Page 1
8-Port Gigabit Ethernet
Rack-Mount Smart Switch
Users Manual
EP-808DG-S
www.surecom.com.tw
#471808DGS0Z0
Page 2
FCC Statement
This equipment can generate, use and radiate radio frequency energy and, if not
installed and used in accordance with the instructions in this manual, may cause
interference to radio communications. This equipment has been tested and found to
comply with the limits for a Class A computing device pursuant to Part 15 of the FCC
rules, which are designed to provid reasonable protection against radio interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the
interference.
CE Declaration of Conformity
This is a Class A product. In a domestic environment product may cause radio
interference in which case the user may be required to take adequate measures.
Trademarks
All other brands and product names may be registered trademarks or trademarks of
their respective holders.
i
1. PRODUCT OVERVIEW.........................................................................1
1.1
INTRODUCTION.........................................................................................1
1.2
PRODUCT CONFIGURATIONS.......................................................................1
1.2.1
EP-808DG-S Outline ..................................................................................1
1.2.2
EP-808DG-S Configure ...............................................................................
1.3
FEATURE SUMMARY....................................................................................1
2. FUNCTIONS AND FEATURES.............................................................3
2.1
FRONT AND REAR PANELS ............................................................................3
2.2
LED BOARD DEFINITION FOR EP-808DG-S.......................................................3
2.3
NETWORK PORTS .......................................................................................4
2.4
CONSOLE PORT..........................................................................................4
2.5
L2 SWITCHING FUNCTIONS .........................................................................5
2.5.1
Switching ................................................................................................5
2.5.2
Forwarding Modes ....................................................................................6
2.5.3
Flow Control............................................................................................6
2.5.4
Port Mirroring .........................................................................................6
2.5.5
VLAN.....................................................................................................6
2.5.6
Priority...................................................................................................6
2.5.7
Link Aggregation ......................................................................................7
2.5.8
Management ............................................................................................8
2.5.9
Console Interface.......................................................................................8
2.5.10
Security ...............................................................................................8
3. SPECIFICATIONS AND STANDARDS................................................9
Contents
13-48983-19
Page 3
1. PRODUCT OVERVIEW
1.1 Introduction
This product specification for EP-808DG-S defines 8-port Gigabit Ethernet
Switch. EP-808DG-S provides 8 Ethernet ports and is capable of management
functions, such as VLAN, Port trunking and Port mirroring.
1.2 Product Configurations
1.2.1 EP-808DG-S Outline
The base hardware is a 1.0U high, 19 inches wide metal enclosure. The
EP-808DG-S can be configured by out-of-band channel via the console port
(RS232) directly.
1.2.2 EP-808DG-S Configure
· EP-808DG-S unit. (Gigabit Ethernet configurable switching hub with eight
10M/100M/1000Mbps copper medium RJ45 ports)
· One AC power cord
· One RS-232 Cable
· One Users Manual
· One Warranty Card
1.3 Feature Summary
EP-808DG-S model is equipped with eight RJ45 connectors.
Supports half/full duplex mode for all 10/100M ports and full duplex mode for
1000M ones.
Provides non-blocking switching architecture.
Operates at maximum packet forwarding rate in 14880pps/10M,
148800pps/100M and 1488000pps/1000M.
Supports 16K MAC address entries.
Provides 192K bytes packet memory block buffer with 1.5M bytes external
packet memory.
4. Console Command Manaual for EP-808DG-S....................................... 10
4.1
POWER UP................................................................................................11
4.2
LOG-IN....................................................................................................12
4.3
MAIN MENU..............................................................................................13
4.4
THE SYSTEM CONFIGURATION MENU............................................................
4.5
PORT CONFIGURATION..............................................................................16
4.6
PORT TRUNKING CONFIGURATION..............................................................
4.7
PORT MIRRORING CONFIGURATION...............................................................19
4.8
VLAN CONFIGURATION..............................................................................20
4.9
PRIORITY CONFIGURATION........................................................................21
4.10
PORT STATISTICS....................................................................................22
4.11
RESTART................................................................................................
4.12
EXIT.............................................................................................................
1
23
24
17
15
Page 4
Provides flow control mechanism to ensure zero packet loss. They are
IEEE802.3x for full duplex operation and collision-like backpressure for half
duplex operation.
Provides store-and-forward forwarding scheme.
Provides 1 Male DB9 RS-232C console interface configured as DTE for
operation, diagnostics, status, and configuration information.
Provides menu-driven console interface from the console port by VT-100
compatible terminal.
Provides port-mirroring function.
Provides Link Aggregation function (2,3 or 4 ports per link) .
Supports up to 4 trunk groups
Supports IEEE 802.3ac frame extension for VLAN tagging.
Supports tag-based VLAN as in IEEE 802.1Q.
Supports up to 32 port-based VLANs
Provides 4-level priority for switching.
2. FUNCTIONS AND FEATURES

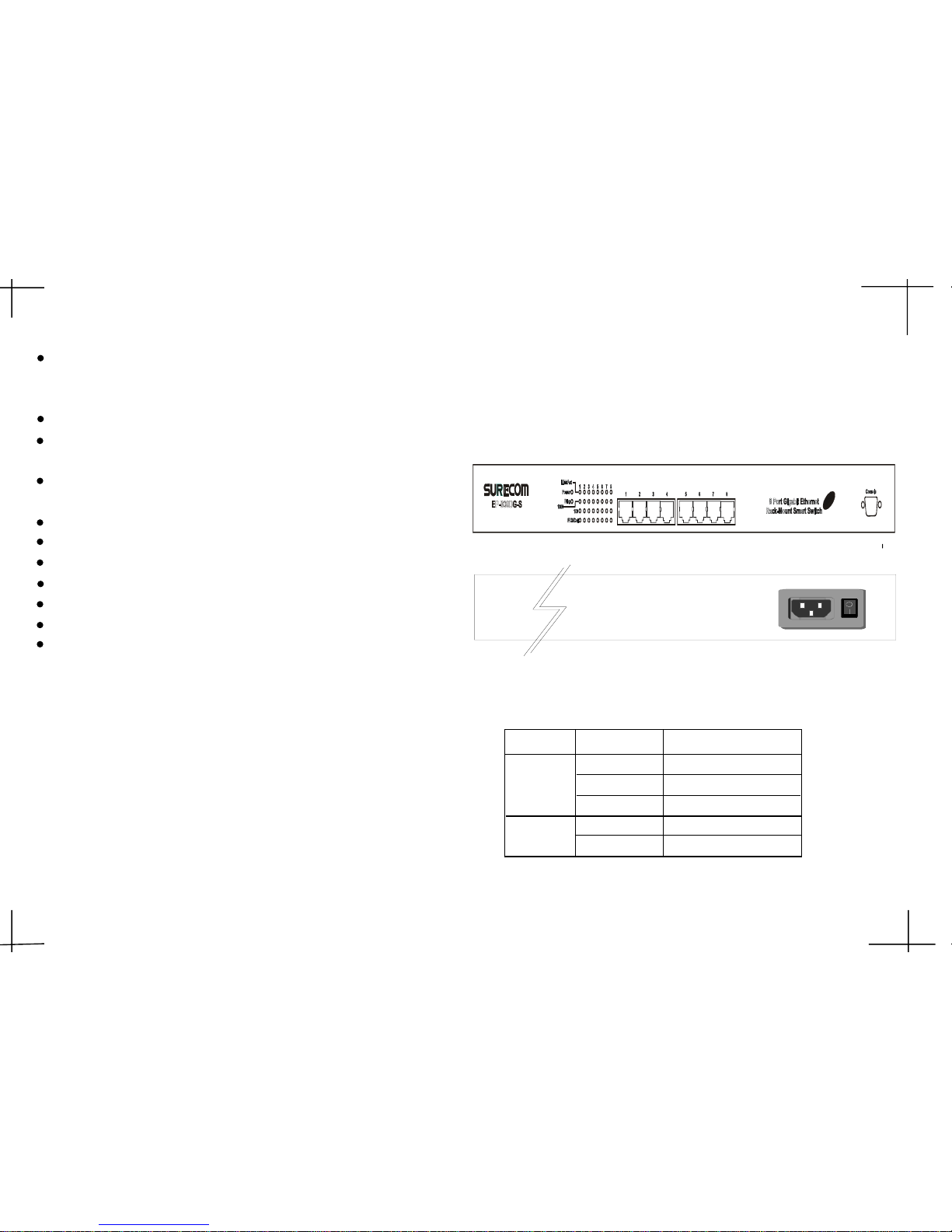

2.1 Front and Rear Panels
The height of the EP-808DG-S is 1.0U and the width is 19". The front panel
supports a number of LEDs that indicate the basic status of the unit and are
intended to assist in local fault diagnosis.
2.2 LED Board Definition for EP-808DG-S
There are four LEDs dedicated to each port for showing ports status.
Label Color Meaning
Green Link On
Link/Act Blink Activity
Off Link Off
1000 Green 1000M Speed
Off Not 1000M Speed
2 3
Page 5
100 Green 100M Speed
Off 10M speed
Green Full-duplex mode
Blinking Collision
FDX/Col
Off Half-duplex mode
System LEDs are used to indicate the status of power and power-on
self-test status.
Label Color Meaning
Power Green Power on, normal operation
Off
Diag. Green
Off
Power off
Power on self test fail
Power on self test pass
2.3 Network Ports
The EP-808DG-S provides eight 10Base-T/100Bate-TX/1000BASE-T (RJ
-45 connector) ports.
2.4 Console Port
The console port interface conforms to the RS-232 electrical specification
and locates on the front panel. This interface supports asynchronous data of eight
data bits, one stop bit, and no parity bit. The unit only operates at 38400bps rates
with RS-232 cable in system configure.
2.5 L2 Switching Functions
2.5.1 Switching
EP-808DG-S supports 10M/100M or Gigabit Ethernet interfaces (1000Base-T).
All 10M/100M ports support half/full-duplex mode and 1000M ports support full
-duplex mode. When packet enters a port, its destination MAC address is checked
up entries in an address database to see which port can lead to its destination.
When matched destination port is found, the frame is queued and waiting for
forwarding to that port(s). The EP-808DG-S provides output packet buffering so
that data can be switched among multiple ports. If the destination address is found
to be the local port, the frame is dropped or filtered. If the destination address is
not found in the address database, the frame is flooded to all ports except the
incoming port.
A broadcast frame or multicast frame is always flooded to all ports except the
incoming port.
The source MAC address of each frame is recorded into the address
database along with the port number of the port where it enters the switch. The
information is then used for later decision for frame forwarding.
The address database can hold up to 16K addresses. Each entry in the
address hash table is associated with a particular 48-bit IEEE MAC address. The
table contains all of the information required to process, filter or switch packets to
known (i.e., previously learned) addresses.
An entry in the address database will be discarded if it has not been refreshed
for a period time called aging time. This is to ensure correct operation when a
node is moved to another port and to keep the table clean. Aging timer has a
default value and is configurable through UI.
4
5
Page 6
2.5.2 Forwarding Modes
EP-808DG-S only supports Store and Forward operation.The store and forward
mode of operation is the same as a conventional bridge where received packets are
buffered entirety prior to forwarding. This ensures that only whole packets with
a good CRC are passed to the destination.
2.5.3 Flow Control
EP-808DG-S is provided with the facility to minimize packet loss due to sustained
excess load exceeding the ability of the switchs receiving buffers to store frames.
In full-duplex operation, this is done by the protocol defined in the 802.3x standard.
EP-808DG-S will respond to received flow control packets and generate its own
depending upon memory availability when flow control function being set. The
factory default of this feature is disabled.
2.5.4 Port Mirroring
Any port can be mirrored by port eighth such that all the traffic received and/or
transmitted by that port will be copied to the monitoring port. Only single port and
single direction can be monitored at the same time.
2.5.5 VLAN
EP-808DG-S has Virtual LAN (VLAN) capabilities to restrict the flow of multicast and broadcast traffic to only the end stations requiring them. Any traffic
passing between VLANs must do so through an external router.
2.5.6 Priority
EP-808DG-S supports the following priority features:
1. Priority associated with individual packets:
When 802.1Q tagging is used, the packet carries 3 priority bits in its VLAN ID.
The 802.1Q tag priority will always be used on an 802.1Q link. The hardware is
programmable as to which priority bits are treated as high priority. For this product,
high priority treatment is given to packets with a priority value of 4-7.
2. Four Queues
Output packet will be queued to one of four queues depending on the setting
of the VLAN tag value.
2.5.7 Link Aggregation
Link Aggregation is to connect multiple links/ports to the same partner in order
to achieve higher network throughput. The following groups of 2 to 4 ports can
be trunked in EP-808DG-S:
1,2 3,4 5,6 7,8
1 to 3 3 to 5 5 to 7 6 to 8
1 to 4 5 to 8
Any port within a group above can be regarded as one trunk if they are configured as a logical link.
Automatic load balancing is performed by the switching core that will
reconfigure the traffic distribution across the multiple links in the event of a link
becoming inactive. This is based upon a hashing algorithm of the source address of
each packet. This ensures that conversations between units will remain on the
same link to guarantee frame ordering.
The link aggregation can be enabled by UI.
6 7
Page 7
2.5.8 Management
The EP-808DG-S can be configured through the console port (out-of-band
management).
2.5.9 Console Interface
The console interface can be accessed from the DB-9 connector on the
rear panel and only operate on 38400bps. EP-808DG-S provides menu driven
command interface. The terminal connected to EP-808DG-S should be a VT-100
compatible terminal in order to display menu properly. The console commands
can be used to configure the functions of the switch and show the network statistics.User will see a login screen after EP-808DG-S is powered on. A valid password must be input in order to log into the system.
2.5.10 Security
The EP-808DG-S supports basic security to prevent illegal access from UI. It is
built by password request at log in screen. Without correct password, user cannot
access switch setting and monitor switch status.
3. SPECIFICATIONS AND STANDARDS
Model EP-808DG-S
Standards IEEE 802.3 10BASE-T
Media 1000BASE-T: Four-pair Cat 5 cable,
100m maximum
No. of Port 8
Auto MDI/MDIX Yes
VLAN Yes (port-based, up to 32 VLANs)
Trunk Yes (up to 4 trunk groups)
QoS
Yes (4-level priority for switching)
Speed Select Auto-Negotiation
Switching Method store-and-forward
Power Supply Internal Switching Power
Input AC100-240V,50/60Hz
Output DC 3.3V/15A,5V/2A
Environmental Temperature Humidity
Temperature Operation 0
¢J¢J
¢J¢J
¢J~45
¢J¢J
¢J¢J
¢J 10%~90%
Humidity Storage 0
¢J¢J
¢J¢J
¢J~60
¢J¢J
¢J¢J
¢J 5%~95%
Dimension 440 × 200 × 45 mm
Conformance FCC, CE
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
8 9
Loading...
