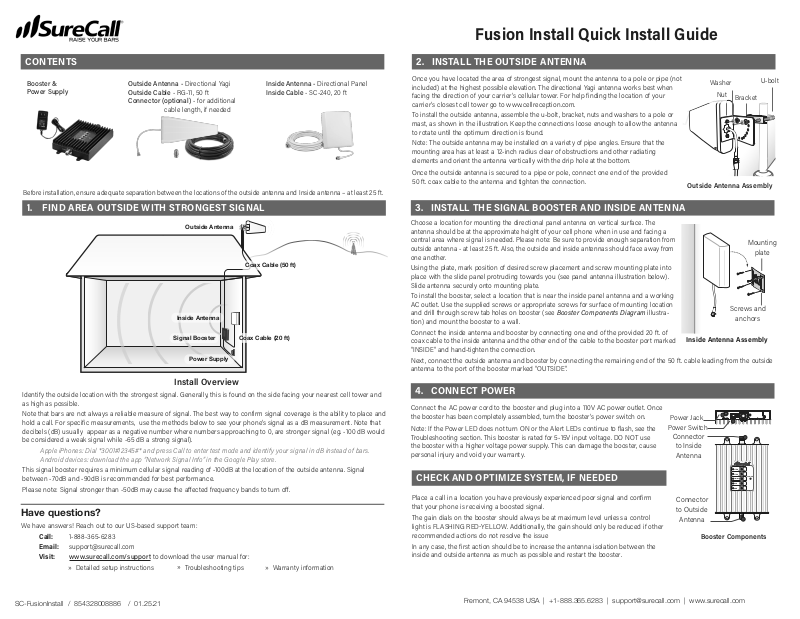

Fusion Install Quick Install Guide
CONTENTS
Booster &
Power Supply
Outside Antenna- Directional Yagi
Outside Cable - RG-11, 50 ft
Connector (optional) - for additional
cable length, if needed
Before installation, ensure adequate separation between the locations of the outside antenna and Inside antenna – at least 25 ft.
Inside Antenna- Directional Panel
Inside Cable - SC-240, 20 ft
1. FIND AREA OUTSIDE WITH STRONGEST SIGNAL
Outside Antenna
Coax Cable (50 ft)
Inside Antenna
Signal Booster
Power Supply
Coax Cable (20 ft)
Install Overview
Identify the outside location with the strongest signal. Generally, this is found on the side facing your nearest cell tower and
as high as possible.
Note that bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to place and
hold a call. For specific measurements, use the methods below to see your phone’s signal as a dB measurement. Note that
decibels (dB) usually appear as a negative number where numbers approaching to 0, are stronger signal (eg. -100 dB would
be considered a weak signal while -65 dB a strong signal).
Apple iPhones: Dial *3001#12345#* and press Call to enter test mode and identif y your signal in dB instead of bars.
Android devices: download the app “Network Signal Info” in the Google Play store.
This signal booster requires a minimum cellular signal reading of -100dB at the location of the outside antenna. Signal
between -70dB and -90dB is recommended for best performance.
Please note: Signal stronger than -50dB may cause the aected frequency bands to turn o.
Have questions?
We have answers! Reach out to our US-based support team:
Call: 1-888-365-6283
Email: support@surecall.com
Visit: www.surecall.com/support to download the user manual for:
» Detailed setup instructions Troubleshooting tips » Warranty information
2. INSTALL THE OUTSIDE ANTENNA
Once you have located the area of strongest signal, mount the antenna to a pole or pipe (not
included) at the highest possible elevation. The directional Yagi antenna works best when
facing the direction of your carrier’s cellular tower. For help finding the location of your
carrier’s closest cell tower go to www.cellreception.com.
To install the outside antenna, assemble the u-bolt, bracket , nuts and washers to a pole or
mast, as shown in the illustration. Keep the connections loose enough to allow the antenna
to rotate until the optimum direction is found.
Note: The outside antenna may be installed on a variety of pipe angles. Ensure that the
mounting area has at least a 12-inch radius clear of obstructions and other radiating
elements and orient the antenna vertically with the drip hole at the bottom.
Once the outside antenna is secured to a pipe or pole, connect one end of the provided
50 ft. coax cable to the antenna and tighten the connection.
Washer
Nut
Outside Antenna Assembly
U-bolt
Bracket
3. INSTALL THE SIGNAL BOOSTER AND INSIDE ANTENNA
Choose a location for mounting the directional panel antenna on vertical surface. The
antenna should be at the approximate height of your cell phone when in use and facing a
central area where signal is needed. Please note: Be sure to provide enough separation from
outside antenna - at least 25 ft. Also, the outside and inside antennas should face away from
one another.
Mounting
plate
Using the plate, mark position of desired screw placement and screw mounting plate into
place with the slide panel protruding towards you (see panel antenna illustration below).
Slide antenna securely onto mounting plate.
To install the booster, select a location that is near the inside panel antenna and a working
AC outlet. Use the supplied screws or appropriate screws for surface of mounting location
and drill through screw tab holes on booster (see Booster Components Diagram illustration) and mount the booster to a wall.
Connect the inside antenna and booster by connecting one end of the provided 20 ft . of
coax cable to the inside antenna and the other end of the cable to the booster port marked
Inside Antenna Assembly
Screws and
anchors
“INSIDE” and hand-tighten the connection.
Next , connect the outside antenna and booster by connecting the remaining end of the 50 ft. cable leading from the outside
antenna to the port of the booster marked “OUTSIDE ”.
4. CONNECT POWER
Connect the AC power cord to the booster and plug into a 110V AC power outlet. Once
the booster has been completely assembled, turn the booster’s power switch on.
Note: If the Power LED does not turn ON or the Alert LEDs continue to flash, see the
Troubleshooting section. This booster is rated for 5-15V input voltage. DO NOT use
the booster with a higher voltage power supply. This can damage the booster, cause
personal injury and void your warranty.
CHECK AND OPTIMIZE SYSTEM, IF NEEDED
Place a call in a location you have previously experienced poor signal and confirm
that your phone is receiving a boosted signal.
The gain dials on the booster should always be at maximum level unless a control
light is FLASHING REDYELLOW. Additionally, the gain should only be reduced if other
recommended actions do not resolve the issue
In any case, the first action should be to increase the antenna isolation between the
inside and outside antenna as much as possible and restart the booster.
Power Jack
Power Switch
Connector
to Inside
Antenna
Connector
to Outside
Antenna
44
54
LTE-A
OFF
64
54
44
LTE-V
OFF
64
POWER
55
45
CELLULAR
OFF
65
52
62
PCS
OFF
72
61
51
AWS
OFF
71
Booster Components
SC-FusionInstall / 854328008886 / 01.25.21
Fremont, CA 94538 USA | +1-888.365.6283 | support@surecall.com | www.surecall.com
Performance Optimization
he Fusion Install automatically reduces gain (coverage performance) because of insufficient RF separation between the
T
inside and outside antennas. Consider the options listed in the this section to resolve issues with inadequate antenna
isolation.
Note, in smaller wood constructed homes some reduction in gain (slow YELLOW flash) is considered ‘normal’ operation.
Keep in mind, identifying the setup that yields the best possible results for your environment will come from testing
-- balancing the elimination of interference and while also receiving the best possible signal.
1. Verify that the minimum distance of 25 vertical feet has been achieved. Separation up to 40 - 50 ft may be needed,
however, especially where vertical separation is not possible.
2. Check for sources of interference such as, cellular modems or hotspots.
3. Verify neither antenna is placed near a window.
4. Ensure that the antennas are aimed away from one another.
3-Year Warranty
Thank you for your SureCall purchase. Please register your new product at www.surecall.com/activate.
SureCall warranties its products for three years from the date of purchase against defects in workmanship and/or materials.
Products returned by customers must be in their original, un-modified condition, shipped at the customer ’s expense in the original or protective packaging with proof-of-purchase documentation enclosed and a Return Merchandise Authorization (RMA)
number printed clearly on the outside of the shipping container. RMA numbers are obtained by contacting Customer Support .
This warranty does not apply to any product determined by SureCall to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages the product’s physical or electronic properties.
For complete warranty text , including limitations and liability, see the Fusion-Install full user manual, available online.
LED Indicators
The gain dials on the booster should always be at maximum level unless a control light is FLASHING REDYELLOW.
Additionally, they should only be reduced if other recommended actions do not resolve the issue. Visit www.surecall.com/
support to download the user manual for additional information.
CONDITION INDICATION
OFF This is part of normal operation. Light is o while band is active.
YELLOW SOLID This is part of normal operation. Indicates that the band is Inactive. After a period of time, if there’s
YELLOW
FLASHING
RED FLASHING Indicates that the booster is receiving too much signal which could cause the aected band to
YELLOW/RED
ALTERNATELY
FLASHING
RED SOLID Band is o. If a red light has been flashing for an extended time, the band will automatically shut o
WARNING: Do not attenuate the uplink and downlink dB settings below 35dB. This could cause the aected fre quency band to turn o.
no activity the band will go into sleep mode. Light is o while band is active.
This is part of normal operation. Indicates that the Automatic Gain Control (AGC) is self-adjusting.
automatically turn o. When this happens:
1. For kits using a YAGI outside antenna, turn the antenna in short increments away from the signal source.
2. Increase the separation between antennas (additional vertical separation works best).
3. Add an inline attenuator to the cable coming into the outside port of the booster.
4. As a last resort, turn down the dB gain on the dial until the light goes OFF or flashes yellow.
Oscillation is detected.
First, try increasing the separation between the inside and outside antennas. If your booster kit uses
two directional antennas (example: outside Yagi antenna and inside panel antenna), ensure that they
are facing away from one another.
If oscillation continues, lower the dB gain in small increments until the light turns o or flashes
yellow.
and display a solid red light.
This can also happen when the booster attenuation has been turned all the way down.
Troubleshooting
Specications
Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
Supported Standards: CDMA, WCDMA , GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Input Impedance: 75 server / 50 donor port
Maximum Gain: 72 dB
Noise Figure: 8 dB
VSWR: ≤2.0
AC Input: Input AC110V, 60 Hz; Output DC 5-15V
Maximum Output Power: 1 Watt EIRP
Cable: RG-11 / SC-240
RF Connectors: F Female donor / N Female server
Power Consumption: <15W
Operation Temperature: -4º to +158º F
Certifications: FCC ID: RSNF4HOME3 IC: 7784A-F4HOME3
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most
wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be
installed at least 20 cm (8 inches) from (i.e., MUST NOT be installed within 20 cm of) any person.
You MUST cease operating this device immediately if requested by the FCC or licensed wireless service provider.
WARNING: E911 location information may not be provided or may be inaccurate for calls served by using this device.
This device may operate in a fixed location only, for in-building use.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
PROBLEM RESOLUTION
Signal booster has no
power
After completing
installation, indoor
signal coverage has
not improved
Connect the power supply to an alternate power source.
Verify that the power source is not controlled by a switch that has removed power from the outlet.
If the POWER LED on the signal booster remains OFF, contact tech support at: 1-888-365-6283 or
support@surecall.com
(
1) Verify that all cable connections are tightly fitted. (2) Try further separating the antennas. (3)
Verify that there is usable signal where the outside antenna is placed.
Remember: Bars are not always a reliable measure of signal. The best way to confirm signal
coverage is the ability to place and hold a call.
