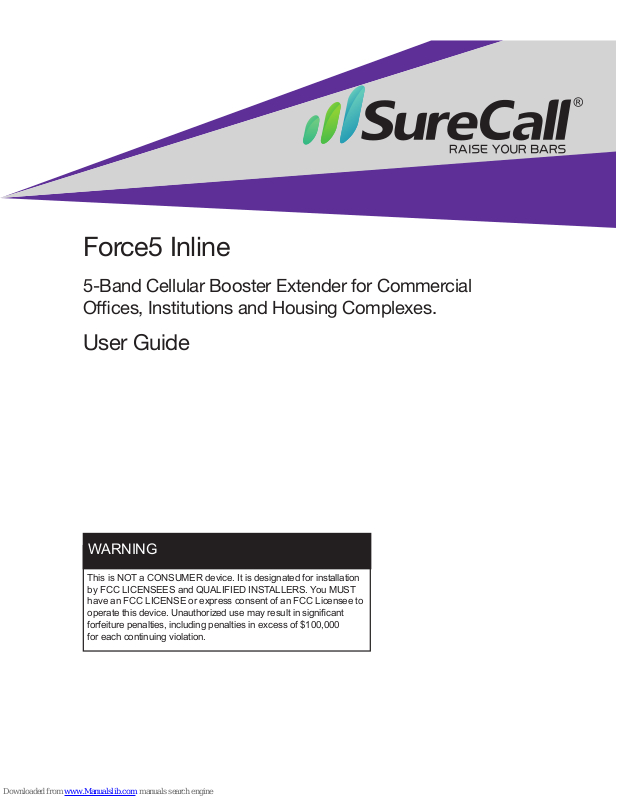

SureCall Force5 Inline User Manual
Force5 Inline
5-Band Cellular Booster Extender for Commercial
Oces, Institutions and Housing Complexes.
User Guide
This is NOT a CONSUMER device. It is designated for installation
by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST
have an FCC LICENSE or express consent of an FCC Licensee to
operate this device. Unauthorized use may result in signicant
forfeiture penalties, including penalties in excess of $100,000
for each continuing violation.
WARNING
How It Works Pg. 3
Package Contents Pg. 4
Before You Start Pg. 4
Installing Your inside Antenna Pg. 5
Installing Signal Booster Pg. 7
Congure Gain Setting Pg. 9-11
Troubleshooting Pg. 12
Specication Pg. 13
Warranty Pg. 14-15
Safety Information Pg. 15
Table of Contents
2
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com
How it Works
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com
3
Thank you for your purchase of the Force5 Inline signal booster. This booster is designed
to extend the signal reach for Industrial Force5 Inline installations that extend beyond
80,000 square feet.
This guide contains all the information you’ll need to get your Force5 Inline system up
and running. If you need any assistance while installing the product please contact tech
support at 1-888-365-6283.
When a project entails greater area coverage than the Force5 Industrial alone can pro-
vide, additional Force5 Inline boosters can be added to areas where the signal strength
is getting weak or cable lengths are too long causing dB loss.
How it works
Two common ways to increase the coverage area include:
• For areas consisting of long aisles, Force5 Inline boosters can be added where the signal falls to between
-70dB and -90dB.
• For large, wide areas the Force5 Inline boosters can be daisy-chained with the use of splitters to extend the
signal to remote corners.
4
Package Contents
1. Unpack all package contents. For missing or damaged items, contact your reseller.
2. Turn over the signal booster and record the model and serial number for reference:
Serial #:
Purchase Date:
3. Keep the carton and packing material to store the product in case you need to return it.
Standard Force5-Inline signal booster packages include the following items:
• One power supply
Signal Booster
Force5 Inline Booster
Before You Start
Step 1. Make sure you have positioned the booster close enough to an existing
electrical outlet.
Step 2. Make sure you have sucient cable length between the main cable
location and booster connector.
Step 3 Make sure you have sucient cable length between proposed inside antenna
location and booster connector.
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com
5
1. If your indoor antenna is a dome type, mount it on the ceiling in a central location.
2. If your indoor antenna is a at panel, install it against a wall or surface projecting the
area where you want reception. Point the antenna away from the outside antenna.
To avoid interference stay a minimum distance of 3 feet from the panel antenna.
Step 1. Install the Inside Antenna
Inside antennas come in omni-directional (dome) and at panel versions.
Installing Your Hardware
Note: As you can see from the table above, acquiring the recommended inside and outside antenna separation optimizes coverage signicantly.
Any reduced antenna separation reduces the booster’s coverage.
Required Between
Outside and Inside Antenna
Antenna Separation Table
antenna separation
40dB 5-6’
45dB 15-20’
50dB 50’
55dB 60’
65dB 75-80’
72dB 100’-110’
Amplier gain Min. separation (ad)
Force5 Industrial
Force5 Inline
