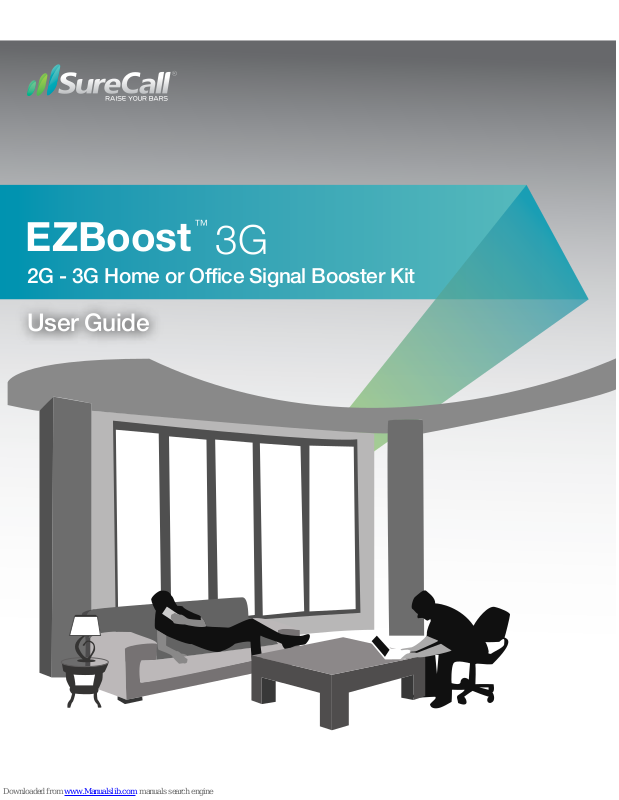

SureCall EZBoost 3G User Manual

User Guide

2G - 3G Home or Office Signal Booster Kit

EZBoost

3G

™

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [e-mail]

How It Works Pg. 4

Package Contents Pg. 5-6

Installing Your Hardware Pg. 7

Installation Overview Pg. 7

Finding the Strongest Signal Pg. 8

Installing the Outside Anntenna Pg. 9-10

Installing the Insides Anntenna Pg. 11-12

Installing Signal Booster Pg. 13-14

Congure Gain Setting Pg. 14

Troubleshooting Pg. 15

Specication Pg. 17

Warranty Pg. 18-19

Safety Information Pg. 19

Table of Contents

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [e-mail]

32

Thank you for your purchase of SureCall’s EZBoost 3G cellular signal booster kit. EZBoost 3G

was specically designed to eliminate frustrations over dropped calls, limited range and

slow data rates by amplifying incoming and outgoing cellular signals in homes and oces.

EZBoost 3G enhances 2G and 3G voice and reception data for all major U.S. carriers.

If you need any assistance while installing this product please contact tech support at

1-888-365-6283 or email us at: [e-mail].

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [e-mail] SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [e-mail]

54

How It Works

SureCall’s EZBoost 3G is a high-quality bidirectional signal booster that

enhances cellular signals to areas that are prone to weak cellular coverage.

EZBoost 3G works with two antennas:

• An inside desktop antenna that communicates with your cell phone.

• An antenna built into the back of the booster that communicates with the cell tower.

Signals sent from a cell tower are received by EZBoost 3G, amplied and then broadcast

to your phone via the inside antenna. When your phone transmits, the signal is sent to

the inside antenna, amplied and then sent to the cell tower via the EZBoost.

Package Contents

1. Unpack all package contents. For missing or damaged items, contact your reseller.

2. Turn over the signal booster and record the model and serial number for reference:

Serial #:

Purchase Date:

3. Keep the carton and packing material to store the product in case you need to return it.

Your EZBoost 3G signal booster package includes the following items:

• One SureCall EZboost 3G signal booster

• One outside antenna

• Cable for connecting the outside antenna to the signal booster

• One inside antenna

• Cable for connecting the inside antenna to the signal booster

• One power supply

Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC.

Changes or modications not expressly approved by SureCall could void the user’s authority to operate the equipment.

EZBoost 3G with

built-in SC-303 antenna

Indoor Cable SC240-50NN (White)

SC-302W Desktop Antenna

Booster

Antenna
