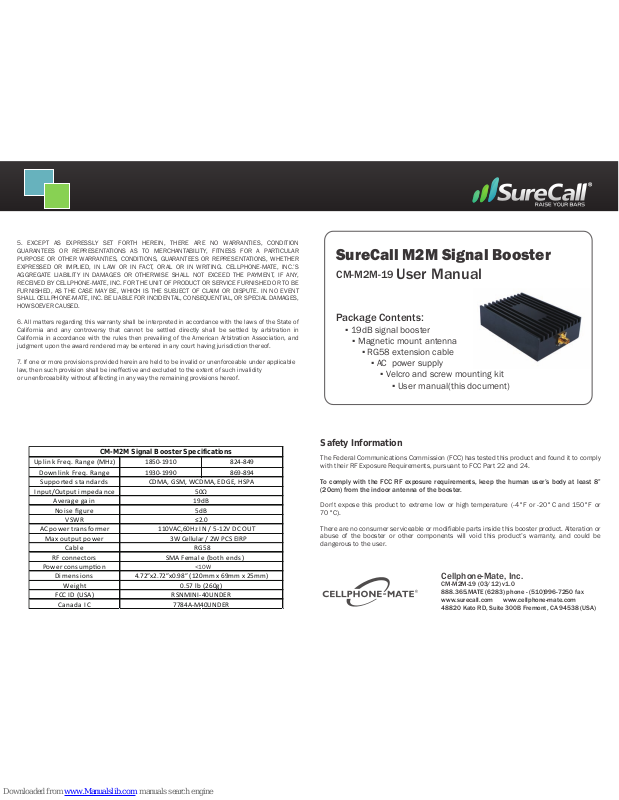

SureCall CM-M2M-19 User Manual

®

User Manual

CM-M2M-19

Package Contents

:

▪ 19dB signal booster
▪ Magnetic mount antenna
▪ RG58 extension cable
▪ AC power supply
▪ Velcro and screw mounting kit
▪ User manual(this document)

Safety Information

The Federal Communications Commission (FCC) has tested this product and found it to comply
with their RF Exposure Requirements, pursuant to FCC Part 22 and 24.

To comply with the FCC RF exposure requirements, keep the human user’s body at least 8”
(20cm) from the indoor antenna of the booster.

Don't expose this product to extreme low or high temperature (-4°F or -20°C and 150°F or
70°C).

There are no consumer serviceable or modifiable parts inside this booster product. Alteration or
abuse of the booster or other components will void this product’s warranty, and could be
dangerous to the user.

SureCall M2M Signal Booster

Upl in k F req . Ra nge (MHz) 1850-1910 824-849

Downl in k F req . Ra nge 1930-1990 869-894

Suppo rted s tan da rds

In put/Ou tpu t i mped a nce

Avera ge ga in

Noi se figure

VSWR

AC power tran sfo rmer

Max o utput power

Cab l e

RF conn ectors

Powe r cons umpo n

Di mensio ns

We ight

FCC ID (US A)

Can a da IC

0.57 lb (260g)

RSNMINI -40UNDER

7784A-M40UNDER

110VAC,60Hz I N / 5-12V DC OUT

3W Cellular / 2W PCS EIRP

RG58

SMA Fema l e (bo th en ds)

4.72”x2.72”x0.98” (120mm x 69mm x 25mm)

CM-M2M Signal Booster Specifications

CDMA, GSM, WCDMA, EDG E, HS PA

50Ω

19dB

5dB

≤2.0

5. EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITION
GUARANTEES OR REPRESENTATIONS AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR OTHER WARRANTIES, CONDITIONS, GUARANTEES OR REPRESENTATIONS, WHETHER
EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING. CELLPHONE-MATE, INC.’S
AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY,
RECEIVED BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE
FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT
SHALL CELLPHONE-MATE, INC. BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES,
HOWSOEVER CAUSED.

6. All matters regarding this warranty shall be interpreted in accordance with the laws of the State of
California and any controversy that cannot be settled directly shall be settled by arbitration in
California in accordance with the rules then prevailing of the American Arbitration Association, and
judgment upon the award rendered may be entered in any court having jurisdiction thereof.

7. If one or more provisions provided herein are held to be invalid or unenforceable under applicable
law, then such provision shall be ineffective and excluded to the extent of such invalidity
or unenforceability without affecting in any way the remaining provisions hereof.

Cellphone-Mate, Inc.

CM-M2M-19 (03/12) v1.0

888.365.MATE (6283) phone - [phone] fax
www.surecall.com www.cellphone-mate.com
48820 Kato RD, Suite 300B Fremont, CA 94538 (USA)

<10W

The CM-M2M Booster by Cellphone-Mate, Inc. provides significantly increased cellular signal strength
and quality. You will see the difference in the number ofbars on your display and hear the difference
during your conversations.

Mounting & Connecting the Booster

Connecting the Booster: The signal is received by the outside antenna from the cell tower, then
AMPLIFIED and transmitted directly to your wireless modem (in the ATM, lotto machine or other
machine-to-machine application) through the cable to the booster. When the modem transmits, the
signal is received by the booster, then AMPLIFIED and transmitted to the cell tower through the outside
antenna.

Connect the Antenna: The magnetic antenna must be used outdoors. Attach the magnetic mount
antenna to any metallic surface. The best location will be clear of obstacles. Make sure the area under
the magnet is clean. Connect the magnetic antenna cable to the “OUTSIDE” connector of the booster
and tighten it.

WARNING: The outside antenna must not be co-located or operating in conjunction with any other
antenna or booster.

Connect the Modem (inside ATM, lotto machine or other modem applications): Connect one
end of the RG58 extension cable to the booster marked “INSIDE”and the other end to the modem and
tighten both connections.

Connect the Power Cord: To prevent damage to the booster, before plugging in the booster to an AC
power outlet, make sure the booster’s power switch is in the OFF position. Then connect the AC power
cord to the booster. Then connect the free plug to the outlet. Make sure that all of the connections to
the booster are tight and secure, then turn on the booster’s power switch. The LED light will glow
indicating that the booster is ready to use.

(Optional) Mounting the Booster with Velcro: You can leave the booster on top of a flat surface or
use the enclosed Velcro straps to mount it. There are two 6cm x 2.5cm Velcro strips (hook-and-loop
pairs) in the box for mounting the booster.

Note: This booster is also capable for mobile use. Please find more information at www.surecall.com

Using the Booster

The booster is ready for use as soon as all connections are made and the unit powers up without the
red light coming on. You may now place and receive cellular phone calls with powerful signal
amplification.
Note: The booster case may become warm during operation. This is normal. Press any key on your cell
phone to refresh communication with the base station.

Troubleshooting

If the booster interferes with your radio or other electronic receivers, move the booster further away
from those devices. For a list of Frequently Asked Questions and a complete, up-to-date
Troubleshooting Guide, please visit our website at: www.surecall.com. You may also consult a
Cellphone-Mate technical specialist directly by emailing us at [e-mail].

Warranty

1. Cellphone-Mate, Inc. warrants to the buyer that each of its products, when shipped will be free from
defects in material and workmanship and will perform in full accordance with applicable
specifications. The limit of liability under this warranty is, at Cellphone-Mate, Inc.’s option, to repair or
replace any product or part thereof which shall within TWO YEARS of purchaseas determined by
examination by Cellphone-Mate, Inc., prove defective in material and/ or workmanship. Warranty
returns must first be authorized in writing by Cellphone-Mate, Inc. Disassembly of any Cellphone-Mate,
Inc. product by anyone other than an authorized representative of Cellphone-Mate, Inc. voids this
warranty in its entirety. Cellphone-Mate, Inc. reserves the right to make changes in any of its products
without incurring any obligation to make the same changes on previously delivered products.

2. As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for
all products returned to Cellphone-Mate, Inc. for repair, and Cellphone-Mate, Inc. will pay the return
shipping with the exception of product returned from outside the United States in which case the
Buyer will pay the shipping charges.

3. The Buyer will pay the cost of inspecting and testing any goods returned under the warranty or
otherwise which are found to meet the applicable specifications or which are not defective or not
covered by this warranty.

4. Products sold by Cellphone-Mate, Inc. shall not be considered defective or non-conforming to the
Buyers’ order if they satisfactorily fulfill the performance requirements that were published in the
product specification literature, or in accordance with samples provided by Cellphone-Mate, Inc. This
warranty shall not apply to any products or parts thereof which have been subject to accident,
negligence, alteration, abuse, or misuse. Cellphone-Mate, Inc. makes no warranty whatsoever in
respect to accessories or parts not supplied by it.
