Supro Fuzz User Manual

Fuzz

User’s Guide

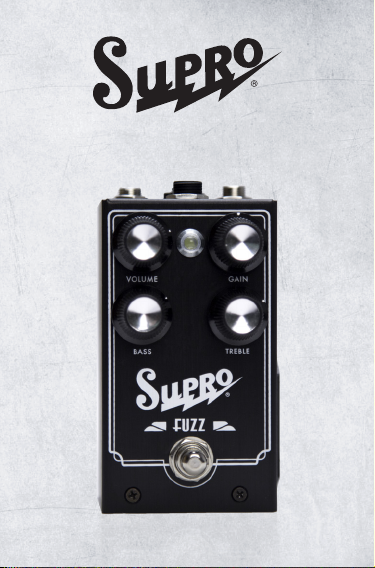

The Supro Fuzz takes a “best-of-all-worlds”
approach to old school fuzz using both
N.O.S. Germanium transistor gain and
silicon-based gain to create a low-noise,
high-octane fuzz box that will leave you
deaf and breathless. Whether you’re looking
for a touch-sensitive, vintage 60’s flavor or
a full-on wall of modern sonic destruction,
the Supro Fuzz delivers the goods while
keeping your noise floor amazingly low.

The GAIN control sets the amount of gain in
the silicon clipping circuit. As you turn the
gain up, the pedal will gradually become
more distorted and “fuzzy”. This control
gives you a wide range of sounds from a
clean sound with some fur to all out square
wave sonic destruction.

The Supro Fuzz is equipped with a 2 band
independent EQ. The BASS control sets
the output level of bass frequencies. This
control has a wide range. When using this

pedal with overall warm sounding amps,
such as Supro amps, a little on this control
can go a long way. The TREBLE controls
sets the output level of treble frequencies.

The VOLUME control sets the output level
of the fuzz effect.

The EXPRESSION jack accepts a 1/4” TRS
cable from a high impedance expression
pedal. The expression pedal serves as a
treble control.

Your Supro Fuzz pedal comes equipped
with a 9V battery that is accessible from
the side-mounted battery drawer. A 1/4”
TS cable must be connected to the input
jack for the pedal to power up.

The Supro Fuzz can be powered with
9 - 18V with a center-negative DC power
supply adapter. Running this pedal at 18V
will give more headroom, more punch, and
more output than if run at 9V.

There is no better pedal for transparently

BOOST

driving a tube amp than the Supro Boost. This
J-FET based pedal design delivers up to 20db
noiseless gain boost plus optional High Pass
or Low Pass filtering to contour your sound.

This groundbreaking analog pedal re-creates

DRIVE

the circuitry of a Supro amp from end to end,
including a preamp, phase inverter, and an
actual output transformer. The real tone of
a genuine Supro amp has everything to do
with the unique phase inverter design, Class-A
power-amp section, and the magnetic saturation
that occurs via the old-school transformers
found in these vintage tone machines.

1675RT RHYTHM MASTER

35/45/60 watts 1x15

1642RT TITAN

50 watts 1×10

To check out the full line of Supro amplifiers, accessories

and merchandise, please visit:www.SuproUSA.com

Supro Limited Warranty:

Your Supro effect pedal comes with a 1 year limited
warranty on parts and workmanship. During the
warranty period we will repair or replace, at our
option, defective parts or pedals free of charge,
and return them to the owner.

Warranty service does not include damaged, mod­ified, or misused pedals and such pedals will be
subject to a standard repair charge.

What you must do: First, contact us directly via
email and describe the problem to us. If the problem
cannot be resolved we will have you send the pedal
directly to us for servicing.

How to contact us for warranty service:
Email: [e-mail]
Phone: [phone]

Warranty Limitations: This warranty does not cover
defects resulting from improper or unreasonable use,
accident,unauthorized tampering or modifications;
and, warranty shall be considered void if chassis
has been opened.

To validate your 1-year, limited warranty, please
register your Supro pedal, within 30 days of pur­chase,on the web at: www.SuproUSA.com/warranty
