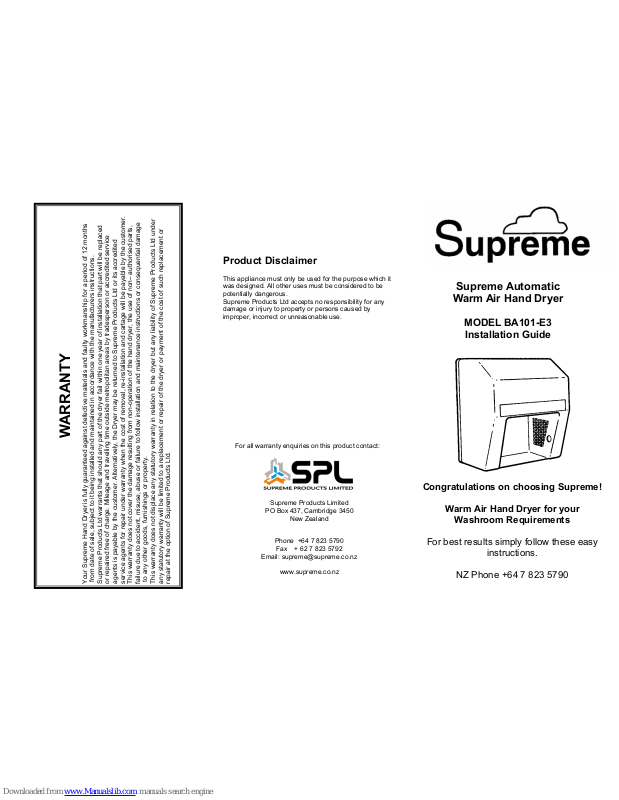

SUPREME BA101-E3 Installation Manual

Supreme Automatic

Warm Air Hand Dryer

MODEL BA101-E3

Installation Guide

Congratulations on choosing Supreme!

Warm Air Hand Dryer for your

Washroom Requirements

For best results simply follow these easy

instructions.

NZ Phone [phone]

For all warranty enquiries on this product contact:

Supreme Products Limited

PO Box 437, Cambridge 3450

New Zealand

Phone [phone]

Fax + 62 7 823 5792

Email: [e-mail]

www.supreme.co.nz

Product Disclaimer

This appliance must only be used for the purpose which it
was designed. All other uses must be considered to be
potentially dangerous.
Supreme Products Ltd accepts no responsibility for any
damage or injury to property or persons caused by
improper, incorrect or unreasonable use.

WARRANTY

Your Supreme Hand Dryer is fully guaranteed against defective materials and faulty workmanship for a period of 12 months

from date of sale, subject to it being installed and maintained in accordance with the manufacturers instructions.

Supreme Products Ltd warrants that should any part of the dryer fail within one year of installation that part will be replaced

or repaired free of charge. Mileage and travelling time outside metropolitan areas by tradesperson or accredited service

agents is payable by the customer. Alternatively, the Dryer may be returned to Supreme Products Ltd or its accredited

service agents for repair under warranty when the cost of removal, re-installation and cartage will be payable by the customer.

This warranty does not cover the damage resulting from non-operation of the hand dryer, the use of non– authorised parts,

failure due to accident, misuse, abuse or failure to follow installation and maintenance instructions or consequential damage

to any other goods, furnishings or property.

This warranty does not displace any statutory warranty in relation to the dryer but any liability of Supreme Products Ltd under

any statutory warranty will be limited to a replacement or repair of the dryer or payment of the cost of such replacement or

repair at the option of Supreme Products Ltd.

Planning

We suggest that one Hand Dryer be installed for every two hand
basins.

The BA101 hand dryer IS suitable for mounting over bench
tops or reflective surfaces.

When positioning dryers take note of traffic flows in the
washroom, also be aware of obstructing doors, cabinets etc.

Electrical Connection

Remove and discard test wires from terminal block before
installation. Installation must be carried out by a qualified person
in accordance with all local wiring regulations.
Fixed wiring is recommended for all installations. Wiring should
emerge from the wall in the position marked on the mounting
diagram. All fixed wiring should incorporate a switch or breaker
with a contract separation of at least 3mm in all poles.
Should a supply cord be required use a cable clamp part
# BA404.

Safety Precautions &
Standards Compliance

Supreme Hand Dryers have been tested and comply with all
relevant Australian and New Zealand standards for electrical
safety and electromagnetic interference.

CAUTION

•

The dryer is not intended for use by young children or infirm
persons without supervision.

•

Young children should be supervised to ensure that they do
not play with the appliance.

•

Do not insert objects into the air outlet, doing so can be
hazardous and could result in electric shock.

•

Do not obstruct the air inlets or outlets in any way.

• Do service your Hand Dryer at regular
intervals.

Maintenance Instructions

Very little maintenance is required to keep your hand dryer in
first class operating order. However, the following maintenance
should be carried out six monthly in high traffic areas and twelve
monthly in normal traffic areas:

1. Disconnect power supply and remove cover and sensor plug.

2. Carefully clean lint from inside of dryer paying particular
attention to fan blades

3. Unplug LED and receiver from lenses and wash cover in
warm soapy water paying particular attention to lenses– dry
thoroughly.

Your guarantee could become void if the above is not
performed at the specific intervals.

NOTE: If the power cord of this appliance is damaged, it must
only be replace by a repair shop appointed by the manufacturer,
or a suitably qualified person in order to avoid a hazard.

Service Hints

All service work should be carried out by a qualified trades
person. Turn off power supply before removing the cover.
In event of your hand dryer failing to start, firstly check that the
power is available at Printed Circuit Board, and sensor leads
are plugged in. The motor brushes should be checked
periodically and should be replaced if less than 10mm long.
In the event of the hand dryer operating but not heating, switch
off the power, remove the cover and replace the element by
removing the right hand fan housing.
If the dryer starts in its own, replace the complete sensor lead
with LED and Receiver.

Installation Instructions

Remove the hand dryer cover by undoing the 2 x 6mm screws
on the underside of the cover.
Lift the lower part of the cover up approximately 12mm, then
push cover upwards to unlatch the top of the cover from the
back plate. Position the back plate on wall as per the mounting
diagram below.

Fasten the dryer to the wall using suitable fixings for the type of
wall. To replace the cover firstly plug the sensor leads into the
receptacle on the circuit board then latch the top of the cover
over the base plate and ease the bottom of the cover into place.
Replace the two 6mm stainless screws.

NOTE:

The sensor leads must be
plugged into PCB before
machine will start.

Height recommendations

Recommended height to bottom of dryer.
Men’s washroom 1100mm
Ladies’ washroom 1050mm
Children’s washroom 13-17yrs 1000mm
Children’s washroom 10-13yrs 950mm
Children’s washroom 7-10yrs 900mm
Children’s washroom 4-7yrs 800mm
Disabled Person’s 800mm

330mm

75mm

25mm

4 fixing

points
