Supra Comp, Santera, Launch SL, Legacy, Launch SSV Owner's Manual

...

5820 Hwy 411 South, Maryville, Tennessee 37801 (865) 856-3035

Revised 2-20-02 EHJ

Table of Contents

Section I Introduction 3 Section II Boating Safety 5 Section III Boating Rules 9 Section IV Boat Specificatioins 13 Section V Operating Information 19 Section VI Starting & Operation 21 Section VII Instrument Panel 25 Sectioin VIII Equipment & Options 33 Sectiion IX Service & Maintenance 45 Section X Cleaning, Care & Storage 51 Section XI Winterization & Dry Storage 53 Section XII Technical Information 55 Section XIII Trailer Your Boat 57 Section XIV Supra Warranty 61 Section XV Index 65

Boat Information

Hull Identification Number:______________________________________ Date of Purchase:_____________________________________________ Dealer’s Phone Number:________________________________________ Registration Number:__________________________________________ Engine Serial Number:_________________________________________ Trailer Serial Number:__________________________________________

Revised 2-20-02 EHJ

Section I

Introduction

Supra inboard ski boats are manufactured by Skier’s Choice, Inc. in Maryville, Tennessee and distributed throughout the United States and the world.

This manual provides an overview for operating your Supra boat. It should be considered a permanent part of your Supra boat, and contains important information on Safety , Boating Rules, Proper Operation and Maintenance of your boat. Should the boat be sold, this manual will provide the same important information to the next owner .

Be sure to read and understand all aspects of Boating Safety and Operation before using your boat. If you have any questions, your dealer can provide the information you need to have a safe and pleasurable boating experience.

All information, illustrations and specifications in this manual are based on the latest product information available at the time of printing. Supra may discontinue models and equipment or change specifications and designs without any notice and without incurring obligation.

This manual contains information about several Supra models. Some information may not apply to your boat since standard and optional equipment may vary from model to model.

As you read through this manual, you will find CAUTION, WARNING and DANGER symbols which require special attention. Please read them carefully! They may tell you how to avoid problems and/or endangering yourself, your passengers, and other boaters. PLEASE REVIEW

ALL SAFETY INFORMATION.

A maintenance schedule and accessory information are included to assure trouble-free operation of your boat. Should service problems arise, remember that your Supra dealer knows your boat best and is interested in your total satisfaction.

Thank you for purchasing a Supra boat. We hope your ownership results in an enjoyable and rewarding boating experience. Be safe and enjoy the fun!

Comp, Legacy, Santera, Launch, Launch SL, Launch SS, Launch SSV, Sunsport, and Sunsport V

are registered trademarks of Skier’s Choice, Inc.

Trademarks

All other product names are copyright and registered trademarks/trade names of their respective owners.

Revised 2-20-02 EHJ

Section II

Boating Safety

Important Safety Information!

Your safety, as well as the safety of others with and around you, is a direct result of how you operate and maintain your boat. Read and comprehend this manual. Make sure that you understand all the controls and operating instructions before attempting to operate the boat. Improper operation is extremely dangerous.

The basic safety rules are outlined in this section of the manual. Additional precautions throughout the manual are noted by the following symbols.

This symbol indicates a potentially hazardous circumstance, which, if not avoided, may result in minor or moderate injury . It may also be used to alert against unsafe practices.

This symbol indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

Boating Safety

Boating Safety starts with a thorough understanding of your equipment and its proper operation. In addition to careful review of this manual, you should be aware as well that there are many sources of information available. Skier’s Choice urges you to pursue additional training, such as safety and seamanship courses offered by the U.S. Coast Guard Auxiliary and the U.S. Power Squadron.

The following is a listing of just some of the agencies and organizations that offer safety training or information:

- American Red Cross, National HQ 17th & D Streets NW Washington, DC 20006 (202) 639-3686 www.redcross.org

- USA Waterski 799 Overlook Drive Winter Haven, FL 33884 (941) 324-4341 www.usawaterski.org

This symbol indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This is limited to the most extreme situations.

The precautions listed in this manual and on the boat are not all-inclusive. If a procedure, method, tool or part is not specifically recommended by Skier’s Choice, you must satisfy yourself that it is safe for you and others, and that the boat will not be damaged or made unsafe as a result of your decision.

REMEMBER: ALWAYS USE COMMON SENSE WHEN OPERA TING, SERVICING OR REPAIRING THE BOAT!

In addition to everyday safety, failure to observe safety recommendations may result in severe personal injury or death to you or to others. Use caution and common sense when operating your boat. Don’t take unnecessary chances!

Be certain that all boat passengers are aware of this information and conform to boat safety principles.

- Boat Owners Association of the United States (BOAT/US) 880 South Pickett Street Alexandria, VA 22304 (703) 823-9550 www.boatus.com

- National Safe Boating Council 2550 M Street NW, Suite 425 Washington, DC 20037 (202) 296-4588 www.safeboatingcouncil.org

- U.S. Coast Guard Auxiliary Commandant (G-NAB) 2100 Second Street SW Washington, DC 20593-0001 (800) 336-2628 www.cgaux.org

- U.S. Power Squadron www.usps.org

- On-Line Basic Boating Safety Course available at:www.boatsafe.com

Federal law requires certain safety equipment to be on-board at all times. In addition, responsible boaters carry other equipment in case of emergency . Check with the local boating authorities for any additional requirements over and above the federal stipulations.

Safety Equipment

General Safety Precautions

Y our Supra has been equipped at the factory with most of the federally required safety equipment for 1, 16’-to-26’). This equipment includes:

- UL-approved Marine Fire Extinguisher, T ype A-BC (2 lbs.), good for solids, liquids, and electrical fire

- ABYC-approved Marine Mufflers with water injection

- USCG-approved Marine Flame Arrestor

- USCG-approved Engine Box Ventilation with spark-less power blower

- ABYC-approved Electric Horn sound warning device

- USCG-approved inland lighting

Federal law also requires at least a Type I, II or III Personal Flotation Device (PFD) for each person on board or being towed on water skis or other recreational equipment. In addition, one throwable Type IV PFD must also be on board.

As the owner, obtaining the appropriate PFDs is your responsibility. Y our Supra dealer can—and will be happy to

assist you.

NOTE: Requirements for coastal waters and inland waters differ. Check with the local authorities for more information.

A responsible owner will avoid potential problems on an outing by having additional equipment on board. Normally, this equipment is dependent on the body of water and the length of the trip.

We suggest the following—as a minimum. Y our Supra dealer can also assist you with additional recommendations.

- An anchor with at least 75-feet of line

- A manual bailing device for removing water

- A combination oar/boat hook

- A day-and-night visual distress signal

- A first aid kit and manual

- An airway breathing tube

- A waterproof flashlight

- A set of local navigation charts

- Mooring lines and fenders

- Extra engine oil

- A tool kit

- A portable AM/FM radio or weather radio

inland waters (Class

Failure to adhere to these precautions may result in severe injury or death to you and/or others.

- Improper operation is extremely dangerous. Operators must read and understand all operating manuals supplied with the boat before operation.

- On-board equipment must always conform to the governing federal, state, and local regulations.

- Small children in the bow of the boat should be accompanied by an adult at all times.

- Never stand or allow passengers to stand while the boat is moving. You or others may be thrown from the boat.

- Never operate the boat while under the influence of alcohol or other drugs.

- Gasoline vapors can explode. Before starting engine, open engine box, check engine compartment for gasoline vapors, and operate blower for at least 4 minutes. Run blower below cruising speed.

- Leaking fuel is a fire and explosion hazard. Inspect system regularly. Examine fuel tanks for leaks or corrosion at least annually.

- Never override or modify the engine safety shut-off switch or engine neutral starting safety switch in any way.

- Never remove or modify components of the fuel system in any way except for maintenance by qualified personnel. T ampering with fuel components may cause a hazardous condition.

- Never allow any type of spark or open flame on board. It may result in fire or explosion.

- It is the owner’s responsibility to check tightness of the Rad-A-Cage Tower bolts BEFORE each use.

- The Rad-A-Cage Tower is designed to pull a single (1) individual. DO NOT climb or sit on the Rad-A-Cage T ower . Rope may loop on inverted tricks. DO NOT sit behind the pulling point of the Rad-A-Cage Tower.

Boating-related accidents are generally caused by the operator’s failure to follow basic safety rules or written precautions. Most accidents can be avoided if the operator is completely familiar with the boat, its operation, and can recognize potentially hazardous situations before an accident occurs.

- T o avoid serious personal injury, DO NOT be on or about the swim platform while engine is running and keep away from rear of boat while engine is running.

- T o avoid serious personal injury , DO NOT operate engine while anyone is on or about the swim platform or in the water near the boat.

General Safety Precautions (continued)

- The tow bar is not designed for vertical extensions. Any modifications to the tow bar or its mountings may result in damage to the boat and injury to the user.

Skiing Safety

Skiers are obligated to be as aware of the fundamental safety rules as well as the boat operator. If you are new to water skiing, seek certified training before starting. You will find it especially helpful to join a local ski club, USA Waterski, or similar organization when possible.

- Rear storage area is located above the gas tank and is not designed for ballast. Weight limit is 150 lbs. equally distributed.

- The Rad-A-Cage Tower may strike low objects. Check clearance height around docks, shore, overhanging objects, bridges and power lines.

- DO NOT pull past 45 degrees of the centerline of the boat. Failure to follow this rule could result in the boat capsizing.

Always remember that the majority of water skiing injuries are the result of impacts with other objects, so always look where you are going and be aware of what is going on around you.

Failure to adhere to these warnings may result in severe injury or death to you and/or others.

- Every skier must always wear a USCG-approved personal flotation device.

- Maintain a distance of at least 100 feet from all other objects, including other boats, piers, rafts, mooring and navigational buoys, pilings, abutments, or any other items.

- Always have an experienced driver and observer in the boat when skiing.

- Never ski in shallow water, close to shore, or in water where you do not know the depth or what is beneath the surface.

- Never put your arm, head, or any other part of your body through the handle-bridle of the ski line nor wrap the line around any part of the body at any time.

- Never ski at night, or directly in front of other boats.

- Never jump from a boat that is moving at any speed, nor enter or exit the water when the engine is running (ON).

- Make sure that everyone knows and uses approved skiing hand signals and common skiing courtesy.

Ski Pylon Extensions

The use of a ski pylon extension or extensions in excess of 7-feet vertical is not recommended by Supra on our products. If you elect to use merchandise such as these, be aware that they could create excessive stress on your boat and subjectively cause damages not covered by the warranty.

Warning Plates and Labels

Read and note ALL warning plates and labels from bow to stern that appear on the boat, including these!

Section III

Boating Rules

Basic Boating Rules

Y ou should be aware of these rules and follow them whenever you encounter another vessel on the water.

The rules presented in this manual are condensed and have been provided as a convenience only. Consult your local U.S. Coast Guard Auxiliary (USCGA) or Department of Motor Vehicles (DMV) for a complete set of rules governing the waters in which you will be using your boat. If you plan to travel—even for a short trip—you would be well served to contact the regional USCGA or DMV in the area where you will be boating.

Review and understand all local and state laws.

Any time two vessels on the water meet one another, one vessel has the right-of-way. It is called the stand-on vessel. The vessel which does NOT have the right-of-way is called the give-way or burdened vessel.

These rules determine which vessel has the right-of-way , and accordingly, what each vessel should do.

The vessel with the right-of-way has the duty to continue its course and speed, except to avoid an immediate collision. When you maintain your direction and speed, the other vessel will be able to determine how best to avoid you.

Encountering Other Vessels

There are three main situations in which you may encounter other vessels and you must observe the Steering Rules in order to avoid a collision. These are:

- Meeting (you are approaching another vessel head-on)

- Crossing (you are traveling across the other vessel’s path)

- Overtaking (you are passing or being passed by another vessel)

Using the following illustration in which you are the boat in the center, you should give right-of-way to all vessels shown in the white area. In this instance, you are the give-way vessel. All vessels in the shaded area must yield to you as you are the stand-on vessel. Both you and the meeting vessel must alter course to avoid each other.

The vessel which does not have the right-of-way has the duty to take positive and timely action to stay out of the way of the stand-on vessel. Normally, the give-way vessel should not cross in front of the stand-on vessel. Slow down or change directions briefly and pass behind the other vessel. Y ou should always move in such a way that the stand-on operator can see what you are doing.

This rule is called Rule 2 in the International Rules and says,

“In obeying and construing these rules due regard shall be had to all dangers of navigation and collision, and to any special circumstances, which may render a departure from the above rules necessary in order to avoid immediate danger.”

If you are meeting another power vessel head-on, and you are close enough to run the risk of collision, neither of you has the right-of-way . Both of you should alter course to avoid an accident. You should keep the other vessel on your port (left) side. This rule doesn’t apply if both of you can clear each other by continuing your set course and speed.

When two power-driven vessels are crossing each other’s path close enough to run the risk of collision, the vessel that views the crossing vessel to the starboard (right) side must give-way.

If the other vessel is to the port (left) side, maintain your course and direction, provided the other vessel gives you the right-of-way as it should.

All vessels which are fishing with nets, lines or trawls are considered under International Rules to be fishing vessels. Boats with trolling lines are not considered fishing vessels.

Fishing vessels have the right-of-way, regardless of position. These vessels, however, cannot impede the passage of other vessels in narrow channels.

Sailing vessels should normally be given the right-of-way. The exceptions to this are:

- When the sailing vessel is overtaking the power-driven vessel, the power-driven vessel has the right-of-way.

- Sailing vessels should keep clear of any fishing vessel.

- In a narrow channel, a sailing vessel should not hamper the safe passage of a power-driven vessel which can navigate only in such a channel.

If you are passing another vessel, you are the give-way vessel. This means that the other vessel is expected to maintain its course and speed. You must stay out of its way as you clear it, altering course and speed as necessary.

Conversely, if you are being passed by another vessel, you should maintain your speed and direction so that the other vessel can steer itself around you.

There are three other rules to always remember when driving your boat around other vessels.

When navigating in narrow channels, you should keep to the right when it is safe and practical to do so. If the operator of a power-driven vessel is preparing to go around a bend that may obstruct the view of other water vessels, the operator should sound a prolonged blast on the whistle or horn—four to six seconds.

If another vessel is around the bend, it too should sound the whistle or horn. Even if no reply is heard, however, the vessel should still proceed around the bend with caution.

The waters of the United States are marked for safe navigation by the lateral system of buoyage. The markers and buoys you will encounter have an arrangement of shapes, colors, numbers and lights to show which side of the buoy a boater should pass when navigating in a particular direction.

The markings on these buoys are oriented from the perspective of being entered from seaward while the boater is going towards the port. This means that red buoys are passed on the starboard (right) side when proceeding from open water into port, and black buoys are to port (left) side. When navigating out of port, your position to the buoys should be reversed: red buoys to port and black buoys to starboard.

Many boating bodies of water are entirely within the boundaries of a single state. The Uniform State Waterway Marking Systems has been devised for these waters. This system uses buoys and signs with distinctive shapes and colors to show regulatory or advisory information.

These markers are white with black letters and orange borders. The information signifies speed zones, restricted areas, danger areas and general information.

Remember: Markings may vary by geographic location. Always consult local boating authorities before driving your boat in unfamiliar waters.

(See examples of buoys and markers next page.)

If you navigate these type of waters, you should carry a portable air horn, which are available from local marine supply stores.

Revised 2-20-02 EHJ

Section IV

Boat Specifications

Comp

Boat Specifications:

Overall Length w/o Platform 19’ 11.5” Overall Length w/Platform 21’ 8” Overall Length w/Trailer 23’ 8” Width (Beam) 91” Draft 21” Weight - Boat Only 2,500 lbs. Weight - Boat & Trailer 3,350 lbs. Capacity - Passenger 8 Capacity - Weight 1,100 lbs. Capacity - Fuel 27 gals. Engine 320 HP, V-8

Revised 2-20-02 EHJ

Santera

Boat Specifications:

Overall Length w/o Platform 21’ 8” Overall Length w/Platform 23’ 10” Overall Length w/Trailer 25’ 8” Width (Beam) 95” Draft 24” Weight - Boat Only 3,250 lbs. Weight - Boat & Trailer 4,350 lbs. Capacity - Passenger 11 Capacity - Weight 1,500 lbs. Capacity - Fuel 40 gals. Engine 320 HP, V-8

Legacy

Boat Specifications:

Overall Length w/o Platform 21’ 8” Overall Length w/Platform 23’ 10” Overall Length w/Trailer 25’ 8” Width (Beam) 95” Draft 22” Weight - Boat Only 3,050 lbs. Weight - Boat & Trailer 4,150 lbs. Capacity - Passenger 11 Capacity - Weight 1,500 lbs. Capacity - Fuel 34 gals. Engine 320 HP, V-8

Launch

Boat Specifications:

Overall Length w/o Platform 20’ 11” Overall Length w/Platform 22’ 7” Overall Length w/Trailer 24’ 9” Width (Beam) 98” Draft 24” Weight - Boat Only 3,450 lbs. Weight - Boat & Trailer 4,705 lbs. Capacity - Passenger 13 Capacity - Weight 1,775 lbs. Capacity - Fuel 37 gals. Engine 320 HP, V-8

Launch SL

Boat Specifications:

Launch SS

Boat Specifications:

Launch SSV

Boat Specifications:

Sunsport

Boat Specifications:

Sunsport V

Boat Specifications:

Section IV

Boat Specifications

Comp

Boat Specifications:

Revised 2-20-02 EHJ

Santera

Boat Specifications:

Legacy

Boat Specifications:

Launch

Boat Specifications:

Launch SL

Boat Specifications:

Launch SS

Boat Specifications:

Launch SSV

Boat Specifications:

Sunsport

Boat Specifications:

Sunsport V

Boat Specifications:

Break In Period

Taking care to properly break in your new engine will pay off in the long run. In our years of field testing, we have proven that an Indmar engine, when properly broken in according to our simple procedures, will last longer, run better and have fewer repairs over its lifetime.

Your new engine does not require an elaborate break-in procedure. Just follow these simple instructions and you are off to a great start.

The three (3) most important aspects of new engine break-in are:

1.Avoid running engine at high speeds.

2.Do not carry a heavy load (passengers, gear, etc.).

3.V ary your boat speed during break-in, don’t run at the same RPM for a long period of time.

BREAK-IN STEPS

- For the first hour, do not exceed 2,000 RPM.

- For the second hour, do not exceed 3,000 RPM.

- For the next five hours, do not exceed 4,000 RPM

BREAK-IN TIPS

- Avoid fast accelerations and don’t carry (or pull) a heavy load during this period.

- Always let engine warm up gradually before acceleration.

- Check oil frequently. During the first 50 to 100 hours, an engine can use more oil than usual. Maintain oil at a proper level at all times (do not overfill).

- Monitor transmission fluid levels.

- Report abnormal noises or vibrations to your dealer.

- Keep an eye out for loose mountings, fittings, nuts, bolts, and clamps.

During the BREAK-IN process, engine temperature should be carefully monitored and speed should be reduced if overheating is evident. ALSO, PLEASE REFER TO ENGINE

OWNER’S MANUAL FOR BREAK-IN INFORMATION.

NOTICE: PLEASE REFER TO ENGINE OWNER’S MANUAL for maximum RPM and engine break-in procedure. After the first 20 hours of operation, take your boat to the dealer for its first oil and filter change, as well as an engine checkup. Remember to keep a sharp eye on all gauges and warning lights during these first hours of operation. Report anything unusual to your dealer.

After the break-in procedure is over, your boat may be operated continuously at any speed.

Do not exceed maximum RPM recommended for your engine. Exceeding the maximum RPM may result in damage to the engine.

Section V

Operating Infomation

Starting & Operation

A standard pre-starting procedure should be always be followed before the first start-up of the day.

1.Check the engine oil level.

2.Check for gasoline fumes in bilge or engine compartment.

3.Operate engine blower for 4 minutes to remove any fumes.

4.Check manual operation of bilge pump. Make sure bilge areas are empty.

Other items might also be inspected, depending on the boat and its use. It is advisable to formulate a check list particular to the equipment and operation of your boat.

REFER TO THE BOATMAN’S CHECKLIST OF THIS MANUAL.

Consult the local Coast Guard Auxiliary or Power Squadron for full details on boating safety.

NOTE: Add-on electrical accessories should never be connected to the ignition terminal or ignition circuit.

IMPORT ANT: DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts. PLEASE REFER TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.

Before starting your engine you must open the engine box and check engine compartment and bilge for gasoline and oil vapors.

BEFORE ST ARTING ENGINE, BE SURE THA T THE SHIFT SELECTOR IS IN NEUTRAL.

The correct starting procedure depends upon the type of engine. Please refer to the engine manual before starting.

Canvas Cover

Your mooring cover is not designed for trailering. Trailering with your cover inst alled may cause premature cover failure and boat damage. This damage is not warrantable.

Coast Guard Regulations

The United States Coast Guard boating regulations prescribe minimum standards of safety to be met and maintained by all watercraft. It is necessary that your boat remain in compliance with these regulations.

Your Supra boat cover is made from the finest canvas and webbing to insure that your boat will be protected in the off season. The cover has been designed to fit securely around each boat. If you new cover does not seem to be snug, a shrinkage allowance has been sized in.

Use the following procedure when covering the boat:

1.Be sure that the cover fits snugly at the bow then unfold from front to back.

2.Be sure to install cover pole(s) and adjust to proper height, using set screw on pole(s). This will keep water from gathering in the center, which can damage the cover.

3.Secure all fastening straps around the trailer frame.

4.Pull the draw cord equally from both sides and tie off to the lifting eyes on the stern in accordance with the illustration.

Folding Cover

When folding the cover for storage, be sure the cover is dry. Take care not to scratch the canvas finish against rough surfaces. Store in a dry location.

Cover Repair

If the cover becomes damaged, immediately patch and reseal the area. Use a tent seam sealer to reseal any new stitches. Spray fabric guard on scraped or worn surfaces. Canvas tears should be repaired professionally and stitches sealed to prevent leakage.

The staff at Skier’s Choice, Inc. recommend that all boat operators complete a Coast Guard approved boating safety course.

Maximum Capacities

In compliance with United States Coast Guard Regulations, Supra Boats meet or exceed all safety standards designed for recreational boats. To ensure safe handling and performance, each Supra boat displays a maximum capacity sticker (see sample), stating the maximum passenger weight load allowable.

NOTICE: Refer to the Maximum Capacity Sticker on your boat for allowable loading.

Section VI

Starting & Operation

A standard pre-starting procedure should be always be followed before the first start-up of the day.

1.Check the engine oil level.

2.Check for gasoline fumes in bilge or engine compartment.

3.Operate engine blower for 4 minutes to remove any fumes.

4.Check manual operation of bilge pump. Make sure bilge areas are empty. Other items might also be inspected, depending on the boat and its use. It is advisable to formulate a check list

particular to the equipment and operation of your boat.

REFER TO THE BOATMAN’S CHECKLIST OF THIS MANUAL.

Consult the local Coast Guard Auxiliary or Power Squadron for full details on boating safety.

NOTE: Add-on electrical accessories should never be connected to the ignition terminal or ignition circuit. IMPORTANT: DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to

allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts. PLEASE REFER TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.

BEFORE ST ARTING ENGINE, BE SURE THAT THE SHIFT SELECTOR IS IN NEUTRAL.

The correct starting procedure depends upon the type of engine. Please refer to the engine manual before starting.

To Start Electronic Fuel Injection

(EFI) Engine

1.Place shift selector in Neutral with the throttle in the upright (zero) position. (If throttle is not in the idle position, the throttle position sensor will not allow the engine computer to proceed with a normal starting procedure).

2.Turn Ignition Key to Start Position to operate the starter.

3.Release the Key when engine starts (key will return to run position).

4.Allow the engine to establish a good idle (30 to 60 seconds) before getting underway.

5.Shift slowly into forward or reverse, allowing the transmission time to engage before powering up.

NOTE: It is normal for the idle to speed up in cold start conditions.

DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts. PLEASE REFER TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.

NOTE: Should the EFI engine become “flooded” use the following procedure to start:

1F. Place shift selector in Neutral and disengage the

transmission by pushing the transmission lockout button located at the bottom of the lever.

2F . With the transmission disengaged push the lever forward

to full throttle position. (This will cause the computer to shut off the fuel injectors which will allow the engine to clear of excess fuel during starting).

3F. Turn the Ignition Key to Start Position and operate the

starter for no more than 15 seconds at a time until the engine starts.

4F. When the engine starts, back off the throttle and allow

the engine to establish a good idle (30 to 60 seconds).

5F. Return the throttle to idle position and the transmission

lockout will automatically reengage the transmission in neutral position.

6F. When ready to get underway, shift slowly into forward

or reverse, allowing the transmission time to engage the gearing before powering up.

To Start Carburetor Engine

1.Place shift selector in Neutral with the throttle in the upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2.Turn the ignition key to the start position to operate the starter.

3.When the engine starts, release the key and it will return to the run position.

4.With the transmission disengaged, push the throttle lever forward to increase the engine idle to 1200 to 1500 RPM.

5.When the engine idle smooths out, return the throttle to idle position and the transmission lockout will automatically reengage the transmission in neutral position.

6.When ready to get underway, shift slowly into forward or reverse, allowing the transmission time to engage the gearing before powering up.

Revised 2-20-02 EHJ

If Carburetor Engine Does Not Start

1B. Place shift selector in Neutral with the throttle in the

upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2B. With the transmission disengaged, push the throttle lever

forward about one/fourth (to slow run position). 3B. Turn ignition key to start position to operate starter. 4B. When the engine starts operate the throttle lever to

establish an engine idle of 1200 to 1500 RPM. 5B. When the engine idle smooths out, return the throttle to

idle position and the transmission lockout will

automatically reengage the transmission in neutral

position. 6B. When ready to get underway, shift slowly into forward

or reverse, allowing the transmission time to engage

the gearing before powering up.

If Carburetor Engine Does Not Start

1C. Place shift selector in Neutral with the throttle in the

upright (zero) position and push the transmission lockout

button at the bottom of the lever to disengage the

transmission. 2C. With the transmission disengaged, move the throttle

lever back and forth from one/fourth to one/third throttle. 3C. While moving the throttle lever turn the ignition key to

Start Position to operate the starter.

NOTE: Do not operate the starter for more than 15 seconds at a time. Allow the starter to rest for a full minute before attempting this starting procedure again.

4C. When the engine starts, operate the throttle lever to

establish an engine idle of 1200 to 1500 RPM.

Throttle Lever

The throttle lever controls both the throttle and the transmission. The idle position (normally vertical) is the zero throttle position and the neutral position for the transmission. A safety ring (umbrella) keeps the lever from being accident ally moved to engage the transmission. To place the transmission into gear, with your hand placed over the lever ball, pull up on the safety ring (umbrella) and slowly push the lever into forward gear or slowly pull the lever back into reverse gear.

Never shift the lever directly from the neutral (vertical) position into a speed position.

- To prevent damage to the transmission always allow the transmission time to engage before accelerating the engine.

- Once the transmissions engaged, you may accelerate as quickly as you like.

If Carburetor Engine Floods

1D. Place shift selector in Neutral with the throttle in the

upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2D. Push the throttle lever to the full throttle (wide open)

position.

3D. Turn Ignition Key to operate starter.

NOTE: Do not operate the starter for more than 15 seconds at a time. Allow the starter to rest for a full minute before attempting this starting procedure again.

4D. When the engine starts, back off the throttle, but allow

the engine to idle at 1500 RPM until it smooths out.

Transmission

Lockout

The Transmission Lockout button allows the transmission to be disengaged while giving the throttle full operating range. With the lever in the idle position (normally vertical) push the button located at the bottom of the lever to disengage the transmission. The throttle may then be operated in any open position (forward of neutral or back of neutral upright position). Return the throttle to idle position, and the transmission lockout will automatically reengage the transmission in neutral position.

Bilge Area Drain Plug

The bilge area drain plug is located at the front of the motor well, directly under the engine.

It is extremely important that the drain plug is always checked before starting the engine. The drain plug should be secured in place using a wrench.

DO NOT start engine until center drain plug is checked and secured in place. DO NOT try to install center drain plug while engine is running!

Rear Drain Plug

The rear drain plug is located at the back of the boat, near the bottom of the transom (See photo). It is extremely important that the drain plug is always checked before starting the engine. The drain plug should be secured in place using a wrench.

DO NOT start the engine until the drain plug is checked and secured in place.

DO NOT try to install the drain plug while the engine is running.

Fuel Precautions Fueling

Use a gasoline with a minimum octane rating of 89.

Sparks while fueling could cause an explosion!

DO NOT use gasoline containing methyl alcohol (methanol) or ethyl alcohol (ethanol). Methanol and Ethanol can damage your boat’s fuel system.

Gasoline Stabilizer should be added to the fuel t ank when the boat is used infrequently or whenever your boat will not be used for two weeks or more. During storage always add Gasoline Stabilizer to reduce gumming or tank sludge.

Filling the Tank

Before Fueling:

1.Turn off engine.

2.Turn off ignition.

3.Extinguish cigarettes or any open flame.

While Fueling:

1.Keep hose nozzle in contact with fill pipe to provide a ground against static sparks.

2.Fill tank at a slow rate to avoid any spillage.

Fuel Cap & Key

Be especially careful when filling the fuel tank. DO NOT over fill the tank. Fuel may empty through the fuel vent and damage to finishes could result.

If fuel is spilled on stripes or decals, apply a common bath cleaner (nonabrasive) and wipe with a damp cloth. Rinse the spill area with clean water.

The fuel cap is located on the rear deck near the stern. A special fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber O-ring. Please do not over tighten.

Section VII

Instrument Panel & Controls

Speed Calibration

Speed may be checked using a stopwatch and a standard slalom course. Adjust the speedometer needle by turning the adjuster buttons.

(Times are from start gate to end gate)

Speedometer

Engine Hours

The speedometer indicates the water speed of the boat in miles per hour. It is recommended that the speedometer be checked for accuracy periodically.

Tachometer

Engine Hours are shown on the face of the Tachometer. The engine hour gauge acts as an odometer for the engine.

Engine hours should always be noted and documented so that required maintenance and lubricant changes may be performed at the proper intervals.

Temperature Gauge

The tachometer registers the operating speed of the motor’s shaft output and may be used as an alternative to speedometer if weight and water conditions permit.

DO NOT exceed the recommended RPM during break-in and normal operation of your motor. Exceeding the manufacturer’s suggested RPM may cause damage to the engine.

The temperature gauge indicates the engine coolant temperature while the coolant is circulating inside the engine. Engine operating temperatures will vary depending on the weather conditions and engine load. Normal operating temp range is between 160 degrees and 180 degrees.

NOTICE: Refer to your Engine Owners Manual for additional details.

Damage from overheating an engine IS NOT warrantable.

Fuel Gauge

Voltmeter

This gauge indicates the approximate quantity of fuel remaining in the tank when the ignition is in the “ON” position.

NOTICE: DO NOT run the tank to empty. To prevent condensation from forming in the tank, it is recommended that the tank be filled when the gauge indicates 1/4 tank of fuel remaining.

The following conditions may be considered normal operation of the fuel gauge and fuel system:

- Gas station pumps may shut off before the fuel gauge indicates FULL.

- The amount of fuel required for fill-up may not exactly correspond to the gauge.

- The gauge needle may not move away from FULL until some time after fill-up.

- The gauge needle may move during turns, stops and acceleration.

NOTICE: Become familiar with engine hourly fuel consumption at various speeds and know when to check the fuel gauge.

Speedometer Paddle Wheel

The voltmeter indicates whether the battery is charging or discharging. The needle should be located in the normal range while the engine is running.

If the voltmeter does not register in the normal range, there may be a problem within the electrical system. It is normal for the voltmeter needle to fall when starting the engine. Normal range is 12 to 14 volts.

Oil Pressure Gauge

The Speedometer pickup is a paddle wheel located on the bottom of the boat. Poor water conditions may cause the wheel to become clogged or give incorrect information.

The oil pressure gauge indicates the oil pressure in the engine while the engine is running.

If the oil pressure remains below the normal range of 20 to 40 psi, stop the engine immediately. If engine is allowed to run while oil pressure is too low, permanent engine damage may occur.

Running the engine with low oil pressure may cause severe engine damage.

Depth Sounder

General Description

1.The depth finder will read to 199 ft., or the corresponding number of meters or fathoms. If the reading is less than

19.9 ft., meters or fathoms, 1/10th increments will be displayed. If the reading is more than 19.9 ft., all readings will be in whole numbers.

2.The depth finder has an audible and LCD displayed depth alarm with adjustable shallow and deep limits and a depth below keel offset feature. The settings once made are stored in memory and will remain even if the battery is disconnected.

NOTE: To fully deactivate an alarm, reset it to zero. Pressing the “ON/OFF MODE” keypad temporarily deactivates the alarm. To reactivate the alarm press the “ON/OFF MODE” keypad until the depth reading appears.

3.Keel Offset. Pressing the “ON/OFF MODE” keypad again displays the “KL” keel offset setting. This can be set so that the depth sounder either shows the depth below the keel or the depth below the transducer. Press the up or down arrow keypads to adjust the reading to the desired depth no more than 19.9 ft. For example if the bottom of the keel is 2 ft below the transducer and you want the depth sounder to read the depth below the keel, the display should be adjusted to read 2.0 ft

NOTE: Once a keel offset is programmed, the shallow and deep alarms will be activated by the depth below the keel.

4.Units. Pressing the “ON/OFF MODE” keypad again displays “Un” on the LCD indicating the units mode. Press either the up or down arrow keypads to set the units desired to feet (FT), meters (M), or fathoms (F). These units, once set, will remain the same for all modes. Pressing the “ON/OFF MODE” keypad again returns the depth sounder to normal operation.

Stereo

Operation:

1.Power On. The depth sounder will activate automatically when the power to it is initially turned on. You do not have to press the combination “ON/OFF MODE” keypad. The LCD will illuminate showing the depth and will also show the type of units selected, feet (FT), meters (M), or fathoms (F). To turn the depth sounder off, press and hold the “ON/OFF MODE” keypad for 4 seconds. Pressing the “ON/OFF MODE” keypad again will reactivate the unit. NOTE: The instrument is designed to have the internal LED lighting remain on as long as power is supplied even if the unit is turned “OFF” at the keypad.

2.Depth Alarm. Shallow mode: Pressing the “ON/OFF MODE” keypad again displays the “SH” shallow depth alarm setting. This is the shallowest water that will activate the alarm. Press and hold the up or down arrow keypads to adjust the reading to the desired depth. Deep mode: Pressing the “ON/OFF MODE” keypad again displays the “DP” deep depth alarm setting. This is the deepest water that will activate the alarm. Press and hold the up or down arrow keypads to adjust the reading to the desired depth. When the shallow depth setting is read by the depth sounder, the “SH” will flash on the LCD and the audible alarm will sound rapidly . When the deep depth setting is read by the depth sounder, the “DP” will flash on the LCD and the audible alarm will sound at 2 beeps per second.

Please refer to your stereo owner’s manual for proper operation instruction.

The stereo cannot be turned off by the

remote. The “SRC” button on the stereo unit must be held down for 3 seconds to completely turn the stereo off. Continue to hold the SRC button until the display goes blank.

If the face displays “ALL OFF”, your

stereo is in standby mode and drawing battery power which will drain the battery and may lead to a dead battery.

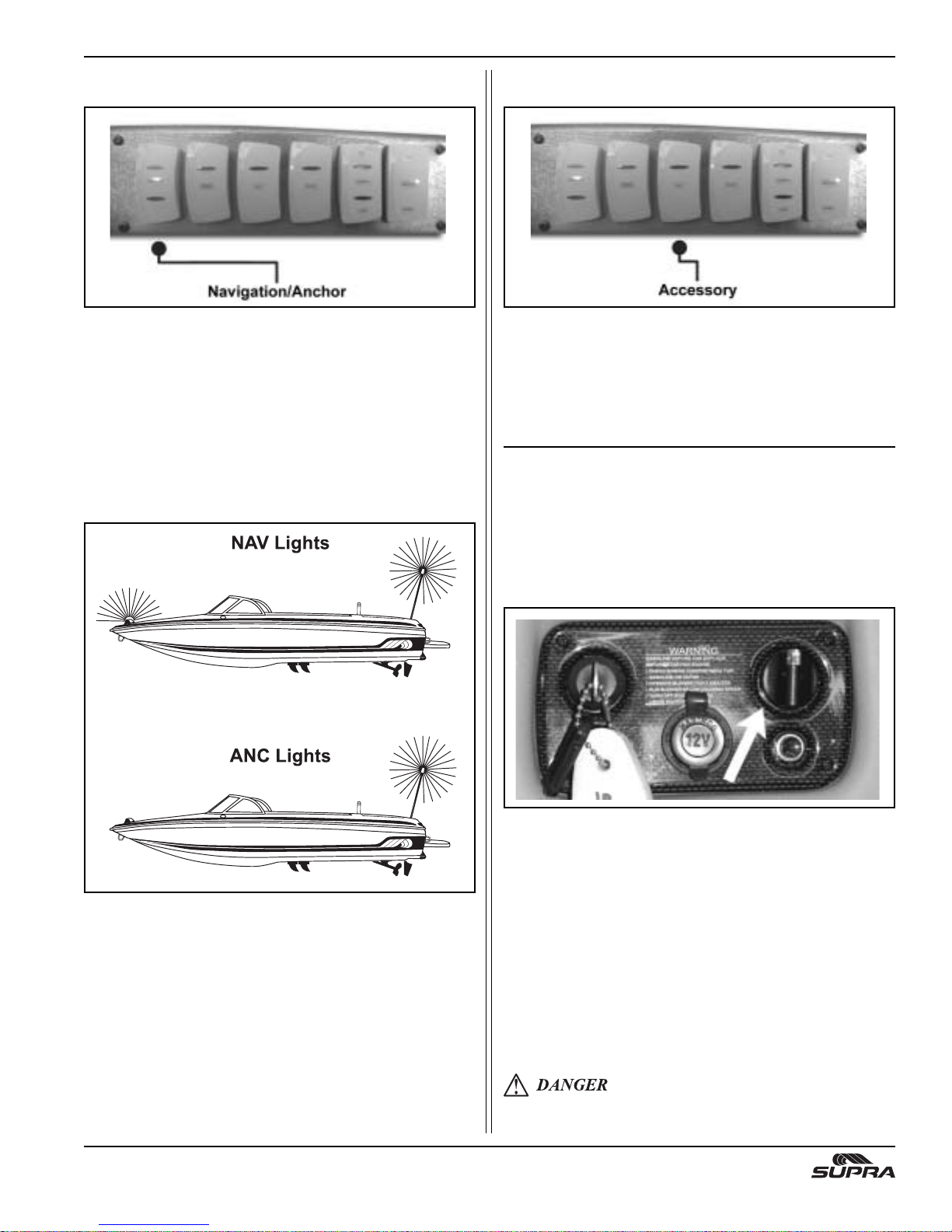

Navigation Lights Switch Accessory Switch

The navigation light switch supplies power to the Bow Light, the Stern Light and the Pole Light.

Operation

When underway during night time operation, set the switch in the NAV position to activate all of the running lights.

When docked or at anchor, set the switch i the ANC position to activate only the pole light.

The accessory switch supplies power to an extra circuit for accessories that may be added (such as heaters, hot water showers, etc.).

NOTICE: If accessories fail to operate, press the circuit breaker.

Blower Switch

NOTICE: If lights fail to operate, press the circuit breaker under the dash.

The blower switch activates the blower motor. The primary function of the blower fan is to remove any fumes from the bilge area. The blower also draws fresh air into the engine compartment.

Never depend solely on the blower to eliminate dangerous fumes. Before starting the engine, always open the motor box to check if fumes are present. Switch on the blower fan a minimum of four minutes before starting the engine.

NOTICE: If the blower fails to operate, reset the circuit breaker. If the blower still does not operate, notify your Supra dealer.

Failure to operate the blower in accordance with the Coast Guard Recommendation could result in an explosion.

Ignition Switch

Horn Switch

Located on the port side of the dashboard, the ignition switch has three positions. In the vertical position the ignition is OFF . With the key in, turn the ignition switch one notch to the right to check all electrical equipment, including blower, pump, and lights. Turn the ignition all the way to the right to operate the starter.

NOTE: All electrical equipment should be turned off when the boat is in storage.

Tilt Steering

The Horn Switch is located on the port dash panel near the ignition. Sound the horn by depressing the button.

Horn/Whistle Signals

One Long Blast:

Warning Signal (Coming out of slip)

One Short Blast:

Pass on my Port Side

Two Short Blasts:

Pass on my Starboard Side

Three Short Blasts:

Engines in Reverse

Four or More Blasts:

Danger Signal

1.OVERTAKING / PASSING: Boat being p assed has the right-of-way. KEEP CLEAR.

2.MEETING HEAD-ON: Keep to the right.

3.CROSSING: Boat on the right has the right-of-way. slow

down and permit him to pass.

Tilt steering may be adjusted up or down in five different locking positions. T o adjust, depress the tilt lever located beneath the bezel and move the steering wheel to the desired position. Release the lever to lock the wheel into place.

DC Outlet

For your convenience, a DC outlet has been included next to the ignition switch.

Circuit Breaker Panel

— or —

The circuit breaker panel contains breakers for all electrical equipment. The panel is located below the dashboard on the side wall nearest the driver’s left knee.

If a switch fails to operate, locate the corresponding circuit breaker and press the reset button. If the equipment still does not operate, notify your Supra dealer.

Courtesy Lights Switch

The Courtesy Lights switch supplies power to the interior lights located to the rear of the helm.

NOTICE: If lights fail to operate, press the circuit breaker .

Bilge Pump Switch

The bilge pump switch operates in two positions. The manual position is used to verify that the pump is operational.

The automatic pump function is engaged at all other times so that any excess water in the bilge may automatically be pumped out.

NOTICE: If the Bilge Pump fails to operate in the manual position, press the circuit breaker reset button labeled BILGE. If the bilge pump still does not operate, notify your Supra dealer.

V-Drive Warning Light

The V-Drive transmission in your Supra is equipped with a “low pressure” warning light. This light is located by the dash. Do not operate your Supra if the warning light remains on, whenever the engine speed is above, 1,200 RPM (+/400 RPM). This warning light should be on whenever the engine speed is below 1,200 RPM (+/- 400 RPM). If this light remains on during operation above idle, shut your engine off immediately and check your v-drive oil level and see your dealer.

Hippo Ballast System

The optional Hippo Ballast System is an electronically controlled 3 bag ballast system that can be operated from the driver’s seat. The switch panel is located directly below the shifter mechanism and allows independent filling and draining of each ballast bag. If bags fail to fill or drain, you may check the hippo fuse block located under the dash area to insure fuses have not blown. The 3 ballast bag system is located in the front ski locker, starboard rear storage compartment, and port rear storage compartment.

Each Hippo system also includes a manual shut off valve in case of emergencies. If closed, the valve will prevent any water from entering the system and is only used in emergency situations. Under normal use the valve should remain open to allow full flow of water into system.

T o allow water into the system, Hippo ballast systems utilize a scooped intake strainer to force water into the system whether the boat is sitting still or underway . If air becomes trapped in the system, it may be necessary to run the boat at planning speeds to force air through the system and allow the fill pump to prime fully . Once the pump has primed it is no longer necessary to run the boat for filling. This situation may occur if the boat is trailered for long distances.

Care should be taken that the ballast bags are situated properly with the fill hose on top and drain hose on bottom and that all fittings are installed securely. The bags should not be twisted and the bags should be free to expand and drain completely. Care should be taken to prevent sharp objects from coming in contact with the bags. Cuts and punctures to the bags are not warrantable.

Section VIII

Equipment & Options

Driver Seat

Ignition Keys

Two ignition keys are provided with the boat. Key entry into the ignition may be difficult due to the boot protector. Please, do not unduly force the key into the ignition. Key tumblers are located vertically , thus the key should be vertical when placed into the switch.

NOTE: Always attach the ignition key and gas key to a floating key chain to prevent loss in the water.

Fuel Cap Key

T o prevent tampering with fuel system, your Supra is provided with a gas cap, which may be opened only with a special key .

NOTICE: The gas cap is sealed by a rubber O-ring. DO NOT over tighten!

Always attach the ignition key and gas key to a floating key chain to prevent loss overboard.

The rear view mirror is installed as a standard item. The mirror is adjustable and is not permanently placed so that it may be set for each driver.

- Mirror should always be checked before driving.

- Mirror angle will change with each new driver.

Mirror

Revised 2-20-02 EHJ

Driver’s Seat & Seat Adjustment

Inboard Motor Box

The motor box encloses the inboard engine and quiets engine noise. To open, stand on either side of the engine toward the stern seat. Grasp the handle and pull up at approximately a 45 degree angle. If the engine requires maintenance, open the box until it rests open.

The motor box base is fitted with quick release rubber holddowns and stainless steel brackets for easy removal.

The driver’s seat may be adjusted forward or backward by moving the lever below the front of the seat (Lever-A in the photo). Use body pressure to move the seat to the desired position. Release the lever then check to feel the seat lock into place.

After adjusting the seat, be sure that it has locked into place by pushing forward and backward until it has securely latched.

DO NOT attempt to adjust the driver’s seat while the boat is moving.

V-Drive Engine Compartment

To access the engine, pull the black strap up to trigger the sun deck release.

NOTE: If the strap is shut inside the engine compartment, you will need to reach through the side storage and manually release the trigger.

When the ski locker is closed, the upholstered lid doubles as a cushioned sun deck.

Fire Extinguisher

V-Drive Ski Pylon

A standard United States Coast Guard approved fire extinguisher is provided with your Supra boat. The fire extinguisher is located under the observer’s seat cushion.

NOTICE: Refer to the instructions on the fire extinguisher for proper use.

Flame Precautions

The ski pylon is to be used to pull skiers. DO NOT use ski pylon to hoist boat! Only use the lifting rings for this purpose.

DO NOT mount any Pylon Extension on the rear pylon (located at the rear sundeck).

Inboard Ski Pylon

Sparks while fueling can cause explosion! Extreme caution should be taken when an open flame is present on board. Fumes from the engine and fumes from the battery are highly flammable. No flame or spark should come near these areas.

The ski pylon is located in the center portion of the boat directly in front of the motor box. The ski pylon is to be used to pull skiers. DO NOT use ski pylon to hoist boat! Only use the lifting rings for this purpose.

NOTICE: The use of pylon extensions may cause the pylon to loosen. Please see your dealer for proper tightening procedures.

The use of pylon extensions can severely effect the overall handling of the boat. Follow pylon extension manufacturers directions for mounting.

DO NOT mount any Pylon Extension on the rear pylon (located at the rear sundeck of v-drive models).

Rad-A-Cage

If your Supra model has been equipped with an optional RADA-CAGE towing tower, please review this section for details on it’s usage, maintenance and storage.

The cage is designed as a stable tower to enhance wakeboarding. It is NOT intended to be used to tow skiers, barefoot skiers, or multiple wakeboarders. Such use will void any warranties written or implied.

Before use, be sure that all mounting bolts are properly tightened in place.

Be aware of and avoid low overhead objects such as bridges, power lines, overhanging trees, etc.

DO NOT stick fingers or other objects into logo cutouts!

To Lower Cage For Storage Tools Required: 5/16” Allen Wrench

1.Loosen (but do not remove) the front 5/16-18 x 1-1/4” allen head bolts that connect the front legs to the foot.

2.Remove the hand knobs of the rear feet.

3.While standing in the bow area, pull the cage forward, gently placing it against the bow of the boat.

Place padding between the cage and the boat to protect the gel coat finish from scratches.

To Raise The Cage

Lift and rock the tower back into place until the rear legs align with the rear feet. (Some manipulation of the cage may be required to get the legs to line up with the feet). Install both bolts and tighten all bolts.

The threads in the aluminum foot could be damaged if the bolts are not aligned and threaded correctly!

Rad-A-Cages are designed to pull one wakeboarder, kneeboarder or trick-skier.

Pole Light Receptacle

Courtesy Lights

The pole light receptacle is located on the starboard of the stern, along side of the sun deck. To install pole light, slide open the weather cover and insert the pole light in the aligned position.

Pole Light

On some models, the removable pole light is stored on the side wall of the rear storage area. Gently pull the pole light from the mounting and place into the pole light receptacle.

The pole light must always be in place and illuminated when visibility is limited. The pole light must be displayed while underway from sunset to sunrise.

Courtesy lights are installed at several locations in the interior of the boat. The courtesy light switch is located on the instrument panel and is marked “CTSY”.

Bow Light

The bow light is located on the bow of the deck at the front of the boat. To alert other boaters to your position and direction. The light is green on the starboard side and red on the port side.

Stern Light

The stern light is located at the center of the transom below the rub rail. This white light alerts other boaters when they are approaching your boat from behind.

Lifting Rings

Ski Platform

The transom mounted ski platform allows easy access to and from the water for skiers and swimmers.

It is recommended that entries to and exits from the water be made from the platform to avoid accidents. (The fiberglass deck can become slippery when wet)

Shut off the engine when people are on the platform or in the water near the platform.

Exhaust fumes contain carbon monoxide. Direct or prolonged exposure to carbon monoxide will cause brain damage or death.

The forward bow eye is located just aft of the bow light. Two lifting rings are located on the transom.

Bow Eye

The bow eye is located at the front of the hull below the rub rail. It is the point of the attachment to lead the boat onto the trailer and to secure the boat to the trailer or to tie-off when docking.

Sling

NOTICE: Do not use the bow eye ONLY to hoist the boat. Y ou must use a sling with the bow eye when hoisting the boat. (See Hoisting Instructions)

Detachable Bracket

The ski platform is attached to the boat with detachable brackets. The platform may be removed from the boat pulling the retaining pins from the brackets and lifting up and out.

Ski Locker

Bilge Inspection Plate

The fuel tank inspection plate/bilge inspection plate is located on the floor. Open the inspection plate by unscrewing it to check the condition of the fuel tank and wire harness or for water in the bilge.

NOTICE: Keep this area clean and free of dirt and debris.

Ski storage, depending on the model of Supra you own, is located either between the observer’s seat and driver’s console on most v-drives or can be found under the sun deck of inboard models. On storage found between the driver and oberserver’s console, simply unsnap the strap and lift to open. Models with ski storage at the rear of the boat can be accessed by grasping the strap and pulling up and forward.

Sundeck

When the ski locker is closed, the upholstered lid doubles as a cushioned sun deck.

Propeller

Wake Plate

The wake plate is located on the stern at the bottom of the transom. Proper adjustment of the wake plate will allow better control of the trim.

Adjustment is made by turning the turnbuckles to the desired osition, moving the plate up or down. Your dealer can help you with this.

Under normal conditions, the abest overall plate position is between 1/8” above or below horizontal.

The research and design team at Skier’s Choice has carefully explored and tested many different propellers and pitch angles for use on our boats. All tests indicate that the current propeller installed on your model is the best for the variety of boating performance required, whether skiing competitively or for pleasure.

It is strongly recommended that your Supra dealer be notified before changing the propeller. In general, changing to a lower pitched propeller may increase acceleration, but will decrease top speed. Changing to a higher pitched propeller may achieve higher top speed with a light load, while acceleration and power may decrease.

NOTICE: DO NOT raise the wake plate above or below 1/4” the horizontal plane.

(See also Optional Hydraulic Wake Plate)

Hydraulic Wake Plate

The hydraulic wake plate allows the driver to control the running attitude of the boat. It can be controlled by the switch on the dashboard.

Trim Switch & Gauge

This switch controls the optional hydraulic wake plate. The gauge indicates the position of the plate. The gauge will only read from 0 degree to 50 degrees due to limited hydraulic motion.

V-Drive Battery Box

The battery box is mounted inside and to the rear of the port side storage compartment. To access the battery, open the port side storage compartment hatch and pull the cloth handle on the battery access door located in the rear of this compartment.

NOTICE: It is recommended that the battery cables be disconnected from the battery when the boat is placed in storage.

Walk-Thru Windshield

Inboard Battery Box

The battery is mounted inside the passenger side storage compartment.

NOTICE: It is recommended that the battery cables be disconnected from the battery when the boat is placed in storage.

The movable center windshield panel allows access to and from the bow deck. To open, turn safety latches to vertical and push. Lay the center windshield panel gently against the fixed side panel.

Fuel Precautions

Sparks while fueling could cause an explosion!

Filling the Tank

Before Fueling:

1.Turn off engine.

2.Turn off all electrical systems.

3.Extinguish cigarettes or any open flame.

While Fueling:

1.Keep fuel hose nozzle in contact with fill pipe to provide grounding.

2.Fill tank at a slow rate to avoid spills.

Fuel Tank

NOTICE: Pay careful attention when filling the fuel tank. DO NOT overfill the tank! Fuel may empty through the fuel vent and damage the outside finish.

If fuel is spilled on stripes or decals, apply a common bath cleaner and wipe with a damp cloth. Rinse spill area with clean water.

V-Drive Fuel Tank

The fuel cap is located in the middle of the rear of the boat. A specially designed fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber o-ring. Please do not overtighten.

The fuel cap is located on the starboard side of the boat near the stern. A specially designed fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber o-ring. Please do not overtighten.

Fuel Vent

The fuel vent is a part of the gas filler neck. This vent is connected to the fuel tank via the vent hose, which releases gasoline fumes from the fuel tank.

Gasoline vapors are highly explosive.

Revised 2-20-02 EHJ

Inboard Model

V-Drive Model

Section IX

Service & Maintenance

The illustration above denotes the areas which may need to be accessed or may require cleaning or maintenance. It is important to have basic understanding of the parts and their location on the boat. However, it is recommend that any service beyond routine maintenance be performed by an authorized Supra dealer.

Service & Maintenance

For your convenience, a maintenance schedule has been included in this manual. The items listed outline when to perform safety checks, lubrication and general service to your boat. Engine hours or elapsed time determine when service is necessary.

It is recommended that any replacement parts used during maintenance or for repair be supplied by an authorized Supra dealer.

NOTICE: You are responsible for keeping records of all maintenance on your boat. To maintain your new boat warranty, you may be required to prove that required maintenance was performed.

Revised 2-20-02 EHJ

Maintenance Chart

Cooling Systems

FRESH WATER COOLING SYSTEM

The standard cooling system for Supra boats is an open circulation cooling system with intake water. This is preferred for lakes and reservoirs with low salt content. If the engine is occasionally operated in salt water, the cooling system should be flushed with fresh water periodically and always before storage. If your boat is regularly operated in salt water, it should be equipped with the optional salt water package.

SAL T WA TER COOLING SYSTEM

The optional cooling system for use on salt water is a closed system with a solution of 50% antifreeze and 50% fresh water. The coolant is left in the closed system and replaced once a year.

Body Lubrication

Normal use of your Supra causes metal to metal movement at some parts in the boat. Driver seat track should be lubricated with a water resistant chassis lubricant such as silicon grease.

Lubricate rudder grease fitting located below the engine, once annually.

Engine Oil and Filter

The oil filter is located below the engine. The engine manufacturer recommends that you change the oil and oil filter after the first 1020 hours use of your new boat. Thereafter , to maximize engine life, change oil and filter after every 50 hours of use (See Engine Manual).

Crankcase oil should be selected to deliver the highest performance for your operating conditions and climate. In general, engine oils with lower viscosity ratings are used when temperatures remain low or when better fuel economy is desired. Oils with higher viscosity ratings are used when temperatures remain higher and when higher performance is expected from the engine.

The Engine Manufacturer recommends Pennzoil 15W-40 Marine Motor Oil. If this is unavailable, a high grade with an A.P.I. classification of SH, SJ, SG/CD is acceptable.

REFER TO ENGINE MANUAL for more information.

V-Drive Remote Oil Filter

V-Drive remote oil filter is mounted on the ski pylon bracket.

Oil Level Check

Fuel Filter - Water Separator

Depending on the model of your engine, you will have either a water separator filter, or a fuel filter. If your engine has a water separator filter, it will be located on the front of the engine. If your engine has a fuel filter, it will be located on the stringer under the engine.

Engine oil level should be checked at regular intervals (such as every 5 engine hours). To obtain a true reading, when the engine is at operating temperature and turned off, check the oil level showing on the dipstick.

If the oil level is between the “FULL” and the “ADD” marks on the dipstick, simply replace the dipstick. When the oil level is at or below the “ADD” mark, add oil to return the level to the “FULL” mark.

Transmission Level Check

V-Drive Fluid Check

Use only automatic transmission fluid type “A” in transmissions with 1:1 drive train. Refer to Engine Owners Manual.

Change Frequency

Change transmission fluid every year, using only Dextron-III Mercon automatic transmission fluid.

Maintaining Fluid Level

Transmission fluid level should be checked regularly and fluid added if necessary. Maintain fluid levels as follows:

- Boat must be at rest.

- Engine should be at operating temperature, but turned off while checking level.

- Remove transmisson fluid dipstick

- Wipe fluid clean from dipstick and replace.

- Remove dipstick and note level indicated by the upper and lower marks.

- If required, add fluid to bring the level to the upper mark.

The fluid level can be checked by using the oil level gauge, which is located on top of the V-Drive transmission. This unit is located under the center cushion of the rear seat. Pull out the cushion to access the transmission.

Pull the oil level gauge to check the fluid level. If the level is low, add fluid to the correct mark on the dipstick. Use SAE 30 motor oil.

NOTE: Only a trained and qualified technician should perform the oil change on your V-drive unit.

Change Frequency

The oil should be changed in the V-drive transmission after the first 100 hours of operation, then each year at the end of your boating season.

Maintaining Fluid Level

Transmission fluid level should be checked regularly and fluid added if necessary. Maintain fluid levels as follows:

- Boat must be at rest.

- Engine should be at operating temperature, but turned off while checking level.

- Remove transmisson fluid dipstick

- Wipe fluid clean from dipstick and replace.

- Remove dipstick and note level indicated by the upper and lower marks.

- If required, add fluid to bring the level to the upper mark.

Shaft Log Packing Nut Battery Cable

The Shaft Log Packing Nut should be checked periodically and adjusted if needed. Adjust as follows:

- Loosen the jam nut a few turns.

- Tighten the shaft log packing nut by hand. DO NOT over tighten.

- Tighten the jam nut against the packing nut.

- Check for leaks.

NOTICE: It is normal for the Packing Log to drip water at a slow rate of one drop every 15 to 30 seconds.

Installation & Precautions

Your Supra electrical system is a negative ground type. The negative battery cable is grounded to the engine block. The positive battery cable is connected to the starter solenoid.

Connect the positive (+) battery cable to the positive (+) post on the battery. Connect the negative (-) battery cable to the (-) post on the battery.

Failure to connect battery cables as outlined will damage the system and void the warranty.

Sulfuric acid in the battery can cause serious burns. If spilled on skin or in eyes, flush with clean water immediately, then seek medical attention.

Hydrogen and oxygen gases are produced during normal battery operation and charging. Sparks or flames near the battery vent openings can cause the mixture to ignite and explode.

Section X

Cleaning, Care & Storage

Fiberglass Care

Washing and waxing the boat hull and deck regularly will extend the life and beauty of your Supra. It is a good routine to rinse your boat with fresh water after each day’s use.

It is recommended that the hull land deck be cleaned and waxed after every 25 hours of use. This will decrease water friction and lesson the potential for staining or spotting on the gelcoat surface.

When the original gelcoat shine cannot be restored by waxing, the shine may be restored by hand buffing with a commercial polishing compound. Be sure to apply a new coat of wax containing Carnauba over the area that has been polished.

IMPORT ANT : Porcelain cleaning powders are too abrasive for use on gelcoat and may cause permanent discoloration if used. Household detergents containing ammonia or chlorine should not be used on gelcoat. Never use acetone or ketone solvents to clean your boat finish.

Rub Rail Care

Use a sponge or other soft material to wash and wax the rub rail. To wax, use a commercial automotive bumper wax.

NOTICE: When tying up to a dock or another boat, always use cushioned fenders (dock bumpers) to protect your boat from hard surfaces.

Washing Your Boat

The easiest way to preserve the beauty of your boat is to keep it clean by frequent washing. Wash the boat with luke warm or cold water. Wipe the boat down immediately after washing to avoid water spots. A void using hot water or washing your boat in direct sunlight. Avoid using strong soaps or chemical detergents. To avoid spotting, all cleaning agents should be thoroughly rinsed from the surface promptly and not allowed to dry on the finish.

Windshield Care

All Supra windshields are constructed of tempered safety glass to ensure passenger safety. The glass surfaces should be cleaned regularly to ensure that visibility is not obstructed.

Use a commercial glass cleaner to remove any spotting or stubborn stains that develop on the windshield. Never use abrasive cleaners on glass surfaces.

Upholstery Care

All upholstery items on your Supra are made of tough marine grade vinyl that is easily cleaned.

It is important to provide for the drying of all upholstery and carpet after each use of the boat. Open all storage compartments and slide all removable cushions out about an inch to allow air to circulate behind.

FOREIGN DEPOSITS

Tree sap, bird droppings, air borne chemicals, petroleum products and other foreign matter may damage the gelcoat surface if not removed promptly (SEE WASHING

INSTRUCTIONS). BOAT HULL PROTECTION

If your Supra is to remain in salt water for an extended period, the hull below the water line should be painted with a marine bottom paint. Bottom paint is also recommended for fresh water locations where the boat is left in the water for extended periods of time.

TEAK WOOD CARE

If teak wood has been installed on your Supra, a small amount of maintenance will be required to retain the natural beauty. Teak wood should not be varnished. Instead, teak oil or mineral oil should be applied. Oil should be applied 3 to 4 times per year. If teak has been allowed to become gray and dry, sand with fine grit paper and reapply teak oil.

Strong detergents and cleaners may shorten the life of the vinyl. PLEASE SEE VINYL MANUFACTURER’S RECOMMENDED CARE GUIDE INCLUDED IN YOUR OWNER’S MANUAL PACKAGE.

FAILURE TO FOLLOW CARE GUIDE MAY VOID VINYL WARRANTY.

Drying Upholstery

Section XI

Winterization & Dry Storage

When the boating and ski season comes to a close, it is recommended that your Supra boat be removed from the water and stored for the winter months.

It is extremely important to follow the proper winterizing procedure. The engine must be correctly winterized for safe storage in your climate. This should be done by a professional. Your Supra dealer will know exactly what must be done to insure the longest possible life for your boat.

In addition to preparing the engine the following tasks should be done to winterize the boat:

1.Remove the center drain plug from the boat.

2.Thoroughly clean the boat inside and out. Inspect the hull for any residue or algae growth and remove if required.

3.Clean the bilge area thoroughly and operate the bilge pump to remove any water from the bilge hose.

4.Remove all seat cushions and open all storage areas to air circulation in the boat interior. When thoroughly dry, replace cushions and close storage areas.

5.Top off fuel tank to prevent any condensation from accumulating in the fuel system. Use a commercially available fuel stabilizer to remove water and prevent gumming.

6.If the boat is stored on its trailer, insure that the boat is properly positioned. If possible lift the tongue so that the bow is slightly raised to promote drainage from the center drain hole.

7.Install the canvas cover and secure the straps in accordance with cover instructions.

NOTE: During the winter months, water is a boat’s worst enemy. Always store the boat when the interior is completely dry. Periodically check on the condition of the stored boat.

Hoisting

Correct Hoisting

If the boat ever needs to be hoisted, special attention should be given to the following recommendations:

- Hoist the boat using a horizontal lifting bar only.

- Never attempt to lift the boat by means of a cable sling from bow to stern lifting eyes.

- Hoist operator should slowly and smoothly lift the boat without jerking to avoid damage to the lifting eyes.

Incorrect Hoisting

DO NOT use the ski pylon to hoist the boat.

Incorrect hoisting may invalidate the warranty on the boat.

DO NOT use the bow eye to hoist boat. Use only a proper sized sling in the designated lifting rings to hoist the boat.

Identification Number

The hull identification number is located on the upper right hand side of the transom below the rub rail.

Section XII

Technical Information

Hydrogen and oxygen gases are produced during normal battery operation or charging. Sparks or flames can cause this mixture to ignite and explode if it comes near the vent openings. Sulfuric acid in the battery can cause serious burns if spilled on skin or in eyes. Flush with clear water immediately!

Revised 2-20-02 EHJ

Section XIII

Trailering Your Boat

Trailer & Towing

The trailer supplied with your Supra was designed especially for the boat with your convenience in mind. Please be sure that you have an appropriate tow vehicle before attempting to trailer your boat. Your vehicle must be capable of towing 5,000 lbs. and must be fitted with no less than a Class III (5,000 lb. max.) trailer hitch.

Read the trailer towing section of your vehicle owner’s manual before towing your trailer.

All Supra trailers require a 2” ball and a five (5) pin marine grade trailer wiring connector. The standard height from the ground to the top of the hitch ball should be about 20 inches. With the trailer attached to the tow vehicle, the trailer should stand approximately level.

Trailer Plug Wire Schematic

White:Ground Green: Right Turn / Brake Yellow: Left Turn / Brake Brown: Running Lights Blue: Reverse Lights

Connecting the Trailer

When connecting the trailer to your tow vehicle use the following procedure:

1.Raise the tongue with the trailer jack, position the trailer tongue directly over the 2" ball, and lower the jack until the tongue goes all the way down over the ball.

2.Press down on the latch until it locks on the ball with a “click.” NOTICE: If your hitch ball has an excessive flat spot on top, the latch may not engage properly. If the latch does not catch, check with your dealer or hitch installer before trailering.

3.Insert the locking pin into the tongue. (Lock pin hole is on the side of the tongue)

4.When all weight is off the trailer jack, pull the jack lock pin and rotate the jack to the horizontal position and lock the pin.

5.Attach the safety chains to the tow vehicle hitch. Cross the chains and wrap them around each other once or possibly twice allowing just enough slack to permit tight turns of the vehicle and trailer.

6.Connect the trailer light plug to the tow vehicle connection to activate the lights.

7.Connect the brake safety cable.

NOTE: Supra trailers feature disk brakes. The 5th wire (blue) on the wire connector needs to be connected to your vehicles reverse lights to be operative. This wire (blue) provides power to a solenoid which deactivates the brakes while in reverse. You may still tow your trailer without the blue wire connected, however, you may experience difficulty backing the trailer.

BEFORE USE, READ ALL INFORMA TION SUPPLIED WITH THE TRAILER BY THE MANUFACTURER.

Revised 2-20-02 EHJ

Prolong Trailer Life

Connecting the Trailer (continued)

The following guidelines will prolong the life of the boat and trailer:

1.Always secure the boat to the trailer with tie-downs. Do not place straps around fenders or lights.

2.Always verify that the winch hook is securely in the bow eye, the strap is tight and the winch handle locked in place before trailering.

3.Check the recommended pressure displayed on the side of the tires and assure that it is maintained. Under-inflated tires could cause trailer sway and excessive tire wear.

4.Before use, please read all information supplied with the trailer by the manufacturer (Bearing Buddy , Boat Buddy and hydraulic brake actuator). Check wheel bearing grease.

5.Before operating Boat Buddy, check trigger setting and latch pin location. After loading, check latch pin and confirm that it is properly seated in the eye hook before pulling trailer out of water. Wash Boat Buddy moving parts with high pressure water.

6.Check wheel bearing grease.

7.See Trailer Owner Manual for Maintenance Schedule.

Inadvertent release of latch pin could result in injury!

4.When all weight is off the trailer jack, pull the jack lock pin and rotate the jack to the horizontal position and re-lock the pin.

5.Attach the safety cables to the tow vehicle hitch. Cross the cables and wrap them around each other once or possibly twice allowing just enough slack to permit tight turns of the vehicle and trailer.

6.Plug the trailer lights connector to the vehicle harness.

7.Clip the brake lockout cable to the vehicle hitch.

T railer Alignment

Connecting the Trailer

When connecting the trailer to your tow vehicle use the following procedure:

1. Raise the tongue with the trailer jack, position the trailer tongue directly over the 2" ball, and lower the jack until the tongue goes all the way down over the ball.

2.Press down on the latch until it locks on the ball with a “click.”

Correct Alignment

When pulling the boat onto the trailer, be sure that it is centered on the trailer.

NOTICE: If your hitch ball has an excessive flat spot on top, the latch may not engage properly . If the latch does not catch, check with your dealer or hitch installer before trailering.

3.Insert the locking pin into the tongue. Lock pin hole is on the side of the tongue.

Incorrect Alignment

The distance between the boat and the wheel runner board should be equal on both sides.

Unloading Procedure

To unload the boat use the following procedure as a guide:

1.Make sure that all drain plugs are securely in place.

2.Unplug light cord before backing into the water.

3.With Bow Eye Hook fastened, retract Boat Buddy latch pin by pulling trigger into “safety” position. (If latch pin is bound, tighten winch to relieve pressure, then pull trigger into “safety” position).

4.With Bow Eye Hook fastened, back the trailer until the water level is approximately 1 inch below the top of the trailer fenders. NOTICE: Ramp slopes vary, so actual level of

water on trailer may be different. (NOTE: Caution on this page!).

5.Follow the cold start procedure recommended in this manual.

6.After starting the engine remove Bow Eye Hook.

7.With engine idling, center steering wheel, engage transmission and slowly pull throttle into reverse. Ease back on the throttle lever until the boat starts to move.

NOTE: DO NOT attempt to use excessive power to free that boat from dry carpet runners. Power off of the trailer only when the boat has floated free.

If the trailer is not submerged to the correct depth, the bow of the boat could drop when powering off incorrectly, possibly damaging the boat.

Loading Procedure

To load the boat on the trailer, position the trailer in the water with approximately 1 inch of the top of the fender showing.

1.Set the Boat Buddy for loading by pulling trigger or latch mechanism into “set” position.

2.Idle/coast the boat onto the trailer using as little power as possible, while keeping it centered between the guide poles.

3.Power slowly forward until the bow eye solidly contacts the Boat Buddy and the latch is triggered.

4.Winch hook must be attached to bow eye and tightened before trailering.

DO NOT Power onto the trailer during rough conditions!

Once correctly positioned on the trailer, switch off ignition.

DO NOT OVER POWER onto trailer or damage may occur to the boat and/or the trailer!

The trailer must be positioned for the correct water depth for loading or you may damage the boat. Varying ramp angles require different procedures. In general, the steeper the ramp, the more shallow the trailer should be positioned in the water. Your local dealer can help you understand this, should you require additional assistance.

NOTE: Because your Supra is a direct drive inboard, when

backing up, the stern will have a tendency to drift left or right depending on propeller rotation.

Supra Limited Warranty

Section XIV

T aking care of our product af ter it becomes yours has always been “standard policy” at Skier’s Choice, Inc., the proud manufacturer of the Supra line of boats. And to further prove our point, we offer the following limited warranty.

TERMS OF WARRANTY

During the applicable Warranty Period (as defined below), Skier’s Choice, Inc. (“Skier’s Choice” or the “Company”) warrants to the original retail purchaser (the “First Owner”) that the components and parts manufactured by Skier’s Choice (the “Covered Components”) of each new Skier’s Choice boat are free from any defects in material and workmanship, under normal use and when operated and maintained according to boat’s instructions (“Normal Use and Operation”).

- This Limited Warranty applies to all Covered Components other than the deck, hull, floor and stringers for a period of one year (the “One-Y ear Warranty Period”) from the original date of purchase by the First Owner (the “Original Purchase Date”).

- This Limited Warranty applies to the deck, hull, floor (excluding carpet) and stringers for the lifetime of the boat (the “Lifetime Warranty Period”).

This Limited Warranty may be transferred (for a minimal fee) to subsequent owner(s) only through a Supra Dealer during a period of two (2) years from the Original Purchase Date.

Subject to the terms of this Limited Warranty, Skier’s Choice will repair or replace, at its sole option, any Covered Component which is returned during the applicable Warranty Period to the Skier’s Choice factory or to any other Supra authorized repair facility (an “Authorized Supra Facility”), provided that:

- Only the Covered Components that are declared defective upon examination by Skier’s Choice will be repaired or replaced under this Limited Warranty;

- Transportation of the boat, part s or components to and from the Skier’s Choice factory or the Authorized Supra Facility must be pre-paid by the owner;

- Notice of any claim under this Limited Warranty must be provided to Skier’s Choice by the Authorized Supra Facility no later than sixty (60) days after the owner becomes aware of the defect.

Notification of a claim or defect must be properly made directly to an Authorized Supra Facility , who subsequently must submit the claim information to Skier’s Choice at 5820 US 411 South, Maryville, Tennessee 37801. Information needed for processing a claim includes (1) Name and address of the owner; (2) Serial number of the boat; (3) Original retail purchase date; (4) Detailed explanation of the defect; and (5) Estimated repair cost.

Supra Warranty

Note: Warranty repair or replacement cannot be made until this information is approved by Skier’s Choice.

In case of defect of a Covered Component, Skier’s Choice will use its reasonable best efforts to repair or replace the Covered Component within ninety (90) days of receipt thereof at its factory or an Authorized Supra Facility. Any warranty on replaced or repaired components pursuant to this Limited Warranty shall remain in effect only for the remainder of the original Warranty Period. The rep air or replacement of Covered Components will be made by Skier’s Choice without charge to the owner for parts or labor. The replacement or repair of the defective part or component as stated in this Limited Warranty shall be the sole remedy of the owner and the sole liability of the Company under this Warranty and any implied warranties.

There are no express or implied warranties on the parts and components manufactured or sold by Skier’s Choice except as set forth in this Limited Warranty.

EXCLUSIONS

Claims or assertions relating to the following are specifically excluded from coverage under this Limited Warranty and Skier’s Choice disclaims any liability or obligation with respect to the following:

1.Defects in or damage caused by or relating to the engine or any part thereof. (Note: The engine may be covered by warranty of the engine manufacturer. Please see engine manufacturer warranty for details.)

2.Defects in or damage caused by or relating to the trailer or any part thereof. (Note: The trailer may be covered by warranty of the trailer manufacturer. Please see trailer manufacturer warranty for details.)

3.Covered Components of a boat that has been sold or transferred by the First Owner, unless this Warranty is properly transferred through a Supra Dealer to the subsequent purchaser(s) within two years of the Original Purchase Date.

4.Damage caused by, related to, or resulting from failure of components or parts which are not manufactured by Skier’s Choice, including but not limited to bilge pump failure.

5.The Limited Lifetime Warranty on the deck, hull, floor (excluding carpet) and stringers does not include hardware or other components fastened or adhered to the hull, deck, floor or stringers.

6.Normal maintenance and upkeep relating to the boat or any part thereof, including but not limited to, alignment, adjustments, connectors, tune-ups and wear items, such

as, shaft packing, belts, hoses, filters, seals, gasket s, strut bushing, etc.

7. Damage to or malfunction of a boat, or any component thereof, resulting from owner use, lack of maintenance, improper maintenance, impact, misuse, negligence, collision, delay in repair, improper hoisting or cradling of the boat.

8. Any and all consequential damages including, but not limited to, costs incurred for haul-out, launching, towing and storage charges, telephone or rental charges of any type, inconveniences, loss of use, or loss of time or income.

THE REMEDIES OF REPAIR OR REPLACEMENT A T THE OPTION OF SKIER’S CHOICE, AS SET FORTH HEREIN, ARE THE ONLY REMEDIES A VAILABLE UNDER THIS WARRANTY. SKIER’S CHOICE DISCLAIMS ANY OBLIGATION OR LIABILITY FOR COSTS OR CHARGES DERIVED FROM INCONVENIENCE OF LOSS OF USE, COMMERCIAL OR MONET ARY LOSS DUE TO LOSS OF TIME, INCONVENIENCE, OR ANY OTHER CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

3. THIS WARRANTY IS IN PLACE OF ANY OTHER EXPRESS WARRANTIES.

9. Equipment installed by anyone other than authorized factory personnel at the Company’s production facility. Equipment replaced at an Authorized Supra Facility pursuant to this warranty agreement remains under warranty until the expiration of the Limited Warranty period.

10. Any boat which is: (a) used for rental or other commercial, military or industrial purposes; (b) used in boat racing, demonstrations, ski school, or similar events; (c) altered, modified, repaired or replaced so as to increase the cubic inch capacity or horsepower output of the engine and boat as originally manufactured; (d) not properly stored or maintained.

11. Speeds, fuel consumption and other performance characteristics because they are estimated and may vary .

12. Damage to or defects in paints, varnishes, gelcoat surfaces and colors, finish distortions, chrome plated or anodized finishes, floor covers and any other surface coatings.

13. Gelcoat discoloration, cracks, blisters or bubbles, including, but not limited, to those which may result from a boat being left in the water for long periods of time.

14. Upholstery cracks, mildew , stains or tears resulting from owner use, lack of maintenance, improper maintenance, impact, misuse, negligence, delay in repair, use of improper cleaners or conditioners.

4. THIS WARRANTY APPLIES TO THE FIRST OWNER AND IS TRANSFERABLE TO SUBSEQUENT OWNER(S) ONLY THROUGH AN AUTHORIZED SUPRA DEALER DURING A PERIOD OF TWO YEARS FROM THE ORIGINAL PURCHASE DATE. SKIER’S CHOICE RESERVES THE RIGHT TO NOT TRANSFER THE WARRANTY ON ANY BOAT THAT HAS BEEN DAMAGED OR MISUSED.

5. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MA Y ALSO HAVE OTHER RIGHTS WHICH V AR Y FROM STATE TO STATE.

6. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY CONTRACTUAL LIABILITIES, INCLUDING PRODUCT LIABILITIES.

7. THE DEALER IS NOT THE AGENT OF SKIER’S CHOICE AND SKIER’S CHOICE DOES NOT AUTHORIZE THE DEALER, OR ANY OTHER PERSON, T O ASSUME ON BEHALF OF SKIER’S CHOICE ANY LIABILITY OR EXPENSE INCURRED IN THE COURSE OF REP AIRING ITS PRODUCTS OTHER THAN THOSE EXPRESSL Y AUTHORIZED IN THIS LIMITED WARRANTY. THE DEALER MAY NOT EXTEND OR IN ANY WAY CHANGE OR AMEND THIS LIMITED WARRANTY.

Owner’s Responsibility

15. Skier’s Choice reserves the right to improve its products through changes in design or material without being obligated to incorporate such changes in products of prior manufacture.

OTHER LIMITATIONS

1. THIS LIMITED WARRANTY LIMITS THE DURA TION OF ANY IMPLIED WARRANTY OF MERCHANT ABILITY OR IMPLIED WARRANTY OF FITNESS FOR A P ARTICULAR PURPOSE TO THE PERIODS SPECIFIED HEREIN. Some states do not allow limitations on how long an Implied Warranty lasts, so this limitation may not apply to you.

1. Before operating your Supra, it is necessary to read and fully understand this Owner’s Manual and all other information delivered with the boat.

2. It is the owner’s responsibility to take the boat to an authorized Supra dealer to obtain warranty service.

3. It is the owner’s responsibility to properly operate and maintain the boat in accordance with this manual and all other information delivered with boat.

4. The owner should keep maintenance records should it be necessary to show that required maintenance has been performed on the boat.

Dealer’s Responsibility

Customer Assistance

1. The Dealer should provide the buyer with an adequate orientation in the general operation of the boat and review all systems and accessories included with the boat.

2. The Dealer should deliver a complete owner’s manual packet with the boat consisting of Owner’s Manual, Registration Engine Manual, Stereo Manual, Supra Warranty and all warranties for separately warranted items aboard the boat.

3. The Dealer should review all warranty information with the buyer and assist in filling out warranty cards if necessary.

4. The Dealer should insure that any information or obligation from either Skier’s Choice, Inc. or from the dealership is clearly understood by the buyer.

5. The Dealer should instruct the buyer in obtaining local service and out-of-area service for a Supra boat.

The staff at Skier’s Choice, Inc. is concerned with your complete satisfaction. This includes the prompt resolution of any problems that may arise during the warranty period. Normally, problems encountered may be efficiently and effectively resolved by your Supra Dealer. However, if a problem cannot be handled by the Dealer or if a solution is not satisfactory to you as an Owner, please follow these steps to get the matter resolved:

STEP ONE

Discuss the problem with a member of your Supra Dealer’s management staff. It is most likely that the problem will be resolved at this level.

STEP TWO

If the Dealer management does not resolve the problem to your satisfaction, please have the problem and all action taken, documented by the Dealer, then contact the factory Customer Service Representative at Skier’s Choice, Inc.:

Skier’s Choice, Inc.

5820 Highway 411 South

Maryville, TN 37801 Tel: (865) 856-3035

Fax: (865) 856-3241

Describe the original problem in detail to the Customer Service Representative. Be prepared to furnish appropriate documentation and the reasons why service by the Dealer was unsatisfactory . If further action is required to resolve the problem, the Customer Service Representative will dictate the appropriate action.

STEP THREE

Finally, if after following these steps and providing documentation and after obtaining necessary authorization from the Customer Service Representative to take additional action, the problem is still not resolved to your satisfaction, the President of Skier’s Choice, Inc. will personally review the problem and make a determination concerning final resolution.

Accessory Power Switch 29

Battery & Cable Installation 49 Battery Box 42 Battery Specifications 55 Bilge Area Drain Plug 23 Bilge Inspection Plate 39 Bilge Pump Switch 31 Blower Switch 29 Boating Rules 9 Boating Safety 5 Boat Specifications 13 Body Lubrication 46 Bow Eye 38, 54 Bow Light 37 Break-In Period 19

Canvas Cover 20 Circuit Breaker Panels 31 Coast Guard Regulations 20 Cooling Systems 46 Courtesy Lights 31, 37 Customer Assistance 68

Daily Check List 4 DC Outlet 30 Dealer’s Responsibilities 63 Depth Finder 28 Driver’s Seat 34

Engine Data 55 Engine Hour Gauge 26 Engine Hours 26

Section XV

Index

Ignition 30 Ignition Key 33 Introduction 3 Interior Lights 28 Instrument Panel & Controls 25

Lifting Rings 38

Maintenance Chart 46 Maximum Capacities 20 Mirror 33 Motor Box (Inboard) 34

Navigation Lights 29 Neutral Lock Out 22

Oil Dipstick 47 Oil & Filter 47 Oil Level Check 47 Oil Pressure Gauge 27 Oil Pressure 27 Operating Information 19

Pole Light 37 Pole Light Receptacle 37 Propeller 40 Propeller Precaution 40

Fiberglass Care 51 Filling Fuel Tank 43 Fire Extinguisher 35 Foreign Material Deposits 52 Fuel 25, 41 Fuel Cap Key 24, 33 Fuel Filter 47 Fuel Gauge 27 Fuel Information 3 Fuel Precautions 24, 43 Fuel Tank 24, 43 Fuel Vent 24, 43

Hippo Ballast System 32 Hoisting 54 Horn 30 Hull Identification Number 55 Hull Protection 52

Rad-A-Cage 36 Rear Drain Plug 23 Rub Rail 51

Safety Equipment 6 Seat Adjustment 34 Service & Maintenance 45 Shaft Log Packing Nut 49 Ski Locker 37 Ski Platform 39 Ski Platform Detachable Brackets 39 Ski Pylon (Inboard & V-Drive) 35 Slalom Sourse Speeds 25 Speedometer 26 Speed Calibration 25 Speedometer Paddle Wheel 27 Starting & Operation 19, 21 Stern Light 37 Sundeck 40

Index (continued)

Tachometer 26 Teak Wood Care 52 Temperature Gauge 26 Throttle Lever 22 Tilt Steering 30 Trailer 57

Boat Connecting 57-58 Loading Procedure 59 Trailer Alignment 58 Unloading Procedure 59

Transmission 47

Fluid Check 48 Fluid Specifications 47 Lockout 22

Upholstery Care 52

V-Drive

Battery Box 42 Engine Compartment 34 Fluid Check 48 Fuel Tank 43 Warning Light 31

Voltmeter 27

Wake Plate 40 Walk-Thru Windshield 42 Warning Labels 8 Warranty 61 Washing Your Boat 51 Windshield Care 51 Winterization 53

Supra Comp, Santera, Launch SL, Legacy, Launch SSV Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
