Super Vac P164S, P244S User Manual

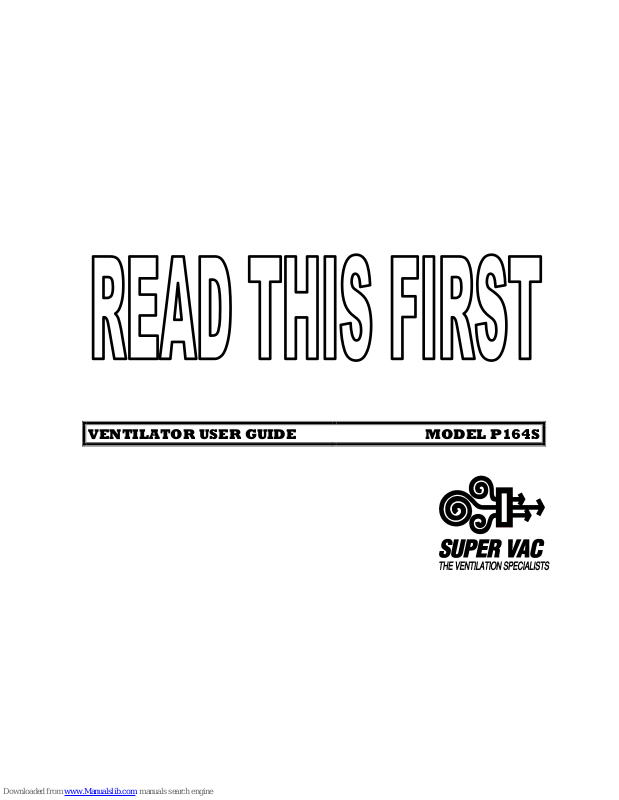

VENTILATOR USER GUIDE MODEL P164S

USER GUIDE

This manual covers the description, cautions, operation and maintenance of Super Vac Electric Ventilators

PS Series

Please take the time to read this manual before operating the ventilator.

Save this guide for future reference.

CONTENTS

1. BREAKAGE OR DAMAGE DURING SHIPMENT ................................................................................................................................................................................2

2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................................................................ 3

3. PRODUCT SAFETY PRECAUTIONS...................................................................................................................................................................................................... 4

4. BEFORE OPERATING VENTILATOR ................................................................................................................................................................................................... 4

5. OPERATION................................................................................................................................................................................................................................................ 5

6. MAINTENANCE AND REPAIR................................................................................................................................................................................................................ 5

7. TROUBLESHOOTING MOTOR OVERHEATING PROBLEMS........................................................................................................................................................ 6

8. EXTENSION CORDS.................................................................................................................................................................................................................................. 7

9. EXTENSION DUCTS .................................................................................................................................................................................................................................. 7

10. WARRANTY .............................................................................................................................................................................................................................................. 8

11. CONTACT INFORMATION.................................................................................................................................................................................................................... 9

12. PARTS LIST............................................................................................................................................................................................................................................. 10

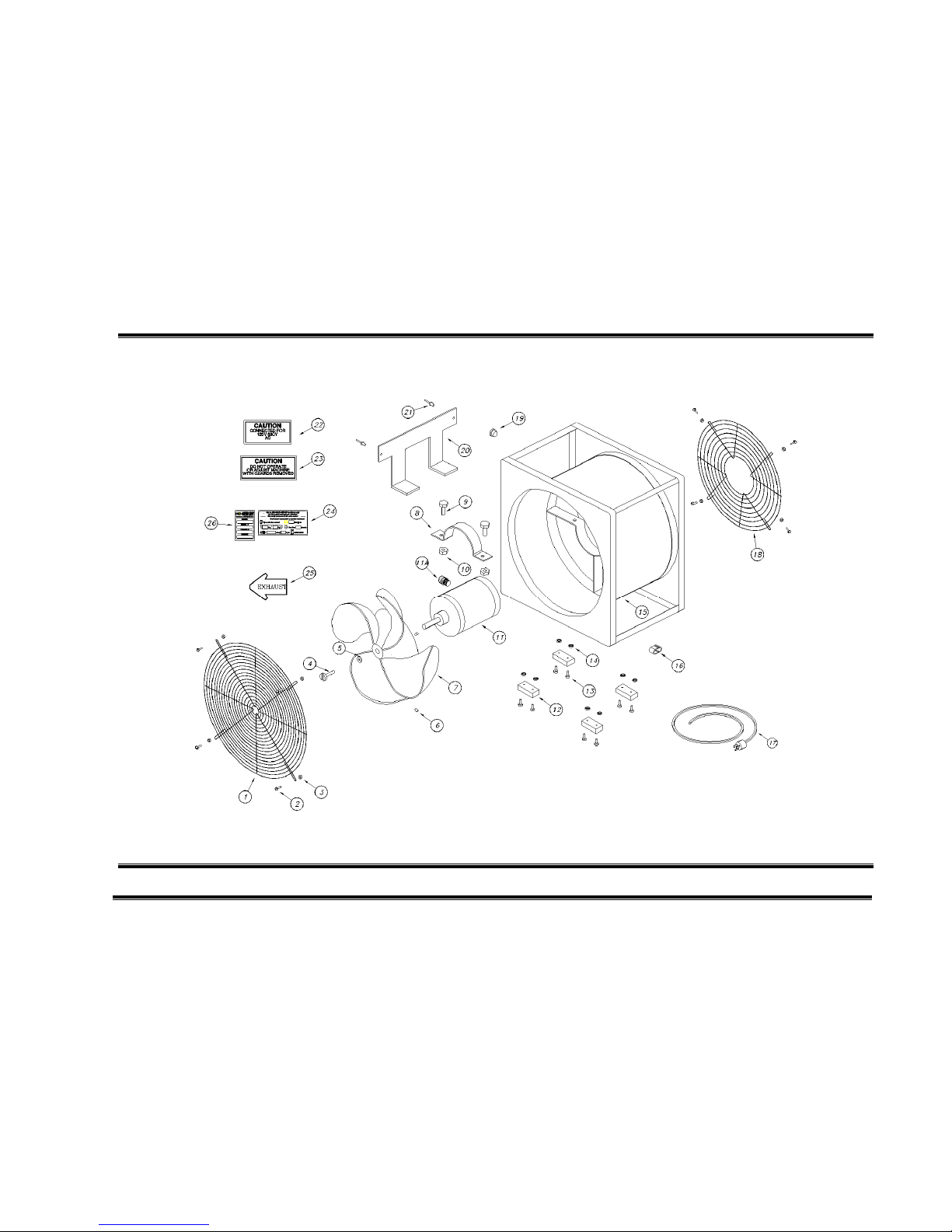

13. EXPLODED VIEW.................................................................................................................................................................................................................................. 11

User Guide

2

1. Breakage or Damage During Shipment

The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it
correctly. Please read these instructions carefully.

Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a
description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the
original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the
original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods.
Mail or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.

Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight agent
for verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the ground floor
and in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.

Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow
deduction from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B.
factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and our
responsibility ceases.

It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if
they follow the above instructions.

Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some
time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose
of these damaged goods, your claim may not be paid.

ELECTRIC VENTILATOR

3

P164S_VentilatorUserGuide-PS-Series.doc REV 08/15/12

2. General Description and Specifications

Super Vac ventilators are specifically designed to provide a convenient and portable source of fresh air. Refer to decal affixed to
ventilator to determine proper operating voltage requirements. Super Vac electric ventilators are single speed, fresh air ventilators,
for use in extreme conditions.

Specifications

1

1

Specifications are subject to change without notification. Refer to model decal affixed to ventilator to determine

actual specifications.

2

TEAO = Totally enclosed air over motor

This ventilator is designed for high powered air movement. Super Vac’s patented propeller produces a greater intake of air and
eliminates turbulence at the tips. The high velocity screw action sweeps air back over the motor, enabling it to run cooler. The
patented 4-Blade propeller is cast from aluminum alloy. Each blade is statically balanced for high efficiency and long life.

All Super Vac ventilators are designed to accept optional spiral duct and adapters. Placing adapter and ducts on the output side
provides positive pressure ventilation. Place adapter and duct on the input side for negative pressure ventilation.

The square housing design gives the unit added strength and stability. Handles on each corner makes the ventilator easy to hang on
windows, doorways or ladders. Multiple units may be stacked using optionally available accessories.
