718GC
User Manual
11 pgs327.22 Kb0

Super Vac 718GC User Manual

Download
Page 1
VENTILATOR USER GUIDE MO
DEL 718GC
Page 2
POSITIVE PRESSURE VENILATOR
USER GUIDE
This manual covers the description, cautions, operation and maintenance of the S
uper Vac Honda Engine powered gasoline positive pressure ventilators.
Please take the time to read this manual before operating the ventilator.
S
ave this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT ............................................................................................................................................... 2
2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................................ 3
3. PRODUCT SAFETY PRECAUTIONS................................................................................................................................................................ 3
4. BEFORE OPERATING VENTILATOR.............................................................................................................................................................. 4
5. OPERATION................................................................................................................................................................................................ 4
6. MAINTENANCE AND REPAIR ........................................................................................................................................................................5
SCHEDULE OF MAINTENANCE..................................................................................................................................................................................... 5
7
. TROUBLESHOOTING................................................................................................................................................................................... 6
8. WARRANTY.................................................................................................................................................................................................7
9. CONTACT INFORMATION............................................................................................................................................................................ 8
10. PARTS LIST ............................................................................................................................................................................................ 9
11. EXPLODED VIEW................................................................................................................................................................................... 10
Page 3
POSITIVE PRESSURE VENILATOR
2 718GC PPV Ventilator User HONDA ENGINE
Revised 11/15/2010
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it c
orrectly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight agent for verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the ground floor and in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow deduction from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B. factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid.
Page 4
POSITIVE PRESSURE VENILATOR
2. General Description and Specifications
Super Vac
ventilators are specifically designed to provide a convenient and portable source of air. Super Vac positive pressure
ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.
This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and eliminates turbulence at the tips. Each blade is statically balanced for high efficiency and long life.
This document is designed to function as a quick start guide and not an in-depth comprehensive instructional manual. Please read all accompanying documents shipped with your ventilator. Due to the many features of gasoline powered equipment thorough familiarity with the engine operating controls is essential to assure safe and trouble free operation.
3
. Product Safety Precautions
Do not use the ventilator for purposes other than its’ intended use. Wear eye and ear protection when operating the ventilator. Never operate ventilator while fatigued. Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury. Do not wear loose clothing that could become entangled in the operating ventilator. Never permit anyone to operate ventilator without proper instruction. Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for
r
eplacements.
Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator,
immediately stop engine. Be certain all mechanical motion has stopped. Disconnect spark plug wire from spark plug and keep it away from spark plug before removing foreign object.
Do not use with any fuel supply source other than the provided fuel tank. Engine exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. Never run the engine in a closed or
confined area.
Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in any explosive environment. Do not use chock blocks to increase the angle of the ventilator, severe injury could occur.
Page 5
POSITIVE PRESSURE VENILATOR
4 718GC PPV Ventilator User HONDA ENGINE
Revised 11/15/2010
4. Before Operating Ventilator
Engine is shipped without oil. With engine in a level position, remove oil fill plug and dipstick. Fill with 18 – 20 ounces
o
f the recommended oil. See page 10 of the HONDA ENGINE Owner’s Manual
for oil viscosity recommendations and
capacity.
Always operate this ventilator with unleaded gasoline having a pump octane rating of 85 or higher. A complete inspection of the ventilator should be made prior to operation. Check all threaded fasteners for proper tightness. Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating
ventilator.
5. Operation
Check ventilator inlet and outlet guards for obstructions. Check and remove from immediate surrounding area any objects that could be drawn into the ventilator intake.
Check the engine oil level, running the engine with a low oil level can cause engine damage. See page 6 of the HONDA
ENGINE Owner’s Manual. Check the engine air cleaner. A dirty filter will reduce engine performance. See page 8 of the HONDA ENGINE Owner’s Manual.
Check the fuel level. Do not overfill. Starting with no more than a 3/4 full tank will help reduce operating interruptions for refueling and avoid fuel spillage when engine is tilted. See page 5 of the HONDA ENGINES Owner’s Manual
.
Place ventilator in desired location before starting.
Refer to page 2 in the HONDA ENGINE Owner’s Manual for additional information showing locations of engine control features and positions.
Page 6
POSITIVE PRESSURE VENILATOR
6. Maintenance and Repair
Maintenance should only be performed by experienced and trained personnel.
B
e sure the ventilator blade has come to a complete stop before performing any maintenance or repair.
Disconnect spark plug wire from spark plug and keep it away from spark plug.
The ventilator blade should be specially checked for build-up of material or dirt which may cause an imbalance. Excessive imbalance can lead to accelerated wear on engine bearings and vibration. Remove ventilator guards. Clean blade and inside housing with mild detergent and water. Do not use abrasives, sharp instruments or caustic solvents that may scratch or damage the aluminum alloy blade.
Schedule of Maintenance
Perform at every indicated hour interval. E
ach use
1st
5 Hrs.
Every 50 Hrs. Every 100 Hrs. Every year
Check level
O
Engine oil
Change
O O
Check
O O
Clean
O
Air filter
Replace
O
Clean-Gap
O
O
Spark plug
Replace
O
Fuel line Check
O
See parts list for replacement part numbers.
Page 7
POSITIVE PRESSURE VENILATOR
6 718GC PPV Ventilator User HONDA ENGINE
Revised 11/15/2010
7. Troubleshooting
C
ommon causes of engine overheating:
Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training
Manual for Smoke Ventilation for recommended ventilator placement.
Incorrect octane fuel, too low octane.
ENGINE WILL NOT START Possible Cause Correction
Fuel valve OFF Move lever to ON
Choke is OFF Set choke to FULL on (Unless engine is warm.)
Check Control Positions
Throttle control is on STOP Move the throttle control to SLOW.
Out of fuel Refuel
Deteriorated fuel
Drain fuel tank and carburetor. Refuel with fresh gasoline.
Check Fuel
Contamination in fuel tank
blocking fuel line
Drain fuel tank and carburetor. Refuel with fresh gasoline.
Remove and Inspect Spark Plug
Spark plug faulty, fouled, or
improperly gapped.
Clean, gap or replace spark plug.
Page 8
POSITIVE PRESSURE VENTILATOR
8. Warranty
Limited Warranty
F
iv
e Years
Super Vacuum Manufacturing Company warrants that the e
quipment is free from defects in materials and workmanship when used and operated for
a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort
Collins, CO 80524
with transportation charges prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in writing to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No parts or equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty without specific written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and condition. We therefore extend to the original purchasers the following Limited Warranty for the period of five years from the original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for
incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed without our knowledge or consent. These conditions are readily discernable when the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that
the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your local business phone directory for the nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we
assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties
of MERCHANTIBILITY
or FITNESS for a particular purpose.
Page 9
POSITIVE PRESSURE VENILATOR
8 718GC PPV Ventilator User HONDA ENGINE
Revised 11/15/2010
9. Contact Information
For parts or service information, contact:
S
u
per Vacuum Manufacturing Company, Inc.
3842 Redman Dr Fort Collins, CO 80524
Ph
one: 1-800-525-5224
970-297-7100
FAX: 970-297-7099 Internet: www.supervac.com
Page 10
POSITIVE PRESSURE VENTILATOR
10. Parts List
1 012-00018 1 GUARD 718 18" FRONT-PAINTED 2 032-15540 8 10-24 X 1/2" PHIL PH MS BLACK 3 032-10754 2 1/4” LOCK WASHER ZINC 4 032-10745 2 1/4 - 20 X 1” HEX CS ZINC 5 008-10187 1 BUSHING BLADE MAUREY HQ 3/4” 6 008-10193 1 KEYSTOCK 3/16” X 1 3/8” SQUARE 7 003-10044 1 BLADE 18" 7 BLADE GAS FINISHED 8 032-10787 4 5/16” LOCK WASHER ZINC
9 032-10779 4 5/16 - 24 X 1 1/4" HEX CS ZINC 10 018-10396 1 SHROUD 18" W/GUARD-PAINTED 11 017-14999 1 718 BUSHING 1 1/4” O.D. X 1” 12 032-10743 1 1/4-20 X 3/4"HEX CS ZINC 13 032-10752 1 1/4” FLAT WASHER USS ZINC 14 032-10750 1 1/4-20 NYLOK HEX NUT ZINC 15 019-15046 1 1/8” X 3/4” ENGINE SUPPORT BRACKET 16 019-15049 1 1/8” X 3/4” ENGINE SUPPORT BRACKET 17 032-10750 3 1/4-20 NYLOK HEX NUT ZINC 18 032-10752 3 1/4” FLAT WASHER USS ZINC 19 032-10725 3 1/4-20 X 5/8” PHIL RH MS ZINC 20 019-10418 1 718 ENGINE MOUNT 21 032-14565 2 3/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC 22 005-10136 4 BUSHING REDUCER 3/4” X 1/2” 23 008-13373 2 WHEEL PNEUMATIC DW414 3" HUB CENTER 24 032-11129 2 3/8” FLAT WASHER USS ZINC 25 032-11133 2 3/8-16 NYLOK HEX NUT ZINC 26 008-14622 1 MOUNT, BRAKE, VENTILATOR, VB1, ALUM 27 008-14624 1 718, BRAKE BAR, FINISHED 28 008-14623 2 MOUNT, BRAKE, VENTILATOR, VB2, ALUM 29 032-10725 2 SCREW, 1/4-20 X 5/8, PHILLIPS RH, ZINC 30 008-10189 6 PLUG FINISHING SQ RIBBED, BLACK 1" 31 024-13473 2 FEET RUBBER CONE SHAPE VBM-4002 32 032-13052 2 5/16-24 NYLOK HEX NUT ZINC 33 018-10404 1 TUBE FRAME 18” PAINTED
34 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN 35 018-15000 2 718 SHROUD SUPPORT BRACKET 36 008-10212 2 WASHER FLAT #17W14930 MICRO-PLASTIC 37 032-11129 2 3/8” FLAT WASHERUSS ZINC 38 032-11133 2 3/8-16 NYLOK HEX NUT ZINC 39 008-10192 2 SPRING A-180-S VALCO 40 PCS. PER LB. 40 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN 41 032-11129 2 3/8” FLAT WASHER USS ZINC 42 032-11133 2 3/8-16 NYLOK HEX NUT ZINC 43 019-15001 1 718 HANDLE PAINTED 44 008-14586 2 STOCK CAP COVER FOR 718 HANDLE TAB 45 032-11133 2 3/8-16 NYLOK HEX NUT ZINC 46 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND 47 008-10211 1 STOCK CAP 3TG .250” X 1.0” X 4" OAL BLK 48 019-15002 1 718 TILT LEVER 49 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND 50 032-10750 2 1/4-20 NYLOK HEX NUT ZINC 51 032-10752 2 1/4” FLAT WASHER USS ZINC 52 032-10752 2 1/4” FLAT WASHER USS ZINC 53 032-10723 2 1/4-20 X 1/2” PHIL PH MS ZINC 54 025-13614 1 DECAL - OIL FILL/TILT WARNING 55 025-13361 1 DECAL 718G4-B SER# GREY 56 025-10551 1 DECAL 718G4-B YELLOW SAFETY 57 025-13404 2 DECAL - INFLATE TIRES 10-15 PSI MAX 58 032-10790 4 5/16-18 NYLOK HEX NUT ZINC 59 032-10770 4 5/16-18 X 1 1/2” HEX CS ZINC 60 032-10786 4 5/16” FLAT WASHER ZINC 61 023-14339 1 ENGINE GC 160 4 CYCLE Honda 62 023-15306 1 5/16-24 X 3/4" HEX CS ZINC 63 032-10791 1 5/16” FENDER WASHER ZINC 64 032-10787 1 5/16” LOCK WASHER USS ZINC
Page 11
POSITIVE PRESSURE VENILATOR
10 718GC PPV Ventilator User HONDA ENGINE
Revised 11/15/2010
CAUTION
CONSULT ENGINE OWNERS MANUAL BEFORE OPERATING

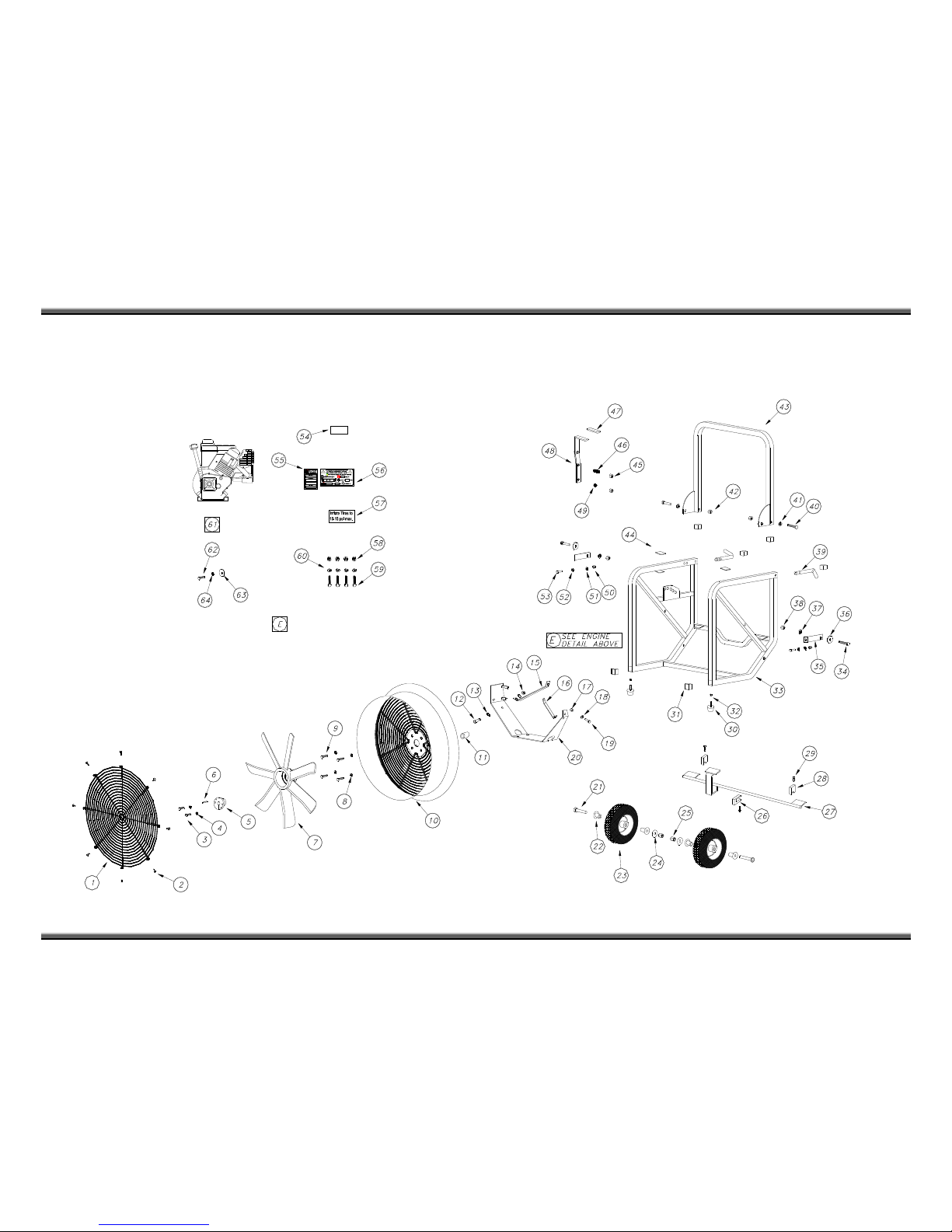

11. Exploded View
