VENTILATOR USER GUIDE MODEL 718G4T
Page 2
USER GUIDE
This manual covers the description, cautions, operation and maintenance of the Super Vac Tecumseh powered gasoline positive pressure ventilators.
Please take the time to read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT ............................................................................................................................................... 2
2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................................ 3
3. PRODUCT SAFETY PRECAUTIONS................................................................................................................................................................ 4
4. BEFORE OPERATING VENTILATOR.............................................................................................................................................................. 4
5. OPERATION.................................................................................................................................................................................................5
STARTING THE ENGINE................................................................................................................................................................................................6
STOPPING THE ENGINE ................................................................................................................................................................................................8
6. MAINTENANCE AND REPAIR ....................................................................................................................................................................... 9
SCHEDULE OF MAINTENANCE.....................................................................................................................................................................................9
7. TROUBLESHOOTING.................................................................................................................................................................................. 10
8. WARRANTY............................................................................................................................................................................................... 11
9. CONTACT INFORMATION........................................................................................................................................................................... 12
10. PARTS LIST ........................................................................................................................................................................................... 13

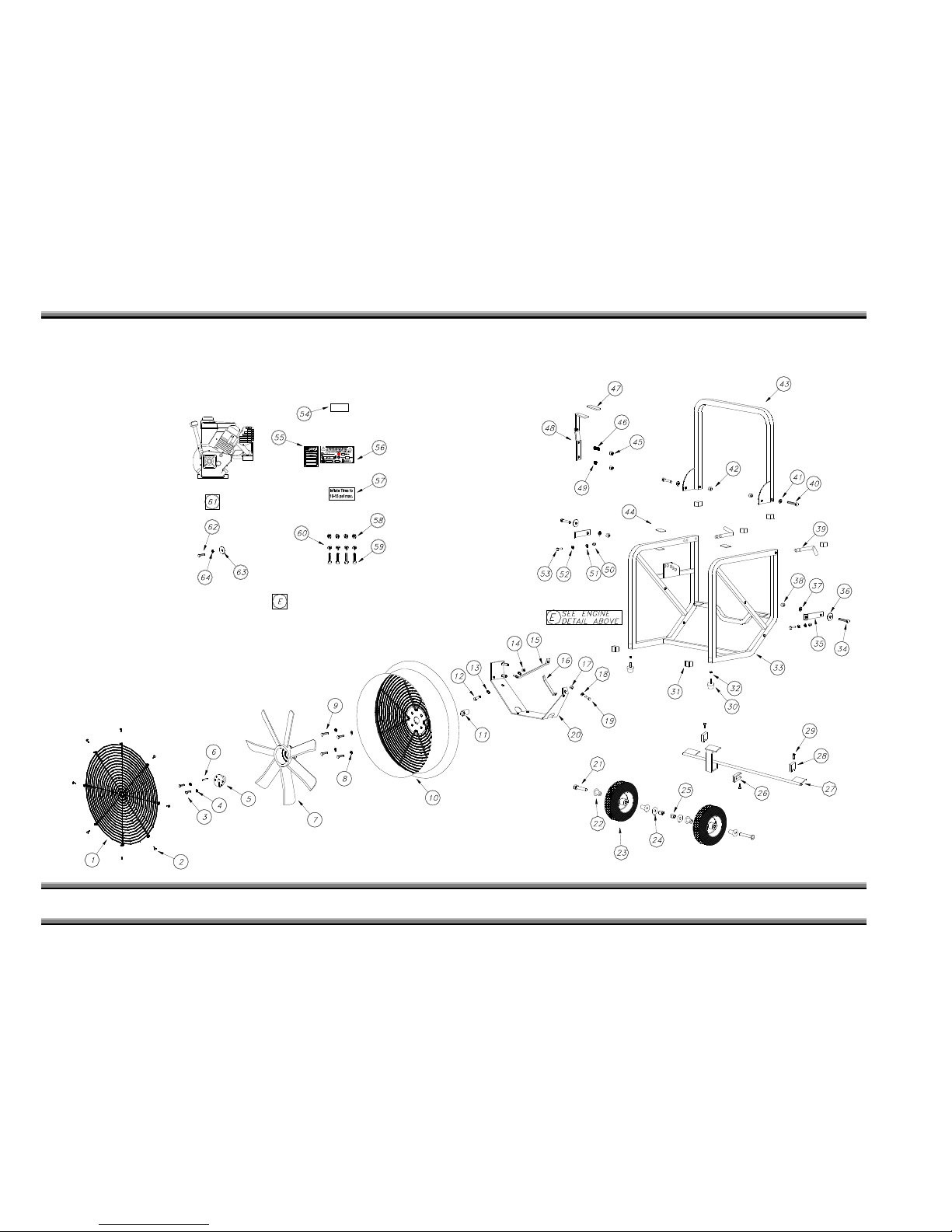

11. EXPLODED VIEW................................................................................................................................................................................... 14
Page 3
POSITIVE PRESSURE VENTILATOR
2
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
1. Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it
correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make
a description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send
you the original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim
blank to the original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the
damaged goods. Mail or hand these papers to your local transportation agent. They will process your claim with reasonable
promptness.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight
agent for verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the
ground floor and in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual
attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow
deduction from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B.
factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and
our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense
if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you
some time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you
dispose of these damaged goods, your claim may not be paid.
Page 4
POSITIVE PRESSURE VENTILATOR
3
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
2. General Description and Specifications
Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super Vac positive pressure
ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.
This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and
eliminates turbulence at the tips. Each blade is statically balanced for high efficiency and long life.
This document is designed to function as a quick start guide and not an in-depth comprehensive instructional manual. Please
read all accompanying documents shipped with your ventilator. Due to the many features of gasoline powered equipment
thorough familiarity with the engine operating controls is essential to assure safe and trouble free operation.
Page 5
POSITIVE PRESSURE VENTILATOR
4
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
3. Product Safety Precautions
Ø Do not use the ventilator for purposes other than its’ intended use.
Ø Wear eye and ear protection when operating the ventilator.
Ø Never operate ventilator while fatigued.
Ø Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.
Ø Do not wear loose clothing that could become entangled in the operating ventilator.
Ø Never permit anyone to operate ventilator without proper instruction.
Ø Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact
factory for replacements.
Ø Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator,
immediately stop engine. Be certain all mechanical motion has stopped. Disconnect spark plug wire from spark plug and
keep it away from spark plug before removing foreign object.
Ø Do not use with any fuel supply source other than the provided fuel tank.
Ø Engine exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. Never run the engine in a
closed or confined area.
Ø Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces.
Ø Never use this ventilator in any explosive environment.
Ø Do not use chock blocks to increase the angle of the ventilator, severe injury could occur.
4. Before Operating Ventilator
§ Engine is shipped without oil. With engine in a level position, remove oil fill plug and dipstick. Fill with 21 ounces of
the recommended oil. See page 1 of the TECUMSEH Operator’s Manual for oil viscosity recommendations and
capacity.
§ Always operate this ventilator with unleaded gasoline having a pump octane rating of 85 or higher.
§ A complete inspection of the ventilator should be made prior to operation.
§ Check all threaded fasteners for proper tightness.
§ Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating
ventilator.
Page 6
POSITIVE PRESSURE VENTILATOR
5
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
5. Operation
Check ventilator inlet and outlet guards for obstructions.
Check and remove from immediate surrounding area any
objects that could be drawn into the ventilator intake.
Check the engine oil level, running the engine with a low oil
level can cause engine damage. See page 2 of the
TECUMSEH Operator’s Manual.
Check the engine air cleaner. A dirty filter will reduce
engine performance. See page 4 of the TECUMSEH
Operator’s Manual.
Check the fuel level. Do not overfill. Starting with no more
than a 3/4 full tank will help reduce operating interruptions
for refueling and avoid fuel spillage when engine is tilted.
See page 2 of the TECUMSEH Operator’s Manual.
Place ventilator in desired location before starting.
Refer to the TECUMSEH Operator’s Manual for additional
information showing locations of engine control features
and positions.
This engine is equipped with an Low Oil Shutdown which is
designed to prevent engine damage caused by an insufficient
amount of oil in the crankcase. Before the engine can fall below a safe limit, the Low Oil Shutdown will automatically stop the
engine (the engine speed control will remain in the current position). The Low Oil Shutdown is sensitive to the engine being
operated at an incline. Operate ventilator within the design limits of the engine tilt lever.
Page 7
POSITIVE PRESSURE VENTILATOR
6
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
Starting the engine
1. Turn the fuel lever counter clockwise to the ON position.
2. If engine is cold, move choke lever to the FULL CHOKE position.
Page 8
POSITIVE PRESSURE VENTILATOR
7
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03

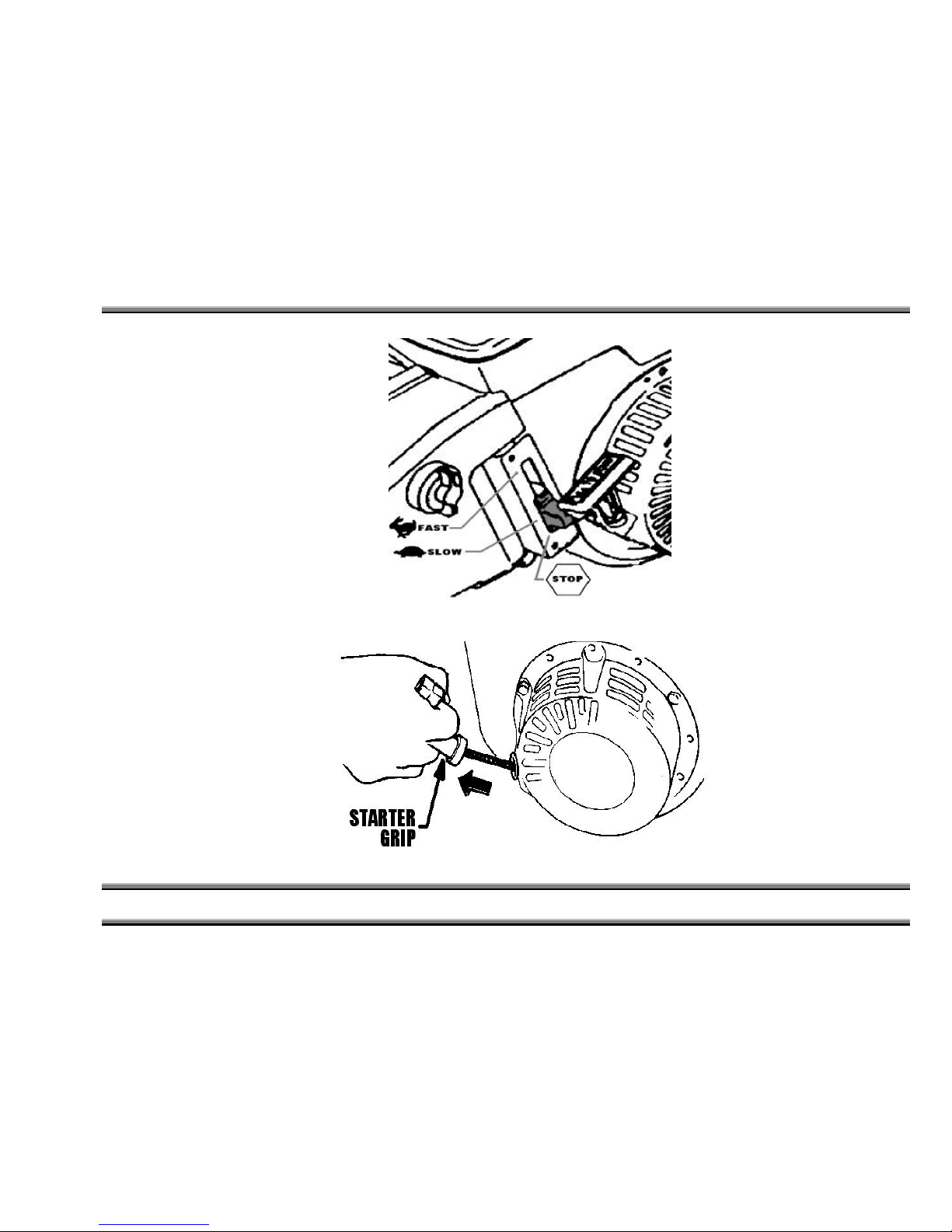

3. Move throttle control to the SLOW position.
4. Pull the starter grip lightly until resistance is felt, then pull briskly. Do not let the starter grip return by releasing grip,
this can lead to starter cord breakage. Return starter grip gently to the recoiled position.
Page 9
POSITIVE PRESSURE VENTILATOR
8
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
Stopping the engine
1. Move throttle lever to the STOP position.
2. Turn the fuel valve lever clockwise to the OFF position.
Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training Manual
for Smoke Ventilation for comprehensive instruction on effective ventilation practices.
Page 10
POSITIVE PRESSURE VENTILATOR
9
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
6. Maintenance and Repair
Maintenance should only be performed by experienced and trained personnel.
Be sure the ventilator blade has come to a complete stop before performing any maintenance or repair.
Disconnect spark plug wire from spark plug and keep it away from spark plug.
The ventilator blade should be specially checked for build-up of material or dirt which may cause an imbalance. Excessive
imbalance can lead to accelerated wear on engine bearings and vibration. Remove ventilator guards. Clean blade and inside
housing with mild detergent and water. Do not use abrasives, sharp instruments or caustic solvents that may scratch or damage
the aluminum alloy blade..
Schedule of Maintenance
Perform at every indicated
hour interval.
Each
use
1
st
2 Hrs.
Every
50 Hrs.
Every
100 Hrs.
Every
year
Refer
to
Page
1
Engine oil Check level
£
2
Change
£ £
3
Air filter Check
£ £
4
Clean
£
Replace
£
Spark plug Clean-Gap
£ £
4
Replace
£
Fuel line Check
£
1
Refers to pages in the TECUMSEH Operator’s Manual.
See parts list for replacement part numbers.
Page 11
POSITIVE PRESSURE VENTILATOR
10
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
7. Troubleshooting
Common causes of engine overheating:
§ Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training
Manual for Smoke Ventilation for recommended ventilator placement.
§ Incorrect octane fuel, too low octane.
ENGINE WILL NOT START Possible Cause Correction
Check control positions Fuel valve OFF Move lever to ON
Choke is OFF Set choke to FULL on (Unless engine is warm.)
Throttle control is on STOP Move throttle control to SLOW.
Low Oil Shutdown Engine oil is low or engine is being operated on too
steep an incline.
Check fuel Out of fuel Refuel
Deteriorated fuel Drain fuel tank and carburetor. Refuel with fresh
gasoline.
Contamination in fuel tank
blocking fuel line
Drain fuel tank and carburetor. Refuel with fresh
gasoline.
Remove and inspect spark plug Spark plug faulty, fouled or
improperly gapped.
Clean, gap or replace spark plug.
Page 12
POSITIVE PRESSURE VENTILATOR
11
718G4T_PPVentilatorUserGuide-Tecumseh.doc
REV
03/18/03
8. Warranty
Limited Warranty
Five Years
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and operated for
a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited warranty is limited to the repair and
replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing Company at 1303 East 11th Street,
Loveland, Colorado 80537 with transportation charges prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in writing to
SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No parts or equipment
will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty without specific written
authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and condition. We therefore
extend to the original purchasers the following Limited Warranty for the period of five years from the original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for
incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed without
our knowledge or consent. These conditions are readily discernable when the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that
the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your
local business phone directory for the nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we
assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties
of MERCHANTIBILITY or FITNESS for a particular purpose.
Page 13
POSITIVE PRESSURE VENTILATOR
12
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
9. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
PO Box 87
Loveland CO 80539
Phone: 1-800-525-5224
970-667-5146
FAX: 970-667-4296
Internet: www.supervac.com
Page 14
POSITIVE PRESSURE VENTILATOR
13
718G4T_PPVentilatorUserGuide-Tecumseh.doc
REV
03/18/03
10. Parts List
1 012-00018 1 GUARD 718 18" FRONT-PAINTED
2 032-15540 8 10-24 X 1/2" PHIL PH MS BLACK
3 032-10754 2 1/4” LOCK WASHER ZINC
4 032-10745 2 1/4 - 20 X 1” HEX CS ZINC
5 008-10187 1 BUSHING BLADE MAUREY HQ 3/4”
6 008-10193 1 KEYSTOCK 3/16” X 1 3/8” SQUARE
7 003-10044 1 BLADE 18" 7 BLADE GAS FINISHED
8 032-10787 4 5/16” LOCK WASHER ZINC
9 032-10779 4 5/16 - 24 X 1 1/4" HEX CS ZINC
10 018-10396 1 SHROUD 18" W/GUARD-PAINTED
11 017-14999 1 718 BUSHING 1 1/4” O.D. X 1”
12 032-10743 1 1/4-20 X 3/4"HEX CS ZINC
13 032-10752 1 1/4” FLAT WASHER USS ZINC
14 032-10750 1 1/4-20 NYLOK HEX NUT ZINC
15 019-15046 1 1/8” X 3/4” ENGINE SUPPORT BRACKET
16 019-15049 1 1/8” X 3/4” ENGINE SUPPORT BRACKET
17 032-10750 3 1/4-20 NYLOK HEX NUT ZINC
18 032-10752 3 1/4” FLAT WASHER USS ZINC
19 032-10725 3 1/4-20 X 5/8” PHIL RH MS ZINC
20 019-10418 1 718 ENGINE MOUNT
21 032-14565 2 3/8-16 X 4 1/2" SOCKET BUTTON HEAD ZINC
22 005-10136 4 BUSHING REDUCER 3/4” X 1/2”
23 008-13373 2 WHEEL PNEUMATIC DW414 3" HUB CENTER
24 032-11129 2 3/8” FLAT WASHER USS ZINC
25 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
26 008-14622 1 MOUNT, BRAKE, VENTILATOR, VB1, ALUM
27 008-14624 1 718, BRAKE BAR, FINISHED
28 008-14623 2 MOUNT, BRAKE, VENTILATOR, VB2, ALUM
29 032-10725 2 SCREW, 1/4-20 X 5/8, PHILLIPS RH, ZINC
30 008-10189 6 PLUG FINISHING SQ RIBBED, BLACK 1"
31 024-13473 2 FEET RUBBER CONE SHAPE VBM-4002
32 032-13052 2 5/16-24 NYLOK HEX NUT ZINC
33 018-10404 1 TUBE FRAME 18” PAINTED
34 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN
35 018-15000 2 718 SHROUD SUPPORT BRACKET
36 008-10212 2 WASHER FLAT #17W14930 MICRO-PLASTIC
37 032-11129 2 3/8” FLAT WASHERUSS ZINC
38 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
39 008-10192 2 SPRING A-180-S VALCO 40 PCS. PER LB.
40 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN
41 032-11129 2 3/8” FLAT WASHER USS ZINC
42 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
43 019-15001 1 718 HANDLE PAINTED
44 008-14586 2 STOCK CAP COVER FOR 718 HANDLE TAB
45 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
46 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND
47 008-10211 1 STOCK CAP 3TG .250” X 1.0” X 4" OAL BLK
48 019-15002 1 718 TILT LEVER
49 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND
50 032-10750 2 1/4-20 NYLOK HEX NUT ZINC
51 032-10752 2 1/4” FLAT WASHER USS ZINC
52 032-10752 2 1/4” FLAT WASHER USS ZINC
53 032-10723 2 1/4-20 X 1/2” PHIL PH MS ZINC
54 025-13614 1 DECAL - OIL FILL/TILT WARNING
55 025-13366 1 DECAL 718G4-H SER# GREY
56 025-10551 1 DECAL 718G4-T YELLOW SAFETY
57 025-13404 2 DECAL - INFLATE TIRES 10-15 PSI MAX
58 032-10790 4 5/16-18 NYLOK HEX NUT ZINC
59 032-10770 4 5/16-18 X 1 1/2” HEX CS ZINC
60 032-10786 4 5/16” FLAT WASHER ZINC
61 023-14334 1 ENGINE 6HP 4 CYCLE TECUMSEH
62 032-10777 1 5/16-24 X 3/4" HEX CS ZINC
63 032-10791 1 5/16” FENDER WASHER ZINC
64 032-10787 1 5/16” LOCK WASHER USS ZINC
Page 15
POSITIVE PRESSURE VENTILATOR
14
718G4T_PPVentilatorUserGuide-Tecumseh.doc REV. 03/18/03
CAUTION
CONSULT ENGINE
OWNERS MANUAL
BEFORE OPERATING
11. Exploded View
Loading...
