Page 1
READ THIS FIRST
VENTILATOR USER GUIDE MODEL 718B
Page 2
Page 3
POSITIVE PRESSURE VENTILATOR
1
718B PPV User Guide Revised 1-2014
USER GUIDE
is manual covers the description, cautions, operation, and maintenance of the Super Vac 718B.
Please take the time to read this manual before operating the ventilator.
Save this guide for future reference.
CONTENTS
1. BREAKAGE OR DAMAGE DURING SHIPMENT.................................................................................................................................
2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................
3. PRODUCT SAFETY PRECAUTIONS...................................................................................................................................................
4. BEFORE OPERATING VENTILATOR....................................................................................................................................................
5. OPERATION................................................................................................................................................................................................
6. CHARGING THE BATTERY.....................................................................................................................................................................
7. MAINTENANCE AND REPAIR...............................................................................................................................................................
8. WARRANTY.................................................................................................................................................................................................
9. CONTACT INFORMATION.....................................................................................................................................................................
10. PARTS LIST.................................................................................................................................................................................................
11. EXPLODED VIEW.....................................................................................................................................................................................
2
3
3
4
4
5
6
6
7
8
9
Page 4
POSITIVE PRESSURE VENTILATOR
2
718B PPV User Guide Revised 1-2014
1. Breakage or Damage During Shipment
e transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it correctly.
Please read these instructions carefully.
Examine the contents of all shipping cases. If you nd any damage, call your transportation agent at once and have them make a
description on the freight or express bill describing the damage and the number of pieces. en write us and we will send you the original
bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the original bill
of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail or hand these
papers to your local transportation agent. ey will process your claim with reasonable promptness.
Please note, we cannot and will not enter claims for damages. If we led claim here, it would be sent to your local freight agent for
verication and investigation. is time can be saved by your ling the claim directly. Every consignee is on the ground oor and in
contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow deduction from
any invoice because of any damage, however, be sure to le your claim promptly. Our goods are sold F.O.B. factory. We take receipt from
the transportation company certifying that the goods were delivered to them in good order, and our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if they
follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some time
later. ese damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these
damaged goods, your claim may not be paid.
Page 5
POSITIVE PRESSURE VENTILATOR
3
718B PPV User Guide Revised 1-2014
2. General Description and Specications
Super Vac ventilators are specically designed to provide a convenient and portable source of fresh air. Refer to decal axed to ventilator
to determine proper operating voltage requirements. Super Vac battery powered ventilators are variable speed, fresh air ventilators, for use
in extreme conditions.
Model # RPM Volt a g e Motor HxWxD Weight
718B 2500 24 V DC Totally Encosed Air Over ( TEAO) 18.25” x 22.5” x 20.75” 50 lbs / 53 with battery
is ventilator is designed for high powered air movement. Super Vac’s patented propeller produces a greater intake of air and eliminates
turbulence at the tips. e patented 7-Blade propeller is cast from aluminum alloy. Each blade is statically balanced for high eciency and
long life.
3. Product Safety Precautions
• Do not use the ventilator for purposes other than its’ intended use.
• Wear eye and ear protection when operating the ventilator.
• Never operate ventilator while fatigued.
• Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.
• Do not wear loose clothing that could become entangled in the operating ventilator.
• Never permit anyone to operate ventilator without proper instruction.
• Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for
replacements.
• Do not place ngers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator, immediately
stop engine. Be certain all mechanical motion has stopped. Disconnect spark plug wire from spark plug and keep it away from spark
plug before removing foreign object.
• Do not use with any power voltage other than the indicated voltage.
• Never handle energized power cords with wet hands.
• Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in any
explosive environment.
• Never let extension cords or plug connection lay in water. Locate the ventilator so that it cannot fall into water inadverntly.
Page 6
POSITIVE PRESSURE VENTILATOR
4
718B PPV User Guide Revised 1-2014
4. Before Operating Ventilator
• Always operate this ventilator with a proper portable DC power source supplied with the unit.
• Never use power cords with frayed, cut, or brittle insulation.
• A complete inspection of the ventilator should be made prior to operation.
• Inspect power cord plug for sound connections.
• Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating ventilator.
5. Operation
Check ventilator inlet and outlet guards for obstructions. Check and remove from immediate surrounding area any objects that could be
drawn into the ventilator intake.
Place ventilator in desired location before connecting battery pack. Use caution not to direct toxic fumes into conned spaces with the
ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for comprehensive instruction on eective ventilation
practices.
Move power switch located on battery pack to the on position to begin ventilation.
To stop ventilation move power switch to the o position..
Page 7
POSITIVE PRESSURE VENTILATOR
5
718B PPV User Guide Revised 1-2014
6. Charging the Battery Pack
e battery pack contains two sealed no-maintenance lead-acid batteries. ese batteries do not maintain a “memory” as
is common with nickel-cadmium style batteries. Total discharging of the batteries is not required nor recommended as a
maintenance procedure.
To restore battery charge –
• Turn power switch to the o position.
• Disconnect battery pack from fan unit.
• Insert charging jack from battery charger into charging plug on battery pack.
• Plug battery charger into appropriate AC power supply (refer to label on charger to determine voltage
• requirements).
e charger will progressively recharge the batteries from the discharged state. Aer 8 hours the batteries will be restored
to 90% of total capacity. Completely discharged batteries will attain 100% charge aer 16 hours.
7. Maintenance and Repair
Maintenance should only be performed by experienced and trained personnel.
Be sure the ventilator is disconnected from the power source before performing any maintenance or repair. e motor is of heavy duty
ball bearing construction. e unit is completely sealed and requires no lubrication for the life of the motor.
e ventilator blade should be specially checked for build-up of material or dirt which may cause an imbalance. Excessive imbalance can
lead to accelerated wear on motor bearings and vibration. Remove ventilator guards. Clean blade and inside housing with mild detergent
and water. Do not use abrasives, sharp instruments or caustic solvents that may scratch or damage the aluminum alloy blade..
Intake and exhaust guards are not interchangeable. When replacing guards aer cleaning, position them with the rings
to the outside with the row of spot welds holding the rings on the bottom.
Page 8
POSITIVE PRESSURE VENTILATOR
6
718B PPV User Guide Revised 1-2014
8. Warranty
Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and
operated for a period of ve years. e responsibility of Super Vacuum Manufacturing Company under this limited warranty is limited to
the repair and replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing Company at
3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in
writing to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No
parts or equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty
without specic written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.
All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and condition. We
therefore extend to the original purchasers the following Limited Warranty for the period of ve years from the original date of purchase:
1. is warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for
incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed
without our knowledge or consent. ese conditions are readily discernible when the equipment is returned to us for inspection.
2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that
the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your
local business phone directory for the nearest repair station for the brand of parts you have or write to us for the address.
3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we
assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. is warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties
of MERCHANTABILITY or FITNESS for a particular purpose.
Page 9
POSITIVE PRESSURE VENTILATOR
7
718B PPV User Guide Revised 1-2014
9. Contact Information
For parts or service information, contact:
Super Vacuum Manufacturing Company, Inc.
3842 Redman Dr.
Fort Collins, CO 80524
Phone: 800-525-5224
970-297-7100
Fax: 970-297-7099
Email : [email protected]
Internet: www.supervac.com
Page 10
POSITIVE PRESSURE VENTILATOR
8
718B PPV User Guide Revised 1-2014
10. Parts List
1 012-10263 1 GUARD 718 18” FRONT-PLATED
2 032-10713 8 10-24 NYLOK SELF LOCK NUT ZINC
3 032-10711 8 10-24 X 1/2” PHIL PH MS ZINC
4 032-10777 1 5/16-24 X 3/4” HEX CS ZINC
5 032-10787 1 5/16” LOCK WASHER USS ZINC
6 032-10791 1 5/16” FENDER WASHER ZINC
7 032-10745 2 1/4 – 20 X 1” HEX CS ZINC
8 032-10754 2 1/4” LOCK WASHER ZINC
9 008-10193 1 KEYSTOCK 3/16” X 1 3/8” SQUARE
10 008-10187 1 BUSHING BLADE MAUREY HQ 3/4”
11 003-10044 1 BLADE 18” 7 BLADE GAS FINISHED
12 018-10396 1 SHROUD 18” W/GUARD-PAINTED
13 032-10769 2 5/16-18 X 1” HEX CS ZINC
14 032-10790 2 5/16-18 NYLOK HEX NUT ZINC
15 032-10786 4 5/16” FLAT WASHER ZINC
16 072-15420 1 24V DC MOTOR - LEESON 1/2 HP
17 032-18803 2 1/2” X 13 X 4 1/2” BOLT
19 008-13375 2 FLAT FREE WHEEL
20 032-18804 6 1/2” WASHER
21 032-18802 2 1/2” X 13 NYLOK NUT
26 024-13473 2 FEET RUBBER CONE SHAPE VBM-4002
27 008-10189 6 PLUG FINISHING SQ RIBBED, BLACK 1”
28 032-13052 2 5/16-24 NYLOK HEX NUT ZINC
29 018-10404 1 TUBE FRAME 18” PAINTED
30 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN
31 032-11129 2 3/8” FLAT WASHER USS ZINC
32 008-10212 2 WASHER FLAT #17W14930 MICRO-PLASTIC
33 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
34 008-10192 2 SPRING A-180-S VALCO
35 032-14564 2 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN
36 032-11129 2 3/8” FLAT WASHERUSS ZINC
37 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
38 019-15001 1 718 HANDLE PAINTED
39 008-14586 2 STOCK CAP COVER FOR 718 HANDLE TAB
40 032-11133 2 3/8-16 NYLOK HEX NUT ZINC
41 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND
42 024-13284 1 SPRING SADDLE ISC #0198 W.DBL GRIND
43 072-15234 1 KNOB
45 019-15002 1 TILT LEVER 718
46 072-15417 1 BATTERY PACK CRADLE
47 032-10732 2 1/4-20 X 1 3/8” PHIL PH MS ZINC
48 072-14964 1 HOUSING, BATTERY CONNECTOR
49 072-14965 2 PIN TERMINAL CONNECTOR
51 072-14965 2 PIN TERMINAL CONNECTOR
52 032-10693 2 #8 FLAT WASHER ZINC
53 032-13571 2 8-32 NYLOK HEX NUT ZINC
54 072-15416 1 COMPONENT MOUNT PLATE
55 032-10686 2 #8 X 5/8” PHIL PH SMS ZINC
56 034-10941 2 8-32 X 3/4” PHIL PH MS SS
57 IONPAC2.0 1 BATTERY PACK - IONPAC2.0
58 025-13361 1 LABEL - BATFAN - SERIAL NUMBER
59 025-13362 1 DECAL 718B YELLOW SAFETY
60 025-13426 1 SUPER VAC VERT BLACK
Page 11
POSITIVE PRESSURE VENTILATOR
9
718B PPV User Guide Revised 1-2014

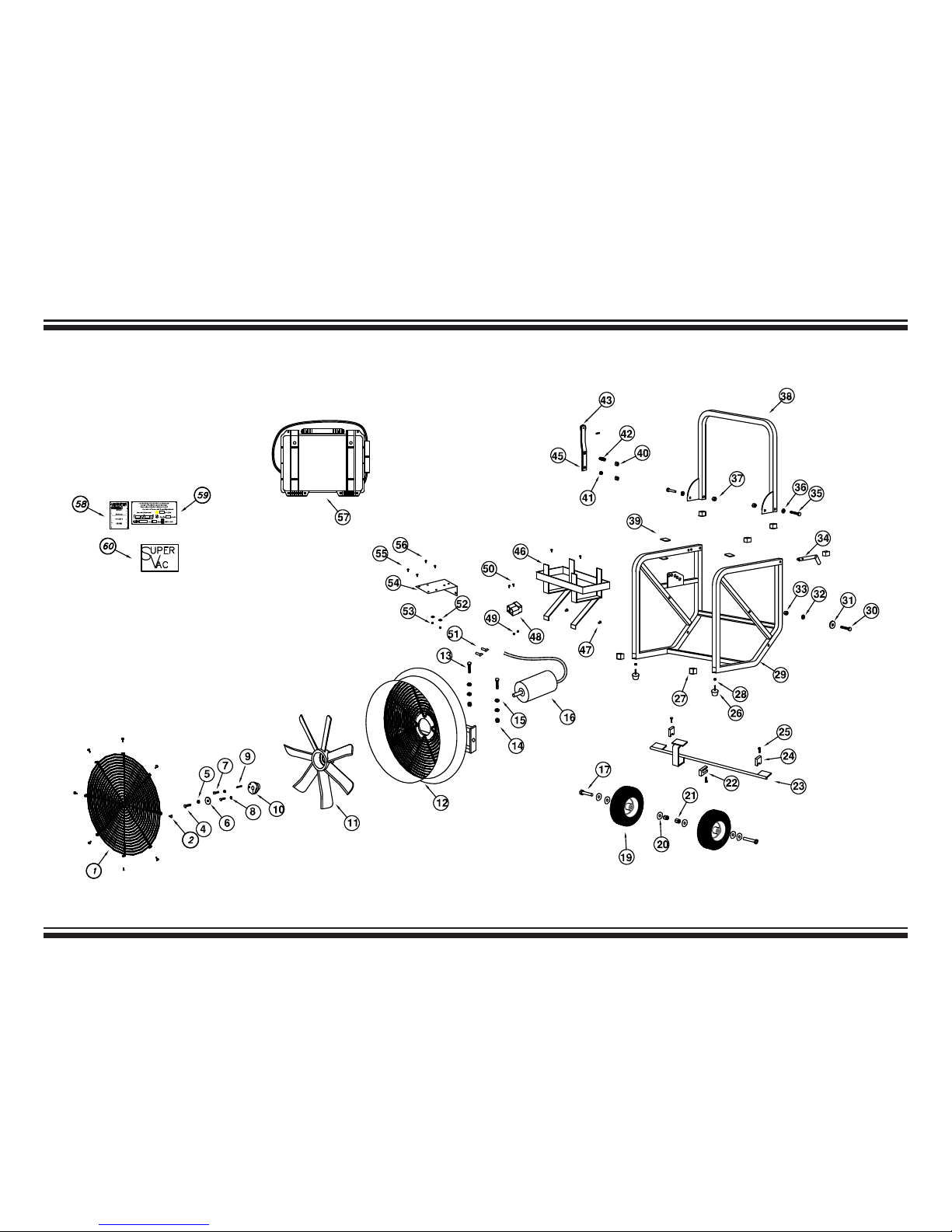

11. Exploded View
