SuperTek ST-P3VFA User Manual

Download

Page 1

SuperTek

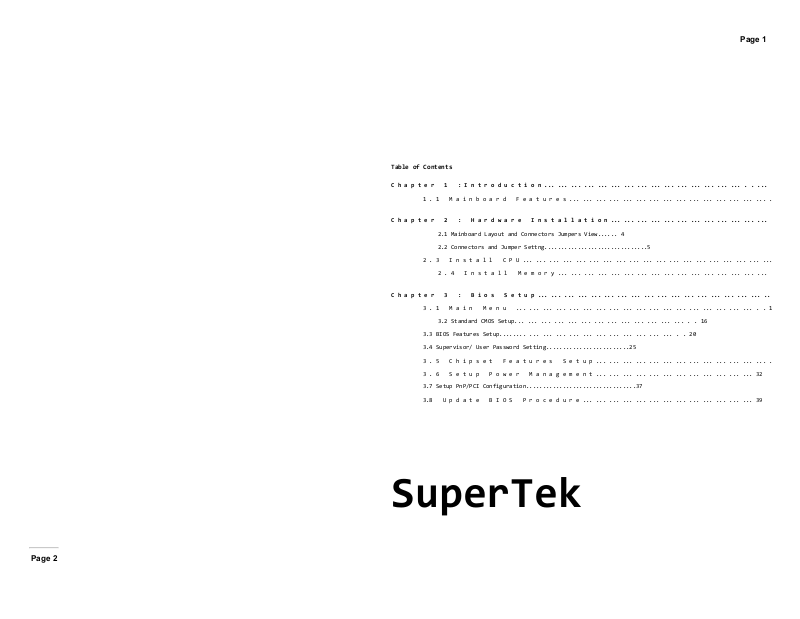

Table of Contents

C h a p t e r 1 : I n t r o d u c t i o n ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . ...

1 . 1 M a i n b o a r d F e a t u r e s ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

C h a p t e r 2 : H a r d w a r e I n s t a l l a t i o n ... ... ... ... ... ... ... ... ... ... ... ...

2.1 Mainboard Layout and Connectors Jumpers View...... 4

2.2 Connectors and Jumper Settng...............................5

2 . 3 I n s t a l l C P U ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...

2 . 4 I n s t a l l M e m o r y ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...

C h a p t e r 3 : B i o s S e t u p ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..

3 . 1 M a i n M e n u ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . 1

3.2 Standard CMOS Setup... ... ... ... ... ... ... ... ... ... ... ... ... . . 16

3.3 BIOS Features Setup........ ... ... ... ... ... ... ... ... ... ... ... . . 20

3.4 Supervisor/ User Password Setting.........................25

3 . 5 C h i p s e t F e a t u r e s S e t u p ... ... ... ... ... ... ... ... ... ... ... ... ... .

3 . 6 S e t u p P o w e r M a n a g e m e n t ... ... ... ... ... ... ... ... ... ... ... ... 32

3.7 Setup PnP/PCI Configuration.................................37

3.8 U p d a t e B I O S P r o c e d u r e ... ... ... ... ... ... ... ... ... ... ... ... ... 39

Page 2

SuperTek

CHAPTER 1 INTRODUCTION

The mainboard is a high-performance personal computer mainboard based on the Pentium II processor. The mainboard uses the highly integrated VIA APOLLO PRO 133 (VT82C693A) AGPset which optimize the system bandwidth and concurrency with the implementation of Quad port Acceleration (QPA).QPA provides 4-port concurrent arbitration of the processor bus, graphics, PCI bus and SDRAM. The VT82C596B chipset integrates all system control functions such as ACPI (Advanced Configuration and Power Interface). The ACPI provides more Energy Saving Features for the OSPM (OS Direct Power Management) function. The VT82C596B chipset also improves the IDE transfer rate by supporting Ultra DMA /66 IDE that transfers data at the rate of 66 MB/s.

1.1 Mainboard Features

CPU

Slot 1 for Pentium II processor or Pentium III processor.

Supports 233MHZ-550MHZ and higher.

Core/ Bus ratios are x2, x2.5, x3, x3.5, x4, x4.5, x5, x5.5, x6 and

higher.

Clock Generator

66MHZ, 100MHZ. 133 MHZ BUS.

AUTO detect CPU BUS CLK frequency. For 66 OR 100MHZ

Switching Voltage Regulator

On-board switching mode DC-DC Step Down Regulator.

Chip Set

Mainboard : VIA APOLLO PRO Chipset.

Enhanced I/O : Winbond 83977 EF Chipset.

System Memory, DIMM*4

Supports three 168-pin unbuffered DIMM Socket.

Supports memory size up to 512 MB.

Supports 3.3v Extended Data Output (EDO) and SDRAM DIMM.

Expansion Slot, AGP1, PCI1-PCI5 , ISA1-ISA2

One AGP (Accelerated Graphics port) slot.-AGP specification

compliant

For 32-bit Master PCI Bus slots and Two 16-bit ISA bus slots

wherein one shared slot that can be used as ISA or PCI.

ACPI (ATX Power Supply Mode)

Power management. Slot-off Control.

Supports Modem Ring-in.

Supports RTC Alarm wake up.

Enhance PCI IDE & I/O Interface

Supports two PCI Bus, Master IDE ports (up to 4 IDE devices)

Supports Ultra DMA/66 function.

Supports SCSI/CD-ROM function.

Page 3

floppy port supports 2FDD with 360k, 720k, 1.2M, 1.44M and 2.88M

bytes.

2.serial ports (COM1+COM2 Two 16550 high speed UART ports).

1.paralle1 port supports SPP/EPP/ECP mode.

2.USB ports.

1.IrDA TX/RX Header.

PS/2 Keyboard interface and PS/2 mouse interface.

System Green BIOS

Flash BIOS option on board, AWARD deep green BIOS, PLUG & PLAY,

PnP function.

C H A P T E R 2 Hardware

Installation

2.1 Mainboard Layout and Connectors Jumpers View

Page 3

SuperTek

= Auto configuration for PCI add-on cards.= CPU stop-clock, real zero clock for CPU.

I/O Device's power saving, APM& SMI.

Implements the EPA Energy Star PC specification with Deep Green

system design. # F u l l -on : System runs in full speed CPU clock. # D o z e : System scales-down CPU clock. # Standby : System scales-down the CPU clock, and turns off video display and spin-off hard disk drives. # Suspend : With SMM CPU, stop CPU clock in suspend mode.

Power Connect

ATX Power Supply.

PCB Dimension

ATX Form Factor : 30.3 cm (L) x 18cm (W) x 4 layers PCB.

Double deck I/O connectors, compatible with Intel Venus Mainboard.

2. 2 Connectors and Jumper Setting

CN1 : PS/2 Mouse Connector & Keyboard Connector CN2 : USB( Universal Serial Bus ) Connector CN4.5 : Serial Port1 Connector, Serial Port2 Connector, Printer Port Connector

Page 4

ATX POWER SUPPLY CONNECTOR

IR : IR FIR/CIR Connect

WOL: WAKE ON LAN CONNECT For supporting this feature , the system must have a special sps (switching power Supply) supported, that must provide at least 800mA ability on the " 5V standby" voltage.

FAN1 : CPU FAN CONNECT

FAN2 : SYSTEM FAN CONNECT

The M/B W83781D IC to AUTO-detect

Page 4

SuperTek

5 6

1.CPU & System Temperature

2.CPU & System Voltage

3.CPU & System FAN Speed

Page 5

SuperTek

CMOS CLEAR SELECT

JP8, JP10, JP11: Clock select

RATE JP8-1 JP8-2 JP8-3 JP8-4

3X ON OFF ON ON

3.5X OFF OFF ON ON 4X ON ON OFF ON

4.5X OFF ON OFF ON 5X ON OFF OFF ON

5.5X OFF OFF OFF ON 6X ON ON ON OFF

6.5X OFF ON ON OFF 7X ON OFF ON OFF

Freq JP8-5 JP8-6 JP8-7 JP8-8 JP10 JP11 66MHZ OFF OFF ON ON 2-3 2-3 75MHZ OFF ON ON ON 2-3 2-3

100MHZ OFF OFF OFF ON 2-3 1-2 112MHZ OFF ON OFF ON 2-3 1-2 133MHZ OFF OFF OFF OFF 1-2 1-2

JP9:

Page 5

7 8

Page 6

SuperTek

2.3 INSTALL CPU

2.3.1 For Celeron, Pentium II & III CPU

The motherboard provides a Single Edge Contact (SEC) slot for processor packaged in an SEC cartridge. Follow these steps to install CPU:

Mount the Universal Retention Mechanism (URM) & Insert the CPU :

( The illustration is just for reference)

This URM was designed to accommodate 3 types of CPU Form Factor. (SECC,SECCII&SEPP). For Example : Pentium II/III & Celeron family.

Note : Please put a soft pad under M/B before the installation of URM.

Installation for SECC CPU : (1) Leave space below each mounting hole for the fastener to protrude through the hole. (2) Position URM on the M/B next to the slot1 connector. (3) Push down retainer pin into respective fastener to secure URM onto the M/B. (4) Push CPU into URM to contact with slot 1. (5) Make sure latching portion of CPU engaged with windows ledge of URM.

Installation for SECC II or SEPP CPU : (1) Same as step (1) of SECC. (2) Same as step (2) of SECC. (3) Same as step (3) of SECC. (4) Same as step (4) of SECC. (5) Snap in 2 clips into side windows of URM to secure SEPP CPU.

1: Retention Mechanism

2: Clip

3: Retainer Pin

4: Fastener

If there is a fan on the CPU, Please plug in the fan cable to the three pin fan connector on the motherboard ( CPUFAN)

2.3.2 For Socket 370 CPU

Before installing CPU, make sure the power is ff. Locate the level bar on the PGA370ZIF socket. Push level bar away from the socket and pull upward 90 degrees. Insert the CPU into the socket. Make sure the notch of the CPU corresponds with the white dot on the ZIF socket (the corner without pin socket).Do not push in the CPU. Make sure all pins are aligned with the CPU socket. On the level bar.

Page 7

Page 6

SuperTek

2.4 INSTALL MEMORY

This motherboard has 4*168-pin 64-bit Dual Inline Memory Module(DIMM) sockets devided into 2 banks. You can install 3.3V unbuffered PC100-compliant Synchronous DRAM (SDRAM) memory.

Some DIMM memory have SPD (Serial Presence Detect) 8-pin IC on module. When 4 piece DIMM on motherboard, it is not recommended the SPD (Serial Presence Detect) DIMM blends and non-SPD DIMM.

(1) PCB LAYOUT AND RELEVANT POSITIONS FOR DIMM X4

2) The support different type of settings for the system memory . There is no jumper nor connect needed for memory configuration. Following figures provides all possible memory combinations.

SDRAM& EDO STATUS BANK0 BANK1 BANK2 BANK3 DIMM1 DIMM2 DIMM3 DIMM4

INSTALLED NONE NONE NONE OK

NONE INSTALLED NONE NONE OK NONE NONE INSTALLED NONE OK

NONE NONE NONE INSTALLED OK INSTALLED INSTALLED NONE NONE OK INSTALLED NONE INSTALLED NONE OK INSTALLED NONE NONE INSTALLED OK

NONE INSTALLED INSTALLED NONE OK

NONE INSTALLED NONE INSTALLED OK

NONE NONE INSTALLED INSTALLED OK INSTALLED INSTALLED INSTALLED NONE OK INSTALLED INSTALLED NONE INSTALLED OK INSTALLED NONE INSTALLED INSTALLED OK

NONE INSTALLED INSTALLED INSTALLED OK INSTALLED INSTALLED INSTALLED INSTALLED OK

Page 8

NOTE :

1.SDRAM Module Specification : 3.3 V Only.

2.For 100 MHZ BUS CLK . We Suggests Using " PC-100" SDRAM SPEC.

3.For Better Reliability . We Suggests Using SPD (Serial Port Data) SDRAM SPEC.

2.4.1 Installation of 168-pin DIMM (Dual Inline Memory Module)

1.Before inserting the DIMM, make sure the pin 1 of the DIMM matches with

the pin 1 on the DIMM socket.

C h a p t e r 3 B I O S

SETUP

3.1 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Mean will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the

Page 7

SuperTek

2.Insert DIMM into the DIMM sockets at a 90-degree angle and press down.

2.4.2 Removal of 168-pin DIMM

1.Press the holding clips on both sides of the socket outward to release the

DIMM.

2.Gently pull the DIMM out of the socket.

I n s t a l l D I M M R e m o v e D I M M

items and press <Enter> to accept and enter the sub-menu.

ROM PCI/ISA BIOS (2A6LGG99)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION SETUP LOAD BIOS DEFAULTS LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

E s c : Q u i t ÈÍËÁ: Select Item F10 : Save & Exit Setup (Shift) F2 : Change Color

Time, Date, Hard Disk Type...

Note that a brief description of each highlighted selection appears at the bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall that some systems may not include all entries.

Standard CMOS Setup

This setup page includes all the items in a standard, AT-compatible BIOS.

BIOS Features Setup

This setup page includes all the items of Award special enhanced features.

Page 9

Super/User Password Setting

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

Chipset Features Setup

This setup page includes all the items of chipset special features.

Power Management Setup

This entry only appears if your system supports Power Management, "Green PC" standards.

PNP/PCI Configuration Setup

This entry appears if your system supports PNP/PCI.

Load BIOS Defaults

The BIOS defaults have been set by the manufacturer and represent settings which provide the minimum requirements for your system to operate.

Load Setup Defaults

The chipset defaults are setting which provide for maximum system performance. While Award has designed the custom BIOS to maximize performance, the manufacturer has the right to change these defaults to meet their needs.

3.2 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

ROM PCI/ISA BIOS (2A6LGG99)

STANDARD CMOS SETUP

AWARD SOFTWARE.INC.

Date (mm:dd:yy) : Thu, Jun 4 1998 Time (hh:mm:ss) : 14:11: 1

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDE SECTOR MODE Primary Master Primary Slave Secondary Master Secondary Slave

:Auto :Auto :Auto :Auto

0 0 0 0

Auto Auto Auto Auto

Drive A Drive B

: 1.44, 3.5 in. : None

V i d e o :EGA/VGA

Base Memory : 640K

Extended Memory: 261120K

Page 8

SuperTek

Integrated Peripherals

This section page includes all the items of IDE hard drive and programmed Input/ Output features.

IDE HDD Auto Detection

Automatically detect and configure hard disk parameters. The Award BIOS includes this ability in the event you are uncertain of your hard disk's parameters.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Save

Abandon all CMOS value changes and exit setup.

Halt On :All, But Keyboard Other Memory : 384KTotal Memory : 262144K

ESC F1

: Quit : Help

ÈÍËÁ : Select Item (shift) F2 : Change Color

PU/PD/+/- : Modify

Date

The date format is <day>,<date><month><year>. Press <F3> to show the calendar. day The day, from Sun to Sat, determined by the BIOS and is

display-only. date The date, from 1 to 31 (or the maximum allowed in the month) month The month, Jan through Dec. year The year, from 1900 through 2099

Time

The time format is <hour><minute><second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00

Page 10

SuperTek

Primary Master/ Primary Slave/ Secondary Master/ Secondary Slave

The categories identify the types of 2 channels that have been installed in the computer. There are 45 predefined types and 4 user definable types are for Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type user is user-definable.

Press PgUp or PgDn to select a numbered hard disk type or type the number and press<Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Type "User" to define your own drive type manually.

If you select Type "User" , you will need to know the information listed below. Enter the information directly from the keyboard and press<Enter>. This information should be included in the documentation from your hard disk vendor or the system manufacturer.

If the controller of HDD interface is ESDI, the selection shall be "Type1". If the controller of HDD interface is SCSI, the selection shall be "None".

If you selection Type "Auto", BIOS will Auto-Detect the HDD & CD-ROM Drive at the POST stage and showing the IDE for HDD & CD-ROM Drive.

TYPE drive type

CYLS. number of cylinders

HEADS number of heads

PRECOMP write precom LANDZONE landing zone

SECTORS number of sectors MODE mode type

If a hard disk has not been installed select NONE and press<Enter>.

Drive A Type/ Drive B Type

The category identifies the types of floppy disk drive A or drive B that have been installed in the computer.

None No floppy drive installed

360K, 5.25 in 5-1/4 inch PC-type standard drive; 360kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive;1.2megabyte capacity

720M, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

Video

The category selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type in Setup.

EGA / VGA Enhanced Graphics Adapter/ Video Graphics Array, For

EGA, VGA, SEGA, SVGA, or PGA monitor adapters.

CGA 40 Color Graphics Adapter, power up in 40 column mode CGA 80 Color Graphics Adapter, power up in 80 column mode MONO Monochrome adapter, includes high resolution monochrome

adapters.

Halt On

The category determines whether the computer will stop if an error is detected during power up.

No errors Whenever the BIOS detects a non-fatal error the system

will be stopped and you will be prompted.

All errors The system boot will not be stopped for any error that

may be detected.

All, But Keyboard The system boot will not stop for a keyboard error, it will

stop for all other errors.

All, But Diskette The system boot will not stop for a disk error; it will stop

for all other errors.

All, But Disk/Key The system boot will not stop for a keyboard or disk

error; it will stop for all other errors.

Page 9

17 18

Memory

The category is display-only which is determined by POST (Power on Self Test) of the BIOS.

Page 11

SuperTek

Base Memory

The POST will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for system with 640K r more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above IMB in the CPU's

memory address map.

Other Memory

This refers to the memory located in the 640K to 1024K address space. This is memory that can be used for different applications. DOS uses this area to load device drivers in an effort to keep as much base memory free for application programs. The BIOS is the most frequent user of this RAM area since this is where it shadows RAM.

3.3 BIOS Features Setup

This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, keyboard operation, shadowing and security.

ROM PCI / ISA BIOS (2A6LGG99)

BIOS FEATURES SETUP

AWARD SOFTWARE. INC.

Video BIOS Shadow C8000-CBFFF Shadow CC000-CFFFF Shadow D0000-D3FFF Shadow D4000-D7FFF Shadow D8000-DBFFF Shadow DC000-DFFF Shadow

: Enabled : Disabled : Disabled : Disabled : Disabled : Disabled : Disabled

Virus Warning CPU Internal Cache External Cache CPU L2 Cache ECC Checking Quick Power On Self Test Boot Sequence Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status IDE HDD Block Mode Gate A20 Option Memory Parity/ECC check Typematic Rate Setting Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option PCI/VGA Palett Snoop OS Select For DRAM>

: Disabled : Enabled : Enabled : Enabled : Enabled : A, C, SCSI : Disabled : Enabled : On : Enabled : Fast : Disabled : Disabled : 6 : 250 : Setup : Disabled : Non-OS2

ESC : Quit ÈÍËÁ : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

Virus Warning When this item is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive for any attempt at modification. If an attempt is made, the BIOS will halt the system and the following error message will appear. Afterwards, if necessary, you will be able to run an antivirus program to locate and remove the problem before any damage is done.

! WARNING !

Disk boot sector is to be modified

Type "Y" to accept write or "N" to abort write

Award Software, INC.

Page 12

Page 10

SuperTek

Enabled Activates automatically when the system boots up causing a

warning message to appear when anything attempts to access the boot sector or hard disk partition table.

Disabled No warning message will appear when anything attempts to

access the boot sector or hard disk partition table.

NOTE:

Many disk diagnostic programs which attempt to access the boot sector table can cause the above warning message. If you will be running such a program, we recommend that you first disable Virus Protection beforeband.

CPU Internal Cache/External Cache

These two categories speed up memory access. However, it depends on CPU/chipset design. The default value is enable.

Enabled Enabled cache

Disabled Disabled cache

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enabled, BIOS will shorten or skip some check items during POST.

Enabled Enable quick POST

Disabled Normal POST

Boot Sequence

The category determines which drive to search first for the disk operating system ( i.e., DOS ). Default value is A,C.

C,A System will first search for hard disk drive then floppy disk

drive.

A,C System will first search for floppy disk drive then hard disk

drive.

CDROM,C,A System will first search for CDROM drive, then hard disk

drive and then floppy disk drive.

C,CDROM,A System will first search for hard disk drive, then CDROM

drive, and then floppy disk drive.

Swap Floppy Drive

This item allows you to determine whether enable the swap floppy drive or not.

The choice: Enabled / Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80

tracks. Note that BIOS can not tell from 720K, 1.2M or 1.44M drive type as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track

number. Note that there will not be any warning message if the drive installed is 360K.

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on.

On Keypad is number keys Off Keypad is arrow keys

IDE HDD Block Mode This allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive(HDD).

Enabled IDE controller uses block mode.

Disabled IDE controller uses standard mode

Enabled is the default.

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate A20 is a device used to address memory above 1 Mbytes. Initially, the gate A20 was handled via a pin on the keyboard. Today, while keyboards still provide this support, it is more common, and much faster, for the system chipset to provide support for gate A20.

Normal Keyboard Fast chipset

Typematic Rate setting

This determined if the typematic rate is to be used. When disabled, continually holding down a key on your keyboard will generate only one instance. In other words, the BIOS will only report that the key is down.

Page 13

When the typematic rate is enabled, the BIOS will report as before, but it will then wait a moment, and, if the key is still down, it will begin the report that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys.

Enabled Enabled typematic rate Disabled Disable typematic rate

< Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.

OS Select for DRAM > 64

This item allows you to access the memory that over 64MB in OS/2. The choice: Non-OS2, OS2.

PCI/ VGA Palette Snoop

Page 11

SuperTek

Typematic Rate (Chars/Sec)When the typematic rate is enabled, this selection allows you select the rate

at which the keys are accelerated.

6 6 characters per second

8 8 characters per second

10 10 characters per second

12 12 characters per second

15 15 characters per second

20 20 characters per second

24 24 characters per second

30 30 characters per second

Typematic Delay (Msec)

When the typematic rate is enabled, this selection allows you to select the delay between when the key was first depressed and when the acceleration begins.

250 250 msec 500 500 msec 750 750 msec 1000 1000 msec

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System The system will not boot and access to Setup will be denied if the

correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if the

correct password is not entered at the prompt

Note : To disable security ,select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press

It determines whether the MPEG ISA/VESA VGA Cards can work withPCI/VGA or not.

Enabled When PCI/VGA working with MPEG ISA/VESA VGA Card.

Disabled When PCI/VGA not working with MPEG ISA/VESA VGA Card.

Video BIOS Shadow

Determines whether video BIOS will be copied to RAM. However, it is optional depending on chipset design. Video Shadow will increase the video speed.

Enabled Video shadow is enabled

Disabled Video shadow is disabled

C8000-CBFFF Shadow/DC000-DFFFF Shadow

These categories determine whether option ROMs will be copied to RAM. An example of such option ROM would be support of on-board SCSI.

Enabled Optional shadow is enabled Disabled Optional shadow is Disabled

Page 14

3.4 Supervisor/ User Password Setting

You can set either supervisor or user password, or both of then. The differences between are:

supervisor password : can enter and change the options of the setup menus. user password: just can enter but do not have the right to change the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <ESC> to abort the selection and not enter a password.

To disabled a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

3.5 Chipset Features Setup

ROM PCI/ISA BIOS (2A6LGG99)

CHIPSET FEATURES SETUP

AWARD SOFTWARE.INC.

CPU Warning Temperature Current System Temperature Current CPU1 Temperature Current CPUFAN Speed Current SystemFAN Speed

: Disabled : 39°C /120°F

: 27°C/80°F :4500RPM

: 0 RPM

CPU (V) DIM (V) +12V

-5V +5V

-12V

: 2.00V : 3.31V : 11.97V : -5.09V : 4.97V : -11.48V

Bank 0/1 DRAM Timing Bank 2/3 DRAM Timing Bank 4/5 DRAM Timing Bank 6/7 DRAM Timing SDRAM Cycle Length DRAM Clock Memory Hole Read Around Write Concurrent PCI/HOST System BIOS Cachable Video RAM Cachable AGP Aperture Size AGP-2X Mode Onchip USB USB Keyboard Support

: SDRAM 10ns : SDRAM 10ns : SDRAM 10ns : SDRAM 10ns : 3 : HCLK-33M : Disabled : Disabled : Disabled : Enabled : Disabled : 64M : Enabled : Enabled : Disabled

ESC : Quit ÈÍËÁ :Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Value (Shift) F2 : Color F6 : Load BIOS Default F7 : Load Setup Defaults

Page 12

SuperTek

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 4) .If the Security option is set to "System", the password will be required both at boot and at entry to Setup. If set to "Setup", prompting only occurs when trying to enter Setup.

Bank 0/1 DRAM Timing : SDRAM 10 ns

This item allows you to setting DIMM1 DRAM Timing. The default is SDRAM10ns.

Bank 2/3 DRAM Timing : SDRAM 10 ns

This item allows you to setting DIMM2 DRAM Timing. The default is SDRAM10ns.

Bank 4/5 DRAM Timing : SDRAM 10 ns

This item allows you to setting DIMM3 DRAM Timing. The default is SDRAM10ns.

Bank 6/7 DRAM Timing : SDRAM 10 ns

This item allows you to setting DIMM4 DRAM Timing. The default is SDRAM10ns.

Other Choice: Normal/Medium/Fast/Turbo is for FPG/EDO Timing setting.

SDRAM Cycle Length : 3

Page 15

This item allows you to setting SDRAM CAS Latency : 3T or 2T The Default is "3".(3T)

DRAM Clock : HCLK-33M

The item allows you to setting DRAM Clock Base on then the CPU Clock(Host Clock) The Default is HCLK-33M Host CLK : CPU Clock HCLK-33M : CPU Clock-33MHz HCLK+33M : CPU Clock +33MHz

System BIOS Cacheable

This item allows you to select Enabled, Disabled. The default is Disabled.

Video BIOS Cacheable

This item allows you to select Enabled, Disabled. The default is Disabled.

Video RAM Cacheable

This item allows you to select Enabled, Disabled. The default is Disabled.

Memory Hole At 15M-16M

Some special add-on cards require a 1MB address space between 15 and 16MB. The documentation for this type of card should prompt you if it need this. The default setting is Disabled.

AGP Aperture Size (MB)

This item sets the maximum amount of system memory that an AGP card will use to store 3D texture mapping data. The larger aperture makes the better performance of the 3D function. The settings range from 4MB to 256MB. The default setting is "4MB".

CPU Warning Temperature

You can set the temperature of CPU from 50°C to 70°C by yourself when the CPU running and its temperature become too hot then temperature sensor will be limited CPU speed with your default value and make the system stable.

Current CPU FAN Speed

Display current CPU FAN Speed (FAN1 Connect)

Current System FAN Speed

Display current System FAN Speed (FAN2 Connect)

CPU(V)

Display Current CPU Vcore Voltage

DIM(V)

Display Current DIMM Vcore Voltage

+12V

Display +12V Vcore Voltage

-12V

Display -12V Vcore Voltage

+5V

Display +5V Vcore Voltage

-5V

Display -5V Vcore Voltage

Page 13

SuperTek

Current System Temperature

Display current System Temperature.

Current CPU Temperature

Display current CPU Temperature.

Page 16

SuperTek

Integrated Peripherals

ROM PCI/ISA BIOS (2A6LGG99)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

Uart Mode Select

Onboard Parallel Port2 Parallel Port Mode

: Normal

: 378/IRQ7 : SPP

OnChip IDE channel 0 OnChip IDE channel 1 IDE Prefetch Mode Primary Master PIO Primary Slave PIO Secondary Master PIO Secondary Slave PIO Primary Master UDMA Primary Slave UDMA Secondary Master UMDA Secondary Slave UMDA Init Display First POWER ON Function

KBC input clock Onboard FDC Controller Onboard Serial Port1 Onboard Serial Port 2

: Enabled : Enabled : Enabled : Auto : Auto : Auto : Auto : Auto : Auto : Auto : Auto : AGP : Button only

: 8MHz : Enabled : Auto : Auto

ESC : Quit ÈÍÁË : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

POWER OFF SYSTEM

There are two ways to power off the system. They are "Power Button" and "OS". (such as windows® 95 and windows® 98, after you shut down the OS the system will power off automatically).

POWER ON SYSTEM

This mainboard provides several ways to power on a system that includes "BUTTON ONLY", "Password", "Hot KEY", "Mouse Left" and "Mouse Right". After this mainboard has been assembled in a system, depend on the different system configuration there are several ways to power on the system. Every way has one or more condition(s) or restriction(s) to achieve its function. Please read the following description refer proceeding.

POWER BUTTON

This is an overrideable button. Please refer to page 3-6 for detailed function description. Note that, if the CMOS setup item "POWER ON Function" is set as "Password" (which located at "INTEGRATED PERIPHERALS", please refer to page 3-5) this button will lose power on function (the power off function is always valid).

KEYBOARD (PASSWORD OR HOT KEY)

Depend on the different CMOS setup, there are two ways to power on by keyboard they are "Password" and "Hot KEY". No matter the setup is "Password" and "Hot KEY", every time if you change this setup item, the functions will become effective after next time the keyboard has been initiated during POST (Power On Self Test). Anytime if you forget the "Password", just disconnect the AC power abort 30-60 seconds then re-connect the AC power, the power button will restore its function and you have a chance to use the power button to turn on the system.

PS/2 (MOUSE LEFT OR MOUSE RIGHT)

Depend on the different CMOS setup, you could use the "Left Key" or "Right Key" PS/2 mouse to turn on the system.

When you use this function you must click the mouse key quickly and continually until the system power on, usually, that maybe need 2-5 times clicked. No matter the setup is "Mouse Right" or "Mouse Left", every time if you change this setup item, the functions will become effective after next time the keyboard has been initiated during POST (Power On Self Test). This function is unavailable while using a COM (serial) port mouse.

Page 14

Page 17

SuperTek

PCI Slot IDE 2nd Channel

This item allows you designate an IDE controller board inserted into one of the physical PCI slots as your secondary IDE controller.

Enabled External IDE controller designated as the

secondary controller

Disabled No IDE controller occupying a PCI slot.

Enabled is the default.

IDE PIO

IDE hard drive controller can support up to two separate hard drives. These drives have a master / slave relationship which are determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers-a primary and a secondary-so you have to ability to install up to four separate hard disks.

PIO means Programmed Input / Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. This simpler and more efficient (and faster).

Your system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode. This is true for the next four setup items.

1. IDE Primary Master PIO

2. IDE Primary Slave PIO

3. IDE Secondary Master PIO

4. IDE Secondary Slave PIO

On-Chip IDE Channel 0

As stated above, your system includes two built-in IDE controllers, both of which operate on the PCI bus. This setup item allows you either to enable or disable the primary controller. You might choose to disable the controller if you were to add a higher performance or specialized controller.

Enabled Primary HDD controller used-Default

Disabled Primary HDD controller not used.

On-Chip IDE Channel 1

As above for the Primary controller, this setup item you either to enable or disable the secondary controller. You might choose to disable the controller if you were to add a higher performance or specialized controller.

Enabled Primary HDD controller used

Disabled Primary HDD controller not used.

Enabled is the default.

Page 18

3.6 Setup Power Management

The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use.

ROM PCI/ISA BIOS (2A6LGG99)

RTC ALARM

For this function you must set the CMOS setup item "Resume by Alarm" to "enabled" and set the accurate data and time in next two fields. When these date and time are equal to the RTC's data and time, the system will be power on. Every time if you change these setup items, the functions will become effective after next time the keyboard has been initiated during POST (Power

Page 15

SuperTek

POWER MANAGEMENT SETUP

AWARD SOFTWARE. INC.

Primary INTR IRQ 3 (COM2) IRQ 4 (COM1) IRQ 5 (LPT2) IRQ 6 (Floppy Disk) IRQ 7 (LPT1) IRQ 8 (RTC Alarm) IRQ 9 (IRQ2 Redir) IRQ 10 (Reserved) IRQ 11 (Reserved) IRQ 12 (PS/2 mouse) IRQ 13 (Processor) IRQ 14 (Hard Disk) IRQ 15 (Reserved)

: ON : Primary : Primary : Primary : Secondary : Secondary : Secondary : Secondary : Secondary : Secondary : Primary : Secondary : Secondary : Secondary

ACPI function Power Management PM Control by APM

Video Off After Video Off Method MODEN Use IRQ Soft-off By PWRBTTN Doze Mode Suspend Mode HDD Power Down VGA Active Monitor ** PM Events** Modem Ring Resume RTC Alarm Resume VGA LPT & COM HDD & FDD DMA / Master

Wake on Lan

: Enabled : User Define : Yes

: Standby : V/H SYNC+Blank : 3 : Instant-OFF

: Disabled : Disabled : Disabled : Disabled

: Disabled : Disabled :OFF : LPT / COM : ON : OFF

: Disabled

E S C : Q u i t ÈÍËÁ: Select Item F 1 : H e l p F5 : Old Values PU/PD/+/- : Modify F6 : Load BIOS Defaults (Shift)F2 : Color F7 : Load Setup Defaults

H Soft-off By PWR-BTTN

If the CMOS setup is "Delay 4 Sec". Selected, this switch's function is : HPWSW (JP9) : ATX power Switch Connect within 1 seconds, the

system will get into Suspend mode. (get into a GREEN mode)

HPWSW (JP9) : ATX power Switch Connect beyond 4 seconds, the

system will power off.

If the CMOS setup is "Install-off" selected, this switch's function is: HPWSW (JP9) : ATX power Switch Connect, the system will power off

instantly.

On Self Test)

MODEN RING-IN

If you have an external MODEN connected to COM A or COM B port, you could power on the system by MODEM via a phone called. For this function you must set the COMS setup item "Resume buy Ring or LAN" to "enabled". Every time if you change this setup item, the function will become effective after next time the "DMI pool data" has been verified. The system will verify the DMI pool data just before loading the OS (operating system). This function will be malfunction if any time the system has been power on but the DMI pool data has not been verified. This function is unavailable while using an internal MODEM card.

WAKE ON LAN

There is a WOL connector (WOL) on mainboard is for connecting a signal cable from a LAN card that supports a Wake On LAN feature. When a LAN card that supports this is installed and connected to the mainboard via this connector, the system will power on when the remote system is access via the LAN. For this function you must set the CMOS setup item "Resume buy Ring or LAN" to "enabled". Every time if you change this setup item, the function will become effective after next time the "DMI pool data" has been verified. The system will verify the DMI pool data just before loading the OS (operating system). This function will be malfunction if any time the system has been power on but the DMI pool data has not been verified.

Power Management

This category allows you select the type (or degree) of power saving and is directly related to the following modes:

1. Doze Mode 3. Suspend Mode

2. Standby Mode

4. HDD Power Down

Page 19

There are four selections for Power Management, three of which have fixed mode settings

Disable (default) No power management. Disables all four modes

Min. Power Saving Minimum power management. Doze Mode=1hr.

Standby Mode = 1hr., Suspend Mode =1 hr., and HDD Power Down = 15 min.

Max. Power Saving Maximum power management -ONLY

AVAILABLE FOR SL CPU'S. Doze Mode =1 min., Standby Mode =1 min., Suspend Mode =1 min., and HDD Power Down =1 min.

User Defined Allows you to set each mode individually. When not

disabled, each of the ranges are from 1 min. to 1 from 1 min. to 15 min. and disable.

PM Control APM

When enabled, an Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU internal clock.

Standby Mode

When enabled and after the set time of system inactivity, the fixed disk drive and the video would be shut off while all other devices still operate at full speed.

Suspend Mode

When enabled and after the set time of system inactivity, all devices except the CPU will be shut off.

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Power Down & Resume Events

Power Down and Resume events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured a On, even when the system is in a power down mode.

On and Off. Off

Page 16

SuperTek

If the Max. Power Saving is not enabled, this will be preset to NO .

Video Off Method

This determines the manner in which the monitor is blanked.

V /H SYNC+Blank This selection will cause the system to turn off the

vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video buffer.

DMPS Initial display power management signaling.

PM Timers

The following four modes are Green PC power saving functions which are only user configurable when User Defined Power Management has been selected. See above for available selections.

Doze Mode

When enabled and after the set time of system inactivity, the CPU clock will run at slower speed while all other devices still operate at full speed.

As above, the choices are is the default.

When set On, activity will neither prevent the system from going into a power management mode nor awaken it.

l IRQ3 (COM2) l IRQ4 (COM1) l IRQ5 (LPT2) l IRQ6 (Floppy Disk) l IRQ7 (LPT1) l IRQ8 (RTC Alarm) l IRQ9 (IRQ2 Redir) l IRQ10 (Reserved) l IRQ11 (Reserved) l IRQ12 (Reserved) l IRQ13 (Coprocessor) l IRQ14 (Hard Disk) l IRQ15 (Reserved)

Page 20

Soft-off By PWR-BTTN (For ATX POWER ONLY)

This item allows you to select Delay 4 sec or Instant-off.

Resume By Ring (For ATX POWER ONLY)

This item allows you to select Disabled, Enabled. If a Fax Modem was connected with serial ports, the computer will be awoken when it received a signal from outside.

Resume By Ring, Setup for MS-DOS mode

1. Select Resume By Ring : Enabled

2. Save the Value and Exit. This system will Reboot.

3. Power off your system by pressing the power button on the panel.

Resume By Ring, Setup for WIN95 mode

1. Select Resume By Ring : Enabled

2. Save the Value and Exit. This system will Reboot.

3. When you want leave WIN95, select Shut down. The power off by software

Resume By Alarm (For ATX POWER ONLY)

This item allows you to select Disabled, Enabled. Which allows the user setting date (Day / Hour/Minute) in advance for turning on the system with a range in 30 days. The system will be awoken on the date according to the user'ssetup.

Resume By Alarm Setup for MS-DOS mode

1. Select Resume By Alarm : Enabled

2. Set the (Day/Hour/Minute) you desire to wake up your system

3. Save the Value and Exit. This system will Reboot.

4. Power off your system by pressing the power button on the panel.

Resume By Alarm Setup for win95 mode

3.7 Setup PnP/PCI Configuration

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

ROM PCI/ISA BIOS (2A6LGG99)

PNP/PCI CONFIUGURATION

AWARD SOFTWARE. INC.

PNP OS Installed Resources Controlled BY Resources Configuration Data

: No : Manual : Disable

CPU to PCI Write Buffer PCI Dynamic Bursting PCI Master 0 WS Write PCI Delay Transaction PCI #2 Access #1 Retry AGP Master 1 WS Write AGP Master 1 WS Read Assign IRQ For USB Assign IRQ For VGA

: Enabled : Enabled

: Enabled : Enabled : Disabled : Enabled : Disabled : Enabled : Enabled

IRQ-3 assigned to IRQ-4 assigned to RQ-5 assigned to IRQ-7 assigned to IRQ-9 assigned to IRQ-10 assigned to IRQ-11 assigned to IRQ-12 assigned to IRQ-14 assigned to IRQ-15 assigned to DMA-0 assigned to DMA-1 assigned to DMA-3 assigned to DMA-5 assigned to DMA-6 assigned to DMA-7 assigned to

: PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA Pnp : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP : PCI/ISA PnP

ESC : Quit ÈÍËÁ: Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F 6 : L o a d B I O S D e f a u l t s F 7 : L o a d S e t u p D e f a u l t s

Page 17

SuperTek

1. Select Resume By Alarm : Enabled

2. Set the (Day/Hour/Minute) you desire to wake up your system

3. Save the Value and Exit. This system will Reboot.

4. When you want leave WIN95, select Shut down. The power off by software

Resource Controlled byThe Award Plug and Play BIOS has the capacity to automatically configure

all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play Operating system such as Windows® 95.

Choices are Auto and Manual (default).

Page 21

SuperTek

Reset Configuration Data

This item allows you to determine reset the configuration data or not.

Choices are Enabled and Disabled (default).

IRQ3/4/5/7/9/10/11/12/14/15, DMA0/1/3/5/6/7 assigned to

This item allows you to determine the IRQ / DMA assigned to the ISA bus and is not available to any PCI slot.

Choices are Legacy ISA and PCI/ISA PnP.

PCI IRQ Activated by

This sets the method by which the PCI bus recognizes that an IRQ service is being requested by a device. Under all circumstances, you should retain the default configuration unless advised otherwise by your system's. manufacturer.

Choices are Level (default) and Edge .

PCI IDE IRQ MAP to This allows you to configure your system to the type of IDE disk controller in use. By default, Setup assumes that your controller is an ISA (Industry Standard Architecture) device rather than a PCI controller. The more apparent difference is the type of slot being used.

If you have equipped your system with a PCI controller, changing this allows you to specify which slot has the controller and which PCI interrupt (A,B,C or D) is associated with the connected hard drives.

Remember that this setting refers to the hard disk itself, rather than individual partitions. Since each IDE controller supports two separate hard disk drivers, you can select the INT# for each. Again, you will note that the primary has a lower interrupt than the secondary as described in "Slot x Using INT#" above. Selecting "PCI Auto" allows the system to automatically determine how your IDE disk system is configured.

3.8 Update BIOS Procedure

1.Find out what the exact model name and PCB version of your motherboard

is. You can see these words on the top left of the screen when you

just

boot up your computer.

2.Create an empty bootable disk by typing the following command: format a:/s (The reason for doing this is that the Award flash utility can only work well when there are no memory drivers installed or any other program to be running in the background).

3.In order to update your BIOS, you will need two files: a. The BIOS binary file (***.bin) b. The Award Flash BIOS Utility file (awdflash.exe)

4.Download the correct BIOS file (***.exe) you need from our web site.

5.Execute the BIOS file, then it will automatically self-decompress into a binary file and an Award flash BIOS utility file.

6.Now copy both of the files onto the bootable disk that was created by previous step.

7.Next, shut down your computer properly, then restart your computer using this disk and run AWDFLASH.EXE

8.Now you will see the Flash Memory Writer menu on your screen. The program will ask for the File Name to Program. Type in the exact name of the BIOS update binary file (***.bin), and press ENTER. (P-1)

FLASH MEMORY WRITER V7.07

For 693-596-E977-2A6LGG99C- 00 DATE: 09/16/1999

F l a s h T y p e

File Name to Program : P3VF0930 . bin Checksum : 36E8H

Error Message:

p-1

Page 18

Page 22

SuperTek

9.The program will now ask you that Do You Want To Save Bios. Type <y> (P-2) and then type the name of your current BIOS including its extension .bin after File Name to Save (P-3). Press <ENTER> and the program will save the current BIOS data to your current path.

FLASH MEMORY WRITER V7.07

For 693-596-E977-2A6LGG99C- 00 DATE: 09/16/1999

Flash Type

File Name to Program : P3VF0930 . bin Checksum : 36E8H

Error Message: Do you Want to Save BIOS (Y/N)

FLASH MEMORY WRITER V7.07

For 693-596-E977-2A6LGG99C- 00 DATE: 09/16/1999

F l a s h T y p e

File Name to Program : P3VF0930 . bin Checksum : 36E8H File Name To Save : P3VF0930. bin

Error Message:

10.Now the program will ask you whether or not to start program, type <y>, the updating process will now start (P-4). Do not turn the system off, wait until the system finishes the updating process and it displays message: Reset or Power Off the system (P-5 ) .

p-2

p-3

FLASH MEMORY WRITER V7.07

For 693-596-E977-2A6LGG99C- 00 DATE: 09/16/1999

F l a s h T y p e

File Name to Program : P3VF0930 . bin Checksum : 36E8H

File Name To Save : P3VF0930. bin

Error Message: Are you sure to program (Y/N)

FLASH MEMORY WRITER V7.07

For 693-596-E977-2A6LGG99C- 00 DATE: 09/16/1999

F l a s h T y p e

File Name to Program : P3VF0930 . bin Checksum : 36E8H

Programming Flash Memory-3FFFF OK

F1 Reset F10 Exit

11.Remove the floppy disk and restart the system. Once the BIOS has

been successfully loaded, you should restart the system in order to the

new BIOS revision to take effect. After restarting the system you have to

load the BIOS defaults. To do this, press <Delete> immediately after

switching the system on to enter BIOS setup. Choose "LOAD SETUP DEFAULTS", type <y> and press <Enter>(P-6). Finally, choose "SAVE & EXIT SETUP" to leave BIOS setup, and now you will complete the update BIOS procedure.

p-4

p-5

Page 23

Page 19

SuperTek

p-6

Notes:

1. If you try to flash a version of BIOS that is for the incorrect motherboard model the following message will appear: "Program files or part number does not match with your system"

2. If you are running Award flash utility in a impure DOS, Windows 9x or Windows NT environment, you will get the following error message: "Insufficient memory"

3. If your system does not startup anymore, please ask your supplier or us for

help.
