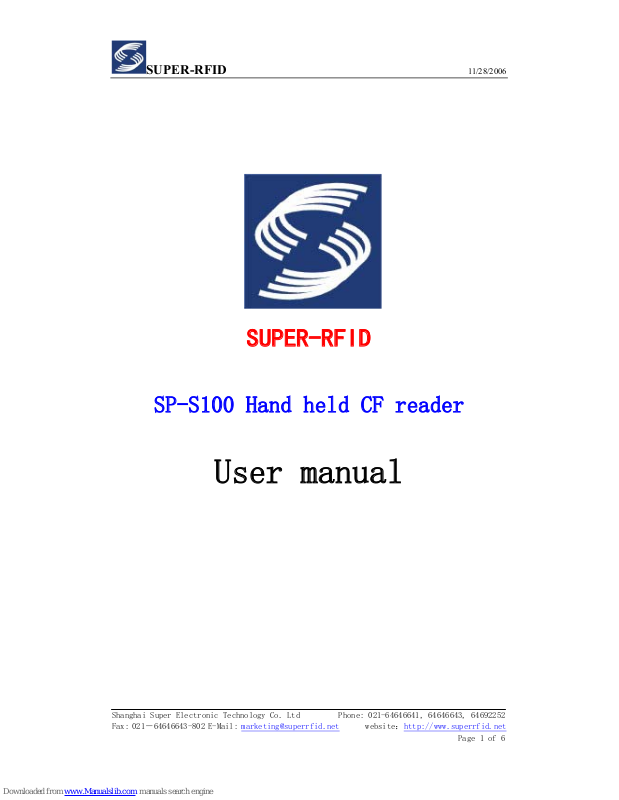

Super-RFID SP-S100 User Manual

SUPER-RFID 11/28/2006

SUPER-RFID

SP-S100 Hand held CF reader

User manual

Shanghai Super Electronic Technology Co. Ltd Phone: [phone]
Fax: [phone] E-Mail: [e-mail]

website：http://www.superrfid.net

Page 1 of 6

SUPER-RFID 11/28/2006

1. SP-S100 Hand held CF reader brief

description

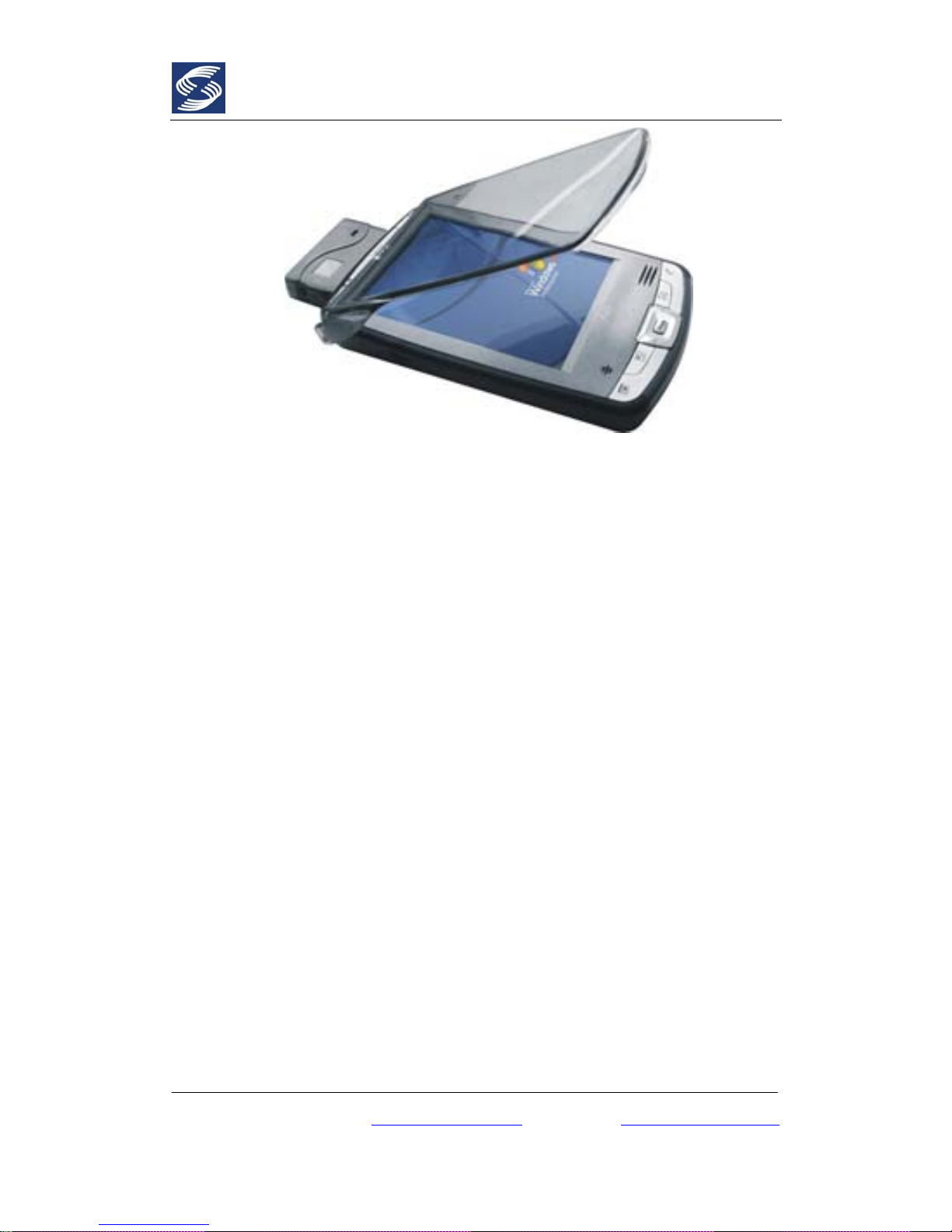

SP-S100 hand held reader/writer is the product of Shanghai Super electronic

technology Co. Ltd, the first RFID hand held PDA reader/writer communicating
with PC through CF interface in the whole world. It is microminiaturized, super light,
portable, extremely convenient and flexible. SP-S100 offers simple application
software to help customers get familiar with our products and do further
windows-based customized application development. Commonly, it is carried by
operator, finishing data collection for tags in certain area and simultaneously storing
collected data in PDA or transmitting to back-end via 802.11b/GPRS, or
automatically finishing data writing for tags in certain area under safety control. It is
capable of bidirectional and long distance communications with tags, able to
supervise hundreds of articles tag attached within range of 10 meters.

As important part of our systematic solution for RF identification, SP-S100 hand held

reader/writer fully demonstrated several advanced technologies of our unique
i-CollectedTM patent package, and integrated many other advanced technologies,
such as micro controller, RF technology, high speed data transmission, high capacity
data storage and imbedded real time system. Cooperating with other types of RFID
products in our company, it provides high quality solution for cases demanding
automatic identification, such as supply chain, storage, animal tracking, product line
management (working-in-progress) and electric power equipments routine check.

Shanghai Super Electronic Technology Co. Ltd Phone: [phone]
Fax: [phone] E-Mail: [e-mail]

website：http://www.superrfid.net

Page 2 of 6

SUPER-RFID 11/28/2006

Performance

1) Identification range is within 10 meters

2) Advanced anti-collision techniques, simultaneously identifying up to 200 tags

3) Applied channel isolation technology, no interferences between equipments

4) Capability of high speed bi-directional data transmission between tag , reader and

PC

5) Communicate with computer through RS232/483/weigand 26 or wirelessly

6) Encrypted and certified to assure data safety, preventive of eavesdropping and

intentional decoding

7) Work at globally free 2.45GHz ISM band

8) Ultra low RF transmission power consumption, healthier and safer

9) Applied 0.18uM technology to reduce cost

10) Meet harsh industrial environment requirements

11) Stable, work temperature range from -10℃ to 60℃, anti-impact design

12) Anti-jamming capability, tolerance of interfering sources at the scene

13) Applied design techniques of anti-interferences and thunders

Shanghai Super Electronic Technology Co. Ltd Phone: [phone]
Fax: [phone] E-Mail: [e-mail]

website：http://www.superrfid.net

Page 3 of 6

SUPER-RFID 11/28/2006

Specifications

Mechanical characteristics

parameters specifications

size 64mm×43mm×11mm

weight 20g

Shell material ABS、stainless steel

Color black

Installation manner Portable, handheld

Microwave link characteristics:

parameters

modulation GFSK GFSK
frequency 2.4 - 2.4835 GHz
Working volage 3.3V±10%
Transmission power ≤0dBm(software adjustable)
Antenna polarization linear polarization
Microwave communication range Within 10 meters
Microwave communication error check Cyclic redundancy check(CRC16)
Communication encryption Temporarily confidential

Bit error ratio/B.E.R

specifications

uplink downlink

-7

10

Electric characteristics:

parameters specifications

power

interface

Environment characteristics:

Shanghai Super Electronic Technology Co. Ltd Phone: [phone]
Fax: [phone] E-Mail: [e-mail]

Supplied by PDA

CF interface Communication
baud rate：19200

website：http://www.superrfid.net

Page 4 of 6

SUPER-RFID 11/28/2006

Parameters Specifications
temperature -40℃ — +80℃
Storage temperature -60℃ — +80℃

Anti-electromagnetism interferences 10V/m 0.1-1000MHz AM waves

reliability MTBF≥70000 hours
Work life 15 years

2. CF reader parameter setup for

testing software

CF reader testing software is named as “Cardreader”, open it, run Cardreader.exe, the

application interface is as follows:

Shanghai Super Electronic Technology Co. Ltd Phone: [phone]
Fax: [phone] E-Mail: [e-mail]

website：http://www.superrfid.net

Page 5 of 6

SUPER-RFID 11/28/2006

“reader” bar can be optionally blank, “count” display the number of tags having been detected,

“interval ” means the time interval of data renew, usually 1 to 2 seconds. “autosave ” is usually set

to 1, means one execution produce 1 data backup file.

Once setup is done, click “read”. ID numbers and corresponding read time of tags being detected

can be displayed on the PDA screen.

Warning:

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.
The equipment compliance with FCC radiation exposure limit set forth for
uncontrolled environment

Changes or modifications to this unit not expressly approved by the party
responsible for compliance will void the user’s authority to operate the equipment.
Any change to the equipment will void FCC grant.
