Supero X9DR3-F, X9DRi-F User Manual

USER’S MANUAL

Revision 1.1b

X9DR3-F

X9DRi-F

Manual Revision 1.1b

Release Date: December 19, 2013

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2013 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
and makes no commitment to update or to keep current the information in this manual, or to notify
any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our Website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE
USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC.
SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED
WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between the manufacturer and the customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of Santa Clara
shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for
all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Preface

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

X9DR3-F/X9DRi-F motherboard.

About This Motherboard

The Super X9DR3-F/X9DRi-F motherboard supports dual Intel® E5-2600(v2) Series

Processors (Socket R LGA 2011) that offer QPI (Intel QuickPath Interface) Tech-

nology (V.1.1), providing point-to-point connection with a transfer speed of up to

8.0 TG/s. With the PCH C606/C602 chipset built in, the X9DR3/i-F motherboard

supports Intel® Management Engine (ME), Rapid Storage Technology, Digital

Media Interface (DMI), PCI-E Gen. 3.0 and up to 1866 MHz DDR3 memory. This

motherboard is ideal for HPC/Cluster/Database 2U server platforms. Please refer

to our Website (http://www.supermicro.com) for CPU and memory support updates.

Manual Organization

Chapter 1 describes the features, specications and performance of the mother-

board, and provides detailed information about the Intel PCH C606/602 chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory, and system setup stored in the CMOS.

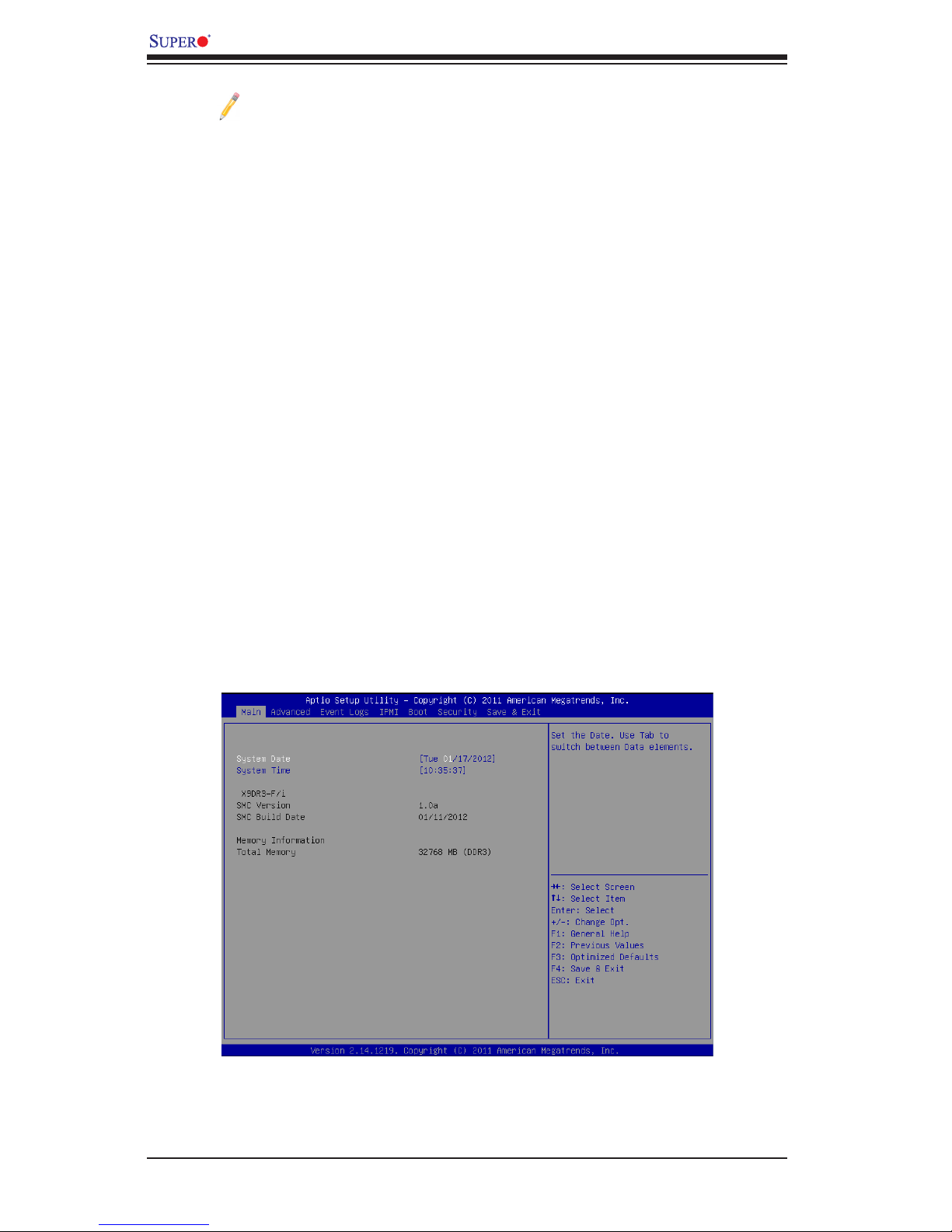

Chapter 4 includes an introduction to the BIOS, and provides detailed information

on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists Software Installation Instructions.

Preface

iii

iv

Conventions Used in the Manual

Pay special attention to the following symbols for proper system installation and to

prevent damage to the system or injury to yourself.

Warning: Important information given to ensure proper system installation or to prevent

damage to the components

Note: Additional information given to differentiate between various models

or provides information for correct system setup.

X9DR3-F/X9DRi-F Motherboard User’s Manual

Preface

v

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 23511

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Web Site: www.supermicro.com.tw

Technical Support:

Email: [e-mail]

Tel: [phone]

vi

Table of Contents

Preface

Chapter 1 Overview

1-1 Overview ......................................................................................................... 1-1

1-2 Processor and Chipset Overview...................................................................1-11

1-3 Special Features ........................................................................................... 1-12

1-4 PC Health Monitoring .................................................................................... 1-12

1-5 ACPI Features ............................................................................................... 1-13

1-6 Power Supply ................................................................................................ 1-13

1-7 Super I/O ....................................................................................................... 1-14

1-8 Advanced Power Management ..................................................................... 1-14

Intel® Intelligent Power Node Manager (NM) (Available when NMView

Software is Installed) ..................................................................................... 1-14

Management Engine (ME) ............................................................................ 1-14

1-9 Overview of the Nuvoton WPCM450 Controller ........................................... 1-15

Other Features Supported by the WPCM BMC Controller ........................... 1-15

Chapter 2 Installation

2-1 Standardized Warning Statements ................................................................. 2-1

Battery Handling .............................................................................................. 2-1

Product Disposal ............................................................................................. 2-3

2-2 Static-Sensitive Devices .................................................................................. 2-4

Precautions ..................................................................................................... 2-4

Unpacking ....................................................................................................... 2-4

2-3 Processor and Heatsink Installation................................................................ 2-5

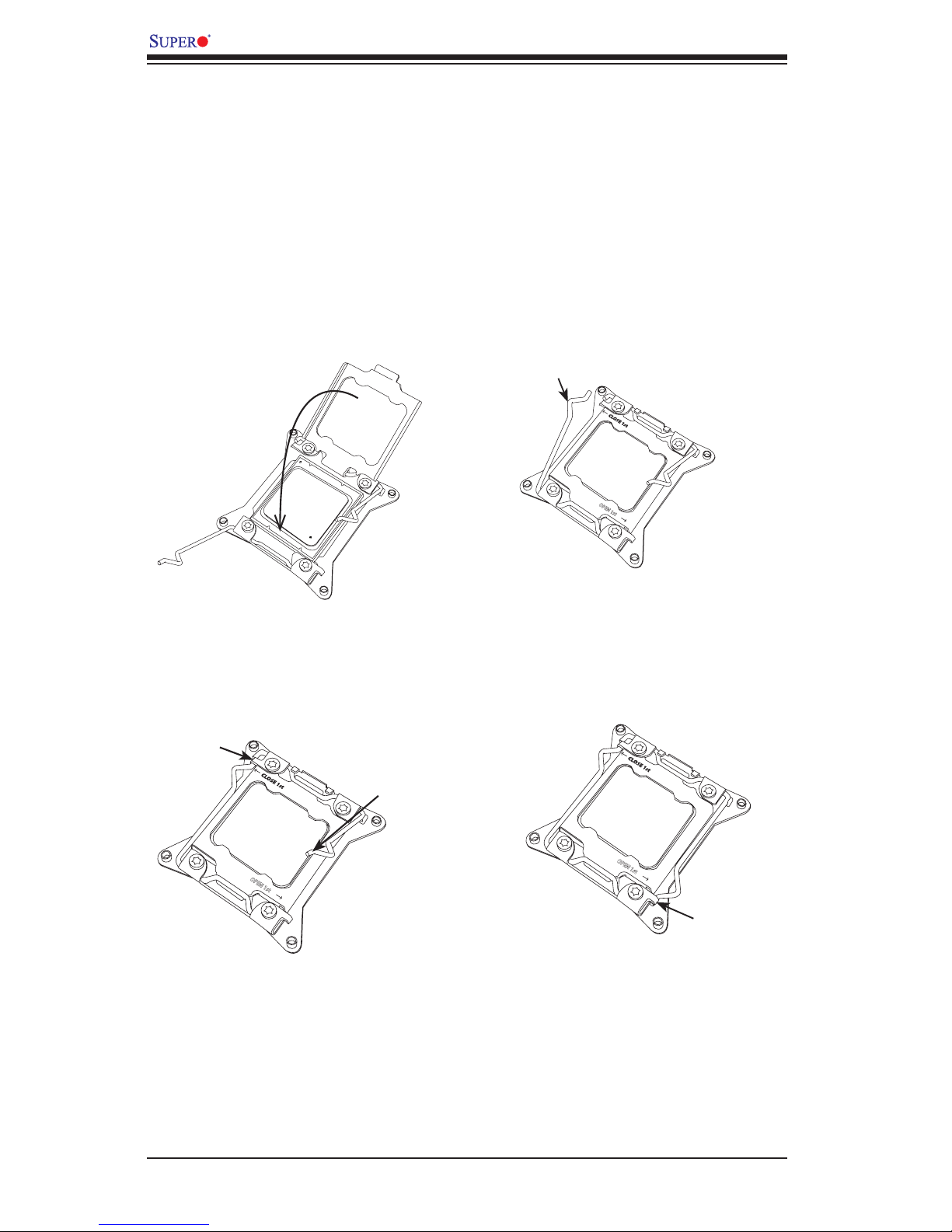

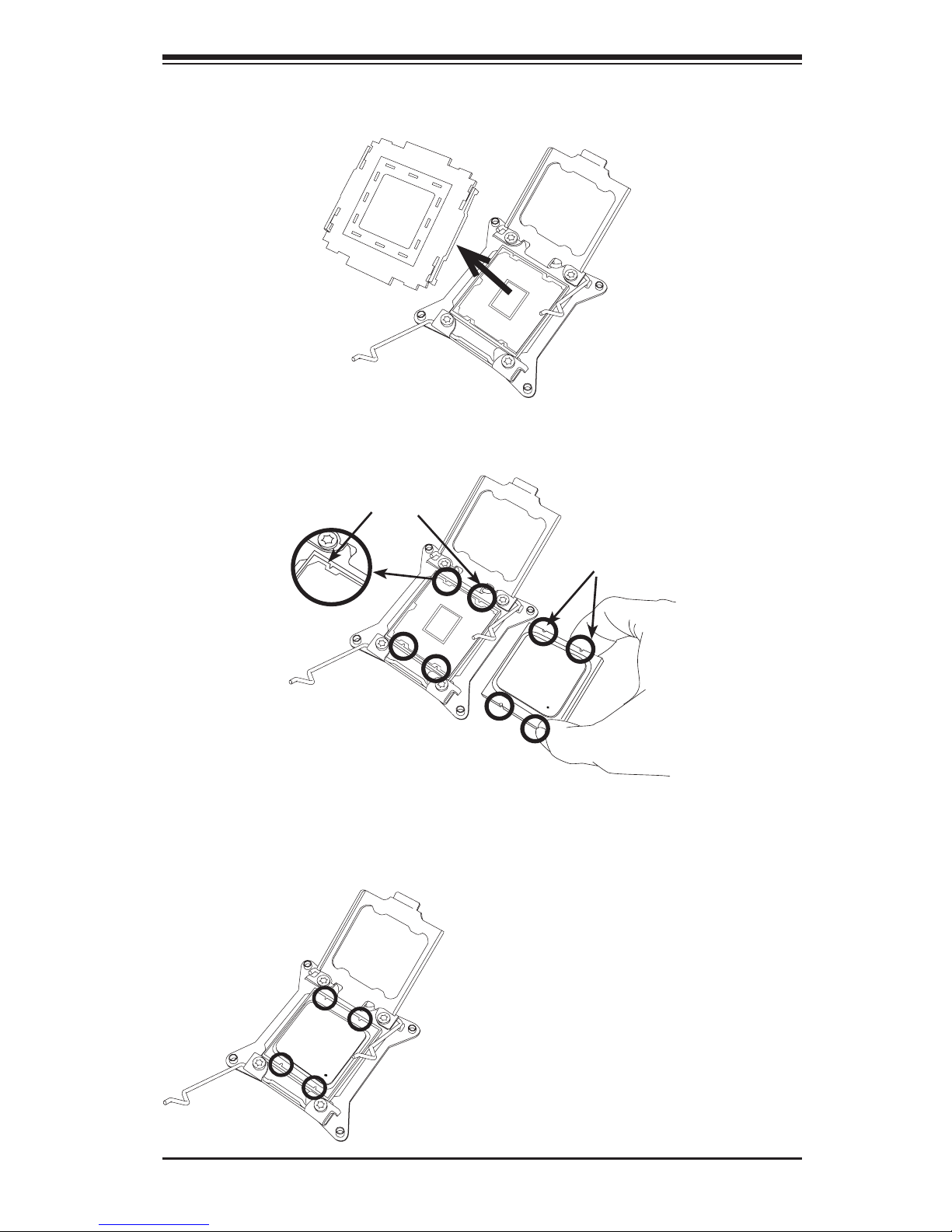

Installing the LGA2011 Processor ................................................................. 2-5

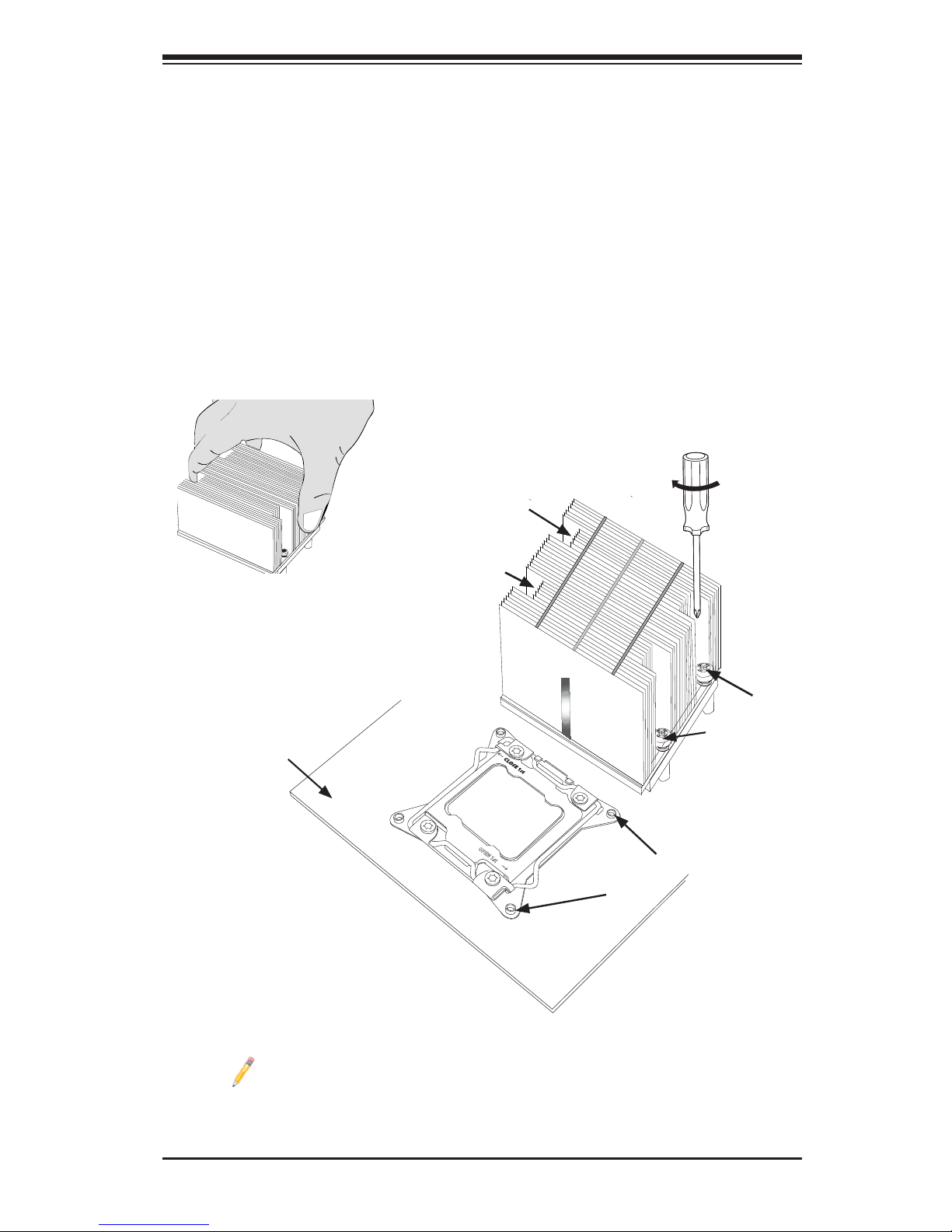

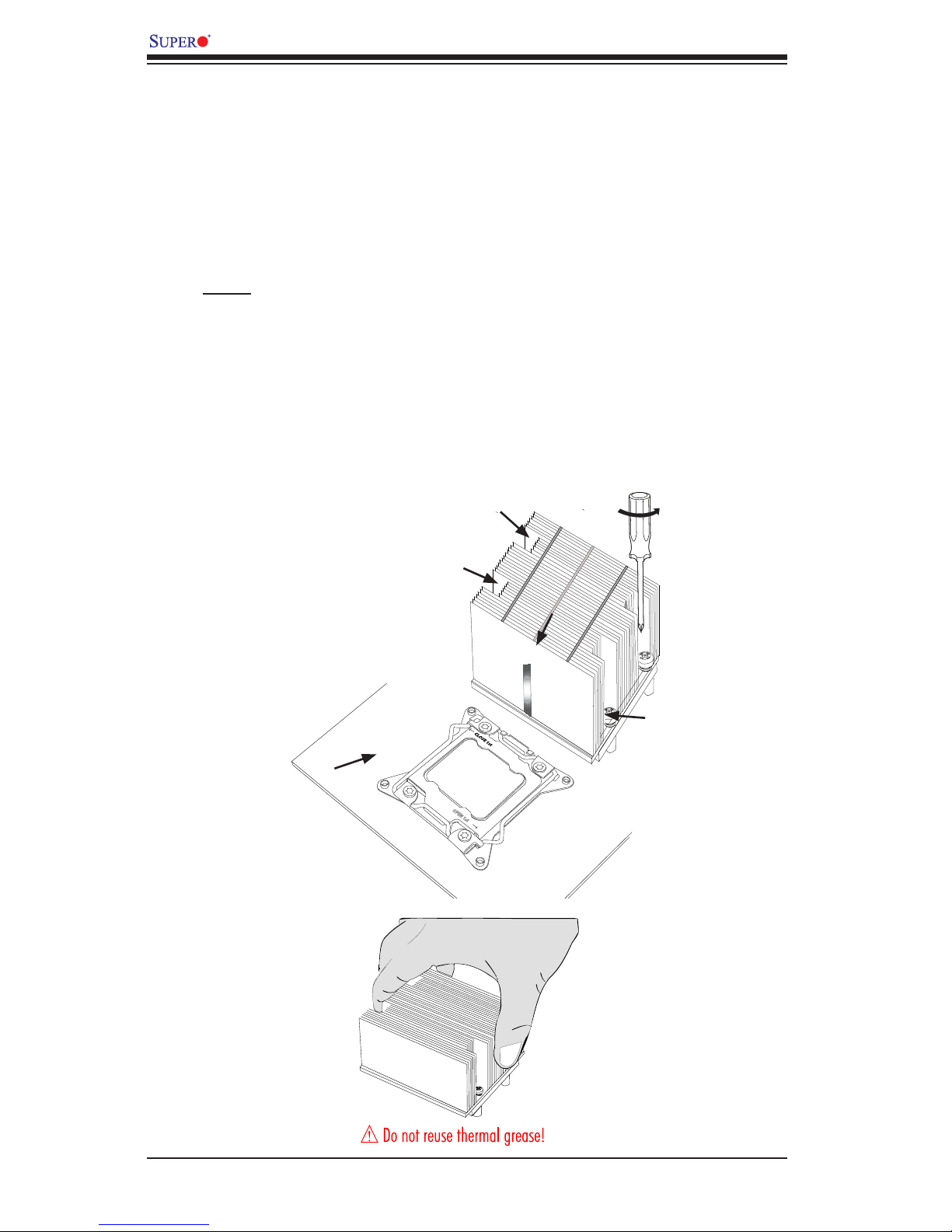

Installing a Passive CPU Heatsink ................................................................. 2-9

Removing the Heatsink ................................................................................. 2-10

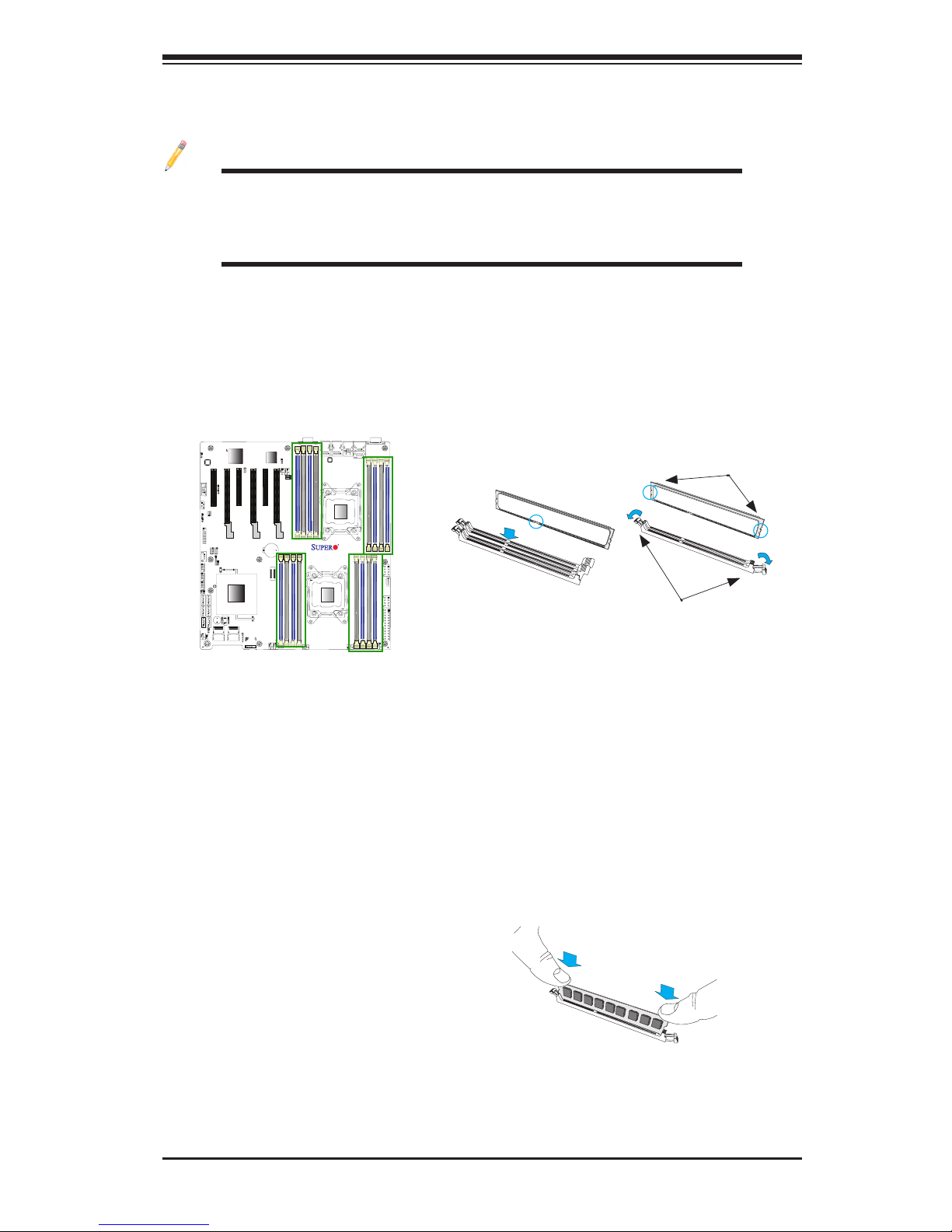

2-4 Installing and Removing the Memory Modules ..............................................2-11

Installing & Removing DIMMs ........................................................................2-11

Removing Memory Modules ..........................................................................2-11

2-5 Motherboard Installation ................................................................................ 2-16

Tools Needed ................................................................................................ 2-16

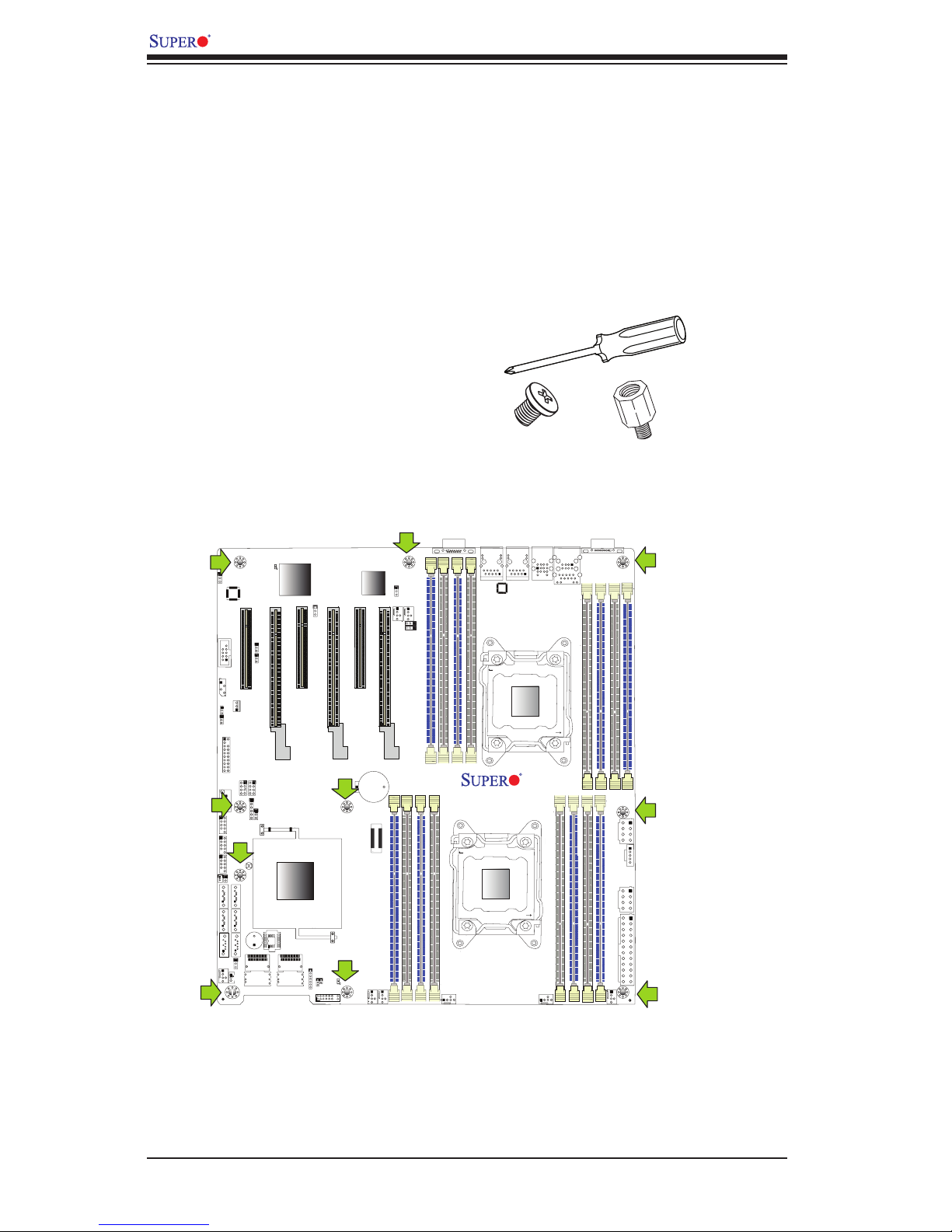

Location of Mounting Holes .......................................................................... 2-16

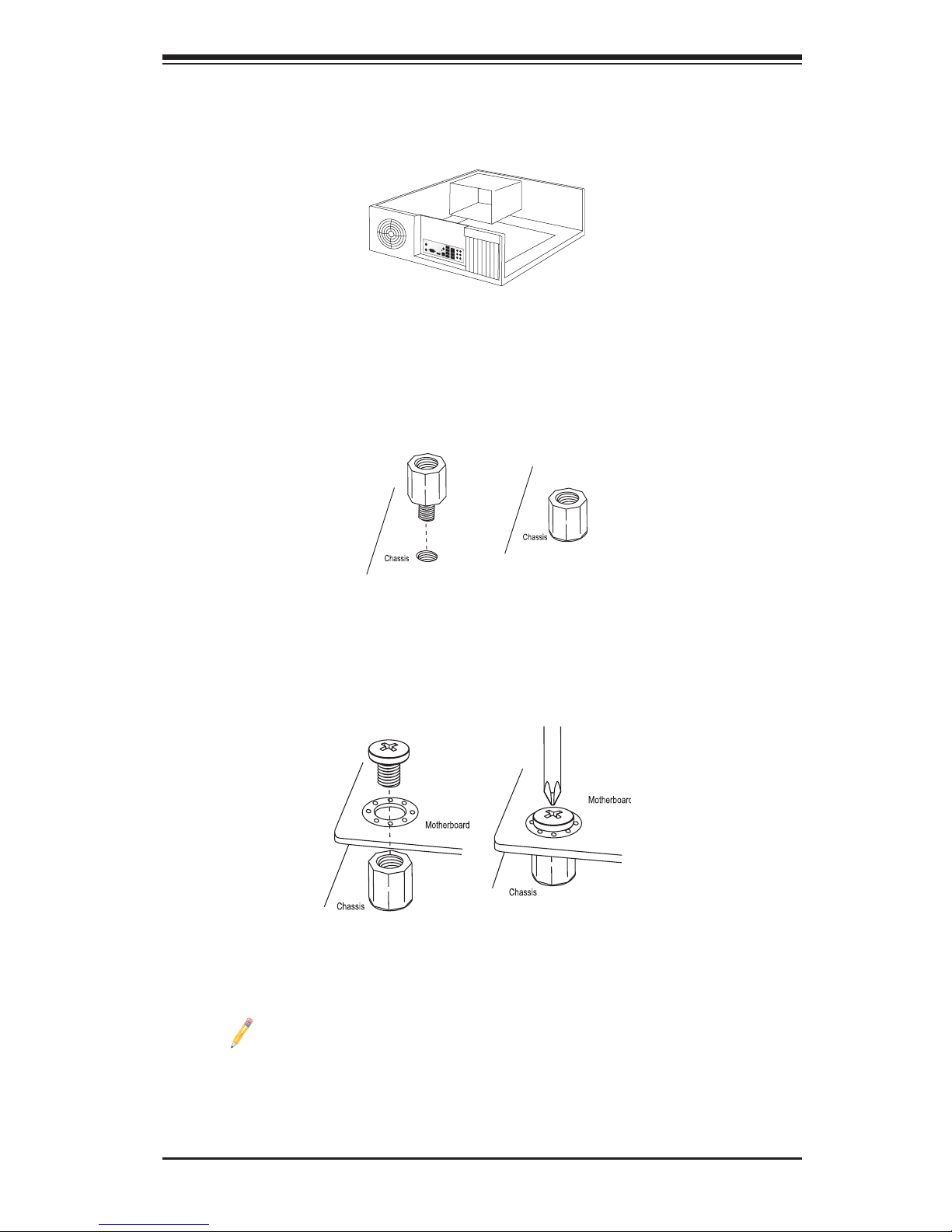

Installing the Motherboard ............................................................................ 2-17

2-6 Control Panel Connectors and I/O Ports ...................................................... 2-18

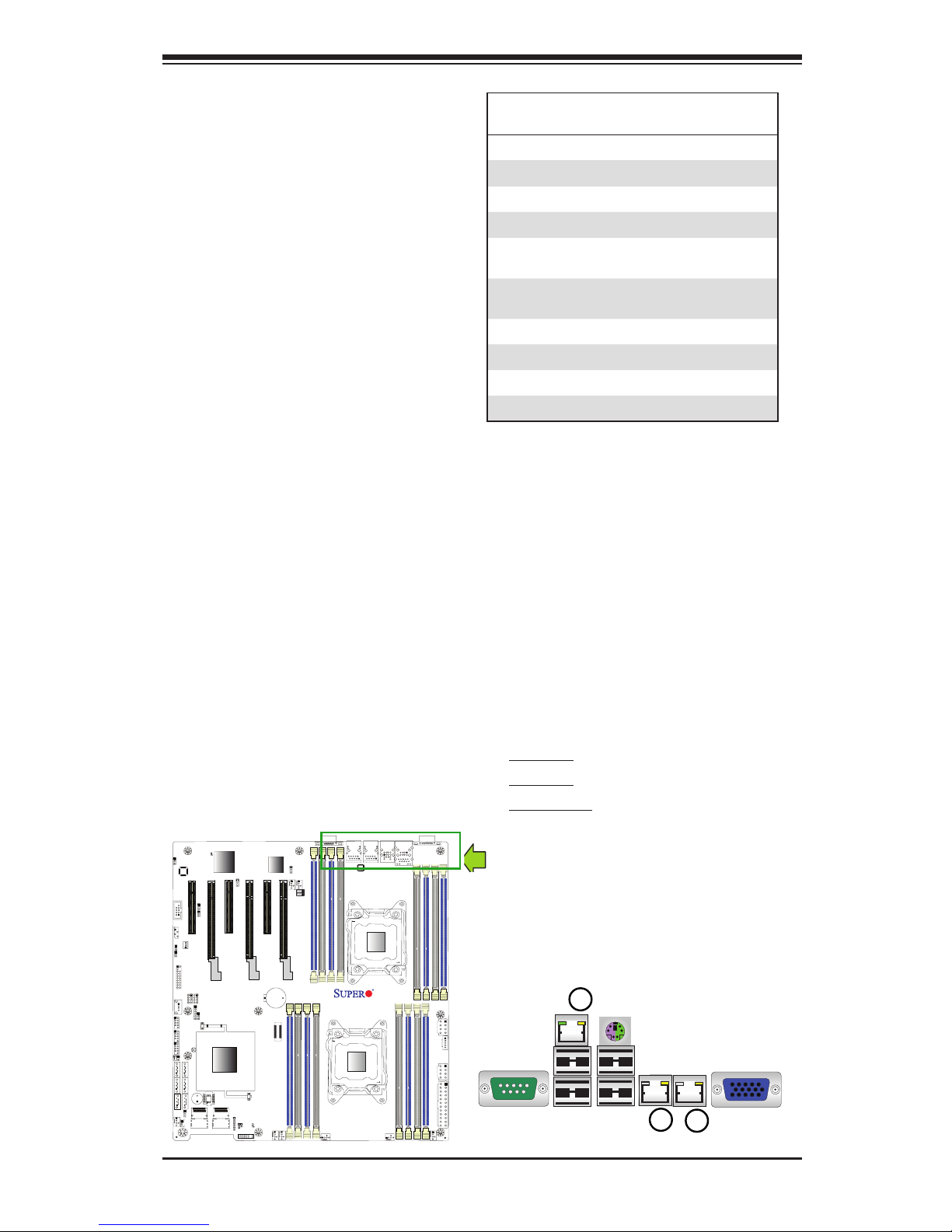

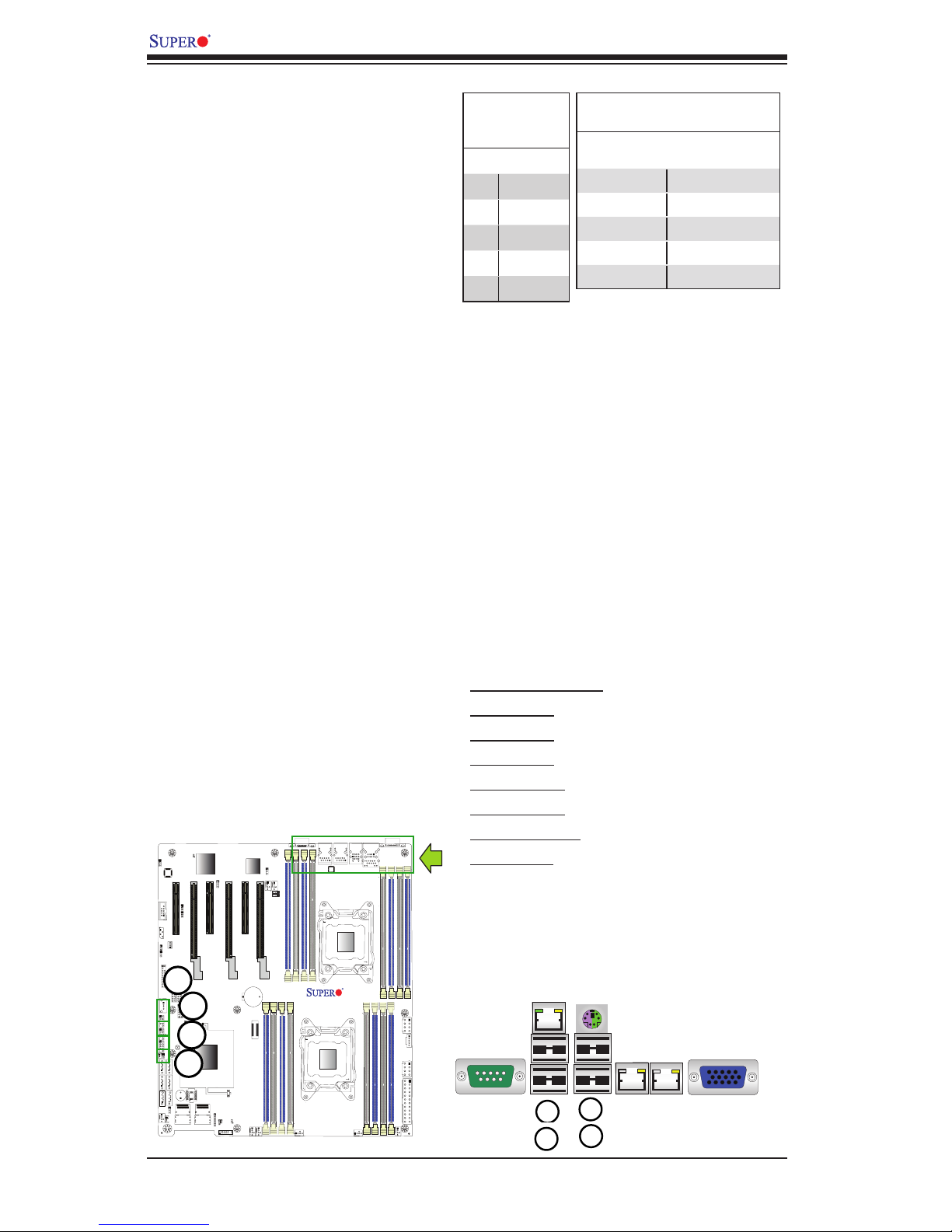

Back Panel Connectors and I/O Ports .......................................................... 2-18

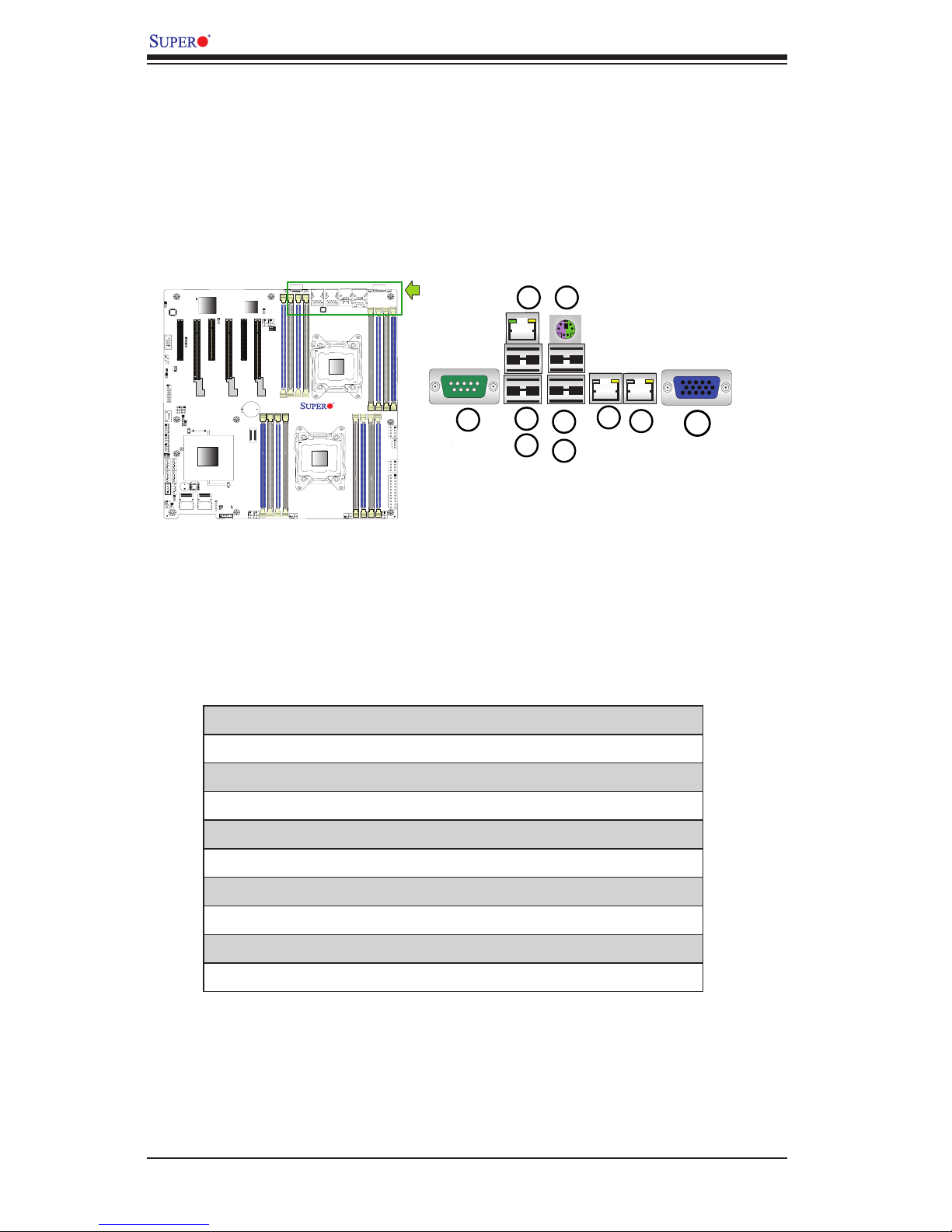

Back Panel I/O Port Locations and Denitions ........................................... 2-18

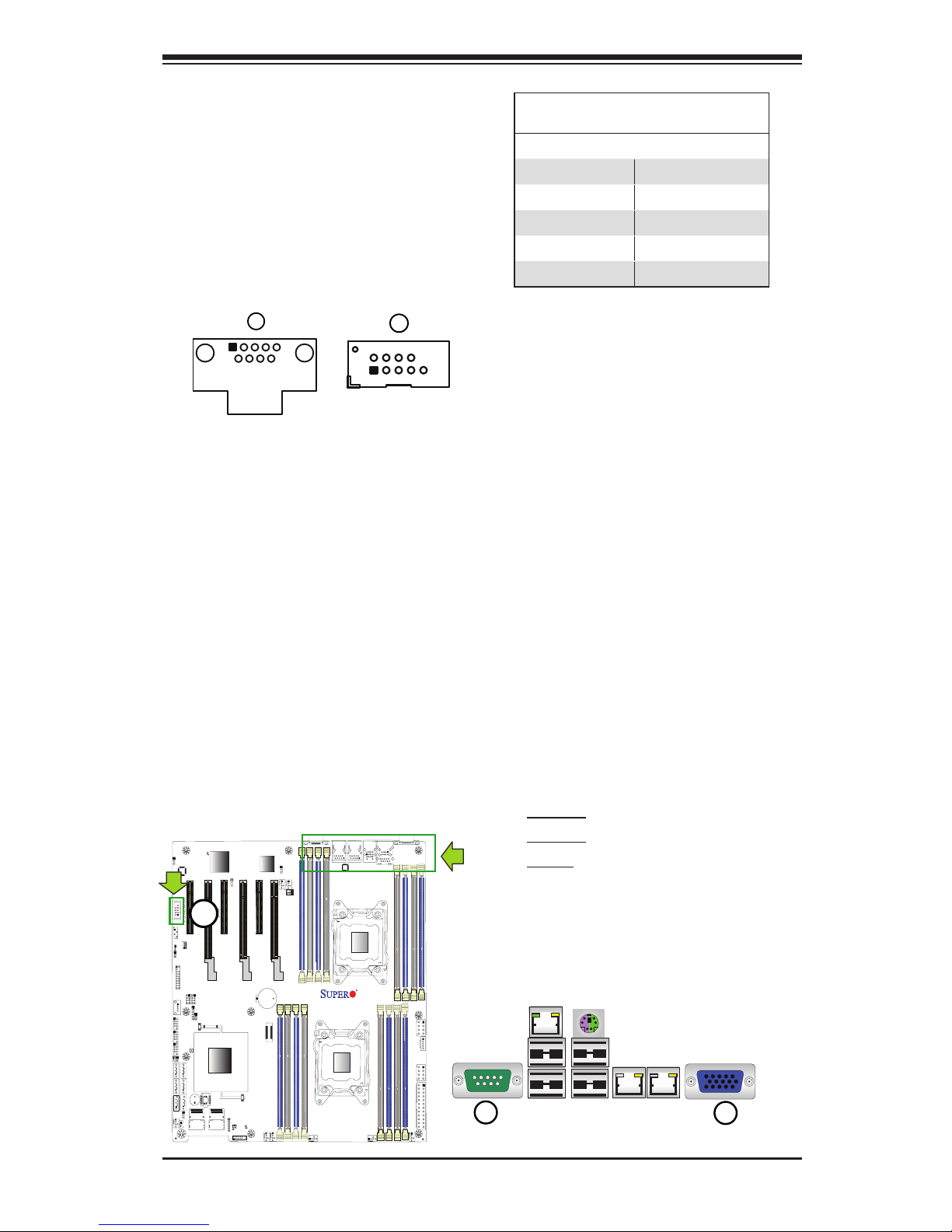

Serial Ports ............................................................................................... 2-19

X9DR3-F/X9DRi-F Motherboard User’s Manual

vii

Table of Contents

Video Connection ..................................................................................... 2-19

Universal Serial Bus (USB) ...................................................................... 2-20

Ethernet Ports .......................................................................................... 2-21

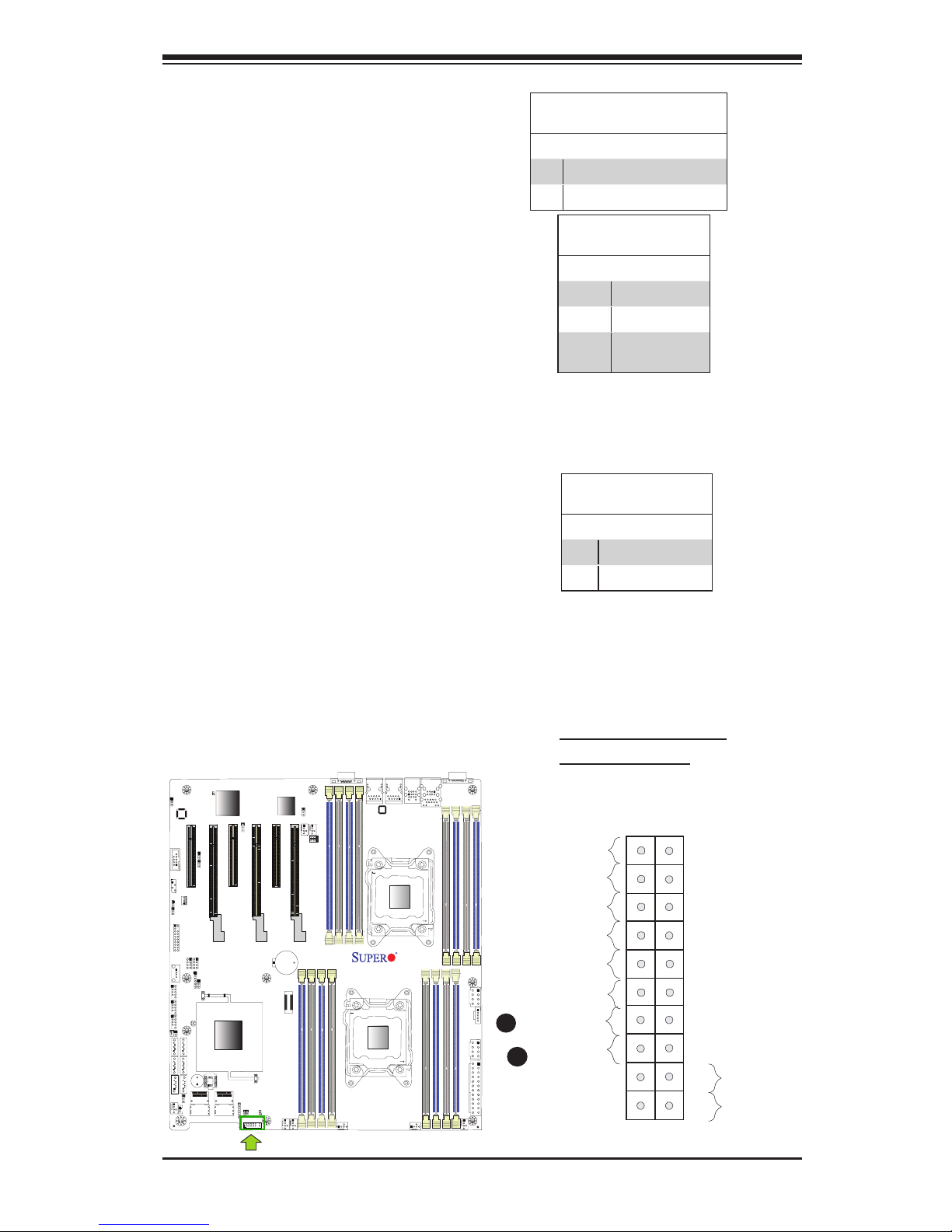

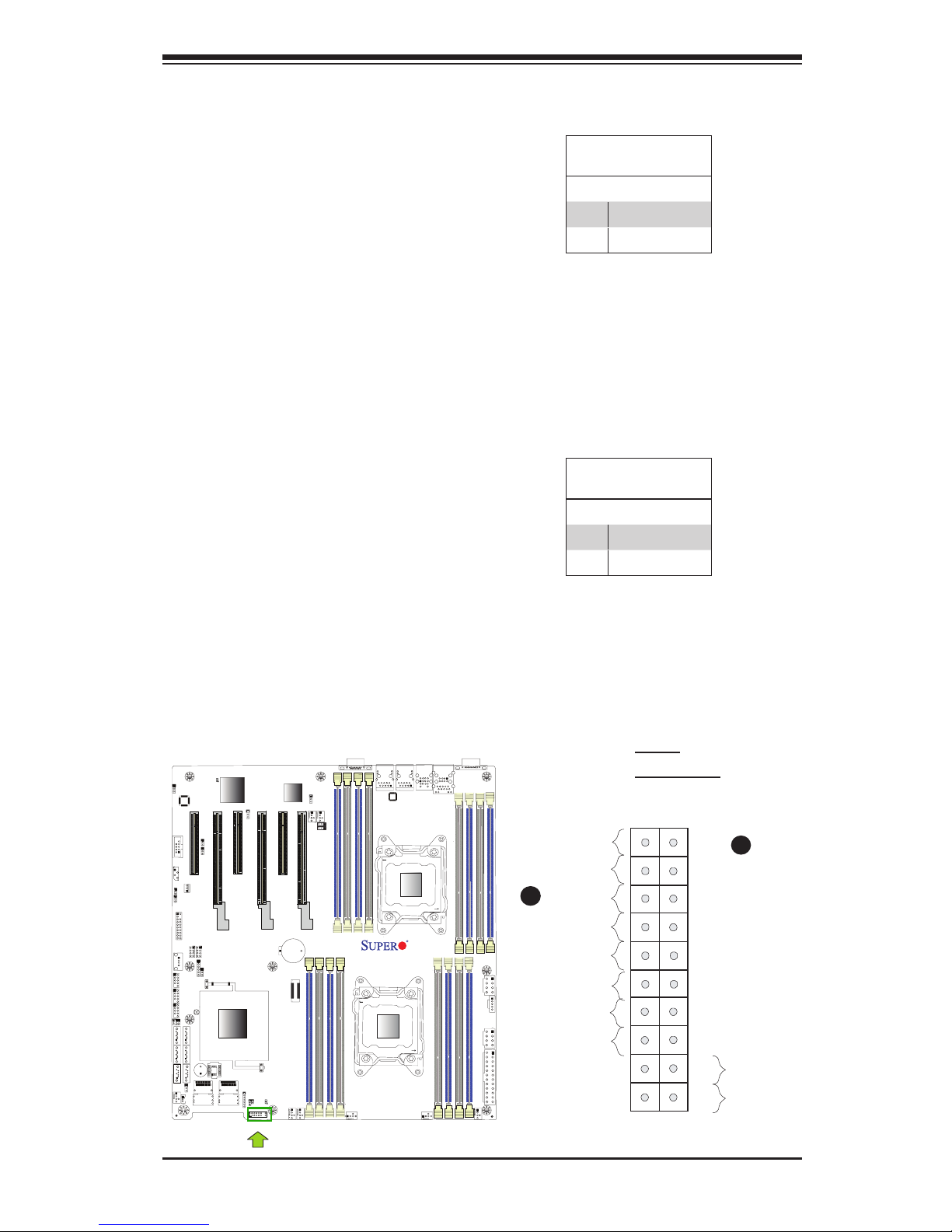

Front Control Panel ....................................................................................... 2-22

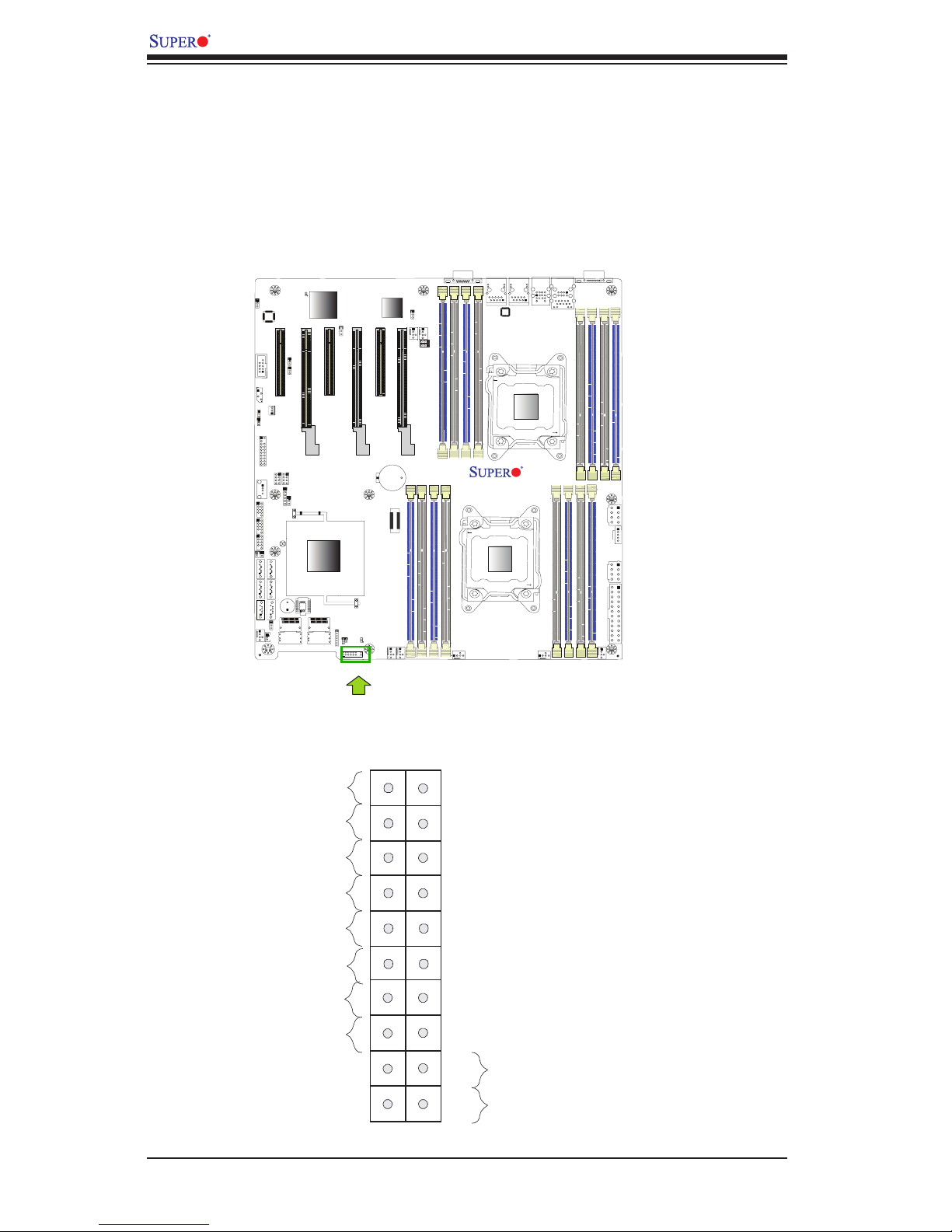

Front Control Panel Pin Denitions............................................................... 2-23

NMI Button ............................................................................................... 2-23

Power LED .............................................................................................. 2-23

HDD LED .................................................................................................. 2-24

NIC1/NIC2 LED Indicators ....................................................................... 2-24

Overheat (OH)/Fan Fail LED.................................................................... 2-25

Power Fail LED ........................................................................................ 2-25

Reset Button ........................................................................................... 2-26

Power Button ........................................................................................... 2-26

2-7 Connecting Cables ........................................................................................ 2-27

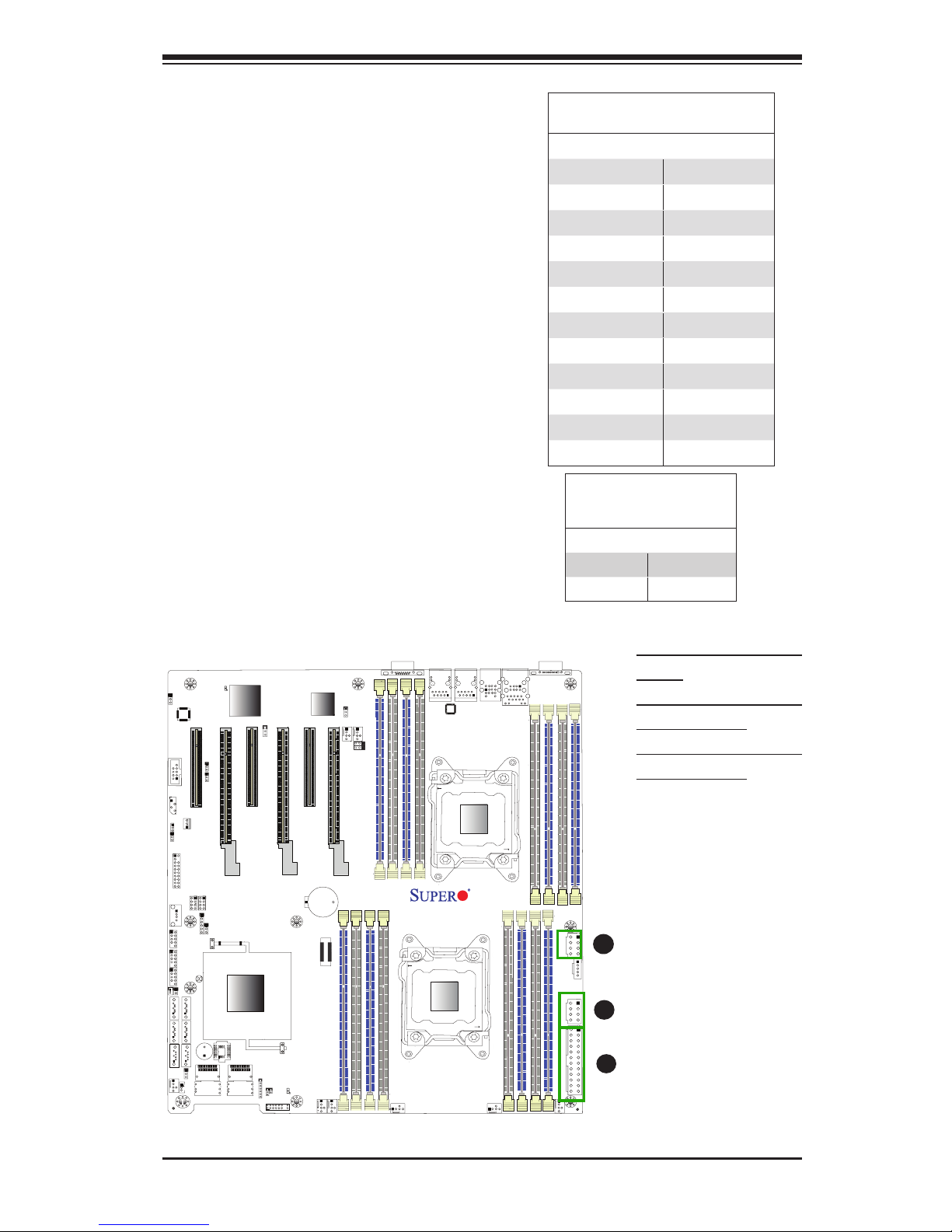

Power Connectors ................................................................................... 2-27

Fan Headers ............................................................................................. 2-28

Chassis Intrusion ..................................................................................... 2-28

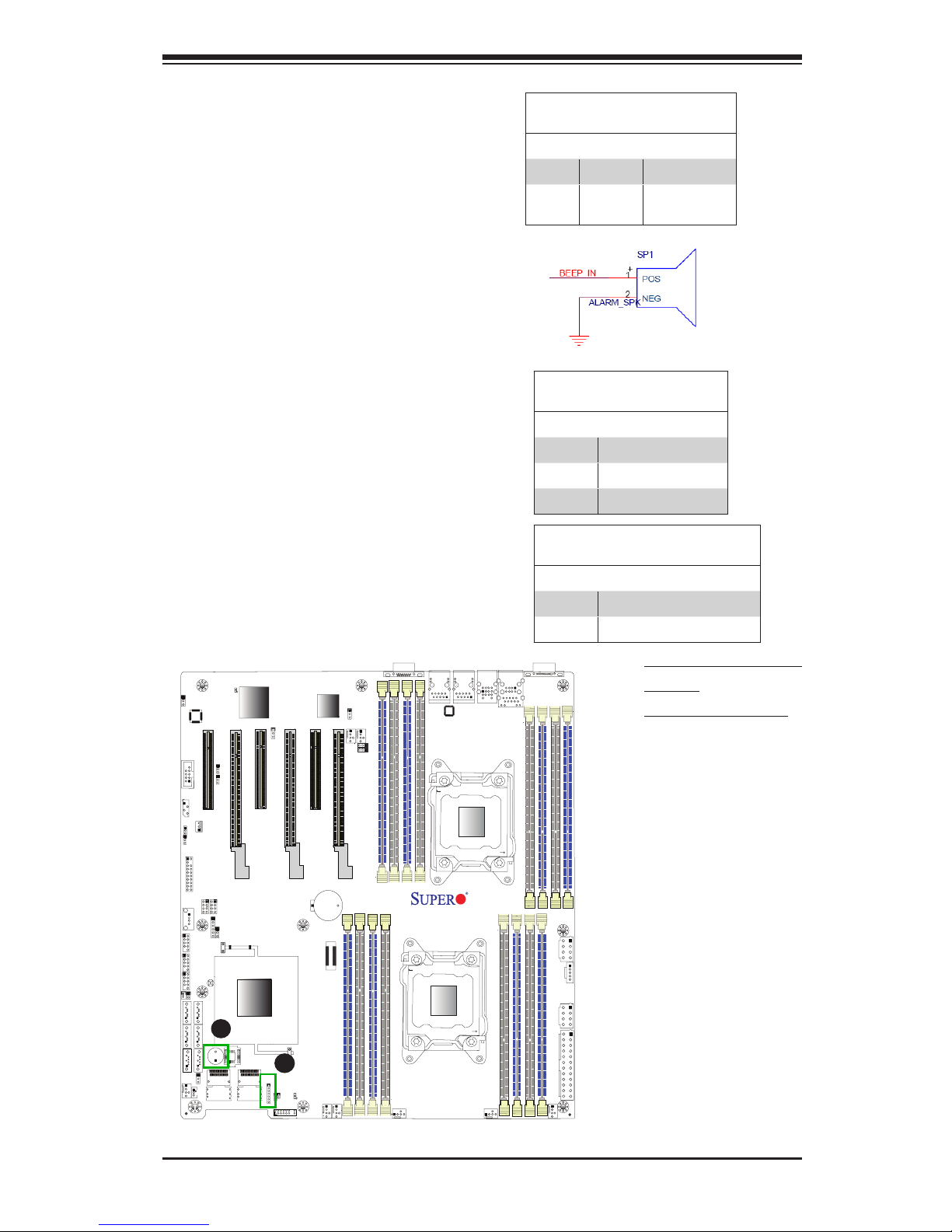

Internal Speaker ....................................................................................... 2-29

Power LED/Speaker ................................................................................. 2-29

TPM Header/Port 80 ................................................................................ 2-30

Overheat LED/Fan Fail ............................................................................ 2-30

Power SMB (I2C) Connector .................................................................... 2-31

IPMB ......................................................................................................... 2-31

T-SGPIO 1/2 Headers .............................................................................. 2-32

DOM Power Connector ............................................................................ 2-32

2-8 Jumper Settings ............................................................................................ 2-33

Explanation of Jumpers ................................................................................ 2-33

GLAN Enable/Disable .............................................................................. 2-33

CMOS Clear ............................................................................................. 2-34

Watch Dog Enable/Disable ...................................................................... 2-34

VGA Enable .............................................................................................. 2-35

BMC Enable ............................................................................................ 2-35

Management Engine (ME) Recovery ...................................................... 2-36

Manufacture Mode Select ........................................................................ 2-36

2-9 Onboard LED Indicators ............................................................................... 2-37

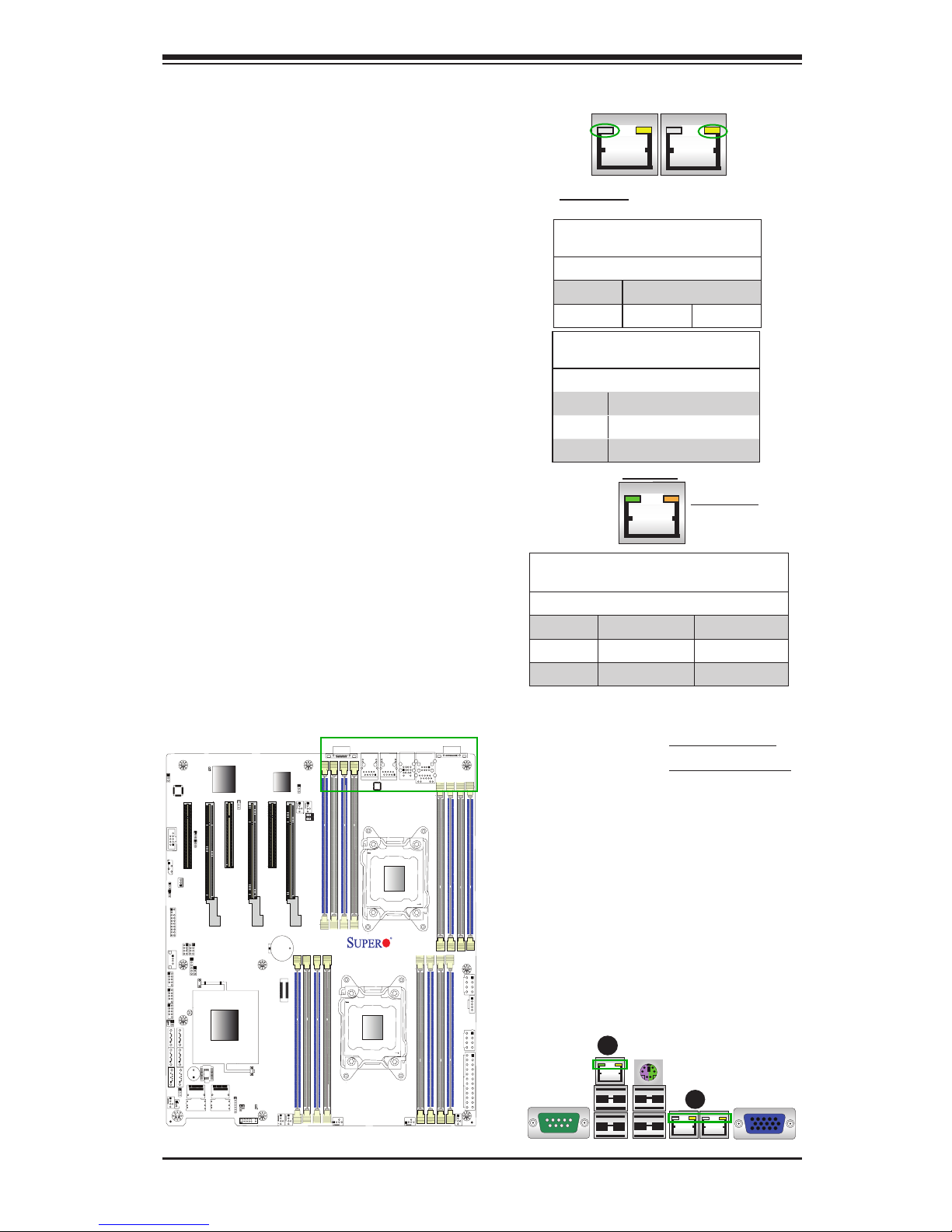

GLAN LEDs .............................................................................................. 2-37

IPMI Dedicated LAN LEDs ....................................................................... 2-37

Onboard Power LED ............................................................................... 2-38

BMC Heartbeat LED ................................................................................ 2-38

viii

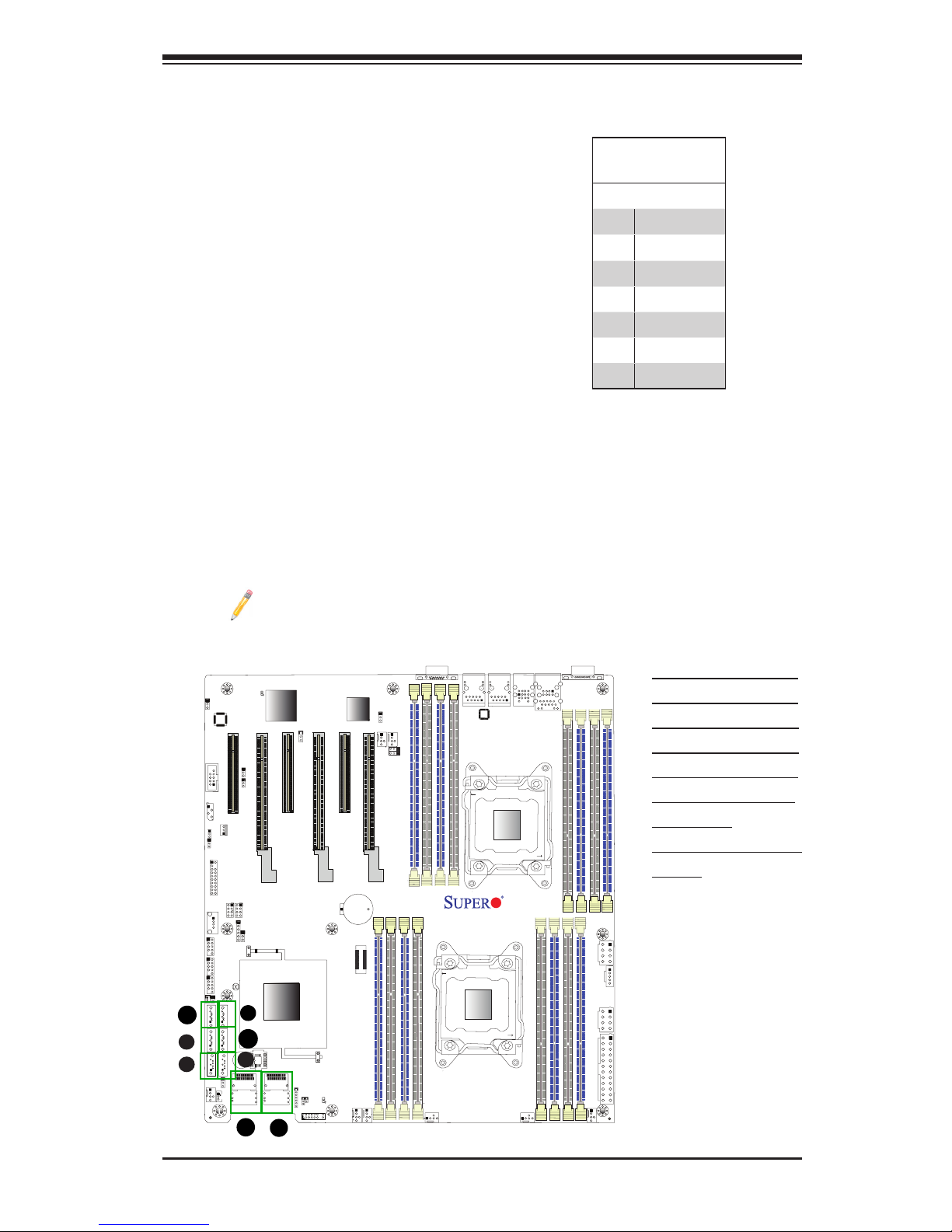

2-10 Serial ATA Connections ................................................................................. 2-39

Serial ATA Ports........................................................................................ 2-39

SCU Ports ................................................................................................ 2-39

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

3-2 Technical Support Procedures ........................................................................ 3-5

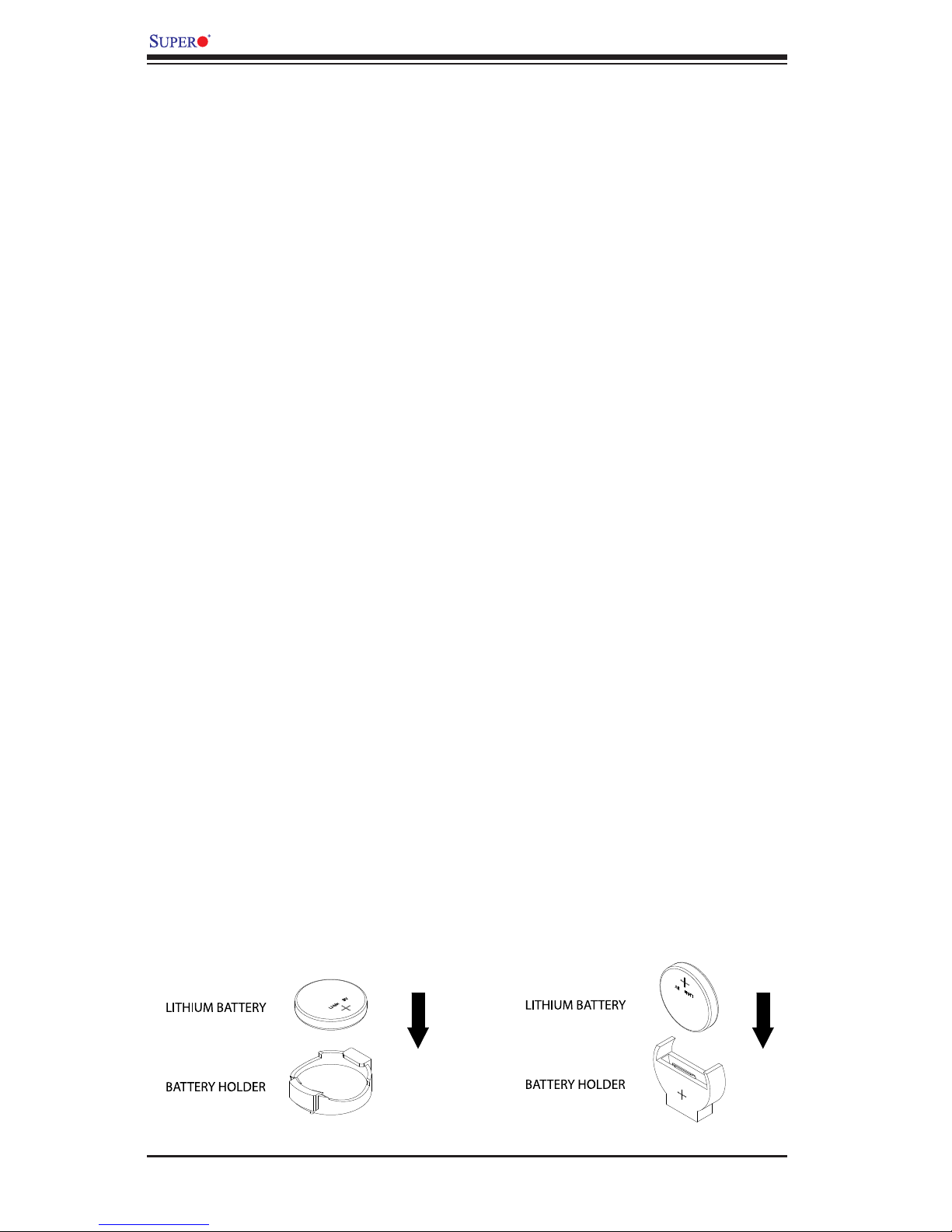

3-3 Battery Removal and Installation .................................................................... 3-6

3-4 Frequently Asked Questions ........................................................................... 3-7

3-5 Returning Merchandise for Service................................................................. 3-8

Chapter 4 BIOS

4-1 Introduction ...................................................................................................... 4-1

4-2 Main Setup ...................................................................................................... 4-2

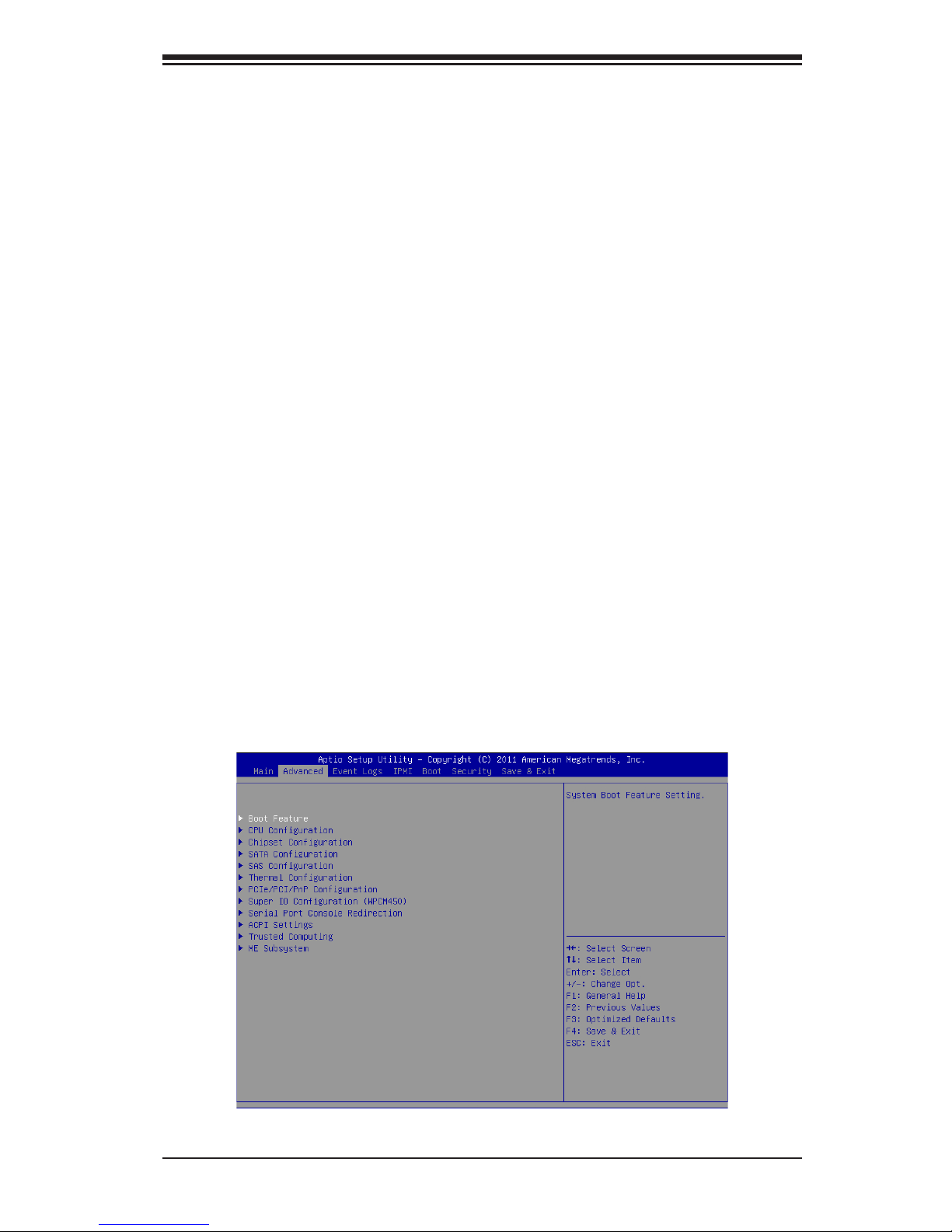

4-3 Advanced Setup Congurations...................................................................... 4-3

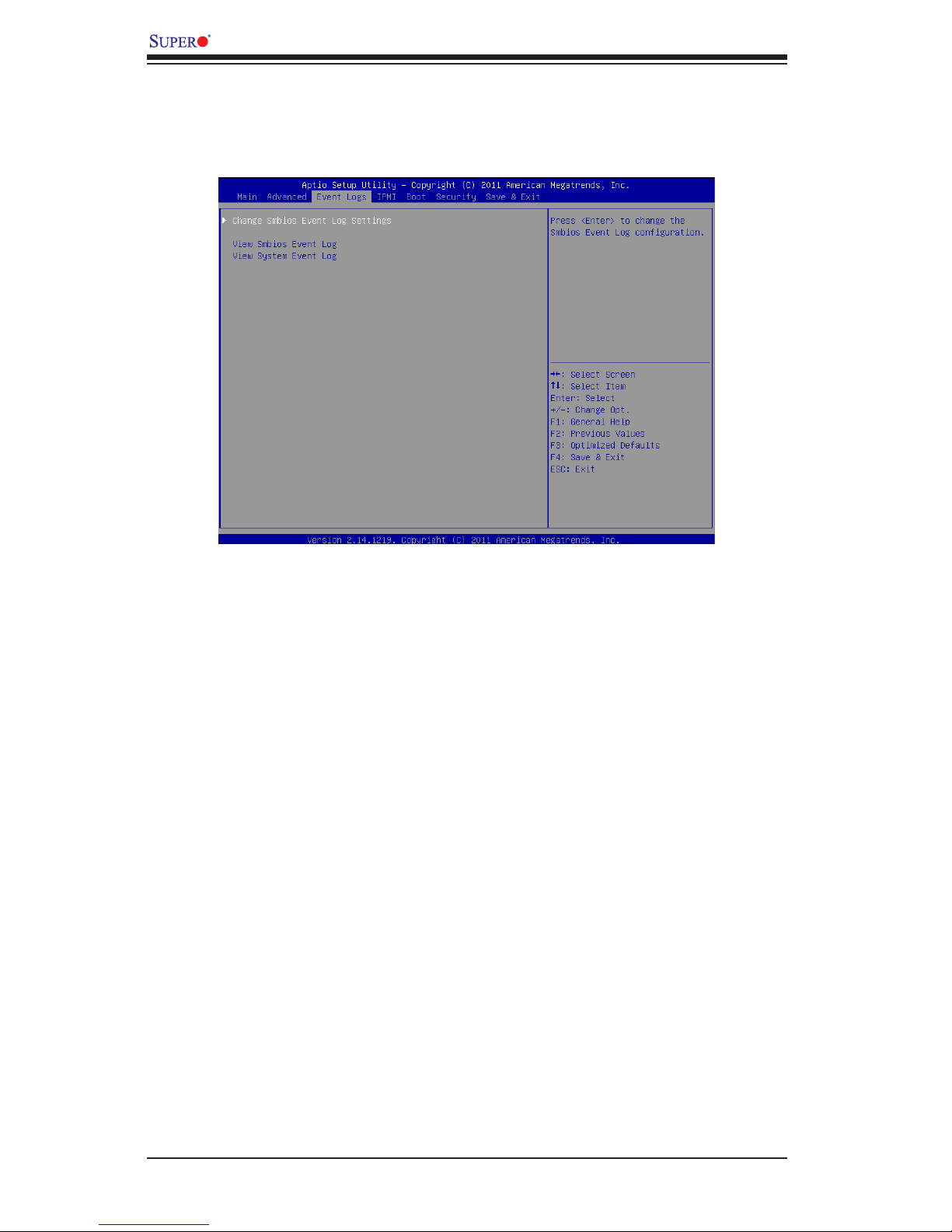

4-4 Event Logs .................................................................................................... 4-24

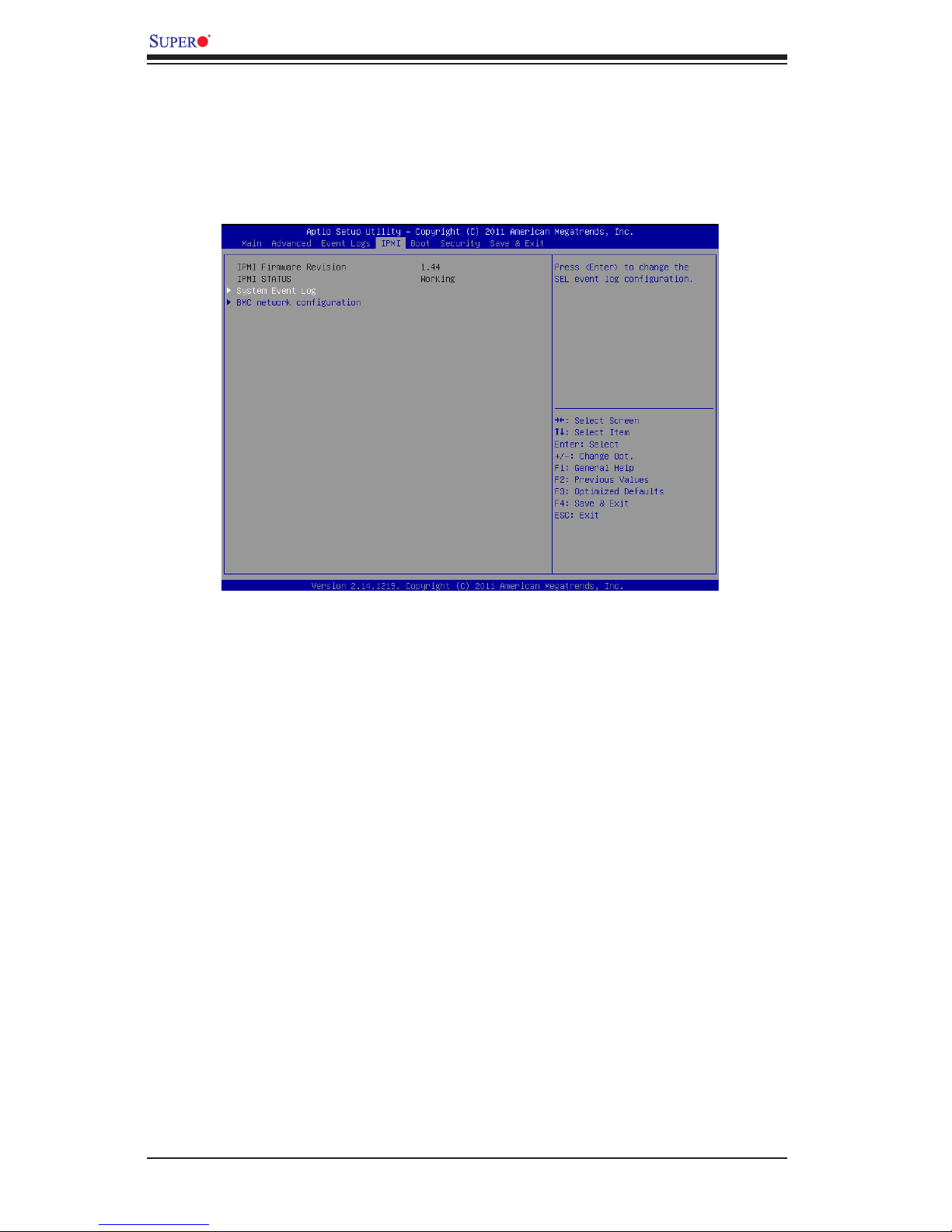

4-5 IPMI ............................................................................................................... 4-26

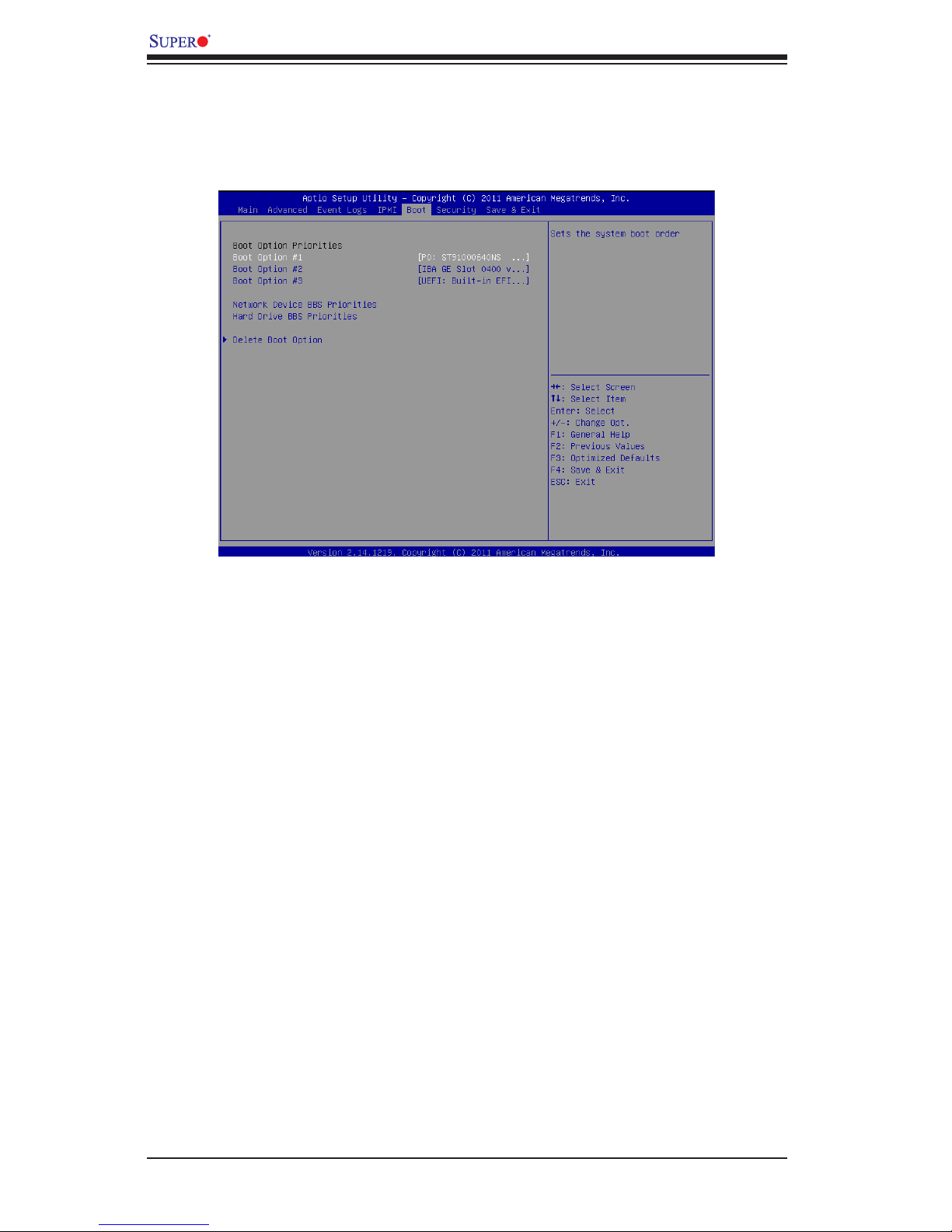

4-6 Boot ............................................................................................................... 4-28

4-7 Security ......................................................................................................... 4-29

4-8 Save & Exit ................................................................................................... 4-30

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B Software Installation Instructions

B-1 Installing Software Programs ..........................................................................B-1

B-2 Conguring SuperDoctor® III .......................................................................... B-2

X9DR3-F/X9DRi-F Motherboard User’s Manual

Chapter 1: Overview

1-1

Chapter 1

Overview

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box.

• One (1) Supermicro Mainboard

• Two (2) Serial ATA cables (CBL-0044Lx2)

•Two (2) I-Pass to Serial ATA cables (CBL-097L-03 x2) (for X9DR3-F)

•One (1) I-Pass to Serial ATA cables (CBL-097L-03) (for X9DRi-F)

• One (1) I/O Shield (MCP-260-00042-0N)

• One (1) Quick Reference Guide (MNL-1259-QRG)

Note: For your system to work properly, please follow the links below to

download all necessary drivers/utilities and the user's manual for your

motherboard.

SMCI product manuals: http://www.supermicro.com/support/manuals/

Product Drivers and utilities: ftp://ftp.supermicro.com/

If you have any questions, please contact our support team at support@supermicro.

com.

1-2

X9DR3-F/X9DRi-F Motherboard User’s Manual

Motherboard Image

Note: All graphics shown in this manual were based upon the latest PCB

Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics

shown in this manual.

Chapter 1: Overview

1-3

Motherboard Layout

Note 1: For the latest CPU/Memory updates, please refer to our Website

at http://www.supermicro.com/products/motherboard/ for details.

Note 2: Changing BMC log-in information is recommended during initial

system power-on. The default username is ADMIN and password is

ADMIN. For BMC best practices, please refer to: http://www.supermicro.

com/products/nfo/les/IPMI/Best_Practices_BMC_Security.pdf

JRK1

LE1

JWF1

SP1

JIPMB1

JPME1

BT1

JBT1

JP3

JWD

JPB1

JL1

JF1

FAN3

FAN2

FAN1

FANB

JTPM1

JPWR1

JPWR2

JI2C1

X9DR3/i-F

SCU4~7

SCU0~3

P2 DIMMH2

P2 DIMMG2

P2 DIMMH1

P2 DIMMG1

P2 DIMME1

P2 DIMME2

P2 DIMMF1

P2 DIMMF2

P1 DIMMA2

P1 DIMMA1

P1 DIMMB2

P1 DIMMB1

P1 DIMMD2

P1 DIMMD1

P1 DIMMC1

P1 DIMMC2

USB4/5

LAN2

TPM/PORT80

USB10/11

USB8/9

USB6

IPMI_LAN

ALWAYS POPULATE DIMMxA FIRST

I-SATA5

I-SATA4

I-SATA3

I-SATA2

I-SATA1

VGA

COM1

KB/Mouse

I-SATA0

T-SGPIO2

T-SGPIO1

COM2

JSTBY1

FAN4

USB 0/1

LAN1

PHY

LAN
CTRL

BMC
CTRL

SIO

BIOS

JPWR3

Rev. 1.11a

Battery

PCH
C602/
C606

USB 2/3

JPL1

J29

DM1

JD1

JOH1

J21

JITP0

JPG1

J22

JPME2

JI2C1JI2C2

CPU1

CPU2

CPU2 Slot5 PCI-E 3.0 x 8

CPU2 Slot 6 PCI-E 3.0 x 16

CPU1 Slot1 PCI-E 3.0 x 8

CPU2 Slot4 PCI-E 3.0 x 16

CPU1 Slot3 PCI-E 3.0 x 8

CPU1 Slot2 PCI-E 3.0 x 16

FAN6 FAN5

FANA

1-4

X9DR3-F/X9DRi-F Motherboard User’s Manual

Notes:

•See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front

panel connections.

•" " indicates the location of "Pin 1".

•Jumpers/LED Indicators not indicated are for testing only.

•Components that are not documented in this manual are reserved for internal

use only.

•Use only the correct type of onboard CMOS battery as specied by the manufac-

turer. Do not install the onboard battery upside down to avoid possible explosion.

X9DR3-F/X9DRi-F Quick Reference

JRK1

LE1

JWF1

SP1

JIPMB1

JPME1

BT1

JBT1

JP3

JWD

JPB1

JL1

JF1

FAN3

FAN2

FAN1

FANB

JTPM1

JPWR1

JPWR2

JI2C1

X9DR3/i-F

SCU4~7

SCU0~3

P2 DIMMH2

P2 DIMMG2

P2 DIMMH1

P2 DIMMG1

P2 DIMME1

P2 DIMME2

P2 DIMMF1

P2 DIMMF2

P1 DIMMA2

P1 DIMMA1

P1 DIMMB2

P1 DIMMB1

P1 DIMMD2

P1 DIMMD1

P1 DIMMC1

P1 DIMMC2

USB4/5

LAN2

TPM/PORT80

USB10/11

USB8/9

USB6

IPMI_LAN

ALWAYS POPULATE DIMMxA FIRST

I-SATA5

I-SATA4

I-SATA3

I-SATA2

I-SATA1

VGA

COM1

KB/Mouse

I-SATA0

T-SGPIO2

T-SGPIO1

COM2

JSTBY1

FAN4

USB 0/1

LAN1

PHY

LAN
CTRL

BMC
CTRL

SIO

BIOS

JPWR3

Rev. 1.11a

Battery

PCH
C602/
C606

USB 2/3

JPL1

J29

DM1

JD1

JOH1

J21

JITP0

JPG1

J22

JPME2

JI2C1JI2C2

CPU1

CPU2

CPU2 Slot5 PCI-E 3.0 x 8

CPU2 Slot 6 PCI-E 3.0 x 16

CPU1 Slot1 PCI-E 3.0 x 8

CPU2 Slot4 PCI-E 3.0 x 16

CPU1 Slot3 PCI-E 3.0 x 8

CPU1 Slot2 PCI-E 3.0 x 16

FAN6 FAN5

FANA

Chapter 1: Overview

1-5

X9DR3-F/X9DRi-F Jumpers

Jumper

Description Default Setting

JBT1

Clear CMOS See Chapter 2

JPB1 BMC Enabled Pins 1-2 (Enabled)

JPG1 VGA Enabled Pins 1-2 (Enabled)

JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled)

JPME1 Management Engine (ME) Recovery

Mode Enable

Pins 1-2 (Normal)

JPME2 Management Eingine (ME)

Manufacture Mode

Pins 1-2 (Normal)

JWD Watch Dog Timer Enable Pins 1-2 (Reset)

X9DR3-F/X9DRi-F Connectors

Connectors Description

BT1 Onboard Battery (See Chpt. 3 for Used Battery Disposal)

COM1/COM2 Backplane COM Port1/Front Accessible COM2 Header

FAN1~6, FAN A, FAN B CPU/System Fan Headers

I-SATA 0/1 Intel SB SATA 3.0 Connectors 0/1 (Color: White)

I-SATA 2~5 Intel SB SATA 2.0 Connectors 2~5 (Color: Black)

J22 (JPWR3) ATX 24-Pin Power Connector (See Warning on Pg. 1-6.)

JD1 Speaker/Power LED Indicator

JF1 Front Panel Control Header

JIPMB1 4-pin External BMC I2C Header (for an IPMI Card)

JL1 Chassis Intrusion

JOH1 Overheat LED Indicator

JPI2C1 Power Supply SMBbus I2C Header

JPWR1/2 12V 8-Pin Power Connectors (See Warning on Pg. 1-6.)

JSTBY1 Standby Header

JTPM1 TPM (Trusted Platform Module)/Port 80

JWF1 SATA DOM (Disk on Module) Power Connector

Keyboard/Mouse PS2 Keyboard/Mouse (optional)

LAN1/LAN2 G-bit Ethernet Ports 1/2

(IPMI) LAN IPMI_Dedicated LAN

SCU 0~3, 4~7 Storage Control Unit (SCU) Connectors 0~3, 4~7 (SCU

4~7: X9DR3-F only)

SP1 Onboard Buzzer (Internal Speaker)

Slot2, Slot4, Slot6 CPU1 Slot2/CPU2 Slot4/CPU2 Slot6 PCI-Exp. 3.0 x16

1-6

X9DR3-F/X9DRi-F Motherboard User’s Manual

Warning: To prevent damage to the power supply or motherboard, please use a power

supply that contains a 24-pin and two 8-pin power connectors. Be sure to connect

these power supply connectors to the 24-pin power connector (JPWR3) and two 8-pin

power connectors (JPWR1, JPWR2) on the motherboard. Failure in doing so will void

the manufacturer warranty on your power supply and motherboard.

Slot1, Slot3, Slot5 CPU1 Slot1/CPU1 Slot3/CPU2 Slot5 PCI-Exp. 3.0 x8

T-SGPIO 1/2 Serial_Link General Purpose I/O Headers

BP USB 0/1, 2/3 Back Panel USB 0/1, 2/3

USB 4/5, USB 6, USB
8/9, USB 10/11

Front Panel Accessible USB Connections

VGA Backpanel VGA Port

X9DR3-F/X9DRi-F LED Indicators

LED Description State Status

DM1 BMC Heartbeat LED Green: Blinking BMC Normal

LE1 Standby PWR LED Green: On SB Power On

Chapter 1: Overview

1-7

Motherboard Features

CPU

• Dual Intel

®

E5-2600(v2) Series Processors (Socket

R LGA2011); each processor supports four full-width

Intel QuickPath Interconnect (QPI) links (with support

of up to 25.6 GT/s per QPI link and with Data Trans-

fer Rate of up to 8.0 GT/s per direction).

Note: For Intel E5-2600(v2) processor support,

BIOS version 3.0 or above is required.

Memory

• Integrated memory controller supports up to 1 TB

of Load Reduced (LRDIMM), 512 GB of Registered

(RDIMM) or 128 GB of Unbuffered (UDIMM) ECC/

Non-ECC DDR3 800/1066/1333/1600/1866 MHz

240-pin 4-channel memory modules in 16 DIMM

slots.

Note 1: 1866 MHz memory speed is dependent

on Intel E5-2600v2 CPUs.

Note 2: For the latest memory updates, please

refer to the Tested Memory List posted on our

website (http://www.supermicro.com/products/

motherboard).

• Virtualization: VT-x, VT-d, and VT-c

Chipset

• Intel

®

PCH C606/C602

Expansion

• Three (3) PCI Express 3.0 x16 slots (CPU1 Slot2/

CPU2 Slot4/CPU2 Slot6)

• Three (3) PCI Express 3.0 x8 slots (CPU1 Slot1/

CPU1 Slot3/CPU2 Slot5)

Slots

Graphics

• Nuvoton BMC Video Controller (Matrox G200)

Network

• One Intel I350 Gigabit (10/100/1000 Mb/s) Ethernet

Dual-Channel Controller for LAN 1/LAN 2 ports.

• Nuvoton WP450R Base-board Controller (BMC) sup-

ports IPMI_LAN 2.0

I/O Devices

SATA Connections

• SATA Ports Six (6): Two (2) SATA 3.0 and

Four (4) SATA 2.0 Ports

• RAID (Linux) RAID 0, 1, 5, 10

1-8

X9DR3-F/X9DRi-F Motherboard User’s Manual

SCU (Storage Control Unit) Connections

• SCU Ports 0~3, 4~7 (X9DR3-F)

0~3 (X9DRi-F)

• RAID Support RAID 0, 1, 10 (X9DR3-F)

RAID 0, 1, 5, 10 (X9DRi-F)

Integrated IPMI 2.0

• IPMI 2.0 supported by the WPCM450R BMC

Serial (COM) Port

• Two (2) Fast UART 16550 Connection: 9-pin RS-

232 port

Super I/O

• Winbond Super I/O 83527

Peripheral
Devices

USB Devices

• Four (4) USB ports on the rear I/O panel (USB 0/1,

USB 2/3),

• Six (6) USB connections for front access (USB 4/5,

USB 8/9, USB 10/11),

• One (1) Type A USB connection for front access

(USB 7)

BIOS

• 16 MB SPI AMI BIOS

®

SM Flash BIOS

• APM 1.2, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard,

Plug & Play (PnP) and SMBIOS 2.5

Power

• ACPI/ACPM Power Management

Management

• Main switch override mechanism

• Keyboard Wake-up from Soft-Off

• Power-on mode for AC power recovery

• Intel

®

Intelligent Power Node Manager (Available

when the NMView Software is Installed)

• Management Engine

PC Health

CPU Monitoring

Monitoring

• Onboard voltage monitors for 1.8V, +3.3V, 3.3VSB,

+5V Standby, 1.35V, 1.5V, Chipset Voltage, and

Battery Voltage.

• CPU 5-Phase switching voltage regulator

Chapter 1: Overview

1-9

• CPU/System overheat LED and control

• CPU Thermal Trip support

• Thermal Monitor 2 (TM2) support

Fan Control

• Fan status monitoring with rmware thermal man-

agement via IPMI 2.0

• Low noise fan speed control

System
Management

• PECI (Platform Environment Conguration Interface)

2.0 support

• System resource alert via SuperDoctor® III

• SuperDoctor® III, Watch Dog, NMI

• Chassis Intrusion Header and Detection

Dimensions

• 12.00" (L) x 13.00" (W) (304.80 mm x 330.20 mm)

Note: For IPMI Conguration Instructions, please refer to the Embedded

IPMI Conguration User's Guide available @ http://www.supermicro.com/

support/manuals/.

1-10

X9DR3-F/X9DRi-F Motherboard User’s Manual

System Block Diagram

Note: This is a general block diagram and may not exactly represent the

features on your motherboard. See the Motherboard Features pages for

the actual specications of each motherboard.

#1-7

#2-8

#2-7

SLOT 2

KB

MS

COM1
External

#1-5

#1-6

Ports 4~7

Ports 0~3

#1-4

#1-3

#1-2

#1-1

DDR3

#2-4

#2-3

#2-2

#2-1

DDR3

QPI

QPI

8G

LANE6

SLOT 1

COM2
Header

SLOT 3

PCI-E X8

USB 2.0

3.0 Gb/S

PCH C606/C602

PCI-E X16 G3

DMI2

LANE5

LANE1/2/3/4

SPI

P0

SIO

W83527

USB

SATA

2 Rear
4 Front

1 Type-A

BMC

PCI-E X8 G3

PCI-32

#2-5

#2-6

PCI-E X8 G3

SCU

DDR3

QPI
8G

SCU

SCU

P1

P1

P0

PCI-E X4 G3

DDR3

E5-2600(v2) Series

Processor#2

E5-2600(v2) Series

SLOT 4

SLOT 5

PCI-E X16

PCI-E X16

PCI-E X16

SLOT 6

PCI-E X8

PCI-E X8 G3

PCI-E X16 G3

PCI-E X16 G3

6.0 Gb/S

(for Ports 0/1)

PCI-E X8

i350

LAN

VGA

PCI-E X4

#2

#3A

#3B

#1B

#1A

DMI2

DMI2

#2

#1

#3

DMI2 4GB/s

8GB/s

#0~#6

#0~#8

Processor#1

#1-8

(SCU4~7:
X9DR3-F only)

Chapter 1: Overview

1-11

1-2 Processor and Chipset Overview

Built upon the functionality and the capability of Intel® E5-2600(v2) Series Proces-

sor (Socket R LGA 2011) and the PCH C606/C602 chipset, the X9DR3-F/X9DRi-F

motherboard provides the performance and feature sets required for dual_proces-

sor-based HPC/Cluster/Database servers. (See note below for processor support.)

With support of Intel QuickPath interconnect (QPI) Technology, the X9DR3-F/

X9DRi-F offers point-to-point serial interconnect interface with a transfer speed

of up to 8.0 GT/s, providing superb system performance.

The PCH C606/C602 chipset provides extensive IO support, including the follow-

ing functions and capabilities:

•PCI-Express Rev. 2.0 support

•PCI-Express Gen. 3 uplink supported by some SKUs

•ACPI Power Management Logic Support Rev. 3.0b or Rev. 4.0

•USB host interface backplane and front access support

•Intel Rapid Storage Technology supported

•Intel Virtualization Technology for Directed I/O (Intel VT-d) supported

•Intel Trusted Execution Technology supported

•Serial Peripheral Interface (SPI) Supported

•Digital Media Interface (DMI) supported

•Advanced Host Controller Interface (AHCI) supported

Note: For Intel E5-2600(v2) processor support, BIOS version 3.0 or above

is required.

1-12

X9DR3-F/X9DRi-F Motherboard User’s Manual

1-3 Special Features

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will

respond when AC power is lost and then restored to the system. You can choose for

the system to remain powered off (in which case you must press the power switch

to turn it back on), or for it to automatically return to the power-on state. See the

Advanced BIOS Setup section for this setting. The default setting is Last State.

1-4 PC Health Monitoring

This section describes the features of PC health monitoring of the motherboard.

This motherboard has an onboard System_Hardware_Monitor chip that supports

PC health monitoring. An onboard voltage monitor will scan the voltages of CPU,

memory, chipset and onboard battery continually. Once a voltage becomes unstable,

a warning is given, or an error message is sent to the screen. The user can adjust

the voltage thresholds to dene the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

The PC health monitoring chip can check the RPM status of a cooling fan. The

onboard CPU and chassis fans are controlled by rmware thermal management

via IPMI 2.0.

Environmental Temperature Control

A thermal control sensor monitors the CPU temperature in real time and will turn

on the thermal control fan whenever the CPU temperature exceeds a user-dened

threshold. The overheat circuitry runs independently from the CPU. Once the

thermal management rmware detects that the CPU temperature is too high, it will

automatically turn on the thermal fan control to prevent the CPU from overheating.

The onboard chassis thermal circuitry can monitor the overall system temperature

and alert the user when the chassis temperature is too high.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

System Resource Alert

This feature is available when used with SuperDoctor® III in the Windows OS

environment or used with SuperDoctor II in Linux. SuperDoctor is used to notify

the user of certain system events. For example, you can congure SuperDoctor

Chapter 1: Overview

1-13

to provide you with warnings when the system temperature, CPU temperatures,

voltages, and fan speeds go beyond a pre-dened range.

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers.

In addition to operating_system-directed power management, ACPI also provides

a generic system event mechanism for Plug and Play, and an operating system-

independent interface for conguration control. ACPI leverages the Plug and Play

BIOS data structures, while providing a processor architecture-independent imple-

mentation that is compatible with Windows 7, Windows Vista and Windows 2008

Operating Systems.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will "wake up," and the LED will automatically stop blinking and remain on.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

The X9DR3-F/X9DRi-F motherboard accommodates 24-pin ATX power supplies.

Although most power supplies generally meet the specications required by the

CPU, some are inadequate. In addition, two 12V 8-pin power connections are also

required to ensure adequate power supply to the system. Your power supply must

also supply 1.5A for the Ethernet ports.

Warning: To avoid damaging the power supply or motherboard, please use a power

supply that contains a 24-pin and two 8-pin power connectors. Be sure to connect

these power supply connectors to the 24-pin (JPWR3) and two 8-pin power connec-

tors (JPWR1, JPWR2) on the motherboard. Failure to do so will void the manufacturer

warranty on your power supply and motherboard.

1-14

X9DR3-F/X9DRi-F Motherboard User’s Manual

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specication 2.02 or above. It must also be SSI compliant. (For more

information, please refer to the Website at http://www.ssiforum.org/). Additionally, in

areas where noisy power transmission is present, you may choose to install a line

lter to shield the computer from noise. It is recommended that you also install a

power surge protector to help avoid problems caused by power surges.

1-7 Super I/O

The Super I/O supports two high-speed, 16550 compatible serial communication

ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable

baud rate generator, complete modem control capability, and a processor interrupt

system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps

as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which

support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conguration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through an SMI or SCI function pin. It also features auto power management

to reduce power consumption.

1-8 Advanced Power Management

Intel® Intelligent Power Node Manager (NM) (Available
when NMView Software is Installed)

The Intel® Intelligent Power Node Manager (IPNM) provides your system with

real-time thermal control and power management for maximum energy efciency.

Although IPNM Specication Version 1.5/2.0 is supported by the BMC (Baseboard

Management Controller), your system must also have IPNM-compatible Manage-

ment Engine (ME) rmware installed to use this feature.

Note: Support for IPNM Specication Version 1.5 or 2.0 depends on the

power supply used in the system.

Management Engine (ME)

The Management Engine, which is an ARC controller embedded in the PCH, pro-

vides Server Platform Services (SPS) to your system. The services provided by

SPS are different from those provided by the ME on client platforms.

Chapter 1: Overview

1-15

1-9 Overview of the Nuvoton WPCM450 Controller

The Nuvoton WPCM450R Controller, a Baseboard Management Controller (BMC),

supports 2D/VGA-compatible Graphic Cores with PCI interface, creating multi-media

virtualization via Keyboard/Video/Mouse Redirection (KVMR). The WPCM450R

Controller is ideal for remote system management.

The WPCM450R Controller interfaces with the host system via PCI connections

to communicate with the graphics cores. It supports USB 2.0 and 1.1 for remote

keyboard/mouse/virtual media emulation. It also provides LPC interface support to

control Super IO functions. The WPCM450R Controller is connected to the network

via an external Ethernet PHY module or shared NCSI connections.

The WPCM450R communicates with onboard components via six SMBus inter-

faces, PECI (Platform Environment Control Interface) buses, and General Purpose

I/O ports.

Other Features Supported by the WPCM BMC Controller

The WPCM450R supports the following features:

•IPMI 2.0

•Serial over LAN

•KVM over LAN

•LAN Alerting-SNMP Trap

•Event Log

•X-Bus parallel interface for I/O expansion

•Multiple ADC inputs, Analog and Digital Video outputs

•SPI Flash Host BIOS and rmware bootstrap program supported

•Reduced Media Independent Interface (RMII)

•OS (Operating System) Independency

•Provides remote Hardware Health Monitoring via IPMI. Key features

•Provides Network Management Security via remote access/console redirection.

•Supports the following Management tools: IPMIView, CLI (Command Line

Interface)

1-16

X9DR3-F/X9DRi-F Motherboard User’s Manual

•RMCP+ protocol supported

Note 1: For more information on IPMI conguration, please refer to the

IPMI User's Guide posted on our website at http://www.supermicro.com/

support/manuals/.

Note 2: The term "IPMI controller" and the term "BMC controller" can be

used interchangeably in this section.

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメー
カーが推奨する型、または同等のものを使用下さい。 使用済電池は製造元の指示に従
って処分して下さい。

警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

2-2

X9DR3-F/X9DRi-F Motherboard User’s Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일
하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사
의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

Chapter 2: Installation

2-3

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
ありま す。

警告
本产品的废弃处理应根据所有国家的法律和规章进行。

警告
本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

2-4

X9DR3-F/X9DRi-F Motherboard User’s Manual

2-2 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam-

aging your system board, it is important to handle it very carefully. The following

measures are generally sufcient to protect your equipment from ESD.

Precautions

•Use a grounded wrist strap designed to prevent static discharge.

•Touch a grounded metal object before removing the board from the antistatic

bag.

•Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

•When handling chips or modules, avoid touching their pins.

•Put the motherboard and peripherals back into their antistatic bags when not

in use.

•For grounding purposes, make sure that your system chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

Chapter 2: Installation

2-5

OPEN 1st

WARNING!

2-3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on

the label area.

Notes:

•Always connect the power cord last, and always remove it before adding,

removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the CPU heatsink.

•If you buy a CPU separately, make sure that you use an Intel-certied multi-

directional heatsink only.

•Make sure to install the system board into the chassis before you install

the CPU heatsink.

•When receiving a server board without a processor pre-installed, make sure

that the plastic CPU socket cap is in place and none of the socket pins are

bent; otherwise, contact your retailer immediately.

•Refer to the Supermicro website for updates on CPU support.

Press down

on

Load Lever

labeled 'Open 1st'.

Installing the LGA2011 Processor

1. There are two load levers on the LGA2011 socket. To open the socket cover,

rst press and release the load lever labeled 'Open 1st'.

OPEN 1st

WARNING!

1

2

2-6

X9DR3-F/X9DRi-F Motherboard User’s Manual

Gently push
down to pop the
load plate open.

2. Press the second load lever labeled 'Close 1st' to release the load plate that

covers the CPU socket from its locking position.

3. With the lever labeled 'Close 1st' fully retracted, gently push down on the

'Open 1st' lever to open the load plate. Lift the load plate to open it com-

pletely.

OPEN 1st

WARNING!

OPEN 1st

WARNING!

1

2

Press down on

Load the

Lever labeled 'Close 1st'

WARNING!

OPEN 1st

WARNING!

1

Pull lever away from
the socket

2
