Supero X10SBA, X10SBA-L User Manual

X10SBA

X10SBA-L

USER’S MANUAL

Revision 1.0

The information in this user’s manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruc­tions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver

is connected.

•Consult the authorized dealer or an experienced radio/TV technician for help.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn­ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to the
State of California to cause birth defects and other repro­ductive harm.

Manual Revision 1.0
Release Date: January 3, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

iii

Preface

Preface

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

X10SBA/X10SBA-L motherboard.

About This Motherboard

The X10SBA/X10SBA-L supports the next-generation Intel® Celeron

J1900 SoC (System on a Chip) 22nm Quad-Core processor in the BGA 1170 format.

With a 64-bit, 22nm, low-power Tri-gate Quad Core Silvermont processor built into

it, the X10SBA(-L) motherboard offers unprecedented enhancements in system

performance, power efciency, and visual/media capability. This motherboard is

ideal for SMB entry-level Storage, Server, or Appliance platforms that are optimized

for networking, thin-client, Kiosk, Digital Signage, and control-box applications.

Please refer to our website (http://www.supermicro.com/products/) for processor

and memory support updates. This product is intended to be installed and serviced

by professional technicians.

Manual Organization

Chapter 1 describes the features, specications and performance of the mother-

board, and provides detailed information on the Intel Celeron Bay Trail processor

platform.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information

on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

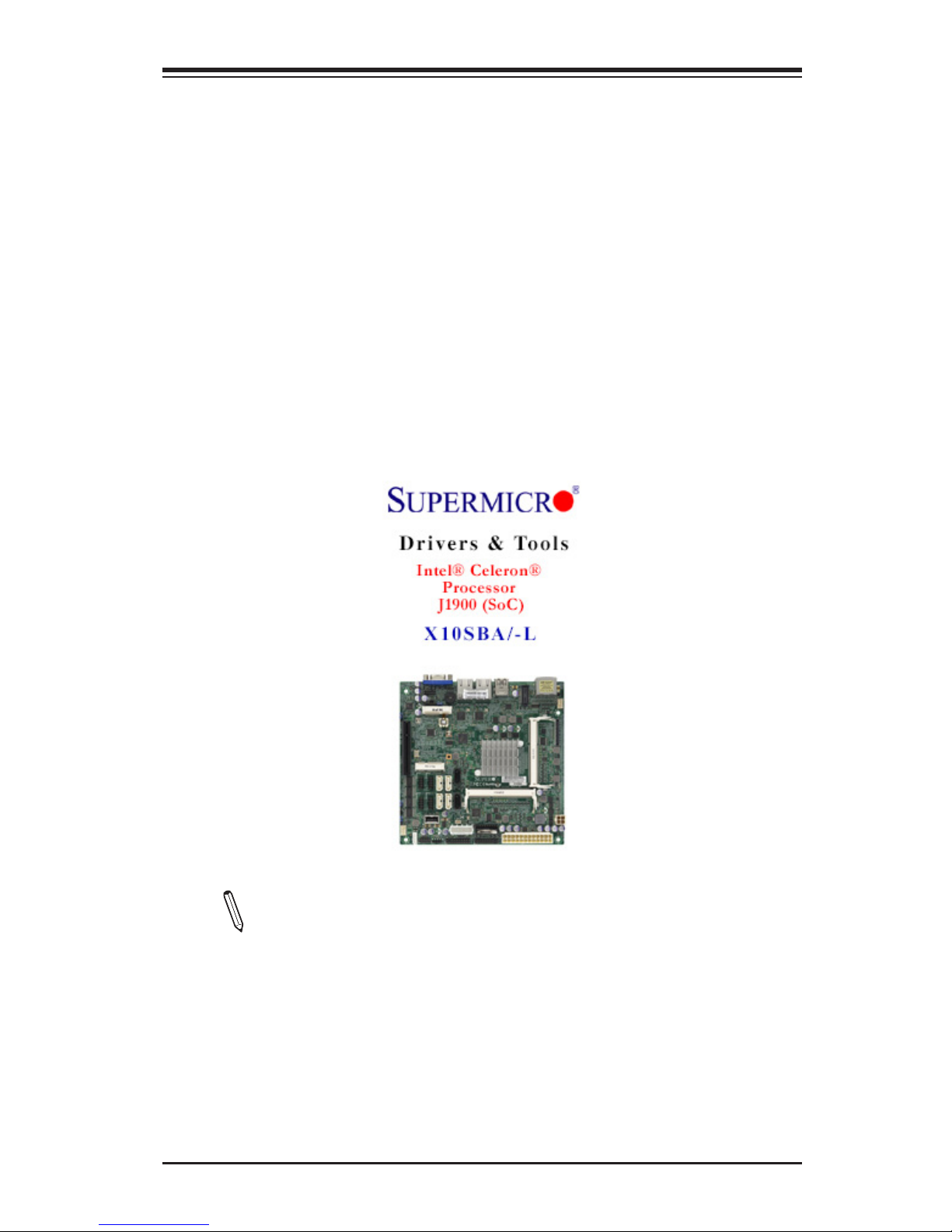

Appendix B lists software program installation instructions.

Appendix C contains UEFI BIOS Recovery instructions.

iv

Conventions Used in the Manual:

Special attention should be given to the following symbols for proper installation and

to prevent damage done to the components or injury to yourself:

Warning: Critical information to prevent damage to the components or injury to your-

self.

Important: Important information is given to ensure proper system instal-

lation or to relay safety precautions.

Note: Additional Information is provided for correct system setup.

X10SBA/X10SBA-L User’s Manual

v

Contacting Supermicro

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Web Site: www.supermicro.com

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Tel: [phone]

Web Site: www.supermicro.com.tw

vi

Table of Contents

Preface

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Processor Overview ......................................................................................1-11

1-3 Special Features ........................................................................................... 1-12

1-4 PC Health Monitoring .................................................................................... 1-12

1-5 ACPI Features ............................................................................................... 1-13

1-6 Power Supply ................................................................................................ 1-13

1-7 Super I/O ....................................................................................................... 1-13

Chapter 2 Installation

2-1 Standardized Warning Statements ................................................................. 2-1

2-2 Static-Sensitive Devices .................................................................................. 2-4

2-3 Memory Support .............................................................................................. 2-5

Memory Population Guidelines ....................................................................... 2-5

Populating Memory Modules........................................................................... 2-6

Installing a SO-DIMM Module into a Horizontal Socket ................................. 2-7

Removing a SO-DIMM Module from the Socket ............................................ 2-7

2-4 Motherboard Installation .................................................................................. 2-8

Tools Needed .................................................................................................. 2-8

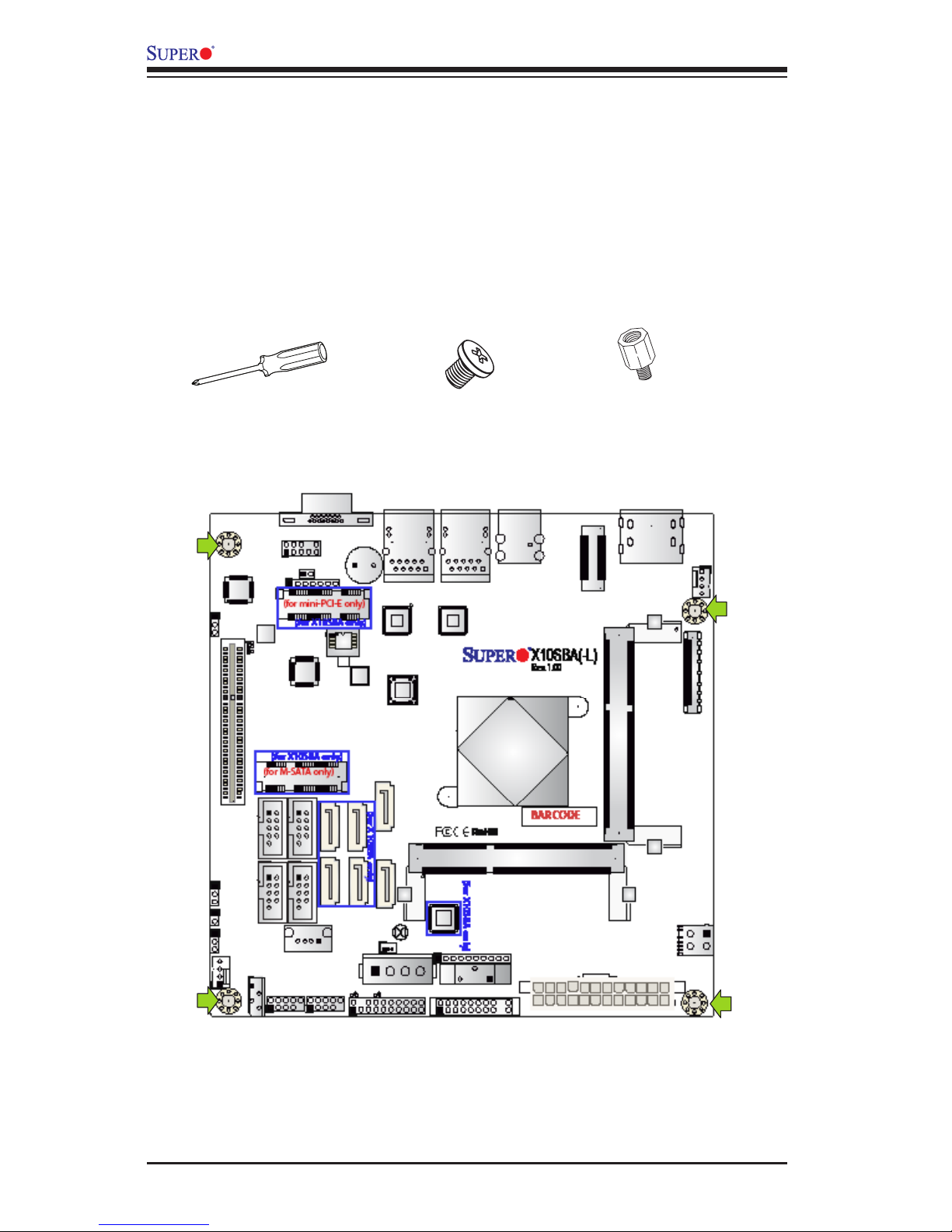

Location of Mounting Holes ............................................................................ 2-8

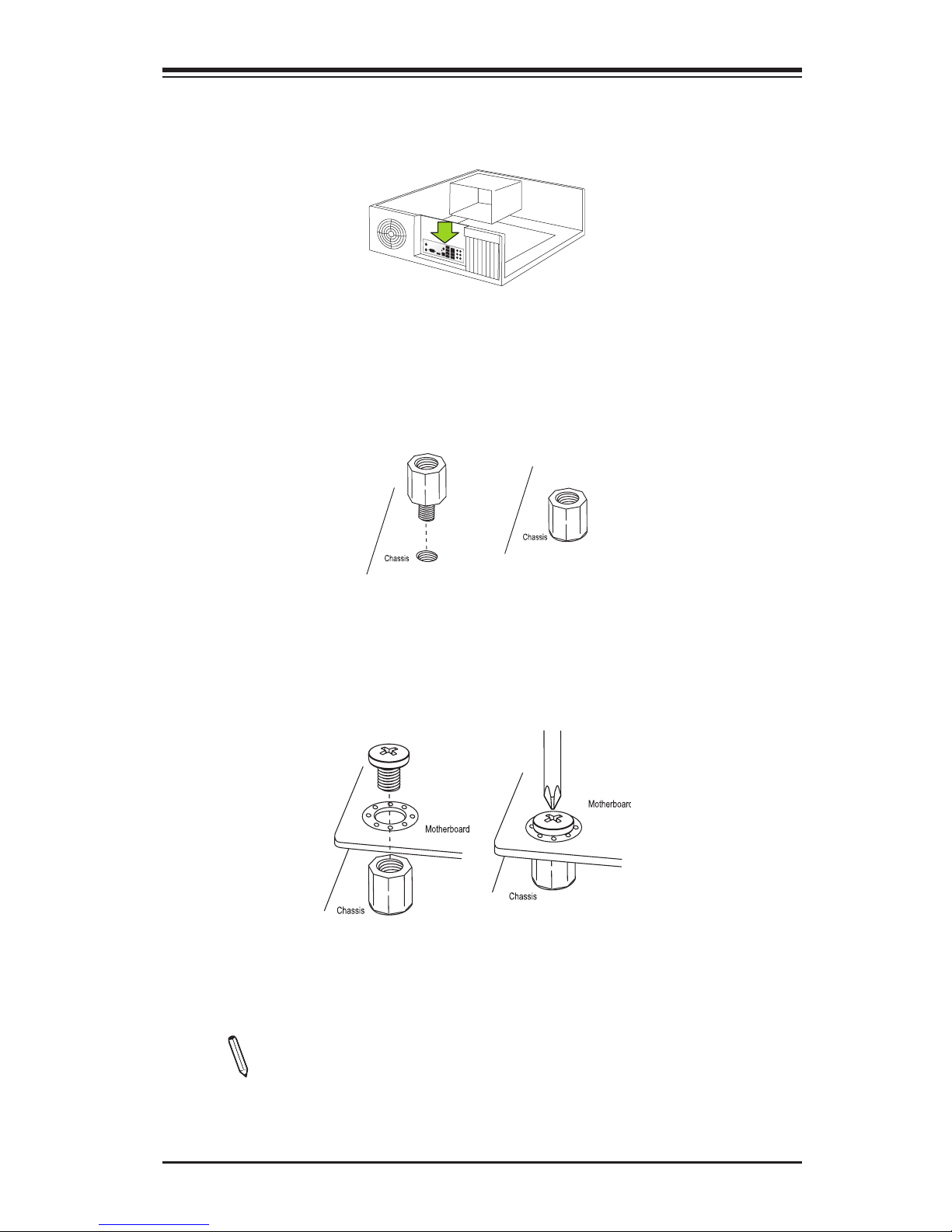

Installing the Motherboard .............................................................................. 2-9

2-5 Connectors/IO Ports ...................................................................................... 2-10

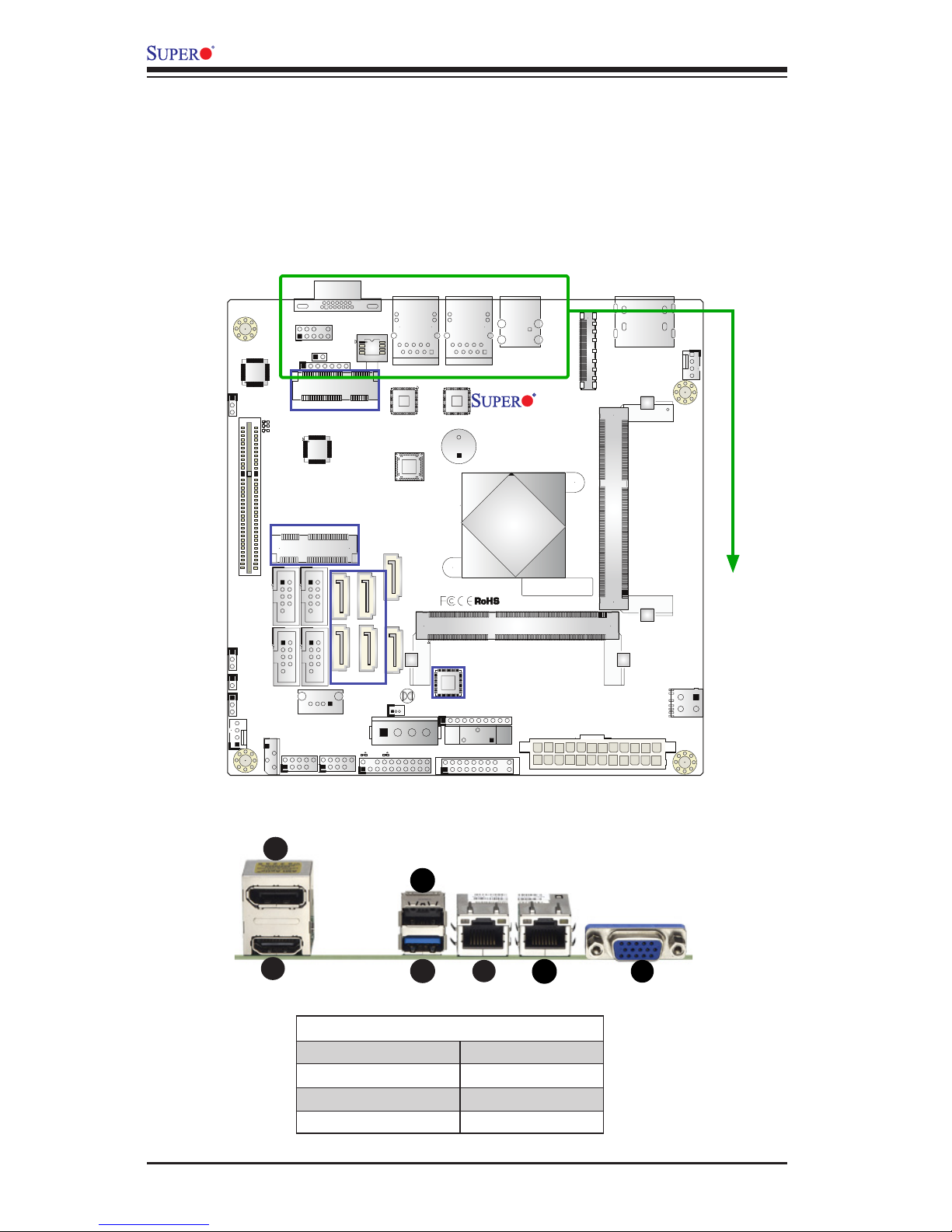

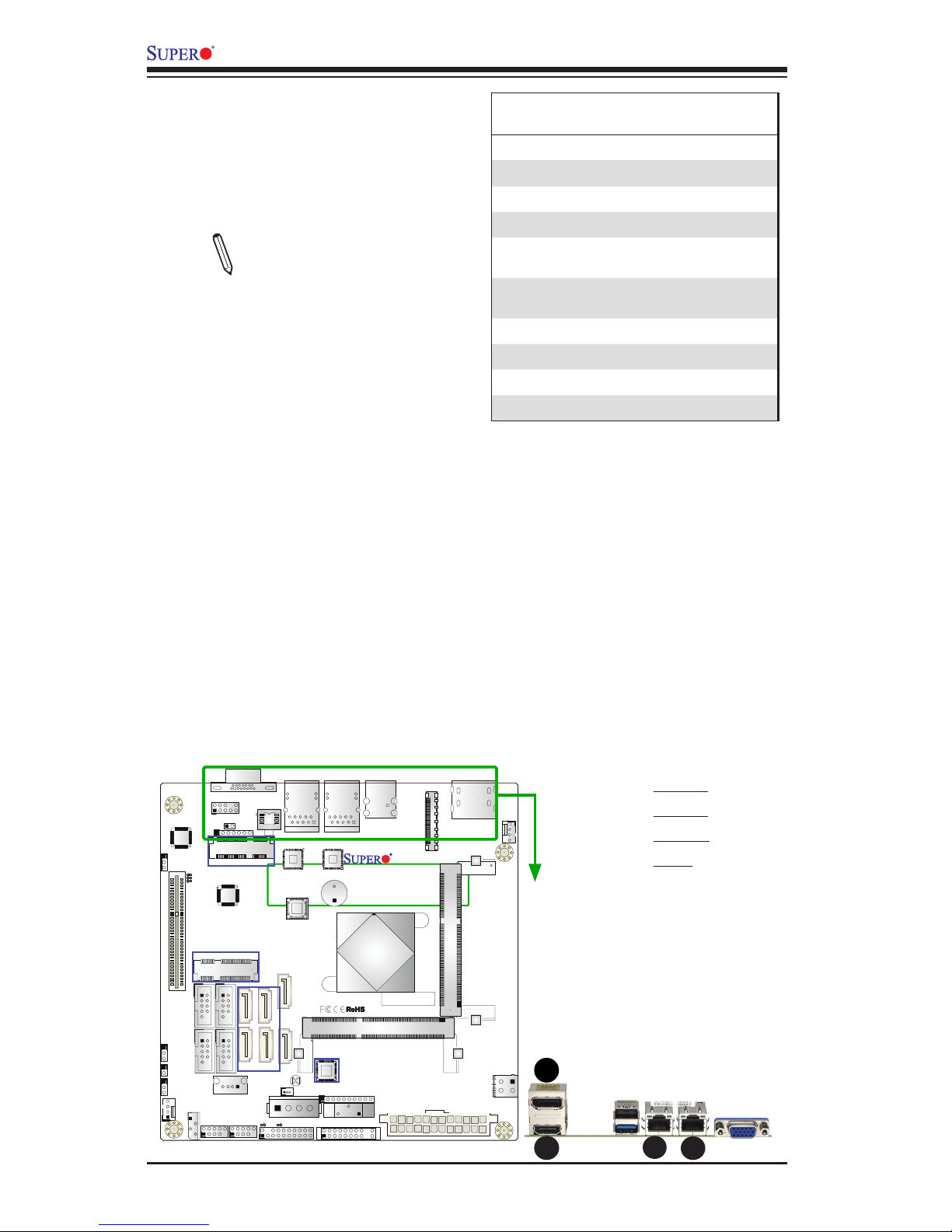

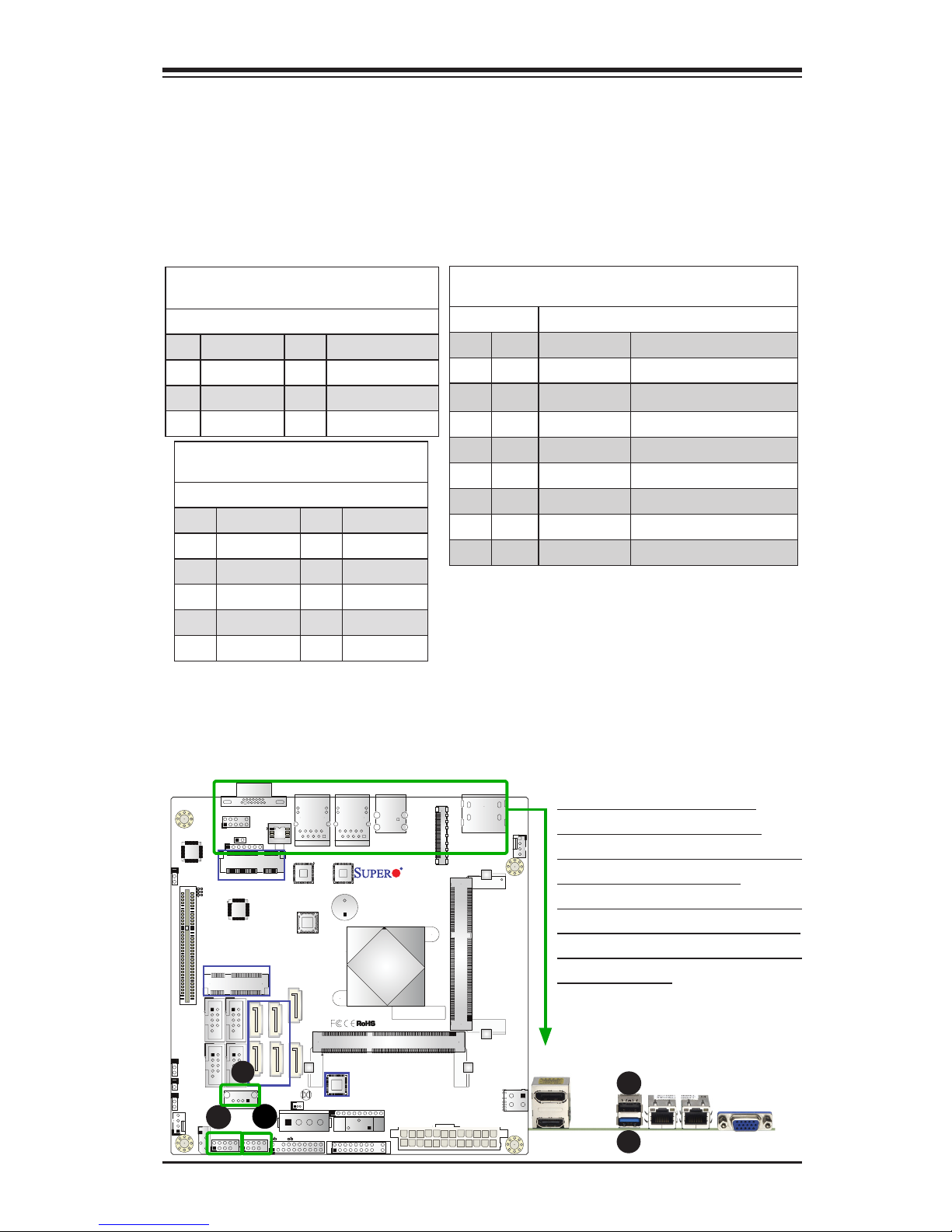

Backplane I/O Panel ..................................................................................... 2-10

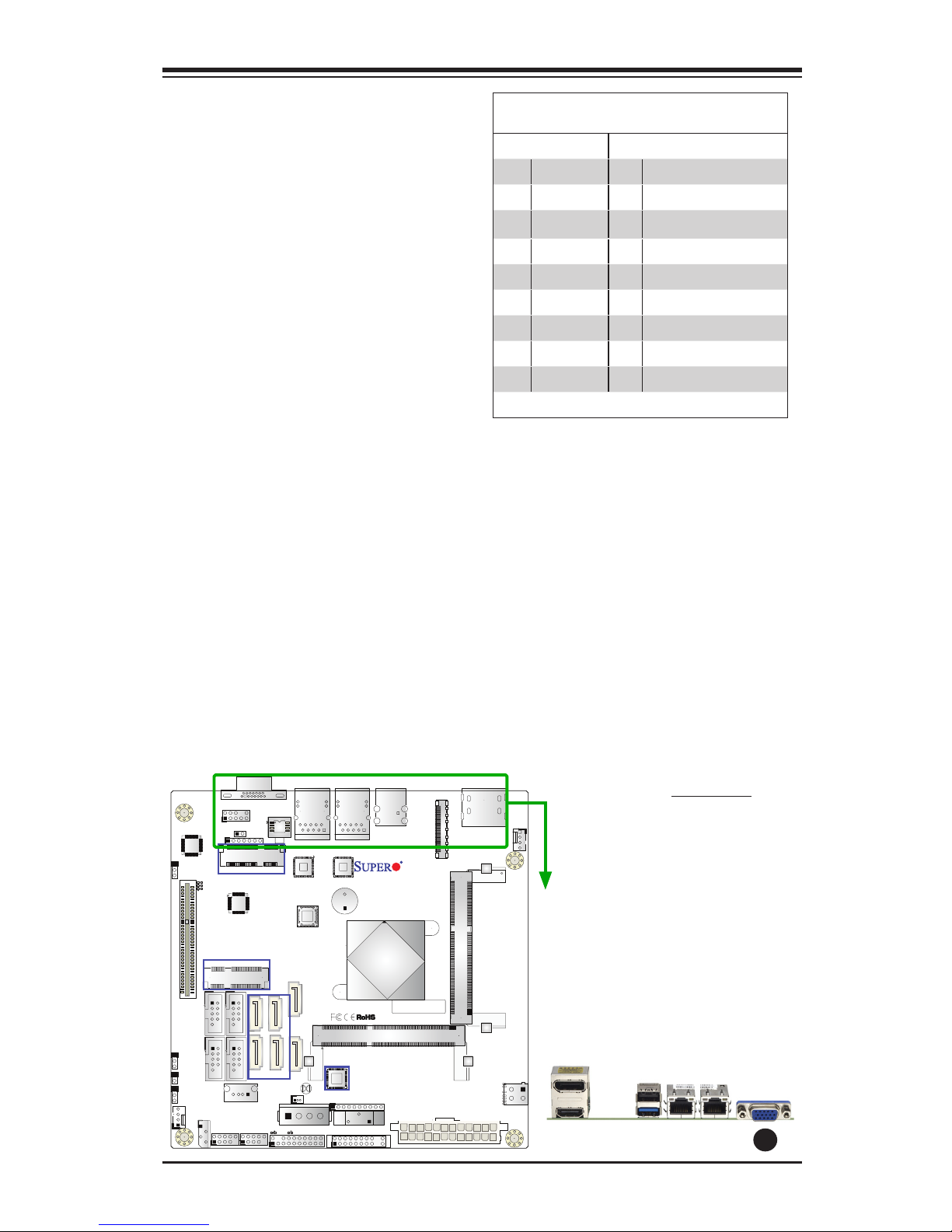

Universal Serial Bus (USB) .......................................................................2-11

Ethernet Ports .......................................................................................... 2-12

HDMI & DP Ports ..................................................................................... 2-12

Video Connector ....................................................................................... 2-13

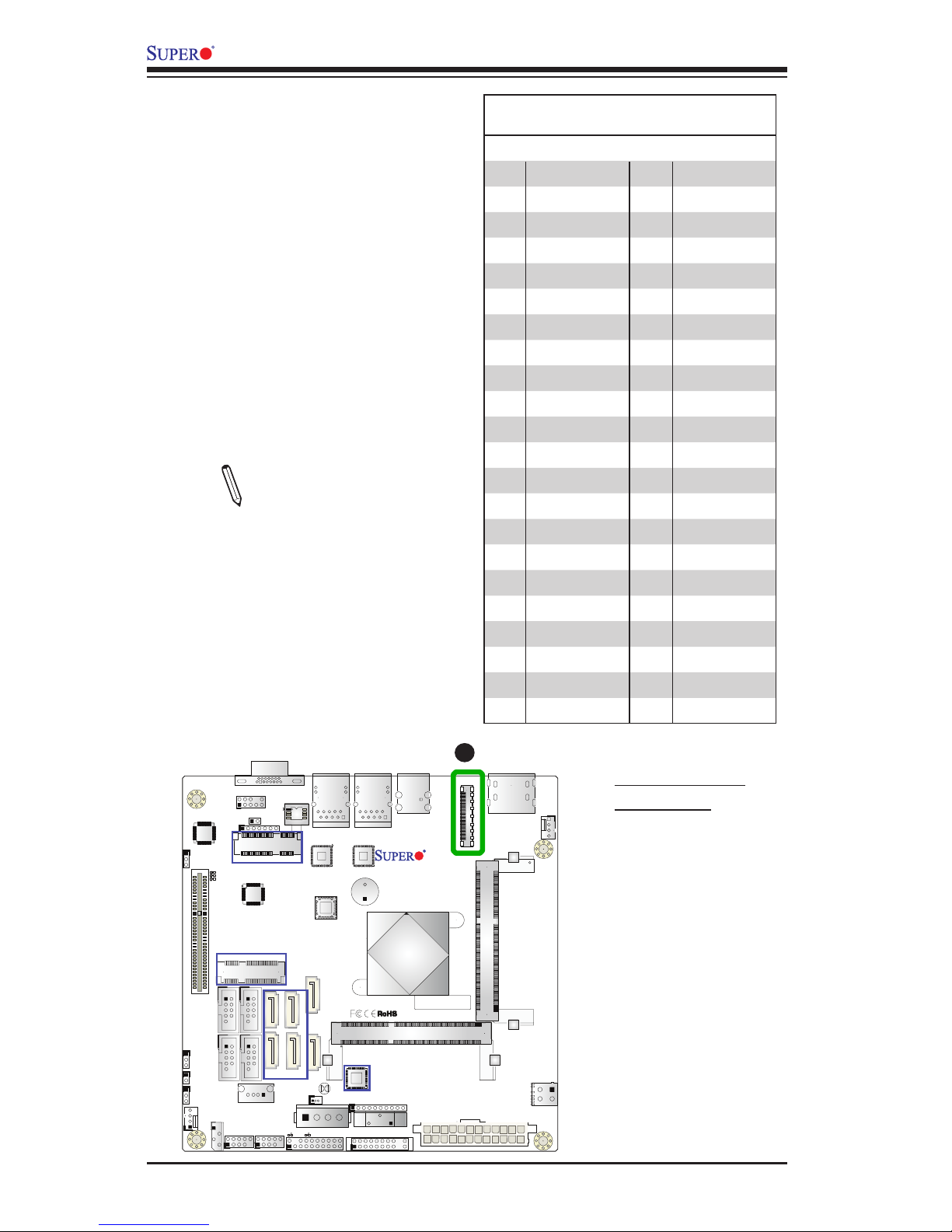

Embedded DisplayPort (eDP) .................................................................. 2-14

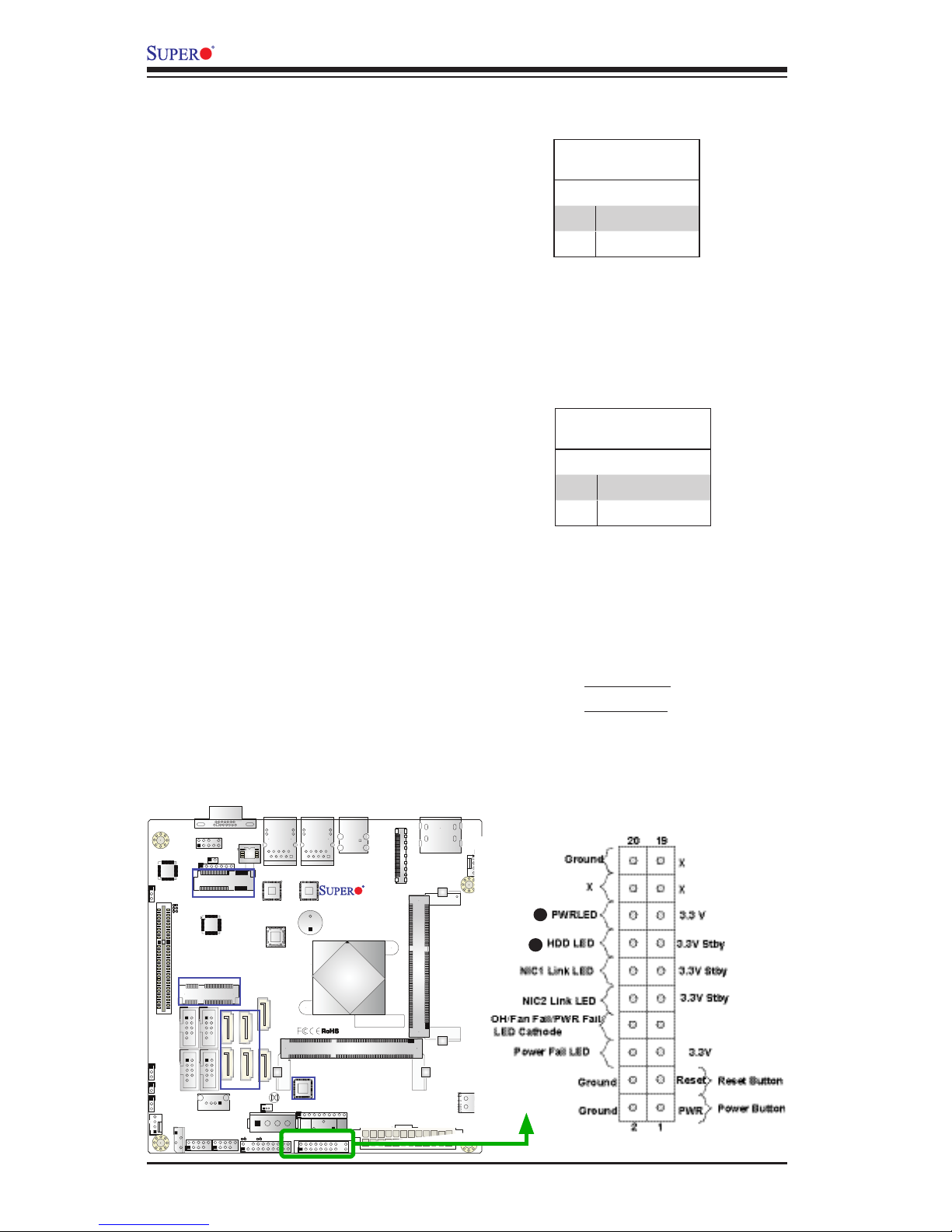

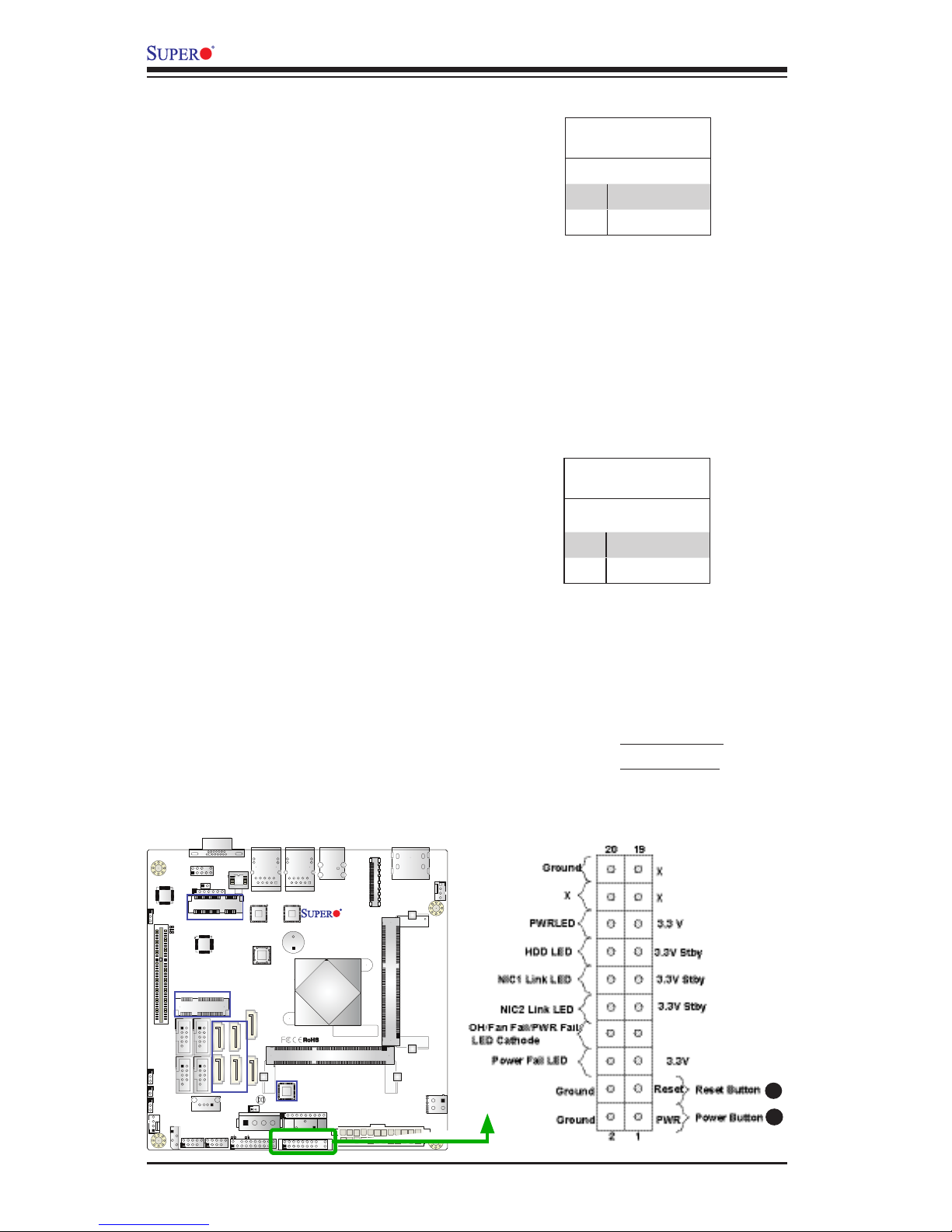

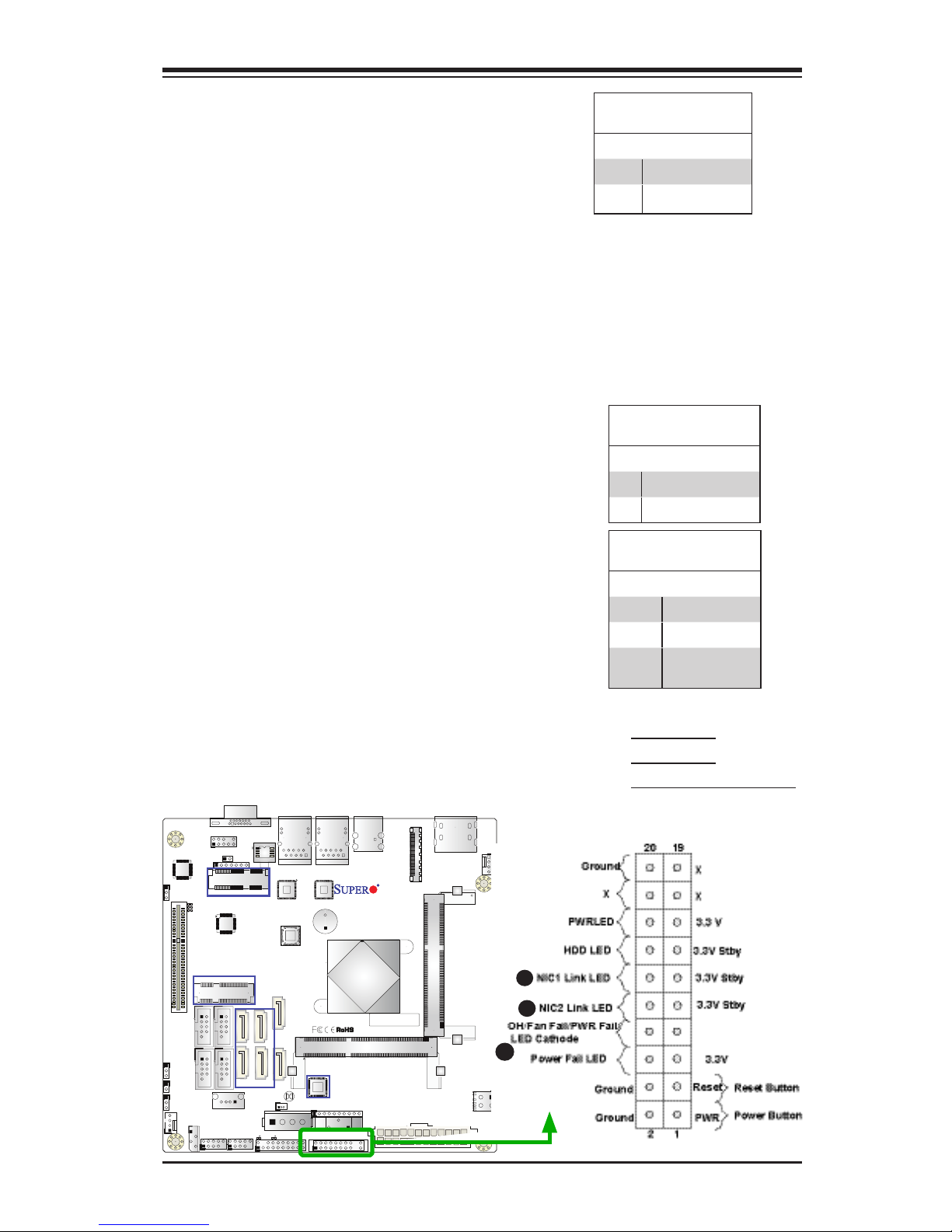

Front Control Panel ....................................................................................... 2-15

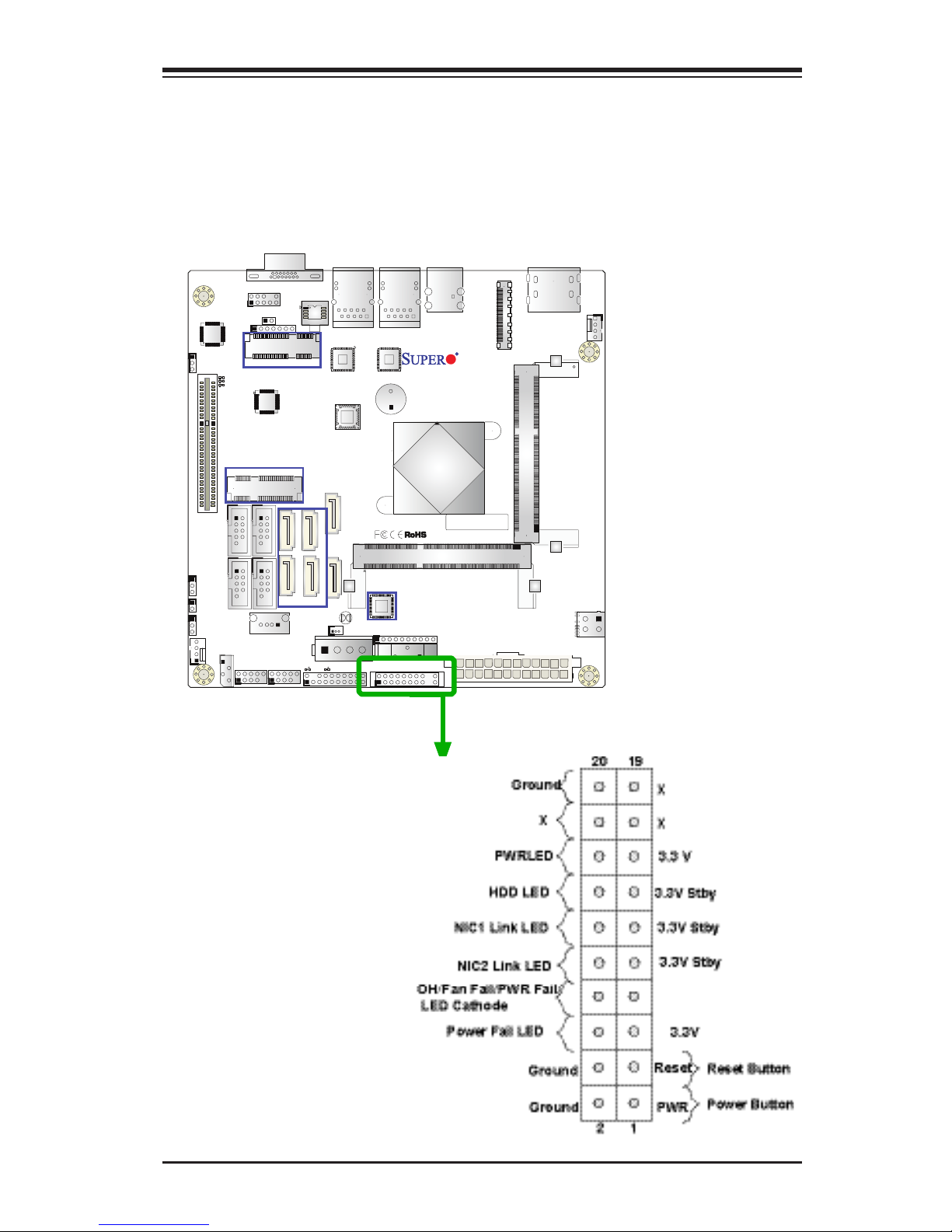

Front Control Panel Pin Denitions............................................................... 2-16

Power LED .............................................................................................. 2-16

HDD LED .................................................................................................. 2-16

NIC1/NIC2 (LAN1/LAN2) .......................................................................... 2-17

Overheat (OH)/Fan Fail ............................................................................ 2-17

Reset Button ........................................................................................... 2-18

Power Button ........................................................................................... 2-18

X10SBA/X10SBA-L User’s Manual

vii

Table of Contents

2-6 Connecting Cables ........................................................................................ 2-19

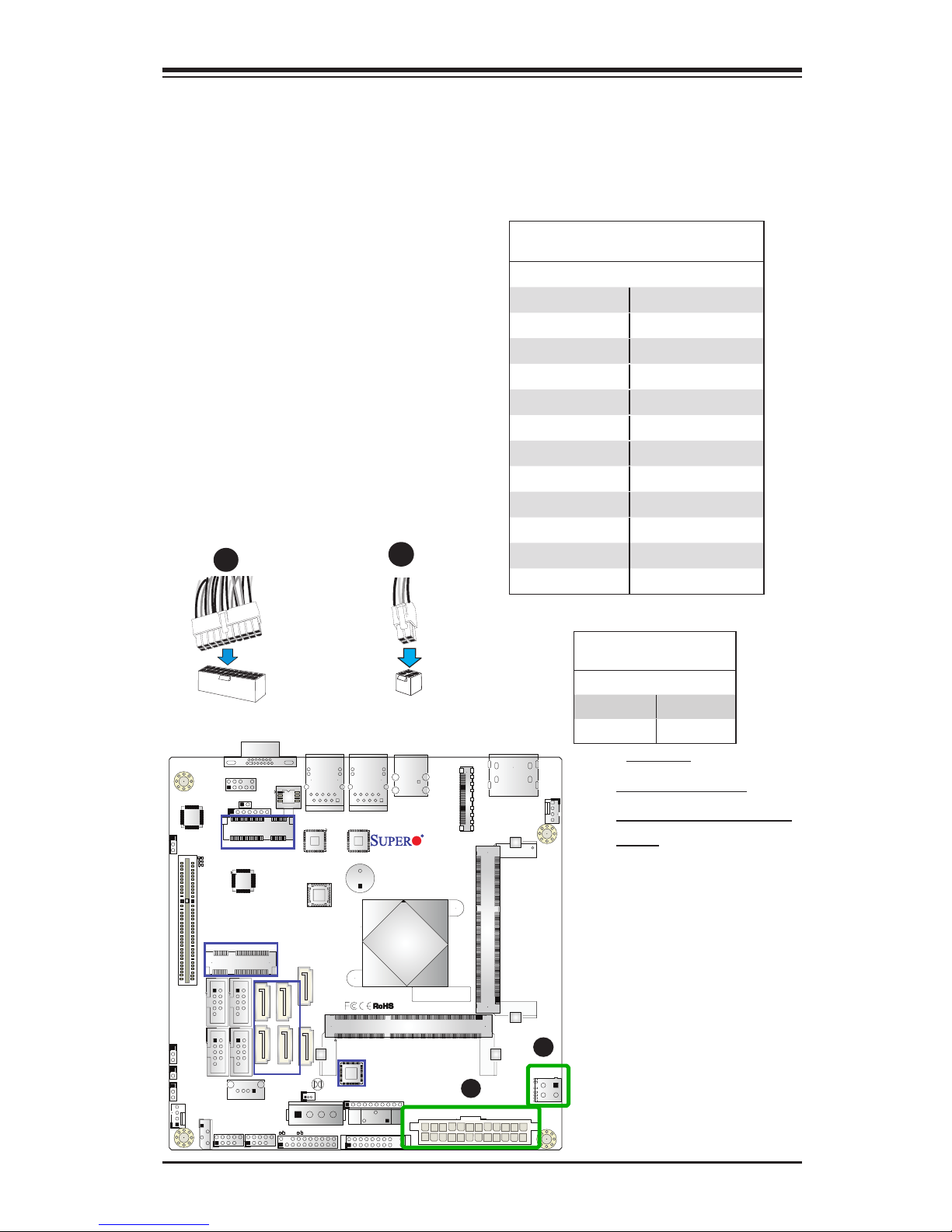

ATX PWR & 12V DC PWR Connectors (JPW1 & PJ1) ........................... 2-19

DOM PWR Connector (JSD1) .................................................................. 2-20

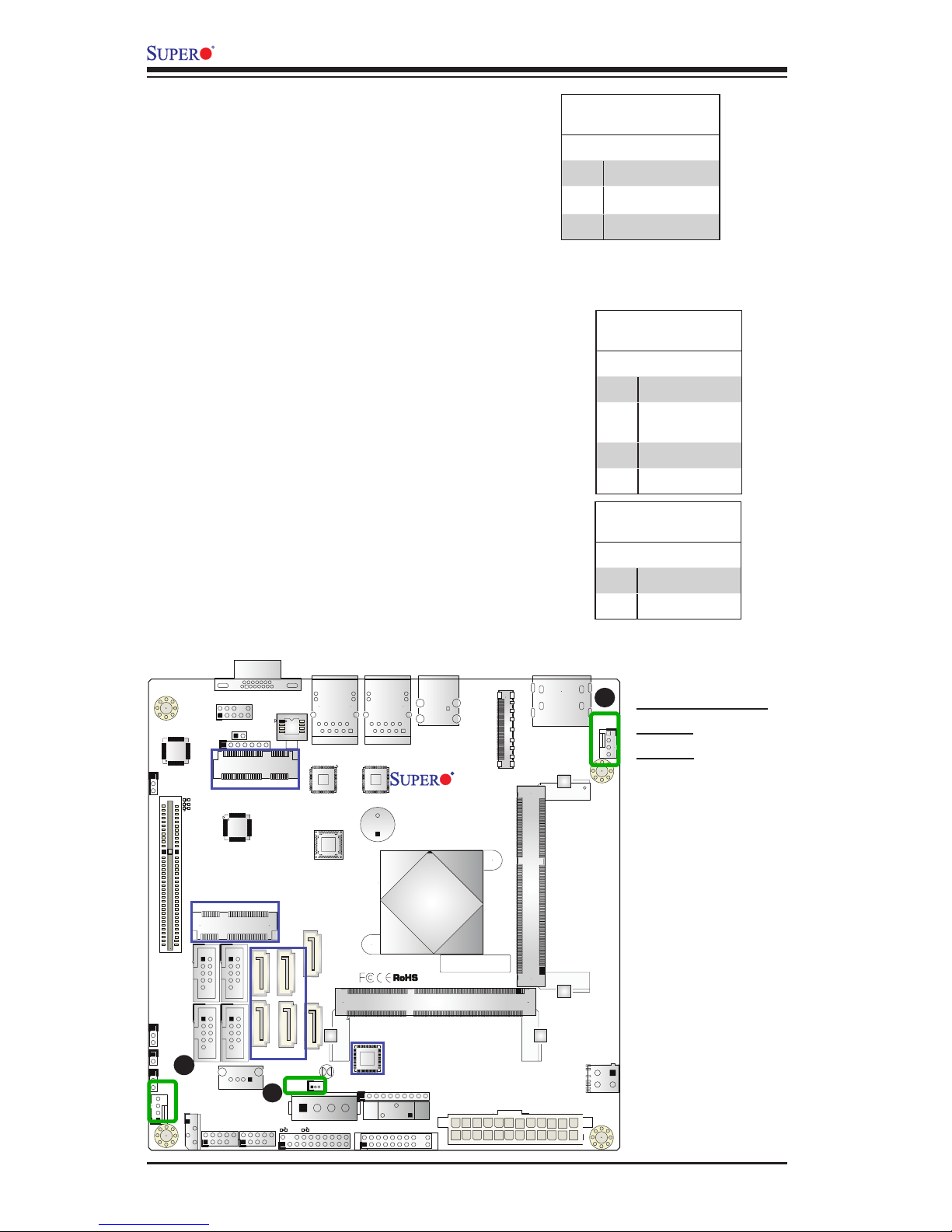

Fan Headers (Fan 1/Fan 2) ..................................................................... 2-20

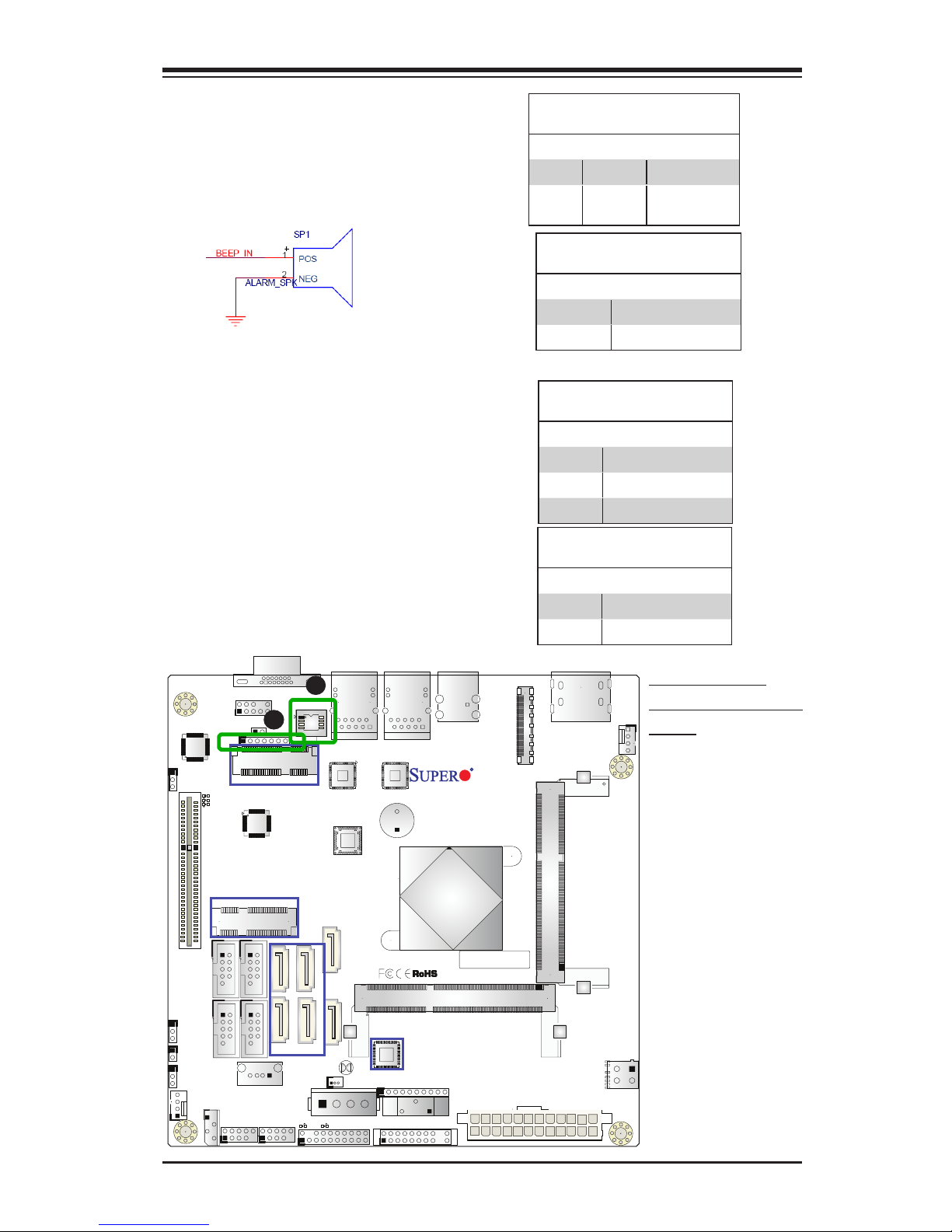

Internal Buzzer (SP1) ............................................................................... 2-21

Power LED/Speaker ................................................................................. 2-21

Serial Ports (COM1-COM4) ..................................................................... 2-22

Front Accessible Audio Header ................................................................ 2-22

TPM Header/Port 80 Header ................................................................... 2-23

SPDIF_OUT (JSPDIF_OUT) .................................................................... 2-23

SMBUS1 ................................................................................................... 2-24

Overheat/Fan Fail LED ............................................................................ 2-24

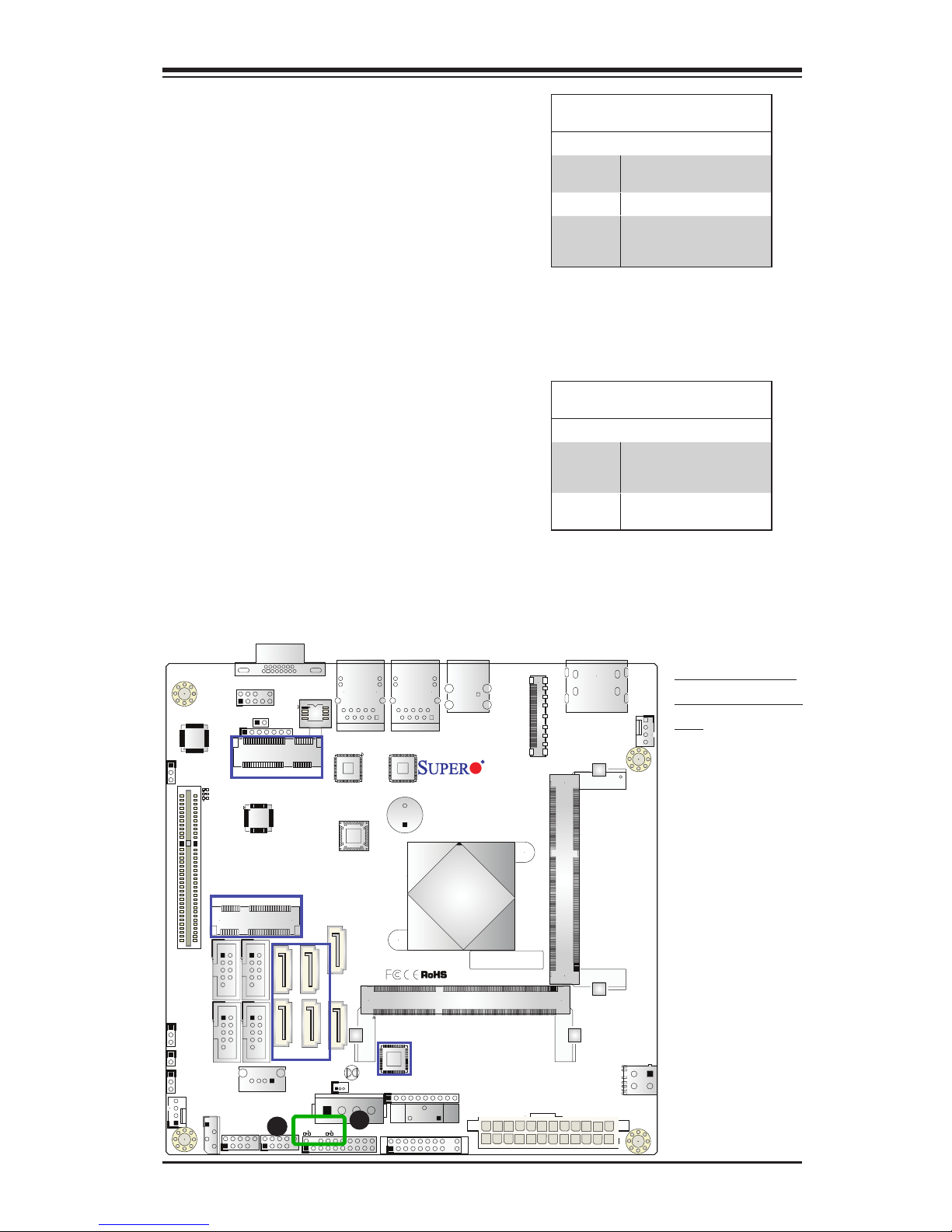

2-7 Jumper Settings ............................................................................................ 2-25

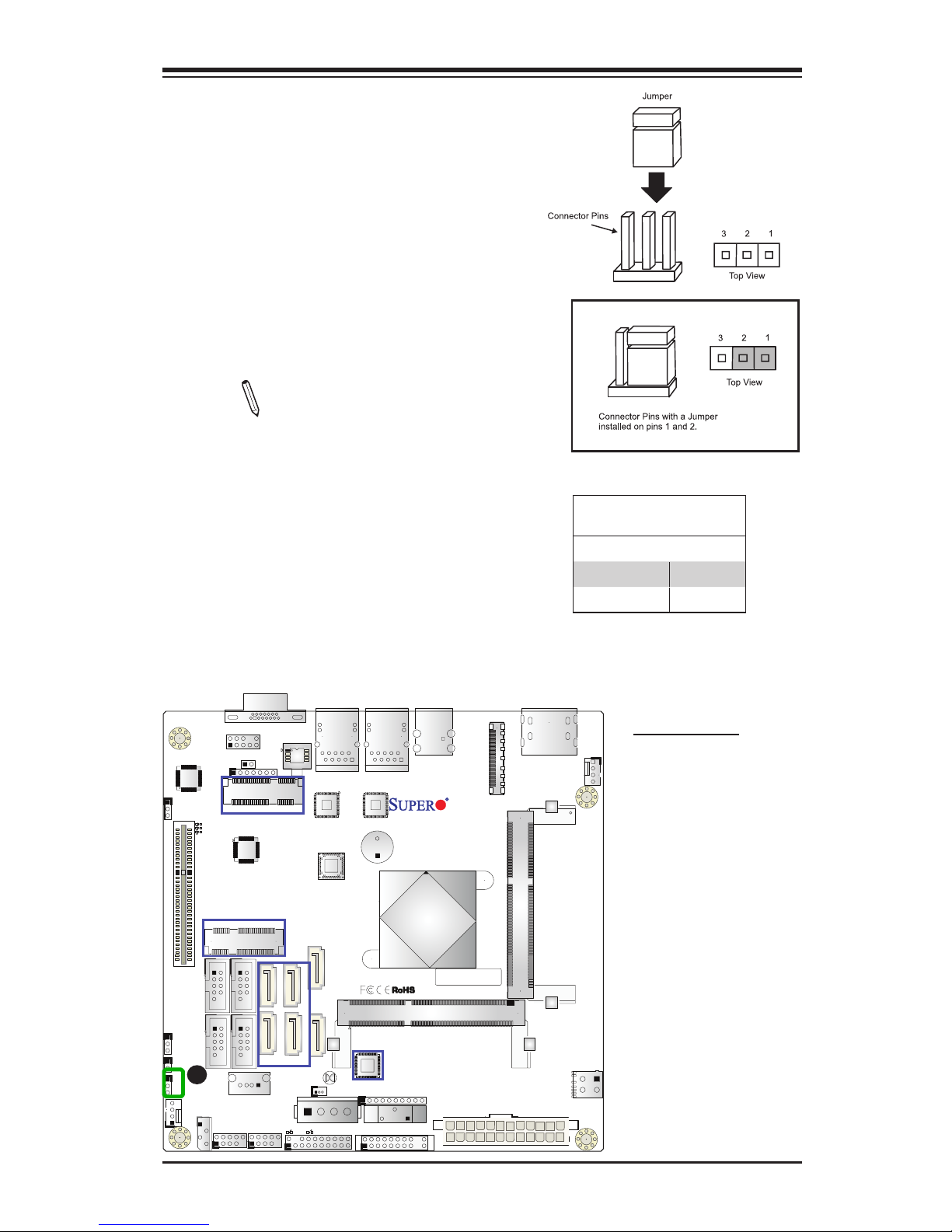

Explanation of Jumpers ................................................................................ 2-25

Audio Enable (JPAC1).............................................................................. 2-25

CMOS Clear ............................................................................................. 2-26

Manufacture Mode Select ........................................................................ 2-26

USB Wake-Up ......................................................................................... 2-27

2-8 Onboard Indicators ........................................................................................ 2-28

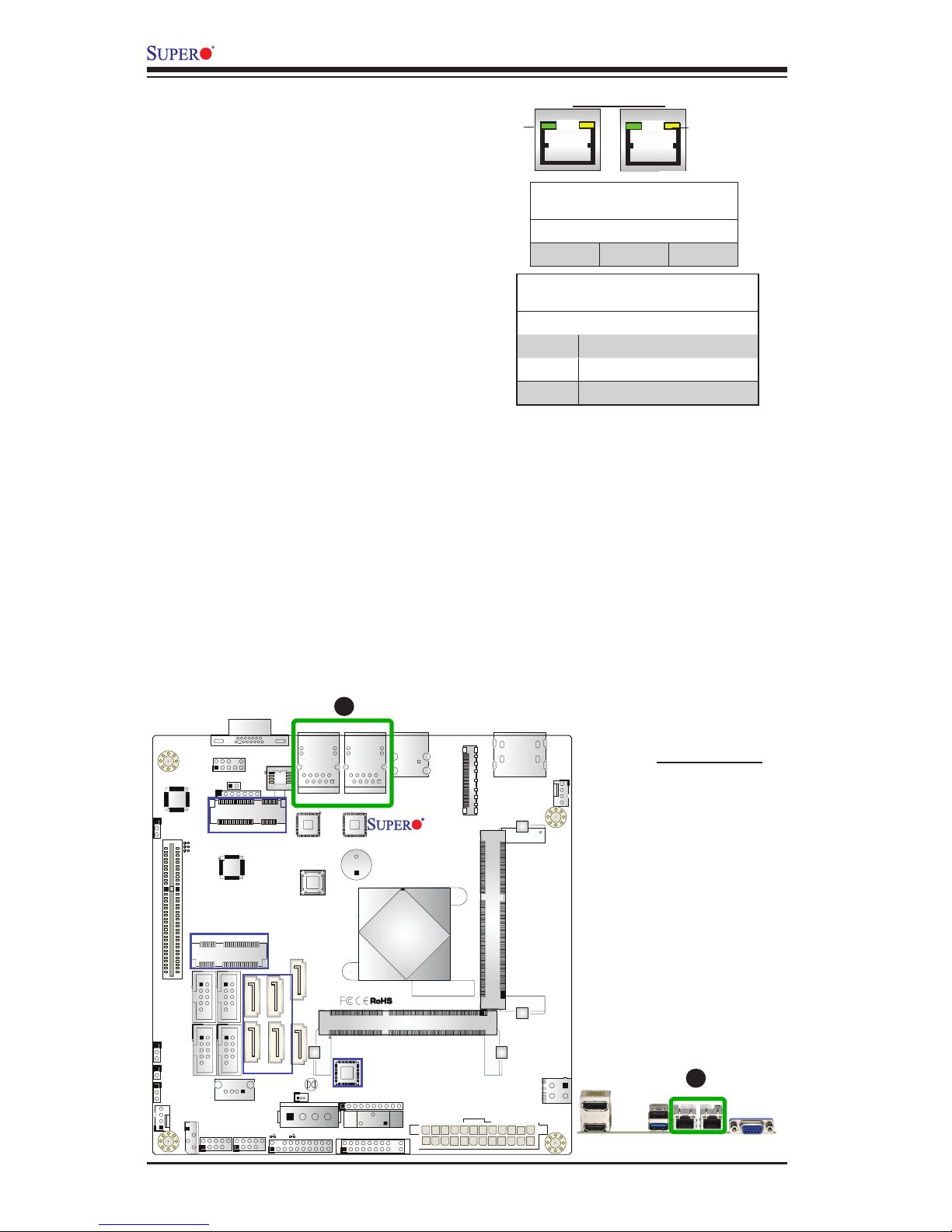

LAN 1/LAN 2 LEDs .................................................................................. 2-28

Main Power LED ..................................................................................... 2-29

Standby Power LED ................................................................................ 2-29

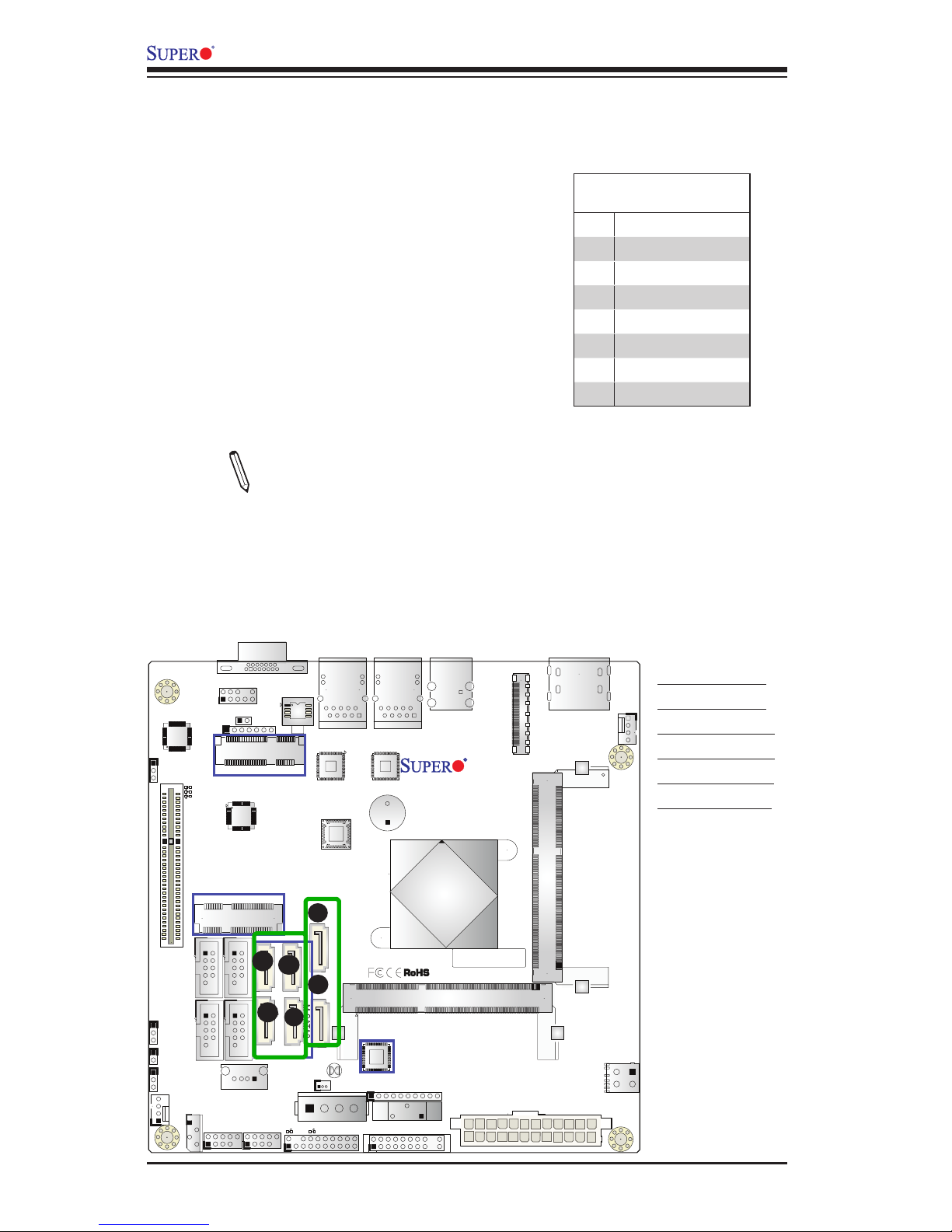

2-9 SATA Connections ......................................................................................... 2-30

SATA 2.0 & SATA 3.0 Connections .......................................................... 2-30

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

3-2 Technical Support Procedures ........................................................................ 3-3

3-3 Frequently Asked Questions ........................................................................... 3-4

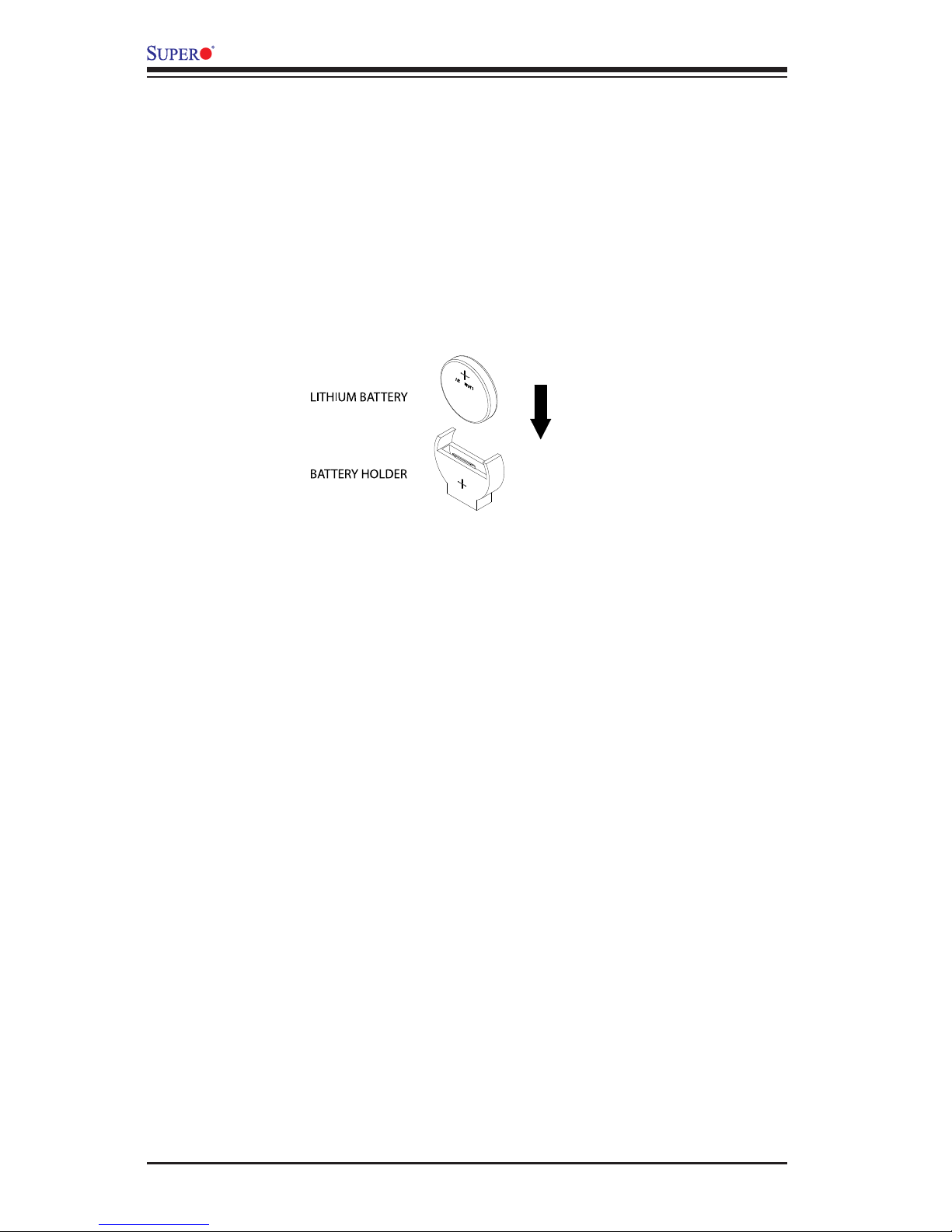

3-4 Battery Removal and Installation .................................................................... 3-5

3-5 Returning Merchandise for Service................................................................. 3-6

Chapter 4 BIOS

4-1 Introduction ...................................................................................................... 4-1

4-2 Main Setup ...................................................................................................... 4-2

4-3 Advanced Setup Congurations...................................................................... 4-4

4-4 Security Settings ........................................................................................... 4-22

4-5 Boot Settings ................................................................................................. 4-25

4-6 Save & Exit ................................................................................................... 4-27

viii

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B Software Installation Instructions

B-1 Installing Drivers ..............................................................................................B-1

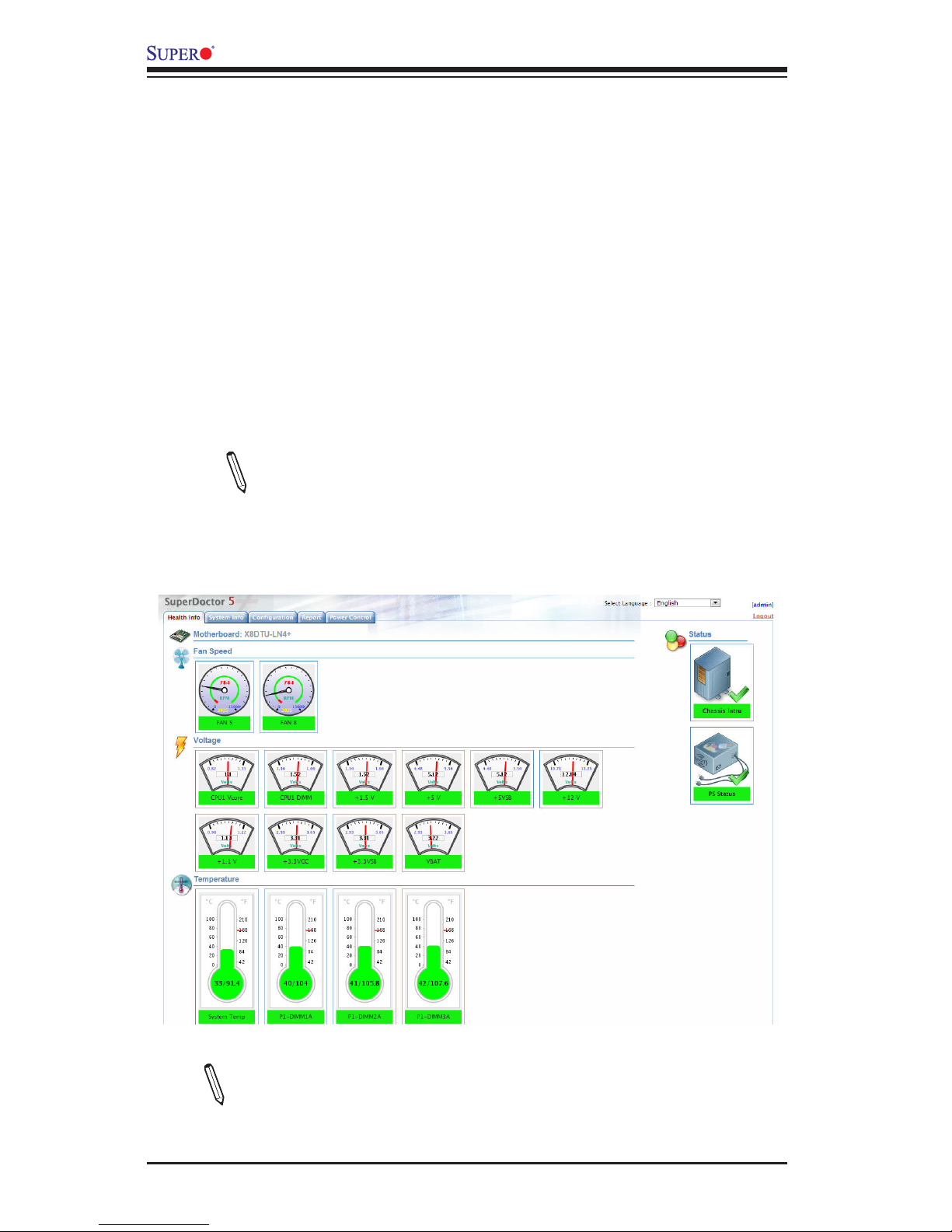

B-2 Conguring SuperDoctor 5 .............................................................................B-2

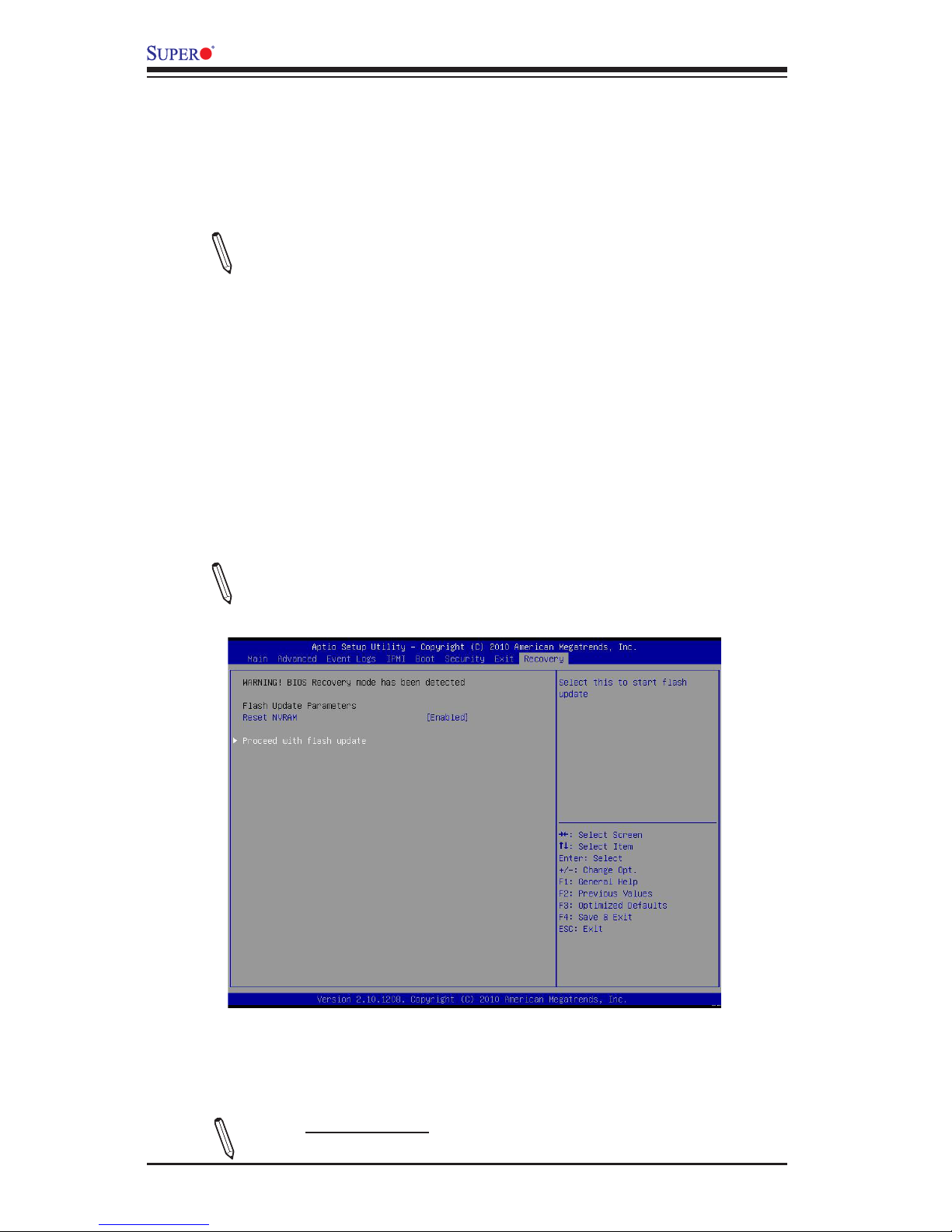

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ......................................................................C-1

C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)....................C-1

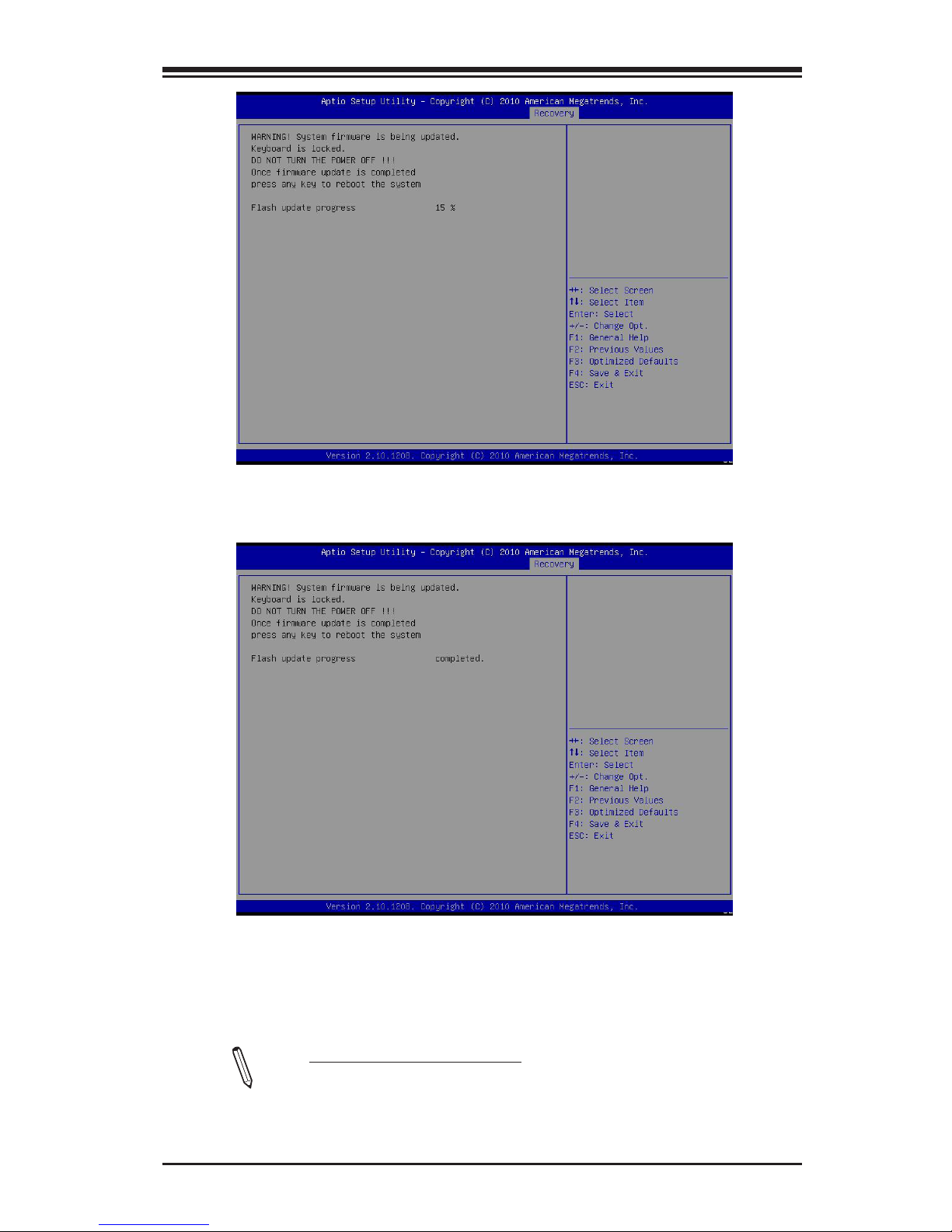

C-3 To Recover the Main BIOS Block Using a USB-Attached Device..................C-1

X10SBA/X10SBA-L User’s Manual

Chapter 1: Introduction

1-1

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box.

•One (1) Supermicro Motherboard

•Six (6) SATA cables (for X10SBA)

•Two (2) SATA cables (for X10SBA-L)

•One (1) I/O shield

•One (1) Quick Reference Guide

Note: For your system to work properly, please follow the links below to

download all necessary drivers/utilities and the user's manual for your

motherboard.

SMCI product manuals: http://www.supermicro.com/support/manuals/

Product Drivers and utilities: ftp://ftp.supermicro.com/

If you have any questions, please contact our support team at support@supermicro.

com.

1-2

X10SBA/X10SBA-L User’s Manual

X10SBA Motherboard Image

Notes:

1. All graphics shown in this manual were based upon the latest PCB Revision

available at the time of publishing of the manual. The motherboard you've received

may or may not look exactly the same as the graphics shown in this manual.

2. Some components are installed on the X10SBA only; some, on the X10SBA-L

only. Refer to the table below for model variations between these two models.

Differences between X10SBA and X10SBA-L

X10SBA X10SBA-L

USB (2.0) Port 3 Not available Yes

USB (2.0) Ports 4/5 Yes Not available

Type A USB (2.0) USB 6 Yes Not available

mini-PCI-E & SATA Ye s Not available

4 SATA 3.0 from Marvell

88SE9230

Yes Not available

eDP Support Yes Not available

Chapter 1: Introduction

1-3

X10SBA/X10SBA-L Motherboard Layout

Important Notes to the User

•See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front

panel connections.

•" " indicates the location of "Pin 1".

•Jumpers/Components not indicated are for testing only.

•When LED1 (Main Power LED Indicator) is on, the system power is on, Un-

plug the power cable before installing or removing any components.

•When LED5 (Standby Power LED Indicator) is on, the standby power cable

is connected, Unplug the power cable before installing or removing any

components.

X10SBA(-L)

Rev.

1.01A

JSMB1

J31

JBT1

BT2

M-SATA0M-SATA1

M-SATA2

M-SATA3

JP1

LAN1LAN2

JDIMM2

PJ1

JF1

JTPM1

JOH1

JSPDIF_OUT

JPUSB1

JPAC1

JPME2

JD1

VGA

FAN1

FAN2

I-SATA1

COM4

COM2

SP1

JSD1

JDIMM1

LED3

LED4

LED2

JPW1

SMBUS1

SLOT1 PCI-E 2.0 X2 (IN X8)

USB4/5

USB6

AUDIO FP

SODIMM2 (1.35V only)

USB1(2.0)

USB0(3.0)

CPU

(Install first)SODIMM1(1.35V only)

eDP

Non-ECC DDR3 Required

HDMI/DP

COM3

FP CTRL

BIOS

BAR CODE

J1

(for mini-PCI-E only)

(for M-SATA only)

J2

COM1

(for X10SBA only)

(for X10SBA only)

(for X10SBA only)

(for X10SBA)

LED1

LED5

USB2/3

I-SATA0

1-4

X10SBA/X10SBA-L User’s Manual

Note: Some components are installed on the X10SBA only; some, on the X10SBA-

L only. Refer to the table below for model variations between these two models.

X10SBA/X10SBA-L Quick Reference

X10SBA(-L)

Rev.

1.01A

JSMB1

J31

JBT1

BT2

M-SATA0M-SATA1

M-SATA2

M-SATA3

JP1

LAN1LAN2

JDIMM2

PJ1

JF1

JTPM1

JOH1

JSPDIF_OUT

JPUSB1

JPAC1

JPME2

JD1

VGA

FAN1

FAN2

I-SATA1

COM4

COM2

SP1

JSD1

JDIMM1

LED3

LED4

LED2

JPW1

SMBUS1

SLOT1 PCI-E 2.0 X2 (IN X8)

USB4/5

USB6

AUDIO FP

SODIMM2 (1.35V only)

USB1(2.0)

USB0(3.0)

CPU

(Install first)SODIMM1(1.35V only)

eDP

Non-ECC DDR3 Required

HDMI/DP

COM3

FP CTRL

BIOS

BAR CODE

J1

(for mini-PCI-E only)

(for M-SATA only)

J2

COM1

(for X10SBA only)

(for X10SBA only)

(for X10SBA only)

(for X10SBA)

LED1

LED5

USB2/3

I-SATA0

Chapter 1: Introduction

1-5

X10SBA/X10SBA-L Jumpers

Jumper Description Default

JBT1 CMOS Clear Open: Normal (See Chpt. 2)

JPAC1 Audio Enable Pins 1-2 (Enabled)

JPME2 Intel Manufacturer Mode Select Pins 1-2 (Normal)

JPUSB1 USB Wake-Up Enable Pins 1-2 (Enabled)

X10SBA/X10SBA-L Headers/Connectors

Connector Description

Audio FP Front Panel Audio Header

Battery Onboard Battery (BT2)

COM1-COM4 COM1/COM2/COM3/COM4 Headers

eDP Embedded DisplayPort (J5) (Only available on the X10SBA)

Fan1/Fan2 System/CPU Fan Headers

HDMI/DP (Backpanel) HDMI/DisplayPort

J1 mini-PCI-E Slot for a mini-PCI-E Card (Only available on the

X10SBA)

J2 mSATA Slot MUX with I-SATA-1 (Only available on the X10SBA)

Note: mSATA MUX (J2) support is available only when I-SATA1 is

not in use. J2 and I-SATA1 cannot be used together.

J4 (Slot 1) PCI-E 2.0 x 2 in x8 Slot

JD1 Power LED/Speaker Header (Pins 1-3: Power LED, Pins 6-7: Internal

Buzzer, Pins 4-7: External Speaker)

JF1 Front Panel Control Header

JOH1 Overheat LED Indicator Header

JPW1 24-pin ATX Main Power Connector (Optional Power Source)

JSD1 SATA DOM (Device_On_Module) Power Connector

JSPDIF_OUT S/PDIF (Sony/Phillips Digital Interconnect Format) Audio Output

Header

JTPM1 Trusted Platform Module/Port 80 Connector

LAN1/LAN2 Gigabit Ethernet (RJ45) Ports (LAN1/2)

PJ1 4-pin 12V Power Connector (Optional Power Source)

(I-)SATA0/1 (Intel-)Serial ATA (SATA 2.0) Ports 0/1 (Optional Power Source)

Note: J2 and I-SATA1 cannot be used together.

(M-)SATA0-3 Marvell 88SE9230 Serial ATA (SATA 3.0) Ports 0-3 (Only available

on the X10SBA)

SMBUS1 (JSMB1) 4-Pin External System Management Bus I2C Header (JSMB1)

1-6

X10SBA/X10SBA-L User’s Manual

SP1 Internal Speaker/Buzzer

USB 0 Backpanel USB 3.0 Port 1

USB 1 Backpanel USB 2.0 Port 2

USB 2/3 Front Accessible USB 2.0 Connections: USB 2, USB 3 (USB 3:

Only available on the X10SBA-L)

USB 4/5 Front Accessible USB 2.0 Connections: USB 4/5 (Only available on

the X10SBA)

USB 6 Type A USB 2.0 Connector: USB 6 (Only available on the X10SBA)

VGA Backpanel VGA Port

X10SBA/X10SBA-L LED Indicators

LED Description Color/State Status

LED1 Main Power LED Green: On Power On

LED5 Standby Power LED Green: On AC On

Chapter 1: Introduction

1-7

Motherboard Features

CPU Single Intel® J1900 SoC (System on a Chip) 64-bit, 22nm

Low-Power, Quad-Core processor in the BGA 1170 format

Memory Supports up to 8 GB of 204-Pin Unbuffered DDR3L (Low

Voltage), Non-ECC, SO-DIMM 1.35V modules of up to

1333 MHz in two horizontal sockets

Note: This motherboard supports 1.35V memory only. Install

the memory modules on the SO-DIMM1 socket rst.

Dual-channel memory

DIMM Size: 2 GB, 4 GB

Expansion Slots One (1) PCI Express 2.0 x2 in x8 slot (Slot 1)

One (1) mini-PCI Express Slot (J1) (for mini-PCI-E only)

One (1) mSATA Slot MUX with a SATA 2.0 Port (J2)

Note: mSATA MUX support is available only when I-SATA1 is not in

use. J2 and I-SATA1 cannot be used together.

Network Connections Two (2) Intel i210AT Gigabit Ethernet Controllers

Two (2) RJ-45 rear I/O panel connectors with Link and
Activity LEDs (LAN1/LAN2)

I/O Devices SATA Connections

SATA 2.0 (3 Gb/s) Two (2) I-SATA 0/1 (Optional Power

Source)

SATA 3.0 (6 Gb/s) Four (4) M-SATA 0-3 (not available on

the -L model)

RAID 0, 1, 10 (MS Windows®)

USB Devices

One (1) USB 3.0 port on the rear I/O panel (USB 0)
One (1) USB 2.0 port on the rear I/O panel (USB 1)

Four (4) Front Accessible USB 2.0 ports on two headers
(USB 2/3, 4/5), (USB 3: only available on the X10SBA-L,
USB 4/5: Not available on the L model)
One (1) Type A USB 2.0 connector (USB 6: not available
on the L model)

Serial (COM) Ports

Four (4) front accessible Serial Port header (COM1­COM4)

One (1) mini-PCI-Express socket (J1)
One (1) mSATA socket (J2) (J2 is not available on the
L-Model; J2 support is available only when I-SATA1 is not
in use)

1-8

X10SBA/X10SBA-L User’s Manual

Video

One (1) High Denition Multimedia Interface (HDMI) , One
(1) DisplayPort, and One (1) VGA on the back panel
One (1) eDP connector (not available on the L model)

Audio

One (1) HDMI and one (1) DisplayPort on the back panel

One (1) Front panel dual-channel Audio Connector

One (1) S/PDIF Digital Output Header

Super I/O

Nuvoton W83527HG

BIOS 64 Mb AMI BIOS® SPI Flash BIOS

Plug and Play, ACPI 5.0, USB Keyboard, SMBIOS 2.7,
UEFI 2.3.1, RTC (Real Time Clock) Wakeup, BIOS Hotkey
Rescue,

Power Conguration ACPI/ACPM, Power Management with S0, S3, S4, S5

support

Main Switch Override Mechanism

Keyboard Wake-up from Soft-Off

External Modem Ring-On

Power-on mode for AC power recovery

PC Health Monitoring System Monitoring

CPU/System overheat LED and control

CPU Thermal Trip support

Fan Control

Fan status monitoring with rmware 4-pin fan speed

control

Low noise fan speed control

System temperature monitor

System Management System resource alert via SuperDoctor® 5

SuperDoctor® 5, Watch Dog/NMI

Power-On mode for AC power recovery

CD Utilities BIOS ash upgrade utility

Other ROHS (Full Compliance, Lead Free)

Operating Temperature: 0-60C

Dimensions Micro-ITX form factor (6.70" x 6.70") (170.18 mm x 170.18

mm)

Chapter 1: Introduction

1-9

Notes

1-10

X10SBA/X10SBA-L User’s Manual

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the Motherboard Features

pages for the actual specications of each motherboard.

Block Diagram

LPC

COM1 (internal header)

NUVOTON

Debug Header/

5.0Gb/s

Rear USB3.0 connector (USB 0)

SATA[1]

USB 2.0 [0]

LPC

SPI

TPM HEADER

SPI

FLASH

SPI 64Mb

480Mb/s

COM2 (internal header)
COM3 (internal header)
COM4 (internal header)

SIO-W83527HG

2.7G/ 2M L2 Cache

4 Cores/8 Threads

PCIE[0]
PCIE[1]

PCIE[2]
PCIE[3]

PCIe Gen2 x 1

PCIe X8 SLOT

5.0GT/s

RJ45

RJ45

GLAN1

INTEL I210

DUAL CHANNEL

MAX. 8G SO-DIMM SUPPORTED

DDR3L 1333 MHz

Non-ECC-SODIMM0

DDI1

DP connector

VGA

VGA connector

DDI0

HDMI connector

TI/HD3SS213ZQET

eDP connector

NCT5104D

GLAN2

INTEL I210

PLX_PEX8605

UPSTREAM

DOWNSTREAM
PORT 1

MINI-PCIE

DOWNSTREAM

PORT 2

DOWNSTREAM

PORT 3

MARVELL/9230

SATA3 [0:3]

6.0GT/s

SATA

SATA 3Gb/s

SATA[0]

USB 3.0
USB 2.0 [1]

USB 2.0 [2]
USB 2.0 [3]

480Mb/s

480Mb/s

USB HUB RENESAS/uPD720114

X10SBA

X10SBA

X10SBA

X10SBA-L

PCIe Gen2 x 1

5.0GT/s

PCIe Gen2 x 2

5.0GT/s

Rear USB2.0 connector (USB 1)

Front USB2.0 header (USB 2/3)

X10SBA-L

X10SBA

(USB 6)

TYPE A USB2.0
connector

mini-PCIe slot

Front USB2.0 header (USB 4/5)

Intel BAY TRAIL-D

SATA / mini PCIe

MUX

X10SBA

Non-ECC-SODIMM1

Chapter 1: Introduction

1-11

1-2 Processor Overview

The X10SBA/X10SBA-L motherboard supports the next-generation Intel® Celeron

J1900 SoC (System on a Chip) 64-bit Quad-Core processor in the BGA 1170

format. Built upon the functionality and capability of the J1900 SoC processor in

Low-Power 22nm Microarchitecture, the motherboard offers unprecedented en-

hancements in system performance, power efciency, and visual/media capability

for SMB entry-level storage, Digital Security, and Digital Signage platforms that are

optimized for networking, thin-client, Kiosk, and control-box applications.

The J1900 SoC processor features an Out-of-Order Execution Engine and offers

new multi-core and system fabric architecture capable of delivering four CPU cores

to achieve higher single-thread performance. In addition, this new SoC processor

also provides an operating range with wider dynamic power and enhanced power

management with faster standby entry and standby support. The X10SBA/X10SBA-

L offers two independent displays through HDMI, DP (eDP) or VGA outputs with full

HD Video Decode/Encode capability.

Intel J1900 Series Processor Features

The J1900 Series processor offers the following features:

Performance

•Out-of Order Execution Pipeline

•Intel® Virtualization Technology (VT-x)

•Turbo Boost Technology

•DX*11, OpenGL 3.0, OpenCL 1.2, OppenGLES 2.0, and HD HQV support

•Intel Gen 7 Graphics and Media encode/decode engine, Full hardware accelera-

tion decode and encode of H. 264, MPEG2, MVC

•Two independent displays with HDMI 1.4a, DP 1.1a

•Support of eDP 1.3 (Not available on the -L model)

Power Efciency

•True Low Power SoC with single-packaging, single-die integrated functions

•Dynamic I/O power reduction

•ACPI 5.0 suppurt

1-12

X10SBA/X10SBA-L User’s Manual

1-3 Special Features

Recovery from AC Power Loss

Basic I/O System (BIOS) provides a setting for you to determine how the system will

respond when AC power is lost and then restored to the system. You can choose

for the system to remain powered off, (in which case you must press the power

switch to turn it back on), or for it to automatically return to a power-on state. See

the Advanced BIOS Setup section to change this setting. The default setting is

Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the board. All have

an onboard System Hardware Monitoring chip that supports PC health monitoring.

Fan Status Monitor with Firmware Control

PC health monitoring in the BIOS can check the RPM status of the cooling fans.

The onboard CPU and chassis fans are controlled by Thermal Management.

Environmental Temperature Control

The thermal control sensor monitors CPU and system temperatures in real time,

and will turn on the thermal control fan whenever the CPU or system temperature

exceeds a user-dened threshold. The overheat circuitry runs independently from

the CPU. Once the thermal sensor detects that the CPU or the system temperature

is too high, it will automatically turn on the thermal fans to prevent the CPU or the

system from overheating. The onboard chassis thermal circuitry can monitor the

overall system temperature and alert the user when the chassis temperature is

too high.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

System Resource Alert

This feature is available when the system is used with SuperDoctor 5 in the

Windows OS environment or Linux. SuperDoctor is used to notify the user of

certain system events. For example, you can also congure SuperDoctor 5 to

provide you with warnings when the system temperature, CPU temperatures,

voltages and fan speeds go beyond predened thresholds.

Chapter 1: Introduction

1-13

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also

provides a generic system event mechanism for Plug and Play, and an operating

system-independent interface for conguration control. ACPI leverages the Plug and

Play BIOS data structures, while providing a processor architecture-independent

implementation that is compatible with Windows 64bit operating system.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start to blink

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will "wake up", and the LED will automatically stop blinking and remain on.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

This motherboard accommodates 24-pin ATX power supplies. In addition to using

the 24-pin power supply, the 12V 4-pin power connector located at PJ1 can also

be used as another power source for space-restrainted application.

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specication 2.02 or above. It must also be SSI compliant. (For more

information, please refer to the web site at http://www.ssiforum.org/). Additionally, in

areas where noisy power transmission is present, you may choose to install a line

lter to shield the computer from noise. It is recommended that you also install a

power surge protector to help avoid problems caused by power surges.

1-7 Super I/O

The Super I/O supports four high-speed, 16550 compatible serial communication

ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable

baud rate generator, complete modem control capability and a processor interrupt

system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps

1-14

X10SBA/X10SBA-L User’s Manual

as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which

support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conguration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through an SMI or SCI function pin. It also features auto power management

to reduce power consumption.

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメー
カーが推奨する型、または同等のものを使用下さい。 使用済電池は製造元の指示に従

って処分して下さい。

警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

2-2

X10SBA/X10SBA-L User’s Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일
하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사
의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

Chapter 2: Installation

2-3

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が

ありま す。

警告
本产品的废弃处理应根据所有国家的法律和规章进行。

警告
本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

2-4

X10SBA/X10SBA-L User’s Manual

2-2 Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid dam-

aging your system board, it is important to handle it very carefully. The following

measures are generally sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Chapter 2: Installation

2-5

2-3 Memory Support

The X10SBA/X10SBA-L supports up to 8 GB of DDR3L (Low Voltage) Non-ECC

SO-DIMM of up to 1333 MHz in two horizontal sockets. This motherboard supports

1.35V memory only. Populate memory on Socket SO-DIMM1 rst.

Note: Check the Supermicro website for recommended memory modules.

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

Memory Population Guidelines

Please follow the table below when populating the motherboard.

Unbuffered DDR3L Non-ECC SO-DIMM Memory

DIMM Slots per

Channel

DIMMs Populat-

ed per Channel

DIMM Type POR Speeds Memory Population

Sequence

2 1 Unbuffered

DDR3L SO-

DIMM

Up to 1333 JDIMM1, JDIMM2

(2 DIMMs)

Note: Be sure to use memory modules of the same type, same speed,

same frequency on the same motherboard. Mixing of memory modules

of different types and speeds is not allowed.

JDIMM2

JDIMM1

(Populate this module rst)

2-6

X10SBA/X10SBA-L User’s Manual

Populating Memory Modules

1. Install the desired number of SO-DIMMs into the memory slots, starting with

JDIMM1, then JDIMM2. Pay attention to the notch along the bottom of the

module to prevent incorrect DIMM module installation.

2. Insert each SO-DIMM module at the proper angle and snap it into place. Repeat

step 1 to install JDIMM2. See the section below for more details on SO-DIMM

memory installation.

Note: Due to memory allocation to system devices, the amount of mem-

ory that remains available for operational use will be reduced when 4 GB

of RAM is used. The reduction in memory availability is disproportional.

See the following table for details.

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Remaining (-Available)

(4 GB Total System

Memory)

Firmware Hub ash memory (System BIOS) 1 MB 3.99

Local APIC 4 KB 3.99

Area Reserved for the chipset 2 MB 3.99

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB

boundary-

512 MB 3.01

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS and other applications 2.84

Chapter 2: Installation

2-7

Socket Key

Installing a SO-DIMM Module into a Horizontal Socket

1. Align the receptive point on the bottom of the SO-DIMM module against the

key on the memory socket. Note the notches on the side of the SO-DIMM

module and those on the socket to avoid causing damage.

2. Line up the bottom of the SO-DIMM memory module with the edge of the

horizontal socket.

Receptive Point on

the Module

3. Once they are lined up, push the memory module into the memory socket

until the module is securely seated in the socket.

Removing a SO-DIMM Module from the Socket

1. Use your thumbs to gently push the side clips on both ends of the socket

away from the SO-DIMM module to release it from the locked position.

2. Once the memory module is loosened from the socket, pull it upwards and

outwards to remove it from the socket.

Memory Module Socket

SO-DIMM Memory

Module

Memory Module Socket

SO-DIMM Memory

Module

Socket Side Clip

Socket Side Clip
