USER’S MANUAL
Revision 1.0
X10DRH-C
X10DRH-CT
X10DRH-i
X10DRH-iT
Manual Revision 1.0
Release Date: Oct.1, 2014
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document
and makes no commitment to update or keep current the information in this manual nor to notify any
person or organization of updates. Please note: For the most up-to-date version of this manual,
please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.
IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE, OR CONSEQUENTIAL DAMAGES ARISING FROM THE
USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL
NOT BE LIABLE FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING,
OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between the manufacturer and the customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of Santa Clara
shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for
all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Preface
This manual is written for system integrators, PC technicians, and
knowledgeable PC users. It provides information for the installation and use of the
X10DRH-C/CT/i/iT motherboard.
About This Motherboard
The Super X10DRH-C/CT/i/iT motherboard supports dual Intel E5-2600v3 Se-
ries processors (Socket R3) that offer new Intel Microarchitecture 22nm Process
Technology, delivering system performance, power efciency, and feature sets to
address the needs of next-generation computer users. With the PCH C612 built
in, the X10DRH-C/CT/i/iT motherboard supports Intel® Node Manager 3.0, Intel
MCTP Protocol, and Management Engine (ME). This motherboard is ideal for
general purpose, storage appliance, and head node server platforms. Please refer
to our website (http://www.supermicro.com) for CPU and memory support updates.
Manual Organization
Chapter 1 describes the features, specications, and performance of the moth-
erboard. It also provides detailed information about the Intel PCH C612 chipset.
Chapter 2 provides hardware installation instructions. Read this chapter when
installing the processor, memory modules, and other hardware components into
the system. If you encounter any problems, see Chapter 3, which describes
troubleshooting procedures for video, memory, and system setup stored in CMOS.
Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup Utility.
Appendix A denes the BIOS error beep codes.
Appendix B lists software installation instructions.
Appendix C contains UEFI BIOS recovery instructions.
Preface
iii
iv
Conventions Used in the Manual
Pay special attention to the following symbols for proper system installation:
Warning: Important information given to ensure proper system installation or to prevent
damage to the components or injury to yourself;
Note: Additional information given to differentiate between models or
instructions provided for proper system setup.
X10DRH-C/CT/i/iT Motherboard User’s Manual
Preface
v
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3992
Email: support@supermicro.com.tw
Website: www.supermicro.com.tw
vi
Table of Contents
Preface
Chapter 1 Overview
1-1 Overview ......................................................................................................... 1-1
1-2 Processor and Chipset Overview...................................................................1-11
1-3 Special Features ........................................................................................... 1-12
1-4 System Health Monitoring ............................................................................. 1-12
1-5 ACPI Features ............................................................................................... 1-13
1-6 Power Supply ................................................................................................ 1-13
1-7 Advanced Power Management ..................................................................... 1-14
Intel® Intelligent Power Node Manager (NM) (Available when the Supermicro
Power Manager [SPM] is installed)............................................................... 1-14
Management Engine (ME) ............................................................................ 1-14
Chapter 2 Installation
2-1 Standardized Warning Statements ................................................................. 2-1
2-2 Static-Sensitive Devices .................................................................................. 2-4
2-3 Motherboard Installation .................................................................................. 2-5
Tools Needed .................................................................................................. 2-5
Location of Mounting Holes ............................................................................ 2-5
Installing the Motherboard .............................................................................. 2-6
2-4 Processor and Heatsink Installation................................................................ 2-7
Installing the LGA2011 Processor ................................................................. 2-7
Installing a Passive CPU Heatsink ................................................................2-11
Removing the CPU and the Heatsink ........................................................... 2-12
2-5 Installing and Removing the Memory Modules ............................................. 2-13
Installing & Removing DIMMs ....................................................................... 2-13
Removing Memory Modules ......................................................................... 2-13
2-6 Control Panel Connectors and I/O Ports ...................................................... 2-16
Back Panel Connectors and I/O Ports .......................................................... 2-16
Back Panel I/O Port Locations and Denitions ........................................... 2-16
Serial Ports ............................................................................................... 2-17
Video Connection ..................................................................................... 2-17
Universal Serial Bus (USB) ...................................................................... 2-18
Ethernet Ports .......................................................................................... 2-19
Unit Identier Switches/UID LED Indicators ............................................. 2-20
Front Control Panel ....................................................................................... 2-21
Front Control Panel Pin Denitions............................................................... 2-22
X10DRH-C/CT/i/iT Motherboard User’s Manual
vii
Table of Contents
NMI Button ............................................................................................... 2-22
Power LED .............................................................................................. 2-22
HDD/UID LED .......................................................................................... 2-23
NIC1/NIC2 LED Indicators ....................................................................... 2-23
Overheat (OH)/Fan Fail/PWR Fail/UID LED ............................................ 2-24
Power Fail LED ........................................................................................ 2-24
Reset Button ........................................................................................... 2-25
Power Button ........................................................................................... 2-25
2-7 Connecting Cables ........................................................................................ 2-26
Power Connectors ................................................................................... 2-26
Fan Headers ............................................................................................. 2-27
Chassis Intrusion ..................................................................................... 2-27
Internal Speaker ....................................................................................... 2-28
Power LED/Speaker ................................................................................. 2-28
TPM/Port 80 Header ................................................................................ 2-29
Power SMB (I2C) Connector .................................................................... 2-30
IPMB ......................................................................................................... 2-30
I-SGPIO 1/2 Headers ............................................................................... 2-31
Standby Power Header ............................................................................ 2-31
2-8 Jumper Settings ............................................................................................ 2-32
Explanation of Jumpers ................................................................................ 2-32
LAN Enable/Disable ................................................................................. 2-32
CMOS Clear ............................................................................................. 2-33
Watch Dog Enable/Disable ...................................................................... 2-33
VGA Enable .............................................................................................. 2-34
BMC Enable ............................................................................................ 2-34
I2C Bus to PCI-Express Slots ................................................................... 2-35
Manufacturer Mode Select ....................................................................... 2-35
SAS Enable (X10DRH-C/CT only) ........................................................... 2-36
2-9 Onboard LED Indicators ............................................................................... 2-37
GLAN LEDs .............................................................................................. 2-37
IPMI-Dedicated LAN LEDs ....................................................................... 2-37
Onboard Power LED ............................................................................... 2-38
BMC Heartbeat LED ................................................................................ 2-38
SAS Activity LED (For X10DRH-C/CT) .................................................... 2-39
SAS Fault LED (For X10DRH-C/CT) ....................................................... 2-39
SAS Heartbeat LED (For X10DRH-C/CT) ............................................... 2-40
2-10 SATA/SAS Connections ................................................................................ 2-41
viii
SATA 3.0 and S-SATA 3.0 Connections ................................................... 2-41
SAS Ports (X10DRH-C/CT Only) ............................................................. 2-42
Chapter 3 Troubleshooting
3-1 Troubleshooting Procedures ........................................................................... 3-1
3-2 Technical Support Procedures ........................................................................ 3-4
3-3 Battery Removal and Installation .................................................................... 3-6
Battery Removal .............................................................................................. 3-6
Proper Battery Disposal .................................................................................. 3-6
3-4 Frequently Asked Questions ........................................................................... 3-7
3-5 Returning Merchandise for Service................................................................. 3-8
Chapter 4 BIOS
4-1 Introduction ...................................................................................................... 4-1
4-2 Main Setup ...................................................................................................... 4-2
4-3 Advanced Setup Congurations...................................................................... 4-4
4-4 Event Logs .................................................................................................... 4-39
4-5 IPMI ............................................................................................................... 4-41
4-6 Security Settings ........................................................................................... 4-43
4-7 Boot Settings ................................................................................................. 4-44
4-8 Save & Exit ................................................................................................... 4-46
Appendix A BIOS Error Beep Codes
A-1 BIOS Error Beep Codes .................................................................................A-1
Appendix B Software Installation Instructions
B-1 Installing Software Programs ..........................................................................B-1
B-2 Installing SuperDoctor5 ...................................................................................B-2
Appendix C UEFI BIOS Recovery Instructions
C-1 An Overview to the UEFI BIOS ......................................................................C-1
C-2 How to Recover the UEFI BIOS Image (Main BIOS Block) ...........................C-1
C-3 To Recover the Main BIOS Block Using a USB-Attached Device..................C-1
X10DRH-C/CT/i/iT Motherboard User’s Manual
Chapter 1: Overview
1-1
Chapter 1
Overview
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost care and at-
tention to detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.
The following items are included in the retail box:
•One (1) Supermicro Mainboard
•Six (6) SATA Cables (CBL-0044L) (For X10DRH-i/iT:)
•Two (2) SATA Cables (CBL-0044L) (X10DRH-C/CT)
•Two (2) SAS Cables (CBL-SAST-0532) (X10DRH-C/CT)
•One (1) I/O Shield (MCP-260-00042-0N)
• One (1) Quick Reference Guide (MNL-1628-QRG)
Note 1: For your system to work properly, please follow the links below
to download all necessary drivers and utilities and the user's manual for
your motherboard.
•SMCI Product Manuals: http://www.supermicro.com/support/manuals/
•Product Drivers and Utilities: ftp://ftp.supermicro.com/
Note 2: For safety considerations, please refer to the complete list of safety
warnings posted on the Supermicro website at http://www.supermicro.com/
about/policies/safety_information.cfm.
If you have any questions, please contact our support team at support@supermicro.
com.
1-2
X10DRH-C/CT/i/iT Motherboard User’s Manual
Motherboard Image
Note: All graphics shown in this manual were based upon the latest PCB
revision available at the time of publication of the manual. The mother-
board you received may or may not look exactly the same as the graphics
shown in this manual.
Chapter 1: Overview
1-3
Motherboard Layout
Note: For the latest CPU/Memory updates, please refer to our website at
http://www.supermicro.com/products/motherboard/ for details.
Differences between X10DRH-C/X10DRH-CT/X10DRH-i/X10DRH-iT
X10DRH-C X10DRH-CT X10DRH-i X10DRH-iT
SAS Connections
(0-3, 4-7)
Yes Yes No No
LSI SAS Controller Yes Yes No No
10G-LAN (TLAN) (w/
X540 LAN Controller)
No Yes No Yes
GLAN (w/i350 LANController)
Yes No Yes No
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
1-4
X10DRH-C/CT/i/iT Motherboard User’s Manual
Notes:
•See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front
panel connections.
• indicates the location of Pin 1.
•Jumpers/LED indicators not indicated are used for testing only.
•Please refer to the table on Page 1-3 to see model variations.
•Use only the correct type of onboard CMOS battery as specied by the manufac-
turer. Do not install the onboard battery upside down to avoid possible explosion.
X10DRH-C/CT/i/iT Quick Reference
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Chapter 1: Overview
1-5
X10DRH-C/CT/i/iT Jumpers
Jumper Description Default Setting
JBT1 Clear CMOS See Chapter 2
JI2C1/JI2C2 SMB to PCI-E Slots Pins 2-3 (Disabled)
JPB1 BMC Enable Pins 1-2 (Enabled)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPL1 GLAN1/GLAN2 Enable (X10DRH-C/i)
(10G) TLAN1/TLAN2 Enable (X10DRHCT/iT)
Pins 1-2 (Enabled)
JPME2 Manufacture (ME) Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Timer Enable Pins 1-2 (Reset)
JPS1 SAS Enable (X10DRH-C/CT only) Pins 1-2 (Enabled)
X10DRH-C/CT/i/iT Connectors
Connectors Description
BT1 (Battery) Onboard CMOS battery (See Chpt. 3 for Used Battery Dis-
posal)
COM1/COM2 Backplane COM Port1/Front accessible COM2 header
FAN1-6,A, B CPU/system fan headers (Fan 1-Fan 6, Fan A, Fan B)
J24 24-pin ATX main power connector (See Warning on Pg. 1-6.)
JD1 Speaker/Power LED header
JF1 Front panel control header
JIPMB1 4-pin external BMC I2C header (for an IPMI card)
JL1 Chassis intrusion header
JPI2C1 Power supply SMBbus I2C header
JPWR1/JPWR2 12V 8-pin power connectors (See Warning on Pg. 1-6.)
JSTBY1 Standby power connector
JTPM1 TPM (Trusted Platform Module)/Port 80 header
LAN1/LAN2 G-bit Ethernet (GLAN) ports 1/2 (X10DRH-C/i)
10G-bit Ethernet (TLAN) ports 1/2 (X10DRH-CT/iT)
IPMI_LAN IPMI_dedicated LAN support by the ASpeed controller
I-SATA 0-5 SATA 3.0 connectors supported by Intel PCH (I-SATA 0-5),
(I-SATA4/I-SATA5: can be used as Supermicro SuperDOM
(Disk-on-Module) with built-in power connectors)
S-SATA SATA 3.0 vertical connector w/4-SATA connections supported
by Intel SCU
SAS(0-3,4-7(JS39)
(for X10DRH-C/CT)
SAS 3.0 connections (0-3,4-7) supported by the LSI 3108
(CPU1) Slot1 PCI-Express 3.0 x8 slot from CPU1
(CPU1) Slot2 PCI-Express 3.0 x8 slot from CPU1
1-6
X10DRH-C/CT/i/iT Motherboard User’s Manual
Warning!
To avoid damaging the power supply or the motherboard, be sure to use a power supply
that contains a 24-pin and two 8-pin power connectors. Be sure to connect the power
supply to the 24-pin power connector (J24) and two 8-pin power connectors (JPWR1,
JPWR2) on the motherboard. Failure to do so may void the manufacturer warranty on
your power supply and motherboard.
(CPU1) Slot3 PCI-Express 3.0 x8 slot from CPU1
(CPU2) Slot4 PCI-Express 3.0 x16 slot from CPU2
(CPU2)Slot5 PCI-Express 3.0 x8 slot from CPU2
(CPU2)Slot6 PCI-Express 3.0 x8 slot from CPU2
(CPU2)Slot7 PCI-Express 3.0 x8 slot from CPU2
(I-)SGPIO1/2 Seria_Link General Purpose I/O headers 1/2 for SATA ports
(I-SGPIO1 for I-SATA0-3, I-SGPIO2 for I-SATA4/5)
SP1 Internal speaker/buzzer
UID UID (Unit Identication) switch
(BP) USB 0/1 (2.0) Backpanel USB 2.0 ports 0/1
(FP) USB 2/3 (2.0) Front accessible USB 2.0 connections (USB 2/3) header
(BP) USB 4/5 (3.0) Backpanel USB 3.0 ports 4/5
(FP) USB 7/8 (3.0) Front accessible USB 3.0 connections (USB 7/8) header
(FP) USB 6 (3.0) Front accessible Type A 3.0 connector (USB6)
VGA Backpanel VGA port
X10DRH-C/CT/i/iT LED Indicators
LED Description State Status
DS13 (X10DRH-C/CT) SAS Heartbeat LED Green: Blinking SAS Normal
LE1 Rear UID LED Blue: On Unit Identied
LE2 Onboard PWR LED On Power On
LEDM1 BMC Heartbeat LED Green: Blinking BMC Normal
LEDS5 (X10DRH-C/CT) SAS Activity LED Green: Blinking SAS Active
LEDS6 (X10DRH-C/CT) SAS Fault LED Red: On
SAS Error(s)
Detected
Chapter 1: Overview
1-7
Motherboard Features
CPU
• Dual Intel
®
E5-2600 v3 Series processors (Socket
R3-LGA 2011); each processor supports dual full-
width Intel QuickPath Interconnect (QPI) links (of up
to 9.6 GT/s one direction per QPI)
Note: Both CPUs need to be installed for full
access to the PCI-E slots, DIMM slots, and on-
board controllers. Refer to the block diagram on
page 1-10 to determine which slots or devices
may be affected.
Memory
• Integrated memory controller supports up to 1024 GB
of Load Reduced (LRDIMM) or 512 GB of Registered
(RDIMM) DDR4 (288-pin) ECC 2133/1866/1600 MHz
modules in 16 slots
Note 1: Memory speed support depends on the
processors used in the system.
Note 2: For the latest CPU/memory updates,
please refer to our website at http://www.super-
micro.com/products/motherboard.
DIMM Sizes
• DIMM Up to 64GB @ 1.2V
Chipset
• Intel® PCH C612
Expansion
• Six (6) PCI Express 3.0 x8 slots (CPU1 Slot1-Slot3,
CPU2 Slot5-Slot7)
• One (1) PCI-Express 3.0 x16 slot (CPU2 Slot4)
Slots
Graphics
• Graphics controller via ASpeed 2400 BMC
Network
• Intel i350 Gigabit (10/100/1000 Mb/s) Ethernet Con-
troller for LAN 1/LAN 2 ports (X10DRH-C/i)
• Intel X540 10-Gigabit (T) Ethernet Controller for LAN
1/LAN 2 ports (X10DRH-CT/iT)
• ASpeed AST 2400 Baseboard Controller (BMC) sup-
ports IPMI 2.0
I/O Devices
SATA/SAS Connections
• SATA 3.0 Six (6) SATA 3.0 ports supported
by Intel PCH (I-SATA 0-5)
One (1) SATA 3.0 vertical con-
nector with 4 connections sup-
ported by the SCU (S-SATA,
JS39)
1-8
X10DRH-C/CT/i/iT Motherboard User’s Manual
• RAID (PCH) RAID 0, 1, 10, 5
• SAS 3.0
(X10DRH-C/
CT Only)
Eight (8) SAS/SATA 3.0 connec-
tions (SAS 0-3, 4-7)
• RAID
(LSI3108)
RAID 0, 1, 5, 6, 10, 50, 60
Hardware RAID + 2GB cache
from the LSI 3108 SAS control-
ler with optional SuperCAP for
battery backup
IPMI 2.0
• IPMI 2.0 supported by ASpeed AST 2400
Serial (COM) Port
• One (1) Fast UART 16550 port on the I/O back panel
• One (1) serial-port header
Peripheral
Devices
USB Devices
• Two (2) USB 2.0 ports on the rear I/O panel (USB 0/1)
• Two (2) USB 3.0 ports on the rear I/O panel (USB 4/5)
• One (1) internal USB 2.0 header for two (2) USB 2.0
connections for front-panel support (USB 2/3)
• One (1) type-A USB 3.0 connector for front access
(USB6)
• One (1) internal USB 3.0 header for two (2) USB 3.0
connections for front panel support (USB 7/8)
BIOS
• 16 MB SPI AMI BIOS
®
SM Flash UEFI BIOS
• APM 1.2, ACPI 3.0/4.0, USB keyboard, Plug-and-
Play (PnP), SPI dual/quad speed support, RTC
(Real-Time Clock) Wake-Up, and SMBIOS 2.3
Power
• ACPI/ACPM Power Management
Management
• Main switch override mechanism
• Power-on mode for AC power recovery
• Intel
®
Intelligent Power Node Manager 3.0 (available
when the Supermicro Power Manager [SPM] is in-
stalled and a special power supply is used. See the
note on Page 1-14.)
• Management Engine (ME)
Chapter 1: Overview
1-9
System
Health
System Health/CPU Monitoring
Monitoring
• Onboard voltage monitoring for 1.2V +3.3V, 3.3V
standby, +5V, +5V standby, +12V, CPU core, mem-
ory, chipset, BMC, PCH, and battery voltages
• CPU/system overheat LED and control
• CPU Thermal Trip support
• Status monitor for speed control
• Status monitor for on/off control
• CPU Thermal Design Power (TDP) support of up to
145W (See Note 1 below.)
Fan Control
• Fan status monitoring via IPMI connections
• Dual cooling zone
• Low-noise fan speed control
• Pulse Width Modulation (PWM) fan control
System
Management
• PECI (Platform Environment Control Interface) 2.0
support
• UID (Unit Identication)/Remote UID
• System resource alert via SuperDoctor 5
• SuperDoctor® 5, Watch Dog, NMI
• Chassis intrusion header and detection
Dimensions
• 12.00" (L) x 13.00" (W) (304.80 mm x 330.20 mm)
Note 1: The CPU maximum thermal design power (TDP) is subject to
chassis and heatsink cooling restrictions. For proper thermal management,
please check the chassis and heatsink specications for proper CPU TDP
sizing.
Note 2: For IPMI conguration instructions, please refer to the Embedded
IPMI Conguration User's Guide available @ http://www.supermicro.com/
support/manuals/.
Note 3: It is strongly recommended that you change BMC log-in informa-
tion upon initial system power-on. The manufacture default username is
ADMIN and the password is ADMIN. For proper BMC conguration, please
refer to http://www.supermicro.com/products/info/les/IPMI/Best_Practices_
BMC_Security.pdf
1-10
X10DRH-C/CT/i/iT Motherboard User’s Manual
System Block Diagram
Note 1: This is a general block diagram and may not exactly represent
the features on your motherboard. See the Motherboard Features pages
for the actual specications of each motherboard.
Note 2: Both CPUs need to be installed for full access to the PCI-E slots,
DIMM slots, and onboard controllers. Refer to the block diagram above to
determine which slots or devices may be affected.
SPI
LAN3
RGRMII
Debug Card
FRONT PANEL
SYSTEM POWER
CTRL
FAN SPEED
PCI-E X1 G2
USB 2.0
X10DRH-C/i (T)
PCH 612
6.0 Gb/S
USB 2.0
LPC
#1
#0
#5
#4
RTL8211E-VB-CG
#3
#2
RJ45
BIOS
SPI
SPI
Temp Sensor
EMC1402-1 *2 at diff SMBUS
TPM HEADER
USB 3.0
BIOS
HEADER
SPI
AST2400
BMC
RMII/NCSI
COM1
Connector
COM2
Header
VGA CONN
BMC Boot Flash
DDR3
5 PHASE
145W
P1
P1
P0
VR12.5
P0
QPI
9.6G
2 x PCI-E X8 G3 (LAN REVERSE)
2IMD2IMD
CPU1 CPU2
QPI
9.6G
5 PHASE
145W
VR12.5
X540/I350
LAN1,2
PCI-E X8 G2
SLOT 4
SLOT 5
PCI-E X16
PCI-E X8
SLOT 6
PCI-E X8
PCI-E X8 G3
2 x PCI-E X8 G3
PCI-E X16 G3
#1 #2 #3#1 #3
#1-8
#2-8
#6
#7
#8
#9
VCCP1 12v
PVCCIO
(1.05/0.95)
from 3.3v
PCI-E X8
SLOT 7
LSI
3108
PCI-E X8 G3
PCI-E X8
#2
SLOT 1
PCI-E X8
SLOT 2
PCI-E X8
SLOT 3
PCI-E X8 G3 (LAN REVERSE)
USB 0/1, 2/3
USB 4/5, 6, 7/8
I-SATA 0,1,2,3
S-SATA 7,8,9,10
SATADOM 5,6
#1-7
#1-6
#1-5
#1-4
#1-3
#1-2
1333/2133
DDR4
#1-1
#2-7
#2-6
#2-5
#2-4
#2-3
#2-2
1333/2133
#2-1
DDR4
SATAUSB2USB3
Chapter 1: Overview
1-11
1-2 Processor and Chipset Overview
Built upon the functionality and capability of the Intel E5-2600 v3 Series processors
(Socket R3) and the Intel C612 PCH, the X10DRH-C/CT/i/iT motherboard provides
system performance, power efciency, and feature sets to address the needs of
next-generation computer users.
With support of the new Intel microarchitecture 22nm process technology, the
X10DRH-C/CT/i/iT drastically increases system performance for a multitude of
server applications.
The PCH C612 chip provides Enterprise SMbus support, including the following
features:
•DDR4 288-pin memory support on Socket R3
•Support for MCTP Protocol
•Support for Management Engine (ME)
•Support of SMBus speeds of up to 400KHz for BMC connectivity
•Improved I/O capabilities to high-storage-capacity congurations
•SPI enhancements
•Intel® Node Manager 3.0 for advanced power monitoring, capping, and man-
agement for BMC enhancement
•The BMC supports remote management, virtualization, and the security pack-
age for enterprise platforms
Note: Node Manager 3.0 support is dependent on the power supply used
in the system.
1-12
X10DRH-C/CT/i/iT Motherboard User’s Manual
1-3 Special Features
Recovery from AC Power Loss
The Basic I/O System (BIOS) provides a setting that determines how the system will
respond when AC power is lost and then restored to the system. You can choose
for the system to remain powered off (in which case you must press the power
switch to turn it back on) or for it to automatically return to the power-on state. See
the Advanced BIOS Setup section for this setting. The default setting is Last State.
1-4 System Health Monitoring
This section describes the features of system health monitoring of the motherboard.
This motherboard has an onboard Baseboard Management Controller (BMC) that
supports system health monitoring. An onboard voltage monitor will scan the follow-
ing onboard voltages continuously: 1.2V, +3.3V, 3.3V standby, +5V, +5V standby,
+12V, CPU core, memory, chipset, BMC, PCH, and battery voltages. Once a voltage
becomes unstable, a warning is given or an error message is sent to the screen. The
user can adjust the voltage thresholds to dene the sensitivity of the voltage monitor.
Fan Status Monitor with Firmware Control
System health monitoring support provided by the BMC controller can check the
RPM status of a cooling fan. The onboard CPU and chassis fans are controlled by
IPMI Thermal Management.
Environmental Temperature Control
System health sensors in the BMC monitors temperatures and voltage settings of
onboard processors and the system in real time via the IPMI interface. Whenever
the temperature of the CPU or the system exceeds a user-dened threshold, system/
CPU cooling fans will be turned on to prevent the CPU or system from overheating.
Note: To avoid possible system overheating, please be sure to provide
adequate airow to your system.
System Resource Alert
This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used
to notify the user of certain system events. For example, you can congure
SuperDoctor 5 to warn you when the system temperature, CPU temperatures,
voltages, or fan speeds go beyond a predened range.
Chapter 1: Overview
1-13
1-5 ACPI Features
ACPI stands for Advanced Conguration and Power Interface. The ACPI speci-
cation denes a exible and abstract hardware interface that provides a standard
way to integrate power management features throughout a system, including its
hardware, operating system, and application software. This enables the system to
automatically turn on and off peripherals such as network cards, hard-disk drives,
and printers.
In addition to power management directed by the operating system, the ACPI also
provides a generic system event mechanism for Plug-and-Play and an interface
(independent of the operating system) for conguration control. ACPI leverages
the Plug-and-Play BIOS data structures, while providing an implementation that is
independent of the processor architecture and compatible with Windows 8/R2 and
Windows 2012/R2 Operating Systems.
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. This is even more important for processors that have high CPU
clock rates.
The X10DRH-C/CT/i/iT motherboard accommodates 24-pin ATX power supplies.
Although most power supplies generally meet the specications required by the
CPU, some are inadequate. In addition, two 12V 8-pin power connections are also
required to ensure adequate power supply to the system.
Warning! To avoid damaging the power supply or the motherboard, be sure to use
a power supply that contains a 24-pin and two 8-pin power connectors. Be sure to
connect the power supply to the 24-pin power connector (J24) and two 8-pin power
connectors (JPWR1, JPWR2) on the motherboard. Failure to do so may void the
manufacturer warranty on your power supply and motherboard.
It is strongly recommended that you use a high-quality power supply that meets
the ATX power supply specication 2.02 or above. It must also be SSI-compliant.
(For more information, please refer to the website at http://www.ssiforum.org/.) Ad-
ditionally, in areas where noisy power transmission is present, you may choose to
install a line lter to shield the computer from noise. It is recommended that you
also install a power surge protector to help avoid problems caused by power surges.
1-14
X10DRH-C/CT/i/iT Motherboard User’s Manual
1-7 Advanced Power Management
The following new advanced power management features are supported by this
motherboard:
Intel® Intelligent Power Node Manager (NM) (Available
when the Supermicro Power Manager [SPM] is installed)
The Intel® Intelligent Power Node Manager 3.0 (IPNM) provides your system with
real-time thermal control and power management for maximum energy efciency.
Although IPNM Specication Version 2.0/3.0 is supported by the BMC (Baseboard
Management Controller), your system must also have IPNM-compatible Manage-
ment Engine (ME) rmware installed to use this feature.
Note: Support for IPNM Specication Version 2.0 or Version 3.0 is depen-
dent on the power supply used in the system.
Management Engine (ME)
The Management Engine, which is an ARC controller embedded in the PCH, pro-
vides Server Platform Services (SPS) to your system. The services provided by
SPS are different from those provided by the ME on client platforms.
Chapter 2: Installation
2-1
Chapter 2
Installation
2-1 Standardized Warning Statements
The following statements are industry-standard warnings, provided to warn the user
of situations which have the potential for bodily injury. Should you have questions or
experience difculty, contact Supermicro's Technical Support Department for assis-
tance. Only certied technicians should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the
Supermicro chassis.
Battery Handling
Warnung
Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die
Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.
Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the
battery only with the same or an equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions.
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメー
カーが推奨する型、または同等のものを使用下さい。 使用済電池は製造元の指示に従
って処分して下さい。
警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。
警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。
2-2
X10DRH-C/CT/i/iT Motherboard User’s Manual
Attention
Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer
que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Jeter les piles usagées conformément aux instructions du fabricant.
¡Advertencia!
Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-
emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-
dado por el fabricante. Desechar las baterías gastadas según las instrucciones
del fabricante.
!הרהזא
תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי
גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.
תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל
경고!
배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일
하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사
의 안내에 따라 사용된 배터리를 처리하여 주십시오.
Waarschuwing
Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de
batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-
bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften
afgevoerd te worden.
Chapter 2: Installation
2-3
Product Disposal
Warning!
Ultimate disposal of this product should be handled according to all national laws
and regulations.
製品の廃棄
この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
ありま す 。
警告
本产品的废弃处理应根据所有国家的法律和规章进行。
警告
本產品的廢棄處理應根據所有國家的法律和規章進行。
Warnung
Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen
des Landes erfolgen.
¡Advertencia!
Al deshacerse por completo de este producto debe seguir todas las leyes y regla-
mentos nacionales.
Attention
La mise au rebut ou le recyclage de ce produit sont généralement soumis à des
lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de
l'organisme compétent.
רצומה קוליס
!הרהזא
ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח
2-4
X10DRH-C/CT/i/iT Motherboard User’s Manual
2-2 Static-Sensitive Devices
Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam-
aging your system board, it is important to handle it very carefully. The following
measures are generally sufcient to protect your equipment from ESD.
Precautions
•Use a grounded wrist strap designed to prevent static discharge.
•Touch a grounded metal object before removing the board from the antistatic
bag.
•Handle the motherboard by its edges only; do not touch its components, periph-
eral chips, memory modules, or gold contacts.
•When handling chips or modules, avoid touching their pins.
•Put the motherboard and peripherals back into their antistatic bags when not
in use.
•For grounding purposes, make sure that your system chassis provides excel-
lent conductivity between the power supply, case, mounting fasteners, and the
motherboard.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage. When
unpacking the motherboard, make sure that the person handling it is static-
protected.
Waarschuwing
De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming
met alle nationale wetten en reglementen.
경고!
이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.
Chapter 2: Installation
2-5
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRH-C/i(T)
Rev. 1.00
2-3 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis.
Make sure that the locations of all mounting holes for both motherboard and chassis
match. Although a chassis may have both plastic and metal mounting fasteners,
metal ones are recommended because they ground the motherboard to the chas-
sis. Make sure that the metal standoffs click in or are screwed in tightly. Then use
a screwdriver to secure the motherboard onto the motherboard tray.
Tools Needed
•Phillips screwdriver
•Panhead screws (9 pieces)
•Standoffs (9 pieces, if needed)

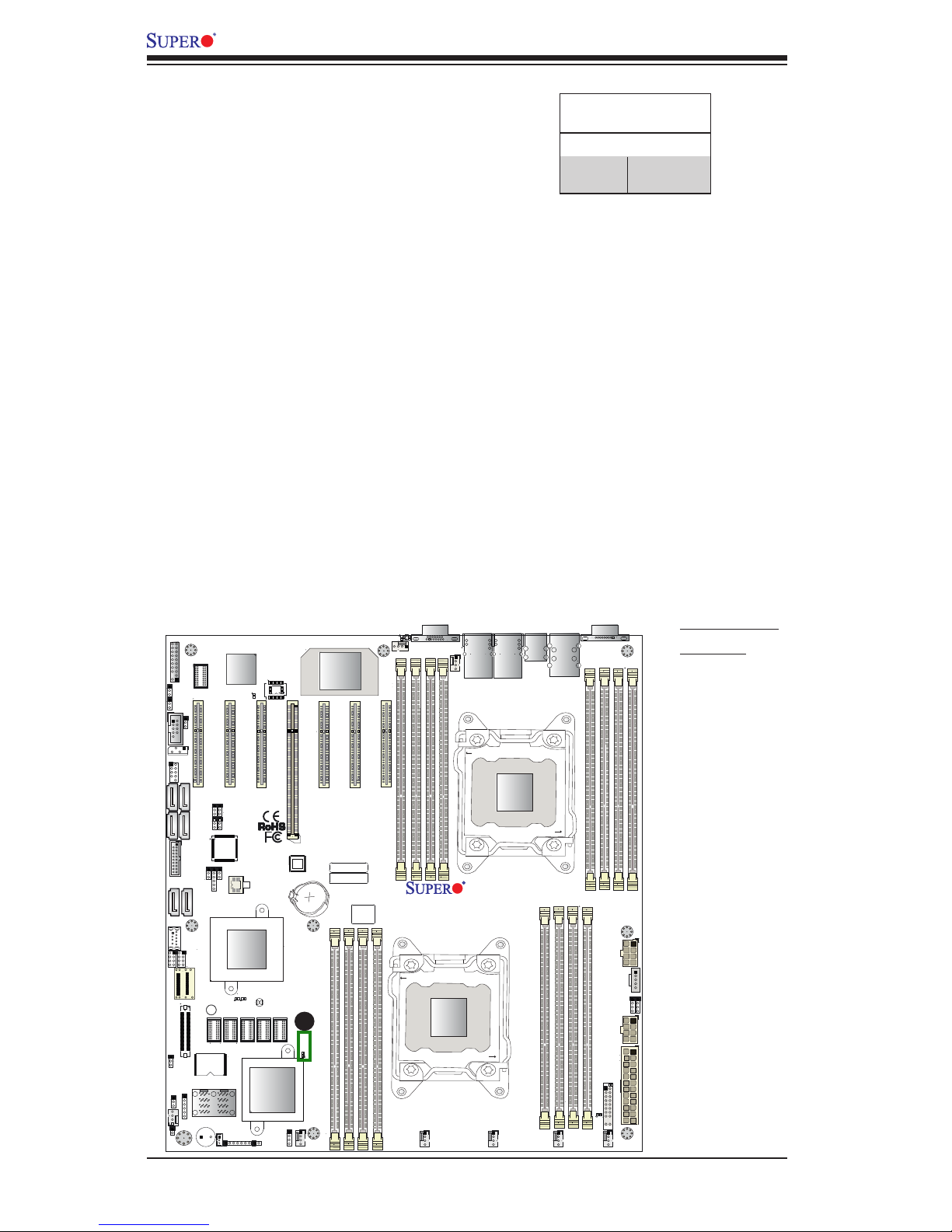

Location of Mounting Holes
There are nine (9) mounting holes on this motherboard as indicated by the arrows.
Caution: 1) To avoid damaging the motherboard and its components, do not use a
force greater than 8 lb/inch on each mounting screw during motherboard installation.
2) Some components are very close to the mounting holes. Please use caution to
prevent damage to these components when installing the motherboard to the chassis.
2-6
X10DRH-C/CT/i/iT Motherboard User’s Manual
Installing the Motherboard
Note: Always connect the power cord last, and always remove it before
adding, removing, or changing any hardware components.
1. Install the I/O shield into the chassis.
2. Locate the mounting holes on the motherboard.
3. Locate the matching mounting holes on the chassis. Align the mounting holes
on the motherboard against the mounting holes on the chassis.
4. Install standoffs in the chassis if needed.
5. Install the motherboard into the chassis carefully to avoid damaging mother-
board components.
6. Using the Phillips screwdriver, insert a panhead #6 screw into a mounting
hole on the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or compo-
nents might look different from those shown in this manual.
Chapter 2: Installation
2-7
2-4 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on the
label area. Also, improper CPU installation and socket/pin misalignment may cause
serious damage to the CPU or the motherboard that will require RMA repairs. Be sure
to read and follow all instructions thoroughly before installing your CPU and heatsink.
Notes:
Always connect the power cord last, and always remove it before adding,
removing, or changing any hardware components. Make sure that you in-
stall the processor into the CPU socket before you install the CPU heatsink.
If you buy a CPU separately, make sure that you use an Intel-certied
multidirectional heatsink only.
Make sure to install the motherboard into the chassis before you install
the CPU heatsink.
If you receive a motherboard without a processor preinstalled, make sure
that the plastic CPU socket cap is in place and that none of the socket
pins are bent; otherwise, contact your retailer immediately.
Refer to the Supermicro website for updates on CPU support.
Installing the LGA2011 Processor
1. There are two load levers on the LGA2011 socket. To open the socket cover,
rst press and release the load lever labeled "Open 1st."
Note: All graphics, drawings, and pictures shown in this manual are for
illustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.
Press down on
load lever labeled
"Open 1st"
1
2
OPEN 1st
OPEN 1st
2-8
X10DRH-C/CT/i/iT Motherboard User’s Manual
OPEN 1st
Gently push
down to pop the
load plate open
2. Press the second load lever labeled "Close 1st" to release the load plate that
covers the CPU socket from its locking position.
3. With the lever labeled "Close 1st" fully retracted, gently push down on the
lever labeled "Open 1st" to open the load plate. Lift the load plate to open it
completely.
1
2
Press down on
load
lever "Close 1st"
Pull lever away from
socket
2
Note: All graphics, drawings and pictures shown in this manual are for il-
lustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.
OPEN 1st
OPEN 1st
1
Chapter 2: Installation
2-9
4. Use your thumb and index nger to loosen the lever and open the load plate.
5. Using your thumb and index nger, hold the CPU by its edges. Align the CPU
keys, which are semicircle notches, against the socket keys.
6. Once they are aligned, carefully lower the CPU straight down into the socket.
Do not drop the CPU on the socket or move the CPU horizontally or vertically.
Do not rub the CPU against the surface or against any of the socket pins to
avoid damaging the CPU or the socket.
Socket Keys
CPU Keys
Warning: You can only install the CPU
inside the socket in one direction. Make
sure that it is properly inserted into the
CPU socket before closing the load
plate. If it doesn't close properly, do not
force it as this may damage your CPU.
Instead, open the load plate again to
make sure that the CPU is aligned
properly.
2-10
X10DRH-C/CT/i/iT Motherboard User’s Manual
OPEN 1st
7. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.
Lever Lock
Lever Lock
Push down and
lock the lever
labeled "Open
1st"
Push down and lock the
lever labeled "Close 1st"
Gently close
the load plate
1 2
3
4
OPEN 1st
OPEN 1st
8. Close the load plate with the CPU inside the socket. Lock the lever labeled
"Close 1st" rst, then lock the lever labeled "Open 1st" second. Using your
thumb, gently push the load levers down to the lever locks.
Chapter 2: Installation
2-11
Note: For optimal airow, please follow your chassis airow direction
to correctly install the CPU heatsink. Graphic drawings included in this
manual are for reference only. They might look different from the compo-
nents installed in your system.
OPEN 1st
Screw#1
Screw#2
Installing a Passive CPU Heatsink
1. Do not apply any thermal grease to the heatsink or the CPU die -- the re-
quired amount has already been applied.
2. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the motherboard and the heatsink bracket underneath.
3. Screw in two diagonal screws (e.g., the #1 and the #2 screws) until just snug.
Do not over-tighten the screws to avoid damaging the CPU and the mother-
board.
4. Finish the installation by fully tightening all four screws.
Mounting Holes
Direction of the
airow
2-12
X10DRH-C/CT/i/iT Motherboard User’s Manual
Removing the CPU and the Heatsink
Warning: We do not recommend that the CPU or the heatsink be removed. However,
if you do need to uninstall the CPU or the heatsink, please follow the instructions below
to uninstall the heatsink to avoid damaging the CPU or the motherboard.
1. Unscrew the heatsink screws from the motherboard in the sequence as
shown in the illustration below.
2. Gently wriggle the heatsink to loosen it from the CPU. Do not use excessive
force when loosening the heatsink!
3. Once the heatsink is loosened from the socket, remove the heatsink from the
CPU socket. Once the heatsink is removed, remove the CPU from the socket
as needed.
4. Remove the used thermal grease and clean the surface of the CPU and the
heatsink. Reapply the proper amount of thermal grease on the surface before
reinstalling the CPU and the heatsink as needed.
Loosen screws
in the sequence
as shown
Screw#2
Motherboard
Screw#1
Screw#3
Screw#4
Notes: 1.) For optimized airow, please follow your chassis airow direc-
tion to properly install the heatsink. 2.) Graphics shown in this manual are
for reference only. They may or may not look the same as the components
installed in your system.
Direction of the
airow
Chapter 2: Installation
2-13
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRH-C/i(T)
Rev. 1.00
Release Tabs
Notches
2-5 Installing and Removing the Memory Modules
Note: Check Supermicro's website for a list of recommended memory modules.
CAUTION
Exercise extreme care when installing or removing DIMM modules
to avoid damaging the DIMM modules or the motherboard.
Installing & Removing DIMMs
1. Insert the desired number of DIMMs into the memory slots, starting with P1-
DIMMA1. For best performance, please use DIMM modules of the same type
and speed in the same bank.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
Removing Memory Modules
Press both release tabs on the ends of the DIMM to unlock it. Once the DIMM is
loosened, remove it from the memory slot.
3. Align the key of the DIMM module with the receptive point on the memory
slot.
4. Align the notches on both ends of the module against the receptive points at
each side of the slot.
5. With your thumbs, press the notches on both ends of the module straight
down into the slot until the module snaps into place.
6. Press the release tabs to their locking positions to secure the DIMM into the
slot.
Press both notches straight
down into the memory slot at
the same time.
2-14
X10DRH-C/CT/i/iT Motherboard User’s Manual
Memory Support for the X10DRH-C/CT/i/iT Motherboard
The X10DRH-C/CT/i/iT motherboard supports up to 1024 GB of Load Reduced
(LRDIMM) or 512 GB of Registered (RDIMM) DDR4 (288-pin) ECC 2133/1866 MHz
modules in 16 slots. Memory speed support depends on the CPUs installed in the
motherboard. For the latest memory updates, please refer to our website at http://
www.supermicro.com/products/motherboard.
Processor & Memory Module Population Conguration
For the memory to work properly, follow the tables below for memory installation.
Processors and their Corresponding Memory Modules
CPU# Corresponding DIMM Modules
CPU 1 P1-
DIMMA1
P1DIMMB1
P1DIMMC1
P1DIMMD1
P1DIMMA2
P1DIMMB2
P1DIMMC2
P1DIMMD2
CPU2 P2-
DIMME1
P2DIMMF1
P2DIMMG1
P2DIMMH1
P2DIMME2
P2DIMM F2
P2DIMMG2
P2DIMMH2
Processor and Memory Module Population for Optimal Performance
Number of
CPUs+DIMMs
CPU and Memory Population Conguration Table
(For memory to work properly, please follow this table.)
1 CPU &
2 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1
1 CPU &
4 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU &
5~8 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + any pair of P1-DIMMA2/P1DIMMB2/P1-DIMMC2/P1-DIMMD2 slots
2 CPUs &
4 DIMMs
CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs &
6 DIMMs
CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs &
8 DIMMs
CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2DIMMG1/P2-DIMMH1
2 CPUs &
9~16 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2DIMMG1/P2-DIMMH1 + any pair of P1, P2 DIMM slots
2 CPUs &
16 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/
P2-DIMMF2/P2-DIMMG2/P2-DIMMH2
Chapter 2: Installation
2-15
Type
Ranks Per
DIMM
and
Data
Width
DIMM
Capacity (GB)
Speed (MT/s); Voltage (V);
Slot Per Channel (SPC) and DIMM Per Channel (DPC)
1 Slot Per
Channel
2 Slots Per Channel
3 Slots Per Channel
1DPC 1DPC 2DPC
1DPC
2DPC
3DPC
4Gb
8Gb
1.2V 1.2V 1.2V
1.2V 1.2V 1.2V
RDIMM SRx4 8GB 16GB
2133 2133 1866
2133 1866 1600
RDIMM SRx8 4GB 8GB
2133 2133 1866
2133 1866 1600
RDIMM DRx8 8GB 16GB
2133 2133 1866
2133 1866 1600
RDIMM DRx4 16GB 32GB
2133 2133 1866
2133
1866 1600
LRDIMM QRx4 32GB 64GB
2133 2133 2133
2133 2133 1600
DDR4 Memory POR for Haswell-EP
Speed (MT/s)
Voltage (V)
Populating RDIMM/LRDIMM ECC Memory Modules
2-16
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
2-6 Control Panel Connectors and I/O Ports
The I/O ports are color-coded in conformance with the industry standards. See
the picture below for the colors and locations of the various I/O ports.
Back Panel Connectors and I/O Ports
Back Panel I/O Port Locations and Denitions
1. COM Port 1
2. Back Panel USB 2.0 Port 0
3. Back Panel USB 2.0 Port 1
4. IPMI-Dedicated LAN
5. Back Panel USB 3.0 Port 4
6. Back Panel USB 3.0 Port 5
7. Gigabit LAN 1 (X10DRH-C/i),
(10G) TLAN 1 (X10DRH-CT/iT)
8. Gigabit LAN 2 (X10DRH-C/i),
(10G) TLAN 2 (X10DRH-CT/iT)
9. Back Panel VGA (Blue)
10. UID Button/UID LED (LE1)
123
4
5
6
7
8
9
10
10
Chapter 2: Installation
2-17
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRH-C/i(T)
Rev. 1.00
Video Connection
A Video (VGA) port is located next to LAN2 on the I/O back panel. Refer to the
board layout below for its location.
1. COM1
2. COM2
3. VGA
Serial Ports
Two COM connections (COM1 and COM2) are located on the motherboard. COM1
is located on the I/O back panel. COM2, located next to CPU1 PCI-E Slot1, provides
front access support. Refer to the board layout below for its location.
COM1
COM2
COM1
COM2
2
1
2
1
3
2-18
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
1. Back Panel USB0 (USB2.0)
2. Back Panel USB1 (USB2.0)
3. Back Panel USB4 (USB3.0)
4. Back Panel USB5 (USB3.0)
5. Front Panel USB 2/3 (USB2.0)
6. Front Panel USB 7/8 (USB3.0)
7. Type-A USB 6 (USB3.0)
Universal Serial Bus (USB)
Two USB 2.0 ports (USB 0/1) and two
USB 3.0 ports (USB 4/5) are located
on the I/O back panel. In addition, an
internal USB 2.0 header and a USB
3.0 header provide support for two
USB 2.0 ports (USB 2/3) and two
USB 3.0 ports (USB 7/8) in the front.
A Type-A connector is also located on
the motherboard to provide front-pan-
el USB 3.0 support (USB 6). (Cables
are not included.) See the tables on
the right and below for pin denitions.
1
2
3
4
5
6
7
Back Panel USB 0/1 (2.0)
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB 2/3 (2.0)
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
Back Panel USB 4/5 (3.0), Front Panel
USB 7/8 (3.0), Type A USB 6 (3.0)
Pin Denitions
Pin# Description
1 VBUS
2 SSRX-
3 SSRX+
4 Ground
5 SSTX-
6 SSTX+
7 GND_DRAIN
8 D-
9 D+
Chapter 2: Installation
2-19
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRH-C/i(T)
Rev. 1.00
1. GLAN1 (X10DRH-C/i)
10GLAN1 (X10DRH-CT/iT)
2. GLAN2 (X10DRH-C/i)
10GLAN2 (X10DRH-CT/iT)
3. IPMI LAN
Ethernet Ports
Two Gigabit Ethernet ports (LAN1 and LAN2) are located on the I/O back panel on
the motherboard. These Ethernet ports support 1GbE LANs on the X10DRH-C/i
and 10GbE LANs on the X10DRH-CT/iT. In addition, an IPMI-dedicated LAN is
located above USB 0/1 ports on the back panel. All of these ports accept RJ45
cables. Please refer to the LED Indicator section for LAN LED information.
1
2
3
2-20
X10DRH-C/CT/i/iT Motherboard User’s Manual
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRH-C/i(T)
Rev. 1.00
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
1. UID Switch
2. Rear UID LED
3. Front UID LED (on pin 7 of JF1)
4. Front UID Switch (on pin 13 of JF1)
3
1
2
Unit Identier Switches/UID LED
Indicators
A rear Unit Identier (UID) switch and a
rear UID LED (LE1) are located next to the
VGA port on the motherboard. The front UID
switch and the UID LED are both located on
the front panel control (JF1), with the front
UID switch on pin 13 of JF1 and the front
LED on pin 7. When you press either the
front or rear UID switch, both front and rear
UID LEDs will be turned on. Press the UID
switch again to turn off the LED indicators.
The UID indicators provide easy identica-
tion of a system unit that may be in need
of service.
Note: UID can also be triggered via
IPMI on the motherboard. For more
information on IPMI, please refer
to the IPMI user's guide posted on
our website @ http://www.super-
micro.com.
UID Switch
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Ground
UID LED
Status
Color/State Status
Blue: On Unit Identied
4
1
Chapter 2: Installation
2-21
Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally lo-
cated on a control panel at the front of the chassis. These connectors are designed
specically for use with Supermicro's server chassis. See the gure below for the
descriptions of the various control panel buttons and LED indicators. Refer to the
following section for descriptions and pin denitions.
JF1 Header Pins
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
2-22
X10DRH-C/CT/i/iT Motherboard User’s Manual
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin denitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin denitions.
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 Control
20 Ground
Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 PWR LED
Front Control Panel Pin Denitions
A. NMI
B. PWR LED
A
B
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Chapter 2: Installation
2-23
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
B
NIC1/NIC2 LED Indicators
The NIC (Network Interface Control-
ler) LED connection for LAN port 1 is
located on pins 11 and 12 of JF1, and
the LED connection for LAN port 2 is
on pins 9 and 10. Attach the NIC LED
cables here to display network activity.
Refer to the table on the right for pin
denitions.
HDD/UID LED
The HDD LED connection is located
on pins 13 and 14 of JF1. Attach a
cable to pin 14 to show the HDD activ-
ity status. Attach a cable to pin 13 to
use the UID switch. See the table on
the right for pin denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 UID Switch
14 HD Active
C
A. HDD/UUID Switch
B. NIC1 LED
C. NIC2 LED
A
GLAN1/2 LED
Pin Denitions (JF1)
Pin# Denition
9 NIC 2 Activity LED
10 NIC 2 Link LED
11 NIC 1 Activity LED
12 NIC 1 Link LED
2-24
X10DRH-C/CT/i/iT Motherboard User’s Manual
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Power Fail LED
The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re-
fer to the table on the right for pin
denitions.
A. OH/Fail/PWR Fail LED
B. PWR Supply Fail
PWR Fail LED
Pin Denitions (JF1)
Pin# Denition
5 3.3V
6 PWR Supply Fail
B
A
Overheat (OH)/Fan Fail/PWR Fail/
UID LED
Connect an LED cable to pins 7 and
8 of the front control panel to use the
Overheat/Fan Fail/Power Fail and
UID LED connections. The red LED
on pin 8 provides warnings of over-
heat, fan failure, or power failure. The
blue LED on pin 7 works as the front-
panel UID LED indicator. Refer to the
table on the right for pin denitions.
OH/Fan Fail/ PWR Fail/Blue_UID
LED Pin Denitions (JF1)
Pin# Denition
7 Blue UID LED
8 OH/Fan Fail/Power Fail
OH/Fan Fail/PWR Fail
LED Status (Red LED)
State Denition
Off Normal
On Overheat
Flashing Fan Fail
Chapter 2: Installation
2-25
1
2
Ground
19
20
NMI
X
X
FP PWRLED
3.3 V
HDD LED
UID Switch
NIC1 Link LED
NIC1 Activity LED
NIC2 Link LED
NIC2 Activity LED
UID LED
OH/Fan Fail/
PWR Fail LED)
Power Fail LED
3.3V
Reset Button
Power Button
Ground
Ground
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Power Button
The Power Button connection is located
on pins 1 and 2 of JF1. Momentarily
contacting both pins will power on/off
the system. To turn on or off the system
power, press the button for 4 seconds or
longer. Refer to the table on the right for
pin denitions.
Power Button
Pin Denitions (JF1)
Pin# Denition
1 Signal
2 Ground
Reset Button
The Reset Button connection is located
on pins 3 and 4 of JF1. Attach it to a
hardware reset switch on the computer
case to support system reset. Refer to
the table on the right for pin denitions.
Reset Button
Pin Denitions (JF1)
Pin# Denition
3 Reset
4 Ground
A. Reset Button
B. PWR Button
A
B
2-26
X10DRH-C/CT/i/iT Motherboard User’s Manual
Warning: To provide adequate power supply
to the motherboard, be sure to connect the
24-pin ATX PWR (J24) and the two 8-pin
PWR connectors (JPWR1, JPWR2) to the
power supply. Failure to do so may void the
manufacturer warranty on your power supply
and motherboard.
2-7 Connecting Cables
Power Connectors
A 24-pin main power supply connector
(J24) and two 8-pin CPU power connec-
tors (JPWR1/ JPWR2) are located on the
motherboard. These power connectors
meet the SSI EPS 12V specication and
must be connected to your power supply
to provide adequate power to the system.
See the tables on the right for pin deni-
tions.
A. J24: 24-Pin ATX PWR
(required)
B. JPWR1: 8-Pin Proces-
sor PWR (required)
C. JPWR2: 8-Pin Proces-
sor PWR (required)
A
B
C
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V (NC) 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Chapter 2: Installation
2-27
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Chassis Intrusion
A Chassis Intrusion header is located
at JL1 on the motherboard. Attach an
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
Pin Denitions
Pin# Denition
1 Intrusion Input
2 Ground
C
A. Fan 1
B. Fan 2
C. Fan 3
D. Fan 4
E. Fan 5
F. Fan 6
G. Fan A
H. Fan B
I. Chassis Intrusion
D
E
F
Fan Headers
This motherboard has eight system/CPU
fan headers (Fans 1-6, Fan A, and Fan
B) on the motherboard. All these 4-pin
fans headers are backward-compatible
with the traditional 3-pin fans. However,
fan speed control is available for 4-pin
fans only by Thermal Management via
the IPMI 2.0 interface. See the table on
the right for pin denitions.
Fan Header
Pin Denitions
Pin# Denition
1 Ground
2 +12V
3 Tachometer
4 PWR Modulation
A
B
H
G
I
2-28
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
B
A
A. Internal Speaker
(Buzzer)
B. Power LED
Internal Speaker
The Internal Speaker (SP1) can be used to
provide audible notications using various
beep codes. See the table on the right for pin
denitions. Refer to the layout below for the
location of the internal buzzer.
Internal Buzzer
Pin Denition
Pin# Denitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
Power LED/Speaker
Pins 1-3 of JD1 are used for power LED
indication, and pins 4-7 are for the speaker.
Please note that the speaker connector pins
(4-7) are used with an external speaker. If you
wish to use the onboard speaker, you should
close pins 6-7 with a cap. See the tables on
the right for pin denitions.
Speaker Connector
Pin Settings
Pin Setting Denition
Pin 4 P5V
Pin 5 Key
Pin 6 R_SPKPIN_N
Pin 7 R_SPKPIN
PWR LED Connector
Pin Denitions
Pin Setting Denition
Pin 1 JD1_PIN1
Pin 2 FP_PWR_LED
Pin 3 FP_PWR_LED
Chapter 2: Installation
2-29
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A
A. TPM/Port 80 Header
TPM/Port 80 Header
A Trusted Platform Module (TPM)/
Port 80 header is located at JTPM1
to provide TPM support and a Port
80 connection. Use this header to en-
hance system performance and data
security. See the table on the right for
pin denitions.
TPM/Port 80 Header
Pin Denitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 No Connection
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 No Connection 14 No Connection
15 +3V STBY 16 SERIRQ
17 GND 18 CLKRUN#
19 LPCPD# 20 No Connection
2-30
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A
A. JPI2C1
B. JIPMB1
Power SMB (I2C) Connector
The Power System Management Bus
(I2C) connector (JPI2C1) monitors
power supply, fan, and system tem-
peratures. See the table on the right
for pin denitions.
PWR SMB
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 PMBUS_Alert
4 Ground
5 +3.3V
IPMB
A System Management Bus header
for IPMI 2.0 is located at JIPMB1.
Connect the appropriate cable here
to use the IPMB I2C connection on
your system.
IPMB Header
Pin Denitions
Pin# Denition
1 Data
2 Ground
3 Clock
4 No Connection
B
Chapter 2: Installation
2-31
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
B
A. I-SGPIO1
B. I-SGPIO2
C. Standby PWR
I-SGPIO 1/2 Headers
Two SGPIO (Serial Link General
Purpose Input/Output) headers are lo-
cated on the motherboard. I-SGPIO1
supports onboard I-SATA 3.0 ports,
while I-SGPIO2 supports S-SATA con-
nections. See the table on the right for
pin denitions.
Note: NC= No Connection
I-SGPIO Headers
Pin Denitions
Pin# Denition Pin Denition
2 NC 1 NC
4 Ground 3 Data
6 Load 5 Ground
8 Clock 7 NC
C
Standby Power Header
The +5V Standby Power header is
located at JSTBY1 on the mother-
board. See the table on the right for
pin denitions. (You must also have a
card with a Standby Power connector
and a cable to use this feature.)
Standby PWR
Pin Denitions
Pin# Denition
1 +5V Standby
2 Ground
3 No Connection
I-SGPIO 0/1
I-SGPIO1 I-SATA 3.0 Ports 0-5 Supported
I-SGPIO2 S-SATA 3.0 Connections Supported
A
2-32
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
2-8 Jumper Settings
Explanation of Jumpers
To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers create
shorts between two pins to change the
function of the connector. Pin 1 is identied
with a square solder pad on the printed
circuit board. See the motherboard layout
pages for jumper locations.
Note: On two pin jumpers,
"closed" means the jumper is on
the pins, and "open" means the
jumper is off them.
Connector
Pins
Jumper
Cap
Setting
Pin 1-2 short
3 2 1
3 2 1
LAN Enable/Disable
JPL1 enables or disables Gigabit LAN
ports 1/2 on the X10DRH-C/i and 10G-
LAN (TLAN) ports 1/2 on the X10DRH-
CT/iT. See the table on the right for jumper
settings. The default setting is Enabled.
LAN Enable
Jumper Settings
Jumper Setting Denition
1-2 Enabled (default)
2-3 Disabled
A
A. GLAN1/2 Enable (X10DRH-
C/i)
A. 10G_LAN (TLAN) 1/2 En-
able (X10DRH-CT/iT)
Chapter 2: Installation
2-33
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
CMOS Clear
JBT1 is used to clear the CMOS. Instead of pins, this "jumper" consists of contact
pads to prevent accidental clearing of the CMOS. To clear the CMOS, use a metal
object such as a small screwdriver to touch both pads at the same time to short
the connection.
Note: Be sure to completely shut down the system, and then short JBT1
to clear the CMOS.
A
B
A. Clear CMOS
B. Watch Dog Enable
Watch Dog Enable/Disable
The Watch Dog (JWD1) is a system monitor
that will reboot the system when a software
application hangs. Close pins 1-2 to reset
the system if an application hangs. Close
pins 2-3 to generate a non-maskable inter-
rupt signal for the application that hangs.
See the table on the right for jumper set-
tings. The Watch Dog must also be enabled
in the BIOS.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset (default)
Pins 2-3 NMI
Open Disabled
2-34
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A. VGA Enabled
B. BMC Enabled
A
B
VGA Enable
Jumper JPG1 allows the user to enable
the onboard VGA connector. The default
setting is 1-2 to enable the connection.
See the table on the right for jumper
settings.
VGA Enable
Jumper Settings
Jumper Setting Denition
1-2 Enabled (Default)
2-3 Disabled
BMC Enable
Jumper JPB1 allows you to enable the
embedded ASpeed AST2400 Base-
board Management Controller (BMC)
to provide IPMI 2.0/KVM support on the
motherboard. See the table on the right
for jumper settings.
BMC Enable
Jumper Settings
Jumper Setting Denition
Pins 1-2 BMC Enable (Default)
Pins 2-3 Disabled
Chapter 2: Installation
2-35
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Manufacturer Mode Select
Close pin 2 and pin 3 of Jumper JPME2
to bypass SPI ash security and force the
system to operate in the manufacturer
mode, which will allow the user to ash
the system rmware from a host server
for system setting modications. See the
table on the right for jumper settings.
ME Mode Select
Jumper Settings
Jumper Setting Denition
1-2 Normal (Default)
2-3 Manufacture Mode
I2C Bus to PCI-Express Slots
Use Jumpers JI2C1 and JI2C2 to connect
the System Management Bus (I2C) to
PCI-Express slots to improve PCI per-
formance. These two jumpers should be
set at the same time. See the table on
the right for jumper settings.
I2C for PCI-E slots
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled (Default)
A
A. JI
2
C1
B. JI
2
C2
C. ME Select
B
C
2-36
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A. SAS Enabled
A
SAS Enable (X10DRH-C/CT only)
Jumper JPS1 allows the user to enable
the onboard SAS connections. The
default setting is 1-2 (enabled). See the
table on the right for jumper settings.
SAS Enable
Jumper Settings
Jumper Setting Denition
1-2 Enabled (Default)
2-3 Disabled
Chapter 2: Installation
2-37
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Link LED
2-9 Onboard LED Indicators
Activity LED
A. LAN1/2 LEDs
B. IPMI LAN LEDs
IPMI-Dedicated LAN LEDs
In addition to LAN 1 and LAN 2, an IPMI LAN
is also located on the I/O back panel. The
amber LED on the right indicates activity,
while the green LED on the left indicates
the speed of the connection. See the table
at right for more information.
Link LED
IPMI LAN
A
B
GLAN LEDs
Two LAN ports (LAN 1 and LAN 2) are locat-
ed on the IO back panel of the motherboard.
Each Ethernet LAN port has two LEDs. The
green LED indicates activity, while the other
Link LED may be green, amber, or off to
indicate the speed of the connection. See
the tables at right for more information.
LAN 1/LAN 2 Link LED (Left)
LED State
LED Color Denition
Off 10 Mbps, 100 Mbps, or No
Connection
Green 10 Gbps (X10DRH-CT/iT only)
Amber 1 Gbps
LAN 1/LAN 2 Activity LED (Right)
LED State
Color Status Denition
Green Flashing Active
Rear View (when facing the
rear side of the chassis)
A
B
Activity LED
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid
Amber: Solid
100 Mbps
1 Gbps
Activity (Right) Amber: Blinking Active
2-38
X10DRH-C/CT/i/iT Motherboard User’s Manual
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
Note: Refer to Page 2-20 for information on the rear UID LED (LE1).
B
Onboard Power LED
The Onboard Power LED is located at
LE2 on the motherboard. When this LED
is on, the system is on. Be sure to turn
off the system and unplug the power
cord before removing or installing com-
ponents. See the tables at right for more
information.
Onboard PWR LED Indicator
LED States
LED Color Denition
Off System Off (PWR cable
not connected)
Green System On
A
A. PWR LED
B. BMC LED
BMC Heartbeat LED
A BMC Heartbeat LED is located at
LEDM1 on the motherboard. When
LEDM1 is blinking, the BMC is function-
ing normally. See the table at right for
more information.
BMC Heartbeat LED
States
Color/State Denition
Green:
Blinking
BMC: Normal
Chapter 2: Installation
2-39
SAS Activity LED
Status
Color/State Denition
Green:
Blinking
SAS: Active
SAS Activity LED (For X10DRH-C/CT)
The SAS Activity LED is located at
LEDS5 on the motherboard. When
LEDS5 is blinking, the SAS drive sup-
ported by the LSI 3108 controller is ac-
tive. See the table on the right for more
information.
SATA Fault LED
Status
Color/State Denition
Red: On SAS error(s)
detected
SAS Fault LED (For X10DRH-C/CT)
The SAS Fault LED is located at LEDS6
on the motherboard. When LEDS6 is
on, an error has occurred to the SAS
drive supported by the LSI 3108 control-
ler. See the table on the right for more
information.
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
B
A. SAS Activity
LED
B. SAS Fault
LED
A
2-40
X10DRH-C/CT/i/iT Motherboard User’s Manual
SAS Heartbeat LED
Status
Color/State Denition
Green:
Blinking
SAS: Normal
SAS Heartbeat LED (For X10DRH-C/
CT)
A SAS Heartbeat LED is located at DS13
on the motherboard. When DS13 is blink-
ing, the SAS is functioning normally. See
the table at right for more information.
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A. SAS Heart-
beat LED
A
Chapter 2: Installation
2-41
Note 2: For more information on the SATA HostRAID conguration, please
refer to the Intel SATA HostRAID user's guide posted on our website @
http://www.supermicro.com..
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A. I-SATA0
B. I-SATA1
C. I-SATA2
D. I-SATA3
E. I-SATA4
F. I-SATA5
G. S-SATA[0:3]
SATA 3.0 and S-SATA 3.0 Connections
Ten SATA 3.0 connections are located on the motherboard. Six SATA 3.0 ports
(I-SATA 0-5) are supported by the Intel PCH C612. A vertical S-SATA connector,
supported by the Intel SCU chip, offers four S-SATA 3.0 connections. These SATA
ports provide serial-link signal connections, which are faster than the connections
of Parallel ATA. See the table on the right for pin denitions.
Note 1: Supermicro SuperDOMs are yellow SATADOM connectors with
power pins built in and do not require separate external power cables.
These connectors are backward-compatible with non-Supermicro SATA-
DOMs that require an external power supply.
C
E
2-10 SATA/SAS Connections
F
A
G
B
D
2-42
X10DRH-C/CT/i/iT Motherboard User’s Manual
SAS Ports (X10DRH-C/CT Only)
Eight SAS ports, supported by the LSI 3108 SAS controller, are located at JS39
on the motherboard. SAS 0-3 and SAS 4-7 support RAID 0, 1, 5, 6, 10, 50, 60
(Hardware RAID + 2GB cache) from the LSI 3108 with optional SuperCAP avail-
able for battery backup (Note below). See the layout below for the locations of
SAS connectors.
Note: Optional SuperCAP can be purchased at Supermicro. Please visit
our website at www.supermicro.com for more information.
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SGPIO1
I-SGPIO2
S-SATA
JS39
USB0/1
FAN6
FAN5
FANB
FANA
FAN3
FAN2
FAN1
JBT1
LEDM1
LE1
LEDS5
LEDS6
DS13
JIPMB1
SP1
J23
JPS7
JPG1
JBR1
JI2C2
JI2C1
JPME2
JPS1
JWD1
JTPM1
USB2/3
BIOS
BT1
JSTBY1
JL1
JOH1
JD1
JS1
JF1
JPWR2
JPWR1
JPI2C1
USB4/5
USB6
USB7/8
BIOS
LICENSE
MAC CODE
BAR CODE
(3.0)
(3.0)
(2.0)
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X8
SAS4-7
COM2
CPU1 SLOT2 PCI-E 3.0 X8
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16
CPU2 SLOT5 PCI-E 3.0 X8
CPU2 SLOT6 PCI-E 3.0 X8
UID
P1 DIMMC1
P1 DIMMC2
P2 DIMME1
P1 DIMMD1
P2 DIMME2
P1 DIMMD2
P2 DIMMF2
P2 DIMMF1
CPU1
P1 DIMMB2
P2 DIMMH2
P1 DIMMA2
P1 DIMMB1
P2 DIMMH1
P1 DIMMA1
P2 DIMMG2
VGA
P2 DIMMG1
LAN2
LAN1
(3.0)
IPMI_LAN
COM1
PWR I2C
CPU2 SLOT7 PCI-E 3.0 X8
FAN4
J24
X10DRH-C/i(T)
Rev. 1.00
JPB1JPL1
TFM
LE2
CPU2
SAS0-3
LSI 3108
SAS CTRL
PCH
BMC
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
Battery
LAN CTRL
A. SAS0-3
B. SAS4-7
A
B
3-1
Chapter 3: Troubleshooting
Chapter 3
Troubleshooting
3-1 Troubleshooting Procedures
Use the following procedures to troubleshoot your system. If you have followed all
of the procedures below and still need assistance, refer to the "Technical Support
Procedures" and/or "Returning Merchandise for Service" section(s) in this chapter.
Note: Always disconnect the power cord before adding, changing, or installing any
hardware components.
Before Power On
1. Make sure that there are no short circuits between the motherboard and
chassis.
2. Disconnect all ribbon/wire cables from the motherboard, including those for
the keyboard and mouse.
3. Remove all add-on cards.
4. Install CPU 1 rst (making sure it is fully seated) and connect the front panel
connectors to the motherboard.
No Power
1. Make sure that ther are no short circuits between the motherboard and the
chassis.
2. Make sure that the ATX power connectors are properly connected.
3. Check that the 115V/230V switch, if available, on the power supply is properly
set.
4. Turn the power switch on and off to test the system, if applicable.
5. The battery on your motherboard may be old. Check to verify that it still sup-
plies ~3VDC. If it does not, replace it with a new one.
3-2
X10DRH-C/CT/i/iT Motherboard User’s Manual
No Video
1. If the power is on but you have no video, remove all add-on cards and
cables.
2. Use the speaker to determine if any beep codes are present. Refer to Ap-
pendix A for details on beep codes.
System Boot Failure
If the system does not display POST or does not respond after the power is turned
on, check the following:
1. Check for any error beep from the motherboard speaker.
•If there is no error beep, try to turn on the system without DIMM modules in-
stalled. If there is still no error beep, try to turn on the system again with only
one processor installed in CPU Socket 1. If there is still no error beep, replace
the motherboard.
•If there are error beeps, clear the CMOS settings by unplugging the power cord
and contacting both pads on the CMOS Clear Jumper (JBT1). (Refer to Section
2-8 in Chapter 2.)
2. Remove all components from the motherboard, especially the DIMM mod-
ules. Make sure that system power is on and that memory error beeps are
activated.
3. Turn on the system with only one DIMM module installed. If the system
boots, check for bad DIMM modules or slots by following the Memory Errors
Troubleshooting procedure in this Chapter.
Losing the System’s Setup Conguration
1. Make sure that you are using a high-quality power supply. A poor-quality
power supply may cause the system to lose the CMOS setup information.
Refer to Section 2-7 for details on recommended power supplies.
2. The battery on your motherboard may be old. Check to verify that it still sup-
plies ~3VDC. If it does not, replace it with a new one.
3. If the above steps do not x the setup conguration problem, contact your
vendor for repairs.
3-3
Chapter 3: Troubleshooting
Memory Errors
When a no-memory beep code is issued by the system, check the following:
1. Make sure that the memory modules are compatible with the system and that
the DIMMs are properly and fully installed. (For memory compatibility, refer to
the memory compatibility chart posted on our website @ http://www.supermi-
cro.com.)
2. Check if different speeds of DIMMs have been installed. It is strongly recom-
mended that you use the same RAM type and speed for all DIMMs in the
system.
3. Make sure that you are using the correct type of Load Reduction (LRDIMM)/
Registered (RDIMM) ECC DDR4 DIMM modules recommended by the manu-
facturer.
4. Check for bad DIMM modules or slots by swapping a single module among
all memory slots and check the results.
5. Make sure that all memory modules are fully seated in their slots. Follow the
instructions given in Section 2-5 in Chapter 2.
6. Please follow the instructions given in the DIMM population tables listed in
Section 2-5 to install your memory modules.
When the System Becomes Unstable
A. If the system becomes unstable during or after OS installation, check the
following:
1. CPU/BIOS support: Make sure that your CPU is supported and that you have
the latest BIOS installed in your system.
2. Memory support: Make sure that the memory modules are supported by test-
ing the modules using memtest86 or a similar utility.
Note: Refer to the product page on our website @ http:\\www.supermicro.
com for memory and CPU support and updates.
3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Re-
place the bad HDDs with good ones.
4. System cooling: Check the system cooling to make sure that all heatsink fans
and CPU/system fans, etc., work properly. Check the hardware monitoring
3-4
X10DRH-C/CT/i/iT Motherboard User’s Manual
settings in the BIOS to make sure that the CPU and system temperatures are
within the normal range. Also check the front panel Overheat LED and make
sure that it is not on.
5. Adequate power supply: Make sure that the power supply provides adequate
power to the system. Make sure that all power connectors are connected.
Please refer to our website for more information on the minimum power
requirements.
6. Proper software support: Make sure that the correct drivers are used.
B. If the system becomes unstable before or during OS installation, check
the following:
1. Source of installation: Make sure that the devices used for installation are
working properly, including boot devices such as CD/DVD and CD/DVD-ROM.
2. Cable connection: Check to make sure that all cables are connected and
working properly.
3. Using the minimum conguration for troubleshooting: Remove all unnecessary
components (starting with add-on cards rst), and use the minimum congura-
tion (but with a CPU and a memory module installed) to identify the trouble
areas. Refer to the steps listed in Section A above for proper troubleshooting
procedures.
4. Identifying bad components by isolating them: If necessary, remove a compo-
nent in question from the chassis, and test it in isolation to make sure that it
works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several
items at the same time. This will help isolate and identify the problem.
6. To nd out if a component is good, swap this component with a new one to
see if the system will work properly. If so, then the old component is bad.
You can also install the component in question in another system. If the new
system works, the component is good and the old system has problems.
3-2 Technical Support Procedures
Before contacting Technical Support, please take the following steps. Also, please
note that as a motherboard manufacturer, Supermicro also sells motherboards
through its channels, so it is best to rst check with your distributor or reseller for
3-5
Chapter 3: Troubleshooting
troubleshooting services. They should know of any possible problems with the
specic system conguration that was sold to you.
1. Please go through the Troubleshooting Procedures and Frequently Asked
Questions (FAQ) sections in this chapter or see the FAQs on our website
(http://www.supermicro.com/) before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website (http://www.supermicro.
com).
3. If you still cannot resolve the problem, include the following information when
contacting Supermicro for technical support:
•Motherboard model and PCB revision number
•BIOS release date/version (This can be seen on the initial display when your
system rst boots up.)
•System conguration
4. An example of a Technical Support form is on our website at http://www.
supermicro.com/RmaForm/.
•Distributors: For immediate assistance, please have your account number ready
when placing a call to our Technical Support department. We can be reached
by email at support@supermicro.com.
3-6
X10DRH-C/CT/i/iT Motherboard User’s Manual
Proper Battery Disposal
Warning! Please handle used batteries carefully. Do not damage the battery in any
way; a damaged battery may release hazardous materials into the environment. Do
not discard a used battery in the garbage or a public landll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose of
your used battery properly.
3-3 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock out-
wards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.
OR
3-7
Chapter 3: Troubleshooting
3-4 Frequently Asked Questions
Question: What are the various types of memory that my motherboard can
support?
Answer: The motherboard supports Load Reduction (LRDIMM)/Registered
(RDIMM) ECC DDR4 DIMM modules. To enhance memory performance, do not mix
memory modules of different speeds and sizes. Please follow all memory installation
instructions given on Section 2-5 in Chapter 2.
Question: How do I update my BIOS?
It is recommended that you do not upgrade your BIOS if you are not experiencing
any problems with your system. Updated BIOS les are located on our website
at http://www.supermicro.com. Please check our BIOS warning message and the
information on how to update your BIOS on our website. Select your motherboard
model and download the BIOS le to your computer. Also, check the current BIOS
revision to make sure that it is newer than your BIOS before downloading. You can
choose from the zip le and the .exe le. If you choose the zip BIOS le, please
unzip the BIOS le onto a bootable USB device. Run the batch le using the format
AMI.bat lename.rom from your bootable USB device to ash the BIOS. Then, your
system will automatically reboot.
Warning: Do not shut down or reset the system while updating the BIOS to prevent
possible system boot failure!)
Note: The SPI BIOS chip used on this motherboard cannot be removed.
Send your motherboard back to our RMA Department at Supermicro for
repair. For BIOS Recovery instructions, please refer to the AMI BIOS
Recovery Instructions posted at http://www.supermicro.com.
Question: How do I handle the used battery?
Answer: Please handle used batteries carefully. Do not damage the battery in any
way; a damaged battery may release hazardous materials into the environment.
Do not discard a used battery in the garbage or a public landll. Please comply
with the regulations set up by your local hazardous waste management agency to
dispose of your used battery properly.
3-8
X10DRH-C/CT/i/iT Motherboard User’s Manual
3-5 Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required before
any warranty service will be rendered. You can obtain service by calling your ven-
dor for a Returned Merchandise Authorization (RMA) number. When returning the
motherboard to the manufacturer, the RMA number should be prominently displayed
on the outside of the shipping carton, and the shipping package is mailed prepaid
or hand-carried. Shipping and handling charges will be applied for all orders that
must be mailed when service is complete. For faster service, You can also request
a RMA authorization online (http://www.supermicro.com/RmaForm/).
This warranty only covers normal consumer use and does not cover damages in-
curred in shipping or from failure due to the alternation, misuse, abuse or improper
maintenance of products.
During the warranty period, contact your distributor rst for any product problems.
Chapter 4: AMI BIOS
4-1
Chapter 4
BIOS
4-1 Introduction
This chapter describes the AMI BIOS setup utility for the X10DRH-C/CT/i/iT. The
ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter
describes the basic navigation of the AMI BIOS setup utility screens.
Note: For AMI BIOS recovery, please refer to the UEFI BIOS Recovery
Instructions in Appendix C.
Starting BIOS Setup Utility
To enter the AMI BIOS setup utility screens, press the <Delete> key while the
system is booting up.
Note: In most cases, the <Delete> key is used to invoke the AMI BIOS
setup screen.
Each main BIOS menu option is described in this manual. The AMI BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be congured. Grayed-out options cannot be congured. Options in blue can be
congured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for a text message. When an option is selected in the
left frame, it is highlighted in white. Often a text message will accompany it.
Note: the AMI BIOS has default text messages built in. Supermicro retains
the option to include, omit, or change any of these text messages.
The AMI BIOS setup utility uses a key-based navigation system called "hot keys."
Most of the AMI BIOS setup utility "hot keys" can be used at any time during the
setup navigation process. These keys include <F1>, <F4>, <Enter>, <Esc>, arrow
keys, etc.
Note: Options printed in Bold are default settings.
How To Change the Conguration Data
The conguration data that determines the system parameters may be changed by
entering the AMI BIOS setup utility. This setup utility can be accessed by pressing
<Del> at the appropriate time during system boot.
4-2
X10DRH-C/CT/i/iT Motherboard User’s Manual
How to Start the Setup Utility
Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS setup utility. From the main menu, you can access the other setup
screens. An AMI BIOS identication string is displayed at the left bottom corner of
the screen, below the copyright message.
Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.
Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall
Supermicro be liable for direct, indirect, special, incidental, or consequential damages
arising from a BIOS update. If you have to update the BIOS, do not shut down or reset
the system while the BIOS is updating to avoid possible boot failure.
4-2 Main Setup
When you rst enter the AMI BIOS setup utility, you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS setup screen is shown below.
Chapter 4: AMI BIOS
4-3
The following Main menu items will be displayed:
System Date/System Time
Use this option to change the system date and time. Highlight System Date or
System Time using the arrow keys. Enter new values using the keyboard. Press the
<Tab> key or the arrow keys to move between elds. The date must be entered in
Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears
as 17:30:00.
Supermicro X10DRH-C/i
Version: This item displays the version of the BIOS ROM used in the system.
Build Date: This item displays the date when the version of the BIOS ROM used
in the system was built.
Memory Information
Total Memory: This item displays the total size of memory available in the system.
Memory Speed: This item displays the default speed of the memory modules
installed in the system.
4-4
X10DRH-C/CT/i/iT Motherboard User’s Manual
4-3 Advanced Setup Congurations
Use the arrow keys to select Advanced setup and press <Enter> to access the
submenu items:
Warning: Take Caution when changing the Advanced settings. An incorrect value, a
very high DRAM frequency or an incorrect BIOS timing setting may cause the system
to malfunction. When this occurs, restore the setting to the manufacture default setting.
Boot Feature
Quiet Boot
Use this feature to select the screen display between POST messages or the OEM
logo at bootup. Select Disabled to display the POST messages. Select Enabled
to display the OEM logo instead of the normal POST messages. The options are
Enabled and Disabled.
AddOn ROM Display Mode
Use this item to set the display mode for the Option ROM. Select Keep Current to
use the current AddOn ROM display setting. Select Force BIOS to use the Option
ROM display mode set by the system BIOS. The options are Force BIOS and
Keep Current.
Bootup Num-Lock State
Use this item to set the Power-on state for the Numlock key. The options are Off
and On.
Chapter 4: AMI BIOS
4-5
Wait For 'F1' If Error
Select Enabled to force the system to wait until the <F1> key is pressed if an error
occurs. The options are Disabled and Enabled.
Interrupt 19 Capture
Interrupt 19 is the software interrupt that handles the boot disk function. When this
item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt
19 at bootup immediately and allow the drives that are attached to the host adap-
tors to function as bootable disks. If this item is set to Postponed, the ROM BIOS
of the host adaptors will not capture Interrupt 19 immediately to allow the drives
attached to the adaptors to function as bootable devices at bootup. The options
are Immediate and Postponed.
Re-try Boot
Select EFI Boot to allow the BIOS to automatically reboot the system from an EFI
boot device after its initial boot failure. Select Legacy Boot to allow the BIOS to
automatically reboot the system from a Legacy boot device after its initial boot
failure. The options are Disabled, Legacy Boot, and EFI Boot.
Power Conguration
Watch Dog Function
Select Enabled to allow the Watch Dog timer to reboot the system when it is inac-
tive for more than 5 minutes. The options are Enabled and Disabled.
Power Button Function
This feature controls how the system shuts down when the power button is pressed.
Select 4 Seconds Override for the user to power off the system after pressing and
holding the power button for 4 seconds or longer. Select Instant Off to instantly
power off the system as soon as the user presses the power button. The options
are 4 Seconds Override and Instant Off.
Restore on AC Power Loss
Use this feature to set the power state after a power outage. Select Power Off for
the system power to remain off after a power loss. Select Power On for the system
power to be turned on after a power loss. Select Last State to allow the system
to resume its last power state before a power loss. The options are Power On,
Stay Off, and Last State.
4-6
X10DRH-C/CT/i/iT Motherboard User’s Manual
CPU Conguration
This submenu displays the following CPU information as detected by the BIOS. It
also allows the user to congure CPU settings.
•Processor Socket
•Processor ID
•Processor Frequency
•Processor Max Ratio
•Processor Min Ratio
•Microcode Revision
•L1 Cache RAM
•L2 Cache RAM
•L3 Cache RAM
•CPU 1 Version
•CPU 2 Version
Clock Spread Spectrum
Select Enabled to allow the BIOS to monitor and attempt to reduce the level of
Electromagnetic Interference caused by the components whenever needed. The
options are Disabled and Enabled.
Hyper-Threading (All)
Select Enable to support Intel's Hyper-threading Technology to enhance CPU per-
formance. The options are Enable and Disable.
Cores Enabled
This feature allows the user to determine the number of CPU cores to enable.
Enter "0" to enable all cores. The default setting is 0, which enables all CPU cores
in the system.
Execute Disable Bit (Available if supported by the OS & the CPU)
Select Enable for Execute Disable Bit Technology support, which will allow the
processor to designate areas in the system memory where an application code
can execute and where it cannot, thus preventing a worm or a virus from ooding
Chapter 4: AMI BIOS
4-7
illegal codes to overwhelm the processor to damage the system during an attack.
The options are Enable and Disable. (Refer to Intel's and Microsoft's websites for
more information.)
PPIN Control
Select Unlock/Enable to use the Protected-Processor Inventory Number (PPIN)
control in the system. The options are Unlock/Enable and Unlock/Disable.
Hardware Prefetcher (Available when supported by the CPU)
If set to Enable, the hardware prefetcher will prefetch streams of data and instruc-
tions from the main memory to the L2 cache to improve CPU performance. The
options are Disable and Enable.
Adjacent Cache Prefetch (Available when supported by the CPU)
Select Enable for the CPU to prefetch both cache lines for 128 bytes as comprised.
Select Disable for the CPU to prefetch both cache lines for 64 bytes. The options
are Disable and Enable.
Note: Please reboot the system for changes on this setting to take effect.
Please refer to Intel’s website for detailed information.
DCU (Data Cache Unit) Streamer Prefetcher (Available when supported by
the CPU)
If set to Enable, the DCU Streamer prefetcher will prefetch data streams from the
cache memory to the DCU (Data Cache Unit) to speed up data accessing and
processing to enhance CPU performance. The options are Disable and Enable.
DCU IP Prefetcher
If set to Enable, the IP prefetcher in the DCU (Data Cache Unit) will prefetch IP
addresses to improve network connectivity and system performance. The options
are Enable and Disable.
Direct Cache Access (DCA)
Select Enable to use Intel DCA (Direct Cache Access) Technology to improve the
efciency of data transferring and accessing. The options are Auto, Enable, and
Disable.
X2 APIC (Advanced Programmable Interrupt Controller)
Based on Intel's Hyper-Threading architecture, each logical processor (thread) is
assigned 256 APIC IDs (APIDs) in 8-bit bandwidth. When this feature is set to En-
able, the APIC ID will expand(X2) from 8 bits to 16 bits to provide 512 APIDs to each
thread for CPU performance enhancement. The options are Disable and Enable.
4-8
X10DRH-C/CT/i/iT Motherboard User’s Manual
AES-NI
Select Enable to use the Intel Advanced Encryption Standard (AES) New Instruc-
tions (NI) to ensure data security. The options are Enable and Disable.
Intel Virtualization Technology
Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor)
through the DMAR ACPI tables. This feature offers fully-protected I/O resource
sharing across Intel platforms, providing greater reliability, security and availability
in networking and data-sharing. The options are Enable and Disable.
Advanced Power Management Conguration
Advanced Power Management Conguration
Power Technology
Select Energy Efcient to support power-saving mode. Select Custom to custom-
ize system power settings. Select Disabled to disable power-saving settings. The
options are Disable, Energy Efcient, and Custom.
CPU P State Control (Available when Power Technology
is set to Custom)
EIST (P-States)
EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically
adjust the processor voltage and core frequency to reduce power consumption
and heat dissipation. The options are Disable and Enable.
Turbo Mode
Select Enabled to use the Turbo Mode to boost system performance. The options
are Enable and Disable.
P-State Coordination
This feature is used to change the P-state (Power-Performance State) coordi-
nation type. P-state is also known as "SpeedStep" for Intel processors. Select
HW_ALL to change the P-state coordination type for hardware components only.
Select SW_ALL to change the P-state coordination type for all software installed
in the system. Select SW_ANY to change the P-state coordination type for a soft-
ware program in the system. The options are HW_All, SW_ALL, and SW_ANY.
Chapter 4: AMI BIOS
4-9
CPU C State Control (Available when Power Technology
is set to Custom)
Package C State limit
Use this item to set the limit on the C-State package register. The options are
C0/1 state, C2 state, C6 (non-Retention) state, C6 (Retention) state, and No
Limit.
CPU C3 Report
Select Enable to allow the BIOS to report the CPU C3 State (ACPI C2) to the
operating system. During the CPU C3 State, the CPU clock generator is turned
off. The options are Enable and Disable.
CPU C6 Report (Available when Power Technology is set to Custom)
Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the
operating system. During the CPU C6 state, power to all cache is turned off.
The options are Enable and Disable.
Enhanced Halt State (C1E)
Select Enabled to use Enhanced Halt-State technology, which will signicantly
reduce CPU power consumption by reducing CPU clock cycles and voltages
during a Halt-state. The options are Disable and Enable.
CPU T State Control (Available when Power Technology
is set to Custom)
ACPI (Advanced Conguration Power Interface) T-States
Select Enable to support CPU throttling by the operating system to reduce power
consumption. The options are Enable and Disable.
Socket RAPL (Running Average Power Limit) Cong.
(Conguration)
FAST_RAPL_NSTRIKE_PL2_DUTY_CYCLE
This feature displays the value of the item above within the range between 25
(10%) and 64 (25%). The default setting is 64.
Turbo Power Limit Lock
Select Enable to set the power use limit for the machine when it is running in
the turbo mode. The options are Enable and Disable.
4-10
X10DRH-C/CT/i/iT Motherboard User’s Manual
Long Pwr (Power) Limit Ovrd (Override)
Select Enable to support long-term power limit override. If this feature is disabled,
BIOS will set the default value. The options are Enable and Disable.
Long Dur (Duration) Power Limit
This item displays the power limit set by the user during which long duration
power is maintained. The default setting is 0.
Long Dur (Duration) Time Window
Use this item to set the time window value (in seconds) over which the TDP
(Thermal Design Point) should be maintained. The default setting is 1, which will
allow the value to be automatically programed by the system.
Pkg (Package) Clmp (Clamping) Limit1
Use this item to set the limit on power performance states for the runtime proces-
sor, with P0 being the state with the highest frequency (clock speed) and power
(consumption), and P1, a step lower in performance than P0, with its frequency
and voltage scaled back a notch. The options are Between P1/P0 and Below P1.
Short Dur (Duration) Pwr (Power) Limit En (Enable)
Select Enable to support Short Duration Power Limit (Power Limit 2). The options
are Enable and Disable.
Short Dur (Duration) Pwr (Power) Limit
This item displays the time period during which short duration power is main-
tained. The default setting is 0.
Pkg (Package) Clmp (Clamping) Lim2
Use this item to set the limit on power performance states for the processor
operating in turbo mode, with P0 being the state with the highest frequency
(clock speed) and power (consumption), and P1, a step lower in performance
than P0, with its frequency and voltage scaled back a notch. The options are
Between P1/P0 and Below P1.
DRAM RAPL (Running Average Power Limit) Conguration
DRAM RAPL (Running Average Power Limit) Baseline
Use this item to set the run-time power-limit baseline for DRAM modules. The
options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1.
Chapter 4: AMI BIOS
4-11
Override BW_LIMIT_TF (BW_limit_tf )
This feature allows the user to turn off the "Override BW_Limit_TF (Time Frame)"
setting when the item--the "Running Average Power Limit for DRAM modules"
(DRAM RAPL) is set to Enabled so that the DRAM RAPL setting can work
properly. The default setting is 1.
DRAM RAPL (Running Average Power Limit) Extended Range
Select Enable to extend the RAPL range for the DRAM modules. The options
are Disable and Enable.
Chipset Conguration
Warning! Please set the correct settings for the items below. A wrong conguration
setting may cause the system to become malfunction.
North Bridge
This feature allows the user to congure the settings for the Intel North Bridge.
IIO Conguration
EV DFX (Device Function On-Hide) Features
When this feature is set to Enable, the EV_DFX Lock Bits that are located on a
processor will always remain clear during electric tuning. The options are Dis-
able and Enable.
IIO0 Conguration
IOU2 (II0 PCIe Port 1)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4, x8, and Auto.
IOU0 (II0 PCIe Port 2)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.
IOU1 (II01 PCIe Port 3)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto..
4-12
X10DRH-C/CT/i/iT Motherboard User’s Manual
No PCIe Port Active ECO (Engineer Change Order)
This feature provides a work-around solution when there is no active PCI device
detected by the BIOS. The options are PCU Squelch Exit Ignore Option and
Reset the SQ FLOP by CSR Option.
Socket 0 PCIeD00F0 - Port 0/DMI
Link Speed
This item congures the link speed of a PCI-E port specied by the user. The
options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s),
and Auto.
PCI-E Port DeEmphasis
This item congures the De-Emphasis Control (LANKCON2 [6]) setting for this
computer. The options are -6.0 dB and -3.5 dB.
The following items will be display:
•PCI-E Port Link Status
•PCI-E Port Link Max
•PCI-E Port Link Speed
PCI-E Port L0s Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L0s to L0. The default setting is 4uS - 8uS.
PCI-E Port L1 Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L1 to L0. The default setting is <1uS, 1uS - 2uS,
2uS - 4uS, 4uS - 8uS, 8uS - 16uS, 16uS - 32uS, 32uS - 64uS, and >64uS.
Fatal Err (Error) Over
Select Enable to force fatal error prorogation to the IIO core error logic for the
port specied by the user. The options are Disable and Enable.
Non-Fatal Err (Error) Over
Select Enable to force non-fatal error prorogation to the IIO core error logic for
the port specied by the user. The options are Disable and Enable.
Corr Err (Correctable Error) Over
Select Enable to force correctable error prorogation to the IIIO core error logic
for the port specied by the user. The options are Disable and Enable.
Chapter 4: AMI BIOS
4-13
L0s Support
When this item is set to Disable, IIO will not put its transmitter in the L0s state.
The default setting is Disable.
Socket 0 PCIeD01F0 - Port 1A/Socket 0 PCIeD02F0
- Port 2A/Socket 0 PCIeD20F2 - Port 2C/Socket 0
PCIeD03F0 - Port 3A/Socket 0 PCIeD03F2 - Port 3C
PCI-E Port
Select Enable to enable the PCI-E port specied by the user. The options are
Auto, Enable, and Disable.
Hot Plug Capable
Select Enable to enable hot-plugging support for the PCI-E port specied by the
user to allow the user to replace the device installed on the port without shutting
down the system. The options are Disable and Enable.
PCI-E Port Link
Select Disable to disable the link that is not involved in training activities, but its
CFG is still active. The options are Enable and Disable.
Link Speed
Use this item to select the link speed for the PCI-E port specied by the user.
The options are GEN1 (2.5 GT/s), GEN2 (5 GT/s), GEN3 (8 GT/s), and Auto.
PCI-E Port DeEmphasis
Use this item to select the De-Emphasis control setting for a PCI-E port specied
by the user. The options are -6.0 dB and -3.5 dB.
The following items will be display:
•PCI-E Port Link Status
•PCI-E Port Link Max
•PCI-E Port Link Speed
PCI-E Port L0s Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L0s to L0. The default setting is 4uS - 8uS.
4-14
X10DRH-C/CT/i/iT Motherboard User’s Manual
PCI-E Port L1 Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L1 to L0. The default setting is <1uS, 1uS - 2uS,
2uS - 4uS, 4uS - 8uS, 8uS - 16uS, 16uS - 32uS, 32uS - 64uS, and >64uS.
Fatal Err (Error) Over
Select Enable to force fatal error prorogation to the IIO core error logic for the
port specied by the user. The options are Disable and Enable.
Non-Fatal Err (Error) Over
Select Enable to force non-fatal error prorogation to the IIO core error logic for
the port specied by the user. The options are Disable and Enable.
Corr Err (Correctable Error) Over
Select Enable to force correctable error prorogation to the IIIO core error logic
for the port specied by the user. The options are Disable and Enable.
L0s Support
When this item is set to Disable, IIO will not put its transmitter in the L0s state.
The default setting is Disable.
PM ACPI Support
Select Enable to generate an _HPGPE message on a PM ACPI event. Select
Disable to generate an MSI message. The options are Disable and Enable.
Gen3 (Generation 3) Eq (Equalization) Mode
Use this item to set the "Adaptive Equalization" mode for PCI-E Generation 3
devices. The options are Auto, Enable Phase 0, 1, 2, 3; Disable Phase 0, 1,
2, 3; Enable Phase 1 Only, Enable Phase 0, 1 Only, Enable MMM Offset West,
and Advanced.
Gen3 (Generation 3) Spec (Specics) Mode
Use this item to set the Specics mode for PCI-E Generation 3 devices. The
options are Auto, 0.70 July, 0.70 Sept and 071 Sept.
Gen3 (Generation 3) Phase2 Mode
Use this item to set the PCI-E Generation 3 Phase 2 mode. The options are
Hardware Adaptive and Manual.
Gen3 (Generation 3) DN TX Preset
Use this item to set the Preset mode for PCI-E Gen3 downstream transmit-
ting (TX) from the master device to a slave device. The options are Auto, P0
(-6.0/0.0 dB), P1 (-3.5/0.0 dB), P2 (-4.5/0.0 dB), P3 (-2.5/0.0 dB), P4 (0.0/0.0
Chapter 4: AMI BIOS
4-15
dB), P5 (0.0/2.0 dB), P6 (0.0/2.5 dB), P7 (-6.0 /3.5 dB), P8 (-3.5/3.5 dB), and
P9 (0.0/3.5 dB).
Gen3 (Generation 3) DN RX Preset Hint
Use this item to set the Preset Hint mode for PCI-E Gen3 downstream receiving
(RX) from the master device to a slave device. The options are Auto, P0 (-6.0
dB), P1 (-7.0 dB), P2 (-8.0 dB), P3 (-9.0 dB), P4 (-10.0 dB) P5 (-11.0 dB), and
P6 (-12.0 dB).
Gen3 (Generation 3) Up TX Preset
Use this item to set the Preset mode for PCI-E Gen3 upstream transmitting (TX)
from a slave device to the master device.The options are Auto, P0 (-6.0/0.0 dB),
P1 (-3.5/0.0 dB), P2 (-4.5/0.0 dB), P3 (-2.5/0.0 dB), P4 (0.0/0.0 dB), P5 (0.0/2.0
dB), P6 (0.0/2.5 dB), P7 (-6.0/3.5 dB), P8 (-3.5/3.5 dB), and P9 (0.0/3.5 dB).
Non-Transparent Bridge PCIe Port Denition (Available on the Socket 0
PCIeD03F0 - Port 3A only)
Select Transparent Bridge to enable Transparent Bridge support for the PCI-E
port specied by the user. Please do not select NTB-RP for a legacy IIO device.
The options are Transparent Bridge, NTB to NTB, and NTB to RP.
Hide Port?
Select Yes to hide the PCI-E port specied from the OS. The options are No
and Yes.
This feature allows the user to congure the settings for the Intel North Bridge.
IIO1 Conguration
IOU2 (II0 PCIe Port 1)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4, x8, and Auto.
IOU0 (II0 PCIe Port 2)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.
IOU1 (II01 PCIe Port 3)
This item congures the PCI-E port Bifuraction setting for a PCI-E port specied
by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto..
4-16
X10DRH-C/CT/i/iT Motherboard User’s Manual
No PCIe Port Active ECO (Engineer Change Order)
This feature provides a work-around solution when there is no active PCI device
detected by the BIOS. The options are PCU Squelch Exit Ignore Option and
Reset the SQ FLOP by CSR Option..
Socket 1 PCIeD00F0 - Port 0/DMI/Socket 1 PCIeD01F0
- Port 1A/Socket 1 PCIeD02F0 - Port 2A/Socket 1
PCIeD20F2 - Port 2C/Socket 1 PCIeD03F0 - Port 3A
PCI-E Port
Select Enable to enable the PCI-E port specied by the user. The options are
Auto, Enable, and Disable.
Hot Plug Capable
Select Enable to enable hot-plugging support for the PCI-E port specied by the
user to allow the user to replace the device installed on the port without shutting
down the system. The options are Disable and Enable.
PCI-E Port Link
Select Disable to disable the link that is not involved in training activities, but its
CFG is still active. The options are Enable and Disable.
Link Speed
Use this item to select the link speed for the PCI-E port specied by the user.
The options are GEN1 (2.5 GT/s), GEN2 (5 GT/s), GEN3 (8 GT/s), and Auto.
PCI-E Port DeEmphasis
Use this item to select the De-Emphasis control setting for a PCI-E port specied
by the user. The options are -6.0 dB and -3.5 dB.
The following items will be display:
•PCI-E Port Link Status
•PCI-E Port Link Max
•PCI-E Port Link Speed
PCI-E Port L0s Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L0s to L0. The default setting is 4uS - 8uS.
Chapter 4: AMI BIOS
4-17
PCI-E Port L1 Exit Latency
Use this item to set the length of time required for the port specied by the user
to complete the transition from L1 to L0. The default setting is <1uS, 1uS - 2uS,
2uS - 4uS, 4uS - 8uS, 8uS - 16uS, 16uS - 32uS, 32uS - 64uS, and >64uS.
Fatal Err (Error) Over
Select Enable to force fatal error prorogation to the IIO core error logic for the
port specied by the user. The options are Disable and Enable.
Non-Fatal Err (Error) Over
Select Enable to force non-fatal error prorogation to the IIO core error logic for
the port specied by the user. The options are Disable and Enable.
Corr Err (Correctable Error) Over
Select Enable to force correctable error prorogation to the IIIO core error logic
for the port specied by the user. The options are Disable and Enable.
L0s Support
When this item is set to Disable, IIO will not put its transmitter in the L0s state.
The default setting is Disable.
PM ACPI Support
Select Enable to generate an _HPGPE message on a PM ACPI event. Select
Disable to generate an MSI message. The options are Disable and Enable.
Gen3 (Generation 3) Eq (Equalization) Mode
Use this item to set the "Adaptive Equalization" mode for PCI-E Generation 3
devices. The options are Auto, Enable Phase 0, 1, 2, 3; Disable Phase 0, 1,
2, 3; Enable Phase 1 Only, Enable Phase 0, 1 Only, Enable MMM Offset West,
and Advanced.
Gen3 (Generation 3) Spec (Specics) Mode
Use this item to set the Specics mode for PCI-E Generation 3 devices. The
options are Auto, 0.70 July, 0.70 Sept and 071 Sept.
Gen3 (Generation 3) Phase2 Mode
Use this item to set the PCI-E Generation 3 Phase 2 mode. The options are
Hardware Adaptive and Manual.
Gen3 (Generation 3) DN TX Preset
Use this item to set the Preset mode for PCI-E Gen3 downstream transmit-
ting (TX) from the master device to a slave device. The options are Auto, P0
(-6.0/0.0 dB), P1 (-3.5/0.0 dB), P2 (-4.5/0.0 dB), P3 (-2.5/0.0 dB), P4 (0.0/0.0
4-18
X10DRH-C/CT/i/iT Motherboard User’s Manual
dB), P5 (0.0/2.0 dB), P6 (0.0/2.5 dB), P7 (-6.0 /3.5 dB), P8 (-3.5/3.5 dB), and
P9 (0.0/3.5 dB).
Gen3 (Generation 3) DN RX Preset Hint
Use this item to set the Preset Hint mode for PCI-E Gen3 downstream receiving
(RX) from the master device to a slave device. The options are Auto, P0 (-6.0
dB), P1 (-7.0 dB), P2 (-8.0 dB), P3 (-9.0 dB), P4 (-10.0 dB) P5 (-11.0 dB), and
P6 (-12.0 dB).
Gen3 (Generation 3) Up TX Preset
Use this item to set the Preset mode for PCI-E Gen3 upstream transmitting (TX)
from a slave device to the master device.The options are Auto, P0 (-6.0/0.0 dB),
P1 (-3.5/0.0 dB), P2 (-4.5/0.0 dB), P3 (-2.5/0.0 dB), P4 (0.0/0.0 dB), P5 (0.0/2.0
dB), P6 (0.0/2.5 dB), P7 (-6.0/3.5 dB), P8 (-3.5/3.5 dB), and P9 (0.0/3.5 dB).
Non-Transparent Bridge PCIe Port Denition (Available on the Socket 1
PCIeD03F0 - Port 3A only)
Select Transparent Bridge to enable Transparent Bridge support for the PCI-E
port specied by the user. Please do not select NTB-RP for a legacy IIO device.
The options are Transparent Bridge, NTB to NTB, and NTB to RP.
Hide Port?
Select Yes to hide the PCI-E port specied from the OS. The options are No
and Yes.
IOAT (Intel® IO Acceleration) Conguration
Enable IOAT
Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which
signicantly reduces CPU overhead by leveraging CPU architectural improve-
ments and freeing the system resource for other tasks. The options are Enable
and Disable.
No Snoop
Select Enable to support no-snoop mode for each CB device. The options are
Disable and Enable.
Relaxed Ordering
Select Enable to enable Relaxed Ordering support which will allow certain
transactions to violate the strict-ordering rules of PCI bus for a transaction to
be completed prior to other transactions that have already been enqueued. The
options are Disable and Enable.
Chapter 4: AMI BIOS
4-19
Intel VT for Directed I/O (VT-d)
Intel® VT for Directed I/O (VT-d)
Select Enable to use Intel Virtualization Technology for Direct I/O VT-d support
by reporting the I/O device assignments to the VMM (Virtual Machine Monitor)
through the DMAR ACPI tables. This feature offers fully-protected I/O resource
sharing across Intel platforms, providing greater reliability, security and avail-
ability in networking and data-sharing. The options are Enable and Disable.
Interrupt Remapping
Select Enable for Interrupt Remapping support to enhance system performance.
The options are Enable and Disable.
QPI (Quick Path Interconnect) Conguration
QPI General Conguration
QPI Status
The following information will display:
•Number of CPU
•Number of II0
•Current QPI Link Speed
•Current QPI Link Frequency
•QPI Global MMIO Low Base/Limit
•QPI Global MMIO High Base/Limit
•QPI PCIe Conguration Base/Size
Link Frequency Select
Use this item to select the desired frequency for QPI Link connections. The op-
tions are 6.4GB/s, 8.0GB/s, 9.6GB/s, Auto, and Auto Limited.
Link L0p Enable
Select Enable for Link L0p support to reduce power consumption. The options
are Enable and Disable.
4-20
X10DRH-C/CT/i/iT Motherboard User’s Manual
Link L1 Enable
Select Enable for Link L1 support to reduce power consumption. The options
are Enable and Disable.
COD Enable (Available when the OS and the CPU support this feature)
Select Enable for Cluster-On-Die support to enhance system performance in
cloud computing. The options are Enable and Disable.
Early Snoop (Available when the OS and the CPU support this feature)
Select Enable for Early Snoop support to enhance system performance. The
options are Enable, Disable, and Auto.
Isoc Mode
Select Enable for Isochronous support to meet QoS (Quality of Service) require-
ments. This feature is especially important for Intel Virtualization Technology. The
options are Enable and Disable.
Memory Conguration
This submenu allows the user to congure Integrated Memory Controller (IMC)
settings.
Enforce POR
Select Enabled to enforce POR restrictions on DDR4 frequency and voltage
programming. The options are Enabled and Disabled.
Memory Frequency
Use this feature to set the maximum memory frequency for onboard memory
modules. The options are Auto, 1333, 1400, 1600, 1800, 1867, 2000, 2133,
2200, 2400, 2600, 2667, 2800, 2993, 3000, 3200, and Reserved (Do not select
Reserved).
Data Scrambling
Select Enabled to enable data scrambling to enhance system performance and
data integrity. The options are Auto, Disabled and Enabled.
DRAM RAPL (Running Average Power Limit) Baseline
Use this feature to set the run-time power-limit baseline for DRAM modules. The
options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1.
Chapter 4: AMI BIOS
4-21
Set Throttling Mode
Throttling improves CPU reliability and reduces power consumption via automat-
ic-voltage control during CPU idle states. The options are Disabled and CLTT
(Closed Loop Thermal Throttling).
Socket Interleave Below 4GB
Select Enable for the memory above the 4G Address space to be split between
two sockets. The options are Enable and Disable.
A7 Mode
Select Enable to support the A7 (Addressing) mode to improve memory perfor-
mance. The options are Enable and Disable.
DIMM Information
This item displays the status of a DIMM module as detected by the AMI
BIOS.
•P1 DIMMA1
•P2 DIMME1
Memory RAS (Reliability_Availability_Serviceability) Conguration
Use this submenu to congure the following Memory RAS settings.
RAS Mode
When Disable is selected, RAS is not supported. When Mirror is selected, the
motherboard maintains two identical copies of all data in memory for data backup.
When Lockstep is selected, the motherboard uses two areas of memory to run
the same set of operations in parallel to boost performance. The options are
Disable, Mirror, and Lockstep Mode.
Memory Rank Sparing
Select Enable to enable memory-sparing support for memory ranks to improve
memory performance. The options are Disabled and Enabled.
Patrol Scrub
Patrol Scrubbing is a process that allows the CPU to correct correctable memory
errors detected on a memory module and send the correction to the requestor
(the original source). When this item is set to Enable, the IO hub will read and
write back one cache line every 16K cycles, if there is no delay caused by internal
processing. By using this method, roughly 64 GB of memory behind the IO hub
will be scrubbed every day. The options are Enable and Disable.
4-22
X10DRH-C/CT/i/iT Motherboard User’s Manual
Patrol Scrub Interval
This feature allows you to decide how many hours the system should wait before
the next complete patrol scrub is performed. Use the keyboard to enter a value
from 0-24. The Default setting is 24.
Demand Scrub
Demand Scrubbing is a process that allows the CPU to correct correctable
memory errors found on a memory module. When the CPU or I/O issues a
demand-read command, and the read data from memory turns out to be a
correctable error, the error is corrected and sent to the requestor (the original
source). Memory is updated as well. Select Enable to use Demand Scrubbing
for ECC memory correction. The options are Enable and Disable.
Device Tagging
Select Enable to support device tagging. The options are Disable and Enable.
South Bridge Conguration
The following South Bridge information will display:
USB Conguration
•USB Module Version
•USB Devices
Legacy USB Support
Select Enabled to support onboard legacy USB devices. Select Auto to disable
legacy support if there are no legacy USB devices present. Select Disabled to
have all USB devices available for EFI applications only. The options are Enabled,
Disabled and Auto.
XHCI Hand-Off
This is a work-around solution for operating systems that do not support XHCI (Ex-
tensible Host Controller Interface) hand-off. The XHCI ownership change should be
claimed by the XHCI driver. The settings are Enabled and Disabled.
EHCI Hand-Off
This item is for operating systems that do not support Enhanced Host Controller
Interface (EHCI) hand-off. When this item is enabled, EHCI ownership change will
be claimed by the EHCI driver. The settings are Enabled and Disabled.
Chapter 4: AMI BIOS
4-23
Port 60/64 Emulation
Select Enabled to support I/O port 60h/64h emulation, which will provide complete
legacy USB keyboard support for the operating systems that do not support legacy
USB devices. The options are Disabled and Enabled.
USB 3.0 Support
Select Enabled for USB 3.0 support. The options are Smart Auto, Auto, Enabled,
and Disabled.
EHCI1
Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on
USB 2.0 connector #1 (-at least one USB 2.0 connector should be enabled for EHCI
support.) The options are Disabled and Enabled.
EHCI2
Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on
USB 2.0 connector #2 (-at least one USB 2.0 connector should be enabled for EHCI
support.) The options are Disabled and Enabled.
4-24
X10DRH-C/CT/i/iT Motherboard User’s Manual
SATA Conguration
When this submenu is selected, AMI BIOS automatically detects the presence of
the SATA devices that are supported by the Intel PCH chip and displays the fol-
lowing items:
SATA Controller
Select Enabled to enable the onboard SATA controller supported by the Intel PCH
chip. The options are Enabled and Disabled.
Congure SATA as
Select IDE to congure a SATA drive specied by the user as an IDE drive. Select
AHCI to congure a SATA drive specied by the user as an AHCI drive. Select
RAID to congure a SATA drive specied by the user as a RAID drive. The options
are IDE, AHCI, and RAID.
*If the item above "Congure SATA as" is set to AHCI, the following items will display:
Support Aggressive Link Power Management
When this item is set to Enabled, the SATA AHCI controller manages the power
usage of the SATA link. The controller will put the link to a low power state when
the I/O is inactive for an extended period of time, and the power state will return
to normal when the I/O becomes active. The options are Enabled and Disabled.
SATA Port 0~ Port 5
This item displays the information of a SATA device installed on the SATA port
specied by the user.
•Model number of drive and capacity
•Software Preserve
Port 0~ Port 5
Select Enabled to enable a SATA port specied by the user. The options are Dis-
abled and Enabled.
Spin Up Device
On an edge detect from 0 to 1, set this item to allow the PCH to initialize the
device. The options are Enabled and Disabled.
SATA Device Type
Use this item to specify if the SATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
Chapter 4: AMI BIOS
4-25
*If the item above "Congure SATA as" is set to IDE, the following items will
display:
SATA Port 0~ Port 5
This item displays the information of a SATA device installed on the SATA port
specied by the user.
•Software Preserve
SATA Device Type (Available when a SATA port is detected)
Use this item to specify if the SATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
*If the item above "Congure SATA as" is set to RAID, the following items will
display:
Support Aggressive Link Power Management
When this item is set to Enabled, the SATA AHCI controller manages the power
usage of the SATA link. The controller will put the link to a low power state when
the I/O is inactive for an extended period of time, and the power state will return
to normal when the I/O becomes active. The options are Enabled and Disabled.
SATA RAID Option ROM/UEFI Driver
Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy
OPROM for system boot. The options are Disabled, EFI, and Legacy.
SATA/sSATA RAID Boot Select
Select SATA Controller to boot the system from a SATA RAID device. Select sSATA
Controller to boot the system from a sSATA RAID device. Select Both to boot the
system either from a SATA RAID device or from an sSATA RAID device. Please
note that the option-Both is not supported by the Windows Server 2012/R2 OS. The
options are None, Both, SATA Controller, and sSATA Controller.
Serial ATA Port 0~ Port 5
This item displays the information of a SATA device installed on the SATA port
specied by the user.
•Model number of drive and capacity
•Software Preserve
4-26
X10DRH-C/CT/i/iT Motherboard User’s Manual
Port 0~ Port 5
Select Enabled to enable a SATA port specied by the user. The options are
Disabled and Enabled.
Spin Up Device
On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-
SET initialization to the device. The options are Enabled and Disabled.
SATA Device Type
Use this item to specify if the SATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
sSATA Conguration
When this submenu is selected, AMI BIOS automatically detects the presence of
the SATA devices that are supported by the PCH-sSATA controller and displays
the following items:
sSATA Controller
This item enables or disables the onboard SATA controller supported by the Intel
PCH-sSATA controller. The options are Enabled and Disabled.
Congure sSATA as
Select IDE to congure an sSATA drive specied by the user as an IDE drive. Select
AHCI to congure an sSATA drive specied by the user as an AHCI drive. Select
RAID to congure an sSATA drive specied by the user as a RAID drive. The op-
tions are IDE, AHCI, and RAID.
*If the item above "Congure sSATA as" is set to AHCI, the following items will
display:
Support Aggressive Link Power Management
When this item is set to Enabled, the SATA AHCI controller manages the power
usage of the SATA link. The controller will put the link to a low power state when
the I/O is inactive for an extended period of time, and the power state will return
to normal when the I/O becomes active. The options are Enabled and Disabled.
sSATA Port 0~ Port 3
This item displays the information detected on the installed on the sSATA port.
specied by the user.
•Model number of drive and capacity
Chapter 4: AMI BIOS
4-27
sSATA Port 0~ Port 3
Select Enabled to enable an sSATA port specied by the user. The options are
Disabled and Enabled.
Spin Up Device
On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-
SET initialization to the device. The options are Enabled and Disabled.
Device Type
Use this item to specify if the sSATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
*If the item above "Congure sSATA as" is set to IDE, the following items will
display:
sSATA Port 0~ Port 3
This item indicates that an sSATA port specied by the user is installed (present)
or not.
sSATA Device Type (Available when a sSATA port is detected)
Use this item to specify if the sSATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
*If the item above "Congure sSATA as" is set to RAID, the following items will
display:
Support Aggressive Link Power Management
When this item is set to Enabled, the SATA AHCI controller manages the power
usage of the sSATA link. The controller will put the link to a low power state when
the I/O is inactive for an extended period of time, and the power state will return
to normal when the I/O becomes active. The options are Enabled and Disabled.
sSATA RAID Option ROM/UEFI Driver
Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy
OPROM for system boot. The options are Disabled, EFI, and Legacy.
SATA/sSATA RAID Boot Select
Select SATA Controller to boot the system from a SATA RAID device. Select sSATA
Controller to boot the system from a sSATA RAID device. Select Both to boot the
system either from a SATA RAID device or from an sSATA RAID device. Please
note that the option-Both is not supported by the Windows Server 2012/R2 OS. The
options are None, Both, SATA Controller, and sSATA Controller.
4-28
X10DRH-C/CT/i/iT Motherboard User’s Manual
sSATA Port 0~ Port 3
Select Enabled to enable an sSATA port specied by the user. The options are
Disabled and Enabled.
Spin Up Device
On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-
SET initialization to the device. The options are Enabled and Disabled.
Device Type
Use this item to specify if the sSATA port specied by the user should be con-
nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk
Drive and Solid State Drive.
Server ME (Management Engine) Conguration
This feature displays the following system ME conguration settings.
•General ME Conguration
•Operational Firmware Version
•Recovery Firmware Version
•ME Firmware Features
•ME Firmware Status #1
•ME Firmware Status #2
•Current State
•Error Code
Altitude
This item indicates the altitude of this machine that is above the sea level. The
value is shown in meters. If the value is unknown, enter the number "80000000".
MCTP (Management Component Transport Protocol) Bus Owner
This item indicates the location of the MCTP Bus owner. Enter 0's to all elds to
disable the MCTP Bus owner.
