Supero X10DRFR, X10DRFR-N, X10DRFR-NT User Manual

USER’S MANUAL

Revision 1.0b

X10DRFR

X10DRFR-N

X10DRFR-NT

Manual Revision 1.0b

Release Date: Jan. 29, 2015

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2015 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

The information in this user’s manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
and makes no commitment to update or to keep current the information in this manual, or to notify
any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE
USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC.
SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED
WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between the manufacturer and the customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of Santa Clara
shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for
all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Preface

This manual is written for system integrators, IT professionals, and

knowledgeable end-users. It provides information for the installation and use of the

X10DRFR/X10DRFR-N//X10DRFR-NT motherboard.

About This Motherboard

The Super X10DRFR/X10DRFR-N/X10DRFR-NT motherboard supports dual Intel®

E5-2600(V3) Series processors (Socket R3) that offer Intel® QPI (QuickPath Inter-

face) Technology, providing point-to-point connection with a transfer speed of up to

9.6 GT/s. With the PCH C612 built in, the X10DRFR(-N/-NT) motherboard supports

Intel® Manageability Engine, Intel Rapid Storage Technology enterprise, Digital

Media Interface, PCI-E Gen. 3.0, and 2133 MHz DDR4 memory. This motherboard

is ideal for 4U FatTwin server platforms. Please refer to our website (http://www.

supermicro.com) for processor and memory support updates.

Manual Organization

Chapter 1 describes the features, specications and performance of the moth-

erboard. It also provides detailed information about the Intel PCH C612 chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules, and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to BIOS, and provides detailed information on

running the BIOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software installation instructions.

Preface

iii

iv

Conventions Used in the Manual

Pay special attention to the following symbols for proper system installation and to

prevent damage to the system or injury to yourself:

Warning: Important information given to ensure proper system installation or to prevent

damage to the components

Note: Additional information given to differentiate between various models

or provides information for proper system setup.

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Preface

v

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

vi

Table of Contents

Preface

Chapter 1 Overview

1-1 Overview ......................................................................................................... 1-1

1-2 Processor and Chipset Overview .................................................................1-11

1-3 Special Features ........................................................................................... 1-12

1-4 System Health Monitoring ............................................................................. 1-12

1-5 ACPI Features ............................................................................................... 1-13

1-6 Power Supply ................................................................................................ 1-13

1-7 Advanced Power Management ..................................................................... 1-14

Intel® Intelligent Power Node Manager (NM) (Available when the Supermicro

Power Manager [SPM] is installed)............................................................... 1-14

Management Engine (ME) ............................................................................ 1-14

Chapter Installation

2-1 Standardized Warning Statements ................................................................. 2-1

2-2 Static-Sensitive Devices .................................................................................. 2-4

2-3 Motherboard Installation .................................................................................. 2-5

Tools Needed .................................................................................................. 2-5

Location of Mounting Holes ............................................................................ 2-5

Installing the Motherboard .............................................................................. 2-6

2-4 Processor and Heatsink Installation................................................................ 2-7

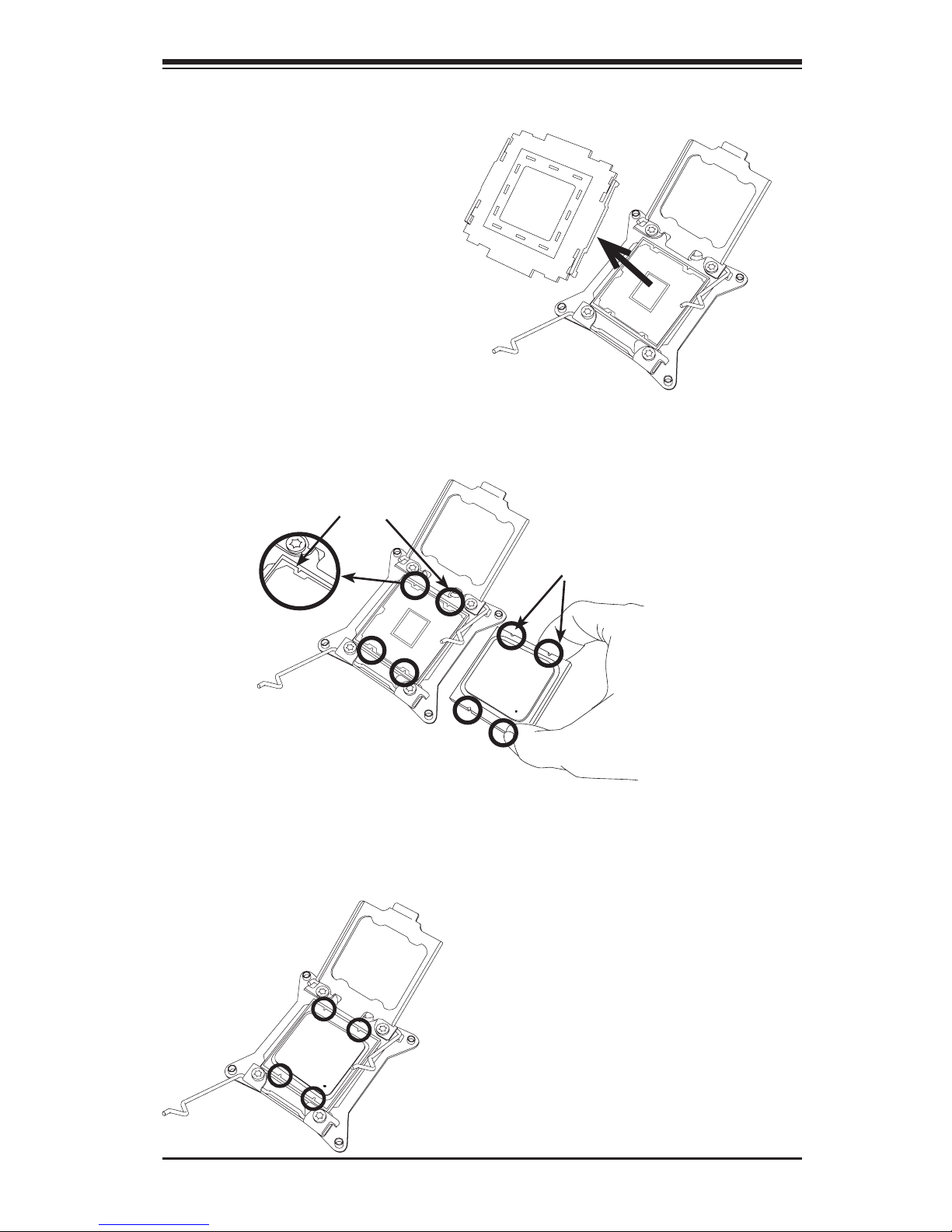

Installing the LGA2011 Processor ................................................................. 2-7

Installing a Passive Heatsink .........................................................................2-11

Removing the Passive Heatsink ................................................................... 2-12

2-5 Installing and Removing the Memory Modules ............................................. 2-13

Installing & Removing DIMMs ....................................................................... 2-13

Removing Memory Modules ......................................................................... 2-13

2-6 Control Panel Connectors and I/O Ports ...................................................... 2-16

Back Panel Connectors and I/O Ports .......................................................... 2-16

Back Panel I/O Port Locations and Denitions ........................................... 2-16

Universal Serial Bus (USB) ...................................................................... 2-17

Video Connector ....................................................................................... 2-17

Ethernet Ports .......................................................................................... 2-18

2-7 Connecting Cables ........................................................................................ 2-19

Power Connectors ................................................................................... 2-19

COM Port Header .................................................................................... 2-20

IPMB I2C SMB .......................................................................................... 2-20

Fan Headers ............................................................................................. 2-21

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

vii

Table of Contents

TPM Header/Port 80 ................................................................................ 2-22

Non-Mask Interrupt Header ...................................................................... 2-22

T-SGPIO 1/2 Headers .............................................................................. 2-23

NVM Express Connections (For X10DRFR-N/NT Only) .......................... 2-23

2-8 Jumper Settings ............................................................................................ 2-24

Explanation of Jumpers ................................................................................ 2-24

LAN Ports 1/2 Enable .............................................................................. 2-24

CMOS Clear ............................................................................................. 2-25

Watch Dog Enable/Disable ...................................................................... 2-25

VGA Enable .............................................................................................. 2-26

BMC Enable ............................................................................................ 2-26

I2C Bus to PCI-Exp. Slots ........................................................................ 2-27

Manufacturer Mode Select ....................................................................... 2-27

2-9 Onboard LED Indicators ............................................................................... 2-28

LAN LEDs ................................................................................................. 2-28

IPMI_LAN LEDs ....................................................................................... 2-28

Standby_Power Good LED ...................................................................... 2-29

BMC Heartbeat LED ................................................................................ 2-29

System_Power Good LED ....................................................................... 2-30

SATA Activity LED .................................................................................... 2-30

2-10 PCI-Express and Serial ATA Connections .................................................... 2-31

PCI-Express 3.0 x16 Slot ......................................................................... 2-31

PCI-Express 3.0 x8 Slots ......................................................................... 2-31

Serial ATA Ports........................................................................................ 2-32

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

3-2 Technical Support Procedures ........................................................................ 3-5

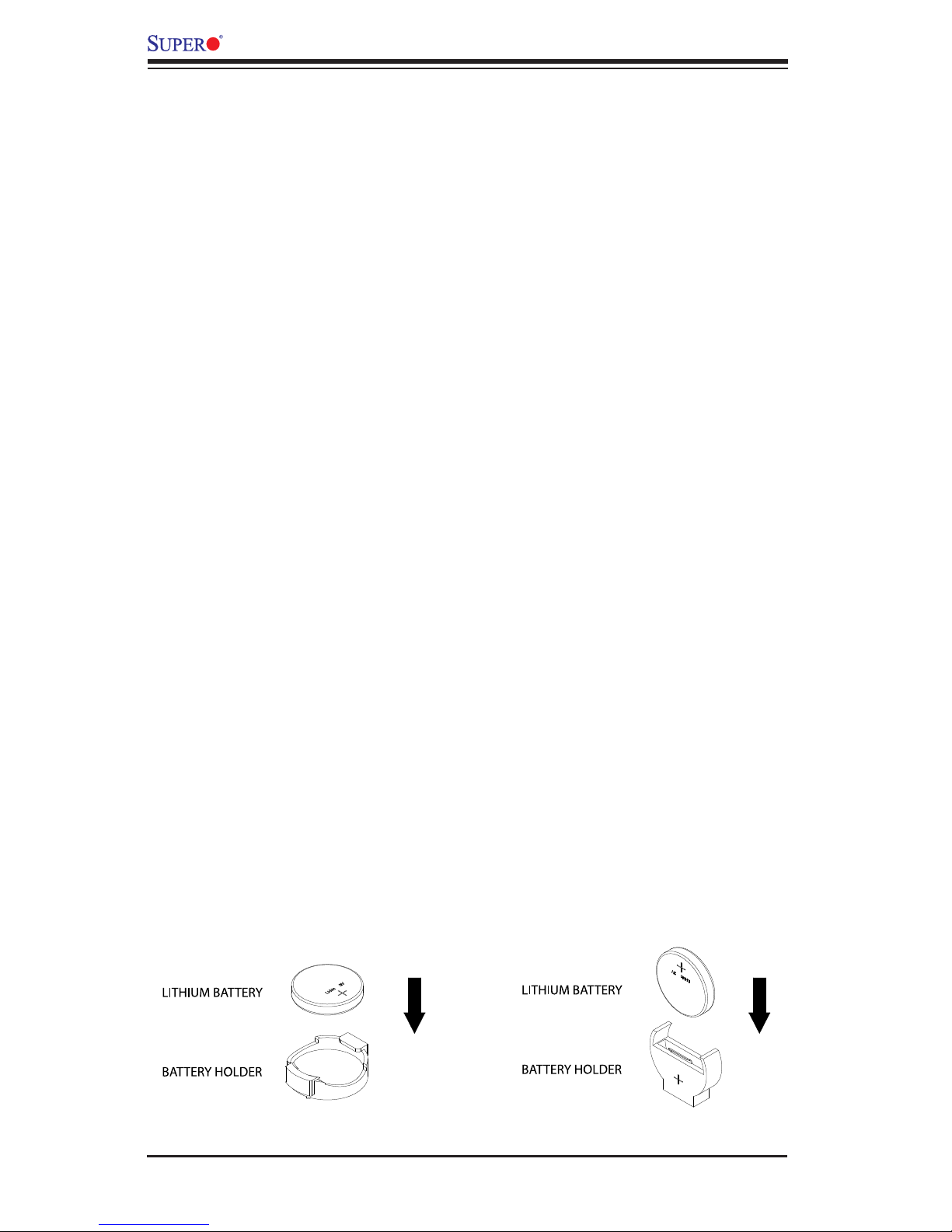

3-3 Battery Removal and Installation .................................................................... 3-6

3-4 Frequently Asked Questions ........................................................................... 3-7

3-5 Returning Merchandise for Service................................................................. 3-8

Chapter 4 BIOS

4-1 Introduction ...................................................................................................... 4-1

4-2 Main Setup ...................................................................................................... 4-2

4-3 Advanced Setup Congurations...................................................................... 4-4

4-4 Event Logs .................................................................................................... 4-32

4-5 IPMI ............................................................................................................... 4-34

viii

4-6 Security Settings ........................................................................................... 4-36

4-7 Boot Settings ................................................................................................. 4-37

4-8 Save & Exit ................................................................................................... 4-39

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B Software Installation Instructions

B-1 Installing Software Programs ..........................................................................B-1

B-2 Conguring SuperDoctor 5 .............................................................................B-2

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ......................................................................C-1

C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)....................C-1

C-3 To Recover the Main BIOS Block Using a USB-Attached Device..................C-1

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Chapter 1: Overview

1-1

Chapter 1

Overview

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

The X10DRFR(-N/-NT) motherboard was designed to be used with a Supermicro-

proprietary chassis as an integrated server platform. It is not to be used as a stand-

alone product and will not be shipped independently in a retail box. No motherboard

shipping package will be provided in your shipment.

Note 1: For your system to work properly, please follow the links below

to download all necessary drivers/utilities and the user's manual for your

motherboard.

• Supermicro product manuals: http://www.supermicro.com/support/manu-

als/

• Product Drivers and utilities: ftp://ftp.supermicro.com/

Note 2: For safety considerations, please refer to the complete list of safety

warnings posted on the Supermicro website at http://www.supermicro.com/

about/policies/safety_information.cfm.

If you have any questions, please contact our support team at support@supermicro.

com.

1-2

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Note: All graphics shown in this manual were based upon the latest PCB

Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics

shown in this manual.

Motherboard Image

Chapter 1: Overview

1-3

Notes:

1. For the latest CPU/Memory updates, please refer to our website at http://

www.supermicro.com/products/motherboard/ for details.

2. Use only the correct type of onboard CMOS battery as specied by

the manufacturer. Do not install the onboard battery upside down to avoid

possible explosion.

Motherboard Layout

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1
JMLP_STBY2

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

1-4

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Notes:

•See Chapter 2 for detailed information jumpers, I/O ports, connectors and ex-

pansion slots. " " indicates the location of "Pin 1".

• Components/Jumpers/LED Indicators that are not documented in this manual

are reserved for internal testing only.

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1
JMLP_STBY2

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

Motherboard Quick Reference

Chapter 1: Overview

1-5

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard Jumpers

Jumper

Description Default Setting

JBT1 Clear CMOS/Reset BIOS Con-

guration

See Chapter 2

JI2C1/JI2C2 SMB to PCI-E Slots Pins 2-3 (Normal)

JPB1 BMC Enable Pins 1-2 (Enabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JPL1 (For X10DRFR(-N)GLAN1/GLAN2 Enable Pins 1-2 (Enabled)

JPL1 (For X10DRFR­NT)

10G-LAN1/10G-LAN2 Enable Pins 1-2 (Enabled)

JPME2 Manufacture Mode (ME) Select Pins 1-2 (Normal)

JWD1 Watch Dog Pins 1-2 (Reset)

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard Connectors

Connectors Description

Battery Onboard CMOS battery (JBAT1) (See the Note on P. 1-3.)

COM1 Serial Port/COM Port 1

CPU1 MLP_PCI-E

3.0x8

Micro Low_Prole (MLP) PCI-E 3.0 x8 slot supported by

CPU1

CPU1_SXB_PCI-E

3.0x16

SXB1_PCI-E 3.0 x16 slot supported by CPU1

FAN1-FAN4 CPU/System Cooling Fan headers 1-4

HDDPOWER 1/2/3 HDD Power headers 1/2/3 (JPWR_HDD1/2/3)

JF1 SMCI-Proprietary multiple connections head w/PMBus,

Hotswap I2C, LED signals, button signals, 5V standby

power supported

JIPMB1 4-pin External BMC I2C header (for an IPMI card)

JNMI1 Non-Mask Interrupt header

JPTM1 TPM (Trusted Platform Module)/Port 80

JPWR9/JPWR10 8-pin Power Connector 9 (12V_in)/Power Connector 10

(Ground)

JNVME1/2 NVM Express PCI-E 3.0 x4 ports 1/2 (for X10DRFR-N/NT

only)

JNVI2C1 System Management Bus (SMB) for NVM Express port (for

X10DRFR-N/NT only)

LAN1/2 Gigabit (GLAN) Ethernet ports 1/2 (for X10DRFR(-N),

10G-LAN (TLAN) Ethernet ports 1/2 (for X10DRFR-NT)

(IPMI) LAN IPMI_dedicated LAN port

Power-Button Onboard power button

1-6

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

I-SATA0-5 I-SATA connectors 0-5 (supported by Intel PCH)

S-SATA0-3 S-SATA connectors 0-3, supported by Intel SCU (S-SATA2/3:

used for Supermicro SuperDOMs (Devices-on-Module with
built-in power pins)

T-SGPIO 1/2 Serial_link General Purpose I/O headers 1/2 (T-SGPIO1: for

I-SATA0-5, T-SGPIO2: for S-SATA0-3)

USB0/USB1 (3.0) Back panel USB 3.0 ports (USB0/USB1)

VGA Back panel VGA port (JVGA1)

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard LED Indicators

LED Description State

LE1 UID (Unit_Identier) LED) Blue: (On/Blinking) Unit identied

LE2 System Power Good LED On: System power on

LE3 SATA Activity LED Green (Blinking): SATA active

LE4 Standby Power Good LED On: Standby power on

LEDM1 BMC Heartbeat LED Green (Blinking): BMC Normal

Warning: Do not install the onboard battery upside down to avoid damaging the

components or the motherboard. Also, be sure to follow the instructions given by your

local hazardous materials management agency to properly dispose of the used bat-

tery for your safety.

Chapter 1: Overview

1-7

CPU

• Dual Intel

®

E5-2600(V3) Series Processors (Socket

R3 LGA 2011); each processor supports two full-

width Intel QuickPath Interconnect (QPI) links (with

Data Transfer Rate of up to 9.6 GT/s per QPI)

Memory

• Integrated memory controller supports up to 1024

GB of Load Reduced (LRDIMM), and up to 512

GB of Registered (RDIMM) DDR4 (288-pin) ECC

2133/1866/1600 MHz memory in 16 slots

Note: Memory speed support is pending on

the processors installed in the system. For

the latest CPU/memory updates, please refer

to our website at http://www.supermicro.com/

products/motherboard.

DIMM Sizes

64GB @ 1.20V

Chipset

• Intel® PCH C612

Expansion

• One (1) Micro Low-Prole (MLP) PCI-Exp 3.0 x8 slot

supported CPU1

• One (1) SXB1 PCI-Exp 3.0 x16 slot supported CPU1

• Two (2) NVMe Ports 1/2 (dual PCI-E 3.0 x 4 mini-

SAS HD connectors) (X10DRFR-N/-NT)

Slots

Graphics

• ASpeed AST2400 BMC Controller

Network

• One Intel i350 Gigabit (10/100/1000 Mb/s) Ethernet

Dual-Channel Controller for GLAN 1/GLAN 2 ports

(for X10DRFR/X10DRFR-N)

• One Intel X540 10-Gigabit Ethernet Dual-Channel

Controller for 10G-LAN (TLAN) 1/10G-LAN (TLAN)

2 ports (X10DRFR-NT)

• One IPMI-dedicated LAN supported by the AST2400

BMC

I/O Devices

SATA Connections

• SATA 3.0 Six (6) SATA 3.0 Connections sup-

ported by Intel PCH (I-SATA0-5),

Four (4) SATA 3.0 Connections sup-

ported by Intel SCU (S-SATA0-3),

(S-SATA2/3: used with Supermicro's

SuperDOMs (Device-on-Module)

with power supply supported

• RAID RAID 0, 1, 5, 10 (from Intel PCH)

Motherboard Features

1-8

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

IPMI 2.0

• IPMI 2.0 supported by the ASpeed 2400 BMC

Serial (COM) Port

• One (1) Fast UART 16550 Connection: 9-pin RS-

232 port

VGA

• Rear VGA Port

Peripheral
Devices

USB Devices

• Two (2) USB 3.0 ports on the rear I/O panel (USB0/

USB1)

BIOS

• 16 MB AMI SPI BIOS Flash ROM

• DMI/DMI2 2.3, PCI 2.3, ACPI 2.0/3.0/4.0, USB Key-

board, Plug & Play (PnP), UEFI 2.3.1, and SMBIOS

2.7 or later

Power

• ACPI Power Management

Cong.

• Main switch override mechanism

• Power-on mode for AC power recovery

• Intel

®

Intelligent Power Node Manager (available

when the Supermicro Power Manager [SPM] is

installed)

• Management Engine

• Riser Card auto-detection

System
Health

System Health Monitoring

Monitoring

• Onboard system health monitors for 1.2V, +3.3V,

3.3V Standby, +5V, +5V Standby, +12, chipset

(PCH) voltage, memory voltage, BMC voltage, and

battery voltage.

• CPU 6-Phase switching voltage regulator

• CPU/System overheat LED and control

• CPU Thermal Trip support

• Thermal Monitor 2 (TM2) support

Fan Control

• Fan status monitoring with rmware 4-pin fan speed

control

• Low noise fan speed control

LED Indicators

• System/CPU Overheat LED

Chapter 1: Overview

1-9

• Suspend-state LED

System
Management

• PECI (Platform Environment Conguration Interface)

2.0 support

• System resource alert via SuperDoctor® 5

• Thermal Monitor 2 (TM2) support

• SuperDoctor® 5, Watch Dog, NMI

• Chassis Intrusion Header and Detection

Dimensions

• 19.63" (L) x 8.53" (W) x (498.60 mm x 216.67 mm)

Note: For IPMI Conguration Instructions, please refer to the Embedded

IPMI Conguration User's Guide available @ http://www.supermicro.com/

support/manuals/.

1-10

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

System Block Diagram

Notes: 1. This is a general block diagram and may not exactly represent

the features on your motherboard. See the Motherboard Features pages

for the actual specications of each motherboard. 2. This block diagram

is provided for your reference only.

SPI

LAN3

RGRMII

Debug Card

FRONT PANEL

SYSTEM POWER

CTRL

FAN SPEED

PCI-E X1 G2

USB 2.0

#12 USB2.0

#6/7/8

PCH

6.0 Gb/S

USB 2.0

LPC

MICROLP

USB2.0

1

SATA

5

4

RTL8211E-VB-CG

3

2

RJ45

BIOS

SPI

SPI

Temp Sensor

W83773G

TPM HEADER

USB 3.0

USB

BIOS

HEADER

SPI

AST2400

BMC

#3

#2

#5

RMII/NCSI

COM1
Header

VGA CONN

BMC Boot Flash

DDR3

SLOT SBX1

5 PHASE
145W

1333/2133

1333/2133

DDRIV

P1

P1

P0

VR12.5

P0

#2-1

DDRIV

#1-4

#1-3

#1-2

#1-1

QPI

9.6G

MICROLP SLOT

PCI-E X16 G3

DMI2

PCI-E X16

PCI-E X8 G3

#1-5

#1-6

DMI2

Processor
DDR-IV

Processor
DDR-IV

QPI

9.6G

4GB/s

5 PHASE
145W

VR12.5

PCI-E X8

P3

AB

I350/

X540

LAN

PCI-E X8

P2

P3
CD

P1
AB

#1-7

#1-8

#2-2

#2-3

#2-4

#2-5

#2-6

#2-7

#2-8

6

7

8

9

10

#1

#2 #3

DMI2

PCI-E X8 G3

PCI-E X8 + X8

SXB2 SAS Slot

x8 Connection for future devices
(potentially: NVME 3,4)

PCI-E x4 +x4 G3

NVME 1,2

PCI-E x8 G3

PVCCIO
(1.05/0.95)
from 3.3v

<=1.7W

Chapter 1: Overview

1-11

1-2 Processor and Chipset Overview

Built upon the functionality and capability of the Intel E5-2600(V3) Series proces-

sors (Socket R3) and the Intel C612 PCH, the X10DRFR(-N/-NT) motherboard

provides the best-balanced solution for performance, power efciency, and fea-

tures to address the diverse needs of next-generation Enterprise (4U) FatTwin

server platforms.

With support of new Intel Microarchitecture 22nm Process Technology built in,

the X10DRFR(-N/-NT) motherboard dramatically increases system performance.

The PCH C612 chip provides Enterprise SMbus and MCTP support, including the

following features:

•DDR4 288-pin memory support on Socket R3

•Support for MCTP Protocol and ME

•Support of SMBus speeds of up to 1 MHz for BMC connectivity

•Improved I/O capabilities to high-storage-capacity congurations

•Embedded Platform

•SPI Enhancements with address space large enough for 2x BIOS

•BMC supports remote management, virtualization, and the security package

for enterprise platforms

1-12

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

1-3 Special Features

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will

respond when AC power is lost and then restored to the system. You can choose for

the system to remain powered off (in which case you must press the power switch

to turn it back on), or for it to automatically return to the power-on state. See the

Advanced BIOS Setup section for this setting. The default setting is Last State.

1-4 System Health Monitoring

This section describes the features of system health monitoring of the motherboard.

This motherboard has an onboard BaseBoard Management Controller (BMC) chip

that supports system health monitoring. An onboard voltage monitor will scan the

following onboard voltages continuously: +1.2V, +3.3V, 3.3V Standby, +5V, +5V

Standby, +12V, CPU core, memory, chipset, BMC, and battery voltages. Once a

voltage becomes unstable, a warning is given, or an error message is sent to the

screen. The user can adjust the voltage thresholds to dene the sensitivity of the

voltage monitor.

Fan Status Monitor with Firmware Control

The system health monitoring support provided by the BMC controller can check

the RPM status of a cooling fan. The onboard CPU and chassis fans are controlled

by the thermal management via the onboard BMC.

Environmental Temperature Control

System-Health sensors monitor temperatures and voltage settings of onboard

processors and the system in real time via the IPMI interface. Whenever the tem-

perature of the CPU or the system exceeds a user-dened threshold, system/CPU

cooling fans will be turned on to prevent the CPU or the system from overheating.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used

to notify the user of certain system events. For example, you can congure

SuperDoctor 5 to provide you with warnings when the system temperature, CPU

temperatures, voltages and fan speeds go beyond a predened range.

Chapter 1: Overview

1-13

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard way

to integrate power management features throughout a computer system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as network cards, hard disk drives

and printers.

In addition to enabling operating_system-directed power management, ACPI also

provides a generic system event mechanism for Plug and Play, and an operating

system-independent interface for conguration control. ACPI leverages the Plug and

Play BIOS data structures, while providing a processor architecture-independent

implementation that is compatible with Windows 7, Windows 8/R2, and Windows

2012/R2 operating systems.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates. In areas where noisy power transmission is present, you may choose

to install a line lter to shield the computer from noise. It is recommended that you

also install a power surge protector to help avoid problems caused by power surges.

1-14

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

1-7 Advanced Power Management

The following new advanced power management features are supported by the

motherboard.

Intel® Intelligent Power Node Manager (NM) (Available
when the Supermicro Power Manager [SPM] is installed)

The Intel® Intelligent Power Node Manager (IPNM) provides your system with

real-time thermal control and power management for maximum energy efciency.

Although IPNM Specication Version 1.5/2.0 is supported by the BMC (BaseBoard

Management Controller), your system must also have IPNM-compatible Manage-

ment Engine (ME) rmware installed to use this feature.

Note: Support for IPNM Specication Version 1.5 or Vision 2.0 depends

on the power supply used in the system.

Management Engine (ME)

The Management Engine, which is an ARC controller embedded in the IOH (I/O

Hub), provides Server Platform Services (SPS) to your system. The services

provided by SPS are different from those provided by the ME on client platforms.

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメー
カーが推奨する型、または同等のものを使用下さい。 使用済電池は製造元の指示に従

って処分して下さい。

警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

2-2

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일
하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사
의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

Chapter 2: Installation

2-3

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
ありま す 。

警告
本产品的废弃处理应根据所有国家的法律和规章进行。

警告
本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

2-4

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

2-2 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid pos-

sible damage to your system board, it is important to handle it very carefully. The

following measures are generally sufcient to protect your equipment from ESD.

Precautions

•Use a grounded wrist strap designed to prevent static discharge.

•Touch a grounded metal object before removing the board from the antistatic

bag.

•Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

•When handling chips or modules, avoid touching their pins.

•Put the motherboard and peripherals back into their antistatic bags when not

in use.

•For grounding purposes, make sure that your system chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

Chapter 2: Installation

2-5

X10DRFR

BAR CODE

Rev. 1.10

2-3 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis.

Make sure that the locations of all the mounting holes for both motherboard and

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

Tools Needed

•Phillips Screwdriver

•Pan head screws (11 pieces)

•Standoffs (11 pieces, if needed)

Location of Mounting Holes

There are eleven (11) mounting holes on this motherboard indicated by the arrows.

Caution: 1) To avoid damaging the motherboard and its components,

please do not use a force greater than 8 lb/inch on each mounting screw

during motherboard installation. 2) Some components are very close to

the mounting holes. Please take precautionary measures to prevent dam-

age to these components when installing the motherboard to the chassis.

2-6

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Installing the Motherboard

Note: Always connect the power cord last, and always remove it before

adding, removing or changing any hardware components. Install the I/O

shield into the chassis.

1. Locate the mounting holes on the motherboard.

2. Locate the matching mounting holes on the chassis. Align the mounting holes

on the motherboard against the mounting holes on the chassis.

3. Install standoffs in the chassis as needed.

4. Install the motherboard into the chassis carefully to avoid damaging mother-

board components.

5. Using the Phillips screwdriver, insert a Pan head #6 screw into a mounting

hole on the motherboard and its matching mounting hole on the chassis.

6. Repeat Step 5 to insert #6 screws into all mounting holes.

7. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are is for illustration only. Your chassis or compo-

nents might look different from those shown in this manual.

Chapter 2: Installation

2-7

2-4 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on

the label area. Also, improper CPU installation or socket/pin misalignment can cause

serious damage to the CPU or the motherboard that will require RMA repairs. Be sure

to read and follow all instructions thoroughly before installing your CPU and heatsink.

Notes:

•Always connect the power cord last, and always remove it before adding,

removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the CPU heatsink.

•If you buy a CPU separately, make sure that you use an Intel-certied multi-

directional heatsink only.

•Make sure to install the motherboard into the chassis before you install the

CPU heatsink.

•When receiving a motherboard without a processor pre-installed, make sure

that the plastic CPU socket cap is in place, and none of the socket pins are

bent; otherwise, contact your retailer immediately.

•Refer to the Supermicro website for updates on CPU support.

LGA2011-3

1

1

Press down

on

Load Lever

labeled 'Open 1st'.

Installing the LGA2011 Processor

1. There are two load levers on the LGA2011 socket. To open the socket cover,

rst press and release the load lever labeled 'Open 1st'.

OPEN 1st

WARNING!

1

2

Note: the graphics provided in the manual are for illustration only. Your

components may or may not look the same as the ones shown in this

manual.

OPEN 1st

(LGA2011-3-Narrow)

2-8

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

OPEN 1st

WARNING!

2. Press the second load lever labeled 'Close 1st' to release the load plate that

covers the CPU socket from its locking position.

3. With the 'Close 1st' lever fully retracted, gently push down on the lever

labeled 'Open 1st' to open the load plate. Lift the load plate to open it com-

pletely.

OPEN 1st

WARNING!

OPEN 1st

WARNING!

1

2

Press down on the

Load Lever

labeled

'Close

1st'.

WARNING!

1

Pull the lever away
from the socket.

2

Gently push
down the load
lever to pop open
the load plate.

Chapter 2: Installation

2-9

WARNING!

4. Using your thumb and the index nger, remove the 'WARNING' plastic cap

from the socket.

5. Use your thumb and index nger to hold the CPU on its edges. Align the CPU

keys, which are semi-circle cutouts, against the socket keys.

6. Once they are aligned, carefully lower the CPU straight down into the socket.

(Do not drop the CPU on the socket. Do not move the CPU horizontally or

vertically. Do not rub the CPU against the surface or against any pins of the

socket to avoid damaging the CPU or the socket.)

Socket Keys

CPU Keys

Warning: You can only install the

CPU inside the socket in one direc-

tion. Make sure that it is properly

inserted into the CPU socket before

closing the load plate. If it doesn't

close properly, do not force it as it

may damage your CPU. Instead,

open the load plate again and dou-

ble-check that the CPU is aligned

properly.

2-10

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

7. With the CPU inside the socket, inspect the four corners of the CPU to make

sure that the CPU is properly installed.

8. Close the load plate with the CPU inside the socket. Lock the lever labeled

'Close 1st' rst, then lock the lever labeled 'Open 1st' lever second. Use your

thumb to gently push the load levers down to the lever locks.

OPEN 1st

OPEN 1st

OPEN 1st

Lever Lock

Lever Lock

Push down and

lock the lever

labeled 'Open 1st.'

Push down and lock

lever labeled 'Close 1st'.

Gently close

the load plate.

1 2

3

4

Chapter 2: Installation

2-11

Installing a Passive Heatsink

1. Apply the proper amount of thermal grease to the heatsink.

2. Place the heatsink on top of the CPU so that the two mounting holes on the

heatsink are aligned with those on the retention mechanism.

3. Insert two push-pins on the sides of the heatsink through the mounting holes

on the motherboard, and turn the push-pins clockwise to lock them.

Screw#1

Screw#2

Screw#3

Screw#4

OPEN 1st

Note: For optimized airow, please follow your chassis airow direction

to properly install the heatsink. Graphics included in this manual are for

reference only. They might look different from the components installed

in your system.

Direction of Airow

2-12

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Removing the Passive Heatsink

Warning: We do not recommend that the CPU or the heatsink be removed. However,

if you do need to remove the heatsink, please follow the instructions below to uninstall

the heatsink to avoid damaging the CPU or other components.

1. Unplug the power cord from the power supply.

2. Press down the push-pin on the heatsink, and turn counter-clock-wise to

loosen it. Repeat the same step to loosen the second push-pin.

3. Hold the heatsink as shown in the picture below, and gently wriggle the heat-

sink to loosen it. (Do not use excessive force when wriggling the heatsink.)

4. Once the heatsink is loosened, remove it from the motherboard.

OPEN 1st

Chapter 2: Installation

2-13

X10DRFR

BAR CODE

Rev. 1.10

Release Tabs

Notches

2-5 Installing and Removing the Memory Modules

Note: Check Supermicro's website for recommended memory modules.

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

Installing & Removing DIMMs

1. Insert the desired number of DIMMs into the memory slots, starting with

P1-DIMMA1. (For best performance, please use the memory modules of the

same type and speed in the same bank.)

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

Removing Memory Modules

Press the release tabs on both ends of the memory module to unlock it. Once it is

loosened, remove the DIMM module from the memory slot.

3. Align the key of the DIMM module with the receptive point on the memory

slot.

4. Align the notches on both ends of the module against the receptive points on

the ends of the slot.

5. Use two thumbs together to press the notches on both ends of the module

straight down into the slot until the module snaps into place.

6. Press the release tabs to the locking positions to secure the DIMM module

into the slot.

Press both notches straight

down into the memory slot at

the same time.

2-14

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Memory Support for the X10DRFR(-N/-NT) Motherboard

The X10DRFR(-N/-NT) motherboard supports up to 1024 GB of Load Reduced

(LRDIMM), and up to 512 GB of Registered (RDIMM) DDR4 (288-pin) ECC

2133/1866/1600 MHz memory in 16 slots

Note: Memory speed support is pending on the processors installed in the

system. For the latest CPU/memory updates, please refer to our website

at http://www.supermicro.com/products/motherboard.

Processor & Memory Module Population Conguration

For memory to work properly, follow the tables below for memory installation.

Processors and their Corresponding Memory Modules

CPU# Corresponding DIMM Modules

CPU 1 P1-

DIMMA1

P1­DIMMB1

P1­DIMMC1

P1­DIMMD1

P1­DIMMA2

P1­DIMMB2

P1­DIMMC2

P1­DIMMD2

CPU2 P2-

DIMME1

P2­DIMMF1

P2­DIMMG1

P2­DIMMH1

P2­DIMME2

P2­DIMM F2

P2­DIMMG2

P2­DIMMH2

Processor and Memory Module Population for Optimal Performance

Number of

CPUs+DIMMs

CPU and Memory Population Conguration Table

(For memory to work properly, please follow the instructions below.)

1 CPU &
2 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1

1 CPU &
4 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1

1 CPU &

5~8 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1­DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots

2 CPUs &

4 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1

2 CPUs &

6 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1

2 CPUs &

8 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2­DIMMG1/P2-DIMMH1

2 CPUs &

9~16 DIMMs

CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2­DIMMG1/P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots

2 CPUs &

16 DIMMs

CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIM­MG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/
P2-DIMMF2/P2-DIMMG2/P2-DIMMH2

Chapter 2: Installation

2-15

Populating DIMM Memory Modules

Speed (MT/s), Slot per Channel
(SPC) & DIMM per Channel (DPC)

2-16

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

2-6 Control Panel Connectors and I/O Ports

The I/O ports are color coded in conformance with the industry standards. See

the picture below for the locations of the various I/O ports.

Back Panel Connectors and I/O Ports

Back Panel I/O Port Locations and Denitions

1. Back panel USB 3.0 Port 0

2. Back panel USB 3.0 Port 1

3. Back panel VGA (Blue)

4. GLAN Port 1 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for
X10DRFR-NT)

5. GLAN Port 2 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for
X10DRFR-NT)

6. IPMI_Dedicated LAN

1

2

3

456

Chapter 2: Installation

2-17

Universal Serial Bus (USB)

Two Universal Serial Bus (USB) 3.0

ports are located on the I/O back

panel. Connect USB cables to use

USB ports 0/1. (Cables are not in-

cluded.) See the tables on the right

for pin denitions.

Back Panel USB

(USB 3.0 0/1)

Pin Denitions

Pin# Denition

1 +5V

2 PO-

3 PO+

4 Ground

5 NA

1. USB (3.0) 0

2. USB (3.0) 1

3. VGA

Video Connector

A Video (VGA) connector is located next to USB Port 1 on the IO back panel. This

connector is used to provide video to your monitor display. Refer to the board layout

below for the location.

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

1

2

3

2-18

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

1. GLAN Port 1 (X10DRFR/X10DRFR-N),

10G-LAN (TLAN) Port 1 (X10DRFR-NT)

2. GLAN Port 2 (X10DRFR/X10DRFR-N),

10G-LAN (TLAN) Port 2 (X10DRFR-NT)

3. IPMI_LAN

Ethernet Ports

Two Ethernet ports (LAN1/2) are

located on the I/O back panel

on the motherboard. These two

LAN ports support Gigabit LAN

connections on the X10DRFR(-

N), and 10-Gigabit LAN (TLAN)

connections on the X10DRFR-NT.

In addition, an IPMI_Dedicated

LAN is located next to LAN 2 on

the back panel to provide IPMI/

KVM support for the motherboard.

All these ports accept RJ45 type

cables. (Note: Please refer to the

LED Indicator Section for LAN LED

information.)

LAN Ports

Pin Denition

Pin# Denition

1 P2V5SB 10 SGND

2 TD0+ 11 Act LED

3 TD0- 12 P3V3SB

4 TD1+ 13 Link 100 LED (Yel-

low, +3V3SB)

5 TD1- 14 Link 1000 LED

(Yellow, +3V3SB)

6 TD2+ 15 Ground

7 TD2- 16 Ground

8 TD3+ 17 Ground

9 TD3- 18 Ground

(NC: No Connection)

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

1

2

3

Chapter 2: Installation

2-19

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

Warning: To ensure adequate power supply to your motherboard, be sure to connect

all the power connectors mentioned above to your power supply For proper system

operation.

A. JPWR9: 8-pin PWR (12V-in) (Req'd)

B. JPWR10: 8-pin PWR (Ground) (Req'd)

C. HDDPOWER1 (JPWR_HDD1: HDD power

supply)

D. HDDPOWER2 (JPWR_HDD2: HDD power

supply)

E. HDDPOWER3 (JPWR_HDD3: HDD power

supply)

A

B

C

Power Connectors

There are two 8-pin power connectors and three

4-pin power connectors located on the motherboard.

The 8-pin power connectors (JPWR9/JPWR10)

provide power supply to the motherboard. The 4-pin

power connectors (JPWR_HDD1/2/3) are used to for

onboard HDDs. See the layout below for the loca-

tions of the power connectors.

D

E

12V 4-pin Power

Connector

Pin Denitions

Pins Denition

1 +12V

2-3 Ground

4 +5V

2-7 Connecting Cables

12V 8-pin PWR Connector

Pin Denitions

Connect# Pins Denition

JPWR9 1-8 +12V

JPWR10 1-8 GND

2-20

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A. COM 1

B. IPMB

A

B

IPMB I2C SMB

A System Management Bus header

for the IPMI slot is located at JIPMB1.

Connect an appropriate cable here to

use the IPMB I2C connection on your

system.

SMB Header

Pin Denitions

Pin# Denition

1 Data

2 Ground

3 Clock

4 No Connection

COM Port Header

A COM port header is located next to

the LAN controller. See the table on

the right for pin denitions.

Serial Port Pin Denitions

(COM1)

Pin # Denition Pin # Denition

1 CDC 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground

Chapter 2: Installation

2-21

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

Fan Headers

This motherboard has four system cooling fan

headers (Fan1-Fan4). All these 4-pin fans headers

are backward compatible with the traditional 3-pin

fans. However, fan speed control is available for

4-pin fans only and is controlled by thermal man-

agement via IPMI 2.0 interface. See the table on

the right for pin denitions.

Fan Header

Pin Denitions

Pin# Denition

1 Ground

2 +12V

3 Tachometer

4 PWR Modulation

A. Fan1

B. Fan2

C. Fan3

D. Fan4

A

B

C

D

2-22

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A

TPM Header/Port 80

A Trusted Platform Module/Port 80 head-

er is located at JTPM1 to provide TPM

support and Port 80 connection. Use this

header to enhance system performance

and data security. See the table on the

right for pin denitions.

TPM/Port 80 Header

Pin Denitions

Pin # Denition Pin # Denition

1 LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V (X)

7 LAD 3 8 LAD 2

9 +3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK4 14 SMB_DAT4

15 +3V_DUAL 16 SERIRQ

17 GND 18 CLKRUN# (X)

19 LPCPD# 20 LDRQ# (X)

A. TPM/Port80

B. JNMI1

Non-Mask Interrupt Header

A Non-Mask Interrupt header is located at

JNMI1 to provide NMI1 connection. Use

this header to enhance system. See the

layout for the location.

B

NMI Button

Pin Denitions

Pin# Denition

1 Control

2 Ground

Chapter 2: Installation

2-23

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A. T-SGPIO 1

B. T-SGPIO 2

C. JNVME1

D. JNVME2

A

T-SGPIO 1/2 Headers

Two SGPIO (Serial-Link General Purpose Input/

Output) headers (T-SGPIO 1/2) are located

on the motherboard. These headers support

Serial_Link interface for onboard SATA connec-

tions (T-SGPIO1: for I-SATA0-5, T-SGPIO2: for

S-SATA0-3). See the table on the right for pin

denitions.

T-SGPIO

Pin Denitions

Pin# Denition Pin Denition

1 NC 2 NC

3 Ground 4 Data

5 Load 6 Ground

7 Clock 8 NC

B

NVM Express Connections (For X10DRFR-N/NT Only)

Two NVM Express ports are located on the motherboard. JNVME ports 1/2 pro-

vide high-speed, low-latency PCI-Exp. 3.0 x4 connections directly from the CPU

to NVMe Solid State (SSD) drives. This greatly increases SSD data-throughput

performance and signicantly reduces PCI-E latency by simplifying driver/

software requirements resulted from direct PCI-E interface from the CPU to the

NVMe SSD drives.

C

D

2-24

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A

2-8 Jumper Settings

Explanation of Jumpers

To modify the operation of the motherboard,

jumpers can be used to choose between

optional settings. Jumpers create shorts be-

tween two pins to change the function of the

connector. Pin 1 is identied with a square

solder pad on the printed circuit board. See

the motherboard layout pages for jumper

locations.

Note: On two pin jumpers, "Closed"

means the jumper is on and "Open"

means the jumper is off the pins.

Connector

Pins

Jumper

Cap

Setting

Pin 1-2 short

3 2 1

3 2 1

LAN Ports 1/2 Enable

JPL1 is used to enable or disable onboard LAN1

and LAN2. LAN ports 1/2 support Gigabit LANs on

the X10DRFR(/-N), and support 10G-LANs on the

X10DRFR-NT. See the table on the right for jumper

settings.

LAN Enable

Jumper Settings

Jumper Setting Denition

1-2 Enabled (default)

2-3 Disabled

A. GLAN1/2 Enable (X10DRFR(/-N))

A. 10G-LAN1/2 Enable (X10 DRFR-NT)

Chapter 2: Installation

2-25

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

CMOS Clear

JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads

to prevent accidental clearing of CMOS. To clear CMOS, use a metal object such

as a small screwdriver to touch both pads at the same time to short the connection.

Always remove the AC power cord from the system before clearing CMOS.

Note: Be sure to completely power-off the system, remove power cords,

and the onboard CMOS battery before you short JBT1 to clear CMOS.

A. Clear CMOS

B. Watch Dog Enable

Watch Dog Enable/Disable

Watch Dog (JWD1) is a system monitor that can

reboot the system when a software application

hangs. Close pins 1-2 to reset the system if an

application hangs. Close pins 2-3 to generate

non-maskable interrupt signals for the application

that hangs. See the table on the right for jumper

settings. Watch Dog must also be enabled in the

BIOS.

Watch Dog

Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset (default)

Pins 2-3 NMI

Open Disabled

A

B

2-26

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A. VGA Enabled

B. BMC Enabled

VGA Enable

Jumper JPG1 allows the user to enable

the onboard VGA connector. The default

setting is on pins 1/2 to enable the con-

nection. See the table on the right for

jumper settings.

VGA Enable

Jumper Settings

Jumper Setting Denition

1-2 Enabled (Default)

2-3 Disabled

BMC Enable

Jumper JPB1 allows you to enable the

onboard BMC (Baseboard Management)

Controller to provide IPMI 2.0/KVM sup-

port on the motherboard. See the table

on the right for jumper settings.

BMC Enable

Jumper Settings

Jumper Setting Denition

Pins 1-2 BMC Enable (Default)

Pins 2-3 Normal

A

B

Chapter 2: Installation

2-27

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

I2C Bus to PCI-Exp. Slots

Jumpers JI2C1 and JI2C2 allow you to

connect the System Management Bus

(I2C) to PCI-Express slots. The default

setting is on pins 2/3 for normal opera-

tion. See the table on the right for jumper

settings.

I2C to PCI-Exp

Jumper Settings

Jumper Setting Denition

1-2 Enabled

2-3 Normal (Default)

A

A. JI2C1

B. JI2C2

C. JPME2

C

Manufacturer Mode Select

Close pin 2 and pin 3 of Jumper JPME2

to bypass SPI ash security and force

the system to operate in the Manufac-

turer mode, allowing the user to ash

the system rmware from a host server

for system setting modications. See the

table on the right for jumper settings.

ME Mode Select

Jumper Settings

Jumper Setting Denition

1-2 Normal (Default)

2-3 Manufacture Mode

B

2-28

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

LAN 1/LAN 2

IPMI LAN

(X8ST3-F)

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

POWER BUTTON

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

2-9 Onboard LED Indicators

A. LAN1/2 LEDs

B. IPMI LAN LEDs

IPMI_LAN LEDs

In addition to LAN1/LAN2, an IPMI_LAN

is also located next to LAN2 port on the

I/O back panel. The amber LED on the

right indicates activity, while the green

LED on the left indicates the speed of

the connection. See the tables at right

for more information.

LAN 1/LAN 2

Link LED Activity LED

IPMI LAN

IPMI LAN Link LED (Left) &

Activity LED (Right)

Color/State Denition

Link (Left) Green: Solid

Amber: Solid

100 Mbps
1 Gbps

Activity (Right) Amber: Blinking Active

LAN LEDs

The LAN ports are located on the IO back

panel on the motherboard. Each Ethernet

LAN port has two LEDs. The yellow LED

indicates activity. The Link LED on the

left side of the LAN port may be green,

amber or off to indicate the speed of the

connection. See the tables at right for

more information.

Activity LED

LAN Link LED Set-

tings

(For X10DRFR-NT)

Color Denition

Off No Connec-

tion,
10 or 100
Mbps

Green 10 Gbps

Amber 1 Gbps

Link LED

GLAN Activity Indicator (Left)

LED Settings

Color Status Denition

Yellow Flashing Active

Rear View (when facing the
rear side of the chassis)

A

B

B

A

LAN Link LED

Settings

(For X10DRFR(/-N))

Color Denition

Off No Con-

nection,
10 Mbps

Green 100 Mbps

Amber 1 Gbps

Chapter 2: Installation

2-29

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

BMC Heartbeat LED

Status

Color/State Denition

Green:
Blinking

BMC: Normal

A. Standby PWR Good LED

B. BMC LED

A

B

BMC Heartbeat LED

A BMCHeartbeat LED is located at

LEDM1 on the motherboard. When

LEDM1 is blinking, BMC functions nor-

mally. See the table at right for more

information.

Standby PWR Good

LED Status

State Description

On Standby

PWR Normal

Standby_Power Good LED

The Standby_Power Good LED is lo-

cated at LE4 on the motherboard. When

LE4 is on, standby power is normal. See

the table at right for more information.

2-30

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

System PWR Good

LED Status

State Description

On System PWR

Normal

System_Power Good LED

The System_Power Good LED is located

at LE2 on the motherboard. When LE2

is on, system power is normal. See the

table at right for more information.

SATA Activity LED

Status

State Description

Blinking SATA Active

SATA Activity LED

An onboard SATA Activity LED is located

at LE3 on the motherboard. When LE3 is

blinking, SATA is active. See the table at

right for more information.

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

A. System PWR Good LED

B. SATA Activity LED

A

B

Chapter 2: Installation

2-31

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

2-10 PCI-Express and Serial ATA Connections

PCI-Express 3.0 x16 Slot

A PCI-Express 3.0 x16 slot (CPU1 SXB1 PCI-E 3x16) is located on the mother-

board. This slot supports PCI-Express 3.0 connections. Refer to the layout below

for the location.

PCI-Express 3.0 x8 Slots

One PCI-Express 3.0 x8 slot (CPU1 MLP PCI-E 3x8) is located on the motherboard.

This slot supports Micro Low-prole PCI-E 3.0 x8 add-on cards. In addition, CPU 1

SXB2, located next to P2-DIMMG1, also supports PCI-E 3.0x8. Refer to the layout

below for the locations.

A. CPU1 SXB1 PCI-E 3.0 x16 Slot

B. CPU1 MLP PCI-E 3.0 x8 Slot

C. CPU1 SXB2 PCI-E 3.0 x8 Slot

A

C

B

2-32

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

JMLP_STBY2

X10DRFR

BAR CODE

JI2C1

JWD1

JPB1

JPL1

JITP1

JPP0

JPP1

JTPM1

JSD1

JSD2

FAN3

FAN1

FAN2

JIPMB1

JBT1

JF1

T-SGPIO1

T-SGPIO2

JNMI1

LE1

LE2

LEDM1

LE3

JPWR10

JPWR9

JBAT1

CPU1

CPU2

I-SATA0

I-SATA1

I-SATA3

I-SATA4

S-SATA3

S-SATA2

GND

12V_IN

IPMI_LAN

LAN2

LAN1

COM1

USB1(3.0)

USB0(3.0)

CPU1 SXB1 PCI-E 3.0 X16

CPU1 MLP PCI-E 3.0 X8

CPU1 SXB2 PCI-E 3.0 X8

P2-DIMME1

P2-DIMME2

P2-DIMMF1

P2-DIMMF2

P2-DIMMH2

P2-DIMMH1

P2-DIMMG1

P2-DIMMG1

P1-DIMMA1

P1-DIMMA2

P1-DIMMB1

P1-DIMMB2

P1-DIMMD2

P1-DIMMD1

P1-DIMMC2

P1-DIMMC1

JPG1

I-SATA5

BIOS

VGA

S-SATA1

S-SATA0

Rev. 1.10

1

1

CLOSE 1st

OPEN 1st

PCH

LAN
CTRL

BMC

I-SATA2

1

FAN4

JPME2

JI2C2

JHP_I2C1

JVRM2

Battery

JMLP_STBY1

HDDPOWER1

HDDPOWER3

JNVME2

JNVME1

LE4

HDDPOWER2

JVRM1

JNVI2C1

J

G

H

I

D

E

Note: Please refer to the Intel SATA HostRAID User's Guide posted on our

website @ http://www.supermicro.com for more info on SATA.

A. I-SATA0

B. I-SATA1

C. I-SATA2

D. I-SATA3

E. I-SATA4

F. I-SATA5

G. S-SATA0

H. S-SATA1

I. S-SATA2 (Yellow: SuperDOM)

J. S-SATA3 (Yellow: SuperDOM)

SATA 2/0/3.0

Pin Denitions

Pin# Denition

1 Ground

2 TX_P

3 TX_N

4 Ground

5 RX_N

6 RX_P

7 Ground

Serial ATA Ports

Six Serial ATA Ports (I-SATA0-I-SATA5), supported by Intel PCH,

are located on the motherboard. I-SATA0-3 support SATA 2.0,

and I-SATA4/5 support SATA3 ports. In addition, four S-SATA

connectors (S-SATA0-3), supported by the Intel SCU, are also

located on the motherboard. S-SATA2/3, colored in yellow, are

used with Supermicro SuperDOM (Disk-on-Module) connectors

with power-pins built in. Supermicro SuperDOM connectors are

backward-compatible with regular SATA HDDs and SATA DOMs.

All SATA ports provide serial-link signal connections, which are

faster than the connections of Parallel ATA. See the table on the

right for pin denitions.

A

C

B

F

3-1

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Note: Always disconnect the power cord before adding, changing or installing any

hardware components.

Before Power On

1. Make sure that there are no short circuits between the motherboard and

chassis.

2. Disconnect all ribbon/wire cables from the motherboard, including those for

the keyboard and mouse.

3. Remove all add-on cards.

4. Install CPU 1 rst (making sure that it is fully seated) and connect the front

panel connectors to the motherboard.

No Power

1. Make sure that no short circuits between the motherboard and the chassis.

2. Make sure that all power connectors are properly connected.

3. Check that the 115V/230V switch on the power supply is properly set, if avail-

able.

4. Turn the power switch on and off to test the system, if applicable.

5. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3-2

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

No Video

1. If the power is on, but you do not have video, remove all the add-on cards

and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A

for details on beep codes.

System Boot Failure

If the system does not display POST or does not respond after the power is turned

on, check the following:

1. Check for any error beep from the motherboard speaker.

•If there is no error beep, try to turn on the system without DIMM modules in-

stalled. If there is still no error beep, try to turn on the system again with only

one processor installed in CPU Socket#1. If there is still no error beep, replace

the motherboard.

•If there are error beeps, clear the CMOS settings by unplugging the power

cord and contracting both pads on the CMOS Clear Jumper (JBT1). (Refer to

Section 2-8 in Chapter 2.)

2. Remove all components from the motherboard, especially the DIMM mod-

ules. Make sure that the system power is on, and memory error beeps are

activated.

3. Turn on the system with only one DIMM module installed. If the system

boots, check for bad DIMM modules or slots by following the Memory Errors

Troubleshooting procedure in this Chapter.

Losing the System’s Setup Conguration

1. Make sure that you are using a high quality power supply. A poor quality

power supply may cause the system to lose the CMOS setup information.

Refer to Section 2-7 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3. If the steps indicated above do not x the Setup Conguration problem, con-

tact your vendor for repairs.

3-3

Chapter 3: Troubleshooting

Memory Errors

When a No_Memory_Beep_Code is issued by the system, check the following:

1. Make sure that the memory modules are compatible with the system and that

the DIMM modules are properly and fully installed. (For memory compatibility,

refer to the Memory Compatibility Chart posted on our website @ http://www.

supermicro.com.)

2. Check if DIMM modules with different speeds have been installed. It is

strongly recommended that you use the same RAM speed for all DIMMs in

the system.

3. Make sure that you are using the correct type of Registered (RDIMM)/Load

Reduced (LRDIMM)ECC DDR4 memory modules as recommended by the

manufacturer.

4. Check for bad DIMM modules or slots by swapping a single module among

all memory slots and check the results.

5. Make sure that all memory modules are fully seated in their slots. Follow the

instructions given in Section 2-5 in Chapter 2.

6. Please follow the instructions given in the DIMM Population Tables listed in

Section 2-5 to install your memory modules.

When the System Becomes Unstable

A. When the system becomes unstable during or after OS installation, check

the following:

1. CPU/BIOS support: Make sure that your CPU is supported, and you have the

latest BIOS installed in your system.

2. Memory support: Make sure that the memory modules are supported by test-

ing the modules using memtest86 or a similar utility.

Note: Refer to the product page on our website http:\\www.supermicro.

com for memory and CPU support and updates.

3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Re-

place the bad HDDs with good ones.

4. System cooling: Check system cooling to make sure that all heatsink fans,

CPU fans and system fans work properly. Check Hardware Monitoring set-

3-4

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

tings in the IPMI to make sure that the CPU and System temperatures are

within the normal range. Also check the front panel Overheat LED, and make

sure that the Overheat LED is not on.

5. Adequate power supply: Make sure that the power supply provides adequate

power to the system. Make sure that all power connectors are connected.

Please refer to our website for more information on minimum power require-

ment.

6. Proper software support: Make sure that the correct drivers are used.

B. When the system becomes unstable before or during OS installation, check

the following:

1. Installation Devices: Make sure that the devices used for installation are work-

ing properly, including boot devices such as CD/DVD disc.

2. Cable connection: Check to make sure that all cables are connected and

working properly.

3. Using minimum conguration for troubleshooting: Remove all unnecessary

components (starting with add-on cards rst), and use minimum conguration

(with a CPU and a memory module installed) to identify the trouble areas.

Refer to the steps listed in Section A above for proper troubleshooting proce-

dures.

4. Identifying bad components by isolating them: If necessary, remove a compo-

nent in question from the chassis, and test it in isolation to make sure that it

works properly. Replace a bad component with a good one.

5. Check and change one component at a time instead of changing several

items at the same time. This will help isolate and identify the problem.

6. To nd out if a component is good, swap this component with a new one to

see if the system will work properly. If so, then the old component is bad.

You can also install the component in question in another system. If the new

system works, the component is good and the old system has problems.

3-5

Chapter 3: Troubleshooting

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, please

note that as a motherboard manufacturer, Supermicro also sells motherboards

through its channels, so it is best to rst check with your distributor or reseller for

troubleshooting services. They should know of any possible problem(s) with the

specic system conguration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked

Question' (FAQ) sections in this chapter or see the FAQs on our website

(http://www.supermicro.com/) before contacting Technical Support.

2. BIOS upgrades can be downloaded from our website (http://www.supermicro.

com).

3. If you still cannot resolve the problem, include the following information when

contacting Supermicro for technical support:

•Motherboard model and PCB revision number

•BIOS release date/version (This can be seen on the initial display when your

system rst boots up.)

•System conguration

4. An example of a Technical Support form is on our website at (http://www.

supermicro.com/RmaForm/).

•Distributors: For immediate assistance, please have your account number ready

when placing a call to our technical support department. We can be reached by

e-mail at [e-mail].

3-6

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

3-3 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.

2. Locate the onboard battery as shown below.

3. Using a tool such as a pen or a small screwdriver, push the battery lock out-

wards to unlock it. Once unlocked, the battery will pop out from the holder.

4. Remove the battery.

OR

Proper Battery Disposal

Warning: Please handle used batteries carefully. Do not damage the battery in any

way; a damaged battery may release hazardous materials into the environment. Do

not discard a used battery in the garbage or a public landll. Please comply with the

regulations set up by your local hazardous waste management agency to dispose of

your used battery properly.

Battery Installation

1. To install an onboard battery, follow the steps 1& 2 above and continue

below:

2. Identify the battery's polarity. The positive (+) side should be facing up.

3. Insert the battery into the battery holder and push it down until you hear a

click to ensure that the battery is securely locked.

Warning: When replacing a battery, be sure to only replace it with the same type.

3-7

Chapter 3: Troubleshooting

3-4 Frequently Asked Questions

Question: What are the various types of memory that my motherboard can

support?

Answer: The motherboard supports DDR4 RDIMM/LRDIMM ECC modules. To

enhance memory performance, do not mix memory modules of different speeds

and sizes. Please follow all memory installation instructions given on Section 2-5

in Chapter 2.

Question: How do I update my BIOS?

It is recommended that you do not upgrade your BIOS if you are not experiencing

any problems with your system. Updated BIOS les are located on our website

at http://www.supermicro.com. Please check our BIOS warning message and the

information on how to update your BIOS on our website. Select your motherboard

model and download the BIOS le to your computer. Also, check the current BIOS

revision to make sure that it is newer than your BIOS before downloading. You can

choose from the zip le and the .exe le. If you choose the zip BIOS le, please

unzip the BIOS le onto a bootable USB device. Run the batch le using the format

FLASH.BAT lename.rom from your bootable USB device to ash the BIOS. Then,

your system will automatically reboot.

Warning: Do not shut down or reset the system while updating the BIOS to prevent

possible system boot failure!

Note: The SPI BIOS chip used on this motherboard cannot be removed.

Send your motherboard back to our RMA Department at Supermicro for

repair. For BIOS Recovery instructions, please refer to the AMI BIOS

Recovery Instructions posted at http://www.supermicro.com.

Question: How do I handle the used battery?

Answer: Please handle used batteries carefully. Do not damage the battery in any

way; a damaged battery may release hazardous materials into the environment. Do

not discard a used battery in the garbage or a public landll. Please comply with the

regulations set up by your local hazardous waste management agency to dispose

of your used battery properly. Refer to Section 3-3 on Page 3-6.

3-8

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

3-5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before

any warranty service will be rendered. You can obtain service by calling your ven-

dor for a Returned Merchandise Authorization (RMA) number. When returning the

motherboard to the manufacturer, the RMA number should be prominently displayed

on the outside of the shipping carton, and the shipping package is mailed prepaid

or hand-carried. Shipping and handling charges will be applied for all orders that

must be mailed when service is complete. For faster service, You can also request

a RMA authorization online (http://www.supermicro.com/RmaForm/).

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alternation, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

Chapter 4: AMI BIOS

4-1

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMI BIOS setup utility for the X10DRFR(/-N/-NT). The

ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter

describes the basic navigation of the AMI BIOS setup utility screens.

Note: For AMI BIOS recovery, please refer to the UEFI BIOS Recovery

Instructions in Appendix C.

Starting BIOS Setup Utility

To enter the AMI BIOS setup utility screens, press the <Delete> key while the

system is booting up.

Note: In most cases, the <Delete> key is used to invoke the AMI BIOS

setup screen.

Each main BIOS menu option is described in this manual. The AMI BIOS setup

menu screen has two main frames. The left frame displays all the options that can

be congured. Grayed-out options cannot be congured. Options in blue can be

congured by the user. The right frame displays the key legend. Above the key

legend is an area reserved for a text message. When an option is selected in the

left frame, it is highlighted in white. Often a text message will accompany it.

Note: the AMI BIOS has default text messages built in. Supermicro retains

the option to include, omit, or change any of these text messages.

The AMI BIOS setup utility uses a key-based navigation system called "hot keys."

Most of the AMI BIOS setup utility "hot keys" can be used at any time during the

setup navigation process. These keys include <F1>, <F4>, <Enter>, <Esc>, arrow

keys, etc.

Note: Options printed in Bold are default settings.

How To Change the Conguration Data

The conguration data that determines the system parameters may be changed by

entering the AMI BIOS setup utility. This setup utility can be accessed by pressing

<Del> at the appropriate time during system boot.

4-2

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.

As the memory is being tested, press the <Delete> key to enter the main menu of

the AMI BIOS setup utility. From the main menu, you can access the other setup

screens. An AMI BIOS identication string is displayed at the left bottom corner of

the screen, below the copyright message.

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.

Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall

Supermicro be liable for direct, indirect, special, incidental, or consequential damages

arising from a BIOS update. If you have to update the BIOS, do not shut down or reset

the system while the BIOS is updating to avoid possible boot failure.

4-2 Main Setup

When you rst enter the AMI BIOS setup utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab on the

top of the screen. The Main BIOS setup screen is shown below.

Chapter 4: AMI BIOS

4-3

The following Main menu items will be displayed:

System Date/System Time

Use this option to change the system date and time. Highlight System Date or

System Time using the arrow keys. Enter new values using the keyboard. Press the

<Tab> key or the arrow keys to move between elds. The date must be entered in

Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears

as 17:30:00.

Supermicro X10DRFR

BIOS Version: This item displays the version of the BIOS ROM used in the

system.

Build Date: This item displays the date when the version of the BIOS ROM used

in the system was built.

Memory Information

Total Memory: This item displays the total size of memory available in the system.

Memory Speed: This item displays the default speed of the memory modules

installed in the system.

4-4

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

4-3 Advanced Setup Congurations

Use the arrow keys to select Advanced setup and press <Enter> to access the

submenu items:

Warning: Take Caution when changing the Advanced settings. An incorrect value, a

very high DRAM frequency or an incorrect BIOS timing setting may cause the system

to malfunction. When this occurs, restore the setting to the manufacture default setting.



Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM

logo at bootup. Select Disabled to display the POST messages. Select Enabled

to display the OEM logo instead of the normal POST messages. The options are

Enabled and Disabled.

AddOn ROM Display Mode

Use this item to set the display mode for the Option ROM. Select Keep Current to

use the current AddOn ROM display setting. Select Force BIOS to use the Option

ROM display mode set by the system BIOS. The options are Force BIOS and

Keep Current.

Bootup Num-Lock State

Use this feature to set the Power-on state for the Numlock key. The options are

Off and On.

Chapter 4: AMI BIOS

4-5

Wait For 'F1' If Error

Select Enabled to force the system to wait until the 'F1' key is pressed if an error

occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this

item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Inter-

rupt 19 at bootup immediately and allow the drives that are attached to these host

adaptors to function as bootable disks. If this item is set to Postponed, the ROM

BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the

drives attached to these adaptors to function as bootable devices at bootup. The

options are Immediate and Postponed.

Re-try Boot

When EFI Boot is selected, the system BIOS will automatically reboot the system

from an EFI boot device after its initial boot failure. Select Legacy Boot to allow

the BIOS to automatically reboot the system from a Legacy boot device after its

initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Conguration

Watch Dog Function

Select Enabled to allow the Watch Dog timer to reboot the system when it is inac-

tive for more than 5 minutes. The options are Enabled and Disabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed.

Select 4 Seconds Override for the user to power off the system after pressing and

holding the power button for 4 seconds or longer. Select Instant Off to instantly

power off the system as soon as the user presses the power button. The options

are 4 Seconds Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power-Off for

the system power to remain off after a power loss. Select Power-On for the system

power to be turned on after a power loss. Select Last State to allow the system

to resume its last power state before a power loss. The options are Power-On,

Stay-Off and Last State.

4-6

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

CPU Conguration

This submenu displays the following CPU information as detected by the BIOS. It

also allows the user to congure CPU settings.

•Processor Socket

•Processor ID

•Processor Frequency

•Processor Max Ratio

•Processor Min Ratio

•Microcode Revision

•L1 Cache RAM

•L2 Cache RAM

•L3 Cache RAM

•CPU 1 Version

•CPU 2 Version

Clock Spread Spectrum

Select Enabled to allow the BIOS to monitor and attempt to reduce the level of

Electromagnetic Interference caused by the components whenever needed. The

options are Disabled and Enabled.

Hyper-Threading (All)

Select Enable to support Intel's Hyper-threading Technology to enhance CPU per-

formance. The options are Enable and Disable.

Cores Enabled

This feature allows the user to determine the number of CPU cores to enable.

Enter "0" to enable all cores. There are 14 cores available in the system. The

default setting is 0.

Execute-Disable Bit (Available if supported by the OS & the CPU)

Select Enable for Execute Disable Bit Technology support, which will allow the

processor to designate areas in the system memory where an application code can

Chapter 4: AMI BIOS

4-7

execute and where it cannot, thus preventing a worm or a virus from ooding illegal

codes to overwhelm the processor to damage the system during an attack. This

feature is used in conjunction with the items: "Clear MCA," "VMX," "Enable SMX,"

and "Lock Chipset" for Virtualization media support. The options are Enable and

Disable. (Refer to Intel and Microsoft websites for more information.)

PPIN Control

Select Unlock/Enable to use the Protected-Processor Inventory Number (PPIN) in

the system. The options are Unlock/Enable and Unlock/Disable.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher will prefetch streams of data and instruc-

tions from the main memory to the L2 cache to improve CPU performance. The

options are Disable and Enable.

Adjacent Cache Prefetch (Available when supported by the CPU)

Select Enable for the CPU to prefetch both cache lines for 128 bytes as comprised.

Select Disable for the CPU to prefetch both cache lines for 64 bytes. The options

are Disable and Enable.

Note: Please reboot the system for changes on this setting to take effect.

Please refer to Intel’s website for detailed information.

DCU (Data Cache Unit) Streamer Prefetcher (Available when supported by
the CPU)

If set to Enable, the DCU Streamer Prefetcher will prefetch data streams from the

cache memory to the DCU (Data Cache Unit) to speed up data accessing and

processing to enhance CPU performance. The options are Disable and Enable.

DCU IP Prefetcher

If set to Enable, the IP prefetcher in the DCU (Data Cache Unit) will prefetch IP

addresses to improve network connectivity and system performance. The options

are Enable and Disable.

DCU Mode

Use this feature to set the data-prefecting mode for the DCU (Data Cache Unit).

The options are 32KB 8Way Without ECC and 16KB 4Way With ECC.

Direct Cache Access (DCA)

Select Enable to use Intel DCA (Direct Cache Access) Technology to improve the

efciency of data transferring and accessing. The options are Auto, Enable, and

Disable.

4-8

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

DCA Prefetch Delay

A DCA Prefetcher is used with a TOE (TCP/IP Ofoad Engine) adapter to prefetch
data in order to shorten execution cycles and maximize data processing efciency.

Prefetching data too frequently can saturate the cache directory and delay neces­sary cache access. This feature reduces or increases the frequency the system
prefetches data. The options are [8], [16], [24], [32], [40], [48], [56], [64], [72], [80],
[88], [96], [104], [112].

X2 APIC (Advanced Programmable Interrupt Controller)

Based on Intel's Hyper-Threading architecture, each logical processor (thread) is

assigned 256 APIC IDs (APIDs) in 8-bit bandwidth. When this feature is set to En-

able, the APIC ID will be expanded from 8 bits (X2) to 16 bits to provide 512 APIDs

to each thread to enhance CPU performance. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instruc-

tions (NI) to ensure data security. The options are Enable and Disable.

Intel Virtualization Technology

Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d sup­port by reporting the I/O device assignments to the VMM (Virtual Machine Monitor)

through the DMAR ACPI tables. This feature offers fully-protected I/O resource

sharing across Intel platforms, providing greater reliability, security and availability

in networking and data-sharing. The options are Enable and Disable.

 Advanced Power Management Conguration

Advanced Power Management Conguration

Power Technology

Select Energy Efcient to support power-saving mode. Select Custom to customize

system power settings. Select Max Performance to optimize system performance.

Select Disabled to disable power-saving settings. The options are Disable, Energy

Efcient, and Custom.

If the option is set to Energy Efcient or Custom, the following items will display:

Cong TDP (Conguring Thermal Design Power)

Select Enable to congure TDP power settings to enhance thermal management.

The options are Enable and Disable.

Cong TDP Level (Available when Cong TDP above is set to Enable)

Use this item to set TDP conguration level to enhance thermal management.

The options are Nominal, Level 1, and Level 2.

Chapter 4: AMI BIOS

4-9

 CPU P State Control (Available when Power Technology

is set to Custom)

EIST (P-states)

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically

adjust processor voltage and core frequency to reduce power consumption and

heat dissipation. The options are Disable and Enable.

Turbo Mode

Select Enabled to use the Turbo Mode to boost system performance. The options

are Enable and Disable.

P-state Coordination

This feature is used to change the P-state (Power-Performance State) coordi-

nation type. P-state is also known as "SpeedStep" for Intel processors. Select

HW_ALL to change the P-state coordination type for hardware components only.

Select SW_ALL to change the P-state coordination type for all software installed

in the system. Select SW_ANY to change the P-state coordination type for a soft-

ware program in the system. The options are HW_All, SW_ALL, and SW_ANY.

 CPU C State Control (Available when Power Technology

is set to Custom)

Package C State limit

Use this item to set the limit on the C-State package register. The options are

C0/1 state, C2 state, C6 (non-Retention) state, and C6 (Retention) state.

CPU C3 Report

Select Enable to allow the BIOS to report the CPU C3 State (ACPI C2) to the

operating system. During the CPU C3 State, the CPU clock generator is turned

off. The options are Enable and Disable.

CPU C6 Report (Available when Power Technology is set to Custom)

Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the

operating system. During the CPU C6 state, power to all cache is turned off.

The options are Enable and Disable.

Enhanced Halt State (C1E)

Select Enabled to use Enhanced Halt-State technology, which will signicantly

reduce the CPU's power consumption by reducing the CPU's clock cycle and

voltage during a Halt-state. You will need to reboot the system for the change

of this setting to take effect. The options are Disable and Enable.

4-10

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

 CPU T State Control (Available when Power Technology

is set to Custom)

ACPI (Advanced Conguration Power Interface) T-States

Select Enable to support CPU throttling by the operating system to reduce power

consumption. The options are Enable and Disable.

 Socket RAPL (Running Average Power Limit) Conguration

FAST_RAPL_NSTRIKE_PL2_DUTY_CYCLE

This feature displays the value of the item above the NSTRIKE_PL2-duty-cycle.

The value should be within the range between 25 (10%) and 64 (25%). The

default setting is 64.

Turbo Power Limit Lock

Select Enable to set the power use limit for the machine when it is running in

the turbo mode. The options are Enable and Disable.

Long Power Limit Override

Select Enable to support long-term power limit override. If this feature is disabled,

BIOS will set the default value. The options are Enable and Disable.

Long Duration Power Limit

This item displays the power limit set by the user during which long duration

power is maintained. The default setting is 0.

Long Duration Time Window

Use this item to set the value (in seconds) of the Long-Duration time window

during which long duration power is maintained. The default setting is 10.

Package Clamping Limit1

Use this item to set the limit on power performance states for the runtime proces-

sor, with P0 being the state with the highest frequency (clock speed) and power

(consumption), and P1, a step lower in performance than P0, with its frequency

and voltage scaled back a notch. The options are Between P1/P0 and Below P1.

Short Duration Power Limit Enable

Select Enable to support Short Duration Power Limit (Power Limit 2). The options

are Enable and Disable.

Chapter 4: AMI BIOS

4-11

Short Duration Power Limit

This item displays the time period during which short duration power is main-

tained. The default setting is 0.

Package Clamping Limit2

Use this item to set the limit on power performance states for the processor

operating in turbo mode, with P0 being the state with the highest frequency

(clock speed) and power (consumption), and P1, a step lower in performance

than P0, with its frequency and voltage scaled back a notch. The options are

Between P1/P0 and Below P1.

Chipset Conguration

Warning! Please set the correct settings for the items below. A wrong conguration

setting may cause the system to become malfunction.

North Bridge

This feature allows the user to congure the settings for the Intel North Bridge.

IIO Conguration

EV DFX (Device Function On-Hide) Feature

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a

processor will always remain clear during electric tuning. The options are Dis-

able and Enable.

IIO1 Conguration

IOU2 (II01 PCIe Port 1)

This item congures the PCI-E port Bifuraction setting for a PCI-E port specied

by the user. The options are x4x4, x8, and Auto.

IOU0 (II01 PCIe Port 2)

This item congures the PCI-E port Bifuraction setting for a PCI-E port specied

by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (II01 PCIe Port 3)

This item congures the PCI-E port Bifuraction setting for a PCI-E port specied

by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

4-12

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

IOAT (Intel® IO Acceleration) Conguration

Enable IOAT

Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which

signicantly reduces CPU overhead by leveraging CPU architectural improve-

ments and freeing the system resource for other tasks. The options are Enable

and Disable.

No Snoop

Select Enable to support no-snoop mode for each CB device. The options are

Disable and Enable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support which will allow certain

transactions to violate the strict-ordering rules of PCI bus for a transaction to be

completed prior to other transactions that have already been enqueued earlier.

The options are Disable and Enable.

 Intel VT for Directed I/O (VT-d)

Intel VT for Direct I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d
support by reporting the I/O device assignments to the VMM (Virtual Machine

Monitor) through the DMAR ACPI Tables. This feature offers fully-protected I/O

resource sharing across Intel platforms, providing greater reliability, security and

availability in networking and data-sharing. The options are Enable and Disable.

Interrupt Remapping

Select Enable for Interrupt Remapping support to enhance system performance.

The options are Enable and Disable.

Coherency Support (Non-Isoch)

Select Enable for the Non-Iscoh VT-d engine to pass through DMA (Direct

Memory Access) to enhance system performance. The options are Enable and

Disable.

Coherency Support (Isoch)

Select Enable for the Iscoh VT-d engine to pass through ATS to enhance system

performance. The options are Enable and Disable.

Chapter 4: AMI BIOS

4-13

QPI (Quick Path Interconnect) Conguration

QPI Status

The following information will display:

•Number of CPU

•Number of IIO

•Current QPI Link Speed

•Current QPI Link Frequency

•QPI Global MMIO Low Base/Limit

•QPI Global MMIO High Base/Limit

•QPI PCIe Conguration Base/Size

Link Speed Mode

Use this item to select the data transfer speed for QPI Link connections. The

options are Fast and Slow.

Link Frequency Select

Use this item to select the desired frequency for QPI Link connections. The op-

tions are 6.4GB/s, 8.0GB/s, 9.6GB/s, Auto, and Auto Limited.

Link L0p Enable

Select Enable for Link L0p support. The options are Enable and Disable.

Link L1 Enable

Select Enable for Link L1 support. The options are Enable and Disable.

COD Enable (Available when the OS and the CPU support this feature)

Select Enabled for Cluster-On-Die support to enhance system performance in

cloud computing. The options are Enable, Disable, and Auto.

Early Snoop (Available when the OS and the CPU support this feature)

Select Enabled for Early Snoop support to enhance system performance. The

options are Enable, Disable, and Auto.

4-14

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Isoc Mode

Select Enabled for Isochronous support to meet QoS (Quality of Service) require-

ments. This feature is especially important for Virtualization Technology. The

options are Enable and Disable.

Memory Conguration

Enforce POR

Select Enable to enforce POR restrictions on DDR4 frequency and voltage

programming. The options are Enabled and Disabled.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory

modules. The options are Auto, 1333, 1400, 1600, 1800, 1867, 2000, 2133,

2200, 2400, 2600, 2667, and Reserved (Do not select Reserved).

ECC Support

Select Enable to enable Error Checking & Correction (ECC) support for onboard

memory modules. The options are Auto, Enable and Disable.

Data Scrambling

Select Enabled to enable data scrambling to enhance system performance and

data integrity. The options are Auto, Disabled and Enabled.

Enable ADR

Select Enabled for ADR (Automatic Diagnostic Repository) support to enhance

memory performance. The options are Enabled and Disabled.

DRAM RAPL (Running Average Power Limit) Baseline

Use this feature to set the run-time power-limit baseline for DRAM modules. The

options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1.

Set Throttling Mode

Throttling improves reliability and reduces power consumption in processors via

automatic voltage control during processor idle states. The options are Disabled

and CLTT (Closed Loop Thermal Throttling).

Socket Interleave Below 4GB

Select Enabled for the memory above the 4G Address space to be split between

two sockets. The options are Enable and Disable.

Chapter 4: AMI BIOS

4-15

Channel Interleaving

Use this item to set DIMM channel interleaving mood. The options are Auto,

1-Way Interleave, 2-Way Interleave, 3-Way Interleave, and 4-Way Interleave.

Rank Interleaving

Use this item to select a rank memory interleaving mode. The options are Auto,

1-Way, 2-Way, 4-Way, and 8-Way.

A7 Mode

Select Enabled to support the A7 (Addressing) mode to improve memory per-

formance. The options are Enable and Disable.

DIMM Information

This item displays the status of a DIMM module as detected by the BIOS.

Memory RAS (Reliability_Availability_Serviceability)

Conguration

Use this submenu to congure the following Memory RAS settings.

RAS Mode

When Disable is selected, RAS is not supported. When Mirror is selected, the

motherboard maintains two identical copies of all data in memory for data backup.

When Lockstep is selected, the motherboard uses two areas of memory to run

the same set of operations in parallel to boost performance. The options are

Disable, Mirror, and Lockstep Mode.

Lockstep x4 DIMMs

Select Enable to enable Lockstep support for x4 DIMM modules. The options

are Auto, Disabled, and Enabled.

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve

memory performance. The options are Disabled and Enabled.

Patrol Scrub

Patrol Scrubbing is a process that allows the CPU to correct correctable memory

errors detected on a memory module and send the correction to the requestor

(the original source). When this item is set to Enable, the IO hub will read and

write back one cache line every 16K cycles if there is no delay caused by internal

processing. By using this method, roughly 64 GB of memory behind the IO hub

will be scrubbed every day. The options are Enable and Disable.

4-16

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before

the next complete patrol scrub is performed. Use the keyboard to enter a value

from 0-24. The Default setting is 24.

Demand Scrub

Demand Scrubbing is a process that allows the CPU to correct correctable

memory errors found on a memory module. When the CPU or I/O issues a

demand-read command, and the read data from memory turns out to be a

correctable error, the error is corrected and sent to the requestor (the original

source). Memory is updated as well. Select Enable to use Demand Scrubbing

for ECC memory correction. The options are Enable and Disable.

Device Tagging

Select Enable to support device tagging. The options are Disable and Enable.



South Bridge Conguration

The following South Bridge information will display:



USB Conguration

•USB Module Version

•USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable

legacy support if there are no legacy USB devices present. Select Disable to have

all USB devices available for EFI applications only. The options are Enabled,

Disabled and Auto.

XHCI (Extensible Host Controller Interface) Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Ex-

tensible Host Controller Interface) hand-off. The XHCI ownership change should be

claimed by the XHCI driver. The settings are Enabled and Disabled.

EHCI (Enhanced Host Controller Interface) Hand-Off

This item is for operating systems that do not support Enhanced Host Controller

Interface (EHCI) hand-off. When this item is enabled, EHCI ownership change will

be claimed by the EHCI driver. The settings are Enabled and Disabled.

Chapter 4: AMI BIOS

4-17

USB Mass Storage Driver Support

Select Enabled for USB mass storage device support. The options are Disabled

and Enabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide

complete legacy USB keyboard support for the operating systems that do not sup-

port legacy USB devices. The options are Disabled and Enabled.

USB 3.0 Support

Select Enabled for USB 3.0 support. The options are Smart Auto, Auto, Enabled,

Disabled and Manual.

EHCI1

Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on

USB 2.0 connector #1 (-at least one USB 2.0 connector should be enabled for EHCI

support.) The options are Disabled and Enabled.

EHCI2

Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on

USB 2.0 connector #2 (-at least one USB 2.0 connector should be enabled for EHCI

support.) The options are Disabled and Enabled.

XHCI (Extensible Host Controller Interface) Pre-Boot Drive

Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a

pre-boot drive specied by the user. The options are Enabled and Disabled.

XHCI (Extensible Host Controller Interface) Idle L1

Select Enabled for XHCI (Extensible Host Controller Interface) Idle Level 1 sup-

port on a USB 3.0 connector specied by the user. The options are Enabled and

Disabled.

PCH DMI ASPM

Select Enabled to enable ASPM (Active State Power Management) support for a

PCH DMI drive. The options are Disabled and Enabled.

4-18

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual



SATA Conguration

When this submenu is selected, AMI BIOS automatically detects the presence of

the SATA devices that are supported by the Intel PCH chip and displays the fol-

lowing items:

SATA Controller

This item enables or disables the onboard SATA controller supported by the Intel

PCH chip. The options are Enabled and Disabled.

Congure SATA as

Select IDE to congure a SATA drive specied by the user as an IDE drive. Select

AHCI to congure a SATA drive specied by the user as an AHCI drive. Select

RAID to congure a SATA drive specied by the user as a RAID drive. The options

are IDE, AHCI, and RAID.

*If the item above "Congure SATA as" is set to AHCI, the following items will display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power

usage of the SATA link. The controller will put the link to a low power state when

the I/O is inactive for an extended period of time, and the power state will return

to normal when the I/O becomes active. The options are Enabled and Disabled.

SATA Port 0~ Port 5

This item displays the information detected on the installed SATA drive on the

particular SATA port.

•Model number of drive and capacity

•Software Preserve Support

Port 0~ Port 5

Select Enabled to enable a SATA port specied by the user. The options are

Disabled and Enabled.

Port 0 ~ Port 5 Hot Plug

Select Enabled to enable hot-plugging support for a port specied by the user,

which will allow the user to replace a SATA disk drive installed on this port without

shutting down the system. The options are Enabled and Disabled.

Port 0 ~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to initialize the

device. The options are Enabled and Disabled.

Chapter 4: AMI BIOS

4-19

Port 0 ~ Port 5 SATA Device Type

Use this item to specify if the SATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.

*If the item above "Congure SATA as" is set to IDE, the following items will

display:

Serial ATA Port 0~ Port 5

This item indicates that a SATA port specied by the user is installed (present)

or not.

Port 0 ~ Port 5 SATA Device Type (Available when a SATA port is
detected)

Use this item to specify if the SATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.

*If the item above "Congure SATA as" is set to RAID, the following items will

display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power

usage of the SATA link. The controller will put the link to a low power state when

the I/O is inactive for an extended period of time, and the power state will return

to normal when the I/O becomes active. The options are Enabled and Disabled.

SATA RAID Option ROM/UEFI Driver

Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy

driver for system boot. The options are Disabled, EFI, and Legacy.

Serial ATA Port 0~ Port 5

This item displays the information detected on the installed SATA drives on the

particular SATA port.

•Model number of drive and capacity

•Software Preserve Support

Port 0~ Port 5

Select Enabled to enable a SATA port specied by the user. The options are

Disabled and Enabled.

4-20

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Port 0 ~ Port 5 Hot Plug

Select Enabled to enable hot-plugging support for a port specied by the user,

which will allow the user to replace a SATA disk drive installed on this port without

shutting down the system. The options are Enabled and Disabled.

Port 0 ~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-

SET initialization to the device. The options are Enabled and Disabled.

Port 0 ~ Port 5 SATA Device Type

Use this item to specify if the SATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.



sSATA Conguration

When this submenu is selected, AMI BIOS automatically detects the presence of

the SATA devices that are supported by the PCH-sSATA controller and displays

the following items:

sSATA Controller

This item enables or disables the onboard SATA controller supported by the Intel

PCH-sSATA controller. The options are Enabled and Disabled.

Congure sSATA as

Select IDE to congure an sSATA drive specied by the user as an IDE drive. Select

AHCI to congure an sSATA drive specied by the user as an AHCI drive. Select

RAID to congure an sSATA drive specied by the user as a RAID drive. The op-

tions are IDE, AHCI, and RAID.

*If the item above "Congure sSATA as" is set to AHCI, the following items will

display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power

usage of the SATA link. The controller will put the link to a low power state when

the I/O is inactive for an extended period of time, and the power state will return

to normal when the I/O becomes active. The options are Enabled and Disabled.

sSATA Port 0~ Port 3

This item displays the information detected on the installed on the sSATA port.

specied by the user.

•Model number of drive and capacity

Chapter 4: AMI BIOS

4-21

•Software Preserve Support

sSATA Port 0~ Port 3

Select Enabled to enable an sSATA port specied by the user. The options are

Disabled and Enabled.

sSATA Port 0 ~ Port 3 Hot Plug

Select Enabled to enable hot-plugging support for a port specied by the user,

which will allow the user to replace a sSATA disk drive installed on this port

without shutting down the system. The options are Enabled and Disabled.

sSATA Port 0 ~ Port 3 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-

SET initialization to the device. The options are Enabled and Disabled.

Port 0 ~ Port 3 sSATA Device Type

Use this item to specify if the sSATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.

*If the item above "Congure sSATA as" is set to IDE, the following items will

display:

sSATA Port 0~ Port 3

This item indicates that an sSATA port specied by the user is installed (pres-

ent) or not.

Port 0 ~ Port 3 sSATA Device Type (Available when a SATA port is
detected)

Use this item to specify if the sSATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.

*If the item above "Congure sSATA as" is set to RAID, the following items will

display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power

usage of the SATA link. The controller will put the link to a low power state when

the I/O is inactive for an extended period of time, and the power state will return

to normal when the I/O becomes active. The options are Enabled and Disabled.

4-22

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

sSATA RAID Option ROM/UEFI Driver

Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy

driver for system boot. The options are Disabled, EFI, and Legacy.

SATA/sSATA RAID Boot Select

Select SATA Controller to use a device supported by the SATA connector for

system boot. Select sSATA Controller to use a device supported by the sSATA

connector for system boot. The options are SATA Controller, sSATA Controller,

and Both..

sSATA Port 0~ Port 3

This item displays the information detected on the installed sSATA drives on the

particular sSATA port.

•Model number of drive and capacity

•Software Preserve Support

sSATA Port 0~ Port 3

Select Enabled to enable an sSATA port specied by the user. The options are

Disabled and Enabled.

sSATA Port 0 ~ Port 3 Hot Plug

This feature designates this port for hot plugging. Set this item to Enabled for

hot-plugging support, which will allow the user to replace an sSATA drive without

shutting down the system. The options are Enabled and Disabled.

sSATA Port 0 ~ Port 3 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-

SET initialization to the device. The options are Enabled and Disabled.

Port 0 ~ Port 3 sSATA Device Type

Use this item to specify if the sSATA port specied by the user should be con-

nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk

Drive and Solid State Drive.

Server ME (Management Engine) Conguration

This feature displays the following system ME conguration settings.

•General ME Conguration

Chapter 4: AMI BIOS

4-23

•Operational Firmware Version

•Recovery Firmware Version

•ME Firmware Features

•ME Firmware Status #1

•ME Firmware Status #2

•Current State

•Error Code

PCIe/PCI/PnP Conguration

The following PCI information will be displayed:

•PCI Bus Driver Version

PCI Latency Timer

Use this item to congure the PCI latency timer for a device installed on a PCI bus.

Select 32 to set the PCI latency timer to 32 PCI clock cycles. The options are 32,

64, 96, 128, 160, 192, 224 and 248 (PCI Bus Clocks).

VGA Palette Snoop

Select Enabled to support VGA palette register snooping which will allow a PCI

card that does not contain its own VGA color palette to examine a video card pal-

ette and mimic it for proper color display. The options are Disabled and Enabled.

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G

Address. The options are Enabled and Disabled.

SR-IOV (Available if the system supports Single-Root Virtualization)

Select Enabled for Single-Root IO Virtualization support. The options are Enabled

and Disabled.

4-24

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

Maximum Payload

Select Auto for the system BIOS to automatically set the maximum payload value

for a PCI-E device to enhance system performance. The options are Auto, 128

Bytes, and 256 Bytes.

Maximum Read Request

Select Auto for the system BIOS to automatically set the maximum size for a read

request for a PCI-E device to enhance system performance. The options are Auto,

128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

ASPM Support

Use this item to set the Active State Power Management (ASPM) level for a PCI-E

device. Select Auto for the system BIOS to automatically set the ASPM level based

on the system conguration. Select Disabled to disable ASPM support. The options

are Disabled, and Auto.

Warning: Enabling ASPM support may cause some PCI-E devices to fail!

MMIOHBase

Use this item to select the base memory size according to memory-address map-

ping for the IO hub. The base memory size must be between 4032G to 4078G. The

options are 56T, 48T, 24T, 512G, and 256G.

MMIO High Size

Use this item to select the high memory size according to memory-address mapping

for the IO hub. The options are 256G, 128G, 512G, and 1024G.

CPU1 SXB1 PCI-E 3.0X16/X8 Slot OP (OPROM)/CPU1 SXB2 PCI-E 3.0X8 Slot
(OPROM)/CPU1 MLP PCI-E 3.0X8 Slot OPROM

Select Enabled to enable Option ROM support to boot the computer using a de-

vice installed on the slot specied by the user. The options are Disabled, Legacy

and EFI.

Onboard LAN Option ROM Type

Select Enabled to enable Option ROM support to boot the computer using a device

installed on the slot specied by the user. The options are Legacy and EFI.

Onboard LAN1 Option ROM/Onboard LAN2 Option ROM/Onboard Video
Option ROM

Use this option to select the type of device installed in LAN Port1, LAN Port2

or the onboard video device used for system boot. The default setting for LAN1

Option ROM is PXE, for LAN2 Option ROM is Disabled, and for Onboard Video

Option ROM is Onboard.

Chapter 4: AMI BIOS

4-25

VGA Priority

Use this item to select the graphics device to be used as the primary video display

for system boot. The options are Onboard and Offboard.

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Uni-

ed Extensible Firmware Interface) for network stack support. The options are

Enabled and Disabled.



Super IO Conguration

Super IO Chip AST2400



Serial Port 1 Conguration/Serial Port 2 Conguration

Serial Port 1/Serial Port 2

Select Enabled to enable the onboard serial port specied by the user. The options

are Enabled and Disabled.

Device Settings

This item displays the base I/O port address and the Interrupt Request address of

a serial port specied by the user.

Change Port 1 Settings/Change Port 2 Settings

This feature species the base I/O port address and the Interrupt Request address

of Serial Port 1 or Serial Port 2. Select Auto for the BIOS to automatically assign

the base I/O and IRQ address to a serial port specied.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5,

6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3,

4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

The options for Serial Port 2 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5,

6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3,

4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial_Over_LAN (SOL) port for console redi-

rection. The options are COM and SOL.

4-26

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual



Serial Port Console Redirection

COM 1

COM 1 Console Redirection

Select Enabled to enable COM Port 1 Console Redirection, which will allow a client

machine to be connected to a host machine at a remote site for networking. The

options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for

conguration:

COM1 Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Con-

sole Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to

add color and function key support. Select ANSI to use the Extended ASCII Char-

acter Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters

into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per second

Use this item to set the transmission speed for a serial port used in Console

Redirection. Make sure that the same speed is used in the host computer and the

client computer. A lower transmission speed may be required for long and busy

lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The

options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission

errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits

is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits

is odd. Select None if you do not want to send a parity bit with your data bits

in transmission. Select Mark to add a mark as a parity bit to be sent along with

the data bits. Select Space to add a Space as a parity bit to be sent with your

data bits. The options are None, Even, Odd, Mark and Space.

Chapter 4: AMI BIOS

4-27

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard

serial data communication. Select 2 Stop Bits if slower devices are used. The

options are 1 and 2.

Flow Control

Use this item to set the ow control for Console Redirection to prevent data

loss caused by buffer overow. Send a "Stop" signal to stop sending data when

the receiving buffer is full. Send a "Start" signal to start sending data when the

receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100

terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text

messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Dis-

abled and Enabled.

Legacy OS Redirection Resolution

Use this item to select the number of rows and columns used in Console Redi-

rection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a

terminal emulator designed for the Windows OS. The options are VT100, LINUX,

XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS Post

Use this feature to enable or disable legacy Console Redirection after BIOS

POST. When the option-Bootloader is selected, legacy Console Redirection is

disabled before booting the OS. When Always Enable is selected, legacy Console

Redirection remains enabled upon OS bootup. The options are Always Enable

and Bootloader.

SOL/COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are En-

abled and Disabled.

4-28

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

*If the item above set to Enabled, the following items will become available for

user's conguration:

SOL/COM2 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client

computer, which is the remote computer used by the user.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirec-

tion. Select VT100 to use the ASCII Character set. Select VT100+ to add color

and function key support. Select ANSI to use the Extended ASCII Character Set.

Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or

more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per second

Use this feature to set the transmission speed for a serial port used in Console

Redirection. Make sure that the same speed is used in the host computer and the

client computer. A lower transmission speed may be required for long and busy

lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The

options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission

errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits

is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits

is odd. Select None if you do not want to send a parity bit with your data bits

in transmission. Select Mark to add a mark as a parity bit to be sent along with

the data bits. Select Space to add a Space as a parity bit to be sent with your

data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard

serial data communication. Select 2 Stop Bits if slower devices are used. The

options are 1 and 2.

Flow Control

Use this feature to set the ow control for Console Redirection to prevent data

loss caused by buffer overow. Send a "Stop" signal to stop sending data when

Chapter 4: AMI BIOS

4-29

the receiving buffer is full. Send a "Start" signal to start data-sending when the

receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100

terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text

messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Dis-

abled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console

Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a

terminal emulator designed for the Windows OS. The options are VT100, LINUX,

XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS Post

Use this feature to enable or disable legacy Console Redirection after BIOS

POST (Power-On Self-Test). When this feature is set to Bootloader, legacy

Console Redirection is disabled before booting the OS. When this feature is set

to Always Enable, legacy Console Redirection remains enabled upon OS boot.

The options are Always Enable and Bootloader.

Serial Port for Out-of-Band Management/Windows Emergency
Management Services (EMS)

The submenu allows the user to congure Console Redirection settings to sup-

port Out-of-Band Serial Port management.

EMS Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redi-

rection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for

user's conguration:

4-30

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

EMS Console Redirection Settings (Available when EMS
Console Redirection is enabled)

Use this feature to specify how the host computer will exchange data with the client

computer, which is the remote computer used by the user.

Out-of-Band Management Port

The feature selects a serial port in a client server to be used by the Windows

Emergency Management Services (EMS) to communicate with a remote host

server. The options are COM1 (Console Redirection) and COM2/SOL (Console

Redirection).

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirec-

tion. Select VT100 to use the ASCII character set. Select VT100+ to add color

and function key support. Select ANSI to use the extended ASCII character set.

Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or

more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per Second

This item sets the transmission speed for a serial port used in Console Redirec-

tion. Make sure that the same speed is used in both host computer and the client

computer. A lower transmission speed may be required for long and busy lines.

The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the ow control for Console Redirection to prevent data

loss caused by buffer overow. Send a "Stop" signal to stop data-sending when

the receiving buffer is full. Send a "Start" signal to start data-sending when

the receiving buffer is empty. The options are None, Hardware RTS/CTS, and

Software Xon/Xoff.

The setting for each these features is displayed:

Data Bits, Parity, Stop Bits

Trusted Computing (Available when a TPM device is
installed and detected by the BIOS)

Conguration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled,

onboard security devices will be enabled for TPM (Trusted Platform Module) sup-

Chapter 4: AMI BIOS

4-31

port to enhance data integrity and network security. Please reboot the system for

a change on this setting to take effect. The options are Enabled and Disabled.

TPM State

Select Enabled to use TPM (Trusted Platform Module) settings to enhance system

data security. Please reboot your system for any change on the TPM state to take

effect. The options are Disabled and Enabled.

Pending Operation

Use this item to schedule a TPM-related operation to be performed by a security

device for system data integrity. Your system will reboot to carry out a pending TPM

operation. The options are 0, Enable Take Ownership, Disable Take Ownership,

and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Current Status Information

This item displays the status of the TPM support on this motherboard.



ACPI Settings

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat-

form and provide a common infrastructure for the system to handle hardware errors

within the Windows OS environment to reduce system crashes and to enhance

system recovery and health monitoring. The options are Enabled and Disabled.

High Precision Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces

periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in

synchronizing multimedia streams, providing smooth playback and reducing the de-

pendency on other timestamp calculation devices, such as an x86 RDTSC Instruc-

tion embedded in the CPU. The High Performance Event Timer is used to replace

the 8254 Programmable Interval Timer. The options are Enabled and Disabled.

NUMA (Available when the OS supports this feature)

Select Enabled to enable Non-Uniform Memory Access support to enhance system

performance. The options are Enabled and Disabled.

4-32

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

4-4 Event Logs

Use this feature to congure Event Log settings.

Change SMBIOS Event Log Settings

This feature allows the user to congure SMBIOS Event settings.

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging

during system boot. The options are Enabled and Disabled.

Runtime Error Logging Support

Select Enable to support Runtime Error Logging. The options are Enable and Dis-

able. If this item is set to Enable, the following item will be available for conguration:

Memory Correctable Error Threshold

Use this item to enter the threshold value for correctable memory errors. The default

setting is 10.

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS)

log before an event logging is initialized at bootup. The options are No and Yes.

Chapter 4: AMI BIOS

4-33

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log

when the event log is full. Select Do Nothing for the system to do nothing when

the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Disabled and Enabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between

1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This item is used to determine how long (in minutes) should the multiple event

counter wait before generating a new event log. Enter a number between 0 to 99.

The default setting is 60.

Note: Please reboot the system for the changes to take effect.

View SMBIOS Event Log

This item allows the user to view the event in the SMBIOS event log. Select this

item and press <Enter> to view the status of an event in the log. The following

categories are displayed:

Date/Time/Error Code/Severity

4-34

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

4-5 IPMI

Use this feature to congure Intelligent Platform Management Interface (IPMI)

settings.

IPMI Firmware Revision

This item indicates the IPMI rmware revision used in your system.

IPMI Status

This item indicates the status of the IPMI rmware installed in your system.

System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled to enable all system event logging support at bootup. The options

are Enabled and Disabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot.

Select Yes, On every reset to erase all system event logs upon each system reboot.

Select No to keep all system event logs after each system reboot. The options are

No, Yes, On next reset, and Yes, On every reset.

Chapter 4: AMI BIOS

4-35

When SEL is Full

This feature allows the user to determine what the AMI BIOS should do when the

system event log is full. Select Erase Immediately to erase all events in the log when

the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, be sure to reboot the system for

the changes to take effect.

BMC Network Conguration

The following items will be displayed:

•IPMI LAN Selection

•IPMI Network Link Status

Update IPMI LAN Conguration

Select Yes for the system BIOS to automatically reset the following IPMI settings

at next system boot. The options are Yes and No.

Conguration Address Source (Available when the item above - Update
IPMI LAN Conguration is set to Yes)

Use this item to select the IP address source for this computer. If Static is selected,

you will need to know the IP address of this computer and enter it to the system

manually in the eld. If DHCP is selected, AMI BIOS will search for a DHCP (Dy-

namic Host Conguration Protocol) server attached to the network and request the

next available IP address for this computer. The options are DHCP Unspecied,

and Static.

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal

and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each

three-digit number is separated by dots and it should not exceed 255.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are

6 two-digit hexadecimal numbers.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in

decimal and in dotted quad form (i.e., 192.168.10.253).

4-36

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

4-6 Security Settings

This menu allows the user to congure the following security settings for the

system.

Password Check

Select Setup for the system to prompt for a password upon entering the BIOS setup

utility. Select Always for the system to prompt for a password at bootup and upon

entering the BIOS Setup utility. The options are Setup and Always.

Administrator Password

Use this feature to set the administrator password which is required before entering

the BIOS setup utility. The length of the password should be from 3 characters

to 20 characters long.

User Password

Use this feature to set the user password which is required to enter the BIOS

setup utility. The length of the password should be from 3 characters to 20 char-

acters long.

Chapter 4: AMI BIOS

4-37

4-7 Boot Settings

Use this feature to congure Boot Settings:

Boot Conguration

Setup Prompt Timeout

Use this item to indicate how many seconds the system shall wait for the BIOS setup

activation key to respond before the system starts to boot. The default setting is 1.

Boot Mode Select

Use this item to select the type of device to be used for system boot. The options

are Legacy, UEFI, and Dual.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices from which the system will boot.

Press <Enter> on each entry from top to bottom to select devices.

•Dual Boot Order #1

•Dual Boot Order #2

•Dual Boot Order #3

•Dual Boot Order #4

•Dual Boot Order #5

•Dual Boot Order #6

4-38

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual

•Dual Boot Order #7

•Dual Boot Order #8

•Dual Boot Order #9

•Dual Boot Order #10

•Dual Boot Order #11

•Dual Boot Order #12

•Dual Boot Order #13

•Dual Boot Order #14

•Dual Boot Order #15



Delete Boot Option

Use this item to select a boot device to delete from the boot priority list.

Delete Boot Option

Select the target boot device to delete.



Network Drive BBS Priorities

•Legacy Boot Order #1



UEFI Application Boot Priorities

•UEFI Boot Order #1
