SUPER
SuperWorkstation 5036T-T
®
USER’S MANUAL
Revision 1.0a
Page 2
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s
instruction manual, may cause interference with radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, you are encouraged to try to correct the interference by one or more of the
following measures: Reorient or relocate the receiving antenna. Increase the separation between
the equipment and the receiver. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected. Consult the dealer or an experienced radio/television
technician for help.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Manual Revision 1.0a
Release Date: September 1, 2009
Unless you request and receive written permission from Super Micro Computer, Inc., you may
not copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2009 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
Page 3
Preface
About This Manual
This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the SuperWorkstation 5036T-T.
Installation and maintenance shall be performed by experienced technicians only.
The SuperWorkstation 5036T-T is a single processor system based on the
SC733TQ-465 mid-tower chassis and the Super X8SAX serverboard. The X8SAX
supports a single Intel® Core™ i7 and Xeon or future Intel Nehalem processor
families (next generation Intel Xeon® processor) - please refer to our web site for
an up-to-date list of supported processors.
Manual Organization
Preface
Chapter 1: Introduction
The fi rst chapter provides a checklist of the main components included with the
system and describes the main features of the Super X8SAX serverboard and the
SC733TQ-465 chassis.
Chapter 2: Installation
This chapter describes the steps necessary to setup the system. If your workstation
was ordered without the processor and memory components, this chapter will refer
you to the appropriate sections of the manual for their installation.
Chapter 3: System Interface
Refer to this chapter for details on the system interface, which includes the functions
and information provided by the control panel on the chassis as well as other LEDs
located throughout the system.
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperWorkstation 5036T-T.
iii
Page 4
SuperWorkstation 5036T-T User's Manual
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X8SAX serverboard, including the
locations and functions of connectors, headers and jumpers. Refer to this chapter
when adding or removing processors or main memory and when reconfi guring the
serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC733TQ-465 mid-tower chassis.
You should follow the procedures given in this chapter when installing, removing
or reconfi guring Serial ATA or peripheral drives and when replacing system power
supply units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed information on running the CMOS Setup Utility.
Appendix A: POST Error Beep Codes
Appendix B: Software Installation Instructions
Appendix C: System Specifi cations
iv
Page 5
Notes
Preface
v
Page 6
SuperWorkstation 5036T-T User's Manual
Table of Contents
Chapter 1 Introduction
1-1 Overview .........................................................................................................1-1
1-2 Serverboard Features .....................................................................................1-2
Processors ......................................................................................................1-2
Memory ...........................................................................................................1-2
Serial ATA .......................................................................................................1-2
PCI Expansion Slots .......................................................................................1-2
Onboard Controllers/Ports .............................................................................. 1-2
Other Features ................................................................................................1-3
1-3 Chassis Features ............................................................................................1-3
System Power ................................................................................................. 1-3
SATA Subsystem ............................................................................................. 1-3
Front Control Panel ......................................................................................... 1-3
I/O Backplane ..................................................................................................1-3
Cooling System ...............................................................................................1-3
1-4 Contacting Supermicro ....................................................................................1-5
Chapter 2 System Setup
2-1 Overview .........................................................................................................2-1
2-2 Unpacking the System .................................................................................... 2-1
2-3 Setting Up the System .................................................................................... 2-2
Checking the Motherboard Setup ................................................................... 2-2
Checking the Drive Bay Setup ........................................................................2-2
Chapter 3 System Interface
3-1 Overview .........................................................................................................3-1
3-2 Control Panel Buttons ..................................................................................... 3-1
RESET ............................................................................................................3-1
POWER ...........................................................................................................3-1
3-3 Control Panel LEDs ........................................................................................ 3-2
Power ..............................................................................................................3-2
HDD ................................................................................................................. 3-2
NIC ..................................................................................................................3-2
Overheat/Fan Fail ........................................................................................... 3-2
3-4 Serial ATA Drive Carrier LEDs ........................................................................ 3-3
Chapter 4 System Safety
4-1 Electrical Safety Precautions .......................................................................... 4-1
4-2 General Safety Precautions ............................................................................ 4-2
vi
Page 7
Table of Contents
4-3 ESD Precautions ............................................................................................. 4-3
4-4 Operating Precautions .................................................................................... 4-4
Chapter 5 Advanced Serverboard Setup
5-1 Handling the Serverboard ............................................................................... 5-1
Precautions .....................................................................................................5-1
Unpacking .......................................................................................................5-2
5-2 Serverboard Installation ..................................................................................5-2
5-3 Connecting Cables .......................................................................................... 5-3
Connecting Data Cables ................................................................................. 5-3
Connecting Power Cables ..............................................................................5-3
Connecting the Control Panel ......................................................................... 5-3
5-4 I/O Ports ..........................................................................................................5-4

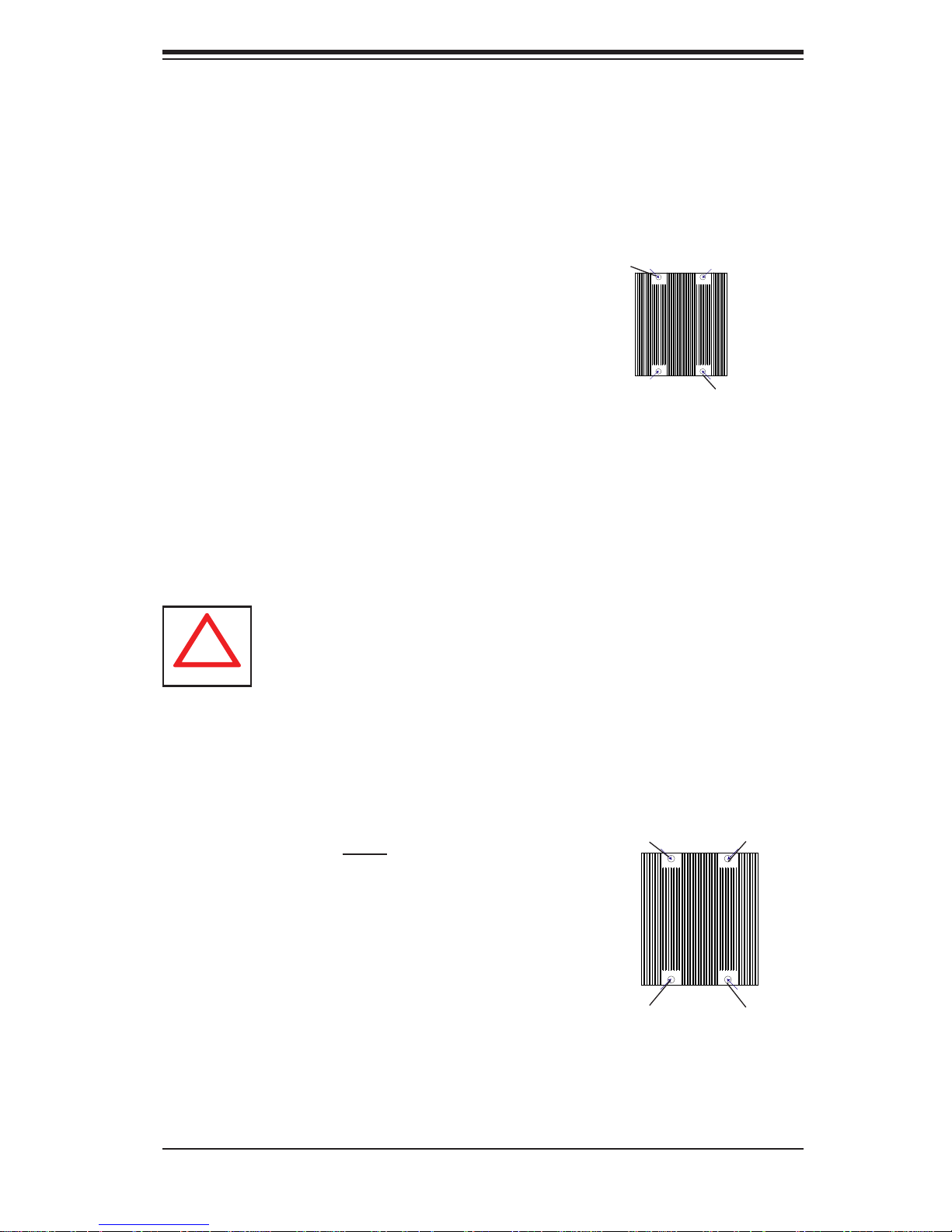

5-5 Processor and Heatsink Installation................................................................5-5

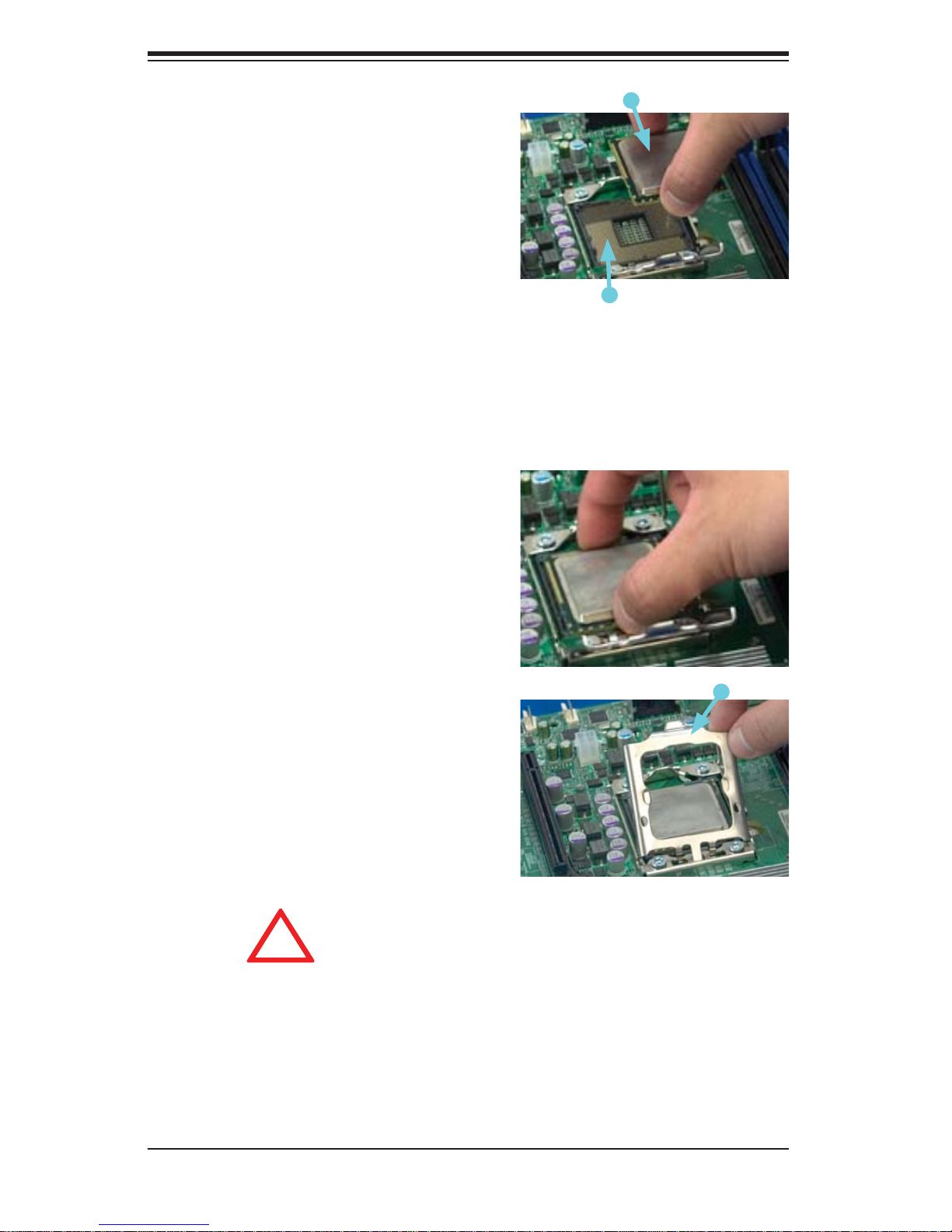

Installing an LGA 1366 Processor..............................................................5-5
5-6 Installing Memory Modules ............................................................................. 5-8

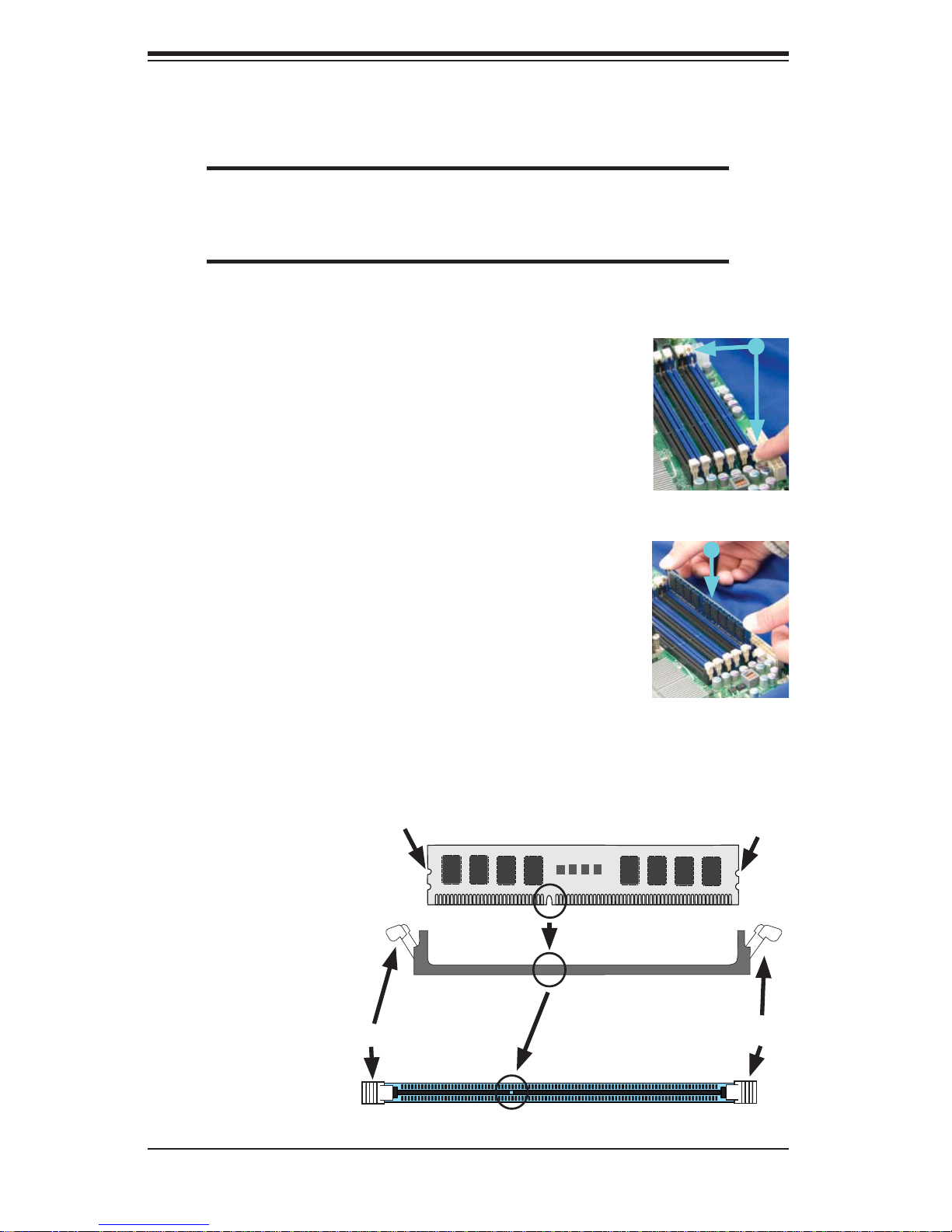

Installing & Removing DIMMs .........................................................................5-8
Order of Populating DIMM Slots ................................................................ 5-9
5-7 Adding PCI Add-On Cards ............................................................................5-10
5-8 Serverboard Details .......................................................................................5-11
X8SAX Quick Reference ...............................................................................5-12
5-9 Connector Defi nitions ................................................................................... 5-13
Main ATX Power Supply Connector ......................................................... 5-13
Processor Power Connector .................................................................... 5-13
Secondary Power Connector ................................................................... 5-13
Power Button ............................................................................................ 5-13
Reset Connector ...................................................................................... 5-13
Overheat/Fan Fail LED (OH)....................................................................5-14
NIC1 (GLAN) LED .................................................................................... 5-14
HDD LED ..................................................................................................5-14
Power On LED ......................................................................................... 5-14
Chassis Intrusion ...................................................................................... 5-14
ATX PS/2 Keyboard and PS/2 Mouse Ports ............................................ 5-15
Fan Headers .............................................................................................5-15
LAN1/LAN2 (Ethernet Ports) .................................................................... 5-15
Wake-On-LAN ..........................................................................................5-15
Wake-On-Ring ..........................................................................................5-16
Speaker ....................................................................................................5-16
Serial Ports ............................................................................................... 5-16
SGPIO Header ......................................................................................... 5-16
vii
Page 8
SuperWorkstation 5036T-T User's Manual
CD and Audio FP ..................................................................................... 5-17
Front Panel Audio Control ........................................................................5-17
High Defi nition Audio (HDA) ..................................................................... 5-17
IEEE 1394 Connection ............................................................................. 5-18
Universal Serial Bus (USB) ...................................................................... 5-18
S/PDIF_Out Connector ............................................................................ 5-19
Overheat/Fan Fail LED (JOH1
Power Supply I2C Connector....................................................................5-19
5-10 Jumper Settings ............................................................................................5-20
Explanation of Jumpers ............................................................................5-20
CMOS Clear .............................................................................................5-20
LAN1/LAN2 Enable/Disable .................................................................... 5-21
Audio Enable/Disable .............................................................................. 5-21
SMBus to PCI/PCI-E Slots ....................................................................... 5-21
Watch Dog Enable/Disable ...................................................................... 5-21
USB Wake-Up Enable/Disable .................................................................5-22
IEEE 1394a Enable/Disable ..................................................................... 5-22
5-11 Onboard Indicators ........................................................................................5-23
LAN1/2 LEDs ............................................................................................5-23
Onboard Power LED (LE1) ...................................................................... 5-23
5-12 Floppy, IDE, and SATA Ports ........................................................................ 5-24
SATA Ports ............................................................................................... 5-24
Floppy Connector ..................................................................................... 5-24
) ........................................................5-19
Chapter 6 Advanced Chassis Setup
6-1 Static-Sensitive Devices ..................................................................................6-1
Precautions .....................................................................................................6-1
Unpacking .......................................................................................................6-1

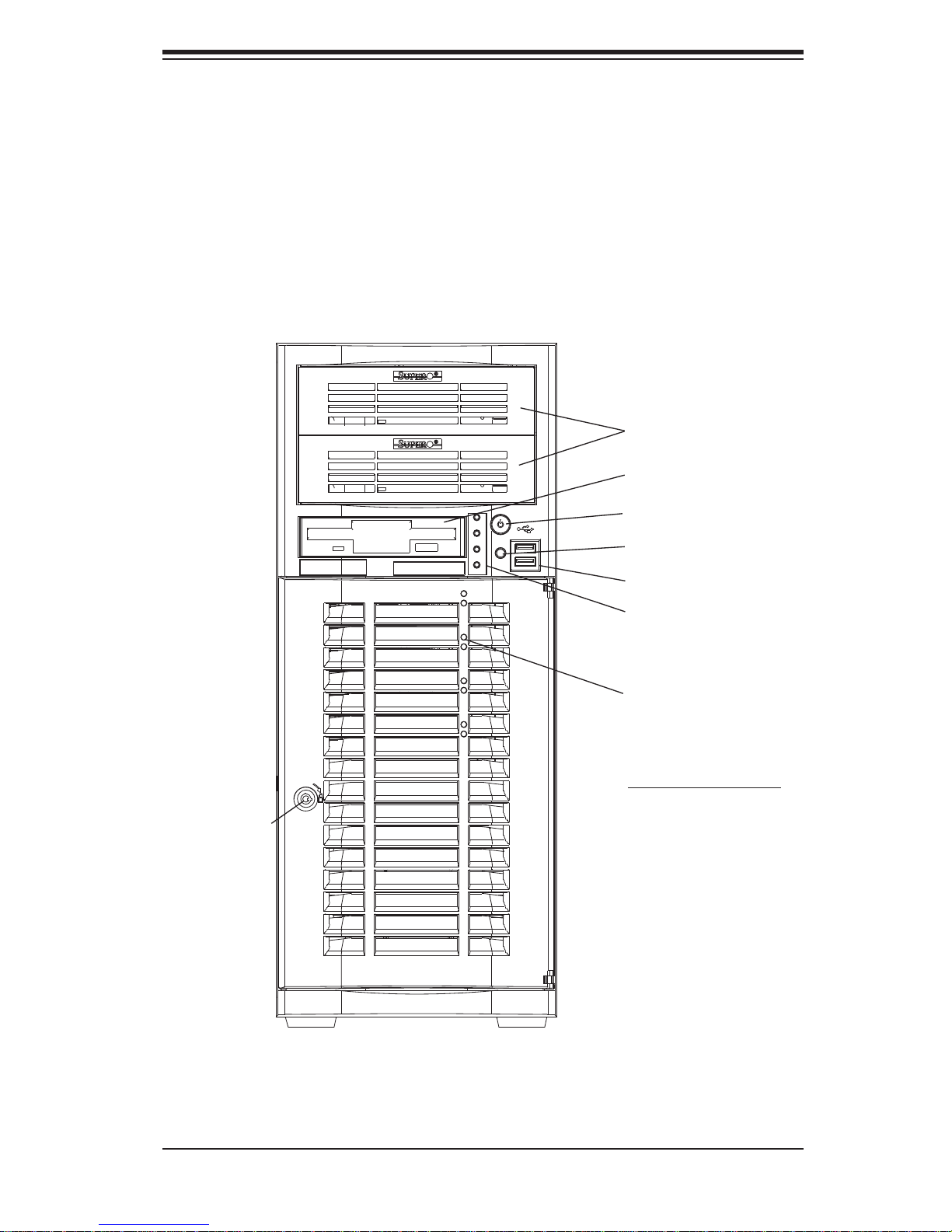

6-2 Front Control Panel ......................................................................................... 6-2
6-3 System Fans ...................................................................................................6-5
Fan Failure ......................................................................................................6-5
Replacing System Fans ............................................................................. 6-5
Identifying and Accessing the Fan ............................................................. 6-5
Removing the Fan Duct Assembly .............................................................6-5
Installing a New Fan .................................................................................. 6-6
6-4 Drive Bay Installation ...................................................................................... 6-7
Serial ATA Drives ............................................................................................. 6-7

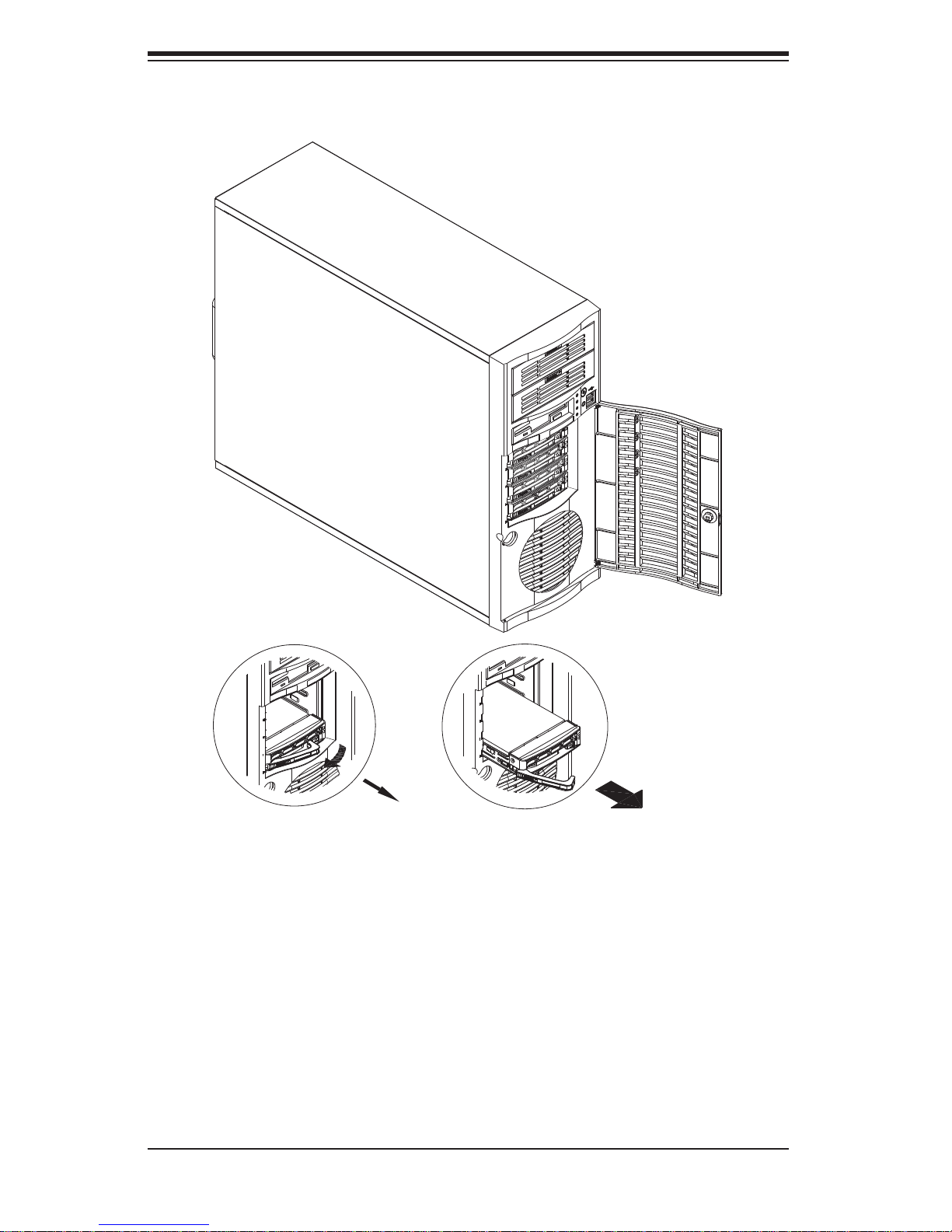

Installing/Removing Hot-Plug SATA Drives ................................................ 6-7
Mounting a SATA Drive in a Drive Carrier ................................................. 6-7
viii
Page 9
Table of Contents
Installing Components in the 5.25" Drive Bays .............................................. 6-9

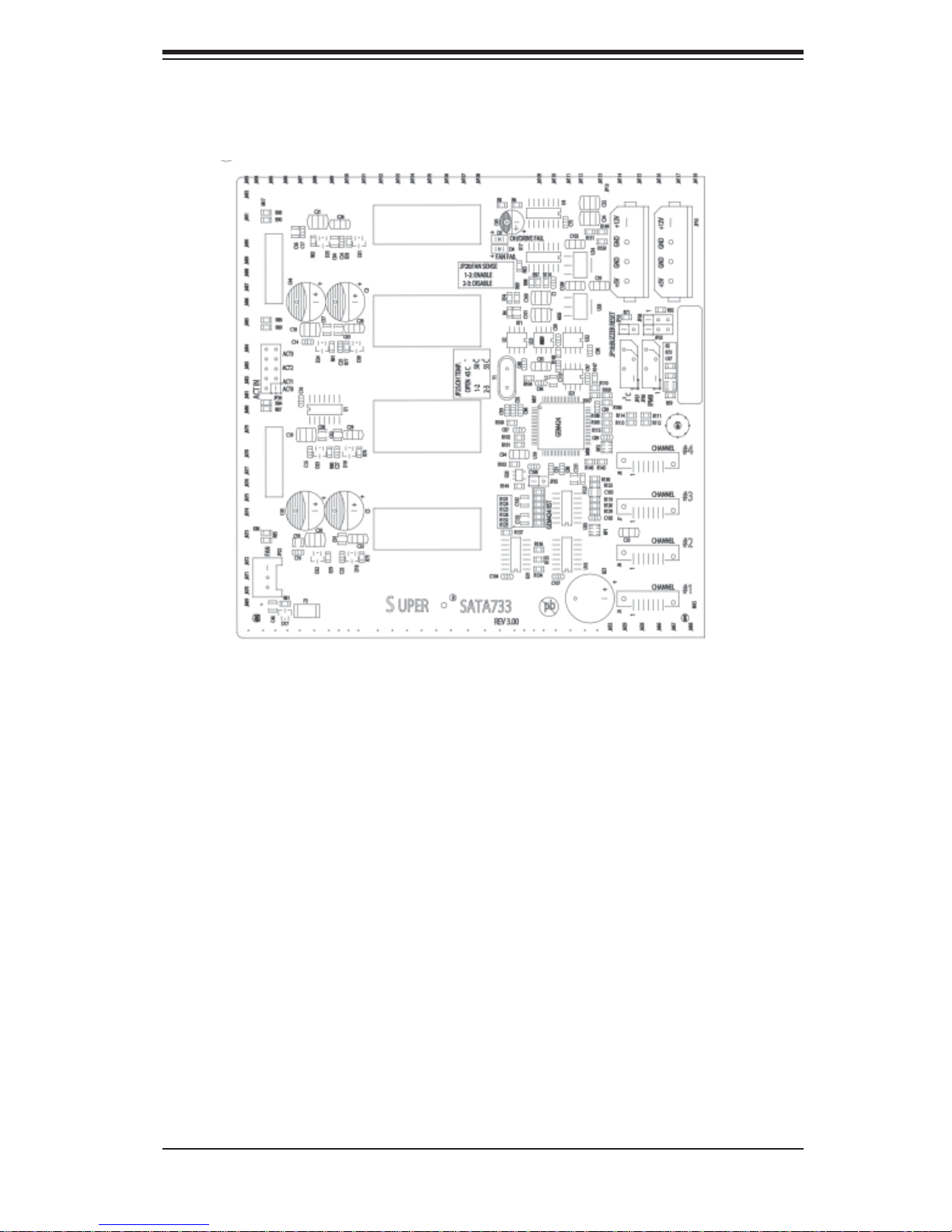

6-5 SATA-733 Backplane Specifi cations .............................................................6-10
Chapter 7 BIOS
7-1 Introduction ......................................................................................................7-1
Starting BIOS Setup Utility ..............................................................................7-1
How To Change the Confi guration Data .........................................................7-1
Starting the Setup Utility ................................................................................. 7-2
7-2 Main Setup ......................................................................................................7-2
7-3 Advanced Setup Confi gurations...................................................................... 7-4
7-4 Security Settings ...........................................................................................7-20

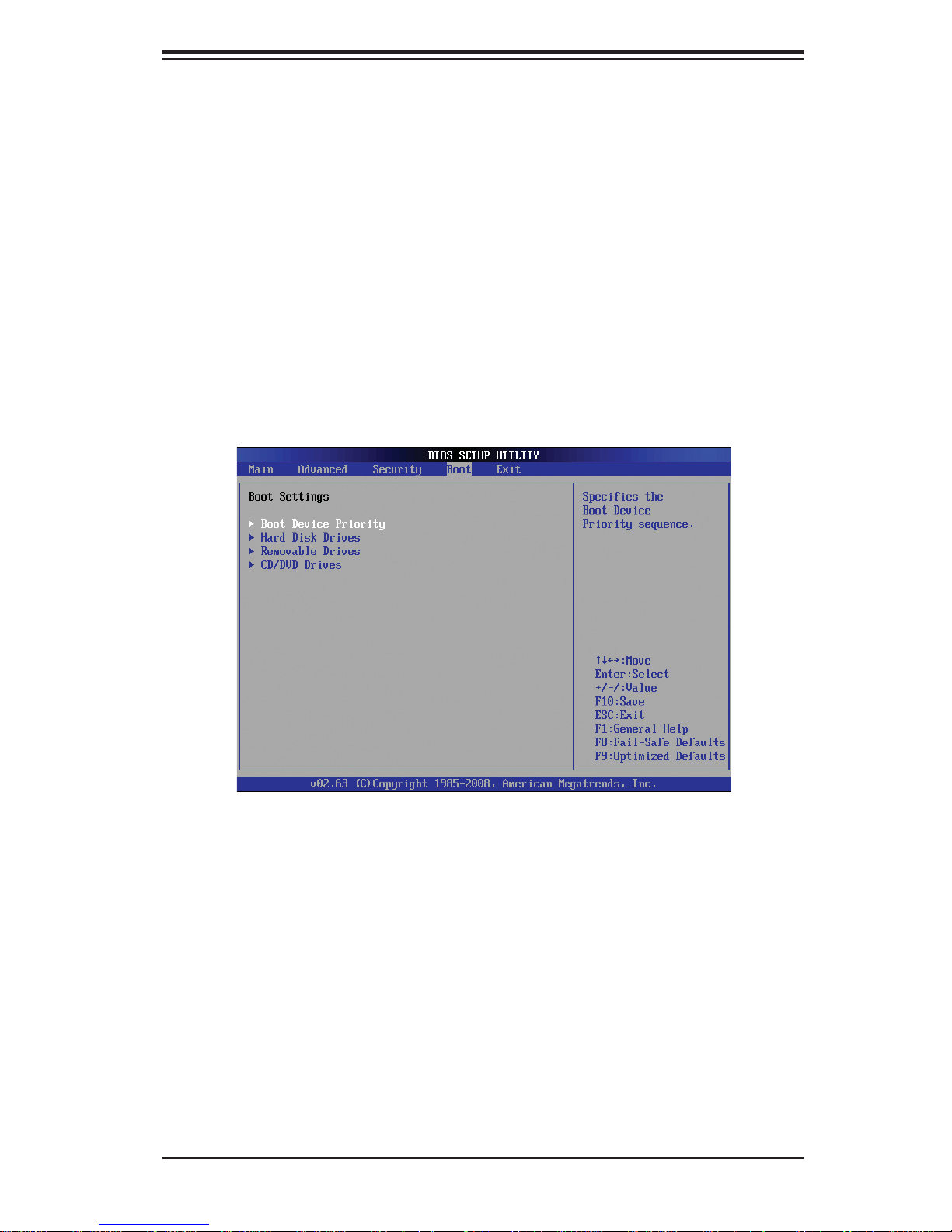

7-5 Boot Confi guration ........................................................................................ 7-21
7-6 Exit Options ................................................................................................... 7-22
Appendix A POST Error Beep Codes
Appendix B Software Installation Instructions
Appendix C System Specifi cations
ix
Page 10
SuperWorkstation 5036T-T User's Manual
Notes
x
Page 11
Chapter 1: Introduction
Chapter 1
Introduction
1-1 Overview
The SuperWorkstation 5036T-T is a high-end workstation comprised of two main
subsystems: the SC733TQ-465 mid-tower chassis and the X8SAX serverboard.
Please refer to our web site for information on operating systems that have been
certifi ed for use with the SuperWorkstation 5036T-T (www.supermicro.com).
In addition to the serverboard and chassis, various hardware components have
been included with the SuperWorkstation 5036T-T, as listed below:
One (1) cooling fan (FAN-0076L4)
•
One (1) exhaust fan (FAN-0077L4 or FAN-0105L4, optional)•
One (1) air shroud (MCP-310-73301-ON)•
One (1) passive heatsink (SNK-P0035AP4)•
One (1) I/O backplate (MCP-260-00001-00)•
One (1) SGPIO cable (CBL-0157L)•
SATA Accessories •
One (1) SATA backplane (CSE-SAS-733TQ)
Four (4) SATA cables (CBL-0061L)
One (1) IEEE1394 cable (CBL-0173L)
•
One (1) SuperWorkstation 5036T-T User's Manual•
1-1
Page 12
SuperWorkstation 5036T-T User's Manual
1-2 Serverboard Features

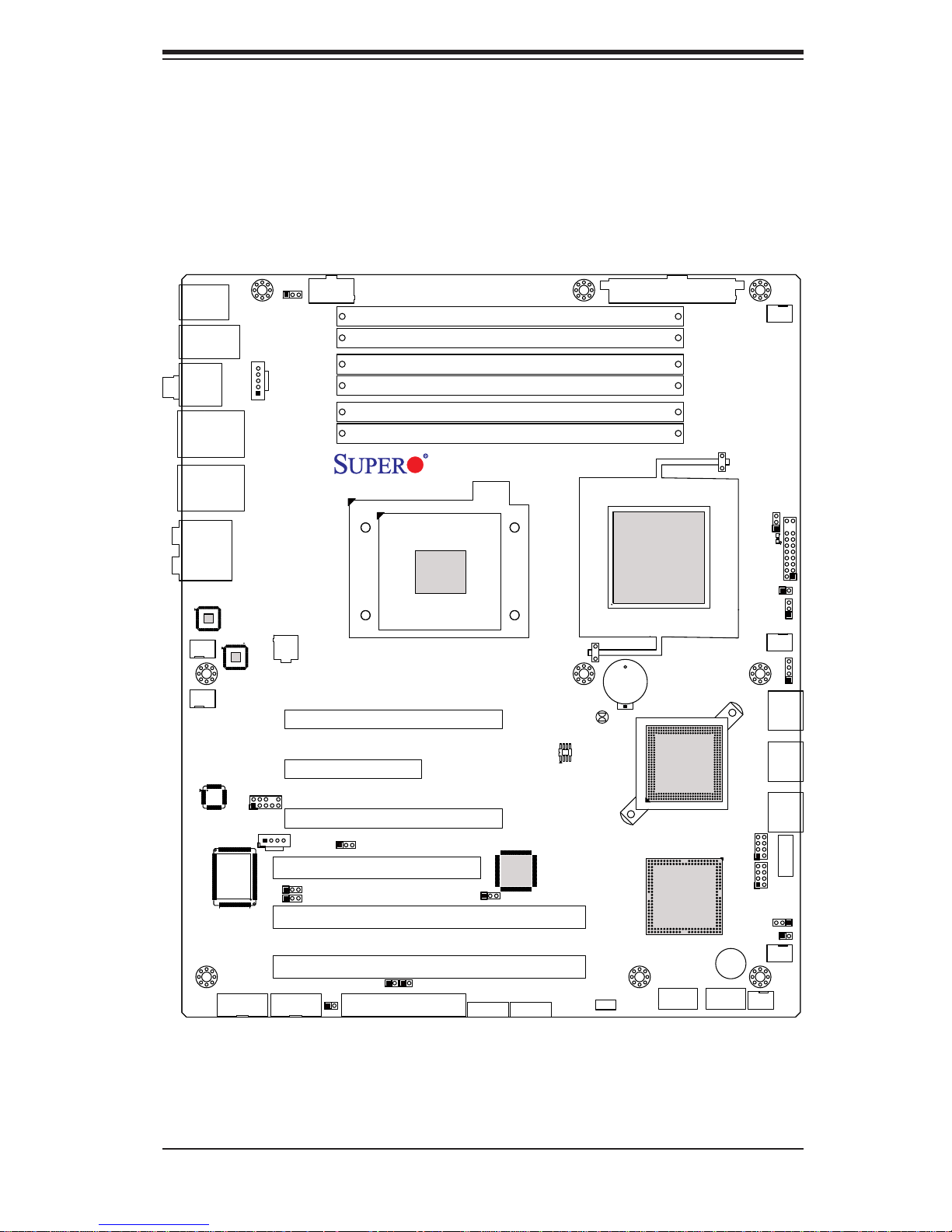

At the heart of the SuperWorkstation 5036T-T lies the X8SAX, a single processor
serverboard based on the Intel X58 + ICH10R chipset. Below are the main features
of the X8SAX. (See Figure 1-1 for a block diagram of the chipset).
Processors
The X8SAX supports a single Intel Core
processor families (next generation Intel Xeon® processor). Please refer to the
serverboard description pages on our web site for a complete listing of supported
processors (www.supermicro.com).
TM
i7 or Xeon® or future Intel Nehalem
Memory
The X8SAX has six DIMM slots that can support up to 24 GB of unbuffered ECC
or non-ECC DDR3-1333/1066/800 SDRAM. Single channel and dual-channel interleaved confi gurations are supported. Modules of the same size and speed should
be used. See Chapter 5 for details.
Serial ATA
A SAT A controller is integrated into the South Bridge (ICH10R) section of the chipset
to provide a six-port Serial ATA subsystem, which is RAID 0, 1, 10 and 5 capable.
The Serial ATA drives are hot-swappable units.
Note: The operati ng system yo u use must h ave R AID su ppor t to e nable t he hotswap capability and RAI D function of the Serial ATA drives.
PCI Expansion Slots
The X8SAX has two PCI-E 2.0 x16, one PCI-E x4 (in a x8 slot), two 64-bit PCI-X
133/100 MHz and one 32-bit PCI slots.
Onboard Controllers/Ports
One fl oppy drive controller and two onboard ATA/100 controllers are provided to
support up to two IDE hard drives or AT API devices (one IDE connection is reserved
for a Compact Flash card). The color-coded I/O ports include two COM ports, six
USB 2.0 ports, PS/2 mouse and keyboard ports, one Gb Ethernet port and six
HDA (High Defi nition Audio) ports. Two IEEE 1394a "Firewire" headers are also
included onboard.
1-2
Page 13
Chapter 1: Introduction
Other Features
Other onboard features that promote system health include onboard voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU
overheat sensors, virus protection and BIOS rescue.
1-3 Chassis Features
The following is a general outline of the main features of the SC733TQ-465 workstation chassis.
System Power
The SC733TQ-465 features a low-noise, high-effi ciency 465W power supply. Power
must be removed from the system before servicing or replacing the power supply.
SATA Subsystem
The SC733TQ-465 chassis was designed to support four SATA hard drives, which
are hot- swappa ble unit s.
Front Control Panel
The control panel on the SuperWorkstation 5036T-T provides you with system
monitoring and control. LEDs indicate power on, network activity, hard disk drive
activity and overheat conditions. The control panel also includes a main power
button and a system reset button.

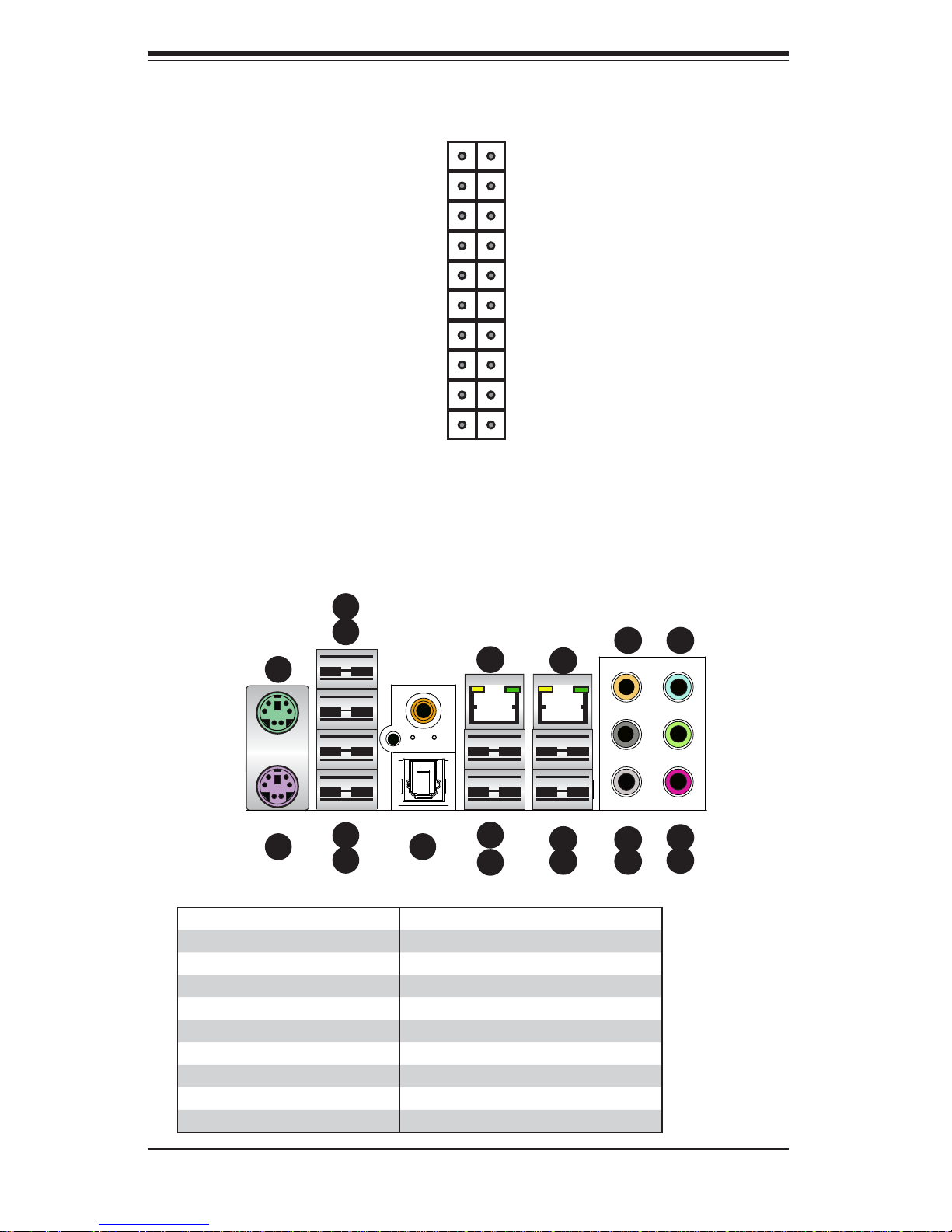

I/O Backplane
The SC733TQ-465 is a mid-tower chassis designed to be used as a workstation
platform. The I/O backplane includes two COM ports, six USB 2.0 ports, PS/2 mouse
and keyboard ports, one gigabit Ethernet port, one IEEE 1394 (Firewire) port (which
occupies one PCI slot) and HDA audio ports. Seven standard size PCI expansion
cards may be added to the system.
Cooling System
The SC733TQ-465 chassis one 9-cm fan located at the front of the chassis and a
12-cm fan located in the power supply. Both fans operate continuously. An exhaust
fan (FAN-0077L4 or FAN-0105L4) is also included for increased airfl ow effi ciency.
1-3
Page 14
SuperWorkstation 5036T-T User's Manual
Figure 1-1. Intel X38 Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
Intersil
VRD 11.1
RJ45
Intel 82574L
SATA x6
USB x 12
TPM 1.2
W83795AG
H/W Monitor
FAN
x 6
RJ45
SATA2 /300
USB2.0
LPC
KB.
MS.
Intel
LGA1366_Processor
QPI: Up to 6.40 GT/s
Intel
Tylersburg
INTEL 82574L
PCI-E_X1
PCI-E_X1
Intel
ICH10R
W83627DHG
LPC I/O
Floppy
COM1
COM2
IOH
36S
DMI
SB
DDR3:1333/1066/800
PCIE_x16
PCIE_x16
PCIE_x4
PCI-E_X4
PCI_32_BUS
SPI
HDA
DIMM_CHA
DIMM_CHB
DIMM_CHC
PCI-E x16 Slot (Gen 2)
PCI-E x16 Slot (Gen 2)
PHX-V PCI-X Slots (2)
PCI-E x4 (in x8)
PCI 32 Slot
TI TSB43AB22A
SPI EEPROM
Realtek ALC883
1-4
Page 15
Chapter 1: Introduction
1-4 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacifi c
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: 886-2-8228-1366, ext.132 or 139
1-5
Page 16
SuperWorkstation 5036T-T User's Manual
Notes
1-6
Page 17
Chapter 2: System Setup
!
!
Chapter 2
System Setup
2-1 Overview
This chapter provides a quick setup checklist to get your SuperWorkstation 5036T -T
up and running. Following the steps in the order given should enable you to have
the system operational within a minimal amount of time. If your system is not already fully integrated with a motherboard, processor, system memory etc., please
turn to the chapter or section noted in each step for details on installing specifi c
components.
2-2 Unpacking the System
You should inspect the box the SuperWorkstation 5036T-T was shipped in and note
if it was damaged in any way. If the workstation itself shows damage, you should
fi le a damage claim with the carrier who delivered it.
Decide on a suitable location for setting up and operating the SuperWorkstation
5036T-T. It should be situated in a clean, dust-free area that is well ventilated. Avoid
areas where heat, electrical noise and electromagnetic fi elds are generated. You
will also need it placed near a grounded power outlet.
Once the SuperWorkstation 5036T-T is placed in the appropriate location, slide the
locking tabs on each caster down to keep it stationary.
Warnings and Precautions!
Ensure that the caster wheels on the workstation are locked.•
Review the electrical and general safety precautions in Chapter 4.•
Use a regulating uninterruptible power supply (UPS) to protect the workstation •
from power surges, voltage spikes and to keep your system operating in case
of a power failure.
Allow the power supply units and hot-swap Serial ATA drive to cool before
•
touching them.
2-1
Page 18
SUPERWORKSTATION 5036T-T User's Manual
To maintain proper cooling, always keep all chassis panels closed and all SATA •
carriers installed when not being serviced.
2-3 Setting Up the System
You should fi rst open the left side panel (when facing the front of the chassis)
to make sure the motherboard is properly installed and all connections have been
made.
Checking the Motherboard Setup
Accessing the inside of the system (Figure 2-1): Begin by removing the two 1.
screws from the back lip of the side cover (this is the left cover when looking
at the chassis from the front.) Grab the handle and gently pull the side cover
out to release it from its position. Once the side cover is out of its position,
slide the cover out of the chassis.
Check the CPU (processor): You may have a processor already installed into 2.
the system board. The processor should have its own heatsink attached. See
Chapter 5 for instructions on processor installation.
Check the system memory:3. Your system may have come with system
memory already installed. Make sure all DIMMs are fully seated in their slots.
For details on adding system memory, refer to Chapter 5.
Installing add-on cards:4. If desired, you can install up to six add-on cards to
the system. See Chapter 5 for details on installing PCI-E/PCI-X/PCI add-on
cards.
Check all cable connections and airfl ow: Make sure all power and data cables 5.
are properly connected and not blocking the airfl ow. See Chapter 5 for details
on cable connections.
Checking the Drive Bay Setup
Next, you should check to make sure the peripheral drives and the Serial ATA drive
and Serial ATA backplane have been properly installed and all essential connections have been made.
Accessing the peripheral drive bays: To install or remove a component in the 1.
3.5" and/or 5.25" drive bay(s), you will need to remove the side chassis cover.
2-2
Page 19
Chapter 2: System Setup

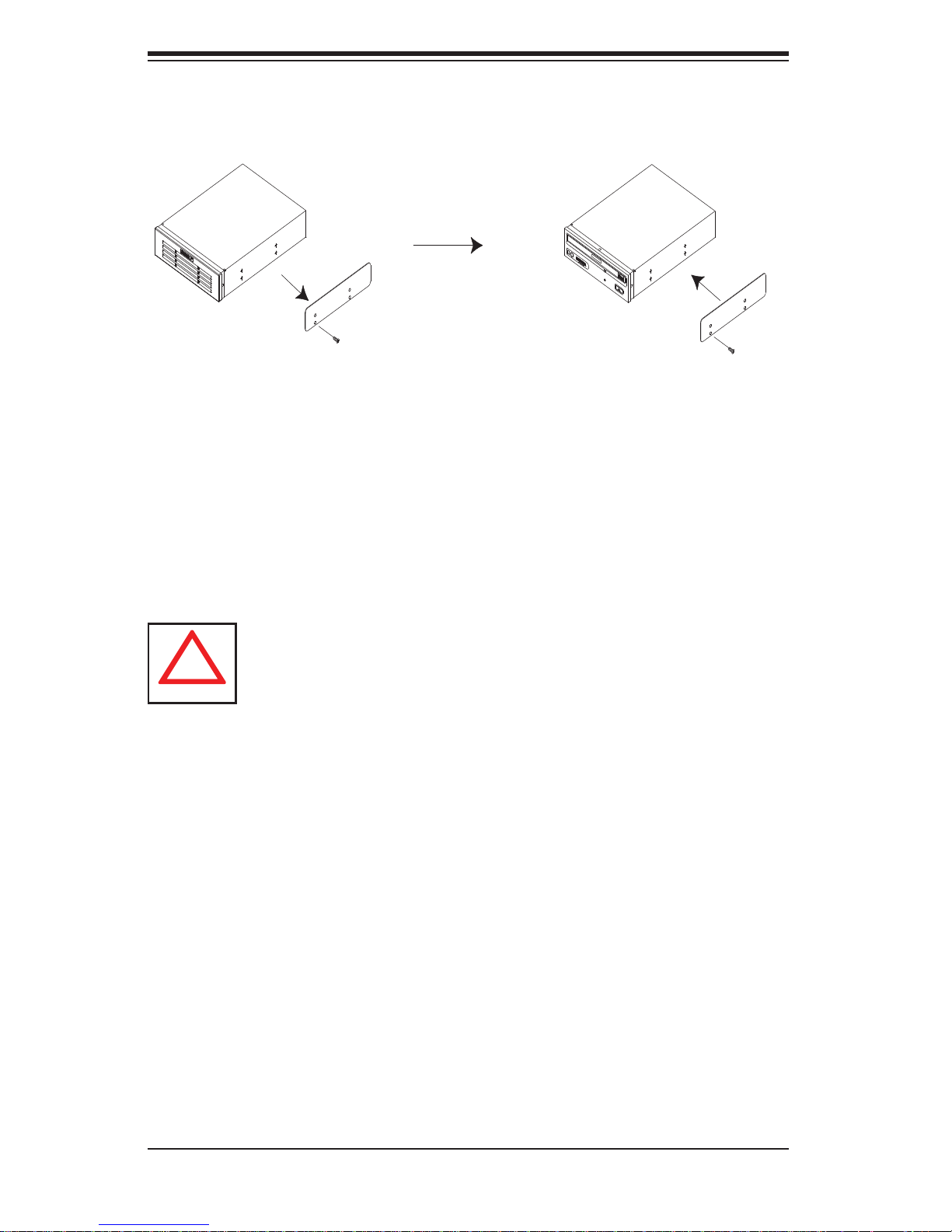

Figure 2-1. Accessing the Inside of the 5036T-T
2-3
Page 20
SUPERWORKSTATION 5036T-T User's Manual
See the installation and removal sections for the peripheral drives in Chapter
6.
Check the Serial ATA disk drives: Depending upon your system's confi gura-2.
tion, your system may have up to four Serial ATA drives already installed. If
you need to install or remove an SATA drive, please refer to the appropriate
section in Chapter 6.
Check the airfl ow: Cooling air is provided by a 9-cm internal cooling fan and 3.
a 12-cm fan that is built in to the power supply. The system component layout
was carefully designed to promote suffi cient airfl ow throughout the chassis.
Also note that all power and data cables have been routed in such a way that
they do not block the airfl ow generated by the fan. Please keep this in mind
when rerouting or adding/removing cables.
Supplying power to the system: The last thing you must do is to provide input 4.
power to the system. Plug the power cord from the power supply unit into a
high-quality power strip that offers protection from electrical noise and power
surges. It is recommended that you use an uninterruptible power supply
(UPS).
2-4
Page 21
Chapter 3: System Interface
Chapter 3
System Interface
3-1 Overview
There are several LEDs on the control panel and one on each Serial ATA drive
carrier to keep you constantly informed of the overall status of the system as well
as the activity and health of specifi c components. There are also two buttons on
the chassis control panel. This chapter explains the meanings of all LED indicators
and any appropriate response you may need to take.
3-2 Control Panel Buttons
There are two push-buttons located on the front of the chassis. These are (in order
from left to right) a reset button and a power on/off button.
RESET
The reset button reboots the system.
POWER
This is the main power button, which is used to apply or turn off the main system
power. T urning off system power with this button removes the main power but keeps
standby power supplied to the system.
3-1
Page 22
SUPERWORKSTATION 5036T-T User's Manual
3-3 Control Panel LEDs
The control panel located on the front of the SC733TQ-465 chassis has four LEDs.
These LEDs provide you with critical information related to different parts of the
system. This section explains what each LED indicates when illuminated and any
corrective action you may need to take.
Power
Indicates power is being supplied to the system's power supply units. This LED
should normally be illuminated when the system is operating.
HDD
Channel activity for all HDDs. This light indicates SATA drive activity when fl ash-
ing.
NIC
Indicates network activity on the Gigabit LAN when fl ashing.
Overheat/Fan Fail
When this LED fl ashes it indicates a fan failure. When on continuously (on and not
fl ashing) it indicates an overheat condition, which may be caused by cables ob-
structing the airfl ow in the system or the ambient room temperature being too warm.
3-2
Page 23
Chapter 3: System Interface
Check the routing of the cables and make sure all fans are present and operating
normally. You should also check to make sure that the chassis covers are installed.
Finally, verify that the heatsinks are installed properly (see Chapter 5). This LED
will remain fl ashing or on as long as the overheat condition exists.
3-4 Serial ATA Drive Carrier LEDs
Each Serial ATA drive carrier has two LEDs.
Green:
• When illuminated, the green LED on the front of the SATA drive carrier
indicates drive activity. A connection to the SATA backplane enables this LED
to blink on and off when that particular drive is being accessed.
Red:
• The red LED indicates two states. When blinking, it indicates the drive is
rebuilding. When solid, it indicates a drive failure. If a SA T A drive fails, you should
be notifi ed by your system management software. Please refer to Chapter 6 for
instructions on replacing failed SATA drives.
3-3
Page 24
SUPERWORKSTATION 5036T-T User's Manual
Notes
3-4
Page 25
Chapter 4: System Safety
!
Chapter 4
System Safety
4-1 Electrical Safety Precautions
Note: power should always be disconnected before performing any service on the system.
Basic electrical safety precautions shall be followed to protect yourself from harm
and the SuperServer 5036T-T from damage:
Be aware of the locations of the power on/off switch on the chassis as well
•
as the room's emergency power-off switch, disconnection switch or electrical
outlet. If an electrical accident occurs, you can then quickly remove power from
the system.
Do not work alone when working with high voltage components.
•
Power should always be disconnected from the system when removing or in-•
stalling main system components, such as the serverboard, memory modules
and fl oppy drive. When disconnecting power, you should fi rst power down the
system with the operating system fi rst and then unplug the power cords of all
the power supply units in the system.
When working around exposed electrical circuits, another person who is familiar
•
with the power-off controls should be nearby to switch off the power if necessary.
Use only one hand when working with powered-on electrical equipment. This
•
is to avoid making a complete circuit, which will cause electrical shock. Use
extreme caution when using metal tools, which can easily damage any electrical
components or circuit boards they come into contact with.
Do not use mats designed to decrease static electrical discharge as protection
•
from electrical shock. Instead, use rubber mats that have been specifi cally
designed as electrical insulators.
The power supply power cords must include a grounding plug and must be
•
plugged into grounded electrical outlets.
4-1
Page 26
SUPERSERVER 5036T-T User's Manual
!
This product may be connected to an IT power system. In all cases, make sure •
that the unit is also reliably connected to Earth (ground).
Serverboard Battery:
• CAUTION - There is a danger of explosion if the onboard
battery is installed upside down, which will reverse its polarites (see Figure
4-1). This battery must be replaced only with the same or an equivalent type
recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
DVD-ROM Laser:
• CAUTION - this server may have come equipped with a
DVD-ROM drive. To prevent direct exposure to the laser beam and hazardous
radiation exposure, do not open the enclosure or use the unit in any unconventional way.
Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Tempera-
•
ture Coeffi cient) fuses on the mainboard must be replaced by trained service
technicians only. The new fuse must be the same or equivalent as the one
replaced. Contact technical support for details and support.
4-2 General Safety Precautions
Follow these rules to ensure general safety:
Keep the area around the SuperServer 5036T-T clean and free of clutter.
•
The SuperServer 5036T-T weighs approximately 43 lbs. (19.5 kg) when fully •
loaded. When lifting the system, two people at either end should lift slowly with
their feet spread out to distribute the weight. Always keep your back straight
and lift with your legs.
Place the chassis top cover and any system components that have been re-
•
moved away from the system or on a table so that they won't accidentally be
stepped on.
While working on the system, do not wear loose clothing such as neckties and
•
unbuttoned shirt sleeves, which can come into contact with electrical circuits or
be pulled into a cooling fan.
4-2
Page 27
Chapter 4: System Safety
!
Remove any jewelry or metal objects from your body, which are excellent metal •
conductors that can create short circuits and harm you if they come into contact
with printed circuit boards or areas where power is present.
After accessing the inside of the system, close the system back up and secure
•
it to the rack unit with the retention screws after ensuring that all connections
have been made.
4-3 ESD Precautions
Electrostatic Discharge (ESD) is generated by two objects with different electrical
charges coming into contact with each other. An electrical discharge is created to
neutralize this difference, which can damage electronic com ponents and printed
circuit boards. The following measures are generally suffi cient to neutralize this
difference before contact is made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
•
Keep all components and printed circuit boards (PCBs) in their antistatic bags •
until ready for use.
Touch a grounded metal object before removing the board from the antistatic
•
bag.
Do not let components or PCBs come into contact with your clothing, which may
•
retain a charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components, peripheral chips,
•
memory modules or contacts.
When handling chips or modules, avoid touching their pins.
•
Put the serverboard and peripherals back into their antistatic bags when not •
in use.
For grounding purposes, make sure your computer chassis provides excellent
•
conductivity between the power supply, the case, the mounting fasteners and
the serverboard.
4-3
Page 28
SUPERSERVER 5036T-T User's Manual
!
4-4 Operating Precautions
Care must be taken to assure that the chassis cover is in place when the 5036T-T
is operating to assure proper cooling. Out of warranty damage to the system can
occur if this practice is not strictly followed.
Figure 4-1. Installing the Onboard Battery
LITHIUM BATTERY
BATTERY HOLDER
4-4
Page 29
Chapter 5: Advanced Serverboard Setup
Chapter 5
Advanced Serverboard Setup
This chapter covers the steps required to install the X8SAX serverboard into
the chassis, connect the data and power cables and install add-on cards. All
serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Remember to completely
close the chassis when you have fi nished working with the serverboard to better
cool and protect the system.
5-1 Handling the Serverboard
Electrostatic discharge (ESD) can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully
(see previous chapter). To prevent the serverboard from bending, keep one hand
under the center of the board to support it when handling. The following measures
are generally suffi cient to protect your equipment from electric static discharge.
Precautions
Use a grounded wrist strap designed to prevent Electrostatic Discharge.•
Touch a grounded metal object before removing any board from its antistatic •
bag.
Handle a board by its edges only; do not touch its components, peripheral chips,
•
memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
•
Put the serverboard, add-on cards and peripherals back into their antistatic •
bags when not in use.
For grounding purposes, make sure your computer chassis provides excellent
•
conductivity between the power supply, the case, the mounting fasteners and
the serverboard.
5-1
Page 30
SuperWorkstation 5036T-T User's Manual
Unpacking
The serverboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static
protected.
5-2 Serverboard Installation
This section explains the fi rst step of physically mounting the X8SAX into the
SC733TQ-465 chassis. Following the steps in the order given will eliminate the most
common problems encountered in such an installation. To remove the serverboard,
follow the procedure in reverse order.
Installing to the Chassis
Access the inside of the system by removing the screws from the back lip of 1.
the top cover of the chassis, then pull the cover off.
The X8SAX requires a chassis big enough to support a 12" x 10" 2.
serverboard, such as Supermicro's SC733TQ-465.
Make sure that the I/O ports on the serverboard align properly with their 3.
respective holes in the I/O shield at the back of the chassis.
Carefully mount the serverboard to the serverboard tray by aligning the board 4.
holes with the raised metal standoffs that are visible in the chassis.
Insert screws into all the mounting holes on your serverboard that line up 5.
with the standoffs and tighten until snug (if you screw them in too tight, you
might strip the threads). Metal screws provide an electrical contact to the
serverboard ground to provide a continuous ground for the system.
Finish by replacing the top cover of the chassis.6.
5-2
Page 31
Chapter 5: Advanced Serverboard Setup
5-3 Connecting Cables
Now that the serverboard is installed, the next step is to connect the cables to the
board. These include the data (ribbon) cables for the peripherals and control panel
and the power cables.
Connecting Data Cables
The cables used to transfer data from the peripheral devices have been carefully
routed to prevent them from blocking the fl ow of cooling air that moves through
the system from front to back. If you need to disconnect any of these cables, you
should take care to keep them routed as they were originally after reconnecting
them (make sure the red wires connect to the pin 1 locations). The following data
cables (with their locations noted) should be connected. (See the layout on page
5-9 for connector locations.)
SATA drive data cable (I-SATA0 ~ I-SATA3)
•
Control Panel cable (JF1)•
SGPIO cable (SGPIO1)•
Important! Make sure the the cables do not come into contact with the fans.
Connecting Power Cables
The X8SAX has a 24-pin primary power supply connector (JPW1) for connection to
the ATX power supply. In addition, a 4-pin auxilliary power connector (JPW3) and
an 8-pin processor power connector (JPW2) must also be connected to your power
supply. See Section 5-9 for power connector pin de fi nitions.
Connecting the Control Panel
JF1 contains header pins for various front control panel connectors. See Figure 5-1
for the pin locations of the various front control panel buttons and LED indicators.
All JF1 wires have been bundled into a single ribbon cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the board. The other
end connects to the Control Panel PCB board, located just behind the system status
LEDs on the chassis. See Chapter 5 for details and pin descriptions.
5-3
Page 32
SuperWorkstation 5036T-T User's Manual
Figure 5-1. Control Panel Header Pins
Ground
20 19
NMI
5-4 I/O Ports
x (Key)
Power On LED
HDD LED
NIC1 LED
NIC2 LED
OH/Fan Fail LED
Power Fail LED
Ground
Ground
2 1
x (Key)
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Reset (Button)
Power (Button)
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports.
Figure 5-2. I/O Ports
6
5
2
10
13
16
19
1
1. Keyboard (Purple) 11. USB Port 6
2. PS/2 Mouse (Green) 12. USB Port 7
3. USB Port 0 13. LAN2
4. USB Port 1 14. Side_Surround (Grey)
5. USB Port 2 15. Back_Surround (Black)
6. USB Port 3 16. CEN/LFE (Orange)
7. S/PDIF 17. Microphone-In (Pink)
8. USB Port 4 18. Front (Green)
9. USB Port 5 19. Line-In (Blue)
10. LAN 1
4
7
3
9
8
12
11
15
14
18
17
5-4
Page 33
Chapter 5: Advanced Serverboard Setup
!
5-5 Processor and Heatsink Installation
When handling the processor package, avoid placing direct pressure on
the label area of the fan.
Notes:
•
Always connect the power cord last and always remove it before adding, removing or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.
If you buy a CPU separately, make sure that you use an Intel-certifi ed multi-
•
directional heatsink only.
Make sure to install the serverboard into the chassis before you install the CPU
•
heatsinks.
When receiving a serverboard without a processor pre-installed, make sure that
•
the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.
Refer to the Sup ermi cro web s ite for upd ates on CPU su ppor t.
•

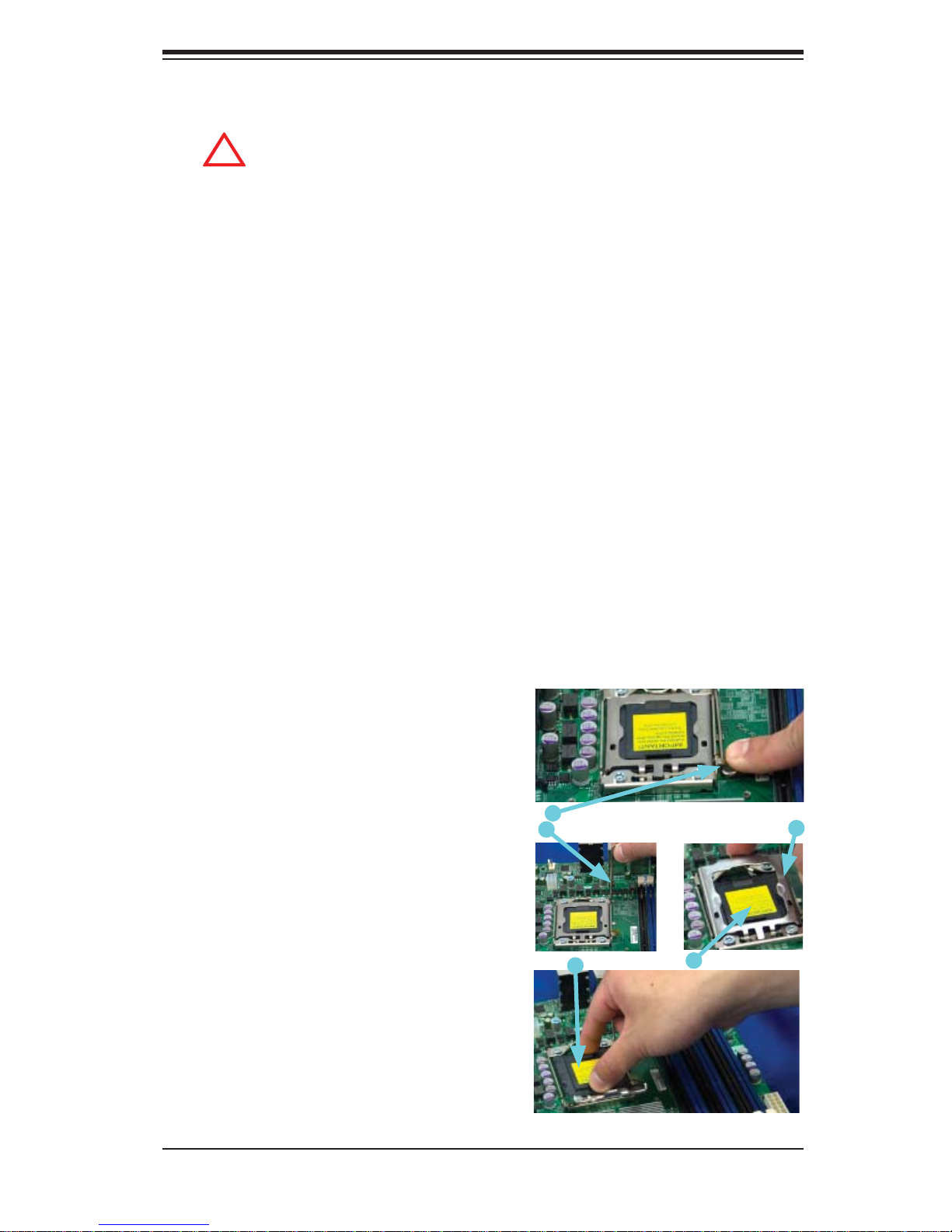

Installing an LGA 1366 Processor
Press the socket clip to release 1.
the load plate, which covers the
CPU socket, from its locking
position.
Socket Clip
Gently lift the socket clip to 2.
open the load plate.
Plastic Cap
Hold the plastic cap at its north 3.
and south center edges to remove it from the CPU socket.
Load Plate
Hold the north & south edges of
the plastic cap to remove it
5-5
Page 34
SuperWorkstation 5036T-T User's Manual
!
After removing the plastic cap, 1.
using your thumb and the index
fi nger, hold the CPU at the north
and south center edges.
Align the CPU key (the semi-circle 2.
cutout) against the socket key (the
notch below the gold color dot on
the side of the socket).
Once both the CPU and the socket 3.
are aligned, carefully lower the
CPU straight down into the socket.
(Do not rub the CPU against the
surface of the socket or its pins to
avoid damaging the CPU or the
socket.)
With the CPU inside the socket, in-4.
spect the four corners of the CPU
to make sure that it is properly
installed.
CPU
CPU Socket
Once the CPU is securely seated 5.
in the socket, lower the CPU load
plate to the socket.
Use your thumb to gently push the 6.
socket clip down to the clip lock.
Warning: Please save the plastic cap. The motherboard must be shipped
with the plastic cap properly installed to protect the CPU socket pins.
Shipment without the plastic cap properly installed will cause damage
to the socket pins.
Load Plate
5-6
Page 35
Chapter 5: Advanced Serverboard Setup
!
Installation and Removal of the Heatsink
Installing the Heatsink
Do not apply any thermal grease to the 1.
heatsink or the CPU die; the required
amount has already been applied.
Place the heatsink on top of the CPU so 2.
that the four mounting holes are aligned
with those on the retention mechanism.
Screw in two diagonal screws (i.e. the #1 3.
and the #2 screws) until just snug (do not
over-tighten the screws, which may damage the CPU.)
Finish the installation by fully tightening all 4.
four screws.
Uninstalling the Heatsink
Warning: We do not recommend removing the CPU or the heatsink.
However, if you do need to uninstall the heatsink, please follow these
instructions to avoid damaging the CPU or the CPU socket.
Screw #1
Screw #2
Unscrew and remove the heatsink screws 1.
in the sequence shown in the picture on
the right.
Hold the heatsink as shown in the picture 2.
on the right and gently wriggle to loosen
it from the CPU. (Do not use excessive
force when doing this!)
Once the heatsink is loosened, remove it 3.
from the CPU socket.
Clean the surface of the CPU and the 4.
heatsink to get rid of the old thermal
grease. Reapply the proper amount of
thermal grease before you re-install the
heatsink.
5-7
Screw #1
Screw #4
Screw #3
Screw #2
Page 36
SuperWorkstation 5036T-T User's Manual
5-6 Installing Memory Modules
Note: Check the S uper micro we b site for r ecom mende d memor y mo dules .
CAUTION
Exercise extreme care when installing or removing DIMM
module s to prevent a ny possi ble dam age.
Installing & Removing DIMMs
Insert the desired number of DIMMs into the memory 1.
slots, starting with DIMM #1A. For best performance,
please use the memory modules of the same type
and same speed in the same bank. See the DIMM
Installation Chart on the following page.
Press down the release tabs on the ends of a 2.
memory slot. Insert each DIMM module vertically into
its slot. Pay attention to the notch along the bottom
of the module to prevent inserting the DIMM module
incorrectly.
Gently press down on the DIMM module until it snaps 3.
into place in the slot. Repeat for all modules.
Reverse the steps above to remove the DIMM mod-4.
ules from the motherboard.
Press down the release tabs
Insert & press down a
DIMM module into the slot
To Install : Inser t module
vert ic ally a nd pre ss
down unt il it sn aps in to
place. Pay a tte ntio n to
the ali gnme nt notc h at
the bottom.
To Remove:
Use your thumbs to
gently push the release
tabs near both ends of
the module. This should
release it from the slot.
Figure 5-3. DIMM Installation
Notch
Note: Notch should align
with the receptive key
Release Tab
point on the slot.
Top View of DDR3 Slot
5-8
Notch
Front View
Release Tab
Page 37
Chapter 5: Advanced Serverboard Setup
Memory Support
The X8SAX supports up to 24 GB of unbuffered ECC/non-ECC DDR31333/1066/80 0 SDRAM.
Notes:
•
Due to the OS limitations, some operating systems may not show more than
4 GB of memory.
Due to all oc atin g mem or y to sys tem devi ce s, mem or y re main ing avai labl e for
•
operational use will be re duced when 4 GB of S DRAM is used. The re duction in m emory ava ilabilit y is disprop orti onal. (Refer to t he followin g Memor y
Availabili ty Table for deta ils.)
Order of Populating DIMM Slots
For memory to work properly , follow the table below for the correct order of populating the DIMM slots. See the motherboad layout page for slot numbering.
DIMM Installation Chart
Number of
DIMMs
1X
2XX
3 XXX
4 XXXX
5 XXXXX
6 XXXXXX
1A 2A 3A 1B 2B 3B
Note: an "X" indicates the slot should be populated.
Population Rules
Any combination of x8 and x16 UDIMMs, with 1Gb or 2Gb DRAM density.•
Populate DIMMs using the "A" DIMM slots fi rst. Any of the slots may be used. •
However, populate the "B" slots only after all "A" slots have been fi lled.
5-9
Page 38
SuperWorkstation 5036T-T User's Manual
5-7 Adding PCI Add-On Cards
The 5036T-T can accommodate standard size add-on cards in all slots on the
X8SAX serverboard.
Installing an Add-on Card
Begin by removing the PCI slot shield for the slot you wish to populate.1.
Fully seat the card into the riser card slot, pushing down with your thumbs 2.
evenly on both sides of the card.
Finish by using a screw to secure the top of the card shield to the chassis. 3.
The PCI slot shields protect the serverboard and its components from EMI
and aid in proper ventilation, so make sure there is always a shield covering
each unused slot.
5-10
Page 39
5-8 Serverboard Details
Figure 5-4. X8SAX Layout
Chapter 5: Advanced Serverboard Setup
KB/Mouse
USB 0~3
S/PDIF
LAN1/USB4~5
LAN2/USB6~7
HD Audio
(7.1)
LAN CTRL
LAN CTRL
Fan6
Fan5
Audio CTRL
S I/O
Audio FP
COM2
JPUSB1
SMBUS_PS1
JPW3
CD-In
COM1
JPW2
Slot 6: PCI-E x16 Gen2
Slot 5 PCI-E x4 in x8 Gen1
Slot 4 PCI-E x16 Gen2
JPAC
Slot 3 PCI 33 MHz
JPL2
JPL1
Slot 2 PCI-X 133/100 MHz
Slot 1 PCI-X 133/100 MHz
JWOR
Floppy
X8SAX
CPU
JI2C2JI2C1
DIMM3A
DIMM3B
DIMM2A
DIMM2B
DIMM1A
DIMM1B
1394_1
1394a
CTRL
JPI1
1394_2
BIOS
JBT1
JWOL
Battery
JPW1
Intel
X58
North Bridge
Intel ICH10R
South Bridge
Intel PXH-V
USB8
T-SGPIO0
SPKR1
USB9
Fan1/
CPU Fan
JLED
LE1
JF1
JOH
JWD
Fan2
JD1
T-SGPIO1
JPUSB2
JL1
Fan4
I-SATA1
I-SATA0
I-SATA3
I-SATA2
I-SATA5
I-SATA4
USB 10/11
Fan3
5-11
Page 40
SuperWorkstation 5036T-T User's Manual
X8SAX Quick Reference
Jumper Description Default Setting
JBT1 CMOS Clear (See Section 5-10)
2
JI
C1/JI2C2 SMB to PCI Slots (See Section 5-10)
JPAC Audio Enable/Disable Pins 1-2 (Enabled)
JPI1 1394a_1/2 Enable/Disable Pins 1-2 (Enabled)
JPL1/JPL2 LAN 1/2 Enable/Disable Pins 1-2 (Enabled)
JPUSB1 Backplane USB Enable/Disable Pins 1-2 (Enabled)
JPUSB2 Front Panel USB Enable/Disable Pins 2-3 (Disabled)
JWD Watch Dog Timer Enable/Disable Pins 1-2 (Reset)
Connector Description
1394a_1/2 IEEE 1394a (Firewire) Headers
Audio FP Front Panel Audio Header
Audio (HD) (BP) High Defi nition Audio (7.1) Ports
CD-In Audio CD Input Header
COM1/COM2 COM1/2 Serial Port Connectors
Fan 1~6 Fan headers (Fan 1 = CPU fan)
Floppy Floppy Disk Drive Connector
JD1 Speaker Header
JF1 Control Panel Header
JL1 Chassis Intrusion Header
JLED Power LED Indicator Header
JOH1 Overheat LED Header
JPW1 24-pin ATX Main Power Connector
JPW2 +12V 8-pin CPU Power Connector
JPW3 +12V 4-pin Secondaru Power Connector
JWOL Wake-On-LAN Header
JWOR Wake-On-Ring Header
LAN1/LAN2 Gigabit Ethernet (RJ45) ports
I-SATA 0~5 (Intel South Bridge) SATA ports 0/1, 2/3, 4/5
SMB_PS PWR Supply (I
S/PDIF Digital Audio/Video Interface Connector
T-SGPIO-0/1 Serial General Purpose Input/Output Headers
USB0~3, USB4/5, 6/7 Universal Serial Bus (USB) Ports
USB8, USB9, USB10/11 Front Panel Ac ces sible U SB Hea ders
5-12
2
C) System Management Bus
Page 41
Chapter 5: Advanced Serverboard Setup
5-9 Connector Defi nitions
Main ATX Power Supply
Connector
The primary power supply connector
(JPW1) meets the SSI (Superset ATX)
24-pin specifi cation. Refer to the table
on the right for the pin defi nitions of
the ATX 24-pin power connector. You
must also connect the 8-pin (JPW2)
power connector to your power supply
(see below).
Processor Power Connector
JPW2 must also be connected to the
power supply to provide power for the
processor. See the table on the right
for pin defi nitions.
ATX Power 24-pin Connector
Pin Defi nitions (JPW1)
Pin# Defi nition Pin # Defi nition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
8-pin (+12V) Processor Power
Pin Defi nitions (JPW2)
Pins Defi nition
1 - 4 Ground
5 - 8 +12V
Required Connection
Secondary Power Connector
It is recommended that JPW3 be connected to the power supply to provide
secondary power. See the table at
right for pin defi nitions.
Power Button
The connection for the power button
is on pins 1 and 2 of JF1. The chassis power button should be connected
here. See the table on the right for pin
defi nitions.
Reset Connector
The reset header is located on pins 3
and 4 of JF1. Attach the reset switch
on the computer chassis to these
pins. See the table on the right for
pin defi nitions.
4-pin Secondary Power
Pin Defi nitions (JPW3)
Pins Defi nition
1 and 2 Ground
3 and 4 +12V
Recommended Connection
Power Button
Pin Defi nitions (JF1)
Pin# Defi nition
1 PW_ON
2 Ground
Reset Button
Pin Defi nitions (JF1)
Pin# Defi nition
3 Reset
4 Ground
5-13
Page 42
SuperWorkstation 5036T-T User's Manual
Overheat/Fan Fail LED (OH)
Connect an LED to pins 7 and 8 of
JF1 to provide advanced warning of
chassis overheating or fan failure.
Refer to the table on the right for pin
defi nitions.
NIC1 (GLAN) LED
The LED connections for the GB LAN
port are on pins 11 and 12 of JF1. Attach an LED cable to display network
activity. See the table on the right for
pin defi nitions.
HDD LED
The HDD LED connection is located
on pins 13 and 14 of JF1. This LED
is used to display all IDE and SATA
activity. See the table on the right for
pin defi nitions.
OH/Fan Fail LED
Pin Defi nitions (JF1)
Pin# Defi nition
7 Vcc
8 Ground
Pin Defi nitions (JF1)
Pin# Defi nition
11 Vcc
12 Ground
Pin Defi nitions (JF1)
Pin# Defi nition
13 Vcc
14 HD Active
OH/Fan Fail Indicator
Status
State Defi nition
Off Normal
On Overheat
Flash-
ing
NIC1 LED
HDD LED
Fan Fail
Power On LED
The Power On LED connector is located on pins 15 and 16 of JF1 (use
JLED for a 3-pin connector). This
connection is used to provide LED
indication of power being supplied to
the system. See the table on the right
for pin defi nitions.
Chassis Intrusion
The Chassis Intrusion header is designated JL1. Attach an appropriate
cable from the chassis to inform you
of a chassis intrusion when the chassis is opened
Power LED
Pin Defi nitions (JF1)
Pin# Defi nition
15 5V Stby
16 Control
Chassis Intrusion
Pin Defi nitions (JL1)
Pin# Defi nition
1 Intrusion Input
2 Ground
5-14
Page 43
Chapter 5: Advanced Serverboard Setup
ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and the PS/2
mouse are located on the I/O backpanel. The mouse port is above the
keyboard port. See the table on the
right for pin defi nitions.
Fan Headers
The X8SAX has six fan headers, all of
which are 4-pin fans. However, pins
1-3 of the fa n header s are bac kward
compatible with the traditional 3-pin
fans. See the table on the right for
pin definitions. The onboard fan
speeds are controlled by Thermal
Management (via Hardware Monitoring) under the Advanced Section in
the BIOS. The default is disabled.
When using Thermal Management
setting, please use all 3-pin fans or
all 4- pin f ans.

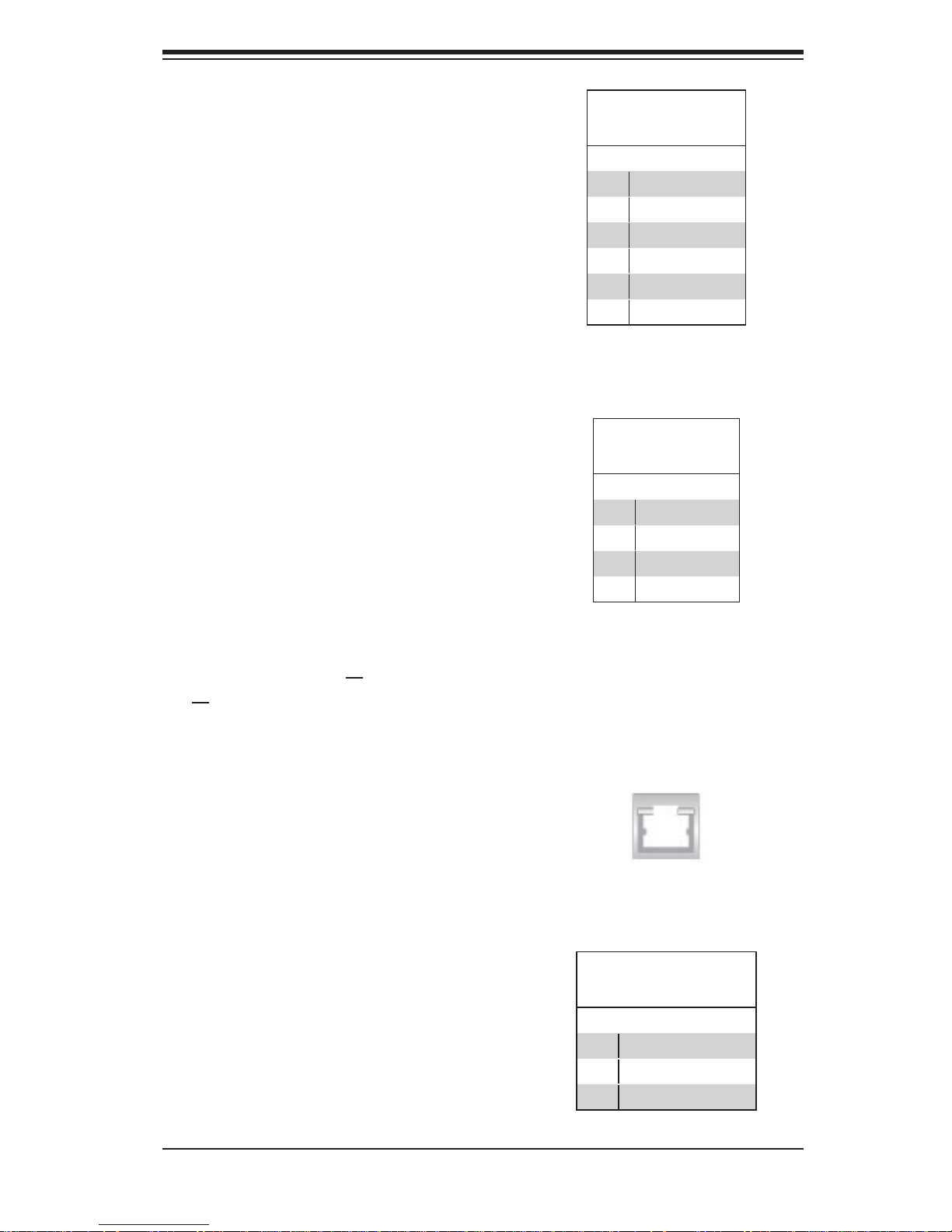

PS/2 Keyboard and
Mouse Port Pin
Defi nitions
Pin# Defi nition
1 Data
2NC
3 Ground
4 VCC
5 Clock
6NC
Fan Header
Pin Defi nitions
(FAN1-6)
Pin# Defi nition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control
LAN1/LAN2 (Ethernet Ports)
Two Ethernet ports are located on the
I/O backplane. These ports accept
RJ45 type cables.
Wake-On-LAN
The Wake-On-LAN header is designated JWOL on the serverboard. See
the table on the right for pin defi ni-
tions. You must also have a LAN card
with a Wake-On-LAN connector and
cable to use this feature.
Wake-On-LAN
Pin Defi nitions
(JWOL)
Pin# Defi nition
1 +5V Standby
2 Ground
3 Wake-up
5-15
Page 44
SuperWorkstation 5036T-T User's Manual
Wake-On-Ring
The Wake-On-Ring header is designated JWOR. This function allows
your computer to receive and be
"awakened" by an incoming call when
in the suspend state. See the table on
the right for pin defi nitions. You must
also have a WOR card and cable to
use this feature.
Speaker
On the JD1 header, pins 3~4 are used
for the internal speaker. Close pins
3~4 with a cap to use the onboard
speaker. If you wish to use an external
speaker, connect the speaker cable to
pins 1~4. See the table on the right for
pin defi nitions.
Wake-On-Ring
Pin Defi nitions
(JWOR)
Pin# Defi nition
1 Ground (Black)
2 Wake-up
Speaker Connector
Pin Defi nitions (JD1)
Pin Setting Defi nition
Pins 3~4 Internal Speaker
Pins1~4 External Speaker
Serial Ports
Two serial ports are included on the
X8SAX. See the table on the right for
pin defi nitions.
SGPIO Header
Two SGPIO (Serial General Purpose
Input/Output) headers are designated
SGPIO0 and SGPIO1. These headers are used to communicate with
the system's enclosure management
chip. See the table on the right for pin
defi nitions.
Serial Port Pin Defi nitions
(COM1/COM2)
Pin # Defi nition Pin # Defi nition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
SGPIO Header
Pin Defi nitions (T-SGPIO0/T-SGPIO1)
Pin# Defi nition Pin Defi nition
1NC 2 NC
3 Ground 4 DATA Out
5 Load 6 Ground
7 Clock 8 NC
NC = No Connection
5-16
Page 45
CD and Audio FP
Chapter 5: Advanced Serverboard Setup
A 4-pin CD header (CD-IN) and an
auxiliary header (Audio FP) allow you
to use the onboard sound for audio
CD playback. Connect an audio cable
from your CD drive to the header
that fi ts your cable's connector. Only
one head er can be used at any o ne
time. See the tables at right for pin
defi nitions.
Front Panel Audio Control
When front panel headphones are
plugged in, the back panel audio output
is disabled. This is done through the FP
Audio header (Audio FP). If the front
panel interface card is not connected to
the front panel audio header, jumpers
should be installed on pin pairs 1-2,
5-6, and 9-10 of the Audio FP header.
If these jumpers are not installed, the
back panel line out connector will be
disabled, and pin 1 of the microphone
in will be left fl oating, which can lead to
excessive back panel microphone noise
and crosstalk. See the table at right for
pin defi nitions.

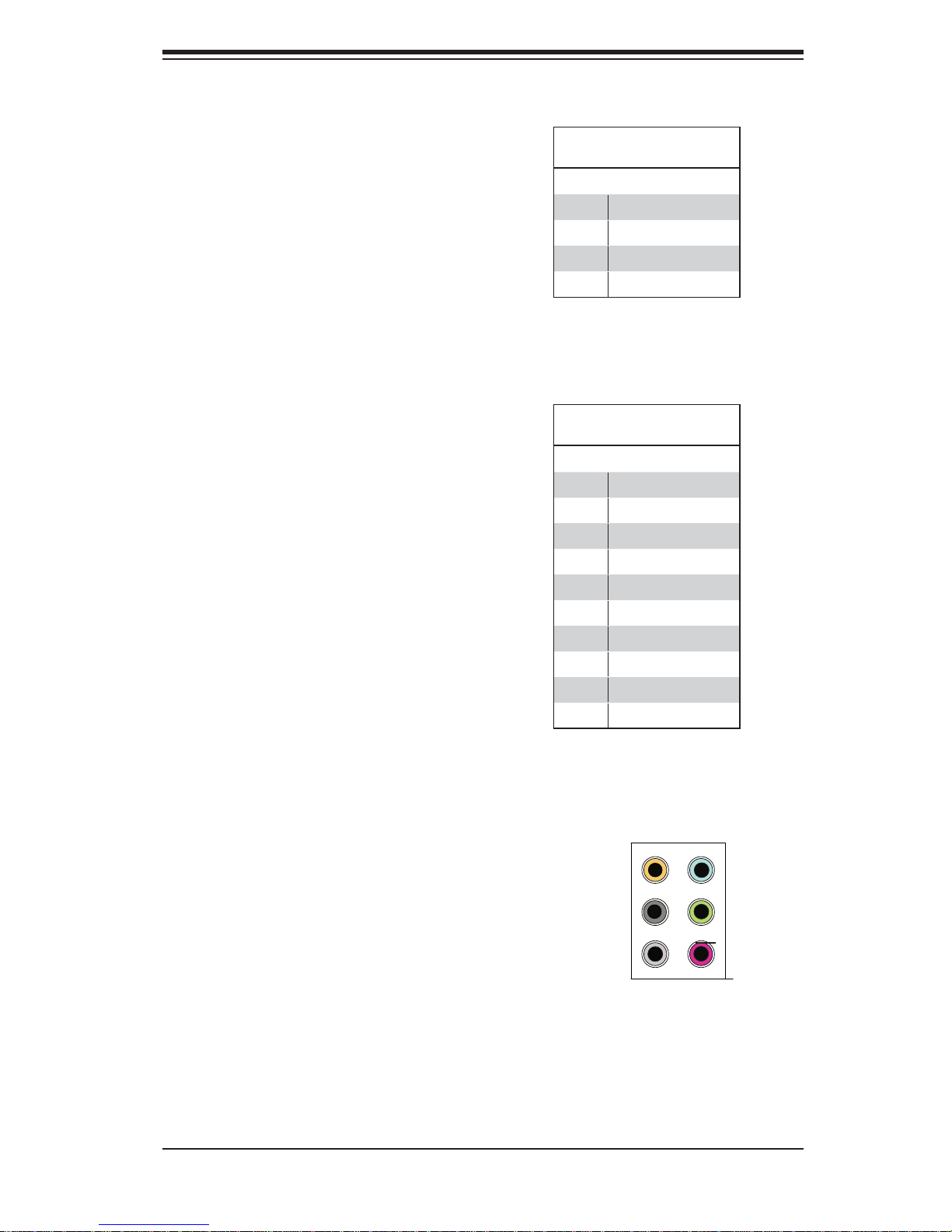

Audio Input CD Header
Pin Defi nitions (CD-IN)
Pin# Defi nition
1 Left Stereo Signal
2 Ground
3 Ground
4 Right Stereo Signal
Front Panel Audio Pin
Defi nitions (Audio FP)
Pin# Defi nition
1 MIC_L
2 Audio Ground
3 MIC_R
4 FP Audio Detect
5 Line_2_R
6 Ground
7 FP_Jack Detect
8 Key
9 Line_2_L
10 Ground
High Defi nition Audio (HDA)
The X8SAX features a 7.1+2 Channel
High Defi nition Audio (HDA) codec that
provides 10 DAC channels, simultaneously supporting 7.1 sound playback
and two channels of independent stereo sound output (multiple streaming)
through the front panel stereo out via
the front L&R, rear L&R, center and
subwoofer speakers. This feature is
activated with the software included in
the CD-ROM that came with your motherboard. Sound is output through the
Line In, Line Out and MIC jacks.
Orange:
CEN/LFE
Black: Back
Surround
Grey: Side
Surround
5-17
Page 46
SuperWorkstation 5036T-T User's Manual
IEEE 1394 Connection
Connectors 1394_1 and 1394_2
provide connectivity for IEEE 1394
(Firewire) devices. See the tables on
the right for pin defi nitions.
1394_1
Pin Defi nitions
Pin# Defi n. Pin# Defi n
1 PTPA0+ 2 PTPA03 GND 4 GND
5 PTPB0+ 6 PTPB07 PWR 1394 8 PWR 1394
10 ZX
1394_2
Pin Defi nitions
Pin# Defi n. Pin# Defi n
1 PTPA1+ 2 PTPA13 GND 4 GND
5 PTPB1+ 6 PTPB17 PWR 1394 8 PWR 1394
10 ZY
Universal Serial Bus (USB)
Eight Universal Serial Bus ports (USB
0~3, USB 4/5, USB 6/7) are located
on the I/O back panel. USB Ports 4/5
are located below LAN Port1 port.
USB 6/7 are below LAN Port2. An
additional four USB connections (USB
8, USB 9 and USB 10/11) are used
to provide front chassis access. USB
8 and USB 9 are Type A connectors.
(USB cables not included). See the
tables on the right for pin defi nitions.
Back Panel USB 0~3, 4/5, 6/7
Pin Defi nitions
Pin# Defi nition Pin# Defi nition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB 8, 9, 10~11
Pin Defi nitions
USB 8, 9, 10
Pin # Defi nition
1 +5V 6 +5V
2 USB_PN2 7 USB_PN3
3 USB_PP2 8 USB_PP3
4 Ground 9 Ground
5 No Con-
nection
USB 11
Pin # Defi nition
10 Key
5-18
Page 47
S/PDIF_Out Connector
An S/PDIF_Out connector is located
next to the Backpanel USB ports on
the motherboard. The S/PDIF(Sony/
Philips Digital Interface Format) connector is used for transporting stereo
digital audio signals. It is commonly
used to connect the output of a DVD
player to a home theater receiver
that supports Dolby Digital or DTS
surround sound. The S/PDIF_Out
connector includes the top component (S/PDIF_RCA) and the bottom
component (S/PDIF). See the tables
below for pin defi nitions.
Chapter 5: Advanced Serverboard Setup
Overheat/Fan Fail LED (JOH1)
The JOH1 header is used to connect
an LED to provide warnings of chassis overheat. This LED will also blink
to indicate a fan failure. Refer to the
table on right for pin defi nitions.
Power Supply I2C Connector
The Power Supply (I
2
C) connector
can be used to monitor the status
of the power supply, fan and system
temperature. See the table on the right
for pin defi nitions.
Overheat LED
Pin Defi nitions
Pin# Defi nition
1 5vDC
2 OH Active
PWR Supply I2C
Pin Defi nitions
(SMB_PS)
Pin# Defi nition
1 Clock
2 Data
3 PWR Fail
4 Ground
5-19
Page 48
SuperWorkstation 5036T-T User's Manual
5-10 Jumper Settings
Explanation of Jumpers
To modify the operation of the
serverboard, jumpers can be used
to choose between optional settings.
Jumpers create shorts between two
pins to change the function of the connector. Pin 1 is identifi ed with a square
solder pad on the printed circuit board.
See the serverboard layout pages for
jumper locations.
Note: On a two-pin jumper, "Closed"
means the jumper is on both pins and
"Open" means the jumper is either on
only one pin or completely removed.
3 2 1
Connector
Pins
Jumper
3 2 1
Setting
CMOS Clear
JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins,
this jumper consists of contact pads to prevent accidentally clearing the contents
of CMOS.
To clear CMOS,
First power down the system and unplug the power cord(s).1.
With the power disconnected, short the CMOS pads with a metal object such 2.
as a small screwdriver.
Remove the screwdriver (or shorting device).3.
Reconnect the power cord(s) and power on the system.4.
Note: Do not use the PW_ON connector to clear CMOS.
5-20
Page 49
LAN1/LAN2 Enable/Disable
Change the setting of jumper JPL1 or
JPL2 to enable or disable the LAN1 and
LAN2 Ethernet ports, respectively. See
the table on the right for jumper settings. The default setting is enabled.
Chapter 5: Advanced Serverboard Setup
LAN1/LAN2 Enable/Disable
Jumper Settings (JPL1/JPL2)
Jumper Setting Defi nition
Pins 1-2 Enabled
Pins 2-3 Disabled
Audio Enable/Disable
JPAC enables or disables the onboard
audio connections. See the table on the
right for jumper settings. The default
setting is Enabled.
SMBus to PCI/PCI-E Slots
Jumpers JI
2
C1 and JI2C2 allow you to
connect the PCI slots to the System
Management Bus (I
2
C). The default
setting is disabled. See the table on the
right for jumper settings.
Watch Dog Enable/Disable
JWD controls the Watch Dog function.
Watch Dog is a system monitor that
can reboot the system when a software
application hangs. Jumping pins 1-2
will cause WD to reset the system if an
application hangs. Jumping pins 2-3
will generate a non-maskable interrupt
signal for the application that hangs.
See the table on the right for jumper
settings. Watch Dog must also be enabled in BIOS.
Audio Enable/Disable
Jumper Settings (JP5)
Pin# Defi nition
1-2 Enabled
2-3 Disabled
SMBus to PCI Slots
Jumper Settings (JI2C1/JI2C2)
2
JI
C1/ JI2C2 Setting
Pins 1-2 Enabled
Pins 2-3 Disabled
Watch Dog
Jumper Settings (JWD)
Jumper Setting Defi nition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled
Note: When enabled, the user needs to
write their own application software in
order to disable the Watch Dog Timer.
5-21
Page 50
SuperWorkstation 5036T-T User's Manual
USB Wake-Up Enable/Disable
Use the JPUSB1/2 jumpers to allow
the system to be "Woken Up" via USB
devices by pressing a key on the USB
keyboard or by clicking the USB mouse
of your system. These jumpers are used
together with the USB Wake-Up function
in the BIOS. Enable the jumper and the
BIOS setting to use this feature. See
the table on the right for jumper settings.
Note: JPUSB1 is used for USB ports
#0~7, and JPUSB2 is for Front Panel
USB por ts # 8, #9 an d #10~11. The default jumper setting is Enabled for JUSB1
and disabled for JUSB2. However, when
the USB function is Enabled in the BIOS,
please be sure to remove those USB
devices from the USB ports whose USB
jumpers are set to Disabled before the
system goes into the standby mode.
USB Wake-Up Enable/
Disable Jumper Set-
tings (JUSB1/JUSB2)
Pin# Defi nition
1-2 Enabled
2-3 Disabled
IEEE 1394a Enable/Disable
JPI1 allows the user to use the onboard
IEEE 1394_1 and 1394_2 connections.
Close pins 1-2 to use this function. The
default setting is Enabled.
1394a Enable
Jumper Settings
Pin# Defi nition
1-2 Enabled (default)
2-3 Disabled
5-22
Page 51
5-11 Onboard Indicators
LAN1/2 LEDs
Chapter 5: Advanced Serverboard Setup
The Ethernet ports (located beside
the VGA port) have two LEDs. On
each port, one LED indicates activity
while the other LED may be green,
amber or off to indicate the speed of
the connection. See the table on the
right for the functions associated with
the connection speed LED.
Onboard Power LED (LE1)
An Onboard Power LED is located at
LE1 on the motherboard. When LE1 is
on, the AC power cable is connected.
Make sure to disconnect the power
cable before removing or installing any
component. See the table on the right
for more details.
(Connection Speed Indicator)
LAN1/2 LED
LED Color Defi nition
Off No Connection or 10 MHz
Green 100 MHz
Amber 1 GHz
Onboard PWR LED Indicator
(LE1)
LED State Defi nition
Off System Off
On System On or System
Off and Power Cable is
Connected
5-23
Page 52
SuperWorkstation 5036T-T User's Manual
5-12 Floppy, IDE, and SATA Ports
SATA Ports
Six Serial ATA (SATA) ports (I-SATA
0~5) are located on the motherboard
to provide serial link connections. Serial Link connections provide faster
data transmission than those of the
traditional Parallel ATA. These SATA
ports are supported by the Intel
ICH10R Chip (South Bridge). See the
table on the right for pin defi nitions.
Floppy Connector
The fl oppy c onnector is l ocated near
the PCI -X slot 1 on th e mother boar d.
See the table on the right for pin
defi nitions.
Note the following when connecting
the fl oppy cable:
The fl oppy disk drive cable has
•
seven tw isted wi res.
A red mark on a wire typically des-
•
ignates th e loc ation of p in 1.
A single fl oppy disk drive ribbon
•
cable has 34 wires and t wo connectors to provide for two fl oppy
disk drives. The connector with
twisted wires always connects to
drive A, and the connector that
does not have twisted wires always connects to drive B.
SATA Port
Pin Defi nitions
(I-SATA0 ~ I-SATA5)
Pin # Defi nition
1 Ground
2 TXP
3 TXN
4 Ground
5 RXN
6 RXP
7 Ground
Floppy Drive Connector
Pin Defi nitions (Floppy)
Pin# Defi nition Pin # Defi nition
1 Ground 2 FDHDIN
3 Ground 4 Reserved
5 Key 6 FDEDIN
7 Ground 8 Index
9 Ground 10 Motor Enable
11 Ground 12 Drive Select B
13 Ground 14 Drive Select B
15 Ground 16 Motor Enable
17 Ground 18 DIR
19 Ground 20 STEP
21 Ground 22 Write Data
23 Ground 24 Write Gate
25 Ground 26 Track 00
27 Ground 28 Write Protect
29 Ground 30 Read Data
31 Ground 32 Side 1 Select
33 Ground 34 Diskette
5-24
Page 53
Chapter 6: Advanced Chassis Setup
Chapter 6
Advanced Chassis Setup
This chapter covers the steps required to install components and perform simple
maintenance on the SC733TQ-465B chassis. Following the component installation
steps in the order given will eliminate most common problems. If some steps are
unnecessary, skip ahead to the next step.
Tools Required
The only tool you will need is a Philips screwdriver.
6-1 Static-Sensitive Devices
Static electrical discharge can damage electronic com ponents. To prevent damage
to any printed circuit boards (PCBs), it is important to handle them very carefully.
The following measures are generally suffi cient to protect your equipment from
static discharge.
Precautions
Use a grounded wrist strap designed to prevent static discharge.•
Touch a grounded metal object before removing any board from its antistatic •
bag.
Handle a board by its edges only; do not touch its components, peripheral chips,
•
memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
•
Put the motherboard, add-on cards and peripherals back into their antistatic •
bags when not in use.
For grounding purposes, make sure your computer chassis provides excellent
•
conductivity between the power supply, the case, the mounting fasteners and
the motherboard.
Unpacking
The motherboard is shipped in antistatic packaging. When unpacking the board,
make sure the person handling it is static protected.
6-1
Page 54
SUPERWORKSTATION 5036T-T Manual
6-2 Front Control Panel
The front control panel must be connected to the JF1 connector on the motherboard
to provide you with system status and alarm indications. A ribbon cable has bundled
these wires together to simplify this connection. Connect the cable from JF1 on the
motherboard (making sure the red wire plugs into pin 1) to the appropriate comnnector on the front control panel PCB (printed circuit board). Pull all excess cabling
over to the control panel side of the chassis.
The LEDs inform you of system status - see Figure 6-1 for details. Figure 6-2 shows
the SC733TQ-465B features included on the front of the chassis. See Chapter 5
for details on JF1.
Figure 6-1. Front Control Panel LEDs
Power
HDD
NIC
Overheat
Indicates power is being supplied to the system.
Indicates SATA hard disk/CD-ROM drive activity.
Indicates network activity the GLAN port.
Indicates an overheat condition or fan failure.
6-2
Page 55
Chapter 6: Advanced Chassis Setup
Figure 6-2. Chassis Front View
5.25" Drive Bays
Floppy Drive Bay (optional)
Front Bezel Lock
Main Power
System Reset
Front Side USB
System LEDs
SATA Active LED
SATA Drive Confi guration
Drive IDs are marked on the
front bezel. From bottom to
top they are Drive 0, Drive 1,
Drive 2 and Drive 3
6-3
Page 56
SUPERWORKSTATION 5036T-T Manual
Figure 6-3. Chassis Rear View
Power Supply
I/O Backplane
(see Figure 5-2)
PCI Expansion Slots
6-4
Page 57
Chapter 6: Advanced Chassis Setup
6-3 System Fans
A 9-cm chassis cooling fan housed in a fan duct is located just below the peripheral
drive bays to provide cool air intake for the system. A 12-cm exhaust fan in the power
supply pulls the cool air through the system and expels the hot air.
Fan Failure
Under normal operation, the chassis fan and the power supply fan both run continuously. If the chassis fan fails, the system must be powered down before replacing
it. If the power supply fan fails, the power supply itself must be replaced.
Replacing System Fans
Identifying and Accessing the Fan
First, check to see if it is the 9-cm fan at the front of the chassis that has 1.
failed. If the 12-cm fan failed, the power supply will need replaced (see section 6-5).
Power down the system and unplug the power cord.2.
Remove the left chassis cover by fi rst removing the two screws from the back 3.
lip of the cover.
Push in the release tab on the cover and push the cover toward the rear of 4.
the chassis until it stops (after moving about ½ inch). Then lift the cover out
and away from the chassis. (See Figure 2-1 for accessing the inside of the
chassis.)
Removing the Fan Duct Assembly
After removing the side chassis cover, release the clips that secure the fan 1.
duct to the chassis. You can then pull the fan duct out from its location in the
chassis.
Remove the four screws at the front of the fan duct that hold the fan in place. 2.
Then release the two fasteners along the side of the fan duct.
You can now separate it into two pieces and easily remove the fan (see Fig-3.
ure 6-4). Add a new fan of the same type (see step 3).
6-5
Page 58
SUPERWORKSTATION 5036T-T Manual
Installing a New Fan
Replace the failed fan with an identical one (available from Supermicro).1.
After the new fan has been installed into the fan duct, reassemble the fan 2.
duct and perform the removal procedure in reverse to install the entire fan
duct assembly back into the chassis. Make sure the wiring for the fan is also
reattached to its proper header.
Finish by replacing the left chassis cover, then restore power to the system.3.
Check that the replaced fan is working properly.4.

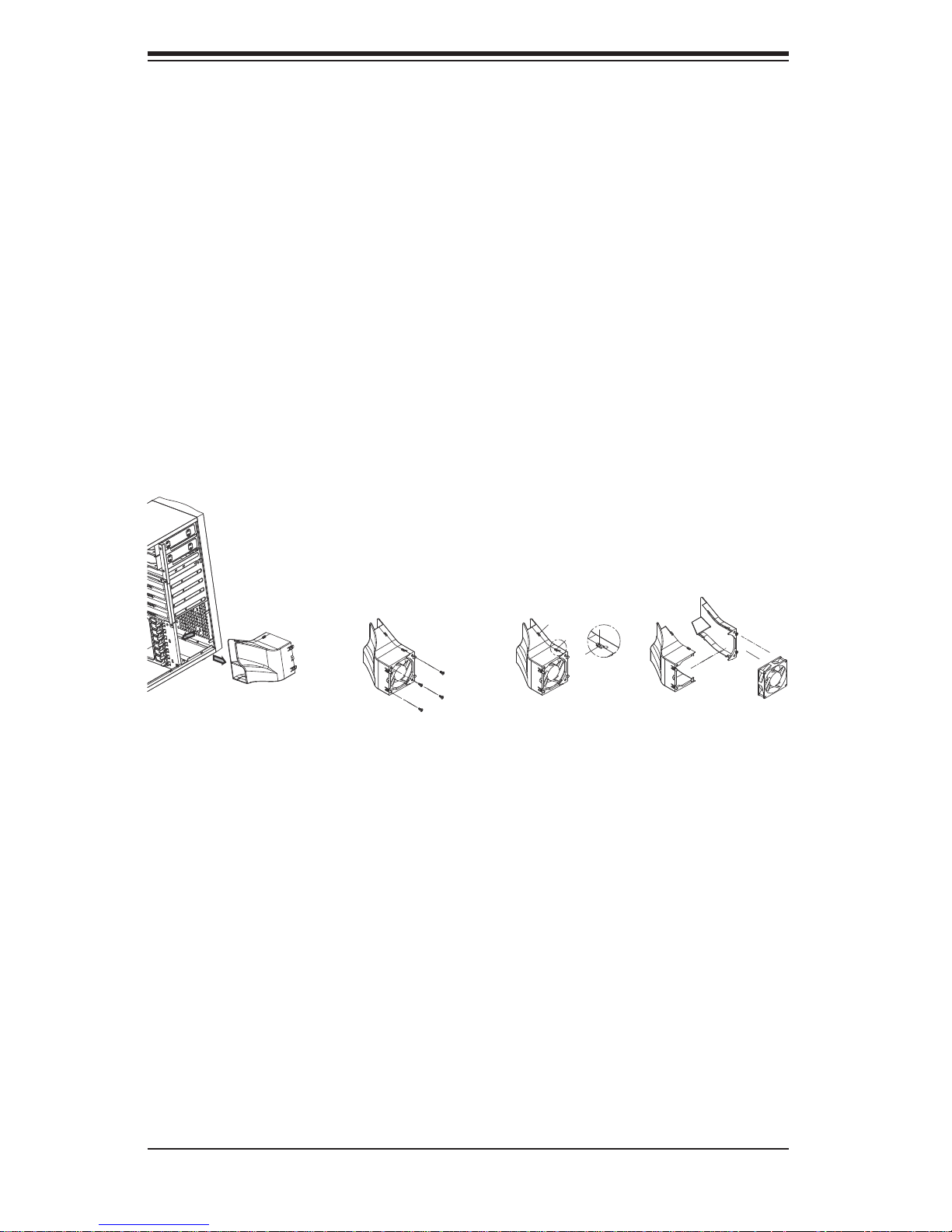

Figure 6-4. Removing the Fan Duct Assembly
6-6
Page 59
Chapter 6: Advanced Chassis Setup
!
6-4 Drive Bay Installation
A bezel covers the front of the chassis but does not need to be removed to access
the drives. If you wish to remove the bezel piece, push on the three tabs on the
inside left side lip of the front chassis cover. Then slightly swing out the same (left)
side of the cover - about ½ inch only. Remove by pushing on the open side of the
cover to remove it from the chassis (do not try to swing or pull it straight out after
opening the left side.
Important! Use extreme caution when working around the SATA
backplane. Do not touch the backplane with any metal objects and
make sure no ribbon cables touch the backplane or obstruct the
airfl ow holes in the SAT A backplane. Regardless of how many SATA
hard drives are installed, all four SATA drive carriers must remain
in the drive bays to promote proper airfl ow.
Serial ATA Drives
The SATA drives are mounted in drive carriers to simplify their installation and
removal from the chassis. These carriers also work to promote proper airfl ow for
the system. For this reason, even carriers without SATA drives must remain in the
workstation.
After unlocking the Serial ATA (SATA) drive bay door, swing it open to access the
SATA drive. The drive IDs are preconfi gured as 0 through 3 in order from bottom
to top. These SATA drives are hot-pluggable, meaning they can be removed and
installed without powering down the system.
Installing/Removing Hot-Plug SATA Drives
To remove a carrier, fi rst open the front bezel then push the release button 1.
located beside the drive LEDs.
Swing the colored handle fully out and use it to pull the unit straight out (see 2.
Figure 6-5). Note: Your operating system must have RAID support to enable
the hot-plug capability of the SATA drives.
Mounting a SATA Drive in a Drive Carrier
Insert the drive into the carrier with the printed circuit board side facing down 1.
so that the mounting holes align with those in the carrier.
Secure the drive to the carrier with four screws.2.
6-7
Page 60
SUPERWORKSTATION 5036T-T Manual
Figure 6-5. Removing a SATA Drive Carrier
6-8
Page 61
Chapter 6: Advanced Chassis Setup
Installing Components in the 5.25" Drive Bays
The 5036T-T has two 5.25" drive bays above the SATA drive bays. Components
such as a fl oppy drive, IDE hard drives or CD-ROM drives can be installed in these
5.25" drive bays.
Accessing the drive carrier
First power down the system and unplug the power cord.1.
Remove the top/left chassis cover to access the drive components.2.
With the cover off, remove the two or four screws that secure the drive carrier 3.
to the chassis (one side only) then push the entire empty drive carrier out
from the back.
Adding a DVD-ROM drive
Remove the guide plate from right side of the empty drive carrier and screw it 1.
into the right side of the DVD-ROM drive using the holes provided (see Figure
6-6).
Slide the DVD-ROM into the bay and secure it to the chassis with the drive 2.
carrier screws you fi rst removed.
Attach the power and data cables to the drive.3.
Replace the top/left chassis cover before restoring power to the system.4.
Adding an IDE or fl oppy drive
Install a fl oppy or IDE drive into one of the removed empty drive carriers 1. with
the printed circuit board side toward the carrier so that the drive's mounting
holes align with those in the carrier.
Secure the drive to the carrier with four screws then slide the assembly into 2.
the bay and secure it to the chassis with the drive carrier screws you fi rst
removed.
Attach the power and data cables to the drive.3.
Replace the top/left chassis cover before restoring power to the system.4.
Note: A red wire typically designates the location of pin 1. You should keep the
drive carriers inserted in any unused drive bays to reduce EMI and noise and to
facilitate the airfl ow inside the chassis.
6-9
Page 62
SUPERWORKSTATION 5036T-T Manual
!
Figure 6-6. Adding a Component Without a Drive Carrier
6-5 SATA-733 Backplane Specifi cations
The SATA backplane supports four SATA drives. The SATA drive's LED connector on the SATA backplane is JP26. There are also two power connectors on the
backplane - both should be connected. Do not cascade the SATA backplane. Refer
to the following table for jumper settings-
Important! Use extreme caution when working aroud the Serial AT A (SATA)
backplane. Do not touch the backplane with any metal objects and make
sure that no ribbon cables touch the backplane or obstruck the airfl ow
holes in the SATA backplane. All SATA drive carriers must remain in the
drive bays to promoste proper airfl ow.
6-10
Page 63
Chapter 6: Advanced Chassis Setup
Figure 6-7: SATA-733 Backplane
Note: all backplane jumpers are set to their recommended default settings. For
details on the backplane jumpers, please refer to the CSE-SAS-733TQ manual
(avaialable on the Supermicro web site).
6-11
Page 64
SUPERWORKSTATION 5036T-T Manual
6-6 Power Supply
The 5036T-T has a single 465W high-effi ciency power supply that features noise-
suppression technology for silent operation. The power supply has the capability
to automatically sense and operate with an input voltage of 100 or 240V AC. This
power supply also has a PFC (Power Factor Correction) feature built in.
Replacing the Power Supply
To replace the power supply, begin by powering down the system and unplug-1.
ging the power cord.
Remove the left chassis cover to access the power supply for removal.2.
Unplug the power cord from the power supply. Then remove the power supply 3.
connectors going to the motherboard and the SATA backplane.
Remove the screws that secure the unit to the mounting brackets in the chas-4.
sis and then pull the unit completely out.
Replace the failed power supply with another having the exact same part 5.
number (PWS-465-PQ). Gently but fi rmly push the new unit all the way into
the open bay.
Secure it to the mounting brackets in the chassis with the screws provided. 6.
Connect two power cables to the SATA backplane and two to the mother-7.
board (ATX PWR CONN and J21 connectors).
Finish by replacing the chassis left cover and then restoring power to the 8.
system.
6-12
Page 65
Chapter 7: BIOS
Chapter 7
BIOS
7-1 Introduction
This chapter describes the AMI BIOS Setup Utility for the X8SAX/C7X58. The AMI
ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter
describes the basic navigation of the AMI BIOS Setup Utility setup screens.
Starting BIOS Setup Utility
To enter the AMI BIOS Setup Utility screens, press the <Delete> key while the
system is booting up.
Note: In most cases, the <Delete> key is used to invoke the AMI BIOS
setup screen. There are a few cases when other keys are used, such as
<F1>, <F2>, etc.
Each main BIOS menu option is described in this manual. The Main BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be confi gured. Grayed-out options cannot be confi gured. Options in blue can be
confi gured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for a text message. When an option is selected in the
left frame, it is highlighted in white. Often a text message will accompany it. (Note:
the AMI BIOS has default text messages built in. Supermicro retains the option to
include, omit, or change any of these text messages.)
The AMI BIOS Setup Utility uses a key-based navigation system called hot keys.
Most of the AMI BIOS setup utility hot keys can be used at any time during the
setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, arrow keys, etc.
Note: Options printed in Bold are default settings.
How To Change the Confi guration Data
The confi guration data that determines the system parameters may be changed by
entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing
<Del> at the appropriate time during system boot.
7-1
Page 66
SuperWorkstation 5036T-T User's Manual
Starting the Setup Utility
Normally, the only visible POST (Power On Self Test) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS Setup Utility. From the main menu, you can access the other setup
screens. An AMI BIOS identifi cation string is displayed at the left bottom corner of
the screen, below the copyright message.
Warning!! Do not shut down or reset the system while updating BIOS
to prevent possible boot failure.

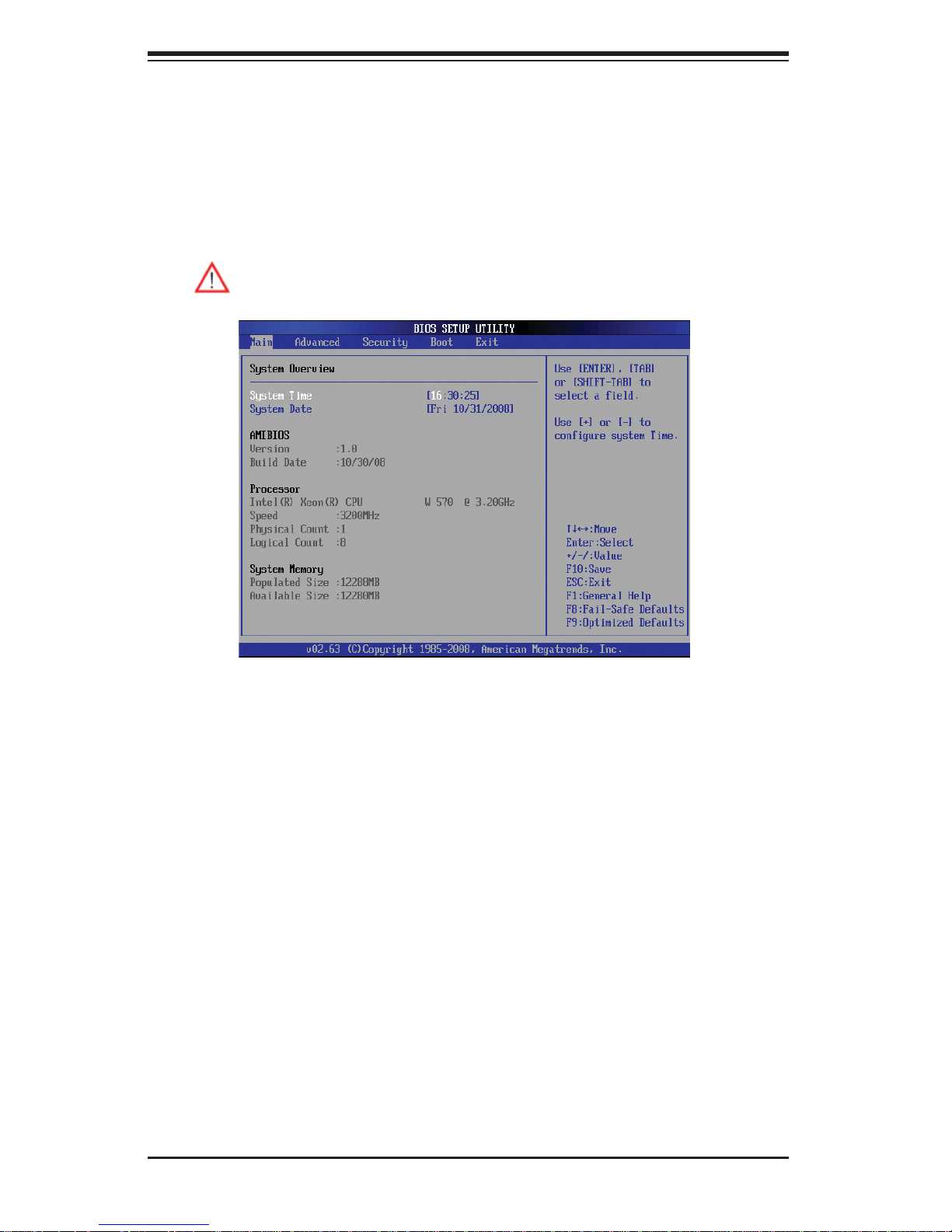

7-2 Main Setup
When you fi rst enter the AMI BIOS Setup Utility , you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS Setup screen is shown below.
System Overview: The following BIOS information will be displayed:
System Time/System Date
Use this option to change the system time and date. Highlight System Time or System Date using the arrow keys. Enter new values through the keyboard. Press the
<Tab> key or the arrow keys to move between fi elds. The date must be entered in
Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time
is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.)
AMIBIOS
Version
Build Date
7-2
Page 67
Chapter 7: BIOS
Processor
The AMI BIOS will automatically display the status of processor as shown below:
Speed
Physical Count
Logical Count
System Memory
This displays the size of memory available in the system:
Populated Size
Available Size
7-3
Page 68
SuperWorkstation 5036T-T User's Manual

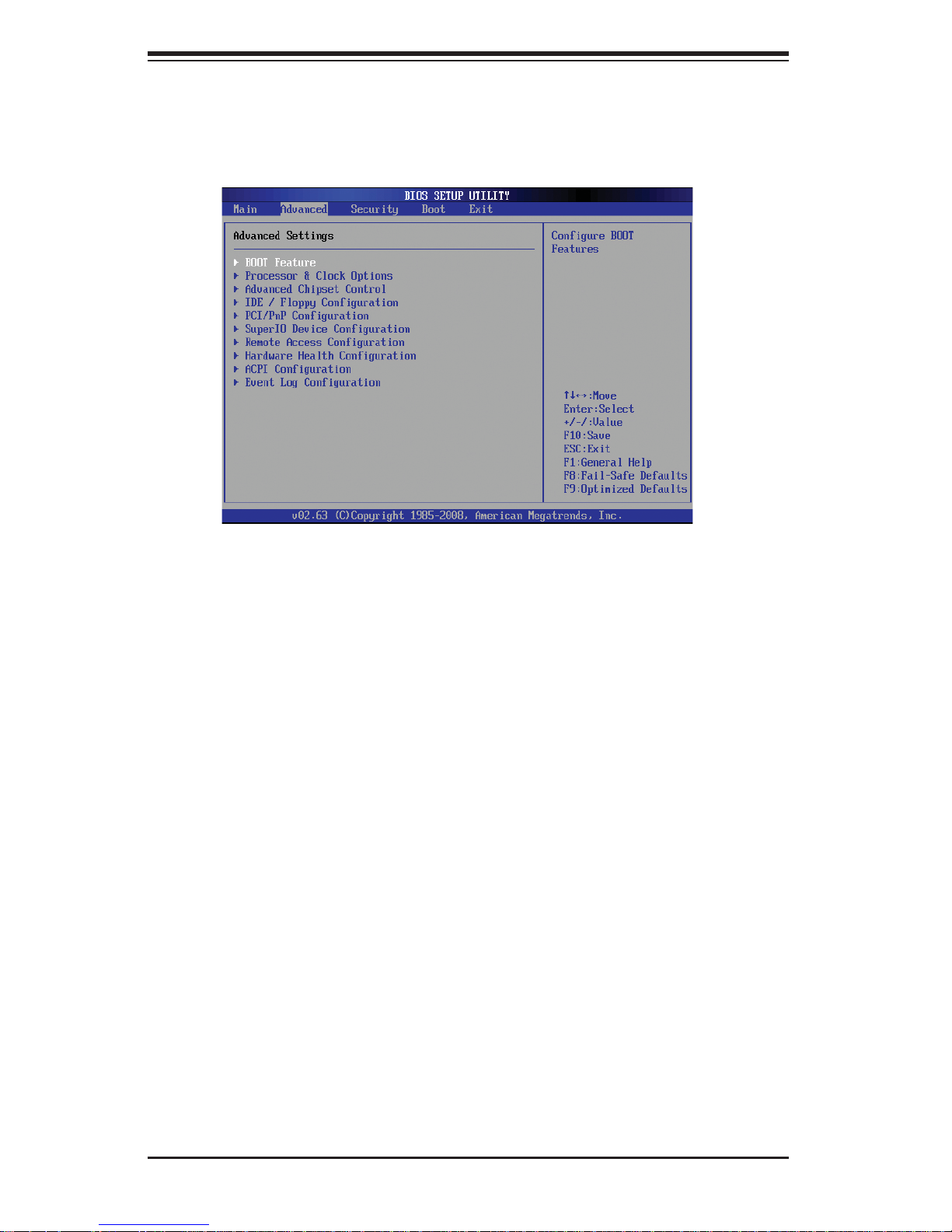

7-3 Advanced Setup Confi gurations
Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu
items:
XBOOT Feature
Quick Boot
If Enabled, this option will skip certain tests during POST to reduce the time needed
for system boot. The options are Enabled and Disabled.
Quiet Boot
This option allows the bootup screen options to be modifi ed between POST mes-
sages or the OEM logo. Select Disabled to display the POST messages. Select
Enabled to display the OEM logo instead of the normal POST messages. The options are Enabled and Disabled.
AddOn ROM Display Mode
This set s the display mode f or Option ROM . The options ar e Force BI OS and
Keep Current.
Bootup Num-Lock
This feature selects the Power-on state for Numlock key. The options are Of f
and On.
PS/2 Mouse Su ppor t
This feature enables support for the PS/2 mouse. The options are Disabled,
Enabled and Auto.
7-4
Page 69
Chapter 7: BIOS
Wait For 'F1' If Error
This for c e s th e syste m to wa it unt il t h e ' F1' key is presse d if a n er r o r oc c ur s . Th e
option s are Dis able d and Enabled.
Hit 'Del' Message Display
This feature displays "Press DEL to run Setup" during POST. The options are
Enabled and Disabled.
Watch Dog Function
If enable d, the Watch Do g Timer wil l a l low the system t o r e boot when i t i s i n a ctive
for more t han 5 minu tes. The o ption s are Enabl ed and Disabled.
Restore on AC Power Loss
Use this feature to set the power state after a power outage. Select Power-Off for
the system power to remain off after a power loss. Select Power-On for the system
power to be turned on after a power loss. Select Last State to allow the system to
resume its last state before a power loss. The options are Power-On, Power-Off
and Last State.
Interrupt 19 Capture
Interr upt 19 is the sof twar e interr upt that han dles the b oot disk f uncti on.
When thi s item is set to En abled, t he ROM BIO S of the ho st adaptor s will
"captur e" Interr upt 19 at boot and all ow the dr ives that ar e atta ched to th ese
host adaptors to function as bootable disks. If this item is set to Disabled, the
ROM BIOS o f the host a daptors w ill not c apture Inte rrupt 19, and t he drive s
attac hed to the se adaptor s will not f uncti on as boot able devic es. Th e options
are Enabl ed and Disabled.
XProcessor & Clock Options
When you fi rst enter the Processor and Clock Options, the current
processor and clock confi guration is displayed. Below it are the different
options that can be modifi ed:
Ratio CMOS Setting
This option allows the user to set the ratio between the CPU Core Clock and the
FSB Frequency. (Note: if an invalid ratio is entered, the AMI BIOS will restore the
setting to the previous state.) The default setting depends on what type of CPU
is installed. For example, the default setting for the Intel® Core i7™ 965 is [24].
Press "+" or "-" on your keyboard to change this value.
7-5
Page 70
SuperWorkstation 5036T-T User's Manual
Clock-Spread Spectrum
Select Enable to use the feature of Clock Spectrum, which will allow the BIOS to
monitor and attempt to reduce the level of Electromagnetic Interference caused by
the components whenever needed. The options are Disabled and Enabled.
Hardware Prefetcher (Available when supported by the CPU)
If set to Enabled, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache in the forward or backward manner to
improve CPU performance. The options are Disabled and Enabled.
Adjacent Cache Line Prefetch (Available when supported by the CPU)
The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The
CPU fetches both cache lines for 128 bytes as comprised if Enabled.
Intel <R> Virtualization Technology (Available when supported by the CPU)
Select Enabled to use the feature of Virtualization T echnology to allow one platform
to run multiple operating systems and applications in independent partitions, creating mult iple " vir tual" sy stems in o ne physic al co mputer. The opt ions ar e Enable d
and Disabled. Note: If there is any change to this setting, you will need to power
off an d restart th e sy s tem for the change to take effe ct. Plea se refer to Inte l’s web
site for detailed information.
Execute-Disable Bit Compatibly (Available when supported by the OS and
the CPU)
Set to Enabled to enable the Execute Disable Bit which will allow the processor
to designate areas in the system memory where an application code can execute
and where it cannot, thus preventing a worm or a virus from fl ooding illegal codes
to overwhelm the processor or damage the system during an attack. The default is
Enabled. (Refer to Intel and Microsoft Web Sites for more information.)
Simultaneous Multi-Threading (Available when supported by the CPU)
Set to Enabled to use the Hyper-Threading Technology , which will result in increased
CPU performance. The options are Disabled and Enabled.
Active Processor Cores
Set to Enabled to use a processor's Second Core and beyond. (Please refer to
Intel's web site for more information.) The options are All, 1 and 2.
Intel® EIST Technology
EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically
adjust processor voltage and core frequency in an effort to reduce power consump-
7-6
Page 71
Chapter 7: BIOS
tion and heat dissipation. Please refer to Intel’s web site for detailed information.
The options are Disable: Disable GV3 and Enable: Enable GV3.
Intel® TurboMode Tech (Available if Intel® EIST technology is Enabled)
This feature allows processor cores to run faster than marked frequency in specifi c
conditions. The options are Disabled and Enabled.
Intel Turbo Boost Confi guration
Turbo Ratio Limit Program
This enables a feature that sets a limit to how high the Processor's clock ratio is
set in relation to the bus speed. The options are Enabled and Disabled
1 - Core Ratio Limit
This increases (multiplies) the Processor's core (1) clock speed in relation to
the bus speed. Default is 26. Press "+" or "-" on your keyboard to change
this value.
2 ~ 3 - Core Ratio Limit
This increases the Processor's core (2~3) clock speed in relation to the bus
speed. Default is 25. Press "+" or "-" on your keyboard to change this value.
TDC Limit Override
This option will override the system's default Current settings for the processor.
The options are Enabled and Disabled.
TDC Limit Value
This option sets the processor's Current value. The Default is 880. Press "+"
or "-" on your keyboard to change this value.
TDP Limit Override
This option will override the system's default Power settings for the processor.
The options are Enabled and Disabled.
TDP Limit Value
This option sets the processor's Power value. Default is 1040. Press "+" or "-"
on your keyboard to change this value.
Intel® C-STATE Architecture
C-State Architecture is a type of processor power management developed by
Intel to allow deeper power reduction from the basic C1 (Halt State) which
blocks clock cycles to the CPU. C-State is an idle state and instructions
are not processed by the CPU. A brief explanation of all the C-States are
as follows:
7-7
Page 72
SuperWorkstation 5036T-T User's Manual
C0 - Active. The CPU is processing instructions.
C1 - Auto Halt. The core clock (CPU) is off. This is the most basic idle state.
Some CPUs support C1E (C1 Enhanced) for lower power consumption.
C2 - Stop Clock. Both the core clock (CPU) and bus clocks (I/O) are off.
C3 - Deep Sleep. The clock generator is off.
C4 - Deeper Deep Sleep. Reduced VCC (Voltage supply).
C6 - Cache Power Off. Power is turned off to all caches.
C7 - Processor Specifi c. Leaves initialized Application Processor in a processor-
specifi c low C-State. For Intel® Core i7™ processors, this is the lowest sup-
ported C-State.
C1E Support
This should be enabled in order to use the "Enhanced Halt State" feature. C1E
signifi cantly reduces the CPU's power consumption by reducing the CPU's clock
cycle and voltage during a "Halt State". The options are Disabled and Enabled.
C-STATE Tech
If enabled, C-State is set by the system automatically to either C2/C3/C4. The
options are Disabled and Enabled.
C-State package limit setting
The selected option will be programmed into the C-State package limit register.
The options are Auto, C1, C3, C6 and C7.
C1 Auto Demotion
When enabled, the CPU will conditionally demote C3/C6/C7 requests to C1 based
on uncore auto-demote information. The options are Disabled and Enabled.
C3 Auto Demotion
When enabled, the CPU will conditionally demote C6/C7 requests to C1 based on
uncore auto-demote information. Available options are Disabled and Enabled.
DCA
This feature cooperates with Intel I/O AT (Acceleration Technology) to accelerate
the performance of TOE devices. (Note: A TOE device is a specialized, dedicated
processor that is installed on an add-on card or a network card to handle some or all
packet processing of this add-on card. For this motherboard, the TOE device is built
inside the ESB 2 South Bridge chip.) The options are Enabled and Disabled.
7-8
Page 73
Chapter 7: BIOS
DCA Prefetch Delay
A DCA Prefetch is used with TOE components to prefetch data in order to shorten
execution cycles and maximize data processing effi ciency. Prefetching too fre-
quently can saturate the cache directory and delay necessary cache accesses. This
feature reduces or increases the frequency the system prefetches data. The options
are [8], [16], [32], [40], [48], [56], [64], [72], [80], [88], [96], [104], [112], [120]
XAdvanced Chipset Control
The items included in the Advanced Settings submenu are listed below:
QPI and IMC Confi guration
QPI (QuickPath Interconnect) is the connection between the CPU and
the motherboard's I/O hub. This section enables this feature to be
modifi ed according to the desired confi guration, such as speed and power
consumption.
QPI Links Speed
This feature selects QPI's data transfer speed.. The options are Slow-mode,
and Full Speed
QPI Frequency
This selects the desired QPI frequency. The options are Auto, 4.800 GT,
6.400 GT.
QPI L0s and L1
This enables the QPI power state to low power. L0s and L1 are automatically
selected by the motherboard. The options are Disabled and Enabled.
Memory Frequency
This feature forces a DDR3 frequency slower than what the system has
detected. The available options are Auto, Force DDR-800, Force DDR-1066,
Force DDR-1333, Force DDR-1600.
Memory Mode
The options are Independent, Channel Mirror, Lockstep and Sparing.
Independent - All DIMMs are available to the operating system.
Channel Mirror - The motherboard maintains two identical copies of all data in
memory for redundancy.
7-9
Page 74
SuperWorkstation 5036T-T User's Manual
Lockstep - The motherboard uses two areas of memory to run the same set
of operations in parallel.
Sparing - A preset threshold of correctable errors is used to trigger fail-over.
The spare memory is put online and used as active memory in place of the
failed memory.
Demand Scrubbing
A memory error-correction scheme where the Processor writes corrected data
back into the memory block from where it was read by the Processor. The
options are Disabled and Enabled.
Patrol Scrubbing
A memory error-correction scheme that works in the background looking for
and correcting resident errors. The options are Disabled and Enabled.
Throttling - Closed Loop
Throttling improves reliability and reduces power in the processor by
automatic voltage control during processor idle states. Available options are
Disabled and Enabled. If Enabled, the following items will appear:
Hyster Temp
Temperature Hysteresis is the temperature lag (in degrees Celsius) after the
set DIMM temperature threshold is reached before Closed Loop Throttling
begins. The options are Disabled, 1.5
o
C, 3.0oC, and 6.0oC.
Guardband Temp
This is the temperature which applies to the DIMM temperature threshold.
Each step is in 0.5
o
C unit. The default is [006]. Press "+" or "-" on your
keyboard to change this value.
Inlet Temp
This is the temperature detected at the chassis inlet. Each step is in 0.5
unit. The default is [070]. Press "+" or "-" on your keyboard to change
this value.
o
C
Temp Rise
This is the temperature rise to the DIMM thermal zone. Each step is in
o
0.5
C unit. The default is [020]. Press "+" or "-" on your keyboard to
change this value.
7-10
Page 75
Chapter 7: BIOS
Air Flow
This is the air fl ow speed to the DIMM modules. Each step is in mm/sec. The
default is [1500]. Press "+" or "-" on your keyboard to change this value.
Altitude
This feature defi nes how many meters above or below sea level the system
is located. Each step is in meters. The options are Sea Level or Below,
1~300, 301~600, 601~900, 901~1200, 1201~1500, 1501~1800, 1801~2100,
2101~2400, 2401~2700, 2701~3000.
DIMM Pitch
This is the physical space between each DIMM module. Each step is in
1/1000 of an inch. The default is [400]. Press "+" or "-" on your keyboard
to change this value.
Throttling - Open Loop
If Enabled, the same options as in Throttling - Closed Loop above will
appear with the exception of Hyster Temp and Guardband Temp. The options
are Disabled and Enabled.
High Performance Event Timer
Select Enabled to activate the High Performance Event Timer (HPET) that
produces periodic interrupts at a much higher frequency than a Real-time Clock
(RTC) does in synchronizing multimedia streams, providing smooth playback
and reducing the dependency on other timestamp calculation devices, such as
an x86 RDTSC Instruction embedded in the CPU. The High Performance Event
Timer is used to replace the 8254 Programmable Interval Timer. The options are
Enabled and Disabled.
HDA Controller
Select Enabled to enable the High-Defi nition Audio Controller. The options are
Enabled and Disabled.
Intel VT-d
Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d
by reporting the I/O device assignments to VMM through the DMAR ACPI Tables.
This feature offers fully-protected I/O resource-sharing across the Intel platforms,
providing the user with greater reliability, security and availability in networking and
data-sharing. The settings are Enabled and Disabled.
7-11
Page 76
SuperWorkstation 5036T-T User's Manual
Intel I/OAT
The Intel I/OAT (I/O Acceleration Technology) signifi cantly reduces CPU
overhead by leveraging CPU architectural improvements, freeing resources for
more other tasks. Available options are Disabled and Enabled.
Active State Power Management
Selec t Enabled to star t Active -State Powe r Management fo r signal trans actions
betwe en L0 an d L1 Links on the PCI E xp re s s Bus . Th is ma x im ize s powe r-s avin g
and tran sact ion spe ed. The o ption s are Enabl ed and Disabled.
USB Functions
This feature allows the user to decide the number of onboard USB ports to be enabled. The Options are: Disabled, 2 USB ports, 4 USB ports, 6 USB ports, 8 USB
ports, 10 USB ports and 12 USB ports.
USB2.0 Controller
Select Enabled to activate th e onboard USB2.0 c ontroller. The options are En-
abled and Disabled.
Legacy USB Support
Select Enabled to use Legacy USB devices. If this item is set to Auto, Legacy USB
support will be automatically enabled if a legacy USB device is installed on the
motherboard, and vise versa. The settings are Disabled, Enabled and Auto.
7-12
Page 77
Chapter 7: BIOS
XIDE / Floppy Confi guration
When this submenu is selected, the AMI BIOS automatically detects the
presence of the IDE Devices and displays the following items:
Floppy A
This feature allows the user to select the type of fl oppy drive connected to the sys-
tem. The options are Disabled, 360KB 5 1/4", 1.2MB 5 1/4", 720KB 3 1/2", 1.44MB
3 1/2" and 2.88MB 3 1/2".
SATA#1 Confi guration
If Compatible is selected, it sets SATA#1 to legacy compatibility mode, while
selecting Enhanced sets SATA#1 to native SATA mode. The options are
Disabled, Compatible, Enhanced
Confi gure SATA#1 As
This feature allows the user to select the drive type for SATA#1. The options are
IDE, RAID and AHCI.
ICH RAID CodeBase (Available if RAID is selected above)
Select Intel to enable the Intel SATA Host RAID Utility. Select Intel to use the Intel
HostRAID Utility. The options are Intel and Adaptec.
Max Ports on SATA#1 (Available if either RAID or AHCI is enabled under
"Confi gure SATA#1 as" above)
The options are 4 Ports and 6 Ports.
SATA#2 Confi guration
Selecting Enhanced will set SATA#2 to native SATA mode. The options are
Disabled, Enhanced
IDE Detect Timeout (sec)
Use this feature to set the time-out value for the BIOS to detect the ATA, ATAPI
devices installed in the system. The options are 0 (sec), 5, 10, 15, 20, 25, 30, and
35.
AHCI CD/DVD Boot Timeout
Use this feature to set the time-out value for the BIOS to detect the AHCI CD/DVD
boot devices installed in the system. The options are 0 (sec), 5, 10, 15, 20, 25,
30, and 35.
7-13
Page 78
SuperWorkstation 5036T-T User's Manual
Primary IDE Master/Slave, Secondary IDE Master/Slave, Third IDE Master,
and fourth IDE Master
These settings allow the user to set the parameters of Primary IDE Master/Slave,
Secondary IDE Master/Slave, Third and Fourth IDE Master slots. Hit <Enter> to
activate the following submenu screen for detailed options of these items. Set the
correct confi gurations accordingly. The items included in the submenu are:
Type
Select the type of device connected to the system. The options are Not Installed,
Auto, CD/DVD and ARMD.
LBA/Large Mode
LBA (Logical Block Addressing) is a method of addressing data on a disk drive.
In the LBA mode, the maximum drive capacity is 137 GB. For drive capacities
over 137 GB, your system must be equipped with a 48-bit LBA mode addressing.
If not, contact your manufacturer or install an ATA/133 IDE controller card that
supports 48-bit LBA mode. The options are Disabled and Auto.
Block (Multi-Sector Transfer)
Block Mode boosts the IDE drive performance by increasing the amount of data
transferred. Only 512 bytes of data can be transferred per interrupt if Block Mode
is not used. Block Mode allows transfers of up to 64 KB per interrupt. Select
Disabled to allow data to be transferred from and to the device one sector at
a time. Select Auto to allow data transfer from and to the device occur multiple
sectors at a time if the device supports it. The options are Auto and Disabled.
PIO Mode
The IDE PIO (Programmable I/O) Mode programs timing cycles between the IDE
drive and the programmable IDE controller. As the PIO mode increases, the cycle
time decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow the
AMI BIOS to automatically detect the PIO mode. Use this value if the IDE disk
drive support cannot be determined. Select 0 to allow the AMI BIOS to use PIO
mode 0. It has a data transfer rate of 3.3 MBs. Select 1 to allow the AMI BIOS
to use PIO mode 1. It has a data transfer rate of 5.2 MBs. Select 2 to allow the
AMI BIOS to use PIO mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to
allow the AMI BIOS to use PIO mode 3. It has a data transfer rate of 11.1 MBs.
Select 4 to allow the AMI BIOS to use PIO mode 4. It has a data transfer 32-Bit
Data Transfer. Select Enabled to enable 32-Bit data transfer.
DMA Mode
Select Auto to allow the BIOS to automatically detect IDE DMA mode when the
IDE disk drive support cannot be determined. Select SWDMA0 to allow the BIOS
7-14
Page 79
Chapter 7: BIOS
to use Single Word DMA mode 0. It has a data transfer rate of 2.1 MBs. Select
SWDMA1 to allow the BIOS to use Single Word DMA mode 1. It has a data
transfer rate of 4.2 MBs. Select SWDMA2 to allow the BIOS to use Single Word
DMA mode 2. It has a data transfer rate of 8.3 MBs. Select MWDMA0 to allow
the BIOS to use Multi Word DMA mode 0. It has a data transfer rate of 4.2 MBs.
Select MWDMA1 to allow the BIOS to use Multi Word DMA mode 1. It has a data
transfer rate of 13.3 MBs. Select MWDMA2 to allow the BIOS to use Multi-Word
DMA mode 2. It has a data transfer rate of 16.6 MBs. Select UDMA0 to allow
the BIOS to use Ultra DMA mode 0. It has a data transfer rate of 16.6 MBs. It
has the same transfer rate as PIO mode 4 and Multi Word DMA mode 2. Select
UDMA1 to allow the BIOS to use Ultra DMA mode 1. It has a data transfer rate
of 25 MBs. Select UDMA2 to allow the BIOS to use Ultra DMA mode 2. It has
a data transfer rate of 33.3 MBs. Select UDMA3 to allow the BIOS to use Ultra
DMA mode 3. It has a data transfer rate of 66.6 MBs. Select UDMA4 to allow
the BIOS to use Ultra DMA mode 4 . It has a data transfer rate of 100 MBs. The
options are Auto, SWDMAn, MWDMAn, and UDMAn.
S.M.A.R.T. For Hard disk drives
Self-Monitoring Analysis and Reporting Technology (SMART) can help predict
impending drive failures. Select Auto to allow the AMI BIOS to automatically detect hard disk drive support. Select Disabled to prevent the AMI BIOS from using
the S.M.A.R.T. Select Enabled to allow the AMI BIOS to use the S.M.A.R.T. to
support hard drive disk. The options are Disabled, Enabled, and Auto.
32Bit Data Transfer
Select Enable to enable the function of 32-bit IDE data transfer. The options
are Enabled and Disabled. (Note: The default setting changes when different
devices are installed.)
XPCI/PnP Confi guration
This feature allows the user to set the PCI/PnP confi gurations for the following
items:
Clear NVRAM
This feature clears the NVRAM during system boot. The options are No and
Yes.
Plug & Play OS
Selecting Yes allows the OS to confi gure Plug & Play devices. (This is not required
for system boot if your system has an OS that supports Plug & Play.) Select No to
allow the AMI BIOS to confi gure all devices in the system.
7-15
Page 80
SuperWorkstation 5036T-T User's Manual
PCI Latency Timer
This feature sets the latency Timer of each PCI device installed on a PCI bus. Select
64 to set the PCI latency to 64 PCI clock cycles. The options are 32, 64, 96, 128,
160, 192, 224 and 248.
PCIX Slot Frequency
Use this setting to change the clock frequency of the PCIX slot(s). The available
options are Auto, 33MHz PCI, 66MHz PCI, 66MHz PCI-X M1, 100MHz PCI-X
M1, and 133MHz PCI-X M1.
PXH IOAPIC Function
Disable this setting for Windows Vista and Windows 2008. This is provided to
optimize compatibility. The options are Disabled and Enabled.
PCI IDE Bus Master
When enabled, the BIOS uses PCI bus mastering for reading/writing to IDE
drives. The options are Disabled and Enabled.
PCI Slot 1 ~ PCI Slot 6
Use this setting to disable any of the PCI slots. The options are Disabled and
Enabled.
Load Onboard LAN1 Option ROM, Load Onboard LAN2 Option ROM
This feature is to enable LAN OPROM for PXE. This is to boot computers using
a network interface. The options are Disabled and Enabled.
XSuper IO Device Confi guration
Serial Port1 Address/ Serial Port2 Address
This option specifi es the base I/O port address and the Interrupt Request address
of Serial Port 1 and Serial Port 2. Select Disabled to prevent the serial port from
accessing any system resources. When this option is set to Disabled, the serial port
physically becomes unavailable. Select 3F8/IRQ4 to allow the serial port to use 3F8
as its I/O port address and IRQ 4 for the interrupt address. The options for Serial
Port1 are Disabled, 3F8/IRQ4, 3E8/IRQ4, 2E8/IRQ3. The options for Serial Port2
are Disabled, 2F8/IRQ3, 3E8/IRQ4, and 2E8/IRQ3.
Serial Port 2 Mode
Use this feature to confi gure Serial Port 2 mode. The options are Normal, IrDA
and ASK IR. IrDA (Infra-Red Data) is an industry standard for remote control
7-16
Page 81
Chapter 7: BIOS
devices. ASK IR (Amplitude Shifted Keying Infra-Red) is a protocol compatible
with Sharp® branded PDAs and other infra-red devices.
Floppy Controller
Select Enabled to enable the onboard Floppy Controller. The options are Enabled
and Disabled.
XRemote Access Confi guration
Remote Access
This feature allows the user to enable the function of Remote Access. The options are Disabled and Enabled.
If the item Remote Access is set to Enabled, the following items will display:
Serial Port Number
This feature allows the user decide which serial port to be used for Console
Redirection. The options are COM 1, and COM 2.
Serial Port Mode
This feature allows the user to set the serial port mode for Console
Redirection. The options are 115200 8, n 1; 57600 8, n, 1; 38400 8, n, 1;
19200 8, n, 1; and 9600 8, n, 1.
Flow Control
This feature allows the user to set the fl ow control for Console Redirection. The
options are None, Hardware, and Software.
Redirection After BIOS POST
Select Disabled to turn off Console Redirection after Power_On_Self_Test
(POST). Select Always to keep C onsole Redirec tion active all the time af ter
POST. (Note: This settin g may not be sup por ted by so me oper ating sys tems.)
Select Boot Loader to keep Console Redirection active during POST and Boot
Loader. The opti ons are D isabl ed, Boot L oader, and Always.
Terminal Type
This feature allows the user to select the target terminal type for Console Redirection. The options are ANSI, VT100, and VT-UTF8.
VT-UTF8 Combo Key Support
A terminal keyboard defi nition that provides a way to send commands from a
remote console. Available options are Enabled and Disabled.
7-17
Page 82
SuperWorkstation 5036T-T User's Manual
Sredir Memory Display Delay
This feature defi nes the length of time in seconds to display memory information.
The options are No Delay, Delay 1 Sec, Delay 2 Sec, and Delay 4 Sec.
XHardware Health Confi guration
This feature allows the user to monitor Hardware Health of the system and review
the status of each item when displayed.
CPU Temperature, System Temperature
CPU Temperature Threshold
This option allows the user to set the CPU Overheat Temperature Threshold. When
the CPU temperature reaches this overheat threshold, the system will slow down
and the CPU fan will be activated to prevent CPU overheat. The options are TControl (the Thermal Control Setting inside the CPU), TControl + 5
Setting + 50C), and TControl + 100 (Thermal Control Setting + 100C).
0
(Thermal Control
Fan Speed Control Modes
This feature allows the user to decide how the system controls the speeds of the
onboard fans. The CPU temperature and the fan speed are correlative. When the
CPU on-die temperature increases, the fan speed will also increase, and vice versa.
Select Workstation if your system is used as a Workstation. Select Server if your
system is used as a Server. Select “Disabled, (Full Speed @12V)” to disable the
fan speed control function and allow the onboard fans to constantly run at the full
speed (12V). The Options are: 1. Disabled, 2. 4-pin (Super Quiet), and 3. 4-pin
(Workstation).
Voltage Monitoring
Vcore, +3.3Vcc, 12V, V_ DI MM, 5 V, -12V, 3.3VSB, and V batt .
Note: In the Windows OS environment, the Supero Doctor III settings take
precedence over the BIOS settings. When fi rst installed, Supero Doctor III
adopts the temperature threshold settings previously set in the BIOS. Any
subsequent changes to these thresholds must be made within Supero Doctor, since the SD III settings override the BIOS settings. For the Windows
OS to adopt the BIOS temperature threshold settings, please change the
SDIII settings to be the same as those set in the BIOS.
7-18
Page 83
Chapter 7: BIOS
XACPI Confi guration
Use this feature to confi gure ACPI (Advanced Confi guration and Power Interface)
power management settings for your system.
USB Device Wake-Up
This feature is used to awaken from Standby mode by a universal serial bus
(USB) device (such as, a USB mouse or USB keyboard). The options are
Enabled and Disabled.
PS2 KB/MS Wake-Up
This feature is used to awaken from Standby mode by a PS/2 mouse or PS/2
keyboard. The options are Enabled and Disabled.
ACPI Aware O/S
Enable ACPI support if it is supported by the OS to control ACPI through the Operating System. Otherwise, disable this feature. The options are Yes and No.
Suspend Mode
This option is used to select the ACPI State that is used for system suspend.
The options are S1 (POS), S3 (STR) and Auto.
S1 (POS) - All processor caches are erased, and stops executing instructions. Power to the CPU(s) and RAM is maintained, but RAM is
refreshed.
S3 (STR) - The CPU has no power and the power supply goes on reduced
power mode. However, main memory (RAM) is still powered.
Headless Mode
This feature is used to enable system to function without a keyboard, monitor or
mouse attached The options are Enabled and Disabled.
ACPI Version Features
The options are ACPI v1.0, ACPI v2.0 and ACPI v3.0. Please refer to ACPI's
website for further explanation: http://www.acpi.info/
XEvent Log Confi guration
View Event Log
Use this option to view the System Event Log.
Mark all events as read
This option marks all events as read. The options are OK and Cancel.
7-19
Page 84
SuperWorkstation 5036T-T User's Manual
Clear event log
This option clears the Event Log memory of all messages. The options are
OK and Cancel.

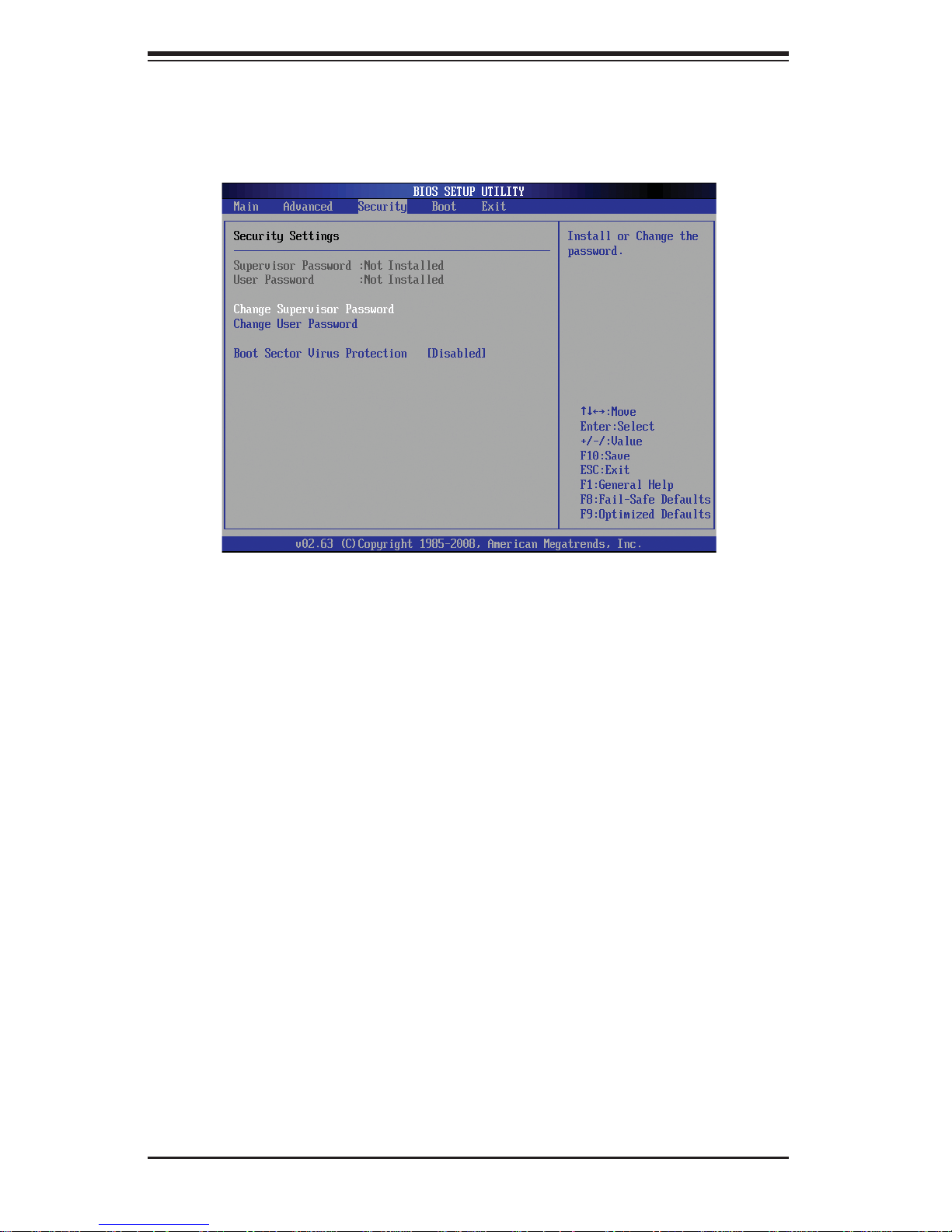

7-4 Security Settings
The AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set fi rst.
Supervisor Password
This item indicates if a supervisor password has been entered for the system. Clear
means such a password has not been used and Set means a supervisor password
has been entered for the system.
User Password Is:
This item indicates if a user password has been entered for the system. Clear
means such a password has not been used and Set means a user password has
been entered for the system.
Change Supervisor Password
Select this feature and press <Enter> to access the submenu, and then type in a
new Supervisor Password.
User Access Level (Available when Supervisor Password is set as above)
Available options are Full Access: grants full User read and write access to the
Setup Utility, View Only: allows access to the Setup Utility but the fi elds cannot be
changed, Limited: allows only limited fi elds to be changed such as Date and Time,
No Access: prevents User access to the Setup Utility.
7-20
Page 85
Chapter 7: BIOS
Change User Password
Select this feature and press <Enter> to access the submenu , and then type in a
new User Password.
Clear User Password (Available only if User Password has been set)
Password Check
Available options are Setup and Always.
Boot Sector Virus Protection
When Enabled, the AMI BOIS displays a warning when any program (or virus) issues a Disk Format command or attempts to write to the boot sector of the hard
disk drive. The options are Enabled and Disabled.
7-5 Boot Confi guration
Use this fe ature to co nfi gure Boot Settings:
XBoot Device Priority
This feature allows the user to specify the sequence of priority for the Boot Device.
The settings are 1st boot device, 2nd boot device, 3rd boot device, and Disabled.
1st boot device - 1st Floppy Drive
•
2nd boot device - [CD/DVD: XXXXXXXXXX]•
3rd boot device - [SATA: XXXXXXXXX]•
7-21
Page 86
SuperWorkstation 5036T-T User's Manual
XRemovable Drives
This feature allows the user to specify the boot sequence from available Removable
Drives. The settings are 1st boot device, 2nd boot device, and Disabled.
1st Drive
•
2nd boot device - [USB: XXXXXXXXX]•
7-6 Exit Options
Select the Exit tab from the AMI BIOS Setup Utility screen to enter the Exit BIOS
Setup screen.
Save Changes and Exit
When you have completed the system confi guration changes, select this option
to leave the BIOS Setup Utility and reboot the computer, so the new system confi guration parameters can take effect. Select Save Changes and Exit from the Exit
menu and press <Enter>.
Discard Changes and Exit
Select this option to quit the BIOS Setup without making any permanent changes
to the system confi guration, and reboot the computer. Select Discard Changes and
Exit from the Exit menu and press <Enter>.
Discard Changes
Select this option and press <Enter> to discard all the changes and return to the
AMI BIOS Utility Program.
7-22
Page 87
Chapter 7: BIOS
Load Optimal Defaults
To set this feature, select Load Optimal Defaults from the Exit menu and press
<Enter>. Then, select OK to allow the AMI BIOS to automatically load Optimal Defaults to the BIOS Settings. The Optimal settings are designed for maximum system
performance, but may not work best for all computer applications.
Load Fail-Safe Defaults
To set this feature, select Load Fail-Safe Defaults from the Exit menu and press
<Enter>. The Fail-Safe settings are designed for maximum system stability, but not
for maximum performance.
7-23
Page 88
SuperWorkstation 5036T-T User's Manual
Notes
7-24
Page 89
Appendix A: POST Error Beep Codes
Appendix A
POST Error Beep Codes
This section lists POST (Power On Self Test) error beep codes for the Phoenix BIOS.
POST error beep codes are divided into two categories: recoverable and terminal.
This section lists Beep Codes for recoverable POST errors.
Recoverable POST Error Beep Codes
When a re cove rab le t yp e of er r or oc c ur s dur ing P OST, BIOS will d isp lay a PO ST
code t hat desc ri bes th e prob lem. BI OS may al so iss ue one of t he fol lowin g beep
codes:
1 long and t wo sh or t beeps - v ideo c onfi guration error
1 repetit ive lon g beep - no m emor y detec ted
1 conti nuous be ep with t he fro nt panel O verhe at LED on - syste m overhe at
A-1
Page 90
SuperWorkstation 5036T-T User's Manual
Notes
A-2
Page 91
Appendix B: Software Installation Instructions
Appendix B
Software Installation Instructions
B-1 Installing Drivers
After you've installed the Windows Operating System, a screen as shown below
will appear. You are ready to install software programs and drivers that have not
yet been installed. To install these software programs and drivers, click the icons
to the right of these items.
Note: Click the icons showing a hand writing on the paper to view the readme fi les
for each item. Click a computer icon to the right of an item to install an item (from
top to the bottom) one at a time. After installing each item, you must re-boot the
system before proceeding with the next item on the list. The bottom icon with a CD
on it allows you to view the entire contents of the CD.

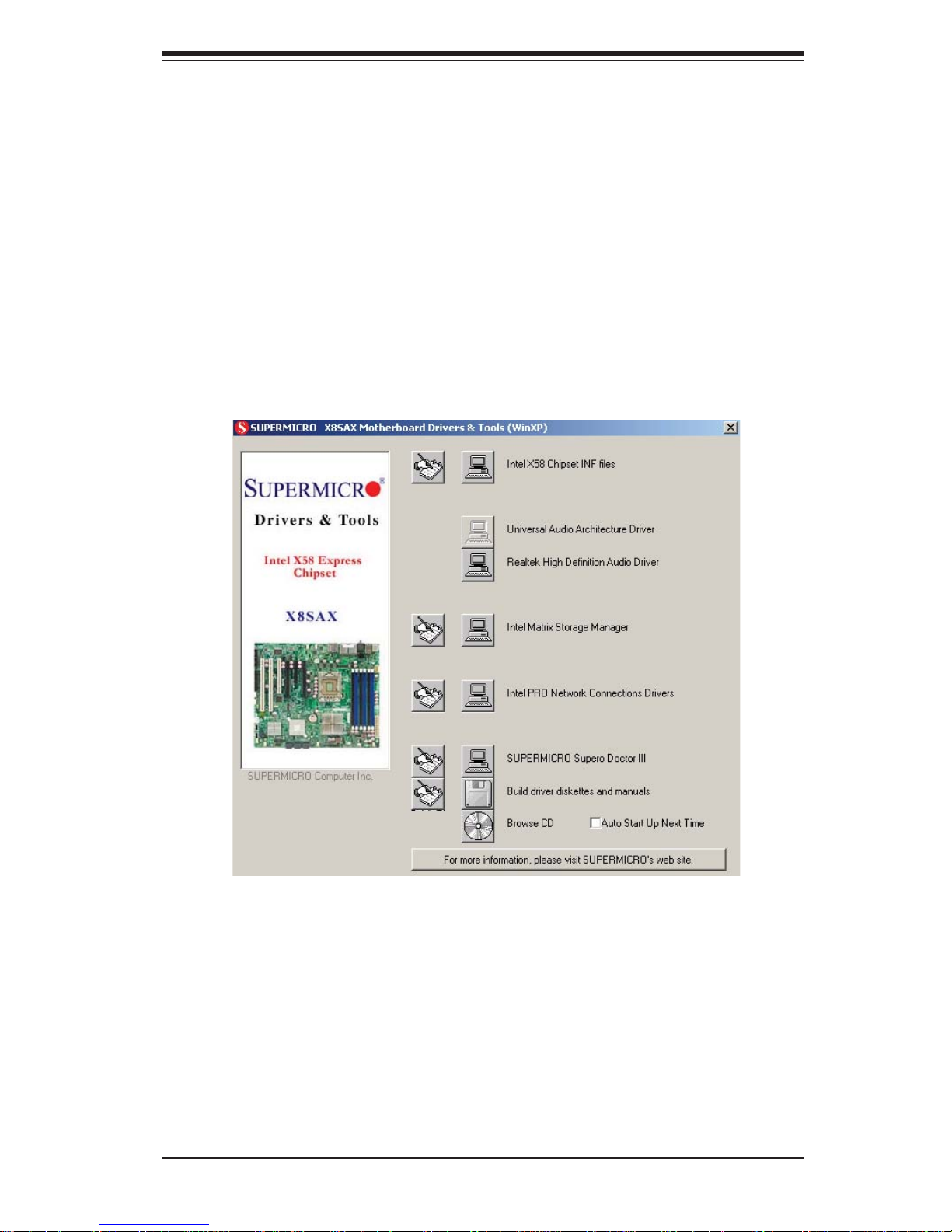

Driver/Tool Installation Display Screen
B-1
Page 92
SuperWorkstation 5036T-T User's Manual
B-2 Confi guring Supero Doctor III
The Supero Doctor III program is a Web-base management tool that supports
remote management capability. It includes Remote and Local Management tools.
The local management is called the SD III Client. The Supero Doctor III program
included on the CDROM that came with your motherboard allows you to monitor
the environment and operations of your system. Supero Doctor III displays crucial
system information such as CPU temperature, system voltages and fan status. See
the Figure below for a display of the Supero Doctor III interface.
Note 1: Both default user name and password are ADMIN.
Note 2: In the Windows OS environment, the Supero Doctor III settings take pre-
cedence over the BIOS settings. When fi rst installed, Supero Doctor III adopts the
temperature threshold settings previously set in the BIOS. Any subsequent changes
to these thresholds must be made within Supero Doctor, since the SD III settings
override the BIOS settings. For the Windows OS to adopt the BIOS temperature
threshold settings, please change the SDIII settings to be the same as those set
in the BIOS.

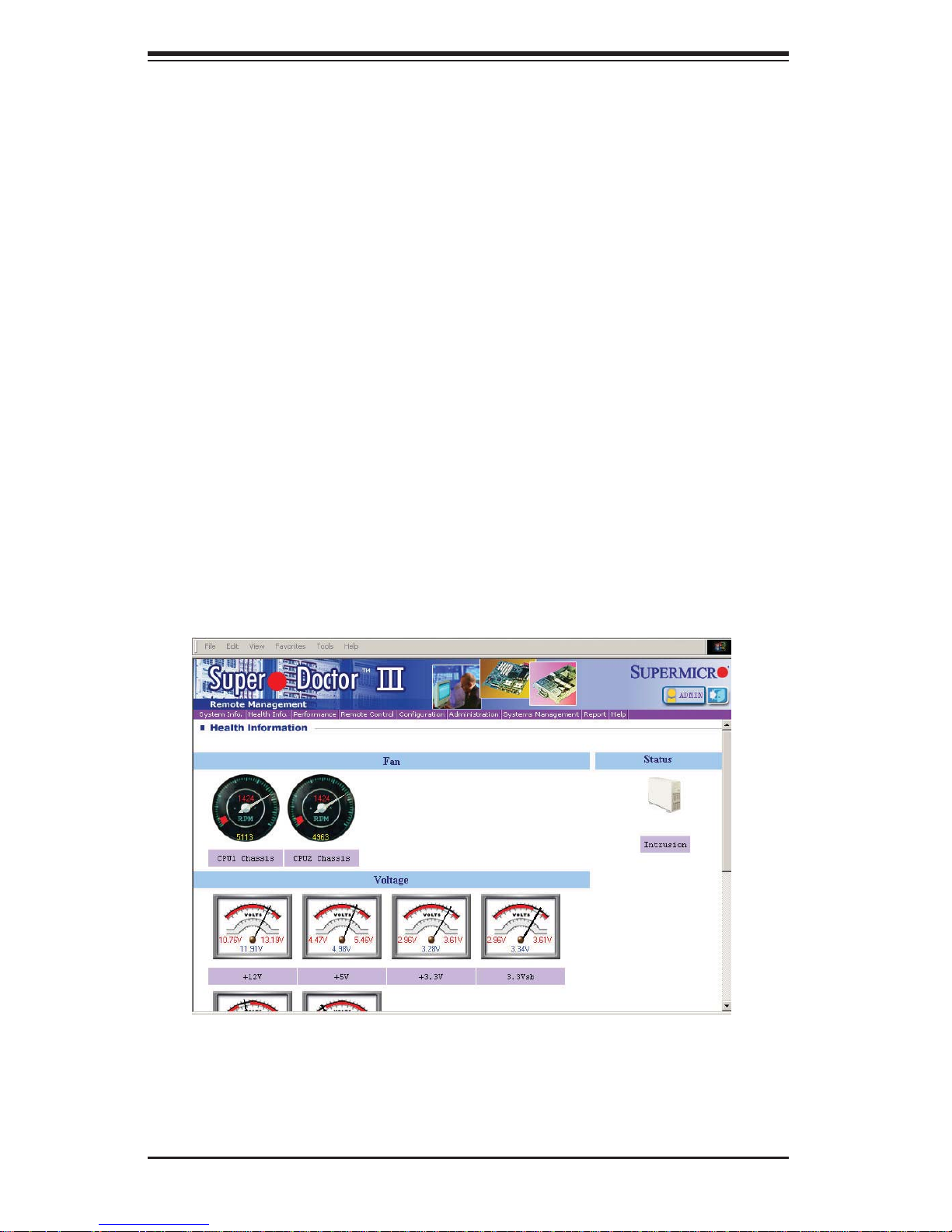

Supero Doctor III Interface Display Screen-I (Health Information)
B-2
Page 93
Appendix B: Software Installation Instructions

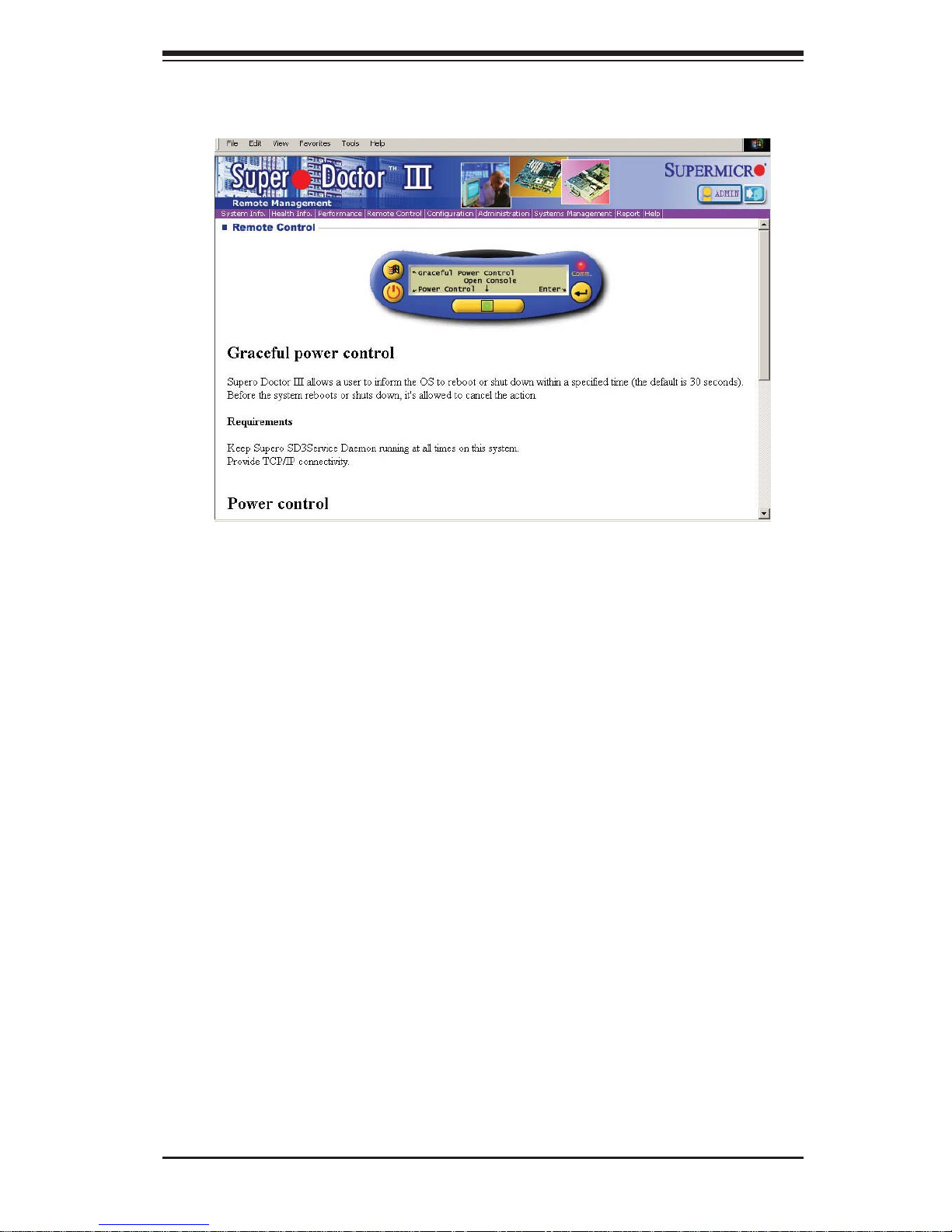

Supero Doctor III Interface Display Screen-II (Remote Control)
Note: SD III Software Revision 1.0 can be downloaded from our Web site at: ftp://
ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download SDIII User's
Guide at: http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf. For
Linux, we will still recommend that you use Supero Doctor II.
B-3
Page 94
SuperWorkstation 5036T-T User's Manual
Notes
B-4
Page 95
Appendix C: System Specifi cations
Appendix C
System Specifi cations
Processors
One Intel Core™ i7 Xeon® or future Intel Nehalem processor families (next
generation Intel Xeon® processor)
Note: Please refer to our web site for a complete listing of supported processors.
Chipset
Intel X38 + ICH9R
BIOS
16 Mb Ph oe nix ® BIOS
Memory Capacity
Six DIMM sockets supporting up to 24 GB of unbuffered, ECC/non-ECC DDR31333/1066/800 SDRAM
Note: See the memory section in Chapter 5 for details.
SATA Con troller
Intel on-chip controller for 3 Gb/s Serial ATA (RAID 0, 1, 5 and 10
supported)
Drive Bays
Four (4) hot-swap dri ve bays to hous e four (4) standard S ATA dri ves
Expansion Slots
Supports the use of six standard size PCI add-on cards: two PXI-E 2.0 x16 slots,
one PCI-E x44 slot, two PCI-X 133 MHz slots and one PCI slot.
Serverboard
X8SAX (proprietary ATX form factor)
Dimensions: 12" x 10" (305 x 254 mm)
Chassis
SC733TQ-465 (Mid-tower)
Dimensions: (WxHxD) 7 x 16.8 x 20.9 in. (178 x 427 x 531 mm)
C-1
Page 96
SuperWorkstation 5036T-T User's Manual
Weight
Gross (Bare Bone): 43 lbs. (19.5 kg.)
System Cooling
Six (6) paired sets of 4-cm counter-rotating cooling fans (fan speed controlled by
BIOS setting)
System Input Requirements
AC Input Voltage: 100-240 VAC
Rated Input Current: 6A (115V) to 3A (240V)
Rated Input Frequency: 50/60 Hz
Power Supply
Rated Output Power: 465W (Part# PWS-465-PQ)
Rated Output Voltages: +3.3V (15A), +5V (20A), +12V (35A), -12V (0.5A), +5Vsb
(3A)
Operating Environment
Operating Temperature: 10º to 35º C (50º to 95º F)
Non-Operating Temperature: -40º to 70º C (-40º to 158º F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-Operating Relative Humidity: 5 to 95% (non-condensing)
C-2
Page 97
Appendix C: System Specifi cations
Regulatory Compliance
Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/-33, CISPR 22 Class B
Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and
Canada), CE Marking (Europe)
California Best Management Practices Regulations for Perchlorate Materials:
This Perchlorate warning applies only to products containing CR (Manganese
Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate”
C-3
Page 98
SuperWorkstation 5036T-T User's Manual
The products sold by Supermicro are not intended for and will not be used in life support systems,
medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to
result in signifi cant injury or loss of life or catastrophic property damage. Accordingly, Supermicro dis-
claims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous
applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend
and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
(continued from front)
C-4
