Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the SuperServer 6025B-TR+/

6025B-8R+. Installation and maintainance should be performed by experienced

technicians only.

The SuperServer 6025B-TR+/6025B-8R+ is a high-end server based on the

SC825TQ-R700LP/SC825S2-R700LP 2U rackmount chassis and the X7DBE+/

X7DB8+, a dual processor serverboard that supports dual Intel

processors at a Front Side (System) Bus speed of 1333 MHz and up to 64 GB of

registered FBD ECC DDR2-667/533 SDRAM.

®

XeonTM LGA 771

Preface

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the serv-

er system and describes the main features of the X7DBE+/X7DB8+ serverboard and

the SC825TQ-R700LP/SC825S2-R700LP chassis, which comprise the SuperServer

6025B-TR+/6025B-8R+.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the SuperServer 6025B-

TR+/6025B-8R+ into a rack and check out the server confi guration prior to pow-

ering up the system. If your server was ordered without processor and memory

components, this chapter will refer you to the appropriate sections of the manual

for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and

information provided by the control panel on the chassis as well as other LEDs

located throughout the system.

iii

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Chapter 4: System Safety

You should thoroughly familiarize yourself with this chapter for a general overview

of safety precautions that should be followed when installing and servicing the

SuperServer 6025B-TR+/6025B-8R+.

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the X7DBE+/X7DB8+ serverboard,

including the locations and functions of connections, headers and jumpers. Refer

to this chapter when adding or removing processors or main memory and when

reconfi guring the serverboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC825TQ-R700LP/SC825S2-

R700LP server chassis. You should follow the procedures given in this chapter

when installing, removing or reconfi guring SATA/SCSI or peripheral drives and when

replacing system power supply units and cooling fans.

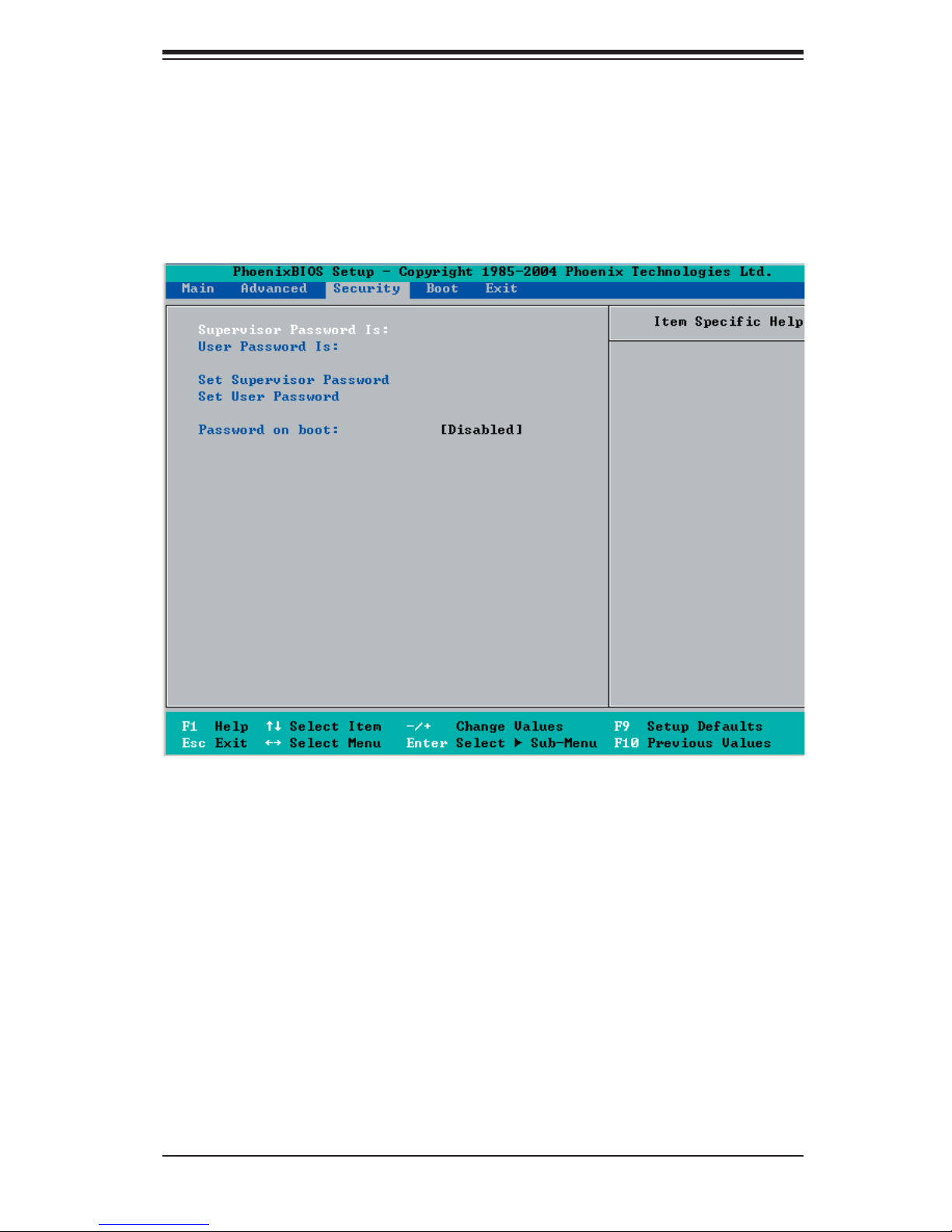

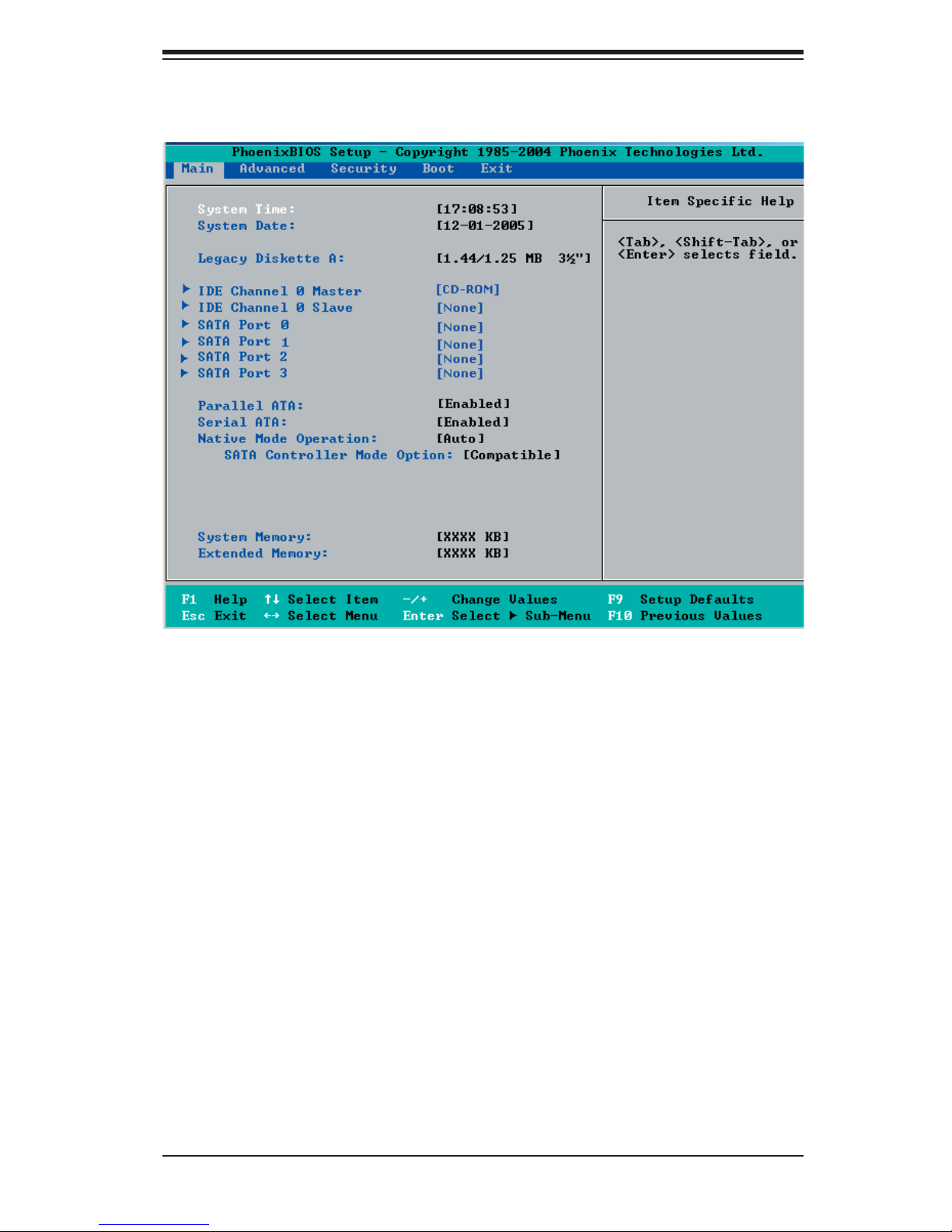

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed informa-

tion on running the CMOS Setup Utility.

Appendix A: BIOS POST Codes

Appendix B: BIOS POST Messages

Appendix C: Software Installation

Appendix D: System Specifi cations

iv

Notes

Preface

v

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Serverboard Features ..................................................................................... 1-2

1-3 Server Chassis Features ................................................................................ 1-4

1-4 Contacting Supermicro ................................................................................... 1-6

Chapter 2: Server Installation

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System ................................................................................... 2-1

2-3 Preparing for Setup ........................................................................................ 2-1

2-4 Installing the System into a Rack ................................................................... 2-4

2-5 Checking the Serverboard Setup ................................................................... 2-8

2-6 Checking the Drive Bay Setup ..................................................................... 2-10

Chapter 3: System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons .................................................................................... 3-1

Reset ........................................................................................................ 3-1

Power ....................................................................................................... 3-1

3-3 Control Panel LEDs ........................................................................................ 3-2

Power Fail ................................................................................................ 3-2

Overheat/Fan Fail .................................................................................... 3-2

NIC1 ......................................................................................................... 3-2

NIC2 ......................................................................................................... 3-2

HDD .......................................................................................................... 3-3

Power ....................................................................................................... 3-3

3-4 Drive Carrier LEDs ......................................................................................... 3-3

Chapter 4: System Safety

4-1 Electrical Safety Precautions .......................................................................... 4-1

4-2 General Safety Precautions ........................................................................... 4-2

4-3 ESD Precautions ............................................................................................ 4-3

4-4 Operating Precautions .................................................................................... 4-4

vi

Table of Contents

Chapter 5: Advanced Serverboard Setup

5-1 Handling the Serverboard .............................................................................. 5-1

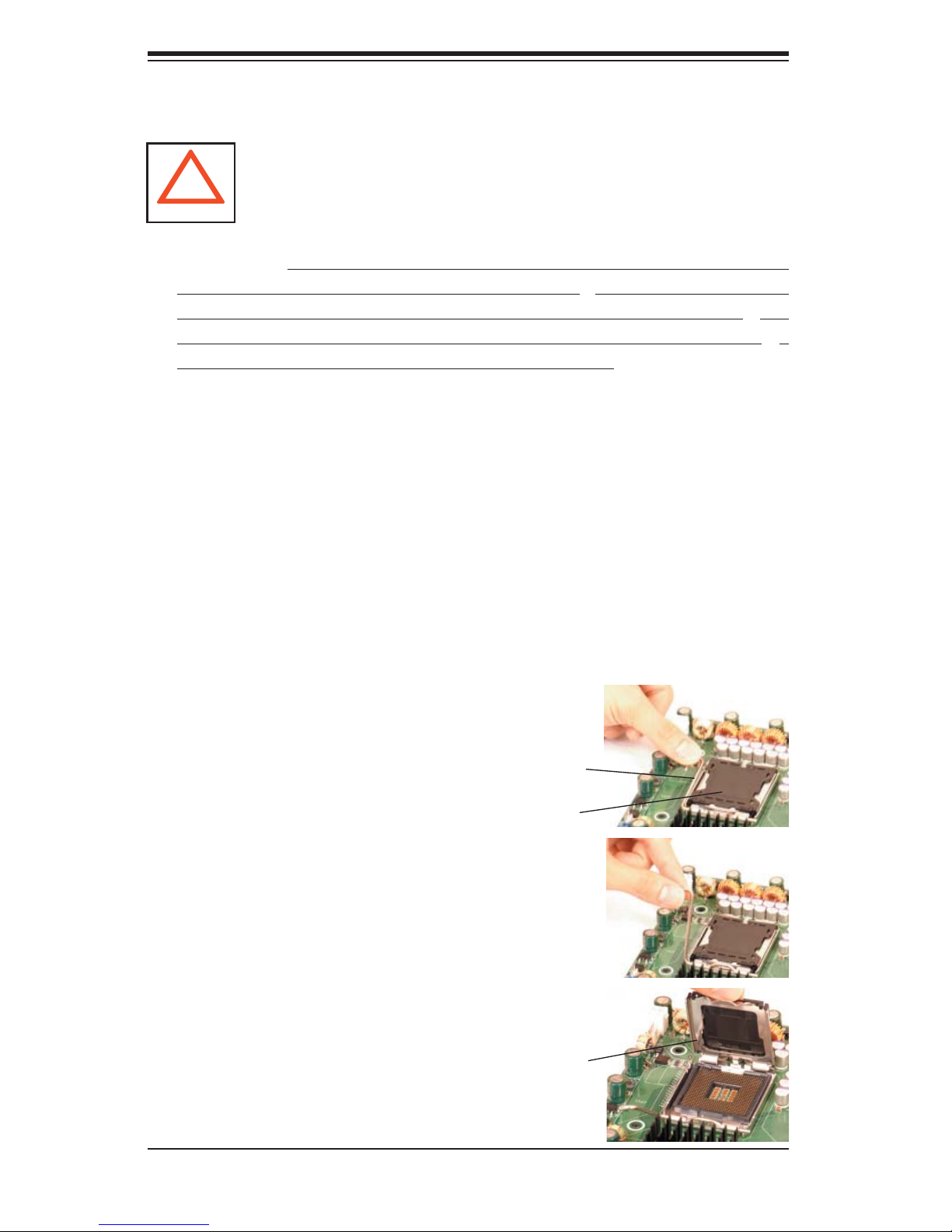

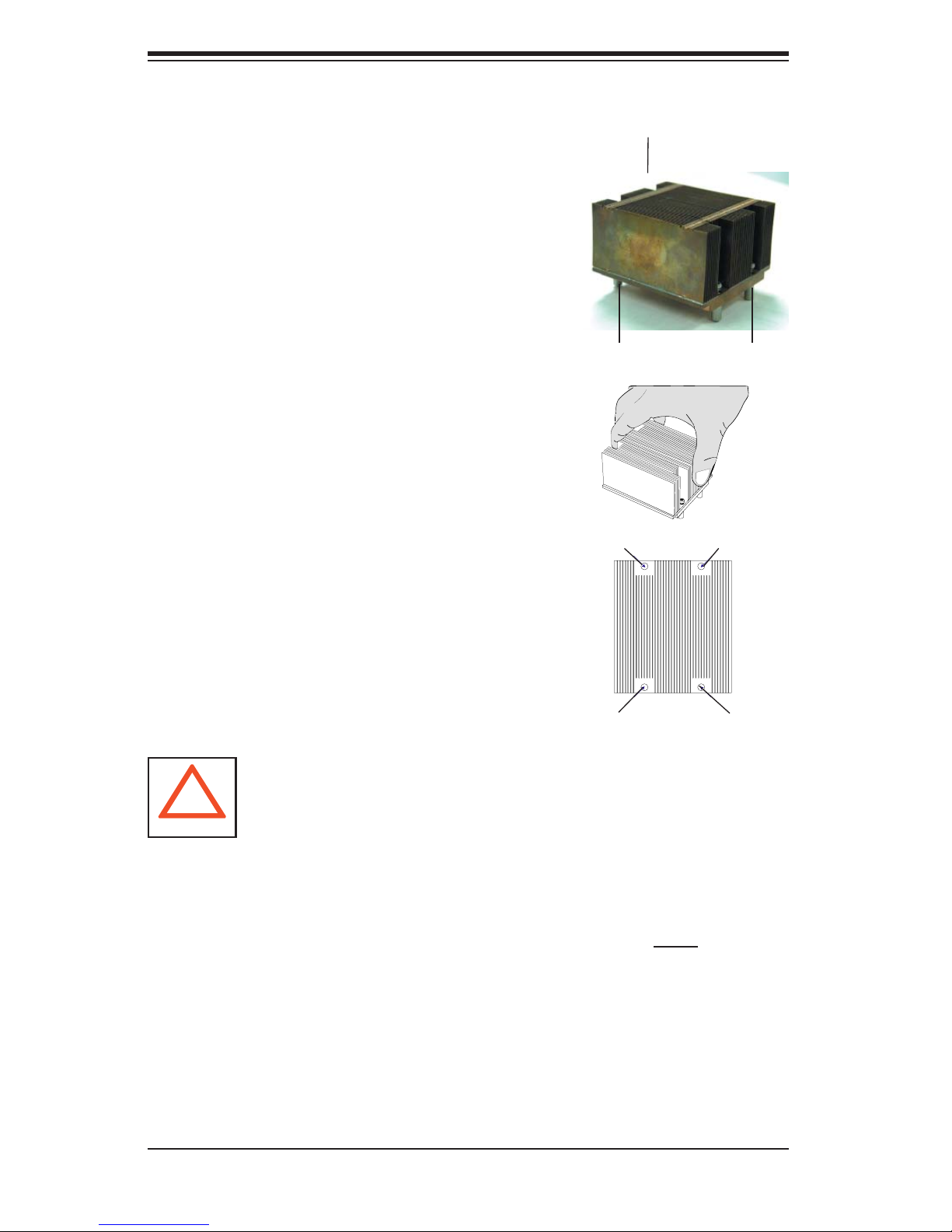

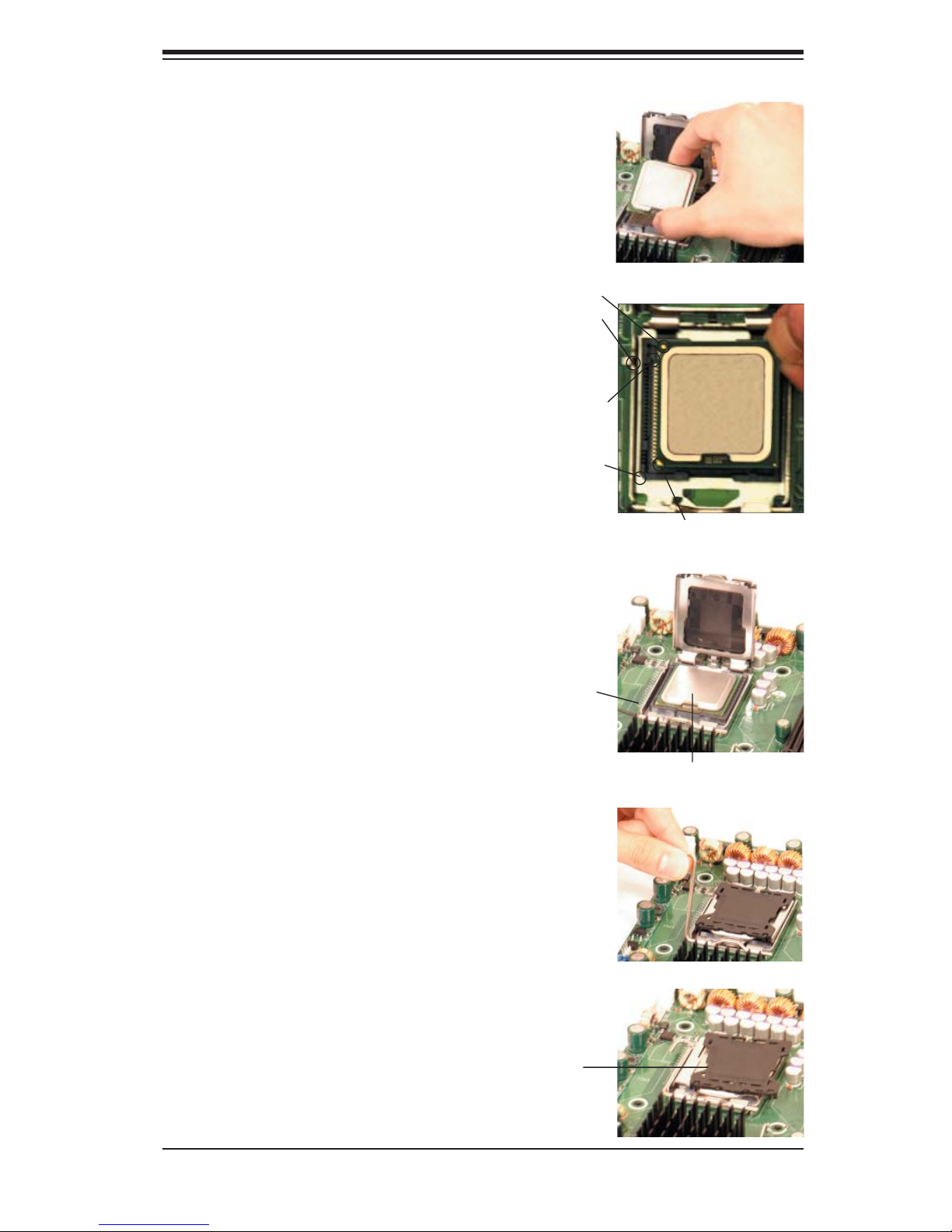

5-2 Processor and Heatsink Installation ............................................................... 5-2

5-3 Connecting Cables ......................................................................................... 5-5

Connecting Data Cables .......................................................................... 5-5

Connecting Power Cables ....................................................................... 5-5

Connecting the Control Panel .................................................................. 5-6

5-4 I/O Ports ......................................................................................................... 5-7

5-5 Installing Memory ........................................................................................... 5-7

5-6 Adding PCI Cards ........................................................................................... 5-9

5-7 Serverboard Details ...................................................................................... 5-10

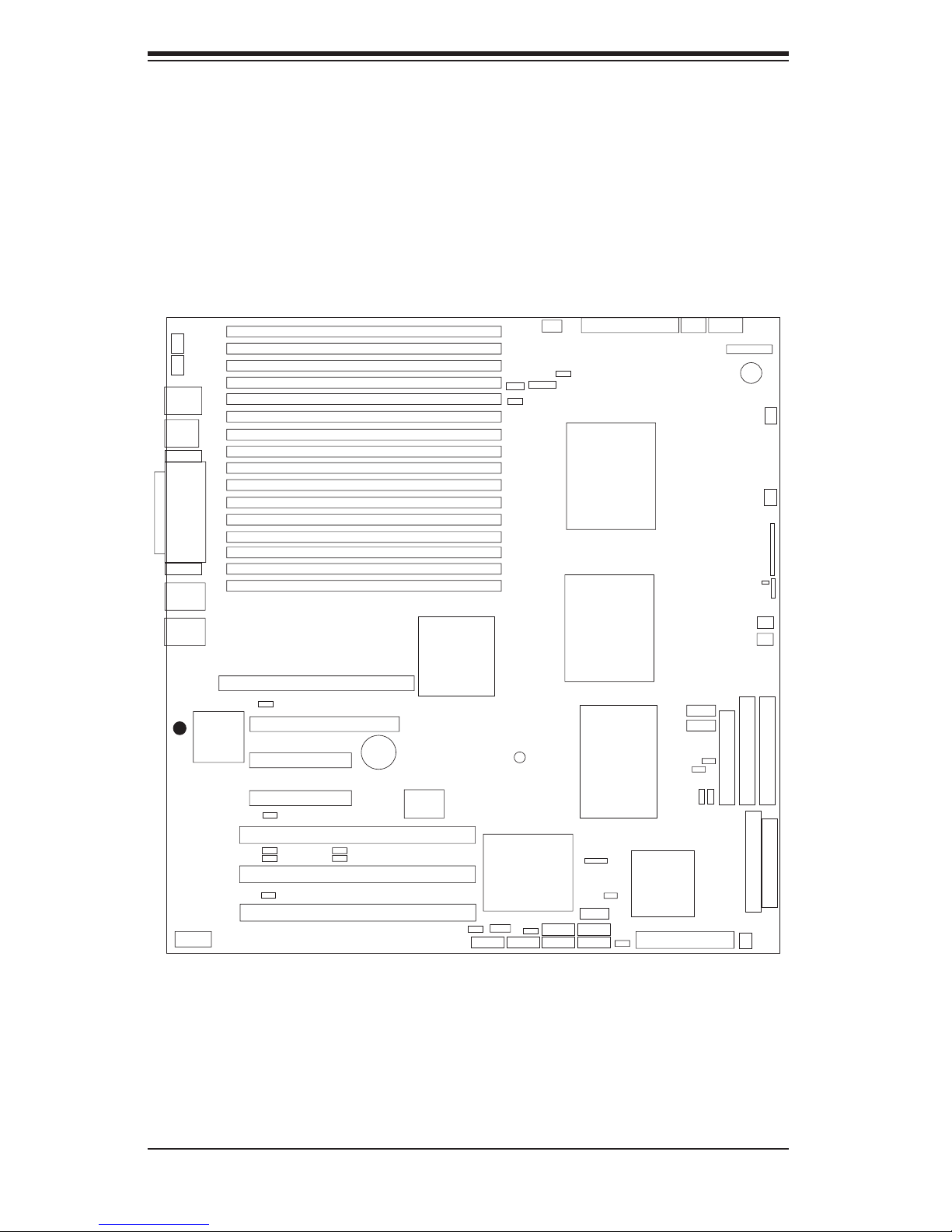

X7DB8+ Layout ...................................................................................... 5-10

X7DB8+/X7DBE+ Quick Reference ....................................................... 5-11

5-8 Connector Defi nitions ................................................................................... 5-12

ATX Power Connector ........................................................................... 5-12

Secondary Power Connector ................................................................. 5-12

Processor Power Connector .................................................................. 5-12

NMI Button ............................................................................................. 5-12

Power LED ............................................................................................. 5-12

HDD LED ............................................................................................... 5-13

NIC1 LED ............................................................................................... 5-13

NIC2 LED ............................................................................................... 5-13

Overheat/Fan Fail LED .......................................................................... 5-13

Power Fail LED ...................................................................................... 5-13

Reset Button .......................................................................................... 5-14

Power Button .......................................................................................... 5-14

Universal Serial Bus (USB0/1) ............................................................... 5-14

Chassis Intrusion .................................................................................... 5-14

Serial Ports ............................................................................................. 5-15

Power Fail Header ................................................................................. 5-15

Fan Headers .......................................................................................... 5-15

Extra Universal Serial Bus Headers ...................................................... 5-16

Power LED/Speaker ............................................................................... 5-16

ATX PS/2 Keyboard and Mouse Ports .................................................. 5-16

Overheat LED ........................................................................................ 5-16

Wake-On-LAN ........................................................................................ 5-17

Wake-On-Ring ........................................................................................ 5-17

SMB ........................................................................................................ 5-17

SMBUS_PS ............................................................................................ 5-17

vii

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

SGPIO .................................................................................................... 5-18

5-9 Jumper Settings ............................................................................................ 5-18

Explanation of Jumpers ......................................................................... 5-18

CMOS Clear ........................................................................................... 5-18

JLAN Enable/Disable ............................................................................. 5-19

Watch Dog Enable/Disable .................................................................... 5-19

3rd Power Supply Fail Detect Enable/Disable ....................................... 5-19

Alarm Reset ........................................................................................... 5-20

VGA Enable/Disable ............................................................................... 5-20

SCSI Controller Enable/Disable ............................................................. 5-20

SCSI Termination Enable/Disable .......................................................... 5-20

Compact Flash Master/Slave Select ...................................................... 5-21

SMBUS to PCI Enable/Disable .............................................................. 5-21

5-10 Onboard Indicators ....................................................................................... 5-22

JLAN1/JLAN2 LEDs ............................................................................... 5-22

SCSI Activity LED Indicators .................................................................. 5-22

Onboard Power LED .............................................................................. 5-22

5-11 Parallel Port, Floppy and Hard Drive Connections ...................................... 5-23

Parallel Port Connector .......................................................................... 5-23

Floppy Connector ................................................................................... 5-24

SATA Ports ............................................................................................. 5-24

IDE Connectors ...................................................................................... 5-25

Ultra320 SCSI Connectors ..................................................................... 5-26

Chapter 6: Advanced Chassis Setup

6-1 Static-Sensitive Devices ................................................................................. 6-1

6-2 Control Panel .................................................................................................. 6-2

6-3 System Fans ................................................................................................... 6-3

System Fan Failure .................................................................................. 6-3

Replacing System Fans ........................................................................... 6-3

6-4 Drive Bay Installation ...................................................................................... 6-4

SATA/SCSI Drive Installation ................................................................... 6-5

DVD-ROM and Floppy Drive Installation ................................................. 6-7

6-5 Power Supply ................................................................................................. 6-8

Power Supply Failure ............................................................................... 6-8

Removing/Replacing the Power Supply ................................................... 6-8

viii

Table of Contents

Chapter 7: BIOS

7-1 Introduction ..................................................................................................... 7-1

7-2 Running Setup ................................................................................................ 7-2

7-3 Main BIOS Setup ............................................................................................ 7-2

7-4 Advanced Setup ............................................................................................. 7-7

7-5 Security ......................................................................................................... 7-19

7-6 Boot .............................................................................................................. 7-20

7-7 Exit ................................................................................................................ 7-21

Appendices:

Appendix A: BIOS POST Messages

Appendix B: BIOS POST Codes

Appendix C: Software Installation

Appendix D: System Specifi cations

ix

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Notes

x

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

The SuperServer 6025B-TR+/6025B-8R+ is a high-end server that is comprised of

two main subsystems: the SC825TQ-R700LP/SC825S2-R700LP 2U server chassis

and the X7DBE+/X7DB8+ dual Intel Xeon processor serverboard. Please refer to

our web site for information on operating systems that have been certifi ed for use

with the SuperServer 6025B-TR+/6025B-8R+ (www.supermicro.com).

In addition to the serverboard and chassis, various hardware components have been

included with the SuperServer 6025B-TR+/6025B-8R+, as listed below:

 Three (3) 8-cm hot-swap chassis fans (FAN-0070)

 One (1) air shroud (MCP-310-00005-00)

 Two (2) CPU passive heatsinks (SNK-P0018)

 One (1) DVD-ROM drive (DVM-PNSC-824)

 Two (2) 3.5" dummy drive trays

 One (1) ATA66 cable for DVD drive (CBL-0139L)

 One (1) fl oppy cable (CBL-040L)

 One (1) front control panel cable (CBL-0087)

 One (1) rail set (MCP-290-00002-00)

 SCSI Accessories (6025B-8R+ only)

One (1) dual-channel SCSI backplane (BPN-SCA-825S2)

One (1) Ultra320 SCSI ribbon cable (CBL-037L-U320)

One (1) Ultra320 SCSI round cable (CBL-0043L)

Eight (8) SCSI hot-swap drive carriers [MCP-220-00001-03(01)]*

List continued on next page.

1-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

 SATA Accessories (6025B-TR+ only)

One (1) SATA backplane (BPN-SAS-825TQ)

Six (6) SATA cables (CBL-0061L)

Two (2) SATA LED cables (CBL-0157L)

Eight (8) SATA hot-swap drive carriers [MCP-220-00001-03(01)]*

(The chassis has eight carriers but only six SATA drives are supported.)

*The 6025B-TR+/6025B-8R+ is available in silver and black; "03" following a part

number indicates silver and "01" indicates black.

1-2 Serverboard Features

At the heart of the SuperServer 6025B-TR+/6025B-8R+ lies the X7DBE+/X7DB8+, a

dual processor serverboard based on the Intel 5000P chipset and designed to pro-

vide maximum performance. Below are the main features of the X7DBE+/X7DB8+.

(See Figure 1-1 for a block diagram of the 5000P chipset).

Processors

The X7DBE+/X7DB8+ supports single or dual LGA 771 type Intel Xeon processors

at a FSB speed of 1333 MHz. Please refer to the serverboard description pages

on our web site for a complete listing of supported processors (www.supermicro.

com).

Memory

The X7DBE+/X7DB8+ has sixteen 240-pin DIMM slots that can support up to 64

GB of FBD (Fully Buffered DIMM) ECC DDR2-667/533 SDRAM. The memory

operates in a 4-way interleaved confi gurations and requires requires modules of

the same size and speed to be installed four at a time. See Chapter 5 Section 5

for details.

Onboard SCSI (6025B-8R+ only)

An onboard Adaptec AIC-7902 dual-channel SCSI controller in integrated into the

X7DB8+, which supports eight 80-pin SCA Ultra320 SCSI hard drives. The SCSI

drives are connected to an SCA backplane that provides power, bus termination

and confi guration settings. The SCSI drives are hot-swappable units.

Note: The operating system you use must have RAID support to enable the hot-

swap capability and RAID function of the SCSI drives.

1-2

Chapter 1: Introduction

Serial ATA

A SATA controller is integrated into the South Bridge of the 5000P chipset to

provide a six-port Serial ATA subsystem, which is RAID 0, 1, 10 and 5 supported.

The Serial ATA drives are hot-swappable units.

Note: The operating system you use must have RAID support to enable the hot-

swap capability and RAID function of the Serial ATA drives.

PCI Expansion Slots

The X7DBE+/X7DB8+ has six PCI expansion slots, which includes two x8 PCI-

Express slots, one x4 PCI-Express slot, two 64-bit 133 MHz PCI-X slots and one

64-bit 100 MHz PCI-X slot. (On the X7DB8+, one 100 MHz PCI slot supports Zero

Channel RAID.)

Onboard Controllers/Ports

One fl oppy drive controller and two onboard ATA/100 controllers are provided to

support up to four IDE hard drives or ATAPI devices. The color-coded I/O ports

include one COM port (an additional COM header is located on the serverboard), a

VGA (monitor) port, a parallel port, two USB 2.0 ports, PS/2 mouse and keyboard

ports and two gigabit Ethernet ports.

ATI Graphics Controller

The X7DBE+/X7DB8+ features an integrated ATI video controller based on the

ES1000 graphics chip. The ES1000 was designed specifi cally for servers, featuring

low power consumption, high reliability and superior longevity.

Other Features

Other onboard features that promote system health include onboard voltage moni-

tors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU

overheat sensors, virus protection and BIOS rescue.

1-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

1-3 Server Chassis Features

The following is a general outline of the main features of the SC825TQ-R700LP/

SC825S2-R700LP server chassis.

System Power

The SC825TQ-R700LP/SC825S2-R700LP features a redundant 700W power sup-

ply composed of two separate power modules. This power redundancy feature

allows you to replace a failed power supply without shutting down the system.

SCSI Subsystem (6025B-8R+ only)

The SC825S2-R700LP chassis was designed to support eight dual-channel SCSI

hard drives, which are hot-swappable units.

Note: The operating system you use must have RAID support to enable the hot-

swap capability of the SCSI drives.

Serial ATA Subsystem

The SC825TQ-R700LP supports up to eight 3 Gb/s Serial ATA drives. The Serial

ATA drives are hot-swappable units and are connected to a backplane that provides

power and control.

Note: The operating system you use must have RAID support to enable the hot-

swap capability of the Serial ATA drives.

Front Control Panel

The control panel on the SuperServer 6025B-TR+/6025B-8R+ provides you with

system monitoring and control. LEDs indicate system power, HDD activity, net-

work activity, system overheat and power supply failure. A main power button and

a system reset button are also included. In addition, two USB ports have been

incorporated into the control panel to provide front side USB access.

I/O Backplane

The SC825TQ-R700LP/SC825S2-R700LP is an ATX form factor chassis designed

to be used in a 2U rackmount confi guration. The I/O backplane provides seven

low-profi le PCI expansion slots, one COM port, a parallel port, a VGA port, two USB

2.0 ports, PS/2 mouse and keyboard ports and two gigabit Ethernet ports.

1-4

Chapter 1: Introduction

Cooling System

The SC825TQ-R700LP/SC825S2-R700LP chassis has an innovative cooling de-

sign that includes three 8-cm hot-plug system cooling fans located in the middle

section of the chassis. An air shroud channels the airfl ow from the system fans to

effi ciently cool the processor area of the system. The power supply module also

includes a cooling fan.

Figure 1-1. Intel 5000P/ESB2 Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

Slot 6: PCI-Exp x8/SEPC

Slot 2: PCI-X

LAN Ports (2)

Slot 5: PCI-Express x8

Slot 4: PCI-Express x8

AIC

7902

PXH

Slot 1: PCI-X

Slot 3: PCI-X

82563

CPU1

PCI-Exp

x8

PCI-Exp

x8

PCI-Exp

x4

PCI-Exp

x8

PCI-X 133

Kumeran

1067/1333 MT/s

5000P

MCH

PCI -E x 8

ESB2

PCI 32

ATI

ES1000

CPU2

FBD CH0

FBD CH1

FBD CH2

FBD CH3

PCI -E x 4

3.0 Gb/s

ATA 100

USB 2.0

LPC

FB D DI MM Ban k1

DDR2

SATA Ports (6)

IDE Ports (2)

USB Ports (5)

S I/O BIOS

FB D DI MM Ban k2

FB D DI MM Ban k3

FB D DI MM Ban k4

Note: The AIC-7902 SCSI controller is only on the X7DB8+ serverboard.

Kybd/

Mouse

1-5

Floppy

COM

Ports (2)

Parallel

Port

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

1-4 Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)

Asia-Pacifi c

Address: Super Micro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

1-6

Chapter 2: Server Installation

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your SuperServer 6025B-TR+/

6025B-8R+ up and running. Following these steps in the order given should enable

you to have the system operational within a minimum amount of time. This quick

setup assumes that your system has come to you with the processors and memory

preinstalled. If your system is not already fully integrated with a serverboard, pro-

cessors, system memory etc., please turn to the chapter or section noted in each

step for details on installing specifi c components.

2-2 Unpacking the System

You should inspect the box the SuperServer 6025B-TR+/6025B-8R+ was shipped

in and note if it was damaged in any way. If the server itself shows damage you

should fi le a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the SuperServer

6025B-TR+/6025B-8R+. It should be situated in a clean, dust-free area that is well

ventilated. Avoid areas where heat, electrical noise and electromagnetic fi elds are

generated. You will also need it placed near a grounded power outlet. Read the

Rack and Server Precautions in the next section.

2-3 Preparing for Setup

The box the SuperServer 6025B-TR+/6025B-8R+ was shipped in should include

two sets of rail assemblies, two rail mounting brackets and the mounting screws

you will need to install the system into the rack. Follow the steps in the order

given to complete the installation process in a minimum amount of time. Please

read this section in its entirety before you begin the installation procedure outlined

in the sections that follow.

2-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Choosing a Setup Location

- Leave enough clearance in front of the rack to enable you to open the front

door completely (~25 inches).

- Leave approximately 30 inches of clearance in the back of the rack to allow

for suffi cient airfl ow and ease in servicing.

-This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

- This product is not suitable for use with visual display work place devices ac-

cording to §2 of the the German Ordinance for Work with Visual Display Units.

!

Warnings and Precautions!

!

Rack Precautions

- Ensure that the leveling jacks on the bottom of the rack are fully extended to the

fl oor with the full weight of the rack resting on them.

- In single rack installation, stabilizers should be attached to the rack.

- In multiple rack installations, the racks should be coupled together.

- Always make sure the rack is stable before extending a component from the

rack.

- You should extend only one component at a time - extending two or more simul-

taneously may cause the rack to become unstable.

Server Precautions

- Review the electrical and general safety precautions in Chapter 4.

- Determine the placement of each component in the rack before you install the

rails.

- Install the heaviest server components on the bottom of the rack fi rst, and then

work up.

- Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a power

failure.

-

Allow the hot plug SATA/SCSI drives and power supply units to cool before touch-

ing them.

-

Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

2-2

Chapter 2: Server Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera-

ture of the rack environment may be greater than the ambient temperature of the

room. Therefore, consideration should be given to installing the equipment in an

environment compatible with the manufacturer’s maximum rated ambient tempera-

ture (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required

for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not

arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply connec-

tions other than the direct connections to the branch circuit (i.e. the use of power

strips, etc.).

2-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

2-4 Installing the System into a Rack

This section provides information on installing the SuperServer 6025B-TR+/6025B-

8R+ into a rack unit. If the 6025B-TR+/6025B-8R+ has already been mounted into

a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack

units on the market, which may mean the assembly procedure will differ slightly.

The following is a guideline for installing the system into a rack with the rack rails

provided. You should also refer to the installation instructions that came with the

rack unit you are using.

Identifying the Sections of the Rack Rails

You should have received a total of six rack rail sections with the SuperServer

6025B-TR+/6025B-8R+. Two of these sections secure directly to the 6025B-TR+/

6025B-8R+ and the third (which actually consists of two joined sections) secures

directly to the rack itself. All screws and hardware mentioned in the installation

steps should be included in the hardware kit.

Refer to Figure 2-1 to determine which rail section gets attached to the front of the

chassis and which gets attached to the rear of the chassis. (The longer of the two

is the front section. The third rail section attaches to the rack.)

Installing the Chassis Rails

Position the front and rear chassis rail sections along the side of the 6025B-

TR+/6025B-8R+ making sure the screw holes line up. Note that these two rails

are left/right specifi c. Screw the front chassis rail (the long piece) securely to the

side of the chassis (see Figure 2-1, step 1). There should be two screws for each

side. Repeat this procedure for the other rail on the opposite side of the chassis.

Then attach the two rear chassis rails to the chassis in the same manner, again

keeping in mind that the rails are left/right specifi c. (You will also need to attach

the rail brackets when installng into a telco rack.)

Locking Tabs: Both front chassis rails and the rack rails have a locking tab, which

serves two functions. The fi rst is to lock the server into place when installed and

pushed fully into the rack, which is its normal position. Secondly, these tabs also

lock the server in place when fully extended from the rack. This prevents the server

from coming completely out of the rack when you pull it out for servicing.

2-4

Chapter 2: Server Installation

Figure 2-1. Installing Chassis Rails

2-5

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Installing the Rack Rails:

Determine where you want to place the SuperServer 6025B-TR+/6025B-8R+ in

the rack. (See Rack and Server Precautions in Section 2-3.) Position the fi xed

rack rail/sliding rail guide assemblies (made up of two inter-locking sections) at the

desired location in the rack, keeping the sliding rail guide facing the inside of the

rack and the rollers toward the front of the rack. Screw the assembly securely to

the rack. Attach the other assembly to the other side of the rack, making sure both

are at the exact same height and with the rail guides facing inward.

Installing the Server into the Rack

You should now have rails attached to both the chassis and the rack unit. The next

step is to install the server into the rack. Do this by lining up the rear of the chas-

sis rails with the front of the rack rails. Slide the chassis rails into the rack rails,

keeping the pressure even on both sides (you may have to depress the locking

tabs when inserting). See Figure 2-2.

When the server has been pushed completely into the rack, you should hear the

locking tabs "click". Finish by inserting and tightening the thumbscrews that hold

the front of the server to the rack.

Installing the Server into a Telco Rack

To install the SuperServer 6025B-TR+/6025B-8R+ into a Telco type rack, use two

L-shaped brackets on either side of the chassis (four total). First, determine how

far the server will extend out the front of the rack. Larger chassis should be posi-

tioned to balance the weight between front and back. If a bezel is included on your

server, remove it. Then attach the two front brackets to each side of the chassis,

then the two rear brackets positioned with just enough space to accommodate the

width of the rack. Finish by sliding the chassis into the rack and tightening the

brackets to the rack.

2-6

Chapter 2: Server Installation

Figure 2-2. Installing the Server into a Rack

2-7

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

2-5 Checking the Serverboard Setup

After you install the 6025B-TR+/6025B-8R+ in the rack, you will need to open the

unit to make sure the serverboard is properly installed and all the connections have

been made.

1. Accessing the inside of the System (see Figure 2-3)

First, grasp the two handles on either side and pull the unit straight out until it locks

(you will hear a "click"). Next, depress the two buttons on the top of the chassis to

release the top cover. You can then lift the top cover from the chassis to gain full

access to the inside of the server.

2. Check the CPUs (processors)

You may have one or two processors already installed into the serverboard. Each

processor needs its own heatsink. See Chapter 5 for instructions on processor and

heatsink installation.

3. Check the system memory

Your 6025B-TR+/6025B-8R+ server system may have come with system memory

already installed. Make sure all DIMMs are fully seated in their slots. For details

on adding system memory, refer to Chapter 5.

4. Installing add-on cards

If desired, you can install add-on cards to the system. See Chapter 5 for details

on installing PCI add-on cards.

5. Check all cable connections and airfl ow

Make sure all power and data cables are properly connected and not blocking the

chassis airfl ow. Also make sure that no cables are positioned in front of the fans.

See Chapter 5 for details on cable connections.

2-8

Chapter 2: Server Installation

Figure 2-3. Accessing the Inside of the System

2-9

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

2-6 Checking the Drive Bay Setup

Next, you should check to make sure the peripheral drives and the Serial ATA drives

have been properly installed and all connections have been made.

1. Accessing the drive bays

All drives are accessable from the front of the server. For servicing the DVD-ROM

and fl oppy drives, you will need to remove the top chassis cover. The Serial ATA

disk drives can be installed and removed from the front of the chassis without

removing the top chassis cover.

2. DVD-ROM and fl oppy disk drives

A slim DVD-ROM and a fl oppy drive should be preinstalled in your server. Refer

to Chapter 6 if you need to reinstall a DVD-ROM and/or fl oppy disk drive to the

system.

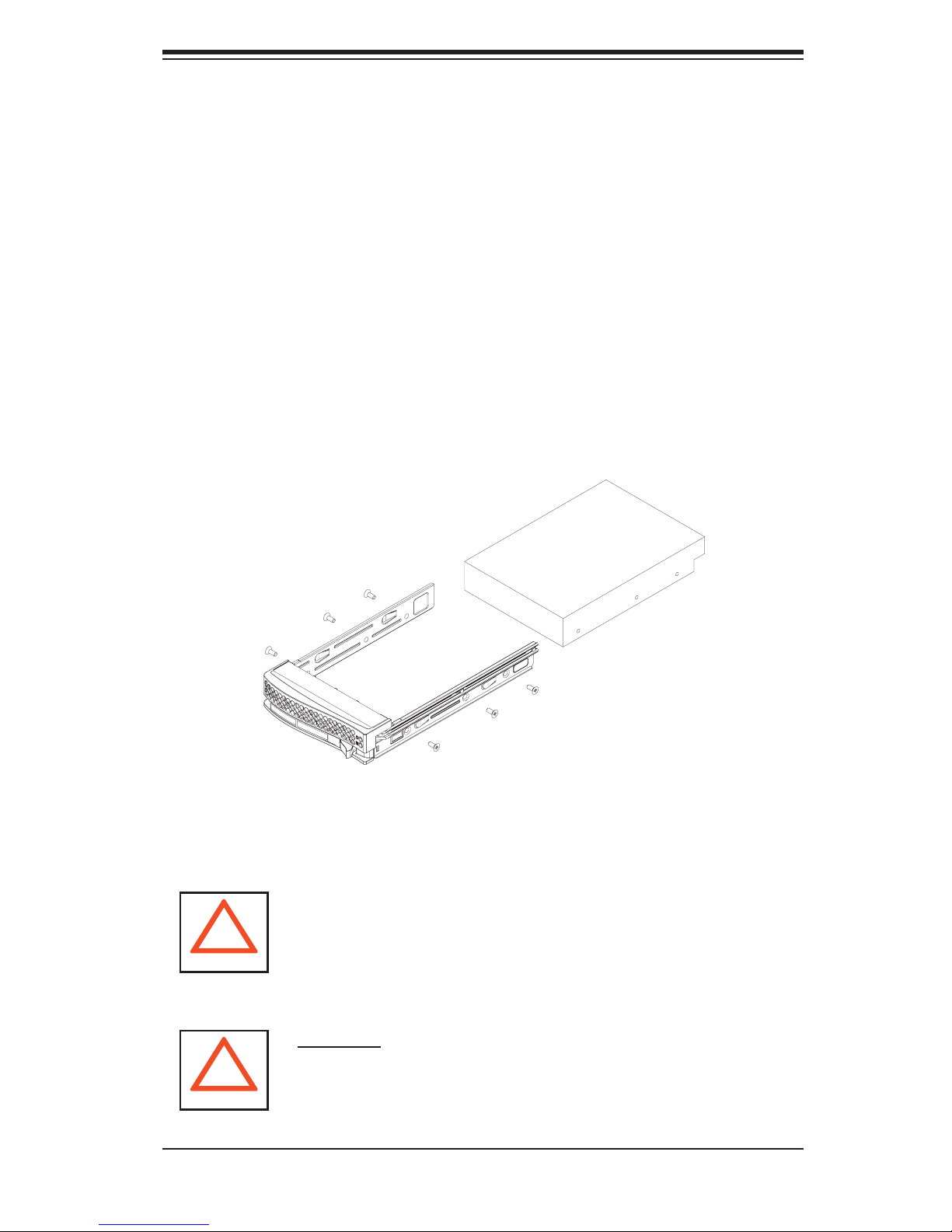

3. Check the SATA/SCSI drives

Depending upon your system's confi guration, your system may have one or more

drives already installed. If you need to install SATA/SCSI drives, please refer to

Chapter 6.

4. Check the airfl ow

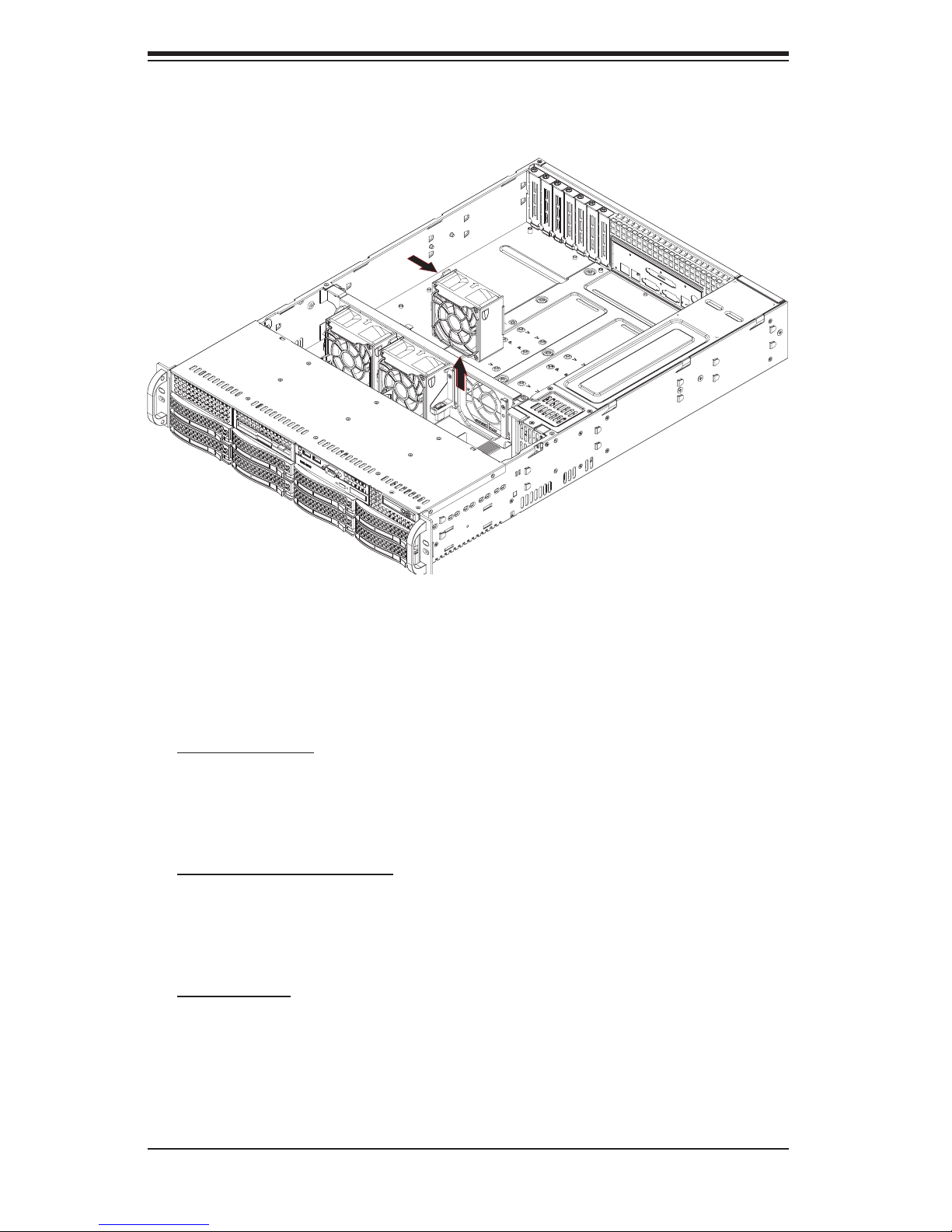

Airfl ow is provided by four 8-cm center chassis cooling fans. An air shroud is also

included in the system to maximize airfl ow. The system component layout was

carefully designed to direct suffi cient cooling airfl ow to the components that gener-

ate the most heat. Note that all power and data cables have been routed in such

a way that they do not block the airfl ow generated by the fans.

5. Supplying power to the system

The last thing you must do is to provide input power to the system. Plug the power

cord(s) from the power supply unit(s) into a high-quality power strip that offers pro-

tection from electrical noise and power surges. It is recommended that you use an

uninterruptible power supply (UPS).

2-10

Chapter 3: System Interface

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the Serial ATA

drive carriers to keep you constantly informed of the overall status of the system as

well as the activity and health of specifi c components. There are also two buttons

on the chassis control panel.

3-2 Control Panel Buttons

The two push-buttons located on the front of the chassis are (in order from left to

right) a reset button and a power on/off button.

 RESET:

 POWER: This is the main power button, which is used to apply or turn off

the main system power. Turning off system power with this button removes the

main power but keeps standby power supplied to the system.

Use the reset button to reboot the system.

3-1

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

3-3 Control Panel LEDs

The control panel located on the front of the chassis has several LEDs. These

LEDs provide you with critical information related to different parts of the system.

This section explains what each LED indicates when illuminated and any corrective

action you may need to take.

 Power Fail: Indicates a power supply module has failed. The second power

supply module will take the load and keep the system running but the failed module

will need to be replaced. Refer to Chapter 6 for details on replacing the power

supply. This LED should be off when the system is operating normally.

 Overheat/Fan Fail: When this LED fl ashes, it indicates a fan failure. When

on continuously it indicates an overheat condition, which may be caused by cables

obstructing the airfl ow in the system or the ambient room temperature being too

warm. Check the routing of the cables and make sure all fans are present and

operating normally. You should also check to make sure that the chassis covers

are installed. Finally, verify that the heatsinks are installed properly (see Chapter

5). This LED will remain fl ashing or on as long as the indicated condition exists.

1

 NIC1: Indicates network activity on the JLAN1 port when fl ashing.

2

 NIC2: Indicates network activity on the JLAN2 port when fl ashing.

3-2

Chapter 3: System Interface

 HDD: Indicates IDE channel activity. On the SuperServer 6025B-TR+/6025B-

8R+, this LED indicates SATA/SCSI and/or DVD-ROM drive activity when fl ash-

ing.

 Power:

This LED should normally be illuminated when the system is operating.

Indicates power is being supplied to the system's power supply units.

3-4 Drive Carrier LEDs

SATA Drives (6025B-TR+)



Green: Each Serial ATA drive carrier has a green LED. When illuminated,

this green LED (on the front of the SATA drive carrier) indicates drive activity. A

connection to the SATA backplane enables this LED to blink on and off when that

particular drive is being accessed. Please refer to Chapter 6 for instructions on

replacing failed SATA drives.

 Red: The red LED to indicate an SATA drive failure. If one of the SATA drives

fail, you should be notifi ed by your system management software. Please refer to

Chapter 6 for instructions on replacing failed SATA drives.

SCSI Drives (6025B-8R+)

Each SCSI drive carrier has two LEDs.

 Green: When illuminated, the green LED on the front of the SCSI drive car-

rier indicates drive activity. A connection to the SCSI SCA backplane enables this

LED to blink on and off when that particular drive is being accessed.

 Red: The SAF-TE compliant backplane activates the red LED to indicate a

drive failure. If one of the SCSI drives fail, you should be notifi ed by your system

management software. Please refer to Chapter 6 for instructions on replacing failed

SCSI drives.

3-3

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Notes

3-4

Chapter 4: System Safety

Chapter 4

System Safety

4-1 Electrical Safety Precautions

!

Basic electrical safety precautions should be followed to protect yourself from

harm and the SuperServer 6025B-TR+/6025B-8R+ from damage:

 Be aware of the locations of the power on/off switch on the chassis as well as

the room's emergency power-off switch, disconnection switch or electrical

outlet. If an electrical accident occurs, you can then quickly remove power

from the system.

 Do not work alone when working with high voltage components.

 Power should always be disconnected from the system when removing or

installing main system components, such as the serverboard, memory

modules and the DVD-ROM and fl oppy drives. When disconnecting power,

you should fi rst power down the system with the operating system and then

unplug the power cords of all the power supply units in the system.

 When working around exposed electrical circuits, another person who is

familiar with the power-off controls should be nearby to switch off the power

if necessary.

 Use only one hand when working with powered-on electrical equipment. This

is to avoid making a complete circuit, which will cause electrical shock.

Use extreme caution when using metal tools, which can easily damage any

electrical components or circuit boards they come into contact with.

 Do not use mats designed to decrease electrostatic discharge as protection

from electrical shock. Instead, use rubber mats that have been specifi cally

designed as electrical insulators.

4-1

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

 The power supply power cord must include a grounding plug and must be

plugged into grounded electrical outlets.

 Serverboard Battery: CAUTION - There is a danger of explosion if the onboard

battery is installed upside down, which will reverse its polarities (see Figure

4-1). This battery must be replaced only with the same or an equivalent type

recommended by the manufacturer. Dispose of used batteries according to

the manufacturer's instructions.

 DVD-ROM Laser: CAUTION - this server may have come equipped with

a DVD-ROM drive. To prevent direct exposure to the laser beam and

hazardous radiation exposure, do not open the enclosure or use the unit in

any unconventional way.

 Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Tempera-

ture Coeffi cient) fuses on the mainboard must be replaced by trained service

technicians only. The new fuse must be the same or equivalent as the one

replaced. Contact technical support for details and support.

4-2 General Safety Precautions

!

Follow these rules to ensure general safety:

 Keep the area around the SuperServer 6025B-TR+/6025B-8R+ clean and free

of clutter.

 The SuperServer 6025B-TR+/6025B-8R+ weighs approximately 57 lbs (25.9

kg.) when fully loaded. When lifting the system, two people at either end

should lift slowly with their feet spread out to distribute the weight. Always

keep your back straight and lift with your legs. Don't use the handles (if

installed) to lift the chassis; the handles should only be used to pull the

server out of the rack.

 Place the chassis top cover and any system components that have been

removed away from the system or on a table so that they won't accidentally

be stepped on.

 While working on the system, do not wear loose clothing such as neckties and

unbuttoned shirt sleeves, which can come into contact with electrical circuits

4-2

Chapter 4: System Safety

or be pulled into a cooling fan.

 Remove any jewelry or metal objects from your body, which are excellent metal

conductors that can create short circuits and harm you if they come into

contact with printed circuit boards or areas where power is present.

 After accessing the inside of the system, close the system back up and secure

it to the rack unit with the retention screws after ensuring that all connections

have been made.

4-3 ESD Precautions

!

Electrostatic discharge (ESD) is generated by two objects with different electrical

charges coming into contact with each other. An electrical discharge is created to

neutralize this difference, which can damage electronic com ponents and printed

circuit boards. The following measures are generally suffi cient to neutralize this

difference before contact is made to protect your equipment from ESD:

 Use a grounded wrist strap designed to prevent static discharge.

 Keep all components and printed circuit boards (PCBs) in their antistatic

bags until ready for use.

 Touch a grounded metal object before removing the board from the antistatic

bag.

 Do not let components or PCBs come into contact with your clothing, which

may retain a charge even if you are wearing a wrist strap.

 Handle a board by its edges only; do not touch its components, peripheral

chips, memory modules or contacts.

 When handling chips or modules, avoid touching their pins.

 Put the serverboard and peripherals back into their antistatic bags when

not in use.

4-3

SUPERSERVER 6025B-TR+/6025B-8R+ User's Manual

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

4-4 Operating Precautions

!

Care must be taken to assure that the chassis cover is in place when the

6025B-TR+/6025B-8R+ is operating to assure proper cooling. Out of warranty

damage to the 6025B-TR+/6025B-8R+ system can occur if this practice is not

strictly followed.

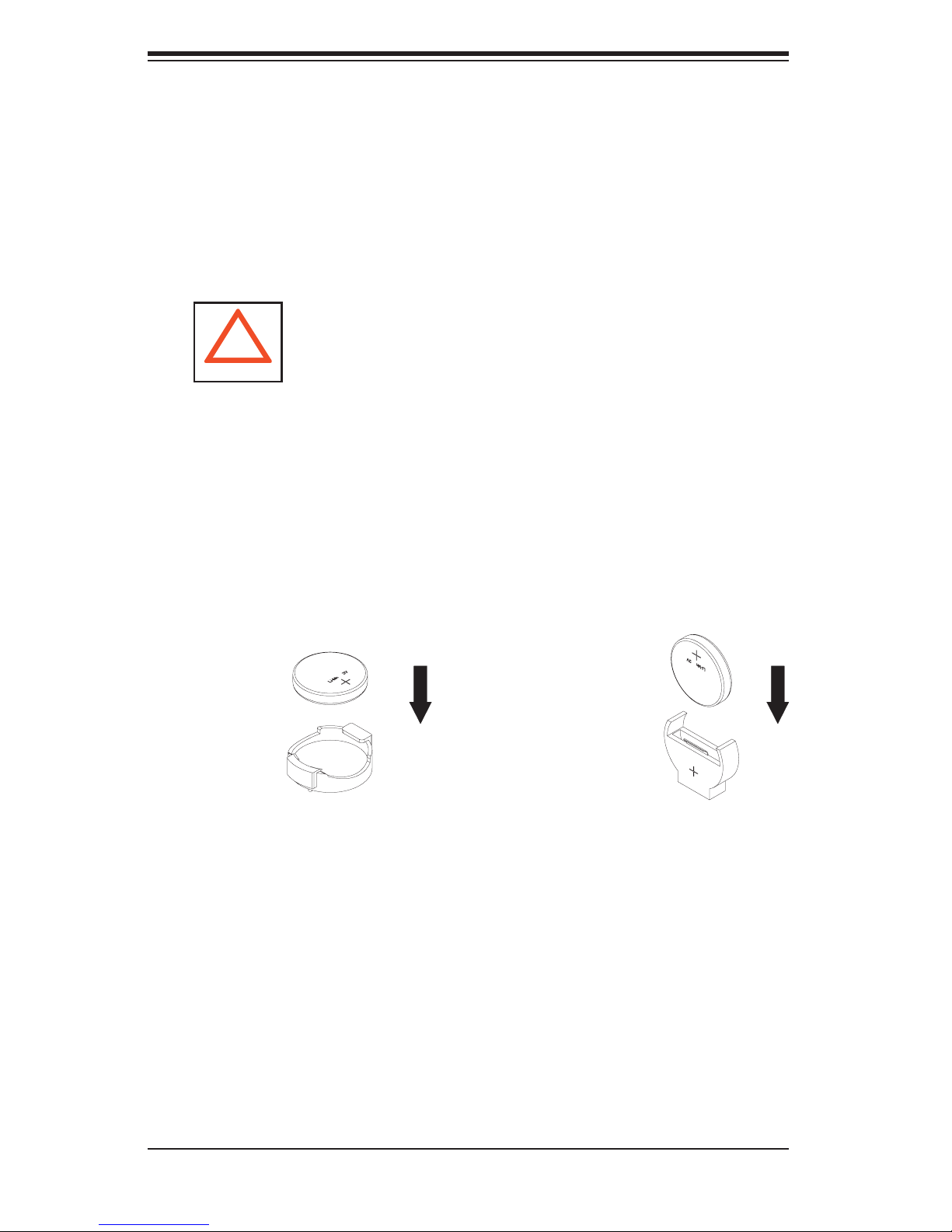

Figure 4-1. Installing the Onboard Battery

LITHIUM BATTERY

LITHIUM BATTERY

OR

BATTERY HOLDER BATTERY HOLDER

4-4

Chapter 5: Advanced Serverboard Setup

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to install processors and heatsinks to the

X7DBE+/X7DB8+ serverboard, connect the data and power cables and install add-

on cards. All serverboard jumpers and connections are described and a layout

and quick reference chart are included in this chapter. Remember to close the

chassis completely when you have fi nished working on the serverboard to protect

and cool the system suffi ciently.

5-1 Handling the Serverboard

Static electrical discharge can damage electronic com ponents. To prevent dam-

age to printed circuit boards, it is important to handle them very carefully (see

Chapter 4). Also note that the size and weight of the serverboard can cause

it to bend if handled improperly, which may result in damage. To prevent the

serverboard from bending, keep one hand under the center of the board to sup-

port it when handling. The following measures are generally suffi cient to protect

your equipment from static discharge.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

5-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

5-2 Processor and Heatsink Installation

When handling the processor, avoid placing direct pressure on the label

!

IMPORTANT: Always connect the power cord last and remove it fi rst before add-

ing, removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the heatsink and fan. The

X7DBE+/X7DB8+ can support either one or two Xeon LGA 771 processors. If

installing one processor only, install it into CPU socket #1.

Notes:

1. Intel's boxed Xeon CPU package contains a CPU fan and heatsink assembly. If

you buy a CPU separately, make sure that you use only Intel-certifi ed multi-direc-

tional heatsinks and fans.

area of the fan. Also, do not place the serverboard on a conductive
surface, which can damage the BIOS battery and prevent the system
from booting up.

2. When purchasing an LGA 771 CPU or when receiving a serverboard with an LGA

771 CPU pre-installed, make sure that the CPU plastic cap is in place and none of

the CPU pins are bent; otherwise, contact the retailer immediately.

3. Revision 2.0 and above of the X7DBE+/X7DB8+ will also support "Woodcrest"

CPUs.

Installing the LGA 771 Processor

1. A black PnP cap is attached to the

load plate to protect the CPU socket.

Press the load lever down and away

from the retention clasp to release the

load plate from its locked position.

2. Gently lift the load lever to open the

load plate.

Load lever

PnP cap

Load plate released

5-2

3. Use your thumb and your index

fi nger to hold the CPU at opposite

sides.

4. Align pin1 of the CPU (the cor-

ner marked with a triangle) with the

notched corner of the CPU socket.

5. Find the corner of the CPU that

has a semi-circle cutout below a gold

dot (CPU key). This corner should be

aligned with the cutout on the socket

(socket key).

6. Once aligned, carefully lower the

CPU straight down into the socket.

Do not drop the CPU on the socket,

do not move the CPU horizontally

or vertically and do not rub the CPU

against any surface or any of the

contacts, which may damage the CPU

and/or contacts.

Chapter 5: Advanced Serverboard Setup

Gold dot

Socket key

CPU key

Notched corner

CPU pin 1

7. With the CPU in the socket, inspect

the four corners of the CPU to make

sure that it is properly installed.

8. Use your thumb to gently push the

load lever down until it snaps into the

retention clasp.

9. If the CPU is properly installed into

the socket, the PnP cap will be auto-

matically released from the load plate

when the lever locks. Remove the cap.

Repeat steps to install a second CPU

if desired.

Warning! Keep the plastic PnP cap.

The serverboard must be shipped

with the PnP cap properly installed

to protect the CPU socket. Shipment

without the PnP cap properly installed

will void the warranty.

Load lever

CPU installed in socket

PnP cap released

from load plate

5-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Installing the Heatsink

1. Do not apply any thermal grease

to the heatsink or the CPU die; the

required amount has already been

applied.

2. Place the heatsink on top of the CPU

so that the four mounting holes are

aligned with those on the (preinstalled)

heatsink retention mechanism.

3. Screw in two diagonal screws (i.e.

the #1 and the #2 screws) until just

snug. Do not fully tighten the screws

or you may damage the CPU.)

CEK Passive Heatsink

Screw#1 Screw#2

4. Add the two remaining screws then

fi nish the installation by fully tightening

Screw #1

Screw #4

all four screws.

Removing the Heatsink

Screw #3

Screw #2

Warning! We do not recommend removal of the heatsink. However,

!

1. Unscrew and remove the heatsink screws from the motherboard in the sequence

as shown in the third diagram above.

2. Hold the heatsink as show in the second diagram above and gently wriggle the

heatsink to loosen it from the CPU. (Do not use excessive force when wriggling the

heatsink!!)

if you do need to uninstall the heatsink, please follow the instructions

below to prevent damage to the CPU or the CPU socket.

3. Once the heatsink is loose, remove it from the CPU.

4. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease.

Reapply the proper amount of thermal grease on the surface before you re-install the

heatsink.

5-4

Chapter 5: Advanced Serverboard Setup

5-3 Connecting Cables

Now that the processors are installed, the next step is to connect the cables to

the serverboard. These include the data (ribbon) cables for the peripherals and

control panel and the power cables.

Connecting Data Cables

The ribbon cables used to transfer data from the peripheral devices have been

carefully routed in preconfi gured systems to prevent them from blocking the fl ow

of cooling air that moves through the system from front to back. If you need to

disconnect any of these cables, you should take care to reroute them as they

were originally after reconnecting them (make sure the red wires connect to the

pin 1 locations). If you are confi guring the system, keep the airfl ow in mind when

routing the cables. The following data cables (with their serverboard connector

locations noted) should be connected. See the serverboard layout diagram in this

chapter for connector locations.

 DVD-ROM drive cable (IDE#1)

 6025B-TR+: SATA cables (SATA0 ~ SATA5)

 6025B-TR+: SATA Enclosure Management LED cables (SGPIO1,

SGPIO2)

 6025B-8R+: SCSI cables (JA1, JA2)

 Control Panel cable (JF1, see next page)

Connecting Power Cables

The X7DBE+/X7DB8+ has a 24-pin primary power supply connector designated

"JPW1" for connection to the ATX power supply. Connect the appropriate con-

nector from the power supply to the "ATX Power" connector to supply power to

the serverboard. See the Connector Defi nitions section in this chapter for power

connector pin defi nitions.

In addition, your power supply must be connected to the 4-pin Secondary ATX

Power connection at JPW2 and the 8-pin processor power connector at JPW3.

5-5

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure

5-3 for the pin locations of the various front control panel buttons and LED indi-

cators. Please note that even and odd numbered pins are on opposite sides of

each header.

All JF1 wires have been bundled into single keyed ribbon cable to simplify their

connection. The red wire in the ribbon cable plugs into pin 1 of JF1. Connect

the other end of the cable to the Control Panel printed circuit board, located just

behind the system status LEDs in the chassis.

See the Connector Defi nitions section in this chapter for details and pin descrip-

tions of JF1.

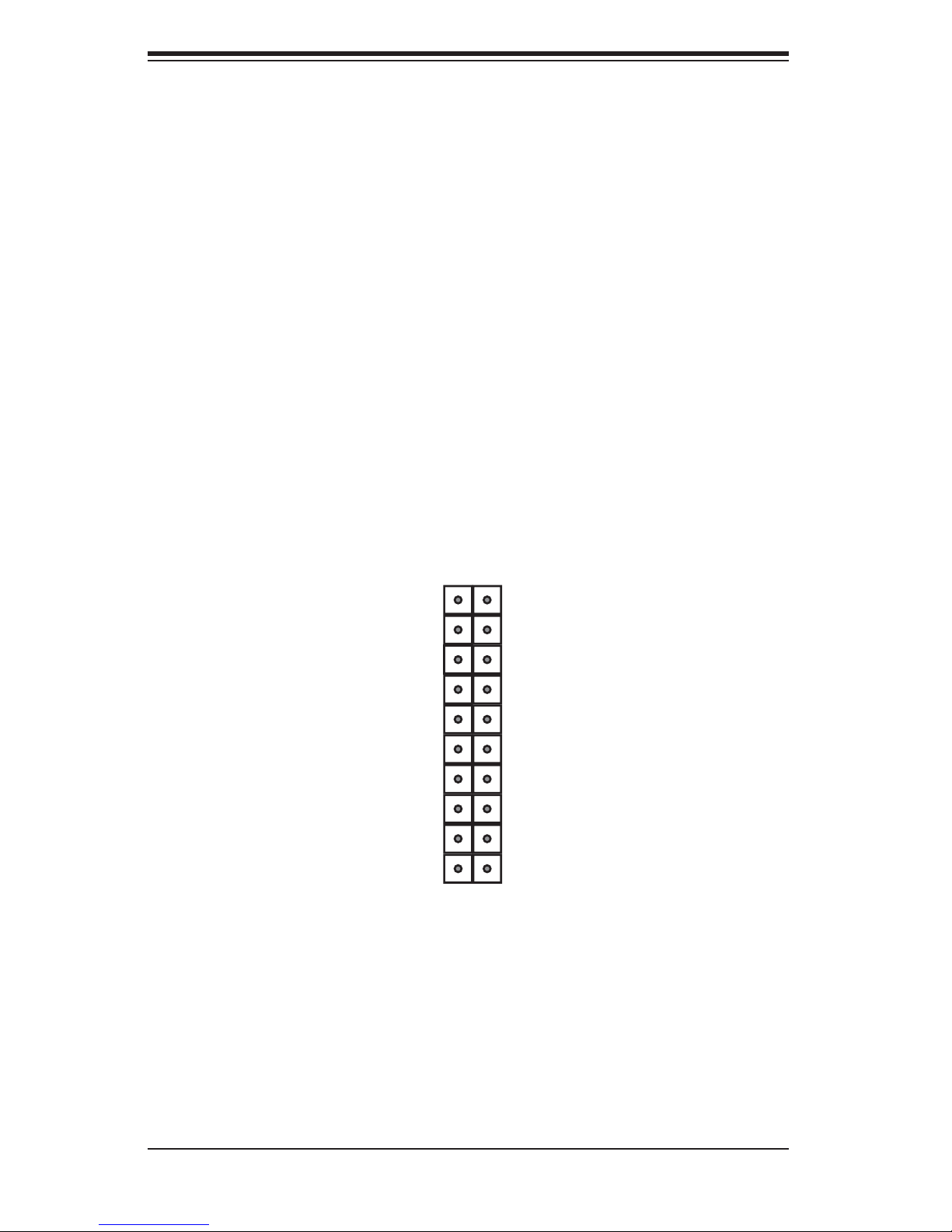

Figure 5-3. Front Control Panel Header Pins (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1

NIC2

OH/Fan Fail LED

Power Fail LED

Ground

Ground

2 1

NMI

x (key)

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Power

5-6

Chapter 5: Advanced Serverboard Setup

5-4 I/O Ports

The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-4 below for the colors and locations of the various I/O ports.

Figure 5-4. Rear Panel I/O Ports

5-5 Installing Memory

Note: Check the Supermicro web site for recommended memory modules.

CAUTION!

Exercise extreme care when installing or removing DIMM modules

to prevent any possible damage. Also note that the memory is inter-

leaved to improve performance (see step 1).

DIMM Installation (See Figure 5-5)

1. Insert the desired number of DIMMs into the memory slots, starting with DIMM

1A. The memory scheme is interleaved so you must install four modules at a time,

beginning with DIMM 1A, DIMM 2A, DIMM 3A and DIMM 4A and so on. (See the

Memory Installation Table below.) Insert each DIMM module vertically into its slot.

Pay attention to the notch along the bottom of the module to prevent inserting the

DIMM module incorrectly.

2. Gently press down on the DIMM module until it snaps into place in the slot.

Repeat for all modules (see step 1 above).

5-7

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Memory Support

The X7DBE+/X7DB8+ supports up to 64 GB of FBD (Fully Buffered DIMM) ECC

DDR2-667/533. Populating with pairs of memory modules that are of the same

size and same type will result in interleaved memory.

Note: Due to OS limitations, some operating systems may not show more than 4

GB of memory. To optimize memory support, follow the table below for memory

installation:

Optimized DIMM Configurations
Branch 0 Branch 1
Number of
DIMMs
4 DIMMs 1A
8 DIMMs 1A 1B
12 DIMMs 1A 1B 1C
16 DIMMs 1A 1B 1C 1D 2A 2B 2C 2D 3A 3B 3C 3D 4A 4B 4C 4D

Notes: i. “---“ indicates an unpopulated DIMM slot. ii. All memory modules must be of the same speed

and type. iii. Interleaved memory is supported when pairs of DIMMs are installed in both Branch 0
and Branch 1. Interleaved memory is not available if only 2 DIMMs are installed.

Bank 1
(Channel 0)

--- --- ---

--- ---

Bank 2
(Channel 1)
2A
2A 2B

---

2A 2B 2C

--- --- ---

--- ---

---

Bank 3
(Channel 2)

--- --- ---

3A
3A 3B

--- ---

3A 3B 3C

Bank 4
(Channel 3)
4A
4A 4B

---

4A 4B 4C

--- --- ---

--- ---

---

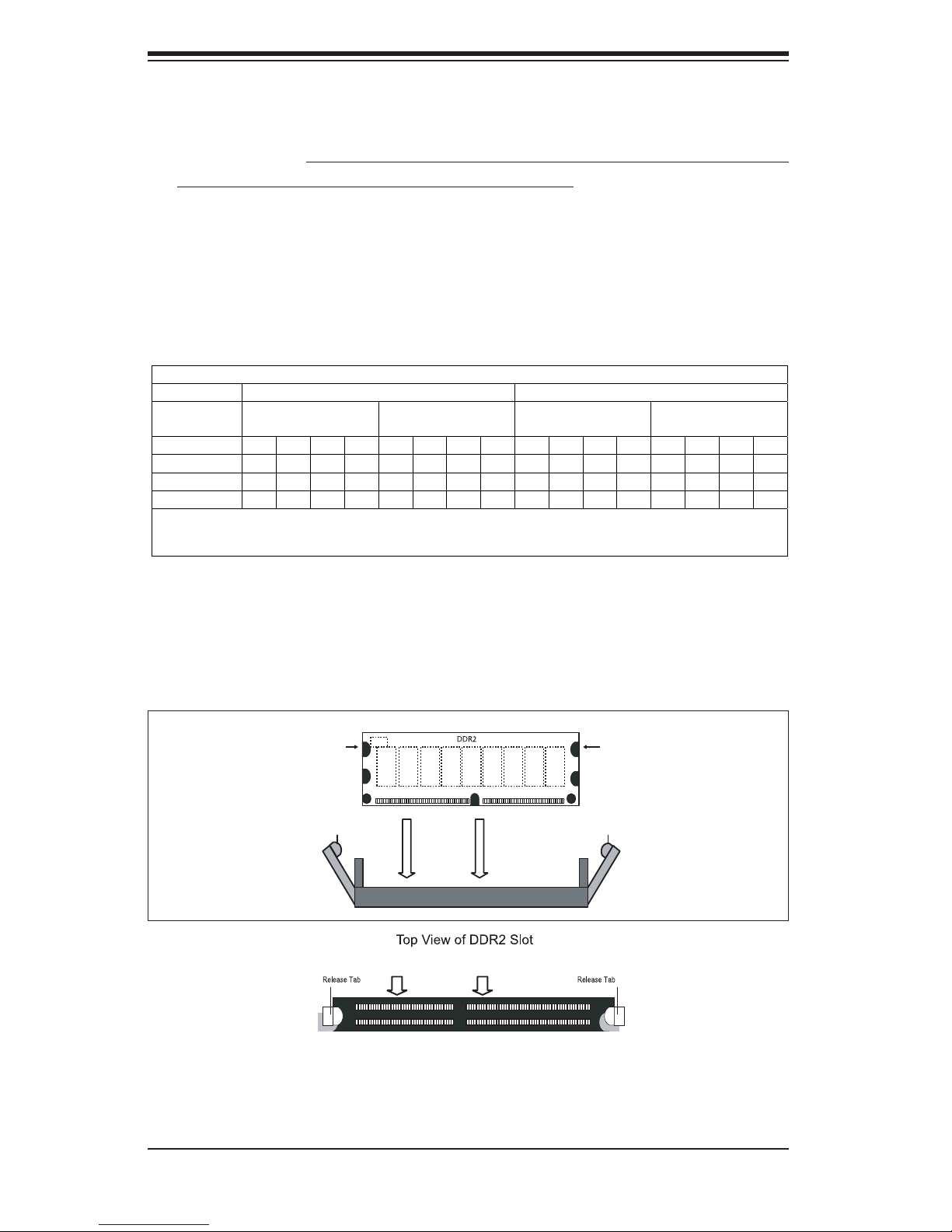

Figure 5-5. Installing DIMM into Slot

Notch

Release

Tab

To Install: Insert module vertically and press down until it snaps into place. Pay attention to the bottom

notches.

To Remove: Use your thumbs to gently push each release tab outward to free the DIMM from the

slot.

Note: Notch

should align

with its

receptive point

on the slot

Notch

Release

Tab

5-8

Chapter 5: Advanced Serverboard Setup

5-6 Adding PCI Cards

1. PCI slots

The X7DBE+/X7DB8+ has six PCI expansion slots, which includes two x8 PCI-

Express slots, one x4 PCI-Express slot, two 64-bit 133 MHz PCI-X slots and one

64-bit 100 MHz PCI-X slot. On the X7DB8+, the 100 MHz PCI-X slot supports Zero

Channel RAID (ZCR).

2. PCI card installation

Before installing a PCI add-on card, make sure you install it into a slot that supports

the speed of the card (see step 1, above). After gaining access to the inside of the

server, determine which slot you wish to populate, then press down on the curved

section at the top of the blue tab for that slot. While pressing down, lift the tab to

unlock the shield. Insert the expansion card into the correct slot on the serverboard,

pushing down with your thumbs evenly on both sides of the card. Lock the card

into place by pressing down on the tab. Follow this procedure when adding a card

to other slots.

5-9

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

5-7 Serverboard Details

Figure 5-6. SUPER X7DB8+ Layout*

(not drawn to scale)

FAN5

FAN6

Kb/

Mouse

USB0/1

COM1

Parallel

VGA

JLAN1

JLAN2

ATI

ES1000

Slot 5: x8 PCI-Exp

SUPER X7DB8+

COM2

Slot 4: x4 PCI-Exp

Slot 7: LP IPMI

JPG1

Slot 6: x8 PCI-Exp

JWD

Slot 3: PCI-X 133 MHz

JPL1
JPL2

Slot 2: PCI-X 133 MHz

JWOR

Slot 1: PCI-X 100 MHz (ZCR)

DIMM 4D

DIMM 4C

DIMM 4B

DIMM 4A

DIMM 3D

DIMM 3C

DIMM 3B

DIMM 3A

DIMM 2D

DIMM 2C

DIMM 2B

DIMM 2A

DIMM 1D

DIMM 1C

DIMM 1B

DIMM 1A

Battery

J28
J27

North Bridge

BIOS

JK1

JP3

JBT1

PXH

SMB

SATA0

SATA1 SATA2 SATA3

FAN7/
CPU FAN1

JAR

JL1

SATA4 SATA5

J3P

SMBUS_PS

JUSB3

JUSB2

JPW1 JPW2 JPW3

CPU1

CPU2

South Bridge

JWOL

JPA1

JWF1

AIC-7902W

U320 SCSI CHB

SGPIO2

SGPIO1

JCF1

JPA3/JPA2

JF1

Speaker

FAN1

FAN2

JD1

LE1

JOH1/JP1

FAN3

FAN8 /
CPU FAN2

Floppy

IDE#2 (Compact Flash)

U320 SCSI CHA

JA1

JA2

FAN4

IDE#1

*Notes:

Jumpers not noted are for test purposes only.

The X7DBE+ shares the same layout but without SCSI connectors, jumpers or components.

IDE#2 is for Compact Flash card use only. To use, close (enable) jumper JCF1 and connect the compact

fl ash power to JWF1.

5-10

Chapter 5: Advanced Serverboard Setup

X7DB8+X7DBE+ Quick Reference

Jumper Description Default Setting

J27/J28 SMBUS to PCI Enable/Disable Closed (Enabled)

J3P 3rd Power Fail Detect Open (Disabled)

JAR Alarm Reset Open (Disabled)

JBT1 CMOS Clear (See Section 5-9)

JCF1 Compact Flash Master/Slave Select Closed (Master)

JPA1* SCSI Controller Enable/Disable Pins 1-2 (Enabled)

JPA2/JPA3* SCSI ChA/ChB Termination En/Dis Open (Enabled)

JPG1 VGA Enable/Disable Pins 1-2 (Enabled)

JPL1/ JPL2 JLAN1/JLAN2 Enable/Disable Pins 1-2 (Enabled)

JWD Watch Dog Pins 1-2 (Reset)

Connector Description

COM1/COM2 COM1/COM2 Serial Port Connector/Header

FAN 1-8 Fans 1-8 (Fans 1-4 = 3-pin, Fans 5-8 = 4-pin)

Floppy Floppy Disk Drive Connector

IDE#1/IDE#2* IDE Hard Drive/Compact Flash Card Connectors

JA1/JA2* SCSI Channel A & B Connectors

JD1 Power LED (pins1-3)/Speaker Header (pins 4-7)

JF1 Front Control Panel Connector

JK1 Keylock Header

JL1 Chassis Intrusion Header

JLAN1/2 G-bit Ethernet Ports

JOH1 Overheat LED

JP3 Power Fault header

JPW1 Primary 24-Pin ATX Power Connector

JPW2 Secondary Power Connector

JPW3 Processor Power Connector

JWF1 Compact Flash Card Power Connector

JWOL Wake-on-LAN Header

JWOR Wake-on-Ring Header

LE1 PWR LED Indicator

LP IPMI (Slot 7) Low Profi le IPMI Connector

Parallel Parallel (Printer) Port

SATA0-SATA5 Intel Serial ATA Connectors

SGPIO1/SGPIO2 SGPIO Headers

SMB System Management Bus Header

SMBUS_PS Power System Management (I

USB0/1, JUSB2, JUSB4 Back Panel USB0/1, Front Panel USB2/3, USB4

2

C) Header

*X7DB8+ only

5-11

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

5-8 Connector Defi nitions

ATX Power Connector

The power supply connector meets

the SSI (Superset ATX) 24-pin specifi -

cation. Make sure that the orientation

of the connector is correct. See the

table on the right for pin defi nitions.

Secondary Power
Connector

In addition to the Primary ATX power

connector (above), the Secondary 12v

8-pin connector (JPW2) must also

be connected to your power supply.

See the table on the right for pin

defi nitions.

ATX Power 24-pin Connector

Pin Defi nitions (JPW1)

Pin# Defi nition Pin # Defi nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

+12V 4-pin Power

Pin Defi nitions (JPW2)

Pins Defi nition

1 & 2 Ground

3 & 4 +12V

Processor Power Connector

The JPW3 header must also be con-

nected to the power supply to provide

power for the processor(s). See the

table on the right for pin defi nitions.

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin defi nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

Processor Power

Pin Defi nitions (JPW3)

Pins Defi nition

1 through 4 Ground

5 through 8 +12V

NMI Button

Pin Defi nitions (JF1)

Pin# Defi nition

19 Control

20 Ground

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 Vcc

16 Control

5-12

Chapter 5: Advanced Serverboard Setup

HDD LED

The HDD (IDE Hard Disk Drive) LED

connection is located on pins 13 and

14 of JF1. Attach the IDE hard drive

LED cable to display disk activity.

Refer to the table on the right for pin

defi nitions.

NIC1 LED

The NIC1 (Network Interface Control-

ler) LED connection is located on pins

11 and 12 of JF1. Attach the NIC1

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 Vcc

14 HD Active

NIC1 LED

Pin Defi nitions (JF1)

Pin# Defi nition

11 Vcc

12 Ground

NIC2 LED

The NIC2 (Network Interface Control-

ler) LED connection is located on pins

9 and 10 of JF1. Attach the NIC2

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

Overheat/Fan Fail LED (OH)

Connect an LED to the OH connection

on pins 7 and 8 of JF1 to provide ad-

vanced warning of chassis overheat-

ing. Refer to the table on the right for

pin defi nitions.

Power Fail LED

The Power Fail LED connection is

located on pins 5 and 6 of JF1. Re-

fer to the table on the right for pin

defi nitions.

NIC2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9 Vcc

10 Ground

OH/Fan Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

7 Vcc

8 Ground

Power Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 Vcc

6 Ground

5-13

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin defi nitions.

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

Power Button

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be confi gured to function

as a suspend button (see the Power

Button Mode setting in BIOS). To turn

off the power when set to suspend

mode, depress the button for at least

4 seconds. Refer to the table on the

right for pin defi nitions.

Universal Serial Bus
(USB0/1)

Two Universal Serial Bus ports are

located beside the PS/2 keyboard/

mouse ports. USB0 is the bottom

connector and USB1 is the top con-

nector. See the table on the right for

pin defi nitions.

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 PW_ON

2 Ground

Universal Serial Bus

Pin Defi nitions (USB0/1)

USB0
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 N/A 5 Key

USB1
Pin # Defi nition

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

5-14

Chassis Intrusion

Pin Defi nitions (JL1)

Pin# Defi nition

1 Intrusion Input

2 Ground

Chapter 5: Advanced Serverboard Setup

Serial Ports

The COM1 serial port is located beside

the mouse port. COM2 is a header on

the serverboard (see serverboard

layout for location). See the table on

the right for pin defi nitions.

Power Fail Header

Connect a cable from your power sup-

ply to the Power Fail header to provide

you with warning of a power supply

failure. The warning signal is passed

through the PWR_LED pin to indicate

a power failure. See the table on the

right for pin defi nitions.

Serial Port Pin Defi nitions

(COM1/COM2)

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 NC

Note: Pin 10 is included on the header but not on

the port. NC indicates no connection.

Power Fail Header

Pin Defi nitions (JP3)

Pin# Defi nition

1 P/S 1 Fail Signal

2 P/S 2 Fail Signal

3 P/S 3 Fail Signal

4 Reset Signal

Note: This feature is only available when using

redundant Supermicro power supplies.

Fan Headers

The X7DBE+/X7DB8+ has eight fan

headers, designated Fan1 through

Fan8. Fan speed is controlled via

Thermal Management with a BIOS

setting. See the table on the right for

pin defi nitions.

Note: Fan1-4 are 3-pin fans and

Fan5-8 are 4-pin fans. Pins 1-3 of

the 4-pin fan headers are backward

compatible with traditional 3-pin fans.

When using a Thermal Management

setting, use all 3-pin fans or all 4-pin

fans on the serverboard. Do not use

3-pin fans and 4-pin fans together.

Fan Header

Pin Defi nitions

(Fan1-8)

Pin# Defi nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

5-15

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Extra Universal Serial Bus
Headers

Three additional USB headers are

located near the WOL header on the

serverboard. JUSB2 includes USB2/3

and JUSB3 is for USB4. These are

included for connection to the ports

on the front of the chassis. A USB

cable (not included) is needed for the

connection. See the table on the right

for pin defi nitions.

Power LED/Speaker

On the JDI header, pins 1-3 are for

a power LED, pins 4-7 are for the

speaker. See the table on the right

for speaker pin definitions. Note:

The speaker connector pins are for

use with an external speaker. If you

wish to use the onboard speaker, you

should close pins 6-7 with a jumper.

Front Panel Universal Serial Bus

Pin Defi nitions (JUSB2/3)

USB2
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 N/A 5 N/A

Speaker Connector

Pin Defi nitions (JD1)

Pin # Function Defi nition

4 + Speaker data (red wire)

5 Key No connection

6 Key

7 Speaker data

USB3
Pin # Defi nition

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/2

mouse ports are located on the I/O

back plane. See the table on the right

for pin defi nitions.

Overheat LED

Connect an LED to the JOH header to

provide warning of a chassis overheat-

ing condition. See the table on the

right for pin defi nitions.

5-16

PS/2 Keyboard and

Mouse Port Pin

Defi nitions (Kb, Mouse)

Pin# Defi nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Overheat LED

Pin Defi nitions (JOH)

Pin# Defi nition

1 +5V

2 OH Active

Chapter 5: Advanced Serverboard Setup

Wake-On-LAN

The Wake-On-LAN header is desig-

nated WOL. See the table on the right

for pin defi nitions. You must enable

the LAN Wake-Up setting in BIOS to

use this feature. You must also have

a LAN card with a Wake-on-LAN con-

nector and cable.

Wake-On-Ring

The Wake-On-Ring header is desig-

nated JWOR. This function allows

your computer to receive and "wake-

up" by an incoming call to the modem

when in suspend state. See the table

on the right for pin defi nitions. You

must have a WOR card and cable to

use this feature.

Wake-On-LAN

Pin Defi nitions (WOL)

Pin# Defi nition

1 +5V Standby

2 Ground

3 Wake-up

Wake-On-Ring
Pin Defi nitions

(JWOR)

Pin# Defi nition

1 Ground (Black)

2 Wake-up

SMB

The System Management Bus header

(for the PCI bus) designated SMB is

located near the SATA ports. Connect

the appropriate cable here to utilize

SMB on your system. See the table

on the right for pin defi nitions.

SMBUS_PS

The SMBUS_PS header is for I2C,

which may be used to monitor the

status of the power supply, fan and

system temperature. See the table on

the right for pin defi nitions.

SMB Header

Pin Defi nitions (SMB)

Pin# Defi nition

1 Data

2 Ground

3 Clock

4 No Connection

SMB Power (I2C)

Pin Defi nitions

(SMBUS_PS)

Pin# Defi nition

1 Clock

2 Data

3 Power Fail

4 Ground

5 +3.3V

5-17

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

SGPIO

The two headers labeled SGPIO1 and SGPIO2 are for SGPIO (Serial General

Purpose Input/Output). SGPIO provides a bus between the SATA controller and the

SATA drive backplane to provide SATA enclosure management functions. Connect

the appropriate cables from the backplane to the SGPIO1 and SGPIO2 headers to

utilize SATA management functions on your system.

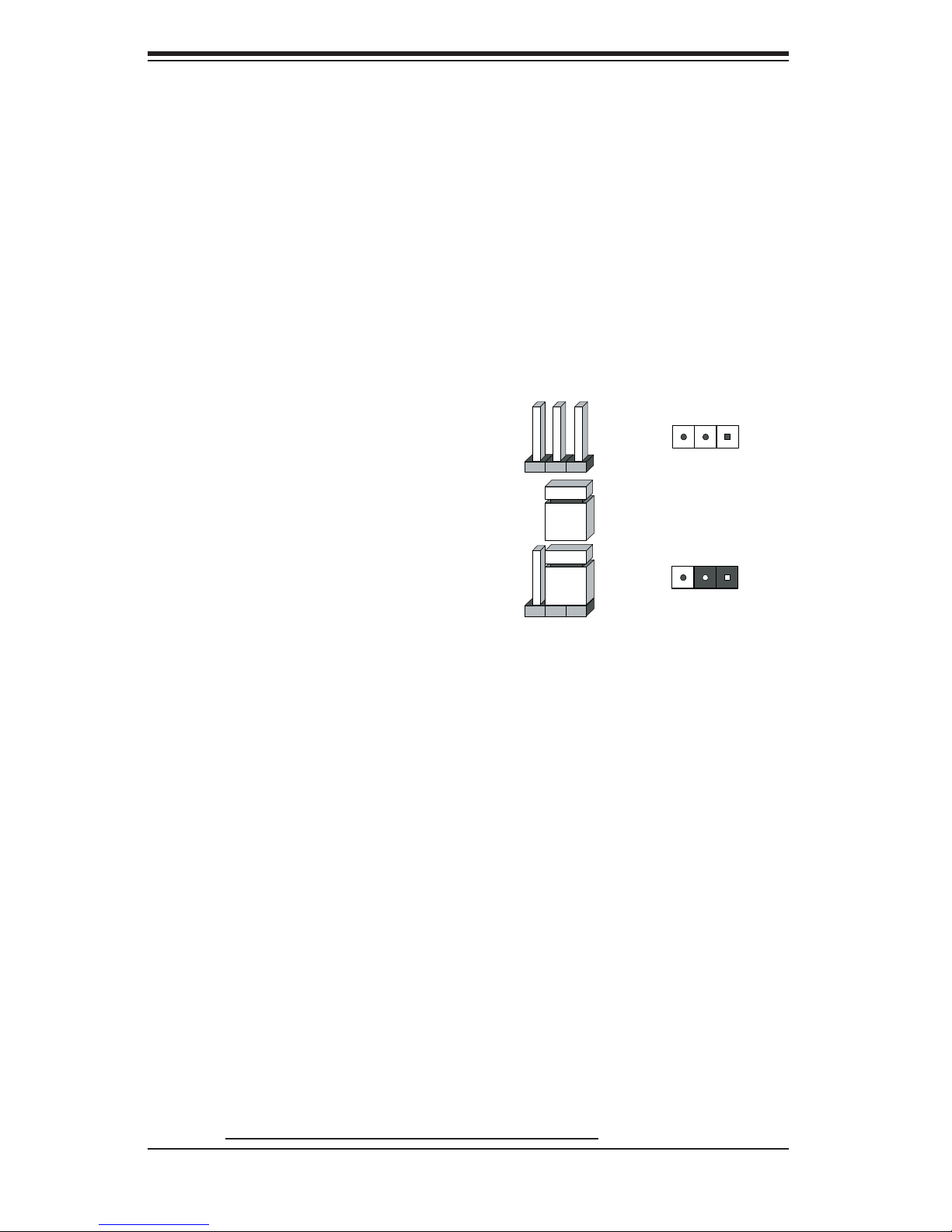

5-9 Jumper Settings

Explanation of
Jumpers

To modify the operation of the

serverboard, jumpers can be used to

choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identifi ed with

a square solder pad on the printed

circuit board. See the diagram at

right for an example of jumping pins

1 and 2. Refer to the serverboard

layout page for jumper locations.

Note: O n t w o - p i n j u m p e r s , " C l o s e d "

means the jumper is on and "Open"

means the jumper is off the pins.

CMOS Clear

Connector

Pins

Jumper

Setting

321

321

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins,

this jumper consists of contact pads to prevent accidentally clearing the contents

of CMOS.

To clear CMOS,

1) First power down the system and unplug the power cord(s)

2) With the power disconnected, short the CMOS pads with a metal object such as

a small screwdriver

3) Remove the screwdriver (or shorting device)

4) Reconnect the power cord(s) and power on the system.

Note: Do not use the PW_ON connector to clear CMOS.

5-18

Chapter 5: Advanced Serverboard Setup

JLAN Enable/Disable

Change the setting of jumper JPL1

and JPL2 to enable or disable the on-

board LAN ports JLAN1 and JLAN2,

respectively. See the table on the

right for jumper settings. The default

setting is enabled

Watch Dog Enable/Disable

JWD controls the Watch Dog function.

Watch Dog is a system monitor that

can reboot the system when a software

application hangs. Pins 1-2 will cause

WD to reset the system if an ap plica tion

hangs. Pins 2-3 will generate a non-

maskable interrupt signal for the appli-

cation that is hung up. See the table

on the right for jumper settings. Watch

Dog must also be enabled in BIOS.

Note: When enabled, the user needs

to write their own application software

to disable the Watch Dog Timer.

JLAN Enable/Disable

Jumper Settings (JPL1/JPL2)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog

Jumper Settings (JWD)

Jumper Setting Defi nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

3rd Power Supply Fail Detect
Enable/Disable

The system can notify you in the event

of a power supply failure. This feature

assumes that three power supply units

are installed in the chassis with one

acting as a backup. If you only have

one or two power supply units installed,

you should disable this (the default set-

ting) with J3P to prevent false alarms.

See the table on the right for jumper

settings.

3rd Power Supply Fail
Detect Enable/Disable

Jumper Settings (J3P)

Jumper Setting Defi nition

Open Disabled

Closed Enabled

5-19

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Alarm Reset (JAR)

The system will notify you in the event

of a power supply failure. This feature

assumes that Supermicro redundant

power supply units are installed in the

chassis. If you only have a single power

supply installed, you should not connect

anything to this jumper to prevent false

alarms. See the table on the right for

jumper settings.

VGA Enable/Disable

JPG1 allows you to enable or disable

the VGA port. The default position is

on pins 1 and 2 to enable VGA. See

the table on the right for jumper set-

tings.

Alarm Reset

Jumper Settings (JAR)

Pin# Defi nition

2 +5V

1 Ground

VGA Enable/Disable

Jumper Settings (JPG1)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

SCSI Controller Enable/
Disable (6025B-8R+ only)

Jumper JPA1 is used to enable or dis-

able the onboard SCSI controller. The

default setting is on pins 1-2 to enable

SCSI. See the table on the right for

jumper settings.

SCSI Termination Enable/
Disable (6025B-8R+ only)

Jumpers JPA2/JPA3 are used to en-

able or disable termination for the

SCSI Channel A (JPA2) and Channel B

(JPA3) connectors. The default setting

is open to enable termination. See the

table on the right for jumper settings.

Note: In order for the SCSI drives to

function properly, please do not change

the default setting (enabled) set by the

SCSI Enable/Disable

Jumper Settings (JPA1)

Both Jumpers Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

SCSI Term. Enable/Disable

Jumper Settings (JPA2/JPA3)

Jumper Setting Defi nition

Open Enabled

Closed Disabled

manufacturer.

5-20

Compact Flash Master/Slave
Select

A Compact Flash Master (Primary)/Slave

(Secondary) Select jumper is located at

JCF1. Close this jumper to enable the

use of a compact fl ash card. For the

compact fl ash card and JCF1 to work

properly, you will fi rst need to connect

the compact fl ash card's power cable

to JWF1. See the table on the right for

jumper settings.

Chapter 5: Advanced Serverboard Setup

Compact Flash Card Master/

Slave Select (JCF1)

Jumper Defi nition

Open Slave (Secondary)

Closed Master (Primary)

SMBUS to PCI Enable/
Disable

The J27 and J28 pair of jumpers allows

you to connect the System Manage-

ment Bus to the PCI expansion slots.

The default setting is closed (on) for

both jumpers to enable the connection.

Both connectors must be set the same

(J27 is for data and J28 is for the clock).

See the table on right for jumper set-

tings.

SMBUS to PCI

Enable/Disable

(J27/J28)

Jumper Setting Defi nition

Closed Enabled

Open Disabled

5-21

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

5-10 Onboard Indicators

JLAN1/JLAN2 LEDs

Each Ethernet port has two LEDs.

The yellow (right) LED indicates activ-

ity while the left LED may be green,

amber or off to indicate the speed of

the connection. See the table on the

right for the functions associated with

the left (connection speed) LED.

SCSI Activity LED Indicators

JLAN Left LED

(Connection Speed Indicator)

LED Color Defi nition

Off 10 MHz

Green 100 MHz

Amber 1 GHz

There are two SCSI Activity LED indi-

cators on the X7DB8+. DA1 indicates

the activity status of SCSI Channel A

and DA2 indicates the activity status

of SCSI Channel B.

Onboard Power LED

LE1 is a power LED located beside

JP1. When this LED is lit, the system

is on. Be sure to turn off the system

and unplug the power cord before re-

moving or installing components.

5-22

Chapter 5: Advanced Serverboard Setup

5-11 Parallel Port, Floppy and Hard Drive Connections

Note the following when connecting the fl oppy and hard disk drive cables:

• The fl oppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

Parallel Port Connector

See the table below for pin defi nitions

of the parallel (printer) port.

Pin# Defi nition Pin # Defi nition

1 Strobe- 2 Auto Feed-

3 Data Bit 0 4 Error-

5 Data Bit 1 6 Init-

7 Data Bit 2 8 SLCT IN-

9 Data Bit 3 10 GND

11 Data Bit 4 12 GND

13 Data Bit 5 14 GND

15 Data Bit 6 16 GND

17 Data Bit 7 18 GND

19 ACK 20 GND

21 BUSY 22 Write Data

23 PE 24 Write Gate

25 SLCT 26 NC

Parallel (Printer) Port Connector

Pin Defi nitions

5-23

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Floppy Connector

The fl oppy connector is located near

the IDE connectors. See the table

below for pin defi nitions.

Pin# Defi nition Pin # Defi nition

1 Ground 2 FDHDIN

3 Ground 4 Reserved

5 Key 6 FDEDIN

7 Ground 8 Index

9 Ground 10 Motor Enable

11 Ground 12 Drive Select B

13 Ground 14 Drive Select B

15 Ground 16 Motor Enable

17 Ground 18 DIR

19 Ground 20 STEP

21 Ground 22 Write Data

23 Ground 24 Write Gate

25 Ground 26 Track 00

27 Ground 28 Write Protect

29 Ground 30 Read Data

31 Ground 32 Side 1 Select

33 Ground 34 Diskette

Floppy Drive Connector

Pin Defi nitions (Floppy)

SATA Ports

There are no jumpers to con-

fi gure the onboard SATA con-

nectors. See the table on the

right for pin defi nitions.

SATA Connector Pin Defi nitions

(SATA0 - SATA5)

Pin # Defi nition

1 Ground

2TXP

3TXN

4 Ground

5RXN

6RXP

7 Ground

5-24

IDE Connectors

There are two IDE connectors: IDE#1

(blue) and IDE#2 (white). IDE#1 is

designated as the primary IDE drive.

IDE#2 is designated as the secondary

IDE drive and is reserved for Compact

Flash card use only. See the table

below for pin defi nitions.

Note: IDE#2 is reserved for Compact

Flash card use only. Do not use it for

other devices. If IDE#2 is populated

with a Compact Flash card, IDE#1

will only support one device. For the

Compact Flash card to work properly,

you will fi rst need to connect a power

cable to JWF1.

Pin# Defi nition Pin # Defi nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

Chapter 5: Advanced Serverboard Setup

IDE Drive Connectors

Pin Defi nitions (IDE#1)

5-25

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Ultra320 SCSI Connectors
(6025B-8R+ only)

There are two SCSI connectors on

the serverboard. SCSI Channel A is

located at JA1 and SCSI Channel B

is located at JA2. Refer to the table

at right for the pin defi nitions.

Pin# Defi nition Pin # Defi nition

1 +DB (12) 35 -DB (12)

2 +DB (13) 36 -DB (13)

3 +DB (14) 37 -DB (14)

4 +DB (15) 38 -DB (15)

5 +DB (P1) 39 -DB (P1)

6 +DB (0) 40 -DB (0)

7 +DB (1) 41 -DB (1)

8 +DB (2) 42 -DB (2)

9 +DB (3) 43 -DB (3)

10 +DB (4) 44 -DB (4)

11 +DB (5) 45 -DB (5)

12 +DB (6) 46 -DB (6)

13 +DB (7) 47 -DB (7)

14 +DB (P) 48 -DB (P)

Ultra320 SCSI Drive Connector

Pin Defi nitions (JA1/JA2)

15 Ground 49 Ground

16 DIFFSENS 50 Ground

17 TERMPWR 51 TERMPWR

18 TERMPWR 52 TERMPWR

19 Reserved 53 Reserved

20 Ground 54 Ground

21 +ATN 55 -ATN

22 Ground 56 Ground

23 +BSY 57 -BSY

24 +ACK 58 -ACK

25 +RST 59 -RST

26 +MSG 60 -MSG

27 +SEL 61 -SEL

28 +C/D 62 -C/D

29 +REQ 63 -REQ

30 +I/O 64 -I/O

31 +DB (8) 65 -DB (8)

32 +DB (9) 66 -DB (9)

33 +DB (10) 67 -DB (10)

34 +DB (11) 68 -DB (11)

5-26

Chapter 6: Advanced Chassis Setup

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform mainte-

nance on the SC825TQ-R700LP/SC825S2-R700LP chassis. For component instal-

lation, follow the steps in the order given to eliminate the most common problems

encountered. If some steps are unnecessary, skip ahead to the step that follows.

Tools Required

The only tool you will need to install components and perform maintenance is a

Philips screwdriver.

6-1 Static-Sensitive Devices

Electrostatic discharge (ESD) can damage electronic com ponents. To prevent

damage to any printed circuit boards (PCBs), it is important to handle them very

carefully. The following measures are generally suffi cient to protect your equipment

from ESD damage.

Precautions

 Use a grounded wrist strap designed to prevent static discharge.

 Touch a grounded metal object before removing any board from its antistatic

bag.

 Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

 When handling chips or modules, avoid touching their pins.

 Put the motherboard, add-on cards and peripherals back into their antistatic bags

when not in use.

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

6-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

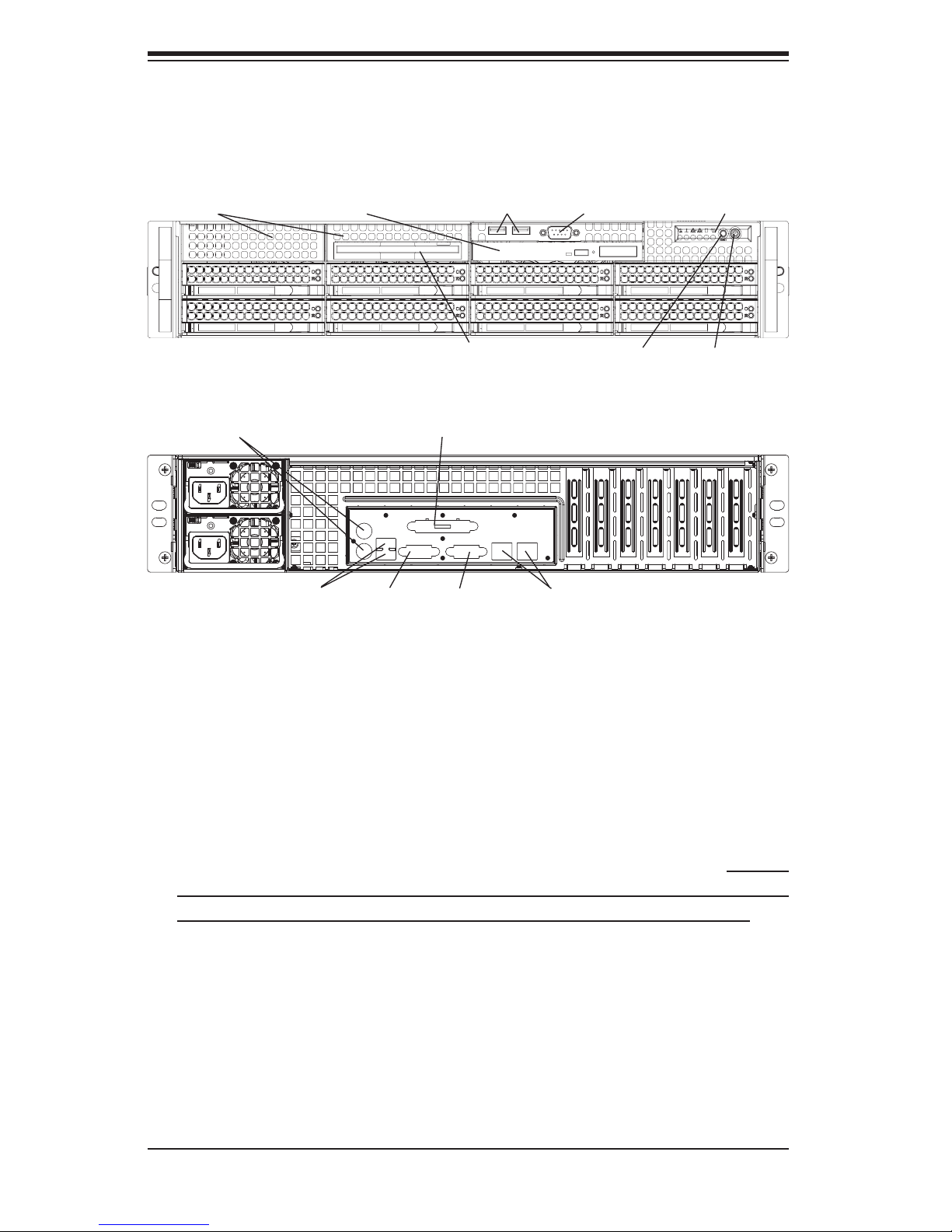

Figure 6-1. Front and Rear Chassis Views

3.5" Drive Bays (2)

Keyboard/Mouse Ports

Slim DVD-ROM Drive

Hard Drives (8) Floppy Drive (optional)

Parallel Port

COM1 Port

USB Ports (2), COM Port

VGA Port

Ethernet Ports USB Ports

System Reset

7 Low-Profi le PCI Slots

Main Power

Control Panel

6-2 Control Panel

The control panel (located on the front of the chassis) must be connected to the

JF1 connector on the serverboard to provide you with system status indications. A

ribbon cable has bundled these wires together to simplify the connection. Connect

the cable from JF1 on the serverboard to JP4 on the Control Panel PCB (printed

circuit board). Make sure the red wire plugs into pin 1 on both JF1 and JP4. Pull

all excess cabling out of the airfl ow path. The LEDs inform you of system status.

See Chapter 3 for details on the LEDs and the control panel buttons. Details on

JF1 can be found in Chapter 5.

6-2

Chapter 6: Advanced Chassis Setup

6-3 System Fans

Three 8-cm hot-swap fans provide the cooling for the SuperServer 6025B-TR+/

6025B-8R+. It is very important that the chassis top cover is properly installed and

making a good seal in order for the cooling air to circulate properly through the

chassis and cool the components. See Figure 6-2.

System Fan Failure

Fan speed is controlled by system temperature via a BIOS setting. If a fan fails,

the remaining fans will ramp up to full speed and the overheat/fan fail LED on the

control panel will turn on. Replace any failed fan at your earliest convenience

with the same type and model (the system can continue to run with a failed fan).

Remove the top chassis cover while the system is still running to determine which

of the fans has failed.

Replacing System Fans

1. Removing a fan

Remove the chassis cover. Press the tabs on the sides of the fan to unlock and

remove the fan and its housing. The fan's power connections will automatically

detach. System power does not need to be shut down since the fans are hot-plug-

gable.

2. Installing a new fan

Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro,

p/n FAN-0070). Position the new fan into the space vacated by the failed fan previ-

ously removed. A "click" can be heard when the fan is fully installed in place and

the power connections are made. If the system power is on, the hot-plug feature

will cause the fan to start immediately upon being connected to its header on the

serverboard.

6-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

Figure 6-2. Removing System Cooling Fans

6-4 Drive Bay Installation/Removal

Accessing the Drive Bays

SATA/SCSI Drives: You do not need to access the inside of the chassis or remove

power to replace or swap SATA/SCSI drives. Proceed to the next step for instruc-

tions. Note: You must use standard 1" high, SATA/SCSI drives in the SuperServer

6025B-TR+/6025B-8R+.

DVD-ROM/Floppy Disk Drive: For installing/removing the DVD-ROM or fl oppy disk

drive, you will need to gain access to the inside of the server by removing the top

cover of the chassis. Proceed to the "DVD-ROM and Floppy Drive Installation"

section later in this chapter for instructions.

5.25" Drive Bay: For installing/removing a component in the 5.25" drive bay, proceed

to the "5.25" Drive Bay Installation" section later in this chapter for instructions.

6-4

Chapter 6: Advanced Chassis Setup

SATA/SCSI Drive Installation

1. Mounting a SATA/SCSI drive in a drive carrier

The SATA/SCSI drives are mounted in drive carriers to simplify their installation and

removal from the chassis. These carriers also help promote proper airfl ow for the

drives. For this reason, even empty carriers without SATA/SCSI drives installed

must remain in the chassis. To add a new SATA/SCSI drive, install a drive into the

carrier with the printed circuit board side facing down so that the mounting holes

align with those in the carrier. Secure the drive to the carrier with four screws, as

shown in Figure 6-3.

Figure 6-3. Mounting a SATA/SCSI Drive in a Carrier

Use caution when working around the SATA/SCSI backplane.

Do not touch the backplane with any metal objects and make

!

!

sure no ribbon cables touch the backplane or obstruct the holes,

which aid in proper airfl ow.

Important: Regardless of how many SATA/SCSI hard drives

are installed, all drive carriers must remain in the drive bays to

maintain proper airfl ow.

6-5

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

2. Installing/removing hot-swap SATA/SCSI drives

The SATA/SCSI drive carriers are all easily accessible at the front of the chassis.

These hard drives are hot-pluggable, meaning they can be removed and installed

without powering down the system. To remove a carrier, push the release button

located beside the drive LEDs. Then swing the colored handle fully out and use it

to pull the unit straight out (see Figure 6-4).

Note: Your operating system must have RAID support to enable the hot-plug ca-

pability of the SATA/SCSI drives.

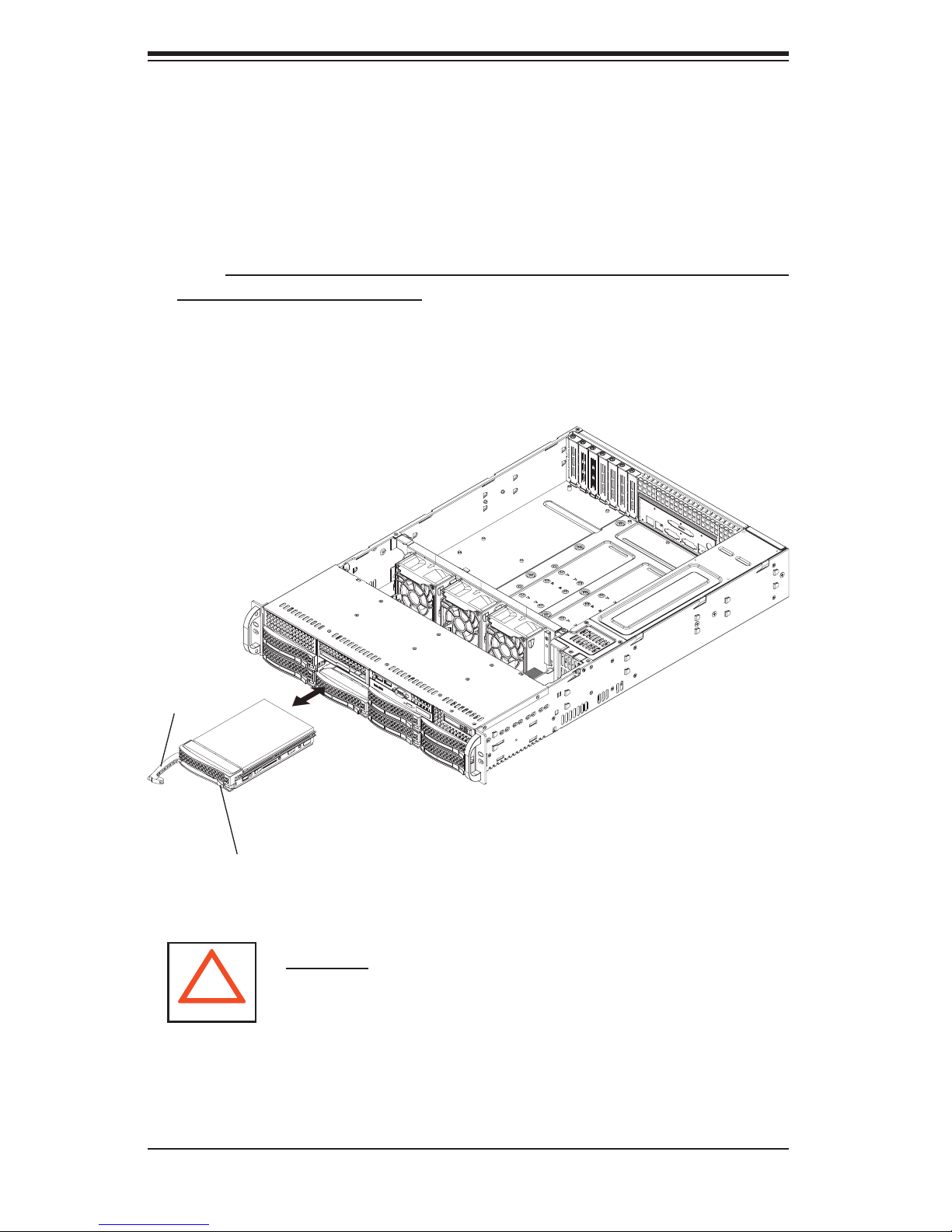

Figure 6-4. Removing a Serial ATA Drive Carrier

Handle

Release Button

Important: All of the SATA/SCSI drive carriers must remain in

!

the drive bays to maintain proper cooling airfl ow.

6-6

Chapter 6: Advanced Chassis Setup

Hard Drive Backplane

The SATA/SCSI drives plug into a backplane that provides power, drive ID and

bus termination. A RAID controller can be used with the backplane to provide data

security. The operating system you use must have RAID support to enable the hot-

swap capability of the Serial ATA drives. The backplane is already preconfi gured,

so there are no jumpers or switches present on it.

DVD-ROM and Floppy Drive Installation

The top cover of the chassis must be opened to gain full access to the DVD-ROM

and fl oppy drive bays. The 6025B-TR+/6025B-8R+ accomodates only slim type

DVD-ROM drives. Side mounting brakets are typically needed to mount a slim

DVD-ROM drive in the 6025B-TR+/6025B-8R+ server.

First, release the retention screws that secure the server unit to the rack. Grasp

the two handles on either side and pull the unit straight out until it locks (you will

hear a "click"). Next, depress the two buttons on the top of the chassis to release

the top cover and at the same time, push the cover away from you until it stops.

You can then lift the top cover from the chassis to gain full access to the inside of

the server. You must power down the system before installing or removing fl oppy

or IDE components.

Drives mount on rails and should "click" into place to be correctly and fully installed

in their bays.

• The fl oppy disk drive cable has seven twisted wires.

• A color mark on a cable typically designates the location of pin 1.

• A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

6-7

S

UPERSERVER 6025B-TR+/6025B-8R+ User's Manual

6-5 Power Supply

The SuperServer 6025B-TR+/6025B-8R+ has a 700 watt redundant power supply

consisting of two power modules. Each power supply module has an auto-switching

capability, which enables it to automatically sense and operate at a 100V - 240V

input voltage.

Power Supply Failure

If either of the two power supply modules fail, the other module will take the full

load and allow the system to continue operation without interruption. The PWR

Fail LED will illuminate and remain on until the failed unit has been replaced. Re-

placement units can be ordered directly from Supermicro (see contact information

in the Preface). The power supply units have a hot-swap capability, meaning you

can replace the failed unit without powering down the system.

Removing/Replacing the Power Supply

You do not need to shut down the system to replace a power supply unit. The

backup power supply module will keep the system up and running while you replace

the failed hot-swap unit. Replace with the same model (see part number in the

Appendix), which can be ordered directly from Supermicro.

1. Removing the power supply

First unplug the power cord from the failed power supply module. Then depress

the locking tab on the power supply module and use the handle to pull it straight

out with the rounded handle.

2. Installing a new power supply

Replace the failed hot-swap unit with another identical power supply unit. Simply

push the new power supply unit into the power bay until you hear a click. Secure

the locking tab on the unit and fi nish by plugging the AC power cord back into the

unit.

6-8

Chapter 7

Chapter 7: BIOS

BIOS

7-1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the X7DBE+/X8DB8+.

The Phoenix ROM BIOS is stored in a fl ash chip and can be easily upgraded using

a fl oppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of the Supermicro web site <http://www.supermicro.com> for any

changes to the BIOS that may not be refl ected in this manual.

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and

PS/2® compatible computers. The Phoenix BIOS fl ash chip stores the system

parameters, types of disk drives, video displays, etc. in the CMOS. The CMOS

memory requires very little electrical power. When the computer is turned off, a

backup battery provides power to the BIOS fl ash chip, enabling it to retain system

parameters. Each time the computer is powered on the computer is confi gured

with the values stored in the BIOS ROM by the system BIOS, which gains control

at boot up.

How To Change the Confi guration Data

The CMOS information that determines the system parameters may be changed by

entering the BIOS Setup utility. This Setup utility can be accessed by pressing the

<Delete> key at the appropriate time during system boot. (See below.)

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory test. As

the memory is being tested, press the <Delete> key to enter the main menu of the

BIOS Setup utility. From the main menu, you can access the other setup screens,

such as the Security and Power menus. Beginning with Section 4-3, detailed de-

scriptions are given for each parameter setting in the Setup utility.

Warning! To prevent possible boot failure, do not shut down or reset the system

while updating the BIOS.

7-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

7-2 Running Setup

Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing the ap-

propriate text from the main BIOS Setup screen. All displayed text is described in

this section, although the screen display is often all you need to understand how

to set the options (see next page).

When you fi rst power on the computer, the Phoenix BIOS™ is immediately acti-

vated.

While the BIOS is in control, the Setup program can be activated in one of two

ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears briefl y at the bottom of the screen during

the POST (Power On Self-Test), press the <Delete> key to activate the main Setup

menu:

Press the <Delete> key to enter Setup

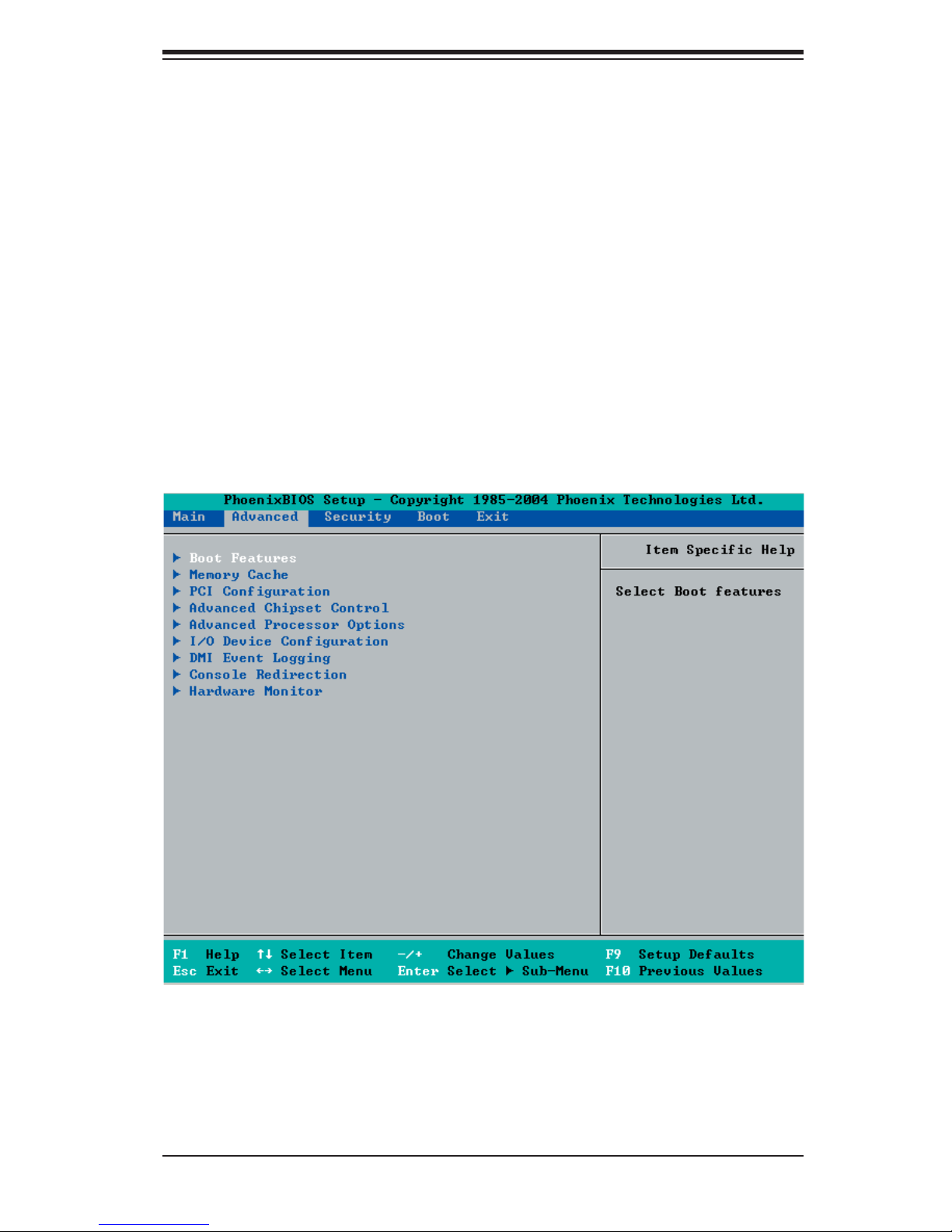

7-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup screen

is displayed below.

Use the Up/Down arrow keys to move among the different settings in each menu.

Use the Left/Right arrow keys to change the options for each setting.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in

detail how to navigate through the menus.

Items that use submenus are indicated with the

press the <Enter> key to access the submenu.

 icon. With the item highlighted,

7-2

Main BIOS Setup Menu

Chapter 7: BIOS

Main Setup Features

System Time

To set the system date and time, key in the correct information in the appropriate

fi elds. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year fi elds, and enter the correct

data. Press the <Enter> key to save the data.

BIOS Date

This fi eld displays the date when this version of BIOS was built.

Legacy Diskette A

This setting allows the user to set the type of fl oppy disk drive installed as diskette A.

The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB,

3.5 in and 2.88MB 3.5 in.

7-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

IDE Channel 0 Master/Slave, SATA Port0, SATA Port1, SATA Port2
and SATA Port3

These settings allow the user to set the parameters of IDE Channel 0 Master/
Slave, IDE Channel 1 Master/Slave, IDE Channel 2 Master, IDE Channel 3

Master slots. Hit <Enter> to activate the following sub-menu screen for detailed

options of these items. Set the correct confi gurations accordingly. The items

included in the sub-menu are:

Type

Selects the type of IDE hard drive. The options are Auto, (which allows the BIOS

to automatically determine the hard drive's capacity, number of heads, etc.), a

number from 1-39 to select a predetermined type of hard drive, CDROM and

ATAPI Removable. The option "User" will allow the user to enter the parameters

of the HDD installed at this connection. The option "Auto" will allow the BIOS to

automatically confi gure the parameters of the HDD installed at the connection.

Choose the option 1-39 to select a predetermined HDD type. Select CDROM if a

CDROM drive is installed. Select ATAPI if a removable disk drive is installed.

7-4

Chapter 7: BIOS

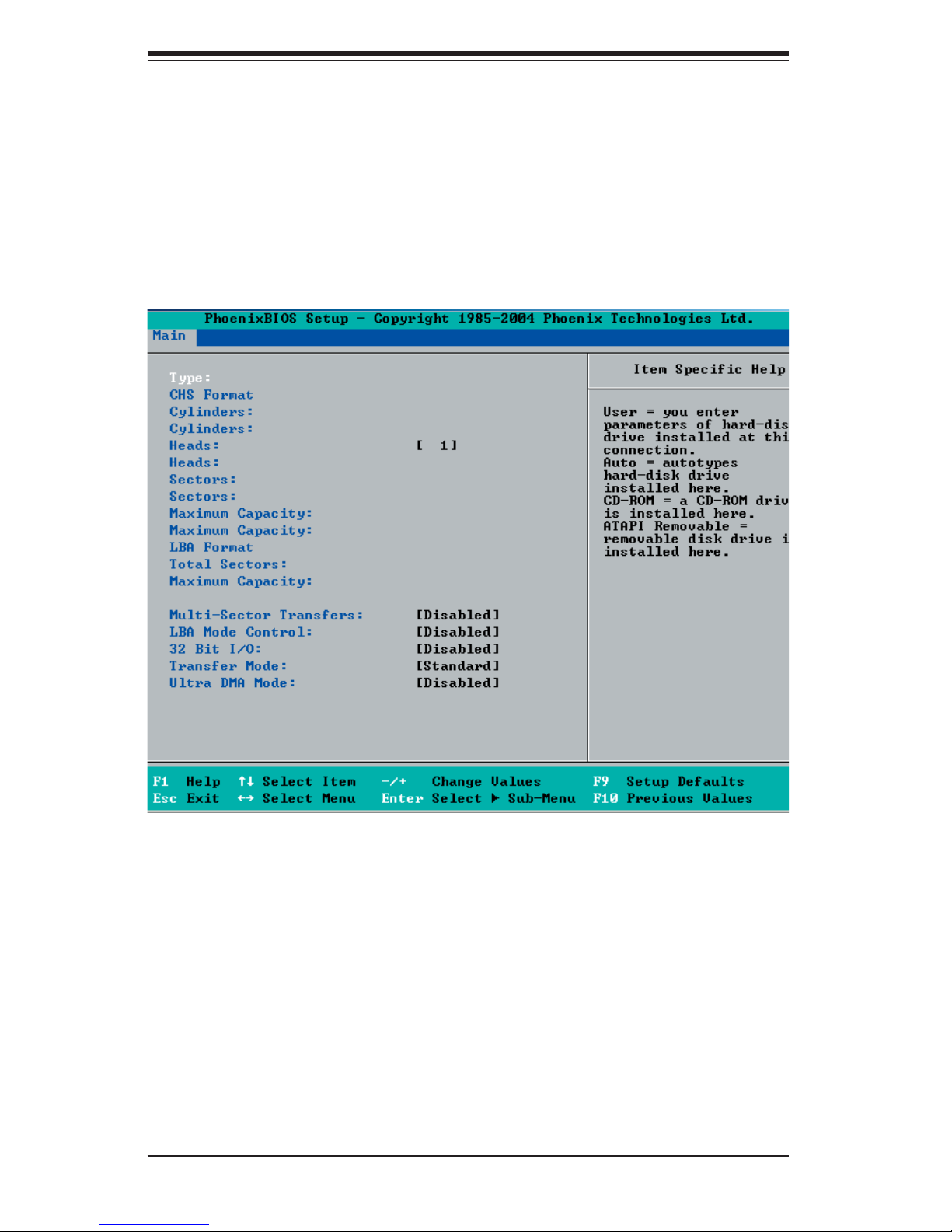

CHS Format

The following items will be displayed by the BIOS:

Type: This item displays the type of CPU.

Cylinders: This item indicates the status of cylinders.

Headers: This item indicates the number of headers.

Sectors: This item displays the number of sectors.

Maximum Capacity: This item displays the maximum storage capacity of the

system.

LBA Format

The following items will be displayed by the BIOS:

Total Sectors: This item displays the number of total sectors available in the

LBA Format.

Maximum Capacity: This item displays the maximum capacity in the LBA

Format.

Multi-Sector Transfer

This item allows the user to specify the number of sectors per block to be used

in multi-sector transfer. The options are Disabled, 4 Sectors, 8 Sectors, and 16

Sectors.

LBA Mode Control

This item determines whether the Phoenix BIOS will access the IDE Channel 0

Master Device via the LBA mode. The options are Enabled and Disabled.

32 Bit I/O

This option allows the user to enable or disable the function of 32-bit data transfer.

The options are Enabled and Disabled.

Transfer Mode

This option allows the user to set the transfer mode. The options are Standard,

Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

Ultra DMA Mode

This option allows the user to select Ultra DMA Mode. The options are Disabled,

Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

7-5

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Parallel ATA

This setting allows the user to enable or disable the function of Parallel ATA. The

options are Disabled, Channel 0, Channel 1, and Both.

Serial ATA

This setting allows the user to enable or disable the function of Serial ATA. The

options are Disabled and Enabled.

Native Mode Operation

Select the native mode for ATA. The options are: Parallel ATA, Serial ATA, Both,

and Auto.

SATA Controller Mode

Select Compatible to allow the SATA and PATA drives to be automatically-detected

and be placed in the Legacy Mode by the BIOS. Select Enhanced to allow the

SATA and PATA drives to be to be automatically-detected and be placed in the

Native IDE Mode.

Note: The Enhanced mode is supported by the Windows 2000 OS or a later

version.

When the SATA Controller Mode is set to "Enhanced", the following items will

display:

Serial ATA (SATA) RAID Enable

Select Enable to enable Serial ATA RAID Functions. (*For the Windows OS

environment, use the RAID driver if this feature is set to Enabled. When this

item is set to Enabled, the item: "ICH RAID Code Base" will be available for you

to select Intel or Adaptec Host RAID Controller. If this item is set to Disabled,

the item: SATA AHCI Enable will be available. ) The options are Enabled and

Disabled.

SATA AHCI

Select Enable to enable the function of Serial ATA Advanced Host Interface.

(Exercise caution when using this function. This feature is for advanced

programmers only.) The options are Enabled and Disabled.

ICH RAID Code Base

Select Intel to enable Intel's ICH HostRAID Controller. Select Adaptec to use

Adaptec's HostRAID Driver. The options are Intel and Adaptec.

7-6

Chapter 7: BIOS

System Memory

This display informs you how much system memory is recognized as being present

in the system.

Extended Memory

This display informs you how much extended memory is recognized as being

present in the system.

7-4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow

keys. You should see the following display. The items with a triangle beside them

have sub menus that can be accessed by highlighting the item and pressing <Enter>.

Options for PIR settings are displayed by highlighting the setting option using the

arrow keys and pressing <Enter>. All Advanced BIOS Setup options are described

in this section.

7-7

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Boot Features

Access the submenu to make changes to the following settings.

Quick Boot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine by

skipping certain tests after the computer is turned on. The settings are Enabled

and Disabled. If Disabled, the POST routine will run at normal speed.

Quiet Boot

This setting allows you to Enable or Disable the diagnostic screen during

boot-up.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Confi guration

and Power Interface) power management on your system. The options are

Yes and No.

Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user
hits the power button. If set to 4-sec., the system will power off when the user
presses the power button for 4 seconds or longer. The options are instant-off
and 4-sec override.

Resume On Modem Ring

Select On to “wake your system up” when an incoming call is received by
your modem. The options are On and Off.

Power Loss Control

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Stay Off, Power On, and

Last State.

Watch Dog

If enabled, this option will automatically reset the system if the system is not

active for more than 5 minutes. The options are Enabled and Disabled.

Summary Screen

This setting allows you to Enable or Disable the summary screen which displays

the system confi guration during bootup.

7-8

Chapter 7: BIOS

Memory Cache

Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be

used as a System BIOS buffer to allow the BIOS write (cache) its data into this

reserved memory area. Select "Write Protect" to enable this function, and this

area will be reserved for BIOS ROM access only. Select "Uncached" to disable this

function and make this area available for other devices.

Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be

used as a Video BIOS buffer to allow the BIOS write (cache) its data into this

reserved memory area. Select "Write Protect" to enable the function and this area

will be reserved for Video BIOS ROM access only. Select "Uncached" to disable

this function and make this area available for other devices.

Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area: block

0-512K to be cached (written) into a buffer, a storage area in the Static DROM

(SDROM) or to be written into the CPU's L1 and L2 cache to speed up CPU

operations. Select "Uncached" to disable this function. Select "Write Through" to

allow data to be cached into the buffer and written into system memory at the same

time. Select "Write Protect" to prevent data from being written into Block 0-512K.

Select "Write Back" to allow CPU to write data back directly from the buffer without

writing data to the System Memory for fast CPU data processing and operation. The

options are Uncached, Write Through, Write Protect, and Write Back.

Cache Base 512K-640K

If enabled, this feature will allow the data stored in the memory area: 512K-640K

to be cached (written) into a buffer, a storage area in the Static DROM (SDROM)

or written into the CPU's L1, L2, and L3 cache to speed up CPU operations.

Select "Uncached" to disable this function. Select "Write Through" to allow data

to be cached into the buffer and written into the system memory at the same

time. Select "Write Protect" to prevent data from being written into the base

memory area of Block 0-512K. Select "Write Back" to allow CPU to write data back

directly from the buffer without writing data to the System Memory for fast CPU

data processing and operation. The options are Uncached, Write Through, Write

Protect, and Write Back.

Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area to

be cached (written) into a buffer, a storage area in the Static DROM (SDROM)

or written into L1, L2, L3 cache inside the CPU to speed up CPU operations.

7-9

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Select "Uncached" to disable this function. Select "Write Through" to allow data

to be cached into the buffer and written into the system memory at the same

time. Select "Write Protect" to prevent data from being written into the base

memory area of Block 0-512K. Select "Write Back" to allow CPU to write data back

directly from the buffer without writing data to the System Memory for fast CPU

data processing and operation. The options are Uncached, Write Through, Write

Protect, and Write Back.

Discrete MTRR Allocation

If enabled, MTRRs (-Memory Type Range Registers) are confi gured as distinct,
separate units and cannot be overlapped. If enabled, the user can achieve better
graphic effects when using a Linux graphic driver that requires the write-combining
confi guration with 4GB or more memory. The options are Enabled and Disabled.

PCI Confi guration

Access the submenu to make changes to the following settings for PCI devices.

Onboard GLAN1/Onboard GLAN2 (Gigabit- LAN) OPROM Confi gure

Enabling this option provides the capability to boot from GLAN. The options are

Disabled and Enabled.

Onboard SCSI OPROM Confi gure

Enabling this option provides the capitally to boot from SCSI HDD. The options

are Disabled and Enabled.

Reset Confi guration Data

If set to Yes, this setting clears the Extended System Confi guration Data- (ESCD)

area. The options are Yes and No.

Frequency for PCI-X#1, PCI-X#2, PCI-X#3

This option allows the user to change the bus frequency for the devices installed

in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66

MHz, PCI-X 100 MHz, and PCI-X 133 MHz.

Frequency for PCI-X#1 On Riser, Frequency for PCI-X#2-#3 On Riser

(Available when an Active Riser Card is present.)

This option allows the user to change the bus frequency of the devices installed

in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66

MHz, PCI-X 100 MHz, and PCI-X 133 MHz.

7-10

Chapter 7: BIOS

Slot#1 PCI 100 MHz ZCR, Slot#2 PCI-X 133MHz, Slot#3 PCI-X
133MHz, Slot#4 PCI-Exp x8, Slot#5 PCI-Exp x8, and Slot#6 PCI-Exp
x4

Access the submenu for each of the settings above to make changes to the

following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options

are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI bus master.

The options are Enabled and Disabled.

Latency Timer

This setting allows you to set the clock rate for Bus Master. A high-priority, high-

throughout device may benefi t from a greater clock rate. The options are Default,

0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h. For Unix, Novell and

other Operating Systems, please select the option: other. If a drive fails after

the installation of a new software, you might want to change this setting and

try again. A different OS requires a different Bus Master clock rate.

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options are

DOS or Other (for Unix, Novelle NetWare and other operating systems).

Advanced Chipset Control

Access the submenu to make changes to the following settings.

Warning! Exercise caution when changing the Advanced settings. Incorr-

ect values entered may cause system malfunction. Also, a very high DRAM

frequency or incorrect DRAM timing may cause system instability. When this

occurs, revert to the default settings.

SERR Signal Condition

This setting specifi es the ECC Error conditions that an SERR# is to be asserted.

The options are None, Single Bit, Multiple Bit, and Both.

4GB PCI Hole Granularity

This feature allows you to select the granularity of PCI hole for PCI slots. If MTRRs

are not enough, this option may be used to reduce MTRR occupation. The options

are: 256 MB, 512 MB, 1GB and 2GB.

7-11

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Memory Branch Mode

This option allows the BIOS to enumerate Host Mode for Device 16, Function

1, Reg. 40h bit 16 and Reg. 58h [14]. The options are Interleave, Sequential,

Mirroring, and Single Channel 0.

Branch 0 Rank Sparing

Select enable to enable the sparing feature for Branch 0 Rank. The options are
Enabled and Disabled.

Branch 1 Rank Sparing

Select enable to enable the sparing feature for Branch 0 Rank. The options are
Enabled and Disabled.

Enhanced x8 Detection

Select Enabled to enable Enhanced x8 DRAM UC Error Detection . The options
are Disabled and Enabled.

Route Port 80h Cycles to

This feature allows the user to decide which bus to send debug information to. The

options are Disabled, PCI and LPC.

Clock Spectrum Feature

If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused

by the components and will attempt to decrease the interference whenever needed.

The options are Enabled and Disabled.

Enabling Multi-Media Timer

Select Yes to activate a set of timers that are alternative to the traditional 8254

timers for the OS use. The options are Yes and No.

USB Function

Select Enabled to enable the function of USB devices specifi ed. The settings are

Enabled and Disabled.

USB Device 29 F3 Only

Select Enabled to enable the function of USB device as specifi ed. The settings

are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for Legacy USB devices. The settings

are Enabled and Disabled.

7-12

Chapter 7: BIOS

Advanced Processor Options

Access the submenu to make changes to the following settings.

CPU Speed

This is a display that indicates the speed of the installed processor.

Hyper-threading (Available when supported by the CPU.)

Set to Enabled to use the Hyper-Threading Technology, which will result in increased

CPU performance. The options are Disabled and Enabled.

Machine Checking (Available when supported by the CPU.)

Set to Enabled to activate the function of Machine Checking and allow the CPU to

detect and report hardware (machine) errors via a set of model-specifi c registers

(MSRs). The options are Disabled and Enabled.

Thermal Management 2 (Available when supported by the CPU.)

Set to Enabled to use Thermal Management 2 (TM2) which will lower CPU voltage

and frequency when the CPU temperature reaches a predefi ned overheat threshold.

Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking to be

regulated via CPU Internal Clock modulation when the CPU temperature reaches

the overheat threshold.

C1 Enhanced Mode (Available when supported by the CPU.)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency

to prevent overheat. The options are Enabled and Disabled. (Please refer to

Intel’s web site for detailed information.)

No Execute Mode Memory Protection (Available when supported by the

CPU and the OS.)

Set to Enabled to enable Execute Disable Bit and allow the processor to classify

areas in memory where an application code can execute and where it cannot, and

thus preventing a worm or a virus from inserting and creating a fl ood of codes to

overwhelm the processor or damage the system during an attack.

Note: this feature is available when your OS and your CPU support the function

of Execute Disable Bit.) The options are Disabled and Enabled. (Note: For more

information regarding hardware/software support for this function, please refer to

Intel's and Microsoft's web sites.

Adjacent Cache Line Prefetch (Available when supported by the CPU.)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The

CPU fetches both cache lines for 128 bytes as comprised if Enabled. The options

are Disabled and Enabled.

7-13

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Set Maximum Extended CPUID=3

Select Enabled to set the Maximum Extended CPUID value to 3. The options are

Enabled and Disabled.

Intel <R> Virtualization Technology

Select Enabled to use the feature of Virtualization Technology. The options are

Enabled and Disabled.

I/O Device Confi guration

Access the submenu to make changes to the following settings.

KBC Clock Input

This setting allows you to select clock frequency for KBC. The options are 6MHz,

8MHz, 12MHz, and 16MHz.

Serial Port A

This setting allows you to assign control of serial port A. The options are Enabled

(user defi ned), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for serial port A. The

options are 3F8, 2F8, 3E8, and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port A.

The options are IRQ3 and IRQ4.

Serial Port B

This setting allows you to assign control of serial port B. The options are Enabled

(user defi ned), Disabled, Auto (BIOS controlled) and OS Controlled.

Mode

This setting allows you to set the type of device that will be connected to serial

port B. The options are Normal and IR (for an infrared device).

Base I/O Address

This setting allows you to select the base I/O address for serial port B. The

options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port B.
The options are IRQ3 and IRQ4.

7-14

Chapter 7: BIOS

Parallel Port

This setting allows you to assign control of the parallel port. The options are

Enabled (user defi ned), Disabled and Auto (BIOS-or OS- controlled).

Base I/O Address

Select the base I/O address for the parallel port. The options are 378, 278

and 3BC.

Interrupt

This setting allows you to select the IRQ (interrupt request) for the parallel port.

The options are IRQ5 and IRQ7.

Mode

This feature allows you to specify the parallel port mode. The options are Output

only, Bi-Directional, EPP and ECP.

DMA Channel

This item allows you to specify the DMA channel for the parallel port. The

options are DMA1 and DMA3.

Floppy Disk Controller

This setting allows you to assign control of the fl oppy disk controller. The options

are Enabled (user defi ned), Disabled, and Auto (BIOS and OS controlled).

Base I/O Address

This setting allows you to select the base I/O address for the Floppy port. The

options are Primary and Secondary.

7-15

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

DMI Event Logging

Access the submenu to make changes to the following settings.

Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Event Logging

This setting allows you to Enable or Disable event logging.

ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes

and No.

7-16

Chapter 7: BIOS

Console Redirection

Access the submenu to make changes to the following settings.

COM Port Address

This item allows you to specify to redirect the console to Onboard COM A or

Onboard COM B. This setting can also be Disabled.

BAUD Rate

This item allows you to select the BAUD rate for console redirection. The options

are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K, and 115.2K.

Console Type

This item allows you to choose from the available options to select the console

type for console redirection. The options are VT100, VT100,8bit, PC-ANSI, 7bit,

PC ANSI, VT100+,

and VT-UTF8.

Flow Control

This item allows you to choose from the available options to select the fl ow control

for console redirection. The options are: None, XON/XOFF, and CTS/RTS.

Console Connection

This item allows you to choose select the console connection: either Direct or

Via Modem.

Continue CR after POST

Choose whether to continue with console redirection after the POST routine.

The options are On and Off.

7-17

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Hardware Monitor Logic

CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate
the alarm system when the CPU temperature reaches this pre-set temperature

threshold. The options are 70

Highlight this and hit <Enter> to see monitor data for the following items:

CPU1 Temperature: This item displays CPU1 Temperature.

CPU2 Temperature: This item displays CPU2 Temperature.

LM93 Temperature: This item displays LM93 Temperature.

Fan 1-FAN8: If the feature of Auto Fan Control is enabled, the BIOS will automatically

display the status of the fans indicated in this item.

Fan Speed Control Modes

o

C, 75oC, 80oC and 85oC.

This feature allows the user to decide how the system controls the speeds of the

onboard fans. The CPU temperature and the fan speed are correlative. When the

CPU on-die temperature increases, the fan speed will also increase, and vise versa.

If the option is set to “3-pin fan”, the fan speed is controlled by voltage. If the

option is set to “4-pin”, the fan speed will be controlled by Pulse Width Modulation

(PWM). Select “3-pin” if your chassis came with 3-pin fan headers. Select “4-pin” if

your chassis came with 4-pin fan headers. Select “Workstation” if your system is

used as a Workstation. Select “Server” if your system is used as a Server. Select

“Disable” to disable the fan speed control function to allow the onboard fans to

run at the full speed (12V) at all the time. The Options are: 1. Disable, 2. 3-pin

(Server), 3. 3-pin (Workstation), 4. 4-pin (Server) and 5. 4-pin (Workstation).

Voltage Monitoring

The following items will be monitored and displayed:

P12V_VR0

P12V_VR1

FSB VTT

PXH Vcore

ES2B Vcore

CPU1Vcore

CPU2Vcore

P3V3

7-18

Chapter 7: BIOS

7-5 Security

Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow

keys. You should see the following display. Security setting options are displayed

by highlighting the setting using the arrow keys and pressing <Enter>. All Security

BIOS settings are described in this section.

Supervisor Password Is:

This displays whether a supervisor password has been entered for the system.

Clear means such a password has not been used and Set means a supervisor

password has been entered for the system.

User Password Is:

This displays whether a user password has been entered for the system. Clear

means such a password has not been used and Set means a user password has

been entered for the system.

Set Supervisor Password

When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When

prompted, type the Supervisor's password in the dialogue box to set or to change

supervisor's password, which allows access to the BIOS.

7-19

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Set User Password

When the item "Set User Password" is highlighted, hit the <Enter> key. When

prompted, type the user's password in the dialogue box to set or to change the

user's password, which allows access to the system at boot-up.

Password on Boot

This setting allows you to require a password to be entered when the system

boots up. The options are Enabled (password required) and Disabled (password

7-6 Boot

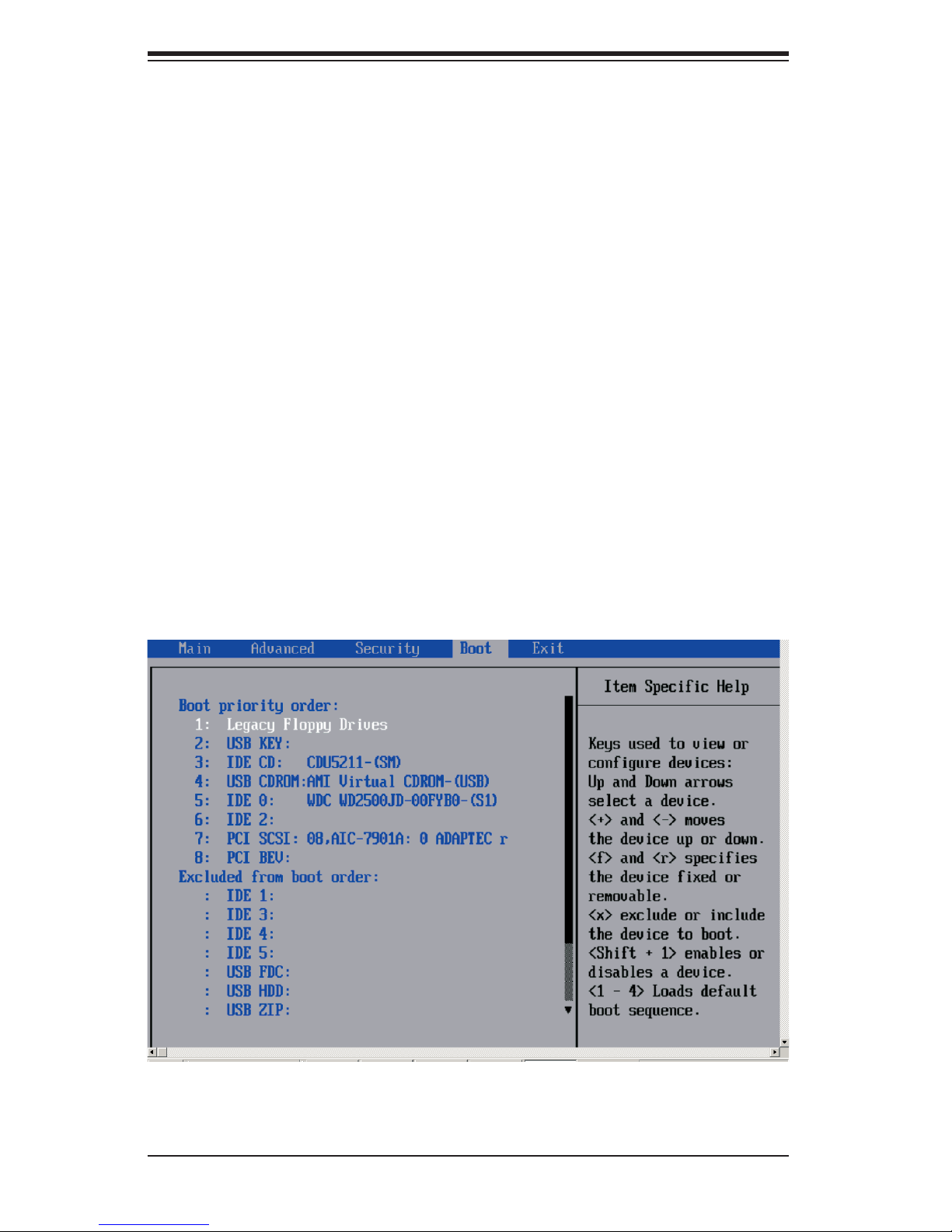

Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys.

You should see the following display. Highlighting a setting with a + or - will expand

or collapse that entry. See details on how to change the order and specs of boot

devices in the Item Specifi c Help window. All Boot BIOS settings are described in

this section.

7-20

Chapter 7: BIOS

Boot Priority Order/Excluded from Boot Order.

Use the Up and Down Arrow Keys to select a device. Use a <+> key or a <-> key to

move the device up or down. Use the <f> key or the <r> key to specify the devices.

You can also use the keys indicated above to specify the priority of boot order of

a device or to move items from the category of "Excluded from Boot Order" to the

category of "Boot Priority Order" and vise versa. See details on how to change the

priority of boot order of devices in the "Item Specifi c Help" window.

7-7 Exit

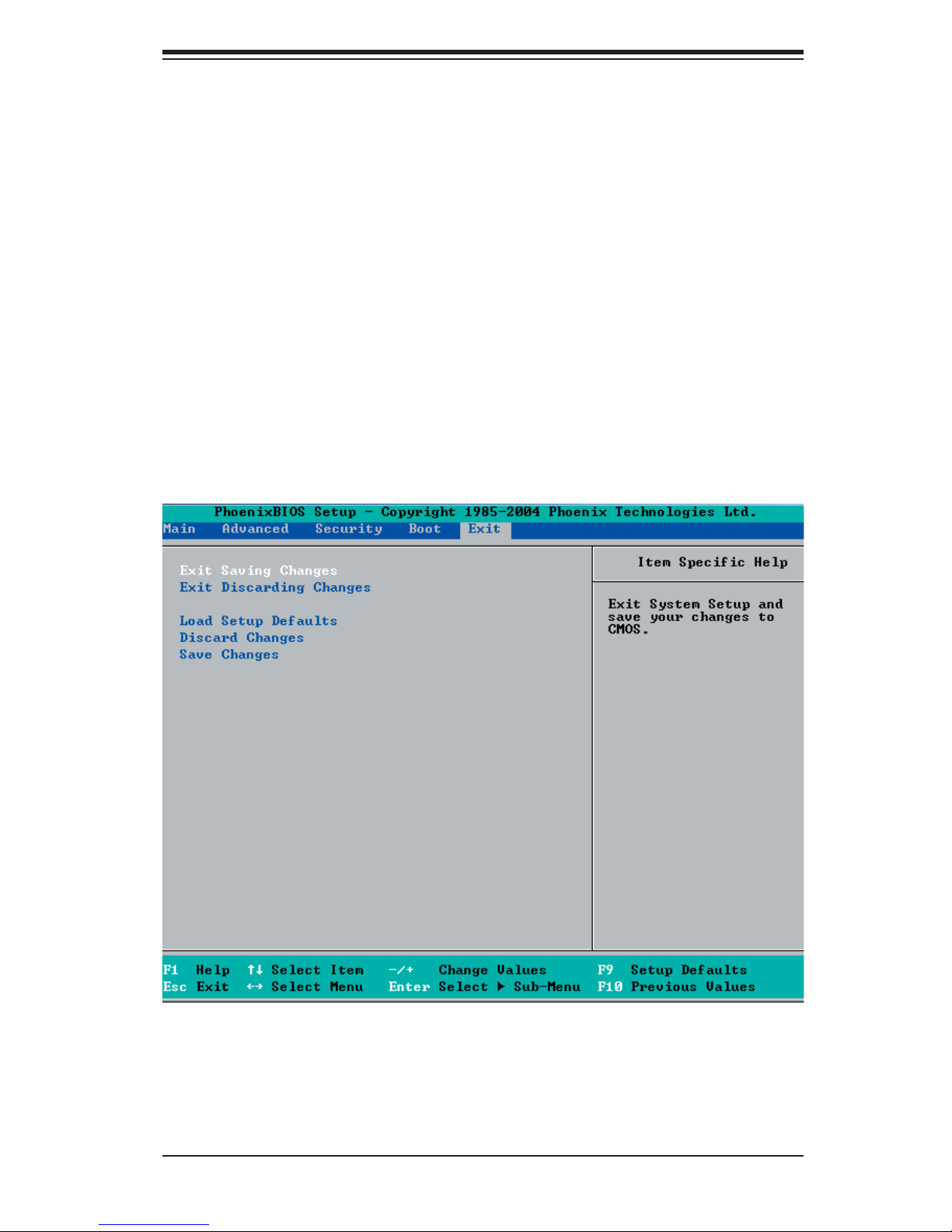

Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys.

You should see the following display. All Exit BIOS settings are described in this

section.

7-21

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Exit Saving Changes

Highlight this item and hit <Enter> to save any changes you made and to exit the

BIOS Setup utility.

Exit Discarding Changes

Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any

changes you may have made.

Load Setup Defaults

Highlight this item and hit <Enter> to load the default settings for all items in the

BIOS Setup. These are the safest settings to use.

Discard Changes

Highlight this item and hit <Enter> to discard (cancel) any changes you made.

You will remain in the Setup utility.

Save Changes

Highlight this item and hit <Enter> to save any changes you made. You will remain

in the Setup utility.

7-22

Appendix A: BIOS POST Messages

Appendix A

BIOS POST Messages

During the Power-On Self-Test (POST), the BIOS will check for problems. If a prob-

lem is found, the BIOS will activate an alarm or display a message. The following is

a list of such BIOS messages.

Failure Fixed Disk

Fixed disk is not working or not confi gured properly. Check to see if fi xed disk is at-

tached properly. Run Setup. Find out if the fi xed-disk type is correctly identifi ed.

Stuck key

Stuck key on keyboard.

Keyboard error

Keyboard not working.

Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

Keyboard locked - Unlock key switch

Unlock the system to proceed.

Monitor type does not match CMOS - Run SETUP

Monitor type not correctly identifi ed in Setup

Shadow Ram Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error

was detected.

System RAM Failed at offset: nnnn

System RAM failed at offset nnnn of in the 64k block at which the error

was detected.

Extended RAM Failed at offset: nnnn Extended memory not

working or not confi gured properly at offset nnnn.

System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and

run Setup to reconfi gure the system.

A-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

System CMOS checksum bad - Default confi guration used

System CMOS has been corrupted or modifi ed incorrectly, perhaps by an application

program that changes data stored in CMOS. The BIOS installed Default Setup Values.

If you do not want these values, enter Setup and enter your own values. If the error

persists, check the system battery or contact your dealer.

System timer error

The timer test failed. Requires repair of system board.

Real time clock error

Real-Time Clock fails BIOS hardware test. May require board repair.

Check date and time settings

BIOS found date or time out of range and reset the Real-Time Clock. May require

setting legal date (1991-2099).

Previous boot incomplete - Default confi guration used

Previous POST did not complete successfully. POST loads default values and offers

to run Setup. If the failure was caused by incorrect values and they are not corrected,

the next boot will likely fail. On systems with control of wait states, improper Setup

settings can also terminate POST and cause this error on the next boot. Run Setup

and verify that the waitstate confi guration is correct. This error is cleared the next

time the system is booted.

Memory Size found by POST differed from CMOS

Memory size found by POST differed from CMOS.

Diskette drive A error

Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that

the drive is defi ned with the proper diskette type in Setup and that the diskette drive

is attached correctly.

Incorrect Drive A type - run SETUP

Type of fl oppy drive A: not correctly identifi ed in Setup.

Incorrect Drive B type - run SETUP

Type of fl oppy drive B: not correctly identifi ed in Setup.

A-2

Appendix A: BIOS POST Messages

System cache error - Cache disabled

RAM cache failed and BIOS disabled the cache. On older boards, check the cache

jumpers. You may have to replace the cache. See your dealer. A disabled cache slows

system performance considerably.

CPU ID:

CPU socket number for Multi-Processor error.

EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory

Access) registers.

Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable

Interrupt).

Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device Address Confl ict

Address confl ict for specifi ed device.

Allocation Error for: device

Run ISA or EISA Confi guration Utility to resolve resource confl ict for the specifi ed

device.

CD ROM Drive

CD ROM Drive identifi ed.

Entering SETUP ...

Starting Setup program

Failing Bits: nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory

test. Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above

for offset address of the failure in System, Extended, or Shadow memory.

A-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Fixed Disk n

Fixed disk n (0-3) identifi ed.

Invalid System Confi guration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ confl ict

I/O device IRQ confl ict error.

PS/2 Mouse Boot Summary Screen:

PS/2 Mouse installed.

nnnn kB Extended RAM Passed

Where nnnn is the amount of RAM in kilobytes successfully tested.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kilobytes successfully tested.

nnnn kB Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes successfully

tested.

nnnn kB System RAM Passed

Where nnnn is the amount of system RAM in kilobytes successfully tested.

One or more I2O Block Storage Devices were excluded from the Setup Boot

Menu

There was not enough room in the IPL table to display all installed I2O block-storage

devices.

Operating system not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and

see if fi xed disk and drive A: are properly identifi ed.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display

it on the screen. If it cannot locate the address, it displays ????. Parity is a method

for checking errors in binary data. A parity error indicates that some data has been

corrupted.

A-4

Appendix A: BIOS POST Messages

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it

on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F1> to start the boot process

or <F2> to enter Setup and change the settings. Press <F3> to display the previous

screen (usually an initialization error of an Option ROM, i.e., an add-on card). Write

down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST. Can be turned off in Setup.

PS/2 Mouse:

PS/2 mouse identifi ed.

Run the I2O Confi guration Utility

One or more unclaimed block storage devices have the Confi guration Request bit set

in the LCT. Run an I2O Confi guration Utility (e.g. the SAC utility).

System BIOS shadowed

System BIOS copied to shadow RAM.

UMB upper limit segment address: nnnn

Displays the address nnnn of the upper limit of Upper Memory Blocks, indicating

released segments of the BIOS which can be reclaimed by a virtual memory man-

ager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

A-5

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

Notes

A-6

Appendix B: BIOS POST Codes

Appendix B

BIOS POST Codes

This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST

codes are divided into two categories: recoverable and terminal.

Recoverable POST Errors

When a recoverable type of error occurs during POST, the BIOS will display an

POST code that describes the problem. BIOS may also issue one of the follow-

ing beep codes:

1 long and two short beeps - video confi guration error

1 repetitive long beep - no memory detected

Terminal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before doing so,

BIOS will write the error to port 80h, attempt to initialize video and write the error

in the top left corner of the screen.

The following is a list of codes that may be written to port 80h.

POST Code Description

02h Verify Real Mode
03h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
07h Disable shadow and execute code from the ROM.
08h Initialize chipset with initial POST values
09h Set IN POST fl ag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h Initialize Power Management
11h Load alternate registers with initial POST values
12h Restore CPU control word during warm boot
13h Initialize PCI Bus Mastering devices
14h Initialize keyboard controller

B-1

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

POST Code Description

16h 1-2-2-3 BIOS ROM checksum
17h Initialize cache before memory Auto size
18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h 1-3-1-1 Test DRAM refresh
22h 1-3-1-3 Test 8742 Keyboard Controller
24h Set ES segment register to 4 GB
28h Auto size DRAM
29h Initialize POST Memory Manager
2Ah Clear 512 kB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx*
2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of
memory bus
2Fh Enable cache before system BIOS shadow
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
38h Shadow system BIOS ROM
3Ah Auto size cache
3Ch Advanced confi guration of chipset registers
3Dh Load alternate registers with CMOS values
41h Initialize extended memory for RomPilot
42h Initialize interrupt vectors
45h POST device initialization
46h 2-1-2-3 Check ROM copyright notice
47h Initialize I20 support
48h Check video confi guration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
4Fh Initialize MultiBoot
50h Display CPU type and speed
51h Initialize EISA board
52h Test keyboard
54h Set key click if enabled
55h Enable USB devices
58h 2-2-3-1 Test for unexpected interrupts
59h Initialize POST display service
5Ah Display prompt “Press F2 to enter SETUP”

B-2

Appendix B: BIOS POST Codes

POST Code Description

5Bh Disable CPU cache
5Ch Test RAM between 512 and 640 kB
60h Test extended memory
62h Test extended memory address lines
64h Jump to UserPatch1
66h Confi gure advanced cache registers
67h Initialize Multi Processor APIC
68h Enable external and CPU caches
69h Setup System Management Mode (SMM) area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB recovery
70h Display error messages
72h Check for confi guration errors
76h Check for keyboard errors
7Ch Set up hardware interrupt vectors
7Dh Initialize Intelligent System Monitoring
7Eh Initialize coprocessor if present
80h Disable onboard Super I/O ports and IRQs
81h Late POST device initialization
82h Detect and install external RS232 ports
83h Confi gure non-MCD IDE controllers
84h Detect and install external parallel ports
85h Initialize PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports.
87h Confi gure Motherboard Confi gurable Devices (optional)
88h Initialize BIOS Data Area
89h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8Ch Initialize fl oppy controller
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96h Clear huge ES segment register
97h Fix up Multi Processor table
98h 1-2 Search for option ROMs. One long, two short
beeps on checksum failure

B-3

S

UPERSERVER 6025B-TR+/6025B-8R+ User’s Manual

POST Code Description

99h Check for SMART Drive (optional)
9Ah Shadow option ROMs
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h Check key lock
A4h Initialize typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot fl ag
B0h Check for errors
B1h Inform RomPilot about the end of POST.
B2h POST done - prepare to boot operating system
B4h 1 One short beep before boot
B5h Terminate QuietBoot (optional)
B6h Check password (optional)
B7h Initialize ACPI BIOS
B9h Prepare Boot
BAh Initialize SMBIOS
BBh Initialize PnP Option ROMs
BCh Clear parity checkers
BDh Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2h Initialize error logging
C3h Initialize error display function
C4h Initialize system error handler
C5h PnPnd dual CMOS (optional)
C6h Initialize note dock (optional)
C7h Initialize note dock late
C8h Force check (optional)
C9h Extended checksum (optional)
CAh Redirect Int 15h to enable remote keyboard
CBh Redirect Int 13h to Memory Technologies Devices such as
ROM, RAM, PCMCIA, and serial disk
CCh Redirect Int 10h to enable remote serial video

B-4
