SUPER
SUPERSERVER 5013C-M
USER’S MANUAL
Revision 1.0a
Page 2
The information in this User’s Manual has been carefully reviewed and is believed to be
accurate. The vendor assumes no responsibility for any inaccuracies that may be
contained in this document, makes no commitment to update or to keep current the
information in this manual, or to notify any person or organization of the updates.
Please
Note: For the most up-to-date version of this manual, please see our
web site at www.supermicro.com.
SUPERMICRO COMPUTER reserves the right to make changes to the product described in
this manual at any time and without notice. This product, including software, if any, and
documentation may not, in whole or in part, be copied, photocopied, reproduced, translated
or reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM
THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR
SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING,
INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR
DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of
Santa Clara shall be the exclusive venue for the resolution of any such disputes.
Supermicro's total liability for all claims will not exceed the price paid for the hardware
product.
Unless you request and receive written permission from SUPER MICRO COMPUTER, you
may not copy any part of this document.
Information in this document is subject to change without notice. Other products and
companies referred to herein are trademarks or registered trademarks of their respective
companies or mark holders.
Copyright © 2005 by SUPER MICRO COMPUTER INC.
All rights reserved.
Printed in the United States of America
Page 3
Preface
About This Manual
This manual is written for professional system integrators and PC technicians.
It provides information for the installation and use of the SuperServer 5013C-M.
Installation and maintainance should be performed by experienced technicians
only.
The SuperServer 5013C-M is a high-end single processor mini 1U rackmount
server based on the SC512C 1U rackmount server chassis and the Super P4SCi
motherboard. The P4SCi supports a single Intel® Pentium® 4 processor of up to
3.40 GHz (processors must be 0.13 micron technology).
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with the
server system and describes the main features of the Super P4SCi motherboard
and the SC512C chassis.
Chapter 2: Server Installation
This chapter describes the steps necessary to install the SuperServer
5013C-M into a rack and check out the server configuration prior to powering up
the system. If your server was ordered without the processor and memory
components, this chapter will refer you to the appropriate sections of the manual
for their installation.
Chapter 3: System Interface
Refer to this chapter for details on the system interface, which includes the
functions and information provided by the control panel on the chassis as
well as other LEDs located throughout the system.
iii
Preface
Page 4
SUPERSERVER 5013C-M User's Manual
iv
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general
overview of safety precautions that should be followed when installing and
servicing the SuperServer 5013C-M.
Chapter 5: Advanced Motherboard Setup
Chapter 5 provides detailed information on the P4SCi motherboard, including the
locations and functions of connectors, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfiguring
the motherboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC512C 1U rackmount server
chassis. You should follow the procedures given in this chapter when installing,
removing or reconfiguring Serial ATA or peripheral drives and when replacing
system power supply units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed
information on running the CMOS Setup Utility.
Appendix A: BIOS POST Messages
Appendix B: BIOS POST Codes
Appendix C: Installing Software and Drivers
Appendix D: System Specifications
Page 5
v
Preface
Notes
Page 6
vi
Table of Contents
Preface
About This Manual ...................................................................................................... iii
Manual Organization ................................................................................................... iii
Chapter 1: Introduction
1-1 Overview ......................................................................................................... 1-1
1-2 Motherboard Features ................................................................................... 1-2
1-3 Server Chassis Features.............................................................................. 1-5
1-4 Contacting Supermicro .................................................................................. 1-7
Chapter 2: Server Installation
2-1 Overview ......................................................................................................... 2-1
2-2 Unpacking the SuperServer 5013C-M ........................................................ 2-1
2-3 Preparing for Setup ....................................................................................... 2-1
Choosing a Setup Location .................................................................... 2-2
Rack Precautions ..................................................................................... 2-2
Server Precautions.................................................................................. 2-2
Rack Mounting Considerations .............................................................. 2-3
2- 4 Installing the SuperServer 5013C-M into a Rack ...................................... 2-4
Identifying the Sections of the Rack Rails .......................................... 2-4
Installing the Chassis Rails .................................................................... 2-5
Installing the Rack Rails ......................................................................... 2-5
Installing the Server into the Rack ....................................................... 2-6
Installing the Server into a Telco Rack ............................................... 2-7
2- 5 Checking the Motherboard Setup ................................................................ 2-8
2-6 Checking the Drive Bay Setup ................................................................... 2-10
Chapter 3: System Interface
3-1 Overview ......................................................................................................... 3-1
3- 2 Control Panel Buttons .................................................................................... 3-1
Reset.......................................................................................................... 3-1
Power ........................................................................................................ 3-1
3-3 Control Panel LEDs ........................................................................................ 3-2
Overheat ................................................................................................... 3-2
NIC2 ............................................................................................................ 3-2
NIC1 ............................................................................................................ 3-2
HDD ............................................................................................................ 3-2
Power ........................................................................................................ 3-3
SUPERSERVER 5013C-M User's Manual
Page 7
Chapter 4: System Safety
4-1 Electrical Safety Precautions ....................................................................... 4-1
4-2 General Safety Precautions ......................................................................... 4-2
4- 3 ESD Precautions ............................................................................................. 4-3
4-4 Operating Precautions ................................................................................... 4-4
Chapter 5: Advanced Motherboard Setup
5- 1 Handling the P4SCi Motherboard................................................................... 5-1
5- 2 Motherboard Installation.................................................................................. 5 -2
5- 3 Connecting Cables .......................................................................................... 5- 3
Connecting Data Cables .......................................................................... 5-3
Connecting Power Cables ........................................................................ 5-3
Connecting the Control Panel ................................................................. 5-3

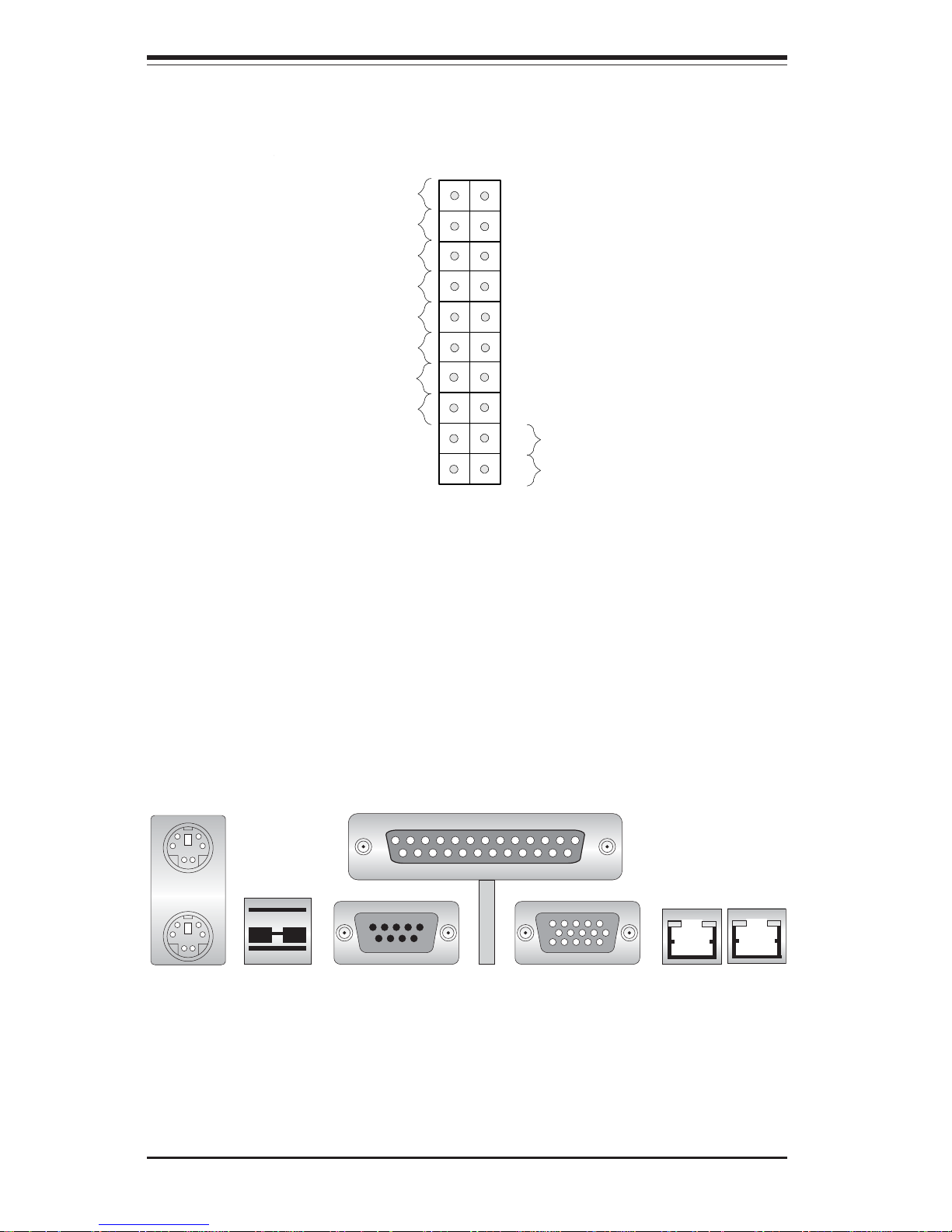

5-4 I/O Ports ........................................................................................................... 5-4

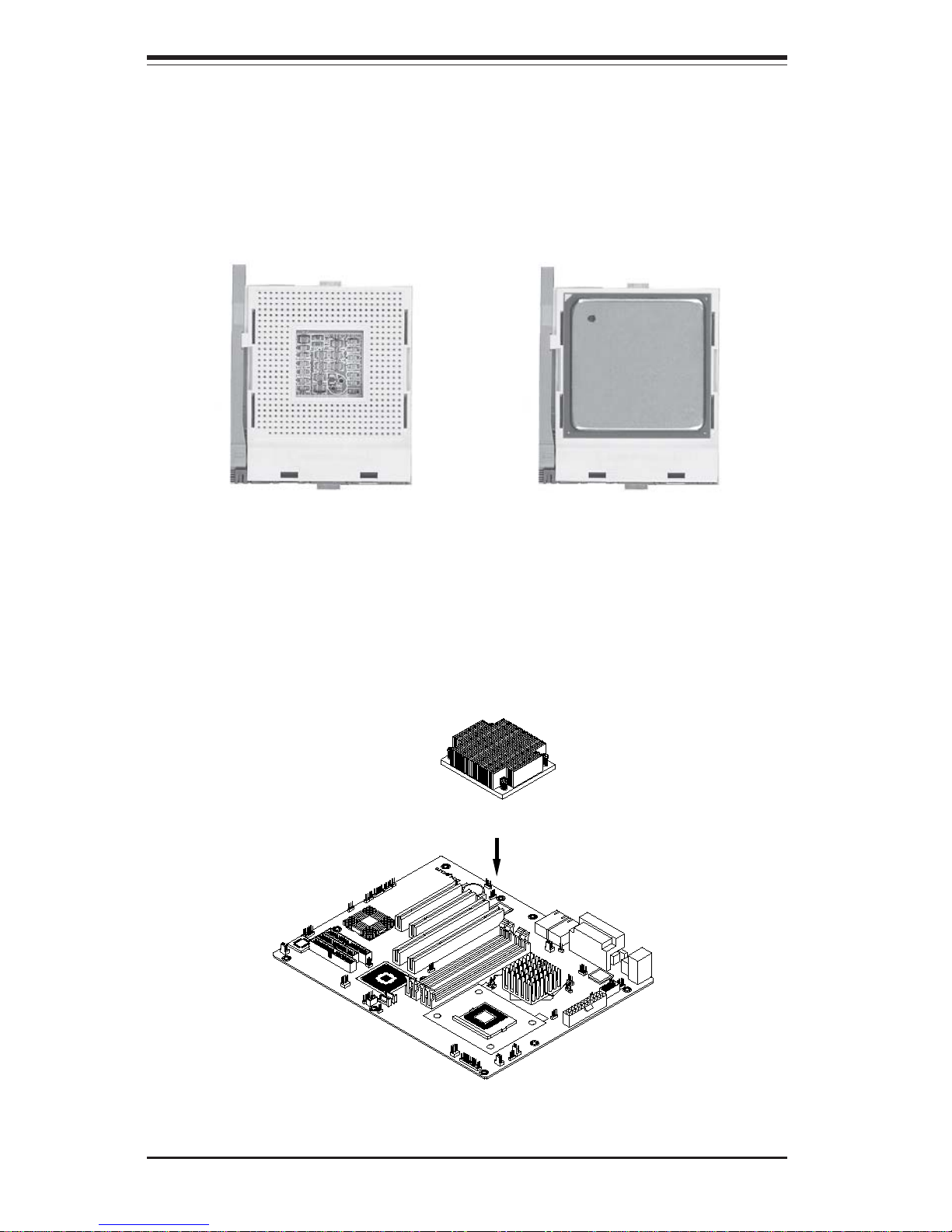

5- 5 Installing Processors ...................................................................................... 5- 5
5- 6 Installing Memory ............................................................................................ 5- 7
5- 7 Adding PCI Cards ............................................................................................ 5-8
5- 8 Motherboard Details ........................................................................................ 5-9

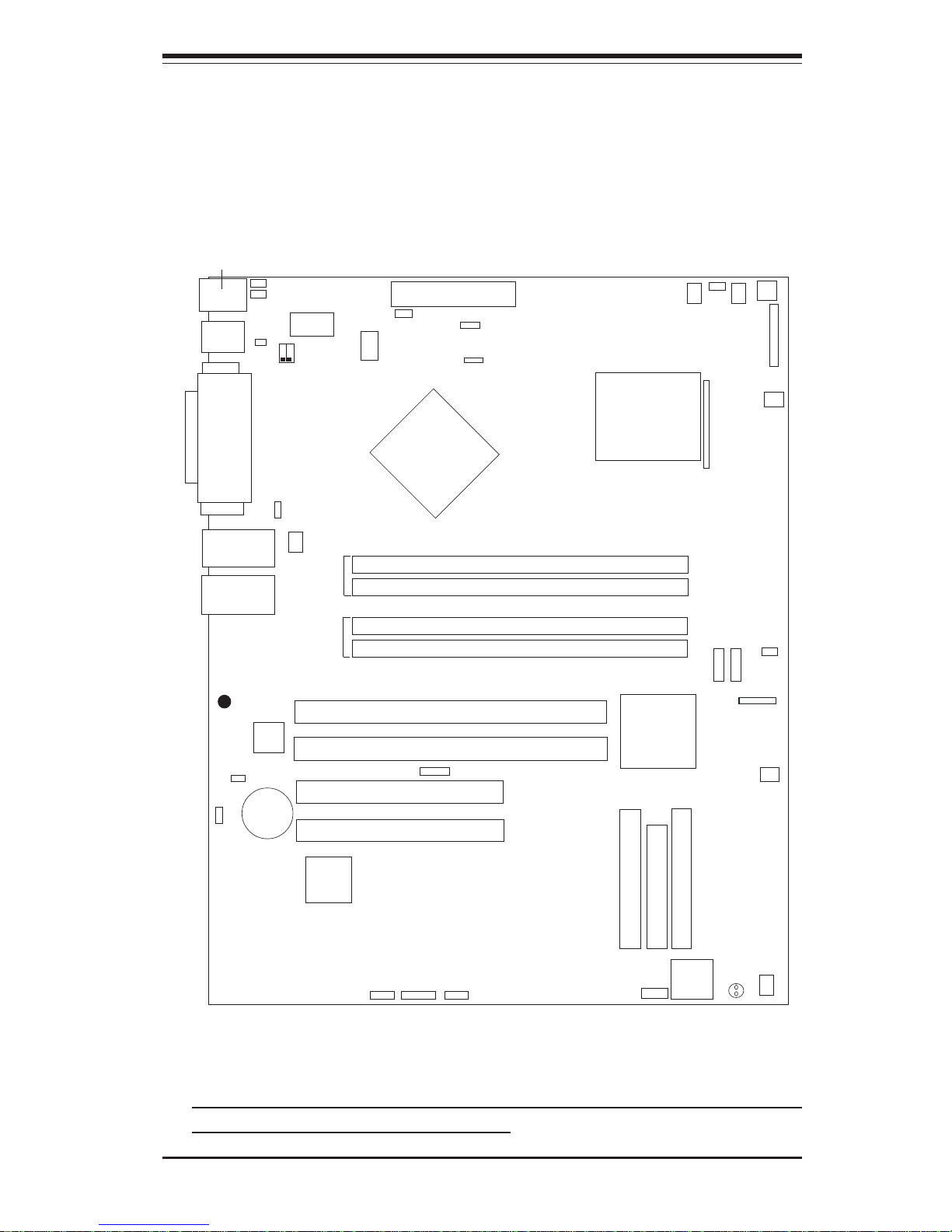

P4SCi Layout ............................................................................................ 5-9
P4SCi Quick Reference ......................................................................... 5-10
5- 9 Connector Definitions .................................................................................... 5-11
Power Supply Connectors...................................................................... 5-11
IR Connector............................................................................................ 5-11
GLAN1/2 (Ethernet Ports)...................................................................... 5-11
PWR_ON Connnector............................................................................. 5-12
Reset Connector ..................................................................................... 5-12
Overheat LED (OH) ................................................................................. 5-12
GLAN1/GLAN2 LED................................................................................ 5-12
IDE LED ................................................................................................... 5-13
Power On LED ........................................................................................ 5-13
Serial Ports ............................................................................................. 5-13
Fan Headers ............................................................................................ 5-13
Chassis Intrusion .................................................................................... 5-14
ATX PS/2 Keyboard and PS/2 Mouse Ports ....................................... 5-14
Universal Serial Bus ............................................................................... 5-14
SMB ......................................................................................................... 5-14
Wake-On-LAN.......................................................................................... 5-15
Wake-On-Ring ........................................................................................ 5-15
vii
Table of Contents
Page 8
viii
SATA LED............................................................................................... 5-15
5-10 Jumper Settings............................................................................................ 5-16
Explanation of Jumpers ........................................................................ 5-16
CMOS Clear............................................................................................. 5-16
Front Side Bus Speed .......................................................................... 5-16
VGA Enable/Disable .............................................................................. 5-16
Watch Dog Enable/Disable ................................................................... 5-16
Speaker Jumper ..................................................................................... 5-16
Keyboard Wake-Up................................................................................ 5-18
USB Wake-Up......................................................................................... 5-18
Keylock Enable/Disable......................................................................... 5-18
System Power Force On...................................................................... 5-19
OH Fan Force On .................................................................................. 5-19
GLAN2 Enable/Disable .......................................................................... 5-19
5-11 Parallel Port/Floppy and Hard Drive Connections ................................... 5-20
Parallel Port ............................................................................................. 5-20
Floppy Connector ................................................................................... 5-21
IDE Connectors ...................................................................................... 5-21
Chapter 6: Advanced Chassis Setup
6- 1 Static-Sensitive Devices ................................................................................. 6-1
6- 2 Control Panel ................................................................................................... 6-2
6-3 System Fans .................................................................................................... 6-3
System Fan Failure .................................................................................. 6- 3
6-4 Drive Bay Installation/Removal ....................................................................... 6-4
Accessing the Drive Bays ....................................................................... 6-4
Serial ATA Drive Installation .................................................................... 6-4
CD-ROM and Floppy Drive Installation ................................................... 6-5
6- 5 Power Supply................................................................................................... 6 -6
Power Supply Failure ............................................................................... 6- 6
Replacing the Power Supply ................................................................... 6- 6
Chapter 7: BIOS
7-1 Introduction....................................................................................................... 7-1
7- 2 Running Setup ................................................................................................. 7 -2
7-3 Main BIOS Setup ............................................................................................ 7-2
7- 4 Advanced BIOS Setup .................................................................................... 7 -4
7-4.1 Advanced BIOS Features ............................................................. 7- 4
7-4.2 Advanced Chipset Control ............................................................ 7-6

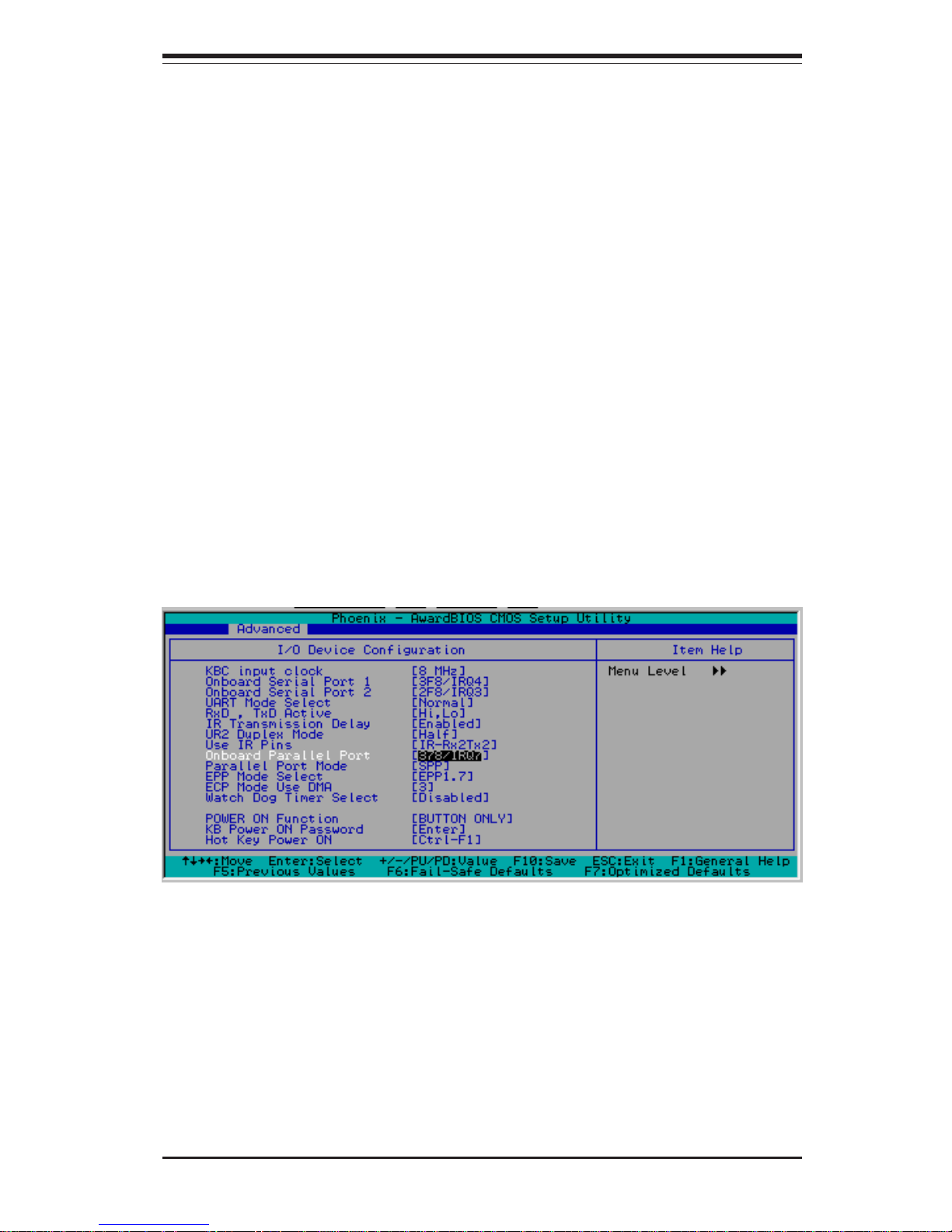

7-4.3 I/O Device Configuration ............................................................... 7-7
SUPERSERVER 5013C-M User's Manual
Page 9
Table of Contents
ix

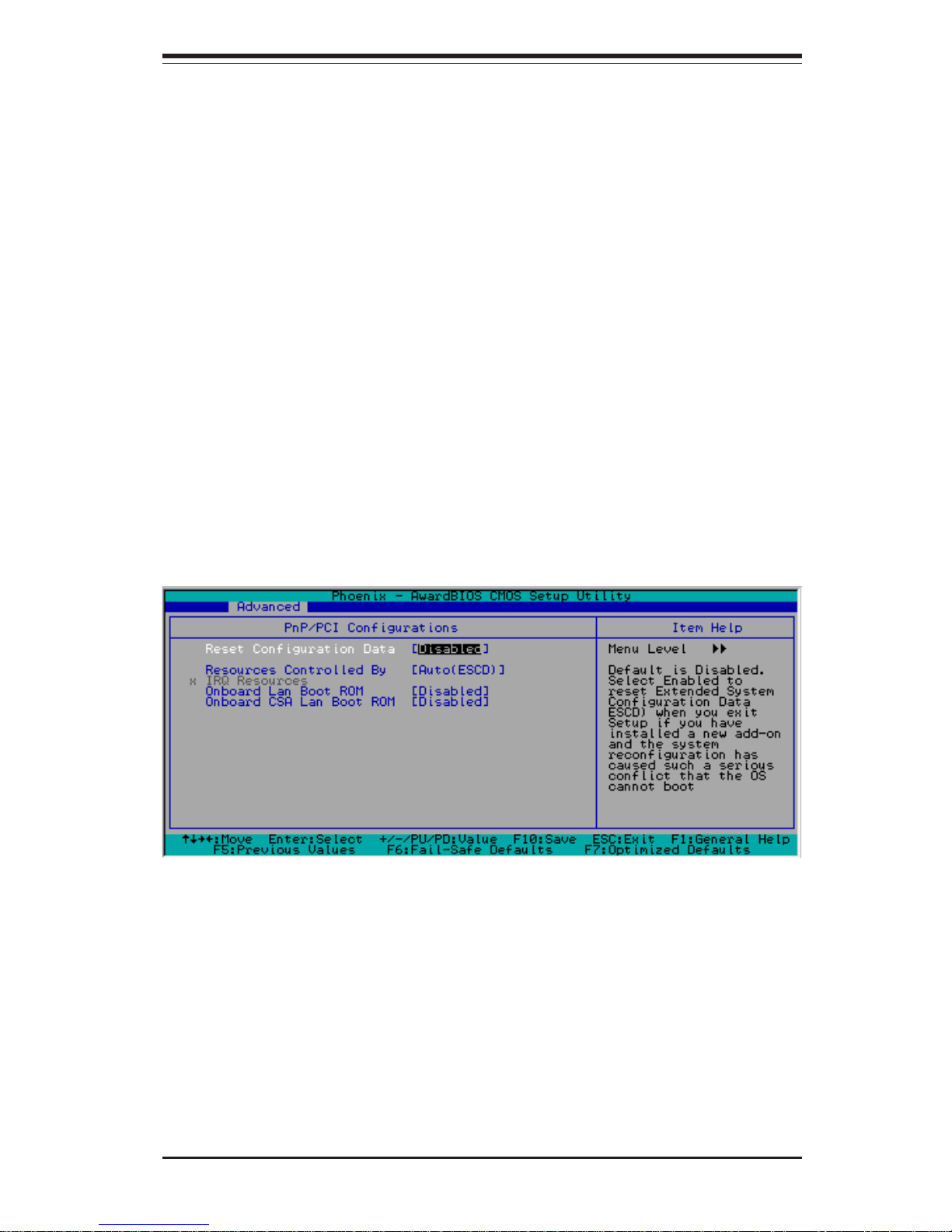

7-4.4 PnP Configuration.......................................................................... 7- 9

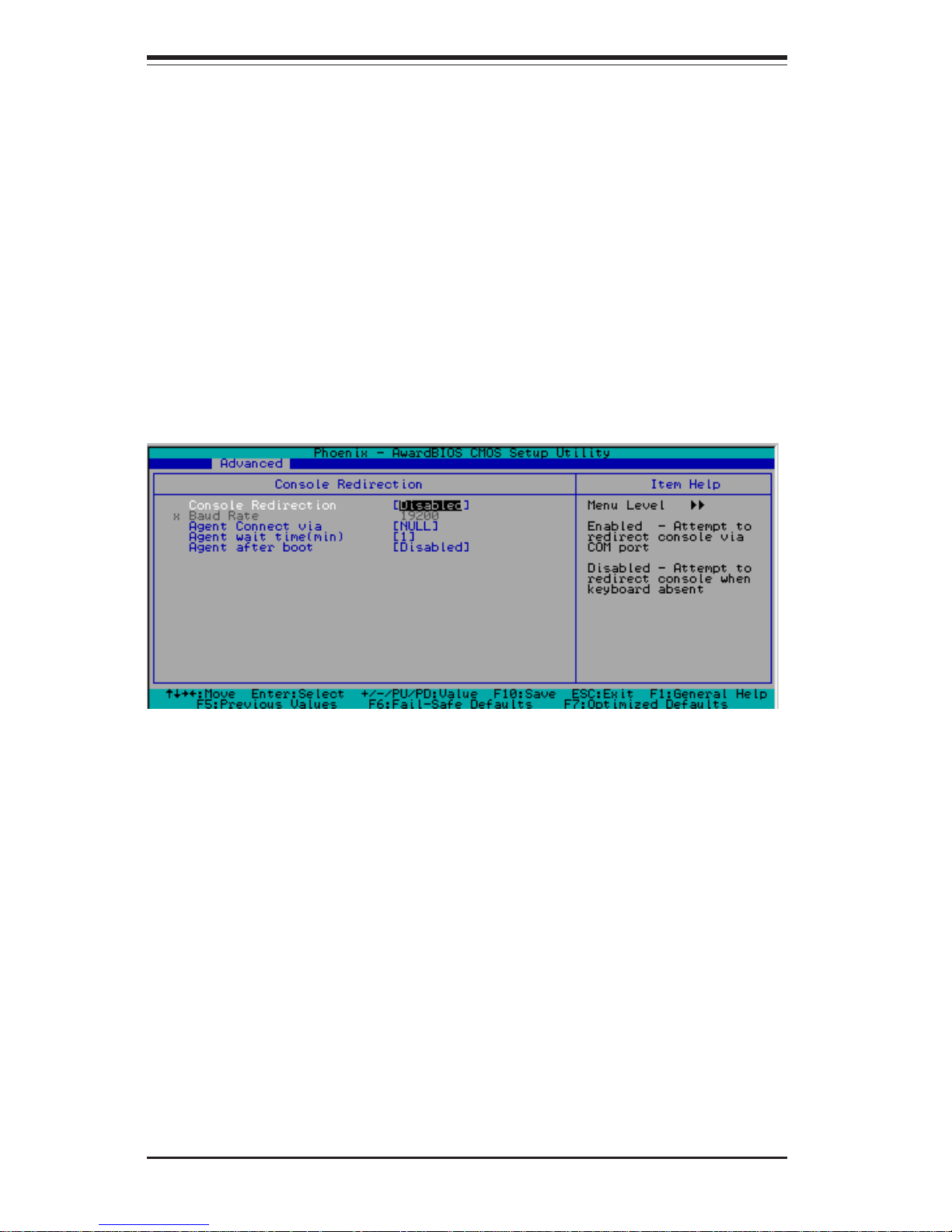

7-4.5 Console Redirection .................................................................... 7-10

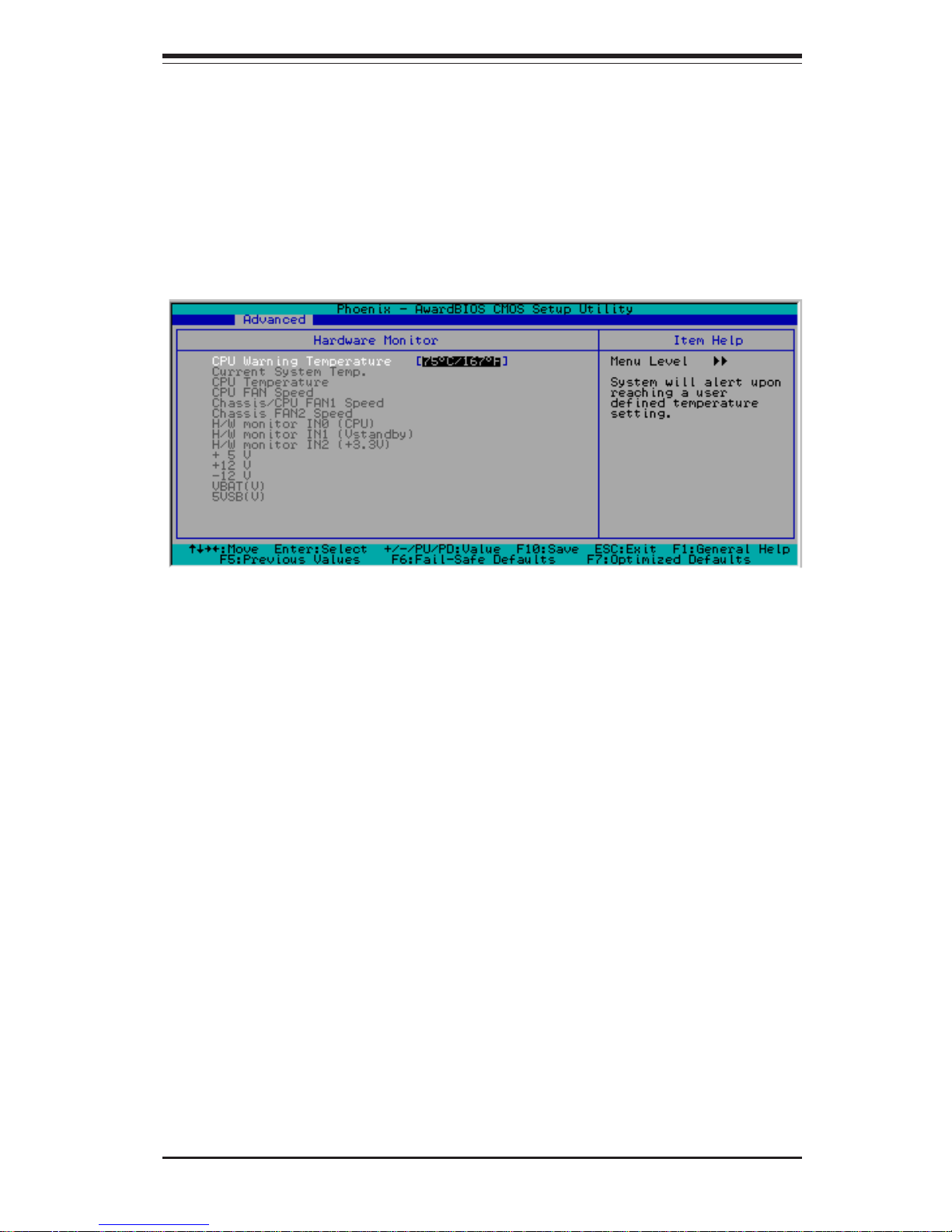

7-4.6 Hardware Monitor......................................................................... 7-11

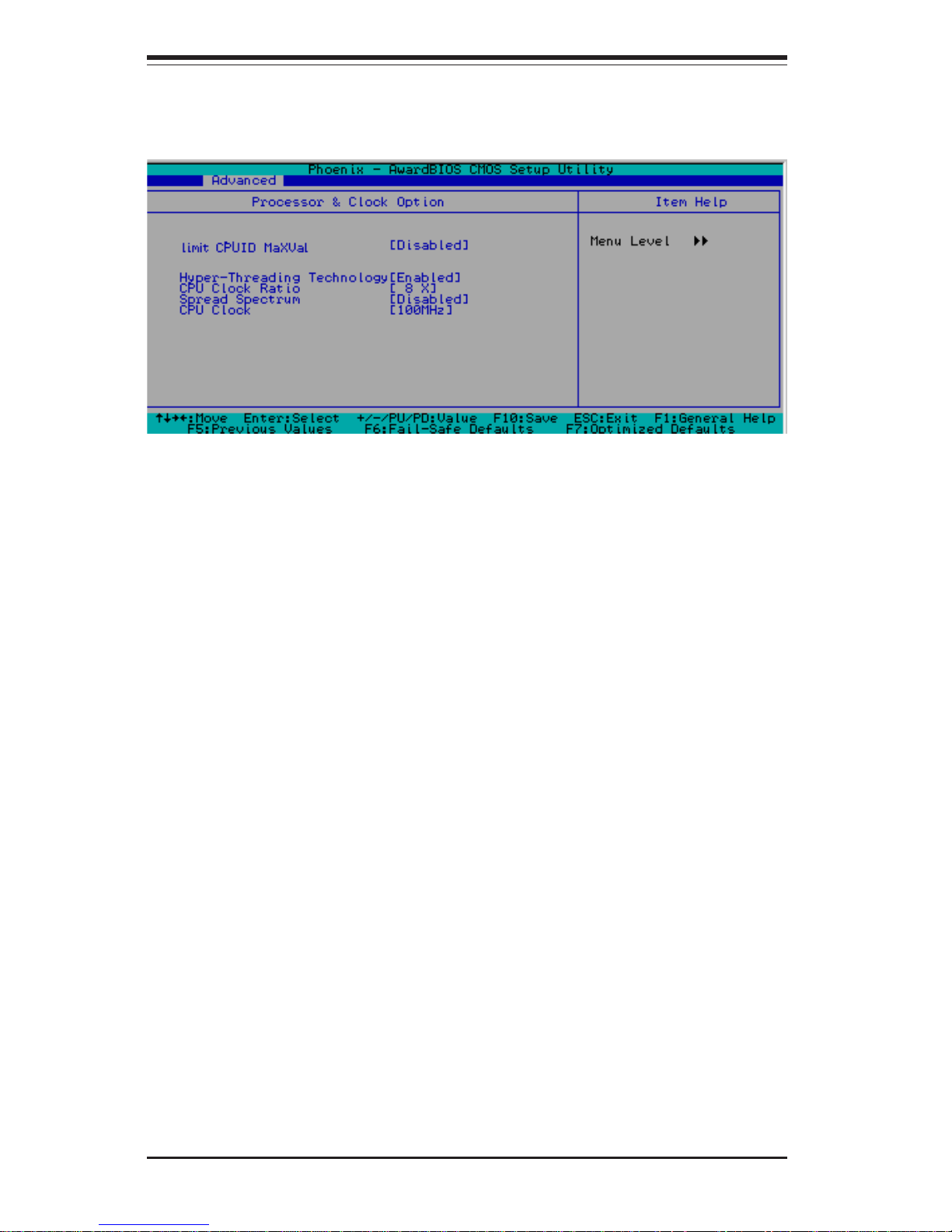

7-4.7 Processor and Clock Options .................................................... 7-12

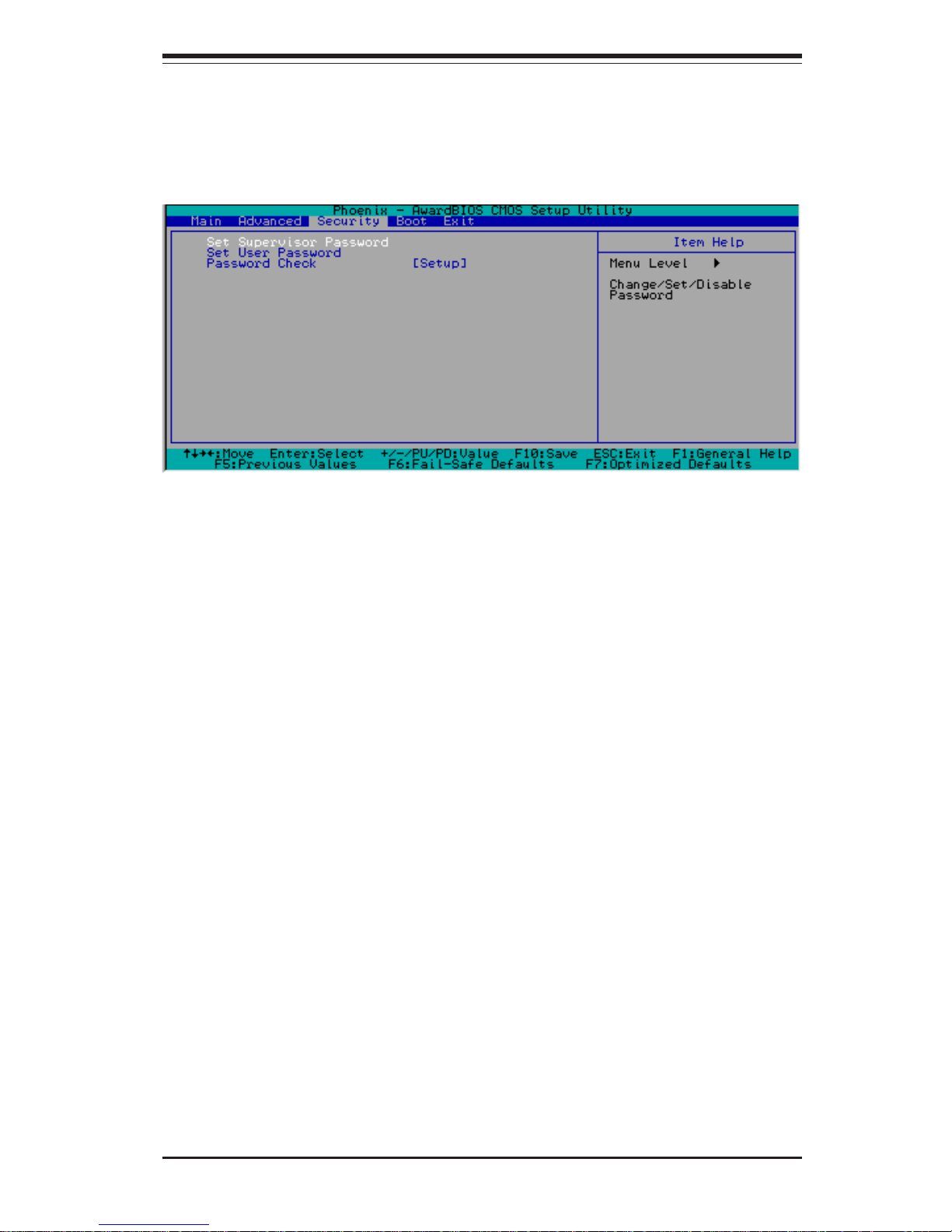

7-5 Security .......................................................................................................... 7-13

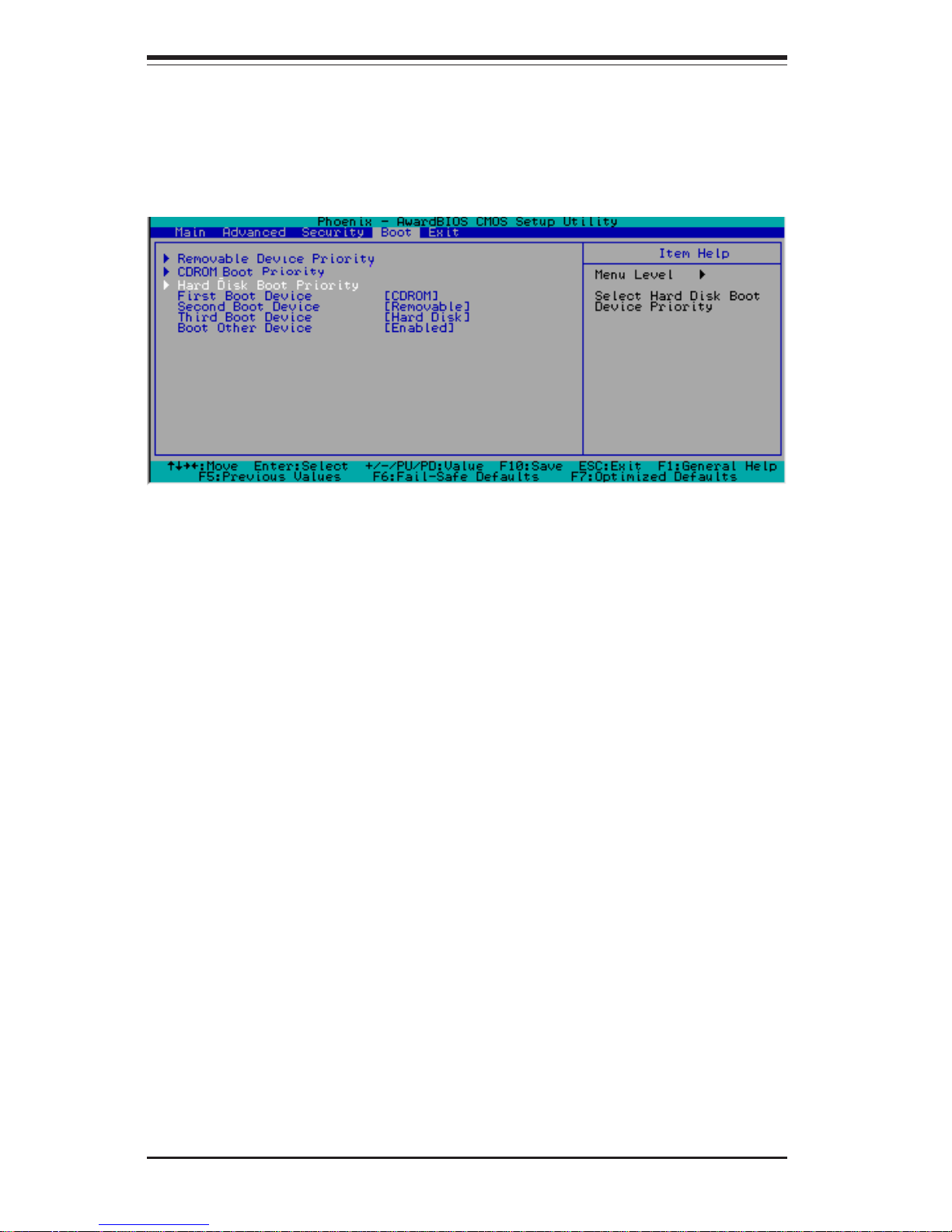

7-6 Boot................................................................................................................. 7-14

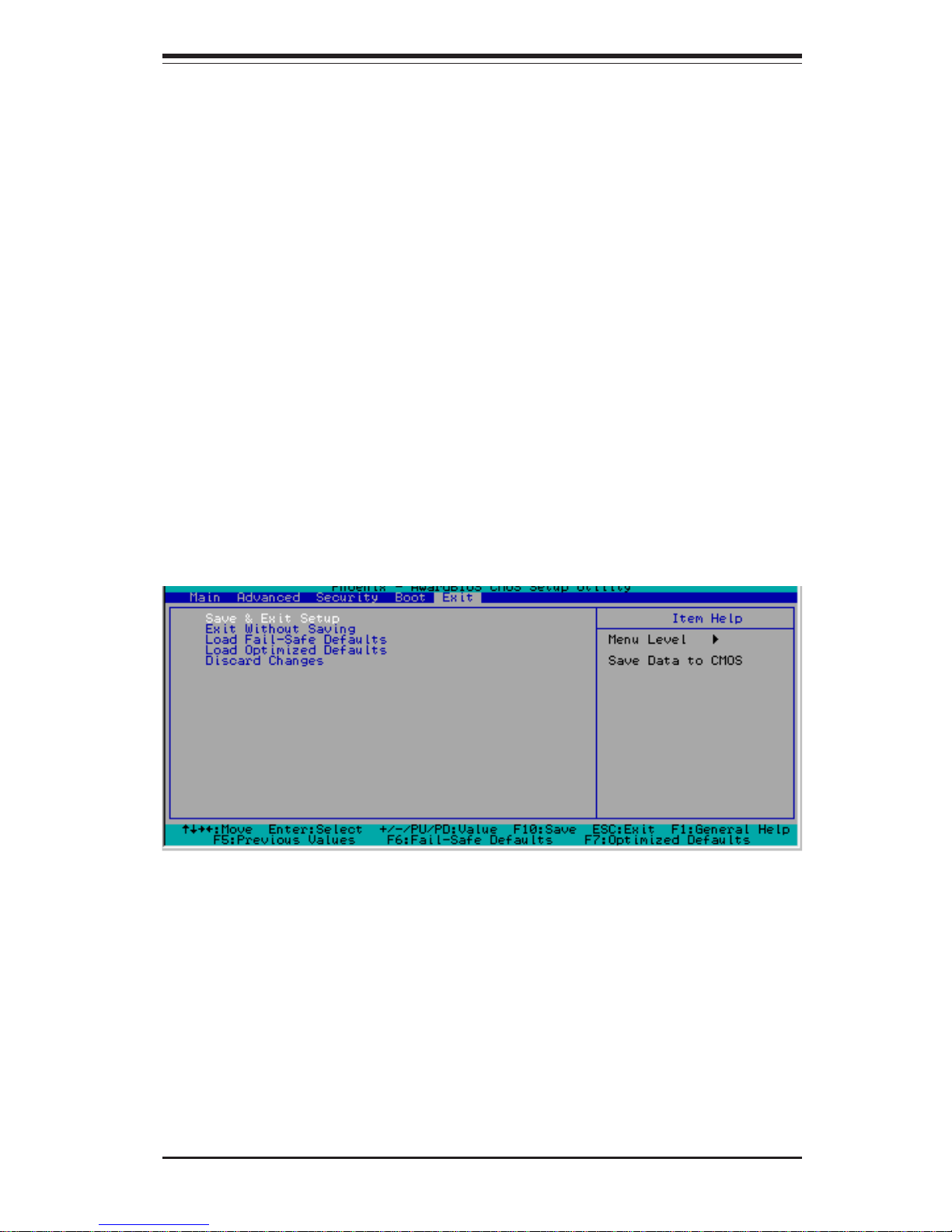

7-7 Exit.................................................................................................................. 7-15
Appendices:
Ap pe n d i x A: B I O S P O S T Me s s a g es ....................................................................... A - 1
Appendix B: BIOS POST Codes ............................................................................. B- 1
Appendix C: Installing Software and Drivers .......................................................... C-1
Introduction to Serial ATA ....................................................................... C-1
Intel Hance Rapids Driver Installation..................................................... C-3
Other Software Programs and Drivers .................................................... C-4
Appendix D: System Specifications ....................................................................... D-1
Page 10
x
Notes
SUPERSERVER 5013C-M User's Manual
Page 11
Chapter 1
Introduction
1-1 Overview
The Supermicro SuperServer 5013C-M is a high-end single processor, mini 1U
rackmount server. The 5013C-M is comprised of two main subsystems: the
SC512C-260 chassis and the P4SCi motherboard. The P4SCi supports a single
478-pin Intel® Pentium® 4 microPGA processor at up to 3.40 GHz with HT
(hyper-threading) technology or a single Intel Celeron® processor of up to 2.40
GHz and up to 4 GB of ECC or non-ECC unbuffered DDR400/333/266 SDRAM
memory. Please refer to our web site for information on operating systems that
have been certified for use with the 5013C-M (www.supermicro.com) and for
regular updates on supported processor speeds.
In addition to the motherboard and chassis, various hardware components may
have been included with the 5013C-M, as listed below.
One CPU heatsink (SNK-P0002)
One (1) slim floppy drive
One (1) slim CD-ROM drive
One (1) IDE cable
One (1) 3.3V 64-bit, 66 MHz PCI-X slot riser card (CSE-RR1U-X)
Rackmount hardware with screws (CSE-PT8) (optional):
Two (2) rack rail assemblies
Six (6) brackets for mounting the rack rails in a rack/telco rack
One (1) CD containing drivers and utilities
SuperServer 5013C-M User's Manual
Chapter 1: Introduction
1-1
Page 12
1-2
SUPERSERVER 5013C-M User's Manual
1-2 Motherboard Features
At the heart of the SuperServer 5013C-M lies the P4SCi, a single processor
motherboard designed to provide maximum performance. Below are the main
features of the P4SCi.
Chipset Overview
The P4SCi is based on Intel’s E7210 chipset (see Figure 1-1 for a block diagram).
The E7210 chipset is made up of two main components:
The Memory Controller Hub (MCH)
The I/O Controller Hub (6300ESB)
Memory Controller Hub (MCH)
The MCH controls the flow of data between the host (CPU) interface, the memory
interface and the I/O Controller Hub interface. It contains advanced power management logic and supports dual-channel (interleaved) DDR memory, providing
bandwidth of up to 6.4 GB/s using DDR400 SDRAM. The MCH supports configurations of a 800 MHz FSB with a 400/333 memory interface, a 533 MHz FSB with
a 333/266 memory interface, and a 400 MHz FSB with a 266 MHz memory
interface.
The MCH supports 128 MB, 256 MB, 512 MB, 1 GB, x4, x8, and x16 DDR.
Maximum system memory supports up to 4.0 GB for dual-channel, ECC or NonECC unbuffered DDR. Registered and/or mixed-mode DIMMs are not supported.
For more information, please refer to Chapter 5.
I/O Controller Hub (6300ESB)
The 6300ESB ICH controller hub provides the I/O subsystem with access to the rest
of the system. It integrates a dual-channel Ultra ATA/100 bus master IDE
controller, two Serial ATA (SATA) host controllers, the SMBus 2.0 controller, the
LPC/Flash BIOS interface, the PCI-X (66MHz) 1.0 interface, the PCI 2.2 interface
and the System Management Controller.
Page 13
Chapter 1: Introduction
1-3
Processors
The P4SCi supports a single Intel Pentium 4 processor of up to 3.40 GHz with
hyper-threading technology in a 478-pin microPGA socket or a single Intel
Celeron processor of up to 2.40 GHz. (Pentium 4 processors must be 0.13
micron technology.) Please refer to the support section of our web site for a
complete listing of supported processors (http://www.supermicro.com/support).
Memory
The P4SCi has four (4) 184-pin DIMM sockets that can support up to 4 GB of ECC
or non-ECC unbuffered DDR400/333/266 SDRAM modules. (Memory operates in
a dual-channel, or interleaved configuration for increased performance.) Lowprofile memory modules are required for use in the 1U form factor of the 5013CM. Module sizes of 128 MB, 256 MB, 512 MB and 1 GB may be used to populate
the DIMM slots.
Serial ATA
A Serial ATA controller is incorporated into the E7210 chipset to provide a twoport Serial ATA subsystem. The Serial ATA drive is not hot-swappable.
PCI Expansion Slots
The P4SCi has two 32-bit, 33 MHz (5V) PCI slots and two 64-bit, 66 MHz (3.3V)
PCI-X slots. When incorporated into the 5013C-M server system, one 64-bit, 66
MHz PCI-X slot is available with the use of a riser card, which supports one fullsize, half-length PCI card.
Ethernet Ports
The E7210 includes an on-chip Gb Ethernet controller and the P4SCi has an
additional Gb Ethernet controller to support a total of two Gigabit LAN ports.
Onboard Controllers/Ports
An onboard IDE controller supports one floppy drive and up to four Ultra ATA 100
hard drives or ATAPI devices. Onboard I/O backpanel ports include one serial
COM port, one parallel port, four USB ports, PS/2 mouse and keyboard ports and
two GLAN (RJ45) ports.
Page 14
1-4
SUPERSERVER 5013C-M User's Manual
Other Features
Other onboard features that promote system health include eight voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and
CPU overheat sensors, virus protection and BIOS rescue.
Figure 1-1 . Intel E7210 Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
MCH
Processor 0
ICH
6300ES B
USB Ports
(4)
ATA/100
Ports (2 )
DIMM
DIMM
Dual-Channel DIMMs (4)
(DDR400/333/266)
CSA Gb Ethernet
Controller (66MHz)
SATA Ports
(2)
FWH
Printer H/W Monitor
ADDR
CTLR
DATA
3.2 GB/s
Hub A
64-bit/66 MHz
UDMA
100
SATA
USB 2.0
Serial PortFDDKB/Mouse
LPC I/O
PCI-X
Gb Ethernet
Cntrlr
ATI
VGA
PCI
32-bit/33 MHz
LPC Bus
Page 15
Chapter 1: Introduction
1-5
1-3 Server Chassis Features
The SuperServer 5013C-M is a mini 1U rackmount server platform configuration.
The following is a general outline of the main features of the SC512C-260 chassis.
System Power
When configured as a SuperServer 5013C-M, the SC512C-260 chassis includes
a single 260W power supply.
Control Panel
The SC512C-260's control panel provides important system monitoring and control information. LEDs indicate power on, network activity, hard disk drive activity, overheat warning and drive failure. The control panel also includes a main
power button and a system reset button.
Rear I/O Panel
The rear I/O panel on the SC512C-260 provides one motherboard expansion slot,
one COM port (another is internal), two USB ports, PS/2 mouse and keyboard
ports, a graphics port and two Gb Ethernet ports. (See Figure 1-2.)
Cooling System
The SC512C chassis has an innovative cooling design that features a 10-cm
blower system cooling fan. The blower fan plugs into a chassis fan header on
the motherboard and operates at full rpm continuously.
Page 16
1-6
SUPERSERVER 5013C-M User's Manual

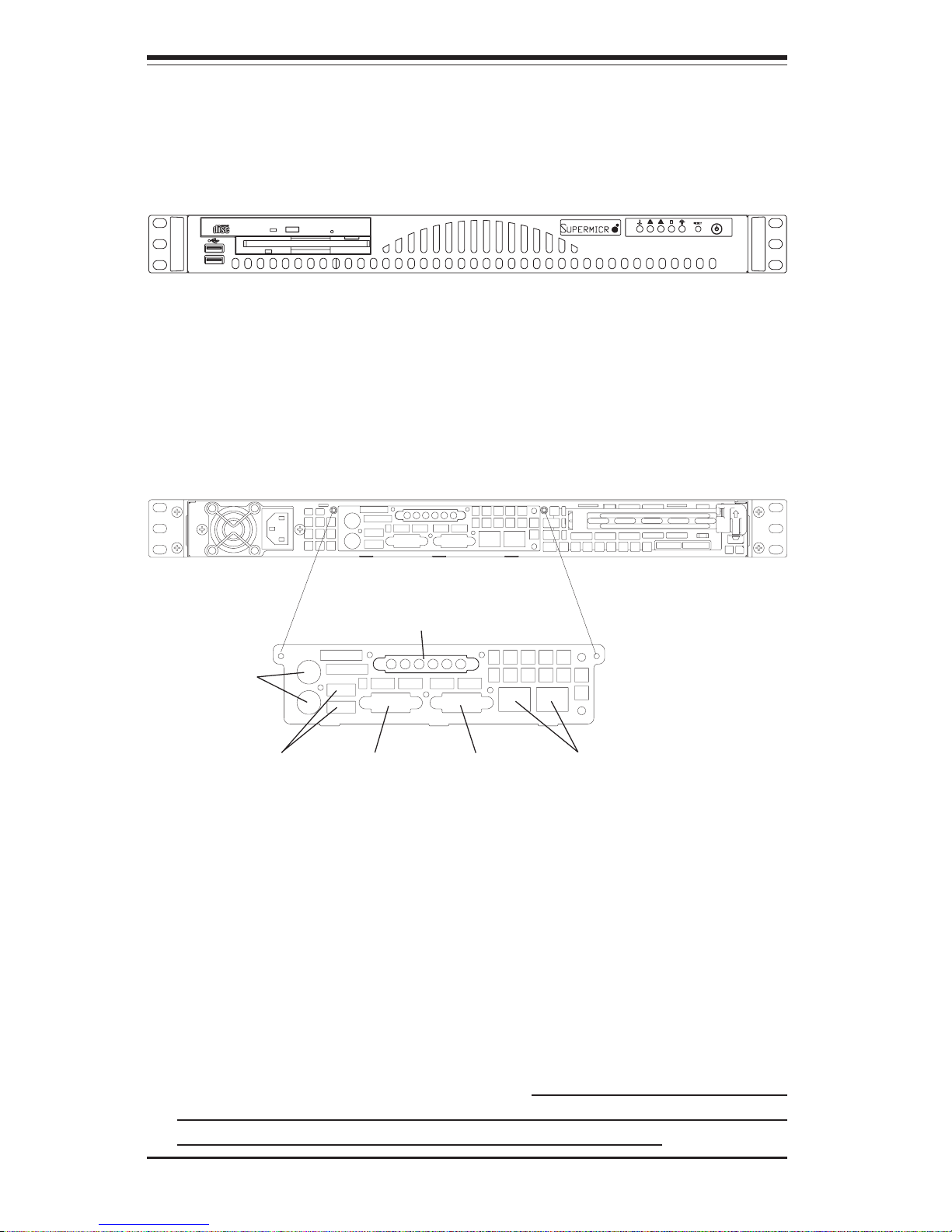

Figure 1-2. Rear I/O Panel
Parallel Port
USB Ports VGA Port
Keyboard/
Mouse Ports
COM1 Port Ethernet Ports
Page 17
Chapter 1: Introduction
1-7
1-4 Contacting Supermicro
Headquarters
Address: SuperMicro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: SuperMicro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address: SuperMicro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei, Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: 886-2-8228-1366, ext.132 or 139
Page 18
1-8
SUPERSERVER 5013C-M User's Manual
Notes
Page 19
Chapter 2: Server Installation
2-1
Chapter 2
Server Installation
2-1 Overview
This chapter provides a quick setup checklist to get your SuperServer 5013C-M
up and running. Following the steps in the order given should enable you to have
the system operational within a minimal amount of time. This quick setup
assumes that your 5013C-M system has come to you with the processor and
memory preinstalled. If your system is not already fully integrated with a motherboard, processor, system memory etc., please turn to the chapter or section
noted in each step for details on installing specific components.
2-2 Unpacking the SuperServer 5013C-M
You should inspect the box the SuperServer 5013C-M was shipped in and note
if it was damaged in any way. If the server itself shows damage, you should file
a damage claim with the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold the SuperServer
5013C-M. It should be situated in a clean, dust-free area that is well ventilated.
Avoid areas where heat, electrical noise and electromagnetic fields are generated. You will also need it placed near a grounded power outlet. Read the Rack
and Server Precautions in the next section.
2-3 Preparing for Setup
The box the SuperServer 5013C-M was shipped in should include two sets of rail
assemblies, two rail mounting brackets and the mounting screws you will need
to install the system into the rack. Follow the steps in the order given to
complete the installation process in a minimal amount of time. Please read this
section in its entirety before you begin the installation procedure outlined in the
sections that follow.
Page 20
2-2
SUPERSERVER 5013C-M User's Manual
Choosing a Setup Location
- Leave enough clearance in front of the rack to enable you to open the
front door completely (~25 inches).
- Leave approximately 30 inches of clearance in the back of the rack to
allow for sufficient airflow and ease in servicing.
- This product is for installation only in a Restricted Access location
(dedicated equipment rooms, service closets and the like).
Rack Precautions
- Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.
- In a single rack installation, stabilizers should be attached to the rack.
- In multiple rack installations, the racks should be coupled together.
- Always make sure the rack is stable before extending a component
from the rack.
- You should extend only one component at a time - extending two or
more simultaneously may cause the rack to become unstable.
Server Precautions
- Review the electrical and general safety precautions in Chapter 4.
- Determine the placement of each component in the rack before you
install the rails.
- Install the heaviest server components on the bottom of the rack
first, and then work up.
- Use a regulating uninterruptible power supply (UPS) to protect the
server from power surges, voltage spikes and to keep your system operating in case of a power failure.
- Allow the power supply units and hot plug Serial ATA drive to cool
before touching them.
- Always keep the rack's front door and all panels and components on
the servers closed when not servicing to maintain proper cooling.
!
!
Warnings and Precautions!
Page 21
Chapter 2: Server Installation
2-3
Rack Mounting Considerations
Ambient Operating Temperature
If installed in a closed or multi-unit rack assembly, the ambient operating
temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing
the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).
Reduced Airflow
Equipment should be mounted into a rack so that the amount of airflow
required for safe operation is not compromised.
Mechanical Loading
Equipment should be mounted into a rack so that a hazardous condition
does not arise due to uneven mechanical loading.
Circuit Overloading
Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might
have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this
concern.
Reliable Ground
A reliable ground must be maintained at all times. To ensure this, the rack
itself should be grounded. Particular attention should be given to power
supply connections other than the direct connections to the branch circuit
(i.e. the use of power strips, etc.).
Page 22
2-4
SUPERSERVER 5013C-M User's Manual
2-4 Installing the 5013C-M into a Rack
(Rack hardware optional)
This section provides information on installing the SuperServer 5013C-M into a
rack unit. If the system has already been mounted into a rack, you can skip
ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market,
which may mean the assembly procedure will differ slightly. The following is a
guideline for installing the unit into a rack with the rack rails provided with the
system. You should also refer to the installation instructions that came with the
rack unit you are using.
Identifying the Sections of the Rack Rails
You should have received two rack rail assemblies with the SuperServer
5013C-M. Each of these assemblies consist of two sections: an inner fixed
chassis rail that secures to the unit (A) and an outer fixed rack rail that secures
directly to the rack itself (B). A sliding rail guide sandwiched between the two
should remain attached to the fixed rack rail (see Figure 2-1). The A and B rails
must be detached from each other to install.
To remove the fixed chassis rail (A), pull it out as far as possible - you
should hear a "click" sound as a locking tab emerges from inside the rail
assembly and locks the inner rail. Then depress the locking tab to pull the
inner rail completely out. Do this for both the left and right side rack rail
assemblies.
Figure 2-1. Identifying the Sections of the Rack Rails
A
B
Page 23
Chapter 2: Server Installation
2-5
Installing the Chassis Rails
Position the fixed chassis rail sections you just removed along the side of
the chassis making sure the five screw holes line up. Note that these two
rails are left/right specific. Screw the rail securely to the side of the
chassis (see Figure 2-2). Repeat this procedure for the other rail on the
other side of the chassis. You will also need to attach the rail brackets
when installing into a telco rack.
Locking Tabs: As you have seen, both chassis rails have a locking tab,
which serves two functions. The first is to lock the server into place
when installed and pushed fully into the rack, which is its normal position.
Secondly, these tabs also lock the server in place when fully extended
from the rack. This prevents the server from coming completely out of
the rack when you pull it out for servicing.
Figure 2-2. Installing Chassis Rails
Installing the Rack Rails
Determine where you want to place the SuperServer 5013C-M in the rack (see
Rack and Server Precautions in Section 2-3). Position the fixed rack rail/sliding
rail guide assemblies at the desired location in the rack, keeping the sliding rail
guide facing the inside of the rack. Screw the assembly securely to the rack
Page 24
2-6
SUPERSERVER 5013C-M User's Manual
Figure 2-3. Installing the Server into a Rack
Installing the Server into the Rack
You should now have rails attached to both the chassis and the rack
unit. The next step is to install the server into the rack. Do this by
lining up the rear of the chassis rails with the front of the rack rails.
Slide the chassis rails into the rack rails, keeping the pressure even on
both sides (you may have to depress the locking tabs when inserting).
See Figure 2-3.
When the server has been pushed completely into the rack, you should
hear the locking tabs "click". Finish by inserting and tightening the
thumbscrews that hold the front of the server to the rack.
using the brackets provided. Attach the other assembly to the other side of the
rack, making sure that both are at the exact same height and with the rail guides
facing inward.
Page 25
Chapter 2: Server Installation
2-7
Figure 2-4. Installing the Server into a Telco Rack
Installing the Server into a Telco Rack
If you are installing the SuperServer 5013C-M into a Telco type rack, follow the
directions given on the previous pages for rack installation. The only difference
in the installation procedure will be the positioning of the rack brackets to the
rack. They should be spaced apart just enough to accomodate the width of the
telco rack.
Page 26
2-8
SUPERSERVER 5013C-M User's Manual
2-5 Checking the Motherboard Setup
After you install the 5013C-M in the rack, you will need to open the unit to make
sure the motherboard is properly installed and all the connections have been
made.
1. Accessing the inside of the 5013C-M (Figure 2-5)
First, release the retention screws that secure the unit to the rack. Grasp the
two handles on either side and pull the unit straight out until it locks (you will
hear a "click"). Then, remove the screws from the lips on either side of the
chassis top cover (see Figure 2-5 for location). Next, depress the two buttons
on the top of the chassis to release the top cover while pushing the cover away
from you until it stops. You can then lift the top cover from the chassis to gain
full access to the inside of the server.
2. Check the CPU (processor)
You may have one processor already installed into the system board. The
processor should have its own heatsink attached. See Chapter 5 for instructions on processor installation.

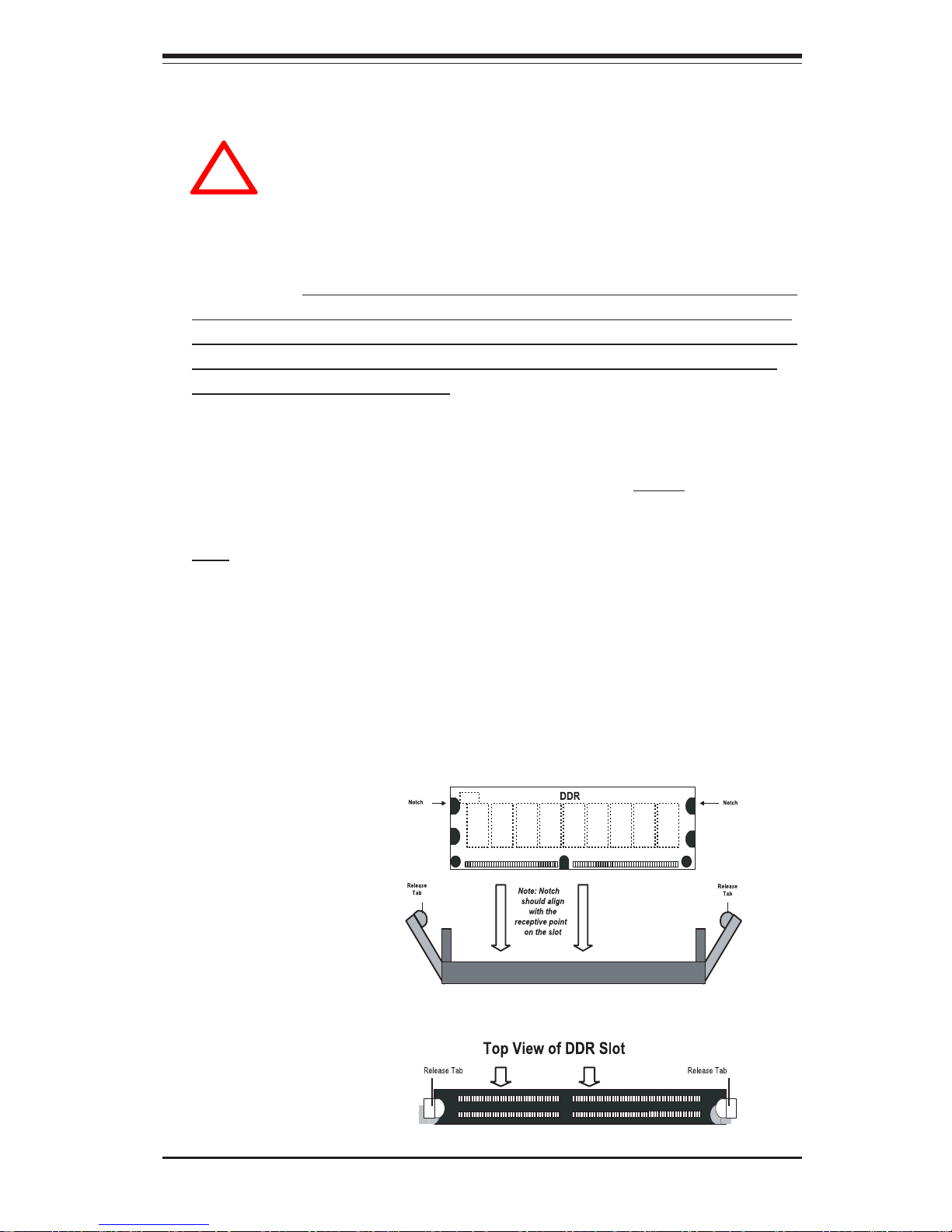

3. Check the system memory
Your 5013C-M server system may have come with system memory already
installed. Make sure all DIMMs are fully seated in their slots. For details on
adding system memory, refer to Chapter 5.
4. Installing add-on cards
If desired, you can install an add-on card to the system. See Chapter 5
for details on installing a PCI add-on card.
5. Check all cable connections and airflow
Make sure all power and data cables are properly connected and not
blocking the airflow. See Chapter 5 for details on cable connections.
Also, check the air seals for damage. The air seals are located under
the blower fan and beneath the frame cross section that separates the
drive bay area from the motherboard area of the chassis.
Note: Make sure that the air seals are properly installed.
Page 27
Chapter 2: Server Installation
2-9

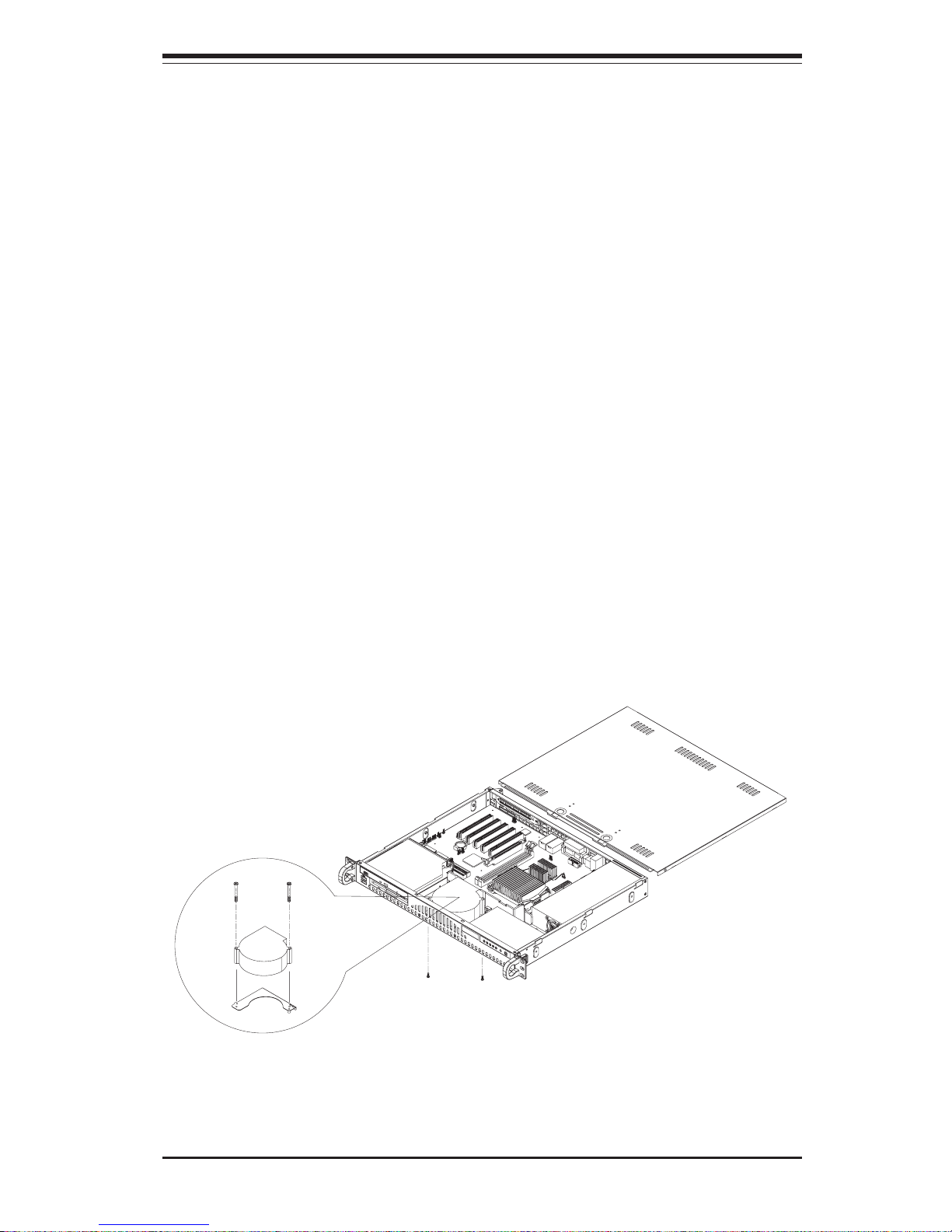

Figure 2-5.
Accessing the Inside of the SuperServer 5013C-M
S
U
P
E
R
R
P
4
S
C
I
Page 28
2-10
SUPERSERVER 5013C-M User's Manual
2-6 Checking the Drive Bay Setup
Next, you should check to make sure the peripheral drives and the Serial
ATA drive and Serial ATA backplane have been properly installed and all essential connections have been made.
1. Accessing the drive bays
All drives can be accessed from the front of the server. For servicing
the CD-ROM and floppy drives, you will need to remove the top chassis
cover. The Serial ATA disk drive can be installed and removed from the front
of the chassis without removing the top chassis cover.
2. Installing a CD-ROM and floppy disk drives
Refer to Chapter 6 if you need to reinstall a CD-ROM and/or floppy disk
drive to the system.
3. Check the IDE disk drives
Depending upon your system's configuration, your system may have an IDE
hard drive already installed. If you need to install an IDE hard drive, please
refer to the appropriate section in Chapter 6.
4. Check the airflow
Airflow is provided by one 10-cm input fan. The system component layout was
carefully designed to promote sufficient airflow through the small 1U
rackmount space. Also note that all power and data cables have been routed
in such a way that they do not block the airflow generated by the fan.
5. Supplying power to the system
The last thing you must do is to provide input power to the system. Plug
the power cord from the power supply unit into a high-quality power
strip that offers protection from electrical noise and power surges. It is
recommended that you use an uninterruptible power supply (UPS).
Page 29
Chapter 3: System Interface
3-1
Chapter 3
System Interface
3-1 Overview
There are several LEDs on the control panel and one on the Serial ATA drive
carrier to keep you constantly informed of the overall status of the system as well
as the activity and health of specific components. There are also two buttons on
the chassis control panel. This chapter explains the meanings of all LED indicators and the appropriate response you may need to take.
3-2 Control Panel Buttons
There are two push-button buttons located on the front of the chassis.
These are (in order from left to right) a reset button and a power on/off
button.
RESET: The reset switch reboots the system.
POWER: This is the main power switch, which is used to apply or
turn off the main system power. Turning off system power with this button
removes the main power but keeps standby power supplied to the system.
RESET
Page 30
3-2
SUPERSERVER 5013C-M User's Manual
3-3 Control Panel LEDs
The control panel located on the front of the SC512C-260 chassis has five LEDs.
These LEDs provide you with critical information related to different parts of the
system. This section explains what each LED indicates when illuminated and
any corrective action you may need to take.
OVERHEAT: Indicates an overheat condition in the chassis. This may
be caused by cables obstructing the airflow in the system, or the ambient
room temperature being too warm. You should also check to make sure
that the chassis cover is installed and that all fans are present and operating normally. Finally, check the air seals for damage. The air seals are
located under the blower fan and beneath the frame cross section that
separates the drive bay area from the motherboard area of the chassis.
NIC2: Indicates network activity on GLAN2 when flashing .
NIC1: Indicates network activity on GLAN1 when flashing.
HDD: Channel activity for all HDDs. This light indicates CD-ROM and IDE
drive activity when flashing.
NIC2
NIC1
Page 31
Chapter 3: System Interface
3-3
Power: Indicates power is being supplied to the system's power supply
units. This LED should normally be illuminated when the system is operating.
Page 32
3-4
SUPERSERVER 5013C-M User's Manual
Notes
Page 33
Chapter 4: System Safety
4-1
Chapter 4
System Safety
4-1 Electrical Safety Precautions
!
Basic electrical safety precautions should be followed to protect yourself from
harm and the SuperServer 5013C-M from damage:
Be aware of the locations of the power on/off switch on the chassis
as well as the room's emergency power-off switch, disconnection
switch or electrical outlet. If an electrical accident occurs, you can
then quickly remove power from the system.
Do not work alone when working with high voltage components.
Power should always be disconnected from the system when removing
or installing main system components, such as the motherboard,
memory modules and floppy drive. When disconnecting power, you should
first power down the system with the operating system first and then unplug
the power cords of all the power supply units in the system.
When working around exposed electrical circuits, another person who
is familiar with the power-off controls should be nearby to switch off
the power if necessary.
Use only one hand when working with powered-on electrical
equipment. This is to avoid making a complete circuit, which will
cause electrical shock. Use extreme caution when using metal tools,
which can easily damage any electrical components or circuit boards
they come into contact with.
Do not use mats designed to decrease static electrical discharge as
protection from electrical shock. Instead, use rubber mats that have
been specifically designed as electrical insulators.
The power supply power cords must include a grounding plug and must
be plugged into grounded electrical outlets.
Page 34
SUPERSERVER 5013C-M User's Manual
4-2
4-2 General Safety Precautions
Follow these rules to ensure general safety:
Keep the area around the SuperServer 5013C-M clean and free of clutter.
The SuperServer 5013C-M weighs approximately 21 lbs (~9.5 kg) when fully
loaded. When lifting the system, two people at either end should lift slowly
with their feet spread out to distribute the weight. Always keep your back
straight and lift with your legs.
Place the chassis top cover and any system components that have been
removed away from the system or on a table so that they won't
accidentally be stepped on.
While working on the system, do not wear loose clothing such as
neckties and unbuttoned shirt sleeves, which can come into contact
with electrical circuits or be pulled into a cooling fan.
Remove any jewelry or metal objects from your body, which are
excellent metal conductors that can create short circuits and harm you
if they come into contact with printed circuit boards or areas where
power is present.
After accessing the inside of the system, close the system back up
and secure it to the rack unit with the retention screws after ensuring
that all connections have been made.
!
Motherboard Battery: CAUTION - There is a danger of explosion if the
onboard battery is installed upside down, which will reverse its
polarites. This battery must be replaced only with the same or an
equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions. See Figure 4-
1.
CD-ROM Laser: CAUTION - this server may have come equipped with a CD-
ROM drive. To prevent direct exposure to the laser beam and hazardous
radiation exposure, do not open the enclosure or use the unit in any
unconventional way.
Page 35
Chapter 4: System Safety
4-3
4-3 ESD Precautions
Electrostatic discharge (ESD) is generated by two objects with different
electrical charges coming into contact with each other. An electrical
discharge is created to neutralize this difference, which can damage
electronic components and printed circuit boards. The following
measures are generally sufficient to neutralize this difference before
contact is made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their
antistatic bags until ready for use.
Touch a grounded metal object before removing the board from the
antistatic bag.
Do not let components or PCBs come into contact with your clothing,
which may retain a charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components,
peripheral chips, memory modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard and peripherals back into their antistatic bags
when not in use.
For grounding purposes, make sure your computer chassis provides
excellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
!
Page 36
SUPERSERVER 5013C-M User's Manual
4-4
4-4 Operating Precautions
Care must be taken to assure that the chassis cover is in place when the
5013C-M is operating to assure proper cooling. Out of warranty damage
to the 5013C-M system can occur if this practice is not strictly followed.
!

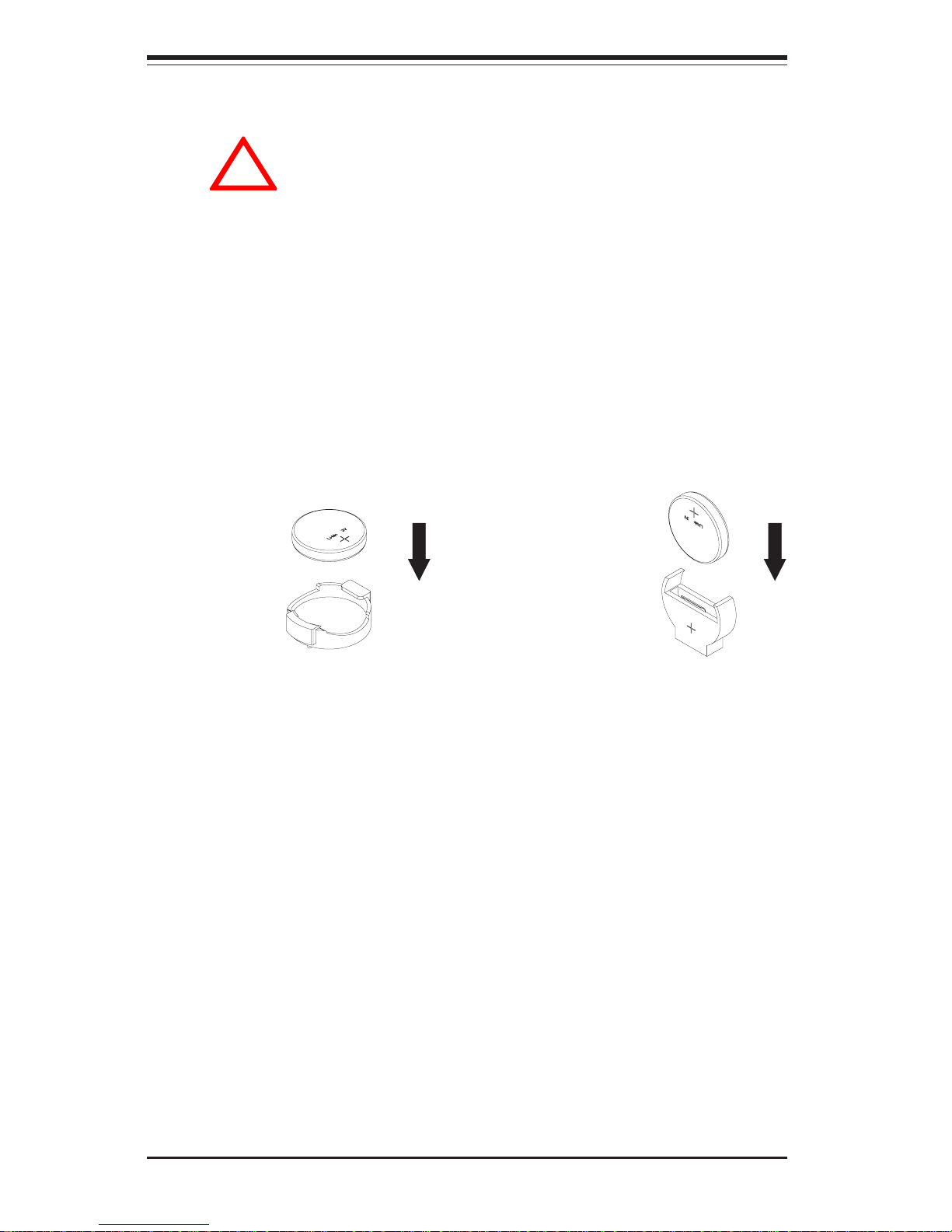

Figure 4-1. Installing the Onboard Battery
LITHIUM BATTERY
BATTERY HOLDER BATTERY HOLDER
LITHIUM BATTERY
OR
Page 37
Chapter 5: Advanced Motherboard Setup
5-1
Chapter 5
Advanced Motherboard Setup
This chapter covers the steps required to install the P4SCi motherboard into the
SC512C chassis, connect the data and power cables and install add-on cards.
All motherboard jumpers and connections are also described. A layout and quick
reference chart are included in this chapter for your reference. Remember to
completely close the chassis when you have finished working with the
motherboard to better cool and protect the system.
5-1 Handling the P4SCi Motherboard
Electric-static discharge (ESD) can damage electronic components. To prevent
damage to any printed circuit boards (PCBs), it is important to handle them very
carefully (see previous chapter). To prevent the P4SCi motherboard from bending, keep one hand under the center of the board to support it when handling. The
following measures are generally sufficient to protect your equipment from electric static discharge.
Precautions
• Use a grounded wrist strap designed to prevent Electric Static Discharge
(ESD).
• Touch a grounded metal object before removing any board from its anti-
static bag.
• Handle a board by its edges only; do not touch its components, periph-
eral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard, add-on cards and peripherals back into their anti-
static bags when not in use.
• For grounding purposes, make sure your computer chassis provides ex-
cellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
Page 38
5-2
SUPERSERVER 5013C-M User's Manual
5-2 Motherboard Installation
This section explains the first step of physically mounting the P4SCi into the
SC512C chassis. Following the steps in the order given will eliminate the most
common problems encountered in such an installation. To remove the
motherboard, follow the procedure in reverse order.
1. Accessing the inside of the 5013C-M (see Figure 2-5)
Two release buttons are located on the top cover of the chassis.
Depressing both of these buttons while pushing the cover away from
you until it stops. You can then lift the top cover from the chassis to
gain full access to the inside of the server. (If already installed in a
rack, you must first release the retention screws that secure the unit
to the rack. Then grasp the two handles on either side and pull the unit
straight out until the rails lock into place.)
2. Check compatibility of motherboard ports and I/O shield:
The P4SCi requires a chassis big enough to support a 12" x 9.5"
motherboard, such as Supermicro's SC512C 1U rackmount. Make sure that
the I/O ports on the motherboard align properly with their respective holes
in the I/O shield at the back of the chassis.
3. Mounting the motherboard onto the motherboard tray:
Carefully mount the motherboard to the motherboard tray by aligning
the board holes with the raised metal standoffs that are visible on the
bottom of the chassis. Insert screws into all the mounting holes on
your motherboard that line up with the standoffs and tighten until snug
(if you screw them in too tight, you might strip the threads). Metal
screws provide an electrical contact to the motherboard ground to
provide a continuous ground for the system.
Unpacking
The motherboard is shipped in antistatic packaging to avoid electrical static
discharge. When unpacking the board, make sure the person handling it is
static protected.
Page 39
Chapter 5: Advanced Motherboard Setup
5-3
5-3 Connecting Cables
Now that the motherboard is installed, the next step is to connect the cables to
the board. These include the data (ribbon) cables for the peripherals and control
panel and the power cables.
Connecting Data Cables
The ribbon cables used to transfer data from the peripheral devices have
been carefully routed to prevent them from blocking the flow of cooling air
that moves through the system from front to back. If you need to disconnect any of these cables, you should take care to keep them routed as they
were originally after reconnecting them (make sure the red wires connect
to the pin 1 locations). The following data cables (with their locations
noted) should be connected. (See the layout on page 5-10 for connector
locations.)
IDE Device Cables (J2 and J5)
Floppy Drive Cable (J7)
Control Panel Cable (JF1)
Connecting Power Cables
The P4SCi has a 24-pin primary power supply connector ("ATX Power") at J20 for
connection to the ATX power supply. In addition, there is a 4-pin secondary
power connector at J21 that also must be connected to your power supply. See
Chapter 5 for power connector pin definitions.
Connecting the Control Panel
JF1 contains header pins for various front control panel connectors. See
Figure 5-1 for the pin locations of the various front control panel buttons
and LED indicators.
All JF1 wires have been bundled into a single ribbon cable to simplify this
connection. Make sure the red wire plugs into pin 1 as marked on the
board. The other end connects to the Control Panel PCB board, located just
behind the system status LEDs on the chassis. See Chapter 5 for details
and pin descriptions.
Page 40
5-4
SUPERSERVER 5013C-M User's Manual
5-4 I/O Ports
The I/O ports are color coded in conformance with the PC 99 specification.
See Figure 5-2 below for the colors and locations of the various I/O ports.
Figure 5-1. Control Panel Header Pins
Note: The COM2 port is a header on the motherboard, located behind the
mouse and keyboard ports.
Mouse (Green)
Parallel Port (Burgundy)
GLAN1 GLAN2
Keyboard
(Purple)
COM1 Port (Turquoise) VGA Port (Blue)USB 0/1 Ports
Power Button
Overheat LE D
1
LAN1 LED
Reset Button
2
X
LAN2 LED
IDE LED
Power On LED
Reset
Signal
Vcc
Vcc
Vcc
Vcc
Vcc
Ground
+3V Standby
1920
X
X
Ground
NMI
X
Figure 5-2. Backpanel I/O Ports
Page 41
Chapter 5: Advanced Motherboard Setup
5-5
5-5 Installing Processors
Avoid placing direct pressure to the top of the processor
package. Always remove the power cord first before add-
ing, removing or changing any hardware components.
Processor Support
The P4SCi has a single 478-pin microPGA socket, which supports Intel Pentium
4 processors on .013 micron process or a single Intel Celeron processor of up
to 2.40 GHz.
!
1. Lift the lever on the CPU socket.
2. Install the CPU in the socket. Make
sure that Pin 1 of the CPU is seated on
Pin 1 of the socket (both corners are
marked with a triangle).
3. Press the lever down until you
hear it *click* into the locked
position.
4. Apply the proper amount of thermal compound to the CPU die. Place the heatsink on
top of the CPU aligning its holes with those on
the retention mechanism. Screw in two diagonal screws (ie. the #1 and #2 screws) until just
snug, then do the same with the remaining two
screws. Finish by fully tightening all four
screws (see Figure 5-4 on next page).
Page 42
5-6
SUPERSERVER 5013C-M User's Manual
Figure 5-3. 478-pin Socket: Empty and with Processor Installed
Figure 5-4. Heatsink (SNK-P0002) Installation
Page 43
Chapter 5: Advanced Motherboard Setup
5-7
5-6 Installing Memory
1. Memory support
The P4SCi supports dual-channel, ECC or non-ECC unbuffered DDR-400/333/
266 SDRAM. Populating DIMM0A and DIMM1A and/or DIMM0B and DIMM1B
with the same size/same type of memory modules will result in dual channel
(two-way interleaved) operation, which is faster than single channel operation.
See the table on the following page for system configuration and the corresponding memory speed support.
2. Installing memory modules
Insert each memory module vertically. Pay attention to the notch along the
bottom of the module to prevent inserting it incorrectly. Gently press down
on the DIMM module until it snaps into place in the slot (see Figure 5-5).
!
CAUTION! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.
To Install: Insert module
vertically and press down
until it snaps into place.
Pay attention to the bottom
notch.
To Remove: Use your
thumbs to gently push
each release tab outward
to free the DIMM from the
slot.
Figure 5-5. DIMM Installation
Note: The Intel E7210 chip supports unbuffered, non-ECC or ECC memory. If
ECC memory is installed, the ECC bits need to be initialized via BIOS before
beginning normal system operation. For system with 4 GB memory and a 2.4
GHz Pentium 4, initialization will take about 65 seconds before any video displays. Since ECC initialization takes time, the Watch Dog Timer select option
needs to be set to a time that will exceed the ECC initialization time.
Page 44
5-8
SUPERSERVER 5013C-M User's Manual
5-7 Adding PCI Cards
1. 64-bit PCI-X slot
The 5013C-M has a riser card (p/n CSE-RR1U-X) designed specifically for use in
the SC512C 1U rackmount chassis (included with the system). This riser card
allows an installed PCI-X card to sit at a 90 degree angle so it can fit inside the
chassis. This riser card accommodates one 64-bit, 66 MHz (3.3V) PCI-X card.
2. PCI-X card installation
Before installing a PCI-X add-on card, locate the PCI riser card mentioned in
Step 1. Begin by removing the PCI slot shield for the slot you wish to
populate. Fully seat the PCI card into the riser card and screw it into the
metal retention rail. Then, insert the riser card into the PCI slot on the
motherboard, pushing down with your thumbs evenly on both sides of the
card. Finish by using a screw to secure the top of the card shield to the
rear of the chassis. The PCI slot shields protect the motherboard and
components from EMI and aid in proper ventilation, so make sure there is
always a shield covering each unused PCI slot.
H o st C lo c k F S B (M H z )
(M H z )
1 00 4 0 0
1 33 5 3 3
2 00 8 0 0
D R A M D a ta S h ow n d u ring
(M T / s) P O S T ro u t ine
2 66 D D R 2 6 6
3 33 D D R 2 6 6
4 00 D D R 2 6 6
2 66 D D R 2 6 6
3 33 D D R 3 3 3
4 00 D D R 3 3 3
2 66 D D R 2 6 6
3 33 D D R 3 2 0 *
4 00 D D R 4 0 0
M em ory Speeds
* The B IOS displays D D R320 due to a chipset limitation.
Page 45
Chapter 5: Advanced Motherboard Setup
5-9
Figure 5-6. P4SCi Layout
(not drawn to scale)
Jumpers not indicated are for test purposes only.
Warning: Using the wrong type of onboard CMOS battery or installing it
upside down may result in explosion.
5-8 Motherboard Details
Keyboard/
Mouse
JBT1
82541
J17
CHS FAN1CPU FAN
JP1
JP2
JP20
J11
USB1/2
COM1
Parallel Port
J8
VGA
ATX Power Connector
J20
CPU
478 mPGA
GLAN1
GLAN2
DIMM0A
DIMM0B
J21
+12V PWR
MCH
JF1
PCI-X 1
PCI-X 2
PCI 1
BATTERY
BIOS
SUPER P4SCi
®
IDE #1
FLOPPY
J37
J7
J2
JPWAKE
JPUSB
J10
JP8 (WD)
JP3
Super I/O
RAGE XL
DIMM1A
DIMM1B
IDE #2
J5
USB3/4
6300ESB
J16 (IR)
WOR
BANK0
BANK1
J15
J36 J18
JL1
J9
COM2
JP3
OH FAN
CHS FAN4
SATA1
SATA2
CHS FAN2
PCI 2
CHS FAN3
J33
JPL2
Kybd/Mouse
Page 46
5-10
SUPERSERVER 5013C-M User's Manual
P4SCi Quick Reference
Jumpers Description Default Setting
J1 7 Power LED Closed (On)
J18 Speaker Enable Pins 3-4 (Internal Buzz.)
J33 VGA Enable/Disable Pins 1-2 (Enabled)
J36 Keylock Enable/Disable Open (Disabled)
JBT1 CMOS Clear See Section 5-10
JP1, JP2 CPU Clock Speed Pins 1-2 (Auto)
JP3 OH Fan Force On Closed (On)
JP8 Watch Dog Reset Pins 1-2 (WD Reset)
JP20 System Power Force On Open (Disabled)
JPL2 GLAN2 Enable/Disable Pins 1-2 (Enabled)
JPUSB USB1/2 Wake Up Pins 1-2 (Disabled)
JPWAKE Keyboard Wakeup Pins 1-2 (Disabled)
Connectors Description
DIMM 0A,0B,1A,1B Memory Slots (1 through 4)
Fans CPU Fan, Chassis Fans 1-4, Overheat Fan
GLAN1/2 Gigabit LAN1/2 Ports
J2/J5 IDE Ports #1/#2
J3/J4 Serial ATA Connectors (SATA1/SATA2)
J7 Floppy Disk Drive Connector
J8 Parallel Printer Port
J9/J10 COM1/COM2
J11 Keyboard/Mouse Ports
J15 System Management Bus
J16 Infrared Header
J2 0 ATX Power Connector
J21 +12V 4-pin Power Connector
J37 Serial ATA LED Activity Header
JF 1 Front Control Panel Header
JL1 Chassis Intrusion Header
USB1/2 Back Panel USB 1/2
USB3/4 Front Panel USB 3/4 Header
VGA VGA Header
WOL Wake-On-LAN
Page 47
Chapter 5: Advanced Motherboard Setup
5-11
5-9 Connector
Definitions

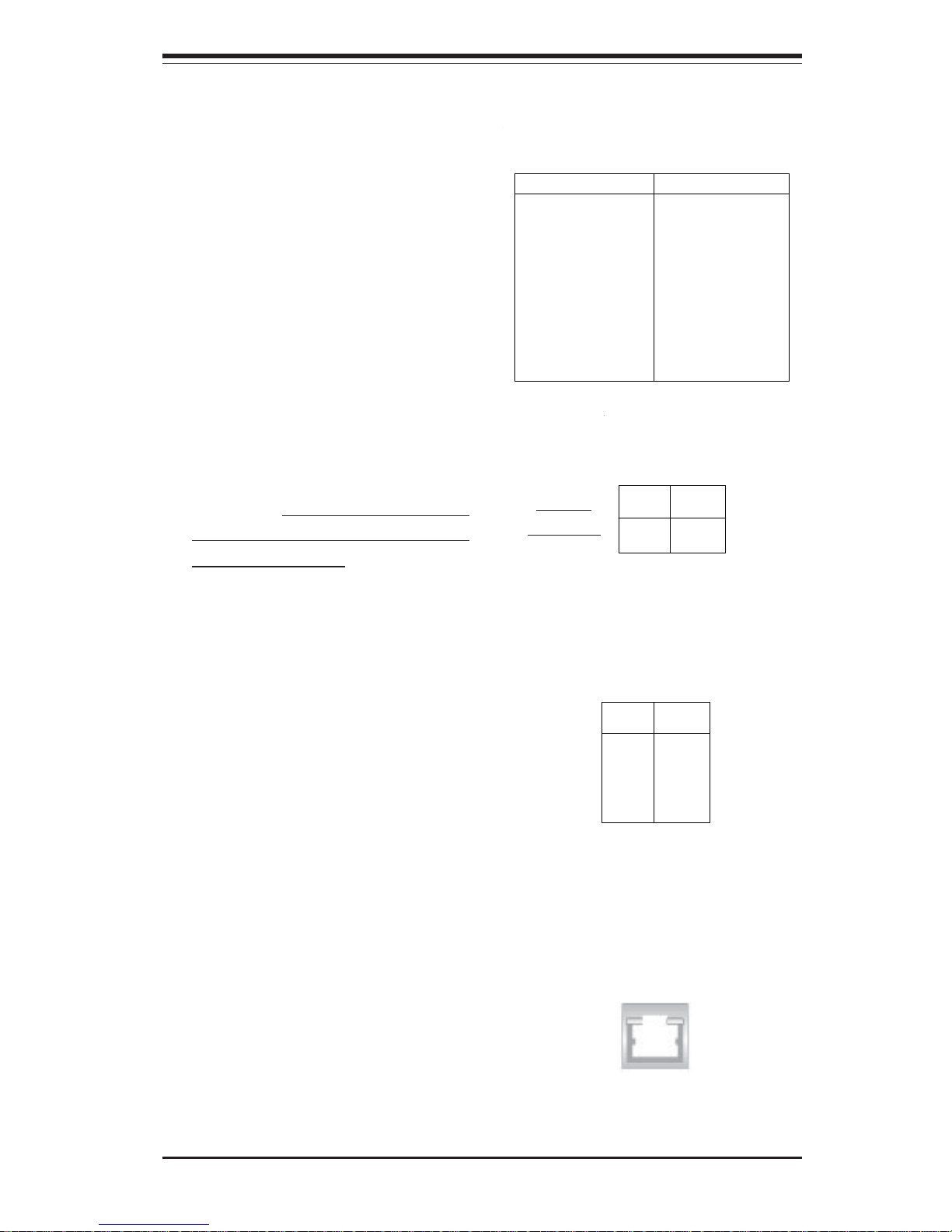

Power Supply Connectors
The primary power supply connector
on the P4SCi meets the SSI
(Superset ATX) 24-pin specification. Refer to the table on the right
for the pin definitions of the ATX
24-pin power connector. You
must also connect the 4-pin J21
power connector to your power
supply. Refer to the table below
right for the J21 (12V) connector.
Important: you must connect J21 to
your power supply to meet the ATX
safety requirements.
Pins #
1 & 2
3 & 4
Definition
Ground
+12 V
+12V 4-pin PWR
Connector
(J21)
Required
Connection
IR Connector
The infrared connector is located
on J16. See the table on the right
for pin definitions. See the Technical Support section of our web
page for information on the infrared devices you can connect to
the system.
ATX Power S u pply 24-pin C on n ector
Pin Definitions (J20)
Pin Number Definition
13 +3.3V
14 -12V
15 COM
16 PS_ON#
17 COM
18 COM
19 COM
20 Res(NC)
21 +5V
22 +5V
23 +5V
24 COM
Pin Number De finition
1 +3.3V
2 +3.3V
3 COM
4 +5V
5 COM
6 +5V
7 COM
8 PWR_ OK
9 5VSB
10 +12V
11 +12V
12 +3.3V
Pin
Number
1
2
3
4
5
6
Definition
+5V
CIRRX
IRRX
Ground
IRTX
NC
Infrared Pin
Definitions
(J16)
GLAN1/2 (Ethernet Ports)
Two Ethernet ports (designated
GLAN1 and GLAN2) are located
beside the VGA port on the I/O
backplane. These ports accept
RJ45 type cables.
Page 48
5-12
SUPERSERVER 5013C-M User's Manual
Reset Connector
The reset connector is located on
pins 3 and 4 of JF1 and attaches
to the reset switch on the computer chassis. See the table on
the right for pin definitions.
PW_ON Connector
The PW_ON connector is located
on pins 1 and 2 of JF1. This
header should be connected to
the chassis power button, which
you may also configure to put the
system into suspend mode (see
the Power Button Mode setting in
BIOS). To turn off the power
when the suspend mode is enabled, depress the power button
for at least 4 seconds. See the
table on the right for pin definitions.
Pin
Number
1
2
Definition
Signal
+3V Stby
PW_ON
Pin Definitions
(JF1)
Pin
Number
3
4
Definition
Reset
Ground
Reset Pin
Definitions
(JF1)
Overheat LED (OH)
Connect an LED to the OH connection on pins 7 and 8 of JF1 to provide advanced warning of chassis
overheating. Refer to the table on
the right for pin definitions.
Overheat (OH) LED
Pin Definitions
(JF1)
Pin
Number
7
8
Definition
Vcc
GND
GLAN1/GLAN2 LED
The GLAN1 and GLAN2 LED connections for the Ethernet ports are located on pins 9 and 10 (GLAN2) and
11 and 12 (GLAN1) of JF1. Attach
LAN LED cables to display network
activity. See the table on the right
for pin definitions.
GLAN1/GLAN2 LED
Pin Definitions
(JF1)
Pin
Number
9,10
11,12
Definition
Vcc
GND
Page 49
Chapter 5: Advanced Motherboard Setup
5-13
Serial Ports
Two serial ports are included on the
motherboard: COM1 (J9) is a port located beside the mouse/keyboard
ports and COM2 (J10) is a header
located on the motherboard near the
J20 power connector. See the table
on the right for pin definitions.
Power On LED
The Power On LED connector is located on pins 15 and 16 of JF1 (use
J17 for a 3-pin connector). This connection is used to provide LED indication of power being supplied to the
system. See the table on the right
for pin definitions.
IDE LED
The IDE LED is located on pins 13
and 14 of JF1. This LED is used to
display all IDE and SATA activity.
See the table on the right for pin definitions.
Hard Drive Activity
LED Pin Definitions
(JF1)
Pin
Number
13
14
Definition
+5V
HD Activity
Pin
Number
15
16
Definition
+5V
Ground
PWR_LED Pin Definitions
(JF1)
Serial Port Pin Definitions
(COM1, COM2)
Pin Number Definition
1 CD
2 RD
3 TD
4 DTR
5 Ground
Pin Number Definition
6 DSR
7 RTS
8 CTS
9 RI
10 NC
Note: Pin 10 is included on the header but not on
the port. NC indicates no connection.
Fan Headers
There are six fan headers on the
P4SCi, which are designated FAN1 ,
FAN2, FAN3, FAN4, CPU FAN and
OH (Overheat) FAN. Note that FAN
3 and FAN 4 are not monitored by
BIOS. Connect the fan on your CPU
heatsink to the CPU FAN header.
See the table on the right for pin
definitions.
Fan Header Pin Definitions
(FAN1, 2, 3, 4, CPU and Overheat)
Pin
Number
1
2
3
Definition
Ground (black)
+12V (red)
Tachometer
Caution: These fan headers are DC power.
Pin
Number
1
2
3
Definition
+5V
Key
Ground
J17
Pin Definiti ons
Page 50
5-14
SUPERSERVER 5013C-M User's Manual
PS/2 Keyboard
and Mouse Port
Pin Definitions
(J11)
Pin
Number
1
2
3
4
5
6
Definition
Data
NC
Ground
VCC
Clock
NC
Chassis Intrusion
The Chassis Intrusion header is designated JL1. See the board layout
for the location of JL1 and the table
on the right for pin definitions.
Pin
Number
1
2
Definition
Intrusion Input
Ground
Chassis Intrusion
Pin Definitions (JL1)
ATX PS/2 Keyboard and
PS/2 Mouse Ports
The ATX PS/2 keyboard and the
PS/2 mouse are located on J11.
The mouse port is above the keyboard port. See the table on the
right for pin definitions.
Universal Serial Bus (USB)
There are two Universal Serial Bus
ports located on the I/O panel and
two additional USB headers located
on the motherboard. The headers,
labeled USB3/USB4, can be used to
provide front side USB access
(cables not included). See the tables
on the right for pin definitions.
Pin# Definition
1 +5V
2 P0-
3 P0+
4 Ground
Pin
Number
2
4
6
8
10
Definition
+5V
PO-
PO+
Ground
Ground
Pin
Number
1
3
5
7
Definition
+5V
PO-
PO+
Ground
USB1/2 Pin Definitions
USB3/4 Pin Definitions
SMB
A System Management Bus header
is located at J25. Connect the appropriate cable here to utilize SMB
on your system.
SMB Header
Pin Definitions (J15)
Pin
Number
1
2
3
4
Definition
Data
Ground
Clock
No Connection
Page 51
Chapter 5: Advanced Motherboard Setup
5-15
Pin
Number
1
2
3
Definition
+5V Standby
Ground
Wake-up
Wake-On-LAN Pin
Definitions (WOL)
Wake-On-LAN
The Wake-On-LAN header is designated WOL on the motherboard.
See the table on the right for pin
definitions. You must enable the
LAN Wake-Up setting in BIOS to
use this function. (You must also
have a LAN card with a Wake-OnLAN connector and cable to use
this feature.)
Wake-On-Ring
The Wake-On-Ring header is designated WOR. This function allows your
computer to receive and be "awakened" by an incoming call when in the
suspend state. See the table on the
right for pin definitions. You must also
have a WOR card and cable to use this
feature.
Pin
Number
1
2
Definition
Ground
Wake-up
Wake-On-Ring Pin Definitions
(WOR)
SATA LED
The SATA LED header is located on
J37. This header is used to display
all SATA activity. See the table on
the right for pin definitions.
SATA LED
Pin Definitions
(J37)
Pin
Number
1
2
3
4
5
Definition
SATA1
SATA2
NC
NC
NC
Page 52
5-16
SUPERSERVER 5013C-M User's Manual
Front Side Bus Speed
JP1 and JP2 are used to set the system (front side) bus speed for the
processor(s). It is best to keep these
jumpers set to Auto. These jumpers
are used together with the CPU
Clock setting in BIOS. See the table
on the right for jumper settings.

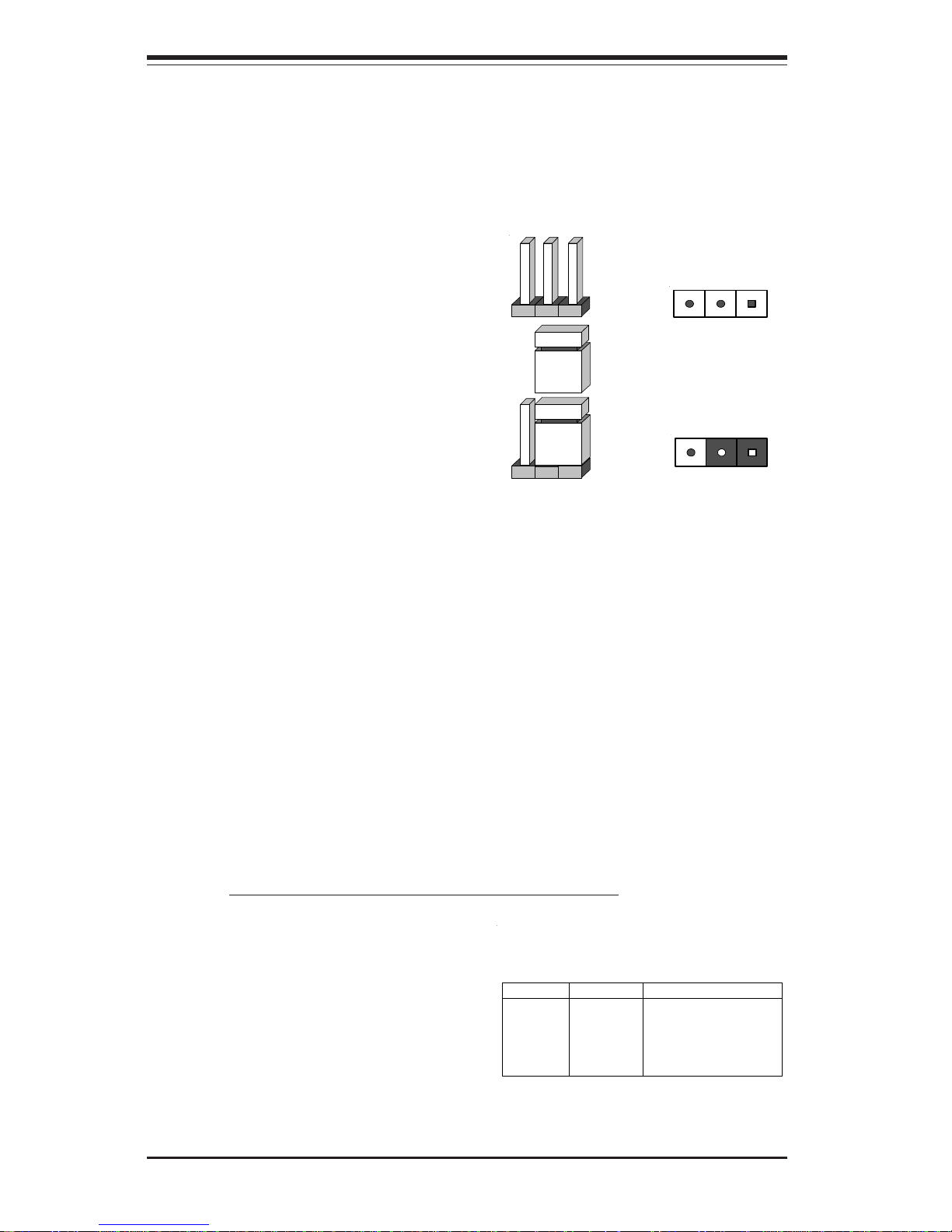

5-10 Jumper Settings
Explanation of
Jumpers
To modify the operation of the
motherboard, jumpers can be used
to choose between optional settings. Jumpers create shorts between two pins to change the
function of the connector. Pin 1 is
identified with a square solder pad
on the printed circuit board. See
the motherboard layout pages for
jumper locations.
Note: On a two-pin jumper,
"Closed" means the jumper is on
both pins and "Open" means the
jumper is either on only one pin or
completely removed.
Connector
Pins
Jumper
Cap
Setting
Pin 1-2 short
3 2 1
3 2 1
CMOS Clear
JBT1 is used to clear CMOS (which will also clear any passwords). Instead of
pins, this jumper consists of contact pads to prevent accidentally clearing the
contents of CMOS.
To clear CMOS, 1) First unplug the power cord(s) 2) With the power disconnected,
short the CMOS pads with a metal object such as a small screwdriver 3) Remove
the screwdriver (or shorting device) 4) Reconnect the power cord(s) and power on the
system.
Note: Do not use the PW_ON connector to clear CMOS.
Front Side Bus Speed
(JP1, JP2)
JP1 JP2
Pins 1-2 Pins 1-2
Pins 2-3 Pins 2-3
NC Pins 2-3
NC NC
Pins 2-3 NC
FSB Speed
Auto
100 MHz (x4)
133 MHz (x4)
Reserved
200 MHz (x4)
Note: NC stands for "No Connection".
Page 53
Chapter 5: Advanced Motherboard Setup
5-17
Watch Dog Enable/Disable
JP8 enables the Watch Dog function,
a system monitor that takes action
when a software application freezes
the system. Jumping pins 1-2 will
have WD reboot the system if a program freezes. Jumping pins 2-3 will
generate a non-maskable interrupt
for the program that has frozen. See
the table on the right for jumper settings. Watch Dog must also be enabled in BIOS.
Jumper
Position
Pins 1-2
Pins 2-3
Open
Definition
WD to Reset
WD to NMI
Disabled
Watch Dog
Jumper Settings (JP8)
Speaker Jumper
The speaker jumper is located on
J18 and allows you to choose between using the internal or external speakers. For the internal
speaker, jump pins 3 and 4. To
use an external speaker, place the
speaker cable's header on all four
pins See the table on the right.
Pins
1 through 4
3 and 4
Definition
External Spkr
Internal Spkr
Speaker
Jumper Settings (J18)
Note: when Watch Dog is enabled, the user must
write their own application software to disable
the Watch Dog Timer.
VGA Enable/Disable
J33 allows you to enable or disable
the VGA port. The default position is
pins 1 and 2 jumped to enable VGA.
See the table on the right for jumper
settings.
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Enabled
Disabled
VGA Enable/Disable
Jumper Settings
(J33)
Page 54
5-18
SUPERSERVER 5013C-M User's Manual
Keyboard Wake-Up
The JPWAKE jumper is used to allow the system to be woken up by
depressing a key on the keyboard
from an S1 or S3 state in Windows OS. See the table on the
right for jumper settings. Your
power supply must meet ATX
specification 2.01 or higher and
supply 720 mA of standby power
to use this feature.
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Disabled
Enabled
Keyboard Wake-Up
Jumper Settings
(JPWAKE)
Keylock Enable/Disable
The Keylock header is located at
J36. Close the jumper to enable the
Keylock function and leave the
jumper open (off) to disable it. The
default setting is open. See the
table on the right for jumper settings.
Jumper
Position
Closed
Open
Definition
Enabled
Disabled
Keylock
Enable/Disable
Jumper Settings
(J36)
USB Wake-Up
Use JPUSB to enable or disable
USB Wake-Up, which allows you
to wakeup the system by depressing a key on the keyboard or
by clicking the mouse when either
is connected to the USB1 or USB2
port (only). Enable the jumper to allow the system to be woken up from
an S1 or S3 state in Windows OS.
See the table on the right for jumper
settings. This feature works with the
USB1 and USB2 ports only.
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Disabled
Enabled
USB Wake-Up
Jumper Settings
(JPUSB)
Page 55
Chapter 5: Advanced Motherboard Setup
5-19
System Power Force On
Jumper JP20 allows you to enable or
disable the Force-Power-On function.
If enabled, system power will always
stay on automatically. If disabled, the
user needs to press the power button
to power on the system.
Jumper
Position
Closed
Open
Definition
Force On
Disabled
System Power Force On
Jumper Settings
(JP20)
GLAN2 Enable/Disable
Change the setting of jumper JPL2 to
enable or disable the Gigabit LAN2
port on the motherboard. See the
table on the right for jumper settings.
The default setting is enabled.
(LAN1 is enabled/disabled via BIOS.)
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Enabled
Disabled
GLAN2
Enable/Disable
Jumper Settings
(JPL2)
Jumper
Position
Closed
Open
Definition
Force On
Disabled
OH Fan Force On
Jumper Settings
(JP3)
OH Fan Force On
Jumper JP3 allows you to enable or
disable the Overheat (OH) Fan Force
On function. If enabled, the OH Fan
will always stay on automatically. If
disabled, the fan only activates according to temperature conditions.
Page 56
5-20
SUPERSERVER 5013C-M User's Manual
5-11 Parallel Port, Floppy and Hard Drive Connections
Use the following information to connect the floppy and hard disk drive
cables.
• The floppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single floppy disk drive ribbon cable has 34 wires and two connectors
to provide for two floppy disk drives. The connector with twisted wires
always connects to drive A, and the connector that does not have
twisted wires always connects to drive B.
• The 80-wire ATA100/66 IDE hard disk drive cable that came with your
system has two connectors to support two drives. This special cable
should be used to take advantage of the speed this new technology
offers. The blue connector connects to the onboard IDE connector interface and the other connector(s) to your hard drive(s). Consult the documentation that came with your disk drive for details on actual jumper
locations and settings for the hard disk drive.
Parallel Port Connector
The parallel port is located on J8.
See the table on the right for pin
definitions.
Pin Number Function
1 Strobe 3 Data Bit 0
5 Data Bit 1
7 Data Bit 2
9 Data Bit 3
11 Data Bit 4
13 Data Bit 5
15 Data Bit 6
17 Data Bit 7
19 ACK
21 BUSY
23 PE
25 SLCT
Pin Number Function
2 Auto Feed 4 Error 6 Init 8 SLCT IN 10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC
Par allel (Printer) Port Pin Definitio n s
(J8)
Page 57
Chapter 5: Advanced Motherboard Setup
5-21
Floppy Connector
The floppy connector is located
on J7. See the table on the right
for pin definitions.
Pin Number Function
1 GND
3 GND
5 Key
7 GND
9 GND
11 GND
13 GND
15 GND
17 GND
19 GND
21 GND
23 GND
25 GND
27 GND
29 GND
31 GND
33 GND
Pin Number Function
2 FDHDIN
4 Reserved
6 FDEDIN
8 Index 10 Motor Enable
12 Drive Select B 14 Drive Select A 16 Motor Enable
18 DIR 20 STEP 22 Write Data 24 Write Gate 26 Track 00 28 Write Protect 30 Read Data 32 Side 1 Select 34 Diskette
Floppy Connector Pin Definitions (J7)
IDE Connectors
There are no jumpers to configure the onboard IDE interfaces
J2 and J5. See the table on the
right for pin definitions. You
must use the ATA100/66 cable
included with your system to
benefit from the ATA100/66
technology.
Pin Number Function
1 Reset IDE
3 Host Data 7
5 Host Data 6
7 Host Data 5
9 Host Data 4
11 Host Data 3
13 Host Data 2
15 Host Data 1
17 Host Data 0
19 GND
21 DRQ3
23 I/O Write 25 I/O Read 27 IOCHRDY
29 DACK3 31 IRQ14
33 Addr 1
35 Addr 0
37 Chip Select 0
39 Activity
Pin Number Function
2 GND
4 Host Data 8
6 Host Data 9
8 Host Data 10
10 Host Data 11
12 Host Data 12
14 Host Data 13
16 Host Data 14
18 Host Data 15
20 Key
22 GND
24 GND
26 GND
28 BALE
30 GND
32 IOCS16 34 GND
36 Addr 2
38 Chip Select 1 40 GND
IDE Connector Pin Definitions
(J2, J5)
Page 58
5-22
SUPERSERVER 5013C-M User's Manual
Notes
Page 59
Chapter 6: Advanced Chassis Setup
6-1
Chapter 6
Advanced Chassis Setup
This chapter covers the steps required to install components and perform maintenance on the SC512C chassis. For component installation, follow the steps
in the order given to eliminate the most common problems encountered. If some
steps are unnecessary, skip ahead to the step that follows.
Tools Required
The only tool you will need to install components and perform maintainance
is a Philips screwdriver.
6-1 Static-Sensitive Devices
Electric Static Discharge (ESD) can damage electronic components. To
prevent damage to any printed circuit boards (PCBs), it is important to
handle them very carefully. The following measures are generally sufficient to protect your equipment from ESD discharge.
Precautions
Use a grounded wrist strap designed to prevent static discharge.
Touch a grounded metal object before removing any board from its anti-
static bag.
Handle a board by its edges only; do not touch its components, periph-
eral chips, memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard, add-on cards and peripherals back into their anti-
static bags when not in use.
For grounding purposes, make sure your computer chassis provides ex-
cellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage.
When unpacking the board, make sure the person handling it is static protected.
Page 60
6-2
SUPERSERVER 5013C-M User's Manual
Figure 6-2. Chassis Rear View
6-2 Control Panel
The control panel (located on the front of the chassis) must be connected
to the JF1 connector on the motherboard to provide you with system control
buttons and status indicators. These wires have been bundled together in
a ribbon cable to simplify the connection. Connect the cable from JF1 on
the motherboard to JP4 on the Control Panel PCB (printed circuit board).
Make sure the red wire plugs into pin 1 on both JF1 and JP4. Pull all excess
Figure 6-1. Chassis Front View
Parallel Port
USB Ports VGA Port
Keyboard/
Mouse Ports
COM1 Port Ethernet Ports
Page 61
Chapter 6: Advanced Chassis Setup
6-3
6-3 System Fans
One 10-cm blower fan provides the cooling for the SuperServer 5013C-M. The
chassis includes air seals under the blower fans and at the chassis cross section, which separates the drive bay area from the motherboard area of the chassis
to promote better airflow. It is highly important that the air seal is properly
installed and making a good seal in order for the cooling air to circulate properly
through the chassis.
System Fan Failure
The blower fan runs at a full 100% rpm. If this fan fails, you will need to have it
replaced with the same type. Contact your vendor or Supermicro for information
on replacement fans.
cabling out of the airflow path. The LEDs inform you of system status. See
Chapter 3 for details on the LEDs and the control panel buttons. Details on
JF1 can be found in Chapter 5.
Figure 6-3. Replacing the System Cooling Fan
Page 62
6-4
SUPERSERVER 5013C-M User's Manual
6-4 Drive Bay Installation/Removal
Accessing the Drive Bays
CD-ROM/IDE/Floppy Disk Drives: For installing or removing the CD-ROM, IDE
or floppy disk drives, you will need to gain access to the inside of the
5013C-M by removing the top cover of the chassis.
Note: Only a "slim" CD-ROM drive and a "slim" floppy drive will fit in the
5013C-M.
IDE Drive Installation
The IDE drive is located at the front and inside of the chassis. The IDE drive is
not hot-swappable, meaning system power must be turned off before installing
or removing.
To install or remove the drive, first power down the system and then remove
the top cover of the chassis. Unscrew the retention screw at the top center
of the drive, then push the drive tray out from the back until you can grasp and
pull it out through the front of the chassis. Remove the drive from the drive
tray.
To add a new IDE drive, install a drive into the tray with the printed circuit
board side facing down and so that the mounting holes align with those in the
tray. Secure the drive to the tray with the four screws. Replace the top cover
when finished. See Figure 6-4.
Page 63
Chapter 6: Advanced Chassis Setup
6-5

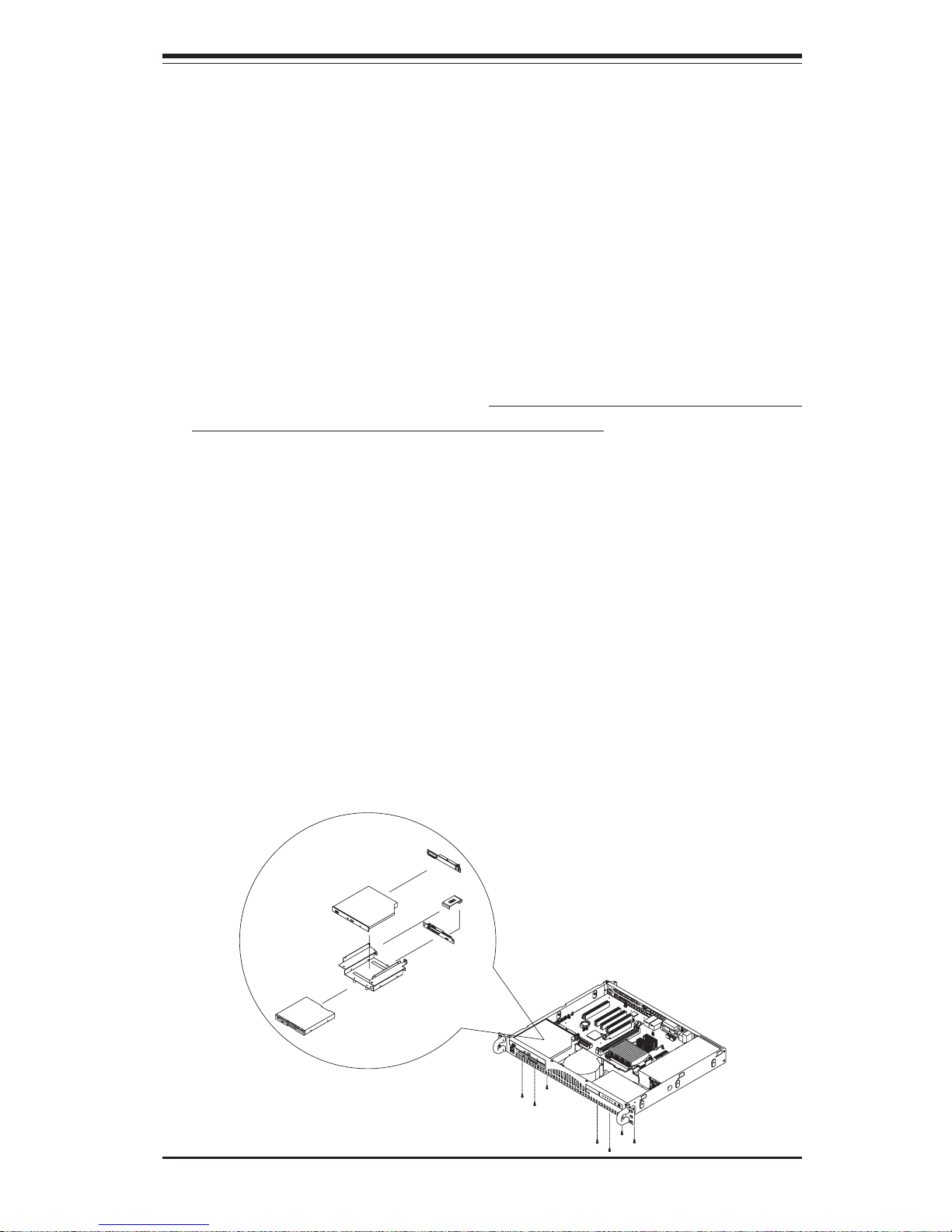

Figure 6-4. Installing/Removing the IDE Drive
CD-ROM and Floppy Drive Installation
The top cover of the chassis must be opened to gain full access to the CD-ROM
and floppy drive bays. Both the CD-ROM and the floppy drives must have a "slim"
profile to fit into the 5013C-M.
First, release the retention screws that secure the unit to the rack. Grasp the
two handles on either side and pull the unit straight out until it locks (you will hear
a "click"). Remove the two screws that secure the top cover to the chassis
(located just behind the handles). Next, depress the two buttons on the top of
the chassis to release the top cover and at the same time, push the cover away
from you until it stops. You can then lift the top cover from the chassis to gain
full access to the inside of the server. You must power down the system before
installing or removing CD-ROM, floppy or IDE drives. See Figure 6-4.
Drives mount on rails and should "click" into place to be correctly and fully
installed in their bays.
• The floppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single floppy disk drive ribbon cable has 34 wires and two connectors to
provide for two floppy disk drives. The connector with twisted wires always
connects to drive A, and the connector that does not have twisted wires
always connects to drive B.
Page 64
6-6
SUPERSERVER 5013C-M User's Manual
6-5 Power Supply
The SuperServer 5013C-M has a single 260 watt power supply. This power
supply has the capability of operating at 100 or 240 input volts. Depress the main
power button on the front of the chassis and then unplug the AC power cord to
completely remove power from the system before removing the power supply.
Power Supply Failure
If the power supply unit fails, the system will shut down and you will need to
replace the power supply unit. Replacement units can be ordered directly from
Supermicro (PWS-0055 - see contact infomation in Chapter 1).
Replacing the Power Supply
1. Accessing the inside of the SuperServer 5013C-M
To replace a power supply, you must first remove the top chassis cover.
To do so, first release the retention screws that secure the unit to the
rack. Grasp the two handles on either side and pull the unit straight out
until it locks (you will hear a "click"). Next, depress the two buttons on
the top of the chassis to release the top cover and push it away from
you. You can then lift the top cover from the chassis to gain full access
to the inside of the server.
2. Removing the power supply
First unplug the power cord from the system. To remove the failed
power unit, remove the two screws on the back of the power supply and a
third from the front of the power supply, which secures it to the bottom of the
chassis. You can then lift the unit straight out of the chassis. (The power
cord should have already been removed.)
3. Installing a new power supply
Replace the failed unit with another unit of the same wattage. It is highly
recommended to replace it with the exact same power supply. Carefully
insert the new unit into position in the chassis and secure it with the two
screws at the rear of the unit and the third at the front. Then reconnect the
power cord, replace the chassis top cover and push the unit back into the
rack. Finish by turning the power switch on the power supply on, and then
depress the power button on the front of the system.
Page 65
Chapter 7: BIOS
7-1
Chapter 7
BIOS
7-1 Introduction
This chapter describes the AwardBIOS for the P4SCi. The Award ROM BIOS is
stored in a Flash chip and can be easily upgraded using a floppy disk-based
program.
Note: Due to periodic changes to the BIOS, some settings may have been added
or deleted and might not yet be recorded in this manual. Refer to the Manual
Download area of our web site for any changes to BIOS that are not reflected in
this manual.
System BIOS
The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and
PS/2® compatible computers. The AwardBIOS Flash chip stores the system
parameters, such as amount of memory, type of disk drives and video displays,
etc. CMOS requires very little power. When the computer is turned off, a backup battery provides power to the BIOS Flash chip, enabling it to retain the system
parameters. Each time the computer is powered-on, the computer is then configured with the values stored in the BIOS ROM by the system BIOS, which gains
control when the computer is powered on.
How To Change the Configuration Data
The CMOS information that determines the system parameters may be changed
by entering the BIOS Setup utility. This Setup utility can be accessed by pressing <Del> at the appropriate time during system boot.
Starting the Setup Utility
Normally, the only visible POST (Power On Self Test) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu
of the BIOS Setup utility. From the main menu, you can access the other setup
screens, such as the Chipset and Power menus. Section 7-3 gives detailed
descriptions of each parameter setting in the Setup utility.
Page 66
7-2
SUPERSERVER 5013C-M User's Manual
7-2 Running Setup
*Optimal default settings are in bold text unless otherwise noted.
The BIOS setup options described in this section are selected by choosing the
appropriate text from the Main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to
understand how to set the options (see on next page).
When you first power on the computer, the AwardBIOS™ is immediately activated.
While the BIOS is in control, the Setup program can be activated in one of two ways:
1. By pressing <Del> immediately after turning the system on, or
2. When the following message appears briefly at the bottom of the screen
during the POST (Power On Self-Test), press the <Del> key to activate
the Main Setup Menu.
Press DEL to enter SETUP

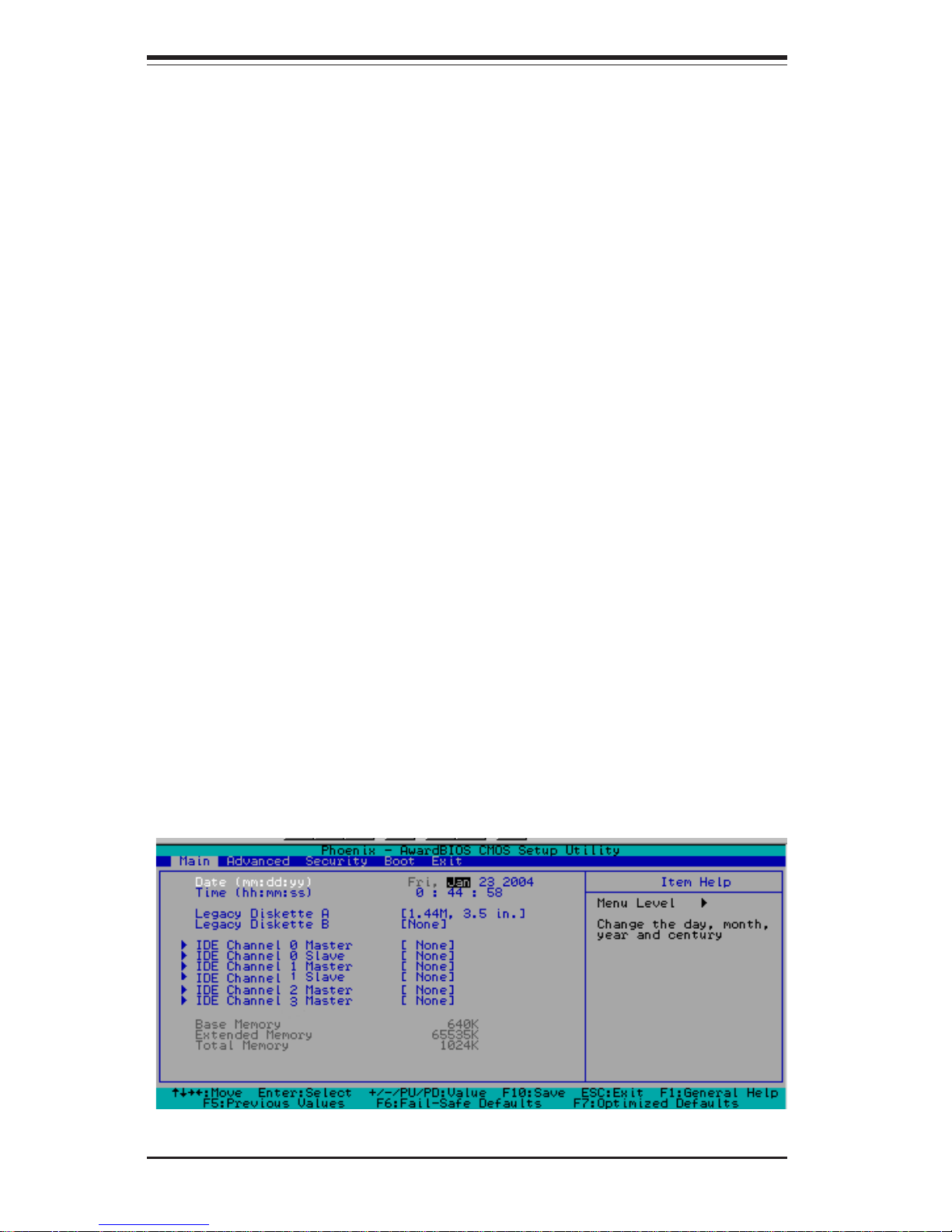

7-3 Main BIOS Setup
All Main Setup options are described in this section. The Main BIOS
Setup screen is displayed below.
Use the <Up> <Down> arrow keys or the <Tab> key to move among the different
settings in the above menu.
Press the <Esc> key to exit the CMOS Setup Menu and use the <Left> <Right>
arrow keys to enter the other categories of BIOS settings. The next section is
described in detail to illustrate how to navigate through the menus.
Main BIOS Setup Menu
Page 67
Chapter 7: BIOS
7-3
IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE
Channel 2 Master, IDE Channel 3 Master
Press the <Auto> key to activate the function of 'IDE HDD Auto-Detection",
which will allow the BIOS to automatically detect the status of the IDE
HDD installed in the system, such as the size, the number of cylinders,
the configurations of items such as Head, Precomp, Landing Zone and
Sector. The options are "None", "Auto" and "Manual."
Access Mode
This item determines the location through which the AwardBIOS accesses
the IDE Primary Master Device. The settings are "CHS", "LBA", "Large" and
"Auto".
Date/Time
Set the system date and time. Key in the correct information in the "mm", "dd"
and "yy" fields. Press the "Enter" key to save the data.
Legacy Diskette A
This setting allows the user to set the type of floppy disk drive installed as
diskette A. The options are "None", "360Kb, 5.25 in", "1.2MB, 5.25 in",
"720Kb, 3.5 in", "1.44 MB, 3.5 in" and "2.88MB 3.5 in".
Legacy Diskette B
This setting allows the user to set the type of floppy disk drive installed as
diskette B. The options are "None", "360Kb, 5.25 in", "1.2MB, 5.25 in",
"720Kb, 3.5 in", "1.44 MB, 3.5 in" and "2.88MB 3.5 in".
XX
XX
XIDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE
Channel 2 Master, IDE Channel 3 Master
These settings allow the user to set the parameters of the IDE Channel 0
Master/Slave, IDE Channel 1 Master/Slave, IDE Channel 1 Master/Slave, IDE
Channel 2 Master, IDE Channel 3 Master slots. Hit <Enter> to activate the
sub-menu screen for detailed options of these items. Set the correct
configurations accordingly.
IDE HDD Auto-Detection
This option allows the user to determine the manner in which the AwardBIOS
sets the settings for the IDE Primary Master Device. The options are "None",
"Auto" and "Manual."
Base Memory/Extended Memory/Total Memory
These are displays that inform you how much of each type of memory is
recognized as being present in the system.
Page 68
7-4
SUPERSERVER 5013C-M User's Manual

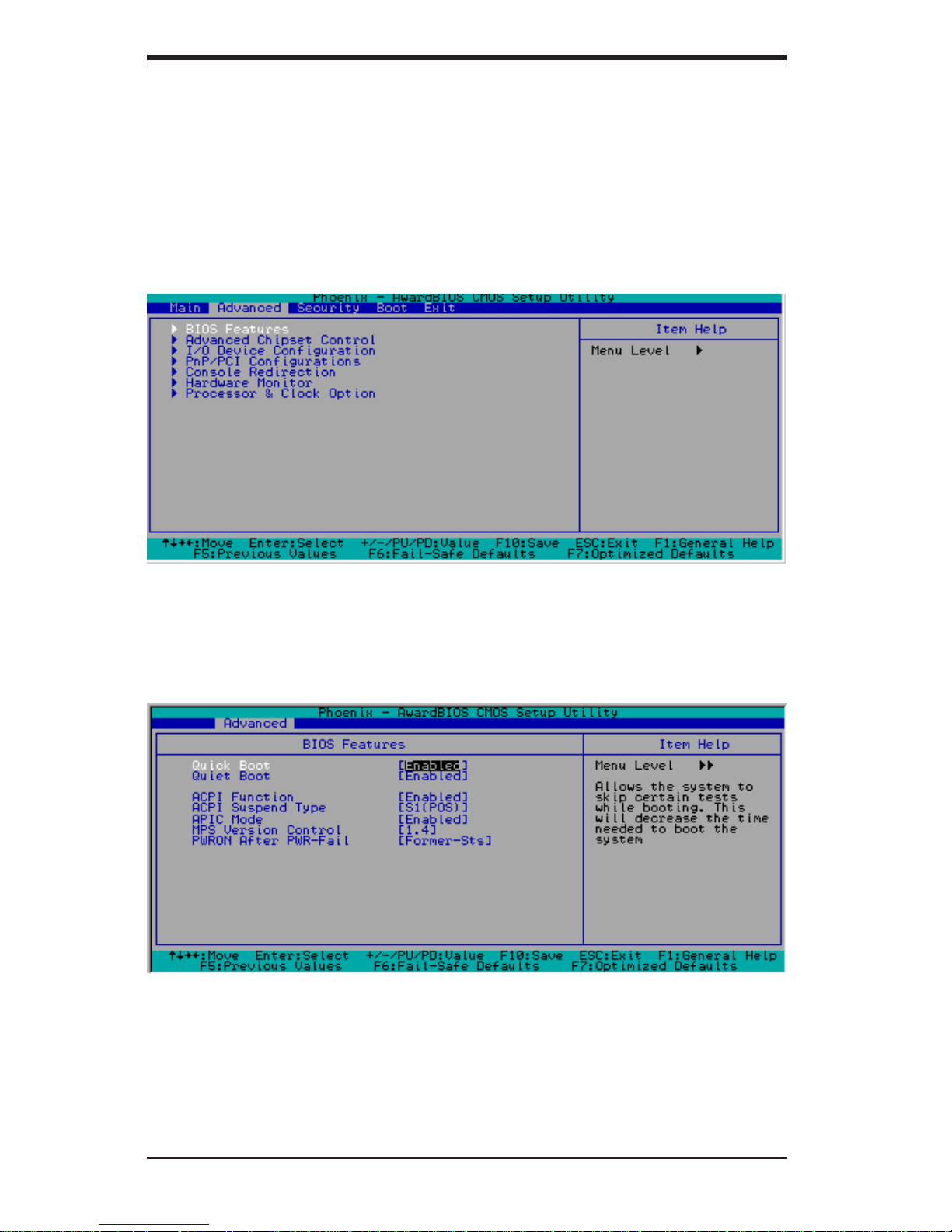

7-4.1 Advanced BIOS Features
When the item of Advanced BIOS Features is highlighted, press the <Enter>
key to activate the screen below:
7-4 Advanced BIOS Setup
Choose Advanced BIOS Setup from the Award BIOS main menu with the Left/
Right arrow keys. You should see the following display. Select one of the
items in the left frame of the screen to go to the sub screen for that item.
Advanced BIOS Setup options are displayed by highlighting the option using
the arrow keys. All Advanced BIOS Setup options are described in this
section.
Page 69
Chapter 7: BIOS
7-5
Quick Boot
If enabled, this feature allows the system to skip certain tests while booting.
This will decrease the time needed to boot the system. The settings are
"Enabled" and "Disabled".
Quiet Boot
This feature allows the user to activate the function of "Quiet Boot". The
options are: "Enabled" and "Disabled".
ACPI Function
Select "Enabled" to activate the function of BIOS Support for Advanced
Configuration and Power Interface features. The settings are "Enabled" or
"Disabled".
ACPI Suspend Type
If enabled, the option allows the user to determine the ACPI Suspend type.
The options are "S1(POS)", "S3(STR)" and S1&S3.
APIC Mode
This setting allows you to Enable or Disable APIC. APIC is used to assign
interrupt signals to a specific processor on multi-processor system and
provides IRQs beyond the conventional 16 under Windows 2000 or XP. It
has no effect on single processor systems.
MPS Version Control
This setting allows you to state the MPS version for your operating system.
Options are "1.1" and "1.4".
PWRON After PWR-Fail
This setting allows the user to specify how the system will respond when
power is reapplied after the system has gone down due to a power failure.
The options are "Off", "On" and "Former-Sts (Former Status)".
Page 70
7-6
SUPERSERVER 5013C-M User's Manual

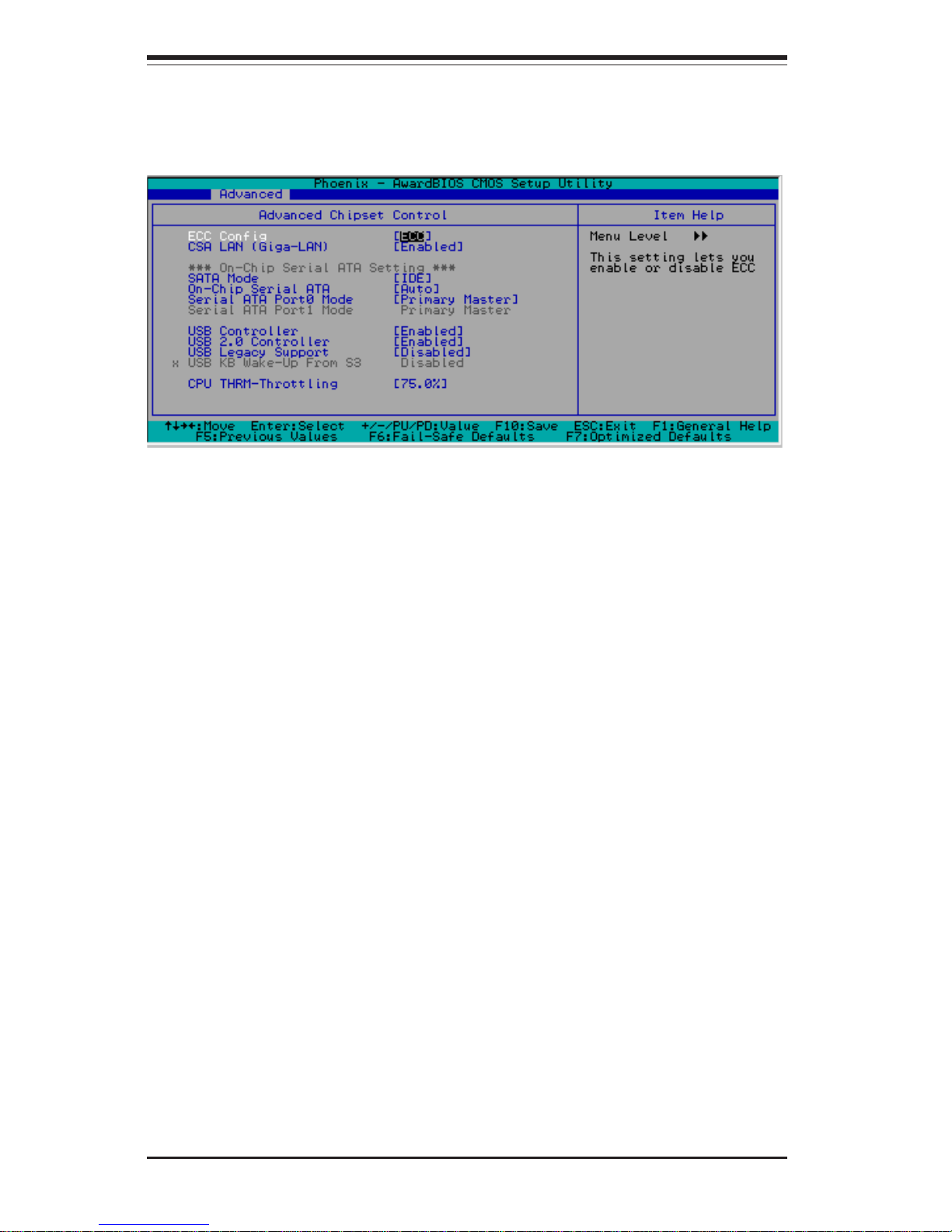

7-4.2 Advanced Chipset Control
Access the submenu to make changes to the following settings.
ECC Configuration
This setting allows you to enable or disable ECC (Error Correction and Checking).
The options are "ECC" and "Non-ECC".
CSA LAN (Gigabit LAN)
Select "Enabled" to activate the CSA LAN. The options are "Enabled" and
"Disabled".
On-Chip Serial ATA
This setting allows you to configure On-Chip Chipset Configurations. Select
"Disabled" to disable the SATA controller. If "Auto" is selected, BIOS will
automatically configure the settings for SATA controller. Select "Combined
Mode" to combine both Parallel ATA (PATA) and Serial ATA (SATA) functions
(with a maximum of two IDE drives available for each channel.) If "Enhanced
Mode" is selected, both SATA and PATA are supported (with a maximum of six
IDE drives available.) If "SATA Only" is selected, SATA will operate in the Legacy
Mode. The options are "Disabled", "Auto", "Combined Mode", "Enhanced Mode"
and "SATA only".
Serial ATA Port0/1 mode
This setting allows you to configure Serial ATA Port0/1 modes. The options are
"Primary Master", "Primary Slave", "Secondary Master", "Secondary Slave",
"SATA0 Master" and "SATA1 Master".
SATA Mode
This setting allows you to set the SATA Mode RAID via BIOS. The options
are "RAID" and "IDE".
Page 71
Chapter 7: BIOS
7-7
USB Controller
This setting allows you to enable or disable the USB controller. The options are
"Enabled" and "Disabled".
USB 2.0 Controller
This setting allows you to enable or disable the USB 2.0 (EHCI) controller. The
options are "Enabled" and "Disabled".
USB Legacy Support
This setting allows you to enable or disable the USB and/or Keyboard/Mouse
under POST and DOS. The options are "Disabled" and "Enabled".
CPU THRM-Throttling
THRM throttling is used to lower power consumption and reduce the heat
generated by the CPU. The options for this setting are "87.5%", "75%",
"62.5%", "50%", "37.5%", "25%" and "12.5%".
7-4.3 I/O Device Configuration
Keyboard Input Clock
This setting allows to you set the speed of the keyboard. The options are "6
MHz", "8 MHz", "12 MHz" and "16 MHz".
Onboard Serial Port1/Onboard Serial Port2
This setting allows the user to set the address and the corresponding IRQ for
Serial Ports 1 and 2. The options are "Disabled", "3F8/IRQ4", "2F8/IRQ3",
"3E8/IRQ4", "2E8/IRQ3" and "Auto". The default settings are "3F8/IRQ4" for
Serial Port 1 and "2F8/IRQ3" for Serial Port 2.
Choose I/O Device Configuration from the Award BIOS main menu with the
Left/Right arrow keys. You should see the following display:
Page 72
7-8
SUPERSERVER 5013C-M User's Manual
UART Mode Select
This setting allows the user to select the UART mode for the BIOS. The options
are "IrDA", "ASKIR" and "Normal".
RxD, TxD Active
This allows the user to change the settings for the "RxD, TxD Active" function.
The options are "Hi, Hi", "Hi, Lo", "Lo, Hi" and "Lo, Lo".
IR Transmission Delay
If "Enabled", the transmission of IR (infrared) signals will be delayed. The options
are "Enabled" and "Disabled".
UR2 Duplex Mode
This setting sets the UR2 Duplex Mode. The options are "Full" and "Half".
Use IR Pins
This item sets the usage of the IR pins. The options are "RxD2, TxD2" and "IRRx2Tx2".
Onboard Parallel Port
This setting allows the user to set the address and the corresponding IRQ for the
onboard parallel port. The options are "Disabled", "378/IRQ7", "278/IRQ5" and
"3BC/IRQ7".
Parallel Port Mode
This setting sets the mode for the onboard Parallel port. The options are "SPP,"
"EPP", "ECP" "ECP+EPP" and "Normal".
EPP Mode Select
This setting allows the user to select the EPP port type. The options are "EPP
1.9" and "EPP 1.7".
ECP Mode Use DMA
This setting allows the user to select the DMA channel for the ECP mode (port)
to use. The options are "1" and "3".
Watch Dog Timer Select
This setting allows you to select the setting for the Watch Dog Timer. The
options are "Disabled", "10 Sec", "20 Sec", "30 Sec", "40 Sec", "1 min", "2 min"
and "4 min".
Page 73
Chapter 7: BIOS
7-9
7-4.4 PnP Configuration
Choose PCI/PnP Configurations from the Award BIOS main menu with the Left/
Right arrow keys. You should see the following display:
Enter "Yes" if are you are using an OS that is PnP (Plug and Play) -compatible.
Enter "No" if your OS does not support PnP.
Reset Configuration Data
Enabling this setting resets the extended system configuration data when you
exit setup. Do this when you have installed a new add-on and the system
reconfiguration has caused such a serious conflict that the OS cannot reboot the
system. The options are "Enabled" and "Disabled".
PnP OS Install
Power On Function
This setting allows the user to decide which method to use to power on the
system. The options are "Password", "Hot Key", "Mouse Left", "Mouse
Right", "Any Key" and "Button Only".
KB Power On Password
This setting allows the user to enter the Password when the system is powered
on via keyboard.
Hot Key Power On
This setting allows the user to decide which hot-keys to use in order to power
on the system. The options are "Ctrl-F1", "Ctrl-F2, Ctrl-F3", "Ctrl-F4", "Ctrl-F5",
"Ctrl-F6", "Ctrl-F7", "Ctrl-F8", "Ctrl-F9", "Ctrl-F10", "Ctrl-F11" and "Ctrl-F12".
Page 74
7-10
SUPERSERVER 5013C-M User's Manual
Resources Controlled By
This setting allows BIOS to automatically configure all boot and Plug and
Play compatible devices. If you choose Auto, you cannot select the IRQ,
Onboard CSA LAN Boot
Select "Enabled" to enable the Boot ROM embedded in the Onboard CSA
LAN Chip. The options are: "Enabled" and "Disabled".
DMA and memory base address fields because BIOS automatically assigns
them. The options are "Auto <ESCD>" and "Manual".
7-4.5 Console Redirection
Console Redirection
Select "Enabled" to redirect the console via the COM port. Select "Disabled"
to redirect the Console when the keyboard is absent. The options are
"Enabled" and "Disabled".
Choose Console Redirection from the Award BIOS main menu with the Left/
Right arrow keys. You should see the following display:
Agent Connect Via
This feature allows the user to set the connection mode for Console
Redirection. When "Null" is entered, Console Redirection will be set to a
direct connection.
Agent Wait Time
This feature allows the user to set the timeout for the connection. The
options are "1 (Min)", "2 (Min)", "4 (Min)" and "8 (Min)".
Page 75
Chapter 7: BIOS
7-11
7-4.6 Hardware Monitor
Choose Hardware Monitor from the Award BIOS main menu with the Left/Right
arrow keys. You should see the following display:
CPU Warning Temperature
This allows you to set the CPU warning temperature. If the CPU temperature
reaches this threshold, an alarm will activate and a warning message will
be displayed onscreen. The options are "Disabled", "600 C/1400 F", "650 C/
1490 F", "700 C/1580 F", "750 C/1670 F", "800 C/1760 F" and "850 C/1850 F".
Agent after Boot
Select "Disabled" to allows the Agent of Console Redirection to continue
running after OS bootup. The Options are "Enabled" and "Disabled".
Page 76
7-12
SUPERSERVER 5013C-M User's Manual
Hyper-Threading Technology
Select "Enabled" to activate the hyper-threading function of the CPU(s) to make
each CPU appear as if there were two CPUs to any programs that support it (you
must have OS support also). The settings are "Disabled" and "Enabled."
CPU Clock Ratio
Key in a number between 8x to 50x to set the clock ratio of the processor. The
default setting is 8x. (8x is only available for retail CPUs.)
Spread Spectrum
Spread Spectrum is a technique used to stablize a system by reducing the
level of ElectroMagnetic Interference. The options are "Enabled" and
"Disabled".
CPU Clock
Key in a number between 100 and 233 to set the CPU clock (MHz).
Supermicro does not recommend or make any guarantees with CPU
overclocking. The default setting is "200 MHz".
Limit CPUID MaxVal
This feature allows the user to set a limit for the CPUID Maximum Value. The
value can be set from 1 to 3. The options are "Enabled" and "Disabled". (For
Windows XP, this setting should be set to "Disabled.")
7-4.7 Processor & Clock Options
Page 77
Chapter 7: BIOS
7-13
Set Supervisor Password
When the item "Set Supervisor Password" is highlighted on the above
screen, press the <Enter> key. When prompted, type the Supervisor
Password in the dialogue box to set or to change the Supervisor
Password.
Set User Password
When the item "Set User Password" is highlighted on the above screen,
press the <Enter> key. When prompted, type the User Password in the
dialogue box to set or to change the User Password.
Password Check
7-5 Security
Choose Security from the Award BIOS main menu with the Left/Right arrow
keys. You should see the following display:
This setting allows the user to determine if the password is required every
time when the system boots up or if the password is required only when
you enter the CMOS setup. The options are "System" and "Setup".
Page 78
7-14
SUPERSERVER 5013C-M User's Manual
First Boot Device
This item allows the user to set the first boot-up device. The options are
"Removable", "Hard Disks", "CDROM", "Legacy LAN", and "Disabled".
XX
XX
X Hard Disk Boot Priority
This item allows the user to select the Boot Priority of the following Hard
Disk Devices: 1. Pri Master:, 2. Pri Slave:, 3. Sec Master:, 4. Sec Slave:,
5. USBHDD0:, 6. USBHDD1:, 7. USBHDD2:, and Bootable Add-In cards.
XX
XX
XRemovable Device Priority
This setting allows you to set the priority of removable devices. The options are
"Floppy Disks", "LS120", "Zip 100", "USB-FDD0", "USB-FDD1", "USB-ZIP0"
and "USB-ZIP1".
7-6 Boot
Choose Boot from the Award BIOS main menu with the Left/Right arrow keys.
You should see the following display:
XX
XX
X CDROM Boot Priority
This item allows the user to specify the boot sequence of the available CDROM
Devices.
Page 79
Chapter 7: BIOS
7-15
7-7 Exit
Choose Exit from the Award BIOS main menu with the Left/Right arrow keys.
You should see the following display:
Save & Exit Setup
When the item "Save & Exit Setup" is highlighted, press <Enter> to save the
changes you've made in the BIOS program (CMOS) and exit. Your system
should, then, continue with the boot-up procedure.
Exit without Saving
When the item "Exit without Saving" is highlighted, press <Enter> to exit the
Setup routine without saving any changes you may have made. Your system should then continue with the boot-up procedure.
Third Boot Device
This item allows the user to set the Third boot-up device. The options are
"Removable", "Hard Disks", "CDROM", "Legacy LAN" and "Disabled".
Boot Other Device
If enabled, this option enables the BIOS to load the OS from another device
rather than the ones that have been specified as the first, second and third
boot up devices. The settings are "Enabled" and "Disabled".
Second Boot Device
This item allows the user to set the second boot-up device. The options
are "Removable", "Hard Disks", "CDROM", "Legacy LAN" and "Disabled".
Page 80
7-16
SUPERSERVER 5013C-M User's Manual
Load Fail-Safe Defaults
Highlight this item and hit <Enter> to load the default settings for all items in
the BIOS Setup. These are the safest settings to use.
Load Optimized Defaults
Highlight this item and hit <Enter> to load the optimized settings for all items
in the BIOS Setup. These settings provide you with optimal system
performance.
Discard Changes
When the item "Discard Changes" is highlighted, press <Enter> to discard
any changes you made to the BIOS settings and to stay in BIOS Setup.
Your system should then continue with the boot-up procedure.
Page 81
A-1
Appendix A: BIOS POST Messages
Appendix A
BIOS POST Messages
During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem
is found, the BIOS will activate an alarm or display a message. The following is a list
of such BIOS messages.
1 long beep Memory Modules Errors
1 long beep+2 short beeps VGA Errors
Beeps Error Message
Page 82
A-2
SUPERSERVER 5013C-M User's Manual
Notes
Page 83
Appendix B: BIOS POST Codes
B-1
This section lists the POST (Power On Self Testing) Codes for the Award BIOS.
POST (hex) Descriptio n
CFh Te st CMOS R/W functionality.
C0h Early chipset initialization:
-Disable shadow RAM
-Disable L2 cache (socket 7 or below)
-Program basic chipset registers
C1h D e tect memory
-Auto-detection of DRAM size, type and ECC.
-Auto-detection of L2 cache (socket 7 or below)
C3h Expand compressed BIOS code to DRAM
C5h Call chipset hook to copy BIOS back to E000 & F000 shadow
RAM.
0h1 Expand the Xgroup codes locating in physical address 1000:0
02h Reserved
03h Initial Superio_Early_Init switch.
04h Reserved
05h 1. Blank out screen
2. Clear CMOS error flag
06h Reserved
07h 1. Clear 8042 interface
2. Initialize 8042 self-test
08h 1. Test special keyboard controller for Winbond 977 series Super
I/O chips.
2. Enable keyboard interface.
09h Reserved
0Ah
Disable PS/2 mouse interface (optional).
Auto detect ports for keyboard & mouse followed by a port & interface swap
(optional).
Reset keyboard for Winbond 977 series Super I/O chips.
0Bh Reserved
0Ch Reserved
0Dh Reserved
0Eh Test F000h segment shadow to see whether it is R/W-able or not. If
test fails, keep beeping the speaker.
Appendix B
BIOS POST Codes
Page 84
B-2
SUPERSERVER 5013C-M User's Manual
POST (hex) Description
0Fh Reserved
10h Auto detect flash type to load app ro pr iate flash R/W codes into the
run time area in F000 for ESCD & DMI support.
11h Reserved
12h Use walking 1’s algorithm to check out interface in CMOS
circuitry. Also set real-time clock power status, and then check for
override.
13h Reserved
14h Program chipset default values into chipset. Chipset default
values are MODBINable by OEM customers.
15h Reserved
16h Initial Early_Init_Onboard_Gene rator switch.
17h Reserved
18h Detect CPU information including brand, SMI type (Cyrix or
Intel) and CPU level (586 or 686).
19h Reserved
1Ah Reserved
1Bh Initial interrupts vector table. If no special s pe cifie d, all H/W
interrupts are directed to SPURIOUS_INT_HDLR & S/W
interrupts to SPURIOUS_soft_HDLR.
1Ch Reserved
1Dh Initial EARLY_PM_ INI T switch.
1Eh Reserved
1Fh Load keyboard matrix (notebook platform)
20h Reserved
21h HPM initialization (noteboo k pla tfor m)
22h Reserved
23h 1. Check validity of RTC value:
e.g. a value of 5Ah is an invalid value for RTC minute.
2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default
value instead.
3. P repare BIOS resource map for PCI & PnP use. If E SCD is valid, ta ke into
consideration of the ESCD’s legacy information.
4. Onboar d c loc k generator initialization. Disable respective clo c k resour c e to
empty PCI & DIMM slots.
5. Early PCI initia liz ation:
-Enumerate PCI bus number
-Assign memory & I/O resource
-Search for a valid VGA device & VGA BIOS, and put it
into C000:0.
24h Reserved
25h Reserved
26h Reserved
27h Initialize INT 09 buffer
28h Reserved
29h
Program CPU internal MTRR (P6 & PII) for 0-640K memory address.
Initialize the APIC for Pentium class CPU.
Program early chipset according to CMOS setup. Example: onboard IDE
controller.
Measure CPU speed.
Invoke video BIOS.
2Ah Reserved
2Bh Reserved
2Ch Reserved
Page 85
Appendix B: BIOS POST Codes
B-3
2Dh 1. Initialize multi-language
2. Put information on screen display, including Award title, CPU type, CPU
speed … .
2Eh Reserved
2Fh Reserved
30h Reserved
31h Reserved
32h Reserved
33h Reset keyboard except Winbond 977 series Super I/O chips.
34h Reserved
35h Reserved
36h Reserved
37h Reserved
38h Reserved
39h Reserved
3Ah Reserved
3Bh Reserved
3Ch Test 8254
3Dh Reserved
3Eh Test 8259 interrupt mask bits for channel 1.
3Fh Reserved
40h Test 8259 interrupt mask bits for channel 2.
41h Reserved
42h Reserved
43h Test 8259 functionality.
44h Reserved
45h Reserved
46h Reserved
47h Initialize EISA slot
48h Reserved
49h 1. Calculate total memory by testing the last double word of each 64K page.
2. Program writes allocation for AMD K5 CPU.
4Ah Reserved
4Bh Reserved
4Ch Reserved
4Dh Reserved
4Eh 1. Program MTRR of M1 CPU
2. Initialize L2 cache for P6 class CPU & program CPU with proper cacheable
range.
3. Initialize the APIC for P6 c la ss CPU.
4. On MP platform, adjust the cacheable range to smaller one in case the
cacheable ranges between each CPU are not identical.
4Fh Reserved
50h Initialize USB
51h Reserved
52h Test all memory (clear all extended memory to 0)
53h Reserved
54h Reserved
55h Display number of processors (multi-processor platform)
56h Reserved
57h 1. Display PnP logo
2. Early ISA PnP initialization
-Assign CSN to every ISA PnP device.
POST (hex) Description
Page 86
B-4
SUPERSERVER 5013C-M User's Manual
POST (hex) Description
58h Reserved
59h Initialize the combined Trend Anti-Virus code.
5Ah Reserved
5Bh (Optional Feature)
Show message for entering AWDFLASH.EXE from FDD (optional)
5Ch Reserved
5Dh 1. Initialize Init_Onboard_Super_IO switch.
2. Initialize Init_Onboard_AUDIO switch.
5Eh Reserved
5Fh Reserved
60h Okay to enter Setup utility; i.e. not until this POST stage can users
enter the CMOS setup utility.
61h Reserved
62h Reserved
63h Reserved
64h Reserved
65h Initialize PS/2 Mouse
66h Reserved
67h Prepare memory size information for function call:
INT 15h ax=E820h
68h Reserved
69h Turn on L2 cache
6Ah Reserved
6Bh Program chipset registers according to items described in Setup &
Auto-configuration table.
6Ch Reserved
6Dh 1. Assign resources to all ISA PnP devices.
2. Auto assign ports to onboa r d COM ports if the corresponding item in Setup is
set to “AUTO”.
6Eh Reserved
6Fh 1. Initialize floppy contr olle r
2. Set up floppy related fields in 40:hardware.
70h Reserved
71h Reserved
72h Reserved
73h (Optional Feature)
Enter AWDFLASH.EXE if :
-AWD FLASH is found in floppy drive.
-ALT+F2 is pressed
74h Reserved
75h Detect & install all IDE devices: HDD, LS120, ZIP, CDROM…..
76h Reserved
77h Detect serial ports & parallel ports.
78h Reserved
79h Reserved
7Ah Detect & install co-processor
7Bh Reserved
7Ch Reserved
7Dh Reserved
7Eh Reserved
7Fh 1. Switch back to text mode if full screen logo is supported.
-If errors occur, report errors & wait for keys
-If no errors occur or F1 key is pressed to continue:
Clear EPA or customization logo.
Page 87
Appendix B: BIOS POST Codes
B-5
POST (hex) Description
80h Reserved
81h Reserved
82h 1. Call chipset power management hook.
2. Recover the text font used by EPA logo (not for full screen logo)
3. If password is set, ask for password.
83h Save all data in stack back to CMOS
84h Initialize ISA PnP boot devices
85h 1. USB final Initialization
2. NET PC: Build SYSID structure
3. Switch screen back to text mode
4. Set up ACPI table at top of memory.
5. Invoke ISA adapter ROMs
6. Assign IRQs to PCI devices
7. Initialize APM
8. Clear noise of IRQs.
86h Reserved
87h Reserved
88h Reserved
89h Reserved
90h Reserved
91h Reserved
92h Reserved
93h Read HDD boot sector information for Trend Anti-Virus code
94h 1. Enable L2 cache
2. Program boot up speed
3. Chipset final initialization.
4. Power management final initialization
5. Clear screen & display summary table
6. Program K6 write allocation
7. Program P6 class write combining
95h 1. Program daylight saving
2. Update keyboard LED & typematic rate
96h 1. Build MP table
2. Build & update ESCD
3. Set CMOS century to 20h or 19h
4. Load CMOS time into DOS timer tick
5. Build MSIRQ routing table.
FFh Boot attempt (INT 19h)
Page 88
B-6
SUPERSERVER 5013C-M User's Manual
Notes
Page 89
Appendix C: Installaling Software and Drivers
C-1
Appendix C
Installing Software and Drivers
After all the hardware has been installed, you must first configure the Adaptec
Embedded Serial ATA RAID driver before you install the operating system. The
necessary drivers are all included on the Supermicro bootable CDs that came
packaged with your motherboard.
C-1 Introduction to Serial ATA
Serial ATA (SATA)
Serial ATA (SATA) is a physical storage interface. It uses a single cable with a
minimum of four wires to create a point-to-point connection between devices. It is a
serial link which supports transfer rates from 150 MB/s. Because the serial cables
used in SATA are thinner than the traditional cables used in Parallel ATA (PATA),
SATA systems can be installed in smaller chassis than PATA. In addition, PATA
cables can only extend to 40cm, while SATA cables can extend up to one meter.
Overall, SATA provides better functionality than PATA.
Intel 6300ESB I/O Controller Hub
Located in the South Bridge of Intel's E7210 chipset, the 6300ESB I/O Controller
Hub provides the I/O subsystem with access to the rest of the system. In addition
to supporting a dual-channel Ultra ATA/100 Bus Master IDE controller (PATA), the
6300ESB also supports two SATA host controllers, which provides support for up to
two SATA ports and up to two RAID drives. The 6300ESB supports the PATA and
SATA device configurations listed below. Note that the 5013C-M supports only a
single SATA drive.
ATA Operating Modes
You can select from the following two modes: Combined Mode and Enhanced Mode.
Combined Mode
In this mode, system BIOS assigns the traditional IRQ 14 and IRQ 15 for HDD use.
Up to four ATA devices are supported by this mode.
Within the Combined Mode, the following three modes are supported:
Page 90
C-2
SUPERSERVER 5013C-M User's Manual
Primary Master(=PM) Yes Yes No No No No
Primary Slave(=PS) Yes No Yes No No No
Secondary Master(=SM) Yes No No Yes No No
Secondary Slave(=SS) Yes No No No Yes No
SATA Port0 No SM SM PM PM PM
SATA Port1 No SS SS PS PS PS
*Note: (No=Not Present, Yes=Present) Also, if Logical Primary is
selected, the IDE channels are no longer available.
Enhanced Mode
In this mode, system BIOS will automatically search for all available IRQs for HDD
use. For newer operating systems that support Enhanced Mode (such as
WindowsXP, Windows2000 and Windows2003), you can set SATA and PATA to the
Enhanced Mode. (These newer operating systems can accommodate both Enhanced and Combined Modes and support up to six ATA devices.)
Please refer to "Advanced Chipset Control" under the "Advanced" setup section in
BIOS to select Combined Mode or Enhanced Mode.
Non-Combined Mode: Parallel ATA only, with a maximum of four devices supported.
Non-Combined Mode: SATA only, with a maximum of two devices supported.
Combined Mode: SATA and PATA devices, with support for two devices of each for
a total of four devices maximum. For IDE(PATA)/SATA configurations, please refer
to the table below.
Page 91
Appendix C: Installaling Software and Drivers
C-3
a. Insert Supermicro's bootable CD that came with the server into the CD drive
and restart the system. Upon reboot, a screen entitled "Super Micro Driver
Diskette Maker" will appear.
b. Choose from the list the item: "Intel Hance Rapids Driver by 3rd Party
(Adaptec)" and press <Enter>.
c. On the next screen displayed, choose the OS driver you want to install and
press <Enter>.
d. Insert a formatted diskette into floppy (A drive) and press <Enter> as prompted.
e. Exit the program after the process is completed. Then, reboot the system.
f. Insert a Microsoft Windows OS Setup CD in the CD Driver, and the system will
start to boot up from the CD.
g. Press the <F6> key when the message-"Press F6 if you need to install a third
party SCSI or RAID driver" displays.
h. When the Windows OS Setup screen appears, press "S" to specify additional
device(s).
i. Insert the driver diskette named "Adaptec Embedded Serial ATA Raid Control-
ler Driver" into drive A: and press the <Enter> key.
j. Choose Adaptec Embedded Host Serial ATA Raid Controller from the list
indicated in the Windows OS Setup Screen, and press the <Enter> key.
k. Press the <Enter> key to continue the installation process. (If you need to
specify any additional devices to be installed, do so at this time.) Once all
devices are specified, press the <Enter> key to continue with the installation.
l. From the Windows OS Setup screen, press the <Enter> key. The OS Setup
will automatically load all device files and then continue the Windows OS installation.
m. After the Windows OS Installation is completed, the system will automatically
reboot.
C-2 Intel Hance Rapids Driver Installation
Page 92
C-4
SUPERSERVER 5013C-M User's Manual
You may also click the icons showing a hand writing on paper to view the readme
files for each item. Click the computer icons to the right of these items to install
each item (from top to the bottom) one at a time. After installing each item,
you must re-boot the system before moving on to the next item on the list.
You should install everything here except for the SUPER Doctor utility, which is
optional. The bottom icon with a CD on it allows you to view the entire contents
of the CD.
C-3 Other Software Programs and Drivers
After you've installed Windows Operating System, the screen shown below will
appear. You are now ready to install the additional software programs and
drivers included on the CD. To install these software programs and drivers, click
the icons to the right of these items.

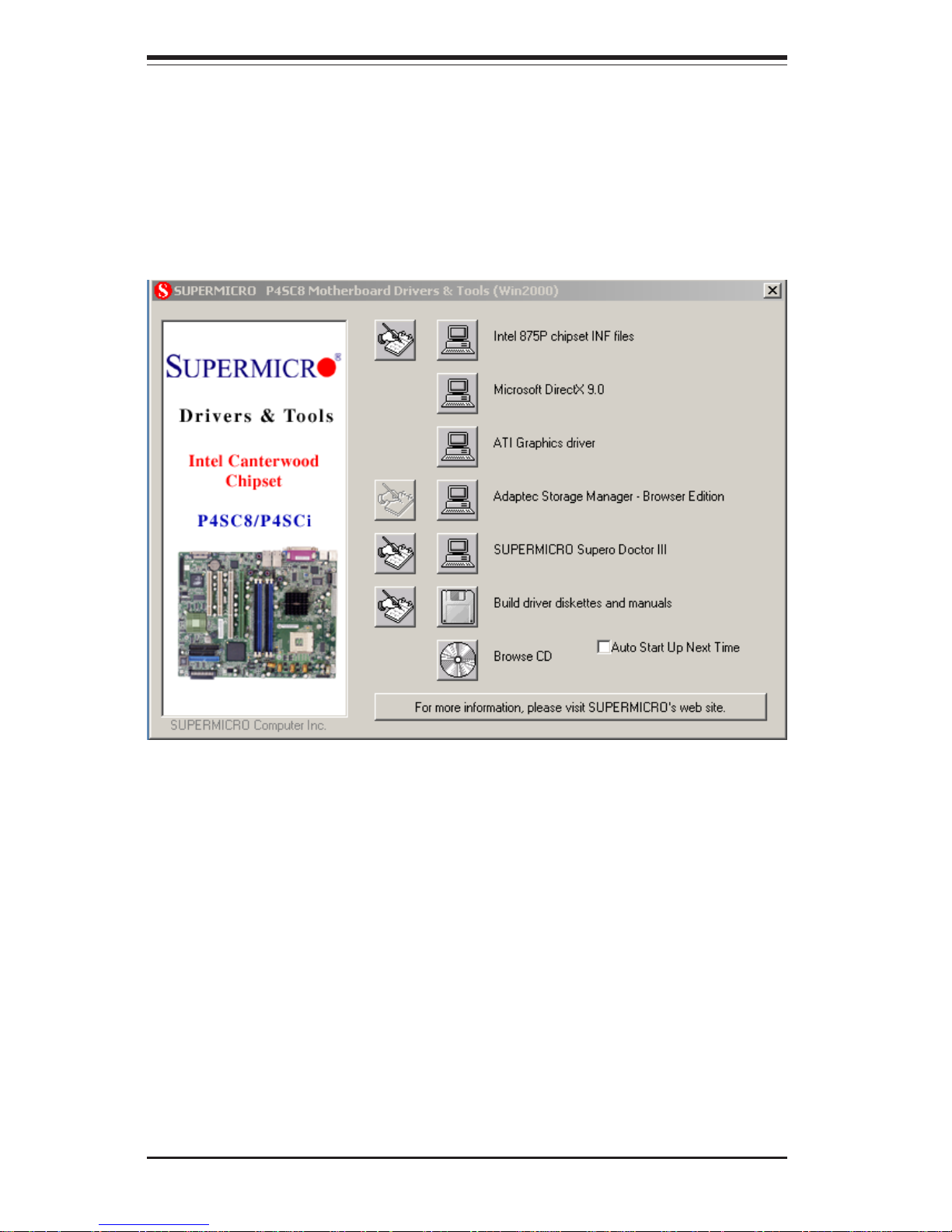

Figure C-1. Driver/Tool Installation Screen
Page 93
Appendix C: Installaling Software and Drivers
C-5
Supero Doctor III
The Supero Doctor III program is a Web base management tool that supports
remote management capability. It includes Remote and Local Management
tools. The local management is called SD III Client. The Supero Doctor III
program included on the CDROM that came with your motherboard allows you
to monitor the environment and operations of your system. Supero Doctor III
displays crucial system information such as CPU temperature, system
voltages and fan status. See the Figure below for a display of the Supero
Doctor III interface.

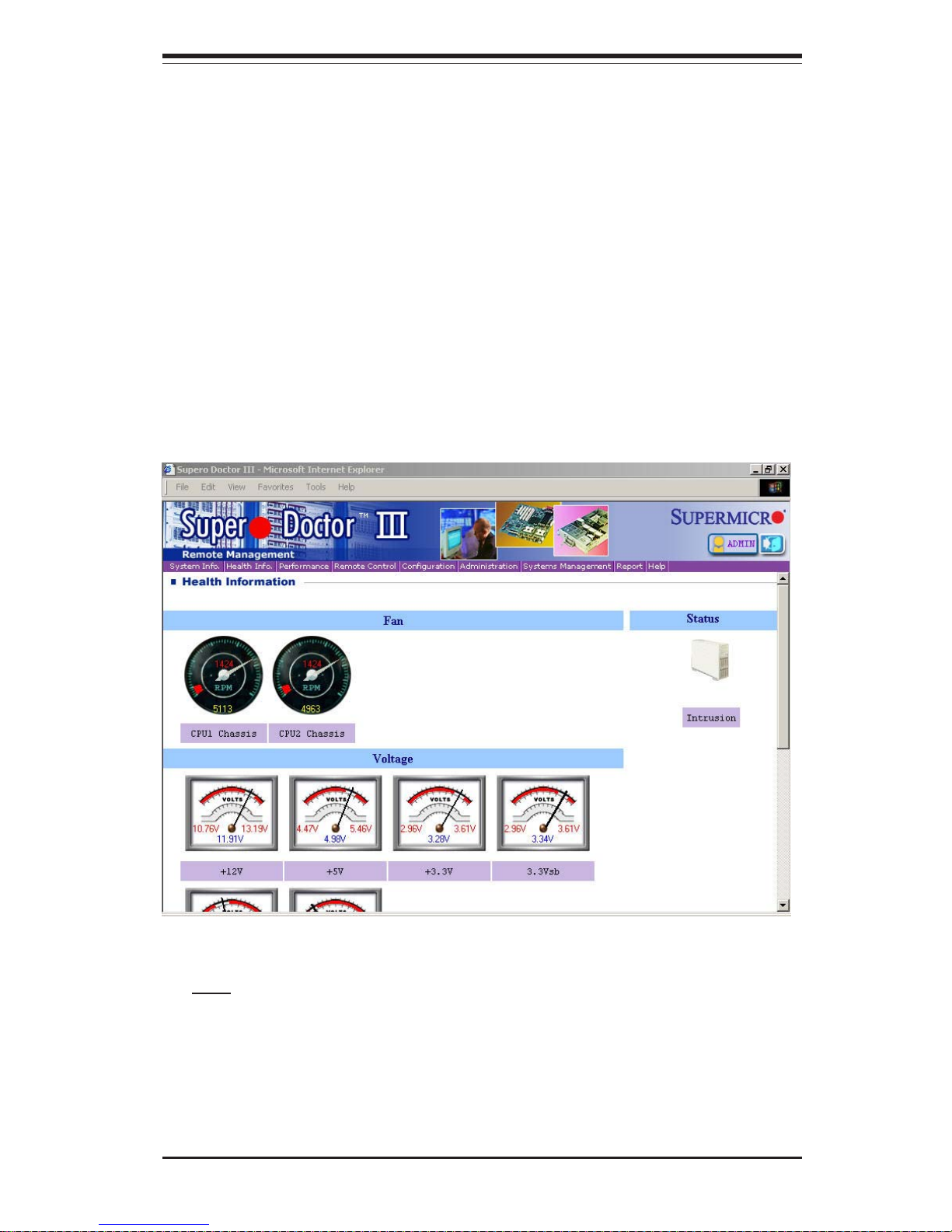

Figure C-2. Supero Doctor III Interface Display (Health Information)
Note: For Linux operating systems, we recommend using Supero Doctor II.
Page 94
C-6
SUPERSERVER 5013C-M User's Manual
Notes
Page 95
D-1
Appendix D: System Specifications
Appendix D
System Specifications
Processors
Single Intel® Pentium® 4 processor of up to 3.40 GHz with hyperthreading technology at a 800/533/400 MHz front side bus speed or a
single Intel Celeron® processor of up to 2.40 GHz
Chipset
Intel E7210
Memory Capacity
Four (4) DIMM slots to support a maximum of 4 GB ECC unbuffered
DDR400/333 low-profile SDRAM (dual-channel memory)
DIMM Sizes
128 MB / 256 MB / 512 MB / 1 GB 184-pin modules supported
Operating Systems Supported
Windows NT, Windows 2000, Solaris, Netware, SCO UNIX and Linux
Serial ATA Controller
6300ESB controller hub incorporated into chipset
Peripheral Bays
One (1) slim floppy drive
One (1) slim CD-ROM drive
PCI Expansion Slots
One (1) 64-bit 66 MHz (3.3V) PCI-X slot (bundled with a riser card)
Motherboard
Model: P4SCi (ATX Form Factor)
Dimensions: 12 x 9.5 in (305 x 241 mm)
Chassis
Model: SC512C-260 (Mini 1U Rackmount)
Dimensions: (WxHxD) 16.7 x 1.7 x 14 in. (424 x 43 x 356 mm)
Page 96
D-2
SUPERSERVER 5013C-M User's Manual
Weight
Net (Bare Bone): 18 lbs. (8.2 kg.)
Net (Gross): 21 lbs. (9.5 kg.)
System Cooling
One (1) 10-cm ball bearing blower fan
System Input Requirements
AC Input Voltage: 100-240 VAC
Rated Input Current: 4A (115V) to 2A (230V)
Rated Input Frequency: 50 to 60 Hz
Power Supply
Rated Output Power: 260W (Model# SP262-1S, Part# PWS-0055)
Rated Output Voltages: +3.3V (15A), +5V (25A), +12V (18A), -12V (1A),
+5Vsb (2A)
BTU Rating
1400 BTUs/hr (for rated output power of 260W)
Operating Environment
Operating Temperature: 10 to +35 degrees C
Non-operating Temperature: -35 to +60 degrees C
Operating Relative Humidity: 5-90%, (non-condensing)
Non-operating Relative Humidity: 5-95%, (non-condensing)
Regulatory Compliance
Electromagnetic Emissions:
FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B
Electromagnetic Immunity:
EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety:
EN 60950/IEC 60950-Compliant
UL Listed (USA)
CUL Listed (Canada)
TUV Certified (Germany)
CE Marking (Europe)
