Supero SuperServer 4027GR-TR, SuperServer 4027GR-TRT User Manual

®

SUPER

USER'S MANUAL

Revision 1.0

SuperServer

4027GR-TR

4027GR-TRT

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at

www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.0
Release Date: March 12, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

iii

Preface

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the SuperServer 4027GR-TR/
TRT. Installation and maintainance should be performed by experienced technicians
only.

The SuperServer 4027GR-TR/TRT is a high-end server based on the SC418GTS­R3200B 4U rackmount chassis and the dual processor X9DRG-OF/OTFserverboard.

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the
server system and describes the main features of the X9DRG-OF/OTFserverboard
and the SC418GTS-R3200B chassis.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the SuperServer 4027GR-TR/
TRT into a rack and check out the server confi guration prior to powering up the
system. If your server was ordered without processor and memory components, this
chapter will refer you to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.

Chapter 4: Standardized Warning Statements

You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SUPERSERVER 4027GR-TR/TRT.

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the X9DRG-OF/OTFserverboard,
including the locations and functions of connections, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and when
reconfi guring the serverboard.

iv

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC418GTS-R3200B server
chassis. You should follow the procedures given in this chapter when installing,
removing or reconfi guring SATA or peripheral drives and when replacing system

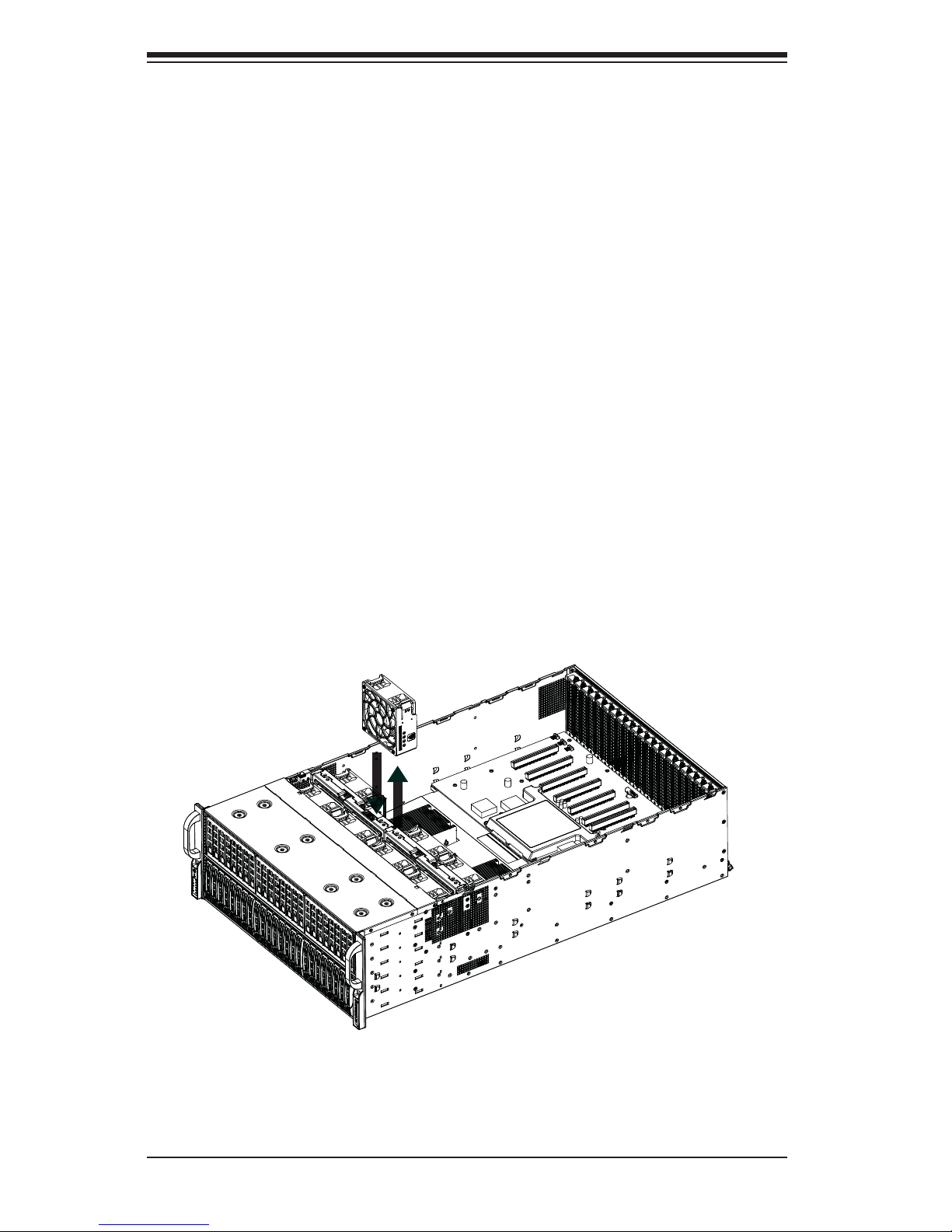

power supply units and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed information
on running the CMOS Setup Utility.

Appendix A: BIOS Error Beep Codes
Appendix B: System Specifi cations

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

v

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Notes

vi

Table of Contents

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Serverboard Features ..................................................................................... 1-2

Processors ...................................................................................................... 1-2

Memory ........................................................................................................... 1-2

Serial ATA ....................................................................................................... 1-2

PCI Expansion Slots ....................................................................................... 1-2

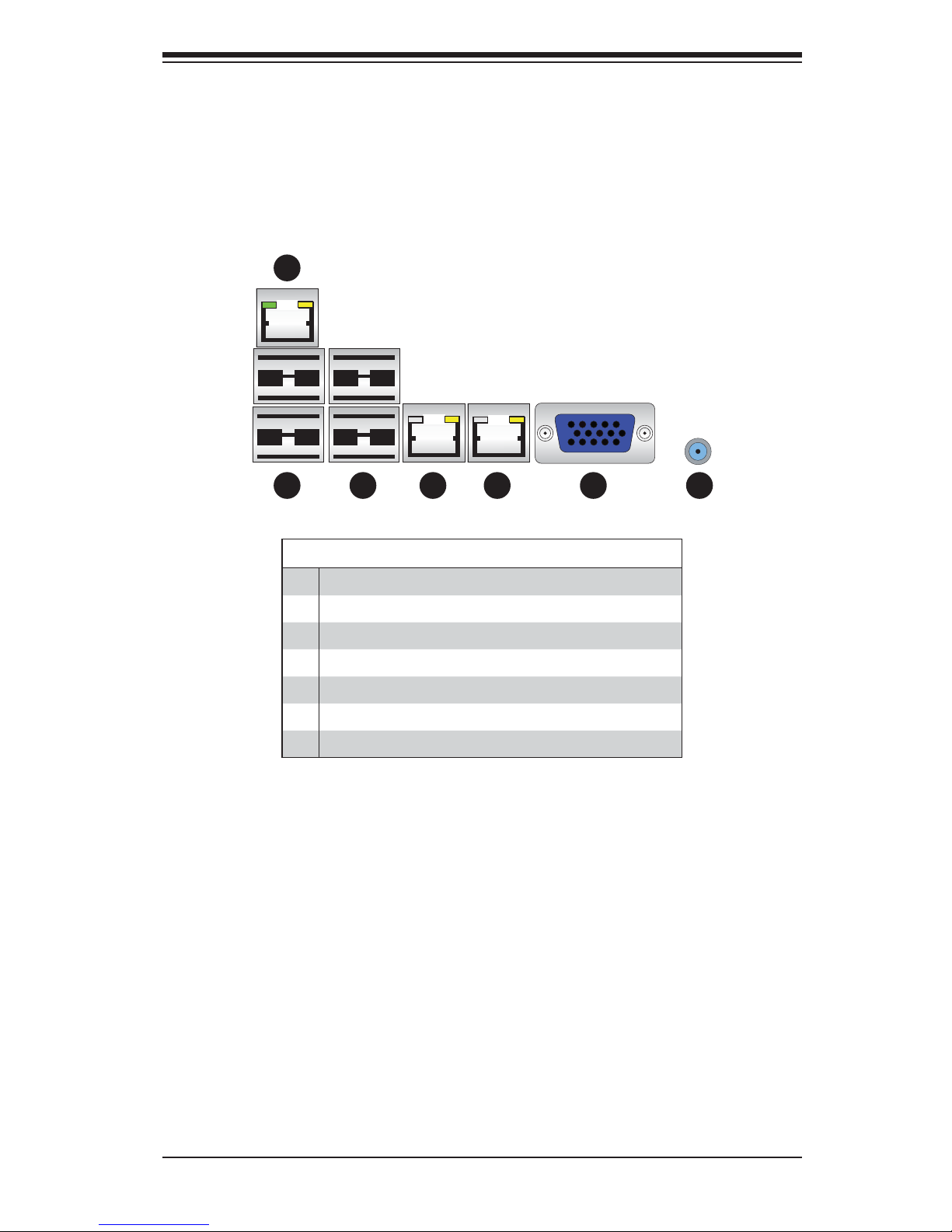

Rear I/O Ports ................................................................................................. 1-2

Graphics Controller ......................................................................................... 1-3

1-3 Server Chassis Features ................................................................................ 1-3

System Power ................................................................................................. 1-3

SATA Subsystem ............................................................................................. 1-3

Front Control Panel ......................................................................................... 1-3

Cooling System ............................................................................................... 1-3

Air Shrouds ..................................................................................................... 1-3

Mounting Rails ................................................................................................ 1-4

1-4 GPU Subsystem .............................................................................................. 1-6

1-5 Contacting Supermicro .................................................................................... 1-7

Chapter 2 Rack Installation

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Preparing for Setup ......................................................................................... 2-1

Choosing a Setup Location ............................................................................. 2-1

2-4 Warnings and Precautions .............................................................................. 2-2

Rack Precautions ............................................................................................ 2-2

General Server Precautions ............................................................................ 2-2

Rack Mounting Considerations ....................................................................... 2-3

Ambient Operating Temperature ................................................................ 2-3

Reduced Airfl ow ......................................................................................... 2-3

Mechanical Loading ................................................................................... 2-3

Circuit Overloading ..................................................................................... 2-3

Reliable Ground ......................................................................................... 2-3

2-5 Rack Mounting Instructions ............................................................................. 2-4

Identifying the Sections of the Rack Rails ...................................................... 2-4

Locking Tabs ................................................................................................... 2-5

Releasing the Inner Rail ................................................................................. 2-5

Installing The Inner Rails on the Chassis ....................................................... 2-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

vii

Installing the Outer Rails on the Rack ............................................................ 2-7

Standard Chassis Installation ......................................................................... 2-8

Optional Quick Installation Method ................................................................. 2-9

Chapter 3 System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons ..................................................................................... 3-2

3-3 Control Panel LEDs ........................................................................................ 3-2

3-4 Drive Carrier LEDs .......................................................................................... 3-4

Chapter 4 Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements ....................................................... 4-1

Warning Defi nition ........................................................................................... 4-1

Installation Instructions .................................................................................... 4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning ........................................................................ 4-6

Equipment Installation ..................................................................................... 4-8

Restricted Area ................................................................................................ 4-9

Battery Handling ............................................................................................ 4-10

Redundant Power Supplies .......................................................................... 4-12

Backplane Voltage ........................................................................................ 4-13

Comply with Local and National Electrical Codes ........................................ 4-14

Product Disposal ........................................................................................... 4-15

Hot Swap Fan Warning ................................................................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Chapter 5 Advanced Serverboard Setup

5-1 Handling the Serverboard ............................................................................... 5-1

Precautions ..................................................................................................... 5-1

Unpacking ....................................................................................................... 5-1

5-2 Connecting Cables .......................................................................................... 5-2

Connecting Data Cables ................................................................................. 5-2

5-3 Control Panel Connectors and I/O Ports ........................................................ 5-3

Connecting the Control Panel ......................................................................... 5-4

5-4 Processor and Heatsink Installation................................................................ 5-5

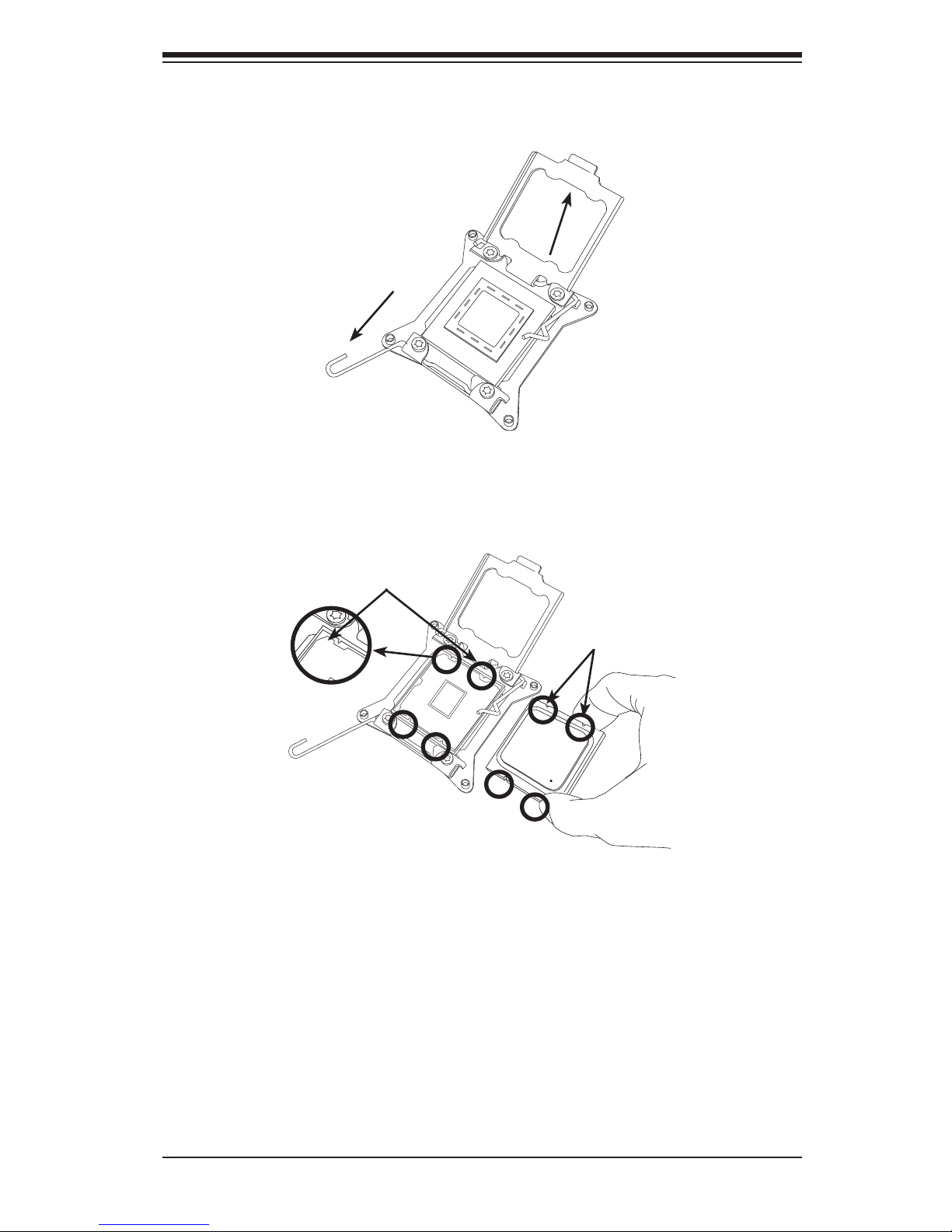

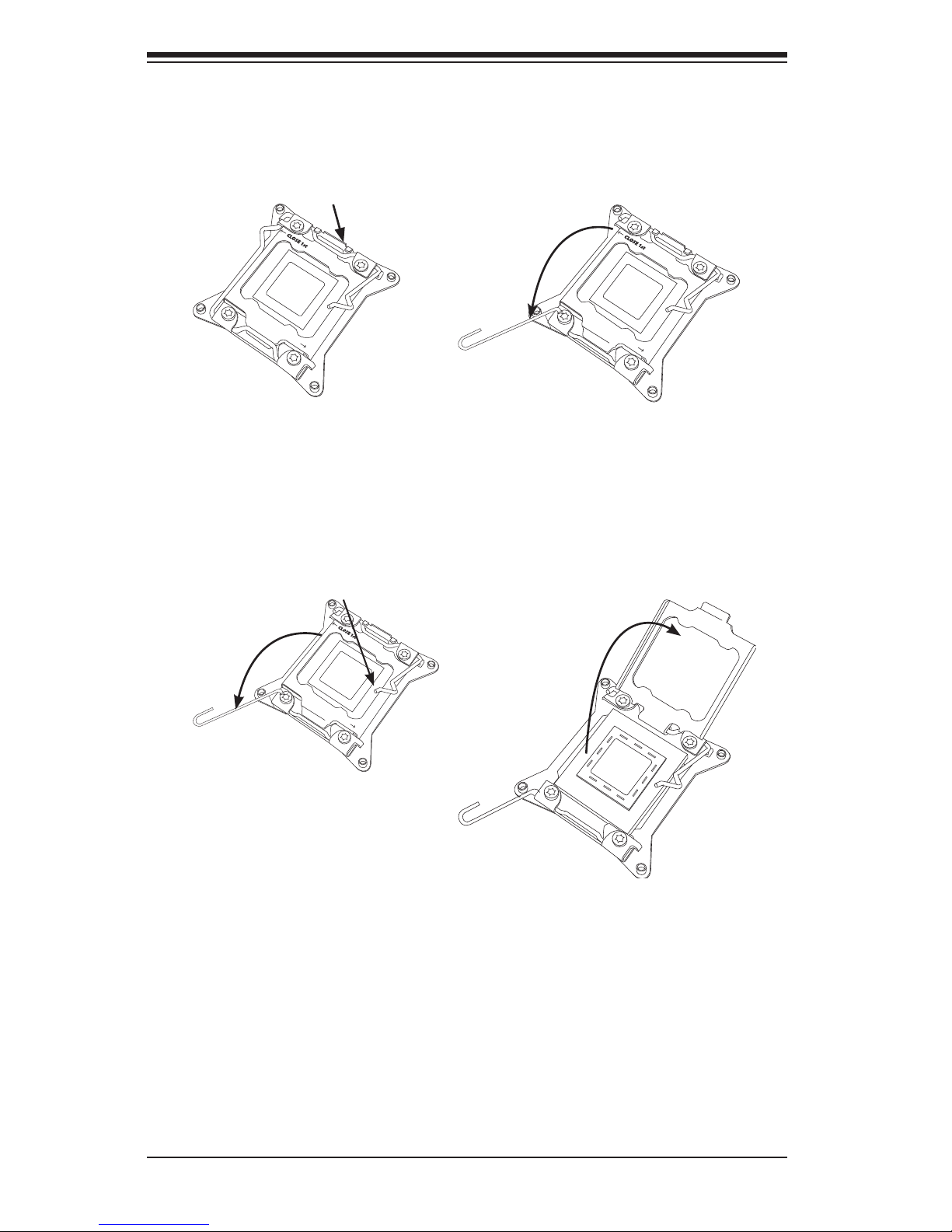

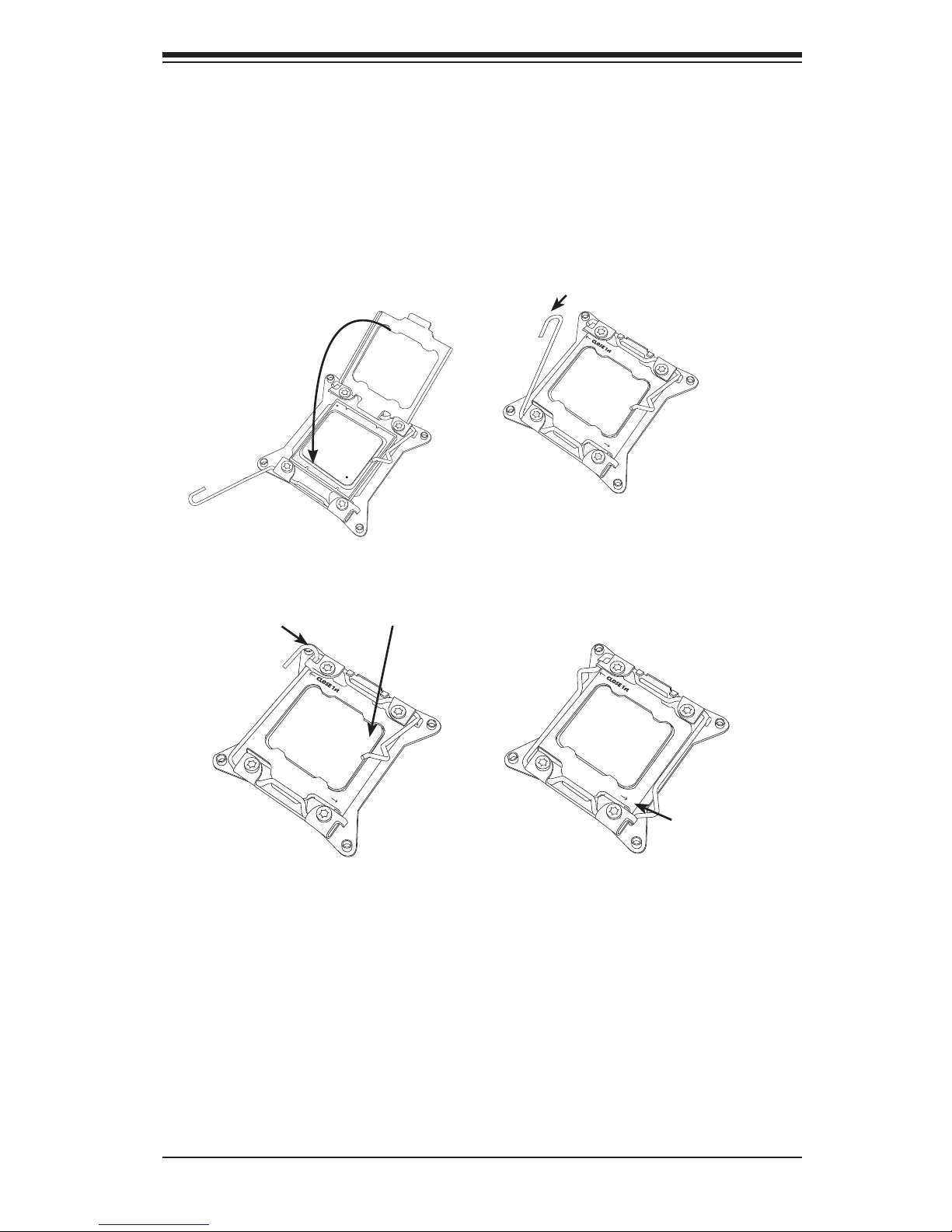

Installing the LGA2011 Processor ................................................................. 5-5

Installing a Passive CPU Heatsink ............................................................... 5-10

Removing the Heatsink ..................................................................................5-11

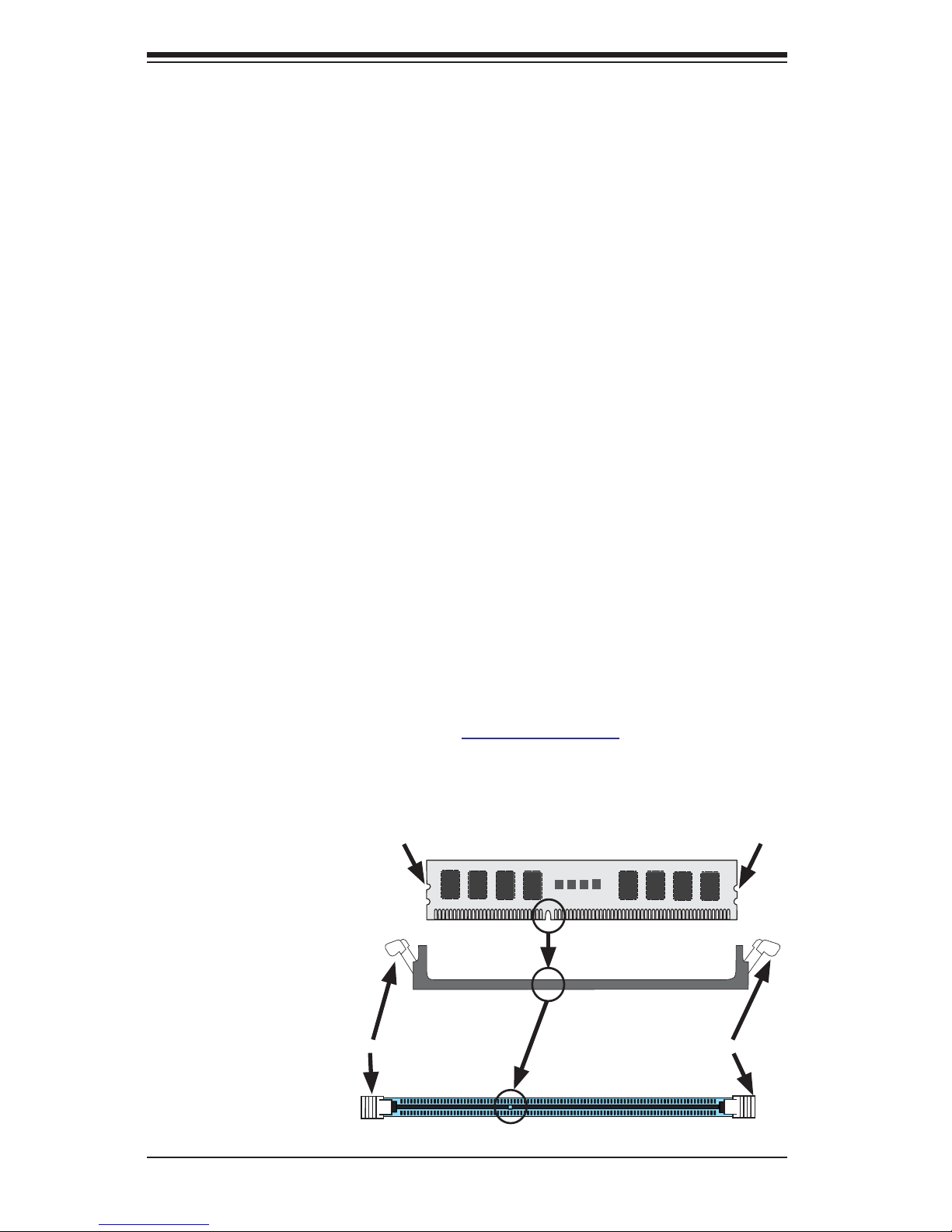

5-5 Installing Memory .......................................................................................... 5-12

Installing Memory .......................................................................................... 5-12

Memory Support ............................................................................................ 5-12

5-6 Adding PCI Expansion Cards ....................................................................... 5-16

Table of Contents

viii

5-7 Serverboard Details ...................................................................................... 5-16

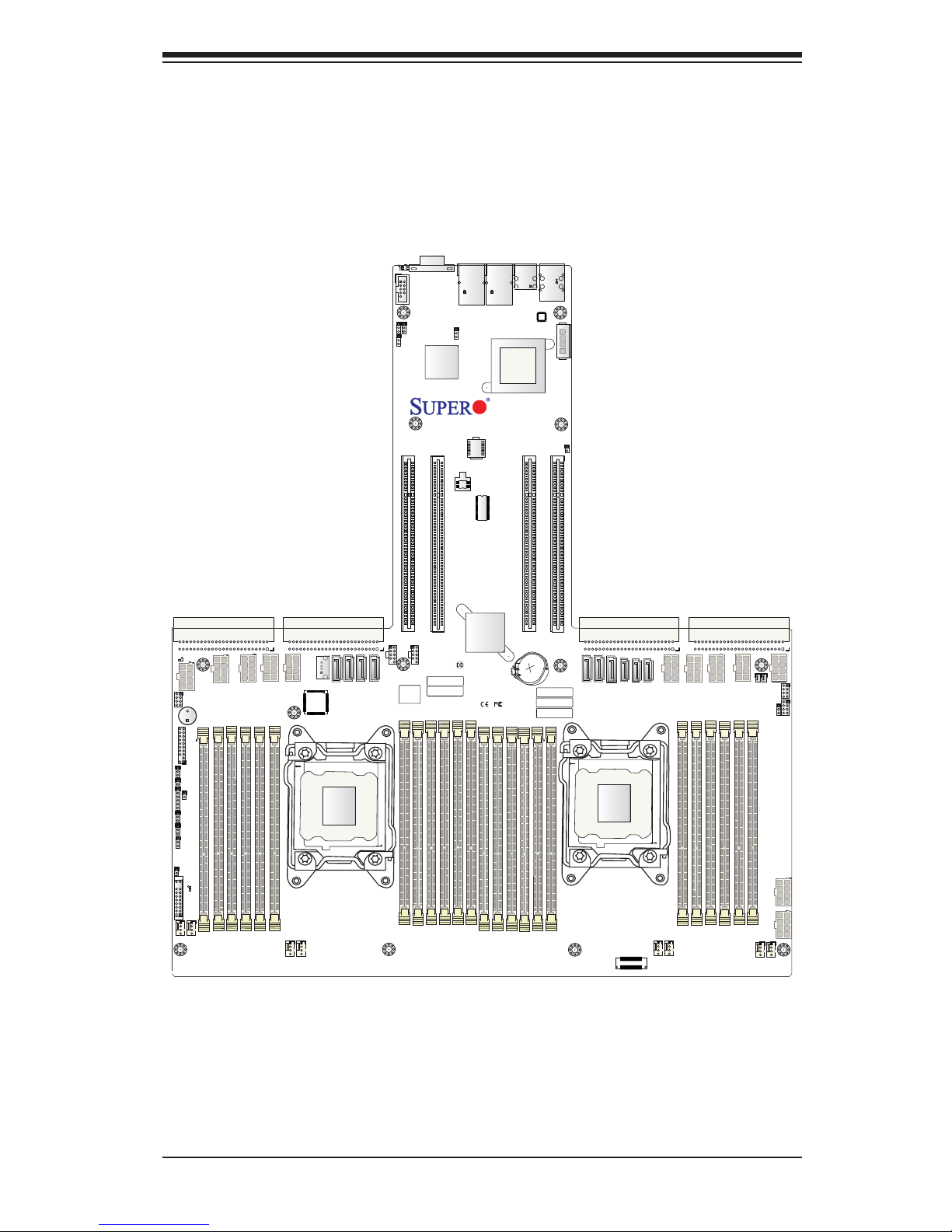

X9DRG-OF/OTF Quick Reference ................................................................ 5-18

5-8 Connector Defi nitions .................................................................................... 5-21

5-9 Jumper Settings ............................................................................................ 5-27

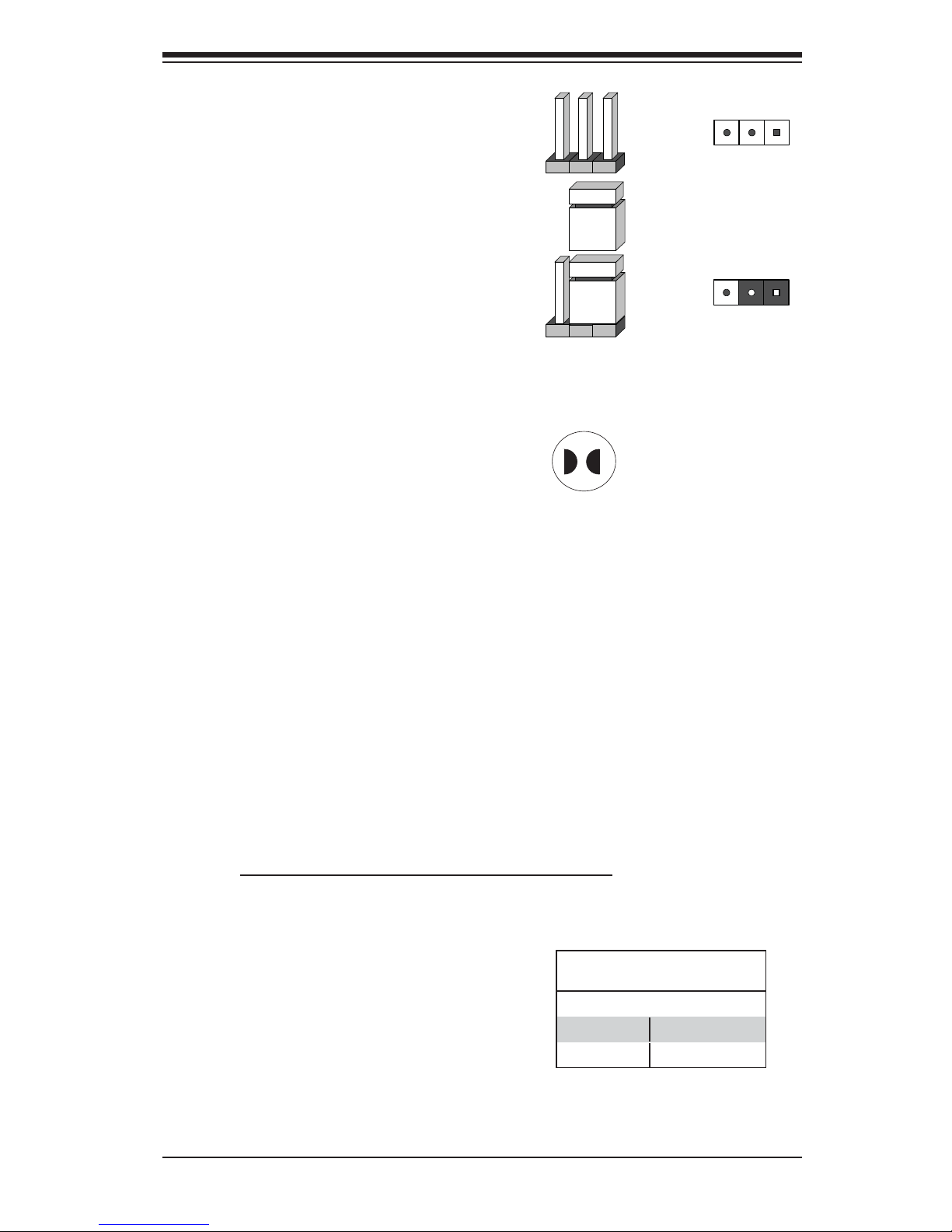

Explanation of Jumpers ................................................................................ 5-27

5-10 Onboard Indicators ........................................................................................ 5-29

5-11 SATA Ports .................................................................................................... 5-31

5-12 Installing Software ......................................................................................... 5-32

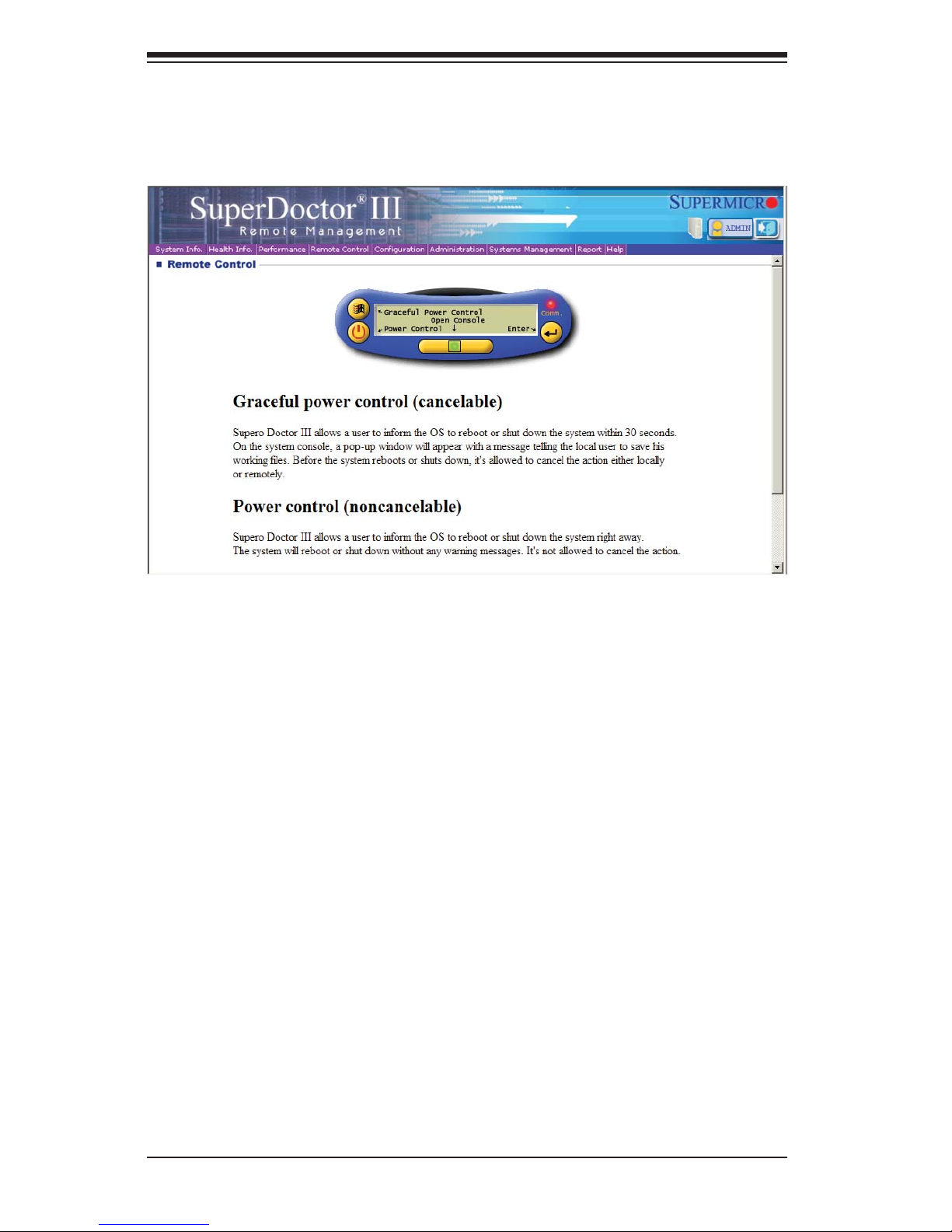

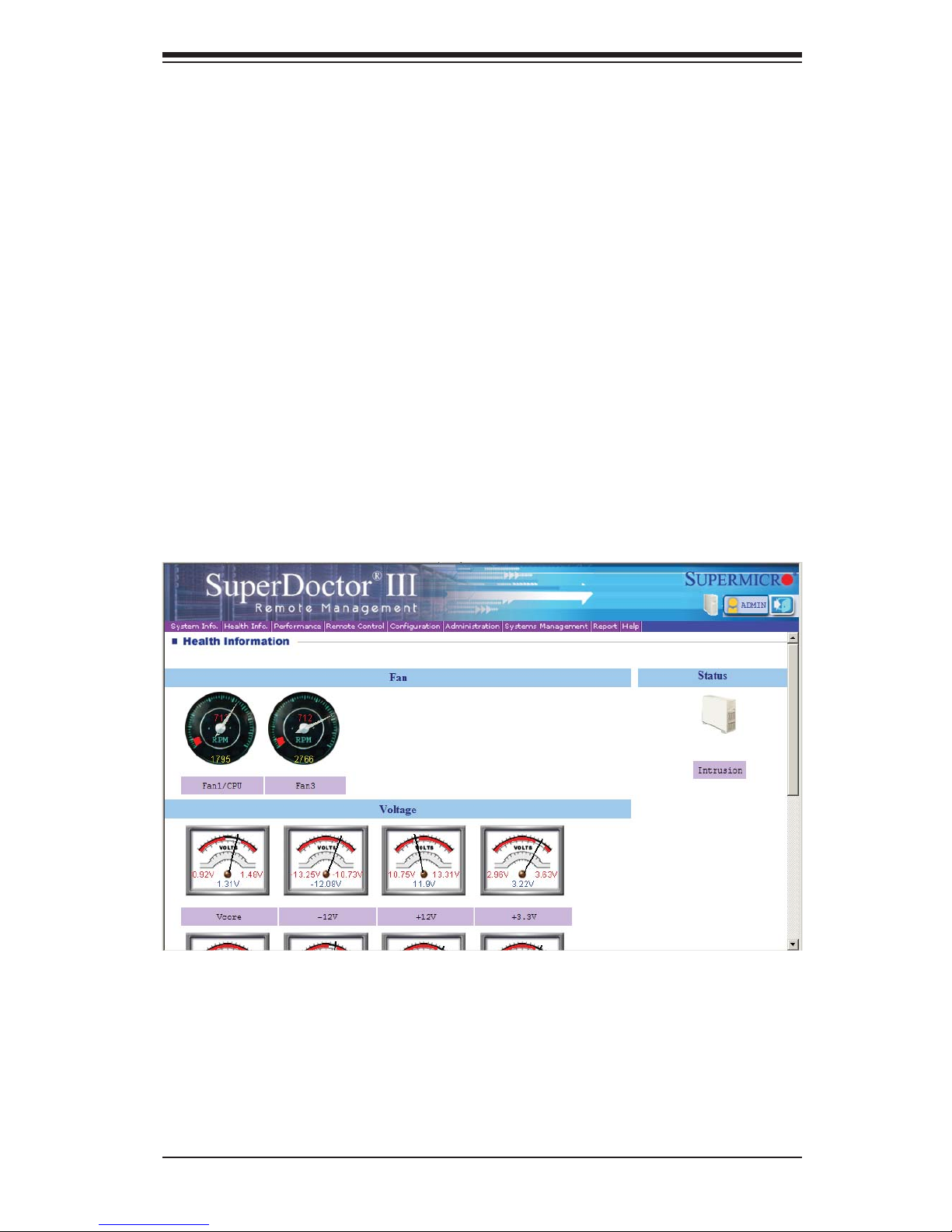

SuperDoctor III .............................................................................................. 5-33

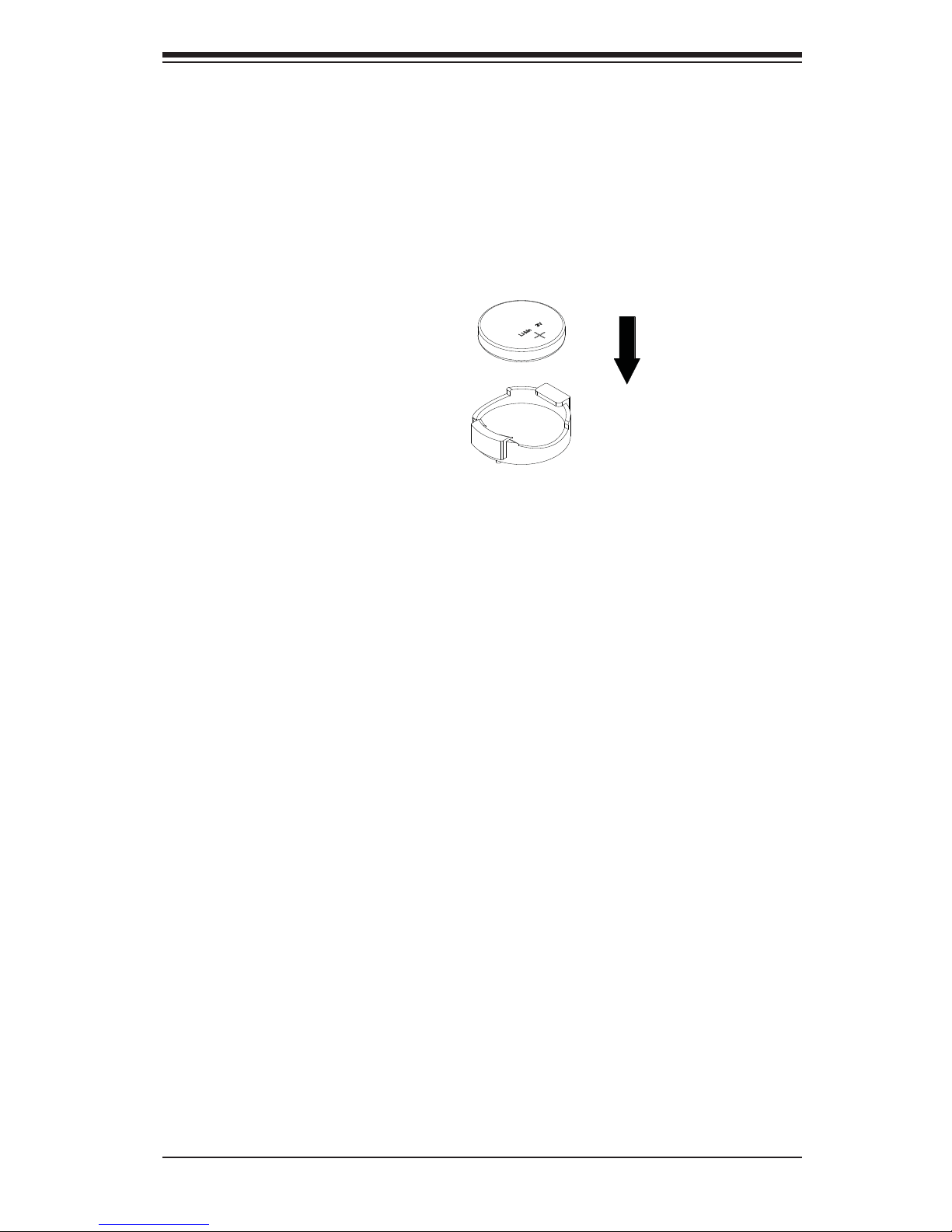

5-13 Onboard Battery ............................................................................................ 5-35

Chapter 6 Advanced Chassis Setup

6-1 Static-Sensitive Devices .................................................................................. 6-1

Precautions ..................................................................................................... 6-1

Unpacking ....................................................................................................... 6-1

6-2 Control Panel .................................................................................................. 6-2

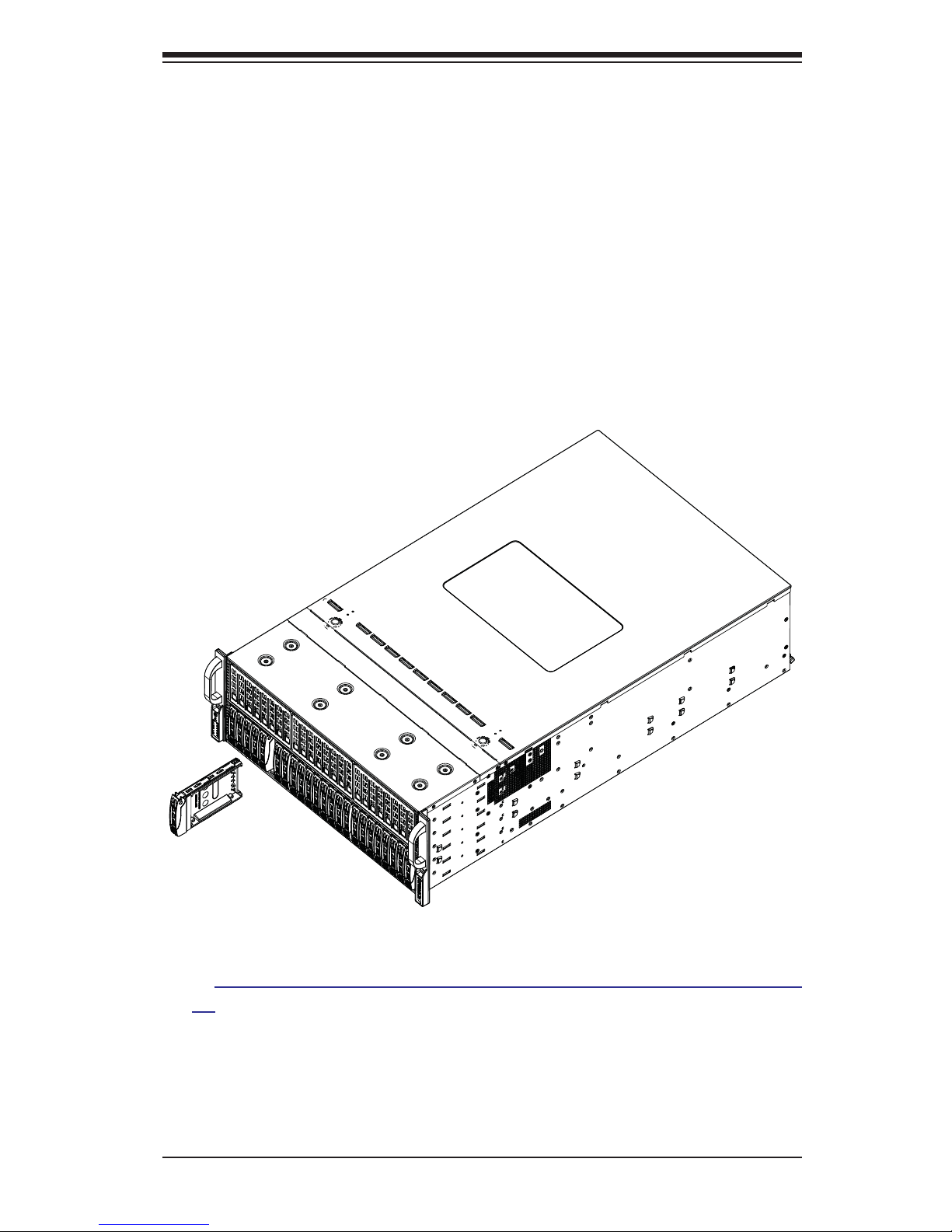

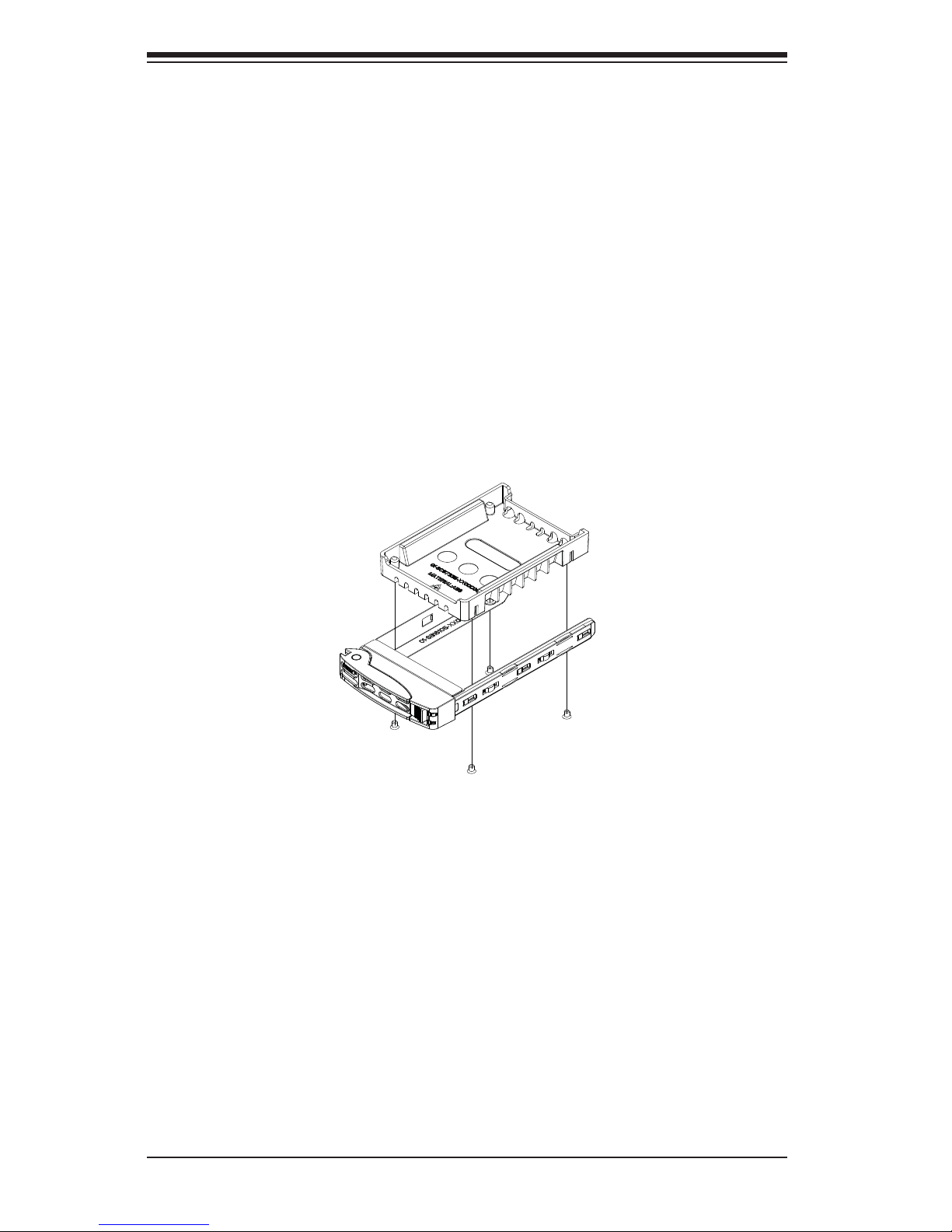

6-3 Installing Hard Drives ...................................................................................... 6-3

6-4 Accessing the Inside of the System................................................................ 6-5

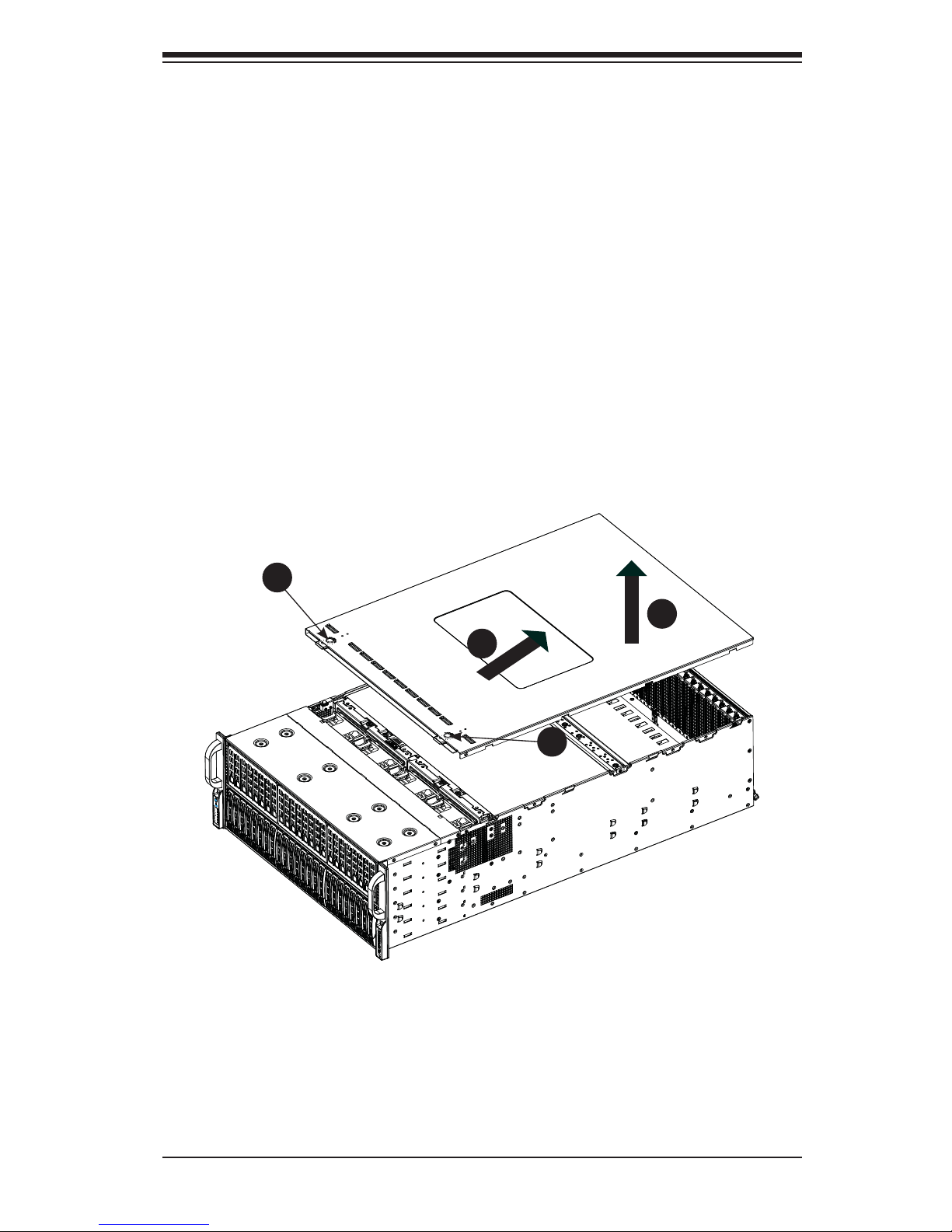

Removing the Chassis Cover ......................................................................... 6-5

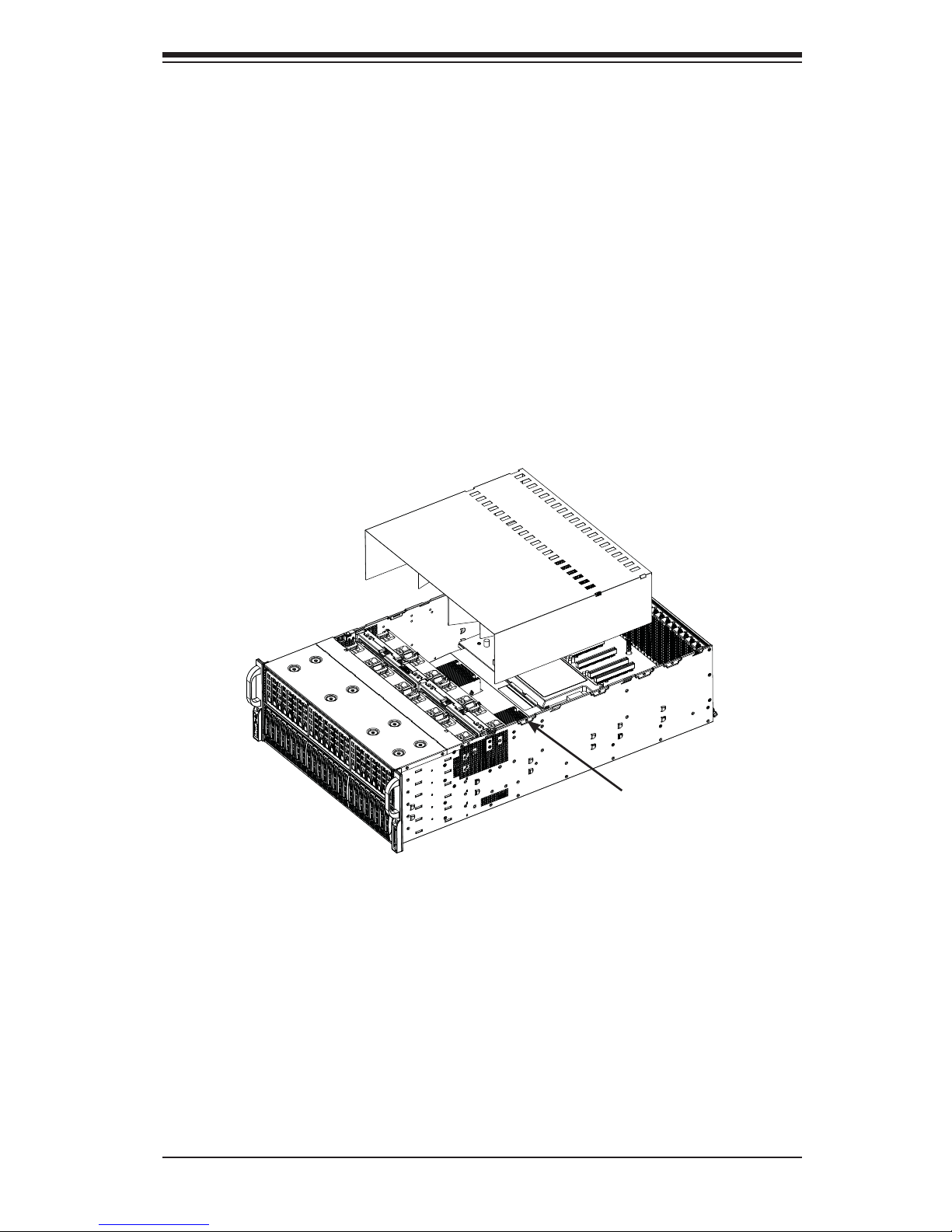

6-5 Installing the Air Shroud .................................................................................. 6-6

Air Shrouds ..................................................................................................... 6-6

6-6 Cooling System ............................................................................................... 6-8

6-7 Power Supply ................................................................................................. 6-9

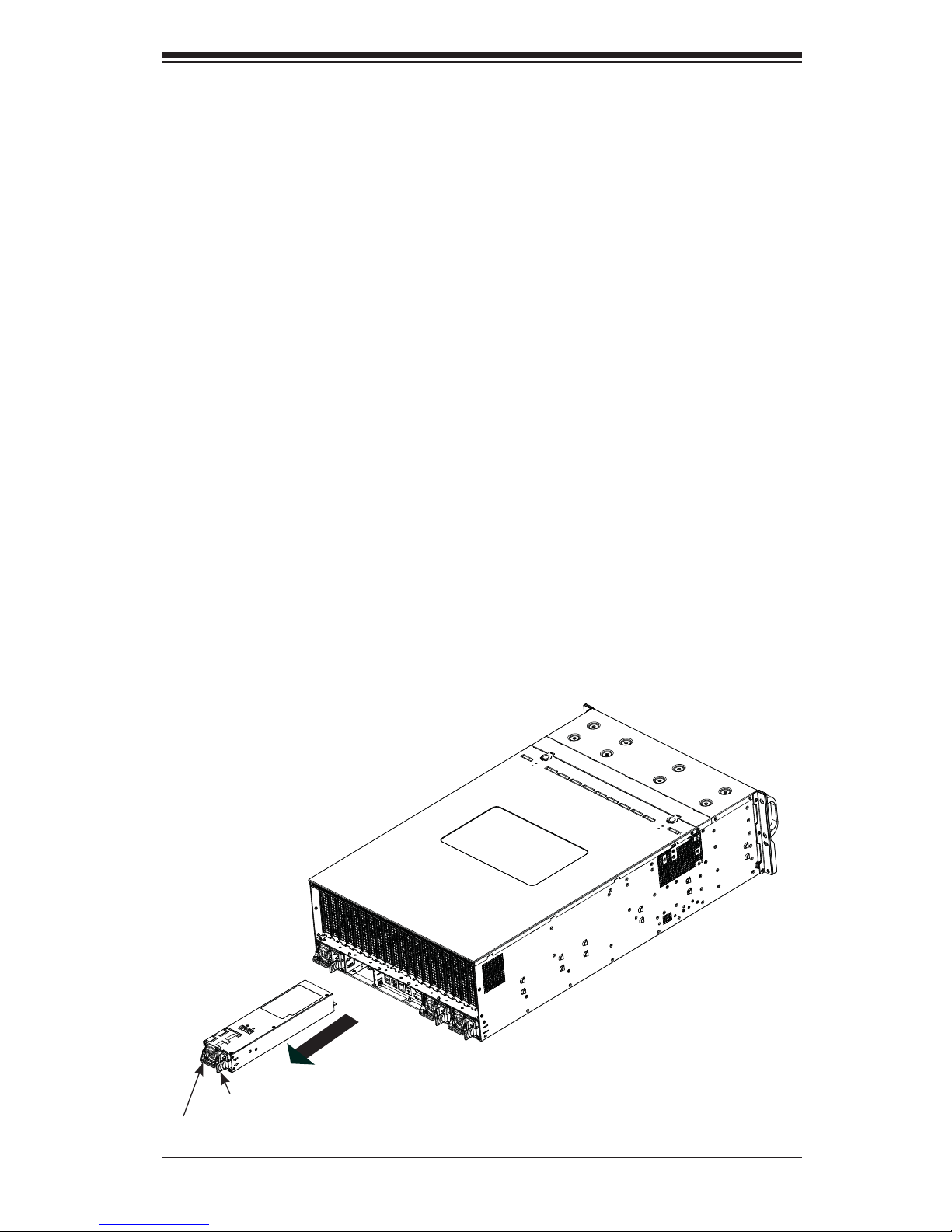

Power Supply Replacement ............................................................................ 6-9

Chapter 7 BIOS

7-1 Introduction ...................................................................................................... 7-1

Starting BIOS Setup Utility .............................................................................. 7-1

How To Change the Confi guration Data ......................................................... 7-2

Starting the Setup Utility ................................................................................. 7-2

7-2 Main Setup ...................................................................................................... 7-2

7-3 Advanced Setup Confi gurations...................................................................... 7-4

7-4 Event Logs .................................................................................................... 7-25

7-5 IPMI ............................................................................................................... 7-27

7-6 Boot ............................................................................................................... 7-29

7-7 Security ......................................................................................................... 7-31

7-8 Save & Exit ................................................................................................... 7-32

Appendix A BIOS Error Beep Codes
Appendix B System Specifi cations

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Chapter 1

Introduction

1-1 Overview

The SuperServer 4027GR-TR/TRT is a high-end GPU-optimized server comprised
of two main subsystems: the SC418GTS-R3200B 4U server chassis, the X9DRG­OF/OTF dual processor serverboard and the X9DRG-O-PCIE I/O board. Please
refer to our web site for information on operating systems that have been certifi ed
for use with the system (www.supermicro.com).

In addition to the serverboard and chassis, various hardware components have been
included with the SuperServer 4027GR-TR/TRT server, as listed below:

• Two passive heatsinks (SNK-P0048PS)

• Two air shrouds (MCP-310-41806-0B, MCP-310-41807-0B)

• Four riser cards (RSC-X9DRG-O-O-P)

• Eight 92 x 92 x 38-mm, 11.5K RPM, PWM fans (FAN-0115L4)

• One SATA backplane (BPN-SAS3-216A)

Twenty-four hot-swap 2.5" HDD trays (MCP-220-00047-0B)

• One rail set (MCP-290-00057-0N)

• One SuperServer 4027GR-TR/TRT Quick Reference Guide

Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety info: http://super-dev/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at:

[email protected]

Chapter 1: Introduction

1-1

1-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

1-2 Serverboard Features

At the heart of the SuperServer 4027GR-TR/TRT lies the X9DRG-OF/OTF, a dual
processor serverboard based on the Intel® C602 PCH chipset and designed to
provide maximum performance.

The sections below cover the main features of the X9DRG-OF/OTF serverboard
(see Figure 1-1 for a block diagram of the chipset).

Processors

The X9DRG-OF/OTF supports two Intel® Xeon® E5-2600 or E5-2600 v2 series
processors (Socket R LGA 2011). Please refer to the serverboard description pages
on our web site for a complete listing of supported processors (www.supermicro.

com).

Note: For Intel E5-2600 (v2) processor support, BIOS version 3.0 or above is
required.

Memory

The X9DRG-OF/OTF has 24 DIMM slots to support up to 1.5 TB of LRDIMM. 768
GB of RDIMM or 128 GB of ECC/non-ECC UDIMM DDR3-1600/1333/1066/800
memory. See Chapter 5 for details. Note that 1600 MHz memory speed is dependent
on Intel E5-2600 (v2) CPUs.

Note: Check the Supermicro website (www.supermicro.com) for the latest memory
support information.

Serial ATA

A Serial ATA controller is integrated into the C602 to provide two SATA 3.0 ports
(I-SATA 0/1) and eight SATA 2.0 ports (I-SATA 2~5 from AHCI, S-SATA 1~4 from
SCU) that support RAID 0, 1, 5 and 10. The SATA drives are hot-swappable units.

PCI Expansion Slots

The 4027GR-TR/TRT has eight PCI Express 3.0 x16 slots, two PCI Express x8 slots
(in x16 slots) and one PCI Express 2.0 x4 (in a x16 slot) slot on the X9DRG-OF/OTF.

Rear I/O Ports

The I/O ports on the rear of the serverboard include a VGA (monitor) port, four
USB 2.0 ports (USB0/1 and USB2/3), two Ethernet LAN ports and a dedicated
IPMI LAN port.

1-3

Chapter 1: Introduction

Note: For IPMI confi guration instructions, refer to the Embedded BMC Confi guration
User's Guide at http://www.supermicro.com/support/manuals/.

Graphics Controller

The X9DRG-OF/OTF features a Matrox G200 video controller.

1-3 Server Chassis Features

The following is a general outline of the main features of the SC418 server chassis.

System Power

The SC418 chassis model includes four high-effi ciency 80-plus Platinum certifi ed
power supplies, rated at 1600 Watts each for a total of 6400 Watts providing plenty
of power for high wattage GPU cards. The power supplies are 2+2 redundancy.
In the unlikely event your power supply fails, replacement is simple and can be
accomplished without tools.

SATA Subsystem

The SC418 supports up to twenty-four 2.5" hot-swap hard drives. These drives are
connected to a backplane that provides power and control.

Front Control Panel

The SC418 chassis includes a control panel on the handle of the chassis to
control the system. The control panel on the provides you with system monitoring
and control. LEDs indicate system power, HDD activity, network activity, system
overheat and power supply failure. A main power button and a system reset button
are also included.

Cooling System

Eight 9-cm fans are used to cool the system. Fan speed is controlled via IPMI.

Air Shrouds

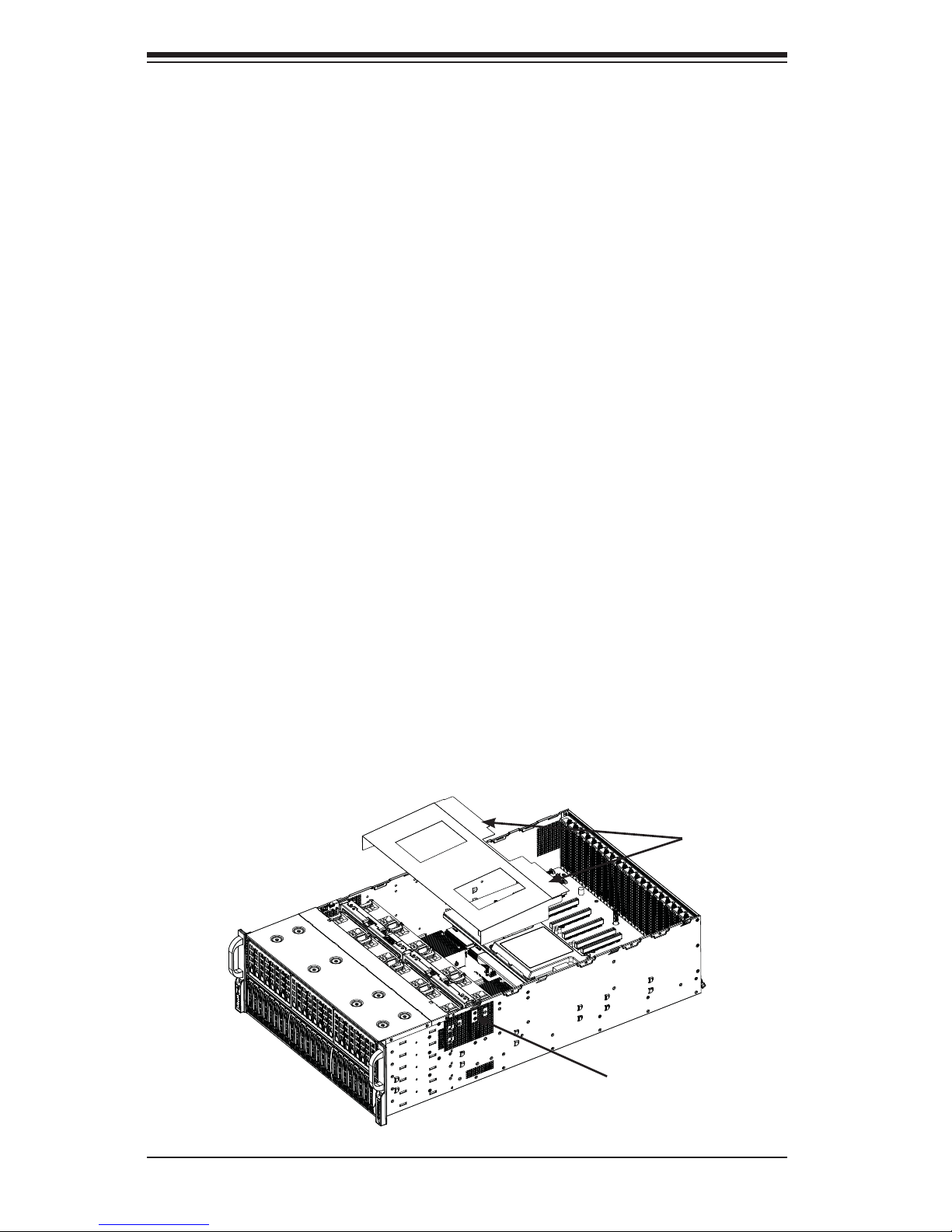

The SC418 chassis includes two mylar air shrouds that direct the airfl ow where
cooling is needed. Always use the air shrouds included with your server.

1-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Figure 1-1. Intel C602 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly repre-

sent the features on your serverboard. See the previous pages and

Chapter 5 for the actual specifi cations of your serverboard. This block

diagram is intended for your reference only.

CPU2

CPU1

i350/X540

LAN

#D-3

#C-3

#B-3

#A-3

#4

#5

i_SATA

#E-3

#F-3

#0

#1

#G-3

#H-3

#2

#3

6+1 PHASE

150W

USB 2.0

USB

4 in Rear I/O
1 internal Type A
possible

2 internal headers

3.0 Gb/S

For PORT 2~5

6.0 Gb/S

For PORT 0~1

PORTs #0~3

DDRIII

P1

P1
P0

VR12

P0

#B-1

#A-1

QPI
8G

DDR3
VDDQ
VRM

Sandybridge-EP

PCH
PATSBURG

DDR3
VDDQ
VRM

DDR3
VTT
VRM

DDR3
VTT
VRM

PORTs #0~1

PCI-E X16 Gen3

SATA

DMI2

SPI

DMI2

i_SATA

SATA3

SATA2

BMC
WPCM450

PCI-E X24

PCI-E X16 Gen3

PCI

DMI2

#A-2

Sandybridge-EP

8 SNB CORE
DDR-III

8 SNB CORE
DDR-III

QPI
8G

4GB/s

PCI-E X24

PCI-E X24

6+1 PHASE

150W

VR12

VGA

PCI-E X8 Gen3

PCI-E X24

SAS

PCI-E X8 Gen3

PCI-E X16 Gen3

PCI-E X16 Gen3

#2

Internal
COM Port

Header

#B-2

#C-1

#C-2

#D-1

#D-2

DDRIII

#F-1

#E-1

#E-2

#G-1

#F-2

#H-2

#H-1

#G-2

PORTs #2~5

SATA

PCI

S_SATA

3.0 Gb/S

For PORT 6~9

SATA2

#1

#2

#3

#4

PCI-E X4 Gen2

PCI-E X4 Gen2

DMI2

#3

#1

Dedicated LAN

VGA Port

#1

#2

#3

Mounting Rails

The SC418 includes a set of quick-release rails, and can be placed in a rack for
secure storage and use. To setup your rack, follow the step-by-step instructions
included in this manual.

1-5

Chapter 1: Introduction

Note: This PCI-E card block diagram may not exactly represent the features on your
serverboard. See the Chapter 5 for the actual specifi cations of each serverboard.

CPU1CPU2

PCH

10G
X540

LOM

PEX8747

slot
1

slot
2

slot
3

slot
5

slot
6

slot
4

slot7slot

8

slot
9

slot
10

slot
11

PEX8747PEX8747PEX8747

Gen3

X16

port 3

port 2

Gen2
X4

re-

driver

port 1

re-

driver

port 2
port 3

port 1

RSC-X9DRG-ORSC-X9DRG-O

Gen3
X16

Gen3

X16

Gen3
X16

Gen3

X16

Gen3
X16

Gen3

X16

Gen3
X8

Gen3

X16

Gen3

X8

Gen2

X4

Gen3

X16

Gen3

X16

Gen3

X16

Gen3
X16

Gen3
X8

Gen3
X8

Figure 1-2. PCI-E Card Block Diagram

1-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

1-4 GPU Subsystem

The 4027GR-TR/TRT server represents one of Supermicro's massively parallel
processing multiple-GPU servers, with support for up to eight GPUs. NVIDIA®
Kepler™ GPUs place this system at the forefront of today's GPU computing
solutions.

Please refer to the NVIDIA web site (

www.nvidia.com) for details on Kepler GPUs.

Notes

The GPUs process complex image calculations and then route the data out through
the VGA port on the serverboard.

The 4027GR-TR/TRT can support eight standard size (double-width) GPUs.

NVIDIA® Kepler™ K10/K20/K20X/K40 GPUs, which come with a passive heatsink
attached, have been tested for use with this system. Any combination of these cards
(up to a total of eight) may have come bundled with the system

Power Notes

To provide power to the GPU cards, connect the GPU power cable (CBL­PWEX-0582) from each of the GPUs to JPW3/JPW13/JPW14/JPW15/JPW16 and
JPW4/JPW12/JPW6/JPW7/JPW5 on the serverboard (one cable for each card).

1-7

Chapter 1: Introduction

1-5 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)

[email protected] (Technical Support)
Web Site:

www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)
Web Site:

www.supermicro.com

Asia-Pacifi c

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [email protected]
Tel: [phone]
Web Site:

www.supermicro.com.tw

1-8

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Notes

2-1

Chapter 2: Server Installation

Chapter 2

Rack Installation

2-1 Overview

This chapter provides a quick setup checklist to get your chassis up and running.
Following these steps in the order given should enable you to have the system
operational within a minimal amount of time.

2-2 Unpacking the System

You should inspect the box which the chassis was shipped in and note if it was
damaged in any way. If the chassis itself shows damage, you should fi le a damage
claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold your chassis. It should
be situated in a clean, dust-free area that is well ventilated. Avoid areas where
heat, electrical noise and electromagnetic fi elds are generated. The system needs
to be placed near a grounded power outlet. Be sure to read the Rack and Server
Precautions in the next section.

2-3 Preparing for Setup

The box your chassis was shipped in should include two sets of rail assemblies and
the mounting screws needed for installing the system into the rack. Also included
is an optional square hole to round hole converter bracket, for use in racks with
round mounting holes. Please read this section in its entirety before you begin the
installation procedure outlined in the sections that follow.

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front

door completely (~25 inches).

• Leave approximately 30 inches of clearance in the back of the rack to allow for

suffi cient airfl ow and ease in servicing.

• This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

2-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

2-4 Warnings and Precautions

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to

the fl oor with the full weight of the rack resting on them.

• In single rack installations, stabilizers should be attached to the rack.

• In multiple rack installations, the racks should be coupled together.

• Always make sure that the rack is stable before extending a component from

the rack.

• You should extend only one component at a time - extending two or more si-

multaneously may cause the rack to become unstable.

General Server Precautions

• Review the electrical and general safety precautions that came with the com-

ponents you are adding to your chassis.

• Determine the placement of each component in the rack before you install the

rails.

• Install the heaviest server components on the bottom of the rack fi rst, and then

work upwards.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a
power failure.

• Allow the hot plug hard drives and power supply modules to cool before touch-

ing them.

• Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

2-3

Chapter 2: Server Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera­ture of the rack environment may be greater than the ambient temperature of the
room. Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient tempera­ture (TMRA).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required
for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connec­tions other than the direct connections to the branch circuit (i.e. the use of power
strips, etc.).

Warning! To prevent bodily injury when mounting or servicing this unit in a
rack, you must take special precautions to ensure that the system remains
stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially fi lled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

2-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

2-5 Rack Mounting Instructions

This section provides information on installing the chassis into a rack unit with the
rails provided. There are a variety of rack units on the market, which may mean
that the assembly procedure will differ slightly from the instructions provided. You
should also refer to the installation instructions that came with the rack unit you are
using. Note: This rail will fi t a rack between 26.5" and 36.4" deep

Identifying the Sections of the Rack Rails

The chassis package includes a rack rail assembly in the rack mounting kit. Each
assembly consists of three sections: An inner chassis rail which secures directly to
the chassis, an outer rail that secures to the rack, and a middle rail which extends
from the outer rail. These assemblies are specifi cally designed for the left and right
side of the chassis.

Figure 2-1. Identifying the Different Rail Sections

Inner Rail

Rail Assembly

(shown with rails

retracted)

This Side Faces

Outward

Locking Tab

Middle Rail

Outer Rail

2-5

Chapter 2: Server Installation

Figure 2-2. Extending and Releasing the Inner Rail

Locking Tabs

Each inner rail has a locking tab. This tab locks the chassis into place when installed
and pushed fully into the rack. These tabs also lock the chassis in place when fully
extended from the rack. This prevents the server from coming completely out of
the rack when when the chassis is pulled out for servicing.

Releasing the Inner Rail

Releasing Inner Rail from the Outer Rails

1. Identify the left and right outer rail assemblies as described on page 2-4.

2. Pull the inner rail out of the outer rail until it is fully extended as illustrated
below.

3. Press the locking tab down to release the inner rail.

4. Pull the inner rail all the way out.

5. Repeat steps 1-3 for the second outer rail.

1

2

1

1

1

3

1

4

2-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Figure 2-4. Inner Rails Installed on the Chassis

Figure 2-3. Installing the Inner Rails

Installing The Inner Rails on the Chassis

Installing the Inner Rails

1. Confi rm that the left and right inner rails have been correctly identifi ed.

2. Place the inner rail fi rmly against the side of the chassis, aligning the hooks
on the side of the chassis with the holes in the inner rail.

3. Slide the inner rail forward toward the front of the chassis until the rail clicks
into the locked position, which secures the inner rail to the chassis.

4. Secure the inner rail to the chassis with the screws provided.

5. Repeat steps 1 through 4 above for the other inner rail.

3

1

4

1

4

2

Inner Rails

Warning: do not pick up the server by the front handles. They are designed
to pull the system from a rack only.

2-7

Chapter 2: Server Installation

Installing the Outer Rails on the Rack

Installing the Outer Rails

1. Press upward on the locking tab at the rear end of the middle rail.

2. Push the middle rail back into the outer rail.

3. Hang the hooks of the front of the outer rail onto the slots on the front of
the rack. If necessary, use screws to secure the outer rails to the rack, as
illustrated above.

4. Pull out the rear of the outer rail, adjusting the length until it fi ts within the
posts of the rack.

5. Hang the hooks of the rear portion of the outer rail onto the slots on the rear
of the rack. If necessary, use screws to secure the rear of the outer rail to the
rear of the rack.

6. Repeat steps 1-5 for the remaining outer rail.

Figure 2-5. Extending and Releasing the Outer Rails

1

1

1

2

1

3

1

4

2-8

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Figure 5-6: Installing into a Rack

Standard Chassis Installation

Installing the Chassis into a Rack

1. Confi rm that the inner rails are properly installed on the chassis.

2. Confi rm that the outer rails are correctly installed on the rack.

3. Pull the middle rail out from the front of the outer rail and make sure that the
ball-bearing shuttle is at the front locking position of the middle rail.

4. Align the chassis inner rails with the front of the middle rails.

5. Slide the inner rails on the chassis into the middle rails, keeping the pressure
even on both sides, until the locking tab of the inner rail clicks into the front of
the middle rail, locking the chassis into the fully extended position.

6. Depress the locking tabs of both sides at the same time and push the chassis
all the way into the rear of the rack.

7. If necessary for security purposes, use screws to secure the chassis handles
to the front of the rack.

Stability hazard. The rack stabilizing mechanism must be in place, or the
rack must be bolted to the fl oor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over.

Note: fi gures are for illustrative purposes only. Always install servers into racks
from the bottom up.

Ball-Bearing

Shuttle

2-9

Chapter 2: Server Installation

Optional Quick Installation Method

The following quick installation method may be used to install the chassis onto a
rack.

Installing the Chassis into a Rack

1. Install the whole rail assembly onto the rack as described on page 2-7.

2. Release the inner rail without retracting the middle rail.

3. Install the inner rails on the chassis as previously described on page 2-6.

4. Install the chassis onto the middle rail as described in the previous section.

2-10

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Notes

Chapter 3: System Interface

3-1

Figure 3-1: Front LED Panel

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the drive carriers
to keep you constantly informed of the overall status of the system as well as the
activity and health of specifi c components.

The SC418GTS has two buttons on the chassis control panel: a reset button and a
power on/off switch. This chapter explains the meanings of all LED indicators and
the appropriate responses you may need to take.

3-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

3-3 Control Panel LEDs

The control panel located on the left handle of the SC418GTS chassis has fi ve
LEDs. These LEDs provide you with critical information related to different parts
of the system. This section explains what each LED indicates when illuminated
and any corrective action you may need to take.

Power

The main power button is used to apply or remove power from the power supply
to the server system. Turning off system power with this button removes the main
power but keeps standby power supplied to the system. Therefore, you must
unplug system before servicing.

3-2 Control Panel Buttons

There are two push-buttons located on the left handle of the chassis. These are
(in order from top to bottom) a power on/off button and a reset button.

Power

Indicates power is being supplied to the system's power supply units. This LED
should normally be illuminated when the system is operating.

HDD

Indicates IDE channel activity. SAS/SATA drive, and/or DVD-ROM drive activity
when fl ashing.

Reset

The reset button is used to reboot the system.

Chapter 3: System Interface

3-3

NIC1

Indicates network activity on GLAN1 when fl ashing.

NIC2

Indicates network activity on GLAN2 when fl ashing.

1

2

Information LED

This LED will be solid blue when the UID function has been activated. When this
LED fl ashes red, it indicates a fan failure. When red continuously it indicates an
overheat condition, which may be caused by cables obstructing the airfl ow in the
system or the ambient room temperature being too warm. Check the routing of
the cables and make sure all fans are present and operating normally. You should
also check to make sure that the chassis covers are installed. Finally, verify that
the heatsinks are installed properly (see Chapter 5). This LED will remain fl ashing
or on as long as the indicated condition exists.

Note: deactivating the UID LED must be performed in the same way it was activated.
(If the UID LED was activated via IPMI, you can only turn the LED off via IPMI and
not with the UID button.)

Information LED States

State Indication

Continuously On (Red) An overheat condition has occured.

Fast Blinking Red (1 Hz) Fan Failure

Slow Blinking Red (.25 Hz) Power Fail

Solid Blue Local UID button has been activated.

Blinking Blue IPM/Remote UID has been activated

3-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL



Power Failure

When this LED fl ashes, it indicates a failure in the redundant power supply.

3-4 Drive Carrier LEDs

Your system supports SAS/SATA drives.

SAS/SATA Drives

Each SAS/SATA drive carrier has two LEDs.

• Blue:

Solid on = Drive is present and available.
Blinking = Drive is actively being accessed.
Each Serial ATA drive carrier has a blue LED. When illuminated in a solid
on state, this blue LED (on the front of the SAS/SATA drive carrier) indicates
drive activity. A connection to the SAS/SATA backplane enables this LED to
blink on and off when that particular drive is being accessed.

• Red:

Solid on = Drive failure
Blinking = Rebuilding RAID
The red LED to indicate an SAS/SATA drive failure. If one of the SAS/SATA
drives fail, you should be notifi ed by your system management software.

4-1

Chapter 4: Warning Statements for AC Systems

Chapter 4

Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user
of situations which have the potential for bodily injury. Should you have questions
or experience difficulty, contact Supermicro's Technical Support department
for assistance. Only certifi ed technicians should attempt to install or confi gure
components.

Read this appendix in its entirety before installing or confi guring components in the
Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.com/
about/policies/safety_information.cfm.

Warning!

This warning symbol means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the hazards involved with
electrical circuitry and be familiar with standard practices for preventing accidents.

Warning Defi nition

警告の定義

この警告サインは危険を意味します。

人身事故につながる可能性がありますので、いずれの機器でも動作させる前に、

電気回路に含まれる危険性に注意して、標準的な事故防止策に精通して下さい。

此警告符号代表危险。

您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分
意识到触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结
尾的声明号码找到此设备的安全性警告说明的翻译文本。

此警告符號代表危險。

您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸
電的危險，並且要熟悉預防事故發生的標準工作程序。請依照每一注意事項後的號
碼找到相關的翻譯說明內容。

4-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu
Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den
Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung
vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen
Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes
de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y
familiarícese con los procedimientos estándar de prevención de accidentes. Al
fi nal de cada advertencia encontrará el número que le ayudará a encontrar el texto
traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES.

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant entraîner des blessures ou des dommages corporels. Avant
de travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées pour
éviter les accidents. Pour prendre connaissance des traductions des avertissements
fi gurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fi n de chaque avertissement.

CONSERVEZ CES INFORMATIONS.

ןונקת תורהצהאהרהז

ןה תואבה תורהצהא ינפמ שמתשמה תא ריהזהל תנמ לע ,היישעתה ינקת יפ לע תורהז הלבח

ה וא תולאש שיו הדימב .תירשפא תיזיפי ,יהשלכ היעבב תולקתרוציל שי הכימת תקלחמ םע רשק

רידגהל וא ןיקתהל םיאשר דבלב םיכמסומ םיאנכט .ורקימרפוס לש תינכט תאה .םיביכר

אורקל שי .ורקימרפוס יזראמב םיביכרה

תרדגה וא תנקתה ינפל ואולמב חפסנה תא

4-3

Warning Statements for AC Systems

안전을 위한 주의사항

경고!

이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수
있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와
관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준
작업절차를 준수해 주시기 바랍니다.

해당 번역문을 찾기 위해 각 경고의 마지막 부분에 제공된 경고문 번호를
참조하십시오

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken,
dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's
en dient u op de hoogte te zijn van de standaard procedures om ongelukken te
voorkomen. Gebruik de nummers aan het eind van elke waarschuwing om deze te
herleiden naar de desbetreffende locatie.

BEWAAR DEZE INSTRUCTIES

. ﻲﻓ ﻚﻧﺍ ﻥﺃ ﻦﻜﻤﻳ ﺔﻟﺎﺣ ﻲﻓ ﺐﺒﺴﺘﺗ ﺔﺑﺎﺻﺍ ﺔﻳﺪﺴﺟ ﺰﻣﺮﻟﺍ ﺍﺬﻫ ﻲﻨﻌﻳ ﺮﻄﺧ !ﺮﻳﺬﺤﺗ

ﻥﺃ ﻞﺒﻗ ﻱﺃ ﻰﻠﻋ ﻞﻤﻌﺗ ﺕﺍﺪﻌﻣ،ﻛﻢﻠﻋ ﻰﻠﻋ ﻦ ﻦﻋ ﺔﻤﺟﺎﻨﻟﺍ ﺮﻁﺎﺨﻤﻟﺎﺑ ﺮﺋﺍﻭﺪﻟﺍ

ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ

ﻛﻭﺔﻳﺍﺭﺩ ﻰﻠﻋ ﻦ ﺭﺎﻤﻤﻟﺎﺑﺕﺎﺳ ﺔﻴﺋﺎﻗﻮﻟﺍ ﻟ ﻊﻨﻤﻉﻮﻗﻭ ﻱﺃﺙﺩﺍﻮﺣ

ﻢﻗﺭ ﻡﺪﺨﺘﺳﺍ ﻥﺎﻴﺒﻟﺍ ﺹﻮﺼﻨﻤﻟﺍ ﺔﻳﺎﻬﻧ ﻲﻓ ﺮﻳﺬﺤﺗ ﻞﻛ ﺭﻮﺜﻌﻠﻟ ﺎﻬﺘﻤﺟﺮﺗ

4-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source.

Warnung

Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen
lesen.

¡Advertencia!

Lea las instrucciones de instalación antes de conectar el sistema a la red de
alimentación.

Attention

Avant de brancher le système sur la source d'alimentation, consulter les directives
d'installation.

設置手順書

システムを電源に接続する前に、設置手順書をお読み下さい。

ﻟﺍ ﺕﺍﺩﺎﺷﺭﺇ ﺮﻗﺍﺐﻴﻛﺮﺘ ﻞﻴﺻﻮﺗ ﻞﺒﻗ ﻰﻟﺇ ﻡﺎﻈﻨﻟﺍ ﺔﻗﺎﻄﻠﻟ ﺭﺪﺼﻣ

אורקל שי רוקמל תכרעמה רוביח ינפל הנקתה תוארוה תאחתמ.

시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오.

Waarschuwing

Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron
aansluit.

警告
将此系统连接电源前,请先阅读安装说明。

警告
將系統與電源連接前，請先閱讀安裝說明。

4-5

Chapter 4: Warning Statements for AC Systems

Circuit Breaker

Warning!

This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

この製 品 は、短絡（過電流）保護装置がある建物での設置を前提としています。

保護装置の定格が250V、20Aを超えないことを確認下さい。

Warnung

Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss­bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der
Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.

¡Advertencia!

Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes)
del edifi cio. Asegúrese de que el dispositivo de protección no sea superior a: 250
V, 20 A.

Attention

Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit
dépend de l'installation électrique du local. Vérifi ez que le courant nominal du
dispositif de protection n'est pas supérieur à :250 V, 20 A.

¥²¢¢¥§²±¯°³«¢©§¥¦¢©§³©°³§©¥«£§³ª§±¯§

60VDC, 20A§±³¢¥¢¥§²±¯°¢©§¨§±¢²¤§

΍ϩΕϱ

ΏΙΕ

ϡΕ ϱΕϝ΍

Γέϱιϕϝ΍έΉ

΍ϭΩϝ΍ϩϡΕϱ΍ϡ

Ρϝ΍

Ι΍Ωωϡ

ϯϝω ΩϡΕωϱΝΕϥϡϝ΍΍Ϋ

ϩ

ϯϥΏϡϝ΍

20A, 250VDC :ϥϡ

έΙϙ΃αϱϝϱΉ΍ϕϭϝ΍

ί΍ϩΝϝ΍

ϡϱϱϕΕ

ϥ΃ ϥϡ Ωϙ΃Ε

警告
此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电
流不大于250V,20A。

警告
此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電
流不大於250V,20A。

4-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Power Disconnection Warning

電源切断の警告
システムコンポーネントの取り付けまたは取り外しのために、シャーシー内部にアクセス

するには、
システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り

外す必要があります。

警告

在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线。

警告

在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。

Warnung

Das System muss von allen Quellen der Energie und vom Netzanschlusskabel
getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es
auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder
zu entfernen.

Warning!

The system must be disconnected from all sources of power and the power cord
removed from the power supply module(s) before accessing the chassis interior to
install or remove system components.

경고!

이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에
의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지
않도록 해야 합니다.

Waarschuwing

Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van
uw electrische installatie. Controleer of het beveiligde aparaat niet groter
gedimensioneerd is dan 220V, 20A.

4-7

Chapter 4: Warning Statements for AC Systems

¡Advertencia!

El sistema debe ser disconnected de todas las fuentes de energía y del cable
eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso
el interior del chasis para instalar o para quitar componentes de sistema.

Attention

Le système doit être débranché de toutes les sources de puissance ainsi que de
son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour
installer ou enlever des composants de systéme.

ילמשח קותינ ינפמ הרהזא

!הרהזא

למשחה תורוקמ לכמ תכרעמה תא קתנל שי ריסהל שיו קפסהמ ילמשחה לבכ תא

נקתה ךרוצל זראמה לש ימינפה קלחל השיג ינפלת רסה ואת .םיביכר

ﻞﺼﻓ ﺐﺠﻳ ﻡﺎﻈﻨﻟﺍ ﻊﻴﻤﺟ ﻦﻣﺭﺩﺎﺼﻣ ﺔﻗﺎﻄﻟﺍ ﺔﻟﺍﺯﺇﻭ ءﺎﺑﺮﻬﻜﻟﺍ ﻚﻠﺳ ﻦﻣ ﺓﺪﺣﻭ ﺩﺍﺪﻣﺍ

ﺔﻗﺎﻄﻟﺍ ﻞﺒﻗ

ﻰﻟﺇ ﻝﻮﺻﻮﻟﺍ ﺔﻴﻠﺧﺍﺪﻟﺍ ﻖﻁﺎﻨﻤﻟﺍ ﻟﻞﻜﻴﻬﻠ ﺔﻟﺍﺯﺇ ﻭﺃ ﺖﻴﺒﺜﺘﻟ ﺕﺎﻧﻮﻜﻣ

ﺯﺎﻬﺠﻟﺍ

경고!

시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에
반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야
합니다.

Waarschuwing

Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren
of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle
stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen

4-8

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Equipment Installation

機器の設置

トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可
されています。

Warning!

Only trained and qualifi ed personnel should be allowed to install, replace, or service
this equipment.

Warnung

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem,
qualifi ziertem Personal gestattet werden.

¡Advertencia!

Solamente el personal califi cado debe instalar, reemplazar o utilizar este equipo.

Attention

Il est vivement recommandé de confier l'installation, le remplacement et la
maintenance de ces équipements à des personnels qualifi és et expérimentés.

!הרהזא

שר דבלב ךמסומ תווצתא ףילחהל ,ןיקתהל יא .דויצה רובע תוריש תתל וא דויצה

ﻦﻴﺑﺭﺪﻤﻟﺍﻭ ﻭ ﺐﻴﻛﺮﺘﻟﻝﺍﺪﺒﺘﺳﺍ ﻭﺃ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ ﺢﻤﺴﻳ ﻥﺃ ﺐﺠﻳ ﻂﻘﻓ ﻦﻴﻠﻫﺆﻤﻟﺍ ﻦﻴﻔﻅﻮﻤﻠﻟ

경고!

훈련을 받고 공인된 기술자만이 이 장비의 설치, 교체 또는 서비스를 수행할 수
있습니다.

警告
只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。

警告
只有經過受訓且具資格人員才可安裝、更換與維修此設備。

4-9

Chapter 4: Warning Statements for AC Systems

アクセス制限区域
このユ ニットは、アクセス制限区域に設置されることを想定しています。
アクセス制限区域は、特別なツール、鍵と錠 前、その他のセキュリティの手段を用いての

み出入りが可能です。

Warning!

This unit is intended for installation in restricted access areas. A restricted access
area can be accessed only through the use of a special tool, lock and key, or other
means of security. (This warning does not apply to workstations).

Restricted Area

Waarschuwing

Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door
geschoold en gekwalifi ceerd personeel.

Warnung

Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen.
Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und
Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.

¡Advertencia!

Esta unidad ha sido diseñada para instalación en áreas de acceso restringido.
Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una
herramienta especial, cerradura con llave u otro medio de seguridad.

Attention

Cet appareil doit être installée dans des zones d'accès réservés. L'accès à une
zone d'accès réservé n'est possible qu'en utilisant un outil spécial, un mécanisme
de verrouillage et une clé, ou tout autre moyen de sécurité.

警告
此部件应安装在限制进出的场所，限制进出的场所指只能通过使用特殊工具、锁和
钥匙或其它安全手段进出的场所。

警告
此裝置僅限安裝於進出管制區域，進出管制區域係指僅能以特殊工具、鎖頭及鑰匙
或其他安全方式才能進入的區域。

4-10

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Battery Handling

Warning!

There is the danger of explosion if the battery is replaced incorrectly. Replace the
battery only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions

תלבגומ השיג םע רוזא

!הרהזא

תרזעב תנתינ השיגה .השיג תלבגה םהב שיש םירוזאב הדיחיה תא ןיקתהל שי

.('דכו לוענמ ,חתפמ) דבלב החטבא ילכ

. ﺺﻴﺼﺨﺗ ﺓﺪﺣﻮﻟﺍ ﻩﺬﻫ ﻲﻓ ﺎﻬﺒﻴﻛﺮﺘﻟ ﻖﻁﺎﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻢﺗ

ﺻﻮﻟﺍ ﻦﻜﻤﻳﻰﻟﺇ ﻝﻮ ﺔﻘﻄﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻂﻘﻓ ﻡﺍﺪﺨﺘﺳﺍ ﻝﻼﺧ ﻦﻣ ،ﺔﺻﺎﺧ ﺓﺍﺩﺃ

ﻭﺃ ﻱﺃ ﻼﻟ ﻯﺮﺧﺃ ﺔﻠﻴﺳﻭﻥﺎﻣﻷ ﺡﺎﺘﻔﻣﻭ ﻞﻔﻗ

경고!

이 장치는 접근이 제한된 구역에 설치하도록 되어있습니다. 특수도구, 잠금 장치 및
키, 또는 기타 보안 수단을 통해서만 접근 제한 구역에 들어갈 수 있습니다.

Waarschuwing

Dit apparaat is bedoeld voor installatie in gebieden met een beperkte toegang.
Toegang tot dergelijke gebieden kunnen alleen verkregen worden door gebruik te
maken van speciaal gereedschap, slot en sleutel of andere veiligheidsmaatregelen.

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメー
カーが推奨する型、または同 等のものを使 用下さい。使用済電池は製造元の指示に従

って処 分して 下さい 。

警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

4-11

Chapter 4: Warning Statements for AC Systems

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die
Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.
Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer
que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
Reemplazar la batería exclusivamente con el mismo tipo o el equivalente
recomendado por el fabricante. Desechar las baterías gastadas según las
instrucciones del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל

ﺮﻄﺧ ﻙﺎﻨﻫ ﻦﻣ ﻝﺍﺪﺒﺘﺳﺍ ﺔﻟﺎﺣ ﻲﻓ ﺭﺎﺠﻔﻧﺍ ﺔﻳﺭﺎﻄﺒﻟﺍ ﺔﺤﻴﺤﺻ ﺮﻴﻏ ﺔﻘﻳﺮﻄﺑ ﻚﻴﻠﻌﻓ

ﺔﻳﺭﺎﻄﺒﻟﺍ ﻝﺍﺪﺒﺘﺳﺍ

ﻂﻘﻓ ﻉﻮﻨﻟﺍ ﺲﻔﻨﺑ ﺎﻬﻟﺩﺎﻌﻳ ﺎﻣ ﻭﺃ ﺎﻤﻛﺖﺻﻭﺃ ﺔﻌﻨﺼﻤﻟﺍ ﺔﻛﺮﺸﻟﺍ ﻪﺑ

ﺕﺎﻳﺭﺎﻄﺒﻟﺍ ﻦﻣ ﺺﻠﺨﺗ ﻟ ﺎﻘﻓﻭ ﺔﻠﻤﻌﺘﺴﻤﻟﺍﺔﻌﻧﺎﺼﻟﺍ ﺔﻛﺮﺸﻟﺍ ﺕﺎﻤﻴﻠﻌﺘ

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와
동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다.
제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontploffi ngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de
batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen
wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd
te worden.

4-12

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Warnung

Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass
der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

¡Advertencia!

Puede que esta unidad tenga más de una conexión para fuentes de alimentación.
Para cortar por completo el suministro de energía, deben desconectarse todas las
conexiones.

Attention

Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute
tension et tout courant électrique de l'unité, toutes les connexions d'alimentation
doivent être débranchées.

Redundant Power Supplies

Warning!

This unit might have more than one power supply connection. All connections must
be removed to de-energize the unit.

冗長電源装置

このユニットは複数の電源装置が接続されている場合があります。

ユニットの電源を切るためには、すべての接続を取り外さなければなりません。

דחא קפסמ רתוי םייק םא

!הרהזא

.קפס לש דחא רוביחמ רתוי שי הדחיל תא ריסהל שיןקורל תנמ לע םירוביחה לכ

חיה תאי.הד

警告
此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。

警告
此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。

4-13

Chapter 4: Warning Statements for AC Systems

Backplane Voltage

バックプレーンの電圧
システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。

修理する際には注意ください。

警告
当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。

警告
當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。

Warnung

Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche
Spannungen oder Energien auf. Vorsicht bei der Wartung.

¡Advertencia!

Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso.
Tenga cuidado cuando lo revise.

Attention

Lorsque le système est en fonctionnement, des tensions électriques circulent sur
le fond de panier. Prendre des précautions lors de la maintenance.

Warning!

Hazardous voltage or energy is present on the backplane when the system is
operating. Use caution when servicing.

. ﺪﻗ ﺍﺬﻬﻟ ﻥﻮﻜﻳ ﻟﺍﺯﺎﻬﺠ ﺕﻻﺎﺼﺗﺍ ﺓﺪﻋ ﺕﺍﺪﺣﻮﺑ ﺔﻗﺎﻄﻟﺍ ﺩﺍﺪﻣﺍ

ﺔﻟﺍﺯﺇ ﺐﺠﻳ ﺕﻻﺎﺼﺗﻻﺍ ﺔﻓﺎﻛ ﻝﺰﻌﻟ ﻟﺍﺓﺪﺣﻮ ﻦﻋ ءﺎﺑﺮﻬﻜﻟﺍ

경고!

이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에
전원을 차단하기 위해서는 모든 연결 단자를 제거해야만 합니다.

Waarschuwing

Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle
aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken.

4-14

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠
機器の取り付けはその地方および国の電気規格に準拠する必要があります。

Warnung

Die Installation der Geräte muss den Sicherheitsstandards entsprechen.

¡Advertencia!

La instalacion del equipo debe cumplir con las normas de electricidad locales y
nacionales.

ﻙﺎﻨﻫ ﺮﻄﺧ ﻦﻣ ﻲﺋﺎﺑﺮﻬﻜﻟﺍ ﺭﺎﻴﺘﻟﺍ ﻰﻠﻋ ﺓﺩﻮﺟﻮﻤﻟﺍ ﺔﻗﺎﻄﻟﺍﻭﺃ ﺔﺣﻮﻠﻟﺍ

ﻥﻮﻜﻳ ﺎﻣﺪﻨﻋﻡﺎﻈﻨﻟﺍ ﻞﻤﻌﻳ ﺪﻨﻋ ﺍﺭﺬﺣ ﻦﻛ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ

경고!

시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생
합니다. 서비스 작업 시 주의하십시오.

Waarschuwing

Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het
systeem in gebruik is. Voorzichtigheid is geboden tijdens het onderhoud.

ירוחאה לנפב חתמ

זא!הרה

ךלהמב רהזיהל שי .תכרעמה לועפת ןמזב ירוחאה לנפב חתמ תנכס תמייק

.הדובעה

警告

设备安装必须符合本地与本国电气法规。

警告

設備安裝必須符合本地與本國電氣法規。

4-15

Chapter 4: Warning Statements for AC Systems

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws
and regulations.

יצראה למשחה יקוח םואית

!הרהזא

תנקתה םייצראהו םיימוקמה למשחה יקוחל תמאות תויהל תבייח דויצה.

ﺕﺍﺪﻌﻤﻟﺍ ﺐﻴﻛﺮﺗ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﻠﻟ ﻞﺜﺘﻤﻳ ﻥﺃ ﺐﺠﻳ ﻦﻴﻧﺍﻮﻘﺔﻴﻨﻁﻮﻟﺍﻭ ﺔﻴﻠﺤﻤﻟﺍ ﺔﻘﻠﻌﺘﻤﻟﺍ

ءﺎﺑﺮﻬﻜﻟﺎﺑ

Attention

L'équipement doit être installé conformément aux normes électriques nationales
et locales.

경고!

현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.

Waarschuwing

Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale
elektriciteitsvoorschriften.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
あります。

警告
本产品的废弃处理应根据所有国家的法律和规章进行。

警告
本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen
des Landes erfolgen.

4-16

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming
met alle nationale wetten en reglementen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y
reglamentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des
lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de
l'organisme compétent.

Warning!

The fans might still be turning when you remove the fan assembly from the chassis.
Keep fi ngers, screwdrivers, and other objects away from the openings in the fan
assembly's housing.

Hot Swap Fan Warning

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

ﻲﺋﺎﻬﻨﻟﺍ ﺺﻠﺨﺘﻟﺍ ﻦﻣ ﺞﺘﻨﻤﻟﺍ ﺍﺬﻫ ﻪﻌﻣ ﻞﻣﺎﻌﺘﻟﺍ ﻲﻐﺒﻨﻳ ﻟ ﺎﻘﻓﻭ ﻊﻴﻤﺠﺔﻴﻨﻁﻮﻟﺍ ﺢﺋﺍﻮﻠﻟﺍﻭ ﻦﻴﻧﺍﻮﻘﻟﺍ ﺪﻨﻋ

ファン・ホットスワップの警告

シャーシから冷却ファン装置を取り外した際、ファンがまだ回転している可能性がありま

す。ファンの開口部に、指、ドライバー、およびその他のものを近づけないで下さい。

警告
当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他
物品太靠近风扇

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

4-17

Chapter 4: Warning Statements for AC Systems

Warnung

Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis
genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände
von den Öffnungen des Lüftergehäuses entfernt.

¡Advertencia!

Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador
del chasis. Mandtenga los dedos, los destornilladores y todos los objetos lejos de
las aberturas del ventilador

Attention

Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez
le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres
objets soient éloignés du logement du bloc ventilateur.

!הרהזא

יקלח תא םיריסמ רשאכ שי .םידבוע ןיידע םיררוואמהו ןכתי ,זראמהמ ררוואמה

קיחרהללררוואמה ךותב םיחתפהמ םינוש הדובע ילכו תועבצאה תא חוטב קחרמ

ﻦﻜﻤﻤﻟﺍ ﻦﻣ ﺡﻭﺍﺮﻤﻟﺍ ﻥﺃ ﻝﺍﺰﺗ ﻻ ﺔﻟﺍﺯﺇ ﺪﻨﻋﺭﻭﺪﺗ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ ﻞﻜﻴﻬﻟﺍ ﻦﻣ ﺐﺠﻳ ءﺎﻘﺑﺇ

ﻊﺑﺎﺻﻷﺍ ﻭﻲﻏﺍﺮﺒﻟﺍ ﺕﺎﻜﻔﻣ

. ءﺎﻴﺷﻷﺍ ﻦﻣ ﺎﻫﺮﻴﻏﻭ ﺍﺪﻴﻌﺑ ﻦﻋ ﺕﺎﺤﺘﻔﻟﺍ ﻲﻓ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ

경고!

섀시로부터 팬 조립품을 제거할 때 팬은 여전히 회전하고 있을 수 있습니다. 팬
조림품 외관의 열려있는 부분들로부터 손가락 및 스크류드라이버, 다른 물체들이
가까이 하지 않도록 배치해 주십시오.

Waarschuwing

Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het
ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers
en eventuele andere voorwerpen uit de buurt van de openingen in de
ventilatorbehuizing.

警告
當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他
物品太靠近風扇。

4-18

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Warning!

When installing the product, use the provided or designated connection cables,
power cables and AC adaptors. Using any other cables and adaptors could cause
a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the
use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any
other electrical devices than products designated by Supermicro only.

Power Cable and AC Adapter

Warnung

Bei der Installation des Produkts, die zur Verfügung gestellten oder benannt
Anschlusskabel, Stromkabel und Netzteile. Verwendung anderer Kabel und Adapter
kann zu einer Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und
Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifi zierte Kabel,
UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von
Supermicro nur bezeichnet gezeigt haben.

¡Advertencia!

Al instalar el producto, utilice los cables de conexión previstos o designados, los
cables y adaptadores de CA. La utilización de otros cables y adaptadores podría
ocasionar un mal funcionamiento o un incendio. Aparatos Eléctricos y la Ley de
Seguridad del Material prohíbe el uso de UL o CSA cables certifi cados que tienen
UL o CSA se muestra en el código de otros dispositivos eléctricos que los productos
designados por Supermicro solamente.

電源コードとACアダプター

製品を設置する場合、提供または指定された接続ケーブル、電源コードとACアダプター
を使用下さい。他のケーブルやアダプタを使用すると故障や火災の原因になることがあ

ります。電気用品安全法は、ULまたはCSA認定のケーブル(UL/CSEマークがコードに表

記)をSupermicroが指定する製品以外に使用することを禁止しています。

警告
安装此产品时,请使用本身提供的或指定的连接线,电源线和电源适配器.使用其它线
材或适配器可能会引起故障或火灾。除了Supermicro所指定的产品,电气用品和材
料安全法律规定禁止使用未经UL或CSA认证的线材。(线材上会显示UL/CSA符号)。

警告
安裝此產品時,請使用本身提供的或指定的連接線,電源線和電源適配器.使用其它線
材或適配器可能會引起故障或火災。除了Supermicro所指定的產品,電氣用品和材
料安全法律規定禁止使用未經UL或CSA認證的線材。(線材上會顯示UL/CSA符號)。

4-19

Chapter 4: Warning Statements for AC Systems

Attention

Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné.
L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement
ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit
l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code
pour tous les autres appareils électriques que les produits désignés par Supermicro
seulement.

אתמו םיילמשחמ י

AC

!הרהזא

םימאתמו םיקפס ,םילבכב שמתשהל שי ,רצומה תא םיניקתמ רשאכAC רשא

וא הלקתל םורגל לוכי רחא םאתמ וא לבכ לכב שומיש .ךכ םשל וקפוסו ודעונ

טב יקוחו למשח ירישכמב שומיש יקוח יפ לע .ילמשח רצק רוסיא םייק ,תוחי

ב םיכמסומה םילבכב שמתשהל-

UL ב וא- CSA לש דוק םהילע עיפומ ראשכ)

UL/CSA( רחא ילמשח רצומ לכ רובע.דבלב ורקימקרפוס ידי לע ןיוצ אלש

ﺐﻴﻛﺮﺗ ﺪﻨﻋ ﻡﺍﺪﺨﺘﺳﺍ ﺐﺠﻳ ﺯﺎﻬﺠﻟﺍ ﻭ،ﻞﻴﺻﻮﺘﻟﺍ ﺕﻼﺑﺎﻛ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺕﻼﺑﺎﻜﻟﺍ

ﺕﻻﻮﺤﻣﻭ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ

. ﻥﺃ ﻱﺃ ﻡﺍﺪﺨﺘﺳﺍ ﺕﻼﺑﺎﻛ ﺕﻻﻮﺤﻣﻭ ﻯﺮﺧﺃ ﺐﺒﺴﺘﻳ ﻲﻓ ﻞﻄﻋ ﺙﻭﺪﺣ ﻖﻳﺮﺣ ﻭﺃ . ﻲﺘﻟﺍ

ﻚﻟ ﺎﻫﺮﻴﻓﻮﺗ ﻢﺗ ﺞﺘﻨﻤﻟﺍ ﻊﻣ

UL ﻭﺃ CSA ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺰﻬﺟﻷﺍ ﺩﺍﻮﻣﻭ ﻥﻮﻧﺎﻗ ﺔﻣﻼﺴﻟﺍ ﻡﺍﺪﺨﺘﺳﺍ ﺮﻈﺤﻳ ﺕﻼﺑﺎﻜﻟﺍ

ﻞﺒﻗ ﻦﻣ ﺓﺪﻤﺘﻌﻣ

Supermicro ﺓﺰﻬﺟﺃ ﻯﺮﺧﺃ ﺔﻴﺋﺎﺑﺮﻬﻛ ﺮﻴﻏ ﺕﺎﺠﺘﻨﻤﻟﺍ ﺔﻨﻴﻌﻤﻟﺍ ﻞﺒﻗ ﻦﻣ ﻱﻷ

(UL/CSA ﻞﻤﺤﺗ ﻲﺘﻟﺍﺔﻣﻼﻋ )

경고!

제품을 설치할 때에는 제공되거나 지정된 연결케이블과 전원케이블, AC어댑터를
사용해야 합니다. 그 밖의 다른 케이블들이나 어댑터들은 고장 또는 화재의 원인이
될 수 있습니다. 전기용품안전법 (Electrical Appliance and Material Safety
Law)은 슈퍼마이크로에서 지정한 제품들 외에는 그 밖의 다른 전기 장치들을
위한 UL또는 CSA에서 인증한 케이블(전선 위에 UL/CSA가 표시)들의 사용을
금지합니다.

Waarschuwing

Bij het installeren van het product, gebruik de meegeleverde of aangewezen kabels,
stroomkabels en adapters. Het gebruik van andere kabels en adapters kan leiden
tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet
verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op
de code voor andere elektrische apparaten dan de producten die door Supermicro
alleen.

4-20

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Notes

Chapter 5: Advanced Serverboard Setup

5-1

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to install the X9DRG-OF/OTFserverboard
into the chassis, connect the data and power cables and install add-on cards.
All serverboard jumpers and connections are also described. A layout and quick
reference chart are included in this chapter for your reference. Remember to
completely close the chassis when you have fi nished working with the serverboard
to better cool and protect the system.

5-1 Handling the Serverboard

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent
damage to any printed circuit boards (PCBs), it is important to handle them very
carefully (see previous chapter). To prevent the serverboard from bending, keep
one hand under the center of the board to support it when handling. The following
measures are generally suffi cient to protect your equipment from electric static
discharge.

Precautions

• Use a grounded wrist strap designed to prevent Electrostatic Discharge (ESD).

• Touch a grounded metal object before removing any board from its antistatic bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid electrical static
discharge. When unpacking the board, make sure the person handling it is static
protected.

5-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

5-2 Connecting Cables

This section covers instructions on how to connect cables to the serverboard.

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully
routed in preconfi gured systems to prevent them from blocking the fl ow of cooling
air that moves through the system from front to back. If you need to disconnect
any of these cables, you should take care to reroute them as they were originally
routed and connected after reconnecting them to the serverboard and peripherals.
If you are confi guring the system, keep the interior system airfl ow in mind when
routing the cables.

The following cables need to be connected for the SuperServer 4027GR-TR/TRT
system:

• Two (2) HDD power extension to backplane cables (CBL-0449L)

• Two (2) cross-over mini SAS HD to 4 SATA w/ SB cables (CBL-SAST-0591)

• Eight (8) 8-pin to two 6+2 pin 12V GPU power cables (CBL-PWEX-0582)

• Eight (8) cooling fan power cables

• Front panel cable

• Chassis instrusion cable

Chapter 5: Advanced Serverboard Setup

5-3

5-3 Control Panel Connectors and I/O Ports

The I/O ports are located on the backplane of the serverboard. See Figure 5-2
below for the descriptions of the various I/O ports.

Figure 5-1. Rear I/O Ports

Back Panel I/O Port Locations and Defi nitions

1. Dedicated IPMI LAN

2. Back Panel USB Port 0/1 (USB2.0)

3. Back Panel USB Port 2/3 (USB2.0)

4. LAN1

5. LAN2

6. VGA Port

7. UID Switch

2

1

53 4 6

7

5-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 5-2
for the pin locations of the various front control panel buttons and LED indicators.
Even and odd numbered pins are on opposite sides of each header.

All JF1 wires have been bundled into single keyed ribbon cable to simplify their
connection. The red wire in the ribbon cable plugs into pin 1 of JF1. Connect the
other end of the cable to the Control Panel printed circuit board, located just behind
the system status LEDs in the chassis.

See the Connector Defi nitions section in this chapter for details and pin descriptions
of JF1.

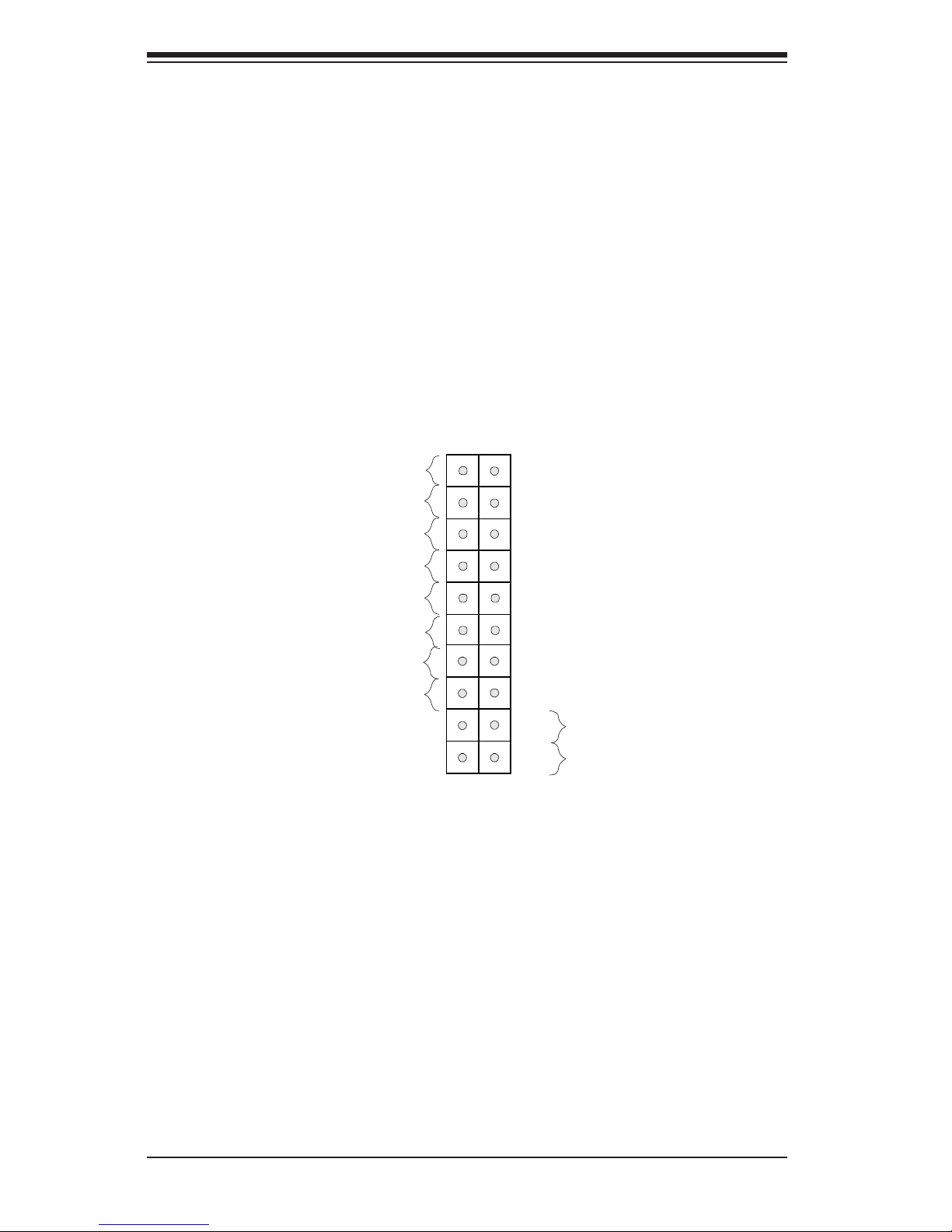

Figure 5-2. Front Control Panel Header Pins (JF1)

Power Button

Blue+ (OH/Fan Fail/
PWR FaiL/UID LED)

1

NIC1 Link LED

Reset Button

2

Power Fail LED

HDD LED

FP PWRLED

Reset

PWR

3.3 V

ID_UID_SW/3/3V Stby

Red+ (Blue LED Cathode)

Ground

Ground

1920

3.3V

X

Ground

NMI

X

NIC2 Link LED

NIC2 Activity LED

NIC1 Activity LED

Chapter 5: Advanced Serverboard Setup

5-5

5-4 Processor and Heatsink Installation

Caution! When handling the processor package, avoid placing direct pressure on the

label area. Make sure to install the system board into the chassis before you install
the CPU heatsink.

Notes

• Always connect the power cord last, and always remove it before adding,

removing or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.

• If you buy a CPU separately, make sure that you use an Intel-certifi ed multi-

directional heatsink only.

• When receiving a server board without a processor pre-installed, make sure that

the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.

• Refer to the Supermicro website for updates on CPU support.

• When one CPU is installed, be sure to installed on CPU Socket 1 fi rst.

Installing the LGA2011 Processor

1. There are two load levers on the LGA2011 socket. To open the socket cover,
fi rst press and release the load lever labeled 'Open 1st'.

OPEN 1st

OPEN 1st

Press down on

load lever labeled

'Open 1st'.

OPEN 1st

OPEN 1st

5-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

2. Press the second load lever labeled 'Close 1st' to release the load plate that
covers the CPU socket from its locking position.

3. With the lever labeled 'Close 1st' fully retracted, gently push down on the
lever marked 'Open 1st' to open the load plate. Lift the load plate to open it
completely.

OPEN 1st

OPEN 1st

Press down on

the load

lever labeled 'Close 1st'

OPEN 1st

OP

EN

1s

t

Pull the lever away
from the socket

Gently push to pop the

load plate open.

OPEN 1st

OPEN

1s

t

Chapter 5: Advanced Serverboard Setup

5-7

4. Use your index fi ngers to loosen the lever and open the load plate.

5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU
keys, which are semi-circle cutouts, against the socket keys.

Socket Keys

CPU Keys

5-8

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

6. Once they are aligned, carefully lower the CPU straight down into the socket.
(Do not drop the CPU on the socket. Do not move the CPU horizontally or
vertically. Do not rub the CPU against the surface or against any pins of the
socket to avoid damaging the CPU or the socket.)

Warning: You can only install the CPU inside the socket in one direction. Make
sure that it is properly inserted into the CPU socket before closing the load plate. If
it doesn't close properly, do not force it as it may damage your CPU. Instead, open
the load plate again and double-check that the CPU is aligned properly.

Chapter 5: Advanced Serverboard Setup

5-9

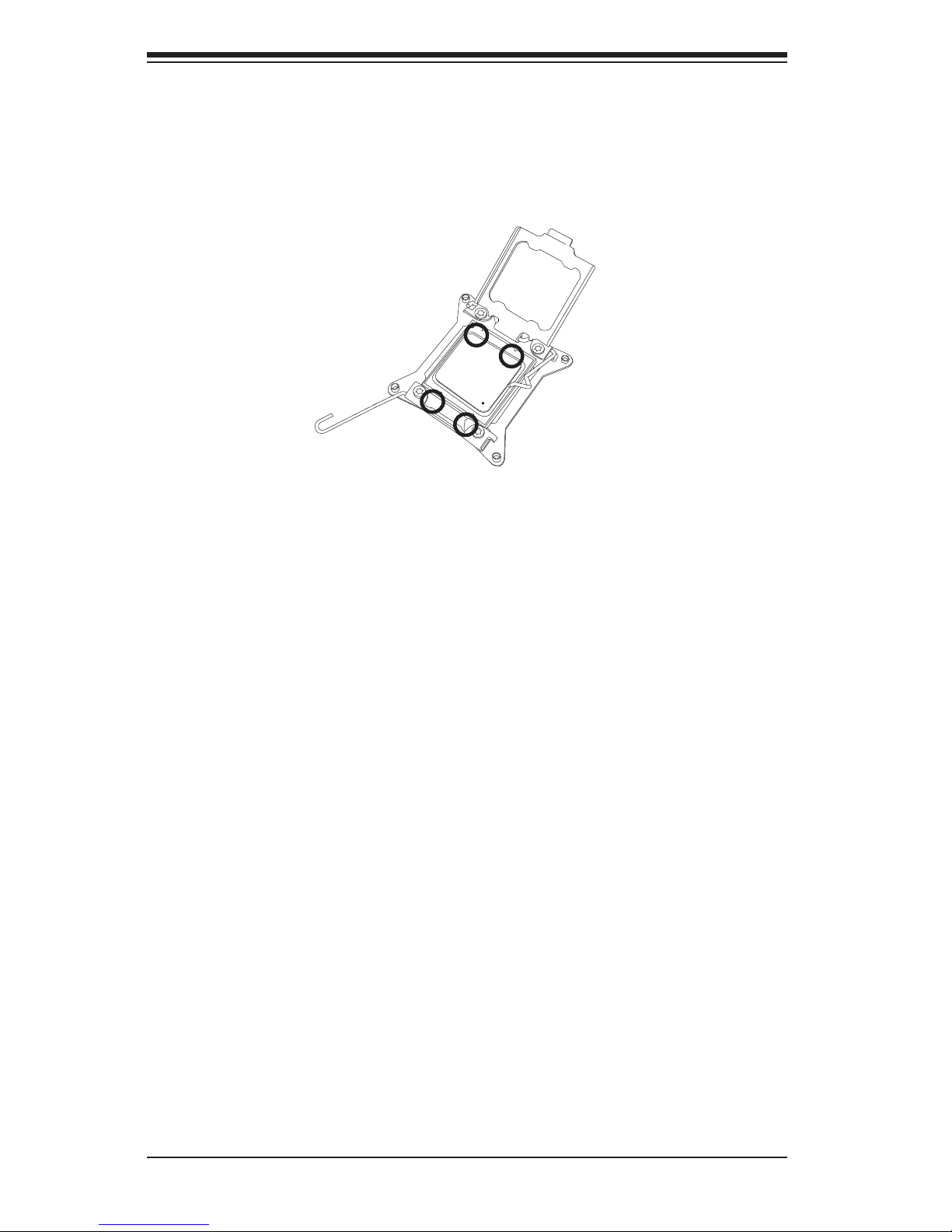

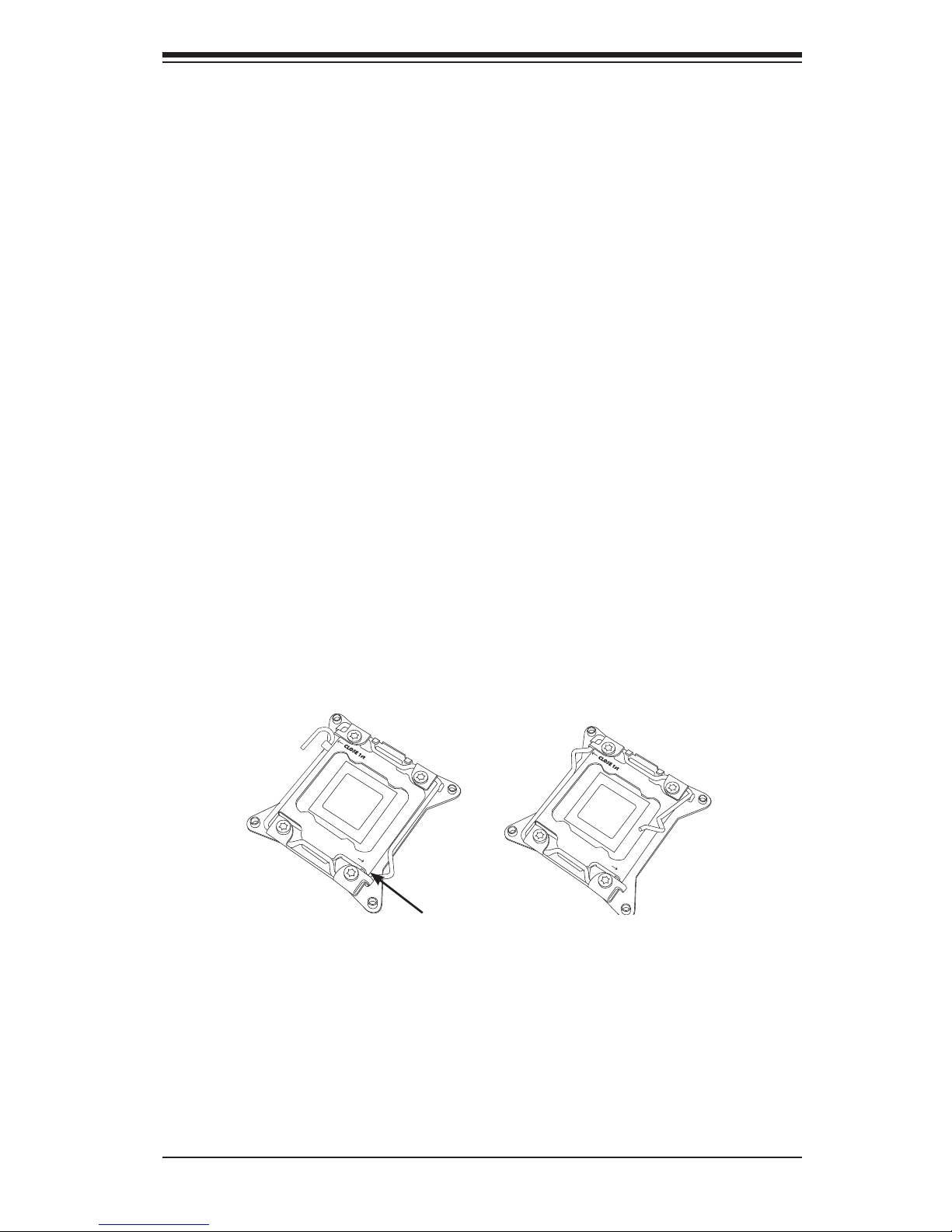

7. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.

8. Close the load plate with the CPU inside the socket. Lock the lever labeled
'Close 1st' fi rst, then lock the lever labeled 'Open 1st' second. Use your
thumb to gently push the load levers down to the lever locks.

Gently close

the load plate.

OPEN 1st

OPEN

1st

Push down and lock the

level labeled 'Close 1st'.

OPEN 1st

OPEN 1s

t

Lever

Lock

Push down and lock

the lever labeled

'Open 1st'

OPEN 1st

OPEN 1st

Lever
Lock

5-10

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

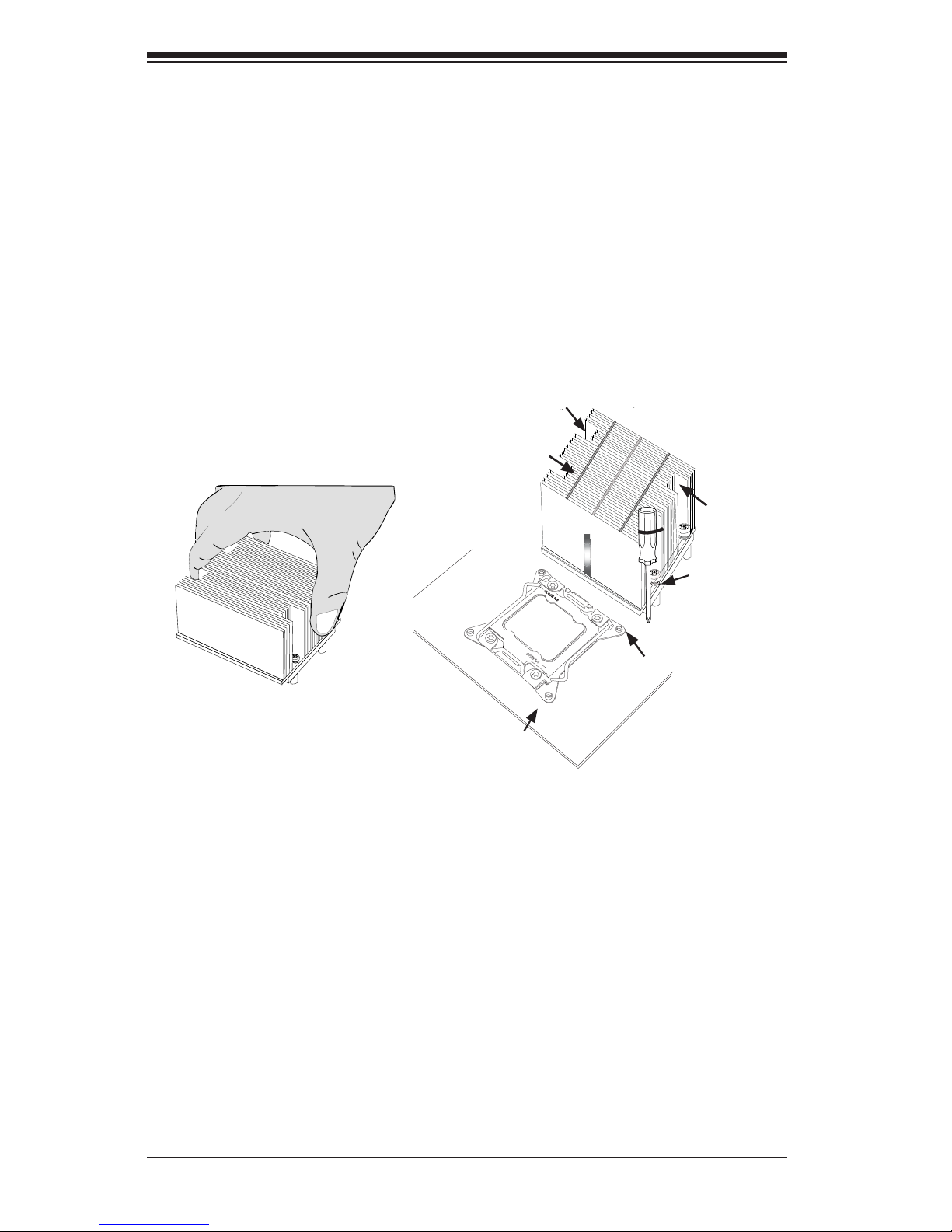

Installing a Passive CPU Heatsink

1. Do not apply any thermal grease to the heatsink or the CPU die -- the
required amount has already been applied.

2. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the Serverboard's and the Heatsink Bracket underneath.

3. Screw in two diagonal screws (i.e., the #1 and the #2 screws) until just snug
(-do not over-tighten the screws to avoid possible damage to the CPU.)

4. Finish the installation by fully tightening all four screws.

OPEN 1st

Serverboard

Screw#1

Screw#2

Mounting
Holes

Screw#3

Screw#4

Chapter 5: Advanced Serverboard Setup

5-11

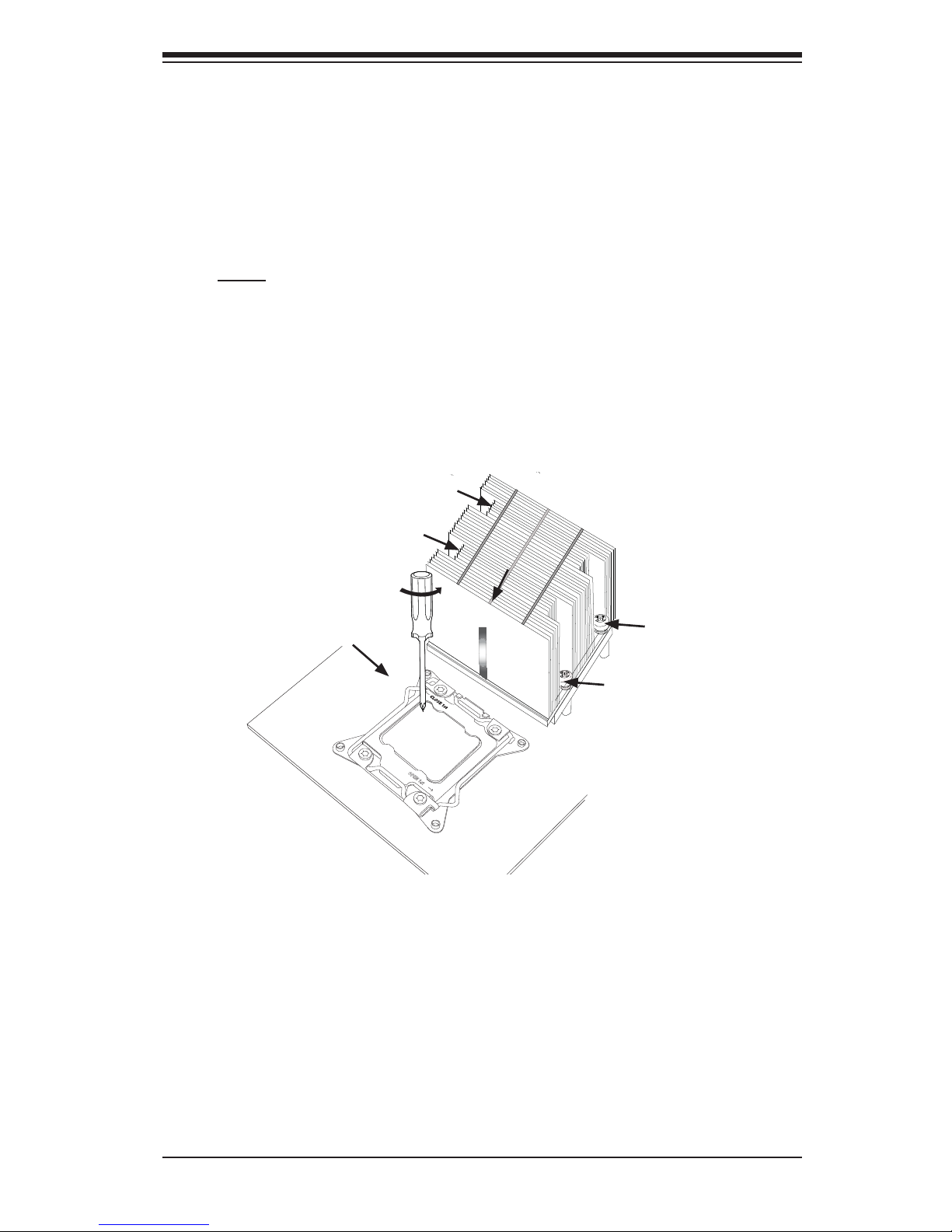

Removing the Heatsink

Caution: We do not recommend that the CPU or the heatsink be removed. However,

if you do need to uninstall the heatsink, please follow the instructions below to uninstall
the heatsink to prevent damage done to the CPU or the CPU socket.

1. Unscrew the heatsink screws from the serverboard in the sequence as shown
in the illustration below.

2. Gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive
force when wriggling the heatsink!)

3. Once the CPU is loosened, remove the CPU from the CPU socket.

4. Remove the used thermal grease and clean the surface of the CPU and the
heatsink, Reapply the proper amount of thermal grease on the surface before
reinstalling the CPU and the heatsink.

OPEN 1st

Loosen screws
in sequence as
shown.

Screw#2

Serverboard

Screw#1

Screw#3

Screw#4

5-12

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

5-5 Installing Memory

Caution: exercise extreme care when installing or removing DIMMs to prevent

possible damage. Remove power from the system before installing or changing
memory modules.

Installing Memory

Installing & Removing DIMMs

1. Insert the desired number of DIMMs into the memory slots, starting with P1­DIMMA1. (For best performance, use the memory modules of the same type
and speed in the same bank.)

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

3. Align the key along the bottom of the DIMM with the receptive point on the
slot.

4. Use two thumbs together to press both ends of the module straight down into
the slot until it snaps into place.

5. Push the release tabs to the locked position to secure the DIMM into the slot.

6. Unlock the release tabs to remove a DIMM from the serverboard.

Memory Support

The X9DRG-OF/OTF supports up to 768 GB of LRDIMM or 128 GB of ECC/non­ECC UDIMM DDR3-1600/1333/1066/800 memory.

Note: Check the Supermicro website (www.supermicro.com) for the latest memory
support information.

T o Install: Insert module
vertically and press
down until it snaps into
place. Pay attention to
the alignment notch at
the bottom.

To Remove: Use your
thumbs to gently push
the release tabs near
both ends of the module.
This should release it
from the slot.

Top View of DDR3 Slot

Release Tab Release Tab

Note: Notch should align with

the receptive key point on
the slot.

Notch

Notch

Front View

Figure 5-3. Installing DIMM into Slot

Chapter 5: Advanced Serverboard Setup

5-13

Processor & Memory Module Population Confi guration

For memory to work properly, follow the tables below for memory installation.

Processors and their Corresponding Memory Modules

CPU# Corresponding DIMM Modules

CPU 1

P1-DIMM

A1 A2 A3 B1 B2 B3 C1 C2 C3 D1 D2 D3

CPU2

P2-DIMM

E1 E2 E3 F1 F2 F3 G1 G2 G3 H1 H2 H3

Processor and Memory Module Population

Number of

CPUs+DIMMs

CPU and Memory Population Confi guration Table

(*For memory to work properly, please follow the instructions below.)

1 CPU &
2 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1

1 CPU &
4 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1

1 CPU &

5~8 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1, P1-DIMMA2/P1-DIMMB2, P1­DIMMC2/P1-DIMMD2

1 CPU &

9~12 DIMMs

CPU1/CPU
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1, P1-DIMMA2/P1-DIMMB2,
P1-DIMMC2/P1-DIMMD2, P1-DIMMA3/P1-DIMMB3, P1-DIMMC3/P1-DIMMD3

2 CPUs &

4 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1

2 CPUs &

6 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1

2 CPUs &

8 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2­DIMMG1/P2-DIMMH1

2 CPUs &

9~12 DIMMs

CPU1/CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2­DIMMG1/P2-DIMMH1, P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2

2 CPUs &

13 DIMMs~24

DIMMs

CPU1/CPU
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2­DIMMG1/P2-DIMMH1, P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2,
P1-DIMMC2/P1-DIMMD2, P2-DIMMG2/P2-DIMMH2, P1-DIMMA3/P1-DIMMB3, P2­DIMME3/P2-DIMMF3, P1-DIMMC3/P1-DIMMD3, P2-DIMMG3/P2-DIMMH3

Note: For detailed information on memory support and updates, please refer to the
SMC Recommended Memory List posted on our website at http://www.supermicro.
com/support/resources/mem.cfm.

5-14

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Populating UDIMM (ECC/Non-ECC) Memory Modules

Intel E5-2600(v2) Series Processor UDIMM Memory Support

Ranks

Per

DIMM

& Data

Width

Memory Capacity

Per DIMM

(See the Note below)

Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and

DIMM Per Channel (DPC)

2 Slots Per Channel 3 Slots Per Channel

1DPC 2DPC 1DPC 2DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5v

SRx8

Non-

ECC

1GB 2GB 4GB NA 1066,

1333,

1600

NA 1066,

1333,

1600

N/A 1066,

1333,

1600

N/A 1066,

1333,

1600

DRx8

Non-

ECC

2GB 4GB 8GB NA 1066,

1333,

1600

NA 1066,

1333,

1600

N/A 1066,

1333,

1600

N/A 1066,

1333,

1600

SRx16

Non-

ECC

512MB 1GB 2GB NA 1066,

1333,

1600

NA 1066,

1333,

1600

N/A 1066,

1333,

1600

N/A 1066,

1333,

1600

SRx8

ECC

1GB 2GB 4GB 1066,

1333

1066,
1333,

1600

1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

DRx8

ECC

2GB 4GB 8GB 1066,

1333

1066,
1333,

1600

1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

Populating RDIMM (ECC) Memory Modules

Intel E5-2600(v2) Series Processor RDIMM Memory Support

Ranks

Per

DIMM

&

Data

Width

Memory Capacity

Per DIMM

(See the Note Below)

Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per Channel

(DPC)

2 Slots Per Channel 3 Slots Per Channel

1DPC 2DPC 1 DPC 2DPC 3DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5v

SRx8 1GB 2GB 4GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,
1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

800 800,

1066

DRx8 2GB 4GB 8GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,
1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

800 800,

1066

SRx4 2GB 4GB 8GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,
1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

800 800,

1066

DRx4 4GB 8GB 16GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,
1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

800 800,

1066

QRx4 8GB 16GB 32GB 800 800

1066

800 800 800 800,

1066

800 800 N/A N/A

QRx8 4GB 8GB 16GB 800 800

1066

800 800 800 800,

1066

800 800 N/A N/A

Chapter 5: Advanced Serverboard Setup

5-15

Populating UDIMM (ECC/Non-ECC) Memory Modules

Intel E5-2600 Series Processor UDIMM Memory Support

Ranks

Per

DIMM

& Data

Width

Memory Capacity

Per DIMM

(See the Note below)

Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and

DIMM Per Channel (DPC)

2 Slots Per Channel 3 Slots Per Channel

1DPC 2DPC 1DPC 2DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5v

SRx8

Non-

ECC

1GB 2GB 4GB NA 1066,

1333

NA 1066,

1333

N/A 1066,

1333,

N/A 1066,

1333

DRx8

Non-

ECC

2GB 4GB 8GB NA 1066,

1333

NA 1066,

1333

N/A 1066,

1333

N/A 1066,

1333

SRx16

Non-

ECC

512MB 1GB 2GB NA 1066,

1333

NA 1066,

1333

N/A 1066,

1333

N/A 1066,

1333

SRx8

ECC

1GB 2GB 4GB 1066,

1333

1066,

1333

1066 1066,

1333

1066 1066,

1333,

1066,
1333

1066,

1333

DRx8

ECC

2GB 4GB 8GB 1066,

1333

1066,

1333

1066 1066,

1333

1066 1066,

1333,

1066,
1333

1066,

1333

Populating RDIMM (ECC) Memory Modules

Intel E5-2600 Series Processor RDIMM Memory Support

Ranks

Per

DIMM

&

Data

Width

Memory Capacity

Per DIMM

(See the Note Below)

Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per Channel

(DPC)

2 Slots Per Channel 3 Slots Per Channel

1DPC 2DPC 1 DPC 2DPC 3DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5V 1.35V 1.5v

SRx8 1GB 2GB 4GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

N/A 800,

1066

DRx8 2GB 4GB 8GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

N/A 800,

1066

SRx4 2GB 4GB 8GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

N/A 800,

1066

DRx4 4GB 8GB 16GB 1066,

1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

1066,
1333

1066,
1333,

1600

N/A 800,

1066

QRx4 8GB 16GB 32GB 800 1066 800 800 800 1066 800 800 N/A N/A

QRx8 4GB 8GB 16GB 800 1066 800 800 800 1066 800 800 N/A N/A

5-16

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

5-6 Adding PCI Expansion Cards

The 4027GR-TR/TRT supports up to eight PCI Express x16 cards.

Installing an Expansion Card

1. After powering down the system, remove the PCI slot shield.

2. Fully seat the card into the slot, pushing down with your thumbs evenly on
both sides of the card.

3. Finish by using a screw to secure the top of the card shield to the chassis.
The PCI slot shield protects the serverboard and its components from EMI
and aid in proper ventilation, so make sure it is always in place.

5-7 Serverboard Details

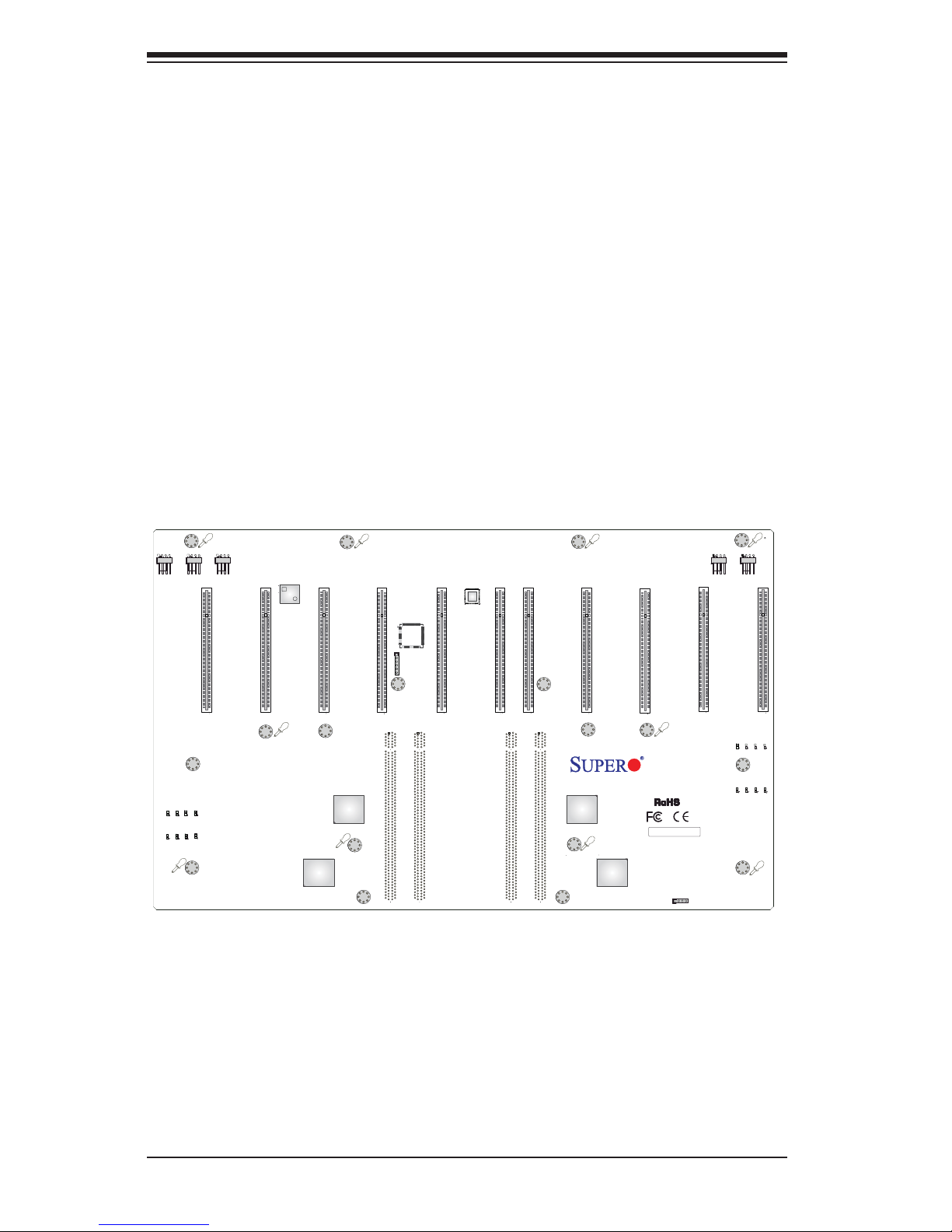

Figure 5-4. X9DRG-OF/OTF-PCIE Board Layout

J9

FAN25

FAN24

FAN23

FAN22

FAN21

LE5

LE17

LE16

LE15

LE14

LE13

LE12

LE3

LE9

LE11

LE10

LE2

LE8

LE7

LE6

LE4

BAR CODE

CPU1
SLOT11 PCI-E 3.0 X16

CPU1
SLOT10 PCI-E 3.0 X16

CPU1
SLOT9 PCI-E 3.0 X16

CPU1
SLOT8 PCI-E 3.0 X16

PCH

SLOT7 PCI-E 2.0 X4 (IN X16)

CPU1
SLOT6 PCI-E 3.0 X8 (IN X16)

CPU2
SLOT5 PCI-E 3.0 X8 (IN X16)

CPU2
SLOT4 PCI-E 3.0 X16

CPU2
SLOT3 PCI-E 3.0 X16

CPU2
SLOT2 PCI-E 3.0 X16

CPU2
SLOT1 PCI-E 3.0 X16

REV:1.00

X9DRG-O-PCIE

J33

J34

J31

J32

Chapter 5: Advanced Serverboard Setup

5-17

Figure 5-5. X9DRG-OF/OTFServerboard Layout

Note: Jumpers and connectors not indicated are for test purposes only.

SW1

JPW10

J21

SP1

JBT1

JITP0

JSD2

JSD1

JTPM1

I_SATA1

I-SATA0

I-SATA2

I_SATA3

JF1

JWD1

JBR1

JPME1

JPL1

JPG1

J29

JPB1

J30

LE1

LE4

DM1

FAN8

FAN6

FAN7

FAN5

FAN1

FAN3

FAN4

JSPK1

JL1

JOH1

JPLD1

JPW18

JPW17

JPW6

JPW12

JPW4

JPW5

JPW3

JPW13

JPW14

JPW15

JPW16

T-SGPIO2

T-SGPIO1

T-SGPIO-S1

BT1

JPW24

JPW23

JPW22

JPW21

BIOS
LICENSE

10G MAC CODE
10G SAN MAC

1G MAC CODE

IPMI CODE
BAR CODE

P2-DIMME1

P2-DIMME2

P2-DIMME3

P2-DIMMF1

P2-DIMMF2

P2-DIMMF3

USB10/11

USB2/3

CPU1

P1-DIMMC1

P1-DIMMC2

P1-DIMMC3

P1-DIMMD1

P1-DIMMD2

P1-DIMMD3

LAN2

LAN1

CPU2

P1-DIMMB3

P1-DIMMB2

VGA1

P1-DIMMB1

P2-DIMMH3

COM1

P1-DIMMA3

P1-DIMMA2

P2-DIMMH2

P1-DIMMA1

P2-DIMMH1

IPMI_LAN

P2-DIMMG3

USB0/1

P2-DIMMG2

P2-DIMMG1

REV:1.00

X9DRG-OF-CPU

S_SATA1

FAN2

JPW7

I_SATA4

I_SATA5

S_SATA2

S_SATA2

S_SATA3

JPME2

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

USB8/9

PCH

BIOS

LAN
CTRL

BMC

BMC Firmware

CLK Chip

USB6

J34

J33

J32

J31

5-18

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

X9DRG-OF/OTF Quick Reference

Jumper

Description Default Setting

JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 Clear CMOS See Section 5-9
JPB1 BMC Enabled Pins 1-2 (Enabled)
JPG1 VGA Enabled Pins 1-2 (Enabled)
JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled)
JPME1 Management Engine (ME)

Recovery Mode

Pins 1-2 (Normal)

JPME2 Management Engine (ME)

Manufacture Mode

Pins 1-2 (Normal)

JWD1 Watch Dog Timer Enable Pins 1-2 (Reset)

Connector Description

BT1 CMOS Battery
COM1 Serial Port (COM1) Header
FAN1-8 CPU/System Cooling Fans
J21 X9DRG-O(T)F-CPU CPLD Programming
J31/32/33/34 Slots for Riser Cards (RSC-X9DRG-O)
JF1 Front Panel Control Header
JL1 Chassis Intrusion
JOH1 Overheat LED Indicator
JPW3-JPW7,

JPW12-JPW16

GPU and PCIe Add-on Card Auxilliary Power Connectors

JPW17-JPW18 HDD Backplane Power Connector
JPW21/22/23/24 Power Supply Connectors
JSD1/JSD2 SATA DOM (Device on Module) Power Connectors
JTPM1 TPM (Trusted Platform Module)/Port 80
LAN1/LAN2 10G Ethernet LAN Ports 1/2 (X9DRG-OTF), 1G LAN Ports 1/2

(X9DRG-OF)
(IPMI) LAN Dedicated IPMI LAN
(I-)SATA 0-5 SATA 3.0 Ports (I-SATA 0/1), SATA 2.0 Connectors (I-SATA

2-5) from AHCI
S-SATA 1-4 SATA 2.0 Ports from SCU (S-SATA 1-4)
SP1 Onboard Speaker Header
SW1 UID Switch
T-SGPIO1/2 Serial Link General Purpose I/O Headers 1/2 for I-SATA Ports

0~5

Chapter 5: Advanced Serverboard Setup

5-19

T-SGPIO-S1 Serial Link General Purpose I/O Header for S-SATA Ports 1-4

USB 0/1, 2/3 Back Panel USB 2.0 Ports
USB 6 USB Internal Type A USB Header
USB 8/9 USB 2.0 Headers
USB 10/11 USB 2.0 Headers

X9DRG-O-PCIE Board

Connector Description

JPCIE1 CPU2 Slot1 3.0 x16
JPCIE2 CPU2 Slot2 3.0 x16
JPCIE3 CPU2 Slot3 3.0 x16
JPCIE4 CPU2 Slot4 3.0 x16
JPCIE5 CPU2 Slot5 3.0 x8 (in x16)
JPCIE6 CPU1 Slot6 3.0 x8 (in x16)
JPCIE7 PCH Slot7 2.0 x4 (in x16)
JPCIE8 CPU1 Slot8 3.0 x16
JPCIE9 CPU1 Slot9 3.0 x16
JPCIE10 CPU1 Slot10 3.0 x16
JPCIE11 CPU1 Slot11 3.0 x16

LED Description State Status

LE2 CPU1 Port2 Fatal Error Indicator Static Red Fatal Error

LE3 CPU1 Port3 Fatal Error Indicator Static Red Fatal Error

LE4 CPU2 Port2 Fatal Error Indicator Static Red Fatal Error

LE5 CPU2 Port3 Fatal Error Indicator Static Red Fatal Error

LE6 CPU1 Port2 Link Error Indicator

Off
1Hz Green Blinking

2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LED Description State Status

DM1 BMC Heartbeat LED Green BMC Normal

LE1 Standby PWR LED Green: On SB Power On

LE4 UID Switch LED Blue: On Unit Identifi ed

LE7 CPU1 Slot8 Link Error Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

5-20

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

LE8 CPU1 Slot9 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE9 CPU1 Port3 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE10

CPU1 Slot10 Link Status Indi­cator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE11

CPU1 Slot11 Link Status Indi­cator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE12 CPU2 Port2 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE13 CPU2 Slot3 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE14 CPU2 Slot4 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE15 CPU2 Port3 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE16 CPU2 Slot1 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

LE17 CPU2 Slot2 Link Status Indicator

Off
1Hz Green Blinking
2Hz Green Blinking
Static Green On

Link is down

2.5GT/s
5GT/s
8GT/s

Warning: To provide adequate power supply to the system, be sure to connect all
onboard power connectors to the power supply.

Chapter 5: Advanced Serverboard Setup

5-21

5-8 Connector Defi nitions

Warning: To ensure adequate power supply to your serverboard, be sure to connect

all the power connectors mentioned above to your power supply for proper system
operation.

Power Connectors

The main power to the serverboard is
provided from the backplane through
the JPW21, JPW22, JPW23 and JPW24
connectors. In addition, the following
power connecotrs also need connected:

• Two HDD backplane power

connectors (JPW17, JPW18)

• Ten PCI-E Add-on card auxilliary

power connectors (JPW3-JPW7,
JPW12-JPW16)

8-Pin PCI-E Aux.

Power Con-

nector

Pin Defi nitions

Pins Defi nition

1~3 +12V

4~8 Ground

8-pin HDD

Backplane Power

Connector

Pin Defi nitions

Pins Defi nition

1~4 Ground

5~6 +12V

7~8 +5V

Power LED

The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin defi nitions.

NMI Button

The non-maskable interrupt button
header is located on pins 19 and 20 of
JF1. Refer to the table on the right for
pin defi nitions.

NMI Button

Pin Defi nitions (JF1)

Pin# Defi nition

19 Control

20 Ground

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 3.3V

16 PWR LED

HDD LED/UID Switch

The HDD/UID LED connection is located
on pins 13 and 14 of JF1. Attach a hard
drive LED cable here to display HDD
activity (including SATA). Connect a
UID switch cable to use UID switch
connection. The front UID switch works
in conjunction with UID LED located at
pins 7/8. See the table on the right for
pin defi nitions.

HDD LED/UID Switch

Pin Defi nitions (JF1)

Pin# Defi nition

13 UID Switch/3,3V

14 HDD Active

5-22

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

NIC1/NIC2 LED Indicators

The NIC (Network Interface Controller)
LED connection for LAN port 1 is located
on pins 11 and 12 of JF1 and the LED
connection for LAN Port 2. Attach the
NIC LED cables here to display network
activity. Refer to the table on the right for
pin defi nitions.

NIC1/2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9 NIC 2 Act. LED

10 NIC 2 Link LED

11 NIC 1 Act. LED

12 NIC 1 Link LED

Power Fail LED

The Power Fail LED connection is
located on pins 5 and 6 of JF1. Refer to
the table on the right for pin defi nitions.

PWR Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 3.3V

6 PWR Supply Fail

Overheat (OH)/Fan Fail/PWR Fail/
UID LED

Connect an LED cable to pins 7 and
8 of Front Control Panel to use the
Overheat/Fan Fail/Power Fail and UID
LED connections. The Red LED on
pin 7 provides warnings of overheat,
fan failure or power failure. The Blue
LED on pin 8 works as the front panel
UID LED indicator. The Red LED takes
precedence over the Blue LED by
default. Refer to the tables on the right
for pin defi nitions.

OH/Fan Fail/ PWR Fail/Blue_UID

LED Pin Defi nitions (JF1)

Pin# Defi nition

7 Red_LED-Cathode/OH/Fan Fail/

Power Fail5.5V.SB

8 Blue_UID LED

OH/Fan Fail/PWR Fail

LED Status (Red LED)

State Defi nition

Off Normal

On Overheat

Flashing Fan Fail

Reset Button

The Reset Button connection is located
on pins 3 and 4 of JF1. Attach it to a
hardware reset switch on the computer
case. Refer to the table on the right for
pin defi nitions.

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

Chapter 5: Advanced Serverboard Setup

5-23

Power Button

The Power Button connection is located
on pins 1 and 2 of JF1. Momentarily
contacting both pins will power on/off
the system. This button can also be
configured to function as a suspend
button (with a setting in the BIOS). To
turn off the power when the system is
in suspend mode, press the button for 4
seconds or longer. Refer to the table on
the right for pin defi nitions.

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 Signal

2 Ground

Universal Serial Bus (USB)

Four Universal Serial Bus ports (USB
0/1, 2/3) are located on the I/O back
panel to provide USB connections.
(Cables are not included). See the tables
on the right for pin defi nitions.

Backplane USB

Pin Defi nitions

Pin# Defi nition

1 +5V

2 PO-

3 PO+

4 Ground

5NA

Unit Identifi er Switch

A Unit Identifi er (UID) switch and two
LED indicators are located on the
serverboard. The UID switch is located
next to LAN2 port on the backplane. The
rear UID LED (LE4) is located next to the
UID switch. The Front Panel UID LED
is located at pins 7/8 of JF1. Connect
a cable to pin 8 on JF1 for Front Panel
UID LED indication. When you press the
UID switch, both the rear UID LED and
front panel UID LED indicators will be
turned on. Press the UID switch again
to turn off both LED Indicators. These
UID Indicators provide easy identifi cation
of a system unit that may be in need of
service.

Note: UID can also be triggered via IPMI
on the serverboard. For more information
on IPMI, please refer to the IPMI User's
Guide posted on our website at http://
www.supermicro.com.

UID LED (LE)

Status

Color/State OS Status

Blue: On Windows OS Unit Identifi ed

Blue:
Blinking

Linux OS Unit Identifi ed

5-24

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Ethernet Ports

Two Ethernet ports (LAN1, LAN2) are
located on the I/O backplane on the
serverboard. These LAN ports support
10G LAN. These ports accept RJ45 type
cables. Please refer to the LED Indicator
Section for LAN LED information.

Chassis Intrusion

A Chassis Intrusion header is located
at JL1 on the serverboard. Attach an
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.

Chassis Intrusion

Pin Defi nitions

Pin# Defi nition

1 Intrusion Input

2 Ground

Fan Header

Pin Defi nitions

Pin# Defi nition

1 Ground

2 +12V

3 Tachometer

4 Pulse Width

Modulation

Fan Headers

This serverboard has eight fan headers
for CPU/system use. All these 4-pin fans
headers are backward compatible with
the traditional 3-pin fans. However, fan
speed control is only available for 4-pin
fans via IPMI thermal management. See
the table on the right for pin defi nitions.

Serial Ports

A COM port header is located next to the
BMC controller on the serverboard. See
the table on the right for pin defi nitions.

Serial (COM) Port

Pin Defi nitions

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 N/A

Chapter 5: Advanced Serverboard Setup

5-25

TPM Header/Port 80

A Trusted Platform Module/Port 80
header is located at JTPM1 to provide
TPM support and Port 80 connection.
Use this header to enhance system
performance and data security. See the
table on the right for pin defi nitions.

TPM/Port 80 Header (JTPM1)

Pin Defi nitions

Pin# Defi nition Pin# Defi nition

1 LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V (X)

7 LAD 3 8 LAD 2

9 +3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK4 14 SMB_DAT4

15 +3V_DUAL 16 SERIRQ

17 GND 18 CLKRUN# (X)

19 LPCPD# 20 LDRQ# (X)

Overheat LED/Fan Fail

The JOH1 header is used to connect
an LED indicator to provide warnings
of chassis overheating and fan failure.
This LED will blink when a fan failure
occurs. Refer to the tables on right for
pin defi nitions.

Overheat LED

Pin Defi nitions

Pin# Defi nition

1 P3V3

2 OH Active

Low Signal

OH/Fan Fail LED

Status

State Message

Solid Overheat

Blinking (1Hz) Fan Fail

Blinking (0.25Hz) PWR Fail

T-SGPIO

Pin Defi nitions

Pin# Defi nition Pin# Defi nition

1NC 2NC

3 Ground 4 Data

5 Load 6 Ground

7 Clock 8 NC

Note: NC= No Connection

T-SGPIO1/2/-S1 Headers

Two T-SGPIO (Serial-Link General Purpose
Input/Output) headers (T-SGPIO1/2/-S1)
are located on the serverboard. These
headers support a Serial Link interface for
onboard SATA connections. See the table
on the right for pin defi nitions.

5-26

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Speaker Header

The speaker header (JSPK1) for a
buzzer can be used to provide audible
indications for various beep codes. See
the table on the right for pin defi nitions.
Refer to the layout below for the locations
of the speaker header.

Speaker Header

Pin Defi nition

Pin# Defi nitions

Pin 1 Pos. (+) 5V

Pin 2 Neg. (-) Alarm

Speaker

DOM Power Connector

The power connectors for SATA DOM
(Disk On Module) devices are located at
JSD1 and JSD2. Connect an appropriate
cable here to provide backup power
support for your SATA DOM devices
to retain cache data during power
outage. See the table on the right for
pin defi nitions.

DOM Power

Pin Defi nitions

Pin# Defi nition

1 +5V

2 Ground

3 Ground

Chapter 5: Advanced Serverboard Setup

5-27

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins,
this jumper consists of contact pads to prevent accidentally clearing the contents
of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s). It is also
recommended that you remove the onboard battery from the serverboard.

2. With the power disconnected, short the CMOS pads with a metal object such
as a small screwdriver.

3. Remove the screwdriver (or shorting device).

4. Reconnect the power cord(s) and power on the system.

Note: Do not use the PW_ON connector to clear CMOS.

5-9 Jumper Settings

Explanation of Jumpers

To modify the operation of the serverboard,
jumpers can be used to choose between
optional settings. Jumpers create shorts
between two pins to change the function
of the connector. Pin 1 is identifi ed with
a square solder pad on the printed circuit
board. See the diagram at right for an
example of jumping pins 1 and 2. Refer to the
serverboard layout page for jumper locations.

Note: On two-pin jumpers, "Closed" means
the jumper is on and "Open" means the
jumper is off the pins.

Connector

Pins

Jumper

Setting

3 2 1

3 2 1

JBT1 contact pads

LAN Enable/Disable

JPL1 enables or disables the LAN1 and
LAN2 ports on the serverboard. See the
table on the right for jumper settings.
The default setting is Enabled.

LAN Enable/Disable

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

5-28

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

VGA Enable

Jumper JPG1 allows the user to enable
the onboard VGA connector. The default
setting is 1-2 to enable the connection.
See the table on the right for jumper
settings.

VGA Enable/Disable

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

BMC Enable

Jumper JPB1 allows you to enable
the embedded BMC (Baseboard
Management) Controller to provide IPMI/
KVM support on the serverboard. See
the table on the right for jumper settings.

BMC Enable/Disable

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 BMC Enabled (Default)

Pins 2-3 Disabled

Management Engine (ME) Recovery

Use jumper JPME1 to select ME Firmware
Recovery mode, which will limit resource
allocation for essential system operation
only in order to maintain normal power
operation and management. In the single
operation mode, online upgrade will be
available via Recovery mode. See the
table on the right for jumper settings.

ME Recovery

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Normal (Default)

Pins 2-3 ME Recovery

Manufacture Mode Select

Close pins 2 and 3 of jumper JPME2 to
bypass SPI fl ash security and force the
system to operate in the Manufacture
Mode, allowing the user to flash the
system fi rmware from a host server for
system setting modifi cations. See the
table on the right for jumper settings.

ME Mode Select

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Normal (Default)

Pins 2-3 Manufacture Mode

Chapter 5: Advanced Serverboard Setup

5-29

5-10 Onboard Indicators

Onboard Power LED

An Onboard Power LED is located at
LE1 on the serverboard. When this
LED is lit, the system is on. Be sure
to turn off the system and unplug the
power cord before removing or installing
components. See the tables at right for
more information.

Watch Dog Enable/Disable

Watch Dog (JWD1) is a system moni­tor that will reboot the system when a
software application hangs. Close pins
1-2 to reset the system if an applica­tion hangs. Close pins 2-3 to generate
a non-maskable interrupt signal for the
application that hangs. See the table on
the right for jumper settings. Watch Dog
must also be enabled in the BIOS.

Watch Dog

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Reset (default)

Pins 2-3 NMI

Open Disabled

Onboard Power LED Indicator

(LE1)

LED Color Defi nition

Off System Off (PWR cable

not connected)

Green System On

Green:
Flashing
Quickly

ACPI S1 State

Green:
Flashing
Slowly

ACPI S3 (STR) State

BMC Heartbeat LED (DM1)

Status

Color/State Defi nition

Green: Blinking BMC:Normal

BMC Heartbeat LED

A BMC Heartbeat LED is located at
DM1 on the serverboard. When DM1
is blinking, the BMC is functioning
normally. See the table at right for more
information.

5-30

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

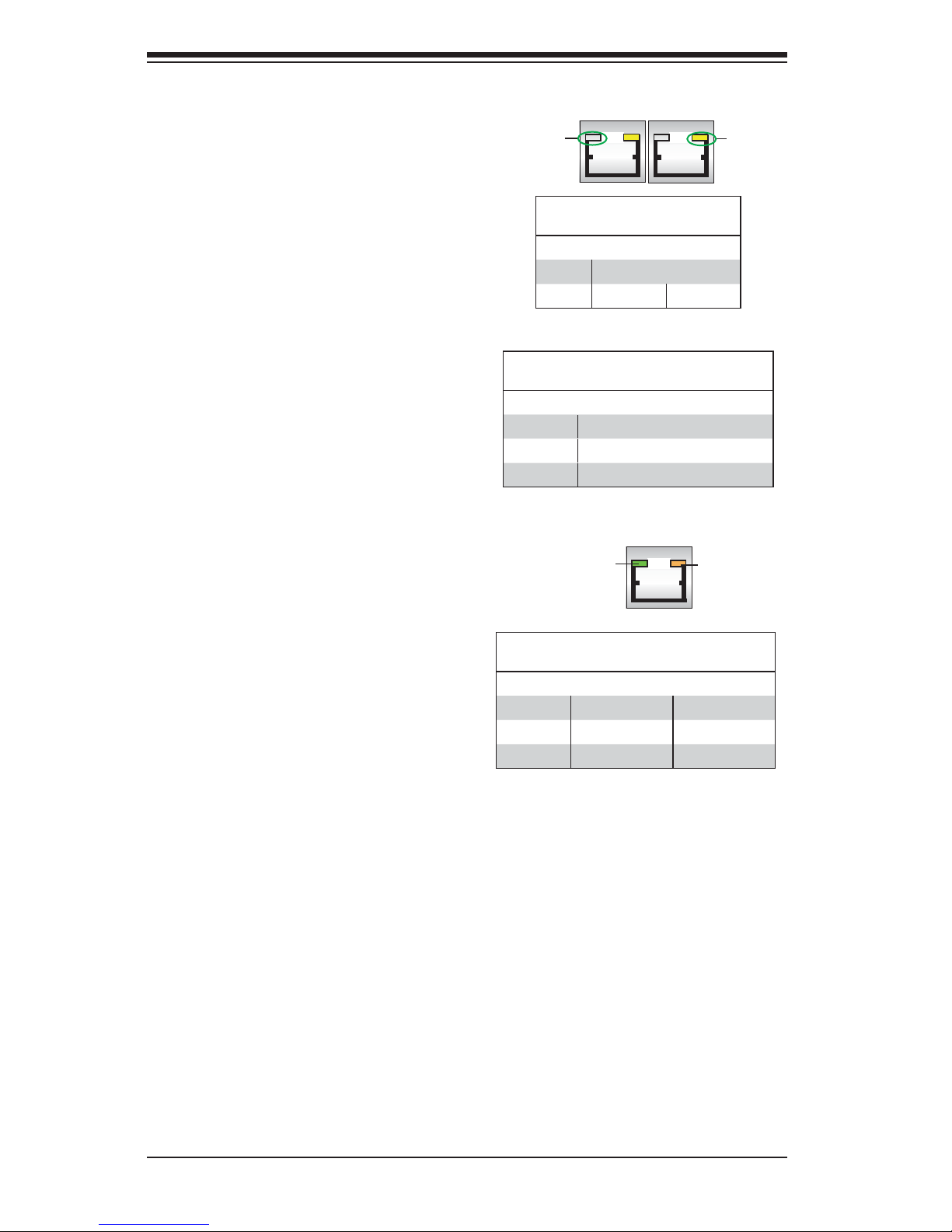

IPMI Dedicated LAN LEDs

In addition to LAN 1/LAN 2, an IPMI
Dedicated LAN is also located on the
I/O Backplane of the serverboard.
The amber LED on the right indicates
connection and activity, while the green
LED on the left indicates the speed of
the connection. See the tables at right
for more information.

Link LED Activity LED

IPMI LAN

GLAN LEDs

There are two Ethernet LAN ports on
the serverboard. Each LAN port has
two LEDs. The Yellow LED on the right
indicates connection and activity. The
Link LED on the left side may be green,
amber or off to indicate the speed
of the connection. 10G_LAN support
is available on the X9QR7-TF/JTF
only. See the tables at right for more
information.

IPMI LAN Link Speed LED &

Connection Activity LED

LED Color/State Defi nition

Off Off No Connection

Activity Amber: Blinking Active

Speed Green: Solid 100 Mbps

Activity
LED

Link Speed

LED

GLAN Link Speed Indicator

LED Settings

LED Color Defi nition

Off No Connection, 10 or 100 Mbps

Green 10 Gb (for X9QR7-TF/JTF only)

Amber 1 Gbps

GLAN Activity Indicator (Right)

LED Settings

Color Status Defi nition

Off No Connections

Yellow Flashing Active

Chapter 5: Advanced Serverboard Setup

5-31

5-11 SATA Ports

SATA Port

Pin Defi nitions

Pin # Defi nition

1 Ground

2 TXP

3 TXN

4 Ground

5 RXN

6 RXP

7 Ground

Note: For more information on SATA or SAS RAID confi guration, please refer to the
Intel SATA HostRAID and LSI SAS MegaRAID User's Guides on our Website @ http://

www.supermicro.com..

Serial ATA Ports

There are two SATA 3.0 Ports (I­SATA0/1) and four SATA 2.0 ports
(I-SATA2-I-SATA5) on the mother­board. In addition, there are four S­SATA 2.0 ports (S-SATA1-S-SATA4).
See the table on the right for pin
defi nitions.

5-32

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Figure 5-6. Driver/Tool Installation Display Screen

5-12 Installing Software

The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp.

supermicro.com. Some of these must be installed, such as the chipset driver.

After accessing the ftp site, go into the CDR_Images directory and locate the ISO
fi le for your serverboard. Download this fi le to create a CD/DVD of the drivers and
utilities it contains. (You may also use a utility to extract the ISO fi le if preferred.)

Another option is to go to the Supermicro Website at

http://www.supermicro.
com/products/. Find the product page for your serverboard here, where you may

download individual drivers and utilities.

After creating a CD/DVD with the ISO fi les, insert the disk into the CD/DVD drive
on your system and the display shown in Figure 5-6 should appear.

Note: Click the icons showing a hand writing on paper to view the readme fi les
for each item. Click the computer icons to the right of these items to install each
item (from top to the bottom) one at a time. After installing each item, you must
re-boot the system before moving on to the next item on the list. The bottom
icon with a CD on it allows you to view the entire contents.

Chapter 5: Advanced Serverboard Setup

5-33

SuperDoctor III

The SuperDoctor® III program is a web-based management tool that supports
remote management capability. It includes Remote and Local Management tools.
The local management is called SD III Client. The SuperDoctor III program allows
you to monitor the environment and operations of your system. SuperDoctor III
displays crucial system information such as CPU temperature, system voltages
and fan status. See the fi gures below for examples of the SuperDoctor III interface.

Note: The default User Name and Password for SuperDoctor III is ADMIN / ADMIN.
Note: When SuperDoctor III is fi rst installed, it adopts the temperature threshold

settings that have been set in BIOS. Any subsequent changes to these thresholds
must be made within SuperDoctor III, as the SuperDoctor III settings override the
BIOS settings. To set the BIOS temperature threshold settings again, you would
fi rst need to uninstall SuperDoctor III.

Figure 5-7. SuperDoctor III Interface Display Screen (Health Information)

5-34

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Figure 5-8. SuperDoctor III Interface Display Screen (Remote Control)

Note: The SuperDoctor III program and User’s Manual can be downloaded from the

Supermicro web site at http://www.supermicro.com/products/accessories/software/

SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II

application instead.

Chapter 5: Advanced Serverboard Setup

5-35

5-13 Onboard Battery

Caution: There is a danger of explosion if the onboard battery is installed upside

down, which will reverse its polarites (see Figure 5-9). This battery must be replaced
only with the same or an equivalent type recommended by the manufacturer
(CR2032). Dispose of used batteries according to the manufacturer's instructions.

Figure 5-9. Installing the Onboard Battery

LITHIUM BATTERY

BATTERY HOLDER

Please handle used batteries carefully. Do not damage the battery in any way; a
damaged battery may release hazardous materials into the environment. Do not
discard a used battery in the garbage or a public landfi ll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose
of your used battery properly.

Chapter 6: Advanced Chassis Setup

6-1

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform
maintenance on the SC418GTSGTS-R3200B chassis. For component installation,
follow the steps in the order given to eliminate the most common problems
encountered. If some steps are unnecessary, skip ahead to the step that follows.

Tools Required: The only tool you will need to install components and perform
maintenance is a Philips screwdriver.

6-1 Static-Sensitive Devices

Electrostatic discharge (ESD) can damage electronic com ponents. To prevent
damage to any printed circuit boards (PCBs), it is important to handle them very
carefully. The following measures are generally suffi cient to protect your equipment
from ESD damage.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure the person handling it is static protected.

6-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

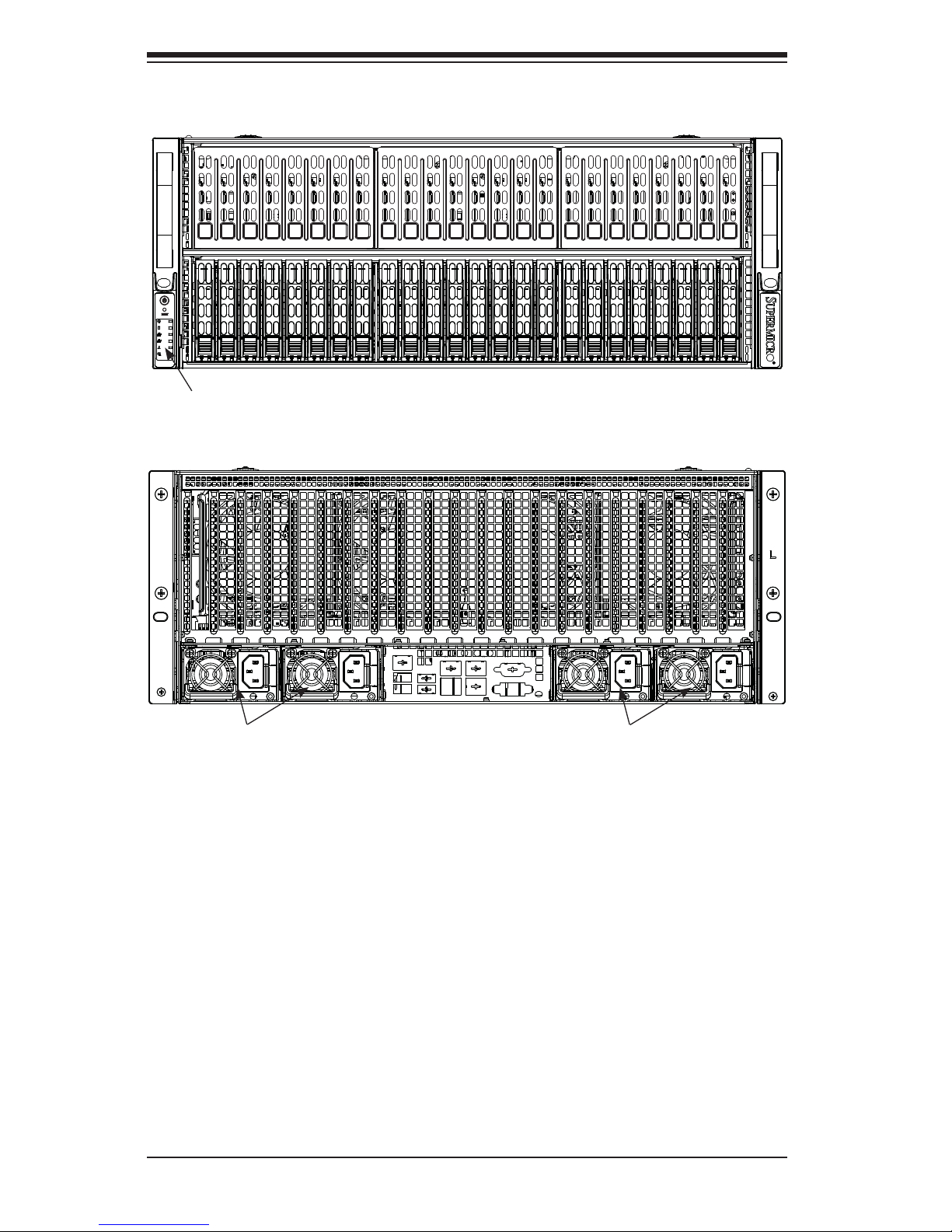

Figure 6-1. Front and Rear Chassis Views

6-2 Control Panel

The control panel is located on the front of the chassis. The LEDs inform you of
system status.

See Chapter 3 for details on the LEDs and the control panel buttons.

I/O PortsPower Supplies

Hard Drives (24)Control Panel

Power Supplies

Chapter 6: Advanced Chassis Setup

6-3

Figure 6-2. Removing a Hard Drive Carrier

6-3 Installing Hard Drives

The SC418GTS supports a total of 24 hard disk drives, which are mounted in drive
carriers and reside within the the hard drive bays. These drives are hot-swappable
and can be removed or replaced without powering down the chassis. Enterprise
SAS or SATA HDDs only are recommended.

Removing Hard Drives and their Carriers from the Hard Drive Bays

1. Press the release button on the drive carrier. This extends the drive carrier
handle.

2. Use the handle to pull the drive and its carrier out of the chassis.

Enterprise level hard disk drives are recommended for use in Supermicro chassis
and servers. For information on recommended HDDs, visit the Supermicro Web site
at http://www.supermicro.com/products/nfo/files/storage/SAS-1-CompList-110909.

pdf

6-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Installing a Hard Drive into a Drive Carrier

1. Insert a drive into the carrier with the PCB side facing down and the
connector end toward the rear of the carrier.

2. Align the drive in the carrier so that the screw holes of both line up. Note that
there are holes in the carrier marked “SATA” to aid in correct installation.

3. Secure the drive to the carrier with four screws as illustrated below.

4. Insert the drive carrier into its bay, keeping the carrier oriented so that the
hard drive is on the top of the carrier and the release button is on the right
side. When the carrier reaches the rear of the bay, the release handle will
retract.

5. Push the handle in until it clicks into its locked position.

Figure 6-3. Removing a Dummy Drive from a Tray

Chapter 6: Advanced Chassis Setup

6-5

6-4 Accessing the Inside of the System

Removing the Chassis Cover

You will need to access the inside of the system to complete certain procedures
such as replacing fans.

Removing the Chassis Cover

If working with components such as memory, processors or heatsinks, start by
shutting the system down and disconnecting the AC power cord.

1. Depress the two release buttons on both sides of the cover.

2. Slide the cover toward the rear of the chassis

3. Lift the cover off the chassis.

Warning: Except for short periods of time, do NOT operate the server without the
cover in place. The chassis cover must be in place to allow proper airfl ow and prevent
overheating.

Figure 6-4. Accessing the Inside of the System

1

1

1

2

1

3

1

1

6-6

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

6-5 Installing the Air Shroud

Air Shrouds

Air shrouds concentrate airfl ow to maximize fan effi ciency. Two air shrouds are
included in the system: one for the CPUs and another for the PCI slots. The CPU
air shroud, which sits behind the system fans, should be installed into the chassis
fi rst. These air shrouds do not require screws to install.

Installing the CPU Air Shroud

1. Confi rm that all fans are in place and working properly.

2. Remove the fan bracket screws (one each on the left and right sides of
chassis. Note: There are four serrated cutouts on the left and right sides of
the rear edge of the shroud. Depending on your system confi guration and
GPU confi guration, you will have to remove one or two of these cutouts to
route the GPU power and SATA cables through the shroud.

3. Lift the fan bracket up a few inches (be careful not to raise it too far as doing
so may disconnect the fans). With the fan bracket raised, install the CPU air
shroud front side fi rst. Then place the fan bracket back in its original position.

4. Route the GPU power and SATA data cables through the cutouts and place
the rear edge of the air shroud between the PCI-E PCB and the mounting
plate.

5. Replace the two fan bracket screws to fi nish.

Figure 6-5. CPU Air Shroud Placement

Serrated
cutouts

Fan bracket screw

Chapter 6: Advanced Chassis Setup

6-7

Figure 6-6. PCI Air Shroud Placement

Installing the PCI-E Air Shroud

1. Remove the GPU retention bracket screw (located on the right side) and
remove the GPU retention bracket.

2. Noting the front and rear sides of the air shroud, insert the sides of the air
shroud between the chassis and GPU1 and GPU8. Insert the interior air
shroud slots between GPU2/GPU3 and GPU6/GPU7. Finally, insert the center
of the air shroud between GPU4 and GPU5.

3. Adjust the air shroud so that front edge is fl ush with the fan bracket.

4. Re-install the GPU retention bracket.

GPU retention
bracket screw

6-8

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

6-6 Cooling System

The SC418GTS chassis contains eight 9-cm system fans that provide cooling for
the system. All eight fans are hot-swappable. There is no need to power down the
system when switching fans.

Changing a System Fan

1. If necessary, open the chassis while the power is running to determine which
fan has failed. (Never run the server for an extended period of time with the
chassis cover open).

2. Press the fan housing lever to unlock the fan from the bracket.

3. While applying pressure to fan housing lever, gently push the fan upwards
from underneath the fan housing to remove it.

4. Place the new fan into the vacant space in the housing. Make sure to apply
pressure to the top of the new fan to lock it into the fan housing. The new fan
should 'click' into place.

5. Confi rm that the fan is working properly before replacing the chassis cover.

Figure 6-6. Replacing a System Fan

Chapter 6: Advanced Chassis Setup

6-9

6-7 Power Supply

The 4027GR-TR/TRT has four redundant, high-effi ciency 1600 Watt power supplies.
These power supplies are auto-switching capable, enabling it to automatically sense
and operate at a 100v to 240v input voltage. An amber light will be illuminated on
the power supply when the power is off. An illuminated green light indicates that
the power supply is operating.

Power Supply Replacement

In the event that one of the power supplies needs to be replaced, one power supply
can be removed without powering-down the system. Replacement power supply
units may be ordered directly from Supermicro.

Changing the Power Supply

1. With the system running, unplug the AC power cord from the failed power
supply module.

2. Push and hold the release tab on the back of the power supply.

3. Grasp the handle and pull the power supply out of its bay.

4. Push the replacement power supply module into the empty bay until it clicks
into the locked position.

5. Plug the AC power cord back into the power supply module.

Figure 6-8. Replacing a Power Supply

Handle

Release Tab

6-10

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

Notes

Chapter 7: BIOS

7-1

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMI BIOS setup utility for the X9DRG-O(T)F-CPU/
X9DRG-O-PCIE Platform. It also provides the instructions on how to navigate the
AMI BIOS setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM
and can be easily updated.

Starting BIOS Setup Utility

To enter the AMI BIOS setup utility screens, press the <Del> key while the system
is booting up.

Note: In most cases, the <Del> key is used to invoke the AMI BIOS setup
screen. There are a few cases when other keys are used, such as <F3>,
<F4>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be confi gured. Grayed-out options cannot be confi gured. Options in blue can be
confi gured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for informational text related to the option currently
selected in the left frame.

Note: The AMI BIOS has default informational messages built in. The
manufacturer retains the option to include, omit, or change any of these
informational messages.

The AMI BIOS setup utility uses a key-based navigation system called "hot keys."
Most of the AMI BIOS setup utility "hot keys" can be used at any time during setup
navigation. These keys include <F3>, <F4>, <Enter>, <ESC>, arrow keys, etc.

Note 1: In this section, options printed in Bold are default settings.

Note 2: <F3> is used to load optimal default settings. <F4> is used to save

the settings and exit the setup utility.

7-2

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

How To Change the Confi guration Data

The confi guration data that determines the system parameters may be changed by
entering the AMI BIOS setup utility. This setup utility can be accessed by pressing
<Delete> at the appropriate time during system boot.

Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Re­covery User Guide posted @http://www.supermicro.com/support/manuals/.

Starting the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS setup utility. From the main menu, you can access the other setup
screens. An AMI BIOS identifi cation string is displayed at the left bottom corner of
the screen below the copyright message.

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.
Flashing the wrong BIOS can cause irreparable damage to the system. In no event
shall the manufacturer be liable for direct, indirect, special, incidental, or consequential
damage arising from a BIOS update. If you have to update the BIOS, do not shut down
or reset the system while the BIOS is being updated to avoid possible boot failure.

7-2 Main Setup

When you fi rst enter the AMI BIOS setup utility, you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS setup menu screen is shown below.

Chapter 7: BIOS

7-3

The AMI BIOS main menu displays the following information:

System Date

This item displays the system date in Day MM/DD/YYYY format (e.g. Wed
01/15/2014).

System Time

This item displays the system time in HH:MM:SS format (e.g. 15:32:52).

Supermicro X9DRG-O(T)F

Version

This item displays the SMC version of the BIOS ROM used in this system.

Build Date

This item displays the date that the BIOS ROM was built.

Memory Information

Total Memory

This displays the amount of memory that is available in the system.

7-4

SUPERSERVER 4027GR-TR/TRT USER'S MANUAL

7-3 Advanced Setup Confi gurations

Use the arrow keys to select Advanced setup menu and press <Enter> to access
the following submenu items.

Boot Feature

Quiet Boot

This feature allows the user to select the bootup screen display between POST
messages and the OEM logo. Select Disabled to display the POST messages.
Select Enabled to display the OEM logo instead of the normal POST messages.
The options are Enabled and Disabled.

AddOn ROM Display Mode

Use this item to set the display mode for the Option ROM. Select Keep Current to
use the current AddOn ROM Display setting. Select Force BIOS to use the Option
ROM display mode set by the system BIOS. The options are Force BIOS and
Keep Current.

Bootup Num-Lock

Use this feature to set the Power-on state for the Num Lock key. The options are
Off and On.

Wait For 'F1' If Error

Select Enabled to force the system to wait until the 'F1' key is pressed if an error
occurs. The options are Disabled and Enabled.

Chapter 7: BIOS

7-5

Interrupt 19 Capture

Interrupt 19 is the software interrupt that handles the boot disk function. When this
item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19
at bootup and allow the drives that are attached to these host adaptors to function
as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap­tors will not capture Interrupt 19, and the drives attached to these adaptors will not
function as bootable devices. The options are Enabled and Disabled.

Re-try Boot

Use this item to select the type of the bootable device that the BIOS will continuously
try to boot the system from. The options are Disabled, Legacy Boot, and EFI Boot.

Power Confi guration

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to automatically reboot when
a non-recoverable error occurs that lasts for more than fi ve minutes. The options
are Enabled and Disabled.

Power Button Function

If this feature is set to Instant Off, the system will power off immediately as soon
as the user presses the power button. If this feature is set to 4 Seconds Override,
the system will power off when the user presses the power button for 4 seconds or
longer. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay Off for the
system power to remain off after a power loss. Select Power On for the system
power to be turned on after a power loss. Select Last State to allow the system
to resume its last state before a power loss. The options are Power On, Stay Off,
and Last State.

CPU Confi guration

This submenu displays the CPU information as detected by the BIOS. It also allows
the user to confi gure CPU settings.

Socket 1 CPU Information/Socket 2 CPU Information

This submenu displays the following information regarding the CPU installed in
Socket 1 or Socket 2.

• Type of CPU
