Supero SUPERSERVER 1027R-N3RF User Manual

SUPERSERVER

1027R-N3RF

®

SUPER

USER'S MANUAL

Revision 1.0a

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.0a
Release Date: March 26, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

iii

Preface

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the SuperServer 1027R-N3RF
Installation and maintainance should be performed by experienced technicians only .

The SuperServer 1027R-N3RF is a high-end server based on the SC116TS-R700WBP
1U rackmount chassis and the X9DRW-3F dual processor serverboard.

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the
server system and describes the main features of the X9DRW-3F serverboard and
the SC116TS-R700WBP chassis.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the SuperServer 1027R-N3RF
into a rack and check out the server confi guration prior to powering up the system.
If your server was ordered without processor and memory components, this chapter
will refer you to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.

Chapter 4: Standardized Warning Statements for AC Systems

You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperServer 1027R-N3RF.

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the X9DRW-3F serverboard, including
the locations and functions of connections, headers and jumpers. Refer to
this chapter when adding or removing processors or main memory and when
reconfi guring the serverboard.

SUPERSERVER 1027R-N3RF USER'S MANUAL

iv

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC116TS-R700WBP server
chassis. You should follow the procedures given in this chapter when installing,
removing or reconfi guring SAS/SATA or peripheral drives and when replacing
system power supply units and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed information
on running the CMOS Setup Utility for the X9DRW-3F serverboard.

Appendix A: BIOS Error Beep Codes
Appendix B: System Specifi cations

Notes

Preface

v

vi

Table of Contents

Chapter 1 Introduction

1-1 Overview .........................................................................................................1-1

1-2 Serverboard Features .....................................................................................1-2

Processors ......................................................................................................1-2

Memory ...........................................................................................................1-2

SAS/SATA ...................................................................................................... 1-2

Onboard Controllers/Ports ..............................................................................1-3

Graphics Controller .........................................................................................1-3

Other Features ................................................................................................ 1-3

1-3 Server Chassis Features ................................................................................1-3

System Power ................................................................................................. 1-3

Hard Drive Subsystem .................................................................................... 1-3

PCI Expansion Slots ....................................................................................... 1-3

Front Control Panel ......................................................................................... 1-4

I/O Backplane ..................................................................................................1-4

Cooling System ............................................................................................... 1-4

1-4 Advanced Power Management ....................................................................... 1-4

Intel® Intelligent Power Node Manager (NM) .................................................1-4

Manageability Engine (ME) ............................................................................. 1-4

1-5 Contacting Supermicro ....................................................................................1-6

Chapter 2 Server Installation

2-1 Overview .........................................................................................................2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Preparing for Setup ......................................................................................... 2-1

Choosing a Setup Location .............................................................................2-2

2-4 Warnings and Precautions .............................................................................. 2-2

Rack Precautions ............................................................................................ 2-2

Server Precautions ..........................................................................................2-2

Rack Mounting Considerations ....................................................................... 2-3

Ambient Operating Temperature ................................................................ 2-3

Reduced Airfl ow ......................................................................................... 2-3

Mechanical Loading ................................................................................... 2-3

Circuit Overloading ..................................................................................... 2-4

Reliable Ground ......................................................................................... 2-4

2-5 Installing the System into a Rack ................................................................... 2-5

Identifying the Sections of the Rack Rails ...................................................... 2-5

SUPERSERVER 1027R-N3RF USER'S MANUAL

vii

Inner Rails .......................................................................................................2-6

Outer Rails ...................................................................................................... 2-7

2-6 Checking the Serverboard Setup ..................................................................2-10

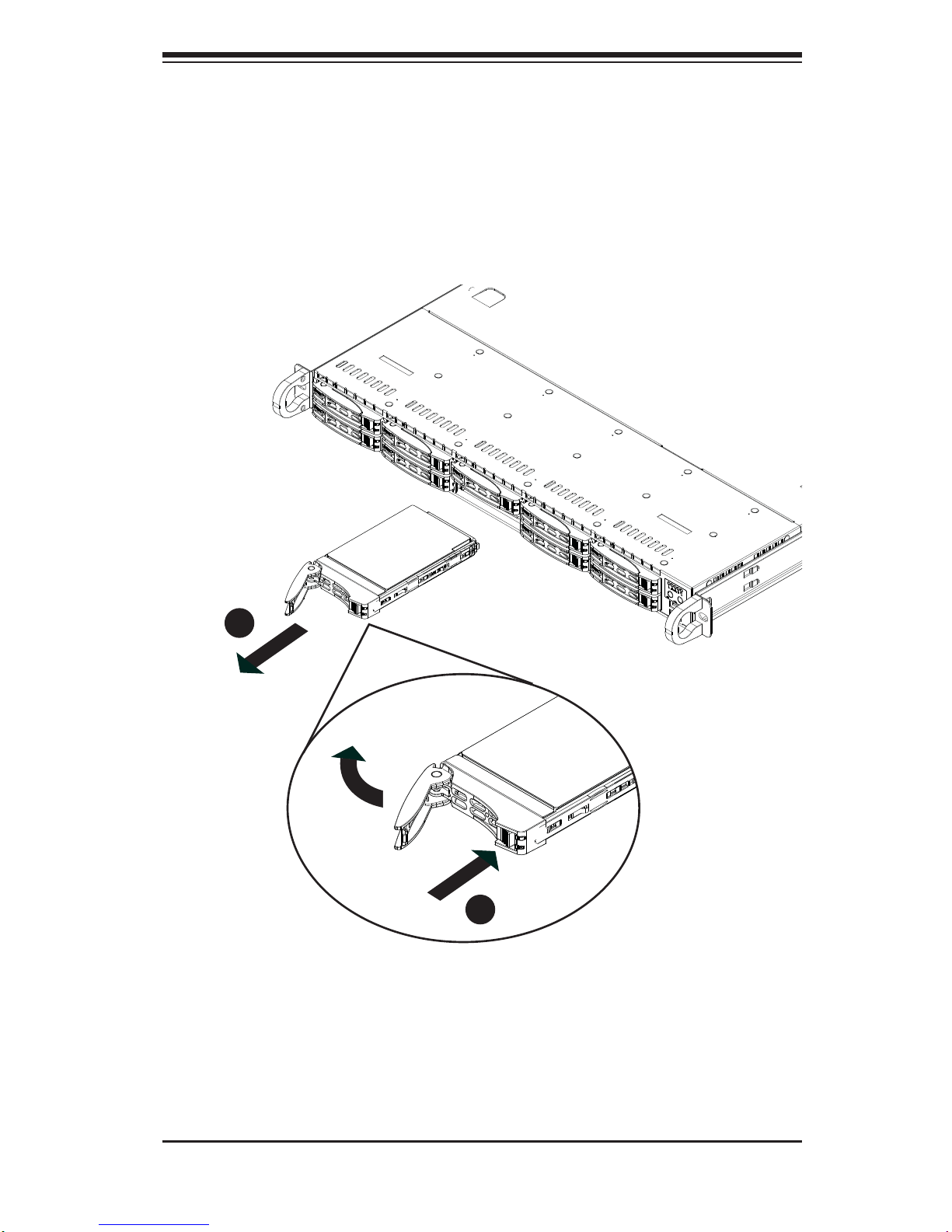

2-7 Checking the Drive Bay Setup .......................................................................2-11

Chapter 3 System Interface

3-1 Overview .........................................................................................................3-1

3-2 Control Panel Buttons ..................................................................................... 3-1

Reset ...............................................................................................................3-1

Power ..............................................................................................................3-1

UID ..................................................................................................................3-2

3-3 Control Panel LEDs ........................................................................................3-3

Information LED ..............................................................................................3-3

NIC2 ................................................................................................................3-3

NIC1 ................................................................................................................3-3

HDD ................................................................................................................. 3-3

Power ..............................................................................................................3-4

3-4 Hard Drive Carrier LEDs ................................................................................. 3-4

3-5 Power Supply LEDs ........................................................................................ 3-4

700W Power Supply LED ............................................................................... 3-4

Chapter 4 Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements ....................................................... 4-1

Warning Defi nition ........................................................................................... 4-1

Installation Instructions ....................................................................................4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning ........................................................................ 4-6

Equipment Installation ..................................................................................... 4-8

Restricted Area ................................................................................................ 4-9

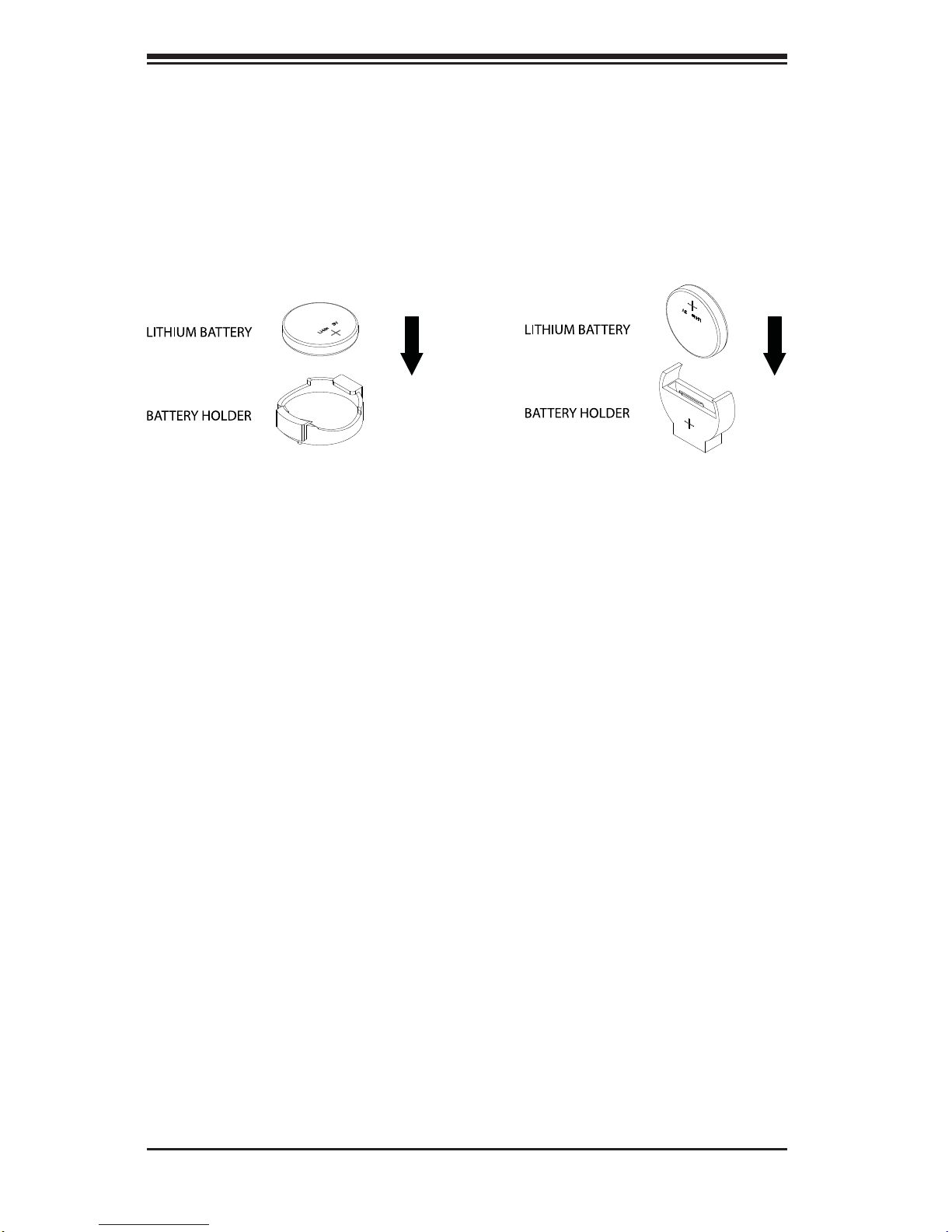

Battery Handling ............................................................................................4-10

Redundant Power Supplies ..........................................................................4-12

Backplane Voltage ........................................................................................ 4-13

Comply with Local and National Electrical Codes ........................................ 4-14

Product Disposal ........................................................................................... 4-15

Easy Swap Fan Warning .............................................................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Table of Contents

viii

Chapter 5 Advanced Serverboard Setup

5-1 Handling the Serverboard ............................................................................... 5-1

Precautions .....................................................................................................5-1

Unpacking .......................................................................................................5-1

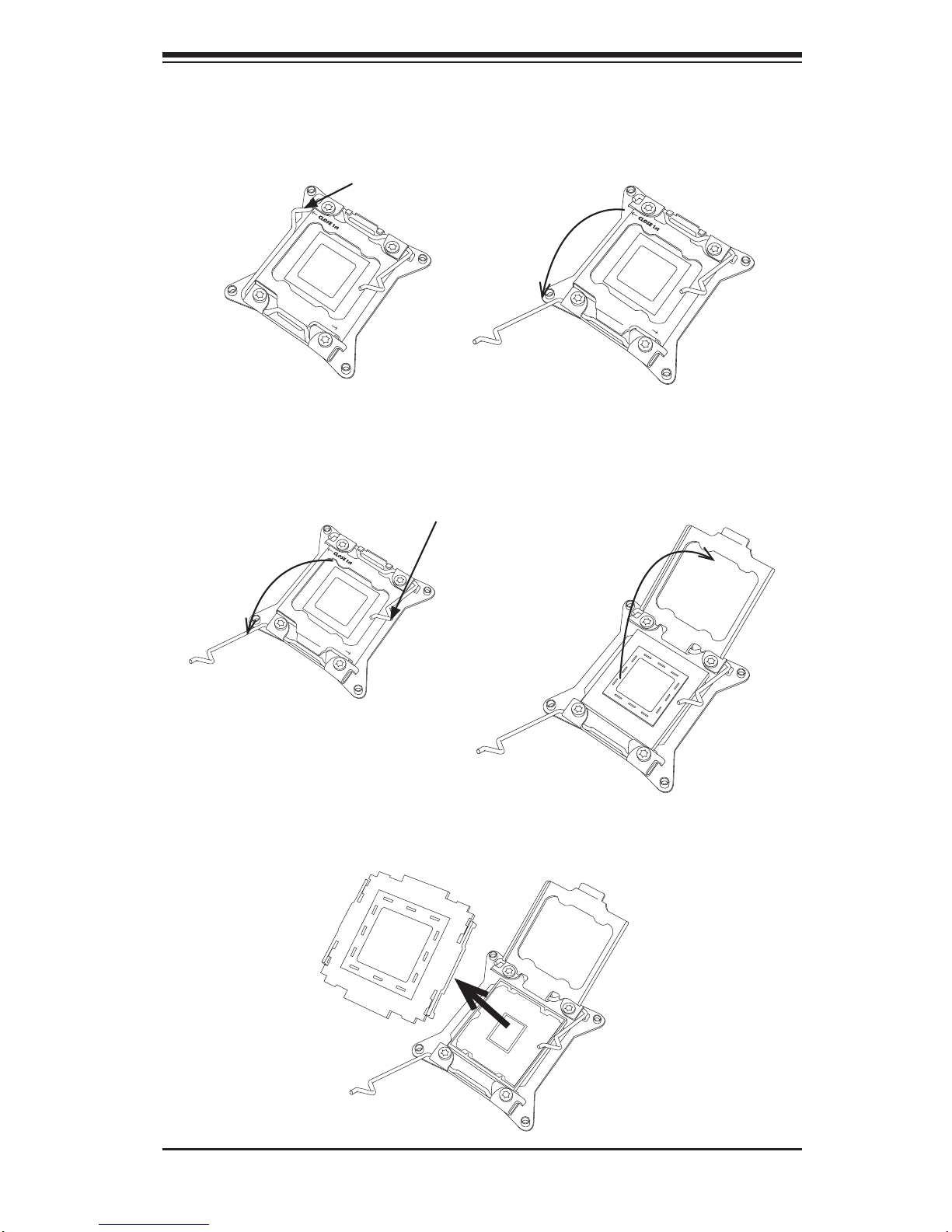

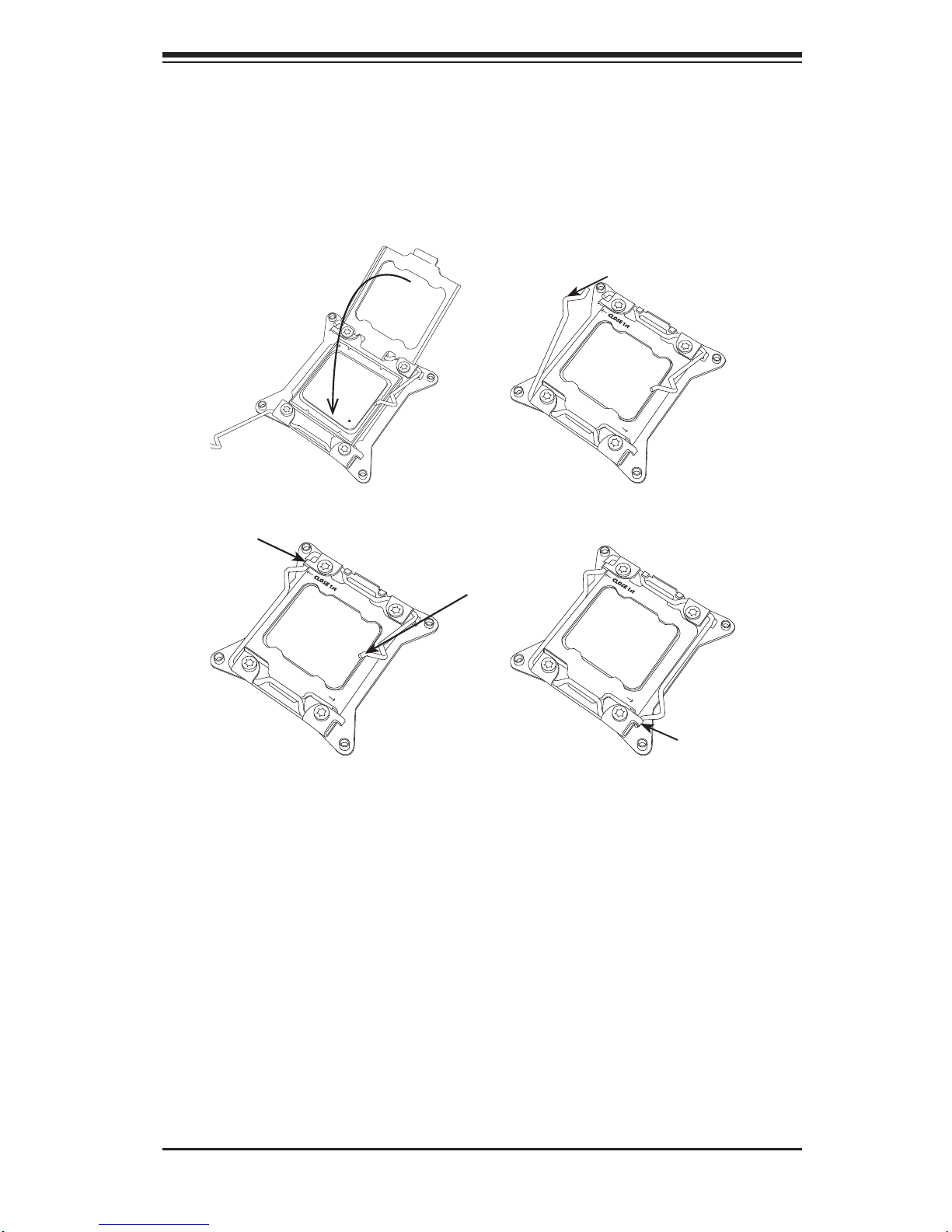

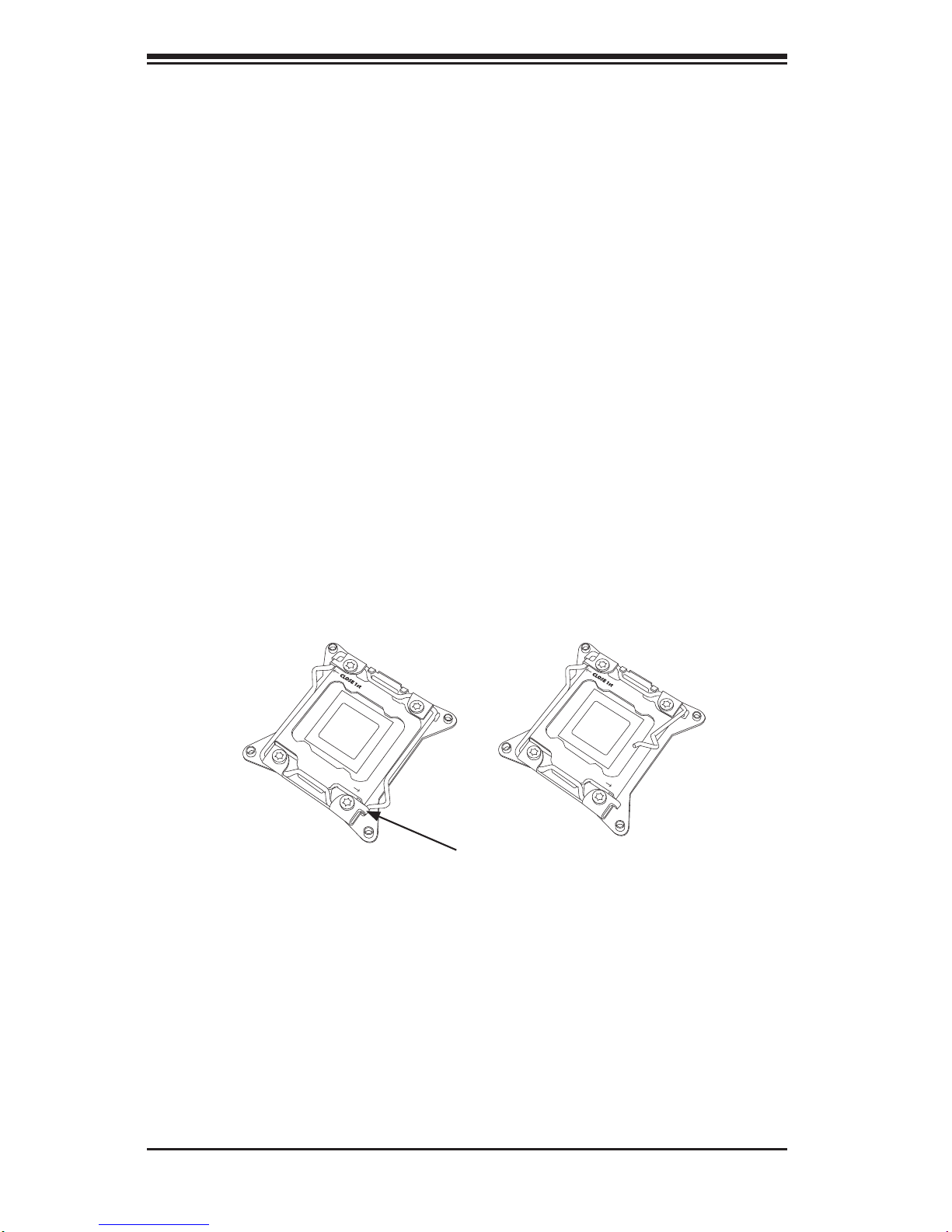

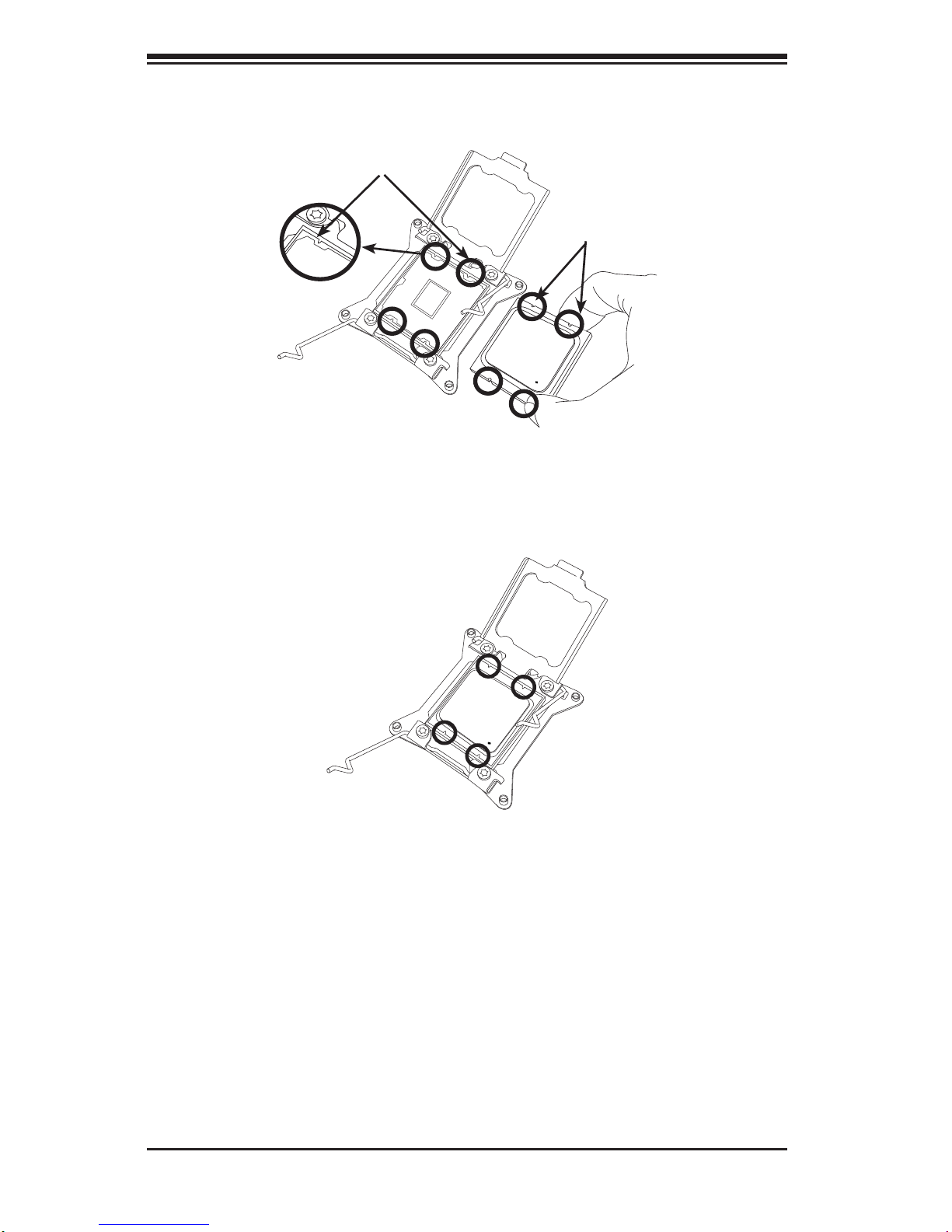

5-2 Processor and Heatsink Installation................................................................5-2

Installing a Passive CPU Heatsink ................................................................. 5-6

Removing the Heatsink ................................................................................... 5-7

5-3 Connecting Cables .......................................................................................... 5-7

Connecting Data Cables ................................................................................. 5-7

Connecting Power Cables ..............................................................................5-8

Connecting the Control Panel ......................................................................... 5-8

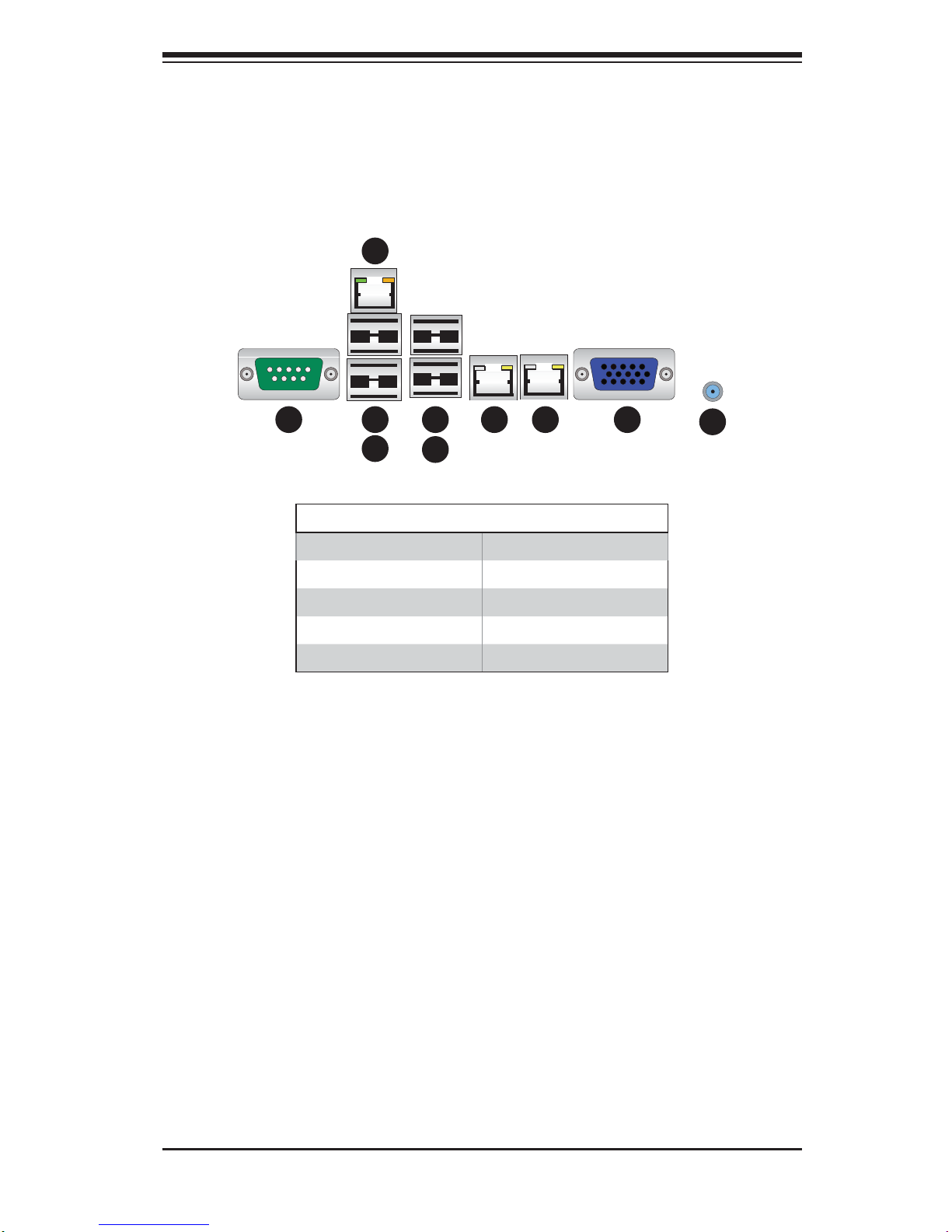

5-4 I/O Ports ..........................................................................................................5-9

5-5 Installing Memory .......................................................................................... 5-10

Memory Support ............................................................................................5-10

5-6 Adding PCI Expansion Cards ....................................................................... 5-12

5-7 Serverboard Details ...................................................................................... 5-13

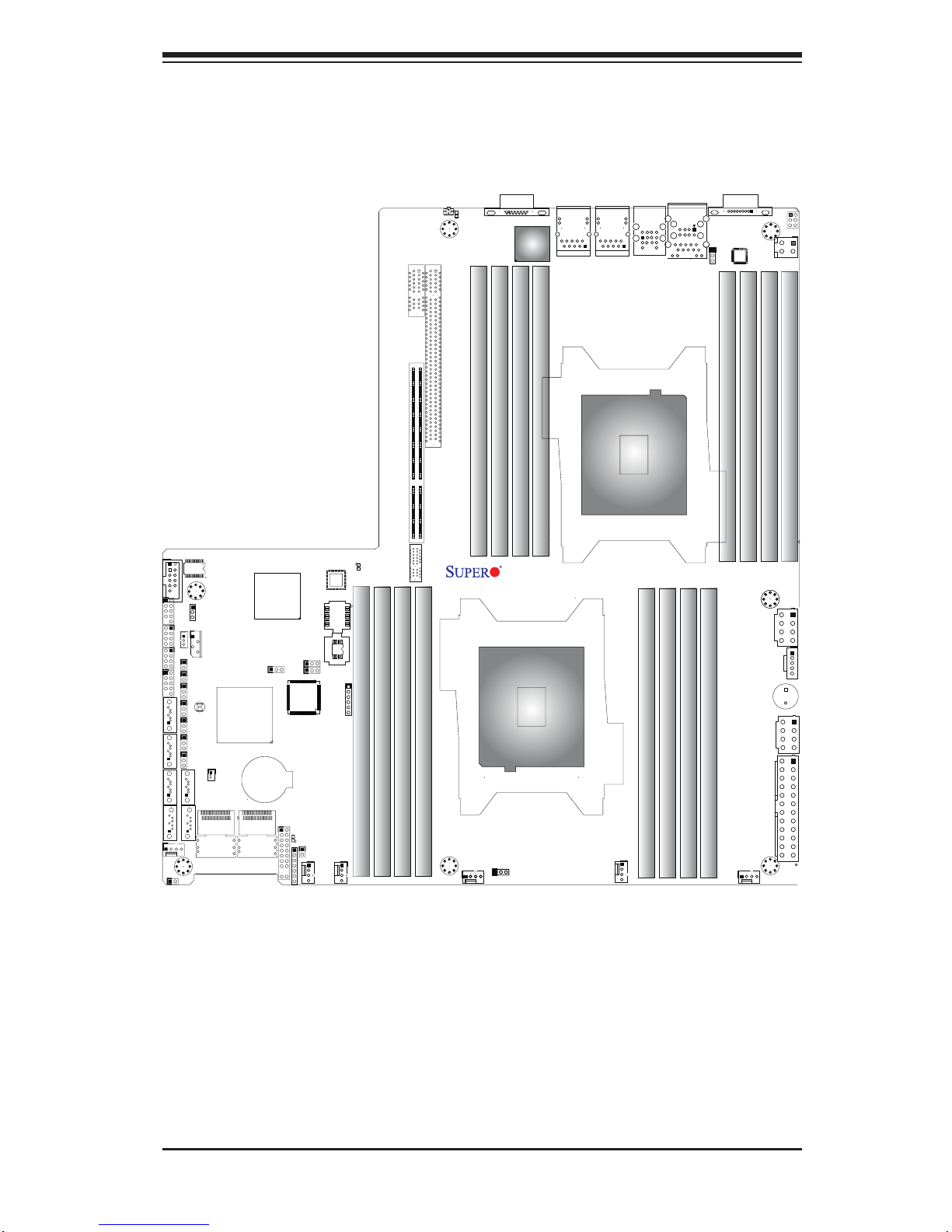

X9DRW-3F Quick Reference ........................................................................ 5-14

5-8 Connector Defi nitions ................................................................................... 5-16

5-9 Jumper Settings ............................................................................................5-25

Explanation of Jumpers ................................................................................5-25

5-10 Onboard Indicators ........................................................................................5-27

5-11 SATA Drive Connections ............................................................................... 5-28

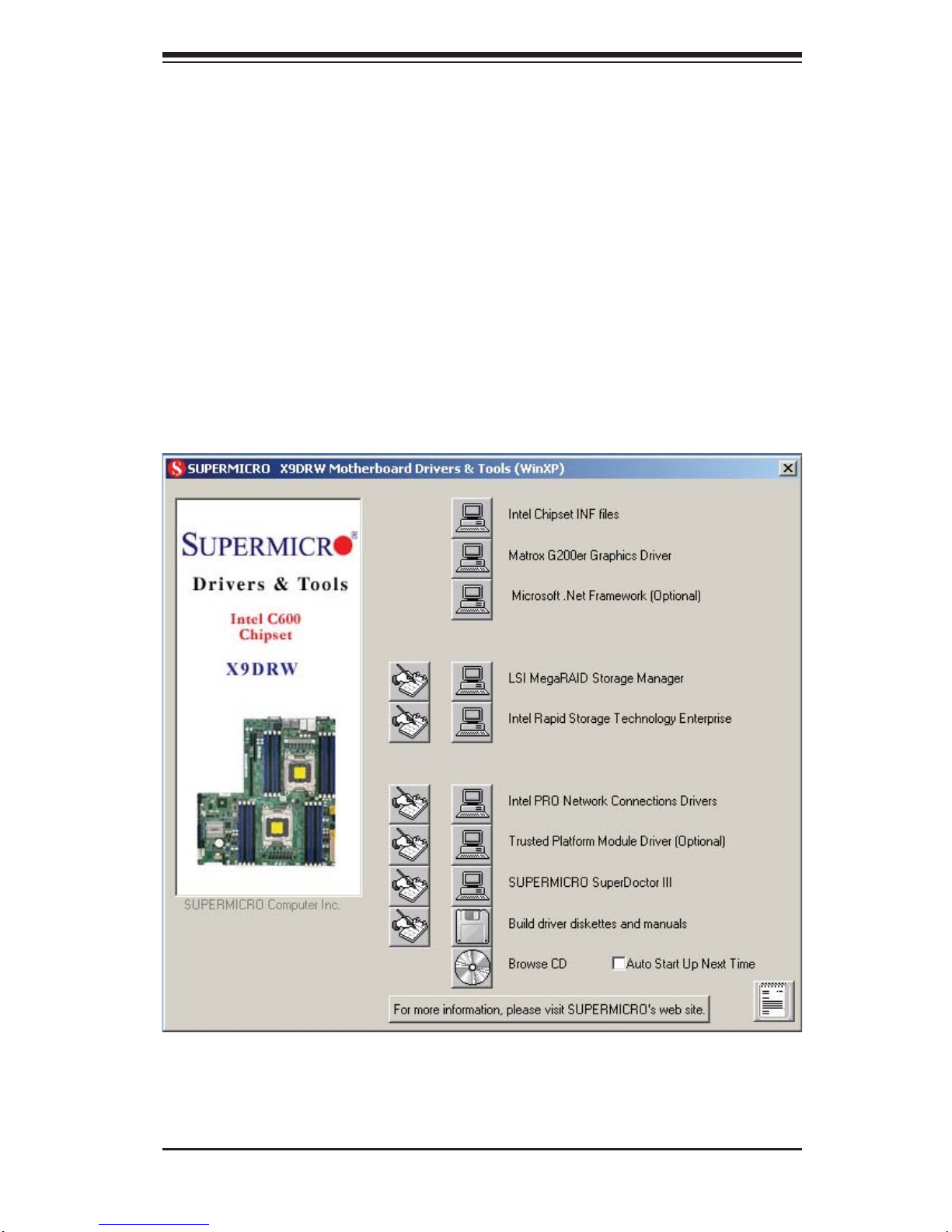

5-12 Installing Drivers ............................................................................................5-29

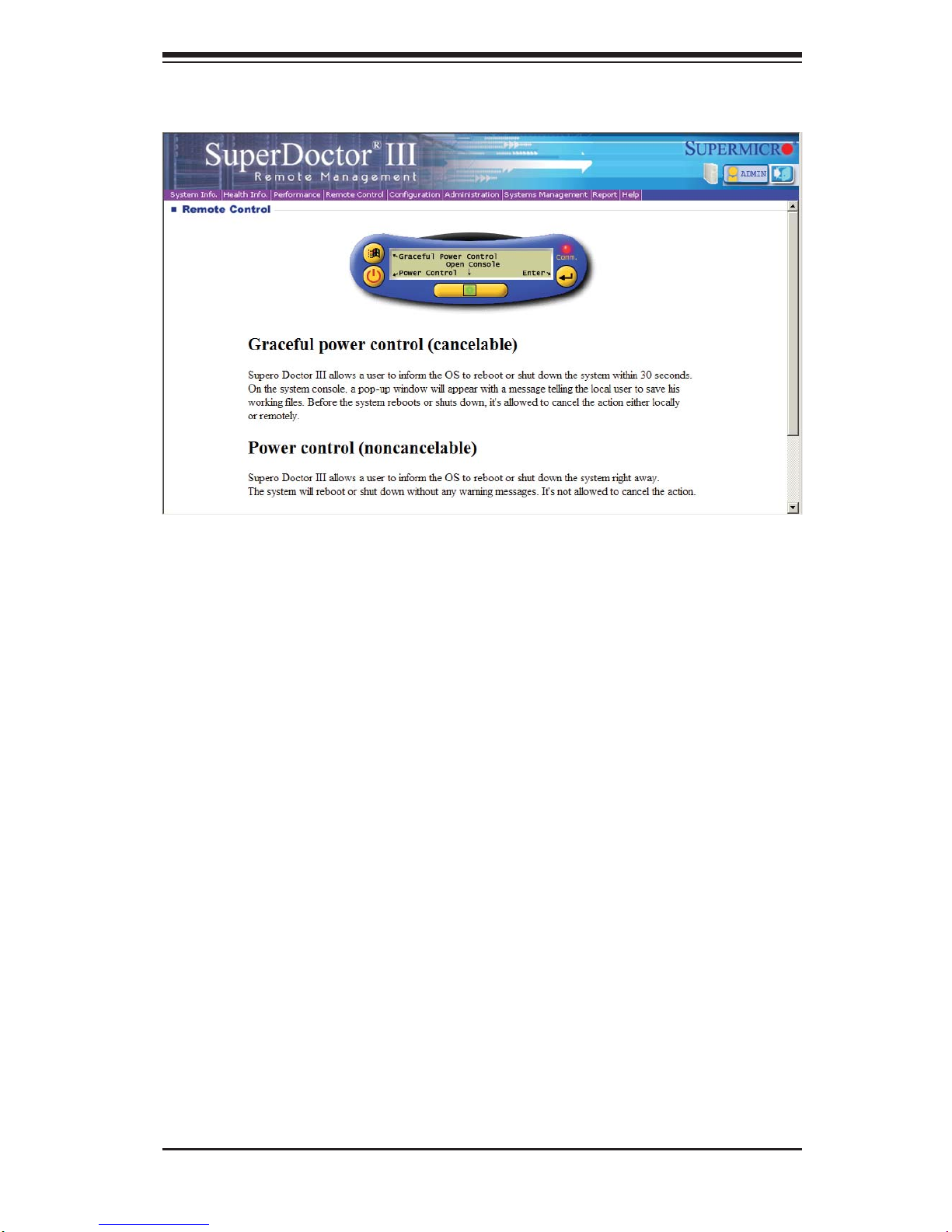

SuperDoctor III .............................................................................................. 5-30

5-13 Serverboard Battery ......................................................................................5-32

Chapter 6 Advanced Chassis Setup

6-1 Static-Sensitive Devices ..................................................................................6-1

Precautions .....................................................................................................6-1

6-2 Control Panel ..................................................................................................6-2

6-3 System Fans ...................................................................................................6-3

System Fan Failure ......................................................................................... 6-4

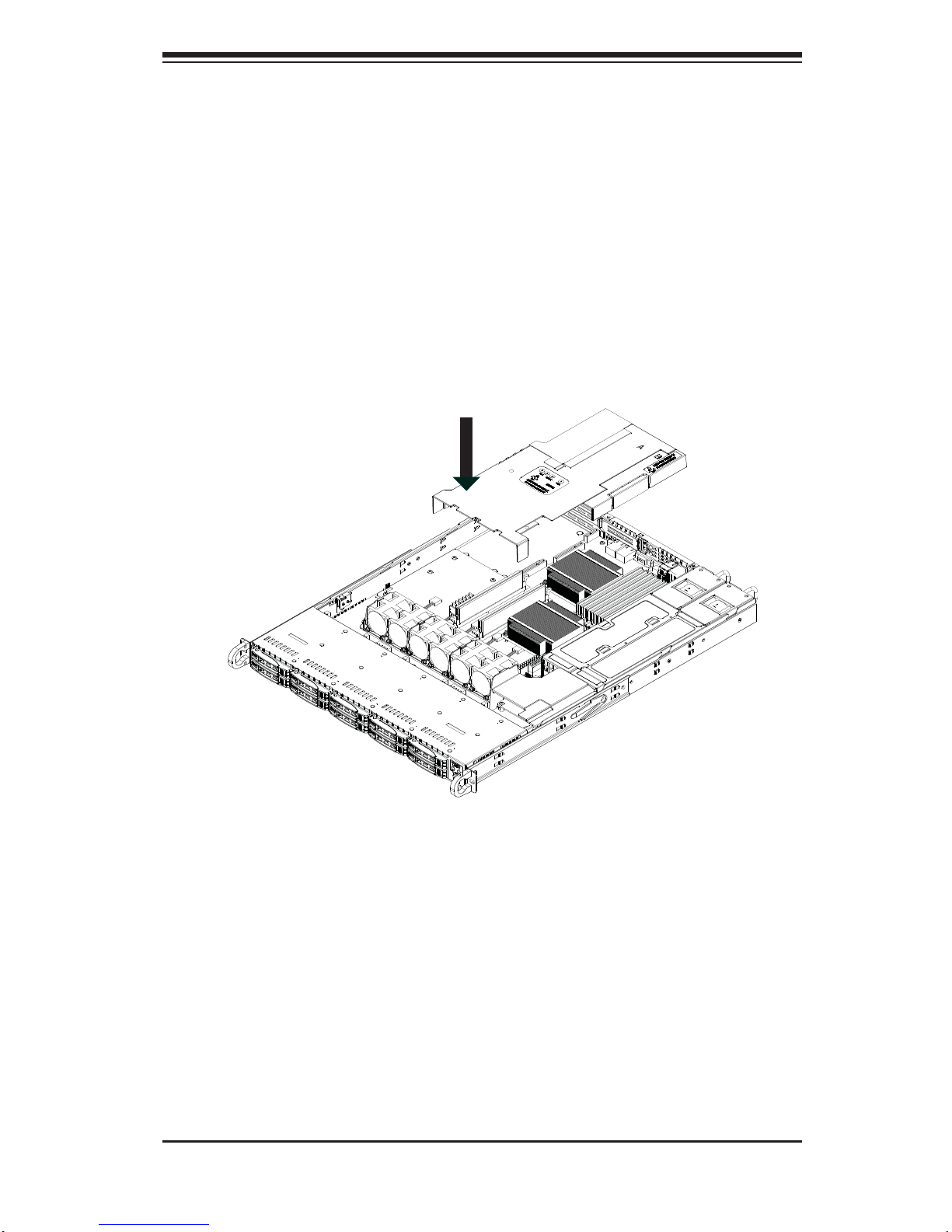

6-4 Installing the Air Shroud ..................................................................................6-5

Checking the Airfl ow .......................................................................................6-5

6-5 Drive Bay Installation/Removal ....................................................................... 6-6

Accessing the Drive Bays ............................................................................... 6-6

Hard Drive Installation .....................................................................................6-6

6-6 Expansion Card Setup .................................................................................... 6-8

6-7 Power Supply .................................................................................................. 6-9

Power Supply Failure ...................................................................................... 6-9

SUPERSERVER 1027R-N3RF USER'S MANUAL

ix

Table of Contents

Chapter 7 BIOS

7-1 Introduction ......................................................................................................7-1

Starting the Setup Utility ................................................................................. 7-1

7-2 Main Menu ...................................................................................................... 7-1

System Time/System Date .............................................................................7-2

7-3 Advanced Settings Menu ................................................................................ 7-2

7-3 Event Logs .................................................................................................... 7-22

7-4 IPMI ...............................................................................................................7-24

7-5 Boot ...............................................................................................................7-26

7-6 Security .........................................................................................................7-27

7-7 Save & Exit ................................................................................................... 7-27

Appendix A BIOS Error Beep Codes
Appendix B System Specifi cations

x

SUPERSERVER 1027R-N3RF USER'S MANUAL

Notes

Chapter 1

Introduction

1-1 Overview

Supermicro's SuperServer 1027R-N3RF is a dual processor, 1U rackmount server.
The 1027R-N3RF is a high-end server comprised of two main subsystems: the
SC116TS-R700WBP 1U server chassis and the X9DRW-3F dual processor
serverboard. Please refer to our web site for information on operating systems that
have been certifi ed for use with the system (www.supermicro.com).

In addition to the serverboard and chassis, various hardware components have
been included with the 1027R-N3RF, as listed below:

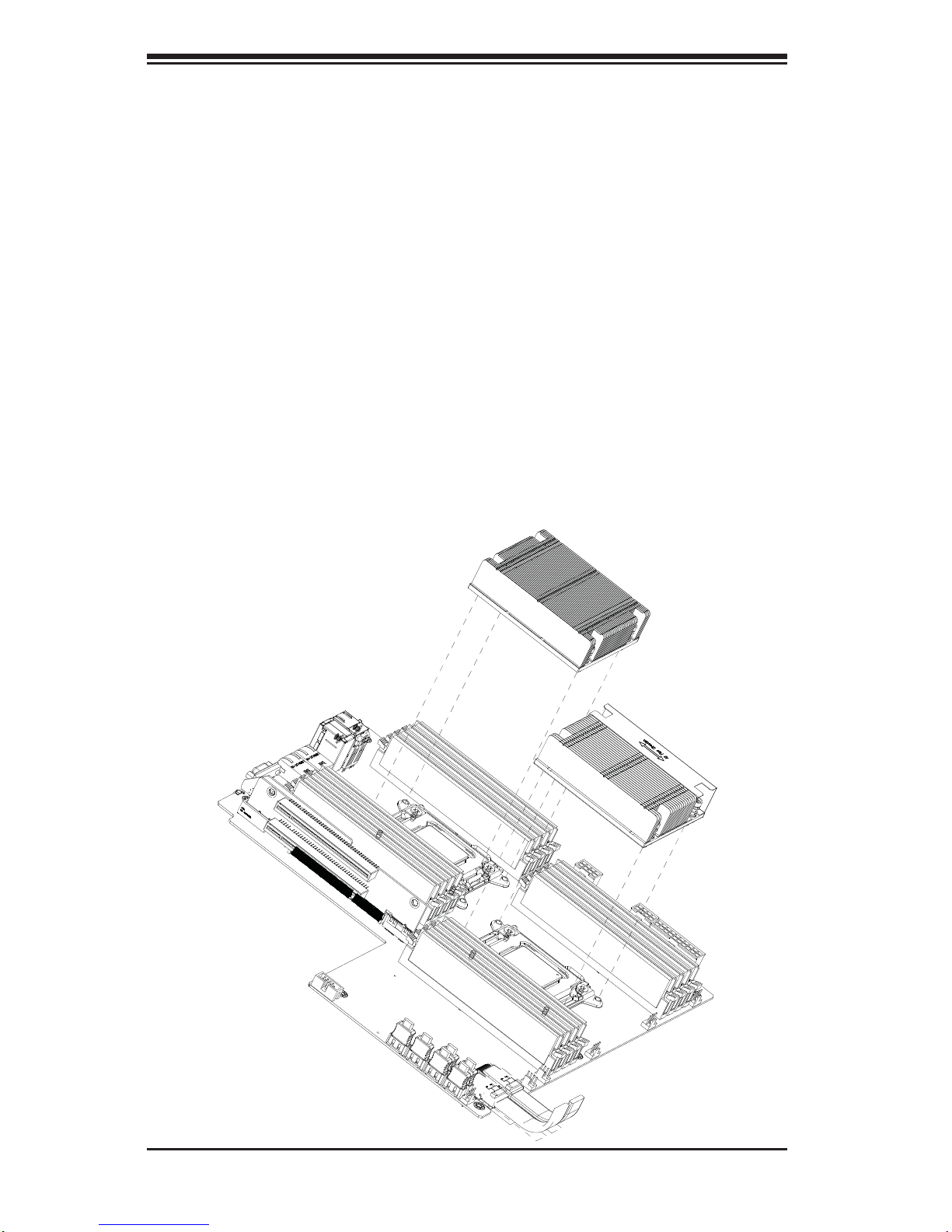

• Two (2) 1U passive CPU heat sink (SNK-P0047PS)

• One (1) SC815/113/116 Intel DP X9, X8 PC air shroud (MCP-310-19002-0N)

• Five (5) 40x56mm 4-pin PWM fans (FAN-0101L4)

• One (1) 70-cm front control cable 20-pin-to-20-pin w/tube (CBL-0335L)

• One (1) 77-cm 2CH USB 2.0 10-pin-to-10-pin cable (CBL0263L)

• SAS/SATA Accessories

One (1) HD Backplane (BPN-SAS-116TQ)
One (1) 30 AWG, 23-with/25.5-cm SB, S cable (CBL-0118L-01)
One (1) 30 AWG, 43/43/33/3-cm with/43-cm SB, S cable (CBL-0388L-01)
One (1) 61.5-cm 8-pin-to-8-pin cable for SGPIO, PBF cable (CBL-0157L-01)
Two (2) 65-cm SATA round S-RA PBF cable (CBL-0230L)
Ten (10) 2.5" hot-swap hard disk drive trays (MCP-220-00047-0B)

• One (1) set quick release outer rail for 1U chassis (MCP-290-00101-0N)

• One (1) set quick release inner rail, front for 1U chassis (MCP-290-00107-0N)

• One (1) set quick release inner rail, extension for 1U chassis (MCP-290-00111-

0N)

• One (1) riser card (RSC-R1UW-2E16-O-P)

Chapter 1: Introduction

1-1

1-2

SUPERSERVER 1027R-N3RF USER'S MANUAL

Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety information:

http://super-dev/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at:

[e-mail]

1-2 Serverboard Features

At the heart of the SuperServer 1027R-N3RF lies the X9DRW-3F, a dual processor
serverboard based on the Intel PCH C606 chipset. Below are the main features of
the X9DRW-3F. (See Figure 1-1 for a block diagram of the chipset).

Processors

The X9DRW-3F supports single or dual E5-2600 Series processors in
Socket R LGA2011 type sockets. Please refer to our web site for a complete listing
of supported processors (www.supermicro.com).

Memory

The X9DRW-3F has sixteen (16) single/dual/tri/quad channel 240-pin DIMM sockets
that can support up to 512 GB of DDR3 1600/1333/1066/800 MHz speed registered
ECC RDIMM/LRDIMM SDRAM in two-channel memory bus. Memory sizes of
1GB, 2GB, 4GB, 8GB, 16GB and 32GB @ 1.35V/1.5V voltages are supported.
Please refer to Chapter 5 for installing memory.

Note: LRDIMM (Reduced Load) memory supports only 1333/1066/800 MHz speed
memory.

SAS/SATA

An on -c hip (Intel PCH C606) SATA controller is i ntegrate d into the X9 DR W-3 F to
provid e a s i x-port SATA sub sy ste m (two SATA 3.0 and four SATA 2.0 ports), which
is R AID 0, 1, 5 and 10 (W ind ows SATA) or RA ID 0, 1 an d 10 (LINUX ) supp or te d.
The SATA drives ar e hot-s wappab le units .

The onb oard Intel PCH C606 chip also functions as a SAS controller for an eight
port eight SAS subsystem (RAID 0, 1, 5, 6, 10, 50 and 60). SAS drives are hot­swappable.

Chapter 1: Introduction

1-3

Note: You must have RAID set up to enable the hot-swap capability of the SATA
drives. D ocum entati on on R AI D setup gui deline s can be fo und on our we b site.

Onboard Controllers/Ports

The color-coded I/O ports on the X9DRW-3F include two COM ports (one header
and one port), a VGA (monitor) port, eight USB 2.0 ports (4x rear, 1x header for four
front panel), two gigabit Ethernet ports and one dedicated IPMI LAN port.

Note: For more information on IPMI confi guration, please refer to the IPMI User's
Guide posted on our website at http://www.supermicro.com/support/manuals/

Graphics Controller

The X9DRW-3F features an integrated Renesas Base-board Controller (BMC) chip,
which also acts as a video controller.

Other Features

Other onboard features that promote system health include onboard voltage
monitors, auto-switching voltage regulators, chassis and CPU overheat sensors,
power management, AC power loss recovery, virus protection and BIOS rescue.

1-3 Server Chassis Features

The SC116TS-R700WBP is Supermicro's third-generation 1U chassis and features
ten 2.5" hard drive bays and two high-effi ciency power supplies. The following is a
general outline of the main features of the SC116TS-R700WBP chassis.

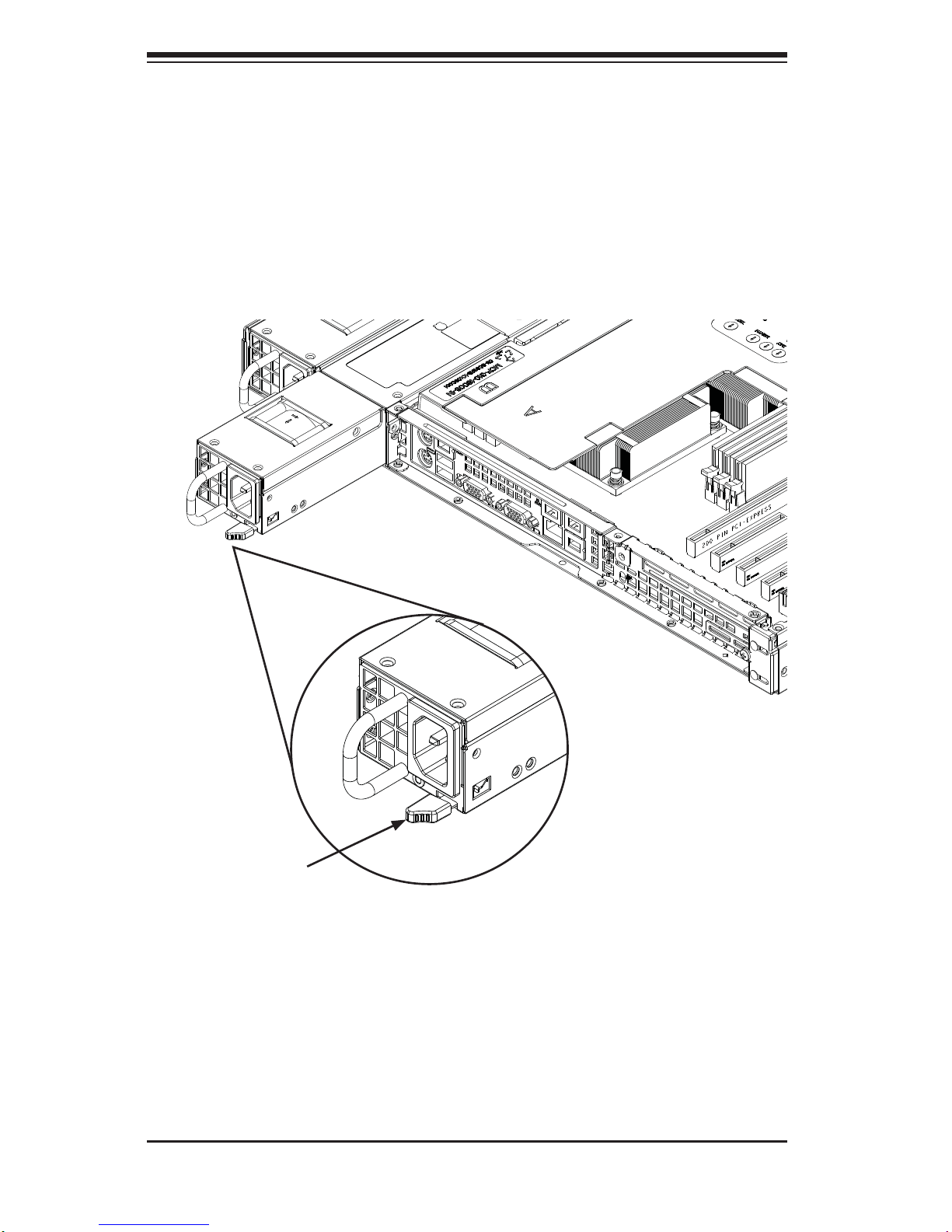

System Power

When confi gured as a SuperServer 1027R-N3RF, the SC116TS-R700WBP chassis
includes two redundant hot-swappable 700 Watt power supplies. In the unlikely
event your power supply fails, replacement is simple and can be done without tools.

Hard Drive Subsystem

The SC116TS-R700WBP chassis was designed to support ten hot-swap SATA
hard drives.

PCI Expansion Slots

A riser card (RSC-R1UW-2E16-O-P) on the left side of the chassis can support
two full-height, 6.6" length PCI-E 3.0 x16 cards. See section 5-6 for further details.)

1-4

SUPERSERVER 1027R-N3RF USER'S MANUAL

Front Control Panel

The SC116TS-R700WBP control panel provides important system monitoring and
control information. LEDs indicate power on, network activity , hard disk drive activity
and a UID (Universal Information) LED. Also present are a main power button, a
system reset button and a UID button.

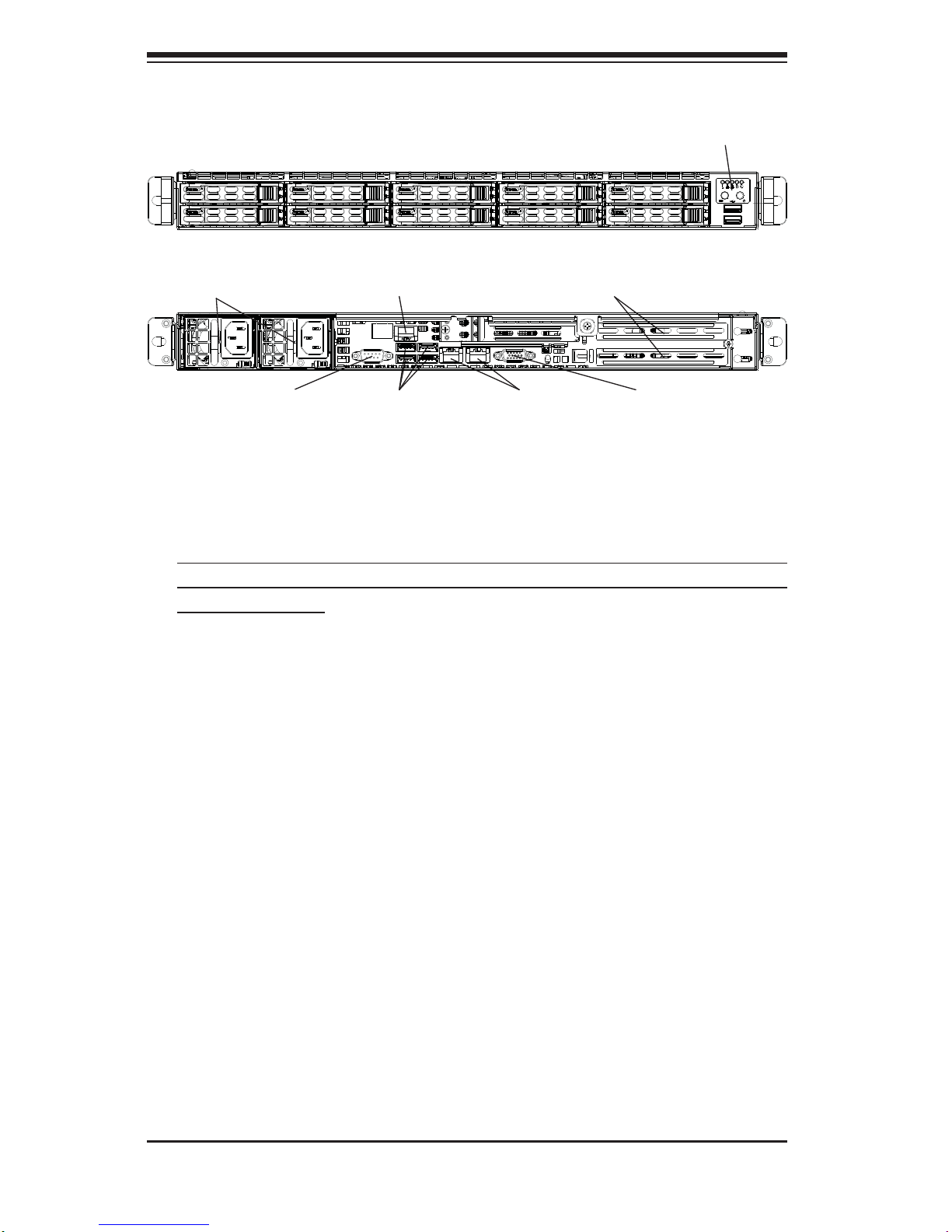

I/O Backplane

The SC116TS-R700WBP is an extended ATX form factor chassis that is designed
to be used in a 1U rackmount confi guration. Ports on the I/O backplane include
one COM port, a VGA port, four USB 2.0 ports, two gigabit Ethernet ports and one
IPMI port. A UID (Unit Identifi er) button and LED are also located beside the LAN2
Ethernet port.

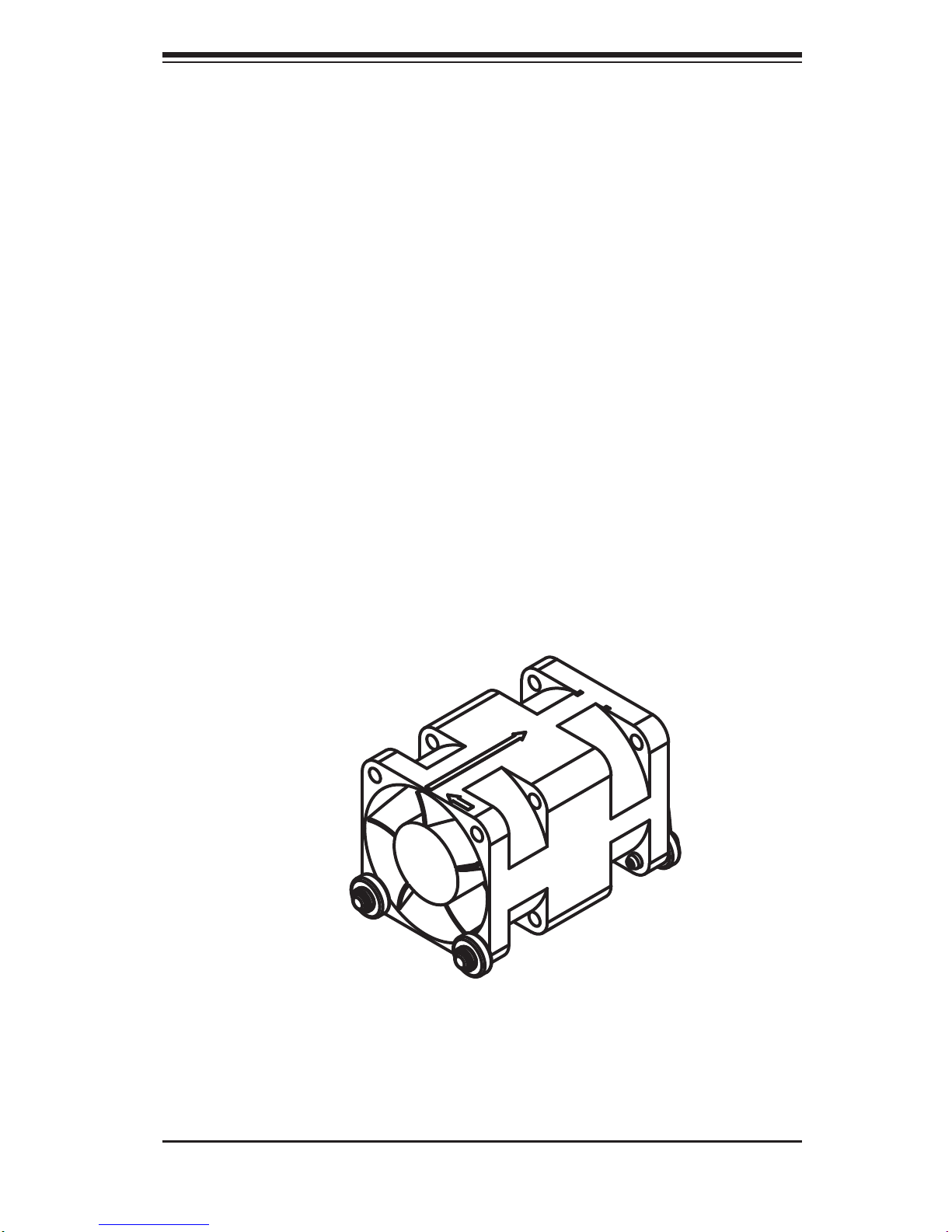

Cooling System

The SC1 16TS-R700WBP chassis has an innovative cooling design that features fi ve
sets of 4-cm counter-rotating fans located in the middle section of the chassis and
provides space for one additional fan if required. These fans are 1U high and are
powered by 4-pin connectors, with chassis fan speed controlled by IPMI software.
The power supply module also includes a cooling fan.

1-4 Advanced Power Management

Intel® Intelligent Power Node Manager (NM)

The Intel® Intelligent Power Node Manager (IPNM) provides your system with
real-time thermal control and power management for maximum energy effi ciency.
Although IPNM Specifi cation Version 1.5 is supported by the BMC (Baseboard
Management Controller), your system must also have IPNM-compatible
Manageability Engine (ME) fi rmware installed to use this feature.

Manageability Engine (ME)

The Manageability Engine, which is an ARC controller embedded in the IOH (I/O
Hub), provides Server Platform Services (SPS) to your system. The services
provided by SPS are different from those proveded by the ME on client platforms.

Chapter 1: Introduction

1-5

Figure 1-1. Intel PCH C606 Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

PROCESSOR

PROCESSOR

DDR3 DIMM

#1

#2

DDR3 DIMM

DDR3 DIMM

DDR3 DIMM

DDR3 DIMM

#2

#1

DDR3 DIMM

G

A

CPU Rear

DDR3 DIMM

B

DDR3 DIMM

D

C

H

F

E

Socket 00

Socket 01

#1

#2

#1

#2

#1

#2

#1

#2

#1

#2

#1

#2

P0

P0

P1

P1

x1

x16

x16

x16

J1

Right Slot

PCIE 3.0x16

DMI

PE3 PE2 PE1

QPI

QPI

CPU Front

DMI

PE1PE2PE3

P0PE3

J3

Left Slot

PCIE 3.0x16+x16

x4 (Lane4~7)

UL1

I350AM2

JLAN1

RJ45

JLAN2

RJ45

Lane Reversal & Polarity Inversion

DMI: Lane Reversal

BIOS

SPI Flash

SPI

DMI
PEG [0...3]

PET8 USB [10,11] LPC

SSB

PCH C606

Gen 3 [1...7]

SATA [0...5]

USB [0...9]

SATA Gen3

SATA Gen2

SATA0

SATA1

SATA2

SATA3

SATA4

SATA5

DDR3 RAM

Renesas

VGA

BMC

TPM Chip

Super I/O

W83527

NCT7904D

HW Monitor

VGA

CONN

PHY

RTL8211E
IPMI LAN

RJ45

REAR

HDR 2X5

REAR

3Gbps

6Gbps

JSM2(SCU4~7)

(3F only)

JSM1(SCU0~3)

1-6

SUPERSERVER 1027R-N3RF USER'S MANUAL

1-5 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)
Web Site:

www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacifi c

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 23511

Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Web Site:

www.supermicro.com.tw

Technical Support:
Email: [e-mail]
Tel: [phone]

Chapter 2: Server Installation

2-1

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your SuperServer 1027R-N3RF
up and running. Following these steps in the order given should enable you to have
the system operational within a minimum amount of time. This quick setup assumes
that your system has come to you with the processors and memory preinstalled. If
your system is not already fully integrated with a serverboard, processors, system
memory etc., please turn to the chapter or section noted in each step for details on
installing specifi c components.

2-2 Unpacking the System

You should inspect the box the SuperServer 1027R-N3RF was shipped in and note
if it was damaged in any way. If the server itself shows damage you should fi le a
damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the 1027R-N3RF. It
should be situated in a clean, dust-free area that is well ventilated. Avoid areas
where heat, electrical noise and electromagnetic fi elds are generated. You will also
need it placed near a grounded power outlet. Be sure to read the Rack and Server
Precautions in the next section.

2-3 Preparing for Setup

The box the SuperServer 1027R-N3RF was shipped in should include two sets of
rail assemblies, two rail mounting brackets and the mounting screws you will need
to install the system into the rack. Follow the steps in the order given to complete
the installation process in a minimum amount of time. Please read this section in
its entirety before you begin the installation procedure outlined in the sections that
follow.

2-2

SUPERSERVER 1027R-N3RF USER'S MANUAL

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front door

completely (~25 inches) and approximately 30 inches of clearance in the back
of the rack to allow for suffi cient airfl ow and ease in servicing.This product is for
installation only in a Restricted Access Location (dedicated equipment rooms,
service closets and the like).

• This product is not suitable for use with visual display work place devices

acccording to §2 of the the German Ordinance for Work with Visual Display Units.

2-4 Warnings and Precautions

Warning! To prevent bodily injury when mounting or servicing this unit in a

rack, you must take special precautions to ensure that the system remains stable.
The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially fi lled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to

the fl oor with the full weight of the rack resting on them.

• In single rack installation, stabilizers should be attached to the rack. In multiple

rack installations, the racks should be coupled together.

• Always make sure the rack is stable before extending a component from the

rack.

• You should extend only one component at a time - extending two or more

simultaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Chapter 4.

• Determine the placement of each component in the rack before you install the

rails.

Chapter 2: Server Installation

2-3

• Install the heaviest server components on the bottom of the rack fi rst, and then

work up.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a
power failure.

• Allow the hot plug SATA drives and power supply modules to cool before

touching them.

• Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

Rack Mounting Considerations

Warning: Do not pick up the server with the front handles. They are

designed to pull the system from a rack only.

Stability Hazard: The rack stabilizing mechanism must be in place, or the
rack must be bolted to the fl oor before you slide the unit out for servicing. Failure
to stabilize the rack can cause the rack to tip over.

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating
temperature of the rack environment may be greater than the ambient temperature
of the room. Therefore, consideration should be given to installing the equipment
in an environment compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required
for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.

2-4

SUPERSERVER 1027R-N3RF USER'S MANUAL

Circuit Overloading

Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack
itself should be grounded. Particular attention should be given to power supply
connections other than the direct connections to the branch circuit (i.e. the use of
power strips, etc.).

Chapter 2: Server Installation

2-5

2-5 Installing the System into a Rack

This section provides information on installing the SC1 16 chassis into a rack unit with
the rails provided. There are a variety of rack units on the market, which may mean
the assembly procedure will differ slightly. You should also refer to the installation
instructions that came with the rack unit you are using.

NOTE: This rail will fi t a rack between 26" and 33.5" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two quick release rack rail assemblies in the rack
mounting kit. Each assembly consists of two sections: an inner fi xed chassis rail
that secures directly to the server chassis and an outer fi xed rack rail that secures
directly to the rack itself.

Figure 2-1. Identifying the Sections of the Rack Rails

Inner Rails

Inner Rail
Extensions

2-6

SUPERSERVER 1027R-N3RF USER'S MANUAL

Inner Rails

The SC1 16 chassis includes a set of inner rails in two sections: inner rails and inner
rail extensions. The inner rails are pre-attached and do not interfere with normal use
of the chassis if you decide not to use a server rack. Attach the inner rail extension
to stabilize the chassis within the rack.

Installing the Inner Rails (Figure 2-2)

1. Place the inner rail extensions on the side of the chassis aligning the hooks
of the chassis with the rail extension holes. Make sure the extension faces
"outward" just like the pre-attached inner rail.

2. Slide the extension toward the front of the chassis.

3. Secure the chassis with two screws as illustrated.

4. Repeat steps 1-3 for the other inner rail extension.

Figure 2-2. Installing Chassis Rails

1

1

1

2

1

3

Chapter 2: Server Installation

2-7

Outer Rails

Installing the Outer Rails to the Rack (Figures 2-3 and 2-4)

1. Attach the shorter outer rail to the outside of the longer outer rail. You must
align the pins with the slides. Both bracket ends must face the same direction.

2. Adjust both the shorter and longer rails to the proper distance so that the rail
fi ts snugly into the rack.

3. Secure the long bracket to the front side of the outer rail with two M5 screws
and the short bracket to the rear side of the outer rail with three M5 screws.

4. Repeat steps 1-4 for the left outer rail.

Figure 2-3. Assembling the Outer Rails

Secure to the

Front of the Rack

Secure to the

Rear of the Rack

Attach Outer Rails

Together

2-8

SUPERSERVER 1027R-N3RF USER'S MANUAL

Figure 2-4. Installing the Outer Rails to the Rack

1

2

1

3

1

3

Chapter 2: Server Installation

2-9

Installing the Chassis into a Rack (Figure 2-5)

1. Confi rm that chassis includes the inner rails and inner rail extensions.
Alsoconfi rm that the outer rails are installed on the rack.

2. Align the chassis inner rails with the front of the out rails on the rack.

3. Slide the chassis rails into the rack rails, keeping the pressure even on both
sides (you may have to depress the locking tabs when inserting). When the
server has been pushed completely into the rack, you should hear the locking
tabs click into position.

4. (Optional) Insert and tighten the thumbscrews that hold the front of the server
to the rack.

Figure 2-5. Installing the Server into a Rack

Note: The fi gure above is for illustrative purposes only. Always install servers to

the bottom of the rack fi rst.

2-10

SUPERSERVER 1027R-N3RF USER'S MANUAL

2-6 Checking the Serverboard Setup

After you install the 1027R-N3RF in the rack, you will need to open the unit to make
sure the serverboard is properly installed and all the connections have been made.

Removing the Chassis Cover (Figure 2-7)

1. Grasp the two handles on either side and pull the unit straight out until it
locks (you will hear a "click").

2. Remove the screws securing the top cover to the chssis.

3. Slide the cover toward the rear of the chassis.

4. Lift the cover off the chassis.

Checking the Components

1. You may have one or two processors already installed into the serverboard.
Each processor needs its own heatsink. See Chapter 5 for instructions on
processor and heatsink installation.

2. Your 1027R-N3RF server system may have come with system memory
already installed. Make sure all DIMMs are fully seated in their slots. For
details on adding system memory, refer to Chapter 5.

3. If desired, you can install add-on cards to the system. See Chapter 5 for
details on installing PCI add-on cards.

Figure 2-7: Removing the Chassis Cover

1

3

1

1

1

1

1

2

Chapter 2: Server Installation

2-11

4. Make sure all power and data cables are properly connected and not blocking
the chassis airfl ow. See Chapter 5 for details on cable connections. Also,
check the air seals for damage. The air seals are located under the blower
fan and beneath the frame cross section that separates the drive bay area
from the serverboard area of the chassis.

2-7 Checking the Drive Bay Setup

Next, you should check to make sure the hard drives have been properly installed
and all connections have been made.

Checking the Drives

1. For servicing the hard drives, you will need to remove the top chassis cover.

2. If you need to remove or install hard drives, please refer to Chapter 6.

Checking the Airfl ow

1. Airfl ow is provided by fi ve 4-cm counter-rotating fans. The system component
layout was carefully designed to direct suffi cient cooling airfl ow to the
components that generate the most heat.

2. Note that all power and data cables have been routed in such a way that they
do not block the airfl ow generated by the fans.

Providing Power

1. The last thing you must do is to provide input power to the system. Plug the
power cord from the power supply unit into a high-quality power strip that
offers protection from electrical noise and power surges. It is recommended
that you use an uninterruptible power supply (UPS).

2. Finish by depressing the power button on the chassis control panel.

2-12

SUPERSERVER 1027R-N3RF USER'S MANUAL

Notes

Chapter 3: System Interface

3-1

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel and on the drive carriers that provide
system and component status for the 1027R-N3RF server. This chapter explains the
meanings of all LED indicators and the appropriate responses that need to be taken.

3-2 Control Panel Buttons

There are three buttons located on the front of the chassis: a reset button, a power
on/off button and a UID button.

Reset

Use the reset button to reboot the system.

Power

This is the main power button, which is used to apply or turn off the main system
power. T urning off system power with this button removes the main power but keeps
standby power supplied to the system.

3-2

SUPERSERVER 1027R-N3RF USER'S MANUAL

UID

Depressing the UID (unit identifi er) button illuminates an LED on both the front and
rear of the chassis for easy system location in large stack confi gurations. The LED
will remain on until the button is pushed a second time. Another UID button on the
rear of the chassis serves the same function. See the table below for descriptions
of UID LED states.

Universal Information LED States

State Indication

Fast Blinking Red (1x/sec) Fan Fail
Solid Red CPU Overheat
Slow Blinking Red (1x/4 sec) Power Fail
Solid Blue Local UID Button Depressed
Blinking Blue IPMI-Activated UID

Note: deactivating the UID LED must be performed in the same way it was activated.
(If the UID LED was activated via IPMI, you can only turn the LED off via IPMI and
not with the UID button.)
