Supero SUPER 370SSA, SUPER 370SSM User Manual

®

SUPER 370SSA
SUPER 370SSM

USER’S MANUAL

Revision 1.1

SUPER

The information in this User’s Manual has been carefully reviewed and is believed to be
accurate. The vendor assumes no responsibility for any inaccuracies that may be contained
in this document, makes no commitment to update or to keep current the information in this
manual, or to notify any person or organization of the updates.

Please Note: For the
most up-to-date version of this manual, please see our web site at
www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in
this manual at any time and without notice. This product, including software, if any, and
documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR
INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of Santa
Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total
liability for all claims will not exceed the price paid for the hardware product.

Unless you request and receive written permission from SUPER MICRO COMPUTER, you
may not copy any part of this document.

Information in this document is subject to change without notice. Other products and
companies referred to herein are trademarks or registered trademarks of their respective
companies or mark holders.

Copyright © 2000 by SUPER MICRO COMPUTER INC.
All rights reserved.

Printed in the United States of America.

Preface

About This Manual

This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use
of the SUPER 370SSA/370SSM motherboard. The SUPER 370SSA/370SSM
supports single Pentium® III FCPGA 500 MHz-1 GHz processors and Celeron
PPGA 333-500 processors at front side bus speeds of 133, 100 and 66 MHz.
Please refer to the support section of our web site (http://
www.supermicro.com/TechSupport.htm) for a complete listing of supported
processors.

FCPGA Pentium III processors are housed in a 370-pin package.

Manual Organization

Chapter 1 includes a checklist of what should be included in your mainboard

box, describes the features, specifications and performance of the SUPER
370SSA/370SSM mainboard and provides detailed information about the
chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read
this chapter when you want to install the processor and DIMM memory mod­ules and when mounting the mainboard in the chassis. Also refer to this
chapter to connect the floppy and hard disk drives, the IDE interfaces, the
parallel and serial ports and the twisted wires for the power supply, the reset
button, the keylock/power LED, the speaker and the keyboard.

If you encounter any problems, see Chapter 3, which describes troubleshoot-
ing procedures for the video, the memory and the setup configuration stored
in CMOS. For quick reference, a general FAQ (Frequently Asked Questions)
section is provided. Instructions are also included for contacting technical
support. In addition, you can visit our web site at www.supermicro.com/
techsupport.htm for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information
on running the CMOS Setup utility.

The Appendix provides post diagnostic error messages.

iii

Preface

iv

SUPER 370SSA/370SSM User’s Manual

Notes

Table of Contents

v

Table of Contents

Preface

About This Manual ...................................................................................................... ii i

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview .......................................................................................................... 1 -1

Checklist .................................................................................................... 1 -1

Contacting Supermicro ............................................................................. 1 -3

SUPER 370SSA Image ........................................................................... 1- 4

SUPER 370SSM Image ........................................................................... 1- 5

SUPER 370SSA Layout .......................................................................... 1- 6

SUPER 370SSM Layout .......................................................................... 1- 8

815 Chipset: System Block Diagram ................................................... 1-10

Motherboard Features ........................................................................... 1-11

1-2 Chipset Overview .......................................................................................... 1-13

1-3 Special Features ........................................................................................... 1-14

Communication and Networking Riser (CNR - 370SSA only) ......... 1-14

Audio Modem Riser (AMR - 370SSM only) ....................................... 1-14

1-4 PC Health Monitoring................................................................................... 1-14

1-5 ACPI/PC 98 Features .................................................................................. 1-16

1-6 Power Supply ................................................................................................ 1-18

1-7 Super I/O ........................................................................................................ 1-18

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................ 2- 1

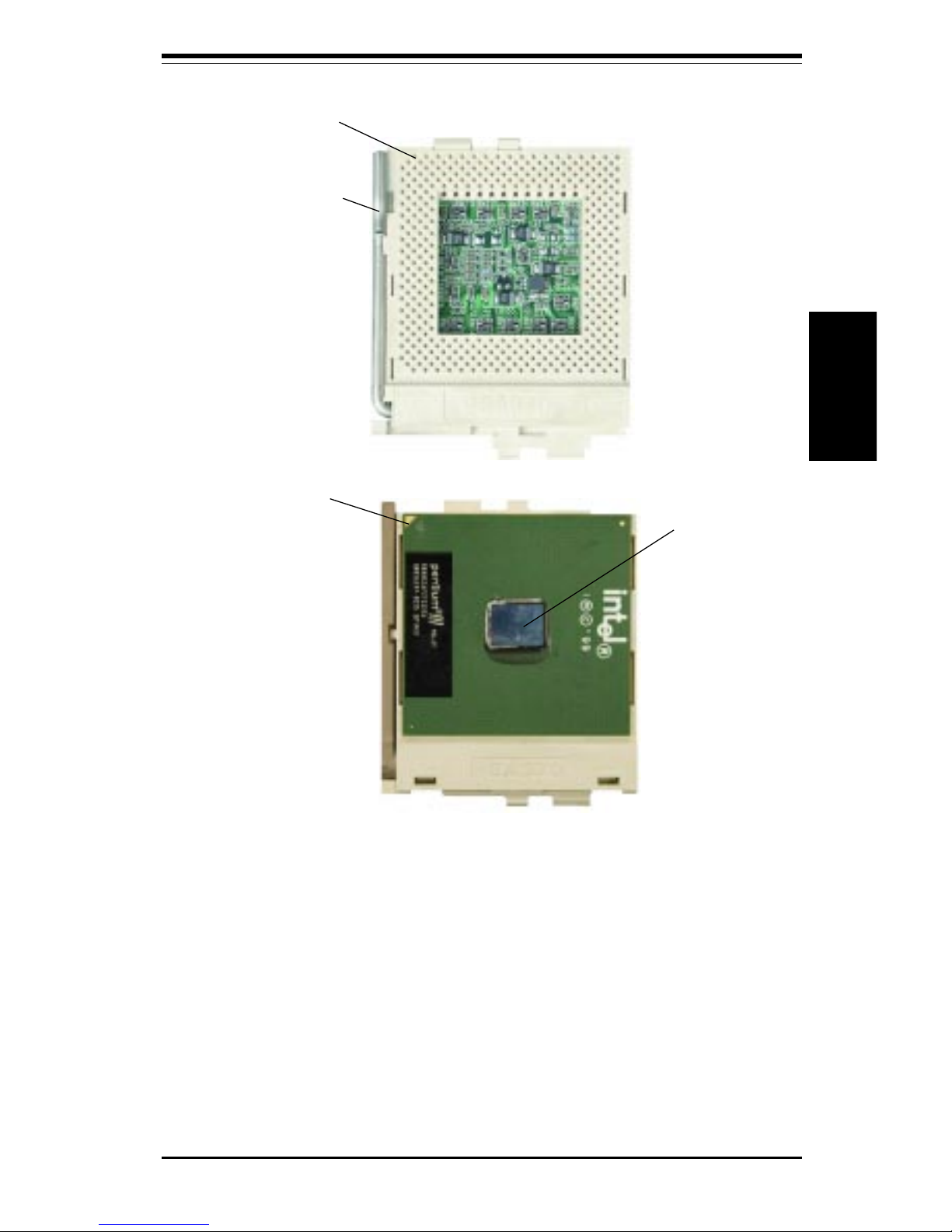

2-2 Processor Installation .................................................................................... 2- 2

2-3 Mounting the Motherboard in the Chassis .................................................. 2-3

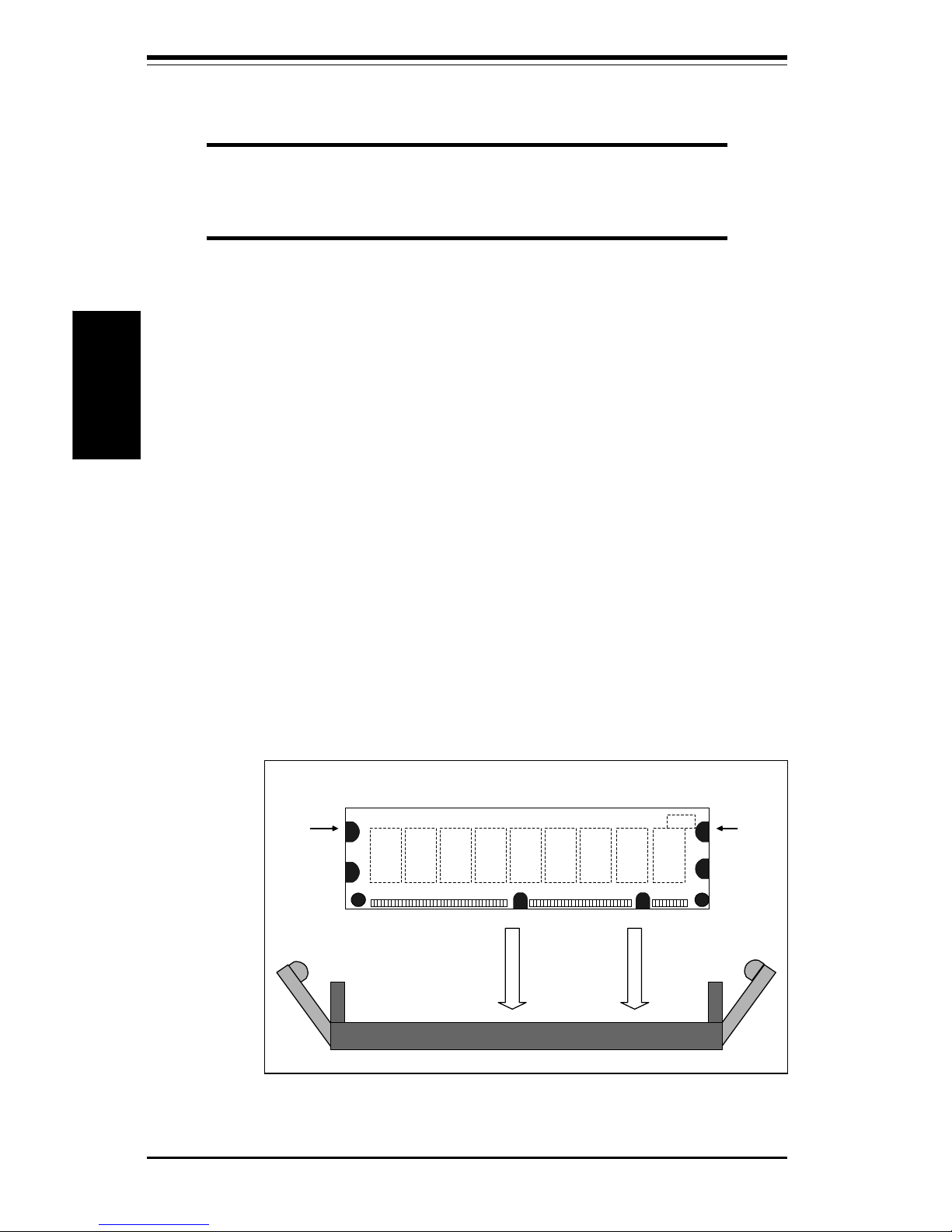

2-4 Installing DIMMs ............................................................................................. 2 -4

2-5 Port/Control Panel Connector Locations .................................................. 2 -5,6

2-6 Connecting Cables ......................................................................................... 2-7

Power Supply Connector ........................................................................ 2-7

Infrared Connector .................................................................................... 2- 7

PWR_ON ................................................................................................... 2 -7

Reset ........................................................................................................... 2 -8

Hard Drive LED ........................................................................................ 2 -8

Keylock/Power LED ................................................................................. 2-8

Speaker ..................................................................................................... 2-8

SUPER 370SSA/370SSM User’s Manual

ATX PS/2 Keyboard/Mouse Ports ......................................................... 2-8

Universal Serial Bus ................................................................................ 2- 9

Serial Ports ............................................................................................... 2-9

Wake-On-LAN ............................................................................................ 2-9

CD Headers ............................................................................................ 2-10

Fan Headers ........................................................................................... 2-10

Chassis Intrusion Header ..................................................................... 2-10

Overheat LED .......................................................................................... 2-10

2-7 Jumper Settings ............................................................................................ 2-11

Explanation of Jumpers ........................................................................ 2-11

Front Side Bus Speed ........................................................................... 2-11

CMOS Clear ............................................................................................ 2-12

AC'97 Enable/Disable ............................................................................. 2-12

Wake-On-Ring ......................................................................................... 2-12

Keyboard Wake-Up ................................................................................. 2-13

2-8 Parallel Port, AMR, Floppy/Hard Disk Drive and AGP Connections .... 2-13

Parallel Port Connector ......................................................................... 2-14

Floppy Connector ................................................................................... 2-14

IDE Connectors ...................................................................................... 2-14

AMR Connector ....................................................................................... 2-15

AGP Slot .................................................................................................. 2-15

2-9 Installing Software Dr ivers .......................................................................... 2-16

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ......................................................................... 3 -1

Before Power On ...................................................................................... 3 -1

No Power ................................................................................................... 3-1

No Video .................................................................................................... 3-1

Memory Errors .......................................................................................... 3-2

Losing the System’s Setup Configuration ............................................ 3- 2

3-2 Technical Support Procedures ..................................................................... 3-2

3-3 Frequently Asked Questions ......................................................................... 3-3

3-4 Returning Merchandise for Service ............................................................. 3- 6

Chapter 4: BIOS

4-1 Introduction....................................................................................................... 4- 1

4-2 BIOS Features ................................................................................................. 4- 2

4-3 Running Setup ................................................................................................. 4 -2

4-4 Advanced Chipset Setup ................................................................................ 4- 4

4-5 Chipset Setup ................................................................................................. 4-14

vi

Table of Contents

4-6 PCI PnP Setup ............................................................................................... 4-22

4-7 Power Setup ................................................................................................... 4-25

4-8 Boot Setup ...................................................................................................... 4-31

4-9 Security Setup ................................................................................................ 4-33

4-10 Exit Setup ....................................................................................................... 4-35

Appendix:

AMIBIOS Post Diagnostic Error Messages ........................................................... A- 1

vii

Notes

SUPER 370SSA/370SSM User’s Manual

viii

Chapter 1: Introduction

1-1

Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an ac­knowledged leader in the industry. Supermicro boards are designed with
the utmost attention to detail to provide you with the highest standards in
quality and performance.

Please check that the following items have all been included with your
motherboard. If anything listed here is damaged or missing, contact your
retailer.

One (1) Supermicro Mainboard

One (1) ATA100 ribbon cable for IDE devices (370SSA)

One (1) ATA66 ribbon cable for IDE devices (370SSM)

One (1) floppy ribbon cable for (1) 5.25-inch floppy and (2) 3.5-inch floppy
drives

One (1) serial COM 2 cable (retail only)

One (1) I/O backpanel shield

One (1) Supermicro CD or diskettes containing drivers and utilities

One (1) User's/BIOS Manual

SUPER 370SSA/370SSM User's Manual

1-2

Introduction

Notes

Chapter 1: Introduction

1-3

Introduction

CONTACTING SUPERMICRO

Headquarters

Address: Super Micro Computer, Inc.

2051 Junction Avenue

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
E-mail: [email protected] (General Information)

[email protected] (Technical Support)
Web site: www.supermicro.com

European Office

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML,

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
E-mail: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

SUPER 370SSA/370SSM User's Manual

1-4

Introduction

SUPER 370SSA

Figure 1-1. SUPER 370SSA Image

Chapter 1: Introduction

1-5

Introduction

SUPER 370SSM

Figure 1-2. SUPER 370SSM Image

SUPER 370SSA/370SSM User's Manual

1-6

Introduction

Figure 1-3. SUPER 370SSA Layout

(not drawn to scale)

SUPER 370SSA

COM1

J30
KB/

MOUSE

J29

ATX POWER

J39

JOH

J38

J32, J33

USB

CPU FAN

D

IM

M

0

DIMM1

PCI 1

PCI 2

PCI 3

JF1

JF2

IR CON PW_ON

RESET

IDE LED/KEYLOCK/SPEAKER

USB2

J19

FLO

P

P

Y

IDE2

IDE1

1

1

J18

F

A

N

2: C

h

a

ssis F

a

n

WOL

FAN3

ICH2

GMCH

J35

Parallel

Port

1

J37

7.8"

J1

J2

BATTERY

FAN2

JPW

A

KE

1

1

LINE

OUT

LINE
IN

MIC

12"

1

JBT1

BIOS
FWH

1

Celeron Processor

FCPGA Package

J4

VGA

GAME PORT

F

A

N

3

: T

he

rm

al C

on

trol F

an

JP11

1

®

AC'97 Audio
CODEC chip

1

JL1

JP12

1

JP28

PCI 4

PCI 5

AGP PRO

PCI 6

CNR/USB3

J40

J41

J42

J28

CD_1

CD

SUPER I/O

J26

JP8

JP9

1

1

DIM

M

2

COM2

JWOR

JP13

J3

Chapter 1: Introduction

1-7

Introduction

370SSA Quick Reference

Jumpers Description Default Setting

JBT1 CMOS Clear (p. 2-12) Pins 1-2 (Normal)
JP11/12 Front Side Bus Speed (p. 2-11) Both: Pins 1-2 (Auto)
JP28 AC97 Audio (p. 2-12) Pins 1-2 (Enabled)
JPWAKE Keyboard Wake-Up Pins 1-2 (Disabled)

Connectors Description

CD Audio CD Input (large connector) (p. 2-10)
CD_1 Audio CD Input (small connector) (p. 2-10)
CNR Communications/Networking Riser (p. 2-14)
COM1/COM2 COM1/COM2 Serial Port Connector (p. 2-9)
CPU FAN CPU Fan Header (p. 2-10)
FAN2 Chassis Fan Header (p. 2-10)
FAN3 Thermal Control Fan Header (p. 2-10)
GAME Game Port
J1, J2, J3 Memory (DIMM) Slots (p. 2-4)
J18, J19 IDE Hard Disk Drive Connectors (p. 2-14)
JP26 Floppy Disk Drive Connector (p. 2-14)
J2 9 ATX Power Connector (p. 2-7)
J30 PS/2 Keyboard/Mouse (p. 2-8)
J32, J33 Universal Serial Bus Ports (p. 2-9)
J35 Parallel Printer Port (p. 2-14)
JF1, JF2 Front Control Panel (p. 2-6)
JL1 Chassis Intrusion Header (p. 2-10)
JOH Overheat LED (p. 2-10)
JWOR Wake-On-Ring Header (p. 2-12)
LINE IN Audio In Connector
LINE OUT Audio Out (Speaker) Connector
MIC Microphone Input
USB3 Universal Serial Bus Port #3
WOL Wake-on-LAN Header (p. 2-9)

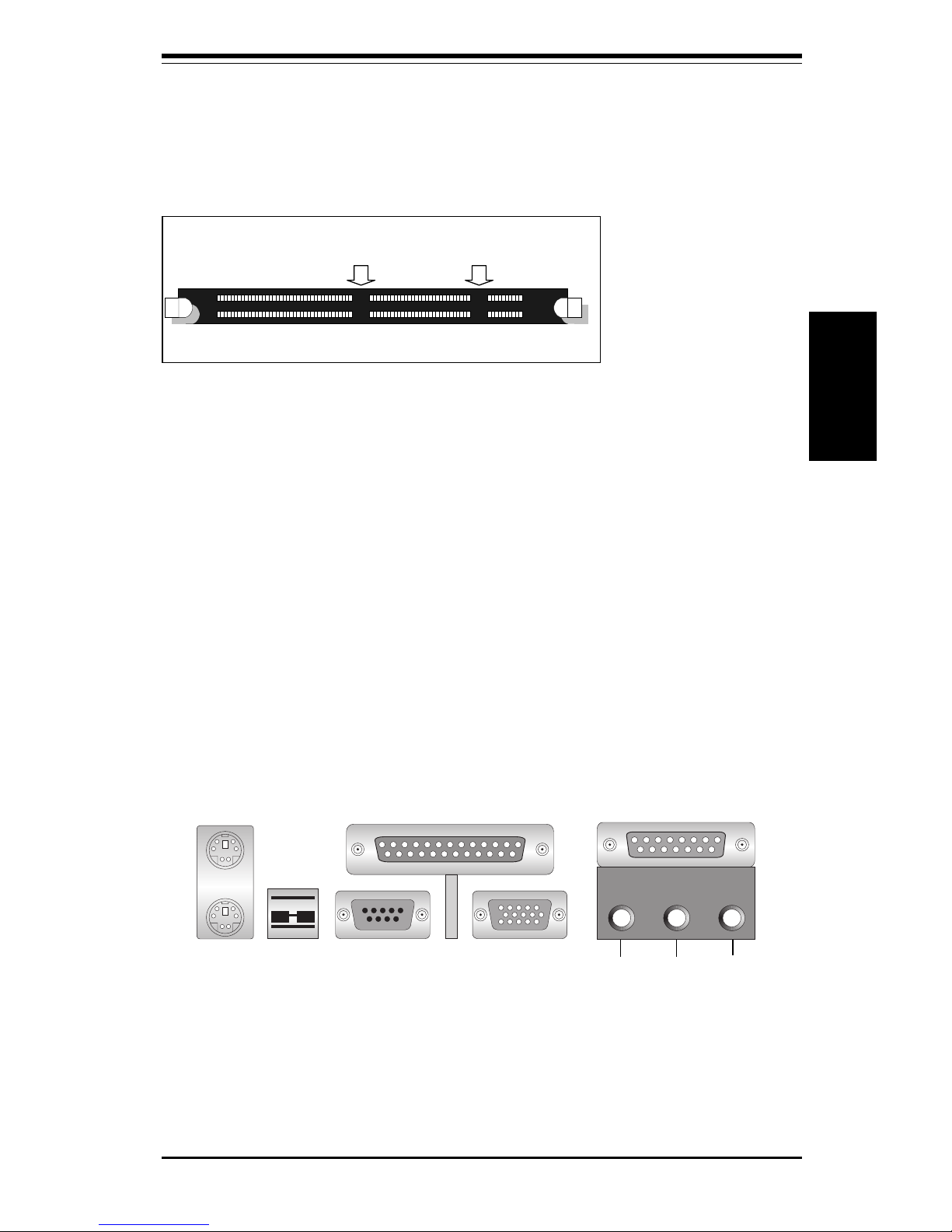

Also see the figures on page 2-5 for the I/O ports and page 2-6 for
the Front Control Panel (JF1/2) connectors.

Jumpers not indicated are for test purposes only.

SUPER 370SSA/370SSM User's Manual

1-8

Introduction

Figure 1-4. SUPER 370SSM Layout

(not drawn to scale)

COM1

J30
KB/

MOUSE

J29

ATX POWER

J11

JOH

J12

J32, J33

USB

CPU FAN

DIM

M

0

DIMM1

PCI 1

PCI 2

JF1

JF2

IR CON PW_ON

RESET

IDE LED/KEYLOCK/SPEAKER

J19

FLO

PP

Y

IDE2

IDE1

1

J18

F

A

N

2: C

h

assis F

a

n

WOL

FAN3

ICH2

GMCH

J35

Parallel

Port

7.8"

J1

J2

BATTERY

FAN2

JPW

AK

E

1

1

LINE

OUT

LINE
IN

MIC

9.6"

1

JBT1

BIOS
FWH

1

Celeron Processor

FCPGA Package

J4

VGA

GAME PORT

F

A

N

3

: T

he

rm

al C

o

ntrol F

a

n

JP11

®

JL1

JP12

1

JP28

AGP PRO

CD_1

CD

SUPER I/O

J26

1

1

DIM

M

2

COM2

JR

JP13

J3

SUPER 370SSM

AMR

AC'97 Audio
CODEC chip

Chapter 1: Introduction

1-9

Introduction

370SSM Quick Reference

Jumpers Description Default Setting

JBT1 CMOS Clear (p. 2-12) Pins 1-2 (Normal)
JP11/12 Front Side Bus Speed (p. 2-11) Both: Pins 1-2 (Auto)
JP28 AC97 Audio (p. 2-12) Pins 1-2 (Enabled)
JPWAKE Keyboard Wake-Up Pins 1-2 (Disabled)

Connectors Description

CD Audio CD Input (large connector) (p. 2-10)
CD_1 Audio CD Input (small connector) (p. 2-10)
COM1/COM2 COM1/COM2 Serial Port Connector (p. 2-9)
CPU FAN CPU Fan Header (p. 2-10)
FAN2 Chassis Fan Header (p. 2-10)
FAN3 Thermal Control Fan Header (p. 2-10)
GAME Game Port
J1, J2, J3 Memory (DIMM) Slots (p. 2-4)
J18, J19 IDE Hard Disk Drive Connectors (p. 2-14)
JP26 Floppy Disk Drive Connector (p. 2-14)
J2 9 ATX Power Connector (p. 2-7)
J30 PS/2 Keyboard/Mouse (p. 2-8)
J32, J33 Universal Serial Bus Ports (p. 2-9)
J35 Parallel Printer Port (p. 2-14)
JF1, JF2 Front Control Panel (p. 2-6)
JL1 Chassis Intrusion Header (p. 2-10)
JOH Overheat LED (p. 2-10)
JWOR Wake-On-Ring Header (p. 2-12)
LINE IN Audio In Connector
LINE OUT Audio Out (Speaker) Connector
MIC Microphone Input
WOL Wake-on-LAN Header (p. 2-9)

Also see the figures on page 2-5 for the I/O ports and page 2-6 for
the Front Control Panel (JF1/2) connectors.

Jumpers not indicated are for test purposes only.

SUPER 370SSA/370SSM User's Manual

1-10

Introduction

GMCH

544 BGA

ICH

360 EBGA

133/100/66 MHz Host Bus

USB

BIOS 4Mb

FWH

Graphics Performance

Accelerator

SuperI/O

LPC

1.5 Mb/sec

Pentium III

FCPGA

CPU

IDE Ports

PCI Slots

133/100 MHz

DIMMs

133/100 MHz Memory Bus

AC97

Audio Codec

Modem Codec

2x/4x AGP

Figure 1-5. 815 Chipset:

System Block Diagram

NOTE: This is a general block diagram and may not

exactly represent the features on your motherboard. See

the following pages for the actual specifications of each

motherboard.

Chapter 1: Introduction

1-11

Introduction

Features of the 370SSA/370SSM Motherboard

CPU

• Single Pentium® III FCPGA 500 MHz-1 GHz processors and Celeron

PPGA 333-500 MHz processors at 133/100/66 MHz front side bus
speeds

Note: Please refer to the support section of our web site for a complete listing of supported
processors. (http://www.supermicro.com/TechSupport.htm)

Memory

• Three 168-pin DIMM sockets to support up to 512 MB unbuffered

SDRAM. PC133 and PC100 SDRAM are fully supported.

Chipset

• Intel 815 (370SSM)

• Intel 815E (370SSA)

Expansion Slots

370SSA:

• Six 32-bit PCI slots

• One AGP Pro slot

• One CNR (Communications and Network Riser Card) slot

• 1 GPA (Graphics Perfomance Accelerator, formerly known as AIMM)

slot

370SSM:

• Two 32-bit PCI slots

• One 4xAGP slot

• One AMR (Audio Modem Riser) slot

• 1 GPA (Graphics Perfomance Accelerator, formerly called AIMM) slot

BIOS

• 4 Mb Firmware Hub AMI® Flash BIOS

• APM 1.2, DMI 2.1, PCI 2.2, ACPI 1.0, Plug and Play (PnP)

PC Health Monitoring

• Seven onboard voltage monitors for CPU core, chipset voltage, +3.3V,

±5V and ±12V

• Four-fan status monitor with firmware/software on/off control

• Environmental temperature monitor and control

SUPER 370SSA/370SSM User's Manual

1-12

Introduction

• CPU fan auto-off in sleep mode

• Power-up mode control for recovery from AC power loss

• System overheat LED and control

• System resource alert

• Hardware BIOS virus protection

• Auto-switching voltage regulator for the CPU core

ACPI/PC 98 Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Real-time clock wake-up alarm

• Main switch override mechanism

• External modem ring-on

Onboard I/O

• 2 EIDE bus master interfaces support Ultra DMA/100 (370SSA)

• 2 EIDE bus master interfaces support Ultra DMA/66 (370SSM)

• 1 floppy port interface (up to 2.88 MB)

• 2 Fast UART 16550A compatible serial ports

• 1 EPP (Enhanced Parallel Port) and ECP (Extended Capabilities Port)
supported parallel port

• PS/2 mouse and PS/2 keyboard ports

• 1 infrared port

• 4 USB (Universal Serial Bus) ports (2 USB ports on 370SSM)

Other

• Selectable CPU and chassis fan speed control (set in BIOS)

• Internal/external modem ring-on

• Recovery from AC power loss control

• Wake-on-LAN (WOL)

• Multiple FSB clock frequency selections (set in BIOS)

CD Utilities

• BIOS flash upgrade utility

• Drivers for 815 chipset utilities

Dimensions

• SUPER 370SSA - ATX: 12" x 7.8" (305 x 198 mm)

• SUPER 370SSM - MicroATX: 9.6" x 7.8" (244 x 198 mm)

Chapter 1: Introduction

1-13

Introduction

1-2 Chipset Overview

Intel’s 815 chipset is made up of three main components: the Graphics and
Memory Controller Hub (GMCH), the I/O Controller Hub (ICH) and the Firm­ware Hub (FWH). The GMCH integrates a 133/100/66 MHz system bus
controller, a 2D/3D graphics accelerator (AGP2x/4x) discrete graphics card,
a 133/100 MHz SDRAM controller and a high-speed hub architecture inter­face that communicates with the ICH. The ICH integrates a UDMA/100 or
UDMA/66 controller, USB controllers and other I/O functions (see below).
The FWH stores both system and video BIOS and includes a Random Num­ber Generator (RNG).

Graphics and Memory Controller Hub (GMCH)

The GMCH includes the host (CPU) interface, DRAM interface, ICH interface
and 4xAGP interface for the 815 chipset. It contains advanced power
management logic and supports dual channels for DRAM. The AGP 2.0
interface supports 4x data transfers and operates at a peak bandwidth of
266 MB/sec. The MCH host interface bus runs at 133/100/66 MHz.

I/O Controller Hub (ICH/ICH2)

The ICH is the I/O Controller Hub subsystem on the 370SSM, which inte­grates many of the Input/Output functions of the 815 chipset, including a
two-channel UDMA/66 Bus Master IDE controller. It also provides the inter­face to the PCI Bus and communicates with the MCH over a dedicated hub
interface. The 370SSA has the more powerful ICH2, which includes UDMA/
100 IDE controllers and two USB controllers that offer 24 Mbps of band­width across four ports. ICH2 also features an enhanced AC'97 interface
that supports full surround sound for the Dolby Digital Audio used on DVDs.

Firmware Hub (FWH)

The FWH is a component that brings added security and manageability to
the PC platform infrastructure. This device includes an integrated Random
Number Generator (RNG) for stronger encryption, digital signing and secu­rity protocols. The FWH stores the system BIOS and video BIOS to eliminate
a redundant nonvolatile memory component.

SUPER 370SSA/370SSM User's Manual

1-14

Introduction

Recovery from AC Power Loss

BIOS provides a setting for you to determine how the system will respond
when AC power is lost and then restored to the system. You can choose
for the system to remain powered off (in which case you must hit the
power switch to turn it back on) or for it to automatically return to a power
on state. See the Power Lost Control setting in the BIOS chapter of this
manual to change this setting. The default setting is Always OFF.

1-3 Special Features

Communication and Networking Riser (CNR - 370SSA only)

The CNR slot supports audio, modem and networking cards and provides
interfaces that support multichannel audio, V.90 analog modems, home net­working through a telephone line, 10/100 Ethernet-based networking and
future technologies. Separating sound and communications systems from
the motherboard makes them less sensitive to noise.

Audio Modem Riser (AMR - 370SSM only)

The AMR is a new modular specification that integrates the audio/modem
functions on the motherboard by assigning the analog I/O functions to a
riser card. Integration of the audio/modem function enhances system capa­bilities while reducing costs. The AMR interface is based on an AC-link that
is compliant with Intel’s Audio Codec ’97 version 2.1 specification.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the SUPER
370SSA/370SSM. Both have an onboard System Hardware Monitor chip
that supports PC health monitoring.

Seven Onboard Voltage Monitors for the CPU Core, Chipset
Voltage, +3.3V,

±±

±±

±5V and

±±

±±

±12V

The onboard voltage monitor will scan these seven voltages continuously.
Once a voltage becomes unstable, it will give a warning or send an error
message to the screen. Users can adjust the voltage thresholds to define
the sensitivity of the voltage monitor.

Chapter 1: Introduction

1-15

Introduction

Three-Fan Status Monitor with Firmware/Software On/Off
Control

The PC health monitor can check the RPM status of the cooling fans. The
onboard 3-pin CPU and chassis fans are controlled by the power manage­ment functions. The thermal fan is controlled by the overheat detection
logic.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and
will turn on the thermal control fan whenever the CPU temperature exceeds
a user-defined threshold. The overheat circuitry runs independently from
the CPU. It can continue to monitor for overheat conditions even when the
CPU is in sleep mode. Once it detects that the CPU temperature is too high,
it will automatically turn on the thermal control fan to prevent any overheat
damage to the CPU. The onboard chassis thermal circuitry can monitor the
overall system temperature and alert users when the chassis temperature
is too high.

CPU Fan Auto-Off in Sleep Mode

The CPU fan activates when the power is turned on. It can be turned off
when the CPU is in sleep mode. When in sleep mode, the CPU will not run
at full power, thereby generating less heat.

CPU Overheat LED and Control

This feature is available when the user enables the CPU overheat warning
function in the BIOS. This allows the user to define an overheat tempera­ture. When this temperature is exceeded, both the overheat fan and the
warning LED are triggered.

System Resource Alert

This feature is available when used with Intel's LANDesk Client Manager
(optional). It is used to notify the user of certain system events. For
example, if the system is running low on virtual memory and there is insuf­ficient hard drive space for saving the data, you can be alerted of the
potential problem.

SUPER 370SSA/370SSM User's Manual

1-16

Introduction

Hardware BIOS Virus Protection

The system BIOS is protected by hardware so that no virus can infect the
BIOS area. The user can only change the BIOS content through the flash
utility provided by SUPERMICRO. This feature can prevent viruses from
infecting the BIOS area and destroying valuable data.

Auto-Switching Voltage Regulator for the CPU Core

The auto-switching voltage regulator for the CPU core can support up to
20A current and auto-sense voltage IDs ranging from 1.3V to 3.5V. This
will allow the regulator to run cooler and thus make the system more stable.

1-5 ACPI/PC 98 Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI
specification defines a flexible and abstract hardware interface that pro­vides a standard way to integrate power management features throughout
a PC system, including its hardware, operating system and application soft­ware. This enables the system to automatically turn on and off peripherals
such as CD-ROMs, network cards, hard disk drives and printers. This also
includes consumer devices connected to the PC such as VCRs, TVs, tele­phones and stereos.

In addition to enabling operating system-directed power management, ACPI
provides a generic system event mechanism for Plug and Play and an oper­ating system-independent interface for configuration control. ACPI lever­ages the Plug and Play BIOS data structures while providing a processor
architecture-independent implementation that is compatible with both Win­dows 98 and Windows NT 5.0. Note: To utilize ACPI, you must reinstall
Windows 98. To reinstall Windows 98 with ACPI, enter DOS and type
"setup /p J" at the CDROM prompt (usually D:\) with the Windows 98 CD
loaded. (Make sure you include the spaces after "setup" and "p".) Then hit
<Enter>. You can check to see if ACPI has been properly installed by
looking for it in the Device Manager, which is located in the Control Panel in
Windows.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to
system and device power control. OnNow is a term for a PC that is always
on but appears to be off and responds immediately to user or other re-

Chapter 1: Introduction

1-17

Introduction

quests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start
blinking to indicate that the CPU is in suspend mode. When the user presses
any key, the CPU will wake-up and the LED will automatically stop blinking
and remain on.

BIOS Support for USB Keyboard

If the USB keyboard is the only keyboard in the system, it keyboard will
function like a normal keyboard during system boot-up.

Real Time Clock Wake-Up Alarm

Although the PC may be perceived to be off when not in use, it is still
capable of responding to preset wake-up events. In the BIOS, the user can
set a timer to wake-up the system at a predetermined time.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a
system suspend button. When the user depresses the power button, the
system will enter a SoftOff state. The monitor will be suspended and the
hard drive will spin down. Depressing the power button again will cause
the whole system to wake-up. During the SoftOff state, the ATX power
supply provides power to keep the required circuitry in the system alive. In
case the system malfunctions and you want to turn off the power, just
depress and hold the power button for 4 seconds. The power will turn off
and no power will be provided to the motherboard.

External Modem Ring-On

Wake-up events can be triggered by a device such as the external modem
ringing when the system is in the SoftOff state. Note that external modem
ring-on can only be used with an ATX 2.01 (or above) compliant power
supply.

SUPER 370SSA/370SSM User's Manual

1-18

Introduction

1-7 Super I/O

The disk drive adapter functions of the Super I/O chip include a floppy disk
drive controller that is compatible with industry standard 82077/765, a data
separator, write pre-compensation circuitry, decode logic, data rate selec­tion, a clock generator, drive interface control logic and interrupt and DMA
logic. The wide range of functions integrated onto the Super I/O greatly
reduces the number of components required for interfacing with floppy disk
drives. The Super I/O supports four 360 K, 720 K, 1.2 M, 1.44 M or 2.88 M
disk drives and data transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s.

Wake-On-LAN (WOL)

Wake-On-LAN is defined as the ability of a management application to re­motely power up a computer that is powered off. Remote PC setup, up­dates and asset tracking can occur after hours and on weekends so that
daily LAN traffic is kept to a minimum and users are not interrupted. The
motherboards have a 3-pin header (WOL) to connect to the 3-pin header on
a Network Interface Card (NIC) that has WOL capability. Wake-On-LAN
must be enabled in BIOS. Note that Wake-On-Lan can only be used with an
ATX 2.01 (or above) compliant power supply.

1-6 Power Supply

As with all computer products, a stable power source is necessary for
proper and reliable operation. It is even more important for processors that
have high CPU clock rates of 300 MHz and above.

The SUPER 370SSA/370SSM accommodates ATX power supplies. Although
most power supplies generally meet the specifications required by the CPU,
some are inadequate.

It is strongly recommended that you use a high quality power supply that
meets ATX power supply Specification 2.02 or above. Additionally, in ar­eas

where noisy power transmission is present, you may choose to install a
line filter to shield the computer from noise. It is recommended that you also
install a power surge protector to help avoid problems caused by power
surges.

Chapter 1: Introduction

1-19

Introduction

It also provides two high-speed, 16550 compatible serial communication
ports (UARTs), one of which supports serial infrared communication. Each
UART includes a 16-byte send/receive FIFO, a programmable baud rate
generator, complete modem control capability and a processor interrupt sys­tem. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps
as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s,
which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional
Printer Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities
Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Con­figuration and Power Interface), which includes support of legacy and ACPI
power management through an SMI or SCI function pin. It also features
auto power management to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can flexibly
adjust to meet ISA PnP requirements, which suppport ACPI and APM (Ad­vanced Power Management).

SUPER 370SSA/370SSM User's Manual

1-20

Introduction

Notes

Chapter 2: Installation

2-1

Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Static-sensitive electrical discharge can damage electronic components. To
prevent damage to your system board, it is important to handle it very carefully.
The following measures are generally sufficient to protect your equipment from
static discharge.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic
bag.

• Handle the board by its edges only; do not touch its components, peripheral
chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not
in use.

• For grounding purposes, make sure your computer chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and
the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage.
When unpacking the board, make sure the person handling it is static protected.

2-2

SUPER 370SSA/370SSM User's Manual

Installation

Heat Sink

Follow the instructions that came with your processor or heat sink to
attach a heat sink to the processor. Your heat sink should have a 3-pin
fan, which connects to the CPU FAN header. Make sure that good
contact is made between the CPU chip and the heat sink. Insufficient
contact will cause the processor to overheat, which may crash the
system.

Processor

You are now ready to install the processor. Your motherboard has a 370­pin, FCPGA type socket, which supports 370-pin Pentium III FCPGA (not
SEPP) and Celeron PPGA processors. Lift the lever on the FCPGA socket
and install with the notched corner of the processor oriented with pin 1.
Fully seat the processor into the socket and then close the lever. See
Figure 2-1 for views of the FCPGA 370-pin socket before and after proces­sor installation.

2-2 Processor Installation

When handling the processor package, avoid placing
direct pressure on the label area of the fan.

The following pages cover the installation procedure. You should install the
processor in the motherboard first, then install the motherboard in the chas­sis, then the memory and add-on cards, and finally the cables and drivers.
Following the installation procedures in the order they appear in this chap­ter should eliminate the most common problems encountered when installing
a system.

IMPORTANT: Always connect the power cord last and always re­move it before adding, removing or changing any hardware compo­nents.

!

Chapter 2: Installation

2-3

Installation

2-3 Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fit different types of
chassis. Chassis may include a variety of mounting fasteners made of
metal or plastic. Although a chassis may have both types, metal fasteners
are the most highly recommended because they ground the motherboard to
the chassis. For this reason, it is best to use as many metal fasteners as
possible.

Pin 1

Lever

Processor

(installed)

Notched

Corner

Figure 2-1. FCPGA Socket: Empty and with Processor Installed

2-4

SUPER 370SSA/370SSM User's Manual

Installation

Figure 2-2. DIMM Installation

Note: Notches

should align

with the

receptive points

on the slot

DIMM Slot

Side View of DIMM Installation into Slot

DIMM

PC100

Notches

PC100

Notches

2-4 Installing DIMMs

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

DIMM Installation (See Figure 2-2)

1. Insert DIMMs in Bank 0 through Bank 2 as required for the desired
system memory.

2. Insert each DIMM module vertically into its slot. Pay attention to the
two notches along the bottom of the module to prevent inserting the
DIMM incorrectly.

3. Gently press down on the DIMM module until it snaps into place.

4. If installing only a single DIMM, you may use any Bank. The 370SSA/
370SSM will support a total of 512 MB of unbuffered SDRAM in its
three DIMM slots. ECC type memory is not supported. PC133 and
PC100 memory are both fully supported at their respective speeds.
However, if three DIMM modules are installed, the memory will run at
100 MHz, even if PC133 memory is used (this is a chipset limitation).

To Install:

Insert module
vertically and
press down
until it snaps
into place.
Pay attention
to the two
notches.

Chapter 2: Installation

2-5

Installation

2-5 Port/Control Panel Connector Locations

The I/O ports are color coded in conformance with the PC99 specification to
make setting up your system easier. See Figure 2-3 below for the colors
and locations of the various I/O ports.

Parallel Port
(Burgundy)

Game Port
(Gold)

COM1 Port
(Turquoise)

Keyboard
(Purple)

Mouse
(Green)

USB

Ports

(Black)

Figure 2-3. I/O Port Locations and Definitions

VGA (Monitor)
Port (Blue)

Top View of DIMM Slot

To Remove:

Use your thumbs to
gently push near
the edge of both
ends of the module.
This should release
it from the slot.

Line Out Line In Mic

(Lime) (Light blue) (Pink)

2-6

SUPER 370SSA/370SSM User's Manual

Installation

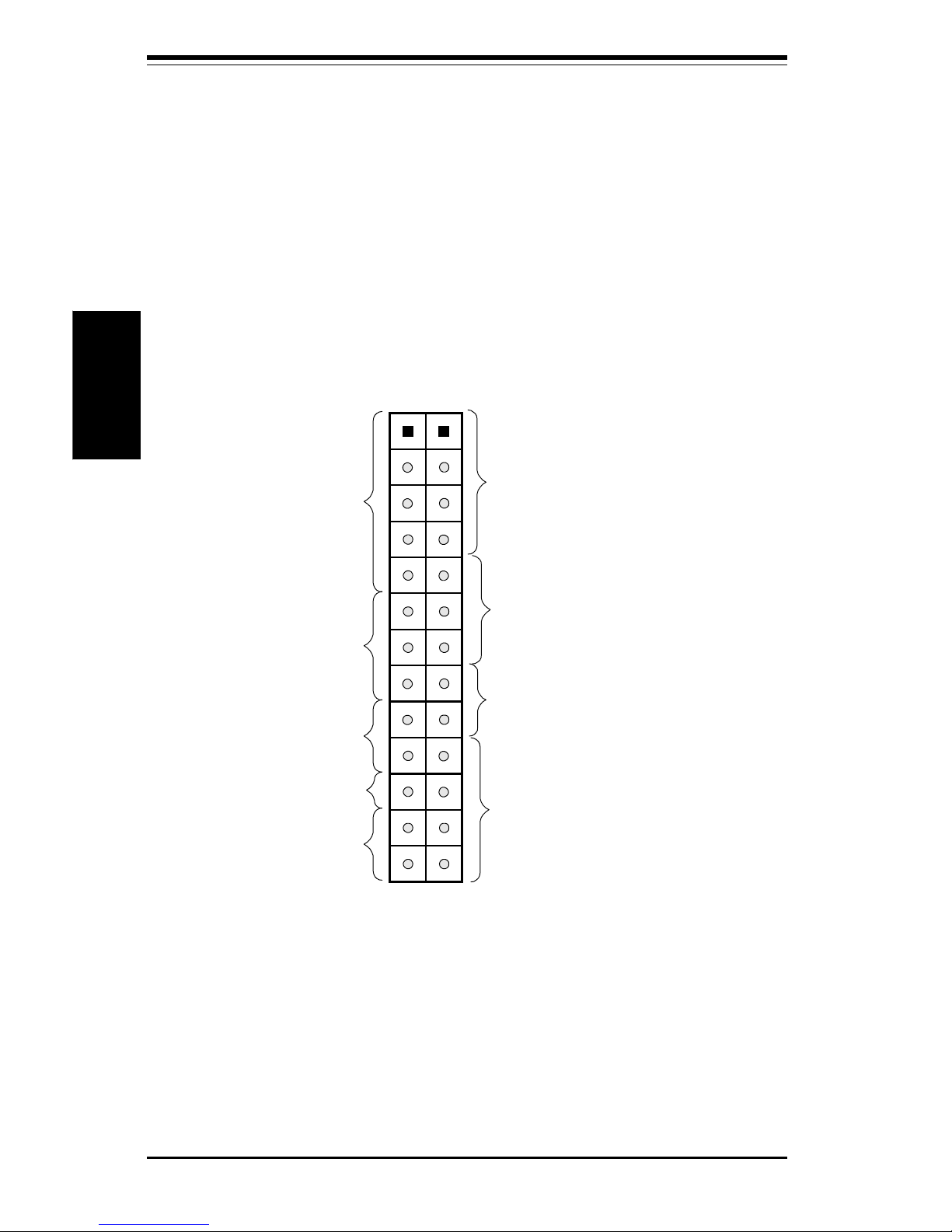

Front Control Panel

JF1 and JF2 contain header pins for various
front control panel connectors. See Figure
2-4 for the pin definitions of the speaker,
keyboard lock, hard drive LED, infrared
connector, and power on and reset button
headers, which are all located on JF1 and
JF2. Refer to pages 2-7 to 2-8 for details.

Speaker

IR Conn

Power

On

X

Reset

JF2 JF1

X

Keyboard
Lock

11

Hard
Drive
LED

Power
LED

Figure 2-4. Front Control Panel Connectors

Chapter 2: Installation

2-7

Installation

PW_ON Connector

The PW_ON connector is located
on pins 9 and 10 of JF2. Momen­tarily contacting both pins will
power on/off the system. The
user can also configure this but­ton to function as a suspend but­ton. (See the Power Button Mode
setting in BIOS.) To turn off the
power when set to suspend mode,
hold down the power button for at
least 4 seconds. See Table 2-3
for pin definitions.

Pin

Number

9

10

Definition

PW_ON

Ground

Table 2-3

PW_ON Connector

Pin Definitions

(JF2)

2-6 Connecting Cables (see previous page for locations)

Power Supply Connector

After you have securely mounted the
motherboard, memory and add-on
cards, you are ready to connect the
cables. Attach an ATX power supply
cable to J29 by aligning the tabs on
both connectors. See Table 2-1 for
the pin definitions of an ATX power
supply.

Table 2-1

ATX Power Supply Connector

Pin Definitions (J29)

Pin Number Definition
1 3.3V
2 3.3V3
3 Ground
4 5V
5 Ground
6 5V
7 Ground
8 PW-OK
9 5VS B
10 1 2 V

Pin Number Definition
11 3.3V
12 -12 V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 5V
20 5V

Infrared Connector

The infrared connector is located
on pins 1-5 of JF2. See Table 2-2
for pin definitions. See the Tech­nical Support section of our web
page for information on the infra­red devices you can connect to
the system.

Pin

Number

1
2
3
4
5

Definition

+5V
Key

IRRX

Ground

IRTX

Table 2-2

Infrared Pin

Definitions

(JF2)

2-8

SUPER 370SSA/370SSM User's Manual

Installation

Keylock/Power LED
Connector

The keylock/power LED connector is
located on pins 5 to 9 of JF1. See
Table 2-6 for pin definitions. Pins 5
through 7 are for the power LED.
Pins 8 and 9 are for the keylock.

Pin

Number

5
6
7
8
9

Function
VCC +5V
VCC +5V

Ground
Ground

Table 2-6

Keylock/Power LED Pin

Definitions (JF1)

Definition

LED power

LED power or key

Black wire

Keyboard inhibit

Black wire

Table 2-5

Hard Drive LED Pin

Definitions

(JF1)

Pin

Number

1
2
3
4

Definition

+5V
HD Active
HD Active

+5V

Hard Drive LED

The hard drive LED is located on pins
1 to 4 of JF1. Attach the hard drive
LED cable to pins 1 and 2. See
Table 2-5 for pin definitions.

Speaker Connector

The speaker connector is located on
pins 10 to 13 of JF1. See Table 2-7
for pin definitions.

Table 2-7

Speaker Connector Pin

Definitions (JF1)

Pin

Number

10
11
12
13

Function

+

Key

Definition

Red wire, Speaker data

No connection

Key

Speaker data

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/
2 mouse are located on J30. See
Table 2-8 for pin definitions. (The
mouse port is above the keyboard
port. See Figure 2-3 for locations.)

Table 2-8

PS/2 Keyboard

and Mouse Port

Pin Definitions

(J30)

Pin

Number

1
2
3
4
5
6

Definition

Data

NC

Ground

VCC

Clock

NC

Reset Connector

The reset connector is located on
pins 12 and 13 of JF2. This connec­tor attaches to the hardware reset
switch on the computer case. See
Table 2-4 for pin definitions.

Pin

Number

12
13

Definition

Ground

Reset

Table 2-4

Reset Pin

Definitions

(JF2)

Chapter 2: Installation

2-9

Installation

Pin

Number

1
2
3

Definition

+5V Standby

Ground

Wake-up

Table 2-11

Wake-On-LAN Pin

Definitions (WOL)

Wake-On-LAN

The Wake-On-LAN header is lo­cated on WOL. Refer to Table 2­11 for pin definitions. You must
enable the LAN Wake-Up setting in
BIOS to use this function. (You
must also have a LAN card with a
Wake-on-LAN connector and cable
to use this feature.)

Universal Serial Bus (USB)

Two Universal Serial Bus connec­tors (USB0 and USB1) are located
on J32 and J33. See Table 2-9 for
pin definitions. The 370SSA also
provides support for two addi­tional USB ports: USB2 is a header
located near the IDE connectors
and provides easy front side chas­sis access (cable not included).
USB3 is incorporated into the CNR
slot - the CNR card you plug in
here should have a USB port.

Table 2-9

Universal Serial Bus Pin Definitions

Pin
Number Definition
1 +5V
2 P0­ 3 P0+
4 Ground
5 N/A

Pin
Number Definition
1 +5V
2 P0­ 3 P0+
4 Ground
5 Key

J32

J33

Serial Ports

Two connectors, for the COM1
and COM2 serial ports, are
provided on your board. COM1 is
located below the parallel port
(see Figure 2-3) and COM2 is
located just behind the Game
Port. See Table 2-10 for pin
definitions. A 10-pin serial ribbon
cable is required if connecting a
device to a COM header.

Table 2-10

Serial Port Pin Definitions

(COM1, COM2)

Pin Number Definition
1 DCD
2 D S R
3 Serial In
4 RT S
5 Serial Out

Pin Number Definition
6 CT S
7 DTR
8 RI
9 Ground
10 NC

2-10

SUPER 370SSA/370SSM User's Manual

Installation

CD Headers

There are two CD headers of dif­ferent sizes on the motherboard
for audio CD playback. You must
connect an audio cable from your
CD player to the header that fits
your cable's connector. Refer to
Table 2-12 for pin definitions.

Table 2-12

Audio CD Header Pin Definitions

(CD, CD_1)

Pin

Number

1
2
3
4

Definition

Right Stereo Signal

Ground

Ground

Left Stereo Signal

Overheat LED (JOH)

The JOH header is used to con­nect an LED to provide warning of
chassis overheating. Refer to
Table 2-15 for pin definitions.

Pin

Number

1
2

Definition

12VDC

OH Active

Table 2-15

Overheat LED

Pin Definitions (JOH)

Chassis Intrusion

The Chassis Intrusion header is lo­cated on JL1. See the board layouts
in Chapter 1 for its location. See
Table 2-14 for pin definitions.

Pin

Number

1
2

Definition

Intrusion Input

Ground

Table 2-14

Chassis Intrusion

Pin Definitions (JL1)

Table 2-13

Fan Header Pin Definitions

(CPU FAN, FAN2, FAN3)

Pin

Number

1
2
3

Definition

Ground (black)

+12V (red)

Tachometer

* Caution: These fan headers
are DC power.

Fan Headers*

The CPU, chassis and thermal
control fan headers are desig­nated CPU FAN, FAN2 and FAN3,
respectively. Refer to Table 2-13
for pin definitions.

Chapter 2: Installation

2-11

Installation

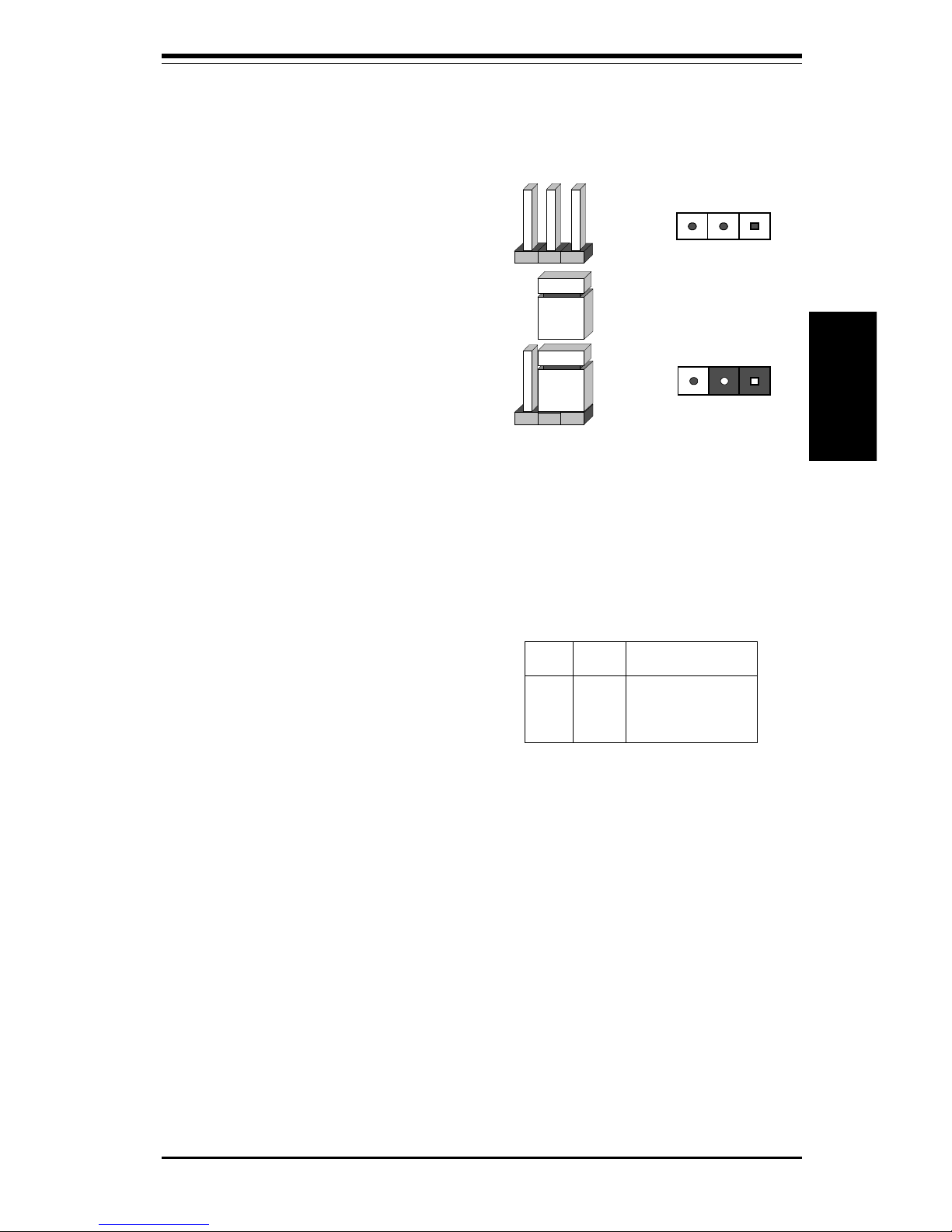

2-7 Jumper Settings

Explanation of
Jumpers

To modify the operation of the moth­erboard, jumpers can be used to
choose between optional settings.
Jumpers create shorts between two
pins to change the function of the
connector. Pin 1 is identified with a
square solder pad on the printed cir­cuit board. See the motherboard
layout pages for jumper locations.

Connector

Pins

Jumper

Cap

Setting

Pin 1-2 short

Front Side Bus Speed

The FSB speed is set with JP11
and JP12. Table 2-16 displays the
settings for these two jumpers.
The CPU speed can also be
changed by software control in
BIOS (see CPU Speed setting).
The CPU Speed setting will show
you the actual CPU speed for each
FSB speed option selected.
Note: If the system does not
reboot after changing the CPU
speed, 1) clear CMOS and reboot
(as described on the next page)
and then set the correct CPU
speed with the BIOS setting men­tioned above.

3 2 1

3 2 1

Table 2-16

Front Side Bus Speed Jumper Settings

(JP11, JP12)

JP11

1-2

2-3
Open
Open

JP12

1-2
2-3
2-3

Open

FSB Speed

Auto

66 MHz
100 MHz
133 MHz

* Note: The Auto setting allows the CPU

to set the speed.

2-12

SUPER 370SSA/370SSM User's Manual

Installation

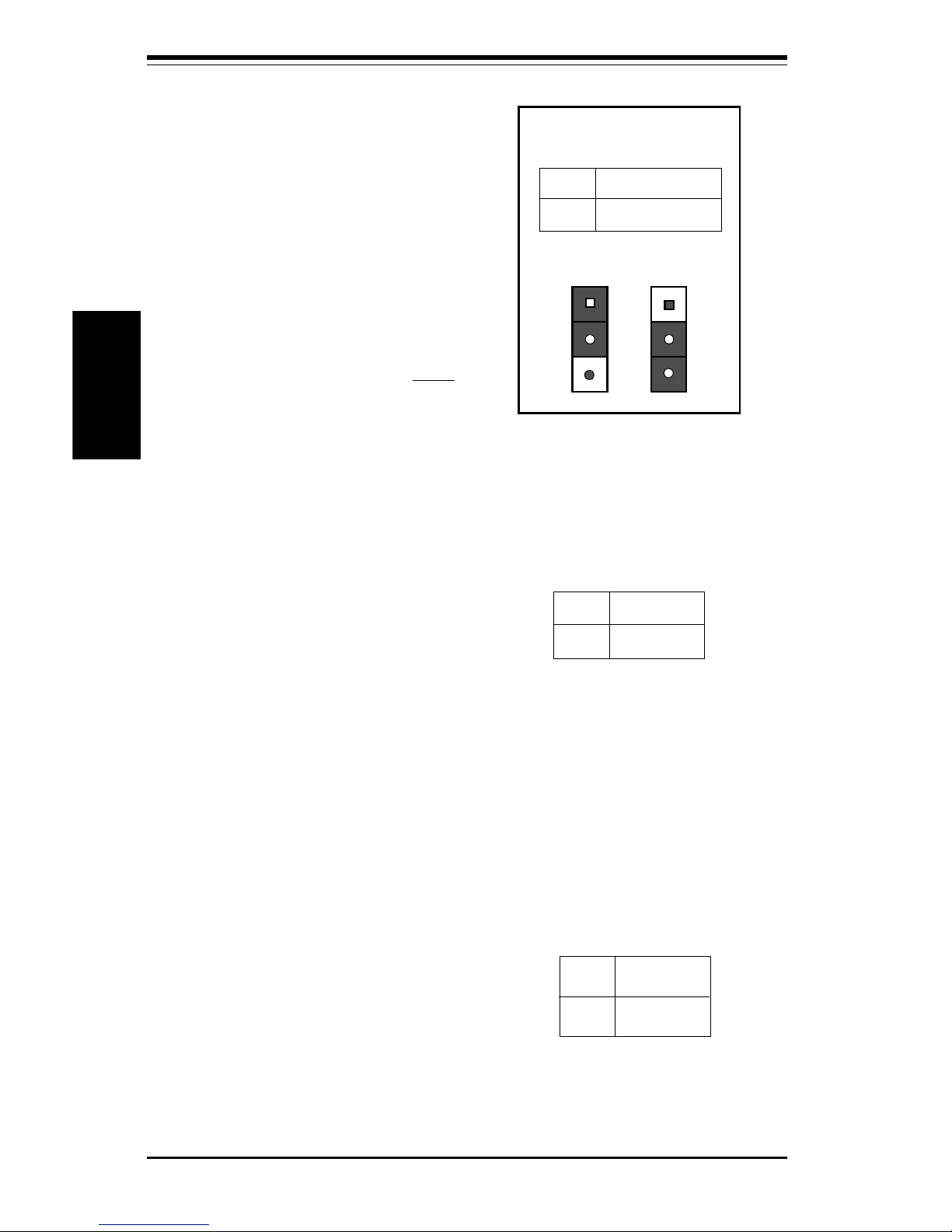

AC'97 Enable/Disable

AC'97 brings high quality audio to
PCs. When enabled with JP28, au­dio is processed onboard and the
AMR slot (370SSM only) will sup­port modems only. The disabled
setting should be selected when
you wish to use an add-on card
for audio either in the AMR or a
PCI slot. See Table 2-18 for
jumper settings.

Jumper

Position

1-2
2-3

Definition

Enabled

Disabled

Table 2-18

AC'97 Enable/Disable

Jumper Settings (JP28)

CMOS Clear

Refer to Table 2-17 for instruc­tions on how to clear CMOS. Al­ways remove the AC power cord
from the system before clearing
CMOS.

Note: For an ATX power supply, you must
completely shut down the system, remove the
AC power cord, then use JBT1 to clear CMOS.
Replace JBT1 back to the pin 1-2 position be­fore powering up the system again. Do not
use the PW_ON connector to clear CMOS.

Table 2-17

CMOS Clear Jumper Settings

(JBT1)

Jumper

Position

1-2
2-3

Definition

Normal

CMOS Clear

Position

1-2

Position

2-3

Normal

CMOS Clear

Wake-On-Ring

The Wake-On-Ring header is desig­nated as JWOR on the 370SSA and as
JR on the 370SSM. This function al­lows your computer to receive and be
"woken up" by an incoming call when
in the suspend state.
Refer to Table 2-19 for pin definitions.
You must also have a WOR card and
cable to use WOR.

Pin

Number

1
2

Definition

+5V Standby

Wake-up

Table 2-19

Wake-On-Ring Pin

Definitions (JWOR/JR)

Chapter 2: Installation

2-13

Installation

2-8 Parallel Port, AMR, AGP and Floppy/Hard Disk Drive

Connections

Use the following information to connect the floppy and hard disk drive
cables.

• The floppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single floppy disk drive ribbon cable has 34 wires and two connectors to
provide for two floppy disk drives. The connector with twisted wires always
connects to drive A, and the connector that does not have twisted wires
always connects to drive B.

• The 80-wire ATA66/100 (370SSM/370SSA) IDE hard disk drive cable that
came with your system has two connectors to support two drives. This
special cable should be used to take advantage of the speed this new
technology offers. The blue connector connects to the onboard IDE
connector interface and the other connector(s) to your hard drive(s).
Consult the documentation that came with your disk drive for details on
actual jumper locations and settings for the hard disk drive.

Keyboard Wake-Up

The JPWAKE jumper is used to­gether with the Keyboard Wake­Up function in BIOS. Enable both
the jumper and the BIOS setting to
allow the system to be woken up
by depressing a key on the key­board. See Table 2-20 for jumper
settings. Your power supply must
meet ATX specification 2.01 or
higher and supply 720 mA of
standby power to use this fea­ture.

Jumper

Position

1-2
2-3

Definition

Disabled

Enabled

Table 2-20

Keyboard Wake-Up

Jumper Settings

(JPWAKE)

2-14

SUPER 370SSA/370SSM User's Manual

Installation

IDE Connectors

There are no jumpers to config­ure the onboard IDE interfaces
J18 and J19. Refer to Table 2­23 for pin definitions. You
must use the ATA100/66 cable
included with your system to
benefit from the ATA100/66
technology.

Parallel Port Connector

The parallel port is located on J35.
See Table 2-21 for pin definitions.

Floppy Connector

The floppy connector is located
on JP26. See Table 2-22 for pin
definitions.

Pin Number Function
1 Strobe­ 3 Data Bit 0
5 Data Bit 1
7 Data Bit 2
9 Data Bit 3
11 Data Bit 4
13 Data Bit 5
15 Data Bit 6
17 Data Bit 7
19 A C K
21 BUSY
23 P E
25 SLCT

Pin Number Function
2 Auto Feed­ 4 Error­ 6 Init­ 8 SLCT IN­ 10 G N D
12 G N D
14 G N D
16 G N D
18 G N D
20 G N D
22 G N D
24 G N D
26 N C

Table 2-21

Parallel (Printer) Port Pin Definitions

(J35)

Pin Number Function
1 GN D
3 GN D
5 K ey
7 GN D
9 GN D
11 GN D
13 GN D
15 GN D
17 GN D
19 GN D
21 GN D
23 GN D
25 GN D
27 GN D
29 GN D
31 GN D
33 GN D

Pin Number Function
2 FDHDIN
4 Reserved
6 FDEDIN
8 Index­ 10 Motor Enable
12 Drive Select B­ 14 Drive Select A­ 16 Motor Enable
18 DIR­ 20 STEP­ 22 Write Data­ 24 Write Gate­ 26 Track 00­ 28 Write Protect­ 30 Read Data­ 32 Side 1 Select­ 34 Diskette

Table 2-22

Floppy Connector Pin Definitions (JP26)

Pin Number Function
1 Reset IDE
3 Host Data 7
5 Host Data 6
7 Host Data 5
9 Host Data 4
11 Host Data 3
13 Host Data 2
15 Host Data 1
17 Host Data 0
19 G N D
21 DRQ3
23 I/O Write­ 25 I/O Read­ 27 IOCHRDY
29 DACK3­ 31 IRQ14
33 Addr 1
35 Addr 0
37 Chip Select 0
39 Activity

Pin Number Function
2 GND
4 Host Data 8
6 Host Data 9
8 Host Data 10
10 Host Data 11
12 Host Data 12
14 Host Data 13
16 Host Data 14
18 Host Data 15
20 K ey
22 G N D
24 G N D
26 G N D
28 BALE
30 G N D
32 IOCS16­ 34 G N D
36 Addr 2
38 Chip Select 1­ 40 G N D

Table 2-23

IDE Connector Pin Definitions

(J18, J19)

Chapter 2: Installation

2-15

Installation

Signal

AUDIO_MUTE#

GND

MONO_OUT_/PC_BEEP

PRIMARY_DN#

-12V
GND
+12V
GND

+5VD
(KEY)
(KEY)

GND

+3.3VD

GND

AC97_SDATA_OUT

AC97_RESET#

AC97_SDATA_IN3

GND

AC97_SDATA_IN2

GND

AC97_MSTRCLK+RST

Pin

Number

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11

B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23

Signal

AUDIO_PWRDN

MONO_PHONE

GND

+5Vdual/+5VSB

USB_OC#

GND

USB+

USB­(KEY)
(KEY)

GND

S/P-DIF_IN

GND

+3.3Vdual/+3.3VSB

GND

AC97_SYNC

GND

AC97_SDATA_IN1

GND

AC97_SDATA_IN0

GND

AC97_BITCLK

Pin

Number

A1
A2
A3
A4
A5
A6
A7
A8

A9
A10
A11

A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23

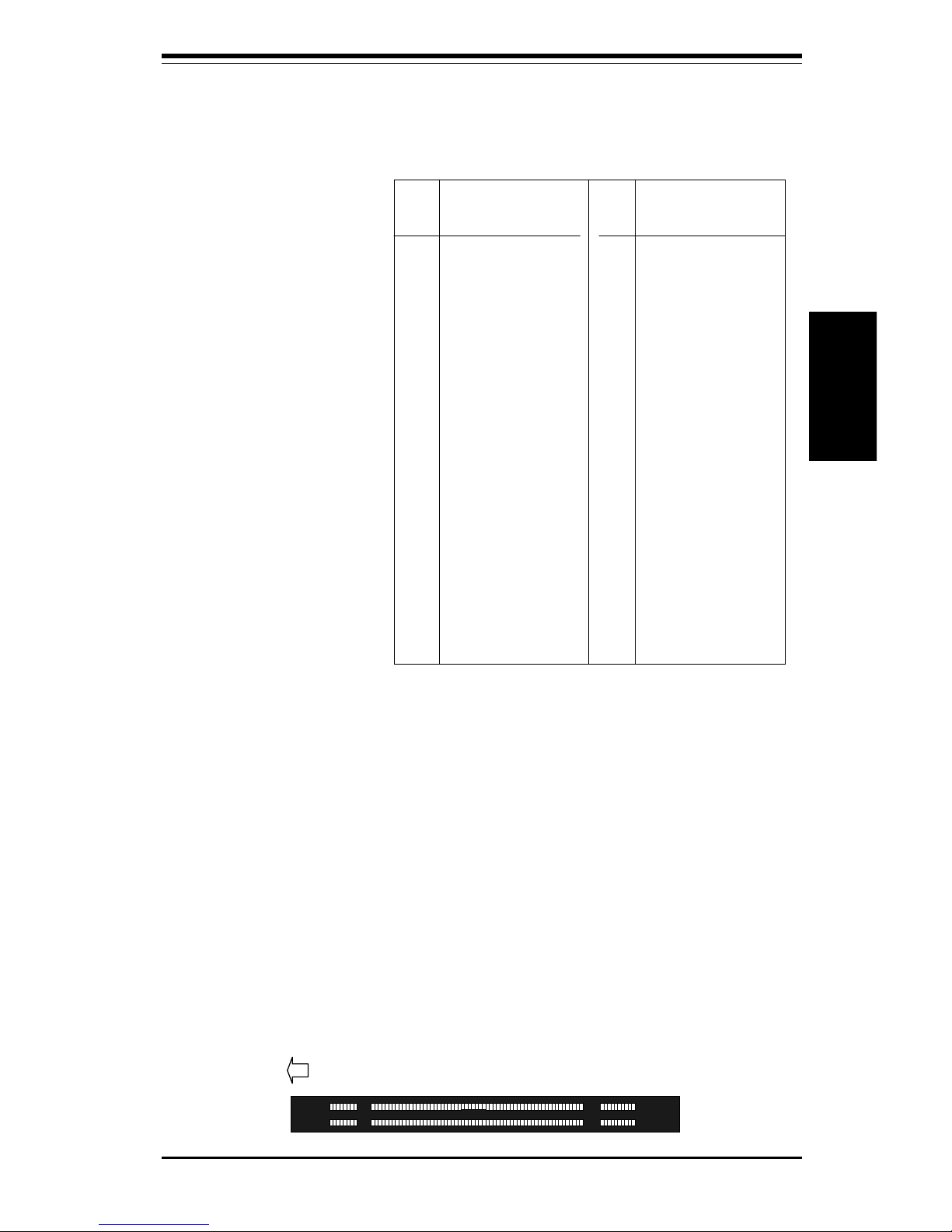

Table 2-24

AMR Connector Pin Definitions (AMR)

AMR Connector

Refer to Table 2-24 for
the pin definitions of the
AMR connector.

AGP Pro Slot

The AGP Pro slot is backward compatible with AGP and 4xAGP graphics
cards, which have fewer pins than AGP Pro cards. Because of this,
care must be taken when installing a graphics card into this slot, as doing
so incorrectly can damage your motherboard. For AGP Pro cards, you
should remove the orange sticker covering one end of the slot. For other
cards, leave this sticker in place and make sure your card does not plug
into the section it covers. A general rule of thumb is to make sure your
card fills the center section of pins first, then the end toward the edge of
the motherboard if there are more. If the I/O shield of your card is flush
with the edge of the motherboard, the card should be inserted correctly.

AGP Pro Slot

Edge of motherboard

2-16

SUPER 370SSA/370SSM User's Manual

Installation

2-9 Installing Software Drivers

After all the hardware has been installed you must install the software drivers.
The necessary drivers are all included on the Supermicro CD that came packaged
with your motherboard. After inserting this CD into your CDROM drive, the
display shown in Figure 2-5 should appear. (If this display does not appear, click
on the My Computer icon and then on the icon representing your CDROM drive.
Finally, double click on the S "Setup" icon.)

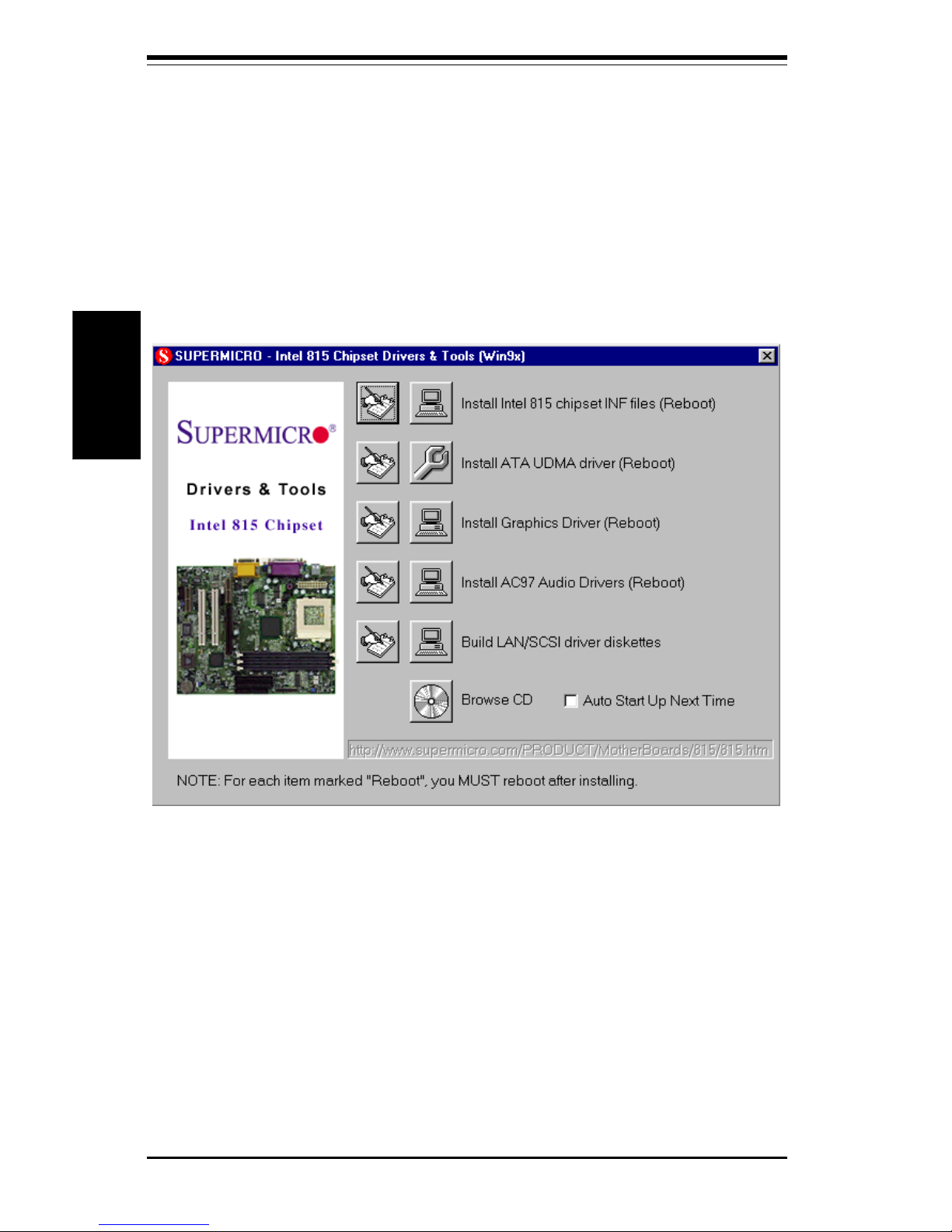

Figure 2-5. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on paper to view the readme files
for each item. Click the tabs to the right of these

in order from top to

bottom

to install each item one at a time. After installing each item, you

must reboot the system before moving on to the next item on the
list. You should install everything here except for the SUPER Doctor utility,

which is optional. The Security and Graphics Drivers support multiple lan­guages. Click the arrows to pull down a menu of choices. The bottom icon
with a CD on it allows you to view the entire contents of the CD.
Note: The memory size reported in the device manager may be less than
expected because some is used by the onboard graphics. Higher screen
resolutions will take up more of this memory.

3-1

Chapter 3: Troubleshooting

Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have
followed all of the procedures below and still need assistance, refer to the
‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’
section(s) in this chapter. Note: Always disconnect the power cord

before adding, changing or installing any hardware components.

Before Power On

1. Make sure no short circuits exist between the motherboard and
chassis.

2. Disconnect all ribbon/wire cables from the motherboard, including those
for the keyboard and mouse.

3. Remove all add-on cards.

4. Install a CPU (making sure it is fully seated) and connect the chassis
speaker and the power LED to the motherboard. (Check all jumper
settings as well.)

No Power

1. Make sure no short circuits exist between the motherboard and the
chassis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it
still supplies ~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards
and cables.

2. Use the speaker to determine if any beep codes exist. Refer to
Appendix A for details on beep codes.

3-2

SUPER 370SSA/370SSM User's Manual

Troubleshooting

5. Make sure all memory modules are fully seated in their slots.

6. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Configuration

1. Check the setting of jumper JBT1. Ensure that you are using a high

quality power supply. A poor quality power supply may cause the
system to lose the CMOS setup information. Refer to Section 1-6 for
details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it
still supplies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fix the Setup Configuration problem, contact
your vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also,
note that as a motherboard manufacturer, Supermicro does not sell directly
to end-users, so it is best to first check with your distributor or reseller for
troubleshooting services. They should know of any possible problem(s)
with the specific system configuration that was sold to you.

NOTE

If you are a system integrator, VAR or OEM, a POST diagnos-

tics card is recommended. For I/O port 80h codes, refer to

App. B.

Memory Errors

1. Make sure the DIMM modules are properly and fully installed for the
amount of memory desired.

2. Determine if different speeds of DIMMs have been installed and verify
that the BIOS setup is configured for the fastest speed of memory
used. It is recommended to use the same memory speed for all
DIMMs in the system.

3. For DIMMs, make sure you are using PC133 or PC100 compliant,
unbuffered SDRAM. EDO SDRAM is not supported.

4. Check for bad DIMM modules or slots by swapping modules between
slots and noting the results.

3-3

Chapter 3: Troubleshooting

Troubleshooting

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently
Asked Question' (FAQ) sections in this chapter or see the FAQs on our

web site (http://www.supermicro.com/techsupport.htm) before con­tacting Technical Support.

2. BIOS upgrades can be downloaded from our web site at
http://www.supermicro.com/techsupport/download.htm.

Note: Not all BIOS can be flashed depending on the modifica­tions to the boot block code.

3. If you still cannot resolve the problem, include the following information
when contacting Supermicro for technical support:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when
your system first boots up)

•System configuration
An example of a Technical Support form is on our web site at
http://www.supermicro.com/techsupport/contact_support.htm.

4. Distributors: For immediate assistance, please have your account number
ready when placing a call to our technical support department. We can
be reached by e-mail at [email protected] or by fax at (408)
895-2012.

3-3 Frequently Asked Questions

Question: What are the various types of memory that the 370SSA/
370SSM motherboard can support?

Answer: The 370SSA/370SSM has three 168-pin DIMM slots that support

up to 512 MB of unbuffered 3.3V SDRAM (registered DIMMs not supported).
ECC memory is not supported. The 133/100 MHz memory bus fully supports
both PC133 and PC100 memory. However, if three DIMM modules are in­stalled, the memory will run at 100 MHz, even if PC133 memory is used (this
is a chipset limitation).

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are

experiencing no problems with your system. Updated BIOS files are located
on our web site at http://www.supermicro.com. Please check our BIOS
warning message and the info on how to update your BIOS on our web
site. Also, check the current BIOS revision and make sure it is newer than
your BIOS before downloading. Select your motherboard model and down-

3-4

SUPER 370SSA/370SSM User's Manual

Troubleshooting

load the BIOS file to your computer. Unzip the BIOS update file and you will
find the readme.txt (flash instructions), the fwhflash.com (BIOS flash utility)
and the BIOS image (xxxxxx.rom) files. Copy these files onto a bootable
floppy and reboot your system. It is not necessary to set BIOS boot block
protection jumpers on the motherboard. At the DOS prompt, enter the com­mand "fwhflash." This will start the flash utility and give you an opportunity
to save your current BIOS image. Flash the boot block and enter the name
of the update BIOS image file.

Note: It is important to save your current BIOS and rename it
"super.rom" in case you need to recover from a failed BIOS update.

Select flash boot block, then enter the update BIOS image. Select "Y" to
start the BIOS flash procedure and do not disturb your system until the
flash utility displays that the procedure is complete. After updating your
BIOS, please clear the CMOS then load Optimal Values in the BIOS.

Question: After flashing the BIOS my system does not have video.
How can I correct this?

Answer: If the system does not have video after flashing your new BIOS,

it indicates that the flashing procedure failed. To remedy this, first clear
CMOS per the instructions in this manual and retry the BIOS flashing proce­dure. If you still do not have video, please use the following BIOS Recov-
ery Procedure. First, make sure the JPWAKE jumper is disabled. Then,
turn your system off and place the floppy disk with the saved BIOS image
file (see above FAQ) in drive A. Press and hold <CTRL> and <Home> at the
same time, then turn on the power with these keys pressed until your
floppy drive starts reading. Your screen will remain blank until the BIOS
program is done. If the system reboots correctly, then the recovery was
successful. The BIOS Recovery Procedure will not update the boot block
in your BIOS.

Question: Do I need the CD that came with your motherboard?

Answer: The supplied compact disc has quite a few drivers and programs

that will greatly enhance your system. We recommend that you review the
CD and install the applications you need. Applications on the CD include
815 chipset drivers for Windows and security and audio drivers.

Question: Why can't I turn off the power using the momentary
power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power

Button Mode setting. When the On/Off feature is enabled, the motherboard

3-5

Chapter 3: Troubleshooting

Troubleshooting

will have instant off capabilities as long as the BIOS has control of the
system. When the Standby or Suspend feature is enabled or when the
BIOS is not in control such as during memory count (the first screen that
appears when the system is turned on), the momentary on/off switch must
be held for more than four seconds to shut down the system. This feature
is required to implement the ACPI features on the motherboard.

Question: I see some of my PCI devices sharing IRQs, but the sys­tem seems to be fine. Is this correct or not?

Answer: Some PCI Bus Mastering devices can share IRQs without perfor-

mance penalties. These devices are designed to work correctly while shar­ing IRQs. See Table 3-1 below for details on shared IRQs.

Table 3-1. Shared IRQs

370SSM

PCI 1 shares an IRQ with the 4xAGP slot
PCI 2 has a dedicated IRQ (does not share)

370SSA

PCI 1 shares an IRQ with PCI 5 and the AGP Pro slot
PCI 2 shares an IRQ with PCI 6
PCI 3 has a dedicated IRQ (does not share)
PCI 4 has a dedicated IRQ (does not share)

Question: I installed my microphone correctly but I can't record any
sound. What should I do?

Answer: Go to <Start>, <Programs>, <Accessories>, <Entertainment> and

then <Volume Control>. Under the Properties tab, scroll down the list of
devices in the menu and check the box beside "Microphone".

3-6

SUPER 370SSA/370SSM User's Manual

Troubleshooting

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is
required before any warranty service will be rendered. You can obtain
service by calling your vendor for a Returned Merchandise Authorization
(RMA) number. When returning to the manufacturer, the RMA number
should be prominently displayed on the outside of the shipping carton, and
mailed prepaid or hand-carried. Shipping and handling charges will be ap­plied for all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover dam­ages incurred in shipping or from failure due to the alternation, misuse,
abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product
problems.

Question: How do I connect the ATA66/100 cable to my IDE
device(s)?

Answer: The 80-wire/40-pin ATA66/100 IDE cable that came with your

system has two connectors to support two drives. This special cable must
be used to take advantage of the speed the ATA66/100 technology offers.
Connect the blue connector to the onboard IDE header and the other
connector(s) to your hard drive(s). Consult the documentation that came
with your disk drive for details on actual jumper locations and settings.
(The 370SSM has an ATA66 cable and the 370SSA has an ATA100 cable.)

Chapter 4: BIOS

4-1

BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMIBIOS for the 370SSA/370SSM. The AMI
ROM BIOS is stored in a Flash EEPROM and can be easily upgraded using
a floppy disk-based program.

Note: Due to periodic changes to BIOS, some settings may have been
added or deleted and might not yet be recorded in this manual. Refer to the
Manual Download area of our web site for any changes to BIOS that are
not reflected in this manual.

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®,
and PS/2® compatible computers. The BIOS ROM stores the system param­eters, such as amount of memory, type of disk drives and video displays,
etc. BIOS ROM requires very little power. When the computer is turned off,
a back-up battery provides power to the BIOS ROM, enabling it to retain the
system parameters. Each time the computer is powered-on, the computer is
then configured with the values stored in the BIOS ROM by the system
BIOS, which gains control when the computer is powered on.

How To Change the Configuration Data

The configuration data that determines the system parameters may be
changed by entering the BIOS Setup utility. This Setup utility can be ac­cessed by pressing <Del> at the appropriate time during system boot.

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory
test. As the memory is being tested, press the <Delete> key to enter the
main menu of the BIOS Setup utility. From the main menu, you can access
the other setup screens, such as the Chipset and Power menus. Section 4­3 gives detailed descriptions of each parameter setting in the Setup utility.

An AMIBIOS identification string is displayed at the left bottom corner of the
screen, below the copyright message.

SUPER 370SSA/370SSM User's Manual

4-2

BIOS

4-2 BIOS Features

• Supports Plug and Play V1.0A and DMI 2.1

• Supports Intel PCI (Peripheral Component Interconnect) (PME) local bus
specification

• Supports Advanced Power Management (APM) specification v 1.1

• Supports ACPI

• Supports Flash ROM

AMIBIOS supports the LS120 drive made by Matsushita-Kotobuki Electronics
Industries Ltd. The LS120:

• Can be used as a boot device

• Is accessible as the next available floppy drive

AMIBIOS supports PC Health Monitoring chips. When a failure occurs in a
monitored activity, AMIBIOS can sound an alarm and display a message.
The PC Health Monitoring chips monitor:

• CPU temperature

• Additional temperature sensors

• Chassis intrusion detector

• Five positive voltage inputs

• Two negative voltage inputs

• Three fan speed monitor inputs

4-3 Running Setup

*Optimal default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choos­ing the appropriate text from the Standard Setup screen. All displayed
text is described in this section, although the screen display is often all
you need to understand how to set the options (see on next page).

Chapter 4: BIOS

4-3

BIOS

Use the Up/Down arrow keys or the <Tab> key to move between the different
settings in the above menu.

When the items "System Time", and "System Date" are highlighted, type in the
correct time/date in the time field, and then press "Enter". The date must be
entered in MM/DD/YY format. The time is entered in HH:MM:SS format. The time
is in also 24-hour format. For example, 5:30 a.m. appears as 05:30:00 and 5:30
p.m. as 17:30:00.

Press the <ESC> key to exit the Main Menu and use the Left/Right arrow keys
to enter the the other categories of BIOS settings. The next section is de­scribed in detail to illustrate how to navigate through the menus.

*Note: Items displayed in gray are preset and cannot be selected.

The Main BIOS Setup Menu

Press the <Delete> key during the POST (Power On Self Test) to enter the Main
Menu of the BIOS Setup Utility. All Main Setup options are described in this
section. The Main BIOS Setup screeen is displayed below.

BIOS SETUP UTILITY

Main

Advanced Chipset PCIPnP Power Boot Security Exit

AMIBIOS Version : 07.00xx
BIOS Release Date : xx/xx/xx
BIOS Filename : SSM70626

Processor Type : PentiumIII™
Processor Speed : 933MHz

System Memory : 256MB

System Time [10:10:00]
System Date [Thu 08/24/00]

↔

Select Screen

↑↓

Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

SUPER 370SSA/370SSM User's Manual

4-4

BIOS

Use the Up/Down arrow keys to select the "Super I/O Configuration line.
When the "Super IO Configuration" line is highlighted, hit "ENTER" to display its

menu.
The following Super IO Configuration screen will appear. Here you can select

your options for the your computer's I/O (Input/Output) devices.

4-4 Advanced Chipset Setup

BIOS SETUP UTILITY

Main

Advanced Chipset PCIPnP Power Boot Security Exit

Setup Warning
Setting items on this screen to incorrect values
may cause the system to malfunction!
> SuperIO Configuration
> IDE Configuration
> Floppy Configuration
> Event Log Configuration
> System Health Monitoring Hardware

Configure SuperIO
Chipset Winbond627F

↔

Select Screen

↑↓

Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit ESC
Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

Choose Advanced BIOS Setup from the AMIBIOS Setup Utility main menu with
the Left/Right arrow keys. You should see the following display. Select one of
the items in the left frame of the screen, such as SuperIO Configuration, to go to
the sub screen for that item. Advanced BIOS Setup options are displayed by
highlighting the option using the arrow keys. All Advanced BIOS Setup options
are described in this section.

Chapter 4: BIOS

4-5

BIOS

Super IO Configuration

The Super IO Configuration includes the following items:

Serial Port 1 Address

This option specifies the base I/O port address and Interrupt Request ad­dress of serial port 1. The settings for this item include Disabled, 3F8/IRQ4,
3E8/IRQ4 and 2E8/IRQ3. Select the desired setting and then press "Enter".

Serial Port 2 Address

This option specifies the base I/O port address and Interrupt Request ad­dress of serial port 2. The settings for this item include Disabled, 2F8/IRQ3,
3E8/IRQ4 and 2E8/IRQ3.

Parallel Port Address

This option specifies the I/O address used by the parallel port. The settings
for this item include Disabled, 378, 278 and 3BC. Select your setting and
then press "Enter".

BIOS SETUP UTILITY

Advanced

Configure Winbond627F Serial Port(s) and Parallel P

Serial Port1 Address
Serial Port2 Address
Cir Port IRQ
Parallel Port Address
Parallel Port Mode
ECP Mode DMA Channel
Parallel Port IRQ
Onboard Game/Midi Port
Midi Irq Select
Power Loss Control
Keyboard Wake-up Function

[3F8/IRQ4]
[2F8/IRQ3]
[10]
[378]
[ECP]
[3]
[7]
[200/298]
[5]
[Always OFF]
[Space]

↔

Select Screen

↑↓

Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

SUPER 370SSA/370SSM User's Manual

4-6

BIOS

Parallel Port Mode

This option specifies the parallel port mode. The settings for this item
include Normal, Bi-directional, EPP and ECP.

ECP Mode DMA Channel

This option allows the user to set the setting for the ECP
Mode of the DMA Channel. The settings for this item include

0, 1 and 3.

Parallel Port IRQ

This option allows the user to set the Parallel Port IRQ. The settings
for this item include 5 and 7.

Onboard Game/Midi Port

This option allows the user to set the Onboard Game/Midi
Port. The settings for this item include Disabled, 200/298,
200/300, 200/330, 208/300 and 208/330.

Midi IRQ Select

This option allows the user to set the Midi IRQ. The settings
for this item are 5, 7, 9 and 10.

Power Loss Control

This option determines how the system will react when power is reapplied
after being lost unexpectedly. The settings are Always Off (if the system
loses power unexpectedly, the computer system will keep power off until
the power button is pressed), Always On (if the system loses power unex­pectedly, the computer system will restore power) and Previous (if the
system loses power unexpectedly, the computer system restores the sys­tem to its previous state before power was lost).

Keyboard Wake-Up Function

Use this option to specify which key is to be depressed to wake-up the
system from sleep mode. The settings are Disabled, CTRL F1, Space and
Any Key. Disabled: This setting prevents the computer system from using
the keyboard to power it on. Ctrl F1: This setting allows the computer

Chapter 4: BIOS

4-7

BIOS

IDE Configuration

Onboard PCI IDE Controller

This option allows the user to enable or disable the integrated IDE Control­ler. The settings include Disabled, Primary, Second and Both. Select "Dis­abled" to disable the Integrated IDE Controller. Select "Primary" to enable
the Primary IDE ontroller only. Select "Secondary" to enable the Secondary
IDE Controller only. Select "Both" to enable both Primary and Secondary
IDE Controllers.

Primary IDE Master

When entering "Setup", BIOS automatically detects the presence of
IDE devices. This displays the auto detection status of the IDE de
vices. You can also manually configure the IDE drives by providing the
following information:

Health Monitor Features

The BIOS continuously monitors the health of your system by measuring
certain voltage levels and temperatures.

CPU Overheat Warning

This option allows you to Enable or Disable a system overheat warning
signal, used to notify you in the event of a dangerous rise in heat levels.

CPU Overheat Warning

This option allows you to specify the temperature threshold that, when
exceeded, will trigger the overheat warning alarm.

The rest of the Health Monitor menu lists various voltages and temperatures
as they are currently being measured. These include CPU temperature, CPU
voltage, the rpms of the CPU, chassis and thermal control fans as well as
the primary voltage levels used by the system: +3.3V, +5V, +12V and -12V.

system to be powered on when the CTRL and F1 keys on the keyboard are
pressed. Space: This setting allows the computer system to be powered
on when the Space bar on the keyboard is pressed. This is the default
setting. Any Key: This setting allows the computer system to be powered
on when any keys on the keyboard are pressed.

SUPER 370SSA/370SSM User's Manual

4-8

BIOS

Type

This option sets the type of device that the AMIBIOS attempts
to boot from after AMIBIOS POST is completed. The settings
include Not installed, Auto, CDROM and ARMD. The "Auto"
setting allows BIOS to automatically detect the presence of
the IDE controller.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing
data on a disk drive. In LBA mode, the maximum drive capac
ity is 137 GB. The settings are Disabled and Auto. Select
"Disabled" to disable LBA mode. Select "Auto" to enable LBA
mode if your device supports it and is not already formatted
with the LBA mode.

Block (Multi-Sector Transfer) Mode

This option sets the block mode multi sector transfers option
The settings include Disabled and Auto. Disabled: This op
tion prevents the BIOS from using Multi-Sector Transfer on
the specified channel. The data to and from the device will
occur one sector at a time. Auto: This option allows the
BIOS to auto detect device support for Multi-Sector Trans
fers on the specified channel. If supported, this option al
lows the BIOS to auto detect the number of sectors per block
for transfer from the hard disk drive to memory. The data
transfer to and from the device will occur multiple sectors at
a time (if the device supports it).

PIO Mode

IDE PIO (Programmable I/O) mode programs timing cycles be
tween the IDE drive and the programmable IDE controller. As
the PIO mode increases, the cycle time decreases. The
settings are: Auto, 1, 2, 3 and 4.

DMA

This item allows the users to select the DMA mode. The
settings are: Auto, SWDMA0, SWDMA1, SWDMA2,
MWDMA0, MWDMA1, MWDM2, UWDMA0, UWDMA1,
UWDMA2, UWDMA3 and UWDMA4. Select Auto to auto de-

Chapter 4: BIOS

4-9

BIOS

tect the DMA Mode. Select SWDMA0 through SWDMA2 to
set single word DMA0 through DMA2. Select MWDMA0
through MWDMA2 to set Multi-word DMA0 through DMA2.
Select UDMA0 trhough UDMA4 to set Ultra DMA0 through
Ultra DMA4.

S.M.A.R.T.

S.M.A.R.T stands for Self-Monitoring Analysis and Reporting
Technology, a feature that can help predict impending drive
failures. The settings are Auto, Disabled and Enabled.
Select "Enabled" or "Disabled" to enable or disable the
S.M.A.R.T. Select "Auto" to auto detect S.M.A.R.T.

32Bit Data Transfer

The settings are Auto, Disabled and Enabled. Select "En­abled" or "Disabled" to enable or disable the 32-bit Data
Transfer function. Select "Auto" to auto detect the 32-bit
Data Transfer function.

ARMD Emulation

This option is used to select the emulation used when config
uring an LS120, MO (Magneto-Optical), or Iomega Zip drive.
The settings are Auto, Floppy and HardDisk.

Primary IDE Slave

When the system enters "Setup", BIOS automatically detects the presence
of IDE devices. This option displays the auto detection status of IDE de­vices. The settings for "Primary IDE Slave" are the same as those for the
"Primary IDE Master".

Secondary IDE Master

This displays the status of auto detection of IDE devices. The settings for
"Secondary IDE Master" are the same as those for the "Primary IDE Master".

Secondary IDE Slave

This displays the status of auto detection of IDE devices. The settings for
"Secondary IDE Slave" are the same as those for the "Primary IDE Master".

SUPER 370SSA/370SSM User's Manual

4-10

BIOS

ATA(PI) 80Pin Cable Detection

This option selects the mechanism for detecting the 80-pin ATA(PI) cable.
Options include Host and Device, Host, and Device. Host: This option
uses the motherboard onboard IDE controller to detect the type of IDE cable
used. Device This option uses the IDE disk drive to detect the type of IDE
cable used. Host & Device: This option uses both the motherboard onboard
IDE controller and IDE disk drive to detect the type of IDE cable used.

Floppy Configuration

Floppy A

Use this option to specify which of floppy drive you have installed in the A
drive. The settings are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3 1/
2", 1.44 MB 3 1/2" and 2.88 MB 3 1/2".

Floppy B

Use this option to specify which of floppy drive you have installed in the B
drive. The settings are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3 1/
2", 1.44 MB 3 1/2" and 2.88 MB 3 1/2".

Floppy Drive Seek

Use this option to Enable or Disable the floppy seek routine on bootup.

Hard Disk Write Protect

This item allows the user to prevent the hard disk from being overwritten.
The options are Enabled or Disabled. Enabled allows the drive to be used
normally; read, write and erase functions can all be performed. Disabled
prevents the hard disk from being erased. This function is effective only
when the device can be accessed through BIOS.

ATA(PI) Detect Timeout

Set this option to stop the system search for ATAPI devices within the
specified number of seconds. The options are 0, 5, 10, 15, 20, 25, 30, and
35 (seconds). Most ATA disk drives can be detected within 5 seconds.

Chapter 4: BIOS

4-11

BIOS

BootUp Num Lock

This option is used to select the status of the Number Lock function on your
keyboard on bootup. The settings are On and Off.

BootUp CPU Speed

This option is used set the CPU speed to either High or Low.

PS/2 Mouse Support

This option specifies whether a PS/2 Mouse will be supported. Settings are

Enabled and Disabled.

Typematic Rate

Set this option to select the rate at which the computer repeats a key that
is held down. Settings are Fast and Slow. Fast: This sets the rate the
computer repeats a key to over 20 times per second. Under normal opera­tions, this setting should not be changed. Slow: This sets the rate the
computer repeats a key to under 8 times per second.

Boot Settings Configuration

Quick Boot

This option allows the BIOS to skip certain tests that are normally perfomred
on boot up. You can disable the option to speed up boot time. The settings
are Disabled and Enabled.

Quiet Boot

If Disabled, this option will cause the normal POST messages to be dis­played upon setup. When Enabled, the OEM logo is displayed instead of
the POST messages.

Add-On ROM Display Mode

Set this option to display add-on ROM (read-only memory) messages. The
settings for this option are Force BIOS and Keep Current. Force BIOS
allows the computer to force a third party BIOS to display during system
boot. Keep Current has the system display AMIBIOS information on bootup.

BIOS.

SUPER 370SSA/370SSM User's Manual

4-12

BIOS

System Keyboard

This option is to let the system know if a keyboard is Present or Absent.

Primary Display

This option specifies the type of monitor display you have installed on the
system. The settings are Absent, VGA/EGA, Color 40 x 25, Color 80 x 25
and monochrome.

Parity Check

Use this option to either Enable or Disable the use of memory parity check­ing.

Boot to OS/2

This option can be used to boot the system to an OS/2 operating system.
The settings are No and Yes.

Wait for F1 if Error

This settings for this option are Enabled and Disabled. Disabled: This
prevents the AMIBIOS to wait on an error for user intervention. This setting
should be used if there is a known reason for a BIOS error to appear. An
example would be a system administrator must remote boot the system.
The computer system does not have a keyboard currently attached. If this
setting is set, the system will continue to bootup in to the operating system.
If ‘F1’ is enabled, the system will wait until the BIOS setup is entered.
Enabled: This option allows the system BIOS to wait for any error. If an
error is detected, pressing <F1> will enter Setup and the BIOS setting can
be adjusted to fix the problem. This normally happens when upgrading the
hardware and not setting the BIOS to recognize it.

Hit "Delete" Message Displayed

This option tells the system to display or not display the "Hit Delete to Enter
Setup" message. The settings are Enabled and Disabled.

Internal Cache

This option is for enabling or disabling the internal CPU L1 cache. Settings
include Disabled, Write-Thru and Write-Back. Disabled: This option pre­vents the system from using the internal CPU L1 cache. This setting should

Chapter 4: BIOS

4-13

BIOS

be used to slow the computer system down or to troubleshoot error mes­sages. Write-Thru: This option allows the computer system to use the
internal CPU L1 cache as Write-Though cache. Write-Through cache is
slower than Write-Back cache. It performs write operations to the internal
L1 CPU cache and system memory simultaneously.Write-Back This
option allows the computer system to use the internal CPU L1 cache as
Write-Back cache. Write-Back cache is faster than Write-Through cache.
Write-Back cache is a caching method in which modifications to data in the
cache aren’t copied to the cache source until absolutely necessary. Write­back caching is available on all CPUs supported by this BIOS. With these
CPUs, write operations stored in the L1 cache aren’t copied to main memory
until absolutely necessary. This is the default setting.

External Cache

This option is for enabling or disabling the internal CPU L2 cache. Settings
include Disabled, Write-Thru and Write-Back. See description above.

Event Log Configuration

Event Logging

This option Enables or Disables the logging of events. You can use this
screen to select options for the Event Log Configuration Settings. You can
access sub screens to view the event log and mark all events as read. Use
the up and down arrow keys to select an item, and the plus (+) and minus
(-) keys to change the option setting. The settings are described on the
following pages. The screen is shown below.

ECC Event Logging

This option Enables or Disables the logging of ECC events. The events
logged by AMIBIOS are post errors such as a bad BIOS, floppy errors, or
hard drive errors.

Clear All Event Logs

This option can be used to tell the system to clear the event log on the next
boot up. The settings are No and Yes.

SUPER 370SSA/370SSM User's Manual

4-14

BIOS

4-5 Chipset Setup

Choose Chipset Setup from the AMIBIOS Setup Utility main menu. The screen
is shown below. All Chipset Setup options are described following the
screen. You can use this screen to select options for the GHCH
Configuration.

GMCH Configuration

You can use this screen to select options for the GMCH Configuration. Use
the up and down arrow keys to select an item, and the plus (+) and minus
(-) keys to change the option setting. The settings are described on the

following pages.

Primary Video Device

This option specifies the primary display device on your system. Settings
include Internal, External PCI, External AGP and Auto. Auto: This setting
allows the BIOS to select the primary video device at bootup. Internal: This
setting allows the onboard video display adapter to be the primary video

BIOS SETUP UTILITY

Main Advanced Chipset P CIPnP Power Boot Secur ity Exit

> GMCH Configuration
> ICH Configuration

Processor Serial Number [Disabled]
CPU Latency Timer [Disabled]

C000,16k Shadow [Cached/WP]
C400,16k Shadow [Cached/WP]
C800,16k Shadow [Disabled]
CC00,16k Shadow [Disabled]
D000,16k Shadow [Disabled]
D400,16k Shadow [Disabled]
D800,16k Shadow [Disabled]
DC00,16k Shadow [Disabled]

Options for MCH

↔

Select Screen

↑↓

Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

Chapter 4: BIOS

4-15

BIOS

device at bootup. External PCI: This setting allows a PCI Display Adapter
card to be the primary video device at bootup. External AGP: This setting
allows an AGP Display Adapter to be the primary video device at bootup.

Internal Graphics Mode Select

This option selects the mode for the internal graphics mode. Settings in­clude Disabled, Enabled; 512 KB and Enabled; 1 MB. Enabled; 1MB: This
option allows the Internal Graphic controller to allocate 1 MB of system
memory for video display use. Enabled; 512KB: This option allows the Inter­nal Graphic controller to allocate 512 KB of system memory for video dis­play use. Disabled: This option allocates no system memory for video dis­play use.

Display Cache Window Size

This option sets the size of the display cache window. The settings are 64
MB and 32 MB.

Internal Graphics Scaling

This option allows the Internal Graphics Scaling to be manually set or auto­matically set. The settings for this option for this setting include Disabled,
Auto and Enabled. Auto: This setting allows the Internal Graphics scaling to
auto select itself. This setting sets the Internal Graphics scaling off.
Enabled: This setting sets the Internal Graphics scaling on.

Internal Graphics TV Format

This option specifies the type of TV format that will be used with the
onboard graphics. The settings are NTSC and PAL.

Output Device Synch/Non-Synch

This option allows you to set the output device as either Non-Synchro-

nous (Asynchronous) or Synchronous. Synchronous means the output

device will match the frequency of the bus speed. Asynchronous or Non­Synchronous allows data to be sent and received at a different frequency
than the bus.

SUPER 370SSA/370SSM User's Manual

4-16

BIOS

Digital Device Priority

Use this option to prioritize the type(s) of display device on your system.
The settings are CRT/FP/TV, FP/CRT/TV, CRT/TV/FP, TV/CRT/FP, FP/TV/CRT
and TV/FP/CRT. (FP stands for flat panel.)

AGP Graphics Aperture Size

This option allows you to adjust the graphics aperture size to either 64 MB
or 32 MB.

Init Display Cache Memory

This option allows the Initial Display cache memory to be adjusted. The
setting are Enabled and Disabled.

Paging Mode Control

This option allows the paging mode controls to be adjusted to either

Close or Open.

RAS-to-CAS Latency Override

The RAS-to-CAS Override is adjusted with this option. The settings
are Disabled and Enabled. Disabled: This option allows RAS-to-CAS.
Enabled: This option overrides RAS-to-CAS. SDRAM stores informa
tion in blocks of rows and columns. RAS stands for Row Address
Strobe. CAS stands for Column Address Strobe.

CAS Latency

This option regulates the speed of the Column Address Strobe (CAS)
as either Fast or Slow, which is higher or lower latency. CAS latency
optimizes the speed at which data is accessed in a column by defining
CAS latency time in 100 MHz or 133 MHz clocks (dependent on the
memory bus speed). It controls the time delay (in clocks) before
SDRAM starts a read command after receiving it. Reading RAS data
can be read twice as fast as reading CAS. Lowering the latency can
increase the speed of the SDRAM, but at the expense of stability.

Chapter 4: BIOS

4-17

BIOS

RAS Timing

This option regulates the speed of the Row Address Strobe (RAS) as
either Fast or Slow. As with CAS Latency, lowering the timing can
increase the speed of the SDRAM, but at the expense of stability.

RAS Pre-charge

The precharge time is the number of cycles it takes for the RAS to
accumulate a charge before a DRAM refresh. Insufficient recharge
time may cause the DRAM to lose data. The settings are Fast and

Slow, which is more stable.

System Memory Frequency

This option allows the system memory frequency to be adjusted. The set­tings are 100 MHz (for PC100 memory), 133 MHz (for PC133 memory) and

Auto, which allows the system memory frequency to auto select itself

SDRAM Refresh

This option sets the refresh rate for the system memory. Settings include

Auto, 15.6 µS, 7.8 µS and 128 CLKS.

DRAM Cycle Time (SCLKS)

This option allows you set the DRAM cycle time to 5/7, 6/8 or Auto.

CAS Latency (SCLKS)

This option allows you to set the CAS latency time to 3, 2 or Auto.

RAS# to CAS# Delay (SCLKS)

The settings for this option are 3, 2 and Auto.

RAS# Precharge (SCLKS)

This option sets the RAS# precharge time. Setting are 3, 2 and Auto.

DRAM Page Closing Policy

The settings for this option are Close and Open.

SUPER 370SSA/370SSM User's Manual

4-18

BIOS

ICH Configuration

You can use this screen to select options for the ICH Configuration. Use
the up and down arrow keys to select an item, and the plus (+) and minus
(-) keys to change the option setting. The settings are described on the
following pages. ICH stands for I/O Controller Hub, which is a chipset on
the motherboard that controls the basic I/O functions, USB ports, audio
functions, modem functions, IDE channels, and PCI slots.

Moon ISA Device Enable

This option allows a Moon ISA device to be supported. The settings are
Disabled and Enabled. A Moon ISA device is a device that contains an
Intel® PCIset S82380AB PCI to ISA in a 160-pin MQFP chipset. This chipset
is called an Intel® Moon ISA or Intel® MISA. This chipset is used to connect
ISA devices to computers that do not have a physical ISA slot. The best
example of this is a notebook computer (No ISA Slots) when used with a
docking station (contains up to three ISA peripherals). The docking station
would contain the Intel® Moon ISA chipset.

ICH Positive Decode

This option allows the ICH Positive Decode to be set. The settings are

Disabled and Enabled.

CPU Bist Enable

This option allows the CPU Bist Enable to be set. The settings are Disabled
and Enabled.

ICH DCB Enable

This option allows the ICH DCB to be set. The settings are Disabled and
Enabled.

Memory Hole

Some ISA cards may require specific areas of memory to function. This
can be done by choosing the 15 MB - 16 MB option to reserve the area.
The settings for this option are Disabled and 15 MB-16 MB.

Chapter 4: BIOS

4-19

BIOS

PC/PCIB Select Enable

This option allows the PC/PCIB Select Enable to be set. The settings are

Disabled and Enabled.

SMBus Controller

The settings for this option are Enabled and Disabled.

AC97 Audio Controller

The settings for this option are Enabled and Disabled.

AC97 Modem Controller

The settings for this option are Enabled and Disabled.

Sound Blaster Decode

This option is for adjusting the Sound Blaster Decode. The settings are

Disabled, 220h-233h, 240h-253h, 260h-273h and 280h-293h.

Microsoft Sound Decode

This option is for adjusting the Microsoft Sound Decode. The settings are

Disabled, 530h-537h, 604h-60Bh, E80h-E87h and F40h-F47h.

MIDI Decode

This option allows the MIDI Decode to be set. The settings are Disabled,
330h-331h and 300h-301h.

Adlib Range 388h-38Bh

This option allows the Adlib Range 388h-38Bh to be set. The settings are
Disabled and Enabled.

Game Port

This option allows the Game Port to be set. The settings are Disabled and
Enabled.

SUPER 370SSA/370SSM User's Manual

4-20

BIOS

Processor Serial Number

Intel includes a serial number in their processors to act as a unique system
identifier. For privacy reasons, you can disable the release of this identifier.
The settings for this option are Disabled and Enabled. Disabled: This set­ting restricts all access to the CPU serial number from your CPU. Enabled:
This setting allows the operating system and applications to be able to read
the CPU serial number from your CPUs. Note: If the CPU is a Intel®
Celeron Processor, then this selection will be grayed out. Intel® Celeron
Processors do not contain a processor serial number.

CPU Latency Timer

This option allows the CPU Latency Timer to be modified. The settings for
this option are Disabled and Enabled. Disabled: The deferrable processor
cycle will be deferred immediately after receiving another ADS#. Enabled:
The deferrable processor cycle will only be deferred after it has been in a
“Snoop Stall” for 31 clocks and another ADS# has arrived.

LPC 4Eh-4Fh Decode

This option allows the LPC 4Eh-4Fh to be set. The settings are Disabled
and Enabled.

DMA-0 Type

DMA-1 Type

DMA-2 Type

DMA-3 Type

DMA-4 Type

DMA-5 Type

DMA-6 Type

DMA-7 Type

This above options allow you to change the protocol for DMA-0 through
DMA-7. The settings for all are PC/PCI and LPC DMA.

Chapter 4: BIOS

4-21

BIOS

C000, 16k Shadow

C400, 16k Shadow

C800, 16k Shadow

CC00, 16k Shadow

D000, 16k Shadow

D400, 16k Shadow

D800, 16k Shadow

DC00, 16k Shadow

These options specify how the 16 KB of video ROM at each of the above
addresses is treated. When Disabled, the contents of the video ROM are
not copied to RAM. When Enabled, the contents of 16 KB of video ROM
beginning at the above address are copied (shadowed) from ROM to RAM
for faster application. When set to Cached/WP, the contents of 16 KB of
video ROM beginning at the above address are copied (shadowed) from
ROM to RAM and can be written to or read from cache memory. The
settings for this option are Disabled, Enabled and Cached/WP. (The optimal
settings are Cached/WP for C000 and C400 and Disabled for all the other
settings.

SUPER 370SSA/370SSM User's Manual

4-22

BIOS

Plug & Play OS

Choose the No setting for computers that do not meet the Plug and Play
specifications, which will allow the BIOS to configure all the devices in the
system. Choosing the Yes setting lets the operating system configure PnP
devices that are not required for boot up (if the system has a PnP operating
system). The operating system would have the ability to change interrupt,
I/O, and DMA settings. Set this option if the system is running Windows
95®, Windows 98® or Windows 2000®. Other operating systems are also
PnP-aware.

Reset Configuration Data

Choosing the Yes setting will cause the PnP configuration data in the BIOS
to be cleared on the next boot up. Choosing the No setting does not force
PnP data to be cleared on the next boot.

4-6 PCI PnP Setup

Choose PCI/PnP Setup from the AMIBIOS Setup main menu. All PCI/PnP
options are described in this section. The PCI/PnP Setup screen is shown
below.

BIOS SETUP UTILITY

Main Advanced Chipse t PC IPnP Powe r Boot Security Exit

Plug & Play O/S
Reset Config Data
PCI Latency Timer
Allocate IRQ to VGA
Palette Snooping
PCI IDE BusMaster
OffBoard PCI/ISA IDE Card
OffBoard PCI IDE Primary IRQ
OffBoard PCI IDE Secondary

USB Controller
Legacy USB Support

IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10

[No]
[No]
[64]
[Yes]
[Disabled]
[Disabled]
[Auto]
[Disabled]
[Disabled]

[Enabled]
[Disabled]

[Available]
[Available]
[Available]
[Available]
[Available]
[Available]

No: lets the BIOS
configure all the
devices in the system.
Yes: lets the
operating system
configure Plug and
Play (PnP) devices not
required for boot if
your system has a Plug
and Play operating
system.

↔

Select Screen

↑↓

Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

Chapter 4: BIOS

4-23

BIOS

PCI Latency Timer

This option specifies the latency timing of the PCI clocks for all PCI devices.
Settings include 32, 64, 96, 128, 160, 192, 224 and 248 PCI clocks.

Allocate IRQ to PCI VGA

This option lets you allocate an interrupt request (IRQ) to the PCI VGA
adapter card (if used). The settings are Yes and No.

Palette Snooping

When enabled, this option informs PCI devices that an ISA graphics device
is installed. The settings are Disabled and Enabled. This does not neces­sarily indicate a physical ISA adapter card. The graphics chipset can be
mounted on a PCI card. Always check with your adapter card manuals
first, before modifying the default settings in the BIOS.

PCI IDE BusMaster

The settings for this option are Disabled and Enabled. Enable to specify
that the IDE controller on the PCI bus has bus mastering capabilities.

OffBoard PCI/ISA IDE Card

This option specifies which PCI slot has an IDE controller card installed.
Settings are Auto, PCI slot 1, PCI slot 2, PCI slot 3, PCI slot 4, PCI slot 5 and
PCI slot 6. (PCI slot numbers will be available in this option even if your
motherboard does not have that slot number. If your motherboard does not
have a PCI slot 5, for example, do not set this option to "PCI slot5".)

OffBoard PCI Primary IRQ

This option specifies the primary IRQ for the PCI. Settings include Disabled,
INTA (Interrupt A), INTB, INTC, INTD and Hardwired. Hardwired tells the
BIOS that the OffBoard IDE Primary controller is a legacy device and the
interrupt request channels cannot participate in PCI “Swizzle”. (PCI
“Swizzle” is a term used to describe IRQ sharing.)

USB Function

The settings for this option are Disabled and Enabled. Disabled prevents
the use of the USB ports and Enabled allows the use of the USB ports.

SUPER 370SSA/370SSM User's Manual

4-24

BIOS

Legacy USB Support

This option allows Legacy USB support. The settings are Disabled, En­abled and Auto. Disabled prevents the use of any USB device in DOS or
during system boot. Enabled allows the use of USB devices during boot
and while using DOS. The Auto setting auto detects USB keyboards or mice
and if found, allows them to be utilized during boot and while using DOS.

IRQ 3

IRQ 4

IRQ 5

IRQ 7

IRQ 9

IRQ 10

IRQ 11

IRQ 14

IRQ 15

The settings for the above options are Available and Reserved. Available
allows the specified IRQ to be available for use by PCI/PnP devices. Re­served means the specified IRQ is reserved for use by Legacy ISA de­vices.

DMA Channel 0

DMA Channel 1

DMA Channel 3

DMA Channel 5

DMA Channel 6

DMA Channel 7

Chapter 4: BIOS

4-25

BIOS

Each of the above list of DMA channel setting options can be set to Avail­able and Reserved. Available means the specified DMA channel is avail-

able for use by PCI/PnP devices. Reserved means the specified DMA chan­nel is reserved for use by Legacy ISA devices.

Reserved Memory Size

This option specifies the size of a memory area to be reserved for Legacy
ISA adapter cards. The settings are Disabled, 16k, 32k and 64k.

Reserved Memory Address

The option specifies the beginning address of the reserved memory area to
be used for Legacy ISA adapter cards. The settings are C0000, C4000,

C8000, CC000, D0000, D4000, D8000 and DC000.

4-7 Power Setup

Choose Power Setup from the AMIBIOS Setup main menu. All Power Setup
options are described in this section. The Power Setup screen is shown
below.

BIOS SETUP UTILITY

Main Advanced Chipse t PCI PnP Po wer Boot Security Exit

ACPI Aware O/S
Suspend to RAM Support
Repost Video on S3 Resume

Power Management/APM
Standby Time Out
Suspend Power Saving
Suspend Time Out
Power Button Mode
AfterG3 Enable
Green PC Monitor Power State
Video Power Down Mode
Hard Disk Power Down Mode
Hard Disk Time Out (Minute)
Display Activity
Manual Throttle Ratio
THRM throttle Ratio
Intruder Sel

[No]
[Disabled]
[Yes]

[Enabled]
[Disabled]
[S1]
[Disabled]
[On/Off]
[Disabled]
[Suspend]
[Suspend]
[Suspend]
[Disabled]
[Ignore]
[50%]
[50%]
[SMI]

↔

Select Screen

↑↓

Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

SUPER 370SSA/370SSM User's Manual

4-26

BIOS

ACPI Aware O/S

This option allows the system to utilize Intel's ACPI (Advanced Configuration
and Power Interface) specification. Settings are No and Yes. DOS®,
Windows 3.x®, and Windows NT® are examples of non-ACPI aware oper­ating systems. Windows 95®, Windows 98® and Windows 2000® are
examples of ACPI aware operating systems.

Suspend to RAM Support

This allows you to enable or disable the Suspend to RAM feature. Settings
are Disabled and Enabled. The Disabled setting prevents the system from
saving information to main memory when in a low power state. Enabled
causes the system to enter a low power state instead of being completely
shut off. This allows the computer system to bootup in a few seconds.
Suspend to RAM (STR) is a technology that is closely associated with the
S3 state of the ACPI (Advanced Configuration and Power Interface) speci­fication. STR allows a properly configured system to go into a low power
state while saving information to main memory about the system’s configu­ration, open applications, and active files. While in the low power (STR)
state, memory remains powered to retain the system information while most
other components turn off to conserve energy. Fans are turned off to pro­vide silent operation and to minimize power consumption. Properly config­ured systems in STR typically can consume less than 5 watts.

Repost Video on S3 Resume

This option determines whether or not to invoke the VGA BIOS post test
when resuming from STR or the S3 state. Settings are No and Yes. (Used
with ACPI only.)

Power Management /APM

This option allows you to select using APM (Advanced Power Manage­ment). The settings are Disabled and Enabled.

Standby Time Out

This option specifies the length of system inactivity time that should expire
before the computer enters a standby power state. The settings are Dis-
abled, 1Min, 5Min and 10Min.

Chapter 4: BIOS

4-27

BIOS

After G3 Enable

This option allows AfterG3 Enable support. The settings are Disabled and
Enabled. Disabled prevents the system to power on after power is applied
to the system. Enabled allows the system to power on after power is
applied to the system. This means that if an ATX compliant power supply is
turned hard off or unplugged from the wall (power socket supplying it
power), the computer system will not power back on immediately after the
power cord is reattached or the hard off switch is flipped back on. The
power button on the front of the chassis is usually the soft off, meaning
that there is still power being supplied to the motherboard even though the
system looks completely off. Hard off means that there is not power being
supplied to the system at all. The only power is coming from the backup
battery on the motherboard.

Suspend Power Saving Type

The settings for this option are C2 and S1. The C2 setting allows the CPU
(microprocessor) to be put in a low power state. In this state, incoming
interrupts wake-up the CPU (microprocessor) to process them (I/O APIC).
S1 allows the system to enter the S1 POS (Power On Suspend) state.
While the system is in this state, the CPU is not executing instructions, all
power resources that supply system level reference of S0 are off, system
memory context is maintained, devices that reference power resources that
are on are on, and devices that can wake-up the system can cause the
CPU to continue to execute from where it left off.

Suspend Time Out

This option specifies the length of system inactivity while in the standby
state that should expire before the computer enters a suspend power state.
The settings are Disabled, 1Min, 5Min and 10Min.

Power Button Mode

This option specifies how the external power button on the computer chas­sis functions. When set to On/Off, depressing the power button turns the
computer on or off. When set to Suspend, depressing the power button
places the computer in Suspend mode or Full On power mode. The Standby
setting places the computer in Standby or Full On mode.

SUPER 370SSA/370SSM User's Manual

4-28

BIOS

Green PC Monitor Power State

This option specifies the power state that a green PC-compliant monitor
enters when BIOS places it in a power saving state after the specified
period of display inactivity has expired. The settings include Standby, Sus-

pend and Off.

Video Power Down Mode

This option specifies the power state that the VGA video subsystem enters
after the specified period of display inactivity has expired. The settings
include Disabled, Standby and Suspend.

Hard Disk Power Down Mode

This option specifies the power conserving state that the hard disk drive(s)
enters after the specified period of inactivity has expired. The settings
include Disabled, Standby and Suspend.

Hard Disk Time Out (Minutes)

This option specifies the length of hard disk inactivity time that should expire
before entering the power conserving state specified in the previous set­ting. The settings include Disabled and increments of 1-15 minutes.

Display Activity

This option specifies if BIOS is to monitor for display activity when in a
power saving state. The Ignore setting means any display activity will not
wake the system up from a power management state. The Monitor setting
allows display activity to wake up the system from a power management
state.

Manual Throttle Ratio

When in a power management state, throttling can be used to lower power
consumption and reduce heat. This option allows the CPU to operate at a
reduced average power, which includes a sacrifice in performance. The
settings include 87.5%, 75.0%, 62.5%, 50%, 37.5%, 25% and 12.5%. (A
setting of 75.0% means the BIOS will throttle back the CPU clock to operate
75% of the time.)

Chapter 4: BIOS

4-29

BIOS

THRM Throttle Ratio

THRM throttling is used to lower power consumption and reduce heat. The
settings include 87.5%, 75.0%, 62.5%, 50%, 37.5%, 25% and 12.5%.

Intruder Sel

This option allows you to set the Intruder SEL setting to SCI or SMI. SCI
stands for System Control Interrupt. This is considered to be ACPI (Ad­vanced Configuration and Power Interface) mode. The operating system
uses the SCI interrupt to process ACPI (Advanced Configuration and Power
Interface) events signaled by GPEs (general Purpose Event), whether the
system is asleep or awake when the event occurs. In other words, the
wake event has the side effect of causing the system to wake up if it is
asleep, but its primary purpose is to generate an SCI that notifies the oper­ating system that the event has occurred. SMI stands for System Manage­ment Interrupt. This is considered to be Legacy mode. It is used to log
interrupt events to operating systems that do not support ACPI (Advanced
Configuration and Power Interface) and operating systems that do.

Timer Overflow Enable

This allows the system to generate a System Management Interrupt after a
specific amount of time has passed. The settings for this option are Dis-

abled and Enabled.

Thermal SMI Enable

This allows the system to generate a System Management Interrupt after a
specific temperature has been exceeded. The settings for this option are

Disabled and Enabled.

PME SMI Enable

This allows the system to generate a System Management Interrupt after a
Power Management event has ocurred. The settings for this option are

Disabled and Enabled.

SW SMI Timer Enable

The settings for this option are Disabled and Enabled.

SUPER 370SSA/370SSM User's Manual

4-30

BIOS

RTC Resume

This allows you to direct the system to resume operation at a predetermined
time by using the real-time clock. The settings for this option Disabled and
Enabled.

RTC Alarm Date

This allows you to input the date you want the system to resume operation
according to a real-time clock wake-up. Input a number from 1 to 31 to
indicate the day of the month.

RTC Alarm Time

This allows you to input the time you want the system to resume operation
according to a real-time clock wake-up. Input the hour and minutes as
desired.

AC97 Logic Resume

This allows you to wake up the system from an AC97 modem. The settings
for this option Disabled and Enabled.

USB Controller Resume

This allows you to wake up the system from a USB device. The settings for
this option Disabled and Enabled.

PME Resume

This allows you to wake up the system from a PME device. The settings for
this option Disabled and Enabled.

RI Resume

The settings for this option Disabled and Enabled.

TCO Logic SMI Enable

This allows the system to generate a System Management Interrupt when a
century rollover occurs. The settings for this option Disabled and Enabled.

Chapter 4: BIOS

4-31

BIOS

4-8 Boot Setup

Choose Boot Setup from the AMIBIOS Setup main menu. All Boot Setup
options are described in this section. The Boot Setup screen is shown
below.

Boot Device Priority

1st Boot Device

This option is used to specify the order of the boot sequence that will be
followed from the available system devices. The settings for the 1st Boot
Device are Removeable Device, Hard Drive, ATAPI CDROM and LANDesk
(R) Server.

SMBUS Resume

This allows you to wake up the system from a System Management Bus
device. The settings for this option Disabled and Enabled.

BIOS SETUP UTILITY

Main Advanced Chipset PCIPn P Power Boot Security Exit

> Boot Device Priority
> Hard Disk Drives
> Removable Devices
> ATAPI CDROM Drives

↔

Select Screen

↑↓

Select Item

Enter Go to Sub Scree

n

F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

SUPER 370SSA/370SSM User's Manual

4-32

BIOS

2nd Boot Device

The settings for the 2nd Boot Device are Removeable Device, Hard Drive,
ATAPI CDROM and LANDesk (R) Server.

3rd Boot Device

The settings for the 3rd Boot Device are Removeable Device, Hard Drive,
ATAPI CDROM and LANDesk (R) Server.

4th Boot Device

The settings for the 4th Boot Device are Removeable Device, Hard Drive,
ATAPI CDROM and LANDesk (R) Server.

Hard Disk Drives

Use this screen to view the hard drives that have been auto-detected or
entered manually on your system.

Removeable Devices

Use this screen to view the removeable devices that have been auto-de­tected or entered manually on your system.

ATAPI CDROM Drives

Use this screen to view the ATAPI CDROM drives that have been auto­detected or entered manually on your system.

Chapter 4: BIOS

4-33

BIOS

4-9 Security Setup

Choose Security Setup from the AMIBIOS Setup main menu. All Security
Setup options are described in this section. The Security Setup screen is
shown below.

Supervisor Password

User Password

AMIBIOS provides both Supervisor and User password functions. If you
use both passwords, the Supervisor password must be set first. The sys­tem can be configured so that all users must enter a password every time
the system boots or when AMIBIOS Setup is executed, using either or both
the Supervisor password or User password. The Supervisor and User
passwords activate two different levels of password security. If you select
password support, you are prompted for a 1 – 6 character password. Type
the password on the keyboard. The password does not appear on the
screen when typed. Make sure you write it down. If you forget it, you must
clear CMOS and reconfigure. Remember your Password! Keep a record
of the new password when the password is changed. If you forget the
password, you must erase the system configuration information in CMOS.

BIOS SETUP UTILITY

Main Advanced Chipse t PCI PnP Pow er Boo t Securi ty Exit

Supervisor Password : Not Installed
User Password : Not Installed

> Change Supervisor Password
> Change User Password
> Clear User Password
Boot Sector Virus Protection [Disabled]

Install or Change the
password.

↔

Select Screen

↑↓

Select Item

Enter Go to Sub Scree

n

F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

SUPER 370SSA/370SSM User's Manual

4-34

BIOS

Change Supervisor Password

This option allows you to change a supervisor password that was entered
previously.

Change User Password

This option allows you to change a user password that was entered previ­ously.

Clear User Password

Use this option to clear the user password so that it is not required to be
entered when the system boots up.

Boot Sector Virus Protection

This option allows you to enable or disable a virus detection program to
protect the boot sector of your hard disk drive. The settings for this option
Disabled and Enabled. If Enabled, AMIBIOS will display a warning when
any program (or virus) issues a Disk Format command or attempts to write
to the boot sector of the hard disk drive.

Chapter 4: BIOS

4-35

BIOS

4-10 Exit Setup

Choose Exit Setup from the AMIBIOS Setup main menu. All Exit Setup op­tions are described in this section. The Exit Setup screen is shown below.

BIOS SETUP UTILITY

Main Advanced Chipset PCIPnP Power Boot Security Exit

> Exit Saving Changes
> Exit Discarding Changes
> Load Optimal Defaults
> Load Fail-Safe Defaults
> Discard Changes

Exit system setup with
saving the changes.

↔

Select Screen

↑↓

Select Item

Enter Go to Sub Scree

n

F1 General Help
F10 Save and Exit
ESC Exit

V02.03 (C)Copyright 1985-2000, American Megatrends, Inc.

Exit Saving Changes

Highlighting this setting and then pressing <Enter> will save any changes
you made in the BIOS Setup program and then exit. Your system should
then continue with the boot up procedure.

Exit Discarding Changes

Highlighting this setting and then pressing <Enter> will ignore any changes
you made in the BIOS Setup program and then exit. Your system should
then continue with the boot up procedure.

SUPER 370SSA/370SSM User's Manual

4-36

BIOS

Load Optimal Defaults

Highlighting this setting and then pressing <Enter> provides the optimum
performance settings for all devices and system features.

Load Failsafe Defaults

Highlighting this setting and then pressing <Enter> provides the safest set
of parameters for the system. Use them if the system is behaving errati­cally.

Discard Changes

Highlighting this setting and then pressing <Enter> will ignore any changes
you made in the BIOS Setup program but will not exit the BIOS Setup pro­gram.

Appendix A

BIOS Error Beep Codes & Messages

During the POST (Power-On Self-Test) routines, which are performed
each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to
continue the boot-up process. The error messages normally appear on
the screen.

Fatal errors are those which will not allow the system to continue the
boot-up procedure. If a fatal error occurs, you should consult with your
system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible
beeps. The numbers on the fatal error list, on the following page,
correspond to the number of beeps for the corresponding error. All
errors listed, with the exception of Beep Code 8, are fatal errors.

Appendix A: BIOS Error Beep Codes

APPENDIX A

SUPER 370SSA/370SSM User’s Manual

A-2

APPENDIX A

Beeps Error message Description

1 Refresh Failure The memory refresh circuitry on the

motherboard is faulty.

3 Base 64 KB Memory Failure A memory failure occurred within the

first 64 KB of memory.

6 8042 - Gate A20 Failure The keyboard controller (8042) contains

the Gate A20 switch which allows the
CPU to operate in virtual mode. This
error means that the BIOS cannot
switch the CPU into protected mode.

7 Processor Exception The CPU on the motherboard generated

Interrupt Error an exception interrupt.

8 Display Memory Read/Write The system video adapter is either

Error missing or its memory is faulty.

Please Note:

This is not a fatal error.

Refer to the table on page A-3 for solutions to the error beep codes.

A-3

Appendix A: BIOS Error Beep Codes

APPENDIX A

If it beeps... then ...

1, or 3 times reseat the DIMM memory. If the

system still beeps, replace the memory.

6 times reseat the keyboard controller chip. If it

still beeps. If it still beeps, try a
different keyboard, or replace
the keyboard fuse, if the keyboard has one. If it still
beeps, replace the keyboard controller

8 times there is a memory error on the

video adapter. Replace the video
adapter, or the RAM on the video
adapter.

9 times the BIOS ROM chip is bad.

The system probably needs a
new BIOS ROM chip.

7 times the processor must be replaced.

If you hear... it's because...

5 short and 1 long beeps no memory is installed

8 short and 1 long beeps EDO memory is installed

6 short and 1 long beeps registered or buffered memory is installed

SUPER 370SSA/370SSM User’s Manual

A-4

APPENDIX A

Error Message Information

8042 Gate -- A20 Gate A20 on the keyboard controller (8042)
Error is not working. Replace the 8042.

Address Line Short! Error in the address decoding circuitry on

the motherboard.

C: Drive Error Hard disk drive C: does not respond. Run

the Hard Disk Utility to correct this problem.
Also, check the C: hard disk type in Standard
Setup to make sure that the hard disk type is
correct.

C: Drive Failure Hard disk drive C: does not respond.

Replace the hard disk drive.

Cache Memory Bad Cache memory is defective. Replace it. Do

Not Enable Cache!

CH-2 Timer Error Most ISA computers include two times.

There is an error in time 2.

CMOS Battery State Low CMOS RAM is powered by a battery. The

battery power is low. Replace the battery.

CMOS Checksum Failure After CMOS RAM values are saved, a

checksum value is generated for error
checking. The previous value is different from
the current value. Run WINBIOS Setup or
AMIBIOS Setup.

CMOS System Option The values stored in CMOS RAM are either
Not Set corrupt or nonexistent. Run WINBIOS

Setup or AMIBIOS Setup.

CMOS Display Type The video type in CMOS RAM does not
Mismatch match the type detected by the BIOS. Run

WINBIOS Setup or AMIBIOS Setup.

CMOS Memory Size The amount of memory on the motherboard is
Mismatch different than the amount in CMOS RAM.

Run WINBIOS Setup or AMIBIOS
Setup.

A-5

Appendix A: BIOS Error Beep Codes

APPENDIX A

Error Message Information

CMOS Time and Run Standard Setup to set the date and time
Date Not Set in CMOS RAM.

D: Drive Error Hard disk drive D: does not respond. Run

the Hard Disk Utility. Also check the D: hard
disk type in Standard Setup to make sure that
the hard disk drive type is correct.

D: Drive Failure Hard disk drive D: does not respond.

Replace the hard disk.

Diskette Boot Failure The boot disk in floppy drive A: is corrupt. It

cannot be used to boot the computer. Use
another boot disk and follow the screen
instructions.

Display Switch Some compters require a video switch on the
Not Proper motherboard be set to either color or

monochrome. Turn the computer off, set the
switch, then power on.

DMA Error Error in the DMA controller.

DMA #1 Error Error in the first DMA channel.

DMA #2 Error Error in the second DMA channel.

FDD Controller Failure The BIOS cannot communicate with the

floppy disk drive controller. Check all
appropriate connections after the computer is
powered down.

HDD Controller Failure The BIOS cannot communicate with the hard

disk drive controller. Check all appropriate
connections after the computer is powered
down.

INTR #1 Error Interrupt channel 1 failed POST.

INTR #2 Error Interrupt channel 2 failed POST.

SUPER 370SSA/370SSM User’s Manual

A-6

APPENDIX A

Error Message Information

Invalid Boot Diskette The BIOS can read the disk in floppy drive

A:, but cannot boot the computer. Use
another boot disk.

Keyboard Is Locked... The keyboard lock on the computer is
Unlock It engaged. The computer must be unlocked to

continue.

Keyboard Error There is a timing problem with the keyboard.

Set the

Keyboard

options in Standard Setup

to

Not Installed

to skip the keyboard post

routines.

KB/Interface Error There is an error in the keyboard connector.

No ROM BASIC Cannot find a bootable sector on either disk

drive A: or hard disk drive C:. The BIOS
calls INT 18h which generates this message.
Use a bootable disk.

Off Board Parity error in memory installed in an
Parity Error expansion slot. The format is:

OFF BOARD PARITY ERROR ADDR
(HEX) = (XXXX) XXXX is the hex
address where the error occurred. Run
AMIDiag to find and correct memory
problems.

On Board Parity error in motherboard memory. The
Parity Error format is:

ON BOARD PARITY ERROR ADDR
(HEX) = (XXXX) XXXX is the hex
address where the error occurred. Run
AMIDiag to find and correct memory
problems.

Parity Error???? Parity error in system memory at an unknown

address. Run AMIDiag to find and correct
memory problems.
