Supero SAS 808TQ User Manual

Rev. 1.0

SAS 808TQ BACKPLANE

USER'S GUIDE

J5

J6

J7

J8

JP10

JP13

D3

GNDGND+12V +5V

GNDGND+12V +5V

1

REV 1.0

SAS808

#3

#2

#1

#0

ii

SAS 808TQ Backplane User's Guide

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of

this manual, please see our web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in this
manual at any time and without notice. This product, including software, if any, and documenta­tion may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any
medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, SPECULAT IVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OR INABILITY TO USE THIS PRODUCT OR DOCUMENTAT ION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING
OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA .

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all
claims will not exceed the price paid for the hardware product.

Manual Revision 1.0

Release Date: April 12, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not
copy or otherwise reproduce/distribute any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2007 by SUPER MICRO COMPUTER INC.
All rights reserved.

Printed in the United States of America

iii

Safety Information and Technical Specifi cations

Table of Contents

SAS 808TQ BACKPLANE USER'S GUIDE

Contacting SuperMicro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...........................iv

Chapter 1: Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines . . . . .. . . . .. . . .. . . . .. . . . .. . . . .. . . . .. . . . .. . . . .. . . .. . . . .. . . ...................... 1-1

1-3 An Important Note to Users . . . . .. . .. . .. . . .. . .. . . .. . .. . .. . . .. . .. . . .. . .. . .. . . .. . .. . ...................... 1-1

Chapter 2: Jumper Settings and Pin Defi nitions

2-1 Front Connectors and Jumpers ... . . ......................... . . ...................................... 2-1

Front Connectors ............................................................................................ 2-1

2-2 Front Connector and Pin Defi nitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... 2-2

2-3 Front Jumper Locations and Pin Defi nitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... 2-3

Explanation of Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... 2-3

FRONT LED INDICATORS . .. .. .. .. .. .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. .. .. .. .. ...................... 2-4

Front Pane LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..................... 2-4

2-4 Rear Connectors and LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... 2-5

Rear SAS/SATA Connectors ... ... ... ... . .. . ... ... ... ... ... ... ... ... . .. . ... ....................... 2-5

Rear LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... 2-5

iv

SAS 808TQ Backplane User's Guide

Contacting SuperMicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacifi c

Address: SuperMicro, Ta iwan

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Ta ipei County

Ta iwan, R.O.C.

Tel: [phone]

Fax: [phone]

Web Site: www.supermicro.com.tw

Technical Support:

Email: [e-mail]

Tel: [phone], ext.132 or 139

1-1

Safety Information and Technical Specifi cations

Chapter 1:

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic com ponents. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally suffi cient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• To uch a grounded metal object before removing a component from the antistatic

bag.

• Handle the RAID card by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

1-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

• Disconnect the power cable before installing or removing any cables from the

backplane.

• Make sure that the backplane is securely and properly installed on the mother-

board to prevent damage to the system due to power shortage.

1-3 An Important Note to Users

• All images and layouts shown in this user's guide are based upon the latest

PCB Revision available at the time of publishing. The card you have received

may or may not look exactly the same as the graphics shown in this manual.

1-2

SAS 808TQ Backplane User's Guide

Notes

2-1

Safety Information and Technical Specifi cations

Front Connectors

Chapter 2:

Jumper Settings and Pin Defi nitions

2-1 Front Connectors and Jumpers

1. Power Connectors (4-pin) JP10 and JP13

2. SAS Port #0 J5

3. SAS Port #1 J6

4. SAS Port #2 J7

5. SAS Port #3 J8

4

1

3

5

J5

J6

J7

J8

JP10

JP13

D3

GNDGND+12V +5V

GNDGND+12V +5V

1

REV 1.0

SAS808

#3

#2

#1

#0

1

2

2-2

SAS 808TQ Backplane User's Guide

2-2 Front Connector and Pin Defi nitions

Backplane

Main Power
4-Pin Connector
(JP10 and JP13)

Pin# Defi nition

1 +12V

2 and 3 Ground

4 +5V

1. Backplane Main Power Connectors

The 4-pin connectors, designated JP10 and

JP13, provide power to the backplane. See

the table on the right for pin defi nitions.

2. - 5. SAS Ports

The SAS ports are used to connect the SAS

drive cables. The four ports are designated

#0 - #4. Each port is also compatible with

SATA drives.

2-3

Safety Information and Technical Specifi cations

2-3 Front Jumper Locations and Pin Defi nitions

Explanation of Jumpers

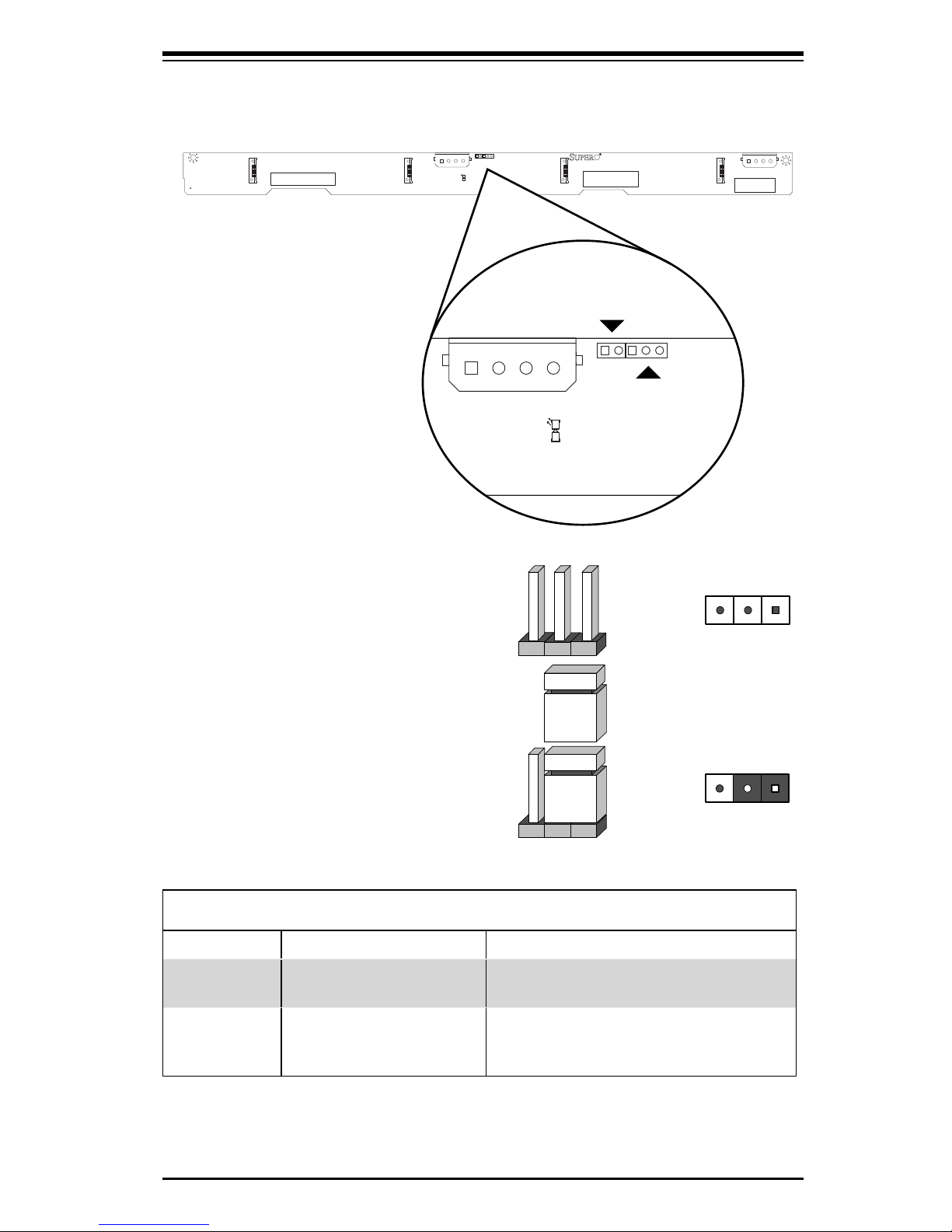

To modify the operation of the backplane,
