About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

PDSM4/E motherboard. The PDSM4/E supports single Intel Pentium D

(Dual-Core)/Pentium 4 Extreme Edition/Pentium 4/Pentium Extreme Edition/Celeron

D LGA (Land Grid Array) 775 Processors at system bus speeds of 1066 MHz/800

MHz/533 MHz. The LGA 775 Pentium D/Pentium 4/Celeron D Processor is housed

in a Flip-Chip Land Grid Array (FC-LGA4) package that interfaces with the moth-

erboard via an LGA775 socket. The PDSM4/E supports the Intel Hyper-Threading

(HT) Technology, the EM64T Technology, the Enhanced Intel SpeedStep Technol-

ogy (EIST) and the Matrix Storage Technology. Please refer to the motherboard

specifi cations pages on our web site (http://www.supermicro.com/Product) for

updates or visit Intel's web site for processor support. This product is intended to

be professionally installed.

Manual Organization

Chapter 1 describes the features, specifi cations and performance of the PDSM4/

PDSME mainboard and provides detailed information about the chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when

installing the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for the video, the memory and the system setup.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS POST Messages.

Appendix B lists BIOS POST Codes.

Appendix C lists Software Installation Instructions.

Conventions Used in the Manual

Special attention should be given to the following symbols for proper installation and
to prevent damage done to the components or injury to yourself:

Danger/Caution: Instructions to be strictly followed to prevent catastro-

phic system failure or to avoid bodily injury.

Warning: Important information given to ensure proper system installa-

tion or to prevent damage to the components.

*Note: Additional Information given to differentiate various models or to ensure

correct system setup.

iii

PDSM4/E User’s Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ....................................................................................................iii

Conventions Used in the Manual ................................................................................. ii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist ..................................................................................................... 1-1

Contacting Supermicro ............................................................................... 1-2

PDSM4/E Image ........................................................................ 1-3

PDSM4/E Layout ........................................................................ 1-4

PDSM4/E Quick Reference ......................................................... 1-5

Intel E7230 (Mukilteo) Chipset: System Block Diagram ............................ 1-6

Motherboard Features .............................................................................. 1-7

1-2 Chipset Overview ........................................................................................... 1-9

1-3 PC Health Monitoring ................................................................................... 1-10

1-4 Power Confi guration Settings ....................................................................... 1-10

1-5 ACPI Features ............................................................................................... 1-11

1-6 Power Supply .................................................................................................. 1-12

1-7 Important Safety and Regulatory Information ................................................. 1-12

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Motherboard in the Chassis ..................................................... 2-5

2-4 Installing DDR 2 Memory ............................................................................... 2-6

2-5 I/O Port/Front Control Panel Connector Locations ........................................ 2-7

2-6 Connecting Cables ......................................................................................... 2-8

Power Supply Connectors ...................................................................... 2-8

Processor Power Connector ...................................................................... 2-8

NMI Button ............................................................................................... 2-9

PWR LED ................................................................................................. 2-9

HDD LED ................................................................................................. 2-10

NIC1/NIC2 LED Indicators ..................................................................... 2-10

OH/Fan Fail LED ......................................................................................2-11

Reset Button ............................................................................................ 2-11

iv

Table of Contents

PWR Button ............................................................................................. 2-12

Serial Ports ............................................................................................... 2-12

PWR LED ................................................................................................ 2-13

Chassis Intrusion .................................................................................... 2-13

Universal Serial Bus (USB) ..................................................................... 2-14

ATX PS/2 Keyboard and PS/2 Mouse Ports ............................................ 2-15

GLAN Ports .............................................................................................. 2-15

Fan Headers ............................................................................................. 2-16

Power Fault .............................................................................................. 2-16

Wake-On-Ring ......................................................................................... 2-17

Wake-On-LAN .......................................................................................... 2-17

VGA Connector ........................................................................................ 2-18

Speaker Header ....................................................................................... 2-18

2-7 Jumper Settings ............................................................................................ 2-19

Explanation of Jumpers ......................................................................... 2-19

GLAN Enable/Disable .............................................................................. 2-19

CMOS Clear ........................................................................................... 2-20

Watch Dog Enable ................................................................................... 2-20

SMBus to PCI/PCI-E Slots ....................................................................... 2-21

VGA Enable .............................................................................................. 2-21

SCSI Enable/Disable ................................................................................ 2-22

SCSI Termination Enable/Disable ............................................................ 2-22

Force PWR-ON Enable/Disable ............................................................... 2-23

2-8 Onboard Indicators ....................................................................................... 2-24

GLAN LED Indicators ............................................................................... 2-24

2-9 Floppy, Parallel Port, Hard Drive, LP IPMI and SCSI Connections ............. 2-25

Floppy Connector ................................................................................... 2-25

IDE Connector ........................................................................................ 2-26

LP IPMI .................................................................................................... 2-26

Ultra 320 SCSI Connector ....................................................................... 2-27

Parallel Port ............................................................................................. 2-28

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ....................................................................................... 3-1

No Power ................................................................................................... 3-1

No Video .................................................................................................. 3-1

Memory Errors ........................................................................................... 3-2

v

PDSM4/E User’s Manual

Losing the System’s Setup Confi guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................. 3-4

Chapter 4: BIOS

4-1 Introduction ....................................................................................................... 4-1

4-2 Running Setup ................................................................................................. 4-2

4-3 Main BIOS Setup ............................................................................................. 4-2

4-4 Advanced Setup ............................................................................................... 4-7

4-5 Security Setup ............................................................................................... 4-18

4-6 Boot Setup ...................................................................................................... 4-20

4-7 Exit .................................................................................................................. 4-20

Appendices:

Appendix A: BIOS POST Messages ......................................................................... A-1

Appendix B: BIOS POST Codes ................................................................................B-1

Appendix C: Software Installation Instructions ...........................................................C-1

vi

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

All Included in the Retail Box Only

One (1) Supermicro Mainboard

One (1) IDE cable (CBL-036)

One (1) fl oppy drive ribbon cable (CBL-022)

One (1) SCSI cable (CBL-034-0320) (*PDSM4 only)

Four (4) SATA cables (CBL-044) (*PDSME only) (*For retail only)

Two (2) SATA cables (CBL-044) (*PDSM4 only) (*For retail only)

One (1) I/O shield (CSE-PT7)

One (1) Supermicro CD containing drivers and utilities

One (1) User's/BIOS Manual

One (1) SCSI Ultra 320 User's Manual (*PDSM4 only)

1-1

PDSM4/PDSME User’s Manual

Contacting Supermicro

Headquarters

Address: SuperMicro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
[e-mail] (Customer Support)

Asia-Pacifi c

Address: SuperMicro, Taiwan
4F, No. 232-1 Liancheng Road
Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [e-mail]
Tel: [phone], ext.132 or 139

1-2

Chapter 1: Introduction

Figure 1-1. PDSM4/PDSME Image

An Important Note to the User

• All images and layouts shown in this manual were based upon the latest PCB

Revision available at the time of publishing. The motherboard you've received

may or may not look exactly the same as the graphics shown in this manual.

1-3

PDSM4/PDSME User’s Manual

Figure 1-3. Motherboard Layout

(not drawn to scale)

J28

KB/MS

USB

J15

J31

VGA

JG1

GLAN1

GLAN2

®

COM1

LAN

CTRL

LAN

CTRL

S I/O

JPG1

Fan5

JPL1

JPL2

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan6

LGA 775

SPKR

J9

JPW2

PW3

12-pin PWR

JP5
JP6

PXH

(The Green Slot)

Floppy

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

BIOS

WOL

LE4

LE3

USB 3/4

USB 5/6

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

Important Notes to the User

• All images and graphics shown in this manual were based upon PCB Rev.

1.0, the latest PCB Revision available at the time of publishing of this manual.
The motherboard you've received may or may not look exactly the same as
the graphics shown in this manual.

• See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front
panel connections.

• " " indicates the location of "Pin 1".

• When the LE1 LED is on, the 5V Standby PWR is on. Maker sure to turn off

the power before installing or removing components.

• SCSI and the PCI-X 100MHz ZCR (the Green Slot) are available on the

PDSM4 only.

1-4

Chapter 1: Introduction

PDSM4/PDSME Quick Reference

Jumper Description Default Setting

JP5/JP6 SMB to PCI Slots Open/Open (Disabled)

JBT1 CMOS Clear See Section 2-7

JPA1 (*PDSM4 only) SCSI Channel Enable Pins 1-2 (Enabled)

JPA2 (*PDSM4 only) SCSI Channel Termin.Enable Open (Enabled)

JPF Power Force-On Open (Disabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JPL1 Giga-bit LAN 1 Enable Open (Enabled)

JPL2 Giga-bit LAN 2 Enable Pins 1-2 (Enabled)

JWD Watch Dog Enable Pins 1-2 (Reset)

Connector Description

24-PIn ATX (JPW1) ATX 24-Pin Power Connector

8-Pin PWR (JPW2) 12V 8-pin Power Connector (Required)

COM1(J31), COM2 (COM2) COM Port 1 & COM 2 Header

DIMM#1A,#2A,#1B,#2B Memory (DIMM) Slots (1 through 4)

Fans 1-6 Chassis/System Fan headers (Fans 1-5) & CPU Fan6

FP Control (JF1) Front Panel Control Header

Floppy Connector (J27) Floppy Disk Connector

IDE1(J3) IDE Slot

JA1 (*PDSM4 only) SCSI Channel Connector

J9 Speaker Connector

JL1 Chassis Intrusion Header

JLED PWR LED

KB/MS(J28) PS/2 Keyboard/Mouse Connector

LAN1/LAN2 (JLAN1/2) Ethernet RJ45 (Gigabit LAN) Port1/Port2 Connectors

Printer Parallel Port (Printer) Header

Power Fault (PW3) Power Fault Header (*See Chapter 2)

SATA 0-3 (I-SATA 0-3) 4 Intel SATA Headers

Slot 1 PCI-X 100 MHz ZCR Slot (Green slot) (*PDSM4 only)

Slot 2 PCI-X 100 MHz

Slot 4 PCI-Exp.x4

Slots 5/6 PCI-X 133 MHz slots

Slot 7 LP IPMI

SPKR1 Internal Buzzer

USB1/2(J15) Back Panel Universal Serial Bus Ports 1, 2

USB3/4(J45),USB5/6(J46) Front Panel Accessible USB headers 3,4,5,6

VGA (JG1) VGA Connector

WOL(WOL) Wake On LAN header

WOR(JWOR) Wake On Ring header

LED Indicator Description (*(Refer to Addendum A)

LE 1 Onboard +5V Standby PWR warning LED Indicator

LE3/LE4 BIOS POST Code Indicators

1-5

PDSM4/PDSME User’s Manual

Motherboard Features

CPU  Latest CPU technology!

• Single Intel Pentium D (Dual-Core)/Pentium 4 Extreme Edition/Pentium 4/Pen-

tium Extreme Edition/Celeron D LGA (Land Grid Array) 775 Processors at system

bus speeds of 1066 MHz/800 MHz/533 MHz.

• Hyper-Threading (HT), EM64T, Enhanced Intel SpeedStep (EIST) supported

Using the EM64T Feature

• Use a CPU that supports the EM64T Technology

• Install a 64-bit OS (Windows XP Professional x64 Ed, Server 2003x64 Ed.)

• Install the 64-bit drivers for all MB components, devices and add-on cards

Using the Hyper-Threading (HT) Technology

• Use a CPU that supports Hyper-Threading Technology

• Install an OS that supports HT, including Windows XP/2003 Server and Linux

2.4x. (Under Linux, use the HT compiler to compile the code. For other oper-

ating systems, be sure to disable the HT feature in the BIOS.)

• Enable the HT feature in the BIOS (under "Advanced" Setting) before install-

ing a supported OS. (*Note: visit www.Intel.com for CPU support and driver

updates.)

OS Licensing Support

• Intel Dual-Core CPU supports: Windows 2000 Professional, Windows

Advanced Server, Windows XP Home, Windows XP Professional, Windows

Server 2003 (Standard, Enterprise)

• Intel Dual-Core CPU and Hyper-Threading Technology supports: Windows

2000 Advanced Server, Windows XP Home, Windows XP Professional, Windows

Server 2003 (Standard, Enterprise)

Memory  Latest memory technology! (*

• Four DIMM slots support Dual/Single Channel DDR2 667/533/400 MHz up

to 8 GB of ECC Unbuffered two-way interleaved DDR2 SDRAM.

Chipset  Latest Intel chipset technology!

• Intel E7230 (Mukilteo)

• Intel ICH7R

• Intel PXH

Expansion Slots

• One (1) PCI-Express x4 slot (Slot 4)

• Two (2) PCI-X 64-Bit 133 MHz slots (Slot 5/Slot 6)

• One (1) PCI-X 64-Bit 100 MHz slot (*PDSM4: Green Slot-Slot 1)

• One (1) PCI-X 64-Bit 100 MHz slot (Slot 2)

• One Low Profi le IPMI Slot (Slot 7)

BIOS

• 8Mb Firmware Hub Phoenix BIOS

• APM 1.2, DMI 2.3, PCI 2.2, PCI-X 1.0,ACPI 1.0, Plug and Play (PnP), SM-

BIOS 2.3, Hardware BIOS Virus Protection

Note: See Section 2-4 for details.)

1-6

Chapter 1: Introduction

PC Health Monitoring

• Onboard voltage monitors for CPU cores, Chipset Voltage, Memory Voltage,

+1.8V, +3.3V, +5V, +12V, and −12V

• CPU 4-phase-switching voltage regulator

• Status monitor for fan speed & System OH/Fan Fail LED/Control

• Pulse Width Modulation Fan Control & Low noise fan speed control

• Environmental temperature monitoring via BIOS, PWR-Up from AC PWR loss

• SuperDoctor III, NMI

• System Resource alert via SuperDoctor III

ACPI Features

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Main switch override mechanism

• Internal/external modem ring-on

Onboard I/O

• Adaptec Utlra 320 AIC-7901 SCSI Controller (*PDSM4 only)

• 1 ATA/100 EIDE Channel

• Intel ICH7R SATA Controller, 4 connectors for 4 devices with support of RAID

functions 0, 1, 5 and 10 (*RAID 5: supported by Intel's RAID Controller only.)

• 1 fl oppy port interface (up to 2.88 MB)

• 1 Fast UART 16550 compatible serial port and 1 header

• Two Intel single-port 82573 PCI-E Gigabit Ethernet Controller

• PS/2 mouse and PS/2 keyboard ports

• Up to 6 USB (Universal Serial Bus) 2.0 ports for a speed

• VGA Connector

• Low Profi le IPMI 2.0

• Super I/O (Winbond 83627HF), Hardware Monitoring: W83792D

• ATI Rage XL 8 MB

Temperature

• Monitoring CPU, chassis environment

• CPU Thermal Trip support

• Thermal Monitor 2 (TM2) (available if supported by the CPU)

Other

• Wake-on-LAN (WOL)

• Wake-on-Ring (WOR)

• Onboard +5vsb warning LED Indicator ("LE 1")

CD Utilities

• Drivers and software for Intel E7230 chipset utilities

Dimensions

• 9.6" (W) x 12" (L) (243.84 mmx 304.8 mm)

1-7

PDSM4/PDSME User’s Manual

VRM 10.1

DIMM_CHA
DIMM_CHB

PRI_IDE

4 x SATA

PORTS

USB

PORT_0~7

VRM V10.1

FSB: 1066/800/533MHz

DDR2_667/533

UDMA/100

S-ATA/300

LGA775_PROCESSOR

ADDR

CTRL CTRL

ADDR

E7230

(MUKILTEO)

MCH

ICH-7R

DATADATA

DMI

PCIE_x1

LPC

PCIE_x8

PCIE_x4

PCIE_x1

PCIE_x1

PCI_32_BUS

LPCUSB 2.0/1.1

CK410 CLK

SCSI-7901

PCI-X BUS

2x PCIX_100

PCI-X BUS

PXH

PCI-X BUS

2x PCIX 133

1_PCIE_x4

1XGb_LAN

1XGb_LAN

ATI

RAGE XL

FWH

W83627HF

KB.

MS.

LPC I/O

FDD. SER.1

SER.2

PRN.

IPMI I/F

SUPER SLOT

PCI 32 BUS

Figure 1-3. E7230 MukilteoChipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the following pages for the

actual specifi cations of each motherboard.

1-8

Chapter 1: Introduction

1-2 Chipset Overview

Intel’s Mukilteo (E7230) chipset, designed for use with the Pentium 4 Processor

in the 90nm Process in the LGA 775 Land Grid Array Package, is comprised of

two primary components: the Memory Controller Hub (MCH) and the I/O Control-

ler Hub (ICH7R). In addition, Intel's PCI-X (PXH) is used for added functionality.

The PDSM4/PDSME provides the performance and feature-set required for the

high-end desktop and the UP workstation market. The PDSM4/PDSME provides

the performance and feature-set required for the high-end server and the UP

workstation market.

Memory Controller Hub (MCH)

The function of the MCH is to manage the data fl ow between four interfaces: the

CPU interface, the DDR2 System Memory Interface, the PCI Express Interface, and

the Direct Media Interface (DMI). The MCH is optimized for the Pentium 4 proces-

sor in the 90nm process in the LGA775 Land Grid Array Package. It supports one

or two channels of DDR2 SDRAM.

The I/O Controller (ICH7R) provides the data buffering and interface arbitration re-

quired for the system to operate effi ciently. It also provides the bandwidth needed

for the system to maintain its peak performance. The Direct Media Interface (DMI)

provides the connection between the MCH and the ICH7R. The ICH7R supports

PCI-E devices, four Serial ATA ports, six USB 2.0 ports and two IDE devices. In

addition, the ICH7R offers the Intel Matrix Storage Technology which provides vari-

ous RAID options for data protection and rapid data access. It also supports the

next generation of client management through the use of PROActive technology in

conjunction with Intel's next generation Gigabit Ethernet controller.

Intel ICH7R System Features

The I/O Controller Hub provides the I/O subsystem with access to the rest of the

system. Functions and capabilities include:

*Advanced Confi guration and Power Interface, Version 2.0 (ACPI)

*Intel IIO External Design Specifi cation (EDS)

*Mukilteo Memory Controller Hub (MCH) External Design Specifi cation (EDS)

*Intel I/O Controller Hub 7 (ICH7) Thermal Design Guideline

*Intel 82573 Platform LAN Connect (PLC) PCI Design

*Low Pin Count (LPC) Interface

1-9

PDSM4/PDSME User’s Manual

1-3 PC Health Monitoring

This section describes the PC health monitoring features of the PDSM4/PDSME.

The motherboard has an onboard System Hardware Monitor chip that supports PC

health monitoring.

Onboard Voltage Monitors for the CPU Cores, Chipset Voltage,
Memory Voltage , +3.3V, +5V, +12V, and −12V (via SuperO Doctor)

The onboard voltage monitor will scan these voltages continuously. Once a

voltage becomes unstable, it will give a warning or send an error message to

the screen. Users can adjust the voltage thresholds to defi ne the sensitivity

of the voltage monitor.

Fan Status Monitor with Firmware Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard

fans are controlled by Thermal Management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat warning function

in the BIOS. This allows the user to defi ne an overheat temperature. When this

temperature reaches the threshold, the CPU thermal trip feature will be activated

and it will send a signal to the Speaker LED and, at the same time, the CPU speed

will be decreased. It will also activate the alarm if a fan failure occurs.

1-4 Power Confi guration Settings

This section describes features of your motherboard that deal with power and

power settings.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If the USB keyboard is the only keyboard in the system, it will function like a normal

keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button. When the user presses the power button, the system will enter

a SoftOff state. The monitor will be suspended and the hard drive will spin down.

1-10

Chapter 1: Introduction

Pressing the power button again will cause the whole system to wake-up. During

the SoftOff state, the ATX power supply provides power to keep the required circuitry

in the system alive. In case the system malfunctions and you want to turn off the

power, just press and hold the power button for 4 seconds. The power will turn off

and no power will be provided to the motherboard.

Wake Ring-On (WOR)

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

Wake-On-LAN (WOL)

Wake-On-LAN is defi ned as the ability of a management application to remotely

power up a computer that is powered off. Remote PC setup, up-dates and asset

tracking can occur after hours and on weekends so that daily LAN traffi c is kept to

a minimum and users are not interrupted. The motherboard has a 3-pin header

(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has

WOL capability. Note that Wake-On-LAN can only be used with an ATX 2.01 (or

above) compliant power supply.

1-5 ACPI Features

ACPI stands for Advanced Confi guration and Power Interface. The ACPI specifi -

cation defi nes a fl exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including its

hardware, operating system and application software. This enables the system to

automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers. This also includes consumer devices connected to the PC

such as VCRs, TVs, telephones and stereos.

In addition to enabling operating system-directed power management, ACPI

provides a generic system event mechanism for Plug and Play and an operating

system-independent interface for confi guration control. ACPI leverages the Plug

and Play BIOS data structures while providing a processor architecture-indepen-

dent implementation that is compatible with both Windows and Linux Operating

Systems.

1-11

PDSM4/PDSME User’s Manual

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates of 1 GHz and faster.

The

most power supplies generally meet the specifi cations required by the CPU, some

are inadequate. A 2 amps of current supply on a 5V Standby rail is strongly rec-

ommended.

The PDSM4/PDSME accommodates ATX power supplies. It is strongly recom-

mended that you use a high quality power supply that meets ATX power supply

Specifi cation 2.02 or above. You should use one that will supply at least 350W of

power. Also your power supply must supply 1.5A for the Ethernet ports. It must also

be SSI compliant (info at http://www.ssiforum.org/). Additionally, in areas where

noisy power transmission is present, you may choose to install a line fi lter to shield

the computer from noise. It is recommended that you also install a power surge

protector to help avoid problems caused by power surges. Please note that the

8-pin 12V power connection (JPW2) is also required to provide adequate power

to you system.

PDSM4/PDSME accommodates 12V ATX power supplies. Although

1-12

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electric-Static-Discharge (ESD) can damage electronic com ponents. To prevent

damage to your system board, it is important to handle it very carefully. The following

measures are generally suffi cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

upside down battery to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

2-1

PDSM4/PDSME User's Manual

2-2 Processor and Heatsink Fan Installation

When handling the processor package, avoid placing

direct pressure on the label area of the fan.

(*Notes: 1. Always connect the power cord last and always remove it before adding,

removing or changing any hardware components. Make sure that you install the

processor into the CPU socket before you install the CPU heatsink.

2. Intel's boxed Pentium 4 CPU package contains the CPU fan and heatsink as-

sembly. If you buy a CPU separately, make sure that you use only Intel-certifi ed

multi-directional heatsink and fan.

3. The Intel Pentium 4 LGA 775 heatsink and fan comes with a push-pin design

and no tool is needed for installation.

4. Make sure to install the motherboard into the chassis before you install the CPU

heatsink and fan.)

5. When purchasing an LGA 775 CPU or when receiving a motherboard with an LGA

775 CPU pre-installed, make sure that the CPU plastic cap is in place and none of

the CPU pins are bent; otherwise, contact the retailer immediately.

6. Refer to the MB Features Section for more details on CPU support.

!

Installation of the LGA775 Processor

1. Press the socket lever to release

the load plate, which covers the CPU

socket, from its locking position.

2. Gently lift the socket lever to open

the load plate.

Socket Lever

Load Plate

Load Plate

2-2

Chapter 2: Installation

3. Locate Pin 1 on the CPU socket.

(*Note: Pin 1 is the corner marked with a

triangle). Please note that the North Key

and the South Key are located vertically

in the CPU housing.

4. Position the motherboard in such a way

that Pin 1 of the CPU socket is located at

the left bottom of the CPU housing.

5. Use your thumb and your index fi nger

to hold the CPU at the North Center Edge

and the South Center Edge of the CPU.

6. Align Pin 1 of the CPU with Pin 1 of the

socket. Once aligned, carefully lower the

CPU straight down to the socket. (**Do

not drop the CPU on the socket. Do not

move the CPU horizontally or vertically.

Do not rub the CPU against the surface

or against any pins of the socket to avoid

damage to the CPU or the socket.)

North Key

Pin 1

South Key

North Center Edge

South Center Edge

7. With the CPU inside the socket, inspect

the four corners of the CPU to make sure

that the CPU is properly installed.

8. Use your thumb to gently push the

Socket Lever

lever down and lock it in the hook.

9. If the CPU is properly installed into the

socket, the plastic cap will be automatical-

ly released from the load plate when the

lever is pushed into the hook. Remove

the plastic cap from the motherboard.

(*Warning: Please keep the plastic

!

cap. The motherboard and the CPU

must be shipped with the plastic cap

properly installed to protect the CPU pins.

Shipment without the CPU plastic cap

properly installed will void the warranty.)

CPU in the CPU socket

Plastic cap is released

from the load plate if

CPU properly installed.

2-3

PDSM4/PDSME User's Manual

Installation of the Heatsink

1. Locate the CPU Fan on the moth-

erboard. (Refer to the layout on the

right for the CPU Fan location.)

2. Position the heatsink in such a

way that the heatsink fan wires are

closest to the CPU fan and are not

interfered with other components.

3. Inspect the CPU Fan wires to

make sure that the wires are routed

through the bottom of the heatsink.

4. Remove the thin layer of the

protective fi lm from the copper core of

the heatsink.

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

LAN

CTRL

LAN

CTRL

S I/O

®

UPER PDSM4

S

COM2

JPG1

Fan5

JPL1

JPL2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

Thermal Grease

CPU Fan

JPW2

PW3

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

JP5
JP6

PCI-X 133 MHz

PCI-E x4

PXH

(The Green Slot)

SPKR

Floppy

J9

12-pin PWR

DIM

M#2B (Black)

DIMM#1B (Blue)

DIM

M

#2A

DIMM

#1A (Blue)

JWOR

Battery

BIOS

WOL

(Black)

E7230

Mukilteo

(North Bridge)

LE4

LE3

USB 3/4

USB 5/6

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

Fan4

JLED

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

(*Warning: CPU overheat may occur

if the protective fi lm is not removed

from the heatsink.)

5. Apply the proper amount of thermal

grease on the CPU. (*Note: if your

heatsink came with a thermal pad,

please ignore this step.)

6. If necessary, rearrange the wires

to make sure that the wires are not

pinched between the heatsink and the

CPU. Also make sure to keep clear-

ance between the fan wires and the

fi ns of the heatsink.

7. Align the four heatsink fasten-

ers with the mounting holes on the

motherboard. Gently push the pairs of

diagonal fasteners (#1 & #2, and #3

& #4) into the mounting holes until

you hear a click. (*Note: Make sure to

orient each fastener in a way that the

narrow end of the groove is pointing

outward.)

CPU

Fan Wires

Heatsink Fins

Heatsink

Fastener

#1

#4

#3

#2

Narrow end of the groove

points outward

2-4

8. Repeat Step 6 to insert all four heatsink

fasteners into the mounting holes.

9. Once all four fasteners are securely

inserted into the mounting holes and the

heatsink is properly installed on the moth-

erboard, connect the heatsink fan wires to

the CPU Fan connector.

Heatsink Removal

1. Unplug the power cord from the power

supply.

2. Disconnect the heatsink fan wires from

the CPU fan header.

3. Use your fi nger tips to gently press on

the fastener cap and turn it counterclock-

wise to make a 1/4 (90

the fastener upward to loosen it.

0

) turn, and then pull

Chapter 2: Installation

4. Repeat Step 3 to loosen all fasteners

from the mounting holes.

5. With all fasteners loosened, remove the

heatsink from the CPU.

2-3 Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fi t different types of chassis.

Make sure the locations of all the mounting holes for both the motherboard and the

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

(*Note: some components are very close to the mounting holes. Please take all

necessary precautionary measures to prevent damage done to these components

when installing the motherboard into the chassis.)

2-5

PDSM4/PDSME User's Manual

2-4 Installing DDR 2 Memory

Memory Module Installation (See Figure 2-2)

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each DDR 2 memory module vertically into its slot. Pay attention to the

notch along the bottom of the module to prevent inserting the module incor-

rectly. (See support information below.)

2. Gently press down on the memory module until it snaps into place.

Support

The PDSM4/PDSME supports Dual channel, ECC unbuffered DDR 2

667/533/400 SDRAM. Both interleaved and non-interleaved memory are

supported, so you may populate any number of DIMM slots. (Populating

DIMM#1A,DIMM#1B, and/or DIMM#2A, DIMM#2B with memory modules

of the same size and of the same type will result in dual channel, two-way

interleaved memory which is faster than the single channel, non-interleaved

memory. When ECC memory is used, it may take 25-40 seconds for the VGA

to display.)

(*Note: 1. Due to chipset limitation, 8GB Memory can only be supported by the

following operating systems:

32-Bit: Windows 2000 Advanced Server, Windows Server 2003 Enterprise

Edition;

64-Bit: Windows Server 2003 Standard x64 Edition, Windows XP Professional

x64 Edition, Windows Server 2003 Enterprise x64 Edition.

2. You may install a maximum of 2GB DIMMs on each slot; however, only DDR 2

533 2GB density modules are available for this confi guration.

3. Some old-version of DDR 2-667 may not match Intel's On-Die-Tempeature re-

quirement and will automatically be down-graded to run @ 533 MHz, If this

occurs, contact your memory vendor to check the ODT value.)

To Install:

Insert module verti­cally and press down
until it snaps into
place. Pay attention
to the notch.

To Remove:

Use your thumbs to
gently push each
release tab outward
to release the DIMM
from the slot.

Figure 2-2. DDR 2 Installation

DDR2

Top View Of DDRII Slot

2-6

Chapter 2: Installation

n

2-5 I/O Port/Control Panel Connector Locations

The I/O ports are color coded in conformance with the PC99 specifi cation to make

setting up your system easier. See Figure 2-3 below for the colors and locations

of the various IO ports.

Figure 2-3. I/O Port Locations and Defi nitions

KB/Mouse COM1USB 0/1 LAN 1/LAN2

VGA

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located

on a control panel at the front of the chassis. These connectors are designed specifi -

cally for use with Supermicro server chassis. See Figure 2-4 for the descriptions of

the various control panel buttons and LED indicators. Refer to the following section

for descriptions and pin defi nitions.

1920

Ground

X

Power LED

HDD LED

NIC1 LED

NMI

X

Vcc

Vcc

Vcc

OH/Fan Fail LED

NIC2 LED

X

Ground

Ground

2

Reset

PWR

1

Figure 2-4. JF1 Header Pins

2-7

Vcc

Vcc

Vcc

Reset Button

Power Butto

PDSM4/PDSME User's Manual

2-6 Connecting Cables

ATX Power Connector

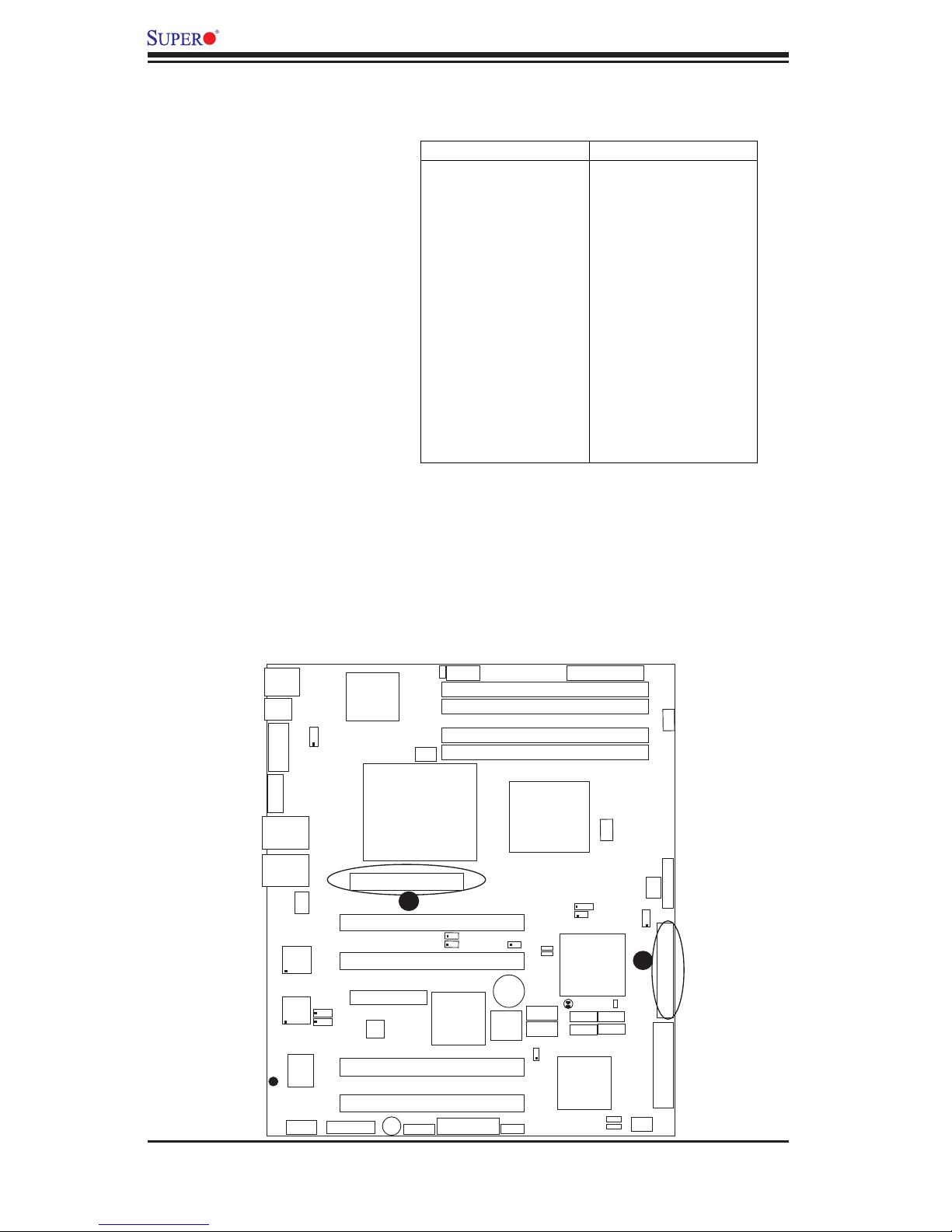

The main power supply connector

(JPW1) on the PDSM4/PDSME meets

the SSI (Superset ATX) specifi cation.

Make sure that the orientation of the

connector is correct. You must also

use the 8 pin (JPW2) power connec-

tor for adequate power supply to the

system (below.) See the table on the

right for pin defi nitions.

Processor Power Connector

In addition to the Primary ATX power

connector (above), the 12V 8-pin Pro-

cessor connector at JPW2 must also

be connected to your power supply

to provide adequate power supply to

the system.

J28

A. 24-Pin ATX PWR

B. 8-Pin 12V PWR

KB/MS

USB

J15

J31

VGA

JG1

GLAN1

COM1

ATX Power Supply 24-pin Connector

Pin Number Definition
13 +3.3V
14 -12V
15 COM
16 PS_ON#
17 COM
18 COM
19 COM
20 Res(NC)
21 +5V
22 +5V
23 +5V
24 COM

8-Pin +12v Power Supply

ATI

Rage XL

JPG1

CPU Fan6

Pentium Dural Core CPU

LGA 775

Pin Definitions

Connector

Pins

1 thru 4
5 thru 8

B

JPW2

PW3

Pin Number Definition

1 +3.3V
2 +3.3V
3 COM

4 +5V

5 COM

6 +5V

7 COM

8 PWR_OK
9 5VSB
10 +12V
11 +12V
12 +3.3V

Definition

Ground

+12v

A

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM

#1A (Blue)

24-Pin ATX PWR

E7230

Mukilteo

(North Bridge)

JPW1

Fan2

Fan1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

Printer

2-8

Slot7

LP IPMI

Slot6

PCI-X 133 MHz

Slot5

Slot2

Slot1

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

SPKR

J9

JP5
JP6

JWOR

Battery

PXH

BIOS

(The Green Slot)

Floppy

WOL

LE4

LE3

USB 3/4

USB 5/6

JWD

JPF

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

ICH7R

SATA2
SATA3

JL1

JPA2

LE1

JLED

Fan4

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

n

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin defi nitions.

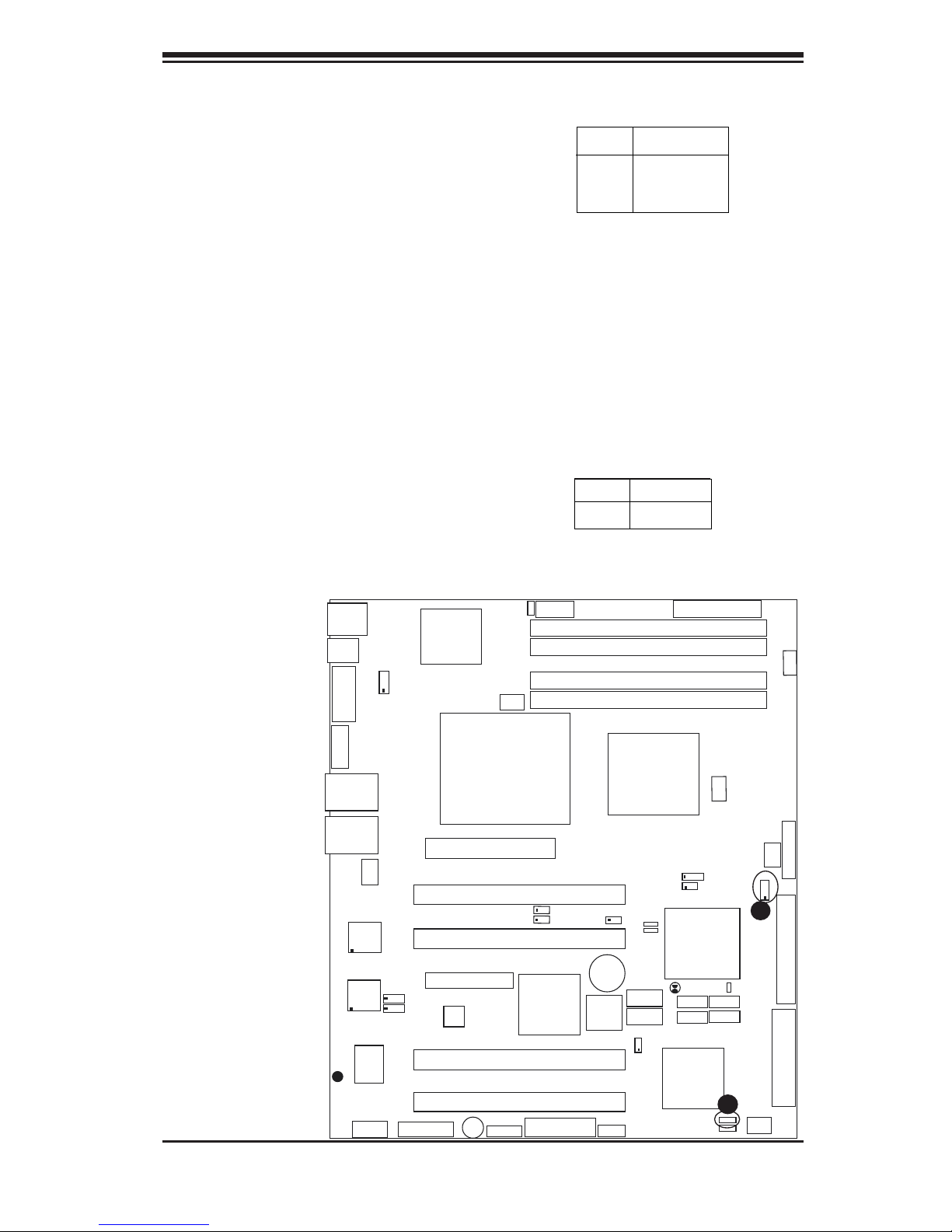

Power LED

Chapter 2: Installation

NMI LED Pin

Definitions

(JF1)

Pin#

Definition

19

NMI_LED Sig.

20

GND

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

E7230

LE4

LE3

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA1

SCSI

KB/MS

USB

J31

JG1

GLAN1

GLAN2

®

J15

J28

COM1

VGA

Fan5

LAN

CTRL

LAN

CTRL

S I/O

UPER PDSM4

S

COM2

JPG1

Slot6

Slot5

JPL1

JPL2

Slot2

Slot1

Printer

ATI

Rage XL

Pentium Dural Core CPU

Slot7

Slot4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

Fan4

JLED

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

PWR_LED Pin Definitions

Pin

Number

15
16

Ground

X

B

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Ground

Ground

X

(JF1)

Definition

LED_Anode

PWR LED Sig.

A. NMI

B. PWR LED

1920

Reset

PWR

2

1

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

A

Reset Button

Power Butto

2-9

PDSM4/PDSME User's Manual

n

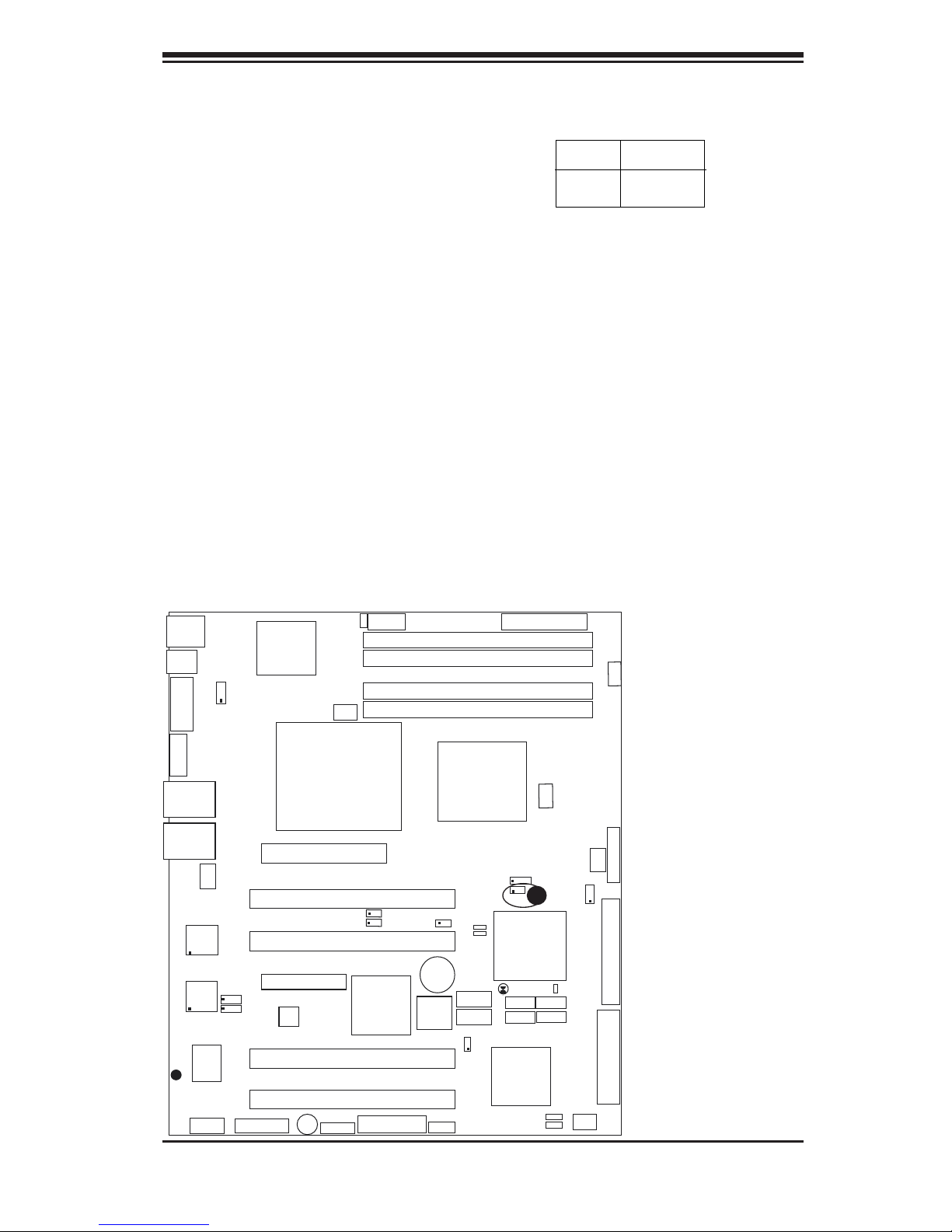

HDD LED

The HDD LED connection is located

on pins 13 and 14 of JF1. Attach the

hard drive LED cable here to display

disk activity (including SCSI, Serial

ATA and IDE drive activities). See the

table on the right for pin defi nitions.

NIC1/NIC2 LED Indicators

The NIC (Network Interface Control-

ler) LED connections for the GLAN

port1 is located on pins 11 and 12

of JF1, and for the GLAN port2 is

located on pins 9 and 10 of JF1. At-

tach the NIC LED cables to display

network activity. Refer to the tables

on the right for pin defi nitions.

NIC1 LED Pin

Definitions

(JF1)

Pin

Number

11
12

HDD LED Pin

Pin

Number

13
14

Definition

Vcc

GND

Definitions

(JF1)

Definition

Vcc

HD Active

NIC2 LED Pin

Definitions

(JF1)

Pin

Number

9

10

Definition

Vcc

GND

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

JP5

JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B

(Black)

DIMM#1B

(Blue)

DIMM#2A

(Black)

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

E7230

LE4

LE3

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

Fan4

JLED

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

Ground

X

Power LED

A

HDD LED

NIC1 LED

B

NIC2 LED

OH/Fan Fail LED

Ground

Ground

A. HDD LED

B. NIC1/NIC2 LED

1920

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

X

2

Vcc

Reset

Reset Button

Power Butto

PWR

1

2-10

Chapter 2: Installation

n

Overheat/FanFail LED

Connect an LED cable to the OH/Fan

Fail connection on pins 7 and 8 of JF1

to provide advanced warning of chas-

sis overheating or system fan failure.

Refer to the table on the right for pin

defi nitions.

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin defi nitions.

Overheat (OH)/

Fan_Fail LED Pin

Definitions

(JF1)

Pin

7
8

Definition

Vcc

GND

Number

OH/Fan Fail LED

State

Off

Stay On

Blink

Reset Button Pin

Definitions

(JF1)

Pin#

Definition

3

Reset Sig.

4

GND

(JF1)

Message

Normal

Overheat

Fan Fail

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR
J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

E7230

LE4

LE3

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

2-11

Fan2

FP CTRL

Fan3

JF1

IDE

OH/Fan Fail LED

J3

SCSI Channel

JA1

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

A

Ground

X

X

Ground

A. OH/Fan Fail LED

B. Reset

1920

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

B

Reset

Reset Button

Power Butto

PWR

2

1

PDSM4/PDSME User's Manual

n

Power Button

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be confi gured to function

as a suspend button (with a setting

in BIOS - see Chapter 4). To turn

off the power when set to suspend

mode, press the button for at least 4

seconds. Refer to the table on the

right for pin defi nitions.

Serial Ports

Two serial ports: COM1 (J31), COM2

(COM2) are included on the mother-

board. COM1 (J31) is a port located

on the backpanel. See the table on the

right for pin defi nitions.

PWR Button Pin

Definitions

(JF1)

Pin#

Definition

1

PWR Signal

2

Serial Port Pin Definitions

Pin Number Definition
1 CD
2 RD
3 TD
4 DTR
5 Ground

Serial Port Pin Definitions

(COM2)

Pin Number Definition
1 CD
2 RD
3 TD
4 DTR
5 Ground

GND

(COM1)

Pin Number Definition
6 DSR
7 RTS
8 CTS
9 RI

Pin Number Definition
6 DSR
7 RTS
8 CTS
9 RI
10 NC

A. PWR Button

B. COM1
C. COM2

J28

KB/MS

USB

J15

COM1

JPG1

J31

B

VGA

JG1

GLAN1

GLAN2

Fan5

Slot6

LAN

Slot5

CTRL

LAN

JPL1

CTRL

JPL2

Slot2

S I/O

®

Slot1

C

UPER PDSM4

S

Printer

COM2

ATI

Rage XL

CPU Fan6

Pentium Dural Core CPU

LGA 775

Slot7

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B

DIMM#1B

DIMM#2A

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

BIOS

USB 5/6

WOL

(Black)

(Blue)

(Black)

E7230

LE4

LE3

USB 3/4

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

OH/Fan Fail LED

IDE

J3

SCSI Channel

JA1

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

Ground

Ground

1920

NMI

X

X

Vcc

Vcc

Vcc

Vcc

Vcc

1

Vcc

Reset

PWR

Reset Button

A

Power Butto

X

2

2-12

Chapter 2: Installation

Power LED

The Power LED connector is located

at JLED. This connection is used to

provide LED Indication of power being

supplied to the system. See the table

on the right for pin defi nitions.

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

JLED

Pin Definitions

Pin

Number

1
2
3

Chassis Intrusion

Pin Definitions (JL1)

Pin

Number

1
2

Definition

+5V

Key

Ground

Definition

Intrusion Input

Ground

A. PWR LED
B. Chassis Intrusion

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan6

LGA 775

SPKR

J9

JPW2

PW3

JP5

JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Blac

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

24-Pin ATX PWR

k)

JWD

JPF

LE4

LE3

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

ICH7R

SATA2
SATA3

B

JL1

JPA2

JPW1

Fan1

LE1

JLED

A

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-13

PDSM4/PDSME User's Manual

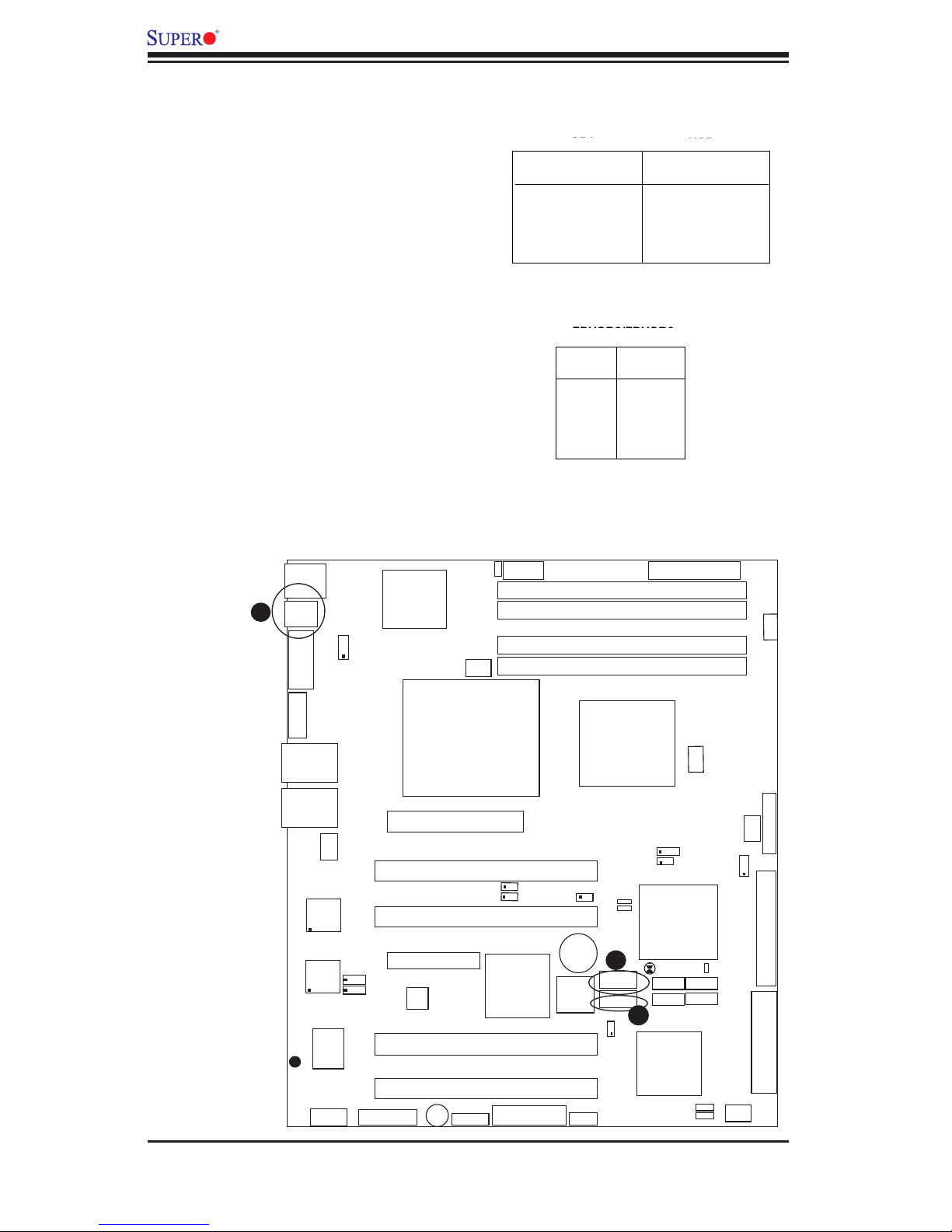

Universal Serial Bus (USB)

There are two Universal Serial Bus

ports (USB 1/2) located at (J15) on

the I/O back panel and additional four

USB ports (USB 3/4/5/6) located next

to the SATA ports on the motherboard.

These ports, labeled USB3 to USB6,

can be used to provide front side

chassis access (cables not included).

See the tables on the right for pin

defi nitions.

A. USB 1/2
B. FP USB3/4
C. FP USB5/6

Universal Serial Bus Pin Definitions

USB1 USB2

USB0

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5N/A

Pin
Number Definition
1+5V
2P0­ 3P0+
4Ground
5Key

USB1

Front Panel Universal

Serial Bus Pin Definitions

USB3/4/5/6

FPUSB2/FPUSB3

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5 N/A

J28

KB/MS

USB

A

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

JP5

JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

B

USB 3/4

BIOS

USB 5/6

WOL

LE4

LE3

(South Bridge)

C

JPA1

24-Pin

JWD

JPF

ICH7R

JBT1

SATA0

SATA1

SCSI

JPW1

ATX PWR

Fan1

LE1

SATA2
SATA3

JL1

JPA2

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-14

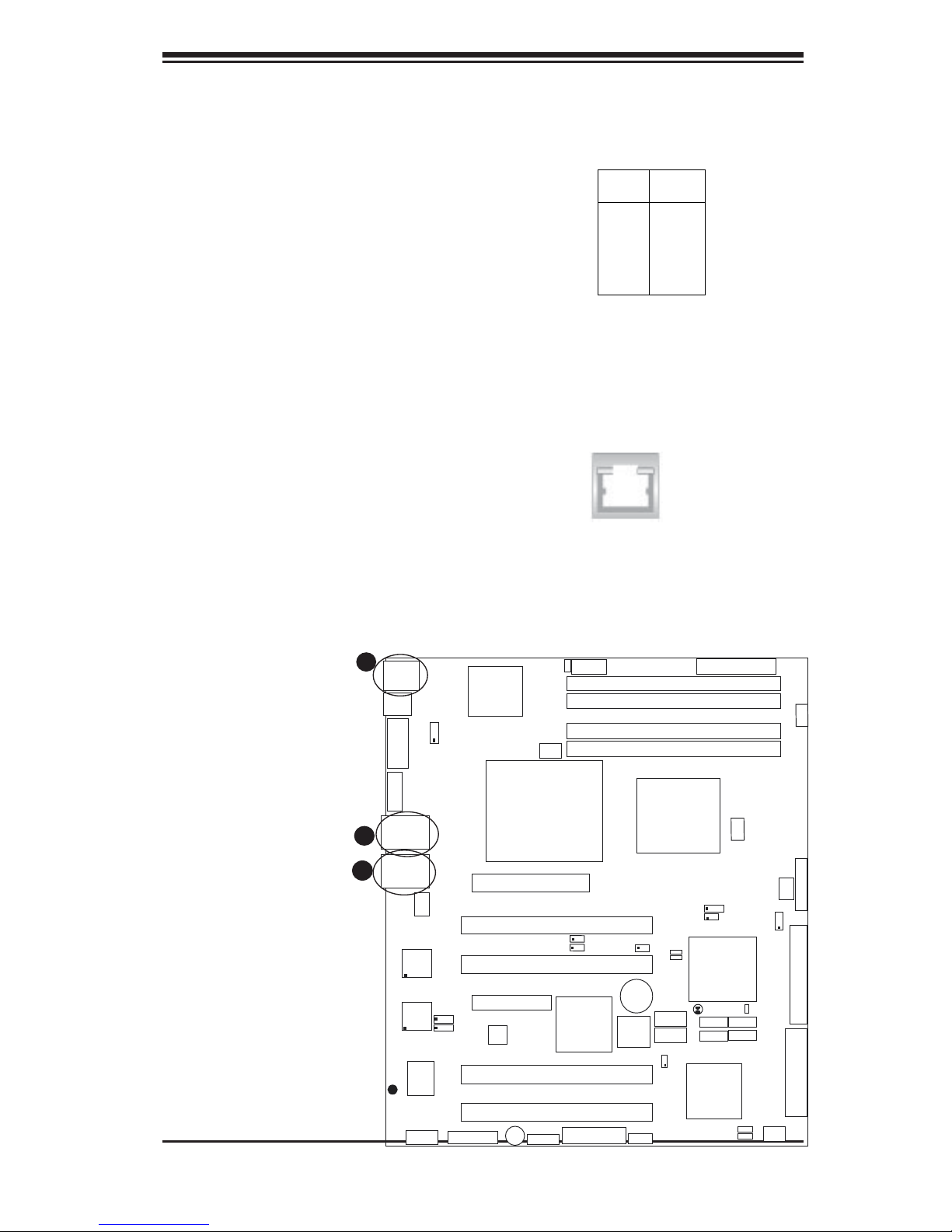

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and PS/2

mouse are located next to the USB

port on the motherboard. See the

table at right for pin defi nitions. (Note:

NC=No connection.)

GLAN (Giga-bit Ethernet
Ports)

Two G-bit Ethernet ports (GLAN1/

GLAN2) are located next to the VGA

Connector on the IO backplane. This

port accepts RJ45 type cables.

Chapter 2: Installation

PS/2 Keyboard

and Mouse Port

Pin Definitions

Pin

Number

1
2
3
4
5
6

Definition

Data

NC

Ground

VCC

Clock

NC

A. KB/Mouse

B. LAN1

C. LAN2

A

KB/MS

USB

JG1

B

C

®

J28

J15

COM1

JPG1

J31

VGA

GLAN1

GLAN2

Fan5

Slot6

LAN

CTRL

LAN

CTRL

S I/O

UPER PDSM4

S

COM2

Slot5

JPL1

JPL2

Slot2

Slot1

Printer

ATI

Rage XL

CPU Fan

Pentium Dural Core CPU

LGA 775

Slot7

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

SPKR

J9

2-15

JPW2

PW3

6

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B

(Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

24-Pin ATX PWR

JPF

LE4

LE3

(South Bridge)

SATA0

JPA1

JWD

ICH7R

JBT1

SATA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

PDSM4/PDSME User's Manual

p

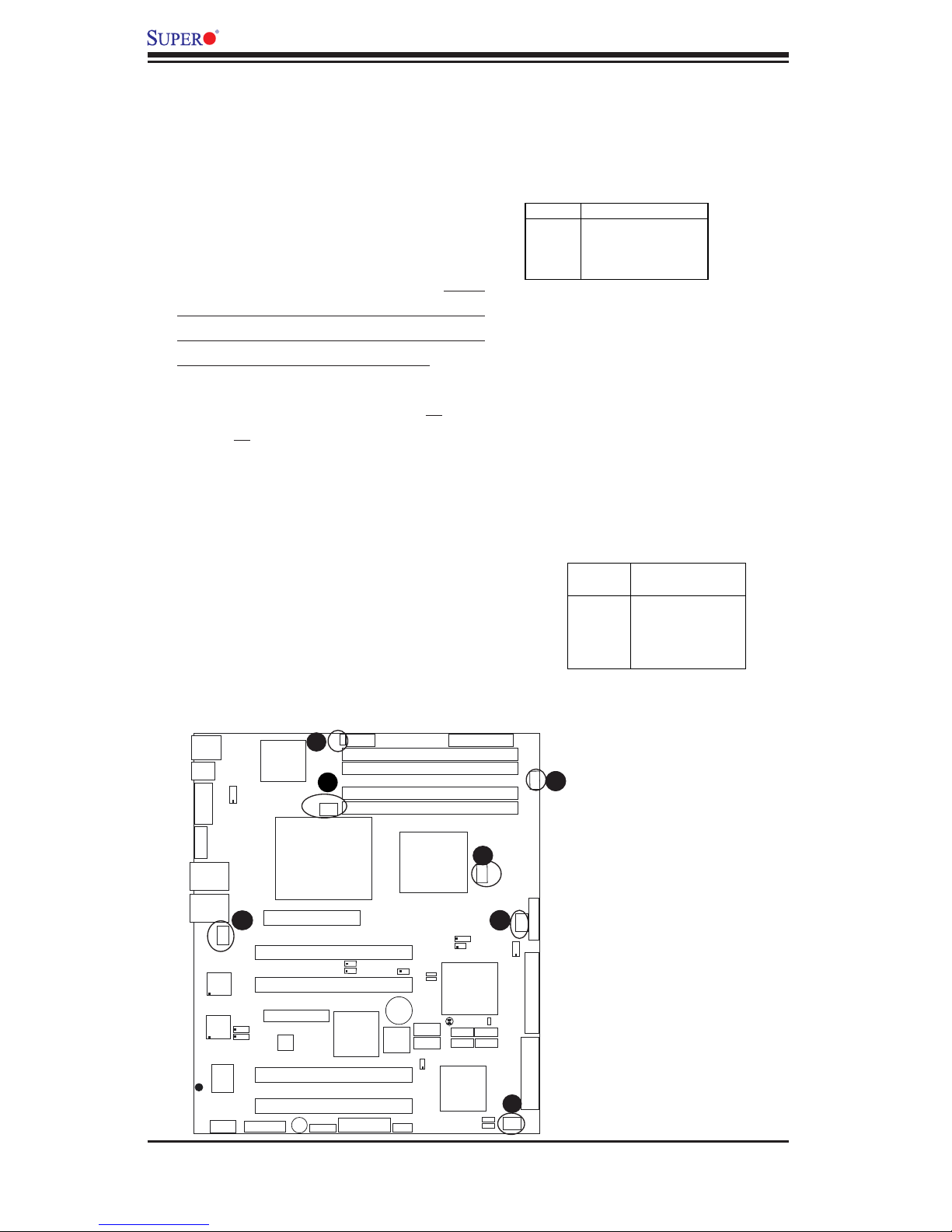

Fan Headers

The PDSM4/PDSME has fi ve chasis/sys-

tem fan headers (Fan1 to Fan5) and one

CPU Fan (CPU Fan6). (*Note: all these

fans are 4-pin fans. However, Pins 1-3 of

the fan headers are backward compatible

with the traditional 3-pin fans.) See the

table on the right for pin defi nitions. (*The

onboard fan speeds are controlled by

Thermal Management via BIOS Hardware

Monitor in the Advanced Setting

Default: Disabled, When using Thermal

Management setting, please use all 3-pin

fans or all 4-pin fans on the motherboard.

Please do not use 3-pin fans and 4-pin

fans on the same board.)

. Note:

4-pin Fan Header Pin Definitions

Pin#

1

2
3

4

Definition

Ground (black)

+12V (red)

Tachometer

PWM_Control

Caution: These fan headers use DC

ower.

Power Fault

Connect a cable from your power supply to

the Power Fault header (PW3) to provide

warning of power supply failure. This warn-

ing signal is passed through the PWR_LED

pin to indicate of a power failure on the

chassis. See the table on the right for pin

defi nitions.

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

DF

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

A

G

CPU Fan6

LGA 775

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

24-Pin ATX PWR

LE4

LE3

(South Bridge)

JPA1

JWD

JPF

JBT1

SATA0

SATA1

SCSI

ICH7R

B

SATA2
SATA3

JL1

JPA2

Power Fault

Pin Definition

Jumper

Definition

Position

1
2
3
4

PWR#1
PWR#2
PWR#3

Signal: Alarm

Reset

Note: This feature is only available when using

redundant Supermicro power supplies.

JPW1

Fan2

C

A. PWR Fault

B. Fan1

C. Fan2

D. Fan3

E. Fan4

F. Fan5

G. CPU Fan6

D

Fan1

LE1

E

Fan4

Fan3

JF1

JLED

J3

JA1

FP CTRL

IDE

SCSI Channel

2-16

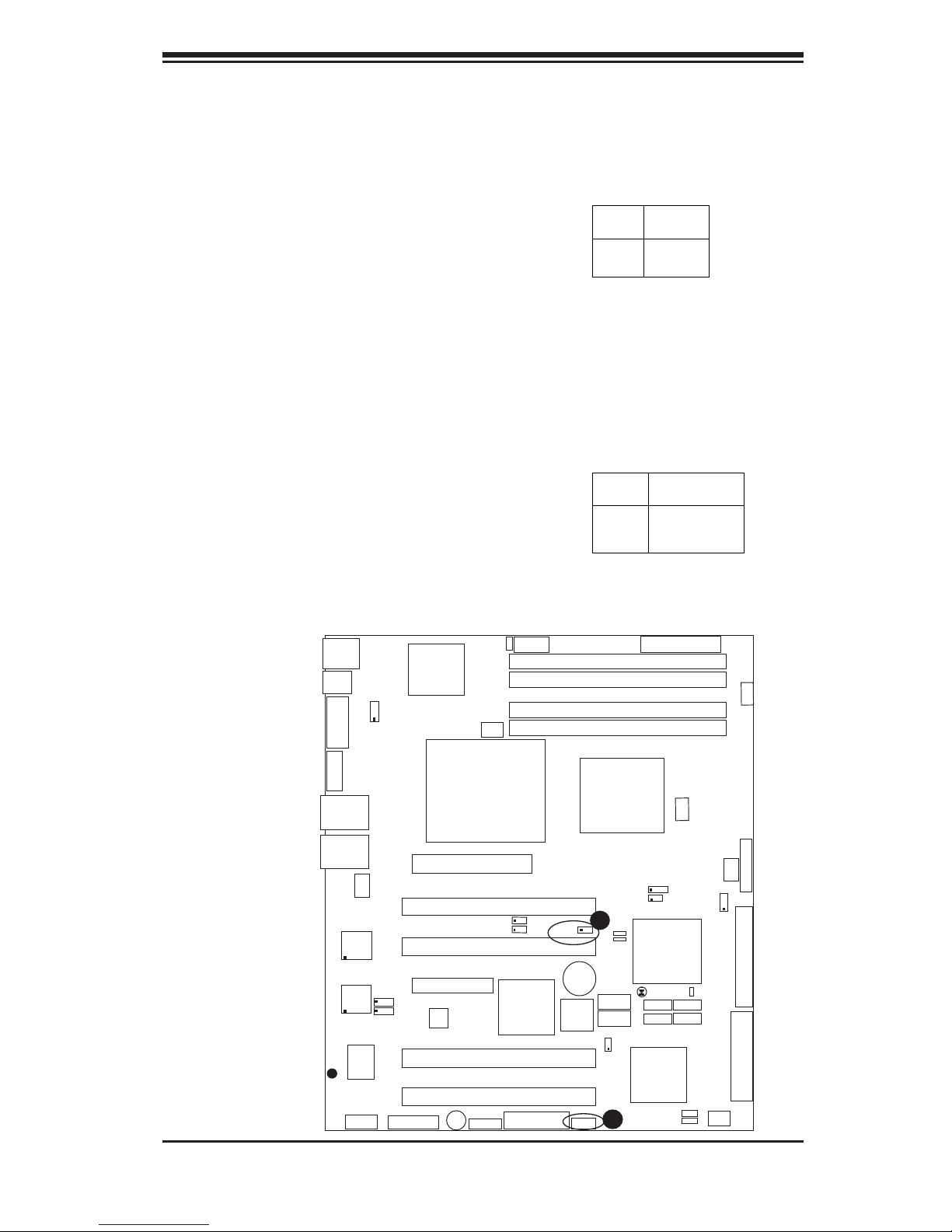

Wake-On-Ring

The Wake-On-Ring header (JWOR)

is located between the two PCI-X 133

MHz slots. This function allows your

computer to receive and be awakened

by an incoming call to the modem

when in suspend state. See the table

on the right for pin defi nitions. You

must have a Wake-On-Ring card and

cable to use this feature.

Wake-On-LAN

The Wake-On-LAN (WOL) header

located to Fan 4. See the table on

the right for pin defi nitions. You must

enable the LAN Wake-Up function in

the BIOS and also have a LAN card

with a Wake-on-LAN connector and

cable to use this feature.

Chapter 2: Installation

Wake-on-Ring

Pin Definitions

(JWOR)

Pin

Number

Number

Definition

Ground

1

Wake-up

2

Wake-On-LAN Pin
Definitions (WOL)

Pin

Definition

1

+5V Standby
2
3

Ground

Wake-up

A. WOR

B. WOL

J28

KB/MS

USB

J15

J31

VGA

JG1

GLAN1

GLAN2

®

UPER PDSM4

S

COM1

LAN

CTRL

LAN

CTRL

S I/O

COM2

Fan5

JPL1

JPL2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

A

JWOR

Battery

USB 3/4

BIOS

USB 5/6

B

WOL

24-Pin ATX PWR

JPF

LE4

LE3

(South Bridge)

JPA1

JWD

ICH7R

JBT1

SATA0

SATA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-17

PDSM4/PDSME User's Manual

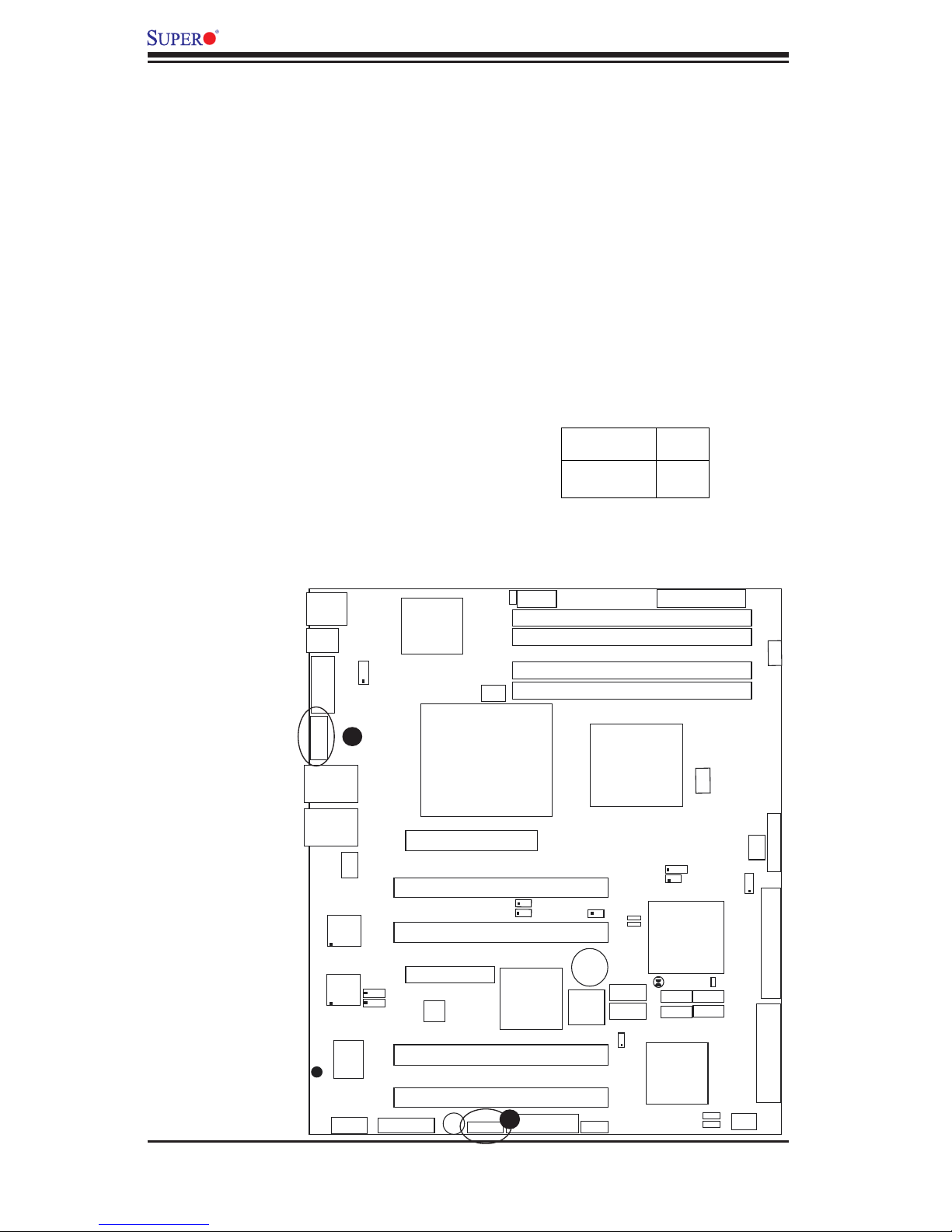

VGA Connector

A VGA connector (JG1) is located

between COM1 and GLAN1 on the IO

backplane. Refer to the board layout

below for the location.

Internal/External Speaker
Header

A Speaker Header (J9) is located

between the Buzzer and the Floppy

Drive on the Motherboard. This header

can be used for external or internal

purpose. Refer to the table on the right

to confi gure internal or external speaker

settings.

Speaker Connector

Close: Pins 3 &4

Internal

Buzzer

connect w/a

4-pin header

External
Speaker

A. VGA

B. Speaker

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

A

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan6

LGA 775

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

B

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

E7230

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

24-Pin ATX PWR

JPF

LE4

LE3

(South Bridge)

SATA0

JPA1

JWD

ICH7R

JBT1

SATA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-18

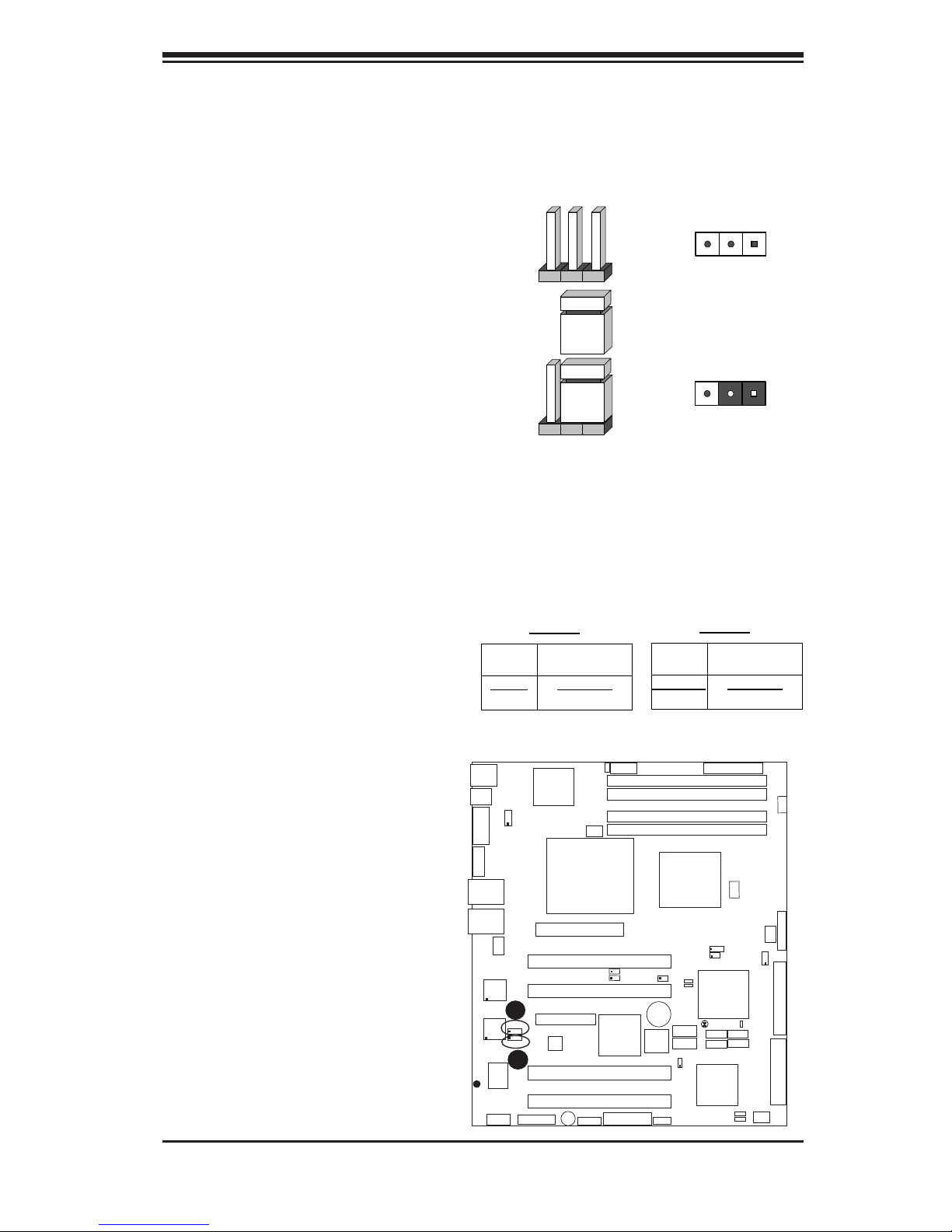

2-7 Jumper Settings

Explanation of
Jumpers

Chapter 2: Installation

To modify the operation of the

motherboard, jumpers can be used

to choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identifi ed with

a square solder pad on the printed

circuit board. See the motherboard

layout pages for jumper locations.

Note: On two pin jumpers, "Closed"

means the jumper is on and "Open"

means the jumper is off the pins.

GLAN Enable/Disable

JPL1/JPL2 enable or disable the

GLAN ports on the motherboard.

See the table on the right for jumper

settings. (*Note: For JPL1, the de-

fault setting is Open to enable. For

JPL2, the default setting is Pins 1-2

to enable.)

A. GLAN1 Enable (JPL1)

B. GLAN2 Enable (JPL2)

GLAN1 Enable

Jumper Settings

Jumper

Position

*Open

Pins 2-3

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

A

LAN

JPL1

CTRL

JPL2

B

S I/O

®

UPER PDSM4

S

COM2

(JPL1)

Definition

*Enabled

Disabled

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot4

PCI-E x4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

PW3

CPU Fan6

LGA 775

PCI-X 133 MHz

PCI-X 133 MHz

SPKR

J9

Connector

Pins

Jumper

Setting

JPW2

12-pin PWR

DIMM#2B

DIMM#1B

DIMM#2A

DIMM#1A (Blue)

JP5
JP6

JWOR

PXH

(The Green Slot)

Floppy

3 2 1

3 2 1

GLAN2 Enable

Jumper Settings

(JPL2)

Jumper

Position

*Pins 1-2

Pins 2-3

24-Pin ATX PWR

(Black)

(Blue)

(Black)

E7230

Mukilteo

(North Bridge)

LE4

LE3

WOL

USB 3/4

USB 5/6

(South Bridge)

JPA1

Battery

BIOS

JWD

JPF

ICH7R

JBT1

SATA0

SATA1

SCSI

Definition

*Enabled

Disabled

JPW1

Fan1

JLED

LE1

SATA2
SATA3

JL1

Fan4

JPA2

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-19

PDSM4/PDSME User's Manual

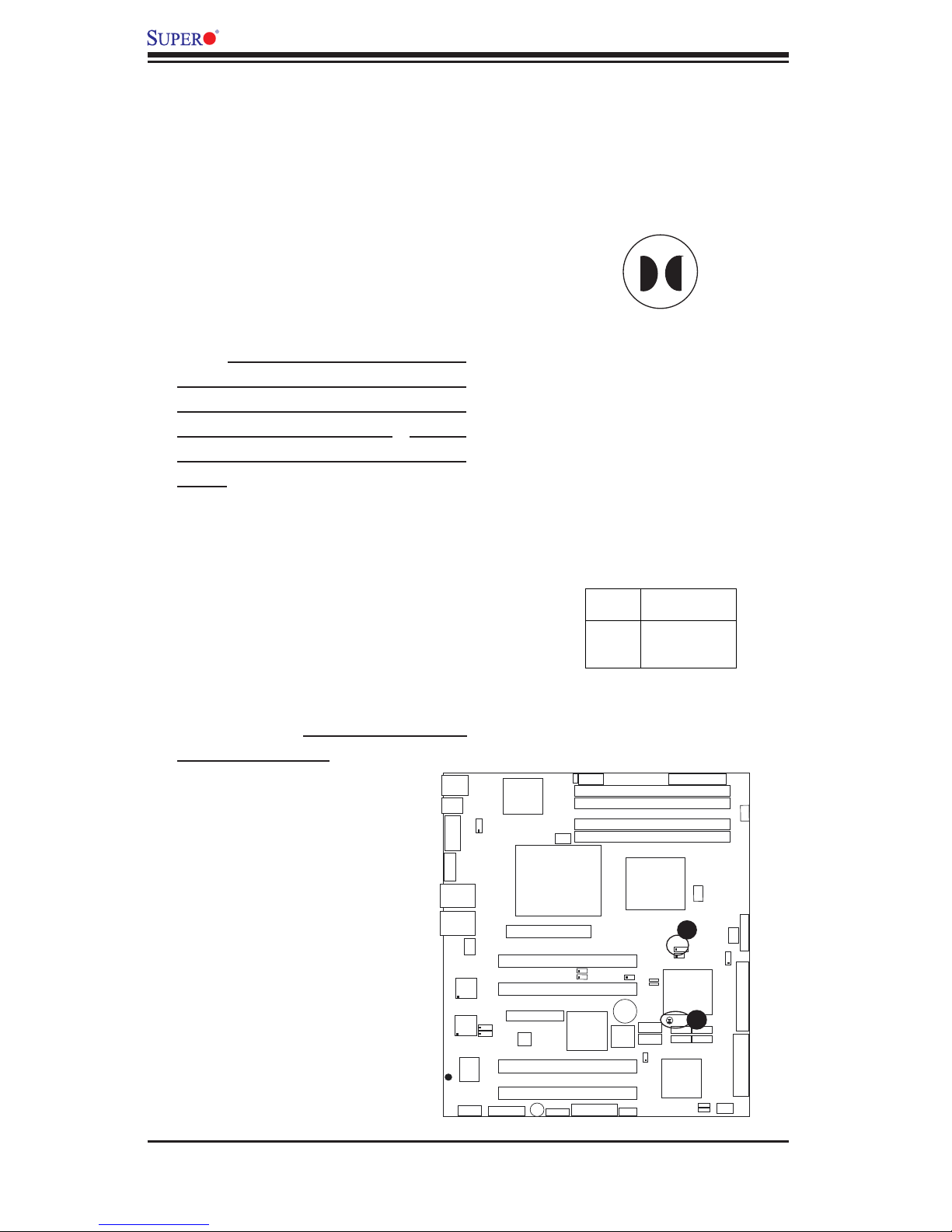

CMOS Clear

JBT1 is used to clear CMOS. Instead

of pins, this "jumper" consists of contact

pads to prevent the accidental clearing

of CMOS. To clear CMOS, use a metal

object such as a small screwdriver to

touch both pads at the same time to

short the connection. Always remove

the AC power cord from the system

before clearing CMOS.

Note: For an ATX power supply, you

must completely shut down the system,

remove the AC power cord and then

short JBT1 to clear CMOS. Do not

use the PW_ON connector to clear

CMOS.

Watch Dog Enable

JWD controls Watch Dog, a system

monitor that takes action when a soft-

ware application hangs. Close Pins

1-2 to reset the system if a program

hangs. Close Pins 2-3 to generate a

non-maskable interrupt for the program

that hangs. (This function requires soft-

ware support.). Watch Dog must also

be enabled in BIOS.

J28

KB/MS

USB

J15

COM1

A. Watch Dog Enable

B. Clear CMOS

J31

VGA

JG1

GLAN1

GLAN2

LAN

CTRL

LAN

CTRL

S I/O

®

UPER PDSM4

S

COM2

Fan5

JPL1

JPL2

ATI

Rage XL

JPG1

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

PW3

CPU Fan6

Pentium Dural Core CPU

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

PCI-X#2 100MHz

SPKR

J9

Watch Dog

Jumper Settings

Jumper
Position
Pins 1-2
Pins 2-3

Open

JPW2

12-pin PWR

DIMM

#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A

JP5
JP6

JWOR

Battery

PXH

BIOS

(The Green Slot)

Floppy

WOL

Definition

WD to Reset

WD to NMI

Disabled

24-Pin ATX PWR

(Blue)

E7230

Mukilteo

(North Bridge)

A

JWD

JPF

LE4

ICH7R

LE3

(South Bridge)

JBT1

USB 3/4

SATA0

USB 5/6

SATA1

JPA1

SCSI

JPW1

Fan2

Fan1

L

FP CTR

Fan3

JF1

JLED

IDE

LE1

B

SATA2
SATA3

JL1

JPA2

J3

SCSI Channel

JA1

Fan4

2-20

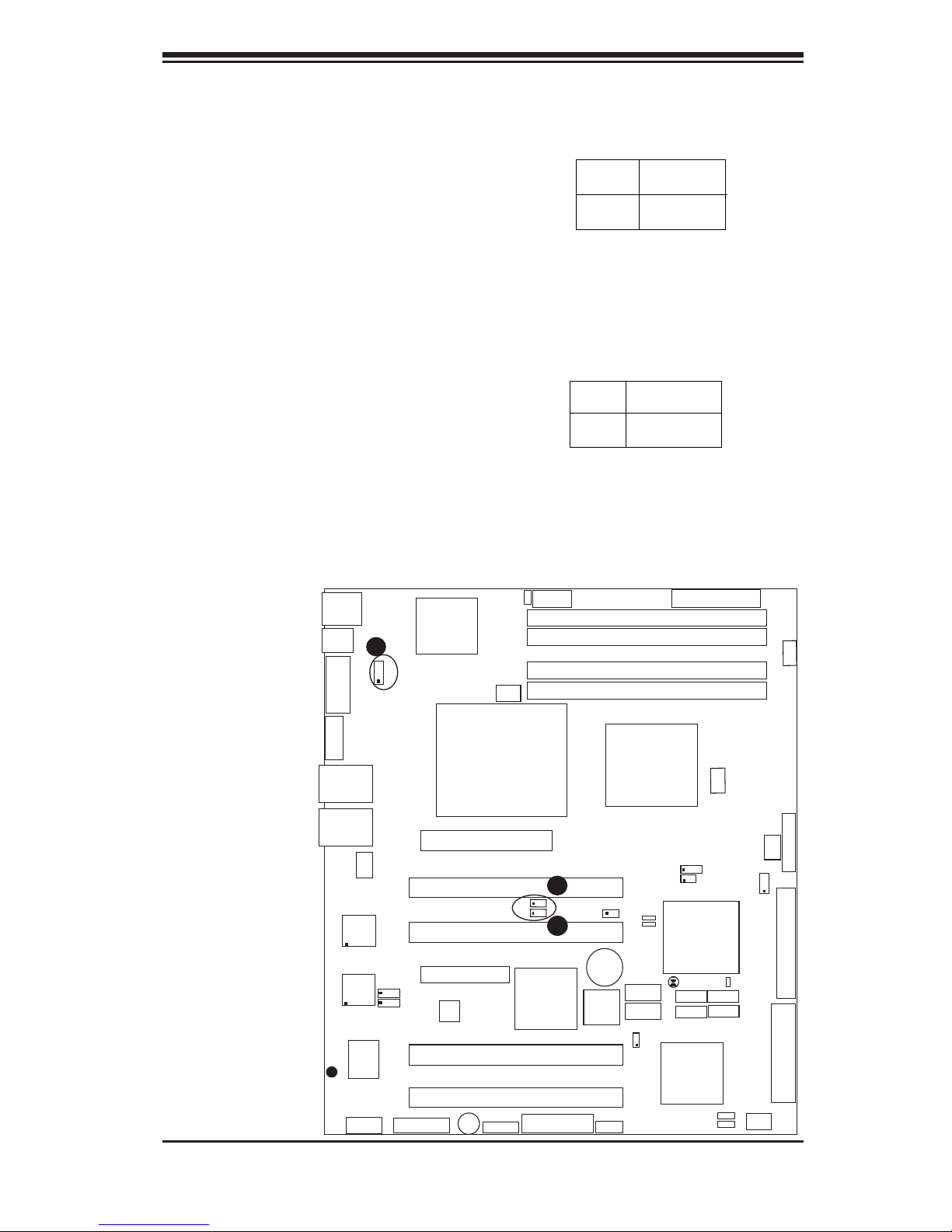

SMBus to PCI/PCI-Exp. Slots

Chapter 2: Installation

Jumpers JP5, JP6 allow you to con-

nect

PCIX/PCI-E slots to the System

Management Bus. The default setting

is "Open" to disable the connection.

See the table on the right for jumper

settings.

VGA Enable/Disable

JPG1 enables or disables the VGA

Connector on the motherboard. See

the table on the right for jumper set-

tings. The default setting is enabled.

SMBus to PCI/PCI-Exp

Jumper

Position

closed

*Open

Definition

Enabled

Disabled

(*Default)

VGA

Enable/Disable

Jumper Settings

(JPG1)

Jumper
Position
Pins 1-2
Pins 2-3

Definition

Enabled

Disabled

A. VGA Enable

B. JP5

C. JP6

J28

KB/MS

USB

A

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan

LGA 775

SPKR

J9

JPW2

PW3

6

B

JP5

JP6

C

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Bl

E7230

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

24-Pin ATX PWR

ue)

JPF

LE4

LE3

(South Bridge)

JPA1

JWD

ICH7R

JBT1

SATA0

SATA1

SCSI

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-21

PDSM4/PDSME User's Manual

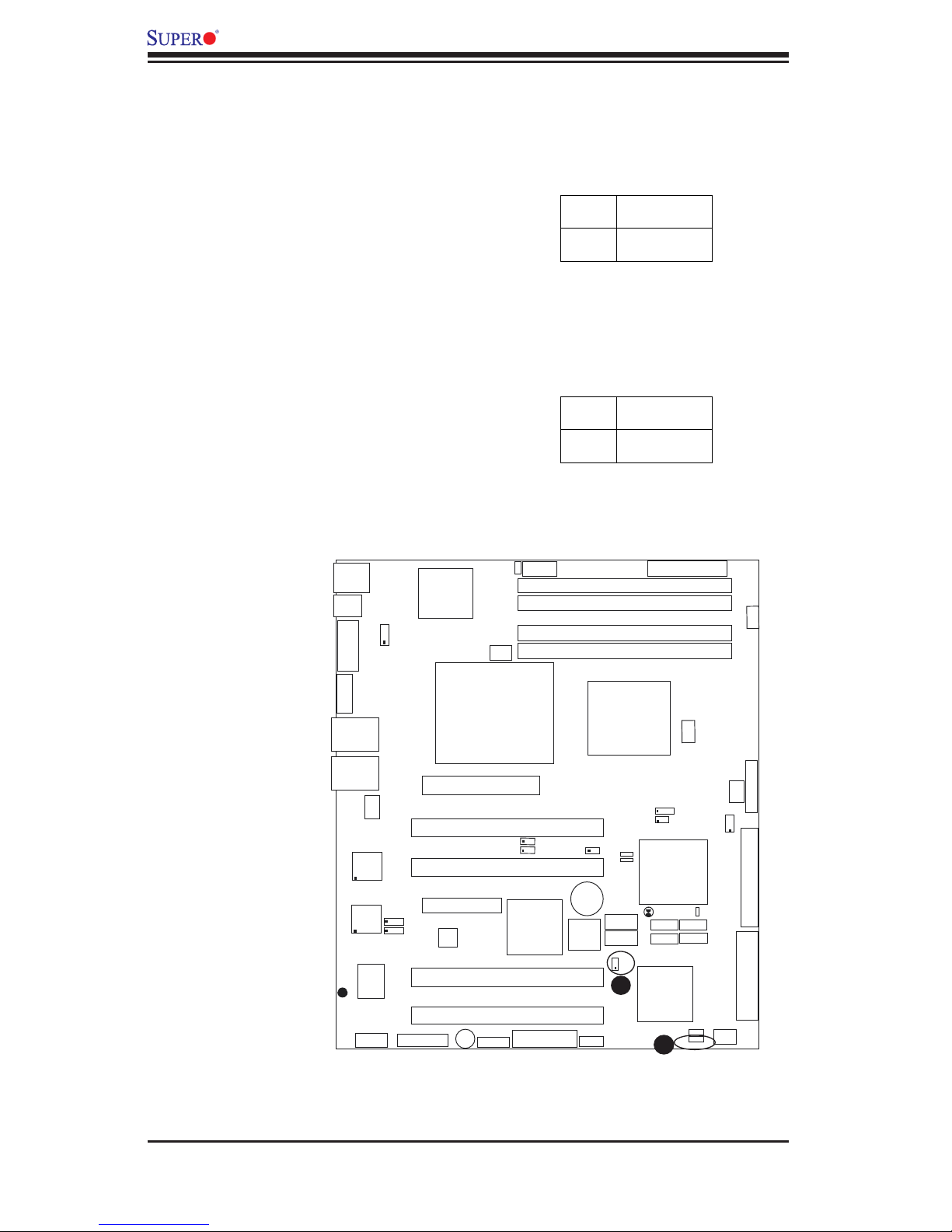

SCSI Enable/Disable (*PDSM4
Only)

Jumper JPA1 allows you to enable
or disable the SCSI Controller. The
default setting is pins 1-2 to enable
the SCSI connection. See the table
on the right for jumper settings.

SCSI Termination Enable/
Disable (*PDSM4 Only)

Jumpers JPA2 allows you to enable or

disable the termination of the SCSI

connector. The default setting is open

to enable (-to terminate-) the SCSI

channel. (For SCSI to function prop-

erly, please do not change the default

setting.) See the table on the right for

jumper settings.

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

ATI

Rage XL

JPG1

Pentium Dural Core CPU

CPU Fan6

LGA 775

SCSI Enable/Disable

Jumper Settings

Jumper

Position
Pins 1-2
Pins 2-3

Definition

Enabled

Disabled

SCSI Channel Termination

Enable/Disable

Jumper Settings

Jumper

Position

*Open

Closed

(Default: Open: Do not change the default setting!)

JPW2

12-pin PWR

PW3

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

Definition

Enabled

Disabled

24-Pin ATX PWR

E7230

Mukilteo

(North Bridge)

JPW1

Fan1

Fan2

A. SCSI Enable
B. SCSI Termination

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

Printer

Slot7

LP IPMI

Slot6

Slot5

Slot2

Slot1

PCI-X 133 MHz

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

J9

2-22

SPKR

JP5
JP6

JWOR

Battery

PXH

BIOS

(The Green Slot)

Floppy

WOL

LE4

LE3

USB 3/4

USB 5/6

A

JWD

JPF

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

B

ICH7R

SATA2
SATA3

JL1

JPA2

LE1

JLED

Fan4

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

Force-Power-On Enable/Dis­able

Jumper JPF allows you to enable or

disable the function of Force-Power-

On. If enabled, the power will always

stay on automatically. If this function

disabled, the user needs to press

the power button to power on the

system.

PWR Force-On

Jumper
Position

Off
On

Chapter 2: Installation

Definition

Normal

Force On

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan6

LGA 775

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A

DIMM#1A (Blue)

JWOR

Battery

BIOS

WOL

(Black)

E7230

Mukilteo

(North Bridge)

USB 3/4

USB 5/6

24-Pin ATX PWR

JWD

JPF

LE4

LE3

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

A

ICH7R

SATA2
SATA3

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

A. Force PWR-On

2-23

PDSM4/PDSME User's Manual

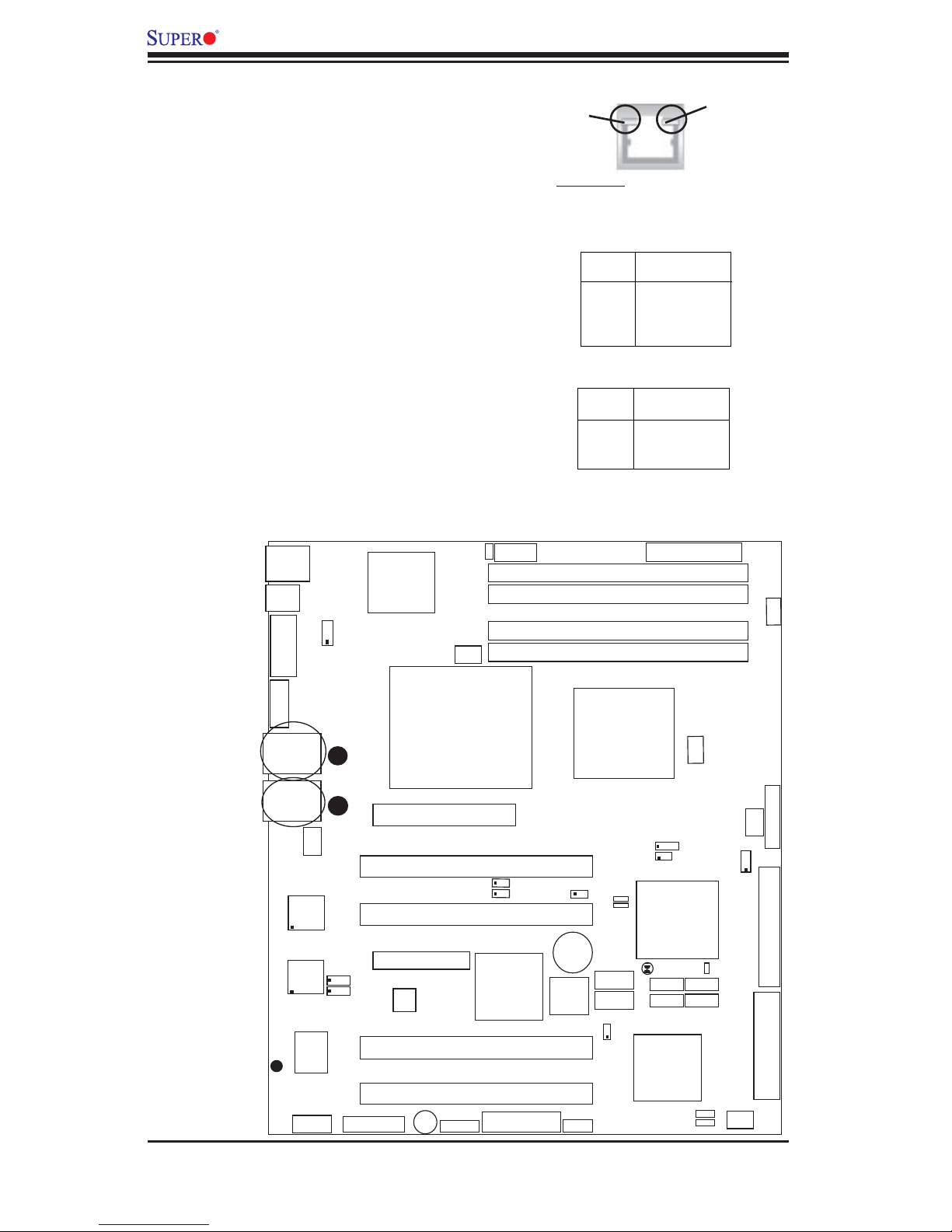

2-8 Onboard Indicators

GLAN LEDs

There are two GLAN ports on the mother-

board. Each Gigabit Ethernet LAN port has

two LEDs. The yellow LED indicates activity

while the other LED may be green, orange

or off to indicate the speed of the connec-

tion. See the table at right for the functions

associated with the second LED.

J28

KB/MS

USB

J15

COM1

J31

JPG1

ATI

Rage XL

CPU Fan6

JPW2

PW3

Left

Right

(Rear View: When viewing from

the rear side of the system)

G-bit LAN Left LED

Indicator

LED

Color

Off

(*Also:Off

Green

Orange

1 Gb LAN Right LED

Indicator(Activ ity LED)

LED

Color

Amber

12-pin PWR

DIMM#2B (Black)

DIMM

#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

Definition

10 Mbps

No Connection)

100 Mbps

1 Gbps

Definition

Blinking

10Mbps/

100Mbps/1Gbps

24-Pin ATX PWR

JPW1

Fan2

A. LAN1 Port
B. LAN2 Port

VGA

JG1

LAN

CTRL

LAN

CTRL

S I/O

A

B

Fan5

JPL1

JPL2

GLAN1

GLAN2

®

UPER PDSM4

S

COM2

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

Slot2

Slot1

Printer

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

LGA 775

SPKR

J9

JP5
JP6

JWOR

Battery

PXH

(The Green Slot)

Floppy

BIOS

WOL

E7230

Mukilteo

(North Bridge)

JPF

LE4

LE3

(South Bridge)

USB 3/4

USB 5/6

JPA1

JWD

ICH7R

JBT1

SATA0

SATA1

SCSI

SATA2
SATA3

JL1

JPA2

Fan1

LE1

JLED

Fan4

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-24

Chapter 2: Installation

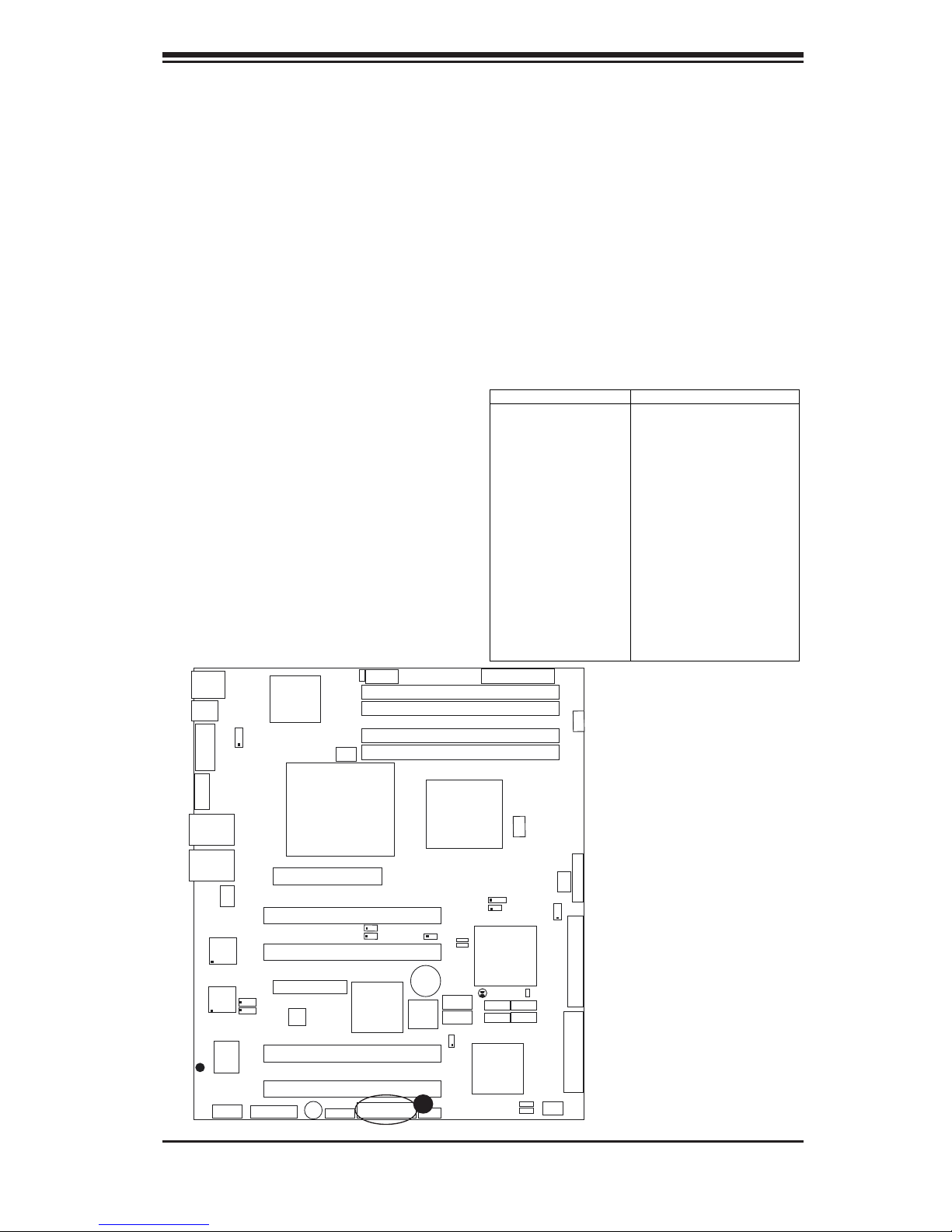

2-9 Floppy, Hard Disk Drive, LP IPMI, SCSI and Parallel Port

Connections

Note the following when connecting the fl oppy and hard disk drive cables:

• The fl oppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single fl oppy disk drive ribbon cable has two connectors to provide for two

fl oppy disk drives. The connector with twisted wires always connects to drive

A, and the connector that does not have twisted wires always connects to drive

B.

Floppy Connector Pin Definitions

Floppy Connector

The fl oppy connector is located

between the IDE connectors and

the IPMI socket. See the table

below for pin defi nitions.

CPU Fan6

LGA 775

PW3

JPW2

12-pin PWR

DIMM#2B (Black)

DIMM#1B

DIMM#2A

DIMM#1A

KB/MS

USB

J31

JG1

GLAN1

J28

J15

VGA

COM1

ATI

Rage XL

JPG1

Pentium Dural Core CPU

(Blue)

(Black)

(Blue)

E7230

Mukilteo

(North Bridge)

Pin Number Function
1 GND
3 GND
5 Key
7 GND
9 GND
11 GND
13 GND
15 GND
17 GND
19 GND
21 GND
23 GND
25 GND
27 GND
29 GND
31 GND
33 GND

24-Pin ATX PWR

JPW1

Fan1

Pin Number Function
2 FDHDIN
4 Reserved
6 FDEDIN
8 Index­ 10 Motor Enable
12 Drive Select B­ 14 Drive Select A­ 16 Motor Enable
18 DIR­ 20 STEP­ 22 Write Data­ 24 Write Gate­ 26 Track 00­ 28 W rite Protect­ 30 Read Data­ 32 Side 1 Select­ 34 Diskette

A. Floppy

Fan2

GLAN2

LAN

CTRL

LAN

CTRL

S I/O

®

UPER PDSM4

S

COM2

Fan5

Slot6

Slot5

JPL1

JPL2

Slot2

Slot1

Printer

Slot7

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

SPKR

J9

JP5
JP6

JWOR

Battery

PXH

BIOS

(The Green Slot)

Floppy

A

WOL

LE4

LE3

USB 3/4

USB 5/6

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

2-25

SATA2
SATA3

JL1

JPA2

LE1

JLED

Fan4

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

PDSM4/PDSME User's Manual

IDE Connectors

An IDE Connector is located

at J3 of the motherboard. See

the table on the right for pin

defi nitions.

LP IPMI

There is a Low Profi le IPMI

Socket (Slot 7) on the moth-

erboard. Refer to the layout

below for the 1UIPMI location.

Pin Number Function
1 Reset IDE
3 Host Data 7
5 Host Data 6
7 Host Data 5
9 Host Data 4
11 Host Data 3
13 Host Data 2
15 Host Data 1
17 Host Data 0
19 GND
21 DRQ3
23 I/O Write­ 25 I/O Read­ 27 IOCHRDY
29 DACK3­ 31 IRQ14
33 Addr 1
35 Addr 0
37 Chip Select 0
39 Activity

IDE Connector Pin Definitions

Pin Number Function
2 GND
4 Host Data 8
6 Host Data 9
8 Host Data 10
10 Host Data 11
12 Host Data 12
14 Host Data 13
16 Host Data 14
18 Host Data 15
20 Key
22 GND
24 GND
26 GND
28 BALE
30 GND
32 IOCS16­ 34 GND
36 Addr 2
38 Chip Select 1­ 40 GND

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot2

Slot1

Printer

PCI-X 133 MHz

PCI-X 133 MHz

Slot4

PCI-E x4

W83792

PCI-X#2 100MHz

PCI-X#1 100MHz ZCR

Buzzer

CPU Fan6

LGA 775

B

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B

(Black)

DIMM#1B (Blue)

DIMM#2A

(Black)

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

E7230

LE4

LE3

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

JLED

A

Fan4

A. IDE1

B. LP IPMI

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-26

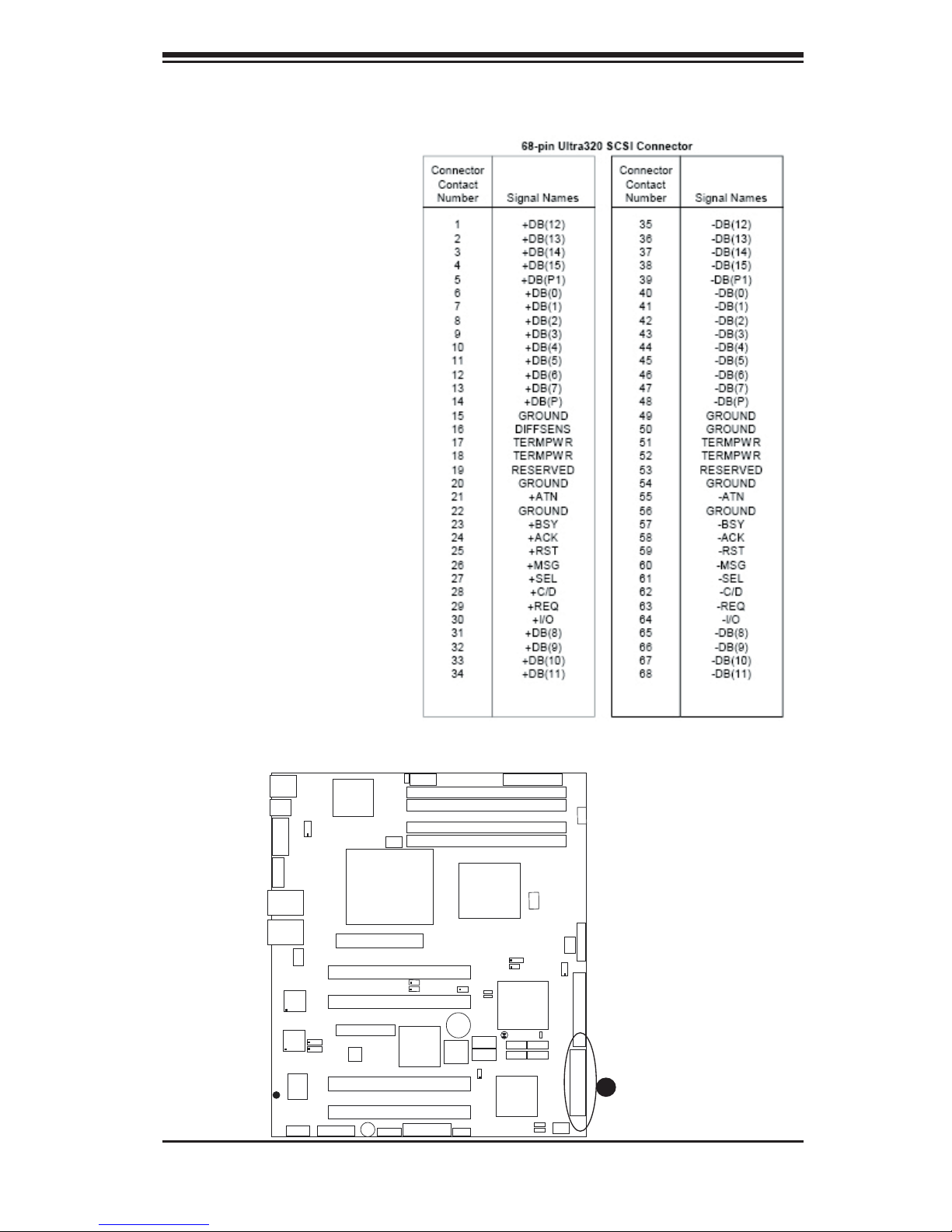

Ultra 320 SCSI
Connectors
(*PDSM4 only)

A SCSI Connector is lo-

cated at JA1 of the mother-

board. See the table on the

right for pin defi nitions.

Chapter 2: Installation

J28

KB/MS

USB

J15

COM1

JPG1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

UPER PDSM4

S

COM2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

LP IPMI

Slot6

Slot5

Slot4

PCI-E x4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

PW3

CPU Fan6

LGA 775

PCI-X 133 MHz

PCI-X 133 MHz

SPKR

J9

JPW2

12-pin PWR

DIMM#2B (Black)

DIMM#1B (Blue)

DIMM#2A (Black)

DIMM#1A (Blue)

JP5
JP6

JWOR

PXH

(The Green Slot)

Floppy

Battery

BIOS

WOL

E7230

Mukilteo

(North Bridge)

LE4

LE3

USB 3/4

USB 5/6

JPA1

2-27

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

Fan4

JLED

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

A. SCSI Channel A

A

PDSM4/PDSME User's Manual

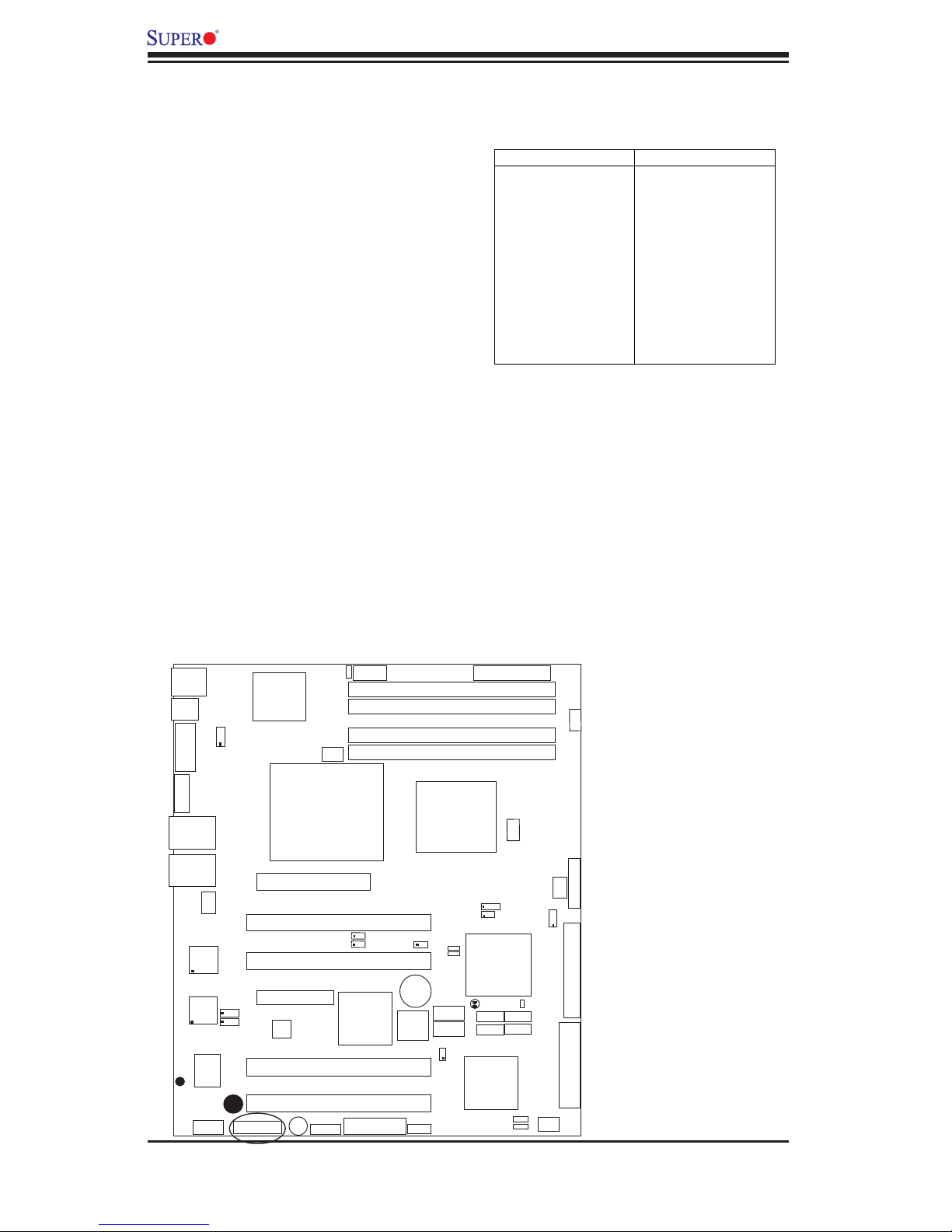

Parallel (Printer) Port
Connector

The parallel (printer) port is located

next to the COM2 Port. See the table

on the right for pin defi nitions.

Parallel (Printer) Port Pin Definitions

Pin Number Function
1 Strobe­ 3 Data Bit 0
5 Data Bit 1
7 Data Bit 2
9 Data Bit 3
11 Data Bit 4
13 Data Bit 5
15 Data Bit 6
17 Data Bit 7
19 ACK
21 BUSY
23 PE
25 SLCT

Pin Number Function
2 Auto Feed­ 4 Error­ 6 Init­ 8 SLCT IN­ 10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC

A. Printer

J28

KB/MS

USB

J15

COM1

J31

VGA

JG1

GLAN1

GLAN2

Fan5

LAN

CTRL

LAN

JPL1

CTRL

JPL2

S I/O

®

A

UPER PDSM4

S

COM2

ATI

Rage XL

JPG1

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

CPU Fan6

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

JP5
JP6

PXH

(The Green Slot)

Floppy

12-pin PWR

DIMM#2B

(Black)

DIMM#1B (Blue)

DIMM#2A

(Black)

DIMM#1A (Blue)

Mukilteo

(North Bridge)

JWOR

Battery

USB 3/4

BIOS

USB 5/6

WOL

E7230

LE4

LE3

JPA1

24-Pin ATX PWR

JWD

JPF

ICH7R

(South Bridge)

JBT1

SATA0

SATA2
SATA3

SATA1

SCSI

JL1

JPA2

JPW1

Fan1

LE1

JLED

Fan4

Fan2

FP CTRL

Fan3

JF1

IDE

J3

SCSI Channel

JA1

2-28

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Make sure that the +5v standby LED (LE1) is not on. (*Note: If LE1 is on, it

indicates that Standby PWR is on. Be sure to unplug the power cable before

installing or removing the components.)

2. Make sure that the 8-pin 12v power connector at JPW2 is connected.

3. Make sure that there are no short circuits between the motherboard and chas-

sis.

4. Disconnect all ribbon/wire cables from the motherboard, including those for the

keyboard and mouse.

5. Remove all add-on cards.

6. Install a CPU and heatsink (-Be sure that it is fully seated,) and then, connect

the chassis speaker and the power LED to the motherboard. Check all jumper

settings as well.

7. Make sure to use the correct type of CMOS battery as specifi ed by the Manu-

facturer. Do not install the CMOS battery upside down to avoid possible

explosion.

No Power

1. Make sure that there are no short circuits between the motherboard and the

chassis.

2. Make sure that all jumpers are set to their default positions.

3. Check if the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on, but you have no video--in this case, you will need to remove

all the add-on cards and cables fi rst.

2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for

details on beep codes.)

3. Remove all memory modules and turn on the system. (If the alarm is on, check

the specs of the memory, reset the memory or try a different one.)

3-1

PDSM4/PDSME User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnostics

card is recommended. For I/O port 80h codes, refer to App. B.

Memory Errors

1. Make sure that the DIMM modules are properly installed and fully seated in the

slots.

2. You should be using unbuffered, ECC DDR 2-677/533/400 memory (see the next

page). Also, it is recommended that you use the same memory speed for all

DIMMs in the system. See Section 2-4 for memory limitations.

3. Check for bad DIMM modules or slots by swapping modules between slots and

noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Confi guration

1. Please be sure to use a high quality power supply. A poor quality power supply

may cause the system to lose the CMOS setup information. Refer to Section

1-6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fi x the Setup Confi guration problem, contact your

vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please make sure that you have followed all

the steps listed below. Also, note that as a motherboard manufacturer, Supermicro

does not sell directly to end-users, so it is best to fi rst check with your distributor or

reseller for troubleshooting services. They should know of any possible problem(s)

with the specifi c system confi guration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked Ques-

tion' (FAQ) sections in this chapter or see the FAQs on our web site (

www.supermicro.com/support/faqs/) before contacting Technical Support.

2. BIOS upgrades can be downloaded from our web site at

com/support/bios/

).

(http://www.supermicro.

http://

3-2

Chapter 3: Troubleshooting

Note: Not all BIOS can be fl ashed; some can be fl ashed, depending on the

modifi cations to the boot block code.

3. If you've followed the instructions above to troubleshoot your system, and still

cannot resolve the problem, then please contact Supermicro's technical support

and provide them with the following information:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your

system fi rst boots up)

•System confi guration

An example of a Technical Support form is on our web site at

supermicro.com/support/contact.cfm).

4. Distributors: For immediate assistance, please have your account number ready

when placing a call to our technical support department. We can be reached

by e-mail at [e-mail], by phone at:

[phone], option 2, or by fax at [phone].

(http://www.

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The PDSM4/PDSME supports up to 8 GB of unbuffered, ECC, DDR2-

677/533/400, two-way interleaved or non-interleaved SDRAM. See Section 2-4 for

details on installing memory.

Question: How do I update my BIOS?

Answer: It is not recommended that you upgrade your BIOS if you are not experi-

encing problems with your system. Updated BIOS fi les are located on our web site

at http://www.supermicro.com/techsupport/BIOS/bios.htm. Please check our BIOS

warning message and the information on how to update your BIOS on our web site.

Also, check the current BIOS revision and make sure it is newer than your current

BIOS before downloading. Select your mainboard model and download the BIOS

fi le to your computer.

(

prevent possible system boot failure!)

*Warning: Do not shut down or reset the system while updating BIOS to

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install

the applications you need. Applications on the CD include chipset drivers for the

Windows OS, security and audio drivers.

3-3

PDSM4/PDSME User's Manual

Question: How do I connect the ATA100/66 cable to my IDE device(s)?

Answer: The 80-wire/40-pin high-density ATA100/66 IDE cable that came with

your system has two connectors to support two drives. This special cable must be

used to take advantage of the speed the ATA100/66 technology offers. Connect

the blue connector to the onboard IDE header and the other connector(s) to

your hard drive(s). Consult the documentation that came with your disk drive for

details on actual jumper locations and settings.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor fi rst for any product problems.

3-4

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the PDSM4/PDSME.

The Phoenix ROM BIOS is stored in a fl ash chip and can be easily upgraded using

a fl oppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of the Supermicro web site <http://www.supermicro.com> for any

changes to the BIOS refl ected in this manual.

Warning: Do not shut down or reset the system while updating the BIOS

to prevent possible boot failure.

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and

PS/2® compatible computers. The Phoenix BIOS fl ash chip stores the system

parameters, types of disk drives, video displays, etc. in the CMOS. The CMOS

memory requires very little electrical power. When the computer is turned off, a

backup battery provides power to the BIOS fl ash chip, enabling it to retain system

parameters. Each time the computer is powered on the computer is confi gured

with the values stored in the BIOS ROM by the system BIOS, which gains control

at boot-up.

How To Change the Confi guration Data

The CMOS information that determines the system parameters may be changed by

entering the BIOS Setup utility. This Setup utility can be accessed by pressing the

<Delete> key at the appropriate time during system boot. (See below.)

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory test. As

the memory is being tested, press the <Delete> key to enter the main menu of the

BIOS Setup utility. From the main menu, you can access the other setup screens,

such as the Security and Power menus. Beginning with Section 4-3, detailed de-

scriptions are given for each parameter setting in the Setup utility.

4-1

PDSM4/PDSME User's Manual

4-2 Running Setup

*Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing

the appropriate text from the main BIOS Setup screen. All displayed text is

described in this section, although the screen display is often all you need to

understand how to set the options (Refer to the next page).

When you fi rst power on the computer, the Phoenix BIOS™ is immediately acti-

vated.

While the BIOS is in control, the Setup program can be activated in one of two

ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears briefl y at the bottom of the screen

during the POST (Power On Self-Test), press the <Delete> key to activate the

main Setup menu:

Press the <Delete> key to enter Setup

(*Note: Please load "System Setup Default" when using the system the fi rst

time.)

4-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup

screen is displayed below.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in

detail how to navigate through the menus.

Items that use submenus are indicated with the

press the <Enter> key to access the submenu.

After entering the submenu, use the Up/Down arrow keys to move among the different

settings in each menu. Use the Left/Right arrow keys to change the options for each

setting. Press <Tab>, <Shift-Tab>, or <Enter> to select a fi eld.

icon. With the item highlighted,

4-2

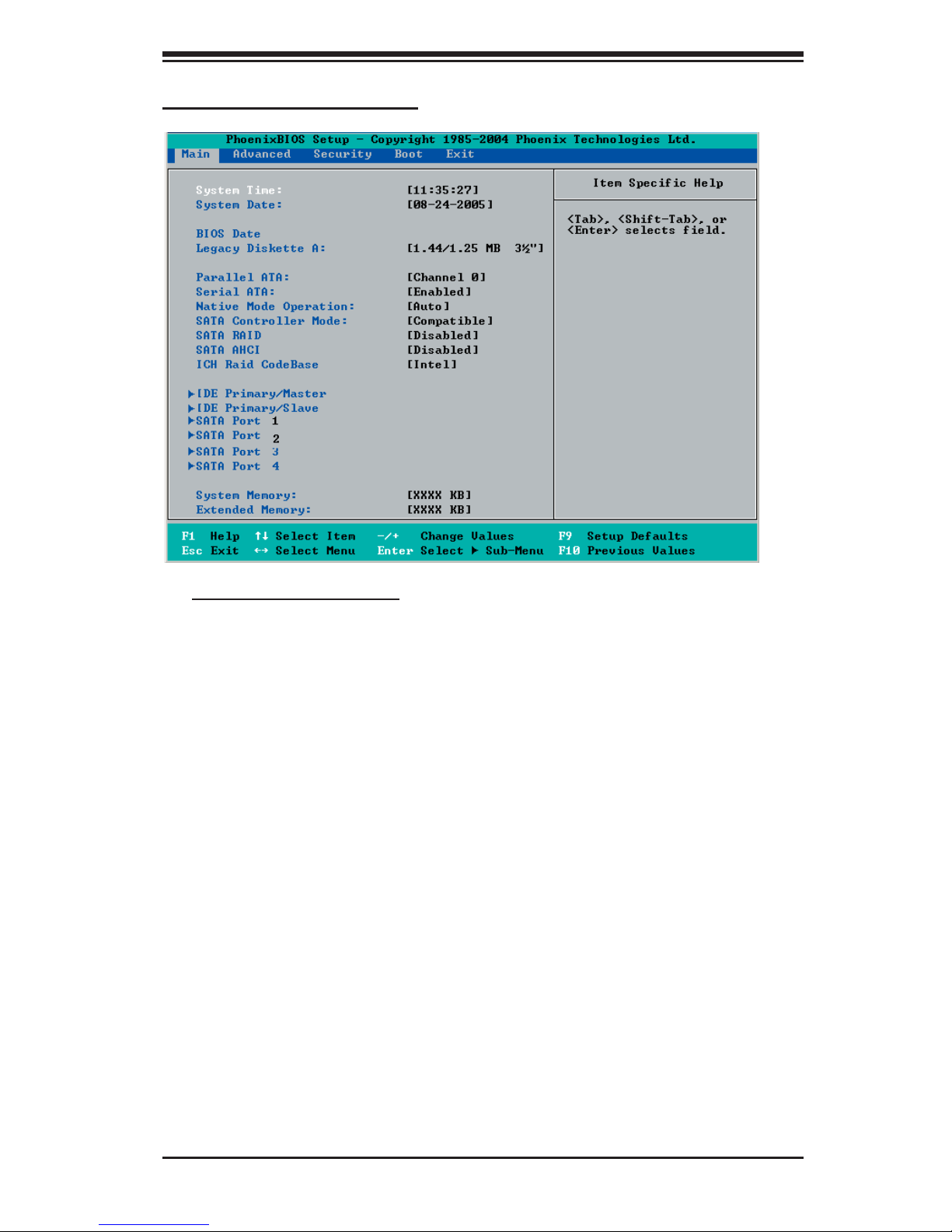

Main BIOS Setup Menu

Chapter 4: BIOS

Main Setup Features

System Time

To set the system date and time, key in the correct information in the appropriate

fi elds. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year fi elds, and enter the correct

data. Press the <Enter> key to save the data.

BIOS Date

This feature allows the BIOS to display the date when the this version of BIOS

was built.

Legacy Diskette A

This setting allows the user to set the type of fl oppy disk drive installed as diskette A.

The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB,

3.5 in and 2.88MB 3.5 in.

4-3

PDSM4/PDSME User's Manual

Parallel ATA

This setting allows the user to enable/disable the function of the Parallel ATA and

confi gure Parallel ATA settings. The options are Disabled, "Parallel ATA (Enabled)".

"Channel 0", "Channel 1", and "Both".

Serial ATA

This setting allows the user to enable or disable the function of the Serial ATA.

The options are Disabled and Enabled.

Native Mode Operation

Select the native mode for the ATA. The options are: Serial ATA and

Auto.

SATA Controller Mode

Select Compatible to allow the SATA and PATA drives to be auto-detected and

placed in the Legacy Mode. Select Enhanced to allow the SATA and PATA drives

to be auto-detected and placed in the Native IDE Mode. (*Note: The Enhanced

mode is supported by the Windows 2000 OS or a later version.)

When the SATA Controller Mode is set to "Enhanced", the following items will

display:

Serial ATA (SATA) RAID

Select Enable to enable the function of the Serial ATA RAID. The options are

Enabled and Disabled (*Default). (*For the Windows OS environment, if this

feature is set to Enabled, be sure to use the RAID driver. If set to Disabled, use

the Non-RAID driver.) (*Note: If this item-SATA RAID is set to Enabled, the next

item-"SATA AHCI Enable" will not be available. If this feature is set to "Enhanced",

the following feature will be available:)

SATA AHCI

Select Enable to enable the function of the Serial ATA Advanced Host

Interface.

(*Warning: Exercise extreme caution when using this function. This

feature is for advanced programmers only.) The options are Enabled

and Disabled.

ICH RAID CodeBase

Select Intel to enable Intel's ICH RAID Controller for the Windows OS. Select

Adaptec to enable Adaptec's RAID Controller for the Linux OS. The options are

Intel and Adaptec.

4-4

Chapter 4: BIOS

 Primary IDE Master/Slave, Secondary IDE Master/Slave, or
Primary IDE Master/Slave, SATA Port 1, SATA Port 2,SATA Port 3,
SATA Port 4

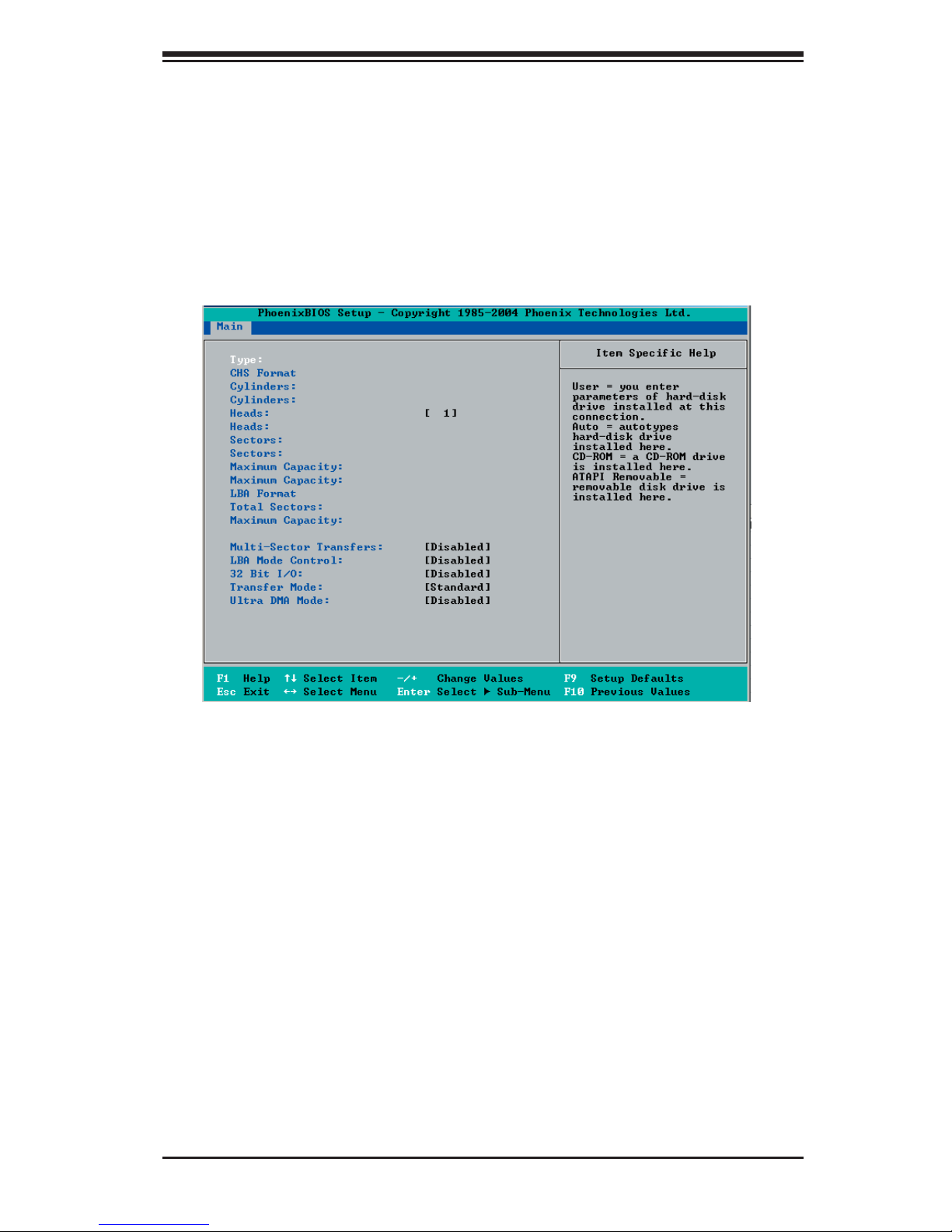

These settings allow the user to set the parameters of Primary IDE Master/Slave

and Secondary IDE Master/Slave slots. Hit <Enter> to activate the following sub-

menu screen for detailed options of these items. Set the correct confi gurations

accordingly. The items included in the sub-menu are:

Type

This option allows the user to select the type of IDE hard drive. The option

Auto will allow the BIOS to automatically determine the hard drive's capacity,

number of heads, etc.). Enter a number between 1-39 to select a predetermined

type of hard drive, CDROM and ATAPI Removable. The option "User" will allow

the user to enter the parameters of the HDD installed at this connection. Select

CDROM if a CDROM drive is installed. Select ATAPI if a removable disk drive

is installed.

4-5

PDSM4/PDSME User's Manual

CHS Format

The following items will be displayed by the BIOS:

TYPE: This item displays the type of CPU.

Cylinders: This item indicates the status of Cylinders.

Headers: This item indicates the number of headers.

Sectors: This item displays the number of sectors.

Maximum Capacity: This item displays the maximum storage capacity of

the system.

LBA Format

The following items will be displayed by the BIOS:

Total Sectors: This item displays the number of total sectors available in

the LBA Format.

Maximum Capacity: This item displays the maximum capacity in the LBA

Format.

Multi-Sector Transfer

This item allows the user to specify the number of sectors per block to be used
in multi-sector transfer. The options are Disabled, 4 Sectors, 8 Sectors, and
16 Sectors.

LBA Mode Control

This item determines if the BIOS will access the Primary IDE Master Device via

the LBA mode. The options are Enabled and Disabled.

32 Bit I/O

This feature allows the user to enable or disable the function of 32-bit data

transfer. The options are Enabled and Disabled.

Transfer Mode

This feature allows the user to select the transfer mode. The options are

Standard, Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1, and

FPIO4/DMA2.

Ultra DMA Mode

This feature allows the user to select the Ultra DMA Mode. The options are

Disabled, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

System Memory

This display informs you how much system memory is detected in the system.

Extended Memory

This display informs you how much extended memory is detected in the system.

4-6

Chapter 4: BIOS

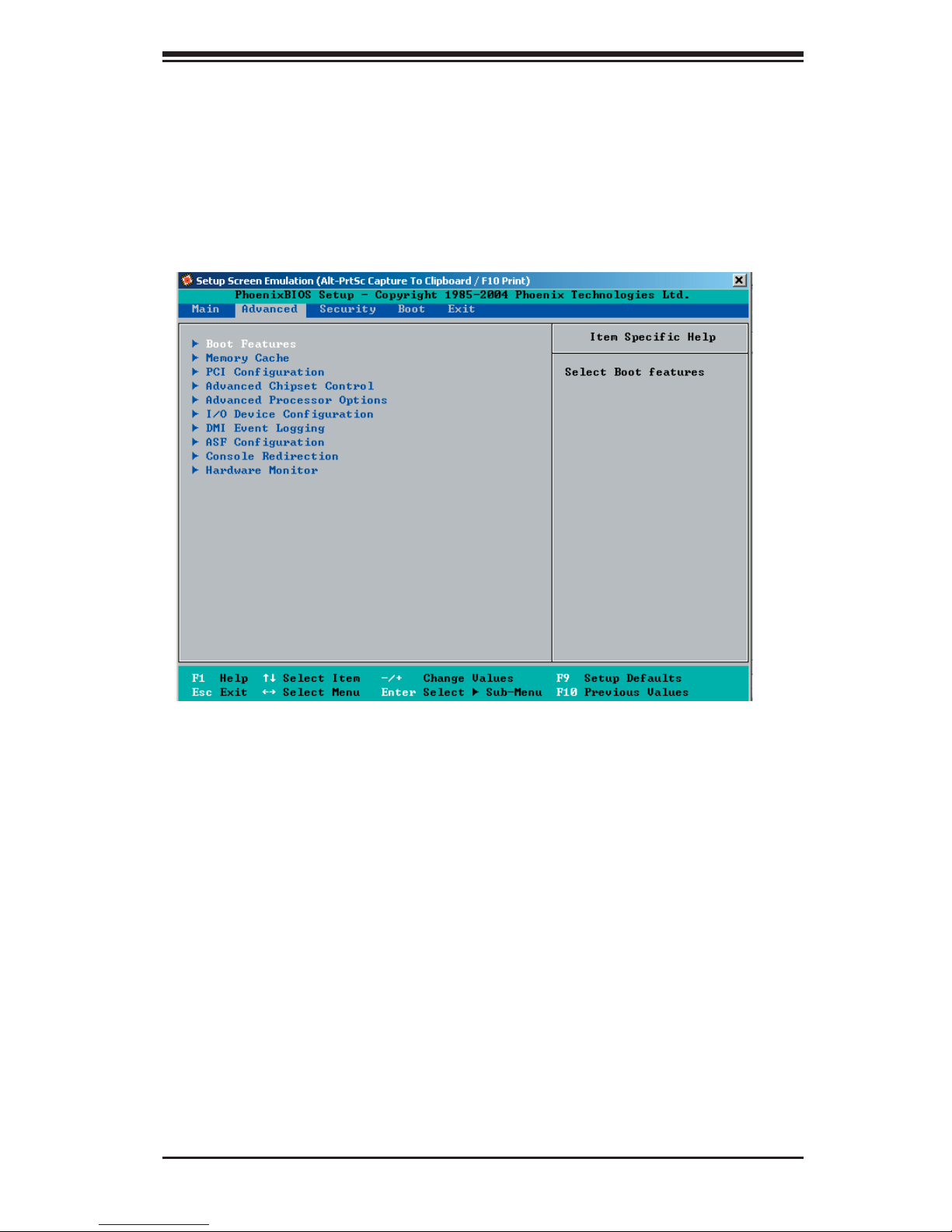

4-4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow

keys. You should see the following display. The items with a triangle beside them

have sub menus that can be accessed by highlighting the item and pressing <Enter>.

Options for PIR settings are displayed by highlighting the setting option using the

arrow keys and pressing <Enter>. All Advanced BIOS Setup options are described

in this section.

Boot Features

Access the submenu to make changes to the following settings.

Quick Boot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine by

skipping certain tests after the computer is turned on. The settings are Enabled

and Disabled. If Disabled, the POST routine will run at normal speed.

Quiet Mode

Set to Enabled to display the Diagnostic Screen during POST. The settings are

Enabled and Disabled.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Confi guration

and Power Interface) power management on your system. The options are

Yes and No.

4-7

PDSM4/PDSME User's Manual

Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user

hits the power button. If set to 4-sec., the system will power off when the user

presses the power button for 4 seconds or longer. The options are instant-off

and 4-sec override.

Resume On Modem Ring

Select On to "wake your system up" when an incoming call is received by your

modem. The options are On and Off.

Power Loss Control

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Last State, Stay off, and

Power On.

Watch Dog

If enabled, this option will automatically reset the system if the system is not

active for more than 5 minutes. The options are Enabled and Disabled.

Summary Screen

This setting allows you to Enable or Disable the summary screen which displays

the system confi guration during bootup.

Memory Cache

Cache Memory

Set to enabled to set the state of Cache Memory. The options are Enabled

and Disabled.

Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be

used as a System BIOS buffer to allow the BIOS to write (cache) its data into

this reserved memory area. Select "Write Protect" to enable this function, and

this area will be reserved for the BIOS ROM access only. Select "Uncached" to

disable this function and make this area available for other devices.

4-8

Chapter 4: BIOS

Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be

used as a Video BIOS buffer to allow the BIOS to write (cache) its data into this

reserved memory area. Select "Write Protect" to enable the function and this

area will be reserved for Video BIOS ROM access only. Select "Uncached" to

disable this function and make this area available for other devices.

Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area:

block 0-512K to be cached (written) into a buffer, a storage area in the Static

DRM (SDROM) or to be written into L1, L2 cache inside the CPU to speed

up CPU operations. Select "Uncached" to disable this function. Select "Write

Through" to allow data to be cached into the buffer and written into the system

memory at the same time. Select "Write Protect" to prevent data from being

written into the base memory area of Block 0-512K. Select "Write Back" to allow

the CPU to write data back directly from the buffer without writing data to the

System Memory for fast CPU data processing and operation. The options are

Uncached, Write Through, Write Protect, and Write Back.

Cache Base 512K-640K

If enabled, this feature will allow the data stored in the base memory area: block

512K-640K to be cached (written) into a buffer, a storage area in the Static DRM

(SDROM) or to be written into L1, L2 cache inside the CPU to speed up CPU

operations. Select "Uncached" to disable this function. Select "Write Through"

to allow data to be cached into the buffer and written into the system memory

at the same time. Select "Write Protect" to prevent data from being written

into the base memory area of Block 512K-640K. Select "Write Back" to allow

the CPU to write data back directly from the buffer without writing data to the

System Memory for fast CPU data processing and operation. The options are

Uncached, Write Through, Write Protect, and Write Back.

Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area to

be cached (written) into a buffer, a storage area in the L1, L2, L3 cache inside

the CPU to speed up CPU operations. Select "Uncached" to disable this function.

Select "Write Through" to allow data to be cached into the buffer and written

into the system memory at the same time. Select "Write Protect" to prevent

data from being written into the extended memory area. Select "Write Back" to

allow the CPU to write data back directly from the buffer without writing data to

the System Memory for fast CPU data processing and operation. The options

are Uncached, Write Through, Write Protect, and Write Back.

4-9

PDSM4/PDSME User's Manual

Discrete MTRR Allocation

If enabled, MTRRs (-Memory Type Range Registers) are confi gured as distinct,

separate units and cannot be overlapped. If enabled, the user can achieve

better graphic effects when using a Linux graphic driver that requires the write-

combining confi guration with 4GB or more memory. The options are Enabled

and Disabled.

PCI Confi guration

Access the submenu to make changes to the following settings for PCI devices.

Onboard GLAN1/GLAN2 (Gigabit- LAN)/SCSI OPROM Confi guration

Enabling this option provides the capability to boot from GLAN1, GLAN2 or SCSI.

The options are Disabled and Enabled.

Reset Confi guration Data

If set to Yes, this setting clears the Extended System Confi guration Data- (ESCD)

area. The options are Yes and No.

Frequency for PCIX#1-#2/SCSI, PCIX#5-#6

This option allows the user to change the bus frequency for the devices installed

in the slots indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66

MHz, PCI-X 100 MHz, and PCI-X 133 MHz.

Slot1 PCI-X 100MHz ZCR, Slot2 PCI-X 100MHz, Slot3 PCI-Exp X1,
Slot4 PCI-Exp X4, Slot5 PCI-X 133 MHz, Slot6 PCI-X 133 MHz

Access the submenu for each of the settings above to make changes to the

following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options

are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI bus master.

The options are Enabled and Disabled.

Latency Timer

This setting allows you to set the clock rate for Bus Master. A high-priority, high-

throughout device may benefi t from a greater clock rate. The options are Default,

0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h. For Unix, Novell and

other Operating Systems, please select the option: other. If a drive fails after

the installation of a new software , you might want to change this setting and

try again. A different OS requires a different Bus Master clock rate.

4-10

Chapter 4: BIOS

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options

are DOS or Other (for Unix, Novelle NetWare and other operating systems).

Advanced Chipset Control

Access the submenu to make changes to the following settings.

*Warning: Take Caution when changing the Advanced settings. An

incorrect setting, a very high DRAM frequency, or an incorrect DRAM

timing may cause the system to become unstable. When this occurs,

reset the setting to the default setting.

Clock Spectrum Feature

If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused

by the components and will attempt to decrease the interference whenever needed.

The options are Enabled and Disabled.

ECC Conditions

This setting specifi es the ECC Error conditions that will be treated as "ECC Error

Events" by the system. The options are None, Single Bit, Multiple Bit, and Both.

(*Note: This item is available when it is supported by the memory.)

ECC Error Handler

This setting allows you to select the type of interrupt to be activated as a result of

an ECC error. The options are None, NMI (Non-Maskable Interrupt), SMI (System

Management Interrupt) and SCI (System Control Interrupt.) (*Note: This item is

available when it is supported by the memory.)

Onboard GLANs

This feature allows the user to enable this function to allow the BIOS to disable

Gigabit LAN. The options are: Enabled and Disabled.

Route Port 80h Cycles to

This feature allows the user to decide which bus to send the debug information to.

The options are PCI, LPC and Disabled.

USB Function

If set to Enabled to enable the USB function when the user keys in a value to a

USB item. The options are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for the Legacy USB devices. The settings

are Enabled and Disabled.

4-11

PDSM4/PDSME User's Manual

Advanced Processor Options

Access the submenu to make changes to the following settings:

CPU Speed

The feature allows the BIOS to display the CPU Speed.

Frequency Ratio

This feature allows the user to select the ration for the internal frequency multiplier

of the CPU. The options are Default, X14, X15, and X16.

Hyper-threading (*Available when supported by the CPU.)

This setting allows you to Enable or Disable the function of hyper-threading.

Enabling hyper-threading results in increased CPU performance. (Applicable for

XP systems.)

Single Logical Processor Mode (*Available when supported by the CPU.)

This feature allows the user to select the Processor Operation Mode. Set to Disabled

to allow the processor to operate in the "single core" mode. Set to Enabled to allow

the processor to operate in the "multi-core" (dual-core) mode.

Machine Checking (*Available when supported by the CPU.)

Set to Enabled to activate the function of Machine Checking and allow the CPU to

detect and report hardware (machine) errors via a set of model-specifi c registers

(MSRs). The options are Disabled or Enabled.

L3 Cache (*Available when supported by the CPU.)

Set to Enabled to enable L3 cache in the CPU to enhance system performance.

The options are Disabled and Enabled.

Thermal Management 2 (*Available when supported by the CPU.)

Set to Enabled to use Thermal Management 2 (TM2) which will lower CPU voltage

and frequency when the CPU temperature reaches a pre-defi ned overheat threshold.

Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking to be

regulated via CPU Internal Clock modulation when the CPU temperature reaches

the overheat threshold.

4-12

Chapter 4: BIOS

Adjacent Cache Line Prefetch

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The

CPU fetches both cache lines for 128 bytes as comprised if Enabled. The options

are Disabled and Enabled.

C1 Enhanced Mode (*Available when supported by the CPU.)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency

to prevent overheat. The options are Enabled and Disabled. (*Note: please

refer to Intel’s web site for detailed information.)

VT Feature (*Available when supported by the CPU.)

Set to Enabled to utilize enhanced virtualization capabilities provided by the

Intel Vanderpool Technology which allows one platform to run multiple operat-

ing systems and applications in independent partitions, creating multiple "virtual"

systems in one physical computer. The options are Enabled and Disabled.

(*Note: If there is any change to this setting, you will need to power off and re-

start the system for the change to take effect.) Please refer to Intel’s web site

for detailed information.

No Execute Mode Memory Protection

Set to Enabled to enable Execute Disable Bit and allow the processor to classify

areas in memory where an application code can execute and where it cannot, and

thus preventing a worm or a virus from inserting and creating a fl ood of codes to

overwhelm the processor or damage the system during an attack.

(*Note: this feature is available when your OS and your CPU support the function

of Execute Disable Bit.) The options are Disabled and Enabled. (Note: For more

information regarding hardware/software support for this function, please refer to

Intel's and Microsoft's web sites.)

Processor Power Management (*Available when supported by the CPU.)

This feature allows the user to determine the processor power management

mode. The options are Disabled and C States Only. If set to Disabled, C States

and GV1/GV3 are disabled. If set to C States only, the processor power will be

controlled through CPU power states in the APCI setting.

4-13

PDSM4/PDSME User's Manual

I/O Device Confi guration

Access the submenu to make changes to the following settings.

KBC Clock input

This setting allows you to set the clock frequency for the Keyboard Clock. The

options are 6MHz, 8MHz, 12 MHz, and 16MHz.

Serial Port A

This setting allows you to decide how Serial Port A is controlled. The options

are Enabled (user defi ned), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for Serial Port A. The

options are 3F8, 2F8, 3E8, and 2E8.

Interrupt

This setting allows you to set the Interrupt for Serial Port A. The options are

IRQ3 and IRQ4.

Serial Port B

This setting allows you to decide how Serial Port B is controlled. The options

are Enabled (user defi ned), Disabled, and Auto (BIOS- or OS- controlled).

Mode

This feature allows the user to set the mode for Serial Port B. The options

are Normal and IR.

Base I/O Address

This setting allows you to select the base I/O address for Serial Port B. The

options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to set the Interrupt for Serial Port B. The options are

IRQ3 and IRQ4.

Parallel Port

This setting allows you to assign control of the Parallel Port. The options are

Enabled (user defi ned), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for the Parallel Port.

The options are 378, 278, and 3BC.

4-14

Chapter 4: BIOS

Interrupt

This setting allows you to set the Interrupt for the Parallel Port. The options

are IRQ5 and IRQ7.

Mode

This feature allows the user to set the mode for the Parallel Port. The options

are Output Only, Bi-Directional, EPP, and ECP.

DMA Channel

This feature allows the user to select the DMA Channel for the Parallel Port. The

options are DMA1 and DMA3.

Floppy Disk Controller

This setting allows you to assign control of the fl oppy disk controller. The options

are Enabled (user defi ned), Disabled, and Auto (BIOS and OS controlled).

Base I/O Address

Select the base I/O address for the parallel port. The options are Primary and

Secondary.

DMI Event Logging

Access the submenu to make changes to the following settings.

Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Event Logging

This setting allows you to Enable or Disable event logging.

ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes

and No.

4-15

PDSM4/PDSME User's Manual

Console Redirection

Access the submenu to make changes to the following settings.

COM Port Address

This item allows you to specify which COM port to redirect the console to:

Onboard COM A or Onboard COM B. This setting can also be Disabled.

BAUD Rate

This item allows you to select the BAUD rate for console redirection. The options

are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K, and 115.2K.

Console Type

This item allows you to select the console type for console redirection. The options
are VT100, VT100,8bit, PC-ANSI, 7bit, PC ANSI, VT100+, and VT-UTF8.

Flow Control

This item allows you to set the fl ow control for console redirection. The options

are: None, XON/XOFF, and CTS/RTS.

Console Connection

This item allows you to decide how Console Redirection is to be connected:

either Direct or Via Modem.

Continue CR after POST

This item allows you to decide if you want to continue with console redirection

after POST routines. The options are On and Off.

4-16

Chapter 4: BIOS

Hardware Monitoring

CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate
the alarm system when the CPU temperature reaches this pre-set temperature

threshold. The options are 75

Highlight this and hit <Enter> to see the data for the following items:

CPU Temperature

System Temperature

Fan Speed Control Modes

This feature allows the user to decide how the system controls the speeds of the

onboard fans. The CPU temperature and the fan speed are correlative. When the

CPU on-die temperature increases, the fan speed will also increase, and vice versa.

If the option is set to "3-pin fan," the fan speed is controlled by voltage. If the

option is set to "4-pin," the fan speed will be controlled by Pulse Width Modulation

(PWM). Select “3-pin” if your chassis came with 3-pin fan headers. Select “4-pin” if

your chassis came with 4-pin fan headers. Select “Workstation” if your system is

used as a Workstation. Select “Server” if your system is used as a Server. Select

“Disable” to disable the fan speed control function to allow the onboard fans to

constantly run at full speed (12V). The Options are: 1. Disable, 2. 3-pin (Server),

3. 3-pin (Workstation), 4. 4-pin (Server) and 5. 4-pin (Workstation).

o

C, 80oC, 85oC, and 90oC. (*See the note below.)

Fan 1 Speed - FAN 6 Speed: If the feature of Auto Fan Control is enabled, the

BIOS will automatically display the status of the fans indicated in this item.

The Voltage status of the following items will be displayed:

Vcore

Vin0 (+12V)

3VCC (+3.3V)

Vin1 (+1.5V)

Vin2 (+1.8V)

Vin3 (+5V)

Vin4 (-12V)

3.3V Standby

*Note: In the Windows OS environment, the Supero Doctor III settings take pre-

cedence over the BIOS settings. When fi rst installed, Supero Doctor III adopts the

temperature threshold settings previously set in the BIOS. Any subsequent changes

to these thresholds must be made within Supero Doctor, since the SD III settings

override the BIOS settings. For the Windows OS to adopt the BIOS temperature

threshold settings, please change the SDIII settings to be the same as those set

in the BIOS.

4-17

PDSM4/PDSME User's Manual

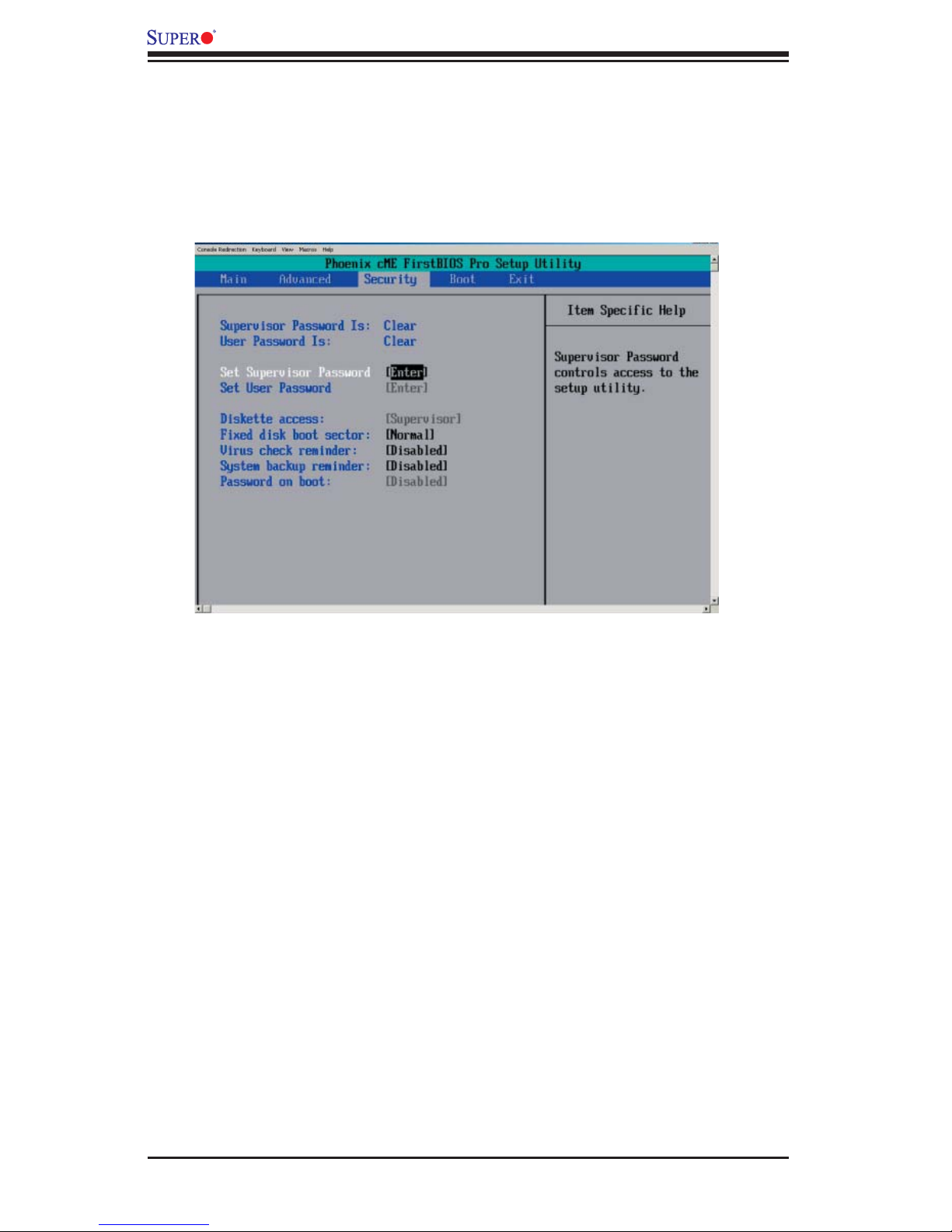

4-5 Security

Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow

keys. You should see the following display. Security setting options are displayed

by highlighting the setting using the arrow keys and pressing <Enter>. All Security

BIOS settings are described in this section.

Supervisor Password Is:

This item indicates if a supervisor password has been entered for the system. Clear

means such a password has not been used and Set means a supervisor password

has been entered for the system.

User Password Is:

This item indicates if a user password has been entered for the system. Clear

means such a password has not been used and Set means a user password has

been entered for the system.

Set Supervisor Password

When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When

prompted, type the Supervisor's password in the dialogue box to set or to change

supervisor's password, which allows access to the BIOS.

Set User Password

When the item "Set User Password" is highlighted, hit the <Enter> key. When

prompted, type the user's password in the dialogue box to set or to change the

user's password, which allows access to the system at boot-up.

4-18

Chapter 4: BIOS

Fixed Disk Boot Sector

This setting may offer some protection against viruses when set to Write Protect,

which will prevent a virus writing illegal codes into the boot sector of the hard drive.

The other option is Normal.

Password on Boot

This setting allows you to decide if a password is required for a user to enter the

system at system boot. The options are Enabled (password required) and Disabled

(password not required).

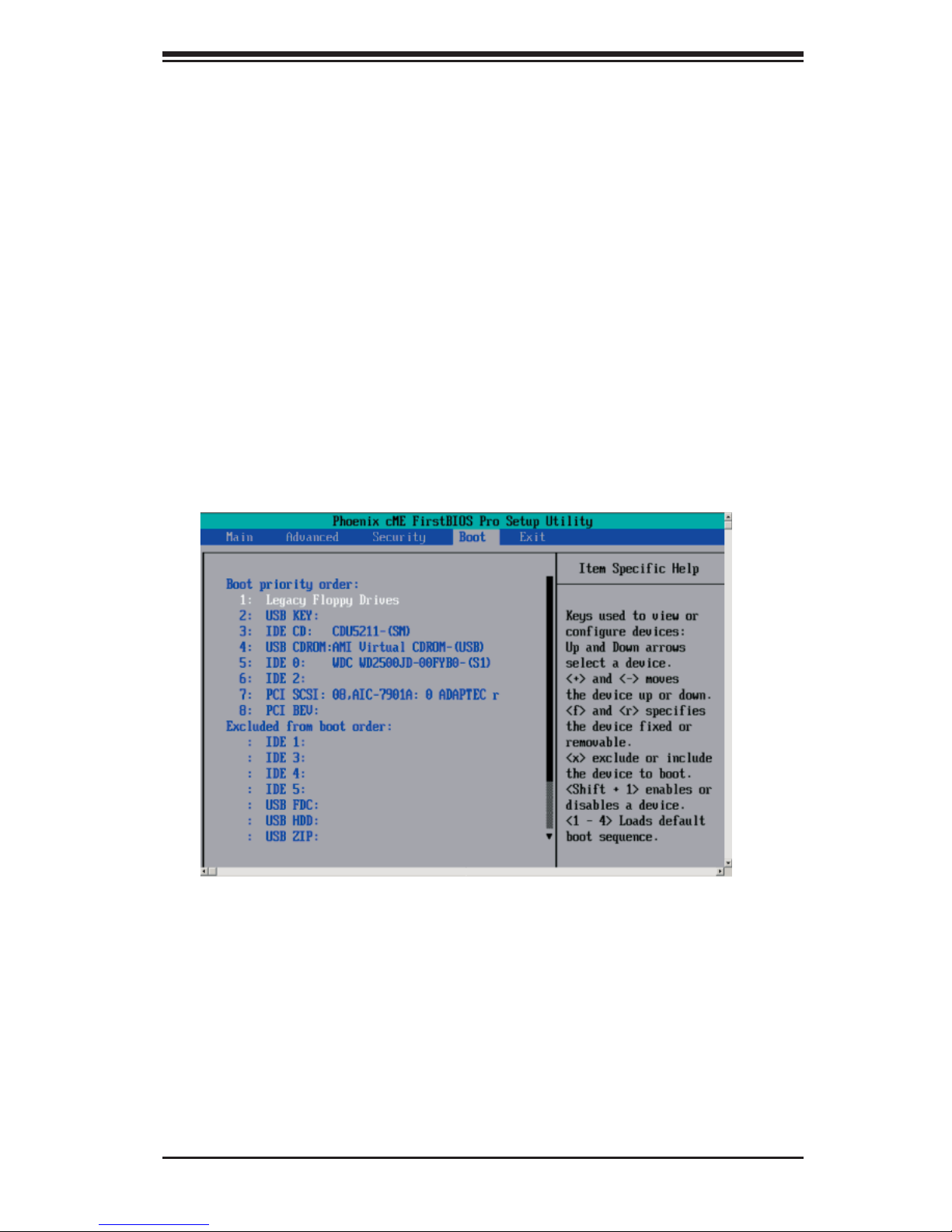

4-6 Boot

Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys.

You should see the following display. Highlighting a setting with a + or - will expand

or collapse that entry. See details on how to change the order and specs of boot

devices in the Item Specifi c Help window. All Boot BIOS settings are described in

this section.

Boot Priority Order/Excluded from Boot Order.

Use the Up and Down Arrow Keys to select a device. Use <+> and <-> keys to

move the device up or down. Use the <f> key or the <r> key to specify the devices.

You can also use the keys indicated above to specify the priority of the boot order

for a device or move a item from the category of "Excluded from Boot Order" to

the category of "Boot Priority Order" and vise versa. Please refer to the window of

"Item Specifi c Help" for details.

4-19

PDSM4/PDSME User's Manual

4-7 Exit

Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys.

You should see the following display. All Exit BIOS settings are described in this

section.

Exit Saving Changes

Highlight this item and hit <Enter> to save any changes you made and to exit the

BIOS Setup utility.

Exit Discarding Changes

Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any

changes you may have made.

Load Setup Defaults

Highlight this item and hit <Enter> to load the default settings for all items in the

BIOS Setup. These are the safest settings to use.

Discard Changes

Highlight this item and hit <Enter> to discard (cancel) any changes you made.

You will remain in the Setup utility.

Save Changes

Highlight this item and hit <Enter> to save any changes you made. You will remain

in the Setup utility.

4-20

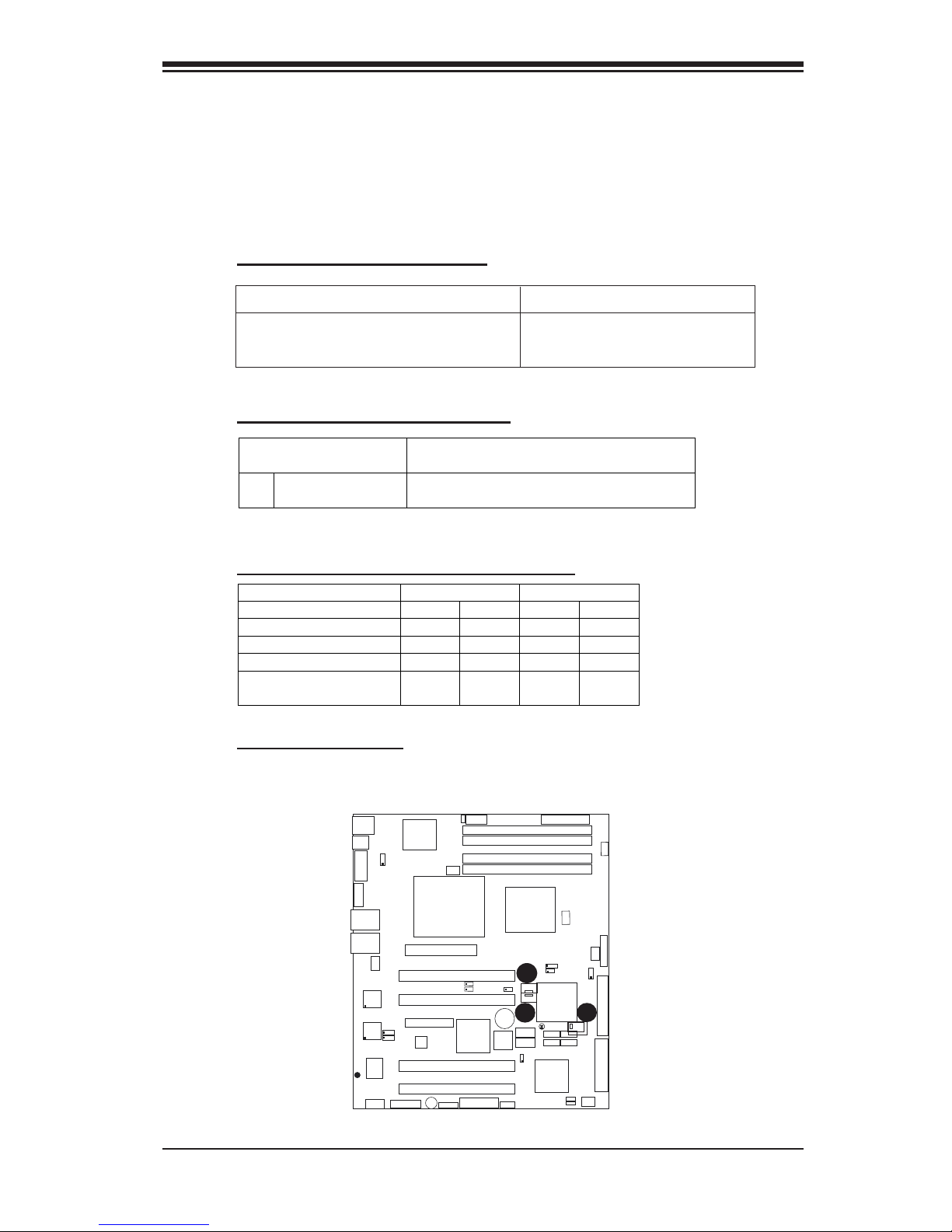

Appendix A: BIOS POST Messages

Appendix A

BIOS POST Messages and LED Indicators

During the Power-On Self-Test (POST), the BIOS will check for problems. If a prob-

lem is found, the BIOS will activate an alarm or display a message. The following is

a list of such BIOS messages.

A-1 BIOS POST Beep Codes

Beeps Error Messages

1 long beep-pause-1 long beep Memory Module Errors

1 long beep + 2 short beeps VGA Errors

A-2 LE1: 5V Standby PWR LED

A-3 LE3/LE4 System Debug Indicators

A-4 LED Locations

LE1:

Action

5V Standby PWR LED

Standby PWR On Turn off the PWR supply before removing

On

or installing components

State LE3 Indicator LE4 Indicator
PWR-ON to POST
ECC Memory Testing
PCI Bus Initializing
VGA Initializing
System Normal

Green On Yellow On
Green Flash Yellow Flash
Green On Yellow Flash
Green Flash Yellow On
Off N/A Off N/A

(After POST)

KB/MS

USB

J31

JG1

GLAN1

GLAN2

®

A. LE1

24-Pin ATX PWR

ck)

e

)

ck)

e

)

JWD

JPF

(South Bridge)

JBT1

SATA0

SATA1

JPA1

SCSI

ICH7R

JPW1

2
Fan

1
n

Fa

3

CTRL
P

F

Fan

1

F

J

JLED

IDE

A

LE1

J3

SATA2
SATA3

SCSI Channel

JA1

JL1

Fan

4

JPA2

Fan

CPU

LGA 775

LP IPMI

PCI-X 133 MHz

PCI-X 133 MHz

PCI-E x4

SPKR

J9

JPW2

PW3

6

PXH

(The Green Slot)

Floppy

JP5
JP6

12-pin PWR

DIM

M

DIM

M#1B

D

IM

M

DIM

M

JWOR

Battery

BIOS

WOL

#2B

(Bla

(B

#2A

(B

#1A

(B

Mukilteo

(North Bridge)

E7230

C

B

USB 3/4

USB 5/6

lu

la

lu

LE4

LE3

J28

J15

VGA

M4
S

UPER PD

S

COM1

LAN

CTRL

LAN

CTRL

S I/O

COM2

JPG1

Fan5

JPL1

JPL2

ATI

Rage XL

Pentium Dural Core CPU

Slot7

Slot6

Slot5

Slot4

W83792

Slot2

PCI-X#2 100MHz

Slot1

PCI-X#1 100MHz ZCR

Buzzer

Printer

B. LE3
C. LE4

A-1

PDSM4/PDSME User's Manual

A-5 BIOS Messages

Failure Fixed Disk

Fixed disk is not working or not confi gured properly. Check to see if fi xed disk is at-

tached properly. Run Setup. Find out if the fi xed-disk type is correctly identifi ed.

Stuck key

Stuck key on keyboard.

Keyboard error

Keyboard not working.

Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

Keyboard locked - Unlock key switch

Unlock the system to proceed.

Monitor type does not match CMOS - Run SETUP

Monitor type not correctly identifi ed in Setup

Shadow Ram Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was de-

tected.

System RAM Failed at offset: nnnn

System RAM failed at offset nnnn of in the 64k block at which the error was de-

tected.

Extended RAM Failed at offset: nnnn

Extended memory not working or not confi gured properly at offset nnnn.

System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and

run Setup to reconfi gure the system.

A-2

Appendix A: BIOS POST Messages

System CMOS checksum bad - Default confi guration used

System CMOS has been corrupted or modifi ed incorrectly, perhaps by an

application program that changes data stored in CMOS. The BIOS installed Default

Setup Values. If you do not want these values, enter Setup and enter your own values.

If the error persists, check the system battery or contact your dealer.

System timer error

The timer test failed. Requires repair of system board.

Real time clock error

Real-Time Clock fails BIOS hardware test. May require board repair.

Check date and time settings

BIOS found date or time out of range and reset the Real-Time Clock. May require

setting legal date (1991-2099).

Previous boot incomplete - Default confi guration used

Previous POST did not complete successfully. POST loads default values and offers

to run Setup. If the failure was caused by incorrect values and they are not corrected,

the next boot will likely fail. On systems with control of wait states, improper Setup

settings can also terminate POST and cause this error on the next boot. Run Setup

and verify that the waitstate confi guration is correct. This error is cleared the next

time the system is booted.

Memory Size found by POST differed from CMOS

Memory size found by POST differed from CMOS.

Diskette drive A error

Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that

the drive is defi ned with the proper diskette type in Setup and that the diskette drive

is attached correctly.

Incorrect Drive A type - run SETUP

Type of fl oppy drive A: not correctly identifi ed in Setup.

Incorrect Drive B type - run SETUP

Type of fl oppy drive B: not correctly identifi ed in Setup.

A-3

PDSM4/PDSME User's Manual

System cache error - Cache disabled

RAM cache failed and BIOS disabled the cache. On older boards, check the cache

jumpers. You may have to replace the cache. See your dealer. A disabled cache slows

system performance considerably.

CPU ID:

CPU socket number for Multi-Processor error.

EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access)

registers.

Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device Address Confl ict

Address confl ict for specifi ed device.

Allocation Error for: device

Run ISA or EISA Confi guration Utility to resolve resource confl ict for the specifi ed

device.

CD ROM Drive

CD ROM Drive identifi ed.

Entering SETUP ...

Starting Setup program

Failing Bits: nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory

test. Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above

for offset address of the failure in System, Extended, or Shadow memory.

A-4

Appendix A: BIOS POST Messages

Fixed Disk n

Fixed disk n (0-3) identifi ed.

Invalid System Confi guration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ confl ict

I/O device IRQ confl ict error.

PS/2 Mouse Boot Summary Screen:

PS/2 Mouse installed.

nnnn kB Extended RAM Passed

Where nnnn is the amount of RAM in kilobytes successfully tested.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kilobytes successfully tested.

nnnn kB Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes successfully tested.

nnnn kB System RAM Passed

Where nnnn is the amount of system RAM in kilobytes successfully tested.

One or more I2O Block Storage Devices were excluded from the Setup Boot

Menu

There was not enough room in the IPL table to display all installed I2O block-storage

devices.

Operating system not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and

see if fi xed disk and drive A: are properly identifi ed.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display

it on the screen. If it cannot locate the address, it displays ????. Parity is a method

for checking errors in binary data. A parity error indicates that some data has been

corrupted.

A-5

PDSM4/PDSME User's Manual

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it

on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F1> to start the boot process

or <F2> to enter Setup and change the settings. Press <F3> to display the previous

screen (usually an initialization error of an Option ROM, i.e., an add-on card). Write

down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST. Can be turned off in Setup.

PS/2 Mouse:

PS/2 mouse identifi ed.

Run the I2O Confi guration Utility

One or more unclaimed block storage devices have the Confi guration Request bit set

in the LCT. Run an I2O Confi guration Utility (e.g. the SAC utility).

System BIOS shadowed

System BIOS copied to shadow RAM.

UMB upper limit segment address: nnnn

Displays the address nnnn of the upper limit of Upper Memory Blocks, indicating

released segments of the BIOS which can be reclaimed by a virtual memory man-

ager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

A-6

Appendix B: BIOS POST Codes

Appendix B

BIOS POST Codes

This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST

codes are divided into two categories: recoverable and terminal.

Recoverable POST Errors

When a recoverable type of error occurs during POST, the BIOS will display an

POST code that describes the problem. BIOS may also issue one of the follow-

ing beep codes:

1 long and two short beeps - video confi guration error

1 repetitive long beep - no memory detected

Terminal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before doing

so, BIOS will write the error to port 80h, attempt to initialize video and write the

error in the top left corner of the screen. The following is a list of codes that may

be written to port 80h.

POST Code Description

01h IPMI Initialization

02h Verify Real Mode

03h Disable Non-Maskable Interrupt (NMI)

04h Get CPU type

06h Initialize system hardware

07h Disable shadow and execute code from the ROM.

08h Initialize chipset with initial POST values

09h Set IN POST fl ag

0Ah Initialize CPU registers

0Bh Enable CPU cache

0Ch Initialize caches to initial POST values

0Eh Initialize I/O component

0Fh Initialize the local bus IDE

10h Initialize Power Management

11h Load alternate registers with initial POST values

12h Restore CPU control word during warm boot

13h Reset PCI Bus Mastering devices

14h Initialize keyboard controller

16h 1-2-2-3 BIOS ROM checksum

17h Initialize cache before memory Auto size

B-1

PDSM4/PDSME User's Manual

POST Code Description

18h 8254 timer initialization

1Ah 8237 DMA controller initialization

1Ch Reset Programmable Interrupt Controller

20h 1-3-1-1 Test DRAM refresh

22h 1-3-1-3 Test 8742 Keyboard Controller

24h Set ES segment register to 4 GB

28h Auto size DRAM

29h Initialize POST Memory Manager

2Ah Clear 512 kB base RAM

2Ch 1-3-4-1 RAM failure on address line xxxx*

2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of

memory bus

2Fh Enable cache before system BIOS shadow

32h Test CPU bus-clock frequency

33h Initialize Phoenix Dispatch Manager

36h Warm start shut down

38h Shadow system BIOS ROM

3Ah Auto size cache

3Ch Advanced confi guration of chipset registers

3Dh Load alternate registers with CMOS values

41h Initialize extended memory for RomPilot (optional)

42h Initialize interrupt vectors

45h POST device initialization

46h 2-1-2-3 Check ROM copyright notice

48h Check video confi guration against CMOS

49h Initialize PCI bus and devices

4Ah Initialize all video adapters in system

4Bh QuietBoot start (optional)

4Ch Shadow video BIOS ROM

4Eh Display BIOS copyright notice

4Fh Initialize MultiBoot

50h Display CPU type and speed

51h Initialize EISA board (optional)

52h Test keyboard

54h Set key click if enabled

55h Enable USB devices

58h 2-2-3-1 Test for unexpected interrupts

59h Initialize POST display service

5Ah Display prompt “Press <ESC> to enter SETUP”

5Bh Disable CPU cache

B-2

Appendix B: BIOS POST Codes

POST Code Description

5Ch Test RAM between 512 and 640 kB

60h Test extended memory

62h Test extended memory address lines

64h Jump to UserPatch1

66h Confi gure advanced cache registers

67h Initialize Multi Processor APIC

68h Enable external and CPU caches

69h Setup System Management Mode (SMM) area

6Ah Display external L2 cache size

6Bh Load custom defaults (optional)

6Ch Display shadow-area message

70h Display error messages

72h Check for confi guration errors

76h Check for keyboard errors

7Ch Set up hardware interrupt vectors

7Dh Initialize Intelligent System Monitoring (optional)

7Eh Initialize coprocessor if present

80h Disable onboard Super I/O ports and IRQs (optional)

81h Late POST device initialization

82h Detect and install external RS232 ports

83h Confi gure non-MCD IDE controllers

84h Detect and install external parallel ports

85h Initialize PC-compatible PnP ISA devices

86h Re-initialize onboard I/O ports.

87h Confi gure Motherboard Confi gurable Devices

(optional)

88h Initialize BIOS Data Area

89h Enable Non-Maskable Interrupts (NMIs)

8Ah Initialize Extended BIOS Data Area

8Bh Test and initialize PS/2 mouse

8Ch Initialize fl oppy controller

8Fh Determine number of ATA drives (optional)

90h Initialize hard-disk controllers

91h Initialize local-bus hard-disk controllers

92h Jump to UserPatch2

93h Build MPTABLE for multi-processor boards

95h Install CD ROM for boot

96h Clear huge ES segment register

97h Fix up Multi Processor table

98h 1-2 Search for option ROMs and shadow if successful. One

long, two short beeps on checksum failure

B-3

PDSM4/PDSME User's Manual

POST Code Description

99h Check for SMART Drive (optional)

9Ch Set up Power Management

9Dh Initialize security engine (optional)

9Eh Enable hardware interrupts

9Fh Determine number of ATA and SCSI drives

A0h Set time of day

A2h Check key lock

A4h Initialize typematic rate

A8h Erase <ESC> prompt

AAh Scan for <ESC> key stroke

ACh Enter SETUP

AEh Clear Boot fl ag

B0h Check for errors

B1h Inform RomPilot about the end of POST (optional)

B2h POST done - prepare to boot operating system

B4h 1 One short beep before boot

B5h Terminate QuietBoot (optional)

B6h Check password (optional)

B7h Initialize ACPI BIOS and PPM Structures

B9h Prepare Boot

BAh Initialize SMBIOS

BCh Clear parity checkers

BDh Display MultiBoot menu

BEh Clear screen (optional)

BFh Check virus and backup reminders

C0h Try to boot with INT 19

C1h Initialize POST Error Manager (PEM)

C2h Initialize error logging

C3h Initialize error display function

C4h Initialize system error fl ags

C6h Console redirection init.

C7h Unhook INT 10h if console redirection enabled

C8h Force check (optional)

C9h Extended ROM checksum (optional)

CDh Reclaim console redirection vector

B-4

Appendix B: BIOS POST Codes

POST Code Description

D2h Unknown interrupt

D4h Check Intel Branding string

D8h Alert Standard Format initialization

D9h Late init for IPMI

DEh Log error if micro-code not updated properly

The following are for boot block in Flash ROM

POST Code Description

E0h Initialize the chipset

E1h Initialize the bridge

E2h Initialize the CPU

E3h Initialize system timer

E4h Initialize system I/O

E5h Check force recovery boot

E6h Checksum BIOS ROM

E7h Go to BIOS

E8h Set Huge Segment

E9h Initialize Multi Processor

EAh Initialize OEM special code

EBh Initialize PIC and DMA

ECh Initialize Memory type

EDh Initialize Memory size

EEh Shadow Boot Block

EFh System memory test

F0h Initialize interrupt vectors

F1h Initialize Run Time Clock

F2h Initialize video

F3h Initialize System Management Manager

F4h Output one beep

F5h Clear Huge Segment

F6h Boot to Mini DOS

F7h Boot to Full DOS

* If the BIOS detects errors on 2C, 2E, or 30 (base 512K RAM error), it displays an

additional word-bitmap (xxxx) indicating the address line or bits that have failed. For

example, “2C 0002” means address line 1 (bit one set) has failed. “2E 1020" means

data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. The BIOS also

sends the bitmap to the port-80 LED display. It fi rst displays the checkpoint code,

followed by a delay, the high-order byte, another delay, and then the loworder byte of

the error. It repeats this sequence continuously.

B-5

PDSM4/PDSME User's Manual

Notes

B-6

Appendix C: Software Installation

Appendix C

Software Installation

After all the hardware has been installed, you must fi rst confi gure Intel's ICH7R

SATA RAID* before you install the Windows Operating System and other software

drivers.

Important Notes to the User:

*Note 1: If you do not wish to confi gure onboard SATA RAID functions, please go

directly to Section C-4 for Operating System & Other Software Installation.

*Note 2: This chapter describes RAID Confi guration Instructions for the Intel ICH

RAID Controller designed for the Windows OS. If you have the PDSME Model and

choose to use the Linux OS, please enable Adaptec's RAID Controller in the BIOS

and refer to the fi le: "E7230 Note.txt" in the folder: "Intel E7230" saved in the CD

that came with your motherboard for Adaptec RAID Confi guration Instructions.

C-1 Introduction to Serial ATA and Parallel ATA

To confi gure the SATA RAID functions, you must fi rst use the Intel ICH7R SATA

RAID Utility program to confi gure the RAID Level that you desire before installing

the Windows XP/2000/2003 operating system and other software drivers. (The

necessary drivers are all included on the Supermicro CD that came packaged with

your motherboard.) Note that the current version of the ICH7R SATA RAID Utility

can only support Windows XP/2000/2003 Operating Systems.

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that uses a single cable with a

minimum of four wires to create a point-to-point connection between devices. It is

a serial link, which supports transfer rates up to 3Gbps. Because the serial cables

used in SATA are thinner than the traditional cables used in Parallel ATA (PATA),

SATA systems have better airfl ow and can be installed in smaller chassis than

Parallel ATA. In addition, the cables used in PATA are limited to a length of 40cm,

while Serial ATA cables can be up to one meter in length. Overall, SATA provides

better functionality than PATA.

Introduction to the Intel ICH7R Serial RAID

Located in the South Bridge of the E7230 Mukilteo chipset, the I/O Controller Hub

(ICH7R) provides the I/O subsystem with access to the rest of the system. It sup-

ports a 2-channel UltraATA/100 Bus Master IDE controller (PATA) and four Serial

ATA (SATA) ports. The ICH7R supports the following PATA and SATA device con-

fi gurations: Legacy mode and Native mode.

C-1

PDSM4/PDSME User's Manual

RAID Confi gurations

The following types of RAID confi gurations are supported:

RAID 0 (Data Striping): this writes data in parallel, interleaved ("striped") sections

of two hard drives. Data transfer rate is doubled over using a single disk.

RAID1 (Data Mirroring): an identical data image from one drive is copied to another

drive. The second drive must be the same size or larger than the fi rst drive.

RAID 10 (Striping & Mirroring): RAID 0 and 1 schemes are combined (without parity

information) to get the benefi ts of both.

RAID 5: both data and parity information are striped and mirrored across three or

more hard drives.

Intel Matrix Storage

The Intel Matrix Storage, supported by the ICH7R, allows the user to create

RAID 0 and RAID1 set by using only two identical hard disk drives. The Intel

Matrix Storage Technology creates two partitions on each hard disk drive and

generate a virtual RAID0 and RAID1sets. It also allows you the change the HDD

partition size without any data.

Confi guring BIOS settings for SATA RAID Functions (Native Mode)

1. Press the <Del> key during system bootup to enter the BIOS Setup Utility.

Note: If it is the fi rst time powering on the system, we recommend you load the

Optimized Default Settings. If you have already done so, please skip to Step 3.

2. Use the arrow keys to select the "Exit" Settings. Once in the "Exit" settings,

Scroll down to select "Load Optimized Default Settings" and press the <Enter>

key. Select "OK" to confi rm the selection. Press the <Enter> key to load the default

settings for the BIOS.

3. Use the arrow keys to select the "Main" section in BIOS.

4. Scroll down to "SATA Control Mode" and press the <Enter> key to select "En-

hanced"

5. Scroll down to "SATA RAID Enabled" and press <Enter>. Then, select "Enabled."

6. Scroll down to "Exit". Select "Save and Exit" from the "Exit" menu. Press the

<Enter> key to save the changes and exit the BIOS.

7. Once you've exited the BIOS Utility, the system will re-boot.

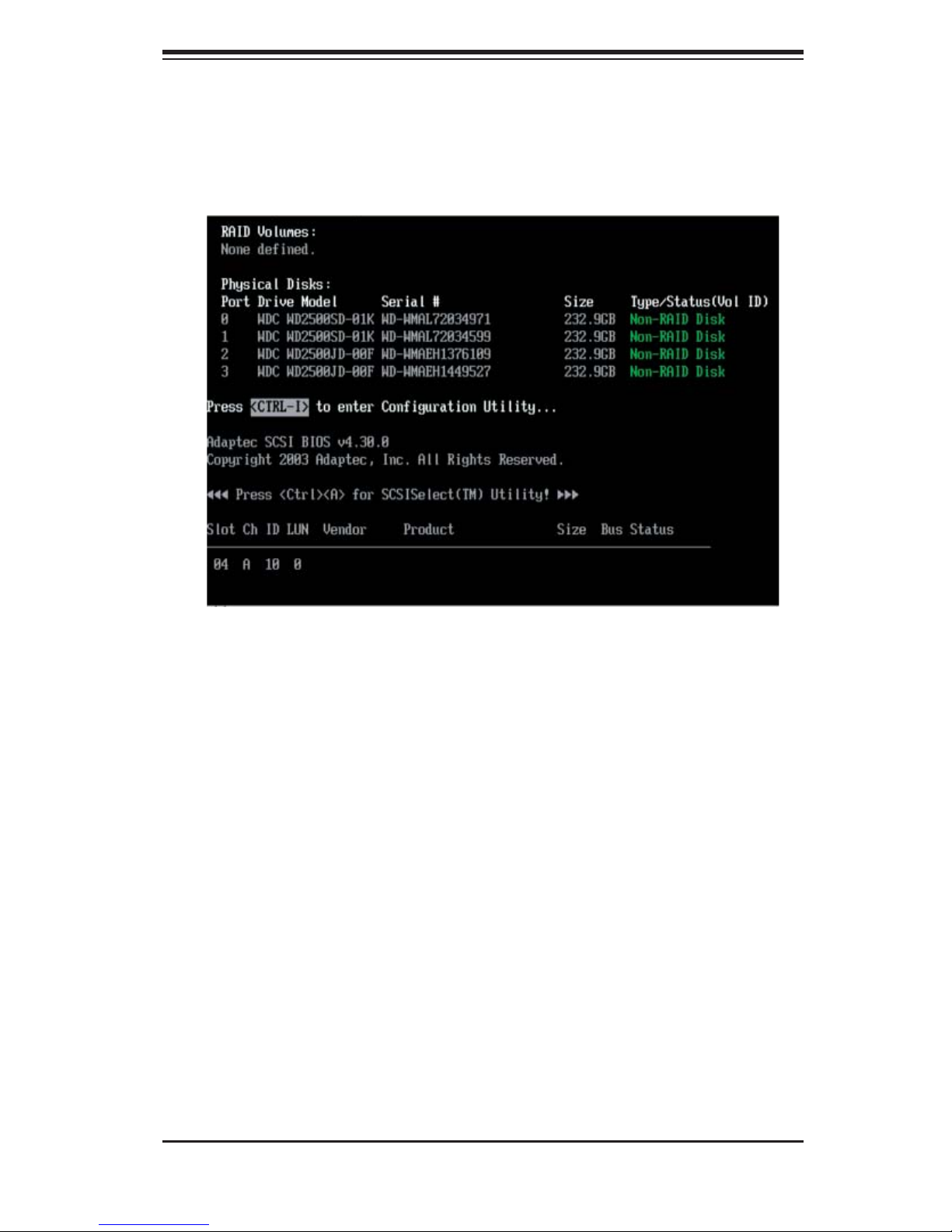

8. During the system boot-up, press the <Ctrl> and <I> keys simultaneously to run

the Intel RAID Confi guration Utility when prompted by the following message: Press

<Ctrl> <I> for Intel RAID Confi guration Utility.

C-2

Appendix C: Software Installation

Using the Intel ICH7R SATA RAID Utility Program

1. Creating, Deleting and Resetting RAID Volumes:

a. After the system exits from the BIOS Setup Utility, the system will automatically

reboot. The following screen appears after Power-On Self Test.

b. When you see the above screen, press the <Ctrl> and the <I> keys simultane-

ously to have the main menu of the SATA RAID Utility appear:

*Note: All graphics and screen shots shown in the manual are for reference only. The

screen shots shown in the manual do not imply Supernicro's endorsement or non-en-

dorsement on any 3rd party's product. Your screens may or many not look exactly the

same as the graphics shown in this manual.

C-3

PDSM4/PDSME User's Manual

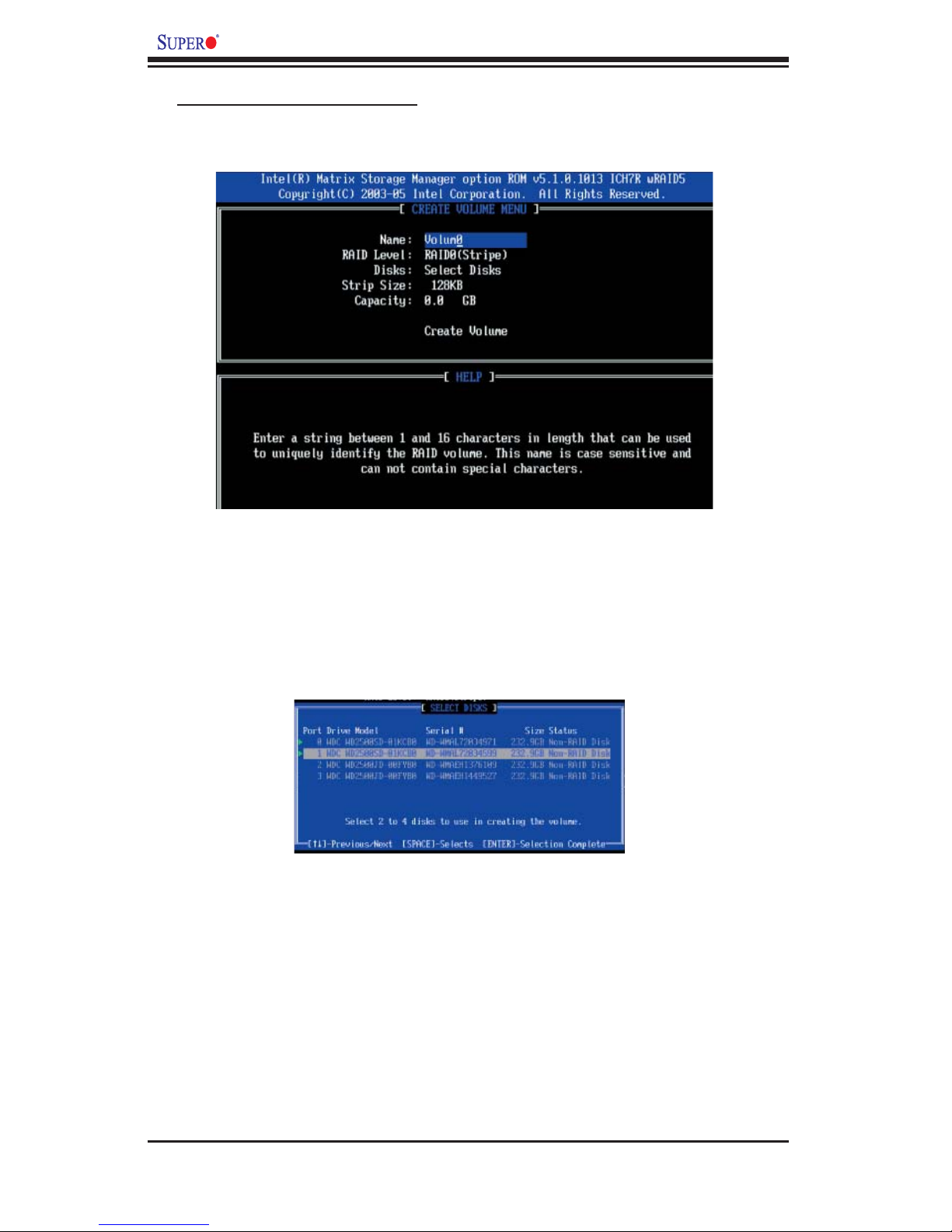

Creating a RAID 0 Volume:

a. Select "Create RAID Volume" from the main menu and press the <Enter> key.

The following screen will appear:

b. Specify a name for the RAID 0 set and press the <Tab> key or the <Enter> key

to go to the next fi eld. (You can use the <Esc> key to select the previous menu.)

c. When RAID Level item is highlighted, press the <Up Arrow>, <Down Arrow> keys

to select RAID 0 (Stripe) and hit <Enter>.

d. When the Disks item is highlighted, press <Enter> to select the HDD to confi gure

as RAID. The following pop-up screen (*See the Note on Page C-3) displays:

e. Use the <Up Arrow>, <Down Arrow> keys to highlight a drive and press <Space>

to select it. A triangle appears to confi rm the selection of the drive.

f. Use the <Up Arrow>, <Down Arrow> keys to selet the stripe size, ranging from

4 KB to 128 KB for the RAID 0 array, and hit <Enter>. (*Note: For a server, please

use a lower stripe size, and for a multimedia system, use a higher stripe size.The

default stripe size is 128 KB.)

g. Press <Enter> when the Create Volume item is highlighted. A warning message

displays.

h. When asked "Are you sure you want to create this volume (Y/N), press "Y" to

create the RAID volume, or type "N" to go back to the Create Volume menu.

C-4

Appendix C: Software Installation

Creating a RAID 1 Volume:

a. Select "Create RAID Volume" from the main menu and press the <Enter> key.

The following screen will appear:

b. Specify a name for the RAID 1 set and press the <Tab> key or the <Enter> key

to go to the next fi eld. (You can use the <Esc> key to select the previous menu.)

c. When RAID Level item is highlighted, press the <Up Arrow>, <Down Arrow> keys

to select RAID 1 (Mirror) and hit <Enter>.

d. When the Capacity item is highlighted, enter your RAID volume capacity and hit

<Enter>. The default setting is the maximum capacity allowed.

e. Press <Enter> when the Create Volume item is highlighted. A warning message

displays.

f. When asked "Are you sure you want to create this volume (Y/N), press "Y" to

create the RAID volume, or type "N" to go back to the Create Volume menu.

C-5

PDSM4/PDSME User's Manual

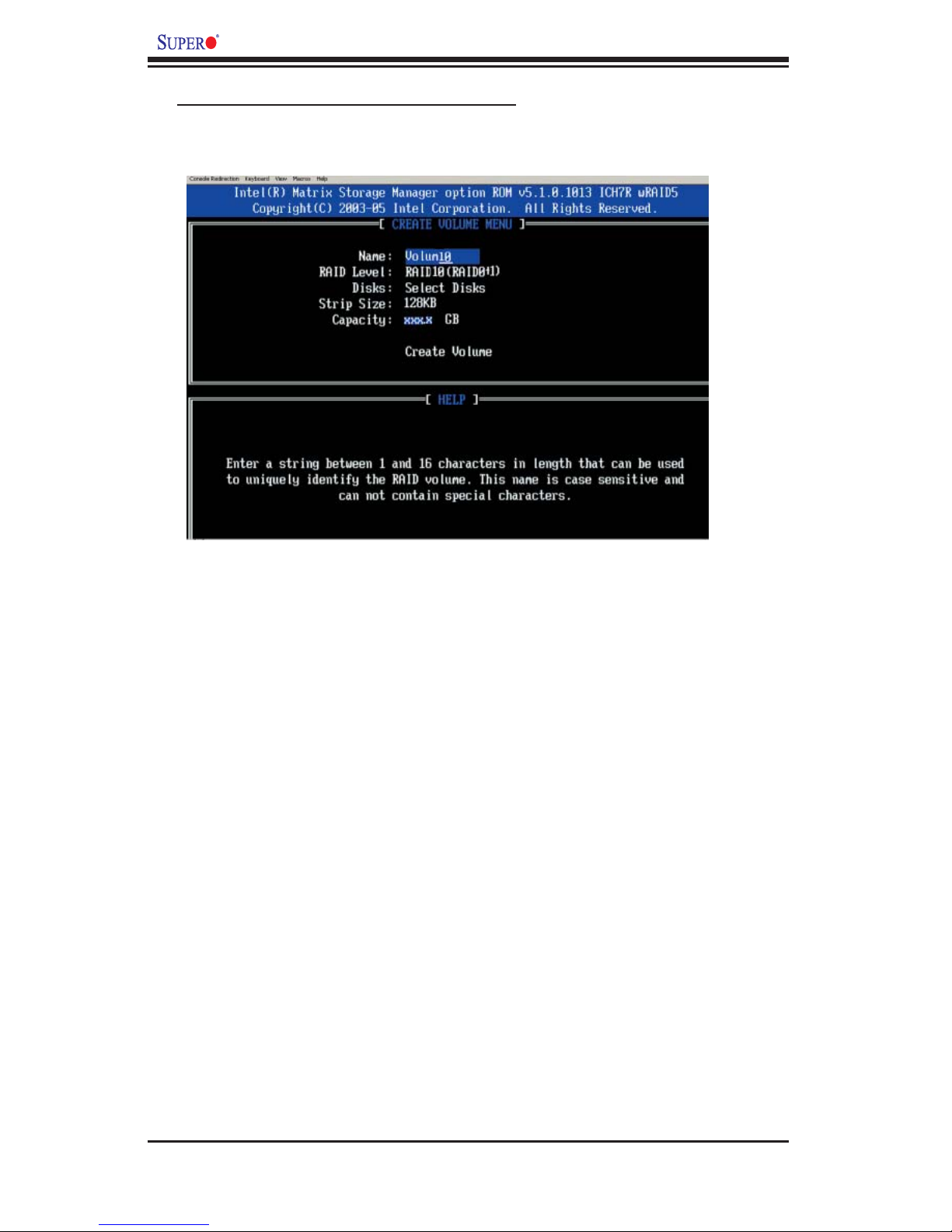

Creating a RAID 10 (RAID 1+ RAID 0):

a. Select "Create RAID Volume" from the main menu and press the <Enter> key.

The following screen will appear:

b. Specify a name for the RAID 10 set and press <Enter>.

c. When RAID Level item is highlighted, use the <Up Arrow>, <Down Arrow> keys

to select RAID 10 (RAID1 + RAID0) and hit <Enter>.

d. When the Stripe Size is highlighted, use the <Up Arrow>, <Down Arrow> keys to

select the stripe size from 4 KB to 128 KB for your RAID 10 and hit <Enter>. The

default setting is 6 4KB. (*Note: For a server, please use a lower stripe size, and

for a multimedia system, use a higher stripe size.)

e. When the RAID Volume Capacity item is highlighted, enter your RAID volume

capacity and hit <Enter>. The default setting is the maximum capacity allowed.

f. Press <Enter> when the Create Volume item is highlighted. A warning message

displays.

f. When asked "Are you sure you want to create this volume (Y/N), press "Y" to

create the RAID volume, or type "N" to go back to the Create Volume menu.

C-6

Appendix C: Software Installation

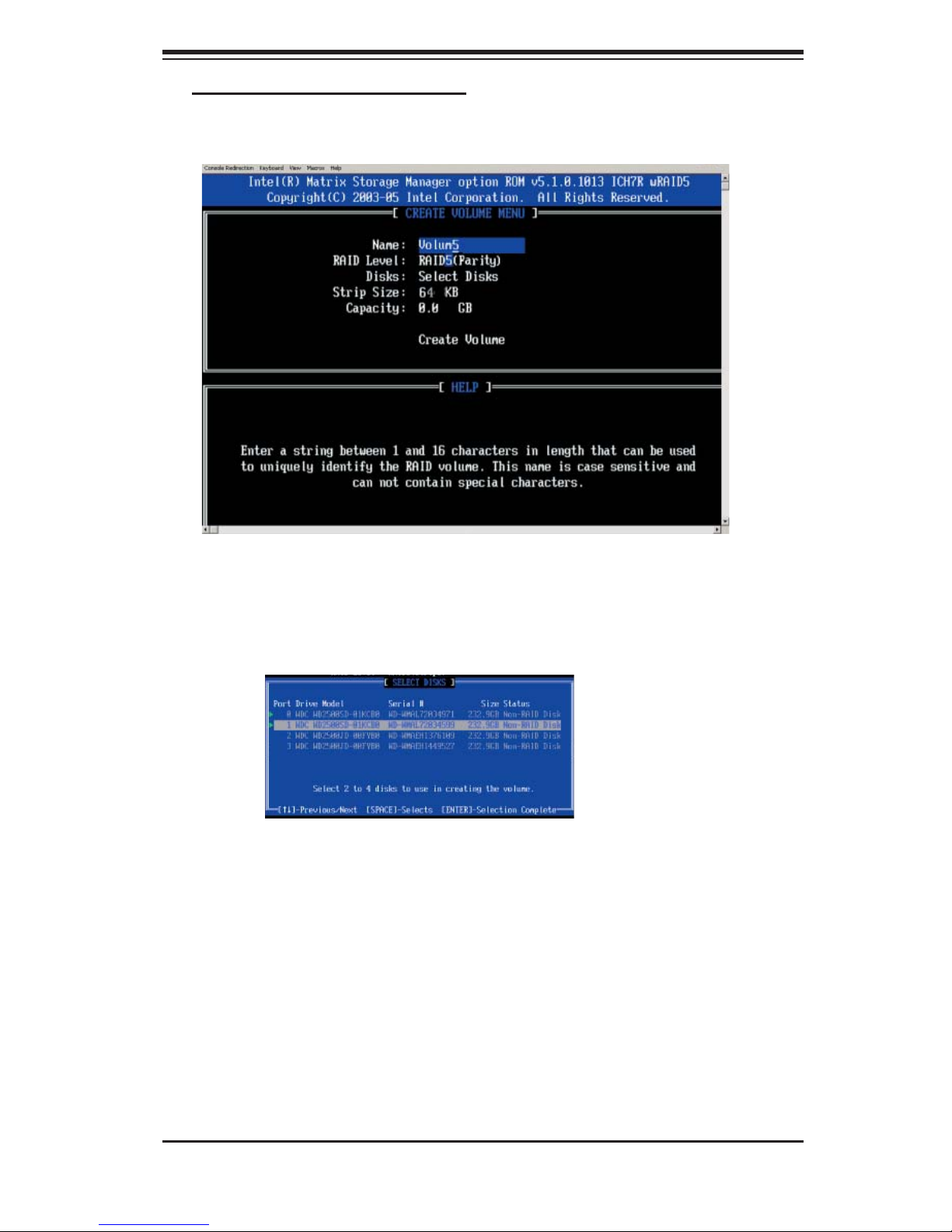

Creating a RAID 5 Set (Parity):

a. Select "Create RAID Volume" from the main menu and press the <Enter> key.

The following screen will appear:

b. Specify a name for the RAID 5 set and press <Enter>.

c. When the Raid Level is highlighted, use the <Up Arrow>, <Down Arrow> keys to

select RAID 5 (Parity) and hit <Enter>.

d. When the Disk item is highlighted, press <Enter> to select the HDD to confi gure

as RAID. The following pop-up screen (*See the Note on Page C-3) displays:

e. Use the <Up Arrow>, <Down Arrow> keys to highlight a drive and press <Space>

to select it. A triangle appears to confi rm the selection of the drive.

f. Use the <Up Arrow>, <Down Arrow> keys to select the stripe size, ranging from

4 KB to 128 KB for the RAID 5 array, and hit <Enter>. (*Note: For a server, please

use a lower stripe size, and for a multimedia system, use a higher stripe size. The

default stripe size is 128 KB.)

g. Enter your desired RAID volume capacity and press <Enter> when the capacity

item is highlighted. The default setting is the maximum capacity allowed.

h Press Enter when the Create Volume item is highlighted. A warning message

displays.

h. When asked "Are you sure you want to create this volume (Y/N), press "Y" to

create the RAID volume, or type "N" to go back to the Create Volume menu.

C-7

PDSM4/PDSME User's Manual

Deleting RAID Volume:

(Warning: Be sure to back up your data before deleting a RAID set. You

will lose all data on the disk drives when deleting a RAID set.)

a. From the main menu, select item2-Delete RAID Volume, and press <Enter>.

b. Use the <Up Arrow>, <Down Arrow> keys to select the RAID set you want to

delete and press <Del>. A Warning message displays.

c. When asked "Are you sure you want to delete this volume (Y/N), press "Y" to

delete the RAID volume, or type "N" to go back to the Delete Volume menu.

C-8

Appendix C: Software Installation

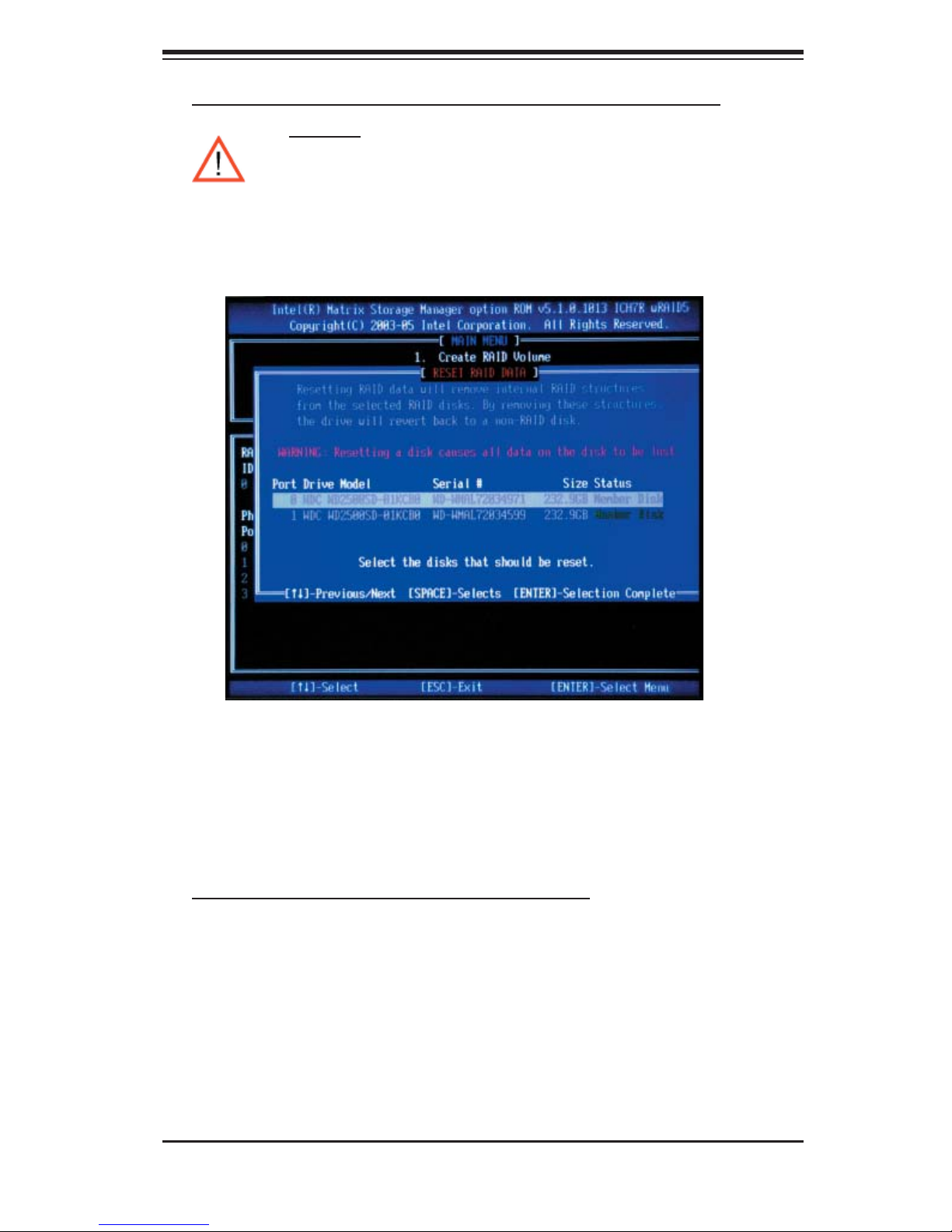

Confi guring Non-RAID Settings and Resetting a RAID HDD

(Warning: Be cautious when you reset a RAID volume HDD to non-

RAID or Resetting a RAID HDD. Resetting a RAID volume HDD or

Restting a RAID HDD will reformat the HDD and delete all internal

RAID structure on the drive.)

a. From the main menu, select item3-Reset Disks to Non- RAID, and press <Enter>.

The following screen will appear:

b. Use the <Up Arrow>, <Down Arrow> keys to highlight the RAID set drive to reset

and press <Space> to select.

c. Press <Enter> to reset the RAID set drive. A Warning message displays.

d. Press "Y" to reset the drive, or type "N" to go back to the main menu.

Exiting the Intel Matrix Storage Manager Utility:

a. From the main menu, select item4-Exit, and press <Enter>. A warning message

will appear.

b. Press "Y" to reset the drive, or type "N" to go back to the main menu.

C-9

PDSM4/PDSME User's Manual

C-2 Installing the Windows XP/2000/2003 for systems
with RAID Functions

Installing a New Operating System-the Windows XP/2000/2003 OS

a. Insert Microsoft's Windows XP/2000/2003 Setup CD in the CD Driver, and the

system will start booting up from CD.

b. Press the <F6> key when the message-" Press F6 if you need to install a third

party SCSI or RAID driver" displays.

c. When the Windows XP/2000/2003 Setup screen appears, press "S" to specify

additional device(s).

d. Insert the driver diskette-"Intel AA RAID XP/2000/2003 Driver for ICH7R into Drive

A: and press the <Enter> key.

e. Choose the Intel(R)82801GR/GH SATA RAID Controller from the list indicated in

the XP/2000/2003 Setup Screen, and press the <Enter> key.

f. Press the <Enter> key to continue the installation process. (If you need to specify

any additional devices to be installed, do it at this time.) Once all devices are speci-

fi ed, press the <Enter> key to continue with the installation.

g. From the Windows XP/2000/2003 Setup screen, press the <Enter> key. The

XP/2000/2003 Setup will automatically load all device fi les and then, continue the

Windows XP/2000/2003 installation.

h. After the Windows XP/2000/2003 Installation is completed, the system will au-

tomatically reboot.

i. Insert Supermicro's CD that came with the package into the CD Drive during

system reboot, and the following screen will appear:

*Note: the current version of the ICH7R SATA RAID Utility can only support the

Windows XP/2000/2003 Operating System.)

C-10

Appendix C: Software Installation

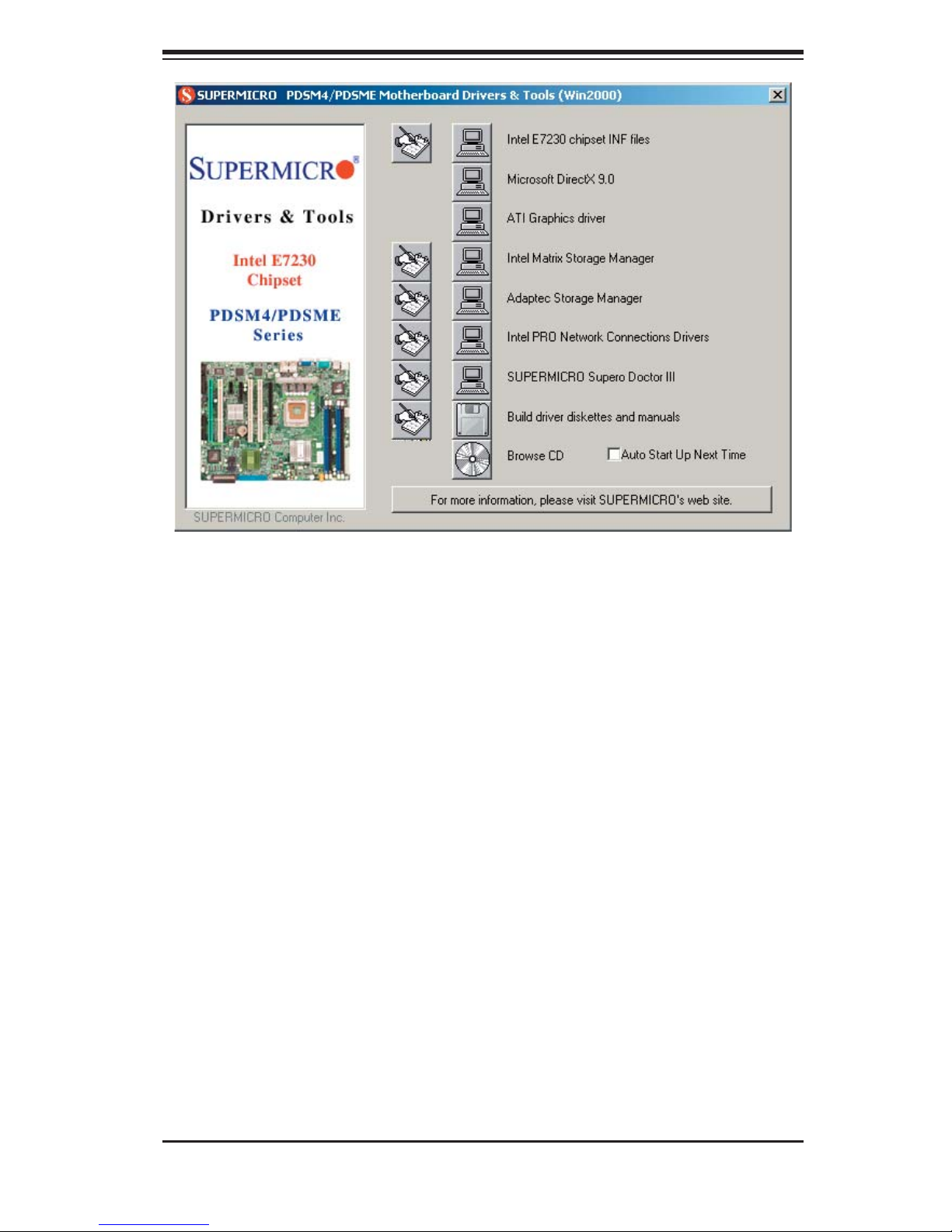

*Note: Click the icons showing a hand writing on the paper to view the readme fi les

for each item. Click the computer icons to the right of these items to install each

item (from top to the bottom) one at a time. After installing each item, you must

re-boot the system before moving on to the next item on the list. The bottom

icon with a CD on it allows you to view the entire contents of the CD.

C-3 Installing Intel Application Accelerator Utility

a. When the above screen appears, click on the icon marked "Application Accel-

erator RAID Edition" on the screen, and the following screen will appear:

C-11

PDSM4/PDSME User's Manual

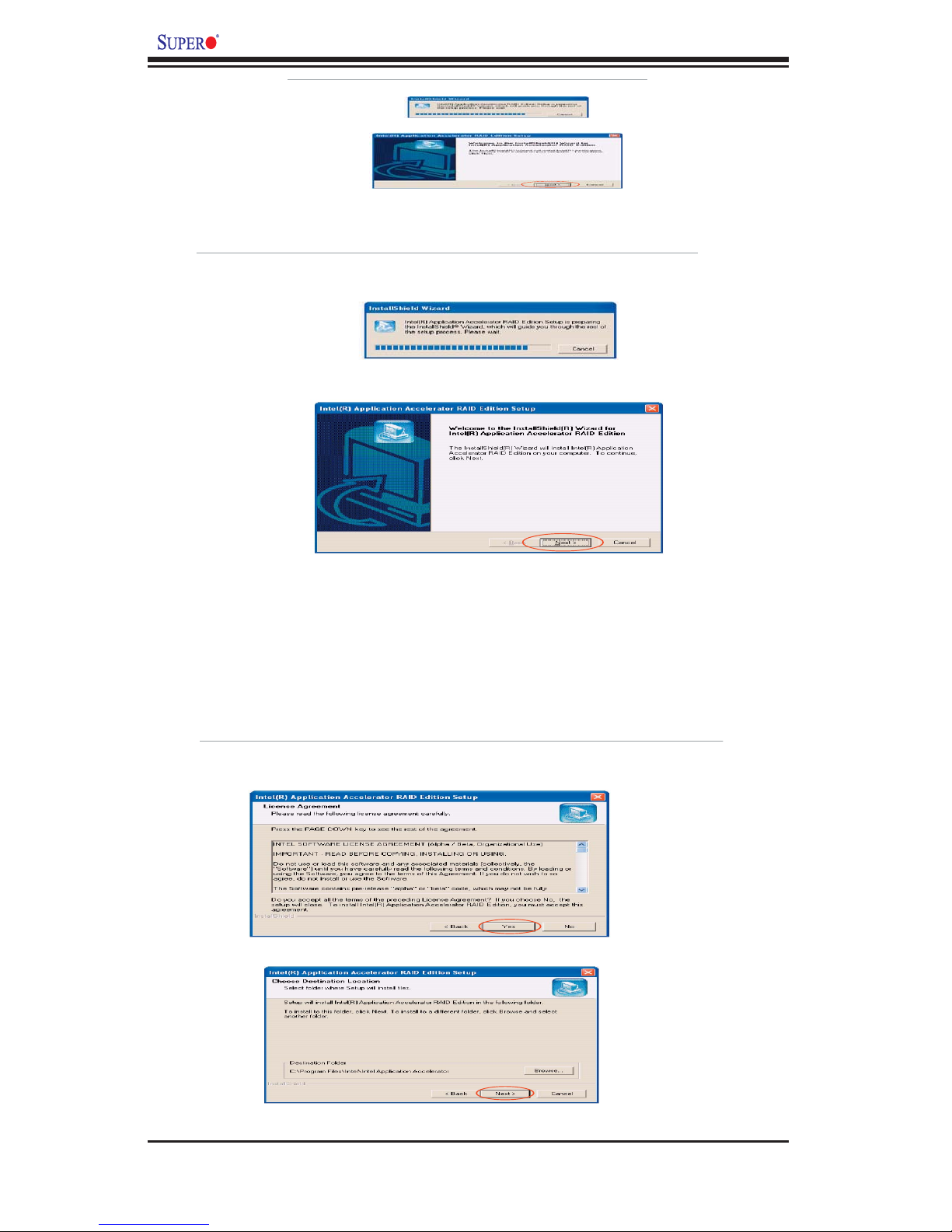

The InstallShield Wizard will begin automatically for installation showed

as following:

Click on the Nextbutton to proceed the installation in the welcoming window.

The InstallShield Wizard will begin automatically for installation showed

as following:

Click on the Next button to proceed the installation in the welcoming window.

Intel ICH5R Serial ATA RAID Introduction

15

Intel ICH5R Serial ATA RAID Introduction

15

b. When the above screen appears, click on the icon marked "Next" on the screen,

and the following screen will appear:

Intel ICH5R Serial ATA RAID Introduction

After reading the license agreement in the following window, click Yes button

to continue.

Select the folder in which you want the program to be installed in the following

window, and click Next button to start installation.

16

C-12

Appendix C: Software Installation

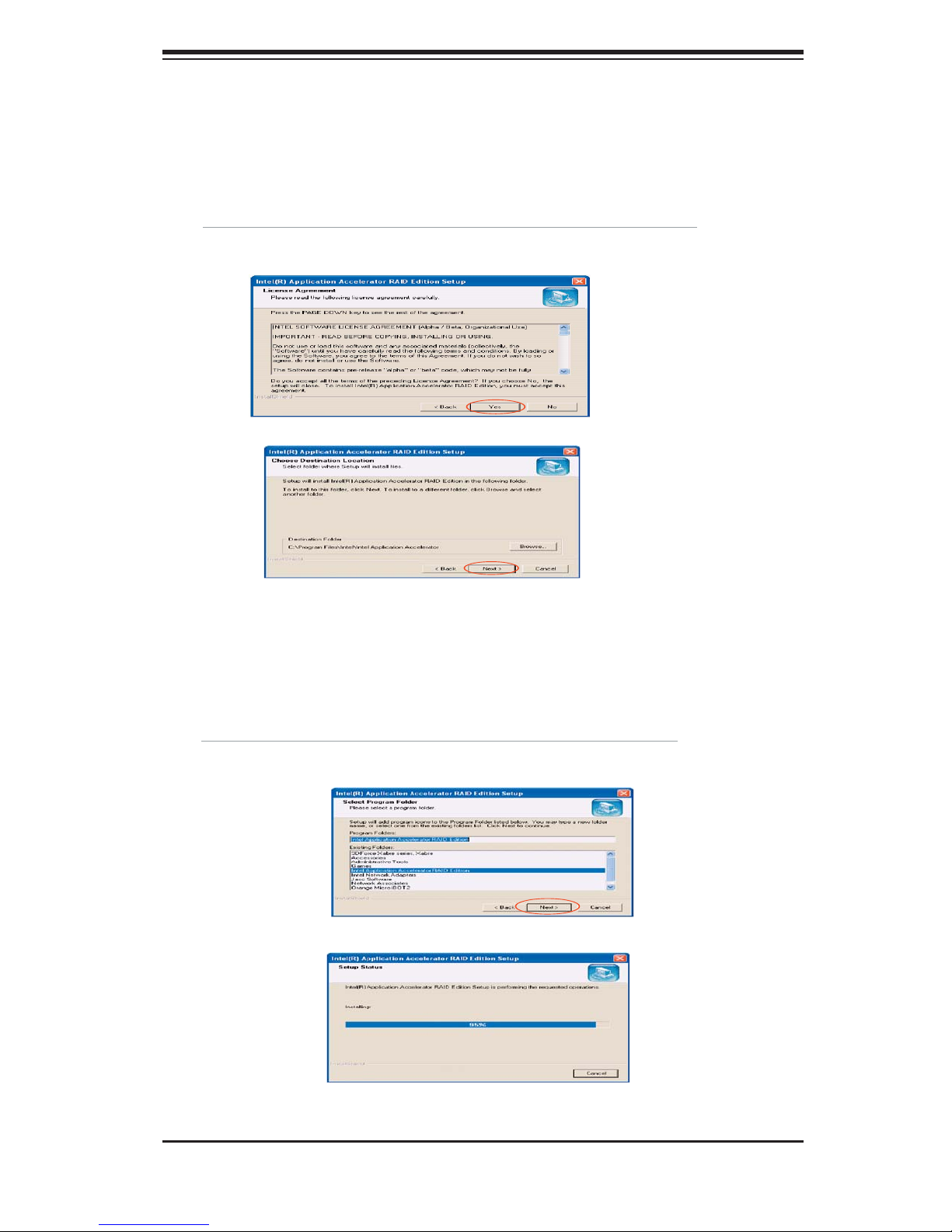

c. After reading the License Agreement, click on the icon marked "Yes" on the

screen, and the following screen will appear:

d. Specify the folder that you want the program to be installed in and then, click

on the icon marked "Next" to begin the installation process.

Intel ICH5R Serial ATA RAID Introduction

After reading the license agreement in the following window, click Yes button

to continue.

Select the folder in which you want the program to be installed in the following

window, and click Next button to start installation.

16

e. Specify a program folder where you want the Setup to add the program icon as

shown in the following screen and click on the icon marked "Next".

Intel ICH5R Serial ATA RAID Introduction

Select a program folder in the following window where you want Setup to

add the program icon.

The following window appears to show the Intel Application Accelerator

RAID Edition Setup installation status.

17

C-13

PDSM4/PDSME User's Manual

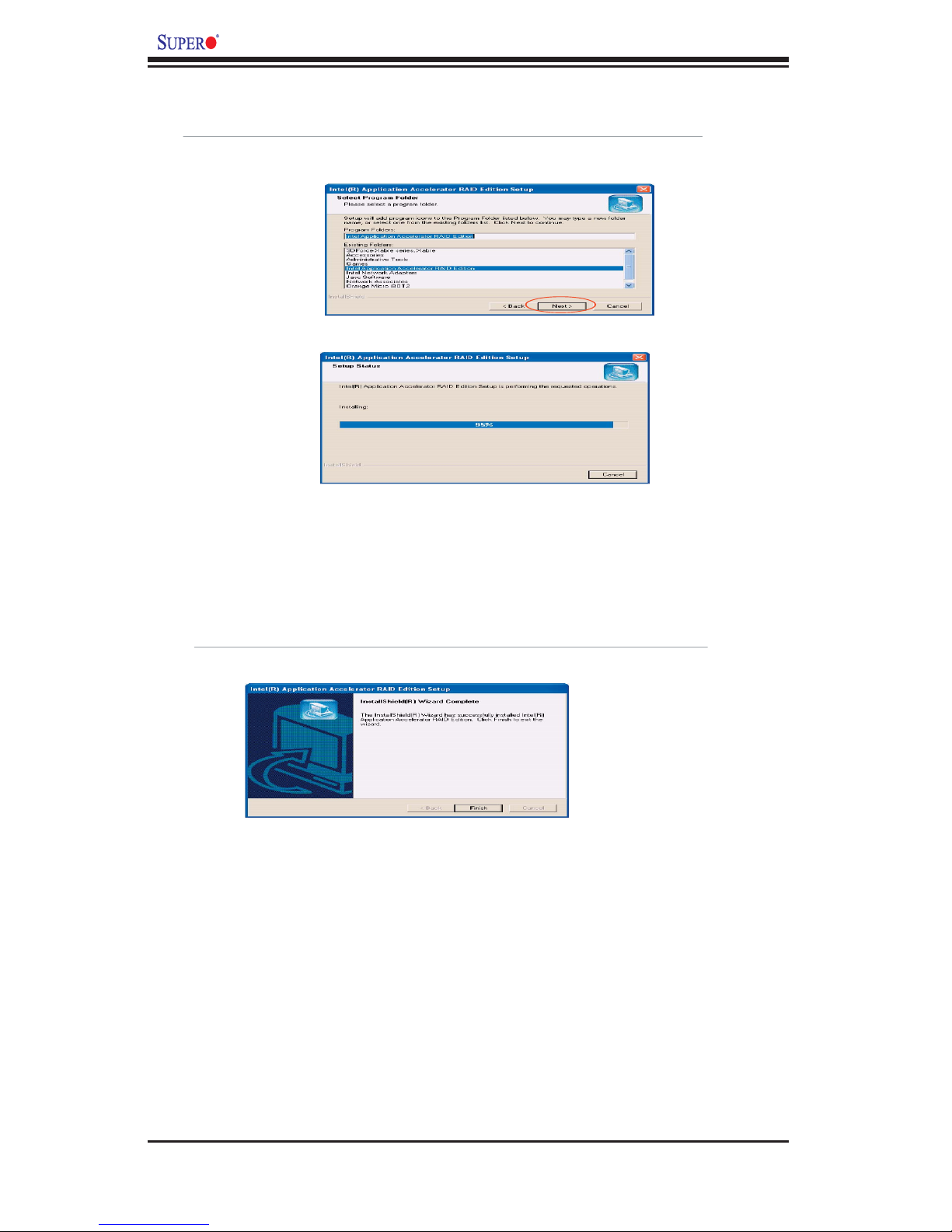

f. The following screen will appear to display the status of the Intel Application Ac-

celerator RAID Edition Installation.

Intel ICH5R Serial ATA RAID Introduction

Select a program folder in the following window where you want Setup to

add the program icon.

The following window appears to show the Intel Application Accelerator

RAID Edition Setup installation status.

17

g. Once the Application Accelerator RAID Edition installation is completed, the fol-

lowing screen will appear and the system will start to re-boot.

Intel ICH5R Serial ATA RAID Introduction

Once the installation is complete, the following window appears.

*Note: Once the XP/2000/2003 Operating System is installed, please read the

"Readme text fi les" for the instructions to use the SATA RAID Utility in the Windows

XP/2000/2003 OS environment.

18

C-14

Appendix C: Software Installation

C-4 Installing the Operating System and other Software
Programs

After all the hardware has been installed, you must fi rst install the operating

system, and then, other software drivers. The necessary drivers are all included

on the Supermicro CDs that came packaged with your motherboard. *Note: for

the Windows 2003 OS, please refer to Page C-14.)

*Note: Click the icons showing a hand writing on the paper to view the readme fi les

for each item. Click the computer icons on the right of these items to install each

item (from top to the bottom) one at a time. After installing each item, you must

re-boot the system before moving on to the next item on the list. The bottom

icon with a CD on it allows you to view the entire contents of the CD.

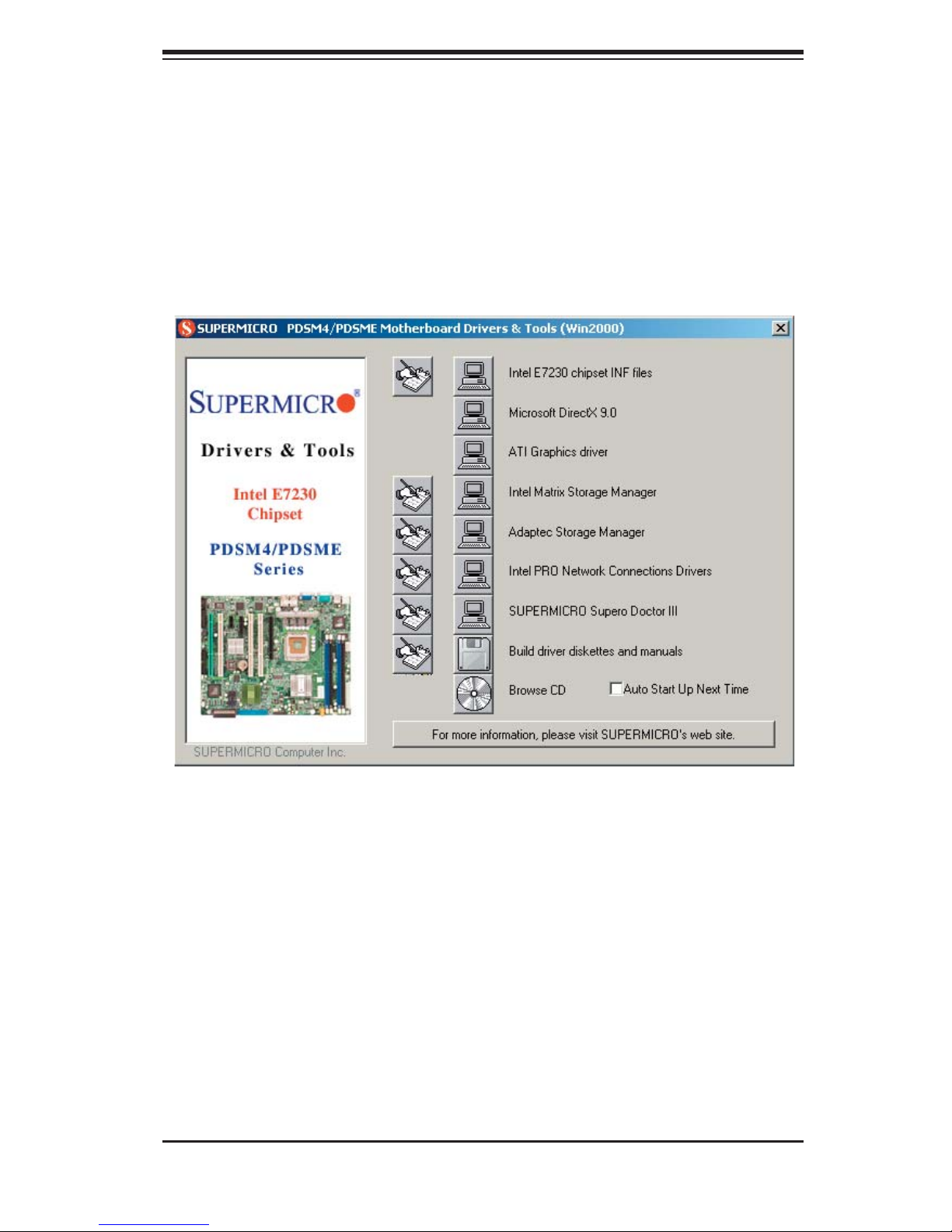

Driver/Tool Installation Display Screen

C-15

PDSM4/PDSME User's Manual

Supero Doctor III

The Supero Doctor III program is a web-base management tool that supports

remote management capability. It includes Remote and Local Management tools.

The local management is called the SD III Client. The Supero Doctor III program

included on the CDROM that came with your motherboard allows you to monitor

the environment and operations of your system. Supero Doctor III displays crucial

system information such as CPU temperature, system voltages and fan status. See

the Figure below for a display of the Supero Doctor III interface.

*Note 1: The default password and user name are ADMIN.

*Note 2: In the Windows OS environment, the Supero Doctor III settings take pre-

cedence over the BIOS settings. When fi rst installed, Supero Doctor III adopts the

temperature threshold settings previously set in the BIOS. Any subsequent changes

to these thresholds must be made within Supero Doctor, since the SD III settings

override the BIOS settings. For the Windows OS to adopt the BIOS temperature

threshold settings, please change the SDIII settings to be the same as those set

in the BIOS.

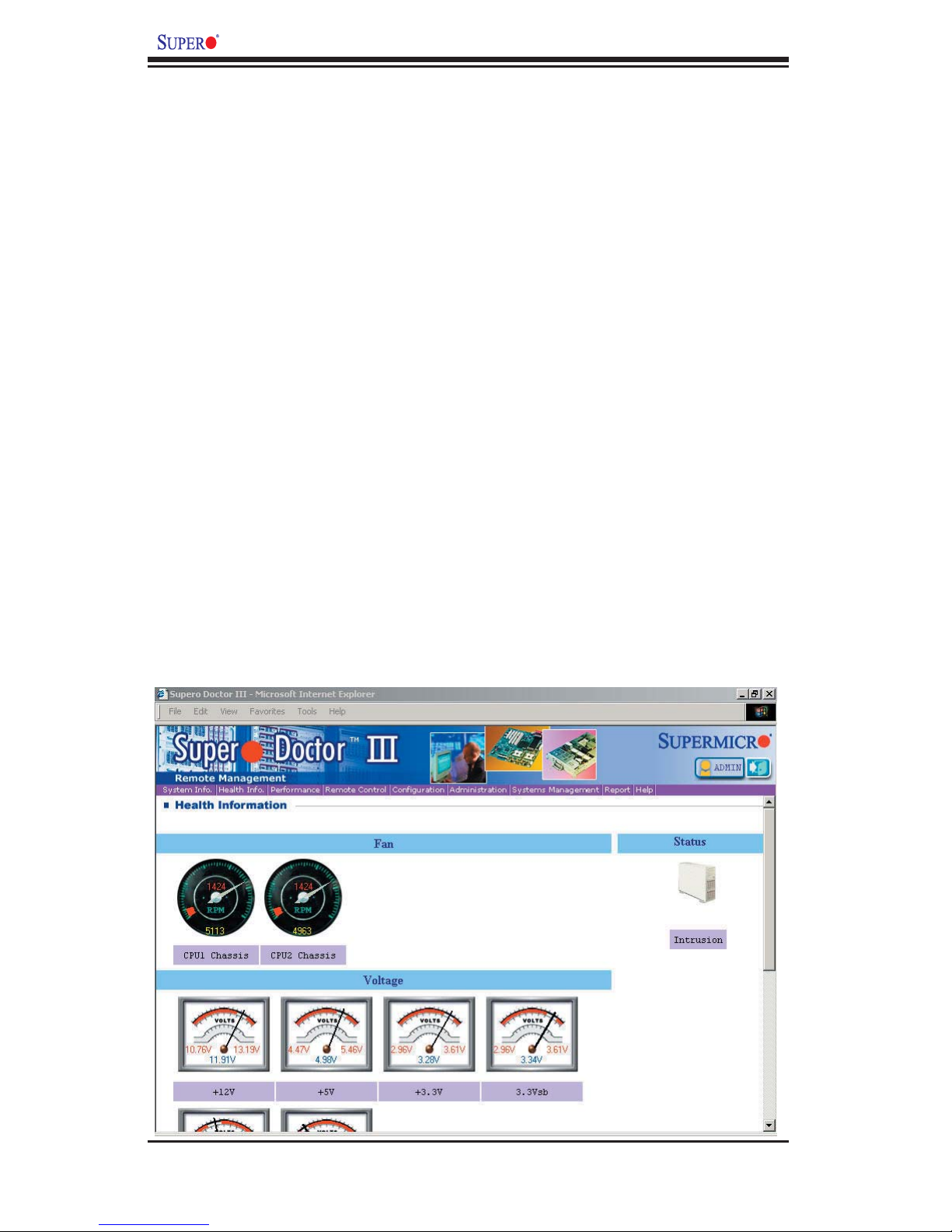

Supero Doctor III Interface Display Screen-I (Health Information)

C-16

Appendix C: Software Installation

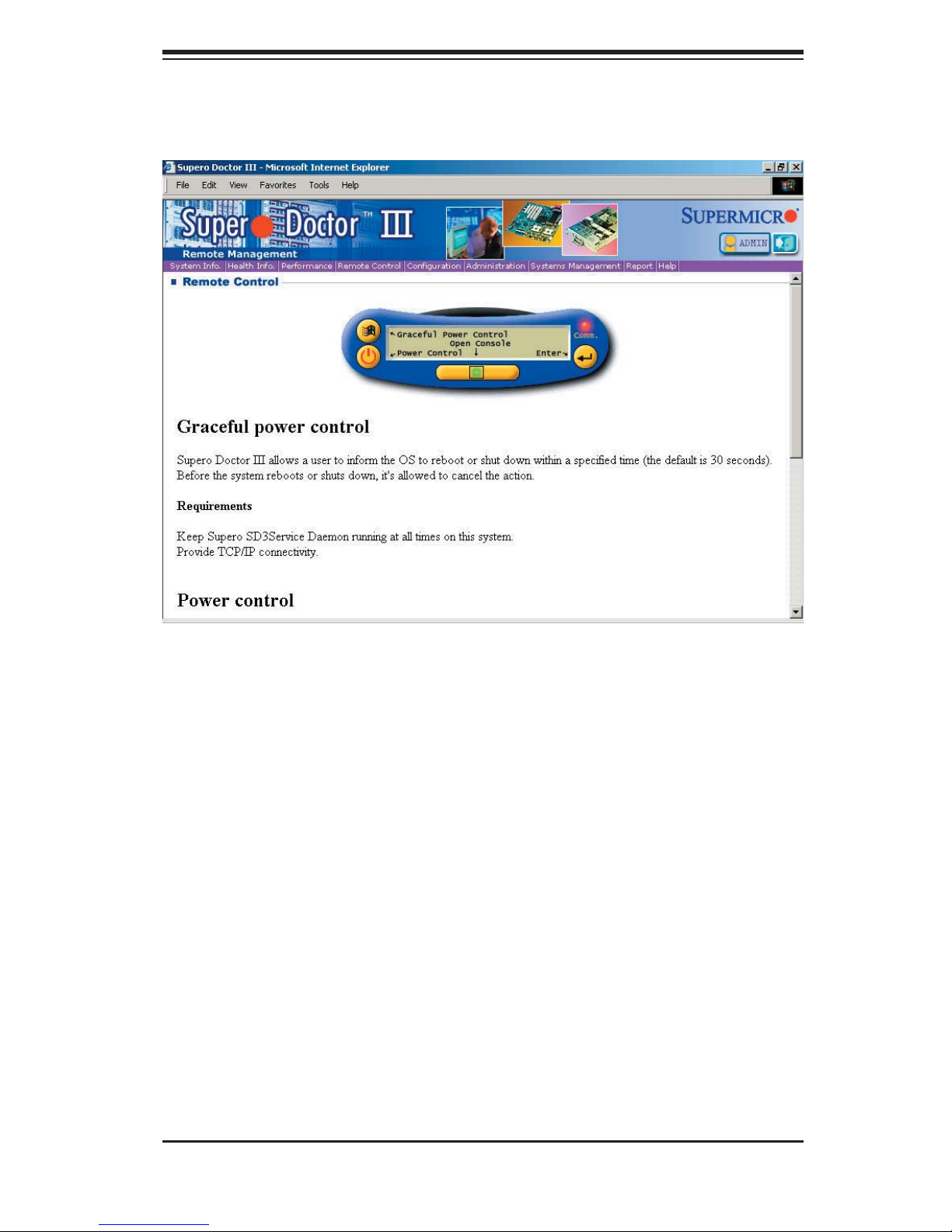

Supero Doctor III Interface Display Screen-II (Remote Control)

*Note: SD III Software Revision 1.0 can be downloaded from our Website at: ftp://

ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download SDIII User's

Guide at: http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf. For

Linux, we will still recommend Supero Doctor II.

C-17

PDSM4/PDSME User's Manual

Notes

C-18
