Preface

Preface

About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of

the

Processor (the Prescott Processor) in the 775-Land Grid Array Package at a sys-

tem bus speed of 800/533 MHz. The Pentium 4 Processor in the 775-Land Grid

Array Package is housed in a Flip-Chip Land Grid Array (FC-LGA4) package that

interfaces with the motherboard via an LGA775 socket. The package consists of a

processor core mounted on a substrate land-carrier. An integrated heat spreader

(IHS) is attached to the package substrate and core and serves as the contacting

surface for processor component thermal solutions, such as a heatsink. Please refer

to the motherboard specifi cations pages on our web site (http://www.supermicro.

com/products/motherboard/) for updates on this motherboard. This product is in-

tended to be professionally installed.

P8SGA motherboard. The P8SGA supports single Intel Pentium® 4

Manual Organization

Chapter 1 includes a checklist of what should be included in your mainboard box,

describes the features, specifi cations and performance of the P8SGA mainboard

and provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read

this chapter when installing the processor and DDR memory modules and when

mounting the mainboard in the chassis. Also refer to this chapter to connect the

fl oppy and hard disk drives, the IDE interfaces, the parallel and serial ports, the

mouse and keyboard and the twisted wires for the power supply, the reset button,

the keylock/power LED and the speaker.

If you encounter any problems, see Chapter 3, which describes troubleshoot-

ing procedures for the video, the memory and the setup confi guration stored in

CMOS. For quick reference, a general FAQ (Frequently Asked Questions) section

is provided. Instructions are also included for contacting technical support. In ad-

dition, you can visit our web site at www.supermicro.com/techsupport.htm for more

detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS POST Messages.

Appendix B lists BIOS POST Codes.

iii

P8SGAUser’s Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist ..................................................................................................... 1-1

Contacting Supermicro ............................................................................... 1-2

SUPER P8SGAImage ............................................................... 1-3

P8SGA Layout ............................................................................ 1-4

P8SGAQuick Reference .............................................................. 1-5

E7205 Chipset: System Block Diagram ..................................................... 1-6

Motherboard Features .............................................................................. 1-7

1-2 Chipset Overview ........................................................................................... 1-9

1-3 PC Health Monitoring ................................................................................... 1-10

1-4 Power Confi guration Settings ....................................................................... 1-10

1-5 Power Supply ............................................................................................... 1-11

1-6 Super I/O .........................................................................................................1-11

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Motherboard in the Chassis ..................................................... 2-5

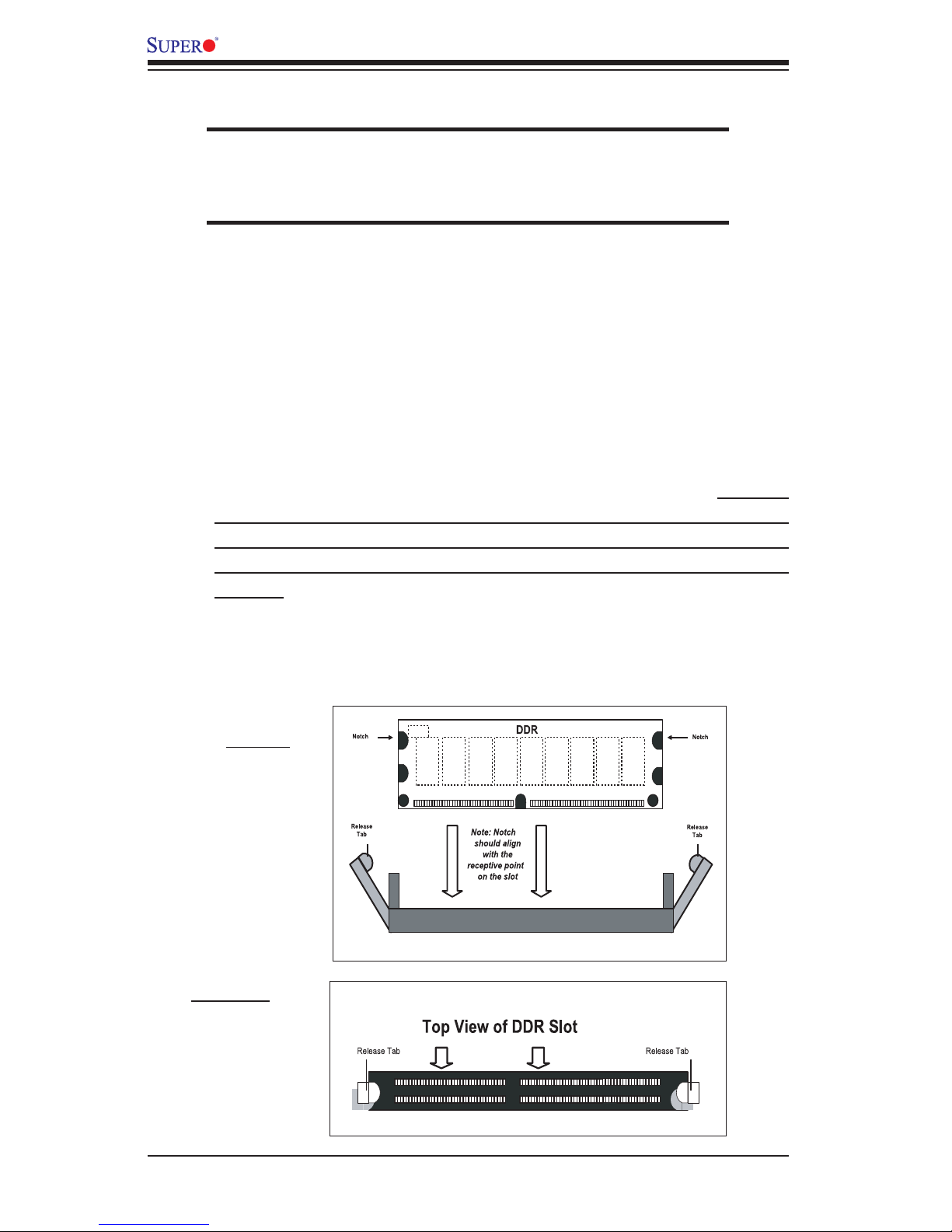

2-4 Installing DDR Memory .................................................................................. 2-6

2-5 I/O Port/Front Control Panel Connector Locations ........................................ 2-7

2-6 Connecting Cables ......................................................................................... 2-8

Power Supply Connectors ...................................................................... 2-8

IR Connector .............................................................................................. 2-8

PW_ON Connector .................................................................................. 2-9

Reset Connector ...................................................................................... 2-9

IDE LED ................................................................................................ 2-10

Power LED Connector ............................................................................ 2-10

Keylock Connector ................................................................................. 2-11

Speaker Connector ............................................................................... 2-11

iv

Table of Contents

Serial Ports ............................................................................................. 2-12

CD Header ............................................................................................. 2-12

Fan Headers .......................................................................................... 2-13

Chassis Intrusion .................................................................................... 2-13

ATX PS/2 Keyboard/Mouse Ports ......................................................... 2-14

Universal Serial Bus (USB) ..................................................................... 2-14

Wake-On-Ring .......................................................................................... 2-15

Wake-On-LAN .......................................................................................... 2-15

Ethernet Port ............................................................................................ 2-15

VGA Connector ........................................................................................ 2-16

SMB Header ............................................................................................. 2-16

Overheat LED ........................................................................................... 2-17

AC'97 Output ............................................................................................ 2-17

2-7 Jumper Settings ............................................................................................ 2-18

Explanation of Jumpers ......................................................................... 2-18

CMOS Clear ........................................................................................... 2-18

USB Wake-Up .......................................................................................... 2-19

Watch Dog Enable/Disable ...................................................................... 2-19

Keyboard Wake-Up .................................................................................. 2-20

Gigabit LAN Enable .................................................................................. 2-20

2-8 Parallel Port, Floppy/Hard Drive and Audio Connections ............................ 2-21

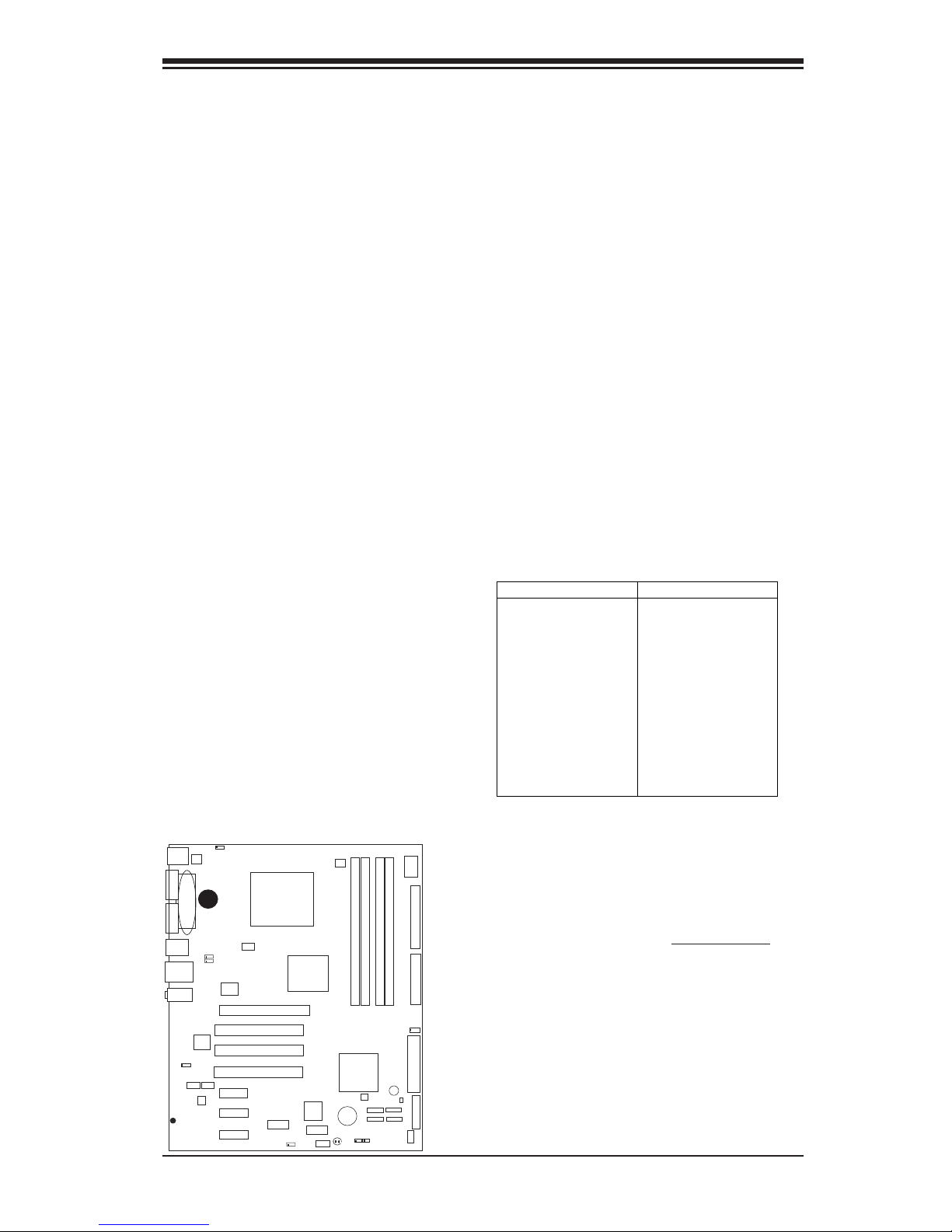

Parallel Port Connector ........................................................................... 2-21

Floppy Connector .................................................................................... 2-22

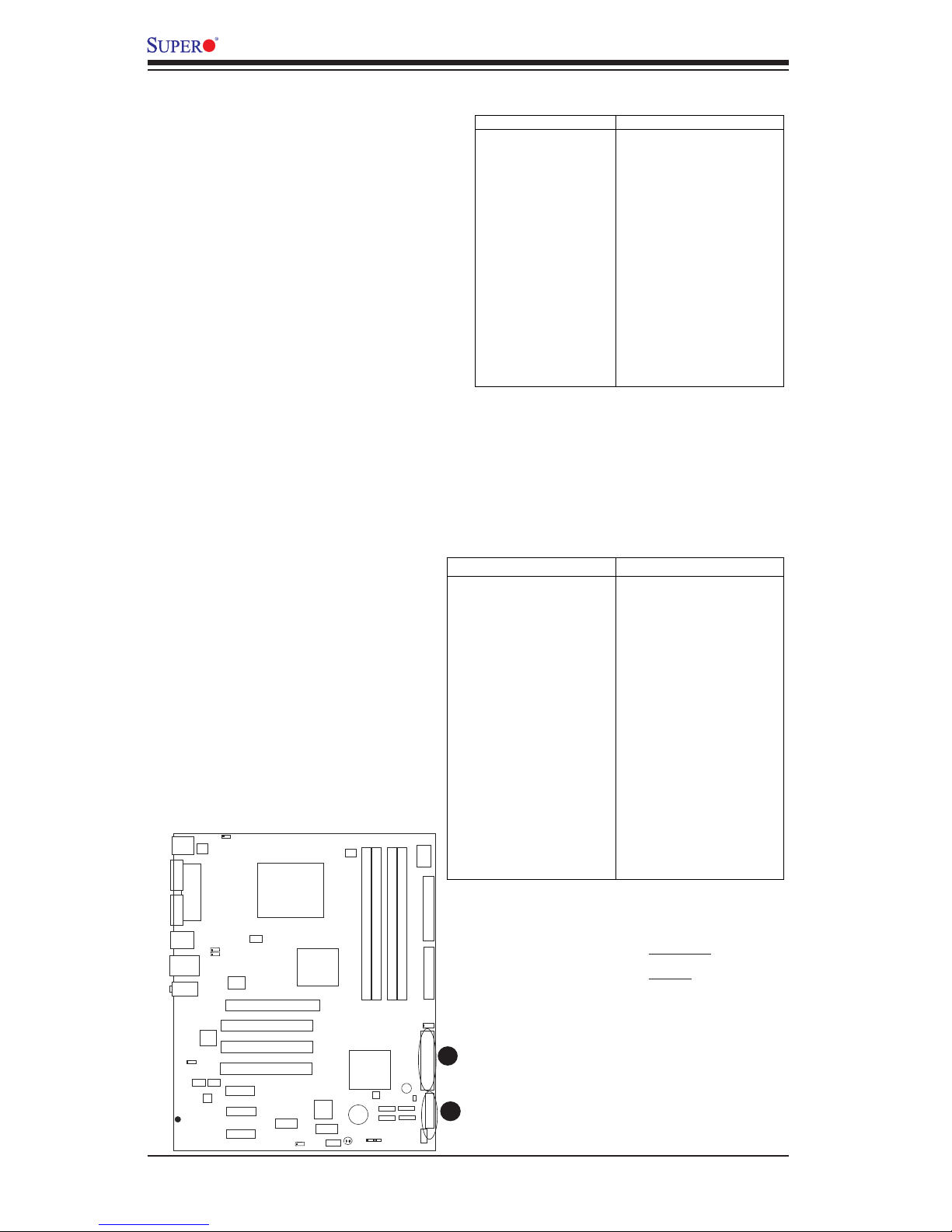

IDE Connectors ....................................................................................... 2-22

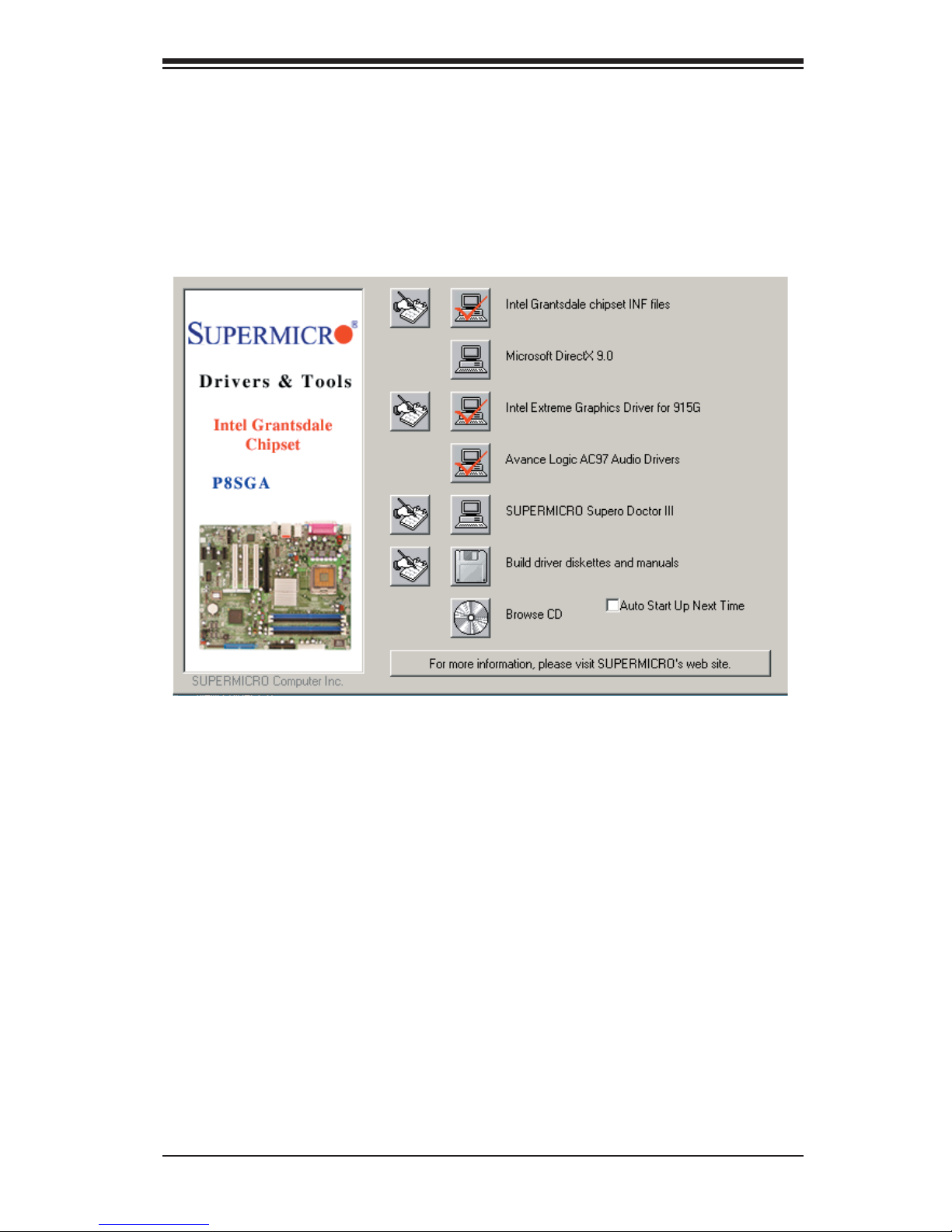

2-9 Installing Software ........................................................................................ 2-23

SuperO Doctor III ..................................................................................... 2-25

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ....................................................................................... 3-1

No Power ................................................................................................... 3-1

No Video .................................................................................................. 3-1

Memory Errors ........................................................................................... 3-2

Losing the System’s Setup Confi guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................. 3-5

v

P8SGA User’s Manual

Chapter 4: BIOS

4-1 Introduction ....................................................................................................... 4-1

4-2 Running Setup ................................................................................................. 4-2

4-3 Main BIOS Setup ............................................................................................. 4-2

Main BIOS Setup Menu ........................................................................... 4-3

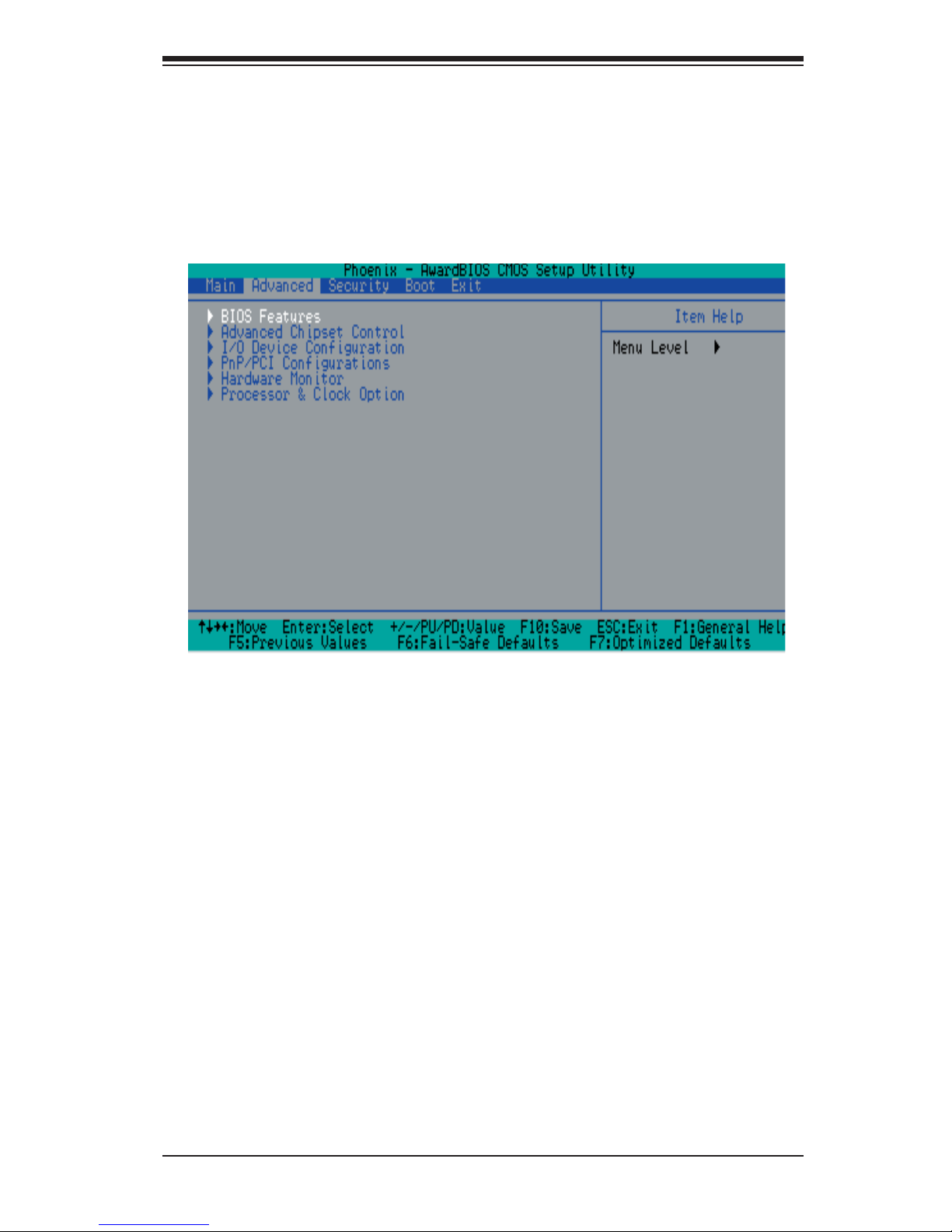

4-4 Advanced BIOS Setup ...................................................................................... 4-5

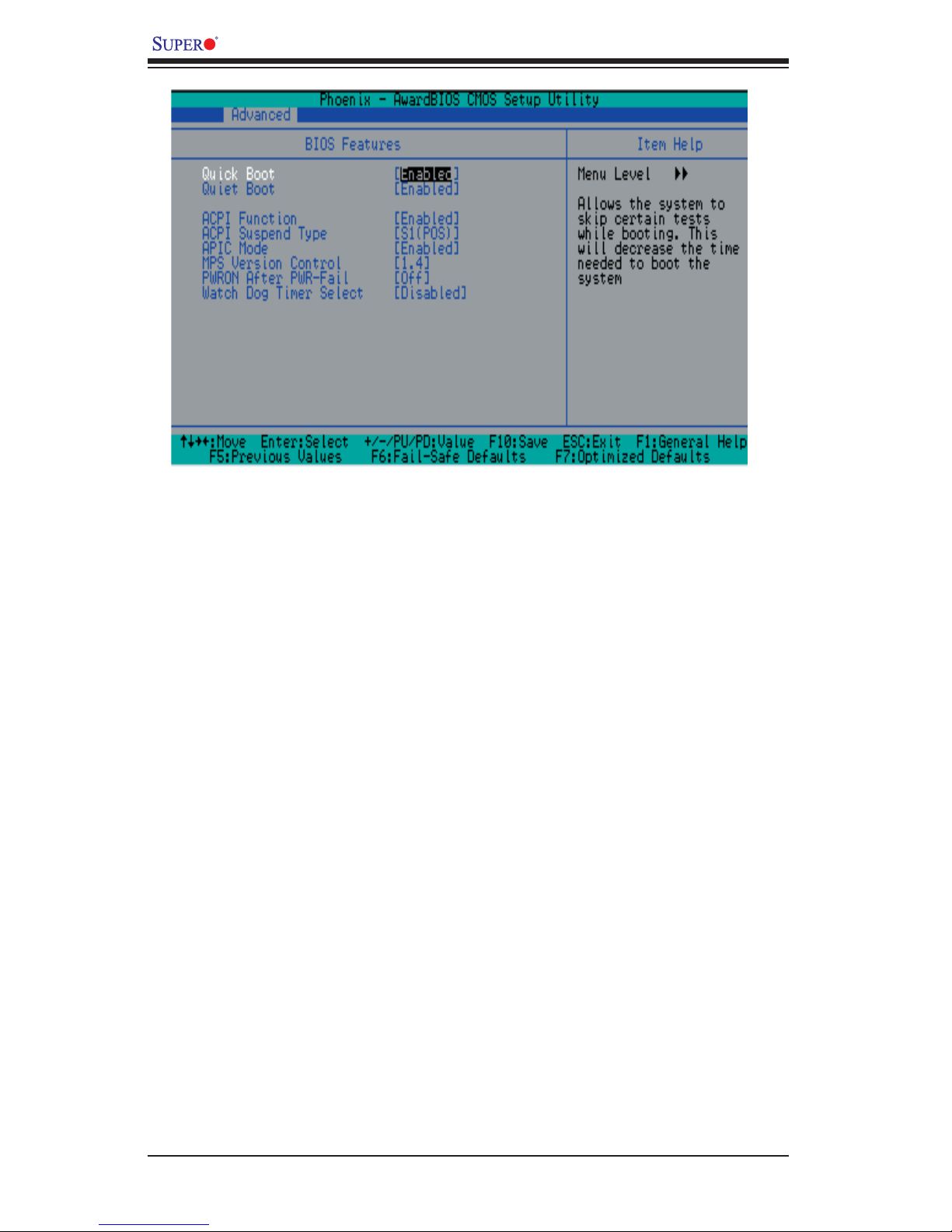

4-4.1 Advanced BIOS Features ................................................................ 4-5

4-4.2 Advanced Chipset Control ............................................................... 4-7

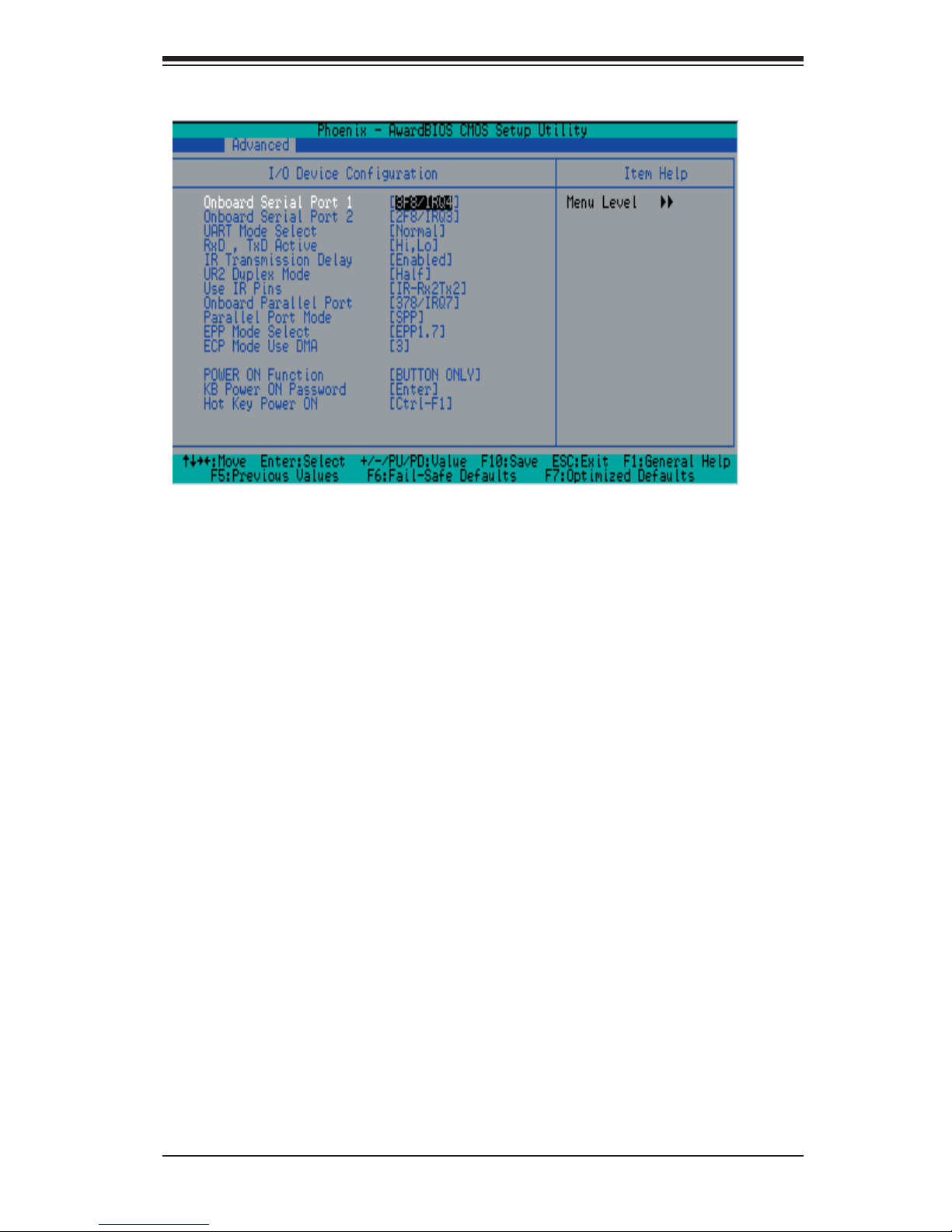

4-4.3 I/O Device Confi guration .................................................................. 4-9

4-4.4 PnP Confi guration .......................................................................... 4-11

4-4.5 Hardware Monitors ......................................................................... 4-13

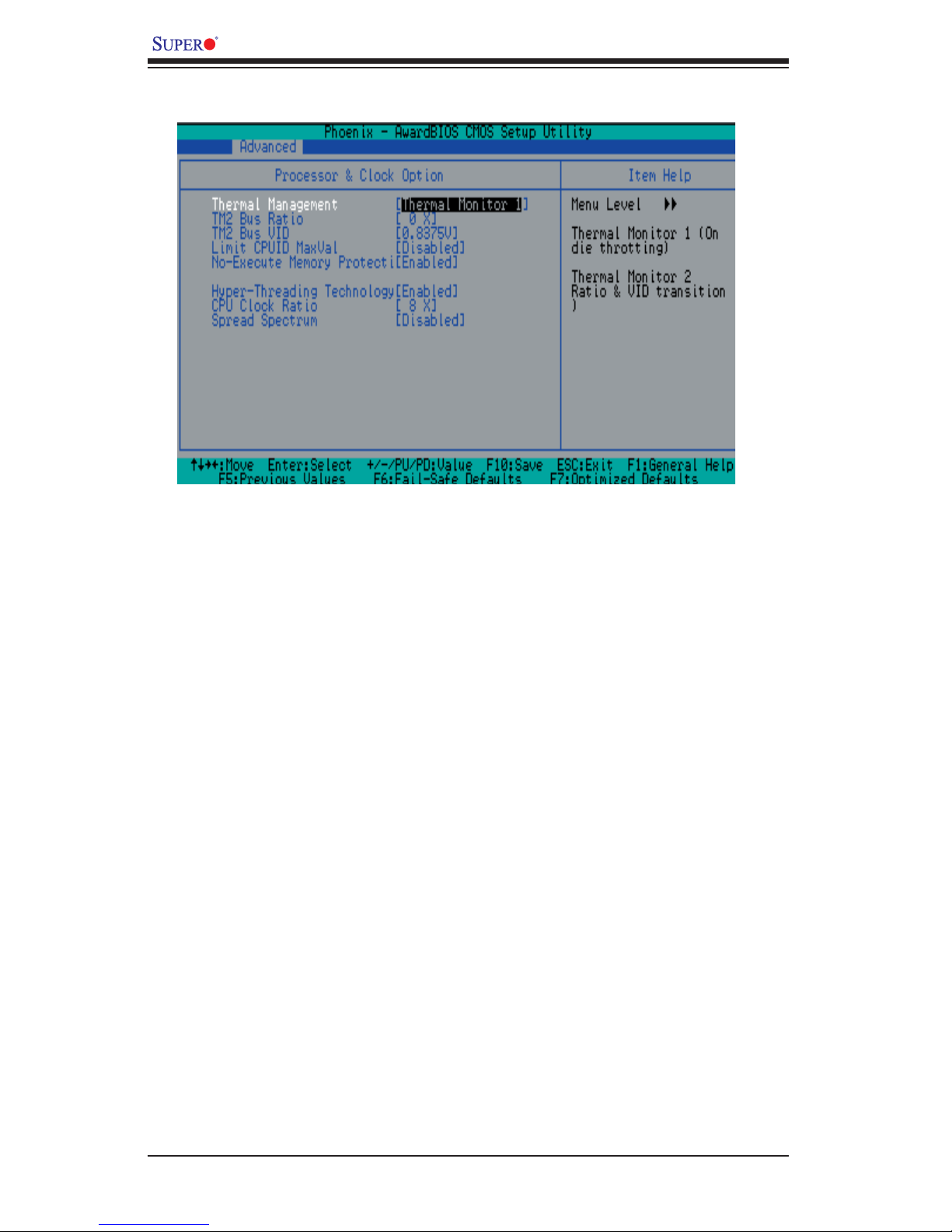

4-4.6 Processor & Clock Options ............................................................ 4-14

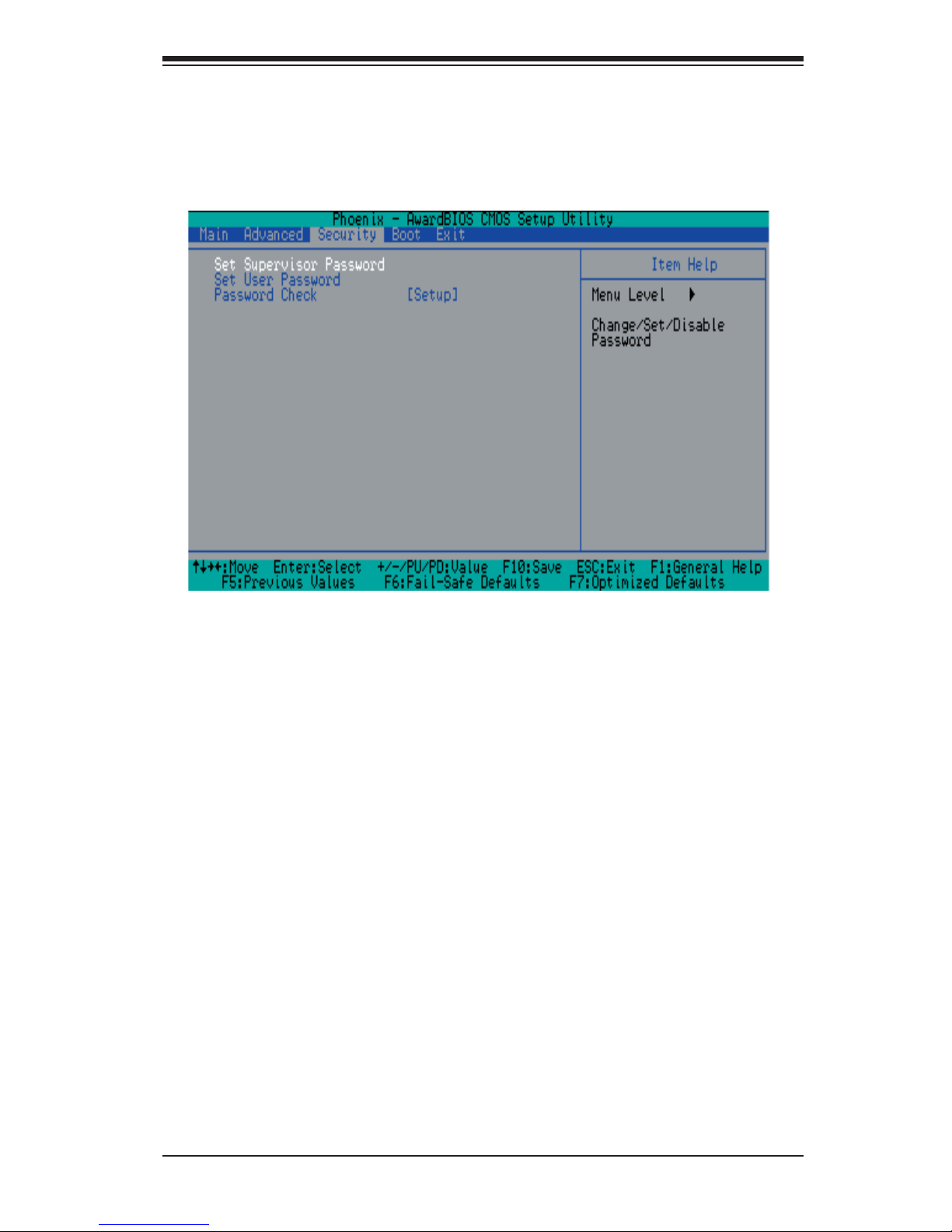

4-5 Security ........................................................................................................... 4-15

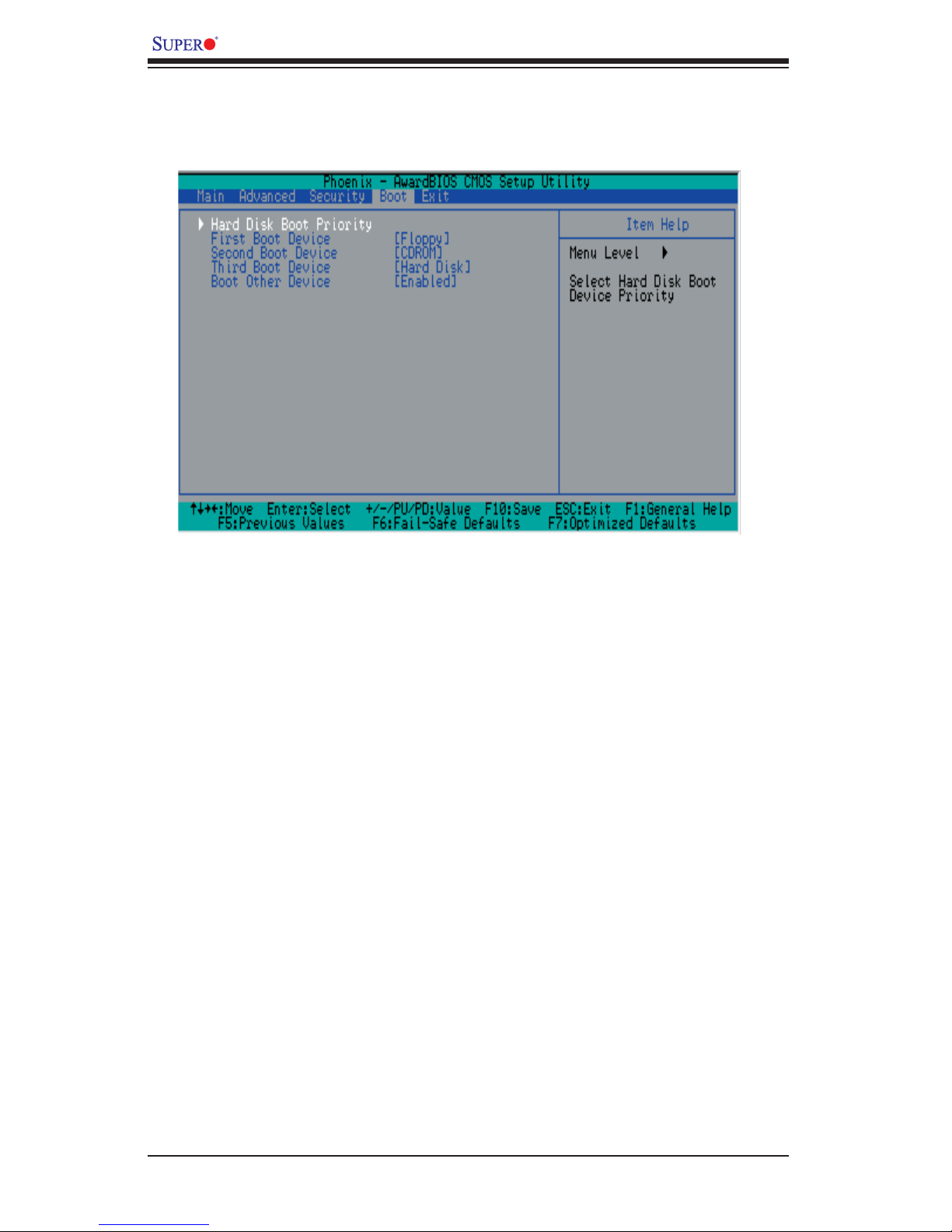

4-6 Boot ............................................................................................................... 4-16

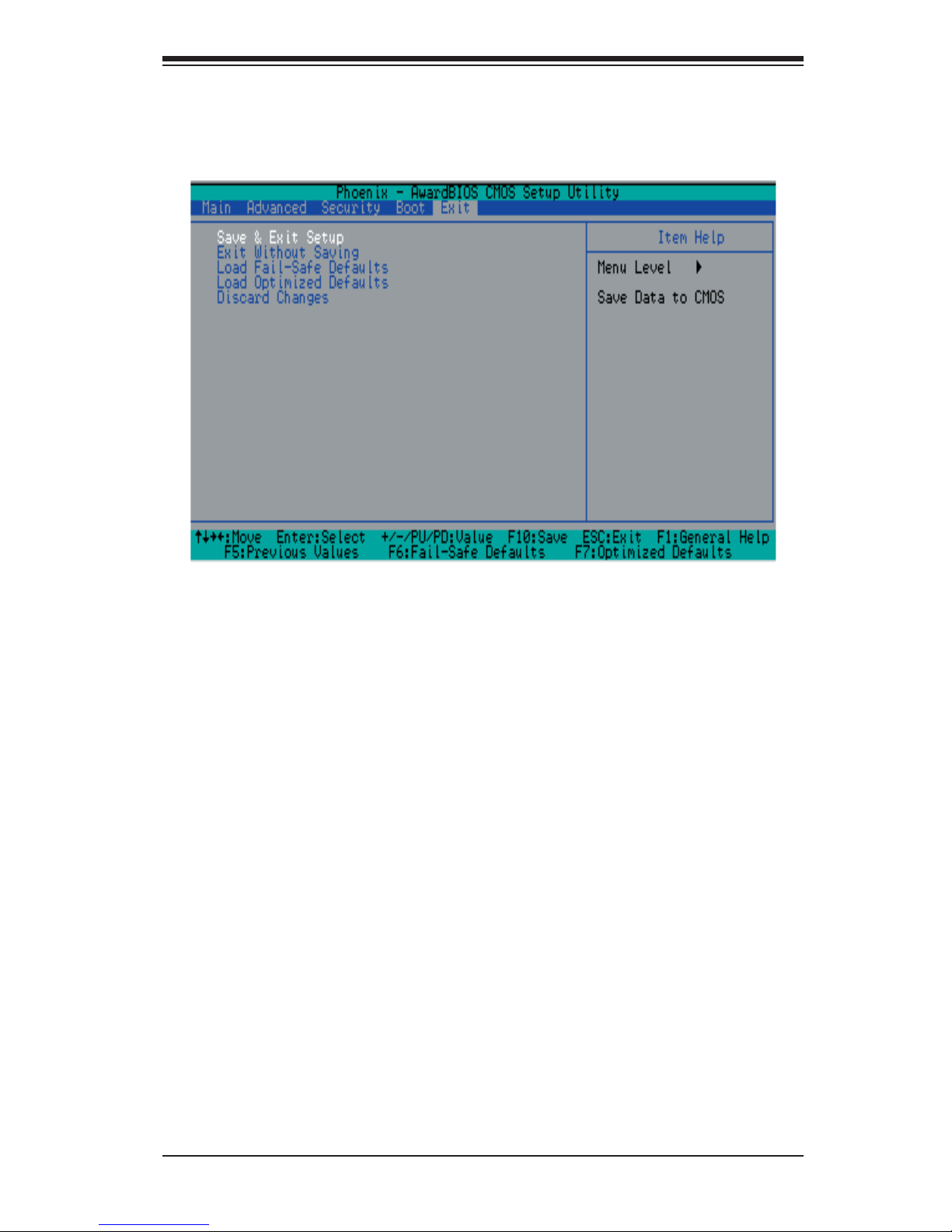

4-7 Exit ................................................................................................................. 4-17

Appendices:

Appendix A: BIOS POST Messages ......................................................................... A-1

Appendix B: BIOS POST Codes ................................................................................B-1

vi

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

All Included in the Retail Box Only

One (1) Supermicro Mainboard

Two (2) SATA cables

One (1) COM port cable with bracket

One (1) IDE cable

One (1) fl oppy drive ribbon cable

One (1) I/O shield

One (1) Supermicro CD containing drivers and utilities

One (1) User's/BIOS Manual

1-1

P8SGA User’s Manual

Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacifi c

Address: Super Micro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.

Tel: [phone]

Fax: [phone]

Web Site: www.supermicro.com.tw

Technical Support:

Email: [e-mail]

Tel: [phone], ext.132 or 139

1-2

Figure 1-1. P8SGA Image

Chapter 1: Introduction

An Important Note to the User

• All images, layouts and contents included in this manual were based upon the

latest PCB revision available at the time of publishing of this manual. The moth-

erboard you've received may or may not look exactly the same as the graphics

shown in this manual.

1-3

P8SGA User’s Manual

Figure 1-3. Motherboard Layout

(not drawn to scale)

KB/MS

J31

COM1 Port

Video Port

JG1

USB

3/4/5/6

USB1/2

& LAN

Audio

JPWAKE

J28

J41

4-Pin 12V PWR

Parallel Port

J30

J44

JPUSB

JPUSB

J11

J45

LAN CTRL

KB/MS Wake-Up

2

Clock

Fan3

PCI-E x16

PCI-3

P4 CPU

LGA 775

915G

Glantsdale

(North Bridge)

Fan1

DIMM#1A (Blue)

DIMM#2A (Black)

DIMM#1B (Blue)

DIMM#2B (Black)

WD Reset

rIO

upe
S

JP5

R

XPW
T

24-PinA

J40

Floppy

J27

PCI-2

JPL

GLAN Enable

AC97

®

UPER P8SGA

S

CDin

Aux.

PCI-E

PCI-E

PCI-E#1

ICH6

PCI-1

#

3

x

1

#

2

x

1

COM2

J13

x

1

JPUSB3

FWH

Front USB7/8

J43

WOL

(South Bridge)

Battery

Clear CMOS

Chs Intru.

JBT1

J34

JL1

SMB

SATA0

SATA1

WOR

Buzzer

SATA2

SATA3

E
D

I

J3

OH

JOH1

FP CTRL

F1
J

Fan2

Important Notes to the User

• All images, layouts and contents included in this manual were based upon the

latest PCB revision available at the time of publishing. The motherboard you've

received may or may not look exactly the same as the ones shown in this

manual.

• See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front panel

connections.

• " " indicates Pin 1.

1-4

Chapter 1: Introduction

P8SGA Quick Reference

Jumpers Description Default Setting

JBT1 CMOS Clear See Section 2-7

JP5 Watch Dog Pins 1-2 (Enabled)

JPL Giga-bit LAN Enable Pins 1-2 (Enabled)

JPUSB USB 1/2 Wake Up Pins 2-3 (Disabled)

JPUSB2 USB 3/4/5/6 Wake Up Pins 2-3 (Disabled)

JPUSB3 USB 7/8 Wake Up Pins 2-3 (Disabled)
JPWAKE KB/Mouse Wake-Up Pins 1-2 (Enabled)

Connectors Description

ATX PWR (J40) ATX 24-Pin Power Connector

CPU PWR (J41) 12V 4-pin Power Connector(*required)

Audio Audio Port

AUX Auxiliary (Audio) Input Header

CD In Audio CD Input Header

Chassis Intrusion (JL1) Chassis Intrusion Header

COM1, COM2 COM Port/Serial Port 1 & Port 2 Connectors

DIMM#1A,#2A,#1B,#2B Memory (DIMM) slots (1 through 4)

Fans 1-3 Fan1: CPU Fan, Fan2/3: Chassis Fan Headers

Floppy Connector Floppy Disk Connector

FR Control Panel (JF1) Front Control Panel Header

(G-) LAN Port Ethernet RJ45 (Gigabit LAN) Connector

IDE (J27) IDE Connector

OH LED (JOH1) Overheat LED Header

Printer (J30) Parallel Printer Port

KB/Mouse (J28) PS/2 Keyboard/Mouse

SATA #0-3 4 SATA Headers

SMB (J34) System Management Bus Header

USB 1/2 (J11) (Back Panel) Universal Serial Ports 1-2

USB 3/4/5/6 (J44) (Back Panel) Universal Serial Ports 3-6

USB7/8 (J43) (Front Panel) USB ports 7/8

VGA (JG1) Video/Graphic Connector

WOR (JWOR1) Wake-On-Ring Header

1-5

P8SGA User’s Manual

VRM 10.1

INTEGRATED

GRAPHIC

1 PCIE_x16

GRAPHIC

PRI_IDE

4 x SATA

PORTS

VRM V10.1

FSB: 800/533MHz

PCIE_x16

UDMA/100

S-ATA/150

LGA775_PROCESSOR

ADDR

CTRL CTRL

ADDR

GRANTSDALE

MCH

DMI

ICH-6

LPC

AC97

DATADATA

DDR_SDRAM

PCIE_x1

PCI_32_BUS

CK410 CLK

DIMM_CHA

DIMM_CHB

3_PCIE_x1

SLOTS

3_PCI_x32

SLOTS

Gb_LAN

USB

PORT_0~7

W83627HF 5.1-CH
LPC I/O

KB. FDD. SER.1

MS.

SER.2

AUDIO

LPCUSB 2.0/1.1

PRN.

FWH

Figure 1-3. 915G Grantsdale Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the following pages for the

actual specifi cations of each motherboard.

1-6

Chapter 1: Introduction

Motherboard Features

CPU  Latest CPU technology!

• Single Intel Pentium

w/FSB 533 MHz in the 775-Land Grid Array Package.

• Supports Intel Hyper-Threading Technology.

Memory  Latest memory technology!

• Dual/Single Channel DDR up to 4 GB of non-ECC unbuffered, two-way inter-

leaved or non-interleaved DDR-400/333 SDRAM in 4 DIMMS

2-4 for details.

Chipset  Latest Intel chipset technology!

• Intel Glantsdale 915G

®

4 Processor w/FSB 800 MHz or Celeron Processor

Note: See Section

Expansion Slots

• One (1) PCI-Express x16 (intended for graphics)

• Three (3) PCI-Express x1

• Three (3) 32-bit PCI 33MHz (5V)

BIOS

• 4 Mb Firmware Hub AwardBIOS

®

Flash BIOS

• APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0, Plug and Play (PnP)

PC Health Monitoring

• Eight onboard voltage monitors for CPU core, +3.3V, +3.3V standby, +5V,

+1.5V, Vbat (battery voltage) and ±12V

• Fan status monitor with fi rmware/software 4 pin fan speed control

• SuperDoctor III, Watch Dog, NMI

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System overheat LED and control

• System resource alert via Supero Doctor III

• Auto-switching voltage regulator for the CPU core

1-7

P8SGA User’s Manual

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Main switch override mechanism

• Internal/external modem ring-on

Onboard I/O

• 1 ATA/100 EIDE Channel s for a total of two IDE devices backward compatible

• Built in ICH6 SATA Controller, 4 connectors for 4 devices

• 1 fl oppy port interface (up to 2.88 MB)

• 2 Fast UART 16550 compatible serial ports

• Intel 82541 Gigabit Ethernet Controller

• 1 EPP (Enhanced Parallel Port) and ECP (Extended Capabilities Port) sup-

ported parallel port

• PS/2 mouse and PS/2 keyboard ports

• Up to 8 USB (Universal Serial Bus) 2.0 ports for a speed of up to 480Mbps 

Latest USB 2.0 technology!

• AC'97 audio high quality 6-channel sound

• Integrated (3rd generation) gfx core graphics on board

Other

• Wake-on-LAN

• Wake-on-Ring (WOR)

• Multiple CPU clock frequency ratio selections (set in BIOS)

• Suspend-to-RAM

• Onboard +5vsb warning LED ("LE1")

CD Utilities

• BIOS fl ash upgrade utility

• Drivers and software for Intel 915G chipset utilities

Dimensions

• ATX form factor, 12" x 9.5" (305 x 240 mm)

1-8

Chapter 1: Introduction

1-2 Chipset Overview

The Intel Grantsdale (915G) chipset contains two primary components: the Graphics

Memory Controller Hub (GMCH) and the I/O Controller Hub (ICH6). The Grantsdale

(915G) provides the performance and feature-set required for high-end single-pro-

cessor desktop solutions.

Graphics Memory Controller Hub (GMCH)

The function of the GMCH is to manage the data fl ow between fi ve interfaces: the

CPU interface Front Side Bus (FSB), System Memory Interface (DRAM controller),

PCI Express Graphic Interface, I/O Controller and the Direct Media Interface (DMI).

The GMCH is optimized for the Prescott Processors in an LGA775 Package. It

supports one or two channels of unbuffered, non-ECC DDR 400/333 SDRAM. It

also supports the PCI-Express-based external graphics solutions.

The ACPI component provides the data buffering and interface arbitration required

for the system to interface effi ciently. The Direct Media Interface (DMI) is a point-

to-point interconnection between the Grantsdale GMCH and the ICH6. Virtually

all communication between the GMCH and the ICH occurs over the Direct Media

Interface. DMI supports 2GB/s (IGB/s each direction) of bandwidth, using a 100

MHz differential clock.

Intel ICH6 System Features

The I/O Controller Hub provides the I/O subsystem with access to the rest of the

system. Functions and capabilities include:

*PCI Express Base Specifi cation, Rev. 1.0a-compliant

*PCI 2.3

*ACPI Power Management Logic Support

*USB host interface

*Enhanced DMA Controller

*System Management Bus

*Low Pin Count (LPC) Interface

*Firmware Hub (FWH) Interface

Graphics Features/Display

The Grantsdale GMCH provides an integrated graphics accelerator, delivering 3D,

2D and video capabilities. It also provides interfaces to a progressive scan analog

monitor and two DVO devices. It is compliant with DVI specifi cation and has a

high-speed interface to a digital display.

1-9

P8SGA User’s Manual

1-3 PC Health Monitoring

This section describes the PC health monitoring features of the P8SGA. The moth-

erboard has an onboard System Hardware Monitor chip that supports PC health

monitoring.

Eight Onboard Voltage Monitors for the CPU Core, Chipset
Voltage, +3.3V, +3.3V standby, +5V, 1.5V, Vbat and ±12V

The onboard voltage monitor will scan these voltages continuously. Once a voltage

becomes unstable, it will give a warning or send an error message to the screen.

Users can adjust the voltage thresholds to defi ne the sensitivity of the voltage

monitor.

Fan Status Monitor with Firmware/Software

The PC health monitor can check the RPM status of the cooling fans via Supero

Doctor.

CPU Overheat LED and Control

This feature is available when the user enables the CPU overheat monitoring in the

BIOS. This allows the user to defi ne an overheat temperature threshold. When this

temperature reaches the threshold, the CPU thermal trip feature will be activated,

and it will send a signal to the Speaker LED and, at the same time, the CPU speed

will be decreased to reduce heat dissipation.

1-4 Power Confi guration Settings

This section describes features of your motherboard that deal with power and

power settings.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If the USB keyboard is the only keyboard in the system, the keyboard will function

like a normal keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button. When the user presses the power button, the system will enter

1-10

Chapter 1: Introduction

a SoftOff state. The monitor will be suspended and the hard drive will spin down.

Pressing the power button again will cause the whole system to wake-up. During

the SoftOff state, the ATX power supply provides power to keep the required circuitry

in the system "alive." In case the system malfunctions and you want to turn off the

power, just press and hold the power button for 4 seconds. The power will turn off

and no power will be provided to the motherboard.

Wake-On-Ring (WOR) Header

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

1-5 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates of 1 GHz and faster.

The

power supplies generally meet the specifi cations required by the CPU, some are

inadequate. A 2 amps of current supply on a 5V Standby rail is strongly recom-

mended.

It is strongly recommended that you use a high quality power supply that meets

12V ATX power supply Specifi cation 1.1 or above. It is also required that the 12V

4-pin power connection (J41) be used for high-load confi gurations. In areas where

noisy power transmission is present, you may choose to install a line fi lter to shield

the computer from noise. It is recommended that you also install a power surge

protector to help avoid problems caused by power surges.

P8SGA accommodates 12V ATX power supplies. Although most

1-6 Super I/O

The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive

controller that is compatible with industry standard 82077/765, a data separator,

write pre-compensation circuitry, decode logic, data rate selection, a clock genera-

tor, drive interface control logic and interrupt and DMA logic. The wide range of

functions integrated onto the Super I/O greatly reduces the number of components

required for interfacing with fl oppy disk drives. The Super I/O supports two 360

K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s,

500 Kb/s or 1 Mb/s.

1-11

P8SGA User’s Manual

It also provides two high-speed, 16550 compatible serial communication ports

(UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable baud

rate generator, complete modem control capability and a processor interrupt sys-

tem. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well

as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support

higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Confi guration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through a SMI or SCI function pin. It also features auto power management

to reduce power consumption.

1-12

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electric Static Discharge (ESD) can damage electronic com ponents. To prevent

damage to your system board, it is important to handle it very carefully. The following

measures are generally suffi cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of CMOS onboard battery as specifi ed by the Manufac-

turer. Do not install the CMOS onboard battery upside down to avoid a possible

explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

Installation Procedures

Follow the procedures as listed below to install the motherboard into a chassis:

1. Install the processor and the heatsink to the motherboard.

2. Install the motherboard in the chassis.

3. Install the memory modules and add-on cards.

4. Connect cables and install controllers/drivers.

2-1

P8SGA User's Manual

2-2 Processor and Heatsink Fan Installation

When handling the processor package, avoid placing direct pres-

!

IMPORTANT: Always connect the power cord last and always remove it before add-

ing, removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the CPU heatsink.

(*Note: The CPU heatsink fan is included only with the retail versions of the P8SGA.

If you buy a processor separately, use only a Supermicro or Intel certifi ed heatsink

and fan.)

Installation of the LGA775 Processor

sure on the label area of the fan.

1. Press the socket lever to release

the load plate, which covers the CPU

socket, from its locking position.

2. Gently lift the socket lever to open

the load plate.

Socket Lever

Load Plate

Load Plate

2-2

Chapter 2: Installation

3. Locate Pin 1 on the CPU socket. (*Note:

Pin 1 is the corner marked with a triangle).

Please note that the North Key and the

South Key are located vertically in the

CPU housing.

4. Position the motherboard in such a way

that Pin 1 of the CPU socket is located at

the left bottom of the CPU housing.

5. Use your thumb and your index fi nger to

hold the CPU at the North Center Edge and

the South Center Edge of the CPU.

6. Align Pin 1 of the CPU with Pin 1 of the

socket. Once aligned, carefully lower the

CPU straight down to the socket. (**Do not

drop the CPU on the socket. Do not move

the CPU horizontally or vertically. Do not

rub the CPU against the surface or against

any pins of the socket to avoid damage to

the CPU or the socket.)

North Key

Pin 1

South Key

North Center Edge

South Center Edge

7. With the CPU inside the socket, inspect

the four corners of the CPU to make sure

that the CPU is properly installed.

8. Use your thumb to gently push the lever

down and lock it in the hook.

9. If the CPU is properly installed into the

socket, the plastic cap will be automatically

released from the load plate when the lever

is pushed into the hook. Remove the plastic

cap from the motherboard.

(*Warning: Please save the plastic cap.

The motherboard must be shipped with

the plastic cap properly installed to protect

the CPU socket pins. Shipment without

the plastic cap properly installed will cause

damage to the socket pins.)

Plastic cap is

released if the

CPU properly

installed.

Socket

Lever

CPU in the CPU socket

2-3

P8SGA User's Manual

Installation of the Heatsink

1. Locate the CPU Fan on the mother-

board. (Refer to the layout on Page 1-4

for the CPU Fan location.)

2. Position the heatsink in such a way

that the heatsink fan wires are closest to

the CPU fan and are not interfered with

other components.

3. Inspect the CPU Fan wires to make

sure that the wires are routed through

the bottom of the heatsink.

4. Remove the thin layer of the protec-

tive fi lm from the copper core of the

heatsink.

(*Warning: CPU overheat may occur if

the protective fi lm is not removed from

the heatsink.)

5. Apply the proper amount of thermal

grease on the CPU. (*Note: if your

heatsink came with a thermal pad,

please ignore this step.)

6. If necessary, re-arrange the wires

to make sure that the wires are not

pinched between the heatsink and the

CPU. Also make sure to keep clearance

between the fan wires and the fi ns of

the heatsink.

7. Align the four heatsink fasteners with

the mounting holes on the motherboard.

Gently push the fasteners into the mount-

ing holes until you hear a click.

8. Repeat Step 6 to insert all four heatsink

fasteners into the mounting holes.

Thermal Grease

CPU

Fan Wires

Heatsink Fins

Heatsink Fas-

tener

9. Once all four fasteners are securely

inserted into the mounting holes and

the heatsink is properly installed on the

motherboard, connect the heatsink fan

wires to the CPU Fan connector.

2-4

Heatsink Removal

1. Unplug the power cord from the power

supply.

2. Disconnect the heatsink fan wires from the

CPU fan header.

3. Use your fi nger tips to gently press on the

fastener cap and rotate counterclockwise to

make a 1/4 (90

4. Repeat Step 3 to loosen all fasteners from

the mounting holes.

5. With all fasteners loosened, remove the

heatsink from the CPU.

0

) turn.

Chapter 2: Installation

2-3 Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fi t different types of chassis.

Make sure the locations of all the mounting holes for both the motherboard and the

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

2-5

P8SGA User's Manual

2-4 Installing DDR Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

Memory Module Installation (See Figure 2-2)

1. Insert each DDR memory module vertically into its slot. Pay attention to the

notch along the bottom of the module to prevent incorrect memory installa-

tion.

2. Gently press down on the memory module until it snaps into place.

Support

The P8SGA supports Dual channel, Non-ECC, unbuffered DDR 400/333

(PC3200/2700) SDRAM. Both interleaved and non-interleaved memory

is supported, so you may populate any number of DIMM slots. (Populate

DIMM#1A,DIMM#1B, and/or DIMM#2A, DIMM#2B with memory modules

of the same size and same type will result in the dual channel, two-way

interleaved memory which is faster than the single channel, non-interleaved

memory.)

Figure 2-2. Side and Top Views of DDR Module Installation into Slot

To Install:

Insert module
vertically and
press down
until it snaps
into place.
Pay attention
to the notch.

To Remove:

Use your thumbs
gently to push
each release tab
outward to release
the DIMM from
the slot.

2-6

Chapter 2: Installation

2-5 I/O Port/Control Panel Connector Locations

The I/O ports are color coded in conformance with the PC99 specifi cation to make

setting up your system easier. See Figure 2-3 below for the colors and locations of

the various IO ports.

Figure 2-3. I/O Port Locations and Defi nitions

Mouse

Keyboard

Parallel Port (Burgundy)

COM1 Port

VGA

USB Ports

Notes:

LAN Port

USB Port

Blue-Line In
Green-Line Out

Pink-Mic

Front Control Panel

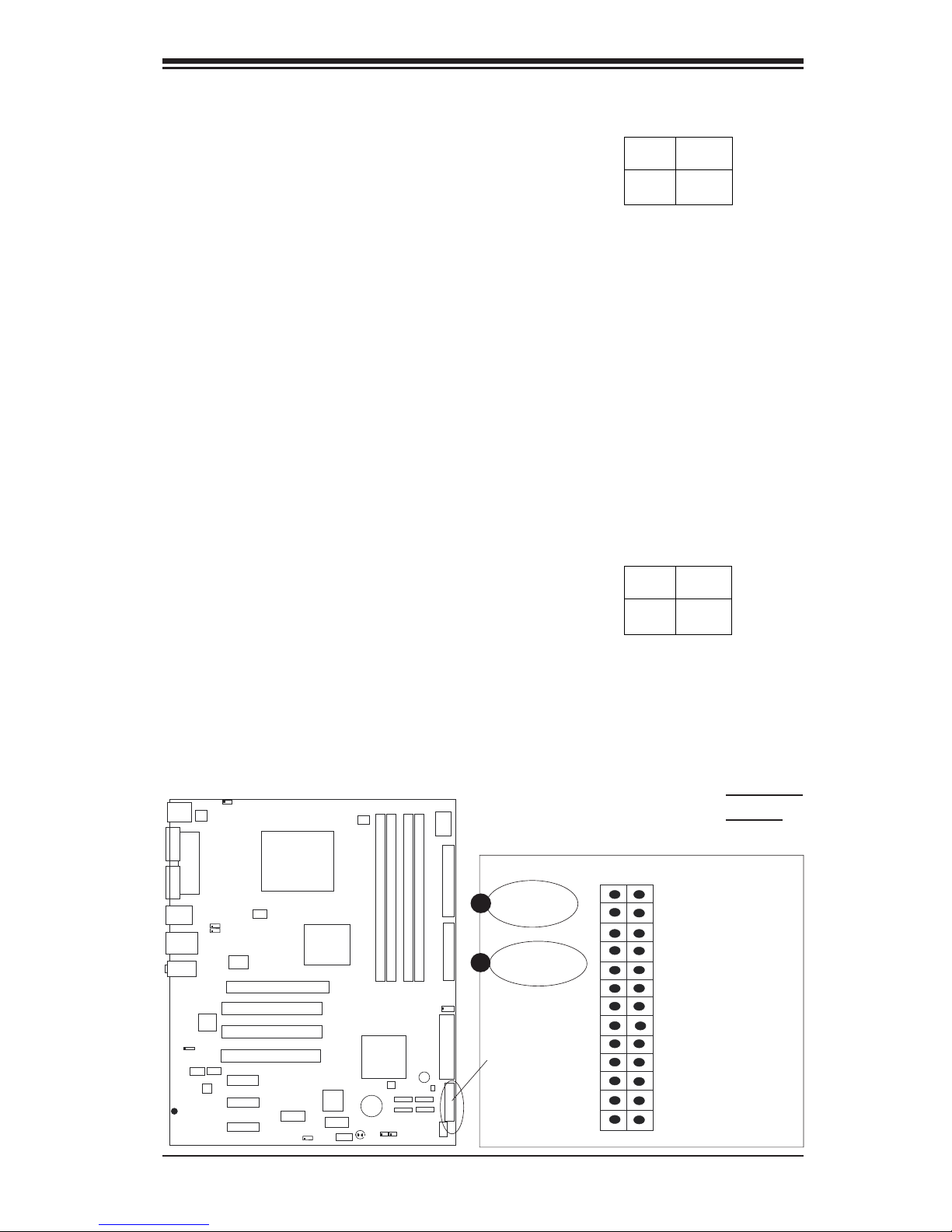

JF1 contains header pins for various front control panel connectors. See Figure

2-4 for the pin defi nitions of the various connectors including the speaker. Refer

to Section 2-6 for details.

JF1

Pin 26: Reset

Pin 24: Ground

Pin 25: VCC5

Pin 23: X

(*See Notes:)

Pin 22: X

Pin 20: PW ON-

Pin 18: PW ON+

Pin 16: X

Pin 14: LAN LED-

Pin 12: LAN LED+

Pin 10: IRTX

Pin 8: GROUND

Pin 6: IRRX

Pin 4: CIRRX

Pin 2: VCC5

Pin 21: X

Pin 19: Speaker

Pin 17: Ground

Pin 15: Keylock

Pin 13: Power LED-

Pin 11: X

Pin 9: Power LED+

Pin 7: IDE LED+

Pin 5: IDE LED Active

Pin 3: IDE LED Active

Pin 1:IDE LED+

Figure 2-4. Front Control Panel Connectors

2-7

P8SGA User's Manual

2-6 Connecting Cables

Power Supply Connectors

The primary power supply connector

(J40) on the P8SGA meets the SSI

(Superset ATX) 24-pin specifi cation.

Refer to the table on the right for the

pin defi nitions of the ATX 24-pin power

connector. You must also connect the

4-pin (J41) processor power connec-

tor to your power supply. Refer to the

table below right for the J41 (12V)

connector.

IR Connector

The infrared connector is located on

pins 2, 4, 6, 8 and 10 of JF1. See the

table on the right for pin defi nitions.

See the Technical Support section of

our web page for more information on

the infrared devices you can connect

to the system.

ATX Power Supply 24-pin Connector

Pin Definitions (J20)

Pin Number Definition
13 +3.3V
14 -12V
15 COM
16 PS_ON#
17 COM
18 COM
19 COM
20 Res(NC)
21 +5V
22 +5V
23 +5V
24 COM

Pin Number Definition

1 +3.3V
2 +3.3V
3 COM

4 +5V

5 COM

6 +5V

7 COM

8 PWR_OK
9 5VSB
10 +12V
11 +12V
12 +3.3V

+12V 4-pin
Connector

(J41)

Pins #

Definition

1 & 2

Ground

3 & 4

+12 V

Required Connection

Infrared Pin

Definitions

(JF1)

Pin

2
4
6
8

10

Definition

+5V

CIRRX

IRRX

Ground

IRTX

Number

JPWAKE

J41

4-Pin 12V PWR

B

Parallel Port

J30

P

J

PU

J

J11

J45

LAN CTRL

CDin

Aux.

AC97

SB2

U

SB

KB/MS Wake-Up

Clock

P

C

I

-

E#3

x

1

P

C

I

-

E

#

2

x

P

C

I

-

E#1

Fan3

PCI-E x16

1

x

1

PCI-3

PCI-2

PCI-1

P4 CPU

LGA 775

COM2

(North Bridge)

J13

SB3

PU

J

915G

Glantsdale

FWH

Front USB7/8

KB/MS

J31

JG1

USB

3/4/5/6

USB1/2

& LAN

Audio

®

J28

COM1 Port

Video Port

J44

JPL

GLAN Enable

UPER P8SGA

S

A. ATX Main PWR

DIMM#1B (Blue)

A

DIMM#2B (Black)

WD Reset

Buzzer

SATA2

SATA3

O
rI

e
p

Su

R
W
P
X

T

in A
P

24-

Pin 26: Reset

J40

Pin 24: Ground

Pin 22: X

Floppy

Pin 20: PW ON-

J27

Pin 18: PW ON+

Pin 16: X

JP5

Pin 14: LAN LED-

Pin 12: LAN LED+

E
ID

Pin 10: IRTX

Pin 8: GROUND

J3

L

OH

TR

OH1
J

Fan2

FP C

1
F
J

C

Pin 6: IRRX

Pin 4: CIRRX

Pin 2: VCC5

Fan1

DIMM#1A (Blue)

DIMM#2A (Black)

ICH6

(South Bridge)

J34

SMB

SATA0

Battery

Clear CMOS

JBT1

JL1

Chs Intru.

SATA1

WOR

J43

WOL

B. CPU PWR

C. IR

JF1

Pin 25: VCC5

Pin 23: X

Pin 21: X

Pin 19: Speaker

Pin 17: Ground

Pin 15: Keylock

Pin 13: Power LED-

Pin 11: X

Pin 9: Power LED+

Pin 7: IDE LED+

Pin 5: IDE LED Active

Pin 3: IDE LED Active

Pin 1:IDE LED+

2-8

Chapter 2: Installation

PW_ON Connector

The PW_ON connector is located on

pins 18 and 20 of JF1. Connect it to

the chassis power button, which you

may also confi gure to put the system

into suspend mode (see the Power

Button Mode setting in the BIOS). To

turn off the power when the suspend

mode is enabled, press the power

button for at least 4 seconds. See the

table on the right for pin defi nitions.

Reset Connector

The reset connector is located on

pins 24 and 26 of JF1. This connec-

tor attaches to the reset switch on the

computer chassis. See the table on

the right for pin defi nitions.

PW_ON

Pin Definitions

(JF1)

Pin

Number

20
18

Definition
PW_ON-

PW_ON+

Reset Pin

Definitions

(JF1)

Pin

Number

24
26

Definition

Ground

Reset

JPWAKE

J41

4-Pin 12V PWR

Parallel Port

J30

PU

J

PU

J

J11

J45

LAN CTRL

CDin

Aux.

AC97

2

SB

SB

KB/MS Wake-Up

Clock

P

C

I

-

E#3

x

1

P

C

I

-

E#2

x

P

C

I

-

E

#

1

x

Fan3

PCI-E x16

1

1

PCI-3

PCI-2

PCI-1

P4 CPU

LGA 775

COM2

(North Bridge)

J13

B3

S

PU

J

915G

Glantsdale

KB/MS

J31

JG1

USB

3/4/5/6

USB1/2

& LAN

J28

COM1 Port

Video Port

J44

Audio

GLAN Enable

®

UPER P8SGA

S

JPL

FWH

Front USB7/8

J43

WOL

Fan1

(South Bridge)

Battery

Clear CMOS

JBT1

DIMM#1A (Blue)

ICH6

J34

JL1

Chs Intru.

DIMM#2A (Black)

SMB

SATA0

SATA1

WOR

DIMM#1B (Blue)

DIMM#2B (Black)

WD Reset

Buzzer

SATA2

SATA3

A. PWR On

O
rI

e
p

Su

R
W
P
X

T

in A
P

Pin 26: Reset

24-

B

Pin 24: Ground

J40

Pin 22: X

Floppy

Pin 20: PW ON-

A

Pin 18: PW ON+

J27

Pin 16: X

JP5

Pin 14: LAN LED-

Pin 12: LAN LED+

E

Pin 10: IRTX

ID

Pin 8: GROUND

J3

OH

OH1
J

Fan2

Pin 6: IRRX

L
TR

Pin 4: CIRRX

FP C

JF1

Pin 2: VCC5

JF1

Pin 25: VCC5

Pin 23: X

Pin 21: X

Pin 19: Speaker

Pin 17: Ground

Pin 15: Keylock

Pin 13: Power LED-

Pin 11: X

Pin 9: Power LED+

Pin 7: IDE LED+

Pin 5: IDE LED Active

Pin 3: IDE LED Active

Pin 1:IDE LED+

B. Reset

2-9

P8SGA User's Manual

IDE_ LED

The IDE LED is located on pins 1, 3,

5, and 7 of JF1. This connects to the

IDE LED to display all activities of all

IDE devices. See the table on the right

for pin defi nitions.

Power_LED Connector

The Power LED connector is located

on pins 9, 11 and 13 of JF1. See the

table on the right for pin defi nitions.

IDE Pin Defi nition

Pin#

1
3

5

7

Definition

IDE LED+

IDE LED+

IDE LED Active

IDE LED Active

IDE LED+

Power_LED

Pin Definitions (JF1)

Pin

Number

9
11
13

Definition

PWR LED+

X

PWR LED-

JPWAKE

J41

4-Pin 12V PWR

Parallel Port

J30

PU

J
