SUPERSERVER

MicroCloud

5038ML-H12TRF

®

USER’S MANUAL

Revision 1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environ­ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the manufacturer’s instruction manual, may cause harmful interference
with radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn­ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to the
State of California to cause birth defects and other repro­ductive harm.

Manual Revision 1.0
Release Date: August 9, 2013

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2013 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It pro­vides information for the installation and use of the SuperServer 5038ML-H12TRF.
Installation and maintenance should be performed by experienced technicians only .

The SuperServer 5038ML-H12TRF is a 12-node, MicroCloud server system based
on the SC939H-R1K63BP 3U chassis and 12 X10SLE-F motherboards. Please refer
to our web site for an up-to-date list of supported processors.

Manual Organization

Preface

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the
system and describes the main features of the Super X10SLE-F motherboard and
the SC939H-R1K63BP chassis.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the server into a rack and
check out the server confi guration prior to powering up the system. If your server
was ordered without the processor and memory components, this chapter will refer
you to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer to this chapter for details on the system interface, which includes the functions
and information provided by the control panel on the chassis as well as other LEDs
located throughout the system.

Chapter 4: Standardized Warning Statements

You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperServer 5038ML-H12TRF.

iii

SUPERSERVER 5038ML-H12TRF User's Manual

Chapter 5: Advanced Motherboard Setup

Chapter 5 provides detailed information on the X10SLE-F motherboard, including
the locations and functions of connectors, headers and jumpers. Refer to this chap­ter when adding or removing processors or main memory and when reconfi guring
the motherboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC939H-R1K63BP 3U server
chassis. You should follow the procedures given in this chapter when installing,
removing or reconfi guring drives and when replacing system power supply units
and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed informa­tion on running the CMOS Setup Utility.

Appendix A: BIOS Error Beep Codes

Appendix B: System Specifi cations

iv

Notes

Preface

v

SUPERSERVER 5038ML-H12TRF User's Manual

Table of Contents

Chapter 1 Introduction

1-1 Overview .........................................................................................................1-1

1-2 Motherboard Features .....................................................................................1-2

Processors ......................................................................................................1-2

Memory ...........................................................................................................1-2

SATA ..............................................................................................................1-2

Rear I/O Ports ................................................................................................. 1-2

IPMI .................................................................................................................1-2

1-3 Server Chassis Features ................................................................................1-4

System Power ................................................................................................. 1-4

Cooling System ............................................................................................... 1-4

1-4 Contacting Supermicro ....................................................................................1-5

Chapter 2 Server Installation

2-1 Overview .........................................................................................................2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Preparing for Setup .........................................................................................2-1

Choosing a Setup Location .............................................................................2-1

2-4 Warnings and Precautions .............................................................................. 2-2

Rack Precautions ............................................................................................ 2-2

Server Precautions ..........................................................................................2-2

Rack Mounting Considerations .......................................................................2-3

Ambient Operating Temperature ................................................................ 2-3

Reduced Airfl ow .........................................................................................2-3

Mechanical Loading ................................................................................... 2-3

Circuit Overloading .....................................................................................2-3

Reliable Ground ......................................................................................... 2-3

2-5 Installing the System into a Rack ................................................................... 2-4

Chapter 3 System Interface

3-1 Overview .........................................................................................................3-1

3-2 Motherboard Nodes ........................................................................................ 3-1

Power Button/LED ...........................................................................................3-1

3-3 Power Supply Modules ................................................................................... 3-2

Power Module LED ......................................................................................... 3-2

Chapter 4 Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements .......................................................4-1

Warning Defi nition ...........................................................................................4-1

vi

Table of Contents

Installation Instructions ....................................................................................4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning ........................................................................ 4-6

Equipment Installation ..................................................................................... 4-8

Restricted Area ................................................................................................ 4-9

Battery Handling ............................................................................................4-10

Redundant Power Supplies ..........................................................................4-12

Backplane Voltage ........................................................................................ 4-13

Comply with Local and National Electrical Codes ........................................ 4-14

Product Disposal ........................................................................................... 4-15

Hot Swap Fan Warning ................................................................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Chapter 5 Advanced Motherboard Setup

5-1 Handling the Motherboard ..............................................................................5-1

Precautions .....................................................................................................5-1

Unpacking .......................................................................................................5-1

5-2 Motherboard Installation/Removal...................................................................5-2

5-3 Connecting Cables .......................................................................................... 5-2

Connecting Data Cables ................................................................................. 5-2

Connecting Power Cables ..............................................................................5-2

5-4 I/O Ports ..........................................................................................................5-3

5-5 Processor and Heatsink Installation................................................................5-4

Installing an LGA1150 Processor ....................................................................5-4

Installing a Heatsink ........................................................................................ 5-7

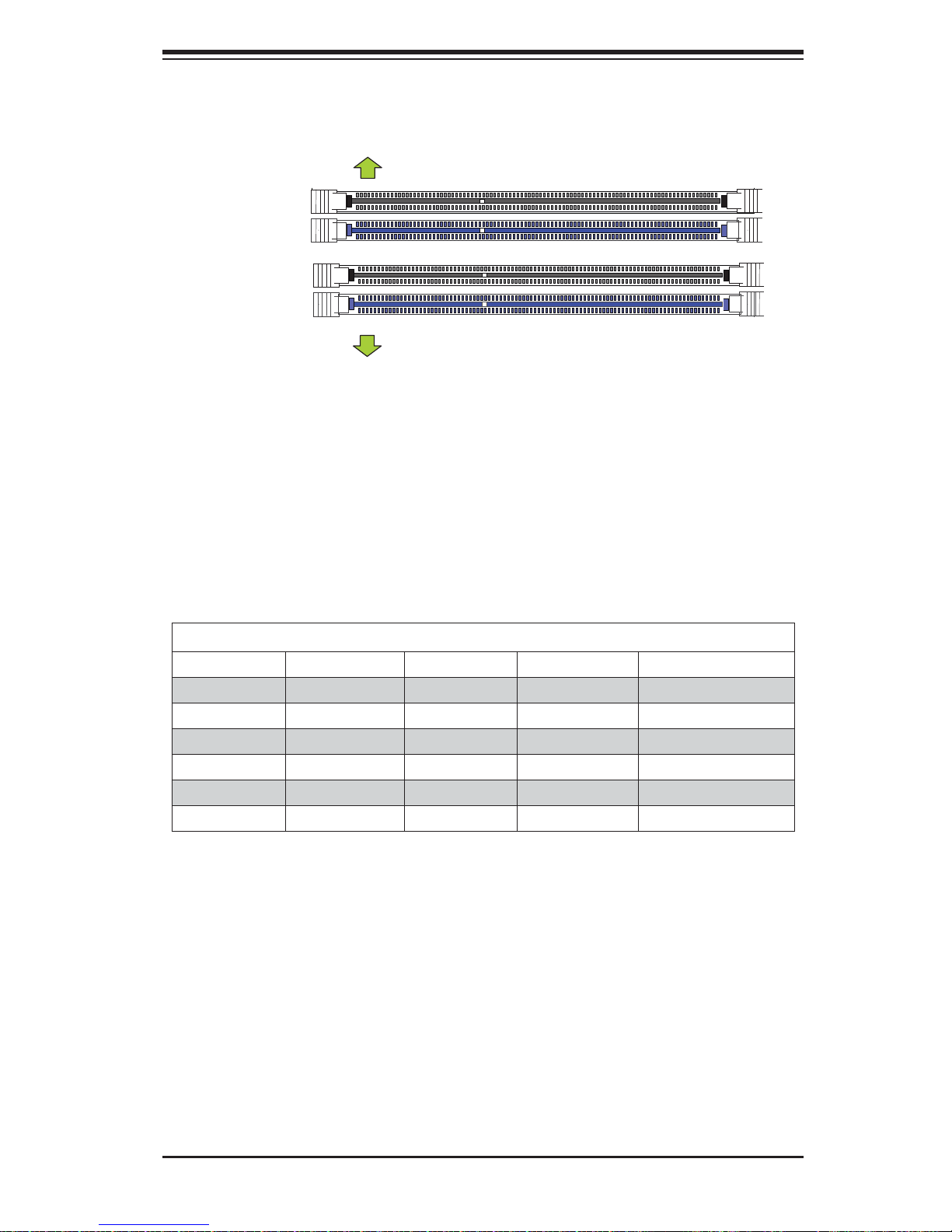

5-6 Installing Memory ............................................................................................ 5-8

How to Install Memory .................................................................................... 5-8

Memory Support .............................................................................................. 5-8

Memory Population Guidelines .......................................................................5-9

5-7 MicroLP Expansion Module .......................................................................... 5-10

5-8 Motherboard Details ...................................................................................... 5-12

X10SLE-F Quick Reference .......................................................................... 5-13

5-9 Connector Defi nitions ....................................................................................5-14

5-10 Jumper Settings ............................................................................................5-17

5-11 Onboard Indicators ........................................................................................5-19

5-12 SATA Ports ....................................................................................................5-19

5-13 Installing Software ......................................................................................... 5-20

SuperDoctor III .............................................................................................. 5-21

5-14 Onboard Battery ............................................................................................5-23

vii

SUPERSERVER 5038ML-H12TRF User's Manual

Chapter 6 Advanced Chassis Setup

6-1 Static-Sensitive Devices ..................................................................................6-1

Precautions .....................................................................................................6-1

6-2 Removing the Chassis Cover ......................................................................... 6-2

6-3 Corresponding Nodes and Fans ..................................................................... 6-3

6-4 Removing and Installing Motherboard Nodes .................................................6-4

6-5 Installing/Removing Hard Drives ..................................................................... 6-5

6-6 System Fans ...................................................................................................6-7

6-7 Power Supply .................................................................................................. 6-8

Power Supply Replacement ............................................................................ 6-8

Chapter 7 BIOS

7-1 Introduction ......................................................................................................7-1

Starting BIOS Setup Utility .............................................................................. 7-1

How To Change the Confi guration Data .........................................................7-1

How to Start the Setup Utility .........................................................................7-2

7-2 Main Setup ...................................................................................................... 7-2

7-3 Advanced Setup Confi gurations......................................................................7-4

7-4 Event Logs .................................................................................................... 7-23

7-5 IPMI ............................................................................................................... 7-24

7-6 Boot Settings ................................................................................................. 7-27

7-7 Security Settings ...........................................................................................7-29

7-8 Save & Exit ................................................................................................... 7-30

Appendix A BIOS Error Beep Codes
Appendix B System Specifi cations

viii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

The SuperServer 5038ML-H12TRF is a 12 node, MicroCloud server system com­prised of the SC939H-R1K63BP 3U chassis and 12 X10SLE-F motherboards.
Please refer to our web site for information on operating systems that have been
certifi ed for use with the 5038ML-H12TRF (www.supermicro.com).

In addition to the motherboard and chassis, various hardware components have
been included with the 5038ML-H12TRF, as listed below:

• Four chassis fans (FAN-0145L4)

• One passive heatsink, each node (SNK-P0047PSR)

• One air shroud, each node (MCP-310-93901-0B)

• One 55-cm 30AWG cable, each node (CBL-0488L)

• One 70-cm 30AWG cable, each node (CBL-0489L)

• One 11.5-cm KVM/SUVI 30/28AWG dual USB cable, each node (CBL-0218L)

• One MicroLP module, each node (AOM-CGP-I2M)

• One rail kit (MCP-290-41803-0N)

Optional parts for 2.5" HDD support:

• One 2.5" HDD mounting kit for the SC939, each node (MCP-220-93903-0N)

Note: a complete list of safety warnings is provided on the Supermicro web site at

http://www.supermicro.com/about/policies/safety_information.cfm

1-1

SUPERSERVER 5038ML-H12TRF User's Manual

1-2 Motherboard Features

The 5038ML-H12TRF includes a total of 12 X10SLE-F single processor mother­boards, which are based on the Intel C224 PCH chipset. Each motherboard con­stitutes a node in the system. Below are the main features of the X10SLE-F. (See
Figure 1-1 for a block diagram of the chipset.)

Processors

Each X10SLE-F supports a single Intel® Xeon® E3-1200 v3 processor (up to 80W)
or 4th Gen Core i3, Pentium®, Celeron® processor in an LGA 1150 socket (Socket
H3). Please refer to the motherboard description pages on our web site for a com­plete listing of supported processors (www.supermicro.com).

Memory

Each X10SLE-F has four DIMM slots that can support up to 32 GB of ECC DDR3­1600/1333 UDIMM (Unbuffered), VLP (Very Low Profi le) memory. This equates to a
maximum of 384 GB for the system. Memory modules of the same size and speed
should be used. See Chapter 5 for details.

SATA

A SATA controller integrated into the chipset provides a four-port SATA 3.0 sub­system on each node. Each node supports two 3.5” SATA 3.0 HDDs or four 2.5"
SATA 3.0 hard drives.

Rear I/O Ports

The rear I/O panel on each node includes one KVM connector, two Gb Ethernet
LAN ports, one dedicated IPMI LAN port, a power LED and buttons for UID (Unit
Identifi cation) and power.

IPMI

IPMI (Intelligent Platform Management Interface) is a hardware-level interface speci­fi cation that provides remote access, monitoring and administration for Supermicro
server platforms. IPMI allows server administrators to view a server’s hardware
status remotely, receive an alarm automatically if a failure occurs, and power cycle
a system that is non-responsive. Each node features IPMI 2.0 with KVM over a
dedicated LAN port.

1-2

Chapter 1: Introduction

Figure 1-1. Intel C224 Chipset:

System Block Diagram

Note: This is a general block diagram. See Chapter 5 for details.

PCIe x8 Micro-LP Slot

SVID

VRM 12.5
MISC VRs

4 SATA Ports

1 SATA Port
1 USB Port (Type A)
2 USB Ports (KVM)

TPM1.2 Header
FLASH SPI 128Mb

PCIe3.0_x8

8.0Gb/s

USB2.0 X 1

480Mb/s

SATA-III

6.0Gb/s
SATA-II

3.0Gb/s

USB3.0 X 1

5.0Gb/s

USB2.0 X 2

480Mb/s

LPC

SPI

COM1(KVM)

HEALTH
INFO

Haswell

(H3)

x4 DMI II

Lynx Point

C224/C226

PCH

NCT6776D
LPC I/O

5.0Gb

1600/1333MHz

1600/1333MHz

PCIe2.0 x1

LPC

LPC

DDR3 (CHA)

DDR3 (CHB)

ASPEED

RTL8211E

RJ45

(IPMI LAN)

ASP2400

RGMII

PHY

(1Gb)

DIMM1
DIMM2(Far)

4 UDIMM
DIMM1
DIMM2(Far)

VGA PORT

(KVM)

1-3

SUPERSERVER 5038ML-H12TRF User's Manual

1-3 Server Chassis Features

The following is a general outline of the main features of the SC939H-R1K63BP
server chassis.

System Power

The SC939H-R1K63BP features a redundant 1620W high-effi ciency power supply
comprised of two separate power modules. This power redundancy feature allows
you to replace a failed power supply without shutting down the system.

Cooling System

The SC939H-R1K63BP chassis includes four 9-cm fans located at the rear of the
chassis. Each node also has an air shroud to channel the airfl ow from the system
fans to effi ciently cool the components that generate the most heat. See Chapter
6 for details.

1-4

1-4 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Chapter 1: Introduction

Web Site:

Europe

Address: Super Micro Computer B.V.

Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

Asia-Pacifi c

Address: Super Micro Computer, Inc.

www.supermicro.com

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

[e-mail] (Technical Support)

[e-mail] (Customer Support)

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 23511

Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Web Site:
Technical Support:
Email: [e-mail]
Tel: [phone]

www.supermicro.com.tw

1-5

SUPERSERVER 5038ML-H12TRF User's Manual

Notes

1-6

Chapter 2: Server Installation

Chapter 2

Server Installation

2-1 Overview

This chapter outlines the procedure to set up your system and install it to a rack. If
your system is not already fully integrated with a motherboard, processors, system
memory etc., please turn to the chapter or section noted in each step for details on
installing specifi c components.

2-2 Unpacking the System

You should inspect the box the system was shipped in and note if it was damaged
in any way. If the server itself shows damage you should fi le a damage claim with
the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the server. It should be
situated in a clean, dust-free area that is well ventilated. Avoid areas where heat,
electrical noise and electromagnetic fi elds are generated. Y ou will also need it placed
near a grounded power outlet. Be sure to read the Rack and Server Precautions
in the next section.

2-3 Preparing for Setup

The server may have come with hardware to mount the system into a server rack. If
mounting to a rack with the rail kit, follow the steps in the order given to complete the
installation process in a minimum amount of time. Please read this section in its en­tirety before you begin the installation procedure outlined in the sections that follow.

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front door

completely (~25 inches) and approximately 30 inches of clearance in the back
of the rack to allow for suffi cient airfl ow and ease in servicing.

• This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

2-1

SUPERSERVER 5038ML-H12TRF User's Manual

• This product is not suitable for use with visual display work place devices

acccording to §2 of the the German Ordinance for Work with Visual Display Units.

2-4 Warnings and Precautions

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to

the fl oor with the full weight of the rack resting on them.

• In single rack installation, stabilizers should be attached to the rack. In multiple

rack installations, the racks should be coupled together.

• Always make sure the rack is stable before extending a component from it.

• You should extend only one component at a time - extending two or more si-

multaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Chapter 4.

• Determine the placement of each component in the rack before you install the

rails.

• Install the heaviest server components on the bottom of the rack fi rst, and then

work up.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a
power failure.

• Allow the hot plug drives and power supplies to cool before touching them.

• Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

2-2

Chapter 2: Server Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera­ture of the rack environment may be greater than the ambient temperature of the
room. Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient tempera­ture (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required
for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connec­tions other than the direct connections to the branch circuit (i.e. the use of power
strips, etc.).

Warning! To prevent bodily injury when mounting or servicing this unit in a
rack, you must take special precautions to ensure that the system remains
stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially fi lled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

2-3

SUPERSERVER 5038ML-H12TRF User's Manual

2-5 Installing the System into a Rack

Use the procedure below for installing the system to a rack.

1. Decide where you want to place the system into the rack (see "Rack Mount­ing Considerations" in the previous section).

2. Position the template at the front of the system to determine the locations of
the screws for the chassis rails (see Figure 2-1).

Figure 2-1. Positioning the Template

3. The two rail sections are screwed together to keep them immobile during
shipping. Release these screws just enough to allow the rails to slide apart.
Note the arrow on the rail, which indicates the end that attaches to the front
of the rack.

4. Slide the rails apart far enough to match the depth of the rack. Position the
rails with the template and secure the front of each to the front of the rack
with two fl athead screws, then secure the back of each rail to the rear of the
rack with two fl athead screws (see Figure 2-2). Note that the rails are left/right
specifi c and very heavy.

5. (Optional step) Add the front left and right handles to the chassis using
screws to secure each handle. Install a thumbscrew through the bottom hole
of each handle.

2-4

Chapter 2: Server Installation

Figure 2-2. Securing the Rails to the Rack

Note: These handles are optional and need only be installed when mounting the

system into a short rack. When mounting into a deep rack, they are unnecessary
and regular screws should be used instead of thumbscrews.

6. With one person on either side, lift the system and slide it into the installed
rails.

7. After pushing the enclosure all the way into the rack, use two roundhead
screws on each side of the server to lock it into place.

Warning: do not pick up the server with the front handles. They are de­signed to pull the system from a rack only.

2-5

SUPERSERVER 5038ML-H12TRF User's Manual

Figure 2-3. Installing to the Rack

Note: this fi gure is for illustrative purposes only. Always install servers to the bot-

tom of a rack fi rst.

Stability hazard. The rack stabilizing mechanism must be in place, or the
rack must be bolted to the fl oor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over.

2-6

Chapter 3: System Interface

Chapter 3

System Interface

3-1 Overview

LEDs are included on the serverboard nodes and the power supply modules to keep
you informed of their operational status. This chapter explains the meanings of all
LED indicators and the appropriate response you may need to take.

3-2 Motherboard Nodes

Power Button/LED

The main power button on each of the nodes functions as both an on/off switch and
as an LED. Pressing the button will alternately power on or remove power from the
node. See the table below for the LED indications.

LED Appearance Description

Green The node is powered on and operating normally

Solid Red The node is detecting an overheat condition

1Hz Blinking Red The node is detecting a fan failure

.25Hz Blinking Red The node is detecting a power failure

No Illumination The node is powered down

3-1

SUPERSERVER 5038ML-H12TRF User's Manual

Figure 3-1. Node LED Indicator

Node LED

Figure 3-2. Power Supply Module LED Indicator

Power Module

LED

3-3 Power Supply Modules

Power Module LED

Each of the power supply modules has its own LED to indicate the status of the
module.

LED Appearance Description

Green The power module is on and operating normally.

Amber

Off

The system is off, the power module is not turned on or
needs service.

AC power is not connected to the power module or the
module needs service.

3-2

Chapter 4: Warning Statements for AC Systems

Chapter 4

Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user
of situations which have the potential for bodily injury. Should you have questions
or experience difficulty, contact Supermicro's Technical Support department
for assistance. Only certifi ed technicians should attempt to install or confi gure
components.

Read this appendix in its entirety before installing or confi guring components in the
Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.com/
about/policies/safety_information.cfm.

Warning Defi nition

Warning!

This warning symbol means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the hazards involved with
electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

人身事故につながる可能性がありますので、いずれの機器でも動作させる前に、

電気回路に含まれる危険性に注意して、標準的な事故防止策に精通して下さい。

此警告符号代表危险。

您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分
意识到触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结
尾的声明号码找到此设备的安全性警告说明的翻译文本。

此警告符號代表危險。

您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸
電的危險，並且要熟悉預防事故發生的標準工作程序。請依照每一注意事項後的號
碼找到相關的翻譯說明內容。

4-1

SUPERSERVER 5038ML-H12TRF User's Manual

ןונקת תורהצהאהרהז

Warnung
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu

Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den
Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung
vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen
Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes

de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y
familiarícese con los procedimientos estándar de prevención de accidentes. Al
fi nal de cada advertencia encontrará el número que le ayudará a encontrar el texto
traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES.

IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une

situation pouvant entraîner des blessures ou des dommages corporels. Avant
de travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées pour
éviter les accidents. Pour prendre connaissance des traductions des avertissements
fi gurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fi n de chaque avertissement.

CONSERVEZ CES INFORMATIONS.

ןה תואבה תורהצהא ינפמ שמתשמה תא ריהזהל תנמ לע ,היישעתה ינקת יפ לע תורהז הלבח

ה וא תולאש שיו הדימב .תירשפא תיזיפי ,יהשלכ היעבב תולקתרוציל שי הכימת תקלחמ םע רשק

רידגהל וא ןיקתהל םיאשר דבלב םיכמסומ םיאנכט .ורקימרפוס לש תינכט תאה .םיביכר

תרדגה וא תנקתה ינפל ואולמב חפסנה תא

אורקל שי .ורקימרפוס יזראמב םיביכרה

4-2

Warning Statements for AC Systems

. ﻲﻓ ﻚﻧﺍ ﻥﺃ ﻦﻜﻤﻳ ﺔﻟﺎﺣ ﻲﻓ ﺐﺒﺴﺘﺗ ﺔﺑﺎﺻﺍ ﺔﻳﺪﺴﺟ ﺰﻣﺮﻟﺍ ﺍﺬﻫ ﻲﻨﻌﻳ ﺮﻄﺧ !ﺮﻳﺬﺤﺗ

ﻥﺃ ﻞﺒﻗ ﻱﺃ ﻰﻠﻋ ﻞﻤﻌﺗ ﺕﺍﺪﻌﻣ،ﻛﻢﻠﻋ ﻰﻠﻋ ﻦ ﻦﻋ ﺔﻤﺟﺎﻨﻟﺍ ﺮﻁﺎﺨﻤﻟﺎﺑ ﺮﺋﺍﻭﺪﻟﺍ

ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ

ﻛﻭﺔﻳﺍﺭﺩ ﻰﻠﻋ ﻦ ﺭﺎﻤﻤﻟﺎﺑﺕﺎﺳ ﺔﻴﺋﺎﻗﻮﻟﺍ ﻟ ﻊﻨﻤﻉﻮﻗﻭ ﻱﺃﺙﺩﺍﻮﺣ

ﻢﻗﺭ ﻡﺪﺨﺘﺳﺍ ﻥﺎﻴﺒﻟﺍ ﺹﻮﺼﻨﻤﻟﺍ ﺔﻳﺎﻬﻧ ﻲﻓ ﺮﻳﺬﺤﺗ ﻞﻛ ﺭﻮﺜﻌﻠﻟ ﺎﻬﺘﻤﺟﺮﺗ

안전을 위한 주의사항

경고!

이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수
있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와
관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준
작업절차를 준수해 주시기 바랍니다.

해당 번역문을 찾기 위해 각 경고의 마지막 부분에 제공된 경고문 번호를
참조하십시오

BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die

lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken,
dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's
en dient u op de hoogte te zijn van de standaard procedures om ongelukken te
voorkomen. Gebruik de nummers aan het eind van elke waarschuwing om deze te
herleiden naar de desbetreffende locatie.

BEWAAR DEZE INSTRUCTIES

4-3

SUPERSERVER 5038ML-H12TRF User's Manual

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source.

設置手順書

システムを電源に接続する前に、設置手順書をお読み下さい。

警告
将此系统连接电源前,请先阅读安装说明。

警告
將系統與電源連接前，請先閱讀安裝說明。

Warnung
Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen

lesen.

¡Advertencia!
Lea las instrucciones de instalación antes de conectar el sistema a la red de

alimentación.

Attention
Avant de brancher le système sur la source d'alimentation, consulter les directives

d'installation.

אורקל שי רוקמל תכרעמה רוביח ינפל הנקתה תוארוה תאחתמ.

ﻟﺍ ﺕﺍﺩﺎﺷﺭﺇ ﺮﻗﺍﺐﻴﻛﺮﺘ ﻞﻴﺻﻮﺗ ﻞﺒﻗ ﻰﻟﺇ ﻡﺎﻈﻨﻟﺍ ﺔﻗﺎﻄﻠﻟ ﺭﺪﺼﻣ

시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오.

Waarschuwing
Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron

aansluit.

4-4

Chapter 4: Warning Statements for AC Systems

Circuit Breaker

Warning!

This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

この製 品は 、短絡（過電流）保護装置がある建物での設置を前提としています。

保護装置の定格が250V、20Aを超えないことを確認下さい。

警告
此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电
流不大于250V,20A。

警告
此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電
流不大於250V,20A。

Warnung
Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss-

bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der
Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.

¡Advertencia!
Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes)

del edifi cio. Asegúrese de que el dispositivo de protección no sea superior a: 250
V, 20 A.

Attention
Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit

dépend de l'installation électrique du local. Vérifi ez que le courant nominal du
dispositif de protection n'est pas supérieur à :250 V, 20 A.

4-5

SUPERSERVER 5038ML-H12TRF User's Manual

경고!

이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에
의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지
않도록 해야 합니다.

Waarschuwing
Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van

uw electrische installatie. Controleer of het beveiligde aparaat niet groter
gedimensioneerd is dan 220V, 20A.

Power Disconnection Warning

Warning!

The system must be disconnected from all sources of power and the power cord
removed from the power supply module(s) before accessing the chassis interior to
install or remove system components.

電源切断の警告
システムコンポーネントの取り付けまたは取り外しのために、シャーシー内部にアクセス

するには、
システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り

外す必要があります。

警告

在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线。

警告

在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。

Warnung
Das System muss von allen Quellen der Energie und vom Netzanschlusskabel

getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es
auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder
zu entfernen.

4-6

Chapter 4: Warning Statements for AC Systems

ילמשח קותינ ינפמ הרהזא

!הרהזא

¡Advertencia!
El sistema debe ser disconnected de todas las fuentes de energía y del cable

eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso
el interior del chasis para instalar o para quitar componentes de sistema.

Attention
Le système doit être débranché de toutes les sources de puissance ainsi que de

son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour
installer ou enlever des composants de systéme.

למשחה תורוקמ לכמ תכרעמה תא קתנל שי ריסהל שיו קפסהמ ילמשחה לבכ תא

נקתה ךרוצל זראמה לש ימינפה קלחל השיג ינפלת רסה ואת .םיביכר

ﻞﺼﻓ ﺐﺠﻳ ﻡﺎﻈﻨﻟﺍ ﻊﻴﻤﺟ ﻦﻣﺭﺩﺎﺼﻣ ﺔﻗﺎﻄﻟﺍ ﺔﻟﺍﺯﺇﻭ ءﺎﺑﺮﻬﻜﻟﺍ ﻚﻠﺳ ﻦﻣ ﺓﺪﺣﻭ ﺩﺍﺪﻣﺍ

ﺔﻗﺎﻄﻟﺍ ﻞﺒﻗ

ﺯﺎﻬﺠﻟﺍ

경고!

시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에
반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야
합니다.

Waarschuwing
Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren

of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle
stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen

ﻰﻟﺇ ﻝﻮﺻﻮﻟﺍ ﺔﻴﻠﺧﺍﺪﻟﺍ ﻖﻁﺎﻨﻤﻟﺍ ﻟﻞﻜﻴﻬﻠ ﺔﻟﺍﺯﺇ ﻭﺃ ﺖﻴﺒﺜﺘﻟ ﺕﺎﻧﻮﻜﻣ

4-7

SUPERSERVER 5038ML-H12TRF User's Manual

Equipment Installation

Warning!

Only trained and qualifi ed personnel should be allowed to install, replace, or service
this equipment.

機器の設置

トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可
されています。

警告
只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。

警告
只有經過受訓且具資格人員才可安裝、更換與維修此設備。

Warnung
Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem,

qualifi ziertem Personal gestattet werden.

¡Advertencia!
Solamente el personal califi cado debe instalar, reemplazar o utilizar este equipo.

Attention
Il est vivement recommandé de confier l'installation, le remplacement et la

maintenance de ces équipements à des personnels qualifi és et expérimentés.

!הרהזא

שר דבלב ךמסומ תווצתא ףילחהל ,ןיקתהל יא .דויצה רובע תוריש תתל וא דויצה

ﻦﻴﺑﺭﺪﻤﻟﺍﻭ ﻭ ﺐﻴﻛﺮﺘﻟﻝﺍﺪﺒﺘﺳﺍ ﻭﺃ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ ﺢﻤﺴﻳ ﻥﺃ ﺐﺠﻳ ﻂﻘﻓ ﻦﻴﻠﻫﺆﻤﻟﺍ ﻦﻴﻔﻅﻮﻤﻠﻟ

경고!

훈련을 받고 공인된 기술자만이 이 장비의 설치, 교체 또는 서비스를 수행할 수
있습니다.

4-8

Chapter 4: Warning Statements for AC Systems

Waarschuwing
Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door

geschoold en gekwalifi ceerd personeel.

Restricted Area

Warning!

This unit is intended for installation in restricted access areas. A restricted access
area can be accessed only through the use of a special tool, lock and key, or other
means of security. (This warning does not apply to workstations).

アクセス制限区域
このユ ニットは、アクセス制限区域に設置されることを想定しています。
アクセス制限区域は、特別なツール、鍵と錠 前、その他のセキュリティの手段を用いての

み出入りが可能です。

警告
此部件应安装在限制进出的场所，限制进出的场所指只能通过使用特殊工具、锁和
钥匙或其它安全手段进出的场所。

警告
此裝置僅限安裝於進出管制區域，進出管制區域係指僅能以特殊工具、鎖頭及鑰匙
或其他安全方式才能進入的區域。

Warnung
Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen.

Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und
Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.

¡Advertencia!
Esta unidad ha sido diseñada para instalación en áreas de acceso restringido.

Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una
herramienta especial, cerradura con llave u otro medio de seguridad.

Attention
Cet appareil doit être installée dans des zones d'accès réservés. L'accès à une

zone d'accès réservé n'est possible qu'en utilisant un outil spécial, un mécanisme
de verrouillage et une clé, ou tout autre moyen de sécurité.

4-9

SUPERSERVER 5038ML-H12TRF User's Manual

תלבגומ השיג םע רוזא

!הרהזא

תרזעב תנתינ השיגה .השיג תלבגה םהב שיש םירוזאב הדיחיה תא ןיקתהל שי

.('דכו לוענמ ,חתפמ) דבלב החטבא ילכ

. ﺺﻴﺼﺨﺗ ﺓﺪﺣﻮﻟﺍ ﻩﺬﻫ ﻲﻓ ﺎﻬﺒﻴﻛﺮﺘﻟ ﻖﻁﺎﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻢﺗ

ﺻﻮﻟﺍ ﻦﻜﻤﻳﻰﻟﺇ ﻝﻮ ﺔﻘﻄﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻂﻘﻓ ﻡﺍﺪﺨﺘﺳﺍ ﻝﻼﺧ ﻦﻣ ،ﺔﺻﺎﺧ ﺓﺍﺩﺃ

ﻭﺃ ﻱﺃ ﻼﻟ ﻯﺮﺧﺃ ﺔﻠﻴﺳﻭﻥﺎﻣﻷ ﺡﺎﺘﻔﻣﻭ ﻞﻔﻗ

경고!

이 장치는 접근이 제한된 구역에 설치하도록 되어있습니다. 특수도구, 잠금 장치 및
키, 또는 기타 보안 수단을 통해서만 접근 제한 구역에 들어갈 수 있습니다.

Waarschuwing
Dit apparaat is bedoeld voor installatie in gebieden met een beperkte toegang.

Toegang tot dergelijke gebieden kunnen alleen verkregen worden door gebruik te
maken van speciaal gereedschap, slot en sleutel of andere veiligheidsmaatregelen.

Battery Handling

Warning!

There is the danger of explosion if the battery is replaced incorrectly. Replace the
battery only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメー
カーが推奨する型、または 同 等のものを使 用下さい。使用済電池は製造元の指示に従

って処 分して下さい。

警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

4-10

Chapter 4: Warning Statements for AC Systems

!הרהזא

Warnung
Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.
Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention
Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!
Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

Reemplazar la batería exclusivamente con el mismo tipo o el equivalente
recomendado por el fabricante. Desechar las baterías gastadas según las
instrucciones del fabricante.

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל

ﺮﻄﺧ ﻙﺎﻨﻫ ﻦﻣ ﻝﺍﺪﺒﺘﺳﺍ ﺔﻟﺎﺣ ﻲﻓ ﺭﺎﺠﻔﻧﺍ ﺔﻳﺭﺎﻄﺒﻟﺍ ﺔﺤﻴﺤﺻ ﺮﻴﻏ ﺔﻘﻳﺮﻄﺑ ﻚﻴﻠﻌﻓ

ﺔﻳﺭﺎﻄﺒﻟﺍ ﻝﺍﺪﺒﺘﺳﺍ

ﻂﻘﻓ ﻉﻮﻨﻟﺍ ﺲﻔﻨﺑ ﺎﻬﻟﺩﺎﻌﻳ ﺎﻣ ﻭﺃ ﺎﻤﻛﺖﺻﻭﺃ ﺔﻌﻨﺼﻤﻟﺍ ﺔﻛﺮﺸﻟﺍ ﻪﺑ

ﺕﺎﻳﺭﺎﻄﺒﻟﺍ ﻦﻣ ﺺﻠﺨﺗ ﻟ ﺎﻘﻓﻭ ﺔﻠﻤﻌﺘﺴﻤﻟﺍﺔﻌﻧﺎﺼﻟﺍ ﺔﻛﺮﺸﻟﺍ ﺕﺎﻤﻴﻠﻌﺘ

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와
동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다.
제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing
Er is ontploffi ngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen
wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd
te worden.

4-11

SUPERSERVER 5038ML-H12TRF User's Manual

דחא קפסמ רתוי םייק םא

!הרהזא

Redundant Power Supplies

Warning!

This unit might have more than one power supply connection. All connections must
be removed to de-energize the unit.

冗長電源装置

このユニットは複数の電源装置が接続されている場合があります。

ユニットの電源を切るためには、すべての接続を取り外さなければなりません。

警告
此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。

警告
此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。

Warnung
Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass

der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

¡Advertencia!
Puede que esta unidad tenga más de una conexión para fuentes de alimentación.

Para cortar por completo el suministro de energía, deben desconectarse todas las
conexiones.

Attention
Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute

tension et tout courant électrique de l'unité, toutes les connexions d'alimentation
doivent être débranchées.

.קפס לש דחא רוביחמ רתוי שי הדחיל תא ריסהל שיןקורל תנמ לע םירוביחה לכ

חיה תאי.הד

4-12

Chapter 4: Warning Statements for AC Systems

. ﺪﻗ ﺍﺬﻬﻟ ﻥﻮﻜﻳ ﻟﺍﺯﺎﻬﺠ ﺕﻻﺎﺼﺗﺍ ﺓﺪﻋ ﺕﺍﺪﺣﻮﺑ ﺔﻗﺎﻄﻟﺍ ﺩﺍﺪﻣﺍ

ﺔﻟﺍﺯﺇ ﺐﺠﻳ ﺕﻻﺎﺼﺗﻻﺍ ﺔﻓﺎﻛ ﻝﺰﻌﻟ ﻟﺍﺓﺪﺣﻮ ﻦﻋ ءﺎﺑﺮﻬﻜﻟﺍ

경고!

이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에
전원을 차단하기 위해서는 모든 연결 단자를 제거해야만 합니다.

Waarschuwing
Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle

aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken.

Backplane Voltage

Warning!

Hazardous voltage or energy is present on the backplane when the system is
operating. Use caution when servicing.

バックプレーンの電圧
システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。

修理する際には注意ください。

警告
当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。

警告
當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。

Warnung
Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche

Spannungen oder Energien auf. Vorsicht bei der Wartung.

¡Advertencia!
Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso.

Tenga cuidado cuando lo revise.

Attention
Lorsque le système est en fonctionnement, des tensions électriques circulent sur

le fond de panier. Prendre des précautions lors de la maintenance.

4-13

SUPERSERVER 5038ML-H12TRF User's Manual

ירוחאה לנפב חתמ

ךלהמב רהזיהל שי .תכרעמה לועפת ןמזב ירוחאה לנפב חתמ תנכס תמייק

זא!הרה

.הדובעה

ﻙﺎﻨﻫ ﺮﻄﺧ ﻦﻣ ﻲﺋﺎﺑﺮﻬﻜﻟﺍ ﺭﺎﻴﺘﻟﺍ ﻰﻠﻋ ﺓﺩﻮﺟﻮﻤﻟﺍ ﺔﻗﺎﻄﻟﺍﻭﺃ ﺔﺣﻮﻠﻟﺍ

ﻥﻮﻜﻳ ﺎﻣﺪﻨﻋﻡﺎﻈﻨﻟﺍ ﻞﻤﻌﻳ ﺪﻨﻋ ﺍﺭﺬﺣ ﻦﻛ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ

경고!

시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생
합니다. 서비스 작업 시 주의하십시오.

Waarschuwing
Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het

systeem in gebruik is. Voorzichtigheid is geboden tijdens het onderhoud.

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠
機器の取り付けはその地方および国の電気規格に準拠する必要があります。

警告

设备安装必须符合本地与本国电气法规。

警告

設備安裝必須符合本地與本國電氣法規。

Warnung
Die Installation der Geräte muss den Sicherheitsstandards entsprechen.

¡Advertencia!
La instalacion del equipo debe cumplir con las normas de electricidad locales y

nacionales.

4-14

Chapter 4: Warning Statements for AC Systems

יצראה למשחה יקוח םואית

Attention
L'équipement doit être installé conformément aux normes électriques nationales

et locales.

!הרהזא

תנקתה םייצראהו םיימוקמה למשחה יקוחל תמאות תויהל תבייח דויצה.

ﺕﺍﺪﻌﻤﻟﺍ ﺐﻴﻛﺮﺗ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﻠﻟ ﻞﺜﺘﻤﻳ ﻥﺃ ﺐﺠﻳ ﻦﻴﻧﺍﻮﻘﺔﻴﻨﻁﻮﻟﺍﻭ ﺔﻴﻠﺤﻤﻟﺍ ﺔﻘﻠﻌﺘﻤﻟﺍ

ءﺎﺑﺮﻬﻜﻟﺎﺑ

경고!

현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.

Waarschuwing
Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale

elektriciteitsvoorschriften.

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws
and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
あります。

警告
本产品的废弃处理应根据所有国家的法律和规章进行。

警告
本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung
Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

4-15

SUPERSERVER 5038ML-H12TRF User's Manual

רצומה קוליס

¡Advertencia!
Al deshacerse por completo de este producto debe seguir todas las leyes y

reglamentos nacionales.

Attention
La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de
l'organisme compétent.

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

ﻲﺋﺎﻬﻨﻟﺍ ﺺﻠﺨﺘﻟﺍ ﻦﻣ ﺞﺘﻨﻤﻟﺍ ﺍﺬﻫ ﻪﻌﻣ ﻞﻣﺎﻌﺘﻟﺍ ﻲﻐﺒﻨﻳ ﻟ ﺎﻘﻓﻭ ﻊﻴﻤﺠﺔﻴﻨﻁﻮﻟﺍ ﺢﺋﺍﻮﻠﻟﺍﻭ ﻦﻴﻧﺍﻮﻘﻟﺍ ﺪﻨﻋ

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Waarschuwing
De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

Hot Swap Fan Warning

Warning!

The fans might still be turning when you remove the fan assembly from the chassis.
Keep fi ngers, screwdrivers, and other objects away from the openings in the fan
assembly's housing.

ファン・ホットスワップの警告

シャーシから冷却ファン装置を取り外した際、ファンがまだ回転している可能性がありま

す。ファンの開口部に、指、ドライバー、およびその他のものを近づけないで下さい。

警告
当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他
物品太靠近风扇

4-16

Chapter 4: Warning Statements for AC Systems

警告
當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他
物品太靠近風扇。

Warnung
Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis

genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände
von den Öffnungen des Lüftergehäuses entfernt.

¡Advertencia!
Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador

del chasis. Mandtenga los dedos, los destornilladores y todos los objetos lejos de
las aberturas del ventilador

Attention
Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez

le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres
objets soient éloignés du logement du bloc ventilateur.

!הרהזא

יקלח תא םיריסמ רשאכ שי .םידבוע ןיידע םיררוואמהו ןכתי ,זראמהמ ררוואמה

קיחרהללררוואמה ךותב םיחתפהמ םינוש הדובע ילכו תועבצאה תא חוטב קחרמ

ﻦﻜﻤﻤﻟﺍ ﻦﻣ ﺡﻭﺍﺮﻤﻟﺍ ﻥﺃ ﻝﺍﺰﺗ ﻻ ﺔﻟﺍﺯﺇ ﺪﻨﻋﺭﻭﺪﺗ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ ﻞﻜﻴﻬﻟﺍ ﻦﻣ ﺐﺠﻳ ءﺎﻘﺑﺇ

ﻊﺑﺎﺻﻷﺍ ﻭﻲﻏﺍﺮﺒﻟﺍ ﺕﺎﻜﻔﻣ

. ءﺎﻴﺷﻷﺍ ﻦﻣ ﺎﻫﺮﻴﻏﻭ ﺍﺪﻴﻌﺑ ﻦﻋ ﺕﺎﺤﺘﻔﻟﺍ ﻲﻓ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ

경고!

섀시로부터 팬 조립품을 제거할 때 팬은 여전히 회전하고 있을 수 있습니다. 팬
조림품 외관의 열려있는 부분들로부터 손가락 및 스크류드라이버, 다른 물체들이
가까이 하지 않도록 배치해 주십시오.

Waarschuwing
Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het

ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers
en eventuele andere voorwerpen uit de buurt van de openingen in de
ventilatorbehuizing.

4-17

SUPERSERVER 5038ML-H12TRF User's Manual

Power Cable and AC Adapter

Warning!

When installing the product, use the provided or designated connection cables,
power cables and AC adaptors. Using any other cables and adaptors could cause
a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the
use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any
other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

製品を設置する場合、提供または指定された接続ケーブル、電源コードとACアダプター
を使用下さい。他のケーブルやアダプタを使用すると故障や火災の原因になることがあ

ります。電気用品安全法は、ULまたはCSA認定のケーブル(UL/CSEマークがコードに表

記)をSupermicroが指定する製品以外に使用することを禁止しています。

警告
安装此产品时,请使用本身提供的或指定的连接线,电源线和电源适配器.使用其它线
材或适配器可能会引起故障或火灾。除了Supermicro所指定的产品,电气用品和材
料安全法律规定禁止使用未经UL或CSA认证的线材。(线材上会显示UL/CSA符号)。

警告
安裝此產品時,請使用本身提供的或指定的連接線,電源線和電源適配器.使用其它線
材或適配器可能會引起故障或火災。除了Supermicro所指定的產品,電氣用品和材
料安全法律規定禁止使用未經UL或CSA認證的線材。(線材上會顯示UL/CSA符號)。

Warnung
Bei der Installation des Produkts, die zur Verfügung gestellten oder benannt

Anschlusskabel, Stromkabel und Netzteile. Verwendung anderer Kabel und Adapter
kann zu einer Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und
Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifi zierte Kabel,
UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von
Supermicro nur bezeichnet gezeigt haben.

¡Advertencia!
Al instalar el producto, utilice los cables de conexión previstos o designados, los

cables y adaptadores de CA. La utilización de otros cables y adaptadores podría
ocasionar un mal funcionamiento o un incendio. Aparatos Eléctricos y la Ley de
Seguridad del Material prohíbe el uso de UL o CSA cables certifi cados que tienen
UL o CSA se muestra en el código de otros dispositivos eléctricos que los productos
designados por Supermicro solamente.

4-18

Chapter 4: Warning Statements for AC Systems

אתמו םיילמשחמ י

Attention
Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné.

L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement
ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit
l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code
pour tous les autres appareils électriques que les produits désignés par Supermicro
seulement.

AC

!הרהזא

AC רשא

םימאתמו םיקפס ,םילבכב שמתשהל שי ,רצומה תא םיניקתמ רשאכ

וא הלקתל םורגל לוכי רחא םאתמ וא לבכ לכב שומיש .ךכ םשל וקפוסו ודעונ

טב יקוחו למשח ירישכמב שומיש יקוח יפ לע .ילמשח רצק רוסיא םייק ,תוחי

UL ב וא- CSA לש דוק םהילע עיפומ ראשכ)

ב םיכמסומה םילבכב שמתשהל-

UL/CSA( רחא ילמשח רצומ לכ רובע.דבלב ורקימקרפוס ידי לע ןיוצ אלש

ﺐﻴﻛﺮﺗ ﺪﻨﻋ ﻡﺍﺪﺨﺘﺳﺍ ﺐﺠﻳ ﺯﺎﻬﺠﻟﺍ ﻭ،ﻞﻴﺻﻮﺘﻟﺍ ﺕﻼﺑﺎﻛ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺕﻼﺑﺎﻜﻟﺍ

ﺕﻻﻮﺤﻣﻭ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ

. ﻥﺃ ﻱﺃ ﻡﺍﺪﺨﺘﺳﺍ ﺕﻼﺑﺎﻛ ﺕﻻﻮﺤﻣﻭ ﻯﺮﺧﺃ ﺐﺒﺴﺘﻳ ﻲﻓ ﻞﻄﻋ ﺙﻭﺪﺣ ﻖﻳﺮﺣ ﻭﺃ . ﻲﺘﻟﺍ

ﻚﻟ ﺎﻫﺮﻴﻓﻮﺗ ﻢﺗ ﺞﺘﻨﻤﻟﺍ ﻊﻣ

UL ﻭﺃ CSA ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺰﻬﺟﻷﺍ ﺩﺍﻮﻣﻭ ﻥﻮﻧﺎﻗ ﺔﻣﻼﺴﻟﺍ ﻡﺍﺪﺨﺘﺳﺍ ﺮﻈﺤﻳ ﺕﻼﺑﺎﻜﻟﺍ

ﻞﺒﻗ ﻦﻣ ﺓﺪﻤﺘﻌﻣ

Supermicro ﺓﺰﻬﺟﺃ ﻯﺮﺧﺃ ﺔﻴﺋﺎﺑﺮﻬﻛ ﺮﻴﻏ ﺕﺎﺠﺘﻨﻤﻟﺍ ﺔﻨﻴﻌﻤﻟﺍ ﻞﺒﻗ ﻦﻣ ﻱﻷ

(UL/CSA ﻞﻤﺤﺗ ﻲﺘﻟﺍﺔﻣﻼﻋ )

경고!

제품을 설치할 때에는 제공되거나 지정된 연결케이블과 전원케이블, AC어댑터를
사용해야 합니다. 그 밖의 다른 케이블들이나 어댑터들은 고장 또는 화재의 원인이
될 수 있습니다. 전기용품안전법 (Electrical Appliance and Material Safety
Law)은 슈퍼마이크로에서 지정한 제품들 외에는 그 밖의 다른 전기 장치들을
위한 UL또는 CSA에서 인증한 케이블(전선 위에 UL/CSA가 표시)들의 사용을
금지합니다.

Waarschuwing
Bij het installeren van het product, gebruik de meegeleverde of aangewezen kabels,

stroomkabels en adapters. Het gebruik van andere kabels en adapters kan leiden
tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet
verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op
de code voor andere elektrische apparaten dan de producten die door Supermicro
alleen.

4-19

SUPERSERVER 5038ML-H12TRF User's Manual

Notes

4-20

Chapter 5: Advanced Motherboard Setup

Chapter 5

Advanced Motherboard Setup

This chapter covers the steps required to connect the data and power cables and
install add-on cards. All motherboard jumpers and connections are also described.
A layout and quick reference chart are included in this chapter for your reference.
Remember to completely close the chassis when you have fi nished working with
the server to better cool and protect the system.

5-1 Handling the Motherboard

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam­age to any printed circuit boards (PCBs), it is important to handle them very carefully
(see previous chapter). To prevent the motherboard from bending, keep one hand
under the center of the board to support it when handling. The following measures
are generally suffi cient to protect your equipment from electric static discharge.

Precautions

• Use a grounded wrist strap designed to prevent ESD.

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid electro static discharge.
When unpacking the board, make sure the person handling it is static protected.

5-1

SUPERSERVER 5038ML-H12TRF User's Manual

5-2 Motherboard Installation/Removal

The X10SLE-F motherboards have been preinstalled into carriers to simplify install­ing and removing the nodes from the SC939H-R1K63BP chassis. The motherboards
should remain in these carriers at all times. If a failed node needs to be returned
for repair or replacement, the motherboard is to be shipped assembled in its car­rier and not by itself. See Chapter 6 for instructions on installing and removing the
motherboard nodes from the chassis.

5-3 Connecting Cables

Now that the processors are installed, the next step is to connect the cables to the
serverboard. These include the data cables for the peripherals and control panel
and the power cables.

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully
routed in preconfi gured systems to pr event them fro m b l o cking th e fl ow of cooling
air that move s through th e system from f ront to back. I f you need to disc onnect
any of these c ab les, yo u sho uld t ake ca re to re route t hem a s they wer e or igin ally
after r ec onn ect ing t hem (make sur e the re d wir es c onn ec t to the p in 1 lo cat io ns).
If you are confi guring the system, keep the airfl ow in mind when routing the cables.
The following data cables (with their serverboard connector locations noted)
should be connected.
See the serverboard layout diagram in this chapter for connector locations.

• SATA cables (3.5" drives: I-SATA0 ~ I-SATA1, 2.5" drives: I-SATA0 ~ I-SATA3)

Connecting Power Cables

The X9DRD-LF has a pr oprietar y power supply c onnector des ignated "J PWR2 "
for co nnectio n to the power su pply. Connect t he approp riate con nector f rom the
power supp ly to JPW R2 t o supply p ower to the se r verboa rd.

5-2

Chapter 5: Advanced Motherboard Setup

5-4 I/O Ports

The I/O ports are located at the back of the motherbord node. See Figure 5-1
below for the colors and locations of the various I/O ports. See Section 5-10 for
port defi nitions.

Figure 5-1. I/O Ports

1 32

I/O Ports

1 UID Button/LED
2 USBs (x2)/Video (Monitor)/COM (UART)
3 Dedicated IPMI LAN Port

5-3

SUPERSERVER 5038ML-H12TRF User's Manual

5-5 Processor and Heatsink Installation

Warning: Avoid placing direct pressure to the top of the processor.

Notes:

• Always connect the power cord last and always remove it before adding, re-

moving or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.

• If you buy a CPU separately, make sure that you use an Intel-certifi ed multi-

directional heatsink only.

• Make sure to install the motherboard into the chassis before you install the

CPU heatsinks.

• When receiving a motherboard without a processor pre-installed, make sure that

the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.

• Refer to the Sup ermi cro web s ite for upd ates on CPU su ppor t.

Installing an LGA1150 Processor

1. Gently press down the load plate
handle and push it outward (to the
right side) to unlock it.

2. Once th e load plate h andle is
unloc ked, gently li ft t he handl e to
open the load plate.

Load Plate

Handle Lock

Load Plate Handle

5-4

Chapter 5: Advanced Motherboard Setup

3. Once t he load p late is ope n, use your thumb and your index fi nger to hold
the CPU at the north center edge and the south center edge of the CPU.

North Center Edge

South Center Edge

4. Align the CPU keys, which are the semicircular cutouts on the sides of the
CPU (shown below), against the socket keys, the semicircular notches on the
sides of the CPU socket. Align CPU pin 1, the triangle at the bottom left of
the CPU, against pin 1 of the socket, the triangle marker at the bottom left of
the CPU socket.

Socket Pin1

Socket Keys

CPU Pin1

CPU Keys

5. Once they are aligned, carefully lower the CPU straight down into the socket.
(To avoid damaging the CPU or the socket, do not drop the CPU on the
socket. Do not rub the CPU against the surface or against any pins of the
socket.)

6. With the CPU seated inside the socket, inspect the four corners of the CPU
to ensure that it is properly installed.

5-5

SUPERSERVER 5038ML-H12TRF User's Manual

7. Once the CPU is properly installed, use your thumb to gently push the load
plat handle down to the handle lock and lock it.

CPU properly installed

Load Plate Handle is

locked into place

8. When the CPU is securely locked into the CPU socket, the plastic cap will be
automatically loosened from the load plate. Use your thumb and index fi nger
to remove the plastic cap from the socket.

The plastic cap will pop
open when the CPU is
properly installed in
the socket. Remove the
cap from the socket.

Warning: You can install the CPU inside the socket only in one direction. Make sure

that it is properly inserted into the CPU socket before closing the load plate. If it
doesn't close properly, do not force it, as that may damage your CPU. Instead, open
the load plate again and check whether the CPU is properly aligned and securely
seated inside the socket.

5-6

Chapter 5: Advanced Motherboard Setup

Installing a Heatsink

1. With the node removed, remove the air shroud.

2. Do not apply any thermal grease to the heatsink or the CPU die; the required
amount has already been applied.

3. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the motherboard and the heatsink bracket underneath.

4. Screw in two diagonal facing screws until just snug. (To avoid possible dam­age to the CPU and heatsink, do not over-tighten the screws.)

5. Finish the installation by fully tightening all four screws.

6. Reverse the order of this procedure to remove a heatsink.

Figure 5-2. Installing a Heatsink

5-7

SUPERSERVER 5038ML-H12TRF User's Manual

5-6 Installing Memory

Caution: Exercise extreme care when installing or removing DIMM modules to prevent

any possible damage to the DIMMs or their sockets

How to Install Memory

1. Insert the desired number of DIMMs into the memory slots in the following
order: DIMMA2, then DIMMB2, DIMMA1, DIMMB1. Pay attention to the notch
along the bottom of the module to prevent incorrect installation.

2. Insert each DIMM module vertically push down until it and snaps into place.
Repeat to install more memory, if needed. See instructions on the next page.

Memory Support

Each X10SLE-F supports up to 32GB of Unbuffered (UDIMM) ECC DDR3­1600/1333 /106 6 m e mo ry in four DI MM slots. O nly VLP (Ver y Lo w Pro fi le) DIMMs
are supported. Please refer to the product page on our web site for possible updates
to memory support.

To In st al l : Insert
module vertically
and pre ss dow n
until it s naps i nto
place. Pay attention
to the alignment
notch at t he bo tto m.

To Remove:

Use your thumbs to
gently push the re­lease tabs near both
ends of the module.
This should release
it from the slot.

Figure 5-2. DIMM Installation

Notch

Release Tab

Notch should align
with the receptive
key point on the slot.

Top View of DDR3 Slot

Notch

Front View

Release Tab

5-8

Chapter 5: Advanced Motherboard Setup

Figure 5-3. Populating DIMM Slots

Towards the CPU

Channel A, Slot 1
Channel A, Slot 2

(Blue Slot)

Channel B, Slot 1

Channel B, Slot 2

(Blue Slot)

Towards the edge of the motherboard

Memory Population Guidelines

1. When installing memory modules, the DIMM slots should be populated in the
following order: DIMMA2, DIMMB2, DIMMA1 and DIMMB1

2. Always use DDR3 DIMM modules of the same size, type and speed.

3. The motherboard will support one or three DIMM modules installed. However,
for best memory performance, install DIMM modules in pairs.

Recommended Population (Balanced)

DIMMA2 DIMMB2 DIMMA1 DIMMB1 Total System Memory

2GB DIMM 2GB DIMM 4GB
2GB DIMM 2GB DIMM 2GB DIMM 2GB DIMM 8GB
4GB DIMM 4GB DIMM 8GB
4GB DIMM 4GB DIMM 4GB DIMM 4GB DIMM 16GB
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB

5-9

SUPERSERVER 5038ML-H12TRF User's Manual

5-7 MicroLP Expansion Module

Each of the 12 nodes in the 5038ML-H12TRF has one MicroLP slot, which can
support a single MicroLP expansion module. Follow the instructions below to install
this module.

Installing a MicroLP Expansion Module

1. Power-down the node using that node's individual power button and remove it
from the system as described in Chapter 6.

2. Open the PCI slot clip and remove the PCI slot shield.

3. Open the PCI slot clip in the rear of the motherboard node.

4. Remove the PCI slot shield.

5. The MicroLP module consists of a MicroLP card, a riser card and a mounting
bracket. Simply insert the module into the MicroLP expansion slot.

6. Slide the expansion cards bracket into the PCI card slot and fi t it with the
opening in the rear of the node.

7. Close the PCI card slot clip to secure the expansion card.

Note: The PCI slot shields protect the motherboard and its components from EMI
and aid in proper ventilation, so make sure there is always a shield covering each
unused slot.

5-10

Chapter 5: Advanced Motherboard Setup

Riser CardExpansion Card

Bracket

Figure 5-4. Installing the MicroLP Expansion Module

Notes: The node and motherboard shown above are examples. Your actual node

and motherboard may vary from those illustrated.
The fi gure above shows an exploded view of the module. The expansion card, riser

card and mounting bracket come pre-assembled.
Currently there are three supported MicroLP expansion cards for the 5038ML-

H12TRF system, as described below.
AOM-CGP-i2M: x2 LAN ports (standard)
AOM-CIBF-M1M: QSFP + x2 USB ports (optional)
AOM-CTG-i1SM: SFP+ x2 USB ports (optional)

5-11

SUPERSERVER 5038ML-H12TRF User's Manual

5-8 Motherboard Details

Figure 5-5. X10SLE-F Layout

LED5

MICRO-LP PCI-E 3.0 X8

IPMI_LAN

BMC

AST2400

JP1

Battery

JKVM1

JPG1

BIOS

I-SATA4

I-SATA0

I-SATA1

SW1

PWR

UID

JUIDB1

LED6

JTPM1

JSD1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

JPME2

JBT1

PCH
Intel LP
C226/C224

JPME1

MAC CODE

CPU

I-SATA2

I-SATA3

USB3.0-0

BAR CODE

JP17

JP18

JP16

5-12

X10SLE-F/HF

Rev. 1.00

JPWR2

JPV1

JWD1

J22

Chapter 5: Advanced Motherboard Setup

X10SLE-F Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear (See Section 5-10)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPME1 ME Recovery Pins 1-2 (Normal)
JPME2 Manufacture Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Pins 1-2 (NMI)

Connector Description

Battery Onboard Battery
IPMI_LAN Dedicated IPMI LAN
JKVM1 USB (x2) / VGA (Monitor) / COM (UART) Connector for

Remote Console Redirection or Remote Network Interface
JP16 Power Output for Hard Disk Drive (12V and 5V)
JP17 Motherboard Interface to PDB
JP18 Motherboard Interface to PDB
JPWR2 SMC Proprietary Power Connector
JSD1 SATA DOM (Device On Module) Power Connector
JTPM1 Trusted Platform Module/Port 80 Connector
I-SATA0 - I-SATA4 Serial ATA Ports (I-SATA0-3: SATA 3.0, I-SATA4: SATA 2.0)
Micro-LP PCI-E Slot SMC Proprietary Micro Low-Profi le (LP) PCI-Express 3.0

x8 Slot
SW1 Power Switch/LED Indicator

UID Unit Ide ntifi er (UID) Button (JUIDB)
USB0 Front Acc essib le USB 3 .0 Por t 0

LED Description State/Status

LED5 Power/Fan Fail/Overheat LED Red: Power Fail, Fan Fail or Overheating
LED6 UID LED Blue: Unit Identifi ed

5-13

SUPERSERVER 5038ML-H12TRF User's Manual

5-9 Connector Defi nitions

Unit Identifi er Switch/UID LED
Indicators

A Unit Identifier (UID) button and a
LED indicator are located on the moth­erboard. The UID button is located at
JUIDB1, and LED is located at LED6 on
the backplane. When you press the UID
button, the UID LED indicator will turn
on. Press the UID button again to turn
off the LED indicator. The UID indicator
provides easy identifi cation of a system
unit that may be in need of service.

Note: UID can also be triggered via IPMI
on the motherboard. For more informa­tion on IPMI, please refer to the IPMI
User's Guide posted on our website @
http://www.supermicro.com.

UID Switch

Pin# Defi nition
1 Ground
2 Ground
3 Button In
4 Button In

UID LED

Status

Color/State Status
Blue: On Unit Identifi ed

Power Switch/LED

A power switch/LED indicator is located next to the UID button/LED on the backplane
of the motherboard. Use this switch to power on or power off the system.

LAN Port

Pin Defi nition

Pin# Defi nition Pin# Defi nition
1 TD0+ 11 TD3-

IPMI_LAN Port

An dedicated IPMI Ethernet port is lo­cated on the I/O backpanel to provide
network connection via IPMI interface.
This port accepts a RJ45 type cable.

Note: Please refer to the LED iIndicator
Section for LAN LED information.

2 TD0- 12 NC
3 NC 13 Ground
4 TD1+ 14 Act LED (Yellow)
5 TD1- 15 Link 1000 LED (Amber)
6 NC 16 Link 100 LED (Green)
7 TD2+ 17 Ground
8 TD2- 18 Ground
9 NC 19 Ground
10 TD3+ 20 Ground

(NC= No Connection)

5-14

Chapter 5: Advanced Motherboard Setup

SMC-Proprietary Power

This motherboard suppor ts SMC-Proprietary power supply. Be sure to use the
power sup ply reco mmende d by Superm icro an d connec t it to JP WR2 to p rovide
power to your system.

Power Output for HDD

An HD D power o ut co nnec tor i s loc ated at J P16. Conn ect a p ower c abl e to JP16
to provid e 12V or 5 V power to th e devic es inst alled i n hard dr ive disks .

Motherboard Interface to PDB

Conne ctors JP17/JP18 provide mot herboard i nterface s upport to PD B. Connect
approp riate c ables to s uppor t inte rf ace bet ween t he moth erbo ard and a PD B.

DOM PWR Connector (JSD1)

The Disk-On-Module (DOM) power con­nector, located at JSD1, provides 5V
(Gen1/Gen) power to a solid state DOM
storage device connected to one of the
SA TA ports. See the table on the right for
pin defi nitions.

Universal Serial Bus (USB)

A USB 3.0 port (USB 0) is located next to
I-SATA3 to provide front chassis access
using USB cables (not included). T wo ad­ditional USB connections are supported
by JKVM1 on the IO backplane. See the
table on the right for pin defi nitions.

DOM PWR

Pin Defi nitions

Pin# Defi nition
15V
2 Ground

3 Ground

USB (3.0) Type A

Pin Defi nitions

Pin# Signals Pin# Signals
1 VBUS 8 StdA_SSTX­2 D- 9 StdA_SSTX+
3 D+ 10 Ground

4 Ground 11 Ground
5 StdA_SSRX- 12 Ground
6 StdA_SSRX+ 13 Ground
7 GND_DRAIN

5-15

SUPERSERVER 5038ML-H12TRF User's Manual

USB (x2)/VGA/COM Connector

JKVM1 supports USB(x2)/VGA/COM
(UART) connections on the I/O back­plane to provide console redirection
support or remote networking interface.

TPM Header/Port 80 Header

A T rusted Platform Module/Port 80 head­er is located at JTPM1 to provide TPM
support and Port 80 connection. Use this
header to enhance system performance
and data security. See the table on the
right for pin defi nitions.

TPM/Port 80 Header

Pin Defi nitions

Pin # Defi nition Pin # Defi nition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 +5V (X)
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 RSV0 14 RSV1
15 +3V_DUAL 16 SERIRQ
17 GND 18 CLKRUN# (X)
19 RSV2 20 RSV3

5-16

5-10 Jumper Settings

Explanation of Jumpers

To modify the operation of the mother­board, jumpers can be used to choose
between optional settings. Jumpers
create shorts between two pins to
change the function of the connector.
Pin 1 is identifi ed with a square solder
pad on the printed circuit board. See
the motherboard layout pages for
jumper locations.

Note: On a two-pin jumper, "Closed"
means the jumper is on both pins and
"Open" means the jumper is either on
only one pin or completely removed.

Chapter 5: Advanced Motherboard Setup

3 2 1

Connector

Pins

Jumper

3 2 1

Setting

CMOS Clear

JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins,
this jumper consists of contact pads to prevent accidentally clearing the contents
of CMOS.

To clear CMOS,

1. First power down the system and unplug the power cord(s). It is also recom­mended that you remove the onboard battery from the motherboard.

2. With the power disconnected, short the CMOS pads with a metal object such
as a small screwdriver.

3. Remove the screwdriver (or shorting device).

4. Reconnect the power cord(s) and onboard battery and power on the system.

Note: Do not use the PW_ON connector to clear CMOS.

5-17

SUPERSERVER 5038ML-H12TRF User's Manual

VGA Enable/Disable (JPG1)

JPG1 allows the user to enable the
onboard VGA connector (through the
KVM). Close pins 1~2 to enable the
VGA. The default setting is Enabled.

Watch Dog RST/NMI Selection
(JWD1)

Watch Dog (JWD1) is a system moni­tor that can reboot the system when a
software application hangs. Close pins
1~2 to reset the system if an applica­tion hangs. Close pins 2~3 to generate
a non-maskable interrupt signal for the
application that hangs. See the table on
the right for jumper settings. Watch Dog
must also be enabled in the BIOS.

VGA Enable/Disable

Jumper Settings

Jumper Setting Defi nition
Pins 1-2 Enabled
Pins 2-3 Disabled

Watch Dog

Jumper Settings

Jumper Setting Defi nition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled

ME Recovery

Set Jumper JPME1 to select ME Firm­ware Recovery Mode, which will limit
system resource for essential function
use only without putting restrictions on
power use. In the single operation mode,
online upgrade will be available via Re­covery mode. See the table on the right
for pin defi nitions.

Manufacturer Mode Select

Close this jumper (JPME2) to bypass
SPI fl ash security and force the system
to use the Manufacturer Mode, which
allows the user to fl ash the system fi rm-
ware from a host server to modify system
settings. See the table on the right for
jumper settings.

ME Recovery

Jumper Settings

Jumper Setting Defi nition
Pins 1-2 Normal
Pins 2-3 ME Recovery

ME Mode Select

Jumper Settings

Jumper Setting Defi nition
Pins 1-2 Normal
Pins 2-3 Manufacture Mode

5-18

5-11 Onboard Indicators

Chapter 5: Advanced Motherboard Setup

IPMI Dedicated LAN Port

A dedicated IPMI LAN port is located
on the I/O backpanel. The yellow LED
on the r ight indic ates activ ity, while the
LED on the left indic ates the speed of
the connection. See the table at right for
more information.

PWR Fail/Fan Fail/OH LED

A Power Fail/Fan Fail/Overheat LED
(LED5) is located on the reverse side
of the mot herboa rd (right under L ED6).
See the t able at r ight fo r more inf orma ­tion.

Link LED

IPMI

IPMI LAN Link Speed LED

Linl LED Color/State Defi nition
Green 100 Mbps
Amber 1000 Mbps

PWR Fail/Fan Fail/OH LED

Color/State Defi nition
Red: OnPWR Fail, Fan Fail

or System Over­heating

Activity LED

Status

5-12 SATA Ports

SATA Ports

Five Serial ATA (SATA) (I-SATA 0-4)
ports are provided on the motherboard.
I-SATA0-3 supports SATA 3.0 and
I-SATA4 supports SATA 2.0. These
Serial Link connections provide faster
data transmission than legacy Parallel
ATA. See the table on the right for pin
defi nitions.

SATA Port

Pin Defi nitions

Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground

5-19

SUPERSERVER 5038ML-H12TRF User's Manual

5-13 Installing Software

The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp.

supermicro.com. Some of these must be installed, such as the chipset driver.

After accessing the ftp site, go into the CDR_Images directory and locate the ISO
fi le for your motherboard. Download this fi le to create a CD/DVD of the drivers and
utilities it contains. (You may also use a utility to extract the ISO fi le if preferred.)

Another option is to go to the Supermicro Website at

products/

load individual drivers and utilities.
After creating a CD/DVD with the ISO fi les, insert the disk into the CD/DVD drive

on your system and the display shown in Figure 5-6 should appear.

. Find the product page for your motherboard here, where you may down-

http://www.supermicro.com/

Figure 5-6. Driver/Tool Installation Display Screen

Note: Click the icons showing a hand writing on paper to view the readme fi les

for each item. Click the computer icons to the right of these items to install each
item (from top to the bottom) one at a time. After installing each item, you must
re-boot the system before moving on to the next item on the list. The bottom
icon with a CD on it allows you to view the entire contents.

5-20

Chapter 5: Advanced Motherboard Setup

SuperDoctor III

The SuperDoctor® III program is a web-based management tool that supports
remote management capability. It includes Remote and Local Management tools.
The local management is called SD III Client. The SuperDoctor III program allows
you to monitor the environment and operations of your system. SuperDoctor III
displays crucial system information such as CPU temperature, system voltages
and fan status. See the fi gures below for examples of the SuperDoctor III interface.

Note: The default User Name and Password for SuperDoctor III is ADMIN / ADMIN.
Note: When SuperDoctor III is fi rst installed, it adopts the temperature threshold

settings that have been set in BIOS. Any subsequent changes to these thresholds
must be made within SuperDoctor III, as the SuperDoctor III settings override the
BIOS settings. To set the BIOS temperature threshold settings again, you would
fi rst need to uninstall SuperDoctor III.

Figure 5-7. SuperDoctor III Interface Display Screen (Health Information)

5-21

SUPERSERVER 5038ML-H12TRF User's Manual

Figure 5-8. SuperDoctor III Interface Display Screen (Remote Control)

Note: The SuperDoctor III program and User ’s Manual can be downloaded from

the Supermicro web site at

ware/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor

II application instead.

http://www.supermicro.com/products/accessories/soft-

5-22

Chapter 5: Advanced Motherboard Setup

5-14 Onboard Battery

Please handle used batteries carefully. Do not damage the battery in any way; a
damaged battery may release hazardous materials into the environment. Do not
discard a used battery in the garbage or a public landfi ll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose
of your used battery properly.

Figure 5-9. Installing the Onboard Battery

Please handle used batteries carefully. Do not damage the battery in any way; a
damaged battery may release hazardous materials into the environment. Do not
discard a used battery in the garbage or a public landfi ll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose
of your used battery properly.

5-23

Chapter 6: Advanced Chassis Setup

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform main­tenance on the SC939H-R1K63BP chassis. For component installation, follow the
steps in the order given to eliminate the most common problems encountered. If
some steps are unnecessary, skip ahead to the step that follows.

Tools Required: The only tool you will need to install components and perform
maintenance is a Philips screwdriver.

6-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent
damage to any printed circuit boards (PCBs), it is important to handle them very
carefully. The following measures are generally suffi cient to protect your equipment
from ESD damage.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the motherboard.

• The person unpacking the system should be static protected.

6-1

SUPERSERVER 5038ML-H12TRF User's Manual

6-2 Removing the Chassis Cover

Figure 6-1. Removing the Chassis Cover

Removing the Chassis Cover

1. Disconnect the chassis from any power source.

2. Remove the three screws which secure the top cover to the chassis as il­lustrated above.

3. Lift the top cover up and off the chassis.

4. Peel off the protective fi lm covering the top cover and the top of the chassis

5. Check that all ventilation openings on the top cover and the top of the chassis
are clear and unobstructed.

Warning: Except for short periods of time, do NOT operate the server without the
cover in place. The chassis cover must be in place to allow proper airfl ow and prevent
overheating.

6-2

Chapter 6: Advanced Chassis Setup

6-3 Corresponding Nodes and Fans

The 5038ML-H12TRF contains 12 individual motherboards contained in separate
nodes. Three nodes each share a common fan (see fi gure below).

Figure 6-2. Corresponding Nodes and Fans

Cooling Zone 1

Fan 1

1

2

3

4

5

6

7

8

9

10

11

12

Fan 2

Fan 3

Corresponding Nodes and Fans

Cooling Zone Node Fans

Fan 4

Cooling Zone 2

Zone 1 Nodes 1 through 6 Fans 1 & 2
Zone 2 Nodes 7 through 12 Fans 3 & 4

6-3

SUPERSERVER 5038ML-H12TRF User's Manual

6-4 Removing and Installing Motherboard Nodes

Release Tab

Handle

Figure 6-3. Removing/Installing a Node

The system comes features twelve removable nodes. Each node contains an in­dividual motherboard and hard drives mounted on a sled, which allows it to easily
be installed and removed from the chassis.

Removing Nodes from the System

1. Power-down the individual node by pressing that node's power button.

2. Press and hold down the release tab on the back of the node.

3. Use the node's handle to pull the node from the system.

Warning: Except for short periods of time while swapping nodes, do not operate the
server with the node bays empty. In the unlikely event of a node failure, remove the
failed node and replace it with the dummy node that was included with the system.

6-4

Chapter 6: Advanced Chassis Setup

6-5 Installing/Removing Hard Drives

The hard drives are installed directly to the sled, which must fi rst be removed from
the system. For this reason, hard drives are not hot-swappable. Either two 3.5" or
four 2.5" hard drives can be installed in each sled (node). An optional kit is required
to install 2.5" drives (MCP-220-93903-0N bracket).

Installing/Removing Hard Drives from the Sled

1. Remove the node to have HDDs installed or removed by following the proce­dure in the previous section.

2. Place the sled on a fl at, non-conductive surface.

3. Insert the hard drive with the printed circuit board side facing downward so
that the mounting holes in the drive align with those in the bottom of the sled.

4. Secure the hard drive to the sled with the screws included with the drive.

5. When fi nished installing or removing drives, push the node/sled back into the
bay it was removed from.

6. Use the node's power button to power it back on.

Figure 6-4. Installing/Removing 3.5" Hard Drives

6-5

SUPERSERVER 5038ML-H12TRF User's Manual

Figure 6-5. Installing/Removing 2.5" Hard Drives (Optional)

Note: Enterprise level hard disk drives are recommended for use in Supermicro

chassis and servers. For information on recommended HDDs, visit the Supermicro
Web site at http://www.supermicro.com/products/nfo/storage.cfm

6-6

Chapter 6: Advanced Chassis Setup

6-6 System Fans

Four 9-cm fans circulate air through the chassis to lower the internal temperature.
These fans are designed to be easily changed, with no tools required and no need
to remove any other parts inside the chassis. In the event of a fan failure, follow
the instructions below to replace it.

Removing a Fan

1. Visually inspect the fans to see which one has failed.

2. Push both release tabs on the failed fan inward.

3. Remove the the fan from the chassis. The wiring will disconnect automati­cally.

4. Remove the screws securing the fan ti its housing and set them aside for
later use.

5. Insert a new fan into the housing and secure with the screws previously
removed.

6. Confi rm that the fan is working with the system powered on.

Figure 6-6. Removing a Fan

Release Tab

Release Tab

6-7

SUPERSERVER 5038ML-H12TRF User's Manual

6-7 Power Supply

The system includes a redundant 1620 watt, high-effi ciency power supply. The
two power supply modules are auto-switching capable, which enables them to
automatically sense and operate at a 100V to 240V input voltage. An amber light
is illuminated on the power supply when the power is off. An illuminated green light
indicates that the power supply is on.

Power Supply Replacement

In the event that one of the power supplies needs to be replaced, one power supply
can be removed without powering-down the system. Replacement power supply
units may be ordered directly from Supermicro.

Changing the Power Supply

1. With the system running, unplug the AC power cord from the failed power
supply module.

2. Press the release tab at the top of the power module

3. Push and hold the release tab on the back of the power supply.

4. Grasp the handle and pull the power supply out of its bay.

5. Push the replacement power supply module into the empty bay until it clicks
into the locked position.

6. Plug the AC power cord back into the power supply module.

Figure 6-6. Removing a Power Module

Release Tab

Handle

6-8

Chapter 7: BIOS

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMI BIOS Setup Utility for the X10SLE-F/X10SLE-HF.
The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This
chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

Note: For AMI BIOS Recovery, please refer to the UEFI BIOS Recovery
Instructions in Appendix C.

Starting BIOS Setup Utility

To enter the AMI BIOS Setup Utility screens, press the <Delete> key while the
system is booting up.

Note: In most cases, the <Delete> key is used to invoke the AMI BIOS
setup screen. There are a few cases when other keys are used, such as
<F1>, <F2>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be confi gured. Grayed-out options cannot be confi gured. Options in blue can be
confi gured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for a text message. When an option is selected in the
left frame, it is highlighted in white. Often a text message will accompany it. (Note:
the AMI BIOS has default text messages built in. Supermicro retains the option to
include, omit, or change any of these text messages.)

The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".
Most of the AMI BIOS setup utility "hot keys" can be used at any time during the
setup navigation process. These keys include <F1>, <F4>, <Enter>, <ESC>, arrow
keys, etc.

Note: Options printed in Bold are default settings.

How To Change the Confi guration Data

The confi guration data that determines the system parameters may be changed by
entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing
<Del> at the appropriate time during system boot.

7-1

SUPERSERVER 5038ML-H12TRF User's Manual

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS Setup Utility. From the main menu, you can access the other setup
screens. An AMI BIOS identifi cation string is displayed at the left bottom corner of
the screen, below the copyright message.

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.
Flashing the wrong BIOS can cause irreparable damage to the system. In no event
shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam­ages arising from a BIOS update. If you have to update the BIOS, do not shut down
or reset the system while the BIOS is updating. This is to avoid possible boot failure.

7-2 Main Setup

When you fi rst enter the AMI BIOS Setup utility , you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS Setup screen is shown below.

The following Main menu items will display:

7-2

Chapter 7: BIOS

System Date/System Time

Use this option to change the system date and time. Highlight System Date or
System Time using the arrow keys. Enter new values through the keyboard. Press

the <Tab> key or the arrow keys to move between fi elds. The date must be entered
in Day MM/DD/YY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears
as 17:30:00.

The following BIOS items will also be displayed:

Supermicro X10SLE-F/HF

Version

Build Date

Memory Information

Total Memory

This displays the total size of memory available in the system.

7-3

SUPERSERVER 5038ML-H12TRF User's Manual

7-3 Advanced Setup Confi gurations

Use the arrow keys to select Boot Setup and press <Enter> to access the submenu
items:

Warning: Take Caution when changing the Advanced settings. An incorrect value, a
very high DRAM frequency , or an incorrect DRAM timing setting may make the system
unstable. When this occurs, revert to the setting to its manufacture default setting.



Boot Feature

Quiet Boot

This feature selects the screen display between POST messages or the OEM
logo at bootup. Select Disabled to display the POST messages. Select Enabled
to display the OEM logo instead of the normal POST messages. The options are

Enabled and Disabled.

AddOn ROM Display Mode

This feature sets the display mode for the Option ROM. Select Keep Current to
use the current AddOn ROM display setting. Select Force BIOS to use the Option
