Chapter 1

M34T Mobile Rack Specifi cations

1-1 Overview

This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides detailed information for the installation and
use of the CSE-M34T mobile rack.

The Supermicro CSE-M34T mobile rack offers cutting edge technolgy with greater
fl exibility. The CSE-M34T supports four Serial ATA hot-swappagle hard drives. These
hard drive yield an unparalleled storage capacity without compromising productivity ,
by eliminating possible system downtime.

1-2 Product Features

Occupancy Three 5.25" drive bays•
Capacity Four 1" host receptacle connectors, SATA hot-swap-•

Cooling Subsystem
Monitoring

Dimensionsw (Wx­HxD)

Weight Net: 5.9lb (2.9 kg), Gross: 7.5lb (3.7 kg)•

pable hard drives (CSE-M35T-1 only)
One 9 cm exhaust fan•

Fan fail detection LED and alarm•
Overheat LED indication•
Drive fail alarm indication (CSE-M35S only)•
Built-in termination (CSE-M35S only)•

146mm x 129mm x 245mm (5.7 in x 5.0 in x 9.5 in)•

1-1

CSE-M34T Mobile Rack User's Guide

1-3 Packing List

The CSE-M34T mobile rack includes the following:

•

CSE-M34T mobile rack

One 90 mm exhaust fan•

Four drive carriers, part number CSE-PT10 (beige only)•

Six counts of 6-32 hex washer head screws•

Eight counts of M3 washer head screws•

Eighteen counts of pan head screws•

One Serial ATA backplane, part number CSE-SATA-M34•

Four Serial ATA cables, part number CBL-0044L•

Serial ATA LED cable, part number CBL-0057L•

Additional Information

The CSE- M34T mobile rack was designed for use in certain chassis and servers
or as a stand-alone unit. Refer to the chassis or server manuals for installation
instructions. Use the instructions listed in this manual when using the mobile rack
independent of a chassis.

The pictures or graphics shown in this user’s guide were based upon the latest
PCB revision available at the time of the publishing of this manual. The CSE- M34T
mobile rack may or may not look exactly the same as the graphics shown in this
manual. The availability of SAS-devices supported depends on the readiness of
fi rmware and hardware support.

1-2

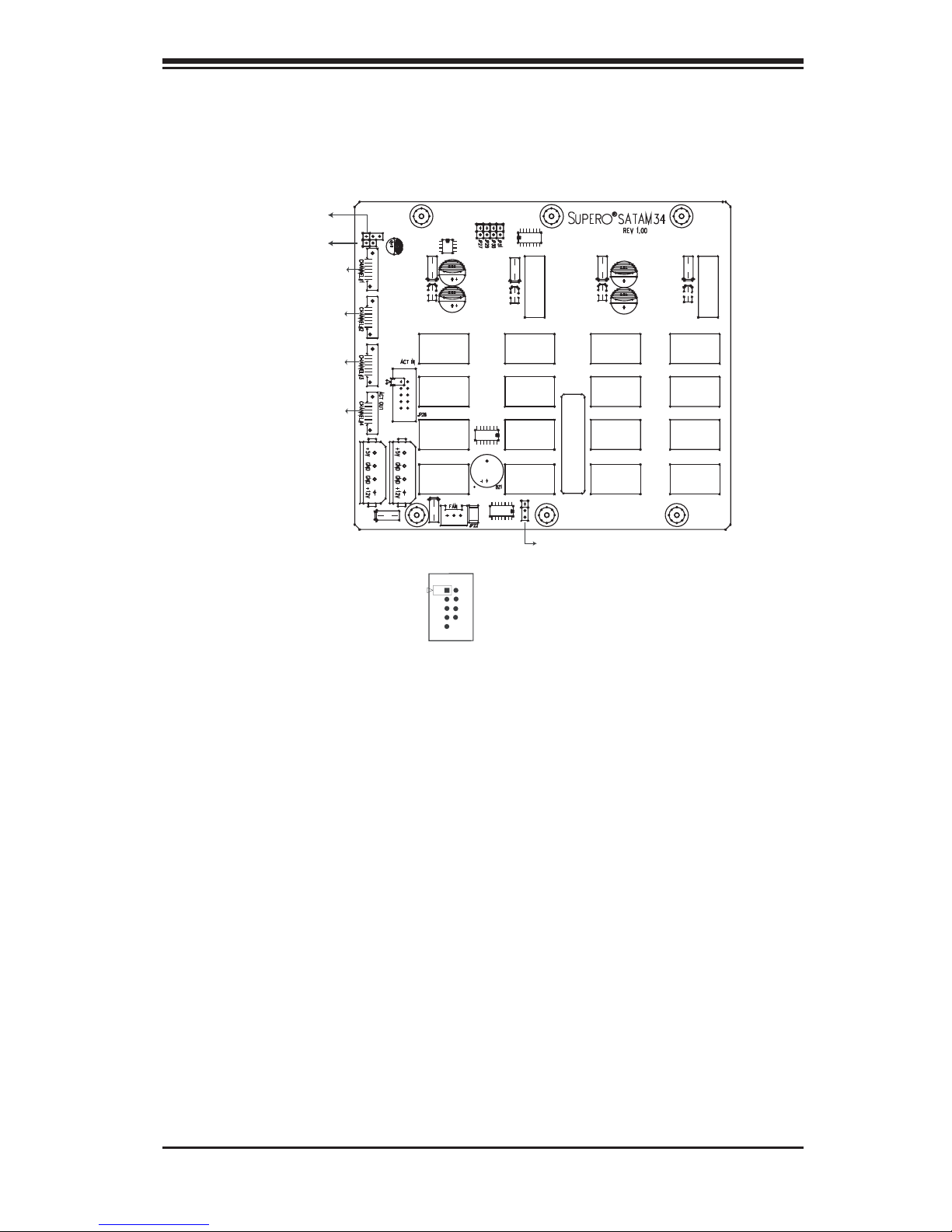

1-4 SATA M34 Backplane

Front Connectors and Jumpers

JP25
JP18

Channel #1

Channel #2

Channel #3

Channel #4

CSE-M34T Mobile Rack User's Guide

ACT1

ACT2

ACT3

ACT4

COM

Figure 1-1. Mobile Rack Backplane (Front)

Activity LEDs Pin Defi nitions JP26
Act. LED1 = Channel 1
Act. LED2 = Channel 2
Act. LED3 = Channel 3
Act. LED4 = Channel 4

JP28

JP26

Key

1-3

CSE-M34T Mobile Rack User's Guide

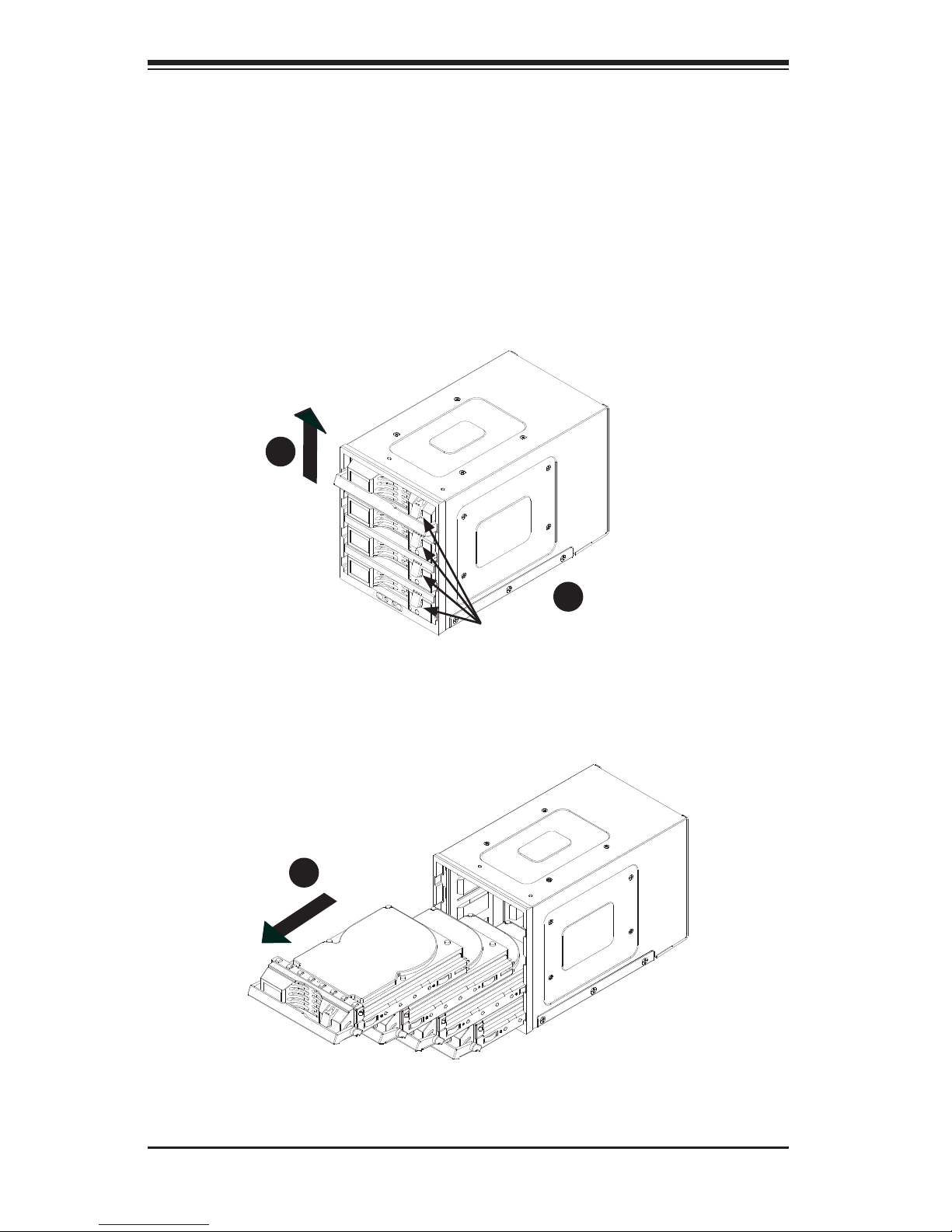

Accessing the Hard Drives

Accessing Hot-Swappable Drives

Push the release button located beside each drive's LED.1.

Lift up on the drive's handle. 2.

Carefully pull the drives out of the storage module.3.

2

Release Buttons

Figure 1-2: Releasing the Drives

3

1

Figure 1-3: Removing the Drives

1-4

Installing a Drive into the Drive Tray

Mount the drive in the drive tray.1.

Secure it into the drive tray as shown with the screws provided.2.

CSE-M34T Mobile Rack User's Guide

!

Figure 1-4: Installing the Drive into the Drive Tray

Warning! Enterprise level hard disk drives are recommended for
use in Supermicro chassis and servers. For information on rec­ommended HDDs, visit the Supermicro Web site at http://www.
supermicro.com/products/nfo/files/storage/SAS-1-CompList-

110909.pdf

1-5

CSE-M34T Mobile Rack User's Guide

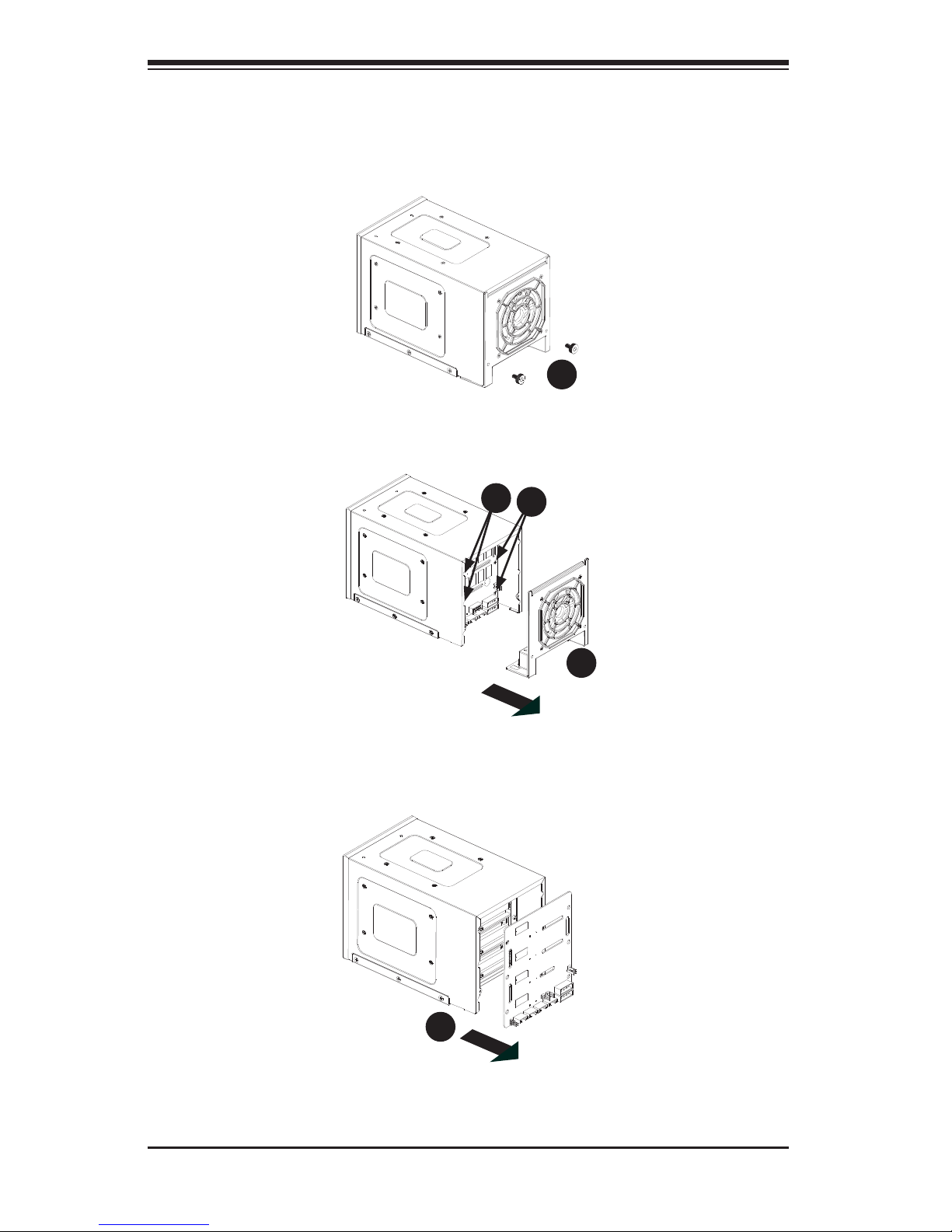

Accessing the Backplane

Remove the screws located on the back of the mobile rack unit as shown. 1.

Pull out the rear fan bracket.2.

1

3

1

3

1

2

Remove the screws securing the backplane.3.

Remove the backplane.4.

4

Figure 1-4: Accessing the Backplane
