Supero H8SCM, H8SCM-F User Manual

USER’S MANUAL

Revision 1.2c

®

SUPER

H8SCM

H8SCM-F

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
and makes no commitment to update or to keep current the information in this manual, or to notify
any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at

www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL
NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED
WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall be
the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims
will not exceed the price paid for the hardware product.

FCC Statement: Refer to Supermicro's web site for FCC Compliance Information.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.2c
Release Date: March 11, 2014
Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.
Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

Preface

iii

Preface

About This Manual

This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
H8SCM(-F) serverboard.

The H8SCM(-F) serverboard is based on the AMD® SR5650/SP5100 chipset and
supports one AMD Socket C32 type processor with up to 32 GB of ECC/Non-ECC
UDIMM or up to 128 GB of ECC RDIMM SDRAM memory . The H8SCM serverboard
does not have IPMI capability, whereas the H8SCM-F serverboard does.

Please refer to the motherboard specifi cations pages on our web site for updates on
supported processors (http://www.supermicro.com/aplus/). This product is intended
to be professionally installed.

Manual Organization

Chapter 1 includes a checklist of what should be included in your motherboard

box, describes the features, specifi cations and performance of the motherboard
and provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read this
chapter when installing the processor(s) and memory modules and when installing
the motherboard in a chassis. Also refer to this chapter to connect the hard disk
drives, the various ports, and the power and reset buttons and the system LEDs.

If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the setup confi guration stored in CMOS.
For quick reference, a general FAQ (Frequently Asked Questions) section is
provided. Instructions are also included for contacting technical support. In addition,
you can visit our web site for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages.
Appendix B lists BIOS POST Checkpoint Codes.

iv

Table of Contents

Chapter 1 Introduction

1-1 Overview .........................................................................................................1-1

Checklist ..........................................................................................................1-1

1-2 Contacting Supermicro ....................................................................................1-2

H8SCM(-F) Quick Reference .......................................................................... 1-5

1-3 Serverboard Features .....................................................................................1-7

1-4 Chipset Overview ..........................................................................................1-10

AMD SR5650/SP5100 Chipset .....................................................................1-10

HyperTransport Technology .......................................................................... 1-10

1-5 PC Health Monitoring .................................................................................... 1-10

1-6 Power Confi guration Settings.........................................................................1-1 1

1-7 Power Supply ................................................................................................1-12

1-8 Super I/O ....................................................................................................... 1-13

Chapter 2 Installation

2-1 Standardized Warning Statements ................................................................. 2-1

About Standardized Warning Statements ....................................................... 2-1

2-2 Static-Sensitive Devices ..................................................................................2-4

Precautions .....................................................................................................2-4

Unpacking .......................................................................................................2-4

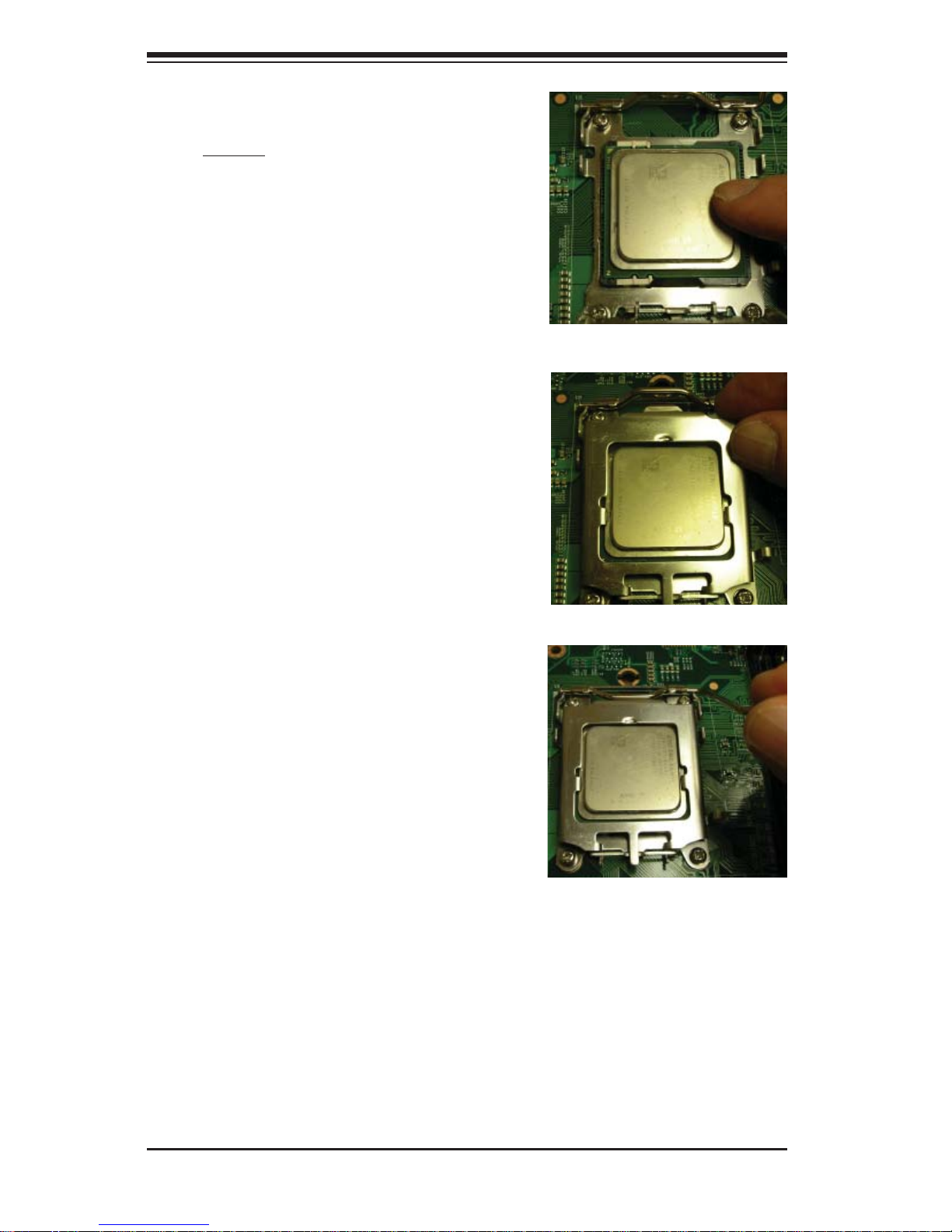

2-3 Processor and Heatsink Installation................................................................2-5

2-4 Mounting the Serverboard into a Chassis ...................................................... 2-7

2-5 Installing Memory ............................................................................................2-7

DIMM Module Population Confi guration .................................................... 2-9

2-6 PCI Expansion Cards ......................................................................................2-9

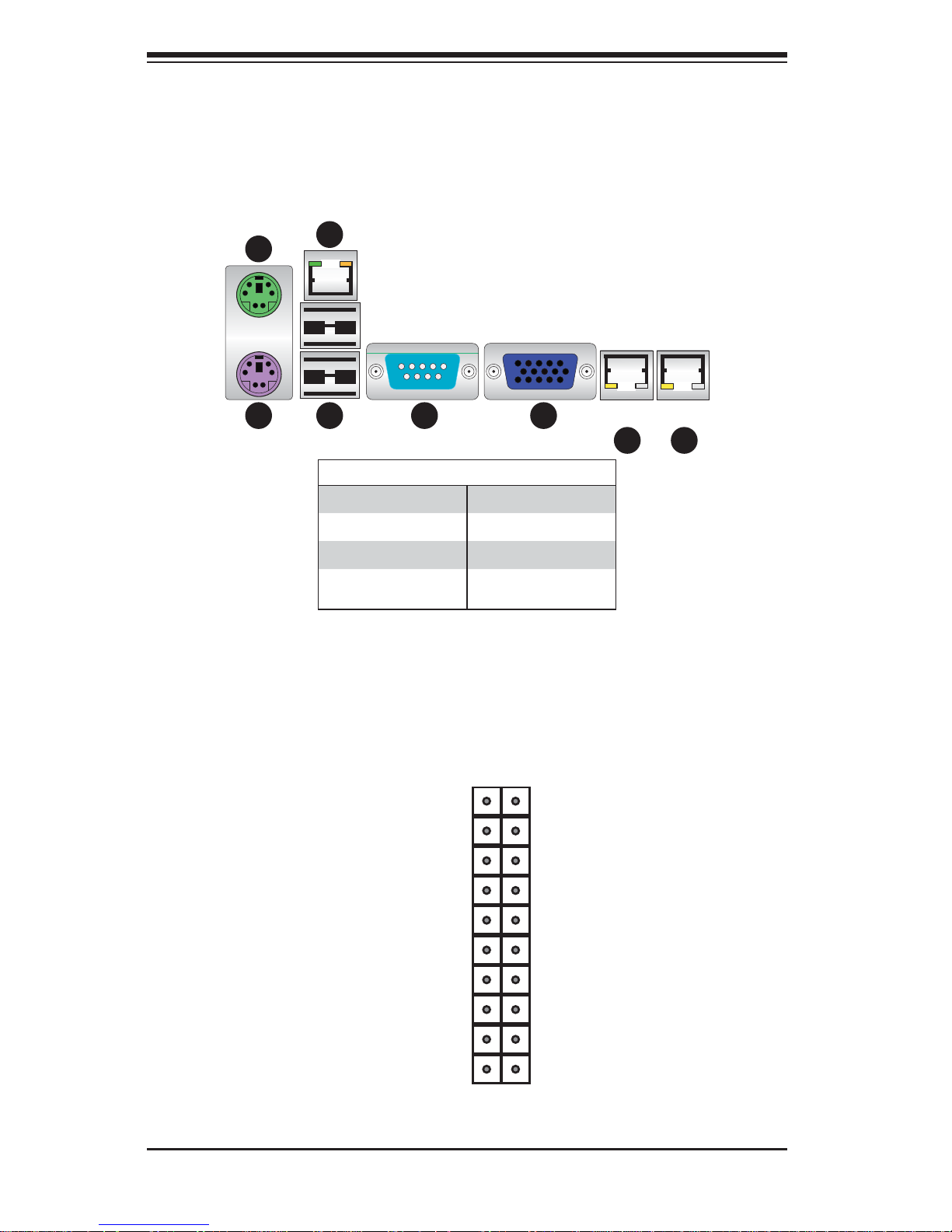

2-7 I/O Port and Control Panel Connections ...................................................... 2-10

Front Control Panel ....................................................................................... 2-10

2-8 Connector Defi nitions ....................................................................................2-11

Power Connectors ....................................................................................2-11

Power Connector .......................................................................................2-11

Reset Connector .......................................................................................2-11

Power Fail LED ........................................................................................ 2-12

Overheat/Fan Fail LED (OH)....................................................................2-12

NIC2 (Activity) LED .................................................................................. 2-12

NIC1 (Activity) LED .................................................................................. 2-12

HDD LED ..................................................................................................2-12

Power On LED ......................................................................................... 2-13

Table of Contents

v

NMI Button ...............................................................................................2-13

LAN1/2 (Ethernet Ports) ........................................................................... 2-13

Universal Serial Bus Ports ....................................................................... 2-13

Chassis Intrusion .....................................................................................2-14

USB Headers ........................................................................................... 2-14

Serial Ports ............................................................................................... 2-14

Fan Headers .............................................................................................2-14

SGPIO ......................................................................................................2-15

Trusted Platform Module Header ............................................................. 2-15

Power SMB (I

2

C) Connector .................................................................... 2-15

ATX PS/2 Keyboard and PS/2 Mouse Ports ............................................ 2-16

Power LED/Speaker ................................................................................. 2-16

Compact Flash Card PWR Connector .....................................................2-16

Overheat LED ...........................................................................................2-17

Wake-On-LAN ..........................................................................................2-17

JIPMB (H8SCM-F only) ............................................................................2-17

Video Connector .......................................................................................2-17

2-9 Jumper Settings ............................................................................................ 2-18

Explanation of Jumpers ................................................................................ 2-18

CMOS Clear .............................................................................................2-18

LAN1/2 Enable/Disable ...........................................................................2-19

VGA Enable/Disable .................................................................................2-19

Compact Flash Master/Slave Select ........................................................ 2-19

Watch Dog Enable/Disable ...................................................................... 2-19

Onboard Speaker Enable/Disable ............................................................2-20

I2C to PCI-Express Slot ...........................................................................2-20

BMC Jumper ............................................................................................ 2-20

2-10 Onboard Indicators ........................................................................................2-21

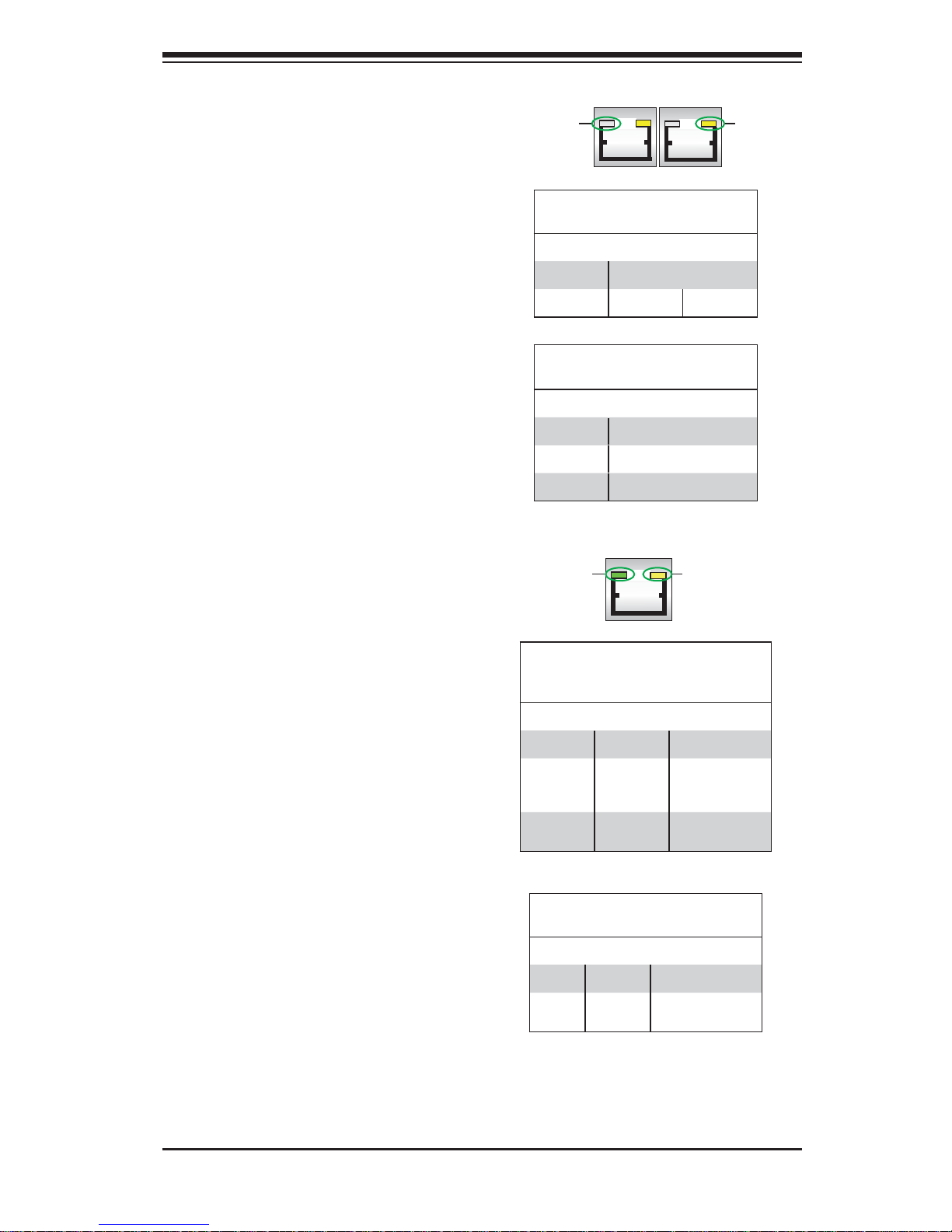

GLAN LEDs .............................................................................................. 2-21

IPMI Dedicated LAN LEDs .......................................................................2-21

BMC Heartbeat LED ................................................................................ 2-21

Power LED ............................................................................................... 2-22

2-11 IDE and SATA Drive Connections ................................................................. 2-22

SATA Ports ...............................................................................................2-22

IDE Connector .......................................................................................... 2-23

2-12 Enabling SATA RAID .....................................................................................2-24

Serial ATA (SATA).......................................................................................... 2-24

Installing the OS/SATA Driver ....................................................................... 2-24

H8SCM(-F) SERVERBOARD USER'S MANUAL

Table of Contents

vi

Building a Driver Diskette .........................................................................2-24

Enabling SATA RAID in the BIOS .................................................................2-25

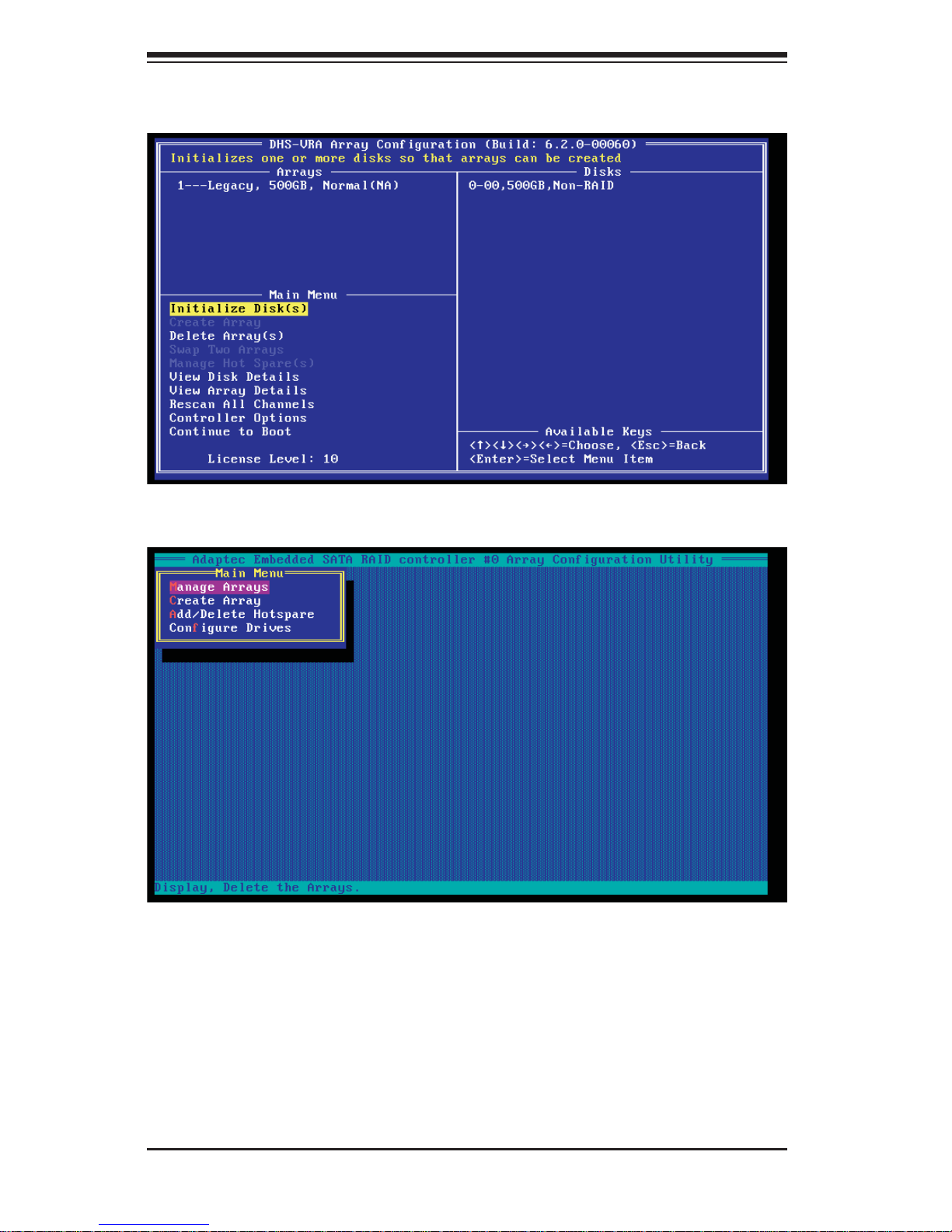

Using the DotHill and Adaptec RAID Utility ..................................................2-27

Installing the RAID Driver During OS Installation .........................................2-27

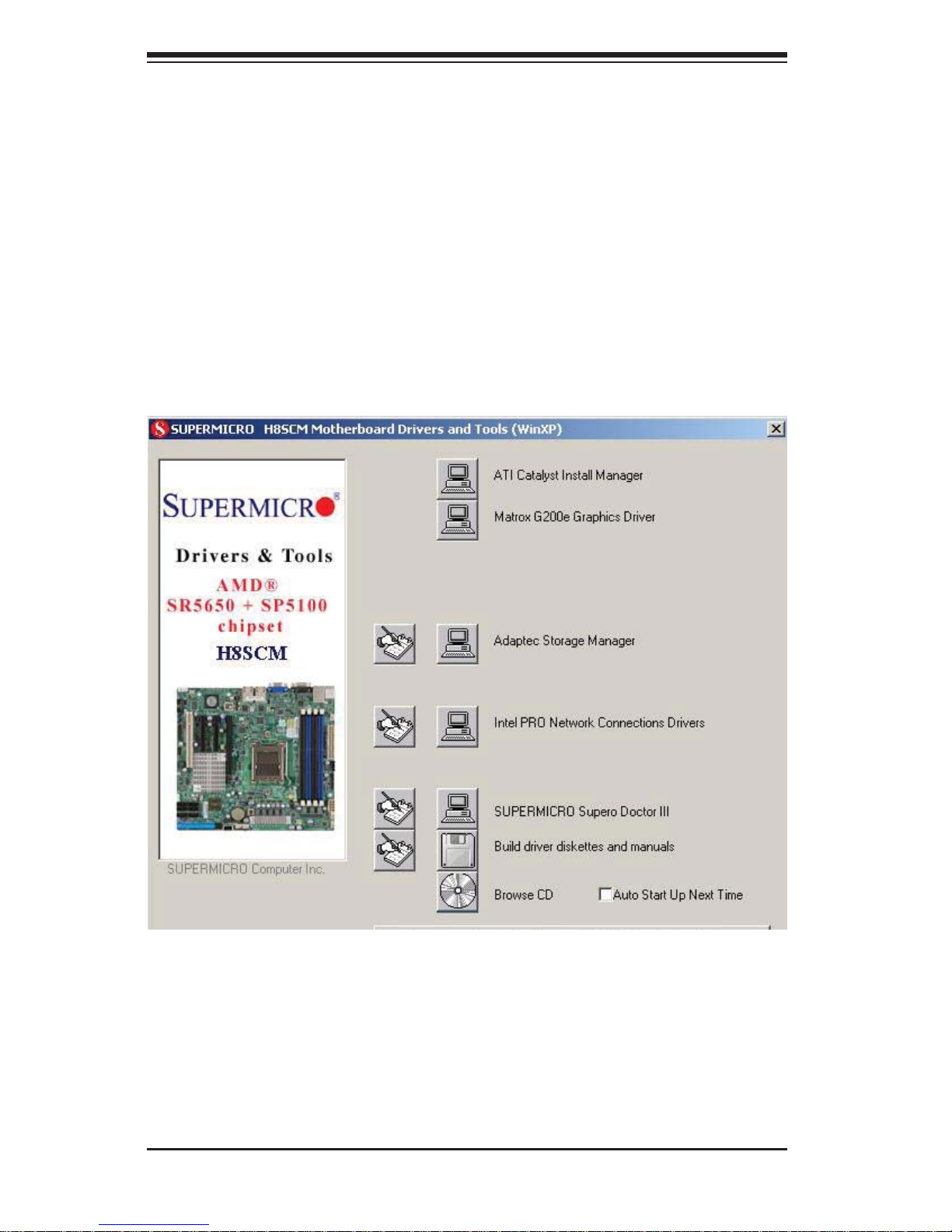

2-13 Installing Drivers ............................................................................................2-28

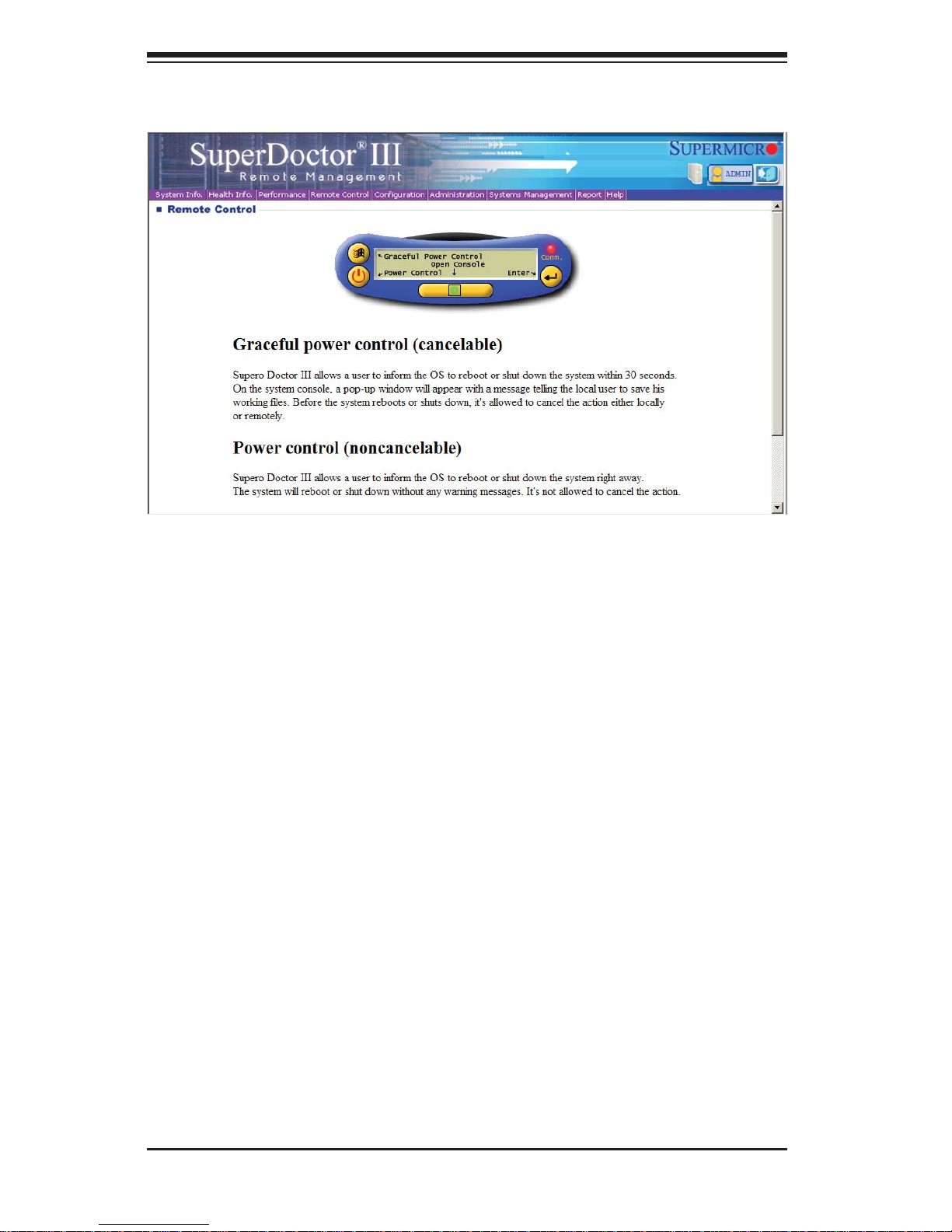

Supero Doctor III ........................................................................................... 2-29

2-14 Serverboard Battery ......................................................................................2-31

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ............................................................................................ 3-1

No Power ........................................................................................................3-1

No Video .........................................................................................................3-2

Memory Errors ............................................................................................... 3-2

Losing the System’s Setup Confi guration ....................................................... 3-2

3-2 Technical Support Procedures ........................................................................ 3-2

3-3 Frequently Asked Questions ........................................................................... 3-3

3-4 Returning Merchandise for Service.................................................................3-4

Chapter 4 BIOS

4-1 Introduction ......................................................................................................4-1

4-2 Main Menu ...................................................................................................... 4-2

4-3 Advanced Settings Menu ................................................................................4-2

4-3 Security Menu ............................................................................................... 4-16

4-4 Boot Menu ..................................................................................................... 4-16

4-5 Exit Menu ...................................................................................................... 4-17

Appendix A BIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes

B-1 Uncompressed Initialization Codes ................................................................. B-1

B-2 Bootblock Recovery Codes ............................................................................. B-2

B-3 Uncompressed Initialization Codes ................................................................. B-3

Chapter 1: Introduction

1-1

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.

• One (1) H8SCM(-F) serverboard

• One (1) I/O shield (MCP-260-00027-0N)

• One (1) Retention bracket (BKT-0012L)

• One (1) 9-pin serial port cable (CBL-0010L)

• One (1) ATA 66/100 IDE LP cable (CBL-0036L-03)

• Six (6) 2ft. Amphenol, SATA cable (CBL-0044L)

Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your motherboard.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety information:

http://super-dev/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at:

[e-mail]

1-2

H8SCM(-F) SERVERBOARD USER'S MANUAL

1-2 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)
Web Site:

www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)
Web Site:

www.supermicro.com

Asia-Pacifi c

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Tel: [phone]
Web Site:

www.supermicro.com.tw

Chapter 1: Introduction

1-3

Figure 1-1. H8SCM(-F) Image

1-4

H8SCM(-F) SERVERBOARD USER'S MANUAL

Notes:

Jumpers not indicated are for test purposes only.
Not all ports, jumpers or LED Indicators are available on all serverboards.

Figure 1-2. H8SCM(-F) Serverboard Layout

(not drawn to scale)

JD1

FAN4 FAN3

FAN2

FAN5

SATA0 SATA1

SATA2 SATA3

SATA4 SATA5

JWF1

JPW1

JF1

JPW2

JPI2C1

JIPMB

JWOL1

JCF1

JL1

JOH1

JWD1

JPG1

JPL2

JPL1

JBT1

DP2

DP1

IPMI_LAN

CPU

FAN1

DIMM2B

DIMM2A

DIMM1B

DIMM1A

T-SGPIO1

T-SGPIO2

IDE#1

CPU

USB6

SLOT7 PCI-E 2.0 X8 / X16 (IN X16)

SLOT6 PCI-E 2.0 X8

USB4/5

USB2/3

SLOT4 PCI 33MHz

LAN2

LAN1

COM2

BATTERY

COM1

VGA

USB0/1

KB/Mouse

SLOT5 PCI-E 2.0 X4 (in X8)

BMC

AMD

SR5650

AMD

SP5100

JI2C1

JI2C2

JPB1

JLPC1

Chapter 1: Introduction

1-5

H8SCM(-F) Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear (See Section 2-8)
JCF1 Compact Flash Master/Slave Closed (Master)
JI2C1/JI2C2 I2C to PCI-E Slot Enable/Disable Both Open (Disabled)
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN 1 Enable/Disable Pins 1-2 (Enabled)
JPL2 LAN 2 Enable/Disable Pins 1-2 (Enabled)
JWD1 Watch Dog Pins 1-2 (Reset)

LED Description

LAN Ports LEDs for the LAN Ethernet ports
Dedicated IPMI LAN (H8SCM-F only) LEDs for the dedicated IPMI LAN Ethernet port (H8SCM-F only)
DP1 LED for BMC Heartbeat
DP2 LED for Serverboard Power-On

1-6

H8SCM(-F) SERVERBOARD USER'S MANUAL

Connector Description

COM1/COM2 COM1 Serial Port/Header
FAN 1-5 Chassis/CPU Fan Headers
IDE#1 IDE Disk Drive Connector
IPMI LAN (H8SCM-F only) Dedicated IPMI LAN Port (H8SCM-F only)
JD1 Speaker Header
JF1 Front Panel Connector
JL1 Chassis Intrusion Header
JOH1 Overheat Warning Header
JIPMB (H8SCM-F only) System Management Bus Header for the IPMI Slot
JPI2C1 Power I

2

C Header
JPW1 24-pin Main ATX Power Connector
JPW2 +12V 8-pin CPU Power Connectors
JWF1 Compact Flash Card Power Connector
JWOL1 Wake-On-LAN Header
JLPC1 TPM Header
LAN1/2 Gigabit Ethernet (RJ45) Ports
PS2 Mouse/Keyboard PS2 Mouse/Keyboard connectors
SATA0 ~ SATA5 SATA Ports
T-SGPIO-1/TSGPIO-2 Serial General Purpose Input/Output Header for SATA
USB0/1, USB2/3, USB4/5, USB6 Universal Serial Bus (USB) Ports, Headers and Type-A Port
VGA VGA Connector

Chapter 1: Introduction

1-7

1-3 Serverboard Features

CPU

• Single AMD Opteron 4000 series (AMD Socket C32 type) processor

Note: Refer to our web site for details on supported processors.

Memory

• Up to four (4) single and dual channel DIMM slots that support up to 32 GB of ECC/

Non-ECC UDIMM or up to 128 GB of ECC RDIMM DDR3-1600/1333/1066 Mhz
speed, 1 GB, 2 GB, 4 GB, 8 GB, 16 GB or 32 GB size SDRAM memory in

1.5V or 1.35V voltages.

Note: Refer to Section 2-5 before installing memory and our web site for recommended
DIMMs

.

Chipset

• AMD SR5650 chipset and one SP5100 Southbridge chipset

Expansion Slots

• One (1) PCI-Express x8 (in x16 slot) Gen. 2

• One (1) PCI-Express x8 Gen. 2

• One (1) PCI-Express x4 (in x8 slot) Gen. 2

• One (1) PCI slot

BIOS

• 16 Mb AMI BIOS® SPI Flash ROM

• APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS

2.3, Real Time Clock Wakeup, Plug and Play (PnP), BIOS resume hot keys,
Hardware BIOS Virus Protection

PC Health Monitoring

• Onboard voltage monitors

• Fan status monitor with fi rmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System resource alert (via included utility program)

• Auto-switching voltage regulator for the CPU core

• CPU thermal trip support

• I

2

C temperature sensing logic

1-8

H8SCM(-F) SERVERBOARD USER'S MANUAL

• Chipkill Support

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Wake-On-LAN (WOL)

Onboard I/O

• Six (6) SATA ports supported by an on-chip SATA controller (RAID 0, 1 and 10

supported)

• Seven (7) USB (Universal Serial Bus 2.0) ports (2x rear, 4x header,

1x type A)

• T wo (2) LAN ports supported by two onboard Intel® 82574L Ethernet controllers

for 10/100/1000Base-T

• One (1) dedicated IPMI LAN port (H8SCM-F only)

• One (1) VGA port supported by an onboard Matrox

®

G200 graphics controller

(with 16 MB DDR2 memory)

• One (1) UDMA IDE 133/100 connector

• Two COM Ports (one external serial port, one Fast UART 16550 port)

Other

• Onboard power LED

• Chassis intrusion detection

Utilities

• BIOS fl ash upgrade utility

• Super Doctor III

• IPMI 1.5 / 2.0

Dimensions

• Micro-ATX form: (LxW) 9.6" x 8.6" (244 x 218 mm)

Chapter 1: Introduction

1-9

DIMM 1B

DIMM 1A

CPU1

HT3 Link
16/16-2.6 GHz

DIMM 2B

DIMM 2A

PCI-E GEN2 X8

Slot4 PCIE x8/x16

IDE (ATA/133)

SA

TA x6

PCI-E GEN2 X8

Slot3 x8

PCI-E GEN2 x1

INTEL

82574L

RJ45

A-Link

SP5100

BMC
VGA

WPCM450-R

PCI

LPC

SMBus

SIO

W83527HG

HWM

W83795G

SPI Flash

KB/MS

COM2

RMII

DDR2 SDRAM

64MB X16

PSU I2C

IPMB

FE PHY

RTL8201N

VGA

RJ45

Clock Gen

TPM

SR5650

COM1

RJ45

INTEL

82574L

PCI SLOT1

PCI-E GEN2 X4

Slot2

SWITCH

PCI-E GEN2 x1

7xUSB

Note: This is a general block diagram and may not exactly represent the features
on your motherboard. See the previous pages for the actual specifi cations of your
motherboard.

Figure 1-3. AMD SR5650/SP5100 Chipset:

System Block Diagram

1-10

H8SCM(-F) SERVERBOARD USER'S MANUAL

1-4 Chipset Overview

The H8SCM(-F) serverboard is based on the AMD SR5650/SP5100 chipset. This
chipset functions as a Media and Communications Processor (MCP). Controllers for
the system memory are integrated directly into AMD Opteron processors.

AMD SR5650/SP5100 Chipset

The AMDSR5650/SP5100 are each a single-chip, high-performance HyperT ransport
peripheral controller. It includes a 22-lane PCI Express interface, an AMD Opteron
16-bit Hyper Transport interface link, a six-port Serial AT A interface and a seven-port
USB 2.0 interface. This hub connects directly to the CPU.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was
designed to increase the communication speed by a factor of up to 48x between
integrated circuits. This is done partly by reducing the number of buses in the
chipset to reduce bottlenecks and by enabling a more effi cient use of memory
in multi-processor systems. The end result is a signifi cant increase in bandwidth
within the chipset.

1-5 PC Health Monitoring

This section describes the PC health monitoring features of the H8SCM(-F)
serverboard. The serverboard has an onboard System Hardware Monitor chip that
supports PC health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once
a voltage becomes unstable, it will give a warning or send an error message to
the screen. Users can adjust the voltage thresholds to defi ne the sensitivity of the
voltage monitor. Real time readings of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard
fans are controlled by thermal management via BIOS.

Chapter 1: Introduction

1-11

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning
function in the BIOS. This allows the user to defi ne an overheat temperature. When
this temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail
warning LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 5-phase-switching voltage regulator for the CPU core can support up to
AMD Opteron 4000 series processors and auto-sense voltage IDs ranging from 0.8
V to 1.55V. This will allow the regulator to run cooler and thus make the system
more stable.

1-6 Power Confi guration Settings

This section describes the features of your motherboard that deal with power and
power settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for a PC that is always on but appears
to be off and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.

Note: To wake up the system from an S4 state by the USB keyboard/mouse, please
connect the keyboard/mouse to USB port 0/1 at the rear I/O side.

1-12

H8SCM(-F) SERVERBOARD USER'S MANUAL

Main Switch Override Mechanism

The power button can function as a system suspend button. When the user
depresses the power button, the system will enter a SoftOff state. The monitor
will be suspended and the hard drive will spin down. Depressing the power button
again will cause the whole system to wake-up. During the SoftOff state, the power
supply provides power to keep the required circuitry in the system alive. In case the
system malfunctions and you want to turn off the power, just depress and hold the
power button for 4 seconds. The power will turn off and no power will be provided
to the motherboard.

Wake-On-LAN (WOL)

Wake-On-LAN is defi ned as the ability of a management application to remotely
power up a computer that is powered off. Remote PC setup, up-dates and access
tracking can occur after hours and on weekends so that daily LAN traffi c is kept
to a minimum and users are not interrupted. The motherboard has a 3-pin header
(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has
WOL capability. Wake-On-LAN must be enabled in BIOS.

1-7 Power Supply

As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.

The H8SCM(-F) serverboard requires the use of proprietary power supplies. Please
refer to the pinout information for the power connectors in Section 7 of Chapter 2
for detailed information on power requirements.

In areas where noisy power transmission is present, you may choose to install a
line fi lter to shield the computer from noise. It is recommended that you also install
a power surge protector to help avoid problems caused by power surges.

Warning: To prevent the possibility of explosion, do not use the wrong type of
onboard CMOS battery or install it upside down.

Chapter 1: Introduction

1-13

1-8 Super I/O

The disk drive adapter functions of the Super I/O Winbond® BMC chip includes a
data separator, write pre-compensation circuitry, decode logic, data rate selection,
a clock generator, drive interface control logic and interrupt and DMA logic. The
wide range of functions integrated onto the Super I/O greatly reduces the number
of components required for interfacing with fl oppy disk drives.

The Super I/O provides two high-speed, 16550 compatible serial communication
ports (UARTs), one of which supports serial infrared communication. Each UART
includes a 16-byte send/receive FIFO, a programmable baud rate generator,
complete modem control capability and a processor interrupt system. Both UARTs
provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced
speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed
modems.

The Super I/O provides functions that comply with ACPI (Advanced Confi guration
and Power Interface), which includes support of legacy and ACPI power management
through a SMI or SCI function pin. It also features auto power management to reduce
power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be fl exibly adjusted
to meet ISA PnP requirements, which support ACPI and APM (Advanced Power
Management).

1-14

H8SCM(-F) SERVERBOARD USER'S MANUAL

Notes
