Supero H8DMU+ User Manual

SUPER

H8DMU+

USER’S MANUAL

Revision 1.0c

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0c Release Date: May 16, 2008

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

H8DMU+ serverboard. The H8DMU+ is based on the nVidia® MCP55 Pro chipset

and supports single or dual AMD Opteron 2000 Series Socket F type processors

and up to 64 GB of DDR2-667/533/400 registered ECC SDRAM.

Please refer to the serverboard speciﬁ cations pages on our web site for updates on

supported processors (http://www.supermicro.com/aplus/). This product is intended

to be professionally installed.

Manual Organization

Chapter 1 includes a checklist of what should be included in your serverboard

box, describes the features, speciﬁ cations and performance of the serverboard and

provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read this

chapter when installing the processor(s) and memory modules and when installing

the serverboard in a chassis. Also refer to this chapter to connect the ﬂ oppy and

hard disk drives, the parallel and serial ports, the mouse and keyboard and the

twisted wires for the power and reset buttons and the system LEDs.

If you encounter any problems, see Chapter 3, which describes troubleshooting

procedures for the video, the memory and the setup conﬁ guration stored in CMOS.

For quick reference, a general FAQ (Frequently Asked Questions) section is pro-

vided. Instructions are also included for contacting technical support. In addition,

you can visit our web site for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages.

Appendix B lists BIOS POST Checkpoint Codes.

iii

H8DMU+ User’s Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .................................................................................................... 1-1

Contacting Supermicro ............................................................................. 1-2

H8DMU+ Image ....................................................................................... 1-3

H8DMU+ Layout ...................................................................................... 1-4

H8DMU+ Quick Reference ...................................................................... 1-5

Serverboard Features .............................................................................. 1-6

nVidia MCP55 Chipset: System Block Diagram ...................................... 1-8

1-2 Chipset Overview ........................................................................................... 1-9

1-3 PC Health Monitoring ................................................................................... 1-10

1-4 Power Conﬁ guration Settings ....................................................................... 1-11

1-5 Power Supply ............................................................................................... 1-12

1-6 Super I/O ...................................................................................................... 1-13

1-7 UIO ............................................................................................................... 1-14

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Serverboard into a Chassis ...................................................... 2-5

2-4 Installing Memory ........................................................................................... 2-5

2-5 I/O Port and Control Panel Connections ........................................................ 2-8

2-6 Connecting Cables ......................................................................................... 2-9

ATX Power Connector ............................................................................. 2-9

Processor Power Connector .................................................................... 2-9

Auxiliary Power Connector ....................................................................... 2-9

Power LED ............................................................................................... 2-9

HDD LED ............................................................................................... 2-10

NIC1 LED ............................................................................................... 2-10

NIC2 LED ............................................................................................... 2-10

Overheat/Fan Fail/Power Fail/UID LED ................................................. 2-10

Power Fail LED ...................................................................................... 2-11

Reset Button .......................................................................................... 2-11

Table of Contents

Power Button .......................................................................................... 2-11

USB Ports .............................................................................................. 2-11

USB Headers ......................................................................................... 2-12

Serial Ports ............................................................................................. 2-12

Fan Headers .......................................................................................... 2-12

LAN1/2 (Ethernet Ports) ......................................................................... 2-12

Power LED/Speaker ............................................................................... 2-13

ATX PS/2 Keyboard/Mouse Ports .......................................................... 2-13

Overheat LED ........................................................................................ 2-13

Chassis Intrusion .................................................................................... 2-13

Wake-On-LAN ........................................................................................ 2-14

Wake-On-Ring ........................................................................................ 2-14

Power Supply I

C Header ...................................................................... 2-14

SMBus Header ....................................................................................... 2-14

Power Fail Alarm Reset Header ............................................................ 2-15

Compact Flash Power ............................................................................ 2-15

SGPIO .................................................................................................... 2-15

UID Button (SW1) .................................................................................. 2-15

2-7 Jumper Settings ............................................................................................ 2-16

Explanation of Jumpers ......................................................................... 2-16

CMOS Clear ........................................................................................... 2-16

VGA Enable/Disable ............................................................................... 2-17

Watch Dog Enable/Disable .................................................................... 2-17

Onboard Speaker Enable/Disable ......................................................... 2-17

Compact Flash Master/Slave ................................................................. 2-18

C to PCI-Express Enable/Disable ........................................................ 2-18

2-8 Onboard Indicators ....................................................................................... 2-19

LAN1/LAN2 LEDs .................................................................................. 2-19

Onboard Power LED (DP4) ................................................................... 2-19

UID LED ................................................................................................. 2-19

2-9 Floppy, IDE and SATA Drive Connections ................................................... 2-20

Floppy Connector ................................................................................... 2-20

IDE Connector ........................................................................................ 2-21

SATA Ports ............................................................................................. 2-21

2-10 Enabling SATA RAID .................................................................................... 2-22

2-11 Installing Drivers ........................................................................................... 2-25

H8DMU+ User’s Manual

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ..................................................................................... 3-1

No Power ................................................................................................. 3-1

No Video .................................................................................................. 3-1

Memory Errors ......................................................................................... 3-2

Losing the System’s Setup Conﬁ guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................ 3-4

Chapter 4: BIOS

4-1 Introduction ..................................................................................................... 4-1

4-2 Main Menu ...................................................................................................... 4-2

4-3 Advanced Settings Menu ............................................................................... 4-2

4-4 Boot Menu .................................................................................................... 4-16

4-5 Security Menu ............................................................................................... 4-17

4-6 Exit Menu ...................................................................................................... 4-18

Appendices:

Appendix A: BIOS Error Beep Codes

Appendix B: BIOS POST Checkpoint Codes

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer serverboard from an acknowledged

leader in the industry. Our boards are designed with the utmost attention to detail

to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your serverboard.

If anything listed here is damaged or missing, contact your retailer.

Included with retail box only

 One (1) H8DMU+ serverboard

 One (1) IDE cable (CBL-036L-03)

 One (1) ﬂ oppy cable (CBL-022L)

 Two (2) heatsink retention modules with four (4) screws (BKT-0012L)

 One (1) CD containing drivers and utilities

1-1

H8DMU+ User’s Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel: +31 (0) 73-6400390 Fax: +31 (0) 73-6416525 Email: sales@supermicro.nl (General Information) support@supermicro.nl (Technical Support) rma@supermicro.nl (Customer Support)

Asia-Paciﬁ c

Address: Super Micro Computer, Inc. 4F, No. 232-1, Liancheng Rd. Chung-Ho 235, Taipei, Taiwan, R.O.C. Tel: +886-(2) 8226-3990 Fax: +886-(2) 8226-3991 Web Site: www.supermicro.com.tw Technical Support: Email: support@supermicro.com.tw Tel: 886-2-8228-1366, ext.132 or 139

1-2

Figure 1-1. H8DMU+ Image

Chapter 1: Introduction

1-3

H8DMU+ User’s Manual

Figure 1-2. H8DMU+ Serverboard Layout

(not drawn to scale)

Kybd/

Mouse

USB0/1

VGA

LAN1

LAN2

SW1

LE1

COM1

UIOP

FAN6

CPU2

CPU2 / DIMM 4A

CPU2 / DIMM 4B

CPU2 / DIMM 3A

CPU2 / DIMM 3B

CPU2 / DIMM 2A

CPU2 / DIMM 2B

CPU2 / DIMM 1A

CPU2 / DIMM 1B

SXB2: PCI-E x4

FAN8/CPU2FAN

SXB2: PCI-E x8

SXB1: PCI-E x16

H8DMU+

COM2

JPI2C

nVidia

MCP55Pro

JPG1

ATI

ES1000

SGPIO2 SGPIO1

JWOL

J32 JPW2 JPW1

CPU1 / DIMM 1B

CPU1 / DIMM 1A

CPU1 / DIMM 2B

CPU1 / DIMM 2A

CPU1 / DIMM 3B

CPU1 / DIMM 3A

CPU1 / DIMM 4B

CPU1 / DIMM 4A

CPU1

C2/JI2C1

Battery

BIOS

SATA 0

JBT1

FAN7/ CPU1FAN

USB6/7 USB4/5

SATA 1

SATA 2

SATA 3

Speaker

SMBus

JWD

JWOR/JOH1/JL1

SATA 4

DP4

FAN1

JF1

FAN2

FAN3

JCF1

JWF1

FAN4

SATA 5

IDE#1

SIMSO

Floppy

FAN5

JD1

Notes:

1. Jumpers not indicated are for test purposes only.

2. There are no "USB2/3" ports or headers.

1-4

Chapter 1: Introduction

H8DMU+ Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear See Section 2-7

JCF1 Compact Flash Card Master/Slave Closed (Master)

JD1 Onboard Speaker Pins 6-7 (Enabled

JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled)

C1/JI2C2 I2C to PCI-Express Enable/Disable Closed (Enabled)

JWD Watch Dog Pins 1-2 (Reset)

Connector Description

COM1/COM2 COM1/COM2 Serial Port Connector/Header

FAN 1-8 Fan Headers 1-8

Floppy Floppy Disk Drive Connector

IDE#1 IDE Hard Drive Connector

J32 Auxiliary Power Connector (4-pin)

JD1 Power LED (pins1-3)/Speaker Header (pins 4-7)

JF1 Front Control Panel Connector

JL1 Chassis Intrusion Header

JOH1 Overheat LED

JPI

C System Management (I2C) Power Header

JPW1 Primary 20-Pin ATX Power Connector

JPW2 Processor Power Connector (8-pin)

JWF1 Compact Flash Card Power Connector

JWOL Wake-on-LAN Header

JWOR Wake-on-Ring Header

LAN1/2 Gigabit Ethernet Ports

SATA0~SATA5 SATA Ports

SGPIO1/SGPIO2 SGPIO Headers

SIMSO IPMI 2.0 (with virtual media over LAN) Slot

SMBus System Management Bus Header

UIOP Power Connector for UIO Card

USB0/1 USB Ports

USB4/5 USB4/USB5 Headers

USB6/7 USB6/USB7 Headers

Other Description

DP4 Onboard Power LED

LE1 Rear UID LED

SW1 UID (Unit Identiﬁ er) Button

1-5

H8DMU+ User’s Manual

Serverboard Features

CPU

• Single or dual AMD 64-bit Socket F, Opteron 2000 type processors

Memory

• Sixteen dual/single channel DIMM slots supporting up to 64 GB of DDR2-

667/533/400 registered ECC SDRAM

Note: Memory capacities are halved for single CPU systems. Refer to Section 2-4 before installing.

Chipset

• nVidia MCP55 Pro

Expansion Slots

• One (1) PCI-Express x16

• One (1) PCI-Express x8

• One (1) PCI-Express x4

• One (1) low-proﬁ le SIMSO slot (for IPMI card)

BIOS

• 8 Mb AMIBIOS

• DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS 2.3, Plug

and Play (PnP)

LPC Flash ROM

PC Health Monitoring

• Onboard voltage monitors for CPU cores, Hyper Transport (1.2V), memory banks

(1.8V), 1.5V, MCP55 Core, 3.3V, 12V, -12V, 5V, VSB and battery voltage

• Fan status monitor with ﬁ rmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System resource alert (via included utility program)

• Auto-switching voltage regulator for the CPU core

1-6

Chapter 1: Introduction

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Main switch override mechanism

• Internal/external modem ring-on

Onboard I/O

• UIO (Universal Input/Output) ready

• On-chip SATA controller supporting six (6) SATA ports (RAID 0, 1, 0+1, 5 and

JBOD supported)

• One (1) UltraDMA (ATA) 133/100 IDE port

• One (1) ﬂ oppy port interface (up to 2.88 MB)

• Two (2) Fast UART 16550 compatible serial ports

• On-chip (nVidia MCP55) Ethernet controller supports two Gigabit Ethernet

ports

• PS/2 mouse and PS/2 keyboard ports

• Six (6) USB (Universal Serial Bus) 2.0 ports/headers

• ATI ES1000 graphics chip

Other

• Wake-on-Ring (JWOR)

• Wake-on-LAN (JWOL)

• UID button and LED

• Chassis intrusion detection

CD Utilities

• BIOS ﬂ ash upgrade utility

Dimensions

• Extended ATX form factor, 12" x 13.05" (305 x 332 mm)

1-7

H8DMU+ User’s Manual

DDR2-667/533/4 00 DDR2-667/533/4 00

DIMM 4B

DIMM 4A

DIMM 3B

DIMM 3A

DIMM 2B

DIMM 2A

DIMM 1B

DIMM 1A

128-bit data + 16-bit ECC

AMD Socket F

Processor (CPU2)

PCI-E x16 Slot

16 x 16 HT link (1 GHz)

AMD Socket F

Processor (CPU1)

16 x 16 HT link (1 GHz)

PCI-E x16

128-bit data + 16- bit ECC

16 x 16 HT link (1 GHz)

DIMM 4B

DIMM 4A

DIMM 3B

DIMM 3A

DIMM 2B

DIMM 2A

DIMM 1B

DIMM 1A

SATA Por ts (6)

IDE: AT A133 (1)

nVidia MCP55 Pro

PCI-E x8 Slot

PCI- E x4 Slot

PCI-E x8

USB Ports (6)

PCI-E x4

ATI ES1000

Ether net Ports (2)

LPC

S I/O BIOS

Floppy

Kybd/

Mouse

Serial Ports

IPMI

(2)

Figure 1-3. nVidia MCP55 Pro Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your serverboard. See the previous pages for the

actual speciﬁ cations of your serverboard.

1-8

Chapter 1: Introduction

1-2 Chipset Overview

The H8DMU+ serverboard is based on the nVidia MCP55 Pro chipset. The nVidia

MCP55 Pro functions as Media and Communications Processor (MCP). Controllers

for the system memory are integrated directly into the AMD Opteron processors.

MCP55 Pro Media and Communications Processor

The MCP55 Pro is a single-chip, high-performance HyperTransport peripheral con-

troller. It includes a 28-lane PCI Express interface, an AMD Opteron 16-bit Hyper

Transport interface link, a six-port Serial ATA interface, a dual-port Gb Ethernet

interface, a single ATA133 bus master interface and a USB 2.0 interface. This hub

connects directly to CPU#1 and through that to CPU#2.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was

designed to increase the communication speed by a factor of up to 48x between

integrated circuits. This is done partly by reducing the number of buses in the

chipset to reduce bottlenecks and by enabling a more efﬁ cient use of memory in

multi-processor systems. The end result is a signiﬁ cant increase in bandwidth

within the chipset.

1-9

H8DMU+ User’s Manual

1-3 PC Health Monitoring

This section describes the PC health monitoring features of the H8DMU+. The

serverboard has an onboard System Hardware Monitor chip that supports PC

health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will scan these voltages continuously: CPU cores,

Hyper Transport (1.2V), memory banks (1.8V), 1.5V, MCP55 Core, 3.3V, 12V, -

12V, 5V, VSB and battery voltage. Once a voltage becomes unstable, it will give

a warning or send an error message to the screen. Users can adjust the voltage

thresholds to deﬁ ne the sensitivity of the voltage monitor. Real time readings of

these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard

fans are controlled by thermal management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning

function in the BIOS. This allows the user to deﬁ ne an overheat temperature. When

this temperature is exceeded or when a fan failure occurs, then, the Overheat/Fan

Fail warning LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 5-phase-switching voltage regulator for the CPU core can support up to 120A

and auto-sense voltage IDs. This will allow the regulator to run cooler and thus

make the system more stable.

1-10

Chapter 1: Introduction

1-4 Power Conﬁ guration Settings

This section describes the features of your serverboard that deal with power and

power settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system

and device power control. OnNow is a term for a PC that is always on but appears

to be off and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal

keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button. When the user depresses the power button, the system will enter

a SoftOff state. The monitor will be suspended and the hard drive will spin down.

Depressing the power button again will cause the whole system to wake-up. Dur-

ing the SoftOff state, the ATX power supply provides power to keep the required

circuitry in the system alive. In case the system malfunctions and you want to turn

off the power, just depress and hold the power button for 4 seconds. The power

will turn off and no power will be provided to the serverboard.

Wake-On-LAN (JWOL)

Wake-On-LAN is deﬁ ned as the ability of a management application to remotely

power up a computer that is powered off. Remote PC setup, up-dates and access

tracking can occur after hours and on weekends so that daily LAN trafﬁ c is kept

to a minimum and users are not interrupted. The serverboard has a 3-pin header

(JWOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has

WOL capability. Wake-On-LAN must be enabled in BIOS. Note that Wake-On-LAN

can only be used with an ATX 2.01 (or above) compliant power supply.

1-11

H8DMU+ User’s Manual

Wake-On-Ring Header (JWOR)

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

1-5 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

The H8DMU+ accommodates 12V ATX power supplies. Although most power sup-

plies generally meet the speciﬁ cations required by the CPU, some are inadequate.

Important: a 3A or greater current supply on the 5V Standby rail is required.

It is strongly recommended that you use a high quality power supply that meets

12V ATX power supply Speciﬁ cation 1.1 or above. Additionally, in areas where

noisy power transmission is present, you may choose to install a line ﬁ lter to shield

the computer from noise. It is recommended that you also install a power surge

protector to help avoid problems caused by power surges.

Warning: To prevent the possibility of explosion, do not use the wrong type of

onboard CMOS battery or install it upside down.

1-12

Chapter 1: Introduction

1-6 Super I/O

The disk drive adapter functions of the Super I/O chip include a ﬂ oppy disk drive

controller that is compatible with industry standard 82077/765, a data separator,

write pre-compensation circuitry, decode logic, data rate selection, a clock genera-

tor, drive interface control logic and interrupt and DMA logic. The wide range of

functions integrated onto the Super I/O greatly reduces the number of components

required for interfacing with ﬂ oppy disk drives. The Super I/O supports two 360

K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s,

500 Kb/s or 1 Mb/s.

It also provides two high-speed, 16550 compatible serial communication ports

(UARTs), one of which supports serial infrared communication. Each UART in-

cludes a 16-byte send/receive FIFO, a programmable baud rate generator, complete

modem control capability and a processor interrupt system. Both UARTs provide

legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed

with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conﬁ guration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through a SMI or SCI function pin. It also features auto power management

to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be ﬂ exibly adjusted

to meet ISA PnP requirements, which support ACPI.

1-13

H8DMU+ User’s Manual

1-7 UIO

The H8DMU+ is a specially-designed serverboard that features Supermicro's UIO

(Universal I/O) technology. UIO serverboards have a PCI-Express x4, x8 and x16

signals that can support PCI-E cards or any one of several types of UIO card types

to add SAS ports, additional LAN ports, Inﬁ niband®, etc. to the serverboard. This

allows the user to tailor the serverboard to their own needs.

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam-

age to your system board, it is important to handle it very carefully. The following

measures are generally sufﬁ cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

• Use only the correct type of CMOS onboard battery as speciﬁ ed by the manufac-

turer. Do not install the CMOS onboard battery upside down, which may result

in a possible explosion.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

Installation Procedures

Follow the procedures as listed below to install the serverboard into a chassis:

1. Install the processor(s) and the heatsink(s).

2. Install the serverboard in the chassis.

3. Install the memory and add-on cards.

4. Finally, connect the cables and install the drivers.

2-1

H8DMU+ User's Manual

2-2 Processor and Heatsink Installation

Exercise extreme caution when handling and installing the proces-

CPU Backplates

Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to

prevent the CPU area of the serverboard from bending and to provide a base for

attaching the heatsink retention modules.

sor. Always connect the power cord last and always remove it be-

fore adding, removing or changing any hardware components.

Installing the Processor (install to the CPU#1 socket ﬁ rst)

1. Begin by removing the cover plate

that protects the CPU. Lift the lever

on CPU socket #1 until it points straight

up. With the lever raised, lift open the

silver CPU retention plate.

Triangles

2. Use your thumb and your index

ﬁ nger to hold the CPU. Locate and

align pin 1 of the CPU socket with pin

1 of the CPU. Both are marked with

a triangle.

2-2

3. Align pin 1 of the CPU with pin 1

of the socket. Once aligned, carefully

place the CPU into the socket. Do not

drop the CPU on the socket, move the

CPU horizontally or vertically or rub the

CPU against the socket or against any

pins of the socket, which may damage

the CPU and/or the socket.

Chapter 2: Installation

4. With the CPU inserted into the

socket, inspect the four corners of the

CPU to make sure that it is properly in-

stalled and ﬂ ush with the socket. Then,

gently lower the silver CPU retention

plate into place.

5. Carefully press the CPU socket

lever down until it locks into its reten-

tion tab. For a dual-processor system,

repeat these steps to install another

CPU into the CPU#2 socket.

Note: if using a single processor, only

the CPU1 DIMM slots are addressable

for a maximum of 32 GB memory.

2-3

H8DMU+ User's Manual

Installing the Heatsink Retention Modules

Two heatsink retention modules (BKT-0012L) and four screws are included in the

retail box. Once installed, these are used to help attach the heatsinks to the CPUs.

To install, align the module with the standoffs of the preinstalled CPU backplate and

with the four feet on the module contacting the serverboard. Secure the retention

module to the backplate with two of the screws provided. See Figure 2-1. Repeat

for the second CPU socket.

Note: BKT-0012L is included for use with non-Supermicro heatsinks only. When

installing Supermicro heatsinks, only BKT-0011L (the pre-installed CPU backplate)

is needed. The BKT-0012L retention module was designed to provide compatibility

with clip-and-cam type heatsinks from third parties.

Figure 2-1. CPU Heatsink Retention Module Installation

Installing the Heatsink

The use of active type heatsinks (except for 1U systems) are recommended. Con-

nect the heatsink fans to the appropriate fan headers on the serverboard. To install

the heatsinks, please follow the installation instructions included with your heatsink

package (not included).

2-4

Chapter 2: Installation

2-3 Mounting the Serverboard into a Chassis

All serverboards and motherboards have standard mounting holes to ﬁ t different

types of chassis. Make sure that the locations of all the mounting holes for both

the serverboard and the chassis match. Although a chassis may have both plastic

and metal mounting fasteners, metal ones are highly recommended because they

ground the serverboard to the chassis. Make sure that the metal standoffs click in

or are screwed in tightly.

1. Check the compatibility of the serverboard ports and the I/O shield

The H8DMU+ serverboard requires a chassis that can support extended ATX boards

of 12" x 13.05" in size. Make sure that the I/O ports on the serverboard align with

their respective holes in the I/O shield at the rear of the chassis.

2. Mounting the serverboard onto the mainboard tray in the chassis

Carefully mount the serverboard onto the mainboard tray by aligning the serverboard

mounting holes with the raised metal standoffs in the tray. Insert screws into all

the mounting holes in the serverboard that line up with the standoffs. Then use a

screwdriver to secure the serverboard to the mainboard tray - tighten until just snug

(if too tight you might strip the threads). Metal screws provide an electrical contact

to the serverboard ground to provide a continuous ground for the system.

2-4 Installing Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see

Figure 2-2). See support information below.

2. Gently press down on the memory module until it snaps into place.

Note: each processor has its own built-in memory controller, so the CPU2 DIMMs

cannot be addressed if only a single CPU is installed. 256 MB, 512 MB, 1 GB, 2

GB and 4 GB memory modules are supported. It is highly recommended that you

remove the power cord from the system before installing or changing any memory

modules.

2-5

H8DMU+ User's Manual

Support

The H8DMU+ supports single or dual-channel, DDR2-667/533/400 registered ECC

SDRAM.

Both interleaved and non-interleaved memory are supported, so you may populate

any number of DIMM slots (see note on previous page and chart on following

page). The CPU2 DIMM slots can only be accessed when two CPUs are installed

(however, the CPU2 DIMM slots are not required to be populated when two CPUs

are installed).

Populating two adjacent slots at a time with memory modules of the same size and

type will result in interleaved (128-bit) memory, which is faster than non-interleaved

(64-bit) memory. See chart on following page.

Optimizing memory performance

If two processors are installed, it is better to stagger pairs of DIMMs across both

sets of CPU DIMM slots, e.g. ﬁ rst populate CPU1 slots 1A and 1B, then CPU2 slots

1A, and 1B, then the next two CPU1 slots, etc. This balances the load over both

CPUs to optimize performance.

Maximum memory: 64 GB of DDR2-667/533/400 SDRAM - if only one CPU is

installed, maximum supported memory is halved (32 GB).

Figure 2-2. Side and Top Views of DDR2 Installation

To Install:

Insert module vertically and press down until it snaps into place. The release tabs should close - if they do not you should close them yourself.

Notch

Release

Tab

Note: Notch

should align

with its

receptive point

on the slot

Note the notch in the slot and on the bottom of the DIMM. These prevent the DIMM from being installed incorrectly.

Notch

Release

Tab

To Remove:

Use your thumbs to gently push each release tab outward to release the DIMM from the slot.

2-6

Chapter 2: Installation

Populating Memory Banks for 128-bit Operation

CPU1 1A/1B

XX X

XX XX

XXX XX

XXX XXX

XXXXXXX

XXXXXXXX

CPU1 2A/2B

CPU1 3A/3B

CPU1 4A/4B

CPU2 1A/1B

CPU2 2A/2B

CPU2 3A/3B

CPU2 4A/4B

Notes: X indicates a pair of populated DIMM slots. If adding at least four DIMMs (with two CPUs installed), the conﬁ gurations with DIMMs spread over both CPUs will result in optimized performance. Note that the ﬁ rst two DIMMs must be installed in the CPU1 memory slots.

2-7

H8DMU+ User's Manual

2-5 I/O Port and Control Panel Connections

The I/O ports are color coded in conformance with the PC99 speciﬁ cation to make

setting up your system easier. See Figure 2-3 below for the colors and locations

of the various I/O ports.

Figure 2-3. I/O Port Locations and Deﬁ nitions

Front Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 2-4

for the pin deﬁ nitions of the various connectors. Refer to Section 2-6 for details.

Figure 2-4. JF1: Front Control Panel Header (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1

NIC2

OH/Fan Fail/Pwr Fail LED

Power Fail LED

Ground

NMI

x (key)

Vcc

UID Button/HDD LED Power

Vcc

UID LED

Vcc

Reset

Ground

Power

2 1

2-8

Chapter 2: Installation

2-6 Connecting Cables

ATX Power Connector

The primary ATX power supply con-

nector (JPW1) meets the SSI (Super-

set ATX) 20-pin speciﬁ cation. Refer

to the table on the right for the pin

deﬁ nitions of the ATX power connec-

tor. This connection supplies power to

the chipset, fans and memory.

Note: You must also connect the

8-pin (JPW2) and 4-pin (J32) power

connectors to your power supply (see

below).

Processor Power Connector

In addition to the primary ATX power

connector (above), the 12v, 8-pin

processor power connector at JPW2

must also be connected to your power

supply. This connection supplies

power to the CPUs. See the table on

the right for pin deﬁ nitions.

ATX Power 20-pin Connector

Pin Deﬁ nitions (JPW1)

Pin# Deﬁ nition Pin # Deﬁ nition

11 +3.3V 1 +3.3V

12 -12V 2 +3.3V

13 COM 3 COM

14 PS_ON 4 +5V

15 COM 5 COM

16 COM 6 +5V

17 COM 7 COM

18 -5V 8 PWR_OK

19 +5V 9 5VSB

20 +5V 10 +12V

Processor Power

Connector

Pin Deﬁ nitions (JPW2)

Pins Deﬁ nition

1 through 4 Ground

5 through 8 +12V

Required Connection

Auxiliary Power Connector

The 4-pin auxiliary power connector at

J32 must also be connected to your

power supply. This connection sup-

plies extra power that may be needed

for high loads. See the table on the

right for pin deﬁ nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin deﬁ nitions.

Auxiliary Power

Connector

Pin Deﬁ nitions (J32)

Pins Deﬁ nition

1 & 2 Ground

3 & 4 +12V

Required Connection

Power LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

15 Vcc

16 Control

2-9

H8DMU+ User's Manual

HDD LED

The HDD (IDE Hard Disk Drive) LED

connection is located on pins 13 and

14 of JF1. Attach the IDE hard drive

LED cable to display disk activity.

Refer to the table on the right for pin

deﬁ nitions.

NIC1 LED

The NIC1 (Network Interface Control-

ler) LED connection is located on pins

11 and 12 of JF1. Attach the NIC1

LED cable to display network activity.

Refer to the table on the right for pin

deﬁ nitions.

NIC2 LED

HDD LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

13 See below*

14 HDD Active

* Pin 13 is for UID button (when used with UID

panel) or for 3.3V power for HDD LED (when

used with non-UID panel)

NIC1 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

11 Vcc

12 NIC1 Active

The NIC2 (Network Interface Control-

ler) LED connection is located on pins

9 and 10 of JF1. Attach the NIC2

LED cable to display network activity.

Refer to the table on the right for pin

deﬁ nitions.

Overheat/Fan Fail/Power Fail/UID LED

Connect an LED to pins 7 and 8 of

JF1 to provide advanced warning of

chassis overheating, a fan failure or

a power supply failure. These pins

also work with the front UID indicator,

which will activate as either a solid

or ﬂ ashing blue LED depending on

whether the LED was activated via

IPMI or the UID button. Refer to the

tables on the right for pin deﬁ nitions

and status indicators.

NIC2 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

9 Vcc

10 NIC2 Active

OH/Fan Fail/Power Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

7 UID LED Signal

8 OH/Fan Fail/Pwr Fail Signal

Red LED Indications

State Indication

Solid Overheat

Blinking (1/4 Hz) Power Fail

Blinking (1 Hz) Fan Fail

Blue LED Indications

State Indication

Solid UID (via Button)

Blinking UID (via IPMI)

2-10

Power Fail LED

Chapter 2: Installation

The Power Fail LED connection is

located on pins 5 and 6 of JF1. Refer

to the table on the right for pin deﬁ ni-

tions. This feature is only available

for systems with redundant power

supplies.

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin deﬁ nitions.

Power Button

Power Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

5 Vcc

6 Control

Reset Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

3 Reset

4 Ground

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be conﬁ gured to function

as a suspend button (see the Power

Button Mode setting in BIOS). To turn

off the power when set to suspend

mode, depress the button for at least

4 seconds. Refer to the table on the

right for pin deﬁ nitions.

Universal Serial Bus Ports (USB0/1)

Two Universal Serial Bus ports

(USB2.0) are located beside the

mouse/keyboard ports. See the table

on the right for pin deﬁ nitions.

Power Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

1PW_ON

2 Ground

Universal Serial Bus Ports

Pin Deﬁ nitions (USB0/1)

USB0 Pin # Deﬁ nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

USB1 Pin # Deﬁ nition

2-11

H8DMU+ User's Manual

USB Headers

Four additional USB2.0 headers

(USB4/5 and USB6/7) are included on

the serverboard. These may be con-

nected to provide front side access.

A USB cable (not included) is needed

for the connection. See the table on

the right for pin deﬁ nitions.

Serial Ports

The COM1 serial port is located be-

side the VGA port. COM2 is a header

located near JWOL. Refer to the table

on the right for pin deﬁ nitions.

Universal Serial Bus Headers

Pin Deﬁ nitions (USB4/5/6/7)

USB2 Pin # Deﬁ nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 Key 5 No connection

Serial Port Pin Deﬁ nitions

Pin # Deﬁ nition Pin # Deﬁ nition

1 DCD 6 DSR

2RXD 7RTS

3TXD 8CTS

4DTR 9 RI

5 Ground 10 NC

USB3/4 Pin # Deﬁ nition

(COM1/COM2)

Fan Headers

The H8DMU+ has eight fan headers,

which are designated FAN1 through

FAN8. FAN7 and FAN8 (for active

CPU heatsinks) are Pulse Width

Modulated (PWM): their speed is

controlled via a BIOS setting. See the

table on the right for pin deﬁ nitions.

Note: when using active heatsinks

(those with fans), connect the heatsink

fan for CPU1 to the FAN7 header and

the heatsink fan for CPU2 to the FAN8

header.

Note: NC indicates no connection.

Fan Header

Pin Deﬁ nitions

(FAN1-8)

Pin# Deﬁ nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (desig-

nated LAN1 and LAN2) are located

beside the VGA port. These Ethernet

ports accept RJ45 type cables.

2-12

Chapter 2: Installation

Power LED/Speaker

On JD1, pins 1, 2, and 3 are for the

power LED and pins 4 through 7 are

for the speaker. See the tables on the

right for pin deﬁ nitions.

Note: The speaker connector pins are

for use with an external speaker. If

you wish to use the onboard speaker,

you should close pins 6 and 7 with a

jumper.

ATX PS/2 Keyboard and PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/2

mouse ports are located on the I/O

backplane. The mouse is the top

(green) port. See the table on the

right for pin deﬁ nitions.

PWR LED Connector Pin Deﬁ nitions (JD1)

Pin# Deﬁ nition

1 +Vcc

2 Control

3 Control

Speaker Connector

Pin Deﬁ nitions (JD1)

Pin# Deﬁ nition

4 Red wire, +5V

5 No connection

6 Buzzer signal

7 Speaker data

PS/2 Keyboard and

Mouse Port Pin

Deﬁ nitions

Pin# Deﬁ nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Overheat LED

Connect an LED to the JOH1 header

to provide warning of chassis over-

heating. See the table on the right for

pin deﬁ nitions.

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

2-13

Overheat LED

Pin Deﬁ nitions (JOH1)

Pin# Deﬁ nition

13.3V

2 OH Active

Chassis Intrusion

Pin Deﬁ nitions (JL1)

Pin# Deﬁ nition

1 Battery voltage

2 Intrusion signal

H8DMU+ User's Manual

Wake-On-LAN

The Wake-On-LAN header is desig-

nated JWOL. See the table on the

right for pin deﬁ nitions. You must

have a LAN card with a Wake-On-LAN

connector and cable to use the Wake-

On-LAN feature.

(Note: Wake-On-LAN from S3, S4, S5

are supported by LAN1. LAN2 sup-

ports Wake-On-LAN from S1 only.)

Wake-On-LAN

Pin Deﬁ nitions

(JWOL)

Pin# Deﬁ nition

1 +5V Standby

2 Ground

3 Wake-up

Wake-On-Ring

The Wake-On-Ring header is desig-

nated JWOR. This function allows

your computer to receive and "wake-

up" by an incoming call to the modem

when in suspend state. See the table

on the right for pin deﬁ nitions. You

must have a Wake-On-Ring card and

cable to use this feature.

Power Supply I2C Header

The JPI2C header is for I2C, which

may be used to monitor the status of

the power supply, fans and system

temperature. See the table on the right

for pin deﬁ nitions.

Wake-On-Ring

Pin Deﬁ nitions

(JWOR)

Pin# Deﬁ nition

1 Ground (Black)

2 Wake-up

I2C Header

Pin Deﬁ nitions (JPI2C)

Pin# Deﬁ nition

1 Clock

2 Data

3 PWR Fail

4Gnd

5 +3.3V

SMBus Header

The SMBus header is for the System

Management Bus. Connect the ap-

propriate cable here to utilize SMB on

the system. See the table on the right

for pin deﬁ nitions.

SMBus Header

Pin Deﬁ nitions (SMBus)

Pin# Deﬁ nition

1 Data

2 Ground

3 Clock

4 No Connection

2-14

Chapter 2: Installation

Compact Flash Power

A Compact Flash Card Power

Connector is located at JWF1. For

the Compact Flash Card to work

properly, you will ﬁ rst need to connect

the device's power cable to JWF1

and correctly set the Compact Flash

Jumper (JCF1).

SGPIO

SGPIO1 and SGPIO2 (Serial General

Purpose Input/Output) provide a bus

between the SATA controller and

the SATA drive backplane to provide

SATA enclosure management func-

tions. Connect the appropriate cables

from the backplane to the SGPIO1

and SGPIO2 header(s) to utilize

SATA management functions on your

system.

Compact Flash

Power Header

Pin Deﬁ nitions (JWF1)

Pin# Deﬁ nition

1+5V

2 Ground

3 Signal

SGPIO Header

Pin Deﬁ nitions (SGPIO1, SGPIO2)

Pin# Deﬁ nition Pin # Deﬁ nition

1NC 2 NC

3 Ground 4 Data

5 Load 6 Ground

7NC 8 NC

Note: NC indicates no connection.

UID Button (SW1)

The SW1 button beside LAN2 provides

a UID (Unit Identiﬁ er) function. Push

the button to illuminate an LED on the

front of the chassis to help locate the

server in a heavily populated rack.

2-15

H8DMU+ User's Manual

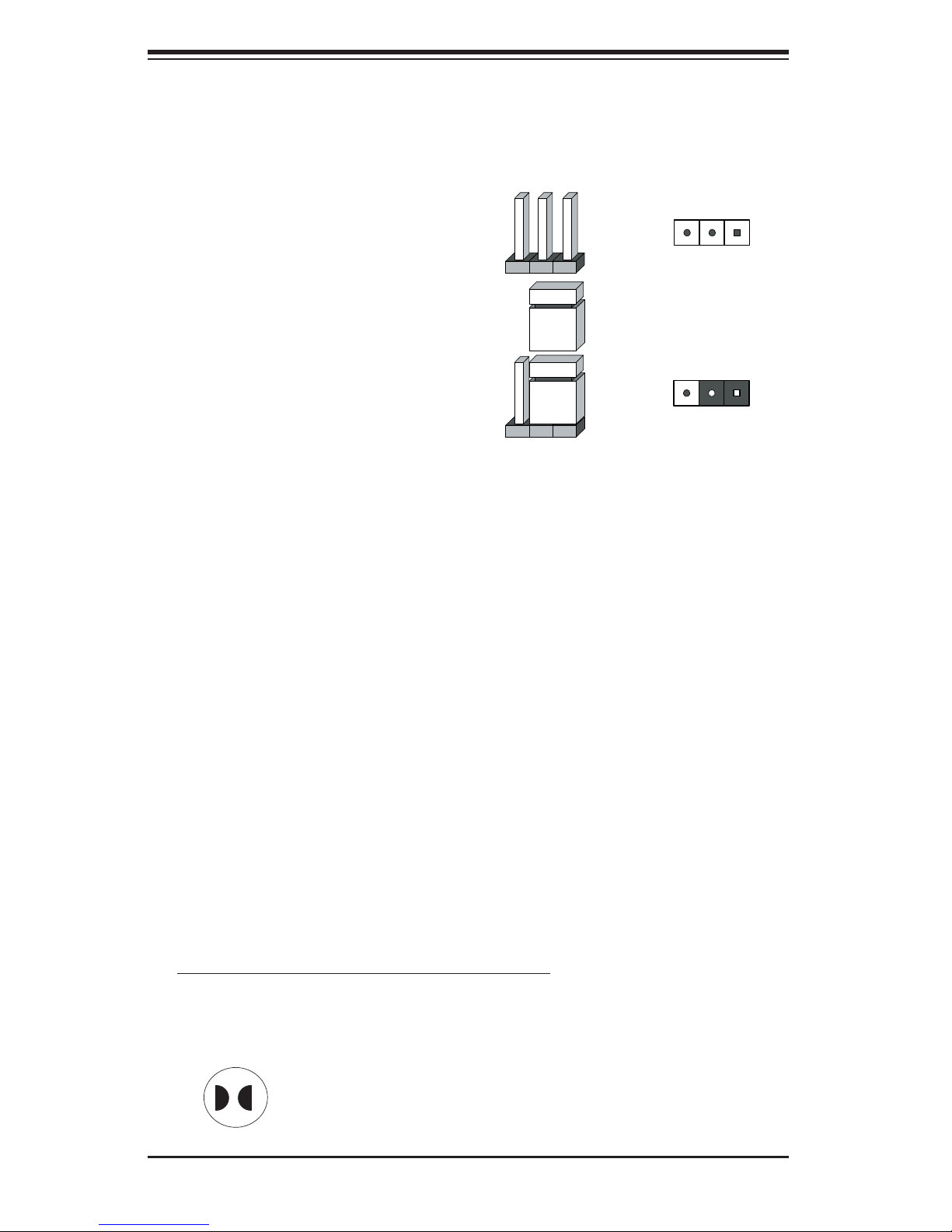

2-7 Jumper Settings

Explanation of Jumpers

To modify the operation of the

serverboard, jumpers can be used to

choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identiﬁ ed with

a square solder pad on the printed

circuit board. See the diagram at

right for an example of jumping pins

1 and 2. Refer to the serverboard

layout page for jumper locations.

Note: O n t w o - p i n j u m p e r s , " C l o s e d "

means the jumper is on and "Open"

means the jumper is off the pins.

CMOS Clear

Connector

321

Pins

Jumper

321

Setting

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins,

this jumper consists of contact pads to prevent accidentally clearing the contents

of CMOS.

To clear CMOS,

1) First power down the system and unplug the power cord(s).

2) With the power disconnected, short the CMOS pads with a metal object such as

a small screwdriver for at least four seconds.

3) Remove the screwdriver (or shorting device).

4) Reconnect the power cord(s) and power on the system.

Notes:

Do not use the PW_ON connector to clear CMOS.

The onboard battery does not need to be removed when clearing CMOS, however

you must short JBT1 for at least four seconds.

JBT1 contact pads

2-16

VGA Enable/Disable

JPG1 allows you to enable or disable

the VGA port. The default position is

on pins 1 and 2 to enable VGA. See

the table on the right for jumper set-

tings.

Chapter 2: Installation

VGA Enable/Disable

Jumper Settings (JPG1)

Jumper Setting Deﬁ nition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog

JWD controls Watch Dog, a system

monitor that takes action when a soft-

ware application freezes the system.

Jumping pins 1-2 will cause WD to

reset the system if an application is

hung up. Jumping pins 2-3 will gen-

erate a non-maskable interrupt signal

for the application that is hung up.

See the table on the right for jumper

settings. Watch Dog can also be

enabled via BIOS.

Onboard Speaker Enable/ Disable

Watch Dog

Jumper Settings (JWD)

Jumper Setting Deﬁ nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

Note: When enabled, the user needs to

write their own application sof tware in or-

der to disable the Watch Dog timer.

The JD1 header allows you to use

either an external speaker or the in-

ternal (onboard) speaker. To use the

internal onboard speaker, close pins

6 and 7 with a jumper. To use an

external speaker, remove the jumper

and connect the speaker wires to pins

4 (+5V) and 7 (control signal). See the

table on the right for settings and the

table associated with the Power LED/

Keylock/Speaker connection (previ-

ous section) for jumper settings.

Onboard Speaker Enable/Disable

Pin Deﬁ nitions (JD1)

Pins Deﬁ nition

6 and 7 Jump for onboard speaker

4 and 7 Attach external speaker wires

Note: Pins 4-7 are used only for the on-

board speaker.

2-17

H8DMU+ User's Manual

Compact Flash Master/Slave

The JCF1 jumper allows you to assign

either master or slave status a compact

ﬂ ash card installed in IDE1. See the

table on the right for jumper settings.

I2C to PCI-Express Enable/ Disable

The JI2C1/JI2C2 pair of jumpers allows

you to connect the System Manage-

ment Bus to any one of the PCI-Express

slots. The default setting is closed for

both jumpers to enable the connection.

Both connectors must have the same

setting (JI

for the clock). See the table on right for

jumper settings.

C1 is for data and JI2C2 is

Compact Flash

Master/Slave

Jumper Settings (JCF1)

Jumper Setting Deﬁ nition

Closed Master

Open Slave

I2C to PCI Enable/Disable

Jumper Settings

(JI2C1/JI2C2)

Jumper Setting Deﬁ nition

Closed Enabled

Open Disabled

2-18

2-8 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside

the VGA port) have two LEDs. On

each Gb LAN port, one LED indicates

activity when blinking while the other

LED may be amber or off to indicate

the speed of the connection. See

the table on the right for the func-

tions associated with the connection

speed LED.

Chapter 2: Installation

LAN LED

(Connection Speed Indicator)

LED Color Deﬁ nition

Off 10/100 MHz

Amber 1 GHz

Onboard Power LED (DP4)

DP4 is an Onboard Power LED. When

this LED is lit, it means power is pres-

ent on the serverboard. In suspend

mode this LED will blink on and off. Be

sure to turn off the system and unplug

the power cord(s) before removing or

installing components.

UID LED (LE1)

The LE1 LED will illuminate when the

UID button is pressed. Pressing the

button a second time will turn this

LED off. The UID LED is used to

help locate speciﬁ c servers in heavily

populated server racks.

2-19

H8DMU+ User's Manual

2-9 Floppy, IDE and SATA Drive Connections

Use the following information to connect the ﬂ oppy and hard disk drive cables.

 The ﬂ oppy disk drive cable has seven twisted wires.

 A red mark on a wire typically designates the location of pin 1.

 A single ﬂ oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two ﬂ oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

 The 80-wire ATA133 IDE hard disk drive cable that came with your system has

two connectors to support two drives. This special cable should be used to take

advantage of the speed this new technology offers. The blue connector connects

to the onboard IDE connector interface and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details

on actual jumper locations and settings for the hard disk drive.

Floppy Connector

The ﬂ oppy connector is located

beside the IDE connector. See

the table on the right for pin

deﬁ nitions.

Floppy Drive Connector Pin Deﬁ nitions (Floppy)

Pin# Deﬁ nition Pin # Deﬁ nition

1 GND 2 FDHDIN

3 GND 4 Reserved

5 Key 6 FDEDIN

7 GND 8 Index-

9 GND 10 Motor Enable

11 GND 12 Drive Select B-

13 GND 14 Drive Select A-

15 GND 16 Motor Enable

17 GND 18 DIR-

19 GND 20 STEP-

21 GND 22 Write Data-

23 GND 24 Write Gate-

25 GND 26 Track 00-

27 GND 28 Write Protect-

29 GND 30 Read Data-

31 GND 32 Side 1 Select-

33 GND 34 Diskette

2-20

Chapter 2: Installation

IDE Connector

There are no jumpers to con-

ﬁ gure the onboard IDE#1 con-

nector. See the table on the

right for pin deﬁ nitions.

IDE Drive Connector

Pin Deﬁ nitions (IDE#1)

Pin# Deﬁ nition Pin # Deﬁ nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

SATA Ports

There are no jumpers to con-

ﬁ gure the SATA ports, which

are designated SATA0 through

SATA5. See the table on the

right for pin deﬁ nitions.

Pin Deﬁ nitions (SATA0-SATA5)

SATA Ports

Pin # Deﬁ nition

1 Ground

2TXP

3TXN

4 Ground

5RXN

6RXP

7 Ground

2-21

H8DMU+ User's Manual

2-10 Enabling SATA RAID

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that employs a single cable with

a minimum of four wires to create a point-to-point connection between devices.

This connection is a serial link. The serial cables used in SATA are thinner than

the traditional cables used in Parallel ATA (PATA) and can extend up to one meter

in length, compared to only 40 cm for PATA cables. Overall, SATA provides better

functionality than PATA.

Installing the OS/SATA Driver

Before installing the OS (operating system) and SATA RAID driver, you must decide

if you wish to have the operating system installed as part of a bootable RAID array

or installed to a separate non-RAID hard drive. If on a separate drive, you may

install the driver either during or after the OS installation. If you wish to have the

OS on a SATA RAID array, you must follow the procedure below and install the

driver during the OS installation.

Building a Driver Diskette

You must ﬁ rst build a driver diskette from the CD-ROM that was included with the

system. (You will have to create this disk on a computer that is already running and

with the OS installed.) Insert the CD into your CD-ROM drive and start the system.

A display as shown in Figure 2-7 will appear. Click on the icon labeled "Build Driver

Diskettes and Manuals" and follow the instructions to create a ﬂ oppy disk with the

driver on it. Once it's been created, remove the ﬂ oppy and insert the installation

CD for the Windows Operating System you wish to install into the CD-ROM drive

of the new system you are about to conﬁ gure.

Enabling SATA RAID in the BIOS

Before installing the Windows Operating System, you must change some settings

in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility.

After the Setup Utility loads,

1. Use the arrow keys to move to the Exit menu. Scroll down with the arrow keys

to the "Load Optimal Defaults setting and press <Enter>. Select "OK" to conﬁ rm,

then <Enter> to load the default settings.

2-22

Chapter 2: Installation

2. Use the arrow keys to move to Advanced > Floppy/IDE/SATA Conﬁ guration >

nVidia RAID Setup and press the <Enter> key. Once in the submenu, enable the

"nVidia RAID Function" setting.

3. Hit the <F10> key to "Save Changes and Exit", then hit <Enter> to verify.

4. After exiting the BIOS Setup Utility, the system will reboot. When prompted

during the startup, press the <F10> key when prompted to run the nVidia RAID

Utility program.

Using the nVidia RAID Utility

The nVidia RAID Utility program is where you can deﬁ ne the drives you want to

include in the RAID array and the mode and type of RAID. Two main windows are

shown in the utility (see Figure 2-5). The "Free Disks" window on the left will list all

available drives. Use the arrow keys to select and move drives to the window on

the right, which lists all drives that are to become part of the RAID array.

Once you have ﬁ nished selecting the drives and type of RAID you wish to use for

your RAID array, press the <F7> key. You will be prompted to verify your choice; if

you want to continue with your choices, select "Yes". Note that selecting "Yes" will

clear all previous data from the drives you selected to be a part of the array. You

are then given the choice of making the RAID array bootable by pressing the the

<B> key. After you have ﬁ nshed, press the <Ctrl> and <X> keys simultaneously.

Figure 2-6 shows a list of arrays that have been set up with the utility.

Installing the OS and Drivers

With the Windows OS installation CD in the CD-ROM drive, restart the system.

When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a

blue screen will appear with a message that begins "Windows could not determine

the type of one or more storage devices . . ." When you see the screen, hit the <S>

key to "Specify Additional Device", then insert the driver diskette you just created

into the ﬂ oppy drive. Highlight "Manufuacturer Supplied Hardware Support Disk"

and hit the <Enter> key. Highlight the ﬁ rst "nVidia RAID" driver shown and press

the <Enter> key to install it. Soon a similar blue screen will appear again. Again hit

the <S> key, then highlight the second item, "nForce Storage Controller" and press

the <Enter> key, then <Enter> again to continue with the Windows setup.

2-23

H8DMU+ User's Manual

Figure 2-5. SATA RAID Utility: Main Screen

Figure 2-6. SATA RAID Utility: Array List

2-24

Chapter 2: Installation

2-11 Installing Drivers

After all the hardware and operating system have been installed, you need to install

certain drivers. The necessary drivers are all included on the Supermicro CD that

came packaged with your serverboard. After inserting this CD into your CD-ROM

drive, the display shown in Figure 2-7 should appear. (If this display does not

appear, click on the My Computer icon and then on the icon representing your CD-

ROM drive. Finally, double click on the S "Setup" icon.)

Figure 2-7. Driver Installation Display Screen

Click the icons showing a hand writing on paper to view the readme ﬁ les for each

item. Click the tabs to the right of these in order from top to bottom to install each

item one at a time. After installing each item, you must reboot the system

before moving on to the next item on the list. You should install everything here

except for the SUPER Doctor utility, which is optional. The bottom icon with a CD

on it allows you to view the entire contents of the CD.

2-25

H8DMU+ User's Manual

Notes

2-26

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Check that the onboard power LED is lit (DP4 on the serverboard).

2. Make sure that the main ATX power connector at JPW1, the 8-pin connector at

JPW2 and the 4-pin connecor at J32 are all connected to your power supply.

3. Make sure that no short circuits exist between the serverboard and chassis.

4. Disconnect all ribbon/wire cables from the serverboard, including those for the

keyboard and mouse.

5. Remove all add-on cards.

6. Install a CPU and heatsink (making sure it is fully seated) and connect the in-

ternal (chassis) speaker and the power LED to the serverboard. Check all jumper

settings as well.

7. Use the correct type of onboard CMOS battery as recommended by the manufac-

turer. To avoid possible explosion, do not install the CMOS battery upside down.

8. Note that the 5VSB supplied from your power supply must provide >3 amps.

No Power

1. Make sure that no short circuits exist between the serverboard and the chas-

sis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your serverboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for

details on beep codes.

3-1

H8DMU+ User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnostics

card is recommended. For I/O port 80h codes, refer to App. B.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.

2. You should be using registered ECC DDR-2 memory (see next page). Also, it

is recommended that you use the same memory type and speed for all DIMMs in

the system. See Section 2-4 for memory details and limitations.

3. Check for bad DIMM modules or slots by swapping modules between slots and

noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Conﬁ guration

1. Make sure that you are using a high quality power supply. A poor quality power

supply may cause the system to lose the CMOS setup information. Refer to Sec-

tion 1-6 for details on recommended power supplies.

2. The battery on your serverboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

3. If the above steps do not ﬁ x the setup conﬁ guration problem, contact your vendor

for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note

that as a serverboard manufacturer, we do not sell directly to end-users, so it is

best to ﬁ rst check with your distributor or reseller for troubleshooting services. They

should know of any possible problem(s) with the speciﬁ c system conﬁ guration that

was sold to you.

1. Please review the ‘Troubleshooting Procedures’ and 'Frequently Asked Questions'

(FAQs) sections in this chapter or see the FAQs on our web site before contacting

Technical Support.

2. BIOS upgrades can be downloaded from our web site.

Note: Not all BIOS can be ﬂ ashed depending on the modiﬁ cations to the boot block

code.

3-2

Chapter 3: Troubleshooting

3. If you still cannot resolve the problem, include the following information when

contacting us for technical support:

 Serverboard model and PCB revision number

 BIOS release date/version (this can be seen on the initial display when your

system ﬁ rst boots up)

 System conﬁ guration

An example of a Technical Support form is posted on our web site.

4. Distributors: For immediate assistance, please have your account number ready

when contacting our technical support department by e-mail.

3-3 Frequently Asked Questions

Question: What type of memory does my serverboard support?

Answer: The H8DMU+ supports up to 64 GB of DDR2-667/533/400 registered

ECC SDRAM with two CPUs installed. With only one CPU installed the maximum

memory support is halved. Memory can be installed in interleaved or non-inter-

leaved conﬁ gurations. See Section 2-4 for details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you not upgrade your BIOS if you are not experi-

encing problems with your system. Updated BIOS ﬁ les are located on our web site

(http://www.supermicro.com/aplus/support/bios). Please check our BIOS warning

message and the information on how to update your BIOS on our web site. Also,

check the current BIOS revision and make sure it is newer than your current BIOS

before downloading.

Select your serverboard model on the web page and download the corresponding

BIOS ﬁ le to your computer. Unzip the BIOS update ﬁ le, in which you will ﬁ nd the

readme.txt (ﬂ ash instructions), the afudos.exe (BIOS ﬂ ash utility) and the BIOS

image (xxx.rom) ﬁ les. Copy these ﬁ les to a bootable ﬂ oppy disk, insert the disk

into drive A and reboot the system. At the DOS prompt after rebooting, enter the

command "ﬂ ash" (without quotation marks) then type in the BIOS ﬁ le that you want

to update with (xxxx.rom).

Question: What's on the CD that came with my serverboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install the

applications you need. Applications on the CD include chipset drivers for Windows

and security and audio drivers.

3-3

H8DMU+ User's Manual

Question: Why can't I turn off the power using the momentary power on/off

switch?

Answer: The instant power off function is controlled in BIOS by the Power But-

ton Mode setting. When the On/Off feature is enabled, the serverboard will have

instant off capabilities as long as the BIOS has control of the system. When the

Standby or Suspend feature is enabled or when the BIOS is not in control such

as during memory count (the ﬁ rst screen that appears when the system is turned

on), the momentary on/off switch must be held for more than four seconds to shut

down the system. This feature is required to implement the ACPI features on the

serverboard.

Question: How do I connect the ATA133 cable to my IDE device(s)?

Answer: The 80-wire/40-pin high-density ATA133 IDE cable that came with your

system has two connectors to support two drives. This special cable must be used

to take advantage of the speed the ATA133 technology offers. Connect the blue

connector to the onboard IDE header and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details on

actual jumper locations and settings.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.

supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor ﬁ rst for any product problems.

3-4

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DMU+. The AMI

ROM BIOS is stored in a ﬂ ash chip and can be easily upgraded using a ﬂ oppy

disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of our web site for any changes to BIOS that may not be reﬂ ected

in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up.

(In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are

a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS

menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options

that can be conﬁ gured. “Grayed-out” options cannot be conﬁ gured. The right frame

displays the key legend. Above the key legend is an area reserved for a text mes-

sage. When an option is selected in the left frame, it is highlighted in white. Often a

text message will accompany it. (Note that BIOS has default text messages built in.

We retain the option to include, omit, or change any of these text messages.) Set-

tings printed in Bold are the default values.

A "

" indicates a submenu. Highlighting such an item and pressing the <Enter>

key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of

these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at

any time during the setup navigation process.

4-1

H8DMU+ User’s Manual

4-2 Main Menu

When you ﬁ rst enter AMI BIOS Setup Utility, you will see the Main Menu screen.

You can always return to the Main Menu by selecting the Main tab on the top of

the screen with the arrow keys.

The Main Menu screen provides you with a system overview, which includes the

version, built date and ID of the AMIBIOS, the type, speed and number of the

processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this ﬁ eld to change the system time and date. Highlight System Time

or System Date using the <Arrow> keys. Enter new values through the keyboard.

Press the <Tab> key or the <Arrow> keys to move between ﬁ elds. The date must

be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as

05:30:00 and 5:30 P.M. as 17:30:00.

4-3 Advanced Settings Menu

 BIOS Features

Quick Boot

If Enabled, this option will skip certain tests during POST to reduce the time

needed for the system to boot up. The options are Enabled and Disabled.

Quiet Boot

If Disabled, normal POST messages will be displayed on boot-up. If Enabled,

this display the OEM logo instead of POST messages.

OS Installation

Change this setting if using a Linux operating system. The available options

are Other and Linux.

Interrupt 19 Capture

Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled

and Disabled.

ACPI Mode

Use this setting to determine whether ACPI mode will be used. The options

are Yes and No.

4-2

Chapter 4: BIOS

 Advanced ACPI Conﬁ guration

MCP55 ACPI HPET Table

Use this setting to Enable or Disable the MCP55 ACPI HPET Table.

ACPI Version Features

Use this setting the determine which ACPI version to use. Options are ACPI

v1.0, ACPI v2.0 and ACPI v3.0.

ACPI APIC Support

Determines whether to include the ACPI APIC table pointer in the RSDT

pointer list. The available options are Enabled and Disabled.

ACPI OEMB Table

Determines whether to include the ACPI APIC table pointer in the RSDT

pointer list. The available options are Enabled and Disabled.

Headless Mode

Use this setting to Enable or Disable headless operation mode through

ACPI.

ACPI HPET Table

Use this setting to Enable or Disable the ACPI HPET Table.

Power Button Mode

Allows the user to change the function of the power button. Options are On/Off

and Suspend.

Watch Dog Timer Select

This setting is used to Enable or Disable the Watch Dog Timer function. It must

be used in conjunction with the Watch Dog jumper (see Chapter 2 for details).

To enable, choose from 1, 2, 3, 4, 8, 15 or 30 min.

Restore on AC Power Loss

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Power Off, Power On and

Last State.

4-3

H8DMU+ User’s Manual

MPS Revision

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

MPS Revision

POST Debugger

Enable this setting to give the status of the AMI POST debugger in the next boot

up. The options are Enabled and Disabled.

 Floppy/IDE/SATA Conﬁ guration

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard ﬂ oppy controller.

Floppy A

Move the cursor to these ﬁ elds via up and down <arrow> keys to select the ﬂ oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Onboard IDE Controller

There is a single ﬂ oppy controller on the motherboard, which may be Enabled or

Disabled with this setting.

Serial ATA Devices

This setting is used to determine if SATA drives will be used and how many. Op-

tions are Disabled, Device 0, Device 0/1 and Device 0/1/2.

 nVidia RAID Setup

nVidia RAID Function

This setting is used to Enable or Disable the nVidia ROM. If Enabled, the set-

ting below will appear.

SATA0/1/2 Primary/Secondary Channel

This setting is used to Enable or Disable the SATA0 Primary, SATA0 Second-

ary, SATA1 Primary, SATA1 Secondary, SATA2 Primary and SATA2 Secondary

channels (six settings total).

4-4

Chapter 4: BIOS

Primary IDE Master/Slave

Highlight one of the items above and press <Enter> to access the submenu for

that item.

Type

Select the type of device connected to the system. The options are Not Installed,

Auto, CDROM and ARMD.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the speciﬁ cations of the drive.

4-5

H8DMU+ User’s Manual

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

Serial ATA0/1/2 Primary/Secondary Channel

Highlight one of the items above and press <Enter> to access the submenu for that

item. If a drive is present, information on that drive will be displayed here.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

4-6
