Preface
About This Manual
This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
H8DMT+/H8DMT-INF+ motherboard. The H8DMT+/H8DMT-INF+ is based on the
nVidia® MCP55-V Pro chipset and supports dual AMD Socket F type processors
and up to 64 GB of DDR2-667/533/400 registered ECC SDRAM.
Please refer to the motherboard specifi cations pages on our web site for updates on
supported processors (http://www.supermicro.com/aplus/). This product is intended
to be professionally installed.
Preface
Manual Organization
Chapter 1 includes a checklist of what should be included in your motherboard
box, describes the features, specifi cations and performance of the motherboard
and provides detailed information about the chipset.
Chapter 2 begins with instructions on handling static-sensitive devices. Read this
chapter when installing the processor(s) and memory modules and when installing
the motherboard in a chassis. Also refer to this chapter to connect the hard disk
drives, the various ports, and the power and reset buttons and the system LEDs.
If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the setup confi guration stored in CMOS.
For quick reference, a general FAQ (Frequently Asked Questions) section is pro-
vided. Instructions are also included for contacting technical support. In addition,
you can visit our web site for more detailed information.
Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.
Appendix A provides BIOS Error Beep Code Messages.
Appendix B lists BIOS POST Checkpoint Codes.
iii
H8DMT+/H8DMT-INF+ User’s Manual
Table of Contents
Chapter 1 Introduction
1-1 Overview ......................................................................................................... 1-1
Checklist .......................................................................................................... 1-1
1-2 Contacting Supermicro .................................................................................... 1-2
H8DMT+/H8DMT-INF+ Quick Reference ........................................................ 1-5
1-3 Chipset Overview ............................................................................................ 1-9
MCP55-V Pro Media and Communications Processor ................................... 1-9
HyperTransport Technology ............................................................................ 1-9
1-4 PC Health Monitoring .................................................................................... 1-10
1-5 Power Confi guration Settings ....................................................................... 1-10
1-6 Power Supply ................................................................................................ 1-12
1-7 Super I/O ....................................................................................................... 1-12
Chapter 2 Installation
2-1 Static-Sensitive Devices .................................................................................. 2-1
Precautions ..................................................................................................... 2-1
Unpacking ....................................................................................................... 2-1
2-2 Processor and Heatsink Installation ............................................................... 2-2
2-3 Mounting the Motherboard into a Chassis ...................................................... 2-4

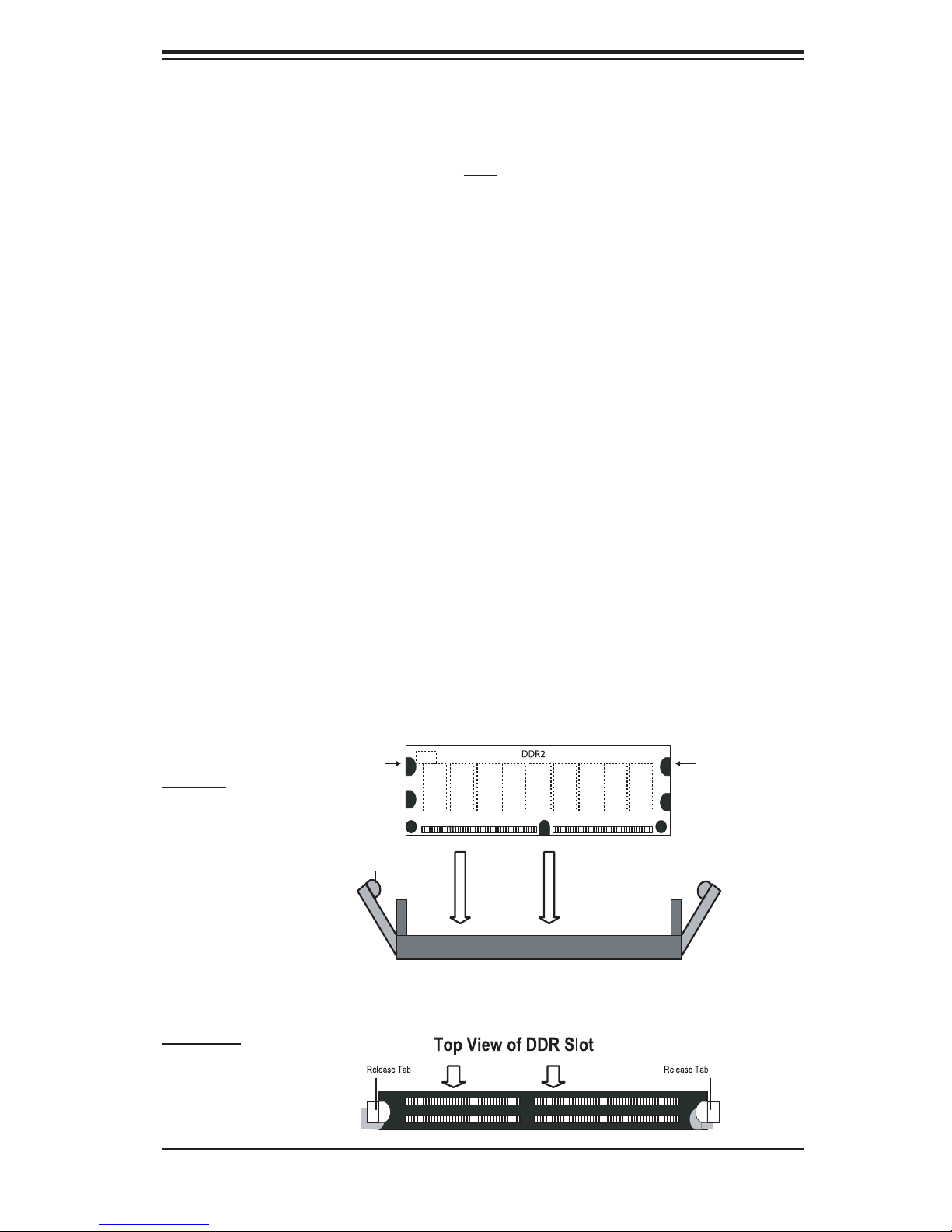

2-4 Installing Memory ............................................................................................ 2-4

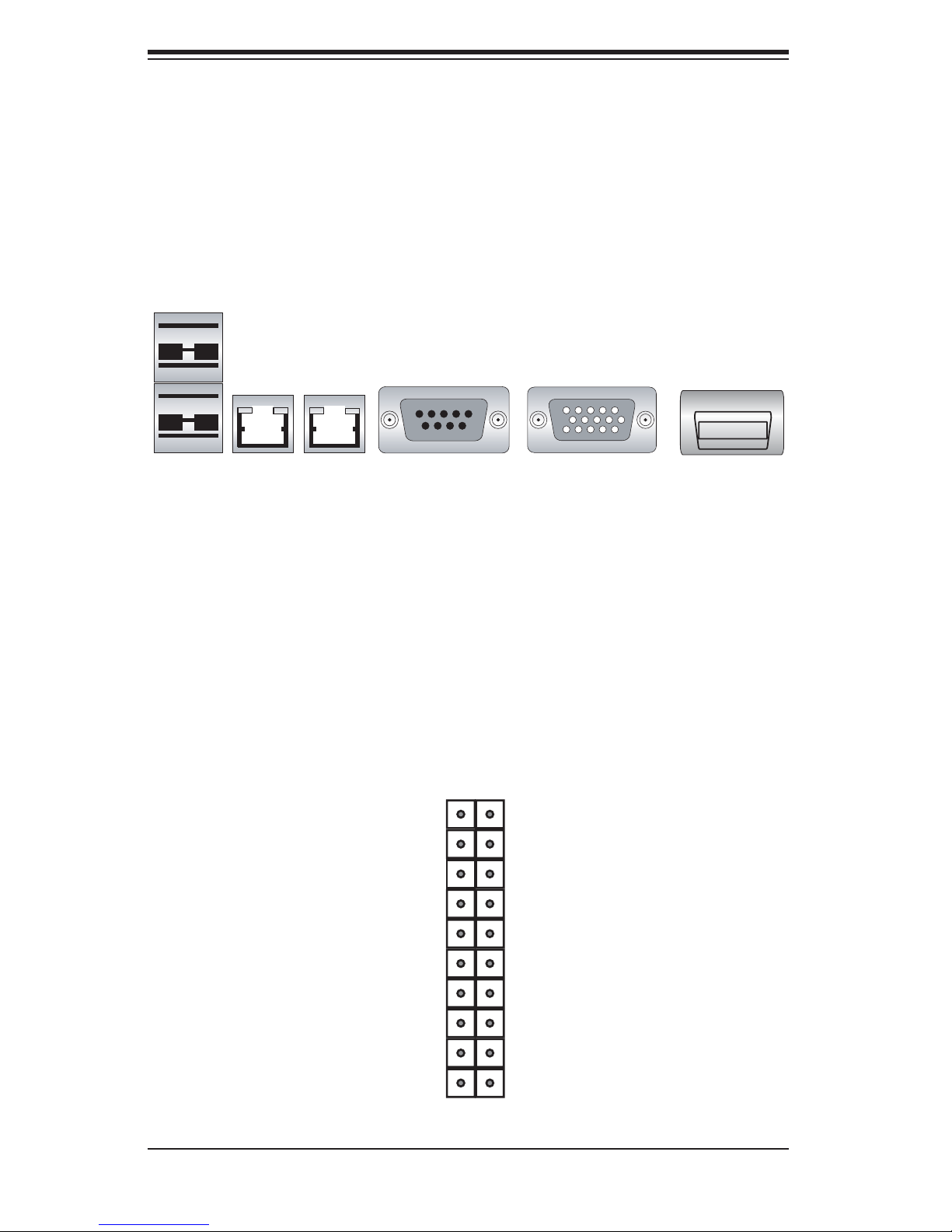

2-5 I/O Port and Control Panel Connections ........................................................ 2-6
Front Control Panel ......................................................................................... 2-6
2-6 Connector Defi nitions ..................................................................................... 2-7
Proprietary Power Connector ..................................................................... 2-7
Auxiliary Power Connector ......................................................................... 2-7
PW_ON Connector ..................................................................................... 2-7
Reset Connector ........................................................................................ 2-7
Overheat/Fan Fail LED (OH) ..................................................................... 2-8
NIC2 (LAN2) LED ....................................................................................... 2-8
NIC1 (LAN1) LED ....................................................................................... 2-8
HDD LED .................................................................................................... 2-8
Power On LED ........................................................................................... 2-8
NMI Button ................................................................................................. 2-9
Universal Serial Bus Ports ......................................................................... 2-9
USB Headers ............................................................................................. 2-9
Power I
Serial Ports ............................................................................................... 2-10
2
C ................................................................................................... 2-9
iv
Table of Contents
Fan Headers ............................................................................................. 2-10
LAN1/2 (Ethernet Ports) ........................................................................... 2-10
Overheat LED ........................................................................................... 2-10
Chassis Intrusion ..................................................................................... 2-10
Wake-On-LAN ...........................................................................................2-11
Wake-On-Ring ...........................................................................................2-11
SMBus Header ..........................................................................................2-11
SGPIO .......................................................................................................2-11
2-7 Jumper Settings ............................................................................................ 2-12
Explanation of Jumpers ................................................................................ 2-12
CMOS Clear ............................................................................................. 2-12
VGA Enable/Disable ................................................................................. 2-13
I2C to PCI-Express Slot ........................................................................... 2-13
Watch Dog Enable/Disable ...................................................................... 2-13
Infi niBand Port Enable/Disable ................................................................ 2-13
2-8 Onboard Indicators ........................................................................................ 2-14
LAN1/LAN2 LEDs ..................................................................................... 2-14
Power LED ............................................................................................... 2-14
Infi niBand LED Indicators ......................................................................... 2-14
2-9 Drive Connections ......................................................................................... 2-15
SATA Ports ............................................................................................... 2-15
2-10 Enabling SATA RAID ..................................................................................... 2-16
Serial ATA (SATA) ......................................................................................... 2-16
Installing the OS/SATA Driver ....................................................................... 2-16
Building a Driver Diskette ......................................................................... 2-16
Enabling SATA RAID in the BIOS ............................................................ 2-17
Using the nVidia RAID Utility ........................................................................ 2-17
Installing the OS and Drivers ........................................................................ 2-17
Chapter 3 Troubleshooting
3-1 Troubleshooting Procedures ........................................................................... 3-1
Before Power On ............................................................................................ 3-1
No Power ........................................................................................................ 3-1
No Video ......................................................................................................... 3-2
Memory Errors ............................................................................................... 3-2
Losing the System’s Setup Confi guration ....................................................... 3-2
3-2 Technical Support Procedures ........................................................................ 3-3
3-3 Frequently Asked Questions ........................................................................... 3-3
3-4 Returning Merchandise for Service ................................................................ 3-4
v
H8DMT+/H8DMT-INF+ User’s Manual
Chapter 4 BIOS
4-1 Introduction ...................................................................................................... 4-1
4-2 Main Menu ...................................................................................................... 4-2
4-3 Advanced Settings Menu ................................................................................ 4-2
4-4 Boot Menu ..................................................................................................... 4-13
4-5 Security Menu ............................................................................................... 4-14
4-6 Exit Menu ...................................................................................................... 4-14
Appendix A BIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes
vi
Chapter 1: Introduction
Chapter 1
Introduction
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.
One (1) H8DMT+/H8DMT-INF+ motherboard
•
Two (2) SATA cables (CBL-0228L)
•
One (1) CD containing drivers and utilities
•
1-1
H8DMT+/H8DMT-INF+ User’s Manual
1-2 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Asia-Pacifi c
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Email: support@supermicro.com.tw
Tel: 886-2-8228-1366, ext.132 or 139
1-2
Figure 1-1. H8DMT-INF+ Image
Chapter 1: Introduction
The H8DMT+ shares the same layout but does not include Infi niBand components.
1-3
H8DMT+/H8DMT-INF+ User’s Manual
Figure 1-2. H8DMT+/H8DMT-INF+ Motherboard Layout
(not drawn to scale)
Notes:
Jumpers not indicated are for test purposes only.
The H8DMT+ does not include Infi niBand components.
1-4
Chapter 1: Introduction
H8DMT+/H8DMT-INF+ Quick Reference
Jumper Description Default Setting
JBT1 CMOS Clear (See Section 2-7)
2
JI
C1/JI2C2 I2C to PCI-E Slot Both Closed (Enabled)
J1B1* Infi niBand Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JWD Watch Dog Pins 1-2 (Reset)
Connector Description
COM1/COM2 COM1 Serial Port/Header
FAN 1-4 Chassis/CPU Fan Headers
J2 Auxilliary Power Connector (for IDE drives)
JF1 Front Panel Connector
JL1 Chassis Intrusion Header
JOH1 Overheat Warning Header
JWOL Wake-On-LAN Header
JWOR Wake-On-Ring Header
JWR1 20-pin Proprietary Power Connector
JWR2 20-pin Proprietary Power Connector
LAN1/2 Gigabit Ethernet (RJ45) Ports
2
PWRI
C Power I2C Header
SATA0 ~ SATA3 SATA Ports
SIMSO SIMSO (Remote Management) Slot
SMBus System Management Bus Header
T-SGPIO-1 Serial General Purpose Input/Output Header
USB0/1, USB2/3/4/5 Universal Serial Bus (USB) Ports, Headers
LED Description
DP4 Onboard Power LED
LE2* Infi niBand Physical Link LED (Green)
LE3* Infi niBand Logical Link LED (Yellow)
*H8DMT-INF+ only.
1-5
H8DMT+/H8DMT-INF+ User’s Manual
Motherboard Features
CPU
Dual AMD Opteron 2000 series (Socket F type) processors
•
Note: Refer to our web site for details on supported processors.
Memory
Sixteen single/dual channel DIMM slots supporting up to 64 GB of DDR2-
•
667/533/400 registered ECC SDRAM
Note: Due to a CPU limitation, fully populating DIMM slots with DDR2-667 will pull the speed down to
533 MHz (see our web site for possible updates to this). Refer to Section 2-4 before installing memory
and our web site for recommended DIMMs.
Chipset
nVidia MCP55-V Pro
•
Expansion Slots
One (1) PCI-Express x16 slot
•
One (1) SIMSO slot (for IPMI card)
•
BIOS
8 Mb AMIBIOS
•
APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS
•
2.3, Plug and Play (PnP)
®
LPC Flash ROM
PC Health Monitoring
Onboard voltage monitors
•
Fan status monitor with fi rmware/software on/off and speed control
•
Watch Dog
•
Environmental temperature monitoring via BIOS
•
Power-up mode control for recovery from AC power loss
•
System resource alert (via included utility program)
•
Auto-switching voltage regulator for the CPU core
•
CPU thermal trip support
•
2
I
C temperature sensing logic
•
1-6
Chapter 1: Introduction
ACPI Features
Microsoft OnNow
•
Slow blinking LED for suspend state indicator
•
BIOS support for USB keyboard
•
Wake-On-LAN (WOL) and Wake-On-Ring (WOR) headers
•
Internal/external modem ring-on
•
Onboard I/O
On-chip SATA controller supporting four (4) SATA ports (RAID 0, 1, 0+1, 5 and
•
JBOD supported)
One (1) Fast UART 16550 compatible serial port
•
On-chip (MCP55-V Pro) Ethernet controller supports two Gigabit LAN ports
•
Six (6) USB (Universal Serial Bus 2.0) ports/headers
•
Onboard XGI Z9S graphics controller
•
H8DMT-INF+: Mellanox Infi niHost MT25204A0-FCC-D for 10Gb/s Infi niBand
•
Other
Onboard power LED
•
Chassis intrusion detection
•
CD Utilities
BIOS fl ash upgrade utility
•
Dimensions
Proprietary form factor: 16.64" x 6.8" (423 x 173 mm)
•
1-7
H8DMT+/H8DMT-INF+ User’s Manual
DDR2-667/533/400
DIMM 4B
DIMM 4A
DIMM 3B
DIMM 3A
DIMM 2B
DIMM 2A
DIMM 1B
DIMM 1A
PCI-E Slot
IB MT25204
Gb LAN
Gb LAN
AMD
Socket F
HM
W83793G
PCI x16
PCI x8
GE PHY
88E1121 R
4x SATA
6x USB
HT
HT
SMBus
RGMII
SATA
USB
AMD
Socket F
HT
MCP55V PRO
LPC
DDR2-667/533/400
PCI
VGA
Z9S
SIO
W83627 DHG
BIOS
IPMI
DIMM 4B
DIMM 4A
DIMM 3B
DIMM 3A
DIMM 2B
DIMM 2A
DIMM 1B
DIMM 1A
DDR
COM
Figure 1-3. nVidia MCP55-V Pro Chipset:
System Block Diagram
Note: This is a general block diagram and may not exactly represent
the features on your motherboard. See the previous pages for the
actual specifi cations of your motherboard.
1-8
Chapter 1: Introduction
1-3 Chipset Overview
The H8DMT+/H8DMT-INF+ motherboard is based on the nVidia MCP55-V Pro
chipset. The nVidia MCP55 Pro functions as Media and Communications Proces-
sor (MCP). Controllers for the system memory are integrated directly into AMD
Opteron processors.
MCP55-V Pro Media and Communications Processor
The MCP55-V Pro is a single-chip, high-performance HyperTransport peripheral
controller. It includes a 28-lane PCI Express interface, an AMD Opteron 16-bit Hyper
Transport interface link, a four-port Serial ATA interface, a dual-port Gb Ethernet
interface and a six-port USB 2.0 interface. This hub connects directly to the CPU.
HyperTransport Technology
HyperTransport technology is a high-speed, low latency point to point link that was
designed to increase the communication speed by a factor of up to 48x between
integrated circuits. This is done partly by reducing the number of buses in the
chipset to reduce bottlenecks and by enabling a more effi cient use of memory
in multi-processor systems. The end result is a signifi cant increase in bandwidth
within the chipset.
1-9
H8DMT+/H8DMT-INF+ User’s Manual
1-4 PC Health Monitoring
This section describes the PC health monitoring features of the H8DMT+/H8DMT-
INF+. The motherboard has an onboard System Hardware Monitor chip that sup-
ports PC health monitoring.
Onboard Voltage Monitors
The onboard voltage monitor will continuously scan crucial voltage levels. Once a
voltage becomes unstable, it will give a warning or send an error message to the
screen. Users can adjust the voltage thresholds to defi ne the sensitivity of the volt-
age monitor. Real time readings of these voltage levels are all displayed in BIOS.
Fan Status Monitor with Firmware/Software Speed Control
The PC health monitor can check the RPM status of the cooling fans. The onboard
fans are controlled by thermal management via BIOS.
CPU Overheat/Fan Fail LED and Control
This feature is available when the user enables the CPU overheat/Fan Fail warning
function in the BIOS. This allows the user to defi ne an overheat temperature. When
this temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail
warning LED is triggered.
Auto-Switching Voltage Regulator for the CPU Core
The 3-phase-switching voltage regulator for the CPU core can support up to 80A
and auto-sense voltage IDs ranging from 0.8 V to 1.55V. This will allow the regulator
to run cooler and thus make the system more stable.
1-5 Power Confi guration Settings
This section describes the features of your motherboard that deal with power and
power settings.
Microsoft OnNow
The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for a PC that is always on but appears
to be off and responds immediately to user or other requests.
1-10
Chapter 1: Introduction
Slow Blinking LED for Suspend-State Indicator
When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.
BIOS Support for USB Keyboard
If a USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.
Main Switch Override Mechanism
The power button can function as a system suspend button. When the user de-
presses the power button, the system will enter a SoftOff state. The monitor will be
suspended and the hard drive will spin down. Depressing the power button again
will cause the whole system to wake-up. During the SoftOff state, the power sup-
ply provides power to keep the required circuitry in the system alive. In case the
system malfunctions and you want to turn off the power, just depress and hold the
power button for 4 seconds. The power will turn off and no power will be provided
to the motherboard.
Wake-On-LAN (WOL)
Wake-On-LAN is defi ned as the ability of a management application to remotely
power up a computer that is powered off. Remote PC setup, up-dates and access
tracking can occur after hours and on weekends so that daily LAN traffi c is kept
to a minimum and users are not interrupted. The motherboard has a 3-pin header
(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has
WOL capability. Wake-On-LAN must be enabled in BIOS.
Wake-On-Ring Header (WOR)
Wake-up events can be triggered by a device such as the external modem ringing
when the system is in the SoftOff state.
1-11
H8DMT+/H8DMT-INF+ User’s Manual
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.
The H8DMT+/H8DMT-INF+ requires the use of proprietary power supplies. Please
refer to the pinout information for the power connectors in Section 6 of Chapter 2
for detailed information on power requirements.
In areas where noisy power transmission is present, you may choose to install a
line fi lter to shield the computer from noise. It is recommended that you also install
a power surge protector to help avoid problems caused by power surges.
Warning: To prevent the possibility of explosion, do not use the wrong type of
onboard CMOS battery or install it upside down.
1-7 Super I/O
The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive
controller that is compatible with industry standard 82077/765, a data separator,
write pre-compensation circuitry, decode logic, data rate selection, a clock generator,
drive interface control logic and interrupt and DMA logic. The wide range of functions
integrated onto the Super I/O greatly reduces the number of components required
for interfacing with fl oppy disk drives.
The Super I/O provides two high-speed, 16550 compatible serial communication
ports (UARTs), one of which supports serial infrared communication. Each UART in-
cludes a 16-byte send/receive FIFO, a programmable baud rate generator, complete
modem control capability and a processor interrupt system. Both UARTs provide
legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed
with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.
The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer
Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).
The Super I/O provides functions that comply with ACPI (Advanced Confi guration
and Power Interface), which includes support of legacy and ACPI power manage-
ment through a SMI or SCI function pin. It also features auto power management
to reduce power consumption.
The IRQs, DMAs and I/O space resources of the Super I/O can be fl exibly adjusted
to meet ISA PnP requirements, which support ACPI and APM (Advanced Power
Management).
1-12
Chapter 2: Installation
Chapter 2
Installation
2-1 Static-Sensitive Devices
Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam-
age to your system board, it is important to handle it very carefully. The following
measures are generally suffi cient to protect your equipment from ESD.
Precautions
Use a grounded wrist strap designed to prevent static discharge.
•
Touch a grounded metal object before removing the board from the antistatic
•
bag.
Handle the board by its edges only; do not touch its components, peripheral
•
chips, memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
•
Put the motherboard and peripherals back into their antistatic bags when not
•
in use.
For grounding purposes, make sure your computer chassis provides excellent
•
conductivity between the power supply, the case, the mounting fasteners and
the motherboard.
Use only the correct type of CMOS onboard battery as specifi ed by the manu-
•
facturer. Do not install the CMOS onboard battery upside down, which may
result in a possible explosion.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure the person handling it is static protected.
2-1
H8DMT+/H8DMT-INF+ User's Manual
2-2 Processor and Heatsink Installation
Exercise extreme caution when handling and installing the processor.
!
Installation Procedure
Follow the procedures as listed below to install the motherboard into a chassis.
Install the processor(s) and the heatsink(s).
1.
Install the motherboard in the chassis.
2.
Install the memory and add-on cards.
3.
Always connect the power cord last and always remove it before adding,
removing or changing any hardware components.
Finally, connect the cables and install the drivers.
4.
Installing the Processors
Begin by removing the cover plate
1.
that protects the CPU. Lift the lever
on the CPU socket until it points
straight up. With the lever raised, lift
open the silver CPU retention plate.
Triangles
Use your thumb and your index
2.
fi nger to hold the CPU. Locate and
align pin 1 of the CPU socket with
pin 1 of the CPU. Both are marked
with a triangle.
2-2
Align pin 1 of the CPU with pin 1 of
3.
the socket. Once aligned, carefully
place the CPU into the socket. Do
not drop the CPU on the socket,
move the CPU horizontally or
vertically or rub the CPU against
the socket or against any pins of
the socket, which may damage the
CPU and/or the socket.
With the CPU inserted into the
4.
socket, inspect the four corners
of the CPU to make sure that it is
properly installed and fl ush with the
socket. Then, gently lower the sil-
ver CPU retention plate into place.
Chapter 2: Installation
Carefully press the CPU socket le-
5.
ver down until it locks into its reten-
tion tab. For a dual-CPU system,
repeat these steps to install another
CPU into the CPU#2 socket (and
into CPU#2, #3 and #4 sockets for
a quad-CPU confi guration).
Note: in single and dual-CPU confi gura-
tions, memory must be installed in the
DIMM slots associated with the installed
CPU(s). Memory is limited to a maximum
of 32 for single CPU and 64 GB for dual
CPU confi gurations.
Installing the Heatsinks
We recommend the use of active type heatsinks (except for 1U systems). Use any
onboard fan header for the CPU's heatsink fan. To install the heatsink, please follow
the installation instructions included with your heatsink package (not included).
2-3
H8DMT+/H8DMT-INF+ User's Manual
2-3 Mounting the Motherboard into a Chassis
All motherboards have standard mounting holes to fi t different types of chassis.
Make sure that the locations of all the mounting holes for both the motherboard
and the chassis match. Although a chassis may have both plastic and metal
mounting fasteners, metal ones are highly recommended because they ground
the motherboard to the chassis. Make sure that the metal standoffs click in or are
screwed in tightly.
Check the Compatibility of the Motherboard Ports and the I/O Shield
The H8DMT+/H8DMT-INF+ motherboard requires a chassis that can support
1.
a board of 16.64" x 6.8" in size. It was designed to be used in a Supermicro
1U Twin system.
Make sure that the I/O ports on the motherboard align with their respective
2.
holes in the I/O shield at the rear of the chassis.
Mounting the Motherboard onto the Tray in the Chassis
Carefully mount the motherboard onto the motherboard tray by aligning the
1.
motherboard mounting holes with the raised metal standoffs in the tray.
Insert screws into all the mounting holes in the motherboard that line up with
2.
the standoffs.
Then use a screwdriver to secure the motherboard to the mainboard tray
3.
- tighten until just snug (if too tight you might strip the threads). Metal screws
provide an electrical contact to the motherboard ground to provide a continu-
ous ground for the system.
Exercise extreme caution when installing or removing memory mod-
!
ules to prevent any possible damage.
2-4 Installing Memory
Installing Memory
Insert each memory module vertically into its slot, paying attention to the
1.
notch along the bottom of the module to prevent inserting the module incor-
rectly (see Figure 2-1).
Install to slots CPU1/DIMM1A and CPU1/DIMM1B fi rst, then to CPU1/
2.
DIMM2A and CPU1/DIMM2B, etc. Always install in pairs and in the numerical
order of the DIMM slots. See support information below.
2-4
Chapter 2: Installation
Gently press down on the memory module until it snaps into place.
3.
With two CPUs installed, repeat step 2 to populate the CPU2 DIMM slots.
4.
Always install pairs of DIMMs to both CPU DIMM slots for more effi cient
operation.
Note: 256 MB, 512 MB, 1 GB, 2 GB and 4 GB memory modules are supported.
It is highly recommended that you remove the power cord from the system before
installing or changing memory modules. Please refer to our web site for memory
that has been tested on the H8DMT+/H8DMT-INF+.
Support
The H8DMT+/H8DMT-INF+ supports single or dual-channel, DDR2-667/533/400
registered ECC SDRAM. Only interleaved memory is supported, so you must
populate two DIMM slots at a time (see procedure above).
Populating two adjacent slots at a time with memory modules of the same size and
type will result in interleaved (128-bit) memory, which is faster than non-interleaved
(64-bit) memory. Note: Due to a CPU limitation, fully populating DIMM slots with
DDR2-667 will pull the speed down to 533 MHz. Please see our web site for pos-
sible updates to this limitation.
Maximum Memory
64 GB of DDR2-667/533/400 registered ECC SDRAM.
Figure 2-1. Side and Top Views of DDR Installation
Notch
To Install:
Insert module vertically
and press down until it
snaps into place. The
release tabs should
close - if they do not
you should close them
yourself.
To Remove:
Use your thumbs to
gently push each release tab outward to
release the DIMM from
the slot.
Release
Tab
Note: Notch
should align
with its
receptive point
on the slot
Note the notch in the slot and on the bottom of the DIMM.
These prevent the DIMM from being installed incorrectly.
Notch
Release
Tab
2-5
H8DMT+/H8DMT-INF+ User's Manual
2-5 I/O Port and Control Panel Connections
The I/O ports are color coded in conformance with the PC99 specifi cation to make
setting up your system easier. See Figure 2-2 below for the colors and locations
of the various I/O ports.
Figure 2-2. I/O Port Locations and Defi nitions
LAN1 LAN2
COM1 Port (Turquoise) VGA Port (Blue)USB 0/1 Ports
Infi niBand Port*
*The InifniBand port is included on the H8DMT-INF+ only.
Front Control Panel
JF1 contains header pins for various front control panel connectors. See Figure 2-3
for the pin defi nitions of the various connectors. Refer to Section 2-6 for details.
Figure 2-3. JF1: Front Control Panel Header (JF1)
20 19
Ground
NMI
x (key)
Power LED
HDD LED
NIC1
NIC2
OH/Fan Fail LED
Power Fail LED
Ground
Ground
x (key)
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Reset
Power
2 1
2-6
Chapter 2: Installation
2-6 Connector Defi nitions
Proprietary Power Connector
The primary power supply connec-
tors (JWR1 and JWR2) are designed
for use with Supermicro proprietary
power supplies. Refer to the table on
the right for the pin defi nitions of the
20-pin power connectors. This con-
nection supplies power to the chipset,
fans and memory.
Auxiliary Power Connector
A 4-pin 12V auxiliary power connector
is included to provide power to hard
drive disks. See the table on the right
for pin defi nitions.
20-pin Power Connector
Pin Defi nitions (JWR1, JWR2)
Pin# Defi nition Pin # Defi nition
11 PS_ON_N 1 GND_1
12 5V_STBY 2 GND_2
13 GND_6 3 GND_3
14 GND_7 4 GND_4
15 GND_8 5 GND_5
16 NC2 6 NC1
17 12V_5 7 12V_1
18 12V_6 8 12V_2
19 12V_7 9 12V_3
20 12V_8 12 12V_4
Auxiliary Power
Pin Defi nitions (J2)
Pin# Defi nition
1 +12V
2 Ground
3 Ground
4 +5V
PW_ON Connector
The PW_ON connector is on pins 1
and 2 of JF1. This header should be
connected to the chassis power but-
ton. See the table on the right for pin
defi nitions.
Reset Connector
The reset connector is located on pins
3 and 4 of JF1 and attaches to the
reset switch on the computer chas-
sis. See the table on the right for pin
defi nitions.
Power Button
Pin Defi nitions (JF1)
Pin# Defi nition
1 PW_ON
2 Ground
Reset Button
Pin Defi nitions (JF1)
Pin# Defi nition
3 Reset
4 Ground
2-7
H8DMT+/H8DMT-INF+ User's Manual
Overheat/Fan Fail LED (OH)
Connect an LED to the OH connection
on pins 7 and 8 of JF1 to provide ad-
vanced warning of chassis overheat-
ing or fan failure. Refer to the table on
the right for pin defi nitions and status
indicators.
NIC2 (LAN2) LED
The LED connections for LAN2 are
on pins 9 and 10 of JF1. Attach LAN
LED cables to display network activ-
ity. See the table on the right for pin
defi nitions.
NIC1 (LAN1) LED
The LED connections for LAN1 are
on pins 11 and 12 of JF1. Attach LAN
LED cables to display network activ-
ity. See the table on the right for pin
defi nitions.
OH/Fan Fail LED
Pin Defi nitions (JF1)
Pin# Defi nition
7 Vcc
8 Control
Pin Defi nitions (JF1)
Pin# Defi nition
9 Vcc
10 Ground
Pin Defi nitions (JF1)
Pin# Defi nition
11 Vcc
12 Ground
OH/Fan Fail
LED Status
State Indication
Solid Overheat
Blinking Fan fail
NIC2 LED
NIC1 LED
HDD LED
The HDD LED connection is located
on pins 13 and 14 of JF1. Attach the
hard drive LED cable here to display
disk activity (for any hard drives on the
system, including SAS, Serial ATA and
IDE). See the table on the right for pin
defi nitions
Power On LED
The Power On LED connector is lo-
cated on pins 15 and 16 of JF1. This
connection is used to provide LED
indication of power being supplied to
the system. See the table on the right
for pin defi nitions.
HDD LED
Pin Defi nitions (JF1)
Pin# Defi nition
13 Vcc
14 HD Active
Power LED
Pin Defi nitions (JF1)
Pin# Defi nition
15 5V Stby
16 Control
2-8
Chapter 2: Installation
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin defi nitions.
Universal Serial Bus Ports
Two Universal Serial Bus ports (USB
2.0) are located beside the LAN1/2
ports. Two additional ports (USB4/5)
are included on the motherboard near
the SIMSO slot. See the table on the
right for pin defi nitions.
NMI Button
Pin Defi nitions (JF1)
Pin# Defi nition
19 Control
20 Ground
Universal Serial Bus Ports
Pin Defi nitions (USB0/1, USB4/5)
USB0
Pin # Defi nition
1 +5V 1 +5V
2PO- 2PO-
3PO+ 3PO+
4 Ground 4 Ground
USB1
Pin # Defi nition
USB Headers
Two USB 2.0 headers (USB2/3) are
also included on the motherboard.
These may be connected to provide
front side access. A USB cable (not
included) is needed for the connec-
tion. See the table on the right for pin
defi nitions.
Power I2C
The JPI
2
C header is for power I2C,
which may be used to monitor the
status of the power supply, fan and
system temperature. See the table on
the right for pin defi nitions.
Universal Serial Bus Headers
Pin Defi nitions (USB2/3)
USB2
Pin # Defi nition
1 +5V 1 +5V
2 PO- 2 PO-
3 PO+ 3 PO+
4 Ground 4 Ground
5 Key 5 No connection
Pin Defi nitions (JPI2C)
Pin# Defi nition
1Data
2 Ground
3Clock
4NC
USB3/4
Pin # Defi nition
Power I2C
2-9
H8DMT+/H8DMT-INF+ User's Manual
Serial Ports
The COM1 serial port is located
beside the VGA port. Refer to the
motherboard layout for the location of
the COM2 header. See the table on
the right for pin defi nitions.
Fan Headers
The H8DMT+/H8DMT-INF+ has four
6-pin proprietary fan headers. Each
fan header supports two 3-pin fans.
See the table on the right for pin
defi nitions.
Note: The onboard fan speed is con-
trolled by the CPU die temperature.
Serial Port Pin Defi nitions
(COM1/COM2)
Pin # Defi nition Pin # Defi nition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
Note: NC indicates no connection.
Fan Header Pin Defi nitions
(Fan1 - Fan4)
Pin # Defi nition Pin # Defi nition
1 PWR (DC
Speed CTRL)
2 Tachometer for
Fan 1/3/5
3 Ground 6 PWR (DC
4 Ground
5 Tachometer for
Fan 2/4/6
Speed CTRL)

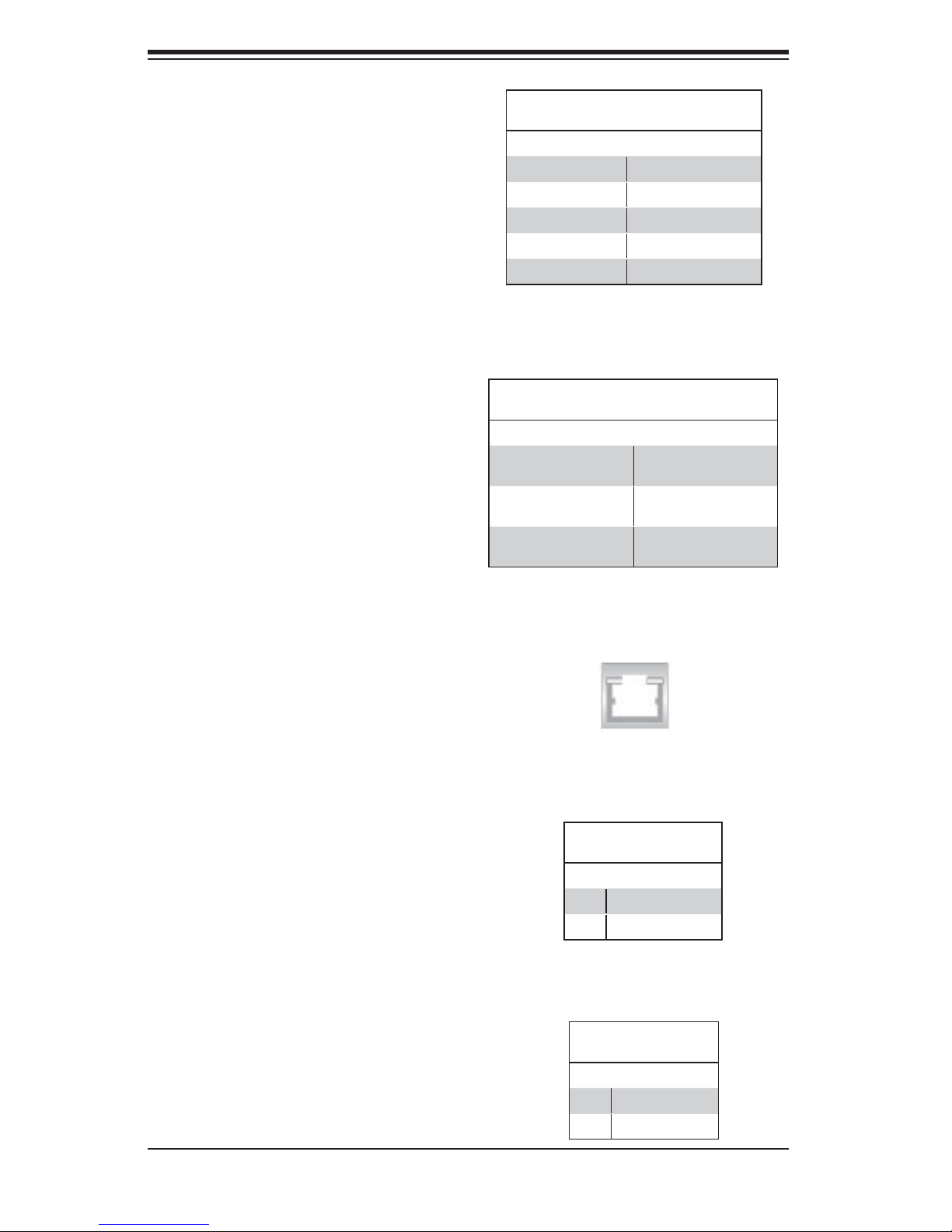

LAN1/2 (Ethernet Ports)
Two Gigabit Ethernet ports (desig-
nated LAN1 and LAN2) are located
beside the COM2 port. These Ether-
net ports accept RJ45 type cables.
Overheat LED
Connect an LED to the JOH1 header
to provide warning of chassis over-
heating. See the table on the right for
pin defi nitions.
Chassis Intrusion
A Chassis Intrusion header is located
at JL1. Attach the appropriate cable to
inform you of a chassis intrusion.
Overheat LED
Pin Defi nitions (JOH1)
Pin# Defi nition
13.3V
2 OH Active
Chassis Intrusion
Pin Defi nitions (JL1)
Pin# Defi nition
1 Battery voltage
2 Intrusion signal
2-10
Wake-On-LAN
The Wake-On-LAN header is desig-
nated JWOL. See the table on the
right for pin defi nitions. You must have
a LAN card with a Wake-On-LAN con-
nector and cable to use the Wake-On-
LAN feature.
Wake-On-Ring
The Wake-On-Ring header is des-
ignated JWOR. This function allows
your computer to receive and "wake-
up" by an incoming call to the modem
when in suspend state. See the table
on the right for pin defi nitions. You
must have a Wake-On-Ring card and
cable to use this feature.
Chapter 2: Installation
Wake-On-LAN
Pin Defi nitions (JWOL)
Pin# Defi nition
1 +5V Standby
2 Ground
3 Wake-up
Wake-On-Ring
Pin Defi nitions (JWOR)
Pin# Defi nition
1 Ground (Black)
2 Wake-up
SMBus Header
The header at SMBus is for the System
Management Bus. Connect the appro-
priate cable here to utilize SMB on the
system. See the table on the right for
pin defi nitions.
SGPIO
The T-SGPIO1 (Serial General Pur-
pose Input/Output) header provides a
bus between the SATA controller and
the SATA drive backplane to provide
SATA enclosure management func-
tions. Connect the appropriate cables
from the backplane to the T-SGPIO1
header to utilize SATA management
functions on your system.
SMBus Header
Pin Defi nitions (SMBus)
Pin# Defi nition
1Data
2 Ground
3 Clock
4 No Connection
SGPIO Header
Pin Defi nitions (T-SGPIO1)
Pin# Defi nition Pin # Defi nition
1NC 2NC
3 Ground 4 Data
5 Load 6 Ground
7NC 8NC
Note: NC indicates no connection.
2-11
H8DMT+/H8DMT-INF+ User's Manual
2-7 Jumper Settings
Explanation of Jumpers
To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers
create shorts between two pins to
change the function of the connector.
Pin 1 is identifi ed with a square solder
pad on the printed circuit board. See
the diagram at right for an example
of jumping pins 1 and 2. Refer to the
motherboard layout page for jumper
locations.
Note: On two-pin jumpers, "Closed"
means the jumper is on and "Open"
means the jumper is off the pins.
CMOS Clear
Connector
321
Pins
Jumper
321
Setting
JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins,
this jumper consists of contact pads to prevent accidentally clearing the contents
of CMOS.
To Clear CMOS
First power down the system and unplug the power cord(s).
1.
With the power disconnected, short the CMOS pads with a metal object such
2.
as a small screwdriver.
Remove the screwdriver (or shorting device).
3.
Reconnect the power cord(s) and power on the system.
4.
Note: Do not use the PW_ON connector to clear CMOS.
JBT1 contact pads
2-12
Chapter 2: Installation
VGA Enable/Disable
JPG1 allows you to enable or disable
the VGA port. The default position is on
pins 1 and 2 to enable VGA. See the
table on the right for jumper settings.
I2C to PCI-Express Slot
2
JI
C1/JI2C2 allows you to enable the
I2C bus to communicate with the PCI-
Express slot. For the jumpers to work
properly, please set both jumpers to
the same setting. If enabled, both
jumpers must be enabled. If disabled,
both jumpers must be disabled. See
the table on the right for jumper set-
tings.
VGA Enable/Disable
Jumper Settings (JPG1)
Jumper Setting Defi nition
Pins 1-2 Enabled
Pins 2-3 Disabled
I2C to PCI-Express Slot
Jumper Settings (JPI
Jumper Setting Defi nition
Closed Enabled
Open Disabled
2
C1/JPI2C2)
Watch Dog Enable/Disable
JWD enables the Watch Dog func-
tion, a system monitor that takes
action when a software application
freezes the system. Jumping pins 1-2
will have WD reboot the system if a
program freezes. Jumping pins 2-3
will generate a non-maskable inter-
rupt for the program that has frozen.
See the table on the right for jumper
settings. Watch Dog must also be
enabled in BIOS.
Infi niBand Port Enable/Disable
J1B1 enables or disables the In-
finiBand port on the H8DMT-INF+.
The default position is on pins 1 and
2 to enable the port. See the table on
the right for jumper settings.
Watch Dog
Jumper Settings (JWD)
Jumper Setting Defi nition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled
Note: when Watch Dog is enabled, the user must
write their own application software to disable the
Watch Dog Timer.
Infi niBand Port
Enable/Disable
Jumper Settings (J1B1)
Jumper Setting Defi nition
Pins 1-2 Enabled
Pins 2-3 Disabled
2-13
H8DMT+/H8DMT-INF+ User's Manual
2-8 Onboard Indicators
LAN1/LAN2 LEDs
The Ethernet ports (located beside the
VGA port) have two LEDs. On each Gb
LAN port, one LED blinks to indicate
activity while the other may be green,
amber or off to indicate the speed of
the connection. See the table on the
right for the functions associated with
the connection speed LED.
Power LED
DP4 is an Onboard Power LED. When
this LED is lit, it means power is pres-
ent on the serverboard. Be sure to turn
off the system and unplug the power
cord(s) before removing or installing
components.
(Connection Speed Indicator)
LAN LED
LED Color Defi nition
Off 10 MHz
Green 100 MHz
Amber 1 GHz
Power LED
(DP4)
State System Status
On Standby power present on
motherboard
Off No power connected
Infi niBand LED Indicators
Two Infi niBand LED indicators (LE2/LE3)
are located near the Infi niBand port. The
green LED (LE2) is the Infi niBand link
LED while the yellow LED (LE3) indicates
activity. Refer to the tables on the right
for details.
Infi niBand Link LED
(LE2)
Color Status Defi nition
Green Solid Infi niBand
Connected
Off Off No connection
Infi niBand Link LED
(LE3)
Color Status Defi nition
Yellow Solid Infi niBand:
Active
Yellow Dim Infi niBand:
Connected,
Activity: Idle
Off Off No connection
2-14
Chapter 2: Installation
2-9 Drive Connections
There are no IDE or fl oppy drive connectors on the motherboard. Use the following
information to connect the SATA drive cables.
SATA Ports
There are no jumpers to con-
fi gure the SATA ports, which
are designated SATA0 through
SATA3. See the table on the
right for pin defi nitions.
Pin Defi nitions (SATA0-SATA3)
SATA Ports
Pin # Defi nition
1 Ground
2TXP
3TXN
4 Ground
5RXN
6RXP
7 Ground
2-15
H8DMT+/H8DMT-INF+ User's Manual
2-10 Enabling SATA RAID
Now that the hardware is set up, you must install the operating system and the
SATA RAID drivers, if you wish to use RAID with your SATA drives. The installation
procedure differs depending on whether you wish to have the operating system
installed on a RAID array or on a separate non-RAID drive. See the instructions
below for details.
Serial ATA (SATA)
Serial ATA (SATA) is a physical storage interface that employs a single cable with a
minimum of four wires to create a point-to-point connection between devices. This
connection is a serial link that supports a SATA transfer rate from 150 MBps. The
serial cables used in SATA are thinner than the traditional cables used in Parallel
ATA (PATA) and can extend up to one meter in length, compared to only 40 cm for
PATA cab les. Overall, SATA provides better functionality than PATA .
Installing the OS/SATA Driver
Before installing the OS (operating system) and SATA RAID driver, you must de-
cide if you wish to have the operating system installed as part of a bootable RAID
array or installed to a separate non-RAID hard drive. If on a separate drive, you
may install the driver either during or after the OS installation. If you wish to have
the OS on a SATA RAID array, you must follow the procedure below and install the
driver during the OS installation.
Building a Driver Diskette
You must fi rst build a driver diskette from the Supermicro CD-ROM that was included
with the system. (You will have to create this disk on a computer that is already
running and with the OS installed.) Insert the CD into your CD-ROM drive and start
the system. A display as shown in Figure 2-4 will appear. Click on the icon labeled
"Build Driver Diskettes and Manuals" and follow the instructions to create a fl oppy
disk with the driver on it. Once it's been created, remove the fl oppy and insert the
installation CD for the Windows Operating System you wish to install into the CD-
ROM drive of the new system you are about to confi gure.
2-16
Chapter 2: Installation
Enabling SATA RAID in the BIOS
Before installing the Windows Operating System, you must change some settings
in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility.
After the Setup Utility loads,
Use the arrow keys to move to the Exit menu. Scroll down with the arrow
1.
keys to the "Load Optimal Defaults setting and press <Enter>. Select "OK" to
confi rm, then <Enter> to load the default settings.
Use the arrow keys to move to the "Advanced" menu, then scroll down to
2.
"nVidia RAID Setup" and press the <Enter> key. Once in the submenu, scroll
down to "nVidia RAID Function" and enable the setting, which will cause the
SATA0/1/2 Primary/Secondary settings to appear. Enable the SATA devices
and channels you will be using.
Hit the <Esc> key twice and scroll to the Exit menu. Select "Save Changes
3.
and Exit" and hit <enter>, then hit <Enter> again to verify.
After exiting the BIOS Setup Utility, the system will reboot. When prompted
4.
during the startup, press the <F10> key when prompted to run the nVidia
RAID Utility program.
Using the nVidia RAID Utility
The nVidia RAID Utility program is where you can defi ne the drives you want to
include in the RAID array and the mode and type of RAID. Two main windows are
shown in the utility. The "Free Disks" window on the left will list all available drives.
Use the arrow keys to select and move drives to the window on the right, which
lists all drives that are to become part of the RAID array.
Once you have fi nished selecting the drives and type of RAID you wish to use for
your RAID array, press the <F7> key. You will be prompted to verify your choice; if
you want to continue with your choices, select "Yes". Note that selecting "Yes" will
clear all previous data from the drives you selected to be a part of the array. You
are then given the choice of making the RAID array bootable by pressing the the
<B> key. After you have fi nshed, press the <Ctrl> and <X> keys simultaneously.
Installing the OS and Drivers
With the Windows OS installation CD in the CD-ROM drive, restart the system.
When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a
blue screen will appear with a message that begins "Windows could not determine
the type of one or more storage devices . . ." When you see the screen, hit the <S>
key to "Specify Additional Device", then insert the driver diskette you just created
2-17
H8DMT+/H8DMT-INF+ User's Manual
into the fl oppy drive. Highlight "Manufuacturer Supplied Hardware Support Disk"
and hit the <Enter> key. Highlight the fi rst "nVidia RAID" driver shown and press
the <Enter> key to install it. Soon a similar blue screen will appear again. Again hit
the <S> key, then highlight the second item, "nForce Storage Controller" and press
the <Enter> key, then <Enter> again to continue with the Windows setup.
2-11 Installing Drivers
The CD that came bundled with the system contains drivers, some of which must
be installed, such as the chipset driver. After inserting this CD into your CD-ROM
drive, the display shown in Figure 2-4 should appear. (If this display does not appear,
click on the My Computer icon and then on the icon representing your CD-ROM
drive. Finally, double click on the S "Setup" icon.)
Click the icons showing a hand writing on paper to view the readme fi les for each
item. Click the computer icons to the right of these items to install each item (from
top to the bottom) one at a time. After installing each item, you should reboot the
system before moving on to the next item on the list. The bottom icon with a CD
on it allows you to view the entire contents of the CD.
2-18
Chapter 2: Installation
Figure 2-4. Driver/Tool Installation Display Screen
2-19
H8DMT+/H8DMT-INF+ User's Manual
Notes
2-20
Chapter 3: Troubleshooting
Chapter 3
Troubleshooting
3-1 Troubleshooting Procedures
Use the following procedures to troubleshoot your system. If you have followed all
of the procedures below and still need assistance, refer to the ‘Technical Support
Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.
Always disconnect the AC power cord before adding, changing or installing any
hardware components.
Before Power On
Check that the onboard power LED is lit (DP4 on the motherboard).
1.
Make sure that the power connector is connected to your power supply.
2.
Make sure that no short circuits exist between the motherboard and chassis.
3.
Disconnect all cables from the motherboard, including those for the keyboard
4.
and mouse.
Remove all add-on cards.
5.
Install a CPU and heatsink (making sure it is fully seated) and connect the
6.
internal (chassis) speaker and the power LED to the motherboard. Check all
jumper settings as well.
Use the correct type of onboard CMOS battery as recommended by the
7.
manufacturer. To avoid possible explosion, do not install the CMOS battery
upside down.
No Power
Make sure that no short circuits exist between the motherboard and the chas-
1.
sis.
Verify that all jumpers are set to their default positions.
2.
Check that the 115V/230V switch on the power supply is properly set.
3.
3-1
H8DMT+/H8DMT-INF+ User's Manual
Turn the power switch on and off to test the system.
4.
The battery on your motherboard may be old. Check to verify that it still sup-
5.
plies ~3VDC. If it does not, replace it with a new one.
No Video
If the power is on but you have no video, remove all the add-on cards and
1.
cables.
Use the speaker to determine if any beep codes exist. Refer to Appendix A
2.
for details on beep codes.
If you are a system integrator, VAR or OEM, a POST diagnostics
card is recommended. For I/O port 80h codes, refer to App. B.
NOTE
Memory Errors
Make sure that the DIMM modules are properly and fully installed.
1.
You should be using registered ECC DDR-2 memory (see next page). Also,
2.
it is recommended that you use the same memory type and speed for all
DIMMs in the system. See Section 2-4 for memory details.
Check for bad DIMM modules or slots by swapping modules between slots
3.
and noting the results.
Check the power supply voltage 115V/230V switch.
4.
Losing the System’s Setup Confi guration
Make sure that you are using a high quality power supply. A poor quality
1.
power supply may cause the system to lose the CMOS setup information.
Refer to Section 1-6 for details on recommended power supplies.
The battery on your motherboard may be old. Check to verify that it still sup-
2.
plies ~3VDC. If it does not, replace it with a new one.
If the above steps do not fi x the setup confi guration problem, contact your
3.
vendor for repairs.
3-2
Chapter 3: Troubleshooting
3-2 Technical Support Procedures
Before contacting Technical Support, please take the following steps. Also, note
that as a motherboard manufacturer, we do not sell directly to end-users, so it is
best to fi rst check with your distributor or reseller for troubleshooting services. They
should know of any possible problem(s) with the specifi c system confi guration that
was sold to you.
Please review the ‘Troubleshooting Procedures’ and 'Frequently Asked Ques-
1.
tions' (FAQs) sections in this chapter or see the FAQs on our web site before
contacting Technical Support.
BIOS upgrades can be downloaded from our web site. Note: Not all BIOS
2.
can be fl ashed depending on the modifi cations to the boot block code.
If you still cannot resolve the problem, include the following information when
3.
contacting us for technical support:
Motherboard model and PCB revision number
BIOS release date/version (this can be seen on the initial display when your
system fi rst boots up)
System confi guration
An example of a Technical Support form is posted on our web site.
Distributors: For immediate assistance, please have your account number ready
when contacting our technical support department by e-mail.
3-3 Frequently Asked Questions
Question: What type of memory does my motherboard support?
Answer: The H8DMT+/H8DMT-INF+ supports up to 64 GB of DDR2-667/533/400
registered ECC SDRAM (or 32 GB with a single CPU installed). Both single and
dual channel confi guratiosn are supported. See Section 2-4 for details on installing
memory.
Question: How do I update my BIOS?
Answer: It is recommended that you not upgrade your BIOS if you are not experi-
encing problems with your system. Updated BIOS fi les are located on our web site.
Please check our BIOS warning message and the information on how to update
your BIOS on our web site. Also, check the current BIOS revision and make sure
it is newer than your current BIOS before downloading.
Select your motherboard model on the web page and download the corresponding
BIOS fi le to your computer. Unzip the BIOS update fi le, in which you will fi nd the
3-3
H8DMT+/H8DMT-INF+ User's Manual
readme.txt (fl ash instructions), the afudos.exe (BIOS fl ash utility) and the BIOS
image (xxx.rom) fi les. Copy these fi les to a bootable fl oppy disk, insert the disk
into drive A and reboot the system. At the DOS prompt after rebooting, enter the
command "fl ash" (without quotation marks) then type in the BIOS fi le that you want
to update with (xxxx.rom).
Question: What's on the CD that came with my motherboard?
Answer: The supplied compact disc has quite a few drivers and programs that will
greatly enhance your system. We recommend that you review the CD and install the
applications you need. Applications on the CD include chipset drivers for Windows
and security and audio drivers.
Question: Why can't I turn off the power using the momentary power on/off
switch?
Answer: The instant power off function is controlled in BIOS by the Power But-
ton Mode setting. When the On/Off feature is enabled, the motherboard will have
instant off capabilities as long as the BIOS has control of the system. When the
Standby or Suspend feature is enabled or when the BIOS is not in control such
as during memory count (the fi rst screen that appears when the system is turned
on), the momentary on/off switch must be held for more than four seconds to shut
down the system. This feature is required to implement the ACPI features on the
motherboard.
3-4 Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required be-
fore any warranty service will be rendered. You can obtain service by calling your
vendor for a Returned Merchandise Authorization (RMA) number. When returning
to the manufacturer, the RMA number should be prominently displayed on the
outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and
handling charges will be applied for all orders that must be mailed when service
is complete.
For faster service, RMA authorizations may be requested online (http://www.
supermicro.com/support/rma/).
This warranty only covers normal consumer use and does not cover damages in-
curred in shipping or from failure due to the alteration, misuse, abuse or improper
maintenance of products.
During the warranty period, contact your distributor fi rst for any product problems.
3-4
Chapter 4: BIOS
Chapter 4
BIOS
4-1 Introduction
This chapter describes the AMIBIOS™ Setup utility for the H8DMT+/H8DMT-INF+.
The AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a
fl oppy disk-based program.
Note: Due to periodic changes to the BIOS, some settings may have been added
or deleted and might not yet be recorded in this manual. Please refer to the Manual
Download area of our web site for any changes to BIOS that may not be refl ected
in this manual.
Starting the Setup Utility
To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up.
(In most cases, the <Delete> key is used to invoke the BIOS setup screen. There
are a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main
BIOS menu option is described in this manual.
The Main BIOS screen has two main frames. The left frame displays all the options
that can be confi gured. “Grayed-out” options cannot be confi gured. The right frame
displays the key legend. Above the key legend is an area reserved for a text mes-
sage. When an option is selected in the left frame, it is highlighted in white. Often
a text message will accompany it. (Note that BIOS has default text messages built
in. We retain the option to include, omit, or change any of these text messages.)
Settings printed in Bold are the default values.
A "
" indicates a submenu. Highlighting such an item and pressing the <Enter>
key will open the list of settings within that submenu.
The BIOS setup utility uses a key-based navigation system called hot keys. Most
of these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used
at any time during the setup navigation process.
4-1
H8DMT+/H8DMT-INF+ User’s Manual
4-2 Main Menu
When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen.
You can always return to the Main Menu by selecting the Main tab on the top of
the screen with the arrow keys.
The Main Menu screen provides you with a system overview, which includes the
version, built date and ID of the AMIBIOS, the type, speed and number of the pro-
cessors in the system and the amount of memory installed in the system.
System Time/System Date
You can edit this fi eld to change the system time and date. Highlight System Time
or System Date using the <Arrow> keys. Enter new values through the keyboard.
Press the <Tab> key or the <Arrow> keys to move between fi elds. The date must
be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format.
Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as
05:30:00 and 5:30 P.M. as 17:30:00.
4-3 Advanced Settings Menu
BIOS Features
Quick Boot
If Enabled, this option will skip certain tests during POST to reduce the time needed
for the system to boot up. The options are Enabled and Disabled.
Quiet Boot
If Disabled, normal POST messages will be displayed on boot-up. If Enabled, this
display the OEM logo instead of POST messages.
OS Installation
Change this setting if using a 64-bit Linux operating system. The available options
are Other and Linux.
Interrupt 19 Capture
Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled and
Disabled.
Wait for F1 if Error
This setting controls the system response when an error is detected during the
boot sequence. When enabled, BIOS will stop the boot sequence when an error is
4-2
Chapter 4: BIOS
detected, at which point you will need to press the F1 button to re-enter the BIOS
setup menu. The options are Enabled and Disabled.
ACPI Mode
Use this setting to determine whether ACPI mode will be used. The options are
Yes and No.
Advanced ACPI Confi guration
ACPI Version Features
Use this setting the determine which ACPI version to use. Options are ACPI
v1.0, ACPI v2.0 and ACPI v3.0.
ACPI APIC Support
Determines whether to include the ACPI APIC table pointer in the RSDT pointer
list. The available options are Enabled and Disabled.
ACPI OEMB Table
Determines whether to include the ACPI APIC table pointer in the RSDT pointer
list. The available options are Enabled and Disabled.
Headless Mode
Use this setting to Enable or Disable headless operation mode through ACPI.
General WHEA Confi guration
WHEA Support
Use this setting to Enable or Disable WHEA (Windows Hardware Error Architec-
ture) support. WHEA provides a common infrastructure for reporting hardware
errors on Windows platforms and was designed to improve recovery following
fatal hardware errors.
Power Button Mode
Allows the user to change the function of the power button. Options are On/Off
and Suspend.
Watch Dog Timer Select
This setting is used to Enable or Disable the Watch Dog Timer function. It must
be used in conjunction with the Watch Dog jumper (see Chapter 2 for details). To
enable, choose from 1, 2, 3, 4, 8, 15 or 30 min.
4-3
H8DMT+/H8DMT-INF+ User’s Manual
Restore on AC Power Loss
This setting allows you to choose how the system will react when power returns
after an unexpected loss of power. The options are Power Off, Power On and Last
State.
MPS Revision
This setting allows the user to select the MPS revision level. The options are 1.1
and 1.4.
SATA Confi guration
Serial ATA Devices
This setting is used to determine if SATA drives will be used and how many. Options
are Disabled, Device 0 and Device 0/1.
nVidia RAID Function
This setting is used to Enable or Disable the nVidia ROM. If Enabled, the setting
below will appear.
SATA0/1 Primary/Secondary Channel
This setting is used to Enable or Disable the SATA0 Primary, SATA0 Secondary,
SATA1 Primary and SATA1 Secondary, channels (four settings total). If enabled,
the following settings will appear:
SerialATA 0/1 Primary/Secondary Channel
LBA/Large Mode
LBA (Logical Block Addressing) is a method of addressing data on a disk drive.
The options are Disabled and Auto.
Block (Multi-Sector Transfer)
Block mode boosts IDE drive performance by increasing the amount of data
transferred. Only 512 bytes of data can be transferred per interrupt if block
mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
Select "Disabled" to allow the data to be transferred from and to the device
one sector at a time. Select "Auto" to allows the data transfer from and to the
device occur multiple sectors at a time if the device supports it. The options are
Auto and Disabled.
4-4
Chapter 4: BIOS
PIO Mode
PIO (Programmable I/O) mode programs timing cycles between the IDE drive
and the programmable IDE controller. As the PIO mode increases, the cycle time
decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow BIOS to
auto detect the PIO mode. Use this value if the IDE disk drive support cannot be
determined. Select 0 to allow BIOS to use PIO mode 0, which has a data transfer
rate of 3.3 MBs. Select 1 to allow BIOS to use PIO mode 1, which has a data
transfer rate of 5.2 MBs. Select 2 to allow BIOS to use PIO mode 2, which has a
data transfer rate of 8.3 MBs. Select 3 to allow BIOS to use PIO mode 3, which
has a data transfer rate of 11.1 MBs. Select 4 to allow BIOS to use PIO mode
4, which has a data transfer rate of 16.6 MBs. This setting generally works with
all hard disk drives manufactured after 1999. For other disk drives, such as IDE
CD-ROM drives, check the specifi cations of the drive.
DMA Mode
Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,
MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,
UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,
UDMA=UltraDMA.)
S.M.A.R.T.
Self-Monitoring Analysis and Reporting Technology (SMART) can help predict
impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk
drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.
Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive
disk. The options are Disabled, Enabled, and Auto.
32-Bit Data Transfer
Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"
to deactivate the function. The options are Enabled and Disabled.
PCI/PnP Confi guration
Slot 1 OPROM
Use this setting to Enable or Disable the OPROM (Option ROM fi rmware) for slot
1. The options are Yes and No.
Load Onboard LAN Option ROM
Use this setting to Enable or Disable the onboard option ROM. This setting must
be enabled to view the Boot Menu settings.
4-5
H8DMT+/H8DMT-INF+ User’s Manual
Clear NVRAM
Select Yes to clear NVRAM during boot-up. The options are Yes and No.
Plug & Play OS
Select Yes to allow the OS to confi gure Plug & Play devices. (This is not required
for system boot if your system has an OS that supports Plug & Play.) Select No to
allow AMIBIOS to confi gure all devices in the system.
PCI Latency Timer
This option sets the latency of all PCI devices on the PCI bus. Select a value to
set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192,
224 and 248.
Advanced Chipset Control
NorthBridge Confi guration
Memory Confi guration
Bank Interleaving
Select Auto to automatically enable a bank-interleaving memory scheme when this
function is supported by the processor. The options are Auto and Disabled.
Channel Interleaving
Selects the channel-interleaving memory scheme when this function is supported
by the processor. The options are Disabled, Address Bits 6, Address Bits 12, XOR
of Address Bits [20:16, 6] and XOR of Address Bits [20:16, 9].
Enable Clock to All Dimms
Use this setting to enable unused clocks to all DIMMSs, even if some DIMM slots
are unpopulated. Options are Enabled and Disabled.
Mem Clk Tristate C3/ALTVID
Use this setting to Enable or Disable memory clock tristate during C3 and ALT
VID.
Memory Hole Remapping
When "Enabled", this feature enables hardware memory remapping around the
memory hole. Options are Enabled and Disabled.
4-6
Chapter 4: BIOS
CS Sparing
This setting will reserve a spare memory rank in each node when enabled. Options
are Enable and Disable.
DCT Unganged Mode
This setting enables unganged DRAM mode (64-bit). Options are Auto (ganged
mode) and Always (unganged mode).
Power Down Enable
This setting enables or disables DDR power down mode. Options are Enabled
and Disabled.
Power Down Mode
This sets the power down mode. Options are Channel and Chip Select.
8-DIMM Drive Strength
Use this setting to Enable or Disable 8-DIMM Drive Strength.
ECC Confi guration
ECC Mode
This setting affects the DRAM scrub rate based on its setting. Options are Disabled,
Basic, Good, Super, Max and User.
DRAM ECC Enable
DRAM ECC allows hardware to report and correct memory errors automatically.
Options are Enabled and Disabled.
DRAM Scrub Redirect
Allows system to correct DRAM ECC errors immediately, even with background
scrubbing on. Options are Enabled and Disabled.
4-Bit ECC Mode
Allows the user to enabled 4-bit ECC mode (also known as ECC Chipkill). Options
are Enabled and Disabled.
DRAM BG Scrub
Corrects memory errors so later reads are correct. Options are Disabled and vari-
ous times in nanoseconds and microseconds.
4-7
H8DMT+/H8DMT-INF+ User’s Manual
Data Cache BG Scrub
Allows L1 cache RAM to be corrected when idle. Options are Disabled and various
times in nanoseconds and microseconds.
L2 Cache BG Scrub
Allows L2 cache RAM to be corrected when idle. Options are Disabled and various
times in nanoseconds and microseconds.
L3 Cache BG Scrub
Allows L3 cache RAM to be corrected when idle. Options are Disabled and various
times in nanoseconds and microseconds.
DRAM Timing Confi guration
Memory Clock Mode
This setting specifi es the memory clock mode. Options are Auto, Limit and
Manual.
DRAM Timing Mode
This setting specifi es the DRAM timing mode. Options are Auto and DCT.
IOMMU Option Menu
IOMMU Mode
Used to disable or set the GART size in systems without AGP. Options are AGP
Present, Disabled, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB and 1 GB.
Alternate VID
Specify the alternate VID while in low power states. Options are Auto and various
voltages from .800V to 1.050V in increments of .025V.
SouthBridge/MCP55 Confi guration
CPU/LDT Spread Spectrum
Enables spread spectrum for the CPU/LDT. Options are Center Spread, Down
Spread or Disabled.
PCIE Spread Spectrum
Allows you to Enable or Disable spread spectrum for PCI-Express.
4-8
Chapter 4: BIOS
SATA Spread Spectrum
Enables spread spectrum for the SATA. Options are Enabled and Disabled.
USB 1.1 Controller
Allows you to Enable or Disable the USB 1.1 controller.
USB 2.0 Controller
Enable or Disable the USB 2.0 controller.
MAC0 LAN0
Settings are Auto and Disabled for MAC0 LAN0.
MAC0 LAN0 Bridge
Settings are Enabled and Disabled for MAC0 LAN0 bridge.
MAC1 LAN1
Settings are Auto and Disabled for MAC1 LAN1.
MAC1 LAN1 Bridge
Settings are Enabled and Disabled for MAC1 LAN1 bridge.
Legacy USB Support
Select "Enabled" to enable the support for USB Legacy. Disable Legacy support if
there are no USB devices installed in the system. "Auto" disabled Legacy support
if no USB devices are connected. The options are Disabled, Enabled and Auto.
Processor & Clock Options
MTRR Mapping
This determines the method used for programming CPU MTRRs when 4 GB or more
memory is present. The options are Continuous, which makes the PCI hole non-
cacheable, and Discrete, which places the PCI hole below the 4 GB boundary.
Thermal Throttling
Used to Enable or Disable thermal to generate a power management event.
Power Now
This setting is used to Enable or Disable the AMD Power Now feature.
Secure Virtual Machine Mode
This setting is used to Enable or Disable SVM.
4-9
H8DMT+/H8DMT-INF+ User’s Manual
CPU Page Translation Table
This setting is used to Enable or Disable the CPU Page Translation Table.
I/O Device Confi guration
Serial Port1 Address
This option specifi es the base I/O port address and Interrupt Request address of
serial port 1. Select "Disabled" to prevent the serial port from accessing any system
resources. When this option is set to Disabled, the serial port physically becomes
unavailable. Select "3F8/IRQ4" to allow the serial port to use 3F8 as its I/O port
address and IRQ 4 for the interrupt address. The options are Disabled, 3F8/IRQ4,
3E8/IRQ4 and 2E8/IRQ3.
Serial Port2 Address
This option specifi es the base I/O port address and Interrupt Request address of
serial port 2. Select "Disabled" to prevent the serial port from accessing any system
resources. When this option is set to "Disabled", the serial port physically becomes
unavailable. Select "2F8/IRQ3" to allow the serial port to use 2F8 as its I/O port
address and IRQ 3 for the interrupt address. The options are Disabled, 2F8/IRQ3,
3E8/IRQ4 and 2E8/IRQ3.
DMI Event Logging
View Event Log
Highlight this item and press <Enter> to view the contents of the event log.
Mark All Events as Read
Highlight this item and press <Enter> to mark all events as read.
Clear Event Log
Select Yes and press <Enter> to clear all event logs. The options are Yes and No
to verify.
Console Redirection
Remote Access
Allows you to Enable or Disable remote access. If enabled, the settings below
will appear.
Serial Port Number
4-10
Chapter 4: BIOS
Selects the serial port to use for console redirection. Options are COM1 and
COM2.
Serial Port Mode
Selects the serial port settings to use. Options are (115200 8, n, 1), (57600 8, n,
1), (38400 8, n, 1), (19200 8, n, 1) and (09600 8, n, 1).
Flow Control
Selects the fl ow control to be used for console redirection. Options are None,
Hardware and Software.
Redirection After BIOS POST
Options are Disable (no redirection after BIOS POST), Boot Loader (redirection
during POST and during boot loader) and Always (redirection always active). Note
that some OS's may not work with this set to Always.
Terminal Type
Selects the type of the target terminal. Options are ANSI, VT100 and VT-UTF8.
VT-UTF8 Combo Key Support
Allows you to Enable or Disable VT-UTF8 combination key support for ANSI/VT100
terminals.
Sredir Memory Display Delay
Use this setting to set the delay in seconds to display memory information. Options
are No Delay, 1 sec, 2 secs and 4 secs.
Hardware Monitor
CPU Overheat Alarm
Use the "+" and "-" keys to set the CPU temperature threshold to between 65
90o C. When this threshold is exceeded, the overheat LED on the chassis will light up
and an alarm will sound. The LED and alarm will turn off once the CPU temperature
has dropped to 5 degrees below the threshold set. The default setting is 72
o
o
C.
and
System Fan Monitor
Fan Speed Control
This feature allows the user to determine how the system will control the speed of
the onboard fans. Select "Workstation" if your system is used as a Workstation.
4-11
H8DMT+/H8DMT-INF+ User’s Manual
Select "Server" if your system is used as a Server. Select "Disable" to disable the
fan speed control function to allow the onboard fans to continuously run at full
speed (12V). The options are 1) Disable (Full Speed) 2) 3-pin (Server) 3) 3-pin
(Workstation).
FAN1 Speed through FAN8 Reading
The speeds of the onboard fans (in rpm) are displayed here.
Other items in the submenu are systems monitor displays for the following infor-
mation:
CPU1 Temperature, CPU2 Temperature (for 2U systems), System Temperature,
VCoreA, VCoreB (for 2U systems), HT Voltage, CPU1 Mem VTT, CPU2 Mem
VTT, CPU1 Mem, CPU2 Mem, 12V, 3.3V, VDD, 5V VSB, MCP55VCore, 1.5V and
VBAT.
IPMI Confi guration
View BMC System Event Log
Pressing the Enter key will open the following settings. Use the "+" and "-" keys to
navigate through the system event log.
Clear BMC System Event Log
Selecting this and pressing the Enter key will clear the BMC system event log.
Set LAN Confi guration
Use the "+" and "-" keys to choose the desired channel number.
IP Address
Use the "+" and "-" keys to select the parameter. The IP address and current
IP address in the BMC are shown.
MAC Address
Use the "+" and "-" keys to select the parameter. The MAC address and cur-
rent MAC address in the BMC are shown.
Subnet Mask
Use the "+" and "-" keys to select the parameter. The subnet address and
current subnet address in the BMC are shown.
4-12
Chapter 4: BIOS
Set PEF Confi guration
PEF Support
Use this setting to Enable or Disable PEF support. When enabled, the following
settings will appear.
PEF Action Global Control
Options are Alert, Power Down, Reset Sysytem, Power Cycle, OEM Action and
Diagnostic Int..
Alert Startup Delay
Use this setting to Enable or Disable the alert startup delay.
Startup Delay
Use this setting to Enable or Disable the startup delay.
Event Message for PEF Action
Use this setting to Enable or Disable event messages for a PEF action.
BMC Watch Dog Timer Action
This setting is used to set the Watch Dog function. The options are Disabled,
Reset System, Power Down and Power Cycle.
4-4 Boot Menu
The Boot Menu is accessible only when the "Load Onboard LAN Option ROM"
setting (in the PCI/PnP Confi guration menu) is enabled.
Boot Device Priority
This feature allows the user to prioritize the boot sequence from the available
devices.
Hard Disk Drives
This feature allows the user to specify the boot sequence from available hard disk
drives.
4-13
H8DMT+/H8DMT-INF+ User’s Manual
4-5 Security Menu
AMI BIOS provides a Supervisor and a User password. If you use both passwords,
the Supervisor password must be set fi rst.
Change Supervisor Password
Select this option and press <Enter> to access the sub menu, and then type in
the password.
Change User Password
Select this option and press <Enter> to access the sub menu, and then type in
the password.
Boot Sector Virus Protection
This option is near the bottom of the Security Setup screen. Select "Disabled" to
deactivate the Boot Sector Virus Protection. Select "Enabled" to enable boot sector
protection. When "Enabled", AMI BIOS displays a warning when any program (or
virus) issues a Disk Format command or attempts to write to the boot sector of the
hard disk drive. The options are Enabled and Disabled.
4-6 Exit Menu
Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup
screen.
Save Changes and Exit
When you have completed the system confi guration changes, select this option
to leave BIOS Setup and reboot the computer, so the new system confi guration
parameters can take effect. Select Save Changes and Exit from the Exit menu and
press <Enter>.
Discard Changes and Exit
Select this option to quit BIOS Setup without making any permanent changes to the
system confi guration and reboot the computer. Select Discard Changes and Exit
from the Exit menu and press <Enter>.
Discard Changes
Select this option and press <Enter> to discard all the changes and return to AMI
BIOS Utility Program.
4-14
Chapter 4: BIOS
Load Optimal Defaults
To set this feature, select Load Optimal Defaults from the Exit menu and press
<Enter>. Then Select "OK" to allow BIOS to automatically load the Optimal Defaults
as the BIOS Settings. The Optimal settings are designed for maximum system
performance, but may not work best for all computer applications.
Load Fail-Safe Defaults
To set this feature, select Load Fail-Safe Defaults from the Exit menu and press
<Enter>. The Fail-Safe settings are designed for maximum system stability, but not
maximum performance.
4-15
H8DMT+/H8DMT-INF+ User’s Manual
Notes
4-16
Appendix A: BIOS Error Beep Codes
Appendix A
BIOS Error Beep Codes
During the POST (Power-On Self-Test) routines, which are performed each time
the system is powered on, errors may occur.
Non-fatal errors are those which, in most cases, allow the system to continue the
boot-up process. The error messages normally appear on the screen.
Fatal errors are those which will not allow the system to continue the boot-up pro-
cedure. If a fatal error occurs, you should consult with your system manufacturer
for possible repairs.
These fatal errors are usually communicated through a series of audible beeps. The
numbers on the fatal error list (on the following page) correspond to the number
of beeps for the corresponding error. All errors listed, with the exception of Beep
Code 8, are fatal errors.
A-1 AMIBIOS Error Beep Codes
Beep Code Error Message Description
1 beep Refresh Circuits have been reset.
(Ready to power up.)
5 short, 1 long Memory error No memory detected in
system
1 long, 8 short Video error Video adapter disabled or
missing
A-1
H8DMT+/H8DMT-INF+ User’s Manual
Notes
A-2
Appendix B: BIOS POST Checkpoint Codes
Appendix B
BIOS POST Checkpoint Codes
When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O
port 0080h. If the computer cannot complete the boot process, diagnostic equipment
can be attached to the computer to read I/O port 0080h.
B-1 Uncompressed Initialization Codes
The uncompressed initialization checkpoint codes are listed in order of execution:
Checkpoint Code Description
D0h The NMI is disabled. Power on delay is starting. Next, the initialization code check-
D1h Initializing the DMA controller, performing the keyboard controller BAT test, starting
D3h Starting memory sizing next.
D4h Returning to real mode. Executing any OEM patches and setting the Stack next.
D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The
sum will be verifi ed.
memory refresh and entering 4 GB fl at mode next.
initialization code is copied to segment 0 and control will be transferred to segment
0.
B-1
H8DMT+/H8DMT-INF+ User’s Manual
B-2 Bootblock Recovery Codes
The bootblock recovery checkpoint codes are listed in order of execution:
Checkpoint Code Description
E0h The onboard fl oppy controller if available is initialized. Next, beginning the base
E1h Initializing the interrupt vector table next.
E2h Initializing the DMA and Interrupt controllers next.
E6h Enabling the fl oppy drive controller and Timer IRQs. Enabling internal cache mem-
Edh Initializing the fl oppy drive.
Eeh Looking for a fl oppy diskette in drive A:. Reading the fi rst sector of the diskette.
Efh A read error occurred while reading the fl oppy drive in drive A:.
F0h Next, searching for the AMIBOOT.ROM fi le in the root directory.
F1h The AMIBOOT.ROM fi le is not in the root directory.
F2h Next, reading and analyzing the fl oppy diskette FAT to fi nd the clusters occupied
F3h Next, reading the AMIBOOT.ROM fi le, cluster by cluster.
F4h The AMIBOOT.ROM fi le is not the correct size.
F5h Next, disabling internal cache memory.
FBh Next, detecting the type of fl ash ROM.
FCh Next, erasing the fl ash ROM.
512 KB memory test.
ory.
by the AMIBOOT.ROM fi le.
FDh Next, programming the fl ash ROM.
FFh Flash ROM programming was successful. Next, restarting the system BIOS.
B-2
Appendix B: BIOS POST Checkpoint Codes
B-3 Uncompressed Initialization Codes
The following runtime checkpoint codes are listed in order of execution.
These codes are uncompressed in F0000h shadow RAM.
Checkpoint Code Description
03h The NMI is disabled. Next, checking for a soft reset or a power on condition.
05h The BIOS stack has been built. Next, disabling cache memory.
06h Uncompressing the POST code next.
07h Next, initializing the CPU and the CPU data area.
08h The CMOS checksum calculation is done next.
0Ah The CMOS checksum calculation is done. Initializing the CMOS status register for
0Bh The CMOS status register is initialized. Next, performing any required initialization
0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to the
0Eh The keyboard controller BAT command result has been verifi ed. Next, performing
0Fh The initialization after the keyboard controller BAT command test is done. The key-
10h The keyboard controller command byte is written. Next, issuing the Pin 23 and 24
11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing
12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2.
13h The video display has been disabled. Port B has been initialized. Next, initializing
14h The 8254 timer test will begin next.
19h Next, programming the fl ash ROM.
1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.
date and time next.
before the keyboard BAT command is issued.
keyboard controller.
any necessary initialization after the keyboard controller BAT command test.
board command byte is written next.
blocking and unblocking command.
CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was
set in AMIBCP or the <End> key was pressed.
the chipset.
2Bh Passing control to the video ROM to perform any required confi guration before the
video ROM test.
2Ch All necessary processing before passing control to the video ROM is done. Look-
ing for the video ROM next and passing control to it.
2Dh The video ROM has returned control to BIOS POST. Performing any required pro-
cessing after the video ROM had control
23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature next.
Making the BIOS code segment writable and performing any necessary confi guration before initializing the interrupt vectors.
24h The confi guration required before interrupt vector initialization has completed. In-
terrupt vector initialization is about to begin.
B-3
H8DMT+/H8DMT-INF+ User’s Manual
Checkpoint Code Description
25h Interrupt vector initialization is done. Clearing the password if the POST DIAG
27h Any initialization before setting video mode will be done next.
28h Initialization before setting the video mode is complete. Confi guring the mono-
2Ah Bus initialization system, static, output devices will be done next, if present. See the
2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not
2Fh The EGA/VGA controller was not found. The display memory read/write test is
30h The display memory read/write test passed. Look for retrace checking next.
31h The display memory read/write test or retrace checking failed. Performing the alter-
32h The alternate display memory read/write test passed. Looking for alternate display
34h Video display checking is over. Setting the display mode next.
37h The display mode is set. Displaying the power on message next.
38h Initializing the bus input, IPL, general devices next, if present. See the last page of
39h Displaying bus initialization error messages. See the last page of this chapter for
switch is on.
chrome mode and color mode settings next.
last page for additional information.
found, performing the display memory read/write test next.
about to begin.
nate display memory read/write test next.
retrace checking next.
this chapter for additional information.
additional information.
3Ah The new cursor position has been read and saved. Displaying the Hit <DEL> mes-
3Bh The Hit <DEL> message is displayed. The protected mode memory test is about
40h Preparing the descriptor tables next.
42h The descriptor tables are prepared. Entering protected mode for the memory test
43h Entered protected mode. Enabling interrupts for diagnostics mode next.
44h Interrupts enabled if the diagnostics switch is on. Initializing data to check memory
45h Data initialized. Checking for memory wraparound at 0:0 and fi nding the total sys-
46h The memory wraparound test is done. Memory size calculation has been done.
47h The memory pattern has been written to extended memory. Writing patterns to the
48h Patterns written in base memory. Determining the amount of memory below 1 MB
49h The amount of memory below 1 MB has been found and verifi ed.
4Bh The amount of memory above 1 MB has been found and verifi ed. Checking for a
sage next.
to start.
next.
wraparound at 0:0 next.
tem memory size next.
Writing patterns to test memory next.
base 640 KB memory next.
next.
soft reset and clearing the memory below 1 MB for the soft reset next. If this is a
power on situation, going to checkpoint 4Eh next.
B-4
Checkpoint Code Description
Appendix B: BIOS POST Checkpoint Codes
4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory
4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory size
4Eh The memory test started, but not as the result of a soft reset. Displaying the fi rst
4Fh The memory size display has started. The display is updated during the memory
50h The memory below 1 MB has been tested and initialized. Adjusting the displayed
51h The memory size display was adjusted for relocation and shadowing.
52h The memory above 1 MB has been tested and initialized. Saving the memory size
53h The memory size information and the CPU registers are saved. Entering real mode
54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,
57h The A20 address line, parity, and the NMI are disabled. Adjusting the memory size
58h The memory size was adjusted for relocation and shadowing. Clearing the Hit
59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed. Starting
above 1 MB next.
next. Going to checkpoint 52h next.
64 KB memory size next.
test. Performing the sequential and random memory test next.
memory size for relocation and shadowing next.
information next.
next.
parity, and the NMI next.
depending on relocation and shadowing next.
<DEL> message next.
the DMA and interrupt controller test next.
60h The DMA page register test passed. Performing the DMA Controller 1 base register
62h The DMA controller 1 base register test passed. Performing the DMA controller 2
65h The DMA controller 2 base register test passed. Programming DMA controllers 1
66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt
67h Completed 8259 interrupt controller initialization.
7Fh Extended NMI source enabling is in progress.
80h The keyboard test has started. Clearing the output buffer and checking for stuck
81h A keyboard reset error or stuck key was found. Issuing the keyboard controller
82h The keyboard controller interface test completed. Writing the command byte and
83h The command byte was written and global data initialization has completed. Check-
84h Locked key checking is over. Checking for a memory size mismatch with CMOS
85h The memory size check is done. Displaying a soft error and checking for a password
test next.
base register test next.
and 2 next.
controller next.
keys. Issuing the keyboard reset command next.
interface test command next.
initializing the circular buffer next.
ing for a locked key next.
RAM data next.
or bypassing WINBIOS Setup next.
B-5
H8DMT+/H8DMT-INF+ User’s Manual
Checkpoint Code Description
86h The password was checked. Performing any required programming before WIN-
87h The programming before WINBIOS Setup has completed. Uncompressing the
88h Returned from WINBIOS Setup and cleared the screen. Performing any necessary
89h The programming after WINBIOS Setup has completed. Displaying the power on
8Ch Programming the WINBIOS Setup options next.
8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller
8Fh The hard disk controller has been reset. Confi guring the fl oppy drive controller
91h The fl oppy drive controller has been confi gured. Confi guring the hard disk drive
95h Initializing the bus option ROMs from C800 next. See the last page of this chapter
96h Initializing before passing control to the adaptor ROM at C800.
97h Initialization before the C800 adaptor ROM gains control has completed. The adap-
98h The adaptor ROM had control and has now returned control to BIOS POST. Perform-
BIOS Setup next.
WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility
next.
programming after WINBIOS Setup next.
screen message next.
next.
next.
controller next.
for additional information.
tor ROM check is next.
ing any required processing after the option ROM returned control.
99h Any initialization required after the option ROM test has completed. Confi guring the
9Ah Set the timer and printer base addresses. Setting the RS-232 base address next.
9Bh Returned after setting the RS-232 base address. Performing any required initializa-
9Ch Required initialization before the Coprocessor test is over. Initializing the Coproces-
9Dh Coprocessor initialized. Performing any required initialization after the Coproces-
9Eh Initialization after the Coprocessor test is complete. Checking the extended keyboard,
A2h Displaying any soft errors next.
A3h The soft error display has completed. Setting the keyboard typematic rate next.
A4h The keyboard typematic rate is set. Programming the memory wait states next.
A5h Memory wait state programming is over. Clearing the screen and enabling parity
A7h NMI and parity enabled. Performing any initialization required before passing control
A8h Initialization before passing control to the adaptor ROM at E000h completed. Passing
timer data area and printer base address next.
tion before the Coprocessor test next.
sor next.
sor test next.
keyboard ID, and Num Lock key next. Issuing the keyboard ID command next.
and the NMI next.
to the adaptor ROM at E000 next.
control to the adaptor ROM at E000h next.
B-6
Checkpoint Code Description
Appendix B: BIOS POST Checkpoint Codes
A9h Returned from adaptor ROM at E000h control. Performing any initialization required
Aah Initialization after E000 option ROM control has completed. Displaying the system
Abh Uncompressing the DMI data and executing DMI POST initialization next.
B0h The system confi guration is displayed.
B1h Copying any code to specifi c areas.
00h Code copying to specifi c areas is done. Passing control to INT 19h boot loader
after the E000 option ROM had control next.
confi guration next.
next.
B-7
H8DMT+/H8DMT-INF+ User’s Manual
Notes
B-8
