Supero H8DM3-2, H8DMi-2 User Manual

SUPER

H8DM3-2 H8DMi-2

USER’S MANUAL

Revision 1.1a

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.1a Release Date: October 9, 2008

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, PC technicians and knowledgeable PC users. It provides information for the installation and use of the H8DM3-2/H8DMi-2 serverboard. The H8DM3-2/H8DMi-2 is based on the nVidia® MCP55 Pro/AMD-8132 chipset and supports single or dual AMD Opteron Series Socket F type processors and up to 64 GB of DDR2-667 or 32 GB of DDR2533/400 registered ECC SDRAM.

Please refer to the serverboard speciﬁ cations pages on our web site for updates on supported processors (http://www.supermicro.com/aplus/). This product is intended to be professionally installed.

2000

Manual Organization

Chapter 1 includes a checklist of what should be included in your serverboard

box, describes the features, speciﬁ cations and performance of the serverboard and provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read this chapter when installing the processor(s) and memory modules and when installing the serverboard in a chassis. Also refer to this chapter to connect the ﬂ oppy and hard disk drives, the parallel and serial ports, the mouse and keyboard and the twisted wires for the power and reset buttons and the system LEDs.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for the video, the memory and the setup conﬁ guration stored in CMOS. For quick reference, a general FAQ (Frequently Asked Questions) section is provided. Instructions are also included for contacting technical support. In addition, you can visit our web site for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages. Appendix B lists BIOS POST Checkpoint Codes.

iii

H8DM3-2/H8DMi-2 User’s Manual

Table of Contents

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist ................................................................................................... 1-1

Contacting Supermicro ............................................................................. 1-2

H8DM3-2/H8DMi-2 Image ........................................................................ 1-3

H8DM3-2/H8DMi-2 Serverboard Layout .................................................. 1-4

H8DM3-2/H8DMi-2 Quick Reference ....................................................... 1-5

Serverboard Features .............................................................................. 1-6

nVidia nVidia MCP55 Pro Chipset: System Block Diagram .................... 1-7

1-2 Chipset Overview ........................................................................................... 1-9

1-3 PC Health Monitoring ................................................................................... 1-10

1-4 Power Conﬁ guration Settings ....................................................................... 1-11

1-5 Power Supply ............................................................................................... 1-12

1-6 Super I/O ....................................................................................................... 1-13

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Serverboard into a Chassis ...................................................... 2-5

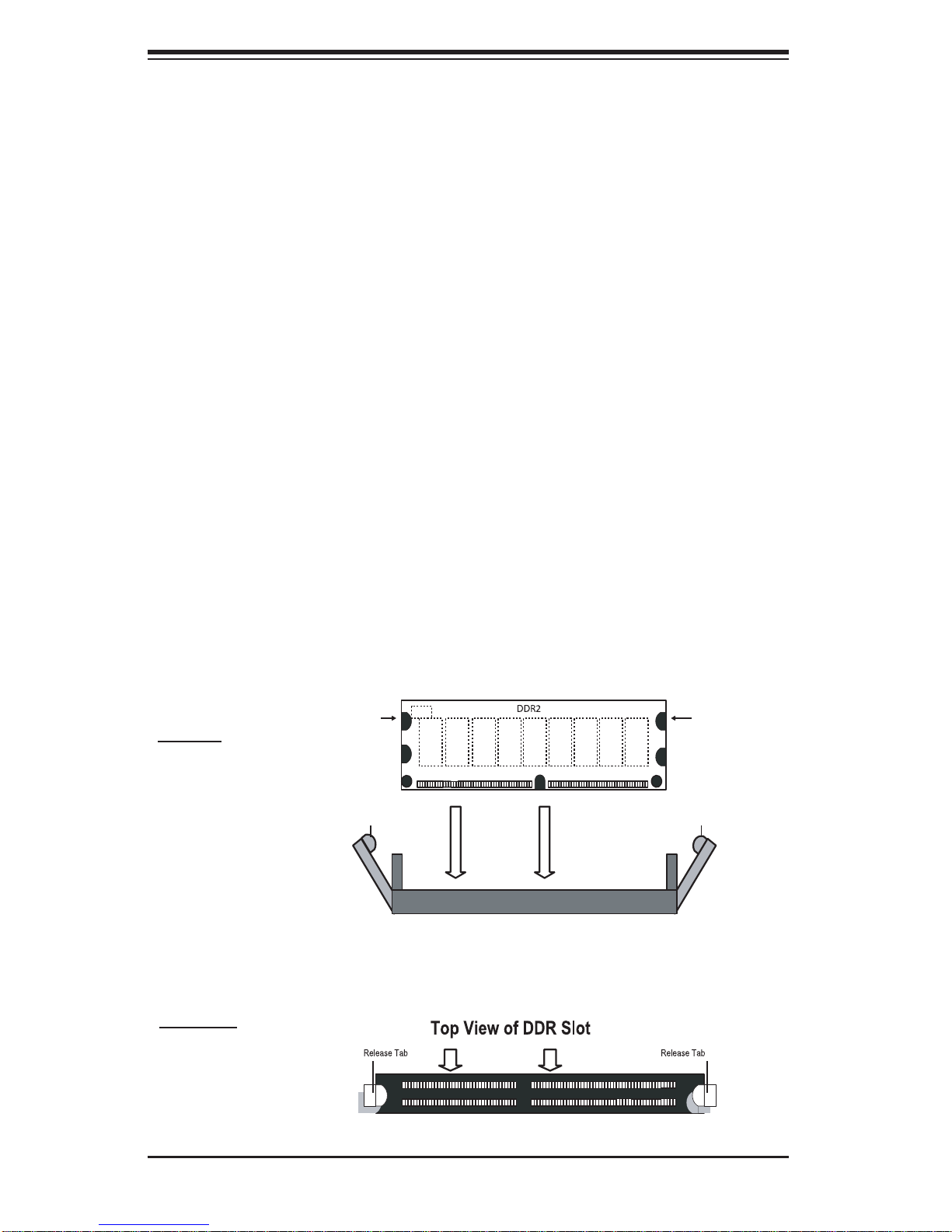

2-4 Installing Memory ........................................................................................... 2-5

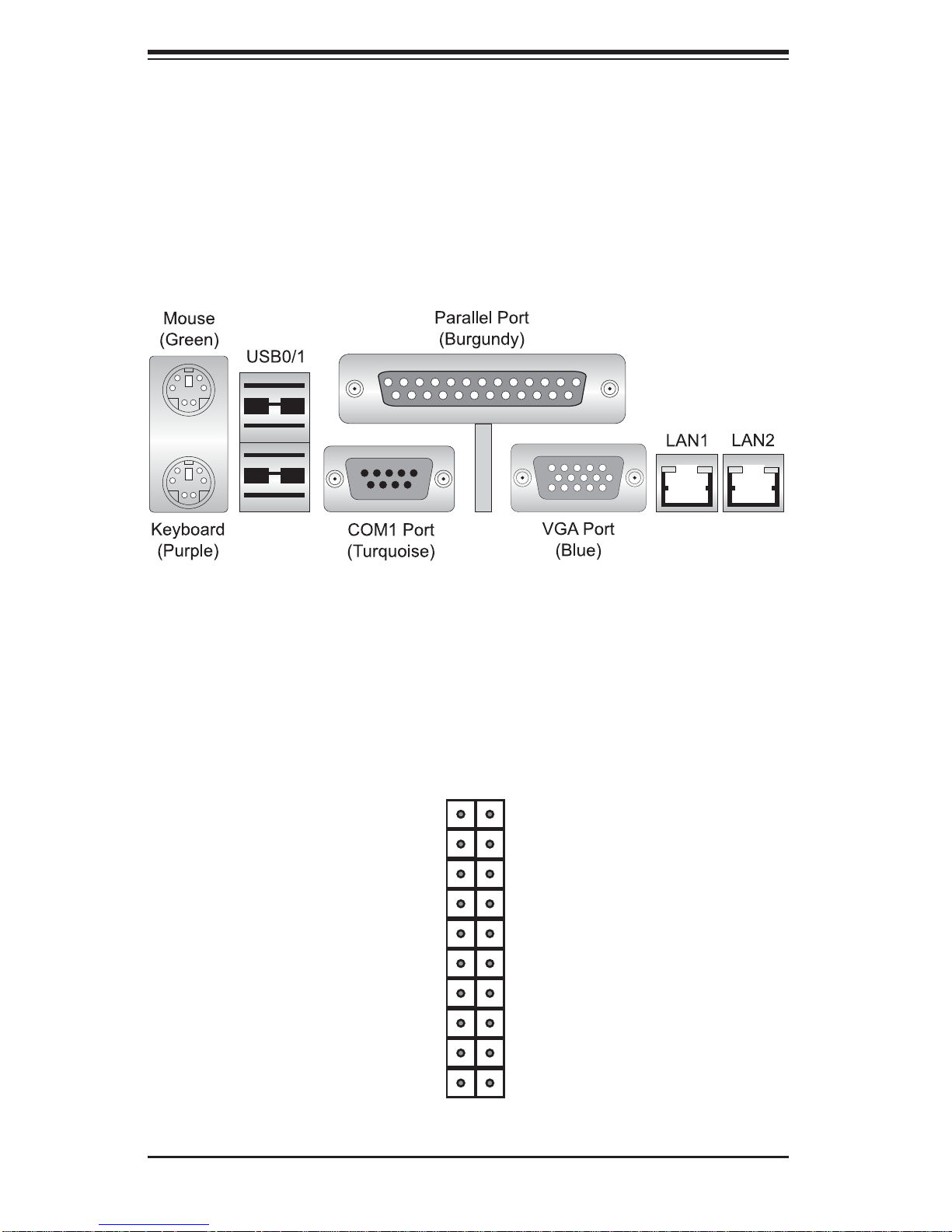

2-5 I/O Port and Control Panel Connections ........................................................ 2-8

2-6 Connecting Cables ......................................................................................... 2-9

ATX Power Connector .............................................................................. 2-9

Processor Power Connector .................................................................... 2-9

Auxiliary Power Connector ....................................................................... 2-9

Power LED ............................................................................................... 2-9

HDD LED ............................................................................................... 2-10

NIC1 LED ............................................................................................... 2-10

NIC2 LED ............................................................................................... 2-10

Overheat/Fan Fail LED .......................................................................... 2-10

Power Fail LED ...................................................................................... 2-10

Reset Button .......................................................................................... 2-11

Power Button .......................................................................................... 2-11

Universal Serial Bus Ports (USB0/1) ..................................................... 2-11

USB Headers ......................................................................................... 2-11

ATX PS/2 Keyboard/Mouse Ports .......................................................... 2-12

Table of Contents

Serial Ports ............................................................................................. 2-12

Fan Headers .......................................................................................... 2-12

Power LED/Speaker/Keylock ................................................................. 2-13

Overheat LED ........................................................................................ 2-13

Chassis Intrusion .................................................................................... 2-13

Wake-On-LAN ........................................................................................ 2-13

Wake-On-Ring ........................................................................................ 2-14

Power Supply I

C Header ...................................................................... 2-14

LAN1/2 (Ethernet Ports) ......................................................................... 2-14

Power Supply Fail Alarm Reset Header ................................................ 2-14

Power Supply Fail Alarm Header ........................................................... 2-15

Compact Flash Power Header ............................................................... 2-15

SGPIO .................................................................................................... 2-15

2-7 Jumper Settings ............................................................................................ 2-16

Explanation of Jumpers ......................................................................... 2-16

CMOS Clear ........................................................................................... 2-16

C to PCI-X Enable/Disable .................................................................. 2-17

C to PCI-E Enable/Disable .................................................................. 2-17

Watch Dog Enable/Disable .................................................................... 2-17

VGA Enable/Disable ............................................................................... 2-17

PCI-X Slot Speed ................................................................................... 2-18

Compact Flash Master/Slave ................................................................. 2-18

3rd Power Supply Fail Signal Enable/Disable ........................................ 2-18

SAS RAID Select .................................................................................... 2-18

2-8 Onboard Indicators ....................................................................................... 2-19

LAN1/LAN2 LEDs .................................................................................. 2-19

+5V LED ................................................................................................. 2-19

2-9 Floppy, IDE, SATA and SAS Drive Connections .......................................... 2-20

Floppy Connector ................................................................................... 2-20

IDE Connector ........................................................................................ 2-21

SATA Ports ............................................................................................. 2-22

SAS Ports ............................................................................................... 2-22

2-10 Enabling SATA RAID .................................................................................... 2-23

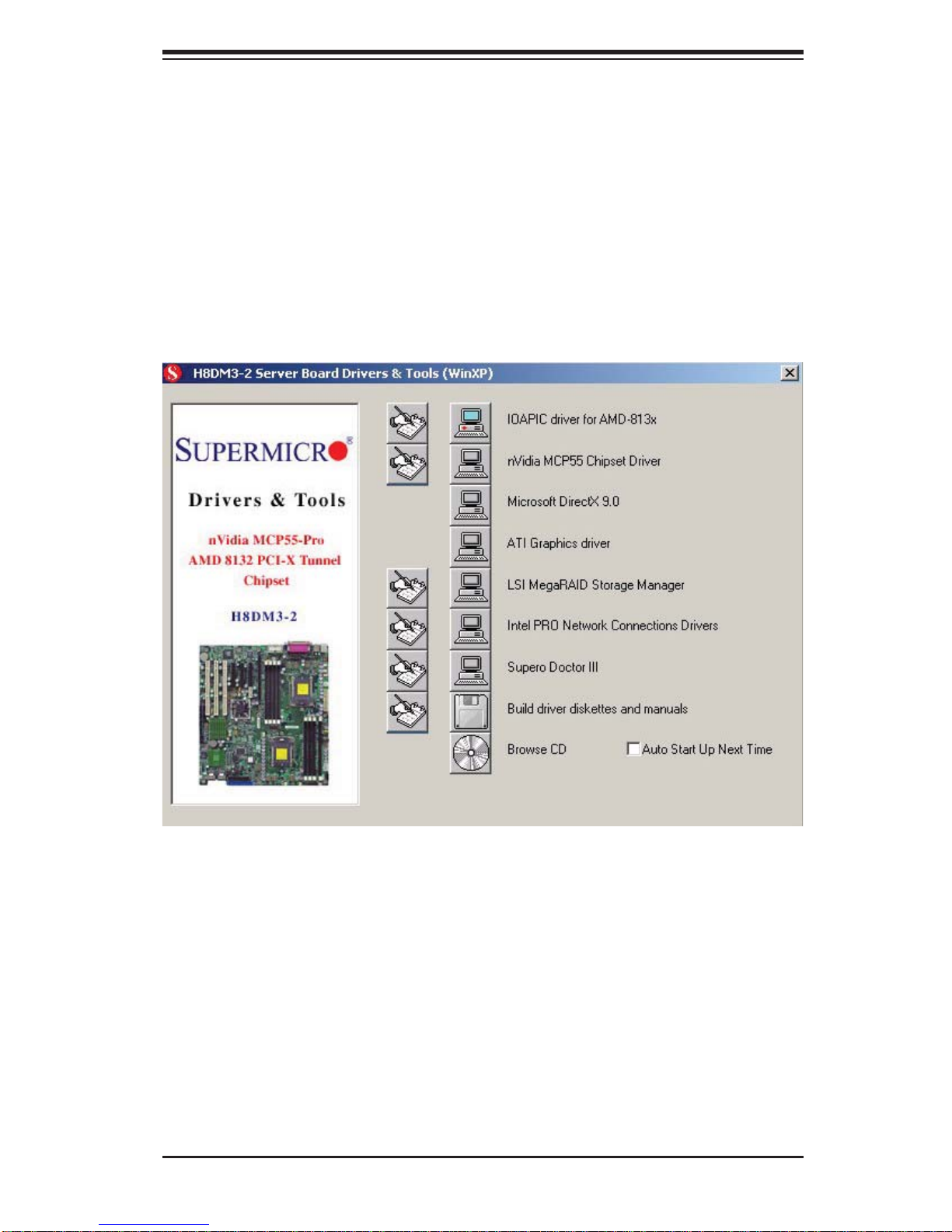

2-11 Installing Additional Drivers .......................................................................... 2-25

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ..................................................................................... 3-1

No Power ................................................................................................. 3-1

H8DM3-2/H8DMi-2 User’s Manual

No Video .................................................................................................. 3-1

Memory Errors ......................................................................................... 3-2

Losing the System’s Setup Conﬁ guration ................................................ 3-2

3-2 Technical Support Procedures ........................................................................ 3-2

3-3 Frequently Asked Questions ........................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................ 3-4

Chapter 4: BIOS

4-1 Introduction ..................................................................................................... 4-1

4-2 Main Menu ...................................................................................................... 4-2

4-3 Advanced Settings Menu ............................................................................... 4-2

4-4 Boot Menu .................................................................................................... 4-17

4-5 Security Menu ............................................................................................... 4-17

4-6 Exit Menu ...................................................................................................... 4-18

Appendices:

Appendix A: BIOS Error Beep Codes Appendix B: BIOS POST Checkpoint Codes

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer serverboard from an acknowledged leader in the industry. Our boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your serverboard. If anything listed here is damaged or missing, contact your retailer.

Included with retail box only

 One (1) H8DM3-2/H8DMi-2 serverboard

 One (1) IDE cable (CBL-036L-02)

 One (1) ﬂ oppy cable (CBL-022L)

 One (1) COM port cable (CBL-010)

 Two (2) SAS cables, H8DM3-2 only (CBL-0097L-02)

 Four (4) SATA cables, H8DM3-2 only (CBL-044L)

 Six (6) SATA cables, H8DMi-2 only (CBL-044L)

 Two (2) heatsink retention modules with four (4) screws (BKT-0012L)

 One (1) I/O shield for chassis (CSE-PT7L)

 One (1) CD containing drivers and utilities

1-1

H8DM3-2/H8DMi-2 User’s Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel: +31 (0) 73-6400390 Fax: +31 (0) 73-6416525 Email: sales@supermicro.nl (General Information) support@supermicro.nl (Technical Support) rma@supermicro.nl (Customer Support)

Asia-Paciﬁ c

Address: Super Micro Computer, Inc. 4F, No. 232-1, Liancheng Rd. Chung-Ho 235, Taipei County Taiwan, R.O.C. Tel: +886-(2) 8226-3990 Fax: +886-(2) 8226-3991 Web Site: www.supermicro.com.tw Technical Support: Email: support@supermicro.com.tw Tel: 886-2-8228-1366, ext.132 or 139

1-2

Figure 1-1. H8DM3-2/H8DMi-2 Image

Chapter 1: Introduction

Notes: H8DM3-2 is pictured. The H8DMi-2 has the same layout as the H8DM3-2 but with no SAS components or ports.

1-3

H8DM3-2/H8DMi-2 User’s Manual

Figure 1-2. H8DM3-2/H8DMi-2 Serverboard Layout

Kb/

Mouse

USB0/1

COM1

FAN5

FAN6

FAN8/

JPW2

CPU FAN2

CPU2

(not drawn to scale)

J1B1

CPU1 DIMM 1B

CPU1 DIMM 1A CPU1 DIMM 2B CPU1 DIMM 2A

JPW1

J3P

JPI2C

JOH1

FAN2

JPWF

FAN1

JF1

VGA

LAN1

LAN2

Slot 6: PCI-E x8

Slot 5: PCI-E x8

Slot 4: PCI-E x4

ATI

ES1000

Battery

SUPER H8DM3-2

JPG1

JPXA1 JPXB1

JWOL

CPU2 DIMM 2A CPU2 DIMM 2B CPU2 DIMM 1A CPU2 DIMM 1B

SIMLP

SEPC

nFAN1

Slot 3: PCI-X 133 MHz

Slot 2: PCI-X 133/100 MHz

Slot 1: PCI-X 133/100 MHz

USB4/5 USB2/3

nVidia

MCP55 Pro

SATA1 SATA3 SATA0

FAN7/ CPU FAN1

JBT1

JWOR

AMD

8132

SATA2 SATA4 SATA5

I-Button

COM2

JL1

CPU1

JAR

JWD

BIOS

Speaker

LSI SAS

1068E

SGPIO1 SGPIO2

FAN4

SAS4~7

SAS0~3

FAN3

JCF1

JWF1

JF2

DP2

Floppy

JPS1

IDE#1

Notes:

1. Jumpers not indicated are for test purposes only.

2. The H8DMi-2 has the same layout as the H8DM3-2 but with no SAS components or ports or I-button.

3. The I-Button (optional) is used to enable RAID 5.

4. For SAS RAID, SR and IT modes are supported but not IR.

1-4

Chapter 1: Introduction

H8DM3-2/H8DMi-2 Quick Reference

Jumpers Description Default Setting

J3P Power Supply Fail Detect Closed (Enabled) JBT1 CMOS Clear See Section 2-7 JCF1 Compact Flash Master/Slave Closed (Master)

C1/2 I2C to PCI-X Enable/Disable Pins 2-3 (Disabled)

C3/4 I2C to PCI-E Enable/Disable Pins 2-3 (Disabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPS1* SAS RAID Select Closed (SR RAID) JPXA1/JPXB1 PCI-X Slot 1&2 Freq. Open (Auto) JWD Watch Dog Pins 1-2 (Reset)

Connectors Description

COM1, COM2 COM1/COM2 Serial Port/Header FAN 1-8 System Fan Headers Floppy Floppy Disk Drive Connector I-Button* RAID 5 Enable Button (optional) IDE#1 IDE Drive Connector J1B1 24-Pin ATX Power Connector JAR Power Fail Alarm Reset Header JF1 Front Panel Connector JF2 Onboard Speaker/Keylock/Power LED JL1 Chassis Intrusion Header JOH1 Overheat Warning Header

JPI

C Power Supply I2C Header JPW1 8-Pin Processor Power Connector JPW2 4-pin Auxiliary Power Connector JPWF Power Supply Fail Alarm Header JWF1 Compact Flash Card Power Connector JWOL Wake-On-LAN Header JWOR Wake-On-Ring Header LAN1/2 Gigabit Ethernet (RJ45) Ports nFAN1 Chipset Heatsink Fan Header SAS0~3, SAS4~7* SAS Ports SATA0 ~ SATA5 Serial ATA Ports SGPIO1/SGPIO2 SGPIO Headers SIMLP IPMI 2.0 Card Slot USB0/1 Universal Serial Bus (USB) Ports 0/1 USB2/3, USB4/5 USB Headers

Indicators Description

DP2 Onboard Power LED *H8DM3-2 only

1-5

H8DM3-2/H8DMi-2 User’s Manual

Serverboard Features

CPU

• Single or dual AMD Opteron 2000 Series Socket F type processors

Memory

• Eight dual/single channel DIMM slots supporting up to 64 GB of DDR2-667 or 32 GB of DDR2-533/400 registered ECC SDRAM

Note: Memory capacities are halved for single CPU systems. Refer to Section 2-4 before installing.

Chipset

• nVidia MCP55 Pro

• AMD-8132

Expansion Slots

• Two (2) PCI-Express x8 slots

• One (1) PCI-Express x4 slot

• One (1) PCI-X 133 MHz slot

• Two (2) PCI-X 133/100 MHz slots*

• One (1) low-proﬁ le SIMLP slot (for IPMI card)

*These slots share a bus and so can only support up to 100 MHz when cards

are installed in both slots.

BIOS

• 8 Mb AMIBIOS

• APM 1.2, DMI 2.3, PCI 2.2, ACPI 2.0, SMBIOS 2.3, Plug and Play (PnP)

LPC Flash ROM

PC Health Monitoring

• Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V stby and battery voltage

• Fan status monitor with ﬁ rmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System resource alert (via included utility program)

• Pulse Width Modulated (PWM) fan connectors (FAN7 and FAN8 only)

• Auto-switching voltage regulator for the CPU core

1-6

Chapter 1: Introduction

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Main switch override mechanism

• Internal/external modem ring-on

Onboard I/O

• On-chip SATA controller supporting six (6) SATA ports (RAID 0, 1, 0+1, 5 and JBOD)

• LSI 1068E SAS controller (H8DM3-2 only, RAID 0, 1, 10 and JBOD; optional RAID 5 support with I-Button installed)

• One (1) UltraDMA (ATA) 133/100 IDE port

• One (1) ﬂ oppy port interface (up to 2.88 MB)

• Two (2) Fast UART 16550 compatible serial ports

• On-chip (nVidia MCP55) Ethernet controller supports two Gigabit LAN ports

• PS/2 mouse and PS/2 keyboard ports

• Six (6) USB (Universal Serial Bus) 2.0 ports/headers

Other

• Wake-on-Ring (JWOR)

• Wake-on-LAN (JWOL)

• Onboard +5V power LED

• Chassis intrusion detection

CD Utilities

• BIOS ﬂ ash upgrade utility

Dimensions

• Extended ATX form factor, 12" x 13.05" (305 x 332 mm)

1-7

H8DM3-2/H8DMi-2 User’s Manual

DIMM 2A

DIMM 2B

DIMM 1A

DIMM 1B

Slot 1: PCI-X 133/100 MHz

Slot 2: PCI-X 133/ 100 MHz

Slot 3: PCI-X 133 MHz

128-bit data + 16-bit ECC

AMD Socket F

AMD 8132

CPU2

16 x 16 HT link (1 GHz)

16 x 16 HT link (800 MHz)

ATI ES1000

SIMLP

H/W Monitor

Fan Conn.

Floppy

PCI-32

128-bit data + 16-bit ECCDDR2-667/533/400

AMD Socket F

CPU1

16 x 16 HT link (1 GHz)

nVidia

MCP55Pro

LPC

S I/O BIOS

Kybd/

Mouse

Serial Ports

(2)

DDR2-667/533/400

DIMM 2A

DIMM 2B

DIMM 1A

DIMM 1B

SATA Ports (6)

ATA133 Port (1)

USB Ports (6)

GLAN Ports (2)

Slot 4: PCI-E x4

Slot 5: PCI-E x8

Slot 6: PCI-E x8 SEPC

Figure 1-3. nVidia MCP55 Pro/AMD-8132 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your serverboard. See the previous pages for the

actual speciﬁ cations of your serverboard.

1-8

Chapter 1: Introduction

1-2 Chipset Overview

The H8DM3-2/H8DMi-2 serverboard is based on the nVidia MCP55 Pro/AMD-8132 chipset. The nVidia MCP55 Pro functions as Media and Communications Processor (MCP). Controllers for the system memory are integrated directly into the AMD Opteron processors.

MCP55 Pro Media and Communications Processor

The MCP55 Pro is a single-chip, high-performance HyperTransport peripheral controller. It includes a 28-lane PCI Express interface, an AMD Opteron 16-bit Hyper Transport interface link, a six-port Serial ATA interface, a dual-port Gb Ethernet interface, a dual ATA133 bus master interface and a USB 2.0 interface. This hub connects directly to CPU#1 and through that to CPU#2.

8132 HyperTransport PCI-X Tunnel

This hub includes AMD-speciﬁ c technology that provides two PCI-X bridges with each bridge supporting a 64-bit data bus as well as separate PCI-X operational modes and independent transfer rates. Each bridge supports up to ﬁ ve PCI mas- ters that include clock, request and grant signals. The 8132 tunnel connects to the processors and through them to system memory. It also interfaces directly with the Serial ATA and Ethernet controllers.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was designed to increase the communication speed by a factor of up to 48x between integrated circuits. This is done partly by reducing the number of buses in the chipset to reduce bottlenecks and by enabling a more efﬁ cient use of memory in multi-processor systems. The end result is a signiﬁ cant increase in bandwidth within the chipset.

1-9

H8DM3-2/H8DMi-2 User’s Manual

1-3 PC Health Monitoring

This section describes the PC health monitoring features of the H8DM3-2/H8DMi-

2. The serverboard has an onboard System Hardware Monitor chip that supports PC health monitoring.

Onboard Voltage Monitors for two CPU cores, 3.3V, +5Vin, +12Vin, +5V standby and battery

The onboard voltage monitor will scan these voltages continuously . Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can adjust the voltage thresholds to deﬁ ne the sensitivity of the voltage moni- tor. Real time readings of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard fans are controlled by thermal management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning function in the BIOS. This allows the user to deﬁ ne an overheat temperature. When this temperature is exceeded or when a fan failure occurs, then, the Overheat/Fan Fail warning LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 3-phase-switching voltage regulator for the CPU core can support up to 80A and auto-sense voltage IDs ranging from 0.8 V to 1.55V. This will allow the regulator to run cooler and thus make the system more stable.

1-10

Chapter 1: Introduction

1-4 Power Conﬁ guration Settings

This section describes the features of your serverboard that deal with power and power settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system and device power control. OnNow is a term for a PC that is always on but appears to be off and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking to indicate that the CPU is in suspend mode. When the user presses any key, the CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system suspend button. When the user depresses the power button, the system will enter a SoftOff state. The monitor will be suspended and the hard drive will spin down. Depressing the power button again will cause the whole system to wake-up. During the SoftOff state, the ATX power supply provides power to keep the required circuitry in the system alive. In case the system malfunctions and you want to turn off the power, just depress and hold the power button for 4 seconds. The power will turn off and no power will be provided to the serverboard.

Wake-On-LAN (JWOL)

Wake-On-LAN is deﬁ ned as the ability of a management application to remotely power up a computer that is powered off. Remote PC setup, up-dates and access tracking can occur after hours and on weekends so that daily LAN trafﬁ c is kept to a minimum and users are not interrupted. The serverboard has a 3-pin header (JWOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has WOL capability. Wake-On-LAN must be enabled in BIOS. Note that Wake-On-LAN can only be used with an ATX 2.01 (or above) compliant power supply.

1-11

H8DM3-2/H8DMi-2 User’s Manual

Wake-On-Ring Header (JWOR)

Wake-up events can be triggered by a device such as the external modem ringing when the system is in the SoftOff state. Note that external modem ring-on can only be used with an ATX 2.01 (or above) compliant power supply.

1-5 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates.

The H8DM3-2/H8DMi-2 accommodates 12V ATX power supplies. Although most power supplies generally meet the speciﬁ cations required by the CPU, some are inadequate. A 2 amp current supply on a 5V Standby rail is strongly recommended.

It is strongly recommended that you use a high quality power supply that meets 12V ATX power supply Speciﬁ cation 1.1 or above. Additionally, in areas where noisy power transmission is present, you may choose to install a line ﬁ lter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

Warning: To prevent the possibility of explosion, do not use the wrong type of onboard CMOS battery or install it upside down.

1-12

Chapter 1: Introduction

1-6 Super I/O

The disk drive adapter functions of the Super I/O chip include a ﬂ oppy disk drive controller that is compatible with industry standard 82077/765, a data separator, write pre-compensation circuitry, decode logic, data rate selection, a clock generator, drive interface control logic and interrupt and DMA logic. The wide range of functions integrated onto the Super I/O greatly reduces the number of components required for interfacing with ﬂ oppy disk drives. The Super I/O supports two 360 K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s.

It also provides two high-speed, 16550 compatible serial communication ports (UARTs), one of which supports serial infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a processor interrupt system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Conﬁ guration and Power Interface), which includes support of legacy and ACPI power management through a SMI or SCI function pin. It also features auto power management to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be ﬂ exibly adjusted to meet ISA PnP requirements, which support ACPI and APM (Advanced Power Management).

1-13

H8DM3-2/H8DMi-2 User’s Manual

Notes

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. T o prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufﬁ cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the serverboard.

• Use only the correct type of CMOS onboard battery as speciﬁ ed by the manufac- turer. Do not install the CMOS onboard battery upside down, which may result in a possible explosion.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure the person handling it is static protected.

Installation Procedures

Follow the procedures as listed below to install the serverboard into a chassis:

1. Install the processor(s) and the heatsink(s).

2. Install the serverboard in the chassis.

3. Install the memory and add-on cards.

4. Finally, connect the cables and install the drivers.

2-1

H8DM3-2/H8DMi-2 User's Manual

2-2 Processor and Heatsink Installation

Exercise extreme caution when handling and installing the processor. Always connect the power cord last and always remove it before adding, removing or changing any hardware components.

Installing the CPU Backplates

Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to prevent the CPU area of the serverboard from bending and to provide a base for attaching the heatsink retention modules.

Installing the Processor (install to the CPU#1 socket ﬁ rst)

1. Begin by removing the cover plate that protects the CPU. Lift the lever on CPU socket #1 until it points straight up. With the lever raised, lift open the silver CPU retention plate.

Triangles

2. Use your thumb and your index ﬁ nger to hold the CPU. Locate and align pin 1 of the CPU socket with pin 1 of the CPU. Both are marked with a triangle.

2-2

3. Align pin 1 of the CPU with pin 1

of the socket. Once aligned, carefully place the CPU into the socket. Do not

drop the CPU on the socket, move the CPU horizontally or vertically or rub the CPU against the socket or against any pins of the socket, which may damage the CPU and/or the socket.

Chapter 2: Installation

4. With the CPU inserted into the

socket, inspect the four corners of the CPU to make sure that it is properly installed and ﬂ ush with the socket. Then, gently lower the silver CPU retention plate into place.

5. Carefully press the CPU socket

lever down until it locks into its retention tab. For a dual-processor system, repeat these steps to install another CPU into the CPU#2 socket. Note: if using a single processor, only the CPU1 DIMM slots are addressable for a maximum of 16 GB memory.

2-3

H8DM3-2/H8DMi-2 User's Manual

Installing the Heatsink Retention Modules

Two heatsink retention modules (BKT-0012L) and four screws are included in the retail box. Once installed, these are used to help attach the heatsinks to the CPUs. To install, align the module with the standoffs of the preinstalled CPU backplate and with the four feet on the module contacting the serverboard. Secure the retention module to the backplate with two of the screws provided. See Figure 2-1. Repeat for the second CPU socket.

Note: BKT-0012L is included for use with non-proprietary heatsinks only. When installing Supermicro heatsinks, only BKT-0011L (the CPU backplate) is needed. The BKT-0012L retention module was designed to provide compatibility with clipand-cam type heatsinks from third parties.

Figure 2-1. CPU Heatsink Retention Module Installation

Installing the Heatsink

The use of active type heatsinks are recommended (except for 1U systems). Connect the heatsink fans to the appropriate fan headers on the serverboard. To install the heatsinks, please follow the installation instructions included with your heatsink package (not included).

2-4

Chapter 2: Installation

2-3 Mounting the Serverboard into a Chassis

All serverboards and motherboards have standard mounting holes to ﬁ t different types of chassis. Make sure that the locations of all the mounting holes for both the serverboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the serverboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

1. Check the compatibility of the serverboard ports and the I/O shield

The H8DM3-2/H8DMi-2 serverboard requires a chassis that can support extended A TX boards of 12" x 13.05" in size. Make sure that the I/O ports on the serverboard align with their respective holes in the I/O shield at the rear of the chassis.

2. Mounting the serverboard onto the mainboard tray in the chassis

Carefully mount the serverboard onto the mainboard tray by aligning the serverboard mounting holes with the raised metal standoffs in the tray. Insert screws into all the mounting holes in the serverboard that line up with the standoffs. Then use a screwdriver to secure the serverboard to the mainboard tray - tighten until just snug (if too tight you might strip the threads). Metal screws provide an electrical contact to the serverboard ground to provide a continuous ground for the system.

2-4 Installing Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see Figure 2-2). See support information below.

2. Gently press down on the memory module until it snaps into place.

Note: each processor has its own built-in memory controller, so the CPU2 DIMMs cannot be addressed if only a single CPU is installed. 128 MB, 256 MB, 512 MB, 1 GB, 2 GB and 4 GB memory modules are supported. It is highly recommended that you remove the power cord from the system before installing or changing any memory modules.

2-5

H8DM3-2/H8DMi-2 User's Manual

Support

The H8DM3-2/H8DMi-2 supports single or dual-channel, DDR2-667/533/400 registered ECC SDRAM. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots (see note on previous page and charts on following page). The CPU2 DIMM slots can only be accessed when two CPUs are installed (however, the CPU2 DIMM slots are not required to be populated when two CPUs are installed). Populating two adjacent slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory. See charts on following page.

Optimizing memory performance

If two processors are installed, it is better to stagger pairs of DIMMs across both sets of CPU DIMM slots, e.g. ﬁ rst populate CPU1 slots 1A and 1B, then CPU2 slots 1A, and 1B, then the next two CPU1 slots, etc. This balances the load over both CPUs to optimize performance.

Maximum memory: 64 GB of DDR2-667 or 32 GB of DDR2-533/400 registered ECC SDRAM. If only one CPU is installed, maximum supported memory is halved (16 GB).

Figure 2-2. Side and Top Views of DDR Installation

To Install:

Insert module vertically and press down until it snaps into place. The release tabs should close - if they do not you should close them yourself.

Notch

Release

Tab

Note: Notch

should align

with its

receptive point

on the slot

Note the notch in the slot and on the bottom of the DIMM. These prevent the DIMM from being installed incorrectly.

Notch

Release

Tab

To Remove:

Use your thumbs to gently push each release tab outward to release the DIMM from the slot.

2-6

Chapter 2: Installation

Populating Memory Banks for 128-bit Operation

CPU1

DIMM1A

XX XX XX XX XX XX XXXX XXXX XXXXXX XXXX XX XXXXXXXX

CPU1

DIMM1B

CPU1

DIMM2A

XX XXXX XX XX XXXXXX

CPU1

DIMM2B

CPU2

DIMM1A

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

Notes: X indicates a populated DIMM slot. If adding at least four DIMMs (with two CPUs installed), the conﬁ gurations with DIMMs spread over both CPUs (and not like the con- ﬁ guration in row 5) will result in optimized performance. Note that the ﬁ rst two DIMMs must be installed in the CPU1 memory slots.

Populating Memory Banks for 64-bit Operation

CPU1

DIMM1A

XX XX X X

CPU1

DIMM1B

CPU1

DIMM2A

XX XX

CPU1

DIMM2B

CPU2

DIMM1A

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

2-7

H8DM3-2/H8DMi-2 User's Manual

2-5 I/O Port and Control Panel Connections

The I/O ports are color coded in conformance with the PC99 speciﬁ cation to make setting up your system easier. See Figure 2-3 below for the colors and locations of the various I/O ports.

Figure 2-3. I/O Port Locations and Deﬁ nitions

Front Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 2-4 for the pin deﬁ nitions of the various connectors. Refer to Section 2-6 for details.

Figure 2-4. JF1: Front Control Panel Header (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1 NIC2

OH/Fan Fail LED

Power Fail LED

Ground

NMI x (key) Vcc Vcc Vcc Vcc Vcc Vcc Reset

Ground

Power

2 1

2-8

Chapter 2: Installation

2-6 Connecting Cables

ATX Power Connector

The primary ATX power supply connector (J1B1) meets the SSI (Superset ATX) 24-pin speciﬁ cation. Refer to the table on the right for the pin deﬁ ni- tions of the ATX 24-pin power connector. This connection supplies power to the chipset, fans and memory.

Note: You must also connect the 8pin (JPW1) and 4-pin (JPW2) power connectors to your power supply (see below).

Processor Power Connector

In addition to the primary ATX power connector (above), the 12v, 8-pin processor power connector at JPW1 must also be connected to your power supply. This connection supplies power to the CPUs. See the table on the right for pin deﬁ nitions.

ATX Power 24-pin Connector

Pin Deﬁ nitions (J1B1)

Pin# Deﬁ nition Pin # Deﬁ nition 13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 COM 3 COM 16 PS_ON 4 +5V 17 COM 5 COM 18 COM 6 +5V 19 COM 7 COM 20 Res (NC) 8 PWR_OK 21 +5V 9 5VSB 22 +5V 10 +12V 23 +5V 11 +12V 24 COM 12 +3.3V

Processor Power

Connector

Pin Deﬁ nitions (JPW1)

Pins Deﬁ nition 1 through 4 Ground 5 through 8 +12V

Required Connection

Auxiliary Power Connector

The 4-pin auxiliary power connector at JPW2 must also be connected to your power supply. This connection supplies extra power that may be needed for high loads. See the table on the right for pin deﬁ nitions.

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table on the right for pin deﬁ nitions.

Auxiliary Power

Connector

Pin Deﬁ nitions (JPW2)

Pins Deﬁ nition 1 & 2 Ground 3 & 4 +12V

Required Connection

Power LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 15 Vcc 16 Control

2-9

H8DM3-2/H8DMi-2 User's Manual

HDD LED

The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF1. Attach the IDE hard drive LED cable to display disk activity. Refer to the table on the right for pin deﬁ nitions.

NIC1 LED

The NIC1 (Network Interface Controller) LED connection is located on pins 11 and 12 of JF1. Attach the NIC1 LED cable to display network activity. Refer to the table on the right for pin deﬁ nitions.

NIC2 LED

The NIC2 (Network Interface Controller) LED connection is located on pins 9 and 10 of JF1. Attach the NIC2 LED cable to display network activity. Refer to the table on the right for pin deﬁ nitions.

HDD LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 13 Vcc 14 HD Active

NIC1 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 11 Vcc 12 NIC1 Active

NIC2 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 9 Vcc 10 NIC2 Active

Overheat/Fan Fail LED

Connect an LED to the OH connection on pins 7 and 8 of JF1 to provide advanced warning of chassis overheating. Refer to the table on the right for pin deﬁ nitions and status indicators.

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table on the right for pin deﬁ ni- tions. This feature is only available for systems with redundant power supplies.

2-10

OH/Fan Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 7 Vcc 8 Control

Pin# Deﬁ nition 5 Vcc 6 Control

OH/Fan Fail

LED Status

State Indication Solid Overheat Blinking Fan fail

Power Fail LED

Pin Deﬁ nitions (JF1)

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to the hardware reset switch on the computer case. Refer to the table on the right for pin deﬁ nitions.

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be conﬁ gured to function as a suspend button (see the Power Button Mode setting in BIOS). To turn off the power when set to suspend mode, depress the button for at least 4 seconds. Refer to the table on the right for pin deﬁ nitions.

Chapter 2: Installation

Reset Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 3 Reset 4 Ground

Power Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 1 PW_ON 2 Ground

Universal Serial Bus Ports (USB0/1)

Two Universal Serial Bus ports (USB2.0) are located beside the LAN1/2 ports. See the table on the right for pin deﬁ nitions.

USB Headers

Four additional USB2.0 headers (USB2/3 and USB4/5) are included on the serverboard. These may be connected to provide front side access. A USB cable (not included) is needed for the connection. See the table on the right for pin deﬁ nitions.

Universal Serial Bus Ports

Pin Deﬁ nitions (USB0/1)

USB0 Pin # Deﬁ nition

1 +5V 1 +5V 2 PO- 2 PO3 PO+ 3 PO+ 4 Ground 4 Ground

Universal Serial Bus Headers

Pin Deﬁ nitions (USB2/3/4/5)

USB2 Pin # Deﬁ nition

1 +5V 1 +5V 2 PO- 2 PO3 PO+ 3 PO+ 4 Ground 4 Ground 5 Key 5 No connection

USB1 Pin # Deﬁ nition

USB3/4 Pin # Deﬁ nition

2-11

H8DM3-2/H8DMi-2 User's Manual

ATX PS/2 Keyboard and PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/2 mouse ports are located on the IO backplane. The mouse is the top (green) port. See the table on the right for pin deﬁ nitions.

Serial Ports

The COM1 port is located under the parallel port. COM2 is a header located beside the SATA5 port. See the serverboard layout for locations and the table on the right for pin deﬁ nitions.

PS/2 Keyboard and

Mouse Port Pin

Deﬁ nitions

Pin# Deﬁ nition 1 Data 2NC 3 Ground 4 VCC 5 Clock 6NC

Serial Port Pin Deﬁ nitions

(COM1/COM2)

Pin # Deﬁ nition Pin # Deﬁ nition 1 DCD 6 DSR 2 RXD 7 RTS 3 TXD 8 CTS 4 DTR 9 RI 5 Ground 10 NC

Note: NC indicates no connection.

Fan Headers

The H8DM3-2/H8DMi-2 has eight fan headers, which are designated FAN1 through FAN8. FAN7 and FAN8 are for 4-pin Pulse Width Modulated (PWM) fans and are to be connected to the CPU heatsink fans. Their speed is controlled via Thermal Management with a BIOS setting. FAN1 through FAN6 are 3-pin, non-PWM fans. See the tables on the right for pin deﬁ ni- tions.

Note: The nFAN1 header connects to the heatsink fan on the nVidia MCP 55 Pro chip. Do not disconnect this fan or the chipset may overheat. See the table on the right for pin deﬁ nitions.

4-pin Fan Header

Pin Deﬁ nitions

(FAN7/FAN8)

Pin# Deﬁ nition 1 Ground (Black) 2 +12V (Red) 3 Tachometer 4 PWM Control

3-pin Fan Header

Pin Deﬁ nitions

(FAN1-FAN6)

Pin# Deﬁ nition 1 Ground (Black) 2 +12V (Red) 3 Tachometer

2-12

Chapter 2: Installation

Power LED/Speaker/Keylock

On JF2, pins 2, 4, and 6 are for the power LED, pins 1, 3, 5 and 7 are for the speaker and pins 8 and 10 are for the keylock. See the tables on the right for pin deﬁ nitions. Note: The speaker connector pins are for use with an external speaker. If you wish to use the onboard speaker, you should close pins 5 and 7 with a jumper. Utilizing the keylock header allows you to inhibit any actions made on the keyboard, effectively "locking" it.

Overheat LED

Connect an LED to the JOH1 header to provide warning of chassis overheating. See the table on the right for pin deﬁ nitions.

PWR LED Connector Pin Deﬁ nitions (JF2)

Pin# Deﬁ nition 2 +Vcc 4 Control 6 Control

Speaker Connector

Pin Deﬁ nitions (JF2)

Pin# Deﬁ nition 1 Red wire, +5V 3 No connection 5 Buzzer signal 7 Speaker data

Overheat LED

Pin Deﬁ nitions (JOH1)

Pin# Deﬁ nition 1 3.3V 2 OH Active

Chassis Intrusion

A Chassis Intrusion header is located at JL1. Attach the appropriate cable to inform you of a chassis intrusion.

Wake-On-LAN

The Wake-On-LAN header is designated JWOL. See the table on the right for pin deﬁ nitions. You must have a LAN card with a Wake-On-LAN connector and cable to use the WakeOn-LAN feature.

(Note: Wake-On-LAN from S3, S4, S5 are supported by LAN1. LAN2 supports Wake-On-LAN from S1 only.)

Chassis Intrusion

Pin Deﬁ nitions (JL1)

Pin# Deﬁ nition 1 Battery voltage 2 Intrusion signal

Wake-On-LAN

Pin Deﬁ nitions

(JWOL)

Pin# Deﬁ nition 1 +5V Standby 2 Ground 3 Wake-up

2-13

H8DM3-2/H8DMi-2 User's Manual

Wake-On-Ring

The Wake-On-Ring header is designated JWOR. This function allows your computer to receive and "wakeup" by an incoming call to the modem when in suspend state. See the table on the right for pin deﬁ nitions. Y ou must have a Wake-On-Ring card and cable to use this feature.

Power Supply I2C Header

The JPI2C header is for I2C, which may be used to monitor the status of the power supply, fans and system temperature. See the table on the right for pin deﬁ nitions.

Wake-On-Ring Pin Deﬁ nitions

(JWOR)

Pin# Deﬁ nition 1 Ground (Black) 2 Wake-up

I2C Header

Pin Deﬁ nitions (JPI2C)

Pin# Deﬁ nition 1 Clock 2 Data 3 PWR Fail 4 Gnd 5 +3.3V

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (designated LAN1 and LAN2) are located beside the VGA port. These Ethernet ports accept RJ45 type cables.

Power Supply Fail Alarm Reset Header

Connect JAR to the alarm reset button on your chassis (if available) or to a microswitch to allow you to turn off the alarm that sounds when a power supply module fails. See the table on the right for pin deﬁ nitions.

Alarm Reset Header

Pin Deﬁ nitions (JAR)

Pin# Deﬁ nition 1 Ground 2 Reset Signal

2-14

Power Supply Fail Alarm Header

Connect a cable from your power supply to JPWF to provide you with warning of a power supply failure. The warning signal is passed through the PWR_LED pin to indicate a power failure. See the table on the right for pin deﬁ nitions.

Chapter 2: Installation

Power Supply Fail

Alarm Header

Pin Deﬁ nitions (JPWF)

Pin# Deﬁ nition 1 P/S 1 Fail Signal 2 P/S 2 Fail Signal 3 P/S 3 Fail Signal 4 Reset (from MB)

Note: This feature is only available when using redundant power supplies.

Compact Flash Power Header

A Compact Flash Card Power header is located at JWF1. For the Compact Flash Card to work properly, you will ﬁ rst need to connect the device's power cable to JWF1 and correctly set the Compact Flash Jumper (JCF1).

SGPIO

SGPIO1 and SGPIO2 (Serial General Purpose Input/Output) provide a bus between the SATA controller and the SATA drive backplane to provide SATA enclosure management functions. Connect the appropriate cables from the backplane to the SGPIO1 and SGPIO2 header(s) to utilize SATA management functions on your system.

Compact Flash

Power Header

Pin Deﬁ nitions (JWF1)

Pin# Deﬁ nition 1 +5V 2 Ground 3 Signal

SGPIO Header

Pin Deﬁ nitions (SGPIO1, SGPIO2)

Pin# Deﬁ nition Pin # Deﬁ nition 1NC 2NC 3 Ground 4 Data 5 Load 6 Ground 7NC 8NC

Note: NC indicates no connection.

2-15

H8DM3-2/H8DMi-2 User's Manual

2-7 Jumper Settings

Explanation of Jumpers

To modify the operation of the serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the conne cto r. Pin 1 is identiﬁ ed with a square solder pad on the printed circu it boar d. See the d iagra m at right for an example of jumping pins 1 and 2. Refer to the ser ve rboard layout page for jumper locations.

Note: On two-pin jumpers, "Closed" means the jumper is on and "Open"

means th e jumper i s off t he pins .

CMOS Clear

Connector

3 2 1

Pins

Jumper

3 2 1

Setting

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To clear CMOS,

1) First power down the system and unplug the power cord(s).

2) With the power disconnected, short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.

3) Remove the screwdriver (or shorting device).

4) Reconnect the power cord(s) and power on the system.

Notes:

Do not use the PW_ON connector to clear CMOS.

The onboard battery does not need to be removed when clearing CMOS, however you must short JBT1 for at least four seconds.

JBT1 contact pads

2-16

I2C to PCI-X En able/ Disa ble

The JI2C1/2 pair of jumpers allows you to connect the System Management Bus to the PC I-X expansion s lots. The default set ting is disabled. Both con-

necto r s mus t be s et t he s am e (JI for data and JI

C2 is for the clock). See

C1 is

the table on right for jumper settings.

I2C to PCI- E Enab le/D isabl e

The JI2C3/4 pair of jumpers allows you to connect the System Management Bus to the PCI-Express expansion slots. Th e default setting i s disabled. Both c on ne c to r s m us t be s et t h e sa m e

(JI

C3 is for data and JI2C4 is for the clock). See the table on right for jumper settings.

Chapter 2: Installation

I2C to PCI-X Enable/Disable

Jumper Settings

(JI2C1/2)

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

I2C to PCI-E Enable/Disable

Jumper Settings

(JI2C3/4)

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

Watch Dog

JWD controls Watch Dog, a system monitor that takes action when a software application freezes the system. Jumping pins 1-2 will cause WD to reset the system if an application is hung up. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that is hung up. See the table on the right for jumper settings. Watch Dog must also be enabled in BIOS.

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port. The default position is on pins 1 and 2 to enable VGA. See the table on the right for jumper settings.

Watch Dog

Jumper Settings (JWD)

Jumper Setting Deﬁ nition Pins 1-2 Reset Pins 2-3 NMI Open Disabled

VGA Enable/Disable

Jumper Settings (JPG1)

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

2-17

H8DM3-2/H8DMi-2 User's Manual

PCI-X Slot Speed

Jumper JPXA1 on the H8DM3-2/ H8DMi-2 is used to change the speed of PCI-X slots #1 & 2. Jumper JPXB1 is used to change the speed of PCI-X slot #3. See the tables on the right for jumper settings.

Note: JPXA1 controls the speed for PCI-X slots #1 and #2. JPXB1 controls the speed for PCI-X slot #3. The default setting for both is Open (Auto).

Compact Flash Master/Slave

The JCF1 jumper allows you to assign either master or slave status a compact ﬂ ash card installed in IDE1. See the table on the right for jumper settings.

PCI-X Slot Speed Jumper Settings

(JPX1A/JPX1B)

Jumper Setting Deﬁ nition Open Auto Pins 1-2 PCI-X 66 MHz Pins 2-3 PCI 66 MHz

Compact Flash

Master/Slave

Jumper Settings (JCF1)

Jumper Setting Deﬁ nition Closed Master Open Slave

Power Sup ply Fail D ete ct Enable/Disable

The system can notify you in the eve nt of a power supp ly fai lure. T his feat ure assume s that redund ant power supp ly modules are installed in the chassis. If you only have a single power supply instal led, you sh ould dis able t his func tion with J3P to prevent false alarms. See the table on the right for jumper settings.

SAS RAID Select

JPS1 allows you to select between SR RAID, which is the default and enables SAS RAID, or IT RAID, which treats SAS drives as non-RAID drives and requires a ﬁ rmware ﬂ ash. See the table on the right for jumper settings and the following page for the IT ﬁ rmware ﬂ ash procedure.

Power Supply Fail Detect

Jumper Settings (J3P)

Jumper Setting Deﬁ nition Open Disabled Closed Enabled

SAS RAID Select

Jumper Settings (JPS1)

Jumper Setting Deﬁ nition Open IT RAID Closed SR RAID

Note: SR = Software RAID IT = Integrate Target mode. IR mode is not supported.

2-18

Chapter 2: Installation

Flashing IT Firmware

1. Download the appropriate IT ﬁ rmware from the web site: ftp://ftp.supermicro.com/driver/SAS/LSI/Firmware/IT/

2. Unzip it to a bootable ﬂ oppy or USB pen.

3. With JPS1 on (closed) boot to the device with the unzipped ﬁ rmware and type "clear" to erase the SR ﬁ rmware.

4. Remove AC power and open JPS1.

5. Boot to the disk again and type "H8DM32".

6. When prompted for the SAS address, type in the 16-digit SAS address labeled on the board.

7. Power off the system before restarting.

2-8 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside the VGA port) have two LEDs. On each Gb LAN port, one LED indicates activity when blinking while the other LED may be amber or off to indicate the speed of the connection. See the table on the right for the functions associated with the connection speed LED.

Onboard Power LED

DP2 is an Onboard Power LED. When this LED is lit, it means power is present on the serverboard. In suspend mode this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

(Connection Speed Indicator)

JLAN LED

LED Color Deﬁ nition Off 10/100 MHz Amber 1 GHz

2-19

H8DM3-2/H8DMi-2 User's Manual

2-9 Floppy, IDE, SATA and SAS Drive Connections

Use the following information to connect the ﬂ oppy and hard disk drive cables.

 The ﬂ oppy disk drive cable has seven twisted wires.  A red mark on a wire typically designates the location of pin 1.  A single ﬂ oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two ﬂ oppy disk drives. The connector with twisted wires always connects to drive A, and the connector that does not have twisted wires always connects to drive B.

 The 80-wire ATA133 IDE hard disk drive cable that came with your system has

two connectors to support two drives. This special cable should be used to take advantage of the speed this new technology offers. The blue connector connects to the onboard IDE connector interface and the other connector(s) to your hard drive(s). Consult the documentation that came with your disk drive for details on actual jumper locations and settings for the hard disk drive.

Floppy Connector

The ﬂ oppy connector is located beside the IDE connector. See the table on the right for pin deﬁ nitions.

Floppy Drive Connector Pin Deﬁ nitions (Floppy)

Pin# Deﬁ nition Pin # Deﬁ nition 1 GND 2 FDHDIN 3 GND 4 Reserved 5 Key 6 FDEDIN 7 GND 8 Index9 GND 10 Motor Enable 11 GND 12 Drive Select B13 GND 14 Drive Select A15 GND 16 Motor Enable 17 GND 18 DIR19 GND 20 STEP21 GND 22 Write Data23 GND 24 Write Gate25 GND 26 Track 0027 GND 28 Write Protect29 GND 30 Read Data31 GND 32 Side 1 Select33 GND 34 Diskette

2-20

Chapter 2: Installation

IDE Connector

There are no jumpers to conﬁ gure the onboard IDE#1 connector unless using it for a compact flash device. See the table on the right for pin deﬁ nitions.

IDE Drive Connectors

Pin Deﬁ nitions (IDE#1)

Pin# Deﬁ nition Pin # Deﬁ nition 1 Reset IDE 2 Ground 3 Host Data 7 4 Host Data 8 5 Host Data 6 6 Host Data 9 7 Host Data 5 8 Host Data 10 9 Host Data 4 10 Host Data 11 11 Host Data 3 12 Host Data 12 13 Host Data 2 14 Host Data 13 15 Host Data 1 16 Host Data 14 17 Host Data 0 18 Host Data 15 19 Ground 20 Key 21 DRQ3 22 Ground 23 I/O Write 24 Ground 25 I/O Read 26 Ground 27 IOCHRDY 28 BALE 29 DACK3 30 Ground 31 IRQ14 32 IOCS16 33 Addr1 34 Ground 35 Addr0 36 Addr2 37 Chip Select 0 38 Chip Select 1 39 Activity 40 Ground

2-21

H8DM3-2/H8DMi-2 User's Manual

SATA Ports

There are no jumpers to conﬁ gure the SATA ports, which are designated SATA0 through SATA5. See the table on the right for pin deﬁ nitions.

SATA Drive Ports

Pin Deﬁ nitions (SATA0-SATA5)

Pin # Deﬁ nition 1 Ground 2 TXP 3 TXN 4 Ground 5 RXN 6 RXP 7 Ground

SAS Ports (H8DM3-2)

There are two SAS port connectors located near the IDE and ﬂ oppy connectors. One is for the SAS0~3 ports and the other is for SAS4-7 ports. See the table on the right for pin deﬁ nitions.

Note: SAS is enabled in BIOS (refer to Chapter 4). See LSI's SAS manual for details on creating and working with SAS RAID arrays.

Pin Deﬁ nitions (SAS0~3/SAS4~7)

SAS Ports

Pin# Deﬁ nition Pin # Deﬁ nition 1 Rx0+ 2 Rx03 Rx1+ 4 Rx15 Rx2+ 6 Rx27 Rx3+ 8 Rx39 Tx3- 10 Tx3+ 11 Tx2- 12 Tx2+ 13 Tx1- 14 Tx1+ 15 Tx0- 16 Tx0+

2-22

Chapter 2: Installation

2-10 Enabling SATA RAID

Now that the hardware is set up, you can install the operating system and the SA TA RAID drivers, if you wish to utilize SATA RAID. The installation procedure differs depending on whether you wish to have the operating system installed on a RAID array or on a separate non-RAID drive. See the instructions below for details.

Notes: See the LSI SAS manual (included on the Supermicro CD) for SAS RAID. IR mode is not supported.

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that employs a single cable with a minimum of four wires to create a point-to-point connection between devices. This connection is a serial link that supports a SATA transfer rate from 150 MBps. The serial cables used in SATA are thinner than the traditional cables used in Parallel ATA (PATA) and can extend up to one meter in length, compared to only 40 cm for PATA cables. Overall, SATA provides better functionality than PATA.

Installing the OS/SATA Driver

Before installing the OS (operating system) and SA TA RAID driver, you must decide if you wish to have the operating system installed as part of a bootable RAID array or installed to a separate non-RAID hard drive. If on a separate drive, you may install the driver either during or after the OS installation. If you wish to have the OS on a SATA RAID array, you must follow the procedure below and install the driver during the OS installation.

Building a Driver Diskette

Y ou must ﬁ rst build a driver diskette from the Supermicro CD-ROM that was included with the system. (You will have to create this disk on a computer that is already running and with the OS installed.) Insert the CD into your CD-ROM drive and start the system. A display as shown in Figure 2-5 will appear. Click on the icon labeled "Build Driver Diskettes and Manuals" and follow the instructions to create a ﬂ oppy disk with the driver on it. Once it's been created, remove the ﬂ oppy and insert the installation CD for the Windows Operating System you wish to install into the CD-ROM drive of the new system you are about to conﬁ gure.

Enabling SATA RAID in the BIOS

Before installing the Windows Operating System, you must change some settings in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility. After the Setup Utility loads,

2-23

H8DM3-2/H8DMi-2 User's Manual

1. Use the arrow keys to move to the Exit menu. Scroll down with the arrow keys to the "Load Optimal Defaults setting and press <Enter>. Select "OK" to conﬁ rm, then <Enter> to load the default settings.

2. Use the arrow keys to move to Advanced > Floppy/IDE/SATA Conﬁ guration > Serial ATA Devices and then the nVidia RAID Setup settings. Use these settings to enable the SATA and RAID functions. Enable the SATA devices and channels you will be using.

3. Hit the <Esc> key twice and scroll to the Exit menu. Select "Save Changes and Exit" and hit <enter>, then hit <Enter> again to verify.

4. After exiting the BIOS Setup Utility, the system will reboot. When prompted during the startup, press the <F10> key when prompted to run the nVidia RAID Utility program.

Using the nVidia RAID Utility

The nVidia RAID Utility program is where you can deﬁ ne the drives you want to include in the RAID array and the mode and type of RAID. Two main windows are shown in the utility. The "Free Disks" window on the left will list all available drives. Use the arrow keys to select and move drives to the window on the right, which lists all drives that are to become part of the RAID array.

Once you have ﬁ nished selecting the drives and type of RAID you wish to use for your RAID array, press the <F7> key. You will be prompted to verify your choice; if you want to continue with your choices, select "Yes". Note that selecting "Yes" will clear all previous data from the drives you selected to be a part of the array. You are then given the choice of making the RAID array bootable by pressing the the <B> key. After you have ﬁ nshed, press the <Ctrl> and <X> keys simultaneously.

Installing the OS and Drivers

With the Windows OS installation CD in the CD-ROM drive, restart the system. When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a blue screen will appear with a message that begins "Windows could not determine the type of one or more storage devices . . ." When you see the screen, hit the <S> key to "Specify Additional Device", then insert the driver diskette you just created into the ﬂ oppy drive. Highlight "Manufuacturer Supplied Hardware Support Disk" and hit the <Enter> key. Highlight the ﬁ rst "nVidia RAID" driver shown and press the <Enter> key to install it. Soon a similar blue screen will appear again. Again hit the <S> key, then highlight the second item, "nForce Storage Controller" and press the <Enter> key, then <Enter> again to continue with the Windows setup.

2-24

Chapter 2: Installation

2-11 Installing Additional Drivers

The CD that came bundled with the system contains software drivers, some of which must be installed, such as the chipset driver. After inserting this CD into your CDROM drive, the display shown in Figure 2-5 should appear. (If this display does not appear, click on the My Computer icon and then on the icon representing your CD-ROM drive. Finally, double click on the S "Setup" icon.)

Figure 2-5. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on paper to view the readme ﬁ les for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you should reboot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents of the CD.

2-25

H8DM3-2/H8DMi-2 User's Manual

Notes

2-26

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

Before Power On

1. Check that the onboard power LED (DP2) is lit.

2. Make sure that the main ATX power connector at J1B1, the 8-pin connector at JPW1 and the 4-pin connector at JPW2 are all connected to your power supply.

3. Make sure that no short circuits exist between the serverboard and chassis.

4. Disconnect all ribbon/wire cables from the serverboard, including those for the keyboard and mouse.

5. Remove all add-on cards.

6. Install a CPU and heatsink (making sure it is fully seated) and connect the internal (chassis) speaker and the power LED to the serverboard. Check all jumper settings as well.

7. Use the correct type of onboard CMOS battery as recommended by the manufacturer. To avoid possible explosion, do not install the CMOS battery upside down.

No Power

1. Make sure that no short circuits exist between the serverboard and the chassis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your serverboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

3-1

H8DM3-2/H8DMi-2 User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnostics

card is recommended. For I/O port 80h codes, refer to App. B.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.

2. You should be using registered ECC DDR-2 memory (see next page). Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 2-4 for memory details and limitations.

3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Conﬁ guration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 1-6 for details on recommended power supplies.

2. The battery on your serverboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not ﬁ x the setup conﬁ guration problem, contact your vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a serverboard manufacturer, we do not sell directly to end-users, so it is best to ﬁ rst check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the speciﬁ c system conﬁ guration that was sold to you.

1. Please review the ‘Troubleshooting Procedures’ and 'Frequently Asked Questions' (FAQs) sections in this chapter or see the FAQs on our web site before contacting Technical Support.

2. BIOS upgrades can be downloaded from our web site.

Note: Not all BIOS can be ﬂ ashed depending on the modiﬁ cations to the boot block code.

3-2

Chapter 3: Troubleshooting

3. If you still cannot resolve the problem, include the following information when contacting us for technical support:

 Serverboard model and PCB revision number  BIOS release date/version (this can be seen on the initial display when your

system ﬁ rst boots up)

 System conﬁ guration

An example of a Technical Support form is posted on our web site.

4. Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by e-mail.

3-3 Frequently Asked Questions

Question: What type of memory does my serverboard support? Answer: The H8DM3-2/H8DMi-2 supports up to 64 GB of DDR2-667 or 32 GB of

DDR2-533/400 registered ECC SDRAM with two CPUs installed. With only one CPU installed the maximum memory support is halved. Memory can be installed in interleaved or non-interleaved conﬁ gurations. See Section 2-4 for details on installing memory.

Question: How do I update my BIOS? Answer: It is recommended that you not upgrade your BIOS if you are not experi-

encing problems with your system. Updated BIOS ﬁ les are located on our web site. Please check our BIOS warning message and the information on how to update your BIOS on our web site. Also, check the current BIOS revision and make sure it is newer than your current BIOS before downloading.

Select your mainboard model on the web page and download the corresponding BIOS ﬁ le to your computer. Unzip the BIOS update ﬁ le, in which you will ﬁ nd the readme.txt (ﬂ ash instructions), the afudos.exe (BIOS ﬂ ash utility) and the BIOS image (xxx.rom) ﬁ les. Copy these ﬁ les to a bootable ﬂ oppy disk, insert the disk into drive A and reboot the system. At the DOS prompt after rebooting, enter the command "ﬂ ash" (without quotation marks) then type in the BIOS ﬁ le that you want to update with (xxxx.rom).

Question: What's on the CD that came with my serverboard? Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install the applications you need. Applications on the CD include chipset drivers for Windows and security and audio drivers.

3-3

H8DM3-2/H8DMi-2 User's Manual

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power But-

ton Mode setting. When the On/Off feature is enabled, the serverboard will have instant off capabilities as long as the BIOS has control of the system. When the Standby or Suspend feature is enabled or when the BIOS is not in control such as during memory count (the ﬁ rst screen that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down the system. This feature is required to implement the ACPI features on the serverboard.

Question: How do I connect the ATA133 cable to my IDE device? Answer: The 80-wire/40-pin high-density ATA133 IDE cable that came with your

system is a special cable that must be used to take advantage of the speed the ATA133 technology offers. Connect the blue connector to the onboard IDE header and the other connectors to your hard drives. Consult the documentation that came with your disk drive for details on jumper locations and settings.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor ﬁ rst for any product problems.

3-4

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DM3-2/H8DMi-2. The AMI ROM BIOS is stored in a ﬂ ash chip and can be easily upgraded using a ﬂ oppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our web site for any changes to BIOS that may not be reﬂ ected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up. (In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be conﬁ gured. “Grayed-out” options cannot be conﬁ gured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values. A "

" indicates a submenu. Highlighting such an item and pressing the <Enter>

key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at any time during the setup navigation process.

4-1

H8DM3-2/H8DMi-2 User’s Manual

4-2 Main Menu

When you ﬁ rst enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys.

The Main Menu screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this ﬁ eld to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between ﬁ elds. The date must be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format. Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as 05:30:00 and 5:30 P.M. as 17:30:00.

4-3 Advanced Settings Menu

 Boot Features

Quick Boot

If Enabled, this option will skip certain tests during POST to reduce the time needed for the system to boot up. The options are Enabled and Disabled.

Quiet Boot

If Disabled, normal POST messages will be displayed on boot-up. If Enabled, this display the OEM logo instead of POST messages.

Add-On ROM Display Mode

Set this option to display add-on ROM (read-only memory) messages. The default setting is Force BIOS. Select Force BIOS to allow the computer system to force a third party BIOS to display during system boot. Select Keep Current to allow the computer system to display the BIOS information during system boot. The options are Force BIOS and Keep Current.

4-2

Chapter 4: BIOS

Boot up Num-Lock

Set this value to allow the Number Lock setting to be modiﬁ ed during boot up. The options are On and Off.

PS/2 Mouse Support

Set this value to modify support for a PS/2 mouse. The options are Auto, Enabled and Disabled.

Wait for ‘F1’ If Error

Select Enable to activate the Wait for F1 if Error function. The options are

Enabled and Disabled.

Hit ‘DEL’ Message Display

Select Enabled to display message to hit the DEL key to enter Setup. The options are Enabled and Disabled.

Interrupt 19 Capture

Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled and Disabled.

OS Installation

Change this setting if using a 64-bit Linux operating system. The available options are Other and Linux.

ACPI Conﬁ guration

ACPI Version Features

Use this setting the determine which ACPI version to use. Options are ACPI v1.0, ACPI v2.0 and ACPI v3.0.

ACPI APIC Support

Determines whether to include the ACPI APIC table pointer in the RSDT pointer list. The available options are Enabled and Disabled.

AMI OEMB Table

Determines whether to include the AMI APIC table pointer in the RSDT pointer list. The available options are Enabled and Disabled.

4-3

H8DM3-2/H8DMi-2 User’s Manual

Headless Mode

Use this setting to Enable or Disable headless operation mode through ACPI.

MCP55 ACPI HPET Table

Use this setting to either Enable or Disable the MCP55 ACPI HPET table.

Power Conﬁ guration Power Button Mode

Allows the user to change the function of the power button. Options are On/Off and Suspend.

Restore on AC Power Loss

This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Power Off, Power On and

Last State.

Watch Dog Timer

This setting is used to Enable or Disable the Watch Dog Timer function. It must be used in conjunction with the Watch Dog jumper (see Chapter 2 for details).

MPS Conﬁ guration MPS Revision

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

Smbios Conﬁ guration Smbios Smi Support

This setting allows SMI wrapper support for PnP function 50h-54h. The options are Enabled and Disabled.

4-4

Chapter 4: BIOS

 CPU Conﬁ guration

MThe submenu lists CPU information and the following settings:

GART Error Reporting

This setting is used for testing only (setting should be disabled).

Microcode Update

This setting is used to Enable or Disable updating the microcode.

Secure Virtual Machine Mode

This setting is used to Enable or Disable SVM.

Power Now

This setting is used to Enable or Disable the AMD Power Now feature.

ACPI SRAT Table

This setting is used to Enable or Disable the building of the ACPI SRAT table.

Thermal Throttling

This setting is used to Enable or Disable Thermal Throttling.

CPU Page Translation Table

This setting is used to Enable or Disable the CPU Page Translation Table.

 Floppy/IDE/SATA Conﬁ guration

Floppy A

Move the cursor to these ﬁ elds via up and down <arrow> keys to select the ﬂ oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Floppy B

Move the cursor to these ﬁ elds via up and down <arrow> keys to select the ﬂ oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44 MB 3½”, and 2.88 MB 3½".

4-5

H8DM3-2/H8DMi-2 User’s Manual

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard ﬂ oppy controller.

Onboard IDE Controller

There is a single ﬂ oppy controller on the motherboard, which may be Enabled or Disabled with this setting.

Serial ATA Devices

This setting is used to determine if SATA drives will be used and how many. Options are Disabled, Device 0, Device 0/1 and Device 0/1/2.

nVidia RAID Function

This setting is used to Enable or Disable the nVidia ROM.

Primary IDE Master/Slave

Highlight one of the items above and press <Enter> to access the submenu for that item.

Type

Select the type of device connected to the system. The options are Not Installed,

Auto, CDROM and ARMD.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive. The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. Select "Disabled" to allow the data to be transferred from and to the device one sector at a time. Select "Auto" to allows the data transfer from and to the device occur multiple sectors at a time if the device supports it. The options are Auto and Disabled.

4-6

Chapter 4: BIOS

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1. It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the speciﬁ cations of the drive.

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2, MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3, UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA, UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T. Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled" to deactivate the function. The options are Enabled and Disabled.

Serial ATA0/1/2 Primary/Secondary Channel

Highlight one of the items above and press <Enter> to access the submenu for that item. If a drive is present, information on that drive will be displayed here.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive. The options are Disabled and Auto.

4-7

H8DM3-2/H8DMi-2 User’s Manual

Block (Multi-Sector Transfer)

PIO Mode

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2, MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3, UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA, UDMA=UltraDMA.)

S.M.A.R.T.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled" to deactivate the function. The options are Enabled and Disabled.

4-8

Chapter 4: BIOS

Hard Disk Write Protect

Select Enabled to enable the function of Hard Disk Write Protect to prevent data from being written to HDD. The options are Enabled or Disabled.

IDE Detect Time Out (Sec)

This feature allows the user to set the time-out value for detecting ATA, ATA PI devices installed in the system. The options are 0 (sec), 5, 10, 15, 20, 25, 30 and

35.

ATA(PI) 80Pin Cable Detection

This setting allows AMI BIOS to auto-detect the 80-Pin ATA(PI) cable. The options are Host & Device, Host and Device.

 PCI/PnP Conﬁ guration

Clear NVRAM

Select Yes to clear NVRAM during boot-up. The options are Yes and No.

Plug & Play OS

Select Yes to allow the OS to conﬁ gure Plug & Play devices. (This is not required for system boot if your system has an OS that supports Plug & Play.) Select No to allow AMIBIOS to conﬁ gure all devices in the system.

PCI Latency Timer

This option sets the latency of all PCI devices on the PCI bus. Select a value to set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192, 224 and 248.

Allocate IRQ to PCI VGA

Set this value to allow or restrict the system from giving the VGA adapter card an interrupt address. The options are Yes and No.

Palette Snooping

Select "Enabled" to inform the PCI devices that an ISA graphics device is installed in the system in order for the graphics card to function properly. The options are Enabled and Disabled.

4-9

H8DM3-2/H8DMi-2 User’s Manual

PCI IDE BusMaster

Set this value to allow or prevent the use of PCI IDE busmastering. Select "Enabled" to allow AMI BIOS to use PCI busmaster for reading and writing to IDE drives. The options are Disabled and Enabled.

Offboard PCI/ISA IDE Card

This option allows the user to assign a PCI slot number to an Off-board PCI/ISA IDE card in order for it to function properly. The options are Auto, PCI Slot1, PCI Slot2, PCI Slot3, PCI Slot4, PCI Slot5, and PCI Slot6.

IRQ3/IRQ4/IRQ5/IRQ7/IRQ9/IRQ10/IRQ11/IRQ14/IRQ15

This feature speciﬁ es the availability of an IRQ to be used by a PCI/PnP device. Select Reserved for the IRQ to be used by a Legacy ISA device. The options are

Available and Reserved.

DMA Channel 0/1/3/5/6/7

This feature speciﬁ es the availability of a DMA channel. The options are Available and Reserved.

Reserved Memory Size

This setting sets the size of the memory block to reserve for Legacy ISA devices. The options are Disabled, 16k, 32k and 64k.

Onboard SAS Controller

This setting is used to Enable or Disable the onboard SAS controller.

 Super IO Conﬁ guration

Serial Port1 Address

This option speciﬁ es the base I/O port address and Interrupt Request address of serial port 1. Select "Disabled" to prevent the serial port from accessing any system resources. When this option is set to Disabled, the serial port physically becomes unavailable. Select "3F8/IRQ4" to allow the serial port to use 3F8 as its I/O port address and IRQ 4 for the interrupt address. The options are Disabled, 3F8/IRQ4, 3E8/IRQ4 and 2E8/IRQ3.

Serial Port2 Address

This option speciﬁ es the base I/O port address and Interrupt Request address of serial port 2. Select "Disabled" to prevent the serial port from accessing any system

4-10

Chapter 4: BIOS

resources. When this option is set to "Disabled", the serial port physically becomes unavailable. Select "2F8/IRQ3" to allow the serial port to use 2F8 as its I/O port address and IRQ 3 for the interrupt address. The options are Disabled, 2F8/IRQ3, 3E8/IRQ4 and 2E8/IRQ3.

Serial Port 2 Mode

Tells BIOS which mode to select for serial port 2. The options are Normal, IrDA and ASKIR.

Parallel Port Address

This option speciﬁ es the I/O address used by the parallel port. Select Disabled to prevent the parallel port from accessing any system resources. When the value of this option is set to Disabled, the printer port becomes unavailable. Select 378 to allow the parallel port to use 378 as its I/O port address. The majority of parallel ports on computer systems use IRQ7 and I/O Port 378H as the standard setting. Select 278 to allow the parallel port to use 278 as its I/O port address. Select 3BC to allow the parallel port to use 3BC as its I/O port address.

Parallel Port Mode

Specify the parallel port mode. The options are Normal, Bi-directional, EPP and ECP.

Parallel Port IRQ

Select the IRQ (interrupt request) for the parallel port. The options are IRQ5 and IRQ7.

4-11

H8DM3-2/H8DMi-2 User’s Manual

 Chipset Conﬁ guration  NorthBridge Conﬁ guration

 Memory Conﬁ guration

Bank Interleaving

Select Auto to automatically enable a bank-interleaving memory scheme when this function is supported by the processor. The options are Auto and Disabled.

Channel Interleaving

Selects the channel-interleaving memory scheme when this function is supported by the processor. The options are Disabled, Address Bits 6, Address Bits 12, XOR

of Address Bits [20:16, 6] and XOR of Address Bits [20:16, 9].

Enable Clock to All Dimms

Use this setting to enable unused clocks to all DIMMSs, even if some DIMM slots are unpopulated. Options are Enabled and Disabled.

Mem Clk Tristate C3/ALTVID

Use this setting to Enable or Disable memory clock tristate during C3 and ALT VID.

Memory Hole Remapping

When "Enabled", this feature enables hardware memory remapping around the memory hole. Options are Enabled and Disabled.

CS Sparing

This setting will reserve a spare memory rank in each node when enabled. Options are Enable and Disable.

DCT Unganged Mode

This setting enables unganged DRAM mode (64-bit). Options are Auto (ganged mode) and Always (unganged mode).

Power Down Enable

This setting enables or disables DDR power down mode. Options are Enabled and Disabled.

4-12

Chapter 4: BIOS

Power Down Mode This sets the power down mode. Options are Channel and Chip Select.

 ECC Conﬁ guration

DRAM ECC Enable

DRAM ECC allows hardware to report and correct memory errors automatically. Options are Enabled and Disabled.

DRAM Scrub Redirect

Allows system to correct DRAM ECC errors immediately, even with background scrubbing on. Options are Enabled and Disabled.

4-Bit ECC Mode

Allows the user to enabled 4-bit ECC mode (also known as ECC Chipkill). Options are Enabled and Disabled.

DRAM BG Scrub

Corrects memory errors so later reads are correct. Options are Disabled and various times in nanoseconds and microseconds.

L2 Cache BG Scrub

Allows L2 cache RAM to be corrected when idle. Options are Disabled and various times in nanoseconds and microseconds.

L3 Cache BG Scrub

Allows L3 cache RAM to be corrected when idle. Options are Disabled and various times in nanoseconds and microseconds.

DRAM Timing Conﬁ guration Memory Clock Mode

This setting speciﬁ es the memory clock mode. Options are Auto, Limit and Manual.

DRAM Timing Mode

This setting speciﬁ es the DRAM timing mode. Options are Auto, DCT0, DCT1 and Both.

Power Down Control

Allows DIMMs to enter power down mode by deasserting the clock enable signal when DIMMs are not in use. Options are Auto and Disabled.

4-13

H8DM3-2/H8DMi-2 User’s Manual

Alternate VID

Specify the alternate VID while in low power states. Options are Auto and various voltages from .800V to 1.050V in increments of .025V.

 SouthBridge Conﬁ guration

CPU/LDT Spread Spectrum

Enables spread spectrum for the CPU/LDT. Options are Center Spread, Down Spread or Disabled.

PCIE Spread Spectrum

Allows you to Enable or Disable spread spectrum for PCI-Express..

SATA Spread Spectrum

Enables spread spectrum for the SATA. Options are Enabled and Disabled.

Primary Graphics Adapter

Options are PCI Express --> PCI and PCI --> PCI Express.

USB 1.1 Controller

Enable or disable the USB 1.1 controller.

USB 2.0 Controller

Enable or disable the USB 2.0 controller.

MAC0 LAN0

Settings are Auto and Disabled for MAC0 LAN0.

MAC1 LAN1

Settings are Auto and Disabled for MAC1 LAN1.

Legacy USB Support

Select "Enabled" to enable the support for USB Legacy . Disable Legacy support if there are no USB devices installed in the system. "Auto" disabled Legacy support if no USB devices are connected. The options are Disabled, Enabled and Auto.

4-14

Chapter 4: BIOS

USB 2.0 Controller Mode

Select the controller mode for your USB ports. Options are HiSpeed and FullSpeed. (HiSpeed=480 Mbps, FullSpeed=12 Mbps).

BIOS EHCI Hand-Off

Enable or Disable a workaround for OS's without EHCI hand-off support.

 Event Log Conﬁ guration View Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Mark All Events as Read

Highlight this item and press <Enter> to mark all events as read.

Clear Event Log

Select Yes and press <Enter> to clear all event logs. The options are Yes and No to verify.

 PCI Express Conﬁ guration Active State Power Management

Used to Enable or Disable the PCI-Express L0 and L1 link power states.

 Remote Acess Conﬁ guration

Remote Access

Allows you to Enable or Disable remote access. If enabled, the settings below will appear.

Serial Port Number

Selects the serial port to use for console redirection. Options are COM1 and COM2.

Serial Port Mode

Selects the serial port settings to use. Options are (115200 8, n, 1), (57600 8, n,

1), (38400 8, n, 1), (19200 8, n, 1) and (09600 8, n, 1).

Flow Control

Selects the ﬂ ow control to be used for console redirection. Options are None, Hardware and Software.

4-15

H8DM3-2/H8DMi-2 User’s Manual

Redirection After BIOS POST

Options are Disable (no redirection after BIOS POST), Boot Loader (redirection during POST and during boot loader) and Always (redirection always active). Note that some OS's may not work with this set to Always.

Terminal Type

Selects the type of the target terminal. Options are ANSI, VT100 and VT-UTF8.

VT-UTF8 Combo Key Support

Allows you to Enable or Disable VT-UTF8 combination key support for ANSI/VT100 terminals.

Sredir Memory Display Delay

Use this setting to set the delay in seconds to display memory information. Options are No Delay, 1 sec, 2 secs and 4 secs.

 System Health Monitor

CPU Overheat Alarm

Use the "+" and "-" keys to set the CPU temperature threshold to between 65o and 90 sis will light up and an alarm will sound. The LED and alarm will turn off once the CPU temperature has dropped to 5 degrees below the threshold set. The default setting is 72

The submenu includes monitor displays for the following information: CPU1 Temperature, CPU2 Temperature (for dual CPU systems), System Tem-

perature, VCore1, VCore2 (for dual CPU systems), 3.3V, +5Vin, +12Vin, 5V stby and battery voltage.

C. When this threshold is exceeded, the overheat LED on the chas-

 System Fan Monitor

Fan Speed Control Modes

This feature allows the user to determine how the system will control the speed of the onboard fans. Select "Workstation" if your system is used as a Workstation. Select "Server" if your system is used as a Server. Select "Disable" to disable the fan speed control function to allow the onboard fans to continuously run at full speed (12V). The options are 1) Disabled (Full Speed) 2) Server Mode and 3) Workstation Mode.

4-16

Chapter 4: BIOS

FAN1 Speed through FAN8 Reading

The speeds of the onboard fans (in rpm) are displayed here.

4-4 Boot Menu

This feature allows the user to conﬁ gure the following items:

 Boot Device Priority

This feature allows the user to prioritize the boot sequence from the available devices.

 Removable Drives

This feature allows the user to specify the Boot sequence from available removable drives.

4-5 Security Menu

AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set ﬁ rst.

Change Supervisor Password

Select this option and press <Enter> to access the sub menu, and then type in the password.

Change User Password

Select this option and press <Enter> to access the sub menu, and then type in the password.

Boot Sector Virus Protection

This option is near the bottom of the Security Setup screen. Select "Disabled" to deactivate the Boot Sector Virus Protection. Select "Enabled" to enable boot sector protection. When "Enabled", AMI BIOS displays a warning when any program (or virus) issues a Disk Format command or attempts to write to the boot sector of the hard disk drive. The options are Enabled and Disabled.

4-17

H8DM3-2/H8DMi-2 User’s Manual

4-6 Exit Menu

Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen.

Save Changes and Exit

When you have completed the system conﬁ guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system conﬁ guration parameters can take effect. Select Save Changes and Exit from the Exit menu and press <Enter>.

Discard Changes and Exit

Select this option to quit BIOS Setup without making any permanent changes to the system conﬁ guration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to AMI BIOS Utility Program.

Load Optimal Defaults

To set this feature, select Load Optimal Defaults from the Exit menu and press <Enter>. Then Select "OK" to allow BIOS to automatically load the Optimal Defaults as the BIOS Settings. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications.

Load Fail-Safe Defaults

To set this feature, select Load Fail-Safe Defaults from the Exit menu and press <Enter>. The Fail-Safe settings are designed for maximum system stability, but not maximum performance.

4-18

Appendix A: BIOS Error Beep Codes

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list, on the following page, correspond to the number of beeps for the corresponding error. All errors listed, with the exception of Beep Code 8, are fatal errors.

POST codes may be read on the debug LEDs located beside the LAN port on the serverboard backplane. See the description of the Debug LEDs (LED1 and LED2) in Chapter 5.

A-1 AMIBIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset. (Ready to power up.)

5 short, 1 long Memory error No memory detected in system

8 beeps Display memory read/write error Video adapter missing or with faulty memory

A-1

H8DM3-2/H8DMi-2 User’s Manual

Notes

A-2

Appendix B: BIOS POST Checkpoint Codes

Appendix B

BIOS POST Checkpoint Codes

When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h.

B-1 Uncompressed Initialization Codes

The uncompressed initialization checkpoint codes are listed in order of execution:

Checkpoint Code Description

D0h The NMI is disabled. Power on delay is starting. Next, the initialization code check-

D1h Initializing the DMA controller, performing the keyboard controller BAT test, starting

D3h Starting memory sizing next. D4h Returning to real mode. Executing any OEM patches and setting the Stack next. D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The

sum will be veriﬁ ed.

memory refresh and entering 4 GB ﬂ at mode next.

initialization code is copied to segment 0 and control will be transferred to segment

B-1

H8DM3-2/H8DMi-2 User’s Manual

B-2 Bootblock Recovery Codes

The bootblock recovery checkpoint codes are listed in order of execution:

Checkpoint Code Description

E0h The onboard ﬂ oppy controller if available is initialized. Next, beginning the base

E1h Initializing the interrupt vector table next. E2h Initializing the DMA and Interrupt controllers next. E6h Enabling the ﬂ oppy drive controller and Timer IRQs. Enabling internal cache mem-

Edh Initializing the ﬂ oppy drive. Eeh Looking for a ﬂ oppy diskette in drive A:. Reading the ﬁ rst sector of the diskette. Efh A read error occurred while reading the ﬂ oppy drive in drive A:. F0h Next, searching for the AMIBOOT.ROM ﬁ le in the root directory. F1h The AMIBOOT .ROM ﬁ le is not in the root directory. F2h Next, reading and analyzing the ﬂ oppy diskette FAT to ﬁ nd the clusters occupied

F3h Next, reading the AMIBOOT.ROM ﬁ le, cluster by cluster. F4h The AMIBOOT .ROM ﬁ le is not the correct size. F5h Next, disabling internal cache memory. FBh Next, detecting the type of ﬂ ash ROM. FCh Next, erasing the ﬂ ash ROM.

512 KB memory test.

ory.

by the AMIBOOT.ROM ﬁ le.

FDh Next, programming the ﬂ ash ROM. FFh Flash ROM programming was successful. Next, restarting the system BIOS.

B-2

Appendix B: BIOS POST Checkpoint Codes

B-3 Uncompressed Initialization Codes

The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM.

Checkpoint Code Description

03h The NMI is disabled. Next, checking for a soft reset or a power on condition. 05h The BIOS stack has been built. Next, disabling cache memory. 06h Uncompressing the POST code next. 07h Next, initializing the CPU and the CPU data area. 08h The CMOS checksum calculation is done next. 0Ah The CMOS checksum calculation is done. Initializing the CMOS status register for

0Bh The CMOS status register is initialized. Next, performing any required initialization

0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to the

0Eh The keyboard controller BAT command result has been veriﬁ ed. Next, performing

0Fh The initialization after the keyboard controller BA T command test is done. The key-

10h The keyboard controller command byte is written. Next, issuing the Pin 23 and 24

11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing

12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2. 13h The video display has been disabled. Port B has been initialized. Next, initializing

14h The 8254 timer test will begin next. 19h Next, programming the ﬂ ash ROM. 1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.

date and time next.

before the keyboard BAT command is issued.

keyboard controller.

any necessary initialization after the keyboard controller BAT command test.

board command byte is written next.

blocking and unblocking command.

CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was set in AMIBCP or the <End> key was pressed.

the chipset.

2Bh Passing control to the video ROM to perform any required conﬁ guration before the

video ROM test.

2Ch All necessary processing before passing control to the video ROM is done. Look-

ing for the video ROM next and passing control to it.

2Dh The video ROM has returned control to BIOS POST. Performing any required pro-

cessing after the video ROM had control

23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature next.

Making the BIOS code segment writable and performing any necessary conﬁ gura- tion before initializing the interrupt vectors.

24h The conﬁ guration required before interrupt vector initialization has completed. In-

terrupt vector initialization is about to begin.

B-3

H8DM3-2/H8DMi-2 User’s Manual

Checkpoint Code Description

25h Interrupt vector initialization is done. Clearing the password if the POST DIAG

27h Any initialization before setting video mode will be done next. 28h Initialization before setting the video mode is complete. Conﬁ guring the mono-

2Ah Bus initialization system, static, output devices will be done next, if present. See the

2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not

2Fh The EGA/VGA controller was not found. The display memory read/write test is

30h The display memory read/write test passed. Look for retrace checking next. 31h The display memory read/write test or retrace checking failed. Performing the alter-

32h The alternate display memory read/write test passed. Looking for alternate display

34h Video display checking is over. Setting the display mode next. 37h The display mode is set. Displaying the power on message next. 38h Initializing the bus input, IPL, general devices next, if present. See the last page of

39h Displaying bus initialization error messages. See the last page of this chapter for

switch is on.

chrome mode and color mode settings next.

last page for additional information.

found, performing the display memory read/write test next.

about to begin.

nate display memory read/write test next.

retrace checking next.

this chapter for additional information.

additional information.

3Ah The new cursor position has been read and saved. Displaying the Hit <DEL> mes-

3Bh The Hit <DEL> message is displayed. The protected mode memory test is about

40h Preparing the descriptor tables next. 42h The descriptor tables are prepared. Entering protected mode for the memory test

43h Entered protected mode. Enabling interrupts for diagnostics mode next. 44h Interrupts enabled if the diagnostics switch is on. Initializing data to check memory

45h Data initialized. Checking for memory wraparound at 0:0 and ﬁ nding the total sys-

46h The memory wraparound test is done. Memory size calculation has been done.

47h The memory pattern has been written to extended memory. Writing patterns to the

48h Patterns written in base memory. Determining the amount of memory below 1 MB

49h The amount of memory below 1 MB has been found and veriﬁ ed. 4Bh The amount of memory above 1 MB has been found and veriﬁ ed. Checking for a

sage next.

to start.

next.

wraparound at 0:0 next.

tem memory size next.

Writing patterns to test memory next.

base 640 KB memory next.

next.

soft reset and clearing the memory below 1 MB for the soft reset next. If this is a power on situation, going to checkpoint 4Eh next.

B-4

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory

4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory size

4Eh The memory test started, but not as the result of a soft reset. Displaying the ﬁ rst

4Fh The memory size display has started. The display is updated during the memory

50h The memory below 1 MB has been tested and initialized. Adjusting the displayed

51h The memory size display was adjusted for relocation and shadowing. 52h The memory above 1 MB has been tested and initialized. Saving the memory size

53h The memory size information and the CPU registers are saved. Entering real mode

54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,

57h The A20 address line, parity , and the NMI are disabled. Adjusting the memory size

58h The memory size was adjusted for relocation and shadowing. Clearing the Hit

59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed. Starting

above 1 MB next.

next. Going to checkpoint 52h next.

64 KB memory size next.

test. Performing the sequential and random memory test next.

memory size for relocation and shadowing next.

information next.

next.

parity, and the NMI next.

depending on relocation and shadowing next.

<DEL> message next.

the DMA and interrupt controller test next.

60h The DMA page register test passed. Performing the DMA Controller 1 base register

62h The DMA controller 1 base register test passed. Performing the DMA controller 2

65h The DMA controller 2 base register test passed. Programming DMA controllers 1

66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt

67h Completed 8259 interrupt controller initialization. 7Fh Extended NMI source enabling is in progress. 80h The keyboard test has started. Clearing the output buffer and checking for stuck

81h A keyboard reset error or stuck key was found. Issuing the keyboard controller

82h The keyboard controller interface test completed. Writing the command byte and

83h The command byte was written and global data initialization has completed. Check-

84h Locked key checking is over. Checking for a memory size mismatch with CMOS

85h The memory size check is done. Displaying a soft error and checking for a password

test next.

base register test next.

and 2 next.

controller next.

keys. Issuing the keyboard reset command next.

interface test command next.

initializing the circular buffer next.

ing for a locked key next.

RAM data next.

or bypassing WINBIOS Setup next.

B-5

H8DM3-2/H8DMi-2 User’s Manual

Checkpoint Code Description

86h The password was checked. Performing any required programming before WIN-

87h The programming before WINBIOS Setup has completed. Uncompressing the

88h Returned from WINBIOS Setup and cleared the screen. Performing any necessary

89h The programming after WINBIOS Setup has completed. Displaying the power on

8Ch Programming the WINBIOS Setup options next. 8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller

8Fh The hard disk controller has been reset. Conﬁ guring the ﬂ oppy drive controller

91h The ﬂ oppy drive controller has been conﬁ gured. Conﬁ guring the hard disk drive

95h Initializing the bus option ROMs from C800 next. See the last page of this chapter

96h Initializing before passing control to the adaptor ROM at C800. 97h Initialization before the C800 adaptor ROM gains control has completed. The adap-

98h The adaptor ROM had control and has now returned control to BIOS POST. Perform-

BIOS Setup next.

WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.

programming after WINBIOS Setup next.

screen message next.

next.

controller next.

for additional information.

tor ROM check is next.

ing any required processing after the option ROM returned control.

99h Any initialization required after the option ROM test has completed. Conﬁ guring the

9Ah Set the timer and printer base addresses. Setting the RS-232 base address next. 9Bh Returned after setting the RS-232 base address. Performing any required initializa-

9Ch Required initialization before the Coprocessor test is over. Initializing the Coproces-

9Dh Coprocessor initialized. Performing any required initialization after the Coproces-

9Eh Initialization after the Coprocessor test is complete. Checking the extended keyboard,

A2h Displaying any soft errors next. A3h The soft error display has completed. Setting the keyboard typematic rate next. A4h The keyboard typematic rate is set. Programming the memory wait states next. A5h Memory wait state programming is over. Clearing the screen and enabling parity

A7h NMI and parity enabled. Performing any initialization required before passing control

A8h Initialization before passing control to the adaptor ROM at E000h completed. Passing

timer data area and printer base address next.

tion before the Coprocessor test next.

sor next.

sor test next.

keyboard ID, and Num Lock key next. Issuing the keyboard ID command next.

and the NMI next.

to the adaptor ROM at E000 next.

control to the adaptor ROM at E000h next.

B-6

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

A9h Returned from adaptor ROM at E000h control. Performing any initialization required

Aah Initialization after E000 option ROM control has completed. Displaying the system

Abh Uncompressing the DMI data and executing DMI POST initialization next. B0h The system conﬁ guration is displayed. B1h Copying any code to speciﬁ c areas. 00h Code copying to speciﬁ c areas is done. Passing control to INT 19h boot loader

after the E000 option ROM had control next.

conﬁ guration next.

next.

B-7

H8DM3-2/H8DMi-2 User’s Manual

Notes

B-8

Supero H8DM3-2, H8DMi-2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
