Supero H8DCT-F, H8DCT-IBQF User Manual

USER’S MANUAL

Revision 1.1c

®

SUPER

H8DCT-F

H8DCT-IBQF

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
and makes no commitment to update or to keep current the information in this manual, or to notify
any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at

www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL
NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED
WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall be
the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims
will not exceed the price paid for the hardware product.

FCC Statement: Refer to Supermicro's web site for FCC Compliance Information.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.1c
Release Date: March 04, 2014
Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.
Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

Preface

iii

Preface

About This Manual

This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
H8DCT-F/IBQF serverboard.

The H8DCT-F/IBQF serverboard is based on the AMD® SR5670/SP5100 chipset
and supports two AMD Socket C32 type processors with up to 64 GB of ECC/
Non-ECC UDIMM or up to 192 GB of ECC RDIMM. This board series includes the
following serverboards and characteristics:

Serverboard Embeded IPMI Embeded Infi niBand

H8DCT-F Yes
H8DCT-IBQF Yes Yes

Please refer to the motherboard specifi cations pages on our web site for updates on
supported processors (http://www.supermicro.com/aplus/). This product is intended
to be professionally installed.

Manual Organization

Chapter 1 includes a checklist of what should be included in your motherboard

box, describes the features, specifi cations and performance of the motherboard
and provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read this
chapter when installing the processor(s) and memory modules and when installing
the motherboard in a chassis. Also refer to this chapter to connect the hard disk
drives, the various ports, and the power and reset buttons and the system LEDs.

If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the setup confi guration stored in CMOS.
For quick reference, a general FAQ (Frequently Asked Questions) section is
provided. Instructions are also included for contacting technical support. In addition,
you can visit our web site for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages.
Appendix B lists BIOS POST Checkpoint Codes.

iv

Table of Contents

Chapter 1 Introduction

1-1 Overview .........................................................................................................1-1

Checklist ..........................................................................................................1-1

1-2 Contacting Supermicro ....................................................................................1-2

1-3 Serverboard Features .....................................................................................1-6

1-4 Chipset Overview ............................................................................................1-9

AMD SR5670/SP5100 Chipset .......................................................................1-9

HyperTransport Technology ............................................................................ 1-9

1-5 PC Health Monitoring ...................................................................................... 1-9

1-6 Power Confi guration Settings........................................................................1-10

1-7 Power Supply .................................................................................................1-11

1-8 Super I/O ........................................................................................................1-11

Chapter 2 Installation

2-1 Standardized Warning Statements .................................................................2-1

About Standardized Warning Statements ....................................................... 2-1

2-2 Static-Sensitive Devices ..................................................................................2-4

Precautions .....................................................................................................2-4

Unpacking .......................................................................................................2-4

2-3 Processor and Heatsink Installation................................................................ 2-5

2-4 Mounting the Serverboard into a Chassis ......................................................2-7

2-5 Installing Memory ............................................................................................2-7

DIMM Module Population Confi guration .................................................... 2-9

2-6 PCI Expansion Cards .................................................................................... 2-10

2-7 I/O Port and Control Panel Connections .......................................................2-11

Front Control Panel ........................................................................................2-11

2-8 Connector Defi nitions ................................................................................... 2-12

Power Connectors ...................................................................................2-12

Auxiliary Power Connector ....................................................................... 2-12

Power Connector ......................................................................................2-12

Reset Connector ...................................................................................... 2-12

Power Fail LED ........................................................................................ 2-13

Overheat/Fan Fail/UID LED ..................................................................... 2-13

NIC2 (Activity) LED .................................................................................. 2-13

NIC1 (Activity) LED .................................................................................. 2-13

HDD LED ..................................................................................................2-13

Power On LED ......................................................................................... 2-14

Table of Contents

v

NMI Button ............................................................................................... 2-14

Serial Ports ............................................................................................... 2-14

LAN1/2 (Ethernet Ports) ........................................................................... 2-14

Trusted Platform Module Header ............................................................. 2-15

Overheat LED ...........................................................................................2-15

Chassis Intrusion .....................................................................................2-15

Video Connector .......................................................................................2-15

IPMB .........................................................................................................2-16

Power SMB (I

2

C) ......................................................................................2-16

Universal Serial Bus Ports ....................................................................... 2-16

T-SGPIO ...................................................................................................2-16

USB Headers ........................................................................................... 2-17

Unit Identifi er Button ................................................................................. 2-17

Fan Headers .............................................................................................2-17

2-9 Jumper Settings ............................................................................................ 2-18

Explanation of Jumpers ................................................................................2-18

CMOS Clear .............................................................................................2-18

Infi niBand Port Enable/Disable

(H8DCT-IBQF only) .................................................................................. 2-19

I2C to PCI-Express Slots ......................................................................... 2-19

BMC Jumper ............................................................................................ 2-19

VGA Enable/Disable .................................................................................2-19

Watch Dog Enable/Disable ...................................................................... 2-20

LAN Enable/Disable ................................................................................2-20

2-10 Onboard Indicators ........................................................................................2-21

GLAN LEDs .............................................................................................. 2-21

IPMI Dedicated LAN LEDs .......................................................................2-21

UID LED (LE1) ........................................................................................2-21

Power LED ...............................................................................................2-22

2-11 SATA Drive Connections ...............................................................................2-22

SATA Ports ............................................................................................... 2-22

2-12 Enabling SATA RAID ..................................................................................... 2-23

Serial ATA (SATA).......................................................................................... 2-23

Installing the OS/SATA Driver .......................................................................2-23

Building a Driver Diskette .........................................................................2-23

Enabling SATA RAID in the BIOS ................................................................. 2-24

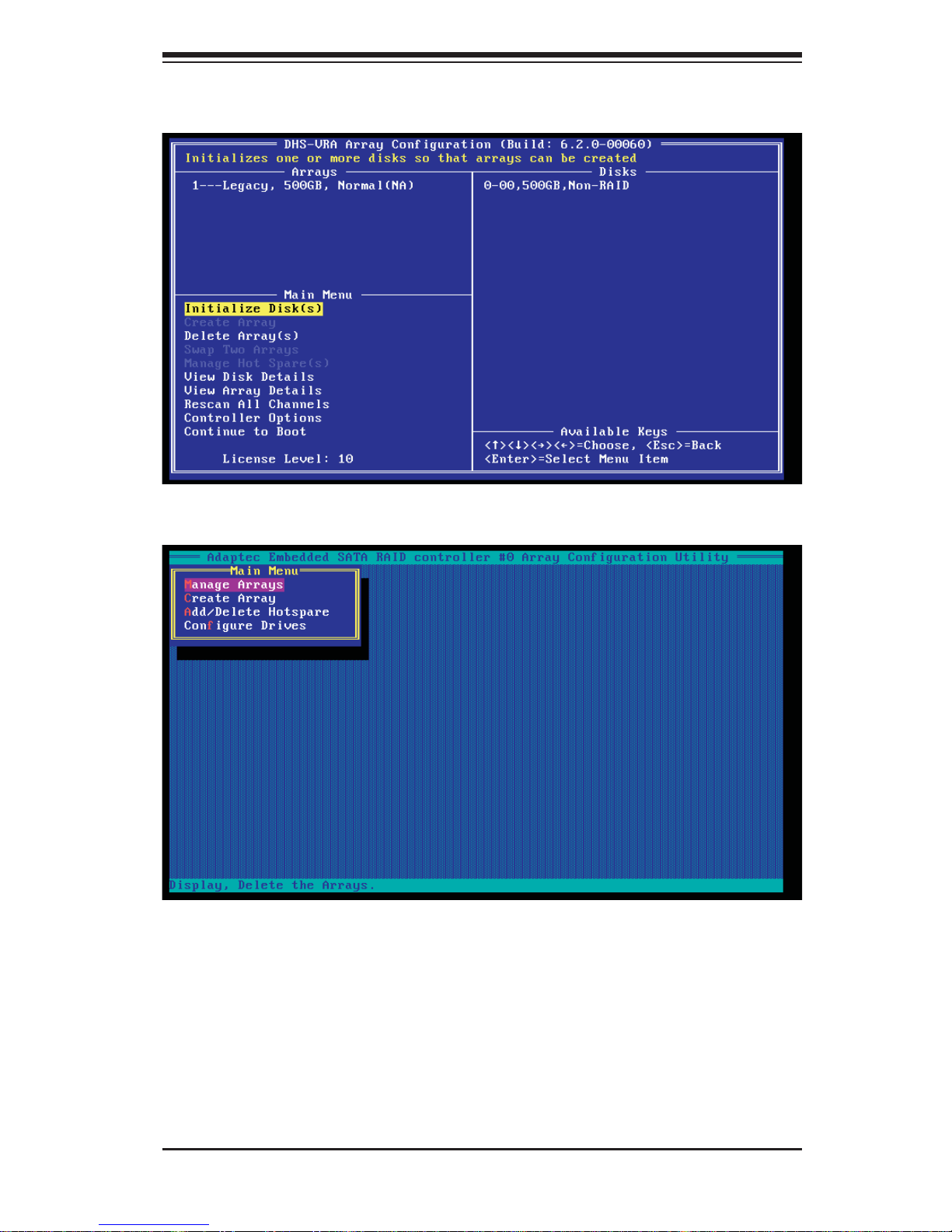

Using the DotHill and Adaptec RAID Utility ..................................................2-26

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

Table of Contents

vi

Installing the RAID Driver During OS Installation ......................................... 2-26

2-13 Installing Drivers ............................................................................................2-27

Supero Doctor III ........................................................................................... 2-28

2-14 Serverboard Battery ......................................................................................2-30

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ............................................................................................3-1

No Power ........................................................................................................ 3-1

No Video ......................................................................................................... 3-2

Memory Errors ............................................................................................... 3-2

Losing the System’s Setup Confi guration .......................................................3-2

3-2 Technical Support Procedures ........................................................................ 3-2

3-3 Frequently Asked Questions ........................................................................... 3-3

3-4 Returning Merchandise for Service................................................................. 3-4

Chapter 4 BIOS

4-1 Introduction ......................................................................................................4-1

4-2 Main Menu ...................................................................................................... 4-2

4-3 Advanced Settings Menu ................................................................................ 4-2

4-3 Security Menu ............................................................................................... 4-15

4-4 Boot Menu ..................................................................................................... 4-15

4-5 Exit Menu ...................................................................................................... 4-17

Appendix A BIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes

B-1 Uncompressed Initialization Codes ................................................................. B-1

B-2 Bootblock Recovery Codes ............................................................................. B-2

B-3 Uncompressed Initialization Codes ................................................................. B-3

Chapter 1: Introduction

1-1

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.

• One (1) H8DCT-F/IBQF serverboard

• Two (2) I/O cables (CBL-0228L)

Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your motherboard.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• Product safety information:

http://super-dev/about/policies/safety_information.cfm

• If you have any questions, please contact our support team at:

[e-mail]

1-2

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

1-2 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)
Web Site:

www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)
Web Site:

www.supermicro.com

Asia-Pacifi c

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Tel: [phone]
Web Site:

www.supermicro.com.tw

Chapter 1: Introduction

1-3

Figure 1-1. H8DCT-IBQF Image

1-4

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

Notes:

1. Jumpers not indicated are for test purposes only.

2. Not all ports, jumpers or LED Indicators are available on all serverboards.

Figure 1-2. H8DCT-F/IBQF Serverboard Layout

(not drawn to scale)

FAN2

FAN1

FAN3

IPMB

JPW2

JPW1

Speaker

UID
LE1

JB2

JTPM1

PCI-Express x16 Gen. 2

DP2

JBT1

Battery

JL1

JPG1

JWD1

JPL1

JF1

SATA2

SATA0
SATA1

SATA3

T-SGPIO1

P2-DIMM2C

P2-DIMM1C

P1-DIMM2C

P1-DIMM1C

JPB1

IPMI_LAN

JOH1

JI2C1

VGA

COM1

P1-DIMM2A

P1-DIMM2B

P1-DIMM1A

P1-DIMM1B

USB2/3

LAN2

LAN1

USB0/1

P2-DIMM2A

P2-DIMM2B

P2-DIMM1B

P2-DIMM1A

CPU1

CPU2

IB

BMC

NIC

AMD

SR5670

AMD

SP5100

JPI2C1

J163

JIB1

JI2C2

Chapter 1: Introduction

1-5

H8DCT-F/IBQF Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear (See Section 2-8)
JIB1 Infi niBand Enable/Disable (H8DCT-IBQF only) Pins 1-2 (Enabled)
JI2C1/JI2C2 I2C to PCI-E Slot Enable/Disable Open (Disabled)
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN 1/2 Enable/Disable Pins 1-2 (Enabled)
JWD1 Watch Dog Enable/Disable Pins 1-2 (Reset)

LED Description

LAN Ports LEDs for the LAN Ethernet ports
Dedicated IPMI LAN LEDs for the dedicated IPMI LAN Ethernet port
DP2 LED for Serverboard Power-On
LE1 LED for UID Button

Connector Description

COM1 COM1 Serial Port/Header
FAN 1-3 Chassis/CPU Fan Headers
IPMB System Management Bus Header (SMBus)
IPMI LAN Dedicated IPMI LAN Port
J163 Auxiliary Power Connector
JB2 Infi niBand Connector (H8DCT-IBQF only)
JF1 Front Panel Connector
JL1 Chassis Intrusion Header
JOH1 Overheat Warning Header
JTPM1 Trusted Platform Module Header
JPI2C1 Power I2C Header
JPW1/JPW2 20-Pin Proprietary Power Connectors
LAN1/2 Gigabit Ethernet (RJ45) Ports
SATA0 ~ SATA3 SATA Ports
T-SGPIO1 Serial General Purpose Input/Output Header for SATA
UID Unit Identifi er Button
USB0/1, USB2/3 Universal Serial Bus (USB) Ports and Headers
VGA VGA Connector

1-6

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

1-3 Serverboard Features

CPU

• Dual AMD Opteron 4000 series (AMD Socket C32 type) processor

Note: Refer to our web site for details on supported processors.

Memory

• Up to twelve (12) DIMM slots support up to 64 GB of ECC/Non-ECC

UDIMM or up to 192 GB of ECC RDIMM DDR3-1600/1333/1066 Mhz speed,
1 GB, 2 GB, 4 GB, 8 GB, 16 GB or 32 GB size SDRAM of 1.5V or 1.35V
voltages.

Note: Refer to Section 2-5 before installing memory and our web site for recommended DIMMs.

Chipset

• AMD SR5670 chipset and one SP5100 Southbridge chipset

Expansion Slots

• One (1) PCI-Express x16 Gen. 2

BIOS

• 16 Mb AMI BIOS® SPI Flash ROM

• DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS 2.3, Real

Time Clock Wakeup, Plug and Play (PnP), BIOS resume hot keys, Hardware
BIOS Virus Protection

PC Health Monitoring

• Onboard voltage monitors

• Fan status monitor with fi rmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System resource alert (via included utility program)

• Auto-switching voltage regulator for the CPU core

• CPU thermal trip support

• I

2

C temperature sensing logic

• Chipkill Support

Chapter 1: Introduction

1-7

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

Onboard I/O

• Four (4) SATA ports supported by an on-chip SATA controller (RAID 0, 1, 10

supported)

• Four (4) USB (Universal Serial Bus 2.0) ports (2x rear, 2x header)

• Two (2) LAN ports supported by one onboard Intel® 82576 Ethernet controller

for 10/100/1000Base-T

• One (1) dedicated IPMI LAN port

• One (1) VGA port supported by an onboard Matrox

®

G200eW graphics controller

(with 16 MB DDR2 memory)

• One COM Port (external serial port)

• One Mellonox Connect-X Infi niBand supporting a single QSFP connector

Other

• Onboard power LED

• Chassis intrusion detection

Utilities

• BIOS fl ash upgrade utility

• Super Doctor III

• IPMI 1.5 / 2.0

Dimensions

• Proprietary format: (LxW) 6.5" x 16.64" (165 x 423 mm)

1-8

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

AMD

Socket C32

CPU2

HT3 Link
16x16 bits 5.2GT/s

PCI-E GEN2 X16

Slot1

PCI-E GEN2 X4

INTEL

KAWELA

A-Link

SP5100

SATA x4

BMC
VGA

WPCM450-R

PCI

SMBus

SIO

W83527

SPI Flash

RMII

DDR2 SDRAM

64Mb X16bit

PSU I2C

IPMB

VGA

RJ45 USB x4

FE PHY

RTL8201N

LPC

HWM

W83795G

SR5670

RJ45

RJ45

COM1

PCI-E GEN2 X8

Mellanox

ConnectX

DDR3

1600/1333

/1066 MT/s

DIMM 1A

DIMM 1B

DIMM 1C

DIMM 2A

DIMM 2B

DIMM 2C

CH 2

CH 1

DDR3

1600/1333

/1066 MT/s

DIMM 1A

DIMM 1B

DIMM 1C

DIMM 2A

DIMM 2B

DIMM 2C

CH 1

HT3 Link

16 x16 bits 6.4GT/s

HT3 Link

16 x16 bits 6.4GT/s

CH 2

AMD

Socket C32

CPU1

Figure 1-3. AMD SR5670/SP5100 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the previous pages for the

actual specifi cations of your motherboard.

Chapter 1: Introduction

1-9

1-4 Chipset Overview

The H8DCT-F/IBQF serverboard is based on the AMD SR5670/SP5100 chipset. This
chipset functions as a Media and Communications Processor (MCP). Controllers for
the system memory are integrated directly into AMD Opteron processors.

AMD SR5670/SP5100 Chipset

The AMD SR5670/SP5100 chispsets are each a single-chip, high-performance
HyperTransport peripheral controller. They include a 30-lane PCI Express interface,
an AMD Opteron 16-bit Hyper Transport interface link, a four-port Serial ATA
interface and a four-port USB 2.0 interface. This hub connects directly to the CPU.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was
designed to increase the communication speed by a factor of up to 48x between
integrated circuits. This is done partly by reducing the number of buses in the
chipset to reduce bottlenecks and by enabling a more effi cient use of memory
in multi-processor systems. The end result is a signifi cant increase in bandwidth
within the chipset.

1-5 PC Health Monitoring

This section describes the PC health monitoring features of the H8DCT-F/IBQF
serverboard. The serverboard has an onboard System Hardware Monitor chip that
supports PC health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once
a voltage becomes unstable, it will give a warning or send an error message to
the screen. Users can adjust the voltage thresholds to defi ne the sensitivity of the
voltage monitor. Real time readings of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard
fans are controlled by thermal management via BIOS.

1-10

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning
function in the BIOS. This allows the user to defi ne an overheat temperature. When
this temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail
warning LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 5-phase-switching voltage regulator for the CPU core can support up to
AMD Opteron 4000 series processors and auto-sense voltage IDs ranging from 0.8
V to 1.55V. This will allow the regulator to run cooler and thus make the system
more stable.

1-6 Power Confi guration Settings

This section describes the features of your motherboard that deal with power and
power settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for a PC that is always on but appears
to be off and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.

Note: To wake up the system from an S4 state by the USB keyboard/mouse, please
connect the keyboard/mouse to USB port 0/1 at the rear I/O side.

Chapter 1: Introduction

1-11

Main Switch Override Mechanism

The power button can function as a system suspend button. When the user
depresses the power button, the system will enter a SoftOff state. The monitor
will be suspended and the hard drive will spin down. Depressing the power button
again will cause the whole system to wake-up. During the SoftOff state, the power
supply provides power to keep the required circuitry in the system alive. In case the
system malfunctions and you want to turn off the power, just depress and hold the
power button for 4 seconds. The power will turn off and no power will be provided
to the motherboard.

1-7 Power Supply

As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.

The H8DCT-F/IBQF serverboard requires the use of proprietary power supplies.
Please refer to the pinout information for the power connectors in Section 7 of
Chapter 2 for detailed information on power requirements.

In areas where noisy power transmission is present, you may choose to install a
line fi lter to shield the computer from noise. It is recommended that you also install
a power surge protector to help avoid problems caused by power surges.

Warning: To prevent the possibility of explosion, do not use the wrong type of
onboard CMOS battery or install it upside down.

1-8 Super I/O

The disk drive adapter functions of the Super I/O Winbond® BMC chip includes a
data separator, write pre-compensation circuitry, decode logic, data rate selection,
a clock generator, drive interface control logic and interrupt and DMA logic. The
wide range of functions integrated onto the Super I/O greatly reduces the number
of components required for interfacing with fl oppy disk drives.

The Super I/O provides two high-speed, 16550 compatible serial communication
ports (UARTs), one of which supports serial infrared communication. Each UART
includes a 16-byte send/receive FIFO, a programmable baud rate generator,
complete modem control capability and a processor interrupt system. Both UARTs
provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced
speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed
modems.

1-12

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

The Super I/O provides functions that comply with ACPI (Advanced Confi guration
and Power Interface), which includes support of legacy and ACPI power management
through a SMI or SCI function pin. It also features auto power management to reduce
power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be fl exibly adjusted
to meet ISA PnP requirements, which support ACPI and APM (Advanced Power
Management).

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Standardized Warning Statements

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user
of situations which have the potential for bodily injury. Should you have questions
or experience difficulty, contact Supermicro's Technical Support department
for assistance. Only certifi ed technicians should attempt to install or confi gure
components.

Read this section in its entirety before installing or confi guring components in the
Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.

com/about/policies/safety_information.cfm.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the
battery only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメー

カーが推奨する型、または同 等 のものを使用下さい。 使用済電池は製造元の指示に従

って処 分して下さい。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更
换原有电池。请按制造商的说明处理废旧电池。

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有
電池。請按照製造商的說明指示處理廢棄舊電池。

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

2-2

Warnung
Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.
Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention
Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Jeter les piles usagées conformément aux instructions du fabricant.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל

ﺮﻄﺧ ﻙﺎﻨﻫ ﻦﻣ ﻝﺍﺪﺒﺘﺳﺍ ﺔﻟﺎﺣ ﻲﻓ ﺭﺎﺠﻔﻧﺍ ﺔﻳﺭﺎﻄﺒﻟﺍ ﺔﺤﻴﺤﺻ ﺮﻴﻏ ﺔﻘﻳﺮﻄﺑ ﻚﻴﻠﻌﻓ

ﺔﻳﺭﺎﻄﺒﻟﺍ ﻝﺍﺪﺒﺘﺳﺍ

ﻂﻘﻓ ﻉﻮﻨﻟﺍ ﺲﻔﻨﺑ ﺎﻬﻟﺩﺎﻌﻳ ﺎﻣ ﻭﺃ ﺎﻤﻛﺖﺻﻭﺃ ﺔﻌﻨﺼﻤﻟﺍ ﺔﻛﺮﺸﻟﺍ ﻪﺑ

ﺕﺎﻳﺭﺎﻄﺒﻟﺍ ﻦﻣ ﺺﻠﺨﺗ ﻟ ﺎﻘﻓﻭ ﺔﻠﻤﻌﺘﺴﻤﻟﺍﺔﻌﻧﺎﺼﻟﺍ ﺔﻛﺮﺸﻟﺍ ﺕﺎﻤﻴﻠﻌﺘ

Waarschuwing
Er is ontploffi ngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen
wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd
te worden.

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와
동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다.
제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

¡Advertencia!
Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

Reemplazar la batería exclusivamente con el mismo tipo o el equivalente
recomendado por el fabricante. Desechar las baterías gastadas según las
instrucciones del fabricante.

Chapter 2: Installation

2-3

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws
and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が

あります。

警告

本产品的废弃处理应根据所有国家的法律和规章进行。

警告

本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung
Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.
¡Advertencia!
Al deshacerse por completo de este producto debe seguir todas las leyes y

reglamentos nacionales.
Attention
La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de
l'organisme compétent.

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

Waarschuwing
De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

ﻲﺋﺎﻬﻨﻟﺍ ﺺﻠﺨﺘﻟﺍ ﻦﻣ ﺞﺘﻨﻤﻟﺍ ﺍﺬﻫ ﻪﻌﻣ ﻞﻣﺎﻌﺘﻟﺍ ﻲﻐﺒﻨﻳ ﻟ ﺎﻘﻓﻭ ﻊﻴﻤﺠﺔﻴﻨﻁﻮﻟﺍ ﺢﺋﺍﻮﻠﻟﺍﻭ ﻦﻴﻧﺍﻮﻘﻟﺍ ﺪﻨﻋ

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

2-4

2-2 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent
damage to your system board, it is important to handle it very carefully . The following
measures are generally suffi cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not

in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the motherboard.

• Use only the correct type of CMOS onboard battery as specifi ed by the

manufacturer. Do not install the CMOS onboard battery upside down, which
may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure the person handling it is static protected.

Chapter 2: Installation

2-5

2-3 Processor and Heatsink Installation

Caution: Exercise extreme caution when handling and installing the processor. Always

connect the power cord last and always remove it before adding, removing or changing
any hardware components.

Installation Procedure

Follow the procedures as listed below to install the motherboard into a chassis.

1. Install the processor(s) and the heatsink(s).

2. Install the motherboard in the chassis.

3. Install the memory and add-on cards.

4. Finally, connect the cables and install the drivers.

Installing the Processors

1. Begin by removing the cover plate
that protects the CPU. Lift the
lever on the CPU socket until it
points straight up. With the lever
raised, lift open the silver CPU
retention plate.

Triangles

2. Use your thumb and your index
fi nger to hold the CPU. Locate
and align pin 1 of the CPU socket
with pin 1 of the CPU. Both are
marked with a triangle.

H8DCT-F/IBQF SERVERBOARD USER'S MANUAL

2-6

Installing the Heatsinks

We recommend the use of active type heatsinks (except for 1U systems). Use any
onboard fan header for the CPU's heatsink fan. To install the heatsink, please follow
the installation instructions that are included with your heatsink package.

Note: Make sure the heatsink is placed so that the fi ns of the heatsink are in the
direction of the airfl ow in your system.

3. Align pin 1 of the CPU with pin
1 of the socket. Once aligned,
carefully place the CPU into the
socket. Do not drop the CPU

on the socket, move the CPU
horizontally or vertically or rub the
CPU against the socket or against
any pins of the socket, which
may damage the CPU and/or the
socket.

4. With the CPU inserted into the
socket, inspect the four corners
of the CPU to make sure that it is
properly installed and fl ush with
the socket. Then, gently lower
the silver CPU retention plate into
place.

Caution: The CPU will only seat inside the socket in one direction. Make sure it is
properly inserted before closing the load plate. If it doesn't close properly, do not force
it as it may damage your CPU. Instead, open the load plate again and double-check
that the CPU is aligned properly.
