Supero H8DA3-2, H8DAi-2 User Manual

®

SUPER

H8DA3-2
H8DAi-2

USER’S MANUAL

Revision 1.0c

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.0c
Release Date: January 9, 2008

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2008 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

Preface

Preface

About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

H8DA3-2/H8DAi-2 serverboard. The H8DA3-2/H8DAi-2 is based on the nVidia®

MCP55 chipset and supports single or dual AMD Socket F type processors and up

to 32 GB of DDR2-667/533/400 registered ECC SDRAM.

Please refer to the serverboard specifi cations pages on our web site for updates on

supported processors (http://www.supermicro.com/aplus/). This product is intended

to be professionally installed.

Manual Organization

Chapter 1 includes a checklist of what should be included in your serverboard

box, describes the features, specifi cations and performance of the serverboard and

provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices. Read this

chapter when installing the processor(s) and memory modules and when installing

the serverboard in a chassis. Also refer to this chapter to connect the fl oppy and

hard disk drives, the parallel and serial ports, the mouse and keyboard and the

twisted wires for the power and reset buttons and the system LEDs.

If you encounter any problems, see Chapter 3, which describes troubleshooting

procedures for the video, the memory and the setup confi guration stored in CMOS.

For quick reference, a general FAQ (Frequently Asked Questions) section is pro-

vided. Instructions are also included for contacting technical support. In addition,

you can visit our web site for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages.

Appendix B lists BIOS POST Checkpoint Codes.

iii

H8DA3-2/H8DAi-2 User’s Manual

Table of Contents

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .................................................................................................... 1-1

Contacting Supermicro ............................................................................. 1-2

H8DA3-2/H8DAi-2 Image ......................................................................... 1-3

H8DA3-2/H8DAi-2 Serverboard Layout .................................................... 1-4

H8DA3-2/H8DAi-2 Quick Reference ......................................................... 1-5

Serverboard Features .............................................................................. 1-6

Chipset: System Block Diagram ............................................................... 1-8

1-2 Chipset Overview ........................................................................................... 1-9

1-3 PC Health Monitoring ................................................................................... 1-10

1-4 Power Confi guration Settings ....................................................................... 1-11

1-5 Power Supply ............................................................................................... 1-12

1-6 Super I/O ........................................................................................................ 1-13

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Serverboard into a Chassis ...................................................... 2-5

2-4 Installing Memory ........................................................................................... 2-5

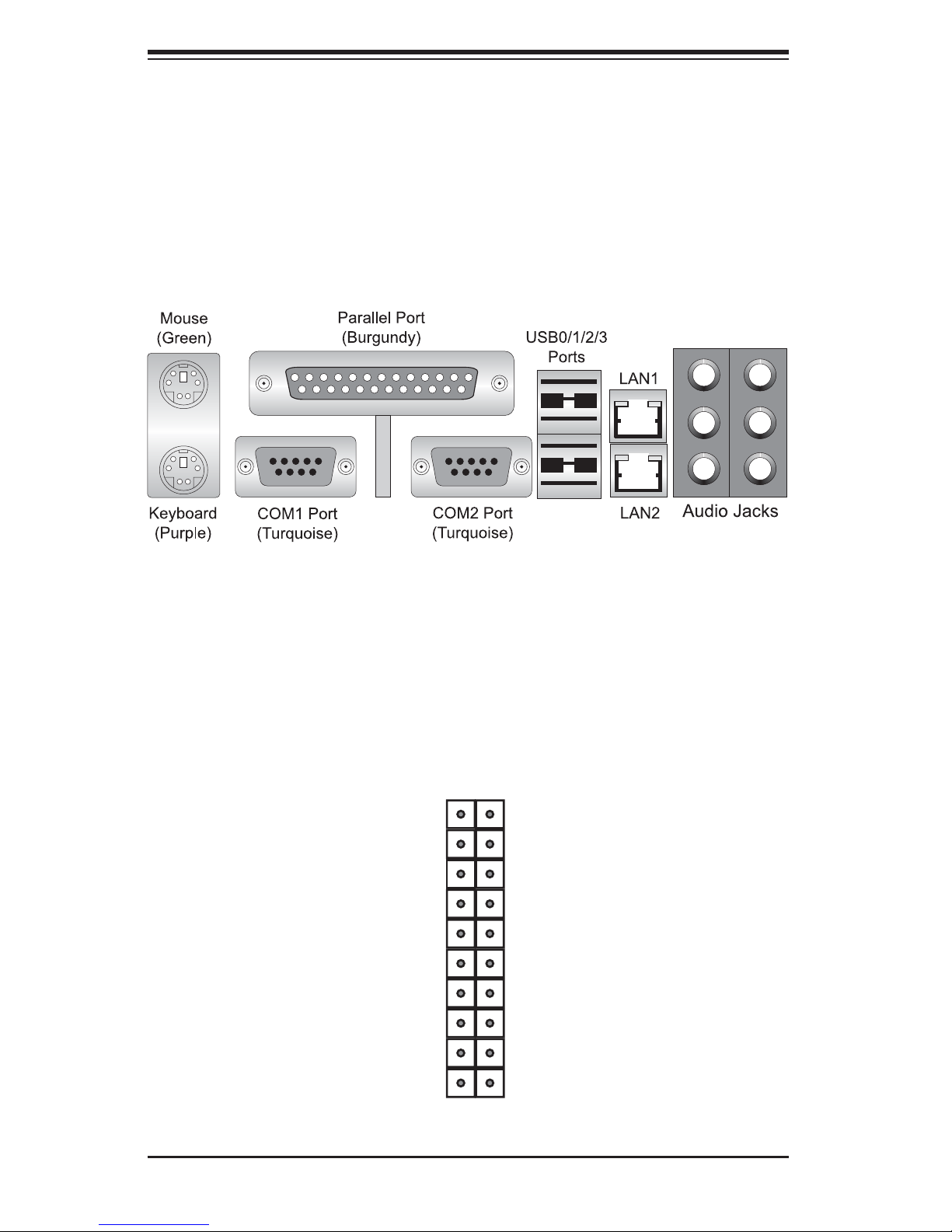

2-5 I/O Port and Control Panel Connections ........................................................ 2-8

2-6 Connector Defi nitions ..................................................................................... 2-9

ATX Power Connector ............................................................................ 2-9

Processor Power Connector ..................................................................... 2-9

Auxiliary Power Connector ........................................................................ 2-9

Power LED ............................................................................................... 2-9

HDD LED .............................................................................................. 2-10

NIC1 LED ................................................................................................ 2-10

NIC2 LED ................................................................................................ 2-10

Overheat/Fan Fail LED ......................................................................... 2-10

Power Fail LED ....................................................................................... 2-11

Reset Button ............................................................................................ 2-11

Power Button ........................................................................................ 2-11

Universal Serial Bus Ports (USB0/1/2/3) ............................................... 2-11

USB Ports ................................................................................................ 2-11

USB Headers ......................................................................................... 2-12

iv

Table of Contents

Serial Ports .............................................................................................. 2-12

Fan Headers .......................................................................................... 2-12

LAN1/2 (Ethernet Ports) .......................................................................... 2-12

Power LED/Speaker ............................................................................. 2-13

ATX PS/2 Keyboard/Mouse Ports ......................................................... 2-13

Overheat LED .......................................................................................... 2-13

CD IN Header .......................................................................................... 2-13

Wake-On-LAN ......................................................................................... 2-14

Wake-On-Ring ......................................................................................... 2-14

Power Supply I

2

C Header ....................................................................... 2-14

Power Fail Alarm Reset Header ............................................................ 2-15

Compact Flash Power Header ............................................................... 2-15

SGPIO .................................................................................................... 2-15

Chassis Intrusion .................................................................................... 2-16

Audio Output Header ............................................................................. 2-16

Audio Ports ............................................................................................. 2-17

2-7 Jumper Settings ............................................................................................ 2-18

Explanation of Jumpers ......................................................................... 2-18

CMOS Clear ........................................................................................... 2-18

3rd Power Supply Fail Signal Enable/Disable ........................................ 2-19

2

I

C to PCI Enable/Disable ....................................................................... 2-19

Watch Dog Enable/Disable ..................................................................... 2-19

Power LED/Speaker ............................................................................... 2-20

USB Power Select ................................................................................. 2-20

Compact Flash Master/Slave ................................................................. 2-20

SAS Controller Enable/Disable .............................................................. 2-21

2-8 Onboard Indicators ........................................................................................ 2-21

LAN1/LAN2 LEDs .................................................................................... 2-21

+3.3V Standby LED ................................................................................ 2-21

2-9 Floppy, IDE, Parallel Port, SAS and SATA Drive Connections .................... 2-22

Floppy Connector .................................................................................... 2-22

IDE Connector ......................................................................................... 2-23

Parallel Port Connector ........................................................................... 2-24

SATA Ports .............................................................................................. 2-24

SAS Ports ............................................................................................... 2-25

2-10 Enabling SATA RAID .................................................................................... 2-26

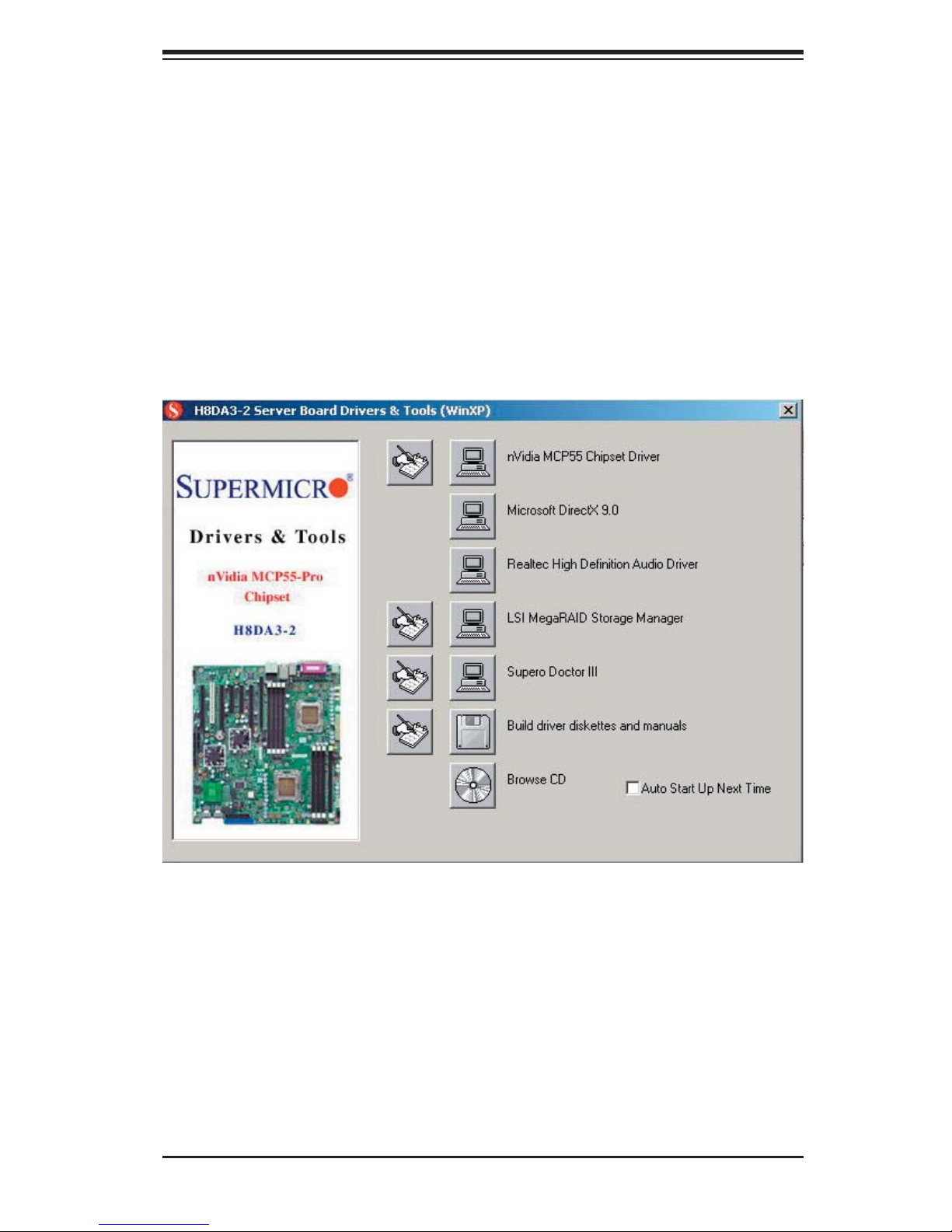

2-11 Installing Drivers ........................................................................................... 2-29

v

H8DA3-2/H8DAi-2 User’s Manual

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ....................................................................................... 3-1

No Power ................................................................................................... 3-1

No Video .................................................................................................. 3-1

Memory Errors ........................................................................................... 3-2

Losing the System’s Setup Confi guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................. 3-4

Chapter 4: BIOS

4-1 Introduction ...................................................................................................... 4-1

4-2 Main Menu ...................................................................................................... 4-2

4-3 Advanced Settings Menu ............................................................................... 4-2

4-4 Boot Menu ..................................................................................................... 4-18

4-5 Security Menu ................................................................................................ 4-18

4-6 Exit Menu ...................................................................................................... 4-19

Appendices:

Appendix A: BIOS Error Beep Codes

Appendix B: BIOS POST Checkpoint Codes

vi

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer serverboard from an acknowledged

leader in the industry. Our boards are designed with the utmost attention to detail

to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your serverboard.

If anything listed here is damaged or missing, contact your retailer.

Included with retail box only

 One (1) H8DA3-2/H8DAi-2 serverboard

 One (1) IDE cable (CBL-036L-03)

 One (1) fl oppy cable (CBL-022L)

 H8DA3-2: Four (4) SATA cables (CBL-044L)

 H8DAi-2: Six (6) SATA cables (CBL-044L)

 One (1) USB 2.0 port cable (CBL-083L)

 Two (2) iPass SATA cables, H8DA3-2 only (CBL-0097L-02)

 Two (2) heatsink retention modules with four (4) screws (BKT-0012L)

 One (1) I/O shield for chassis (MCP-260-00004-00)

 One (1) CD containing drivers and utilities

1-1

H8DA3-2/H8DAi-2 User’s Manual

Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
[e-mail] (Customer Support)

Asia-Pacifi c

Address: Super Micro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [e-mail]
Tel: [phone], ext.132 or 139

1-2

Figure 1-1. H8DA3-2/H8DAi-2 Image

Chapter 1: Introduction

Note: the H8DA3-2 is pictured. The H8DAi-2 shares the same layout but does not

include SAS components.

1-3

H8DA3-2/H8DAi-2 User’s Manual

Figure 1-2. H8DA3-2/H8DAi-2 Serverboard Layout

(not drawn to scale)

Kb/Mse

COM1

Parallel

Port

COM2

USB0/1/2/3

LAN1/2

Audio

J42

FAN5

2

C1

JI

2

JI

C2

Slot #5: PCI-Exp x4

Slot #4: PCI-Exp x4

SUPER H8DA3-2

Audio_FP

CD IN

JWOL

JPW2

FAN6

CPU2 Fan/FAN8

SIMLP

Slot #6: PCI-Exp x16

Slot #3: PCI-Exp x16

Slot #2: PCI 33 MHz

JPX2A
JPX1A

Slot #1: PCI-Exp x8

JPUSB

J1B1

CPU2

CPU2 / DIMMB 2A

CPU2 / DIMMB 2B

CPU2 / DIMMB 1A

CPU2 / DIMMB 1B

USB6/7

USB4/5

MCP55 Pro

Battery

SATA1 SATA3

SATA4SATA2SATA0

nVidia

IO55

JBT1

SATA5

CPU1 / DIMMA 1B

CPU1 / DIMMA 1A

CPU1 / DIMMA 2B

CPU1 / DIMMA 2A

CPU1 FAN/FAN7

JL1JAR

JWOR

CPU1

Speaker

JWD

LSI

1068E

JPW1

BIOS

T-SGPIO1
T-SGPIO2

J3P

JPWF

JOH1

FAN2

FAN3

FAN4

JPI2C

JF1

JF2

DP2

JCF1

JWF1

Floppy

SAS4~7

SAS0~3

FAN1

IDE#1

JPS1

Notes:

Jumpers not indicated are for test purposes only.

The H8DAi-2 does not include SAS components.

1-4

Chapter 1: Introduction

H8DA3-2/H8DAi-2 Quick Reference

Jumpers Description Default Setting

J3P 3rd Power Fail Detect En/Dis Closed (Enabled)

JBT1 CMOS Clear See Section 2-7

JCF1 Compact Flash Master/Slave Closed (Master)

JF2 Onboard Speaker Pins 5-7 (Enabled)

JI2C1/2 I2C to PCI Enable/Disable Pins 2-3 (Disabled)

JPS1* SAS Controller Enable/Disable Pins 1-2 (Enabled)

JPUSB USB Power Select Pins 1-2 (Dual Pwr)

JWD Watch Dog Pins 1-2 (Reset)

Connectors Description

Audio_FP Audio Output

CD IN Audio In for CD

COM1, COM2 COM1/COM2 Serial Ports

FAN 1-8 System Fan Headers

Floppy Floppy Disk Drive Connector

IDE#1 IDE Drive Connector

J1B1 24-Pin ATX Power Connector

J42 Audio Ports

JAR Power Fail Alarm Reset Header

JF1 Front Panel Connector

JF2 Onboard Speaker/Keylock/Power LED

JL1 Chassis Intrusion Header

JOH1 Overheat Warning Header

2

JPI

C Power Supply I2C Header

JPW1 8-Pin Processor Power Connector

JPW2 4-pin Auxiliary Power Connector

JWF1 Compact Flash Card Power Connector

JWOL Wake-On-LAN Header

JWOR Wake-On-Ring Header

LAN1/2 Gigabit Ethernet (RJ45) Ports

SAS0 ~ 3/SAS4 ~ 7* Serial Attached SCSI Ports

SATA0 ~ SATA5 Serial ATA Ports

SIMLP Low Profi le IPMI 2.0 Card Slot

T-SGPIO1/T-SGPIO2 SGPIO Headers

USB0/1/2/3 Universal Serial Bus (USB) Ports 0/1/2/3

USB4/5, USB6/7 USB Headers

LEDs Description

DP2 Onboard Power LED

*H8DA3-2 only

1-5

H8DA3-2/H8DAi-2 User’s Manual

Serverboard Features

CPU

• Single or dual AMD 64-bit Socket F, Opteron 2000 type processors

Memory

• Eight dual/single channel DIMM slots supporting up to 32 GB of DDR2-

667/533/400 registered ECC ECC SDRAM

Note: Memory capacities are halved for single CPU systems. Refer to Section 2-4 before installing.

Chipset

• nVidia MCP55 Pro

• nVidia IO-55

Expansion Slots

• Two (2) PCI-Express x16

• One (1) PCI-Express x8 (in PCI-Express x16 slot)

• Two (2) PCI-Express x4 (in PCI-Express x8 slots)

• One (1) 32 MHz PCI

• One (1) low-profi le SIMLP slot (for IPMI card)

BIOS

• 8 Mb AMIBIOS

• DMI 2.3, PCI 2.2, ACPI 2.0, SMBIOS 2.3, Plug and Play (PnP)

®

LPC Flash ROM

PC Health Monitoring

• Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V standby

and battery voltage

• Fan status monitor with fi rmware/software on/off and speed control

• Watch Dog

• Environmental temperature monitoring via BIOS

• Power-up mode control for recovery from AC power loss

• System resource alert (via included utility program)

• Pulse Width Modulated (PWM) fan connectors

• Auto-switching voltage regulator for the CPU core

1-6

Chapter 1: Introduction

ACPI Features

• Microsoft OnNow

• LED for suspend state indication

• BIOS support for USB keyboard

• Main switch override mechanism

• Internal/external modem ring-on

• Suspend to RAM (STR)

Onboard I/O

• On-chip SATA controller for six (6) SATA ports (RAID 0, 1, 0+1 and 5)

• LSI 1068E SAS controller for eight (8) SAS ports, H8DA3-2 only (RAID 0, 1,

10 and JBOD, optional RAID 5 support with iButton installed)

• One (1) UltraDMA (ATA) 133/100 IDE port

• One (1) fl oppy port interface (up to 2.88 MB)

• Two (2) Fast UART 16550 compatible serial ports

• On-chip (nVidia MCP55) Ethernet controller supports two Gigabit LAN ports

• PS/2 mouse and PS/2 keyboard ports

• Eight (8) USB (Universal Serial Bus) 2.0 ports/headers

• Realtek ALC-883 HD Audio for 7.1 sound

Other

• Wake-on-Ring (JWOR)

• Wake-on-LAN (JWOL)

• Onboard power LED (DP2)

• Chassis intrusion detection

CD Utilities

• BIOS fl ash upgrade utility

Dimensions

• Extended ATX form factor, 12" x 13.05" (305 x 332 mm)

1-7

H8DA3-2/H8DAi-2 User’s Manual

DDR2-667/533 DDR2-667/533

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

Slot #1: PCI-E x8

Slot #3: PCI-E x16

Slot #4: PCI-E x4

128-bit data + 16-bi t ECC

AMD Socket F

Processor (CPU2)

PCI- E

PCI- E

nVidia IO-55

PCI-E

16 x 16 HT link (1 GHz)

AMD Socket F

Processor (CPU1)

16 x 16 HT lin k (1 GHz)

nVidia MCP55 Pro

128-bit data + 16-bi t ECC

16 x 16 HT lin k (1 GHz)

ALC-883 Audio

SATA Por ts (6)

IDE: AT A133 (1)

USB Ports (8)

GLAN Ports (2)

Slot #2: PCI

Slot #5: PCI- E x4

Slot #6: PCI-E x16

PCI32

PCI-E

PCI-E

LPC

SAS Ports (8)

S I/O BIOS

Floppy

Kybd/

Mouse

Serial Ports

(2)

Parallel

Port

DIMM 1B

DIMM 2B

SIMLP

IPMI

DIMM 1A

DIMM 2A

Figure 1-3. nVidia MCP55 Pro/IO-55 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your serverboard. See the previous pages for the

actual specifi cations of your serverboard.

1-8

Chapter 1: Introduction

1-2 Chipset Overview

The H8DA3-2/H8DAi-2 serverboard is based on the nVidia MCP55 Pro/IO-55

chipset. The nVidia MCP55 Pro functions as Media and Communications Proces-

sor (MCP) and the IO-55 as a PCI-X Bridge. Controllers for the system memory

are integrated directly into the AMD Opteron processors.

MCP55 Pro Media and Communications Processor

The MCP55 Pro is a single-chip, high-performance HyperTransport peripheral con-

troller. It includes a 28-lane PCI Express interface, an AMD Opteron 16-bit Hyper

Transport interface link, a six-port Serial ATA interface, a dual-port Gb Ethernet

interface, a single ATA133 bus master interface and a USB 2.0 interface. This hub

connects directly to CPU#1 and through that to CPU#2.

IO-55

This hub connects directly to CPU1 via a 16 x 16 1 GHz Hyper Transport link. The

IO-55 includes an interface for three PCI-Express slots.

HyperTransport Technology

HyperTransport technology is a high-speed, low latency point to point link that was

designed to increase the communication speed by a factor of up to 48x between

integrated circuits. This is done partly by reducing the number of buses in the

chipset to reduce bottlenecks and by enabling a more effi cient use of memory in

multi-processor systems. The end result is a signifi cant increase in bandwidth

within the chipset.

1-9

H8DA3-2/H8DAi-2 User’s Manual

1-3 PC Health Monitoring

This section describes the PC health monitoring features of the H8DA3-2/H8DAi-2.

The serverboard has an onboard System Hardware Monitor chip that supports PC

health monitoring.

Onboard Voltage Monitors for two CPU cores, 3.3V, +5Vin, +12Vin,
5V standby and battery voltage

The onboard voltage monitor will scan these voltages continuously. Once a voltage

becomes unstable, it will give a warning or send an error message to the screen.

Users can adjust the voltage thresholds to defi ne the sensitivity of the voltage moni-

tor. Real time readings of these voltage levels are all displayed in BIOS.

Fan Status Monitor with Firmware/Software Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard

fans are controlled by thermal management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat/Fan Fail warning

function in the BIOS. This allows the user to defi ne an overheat temperature. When

this temperature is exceeded or when a fan failure occurs, then, the Overheat/Fan

Fail warning LED is triggered.

Auto-Switching Voltage Regulator for the CPU Core

The 4-phase-switching voltage regulator for the CPU core can support up to 80A and

auto-sense voltage IDs ranging from 0.8 V to 1.55V. This will allow the regulator

to run cooler and thus make the system more stable.

1-10

Chapter 1: Introduction

1-4 Power Confi guration Settings

This section describes the features of your serverboard that deal with power and

power settings.

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system

and device power control. OnNow is a term for a PC that is always on but appears

to be off and responds immediately to user or other requests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will wake-up and the LED will automatically stop blinking and remain on.

BIOS Support for USB Keyboard

If a USB keyboard is the only keyboard in the system, it will function like a normal

keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button. When the user depresses the power button, the system will enter

a SoftOff state. The monitor will be suspended and the hard drive will spin down.

Depressing the power button again will cause the whole system to wake-up. Dur-

ing the SoftOff state, the ATX power supply provides power to keep the required

circuitry in the system alive. In case the system malfunctions and you want to turn

off the power, just depress and hold the power button for 4 seconds. The power

will turn off and no power will be provided to the serverboard.

Wake-On-LAN (JWOL)

Wake-On-LAN is defi ned as the ability of a management application to remotely

power up a computer that is powered off. Remote PC setup, up-dates and access

tracking can occur after hours and on weekends so that daily LAN traffi c is kept

to a minimum and users are not interrupted. The serverboard has a 3-pin header

(JWOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has

WOL capability. Wake-On-LAN must be enabled in BIOS. Note that Wake-On-LAN

can only be used with an ATX 2.01 (or above) compliant power supply.

1-11

H8DA3-2/H8DAi-2 User’s Manual

Wake-On-Ring Header (JWOR)

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

1-5 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

The H8DA3-2/H8DAi-2 accommodates 12V ATX power supplies. Although most

power supplies generally meet the specifi cations required by the CPU, some are

inadequate. Important: a 3A or greater current supply on the 5V Standby rail is

required.

It is strongly recommended that you use a high quality power supply that meets

12V ATX power supply Specifi cation 1.1 or above. Additionally, in areas where

noisy power transmission is present, you may choose to install a line fi lter to shield

the computer from noise. It is recommended that you also install a power surge

protector to help avoid problems caused by power surges.

Warning: To prevent the possibility of explosion, do not use the wrong type of

onboard CMOS battery or install it upside down.

1-12

Chapter 1: Introduction

1-6 Super I/O

The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive

controller that is compatible with industry standard 82077/765, a data separator,

write pre-compensation circuitry, decode logic, data rate selection, a clock genera-

tor, drive interface control logic and interrupt and DMA logic. The wide range of

functions integrated onto the Super I/O greatly reduces the number of components

required for interfacing with fl oppy disk drives. The Super I/O supports two 360

K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s,

500 Kb/s or 1 Mb/s.

It also provides two high-speed, 16550 compatible serial communication ports

(UARTs), one of which supports serial infrared communication. Each UART in-

cludes a 16-byte send/receive FIFO, a programmable baud rate generator, complete

modem control capability and a processor interrupt system. Both UARTs provide

legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed

with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer

Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Confi guration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through a SMI or SCI function pin. It also features auto power management

to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can be fl exibly adjusted

to meet ISA PnP requirements, which support ACPI.

1-13

H8DA3-2/H8DAi-2 User’s Manual

Notes

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam-

age to your system board, it is important to handle it very carefully. The following

measures are generally suffi cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

• Use only the correct type of CMOS onboard battery as specifi ed by the manufac-

turer. Do not install the CMOS onboard battery upside down, which may result

in a possible explosion.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

Installation Procedures

Follow the procedures as listed below to install the serverboard into a chassis:

1. Install the processor(s) and the heatsink(s).

2. Install the serverboard in the chassis.

3. Install the memory and add-on cards.

4. Finally, connect the cables and install the drivers.

2-1

H8DA3-2/H8DAi-2 User's Manual

2-2 Processor and Heatsink Installation

Exercise extreme caution when handling and installing the proces-

!

Installing the CPU Backplates

Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to

prevent the CPU area of the serverboard from bending and to provide a base for

attaching the heatsink retention modules.

sor. Always connect the power cord last and always remove it be-

fore adding, removing or changing any hardware components.

Installing the Processor (install to the CPU#1 socket fi rst)

1. Begin by removing the cover plate

that protects the CPU. Lift the lever

on CPU socket #1 until it points straight

up. With the lever raised, lift open the

silver CPU retention plate.

Triangles

2. Use your thumb and your index

fi nger to hold the CPU. Locate and

align pin 1 of the CPU socket with pin

1 of the CPU. Both are marked with

a triangle.

2-2

3. Align pin 1 of the CPU with pin 1

of the socket. Once aligned, carefully

place the CPU into the socket. Do not

drop the CPU on the socket, move the

CPU horizontally or vertically or rub the

CPU against the socket or against any

pins of the socket, which may damage

the CPU and/or the socket.

Chapter 2: Installation

4. With the CPU inserted into the

socket, inspect the four corners of the

CPU to make sure that it is properly in-

stalled and fl ush with the socket. Then,

gently lower the silver CPU retention

plate into place.

5. Carefully press the CPU socket

lever down until it locks into its reten-

tion tab. For a dual-processor system,

repeat these steps to install another

CPU into the CPU#2 socket.

Note: if using a single processor, only

the CPU1 DIMM slots are addressable

for a maximum of 16 GB memory.

2-3

H8DA3-2/H8DAi-2 User's Manual

Installing the Heatsink Retention Modules

Two heatsink retention modules (BKT-0012L) and four screws are included in the

retail box. Once installed, these are used to help attach the heatsinks to the CPUs.

To install, align the module with the standoffs of the preinstalled CPU backplate and

with the four feet on the module contacting the serverboard. Secure the retention

module to the backplate with two of the screws provided. See Figure 2-1. Repeat

for the second CPU socket.

Note: BKT-0012L is included for use with non-Super Micro heatsinks only. When

installing Super Micro heatsinks, only BKT-0011L (the CPU backplate) is needed.

The BKT-0012L retention module was designed to provide compatibility with clip-

and-cam type heatsinks from third parties.

Figure 2-1. CPU Heatsink Retention Module Installation

Installing the Heatsink

The use of active type heatsinks (except for 1U systems) are recommended. Con-

nect the heatsink fans to the appropriate fan headers on the serverboard. To install

the heatsinks, please follow the installation instructions included with your heatsink

package (not included).

2-4

Chapter 2: Installation

2-3 Mounting the Serverboard into a Chassis

All serverboards and motherboards have standard mounting holes to fi t different

types of chassis. Make sure that the locations of all the mounting holes for both

the serverboard and the chassis match. Although a chassis may have both plastic

and metal mounting fasteners, metal ones are highly recommended because they

ground the serverboard to the chassis. Make sure that the metal standoffs click in

or are screwed in tightly.

1. Check the compatibility of the serverboard ports and the I/O shield

The H8DA3-2/H8DAi-2 serverboard requires a chassis that can support extended

ATX boards of 12" x 13.05" in size. Make sure that the I/O ports on the serverboard

align with their respective holes in the I/O shield at the rear of the chassis.

2. Mounting the serverboard onto the mainboard tray in the chassis

Carefully mount the serverboard onto the mainboard tray by aligning the serverboard

mounting holes with the raised metal standoffs in the tray. Insert screws into all

the mounting holes in the serverboard that line up with the standoffs. Then use a

screwdriver to secure the serverboard to the mainboard tray - tighten until just snug

(if too tight you might strip the threads). Metal screws provide an electrical contact

to the serverboard ground to provide a continuous ground for the system.

2-4 Installing Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see

Figure 2-2). See support information below.

2. Gently press down on the memory module until it snaps into place.

Note: each processor has its own built-in memory controller, so the CPU2 DIMMs

cannot be addressed if only a single CPU is installed. 512 MB, 1 GB, 2 GB and 4

GB memory modules are supported. It is highly recommended that you remove the

power cord from the system before installing or changing any memory modules.

2-5

H8DA3-2/H8DAi-2 User's Manual

Support

The H8DA3-2/H8DAi-2 supports single or dual-channel, DDR2-667/533/400 regis-

tered ECC SDRAM.

Both interleaved and non-interleaved memory are supported, so you may populate

any number of DIMM slots (see note on previous page and charts on following

page). The CPU2 DIMM slots can only be accessed when two CPUs are installed

(however, the CPU2 DIMM slots are not required to be populated when two CPUs

are installed).

Populating two adjacent slots at a time with memory modules of the same size and

type will result in interleaved (128-bit) memory, which is faster than non-interleaved

(64-bit) memory. See charts on following page.

Optimizing memory performance

If two processors are installed, it is better to stagger pairs of DIMMs across both

sets of CPU DIMM slots, e.g. fi rst populate CPU1 slots 1A and 1B, then CPU2 slots

1A, and 1B, then the next two CPU1 slots, etc. This balances the load over both

CPUs to optimize performance.

Maximum memory: DDR2-667/533/400: 32 GB. If only one CPU is installed,

maximum supported memory is halved (16 GB).

Figure 2-2. Side and Top Views of DDR Installation

To Install:

Insert module vertically
and press down until it
snaps into place. The
release tabs should
close - if they do not
you should close them
yourself.

Notch

Release

Tab

Note: Notch

should align

with its

receptive point

on the slot

Note the notch in the slot and on the bottom of the DIMM.
These prevent the DIMM from being installed incorrectly.

Notch

Release

Tab

To Remove:

Use your thumbs to
gently push each re­lease tab outward to
release the DIMM from
the slot.

2-6

Chapter 2: Installation

Populating Memory Banks for 128-bit Operation

CPU1

DIMM1A

XX

XX XX

XX XX

XX XXXX

XXXX

XXXXXX

XXXX XX

XXXXXXXX

CPU1

DIMM1B

CPU1

DIMM2A

XX

XXXX

XX XX

XXXXXX

CPU1

DIMM2B

CPU2

DIMM1A

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

Notes: X indicates a populated DIMM slot. If adding at least four DIMMs (with two CPUs
installed), the confi gurations with DIMMs spread over both CPUs (and not like the con­fi guration in row 5) will result in optimized performance. Note that the fi rst two DIMMs
must be installed in the CPU1 memory slots.

Populating Memory Banks for 64-bit Operation

CPU1

DIMM1A

X

XX

XX

X X

CPU1

DIMM1B

CPU1

DIMM2A

X

XX

XX

CPU1

DIMM2B

CPU2

DIMM1A

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

2-7

H8DA3-2/H8DAi-2 User's Manual

2-5 I/O Port and Control Panel Connections

The I/O ports are color coded in conformance with the PC99 specifi cation to make

setting up your system easier. See Figure 2-3 below for the colors and locations

of the various I/O ports.

Figure 2-3. I/O Port Locations and Defi nitions

Front Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 2-4

for the pin defi nitions of the various connectors. Refer to Section 2-6 for details.

Figure 2-4. JF1: Front Control Panel Header (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1

NIC2

OH/Fan Fail LED

Power Fail LED

Ground

NMI

x (key)

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Ground

Power

2 1

2-8

Chapter 2: Installation

2-6 Connector Defi nitions

ATX Power Connector

The primary ATX power supply con-

nector (J1B1) meets the SSI (Super-

set ATX) 24-pin specifi cation. Refer to

the table on the right for the pin defi ni-

tions of the ATX 24-pin power connec-

tor. This connection supplies power to

the chipset, fans and memory.

Note: You must also connect the 8-

pin (JPW1) and 4-pin (JPW2) power

connectors to your power supply (see

below).

Processor Power Connector

In addition to the primary ATX power

connector (above), the 12v, 8-pin

processor power connector at JPW1

must also be connected to your power

supply. This connection supplies

power to the CPUs. See the table on

the right for pin defi nitions.

ATX Power 24-pin Connector

Pin Defi nitions (J1B1)

Pin# Defi nition Pin # Defi nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

Processor Power

Connector

Pin Defi nitions (JPW1)

Pins Defi nition

1 through 4 Ground

5 through 8 +12V

Required Connection

Auxiliary Power Connector

The 4-pin auxiliary power connector

at JPW2 must also be connected to

your power supply. This connection

supplies extra power that may be

needed for high loads. See the table

on the right for pin defi nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

Auxiliary Power

Connector

Pin Defi nitions (JPW2)

Pins Defi nition

1 & 2 Ground

3 & 4 +12V

Required Connection

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 Vcc

16 Control

2-9

H8DA3-2/H8DAi-2 User's Manual

HDD LED

The HDD (IDE Hard Disk Drive) LED

connection is located on pins 13 and

14 of JF1. Attach the IDE hard drive

LED cable to display disk activity.

Refer to the table on the right for pin

defi nitions.

NIC1 LED

The NIC1 (Network Interface Control-

ler) LED connection is located on pins

11 and 12 of JF1. Attach the NIC1

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 Vcc

14 HD Active

NIC1 LED

Pin Defi nitions (JF1)

Pin# Defi nition

11 Vcc

12 NIC1 Active

NIC2 LED

The NIC2 (Network Interface Control-

ler) LED connection is located on pins

9 and 10 of JF1. Attach the NIC2

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

Overheat/Fan Fail LED

Connect an LED to the OH connection

on pins 7 and 8 of JF1 to provide ad-

vanced warning of chassis overheat-

ing. Refer to the table on the right for

pin defi nitions and status indicators.

OH/Fan Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

7 Vcc

8 Control

NIC2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9Vcc

10 NIC2 Active

OH/Fan Fail
LED Status

State Indication

Solid Overheat

Blinking Fan fail

2-10

Power Fail LED

Chapter 2: Installation

The Power Fail LED connection is

located on pins 5 and 6 of JF1. Refer

to the table on the right for pin defi ni-

tions. This feature is only available

for systems with redundant power

supplies.

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin defi nitions.

Power Button

Power Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 Vcc

6 Control

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be confi gured to function

as a suspend button (see the Power

Button Mode setting in BIOS). To turn

off the power when set to suspend

mode, depress the button for at least

4 seconds. Refer to the table on the

right for pin defi nitions.

Universal Serial Bus Ports
(USB0/1/2/3)

Four Universal Serial Bus ports

(USB2.0) are located on the I/O back

panel. See the table on the right for

pin defi nitions.

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1PW_ON

2 Ground

Universal Serial Bus Ports

Pin Defi nitions (USB0/1/2/3)

USB0
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

USB1
Pin # Defi nition

2-11

H8DA3-2/H8DAi-2 User's Manual

USB Headers

Four additional USB2.0 headers

(USB4/5 and USB6/7) are included on

the serverboard. These may be con-

nected to provide front side access.

A USB cable (not included) is needed

for the connection. See the table on

the right for pin defi nitions.

Serial Ports

The COM1 and COM2 serial ports are

located under the parallel port. Refer

to Figure 2-3 for locations and the

table on the right for pin defi nitions.

Universal Serial Bus Headers

Pin Defi nitions (USB4/5/6/7)

USB4/6
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 Key 5 No connection

Serial Port Pin Defi nitions

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2RXD 7RTS

3TXD 8CTS

4DTR 9 RI

5 Ground 10 NC

USB5/7
Pin # Defi nition

(COM1/COM2)

Fan Headers

The H8DA3-2/H8DAi-2 has eight fan

headers, which are designated FAN1

through FAN8. Fans are Pulse Width

Modulated (PWM) and their speed is

controlled via Thermal Management

with a BIOS setting. See the table on

the right for pin defi nitions.

Note: when using active heatsinks

(those with fans), connect the heatsink

fan for CPU1 to the FAN7 header and

the heatsink fan for CPU2 to the FAN8

header.

Note: NC indicates no connection.

Fan Header

Pin Defi nitions

(FAN1-8)

Pin# Defi nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (desig-

nated LAN1 and LAN2) are located

beside the COM2 port. These Ether-

net ports accept RJ45 type cables.

Notes: LAN1 is the top port and LAN2 is the bot-

tom port.

2-12

Chapter 2: Installation

Power LED/Speaker

On JF2, pins 2, 4 and 6 are for the

power LED and pins 1, 3, 5 and 7 are

for the speaker. Pins 8 and 10 are for

the keylock. See the tables on the

right for pin defi nitions.

Note: The speaker connector pins are

for use with an external speaker. If

you wish to use the onboard speaker,

you should close pins 5 and 7 with a

jumper.

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and the

PS/2 mouse ports are located on the

IO backplane. The mouse is the top

(green) port. See the table on the

right for pin defi nitions.

PWR LED Connector
Pin Defi nitions (JF2)

Pin# Defi nition

2 +Vcc

4 Control

6 Control

Speaker Connector

Pin Defi nitions (JF2)

Pin# Defi nition

1 Red wire, +5V

3 No connection

5 Buzzer signal

7 Speaker data

PS/2 Keyboard and

Mouse Port Pin

Defi nitions

Pin# Defi nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Overheat LED

Connect an LED to the JOH1 header

to provide warning of chassis over-

heating. See the table on the right for

pin defi nitions.

CD IN Header

The 4-pin CD IN header allows you to

use the onboard sound for audio CD

playback. Connect the audio cable

from your CD drive to this header.

See the table on the right for pin

defi nitions.

Overheat LED

Pin Defi nitions (JOH1)

Pin# Defi nition

13.3V

2 OH Active

CD IN

Pin Defi nitions

Pin# Defi nition

1 Right Signal

2 Ground

3 Ground

4 Left Signal

2-13

H8DA3-2/H8DAi-2 User's Manual

Wake-On-LAN

The Wake-On-LAN header is desig-

nated JWOL. See the table on the

right for pin defi nitions. You must

have a LAN card with a Wake-On-LAN

connector and cable to use the Wake-

On-LAN feature.

Note: Wake-On-LAN from S3, S4,

S5 states are supported by LAN1.

LAN2 supports Wake-On-LAN from

S1 state only.

Wake-On-LAN

Pin Defi nitions

(JWOL)

Pin# Defi nition

1 +5V Standby

2 Ground

3 Wake-up

Wake-On-Ring

The Wake-On-Ring header is desig-

nated JWOR. This function allows

your computer to receive and "wake-

up" by an incoming call to the modem

when in suspend state. See the table

on the right for pin defi nitions. You

must have a Wake-On-Ring card and

cable to use this feature.

Power Supply I2C Header

The JPI2C header is for I2C, which

may be used to monitor the status of

the power supply, fans and system

temperature. See the table on the right

for pin defi nitions.

Wake-On-Ring
Pin Defi nitions

(JWOR)

Pin# Defi nition

1 Ground (Black)

2 Wake-up

I2C Header

Pin Defi nitions (JPI2C)

Pin# Defi nition

1 Clock

2 Data

3 PWR Fail

4Gnd

5 +3.3V

2-14

Chapter 2: Installation

Power Fail Alarm Reset
Header

Connect JAR to the alarm reset but-

ton on your chassis (if available) or to

a microswitch to allow you to turn off

the alarm that sounds when a power

supply module fails. See the table on

the right for pin defi nitions.

Compact Flash Power
Header

A Compact Flash Card Power header

is located at JWF1. For the Compact

Flash Card to work properly, you will

fi rst need to connect the device's power

cable to JWF1 and correctly set the

Compact Flash Jumper (JCF1).

Alarm Reset Header

Pin Defi nitions (JAR)

Pin# Defi nition

1 Ground

2 Reset Signal

Compact Flash

Power Header

Pin Defi nitions (JWF1)

Pin# Defi nition

1 +5V

2 Ground

3 Signal

SGPIO

T-SGPIO1 and T-SGPIO2 (Serial

General Purpose Input/Output) pro-

vide a bus between the SATA control-

ler and the SATA drive backplane to

provide SATA enclosure management

functions. Connect the appropriate

cables from the backplane to the

SGPIO1 and SGPIO2 header(s) to

utilize SATA management functions

on your system.

Pin Defi nitions (T-SGPIO1, T-SGPIO2)

SGPIO Header

Pin# Defi nition Pin # Defi nition

1NC 2 NC

3 Ground 4 Data

5 Load 6 Ground

7NC 8 NC

Note: NC indicates no connection.

2-15

H8DA3-2/H8DAi-2 User's Manual

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

Audio Output Header

The Audio_FP header gives you the

option of directing the audio output to

Line In/Line Out/ Mic jacks that may

be added to the front of the chassis

(requires additional hardware, not in-

cluded). See the table on the right for

pin defi nitions.

Chassis Intrusion

Pin Defi nitions (JL1)

Pin# Defi nition

1 Battery voltage

Pin# Defi nition

1 MIC left channel

2 Ground

3 MIC right channel

4 Front panel audio detect

5 Line out right channel

6 MIC jack detect

7 Front audio jack detect

8Key

9 Line out left channel

10 Line out jack detect

2 Intrusion signal

Audio Output Header

Pin Defi nitions (Audio_FP)

Notes: NC indicates no connection. Pins 6

and 10 are not active when a header is used

for front side audio access.

2-16

Chapter 2: Installation

Audio Ports (J42)

HD (High Defi nition) audio is provided with an onboard Realtek ALC883 audio chip.

The H8DA3-2/H8DAi-2 features 6-channel (5.1) sound for front L&R, rear L&R,

center and subwoofer speakers with the use of a mic or line-in device. Without

the use of a mic or line-in device, 8-channel sound (7.1) may be used. Sound is

output through the Line In, Line Out and MIC jacks (see below). There is also a

CD1 header on the board that can be used for audio.

Refer to the diagrams below for the port defi nitions when employing 5.1 or 7.1

sound on your system.

Audio Jacks: 5.1 Sound

Orange jack: Surround L/R

Black jack: Front L/R

Gray jack: Center/Subwoofer

Audio Jacks: 7.1 Sound

Orange jack: Front Right

Black jack: Subwoofer

Gray jack: Surround Right

Audio Output Header: rev. 1.2

Pin Defi nitions (Audio_FP)

Pin# Defi nition

1 MIC left channel

2 Ground

3 MIC right channel

4 Front panel audio detect

5 Line out right channel

6 MIC jack detect

7 Front audio jack detect

8Key

9 Line out left channel

10 Line out jack detect

Blue jack: Line In

Green jack: Line Out

Pink jack: Mic

Blue jack: Front Left

Green jack: Center

Pink jack: Surround Left

2-17

H8DA3-2/H8DAi-2 User's Manual

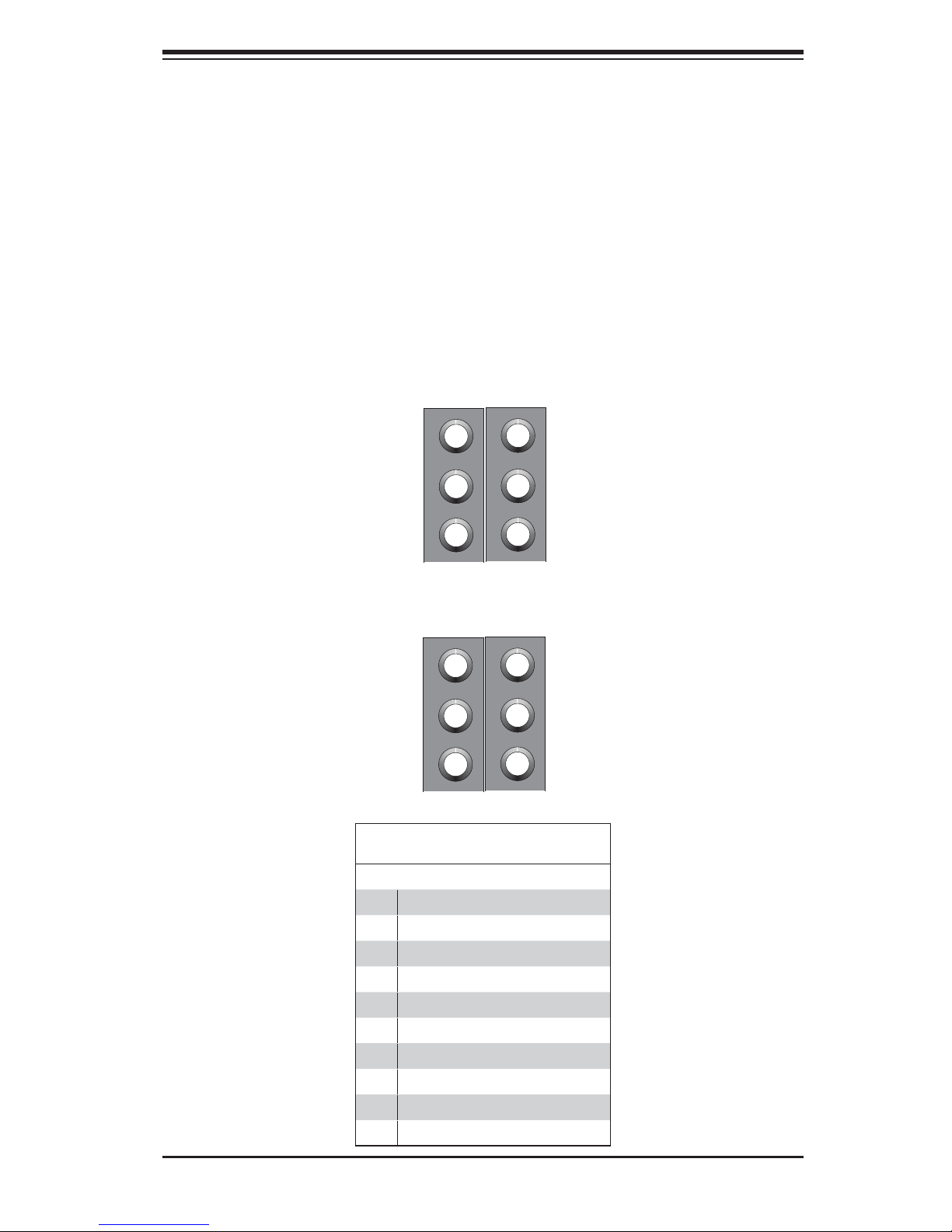

2-7 Jumper Settings

Explanation of
Jumpers

To modify the operation of the

serverboard, jumpers can be used to

choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identifi ed with

a square solder pad on the printed

circuit board. See the diagram at

right for an example of jumping pins

1 and 2. Refer to the serverboard

layout page for jumper locations.

Note: O n t w o - p i n j u m p e r s , " C l o s e d "

means the jumper is on and "Open"

means the jumper is off the pins.

CMOS Clear

Connector

321

Pins

Jumper

321

Setting

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins,

this jumper consists of contact pads to prevent accidentally clearing the contents

of CMOS.

To clear CMOS,

1) First power down the system and unplug the power cord(s).

2) With the power disconnected, short the CMOS pads with a metal object such as

a small screwdriver for at least four seconds.

3) Remove the screwdriver (or shorting device).

4) Reconnect the power cord(s) and power on the system.

Notes:

Do not use the PW_ON connector to clear CMOS.

The onboard battery does not need to be removed when clearing CMOS, however

you must short JBT1 for at least four seconds.

JBT1 contact pads

2-18

3rd Power Supply Fail Signal
Enable/Disable

The system can notify you in the event

of a power supply failure. This feature

assumes that three redundant power

supply units are installed in the chas-

sis. If you only have one or two power

supplies installed, you should disable

the function with the J3P header to pre-

vent false alarms. See the table on the

right for jumper settings.

I2C to PCI Enable/Disable

Chapter 2: Installation

3rd Power Supply Fail Signal

Jumper Settings (J3P)

Jumper Setting Defi nition

Open Disabled

Closed Enabled

The JI2C1/2 pair of jumpers allows you

to connect the System Management

Bus to the PCI expansion slots. The

default setting is disabled (pins 2-3) for

both jumpers. Both connectors must

be set the same (JI

2

JI

C2 is for the clock). See the table on

2

C1 is for data and

right for jumper settings.

Watch Dog

JWD controls Watch Dog, a system

monitor that takes action when a soft-

ware application freezes the system.

Jumping pins 1-2 will cause WD to

reset the system if an application is

hung up. Jumping pins 2-3 will gen-

erate a non-maskable interrupt signal

for the application that is hung up.

See the table on the right for jumper

settings. Watch Dog can also be

enabled via BIOS.

I2C to PCI Enable/Disable

Jumper Settings

2

C1/2)

(JI

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog

Jumper Settings (JWD)

Jumper Setting Defi nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

Note: When enabled, the user needs to

write their own application software in or-

der to disable the Watch Dog timer.

2-19

H8DA3-2/H8DAi-2 User's Manual

Power LED/Speaker

On JF2, pins 2, 4 and 6 are for the

power LED and pins 1, 3, 5 and 7 are

for the speaker. Pins 8 and 10 are for

the keylock. See the tables on the

right for pin defi nitions.

Note: The speaker connector pins are

for use with an external speaker. If

you wish to use the onboard speaker,

you should close pins 5 and 7 with a

jumper.

USB Power Select

Jumper JPUSB is used to select the

power state for the USB ports. The

Standard setting means power is ap-

plied to the ports only when the system

is powered on. The Dual Power setting

will allow the USB ports to have power

whenever the system's AC power cord

is c o n nected, re g ardless of w hether the

system is powered on or not. See the

PWR LED Connector

Pin Defi nitions (JF2)

Pin# Defi nition

2 +Vcc

4 Control

6 Control

Speaker Connector

Pin Defi nitions (JF2)

Pin# Defi nition

1 Red wire, +5V

3 No connection

5 Buzzer signal

7 Speaker data

USB Power Select

Jumper Settings (JPUSB)

Jumper Setting Defi nition

Pins 1-2 Dual Power

Pins 2-3 Standard Power

table on right for jumper settings.

Compact Flash Master/Slave

The JCF1 jumper allows you to assign

either master or slave status a compact

fl ash card installed in IDE1. See the

table on the right for jumper settings.

Compact Flash

Master/Slave

Jumper Settings (JCF1)

Jumper Setting Defi nition

Closed Master

Open Slave

2-20

Chapter 2: Installation

SAS Controller Enable/
Disable (H8DA3-2 only)

JPS1 enables or disables the onboard

LSI 1068E SAS controller on the

H8DA3-2. See the table on the right

for jumper settings. The default set-

ting is enabled.

2-8 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside

the VGA port) have two LEDs. On

each Gb LAN port, one LED indicates

activity when blinking while the other

LED may be amber or off to indicate

the speed of the connection. See

the table on the right for the func-

tions associated with the connection

speed LED.

SAS Controller Enable

Jumper Settings (JPS1)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

LAN LED

(Connection Speed Indicator)

LED Color Defi nition

Off 10/100 MHz

Amber 1 GHz

Onboard Power LED

DP2 is an Onboard Power LED. When this

LED is lit, it means power is present on the

serverboard. In suspend mode this LED

will blink on and off. Be sure to turn off the

system and unplug the power cord(s) be-

fore removing or installing components

Onboard Power LED

(DP2)

State System Status

On Standby power present on

serverboard

Off No power connected

Flashing System in standby state

2-21

H8DA3-2/H8DAi-2 User's Manual

2-9 Floppy, IDE, Parallel Port, SAS and SATA Drive
Connections

Use the following information to connect the fl oppy and hard disk drive cables.

 The fl oppy disk drive cable has seven twisted wires.

 A red mark on a wire typically designates the location of pin 1.

 A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

 The 80-wire ATA133 IDE hard disk drive cable that came with your system has

two connectors to support two drives. This special cable should be used to take

advantage of the speed this new technology offers. The blue connector connects

to the onboard IDE connector interface and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details

on actual jumper locations and settings for the hard disk drive.

Floppy Connector

The fl oppy connector is located

beside the IDE connector. See

the table on the right for pin

defi nitions.

Floppy Drive Connector
Pin Defi nitions (Floppy)

Pin# Defi nition Pin # Defi nition

1 GND 2 FDHDIN

3 GND 4 Reserved

5 Key 6 FDEDIN

7 GND 8 Index-

9 GND 10 Motor Enable

11 GND 12 Drive Select B-

13 GND 14 Drive Select A-

15 GND 16 Motor Enable

17 GND 18 DIR-

19 GND 20 STEP-

21 GND 22 Write Data-

23 GND 24 Write Gate-

25 GND 26 Track 00-

27 GND 28 Write Protect-

29 GND 30 Read Data-

31 GND 32 Side 1 Select-

33 GND 34 Diskette

2-22

Chapter 2: Installation

IDE Connector

There are no jumpers to con-

fi gure the onboard IDE#1 con-

nector. See the table on the

right for pin defi nitions.

IDE Drive Connector

Pin Defi nitions (IDE#1)

Pin# Defi nition Pin # Defi nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

2-23

H8DA3-2/H8DAi-2 User's Manual

Parallel Port
Connector

See the table on the right for

pin defi nitions of the parallel

(printer) port.

Parallel Port Connector

Pin Defi nitions

Pin# Defi nition Pin # Defi nition

1 Strobe- 2 Auto Feed-

3 Data Bit 0 4 Error-

5 Data Bit 1 6 Init-

7 Data Bit 2 8 SLCT IN-

9 Data Bit 3 10 GND

11 Data Bit 4 12 GND

13 Data Bit 5 14 GND

15 Data Bit 6 16 GND

17 Data Bit 7 18 GND

19 ACK 20 GND

21 BUSY 22 Write Data

23 PE 24 Write Gate

25 SLCT 26 NC

SATA Ports

There are no jumpers to confi g-

ure the Serial ATA ports, which

are designated SATA0 through

SATA5. See the table on the

right for pin defi nitions.

Pin Defi nitions (SATA0-SATA5)

SATA Ports

Pin # Defi nition

1 Ground

2TXP

3TXN

4 Ground

5RXN

6RXP

7 Ground

2-24

Chapter 2: Installation

SAS Ports

There are eight Serial Attached

SCSI ports on the H8DA3-2

(SAS0~3 and SAS4~7). See

the table on the right for pin

defi nitions.

Pin Defi nitions (SAS0~3, SAS4~7)

SAS Ports

Pin# Defi nition Pin # Defi nition

A1 Ground B1 Ground

A2 RX 0+ B2 TX 0+

A3 RX 0- B3 TX 0-

A4 Ground B4 Ground

A5 RX 1+ B5 TX 1+

A6 RX 1- B6 TX 1-

A7 Ground B7 Ground

A8 SB7 B8 SB0

A9 SB3 B9 SB1

A10 SB4 B10 SB2

A11 SB5 B11 SB6

A12 Ground B12 Ground

A13 RX 2+ B13 TX 2+

A14 RX 2- B14 TX 2-

A15 Ground B15 Ground

A16 RX 3+ B16 TX 3+

A17 RX 3- B17 TX 3-

A18 Ground B18 Ground

2-25

H8DA3-2/H8DAi-2 User's Manual

2-10 Enabling SATA RAID

Note: For SAS RAID (H8DA3-2), please refer to LSI manual on the driver CD.

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that employs a single cable with

a minimum of four wires to create a point-to-point connection between devices.

This connection is a serial link. The serial cables used in SATA are thinner than

the traditional cables used in Parallel ATA (PATA) and can extend up to one meter

in length, compared to only 40 cm for PATA cables. Overall, SATA provides better

functionality than PATA.

Installing the OS/SATA Driver

Before installing the OS (operating system) and SATA RAID driver, you must decide

if you wish to have the operating system installed as part of a bootable RAID array

or installed to a separate non-RAID hard drive. If on a separate drive, you may

install the driver either during or after the OS installation. If you wish to have the

OS on a SATA RAID array, you must follow the procedure below and install the

driver during the OS installation.

Note: the SATA RAID driver is supported by Windows 2000 and XP only.

Building a Driver Diskette

You must fi rst build a driver diskette from the CD-ROM that was included with the

system. (You will have to create this disk on a computer that is already running and

with the OS installed.) Insert the CD into your CD-ROM drive and start the system.

A display as shown in Figure 2-7 will appear. Click on the icon labeled "Build Driver

Diskettes and Manuals" and follow the instructions to create a fl oppy disk with the

driver on it. Once it's been created, remove the fl oppy and insert the installation

CD for the Windows Operating System you wish to install into the CD-ROM drive

of the new system you are about to confi gure.

Enabling SATA RAID in the BIOS

Before installing the Windows Operating System, you must change some settings

in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility.

After the Setup Utility loads,

1. Use the arrow keys to move to the Exit menu. Scroll down with the arrow keys

to the "Load Optimal Defaults setting and press <Enter>. Select "OK" to confi rm,

then <Enter> to load the default settings.

2-26

Chapter 2: Installation

2. Use the arrow keys to move to Advanced > Floppy/IDE/SATA Confi guration >

nVidia RAID Setup and press the <Enter> key. Once in the submenu, enable the

"nVidia RAID Function" setting, which will cause the SATA0/1/2 Primary/Secondary

settings to appear. Enable the SATA devices and channels you will be using.

3. Hit the <F10> key to "Save Changes and Exit", then hit <Enter> to verify.

4. After exiting the BIOS Setup Utility, the system will reboot. When prompted

during the startup, press the <F10> key when prompted to run the nVidia RAID

Utility program.

Using the nVidia RAID Utility

The nVidia RAID Utility program is where you can defi ne the drives you want to

include in the RAID array and the mode and type of RAID. Two main windows are

shown in the utility (see Figure 2-5). The "Free Disks" window on the left will list all

available drives. Use the arrow keys to select and move drives to the window on

the right, which lists all drives that are to become part of the RAID array.

Once you have fi nished selecting the drives and type of RAID you wish to use for

your RAID array, press the <F7> key. You will be prompted to verify your choice; if

you want to continue with your choices, select "Yes". Note that selecting "Yes" will

clear all previous data from the drives you selected to be a part of the array. You

are then given the choice of making the RAID array bootable by pressing the the

<B> key. After you have fi nshed, press the <Ctrl> and <X> keys simultaneously.

Figure 2-6 shows a list of arrays that have been set up with the utility.

Installing the OS and Drivers

With the Windows OS installation CD in the CD-ROM drive, restart the system.

When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a

blue screen will appear with a message that begins "Windows could not determine

the type of one or more storage devices . . ." When you see the screen, hit the <S>

key to "Specify Additional Device", then insert the driver diskette you just created

into the fl oppy drive. Highlight "Manufuacturer Supplied Hardware Support Disk"

and hit the <Enter> key. Highlight the fi rst "nVidia RAID" driver shown and press

the <Enter> key to install it. Soon a similar blue screen will appear again. Again hit

the <S> key, then highlight the second item, "nForce Storage Controller" and press

the <Enter> key, then <Enter> again to continue with the Windows setup.

2-27

H8DA3-2/H8DAi-2 User's Manual

Figure 2-5. SATA RAID Utility: Main Screen

Figure 2-6. SATA RAID Utility: Array List

2-28

Chapter 2: Installation

2-11 Installing Drivers

After all the hardware and operating system have been installed, you need to install

certain drivers. The necessary drivers are all included on the Supermicro CD that

came packaged with your serverboard. After inserting this CD into your CD-ROM

drive, the display shown in Figure 2-7 should appear. (If this display does not

appear, click on the My Computer icon and then on the icon representing your CD-

ROM drive. Finally, double click on the S "Setup" icon.)

Figure 2-7. Driver Installation Display Screen

Click the icons showing a hand writing on paper to view the readme fi les for each

item. Click the tabs to the right of these in order from top to bottom to install each

item one at a time. After installing each item, you must reboot the system

before moving on to the next item on the list. You should install everything here

except for the SUPER Doctor utility, which is optional. The bottom icon with a CD

on it allows you to view the entire contents of the CD.

2-29

H8DA3-2/H8DAi-2 User's Manual

Notes

2-30

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Check that the onboard power LED is lit (DP2 on the serverboard).

2. Make sure that the main ATX power connector at J1B1, the 8-pin connector at

JPW1 and the 4-pin connecor at JPW2 are all connected to your power supply.

3. Make sure that no short circuits exist between the serverboard and chassis.

4. Disconnect all ribbon/wire cables from the serverboard, including those for the

keyboard and mouse.

5. Remove all add-on cards.

6. Install a CPU and heatsink (making sure it is fully seated) and connect the in-

ternal (chassis) speaker and the power LED to the serverboard. Check all jumper

settings as well.

7. Use the correct type of onboard CMOS battery as recommended by the manufac-

turer. To avoid possible explosion, do not install the CMOS battery upside down.

8. Note that the 5VSB supplied from your power supply must provide >3 amps.

No Power

1. Make sure that no short circuits exist between the serverboard and the chas-

sis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your serverboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for

details on beep codes.

3-1

H8DA3-2/H8DAi-2 User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnostics

card is recommended. For I/O port 80h codes, refer to App. B.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.

2. You should be using registered ECC DDR-2 memory (see next page). Also, it

is recommended that you use the same memory type and speed for all DIMMs in

the system. See Section 2-4 for memory details and limitations.

3. Check for bad DIMM modules or slots by swapping modules between slots and

noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Confi guration

1. Make sure that you are using a high quality power supply. A poor quality power

supply may cause the system to lose the CMOS setup information. Refer to Sec-

tion 1-6 for details on recommended power supplies.

2. The battery on your serverboard may be old. Check to verify that it still supplies

~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fi x the setup confi guration problem, contact your vendor

for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note

that as a serverboard manufacturer, we do not sell directly to end-users, so it is

best to fi rst check with your distributor or reseller for troubleshooting services. They

should know of any possible problem(s) with the specifi c system confi guration that

was sold to you.

1. Please review the ‘Troubleshooting Procedures’ and 'Frequently Asked Questions'

(FAQs) sections in this chapter or see the FAQs on our web site before contacting

Technical Support.

2. BIOS upgrades can be downloaded from our web site.

Note: Not all BIOS can be fl ashed depending on the modifi cations to the boot block

code.

3-2

Chapter 3: Troubleshooting

3. If you still cannot resolve the problem, include the following information when

contacting us for technical support:

 Serverboard model and PCB revision number

 BIOS release date/version (this can be seen on the initial display when your

system fi rst boots up)

 System confi guration

An example of a Technical Support form is posted on our web site.

4. Distributors: For immediate assistance, please have your account number ready

when contacting our technical support department by e-mail.

3-3 Frequently Asked Questions

Question: What type of memory does my serverboard support?

Answer: The H8DA3-2/H8DAi-2 supports up to 32 GB of registered ECC DDR2-

667/533/400 SDRAM with two CPUs installed. With only one CPU installed the

maximum memory support is halved. Memory can be installed in interleaved or

non-interleaved confi gurations. See Section 2-4 for details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you not upgrade your BIOS if you are not experi-

encing problems with your system. Updated BIOS fi les are located on our web site

(http://www.supermicro.com/aplus/support/bios). Please check our BIOS warning

message and the information on how to update your BIOS on our web site. Also,

check the current BIOS revision and make sure it is newer than your current BIOS

before downloading.

Select your serverboard model on the web page and download the corresponding

BIOS fi le to your computer. Unzip the BIOS update fi le, in which you will fi nd the

readme.txt (fl ash instructions), the afudos.exe (BIOS fl ash utility) and the BIOS

image (xxx.rom) fi les. Copy these fi les to a bootable fl oppy disk, insert the disk

into drive A and reboot the system. At the DOS prompt after rebooting, enter the

command "fl ash" (without quotation marks) then type in the BIOS fi le that you want

to update with (xxxx.rom).

Question: What's on the CD that came with my serverboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install the

applications you need. Applications on the CD include chipset drivers for Windows

and security and audio drivers.

3-3

H8DA3-2/H8DAi-2 User's Manual

Question: Why can't I turn off the power using the momentary power on/off

switch?

Answer: The instant power off function is controlled in BIOS by the Power But-

ton Mode setting. When the On/Off feature is enabled, the serverboard will have

instant off capabilities as long as the BIOS has control of the system. When the

Standby or Suspend feature is enabled or when the BIOS is not in control such

as during memory count (the fi rst screen that appears when the system is turned

on), the momentary on/off switch must be held for more than four seconds to shut

down the system. This feature is required to implement the ACPI features on the

serverboard.

Question: How do I connect the ATA133 cable to my IDE device(s)?

Answer: The 80-wire/40-pin high-density ATA133 IDE cable that came with your

system has two connectors to support two drives. This special cable must be used

to take advantage of the speed the ATA133 technology offers. Connect the blue

connector to the onboard IDE header and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details on

actual jumper locations and settings.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.

supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor fi rst for any product problems.

3-4

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DA3-2/H8DAi-2. The

AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy

disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of our web site for any changes to BIOS that may not be refl ected

in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up.

(In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are

a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS

menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options

that can be confi gured. “Grayed-out” options cannot be confi gured. The right frame

displays the key legend. Above the key legend is an area reserved for a text mes-

sage. When an option is selected in the left frame, it is highlighted in white. Often a

text message will accompany it. (Note that BIOS has default text messages built in.

We retain the option to include, omit, or change any of these text messages.) Set-

tings printed in Bold are the default values.

A "

" indicates a submenu. Highlighting such an item and pressing the <Enter>

key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of

these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at

any time during the setup navigation process.

4-1

H8DA3-2/H8DAi-2 User’s Manual

4-2 Main Menu

When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen.

You can always return to the Main Menu by selecting the Main tab on the top of

the screen with the arrow keys.

The Main Menu screen provides you with a system overview, which includes the

version, built date and ID of the AMIBIOS, the type, speed and number of the

processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this fi eld to change the system time and date. Highlight System Time

or System Date using the <Arrow> keys. Enter new values through the keyboard.

Press the <Tab> key or the <Arrow> keys to move between fi elds. The date must

be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as

05:30:00 and 5:30 P.M. as 17:30:00.

4-3 Advanced Settings Menu

 Boot Features

Quick Boot

If Enabled, this option will skip certain tests during POST to reduce the time

needed for the system to boot up. The options are Enabled and Disabled.

Quiet Boot

If Disabled, normal POST messages will be displayed on boot-up. If Enabled,

this display the OEM logo instead of POST messages.

Add-On ROM Display Mode

Set this option to display add-on ROM (read-only memory) messages. The de-

fault setting is Force BIOS. Select Force BIOS to allow the computer system

to force a third party BIOS to display during system boot. Select Keep Current

to allow the computer system to display the BIOS information during system

boot. The options are Force BIOS and Keep Current.

4-2

Chapter 4: BIOS

Boot up Num-Lock

Set this value to allow the Number Lock setting to be modifi ed during boot up.

The options are On and Off.

PS/2 Mouse Support

Set this value to modify support for a PS/2 mouse. The options are Auto, En-

abled and Disabled.

Wait for ‘F1’ If Error

Select Enable to activate the Wait for F1 if Error function. The options are

Enabled and Disabled.

Hit ‘DEL’ Message Display

Select Enabled to display message to hit the DEL key to enter Setup. The op-

tions are Enabled and Disabled.

Interrupt 19 Capture

Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled

and Disabled.

OS Installation

Change this setting if using a 64-bit Linux operating system. The available op-

tions are Other and Linux.

ACPI Confi guration

ACPI Version Features

Use this setting the determine which ACPI version to use. Options are ACPI

v1.0, ACPI v2.0 and ACPI v3.0.

ACPI APIC Support

Determines whether to include the ACPI APIC table pointer in the RSDT pointer

list. The available options are Enabled and Disabled.

AMI OEMB Table

Determines whether to include the AMI APIC table pointer in the RSDT pointer

list. The available options are Enabled and Disabled.

4-3

H8DA3-2/H8DAi-2 User’s Manual

Headless Mode

Use this setting to Enable or Disable headless operation mode through ACPI.

MCP55 ACPI HPET Table

Use this setting to either Enable or Disable the MCP55 ACPI HPET table.

Suspend Mode

This setting is used to select the ACPI state used for system suspend. The

options are S1 (POS), S3 (STR) and Auto.

Power Confi guration

Power Button Mode

Allows the user to change the function of the power button. Options are On/Off

and Suspend.

Restore on AC Power Loss

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Power Off, Power On and

Last State.

Watch Dog Timer

This setting is used to Enable or Disable the Watch Dog Timer function. It must

be used in conjunction with the Watch Dog jumper (see Chapter 2 for details).

MPS Confi guration

MPS Revision

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

Smbios Confi guration

Smbios Smi Support

This setting allows SMI wrapper support for PnP function 50h-54h. The options

are Enabled and Disabled.

4-4

Chapter 4: BIOS

 CPU Confi guration

The submenu lists CPU information and the following settings:

GART Error Reporting

This setting is used for testing only (setting should be disabled).

Power Now

This setting is used to Enable or Disable the AMD Power Now feature.

Thermal Throttling

This setting is used to Enable or Disable Thermal Throttling.

Errata #169

The options are Enabled or Disabled. Some Linux kernals may have problems

installing, in such case try disabling this setting for a workaround.

 Floppy/IDE/SATA Confi guration

Floppy A

Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Floppy B

Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard fl oppy controller.

Onboard IDE Controller

There is a single fl oppy controller on the motherboard, which may be Enabled or

Disabled with this setting.

Serial ATA Devices

This setting is used to determine if SATA drives will be used and how many. Op-

tions are Disabled, Device 0, Device 0/1 and Device 0/1/2.

4-5

H8DA3-2/H8DAi-2 User’s Manual

nVidia RAID Function

This setting is used to Enable or Disable the nVidia ROM.

Primary IDE Master/Slave

Highlight one of the items above and press <Enter> to access the submenu for

that item.

Type

Select the type of device connected to the system. The options are Not Installed,

Auto, CDROM and ARMD.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the specifi cations of the drive.

4-6

Chapter 4: BIOS

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

Serial ATA0/1/2 Primary/Secondary Channel

Highlight one of the items above and press <Enter> to access the submenu for that

item. If a drive is present, information on that drive will be displayed here.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

4-7

H8DA3-2/H8DAi-2 User’s Manual

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the specifi cations of the drive.

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

Hard Disk Write Protect

Select Enabled to enable the function of Hard Disk Write Protect to prevent data

from being written to HDD. The options are Enabled or Disabled.

IDE Detect Time Out (Sec)

This feature allows the user to set the time-out value for detecting ATA, ATA PI

devices installed in the system. The options are 0 (sec), 5, 10, 15, 20, 25, 30 and

35.

ATA(PI) 80Pin Cable Detection

This setting allows AMI BIOS to auto-detect the 80-Pin ATA(PI) cable. The options

are Host & Device, Host and Device.

4-8

Chapter 4: BIOS

 PCI/PnP Confi guration

Clear NVRAM

Select Yes to clear NVRAM during boot-up. The options are Yes and No.

Plug & Play OS

Select Yes to allow the OS to confi gure Plug & Play devices. (This is not required

for system boot if your system has an OS that supports Plug & Play.) Select No

to allow AMIBIOS to confi gure all devices in the system.

PCI Latency Timer

This option sets the latency of all PCI devices on the PCI bus. Select a value to

set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192,

224 and 248.

Allocate IRQ to PCI VGA

Set this value to allow or restrict the system from giving the VGA adapter card an

interrupt address. The options are Yes and No.

Palette Snooping

Select "Enabled" to inform the PCI devices that an ISA graphics device is installed

in the system in order for the graphics card to function properly. The options are

Enabled and Disabled.

PCI IDE BusMaster

Set this value to allow or prevent the use of PCI IDE busmastering. Select "Enabled"

to allow AMI BIOS to use PCI busmaster for reading and writing to IDE drives. The

options are Disabled and Enabled.

Offboard PCI/ISA IDE Card

This option allows the user to assign a PCI slot number to an Off-board PCI/ISA

IDE card in order for it to function properly. The options are Auto, PCI Slot1, PCI

Slot2, PCI Slot3, PCI Slot4, PCI Slot5, and PCI Slot6.

IRQ3/IRQ4/IRQ5/IRQ7/IRQ9/IRQ10/IRQ11

This feature specifi es the availability of an IRQ to be used by a PCI/PnP device.

Select Reserved for the IRQ to be used by a Legacy ISA device. The options are

Available and Reserved.

4-9

H8DA3-2/H8DAi-2 User’s Manual

DMA Channel 0/Channel 1/Channel 3/Channel 5/Channel 6/Channel
7

Select Available to indicate that a specifi c DMA channel is available to be used by

a PCI/PnP device. Select Reserved if the DMA channel specifi ed is reserved for

a Legacy ISA device. The options are Available and Reserved.

Reserved Memory Size

This feature specifi es the size of memory block to be reserved for Legacy ISA

devices. The options are Disabled, 16K, 32K and 64K.

Onboard SAS Controller

This option allows the user to Enable or Disable the onboard SAS controller.

4-10

Chapter 4: BIOS

 Super IO Confi guration

Serial Port1 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 1. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to Disabled, the serial port physically becomes

unavailable. Select "3F8/IRQ4" to allow the serial port to use 3F8 as its I/O port

address and IRQ 4 for the interrupt address. The options are Disabled, 3F8/IRQ4,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port2 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 2. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to "Disabled", the serial port physically becomes

unavailable. Select "2F8/IRQ3" to allow the serial port to use 2F8 as its I/O port

address and IRQ 3 for the interrupt address. The options are Disabled, 2F8/IRQ3,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port 2 Mode

Tells BIOS which mode to select for serial port 2. The options are Normal, IrDA

and ASKIR.

Parallel Port Address

This option specifi es the I/O address used by the parallel port. Select Disabled to

prevent the parallel port from accessing any system resources. When the value of

this option is set to Disabled, the printer port becomes unavailable. Select 378 to

allow the parallel port to use 378 as its I/O port address. The majority of parallel

ports on computer systems use IRQ7 and I/O Port 378H as the standard setting.

Select 278 to allow the parallel port to use 278 as its I/O port address. Select 3BC

to allow the parallel port to use 3BC as its I/O port address.

Parallel Port Mode

Specify the parallel port mode. The options are Normal, Bi-directional, EPP

and ECP.

Parallel Port IRQ

Select the IRQ (interrupt request) for the parallel port. The options are IRQ5
and IRQ7.

4-11

H8DA3-2/H8DAi-2 User’s Manual

 Chipset Confi guration

 NorthBridge Confi guration

 Memory Confi guration

Memclock Mode

This setting determines how the memory clock is set. Auto has the memory

clock by code and Manual and Limit allow the user to set a standard value.

MCT Timing Mode

Sets the timing mode for memory. Options are Auto and Manual.

Bank Interleaving

Select Auto to automatically enable interleaving-memory scheme when this

function is supported by the processor. The options are Auto and Disabled.

Enable Clock to All DIMMs

Use this setting to enable unused clocks to all DIMMSs, even if some DIMM

slots are unpopulated. Options are Enabled and Disabled.

MemClk Tristate C3/ALTVID

Use this setting to Enable or Disable memory clock tristate during C3 and

ALT VID.

CS Sparing Enable

This setting will reserve a spare memory rank in each node when enabled.

Options are Enable and Disable.

DQS Signal Training Control

This setting is used to Enable or Disable the DQS Signal Training Mode.

Memory Hole Remapping

When "Enabled", this feature enables hardware memory remapping around

the memory hole. Options are Enabled and Disabled.

4-12

Chapter 4: BIOS

 ECC Confi guration

DRAM ECC Enable

DRAM ECC allows hardware to report and correct memory errors automati-

cally. Options are Enabled and Disabled.

4-Bit ECC Mode

Allows the user to enabled 4-bit ECC mode (also known as ECC

Chipkill). Options are Enabled and Disabled.

DRAM Scrub Redirect

Allows system to correct DRAM ECC errors immediately, even with

background scrubbing on. Options are Enabled and Disabled.

DRAM BG Scrub

Corrects memory errors so later reads are correct. Options are Dis-

abled and various times in nanoseconds and microseconds.

L2 Cache BG Scrub

Allows L2 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

Data Cache BG Scrub

Allows L1 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

Power Down Control

Allows DIMMs to enter power down mode by deasserting the clock enable signal

when DIMMs are not in use. Options are Auto and Disabled.

Alternate VID

Specify the alternate VID while in low power states. Options are Auto and vari-

ous voltages from .800V to 1.050V in increments of .025V.

4-13

H8DA3-2/H8DAi-2 User’s Manual

 SouthBridge Confi guration

CPU/LDT Spread Spectrum

Enables spread spectrum for the CPU/LDT. Options are Center Spread, Down

Spread or Disabled.

PCIE Spread Spectrum

Allows you to Enable or Disable spread spectrum for PCI-Express..

SATA Spread Spectrum

Enables spread spectrum for the SATA. Options are Enabled and Disabled.

PCI Bus Scan Order

Options are High  Low and Low  High.

MAC0 LAN0

Settings are Auto and Disabled for MAC0 LAN0.

MAC1 LAN1

Settings are Auto and Disabled for MAC1 LAN1.

USB 1.1 Controller

Enable or disable the USB 1.1 controller.

USB 2.0 Controller

Enable or disable the USB 2.0 controller.

Legacy USB Support

Select "Enabled" to enable the support for USB Legacy. Disable Legacy support

if there are no USB devices installed in the system. "Auto" disabled Legacy

support if no USB devices are connected. The options are Disabled, Enabled

and Auto.

USB 2.0 Controller Mode

Select the controller mode for your USB ports. Options are HiSpeed and

FullSpeed. (HiSpeed=480 Mbps, FullSpeed=12 Mbps).

BIOS EHCI Hand-Off

Enable or Disable a workaround for OS's without EHCI hand-off support.

4-14

Chapter 4: BIOS

 USB Mass Storage Device Confi guration

USB Mass Storage Reset Delay

Set the USB mass storage reset delay to 10 sec., 20 sec., 30 sec. or 40 sec.

Device #1 Emulation Type

If set to Auto, USB devices < 530MB will be emulated as a fl oppy drive and

the remaining as hard drives. The Forced FDD setting forces a formatted hard

drive to boot as a fl oppy disk drive. Options are Auto, Floppy, Forced FDD,

Hard Disk and CD-ROM.

 Event Log Confi guration

View Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Mark All Events as Read

Highlight this item and press <Enter> to mark all events as read.

Clear Event Log

Select Yes and press <Enter> to clear all event logs. The options are Yes and No

to verify.

 PCI Express Confi guration

Active State Power Management

Used to Enable or Disable the PCI-Express L0 and L1 link power states.

 Remote Acess Confi guration

Remote Access

Allows you to Enable or Disable remote access. If enabled, the following

settings will be displayed.

Serial Port Number

Selects the serial port to use for console redirection. Options are COM1 and

COM2.

Serial Port Mode

Selects the serial port settings to use. Options are (115200 8, n, 1), (57600 8,

n, 1), (38400 8, n, 1), (19200 8, n, 1) and (09600 8, n, 1).

4-15

H8DA3-2/H8DAi-2 User’s Manual

Flow Control

Selects the fl ow control to be used for console redirection. Options are None,

Hardware and Software.

Redirection After BIOS POST

Options are Disable (no redirection after BIOS POST), Boot Loader (redirection

during POST and during boot loader) and Always (redirection always active).

Note that some OS's may not work with this set to Always.

Terminal Type

Selects the type of the target terminal. Options are ANSI, VT100 and VT-

UTF8.

VT-UTF8 Combo Key Support

Allows you to Enable or Disable VT-UTF8 combination key support for ANSI/

VT100 terminals.

Sredir Memory Display Delay

Use this setting to set the delay in seconds to display memory information. Op-

tions are No Delay, 1 sec, 2 secs and 4 secs.

4-16

Chapter 4: BIOS

 System Health Monitor

CPU Overheat Alarm

Use the "+" and "-" keys to set the CPU temperature threshold to between 65o

o

and 90

sis will light up and an alarm will sound. The LED and alarm will turn off once

the CPU temperature has dropped to 5 degrees below the threshold set. The

default setting is 72

The submenu includes monitor displays for the following information:

CPU1 Temperature, CPU2 Temperature (for dual CPU systems), System Tem-

perature, CPU1Vcore, CPU2Vcore (for dual CPU systems), 3.3V, +5Vin, +12Vin,

5V standby and battery voltage.

C. When this threshold is exceeded, the overheat LED on the chas-

o

C.

 System Fan Monitor

Fan Speed Control Modes

This feature allows the user to determine how the system will control the speed

of the onboard fans. Select "Workstation" if your system is used as a Worksta-

tion. Select "Server" if your system is used as a Server. Select "Disable" to

disable the fan speed control function to allow the onboard fans to continuously

run at full speed (12V). The options are 1) Disabled (Full Speed) 2) Server

Mode 3) Workstation Mode 4) Workstation Quiet Mode and 5) Workstation

Super Quiet Mode.

FAN1 Speed through FAN8 Reading

The speeds of the onboard fans (in rpm) are displayed here.

4-17

H8DA3-2/H8DAi-2 User’s Manual

4-4 Boot Menu

This menu allows the user to confi gure the following items:

 Boot Device Priority

This feature allows the user to prioritize the boot sequence from the available

devices.

 Hard Disk Drives

This feature allows the user to specify the Boot sequence from available hard disk

drives.

 Removable Drives

This feature allows the user to specify the Boot sequence from available remov-

able drives.

 CD/DVD Drives

This feature allows the user to specify the Boot sequence from available CD/DVD

drives.

4-5 Security Menu

AMI BIOS provides a Supervisor and a User password. If you use both passwords,

the Supervisor password must be set fi rst.

Change Supervisor Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Change User Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Boot Sector Virus Protection

This option is near the bottom of the Security Setup screen. Select "Disabled" to

deactivate the Boot Sector Virus Protection. Select "Enabled" to enable boot sector

protection. When "Enabled", AMI BIOS displays a warning when any program (or

virus) issues a Disk Format command or attempts to write to the boot sector of the

hard disk drive. The options are Enabled and Disabled.

4-18

Chapter 4: BIOS

4-6 Exit Menu

Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup

screen.

Save Changes and Exit

When you have completed the system confi guration changes, select this option

to leave BIOS Setup and reboot the computer, so the new system confi guration

parameters can take effect. Select Save Changes and Exit from the Exit menu

and press <Enter>.

Discard Changes and Exit

Select this option to quit BIOS Setup without making any permanent changes to

the system confi guration and reboot the computer. Select Discard Changes and

Exit from the Exit menu and press <Enter>.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to AMI

BIOS Utility Program.

Load Optimal Defaults

To set this feature, select Load Optimal Defaults from the Exit menu and press

<Enter>. Then Select "OK" to allow BIOS to automatically load the Optimal Defaults

as the BIOS Settings. The Optimal settings are designed for maximum system

performance, but may not work best for all computer applications.

Load Fail-Safe Defaults

To set this feature, select Load Fail-Safe Defaults from the Exit menu and press

<Enter>. The Fail-Safe settings are designed for maximum system stability, but

not maximum performance.

4-19

H8DA3-2/H8DAi-2 User’s Manual

Notes

4-20

Appendix A: BIOS Error Beep Codes

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time

the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the

boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up pro-

cedure. If a fatal error occurs, you should consult with your system manufacturer

for possible repairs.

These fatal errors are usually communicated through a series of audible beeps.

The numbers on the fatal error list, on the following page, correspond to the number

of beeps for the corresponding error. All errors listed, with the exception of Beep

Code 8, are fatal errors.

POST codes may be read on the debug LEDs located beside the LAN port on the

serverboard backplane. See the description of the Debug LEDs (LED1 and LED2)

in Chapter 5.

A-1 AMIBIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset.

(Ready to power up.)

5 short, 1 long Memory error No memory detected in

system

8 beeps Video error Video adapter disabled or

missing

A-1

H8DA3-2/H8DAi-2 User’s Manual

Notes

A-2

Appendix B: BIOS POST Checkpoint Codes

Appendix B

BIOS POST Checkpoint Codes

When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O

port 0080h. If the computer cannot complete the boot process, diagnostic equipment

can be attached to the computer to read I/O port 0080h.

B-1 Uncompressed Initialization Codes

The uncompressed initialization checkpoint codes are listed in order of execution:

Checkpoint Code Description

D0h The NMI is disabled. Power on delay is starting. Next, the initialization code check-

D1h Initializing the DMA controller, performing the keyboard controller BAT test, starting

D3h Starting memory sizing next.

D4h Returning to real mode. Executing any OEM patches and setting the Stack next.

D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The

sum will be verifi ed.

memory refresh and entering 4 GB fl at mode next.

initialization code is copied to segment 0 and control will be transferred to segment

0.

B-1

H8DA3-2/H8DAi-2 User’s Manual

B-2 Bootblock Recovery Codes

The bootblock recovery checkpoint codes are listed in order of execution:

Checkpoint Code Description

E0h The onboard fl oppy controller if available is initialized. Next, beginning the base

E1h Initializing the interrupt vector table next.

E2h Initializing the DMA and Interrupt controllers next.

E6h Enabling the fl oppy drive controller and Timer IRQs. Enabling internal cache mem-

Edh Initializing the fl oppy drive.

Eeh Looking for a fl oppy diskette in drive A:. Reading the fi rst sector of the diskette.

Efh A read error occurred while reading the fl oppy drive in drive A:.

F0h Next, searching for the AMIBOOT.ROM fi le in the root directory.

F1h The AMIBOOT.ROM fi le is not in the root directory.

F2h Next, reading and analyzing the fl oppy diskette FAT to fi nd the clusters occupied

F3h Next, reading the AMIBOOT.ROM fi le, cluster by cluster.

F4h The AMIBOOT.ROM fi le is not the correct size.

F5h Next, disabling internal cache memory.

FBh Next, detecting the type of fl ash ROM.

FCh Next, erasing the fl ash ROM.

512 KB memory test.

ory.

by the AMIBOOT.ROM fi le.

FDh Next, programming the fl ash ROM.

FFh Flash ROM programming was successful. Next, restarting the system BIOS.

B-2

Appendix B: BIOS POST Checkpoint Codes

B-3 Uncompressed Initialization Codes

The following runtime checkpoint codes are listed in order of execution.

These codes are uncompressed in F0000h shadow RAM.

Checkpoint Code Description

03h The NMI is disabled. Next, checking for a soft reset or a power on condition.

05h The BIOS stack has been built. Next, disabling cache memory.

06h Uncompressing the POST code next.

07h Next, initializing the CPU and the CPU data area.

08h The CMOS checksum calculation is done next.

0Ah The CMOS checksum calculation is done. Initializing the CMOS status register for

0Bh The CMOS status register is initialized. Next, performing any required initialization

0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to the

0Eh The keyboard controller BAT command result has been verifi ed. Next, performing

0Fh The initialization after the keyboard controller BAT command test is done. The key-

10h The keyboard controller command byte is written. Next, issuing the Pin 23 and 24

11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing

12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2.

13h The video display has been disabled. Port B has been initialized. Next, initializing

14h The 8254 timer test will begin next.

19h Next, programming the fl ash ROM.

1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.

date and time next.

before the keyboard BAT command is issued.

keyboard controller.

any necessary initialization after the keyboard controller BAT command test.

board command byte is written next.

blocking and unblocking command.

CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was
set in AMIBCP or the <End> key was pressed.

the chipset.

2Bh Passing control to the video ROM to perform any required confi guration before the

video ROM test.

2Ch All necessary processing before passing control to the video ROM is done. Look-

ing for the video ROM next and passing control to it.

2Dh The video ROM has returned control to BIOS POST. Performing any required pro-

cessing after the video ROM had control

23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature next.

Making the BIOS code segment writable and performing any necessary confi gura­tion before initializing the interrupt vectors.

24h The confi guration required before interrupt vector initialization has completed. In-

terrupt vector initialization is about to begin.

B-3

H8DA3-2/H8DAi-2 User’s Manual

Checkpoint Code Description

25h Interrupt vector initialization is done. Clearing the password if the POST DIAG

27h Any initialization before setting video mode will be done next.

28h Initialization before setting the video mode is complete. Confi guring the mono-

2Ah Bus initialization system, static, output devices will be done next, if present. See the

2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not

2Fh The EGA/VGA controller was not found. The display memory read/write test is

30h The display memory read/write test passed. Look for retrace checking next.

31h The display memory read/write test or retrace checking failed. Performing the alter-

32h The alternate display memory read/write test passed. Looking for alternate display

34h Video display checking is over. Setting the display mode next.

37h The display mode is set. Displaying the power on message next.

38h Initializing the bus input, IPL, general devices next, if present. See the last page of

39h Displaying bus initialization error messages. See the last page of this chapter for

switch is on.

chrome mode and color mode settings next.

last page for additional information.

found, performing the display memory read/write test next.

about to begin.

nate display memory read/write test next.

retrace checking next.

this chapter for additional information.

additional information.

3Ah The new cursor position has been read and saved. Displaying the Hit <DEL> mes-

3Bh The Hit <DEL> message is displayed. The protected mode memory test is about

40h Preparing the descriptor tables next.

42h The descriptor tables are prepared. Entering protected mode for the memory test

43h Entered protected mode. Enabling interrupts for diagnostics mode next.

44h Interrupts enabled if the diagnostics switch is on. Initializing data to check memory

45h Data initialized. Checking for memory wraparound at 0:0 and fi nding the total sys-

46h The memory wraparound test is done. Memory size calculation has been done.

47h The memory pattern has been written to extended memory. Writing patterns to the

48h Patterns written in base memory. Determining the amount of memory below 1 MB

49h The amount of memory below 1 MB has been found and verifi ed.

4Bh The amount of memory above 1 MB has been found and verifi ed. Checking for a

sage next.

to start.

next.

wraparound at 0:0 next.

tem memory size next.

Writing patterns to test memory next.

base 640 KB memory next.

next.

soft reset and clearing the memory below 1 MB for the soft reset next. If this is a
power on situation, going to checkpoint 4Eh next.

B-4

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory

4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory size

4Eh The memory test started, but not as the result of a soft reset. Displaying the fi rst

4Fh The memory size display has started. The display is updated during the memory

50h The memory below 1 MB has been tested and initialized. Adjusting the displayed

51h The memory size display was adjusted for relocation and shadowing.

52h The memory above 1 MB has been tested and initialized. Saving the memory size

53h The memory size information and the CPU registers are saved. Entering real mode

54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,

57h The A20 address line, parity, and the NMI are disabled. Adjusting the memory size

58h The memory size was adjusted for relocation and shadowing. Clearing the Hit

59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed. Starting

above 1 MB next.

next. Going to checkpoint 52h next.

64 KB memory size next.

test. Performing the sequential and random memory test next.

memory size for relocation and shadowing next.

information next.

next.

parity, and the NMI next.

depending on relocation and shadowing next.

<DEL> message next.

the DMA and interrupt controller test next.

60h The DMA page register test passed. Performing the DMA Controller 1 base register

62h The DMA controller 1 base register test passed. Performing the DMA controller 2

65h The DMA controller 2 base register test passed. Programming DMA controllers 1

66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt

67h Completed 8259 interrupt controller initialization.

7Fh Extended NMI source enabling is in progress.

80h The keyboard test has started. Clearing the output buffer and checking for stuck

81h A keyboard reset error or stuck key was found. Issuing the keyboard controller

82h The keyboard controller interface test completed. Writing the command byte and

83h The command byte was written and global data initialization has completed. Check-

84h Locked key checking is over. Checking for a memory size mismatch with CMOS

85h The memory size check is done. Displaying a soft error and checking for a password

test next.

base register test next.

and 2 next.

controller next.

keys. Issuing the keyboard reset command next.

interface test command next.

initializing the circular buffer next.

ing for a locked key next.

RAM data next.

or bypassing WINBIOS Setup next.

B-5

H8DA3-2/H8DAi-2 User’s Manual

Checkpoint Code Description

86h The password was checked. Performing any required programming before WIN-

87h The programming before WINBIOS Setup has completed. Uncompressing the

88h Returned from WINBIOS Setup and cleared the screen. Performing any necessary

89h The programming after WINBIOS Setup has completed. Displaying the power on

8Ch Programming the WINBIOS Setup options next.

8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller

8Fh The hard disk controller has been reset. Confi guring the fl oppy drive controller

91h The fl oppy drive controller has been confi gured. Confi guring the hard disk drive

95h Initializing the bus option ROMs from C800 next. See the last page of this chapter

96h Initializing before passing control to the adaptor ROM at C800.

97h Initialization before the C800 adaptor ROM gains control has completed. The adap-

98h The adaptor ROM had control and has now returned control to BIOS POST. Perform-

BIOS Setup next.

WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility
next.

programming after WINBIOS Setup next.

screen message next.

next.

next.

controller next.

for additional information.

tor ROM check is next.

ing any required processing after the option ROM returned control.

99h Any initialization required after the option ROM test has completed. Confi guring the

9Ah Set the timer and printer base addresses. Setting the RS-232 base address next.

9Bh Returned after setting the RS-232 base address. Performing any required initializa-

9Ch Required initialization before the Coprocessor test is over. Initializing the Coproces-

9Dh Coprocessor initialized. Performing any required initialization after the Coproces-

9Eh Initialization after the Coprocessor test is complete. Checking the extended keyboard,

A2h Displaying any soft errors next.

A3h The soft error display has completed. Setting the keyboard typematic rate next.

A4h The keyboard typematic rate is set. Programming the memory wait states next.

A5h Memory wait state programming is over. Clearing the screen and enabling parity

A7h NMI and parity enabled. Performing any initialization required before passing control

A8h Initialization before passing control to the adaptor ROM at E000h completed. Passing

timer data area and printer base address next.

tion before the Coprocessor test next.

sor next.

sor test next.

keyboard ID, and Num Lock key next. Issuing the keyboard ID command next.

and the NMI next.

to the adaptor ROM at E000 next.

control to the adaptor ROM at E000h next.

B-6

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

A9h Returned from adaptor ROM at E000h control. Performing any initialization required

Aah Initialization after E000 option ROM control has completed. Displaying the system

Abh Uncompressing the DMI data and executing DMI POST initialization next.

B0h The system confi guration is displayed.

B1h Copying any code to specifi c areas.

00h Code copying to specifi c areas is done. Passing control to INT 19h boot loader

after the E000 option ROM had control next.

confi guration next.

next.

B-7

H8DA3-2/H8DAi-2 User’s Manual

Notes

B-8
