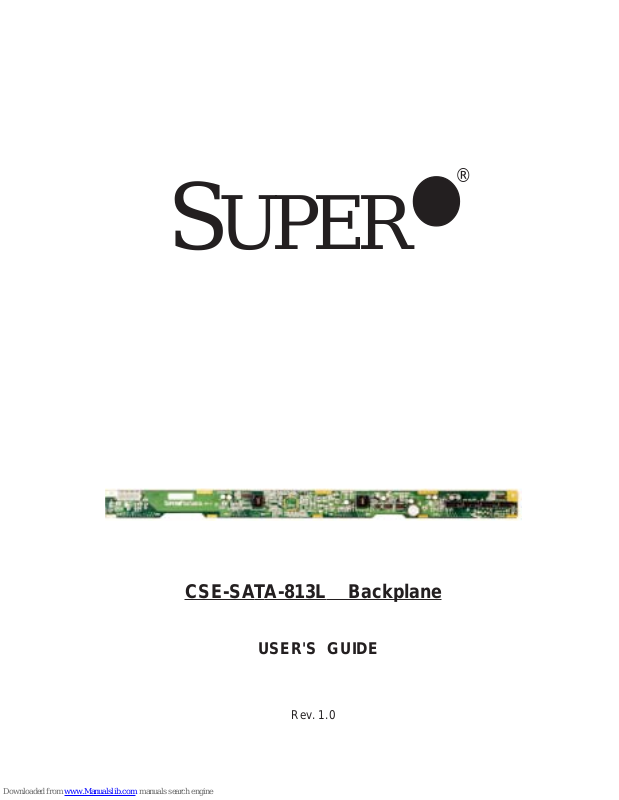

Rev. 1.0
®
SUPER
CSE-SATA-813L Backplane
USER'S GUIDE
1-2
CSE-SATA-813L Backplane User’s Guide
Table of Contents
Safety Information and Technical Specifications............................. 1-3
1. Safety Guidelines .................................................................................... 1-3
2. Jumper Settings and Pin Definitions.............................................. 1-4
A. Front Jumpers and Connectors.................................................. 1-4
B. Rear Connectors and LED Indicators........................................ 1-5
1-3
Safety Information and Technical Specifications
Safety Information and Technical Specifications
To avoid personal injury and property damage, please carefully
follow all the safety steps listed below when accessing your
system or handling the components:
ESD Safety Guidelines
Electric Static Discharge (ESD) can damage electronic components. To
prevent damage to your system, it is important to handle it very carefully. The
following measures are generally sufficient to protect your equipment from
ESD.
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the
antistatic bag.
• Handle the RAID card by its edges only; do not touch its components,
peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in
use.
General Safety Guidelines
• Always disconnect power cables before installing or removing any components from the computer, including the SATA 813L Backplane.
• Disconnect the power cable before installing or removing any cable from
the SATA 813L Backplane.
• Make sure that the SATA 813L Backplane is securely and properly
installed on the motherboard to prevent damage to the system due to
power shortage.
1. Safety Guidelines
1-4
CSE-SATA-813L Backplane User’s Guide
2. Jumper Settings and Pin Definitions
A. Front Jumpers and Connectors
Front Jumper/Connector Locations
+5V
GNDGND+12V
1
1
+5V +12V
+5V
+12V
#1
#0
M9
M15
C23
JP10
D3
U17
U2
JP18
JP25
J6
J5
U1
U18
JP35
C94
MH2
M46
J9
U29
D16
J7
J8
GEM424
REV 1.1
SATA813L
R
UPER
S
C
B
JP25
JP18
D
J5J6
J7
J8
A
Front View
A (J10): 813L Backplane Main Power
B/C: CD-ROM/Floppy Drive Power Connectors
D: Buzzer
You must use the 4-pin power
connector (J10) to provide adequate power supply to the Backplane. See the table on the right
for pin definitions.
Pins #
1
2 & 3
4
Definition
+12 V
Ground
+5V
Backplane Main
PWR
4-pin Connector
(J10)
Jumper Description Definition
Open Buzzer Enable (*Default) JP18
Closed Buzzer Disable
1-2 Overheat Temperature at 500C (*Default)
2-3 Overheat Temperature at 550C
JP25
Open Overheat Temperature at 45
0
C
D3
Front Jumper Descriptions and Pin Descriptions
Backplane Main Power Connector Pin Definitions
CD-ROM/FDD Power Connector Pin Definitions
Pins #
1
2 & 3
4
Definition
+5 V
Ground
+12V
CD-ROM/FDD PWR
4-pin Connectors
Front Connectors and Pin Definitions
You must use the 4-pin power
connectors, marked "B" and "C" on
the layout above, to provide power
supply to the CD-ROM and Floppy
Drives. See the table on the right
for pin definitions.
(*See below for front connector/jumper descriptions.)
1-5
Safety Information and Technical Specifications
Front
Connector
Specification
J5 (Front) SATA#0 Act In (Cable to MB)
J6 (Front) SATA#1 Act In (Cable to MB)
J7 (Front) SATA#2 Act In (Cable to MB)
J8 (Front) SATA#3 Act In (Cable to MB)
Front LED
Indicator
Specification
D3 (Front) Overheat LED Indicator
Rear View
IC1210
JP10
J2
J4
J1
D12
J2
D13 D14
D15
J3
J4
Connectors
B. Rear Connectors and LED Indicators
Rear
Connector
Specification
J1 (Rear) SATA#0 HDD (connected to HDD)
J2 (Rear) SATA#1 HDD (connected to HDD)
J3 (Rear) SATA#2 HDD (connected to HDD)
J4 (Rear) SATA#3 HDD (connected to HDD)
Rear LED
Indicators
Specification
D12 (Rear) SATA#0 Act
D13 (Rear) SATA#1 Act
D14 (Rear) SATA#2 Act
D15 (Rear) SATA#3 Act
LED Indicators
Rear Connector/LED Indicator Locations
Connector/LED Indicator Descriptions
Front SATA Activity Connectors
Front Overheat LED Indicator
(*See below for rear connector/LED descriptions.)
