Supero C7Z170-M, C7H170-M User Manual

C7Z170-M

C7H170-M

USER’S MANUAL

Revision 1.0c

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual,

please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the authorized dealer or an experienced radio/TV technician for help.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Materialspecial handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0c Release Date: May 26, 2017

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

This manual is written for system integrators, PC technicians and knowledgeable PC users. It provides information for the installation and use of the C7Z170-M/C7H170-M motherboard.

Manual Organization

Chapter 1 describes the features, specications and performance of the

motherboard, and provides detailed information on the Intel Z170/H170 Express chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules and other hardware components into the system.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for video, memory and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C contains UEFI BIOS Recovery instructions.

Appendix D contains an introduction and instructions regarding the Dual

Boot Block feature of this motherboard.

iii

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard. If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box.

• One (1) Supermicro Motherboard

• Four (4) SATA cables

• One (1) I/O shield

• One (1) Quick Reference Guide

• One (1) Driver CD

Conventions Used in the Manual

Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself:

Attention! Critical information to prevent damage to the components or injury to yourself.

Important: Important information given to ensure proper system installation or to relay safety precautions.

Note: Additional Information given to differentiate various models or provides information for correct system setup.

Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury.

Should you have questions or experience difculty, contact Supermicro's Technical Support department for assistance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring compo-

nents in the Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従って処分して下さい。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更

换原有电池。请按制造商的说明处理废旧电池。

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有

電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen

Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen

Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen

des Herstellers.

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la

remplacer que par une pile de type semblable ou équivalent, recom-

mandée par le fabricant. Jeter les piles usagées conformément aux

instructions du fabricant.

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante. Desechar las baterías gastadas según las instrucciones del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל







경고!



배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일 하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사 의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd te worden.

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws and regulations.

Standardized Warning Statements

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。

警告

本产品的废弃处理应根据所有国家的法律和规章进行。

警告

本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignezvous auprès de l'organisme compétent.

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

 

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in over-

eenstemming met alle nationale wetten en reglementen.

vii

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Web Site: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: support@supermicro.com.tw

Web Site: www.supermicro.com.tw

viii

Contacting Supermicro

Where to Find More Information

For your system to work properly, please follow the links below to

download all necessary drivers/utilities and the user's manual for your

motherboard.

SMCI product manuals: http://www.supermicro.com/support/manuals/

Product Drivers and utilities: ftp://ftp.supermicro.com/

If you have any questions, please contact our support team at support@

supermicro.com.

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Table of Contents

Preface

Manual Organization ..........................................................................iii

Checklist ..........................................................................................iv

Conventions Used in the Manual .........................................................iv

Standardized Warning Statements ....................................................... v

Battery Handling ....................................................................... v

Product Disposal .......................................................................vi

Contacting Supermicro ..................................................................... viii

Where to Find More Information..........................................................ix

Chapter 1 Introduction

1-1 Overview .............................................................................. 1-1

About this Motherboard .......................................................... 1-1

1-2 Chipset Overview .................................................................. 1-1

Intel® Z170/H170 Express Chipset Features ............................. 1-1

1-3 Motherboard Features ............................................................... 1-2

1-4 Special Features .................................................................... 1-4

Recovery from AC Power Loss ................................................. 1-4

1-5 PC Health Monitoring .............................................................. 1-4

Fan Status Monitor with Firmware Control ............................... 1-4

Environmental Temperature Control ......................................... 1-4

System Resource Alert ........................................................... 1-5

1-6 ACPI Features ....................................................................... 1-5

Slow Blinking LED for Suspend-State Indicator .......................... 1-5

1-7 Power Supply ........................................................................ 1-6

1-8 Super I/O ............................................................................. 1-6

Chapter 2 Installation

2-1 Installation Components and Tools Needed ............................... 2-1

2-2 Static-Sensitive Devices .......................................................... 2-2

Precautions ........................................................................... 2-2

Unpacking ............................................................................. 2-2

2-3 Processor and Heatsink Installation .......................................... 2-3

Installing the LGA1151 Processor ........................................... 2-3

Installing an Active CPU Heatsink with Fan ............................... 2-6

Removing the Heatsink ........................................................... 2-8

2-4 Installing DDR4 Memory ......................................................... 2-9

DIMM Installation .................................................................. 2-9

Table of Contents

Removing Memory Modules ..................................................... 2-9

Memory Support .................................................................. 2-10

Memory Population Guidelines ............................................... 2-11

2-5 Motherboard Installation ....................................................... 2-12

Tools Needed ....................................................................... 2-12

Location of Mounting Holes ................................................... 2-12

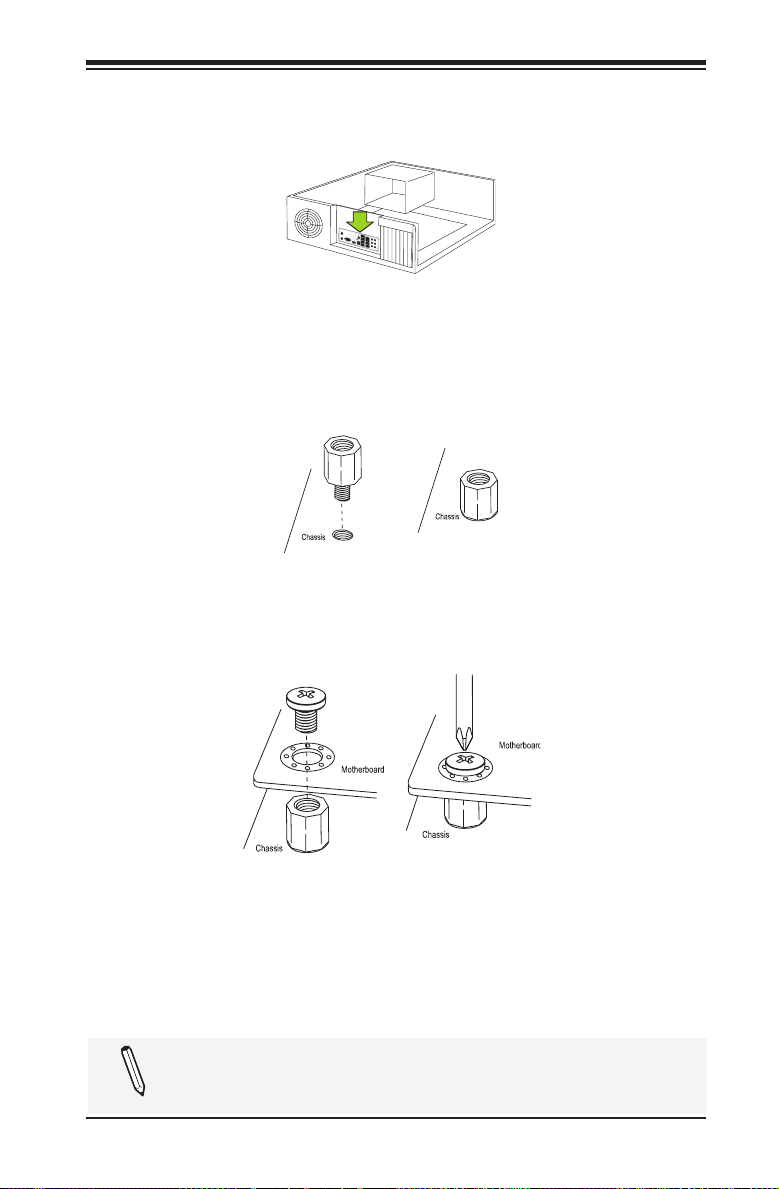

Installing the Motherboard .................................................... 2-13

2-6 Connectors/IO Ports ............................................................. 2-14

Back I/O Panel .................................................................... 2-14

Universal Serial Bus (USB) ................................................ 2-15

Ethernet Port ................................................................... 2-17

Back Panel High Denition Audio (HD Audio) ...................... 2-17

S/PDIF Port ..................................................................... 2-18

VESA® DisplayPort™ ........................................................ 2-18

HDMI Port ....................................................................... 2-18

DVI-D Port ...................................................................... 2-18

Front Control Panel .............................................................. 2-19

Front Control Panel Pin Denitions ......................................... 2-20

Power LED ..................................................................... 2-20

HDD LED ........................................................................ 2-20

NIC1 (LAN) ..................................................................... 2-20

Overheat (OH)/Fan Fail ..................................................... 2-20

Reset Button .................................................................. 2-21

Power Button .................................................................. 2-21

2-7 Connecting Cables ............................................................... 2-22

ATX Main PWR, CPU, AUX PWR Connectors (JPW1, JPW2, JPW3) .. 2-22

Fan Headers (Fan 1 ~ Fan 5) ............................................ 2-23

Chassis Intrusion (JL1) .................................................... 2-23

Internal Buzzer (SP1) ....................................................... 2-24

Speaker (JD1) ................................................................. 2-24

Onboard Power LED (JLED1) .............................................. 2-25

Serial Port (COM1) ........................................................... 2-25

DOM PWR Connector (JSD1).............................................. 2-26

SPDIF OUT (JSPDIF_OUT) ................................................. 2-26

Standby Power Header (JSTBY1) ........................................ 2-27

PCI-E M.2 Connector (PCI-E M.2) ....................................... 2-27

Front Panel Audio Header (AUDIO FP) ................................ 2-28

TPM Header/Port 80 Header .............................................. 2-28

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

2-8 Jumper Settings .................................................................. 2-29

Explanation of Jumpers ........................................................ 2-29

LAN Enable/Disable .......................................................... 2-29

Clear CMOS & JBT1 .......................................................... 2-30

PCI Slot SMB Enable (I2C1/I2C2) ........................................ 2-30

Audio Enable (JPAC1) ....................................................... 2-31

Manufacturing Mode (JPME2) ............................................. 2-31

USB Wake Up (JPUSB1/JPUSB2) ........................................ 2-32

Watch Dog Enable/Disable ................................................. 2-32

BIOS Recovery Switch (JBR1) ............................................ 2-33

Power Button (POWER BUTTON) ........................................ 2-33

BIOS Restore (BIOS RESTORE) .......................................... 2-33

2-9 Onboard Indicators ................................................................ 2-34

LAN LEDs ........................................................................ 2-34

Onboard Power LED (LED1) .............................................. 2-34

M.2 On Board (LED2) ...................................................... 2-35

2-10 SATA Connections ................................................................ 2-36

SATA Connections (I-SATA0~I-SATA5) ................................ 2-36

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ..................................................... 3-1

Before Power On.................................................................... 3-1

No Power .............................................................................. 3-1

No Video .............................................................................. 3-2

Memory Errors ..................................................................... 3-2

When the System is Losing the Setup Conguration .................. 3-2

3-2 Technical Support Procedures .................................................. 3-3

3-3 Frequently Asked Questions .................................................... 3-4

3-4 Battery Removal and Installation ............................................. 3-5

Battery Removal .................................................................... 3-5

Proper Battery Disposal .......................................................... 3-5

3-5 Returning Motherboard for Service ........................................... 3-6

Battery Installation ................................................................ 3-6

Chapter 4 BIOS

4-1 Introduction .......................................................................... 4-1

Starting BIOS GUI Setup Utility ............................................... 4-1

How To Change the Conguration Data .................................... 4-2

How to Start the Setup Utility ................................................. 4-2

4-2 System Information ............................................................... 4-3

System Date ..................................................................... 4-3

xii

Table of Contents

System Time ..................................................................... 4-3

4-3 CPU ..................................................................................... 4-4

CPU Conguration .................................................................. 4-5

C6DRAM ........................................................................... 4-6

SW Guard Extension (SGX) ................................................. 4-6

Select Owner EPOCH input type ........................................... 4-6

PRMRR Size ....................................................................... 4-6

Hardware Prefetcher .......................................................... 4-6

Adjacent Cache Line Prefetch ............................................. 4-6

Intel (VMX) Virtualization Technology .................................. 4-6

PECI ................................................................................. 4-7

Active Processor Cores ........................................................ 4-7

Hyper-Threading ................................................................ 4-7

BIST ................................................................................. 4-7

JTAG C10 Power................................................................. 4-7

AP Threads Idle Manner ...................................................... 4-7

AP Threads Handoff Manner ................................................ 4-7

AES .................................................................................. 4-7

Machine Check ................................................................... 4-7

MonitorMWait ..................................................................... 4-7

Intel Trusted Execution Technology ....................................... 4-8

Alias Check Request ........................................................... 4-8

Reset AUX Content ............................................................. 4-8

Flash Wear Out Protection ................................................... 4-8

Debug Interface ................................................................. 4-8

Debug Interface Lock ......................................................... 4-8

Processor trace memory allocation ....................................... 4-8

FCLK Frequency for Early Power On ..................................... 4-8

Voltage Optimization .......................................................... 4-8

Power and Performance .......................................................... 4-9

CPU - Power Management Control ........................................... 4-9

Boot performance mode ...................................................... 4-9

Intel(R) SpeedStep(tm) ...................................................... 4-9

View/Congure Turbo Options ............................................... 4-10

Energy Efcient P-state ..................................................... 4-10

Energy Efcient Turbo ....................................................... 4-11

CPU VR Settings .................................................................. 4-11

PSYS Slope ..................................................................... 4-11

PSYS Offset ..................................................................... 4-11

xiii

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

PSYS PMax Power ............................................................ 4-11

Acoustic Noise Settings ........................................................ 4-12

Acoustic Noise Mitigation ................................................... 4-12

Core/IA VR Settings ............................................................. 4-13

GT-Sliced VR Settings ........................................................... 4-15

C states .......................................................................... 4-17

Enhanced C-states ........................................................... 4-17

C-State Auto Demotion ..................................................... 4-17

C-State Un-demotion ........................................................ 4-17

Package C-State Demotion ................................................ 4-17

Package C-State Un-Demotion ........................................... 4-17

IO MWAIT Redirection ....................................................... 4-18

Package C State Limit ....................................................... 4-18

C3 Latency Control (MSR 0x60A) ........................................... 4-18

C6/C7 Short Latency Control (MSR 0x60B) ............................. 4-18

C6/C7 Long Latency Control (MSR 0x60C) .............................. 4-18

Custom P-state Table ........................................................... 4-19

CPU Lock Conguration ........................................................ 4-19

GT-Power Management ......................................................... 4-20

CPU OverClocking ................................................................ 4-21

BCLK Clock Frequency (1/100 MHz) ................................... 4-21

FCLK Frequency for Early Power On ................................... 4-21

Active Processor Cores ...................................................... 4-21

Load SMC CPU OC Setting ................................................. 4-21

1-Core Ratio Limit Override ............................................... 4-21

2-Core Ratio Limit Override ............................................... 4-22

3-Core Ratio Limit Override ............................................... 4-22

4-Core Ratio Limit Override ............................................... 4-22

AVX Ratio Offset .............................................................. 4-22

BCLK Aware Adaptive Voltage ............................................ 4-22

Boot Performance Mode .................................................... 4-22

Intel(R) SpeedStep(tm) ................................................... 4-22

Turbo Mode .................................................................... 4-23

Package Power Limit MSR Lock .......................................... 4-23

Congurable TDP Boot Mode ............................................. 4-23

Congurable TDP Lock ...................................................... 4-23

CTDP BIOS Control ........................................................... 4-23

Power Limit 1 Override ..................................................... 4-23

xiv

Table of Contents

Power Limit 1 ................................................................. 4-23

Power Limit 1 Time Window .............................................. 4-24

Power Limit 2 Override ..................................................... 4-24

Power Limit 2 ................................................................. 4-24

Platform PL1 Enable ......................................................... 4-24

Platform PL2 Enable ......................................................... 4-24

Power Limit 3 Override ..................................................... 4-24

Power Limit 4 Override ..................................................... 4-24

CPU Flex Ratio Override .................................................... 4-25

CPU Flex Ratio Settings .................................................... 4-25

Core Max OC Ratio ........................................................... 4-25

System Agent Voltage (mV) .............................................. 4-25

Core Voltage Mode ........................................................... 4-25

Core Extra Turbo Voltage ................................................. 4-25

Core Voltage Override ....................................................... 4-25

Core Voltage Offset .......................................................... 4-25

Offset Prex ................................................................... 4-25

Core PLL Voltage Offset .................................................... 4-25

Ring Max OC Ratio ........................................................... 4-26

Ring Min OC Ratio ............................................................ 4-26

Uncore Voltage Offset ....................................................... 4-26

Offset Prex .................................................................... 4-26

PCH Voltage .................................................................... 4-26

CPU PLL Voltage .............................................................. 4-26

CPU_IO Voltage ............................................................... 4-26

Load Line Calibration ........................................................ 4-26

VRM Total Current Limit Capability ..................................... 4-26

VRM Per-Phase Current Limit Capability .............................. 4-27

PSYS Slope ..................................................................... 4-27

PSYS Offset ..................................................................... 4-27

PSYS PMax Power ............................................................ 4-27

Acoustic Noise Settings ........................................................ 4-27

Acoustic Noise Mitigation ................................................... 4-27

Core/IA VR Settings ............................................................. 4-28

4-4 Memory .............................................................................. 4-31

Memory Scrambler ........................................................... 4-31

Force Cold Reset .............................................................. 4-31

Channel A DIMM Control ................................................... 4-32

Channel B DIMM Control ................................................... 4-32

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Force Single Rank ............................................................ 4-32

Mrc Fast Boot .................................................................. 4-32

Memory OverClocking ........................................................... 4-32

Memory Prole ................................................................ 4-33

Memory Reference Clock ................................................... 4-33

QCLK Odd Ratio ............................................................... 4-33

Memory Frequency ........................................................... 4-33

Memory Voltage ............................................................... 4-34

3rd Timing: ......................................................................... 4-35

4-5 Advanced ............................................................................ 4-39

Boot Feature ....................................................................... 4-39

Quiet Boot ...................................................................... 4-39

Bootup Num-Lock ............................................................ 4-39

Wait for "F1" Error ........................................................... 4-39

Re-try Boot ..................................................................... 4-40

Power Button Function ...................................................... 4-40

AC Loss Policy Depend On ................................................. 4-40

EuP Support .................................................................... 4-40

SuperIO Chip NCT6792D ................................................... 4-41

Serial Port 1 Conguration ................................................ 4-41

Serial Port ....................................................................... 4-41

Device Settings ................................................................ 4-41

Change Settings .............................................................. 4-41

COM 0 ............................................................................ 4-42

Console Redirection .......................................................... 4-42

System Agent (SA) Conguration ........................................... 4-46

Graphics Conguration ......................................................... 4-47

Graphics Turbo IMON Current ............................................ 4-47

Skip Scanning of External Gfx Card .................................... 4-47

Primary Display ............................................................... 4-47

Select PCIE Card .............................................................. 4-47

External Gfx Card Primary Display Conguration .................. 4-47

Internal Graphics ............................................................ 4-48

GTT Size ......................................................................... 4-48

Aperture Size .................................................................. 4-48

DVMT Pre-Allocated .......................................................... 4-48

DVMT Total Gfx Mem ........................................................ 4-48

Gfx Low Power Mode ........................................................ 4-48

xvi

Table of Contents

VDD Enable ..................................................................... 4-48

HDCP Support ................................................................. 4-48

Algorithm ........................................................................ 4-49

PM Support ..................................................................... 4-49

PAVP Enable .................................................................... 4-49

Cdynmax Clamping Enable ................................................ 4-49

Cd Clock Frequency .......................................................... 4-49

GT-Sliced VR Settings ........................................................... 4-50

SATA And RST Conguration ................................................. 4-56

SATA Controller(s) ............................................................ 4-56

SATA Mode Selection ........................................................ 4-56

SATA Controller Speed ...................................................... 4-56

SATA Frozen .................................................................... 4-56

Serial ATA Port 0~5 .......................................................... 4-56

Hot Plug ......................................................................... 4-56

Congured as eSATA ........................................................ 4-57

Spin Up Device ................................................................ 4-57

SATA Device Type ............................................................ 4-57

PCH FW Conguration .......................................................... 4-57

ME FW Image Re-Flash ..................................................... 4-57

USB Conguration ................................................................ 4-58

Legacy USB Support ......................................................... 4-58

XHCI Hand-Off ................................................................. 4-58

PCIe/PCI/PnP Conguration ................................................... 4-59

Security .............................................................................. 4-61

Administrator Password ..................................................... 4-61

User Password ................................................................. 4-61

Secure Boot ........................................................................ 4-62

Attempt Secure Boot ........................................................ 4-62

Secure Boot Mode ............................................................ 4-62

CSM Support ................................................................... 4-62

Key Management (Available when Secure Boot Mode is set to

'Customized') ...................................................................... 4-63

Provision Factory Default Keys ........................................... 4-63

Install Factory Default Keys ............................................... 4-63

Enroll E Image ............................................................... 4-63

Save All Secure Boot Variables .......................................... 4-63

Platform Key (PK) ............................................................ 4-63

Key Exchange Keys .......................................................... 4-64

xvii

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Authorized Signatures ....................................................... 4-64

Forbidden Signatures ........................................................ 4-64

Authorized TimeStamps .................................................... 4-65

OsRecovery Signatures ..................................................... 4-65

4-6 Thermal .............................................................................. 4-66

4-7 Save & Exit ......................................................................... 4-68

Boot mode select ............................................................. 4-68

FIXED BOOT ORDER Priorities ............................................ 4-68

Legacy Boot Option #1~#8 ............................................... 4-68

NETWORK Drive BBS Priorities ........................................... 4-68

Boot Option #1 ................................................................ 4-68

Boot Override ................................................................. 4-68

Launch EFI Shell from lesystem device ............................. 4-69

4-8 BIOS Update ....................................................................... 4-70

Start Update ................................................................... 4-70

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .......................................................... A-1

Appendix B Software Installation Instructions

B-1 Installing Drivers ................................................................... B-1

B-2 Conguring SuperDoctor® V ................................................... B-2

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ................................................ C-1

C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block) .... C-1

C-3 To Recover the Main BIOS Block Using a USB-Attached Device .... C-2

Appendix D Dual Boot Block

D-1 Introduction ..........................................................................D-1

BIOS Boot Block ....................................................................D-1

BIOS Boot Block Corruption Occurrence ..................................D-1

D-2 Steps to Reboot the System by switch JBR1 ............................. D-2

xviii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

About this Motherboard

The C7Z170-M/C7H170-M supports a single 6th/7th Generation Intel®

Core™ i7/i5/i3 processors in an LGA 1151 (H4) socket. With the Intel®

Z170/H170 Express chipset built in, the C7Z170-M (supports overclock-

ing) and the C7H170-M motherboard offers substantial system per-

formance and storage capability in a smaller footprint. Please refer to

our website (http://www.supermicro.com/products/) for processor and

memory support updates.

1-2 Chipset Overview

Intel® Z170/H170 Express Chipset Features

• Direct Media Interface (up 8 GT/s transfer, Full Duplex)

• Intel® Matrix Storage Technology and Intel® Rapid Storage Technology

• Dual NAND Interface

• Intel® I/O Virtualization (VT-d) Support

• Intel® Trusted Execution Technology Support

• PCI Express 3.0 Interface (up to 8 GT/s)

• SATA Controller (up to 6Gb/sec)

• Advanced Host Controller Interface (AHCI)

1-1

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

1-3 Motherboard Features

CPU

Single Intel® Core i3/i5/i7 6th/7th generation processor in an LGA1151 type socket.

Memory

C7Z170-M: Four (4) slots support up to 64GB of unbuffered, non-ECC, 3300MHz(OC) DDR4 memory

C7H170-M: Four (4) slots support up to 64GB of unbuffered, non-ECC, 2133MHz DDR4 memory

Dual-channel memory

DIMM sizes

UDIMM 4GB, 8GB, 16GB

Chipset

Expansion Slots

Intel® Z170/H170 Express

One (1) PCI-E 3.0 X16 slot

One (1) PCI-E 3.0 X4 (in X4) slot

One (1) PCI-E 3.0 X1 slot

One () PCI-E 3.0 M.2 X4 slot/connector

Network

One (1) Gigabit Ethernet Controller

Connections

One (1) RJ-45 rear I/O panel connectors with Link and Activity LEDs

I/O Devices SATA Connections

SATA 3.0 (6Gb/s) Six (6) I-SATA 0~5, via Intel® Z170/

H170 Express chipset

RAID 0, 1, 5, 10

USB Devices

Two (2) USB 2.0, Four (4) USB 3.0 ports on the rear I/O panel

Two (2) front-accessible USB 2.0 ports on one header, two (2) front accessible USB 3.0 ports on one header and two (2) front accessible USB 3.1 ports on one header.

Keyboard/Mouse

One shared PS/2 Keyboard/Mouse port on the I/O backpanel

Other I/O Ports

One (1) DisplayPort, One (1) DVI-D Port, One (1) HDMI Port

One (1) Serial Port header (COM1)

1-2

Audio

One (1) High Denition Audio 7.1 channel connector

supported by Realtek ALC1150 on the back panel

One (1) Front Panel Audio Header

One (1) S/PDIF Out on the rear side of the chassis

Super I/O

Nuvoton NCT6792D-B

BIOS

128 Mb AMI BIOS® SPI Flash BIOS

Plug and Play (PnP0, DMI 2.8, PCI 2.3, ACPI

1.0/2.0/3.0, and USB Keyboard

Power Configuration

ACPI/ASPM Power Management

Main Switch Override Mechanism

Power-on mode for AC power recovery

Health Monitoring CPU Monitoring

Onboard monitors: VCPU, 12V, VCPU_SA, 5VCC, VDIMM, VCPU_IO, VCPU_GT, VDIMM_2.5, PCH 1.0V,

3.3V_DL, AVCC, VSB3, 3.3VCC, VBAT, VCPU_STPLL

CPU 4+1 Phase Switching Voltage Regulator

GT 3 Phase Switching Voltage Regulator

CPU/System overheat LED and control

CPU Thermal Trip support

Thermal Monitor support

Fan Control

Fan status monitoring with rmware 4-pin fan

speed control

Low noise fan speed control

System Management

PECI (Platform Environment Conguration Interface) 2.0 support

System resource alert via SuperDoctor® V

SuperDoctor V, NMI

Chassis Intrusion header and detection

CD Utilities

BIOS ash upgrade utility

Drivers and software for Intel® Z170/H170 Express chipset utilities

Other

Dimensions

ROHS 6/6 (Full Compliant, Lead Free)

ATX form factor (9.6" x 9.6") (243.84 mm x

243.84 mm)

Chapter 1: Introduction

1-3

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

1-4 Special Features

Recovery from AC Power Loss

Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state. See the Advanced BIOS Setup section to change this setting. The default setting is Last State.

1-5 PC Health Monitoring

This section describes the PC health monitoring features of the board. All have an onboard System Hardware Monitoring chip that supports PC health monitoring. An onboard voltage monitor will scan these onboard voltages continuously: VCPU, 12V, VCPU_SA, 5VCC, VDIMM, VCPU_IO,

VCPU_GT, VDIMM_2.5, PCH 1.0V, 3.3V_DL, AVCC, VSB3, 3.3VCC, VBAT, VCPU_STPLL. Once a voltage becomes unstable, a warning is given, or

an error message is sent to the screen. The user can adjust the voltage

thresholds to dene the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

PC health monitoring in the BIOS can check the RPM status of the cooling fans. The onboard CPU and chassis fans are controlled by Thermal Management via SIO.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn on the thermal control fan whenever the CPU temperature exceeds a user-dened threshold. The overheat circuitry runs independently from the CPU. Once the thermal sensor detects that the CPU temperature is too high, it will automatically turn on the thermal fans to prevent the CPU from overheating. The onboard chassis thermal circuitry can monitor the overall system temperature and alert the user when the chassis temperature is too high.

Note: To avoid possible system overheating, please be sure to

provide adequate airow to your system.

1-4

Chapter 1: Introduction

System Resource Alert

This feature is available when the system is used with SuperDoctor III in the

Windows OS environment or used with SuperDoctor II in Linux. SuperDoctor

is used to notify the user of certain system events. For example, you can also

congure SuperDoctor to provide you with warnings when the system temperature,

CPU temperatures, voltages and fan speeds go beyond predened thresholds.

1-6 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI

specication denes a exible and abstract hardware interface that

provides a standard way to integrate power management features

throughout a PC system, including its hardware, operating system and

application software. This enables the system to automatically turn on

and off peripherals such as CD-ROMs, network cards, hard disk drives

and printers.

In addition to enabling operating system-directed power management,

ACPI also provides a generic system event mechanism for Plug and Play,

and an operating system-independent interface for conguration control.

ACPI leverages the Plug and Play BIOS data structures, while providing

a processor architecture-independent implementation that is compatible

with Windows 7, Windows 8, and Windows 2008 Operating Systems.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will

start to blink to indicate that the CPU is in suspend mode. When the user

presses any key, the CPU will "wake up", and the LED will automatically

stop blinking and remain on.

1-5

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

1-7 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates.

This motherboard accommodates 24-pin ATX power supplies. Although

most power supplies generally meet the specications required by the

CPU, some are inadequate. In addition, a 12V 4-pin power connector at JPW3, and a 12V 8-pin power connector located at JPW2 are also required to ensure adequate power supply to the system. Also your power supply must supply 1.5A for the Ethernet ports.

Attention! To prevent damage to the power supply or motherboard, please use a power supply that contains a 24-pin, 8-pin and a 4-pin power connector. Be sure to attach these connectors to the 24-pin (JPW1), 8-pin (JPW2), and 4-pin (JPW3) power headers on the motherboard.

It is strongly recommended that you use a high quality power supply

that meets ATX power supply Specication 2.02 or above. It must also

be SSI compliant. (For more information, please refer to the web site at http://www.ssiforum.org/.) Additionally, in areas where noisy power

transmission is present, you may choose to install a line lter to shield

the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

1-8 Super I/O

The Super I/O supports two high-speed, 16550 compatible serial communication ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a processor interrupt system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Con-

guration and Power Interface), which includes support of legacy and

ACPI power management through an SMI or SCI function pin. It also features auto power management to reduce power consumption.

1-6

Chapter 1: Introduction

C7Z170-M/C7H170-M Motherboard Image

Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics shown in this manual.

1-7

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

C7Z170-M/C7H170-M Motherboard Layout

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

USB 8/9(3.1)

JPUSB2

USB 2/3

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JPCIE2

JPUSB2:USB 8/9 WAKE UP

1-2 ENABLE

2-3 DISABLE

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

5V STBY POWER

LEDLED

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1 JTPM1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA5

I-SATA2

I-SATA3

I-SATA0

I-SATA1

JL1:

CHASSIS INTRUSION

JL1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

FAN3

JPAC1

JUSB30_I4

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

DVI

KB/MOUSE

USB 0/1

JPUSB1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Important Notes to the User

• See Chapter 2 for detailed information on jumpers, I/O ports and

JF1 front panel connections.

• " " indicates the location of "Pin 1".

• Jumpers not indicated are for internal testing only.

• When LED1 (Onboard Power LED Indicator) is on, system power

is on. Unplug the power cable before installing or removing any components.

1-8

PCIe x16 SLOT #3

PCIe x1 SLOT #1

PCIe x4 SLOT #2

4 X USB 3.0 Rear

2 X USB 3.0 Header

2 X USB 2.0 Front

2 X USB 2.0 Rear

ASM1142 USB3.1

Display Port

HDMI

DVI

PCIe3.0_x16

8.0GT/s

Digital port B

Digital port C

Digital port D

PCIe3.0_x1

8GT/s

PCIe3.0_x4

8GT/s

USB3.0 5Gbps

USB2.0 480Mbps

PCIe3.0_x1

8GT/s

C7Z170-M Block Diagram

IMVP8

INTEL LGA1151

6th Gen CPU

DDI B

(Socket-H4)

DDI C

x4 DMI 8GT/s

Intel

SKL PCH-H Z170

PCH

Chapter 1: Introduction

SVID

IMVP8

DDR4 (CHA)

2133/1866/1600MHz

DDR4 (CHB)

2133/1866/1600MHz

PCIe3.0_x1 GLAN1

8GT/s

SATA-III

6Gb/s

PCIe3.0_x4

8GT/s

I219

DIMMA0

DIMMA1

DIMMB0

DIMMB1

6X SATA-III

M.2 SOCKET SSD

RJ45

2 X USB 3.1 Header

Realtek ALC1150

Audio Jack/ Aduio Pin Header

AZALIA

1-9

SPI

FLASH SPI 128Mb

LPC

PS2 KB/MS

TPM1.2 Header

NCT6792D-B

LPC I/O

COM1 Header

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

C7H170-M Block Diagram

x4 DMI 8GT/s

IMVP8

PCIe x16 SLOT #3

PCIe x1 SLOT #1

PCIe x4 SLOT #2

4 X USB 3.0 Rear

2 X USB 3.0 Header

2 X USB 2.0 Front

2 X USB 2.0 Rear

ASM1142 USB3.1

Display Port

HDMI

DVI

PCIe3.0_x16

8.0GT/s

Digital port B

Digital port C

Digital port D

PCIe3.0_x1

8GT/s

PCIe3.0_x4

8GT/s

USB3. 5Gbps

USB3.0 5Gbps

USB2.0 480Mbps

PCIe3.0_x1

8GT/s

INTEL LGA1151

6th Gen CPU

DDI B

(Socket-H4)

DDI C

Intel

SKL PCH-H H170

PCH

SVID

IMVP8

DDR4 (CHA)

2133/1866/1600MHz

DDR4 (CHB)

2133/1866/1600MHz

PCIe3.0_x1 GLAN1

8GT/s

SATA-III

6Gb/s

PCIe3.0_x4

8GT/s

DIMMA0

DIMMA1

DIMMB0

DIMMB1

I219

RJ45

6X SATA-III

M.2 SOCKET SSD

2 X USB 3.1 Header

Realtek ALC1150

Audio Jack/ Aduio Pin Header

AZALIA

1-10

FLASH SPI 128Mb

SPI

LPC

PS2 KB/MS

TPM1.2 Header

NCT6792D-B

LPC I/O

COM1 Header

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

AUDIO FP

JHD_AC1

JD1:

USB 8/9(3.1)

JPUSB2

USB 2/3

JWD1

2-3:NMI

CMOS CLEAR

JBT1

2-3:BIOS RECOVERY 1-2:NORMAL

JBR1:

JLED1

I-SATA5

COM1

1-2:RST

5V STBY POWER

JSTBY1

I-SATA4

Chapter 1: Introduction

C7Z170-M/C7H170-M Quick Reference

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

MH1

SPEAKER:1-4 BUZZER:3-4

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

HD AUDIO

FAN5

USB 6/7(3.0)

JPW3

JUSBLAN1

LAN

USB 4/5(3.0)

S/PDIF OUT

HDMI/DP

JL1

LED2

M.2 PCI-E X4

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

WATCH DOG

CPU

BT1

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

USB 10/11(3.0)

I-SATA0

I-SATA1

JUSB30_I4

FAN3

JPW1

JSD1:

SATA DOM PWR

I-SATA2

I-SATA3

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Jumper Description Default

JBT1 Clear CMOS (on board) (See Chpt. 2)

JI2C1/JI2C2 SMB to PCI Slots On (Enabled)

JPAC1 Audio Enable Pins 1-2 (Enabled)

JPL1 LAN1 Enable Pins 1-2 (Enabled)

JPME2 Intel® Manufacturing Mode Pins 1-2 (Normal)

JWD1 Watch Dog Enable Pins 1-2 (RST)

JBR1 BIOS Recovery Switch Toggle Switch, Off (Disabled)

JPUSB1 USB Wake Up Enable (Back Panel USB 0/1) Pins 1-2 (Enabled)

Power Button Internal Power Button Push Button Switch

BIOS Restore Restores the BIOS from Firmware ('SUPER.

Push Button Switch

ROM') on a USB memory device

Clear CMOS Clear CMOS Switch Push Button Switch

1-11

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Connector Description

I/O Back Panel See Back Panel I/O Connectors, below right

Audio FP Front Panel Audio Header

BT1 Onboard Battery

COM1 COM1 Port Header

Fan 1,2,3,4,5 System/CPU Fan Headers (Fan1: CPU Fan)

JD1 Speaker/buzzer (Pins 1~4: External Speaker, Pins 3~4: Buzzer)

JF1 Front Panel Control Header

JL1 Chassis Intrusion Header

JLED1 Power LED Indicator Header

JPW1 24-pin ATX Main Power Connector (Required)

JPW2 +12V 8-pin CPU power Connector (Required)

JPW3 +12V 4-pin Peripheral Power Connector

JSD1 SATA DOM (Disk On Module) Power Connector

JSPDIF_OUT Sony/Philips Digital Interface (S/PDIF) Out Header

JSTBY1 Standby Power Header

SP1 Internal Speaker/Buzzer

I-SATA0~5 (Intel® Z170) Serial ATA (SATA 3.0) Ports 0~5 (6Gb/sec)

USB 2/3 Front Panel Accessible USB 2.0 Headers 2/3

USB 8/9 (3.1) Front Panel Accessible USB 3.1 Header 8/9

USB 10/11 (3.0) Front Panel Accessible USB 3.0 Header 10/11

PCI-E M.2 CONNECTOR PCI-E M.2 Connector, PCIe M.2 supports M-Key (PCIe3.0 x4) storage

card only.

JTPM1 Trusted Platform Module (TPM) Header

LED Description Color/State Status

LED1 Onboard Standby PWR LED Green: Solid on Power On

LED2 M.2 LED Green: M.2 on board M.2 on board

1-12

Chapter 2: Installation

Chapter 2

Installation

2-1 Installation Components and Tools Needed

Screws

Intel LGA 1151 Processor

PC Chassis

Power Supply

Phillips-Head Screwdriver

DDR4 DIMMs

Heatsink with Fan

Video Card (Optional)

SATA/USB Optical Drive (Optional)

SATA Hard Disk Drive

2-1

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

2-2 Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid damaging your system board, it is important to handle it very

carefully. The following measures are generally sufcient to protect your

equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure that the person handling it is static protected.

2-2

Chapter 2: Installation

2-3 Processor and Heatsink Installation

Attention! When handling the processor package, avoid placing direct pressure on the label area of the fan.

Important:

Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.

If you buy a CPU separately, make sure that you use an Intel-

certied multi-directional heatsink only.

Make sure to install the system board into the chassis before you install the CPU heatsink.

When receiving a server board without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.

Refer to the Supermicro website for updates on CPU support.

Installing the LGA1151 Processor

1. Press the load lever to release the load plate, which covers the CPU socket, from its locking position.

Load Plate

Load Lever

2-3

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

2. Gently lift the load lever to open the load plate. Remove the plastic cap.

3. Use your thumb and your index nger to hold the CPU at the North

center edge and the South center edge of the CPU.

North Center Edge

South Center Edge

4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once it is aligned, carefully lower the CPU straight down into the socket. Do not drop the CPU on the socket. Do not move the CPU horizontally or vertically.

2-4

Chapter 2: Installation

5. Do not rub the CPU against the surface or against any pins of the socket to avoid damaging the CPU or the socket.

6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed.

7. Use your thumb to gently push the load lever down to the lever lock.

CPU properly installed

Load lever locked

into place

Attention! You can only install the CPU inside the socket only in one direction. Make sure that it is properly inserted into the CPU socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

2-5

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Installing an Active CPU Heatsink with Fan

1. Locate the CPU Fan power connector on the motherboard. (Refer to the layout on the right for the CPU Fan location.)

2. Position the heatsink so that the heatsink fan wires are closest to the CPU fan power connector and are not interfered with other components.

3. Inspect the CPU Fan wires to make sure that the wires are routed through the bottom of the heatsink.

4. Remove the thin layer of the protective lm from the heatsink.

Attention! CPU overheating may

occur if the protective lm is not

removed from the heatsink.

Thermal Grease

Heatsink Fins

5. Apply the proper amount of thermal grease on the CPU.

Note: if your heatsink came with a thermal pad, please ignore this step.

6. If necessary, rearrange the wires to make sure that the wires are not pinched between the heatsink and the CPU. Also make sure to keep clearance

Recommended Supermicro

heatsink:

SNK-P0046A4 active heatsink

2-6

between the fan wires and

the ns of the heatsink.

7. Align the four heatsink fasteners with the mounting holes on the motherboard. Gently push the pairs of diagonal fasteners (#1 & #2, and #3 & #4) into the mounting holes until you hear a click. Also, make sure to orient each fastener so that the narrow end of the groove is pointing outward.

8. Repeat Step 7 to insert all four heatsink fasteners into the mounting holes.

9. Once all four fasteners are securely inserted into the mounting holes, and the heatsink is properly installed on the motherboard, connect the heatsink fan wires to the CPU Fan connector.

Chapter 2: Installation

2-7

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Removing the Heatsink

Attention! We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to remove the heatsink and to prevent damage done to the CPU or other components.

Active Heatsink Removal

1. Unplug the power cord from the power supply.

2. Disconnect the heatsink fan wires from the CPU fan header.

3. Use your nger tips to gently

press on the fastener cap and turn it counterclockwise to make a 1/4 (900) turn, and pull the fastener upward to loosen it.

Unplug the

PWR cord

4. Repeat Step 3 to loosen all fasteners from the mounting holes.

5. With all fasteners loosened, remove the heatsink from the CPU.

2-8

Pull Up

Chapter 2: Installation

JTPM1

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

LEDLED

LED

JF1

2-4 Installing DDR4 Memory

Note: Check the Supermicro website for recommended memory modules.

Attention! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA2 (see the next page for the location). For the system to work properly, please use the memory modules of the same type and speed in the same motherboard.

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

3. Align the key of the DIMM mod-

ule with the receptive point on the memory slot.

4. Align the notches on both ends of

the module against the receptive points on the ends of the slot.

5. Use two thumbs together to press

the notches on both ends of the module straight down into the slot until the module snaps into place.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

MH2

USB 6/7(3.0)

AUDIO FP

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE1

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

PWR

RST

CMOS CLEAR

JBT1

OH/FF

NIC2

2-3:BIOS RECOVERY 1-2:NORMAL

JBR1:

NIC1

HDDPWR

5V STBY POWER

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

HD AUDIO

MH1

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE

JUSBLAN1

2-3:DISABLE

MH12

JPCIE2

PCH SLOT2 PCI-E 3.0 X4

JPW3

CPU SLOT3 PCI-E 3.0 X16

FAN5

JL1: JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

LED2

M.2 PCI-E X4

BT1

USB 10/11(3.0)

JUSB30_I4

JPW1

I-SATA0

FAN3

I-SATA1

LAN

USB 4/5(3.0)

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

DVI

S/PDIF OUT

KB/MOUSE

USB 0/1

HDMI/DP

FAN4

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

CPU

BAR CODE

FAN1 /CPU FAN

TP104

TP103 TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Notches

6. Press the release tabs to the lock

Release Tabs

positions to secure the DIMM module into the slot.

Removing Memory Modules

Press both notches

straight down into

the memory slot.

Reverse the steps above to remove the DIMM modules from the motherboard.

2-9

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Memory Support

Towards the CPU

DIMMA1 (Black Slot)

DIMMA2 (Red Slot)

DIMMB1 (Black Slot)

DIMMB2 (Red Slot)

Towards the edge of the motherboard

The C7Z170-M/C7H170-M supports up to 64GB of Unbuffered (UDIMM)

non-ECC DDR4 memory, in four 288-pin memory slots. Populating these DIMM modules with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory performance. The C7Z170-M supports memory speeds of up to 3300MHz (OC) while the C7H170-M supports up to 2133MHz.

Notes

Be sure to use memory modules of the same type, same speed, same frequency on the same motherboard. Mixing of memory modules of different types and speeds is not allowed.

Due to memory allocation to system devices, the amount of memory that remains available for operational use will be reduced when 4 GB of RAM is used. The reduction in memory availability is disproportional. See the following table for details.

For Microsoft Windows users: Microsoft implemented a design change in the Windows XP with Service Pack 2 (SP2) and Win-

dows Vista. This change is specic to the behavior of Physical

Address Extension (PAE) mode which improves driver compatibility. For more information, please read the following article at

Microsoft’s Knowledge Base website at: http://support.microsoft.

com/kb/888137.

2-10

Chapter 2: Installation

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Firmware Hub ash memory (System BIOS) 1 MB 3.99

Local APIC 4 KB 3.99

Area Reserved for the chipset 2 MB 3.99

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB boundary-

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS and other applications 2.84

512 MB 3.01

Remaining (-Available)

(4 GB Total System

Memory)

Memory Population Guidelines

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2, then DIMMA1, DIMMB1.

• Always use DDR4 DIMM modules of the same size, type and speed.

• Mixed DIMM speeds may be installed. However, all DIMMs will run at the speed of the slowest DIMM.

Recommended Population (Balanced)

DIMMA2 DIMMB2 DIMMA1 DIMMB1 Total System Memory

4GB 4GB 8GB

4GB 4GB 4GB 4GB 16GB

8GB 8GB 16GB

8GB 8GB 8GB 8GB 32GB

16GB 16GB 32GB

16GB 16GB 16GB 16GB 64GB

2-11

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

2-5 Motherboard Installation

All motherboards have standard mounting holes to t different types of

chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly. Use a screwdriver to secure the motherboard onto the motherboard tray.

Tools Needed

Philips Screwdriver

(1)

Philips Screws (8)

Location of Mounting Holes

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1: 2-3:NMI 1-2:RST

WATCH DOG

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

5V STBY POWER

LEDLED

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1 JTPM1

JI2C1/JI2C2

ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA0

I-SATA2

I-SATA3

I-SATA5

MH2

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

LED2

M.2 PCI-E X4

BT1

USB 10/11(3.0)

JUSB30_I4

FAN3

I-SATA1

HD AUDIO

FAN5

Standoffs (8)

Only if Needed

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

CPU

USB 6/7(3.0)

JPW3

JPW1

DVI

KB/MOUSE

USB 0/1

JPUSB1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Attention! 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

2-12

Chapter 2: Installation

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

2. Locate the mounting holes on the motherboard. (See the previous

page.)

3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging

other motherboard components.

6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a

mounting hole on the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

2-13

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JPUSB1

2-6 Connectors/IO Ports

The I/O ports are color coded in conformance with the industry standards.

See the gure below for the colors and locations of the various I/O ports.

Back I/O Panel

JAUDIO1

DESIGNED IN USA

REV:1.00

JHD_AC1:Audio AC97 and HD audio jumper

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

JPUSB2

CMOS CLEAR

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

AUDIO FP

JHD_AC1

JD1:

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

JBT1

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

C7Z170-M

MH1

SPEAKER:1-4 BUZZER:3-4

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1: WATCH DOG

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

JPW3

FAN5

LED2

BT1

JPW1

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

USB 10/11(3.0)

JUSB30_I4

FAN3

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

A. PS/2 Keyboard/Mouse Port G. VESA Display Port M. Center/LFE Out

B. USB 2.0 Port 0 H. Gb LAN Port N. Surround Out

C. USB 2.0 Port 1 I. USB 3.0 Port 4 O. S-Surround Out

D. DVI-D Port J. USB 3.0 Port 5 P. Line In

E. S/PDIF Port K. USB 3.0 Port 6 Q. Line Out

F. HDMI Port L. USB 3.0 Port 7 R. Mic In

HD Audio

2-14

N O

Chapter 2: Installation

Universal Serial Bus (USB)

Two Universal Serial Bus 2.0 ports (#0/1), and four USB 3.0 ports (#4/5,

#6/7) are located on the I/O back panel. In addition, one USB 2.0 header

(#2/3), and two USB 3.0 headers (#8/9, #10/11) are also located on the motherboard to provide front chassis access using USB cables (not

included). See the tables below for pin denitions.

Front Panel USB (2.0) Header #2/3

Pin Denitions

Pin # Denition Pin # Denition

1 +5V 2 +5V

3 USB_PN6 4 USB_PN7

5 USB_PP6 6 USB_PP7

7 Ground 8 Ground

9 Key 10 Ground

Back Panel USB (3.0) #6/7

Pin Denitions

Pin # Denition Pin # Denition

A1 +5V B1 +5V

A2 USB_PN2 B2 USB_PN3

A3 USB_PP2 B3 USB_PP3

A4 Ground B4 Ground

Front Panel USB (3.0) Header #8/9, #10/11

Pin# Pin# Signal Name Description

1 19 VBUS Power

8 12 D- USB 2.0 Differential Pair

9 11 D+

7 13 Ground Ground of PWR Return

2 18 StdA_SSRX- SuperSpeed Receiver

3 17 StdA_SSRX+ Differential Pair

4 16 GND_DRAIN Ground for Signal Return

5 15 StdA_SSTX- SuperSpeed Transmitter

6 14 StdA_SSTX+ Differential Pair

Pin# Denition Pin# Denition

4 +5V 8 +5V

7 USB_PN1 3 USB_PN0

6 USB_PP1 2 USB_PP0

5 Ground 1 Ground

Pin Denitions

Back Panel USB (3.0) #4/5

Pin Denitions

Pin # Denition Pin # Denition

1 +5V 10 +5V

2 USB_PN12 11 USB_PN13

3 USB_PP12 12 USB_PP13

4 Ground 13 Ground

Back Panel USB (2.0) #0/1

Pin Denitions

2-15

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JPUSB1

A. Backpanel USB 2.0 #0

B. Backpanel USB 2.0 #1

C. Backpanel USB 3.0 #4

D. Backpanel USB 3.0 #5

E. Backpanel USB 3.0 #6

F. Backpanel USB 3.0 #7

G. USB 3.0 Header #8/9

H. USB 2.0 Header #2/3

I. USB 3.0 Header #10/11

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

JHD_AC1:Audio AC97 and HD audio jumper

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

CMOS CLEAR

JBT1

2-3:BIOS RECOVERY

1-2:NORMAL JBR1:

5V STBY POWER

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

MH2

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

M.2 PCI-E X4

USB 10/11(3.0)

JUSB30_I4

I-SATA0

FAN3

I-SATA1

JAUDIO1

USB 6/7(3.0)

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

2-16

Chapter 2: Installation

Ethernet Port

One Gigabit Ethernet port (LAN) is located next to the S/PDIF port on the I/O Backpanel to provide network connections. This port will accept RJ45 type cables.

Note: Please refer to the LED Indica-

tor Section for LAN LED information.

Back Panel High Denition Audio (HD Audio)

This motherboard features a 7.1+2 Channel High Denition Audio (HDA) codec that provides 10 DAC channels. The HD Audio connections simultaneously supports multiple-streaming 7.1 sound playback with 2 channels of independent stereo output through the front panel stereo out for front, rear, center and subwoofer speakers. Use the Advanced software included in the CD-ROM with your motherboard to enable this function.

A. LAN1

B. Center/LFE Out

C. Surround Out

D. S-Surround

E. Line In

F. Line Out

G. Mic In

LAN Port

Pin Definition

Pin Description Pin Description

1 VBUS1 21 TX1-

2 D1N 22 TX2+

3 D1P 23 TX2-

4 GND 24 TX3+

5 STDA_SS-

RX1N

6 STDA_SS-

RX1P

7 GND_

DRAIN

8 STDA_

SSTX1N

9 STDA_

SSTX1P

10 VBUS2 30 ORG+/GRN-

11 D2N 31 YEL+

12 D2P 32 YEL-

13 GND 33 CG1

14 STDA_SS-

RX2N

15 STDA_SS-

RX2P

16 GND_

DRAIN

17 STDA_

SSTX2N

18 STDA_

SSTX2P

19 Vcc 39 CG7

20 TX1+ 40 CG8

25 TX3-

26 TD4+

27 TX4-

28 GND

29 ORG-/GRN+

34 CG2

35 CG3

36 CG4

37 CG5

38 CG6

2-17

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

S/PDIF Port

A S/PDIF port is located next to the DVI-D port on the I/O backpanel. Use this port to connect to a compatible S/PDIF optical audio device.

VESA® DisplayPort™

DisplayPort, developed by the VESA consortium, delivers digital display at a fast refresh rate. It can connect to virtually any display device using a DisplayPort adapter for devices such as VGA, DVI, or HDMI.

HDMI Port

One HDMI (High-Denition Multimedia Interface) is located on the I/O backpanel. This connector is used to display both high denition video

and digital sound through an HDMI capable display, using a single HDMI cable (not included).

DVI-D Port

A DVI-D port is located on the I/O backpanel. Use this port to connect to a compatible DVI (Digital Visual Interface) display.

A. S/PDIF Port

B. HDMI Port

C. VESA Display Port

D. DVI-D

2-18

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

OH/Fan Fail

1516

Chapter 2: Installation

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These

connectors are designed specically for use with Supermicro chassis. See the gure below for the descriptions of the front control panel buttons

and LED indicators. Refer to the following section for descriptions and

pin denitions.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

USB 8/9(3.1)

JPUSB2

USB 2/3

JWD1

2-3:NMI

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

LEDLED

JLED1

JF1

JTPM1

JTPM1:TPM/PORT80

I-SATA5

COM1

5V STBY POWER

JSTBY1

I-SATA4

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JPUSB2:USB 8/9 WAKE UP

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1: 1-2:RST WATCH DOG

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

JL1:

CHASSIS INTRUSION

JL1

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

JUSB30_I4

FAN3

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Power LED

HDD LED

NIC1 LED

LED

Ground

Vcc

Pin 15Pin 16

Vcc

Reset

Reset Button

PWR

Power Button

Pin 2

Pin 1

JF1 Header Pins

2-19

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

OH/Fan Fail

1516

Front Control Panel Pin Definitions

Power LED

The Power LED connection is located on

pins 15 and 16 of JF1. Refer to the table on the right for pin denitions.

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of HDDrelated activities, including IDE, SATA activities. See the table on the right for

pin denitions.

NIC1 (LAN)

The NIC (Network Interface Controller) LED connection for LAN port 1 is located

on pins 11 and 12 of JF1. Attach an LED indicator to this header to display network activity. Refer to the table on the

right for pin denitions.

Overheat (OH)/Fan Fail

Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings for chassis overheat/ fan failure. Refer to the table on the right

for pin denitions.

Power LED

Pin Denitions (JF1)

Pin# Denition

15 VCC

16 Ground

HDD LED

Pin Denitions (JF1)

Pin# Denition

13 VCC

14 HD Active

LAN LED

Pin Denitions (JF1)

Pin# Denition

11 Vcc

12 Ground

OH/Fan Fail LED

Pin Denitions (JF1)

Pin# Denition

7 VCC

8 OH/Fan Fail LED

OH/Fan Fail Indicator

Status

State Denition

Off Normal

On Overheat

Flash-

Fan Fail

ing

Power LED

HDD LED

NIC1 LED

LED

Ground

2-20

Reset

PWR

Vcc

Reset Button

Power Button

A. PWR LED

B. HDD LED

C. NIC1 LED

D. OH/Fan Fail

Reset Button

OH/Fan Fail

1516

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the

table on the right for pin denitions.

Chapter 2: Installation

Reset Button

Pin Denitions (JF1)

Pin# Denition

3 Reset

4 Ground

Power Button

The Power Button connection is located on pins1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be con-

gured to function as a suspend button

(with a setting in the BIOS - see Chapter

4). To turn off the power in the suspend mode, press the button for at least 4 seconds. Refer to the table on the right

for pin denitions.

Power LED

HDD LED

NIC1 LED

LED

Ground

Reset

PWR

Vcc

Reset Button

Power Button

Pin Denitions (JF1)

Pin# Denition

1 Signal

2 Ground

A. Reset Button

B. PWR Button

2-21

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JPUSB1

JPUSB1:USB0/1 WAKE UP

2-7 Connecting Cables

This section provides brief descriptions and pin-out denitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector.

ATX Main PWR, CPU, AUX PWR Connectors (JPW1, JPW2, JPW3)

The 24-pin main power connector (JPW1) is used to provide power to the motherboard. The 8-pin CPU PWR connector (JPW2) is also required for the processor. JPW3 is a 4-pin connector that provides auxiliary power to peripheral cards and devices. These power connectors meet

the SSI EPS 12V specication. See the

tables on the right and below for pin

denitions.

12V 8-pin Power Connec-

tor Pin Denitions

Pins Denition

1 through 4 Ground

5 through 8 +12V

C7Z170-M

AUDIO FP

JHD_AC1:Audio AC97 and HD audio jumper

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE 1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

5V STBY POWER

LEDLED

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1

JTPM1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

12V 4-pin Power Connec-

Pins Denition

1 through 2 Ground

3 through 4 +12V

DESIGNED IN USA

REV:1.00

MH2

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

JPCIE2

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

M.2 PCI-E X4

USB 10/11(3.0)

JUSB30_I4

I-SATA0

FAN3

I-SATA1

tor Pin Denitions

JAUDIO1

USB 6/7(3.0)

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

CPU

ATX Power 24-pin Connector

Pin Denitions (JPW1)

Pin# Denition Pin # Denition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

A. 24-Pin ATX Main PWR

B. 8-Pin PWR

C. 4-Pin Auxiliary PWR

DVI

KB/MOUSE

USB 0/1

FAN4

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

JPW2

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-22

Chapter 2: Installation

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Fan Headers (Fan 1 ~ Fan 5)

The C7Z170-M/C7H170-M has ve fan

headers (Fan 1~Fan 5). These fans are 4-pin fan headers. Although pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans, we recommend the use 4-pin fans to take advantage of the fan speed control. This allows the fan speeds to be automatically adjusted based on the motherboard temperature. Refer to the table on the right

for pin denitions.

Chassis Intrusion (JL1)

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened.

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

JPUSB2

CMOS CLEAR

2-3:BIOS RECOVERY

1-2:NORMAL JBR1:

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

WATCH DOG

JBT1

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

JPW3

FAN5

LED2

BT1

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

USB 10/11(3.0)

JUSB30_I4

FAN3

LAN

USB 6/7(3.0)

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

JPW1

JAUDIO1

DESIGNED IN USA

REV:1.00

2-23

Fan Header

Pin Denitions

Pin# Denition

1 Ground (Black)

2 2.5A/+12V

(Red)

3 Tachometer

4 PWM_Control

Chassis Intrusion

Pin Denitions (JL1)

Pin# Denition

1 Intrusion Input

2 Ground

A. Fan 1 (CPU Fan)

B. Fan 2

C. Fan 3

D. Fan 4

E. Fan 5

F. Chassis Intrusion

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPUSB1

FAN4

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Internal Buzzer (SP1)

The internal Buzzer (SP1) can be used to provide audible indications for various beep codes. See the table on the right

for pin denitions.

Speaker (JD1)

On the JD1 header, Pins 3~4 are used for internal speaker. Close Pins 3~4 with a cap to use the onboard speaker. If you wish to use an external speaker, close Pins 1~4 with a cable. See the table on

the right for pin denitions.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPUSB2

JF1

PWR

RST

CMOS CLEAR

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

JBT1

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JPUSB2:USB 8/9 WAKE UP

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

WATCH DOG

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

JL1

JL1:

CHASSIS INTRUSION

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

FAN3

MH2

JPAC1

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

USB 6/7(3.0)

HD AUDIO

JPW3

FAN5

LED2

BT1

JUSB30_I4

JPW1

Internal Buzzer

Pin Denition

Pin# Denitions

Pin 1 Pos. (+) Beep In

Pin 2 Neg. (-) Alarm

Speaker Connector

Pin Denitions

Pin Setting Denition

Pins 3~4 Internal Speaker

Pins1~4 External Speaker

A. Internal Buzzer

B. Speaker Header

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

DVI

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

Power Button

JSMB2

JSMB1

Speaker

JPW2

FAN1 /CPU FAN

CLEAR CMOS

BIOS Restore

FAN2

S11

KB/MOUSE

USB 0/1

FAN4

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

2-24

Chapter 2: Installation

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Onboard Power LED (JLED1)

An onboard Power LED header is located at JLED1. This Power LED header is connected to Front Control Panel located at JF1 to indicate the status of system power. See the table on the right for pin

denitions.

Serial Port (COM1)

There is one serial (COM) port header on the motherboard. COM1is located next to the USB 2/3 header. See the table on the

right for pin denitions.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPUSB2

JF1

PWR

RST

CMOS CLEAR

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

WATCH DOG

JBT1

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

JPW3

FAN5

LED2

BT1

JPW1

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

JL1

USB 10/11(3.0)

JUSB30_I4

FAN3

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

Onboard PWR LED

Pin Denitions

Pin# Denition

1 VCC

2 Connection to PWR

LED in JF1

3 Connection to PWR

LED in JF1

Serial/COM Ports

Pin Denitions

Pin # Denition Pin # Denition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 N/A

A. PWR LED

B. COM1

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-25

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

DOM PWR Connector (JSD1)

The Disk-On-Module (DOM) power connector, located at JSD1, provides 5V (Gen1/Gen) power to a solid state DOM storage device connected to one of the SATA ports. See the table on the right

for pin denitions.

SPDIF OUT (JSPDIF_OUT)

The SPDIF Out (JSPDIF_OUT) is used for digital audio output. You will also need the appropriate cable to use this feature.

JAUDIO1

DESIGNED IN USA

REV:1.00

JHD_AC1:Audio AC97 and HD audio jumper

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

JPUSB2

CMOS CLEAR

2-3:BIOS RECOVERY

AUDIO FP

JHD_AC1

JD1:

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

JBT1

1-2:NORMAL

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

C7Z170-M

MH1

SPEAKER:1-4 BUZZER:3-4

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JPUSB2:USB 8/9 WAKE UP

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

WATCH DOG

JL1

JL1:

CHASSIS INTRUSION

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

HD AUDIO

JPW3

FAN5

LED2

BT1

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

USB 10/11(3.0)

I-SATA0

I-SATA1

JUSB30_I4

FAN3

JPW1

JSD1:

SATA DOM PWR

I-SATA2

I-SATA3

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

Pin Denitions

Pin# Denition

1 5V

2 Ground

3 Ground

SPDIF_OUT

Pin Denitions

Pin# Denition

1 S/PDIF_Out

2 Ground

A.DOM PWR

B. S/PDIF OUt

S/PDIF OUT

HDMI/DP

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

CPU

TP104

TP103

TP100

DOM PWR

DVI

JPL1

DIMMA1 DIMMA2

DIMMB1

DIMMB2

JSMB2

JSMB1

FAN1

/CPU FAN

CLEAR CMOS

BIOS Restore

Power Button

JPW2

FAN2

KB/MOUSE

FAN4

S11

USB 0/1

JPUSB1

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

2-26

Chapter 2: Installation

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Standby Power Header (JSTBY1)

The Standby Power header is located at JSTBY1 on the motherboard. See the

table on the right for pin denitions.

PCI-E M.2 Connector (PCI-E M.2)

The PCI-E M.2 connector is for devices such as memory cards, wireless adapters, etc. These devices must

conform to the PCIE M.2 specications (formerly known as NGFF). This particular PCIe M.2 supports M-Key

(PCIe3.0 x4) storage card only.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPUSB2

JF1

PWR

RST

CMOS CLEAR

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

USB 8/9(3.1)

USB 2/3

JWD1

JBT1

1-2:NORMAL

JBR1:

JLED1

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

1-2 ENABLE

2-3 DISABLE

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

2-3:NMI

1-2:RST WATCH DOG

5V STBY POWER

JSTBY1

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2

ON:ENABLE

OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA4

I-SATA5

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

JL1

M.2 PCI-E X4

USB 6/7(3.0)

HD AUDIO

JPW3

FAN5

LED2

BT1

USB 10/11(3.0)

JUSB30_I4

FAN3

JPW1

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

Standby Power

Pin Denitions

Pin# Denition

1 +5V Standby

2 Ground

3 Wake-up

A. STBY PWR

B. PCI-E M.2 Connector

S/PDIF OUT

HDMI/DP

CPU

DVI

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

Power Button

JSMB2

JSMB1

FAN1

CLEAR CMOS

BIOS Restore

KB/MOUSE

USB 0/1

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

S11

FAN2

2-27

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Front Panel Audio Header (AUDIO

FP)

A 10-pin Audio header is supported on the motherboard. This header allows you to connect the motherboard to a front panel audio control panel, if needed. Connect an audio cable to the audio header to use this feature (not supplied).

See the table at right for pin denitions

for the header.

TPM Header/Port 80 Header

A Trusted Platform Module/Port 80 header is located at JTPM1 to provide TPM support and Port 80 connection. Use this header to enhance system performance and data security.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

JF1

RST

LED

NIC2

NIC1

LEDLED

JTPM1

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPUSB2

PWR

CMOS CLEAR

OH/FF

2-3:BIOS RECOVERY

1-2:NORMAL

HDD PWR

JF1

JTPM1:TPM/PORT80

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

WATCH DOG

JBT1

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

JL1

M.2 PCI-E X4

USB 10/11(3.0)

JUSB30_I4

FAN3

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

10-in Audio

Pin Denitions

Pin# Signal

1 Microphone_Left

2 Audio_Ground

3 Microphone_Right

4 Audio_Detect

5 Line_2_Right

6 Ground

7 Jack_Detect

8 Key

9 Line_2_Left

10 Ground

A. AUDIO FP

B. TPM/Port 80

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPUSB1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-28

2-8 Jumper Settings

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Explanation of Jumpers

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector.

Pin 1 is identied with a square solder

pad on the printed circuit board.

Note: On two pin jumpers, "Closed" means the jumper is on, and "Open" means the jumper is off the pins.

Chapter 2: Installation

LAN Enable/Disable

Jumper JPL1 will enable or disable the

LAN port on the motherboard. See the

table on the right for jumper settings. The default setting is enabled.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

5V STBY POWER

LEDLED

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1

JTPM1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

JPW3

FAN5

LED2

BT1

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

USB 10/11(3.0)

JUSB30_I4

I-SATA0

FAN3

I-SATA1

LAN

USB 6/7(3.0)

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

JPW1

Pin# Denition

1-2 Enabled (default)

2-3 Disabled

A. JPL1: LAN Enable

S/PDIF OUT

HDMI/DP

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

CPU

TP104

TP103 TP100

GLAN Enable

Jumper Settings

DVI

KB/MOUSE

USB 0/1

JPUSB1

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-29

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

Clear CMOS & JBT1

Clear CMOS and JBT1 are used to clear the saved system setup con-

guration stored in the CMOS chip. To clear the contents of the CMOS

using JBT1, short the two pads of JBT1 with metallic conductor such as

a athead screwdriver. Clear CMOS works the same way but is a push

button switch. This will erase all user settings and revert everything to their factory-set defaults.

PCI Slot SMB Enable (I2C1/I2C2)

Use Jumpers I2C1/I2C2 to enable PCI SMB (System Management Bus) support to improve system management for the PCI slots. See the table on the right for jumper settings.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

USB 8/9(3.1)

JPUSB2

USB 2/3

JF1

PWR

RST

CMOS CLEAR

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

JWD1

2-3:NMI

JBT1

JLED1

I-SATA5

COM1

1-2:RST

5V STBY POWER

JSTBY1

I-SATA4

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JPUSB2:USB 8/9 WAKE UP

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

WATCH DOG

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

JL1:

CHASSIS INTRUSION

JL1

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

JUSB30_I4

FAN3

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

PCI Slot_SMB Enable

Jumper Settings

Jumper Setting Denition

Short (Default) Enabled

Open Disabled

A. JBT1

B. Clear CMOS

C. JI2C1

D. JI2C2

JPL1

1-2

2-3

DVI

JPL1

LAN

ENABLE

DISABLE

TP104

TP103

TP100

JPW2

FAN1

/CPU FAN

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

Power Button

JSMB2

FAN2

JSMB1

S/PDIF OUT

HDMI/DP

CPU

KB/MOUSE

S11

USB 0/1

FAN4

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

2-30

Chapter 2: Installation

JPUSB1

Audio Enable (JPAC1)

JPAC1 allows you to enable or disable the onboard audio support. The default position is on pins 1 and 2 to enable onboard audio connections. See the table on the right for jumper settings.

Manufacturing Mode (JPME2)

Close Pin 2 and Pin 3 of Jumper JPME2

to bypass SPI ash security and force

the system to operate in Manufactur-

ing Mode, allowing the user to ash the system rmware from a host server for system setting modications. See the

table on the right for jumper settings.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

JHD_AC1:Audio AC97 and HD audio jumper

JD1

JPUSB2

JF1

PWR

RST

CMOS CLEAR

OH/FF

LED

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

USB 8/9(3.1)

USB 2/3

COM1

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

JBT1

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

LED1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JSD1:

JPCIE1

JPME2:

JBR1

JI2C2

JI2C1

JTBT1

PCH SLOT1 PCI-E 3.0 X1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

SATA DOM PWR

I-SATA2

I-SATA3

MH1

JPCIE2

PCH SLOT2 PCI-E 3.0 X4

I-SATA0

I-SATA1

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

JUSB30_I4

FAN3

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

USB 6/7(3.0)

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

Audio Enable/Disable

Jumper Settings

Both Jumpers Denition

Pins 1-2 Enabled

Pins 2-3 Disabled

Manufacture Mode (JPME2)

Jumper Settings

Pin# Denition

1-2 Normal (Default)

2-3 Manufacture Mode

A. Audio Enable

B. Manufacturing Mode

S/PDIF OUT

HDMI/DP

DVI

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

Power Button

JSMB2

FAN2

JSMB1

JPW2

KB/MOUSE

S11

FAN4

USB 0/1

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

2-31

JPUSB1

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

LED

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

USB Wake Up (JPUSB1/JPUSB2)

Use jumper JPUSB to activate the "wakeup" function of the USB ports by pressing a key on a USB keyboard or clicking the USB mouse connected. This jumper is used together with a USB Wake-Up

Jumper Setting Denition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

feature in the BIOS. Enable this jumper and the USB support in the BIOS to wake up your system via USB devices. JPUSB1 controls USB 2.0 ports #0/1 on the back panel, while JPUSB2 controls USB 3.1 ports #8/9 (header) on the motherboard.

Watch Dog Enable/Disable

Watch Dog (JWD1) is a system monitor that can reboot the system when a software application hangs. Close Pins 1-2 to reset the system if an application hangs. Close Pins 2-3 to generate a non-maskable interrupt signal for the application that hangs. See the table on the right for jumper settings.

JAUDIO1

DESIGNED IN USA

REV:1.00

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPUSB2

JF1

PWR

RST

CMOS CLEAR

OH/FF

NIC2

2-3:BIOS RECOVERY

1-2:NORMAL

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JTPM1:TPM/PORT80

USB 8/9(3.1)

USB 2/3

COM1

JWD1

2-3:NMI

1-2:RST

WATCH DOG

JBT1

JBR1:

5V STBY POWER

JSTBY1

JLED1

I-SATA4

I-SATA5

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

1-2 ENABLE

2-3 DISABLE

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1:

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA0

I-SATA2

I-SATA1

I-SATA3

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

JL1

M.2 PCI-E X4

USB 10/11(3.0)

JUSB30_I4

FAN3

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

2-32

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

USB Wake-Up

Jumper Settings

Watch Dog

Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset (default)

Pins 2-3 NMI

Open Disabled

A. JPUSB1

B. JPUSB2

C. Watch Dog Enable

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

TP104

TP103

TP100

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

Chapter 2: Installation

BIOS Recovery Switch (JBR1)

The BIOS Recovery Switch (JBR1) is used to enable or disable the BIOS Recovery feature of the motherboard. Slide the switch from the default position to begin the recovery process. See Appendix D for details.

Power Button (POWER BUTTON)

In addition to the soft power switch provided in JF1, your motherboard is equipped with a 'soft' power button on the motherboard. This switch works the same way as the soft power switch on JF1.

BIOS Restore (BIOS RESTORE)

When pressed, the BIOS Restore Button will look for, and load a le named 'SUPER.ROM' from an installed USB memory device, in any of the USB ports. It will then proceed to update the BIOS. Do

NOT turn off the system when BIOS is

updating.

BIOS Recovery (JBR1)

Jumper Settings

State Denition

Off Normal (Default)

On Recover

Off

A. BIOS Recovery

B. Power Button

C. BIOS Restore

JHD_AC1:Audio AC97 and HD audio jumper

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JTPM1

JLED1:

3 PIN POWER LED

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

CMOS CLEAR

JBT1

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

5V STBY POWER

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

JPW3

FAN5

LED2

BT1

CPU SLOT3 PCI-E 3.0 X16

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

USB 10/11(3.0)

JUSB30_I4

I-SATA0

FAN3

I-SATA1

LAN

USB 4/5(3.0)

JUSBLAN1

CPU

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

USB 6/7(3.0)

JPW1

DVI

KB/MOUSE

USB 0/1

JPUSB1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

JSMB1

FAN2

JAUDIO1

DESIGNED IN USA

REV:1.00

2-33

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

JHD_AC1:Audio AC97 and HD audio jumper

3 PIN POWER LED

JLED1:

2-9 Onboard Indicators

LAN LEDs

One LAN port is located on the I/O

backpanel of the motherboard. This

Ethernet LAN port has two LEDs (Light

Emitting Diode). The yellow LED indicates activity, while the Link LED may be green, amber, or off to indicate the speed of the connections. See the tables at right for more information.

LAN

Link LED

Activity LED

Onboard Power LED (LED1)

An Onboard Power LED is located at LED1 on the motherboard. When LED1 is on, the AC power cable is connected. Make sure to disconnect the power cable before removing or installing any component. See the layout below for the LED location.

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE 1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

JF1

PWR

RST

CMOS CLEAR

JBT1

OH/FF

LED

NIC2

2-3:BIOS RECOVERY 1-2:NORMAL

JBR1:

NIC1

HDD PWR

5V STBY POWER

LEDLED

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JF1

JTPM1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

JTPM1:TPM/PORT80

SATA DOM PWR

JSD1:

I-SATA4

I-SATA2

I-SATA3

I-SATA5

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

JPCIE2

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

JUSB30_I4

FAN3

M.2 PCI-E X4

FAN5

LED2

BT1

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

I-SATA0

I-SATA1

JAUDIO1

DESIGNED IN USA

REV:1.00

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

CPU

TP104

TP103

TP100

USB 6/7(3.0)

JPW3

JPW1

GLAN Activity Indicator

LED Settings

Color Status Denition

Yellow Flashing Active

GLAN Link Indicator

LED Settings

LED Color Denition

Off No Connection/10 Mbps/100

Mbps

Amber 1 Gbps

Green 10 Gbps.

Onboard PWR LED Indicator

LED Status

Status Denition

Off System Off

On System on, or

System off and PWR

Cable Connected

A. LAN LEDs

B. PWR LED

DVI

KB/MOUSE

USB 0/1

JPUSB1

FAN4

JPL1

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-34

Chapter 2: Installation

JPUSB1

M.2 On Board (LED2)

The M.2 On Board LED is located on LED2. When lit, this indicates that an M.2 device is detected in the M.2 slot of the motherboard, and is working normally.

JAUDIO1

DESIGNED IN USA

REV:1.00

JHD_AC1:Audio AC97 and HD audio jumper

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

C7Z170-M

AUDIO FP

MH1

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JD1

JPCIE2

JPCIE1

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

USB 8/9(3.1)

JPUSB2

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

CMOS CLEAR

JBT1

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1:

5V STBY POWER

JSTBY1

JLED1

LED1

JBR1

JI2C2

JI2C1

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

SATA DOM PWR

JSD1:

I-SATA4

I-SATA0

I-SATA2

I-SATA1

I-SATA3

I-SATA5

MH2

HD AUDIO

JPAC1

JSPDIF_OUT

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

CPU SLOT3 PCI-E 3.0 X16

FAN5

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

LED2

M.2 PCI-E X4

BT1

USB 10/11(3.0)

JUSB30_I4

FAN3

M.2 On Board

LED Settings

Color Status Denition

Green Steady M.2 Device

Detected

A. M.2 On Board

LAN

USB 6/7(3.0)

S/PDIF OUT

HDMI/DP

USB 4/5(3.0)

JUSBLAN1

JPW3

CPU

ALWAYS POPULATE RED SOCKET FIRST UNB NON-ECC DDR4 DIMM REQUIRED

JPW1

DVI

KB/MOUSE

USB 0/1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1

/CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-35

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

2-10 SATA Connections

SATA Connections (I-SATA0~I-SATA5)

Six Serial ATA (SATA) 3.0 connectors (I-SATA 0~5) are supported on the board. These I-SATA 3.0 ports are supported by the Intel Z170 PCH

chip (supports RAID 0,1,5,10). See the table below for pin denitions.

JHD_AC1:Audio AC97 and HD audio jumper

JD1

JF1

PWR

RST

OH/FF

LED

NIC2

NIC1

HDD PWR

LEDLED

JF1

JTPM1

JLED1:

JTPM1:TPM/PORT80

3 PIN POWER LED

JPUSB2

2-3:BIOS RECOVERY

AUDIO FP

JHD_AC1

SPEAKER:1-4

JD1:

BUZZER:3-4

JPCIE1

USB 8/9(3.1)

USB 2/3

COM1

2-3:ME MANUFACTURING MODE

1-2:NORMAL

JPME2:

JPME2

JWD1

JWD1:

2-3:NMI

1-2:RST

WATCH DOG

CMOS CLEAR

JBT1

1-2:NORMAL

JBR1:

5V STBY POWER

JSTBY1

JLED1

LED1

JI2C1

JSD1:

I-SATA4

I-SATA5

(Bottom)

SATA 2.0/3.0 Connectors

Pin Denitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

REV:1.00

C7Z170-M

MH1

JPCIE2

PCH SLOT2 PCI-E 3.0 X4

PCH SLOT1 PCI-E 3.0 X1

JL1:

JPUSB2:USB 8/9 WAKE UP

CHASSIS INTRUSION

1-2 ENABLE

2-3 DISABLE

JL1

JBR1

JI2C2

JI2C1/JI2C2 ON:ENABLE OFF:DISABLE

JTBT1

(Top)

SATA DOM PWR

I-SATA0

I-SATA2

I-SATA1

I-SATA3

DESIGNED IN USA

JPAC1

JSPDIF_OUT

CPU SLOT3 PCI-E 3.0 X16

USB 10/11(3.0)

JUSB30_I4

FAN3

MH2

JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE

MH12

M.2 PCI-E X4

Top

A. I-SATA 3.0 #4

B. I-SATA 3.0 #2

C. I-SATA 3.0 #0

Bottom

D. I-SATA 3.0 #5

E. I-SATA 3.0 #3

F. I-SATA 3.0 #1

JAUDIO1

HD AUDIO

JPW3

FAN5

LED2

BT1

JPW1

USB 6/7(3.0)

LAN

USB 4/5(3.0)

JUSBLAN1

ALWAYS POPULATE RED SOCKET FIRST

UNB NON-ECC DDR4 DIMM REQUIRED

S/PDIF OUT

HDMI/DP

CPU

DVI

KB/MOUSE

USB 0/1

JPUSB1

JPL1

LAN

1-2

ENABLE

2-3

DISABLE

FAN4

JPW2

JPUSB1:USB0/1 WAKE UP

1-2 ENABLE

2-3 DISABLE

MAC CODE

BAR CODE

FAN1 /CPU FAN

TP104

TP103

TP100

DIMMA1 DIMMA2

DIMMB1

DIMMB2

CLEAR CMOS

BIOS Restore

S11

Power Button

JSMB2

FAN2

JSMB1

2-36

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

Before Power On

1. Make sure that the Standby PWR LED is not on. (Note: If it is on, the

onboard power is on. Be sure to unplug the power cable before installing or

removing the components.)

2. Make sure that there are no short circuits between the motherboard and

chassis.

3. Disconnect all ribbon/wire cables from the motherboard, including those for

the keyboard and mouse. Also, be sure to remove all add-on cards.

4. Install a CPU and heatsink (-be sure that it is fully seated) and then connect

the chassis speaker and the power LED to the motherboard. Check all jumper

settings as well.

No Power

1. Make sure that there are no short circuits between the motherboard and

chassis.

2. Make sure that all jumpers are set to their default positions.

3. Check if the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to make sure that it still

supplies ~3VDC. If it does not, replace it with a new one.

3-1

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

No Video

1. If the power is on, but you have no video--in this case, you will need to re-

move all the add-on cards and cables rst.

2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A

for details on beep codes.)

3. Remove all memory modules and turn on the system. (If the alarm is on,

check the specications of memory modules, reset the memory or try a differ-

ent one.)

Memory Errors

1. Make sure that the DIMM modules are properly installed and fully seated in

the slots.

2. You should be using unbuffered Non-ECC DDR4 (up to 3000) MHz memory

recommended by the manufacturer. Also, it is recommended that you use the

memory modules of the same type and speed for all DIMMs in the system.

Do not use memory modules of different sizes, different speeds and different

types on the same motherboard.

3. Check for bad DIMM modules or slots by swapping modules between slots to

see if you can locate the faulty ones.

4. Check the switch of 115V/230V power supply.

When the System is Losing the Setup Configuration

1. Please be sure to use a high quality power supply. A poor quality power sup-

ply may cause the system to lose CMOS setup information. Refer to Section

1-5 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not x the Setup Conguration problem, contact your

vendor for repairs.

3-2

Chapter 3: Troubleshooting

3-2 Technical Support Procedures

Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is

best to rst check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specic system conguration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked

Question' (FAQ) sections in this chapter or see the FAQs on our website

(http://www.supermicro.com/support/faqs/) before contacting Technical Sup-

port.

2. BIOS upgrades can be downloaded from our website at http://www.supermi-

cro.com/support/bios/.

Note: Not all BIOS can be ashed. Some cannot be ashed; it

depends on the boot block code of the BIOS.

3. If you've followed the instructions above to troubleshoot your system, and still

cannot resolve the problem, then contact Supermicro's technical support and

provide them with the following information:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your

system rst boots up)

• System conguration

• An example of a Technical Support form is on our website at http://www.super-

micro.com/support/contact.cfm.

4. Distributors: For immediate assistance, please have your account number

ready when placing a call to our technical support department. We can be

reached by e-mail at support@supermicro.com, by phone at: (408) 503-

8000, option 2, or by fax at (408)503-8019.

3-3

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The C7Z170-M/C7H170-M supports up to 64GB of unbuffered

Non-ECC DDR4. See Section 2-4 for details on installing memory.

Question: How do I update my BIOS?

Answer: We do NOT recommend that you upgrade your BIOS if you are

not experiencing any problems with your system. Updated BIOS les are

located on our website at http://www.supermicro.com/support/bios/. Please check our BIOS warning message and the information on how to update your BIOS on our web site. Select your motherboard model and download the BIOS ROM le to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before

downloading. You may choose the zip le or the .exe le. If you choose the zipped BIOS le, please unzip the BIOS le onto a bootable device or a USB pen/thumb drive. To ash the BIOS, run the batch le named "ami.bat" with the new BIOS ROM le from your bootable device or USB

pen/thumb drive. Use the following format:

F:\> ami.bat BIOS-ROM-lename.xxx <Enter>

Note: Always use the le named “ami.bat” to update the BIOS, and insert a space between "ami.bat" and the lename. The BIOS-ROM-lename will bear the motherboard name (i.e.,

C7Z170) and build version as the extension. For example, "C7Z170.115". When completed, your system will automatically reboot.

If you choose the .exe le, please run the .exe le under Windows to create the BIOS ash oppy disk. Insert the oppy disk into the system you wish to ash the BIOS. Then, boot the system to the oppy disk. The BIOS utility will automatically ash

the BIOS without any prompts. Please note that this process may take a few minutes to complete. Do not be concerned if the screen is paused for a few minutes.

When the BIOS ashing screen is completed, the system will reboot and will show “Press F1 or F2”. At this point, you will need to load the BIOS defaults. Press <F1> to go to the BIOS setup screen, and press <F9> to load the default settings. Next, press <F10> to save and exit. The system will then reboot.

Attention! Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure!

3-4

Chapter 3: Troubleshooting

Question: I think my BIOS is corrupted. How can I recover my BIOS?

Answer: Please see Appendix C-BIOS Recovery for detailed instructions.

3-4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.

2. Locate the onboard battery as shown below.

3. Using a tool such as a pen or a small screwdriver, push the battery lock out-

wards to unlock it. Once unlocked, the battery will pop out from the holder.

4. Remove the battery.

Proper Battery Disposal

Battery Lock

Attention! Please handle used batteries carefully. Do not damage

the battery in any way; a damaged battery may release hazardous

materials into the environment. Do not discard a used battery in the

garbage or a public landll. Please comply with the regulations set

up by your local hazardous waste management agency to dispose of your used battery properly.

Battery

3-5

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Battery Installation

1. To install an onboard battery, follow the steps 1& 2 above and continue below:

2. Identify the battery's polarity. The positive (+) side should be facing up.

3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Attention! When replacing a battery, be sure to only replace it with the same type.

Battery Holder

This side up

Press down until you hear a click.

3-5 Returning Motherboard for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro.com/support/rma/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

3-6

Chapter 4: AMI BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMI BIOS setup utility for the C7Z170-M. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS setup utility setup screens.

Note: For AMI BIOS Recovery, please refer to the UEFI BIOS Recovery Instructions in Appendix C.

Starting BIOS GUI Setup Utility

To enter the AMI BIOS GUI setup utility screens, press the <Delete> key while the system is booting up.

Note: In most cases, the <Delete> key is used to invoke the AMI BIOS setup screen.

Each BIOS menu option is described in this manual. The Main BIOS Setup screen has two main areas. The left area is the Main Navigation, and the main area is for the Information Section. Icons that do not respond when

the mouse pointer is hovering on top are not congurable.

4-1

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

The AMI BIOS GUI setup utility uses a mouse pointer navigation system similar to standard graphical user interfaces. Hover and click an icon to select a section, click a down arrow to select from an options list.

You may press the <F1> on any screen under the Setup Section to see a list of Hot Keys that are available. Press <F12> to print the screen.

The keyboard's Escape key <ESC> cancels the current screen and will allow you to return to the previous screen.

How To Change the Configuration Data

The conguration data that determines the system parameters may be

changed by entering the AMI BIOS GUI setup utility. This setup utility can be accessed by pressing <Del> at the appropriate time during system boot.

Note: For the purposes of this manual, options that are printed in Bold are default settings.

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS GUI setup utility. From the Setup Home screen, you can access the other Setup Sections.

4-2

Chapter 4: AMI BIOS

4-2 System Information

The System Information Panel displays the motherboard's conguration.

The following information among others is displayed in this section:

• Motherboard Model Name - C7Z170-M.

• BIOS Version - this item displays the BIOS version number.

• Build Date and Time - displays the BIOS build date and time.

• CPU - displays the CPU type speed, stepping, etc.

• CPU Fan Data - displays sensor type, temperature, speed

System Date

Click on the date to open the setup elds. This item sets and displays the

system date. Click the up and down arrows to adjust the date.

System Time

Click on the time to open the setup elds. This item sets and displays the

system time. Click the up and down arrows to adjust the system time.

4-3

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

4-3 CPU

The following information is displayed in this section:

• Name - indicates the model name of the CPU.

• Type - indicates the brand, model name, model number of the

CPU and it's rated clock speed.

• Speed - this item shows the detected CPU speed.

• ID - displays the unique CPU ID.

• Stepping - displays the processor stepping.

• Number of Processors - displays the number of cores detected.

• Microcode Revision - displays the CPU's microcode patch ver-

sion.

• GT Info - this item shows the processor's GT Information.

• IGFX VBIOS Version - this item shows the Integrated Graphics

VBIOS version.

• IGFX GOP Version - this item shows the Integrated Graphics

VOP version.

• Memory RC Version - this item shows the memory RC version.

4-4

CPU Configuration

Set all options for the processor in this section.

The following CPU information will be displayed:

• CPU Type - displays the CPU type.

Chapter 4: AMI BIOS

• Type - indicates the brand, model name, model number of the

CPU and it's rated clock speed.

• ID - displays the unique CPU ID.

• Speed - this item shows the detected CPU speed.

• L1 Data Cache - indicates Level 1 cache is supported.

• L1 Instruction Cache - displays Level 1 instruction cache is

supported.

• L2 Cache - indicates Level 2 cache is supported.

• L3 Cache - displays whether Level 3 cache is supported or not.

• L4 Cache - indicates Level 4 cache is supported.

• VMX - indicates VMX is supported.

• SMX/TXT - indicates SMX/TXT is supported.

4-5

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

C6DRAM

Select Enabled to allow moving of DRAM contents to PRM memory when CPU is in C6 state. The options are Disabled and Enabled.

SW Guard Extension (SGX)

Select Enabled to activate the Software Guard Extensions (SGX). The options are Software Controlled, Enabled, and Disabled.

Select Owner EPOCH input type

There are three Owner EPOCH modes (Each EPOCH is 64 bit). The options are No Change in Owner EPOCHs, Change to New Random Owner

EPOCHs, and Manual User Dened Owner EPOCHs.

PRMRR Size

The BIOS must reserve a contiguous region of Processor Reserved Memory (PRM) in the Processor Reserved Memory Range Register (PRMRR). This item appears SW Guard Extensions is enabled. The options are INVALID PRMRR, 32MB, 64MB, and 12MB.

Hardware Prefetcher

(Available when supported by the CPU)

If this item is set to Enabled, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Disabled and Enabled.

Adjacent Cache Line Prefetch

(Available when supported by the CPU)

Select Enabled for the CPU to prefetch both cache lines for 128 bytes as comprised. Select Disabled for the CPU to prefetch both cache lines for 64 bytes. The options are Disabled and Enabled.

Intel (VMX) Virtualization Technology

(Available when supported by the CPU)

Select Enabled to use the Intel Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Disabled and Enabled.

Note: If there is any change to this setting, you will need to power off and reboot the system for the change to take effect. Please refer to Intel’s web site for detailed information.

4-6

Chapter 4: AMI BIOS

PECI

Select Enabled to activate the Platform Environment Control Interface (PECI). The options are Disabled and Enabled.

Active Processor Cores

Use this feature to select the number of active processor cores. The options are All, 1, 2, and 3. (These options depend on how many cores are supported by the CPU.)

Hyper-Threading

Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Disabled and Enabled.

BIST

Select Enabled to activate the Built-In Self Test (BIST) on reset. The options are Disabled and Enabled.

JTAG C10 Power

Select Enabled to activate power JTAG in C10 and deeper power states. The options are Enabled and Disabled.

AP Threads Idle Manner

Select Enabled to activate AP threads Idle Manner for waiting signal to run. The options are HALT Loop, MWAIT Loop, and RUN Loop.

AP Threads Handoff Manner

Select Enabled to activate AP threads Idle Manner for waiting signal to run. The options are HALT Loop and MWAIT Loop.

AES

Select Enable for Intel CPU Advanced Encryption Standard (AES) Instructions support to enhance data integrity. The options are Disabled and

Enabled.

Machine Check

Select Enable to activate Machine Check. The options are Disabled and

Enabled.

MonitorMWait

Select Enable to activate MonitorMWait. The options are Disabled and

Enabled.

4-7

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Intel Trusted Execution Technology

Intel TXT (Trusted Execution Technology) helps protect against software-

based attacks and ensures protection, condentiality and integrity of data

stored or created on the system. The options are Disabled and Enabled.

* Intel Trusted Execution Technology is Enabled, the features Alias Check

Request and DPR Memory Size are available for conguration.

Alias Check Request

(Available when the TPM module is detected by the BIOS)

Use this feature to set up Alias Check Request. The options are Enabled and Disabled.

Reset AUX Content

Use this feature to reset the TPM Auxiliary content. The options are yes and no.

Flash Wear Out Protection

Select Enable to activate Flash Wear Out Protection. The options are

Disabled and Enabled.

Debug Interface

Select Enable to activate Debug Interface. The options are Disabled and Enabled.

Debug Interface Lock

Select Enable to activate Debug Interface lock. The options are Disabled and Enabled.

Processor trace memory allocation

Disable of select a value for Processor Trace memory region size. The options are Disabled, 4KB, 8KB, 16KB, 32KB, 64KB, 128KB, 256KB, 512KB, and 1MB.

FCLK Frequency for Early Power On

Select the FCLK frequency for early power on. The options are Normal (800MHz), 1GHz, and 400MHz.

Voltage Optimization

Select Enable to activate Voltage Optimization. The options are Disabled and Enabled.

4-8

Chapter 4: AMI BIOS

Power and Performance

CPU - Power Management Control

Boot performance mode

This option enables the selection of the default CPU performance during system boot. The options are Max Battery, Max Non-Turbo Perfor-

mance, and Turbo Performance.

Intel(R) SpeedStep(tm)

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation. Please refer to Intel’s web site for

detailed information. The options are Disabled and Enabled.

4-9

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

View/Configure Turbo Options

The following information is displayed in this section:

• Max Turbo Power Limit

• Min Turbo Power Limit

• Package TDP Limit

• Power Limit 1

• Power Limit 2

• 1-core Turbo Ratio

• 2-core Turbo Ratio

• 3-core Turbo Ratio

• 4-core Turbo Ratio

Energy Efcient P-state

Select Enable to activate Energy Efcient P-State. When set to Disabled,

this feature will disable access to ENERGY_PERFORMANCE_BIAS MSR, and CPUID Function 6 ECX[3] will read 0, indicating that there is no

support for Energy Efcient policy setting. The options are Disabled and

Enabled.

4-10

Chapter 4: AMI BIOS

Energy Efcient Turbo

Select Enabled to activate Energy Efcient Turbo. This feature will opportunistically lower the turbo frequency to increase efciency. We

recommend to leave this enabled and disable only in overclocking situations where the turbo frequency must remain constant. The options are Disabled and Enabled.

CPU VR Settings

PSYS Slope

PSYS Slope is dened in 1/100 increments and uses the BIOS VR mailbox

command 0x9. Valid range is 0-200. For example, enter 125 for a 1.25 slope. Enter 0 for AUTO.

PSYS Offset

PSYS Offset is dened in 1/4 increments and uses the BIOS VR mailbox

command 0x9. For example, enter 100 for a 25 offset. Valid range is 0-255.

PSYS PMax Power

The value is dened in 1/8 Watt increments and uses the BIOS VR mailbox command 0xB. For example, enter 1000 for a 125 Watt PMax value. Valid range is 0-8192. Enter 0 for AUTO.

4-11

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Acoustic Noise Settings

Acoustic Noise Mitigation

Select Enable to help mitigate acoustic noise on certain SKUs when the CPU is in deeper C-State. The options are Disabled and Enabled.

When the above is set to Enabled, the followings can be congured:

IA VR Domain

Disable Fast PKG C State Ramp for IA Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

Slow Slew Rate for IA Domain

This feature sets the VR IA Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are Fast/2, Fast/4, Fast/8, and Fast/16.

GT VR Domain

Disable Fast PKG C State Ramp for GT Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

Slow Slew Rate for GT Domain

This feature sets the VR GT Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are Fast/2, Fast/4, Fast/8, and Fast/16.

SA VR Domain

Disable Fast PKG C State Ramp for SA Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

4-12

Chapter 4: AMI BIOS

Slow Slew Rate for SA Domain

This feature sets the VR SA Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are Fast/2, Fast/4, Fast/8, and Fast/16.

Core/IA VR Settings

VR Cong Enable

Select Enable to activate VR conguration options. The options are

Disabled and Enabled.

AC Loadline

AC Loadline is dened in 1/100 mOhms and uses the BIOS mailbox

command 0x2. A value of 100 equals 1.0 mOhm, and 1255 is 12.55 mOhms. Valid range is 0-6249 (0-62.49 mOhms). Enter 0 for

AUTO.

DC Loadline

DC Loadline is dened in 1/100 mOhms and uses the BIOS mailbox

command 0x2. A value of 100 equals 1.0 mOhm, and 1255 is 12.55 mOhms. Valid range is 0-6249 (0-62.49 mOhms). Enter 0 for

AUTO.

PS Current Threshold1

The PS Current Threshold1 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for

AUTO. Default is 80 for 20A.

PS Current Threshold2

The PS Current Threshold2 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for

AUTO. Default is 20 for 5A.

PS Current Threshold3

The PS Current Threshold2 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for

AUTO. Default is 4 for 5A.

4-13

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

PS3 Enable

Enable or Disables PS3. Uses BIOS VR mailbox command line 0x3. The options are Disabled and Enabled.

PS4 Enable

Enable or Disables PS4. Uses BIOS VR mailbox command line 0x3. The options are Disabled and Enabled.

IMON Slope

IMON (Load Current Monitor) Slope is dened in 1/100 increments

and uses the BIOS VR mailbox command 0x4. Valid range is 0-200. For example, enter 125 for a 1.25 slope. Enter 0 for AUTO.

IMON Offset

IMON Offset is dened in 1/1000 increments and uses the BIOS

VR mailbox command 0x4. For example, enter 25,348 for a 25.348 offset. Valid range is 0-63999.

IMON Prex

This feature sets the IMON offset value to a positive or negative number. The options are + and -.

VR Current Limit

This feature sets the Voltage Regulator current limit. The value represents the maximum instantaneous current allowed at any given time. The value is represented in 1/4A (Ampere) increments. A value of 400 equals 100A. Set this number to 1022 for Auto. This uses the BIOS VR mailbox command 0x6.

VR Voltage Limit

This feature sets the Voltage Regulator voltage limit. The value is represented in mV. A value of 1250 equals 1.25V. Set this number to 7999 for Auto. This uses the BIOS VR mailbox command 0x6.

TDC Enable

Enable or Disables TDC (Thermal Design Current). The options are

Disabled and Enabled.

TDC Current Limit

The TDC Current Limit is dened in 1/8A (Amperes) increments

and uses the BIOS mailbox command 0x1A. A value of 1000 equals 125A. Valid range is 0-32767. Enter 0 for 0 Amps.

4-14

Chapter 4: AMI BIOS

TDC Time Window

The TDC Time Window is dened in milliseconds. Valid range is 1-8ms and 10ms. Note that 9ms has no valid encoding in the MSR denition. The options are 1ms, 2ms, 3ms, 4ms, 5ms, 6ms, 7ms, 8ms, and 10ms.

TDC Lock

This feature enables or disables TDC Lock. The options are Disabled and Enabled.

GT-Sliced VR Settings

GT-Sliced Domain

VR Cong Enable

Select Enable to activate VR conguration options. The options are

Disabled and Enabled.

AC Loadline

AC Loadline is dened in 1/100 mOhms and uses the BIOS mailbox

command 0x2. A value of 100 equals 1.0 mOhm, and 1255 is 12.55 mOhms. Valid range is 0-6249 (0-62.49 mOhms). Enter 0 for AUTO.

DC Loadline

DC Loadline is dened in 1/100 mOhms and uses the BIOS mailbox

command 0x2. A value of 100 equals 1.0 mOhm, and 1255 is 12.55 mOhms. Valid range is 0-6249 (0-62.49 mOhms). Enter 0 for AUTO.

PS Current Threshold1

The PS Current Threshold1 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for AUTO. Default is 80 for 20A.

PS Current Threshold2

The PS Current Threshold2 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for AUTO.

Default is 20 for 5A.

4-15

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

PS Current Threshold3

The PS Current Threshold2 is dened in 1/4A (Amperes) increments

and uses the BIOS mailbox command 0x3. A value of 400 equals 100A. Range is 0-512 which translates to 0-128A. Enter 0 for AUTO.

Default is 4 for 5A.

PS3 Enable

Enable or Disables PS3. Uses BIOS VR mailbox command line 0x3. The options are Disabled and Enabled.

PS4 Enable

Use this feature to enable or disable PS4. This feature uses BIOS VR mailbox command line 0x3. The options are Disabled and Enabled.

IMON Slope

IMON (Load Current Monitor) Slope is dened in 1/100 increments and

uses the BIOS VR mailbox command 0x4. Valid range is 0-200. For example, enter 125 for a 1.25 slope. Enter 0 for AUTO.

IMON Offset

IMON Offset is dened in 1/1000 increments and uses the BIOS VR

mailbox command 0x4. For example, enter 25,348 for a 25.348 offset. Valid range is 0-63999.

IMON Prex

This feature sets the IMON offset value to a positive or negative number. The options are + and -.

VR Current Limit

This feature sets the Voltage Regulator current limit. The value represents the maximum instantaneous current allowed at any given time. The value is represented in 1/4A (Ampere) increments. A value of 400 equals 100A. Set this number to 0 for Auto. This uses the BIOS VR mailbox command 0x6.

VR Voltage Limit

This feature sets the Voltage Regulator voltage limit. The value is represented in mV. A value of 1250 equals 1.25V. Set this number to

0 for Auto. This uses the BIOS VR mailbox command 0x6.

TDC Enable

Enable or Disables TDC (Thermal Design Current). The options are

Disabled and Enabled.

4-16

Chapter 4: AMI BIOS

TDC Current Limit

The TDC Current Limit is dened in 1/8A (Amperes) increments and

uses the BIOS mailbox command 0x1A. A value of 1000 equals 125A. Valid range is 0-32767. Enter 0 for 0 Amps.

TDC Time Window

The TDC Time Window is dened in milliseconds. Valid range is 1-8ms and 10ms. Note that 9ms has no valid encoding in the MSR deni-

tion. The options are 1ms, 2ms, 3ms, 4ms, 5ms, 6ms, 7ms, 8ms, and 10ms.

TDC Lock

This feature enables or disables TDC Lock. The options are Disabled and Enabled.

C states

C-States architecture, a processor power management platform developed by Intel, can further reduce power consumption from the basic C1 (Halt State) state that blocks clock cycles to the CPU. Select Enabled for CPU C Sates support. The options are Disabled and Enabled. If this feature is set to Enabled, the following items will be displayed:

Enhanced C-states

(Available when "CPU C States" is set to Enabled)

Select Enabled to enable Enhanced C1 Power State to boost system performance. The options are Disabled and Enabled.

C-State Auto Demotion

When this item is enabled, the CPU will conditionally demote C State based on un-cored auto-demote information. The options are Disabled, C1, C3, and C1 and C3.

C-State Un-demotion

When this item is enabled, the CPU will conditionally undemote from demoted C3 or C1. The options are Disabled, C1, C3, and C1 and C3.

Package C-State Demotion

This item enables the Package C-State demotion. The options are Disabled and Enabled.

Package C-State Un-Demotion

When set, the CPU will conditionally undemote from demoted Packaged Package C-State Un-Demotion. The options are Disabled and Enabled.

4-17

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

CState Pre-Wake

When set, this option enables or disables the C-State pre wake. The options are Disabled and Enabled.

IO MWAIT Redirection

When enabled, this feature will map and send the IO read instructions to the IO registers. The options are Disabled and Enabled.

Package C State Limit

Select Auto for the AMI BIOS to automatically set the limit on the C-State package register. The options are Cpu Default, C10, C9, C8, C7S, C7, C6, C3, C2, C2, and Auto.

C3 Latency Control (MSR 0x60A)

Time Unit

Use this item to set the C3 latency control time unit. The options are 1ns, 32ns, 1024ns, 32768ns, 1048576ns, and 33554432ns.

Latency

Use this item to set the C3 latency time value. Valid range is 0-1023. The default setting is 78.

C6/C7 Short Latency Control (MSR 0x60B)

Time Unit

Use this item to set the C6/C7 short latency time unit. The options are 1ns, 32ns, 1024ns, 32768ns, 1048576ns, and 33554432ns.

Latency

Use this item to set the C6/C7 short latency time value. Valid range is 0-1023. The default setting is 118.

C6/C7 Long Latency Control (MSR 0x60C)

Time Unit

Use this item to set the C6/C7 long latency time unit. The options are 1ns, 32ns, 1024ns, 32768ns, 1048576ns, and 33554432ns.

4-18

Chapter 4: AMI BIOS

Latency

Use this item to set the C6/C7 long latency time value. Valid range is 0-1023. The default setting is 148.

Thermal Monitor

Use this feature to enable the thermal monitor support. The options are Disabled and Enabled.

Timed MWAIT

Use this feature to enable the Timed MWAIT support. The options are Disabled and Enabled.

Custom P-state Table

Energy Performance Gain

Use this feature to enable or disable the energy performance gain. The options are Disabled and Enabled.

EPG DIMM Idd3N

This feature displays the memory standby current.

EPG DIMM Idd3P

This item displays the active power-down current.

CPU Lock Configuration

CFG Lock

When Enabled, this item allows for the conguration of the MSR

0xE2[15] CFG lock bit. The options are Disabled and Enabled.

Overclocking Lock

Select Enabled to prevent the CPU overclocking. The options are

Disabled and Enabled.

4-19

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

GT-Power Management

RC6 (Render Standby)

Use this feature to enable Render Standby support. The options are

Enabled and Disabled.

Maximum GT Frequency

This option is the Maximum GT Frequency as dened by the user.

Choose between 300MHz (RPN) and 1200MHz (RP0). Any value beyond this range will be clipped to its min/max supported by the CPU. The options are Default Max Frequency, 100MHz through 1200MHz (in increments of 50MHz).

4-20

Chapter 4: AMI BIOS

CPU OverClocking

BCLK Clock Frequency (1/100 MHz)

Use this item to set the CPU clock override value for the host system. The default setting is 10000.

FCLK Frequency for Early Power On

Select the FCLK frequency for early power on. The options are Normal (800MHz), 1GHz, and 400MHz.

Active Processor Cores

Use this feature to select the number of active processor cores. The options are All, 1, 2, and 3. (These options depend on how many cores are supported by the CPU.)

Load SMC CPU OC Setting

This item has optimized pre-congured overclock settings. Select one

to activate. The options are Manual, 4.0GHz~5.5GHz (in 100MHz increments).

1-Core Ratio Limit Override

This increases (multiplies) 1 clock speed in the CPU core in relation to the bus speed when one CPU core is active. The default setting is based on CPU.

4-21

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

2-Core Ratio Limit Override

This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus speed when two CPU cores are active. The default setting is based on CPU.

3-Core Ratio Limit Override

This increases (multiplies) 3 clock speeds in the CPU core in relation to the bus speed when three CPU cores are active. The default setting is based on CPU.

4-Core Ratio Limit Override

This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus speed when four CPU cores are active. The default setting is based on CPU.

AVX Ratio Offset

The AVX Ratio Offset species a negative offset from the Turbo Ratio Limit MSR for AVX workloads. AVX is a more stressful workload. It is helpful to lower the AVX ratio to ensure maximum possible ratio for SSE workloads. Valid range is 0-31. Enter 0 for Auto.

BCLK Aware Adaptive Voltage

When enabled, pcode will be aware of the BCLK frequency when calculating the CPV/F curves. This is ideal for BCLK to avoid high voltage overrides. The options are Disabled and Enabled.

RSR

This item enables or disables the RSR feature. The options are Disabled and Enabled.

Boot Performance Mode

This option enables the selection of the default CPU performance during system boot. The options are Max Battery, Max Non-Turbo Perfor-

mance, and Turbo Performance.

Intel(R) SpeedStep(tm)

Enhanced Intel SpeedStep Technology (EIST) allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation. Please refer to Intel’s web site for detailed information. The options are Disabled and Enabled.

4-22

Chapter 4: AMI BIOS

Turbo Mode

This feature allows processor cores to run faster than the rated operating

frequency in specic conditions. The options are Disabled and Enabled.

If this feature is set to Enabled, the following items will be displayed:

Package Power Limit MSR Lock

This feature enables or disables the locking of Package Power Limit settings. When enabled Package Power Limit MSR will be locked and a reset will be required to unlock the register. The options are Disabled and Enabled.

Congurable TDP Boot Mode

This feature sets the TDP Boot Mode to either Nominal, Down, Up, or Deactivated. When deactivated, it will set MSR to Nominal and MMIO to zero.

Congurable TDP Lock

This option sets the lock bits on TURBO_ACTIVATION_RATIO and CON-

FIG_TDP_CONTROL. When lock is enabled, Custom Cong TDP Count will be forced to 1 and Custom Cong TDP Boot Index will be forced to

0. The options are Enabled and Disabled.

CTDP BIOS Control

This feature enables CTDP control via runtime ACPI BIOS methods. The options are Enabled and Disabled.

Power Limit 1 Override

This feature disables or enables the Power Limit 1 Override. If this option is disabled, the BIOS will program the default values for Power Limit and Power Limit 1 Time Window. The options are Disabled and Enabled.

Power Limit 1

This feature congures Package Power Limit 1, in milliwatts. When the

limit is exceeded, the CPU ratio is lowered after a period of time (see item below). A lower limit can save power and protect the CPU, while a higher limit improves performance. This value must be between Min Power Limit TDP limit. If value is '0' the BIOS will program the TDP value. Use the number keys on your keyboard to enter the value. The default setting is dependent on the CPU.

4-23

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Power Limit 1 Time Window

This item determines how long the time window over which the TDP value is maintained. Use the number keys on your keyboard to enter the value. The default setting is 8. This value may vary between 0~128.

Power Limit 2 Override

This feature disables or enables the Power Limit 2 Override. If this option is disabled, the BIOS will program the default values for Power Limit and Power Limit 2 Time Window. The options are Disabled and Enabled.

Power Limit 2

This feature congures Package Power Limit 2, in milliwatts. When the

Platform PL1 Enable

This option disables or enables the Platform Power Limit 1 programming. If this option is enabled, it activates the PL1 value to be used by the processor to limit the average power of the given time window. The options are Disabled and Enabled.

Platform PL2 Enable

This option disables or enables the Platform Power Limit 2 programming. If this option is enabled, it activates the PL1 value to be used by the processor to limit the average power of the given time window. The options are Disabled and Enabled.

Power Limit 3 Override

This feature disables or enables the Power Limit 3 Override. If this option is disabled, the BIOS will program the default values for Power Limit and Power Limit 3 Time Window. The options are Disabled and Enabled.

Power Limit 4 Override

This feature disables or enables the Power Limit 4 Override. If this option is disabled, the BIOS will program the default values for Power Limit and Power Limit 4 Time Window. The options are Disabled and Enabled.

4-24

Chapter 4: AMI BIOS

CPU Flex Ratio Override

Select Enabled to activate CPU Flex Ratio programming. The options are

Disabled and Enabled.

CPU Flex Ratio Settings

When CPU Flex Ratio Override is enabled, this sets the value for the CPU Flex Ratio. The default is 25.

Core Max OC Ratio

This option sets the maximum overclocking ratio for the CPU core. The allowable range is 0-80.

System Agent Voltage (mV)

This option sets the System Agent Voltage in mV.

Core Voltage Mode

Use this feature to select the Core voltage mode. The options are Adaptive and Override.

Core Extra Turbo Voltage

(If the feature above, Core Voltage Mode, is set to Adaptive.) Use this feature to set the extra voltage applied while GT is operating in turbo mode. Specify a value from 0mV to 2000mV. Enter 0 to use the manufacture default value.

Core Voltage Override

(If the feature above, Core Voltage Mode, is set to Override.) Use this feature to set the core voltage override value.

Core Voltage Offset

Use this feature to set the CPU Voltage Offset value from -500mV to +500mV. Enter 0 to use the manufacturer default value.

Offset Prex

Use this feature to set the Core Voltage Offset value as a positive (+) number or a negative (-) number. The default setting is "+".

Core PLL Voltage Offset

Use this feature to set the CPU PLL Voltage Offset value from 0-63 with each unit at 15mV. This is used to increase the range of the core frequency in extreme overclocking conditions. Press "+" or "-" on your keyboard to make a selection.

4-25

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

Ring Max OC Ratio

This option sets the maximum overclocking ratio for the RING domain. Press "+" or "-" on your keyboard to change the value.

Ring Min OC Ratio

This option sets the minimum overclocking ratio for the RING domain. Press "+" or "-" on your keyboard to change the value.

Uncore Voltage Offset

Use this feature to set the uncore domain Voltage Offset value from

-1000mV to +1000mV. Enter 0 to use the manufacture default value. Press "+" or "-" on your keyboard to change the value.

Offset Prex

Use this feature to set the offset value as positive or negative. The options are + or -.

PCH Voltage

Use this feature to trim the PCH Voltage. Select from these values: 1.00V,

1.05V, 1.10V, 1.15V, 1.20V, 1.25V, and 1.30V.

CPU PLL Voltage

Use this feature to trim the CPU PLL Voltage. Select from these values:

1.20V, 1.25V, 1.30V, 1.35V, 1.40V, 1.45V, and 1.50V.

CPU_IO Voltage

Use this feature to calibrate the CPU I/O Voltage. Select from these values: 0.975V, 1.15V, 1.30V, and 1.50V.

Load Line Calibration

Load line calibration is vDroop, which is the tendency for a CPU's vCore to drop when going from an idle state to a load state. Enable this feature to reduce vDroop. The options are Disabled and Enabled.

VRM Total Current Limit Capability

Use this feature to set the CPU integrated voltage regulator when under extreme high load for VRM total current limit. The options are 100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%, 180%, 190%, and 200%.

4-26

Chapter 4: AMI BIOS

VRM Per-Phase Current Limit Capability

Use this feature to set the CPU integrated voltage regulator when under extreme high load for VRM per-phase current limit. The options are

100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%, and 180%.

PSYS Slope

PSYS Slope is dened in 1/100 increments and uses the BIOS VR mailbox

command 0x9. Valid range is 0-200. For example, enter 125 for a 1.25 slope. Enter 0 for AUTO.

PSYS Offset

PSYS Offset is dened in 1/4 increments and uses the BIOS VR mailbox

command 0x9. For example, enter 100 for a 25 offset. Valid range is 0-255.

PSYS PMax Power

The value is dened in 1/8 Watt increments and uses the BIOS VR mailbox command 0xB. For example, enter 1000 for a 125 Watt PMax value. Valid range is 0-8192. Enter 0 for AUTO.

Acoustic Noise Settings

Acoustic Noise Mitigation

Select Enable to help mitigate acoustic noise on certain SKUs when the CPU is in deeper C-State. The options are Disabled and Enabled.

When the above is set to Enabled, the following can be congured:

IA VR Domain

Disable Fast PKG C State Ramp for IA Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

Slow Slew Rate for IA Domain

This feature sets the VR IA Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are

Fast/2, Fast/4, Fast/8, and Fast/16.

4-27

Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

GT VR Domain

Disable Fast PKG C State Ramp for GT Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

Slow Slew Rate for GT Domain

This feature sets the VR GT Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are Fast/2, Fast/4, Fast/8, and Fast/16.

SA VR Domain

Disable Fast PKG C State Ramp for SA Domain

Select False to leave Fast ramp enabled during deeper C-States. Selecting True will disable Fast ramp during deeper C-States. The options are FALSE and TRUE.

Slow Slew Rate for SA Domain

This feature sets the VR SA Slew Rate for Deep Package C-State ramp time. Slow slew rate equals Fast divided by the number 2, 4, 8, or

16. This feature is used to help reduce acoustic noise. The options are Fast/2, Fast/4, Fast/8, and Fast/16.

Core/IA VR Settings

VR Cong Enable

Select Enable to activate VR conguration options. The options are

Disabled and Enabled.

*If the item above is set to Enabled, the following items will become

available for conguration:

AC Loadline

AC Loadline is dened in 1/100 mOhms and uses the BIOS mailbox

command 0x2. A value of 100 equals 1.0 mOhm, and 1255 is 12.55 mOhms. Valid range is 0-6249 (0-62.49 mOhms). Enter 0 for AUTO.

4-28
