Supero C7B75 User Manual

C7B75
USER’S MANUAL
Revision 1.0
Manual Revision 1.0
Release Date: November 29, 2012
Copyright © 2012 by Super Micro Computer, Inc. All rights reserved.
Printed in the United States of America
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason­able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn­ing the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/television technician for help.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn­ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.
WARNING: Handling of lead solder materials used in this prod­uct may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.
iii
Preface
Preface
This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
C7B75 motherboard.
About This Motherboard
The C7B75 supports a single 2nd & 3rd generation Intel® Core™ i7/i5/
i3, Pentium® and Celeron® processors in an LGA1155 Socket. With the Intel® B75
Express chipset built in, the C7B75 motherboard offers substantial enhancements
in system performance and storage capability for intermediate performance system
platforms in a sleek package. Please refer to our website (http://www.supermicro.
com/products/) for processor and memory support updates. This product is intended
to be installed and serviced by professional technicians.
Manual Organization
Chapter 1describesthefeatures,specicationsandperformanceofthemother-
board, and provides detailed information on the Intel B75 Express chipset.
Chapter 2 provides hardware installation instructions. Read this chapter when in-
stalling the processor, memory modules and other hardware components into the
system. If you encounter any problems, see Chapter 3, which describes trouble-
shooting procedures for video, memory and system setup stored in the CMOS.
Chapter 4 includes an introduction to the BIOS, and provides detailed information
on running the CMOS Setup utility.
Appendix A provides BIOS Error Beep Codes.
Appendix B lists software program installation instructions.

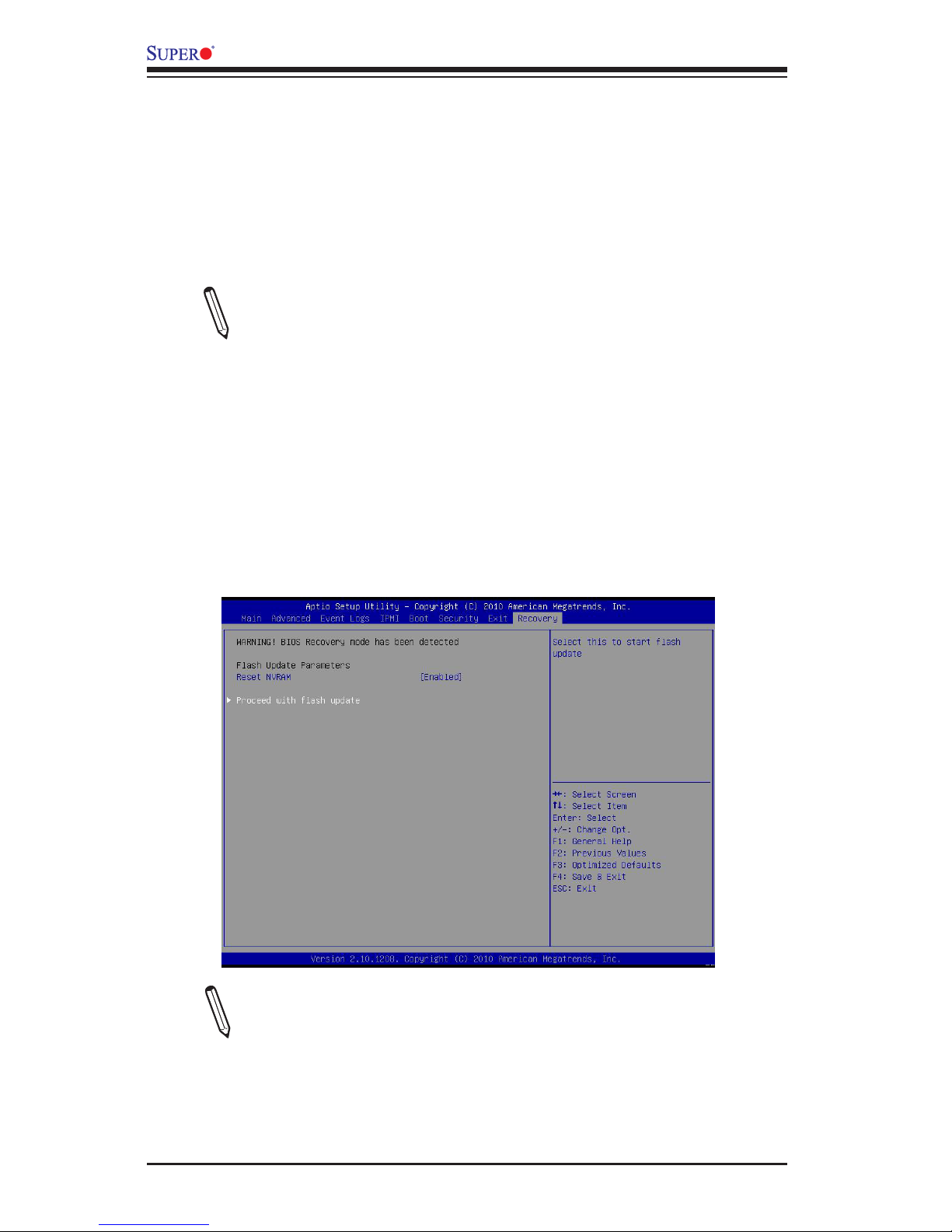

Appendix C contains UEFI BIOS Recovery instructions.
iv
Conventions Used in the Manual:
Special attention should be given to the following symbols for proper installation and
to prevent damage done to the components or injury to yourself:
Danger/Caution: Instructions to be strictly followed to prevent catastrophic system
failure or to avoid bodily injury
Warning: Critical information to prevent damage to the components or data loss.
Important: Important information given to ensure proper system installa-
tion or to relay safety precautions.
Note: Additional Information given to differentiate various models or pro-
vides information for correct system setup.
C7B75 User’s Manual
v
Contacting Supermicro
1-4 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Asia-Pacic
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd
New Taipei City 235
Taiwan
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Email: support@supermicro.com.tw
Tel: +886-(2)-8226-3990
vi
Table of Contents
Preface
About This Motherboard ................................................................................................ iii
Manual Organization .....................................................................................................iii
Conventions Used in the Manual: .................................................................................iv
1-4 Contacting Supermicro ........................................................................................v
Chapter 1
Introduction
1-1 Overview ......................................................................................................... 1-1
Checklist .......................................................................................................... 1-1
Motherboard Features ..................................................................................... 1-6
1-2 Chipset Overview ........................................................................................... 1-9
Intel B75 Express Chipset Features ............................................................... 1-9
1-3 Special Features ........................................................................................... 1-10
Recovery from AC Power Loss ..................................................................... 1-10

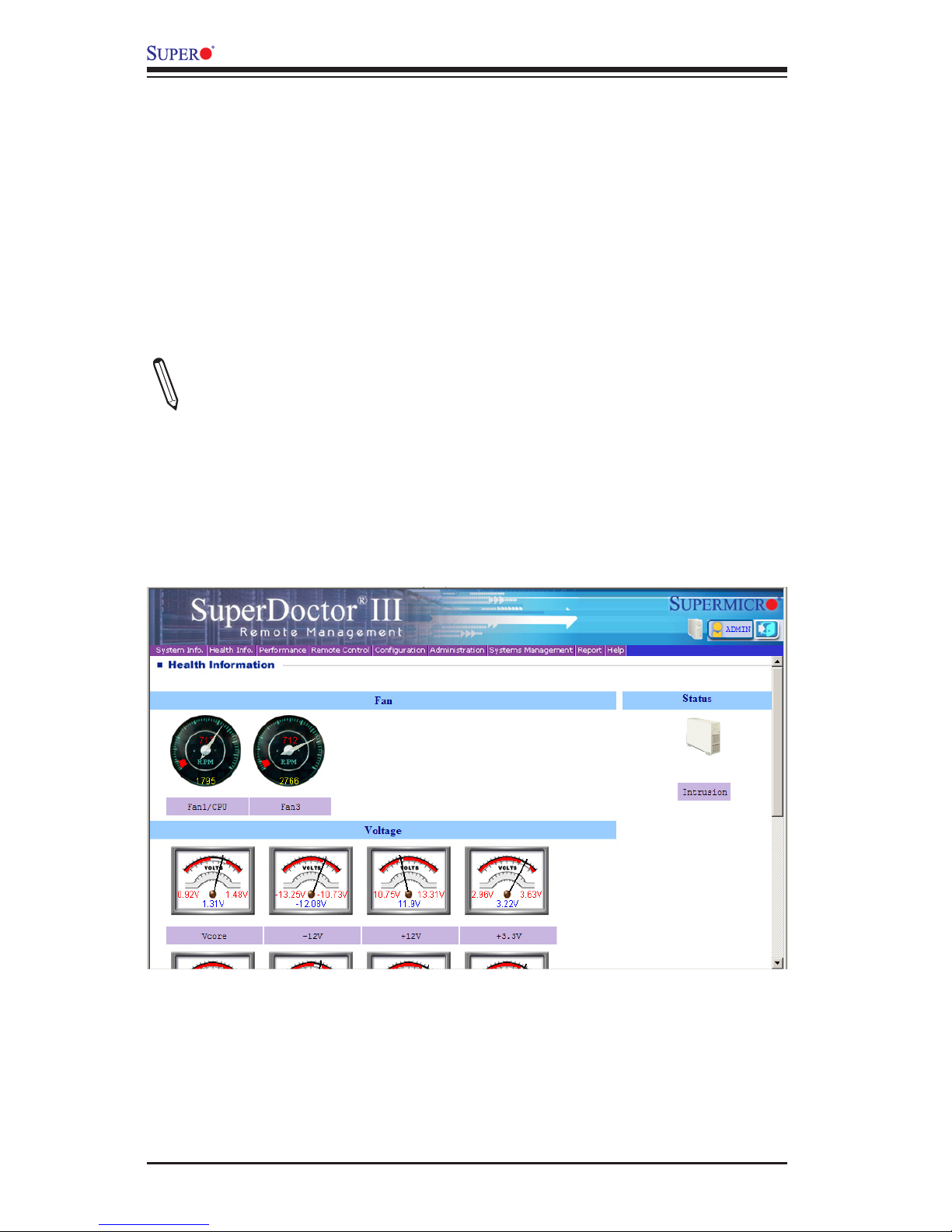

1-4 PC Health Monitoring .................................................................................... 1-10
Fan Status Monitor with Firmware Control .................................................. 1-10
Environmental Temperature Control ............................................................. 1-10
System Resource Alert ................................................................................. 1-10
1-5 ACPI Features ................................................................................................1-11
Slow Blinking LED for Suspend-State Indicator ............................................1-11
1-6 Power Supply .................................................................................................1-11
1-7 Super I/O ....................................................................................................... 1-12
Chapter 2
Installation
2-1 Static-Sensitive Devices .................................................................................. 2-1
Precautions ..................................................................................................... 2-1
Unpacking ....................................................................................................... 2-1
2-2 Processor and Heatsink Installation................................................................ 2-2
Installing the LGA1155 Processor ................................................................. 2-2
Installing an Active CPU Heatsink with Fan ................................................... 2-5

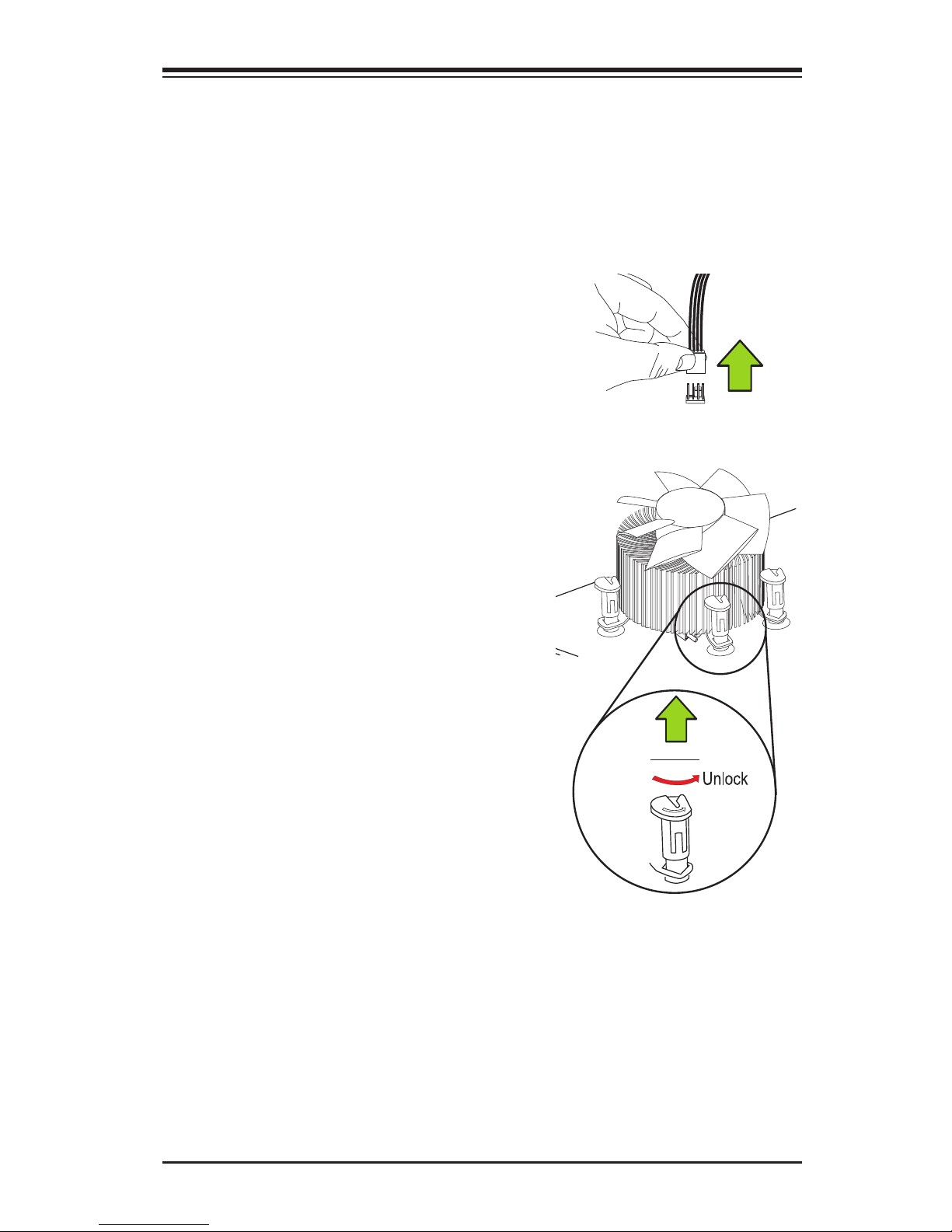

Removing the Heatsink ................................................................................... 2-7
2-3 Installing DDR3 Memory ................................................................................. 2-8
DIMM Installation ............................................................................................ 2-8

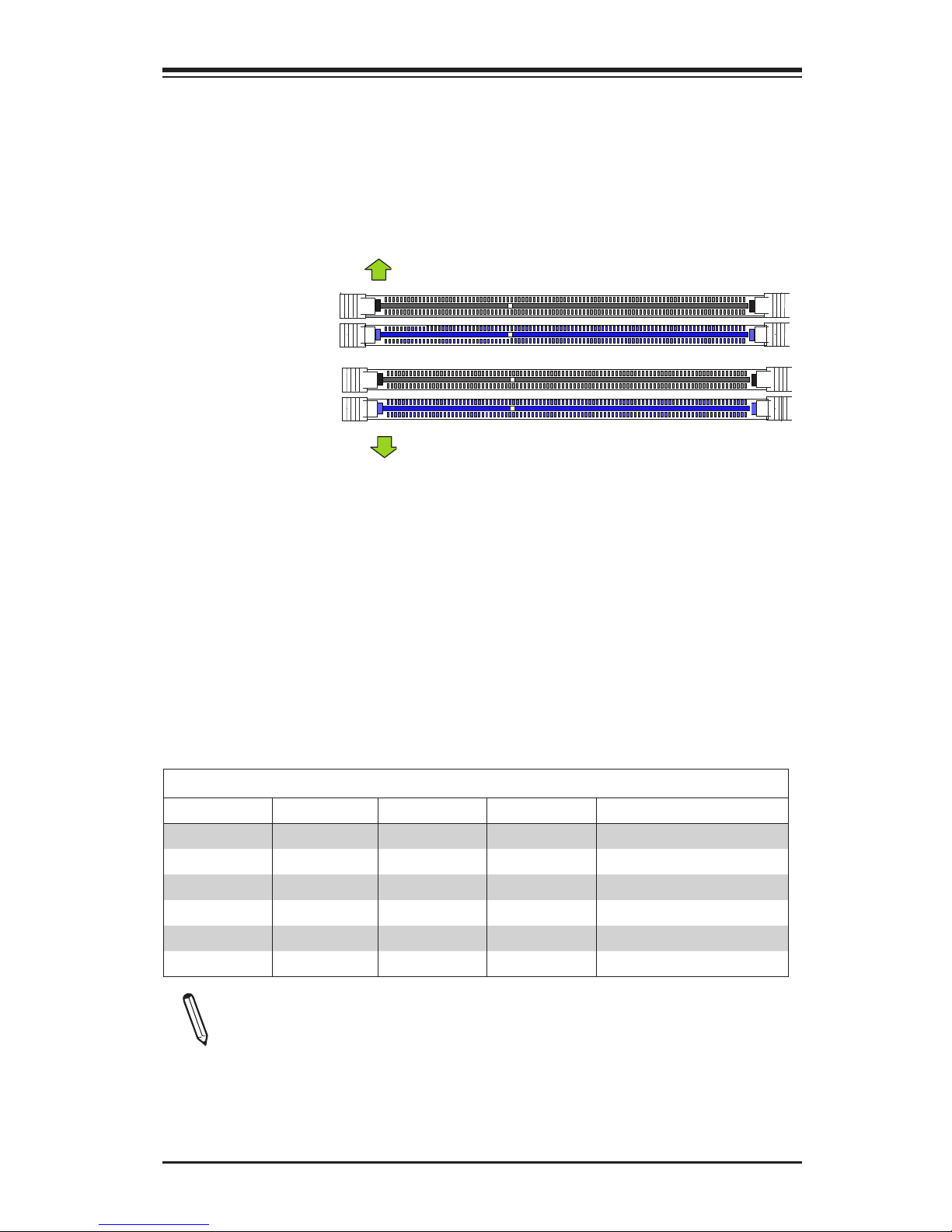

Removing Memory Modules ........................................................................... 2-8
Memory Support .............................................................................................. 2-9
C7B75 User’s Manual
vii
Table of Contents
Memory Population Guidelines ....................................................................... 2-9
2-4 Motherboard Installation .................................................................................2-11
Tools Needed .................................................................................................2-11
Location of Mounting Holes ...........................................................................2-11
Installing the Motherboard ............................................................................ 2-12
2-5 Connectors/IO Ports ...................................................................................... 2-13
Backplane I/O Panel ..................................................................................... 2-13
Universal Serial Bus (USB) ...................................................................... 2-14
Ethernet Ports .......................................................................................... 2-15
BackPanelHighDenitionAudio(HDAudio) ........................................ 2-15
Front Accessible Audio Header ................................................................ 2-16
DVI Port (DVI) .......................................................................................... 2-17
VGA Port (VGA) ....................................................................................... 2-17
Serial Port (COM1,COM2) ....................................................................... 2-17

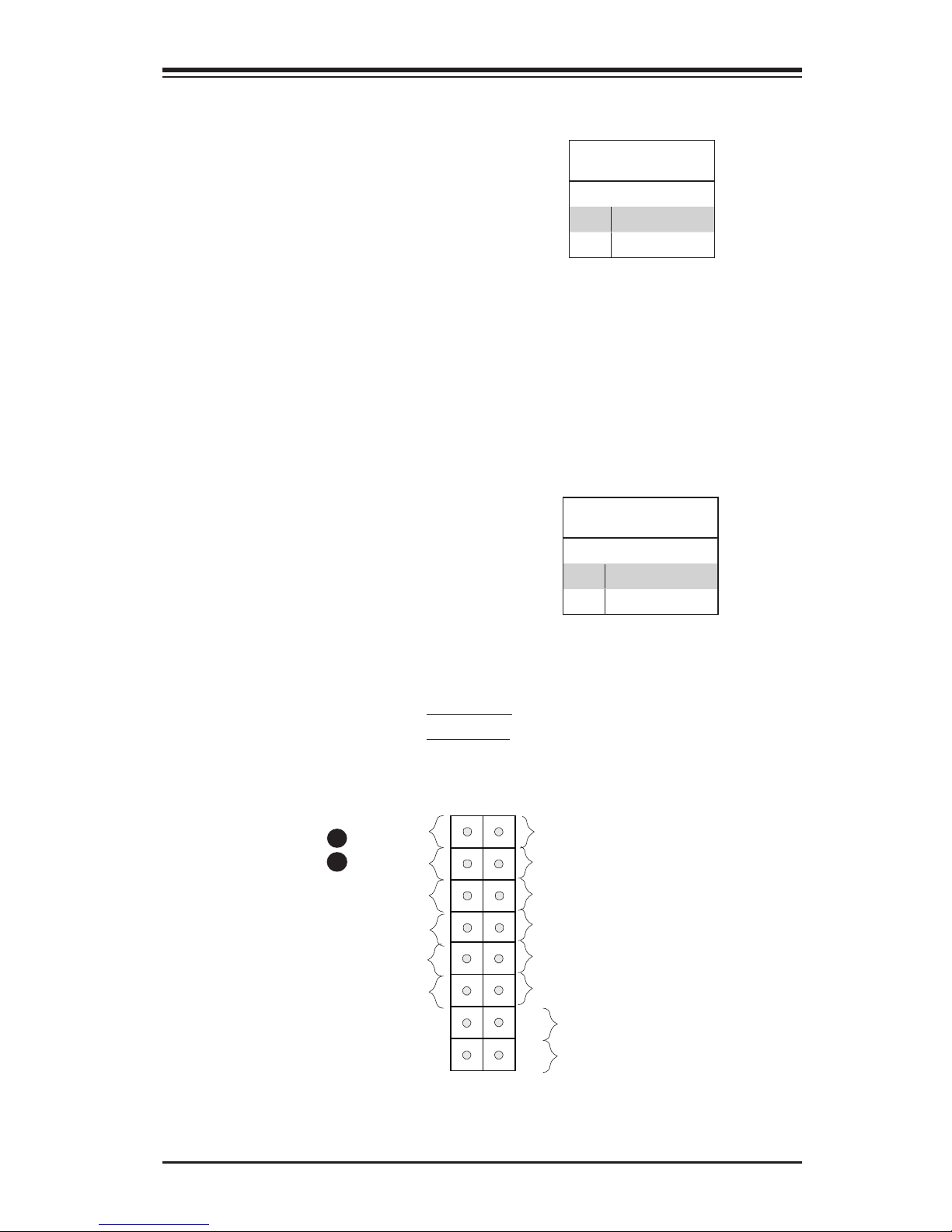

Front Control Panel ....................................................................................... 2-18
FrontControlPanelPinDenitions............................................................... 2-19
Power LED .............................................................................................. 2-19
HDD LED .................................................................................................. 2-19
NIC1 (LAN1) ............................................................................................. 2-20
Overheat (OH)/Fan Fail ............................................................................ 2-20
Reset Button ........................................................................................... 2-21
Power Button ........................................................................................... 2-21
2-6 Connecting Cables ........................................................................................ 2-22
ATX Main PWR & CPU PWR Connectors (JPW1 & JPW2) ................... 2-22
Fan Headers (Fan 1 ~ Fan 4) .................................................................. 2-23
Chassis Intrusion (JL1) ........................................................................... 2-23
Internal Buzzer (SP1) ............................................................................... 2-24
Speaker (JD1) .......................................................................................... 2-24
Onboard Power LED (JLED) .................................................................... 2-25
Serial Ports (COM1 ~ COM4) .................................................................. 2-25
DOM PWR Connector (JSD1) .................................................................. 2-26
Wake-On-LAN (JWOL) ............................................................................. 2-26
Wake-On-Ring (JWOR) ............................................................................ 2-27
Power LED Header (JLED1) .................................................................... 2-27
TPM Header (JTPM1) .............................................................................. 2-28
2-7 Jumper Settings ............................................................................................ 2-29
Explanation of Jumpers ................................................................................ 2-29
CMOS Clear (JBT1) ................................................................................. 2-29
viii
PCI Slot SMB Enable (JI2C1/JI2C2) ........................................................ 2-30
ATX Mode (JAT1) ..................................................................................... 2-30
Manufacturing Mode (JPME2).................................................................. 2-31
Audio Enable (JPAC1).............................................................................. 2-31
TPM Support Enable (JPT1) .................................................................... 2-32
2-8 Onboard Indicators ........................................................................................ 2-33
LAN LEDs ................................................................................................. 2-33
Onboard Power LED (LED1) .................................................................. 2-33
2-9 SATA Connections ......................................................................................... 2-34
SATA Connections (I-SATA0~I-SATA5) .................................................... 2-34
Chapter 3
Troubleshooting
3-1 Troubleshooting Procedures ........................................................................... 3-1
Before Power On ............................................................................................ 3-1
No Power ........................................................................................................ 3-1
No Video ......................................................................................................... 3-2
Memory Errors ............................................................................................... 3-2
LosingtheSystem’sSetupConguration ....................................................... 3-2
3-2 Technical Support Procedures ........................................................................ 3-2
3-3 Frequently Asked Questions ........................................................................... 3-3
3-4 Battery Removal and Installation .................................................................... 3-5
Battery Removal .............................................................................................. 3-5
Proper Battery Disposal .................................................................................. 3-5
3-5 Returning Merchandise for Service................................................................. 3-6
Battery Installation ........................................................................................... 3-6
Chapter 4
BIOS
4-1 Introduction ...................................................................................................... 4-1
Starting BIOS Setup Utility .............................................................................. 4-1
HowToChangetheCongurationData ......................................................... 4-1
How to Start the Setup Utility ......................................................................... 4-2
4-2 Main Setup ...................................................................................................... 4-2
System Overview: The following BIOS information will be displayed: ....... 4-3
System Time/System Date ........................................................................ 4-3
Supermicro C7B75 ..................................................................................... 4-3
Version ........................................................................................................4-3
Build Date ................................................................................................... 4-3
C7B75 User’s Manual
ix
Table of Contents
Processor ................................................................................................... 4-3
Type of Processor ......................................................................................4-3
Speed ......................................................................................................... 4-3
System Memory ........................................................................................ 4-3
Size............................................................................................................. 4-3
4-3 AdvancedSetupCongurations...................................................................... 4-4
Boot Feature ................................................................................................. 4-4
Quiet Boot .................................................................................................. 4-4
AddOn ROM Display Mode ........................................................................ 4-4
Bootup Num-Lock ....................................................................................... 4-4
Wait For 'F1' If Error ................................................................................... 4-4
Interrupt 19 Capture ................................................................................... 4-5
Re-try Boot ................................................................................................. 4-5
PowerConguration ........................................................................................ 4-5
Watch Dog Function ................................................................................... 4-5
Power Button Function ............................................................................... 4-5
Restore on AC Power Loss ........................................................................ 4-5
CPUConguration ....................................................................................... 4-5
Active Processor Cores .............................................................................. 4-6
Limit CPUID Maximum ............................................................................... 4-6
Execute-Disable Bit ................................................................................... 4-6
Intel® Virtualization Technology ................................................................. 4-6
Hardware Prefetcher .................................................................................. 4-6
Adjacent Cache Line Prefetch ................................................................... 4-6
Clock Spread Spectrum ............................................................................ 4-6
ChipsetConguration .................................................................................. 4-8
SATAConguration .....................................................................................4-11
SATA Mode Selection ................................................................................4-11
PCIe/PCI/PnPConguration ..................................................................... 4-12
VGA Priority .............................................................................................. 4-12
PCI ROM Priority ...................................................................................... 4-12
PCI Latency Timer .................................................................................... 4-12
Maximum Payload Size ............................................................................ 4-12
Maximum Read Request .......................................................................... 4-12
ASPM Support .......................................................................................... 4-12
SLOT4 PCI-E 2.0 x4 (in x16 ) OPROM ................................................... 4-13
SLOT5 PCI 33MHz OPROM .................................................................... 4-13
SLOT6 PCI-E 2.0 x1 OPROM.................................................................. 4-13
x
SLOT7 PCI-E 3.0 x16 OPROM ................................................................ 4-13
Load Onboard LAN1 Option ROM ........................................................... 4-13
Network Stack .......................................................................................... 4-13
IPv4 PXE Support ................................................................................... 4-13
IPv6 PXE Support .................................................................................... 4-13
SuperIOConguration ............................................................................. 4-13
NCT6776F ................................................................................................ 4-13
Serial Port 1, Serial Port 2 ....................................................................... 4-13
Serial Port 1 Settings ............................................................................... 4-14
Serial Port 2 Settings ............................................................................... 4-14
IT8760 ...................................................................................................... 4-14
Serial Port 3, Serial Port 4 ....................................................................... 4-14
Serial Port 3 Settings ............................................................................... 4-14
Serial Port 4 Settings ............................................................................... 4-14
HardwareHealthConguration .................................................................. 4-14
Fan Speed Control Mode ......................................................................... 4-14
CPU Temperature Display Mode .............................................................. 4-15
System Temperature / Peripheral Temperature ....................................... 4-15
Fan 1 ~ Fan 4 Speed ............................................................................... 4-15
VCORE, 12V, VDIMM, 5VCC, CPU VTT, AVCC, 3.3VCC, VSB, VBAT .. 4-15
ACPI Settings ............................................................................................. 4-16
High Precision Event Timer ...................................................................... 4-16
ACPI Sleep State ..................................................................................... 4-16
Trusted Computing ..................................................................................... 4-16
TrustedComputingConguration ............................................................ 4-16
PCH-FWConguration .............................................................................. 4-18
Me Firmware Re-Flash ............................................................................. 4-18
Intel® Ethernet Controller 10 Gigabit ........................................................ 4-18
Blink LEDs (range 1-15 seconds) ........................................................... 4-18
PORT CONFIGURATION INFORMATION ............................................... 4-18
4-4 Boot Settings ................................................................................................ 4-19
Boot Options Priority .................................................................................. 4-19
Boot Option #1, Boot option #2, Boot Option #3, etc .............................. 4-19
UEFI Boot Drive BBS Priorities ................................................................ 4-19
Add New Boot Option ................................................................................... 4-19
Delete Boot Option ..................................................................................... 4-19
4-3 Security Settings ........................................................................................... 4-20
Password Check ...................................................................................... 4-20
Administrator Password .......................................................................... 4-20
C7B75 User’s Manual
xi
4-5 Save and Exit Options .................................................................................. 4-21
Save Changes and Reset ........................................................................ 4-21
Save Options ............................................................................................ 4-21
Save Changes .......................................................................................... 4-21
Discard Changes ...................................................................................... 4-21
Restore Optimized Defaults ..................................................................... 4-22
Save as User Defaults ............................................................................. 4-22
Restore User Defaults .............................................................................. 4-22
Boot Override ........................................................................................... 4-22
Appendix A
BIOS Error Beep Codes
A-1 BIOS Error Beep Codes .................................................................................A-1
Appendix B
Software Installation Instructions
B-1 Installing Drivers ..............................................................................................B-1
B-2 ConguringSuperDoctor® III .......................................................................... B-2
Appendix C
UEFI BIOS Recovery Instructions
C-1 An Overview to the UEFI BIOS ......................................................................C-1
C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)....................C-1
C-3 To Recover the Boot Sector Using a USB-Attached Device ..........................C-1
Table of Contents
xii
Notes
C7B75 User’s Manual
Chapter 1: Introduction
1-1
Chapter 1
Introduction
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.
The following items are included in the retail box.
•One (1) Supermicro Motherboard
•Two (2) SATA cables
•One (1) I/O shield
•One (1) Quick Reference Guide
Note: For your system to work properly, please follow the links below to
download all necessary drivers/utilities and the user's manual for your
motherboard.
•SMCI product manuals: http://www.supermicro.com/support/manuals/
•Product Drivers and utilities: ftp://ftp.supermicro.com/
Warning: For safety considerations, please refer to the complete list of
safety warnings posted on the Supermicro website at http://www.supermi-
cro.com/about/policies/safety_information.cfm.
If you have any questions, please contact our support team at support@supermicro.
com.
1-2
C7B75 User’s Manual
C7B75 Motherboard Image
Note: All graphics shown in this manual were based upon the latest PCB Revision
available at the time of publishing of the manual. The motherboard you've received
may or may not look exactly the same as the graphics shown in this manual.
Chapter 1: Introduction
1-3
C7B75 Motherboard Layout
Important Notes to the User
•See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front
panel connections.
•" " indicates the location of "Pin 1".
•Jumpers not indicated are for testing only.
•When LED1 (Onboard Power LED Indicator) is on, system power is on. Un-
plug the power cable before installing or removing any components.
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
1-4
C7B75 User’s Manual
C7B75 Quick Reference
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
1
18
22
10
DIMM1B
DIMM1A
SLOT4
SLOT5
SLOT6
Socket H2
LGA 1155
CPU
11
13
14
15
16
19
20
21
23
17
24
25
26
27
28
29
30
35 33 31 36 34 32
37
38
SLOT7
2
3
4
5
6
7 8
9
12
C7B75 Jumpers
Number Name Description Default Setting
3 JPAC1 Audio Enable Pins 1-2 (Enabled)
4,5 JI2C1,JI2C2 SMB to PCI Slots Off (Disabled)
10 JBT1 CMOS Reset Off (Disabled)
11 JPME2 Intel ME Manufacturing Mode Pins 1-2 (Disabled)
22 JD1 External Speaker Pins 3-4 (Disabled, Onboad Buzzer Enabled)
25 JPT1 TPM Enable Pins 2-3 (TPM Disabled)
37 JAT1 ATX Mode Pins 1-2 (ATX Mode On)
DIMM2B
DIMM2A
Chapter 1: Introduction
1-5
C7B75 Jumpers and Connectors
Number Name Description
1 Backpanel I/O See "Backpanel I/O Connectors", page 2-13
2 AUDIO FP Front Panel Audio Header
6,9 COM4,COM3 Serial Headers for COM4,COM3
7 BAT System Backup Battery
8 CPU Socket H2, LGA1155 CPU
12 JWOR Wake-On-Ring Header
13,14 USB 8/9,4/5 USB Headers 8/9, 4/5
15 JL1 Chassis Intrusion Header
17 JLED1 Power LED Header
18 JWOL Legacy Wake-On-LAN Header
19 JF1 Front Panel Control/LED Header
20,26,28,29 FAN 3,2,1,4 Fan Headers 3,2,1 (CPU Fan),4
21 JSD1 Disk On Module (DOM) Power Header
22 JD1 Ext Speaker Header (remove jumper and attach speaker cable)
23 SP1 Onboard Buzzer
24 JPW1 24-Pin ATX Power Connector
27 JTPM1 Trusted Platform Module (TPM) Header
30 JPW2 8-Pin ATX Auxilliary Power Connector
31~36 I-SATA 0,1,2,3,4,5 SATA Ports 0~5 (I-SATA 0 supports 6Gb/s)
38 USB 0/1 USB 3.0/2.0 Header 0/1
LED Indicators
Number Name Description LED Status
16 LED1 Onboard Standby PWR LED Green: Solid on Power is On
1-6
C7B75 User’s Manual
Motherboard Features
CPU Single 2nd & 3rd generation Intel® Core™ i7/i5/i3,
Pentium® and Celeron® processors, LGA1155 Socket.
Memory Four (4) SDRAM slots support up to 32 GB of DDR3 Unbuf-
fered, Non-ECC 1333/1066 memory
Supports dual-channel memory bus
DIMM sizes
UDIMM 1 GB, 2 GB, 4GB, and 8GB
Chipset Intel® B75 Express
Expansion Slots One (1) PCI Express 3.0 x1 slot
One (1) PCI Express 2.0 x4 (in x16) slot
One (1) PCI Express 3.0 x16 slot
One (1) PCI 33 MHz slot
Network Connections One (1) Gigabit Ethernet Controller: Intel 82579LM
One (1) RJ-45 Rear I/O Panel Connector with Link and Activity LEDs
I/O Devices SATA Connections
SATA 3.0 (6Gb/s) One (1) I-SATA 0
SATA 2.0 (3Gb/s) Five (5) I-SATA 1~4
USB Devices
Four (4) USB 2.0 ports and Two (2) USB 3.0 ports on the rear I/O panel
Four (4) Front Accessible USB 2.0 ports on two head­ers, and Two (2) Front Accessible USB 3.0 ports on one header
Serial (COM) Ports
Two (2) front accessible Serial Port headers (COM3, COM4) and Two (2) COM ports on the Backpanel (COM1, COM2)
One (1) Serial Port on the back panel (COM1)
Audio
Five (5) Female Mini Jacks for High Denition Audio on
the Back Panel
Front Panel Audio Header
One (1) SP/DIF Optical Out on the back panel
SP/DIF In and SP/DIF Out Headers
Super I/O
Nuvoton NCT6776F
Chapter 1: Introduction
1-7
Video
One (1) VGA Port, One (1) DVI Port
BIOS 64 Mb AMI BIOS® SPI Flash BIOS
Play and Plug (PnP0, DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard and SMBIOS 2.5
Power Conguration ACPI/ACPM Power Management
Main Switch Override Mechanism
Keyboard Wake-up from Soft-Off
Internal/External Modem Ring-On
Power-on mode for AC power recovery
PC Health Monitoring CPU Monitoring
Onboard voltage monitors for Vcore, BAT, 3.3V, 3VSB, 5V, 12V, VTT CPU, DIMM
CPU 4-phase switching voltage regulator
CPU/System overheat LED and control
CPU Thermal Trip support
Thermal Monitor 2 (TM2) support
Fan Control
Fan status monitoring with rmware 4-pin (Pulse Width
Modulation) fan speed control
Low noise fan speed control
System Management PECI (Platform Environment Conguration Interface) 2.0
support
System resource alert via SuperDoctor® III
SuperDoctor III, Watch Dog, NMI
Chassis Intrusion header and detection
Utilities (Download) BIOS ash upgrade utility
Drivers and software for Intel® B75 Express chipset utili­ties
Other ROHS 6/6 (Full Compliance, Lead Free)
TPM 1.2 on board, Disk On Module (DOM) Support
Dimensions ATX form factor (9.6" x 9.6")
1-8
C7B75 User’s Manual
System Block Diagram
Note: This is a general block diagram and may not exactly represent
the features on your motherboard. See the Motherboard Features
pages for the actual specications of each motherboard.
C7B75 Block Diagram
INTEL LGA1155
VRD12
PCIe3.0_x16
PCIe x16 SLOT #7
8.0GT/s
VRM 12
SVID
DDR3 (CHA)
DDR3 (CHB)
DIMM1A (Blue) DIMM1B
DIMM2A (Blue) DIMM2B
1600/1333/1066MHz
x4 DMI 5GT/s
5GT/s
PCIe2.0_x1
PCIe x1 SLOT #6
5GT/s
PCIe2.0_x4
PCIe x4 SLOT #4
33MHz
5V PCI
PCI SLOT #5
5 SATA-II PORTS
SATA-II 300MB/s
12 USB PORTS
USB2.0 480Mbps
1 SATA-III PORT
SATA-III 600MB/s
RJ45
PCIe x1
2.5GT/s
GLAN1 82579V
Panther Point
Ivy Bridge-DT
(Socket-H2)
LPC
TPM1.2
COM1/2
HEALTH INFO
LPC I/O
NCT6776F
FLASH SPI 32Mb
SPI
RoHS 6/6
x4 FDI
2.7 Gbps
Digital port C
DVI-D
COM 3/4
ITE 8760
Analogl port A
VGA
RealTEK ALC888S-VD2
AZALIA
1600/1333/1066MHz
4 USB 3.0 PORTS
USB3.0 5G bps
PCH
B75
Intel
Chapter 1: Introduction
1-9
1-2 Chipset Overview
Designed for the needs of the small businesses, the Intel® B75 Express Chipset
offers ready solutions for increased PC performance, manageability, and security.
Following is a short list of features. For a comprehensive overview of the chipset,
please visit Intel's website at http://www.intel.com.
Intel B75 Express Chipset Features
•Supports 3rd Generation Intel Core processors
•Intel Rapid Storage Technology
•Intel Rapid Recover Technology
•Intel Smart Response Technology
•Intel Smart Connect Technology
•Intel Rapid Start Technology
•Universal Serial Bus 3.0
•Serial SATA (SATA) 3.0 (up to 6 Gb/sec)
1-10
C7B75 User’s Manual
1-3 Special Features
Recovery from AC Power Loss
Basic I/O System (BIOS) provides a setting for you to determine how the system will
respond when AC power is lost and then restored to the system. You can choose
for the system to remain powered off, (in which case you must press the power
switch to turn it back on), or for it to automatically return to a power-on state. See
the Advanced BIOS Setup section to change this setting. The default setting is
Last State.
1-4 PC Health Monitoring
This section describes the PC health monitoring features of the board. All have
an onboard System Hardware Monitoring chip that supports PC health monitoring.
An onboard voltage monitor will scan these onboard voltages continuously: Vcore,
BAT, 3.3V, 3VSB, 5V, 12V, VTT CPU, DIMM. Once a voltage becomes unstable, a
warning is given, or an error message is sent to the screen. The user can adjust
the voltage thresholds to dene the sensitivity of the voltage monitor.
Fan Status Monitor with Firmware Control
PC health monitoring in the BIOS can check the RPM status of the cooling fans. The
onboard CPU and chassis fans are controlled by Thermal Management via BIOS
(under the Hardware Monitoring section in the Advanced Setting).
Environmental Temperature Control
The thermal control sensor monitors the CPU temperature in real time and will turn
on the thermal control fan whenever the CPU temperature exceeds a user-dened
threshold. The overheat circuitry runs independently from the CPU. Once the ther-
mal sensor detects that the CPU temperature is too high, it will automatically turn
on the thermal fans to prevent the CPU from overheating. The onboard chassis
thermal circuitry can monitor the overall system temperature and alert the user when
the chassis temperature is too high.
Note: To avoid possible system overheating, please be sure to provide
adequate airow to your system.
System Resource Alert
This feature is available when the system is used with Supero Doctor III in
the Windows OS environment or used with Supero Doctor II in Linux. Supero
Chapter 1: Introduction
1-11
Doctor is used to notify the user of certain system events. For example, you can
also congure Supero Doctor to provide you with warnings when the system
temperature, CPU temperatures, voltages and fan speeds go beyond predened
thresholds.
1-5 ACPI Features
ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-
tion denes a exible and abstract hardware interface that provides a standard
way to integrate power management features throughout a PC system, including
its hardware, operating system and application software. This enables the system
to automatically turn on and off peripherals such as CD-ROMs, network cards, hard
disk drives and printers.
In addition to enabling operating system-directed power management, ACPI also
provides a generic system event mechanism for Plug and Play, and an operating
system-independent interface for conguration control. ACPI leverages the Plug and
Play BIOS data structures, while providing a processor architecture-independent
implementation that is compatible with Windows XP, Windows Vista, and Windows
2008 Operating Systems.
Slow Blinking LED for Suspend-State Indicator
When the CPU goes into a suspend state, the chassis power LED will start to blink
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will "wake up", and the LED will automatically stop blinking and remain on.
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.
This motherboard accommodates 24-pin ATX power supplies. Although most
power supplies generally meet the specications required by the CPU, some are
inadequate. In addition, the 12V 8-pin power connector located at JPW2 is also
required to ensure adequate power supply to the system. Also your power supply
must supply 1.5A for the Ethernet ports.
Note: Please use a power supply that contains a 24-pin and a 8-pin power
connectors. Be sure to connect these connectors to the 24-pin (JPW1) and
the 4-pin (JPW2) power connectors on the motherboard.
It is strongly recommended that you use a high quality power supply that meets ATX
power supply Specication 2.02 or above. It must also be SSI compliant. (For more
1-12
C7B75 User’s Manual
information, please refer to the web site at http://www.ssiforum.org/). Additionally, in
areas where noisy power transmission is present, you may choose to install a line
lter to shield the computer from noise. It is recommended that you also install a
power surge protector to help avoid problems caused by power surges.
1-7 Super I/O
The Super I/O supports two high-speed, 16550 compatible serial communication
ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable
baud rate generator, complete modem control capability and a processor interrupt
system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps
as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which
support higher speed modems.
The Super I/O provides functions that comply with ACPI (Advanced Conguration
and Power Interface), which includes support of legacy and ACPI power manage-
ment through an SMI or SCI function pin. It also features auto power management
to reduce power consumption.
Chapter 2: Installation
2-1
Chapter 2
Installation
2-1 Static-Sensitive Devices
Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid dam-
aging your system board, it is important to handle it very carefully. The following
measures are generally sufcient to protect your equipment from ESD.
Precautions
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic
bag.
• Handle the board by its edges only; do not touch its components, peripheral
chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in
use.
• For grounding purposes, make sure your computer chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and
the motherboard.
• Use only the correct type of onboard CMOS battery. Do not install the onboard
battery upside down to avoid possible explosion.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure that the person handling it is static protected.
2-2
C7B75 User’s Manual
2-2 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct
pressure on the label area of the fan.
Important:
Always connect the power cable last, and always remove it before adding,
removing or changing any hardware components. Make sure that you in-
stall the processor into the CPU socket before you install the CPU heatsink.
If you buy a CPU separately, make sure that you use an Intel-certied
multi-directional heatsink only.
Make sure to install the system board into the chassis before you install
the CPU heatsink.
When receiving a server board without a processor pre-installed, make
sure that the plastic CPU socket cap is in place and none of the socket
pins are bent; otherwise, contact your retailer immediately.
Refer to the Supermicro website for updates on CPU support.
Load Lever
Installing the LGA1155 Processor
1. Press the load lever to release the load plate, which covers the CPU socket,
from its locking position.
Load Plate
Chapter 2: Installation
2-3
2. Gently lift the load lever to open the load plate. Remove the plastic cap.
3. Use your thumb and your index nger to hold the CPU at the North center
edge and the South center edge of the CPU.
4. Align the CPU key that is the semi-circle cutouts against the socket keys.
Once it is aligned, carefully lower the CPU straight down into the socket. (Do
not drop the CPU on the socket. Do not move the CPU horizontally or verti-
cally.
South Center Edge
North Center Edge
2-4
C7B75 User’s Manual
Warning: You can only install the CPU inside the socket only in one direction.
Make sure that it is properly inserted into the CPU socket before closing the
load plate. If it doesn't close properly, do not force it as it may damage your
CPU. Instead, open the load plate again and double-check that the CPU is
aligned properly.
CPU properly installed
Load lever locked
into place
5. Do not rub the CPU against the surface or against any pins of the socket to
avoid damaging the CPU or the socket.)
6. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.
7. Use your thumb to gently push the load lever down to the lever lock.
Chapter 2: Installation
2-5
Thermal Grease
Heatsink Fins
Recommended Supermicro
heatsink:
SNK-P0046A4 active heatsink
Installing an Active CPU Heatsink with Fan
1. Locate the CPU Fan power connec-
tor on the motherboard. (Refer to
the layout on the right for the CPU
Fan location.)
2. Position the heatsink so that the
heatsink fan wires are closest to the
CPU fan power connector and are
not interfered with other compo-
nents.
3. Inspect the CPU Fan wires to make
sure that the wires are routed
through the bottom of the heatsink.
4. Remove the thin layer of the protec-
tive lm from the heatsink.
Warning: CPU overheat may
occur if the protective lm is not
removed from the heatsink.
5. Apply the proper amount of thermal
grease on the CPU.
Note: if your heatsink came with
a thermal pad, please ignore
this step.
6. If necessary, rearrange the wires
to make sure that the wires are not
pinched between the heatsink and
the CPU. Also make sure to keep
clearance between the fan wires
and the ns of the heatsink.
2-6
C7B75 User’s Manual
7. Align the four heatsink fasten-
ers with the mounting holes
on the motherboard. Gently
push the pairs of diagonal
fasteners (#1 & #2, and #3 &
#4) into the mounting holes
until you hear a click. Also,
make sure to orient each
fastener so that the narrow
end of the groove is pointing
outward.
8. Repeat Step 7 to insert all
four heatsink fasteners into
the mounting holes.
9. Once all four fasteners are
securely inserted into the
mounting holes, and the heat-
sink is properly installed on
the motherboard, connect the
heatsink fan wires to the CPU
Fan connector.
Chapter 2: Installation
2-7
Removing the Heatsink
Warning: We do not recommend
that the CPU or the heatsink be
removed. However, if you do
need to remove the heatsink,
please follow the instructions be-
low to remove the heatsink and to
prevent damage done to the CPU
or other components.
Active Heatsink Removal
1. Unplug the power cable from the
power supply.
2. Disconnect the heatsink fan wires
from the CPU fan header.
3. Use your nger tips to gently press
on the fastener cap and turn it
counterclockwise to make a 1/4 (900)
turn, and pull the fastener upward to
loosen it.
4. Repeat Step 3 to loosen all fasteners
from the mounting holes.
5. With all fasteners loosened, remove
the heatsink from the CPU.
Unplug the
power cable
Pull Up
2-8
C7B75 User’s Manual
2-3 Installing DDR3 Memory
Note: Check the Supermicro website for recommended memory mod-
ules.
CAUTION
Exercise extreme care when installing or removing DIMM
modules to prevent any possible damage.
DIMM Installation
1. Insert the desired number of DIMMs
into the memory slots, starting with
DIMM1A (Slot A, Channel 1, see the
next page for the location). For best
performance, please use the memory
modules of the same type and speed
in the same bank.
2. Push the release tabs outwards on
both ends of the DIMM slot to unlock
it.
Release Tabs
Notches
3. Align the key of the DIMM mod-
ule with the receptive point on the
memory slot.
Press both notches
straight down into
the memory slot.
4. Align the notches on both ends of
the module against the receptive
points on the ends of the slot.
5. Use two thumbs together to press
the notches on both ends of the
module straight down into the slot
until the module snaps into place.
6. Press the release tabs to the lock
positions to secure the DIMM module
into the slot.
Removing Memory Modules
Reverse the steps above to remove the
DIMM modules from the motherboard.
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
Chapter 2: Installation
2-9
Memory Support
The C7B75 Motherboard supports up to 32GB of Unbuffered (UDIMM) non-ECC
DDR3 1600/1333/1066 MHz in 4 memory slots. Populating these DIMM modules
with a pair of memory modules of the same type and same size will result in
interleaved memory, which will improve memory performance. Please refer to
the table below:
DIMM1B (Blue Slot)
DIMM2A
DIMM1A
DIMM2B (Blue Slot)
Towards the edge of the motherboard
Towards the CPU
Memory Population Guidelines
When installing memory modules, the DIMM slots should be populated in the following
order: DIMM1B (blue), DIMM2B (blue), DIMM1A and DIMM2A.
Always use DDR3 DIMM modules of the same size, type and speed.
Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed
of the slowest DIMM.
The motherboard will support one DIMM module or three DIMM modules installed.
However for best memory performance, install DIMM modules in pairs.
Recommended Population (Balanced)
DIMM1B Slot DIMM2B Slot DIMM1A Slot DIMM2A Slot Total System Memory
2GB 2GB 4GB
2GB 2GB 2GB 2GB 8GB
4GB 4GB 8GB
4GB 4GB 4GB 4GB 16GB
8GB 8GB 16GB
8GB 8GB 8GB 8GB 32GB
Note: Due to memory allocation to system devices, the amount of memory that
remai ns available for opera tio nal use will be red uced whe n 4 GB of RA M is us ed.
2-10
C7B75 User’s Manual
Possible System Memory Allocation & Availability
System Device Size Physical Memory
Remaining (-Available)
(4 GB Total System
Memory)
Firmware Hub ash memory (System BIOS) 1 MB 3.99
Local APIC 4 KB 3.99
Area Reserved for the chipset 2 MB 3.99
I/O APIC (4 Kbytes) 4 KB 3.99
PCI Enumeration Area 1 256 MB 3.76
PCI Express (256 MB) 256 MB 3.51
PCI Enumeration Area 2 (if needed) -Aligned on 256-MB
boundary-
512 MB 3.01
VGA Memory 16 MB 2.85
TSEG 1 MB 2.84
Memory available to OS and other applications 2.84
Chapter 2: Installation
2-11
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
Caution: 1) To avoid damaging the motherboard and its components,
please do not use a force greater than 8 lb/inch on each mounting screw
during motherboard installation. 2) Some components are very close to the
mounting holes. Please take precautionary measures to avoid damaging
these components when installing the motherboard to the chassis.
2-4 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis.
Make sure that the locations of all the mounting holes for both motherboard and
chassis match. Although a chassis may have both plastic and metal mounting fas-
teners, metal ones are highly recommended because they ground the motherboard
to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.
Then use a screwdriver to secure the motherboard onto the motherboard tray.
Tools Needed
Philips Screwdriver
Standoffs
Only if Needed
Philips Screws
Location of Mounting Holes
2-12
C7B75 User’s Manual
Installing the Motherboard
1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. (See the previous page.)
3. Locate the matching mounting holes on the chassis. Align the mounting holes
on the motherboard against the mounting holes on the chassis.
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other
motherboard components.
6. Using the Philips screwdriver, insert a Philips head #6 screw into a mounting
hole on the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are is for illustration only. Your chassis or compo-
nents might look different from those shown in this manual.
Chapter 2: Installation
2-13
A. Serial Port (COM1) J. USB 3.0 Port 3 / USB 2.0 Port 3
B. Serial Port (COM2) K. USB 3.0 Port 2 / USB 2.0 Port 2
C. VGA Port L. Center/LFE Out
D. DVI Port M. Surround Out
E. USB13 (2.0) N. S/PDIF Out (Optical)
F. USB12 (2.0) O. Line In
G. USB11 (2.0) P. Line Out
H. USB10 (2.0) Q. Microphone In
I. Gb LAN Port
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
2-5 Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specication. See the
gure below for the colors and locations of the various I/O ports.
Backplane I/O Panel
HD Audio
HD Audio
E
A
B
C
F
D
G H
I
J
K
L
M N
O
P
Q
HD Audio
2-14
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A. Backpanel USB 2.0 #10
B. Backpanel USB 2.0 #11
C. Backpanel USB 2.0 #12
D. Backpanel USB 2.0 #13
E. Backpanel USB 3.0 #0
F. Backpanel USB 3.0 #1
G. Front Panel USB 2.0 #4/5
H. Front Panel USB 2.0 #8/9
I. Front Panel USB 3.0 #0/1
Universal Serial Bus (USB)
Six Universal Serial Bus (USB 3.0 ports 2,3) and four (USB 2.0 ports 10,11,12,13)
are located on the I/O back panel. USB 2.0 headers 4/5,8/9 and USB 3.0 header
0/1 are used to provide front chassis access using USB cables (not included). See
the tables below for pin denitions.
Back Panel USB #2,3,10,11,12,13
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB (2.0) #4/5, 8/9
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
A
Front Panel USB (3.0) #0/1
Pin Denitions
Pin# Pin# Signal Name Description
1 10 VBUS Power
2 11 D- USB 2.0 Differential Pair
3 12 D+
4 13 Ground Ground of PWR Return
5 14 StdA_SSRX- SuperSpeed Receiver
6 15 StdA_SSRX+ Differential Pair
7 16 GND_DRAIN Ground for Signal Return
8 17 StdA_SSTX- SuperSpeed Transmitter
9 18 StdA_SSTX+ Differential Pair
C
E
B
F
D
H
G
I
Chapter 2: Installation
2-15
Ethernet Ports
There is one Gigabit Ethernet port
(LAN1) located next to the HD Audio
Connectors on the I/O Backpanel to
provide a network connection. This
port accepts RJ45 type cables.
Note
Please refer to the LED In-
dicator Section for LAN LED
information.
LAN Ports
Pin Denition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Green, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
A. LAN1
A.SPDIF_Out
B. Surround_Out
C. CEN/LFE_Out
D. Mic_In
E. Line-Out
F. Line_In
A
E
A
B
C
F
D
Back Panel High Denition Audio (HD Audio)
This motherboard features a 7.1+2 Channel High Denition Audio (HDA) codec that
provides 10 DAC channels. The HD Audio connections simultaneously supports
multiple-streaming 7.1 sound playback with 2 channels of independent stereo output
through the front panel stereo out for front, rear, center and subwoofer speakers.
(BP) HD Audio
Conn# Signal
A
SPDIF_Out
B
Surround_Out
C
CEN/LFE_Out
D
Mic_In
E
Line_Out
F
Line_In
HD Audio
2-16
C7B75 User’s Manual
Front Accessible Audio Header
A 10-pin Audio header is also
located on the motherboard. This
header allows you to use the on-
board sound for audio playback.
Connect an audio cable to the au-
dio header to use this feature. See
the tables at right for pin denitions
for these headers.
10-in Audio
Pin Denitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
A. Audio Header
Chapter 2: Installation
2-17
DVI Port (DVI)
One DVI Port (Digital Visual Interface) is
located next to the VGA port on the I/O
backpanel. This connector is used to display
both high denition video and digital sound
through an HDMI-capable display, using a
single HDMI cable (not included).
VGA Port (VGA)
A VGA port is located next to the USB ports
on the I/O backpanel. Use this port to con-
nect to a compatible VGA display.
A
B
A. DVI Port
B. VGA Port
C. COM1
D. COM2
Serial Port (COM1,COM2)
Serial ports COM1 and COM2 are located
on the I/O back panel. There are two other
Serial port headers on the motherboard for
COM3 and COM4. See the table on the
right for pin denitions.
Serial Ports-COM2/COM3/COM4
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
C
D
2-18
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2

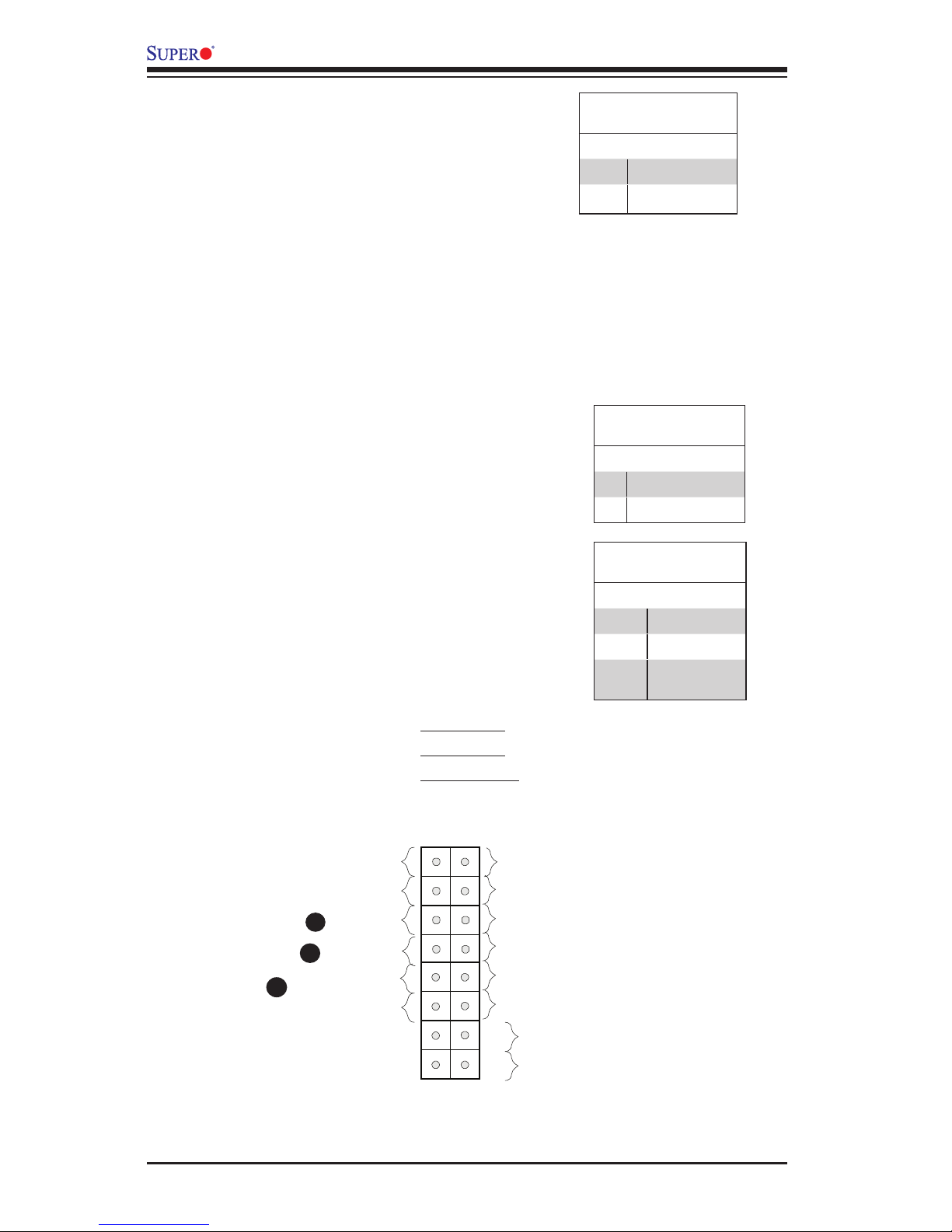

Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located
on a control panel at the front of the chassis. These connectors are designed spe-
cically for use with Supermicro chassis. See the gure below for the descriptions
of the front control panel buttons and LED indicators. Refer to the following section
for descriptions and pin denitions.
Pin 15Pin 16
Pin 1
Pin 2
JF1 Header Pins
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
Ground
Ground
X
X
NIC2 LED
LED_Anode+
Chapter 2: Installation
2-19
Front Control Panel Pin Denitions
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin denitions.
Power LED
Pin Denitions (JF1)
Pin# Denition
15 +5V
16 Ground
A. PWR LED
B. HDD LED
A
B
HDD LED
The HDD LED connection is located
on pins 13 and 14 of JF1. Attach a
cable here to indicate the status of
HDD-related activities, including IDE,
SATA activities. See the table on the
right for pin denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 +5V
14 HD Active
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
Ground
Ground
X
X
NIC2 LED
LED_Anode+
2-20
C7B75 User’s Manual
NIC1 (LAN1)
The NIC (Network Interface Controller)
LED connection for LAN port 1 is located
on pins 11 and 12 of JF1. NIC1 LED is a
2-pin NIC LED header. Attach NIC LED
cables to NIC1 LED indicators to display
network activity. Refer to the table on the
right for pin denitions.
LAN1/LAN2 LED
Pin Denitions (JF1)
Pin# Denition
9/11 Vcc
10/12 Ground
C
A. NIC1 LED
B. NIC2 LED
C. OH/Fan Fail
Overheat (OH)/Fan Fail
Connect an LED cable to OH/Fan Fail
connections on pins 7 and 8 of JF1 to
provide warnings for chassis overheat/fan
failure. Refer to the table on the right for
pin denitions.
OH/Fan Fail LED
Pin Denitions (JF1)
Pin# Denition
7 Vcc/Blue UID LED
8 OH/Fan Fail LED
OH/Fan Fail Indicator
Status
State Denition
Off Normal
On Overheat
Flash-
ing
Fan Fail
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
Ground
Ground
X
X
NIC2 LED
LED_Anode+
A
B
Chapter 2: Installation
2-21
Power Button
The Power Button connection is located
on pins1 and 2 of JF1. Momentarily con-
tacting both pins will power on/off the sys-
tem. This button can also be congured
to function as a suspend button (with a
setting in the BIOS - see Chapter 4). To
turn off the power in the suspend mode,
press the button for at least 4 seconds.
Refer to the table on the right for pin
denitions.
Power Button
Pin Denitions (JF1)
Pin# Denition
1 Signal
2 +3V Standby
Reset Button
The Reset Button connection is located
on pins 3 and 4 of JF1. Attach it to a
hardware reset switch on the computer
case to reset the system. Refer to the
table on the right for pin denitions.
Reset Button
Pin Denitions (JF1)
Pin# Denition
3 Reset
4 Ground
A. Reset Button
B. PWR Button
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
Ground
Ground
X
X
NIC2 LED
LED_Anode+
A
B
2-22
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
2-6 Connecting Cables
This section provides brief descriptions and pin-out denitions for onboard headers
and connectors. Be sure to use the correct cable for each header or connector.
A. 24-Pin ATX Main PWR
B. 8-Pin Processor PWR
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR Connectors (JPW1 & JPW2)
The 24-pin main power connector
(JPW1) is used to provide power to
the motherboard. The 8-pin CPU PWR
connector (JPW2) may be required for
the processor. These power connectors
meet th e SSI EPS 12V spec ica tio n. See
the table on the right for pin denitions.
A
B
Chapter 2: Installation
2-23
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
Fan Header
Pin Denitions
Pin# Denition
1 Ground (Black)
2 2.5A/+12V
(Red)
3 Tachometer
4 PWM_Control
Fan Headers (Fan 1 ~ Fan 4)
The C7B75 has four fan headers (Fan 1~Fan 4).
These fans are 4-pin fan headers. Although pins
1-3 of the fan headers are backward compatible
with the traditional 3-pin fans, we recommend
the use 4-pin fans to take advantage of the fan
speed control in the BIOS Hardware Monitoring
section. This allows the BIOS to automatically
adjust fan speeds based on the motherboard's
detected system temperature. Refer to the table
on the right for pin denitions.
A
B
A. Fan 1 (CPU Fan)
B. Fan 2
C. Fan 3
D. Fan 4
E. Chassis Intrusion
C
D
E
Chassis Intrusion (JL1)
A Chassis Intrusion header is located at JL1 on
the motherboard. Attach the appropriate cable
from the chassis to inform you of a chassis intru-
sion when the chassis is opened.
Chassis Intrusion
Pin Denitions (JL1)
Pin# Denition
1 Intrusion Input
2 Ground
2-24
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
Internal Buzzer (SP1)
The Internal Buzzer (SP1) can be
used to provide audible indications for
various beep codes. See the table on
the right for pin denitions.
A. Internal Buzzer
B. Speaker Header
Internal Buzzer
Pin Denition
Pin# Denitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
Speaker (JD1)
On the JD1 header, Pins 3~4 are
used for internal speaker. Close Pins
3~4 with a jumper to use the onboard
speaker. If you wish to use an external
speaker, attach the external speaker
cable to Pins 1~4. See the table on
the right for pin denitions.
Speaker Connector
Pin Denitions
Pin Setting Denition
Pins 3~4 Internal Speaker
Pins1~4 External Speaker
A
B
Chapter 2: Installation
2-25
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
C
A
B
A. PWR LED
B. COM3
C. COM4
Onboard Power LED (JLED)
An onboard Power LED header is lo-
cated at JLED. This Power LED header
is connected to Front Control Panel
located at JF1 to indicate the status of
system power. See the table on the right
for pin denitions.
Onboard PWR LED
Pin Denitions
Pin# Denition
1 VCC
2 No Connection
3 Connection to PWR
LED in JF1
Serial Ports (COM1 ~ COM4)
In addition to COM1 and COM2, which
are located on the I/O back panel,
there are two Serial port headers on
the motherboard for COM3 and COM4.
See the table on the right for pin deni-
tions.
Serial Ports-COM3/COM4
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
2-26
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2

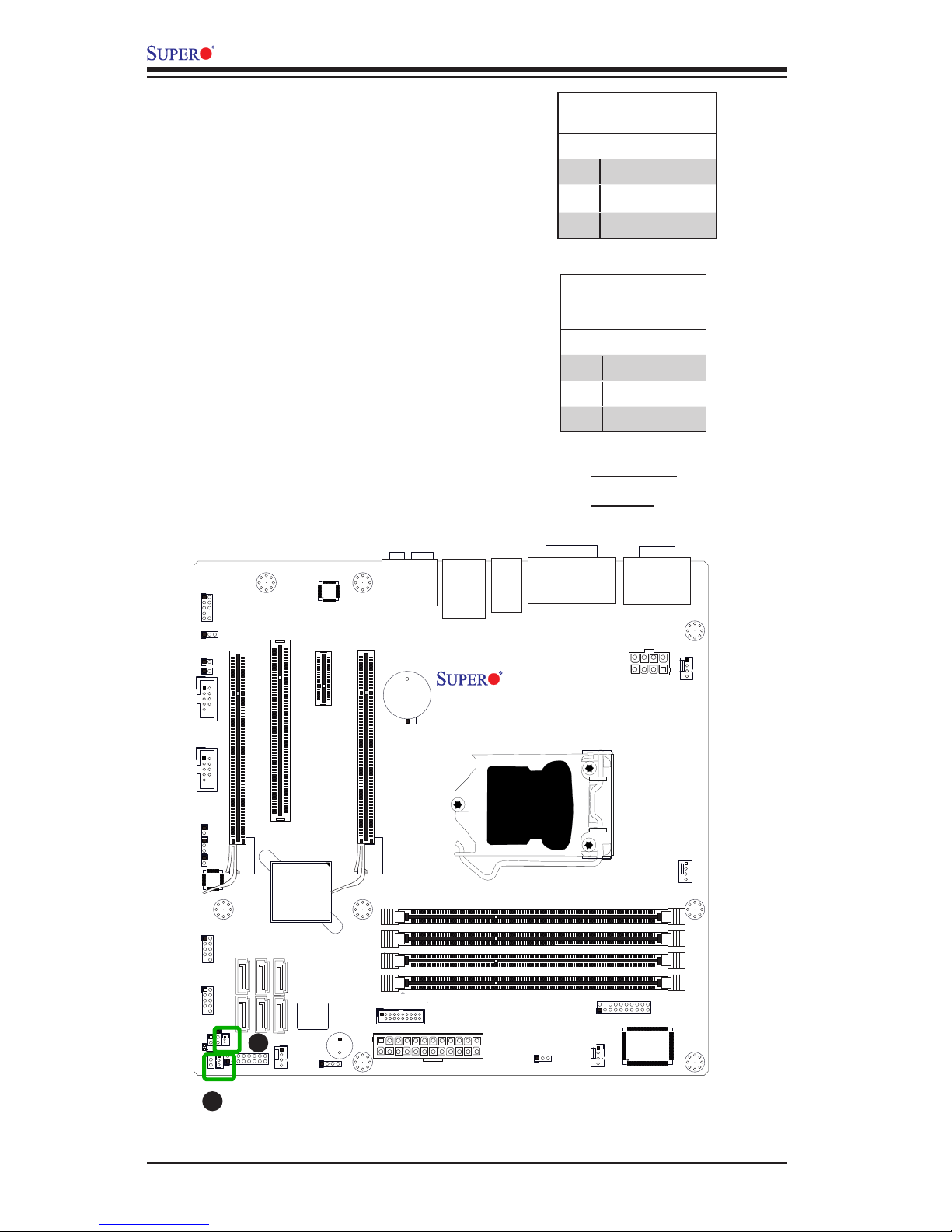

DOM PWR Connector (JSD1)
The Disk-On-Module (DOM) power
connector, located at JSD1, provides
5V (Gen1/Gen) power to a solid state
DOM storage device connected to one
of the SATA ports. See the table on the
right for pin denitions.
DOM PWR
Pin Denitions
Pin# Denition
1 5V
2 Ground
3 Ground
Wake-On-LAN (JWOL)
The Wake-On-LAN header is located
at JWOL on the motherboard. See the
table on the right for pin denitions.
(You must also have a LAN card with
a Wake-On-LAN connector and cable
to use this feature.)
Wake-On-LAN
Pin Denitions
(JWOL)
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up
A
B
A.DOM PWR
B. JWOL
Chapter 2: Installation
2-27
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
A.JWOR
B. Power LED Header
Wake-On-Ring (JWOR)
The Wake-On-Ring header is located
at JWOR. This function allows your
computer to wake up when receiving
an incoming call to the modem while
in the suspend state. This header is
provided to support legacy devices.
See the table on the right for pin de-
nitions.
Wake-On-Ring
Pin Denitions
Pin# Denition
1 Ground
2 Wake-up
Power LED Header (JLED1)
The Wake-On-Ring header is located
at JWOR. This function allows your
computer to wake up when receiving
an incoming call to the modem while
in the suspend state. This header is
provided to support legacy devices.
See the table on the right for pin de-
nitions.
Power LED
Pin Denitions
Pin# Denition
1 Vcc
2 NC
3 PWR_LED
B
2-28
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A

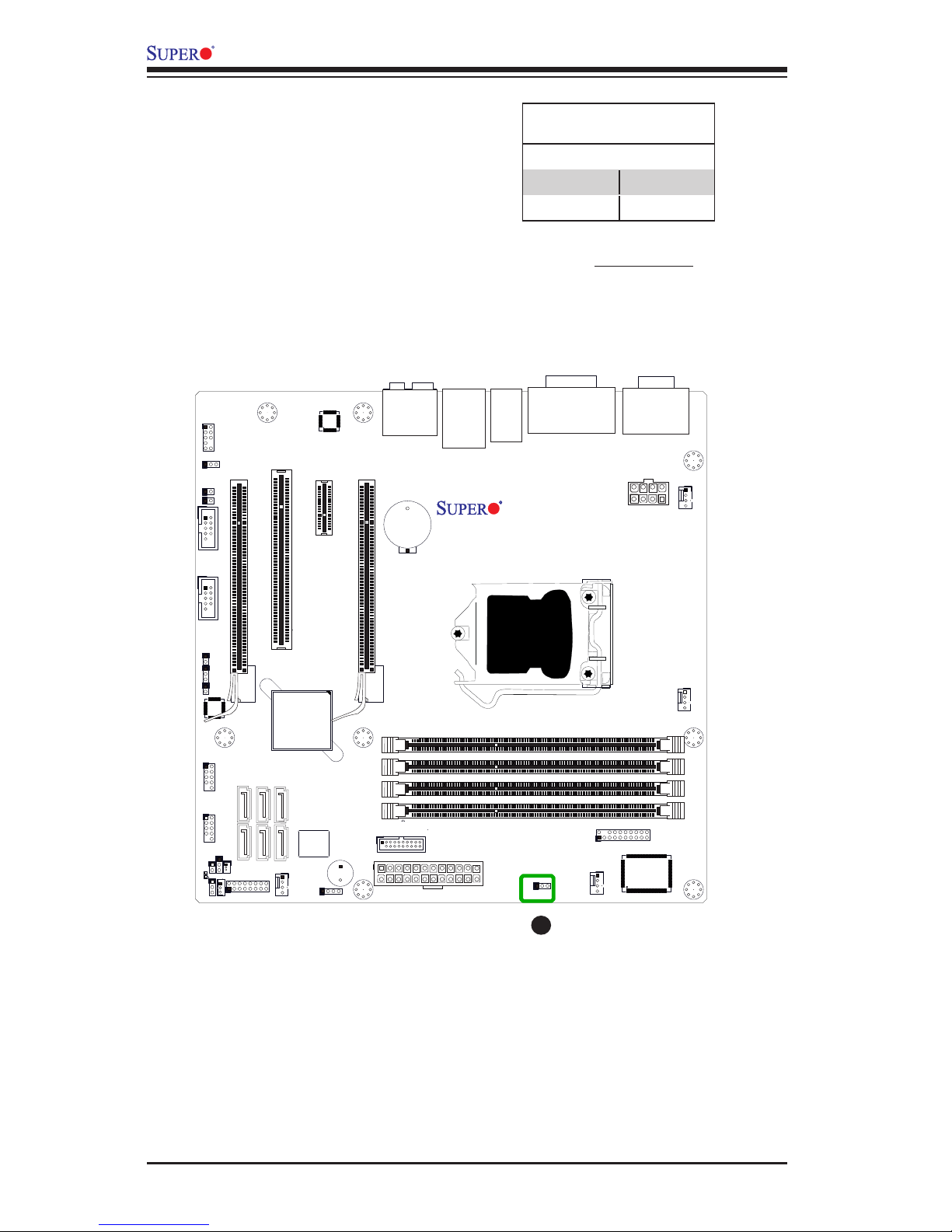

Trusted Platform Module Header
Pin Denitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME 4 No Pin
5 LRESET 6 VCC5
7 LAD3 8 LAD2
9 VCC3 10 LAD1
11 LAD0 12 GND
13 SMBCLK 14 SMBDAT
15 SB3V 16 SERIRQ
17 GND 18 CLKRUN
19 LPCPD 20 LDRQ1
TPM Header (JTPM1)
This header is used to connect a
Trusted Platform Module (TPM), which
is available from a third-party vendor.
A TPM is a security device that sup-
ports encryption and authentication
in hard drives. It enables the moth-
erboard to deny access if the TPM
associated with the hard drive is not
installed in the system. See the table
on the right for pin denitions.
A. JTPM1
Chapter 2: Installation
2-29
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
2-7 Jumper Settings
Explanation of Jumpers
To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers create
shorts between two pins to change the
function of the connector. Pin 1 is identied
with a square solder pad on the printed
circuit board.
Note: On two pin jumpers,
"Closed" means the jumper is on,
and "Open" means the jumper is
off the pins.
A
CMOS Clear (JBT1)
JBT1 is used to clear the saved system setup stored in the CMOS chip. To clear
the contents of the CMOS, completely shut down the system, remove the AC power
cable and then short JBT1 with a jumper. Remove the jumper before powering on
the system again. This will erase all user settings and revert everything to their
factory-set defaults.
A. Clear CMOS
2-30
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
A. JI2C1
B. JI2C2
C. ATX Mode
B
PCI Slot_SMB Enable
Jumper Settings
Jumper Setting Denition
Short Enabled
Open (Default) Disabled
PCI Slot SMB Enable (JI2C1/JI2C2)
Use Jumpers JI2C1/JI2C2to enable PCI
SMB (System Management Bus) support
to improve system management for the
PCI slots. See the table on the right for
jumper settings.
C
ATX Mode (JAT1)
This jumper provides the ability to select
between AT and ATX mode. AT mode
provides the ability to bypass the "soft
switch" so the system boots immediately
without waiting for a user to physically
push the soft siwtch. This is useful with
remote applications.
ATX Mode
Jumper Settings
Jumper Setting Denition
1-2 (Default) ATX Mode
2-3 AT Mode
Chapter 2: Installation
2-31
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
B
A. Manufacturing Mode
B. Audio Enable
Manufacturing Mode (JPME2)
Close pins 2-3 to enable Manufacturing
Mode. See the table on the right for jumper
settings.
Audio Enable/Disable
Jumper Settings
Both Jumpers Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
Audio Enable (JPAC1)
JPAC1 allows you to enable or disable
the onboard audio support. The default
position is on pins 1 and 2 to enable on-
board audio connections. See the table
on the right for jumper settings.
Manufacturing Mode
Jumper Settings
Pin# Denition
1-2 Normal (Default)
2-3 Manufacturing
Mode
2-32
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1
JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
A. TPM Enable
TPM Support Enable (JPT1)
JPT1 allows the user to enable TPM
(Trusted Platform Module) support to
improve data integrity and system secu-
rity. See the table on the right for jumper
settings. The default setting is Enabled.
TPM Support Enable
Jumper Settings
Jumper Setting Denition
1-2 (Default) Enabled
2-3 Disabled
Chapter 2: Installation
2-33
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
LAN LEDs
One LAN port (LAN1) is located on the I/O
backpanel of the motherboard. The Eth-
ernet LAN port has two LEDs. The yellow
LED indicates activity, while the Link LED
may be green, amber, or off to indicate the
speed of the connection. See the tables at
right for more information.
2-8 Onboard Indicators
A. LAN Port 1
B. PWR LED
LAN 1
Link LEDs (Green/Amber/Off)
LED Color Denition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Activity LED
A
B
Link LED
Onboard PWR LED Indicator
LED Status
Status Denition
Off System Off
On System on, or
System off and PWR Cable Connected
Onboard Power LED (LED1)
An Onboard Power LED is located
at LED1 on the motherboard. When
LED1 is on, the AC power cable is
connected. Make sure to disconnect
the power cable before removing or
installing any component. See the
layout below for the LED location.
2-34
C7B75 User’s Manual
BIOS LICENSE
JTPM1
JPW2
JSD1
I-SATA4
I-SATA5
I-SATA2
I-SATA3
I-SATA1
I-SATA0
COM4 COM3
JL1
JBT1
JWOR1
JI2C1 JI2C2
JPW1
LED1
JWOL
JLED1
JAT1
JPT1
JPME2
JPAC1
SP1
FAN3
FAN2
FAN1
FAN4
JD1
(CPU FAN)
USB2.0-2/3
LAN
AUDIO FP
DIMM2A
HD AUDIO
USB4/5
USB8/9
USB3.0, 2.0-0/1
DIMM1B
DIMM1A
JF1
ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED
SLOT4 PCI-E 2.0 X4 (IN X16)
SLOT5 PCI 33MHz
SLOT6 PCI-E 2.0 X1
SLOT7 PCI-E 3.0 X16
COM1/2
VGA/DVI
USB10-13
USB3.0-2/3
DIMM2B
C7B75
JPW2
A
2-9 SATA Connections
SATA Connections (I-SATA0~I-
SATA5)
One Serial ATA (SATA) 3.0 connector (I-
SATA 0) is located on the motherboard.
In addition, ve SATA 2.0 (I-SATA 1~5)
connectors are also located on the
board. These SATA ports are supported
by the Intel B75 Express Chipset and
provide faster data transmission than
legacy Parallel ATA. See the table on
the right for pin denitions.
SATA 2.0/3.0 Connectors
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
B
A. I-SATA 3.0 #0
B. I-SATA 2.0 #1
C. I-SATA 2.0 #2
D. I-SATA 2.0 #3
E. I-SATA 2.0 #4
F. I-SATA 2.0 #5
E
D
C7B75 SATA Connector Types
Port# Connection Type
I-SATA 0 SATA 3.0
I-SATA 1/2/3/4 SATA 2.0
C
F
3-1
Chapter 3: Troubleshooting
Chapter 3
Troubleshooting
3-1 Troubleshooting Procedures
Use the following procedures to troubleshoot your system. If you have followed all
of the procedures below and still need assistance, refer to the ‘Technical Support
Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.
Always disconnect the AC power cable before adding, changing or installing any
hardware components.
Before Power On
1. Make sure that the Standby PWR LED is not on. (Note: If it is on, the
onboard power is on. Be sure to unplug the power cable before installing or
removing the components.)
2. Make sure that there are no short circuits between the motherboard and
chassis.
3. Disconnect all ribbon/wire cables from the motherboard, including those for
the keyboard and mouse. Also, be sure to remove all add-on cards.
4. Install a CPU and heatsink (-be sure that it is fully seated) and then connect
the chassis speaker and the power LED to the motherboard. Check all jumper
settings as well.
No Power
1. Make sure that there are no short circuits between the motherboard and
chassis.
2. Make sure that all jumpers are set to their default positions.
3. Check if the 115V/230V switch on the power supply is properly set.
4. Turn the power switch on and off to test the system.
5. The battery on your motherboard may be old. Check to make sure that it still
supplies ~3VDC. If it does not, replace it with a new one.
3-2
C7B75 User’s Manual
No Video
1. If the power is on, but you have no video--in this case, you will need to re-
move all the add-on cards and cables rst.
2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A
for details on beep codes.)
3. Remove all memory modules and turn on the system. (If the alarm is on,
check the specs of memory modules, reset the memory or try a different one.)
Memory Errors
1. Make sure that the DIMM modules are properly installed and fully seated in
the slots.
2. You should be using unbuffered Non-ECC DDR3 (1.5V) 1333/1066 MHz
memory (recommended by the manufacturer). Also, it is recommended that
you use the memory modules of the same type and speed for all DIMMs in
the system. Do not use memory modules of different sizes, different speeds
and different types on the same motherboard.
3. Check for bad DIMM modules or slots by swapping modules between slots to
see if you can locate the faulty ones.
4. Check the switch of 115V/230V power supply.
Losing the System’s Setup Conguration
1. Please be sure to use a high quality power supply. A poor quality power sup-
ply may cause the system to lose CMOS setup information. Refer to Section
1-5 for details on recommended power supplies.
2. The battery on your motherboard may be old. Check to verify that it still sup-
plies ~3VDC. If it does not, replace it with a new one.
3. If the above steps do not x the Setup Conguration problem, contact your
vendor for repairs.
3-2 Technical Support Procedures
Before contacting Technical Support, please make sure that you have followed all
the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro
3-3
Chapter 3: Troubleshooting
does not sell directly to end users, so it is best to rst check with your distributor or
reseller for troubleshooting services. They should know of any possible problem(s)
with the specic system conguration that was sold to you.
1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked
Question' (FAQ) sections in this chapter or see the FAQs on our website
(http://www.supermicro.com/support/faqs/) before contacting Technical Sup-
port.
2. BIOS upgrades can be downloaded from our website at (http://www.supermi-
cro.com/support/bios/).
Note: Not all BIOS can be ashed. Some cannot be ashed; it depends
on the boot block code of the BIOS.
3. If you've followed the instructions above to troubleshoot your system, and still
cannot resolve the problem, then contact Supermicro's technical support and
provide them with the following information:
• Motherboard model and PCB revision number
• BIOS release date/version (this can be seen on the initial display when your
system rst boots up)
•System conguration
•An example of a Technical Support form is on our website at (http://www.su-
permicro.com/support/contact.cfm).
4. Distributors: For immediate assistance, please have your account number
ready when placing a call to our technical support department. We can be
reached by e-mail at support@supermicro.com, by phone at: (408) 503-
8000, option 2, or by fax at (408)503-8019.
3-3 Frequently Asked Questions
Question: What type of memory does my motherboard support?
Answer: The C7B75 supports up to 32GB of unbuffered Non-ECC DDR3 SDRAM
(1.5V, 1333/1066 MHz). See Section 2-3 for details on installing memory.
Question: How do I update my BIOS?
Answer: We do NOT recommend that you upgrade your BIOS if you are not
experiencing any problems with your system. Updated BIOS les are located on
3-4
C7B75 User’s Manual
our website at http://www.supermicro.com/support/bios/. Please check our BIOS
warning message and the information on how to update your BIOS on our web
site. Select your motherboard model and download the BIOS ROM le to your
computer. Also, check the current BIOS revision to make sure that it is newer than
your BIOS before downloading. You may choose the zip le or the .exe le. If you
choose the zipped BIOS le, please unzip the BIOS le onto a bootable device or
a USB pen/thumb drive. To ash the BIOS, run the batch le named "ami.bat" with
the new BIOS ROM le from your bootable device or USB pen/thumb drive. Use
the following format:
F:\> ami.bat BIOS-ROM-lename.xxx <Enter>
Note: Always use the le named “ami.bat” to update the BIOS, and inser t
a space between "ami.bat" and the lename. The BIOS-ROM-lename
will bear the motherboard name (i.e., C7B75) and build version as the
extension. For example, "C7B750.115".When completed, your system will
automatically reboot.
If you choose the .exe le, please run the .exe le under Windows to create
the BIOS ash oppy disk. Insert the oppy disk into the system you wish
to ash the BIOS. Then, boot the system to the oppy disk. The BIOS util-
ity will automatically ash the BIOS without any prompts. Please note that
this process may take a few minutes to complete. Do not be concerned if
the screen is paused for a few minutes.
When the BIOS ashing screen is completed, the system will reboot and
will show “Press F1 or F2”. At this point, you will need to load the BIOS
defaults. Press <F1> to go to the BIOS setup screen, and press <F9> to
load the default settings. Next, press <F10> to save and exit. The system
will then reboot.
Warning: Do not shut down or reset the system while updating the BIOS
to prevent possible system boot failure!
Important: The SPI BIOS chip installed on this motherboard is not re-
movable. To repair or replace a damaged BIOS chip, please send your
motherboard to RMA at Supermicro for service.
Question: I think my BIOS is corrupted. How can I recover my BIOS?
Answer: Please see Appendix C-BIOS Recovery for detailed instructions.
Question: What's on the CD that came with my motherboard?
Answer: The supplied compact disc has quite a few drivers and programs that will
greatly enhance your system. We recommend that you review the CD and install the
applications you need. Applications on the CD include chipset drivers for Windows,
security programs, and audio drivers.
3-5
Chapter 3: Troubleshooting
Proper Battery Disposal
Warning! Please handle used batteries carefully. Do not damage the bat-
tery in any way; a damaged battery may release hazardous materials into
the environment. Do not discard a used battery in the garbage or a public
landll. Please comply with the regulations set up by your local hazardous
waste management agency to dispose of your used battery properly.
Question: Why do I get an error message “IASTOR.SYS read error” and "press F6
to install Intel RAID driver" when installing Windows on my motherboard?
Answer: To solve this issue, disable the IPMI jumper. Another solution is to use a
USB oppy drive instead of the onboard oppy drive. For the IPMI jumper location,
please check Chapter 1.
Question: What is the heatsink part number for my C7B75 motherboard?
Answer: For the 1U passive heatsink, ask for SNK-P0046P (back plate is included).
For the 2U active heatsink, use SNK-P0046A4.
Question: Why can't I recover the BIOS even when I’ve followed the instructions
in the user’s manual for the motherboard?
Answer: Please disable the IPMI jumper and try it again. For the jumper location,
please check Chapter 1.
3-4 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock out-
wards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.
Battery Lock
Battery
3-6
C7B75 User’s Manual
Battery Holder
1
2
Battery Installation
1. To install an onboard battery, follow the steps 1& 2 above and continue
below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a
click to ensure that the battery is securely locked.
Warning: When replacing a battery, be sure to only replace it with the
same type.
This side up
Press down until you hear a click.
3-5 Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required
before any warranty service will be rendered. You can obtain service by calling
your vendor for a Returned Merchandise Authorization (RMA) number. For faster
service, you may also obtain RMA authorizations online (http://www.supermicro.
com/support/rma/). When you return the motherboard to the manufacturer, the
RMA number should be prominently displayed on the outside of the shipping
carton, and mailed prepaid or hand-carried. Shipping and handling charges will
be applied for all orders that must be mailed when service is complete.
This warranty only covers normal consumer use and does not cover damages
incurred in shipping or from failure due to the alteration, misuse, abuse or improper
maintenance of products.
During the warranty period, contact your distributor rst for any product prob-
lems.
Chapter 4: AMI BIOS
4-1
Chapter 4
BIOS
4-1 Introduction
This chapter describes the AMI BIOS Setup Utility for the C7B75. The ROM BIOS
is stored in a Flash EEPROM and can be easily updated. This chapter describes
the basic navigation of the AMI BIOS Setup Utility setup screens.
Note: For AMI BIOS Recovery, please refer to the UEFI BIOS Recovery
Instructions in Appendix C.
Starting BIOS Setup Utility
To enter the AMI BIOS Setup Utility screens, press the <Delete> key while the
system is booting up.
Note: In most cases, the <Delete> key is used to invoke the AMI BIOS
setup screen. There are a few cases when other keys are used, such as
<F1>, <F2>, etc.
Each main BIOS menu option is described in this manual. The Main BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be congured. Grayed-out options cannot be congured. Options in blue can be
congured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for a text message. When an option is selected in the
left frame, it is highlighted in white. Often a text message will accompany it. (Note:
the AMI BIOS has default text messages built in. Supermicro retains the option to
include, omit, or change any of these text messages.)
The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".
Most of the AMI BIOS setup utility "hot keys" can be used at any time during the
setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, ar-
row keys, etc.
Note: Options printed in Bold are default settings.
How To Change the Conguration Data
The conguration data that determines the system parameters may be changed by
entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing
<Del> at the appropriate time during system boot.
4-2
C7B75 User’s Manual
How to Start the Setup Utility
Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS Setup Utility. From the main menu, you can access the other setup
screens. An AMI BIOS identication string is displayed at the left bottom corner of
the screen, below the copyright message.
Warning! Do not upgrade the BIOS unless your system has a BIOS-related
issue. Flashing the wrong BIOS can cause irreparable damage to the
system. In no event shall Supermicro be liable for direct, indirect, special,
incidental, or consequential damages arising from a BIOS update. If you
have to update the BIOS, do not shut down or reset the system while the
BIOS is updating. This is to avoid possible boot failure.
4-2 Main Setup
When you rst enter the AMI BIOS Setup Utility, you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS Setup screen is shown below.
Main Advanced Boot Save & Exit
 : Select Screen  : Select Item
Enter: Select +/- : Change Opt. F1 : General Help F2 : Previous Values F3 : Optimized Defaults F4 : Save & Exit ESC : Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Set the Time. Use tab to switch between Time elements.
Security
System Date [Wed 10/25/2012]
System Time [09:27:40]
Supermicro C7B75 Version 1.00 Build Date 10/26/2012
Processor Intel (R) Core (TM) i3-2130 CPU @ 3.40GHz Speed 3400 MHz
System Memory Size 4096 MB
Apo Setup Ulity - Copyright (C) 2011 American Megatrends, Inc.
Chapter 4: AMI BIOS
4-3
System Overview: The following BIOS information will be displayed:
System Time/System Date
Use this option to change the system time and date. Highlight System Time or
System Date using the arrow keys. Enter new values through the keyboard. Press
the <Tab> key or the arrow keys to move between elds. The date must be entered
in Day MM/DD/YY format. The time is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears
as 17:30:00.
The following BIOS items will also be displayed:
Supermicro C7B75
Version
Build Date
Processor
The AMI BIOS will automatically display the status of the processor used in the
motherboard as shown below:
Type of Processor
Speed
System Memory
This displays the size of memory available in the system:
Size
4-4
C7B75 User’s Manual
4-3 Advanced Setup Congurations
Use the arrow keys to select Boot Setup and press <Enter> to access the submenu
items:
Boot Feature
Quiet Boot
Use this feature to select the screen display between POST messages or the OEM
logo at bootup. Select Disabled to display the POST messages. Select Enabled
to display the OEM logo instead of the normal POST messages. The options are
Enabled and Disabled.
AddOn ROM Display Mode
Use this feature to set the display mode for Option ROM. The options are Force
BIOS and Keep Current.
Bootup Num-Lock
This feature selects the Power-on state for the Numlock key. The options are Off
and On.
Wait For 'F1' If Error
This forces the system to wait until the 'F1' key is pressed if an error occurs. The
options are Disabled and Enabled.
 : Select Screen  : Select Item
Enter: Select +/- : Change Opt. F1 : General Help F2 : Previous Values F3 : Opmized Defaults F4 : Save & Exit ESC : Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
System Boot Feature Seng.
Main Advanced Boot Security Save & Exit
Boot Feature
CPU Configuraon Chipset Configuraon SATA Configuraon PCIe/PCI/PnP Configuraon Super IO Configuraon Hardware Health Configuraon ACPI Sengs Trusted Compung PCH-FW Configuraon
Intel (R) 82579V Gigabit Network Connecon
Apo Setup Ulity - Copyright (C) 2011 American Megatrends, Inc.
Chapter 4: AMI BIOS
4-5
Interrupt 19 Capture
Interrupt 19 is the software interrupt that handles the boot disk function. When this
item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19
at bootup and allow the drives that are attached to these host adaptors to function
as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap-
tors will not capture Interrupt 19, and the drives attached to these adaptors will not
function as bootable devices. The options are Enabled and Disabled.
Re-try Boot
When set to Enabled, the BIOS will continuously retry to boot from the selected
boot type. The options are Disabled, Legacy Boot, and EFI Boot.
Power Conguration
Watch Dog Function
If enabled, the Watch Dog timer will allow the system to automatically reboot when
a non-recoverable error occurs that lasts for more than ve minutes. The options
are Enabled and Disabled.
Power Button Function
This feature controls how the system shuts down when the power button is pressed.
Select 4 Seconds Override for the user to power off the system after pressing and
holding the power button for 4 seconds or longer. Select Instant Off to instantly
power off the system as soon as the user presses the power button. The options
are 4 Seconds Override and Instant Off.
Restore on AC Power Loss
Use this feature to set the power state after a power outage. Select Power-Off for
the system power to remain off after a power loss. Select Power-On for the system
power to be turned on after a power loss. Select Last State to allow the system to
resume its last power state before a power loss. The options are Power-On, Stay-
Off and Last State.
CPU Conguration
Warning: Take Caution when changing the Advanced settings. An incorrect value, a
very high DRAM frequency or an incorrect DRAM timing setting may cause system
to become unstable. When this occurs, revert to the setting to its manufacture default
setting.
4-6
C7B75 User’s Manual
CPU Information
This submenu displays information regarding the installed CPU.
Active Processor Cores
Enables selection of the number of the processor's core to activate. (Please refer
to Intel's web site for more information.) The options are All, 1, 2, and 3.
Limit CPUID Maximum
This feature allows the user to set the maximum CPU ID value. Enable this function
to boot the legacy operating systems that cannot support processors with extended
CPUID functions. The options are Enabled and Disabled (for the Windows OS).
Execute-Disable Bit (Available when supported by the OS and the CPU)
Set to Enabled to enable the Execute Disable Bit which will allow the processor
to designate areas in the system memory where an application code can execute
and where it cannot, thus preventing a worm or a virus from ooding illegal codes
to overwhelm the processor or damage the system during an attack. The default is
Disabled. (Refer to Intel and Microsoft Web Sites for more information.)
Intel® Virtualization Technology (Available when supported by the CPU)
Select Enabled to use the Intel Virtualization Technology to allow one platform to
run multiple operating systems and applications in independent partitions, creat-
ing multiple "virtual" systems in one physical computer. The options are Enabled
and Disabled.
Note: If there is any change to this setting, you will need to power off and
restart the system for the change to take effect. Please refer to Intel’s
web site for detailed information.
Hardware Prefetcher (Available when supported by the CPU)
If set to Enabled, the hardware prefetcher will prefetch streams of data and instruc-
tions from the main memory to the L2 cache to improve CPU performance. The
options are Disabled and Enabled.
Adjacent Cache Line Prefetch (Available when supported by the CPU)
Select Enabled for the CPU to prefetch both cache lines for 128 bytes as comprised.
Select Disabled for the CPU to prefetch both cache lines for 64 bytes. The options
are Disabled and Enabled.
Clock Spread Spectrum
Chapter 4: AMI BIOS
4-7
If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused
by the components and will attempt to decrease the interference whenever needed.
The options are Enabled and Disabled.
CPU PPM Conguration
Use this feature to select a power-saving scheme for the motherboard. The
options are Disabled, Energy Efcient and Custom. If Custom is selected, the
following options become available:
EIST
EIST (Enhanced Intel SpeedStep Technology) allows the system to automati-
cally adjust processor voltage and core frequency in an effort to reduce power
consumption and heat dissipation. Please refer to Intel’s web site for detailed
information. The options are Disabled and Enabled.
Turbo Mode
This feature allows processor cores to run faster than marked frequency in
specic conditions. The options are Disabled and Enabled.
CPU C3 Report
Select Enabled for the CPU to report C3 (ACPI C2) state to the operating system.
The options are Disabled and Enabled.
CPU C6 Report
Select Enabled for the CPU to report C6 (ACPI C3) state to the operating system.
The options are Disabled and Enabled.
Cong TDP Lock
Select Enabled to lock the cong TDP control register. The options are Disabled
and Enabled.
ACPI T State
Use this feature to enable ACPI T (throttling) state support. The options are Disabled and Enabled.
4-8
C7B75 User’s Manual
Chipset Conguration
WARNING: Setting the wrong values in the following sections may cause the system
to malfunction.
System Agent (SA) Conguration
Use this section to modify System Agent (SA) parameters.
Graphics Conguration
Internal Graphics
Use this item to keep IGD (Internal Graphics Device) enabled based on the setup
options. The settings are Auto, Disabled, and Enabled.
IGFX Boot Display
Use this item to select which video device will be activated during POST. The
options are Auto, CRT, DVI-D, and CRT+DVI-D
GTT Size
Use this item to determine the GTT (Graphics Translation Table) size. The op-
tions are 1MB and 2MB.
Aperture Size
Use this item to select the Aperture size. The options are 128MB, 256MB, and
512MB.
DVMT Pre-Allocated
Use this item to select the pre-allocated DVMT (Dynamic Video Memory Tech-
nology) graphics memory size used by the IGD (Internal Graphics Device). The
options are 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M,
352M, 384M, 416M, 448M, 480M, 512M, and 1024M.
DVMT Total Gfx Mem
Use this item to select the pre-allocated DVMT (Dynamic Video Memory Tech-
nology) graphics memory size used by the IGD (Internal Graphics Device). The
options are 128M, 256M, and MAX.
Gfx Low Power Mode
If set to Enabled, the graphics render clock speed is reduced to save power. The
options are Enabled and Disabled.
Chapter 4: AMI BIOS
4-9
Graphics Performance Analyzers
Use this feature to enable or disable the Intel graphics performance analyzers
counters. The options are Enabled and Disabled.
NB PCIe Conguration
PEG0 - Gen X
Use this item to congure the desired Generation support for PEG0. The options
are Auto, Gen1, Gen2, and Gen3.
VT-d
Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI
Tables. This feature offers fully-protected I/O resource-sharing across the Intel
platforms, providing the user with greater reliability, security and availability in
networking and data-sharing. The settings are Enabled and Disabled.
Memory Conguration
Use this section to view memory information and congure memory settings.
Memory Frequency Limiter
Use this item to select the maximum memory frequency (in MHz). The settings
are Auto, 1067, 1333, 1600, 1867, 2133, 2400, 2667.
Max TOLUD
Use this item to set the maximum value of TOLUD. Select Dynamic to allow
TOLUD to adjust automatically based on the largest MMIO length of the installed
graphic controller. The options are Dynamic, 1GB, 1.25GB, 1.5GB, 1.75GB,
2GB, 2.25GB, 2.5GB. 2.75GB, 3GB, 3.25GB.
NMode Support
Use this item to select the desired NMode support. The options are Auto, 1N
Mode, and 2N Mode.
Memory Scrambler
Use this item to enable memory scrambler support. The options are Enabled
and Disabled.
MRC Fast Boot
Select Enabled to speed up boot times by bypassing long memory training
routines. The options are Enabled and Disabled.
4-10
C7B75 User’s Manual
Scrambler Seed Generation Off
Use this item to control memory scrambler seed generation. Select Enabled to
prevent generating scrambler seed. Select Disabled to always generate scram-
bler seed. The options are Enabled and Disabled.
Memory Remap
Select Enabled to enable memory remap above 4G. The options are Enabled
and Disabled.
Memory Alias Check
Select Enabled to enable memory alias check. The options are Enabled and
Disabled.
South Bridge Conguration
This item displays the current South Bridge conguration.
GbE Controller
Select Enabled to enable the onboard gigabit Ethernet controller. The settings
are Enabled and Disabled.
Wake on LAN from S5
Select Enabled to enable the capability to 'wake-up' the system from the S5
power state (Soft Off State) through the Ethernet controller. The settings are
Enabled and Disabled.
Deep Sx
Select Enabled to enable Deep Sleep State support. The settings are Disabled,
Enabled in S5, Enabled in S4-S5.
USB Functions
This feature will enable or disable the motherboard's USB functions. The options
are Enabled and Disabled.
Legacy USB Support
This feature enables support for legacy USB devices. Select Auto to disable
legacy support if USB devices are not present. Select Disable to have USB
devices available only for EFI applications. The options are Enabled, Disabled
and Auto.
Chapter 4: AMI BIOS
4-11
Port 60/64 Emulation
This feature enables or disables I/O port 60h/64h emulation support. This should
be enabled for complete USB keyboard legacy support for non-USB-aware Op-
erating Systems. The options are Disabled and Enabled.
BIOS EHCI Hand-Off
This item is for Operating Systems that do not support Enhanced Host Control-
ler Interface (EHCI) hand-off. When enabled, EHCI ownership change will be
claimed by the EHCI driver. The settings are Enabled and Disabled.
XHCI Pre-Boot Driver
Select Enabled to enable driver support for XHCI pre-boot. The options are
Enabled and Disabled.
Azalia HD Audio
Select Enabled to enable the Azalia High Denition Audio feature. The settings
are Enabled and Disabled.
SATA Conguration
When this submenu is selected, the AMI BIOS automatically detects the presence
of the IDE Devices and displays the following items:
SATA Mode Selection
Use this item to select the mode for the installed drives. The options are IDE Mode,
and AHCI Mode.
AHCI Mode
The following items are displayed when AHCI Mode is selected:
Port0~Port5 Hot Plug
Select Enabled to enable hot-plug support for a particular port, which will
allow the user to change a hardware component or device without shutting
down the system. The options are Enabled and Disabled.
Mechanical Presence Switch (Available when Port0~Port5 Hot Plug is set to Enabled)
Use this item to control reporting if the port is connected to a device with
a Mechanical Presence switch (hardware support required). The options
are Enabled and Disabled.
4-12
C7B75 User’s Manual
IDE Mode
The following items are displayed when IDE Mode is selected:
IDE Legacy / Native Mode Selection
Use this item to select Native Mode or IDE Legacy support. The options
are Native and Legacy.
PCIe/PCI/PnP Conguration
This feature allows the user to set the PCI/PnP congurations for the following items:
VGA Priority
This feature allows the user to select the graphics adapter to be used as the primary
boot device. The options are Auto, Onboard, and Offboard.
PCI ROM Priority
When there are multiple Option ROMs (Legacy and EFI compatible), this feature
species what Option ROM to launch. The options are Legacy ROM and UEFI
Compatible ROM.
PCI Latency Timer
This feature sets the latency Timer of each PCI device installed on a PCI bus. Select
64 to set the PCI latency to 64 PCI bus clock cycles. The options are 32 PCI Bus
Clocks, 64 PCI Bus Clocks, 96 PCI Bus Clocks, 128 PCI Bus Clocks, 160 PCI
Bus Clocks, 192 PCI Bus Clocks, 224 PCI Bus Clocks and 248 PCI Bus Clocks.
Maximum Payload Size
Select Auto to allow the system BIOS to automatically set the maximum payload
value for a PCI-E device to enhance system performance. The options are Auto,
128 Bytes and 256 Bytes.
Maximum Read Request
Select Auto to allow the system BIOS to automatically set the maximum Read
Request size for a PCI-E device to enhance system performance. The options are
Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.
ASPM Support
Select Enabled to enable Active-State Power Management for signal transactions
between L0 and L1 Links on the PCI Express Bus in order to maximize power-
saving and transaction speeds. The options are Disabled, Auto, and Force L0s.
Chapter 4: AMI BIOS
4-13
SLOT4 PCI-E 2.0 x4 (in x16 ) OPROM
Select Enabled to enable Option ROM support to boot the computer using a de-
vice installed on the slot specied above. The options are Enabled and Disabled.
SLOT5 PCI 33MHz OPROM
Select Enabled to enable Option ROM support to boot the computer using a de-
vice installed on the slot specied above. The options are Enabled and Disabled.
SLOT6 PCI-E 2.0 x1 OPROM
Select Enabled to enable Option ROM support to boot the computer using a de-
vice installed on the slot specied above. The options are Enabled and Disabled.
SLOT7 PCI-E 3.0 x16 OPROM
Select Enabled to enable Option ROM support to boot the computer using a de-
vice installed on the slot specied above. The options are Enabled and Disabled.
Load Onboard LAN1 Option ROM
This feature enables or disables the onboard ROM option for LAN1. The options
are Disabled and Enabled.
Network Stack
Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unied
Extensible Firmware Interface) for network stack support. The options are Enabled
and Disabled.
IPv4 PXE Support (Available when Network Stack is set to Enabled)
Set this item to Enabled to activate IPv4 PXE Support. The options are Enabled
and Disabled.
IPv6 PXE Support (Available when Network Stack is set to Enabled)
Set this item to Enabled to activate IPv6 PXE Support. The options are Enabled
and Disabled.
Super IO Conguration
NCT6776F
Serial Port 1, Serial Port 2
Select Enabled to enable a serial port specied by the user. The options are En-
abled and Disabled.
4-14
C7B75 User’s Manual
Serial Port 1 Settings
This option species the base I/O port address and the Interrupt Request address of
Serial Port 1. Select Disabled to prevent the serial port from accessing any system
resources. When this option is set to Disabled, the serial port becomes unavailable.
The options are Auto, IO=3F8h; IRQ=4; IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11,
12; and IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Serial Port 2 Settings
This option species the base I/O port address and the Interrupt Request address
of Serial Port 1. The options are Auto, IO=2F8h; IRQ=3; IO=3F8h; IRQ=3, 4, 5, 6,
7, 9, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5,
6, 7, 9, 10, 11, 12; and IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IT8760
Serial Port 3, Serial Port 4
Select Enabled to enable a serial port specied by the user. The options are En-
abled and Disabled.
Serial Port 3 Settings
This option species the base I/O port address and the Interrupt Request ad-
dress of Serial Port 3. The options are: Auto, IO=3E8h;IRQ=11; IO=3D0h;IRQ=11;
IO=3D8h;IRQ=11; IO=3E0h;IRQ=11;
Serial Port 4 Settings
This option species the base I/O port address and the Interrupt Request ad-
dress of Serial Port 4. The options are: Auto, IO=2E8h;IRQ=11; IO=2D0h;IRQ=11;
IO=2D8h;IRQ=11; IO=2E0h;IRQ=11;
Hardware Health Conguration
Fan Speed Control Mode
This feature allows the user to decide how the system controls the speeds of the
onboard fans. The CPU temperature and the fan speed are correlative. When the
CPU on-die temperature increases, the fan speed will also increase for effective
system cooling. Select "Full Speed" to allow the onboard fans to run at full speed
(of 100% Pulse Width Modulation Duty Cycle) for maximum cooling. This setting
is recommended for special system conguration or debugging. Select "Standard"
for the onboard fans to run at 50% of the Initial PWM Cycle in order to balance the
Chapter 4: AMI BIOS
4-15
needs between system cooling and power saving. This setting is recommended for
regular systems with normal hardware congurations. The options are Full Speed
(@100% of PWM Cycle), and Standard (@50% of PWM Cycle).
CPU Temperature Display Mode
This feature displays the CPU temperature detected by DTS (i.e., +34oC) or tem-
perature status in text ("Low", "Medium" or "High"). The options are Text Mode or
DTS Mode.
If Text Mode is selected, the CPU Temperature Display Mode will show the CPU
temperature status as follows:
Low – This level is considered as the ‘normal’ operating state. The CPU
temperature is well below the CPU ‘Temperature Tolerance’. The mother-
board fans and CPU will run normally as congured in the BIOS (Fan Speed
Control).
User intervention: No action required.
Medium – The processor is running warmer. This is a ‘precautionary’ level
and generally means that there may be factors contributing to this condition,
but the CPU is still within its normal operating state and below the CPU
‘Temperature Tolerance’. The motherboard fans and CPU will run normally
as congured in the BIOS. The fans may adjust to a faster speed depending
on the Fan Speed Control settings.
User intervention: No action is required. However, consider checking the CPU
fans and the chassis ventilation for blockage.
High – The processor is running hot. This is a ‘caution’ level since the CPU’s
‘Temperature Tolerance’ has been reached (or has been exceeded) and may
activate an overheat alarm:
The information provided above is for your reference only. For more information
on thermal management, please refer to Intel’s Web site at www.Intel.com.
System Temperature / Peripheral Temperature
This feature displays the temperature readings from the system sensor (chassis)
and peripheral devices.
Fan 1 ~ Fan 4 Speed
This feature displays the fan speed readings from fan interfaces Fan1 through Fan4.
VCORE, 12V, VDIMM, 5VCC, CPU VTT, AVCC, 3.3VCC, VSB, VBAT
This feature displays the current voltages of the above voltage monitors.
4-16
C7B75 User’s Manual
ACPI Settings
Use this feature to congure Advanced Conguration and Power Interface (ACPI)
power management settings for your system.
High Precision Event Timer
Select Enabled to activate the High Performance Event Timer (HPET) that produces
periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in
synchronizing multimedia streams, providing smooth playback and reducing the de-
pendency on other timestamp calculation devices, such as an x86 RDTSC Instruc-
tion embedded in the CPU. The High Performance Event Timer is used to replace
the 8254 Programmable Interval Timer. The options are Enabled and Disabled.
ACPI Sleep State
This setting allows you to congure the ACPI (Advanced Conguration and Power
Interface) sleep state for your system when it is in the Suspend mode. The options
are Suspend Disabled, S1 only (CPU Stop Clock), and S3 only (Suspend to RAM).
Trusted Computing
Trusted Computing Conguration
TPM Support
Select Enabled on this item and enable the TPM jumper on the motherboard to
enable TPM support to improve data integrity and network security. The options
are Enabled and Disabled.
TPM State
Select Enabled to enable TPM security settings to improve data integrity and
network security. The options are Disabled and Enabled.
Pending Operation
Use this item to schedule an operation for the security device. The options are
None, Enable Take Ownership, Disable Take Ownership, and TPM Clear.
Note: During restart, the computer will reboot in order to execute the pend-
ing operation and change the state of the security device.
Current Status Information: This item displays the information regarding the
current TPM status.
Chapter 4: AMI BIOS
4-17
TPM Enable Status
This item displays the status of TPM Support to indicate if TPM is currently
enabled or disabled.
TPM Active Status
This item displays the status of TPM Support to indicate if TPM is currently ac-
tive or deactivated.
TPM Owner Status
This item displays the status of TPM Ownership.
Intel TXT (LT) Conguration
Intel TXT (LT-SX) Hardware Support
This feature indicates if the following hardware components support the Intel
Trusted Execution Technology.
CPU: TXT (Trusted Execution Technology) Feature
Chipset: TXT (Trusted Execution Technology) Feature
Intel TXT (LT) Conguration
This feature displays the following TXT conguration setting.
TXT (LT-SX) Support: This item indicates if the Intel TXT support is enabled
or disabled. The default setting is Disabled.
Note: Be sure to format your TPM module before enabling TXT (LT-SX)
support for this feature to work properly.
Note 2: Intel TXT (LT-SX) Dependencies
For Trusted Execution Technology to work properly, be sure to enable the
features displayed below:
VT-d Support: Intel Virtualization Technology with Direct I/O support
VT Support: Intel Virtualization Technology support
TPM Support: Trusted Platform support
TPM State: Trusted Platform state
4-18
C7B75 User’s Manual
PCH-FW Conguration
This feature displays ME conguration settings.
Me Firmware Re-Flash
Use this feature to enable re-ashing of the ME rmware. The options are Disabled
and Enabled.
Intel® Ethernet Controller 10 Gigabit
This item displays the following information on the Intel 82579V Gigabit Network
Connection.
NIC Conguration
Link Speed
Use this feature to change the link speed and duplex for the current port. The
options are AutoNeg, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100
Mbps Full.
Wake on LAN
Select Enabled to wake the system with a magic packet. The options are Dis-
abled and Enabled.
Blink LEDs (range 1-15 seconds)
This feature allows the user to specify the duration for LEDs to blink. The range is
from 0 ~ 15 seconds. The default setting is 0.
PORT CONFIGURATION INFORMATION
This section displays the following port information:
•UEFI Driver
•Adapter PBA
•Chip Type
•PCI Device ID
•PCI Bus:Device:Function
•Link Status
•Factory MAC Address
Chapter 4: AMI BIOS
4-19
4-4 Boot Settings
Boot Options Priority
This feature allows the user to specify which devices are boot devices and the order
of priority from which the systems boots from during startup.
Boot Option #1, Boot option #2, Boot Option #3, etc
The settings are Built-in EFI Shell, [any detected boot device] and Disabled.
UEFI Boot Drive BBS Priorities
Use this setting to specify the boot device priority sequence from UEFI boot drives.
Add New Boot Option
Use this feature to add a new boot device to the priority list.
Delete Boot Option
This feature allows the removal of a boot device and the order of priority from which
the systems boots from during startup.
 : Select Screen  : Select Item
Enter: Select +/- : Change Opt. F1 : General Help F2 : Previous Values F3 : Opmized Defaults F4 : Save & Exit ESC : Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Set Boot Priority.
Boot Opons Priority 07.69
Boot Opon #1 [CD/DVD] Boot Opon #2 [Hard Disk:P5: WDC WD8...] Boot Opon #3 [USB Hard Disk] Boot Opon #4 [Removable] Boot Opon #5 [Network]
Hard Disk Drive BBS Priories UEFI Boot Drive BBS Priories
Add New Boot Opon Delete Boot Opon
Main Advanced Boot Security Save & Exit
Apo Setup Ulity - Copyright (C) 2011 American Megatrends, Inc.
4-20
C7B75 User’s Manual
4-3 Security Settings
If the Administrator password is dened ONLY - this controls access to the
BIOS setup ONLY.
If the User's password is dened ONLY - this password will need to be entered
during each system startup or boot, and will also have Administrator rights in
the setup.
Passwords must be at least 3 and up to 20 characters long.
Password Check
Use this feature to determine when a password entry is required. Select Setup to
require the password only when entering setup. Select Always to require the pass-
word when entering setup and on each boot. The options are Setup and Always.
Administrator Password
Press Enter to create a new, or change an existing Administrator password.
 : Select Screen  : Select Item
Enter: Select +/- : Change Opt. F1 : General Help F2 : Previous Values F3 : Opmized Defaults F4 : Save & Exit ESC : Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Setup: Check password while invoking setup. Always: Check password while invoking setup as well as on each boot.
Main Advanced
Save & Exit
Boot Security
Password Descripon
If ONLY the administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Password Check [Setup]
Administrator Password
Apo Setup Ulity - Copyright (C) 2011 American Megatrends, Inc.
Chapter 4: AMI BIOS
4-21
 : Select Screen  : Select Item
Enter: Select +/- : Change Opt. F1 : General Help F2 : Previous Values F3 : Opmized Defaults F4 : Save & Exit ESC : Exit
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Exit system setup without saving any changes.
Main Advanced
Boot
Security Save & Exit
Discard Changes and Exit
Save Changes and Reset
Save Opons Save Changes Discard Changes
Restore Opmized Defaults Save as User Defaults Restore User Defaults
Boot Override
P5: WDC WD800AAJS-00B4A0 UEFI: Built-in EFI Shell
Apo Setup Ulity - Copyright (C) 2011 American Megatrends, Inc.
4-5 Save and Exit Options
Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup
screen.
Discard Changes and Exit
Select this option to quit the BIOS Setup without making any permanent changes
to the system conguration, and reboot the computer. Select Discard Changes and
Exit, and press <Enter>.
Save Changes and Reset
When you have completed the system conguration changes, select this option to
save the changes and reboot the computer so that the new system conguration
settings can take effect. Select Save Changes and Exit, and press <Enter>.
Save Options
Save Changes
Select this option and press <Enter> to save all changes you've done so far and
return to the AMI BIOS utility Program.
Discard Changes
Select this feature and press <Enter> to discard all the changes and return to the
BIOS setup.
4-22
C7B75 User’s Manual
Restore Optimized Defaults
To set this feature, select Restore Optimized Defaults from the Exit menu and press
<Enter>. These are factory settings designed for maximum system stability, but not
for maximum performance.
Save as User Defaults
To set this feature, select Save as User Defaults from the Exit menu and press
<Enter>. This enables the user to save any changes to the BIOS setup for future use
Restore User Defaults
To set this feature, select Restore User Defaults from the Exit menu and press <En-
ter>. Use this feature to retrieve user-dened settings that were saved previously.
Boot Override
This feature allows the user to override the Boot Option Priorities setting in the Boot
menu, and instead immediately boot the system with one of the listed devices. This
is a one-time override.
Appendix A: POST Error Beep Codes
A-1
Appendix A
BIOS Error Beep Codes
During the POST (Power-On Self-Test) routines, which are performed each time
the system is powered on, errors may occur.
Non-fatal errors are those which, in most cases, allow the system to continue
with bootup. The error messages normally appear on the screen.
Fatal errors will not allow the system to continue to bootup. If a fatal error oc-
curs, you should consult with your system manufacturer for possible repairs.
These fatal errors are usually communicated through a series of audible beeps.
The numbers on the fatal error list correspond to the number of beeps for the
corresponding error.
A-1 BIOS Error Beep Codes
BIOS Error Beep Codes
Beep Code/LED Error Message Description
1 beep Refresh Circuits have been reset.
(Ready to power up)
5 short beeps + 1 long beep
Memory error No memory detected in the
system
5 beeps Display memory
read/write error
Video adapter missing or with faulty memory
OH LED On System OH System Overheat
A-2
C7B75 User’s Manual
Notes
Appendix B: Software Installation Instructions
B-1
Driver/Tool Installation Display Screen
Note 1. Click the icons showing a hand writing on the paper to view the
readme les for each item. Click on a computer icon to the right of an item
to install this item (from top to the bottom), one at a time. After installing
each item, you must reboot the system before proceeding with the next
item on the list. The bottom icon with a CD on it allows you to view the
entire contents of the CD.
Note 2. When making a storage driver diskette by booting into a Driver
CD, please set the SATA Conguration to "Compatible Mode" and congure
SATA as IDE in the BIOS Setup. After making the driver diskette, be sure
to change the SATA settings back to your original settings.
Appendix B
Software Installation Instructions
B-1 Installing Drivers
After you've installed the Windows Operating System, a screen as shown below
will appear. You are ready to install software programs and drivers that have not
yet been installed. To install these software programs and drivers, click the icons
to the right of these items. (Note: To install the Windows Operating System, please
refer to the instructions posted on our website at http://www.supermicro.com/
support/manuals/.)
B-2
C7B75 User’s Manual
SuperDoctor III Interface Display Screen-I (Health Information)
B-2 Conguring SuperDoctor® III
The SuperDoctor III program is a Web-based management tool that supports remote
management capability. It includes Remote and Local Management tools. The local
management tool is called the SD III Client. The SuperDoctor III program included
on the CDROM that came with your motherboard allows you to monitor the envi-
ronment and operations of your system. SuperDoctor III displays crucial system
information such as CPU temperature, system voltages and fan status. See the
Figure below for a display of the SuperDoctor III interface.
Note: 1 The default user name and password are ADMIN.
Note 2: In the Windows OS environment, the SuperDoctor III settings take pre-
cedence over the BIOS settings. When rst installed, SuperDoctor III adopts the
temperature threshold settings previously set in BIOS. Any subsequent changes
to these thresholds must be made within SuperDoctor, since the settings over-
ride the BIOS settings. For the Windows OS to adopt the BIOS temperature
threshold settings, please change the SD III Client settings to be the same as
those set in BIOS.
Appendix B: Software Installation Instructions
B-3
SuperDoctor III Interface Display Screen-II (Remote Control)
Note: The SuperDoctor III software and manual may be downloaded from our
Website at:
http://www.supermicro.com/products/accessories/software/SuperDoctorIII.cfm.
For Linux, we still recommend that you use SuperDoctor II, this version is also
available for download at the link above.
B-4
C7B75 User’s Manual
Notes
Appendix C: UEFI BIOS Recovery
C-1
Appendix C
UEFI BIOS Recovery Instructions
Warning! Do not upgrade the BIOS unless your system has a BIOS-related
issue. Flashing the wrong BIOS can cause irreparable damage to the
system. In no event shall Supermicro be liable for direct, indirect, special,
incidental, or consequential damages arising from a BIOS update. If you
need to update the BIOS, do not shut down or reset the system while the
BIOS is updating to avoid possible boot failure.
C-1 An Overview to the UEFI BIOS
The Unied Extensible Firmware Interface (UEFI) specication provides a software-
based interface between the operating system and the platform rmware in the
pre-boot environment. The UEFI specication supports an architecture-independent
mechanism for add-on card initialization to allow the UEFI OS loader, which is stored
in the add-on card, to boot up the system. UEFI offers a clean, hand-off control to
a computer system at bootup.
C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)
An AMIBIOS ash chip consists of a boot sector block and a main BIOS code block
(a main BIOS image). The boot sector block contains critical BIOS codes, including
memory detection and recovery codes for the user to ash a new BIOS image if the
original BIOS image is corrupted. When the system power is on, the boot sector
codes execute rst. Once it is completed, the main BIOS code will continue with
system initialization and bootup.
Note: Follow the BIOS Recovery instructions below for BIOS recovery
when the main BIOS block crashes. However, when the BIOS Boot sec-
tor crashes, you will need to send the motherboard back to Supermicro
for RMA repair.
C-3 To Recover the Boot Sector Using a USB-Attached Device
This feature allows the user to recover a BIOS image using a USB-attached device
without additional utilities used. A USB ash device such as a USB Flash Drive, or
C-2
C7B75 User’s Manual
Note: At this point, you may decide if you want to start with BIOS Recov-
ery. If you decide to proceed with BIOS Recovery, follow the procedures
below.
a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB
Hard Disk drive cannot be used for BIOS recovery at this time.
To perform UEFI BIOS recovery using a USB-attached device, follow the instruc-
tions below.
1. Using a different machine, copy the "Super.ROM" binary image le into the
disc Root "\" Directory of a USB device or a writeable CD/DVD.
Note: If you cannot locate the "Super.ROM" le in your driver disk, visit our
website at www.supermicro.com to download the BIOS image into a USB
ash device and rename it to "Super ROM" for BIOS recovery use.
2. Insert the USB device that contains the new BIOS image ("Super.ROM") into
your USB drive and power on the system
3. While powering on the system, keep pressing <Ctrl> and <Home> simultane-
ously on your PS2 keyboard until your hear two short beeps. This may take
from a few seconds to one minute.
4. After locating the new BIOS binary image, the system will enter the BIOS
Recovery menu as shown below.
Appendix C: UEFI BIOS Recovery
C-3
5. When the screen as shown above displays, using the arrow key, select the
item- "Proceed with ash update" and press the <Enter> key. You will see the
progress of BIOS Recovery as shown in the screen below.
Note: Do not interrupt the process of BIOS ashing until it is com-
pleted.
6. After the process of BIOS Recovery is complete, press any key to reboot the
system.
7. Using a different system, extract the BIOS package into a bootable USB ash
drive.
C-4
C7B75 User’s Manual
8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt.
Note: Do not interrupt this process until BIOS ashing is completed.
9. After seeing the message that BIOS update is completed, unplug the AC pow-
er cable from the power supply to clear CMOS, and then plug the AC power
cable in the power supply again to power on the system.
10. Press <Del> continuously to enter the BIOS Setup utility.
11. Press <F3> to load default settings.
12. After loading default settings, press <F4> to save the settings and exit the
BIOS Setup utility.
