Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the 2021M-UR+. Installation

and maintenance should be performed by experienced technicians only.

The AS2021M-UR+ is a high-end server based on the SC825TQ-R700U 2U rack-

mount chassis and the H8DMU+, a dual processor serverboard that supports single

or dual AMD 64-bit Socket F, Opteron 2000 type processors and up to 64 GB of

DDR2-667/533/400 registered ECC SDRAM.

Preface

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the

server system and describes the main features of the H8DMU+ serverboard and

the SC825TQ-R700U chassis, which comprise the 2021M-UR+.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the 2021M-UR+ into a rack

and check out the server confi guration prior to powering up the system. If your

server was ordered without processor and memory components, this chapter will

refer you to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and

information provided by the control panel on the chassis as well as other LEDs

located throughout the system.

iii

AS2021M-UR+ User's Manual

Chapter 4: System Safety

You should thoroughly familiarize yourself with this chapter for a general overview

of safety precautions that should be followed when installing and servicing the

2021M-UR+.

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the H8DMU+ serverboard, including the

locations and functions of connections, headers and jumpers. Refer to this chapter

when adding or removing processors or main memory and when reconfi guring the

serverboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC825TQ-R700U server chassis.

You should follow the procedures given in this chapter when installing, removing or

reconfi guring SATA or peripheral drives and when replacing system power supply

modules and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed informa-

tion on running the CMOS Setup Utility.

Appendix A: BIOS Error Beep Codes

Appendix B: BIOS POST Checkpoint Codes

Appendix C: System Specifi cations

iv

Notes

Preface

v

AS2021M-UR+ User's Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Serverboard Features ..................................................................................... 1-2

1-3 Server Chassis Features ................................................................................ 1-3

1-4 Contacting Super Micro .................................................................................. 1-6

Chapter 2: Server Installation

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System ................................................................................... 2-1

2-3 Preparing for Setup ........................................................................................ 2-1

Choosing a Setup Location ...................................................................... 2-2

Rack Precautions ..................................................................................... 2-2

Server Precautions ................................................................................... 2-2

Rack Mounting Considerations ................................................................ 2-3

2-4 Installing the System into a Rack ................................................................... 2-4

2-5 Checking the Serverboard Setup ................................................................... 2-8

2-6 Checking the Drive Bay Setup ..................................................................... 2-10

Chapter 3: System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons .................................................................................... 3-1

UID ........................................................................................................... 3-1

Reset ........................................................................................................ 3-1

Power ....................................................................................................... 3-1

3-3 Control Panel LEDs ........................................................................................ 3-2

Universal Information LED ....................................................................... 3-2

NIC2 ......................................................................................................... 3-3

NIC1 ......................................................................................................... 3-3

HDD .......................................................................................................... 3-3

Power ....................................................................................................... 3-3

3-4 Drive Carrier LEDs ......................................................................................... 3-3

vi

Table of Contents

Chapter 4: System Safety

4-1 Electrical Safety Precautions .......................................................................... 4-1

4-2 General Safety Precautions ........................................................................... 4-2

4-3 ESD Precautions ............................................................................................ 4-3

4-4 Operating Precautions .................................................................................... 4-4

Chapter 5: Advanced Serverboard Setup

5-1 Handling the Serverboard .............................................................................. 5-1

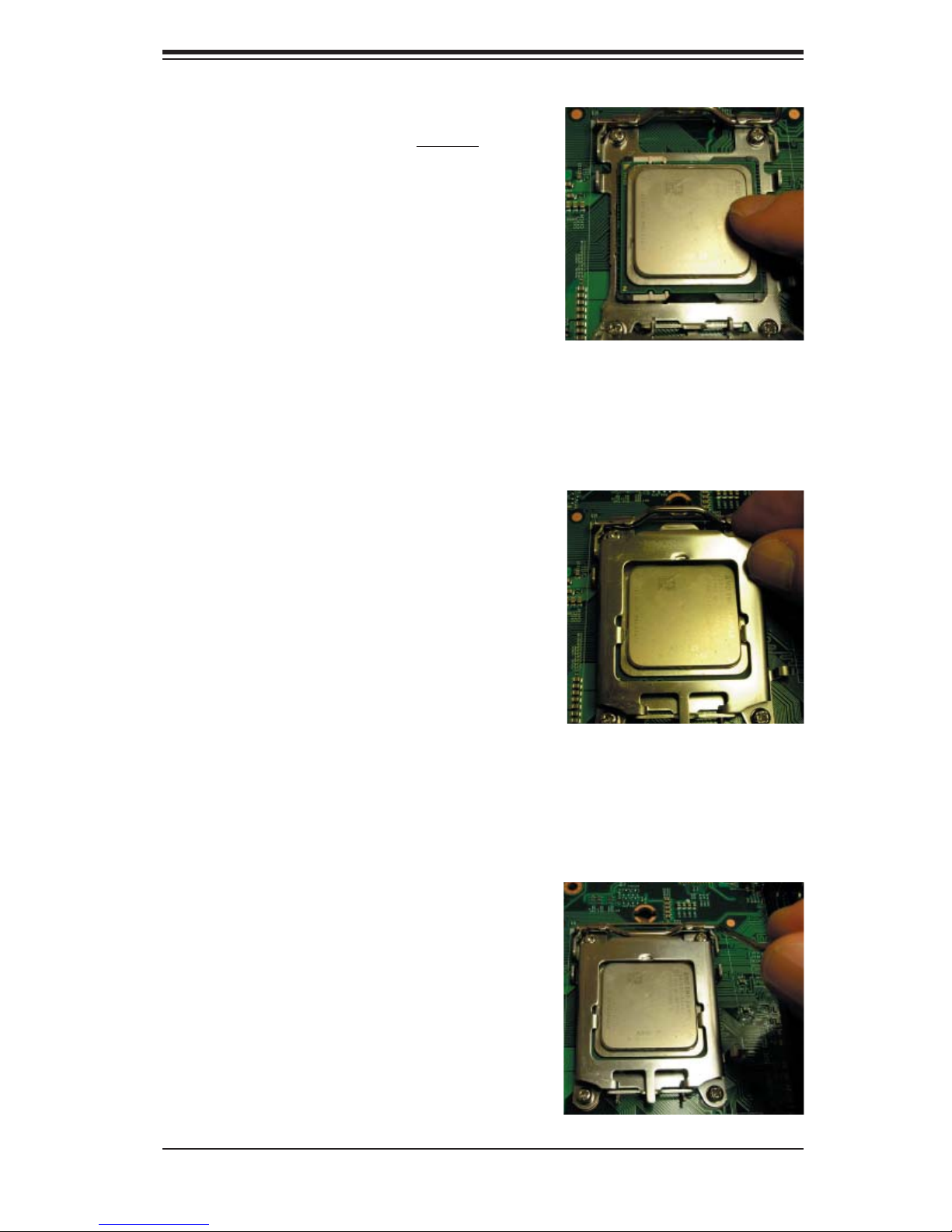

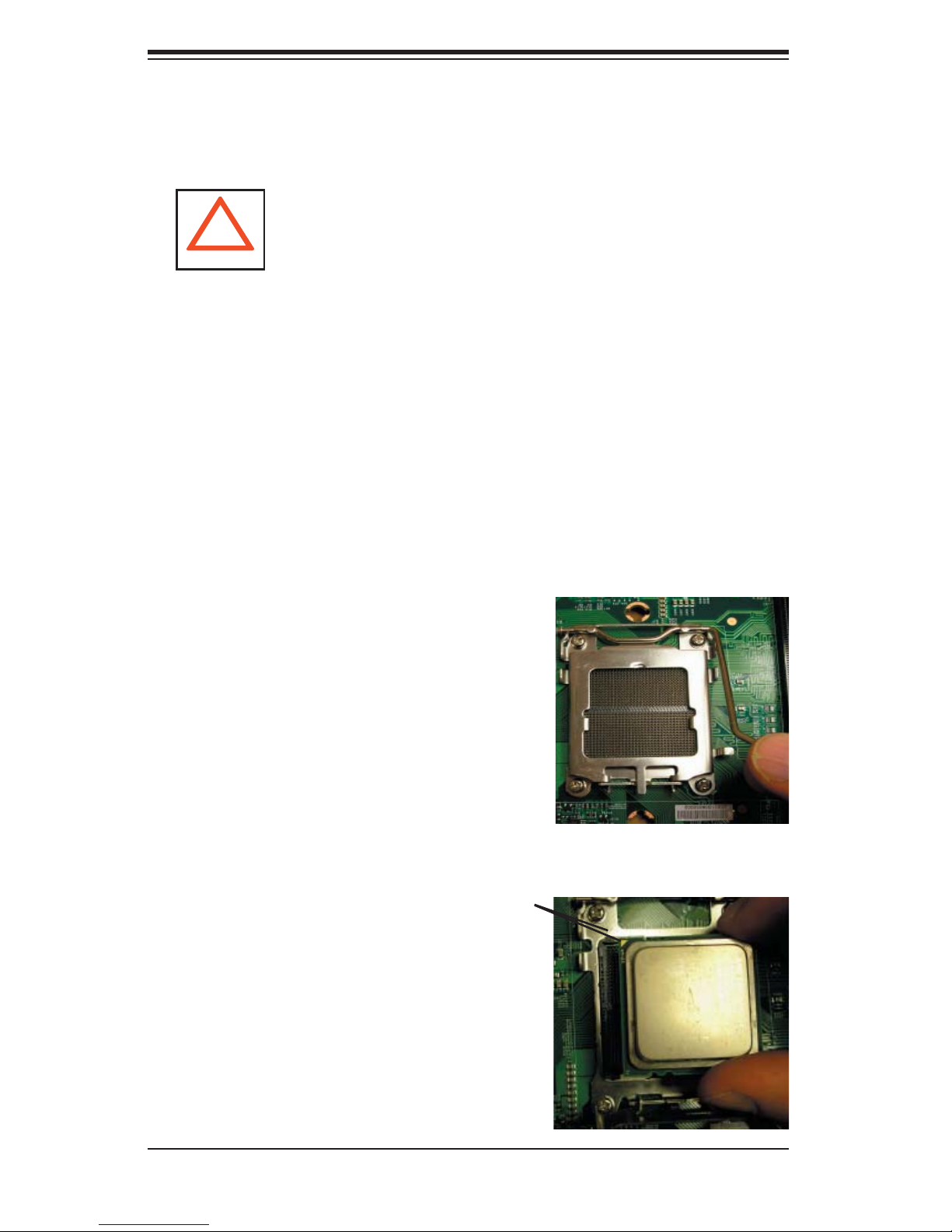

5-2 Processor and Heatsink Installation ............................................................... 5-2

5-3 Connecting Cables ......................................................................................... 5-5

Connecting Data Cables .......................................................................... 5-5

Connecting Power Cables ....................................................................... 5-5

Connecting the Control Panel .................................................................. 5-6

5-4 I/O Ports ......................................................................................................... 5-7

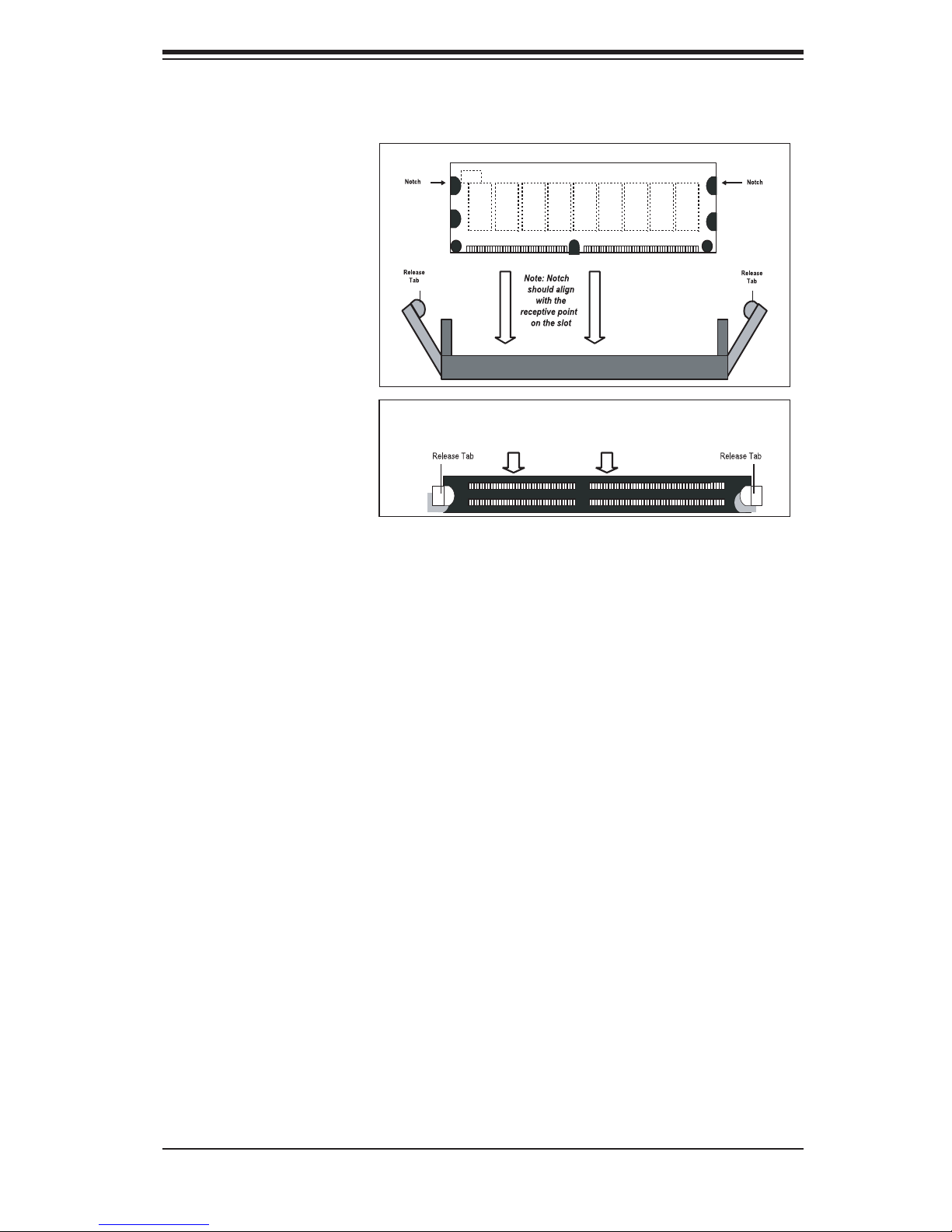

5-5 Installing Memory ........................................................................................... 5-7

5-6 Adding PCI Expansion Cards ......................................................................... 5-9

5-7 Serverboard Details ...................................................................................... 5-10

H8DMU+ Layout .................................................................................... 5-10

H8DMU+ Quick Reference .................................................................... 5-11

5-8 Connector Defi nitions ................................................................................... 5-12

ATX Power Connector ........................................................................... 5-12

Processor Power Connector .................................................................. 5-12

Auxiliary Power Connector ..................................................................... 5-12

Power LED ............................................................................................. 5-12

HDD LED ............................................................................................... 5-13

NIC1 LED ............................................................................................... 5-13

NIC2 LED ............................................................................................... 5-13

Universal Information LED ..................................................................... 5-13

Power Fail LED ...................................................................................... 5-14

Reset Button .......................................................................................... 5-14

Power Button .......................................................................................... 5-14

Universal Serial Bus (USB0/1) ............................................................... 5-14

USB Headers ......................................................................................... 5-15

Serial Ports ............................................................................................. 5-15

Fan Headers .......................................................................................... 5-15

LAN1/2 (Ethernet Ports) ......................................................................... 5-15

Power LED/Speaker ............................................................................... 5-16

ATX PS/2 Keyboard and PS/2 Mouse Ports ......................................... 5-16

Overheat LED ........................................................................................ 5-16

vii

AS2021M-UR+ User's Manual

Chassis Intrusion .................................................................................... 5-16

Wake-On-LAN ........................................................................................ 5-17

Wake-On-Ring ........................................................................................ 5-17

Power Supply I

2

C Header ...................................................................... 5-17

SMBus Header ....................................................................................... 5-17

Power Fail Alarm Reset Header ............................................................ 5-18

Compact Flash Power ............................................................................ 5-18

SGPIO .................................................................................................... 5-18

UID Button .............................................................................................. 5-18

5-9 Jumper Settings ............................................................................................ 5-19

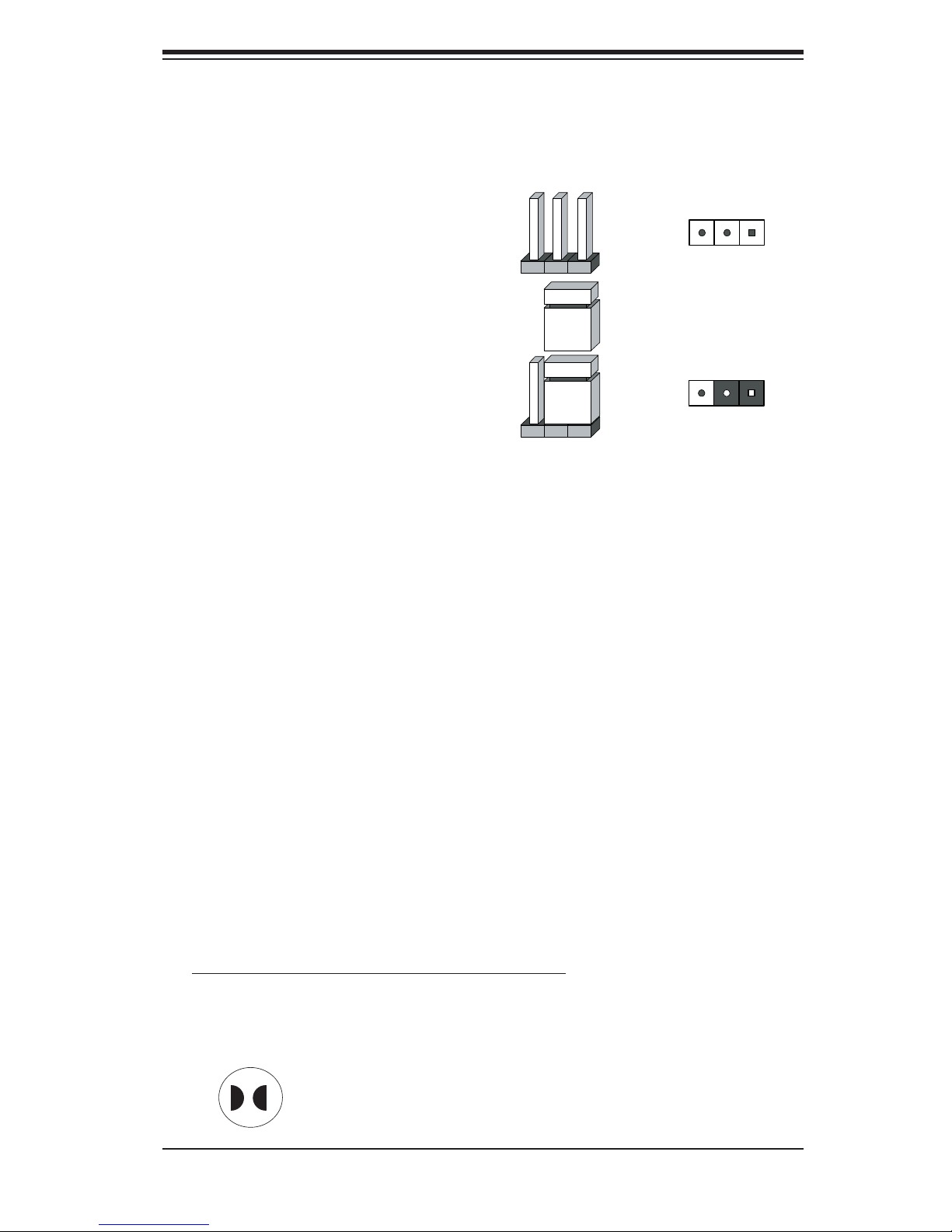

Explanation of Jumpers ......................................................................... 5-19

CMOS Clear ........................................................................................... 5-19

VGA Enable/Disable ............................................................................... 5-20

Watch Dog Enable/Disable .................................................................... 5-20

Onboard Speaker Enable/Disable ......................................................... 5-20

Compact Flash Master/Slave ................................................................. 5-21

2

I

C to PCI-Express Enable/Disable ........................................................ 5-21

5-10 Onboard Indicators ....................................................................................... 5-22

LAN1/2 LEDs ......................................................................................... 5-22

+3.3V LED .............................................................................................. 5-22

UID LED ................................................................................................. 5-22

5-11 Floppy, IDE and SATA Drive Connections ................................................... 5-23

Floppy Connector ................................................................................... 5-23

IDE Connector ........................................................................................ 5-24

SATA Ports ............................................................................................. 5-24

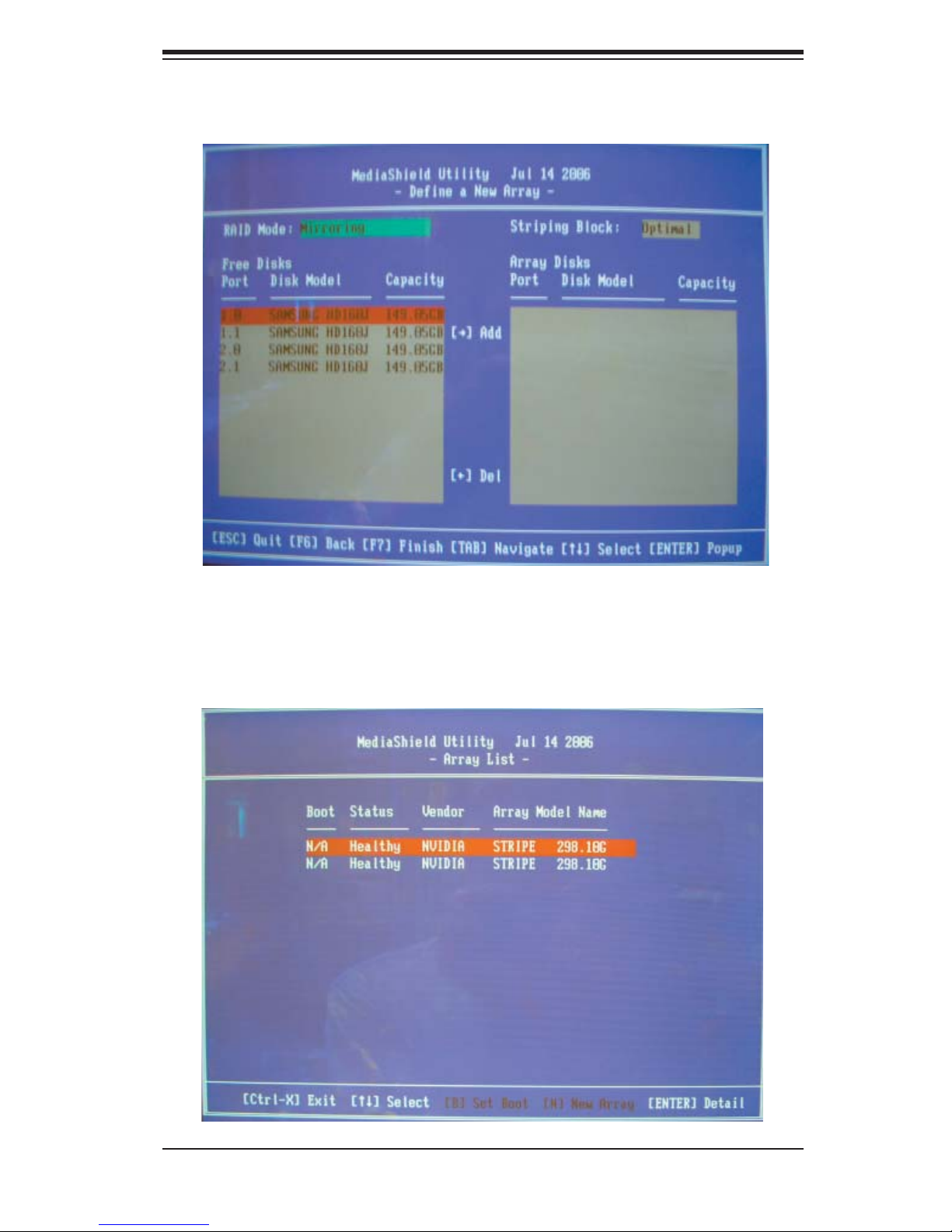

5-12 Enabling SATA RAID .................................................................................... 5-25

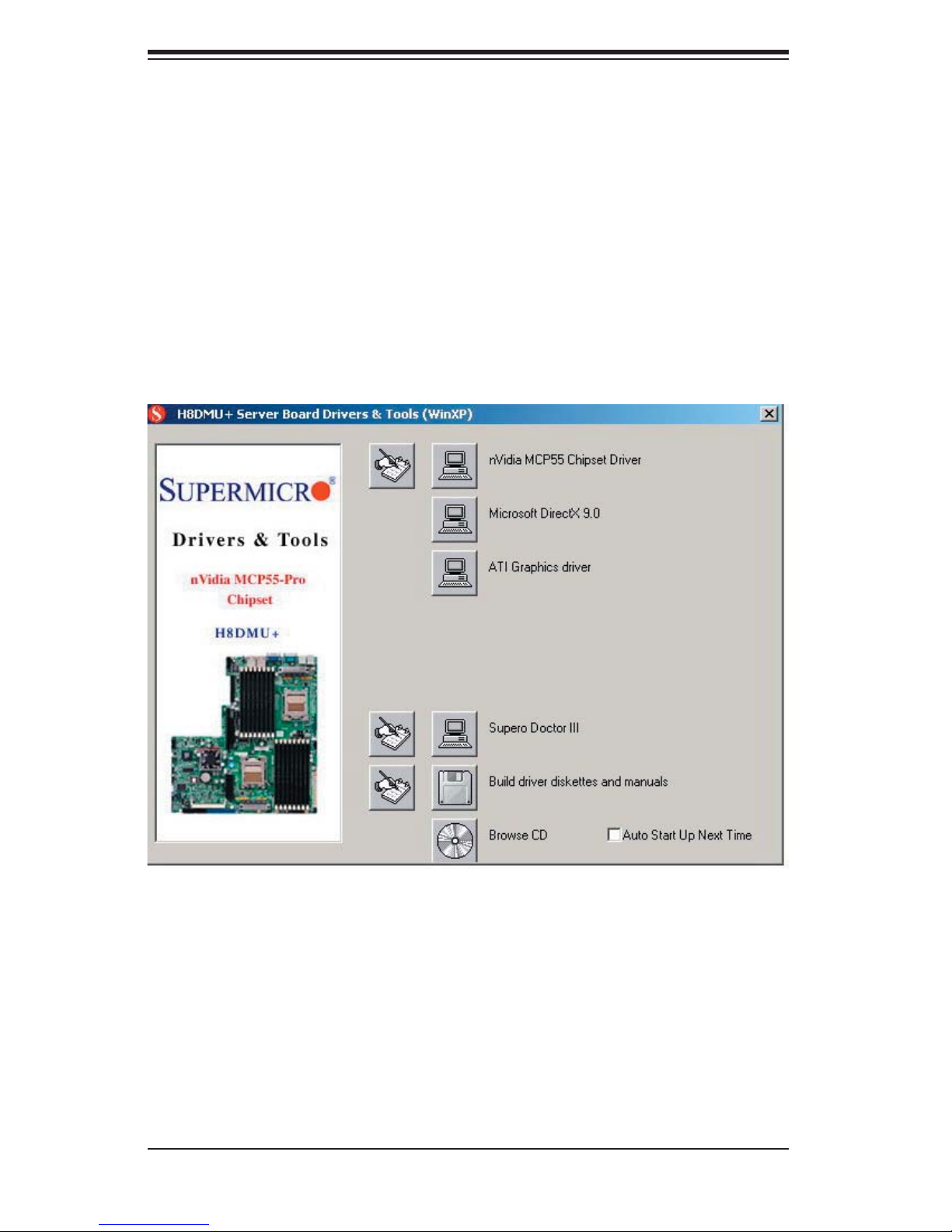

5-13 Installing Drivers ........................................................................................... 5-28

Chapter 6: Advanced Chassis Setup

6-1 Static-Sensitive Devices ................................................................................. 6-1

6-2 Control Panel .................................................................................................. 6-2

6-3 System Fans ................................................................................................... 6-3

System Fan Failure .................................................................................. 6-3

Replacing System Fans ........................................................................... 6-3

6-4 Drive Bay Installation/Removal ...................................................................... 6-4

6-5 Power Supply ................................................................................................. 6-9

Power Supply Failure ............................................................................... 6-9

Removing/Replacing the Power Supply ................................................... 6-9

viii

Table of Contents

Chapter 7: BIOS

7-1 Introduction ..................................................................................................... 7-1

7-2 Main Menu ...................................................................................................... 7-2

7-3 Advanced Settings Menu ............................................................................... 7-2

7-4 Boot Menu .................................................................................................... 7-16

7-5 Security Menu ............................................................................................... 7-17

7-6 Exit Menu ...................................................................................................... 7-18

Appendices:

Appendix A: BIOS Error Beep Codes

Appendix B: BIOS POST Checkpoint Codes

Appendix C: System Specifi cations

ix

2021M-UR+ User's Manual

Notes

x

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

The AS2021M-UR+ is a high-end server comprised of two main subsystems: the

SC825TQ-R700U 2U server chassis and the H8DMU+ dual processor serverboard.

Please refer to our web site for information on operating systems that have been

certifi ed for use with the system (www.supermicro.com).

In addition to the serverboard and chassis, various hardware components have

been included with the 2021M-UR+, as listed below:

 One (1) slim DVD-ROM drive [DVM-PNSC-824(B)]

 Three (3) 8-cm hot-swap chassis fans (FAN-0094L)

 One (1) air shroud (MCP-310-00025-01)

 Two (2) passive CPU heatsinks (SNK-P0023P)

 Riser Cards: (see Section 5-6 for details)

One (1) CSE-R2UU-2E8R

One (1) CSE-R2UU-UA3E8

 SAS/SATA Accessories

One (1) SAS/SATA backplane (BPN-SAS-825TQ)

Two (2) SAS/SATA iPASS cables (CBL-0188L)

Eight (8) SATA drive carriers (MCP-220-00001-01)

 One (1) rackmount kit (MCP-290-00002-00)

 One (1) CD containing drivers and utilities

Notes: A "V" at the end of a server name indicates the chassis is silver.

The AS2021M-UR+ requires a SAS UIO card for SAS capability.

1-1

AS2021M-UR+ User's Manual

1-2 Serverboard Features

At the heart of the AS2021M-UR+ lies the H8DMU+, a dual processor serverboard

based the nVidia MCP55 Pro chipset. Below are the main features of the H8DMU+

(see Figure 1-1 for a block diagram of the chipset).

Processors

The H8DMU+ supports single or dual AMD 64-bit Socket F, Opteron 2000 type

processors. Please refer to the serverboard description pages on our web site for

a complete listing of supported processors.

Memory

The H8DMU+ has sixteen dual/single channel DIMM slots supporting up to 64

GB of DDR2-667/533/400 registered ECC SDRAM. Please refer to Chapter 5 for

memory speed jumper settings.

UIO

The H8DMU+ is a specially-designed serverboard that features Supermicro's UIO

(Universal I/O) technology. UIO serverboards have a PCI-Express x8 connector

that can support any one of several types of UIO card types to add SAS ports,

additional LAN ports, etc. to the serverboard. This allows the user to tailor the

serverboard to their own needs.

Serial ATA

An on-chip SATA controller is integrated into the H8DMU+ to provide a six-port, 3

Gb/sec Serial ATA subsystem, which is RAID 0, 1, 0+1, 5 and JBOD supported.

The SATA drives are hot-swappable units. Note: The operating system you use

must have RAID support to enable the hot-swap capability and RAID function of

the Serial ATA drives.

Onboard Controllers/Ports

One fl oppy drive controller and one onboard ATA/133 controller are provided to

support up to two IDE hard drives or ATAPI devices. The color-coded I/O ports

include one COM port, a VGA (monitor) port, two USB 2.0 ports, PS/2 mouse and

keyboard ports and two gigabit Ethernet ports.

1-2

Chapter 1: Introduction

ATI Graphics Controller

The H8DMU+ features an integrated ATI video controller based on the ES1000

graphics chip. The ES1000 was designed specifi cally for servers, featuring low

power consumption, high reliability and superior longevity.

Other Features

Other onboard features that promote system health include onboard voltage moni-

tors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU

overheat sensors, virus protection and BIOS rescue.

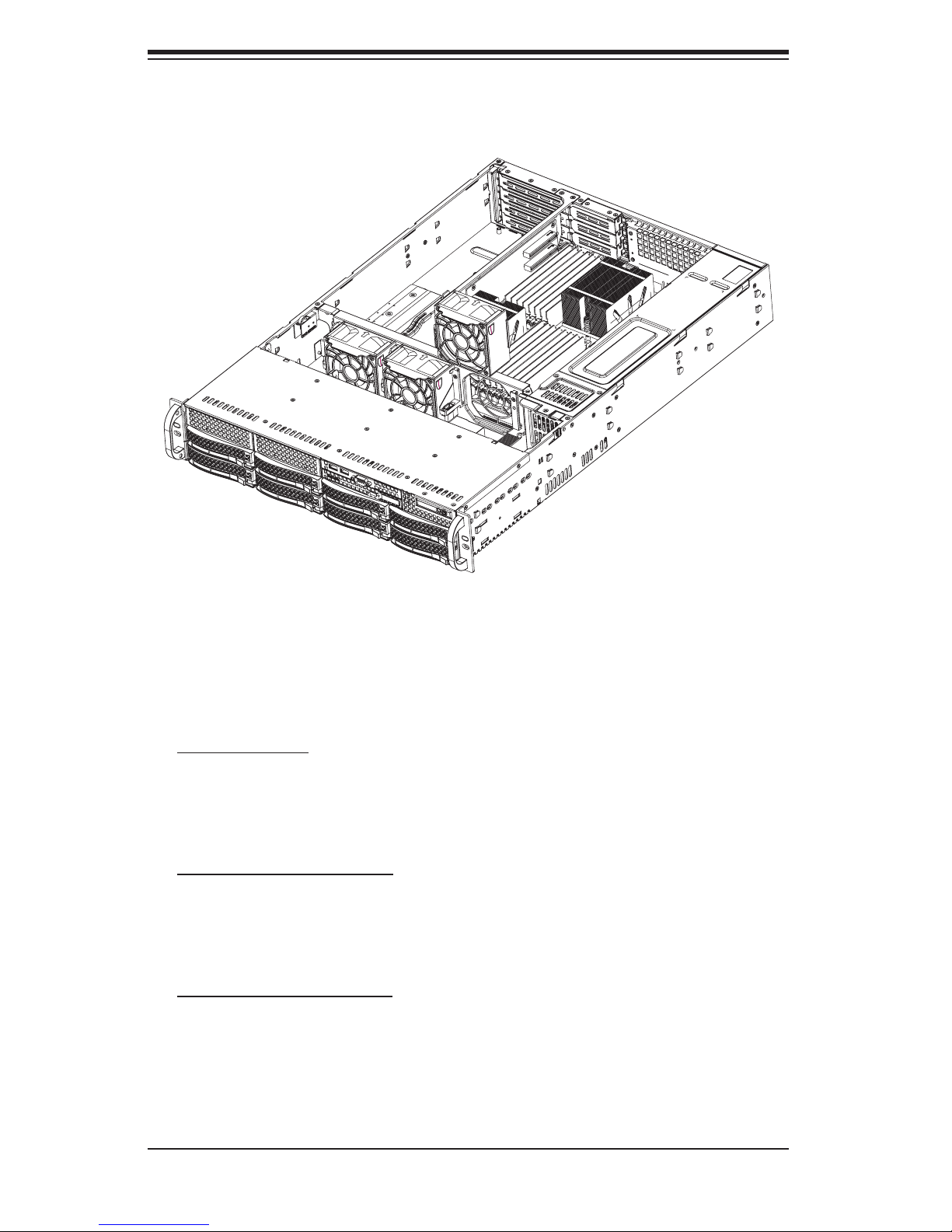

1-3 Server Chassis Features

The following is a general outline of the main features of the SC825TQ-R700U

server chassis.

System Power

The SC825TQ-R700U features a redundant 700W power supply composed of two

separate power modules. This power redundancy feature allows you to replace a

failed power supply without shutting down the system.

Serial ATA Subsystem

The SC825TQ-R700U supports up to eight 3 Gb/s Serial ATA drives. The Serial

ATA drives are hot-swappable units and are connected to a backplane that provides

power and control.

Note: The operating system you use must have RAID support to enable the hot-

swap capability of the Serial ATA drives.

PCI Expansion Slots

When confi gured as a 2021M-UR+ server, the SC825TQ-R700U suppports expan-

sion cards on both the left and right sides of the chassis:

Left side: UIO card and three PCI-Express x8 cards (with RSC-R2UU-UA3E8 riser

card.)

Right side: one PCI-E x8 card and one PCI-E x4 card in a x8 slot (with RSC-R2UU-

2E8R riser card). (Left and right refer to the side when viewed from the front of the

chassis.)

1-3

AS2021M-UR+ User's Manual

Front Control Panel

The control panel on the SuperServer 2021M-UR+ provides you with system

monitoring and control. LEDs indicate system power, HDD activity, network activ-

ity, system overheat and power supply failure. A main power button and a system

reset button are also included. In addition, two USB ports have been incorporated

into the control panel to provide front side USB access.

I/O Backplane

The SC825TQ-R700U is an ATX form factor chassis designed to be used in a

2U rackmount confi guration. The I/O backplane provides seven low-profi le PCI

expansion slots, one COM port, a VGA port, two USB 2.0 ports, PS/2 mouse and

keyboard ports and two gigabit Ethernet ports.

Cooling System

The SC825TQ-R700U chassis has an innovative cooling design that includes three

8-cm hot-plug system cooling fans located in the middle section of the chassis. An

air shroud channels the airfl ow from the system fans to effi ciently cool the processor

area of the system. The power supply module also includes a cooling fan.

1-4

Chapter 1: Introduction

Figure 1-1. MCP55 Pro Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

DDR2-667/533/400 DDR2-667/533/400

DIMM 4B

DIMM 4A

DIMM 3B

DIMM 3A

DIMM 2B

DIMM 2A

DIMM 1B

DIMM 1A

128-bit data + 16-bit ECC

AMD Socket F

Pro cessor (CPU 2)

PCI-E x16 Slot

16 x 16 HT link (1 GHz)

PCI-E x16

AMD Socket F

Processor (CPU1)

128-bit data + 16-bit ECC

16 x 16 HT link (1 GHz)

DIMM 4B

DIMM 4A

DIMM 3B

DIMM 3A

DIMM 2B

DIMM 2A

DIMM 1B

DIMM 1A

SATA Por ts (6)

IDE: AT A133 (1)

nVidia MCP55Pro

PCI-E x8 Slot

PCI- E x4 Slot

PCI-E x8

PCI-E x4

USB Ports (6)

ATI ES1000

Ether net Por ts (2)

LPC

S I/O BIOS

Floppy

Kybd/

Mouse

Serial Ports

IPMI

(2)

1-5

AS2021M-UR+ User's Manual

1-4 Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)

Asia-Pacifi c

Address: Super Micro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

1-6

Chapter 2: Server Installation

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your 2021M-UR+ up and

running. Following these steps in the order given should enable you to have the

system operational within a minimum amount of time. This quick setup assumes

that your system has come to you with the processors and memory preinstalled. If

your system is not already fully integrated with a serverboard, processors, system

memory etc., please turn to the chapter or section noted in each step for details on

installing specifi c components.

2-2 Unpacking the System

You should inspect the box the 2021M-UR+ was shipped in and note if it was dam-

aged in any way. If the server itself shows damage you should fi le a damage claim

with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the 2021M-UR+. It should

be situated in a clean, dust-free area that is well ventilated. Avoid areas where

heat, electrical noise and electromagnetic fi elds are generated. You will also need

it placed near a grounded power outlet. Read the Rack and Server Precautions in

the next section.

2-3 Preparing for Setup

The box the 2021M-UR+ was shipped in should include two sets of rail assemblies,

two rail mounting brackets and the mounting screws you will need to install the

system into the rack. Follow the steps in the order given to complete the installation

process in a minimum amount of time. Please read this section in its entirety before

you begin the installation procedure outlined in the sections that follow.

2-1

AS2021M-UR+ User's Manual

Choosing a Setup Location

- Leave enough clearance in front of the rack to enable you to open the front

door completely (~25 inches).

- Leave approximately 30 inches of clearance in the back of the rack to allow for

suffi cient airfl ow and ease in servicing.

-This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

- This product is not suitable for use with visual display work place devices according

to §2 of the the German Ordinance for Work with Visual Display Units.

!

Warnings and Precautions!

!

Rack Precautions

- Ensure that the leveling jacks on the bottom of the rack are fully extended to the

fl oor with the full weight of the rack resting on them.

- In single rack installation, stabilizers should be attached to the rack.

- In multiple rack installations, the racks should be coupled together.

- Always make sure the rack is stable before extending a component from the

rack.

- You should extend only one component at a time - extending two or more simul-

taneously may cause the rack to become unstable.

Server Precautions

- Review the electrical and general safety precautions in Chapter 4.

- Determine the placement of each component in the rack before you install the

rails.

- Install the heaviest server components on the bottom of the rack fi rst, and then

work up.

- Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a power

failure.

-

Allow the hot plug SATA drives and power supply units to cool before touch-

ing them.

-

Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

2-2

Chapter 2: Server Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera-

ture of the rack environment may be greater than the ambient temperature of the

room. Therefore, consideration should be given to installing the equipment in an

environment compatible with the manufacturer’s maximum rated ambient tempera-

ture (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required

for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not

arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply connec-

tions other than the direct connections to the branch circuit (i.e. the use of power

strips, etc.).

2-3

AS2021M-UR+ User's Manual

2-4 Installing the System into a Rack

This section provides information on installing the 2021M-UR+ into a rack unit. If

the 2021M-UR+ has already been mounted into a rack, you can skip ahead to

Sections 2-5 and 2-6. There are a variety of rack units on the market, which may

mean the assembly procedure will differ slightly. The following is a guideline for

installing the system into a rack with the rack rails provided. You should also refer

to the installation instructions that came with the rack unit you are using.

Identifying the Sections of the Rack Rails

You should have received a total of six rack rail sections with the 2021M-UR+. Two

of these sections secure directly to the 2021M-UR+ and the third (which actually

consists of two joined sections) secures directly to the rack itself. All screws and

hardware mentioned in the installation steps should be included in the hardware

kit.

Refer to Figure 2-1 to determine which rail section gets attached to the front of the

chassis and which gets attached to the rear of the chassis. (The longer of the two

is the front section. The third rail section attaches to the rack.)

Installing the Chassis Rails

Position the front and rear chassis rail sections along the side of the 2021M-UR+

making sure the screw holes line up. Note that these two rails are left/right specifi c.

Screw the front chassis rail (the long piece) securely to the side of the chassis

(see Figure 2-1, step 1). There should be two screws for each side. Repeat this

procedure for the other rail on the opposite side of the chassis. Then attach the

two rear chassis rails to the chassis in the same manner, again keeping in mind

that the rails are left/right specifi c. (You will also need to attach the rail brackets

when installng into a telco rack.)

Locking Tabs: Both front chassis rails and the rack rails have a locking tab, which

serves two functions. The fi rst is to lock the server into place when installed and

pushed fully into the rack, which is its normal position. Secondly, these tabs also

lock the server in place when fully extended from the rack. This prevents the server

from coming completely out of the rack when you pull it out for servicing.

2-4

Chapter 2: Server Installation

Figure 2-1. Installing Chassis Rails

2-5

AS2021M-UR+ User's Manual

Installing the Rack Rails:

Determine where you want to place the 2021M-UR+ in the rack. (See Rack and

Server Precautions in Section 2-3.) Position the fi xed rack rail/sliding rail guide as-

semblies (made up of two inter-locking sections) at the desired location in the rack,

keeping the sliding rail guide facing the inside of the rack and the rollers toward

the front of the rack. Screw the assembly securely to the rack. Attach the other

assembly to the other side of the rack, making sure both are at the exact same

height and with the rail guides facing inward.

Installing the Server into the Rack

You should now have rails attached to both the chassis and the rack unit. The next

step is to install the server into the rack. Do this by lining up the rear of the chas-

sis rails with the front of the rack rails. Slide the chassis rails into the rack rails,

keeping the pressure even on both sides (you may have to depress the locking

tabs when inserting). See Figure 2-2.

When the server has been pushed completely into the rack, you should hear the

locking tabs "click". Finish by inserting and tightening the thumbscrews that hold

the front of the server to the rack.

Installing the Server into a Telco Rack

To install the 2021M-UR+ into a Telco type rack, use two L-shaped brackets on

either side of the chassis (four total). First, determine how far follow the server will

extend out the front of the rack. Larger chassis should be positioned to balance

the weight between front and back. If a bezel is included on your server, remove

it. Then attach the two front brackets to each side of the chassis, then the two

rear brackets positioned with just enough space to accommodate the width of the

telco rack. Finish by sliding the chassis into the rack and tightening the brackets

to the rack.

2-6

Chapter 2: Server Installation

Figure 2-2. Installing the Server into a Rack

2-7

AS2021M-UR+ User's Manual

2-5 Checking the Serverboard Setup

After you install the 2021M-UR+ in the rack, you will need to open the unit to

make sure the serverboard is properly installed and all the connections have been

made.

1. Accessing the inside of the System (see Figure 2-3)

First, grasp the two handles on either side and pull the unit straight out until it locks

(you will hear a "click"). Next, depress the two buttons on the top of the chassis to

release the top cover. You can then lift the top cover from the chassis to gain full

access to the inside of the server.

2. Check the CPUs (processors)

You may have one or two processors already installed into the serverboard. Each

processor needs its own heatsink. See Chapter 5 for instructions on processor and

heatsink installation.

3. Check the system memory

Your 2021M-UR+ server system may have come with system memory already in-

stalled. Make sure all DIMMs are fully seated in their slots. For details on adding

system memory, refer to Chapter 5.

4. Installing add-on cards

If desired, you can install add-on cards to the system. See Chapter 5 for details

on installing PCI add-on cards.

5. Check all cable connections and airfl ow

Make sure all power and data cables are properly connected and not blocking the

chassis airfl ow. Also make sure that no cables are positioned in front of the fans.

See Chapter 5 for details on cable connections.

2-8

Chapter 2: Server Installation

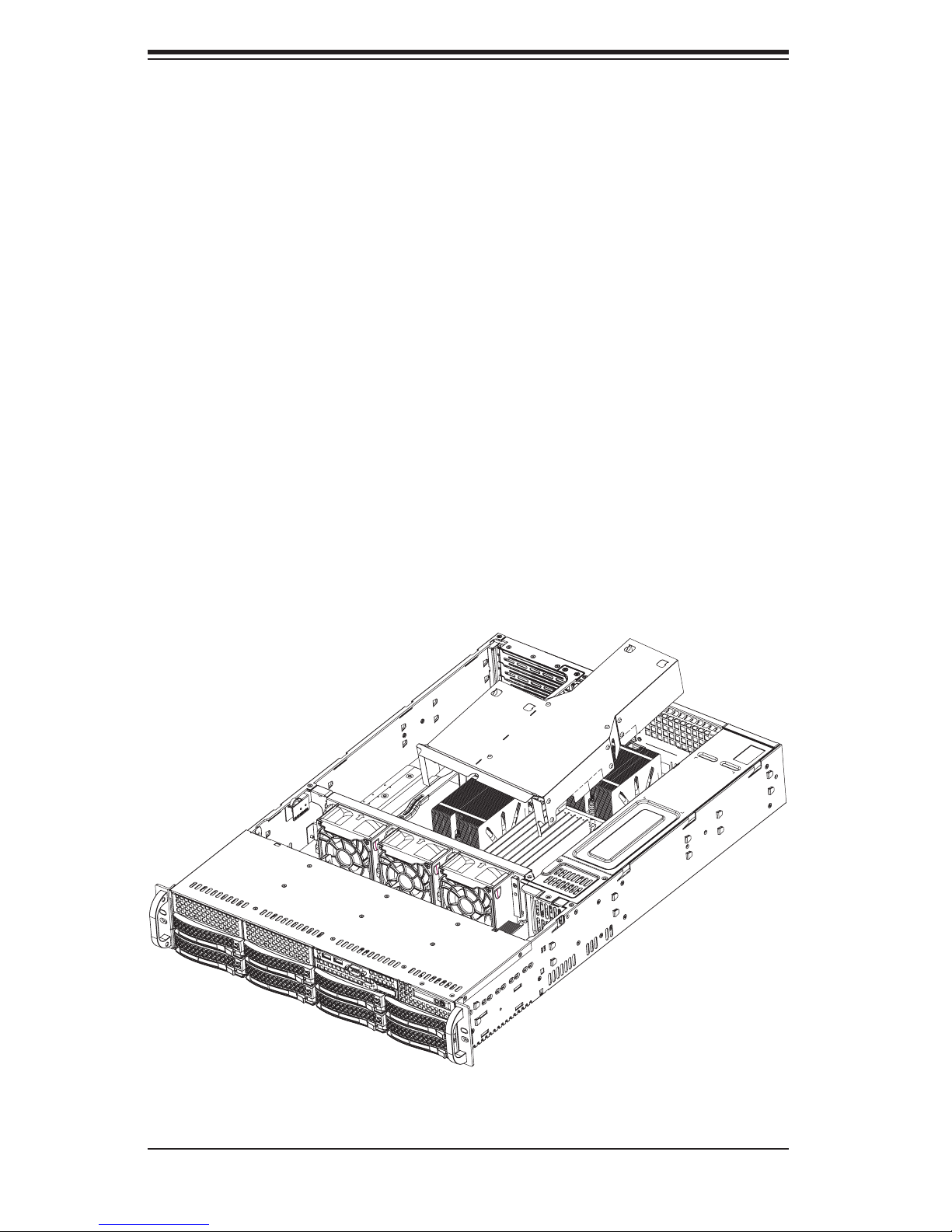

Figure 2-3. Accessing the Inside of the System

2-9

AS2021M-UR+ User's Manual

2-6 Checking the Drive Bay Setup

Next, you should check to make sure the peripheral drives have been properly

installed and all connections have been made.

1. Accessing the drive bays

All drives are accessable from the front of the server. For servicing the DVD-ROM

and fl oppy drives, you will need to remove the top chassis cover. The SAS/SATA

disk drives can be installed and removed from the front of the chassis without

removing the top chassis cover.

2. DVD-ROM and fl oppy disk drives

A slim DVD-ROM and a fl oppy drive should be preinstalled in your server. Refer

to Chapter 6 if you need to reinstall a DVD-ROM and/or fl oppy disk drive to the

system.

3. Check the SAS/SATA drives

Depending upon your system's confi guration, your system may have one or more

drives already installed. If you need to install SAS or SATA drives, please refer

to Chapter 6.

4. Check the airfl ow

Airfl ow is provided by four 8-cm center chassis cooling fans. An air shroud is also

included in the system to maximize airfl ow. The system component layout was

carefully designed to direct suffi cient cooling airfl ow to the components that gener-

ate the most heat. Note that all power and data cables have been routed in such

a way that they do not block the airfl ow generated by the fans.

5. Supplying power to the system

The last thing you must do is to provide input power to the system. Plug the power

cords from the power supply modules into a high-quality power strip that offers

protection from electrical noise and power surges. It is recommended that you use

an uninterruptible power supply (UPS).

2-10

Chapter 3: System Interface

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the drive carri-

ers to keep you constantly informed of the overall status of the system as well as

the activity and health of specifi c components. There are also two buttons on the

chassis control panel.

3-2 Control Panel Buttons

There are three push-buttons located on the front of the chassis: a reset button,

a UID button and a power on/off button.

 UID:

the front and rear of the chassis for easy system location in large stack confi gura-

tions. The LED will remain on until the button is pushed a second time. Another

UID button on the rear of the chassis serves the same function.

 RESET:

Depressing the UID (unit identifi er) button illuminates an LED on both

Use the reset button to reboot the system.

 POWER: This is the main power button, which is used to apply or turn off

the main system power. Turning off system power with this button removes the

main power but keeps standby power supplied to the system.

3-1

AS2021M-UR+ User's Manual

3-3 Control Panel LEDs

The control panel located on the front of the chassis has several LEDs to provide

you with critical information related to different parts of the system. This section

explains what each LED indicates when illuminated and any corrective action you

may need to take.



Universal Information LED: When this LED blinks red slowly, it indicates

a fan failure and when blinking red quickly a power failure. This LED will be blue

when used for UID (Unit Identifi er). When on continuously it indicates an overheat

condition, which may be caused by cables obstructing the airfl ow in the system or

the ambient room temperature being too warm. Check the routing of the cables

and make sure all fans are present and operating normally. You should also check

to make sure that the chassis covers are installed. Finally, verify that the heatsinks

are installed properly (see Chapter 5). This LED will remain fl ashing or on as long

as the indicated condition exists. See the table below for descriptions of the LED

states.

Figure 3-1. Universal Information LED States

Universal Information LED States

State Indication

Fast Blinking Red (1x/sec) Fan Fail

Solid Red CPU Overheat

Slow Blinking Red (1x/4 sec) Power Fail

Solid Blue Local UID Button Depressed

Blinking Blue IPMI-Activated UID

Note: deactivating the UID LED must be performed in the same way it was acti-

vated. (If the UID LED was activated via IPMI, you can only turn the LED off via

IPMI and not with the UID button.)

3-2

Chapter 3: System Interface

1

 NIC2: Indicates network activity on LAN2 when fl ashing .

2

 NIC1: Indicates network activity on LAN1 when fl ashing.

 HDD: Indicates IDE channel activity. On the SuperServer 6015A-NT, this

light indicates SATA and/or DVD-ROM drive activity when fl ashing.

 Power: Indicates power is being supplied to the system's power supply

units. This LED should normally be illuminated when the system is operating.

3-4 Drive Carrier LEDs

SAS/SATA Drives



Green: Each drive carrier has a green LED. When illuminated, this green

LED (on the front of the drive carrier) indicates drive activity. A connection to the

backplane enables this LED to blink on and off when that particular drive is being

accessed.

 Red: The red LED indicates two states. When blinking, it indicates the drive

is rebuilding. When solid, it indicates a drive failure. If a SAS/SATA drive fails, you

should be notifi ed by your system management software. Please refer to Chapter

6 for instructions on replacing failed drives.

3-3

AS2021M-UR+ User's Manual

Notes

3-4

Chapter 4: System Safety

Chapter 4

System Safety

4-1 Electrical Safety Precautions

!

Basic electrical safety precautions should be followed to protect yourself from

harm and the 2021M-UR+ from damage:

 Be aware of the locations of the power on/off switch on the chassis as well as

the room's emergency power-off switch, disconnection switch or electrical

outlet. If an electrical accident occurs, you can then quickly remove power

from the system.

 Do not work alone when working with high voltage components.

 Power should always be disconnected from the system when removing or

installing main system components, such as the serverboard, memory

modules and the DVD-ROM and fl oppy drives. When disconnecting power,

you should fi rst power down the system with the operating system and then

unplug the power cords of all the power supply units in the system.

 When working around exposed electrical circuits, another person who is

familiar with the power-off controls should be nearby to switch off the power

if necessary.

 Use only one hand when working with powered-on electrical equipment. This

is to avoid making a complete circuit, which will cause electrical shock.

Use extreme caution when using metal tools, which can easily damage any

electrical components or circuit boards they come into contact with.

 Do not use mats designed to decrease electrostatic discharge as protection

from electrical shock. Instead, use rubber mats that have been specifi cally

designed as electrical insulators.

4-1

AS2021M-UR+ User's Manual

 The power supply power cord must include a grounding plug and must be

plugged into grounded electrical outlets.

 Serverboard Battery: CAUTION - There is a danger of explosion if the onboard

battery is installed upside down, which will reverse its polarities (see Figure

4-1). This battery must be replaced only with the same or an equivalent type

recommended by the manufacturer. Dispose of used batteries according to

the manufacturer's instructions.

 DVD-ROM Laser: CAUTION - this server may have come equipped with

a DVD-ROM drive. To prevent direct exposure to the laser beam and

hazardous radiation exposure, do not open the enclosure or use the unit in

any unconventional way.

 Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Tempera-

ture Coeffi cient) fuses on the mainboard must be replaced by trained service

technicians only. The new fuse must be the same or equivalent as the one

replaced. Contact technical support for details and support.

4-2 General Safety Precautions

!

Follow these rules to ensure general safety:

 Keep the area around the 2021M-UR+ clean and free of clutter.

 The 2021M-UR+ weighs approximately 37 lbs (16.8 kg.) when fully loaded.

When lifting the system, two people at either end should lift slowly with their

feet spread out to distribute the weight. Always keep your back straight and

lift with your legs. Don't use the handles (if installed) to lift the chassis; the

handles should only be used to pull the server out of the rack.

 Place the chassis top cover and any system components that have been

removed away from the system or on a table so that they won't accidentally

be stepped on.

 While working on the system, do not wear loose clothing such as neckties and

unbuttoned shirt sleeves, which can come into contact with electrical circuits

or be pulled into a cooling fan.

4-2

Chapter 4: System Safety

 Remove any jewelry or metal objects from your body, which are excellent metal

conductors that can create short circuits and harm you if they come into

contact with printed circuit boards or areas where power is present.

 After accessing the inside of the system, close the system back up and secure

it to the rack unit with the retention screws after ensuring that all connections

have been made.

4-3 ESD Precautions

!

Electrostatic discharge (ESD) is generated by two objects with different electrical

charges coming into contact with each other. An electrical discharge is created to

neutralize this difference, which can damage electronic com ponents and printed

circuit boards. The following measures are generally suffi cient to neutralize this

difference before contact is made to protect your equipment from ESD:

 Use a grounded wrist strap designed to prevent static discharge.

 Keep all components and printed circuit boards (PCBs) in their antistatic

bags until ready for use.

 Touch a grounded metal object before removing the board from the antistatic

bag.

 Do not let components or PCBs come into contact with your clothing, which

may retain a charge even if you are wearing a wrist strap.

 Handle a board by its edges only; do not touch its components, peripheral

chips, memory modules or contacts.

 When handling chips or modules, avoid touching their pins.

 Put the serverboard and peripherals back into their antistatic bags when

not in use.

4-3

AS2021M-UR+ User's Manual

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

4-4 Operating Precautions

!

Care must be taken to assure that the chassis cover is in place when the

2021M-UR+ is operating to assure proper cooling. Out of warranty damage to

the 2021M-UR+ system can occur if this practice is not strictly followed.

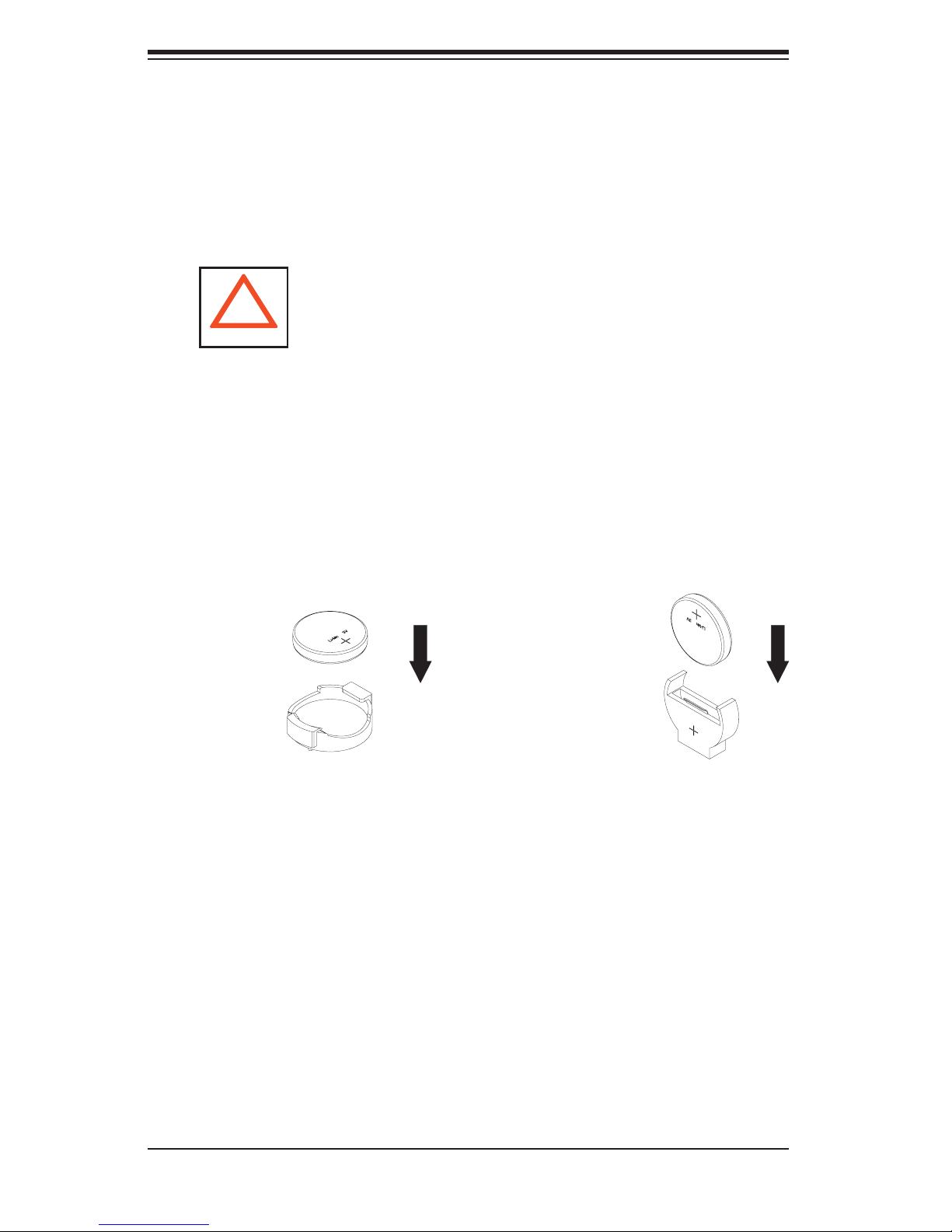

Figure 4-1. Installing the Onboard Battery

LITHIUM BATTERY

LITHIUM BATTERY

OR

BATTERY HOLDER BATTERY HOLDER

4-4

Chapter 5: Advanced Serverboard Setup

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to install processors and heatsinks to

the H8DMU+ serverboard, connect the data and power cables and install add-on

cards. All serverboard jumpers and connections are described and a layout and

quick reference chart are included in this chapter. Remember to close the chas-

sis completely when you have fi nished working on the serverboard to protect and

cool the system suffi ciently.

5-1 Handling the Serverboard

Static electrical discharge can damage electronic com ponents. To prevent dam-

age to printed circuit boards, it is important to handle them very carefully (see

Chapter 4). Also note that the size and weight of the serverboard can cause

it to bend if handled improperly, which may result in damage. To prevent the

serverboard from bending, keep one hand under the center of the board to sup-

port it when handling. The following measures are generally suffi cient to protect

your equipment from static discharge.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

5-1

AS2021M-UR+ User's Manual

5-2 Processor and Heatsink Installation

Exercise extreme caution when handling and installing the proces-

!

CPU Backplates

Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to

prevent the CPU area of the serverboard from bending and to provide a base for

attaching the heatsink retention modules.

sor. Always connect the power cord last and always remove it be-

fore adding, removing or changing any hardware components.

Installing the Processor (install to the CPU#1 socket fi rst)

1. Begin by removing the cover plate

that protects the CPU. Lift the lever

on CPU socket #1 until it points straight

up. With the lever raised, lift open the

silver CPU retention plate.

Triangles

2. Use your thumb and your index

fi nger to hold the CPU. Locate and

align pin 1 of the CPU socket with pin

1 of the CPU. Both are marked with

a triangle.

5-2

3. Align pin 1 of the CPU with pin 1

of the socket. Once aligned, carefully

place the CPU into the socket. Do not

drop the CPU on the socket, move the

CPU horizontally or vertically or rub the

CPU against the socket or against any

pins of the socket, which may damage

the CPU and/or the socket.

Chapter 5: Advanced Serverboard Setup

4. With the CPU inserted into the

socket, inspect the four corners of the

CPU to make sure that it is properly in-

stalled and fl ush with the socket. Then,

gently lower the silver CPU retention

plate into place.

5. Carefully press the CPU socket

lever down until it locks into its reten-

tion tab. For a dual-processor system,

repeat these steps to install another

CPU into the CPU#2 socket.

Note: if using a single processor, only

the CPU1 DIMM slots are addressable

for a maximum of 32 GB memory.

5-3

AS2021M-UR+ User's Manual

Installing the Heatsink Retention Modules

Two heatsink retention modules (BKT-0012L) and four screws are included in the

retail box. Once installed, these are used to help attach the heatsinks to the CPUs.

To install, align the module with the standoffs of the preinstalled CPU backplate and

with the four feet on the module contacting the serverboard. Secure the retention

module to the backplate with two of the screws provided. See Figure 2-1. Repeat

for the second CPU socket.

Note: BKT-0012L is included for use with non-Supermicro heatsinks only. When

installing Supermicro heatsinks, only BKT-0011L (the pre-installed CPU backplate)

is needed. The BKT-0012L retention module was designed to provide compatibility

with clip-and-cam type heatsinks from third parties.

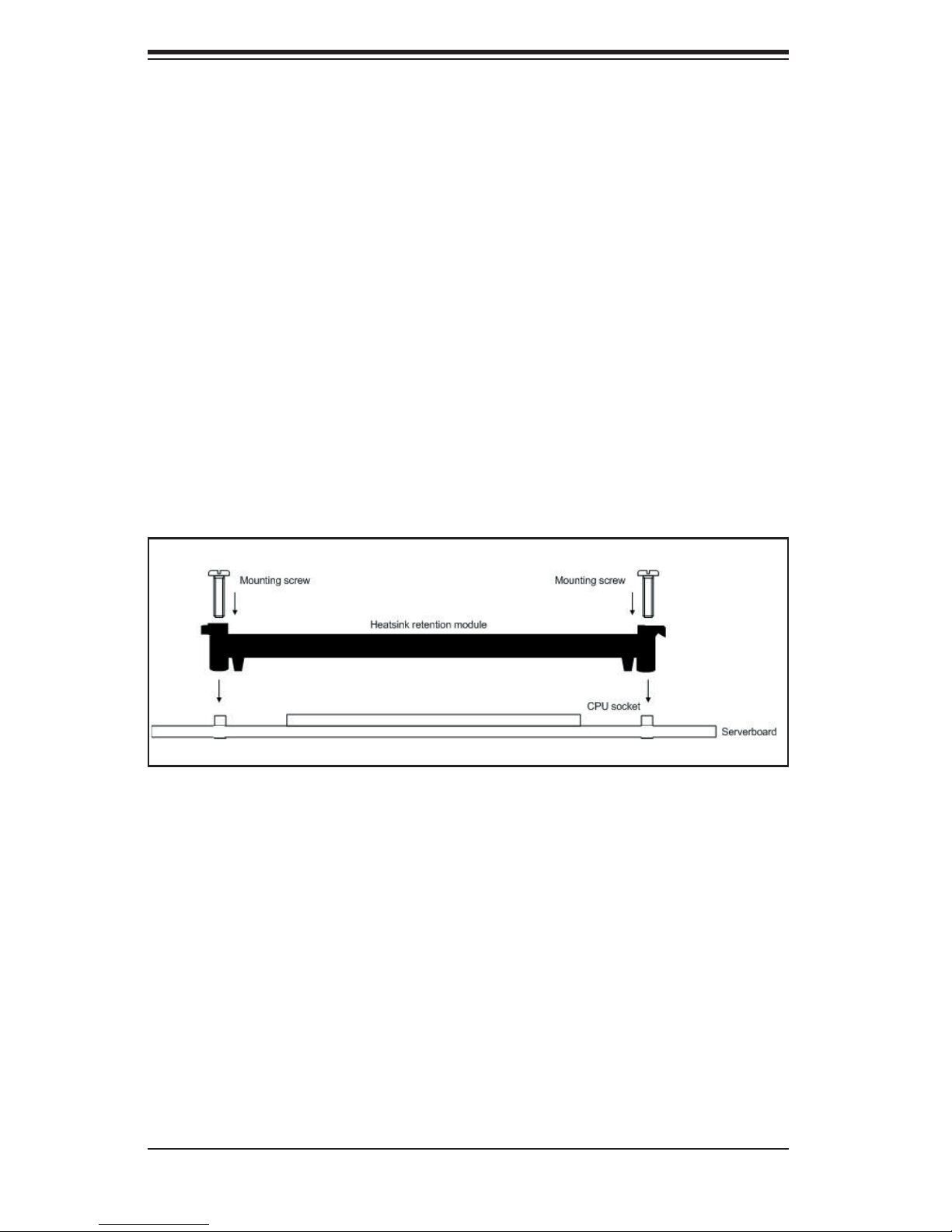

Figure 2-1. CPU Heatsink Retention Module Installation

Installing the Heatsink

The use of active type heatsinks (except for 1U systems) are recommended. Con-

nect the heatsink fans to the appropriate fan headers on the serverboard. To install

the heatsinks, please follow the installation instructions included with your heatsink

package (not included).

5-4

Chapter 5: Advanced Serverboard Setup

5-3 Connecting Cables

Now that the processors are installed, the next step is to connect the cables to

the serverboard. These include the data (ribbon) cables for the peripherals and

control panel and the power cables.

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully

routed in preconfi gured systems to prevent them from blocking the fl ow of cooling

air that moves through the system from front to back. If you need to disconnect

any of these cables, you should take care to reroute them as they were originally

after reconnecting them (make sure the red wires connect to the pin 1 locations).

If you are confi guring the system, keep the airfl ow in mind when routing the

cables. The following data cables (with their serverboard connector locations

noted) should be connected. See the serverboard layout diagram in this chapter

for connector locations.

 DVD-ROM Drive cable (IDE#1)

 Control Panel cable (JF1, see next page)

 SAS or SATA cables (up to 8)

Connecting Power Cables

The H8DMU+ has a 20-pin primary power supply connector designated "JPW1"

for connection to the ATX power supply. Connect the appropriate connector from

the power supply to JPW1 to supply power to the serverboard. See the Connector

Defi nitions section in this chapter for power connector pin defi nitions.

In addition, your power supply must be connected to the 4-pin Auxiliary ATX Power

connection at J32 and the 8-pin Processor Power connector at JPW2.

5-5

AS2021M-UR+ User's Manual

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure

5-1 for the pin locations of the various front control panel buttons and LED indi-

cators. Please note that even and odd numbered pins are on opposite sides of

each header.

All JF1 wires have been bundled into single keyed ribbon cable to simplify their

connection. The red wire in the ribbon cable plugs into pin 1 of JF1. Connect

the other end of the cable to the Control Panel printed circuit board, located just

behind the system status LEDs in the chassis.

See the Connector Defi nitions section in this chapter for details and pin descrip-

tions of JF1.

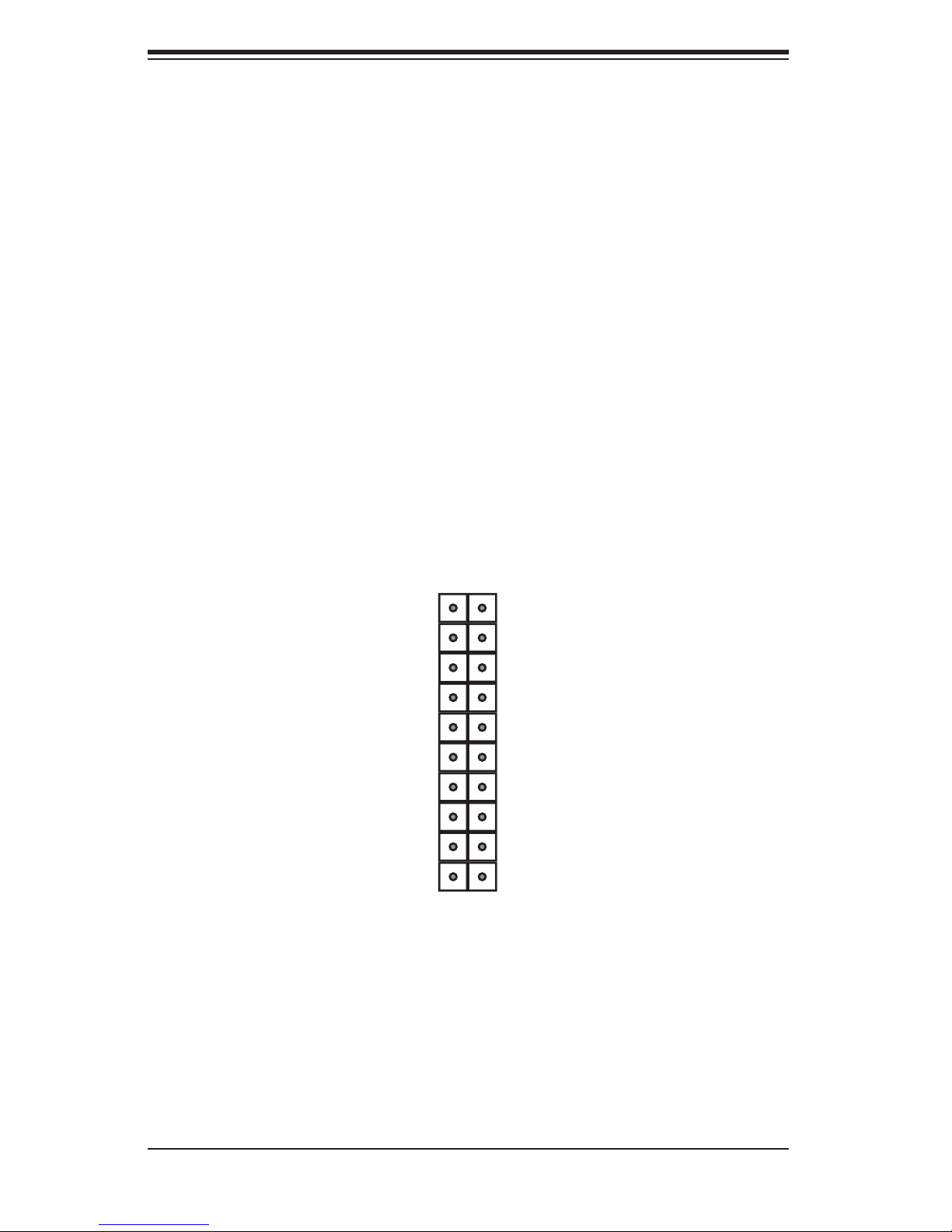

Figure 5-1. Front Control Panel Header Pins (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1

NIC2

OH/Fan Fail/Pwr Fail LED

Power Fail LED

Ground

Ground

2 1

NMI

x (key)

Vcc

UID Button/HDD LED Power

Vcc

Vcc

UID LED

Vcc

Reset

Power

5-6

Chapter 5: Advanced Serverboard Setup

5-4 I/O Ports

The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports.

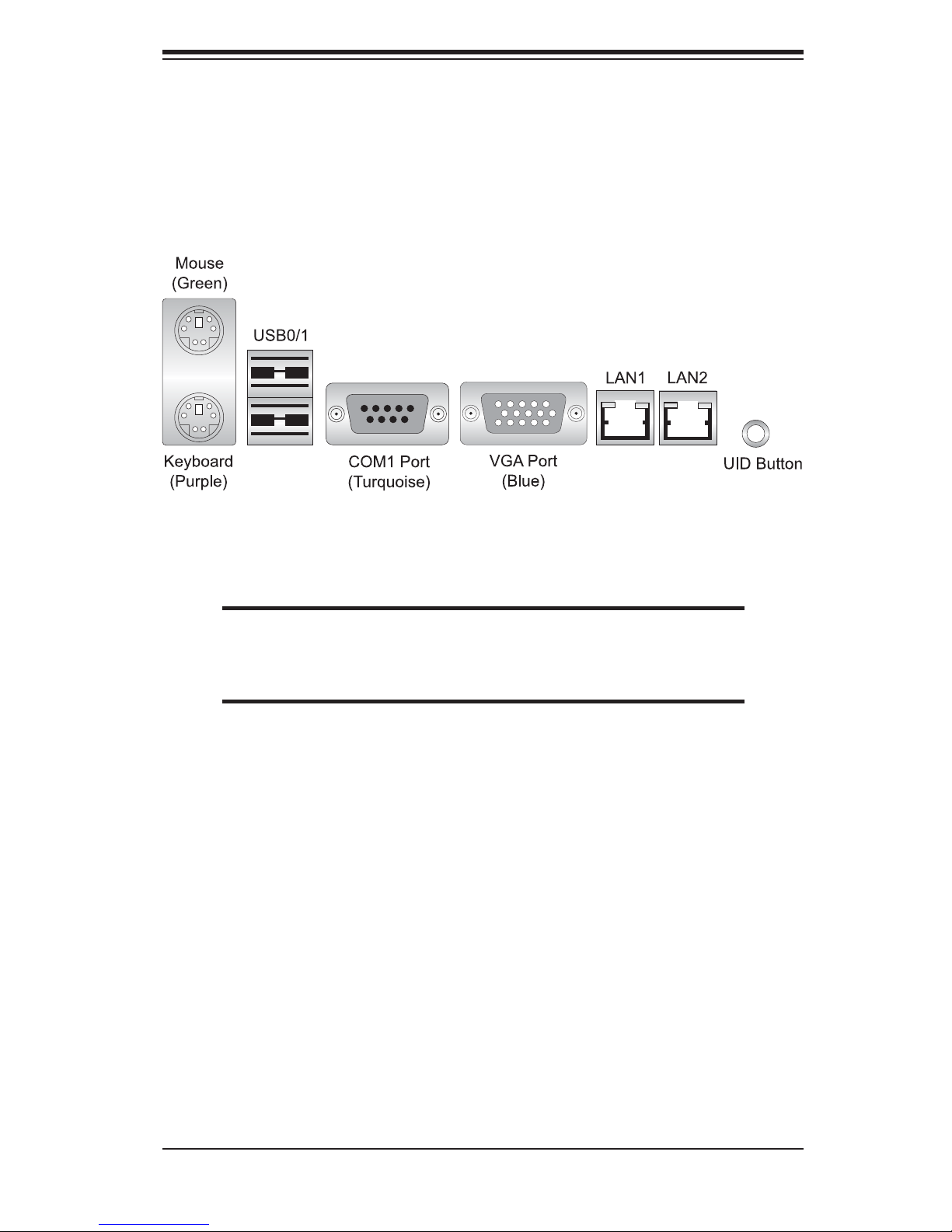

Figure 5-2. Rear Panel I/O Ports

5-5 Installing Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see

Figure 2-2). See support information below.

2. Gently press down on the memory module until it snaps into place.

Note: each processor has its own built-in memory controller, so the CPU2 DIMMs

cannot be addressed if only a single CPU is installed. 256 MB, 512 MB, 1 GB, 2

GB and 4 GB memory modules are supported. It is highly recommended that you

remove the power cord from the system before installing or changing any memory

modules.

Support

The H8DMU+ supports single or dual-channel, DDR2-667/533/400 registered ECC

SDRAM. Both interleaved and non-interleaved memory are supported, so you

may populate any number of DIMM slots (see note above and chart on following

page). The CPU2 DIMM slots can only be accessed when two CPUs are installed

5-7

AS2021M-UR+ User's Manual

(however, the CPU2 DIMM slots are not required to be populated when two CPUs

are installed).

Populating two adjacent slots at a time with memory modules of the same size and

type will result in interleaved (128-bit) memory, which is faster than non-interleaved

(64-bit) memory.

Optimizing memory performance

If two processors are installed, it is better to stagger pairs of DIMMs across both

sets of CPU DIMM slots, e.g. fi rst populate CPU1 slots 1A and 1B, then CPU2 slots

1A, and 1B, then the next two CPU1 slots, etc. This balances the load over both

CPUs to optimize performance.

Maximum memory: 64 GB of DDR2-667/533/400 reg. ECC SDRAM - if only one

CPU is installed, maximum supported memory is halved (32 GB).

Populating Memory Banks for 128-bit Operation

CPU1
1A/1B

X

XX

XX X

XX XX

XXX XX

XXX XXX

XXXXXXX

XXXXXXXX

CPU1
2A/2B

CPU1
3A/3B

CPU1
4A/4B

CPU2
1A/1B

CPU2

2A/2B

CPU2
3A/3B

CPU2
4A/4B

Notes: X indicates a pair of populated DIMM slots. If adding at least four DIMMs (with
two CPUs installed), the confi gurations with DIMMs spread over both CPUs will result
in optimized performance. Note that the fi rst two DIMMs must be installed in the CPU1
memory slots.

5-8

Figure 5-3. Installing DIMM into Slot

To Install: Insert module vertically

and press down until it snaps into

place. Pay attention to the bottom

notch.

To Remove: Use your thumbs

to gently push each release tab

outward to free the DIMM from the

slot.

Chapter 5: Advanced Serverboard Setup

DDR2 FBD DIMM

Top View of DDR2 FBD Slot

5-6 Adding PCI Expansion Cards

1. PCI Expansion Slots

The SC825TQ-R700U chassis can accommodate the full complement of add-on

cards available to the H8DMU+.

Add-on cards are installed into riser card that has been pre-installed to the system.

See confi guration list below.

2. Card installation

Before installing a PCI add-on card, make sure you install it into the correct slot

on the riser card. Begin by releasing the locking tab that corresponds to the slot

you wish to populate. Insert the expansion card into the correct riser card, pushing

down with your thumbs evenly on both sides of the card.

Left Side Riser Card Expansion cards supported

CSE-R2UU-UA3E8 1x UIO card

3x PCI-Express x8 cards

Right Side Riser Card Expansion cards supported

CSE-R2UU-2E8R 1x low-profi le PCI-E x8 card

1x low-profi le PCI-E x4 card (in x8 slot)

5-9

AS2021M-UR+ User's Manual

5-7 Serverboard Details

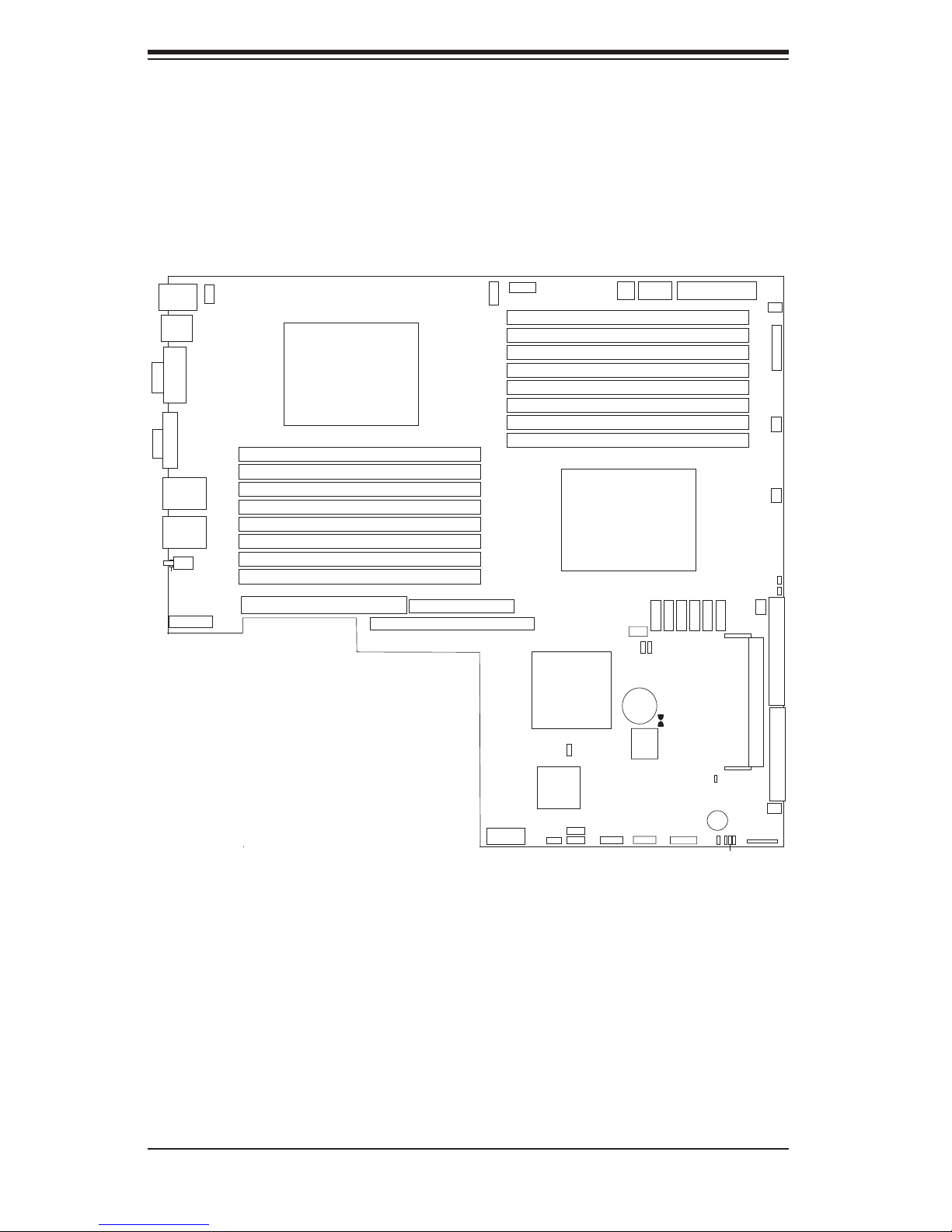

Figure 5-4. SUPER H8DMU+ Layout

(not drawn to scale)

Kybd/

Mouse

USB0/1

COM1

VGA

LAN1

LAN2

SW1

LE1

UIOP

FAN6

CPU2

CPU2 / DIMM 4A

CPU2 / DIMM 4B

CPU2 / DIMM 3A

CPU2 / DIMM 3B

CPU2 / DIMM 2A

CPU2 / DIMM 2B

CPU2 / DIMM 1A

CPU2 / DIMM 1B

SXB2: PCI-E x4

FAN8 /CPU 2FAN

SXB2: PCI-E x8

SXB1: PCI-E x16

H8DMU+

COM2

JPI2C

MCP55Pro

JPG1

ATI

ES1000

JWOL

nVidia

SGPIO2
SGPIO1

J32 JPW2 JPW1

CPU1 / DIMM 4A

CPU1 / DIMM 4B

CPU1 / DIMM 3A

CPU1 / DIMM 3B

CPU1 / DIMM 2A

CPU1 / DIMM 2B

CPU1 / DIMM 1A

CPU1 / DIMM 1B

CPU1

2

C2/JI2C1

JI

Battery

BIOS

SATA0

JBT1

FAN7/
CPU1FAN

USB6/7 USB4/5

SATA1

SATA2

SATA3

Speaker

SMBus

JWD

JWOR/JOH1/JL1

SATA4

DP4

FAN1

JF1

FAN2

FAN3

JCF1

JWF1

FAN4

SATA5

IDE#1

SIMSO

Floppy

FAN5

JD1

Notes:

1. Jumpers not indicated are for test purposes only.

2. There are no "USB2/3" ports or headers.

5-10

Chapter 5: Advanced Serverboard Setup

H8DMU+ Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear See Section 5-9

JCF1 Compact Flash Card Master/Slave Closed (Master)

JD1 Onboard Speaker Pins 6-7 (Enabled

JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled)

2

C1/JI2C2 I2C to PCI-Express Enable/Disable Closed (Enabled)

JI

JWD Watch Dog Pins 1-2 (Reset)

Connector Description

COM1/COM2 COM1/COM2 Serial Port Connector/Header

FAN 1-8 Fan Headers 1-8

Floppy Floppy Disk Drive Connector

IDE#1 IDE Hard Drive Connector

J32 Auxiliary Power Connector (4-pin)

JD1 Power LED (pins1-3)/Speaker Header (pins 4-7)

JF1 Front Control Panel Connector

JL1 Chassis Intrusion Header

JOH1 Overheat LED

2

JPI

C System Management (I2C) Power Header

JPW1 Primary 20-Pin ATX Power Connector

JPW2 Processor Power Connector (8-pin)

JWF1 Compact Flash Card Power Connector

JWOL Wake-on-LAN Header

JWOR Wake-on-Ring Header

LAN1/2 Gigabit Ethernet Ports

SATA0~SATA5 SATA Ports

SGPIO1/SGPIO2 SGPIO Headers

SIMSO IPMI 2.0 (with virtual media over LAN) Slot

SMBus System Management Bus Header

UIOP Power Connector for UIO Card

USB0/1 USB Ports

USB4/5 USB4/USB5 Headers

USB6/7 USB6/USB7 Headers

Other Description

DP4 Onboard Power LED (3.3V)

LE1 Rear UID LED

SW1 UID (Unit Identifi er) Button

5-11

AS2021M-UR+ User's Manual

5-8 Connector Defi nitions

ATX Power Connector

The primary ATX power supply con-

nector (JPW1) meets the SSI (Super-

set ATX) 20-pin specifi cation. Refer

to the table on the right for the pin

defi nitions of the ATX power connec-

tor. This connection supplies power to

the chipset, fans and memory.

Note: You must also connect the

8-pin (JPW2) and 4-pin (J32) power

connectors to your power supply (see

below).

Processor Power Connector

In addition to the primary ATX power

connector (above), the 12v, 8-pin

processor power connector at JPW2

must also be connected to your power

supply. This connection supplies

power to the CPUs. See the table on

the right for pin defi nitions.

ATX Power 20-pin Connector

Pin Defi nitions (JPW1)

Pin# Defi nition Pin # Defi nition

11 +3.3V 1 +3.3V

12 -12V 2 +3.3V

13 COM 3 COM

14 PS_ON 4 +5V

15 COM 5 COM

16 COM 6 +5V

17 COM 7 COM

18 -5V 8 PWR_OK

19 +5V 9 5VSB

20 +5V 10 +12V

Processor Power

Connector

Pin Defi nitions (JPW2)

Pins Defi nition

1 through 4 Ground

5 through 8 +12V

Required Connection

Auxiliary Power Connector

The 4-pin auxiliary power connector at

J32 must also be connected to your

power supply. This connection sup-

plies extra power that may be needed

for high loads. See the table on the

right for pin defi nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

Auxiliary Power

Connector

Pin Defi nitions (J32)

Pins Defi nition

1 & 2 Ground

3 & 4 +12V

Required Connection

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 Vcc

16 Control

5-12

Chapter 5: Advanced Serverboard Setup

HDD LED

The HDD (IDE Hard Disk Drive) LED

connection is located on pins 13 and

14 of JF1. Attach the IDE hard drive

LED cable to display disk activity.

Refer to the table on the right for pin

defi nitions.

NIC1 LED

The NIC1 (Network Interface Control-

ler) LED connection is located on pins

11 and 12 of JF1. Attach the NIC1

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

NIC2 LED

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 See below*

14 HDD Active

* Pin 13 is for UID button (when used with UID

panel) or for 3.3V power for HDD LED (when

used with non-UID panel)

NIC1 LED

Pin Defi nitions (JF1)

Pin# Defi nition

11 Vcc

12 NIC1 Active

The NIC2 (Network Interface Control-

ler) LED connection is located on pins

9 and 10 of JF1. Attach the NIC2

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

Universal Information LED

Connect an LED to pins 7 and 8 of

JF1 to provide advanced warning of

chassis overheating or fan failure.

These pins also work with the front

UID indicator, which will activate as

either a solid or fl ashing blue LED

depending on whether the LED was

activated via IPMI or the UID button.

Refer to the tables on the right for pin

defi nitions and status indicators.

NIC2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9 Vcc

10 NIC2 Active

Universal Info. LED

Pin Defi nitions (JF1)

Pin# Defi nition

7Vcc

8 Control

Red LED Indications

State Indication

Solid Overheat

Blinking (fast) Fan Fail

Blinking (slow) Power Fail

Blue LED Indications

State Indication

Solid UID (via Button)

Blinking UID (via IPMI)

5-13

AS2021M-UR+ User's Manual

Power Fail LED

The Power Fail LED connection is

located on pins 5 and 6 of JF1. Refer

to the table on the right for pin defi ni-

tions. This feature is only available

for systems with redundant power

supplies.

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin defi nitions.

Power Button

Power Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 Vcc

6 Control

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be confi gured to function

as a suspend button (see the Power

Button Mode setting in BIOS). To turn

off the power when set to suspend

mode, depress the button for at least

4 seconds. Refer to the table on the

right for pin defi nitions.

Universal Serial Bus Ports
(USB0/1)

Two Universal Serial Bus ports

(USB2.0) are located beside the

mouse/keyboard ports. See the table

on the right for pin defi nitions.

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 PW_ON

2 Ground

Universal Serial Bus Ports

Pin Defi nitions (USB0/1)

USB0
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

USB1
Pin # Defi nition

5-14

Chapter 5: Advanced Serverboard Setup

USB Headers

Four additional USB2.0 headers

(USB4/5 and USB6/7) are included on

the serverboard. These may be con-

nected to provide front side access.

A USB cable (not included) is needed

for the connection. See the table on

the right for pin defi nitions.

Serial Ports

The COM1 serial port is located be-

side the VGA port. COM2 is a header

located near JWOL. Refer to the table

on the right for pin defi nitions.

Universal Serial Bus Headers

Pin Defi nitions (USB4/5/6/7)

USB2
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 Key 5 No connection

Serial Port Pin Defi nitions

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2RXD 7RTS

3 TXD 8 CTS

4DTR 9 RI

5 Ground 10 NC

USB3/4
Pin # Defi nition

(COM1/COM2)

Fan Headers

The H8DMU+ has eight fan headers,

which are designated FAN1 through

FAN8. FAN7 and FAN8 (for active

CPU heatsinks) are Pulse Width

Modulated (PWM): their speed is

controlled via a BIOS setting. See the

table on the right for pin defi nitions.

Note: when using active heatsinks

(those with fans), connect the heatsink

fan for CPU1 to the FAN7 header and

the heatsink fan for CPU2 to the FAN8

header.

Note: NC indicates no connection.

Fan Header

Pin Defi nitions

(FAN1-8)

Pin# Defi nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (desig-

nated LAN1 and LAN2) are located

beside the VGA port. These Ethernet

ports accept RJ45 type cables.

5-15

AS2021M-UR+ User's Manual

Power LED/Speaker

On JD1, pins 1, 2, and 3 are for the

power LED and pins 4 through 7 are

for the speaker. See the tables on the

right for pin defi nitions.

Note: The speaker connector pins are

for use with an external speaker. If

you wish to use the onboard speaker,

you should close pins 6 and 7 with a

jumper.

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/2

mouse ports are located on the I/O

backplane. The mouse is the top

(green) port. See the table on the

right for pin defi nitions.

PWR LED Connector
Pin Defi nitions (JD1)

Pin# Defi nition

1 +Vcc

2 Control

3 Control

Speaker Connector

Pin Defi nitions (JD1)

Pin# Defi nition

4 Red wire, +5V

5 No connection

6 Buzzer signal

7 Speaker data

PS/2 Keyboard and

Mouse Port Pin

Defi nitions

Pin# Defi nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Overheat LED

Connect an LED to the JOH1 header

to provide warning of chassis over-

heating. See the table on the right for

pin defi nitions.

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

5-16

Overheat LED

Pin Defi nitions (JOH1)

Pin# Defi nition

13.3V

2 OH Active

Chassis Intrusion

Pin Defi nitions (JL1)

Pin# Defi nition

1 Battery voltage

2 Intrusion signal

Wake-On-LAN

The Wake-On-LAN header is desig-

nated JWOL. See the table on the

right for pin defi nitions. You must

have a LAN card with a Wake-On-LAN

connector and cable to use the Wake-

On-LAN feature.

(Note: Wake-On-LAN from S3, S4, S5

are supported by LAN1. LAN2 sup-

ports Wake-On-LAN from S1 only.)

Chapter 5: Advanced Serverboard Setup

Wake-On-LAN

Pin Defi nitions

(JWOL)

Pin# Defi nition

1 +5V Standby

2 Ground

3 Wake-up

Wake-On-Ring

The Wake-On-Ring header is desig-

nated JWOR. This function allows

your computer to receive and "wake-

up" by an incoming call to the modem

when in suspend state. See the table

on the right for pin defi nitions. You

must have a Wake-On-Ring card and

cable to use this feature.

Power Supply I2C Header

The JPI2C header is for I2C, which

may be used to monitor the status of

the power supply, fans and system

temperature. See the table on the right

for pin defi nitions.

Wake-On-Ring
Pin Defi nitions

(JWOR)

Pin# Defi nition

1 Ground (Black)

2 Wake-up

I2C Header

Pin Defi nitions (JPI2C)

Pin# Defi nition

1 Clock

2 Data

3 PWR Fail

4Gnd

5 +3.3V

SMBus Header

The SMBus header is for the System

Management Bus. Connect the ap-

propriate cable here to utilize SMB on

the system. See the table on the right

for pin defi nitions.

SMBus Header

Pin Defi nitions (SMBus)

Pin# Defi nition

1 Data

2 Ground

3 Clock

4 No Connection

5-17

AS2021M-UR+ User's Manual

Power Fail Alarm Reset
Header

Connect JAR to the alarm reset but-

ton on your chassis (if available) or to

a microswitch to allow you to turn off

the alarm that sounds when a power

supply module fails. See the table on

the right for pin defi nitions.

Compact Flash Power

A Compact Flash Card Power

Connector is located at JWF1. For

the Compact Flash Card to work

properly, you will fi rst need to connect

the device's power cable to JWF1

and correctly set the Compact Flash

Jumper (JCF1).

Alarm Reset Header

Pin Defi nitions (JAR)

Pin# Defi nition

1 Ground

2 Reset Signal

Compact Flash

Power Header

Pin Defi nitions (JWF1)

Pin# Defi nition

1+5V

2 Ground

3 Signal

SGPIO

SGPIO1 and SGPIO2 (Serial General

Purpose Input/Output) provide a bus

between the SATA controller and

the SATA drive backplane to provide

SATA enclosure management func-

tions. Connect the appropriate cables

from the backplane to the SGPIO1

and SGPIO2 header(s) to utilize

SATA management functions on your

system.

UID Button (SW1)

The SW1 button beside LAN2 provides

a UID (Unit Identifi er) function. Push

the button to illuminate an LED on the

front of the chassis to help locate the

server in a heavily populated rack.

Pin Defi nitions (SGPIO1, SGPIO2)

SGPIO Header

Pin# Defi nition Pin # Defi nition

1NC 2NC

3 Ground 4 Data

5 Load 6 Ground

7NC 8NC

Note: NC indicates no connection.

5-18

5-9 Jumper Settings

Explanation of
Jumpers

Chapter 5: Advanced Serverboard Setup

To modify the operation of the

serverboard, jumpers can be used to

choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identifi ed with

a square solder pad on the printed

circuit board. See the diagram at

right for an example of jumping pins

1 and 2. Refer to the serverboard

layout page for jumper locations.

Note: On two-pin jumpers, "Closed"

means the jumper is on and "Open"

means the jumper is off the pins.

CMOS Clear

Connector

321

Pins

Jumper

321

Setting

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins,

this jumper consists of contact pads to prevent accidentally clearing the contents

of CMOS.

To clear CMOS,

1) First power down the system and unplug the power cord(s).

2) With the power disconnected, short the CMOS pads with a metal object such as

a small screwdriver for at least four seconds.

3) Remove the screwdriver (or shorting device).

4) Reconnect the power cord(s) and power on the system.

Notes:

Do not use the PW_ON connector to clear CMOS.

The onboard battery does not need to be removed when clearing CMOS, however

you must short JBT1 for at least four seconds.

JBT1 contact pads

5-19

AS2021M-UR+ User's Manual

VGA Enable/Disable

JPG1 allows you to enable or disable

the VGA port. The default position is

on pins 1 and 2 to enable VGA. See

the table on the right for jumper set-

tings.

VGA Enable/Disable

Jumper Settings (JPG1)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog

JWD controls Watch Dog, a system

monitor that takes action when a soft-

ware application freezes the system.

Jumping pins 1-2 will cause WD to

reset the system if an application is

hung up. Jumping pins 2-3 will gen-

erate a non-maskable interrupt signal

for the application that is hung up.

See the table on the right for jumper

settings. Watch Dog can also be

enabled via BIOS.

Onboard Speaker Enable/
Disable

Watch Dog

Jumper Settings (JWD)

Jumper Setting Defi nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

Note: When enabled, the user needs to

write their own application software in or-

der to disable the Watch Dog timer.

The JD1 header allows you to use

either an external speaker or the in-

ternal (onboard) speaker. To use the

internal onboard speaker, close pins

6 and 7 with a jumper. To use an

external speaker, remove the jumper

and connect the speaker wires to pins

4 (+5V) and 7 (control signal). See the

table on the right for settings and the

table associated with the Power LED/

Keylock/Speaker connection (previ-

ous section) for jumper settings.

Onboard Speaker Enable/Disable

Pin Defi nitions (JD1)

Pins Defi nition

6 and 7 Jump for onboard speaker

4 and 7 Attach external speaker wires

Note: Pins 4-7 are used only for the on-

board speaker.

5-20

Chapter 5: Advanced Serverboard Setup

Compact Flash Master/Slave

The JCF1 jumper allows you to assign

either master or slave status a compact

fl ash card installed in IDE1. See the

table on the right for jumper settings.

I2C to PCI-Express Enable/
Disable

The JI2C1/JI2C2 pair of jumpers allows

you to connect the System Manage-

ment Bus to any one of the PCI-Express

slots. The default setting is closed for

both jumpers to enable the connection.

Both connectors must have the same

setting (JI

for the clock). See the table on right for

jumper settings.

2

C1 is for data and JI2C2 is

Compact Flash

Master/Slave

Jumper Settings (JCF1)

Jumper Setting Defi nition

Closed Master

Open Slave

I2C to PCI Enable/Disable

Jumper Settings

2

C1/JI2C2)

(JI

Jumper Setting Defi nition

Closed Enabled

Open Disabled

5-21

AS2021M-UR+ User's Manual

5-10 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside

the VGA port) have two LEDs. On

each Gb LAN port, one LED indicates

activity when blinking while the other

LED may be amber or off to indicate

the speed of the connection. See

the table on the right for the func-

tions associated with the connection

speed LED.

(Connection Speed Indicator)

LAN LED

LED Color Defi nition

Off 10/100 MHz

Amber 1 GHz

+3.3V LED (DP4)

When illuminated, the DP4 LED indi-

cates that power (+3.3V) is present

on the serverboard. DP4 should nor-

mally be illuminated when the system

turned on.

UID LED (LE1)

The LE1 LED will illuminate when the

UID button is pressed. Pressing the

button a second time will turn this

LED off. The UID LED is used to

help locate specifi c servers in heavily

populated server racks.

5-22

Chapter 5: Advanced Serverboard Setup

5-11 Floppy, IDE and SATA Drive Connections

Use the following information to connect the fl oppy and hard disk drive cables.

 The fl oppy disk drive cable has seven twisted wires.

 A red mark on a wire typically designates the location of pin 1.

 A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

 The 80-wire ATA133 IDE hard disk drive cable that came with your system has

two connectors to support two drives. This special cable should be used to take

advantage of the speed this new technology offers. The blue connector connects

to the onboard IDE connector interface and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details

on actual jumper locations and settings for the hard disk drive.

Floppy Connector

The fl oppy connector is located

beside the IDE connector. See

the table on the right for pin

defi nitions.

Floppy Drive Connector

Pin Defi nitions (Floppy)

Pin# Defi nition Pin # Defi nition

1 GND 2 FDHDIN

3 GND 4 Reserved

5 Key 6 FDEDIN

7 GND 8 Index-

9 GND 10 Motor Enable

11 GND 12 Drive Select B-

13 GND 14 Drive Select A-

15 GND 16 Motor Enable

17 GND 18 DIR-

19 GND 20 STEP-

21 GND 22 Write Data-

23 GND 24 Write Gate-

25 GND 26 Track 00-

27 GND 28 Write Protect-

29 GND 30 Read Data-

31 GND 32 Side 1 Select-

33 GND 34 Diskette

5-23

AS2021M-UR+ User's Manual

IDE Connector

There are no jumpers to con-

fi gure the onboard IDE#1 con-

nectors. See the table on the

right for pin defi nitions.

IDE Drive Connectors

Pin Defi nitions (IDE#1)

Pin# Defi nition Pin # Defi nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

SATA Ports

There are no jumpers to con-

fi gure the SATA ports, which

are designated SATA0 through

SATA5. See the table on the

right for pin defi nitions.

Pin Defi nitions (SATA0-SATA5)

SATA Ports

Pin # Defi nition

1 Ground

2TXP

3TXN

4 Ground

5RXN

6RXP

7 Ground

5-24

Chapter 5: Advanced Serverboard Setup

5-12 Enabling SATA RAID

Serial ATA (SATA)

Serial ATA (SATA) is a physical storage interface that employs a single cable with

a minimum of four wires to create a point-to-point connection between devices.

This connection is a serial link. The serial cables used in SATA are thinner than

the traditional cables used in Parallel ATA (PATA) and can extend up to one meter

in length, compared to only 40 cm for PATA cables. Overall, SATA provides better

functionality than PATA.

Installing the OS/SATA Driver

Before installing the OS (operating system) and SATA RAID driver, you must decide

if you wish to have the operating system installed as part of a bootable RAID array

or installed to a separate non-RAID hard drive. If on a separate drive, you may

install the driver either during or after the OS installation. If you wish to have the

OS on a SATA RAID array, you must follow the procedure below and install the

driver during the OS installation.

Building a Driver Diskette

You must fi rst build a driver diskette from the CD-ROM that was included with the

system. (You will have to create this disk on a computer that is already running and

with the OS installed.) Insert the CD into your CD-ROM drive and start the system.

A display as shown in Figure 5-7 will appear. Click on the icon labeled "Build Driver

Diskettes and Manuals" and follow the instructions to create a fl oppy disk with the

driver on it. Once it's been created, remove the fl oppy and insert the installation

CD for the Windows Operating System you wish to install into the CD-ROM drive

of the new system you are about to confi gure.

Enabling SATA RAID in the BIOS

Before installing the Windows Operating System, you must change some settings

in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility.

After the Setup Utility loads,

1. Use the arrow keys to move to the Exit menu. Scroll down with the arrow keys

to the "Load Optimal Defaults setting and press <Enter>. Select "OK" to confi rm,

then <Enter> to load the default settings.

5-25

AS2021M-UR+ User's Manual

2. Use the arrow keys to move to Advanced > Floppy/IDE/SATA Confi guration >

nVidia RAID Setup and press the <Enter> key. Once in the submenu, enable the

"nVidia RAID Function" setting.

3. Hit the <F10> key to "Save Changes and Exit", then hit <Enter> to verify.

4. After exiting the BIOS Setup Utility, the system will reboot. When prompted

during the startup, press the <F10> key when prompted to run the nVidia RAID

Utility program.

Using the nVidia RAID Utility

The nVidia RAID Utility program is where you can defi ne the drives you want to

include in the RAID array and the mode and type of RAID. Two main windows are

shown in the utility (see Figure 5-5). The "Free Disks" window on the left will list all

available drives. Use the arrow keys to select and move drives to the window on

the right, which lists all drives that are to become part of the RAID array.

Once you have fi nished selecting the drives and type of RAID you wish to use for

your RAID array, press the <F7> key. You will be prompted to verify your choice; if

you want to continue with your choices, select "Yes". Note that selecting "Yes" will

clear all previous data from the drives you selected to be a part of the array. You

are then given the choice of making the RAID array bootable by pressing the the

<B> key. After you have fi nshed, press the <Ctrl> and <X> keys simultaneously.

Figure 5-6 shows a list of arrays that have been set up with the utility.

Installing the OS and Drivers

With the Windows OS installation CD in the CD-ROM drive, restart the system.

When you see the prompt, hit the <F6> key to enter Windows setup. Eventually a

blue screen will appear with a message that begins "Windows could not determine

the type of one or more storage devices . . ." When you see the screen, hit the <S>

key to "Specify Additional Device", then insert the driver diskette you just created

into the fl oppy drive. Highlight "Manufuacturer Supplied Hardware Support Disk"

and hit the <Enter> key. Highlight the fi rst "nVidia RAID" driver shown and press

the <Enter> key to install it. Soon a similar blue screen will appear again. Again hit

the <S> key, then highlight the second item, "nForce Storage Controller" and press

the <Enter> key, then <Enter> again to continue with the Windows setup.

5-26

Chapter 5: Advanced Serverboard Setup

Figure 5-5. SATA RAID Utility: Main Screen

Figure 5-6. SATA RAID Utility: Array List

5-27

AS2021M-UR+ User's Manual

5-13 Installing Drivers

After all the hardware and operating system have been installed, you need to install

certain drivers. The necessary drivers are all included on the Supermicro CD that

came packaged with your serverboard. After inserting this CD into your CD-ROM

drive, the display shown in Figure 5-7 should appear. (If this display does not

appear, click on the My Computer icon and then on the icon representing your CD-

ROM drive. Finally, double click on the S "Setup" icon.)

Figure 5-7. Driver Installation Display Screen

Click the icons showing a hand writing on paper to view the readme fi les for each

item. Click the tabs to the right of these in order from top to bottom to install each

item one at a time. After installing each item, you must reboot the system

before moving on to the next item on the list. You should install everything here

except for the SUPER Doctor utility, which is optional. The bottom icon with a CD

on it allows you to view the entire contents of the CD.

5-28

Chapter 6: Advanced Chassis Setup

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform main-

tenance on the SC825TQ-R700U chassis. For component installation, follow the

steps in the order given to eliminate the most common problems encountered. If

some steps are unnecessary, skip ahead to the step that follows.

Tools Required

The only tool you will need to install components and perform maintenance is a

Philips screwdriver.

6-1 Static-Sensitive Devices

Electrostatic discharge (ESD) can damage electronic com ponents. To prevent

damage to any printed circuit boards (PCBs), it is important to handle them very

carefully. The following measures are generally suffi cient to protect your equipment

from ESD damage.

Precautions

 Use a grounded wrist strap designed to prevent static discharge.

 Touch a grounded metal object before removing any board from its antistatic

bag.

 Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

 When handling chips or modules, avoid touching their pins.

 Put the motherboard, add-on cards and peripherals back into their antistatic bags

when not in use.

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

6-1

AS2021M-UR+ User's Manual

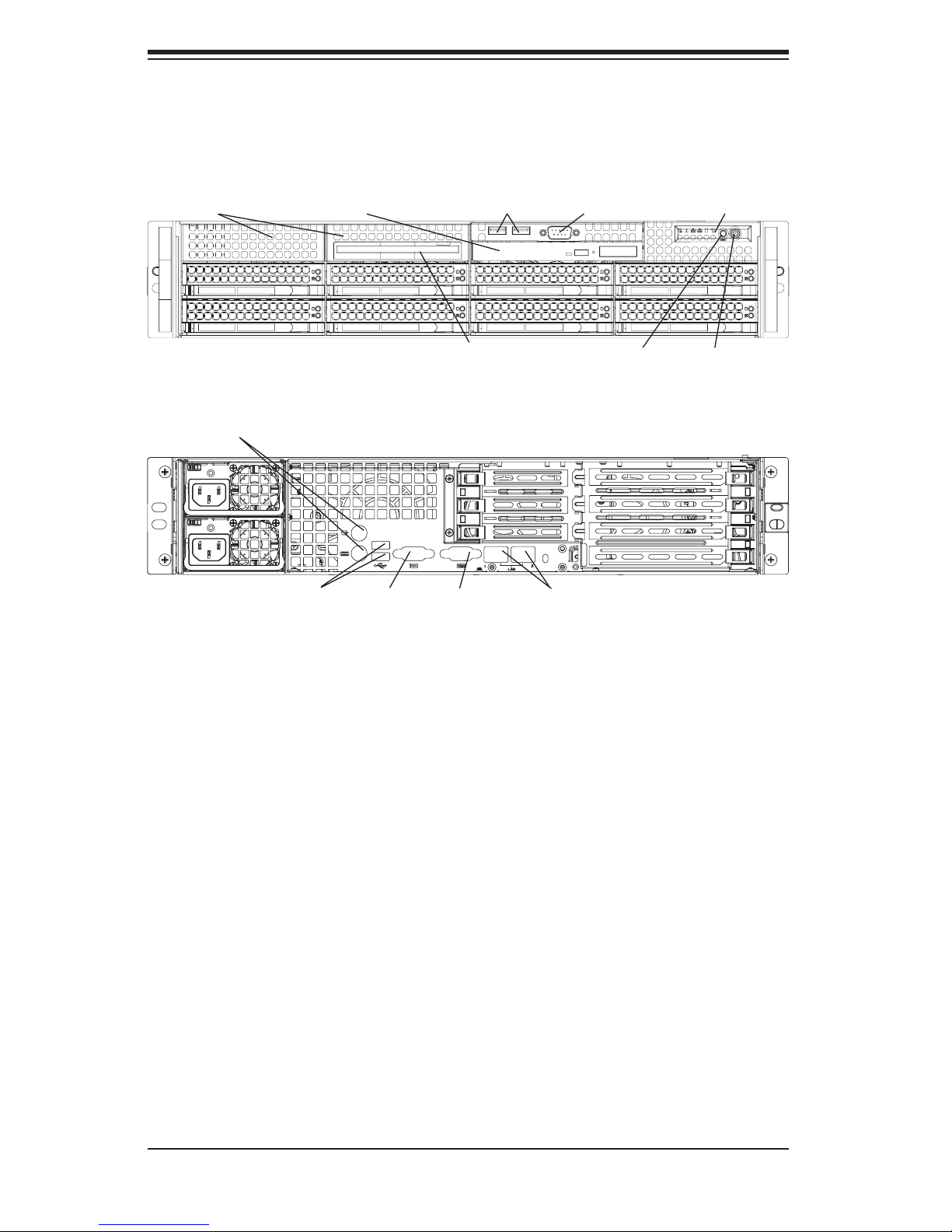

Figure 6-1. Front and Rear Chassis Views

3.5" Drive Bays (2)

Hard Drive Bays (8)

Keyboard/Mouse Ports

Slim DVD-ROM Drive

Floppy Drive (optional)

COM1 Port

USB Ports (2), COM Port

PCI Add-on Card Slots

VGA Port

Ethernet Ports USB Ports

System Reset

Control Panel

Main Power

6-2 Control Panel

The control panel (located on the front of the chassis) must be connected to the

JF1 connector on the serverboard to provide you with system status indications. A

ribbon cable has bundled these wires together to simplify the connection. Connect

the cable from JF1 on the serverboard to the Control Panel PCB (printed circuit

board). Make sure the red wire plugs into pin 1 on both connectors. Pull all ex-

cess cabling out of the airfl ow path. The LEDs inform you of system status. See

Chapter 3 for details on the LEDs and the control panel buttons. Details on JF1

can be found in Chapter 5.

6-2

Chapter 6: Advanced Chassis Setup

6-3 System Fans

Three 8-cm hot-swap fans provide the cooling for the 2021M-UR+. It is very

important that the chassis top cover is properly installed and making a good seal

in order for the cooling air to circulate properly through the chassis and cool the

components. See Figure 6-2.

System Fan Failure

Fan speed is controlled by system temperature via a BIOS setting. If a fan fails,

the remaining fans will ramp up to full speed and the overheat/fan fail LED on the

control panel will turn on. Replace any failed fan at your earliest convenience

with the same type and model (the system can continue to run with a failed fan).

Remove the top chassis cover while the system is still running to determine which

of the fans has failed.

Replacing System Fans

1. Removing a fan

Remove the chassis cover. Press the tabs on the sides of the fan to unlock and

remove the fan and its housing. The fan's power connections will automatically

detach. System power does not need to be shut down since the fans are hot-plug-

gable.

2. Installing a new fan

Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro,

p/n FAN-0070). Position the new fan into the space vacated by the failed fan previ-

ously removed. A "click" can be heard when the fan is fully installed in place and

the power connections are made. If the system power is on, the hot-plug feature

will cause the fan to start immediately upon being connected to its header on the

serverboard.

6-3

AS2021M-UR+ User's Manual

Figure 6-2. Removing System Cooling Fans

6-4 Drive Bay Installation/Removal

Accessing the Drive Bays

SAS/SATA Drives: You do not need to access the inside of the chassis or remove

power to replace or swap SAS/ATA drives. Proceed to the next step for instruc-

tions.

Note: You must use standard 1" high SAS/SATA drives in the 2021M-UR+.

DVD-ROM/Floppy Disk Drive: For installing/removing the DVD-ROM or fl oppy disk

drive, you will need to gain access to the inside of the server by removing the top

cover of the chassis. Proceed to the "DVD-ROM and Floppy Drive Installation"

section later in this chapter for instructions.

DVD-ROM and Floppy Drives: For installing/removing the DVD-ROM or fl oppy drive,

proceed to the "DVD-ROM and Floppy Drive Installation" section later in this chapter

for instructions.

6-4

Chapter 6: Advanced Chassis Setup

SAS/SATA Drive Installation

1. Mounting a SAS/SATA drive in a drive carrier

The SAS/SATA drives are mounted in drive carriers to simplify their installation and

removal from the chassis. These carriers also help promote proper airfl ow for the

drives. For this reason, even empty carriers without drives installed must remain

in the chassis. To add a new drive, install a drive into the carrier with the printed

circuit board side facing down so that the mounting holes align with those in the

carrier. Secure the drive to the carrier with four screws, as shown in Figure 6-3.

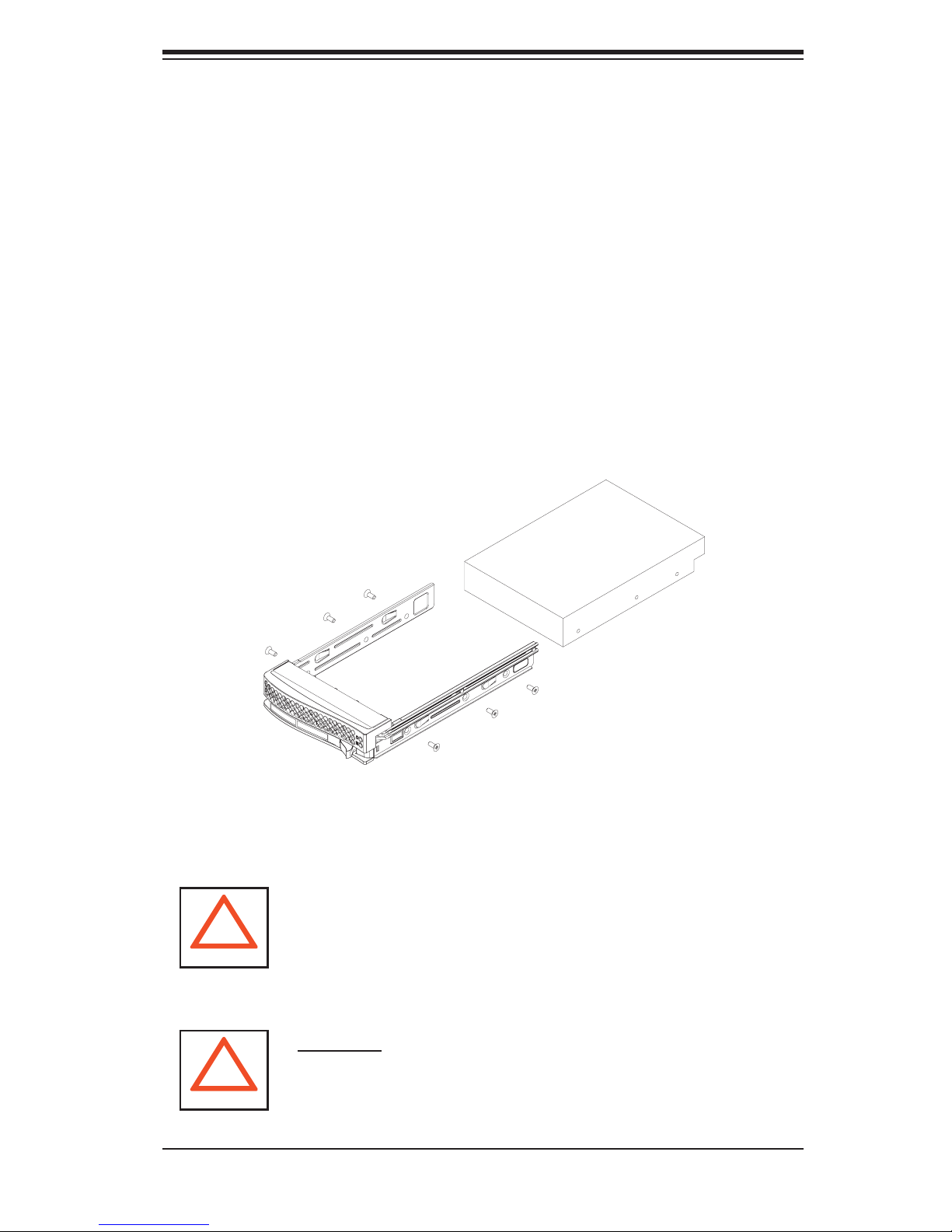

Figure 6-3. Mounting a Drive in a Carrier

Use caution when working around the SAS/SATA backplane. Do

not touch the backplane with any metal objects and make sure

!

!

no ribbon cables touch the backplane or obstruct the holes,

which aid in proper airfl ow.

Important: Regardless of how many SAS/SATA hard drives

are installed, all drive carriers must remain in the drive bays to

maintain proper airfl ow.

6-5

AS2021M-UR+ User's Manual

2. Installing/removing hot-swap SAS/SATA drives

The SAS/SATA drive carriers are all easily accessible at the front of the chassis.

These hard drives are hot-pluggable, meaning they can be removed and installed

without powering down the system. To remove a carrier, push the release button

located beside the drive LEDs. Then swing the colored handle fully out and use it

to pull the unit straight out (see Figure 6-4).

Note: Your operating system must have RAID support to enable the hot-plug ca-

pability of the SAS/SATA drives.

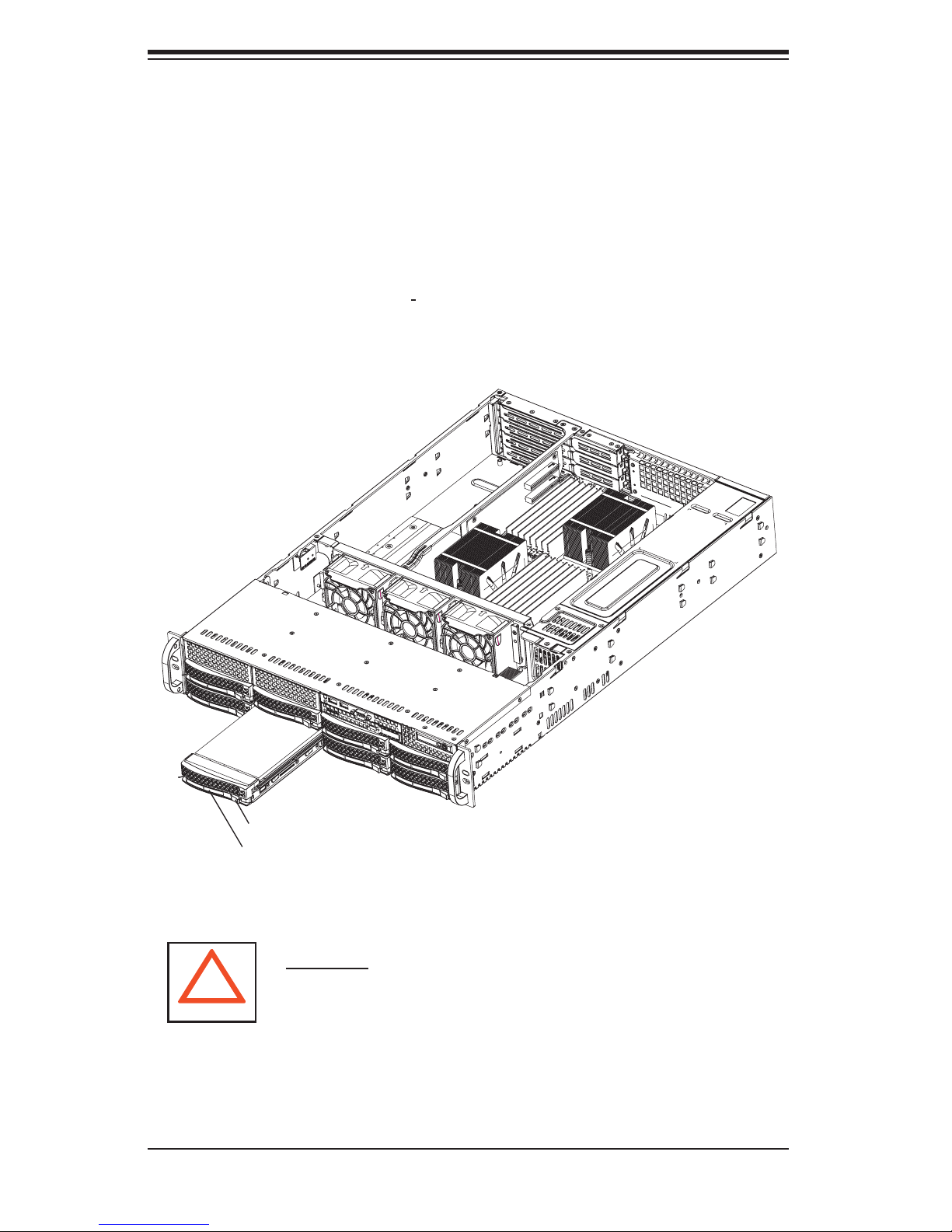

Figure 6-4. Removing a Drive Carrier

Release Button

Handle

Important: All of the SAS/SATA drive carriers must remain in

!

the drive bays to maintain proper cooling airfl ow.

6-6

Chapter 6: Advanced Chassis Setup

Hard Drive Backplane

The SATA drives plug into a backplane that provides power, drive ID and bus termi-

nation. A RAID controller can be used with the backplane to provide data security.

The operating system you use must have RAID support to enable the hot-swap

capability of the drives. The backplane is already preconfi gured, so there are no

jumpers or switches present on it.

DVD-ROM and Floppy Drive Installation

The top cover of the chassis must be opened to gain full access to the DVD-ROM

and fl oppy drive bays. The 2021M-UR+ accomodates only slim type DVD-ROM

drives. Side mounting brakets are typically needed to mount a slim DVD-ROM

drive in the 2021M-UR+ server.

First, grasp the two handles on either side and pull the unit straight out until it locks

(you will hear a "click"). Next, depress the two buttons on the top of the chassis

to release the top cover and at the same time, push the cover away from you until

it stops. You can then lift the top cover from the chassis to gain full access to the

inside of the server. You must power down the system before installing or removing

fl oppy or IDE components.

Drives mount on rails and should "click" into place to be correctly and fully installed

in their bays.

• The fl oppy disk drive cable has seven twisted wires.

• A color mark on a cable typically designates the location of pin 1.

• A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector without twisted wires always connects to drive B.

6-7

AS2021M-UR+ User's Manual

Installing the Air Shroud

Under most circumstances you will not need to remove the air shroud to perform

any service on the system. However, you may temporarily remove it if necessary

(the air shroud should always be in place when the system is operating).

1. To install, slide the air shroud's front lip into the groove located behind the row of

system fans. Make sure the air shroud cut-out aligns with the fan post.

2. Hook the bottom side fl aps of the air shroud to the rear fan chassis screw.

3. Pull the rear edges of the shroud outward and slide the heatsink fl aps under the

heatsink to further secure the air shroud.

Figure 6-4. Installing the Air Shroud

6-8

Chapter 6: Advanced Chassis Setup

6-5 Power Supply

The 2021M-UR+ has a 700 watt redundant power supply consisting of two power

modules. Each power supply module has an auto-switching capability, which en-

ables it to automatically sense and operate at a 100V - 240V input voltage.

Power Supply Failure

If either of the two power supply modules fail, the other module will take the full

load and allow the system to continue operation without interruption. The PWR

Fail LED will illuminate and remain on until the failed unit has been replaced. Re-

placement units can be ordered directly from Supermicro (see contact information

in the Preface). The power supply units have a hot-swap capability, meaning you

can replace the failed unit without powering down the system.

Removing/Replacing the Power Supply

You do not need to shut down the system to replace a power supply unit. The

backup power supply module will keep the system up and running while you replace

the failed hot-swap unit. Replace with the same model (see part number in the

Appendix), which can be ordered directly from Supermicro.

1. Removing the power supply

First unplug the power cord from the failed power supply module. Then depress

the locking tab on the power supply module and use the handle to pull it straight

out with the rounded handle.

2. Installing a new power supply

Replace the failed hot-swap unit with another identical power supply unit. Simply

push the new power supply unit into the power bay until you hear a click. Secure

the locking tab on the unit and fi nish by plugging the AC power cord back into the

unit.

6-9

AS2021M-UR+ User's Manual

6-10

Chapter 7: BIOS

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DMU+. The AMI

ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy

disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of our web site for any changes to BIOS that may not be refl ected

in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up.

(In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are

a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS

menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options

that can be confi gured. “Grayed-out” options cannot be confi gured. The right frame

displays the key legend. Above the key legend is an area reserved for a text mes-

sage. When an option is selected in the left frame, it is highlighted in white. Often a

text message will accompany it. (Note that BIOS has default text messages built in.

We retain the option to include, omit, or change any of these text messages.) Set-

tings printed in Bold are the default values.

A "

" indicates a submenu. Highlighting such an item and pressing the <Enter>

key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of

these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at

any time during the setup navigation process.

7-1

AS2021M-UR+ User's Manual

7-2 Main Menu

When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen.

You can always return to the Main Menu by selecting the Main tab on the top of

the screen with the arrow keys.

The Main Menu screen provides you with a system overview, which includes the

version, built date and ID of the AMIBIOS, the type, speed and number of the

processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this fi eld to change the system time and date. Highlight System Time

or System Date using the <Arrow> keys. Enter new values through the keyboard.

Press the <Tab> key or the <Arrow> keys to move between fi elds. The date must

be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as

05:30:00 and 5:30 P.M. as 17:30:00.

7-3 Advanced Settings Menu

 BIOS Features

Quick Boot

If Enabled, this option will skip certain tests during POST to reduce the time

needed for the system to boot up. The options are Enabled and Disabled.

Quiet Boot

If Disabled, normal POST messages will be displayed on boot-up. If Enabled,

this display the OEM logo instead of POST messages.

OS Installation

Change this setting if using a Linux operating system. The available options

are Other and Linux.

Interrupt 19 Capture

Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled

and Disabled.

ACPI Mode

Use this setting to determine whether ACPI mode will be used. The options

are Yes and No.

7-2

Chapter 7: BIOS

 Advanced ACPI Confi guration

MCP55 ACPI HPET Table

Use this setting to Enable or Disable the MCP55 ACPI HPET Table.

ACPI Version Features

Use this setting the determine which ACPI version to use. Options are ACPI

v1.0, ACPI v2.0 and ACPI v3.0.

ACPI APIC Support

Determines whether to include the ACPI APIC table pointer in the RSDT

pointer list. The available options are Enabled and Disabled.

ACPI OEMB Table

Determines whether to include the ACPI APIC table pointer in the RSDT

pointer list. The available options are Enabled and Disabled.

Headless Mode

Use this setting to Enable or Disable headless operation mode through

ACPI.

ACPI HPET Table

Use this setting to Enable or Disable the ACPI HPET Table.

Power Button Mode

Allows the user to change the function of the power button. Options are On/Off

and Suspend.

Watch Dog Timer Select

This setting is used to Enable or Disable the Watch Dog Timer function. It must

be used in conjunction with the Watch Dog jumper (see Chapter 2 for details).

To enable, choose from 1, 2, 3, 4, 8, 15 or 30 min.

Restore on AC Power Loss

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Power Off, Power On and

Last State.

7-3

AS2021M-UR+ User's Manual

MPS Revision

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

This setting allows the user to select the MPS revision level. The options are

1.1 and 1.4.

MPS Revision

POST Debugger

Enable this setting to give the status of the AMI POST debugger in the next boot

up. The options are Enabled and Disabled.

 Floppy/IDE/SATA Confi guration

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard fl oppy controller.

Floppy A

Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Onboard IDE Controller

There is a single fl oppy controller on the motherboard, which may be Enabled or

Disabled with this setting.

Serial ATA Devices

This setting is used to determine if SATA drives will be used and how many. Op-

tions are Disabled, Device 0, Device 0/1 and Device 0/1/2.

 nVidia RAID Setup

nVidia RAID Function

This setting is used to Enable or Disable the nVidia ROM. If Enabled, the set-

ting below will appear.

SATA0/1/2 Primary/Secondary Channel

This setting is used to Enable or Disable the SATA0 Primary, SATA0 Second-

ary, SATA1 Primary, SATA1 Secondary, SATA2 Primary and SATA2 Secondary

channels (six settings total).

7-4

Chapter 7: BIOS

Primary IDE Master/Slave

Highlight one of the items above and press <Enter> to access the submenu for

that item.

Type

Select the type of device connected to the system. The options are Not Installed,

Auto, CDROM and ARMD.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the specifi cations of the drive.

7-5

AS2021M-UR+ User's Manual

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

Serial ATA0/1/2 Primary/Secondary Channel

Highlight one of the items above and press <Enter> to access the submenu for that

item. If a drive is present, information on that drive will be displayed here.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

7-6

Chapter 7: BIOS

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the specifi cations of the drive.

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

7-7

AS2021M-UR+ User's Manual

 PCI/PnP Confi guration

Load Onboard LAN Option ROM

Use this setting to Enable or Disable the onboard option ROM.

Clear NVRAM

Select Yes to clear NVRAM during boot-up. The options are Yes and No.

Plug & Play OS

Select Yes to allow the OS to confi gure Plug & Play devices. (This is not required

for system boot if your system has an OS that supports Plug & Play.) Select No

to allow AMIBIOS to confi gure all devices in the system.

PCI Latency Timer

This option sets the latency of all PCI devices on the PCI bus. Select a value to

set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192,

224 and 248.

Allocate IRQ to PCI VGA

Set this value to allow or restrict the system from giving the VGA adapter card an

interrupt address. The options are Yes and No.

Palette Snooping

Select "Enabled" to inform the PCI devices that an ISA graphics device is installed

in the system in order for the graphics card to function properly. The options are

Enabled and Disabled.

PCI IDE BusMaster

Set this value to allow or prevent the use of PCI IDE busmastering. Select "Enabled"

to allow AMI BIOS to use PCI busmaster for reading and writing to IDE drives. The

options are Disabled and Enabled.

Offboard PCI/ISA IDE Card

This option allows the user to assign a PCI slot number to an Off-board PCI/ISA

IDE card in order for it to function properly. The options are Auto, PCI Slot1, PCI

Slot2, PCI Slot3, PCI Slot4, PCI Slot5, and PCI Slot6.

7-8

Chapter 7: BIOS

 Advanced Chipset Control

 NorthBridge Confi guration

 Memory Confi guration

Memclock Mode

This setting determines how the memory clock is set. Auto has the memory

clock by code and Limit allows the user to set a standard value.

MCT Timing Mode

Sets the timing mode for memory. Options are Auto and Manual.

Bank Interleaving

Select Auto to automatically enable interleaving-memory scheme when this

function is supported by the processor. The options are Auto and Disabled.

Enable Clock to All DIMMs

Use this setting to enable unused clocks to all DIMMSs, even if some DIMM

slots are unpopulated. Options are Enabled and Disabled.

Mem Clk Tristate C3/ALTVID

Use this setting to Enable or Disable memory clock tristate during C3 and

ALT VID.

CS Sparing Enable

This setting will reserve a spare memory rank in each node when enabled.

Options are Enable and Disable.

DQS Signal Training Control

Tunring off signal training will require custom memory timings programming.

This setting will automatically be disabled when CS Sparing is enabled. The

options are Enable and Disable.

Memory Hole Remapping

When "Enabled", this feature enables hardware memory remapping around

the memory hole. Options are Enabled and Disabled.

7-9

AS2021M-UR+ User's Manual

 ECC Confi guration

DRAM ECC Enable

DRAM ECC allows hardware to report and correct memory errors automati-

cally. Options are Enabled and Disabled.

4-Bit ECC Mode

Allows the user to enabled 4-bit ECC mode (also known as ECC

Chipkill). Options are Enabled and Disabled.

DRAM Scrub Redirect

Allows system to correct DRAM ECC errors immediately, even with

background scrubbing on. Options are Enabled and Disabled.

DRAM BG Scrub

Corrects memory errors so later reads are correct. Options are Dis-

abled and various times in nanoseconds and microseconds.

L2 Cache BG Scrub

Allows L2 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

Data Cache BG Scrub

Allows L1 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

Power Down Control

Allows DIMMs to enter power down mode by deasserting the clock enable signal

when DIMMs are not in use. Options are Auto and Disabled.

Alternate VID

Specify the alternate VID while in low power states. Options are Auto and vari-

ous voltages from .800V to 1.150V in increments of .025V.

Memory Timing Parameters

Allows the user to select which CPU Node's timing parameters (memory clock,

etc.) to display. Options are CPU Node 0 and CPU Node1.

7-10

 SouthBridge Confi guration

USB 1.1 Controller

Enable or disable the USB 1.1 controller.

USB 2.0 Controller

Enable or disable the USB 2.0 controller.

MAC0 LAN0

Settings are Auto and Disabled for MAC0 LAN0.

MAC0 LAN0 Bridge

Settings are Enabled and Disabled for MAC0 LAN0 bridge.

MAC1 LAN1

Settings are Auto and Disabled for MAC1 LAN1.

Chapter 7: BIOS

MAC1 LAN1 Bridge

Settings are Enabled and Disabled for MAC1 LAN1 bridge.

Legacy USB Support

Select "Enabled" to enable the support for USB Legacy. Disable Legacy support

if there are no USB devices installed in the system. "Auto" disabled Legacy

support if no USB devices are connected. The options are Disabled, Enabled

and Auto.

PCI-E Link Select

Use this setting to select the PCI-E link. Options are x8, x8, x4, x8 and x16,

x4, x8.

 Hyper Transport Confi guration

MCP55 (SB) to K8 (CPU) Freq. Auto

This setting is used for frequency selection by CPU capability. Options are

Enabled and Disabled.

MCP55 (SB) to K8 (CPU) LinkWidth

This setting is used to select the link width. Options are 4 4, 8 8 and

16 16.

7-11

AS2021M-UR+ User's Manual

 Processor & Clock Options

This submenu lists CPU information and the following settings:

MTRR Mapping

This determines the method used for programming CPU MTRRs when 4 GB or more

memory is present. The options are Continuous, which makes the PCI hole non-

cacheable, and Discrete, which places the PCI hole below the 4 GB boundary.

Thermal Throttling

Used to Enable or Disable thermal to generate a power management event.

Power Now

This setting is used to Enable or Disable the AMD Power Now feature.

 I/O Device Confi guration

Serial Port1 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 1. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to Disabled, the serial port physically becomes

unavailable. Select "3F8/IRQ4" to allow the serial port to use 3F8 as its I/O port

address and IRQ 4 for the interrupt address. The options are Disabled, 3F8/IRQ4,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port2 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 2. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to "Disabled", the serial port physically becomes

unavailable. Select "2F8/IRQ3" to allow the serial port to use 2F8 as its I/O port

address and IRQ 3 for the interrupt address. The options are Disabled, 2F8/IRQ3,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port 2 Mode

Tells BIOS which mode to select for serial port 2. The options are Normal, IrDA

and ASKIR.

 DMI Event Logging

View Event Log

Highlight this item and press <Enter> to view the contents of the event log.

7-12

Chapter 7: BIOS

Mark All Events as Read

Highlight this item and press <Enter> to mark all events as read.

Clear Event Log

Select Yes and press <Enter> to clear all event logs. The options are Yes and

No to verify.

 Console Redirection

Remote Access

Allows you to Enable or Disable remote access. If enabled, the settings below

will appear.

Serial Port Number

Selects the serial port to use for console redirection. Options are COM1 and

COM2.

Serial Port Mode

Selects the serial port settings to use. Options are (115200 8, n, 1), (57600 8,

n, 1), (38400 8, n, 1), (19200 8, n, 1) and (09600 8, n, 1).

Flow Control

Selects the fl ow control to be used for console redirection. Options are None,

Hardware and Software.

Redirection After BIOS POST

Options are Disable (no redirection after BIOS POST), Boot Loader (redirection

during POST and during boot loader) and Always (redirection always active).

Note that some OS's may not work with this set to Always.

Terminal Type

Selects the type of the target terminal. Options are ANSI, VT100 and VT-

UTF8.

VT-UTF8 Combo Key Support

Allows you to Enable or Disable VT-UTF8 combination key support for ANSI/

VT100 terminals.

7-13

AS2021M-UR+ User's Manual

Sredir Memory Display Delay

Use this setting to set the delay in seconds to display memory information. Op-

tions are No Delay, 1 sec, 2 secs and 4 secs.

 System Health Monitor

CPU Overheat Alarm

Use the "+" and "-" keys to set the CPU temperature threshold to between 65o

and 90o C. When this threshold is exceeded, the overheat LED on the chas-

sis will light up and an alarm will sound. The LED and alarm will turn off once

the CPU temperature has dropped to 5 degrees below the threshold set. The

default setting is 72

o

C.

 System Fan Monitor

Fan Speed Control

This feature allows the user to determine how the system will control the speed of

the onboard fans. Select "Workstation" if your system is used as a Workstation.

Select "Server" if your system is used as a Server. Select "Disable" to disable

the fan speed control function to allow the onboard fans to continuously run at

full speed (12V). The options are 1) Disable (Full Speed) 2) 3-pin (Server)

3) 3-pin (Workstation).

FAN1 Speed through FAN8 Reading

The speeds of the onboard fans (in rpm) are displayed here.

Other items in the submenu are systems monitor displays for the following

information:

CPU1 Temperature, CPU2 Temperature (for dual CPU systems), System Tem-

perature, VCoreA, VCoreB (for dual CPU systems), HT Voltage, CPU1 Mem

VTT, CPU2 Mem VTT, CPU1 Mem, CPU2 Mem, VDD, 1.5V, MCP55 VCcore,

3.3V, 12V, -12V, 5V VSB and VBAT.

7-14

Chapter 7: BIOS

 IPMI Confi guration

 View BMC System Event Log

Pressing the Enter key will open the following settings. Use the "+" and "-"

keys to navigate through the system event log.

Clear BMC System Event Log

Selecting this and pressing the Enter key will clear the BMC system event log.

 Set LAN Confi guration

Use the "+" and "-" keys to choose the desired channel number.

 IP Address

Use the "+" and "-" keys to select the parameter. The IP address and current

IP address in the BMC are shown.

 MAC Address

Use the "+" and "-" keys to select the parameter. The MAC address and cur-

rent MAC address in the BMC are shown.

 Subnet Mask

Use the "+" and "-" keys to select the parameter. The subnet address and

current subnet address in the BMC are shown.

 Set PEF Confi guration

PEF Support

Use this setting to Enable or Disable PEF support. When enabled, the fol-

lowing four settings are accessible.

PEF Action Global Control

Options are Alert, Power Down, Reset Sysytem, Power Cycle, OEM Action

and Diagnostic Int..

Alert Startup Delay

Use this setting to Enable or Disable the alert startup delay.

7-15

AS2021M-UR+ User's Manual

Startup Delay

Use this setting to Enable or Disable the startup delay.

Event Message for PEF Action

Use this setting to Enable or Disable event messages for a PEF action.

BMC Watch Dog Timer Action

This setting is used to set the Watch Dog function. The options are Disabled,

Reset System, Power Down and Power Cycle.

7-4 Boot Menu

This feature allows the user to confi gure the following items:

 Boot Device Priority

This feature allows the user to prioritize the boot sequence from the available

devices.

 Hard Disk Drives

This feature allows the user to specify the boot sequence from available hard disk

drives.

 Removable Drives

This feature allows the user to specify the Boot sequence from available remov-

able drives.

 CD/DVD Drives

This feature allows the user to specify the Boot sequence from available CD/DVD

drives.

 Network Drives

This feature allows the user to specify the Boot sequence from available network

drives.

7-16

Chapter 7: BIOS

7-5 Security Menu

AMI BIOS provides a Supervisor and a User password. If you use both passwords,

the Supervisor password must be set fi rst.

Change Supervisor Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Change User Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Boot Sector Virus Protection

This option is near the bottom of the Security Setup screen. Select "Disabled" to

deactivate the Boot Sector Virus Protection. Select "Enabled" to enable boot sector

protection. When "Enabled", AMI BIOS displays a warning when any program (or

virus) issues a Disk Format command or attempts to write to the boot sector of the

hard disk drive. The options are Enabled and Disabled.

7-17

AS2021M-UR+ User's Manual

7-6 Exit Menu

Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup

screen.

Save Changes and Exit

When you have completed the system confi guration changes, select this option

to leave BIOS Setup and reboot the computer, so the new system confi guration

parameters can take effect. Select Save Changes and Exit from the Exit menu

and press <Enter>.

Discard Changes and Exit

Select this option to quit BIOS Setup without making any permanent changes to

the system confi guration and reboot the computer. Select Discard Changes and

Exit from the Exit menu and press <Enter>.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to AMI

BIOS Utility Program.

Load Optimal Defaults

To load optimal default settings, select this setting and press <Enter>. Then Select

"OK" to allow BIOS to automatically load the Optimal Defaults as the BIOS Settings.

The Optimal settings are designed for maximum system performance, but may not

work best for all computer applications.

Load Failsafe Defaults

Select and press <Enter> to load the Failsafe defaults. The Failsafe settings are

designed for maximum system stability, but not maximum performance.

7-18

Appendix A: BIOS Error Beep Codes

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time

the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the

boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up pro-

cedure. If a fatal error occurs, you should consult with your system manufacturer

for possible repairs.

These fatal errors are usually communicated through a series of audible beeps.

The numbers on the fatal error list, on the following page, correspond to the number

of beeps for the corresponding error. All errors listed, with the exception of Beep

Code 8, are fatal errors.

POST codes may be read on the debug LEDs located beside the LAN port on the

serverboard backplane. See the description of the Debug LEDs (LED1 and LED2)

in Chapter 5.

A-1 AMIBIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset.

(Ready to power up.)

5 short, 1 long Memory error No memory detected in

system

8 beeps Video error Video adapter disabled or

missing

A-1

AS2021M-UR+ User's Manual

Notes

A-2

Appendix B: BIOS POST Checkpoint Codes

Appendix B

BIOS POST Checkpoint Codes

When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O

port 0080h. If the computer cannot complete the boot process, diagnostic equipment

can be attached to the computer to read I/O port 0080h.

B-1 Uncompressed Initialization Codes

The uncompressed initialization checkpoint codes are listed in order of execution:

Checkpoint Code Description

D0h The NMI is disabled. Power on delay is starting. Next, the initialization code check-

D1h Initializing the DMA controller, performing the keyboard controller BAT test, starting

D3h Starting memory sizing next.

D4h Returning to real mode. Executing any OEM patches and setting the Stack next.

D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The

D6h Control is in segment 0. Next, checking if <Ctrl> <Home> was pressed and veri-

sum will be verifi ed.

memory refresh and entering 4 GB fl at mode next.

initialization code is copied to segment 0 and control will be transferred to segment

0.

fying the system BIOS checksum. If either <Ctrl> <Home> was pressed or the
system BIOS checksum is bad, next will go to checkpoint code E0h. Otherwise,
going to checkpoint code D7h.

B-1

AS2021M-UR+ User's Manual

B-2 Bootblock Recovery Codes

The bootblock recovery checkpoint codes are listed in order of execution:

Checkpoint Code Description

E0h The onboard fl oppy controller if available is initialized. Next, beginning the base

E1h Initializing the interrupt vector table next.

E2h Initializing the DMA and Interrupt controllers next.

E6h Enabling the fl oppy drive controller and Timer IRQs. Enabling internal cache mem-

Edh Initializing the fl oppy drive.

Eeh Looking for a fl oppy diskette in drive A:. Reading the fi rst sector of the diskette.

Efh A read error occurred while reading the fl oppy drive in drive A:.

F0h Next, searching for the AMIBOOT.ROM fi le in the root directory.

F1h The AMIBOOT.ROM fi le is not in the root directory.

F2h Next, reading and analyzing the fl oppy diskette FAT to fi nd the clusters occupied

F3h Next, reading the AMIBOOT.ROM fi le, cluster by cluster.

F4h The AMIBOOT.ROM fi le is not the correct size.

F5h Next, disabling internal cache memory.

FBh Next, detecting the type of fl ash ROM.

FCh Next, erasing the fl ash ROM.

512 KB memory test.

ory.

by the AMIBOOT.ROM fi le.

FDh Next, programming the fl ash ROM.

FFh Flash ROM programming was successful. Next, restarting the system BIOS.

B-2

Appendix B: BIOS POST Checkpoint Codes

B-3 Uncompressed Initialization Codes

The following runtime checkpoint codes are listed in order of execution.

These codes are uncompressed in F0000h shadow RAM.

Checkpoint Code Description

03h The NMI is disabled. Next, checking for a soft reset or a power on condition.

05h The BIOS stack has been built. Next, disabling cache memory.

06h Uncompressing the POST code next.

07h Next, initializing the CPU and the CPU data area.

08h The CMOS checksum calculation is done next.

0Ah The CMOS checksum calculation is done. Initializing the CMOS status register for

0Bh The CMOS status register is initialized. Next, performing any required initialization

0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to the

0Eh The keyboard controller BAT command result has been verifi ed. Next, performing

0Fh The initialization after the keyboard controller BAT command test is done. The key-

10h The keyboard controller command byte is written. Next, issuing the Pin 23 and 24

11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing

12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2.

13h The video display has been disabled. Port B has been initialized. Next, initializing

14h The 8254 timer test will begin next.

19h Next, programming the fl ash ROM.

1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.

date and time next.

before the keyboard BAT command is issued.

keyboard controller.

any necessary initialization after the keyboard controller BAT command test.

board command byte is written next.

blocking and unblocking command.

CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was
set in AMIBCP or the <End> key was pressed.

the chipset.

2Bh Passing control to the video ROM to perform any required confi guration before the

video ROM test.

2Ch All necessary processing before passing control to the video ROM is done. Look-

ing for the video ROM next and passing control to it.

2Dh The video ROM has returned control to BIOS POST. Performing any required pro-

cessing after the video ROM had control

23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature next.

Making the BIOS code segment writable and performing any necessary confi gura­tion before initializing the interrupt vectors.

24h The confi guration required before interrupt vector initialization has completed. In-

terrupt vector initialization is about to begin.

B-3

AS2021M-UR+ User's Manual

Checkpoint Code Description

25h Interrupt vector initialization is done. Clearing the password if the POST DIAG

27h Any initialization before setting video mode will be done next.

28h Initialization before setting the video mode is complete. Confi guring the mono-

2Ah Bus initialization system, static, output devices will be done next, if present. See the

2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not

2Fh The EGA/VGA controller was not found. The display memory read/write test is

30h The display memory read/write test passed. Look for retrace checking next.

31h The display memory read/write test or retrace checking failed. Performing the alter-

32h The alternate display memory read/write test passed. Looking for alternate display

34h Video display checking is over. Setting the display mode next.

37h The display mode is set. Displaying the power on message next.

38h Initializing the bus input, IPL, general devices next, if present. See the last page of

39h Displaying bus initialization error messages. See the last page of this chapter for

switch is on.

chrome mode and color mode settings next.

last page for additional information.

found, performing the display memory read/write test next.

about to begin.

nate display memory read/write test next.

retrace checking next.

this chapter for additional information.

additional information.

3Ah The new cursor position has been read and saved. Displaying the Hit <DEL> mes-

3Bh The Hit <DEL> message is displayed. The protected mode memory test is about

40h Preparing the descriptor tables next.

42h The descriptor tables are prepared. Entering protected mode for the memory test

43h Entered protected mode. Enabling interrupts for diagnostics mode next.

44h Interrupts enabled if the diagnostics switch is on. Initializing data to check memory

45h Data initialized. Checking for memory wraparound at 0:0 and fi nding the total sys-

46h The memory wraparound test is done. Memory size calculation has been done.

47h The memory pattern has been written to extended memory. Writing patterns to the

48h Patterns written in base memory. Determining the amount of memory below 1 MB

49h The amount of memory below 1 MB has been found and verifi ed.

4Bh The amount of memory above 1 MB has been found and verifi ed. Checking for a

sage next.

to start.

next.

wraparound at 0:0 next.

tem memory size next.

Writing patterns to test memory next.

base 640 KB memory next.

next.

soft reset and clearing the memory below 1 MB for the soft reset next. If this is a
power on situation, going to checkpoint 4Eh next.

B-4

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory

4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory size

4Eh The memory test started, but not as the result of a soft reset. Displaying the fi rst

4Fh The memory size display has started. The display is updated during the memory

50h The memory below 1 MB has been tested and initialized. Adjusting the displayed

51h The memory size display was adjusted for relocation and shadowing.

52h The memory above 1 MB has been tested and initialized. Saving the memory size

53h The memory size information and the CPU registers are saved. Entering real mode

54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,

57h The A20 address line, parity, and the NMI are disabled. Adjusting the memory size

58h The memory size was adjusted for relocation and shadowing. Clearing the Hit

59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed. Starting

above 1 MB next.

next. Going to checkpoint 52h next.

64 KB memory size next.

test. Performing the sequential and random memory test next.

memory size for relocation and shadowing next.

information next.

next.

parity, and the NMI next.

depending on relocation and shadowing next.

<DEL> message next.

the DMA and interrupt controller test next.

60h The DMA page register test passed. Performing the DMA Controller 1 base register

62h The DMA controller 1 base register test passed. Performing the DMA controller 2

65h The DMA controller 2 base register test passed. Programming DMA controllers 1

66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt

67h Completed 8259 interrupt controller initialization.

7Fh Extended NMI source enabling is in progress.

80h The keyboard test has started. Clearing the output buffer and checking for stuck

81h A keyboard reset error or stuck key was found. Issuing the keyboard controller

82h The keyboard controller interface test completed. Writing the command byte and

83h The command byte was written and global data initialization has completed. Check-

84h Locked key checking is over. Checking for a memory size mismatch with CMOS

85h The memory size check is done. Displaying a soft error and checking for a password

test next.

base register test next.

and 2 next.

controller next.

keys. Issuing the keyboard reset command next.

interface test command next.

initializing the circular buffer next.

ing for a locked key next.

RAM data next.

or bypassing WINBIOS Setup next.

B-5

AS2021M-UR+ User's Manual

Checkpoint Code Description

86h The password was checked. Performing any required programming before WIN-

87h The programming before WINBIOS Setup has completed. Uncompressing the

88h Returned from WINBIOS Setup and cleared the screen. Performing any necessary

89h The programming after WINBIOS Setup has completed. Displaying the power on

8Ch Programming the WINBIOS Setup options next.

8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller

8Fh The hard disk controller has been reset. Confi guring the fl oppy drive controller

91h The fl oppy drive controller has been confi gured. Confi guring the hard disk drive

95h Initializing the bus option ROMs from C800 next. See the last page of this chapter

96h Initializing before passing control to the adaptor ROM at C800.

97h Initialization before the C800 adaptor ROM gains control has completed. The adap-

98h The adaptor ROM had control and has now returned control to BIOS POST. Perform-

BIOS Setup next.

WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility
next.

programming after WINBIOS Setup next.

screen message next.

next.

next.

controller next.

for additional information.

tor ROM check is next.

ing any required processing after the option ROM returned control.

99h Any initialization required after the option ROM test has completed. Confi guring the

9Ah Set the timer and printer base addresses. Setting the RS-232 base address next.

9Bh Returned after setting the RS-232 base address. Performing any required initializa-

9Ch Required initialization before the Coprocessor test is over. Initializing the Coproces-

9Dh Coprocessor initialized. Performing any required initialization after the Coproces-

9Eh Initialization after the Coprocessor test is complete. Checking the extended keyboard,

A2h Displaying any soft errors next.

A3h The soft error display has completed. Setting the keyboard typematic rate next.

A4h The keyboard typematic rate is set. Programming the memory wait states next.

A5h Memory wait state programming is over. Clearing the screen and enabling parity

A7h NMI and parity enabled. Performing any initialization required before passing control

A8h Initialization before passing control to the adaptor ROM at E000h completed. Passing

timer data area and printer base address next.

tion before the Coprocessor test next.

sor next.

sor test next.

keyboard ID, and Num Lock key next. Issuing the keyboard ID command next.

and the NMI next.

to the adaptor ROM at E000 next.

control to the adaptor ROM at E000h next.

B-6

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

A9h Returned from adaptor ROM at E000h control. Performing any initialization required

Aah Initialization after E000 option ROM control has completed. Displaying the system

Abh Uncompressing the DMI data and executing DMI POST initialization next.

B0h The system confi guration is displayed.

B1h Copying any code to specifi c areas.

00h Code copying to specifi c areas is done. Passing control to INT 19h boot loader

after the E000 option ROM had control next.

confi guration next.

next.

B-7

AS2021M-UR+ User's Manual

Notes

B-8
