SUPER

USER'S GUIDE

AOC-SIM1U/SIM1U+

Add-On Card

SIM1U

Page 2

AOC-SIM1U/SIM1U+ User's Guide

1-2

Manual Revision 1.1b Release Date: June 13, 2008

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Page 3

1-3

Chapter 1: Introduction

Table of Contents

Chapter I: Introduction .............................................................................1-4

1.1 Overview ..................................................................................................... 1-4

1.2 IPMI Version 2.0 ......................................................................................... 1-5

1.3 Product Features ........................................................................................ 1-5

1.4 Checklist .................................................................................................... 1-5

1.5 An Important Note to the User ................................................................... 1-5

1.6 Contacting Supermicro ............................................................................... 1-6

1.7 Returning Merchandise for Service .......................................................... 1-7

Chapter 2: Technical Speciﬁcations and Hardware Installation .......... 2-1

2.1 The Conﬁguration of the AOC-SIM1U/SIM1U+ & the AOC-USB2RJ45 .... 2-1

2.2 AOC-SIM1U/SIM1U+ Connector and Jumper Locations .......................... 2-2

2.2.1 Front Components on the AOC-SIM1U(+) .............................................. 2-2

2.2.2 The Dedicated LAN LED on the AOC-USB2RJ45 .................................. 2-2

2.2.3 Front Connectors and LED Indicators ..................................................... 2-3

2.2.4 Dedicated LED Indicators ........................................................................ 2-4

2.2.5 Rear Components on the AOC-SIM1U(+) ............................................... 2-5

2.2.6 Rear LED Indicators ................................................................................ 2-5

2.3 Block Diagram ............................................................................................ 2-6

2.4 Installing the AOC-SIM1U(+) ...................................................................... 2-7

2.4.1 Safety Guidelines .................................................................................... 2-7

2.4.2 SIM1U Slot Locations .............................................................................. 2-8

Chapter 3: Software Application and Usage ..........................................3-1

3.1 Home Page ................................................................................................. 3-3

3.2 Functions Listed On the Home Page ......................................................... 3-5

3.2.1 Remote Control ....................................................................................... 3-5

3.2.2 Virtual Media ............................................................................................ 3-7

3.2.3 System Health ........................................................................................3-11

3.2.4 User Management ................................................................................. 3-17

3.2.5 KVM Settings ......................................................................................... 3-21

3.2.6 Device Settings ...................................................................................... 3-25

3.2.7 Maintenance .......................................................................................... 3-38

3.3 Remote Console Main Page .................................................................... 3-42

3.3.1 Remote Console Options ...................................................................... 3-43

Chapter 4: Frequently Asked Questions ................................................ 4-1

Page 4

AOC-SIM1U/SIM1U+ User's Guide

1-4

Chapter 1

Introduction

This user's guide is written for system integrators, PC technicians an d

knowledgeable PC users who intend to integrate Supermicro's unique IPMI 2.0

Management Utility with support of KVM-over-LAN () into their systems. It pro-

vides detailed information for the application and use of the AOC-SIM1U/SIM1U+

that supports remote access for system monitoring, diagnosis and management.

With the most advanced technologies built-in, the AOC-SIM1U/SIM1U+ offers a

complete, efﬁ cient, and cost-effective remote server management.

(Note: KVM-over-LAN is only for the AOC-SIM1U+ only.)

1.1 Overview

The AOC-SIM1U/SIM1U+ is a highly efﬁ cient, highly compatible and easy-to-use

IPMI card that allows the user to take advantage of the BMC, a baseboard man-

agement controller installed on a server motherboard and the IPMIView, an IPMI-

compliant management application software loaded in a PC, to provide serial links

between the main processor and other system components, allowing for network

interfacing via remote access. With an independent Raritan KIRA100 processor

built-in, the AOC-SIM1U/SIM1U+ provides the user with a solution to ease the com-

plex and expensive systems, allowing an administrator to access, monitor, diagnose

and manage network interfacing anywhere, anytime.

1.2 IPMI Version 2.0

The AOC-SIM1U/SIM1U+ supports the functionality of IPMI Version 2.0. The key

features include the following:

Supports IPMI 2.0 over LAN

Supports Serial over LAN

Supports Virtual Media over LAN

Supports KVM over LAN (For the AOC-SIM1U+ only)

Supports LAN Alerting-SNMP Trap

Supports Event Log

Offers OS (Operating System) Independency

Provides remote Hardware Health Monitoring via IPMI. Key features include

the following:

Temperature monitoring

Fan speed monitoring

Voltage monitoring

Power status monitoring, chassis intrusion monitoring

Remote power control to power-on, power-off or reboot a system

•

Page 5

1-5

Chapter 1: Introduction

Remote access to text-based, graphic-based system information,

including BIOS conﬁgurations and OS operation information (KVM)

Remote management of utility/software applications

Provides Network Management Security via remote access/console redirec-

tion. Key features include:

User authentication enhancement

Encryption support enhancement, allowing for password conﬁgura-

tion security to protect sensitive data transferring via Serial over

LAN

Supports the following Management tools: IPMIView, CLI (Command Line

Interface) and Webengine

Supports RMCP & RMCP protocols

1.3. Product Features

(a) The AOC-SIM1U/SIM1U+ Series: (IPMI 2.0 with a Dedicated LAN)

• Slim size (4.6" W x 1.3" H) (116.84 mm W x 25.41 mm H)

• Supports IPMI over LAN

• Supports 1U and above

• Supports dedicated LAN

1.4 Checklist

If your shipping package came with missing or damaged parts, please contact Supermicro's Tech. Support. Please refer to the following checklist when contacting us.

i. AOC-SIM1U/SIM1U+

ii. Bracket: One bracket (SKT-0240L, including the AOC-USB2RJ45 Add-On Card, the CBL-0165L Cable, Full and Low Proﬁle I/O Brackets.) (The

SKT-0240L is

included in the SIM1U+ shipping package only.)

iii. CDR-SIMIPMI: One Installation CD

iv. White Box with Correct Barcode Label (showing AOC-SIM1U/SIM1U+).

1.5 An Important Note to the User

The graphics shown in this user's guide were based on the latest PCB Revision

available at the time of publishing of this guide. The SIM1U/SIM1U+ card you’ve

received may or may not look exactly the same as the graphics shown in this

user's guide.

•

Page 6

AOC-SIM1U/SIM1U+ User's Guide

1-6

1.6 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Asia-Paciﬁ c

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: support@supermicro.com.tw

Tel: 886-2-8226-1900

Page 7

1-7

Chapter 1: Introduction

1.7 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http:// www.supermicro.com/support/rma/).

Whenever possible, repack the add-on card in the original Supermicro box, using the original packaging materials. If these are no longer available, be sure to pack the add-on card in an anti-static bag and inside the box. Make sure that there is enough packaging material surrounding the add-on card so that it does not become damaged during shipping.

This warranty only covers normal consumer use and does not cover dam

ages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor ﬁrst for any product problems.

Page 8

2-1

Chapter 2: Technical Speciﬁ cations and Installation

Chapter 2

Technical Speciﬁ cations and Hardware

Installation

2.1 Conﬁ guring the AOC-SIM1U/SIM1U+ and the AOC-USB2RJ45 Add-On Cards

The AOC-SIM1U/SIM1U+ Add-On Card is connected to a Dedicated LAN Ethernet

port located on the AOC-USB2RJ45 Add-On Card via an SMC Proprietary cable

(CBL-0165L) for External LAN access. One end of the CBL-0165L cable is con-

nected to the mini USB connector (J3) located on the AOC-SIM1U(+) card and the

other end to that of the AOC-USB2RJ45 card. There are two LEDs located on the

LAN port to indicate network links and activities. Refer to the picture below for the

conﬁ guration.

*Note 1: You can also use LAN1 on the motherboard if you do not need the dedi-

cated LAN support. However, dedicated LAN is recommended for better graphic

support when the KVM feature is used.

*Note 2: The SKT-0240L is included in the SIM1U+ shipping package only.

AOC-SIM1U(+)

CBL-0165L Cable

AOC-USB2RJ45

Dedicated Ethernet (LAN) Port

Mini USB Connector (J3)

Mini USB Connector

Bracket

LAN LEDs

The SKT-0240L

(*Note 2 above)

Page 9

AOC-SIM1U/SIM1U+ User's Guide

2-2

AOC-SIM1U/SIM1U+ User's Guide

SIM1U

2.2 AOC-SIM1U/SIM1U+ Connector and Jumper Locations

2.2.1 Front Components on the AOC-SIM1U(+)

1. V-RAM (64Mb/166MHz)

2. SDRAM (128Mb/133MHz)

3. Transformer

4. J3: Mini USB 9-pin Connector (*Note)

5. JP5: Kira 100 Processor Reset (*Note)

6. D3: Standby Power LED Indicator

2.2.2 The Dedicated LAN LED Indicators on the AOC-USB2RJ45

8. Dedicated LAN LED Indicators

(*Note)

(*Note: See Pages 2-3, 2-4 for details)

Front View

V-RAM

SDRAM

Transformer

(*Note: " ", " ", or " " indicates Pin 1.)

Page 10

2-3

Chapter 2: Technical Speciﬁ cations and Installation

#4. J3: Mini USB Connector

There is a mini USB connector (J3) located on the

AOC-SIM1U/SIM1U+ and another mini USB con-

nector is located on the AOC-USB2RJ45. Use Cable

CBL-0165L to connect the two mini USB connectors

on both add-on cards for external LAN access. Refer

to Page 2-1 for details. See the table at right for the

pin deﬁ nitions.

2.2.3 Front Connector and LED Indicators

Mini USB

Connector

AOC-USB2RJ45

Mini USB Pin Deﬁ nitions

(J3)

Pin# Deﬁ nition

1 Eth-TX_H

2 Eth-TX_L

3 Phy-100

4 Eth-RX_L

5 Eth-RX_H

6 Phy-ACT

7 Dedicated LAN-

Detected

8 3V-duall

9 Ground

AOC-SIM1U(+)

CBL-0165L Cable

(*Note)

#5. JP5: RISC CPU Reset

JP5 is used to reset the Kira 100 Processor, NIC,

and R.T. Close Pin 1 and Pin 2 to enable this

function.After a reset or AC power-on, the AOC-

SIM1U(+) will automatically detect if a cable (CBL-

0165L) is connected. If a cable is not detected,

the AOC-SIM1U(+) will transfer the "Remote

Control" Function to LAN1 on the motherboard.

If a cable is detected, the AOC-SIM1U(+) will use

the dedicated LAN attached to it via the mini USB

connector to manage motherboard activities via

Remote Console. See the table on the right for

jumper settings.

RISC CPU Reset

Setting Description

Open Disabled (*Default)

Close Enabled

Dedicated LAN

port

*Note: The SKT-0240L is included in the SIM1U+ shipping package only.

The SKT-0240L

(*Note below)

Page 11

AOC-SIM1U/SIM1U+ User's Guide

2-4

AOC-SIM1U/SIM1U+ User's Guide

Link LED

Activity LED

GLAN Link Indicator

LED Color Deﬁ nition

Off

No Connection or 10 Mbps

Green 100 Mbps

GLAN Activity Indicator

Color Status Deﬁ nition

Amber Flashing Active

#8. Dedicated LAN LED Indicators

There are two LAN LED Indicators located

on the (Dedicated) LAN port on the AOC-

USB2RJ45 Add-On Card. The green LED

indicates activity, while the power LED may

be green or off to indicate the speed of the

Ethernet connection. See the tables on the

right for more information.

#7. D3: Standby Power LED Indicator

When this LED is on, the standby power is

on. Be sure to remove power cables before

installing or removing components.

2.2.4 Dedicated LAN LED Indicators

Page 12

2-5

Chapter 2: Technical Speciﬁcations and Installation

Rear View

Rear Side Components

1. Raritan's Kira 100 RISC System on Chip

2. Flash Memory

3. PHY LAN

4. Heartbeat LED

2.2.5 Rear Components on the AOC-SIM1U(+)

Kira 100 Processor

PHY LAN

Flash Memory

Heartbeat LED

#4 Heartbeat LED Indicator

Heartbeat LED, located on the rear side

of the AOC-SIM1U(+) card, indicates the

functionality and activity of the add-on

card. Heartbeat LED blinks when the

AOC-SIM1U(+) is active. However, when

the Linux OS and the drivers are being

loaded after each AC power-on or reset,

Heartbeat LED is off for about a minute.

Then, Heartbeat LED will be on again to

indicate that the AOC-SIM1U(+) is active.

See the table on the right for details.

Heartbeat LED

On (Blinking) SIM1U(+): active

Off (for 1 minute) Loading Firmware

Off (Continuously)

SIM1U is not active

2.2.6 Rear Side LED Indicators

Page 13

AOC-SIM1U/SIM1U+ User's Guide

2-6

AOC-SIM1U/SIM1U+ User's Guide

2.3 Block Diagram

Ethernet PHY

DVO interface

UART Interface

USB Interface

LPC Interface

FML Interface

RMII

KIRA100

IPMI-200 Connector

Mother Board SMDATA

Mother Board SMCLK

Mother Board SMALT#

mini USB cable

RJ45 Dedicated LAN

miniUSB

CABLE detection (Lo active)

PIN 7

GPIO24

SIM1U only

Page 14

2-7

Chapter 2: Technical Speciﬁcations and Installation

2.4 Installing the AOC-SIM1U/SIM1U+

To avoid personal injury and property damage, please carefully

follow all the safety steps listed below when installing the AOC-

SIM1U(+) into your system.

ESD Safety Guidelines

Electro-Static Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the antistatic

bag.

• Handle the add-on card by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

General Safety Guidelines

• Always disconnect power cables before installing or removing any components

from the computer.

• Disconnect the power cable before removing any cable from the add-on card.

• Make sure that the SIM1U(+) add-on card is securely seated in the SIM1U slot to

prevent damage to the system due to power shortage. For SIM1U slot locations,

please refer to Section 2.4.2.

SMC Motherboards with SIM1U(+) support

The following Supermicro's motherboards support the AOC-SIM1U(+).

1. The X7DB8/X7DBE/X7DB8+/X7DBE+/X7DB8-X/X7DBE-X/X7DB3 Series

2. The X7DA8/X7DAE/X7DVA-8/X7DVA-E/X7DVL-3/i Series (*Note)

3. The X7DVL-E Series

4. The PDSM4+/PDSME+ Series

(*Note: KVM-over-LAN is not supported by the X7DA8/X7DAE/X7DVL-3/i.)

2.4.1 Safety Guidelines

Page 15

AOC-SIM1U/SIM1U+ User's Guide

2-8

AOC-SIM1U/SIM1U+ User's Guide

2.4.2 SIM1U Slot Locations

To properly use the AOC-SIM1U(+), be sure to install it in the right slot. Refer to the MB layouts below for SIM1U slot locations.

1. The X7DB8/X7DBE/X7DB8+/X7DBE+/X7DB8-X/X7DBE-X/X7DB3 Series and

2. The X7DA8/X7DAE/X7DVA-8/X7DVA-E/X7DVL-3/i Series (*Note)

SIM1U(+) Slot (Slot 7)

3. The X7DVL-E

SIM1U(+) Slot

4. The PDSM4+/PDSME+ Series

SIM1U(+) Slot

(*Note: KVM-over-LAN is not supported by

the X7DA8/X7DAE/X7DVL-3/i.)

Page 16

Chapter 3: Software Application and Usage

3-1

Chapter 3

Software Application and Usage

With an independent I/O processor embedded in Raritan's Kira 100 RISC System

Chip, the AOC-SIM1U/SIM1U+ Add-On Card allows the user to access, monitor,

manage and interface with systems that are in remote locations via LAN. (See the

note on Page 3-2.) The necessary utilities for the access and conﬁguration of the

add-on card are included on the Supermicro bootable CDs that came with your

card. This section provides information on the conﬁguration and the access of the

IPMI card on the network.

Using the IPMICFG Utility to Conﬁgure IP/MAC Addresses and other IPMI Network Settings

1. Run the ipmicfg utility from the bootable CD that came with your shipment.

2. Refer to the table below to conﬁgure the IP/MAC addresses.

Board IPMI MAC IP Communication through

X7 Series with LAN 82563EB, 82575

SIMLC IPMI Card Available

IP/DHCP

LAN1 on MB

X7 Series with LAN 82573

SIMLC LAN1 Available IPLAN1 on MB

H8 DDR2 Memory SIM1U IPMI Card Available

IP/DHCP

Dedicated LAN

LAN1 on MB

H8QM3/i-x SIM1U IPMI Card Available

IP/DHCP

Dedicated LAN

LAN1 LAN1 LAN1 on MB

3. Follow the instructions given in the Readme.txt ﬁle to conﬁgure Gateway IP/Net-

mask IP addresses, to enable/disable DHCP and to conﬁgure other IPMI settings.

Note 1: The Readme.txt ﬁle is included in the CD that came with your shipment. A

copy of the Readme.txt ﬁle, dated 07/05/2007, is also included below.

-m Show IP and MAC

-m IP Set IP (format: ###.###.###.###)

-a MAC Set MAC (format: ##:##:##:##:##:##)

-k Show Subnet Mask

-k Mask Set Subnet Mask (format: ###.###.###.###)

-dhcp on Enable the DHCP

-dhcp off Disable the DHCP

-g Show Gateway IP

-g IP Set Gateway IP (format: ###.###.###.###)

-r BMC cold reset

-garp on Enable the Gratuitous ARP

-garp off Disable the Gratuitous ARP

-fd Reset to the factory default

Page 17

3-2

AOC-SIM1U/SIM1U+ User's Guide

To Access the SIM1U/SIM1U+ Card from a Computer Using the H8QM32(+)/H8QMi-2(+) Motherboards

A. Using the Onboard LAN1 Connection

1. Choose a computer that is connected to the same network and open the

IPMIView utility.

2. Go to File>New>System. Type System Name, IP Address of LAN1, Description

in the appropriate blanks and press the <Enter> key.

3. Select the system from the IPMI Domain. Type the Login ID and Password in

the appropriate blanks to log into the IPMIView utility.

B. Using the Dedicated LAN

1. Choose a computer that is connected to the same network and open the

browser.

2. Type in the IP address of each server that you want to connect to in the ad-dress

bar in your browser.

3. Once the connection is made, the Log In screen as shown below will display.

To Log In

Once you are connected to the remote server, the following Log In screen

displays.

1. Type in your Username in the "Username" box.

2. Type in your Password in the "Password" box and click on "Login."

(Note: The default username is ADMIN. The default password is ADMIN.)

3. The Home Page will display as follows:

Note: KVM-over-LAN is available on the AOC-SIM1U+ only. All features and options

related to the functionality of KVM-over-LAN are supported by the AOC-SIM1U+

only. In addition, KVM-over-LAN is not supported by the following motherboards:

1. X7DA8/X7DAE

2. X7DVL-3/X7DVL-i.

Page 18

Chapter 3: Software Application and Usage

3-3

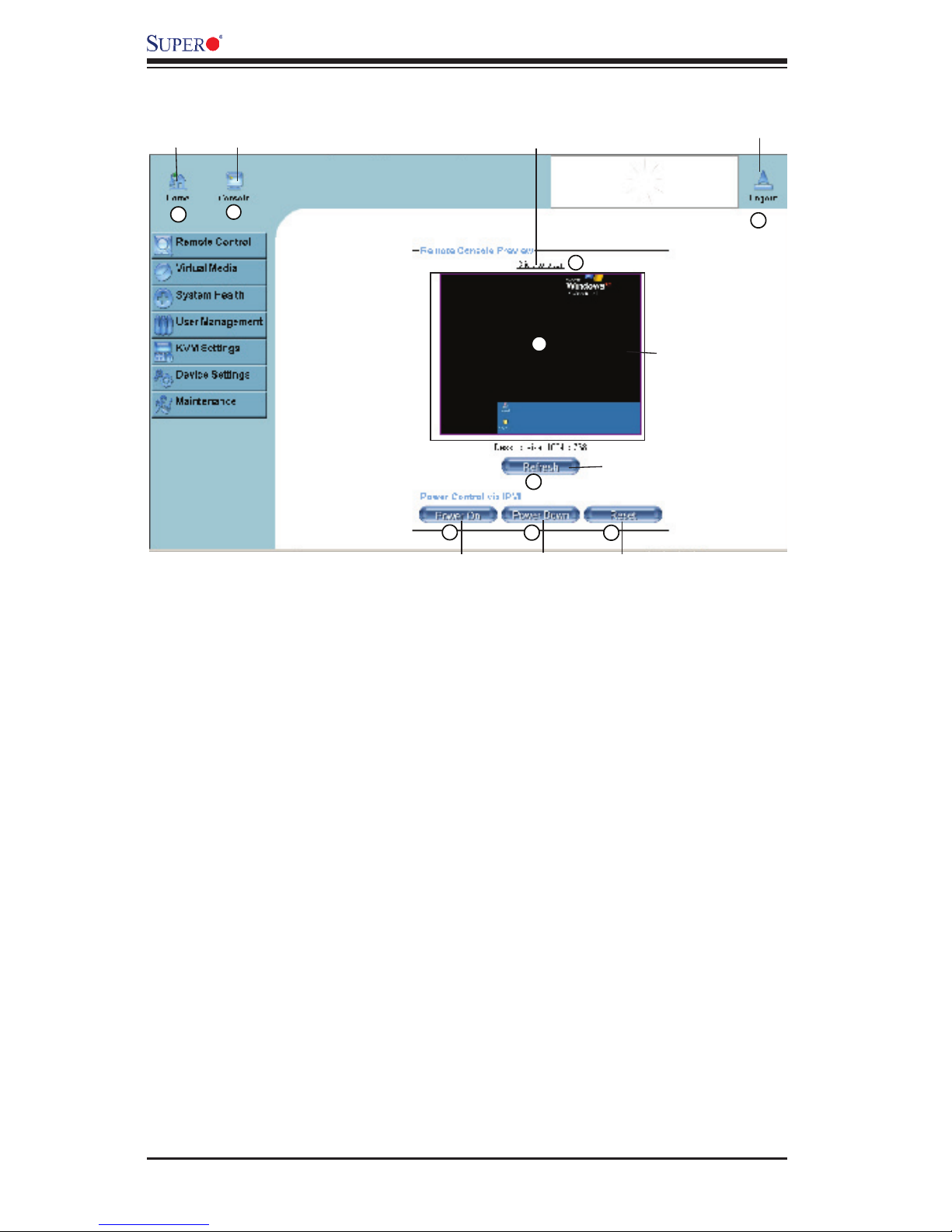

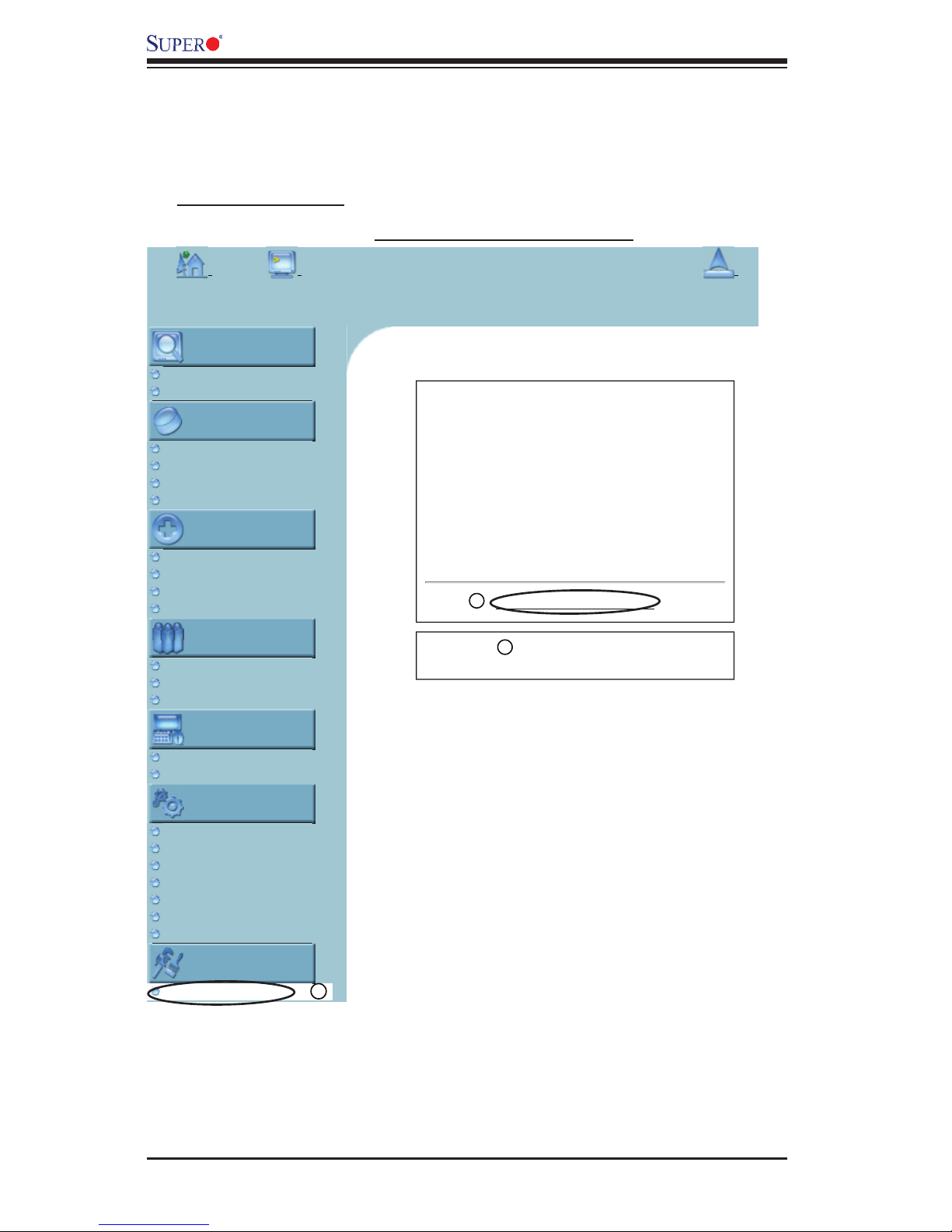

3.1 Home Page

3.1.1 Buttons from the Home Page

Home

Console

Logout

Remote Console Screen

Function Keys

Home: Click this icon to return to the Home Page.

Console: Click this icon to go to the Remote Console Screen.

Remote Console Screen: Displayed in the window is Remote Console

Screen. Click on this window to go to the Remote Console Screen.

Logout: Click on this icon to log out.

Refresh: Click on this icon to refresh the screen of the re-

mote console preview.

Power On: Click on this icon to power on the system of the remote host.

Power Down: Click on this icon to power down the system

of the remote host.

Reset: Click on this icon to reset the remote host.

Page 19

3-4

AOC-SIM1U/SIM1U+ User's Guide

3.1.2 Function Keys from the Home Page

Click on these function keys to use the functions as speciﬁ ed below.

(Note: Please see the next page for details on the functions speciﬁ ed above.)

1. Remote Control: Click on this icon for remote access

and management of Video Console Redirection.

2. Virtual Media: Click on this icon to use virtual remote media devices.

3. System Health: Click on this icon to view and manage health monitoring for remote systems

4. User Management: Click on this icon for User Management.

5. KVM Settings: Click on this icon to conﬁ gure keyboard, Video and mouse settings.

6. Device Settings: Click on this icon to conﬁ gure device settings.

7. Maintenance: Click on this icon to access, diagnose and manage hardware devices

Page 20

Chapter 3: Software Application and Usage

3-5

3.2 Functions Listed on the Home Page

3.2.1. Remote Control

Click on the icon of Remote Control to activate its submenus-KVM Console and Remote Power as listed below.

a. KVM Console

Click on this item to conﬁgure keyboard, mouse or video settings for the remote host.

Remote Console Screen

In the Single/Synchronized Mouse Mode, this cursor indicates the system that is currently active. For the Double Mouse mode, this is the cur

sor for the remote host.

This icon indicates the availability of Keyboard and Mouse.

This icon indicates the number of networks (users) that are connected via Console Redirection. (The number of ﬁgure icons indicates the num

ber of users connected.)

Explanation of Functions

This second mouse cursor only appears in the Double Mouse Mode. This cursor represents the local mouse.

Page 21

3-6

AOC-SIM1U/SIM1U+ User's Guide

b. Remote Power

Click on this item to conﬁ gure the power settings for Remote Console as shown below.

Remote Power Screen

Explanation of Functions

Power On: Click on this icon to power on the remote host.

Power Down: Click on this icon to power down the remote

host.

Reset: Click on this icon to reset the remote host.

Page 22

Chapter 3: Software Application and Usage

3-7

3.2.2. Virtual Media

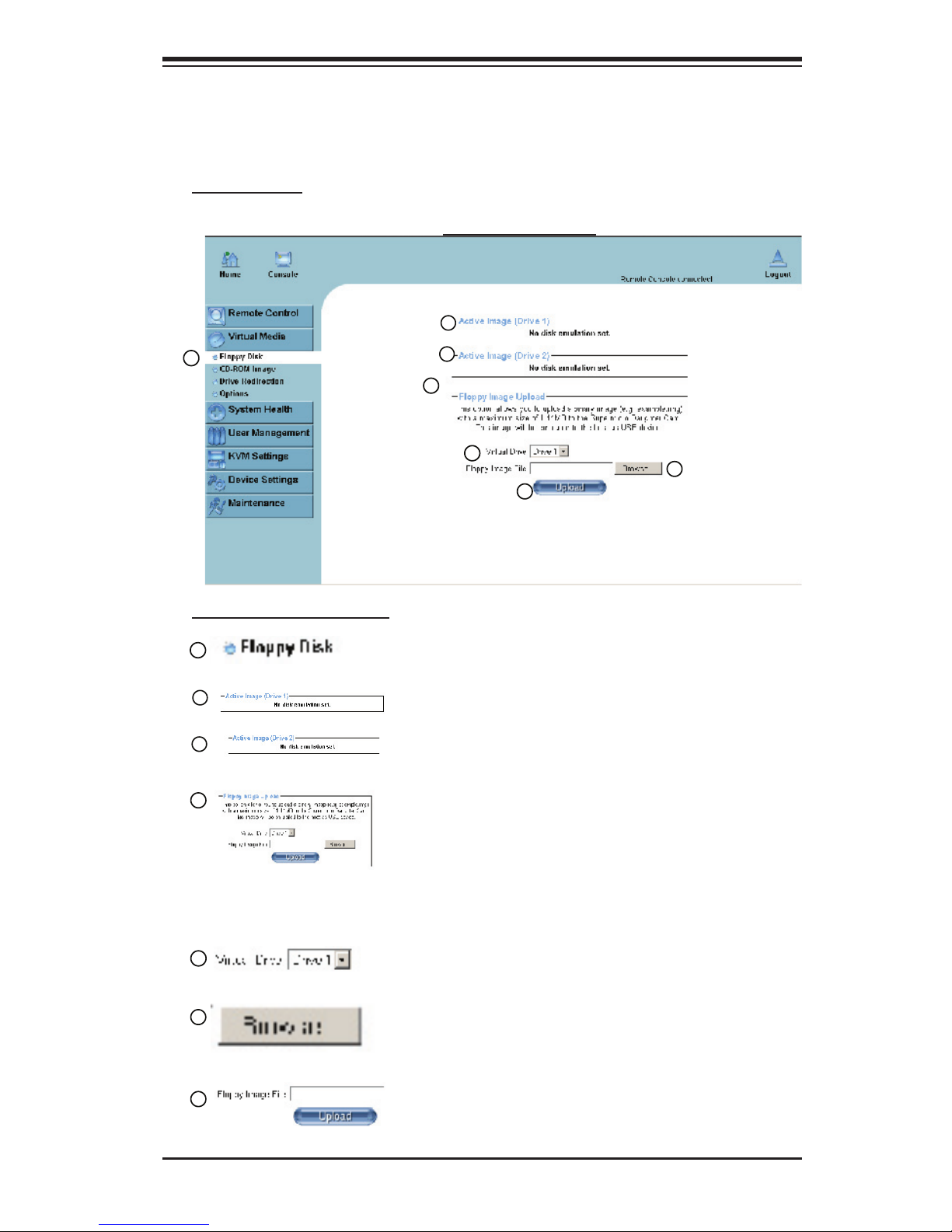

Click on the Virtual Media icon on the Home Page to activate its submenus-Floppy Disk, CD-ROM, Drive Redirection and Options as listed below.

Explanation of Functions

Floppy Disk: Click on this function key to upload the data

stored in the local ﬂoppy disk image to the remote host.

Floppy Disk Screen

Active Image (Drive1): This window displays the data

that has been uploaded to Drive 1 of the remote host.

Active Image (Drive2): This window displays the data that has been uploaded to Drive 2 of the remote host.

Floppy Image Upload: This option allows the user to up-

load the ﬂoppy image as "ﬂoppy" located in the remote host. The ﬂoppy image uploaded shall be in the binary format with a maximum size of 1.44MB. It will be loaded to the Supermicro SIMLP card and will be emulated to the host as a USB device.

Virtual Drive: Select a drive in the remote host as a desti-

nation drive for you to upload your image data.

Floppy Image File: Click on "Browse" to preview and

select the ﬁles that you wish to upload to the host drive selected.

Upload: Once the correct ﬁle name appears in the box,

click Upload to upload the ﬂoppy image to the drive speciﬁed in the remote host.

a. Floppy disk

Page 23

3-8

AOC-SIM1U/SIM1U+ User's Guide

Explanation of Functions

CD-ROM image: Click on this function key to share data

stored in your local CD-ROM drive with other users in the remote host through the Windows Share application via USB.

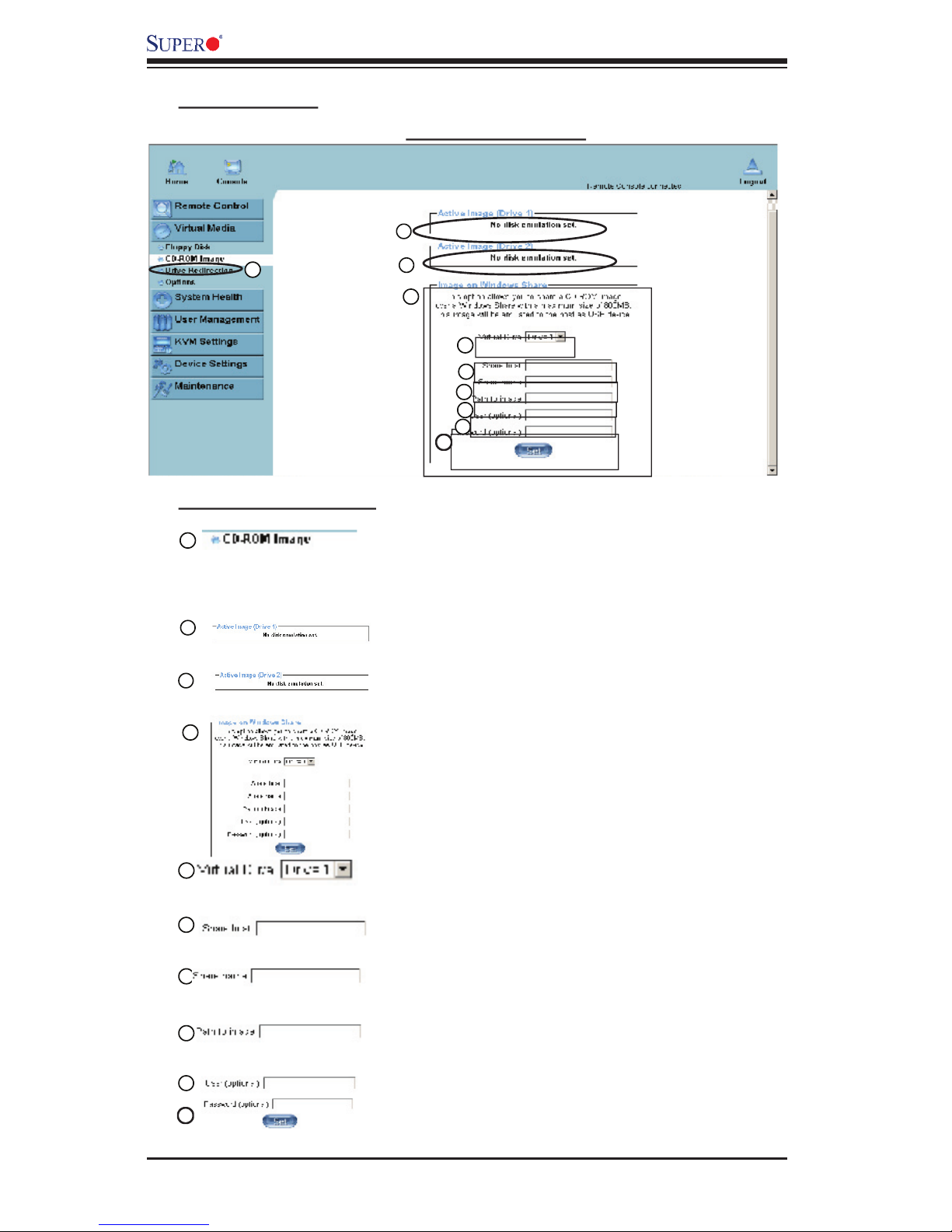

CD-ROM Image Screen

Active Image (Drive1): This window displays the ﬁ le

name of the data currently active in host Drive 1.

Image on Windows Share: This option allows the user to

conﬁ gure Windows Share settings. It allows you to decide how you want to share the CD-ROMISO Image ﬁ le with users in the remote host.

b. CD-ROM Image

Virtual Drive: Specify the drive that you want to share

your data with in the remote host.

Share Host: Key in the IP Address or the name of the

system you wish to share data with via Windows Share.

Share Name: Key in the name of the system you wish to

share data with in the remote host.

Path to Image: Key in the location of source ﬁ les that

you wish to share via Windows Share.

User/Password (Optional): Key in the Username and

password for the person to access the data that you want to share and click "Set" to enter your selections.

Active Image (Drive2): This window displays the ﬁ le

name of the data currently active in host Drive 2.

Page 24

Chapter 3: Software Application and Usage

3-9

Explanation of Functions

Drive Redirection: Click on this function key to make lo-

cal drives accessible for other users via console redirection. This function allows you to share your local drives (Floppy, CD-ROM and HDDs) with users in the remote systems.

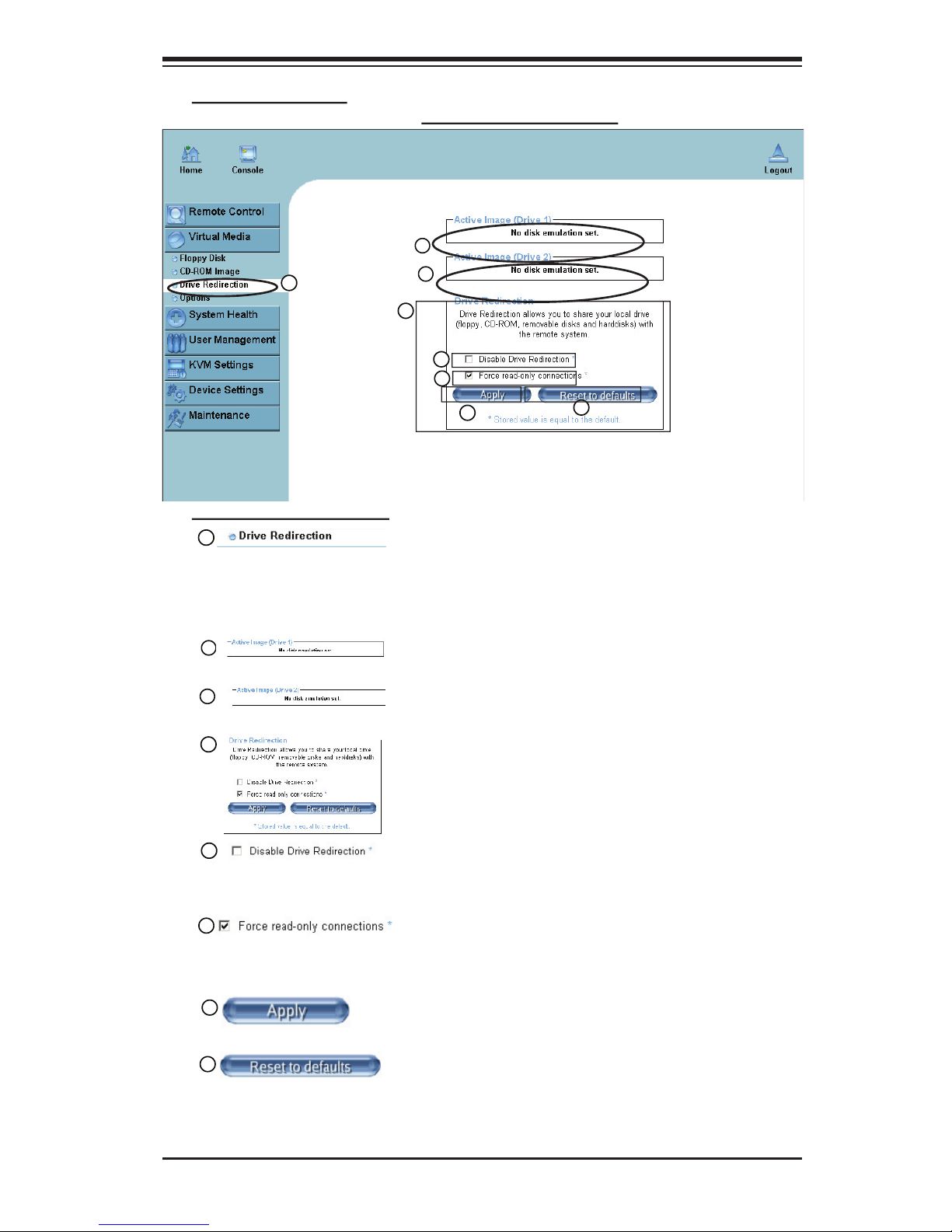

Drive Redirection Screen

Drive Redirection: Use this window to conﬁgure Drive

Redirection settings.

c. Drive Redirection

Disable Drive Redirection: Check the box to disable

Drive Redirection. Once this function is disabled, local drives will not be accessible for other users in remote host.

Force Read Only: Check this box to allow the data

stored in local drives to be read in a remote system, but it cannot be overwritten to ensure data integrity and system security.

Apply: Once you've conﬁgured your settings, click "Apply" to enter your settings.

Reset Default: You can also key in your own setting val-

ues and re-set these values as "default" by clicking on this icon to reset the defaults.

Active Image (Drive1): This window displays the ﬁle name of the data currently active in host Drive 1.

Active Image (Drive2): This window displays the ﬁle name of the data currently active in host Drive 2.

Page 25

3-10

AOC-SIM1U/SIM1U+ User's Guide

Explanation of Functions

Options: Click on this function key to activate the Virtual

Media sub-menu.

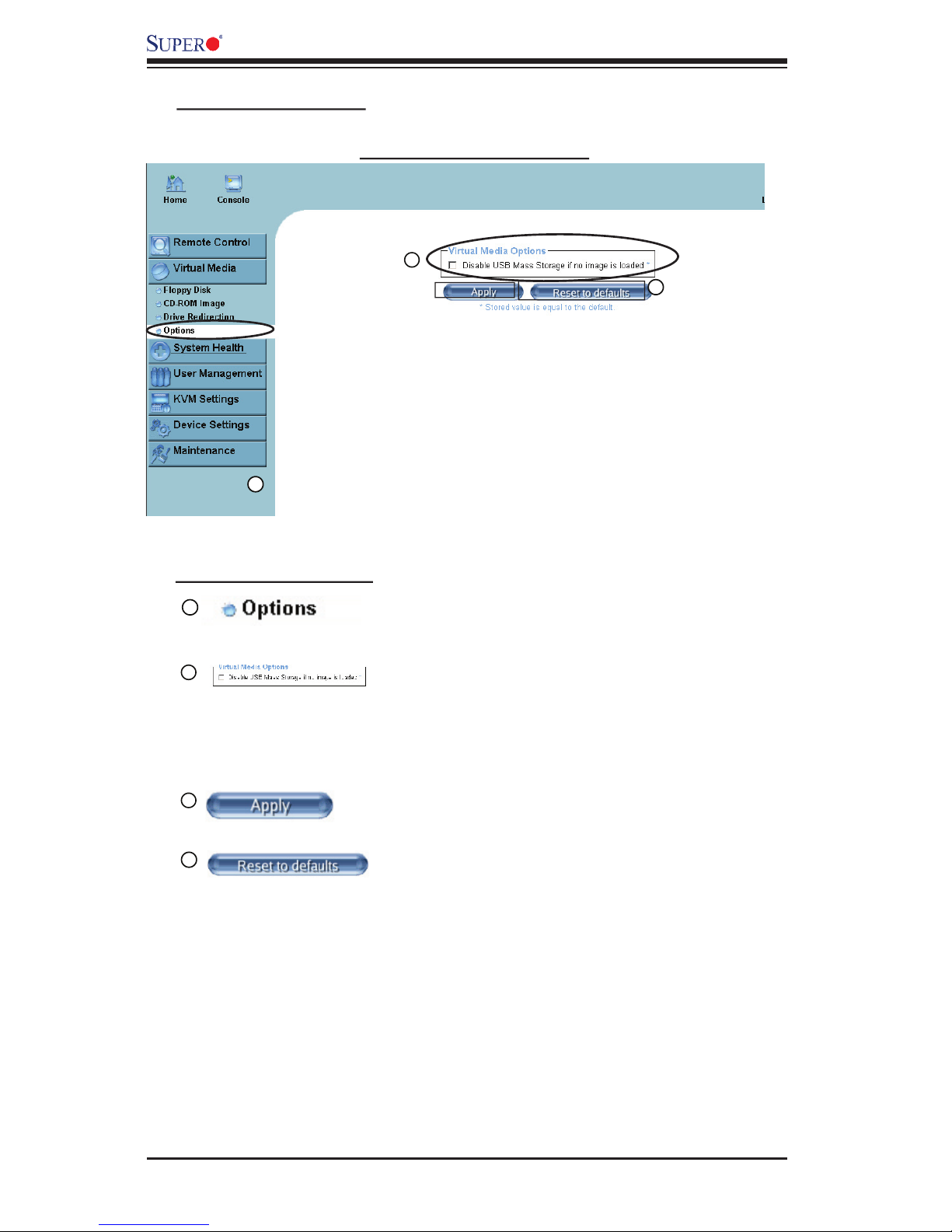

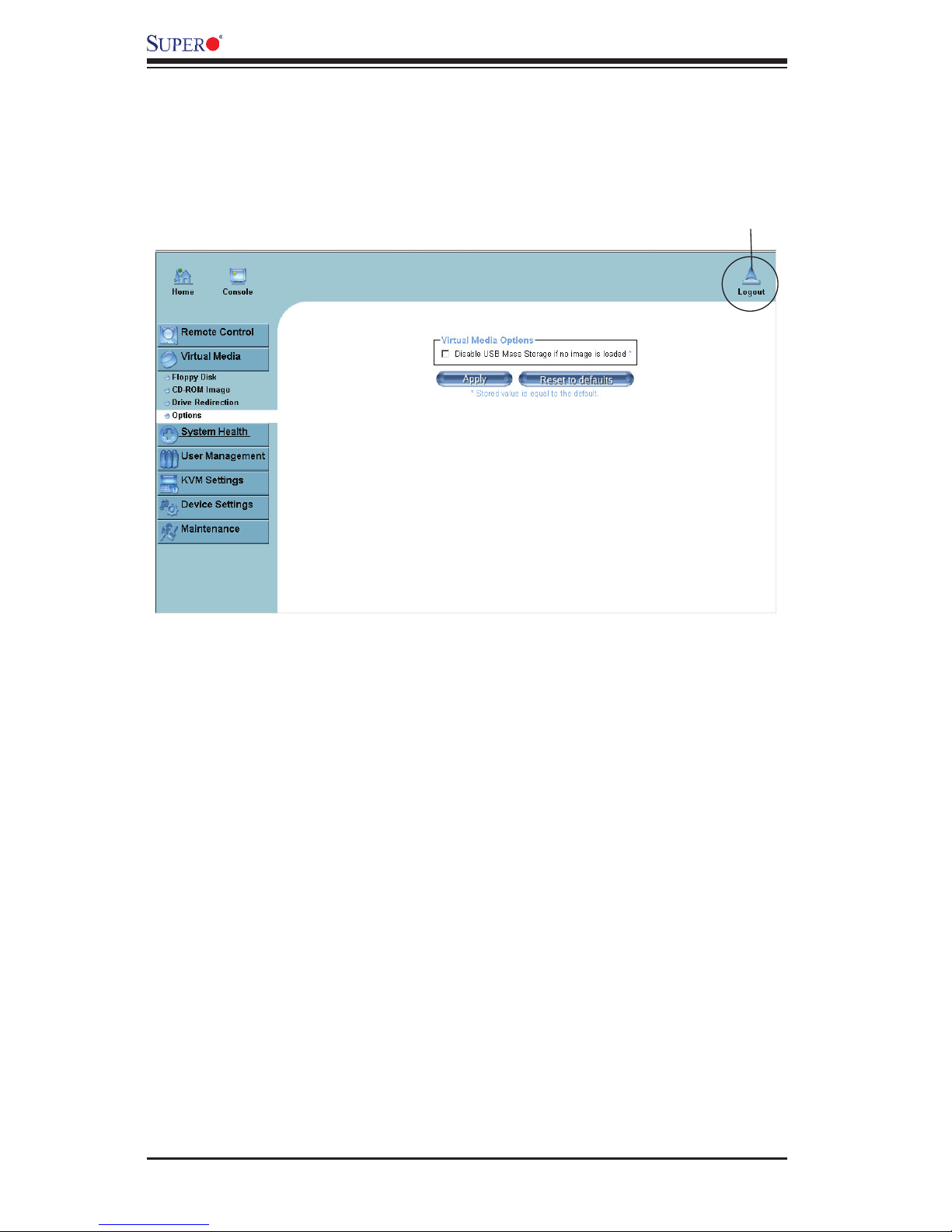

Virtual Media Options Screen

d. Virtual Media Options

Apply: Once you've checked the box, click "Apply" to en-

ter this value.

Reset to Defaults: If you want to set "Disabled" as the default setting for the item-Virtual Media Options, click on this icon.

Virtual Media Options: Use this option to disable or enable USB MASS storage in the remote host. Check this box to disable the function of Virtual Media Options to prevent data stored in a local drive from being accessed, or uploaded by the user in the remote host. The default setting is "enabled."

Page 26

Chapter 3: Software Application and Usage

3-11

3.2.3. System Health

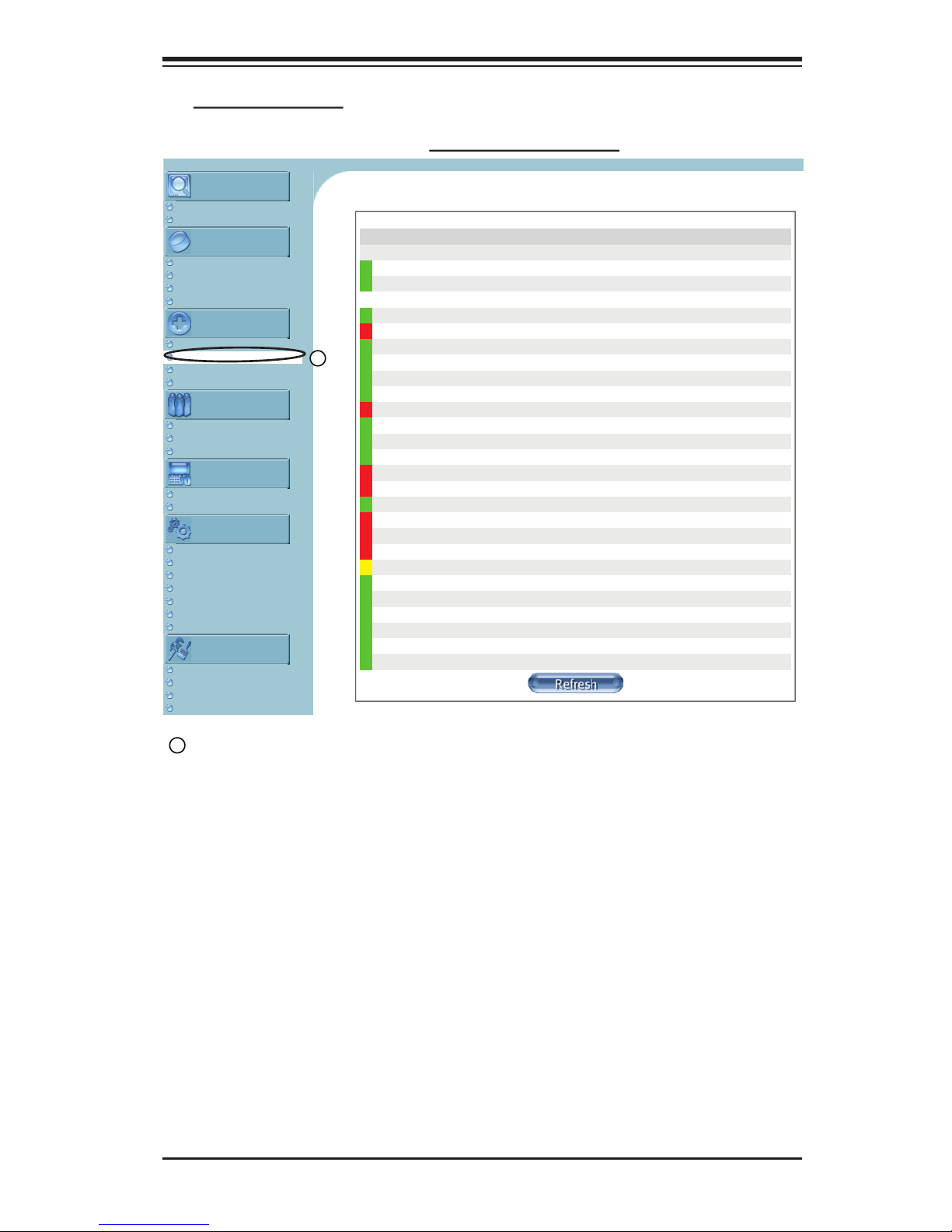

Click on the System Health icon on the Home Page to activate its submenus: Chassis Control, Monitor Sensor, System Event Log and Alert settings as listed below.

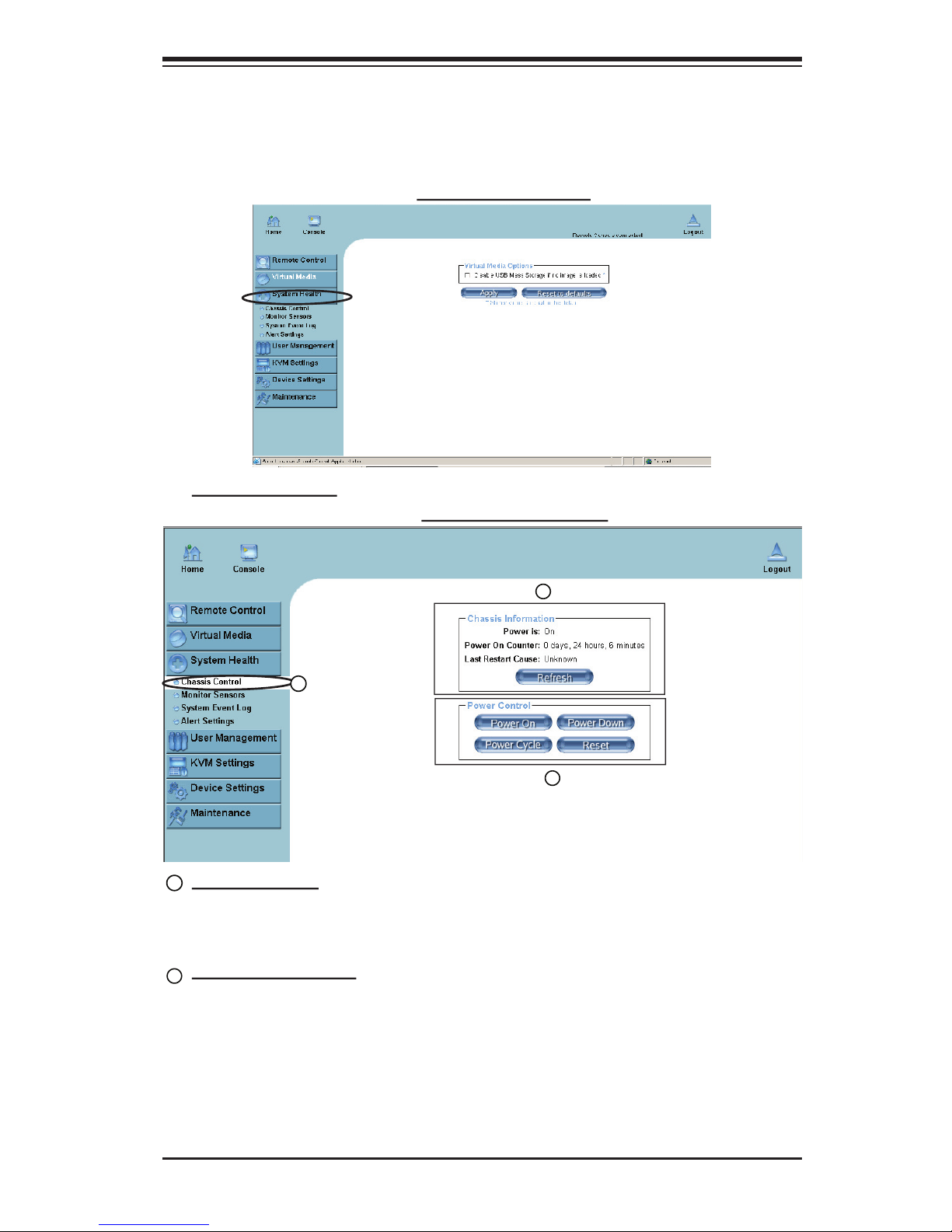

System Health Screen

Chassis Control Screen

a. Chassis Control

Chassis Control

Chassis Control: Click on this function key to access Health Monitoring information

on the remote chassis. The items monitored include 1. Chassis Information 2. Power Control.

Chassis Information:

The following remote chassis information is included:

Power Is: This indicates if the system is on or off for the remote host.

Power On Counter: If power is on, then the counter indicates the length of time the

power has been turned on.

Last Restart Cause: This item states the reason why the host system is restarted if the system has been turned off.

Refresh: Click the Refresh button to update "Chassis Information" as shown in Window 2.

Page 27

3-12

AOC-SIM1U/SIM1U+ User's Guide

Power Control

The following Power Control items are included:

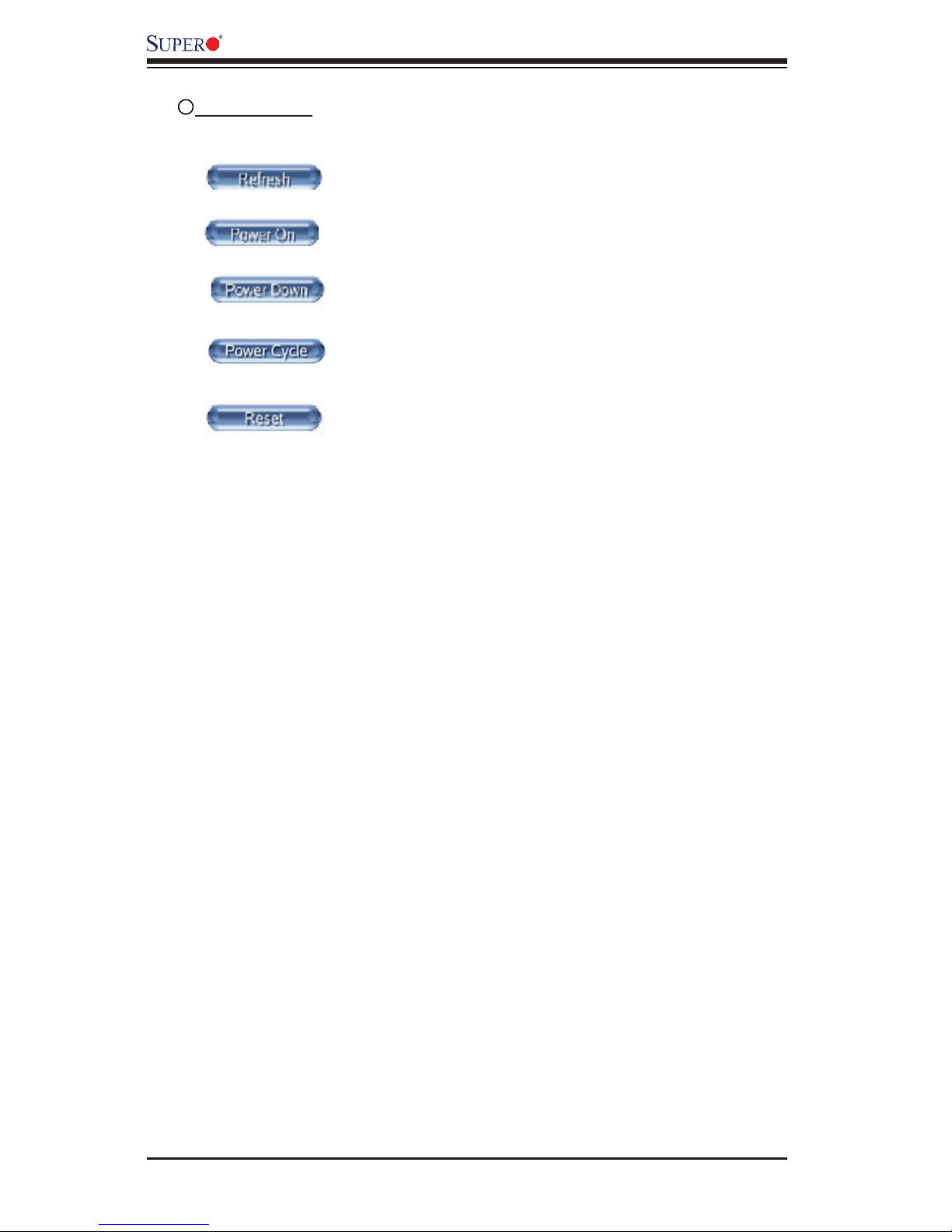

Refresh: Click on this icon to refresh the screen of the remote host.

Power On: Click on this icon to power on the system for the remote host.

Power Down: Click on this icon to power down the system for the remote host.

Reset: Click on this icon to reset the remote console.

Power Cycle: Click on this icon to power down the system

for the remote host and turn it back on later.

Page 28

Chapter 3: Software Application and Usage

3-13

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

Monitoring Sensors

Sensor Type Sensor Name Sensor Status Sensor Reading

Temperature CPU1 Temp A No reading

Temperature CPU2 Temp A Ok 47 degrees C

Temperature CPU1 Temp B Ok 35 degrees C

Temperature CPU2 Temp B No reading

Temperature Sys Temp Ok 44 degrees C

Voltage CPU1 Vcore Below lower non-recoverable threshold 0 (+/- 0.004) Volts

Voltage CPU2 Vcore Ok 1.288 (+/- 0.004) Volts

Voltage 3.3V Ok 3.264 Volts

Voltage 5V Ok 4.872 (+/- 0.012) Volts

Voltage 12V Ok 11.904 (+/- 0.048) Volts

Voltage -12V Below lower non-recoverable threshold -3.800 (+/- -0.050) Volts

Voltage 1.5V Ok 1.456 (+/- 0.008) Volts

Voltage 5VSB Ok 4.848 (+/- 0.012) Volts

Voltage VBAT Ok 3.184 (+/- 0.008) Volts

Fan Fan1/CPU Below lower non-recoverable threshold 0 RPM

Fan Fan2/CPU Below lower non-recoverable threshold 0 RPM

Fan Fan3 Ok 3750 RPM

Fan Fan4 Below lower non-recoverable threshold 0 RPM

Fan Fan5 Below lower non-recoverable threshold 0 RPM

Fan Fan6 Below lower non-recoverable threshold 0 RPM

Physical Security Chassis Intrusi Below lower non-critical threshold 0 unspecified

Power Supply Power Fail Ok 0 unspecified

Module / Board CPU0 Internal E Ok 0 unspecified

Module / Board CPU1 Internal E Ok 0 unspecified

Module / Board CPU Overheat Ok 0 unspecified

Module / Board Thermal Trip0 Ok 0 unspecified

Module / Board Thermal Trip1 Ok 0 unspecified

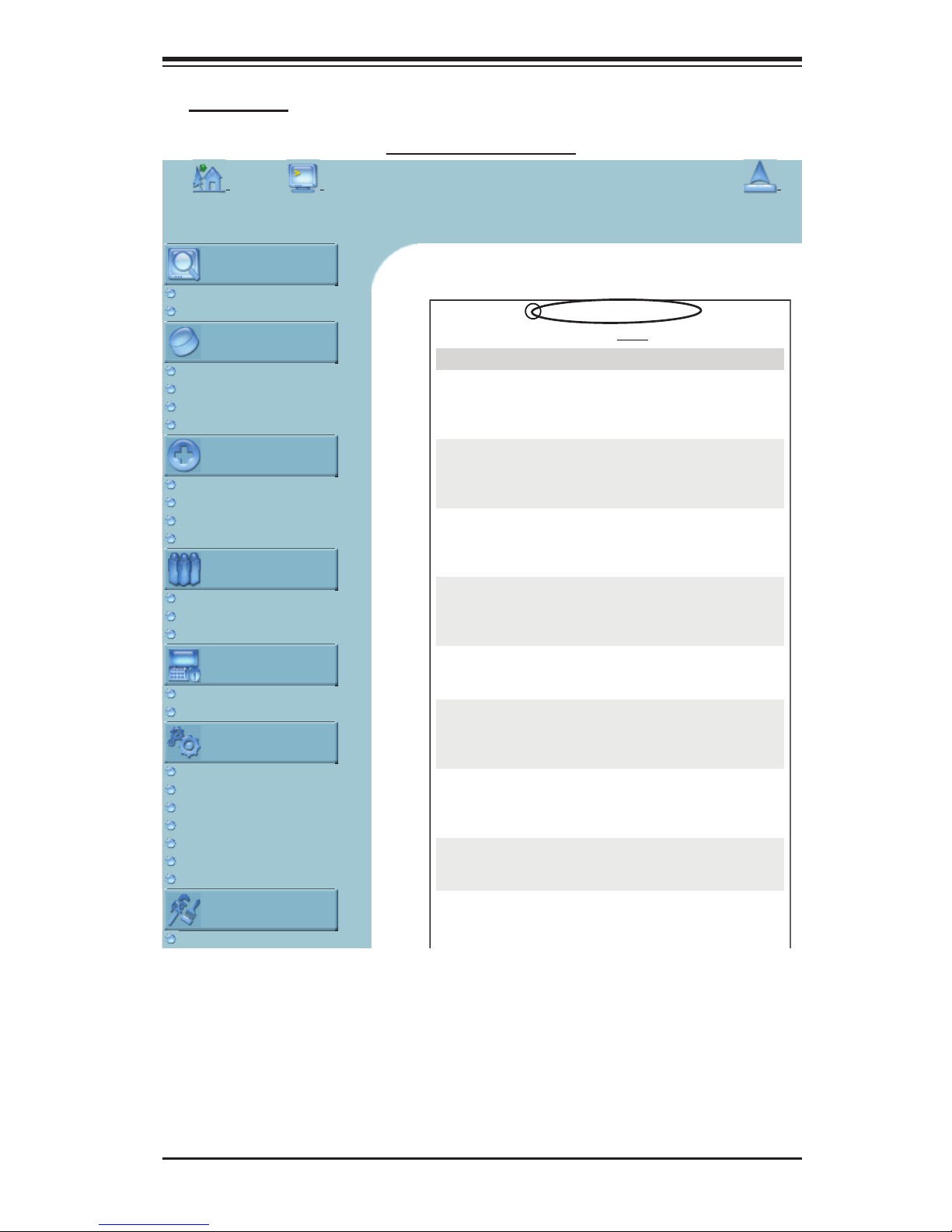

Monitor Sensors Screen

b. Monitor Sensors

Monitoring Sensor: Click on this function key to display the following Health Moni-

toring Information shown in the following table:

Page 29

3-14

AOC-SIM1U/SIM1U+ User's Guide

Health Monitoring Sensor Information on the Remote Host

Temperature Monitoring

CPU1 Temperature (Temp A, Temp B)

Temp A: CPU1 Core1 Temperature, Temp B: CPU1 Core2 Temperature,

CPU2 Temperature (Temp A, Temp B)

Temp A: CPU2 Core1 Temperature, Temp B: CPU2 Core2 Temperature,

System Temperature

Voltage Monitoring

CPU1 VCore CPU1 Vcore: CPU1 Core Voltage

CPU2 VCore CPU2 Vcore: CPU2 Core Voltage

3.3V

5V, 5VSB 5VSB: 5V Standby

+12V, -12V

1.5V

VBAT VBAT: Battery Voltage

Fan Control

Fan1/CPU Fan

Fan2/CPU Fan

Fan 3 – Fan 6 System Fans/Chassis Fans

Physical Security

Chassis Intrusion

Module/Board CPU0 Internal E.

Module/Board CPU1 Internal E.

Module/Board CPU Overheat

When the CPU temperature exceeds this preset temperature, the overheat LED or alert will be triggered, the CPUs will slow down, the CPU fans will be in the full speed mode.

Module/Board Thermal Trip

When the system temperature exceeds this preset temperature, the overheat LED or alert will be triggered, and the cooling fans will be in the full speed mode to prevent system overheat.

Page 30

Chapter 3: Software Application and Usage

3-15

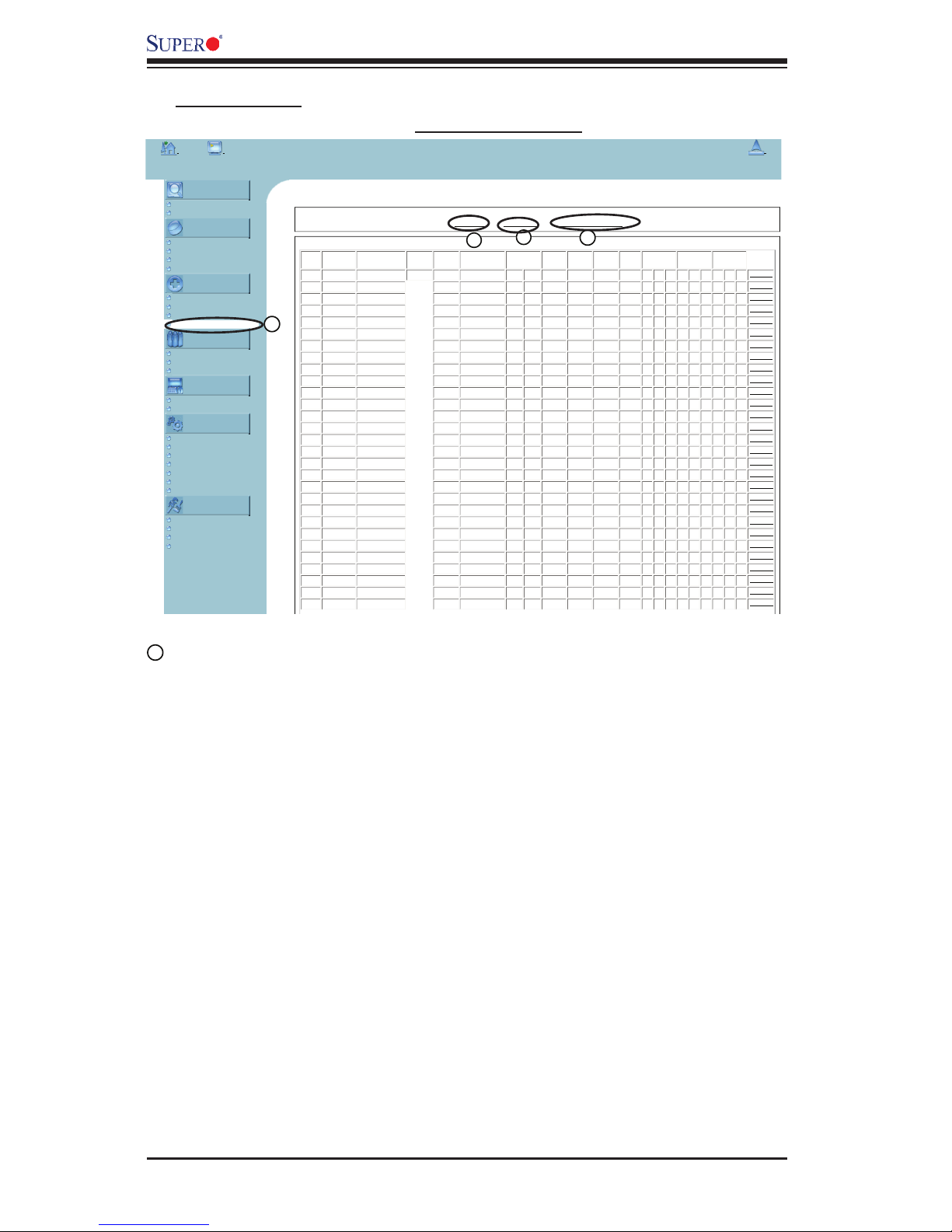

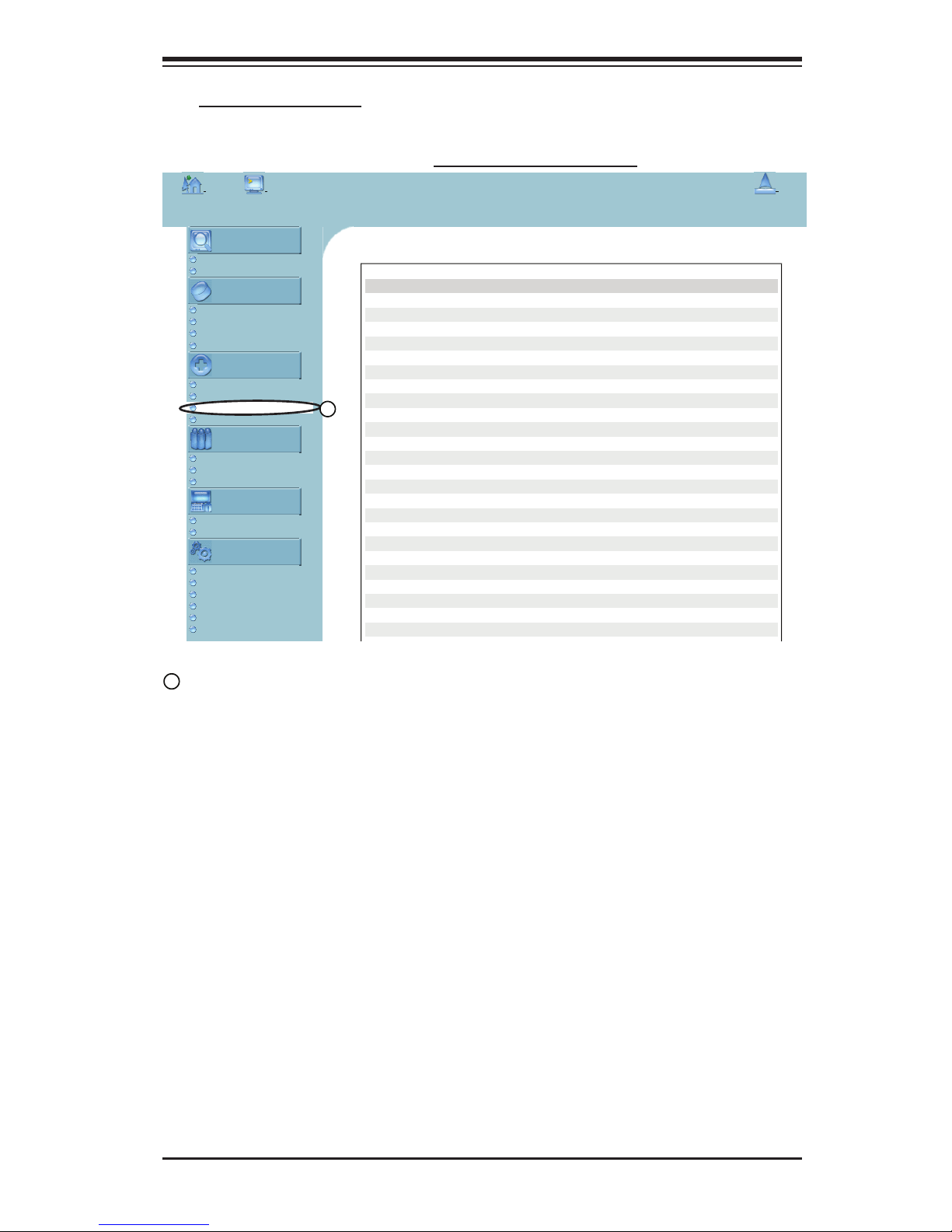

System Event Log Screen

c. System Event Log

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log

System Event Log

Event Type Date Time Source Description Direction

SEL record 02 Pre-Init 00:01:04 Fan6 Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan6 Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan6 Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan5 Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan5 Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan5 Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan4 Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan4 Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan4 Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan2/CPU Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan2/CPU Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan2/CPU Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan1/CPU Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan1/CPU Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Fan1/CPU Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 -12V Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 -12V Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 -12V Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 CPU1 Vcore Lower Non-recoverable going low Assertion Event

SEL record 02 Pre-Init 00:01:04 CPU1 Vcore Lower Critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 CPU1 Vcore Lower Non-critical going low Assertion Event

SEL record 02 Pre-Init 00:01:04 Chassis Intrusi General Chassis intrusion Assertion Event

SEL record 02 06/07/2006 10:04:47 Thermal Trip1 State Asserted Deassertion Event

SEL record 02 06/07/2006 10:04:47 CPU1 Internal E State Asserted Assertion Event

http://192.168.1.200/home.asp (1 of 3)6/8/2006 4:28:28 PM

System Event Log: Click on this function key to display the System Health Event

Log for the remote host system.

Page 31

3-16

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

IPMI Alert Configuration

[

Filter List ] [

Policy List ] [

LAN Destination List ]

IPMI Filter List

Index Status Filter Type Action Policy# Severity

GeneratorIDSensor

Type

Sensor No

Trigger

Offset Mask

Data 1 Data 2 Data 3

1 enabled configurable

alert

0 unspecified ff ff ff ff ff ffff ff ff ff ff ff ff ff ff ff

[edit]

2 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

3 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

4 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

5 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

6 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

7 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

8 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

9 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

10 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

11 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

12 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

13 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

14 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

15 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

16 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

17 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

18 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

19 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

20 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

21 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

22 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

23 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

24 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

25 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

26 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

27 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

28 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

29 disabled configurable 0 unspecified 00 00 00 00 00 0000 00 00 00 00 00 00 00 00 00

[edit]

http://192.168.1.200/home.asp (1 of 2)6/8/2006 4:50:14 PM

Alert Settings Screen

d. Alert Settings

Alert Settings: Click on this function key to activate the alert settings submenu for

the remote host system. The items monitored include: 1. Filter List, 2. Policy List and

3. LAN Destination List

Page 32

Chapter 3: Software Application and Usage

3-17

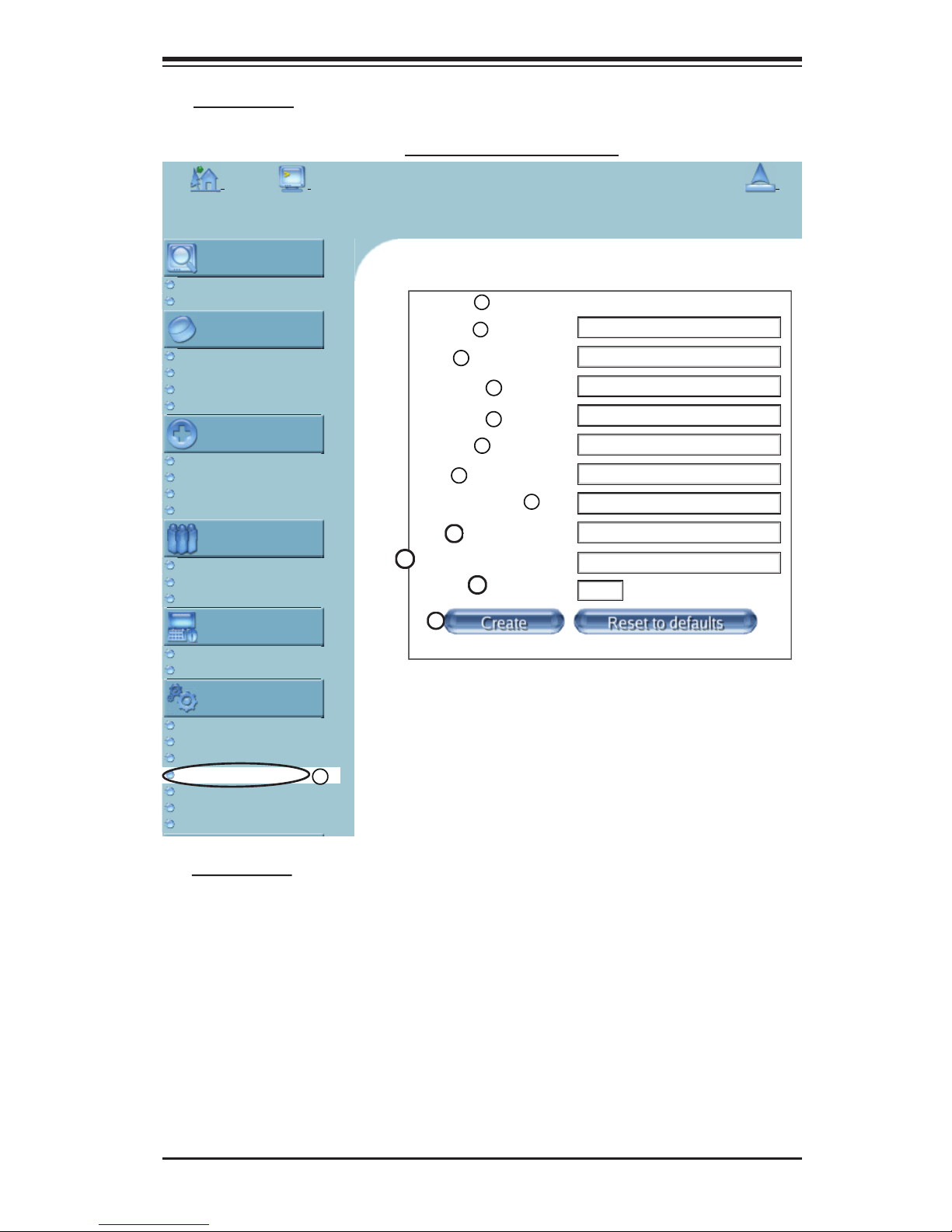

3.2.4. User Management

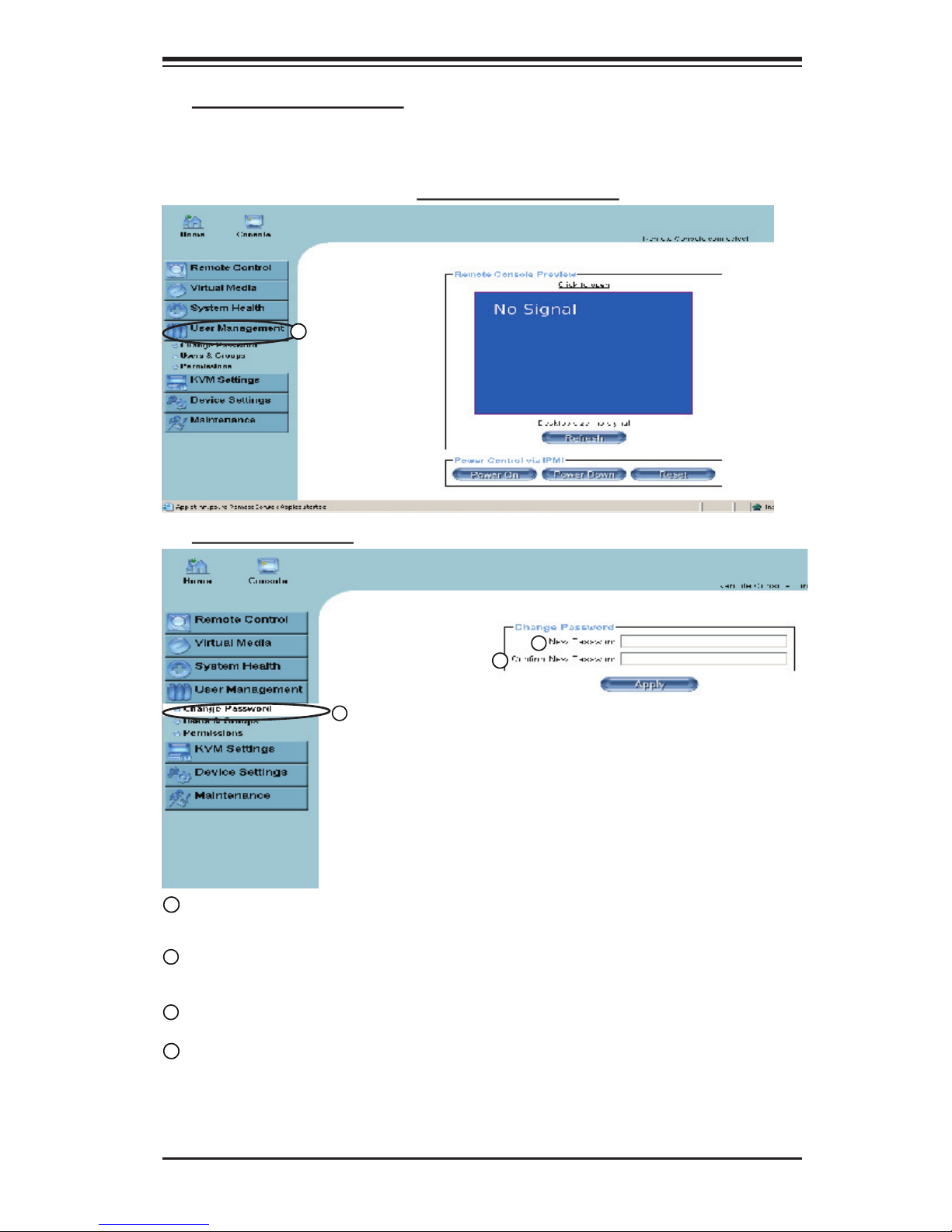

Click on the User Management icon on the Home Page to activate its submenus: Change Password, Users & Group and Permissions as listed below.

User Management Screen

a. Change Password

User Management: Click on this icon to activate the User Management submenu.

Once this submenu displays, you can access the New Password ﬁelds.

Change Password: Click on this function key to access the New Password and Conﬁrm New Password ﬁelds.

New Password: Key in your new password in the blank.

Conﬁrm New Password: Key in your new password in the blank again and click

"Apply" to conﬁrm it.

Page 33

3-18

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

User Management

Existing users

New user name

Full user name

Password

Confirm Password

Email address

Mobile number

Group membership

Member of Not Member of

IPMI Privilege Level

Group Management

Existing groups

New group name

--- select ---

ADMIN

Administrator

testgroup

supergroup

Administrator

--- select ---

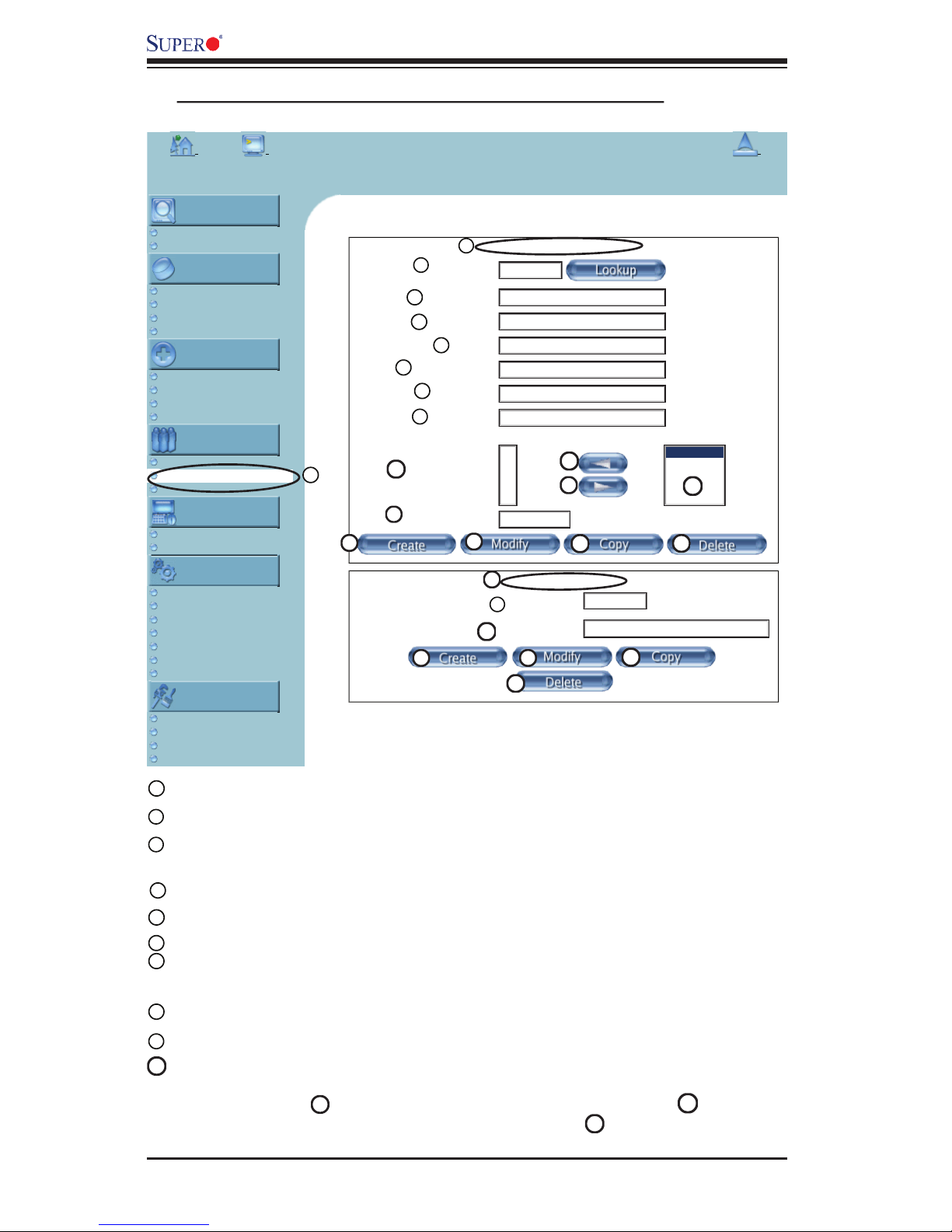

Users & Groups: Click on this icon to activate the Users & Groups submenu.

User Management: This window displays the user's information.

Existing users: Select an existing user for information updates. Once a user is se-

lected, click on the "Lookup" icon on right to view user information.

New user name: Key in new user name in this ﬁ eld.

Full user name: Key in full user name in this ﬁ eld.

Password and Conﬁ rm Password: Type the user's password in the ﬁ eld and then

type the password again in the next ﬁ eld to conﬁ rm it. The password must be 4 characters or longer.

Email Address: Key in the user's email address in the ﬁ eld. (Optional)

Mobile Phone: Key in the user's mobile phone number in the ﬁ eld. (Optional)

Group Membership: This ﬁ eld indicates the group that the user belongs to. To se-

lect a group, click on the group name on the "Not Member Of" window to select it as shown in Window , then click on the backwards arrow shown on to enter the group name in the Group Membership ﬁ eld as shown in . Reverse the procedure to remove the user from a group.

b. Users & Groups-User Management and Group Management

Page 34

Chapter 3: Software Application and Usage

3-19

IPMI Privilege Level: Click on the arrow key on the right to activate the Privilege Selection menu. The IPMI Privilege Level contains ﬁve categories: No Access, User, Operator, Administrator and OEM.

Create: Click on this button to enter a new user's or group information in the User/ Group Management ﬁelds.

Modify: Click on this button to modify a user's or group information in the User/ Group Management ﬁelds.

Copy: Click on this button to copy a user's or group information in the User/Group Management ﬁelds.

Copy User

Choose an Existing User from the selection box. Enter a new user name in the ﬁeld "New User Name." Click on the "Copy" button and a new user with the name you've typed in will be created. The properties of the selected user will be copied to the new user.

Copy Group

Choose an Existing group from the selection box. Enter a new group name in the ﬁeld "New Group Name." Click on the "Copy" button and a new group with the name you've typed in will be created. The properties of the selected group will be copied to the new group.

Delete: Click on this button to delete a user's or group information in the User/Group Management ﬁelds.

Group Management: This window allows you to enter group information for better user management.

Page 35

3-20

AOC-SIM1U/SIM1U+ User's Guide

Home

Ho me C ons ole

B r ows er ha s no J av a !

L ogout

R emote C o ntro l

K V M C ons ole R e mo te P ow er

Vir tual Me dia

F lo ppy D is k C D- R OM Im age Dr iv e R edirec tion Op tio ns

S y s tem Hea lth

C ha s sis Con tro l Mon ito r S e ns ors S y s tem E ven t L o g Alert S ettin gs

Us er Ma nag ement

C ha n ge P a s s wor d Us ers & G roups P er mis si on s

K VM S ettings

Us er C ons ole K e yboar d/Mous e

De vic e S ettings

Ne two rk Dy na m ic DNS S e c ur ity C er tific a te Da te/T im e E v ent L o g S N MP S ettin gs

Mainten anc e

Devi c e I nf or ma tion E v ent L o g Upda te F irmware Un it R es et

Us er/Gr oup P e rmis s ions

S h ow perm is sio ns for us e r/gr ou p

E ffectiv e P er mis si on

Us er P erm is sion Inhe ri ted

G ro up P er mis si on

B o ard R e s et:

allow access allow access deny access

C ha n ge P a s s wor d:

allow change allow change deny access

Da te/T im e S ettin gs :

allow change allow change deny access

F ir mw ar e Upda te:

allow access allow access deny access

F or ens ic C ons ole :

allow change allow change deny access

K V M P ort S witc h:

allow access allow access deny access

K V M S e ttin gs :

allow change allow change deny access

K e yboar d/Mous e S e ttin gs :

allow change allow change deny access

L DA P S ettin gs :

allow change allow change deny access

Mod em S etting s :

allow change allow change deny access

Ne two rk S ettin gs :

allow change allow change deny access

P ow er C o ntro l:

allow access allow access deny access

P ow er C o ntro l S ettin gs :

allow change allow change deny access

R C s ettings (E n c odin g):

allow change allow change deny access

R C s ettings (E x c l us ive A c c es s ):

allow change allow change deny access

R C s ettings (G enera l) :

allow change allow change deny access

R C s ettings (Ho tk ey s ):

allow change allow change deny access

R C s ettings (Monitor Mode):

allow change allow change deny access

R C s ettings (T ype):

allow change allow change deny access

R e mo te C ons ole Acces s:

allow access allow access deny access

S N MP S ettin gs :

allow change allow change deny access

S S L C er tific a te Mana ge me nt:

allow access allow access deny access

S e c ur ity S ettin gs :

allow change allow change deny access

S e ri al S ettings :

allow change allow change deny access

Telnet C o ns ole :

allow access allow access deny access

Us er/G rou p Ma n ag em ent:

allow change allow change deny access

Us er/G rou p P e rmis s ions :

allow change allow change deny access

Virtua l F lopp y Up lo ad :

allow access allow access deny access

ADMIN

c. Permissions

Permissions: Click on this icon to activate the User/Group Permissions submenu.

Show Permissions for User/Group: click on the arrow on the right to activate the

user/group permissions selection menu.

Update: Click this icon to update permissions information.

Effective Permissions: This ﬁ eld indicates the actual permissions a user/group

has.

User Permissions: This ﬁ eld indicates the actual permissions a user has.

Inherited Group Permission: This ﬁ eld indicates the permissions a user has due to

the fact that he or she belongs to a certain group.

Page 36

Chapter 3: Software Application and Usage

3-21

Home

Home Console

Browser has no Java!

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

Remote Console Settings for User

The settings on this page are user specific. Changes you make here will affect the selected user only.

Transmission Encoding

Automatic Detection *

Pre-configured

Network speed

Manually

Compression

Color depth

Remote Console Type

Default Java VM *

Sun Microsystems Java Browser Plugin

If you do not have the Java Browser Plugin already installed on your system, this option will cause downloading of around 11 MByte Plugin code. The Plugin will enable extended Remote Console functionality.

Miscellaneous Remote Console Settings

Start in Monitor Mode *

Start in Exclusive Access Mode *

Mouse Hotkey

Hotkey

Used for fast mouse synchronization (in Double Mouse mode) and to free the grabbed mouse (in Single Mouse mode).

Click here for Help

ADMIN

LAN (high color)

0 - none

16 bit - high col

Alt+F12

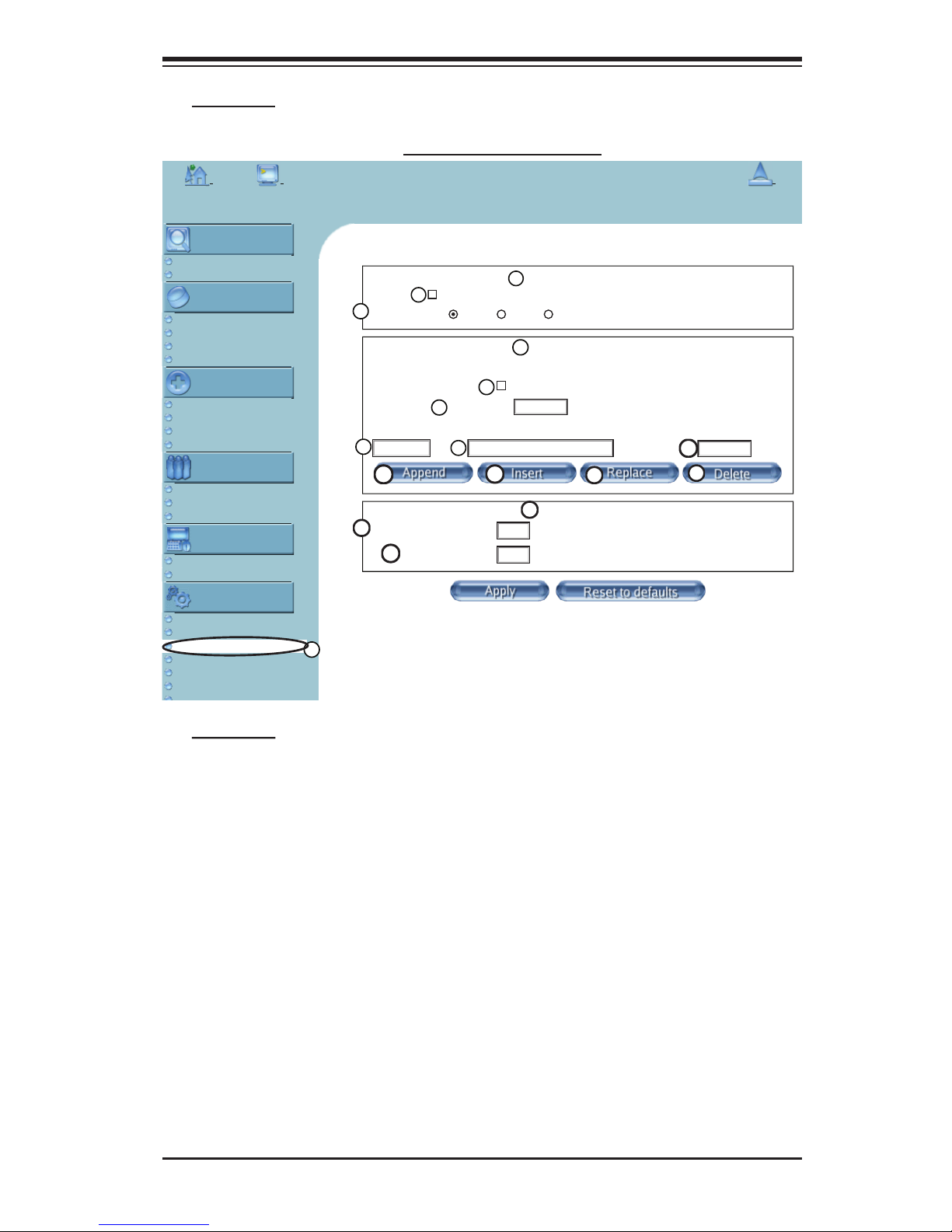

3.2.5. KVM Settings

Click on the KVM Settings icon on the Home Page to activate its submenus: User Console and Keyboard/Mouse as listed below.

KVM Settings: User Console

a. User Console

Page 37

3-22

AOC-SIM1U/SIM1U+ User's Guide

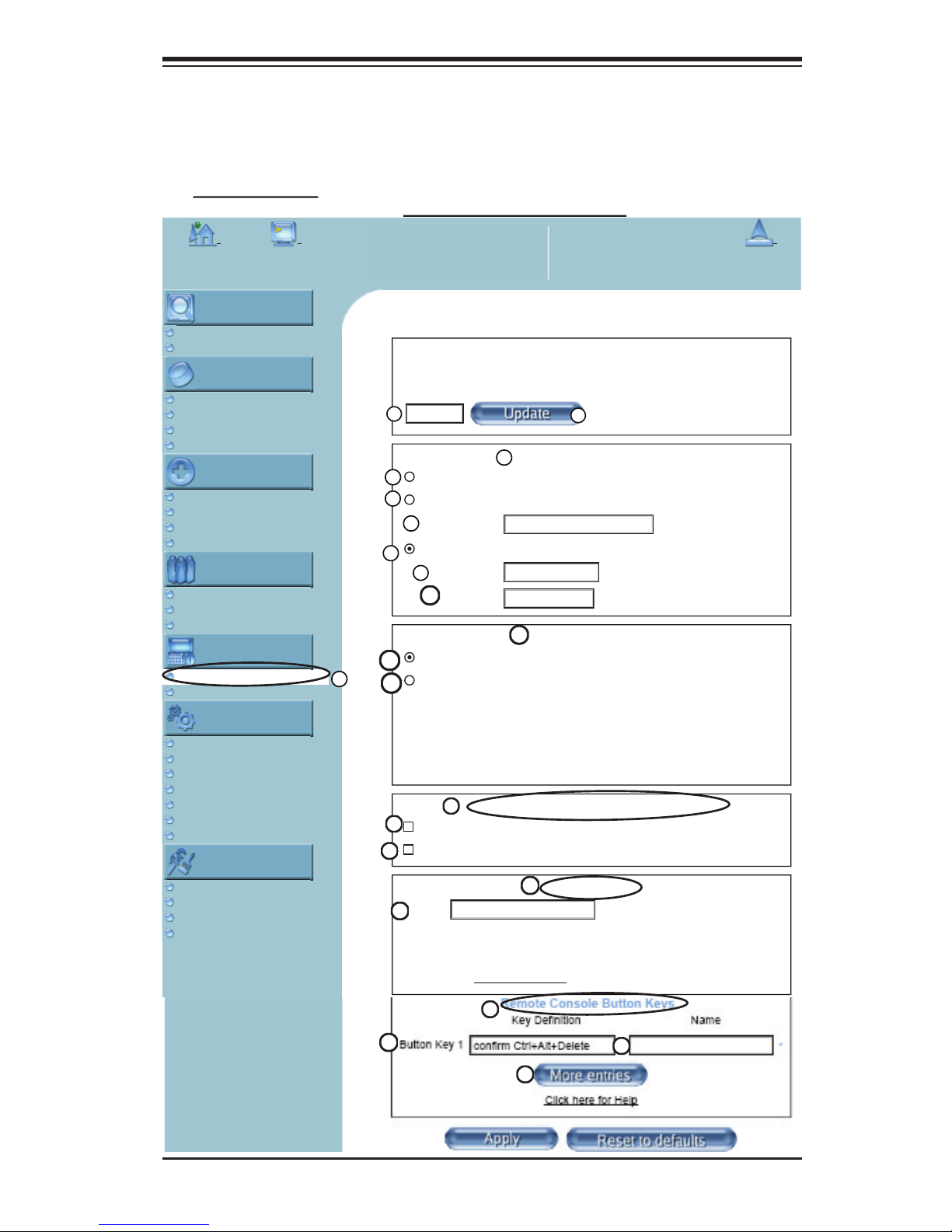

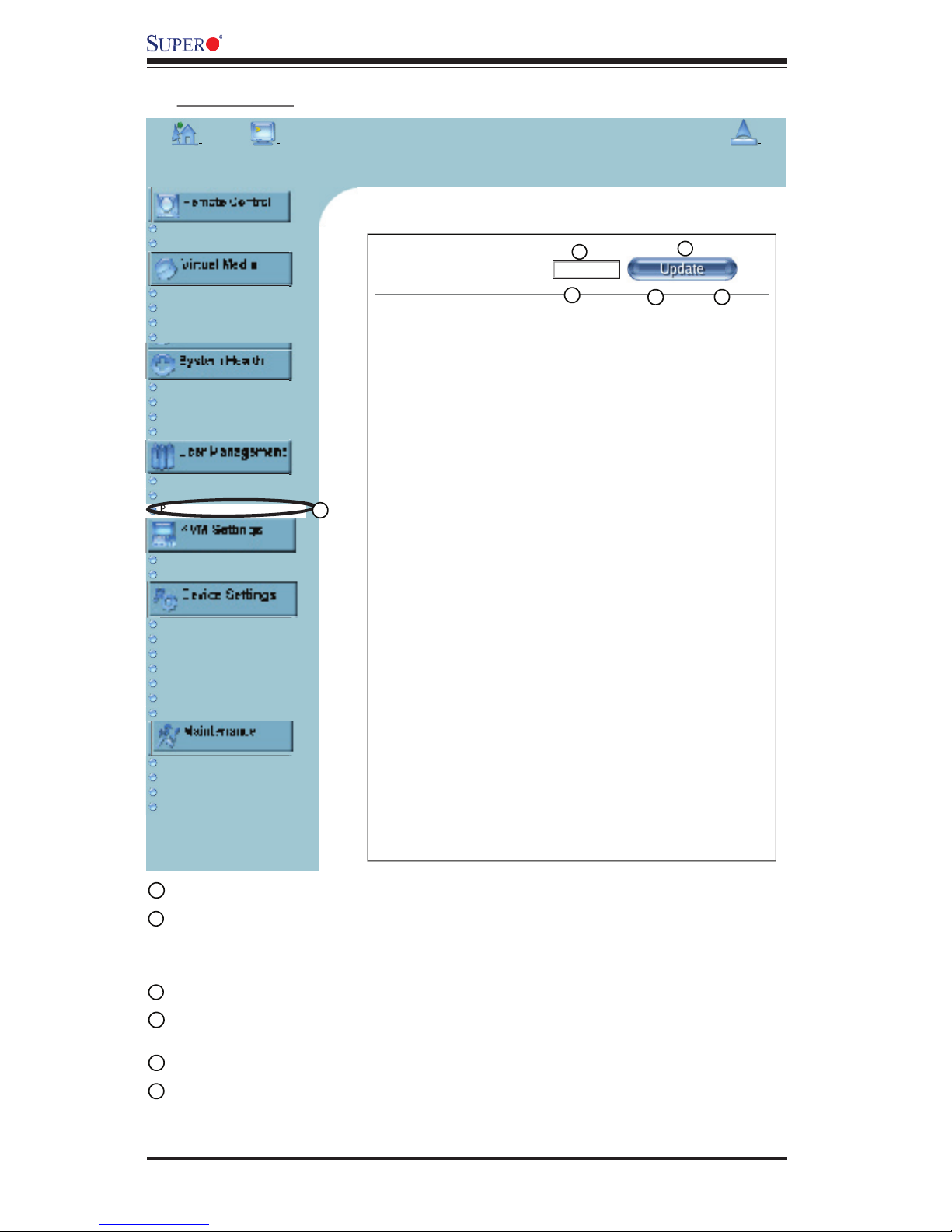

1. User Console: Click on this icon to activate the User Console submenu.

2. User Selection: This ﬁ eld allows you to decide which group the user belongs to.

Click on the arrow on the right to activate the selection menu and highlight the name of the group to select it.

3. Update: Once you've selected the group name, click on Update to save the selections.

4. Transmission Encoding: This ﬁ eld allows the user to decide how (the video) data is transmitted between the local system and the remote host.

5. Automatic Detection: Select this option to allow the OS to automatically detect the networking conﬁ guration settings such as the bandwidth of the connection line, and transmit data accordingly. (You can only select one item from #5, #6 and #8.)

6. Pre-conﬁ gured: This item allows the user to select the data transmission setting from a pre-deﬁ ned options list. The pre-conﬁ gured settings will provide the best result because the compression and color depth settings will be adjusted for optimization based on the network speed indicated. (You can only select one item from #5, #6 and #8.)

7. Network speed: Once you've selected the pre-conﬁ gured option above, you then can select a desired network speed setting from the selection menu by clicking on the arrow on the right.

8. Manually: You can select a desired network speed setting from the selection menu by clicking on the arrow on the right. This item allows the user to adjust both compression and color depth settings individually. (You can only select one item from #5, #6 and #8.)

9. Compression: Data signal transmission is compressed to save bandwidth. High compression rates will slow down network interfacing and shall not be used when several users are connected to the network.

10. Color Depth: Click on the arrow on the right to select either 16 bit-high colors or 8 bit-256 colors. The standard color depth is 16 bit-high color. This setting is recommended for compression level 0. For typical desktop interfaces, the setting of 8 bit-256 colors is recommended for faster data transmission.

11. Remote Console Type: This ﬁ eld allows the user to decide which Remote Console Viewer to use.

12. Default Java VM (JVM): Select this option to use the default Java Virtual Machine of your web browser. This can be the Microsoft JVM for Internet Explorer or the Sun JVM depending on the conﬁ guration of your browser.

13. Sun Microsystems Java Browser Plugin: Select this option when the JVM used to run the code for the Remote Console is a Java Applet. If you use this function for the ﬁ rst time and the appropriate Java plugin is not yet installed in your system, you may download and install it automatically. To download and install it, you need to check "yes" in the dialogs. Downloading Sun's JVM will allow you to use a stable and identical JVM across different platforms. (Note: If your internet connection is slow, please pre-install the JVM on your administration machine.)

a. User Console

Page 38

Chapter 3: Software Application and Usage

3-23

14. Miscellaneous Remote Console Settings: This window allows you to specify the following Remote Console Settings.

15. Start in Monitor Mode: Check this box to enable the Start in Monitor Mode which will allow data to be displayed in the remote monitor as soon as Remote Con

sole is activated. (The data displayed in the remote monitor is ready-only.)

16. Start in Exclusive Access Mode: Check this box to enable the exclusive ac

cess mode immediately at Remote Console startup, which will force all other users connected to the network to close. No other users can open the Remote Console until you disable this function or log off.

17. Mouse Hotkey: This option allows you to use a hotkey combination to specify the mouse synchronization mode or the single mouse mode.

18. Hotkey: Enter a hotkey combination in the box to specify the mouse synchronization mode or the single mouse mode.

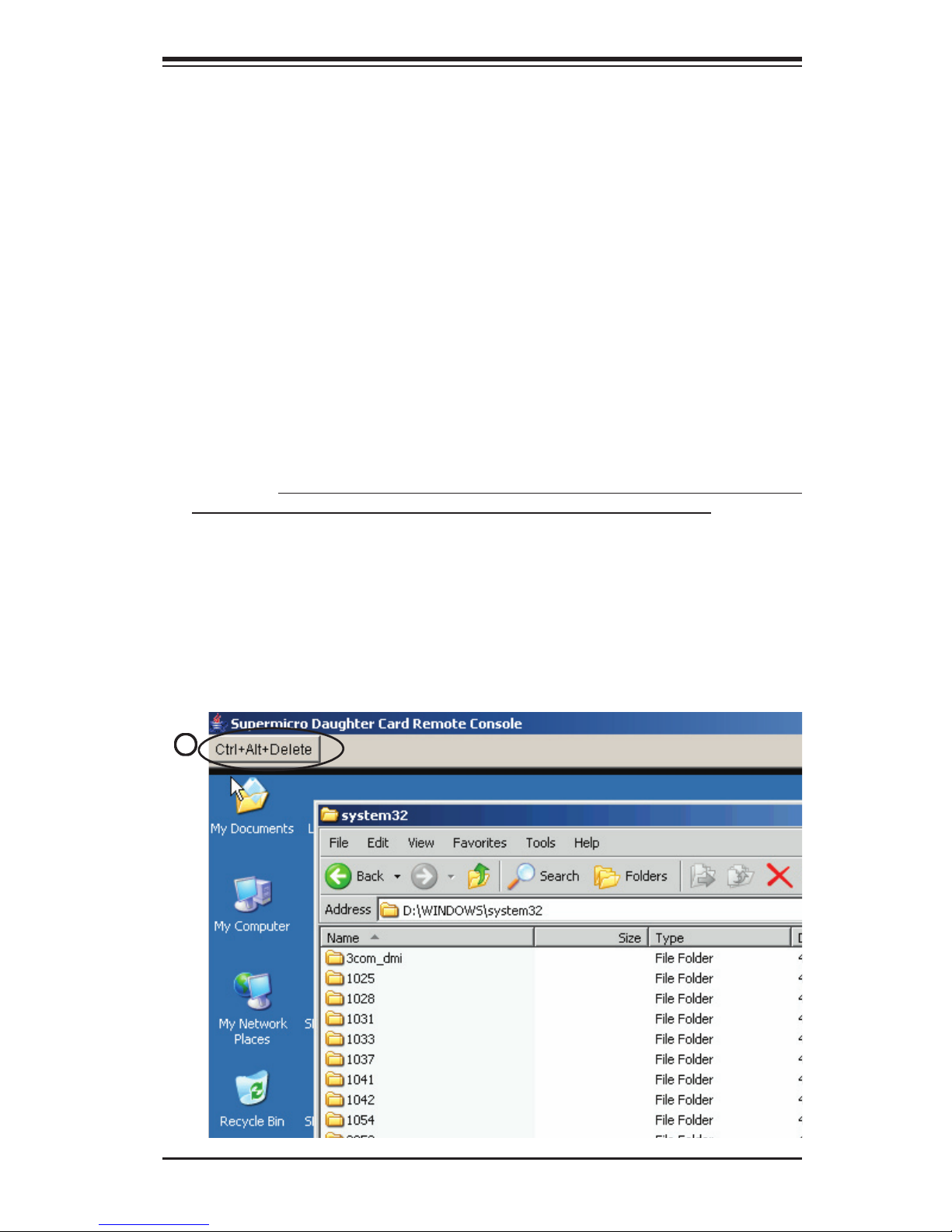

19. Remote Console Button Keys: This window allows the user to deﬁne button keys for the remote host. The button keys allow simulating keystrokes on a remote host or issuing commands to a remote system. The button keys are needed when you have a missing key or when you want to prevent interference caused to the local system. After a remote console button key is set, it will appear on the right upper corner of the remote monitor screen as shown in the graphics below. (For details instructions in creating button keys, please click on the link-"Click here for Help.")

20 Button Keys: Enter the syntax of a button key in the box. (For detailed instructions in creating button keys, please click on the link-"Click here for Help.")

21 Name: Key in the name of a button key in the box. (For details instructions in creating button keys, please click on the link-"Click here for Help.")

22 More Entries: Click on this icon to create more Button Keys.

Page 39

3-24

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Keyboard/Mouse Settings

Key release timeout

enabled

Timeout after msec

Enable key release timeout if you experience duplicated keystrokes during poor network performance.

USB Mouse Type

Mouse speed

Auto

Fixed scaling 1:

* Stored value is equal to the default.

Windows >= 2000, Mac OS X

1.00

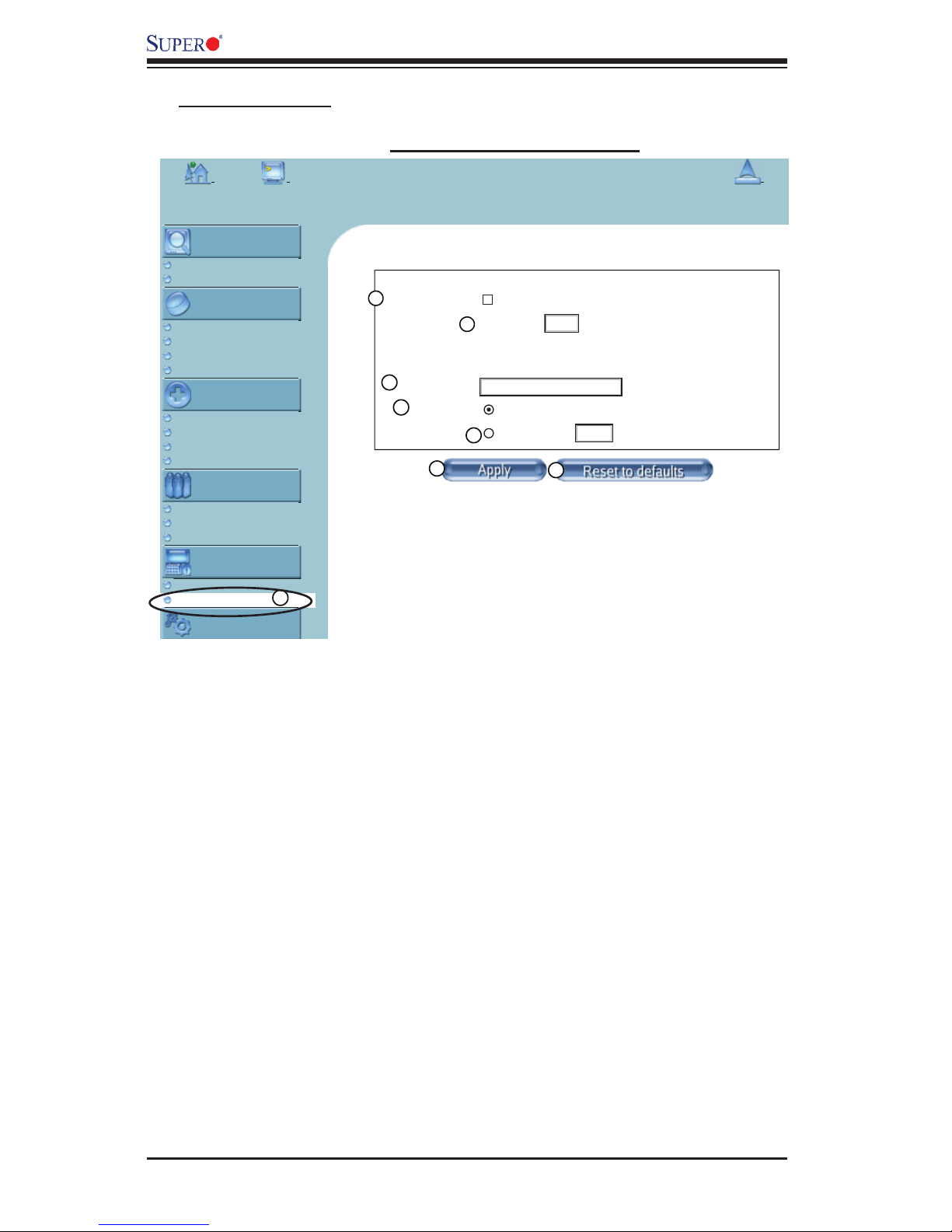

KVM Settings: Keyboard/Mouse

b. Keyboard/Mouse

1. Keyboard/Mouse: Click on this function key to conﬁ gure the following Keyboard/

Mouse Settings.

2. Key Release Timeout: Check this box to enable the function of "Key Release Timeout," which will set the time limit for a key to be pressed by the user.

3. Timeout after_______msec: If the "Key Release Timeout" indicated above has been enabled, click on the arrow on the right to activate a selection menu to select the timeout setting for the item above.

4. USB Mouse Type: For the USB Mouse to function properly, please select the correct OS for your system from the selection menu by clicking on the arrow on the right.

5. Mouse Speed-Auto: Check the selection to allow your system to automatically set your mouse speed.

6. Fixed Scaling: You can also check the "Fixed Scaling" box and manually key in your selection.

7. Apply: Click on this icon to enter your selections.

8. Reset to defaults: You can also cancel your selections and use the default values

pre-set by the manufacturer by clicking on this icon.

Page 40

Chapter 3: Software Application and Usage

3-25

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

Network Basic Settings

IP auto configuration

Preferred host name (DHCP only)

IP address

Subnet mask

Gateway IP address

Primary DNS server IP address

Secondary DNS server IP address

Network Miscellaneous Settings

Remote Console & HTTPS port

HTTP port

SSH port

Bandwidth Limit

kbit/s

Enable SSH access

Disable Setup Protocol

LAN Interface Settings

Current LAN interface parameters: autonegotiation on, 100 Mbps, full duplex, link ok

LAN interface speed

LAN interface duplex mode

* Stored value is equal to the default.

None

192.168.1.200

255.255.255.0

192.168.1.1

443

Autodetect

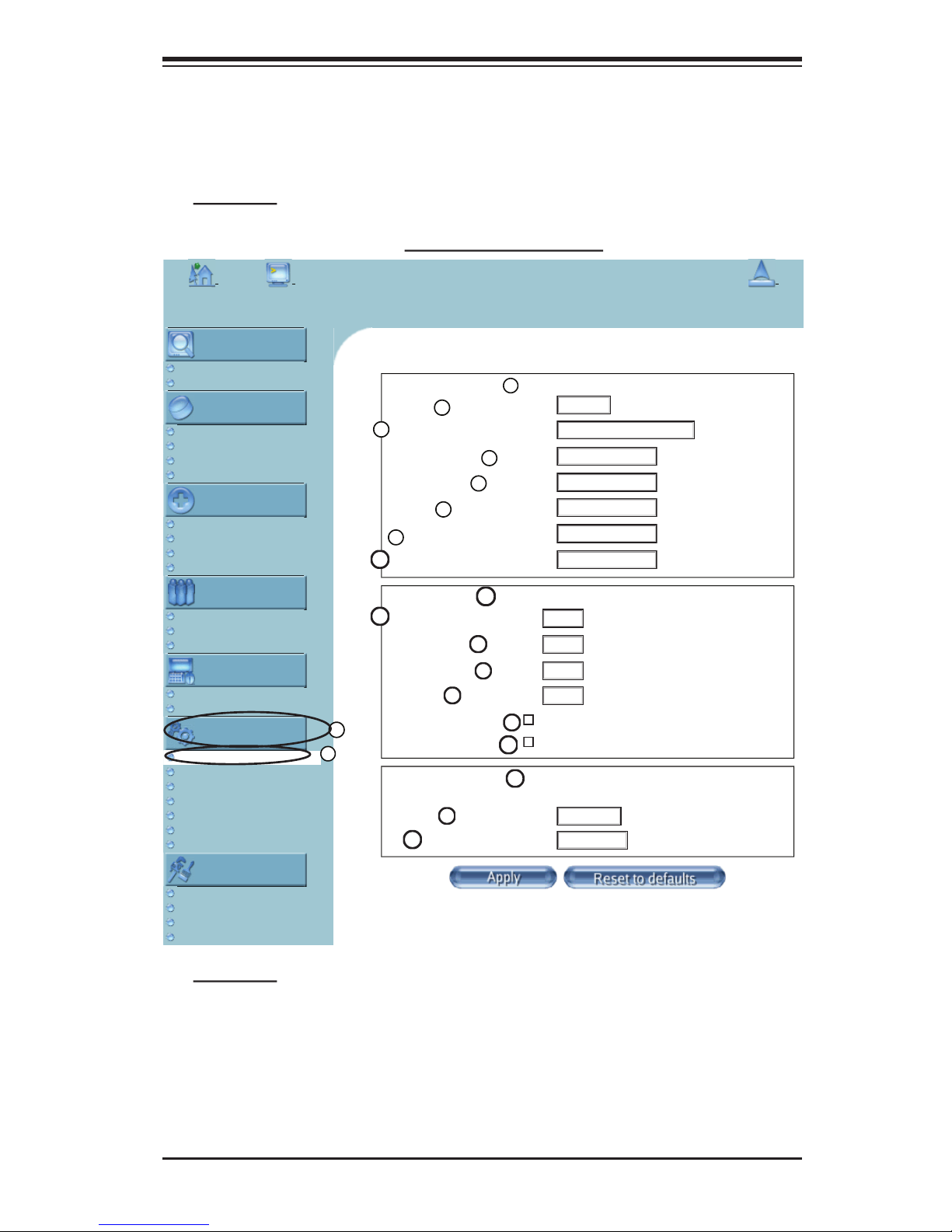

3.2.6. Device Settings

Click on the Device Settings icon on the Home Page to activate its submenus: Network, Dynamic DNS, Security, Certiﬁcate, Date/Time, Event Log and SNMP Settings as listed below.

Device Settings: Network

a. Network

1. Device Settings: Click on the Device Settings icon to activate its submenus:

Network, Dynamic DNS, Security, Certiﬁcate, Date/Time, Event Log and SNMP Set

tings.

2. Network: Click on this function key to activate the Network submenu to conﬁgure the following settings: Network Basic Settings, Network Miscellaneous Settings and LAN Interface Settings.

a. Network

Page 41

3-26

AOC-SIM1U/SIM1U+ User's Guide

3. Network Basic Settings: This window allows you to conﬁ gure basic settings for your network.

4. IP Auto Conﬁ guration: Click on the box to activate the selection menu and select a desired item from the list. The options are None, DHCP, and BOODP.

5. Preferred Host Name (DHCP only): Enter a Preferred Host Name in the box.

6. IP Address: Enter the IP Address for the remote host in the box.

7. Subnet Mask: Enter the net mask of the local network in the box.

8. Gateway IP Address: Enter the local network router's IP address in this box for

the accessibility of the users that are not connected to the local network.

9. Primary DNS Server IP Address: Enter the IP Address of the Primary Domain Name Server in the box.

10. Secondary DNS Server IP Address: Enter the IP Address of the Secondary Domain Name Server in the box. It will be used when the Primary DNS Server cannot be contacted.

11. Network Miscellaneous Setting: This ﬁ eld allows the user to conﬁ gure the following Network Miscellaneous settings as listed below:

12. Remote Console & HTTPS Port: Enter the port numbers the remote host and the HTTP server are listening. If a number is not entered in the box, the default value will be used.

13. HTTP Port: Enter the port number the HTTP server is listening. If a number is not entered in the box, the default value will be used.

14. SSH Port: Enter the port number the SSH server is listening. If a number is not entered in the box, the default value will be used.

15. Bandwidth Limit: Enter the maximum bandwidth value for network interfacing. The value should be in Kbits per second.

16. Enable SSH Access: Click this box to enable SSH Access.

17. Disable Setup Protocol: Check this box to disable the function of Setup Proto-

col for the SIMLP card.

18. LAN Interface Setting: This ﬁ eld allows the user to conﬁ gure the following LAN Interface settings as listed below:

19. LAN Interface Speed: Click on the arrow on the right to activate the selection menu and select a desired speed. The options are: Auto-detect, 10 Mega bits per second or 100 Mega bits per second. If Auto-detect is selected, LAN Interface Speed will be set at the optimized speed based on the system conﬁ gurations detected by the OS.

19. LAN Interface Duplex Mode: Click on the arrow on the right to activate the selection menu to select a desired LAN Interface Duplex Mode. The options are: Autodetect, Half Duplex and Full Duplex. If Auto-detect is selected, the LAN Interface Duplex Mode will be set to the optimized setting based on the system conﬁ gurations detected by the OS.

Page 42

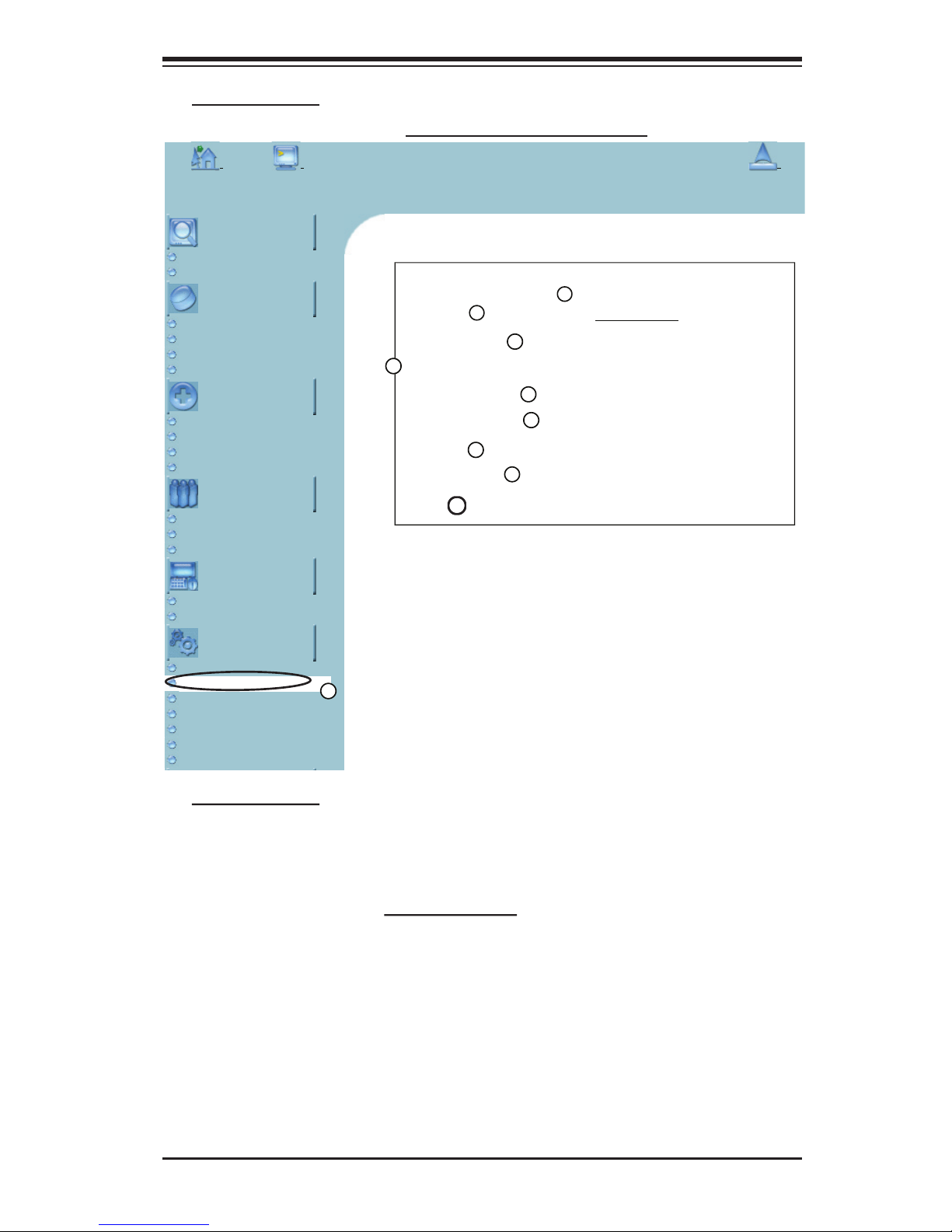

Chapter 3: Software Application and Usage

3-27

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Dynamic DNS Settings

Enable Dynamic DNS *

Dynamic DNS server

www.dyndns.org

DNS System

Hostname (eg. yourhost.dyndns.com)

Username

Password

Check time (HH:MM)

Check interval

Delete saved external IP

* Stored value is equal to the default.

Device Settings: Dynamic DNS

b. Dynamic DNS

1. Dynamic DNS: Click on this function key to activate its submenu and conﬁgure

the following Dynamic DNS (-Domain Name Server) settings as listed below.

2. Enable Dynamic DNS: Check this box to enable the Dynamic DNS service.

3. Dynamic DNS Server www.dyndns.org: Click this link to access the DynDNS

web site. This is the server name where the DDNS Service is registered.

4. DNS System: Dynamic DNS (Item#2 above) is enabled, you can select from the options: Custom or Dynamic from the selection menu. Select "Custom" to use your own system as the DNS server. Select Dynamic to use the pre-conﬁgured Dynamic DNS as your server.

5. Hostname: Enter the name you want to use for the remote host server.

6/7. Username/Password: Enter the username and the password for the remote

host user.

8. Check time (HH:MM): Enter the time the SIMLP card ﬁrst registers with the DNS server in the HH:MM Format. (e.g. 07:25, 19:30)

Page 43

3-28

AOC-SIM1U/SIM1U+ User's Guide

9. Check Interval: Enter the interval for the IPMI to report to the Dynamic DNS again.

10. Delete Saved External IP Address: Click on the Delete Icon to delete the IP Address for an external system that has been previous entered and saved.

Page 44

Chapter 3: Software Application and Usage

3-29

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log

Encryption Settings

Force HTTPS for Web access *

KVM Encryption

Off

* Try Force

IP Access Control

Please note: "Apply" is required, or changes will be lost.

Enable IP Access Control *

Default policy

Rule # IP/Mask Policy

User Blocking

Max. number of failed logins

(empty for infinite)

Block time (minutes)

(empty for infinite)

* Stored value is equal to the default.

Device Settings: Security

c. Security

1. Security: Click on this function key to activate its submenu and conﬁgure the fol-

lowing Security settings as listed below.

2. Encryption Settings: This window allows you to conﬁgure encryption settings.

3. Force HTTPS for Web Access: Check this box to enable the function-Force

HTTPS for Web Access. If enabled, you will need to use an HTTPS connection to access to the web.

4. KVM Encryption: This option allows you to conﬁgure the encryption of the RFB protocol. RFB is used by the remote host to transmit video data displayed in the host monitor to the local administrator machine, and transmit keyboard and mouse data from the local administrator machine back to the remote host.

If set to "Off," no encryption will be used. If set to "Try," the applet (-JVM of the remote host) will attempt to make an encrypted connection. In this case, when a connection cannot be established, an unencrypted connection will be used. If set to "Force," the applet will make an encrypted connection. In this case, an error will be reported if no connection is made.

5. IP Access Control: This section allows you to conﬁgure the IP Access Control settings listed below.

Page 45

3-30

AOC-SIM1U/SIM1U+ User's Guide

6. Enable IP Access Control: Check this box to enable the function of IP Access Control. This function is used to limit user access to the network by identifying them by their IP addresses. (This function is available to the LAN interface only.)

7. Default Policy: When item#6 (-IP Access Control) set to "enabled," you can select either "accept" or "drop", allowing access or denying access according to pre-deﬁ ned rules. (

Note: If this option is set to "drop," and you do not have a set of rules that will accept the internet connection, then the internet connection over LAN is impossible. In this case, you need to change your security settings via modem or by disabling the IP Access Control.)

8. Rule#: Enter a rule number in the box for a command (or commands) that will be used by the IP Access Control.

9. IP/Mask: Enter the IP Address or an IP Address Range for which the command(s) will be applied.

10. Policy: This item instructs the IPMI what to do with the matching packages.

(Note: The sequence or the order of the rules is important. The rules are checked in the ascending order until a rule matches. All rules below the matching one will be ignored. The default policy applies if no matching rules are found.)

11. Append: Select this option to add IP Address/Mask, rules or commands to the existing ones.

12. Insert: Select this option to insert IP Address/Mask, rules or commands to the existing ones.

13. Replace: Select this option to replace an old IP Address/Mask, rule or command with a new one.

14. Delete: Select this option to delete (a part of) an existing IP Address/Mask, rule or command.

15. User Blocking: This window allows you to set the conditions how a user is blocked.

16. Max. Number of Failed Logins: Enter the maximum number of failed attempts or failed logins allowed for a user. If the number of failed logins or attempts exceeds this maximum number allowed, the user will be blocked from system.

(Note: If this box is left empty, the user is allowed to try to login to the server inﬁ nitely. For network security, this is not recommended.)

17. Block Time (Minutes): Enter the number of minutes allowed for a user to attempt to login. If the user fails to login within this time allowed, the user will be blocked from system.

(Note: If this box is left empty, the user is allowed to try to login to the server inﬁ nitely. For network security, this is not recommended.)

Page 46

Chapter 3: Software Application and Usage

3-31

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Certificate Signing Request (CSR)

Common name

Organizational unit

Organization

Locality/City

State/Province

Country (ISO code)

Challenge password

Confirm Challenge password

Key length (bits)

* Stored value is equal to the default.

1024

Device Settings: Certiﬁcate

d. Certiﬁcate

1. Certiﬁcate: Click on this function key to activate its submenu and conﬁgure the

following Certiﬁcate settings as listed below.

2. Certiﬁcate Signing Request (CSR): This window allows you to deﬁne the Certiﬁcate Signing Request (CSR) form. The IPMI uses the Secure Socket Layer (SSL) protocol for encrypted network trafﬁc between itself and the remote host servers. When a connection is made, the IPMI has to expose its identity to a remote host by using a cryptographic certiﬁcate.

To create a certiﬁcate that is unique to a particular IPMI card or SIMLP card, a cer

tiﬁcation authority (CA) needs to ﬁll out the CSR form indicated in the CSR window above and click "Create" to generate it.

Page 47

3-32

AOC-SIM1U/SIM1U+ User's Guide

3. Common Name: Enter the (fully qualiﬁ ed domain) network name of the IPMI.

4. Organization Unit: Enter the name of the department within an organization that

the IPMI belongs to.

5. Organization: Enter the name of the organization that the IPMI belongs to.

6. Locality/City: Enter the name of the city or the location where the organization

is located.

7. State/Province: Enter the name of the state/province where the organization is located.

8. Country (ISO): Enter the name of the country or the ISO code where the organization is located.

9. Email: Enter the email address of a contact person that is responsible for the IPMI.

10. Challenge Password: Enter a challenge Password for the Certiﬁ cation Authority to authorize necessary changes to the certiﬁ cate at a later time. The password shall be four characters or longer.

11. Conﬁ rm Challenge Password: Enter a challenge Password one more time to conﬁ rm it.

12. Key Length (bits): This is the length of key generated in bits.

Page 48

Chapter 3: Software Application and Usage

3-33

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Date/Time Settings

UTC Offset

User specified time *

Date

/ / (mm/dd/yyyy)

Time

: : (hh:mm:ss)

Synchronize with NTP Server

Primary Time server

Secondary Time server

* Stored value is equal to the default.

+/- 0 h

111970

0130

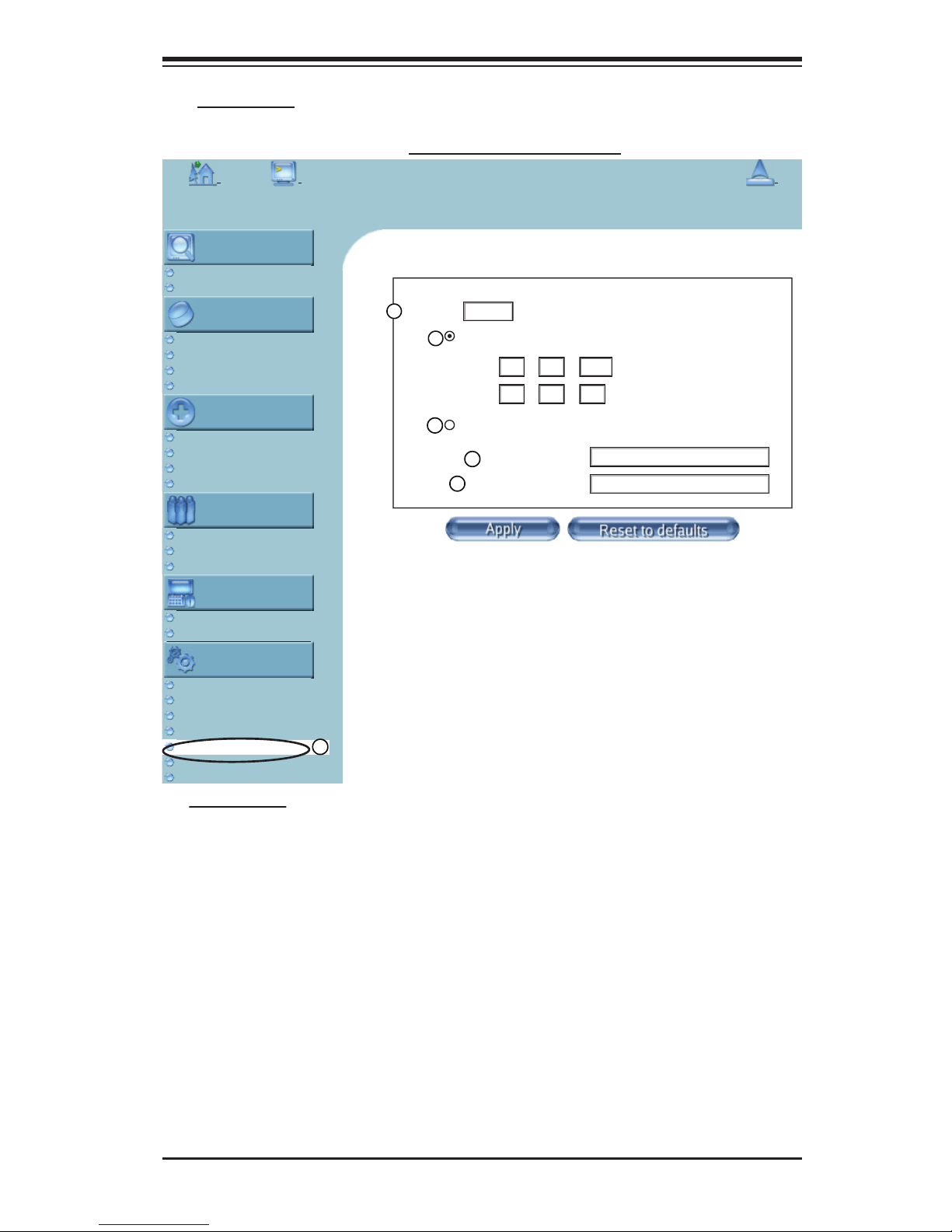

Device Settings: Date/Time

e. Date/Time

1. Date/Time: Click on this function key to activate its submenu. This feature allows

you to set the internal realtime clock for your SIMLP card.

2. UTC Offset: This window allows you to offset the UTC Timer.

3. User Speciﬁed Time: This option allows the user to enter the time values for the

SIMLP internal realtime clock.

4. Synchronize with NTP Server: Enter the IP Address for the NTP (Network Time Protocol) Server that you want your SIMLP internal realtime clock to synchronize with.

5/6. Primary Time Server/Secondary Time Server: Enter the IP Address for the primary NTP Server and the secondary NTP Server that you want your SIMLP internal realtime clock to synchronize with. (The daylight saving time cannot be automatically adjusted. Please manually set up the UTC offset twice a year for your timer to work properly.)

Page 49

3-34

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information Event Log Update Firmware Unit Reset

Event Log Targets

List Logging Enabled *

Entries shown per page

Clear internal log

NFS Logging Enabled *

NFS Server

NFS Share

NFS Log File

SMTP Logging Enabled

SMTP Server

Receiver Email Address

Sender Email Address

SNMP Logging Enabled

Destination IP

Community

Click here to view the Supermicro Daughter Card SNMP MIB

Event Log Assignments

Event List NFS SMTP SNMP

Board Message

* * * *

Security

* * * *

Remote Console

* * * *

Host Control

* * * *

✔

evtlog

✔✔✔

✔

✔✔✔

✔

✔✔✔

✔

✔✔✔

✔

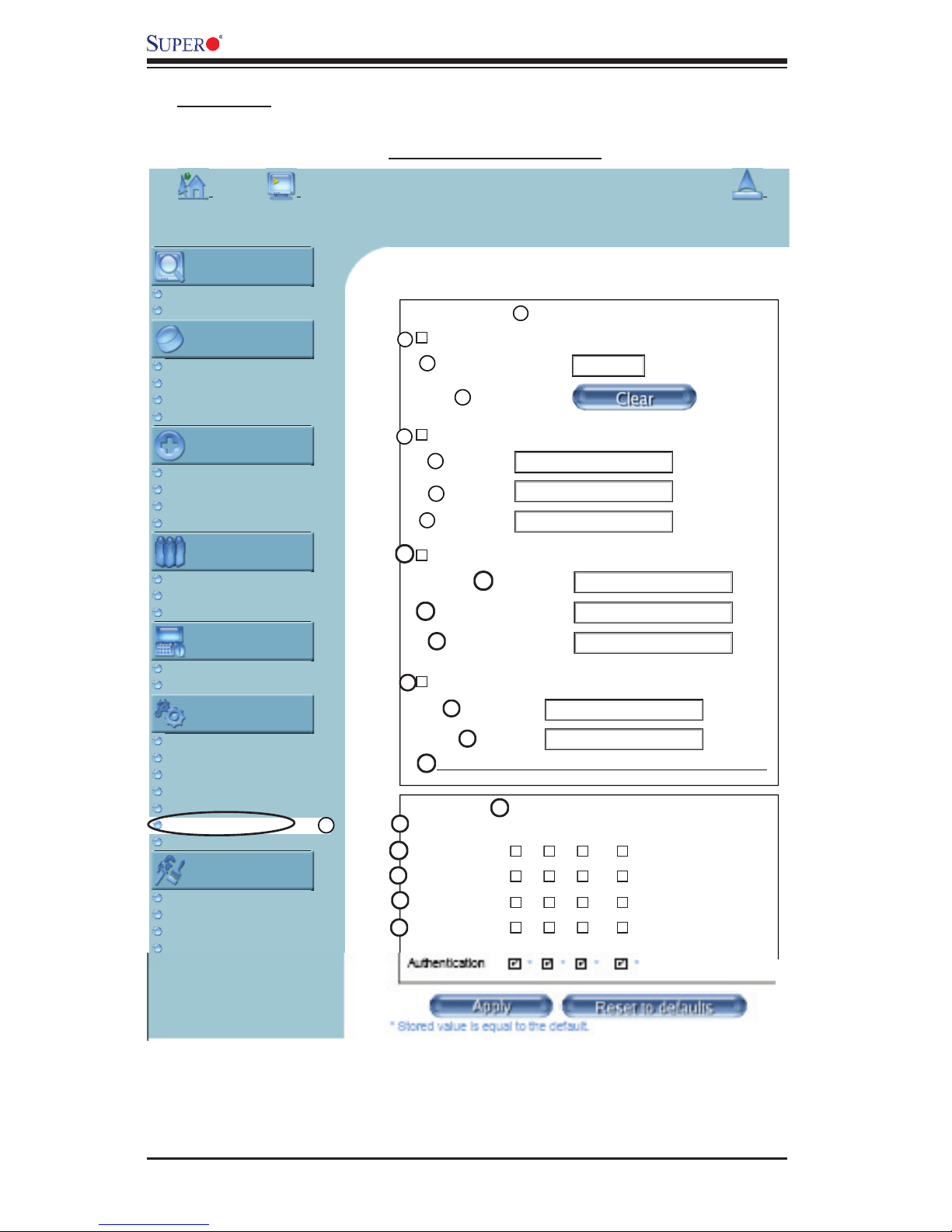

Device Settings: Event Log

f. Event Log

Page 50

Chapter 3: Software Application and Usage

3-35

f. Event Log

1. Event Log: Click on this function key to activate its submenu. This feature allows

you to set Event Log Targets and Event Log Assignment.

2. Event Log Targets: This section allows you to manually set the event log targets and settings.

3. List Logging Enabled: Check this box to activate the event-logging list. To show the event log list, click on "Event Log" on the "Maintenance" page. (The maximum number of log list entries is 1,000 events. Every entry that exceeds this limit will automatically override the oldest one in the list. If the reset button is pressed, all logging information will be saved; however, all logging data will be lost if hard reset is performed or the system loses power.)

4. Entries Shown Per Page: Enter the number of entries you want to display on a page.

5. Clear Internal Log: Click this icon to clear internal event log from the memory.

6. NFS Logging Enable: Click this box to enable NFS Logging which will create a

Network File System (NFS) for the event logging data to be written into.

7. NFS Server: Enter the IP Address of the NFS Server.

8. NFS Share: Enter the path of the Network File System in which the event logging

data is stored.

9. NFS Log File: Enter the ﬁlename of the Network File System in which the event logging data is stored.

10. SMTP Logging Enable: Check this box to enable the function of SMTP (Simple Mail Transfer Protocol) logging.

11. SMTP Server: Enter the IP Address for the SMTP Server.

12. Receiver Email Address: Enter the email address that the SMTP event logging

data will be sent to.

13. Sender Email Address: Enter the email address from which the SMTP event logging data is sent.

14. SNMP Logging Enable: Check this box to enable the function of SNMP (Simple Network Management Protocol) logging.

15. Destination IP: Enter the IP address where the SNMP trap will be sent to.

16. Community: Enter the name of the community if the receiver requires a com-

munity string.

17. Click here to view the Supermicro Daughter Card SNMP MIB: Click this link to see the SMLP card SNMP MIB.

18. Event Log Assignments: This window allows you to specify the types and the destination for the event logging.

Page 51

3-36

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

SNMP Settings

Enable SNMP Agent *

Read Community

Write Community

System Location

System Contact

Click here to view the SNMP MIB

* Stored value is equal to the default.

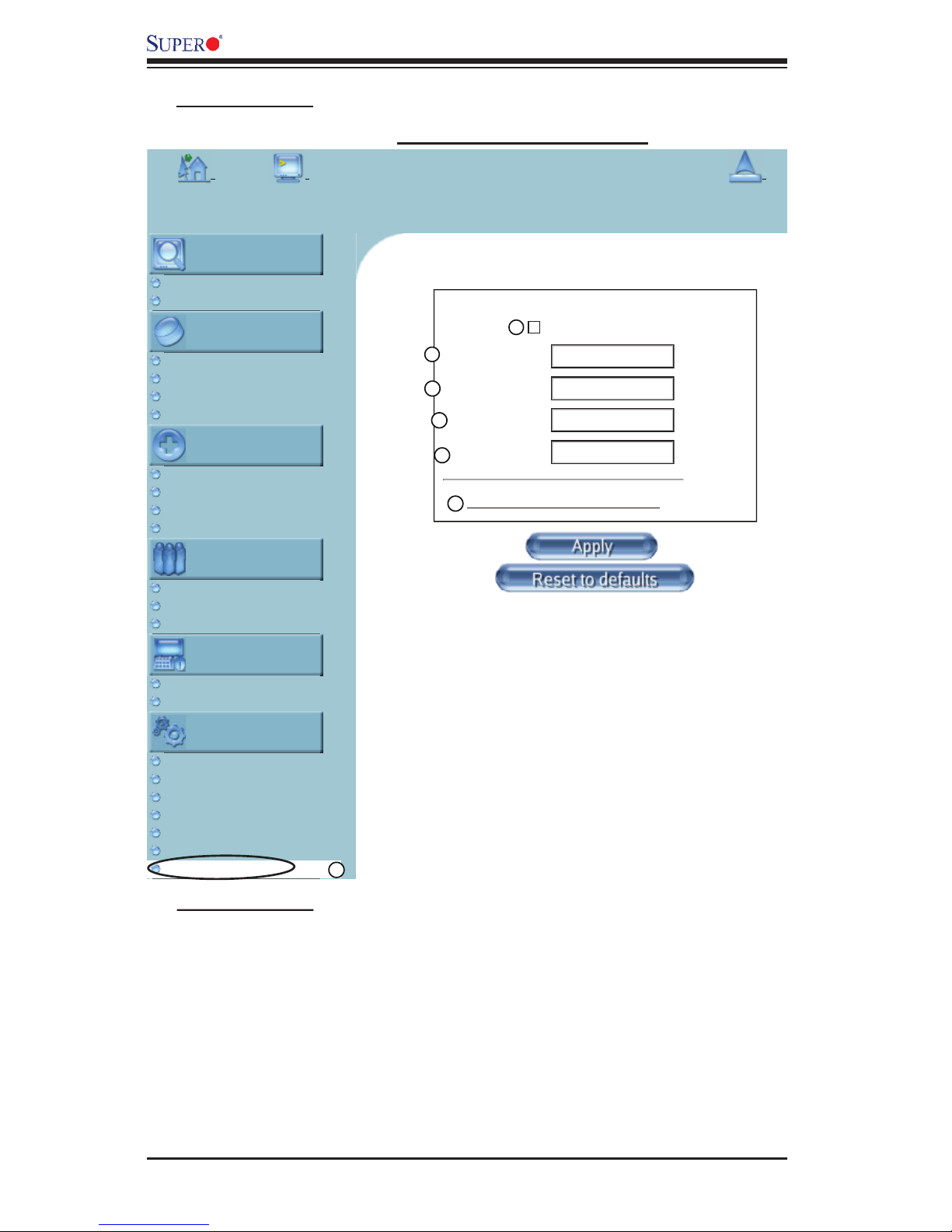

Device Settings: SNMP Settings

g. SNMP Settings

1. SNMP Settings: Click on this function key to activate its submenu. This feature

allows you to conﬁ gure Simple Network Management Protocol settings.

2. Enable SNMP Agent: Check the box to enable the SNMP Agent and allow it to interface with your SIMLP card.

3. Read Community: Enter the name of the SNMP Community from which you will retrieve information via SNMP.

4. Write Community: Enter the name of the SNMP Community to which you can write information and issue commands via SNMP.

Page 52

Chapter 3: Software Application and Usage

3-37

5. System Location: Enter the physical location of the SNMP host server. This location will be used in response to the SNMP request as "sysLocation0."

6. System Contact: Enter the name of the contact person for the SNMP host server. This value will be referred to as "sysContact0."

7. Click here to view the SNMP MIB: Click this link to view the SMLP card SNMP MIB ﬁle. This ﬁle may be necessary for an SNMP client to interface with the SIMLP card.

Page 53

3-38

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information

Product Name:

Supermicro Daughter Card

Serial Number:

05729801DE4375A1

Device IP Address:

192.168.1.200

Device MAC Address:

00:30:48:30:0c:76

Firmware Version:

00.05.00

Firmware Build Number:

3458

Firmware Description:

June-7-06-9:17

Hardware Revision:

0x22

View the datafile for support.

Connected Users

ADMIN (66.120.31.163) active

http://192.168.1.200/home.asp (1 of 2)6/17/2006 1:36:16 PM

Maintenance: Device Information

a. Device Information

1. Device Information: Click on this function key to activate its submenu. This fea-

ture displays the information of the SIMLP card and its ﬁ rmware.

2. View the Data File for Support: Click on this link to view the XML ﬁ le which contains you and your product information which is needed for technical support.

2. Connect Users: List the name(s), the IP Address(es) and the status of the connect person(s).

3.2.7 Maintenance

Click on the Maintenance icon on the Home Page to activate its submenus: Device Information, Event Log, Update Firmware and Unit Reset Settings as listed below.

Page 54

Chapter 3: Software Application and Usage

3-39

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information

Event Log

[ Prev ][

Next ]

Date Event Description

01/01/1970 02:10:19 Authentication

User 'ADMIN' logged in from IP address

66.120.31.163

01/01/1970 02:10:10 Authentication

User 'ADMI' failed to log in from IP address

66.120.31.163

01/01/1970 01:25:11 Authentication

User 'ADMIN' logged in from IP address

66.120.31.163

01/01/1970 00:02:05 Authentication

User 'ADMIN' logged in from IP address

66.120.31.163

01/01/1970 00:00:33 Board Message

Device successfully started.

01/01/1970 00:00:59 Authentication

User 'ADMIN' logged in from IP address

192.168.1.36

01/01/1970 00:00:53 Authentication

User 'ADMIN' failed to log in from IP address

192.168.1.36

01/01/1970 00:00:33 Board Message

Device successfully started.

Maintenance: Event Log

b. Event Log

1. Event Log: Click on the function key on the left to activate the Event Log submenu.

Once the submenu is displayed, the Event Log List will display. The Event Log List contains the information of events that are recorded by the SIMLP in the order of Date/Time, Types, and the descriptions of the events including the IP address(es), person(s) and activities involved .

Page 55

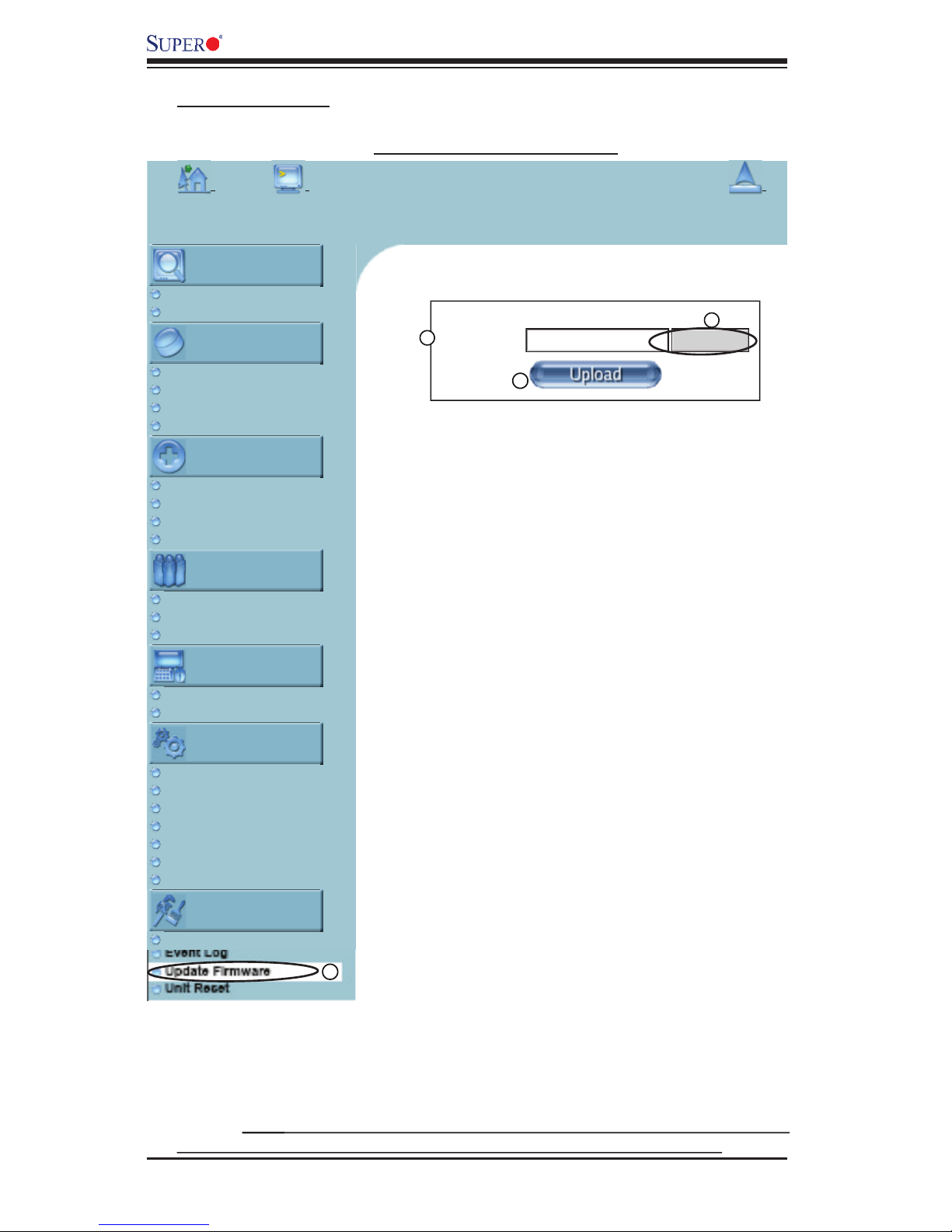

3-40

AOC-SIM1U/SIM1U+ User's Guide

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information

Firmware Upload

Firmware File

Browse...

Maintenance: Update Firmware

c. Update Firmware

1. Update Firmware: Click on this function key to enable "Update Firmware."

2/3. Firmware File: Enter the name of the ﬁ rmware you want to update or click on

the "Browser" icon to select the ﬁ rmware ﬁ le.

4. Update: Click on the "Upload" icon to upload the ﬁ rmware ﬁ le to the server for the update.

(Note: This process is not reversible once the ﬁ rmware is updated, so pro-

ceed with caution. It might take a few minutes to complete the procedure.)

Page 56

Chapter 3: Software Application and Usage

3-41

Home

Home Console

Logout

Remote Control

KVM Console Remote Power

Virtual Media

Floppy Disk CD-ROM Image Drive Redirection Options

System Health

Chassis Control Monitor Sensors System Event Log Alert Settings

User Management

Change Password Users & Groups Permissions

KVM Settings

User Console Keyboard/Mouse

Device Settings

Network Dynamic DNS Security Certificate Date/Time Event Log SNMP Settings

Maintenance

Device Information

Reset Keyboard/Mouse

(USB)

Reset USB

Reset Video Engine

Reset Device

This may take up to a minute.

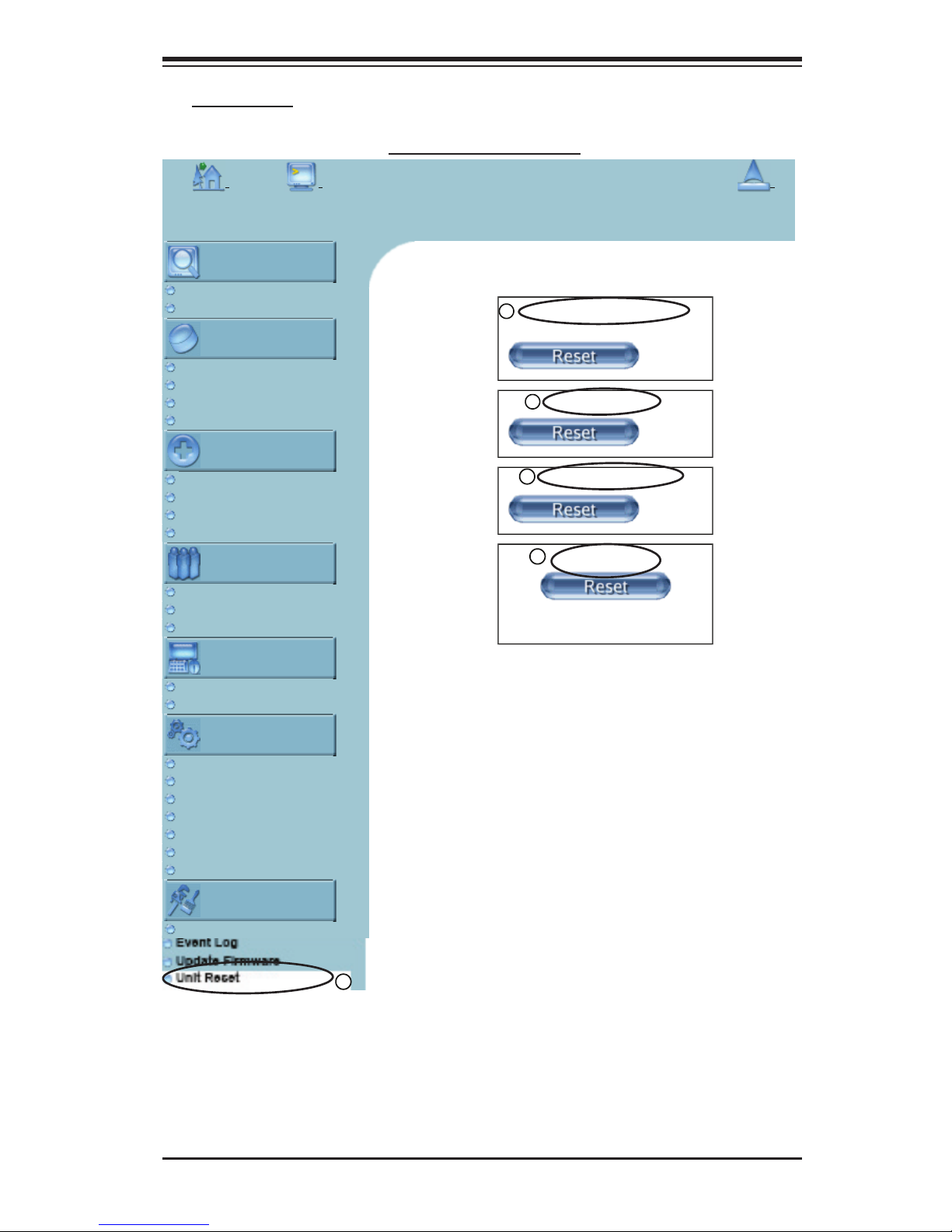

Maintenance: Unit Reset

d. Unit Reset

1. Unit Reset: This feature allows you to reset the following components:

2. Reset Keyboard/Mouse: Click the "Reset" icon to reset Keyboard/mouse.

3. Reset USB: Click the "Reset" icon to reset the USB module.

4. Reset Video Engine: Click the "Reset" icon to reset Video and its controller.

5. Reset Device: Click the "Reset" icon to cold reset the IPMI ﬁrmware.

Page 57

3-42

AOC-SIM1U/SIM1U+ User's Guide

3.3 Remote Console Main Page

Remote Console

Preview Screen

After you have entered the correct IP address for your remote console and typed in correct user name and password, you should be connected to the remote console. When the remote console is connected, the Remote Console window displays as shown above. To go to the remote console screen, you can do one of the following:

1. Click on the console icon (marked "2") on the upper left corner, or

2. Click on the link "Click to Open" to open the remote console screen as shown on #3 above.

The remote console screen as shown on the next page displays.

Note: For your reference, the functions of the icons for this home page are listed below:

1. Home: Click this icon to return to the Home Page.

2. Console: Click this icon to open the remote console screen.

3. Click to Open: Click this link to open the remote console screen.

4. Log-Out: Click this icon to log out.

5. Refresh: Click this icon to refresh the remote console preview screen.

6. Power On: Click this icon to power on the remote server.

7. Power down: Click this icon to power down the remote server.

8. Reset: Click this icon to reset the remote server.

9. Remote Console Preview Screen: This window displays the preview of the re-

mote console screen. Click on this window to go to the remote console screen.

Home Console

Click to Open

Log Out

Power On

Refresh

Power Down

Reset

Page 58

Chapter 3: Software Application and Usage

3-43

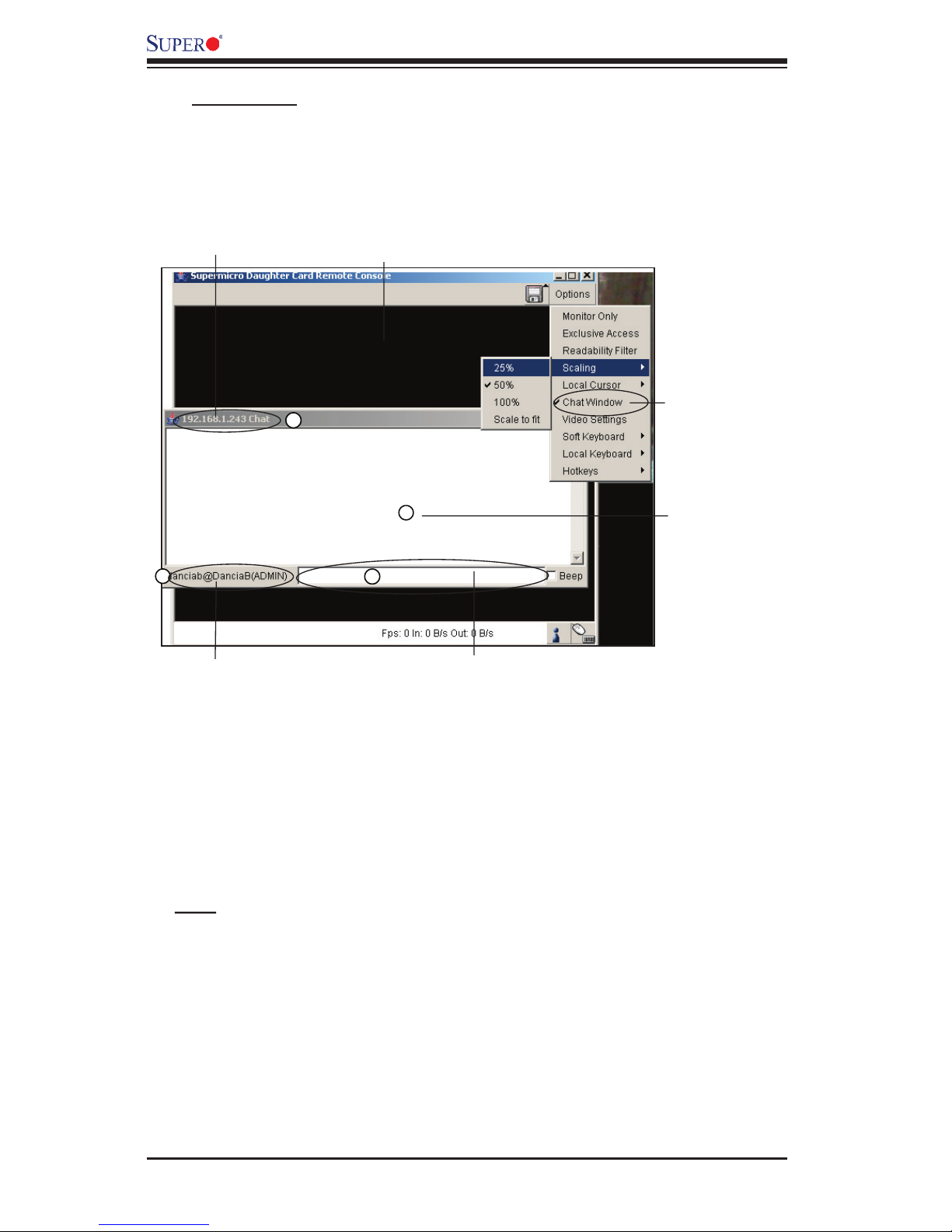

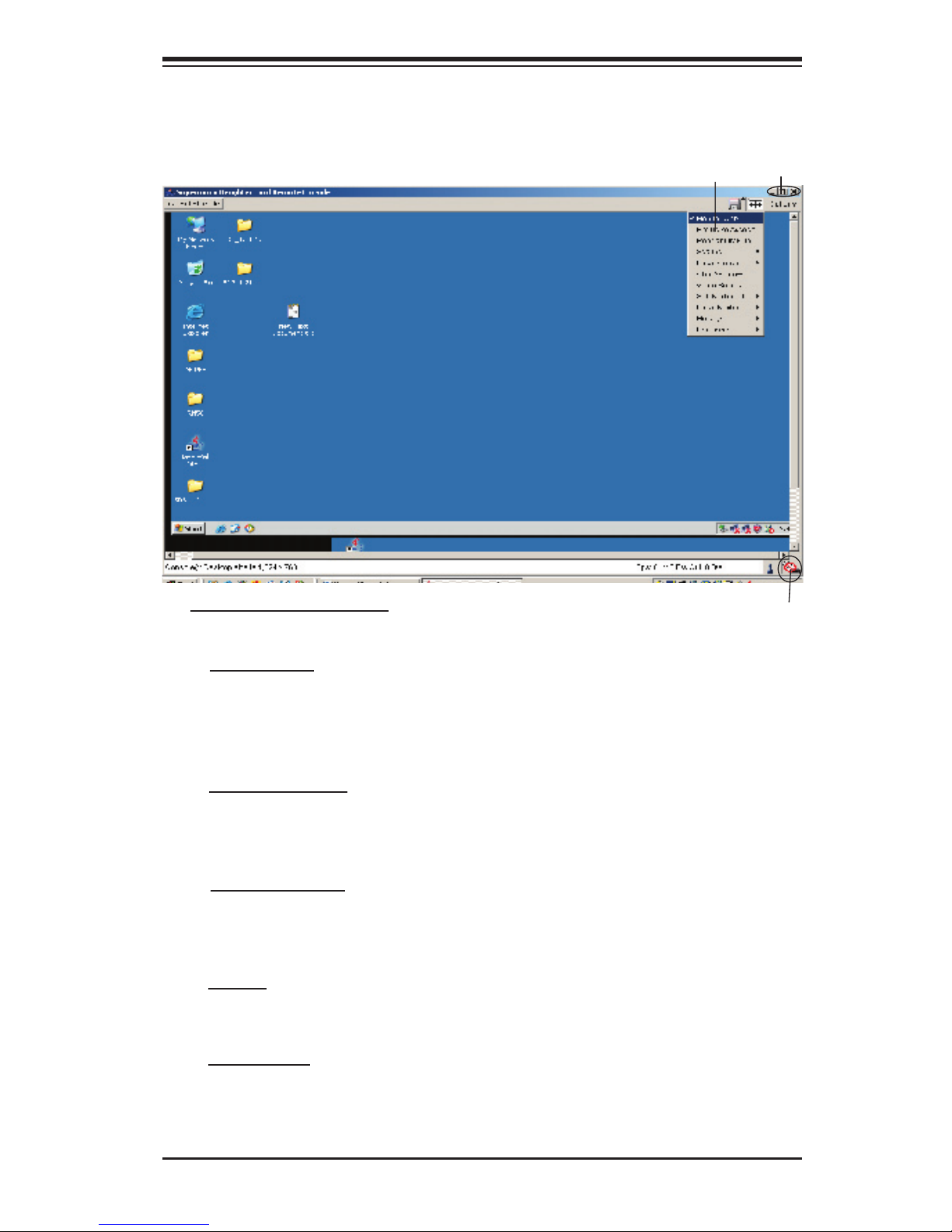

3.3.1 Remote Console Options

After the remote console screen appears, click on the button "Option" on the very upper right corner to display the Options Menu as shown below.

a. Options Menu Items

The following items are included in the Options Menus:

1. Monitor Only: Click on the Monitor Only button to turn the function of "Monitor Only" on or off. If the function of "Monitor Only" is selected, the KB/Mouse icon on the lower right corner will be crossed out as shown above, and the user can only view or monitor remote console activities. Any remote console interaction is no longer available.

2. Exclusive Access: With an appropriate permission, a user can force other users to quit the remote console and claim the console for his or her own exclusive use by clicking on the Exclusive Access icon to select it. When this function is selected, the 2nd user icon on the lower left corner of the screen will be crossed out.

3. Readability Filter: Click on this button to turn the "Readability Filter" on or off. Turn on this function to preserve most of the screen details even when the screen image is substantially scaled down. (Note: This item is available for a system with a JVM 1.4 or higher.)

4. Scaling: This item allows the user to scale the remote console screen to a desired size. Click on this button to access its submenu and select a desired setting from the options listed in the submenu: 25%, 50%, 100% and Scale to Fit.

5. Local Cursor: This item allows the user to choose the desired shape for the local cursor pointer. Click on this button to access its submenu and select a desired shape from the options listed in the submenu: Transparent, Default, Big, Pixel, and Crosshair. The availability of the shapes depends on the Java Virtual Machine used.

Options

Options Menu

No KB/Mouse:

(Crossed-out)

Page 59

3-44

AOC-SIM1U/SIM1U+ User's Guide

6. Chat Window: This item allows the user to communicate with other users logged

in the same remote host by clicking on the Chat Window button. The screen below

shows a Chat Window displayed in a scaled down remote console screen.

Chat Window

Frame

Chat Window button

Remote Console Window

(Scaled-down to 50%)

Chat line

User's Identity Label

Title Bar

For your reference, the items shown on the Chat Window screen are listed below:

1. Title Bar: This shows the IP address of the remote host you are connected to.

2. Chat Window Frame: This frame displays chat messages, including your own

message that has been sent to other users. This is a read-only test display area.

3. User's Identity Label: This line displays your own identity.

4. Chat Line: This is an edit-able text line where you can enter a new message.

Note: Once you've typed your message in the chat line box and press <Enter>, your

message will be sent to remote systems and read by other users. Please review the text displayed in the chat line box before you hit the <Enter> key.

Page 60

Chapter 3: Software Application and Usage

3-45

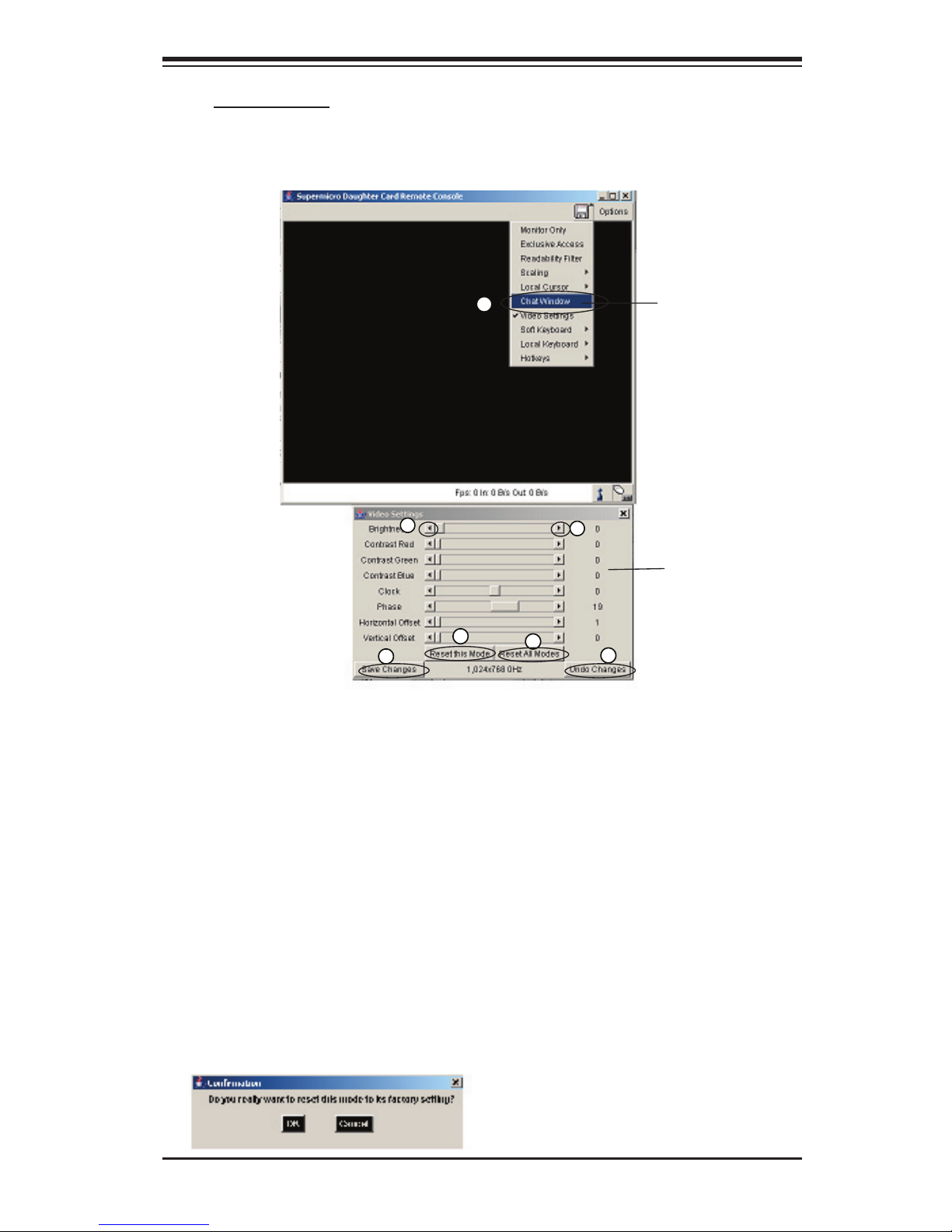

7. Video Settings: This item allows the user to set the monitor display settings by

clicking on the Video Settings button (marked "1" below.) After you've clicked the

Video Settings button, the submenu displays as shown below.

Video Settings

Button

Use your cursor pointer to click on the triangles (marked 2 and 3) to adjust the setting for each of the following items:

i. Brightness ii. Contrast Red iii. Contrast Green iv. Contrast Blue v. Clock vi. Phase vii. Horizontal Offset viii. Vertical Offset

If you are not happy with the changes you have made, you can click on the "

Reset

this Mode" button (marked 4) to reset a particular item, or click on the "Reset All Modes" button (marked 5 above) to reset all items.

To save all changes, click on the "Save Changes" button (Marked 6). You can also click on the "Undo Changes" (Marked 7 above) to abandon the changes.

If "Save Changes" is selected, the conﬁrmation message as shown below appears. Click "OK" to save the changes. Click "Cancel" to return to the previous menu.

Video Settings

Submenu

Page 61

3-46

AOC-SIM1U/SIM1U+ User's Guide

Keys in English Soft Keyboard

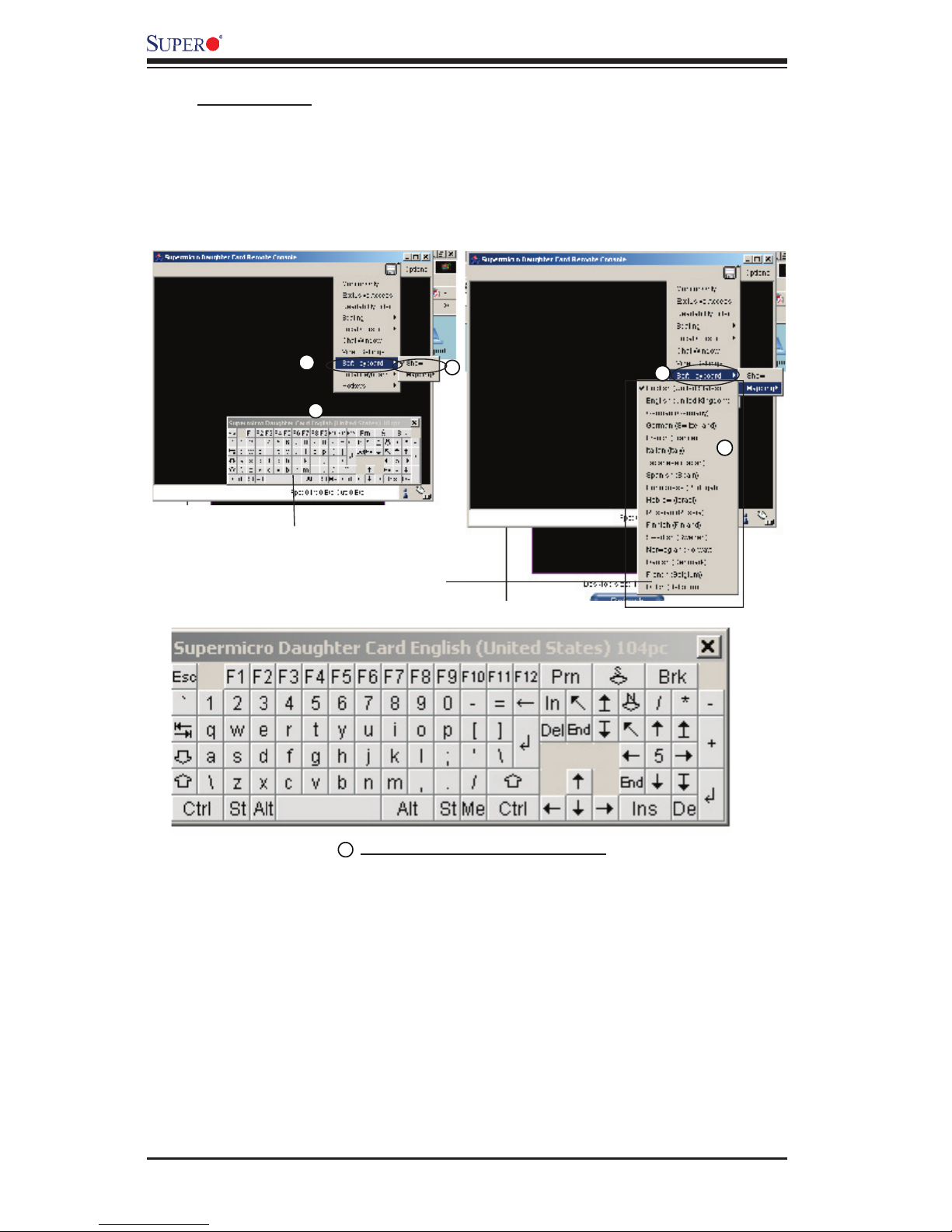

8. Soft Keyboard: This item allows the user to use the soft keys that have been

pre-installed in the "Soft Keyboard" of the particular language selected. After you've

clicked the Soft Keyboard button, the submenu displays as shown below.

Keys in the

Soft Keyboard

i Soft Keyboard: Click on this button to use the pre-installed soft keys or to select

keyboard language.

ii. Show: Click on the "Show Button" to show a soft keyboard which contains pre-

installed soft keys.

iii. Soft Keyboard: When the soft keyboard displays, use your mouse cursor to

select the soft key(s) you want to use.

iv. Mapping: Click on this button to display a list of major languages of the world.

Select from the list the language you want the soft keyboard to be in.

v. Language List: When this language list displays, select the language you want

to use by clicking on it.

Language List

Page 62

Chapter 3: Software Application and Usage

3-47

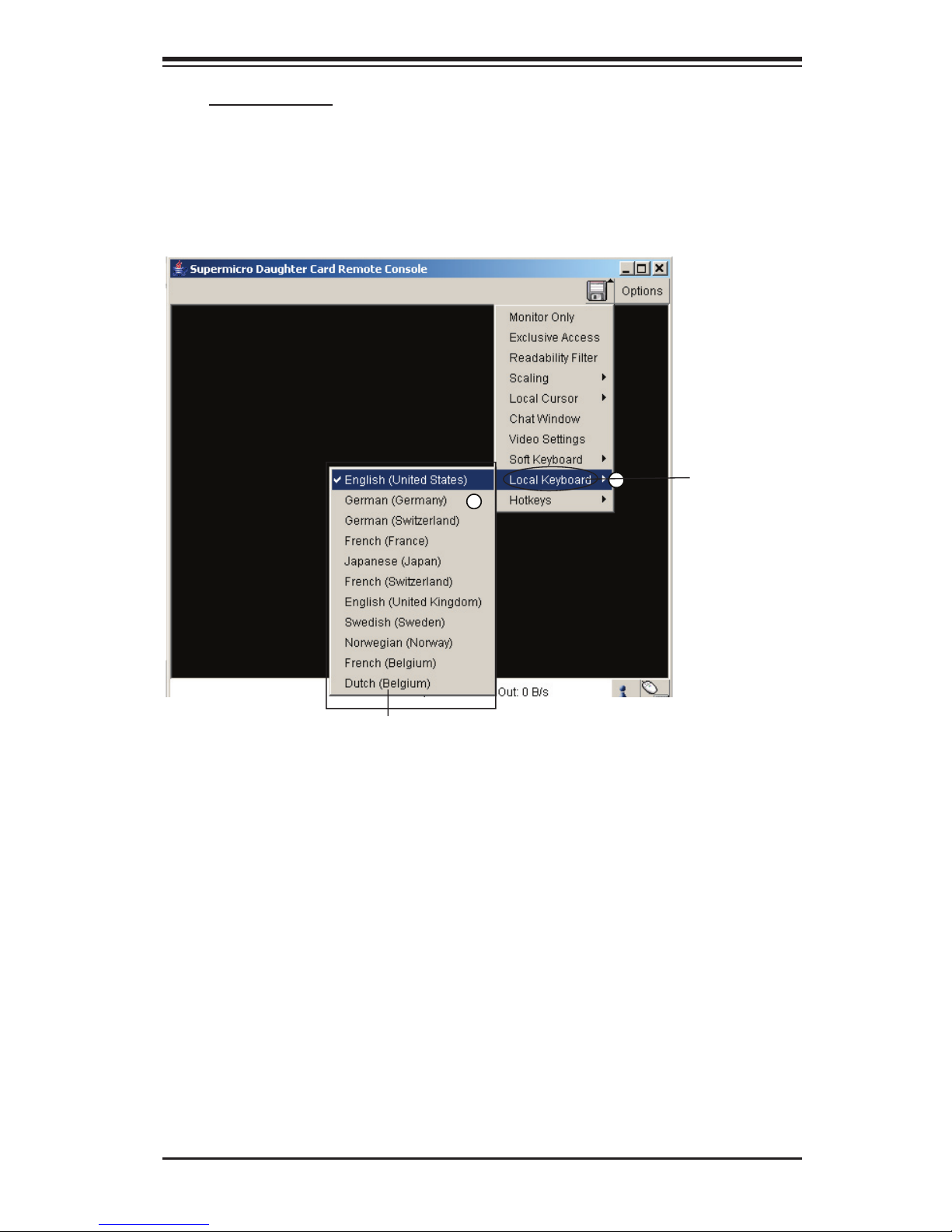

9. Local Keyboard: This item allows the user to manually change the local keyboard

setting for interaction with a remote host. Use this function to change the language

mapping of your browser machine running the remote console host. After you have

clicked Local Keyboard button, the submenu displays as shown below.

Local Keyboard

Button

i Local Keyboard: Click on this button to manually change the local keyboard setting

for remote console interaction. Use this function to change the language mapping

of your browser machine running the remote console host. Click on this button to

display a list of major languages in the world.

ii. Language List: When this language list displays, select the language you want

to use.

Language List

Page 63

3-48

AOC-SIM1U/SIM1U+ User's Guide

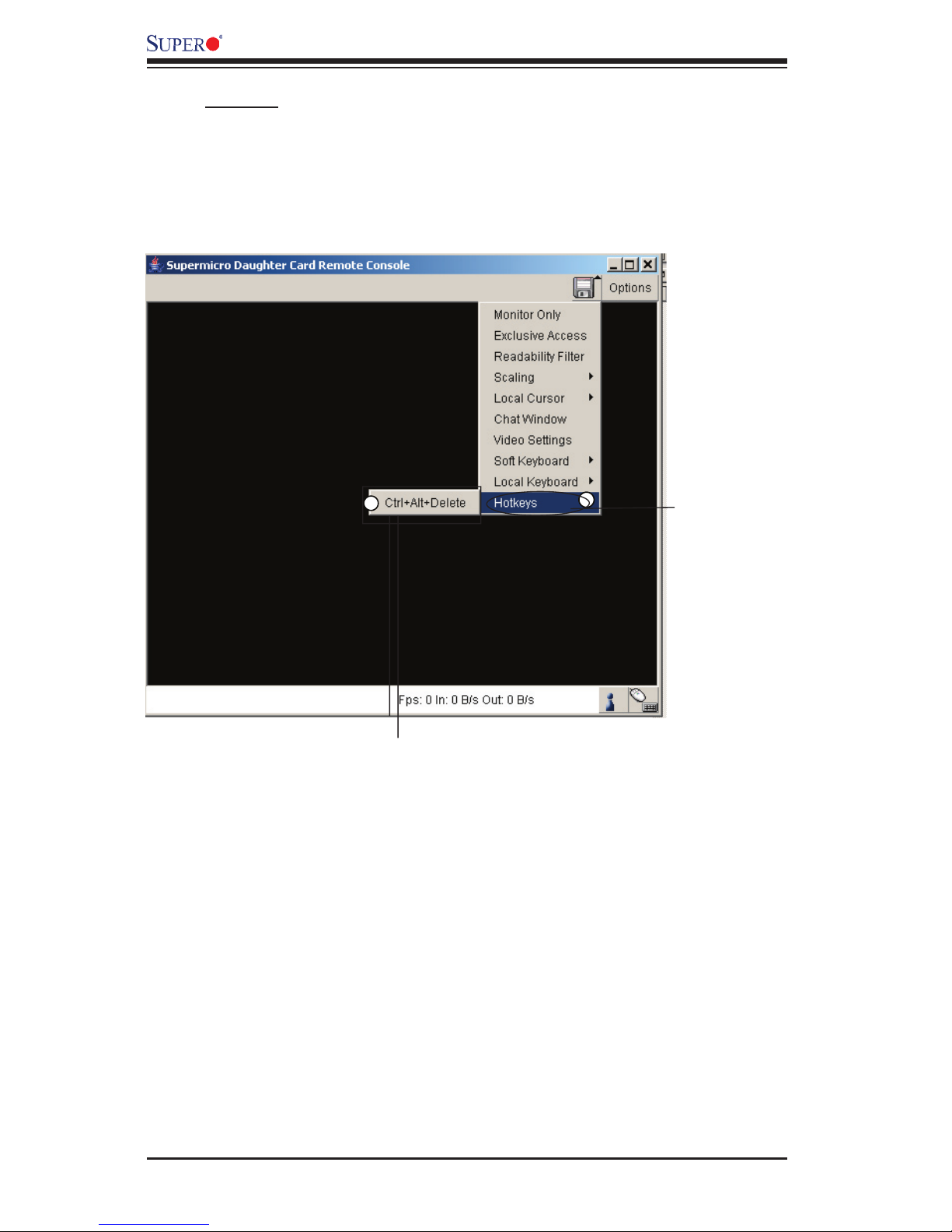

10. Hot Keys: This item allows the user to select a pre-deﬁ ned hot key from a hot

key list. Once a hot key is selected, the command associated with the hot key will be

sent to the remote console host for execution.

After you've clicked Hot Key button, the submenu displays as shown below.

Hot Key Button

i. Hot Key Button: Click on this button to display a hot key list. This list contains

the hot keys that have been pre-deﬁ ned and pre-entered in the system. You can

also use this function to write your own commands and add your own hot keys to

the list.

ii. Hot Key List: Select from the list a hot key you wish to use. By selecting a hot key,

you will send the command associated with this hot key will be sent to the remote

host for execution.

Hot Key List

Page 64

Chapter 3: Software Application and Usage

3-49

Console Icon

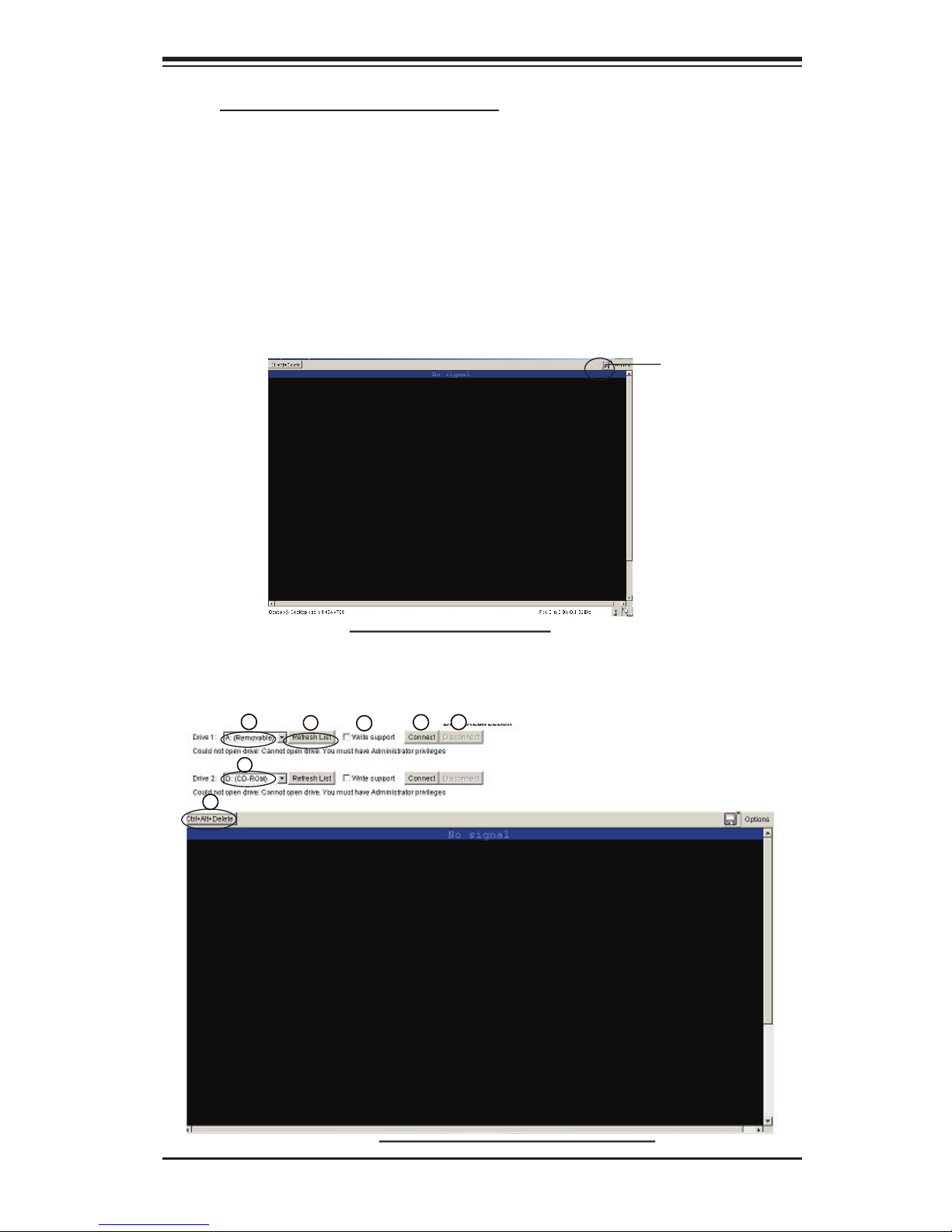

11. Remote Console Interface Window: This item allows the local host to interact

with a remote server. Through the Remote Console Interface Window, the user can

share ﬁles stored in the local drive with a user connected to the remote server, down-

load data from a local drive to the remote server, issue commands to manage the

remote server, or allow the remote server be controlled and managed by a local user

logged in the remote server. This function provides a full spectrum of remote console

interaction and management. You also need to have the Administrator Privilege to

use this feature.

To access the Remote Console Interface window, you need to click the Console icon

on the Remote Console window as shown below.

Once you have clicked on the Console Icon on the Remote Console window, the Remote Console Interface window displays as shown below.

Remote Console Window

Remote Console Interface Window

Page 65

3-50

AOC-SIM1U/SIM1U+ User's Guide

i./ii. Local Drive List: The box displays a list of local drives available for remote ac-

cess. Select from the list a local drive that you want to make accessible for a remote

server.

iii. Refresh: Click this button to refresh the local drive list.

iv. Write Support: Check this button to allow the remote operating system to have

write access to the drive that you have selected. This function allows a user to alter,

overwrite, erase and destroy data stored in the drive selected. This feature should

only be used with non-critical data. When "Write Support" is checked, the warning

message as shown below will display. Read the warning message carefully before

enabling this function.

v. Connect: Click this button to make the drive you have selected accessible for re-

mote console interaction. Once you have clicked "connect," users logged in remote

servers will have access to the local drive that you have selected.

vi. Disconnect: Click this button to cancel the connection established between a lo-

cal drive and a remote server. Once you click this button, the drive you have selected

will not be accessible for remote console interface.

vii. Sending Commands: This functions allows the user to issue a pre-deﬁ ned com-

mand to a remote server for execution.

To use this function, you need to click the hot keys displayed on the upper right

corner of the screen as shown below. (

Note: Hot keys are the commands that have

been pre-deﬁ ned and pre-stored in a remote consoles.)

Click Button 7 "Ctrl+Alt+Delete" as shown on Page 3-49 to send the command

"Ctrl+Alt+Delete" to the remote server for execution.

Once you have clicked on the button, a message displays, asking you if you really

want to send "Ctrl+Alt+Delete" as shown in the picture on the next page. Click "Yes"

to conﬁ rm it or click "Cancel" to stop sending the command for remote execution.

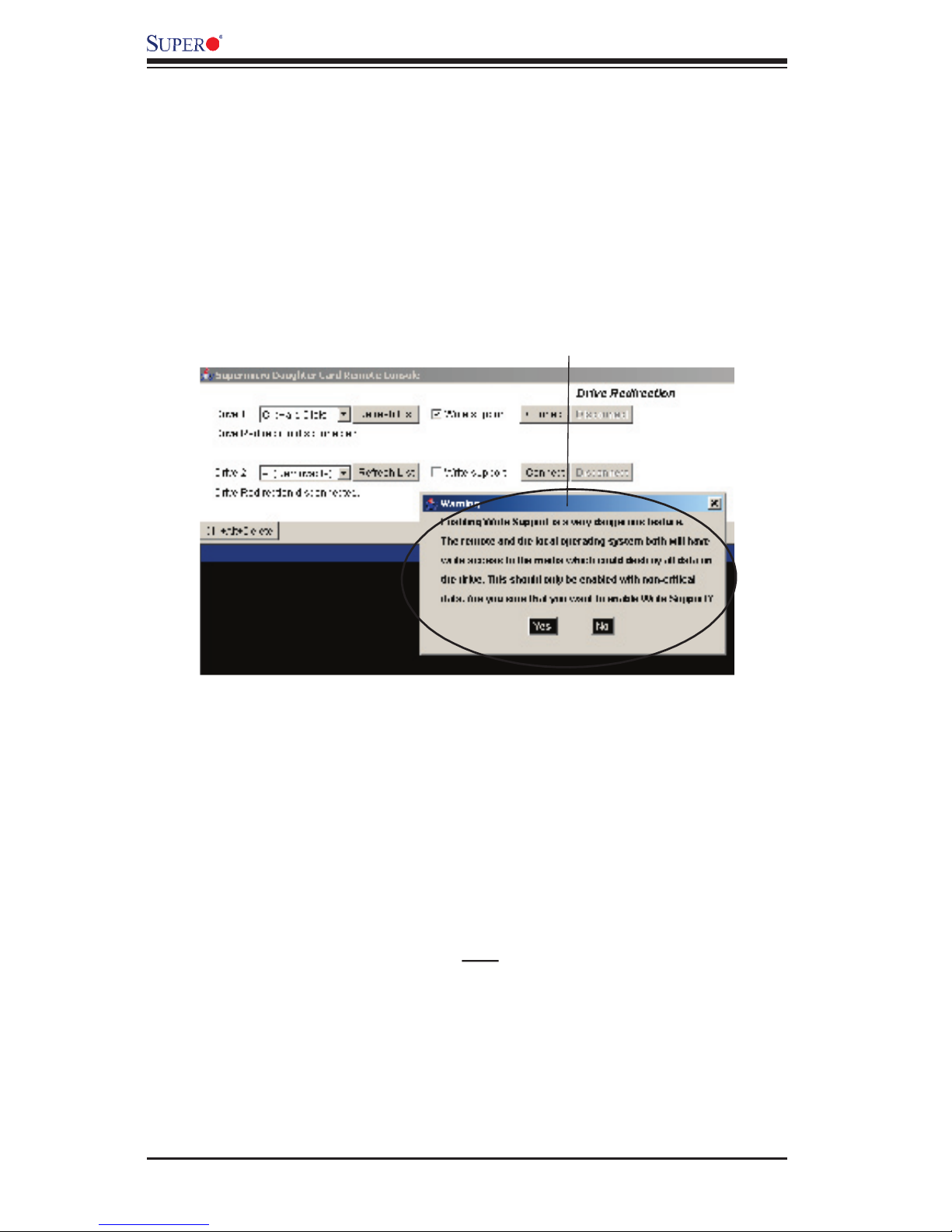

Warning Message

Page 66

Chapter 3: Software Application and Usage

3-51

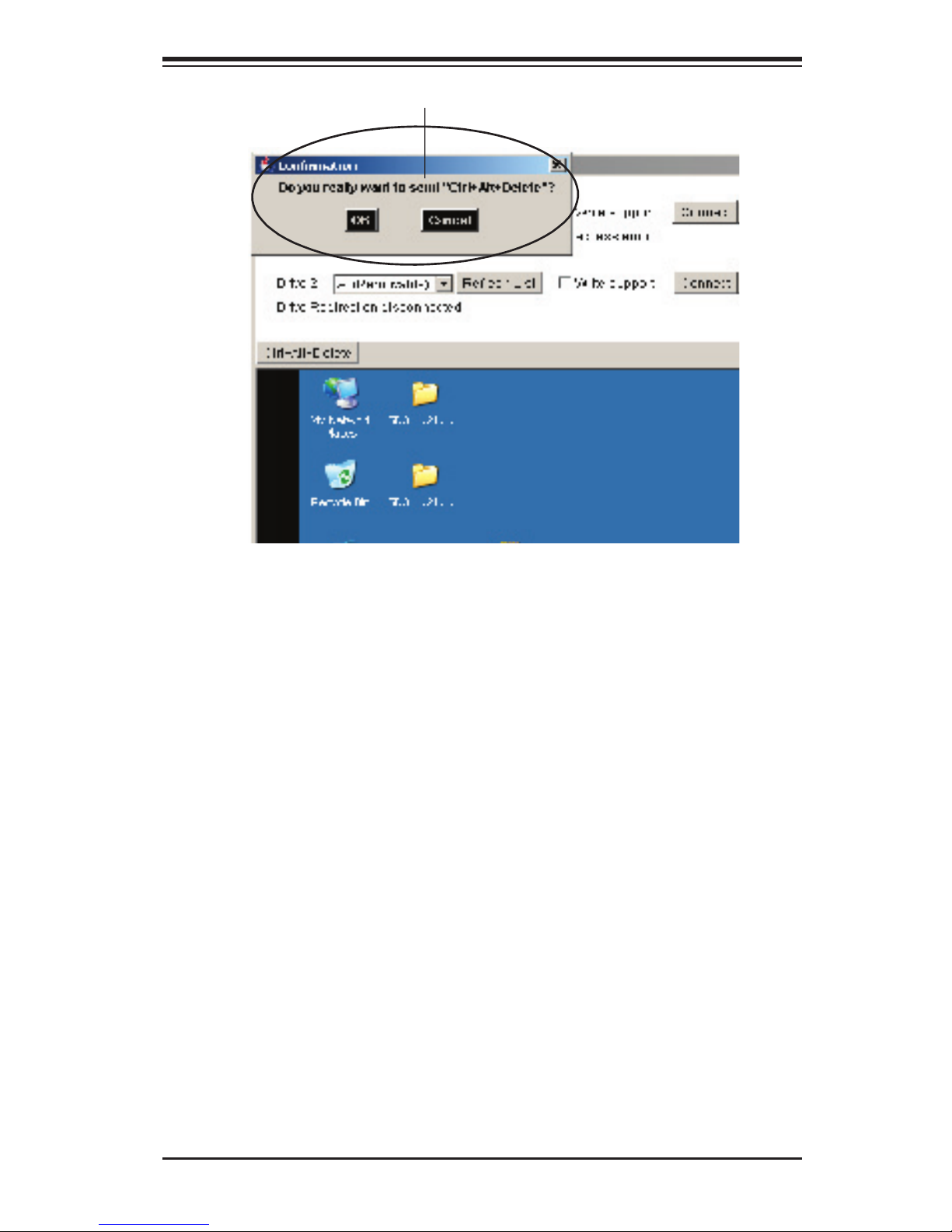

Conﬁrming Message

Page 67

3-52

AOC-SIM1U/SIM1U+ User's Guide

To Log Out

Return to the Home Page and click on the "Log Out" button to log out from Remote

Console Interface.

Logout

Page 68

4-1

Chapter 4: Troubleshooting

Chapter 4 Frequently Asked Questions

1. Questions: How do I ﬂash the ﬁrmware of an IPMI card such as a SIM1U card or a SIM1U+ card?

Answer:

• 1. Log on to the web interface page of the IPMI card by typing the IP address

of the card.

• 2. Click on the maintenance button.

• 3. Browse to choose the correct ﬁle to ﬂash the ﬁrmware.

• 4. Click on the "Update Firmware" button and proceed with ﬁrmware ﬂashing.

2. Questions: How do I setup the IP address and MAC address for the AOCSIM1U(+) Add-On card?

Answer:

• 1. Boot the system into DOS.

• 2. Run the utility-IPNMAC from DOS.

• 3. Follow the prompts to setup the IP Address and MAC address for the AOC-

SIM1U(+).

Contacting Technical Support:

If you still have problems after trying out all the recommended solutions, please

contact our Tech. Support @ (408)503-8000 or visit our web site @ www.

supermicro.com/support/.

Page 69

AOC-SIM1U/SIM1U+ User's Guide

4-2

Notes

Supero AOC-SIM1U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
