TESLA M2090 DUAL-SLOT
COMPUTING PROCESSOR
MODULE
BD-05766-001_v02 | June 2011
Board Specification
DOCUMENT CHANGE HISTORY
BD-05766-001_v02
Version Date Authors Description of Change
01 March 21, 2011 GG, SM Initial Release
02 June 16, 2011 GG, SM Updated memory configuration in Table 1
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | ii
TABLE OF CONTENTS
Overview ........................................................................................... 1
Key Features ..................................................................................... 1
Computing Processor Description ............................................................. 2
Configuration .................................................................................... 3
Mechanical Specifications ....................................................................... 4
PCI Express System ............................................................................. 4
Standard I/O Connector Placement .......................................................... 5
Internal Connectors and Headers ............................................................. 6
External PCI Express Power Connectors .................................................. 6
Power Specifications ............................................................................ 10
Support Information ............................................................................. 11
Certificates and Agencies ..................................................................... 11
Agencies ...................................................................................... 11
Languages ....................................................................................... 12
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | iii
LIST OF FIGURES
Figure 1. Tesla T20A GPU Block Diagram ..................................................... 2
Figure 2. Tesla M2090 Computing Processor Module ........................................ 4
Figure 3. Tesla M2090 Bracket ................................................................. 5
Figure 4. 6-Pin PCI Express Power Connector ................................................ 7
Figure 5. 8-Pin PCI Express Power Connector ................................................ 8
LIST OF TABLES
Table 1. Tesla M2090 Board Configuration .................................................. 3
Table 2. 6-Pin PCI Express Power Connector Pinout ....................................... 9
Table 3. 8-Pin PCI Express Power Connector Pinout ....................................... 9
Table 4. Configuration with External PCI Express Connectors ........................... 10
Table 5. Languages Supported ............................................................... 12
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | iv
OVERVIEW
The NVIDIA® Tesla™ M2090 graphics processing unit (GPU) Computing Module is a PCI
Express, double-wide, full-height (4.376 inches by 9.75 inches by 1.52 inches) form factor
computing module based on the NVIDIA Fermi GPU. This module comprises a
computing subsystem with a GPU and high speed memory. The Tesla M2090 module
offers 6 GB of GDDR5 on-board memory.
The Tesla M2090 can be configured by the OEM or by the end user to enable or disable
ECC or error correcting codes that can fix single-bit errors and report double-bit errors.
Enabling ECC will cause some of the memory to be used for the ECC bits, so the user
available memory will decrease to approximately 5.25 GB for a Tesla M2090.
KEY FEATURES
GPU
Number of processor cores: 512
Processor core clock: 1.3 GHz
Package size: 42.5 mm × 42.5 mm 1981-pin ball grid array (BGA)
Board
PCI Express Gen2 ×16 system interface
Physical dimensions: 4.376 inches × 9.75 inches, dual slot
Board power dissipation: < = 225 W
External Connectors
None
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 1
Internal Connectors and Headers
One 6-pin PCI Express power connector
One 8-pin PCI Express power connector
Memory
Memory clock: 1.85 GHz
Interface: 384-bit
● 6 GB
● 24 pieces 128M × 16 GDDR5 136-pin BGA, SDRAM
BIOS
2Mbit Serial ROM
COMPUTING PROCESSOR DESCRIPTION
Overview
Figure 1 is a block diagram of the Tesla T20A GPU used on the Tesla M2090 dual-slot
computing processor module.
T20A
Processor
Cores
GDDR5
Memory
Memory
Interface
PCIe
PCIe 2.0
Figure 1. Tesla T20A GPU Block Diagram
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 2
Overview
CONFIGURATION
There is one configuration available (Table 1) for the Tesla M2090 dual-slot computing
processor module.
Table 1. Tesla M2090 Board Configuration
Specification Description
Generic SKU reference 900-21030-0040-100
Chip T20A GPU
Package size 42.5 mm × 42.5 mm
Processor clock 1.3 GHz
Memory clock 1.85 GHz
Memory I/O 384-bit GDDR5
Memory configuration 24 pcs 128M × 16 GDDR5 SDRAM
External connectors None
Internal connectors and headers
Board power <= 225 W
Thermal coo lin g solution Passive heat sink
• 8-pin PCI Express power connector
• 6-pin PCI Express power connector
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 3
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM
The Tesla M2090 computing processor board (Figure 2) conforms to the PCI Express full
height (4.376 inches by 9.75 inches) form factor. Figure 2 is shown without the bracket.
4.376 inches
9.75 inches
Figure 2. Tesla M2090 Computing Processor Module
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 4
Mechanical Specifications
STANDARD I/O CONNECTOR PLACEMENT
As shown in Figure 3, the Tesla M2090 includes a vented bracket. If you are an OEM
who qualifies for bracket modifications, you have the option of receiving your module
with no bracket installed.
Figure 3. Tesla M2090 Bracket
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 5
Mechanical Specifications
INTERNAL CONNECTORS AND HEADERS
The Tesla M2090 module supports the following internal connectors and headers.
8-pin PCI Express power connector (can be used with a 6-pin power cable)
6-pin PCI Express power connector
External PCI Express Power Connectors
The Tesla M2090 module is a performance-optimized, high-end product and uses power
from the PCI Express connector as well as external power connectors. The board can be
used in two different ways.
One 8-pin PCI Express power connector or
Two 6-pin PCI Express power connectors
Figure 4 and Figure 5 show the specifications and Table 2 and Table 3 show the pinouts
for the 6-pin and 8-pin PCI Express power connectors.
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 6
Mechanical Specifications
Figure 4. 6-Pin PCI Express Power Connector
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 7
Mechanical Specifications

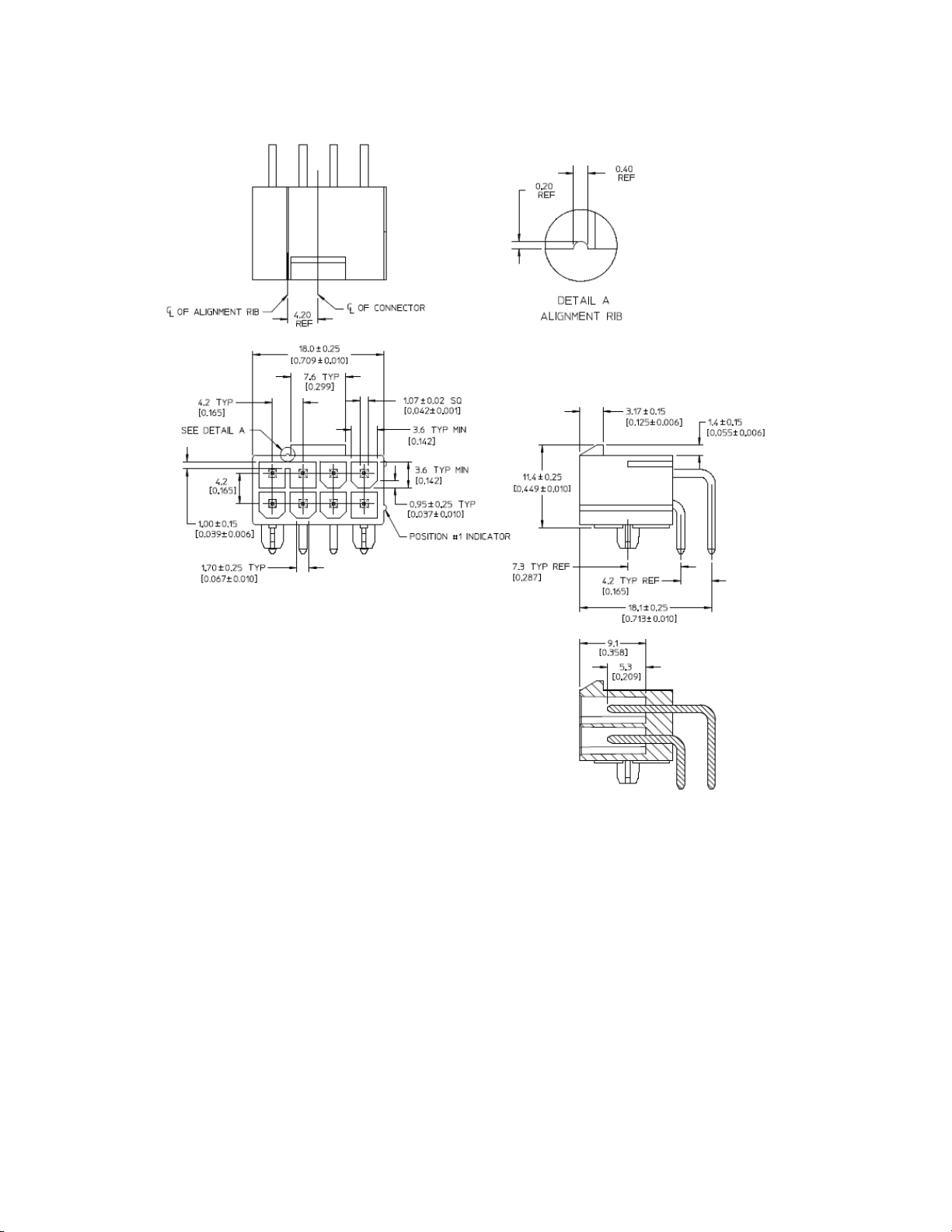

Figure 5. 8-Pin PCI Express Power Connector
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 8
Table 2. 6-Pin PCI Express Power Connector Pinout
Pin Number Description
1 +12 V
2 +12 V
3 +12 V
4 GND
5 Sense
6 GND
Table 3. 8-Pin PCI Express Power Connector Pinout
Pin Number Description
1 +12 V
2 +12 V
3 +12 V
4 Sense1
5 GND
6 Sense0
7 GND
8 GND
Mechanical Specifications
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 9
POWER SPECIFICATIONS
The Tesla M2090 requires power from the PCIe connector as well as one or two auxiliary
power connectors.
Table 4. Configuration with External PCI Express Connectors
6-Pin Power
8-Pin Power Connector
Connected
(either 8-pin or 6-pin)
8-pin connected Not connected Valid configuration – board will operate to
6-pin connected Not connected Insufficient power – board will not operate
Not connected Connected Insufficient power – board w ill not operate
Not connected Not connected Insufficient power – board will not operate
Note: Detailed information about power draw by rail is available to authorized
system partners in the Tesla M2090 System Design Guide.
Connector Result
Connected Valid configuration – board will operate to
specification
specification
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 10
SUPPORT INFORMATION
CERTIFICATES AND AGENCIES
Agencies
Australian Communications Authority and Radio Spectrum Management Group of
New Zealand (C-Tick)
Bureau of Standards, Metrology, and Inspection (BSMI)
Conformité Européenne (CE)
Federal Communications Commission (FCC)
Industry Canada - Interference-Causing Equipment Standard (ICES)
Korean Communications Commission (KCC)
Underwriters Laboratories (cUL)
Voluntary Control Council for Interference (VCCI)
Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 11
LANGUAGES
Table 5. Languages Supported
Support Information
Windows Server
2008 and Windows
English (US) X X
English (UK) X
Arabic X
Chinese, Simplified X
Chinese, Traditional X
Danish X
Dutch X
Finnish X
French X
French (Canada) X
German X
Italian X
Japanese X
Korean X
Norwegian x
Portuguese (Brazil ) X
Russian X
Spanish X
Spanish (Latin America) X
Swedish X
Thai X
Server 2008 R2
Linux
Note: NVIDIA’s CUDA sof tware is only supported in English (U.S.)
