SUPER MICRO Computer SBI-7426T-S3 User Manual

SBI-7426T-S3

Blade Module

User’s Manual

Revison 1.0a

SBI-7426T-S3 Blade Module User’s Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The
vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no
commitment to update or to keep current the information in this manual, or to notify any person or
organization of the updates. P lease Note: For the most up-to-date version of this manual, please see

our web site at www.supermicro.com.

Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described
in this manual at any time and without notice. This product, including software and documentation, is the
property of Supermicro and/or its licensors, and is supplied only under a license. An y use or re produ ction
of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIA L DAMAGES ARISING FROM THE USE OR INABILITY TO USE
THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE,
SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF
REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE,
SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governe d by the laws of Santa Clara
County in the State of Californ i a, USA. The State of California, County of Santa Clara shall be the
exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not
exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instruction manual, may cause harmful interference with radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference,
in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulat ions for Perchlorate Materials: This Perchlorate warning
applies only to products containing CR (Manganese Dioxide) Lithium coin cells. Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate for further
details.

WARNING: HANDLING OF LEAD SOLDER MATERIALS USED IN THIS
PRODUCT MAY EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS AND OTHER
REPRODUCTIVE HARM.

Manual Revison 1.0a
Release Date: May 18, 2011
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy

any part of this document.
Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 201 1 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

ii

Preface

About this Manual

This manual is written for professional system integrators, Information Technology
professionals, service personnel and technicians. It provides information for the
installation and use of Supermicro's SBI-7426T-S3 blade module. Installation and
maintenance should be performed by experienced professionals only.

Manual Organization

Chapter 1: Introduction

The first chapter provides a checklist of the main components included with the
SBI-7426T-S3 blade module and describes its main features.

Chapter 2: System Safety

You should familiarize yourself with this chapter for a general overview of safety
precautions that should be followed when installing and servicing the SBI-7426T-S3
blade module.

Chapter 3: Setup and Installation

Refer to this chapter for details on installing the SBI-7426T-S3 blade module into the
Superblade chassis. Other sections cover the installation and placement of memory
modules and the installation of hard disk drives into the blade module.

Chapter 4: Blade Module Features

This chapter coves features and component information about the SBI-7426T-S3 blade
module. Included here are descriptions and information for mainboard components,
connectors, LEDs and other features of the blade module.

Chapter 5: RAID Setup Procedure

RAID setup and operations for the SBI-7426T-S3 blade module are covered in this
chapter.

Chapter 6: BIOS

BIOS setup is covered in this chapter for the SBI-7426T-S3 blade module.

Appendix A: BIOS POST Codes

BIOS POST Codes for the SBI-7426T-S3 blade module are explained in this appendix.

iii

SBI-7426T-S3 Blade Module User’s Manual

Notes

iv

Table of Contents

Chapter 1 Introduction.......................................................................1-1

1-1 Overview.............................................................................................1-1

1-2 Product Checklist of Typical Components.....................................1-1

1-3 Blade Module Features....................................................................1-2

Processors..............................................................................................1-2

Memory...................................................................................................1-2

Storage....................................................................................................1-3

Density....................................................................................................1-3

1-4 Contacting Supermicro.....................................................................1-4

Chapter 2 System Safety..................................................................2-1

2-1 Electrical Safety Precautions...........................................................2-1

2-2 General Safety Precautions.............................................................2-2

2-3 Electrostatic Discharge Precautions ..............................................2-2

2-4 Operating Precautions......................................................................2-2

Chapter 3 Setup and Installation.................................................3-1

3-1 Overview.............................................................................................3-1

3-2 Installing Blade Modules..................................................................3-1

Powering Up a Blade Unit.......................................................................3-1

Powering Down a Blade Unit ..................................................................3-1

Removing a Blade Unit from the Enclosure............................................3-1

Removing/Replacing the Blade Cover....................................................3-2

Installing a Blade Unit into the Enclosure ...............................................3-2

3-3 Processor Installation .......................................................................3-4

3-4 Onboard Battery Installation............................................................3-5

3-5 Memory Installation...........................................................................3-6

Populating Memory Slots........................................................................3-6

DIMM Installation....................................................................................3-8

3-6 Hard Disk Drive Installation.............................................................3-9

3-7 Installing the Operating System....................................................3-11

Installing with an External USB CD-ROM Drive....................................3-11

Installing via PXE Boot..........................................................................3-11

Installing via Virtual Media (Drive Redirection).....................................3-12

3-8 Management Software...................................................................3-12

v

SBI-7426T-S3 Blade Module User’s Manual

3-9 Configuring and Setting up RAID.................................................3-12

Chapter 4 Blade Module Features..............................................4-1

4-1 Control Panel.....................................................................................4-2

Power Button ..........................................................................................4-3

KVM Button.............................................................................................4-3

LED Indicators ........................................................................................4-3

KVM Connector.......................................................................................4-3

4-2 Mainboard...........................................................................................4-4

Jumpers..................................................................................................4-6

CMOS Clear............................................................................................4-6

4-3 Blade Unit Components...................................................................4-7

Memory Support .....................................................................................4-8

Hard Disk Drives.....................................................................................4-8

Chapter 5 RAID Setup Procedure...............................................5-1

5-1 BIOS Configuration Utilities.............................................................5-2

5-2 BIOS Setup ........................................................................................5-3

Chapter 6 BIOS.......................................................................................6-1

6-1 Introduction.........................................................................................6-1

System BIOS ..........................................................................................6-1

How To Change the Configuration Data .................................................6-1

Starting the Setup Utilit y.................... .. ... .................................................6-1

6-2 BIOS Updates....................................................................................6-2

Flashing BIOS.........................................................................................6-2

6-3 Running Setup...................................................................................6-3

6-4 Main BIOS Setup...............................................................................6-4

6-5 Advanced Setup................................................................................6-5

6-6 Security.............................................................................................6-15

6-7 Boot...................................................................................................6-17

6-8 Exit.....................................................................................................6-19

6-9 Hardware Health Information........................................................6-20

CPU Temperature .................................................................................6-20

System Temperature............................................................................. 6-21

Voltage Monitoring................................................................................6-21

vi

Appendix A BIOS POST Codes....................................................A-1

A-1 BIOS POST Messages....................................................................A-1

A-2 BIOS POST Codes...........................................................................A-3

Recoverable POST Errors................................... ...................................A-4

Terminal POST Errors....................................... ......................................A-4

vii

SBI-7426T-S3 Blade Module User’s Manual

Notes

viii

List of Figures

Figure 1-1. Full Rack of Blade Enclosures and Blade Servers.........................1-3

Figure 3-1. Inserting a Blade into the Enclosure...............................................3-3

Figure 3-2. Locking the Blade into Position.......................................................3-3

Figure 3-3. Installing a Processor in a Socket..... ... ...........................................3-5

Figure 3-4. Installing the Onboard Battery................................................. ... ... .3-6

Figure 3-5. 12-Slot DIMM Numbering...............................................................3-7

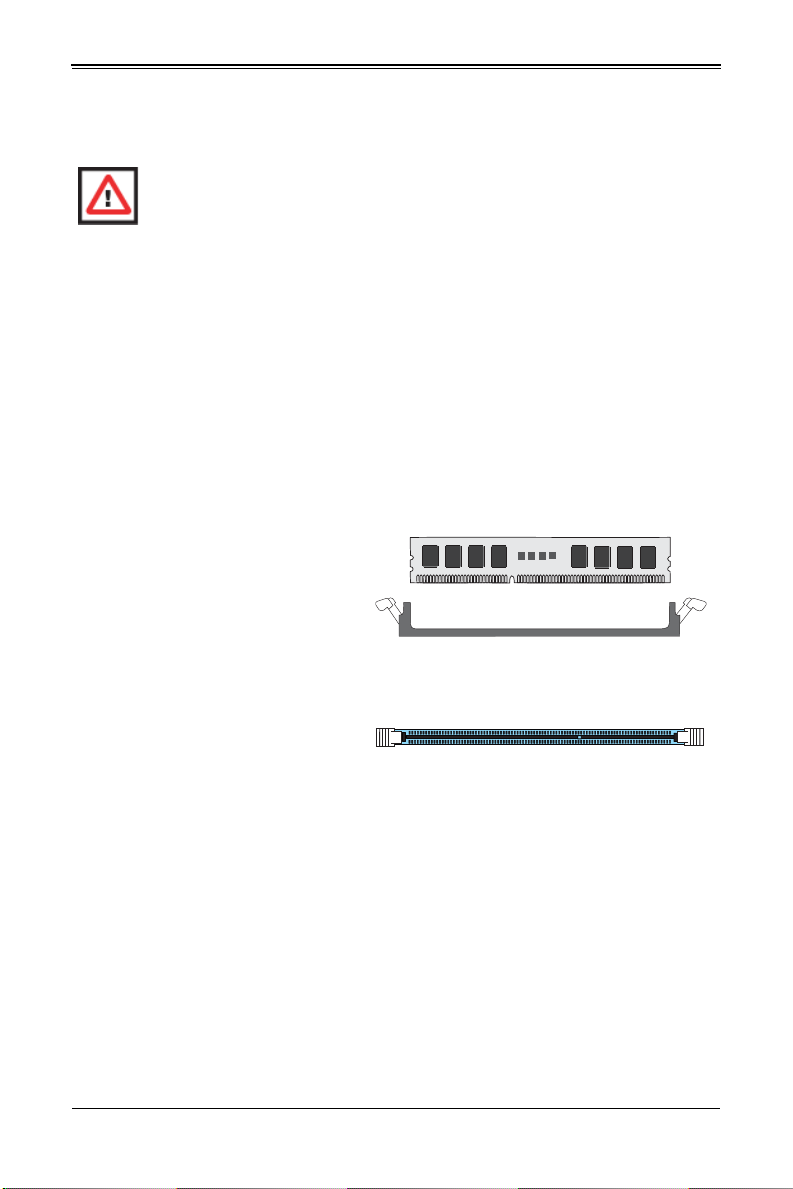

Figure 3-6. Installing a DIMM into a Memory Slot.............................................3-8

Figure 3-7. Installing a Hard Drive in a Carrier................................................3-10

Figure 4-1. SBI-7426T-S3 Blade Module Front View........................................4-1

Figure 4-2. Blade Control Panel........................................................................4-2

Figure 4-3. B8DT6 Mainboard...........................................................................4-4

Figure 4-4. Intel 5500 Tylersburg Chipset Block Diagram ................................4-5

Figure 4-5. Exploded View of SBI-7426T-S3 Blade Module.............................4-7

Figure 5-1. Advanced Settings Screen .............................................................5-3

Figure 5-2. IDE Configuration Screen – Configure RAID Drives.......................5-4

Figure 5-3. Selecting Max Ports Option............................................................5-5

Figure 5-4. Selecting RAID Utility......................................................................5-6

Figure 5-5. Enabling Hot Plug...........................................................................5-7

Figure 5-6. Exit BIOS Setup..............................................................................5-8

Figure 5-7. Screen Message.............................................................................5-9

Figure 6-1. Main Setup Menu Screen...............................................................6-4

Figure 6-2. Advanced Setup Menu...................................................................6-5

Figure 6-3. Security Setup Menu....................................................................6-15

Figure 6-4. Boot Setup Menu..........................................................................6-17

Figure 6-5. Exit Setup Menu...........................................................................6-19

ix

SBI-7426T-S3 Blade Module User’s Manual

Notes

x

List of Tables

Table 1-1. SBI-7426T-S3 Blade Specification Features...................................1-2

Table 3-1. Populating Twelve Memory Slots for Interleaved Operation............3-6

Table 4-1. SBI-7426T-S3 Blade Module Features............................................4-1

Table 4-2. Blade Control Panel.........................................................................4-2

Table 4-3. Blade Module LED Indicators ..........................................................4-3

Table 4-4. B8DT6 Mainboard Layout................................................................4-5

Table 4-5. Main Components of SBI-7426T-S3 Blade Module.........................4-7

Table 6-1. Main BIOS Setup Menu Options......................................................6-5

Table 6-2. Advanced Setup Menu Options.......................................................6-6

Table 6-3. CPU and Clock Configuration Sub-menu ........................................6-7

Table 6-4. IDE Configuration Menu...................................................................6-7

Table 6-5. PCIPnP Configuration Sub-menu....................................................6-8

Table 6-6. SuperIO Configuration Sub-menu....................................................6-9

Table 6-7. Chipset Configuration Sub-menu.....................................................6-9

Table 6-8. ACPI Configuration Sub-menu.......................................................6-11

Table 6-9. AHCI Configuration Sub-menu ......................................................6-12

Table 6-10. Event Log Configuration Sub-menu.............................................6-12

Table 6-11. IPMI Configuration Sub-menu......................................................6-12

Table 6-12. MPS Configuration Sub-menu.....................................................6-14

Table 6-13. PCI Express Configuration Sub-menu.........................................6-14

Table 6-14. SMBIOS Configuration Sub-menu...............................................6-14

Table 6-15. Remote Access Configuration Sub-menu....................................6-14

Table 6-16. System Health Monitor Sub-menu...............................................6-15

Table 6-17. Security Menu Options.................................................................6-16

Table 6-18. Boot Setup Menu Options............................................................6-17

Table 6-19. Exit Menu Options........................................................................6-19

Table A-1. BIOS POST Messages....................................................................A-1

Table A-2. Terminal POST Errors.....................................................................A-4

Table A-3. Boot Block Flash ROM Terminal POST Errors................................A-8

xi

SBI-7426T-S3 Blade Module User’s Manual

Notes

xii

Chapter 1

Introduction

1-1 Overview

The SBI-7426T-S3 blade module is a compact self-contained server that connects into a
pre-cabled enclosure that provides power, cooling, management and networking
functions. One enclosure for the SBI-7426T-S3 blade module can hold fourteen blade
units.

In this manual, “blade system” refers to the entire system (including the enclosure and
blades units), “blade” or “blade unit” refers to a single blade module and “blade
enclosure” is the chassis that the blades, power supplies and modules are housed in.

Please refer to our web site for information on operating systems that have been
certified for use with the SuperBlade (www.supermicro.com/products/superblade/).

1-2 Product Checklist of Typical Components

Your blade module ships with its mainboard already installed in its chassis. Memory,
hard disk drives and the CPU must all be installed by the user after shipment. See

Chapter 3: "Setup and Installation" on page 3-1 for details on installation of these

components.
Aside from the blade module unit itself, the following optional Mezzanine add-on cards

(with InfiniBand Switch) may be ordered for your blade module:

• AOC-IBH-XDD

• AOC-IBH-XDS

• AOC-IBH-XQS
See the Supermicro website and the Superblade Network Modules User’s Manual on

your Superblade system’s CD-ROM for more details on these add-on cards including
instructions on how to install them.

NOTE: Some of these add-on cards may not be available at the time of this
manual’s publication. Please refer to the Supermicro website for their
availability.

1-1

SBI-7426T-S3 Blade Module User’s Manual

1-3 Blade Module Features

Table 1-1 lists the main features of the SBI-7426T-S3 blade module. See the proceeding

section for components typically included in a blade system and other optional
components. Specific details on the SBI-7426T -S3 blade module is found in Chapter 4: "

Blade Module Features" on page 4-1.

Table 1-1. SBI-7426T-S3 Blade Specification Features

Mainboard

Processors

FSB Speed QPI speed, up to 6.4 GT/s bus speed
Chipset Intel 5500 Tylersburg
Graphics Controller Hermon
BIOS 32 MB SPI Flash EEPROM wiht AMI® BIOS

Memory Capacity

Drive Controller LSI SAS2 on-board controller for three SAS2 or SATA disk drives
Hard Drive Bays Three (3) hot-swap drive bays for 2.5" SAS2 or SATA disk drives

Processors

The SBI-7426T-S3 blade module supports up to dual 1366-pin Intel Xeon 5500 series
processors.

Refer to the Supermicro web site for a complete listing of supported processors (http://

www.supermicro.com/products/superblade). Please note that you will need to check the

detailed specifications of a particular blade module for a list of the CPUs it supports.
Details on installation of the processor into the SBI-7426T-S3 blade module are found in

Chapter 3: "Setup and Installation" on page 3-1.

B8DT6 (proprietary form factor)
Chassis Dimensions (HxWxD): 11.32” x 1.67” x 18.9”

Single or dual Intel™ Xeon® 5500 Sequence processors. Please refer to
our web site for a complete listing of supported processors.

Twelve 240-pin DIMM sockets supporting up to 96 GB/24 GB of VLP ECC
Registered/Unbuffered ECC DDR3-1333/1066/800 SDRAM.

Memory

The SBI-7426T-S3 blade module has twelve 240-pin DIMM sockets that can support up
to 96 GB/24 GB of VLP ECC Registered/Unbuffered ECC DDR3-1333/1066/800
SDRAM. Memory is interleaved, which requires modules of the same size and speed to
be installed in groups (of two or three).

Please refer to the Supermicro web site for a list of supported memory
(www.supermicro.com/products/superblade). The detailed specifications for a blade
module will contain a link to a list of recommended memory sizes and manufacturers.

Details on installation of memory modules into the SBI-7426T-S3 blade module are
found in Chapter 3: "Setup and Installation" on page 3-1.

1-2

Chapter 1: Introduction

Storage

The SBI-7426T-S3 blade module can have three 2.5" SAS2 or SATA (Serial ATA) hard
disk drives in front-mounted easy removable carriers. See Chapter 3: "Setup and

Installation" on page 3-1 for storage installation details.

Density

A maximum of fourteen blade modules may be installed into a single blade enclosure.
Each blade enclosure is a 7U form factor, so a standard 42U rack may accommodate up
to six enclosures with sixty blade modules, or the equivalent of sixty 1U servers. With
the inclusion of six CMM modules, twelve Gigabit Ethernet switches and six InfiniBand
switches, this would occupy up to 108U space in a conventional 1U server configuration.

Figure 1-1 displays a view of a full rack with six blade enclosures in it, each with

fourteen blades to an enclosure.

Figure 1-1. Full Rack of Blade Enclosures and Blade Servers

1-3

SBI-7426T-S3 Blade Module User’s Manual

1-4 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]

Email:

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Tel: [phone]
Fax: [phone]

Email:

Asia-Pacific

Address: Super Micro Computer, Inc.

Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [e-mail]
Tel: [phone], ext. 132 or 139

[e-mail] (General Information)

[e-mail] (Technical Support)

Het Sterrenbeeld 28, 5215 ML

‘s-Hertogenbosch, The Netherlands

[e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

1-4

Chapter 2

System Safety

2-1 Electrical Safety Precautions

Basic electrical safety precautions should be followed to protect yourself from harm and
the SuperBlade from damage:

• Be aware of how to power on/off the enclosure power supplies and the individual
blades as well as the room's emergency power-off switch, disconnection switch or
electrical outlet. If an electrical accident occurs, you can then quickly remove power
from the system.

• Do not work alone when working with high voltage components.

• Power should always be disconnected from the blade module when removing or
installing such system components as the mainboard, memory modules and
processors.

• When working around exposed electrical circuits, another person who is familiar
with the power-off controls should be nearby to switch off the power if necessary.

• Use only one hand when working with powered-on electrical equipment. This is to
avoid making a complete circuit, which will cause electrical shock. Use extreme
caution when using metal tools, which can easily damage any electrical components
or circuit boards they come into contact with.

• Do not use mats designed to decrease electrostatic discharge as protection from
electrical shock. Instead, use rubber mats that have been specifically designed as
electrical insulators.

• The power supply power cords must include a grounding plug and must be plugged
into grounded electrical outlets. Power input requires 110-240 V AC, depending upon
your power supply module.

• Mainboard Battery: This battery must be replaced only with the same or an
equivalent type recommended by the manufacturer (CR2032 Lithium 3V battery).
Dispose of used batteries according to the manufacturer's instructions.

WARNING: There is a danger of explosion if the onboard battery is installed
upside down, which will reverse its polarities.

• Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Temperature
Coefficient) fuses on the mainboard must be replaced by trained service technicians
only. The new fuse must be the same or equivalent as the one replaced. Contact
technical support for details and support.

2-1

SBI-7426T-S3 Blade Module User’s Manual

2-2 General Safety Precautions

Follow these rules to ensure general safety:

• Keep the area around the SuperBlade clean and free of clutter.

• Place the blade module cover and any system components that have been removed
away from the system or on a table so that they won't accidentally be stepped on.

• While working on the system, do not wear loose clothing such as neckties and
unbuttoned shirt sleeves, which can come into contact with electrical circuits or be
pulled into a cooling fan.

• Remove any jewelry or metal objects from your body, which are excellent metal
conductors that can create short circuits and harm you if they come into contact with
printed circuit boards or areas where power is present.

• After accessing the inside of the system, replace the blade module's cover before
installing it back into the blade enclosure.

2-3 Electrostatic Discharge Precautions

Electrostatic discharge (ESD) is generated by two objects with different electrical
charges coming into contact with each other. An electrical discharge is created to
neutralize this difference, which can damage electronic components and printed circuit
boards.

The following measures are generally sufficient to neutralize this difference before
contact is made to protect your equipment from ESD:

• Use a grounded wrist strap designed to prevent static discharge.

• Keep all components and printed circuit boards (PCBs) in their antistatic bags until
ready for use.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Do not let components or PCBs come into contact with your clothing, which may
retain a charge even if you are wearing a wrist strap.

• Handle a board by its edges only; do not touch its components, peripheral chips,
memory modules or contacts.

• When handling chips or modules, avoid touching their pins.

• Put the mainboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure the blade enclosure provides excellent
conductivity between the power supplies, the blade modules and the mainboard.

2-4 Operating Precautions

Care must be taken to assure that the cover of the blade unit is in place when the blade
is operating to assure proper cooling. Out of warranty damage to the blade can occur if
this practice is not strictly followed.

Any drive carrier without a hard drive installed must remain fully installed in the drive bay
when the blade module is operating to ensure proper airflow.

2-2

Chapter 3

Setup and Installation

3-1 Overview

This chapter covers the setup and installation of the blade module and its components.

3-2 Installing Blade Modules

Up to fourteen SBI-7426T-S3 blade modules may be installed into a single blade
enclosure (depending upon your enclosure and blad). Blade modules with Windows and
Linux operating systems may be mixed together in the same blade enclosure.

Powering Up a Blade Unit

Each blade unit may be powered on and off independently from the rest of the blades
installed in the same enclosure. A blade unit may be powered up in two ways:

• Press the power button on the blade unit.

• Use IPMIView or the web-browser based management utility to apply power using
either a CMM module, or by the use of the onboard BMC chip in the blade module.

Powering Down a Blade Unit

A blade unit may be powered down in either of five ways:

• Press the power button on the blade unit.

• Use IPMIView or the web-browser based management utility to power down (if you
have Operator or Admin privileges on the CMM).

• Use IPMItool when connected to the CMM to power down (if you have Operator or
Admin privileges on the CMM).

• Use IPMIview or a browser connected to the onboard BMC chip attached to the
blade to power down.

• Use IPMItool to use a Command Line Interface (CLI) to the onboard BMC chip (if
you have Operator or Admin privileges).

Removing a Blade Unit from the Enclosure

Although the blade system may continue to run, individual blades should always be
powered down before removing them from the enclosure.

Removing a Blade Unit from the Enclosure

1. Power down the blade unit (see "Powering Down a Blade Unit" above).

2. Squeeze both handles to depress the red sections then pull out both handles
completely and use them to pull the blade unit from the enclosure.

3-1

SBI-7426T-S3 Blade Module User’s Manual

NOTE: Blade Modules can be Hot-Plugged from the enclosure.

Removing/Replacing the Blade Cover

The blade cover must be removed to access the mainboard when you need to install or
remove processors, memory units, the onboard battery and so on.

Removing/Replacing the Blade Cover

1. Remove the blade unit from the enclosure (see "Removing a Blade Unit from the

Enclosure" above).

2. Depress the two buttons on the cover while pushing the cover toward the rear of the
blade unit. When it stops, lift the cover off the blade unit.

3. To replace the cover, fit the six grooves in the cover into the studs in the sides of the
blade, then slide the cover toward the front of the blade to lock it into place.

Installing a Blade Unit into the Enclosure

Make sure the cover of the blade unit has been replaced first before installing a blade
unit in the enclosure.

Installing a Blade Unit into the Enclosure

1. Slowly push the blade unit into its bay with the handles fully pulled out (see

Figure 3-1).

2. When the blade stops, push the handles back in to their locked position, making
sure the notches in both handles catch the lip of the enclosure (see Figure 3-2).

NOTE: Blade Modules can be Hot-Plugged into the enclosure.

WARNING: Use extreme caution when inserting a blade module into the
enclosure. If the blade's power connector becomes damaged, it can damage

pins on other blade bays that it is inserted into.

3-2

Chapter 3: Setup and Installation

Figure 3-1. Inserting a Blade into the Enclosure

Figure 3-2. Locking the Blade into Position

3-3

SBI-7426T-S3 Blade Module User’s Manual

3-3 Processor Installation

One or two processors may be installed to the mainboard of each blade unit. See

Chapter 1 for general information on the features of the blade unit and the Supermicro
web site for further details including processor, memory and operating system support.

WARNING: This action should only be performed by a trained service
technician. Allow the processor heatsink to cool before removing it.

Removing a Processor

1. Power down and remove the blade unit from the enclosure (see Section 3-2:

Installing Blade Modules on page 3-1 for details).

2. Remove the cover of the blade unit (see "Removing/Replacing the Blade Cover" on

page 3-2).

3. Loosen the four screws that secure the heatsink to the mainboard.

4. Remove the heatsink by gently rotating it back-and-forth sideways with your fingers
to release it from the processor. Set the heatsink aside and upside-down so that
nothing comes into contact with the thermal grease on its underside.

5. Raise the lever of the processor socket up until the processor is released from the
socket, then lift the silver cover plate and remove the processor.

WARNING: This action should only be performed by a trained service
technician.

Installing a Processor

1. If present, remove the protective black PnP cap from the processor socket.

2. Raise the lever of the processor socket until it reaches its upper limit.

3. Lift the silver cover plate completely up and out of the way.

NOTE: Be careful not to damage the pins protruding from the CPU socket.

4. Align pin 1 of the processor with pin 1 of the socket (both are marked with a small
gold triangle) and gently seat the processor into the socket (Figure 3-3).

5. Check to make sure the processor is flush to the socket and fully seated.

6. Lower the socket lever until it locks.

7. To install the heatsink, apply thermal grease to the top of the processor. (If
reinstalling a heatsink, first clean off the old thermal grease with a clean, lint-free
cloth.)

3-4

Chapter 3: Setup and Installation

Gold dot

Socket key

CPU key

Notched corner

CPU pin

8. Place the heatsink on the processor then tighten two diagonal screws until snug,
then the other two screws.

9. When all four screws are snug, tighten them all to secure the heatsink to the
mainboard.

NOTE: Do not overtighten the screws as this may damage the processor or the
heatsink.

10. Replace the cover on the blade unit and finish by installing the unit back into the
blade enclosure.

Figure 3-3. Installing a Processor in a Socket

3-4 Onboard Battery Installation

A battery is included on the mainboard to supply certain volatile memory components
with power when power has been removed from the blade module. If this battery dies, it
must be replaced with an equivalent CR2032 Lithium 3V battery. Dispose of used
batteries according to the manufacturer's instructions. See Figure 3-4 for a diagram of
installing a new onboard battery.

WARNING: There is a danger of explosion if the onboard battery is installed
upside down, which reverses its polarities.

3-5

SBI-7426T-S3 Blade Module User’s Manual

Lithium Battery

Battery Holder

Figure 3-4. Installing the Onboard Battery

3-5 Memory Installation

The mainboard of each blade unit must be populated with DIMMs (Dual In-line Memory
Modules) to provide system memory. The DIMMs should all be of the same size and
speed and from the same manufacturer due to compatibility issues. See details
below on supported memory and our web site (www.supermicro.com/products/

superblade for recommended memory.

Populating Memory Slots

The mainboard of a SBI-7426T-S3 blade module has twelve memory slots, depending
upon the blade model. Both interleaved and non-interleaved memory are supported, so
you may populate any number of DIMM slots.

Populating three slots at a time (DIMM1A + DIMM2A + DIMM3A, etc.) with memory
modules of the same size and of the same type will result in dual-channel, interleaved
memory, which is faster than single-channel, non-interleaved memory. See Table 3-1
and Figure 3-5 for details.

For an interleaved configuration, memory modules of the same size and speed
must be installed in pairs. You should not mix DIMMs of different sizes and
speeds.

Number

of DIMMs

2 DIMMs 1A 1A
4 DIMMs 1A 2A 1A 2A
6 DIMMs 1A 2A 3A 1A 2A 3A
8 DIMMs 1A 1B 2A 3A 1A 1B 2A 3A
10 DIMM 1A 1B 2A 2B 3A 1A 1B 2A 2B 3A
12 DIMM 1A 1B 2A 2B 3A 3B 1A 1B 2A 2B 3A 3B

Table 3-1. Populating Twelve Memory Slots for Interleaved Operation

Processor 1 Processor 2

Channel 0 Channel 1 Channel 2 Channel 0 Channel 1 Channel 2

3-6

Chapter 3: Setup and Installation

Edge of Board

Toward CPU

DIMM3B

DIMM2A

DIMM3A

DIMM1B

DIMM2B

DIMM1A

Edge of Board

Toward CPU

DIMM3B

DIMM2A

DIMM3A

DIMM1B

DIMM2B

DIMM1A

NOTE: The DIMM slot number specified in Table 3-1 equals the DIMM slot to

be populated. A “---” indicates that the DIMM slot should be left unpopulated.

NOTE: Though multiple DIMM memory module types and speeds may be
supported, you need to use DIMM memory modules of the same speed and
type.

Figure 3-5. 12-Slot DIMM Numbering

3-7
