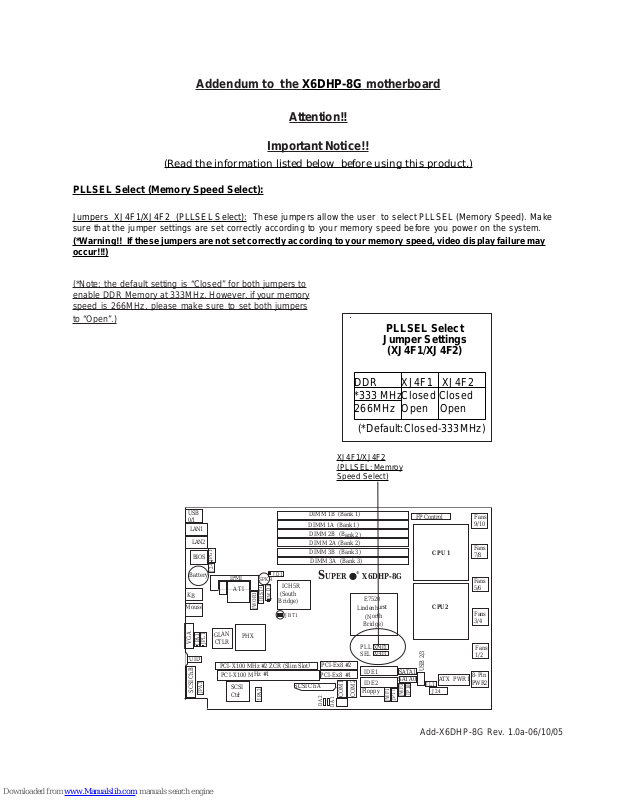

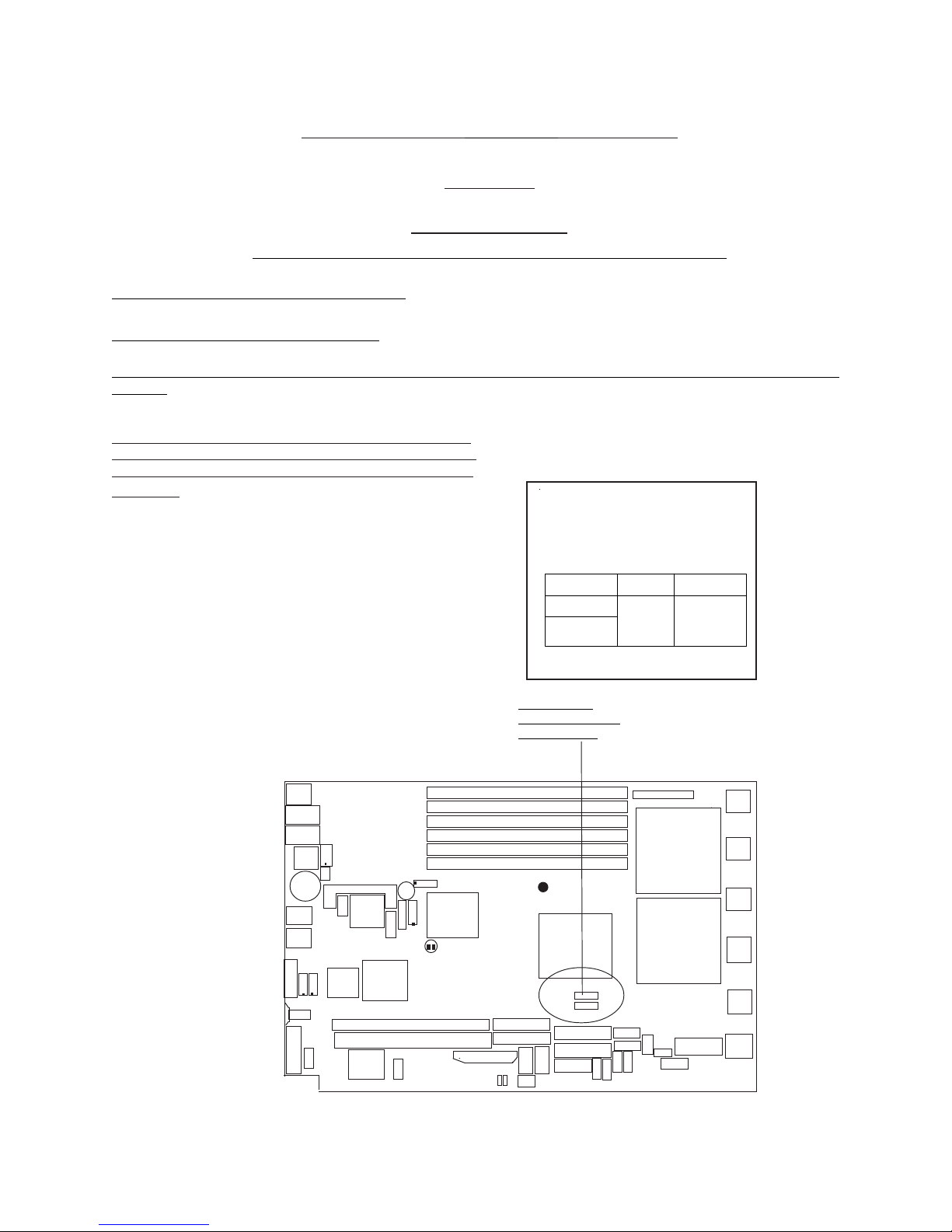

Addendum to the X6DHP-8G motherboard
)
Attention!!
Important Notice!!
(Read the information listed below before using this product.)
PLLSEL Select (Memory Speed Select):
Jumpers XJ4F1/XJ4F2 (PLLSEL Select): These jumpers allow the user to select PLLSEL (Memory Speed). Make
sure that the jumper settings are set correctly according to your memory speed before you power on the system.
(*Warning!! If these jumpers are not set correctly according to your memory speed, video display failure may
occur!!!)
(*Note: the default setting is “Closed” for both jumpers to
enable DDR Memory at 333MHz. However, if your memory
speed is 266MHz, please make sure to set both jumpers
to “Open”.)
PLLSEL Select
Jumper Settings
(XJ4F1/XJ4F2)
USB
0/1
LAN1
LAN2
BIOS
Battery
KB
Mouse
VGA
UID
SCSI Ch.B
JPG1
J22
IPMI
SPKR
ATI
JWOR1
GLAN
PHX
CTLR
JPL1
JPA1
PCI-X100 MHz #2 ZCR (Slim Slot)
PCI-X100 MHz #1
SCSI
JPA3
Ctrl
JRST1
JPA2
JD1
JWD1
ICH5R
(South
Bridge)
JBT1
DIMM 1B (Bank 1)
DIMM 1A (Bank 1)
DIMM 2B (Bank 2)
DIMM 2A (Bank 2)
DIMM 3B (Bank 3)
DIMM 3A (Bank 3)
S
PCI-Ex8 #2
PCI-Ex8 #1
SCSI Ch A
DA2
DDR
*333 MHz
266MHz
(*Default:Closed-333MHz
XJ4F1/XJ4F2
(PLLSEL: Memroy
Speed Select)
DA1
COM1
®
E7520
Lindenhurst
(North
Bridge)
PLL
XJ4F2
XJ4F1
SEL
IDE1
IDE2
Floppy
COM2
JWF1
UPER X6DHP-8G
XJ4F1 XJ4F2
Closed Closed
Open Open
FP Control
CPU 1
CPU2
USB 2/3
SATA1
SATA0
JP17
JWF2
JP18
JL1
J24
ATX PWR1
Fans
9/10
Fans
7/8
Fans
5/6
Fans
3/4
Fans
1/2
8-Pin
PWR2
Add-X6DHP-8G Rev. 1.0a-06/10/05
