Page 1
SUPER
SC847 CHASSIS SERIES
CONNECTIVITY
CONFIGURATIONS
®
QUICK REFERENCE GUIDE
1.0
Page 2
SC847 Connectivity Confi gurations Quick Reference Guide
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Manual Revision 1.0
Release Date: August 4, 2010
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2010 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
ii
Page 3
Connectivity Confi guration Diagrams
Table of Contents
Contacting Supermicro ........................................................................................v
SC847 Chassis Connectivity Confi gurations Quick Reference Guide
1-1 Overview .........................................................................................................1-1
1-2 Connectivity Confi gurations ...........................................................................1-2
Confi guration One ...........................................................................................1-2
Confi guration Two ........................................................................................... 1-3
Confi guration Three.........................................................................................1-4
Confi guration Four .......................................................................................... 1-5
Confi guration Five ...........................................................................................1-6
Confi guration Six ............................................................................................. 1-7
iii
Page 4
SC847 Connectivity Confi gurations Quick Reference Guide
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacifi c
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: 886-2-8226-1900
iv
Page 5
Connectivity Confi guration Diagrams
SC847 Chassis
Connectivity Confi gurations
Quick Reference Guide
1-1 Overview
This quick reference guide serves as a supplement to the SC847 chassis manual.
It provides diagrams showing the supported backplane connectivity options for the
chassis, without including details on chassis maintenance, confi guration or safety
warnings. This guide is designed for use by experienced technicians. For detailed
information on the SC847 chassis visit the Supermicro Web site and dowload the
full chassis manual at http://www.supermicro.com/products/chassis/4U/?chs=847
!
!
Review the warnings and precautions listed in the SC847 chassis
manual before setting up or servicing the SC847 chassis. These
include information in Chapter 2: System Safety and the warnings/
precautions listed in the setup instructions.
Safety Warning: Before performing any chassis setup or maintenance, it is recommended that the chassis be removed from the rack
and placed on a stable bench or table. For instructions on how to
uninstall the chassis from the rack, refer to Chapter 5 Rack Installation of the SC847 chassis manual.
1-1
Page 6
SC847 Connectivity Confi gurations Quick Reference Guide
1-2 Connectivity Confi gurations
The following diagrams represent the different connectivity confi guration options
supported by the SC847 E series chassis.

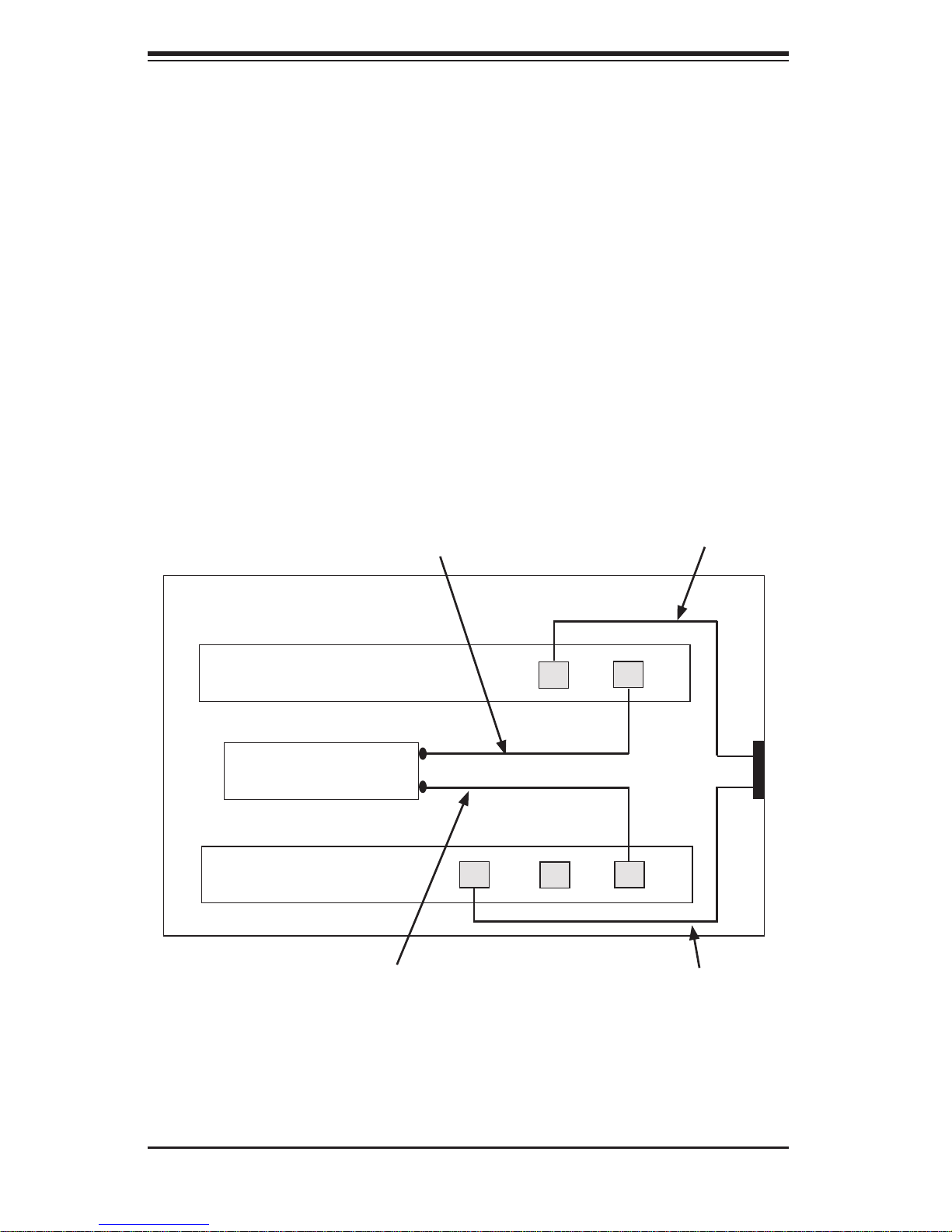

Confi guration One
Connectivity: Parallel•
Features: Performance•
Drive types: SAS/SATA•
Backplane type: Single expander•
SC847-E1 Chassis
SAS(or SAS2)-826EL1
RAID Cards
SAS(or SAS2)-846EL1
CBL-0281L
CBL-0281L
J2 J0
J1
J1
CBL-0352L-LP
J0
CBL-0352L-LP

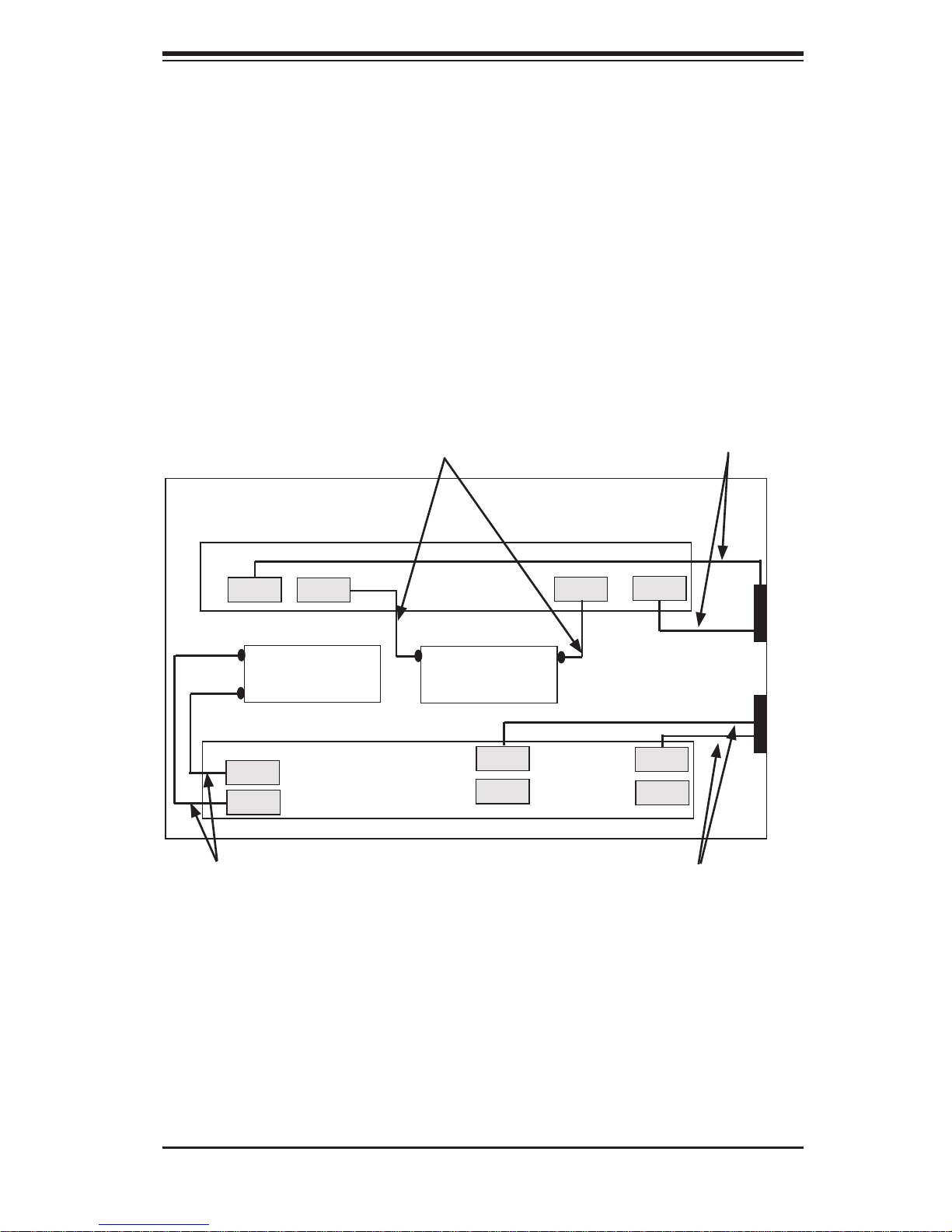

Figure 1-1: Connectivity Confi guration Option One
1-2
Page 7

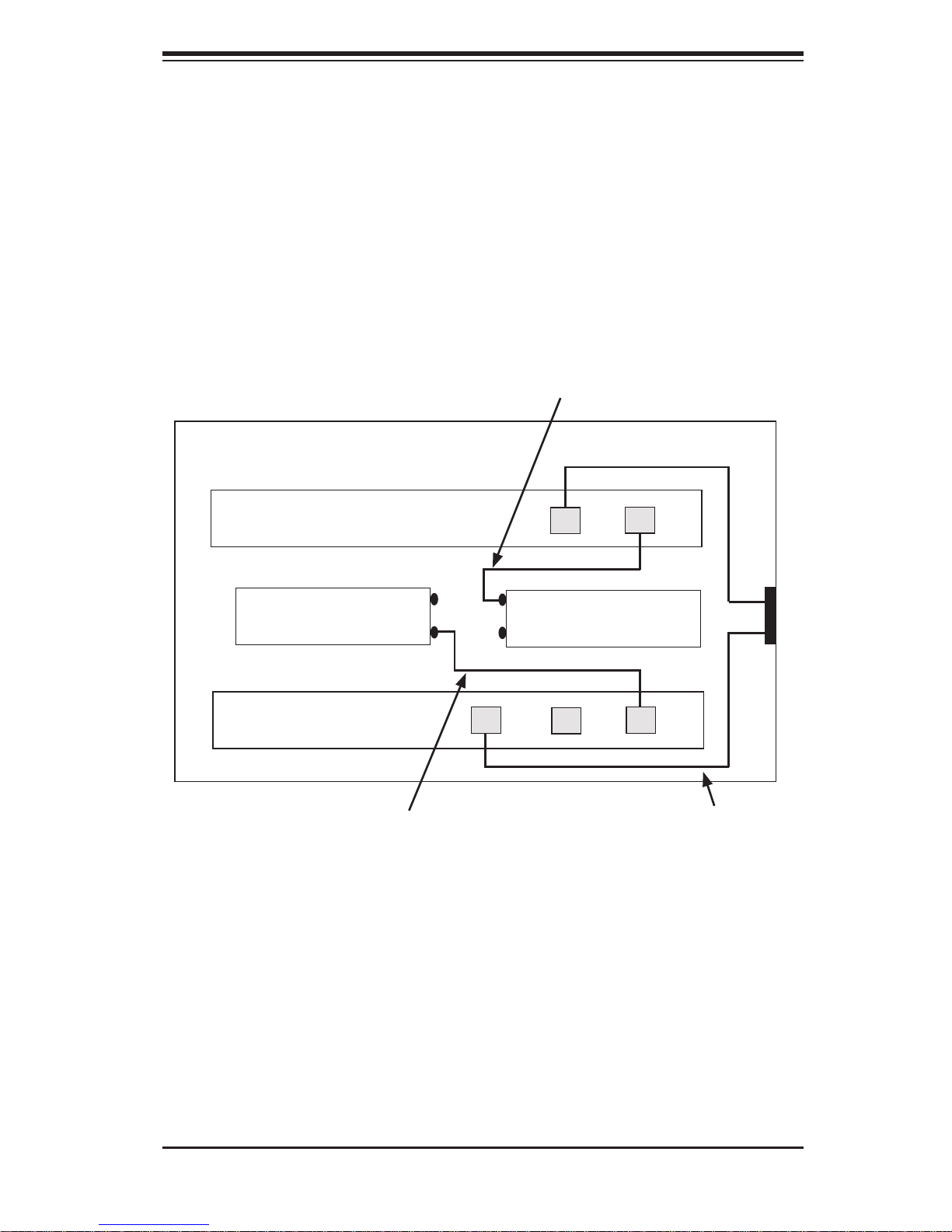

Confi guration Two
Connectivity: Parallel•
Features: Performance/multi PCI buses•
Drive types: SAS/SATA•
Backplane type: Single expander•
SC847-E1 Chassis
Connectivity Confi guration Diagrams
CBL-0281L
SAS(or SAS2)-826EL1
RAID Cards
SAS(or SAS2)-846EL1
Figure 1-2: Connectivity Confi guration Option Two
J1
RAID Cards
J2 J0
J1
J0
CBL-0352L-LPCBL-0281L
1-3
Page 8
SC847 Connectivity Confi gurations Quick Reference Guide

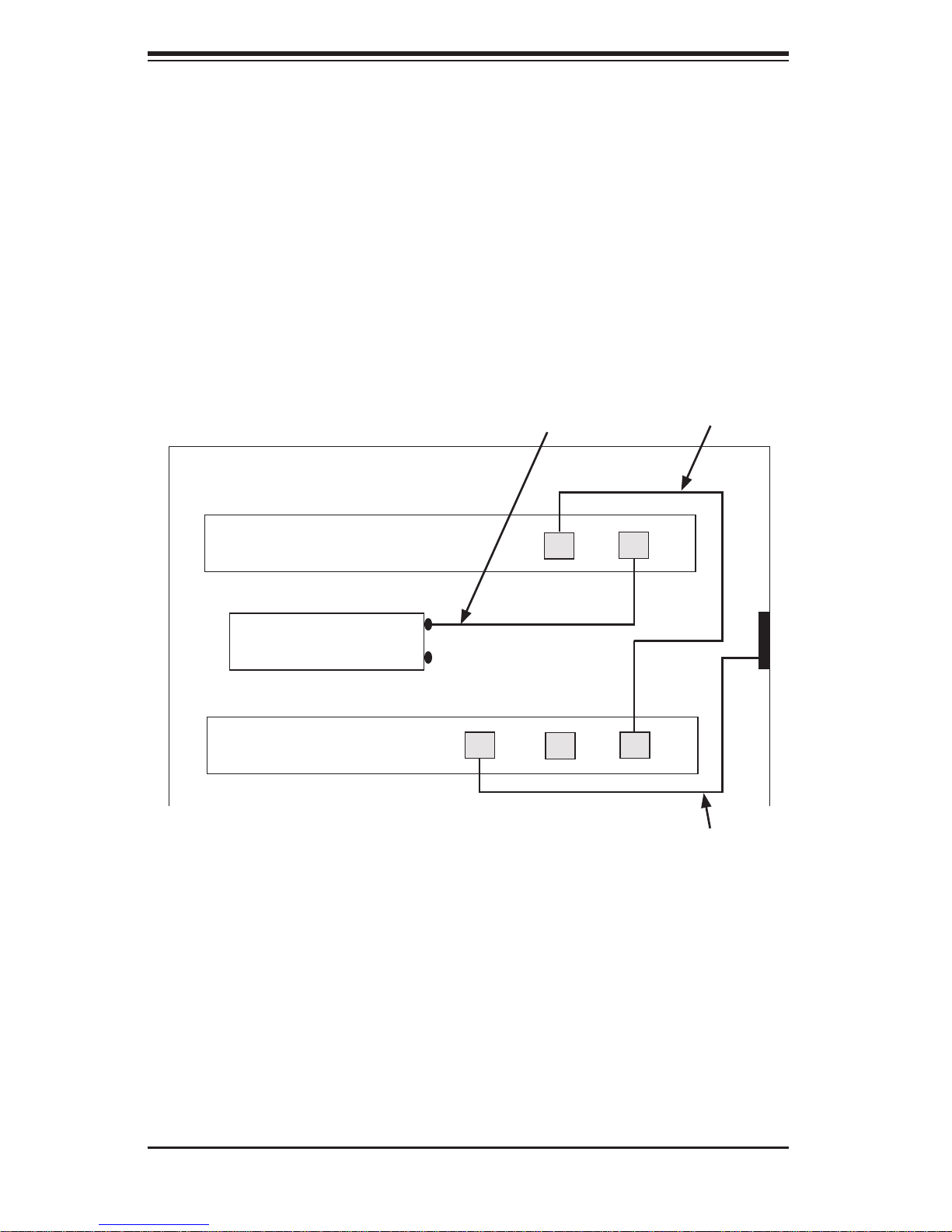

Confi guration Three
Connectivity: Serial•
Features: Capacity•
Drive types: SAS/SATA•
Backplane type: Single expander•
SC847-E1 Chassis
SAS(or SAS2)-826EL1
RAID Cards
SAS(or SAS2)-846EL1
CBL-0281L
J1
J2 J0
J1
J0
CBL-0281L
CBL-0351L-LP
Figure 4-19: Connectivity Confi guration Option Three
1-4
Page 9

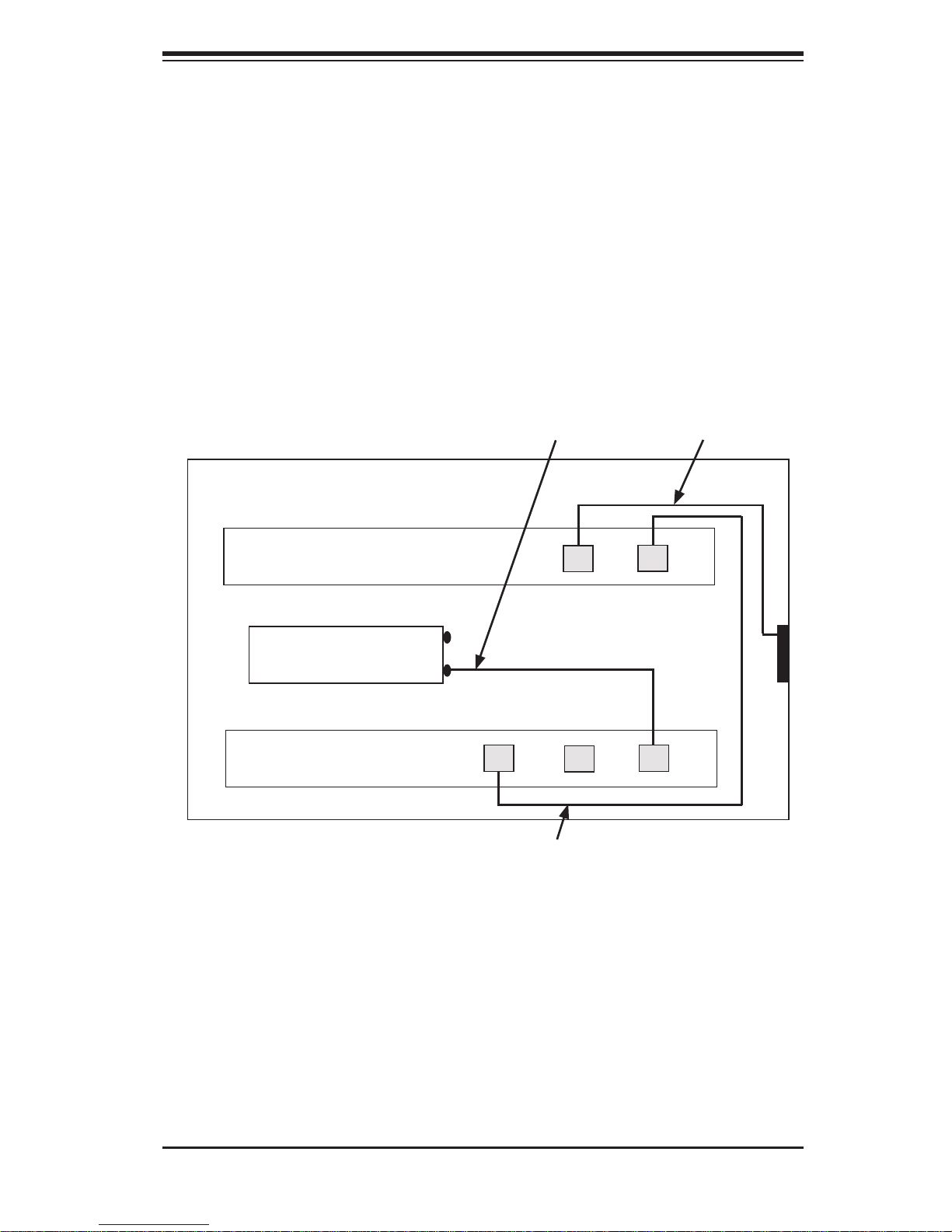

Confi guration Four
Connectivity: Serial•
Features: Capacity•
Drive types: SAS/SATA•
Backplane type: Single expander•
Connectivity Confi guration Diagrams
SC847-E1 Chassis
SAS(or SAS2)-826EL1
RAID Cards
SAS(or SAS2)-846EL1
CBL-0281L
J1
J2 J0
J1
J0
CBL-0281L
CBL-0351L-LP
Figure 4-20: Connectivity Confi guration Option Four
1-5
Page 10
SC847 Connectivity Confi gurations Quick Reference Guide
Confi guration Five
Connectivity: Serial•
Features: Redundancy•
Drive types: SAS only•
Backplane type: Dual expander•
SC847-E1 Chassis
SAS(or SAS2)-826EL1
SEC-J1
SAS(or SAS2)-846EL1
SEC-J0
CBL-0281L
RAID Cards
SEC-J0 SEC-J2
SEC-J1
PRI-J0
CBL-0352L-LP
PRI-J1
PRI-J2PRI-J0
PRI-J1
CBL-0352L-LP
Figure 4-21: Connectivity Confi guration Option Five
1-6
Page 11

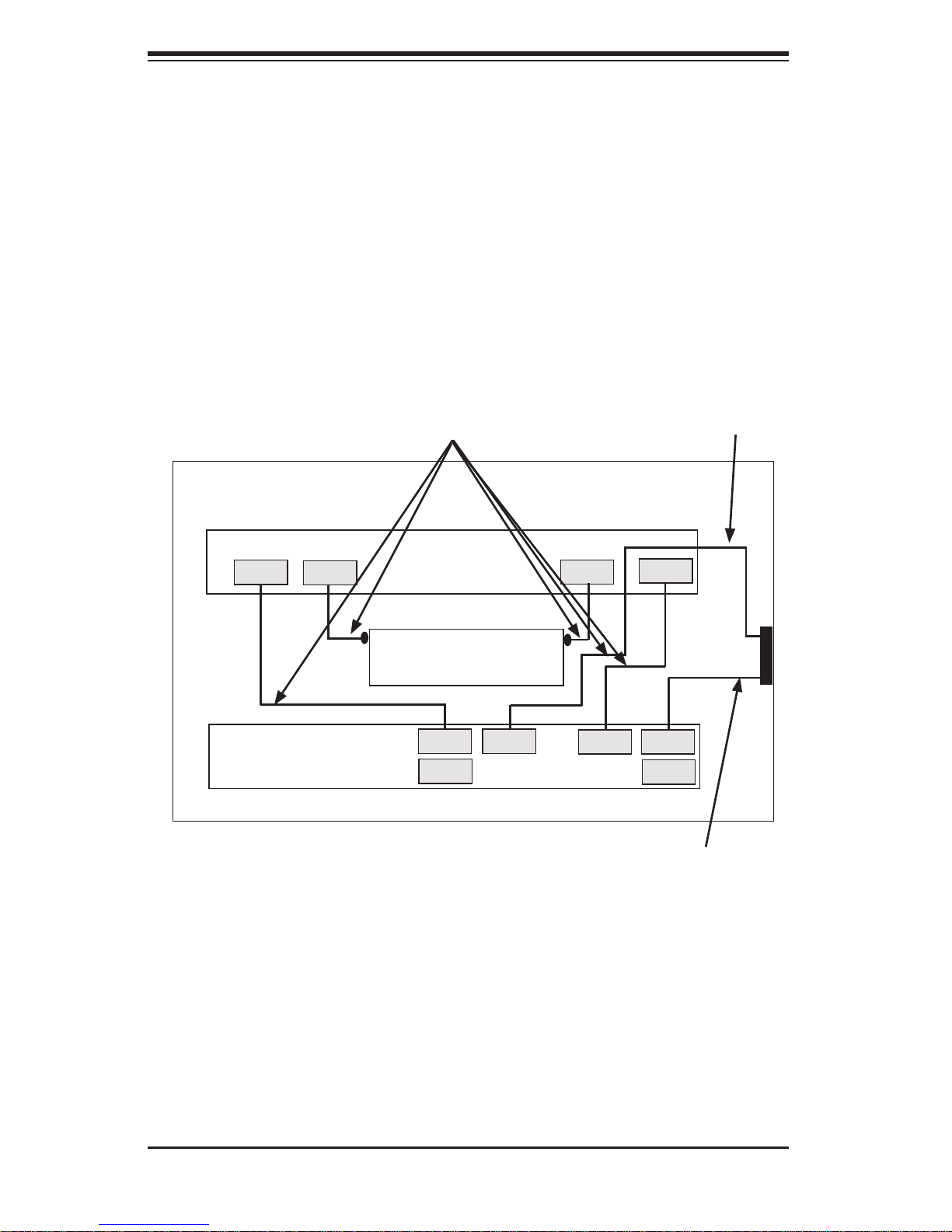

Confi guration Six
Connectivity: Parallel•
Features: Redundancy/performance/multi PCI buses/capacity•
Drive types: SAS only•
Backplane type: Dual expander•
Connectivity Confi guration Diagrams
SC847-E1 Chassis
SAS(or SAS2)-826EL1
SEC-J1
SAS(or SAS2)-846EL1
SEC-J0
PRI-J0
CBL-0281L
SEC-J0
RAID Cards
CBL-0281L
RAID Cards
SEC-J2
SEC-J1
PRI-J0
CBL-0352L-LP
PRI-J1
PRI-J2
PRI-J1
CBL-0352L-LP
Figure 4-21: Connectivity Confi guration Option Five
1-7
