Supermicro PDSMA Plus User Manual

Download

Page 1

PDSMA+

USER’S MANUAL

Revision 1.0c

Page 2

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other

reproductive harm.

Revision Number: 1.0c Release Date: Nov. 3, 2008 Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Page 3

Preface

About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

PDSMA+ motherboard. The PDSMA+ supports single Intel Quad-Core

QX6700/Xeon 3000 Series/Pentium D (Dual-Core)/Pentium 4 Extreme Edition/

Pentium 4/Celeron D LGA (Land Grid Array) 775 Processors at system bus speeds

of 1066 MHz/800 MHz/533 MHz. The LGA 775 Intel Quad-Core QX6700/Xeon 3000

Series/Pentium D (Dual-Core) Processor is housed in a Flip-Chip Land Grid Array

(FC-LGA4) package that interfaces with the motherboard via an LGA775 socket.

The PDSMA+ supports Intel Hyper-Threading (HT) Technology, EM64T Technol-

ogy, Enhanced Intel SpeedStep Technology (EIST) and Matrix Storage Technology.

Please refer to the motherboard speciﬁ cations pages on our web site (http://www.

supermicro.com/Product) for updates or visit Intel's web site for processor support.

This product is intended to be professionally installed.

Manual Organization

Chapter 1 describes the features, speciﬁ cations and performance of the PDSMA+

motherboard and provides detailed information about the chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when

installing the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for the video, the memory and the system setup.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS POST Messages.

Appendix B lists BIOS POST Codes.

Appendix C and Appendix D list HostRAID Conﬁ guration and Software Installa-

tion Instructions.

Conventions Used in this Manual

Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself:

Danger/Caution: Instructions to be strictly followed to prevent

catastrophic system failure or to avoid bodily injury.

Warning: Important information given to ensure proper system installa-

tion or to prevent damage to the components.

Note: Additional Information given to differentiate various models or to ensure

correct system setup.

iii

Page 4

PDSMA+ User’s Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ....................................................................................................iii

Conventions Used in this Manual ................................................................................iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist ..................................................................................................... 1-1

Contacting Supermicro ............................................................................... 1-2

PDSMA+ Image ......................................................................... 1-3

PDSMA+ Layout ......................................................................... 1-4

PDSMA+ Quick Reference .......................................................... 1-5

Motherboard Features .............................................................................. 1-6

Intel 3000 Chipset: System Block Diagram ............................................... 1-8

1-2 Chipset Overview ........................................................................................... 1-9

1-3 Special Features ........................................................................................... 1-10

Recovery from AC Power Loss ...................................................................... 1-10

1-4 PC Health Monitoring ................................................................................... 1-10

1-5 Power Conﬁ guration Settings ....................................................................... 1-11

1-6 ACPI Features ............................................................................................... 1-12

1-7 Power Supply .................................................................................................. 1-12

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

2-2 Processor and Heatsink Installation ............................................................... 2-2

2-3 Mounting the Motherboard in the Chassis ..................................................... 2-5

2-4 Installing DDR2 Memory ................................................................................ 2-6

2-5 Control Panel Connectors/IO Ports ................................................................. 2-8

A. Backplane Connectors/IO Ports ................................................................... 2-8

B. Front Control Panel ...................................................................................... 2-8

C. Front Control Panel Pin Deﬁ nitions ............................................................. 2-9

NMI Button ............................................................................................... 2-9

PWR LED ................................................................................................. 2-9

HDD LED ................................................................................................. 2-10

NIC1/NIC2 LED Indicators ..................................................................... 2-10

OH/Fan Fail LED ......................................................................................2-11

Reset Button ............................................................................................ 2-11

Page 5

Table of Contents

2-6 Connecting Cables ....................................................................................... 2-13

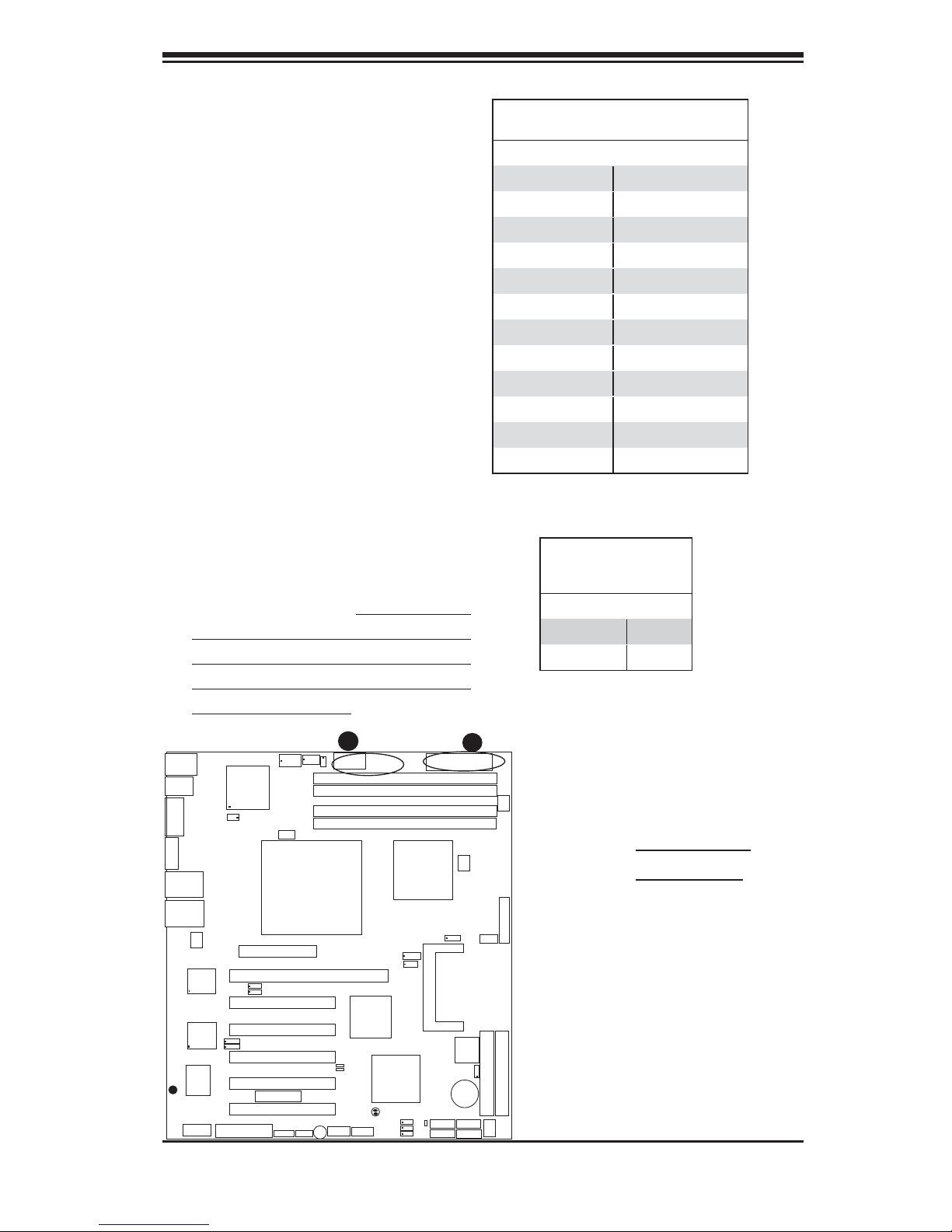

ATX Power Connector ........................................................................... 2-13

Processor Power Connector .................................................................... 2-13

Serial Ports ............................................................................................... 2-14

Chassis Intrusion .................................................................................... 2-14

Universal Serial Bus (USB) ..................................................................... 2-15

GLAN Ports .............................................................................................. 2-15

ATX PS/2 Keyboard and PS/2 Mouse Ports ............................................ 2-16

Speaker Connector .................................................................................. 2-16

Fan Headers ............................................................................................. 2-17

Wake-On-Ring ......................................................................................... 2-18

Wake-On-LAN .......................................................................................... 2-18

VGA Connector ........................................................................................ 2-19

Power SMB Connector ............................................................................. 2-19

Power Fault .............................................................................................. 2-20

Alarm Reset .............................................................................................. 2-20

Compact Flash Card Power Connector ................................................... 2-21

2-7 Jumper Settings ............................................................................................ 2-22

Explanation of Jumpers ......................................................................... 2-22

GLAN Enable/Disable .............................................................................. 2-22

CMOS Clear ........................................................................................... 2-23

VGA Enable .............................................................................................. 2-23

Watch Dog Enable ................................................................................... 2-24

Power Force-On Enable/Disable .............................................................. 2-24

Compact Flash Master/Slave Select ........................................................ 2-25

SMBus to PCI/PCI-Exp. Slots .................................................................. 2-25

2-8 Onboard Indicators ....................................................................................... 2-26

GLAN LED Indicators ............................................................................... 2-26

Onboard Power LED ................................................................................ 2-26

BIOS POST Code LEDs .......................................................................... 2-27

2-9 Floppy, Hard Drive, IPMI 2.0 and Printer Connections ................................ 2-28

Floppy Connector .................................................................................... 2-28

Parallel Port Connector ............................................................................ 2-29

IPMI 2.0 Socket ........................................................................................ 2-29

IDE Connectors ....................................................................................... 2-30

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Page 6

PDSMA+ User’s Manual

Before Power On ....................................................................................... 3-1

No Power ................................................................................................... 3-1

No Video .................................................................................................. 3-1

Memory Errors ........................................................................................... 3-2

Losing the System’s Setup Conﬁ guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................. 3-4

Chapter 4: BIOS

4-1 Introduction ....................................................................................................... 4-1

4-2 Running Setup ................................................................................................. 4-2

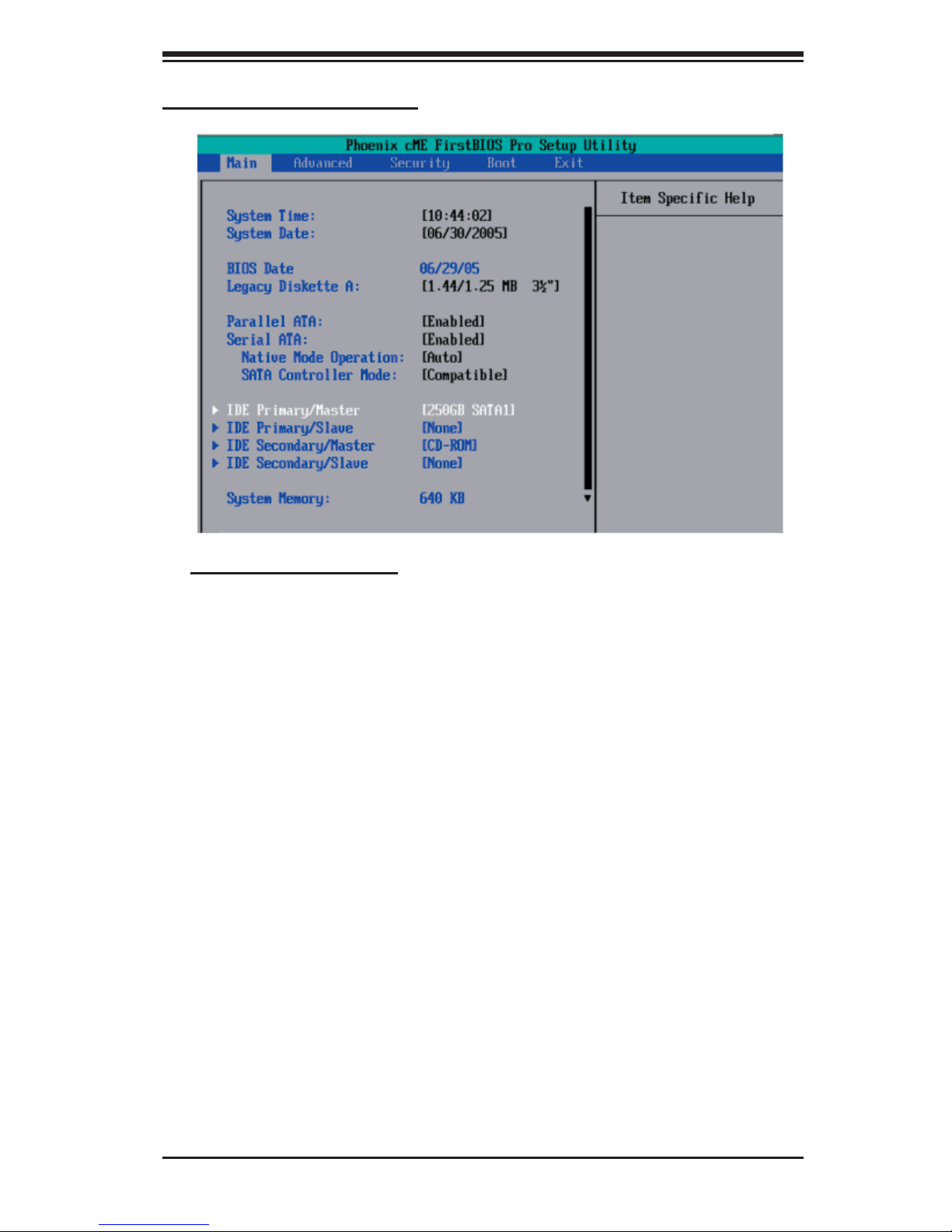

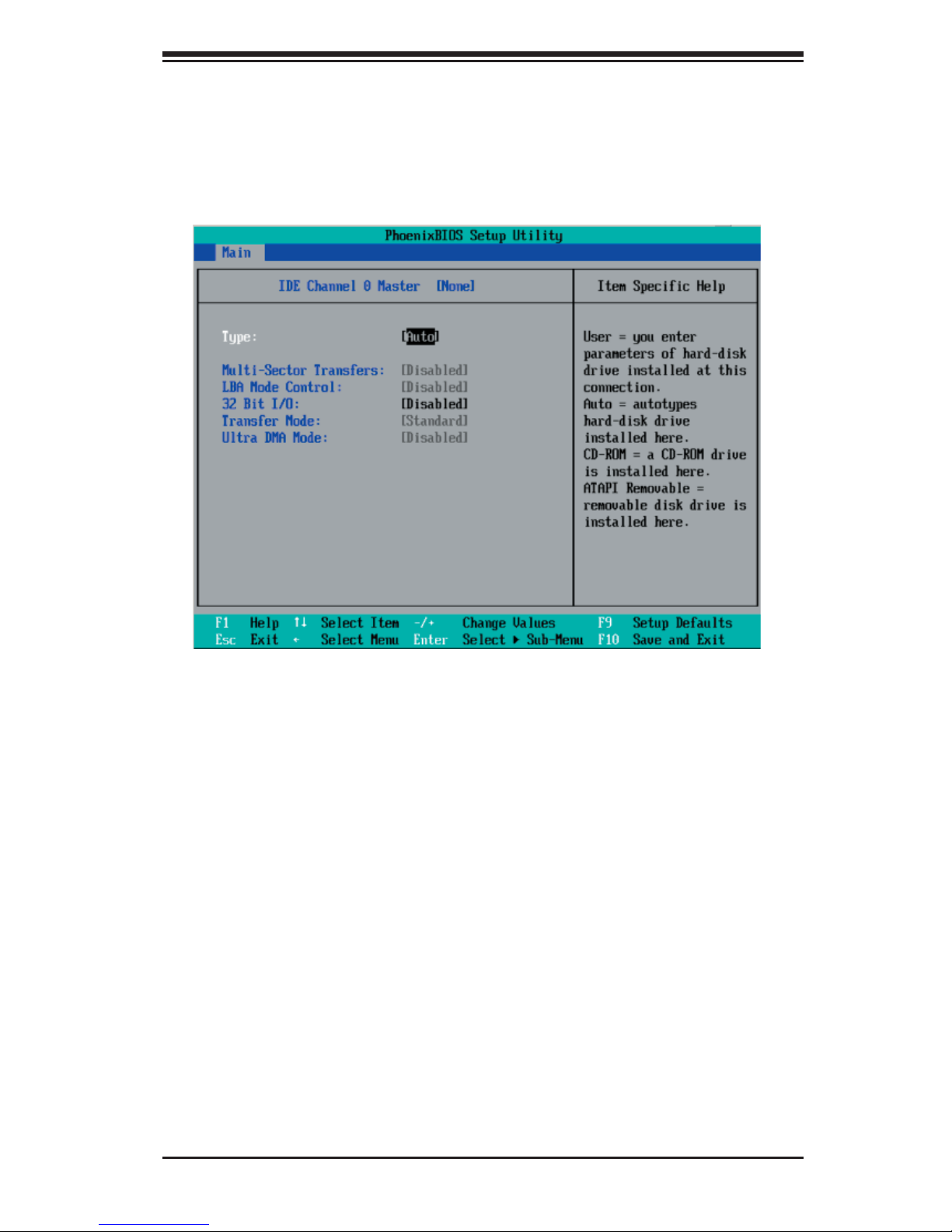

4-3 Main BIOS Setup ............................................................................................. 4-2

4-4 Advanced Setup ............................................................................................... 4-6

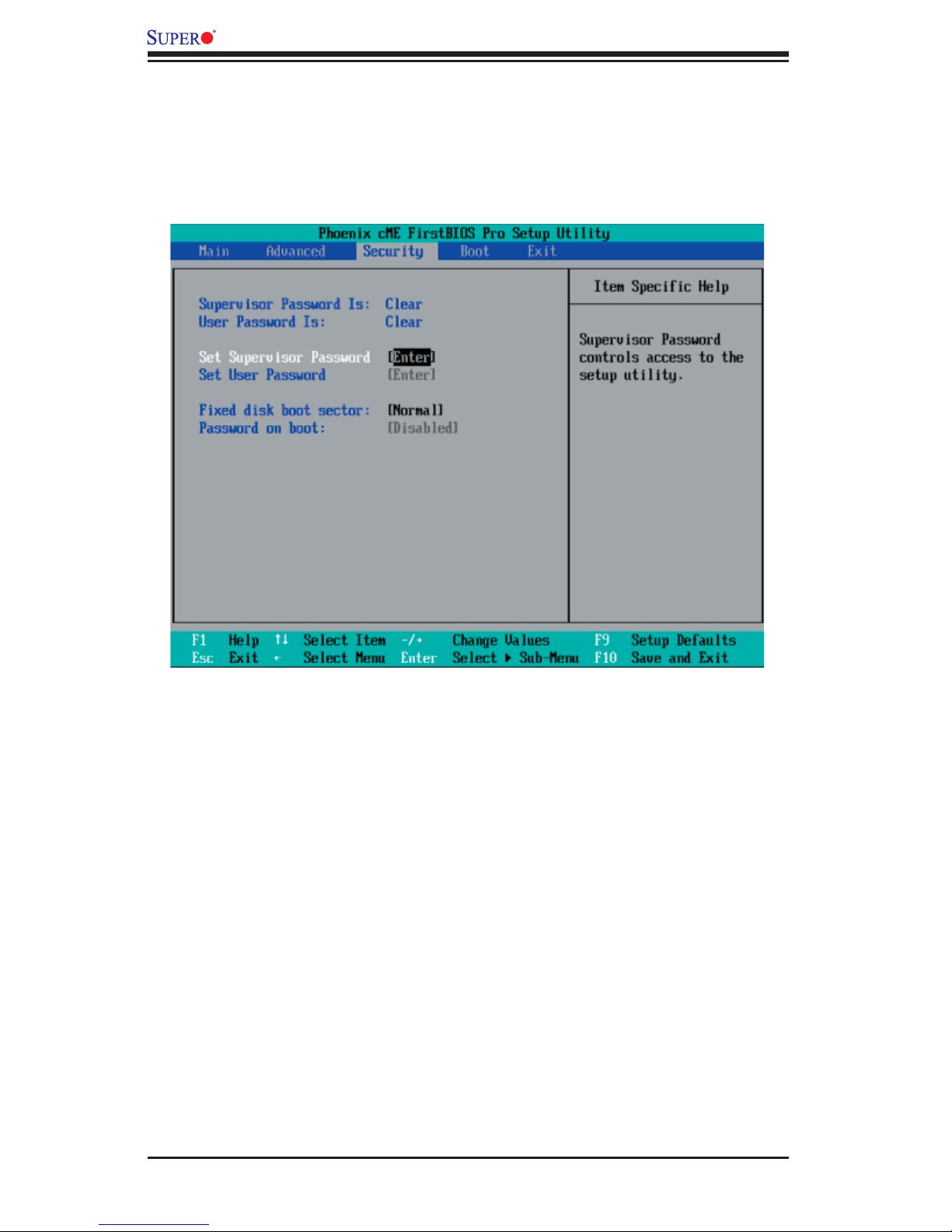

4-5 Security Setup ............................................................................................... 4-18

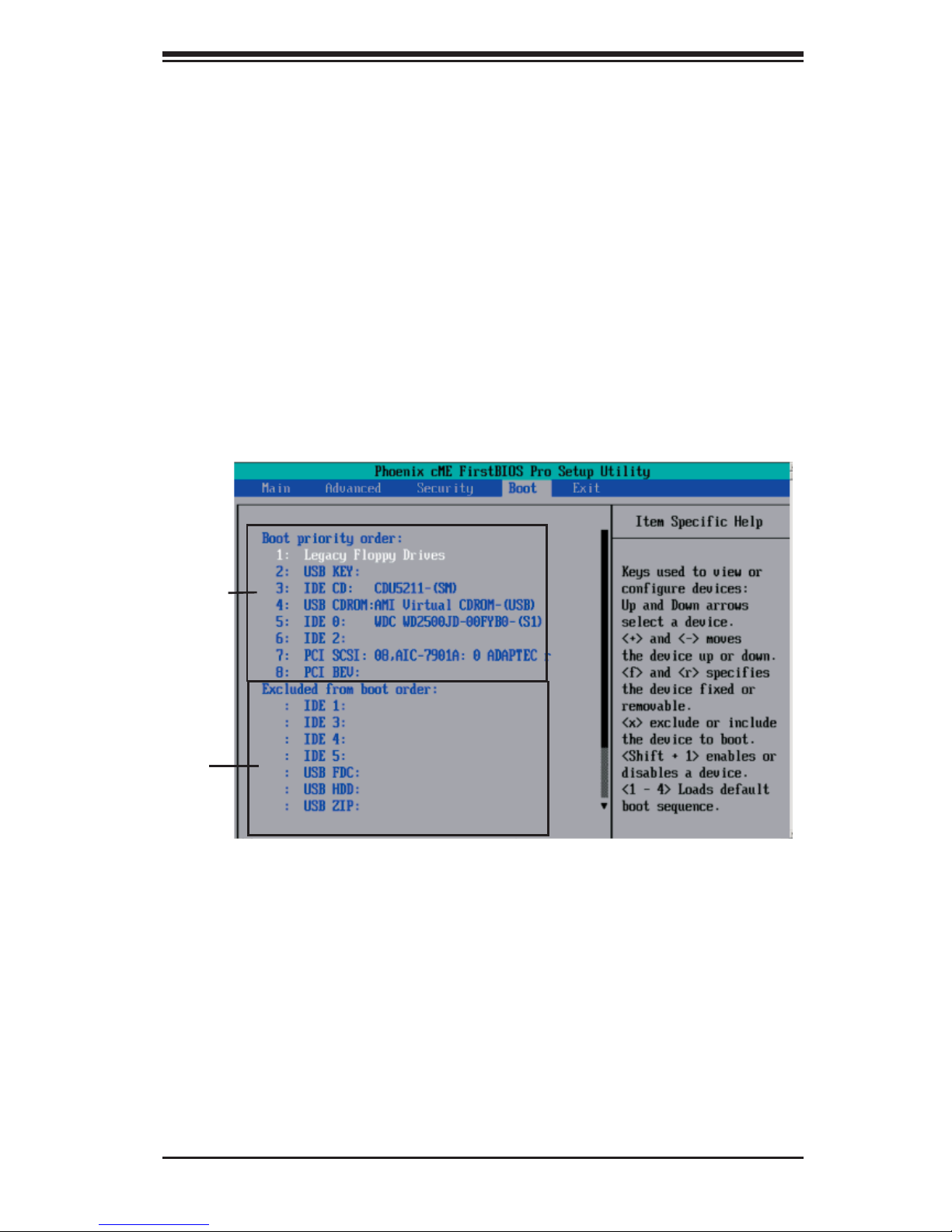

4-6 Boot Setup ...................................................................................................... 4-19

4-7 Exit .................................................................................................................. 4-20

Appendices:

Appendix A: BIOS POST Messages ......................................................................... A-1

Appendix B: BIOS POST Codes ................................................................................B-1

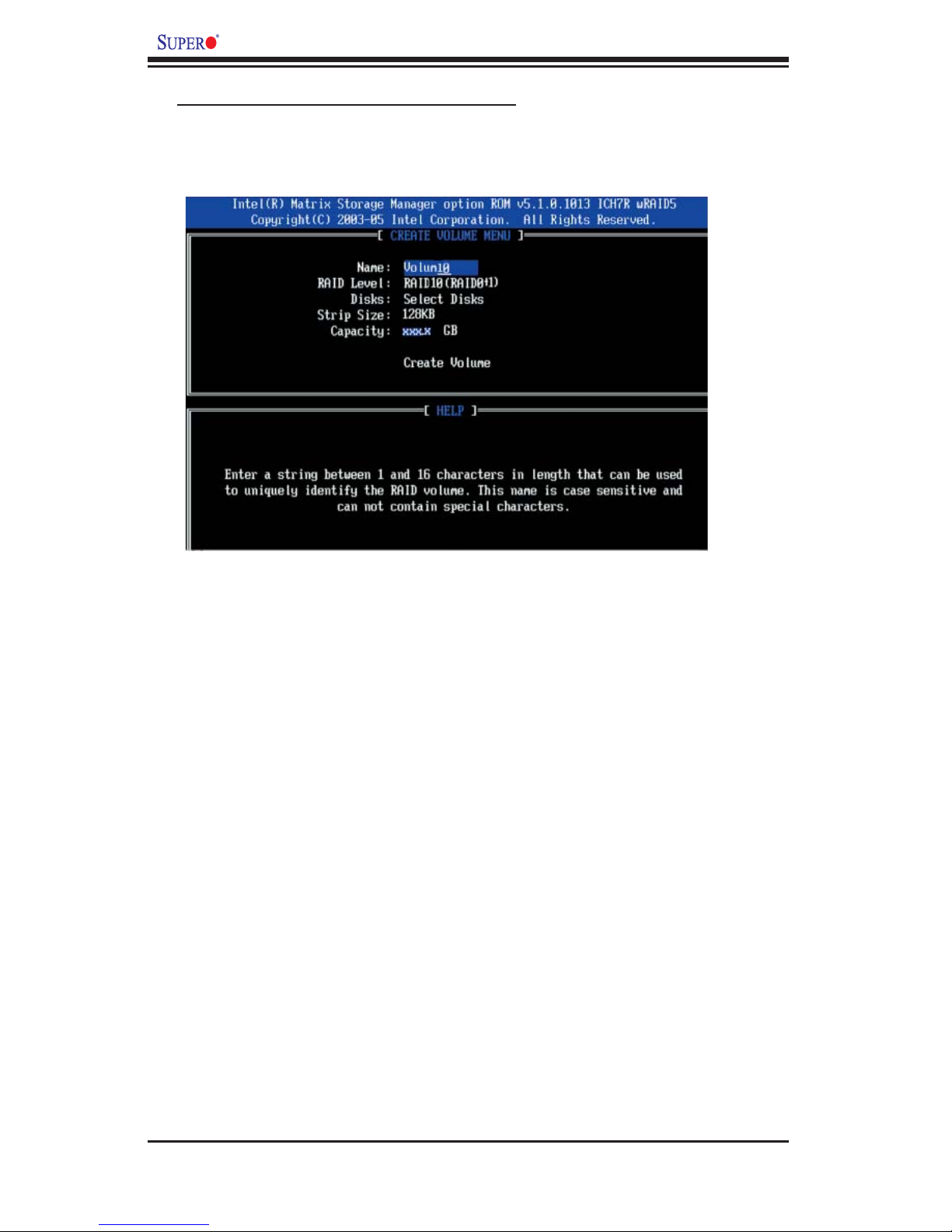

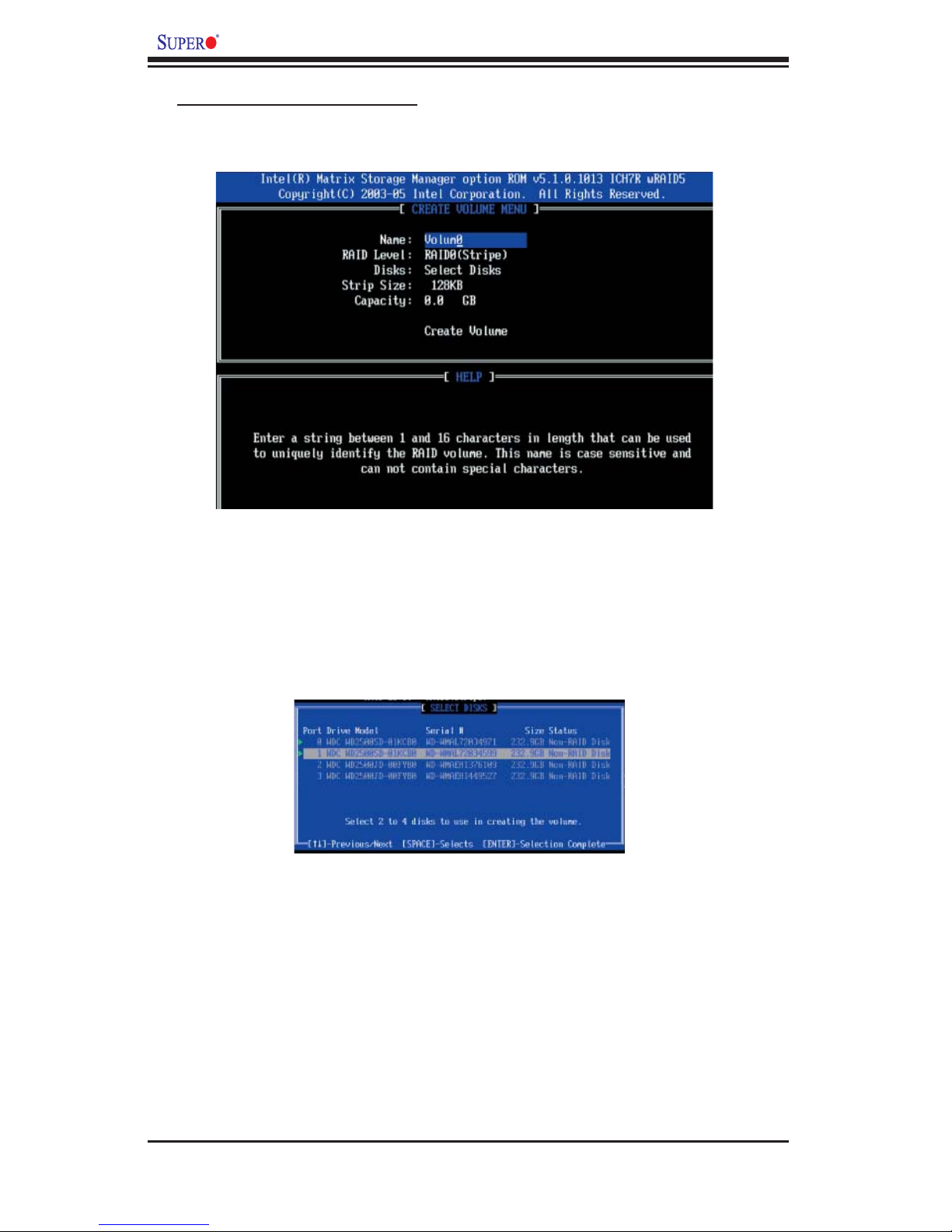

Appendix C: Intel HostRAID Setup Guidelines ..........................................................C-1

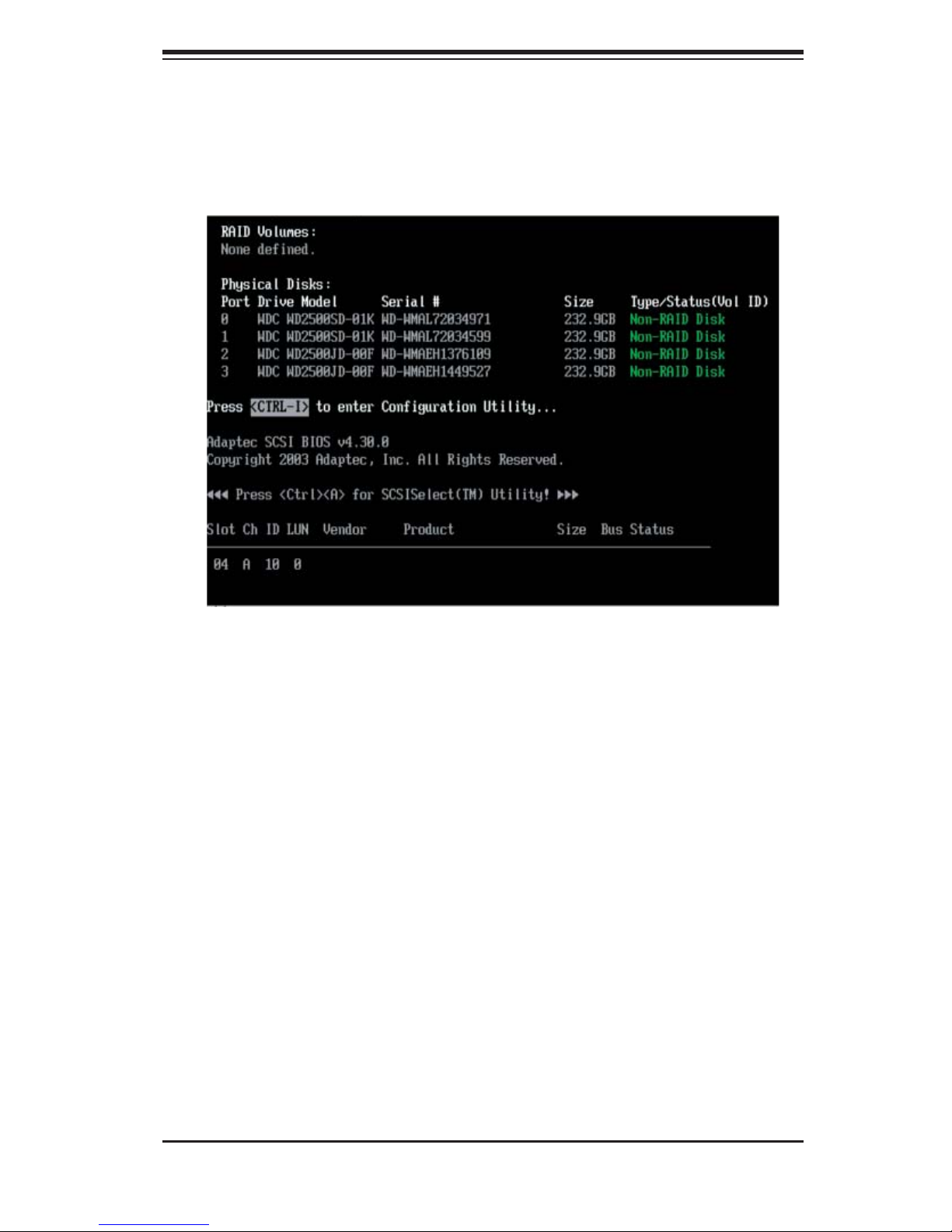

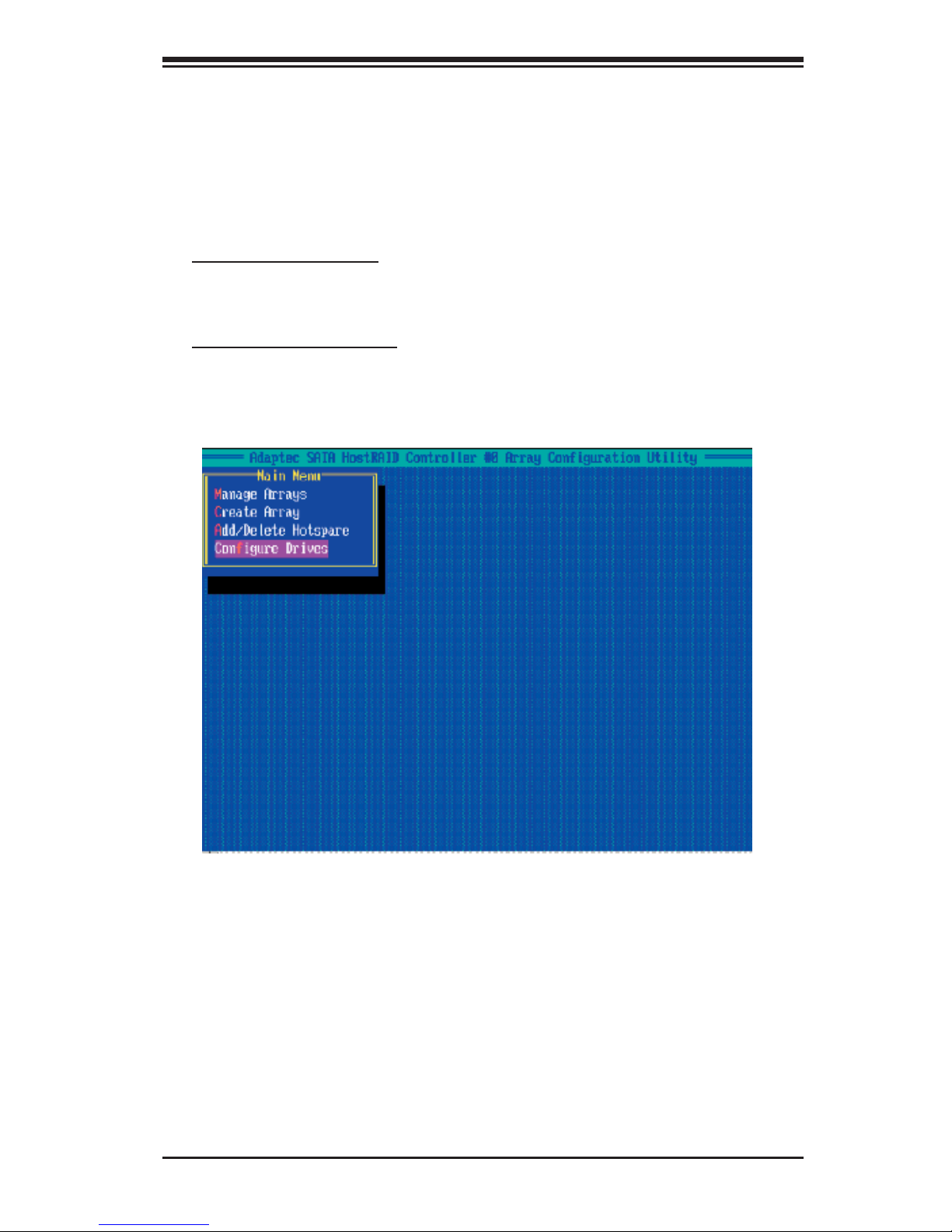

Appendix D: Adaptec HostRAID Setup Guidelines ....................................................D-1

Appendix E: Installing Other Software Programs and Drivers ................................... E-1

Page 7

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

All the following items are included In the retail box only:

One (1) Supermicro Mainboard

One (1) IDE cable (CBL-0036L-02)

One (1) ﬂ oppy drive ribbon cable (CBL-022)

Four (4) SATA cables (CBL-044) (*For retail only)

One (1) I/O shield (CSE-PT07L)

One (1) Supermicro CD containing drivers and utilities

One (1) User's/BIOS Manual

1-1

Page 8

PDSMA+ User’s Manual

Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Paciﬁ c

Address: Super Micro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: [email protected]

Tel: 886-2-8228-1366, ext.132 or 139

1-2

Page 9

PDSMA+ Image

Chapter 1: Introduction

An Important Note to the User

• All images and layouts shown in this manual were based upon the latest PCB

Revision available at the time of publishing of this manual. The motherboard

you've received may or may not look exactly the same as the graphics shown

in this manual.

1-3

Page 10

PDSMA+ User’s Manual

Motherboard Layout

(not drawn to scale)

KB/MS

J28

USB 1/2

J15

COM1

J31

JPG1

VGA

JG1

JLAN1

JLAN2

Fan5

LAN1

Slot6

CTRL

Slot5

LAN2

Slot4

CTRL

Slot3

S I/O

UPER PDSMA+

COM2

Slot2

Slot1

J27

VGA

CTRL

(CPUFan)

Fan6

Slot7

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1

JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

PW3

DIMM 4

DIMM 3

DIMM 2

DIMM 1

CPU

LGA 775

SPKR

WOL

JPW2

JPR1

USB5/6

J45

LE3 LE4

USB3/4

J46

8-pin PWR

PXH-V

JBT1

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

JWD

JPF

ICH7R

South Bridge

JP3 JWOR

JL1

24-Pin ATX PWR

JPW1

Fan2

JLED

IPMI 2.0

BIOS

JWF1

Battery

SATA0

LE1

SATA1

SATA2 SATA3

Fan1

FP CTRL

Fan3

JF1

Primary IDE

*Compact Flash only

Fan4

Important Notes to the User

• Jumpers not indicated are for testing only.

• See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front-

panel connections.

• " " indicates the location of "Pin 1".

• When the LE1 LED is on, the 5V Standby PWR is on. Maker sure to turn off

the power before installing or removing components.

• J4 (the white slot) is reserved for Compact Flash Card only. Do not use it for

other devices. If J4 is populated with a Compact Flash Card, J3 (the blue

slot) will be available for one device only; if not, J3 can be used for multiple

devices.

1-4

Page 11

Chapter 1: Introduction

PDSMA+ Quick Reference (See Chapter 2 for details.)

Jumpers Description Default Setting

JBT1 CMOS Clear See Section 2-7

JP3 Compact Flash Master/Slave Closed (Master) (*Note 2)

JI2C1/JI2C2 SMbus to PCI Slot Open/Open (Disabled)

JPF Power Force-On Open (Disabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JPL1/JPL2 Giga-bit LAN 1/LAN 2 Enable Pins 1-2 (Enabled)

JWD Watch Dog Enable Pins 1-2 (Reset)

Connectors Description

24-PIn ATX (JPW1) ATX 24-Pin Power Connector

8-Pin PWR (JPW2) 12V 8-pin Power Connector (Required)

Alarm Reset (JPR1) Alarm Reset

Chassis Intrusion (JL1) Chassis Intrusion Header

COM1(J31), COM2 COM Port 1 & COM 2 Header

Compact Flash Power (JWF1)Compact Flash PWR Connector (*See Notes on P.1-4)

DIMM#1A,#2A,#1B,#2B Memory (DIMM) Slots (1 through 4)

Fans 1-6 System Fan Headers (Fans 1-5), Fan6: CPU Fan

FP Control (JF1) Front Panel Control Header

Floppy Connector (J27) Floppy Disk Connector

GLAN1/2 (JLAN1/2) Ethernet RJ45 (Gigabit LAN) Port1/Port2 Connectors

IDE(J3)/Compact Flash (J4) IDE Master/Compact Flash (*See Notes on Pg.1-4)

IPMI IPMI 2.0 Socket

KB/MS (J28) PS/2 Keyboard/Mouse Connector

Printer Parallel Port (Printer) Header

Power Fault (PW3) Power Fault Header (*See Chapter 2)

Power SMB (PW4) Power System Management Bus (I2C)

SATA 0-3 (I-SATA 0-3) Intel SATA Headers: ISATA0-ISATA3

SPKR Internal Buzzer

Speaker (J9) Speaker Connector (Pins 3-4: Internal Buzzer, Pins 1-4:

External Speaker Cable)

Slot 1-Slot 5 PCI 32-bit 33MHz slots

Slot 6/Slot 7 PCI-X 64-bit 133MHz (Slot 6)/PCI-Exp x8 (Slot 7)

USB1/2 (J15) Back Panel Universal Serial Bus Ports 1,2

USB3/4 (J46),USB5/6 (J45) Front Panel Accessible USB headers 3,4,5,6

VGA (JG1) VGA Connector

WOL (WOL) Wake On LAN header

WOR (JWOR) Wake On Ring header

LED Indicator Description (*(Refer to Chapter 2 for details)

LE 1 Onboard Standby PWR warning LED Indicator

LE3/LE4 BIOS POST Code Indicators

1-5

Page 12

PDSMA+ User’s Manual

Motherboard Features

CPU  Latest CPU technology!

• Single Intel Quad-Core QX6700/Xeon 3000 Series/Pentium D (Dual-Core)/

Pentium 4 Extreme Edition/Pentium 4/Celeron D LGA (Land Grid Array) 775

Processors at system bus speeds of 1066 MHz/800 MHz/533 MHz

• Hyper-Threading (HT), EM64T, Enhanced Intel SpeedStep (EIST) supported

Using the EM64T Feature

• Use a CPU that supports the EM64T Technology

• Install a 64-bit OS (Windows XP Professional x64 Ed, Server 2003x64 Ed.)

• Install the 64-bit drivers for all MB components, devices and add-on cards

Using the Hyper-Threading (HT) Technology

• Use a CPU that supports Hyper-Threading

• Install an OS that supports HT, including Windows XP/2003 Server and Linux

2.4x. (Under Linux, use the HT compiler to compile the code. For other oper-

ating systems, be sure to disable the HT feature in the BIOS.)

• Enable the HT feature in the BIOS (under "Advanced" Setting) before install-

ing a supported OS. (*Note: visit www.Intel.com for CPU support and driver

updates.)

OS Licensing Support

• Intel Dual-Core CPU supports: Windows 2000 Professional, Windows

Advanced Server, Windows XP Home, Windows XP Professional, Windows

Server 2003 (Standard, Enterprise)

• Intel Dual-Core CPU and Hyper-Threading Technology supports: Windows

2000 Advanced Server, Windows XP Home, Windows XP Professional,

Windows Server 2003 (Standard, Enterprise)

Memory  Latest memory technology! (*

• Four DIMM slots support Dual/Single Channel DDR2 667/533 MHz up to 8 GB

of Unbuffered ECC/Non ECC two-way interleaved SDRAM.

Chipset  Latest Intel chipset technology!

• Intel 3000

• Intel ICH7R

• Intel PXH-V

Expansion Slots

• Five (5) PCI 32-Bit/33 MHz (Slot 1- Slot 5)

• One (1) PCI-X 64-Bit 133 MHz (Slot 6)

• One (1) PCI-Exp x8 (Slot 7)

Note: See Section 2-4 for details.)

BIOS

• 8Mb Firmware Hub Phoenix BIOS

• DMI 2.3, PCI 2.2, ACPI 1.0, Plug and Play (PnP) and SMBIOS 2.3

1-6

Page 13

Chapter 1: Introduction

PC Health Monitoring

• Onboard voltage monitors for CPU cores, Chipset (+1.5V), Memory (+1.8V),

VTT FSB, +3.3V, +3.3V Standby,+5V, +5V Standby, +12V, −12V and VBAT

• CPU 4-phase-switching voltage regulator

• Status monitor for fan speed & System OH/Fan Fail LED

• Pulse Width Modulation Fan Control & Low Noise Fan Speed Control

• Platform Environment Control Interface (PECI) support

• SuperDoctor III, NMI

• System Resource alert via SuperDoctor III

ACPI Features

• Slow blinking LED for suspend state indicator

• BIOS support for USB keyboard

• Main switch override mechanism

• External modem ring-on

Onboard I/O

• 1 ATA/100 EIDE Channel

• Intel ICH7R SATA HostRAID Controller, 4 connectors for 4 devices with sup-

port of RAID functions 0, 1, 5 and 10

• 1 ﬂ oppy port interface (up to 2.88 MB)

• 1 Fast UART 16550 compatible serial port and 1 header

• Two Intel single-port Gigabit Ethernet Controllers: 82573V/82573L

• PS/2 mouse and PS/2 keyboard ports

• Up to 6 USB (Universal Serial Bus) (2.0 ports/4 Internal headers)

• VGA Connector

• IPMI 2.0 Socket

• Super I/O (Winbond W83627 HG) with hardware monitoring (W83793)

• XGI Volari Z7

Temperature

• Monitoring CPU, chassis environment

• CPU Thermal Trip support

• Thermal Monitor 2 (TM2) (available if supported by the CPU)

Other

• Wake-on-LAN (WOL)

• Wake-on-Ring (WOR)

• Onboard Standby PWR warning LED Indicator ("LE 1")

CD Utilities

• Drivers and software for Intel 3000 chipset utilities

Dimensions

• 9.6" (W) x 12" (L) (243.84 mmx 304.8 mm)

1-7

Page 14

PDSMA+ User’s Manual

VRM 11

FSB: 1066/800/533MHz

DDR2 CH_A1-2 CH_B1-2

PRI_IDE

CF_HEADER

4 x SATA

PORTS

USB

PORT_0~5

DDR2_667/533/400

UDMA/100

S-ATA/300

USB 2.0/1.1

LGA775_PROCESSOR

ADDR

CTRL CTRL

ADDR

Intel3000

(MUKILTEO-2)

MCH

ICH-7R

LPC

DATADATA

DMI

PCI-X BUS

PCIE_x4

PCIE_x1

PCI_32_BUS

CK410 CLK

1x PCIE_x8PCIE_x8

SLOT

1x PCIX_64

SLOT

PXH_V

2XGb_LAN

XGi Z7

VGA

5x PCI_32

SLOT

W83627HF

LPC I/O

FWH

IPMI

PECI

SMBUS I/F

KB. FDD. SER.1

MS.

SER.2

PRN.

W83793 H/W MONITOR

Intel 3000 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the following pages for the

actual speciﬁ cations of the motherboard.

1-8

Page 15

Chapter 1: Introduction

1-2 Chipset Overview

The Intel 3000 chipset, designed for use with the Pentium 4 Processor in the LGA

775 Land Grid Array Package, is comprised of two primary components: the Memory

Controller Hub (MCH) and the I/O Controller Hub (ICH7R). In addition, Intel's PCI-X

(PXH-V) is used for added functionality. The PDSMA+ provides the performance

and feature-set required for the high-end UP Server market.

Memory Controller Hub (MCH)

The function of the MCH is to manage the data ﬂ ow between four interfaces: CPU

interface, DDR2 System Memory Interface, PCI Express Interface, and Direct Media

Interface (DMI). The MCH is optimized for the Pentium 4 processor in the LGA775

Land Grid Array Package. It supports one or two channels of DDR2 SDRAM.

The I/O Controller (ICH7R) provides the data buffering and interface arbitration re-

quired for the system to operate efﬁ ciently. It also provides the bandwidth needed

for the system to maintain its peak performance. The Direct Media Interface (DMI)

provides the connection between the MCH and the ICH7R. The ICH7R supports

up to six PCI-Express slots, four Serial ATA ports, six USB 2.0 ports and two IDE

devices. In addition, the ICH7R offers the Intel Matrix Storage Technology which

provides various RAID options for data protection and rapid data access. It also

supports the next generation of client management through the use of PROActive

technology in conjunction with Intel's next generation Gigabit Ethernet controller.

Intel ICH7R System Features

The I/O Controller Hub provides the I/O subsystem with access to the rest of the

system. Functions and capabilities include:

*Advanced Conﬁ guration and Power Interface, Version 2.0 (ACPI)

*Intel I/O External Design Speciﬁ cation (EDS)

*Intel's 3000 Memory Controller Hub (MCH) External Design Speciﬁ cation (EDS)

*Intel I/O Controller Hub 7 (ICH7R) Thermal Design Guideline

*Intel 82573 Platform LAN Connect (PLC) PCI Design

*Low Pin Count (LPC) Interface

1-9

Page 16

PDSMA+ User’s Manual

1-3 Special Features

Recovery from AC Power Loss

BIOS provides a setting for you to determine how the system will respond when AC

power is lost and then restored to the system. You can choose for the system to

remain Powered Off (in which case you must hit the power switch to turn it back on

when the power is restored.) You can also select "Last State" from the Advanced

BIOS Setup section. In this case, the system will be restored to its original state

before the power outage. The default setting is Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the PDSMA+. The

motherboard has an onboard System Hardware Monitor chip that supports PC

health monitoring.

Onboard Voltage Monitors for the CPU Cores, Chipset Voltage (+1.5V), Memory Voltage (+1.8V), +3.3V, +3.3V Standby, +5V, +5V Standby, +12V, −12V, VTT FSB and VBAT.

The onboard voltage monitor will scan these voltages continuously. Once a voltage

becomes unstable, it will give a warning or send an error message to the screen.

The user can adjust the voltage thresholds to deﬁ ne the sensitivity of the voltage

monitor.

Fan Status Monitor with Firmware Speed Control

The PC health monitor can check the RPM status of the cooling fans. The onboard

fans are controlled by Thermal Management via BIOS.

CPU Overheat/Fan Fail LED and Control

This feature is available when the user enables the CPU overheat warning option

in the BIOS. This allows the user to deﬁ ne an overheat temperature. When this

temperature reaches the threshold, the CPU thermal trip feature will be activated

and it will send a signal to the Speaker LED and, at the same time, the CPU speed

will decrease. It will also activate the alarm if a fan failure occurs.

1-10

Page 17

Chapter 1: Introduction

1-5 Power Conﬁ guration Settings

This section describes the features of Power Conﬁ guration and Power Management

of your motherboard.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in the suspend mode. When the user presses any key, the

CPU will "wake-up" and the LED will automatically stop blinking and is turned on.

BIOS Support for USB Keyboard

If the USB keyboard is the only keyboard in the system, it will function like a normal

keyboard during system boot-up.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button. When the user presses the power button, the system will enter

a SoftOff state. The monitor will be suspended and the hard drive will spin down.

Press the power button again to "wake-up" the whole system. During the SoftOff

state, the ATX power supply provides power to the required circuitry and keep the

system "alive." In case the system malfunctions and you want to turn off the power,

just press and hold the power button for 4 seconds. The power will turn off and no

power will be provided to the motherboard.

Wake-On-Ring (WOR)

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

Wake-On-LAN (WOL)

Wake-On-LAN is deﬁ ned as the ability of a management application to remotely

power up a computer that is powered off. Remote PC setup, up-dates and asset

tracking can occur after hours and on weekends so that daily LAN trafﬁ c is kept

to a minimum and users are not interrupted. The motherboard has a 3-pin header

(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has

WOL capability. In addition, an onboard LAN controller can also support WOL

without any connection to the WOL header. The 3-pin WOL header is to be used

with a LAN add-on card only.

Note: Wake-On-LAN requires an ATX 2.01 (or above) compliant power supply.

1-11

Page 18

PDSMA+ User’s Manual

1-6 ACPI Features

ACPI stands for Advanced Conﬁ guration and Power Interface. The ACPI speciﬁ ca-

tion deﬁ nes a ﬂ exible and abstract hardware interface that integrates power man-

agement features with other components of a PC system, including its hardware,

operating system and application software. This enables the system to automati-

cally turn on and off peripherals such as CD-ROMs, network cards, hard disk drives

and printers. This also includes other devices connected to the PC such as VCRs,

TVs, telephones and stereos.

In addition to enabling operating system-directed power management, ACPI

provides a generic system event mechanism for Plug and Play and an operating

system-independent interface for conﬁ guration control. ACPI leverages the Plug

and Play BIOS data structures while providing a processor architecture-indepen-

dent implementation that is compatible with both Windows and Linux Operating

Systems.

1-7 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates of 1 GHz and faster.

The

power supplies generally meet the speciﬁ cations required by the CPU, some are

inadequate. A 2 amps of current supply on a 5V Standby rail is strongly recom-

mended. It is strongly recommended that you use a high quality power supply that

meets ATX power supply Speciﬁ cation 2.02 or above. Also your power supply must

supply 1.5A for the Ethernet ports. It must also be SSI compliant (info at http://www.

ssiforum.org/). Additionally, in areas where noisy power transmission is present,

you may choose to install a line ﬁ lter to shield the computer from noise. It is recom-

mended that you also install a power surge protector to help avoid problems caused

by power surges. To provide adequate power supply to the system, the additional

8-pin 12V power is also required.

PDSMA+ accommodates 12V ATX power supplies. Although most

1-12

Page 19

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electro-Static-Discharge (ESD) can damage electronic com ponents. To prevent

damage to your system board, it is important to handle it very carefully. The following

measures are generally sufﬁ cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

upside down battery to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

2-1

Page 20

PDSMA+ User's Manual

2-2 Processor and Heatsink Fan Installation

When handling the processor package, avoid placing

direct pressure on the label area of the fan.

(Notes: 1. Always connect the power cord last and always remove it before adding,

removing or changing any hardware components. Make sure that you install the

processor into the CPU socket before you install the CPU heatsink.

2. Intel's boxed Pentium 4 CPU package contains the CPU fan and heatsink as-

sembly. If you buy a CPU separately, make sure that you use only Intel-certiﬁ ed

multi-directional heatsink and fan.

3. The Intel Pentium 4 LGA 775 heatsink and fan comes with a push-pin design

and no tool is needed for installation.

4. Make sure to install the motherboard into the chassis before you install the CPU

heatsink and fan.)

5. When purchasing an LGA 775 CPU or when receiving a motherboard with an LGA

775 CPU pre-installed, make sure that the CPU plastic cap is in place and none of

the CPU pins are bent; otherwise, contact the retailer immediately.

6. Refer to the MB Features Section for more details on CPU support.

Installation of the LGA775 Processor

Socket Lever

Load Plate

1. Press the socket lever to release

the load plate, which covers the CPU

socket, from its locking position.

2. Gently lift the socket lever to open

the load plate.

Load Plate

2-2

Page 21

Chapter 2: Installation

3. Locate Pin 1 on the CPU socket. (*Note:

Pin 1 is the corner marked with a triangle).

Please note that the North Key and the

South Key are located vertically in the

CPU housing.

4. Position the motherboard in such a way

that Pin 1 of the CPU socket is located at

the left bottom of the CPU housing.

5. Use your thumb and your index ﬁ nger to

hold the CPU at the North Center Edge and

the South Center Edge of the CPU.

6. Align Pin 1 of the CPU with Pin 1 of the

socket. Once aligned, carefully lower the

CPU straight down to the socket. (**Do not

drop the CPU on the socket. Do not move

the CPU horizontally or vertically. Do not

rub the CPU against the surface or against

any pins of the socket to avoid damage to

the CPU or the socket.)

North Key

Pin 1

South Key

North Center Edge

South Center Edge

7. With the CPU inside the socket, inspect

the four corners of the CPU to make sure

that the CPU is properly installed.

8. Use your thumb to gently push the lever

down and lock it in the hook.

9. If the CPU is properly installed into the

socket, the plastic cap will be automatically

released from the load plate when the lever

is pushed into the hook. Remove the plastic

cap from the motherboard.

(*Warning: Please keep the plastic

cap. The motherboard and the CPU

must be shipped with the plastic cap prop-

erly installed to protect the CPU pins. Ship-

ment without the CPU plastic cap properly

installed will void the warranty.)

Plastic cap is released

from the load plate if

CPU properly installed.

Socket

Lever

CPU in the CPU socket

2-3

Page 22

PDSMA+ User's Manual

Installation of the Heatsink

1. Locate the CPU Fan on the mother-

board. (Refer to the layout on the right

for the CPU Fan location.)

2. Position the heatsink in such a way

that the heatsink fan wires are closest

to the CPU fan and are not interfered

with other components.

3. Inspect the CPU Fan wires to make

sure that the wires are routed through

the bottom of the heatsink.

4. Remove the thin layer of the protec-

tive ﬁ lm from the copper core of the

heatsink.

Thermal Grease

(*Warning: CPU overheat may occur if

the protective ﬁ lm is not removed from

the heatsink.)

5. Apply the proper amount of thermal

grease on the CPU. (*Note: if your

heatsink came with a thermal pad,

please ignore this step.)

6. If necessary, rearrange the wires

to make sure that the wires are not

pinched between the heatsink and the

CPU. Also make sure to keep clear-

ance between the fan wires and the

ﬁ ns of the heatsink.

7. Align the four heatsink fasteners

with the mounting holes on the mother-

board. Gently push the pairs of diago-

nal fasteners (#1 & #2, and #3 & #4)

into the mounting holes until you hear a

click. (*Note: Make sure to orient each

fastener in a way that the narrow end of

the groove is pointing outward.)

CPU

Fan Wires

Heatsink Fins

Heatsink

Fastener

Narrow end of the groove

points outward

2-4

Page 23

8. Repeat Step 6 to insert all four heatsink

fasteners into the mounting holes.

9. Once all four fasteners are securely

inserted into the mounting holes and the

heatsink is properly installed on the moth-

erboard, connect the heatsink fan wires to

the CPU Fan connector.

Heatsink Removal

1. Unplug the power cord from the power

supply.

2. Disconnect the heatsink fan wires from the

CPU fan header.

3. Use your ﬁ nger tips to gently press on the

fastener cap and turn it counterclockwise

to make a 1/4 (90

fastener upward to loosen it.

) turn, and then pull the

Chapter 2: Installation

4. Repeat Step 3 to loosen all fasteners from

the mounting holes.

5. With all fasteners loosened, remove the

heatsink from the CPU.

2-3 Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to ﬁ t different types of chassis.

Make sure that the locations of all mounting holes for the motherboard and the

chassis match. Although a chassis may have both plastic and metal mounting

fasteners, metal ones are highly recommended because they ground the mother-

board to the chassis. Make sure that the metal standoffs click in or are screwed in

tightly. Then use a screwdriver to secure the motherboard onto the motherboard

tray. (*Note: some components are near to the mounting holes. Please take all

necessary precautionary measures to prevent damage done to these components

when installing the motherboard into the chassis.)

2-5

Page 24

PDSMA+ User's Manual

2-4 Installing DDR2 Memory

Memory Module Installation (See Figure 2-2)

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each DDR2 memory module vertically into its slot. Pay attention to the

notch along the bottom of the module to prevent inserting the module incor-

rectly. (See support information below.)

2. Gently press down on the memory module until it snaps into place.

Support

The PDSMA+ supports Dual channel, ECC/Non-ECC unbuffered DDR2

667/533/400 SDRAM. Both interleaved and non-interleaved memory are

supported, so you may populate any number of DIMM slots. (Populating

DIMM#1A,DIMM#1B, and/or DIMM#2A,DIMM#2B with memory modules

of the same size and of the same type will result in dual channel, two-way

interleaved memory which is faster than the single channel, non-interleaved

memory. When ECC memory is used, it may take 25-40 seconds for the VGA

to display.)

*Notes:

1. Due to chipset limitation, 8GB Memory can only be supported by the following

operating systems:

32-Bit: Windows 2000 Advanced Server, Windows Server 2003 Enterprise

Edition;

64-Bit: Windows Server 2003 Standard x64 Edition, Windows XP Professional

x64 Edition, Windows Server 2003 Enterprise x64 Edition.

2. You may install a maximum of 2GB DIMMs on each slot; however, only DDR2

533 MHz 2GB density modules are available for this conﬁ guration.

3. Some old-version of DDR2-667 may not match Intel's On-Die-Temperature re-

quirement and will automatically down-grade to run @ 533 MHz, If this occurs,

contact your memory vendor to check the ODT value.

4. Due to memory allocation to system devices, memory remaining available for

operational use will be reduced when 4 GB of RAM is used. The reduction in

memory availability is disproportional. (Refer to the Memory Availability Table

below for details.)

2-6

Page 25

Chapter 2: Installation

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Firmware Hub ﬂ ash memory (System BIOS)

Local APIC 4 KB 3.99

Area Reserved for the chipset

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB boundary-

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS applications

1 MB 3.99

2 MB 3.99

512 MB 3.01

Remaining (-Available) (4 GB Total System Memory)

2.84

Figure 2-2. Installing DIMM into Slot

To Install:

Insert module vertically and press down until it snaps into place. Pay attention to the notch.

To Remove:

Use your thumbs to gently push each release tab outward to release the DIMM from the slot.

DDR2

Top View Of DDR2 Slot

2-7

Page 26

PDSMA+ User's Manual

2-5 Control Panel Connectors/IO Ports

The I/O ports are color coded in conformance with the PC 99 speciﬁ cation. See

Figure 2-3 below for the colors and locations of the various I/O ports.

A. Back Panel Connectors/IO Ports

UPER PDSMA+

Back Panel Connectors

1. Keyboard (Purple)

2. PS/2 Mouse (Green)

3. Back Panel USB Port 1

4. Back Panel USB Port 2

5. COM Port 1 (Turquoise)

6. VGA Port (Blue)

7. Gigabit LAN 1

8. Gigabit LAN 2

B. Front Control Panel

Figure 2-3. I/O Port Locations and Deﬁ nitions

JF1 contains header pins for various buttons and indicators that are normally located

on a control panel at the front of the chassis. These connectors are designed speciﬁ -

cally for use with Supermicro server chassis. See Figure 2-4 for the descriptions of

the various control panel buttons and LED indicators. Refer to the following section

for descriptions and pin deﬁ nitions.

UPER PDSMA+

OH/Fan Fail LED

Figure 2-4. JF1 Header Pins

1920

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

Ground

Reset

PWR

NMI

Vcc

Reset Button

Power Butto

2-8

Page 27

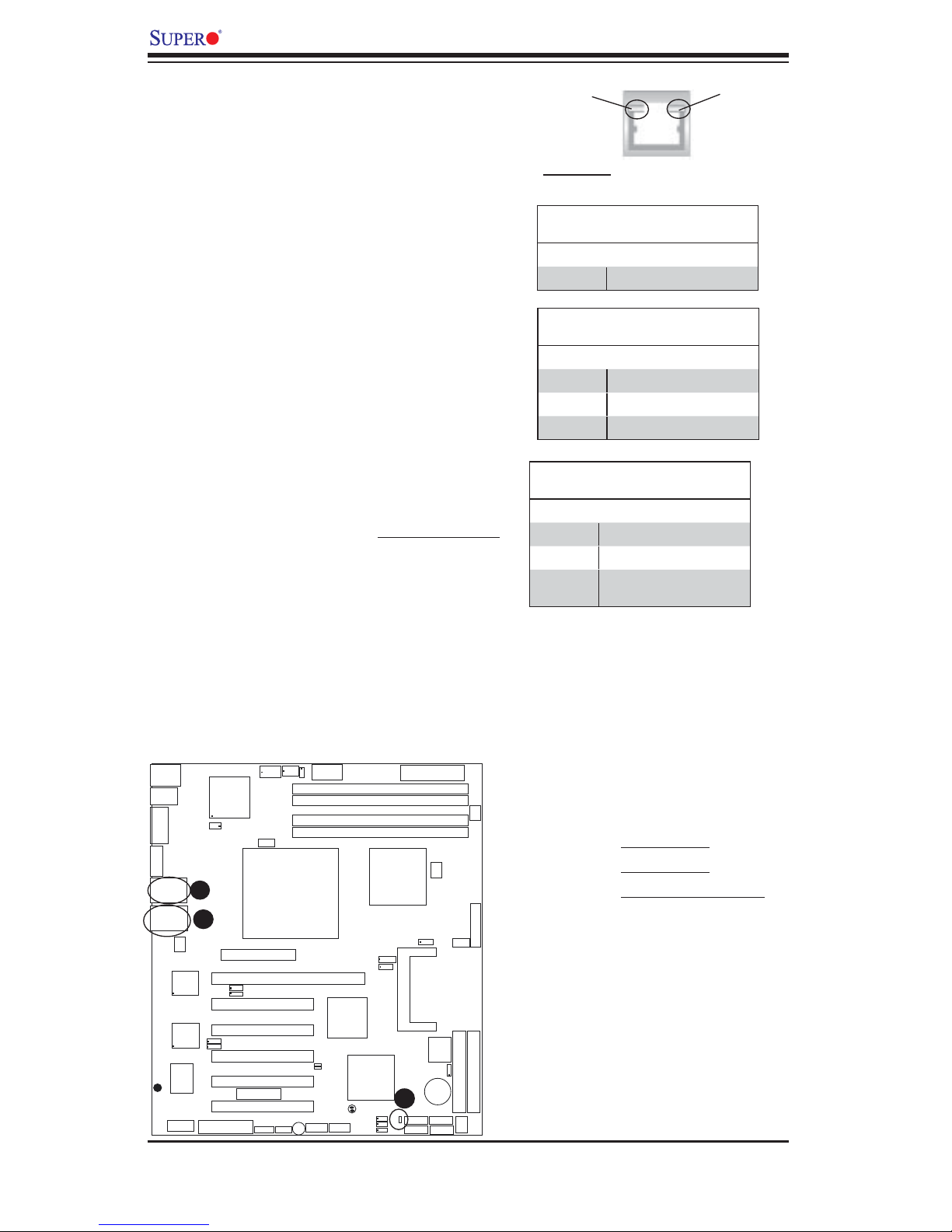

C. Front Control Panel Pin Deﬁ nitions

Chapter 2: Installation

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin deﬁ nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin deﬁ nitions.

NMI Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

19 Control

20 Ground

Power LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

15 +5V

16 Ground

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR

JL1

-Pin AT

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

2-9

Fan1

Power LED

HDD LED

NIC1 LED

FP CTRL

NIC2 LED

OH/Fan Fail LED

Primary IDE

Ground

A. NMI

B. PWR LED

1920

NMI

Vcc

Reset

Reset Button

Power Butto

PWR

Page 28

PDSMA+ User's Manual

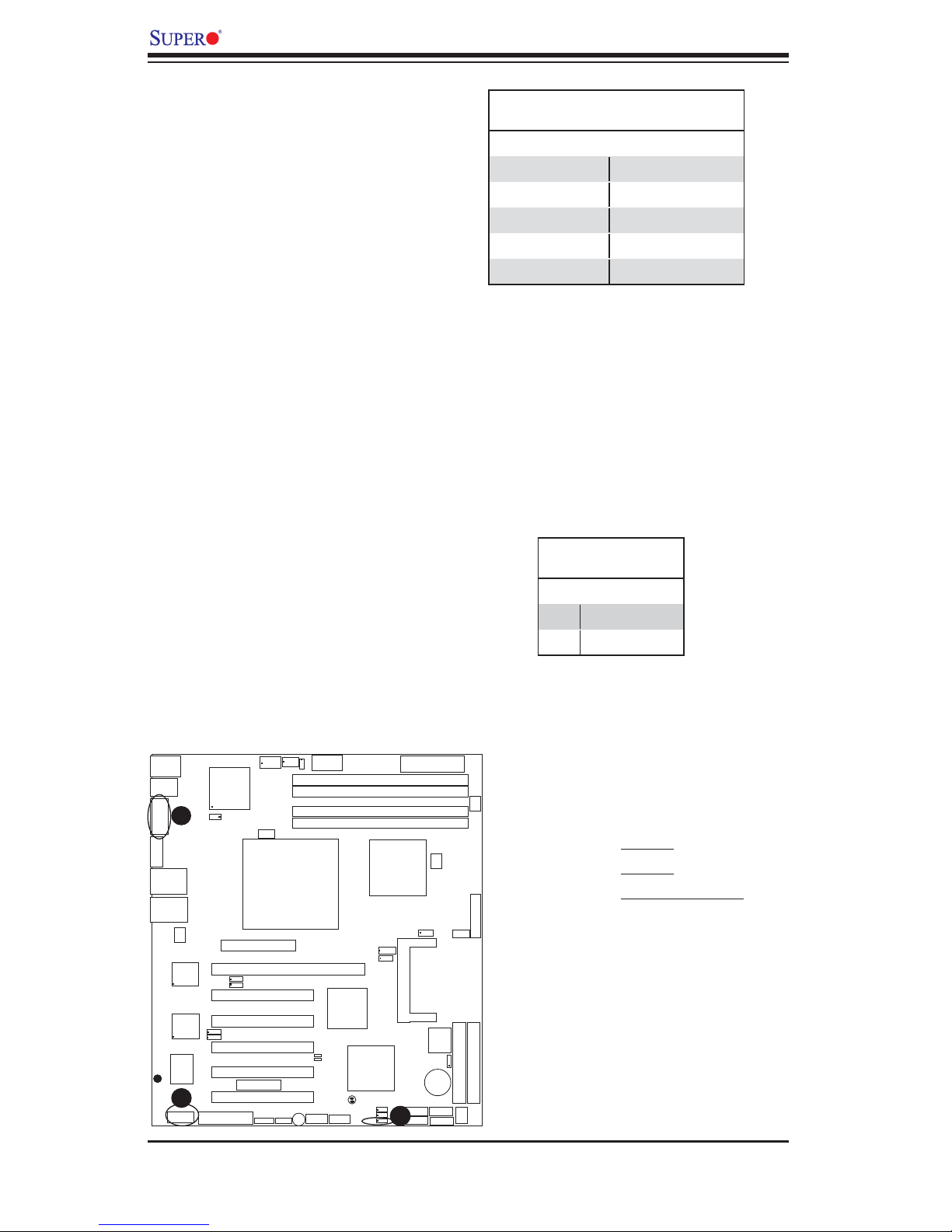

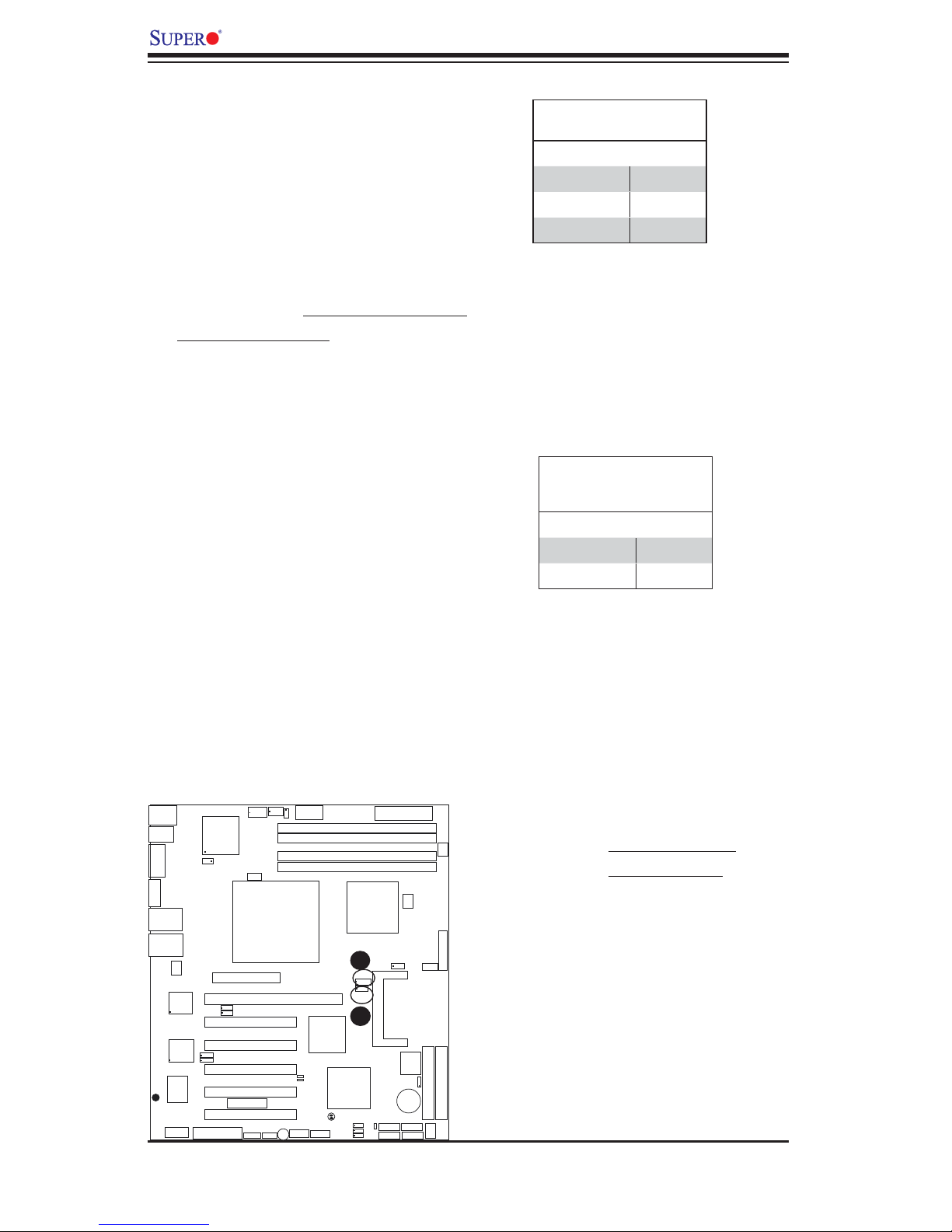

HDD LED

The HDD LED connection is located

on pins 13 and 14 of JF1. Attach the

hard drive LED cable here to display

disk activities (including Serial ATA

and IDE drive activities). See the

table on the right for pin deﬁ nitions.

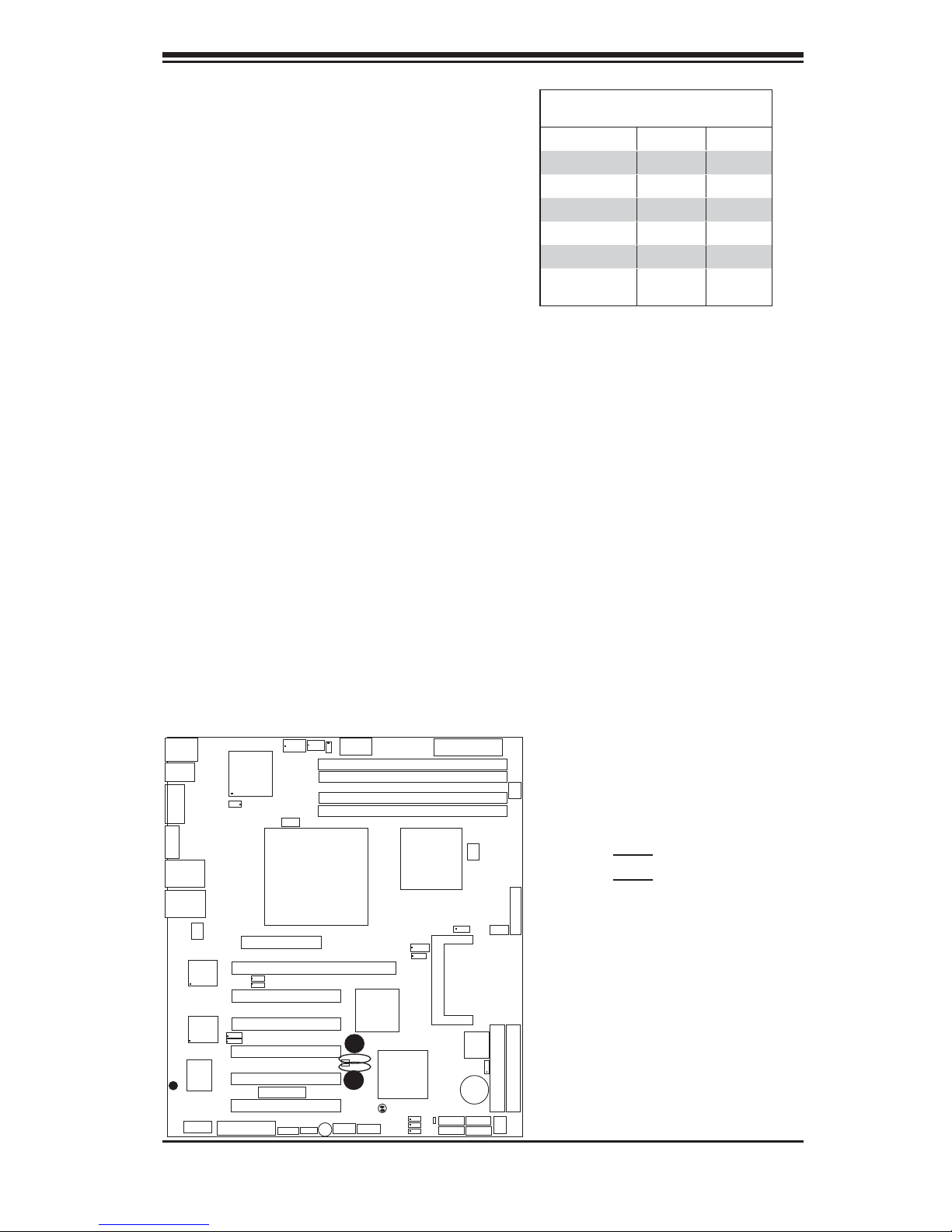

NIC1/NIC2 LED Indicators

The NIC (Network Interface Control-

ler) LED connections for the GLAN

port1 is located on pins 11 and 12 of

JF1, and for the GLAN port2 is lo-

cated on pins 9 and 10 of JF1. Attach

the NIC LED cables to display network

activities. Refer to the tables on the

right for pin deﬁ nitions.

HDD LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

13 +5V

14 HD Active

GLAN1/2 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

9/11 Vcc

10/12 Ground

A. HDD LED

B. GLAN1 LED

C. GLAN2 LED

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

JBT1

USB3/4

8-pin PWR

PXH-V

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

ICH7R

South Bridge

JP3 JWOR JL1

JWD

JPF

LE1

-Pin AT

JLED

IPMI 2.0

SATA0 SATA1

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

2-10

Fan1

FP CTRL

Primary IDE

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Ground

1920

NMI

Vcc

Reset

Reset Button

Power Butto

PWR

Page 29

Chapter 2: Installation

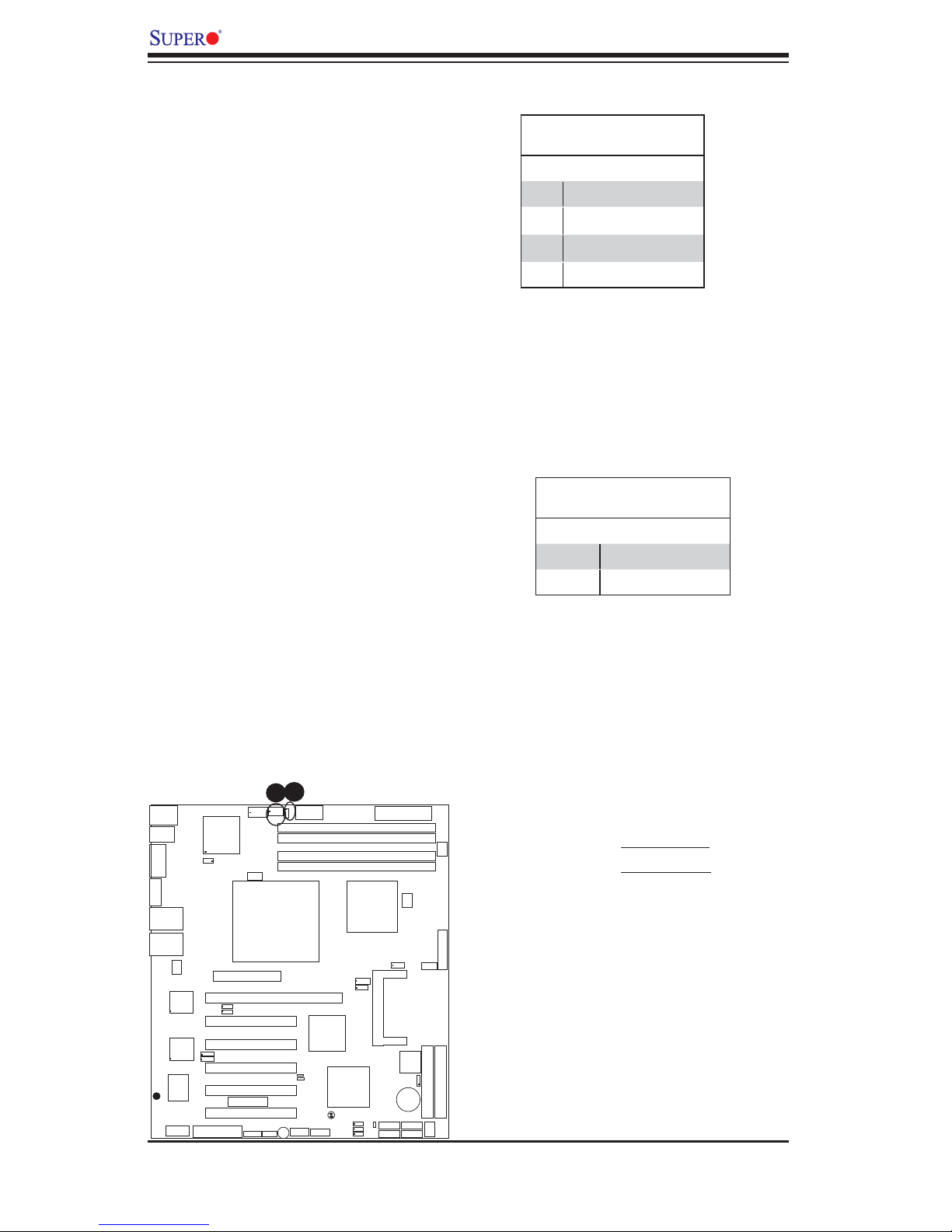

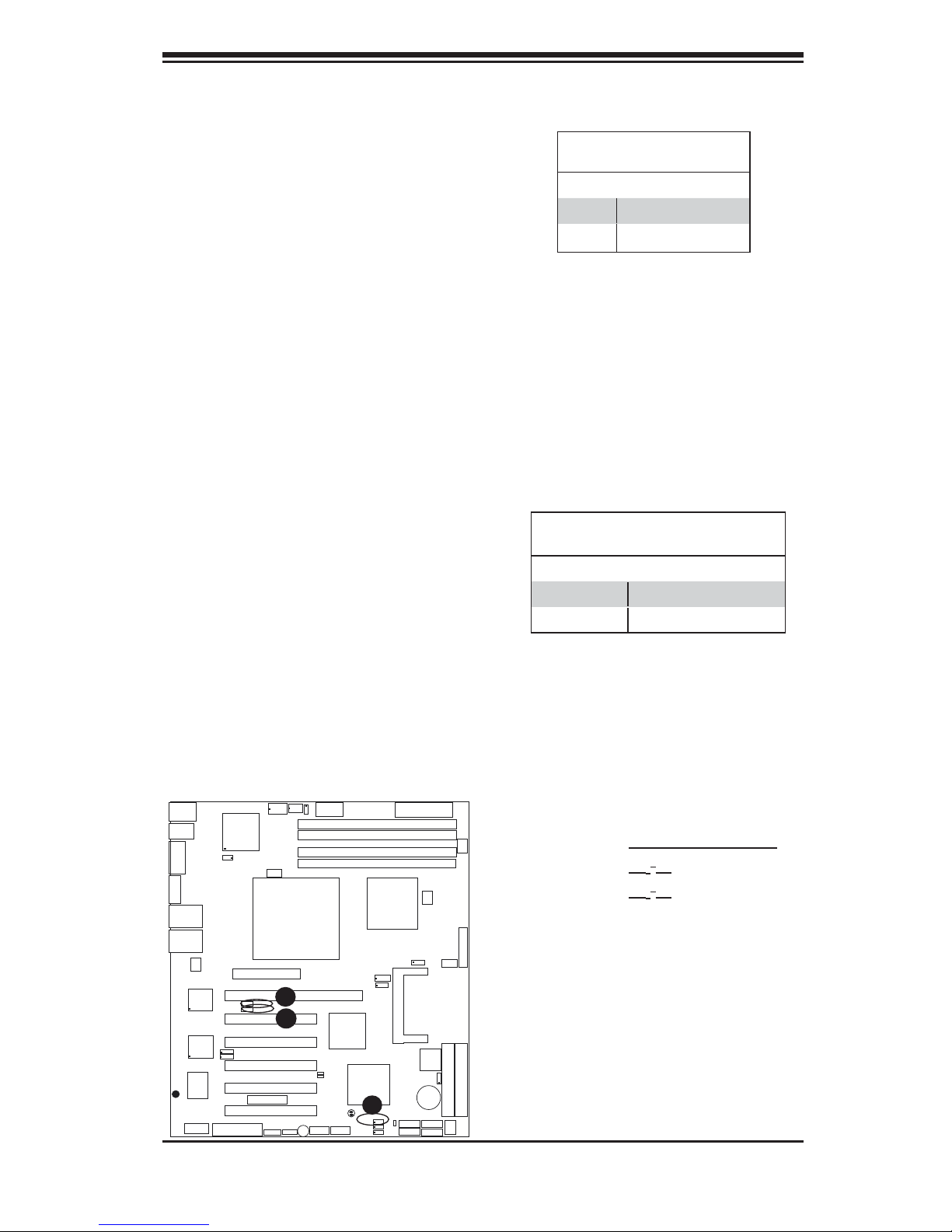

Overheat/FanFail LED

Connect an LED cable to the OH/Fan

Fail connection on pins 7 and 8 of

JF1 to provide an advanced warning

of chassis overheating or system fan

failure. Refer to the table on the right

for pin deﬁ nitions.

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin deﬁ nitions.

OH/Fan Fail Indicator

Status

State Deﬁ nition

Off Normal

On Overheat

Flash-

Fan Fail

ing

Reset Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

3 Reset

4 Ground

OH/Fan Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

7 Vcc

8 Ground

A. OH/Fan Fail LED

B. Reset LED

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR

JL1

-Pin AT

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

Fan1

FP CTRL

OH/Fan Fail LED

Primary IDE

2-11

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

Ground

1920

NMI

Vcc

Reset

Reset Button

Power Butto

PWR

Page 30

PDSMA+ User's Manual

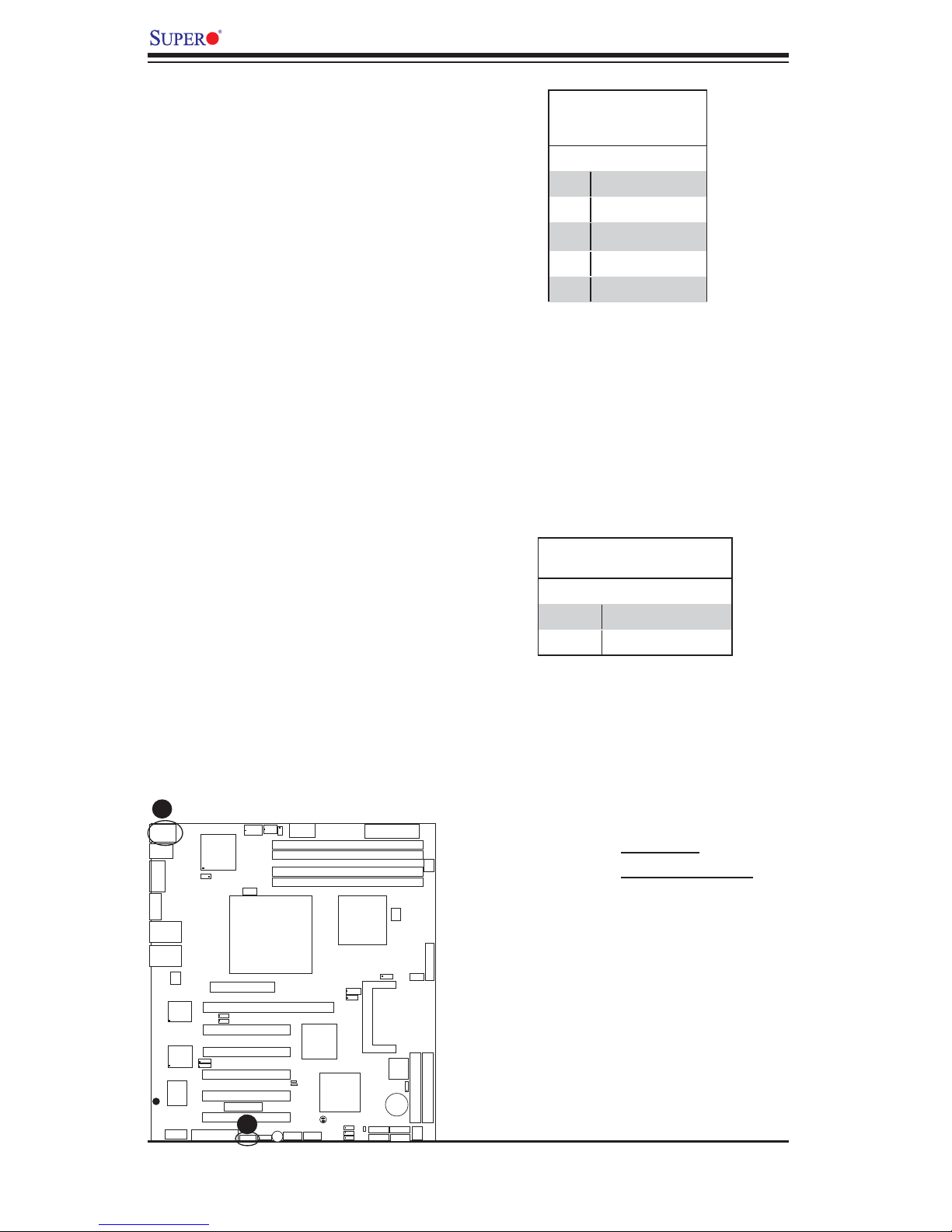

Power Button

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be conﬁ gured to function

as a suspend button (with a setting

in BIOS - see Chapter 4). To turn

off the power when set to suspend

mode, press the button for at least 4

seconds. Refer to the table on the

right for pin deﬁ nitions.

Power Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition

1 Signal

2 +3V Standby

KB/MS

USB 1/2

COM1

VGA

JLAN1

JLAN2

UPER PDSMA+

JPG1

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

JBT1

USB3/4

8-pin PWR

PXH-V

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

ICH7R

South Bridge

JP3 JWOR JL1

JWD

JPF

LE1

-Pin AT

JLED

IPMI 2.0

SATA0 SATA1

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

2-12

Fan1

FP CTRL

Primary IDE

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Ground

A. PWR Button

1920

NMI

Vcc

Reset

Reset Button

Power Butto

PWR

Page 31

Chapter 2: Installation

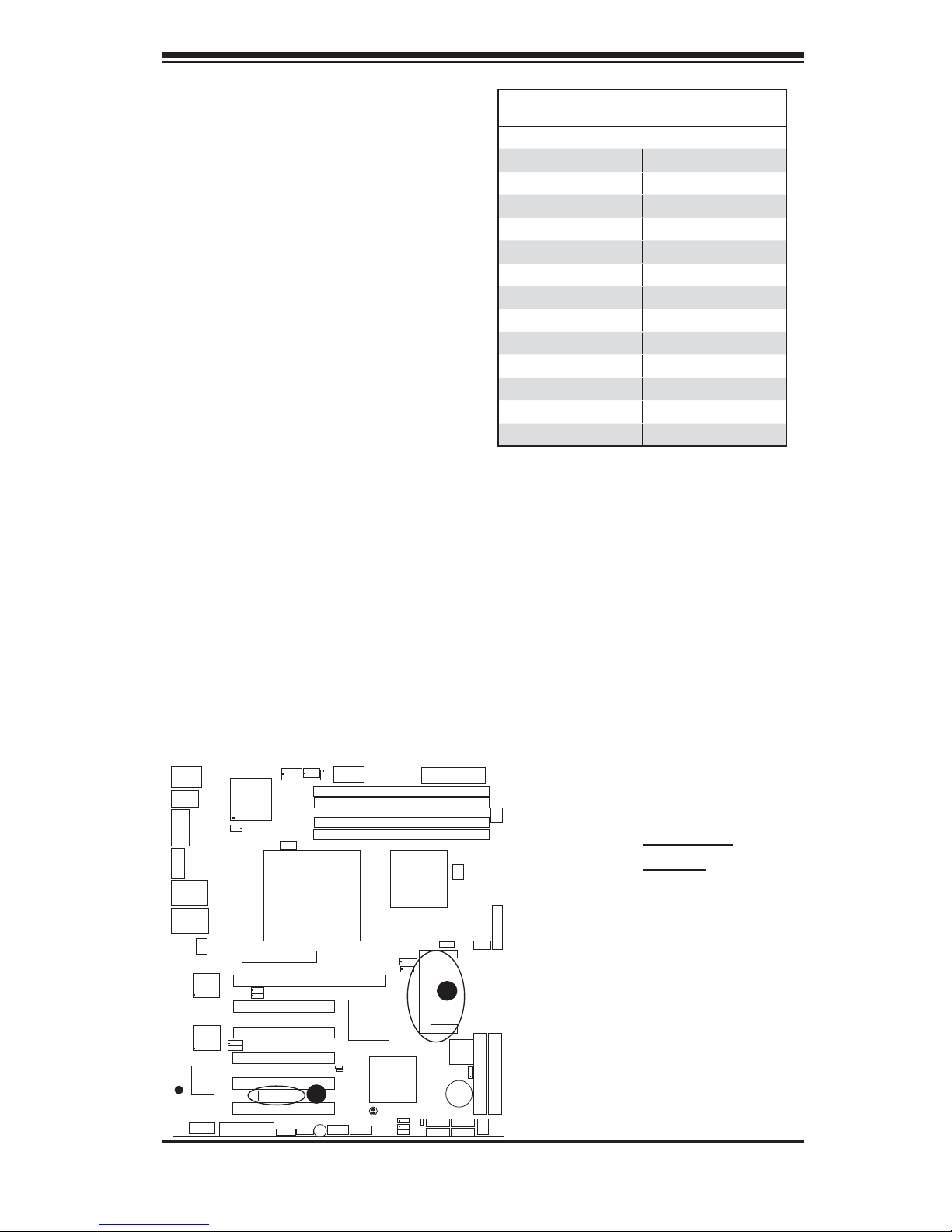

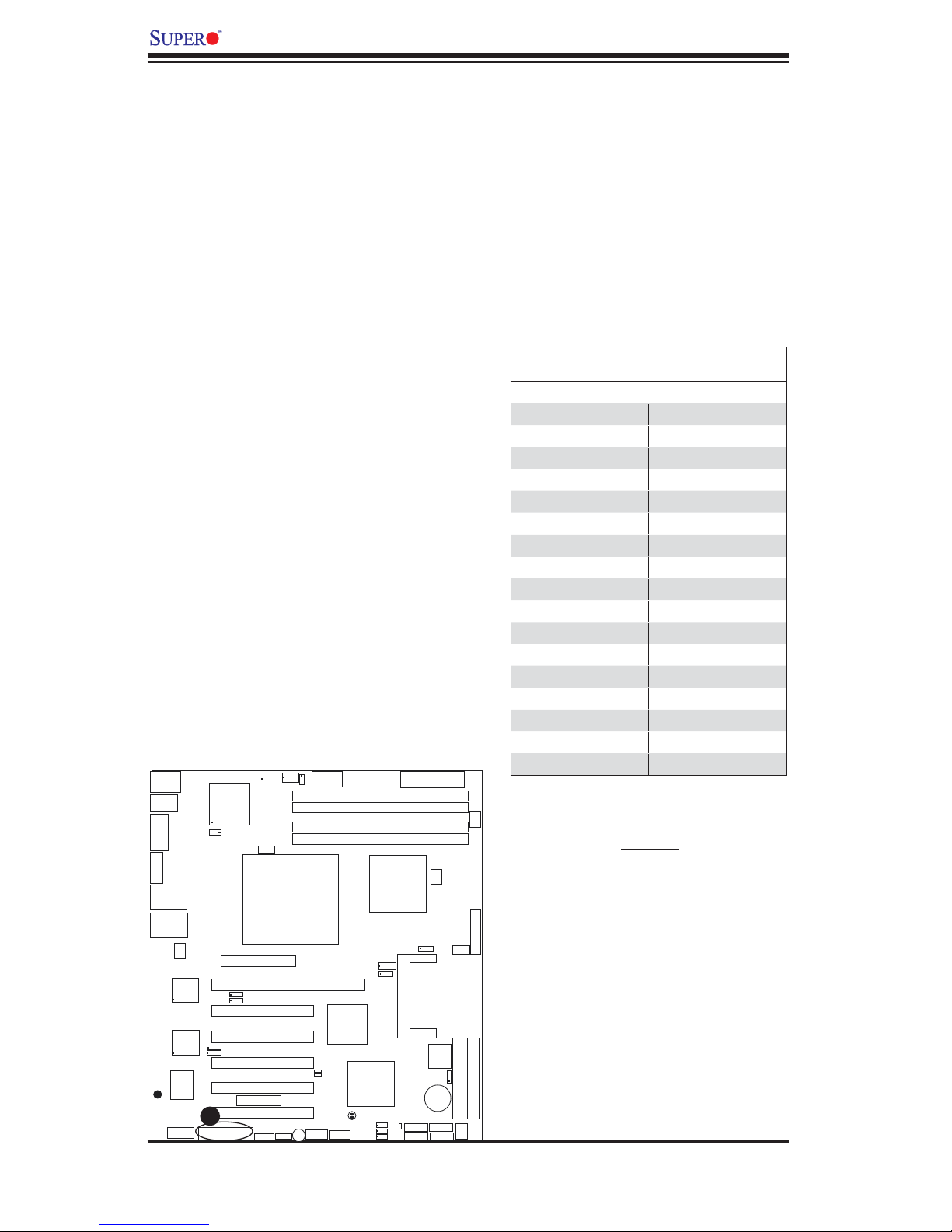

2-6 Connecting Cables

ATX Power Connector

The main power supply connector

(JPW1) on the PDSMA+ meets the

SSI (Superset ATX) speciﬁ cation. You

can only use a 24-pin power supply

cable on the motherboard. Make sure

that the orientation of the connector is

correct. You must also use the 8-pin

(JPW2) processor power connector

for adequate power supply to the

system (*See below.) See the table

on the right for pin deﬁ nitions.

Processor Power Connector

In addition to the Primary ATX power

connector (above), the 12V 8-pin

Processor power connector at JPW2

must also be connected to your power

supply to provide adequate power

supply to the system.

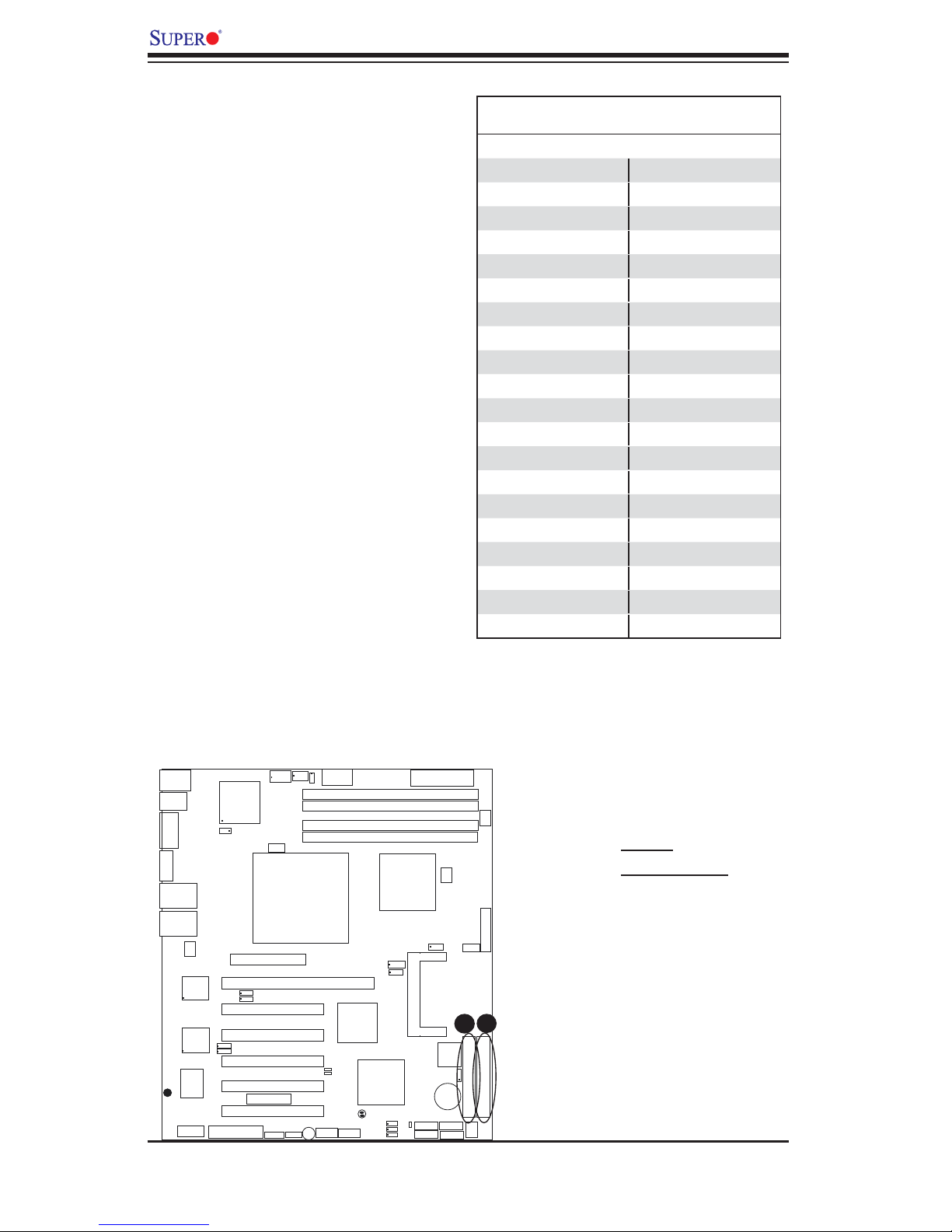

ATX Power 24-pin Connector

Pin Deﬁ nitions

Pin# Deﬁ nition Pin # Deﬁ nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

Secondary Power

Connector

Pin Deﬁ nitions

Pins Deﬁ nition

1 through 4 Ground

5 through 8 +12V

KB/MS

USB 1/2

COM1

VGA

JLAN1

JLAN2

JPG1

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1

JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

24-

Pin A

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

X PWR

Fan2

BIOS

Battery

SATA2 SATA3

2-13

Fan1

RL CT

P F

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

A. 24-Pin ATX PWR

B. 8-Pin 12V PWR

Page 32

PDSMA+ User's Manual

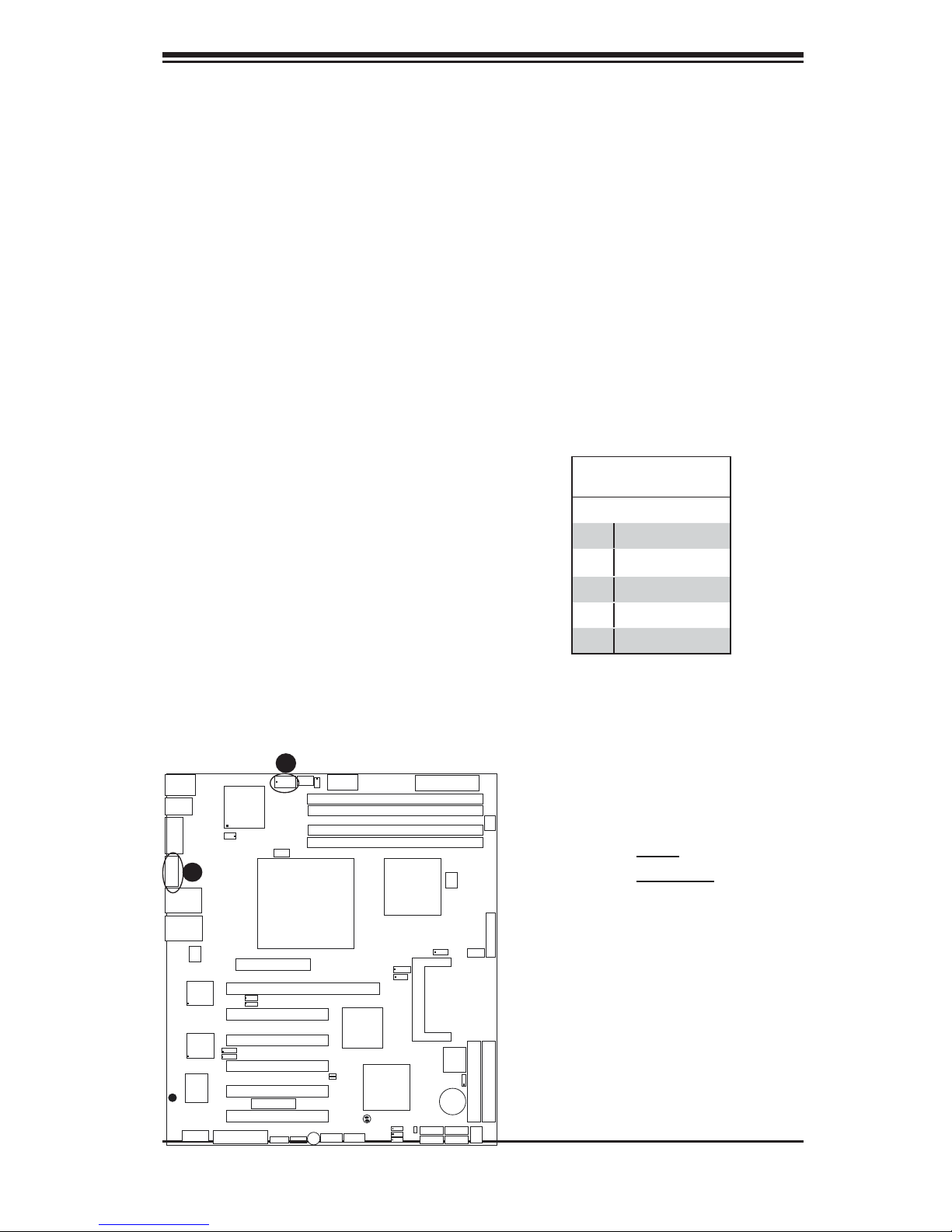

Serial Ports

Two serial headers: COM1 (J31),

COM2 are included on the mother-

board. COM1 (J31) is a port located

next to VGA port. See the table on the

right for pin deﬁ nitions.

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

Serial Port Pin Deﬁ nitions

(COM1/COM2)

Pin # Deﬁ nition Pin # Deﬁ nition

1 CD 6 DSR

2RD 7RTS

3TD 8CTS

4DTR 9 RI

5 Ground 10 NC

Note: Pin 10 is included on the header but not on

the port. NC indicates no connection.

Chassis Intrusion

Pin Deﬁ nitions (JL1)

Pin# Deﬁ nition

1 Intrusion Input

2 Ground

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

24-Pin ATX PWR

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

2-14

A. COM1

B. COM2

C. Chassis Intrusion

Page 33

Chapter 2: Installation

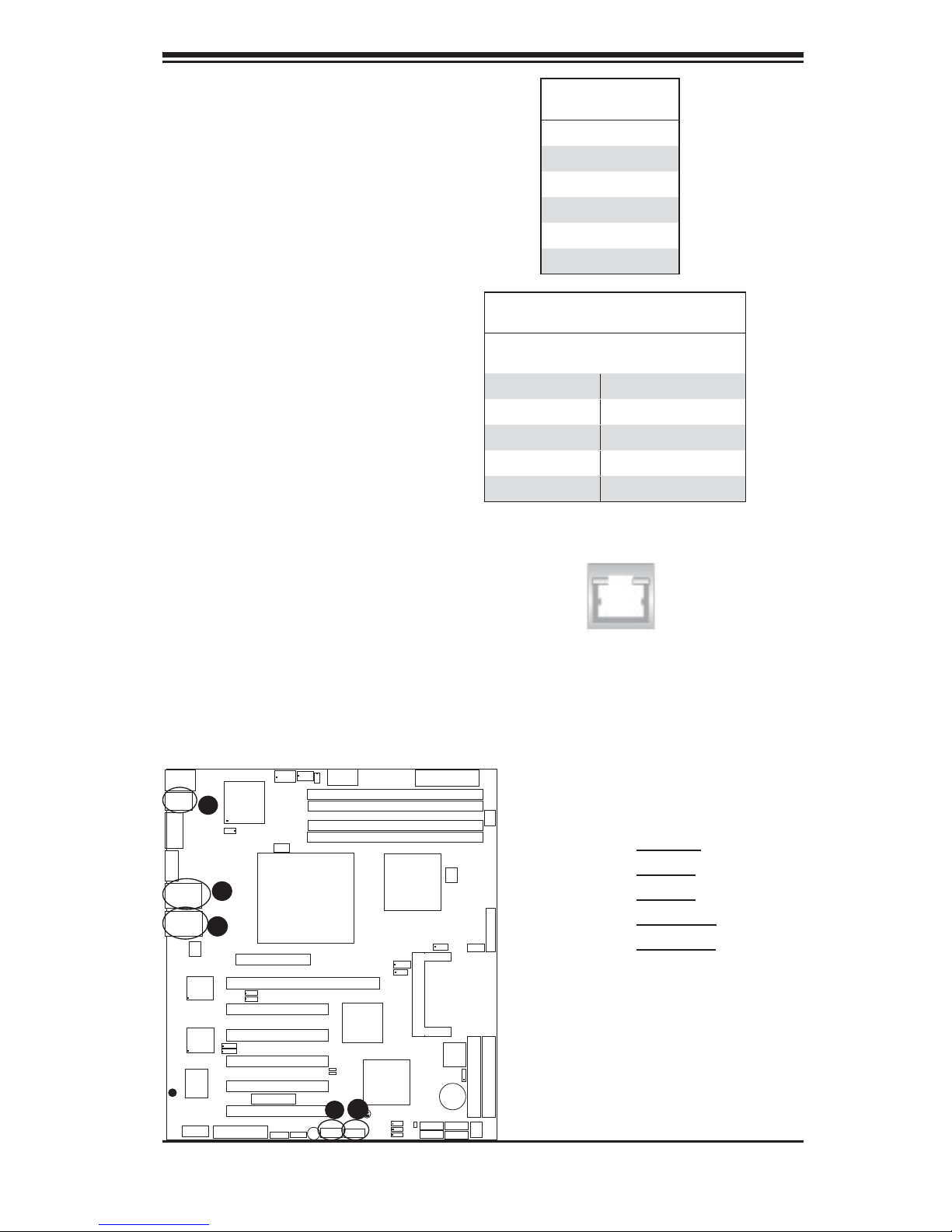

Universal Serial Bus (USB)

Two Universal Serial Bus ports (USB

1/2) are located at (J15) on the I/O

back panel. Additional four USB ports

(USB 3/4, USB 5/6) located are at

J46 and J45 on the motherboard.

These ports can be used to provide

front side chassis access (cables not

included). See the tables on the right

for pin deﬁ nitions.

Back Panel USB

(USB 1/2)

Pin# Deﬁ nitions

1 +5V

2PO-

3PO+

4 Ground

5N/A

Front Panel USB

Pin Deﬁ nitions (USB 3/4/5/6)

USB 3/5 Pin # Deﬁ nition

USB 4/6 Pin # Deﬁ nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 Key 5 No connection

GLAN (Giga-bit Ethernet Ports)

Two G-bit Ethernet ports (GLAN) are

located next to the VGA port on the

IO backplane. This port accepts RJ45

type cables.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

Intel 3000

North Bridge

JWD

JPF

24-Pin ATX PWR

Fan2

JLED

IPMI 2.0

BIOS

Battery

SATA0

SATA2

LE1

SATA3

SATA1

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

A. USB 1/2

B. GLAN1

C. GLAN2

D. FP USB3/4

E. FP USB5/6

2-15

Page 34

PDSMA+ User's Manual

ATX PS/2 Keyboard and PS/2 Mouse Ports

The ATX PS/2 keyboard and PS/2

mouse are located next to the Back

Panel USB ports on the motherboard.

See the table at right for pin deﬁ ni-

tions. (Note: NC=No connection.)

Speaker Connector

PS/2 Keyboard and

Mouse Port Pin

Deﬁ nitions

Pin# Deﬁ nition

1 Data

2NC

3 Ground

4 VCC

5Clock

Speaker Connector (J9)

The speaker connector, located at

J9, allows you to choose using the

internal or an external speaker. For

the internal speaker, short pins 3 and

4. To use an external speaker, place a

speaker cable header on all four pins.

See the table on the right.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

(CPUFan)

Fan6

CPU

LGA 775

SPKR

WOL

8-pin PWR

JPR1

PXH-V

LE3 LE4

JBT1

USB3/4

USB5/6

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

ICH7R

South Bridge

JP3 JWOR JL1

JWD

JPF

24-Pin ATX

JLED

IPMI 2.0

SATA0

LE1

SATA1

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan1

RL CT

P F

Primary IDE

Fan4

Pin Setting Deﬁ nition

Pins 3-4 Internal Speaker

Pins 1-4 External Speaker

A. KB/Mouse

B. Speaker Connector

2-16

Page 35

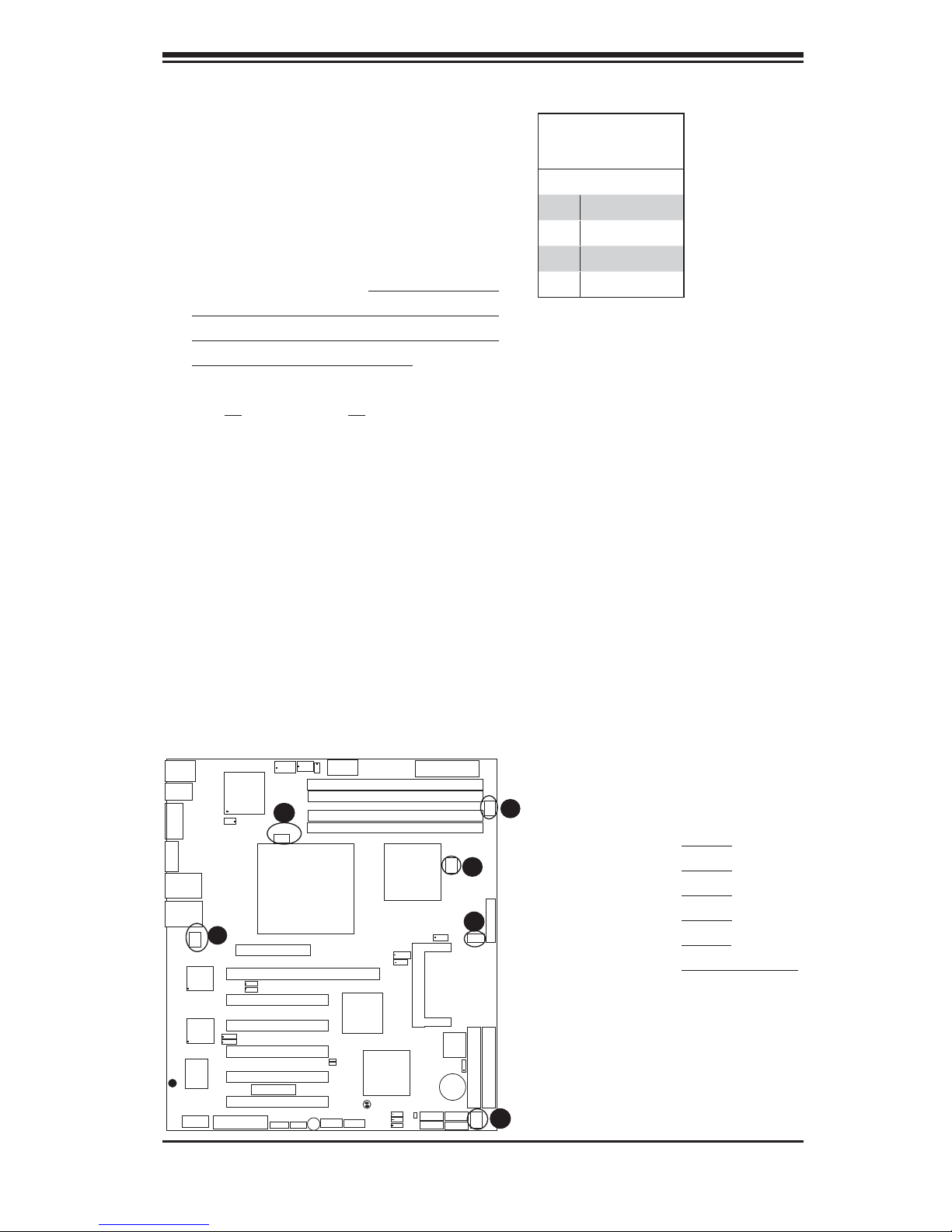

Fan Headers

The PDSMA+ has six fan headers (Fan1

to Fan6). Fan6 is designated as the CPU

Cooling Fan. (*Note: all these fans are

4-pin fans. However, Pins 1-3 of the fan

headers are backward compatible with the

traditional 3-pin fans.) See the table on the

right for pin deﬁ nitions. *The onboard fan

speeds are controlled by the Fan Speed

Mode (Thermal Management) in the BIOS

Hardware Monitoring Section. When us-

ing Thermal Management settings, please

use all 3-pin fans or all 4-pin fans on the

motherboard. Please do not use 3-pin

fans and 4-pin fans on the same board.

The default setting is "Disabled" which

will allow the onboard fans to run at the

full speed.)

Chapter 2: Installation

Fan Header

Pin Deﬁ nitions

(Fan1-5)

Pin# Deﬁ nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM_Control

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

24-Pin ATX PWR

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

2-17

A. Fan 1

B. Fan 2

C. Fan 3

D. Fan 4

E. Fan 5

F. Fan 6 (CPU Fan)

Page 36

PDSMA+ User's Manual

Wake-On-Ring

The Wake-On-Ring header is located

at JWOR. This function allows your

computer to be "awakened" by an

incoming call to the modem when in

the suspend state. See the table on

the right for pin deﬁ nitions. You must

have a Wake-On-Ring card and a

cable to use this feature.

Wake-On-LAN

The Wake-On-LAN header is located

at WOL. See the table on the right for

pin deﬁ nitions. You must enable the

LAN Wake-Up function in the BIOS

and also have a LAN card with a

Wake-on-LAN connector and a cable

to use this feature.

Wake-On-Ring Pin Deﬁ nitions

(JWOR)

Pin# Deﬁ nition

1 Ground (Black)

2 Wake-up

Wake-On-LAN

Pin Deﬁ nitions

(JWOL)

Pin# Deﬁ nition

1 +5V Standby

2 Ground

3 Wake-up

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR

JL1

24-Pin

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

ATX P

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

Fan1

FP CT

Primary IDE

2-18

A. WOR

B. WOL

Page 37

VGA Connector

A VGA connector (JG1) is located next

to COM1 Port on the IO backplane.

Refer to the board layout below for

the location.

Chapter 2: Installation

Power SMB (I2C) Connector

Power SMB (I2C) Connector (PW4)

monitors the status of PWR Supply,

Fan and system temperature. See the

table on the right for pin deﬁ nitions.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

Intel 3000

North Bridge

JWD

JPF

24-Pin ATX PWR

Fan2

JLED

IPMI 2.0

BIOS

Battery

SATA0

SATA2

LE1

SATA3

SATA1

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

PWR SMB

Pin Deﬁ nitions

Pin# Deﬁ nition

1Clock

2 Data

3 PWR Fail

4 Ground

5+3.3V

A. VGA

B. PWR SMB

2-19

Page 38

PDSMA+ User's Manual

Power Fault (PWR Supply Failure)

Connect a cable from your power

supply to the Power Fail (PSF) header

(PW3) to provide a warning of power

supply failure. This warning signal is

passed through the PWR_LED pin

to indicate of a power failure on the

chassis. See the table on the right

for pin deﬁ nitions.

PWR Supply Fail LED

Pin Deﬁ nitions

Pin# Deﬁ nition

1 PWR 1: Fail

2 PWR 2: Fail

3 PWR 3: Fail

4 Signal: Alarm Reset

Note: This feature is only available when using

Supermicro redundant power supplies.

Alarm Reset

If three power supplies are installed

and Alarm Reset (JPR1) is enabled,

the system will notify you when any

of the three power modules fails. Con-

nect JPR1 to a micro-switch to turn

off the alarm that is activated when a

power module fails. See the table on

the right for pin deﬁ nitions.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1

JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

(CPUFan)

Fan6

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

ICH7R

South Bridge

JP3 JWOR JL1

JPF

JWD

LE1

-Pin

JLED

IPMI 2.0

SATA0 SATA1

Battery

SATA2

BIOS

SATA3

PWR

Fan2

Fan3

JWF1

*Compact Flash only

Fan1

Primary IDE

Fan4

Alarm Reset

Pin Setting Deﬁ nition

Pin 1 Ground

Pin 2 +5V

A. Power Fault

B. Alarm Reset

FP CTRL

2-20

Page 39

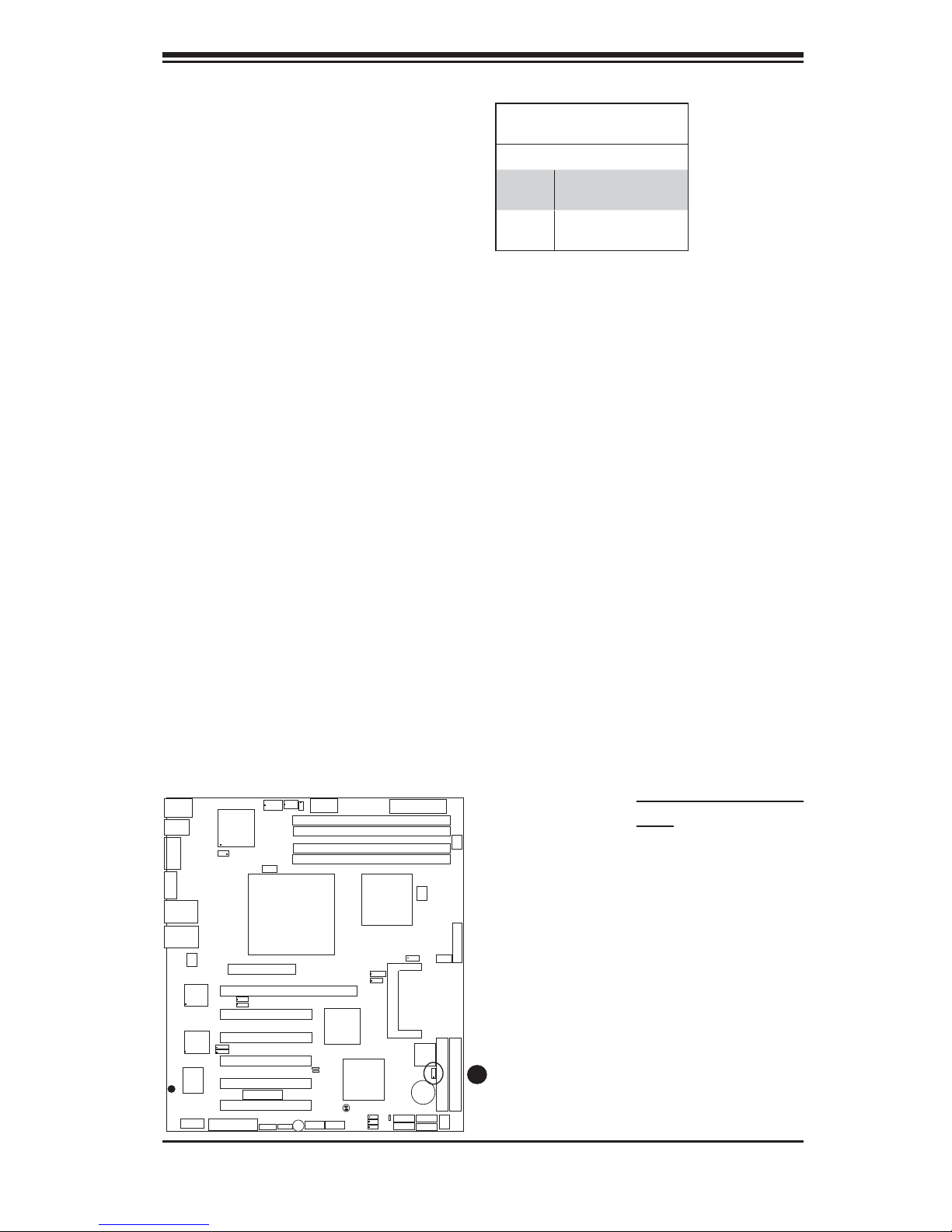

Compact Flash Card PWR Connector

A Compact Flash Card Power

Connector is located at JWF1. Please

connect the Compact Flash Card

power cable to JWF1 and enable

Compact Flash Card Jumper located

at JP3 before using Compact Flash

Card. Refer to the board layout below

for the location.

Chapter 2: Installation

Compact Flash Card PWR

Connector

Jumper Deﬁ nition

On Compact Flash

Power On

Off Compact Flash

Power Off

KB/MS

USB 1/2

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

JPG1

Floppy

VGA

CTRL

(CPUFan)

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

JPR1

Fan6

CPU

LGA 775

LE3 LE4

SPKR

USB5/6

WOL

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

-Pin

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2

SATA3

PWR

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

Fan1

FP CTRL

Primary IDE

2-21

A. Compact Flash Card

Power

Page 40

PDSMA+ User's Manual

2-7 Jumper Settings

Explanation of Jumpers

To modify the operation of the

motherboard, jumpers can be used

to choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identified with

a square solder pad on the printed

circuit board. See the motherboard

layout pages for jumper locations.

Note: On two pin jumpers, "Closed"

means the jumper is on and "Open"

means the jumper is off the pins.

GLAN Enable/Disable

JPL1 and JPL2 enable or disable

GLAN 1 Port and GLAN 2 Port on the

motherboard. See the table on the

right for jumper settings. The default

setting is enabled.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

Intel 3000

North Bridge

JWD

JPF

24-Pin ATX PWR

Fan2

JLED

IPMI 2.0

BIOS

Battery

SATA0

SATA2

LE1

SATA3

SATA1

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

GLAN 1/2 Enable

Jumper Settings

Jumper Setting Deﬁ nition

1-2 Enabled

2-3 Disabled

A. GLAN1 Enable

B. GLAN2 Enable

2-22

Page 41

CMOS Clear

JBT1 is used to clear CMOS. Instead

of pins, this "jumper" consists of contact

pads to prevent accidental clearing of

CMOS. To clear CMOS, use a metal ob-

ject such as a small screwdriver to touch

both pads at the same time to short the

connection. Always remove the AC power

cord from the system before clearing

CMOS.

Note: For an ATX power supply, you must

completely shut down the system, remove

the AC power cord and then short JBT1

to clear CMOS. Do not use the PW_ON

connector to clear CMOS.

Chapter 2: Installation

VGA Enable/Disable

JPG1 enables or disables the VGA Con-

nector on the motherboard. See the table

on the right for jumper settings. The

default setting is enabled.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

ICH7R

South Bridge

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

JWD

JPF

JP3 JWOR JL1

24-Pin ATX PWR

JLED

IPMI 2.0

SATA0

LE1

SATA1

BIOS

Battery

SATA2 SATA3

Fan2

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

VGA Enable/Disable

Jumper Settings

Jumper Setting Deﬁ nition

Pins 1-2 Enabled

Pins 2-3 Disabled

A. Clear CMOS

B. VGA Enabled

2-23

Page 42

PDSMA+ User's Manual

Watch Dog Enable

JWD controls Watch Dog, a system

monitor that takes action when a soft-

ware application hangs. Close Pins

1-2 to reset the system if a program

hangs. Close Pins 2-3 to generate a

non-maskable interrupt for the program

that hangs. (This function requires soft-

ware support.). Watch Dog must also

be enabled in BIOS.

Power Force On Enable/ Disable

Jumper JPF allows you to enable or

disable the Power Force On function. If

enabled, the power will always stay on

automatically. If this function is disabled

(the normal setting), the user needs to

press the power button to power on

the system.

Watch Dog

Jumper Settings (JWD)

Jumper Setting Deﬁ nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

Power Force On

Enable/Disable

Jumper Settings (JPF)

Jumper Setting Deﬁ nition

Open Normal

Closed Force On

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

-Pin AT

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

Fan1

TRL C P F

Primary IDE

2-24

A. Watch Dog Enable

B. Power Force On

Page 43

Compact Flash Master/Slave Select

A Compact Flash Master (Primary)/

Slave (Secondary) Select Jumper is

located at JP3. Close this jumper to

enable Compact Flash Card. For the

Compact Flash Card to work properly,

you will need to connect the Compact

Flash Card power cable to JWF1 and

close this jumper to enable it first.

Refer to the board layout below for the

location.

Chapter 2: Installation

Compact Flash Card Master/

Slave Select

Jumper Deﬁ nition

Open Slave (Secondary)

Closed Master (Primary)

I2C Bus to PCI-X/PCI-Exp. Slots

Jumpers JI2C1 and JI2C1 allow you to

connect

(I2C) to PCI-X/PCI-E slots. The default

setting is "Open" to disable the con-

nection. See the table on the right for

jumper settings.

KB/MS

USB 1/2

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

the System Management Bus

JPG1

VGA

CTRL

Floppy

JPL1 JPL2

(CPUFan)

Fan6

CPU

LGA 775

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

JPF

ICH7R

South Bridge

JP3 JWOR JL1

JWD

LE1

SATA0 SATA1

IPMI 2.0

Pin A

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan3

JWF1

Fan1

FP CTRL

Primary IDE

*Compact Flash only

Fan4

I2C to PCI-S/PCI/Exp

Jumper Settings

Jumper Setting Deﬁ nition

Closed Enabled

Open Disabled (Default)

A. Compact Flash Select

B. I2C1

2-25

Page 44

PDSMA+ User's Manual

2-8 Onboard Indicators

GLAN LEDs

There are two GLAN ports on the mother-

board. Each Gigabit Ethernet LAN port has

two LEDs. The yellow LED indicates activity,

while the other LED may be green, amber

or off to indicate the speed of the connec-

tion. See the table at right for the functions

associated with the second LED.

Onboard Power LED

There is an Onboard Power LED (LE1) lo-

cated on the motherboard. When LE1 is off,

the system is off. When the green light is on,

the system is on. When the yellow light is on,

the system is off, but the AC power cable is

still connected. Make sure to disconnect the

power cable before removing or installing

components. See the layout below for the

LED location.

Activity LEDLink LED

(Rear View: When viewing it from the

rear side of the system)

GLAN Activity LED

Activity Indicator

LED Color Deﬁ nition

Yellow Flashing: LAN Port Active

GLAN Link LED

Connection Speed Indicator

LED Color Deﬁ nition

Off 10Mbps or No Connection

Green 100 Mbps

Amber 1 Gbps

Onboard PWR LED Indicator (LE1)

LED Color Deﬁ nition

Off System Off

Green System On

Yellow System off, PWR Cable

Connected

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

Floppy

VGA

CTRL

(CPUFan)

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Fan6

PW4

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

24-Pin ATX PWR

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

2-26

A. GLAN1 Port

B. GLAN2 Port

C. Onboard Power LED

Page 45

Chapter 2: Installation

BIOS POST Code LEDs

There are two POST (Power-On Self

Test) Code LEDs (LE3, LE4) located on

the motherboard. The green LED is LE3,

and the yellow LED is LE4. These LEDs

indicate POST activities during system

bootup. Refer to the table on the right for

details. Also see the layout below for the

LED locations.

POST LED Indicators (LE3/LE4)

LE3 LE4

Green Yellow

POST On On

Memory Initial. Blinking Blinking

PCI Initialization On Blinking

Video Initial. Blinking On

POST Com-

Off Off

pleted

KB/MS

USB 1/2

COM1

VGA

JLAN1

JLAN2

JPG1

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

(CPUFan)

Fan6

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

-Pin

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

Battery

2-27

Fan2

BIOS

SATA2 SATA3

PWR

JWF1

Fan1

RL T

P C F

Fan3

Primary IDE

*Compact Flash only

Fan4

A. LE3

B. LE4

Page 46

PDSMA+ User's Manual

2-9 Floppy, Hard Disk Drive, IPMI and Printer Connections

Note the following when connecting the ﬂ oppy and hard disk drive cables:

• The ﬂ oppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single ﬂ oppy disk drive ribbon cable has two connectors to provide for two

ﬂ oppy disk drives. The connector with twisted wires always connects to drive

A, and the connector that does not have twisted wires always connects to drive

Floppy Drive Connector

Floppy Connector

The ﬂ oppy connector is located

between the IDE connectors and

the printer. See the table below

for pin deﬁ nitions.

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Floppy

PW4

(CPUFan)

Fan6

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR JL1

24-Pin ATX PWR

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

Pin# Deﬁ nition Pin # Deﬁ nition

1 Ground 2 FDHDIN

3 Ground 4 Reserved

5 Key 6 FDEDIN

7 Ground 8 Index

9 Ground 10 Motor Enable

11 Ground 12 Drive Select B

13 Ground 14 Drive Select B

15 Ground 16 Motor Enable

17 Ground 18 DIR

19 Ground 20 STEP

21 Ground 22 Write Data

23 Ground 24 Write Gate

25 Ground 26 Track 00

27 Ground 28 Write Protect

29 Ground 30 Read Data

31 Ground 32 Side 1 Select

33 Ground 34 Diskette

Pin Deﬁ nitions

A. Floppy

2-28

Page 47

Chapter 2: Installation

Parallel (Printer) Port Connector

The parallel (printer) port is located

on the motherboard. See the table on

the right for pin deﬁ nitions.

IPMI 2.0 Slot

There is an IPMI 2.0 Slot on

the motherboard. Refer to the

layout below for the IPMI Slot

location.

Parallel (Printer) Port Connector

Pin Deﬁ nitions

Pin# Deﬁ nition Pin # Deﬁ nition

1 Strobe- 2 Auto Feed-

3 Data Bit 0 4 Error-

5 Data Bit 1 6 Init-

7 Data Bit 2 8 SLCT IN-

9 Data Bit 3 10 GND

11 Data Bit 4 12 GND

13 Data Bit 5 14 GND

15 Data Bit 6 16 GND

17 Data Bit 7 18 GND

19 ACK 20 GND

21 BUSY 22 Write Data

23 PE 24 Write Gate

25 SLCT 26 NC

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

Floppy

VGA

CTRL

(CPUFan)

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

JPL1 JPL2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

Fan6

PW4

PW3

CPU

LGA 775

SPKR

WOL

JPR1

USB5/6

LE3 LE4

8-pin PWR

PXH-V

JBT1

USB3/4

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

Intel 3000

North Bridge

JWD

JPF

ICH7R

South Bridge

JP3 JWOR

JL1

4-Pin AT

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

X PW

Fan2

Fan3

JWF1

*Compact Flash only

Fan4

2-29

Fan1

A. Parallel Port

B. IPMI 2.0

FP CTRL

Primary IDE

Page 48

PDSMA+ User's Manual

IDE Connectors

There are two IDE Connectors (J3:

Blue, J4: White) on the motherboard.

The blue IDE connector (J3) is desig-

nated as the Primary IDE Drive. The

white IDE connector (J4) is designated

as the Secondary IDE Drive, reserved

for Compact Flash Card use only. (See

the note below.) See the table on the

right for pin deﬁ nitions.

Note: J4 (the white slot) is reserved for

Compact Flash Card only. Do not use

it for other devices. If J4 is populated

with a Compact Flash Card, J3 (the blue

slot) will be available for one device

only. For the Compact Flash Card to

work properly, you will need to connect

a power cable to JWF1 ﬁ rst.

IDE Drive Connectors

Pin Deﬁ nitions (IDE)

Pin# Deﬁ nition Pin # Deﬁ nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

KB/MS

USB 1/2

JPG1

COM1

VGA

JLAN1

JLAN2

Fan5

LAN1

CTRL

LAN2

CTRL

S I/O

UPER PDSMA+

COM2

VGA

CTRL

JPL1 JPL2

Floppy

PW3

(CPUFan)

Fan6

CPU

LGA 775

PCI-Exp. x8

PCI-X 64-bit 133 MHz

JI2C1 JI2C2

PCI 32-bit 33 MHz

Printer

PCI 32-bit 33 MHz

SPKR

WOL

USB5/6

JPR1

LE3 LE4

PXH-V

JBT1

USB3/4

8-pin PWR

DIMM 2B

DIMM 1B

DIMM 2A

DIMM 1A

ICH7R

South Bridge

JP3 JWOR

JL1

24-Pin ATX PWR

Intel 3000

North Bridge

JWD

JPF

IPMI 2.0

SATA0

LE1

SATA1

JLED

BIOS

Battery

SATA2 SATA3

Fan2

2-30

Fan1

CTRL

Fan3

JWF1

Primary IDE

*Compact Flash only

Fan4

A. IDE#1

B. Compact Flash

Page 49

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Make sure the 8-pin 12v power connector at JPW2 is connected.

2. Make sure that there are no short circuits between the motherboard and chas-

sis.

3. Disconnect all ribbon/wire cables from the motherboard, including those for the

keyboard and mouse.

4. Remove all add-on cards.

5. Install a CPU and heatsink (making sure that it is fully seated,) and then, con-

nect the chassis speaker and the power LED to the motherboard. Check all

jumper settings as well.

6. Make sure to use the correct type of CMOS battery as speciﬁ ed by the Manu-

facturer. Do not install the CMOS battery upside down to avoid possible

explosion.

No Power

1. Make sure that there are no short circuits between the motherboard and the

chassis.

2. Make sure that all jumpers are set to their default positions.

3. Check if the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on, but you have no video--in this case, you will need to re-

move all the add-on cards and cables ﬁ rst.

2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A

for details on beep codes.)

3. Remove all memory modules and turn on the system. (If the alarm is on,

check the specs of the memory, re-install the memory or try a different one.)

3-1

Page 50

PDSMA+ User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnostics

card is recommended. For I/O port 80h codes, refer to App. B.

Memory Errors

1. Make sure that the DIMM modules are properly installed and fully seated in

the slots.

2. You should be using unbuffered, ECC/Non-ECC DDR2-677/533 memory (see

the next page). Also, it is recommended that you use the same memory

speed for all DIMMs in the system. See Section 2-4 for memory limitations.

3. Check for bad DIMM modules or slots by swapping modules between slots

and noting the results.

4. Check the power supply voltage 115V/230V switch.

Losing the System’s Setup Conﬁ guration

1. Please be sure to use a high quality power supply. A poor quality power sup-

ply may cause the system to lose the CMOS setup information. Refer to

Section 1-6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not ﬁ x the Setup Conﬁ guration problem, contact your

vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please make sure that you have followed all

the steps listed below. Also, note that as a motherboard manufacturer, Supermicro

does not sell directly to end-users, so it is best to ﬁ rst check with your distributor or

reseller for troubleshooting services. They should know of any possible problem(s)

with the speciﬁ c system conﬁ guration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked Ques-

tion' (FAQ) sections in this chapter or see the FAQs on our web site (

www.supermicro.com/support/faqs/

2. BIOS upgrades can be downloaded from our web site at

(http://www.supermicro.com/support/bios/).

) before contacting Technical Support.

http://

Note: Not all BIOS can be ﬂ ashed; some can be ﬂ ashed, depending on the

modiﬁ cations to the boot block code.

3-2

Page 51

Chapter 3: Troubleshooting

3. If you've followed the instructions above to troubleshoot your system, and still

cannot resolve the problem, then please contact Supermicro's technical support

and provide them with the following information:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your

system ﬁ rst boots up)

•System conﬁ guration

An example of a Technical Support form is on our web site at

(http://www.supermicro.com/support/contact.cfm).

4. Distributors: For immediate assistance, please have your account number ready

when placing a call to our technical support department. We can be reached

by e-mail at [email protected], by phone at:

(408) 503-8000, option 2, or by fax at (408)503-8019.

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The PDSMA+ supports up to 8 GB of unbuffered, ECC/Non-ECC DDR2-

677/533, two-way interleaved or non-interleaved SDRAM. See Section 2-4 for

details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not

experiencing any problems with your system. Updated BIOS ﬁ les are located on

our web site at

warning message and the information on how to update your BIOS on our web

site. Select your motherboard model and download the BIOS ﬁ le to your computer.

Also, check the current BIOS revision and make sure that it is newer than your

BIOS before downloading. You can choose from the zip ﬁ le and the .exe ﬁ le. If

you choose the zip BIOS ﬁ le, please unzip the BIOS ﬁ le onto a bootable device or

a USB pen. Run the batch ﬁ le using the format ﬂ ash.bat ﬁ lename.rom from your

bootable device or USB pen to ﬂ ash the BIOS. Then, your system will automati-

cally reboot. If you choose the .exe ﬁ le, please run the .exe ﬁ le under Windows to

create the BIOS ﬂ ash ﬂ oppy disk. Insert the ﬂ oppy disk into the system you wish

to ﬂ ash the BIOS. Then, bootup the system to the ﬂ oppy disk. The BIOS utility will

automatically ﬂ ash the BIOS without any prompts. Please note that this process

may take a few minutes to complete. Do not be concerned if the screen is paused

for a few minutes.

http://www.supermicro.com/support/bios/. Please check our BIOS

(

Warning: Do not shut down or reset the system while updating BIOS to

prevent possible system boot failure!)

3-3

Page 52

PDSMA+ User's Manual

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install

the applications you need. Applications on the CD include chipset drivers for Win-

dows, security and audio drivers.

Question: How do I connect the ATA100/66 cable to my IDE device(s)?

Answer: The 80-wire/40-pin high-density ATA100/66 IDE cable that came with

your system has two connectors to support two drives. This special cable must be

used to take advantage of the speed the ATA100/66 technology offers. Connect

the blue connector to the onboard IDE header and the other connector(s) to

your hard drive(s). Consult the documentation that came with your disk drive for

details on actual jumper locations and settings.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor ﬁ rst for any product problems.

3-4

Page 53

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the PDSMA+. The

Phoenix ROM BIOS is stored in a ﬂ ash chip and can be easily upgraded using a

ﬂ oppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of the Supermicro web site <

bios/> for any changes to the BIOS that may not be reﬂ ected in this manual.

Warning: Do not shut down or reset the system while updating the BIOS

to prevent possible boot failure.

http://www.supermicro.com/support/

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and

PS/2

compatible computers. The Phoenix BIOS stores the system parameters,

types of disk drives, video displays, etc. in the CMOS. The CMOS memory requires

very little electrical power. When the computer is turned off, a backup battery pro-

vides power to the CMOS Logic, enabling it to retain system parameters. Each time

when the computer is powered on, the computer is conﬁ gured with the values stored

in the CMOS Logic by the system BIOS, which gains control at boot up.

How To Change the Conﬁ guration Data

The CMOS information that determines the system parameters may be changed by

entering the BIOS Setup utility. This Setup utility can be accessed by pressing the

<Delete> key at the appropriate time during system boot. (See below.)

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory test. As

the memory is being tested, press the <Delete> key to enter the main menu of the

BIOS Setup utility. From the main menu, you can access the other setup screens,

such as the Security and Power menus. Beginning with Section 4-3, detailed de-

scriptions are given for each parameter setting in the Setup utility.

4-1

Page 54

PDSMA+ User's Manual

4-2 Running Setup

*Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing the ap-

propriate text from the main BIOS Setup screen. All displayed text is described in

this section, although the screen display is often all you need to understand how

to set the options (See the next page).

When you ﬁ rst power on the computer, the Phoenix BIOS™ is immediately acti-

vated.

While the BIOS is in control, the Setup program can be activated in one of two

ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears brieﬂ y at the bottom of the screen

during the POST (Power On Self-Test), press the <Delete> key to activate the main

Setup menu:

Press the <Delete> key to enter Setup

4-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup screen

is displayed below.

Use the Up/Down arrow keys to move among the different settings in each menu.

Use the Left/Right arrow keys to change the options for each setting.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in

detail how to navigate through the menus.

Items that use submenus are indicated with the

press the <Enter> key to access the submenu.

icon. With the item highlighted,

4-2

Page 55

Main BIOS Setup Menu

Chapter 4: BIOS

Main Setup Features

System Time

To set the system date and time, key in the correct information in the appropriate

ﬁ elds. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year ﬁ elds, and enter the correct

data. Press the <Enter> key to save the data.

BIOS Date

This ﬁ eld displays the date when this version of BIOS was built.

Legacy Diskette A

This setting allows the user to set the type of ﬂ oppy disk drive installed as diskette A.

The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB,

3.5 in and 2.88MB 3.5 in.

4-3

Page 56

PDSMA+ User's Manual

Parallel ATA

This setting allows the user to enable/disable the function of Parallel ATA and

conﬁ gure Parallel ATA settings. The options are Disabled and Enabled.

Serial ATA

This setting allows the user to enable or disable the function of Serial ATA. The

options are Disabled and Enabled.

Native Mode Operation

This setting allows the user to set the native mode for ATA. The options are: Serial

ATA and Auto.

SATA Controller Mode

Select Compatible to allow the SATA and PATA drives to be automatically detected

and placed in the Legacy Mode. Select Enhanced to allow the SATA and PATA

drives to be automatically detected and placed in the Native IDE Mode. (*Note: The

Enhanced mode is supported by the Windows 2000 OS or a later version.)

When the SATA Controller Mode is set to Enhanced, the following items will

display:

Serial ATA (SATA) RAID Enable

Select Enable to enable Serial ATA RAID Functions. (*For the Windows OS

environment, use the RAID driver if this feature is set to Enabled. When this

item is set to Enabled, the item: "ICH RAID Code Base" will be available for

you to select Intel or Adaptec Host RAID ﬁ rmware to be activated. If this item

is set to Disabled, the item-SATA AHCI Enable will be available.) The options

are Enabled and Disabled.

SATA AHCI (*Available when SATA RAID is Disabled.)

Select Enable to enable the function of Serial ATA Advanced Host Interface.

(*Take caution when using this function. This feature is for advanced programmers

only.) The options are Enabled and Disabled.

(*Warning: Exercise extreme caution when using this function. This

feature is for advanced programmers only.) The options are Enabled

and Disabled.

ICH RAID Code Base (*Available when SATA RAID is Enabled.)

Select Intel to enable Intel's SATA RAID ﬁ rmware. Select Adaptec to use Adaptec's

HostRAID ﬁ rmware. The options are Intel and Adaptec.

4-4

Page 57

Chapter 4: BIOS

 Primary IDE Master/Slave and IDE Secondary Master/Slave

These settings allow the user to set the parameters of Primary IDE Master/Slave

and IDE Secondary Master/Slave slots. Hit <Enter> to activate the following

submenu screen for detailed options of these items. Set the correct conﬁ gurations

accordingly. The items included in the submenu are:

Type

This option allows the user to selects the type of IDE hard drive. The option

Auto will allow the BIOS to automatically configure the parameters of the

HDD installed at the connection. Enter a number between 1 to 39 to select a

predetermined HDD type. Select User to allow the user to enter the parameters

of the HDD installed. Select CDROM if a CDROM drive is installed. Select ATAPI

if a removable disk drive is installed.

Multi-Sector Transfers

This item allows the user to specify the number of sectors per block to be

used in multi-sector transfer. The options are Disabled, 4 Sectors, 8 Sectors,

and 16 Sectors.

LBA Mode Control

This item determines whether the Phoenix BIOS will access the IDE Channel 0

Master Device via the LBA mode. The options are Enabled and Disabled.

32 Bit I/O

This option allows the user to enable or disable the function of 32-bit data transfer.

The options are Enabled and Disabled.

4-5

Page 58

PDSMA+ User's Manual

Transfer Mode

This option allows the user to set the transfer mode. The options are Standard,

Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

Ultra DMA Mode

This option allows the user to select Ultra DMA Mode. The options are Disabled,

Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

System Memory

This display informs you how much system memory is detected in the system.

Extended Memory

This display informs you how much extended memory is detected in the system.

4-4 Advanced Setup

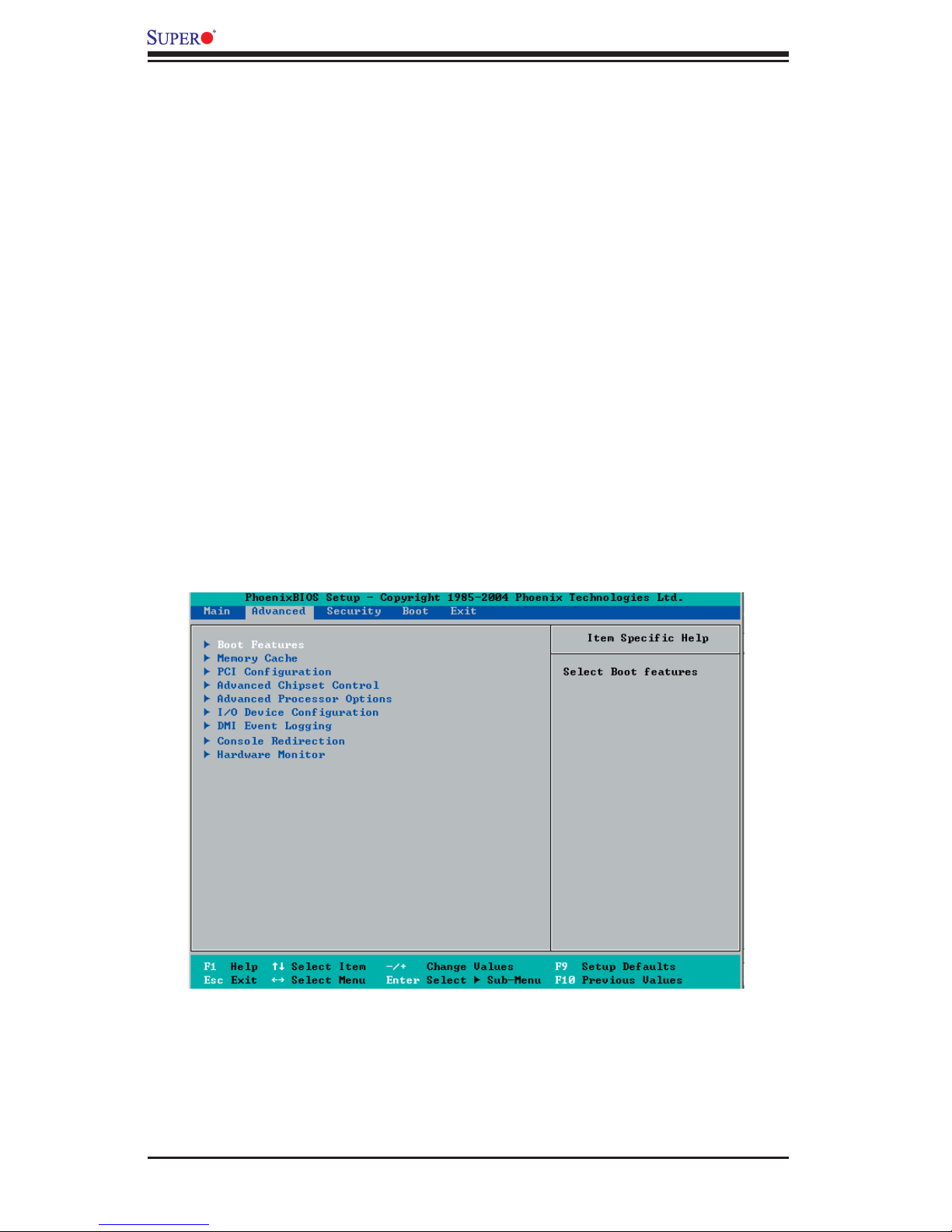

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow

keys. You should see the following display. The items with a triangle beside them

have sub menus that can be accessed by highlighting the item and pressing <Enter>.

Options for PIR settings are displayed by highlighting the setting option using the

arrow keys and pressing <Enter>. All Advanced BIOS Setup options are described

in this section.

Boot Features

Access the submenu to make changes to the following settings.

Quick Boot Mode

Select Enabled to speed up POST (Power On Self Test) routines by skipping

certain tests after bootup. If Disabled, POST routines will run at normal speed.

4-6

Page 59

Chapter 4: BIOS

Quiet Boot

Set to Enabled to display the Diagnostic Screen during POST. The settings are

Enabled and Disabled.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Conﬁ guration

and Power Interface) power management on your system. The options are

Yes and No.

Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user

hits the power button. If set to 4-sec., the system will power off when the user

presses the power button for 4 seconds or longer. The options are instant-off

and 4-sec override.

Resume On Modem Ring

Select On to "wake your system up" when an incoming call is received by your

modem. The options are On and Off.

Resume On PME#

Select On to allow your system be woken up when signals are received by the selected PME# of a PCI slot. The options are On and Off.

Power Loss Control

This setting allows you to choose how the system will react when power returns

after an unexpected loss of power. The options are Last State, Stay off, and

Power On.

Watch Dog

If enabled, this option will automatically reset the system if the system is not

active for more than 5 minutes. The options are Enabled and Disabled.

Summary Screen

This setting allows you to Enable or Disable the summary screen which displays

the system conﬁ guration during bootup.

Memory Cache

Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be used

as a System BIOS buffer to allow the BIOS to write (cache) data into this reserved

memory area. Select Write Protect to enable this function, and this area will be

reserved for BIOS ROM access only. Select Uncached to disable this function and

make this area available for other devices.

4-7

Page 60

PDSMA+ User's Manual

Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be

used as a Video BIOS buffer to allow the BIOS to write (cache) data into this

reserved memory area. Select Write Protect to enable the function and this area

will be reserved for Video BIOS ROM access only. Select Uncached to disable this

function and make this area available for other devices.

Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area: block

0-512K to be cached (written) into a buffer, a storage area in Static DROM (SDROM)

or to be written into L1, L2 cache inside the CPU to speed up CPU operations.

Select Uncached to disable this function. Select Write Through to allow data to be

cached into the buffer and written into the system memory at the same time.

Select Write Protect to prevent data from being written into the base memory

area of Block 0-512K. Select Write Back to allow the CPU to write data back

directly from the buffer without writing data to the System Memory for fast CPU

data processing and operation. The options are Uncached, Write Through, Write

Protect, and Write Back.

Cache Base 512K-640K

If enabled, this feature will allow the data stored in the memory area: 512K-640K

to be cached (written) into a buffer, a storage area in Static DROM (SDROM)

or written into L1, L2, L3 cache inside the CPU to speed up CPU operations.

Select Uncached to disable this function. Select Write Through to allow data to

be cached into the buffer and written into the system memory at the same time.

Select Write Protect to prevent data from being written into the base memory

area of Block 512-640K. Select Write Back to allow the CPU to write data back

directly from the buffer without writing data to the System Memory for fast CPU

data processing and operation. The options are Uncached, Write Through, Write

Protect, and Write Back.

Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area

to be cached (written) into a buffer, a storage area in Static DROM (SDROM)

or written into L1, L2, L3 cache inside the CPU to speed up CPU operations.

Select Uncached to disable this function. Select Write Through to allow data

to be cached into the buffer and written into the system memory at the same

time. Select Write Protect to prevent data from being written into the extended

memory area above 1 MB. Select Write Back to allow the CPU to write data back

directly from the buffer without writing data to the System Memory for fast CPU

data processing and operation. The options are Uncached, Write Through, Write

Protect, and Write Back.

4-8

Page 61

Chapter 4: BIOS

Discrete MTRR Allocation

If enabled, MTRRs (-Memory Type Range Registers) are conﬁ gured as distinct, separate

units and cannot be overlapped. Set to Enabled to enhance graphic performance

when using a Linux graphic driver that requires write-combining conﬁ guration with

4GB or more memory. The options are Enabled and Disabled.

PCI Conﬁ guration

Access the submenu to make changes to the following settings for PCI devices.

Onboard GLAN1/Onboard GLAN2 (Gigabit- LAN) OPROM Conﬁ gure

Enabling this option provides the capability to boot from the GLAN port speciﬁ ed.

The options are Disabled and Enabled.

Reset Conﬁ guration Data

If set to Yes, this setting clears the Extended System Conﬁ guration Data- (ESCD)

area. The options are Yes and No.

Frequency for PCI-X

This option allows the user to change the bus frequency for the devices installed

in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66

MHz, PCI-X 100 MHz and PCI-X 133 MHz.

Slot 1-Slot 5 PCI 32-bit/Slot 6 PCI-X 133 MHz/Slot 7 PCI-E x8

Access the submenu for each of the settings above to make changes to the

following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options

are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI bus master.

The options are Enabled and Disabled.

Latency Timer

This setting allows you to set the clock rate for Bus Master. A high-priority, high-

throughout device may beneﬁ t from a greater clock rate. The options are Default,

0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h. For Unix, Novell and

other Operating Systems, please select the option: other. If a drive fails after

the installation of a new software, you might want to change this setting and try

again. A different OS requires a different Bus Master clock rate.

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options are

DOS or Other (for Unix, Novelle NetWare and other operating systems).

4-9

Page 62

PDSMA+ User's Manual

Advanced Chipset Control

Access the submenu to make changes to the following settings.

*Warning: Take Caution when changing the Advanced settings. Incorrect

values entered may cause system malfunction. Also, a very high DRAM

frequency or incorrect DRAM timing may cause system instability. When this

occurs, revert to the default setting.

Clock Spectrum Feature

If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused

by the components and will attempt to decrease the interference whenever needed.

The options are Enabled and Disabled.

Route Port 80h Cycles to

This feature allows the user to decide which bus to send the debug information to.

The options are PCI, LPC and Disabled.

USB Function

If set to Enabled to enable the USB function when the user keys in a value to a

USB item. The options are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for the Legacy USB devices. The settings

are Enabled and Disabled.

4-10

Page 63

Chapter 4: BIOS

Advanced Processor Options

Access the submenu to make changes to the following settings:

CPU Speed

This is a display that indicates the speed of the installed processor.

Frequency Ratio (*Available when supported by the CPU.)

The feature allows the user to set the internal frequency multiplier for the CPU.

The options are: Default and x12.

Core-Multi-Processing (*Available when supported by the CPU.)

Set to Enabled to use a processor's Second Core and beyond. (Please refer to

Intel's web site for more information.) The options are Disabled and Enabled.

Machine Checking (*Available when supported by the CPU.)

Set to Enabled to use this function which will allow the CPU to detect and report

hardware (machine) errors via a set of model-speciﬁ c registers (MSRs). The options

are Disabled and Enabled.

Enhanced Intel SpeedStep Support (*Available when supported by the

CPU.)

Select Enabled to use the Enhanced Intel SpeedStep Technology and allows the

system to automatically adjust processor voltage and core frequency in an effort

to reduce power consumption and heat dissipation. The options are Enabled and

Disabled. Please refer to Intel’s web site for detailed information.

Thermal Management 2 (*Available when supported by the CPU.)

Set to Enabled to use Thermal Management 2 (TM2) which will lower the CPU

voltage and frequency when the CPU temperature reaches a predeﬁ ned overheat

threshold. Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking

to be regulated via CPU Internal Clock modulation when the CPU temperature

reaches the overheat threshold.

Adjacent Cache Line Prefetch (*Available when supported by the CPU.)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The

CPU fetches both cache lines for 128 bytes as comprised if Enabled. The default

setting is Enabled.

Set Maximum Extended CPUID=3

Select Enabled to set the Maximum Extended CPUID value to 3. The options are

Enabled and Disabled.

Echo TPR

Select Enabled to send TPR (Transport Protocol) messages on the system bus.

The options are Enabled and Disabled.

4-11

Page 64

PDSMA+ User's Manual

C1 Enhanced Mode (*Available when supported by the CPU.)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency to

prevent overheat. The options are Enabled and Disabled. (*Note: please refer

to Intel’s web site for detailed information.)

Intel <R> Virtualization Technology (*Available when supported by the

CPU.)

Select Enabled to use the feature of Virtualization Technology to allow one platform

to run multiple operating systems and applications in independent partitions, creating

multiple "virtual" systems in one physical computer. The options are Enabled and

Disabled. (*Note: If there is any change to this setting, you will need to power off

and restart the system for the change to take effect.) Please refer to Intel’s web

site for detailed information.

No Execute Mode Memory Protection (*Available when supported by

the CPU.)

Set to Enabled to allow the processor to classify areas in memory where an

application code can execute and where it cannot, and thus preventing a worm or

a virus from inserting and creating a ﬂ ood of codes to overwhelm the processor or

damage the system during an attack.

(*Note: this feature is available when your OS and your CPU support the function

of Execute Disable Bit.) The options are Disabled and Enabled. (Note: For more

information regarding hardware/software support for this function, please refer to

Intel's and Microsoft's web sites.)

I/O Device Conﬁ guration

Access the submenu to make changes to the following settings.

KBC Clock Input

This setting allows you to select clock frequency for KBC. The options are 6MHz,

8MHz, 12MHz, and 16MHz.

Serial Port A

This setting allows you to assign control of serial port A. The options are Enabled

(user deﬁ ned), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for serial port A. The

options are 3F8, 2F8, 3E8, and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port A.

The options are IRQ3 and IRQ4.

4-12

Page 65

Chapter 4: BIOS

Serial Port B

This setting allows you to assign control of serial port B. The options are Enabled

(user deﬁ ned), Disabled, Auto (BIOS controlled) and OS Controlled.

Mode

This setting allows you to set the type of device that will be connected to serial

port B. The options are Normal and IR (for an infrared device).

Base I/O Address

This setting allows you to select the base I/O address for serial port B. The

options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port B. The options are IRQ3 and IRQ4.

Parallel Port

This setting allows you to assign control of the Parallel Port. The options are

Enabled (user deﬁ ned), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for the Parallel Port.

The options are 378, 278, and 3BC.

Interrupt

This setting allows you to set the Interrupt for the Parallel Port. The options

are IRQ5 and IRQ7.

Mode

This feature allows the user to set the mode for the Parallel Port. The

options are Output Only, Bi-Directional, EPP, and ECP.

DMA Channel

This feature allows the user to select the DMA Channel for the Parallel Port.

The options are DMA1 and DMA3.

Floppy Disk Controller

This setting allows you to assign control of the ﬂ oppy disk controller. The options

are Enabled (user deﬁ ned), Disabled, and Auto (BIOS and OS controlled).

Base I/O Address

This setting allows you to select the base I/O address for the Floppy port. The

options are Primary and Secondary.

4-13

Page 66

PDSMA+ User's Manual

DMI Event Logging

Access the submenu to make changes to the following settings.

Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Event Logging

This setting allows you to Enable or Disable event logging.

ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes

and No.

4-14

Page 67

Chapter 4: BIOS

Console Redirection

Access the submenu to make changes to the following settings.

COM Port Address

This item allows you to specify which COM port to direct the remote console to:

Onboard COM A or Onboard COM B. This setting can also be Disabled.

BAUD Rate

This item allows you to set the BAUD rate for console redirection. The options

are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K, and 115.2K.

Console Type

This item allows you to set console redirection type. The options are VT100,

VT100,8bit, PC-ANSI, 7bit, PC ANSI, VT100+,

VT-UTF8 and ASCII.

Flow Control

This item allows you to select the ﬂ ow control option for console redirection. The

options are: None, XON/XOFF, and CTS/RTS.

Console Connection

This item allows you to decide how console redirection is to be connected: either

Direct or Via Modem.

Continue CR after POST

This item allows you to decide if you want to continue with console redirection

after the POST routine. The options are On and Off.

4-15

Page 68

PDSMA+ User's Manual

Hardware Monitor Logic

*Note: The Phoenix BIOS will automatically detect the type of CPU(s) and hardware monitoring chip used on the motherboard and will display the Hardware Monitoring Screen accordingly. Your Hardware Monitoring Screen may look like the one shown on this page, or on P. 4-17, depending on the type of CPU(s) and HW Monitoring chip you are using.

CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature

threshold. The options are 75

Highlight this and hit <Enter> to see monitor data for the following items:

CPU Temperature

System Temperature

Fan1-Fan6 Speeds: If the feature of Auto Fan Control is enabled, the BIOS will

automatically display the status of the fans indicated in this item.

C, 80oC, 85oC and 90oC. (See the note below.)

Fan Speed Control Modes

This feature allows the user to decide how the system controls the speeds of the

onboard fans. The CPU temperature and the fan speed are correlative. When the

CPU on-die temperature increases, the fan speed will also increase, and vice versa.

If the option is set to 3-pin fan, the fan speed is controlled by voltage. If the option

is set to 4-pin, the fan speed will be controlled by Pulse Width Modulation (PWM).

Select 3-pin if your chassis came with 3-pin fan headers. Select 4-pin if your chas-

sis came with 4-pin fan headers. Select Workstation if your system is used as a

Workstation. Select Server if your system is used as a Server. Select Disable to

disable fan speed control and allow the onboard fans to constantly run at full speed

(12V). The Options are: 1. Disable, 2. 3-pin (Server), 3. 3-pin (Workstation), 4.

4-pin (Server) and 5. 4-pin (Workstation).

Voltage Monitoring

The following items will be monitored and displayed:

Vcore A, 1.5V, -12V, Vdimm, +3.3V, +12V, 5Vsb, 5VDD, P_VTT, Vbat

*Note: In the Windows OS environment, the Supero Doctor III settings take pre-

cedence over the BIOS settings. When ﬁ rst installed, Supero Doctor III adopts the

temperature threshold settings previously set in the BIOS. Any subsequent changes

to these thresholds must be made within Supero Doctor, since the SD III settings

override the BIOS settings. For the Windows OS to adopt the BIOS temperature

threshold settings, please change the SDIII settings to be the same as those set

in the BIOS.

4-16

Page 69

Chapter 4: BIOS

Hardware Monitor Logic (*See the Note on Page 4-16.)

CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate

the alarm system when the CPU temperature reaches this pre-set temperature

threshold. The hardcode default setting is 75

C. (*See the note below.)

CPU1 Temperature

Temperature Monitoring (*Available if supported by the CPU)

Highlight this and hit <Enter> to see monitor data for the following PECI (Platform

Environment Control Interface) items:

PECI Agent 1 Temperature/PECI Agent 2 Temperature/PECI Agent 3 Temperature/

PECI Agent 4 Temperature

System Temperature

Fan1-Fan5 Speeds: If the feature of Auto Fan Control is enabled, the BIOS will
