User's Guide
Revision 1.0a
AOC-MTGN-i2S
Page 2
User's Guide Revision 1.0a
Release Date: February 24, 2016
Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2016 by Super Micro Computer, Inc. All rights reserved.
Printed in the United States of America
The information in this User's Guide has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this user's guide, or to notify any person or organization of the updates. Please Note: For the most up-to-date version
of this user's guide, please see our Website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this user's guide at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between the manufacturer and the customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.
WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.
Page 3
Preface
About this User's Guide
This user's guide is written for system integrators, IT technicians and
knowledgeable end users. It provides information for the installation and use of the
AOC-MTGN-i2S add-on card.
About this Add-on Card
The Supermicro® Super I/O Modules provide exible I/O networking options, and
the AOC-MTGN-i2S is the most exible and scalable 10GbE SFP+ SIOM controller
for today’s demanding data center environments. Based on the Intel 10GbE network
controller 82599, the AOC-MTGN-i2S addresses the demanding needs of the next
generation data center by providing unmatched features for virtualization, exibility
for LAN and SAN networking.
Please note that this product is sold only as part of an integrated solution with
Supermicro server systems.
An Important Note to the User
All images and layouts shown in this user's guide are based upon the latest PCB
Revision available at the time of publishing. The card you have received may or
may not look exactly the same as the graphics shown in this user's guide.
Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required before
any warranty service will be rendered. You can obtain service by calling your ven-
dor for a Returned Merchandise Authorization (RMA) number. When returning the
motherboard to the manufacturer, the RMA number should be prominently displayed
on the outside of the shipping carton, and the shipping package is mailed prepaid
or hand-carried. Shipping and handling charges will be applied for all orders that
must be mailed when service is complete. For faster service, you can also request
a RMA authorization online (http://www.supermicro.com/RmaForm/).
This warranty only covers normal consumer use and does not cover damages in-
curred in shipping or from failure due to the alternation, misuse, abuse or improper
maintenance of products.
During the warranty period, contact your distributor rst for any product problems.
Preface
iii
Page 4
iv
AOC-MTGN-i2S Add-on Card User's Guide
Conventions Used in the User's Guide
Pay special attention to the following symbols for proper system installation and to
prevent damage to the system or injury to yourself:
Warning: Important information given to ensure proper system installation
or to prevent damage to the components or injury to yourself.
Note: Additional information given to differentiate between various models
or provides information for correct system setup.
Naming Convention
SMC Networking Add-on Cards
Naming Convention for SIOM Network Adapters
A O C – MH IBF – 2 Q G
1 – 2 3 – 6 7 8
Character Representation Options
1st Product Family AOC: Add On Card
2nd Form Factor S: Standard, P: Proprietary, C: MicroLP,
M: Super IO Module (SIOM), MH: SIOM Hybrid
3rd Product Type/Speed G: GbE (1Gb/s), TG: 10GbE (10Gb/s), 25G: 25GbE (25Gb/s),
40G: 40GbE (40Gb/s), 50G: 50GbE (50Gb/s), 100G: 100GbE (100Gb/s), IBE: EDR IB (100Gb/s), IBF: FDR IB (56Gb/s), IBQ: QDR IB (40Gb/s), HFI: Host Fabric Interface
4th C
hipset Model (Optional) N: Niantec (82599), P: Powerville (i350), S: Sageville (X550)
5th Chipset Manufacturer (Optional) i: Intel, m: Mellanox, b: Broadcom
6th Number of Ports 1: 1 port, 2: 2 ports, 4: 4 ports
7th Connector Type (Optional) S: SFP+/SFP28, T: 10GBase-T, Q: QSFP+, C: QSFP28
8th 2
nd
Controller/Connector Type
(Optional)
G: GbE RJ45, S: 10G SFP+, T: 10GBase-T
Model Type Form Factor Controller Connection
Dimension
(w/o Brackets) (L x H)
Power
(W)
SGP-i2 GbE Standard LP Intel® i350 AM2 2 RJ45 (1Gb/port) 3.9” (99mm) x 2.73” (69mm) 3.5
SGP-i4 GbE Standard LP Intel® i350 AM4 4 RJ45 (1Gb/port) 3.9” (99mm) x 2.73” (69mm) 5
STG-b4S 10GbE Standard LP Broadcom® BCM57840S 4 SFP+ (10Gb/port) 5.4” (137mm) x 2.73” (69mm) 14
STG-i2T 10GbE Standard LP Intel® X540-AT2 2 RJ45 (10GBase-T) 5.9” (150mm) x
2.73” (69mm) 13
STGN-i2S 10GbE Standard LP Intel® 82599ES 2 SFP+ (10Gb/port) 4.0” (102mm) x 2.73” (69mm) 11.2
STGN-i1S 10GbE Standard LP Intel® 82598EN 1 SFP+ (10Gb/port) 4.0” (102mm) x 2.73” (69mm) 10
STG-i4S 10GbE Standard LP Intel® XL710-AM1 4 SFP+ (10Gb/port) 5.9” (150mm) x 2.73” (69mm) 8
S40G-i2Q 40GbE Standard LP Intel® XL710 AM2 2 QSFP+ (40Gb/port) 5.9” (150mm) x 2.73” (69mm) 7
PTG-i1S 10GbE Proprietary Intel® 82599EN 1 SF
P+ (10Gb/port) 10.04” (255mm) x .78” (20mm) 7.5
UG-i4 GbE UIO FH Intel® 82571EB 4 RJ45 (1Gb/port) 6.6” (167mm) x 3.9” (98mm) 10
CGP-i2 GbE MicroLP Intel® i350 AM2 2 RJ45 (1Gb/port) 4.45” (113mm) x 1.54” (39mm) 4
CG-i2 GbE MicroLP Intel® 82580 2 RJ45 (1Gb/port) 4.45” (113mm) x 1.3” (34mm) 4
CIBF-m1 FDR IB MicroLP Mellanox® ConnectX-3 1 QSFP (56Gb/port) 4.85" (123mm) x 1.54" (39mm) 7
CIBQ-m1 QDR IB MicroLP Mellanox® ConnectX-3 1 QSFP
(40Gb/port) 4.85" (123mm) x 1.54" (39mm) 7
CTG-i1S 10GbE MicroLP Intel® 82599EN 1 SFP+ (10Gb/port) 4.85" (123mm) x 1.54" (39mm) 10
CTG-i2S 10GbE MicroLP Intel® 82599ES 2 SFP+ (10Gb/port) 4.85" (123mm) x 1.54" (39mm) 11
CTG-i2T 10GbE M icroLP Intel® X540 2 RJ45 (10GBase-T) 4.8” (123mm) x 2.75” (77mm) 13
CTGS-i2T 10GbE MicroLP Intel® X550 2 RJ45 (10GBase-T) 4.45” (113mm) x 1.54” (39mm) 12
MGP-i2 GbE SIOM Intel® i350 AM2 2 RJ45 (1Gb/p
ort) 3.622" (92mm) x 3.428" (87.1mm) 3.7
MGP-i4 GbE SIOM Intel® i350 AM4 4 RJ45 (1Gb/port) 3.622" (92mm) x 3.428" (87.1mm) 4.4
MTGN-i2S 10GbE SIOM Intel® 82599ES 2 SFP+ (10Gb/port) 3.622" (92mm) x 3.428" (87.1mm) 7.2
MTG-i4S 10GbE SIOM Intel® XL710-AM1 4 SFP+ (10Gb/port) 3.622" (92mm) x 3.428" (87.1mm) 7
Networking Adapter List
Page 5
v
Preface
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: [email protected] (General Information)
[email protected] (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacic
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho Dist., New Taipei City 235
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Website: www.supermicro.com.tw
Email: [email protected] (Technical Support)
Tel: +886-(2) 8226-5990 (Technical Support)
Page 6
Table of Contents
Preface
About this User's Guide ................................................................................................ 3
About this Add-on Card ................................................................................................. 3
Returning Merchandise for Service ............................................................................... 3
Conventions Used in the User's Guide ......................................................................... 4
Naming Convention ....................................................................................................... 4
SMC Networking Add-on Cards .................................................................................... 4
Contacting Supermicro .................................................................................................. 5
Chapter 1 Overview
1-1 Overview ......................................................................................................... 1-1
1-2 Key Features ................................................................................................... 1-1
1-3 Specications .................................................................................................. 1-2
Chapter 2 Hardware Components

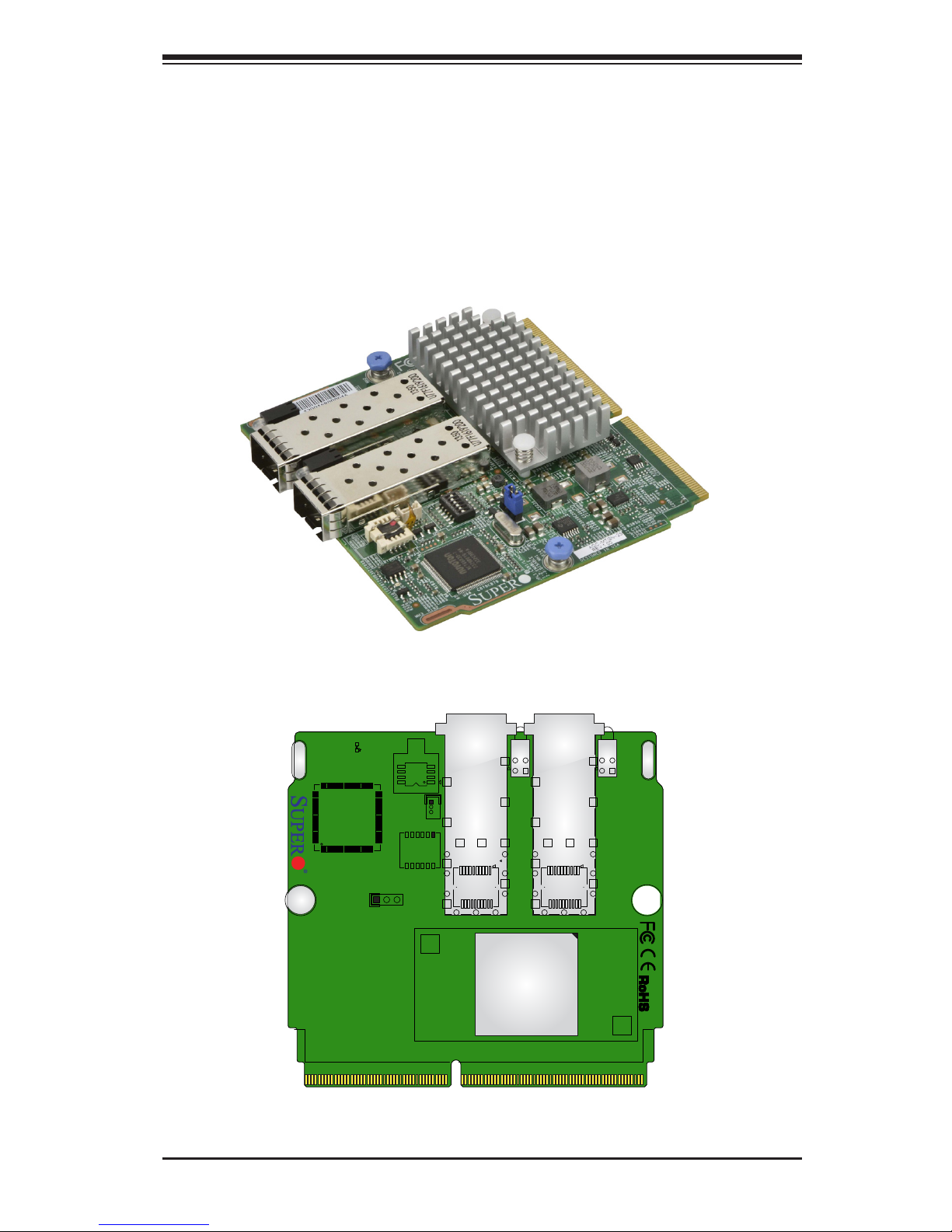

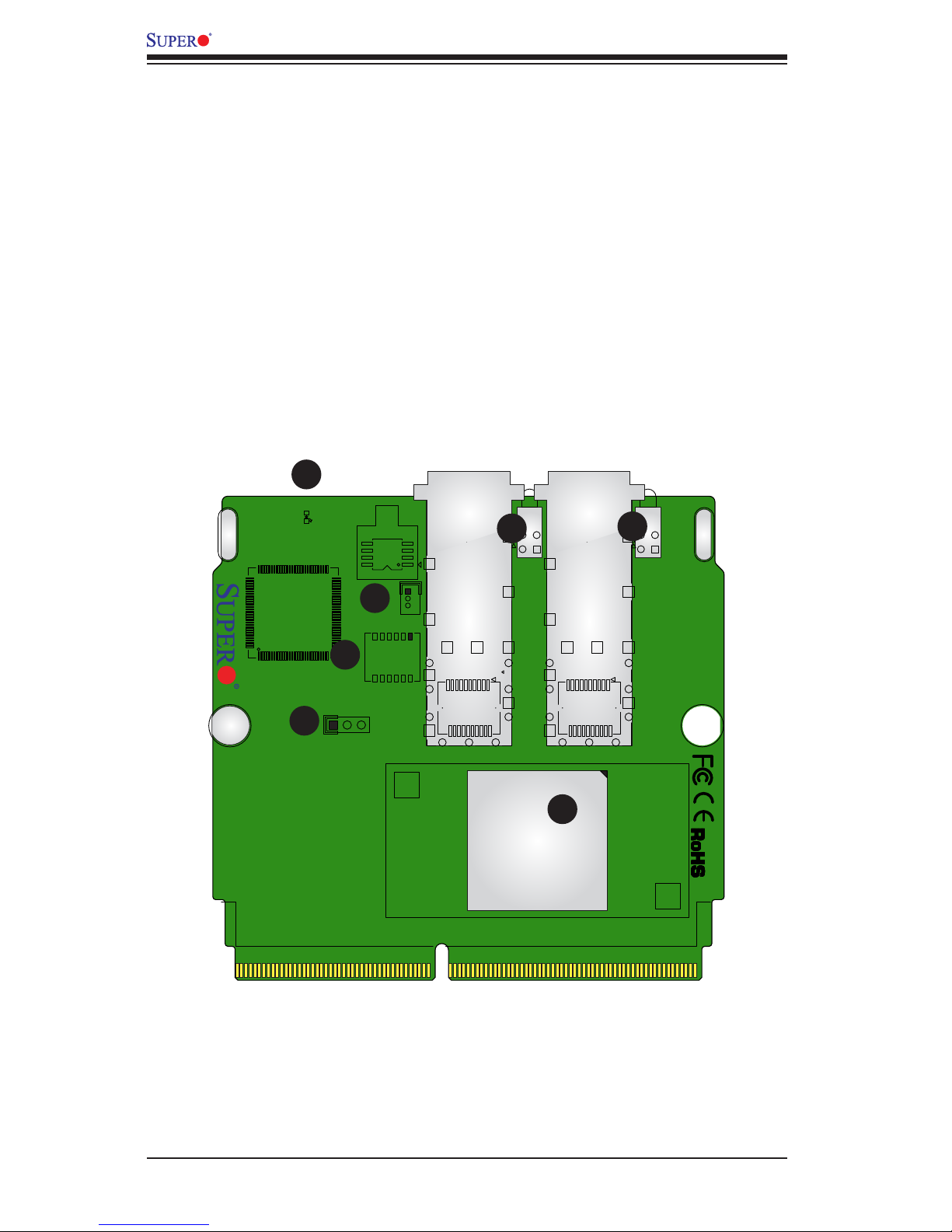

2-1 Add-On Card Image and Layout ..................................................................... 2-1
2-2 Major Components .......................................................................................... 2-2
2-3 Connectors and LEDs ..................................................................................... 2-3
LAN Ports ................................................................................................... 2-3
LED1 and LED2 ......................................................................................... 2-3
Thermal Alert LED ...................................................................................... 2-3
2-4 Jumpers ........................................................................................................... 2-4
Explanation of Jumpers .................................................................................. 2-4
LAN Port Enable/Disable ........................................................................... 2-4
Thermal Alert Connector ............................................................................ 2-4

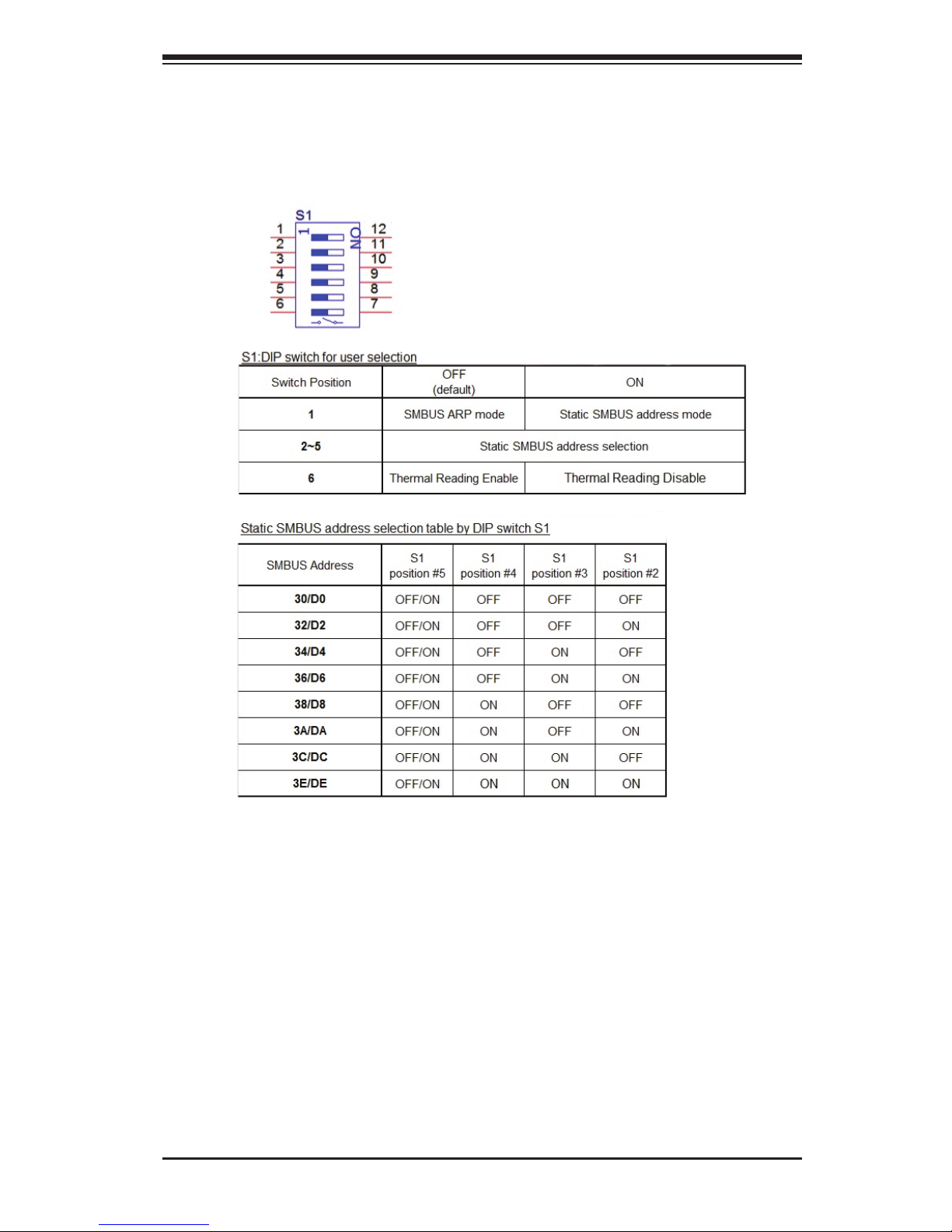

S1 DIP Switch ............................................................................................ 2-5
Chapter 3 Installation
3-1 Static-Sensitive Devices .................................................................................. 3-1
Precautions ..................................................................................................... 3-1
Unpacking ....................................................................................................... 3-1
3-2 Before Installation ........................................................................................... 3-2

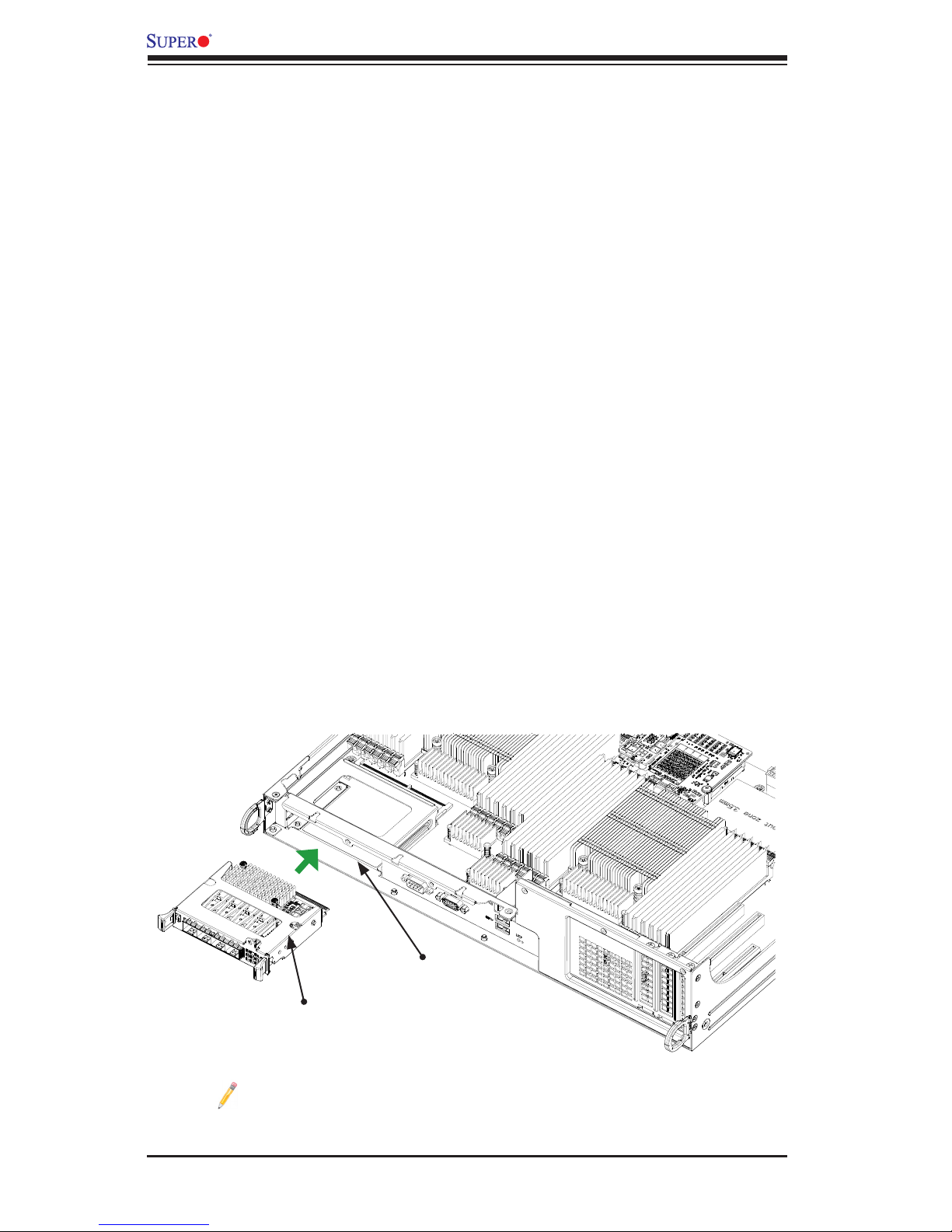

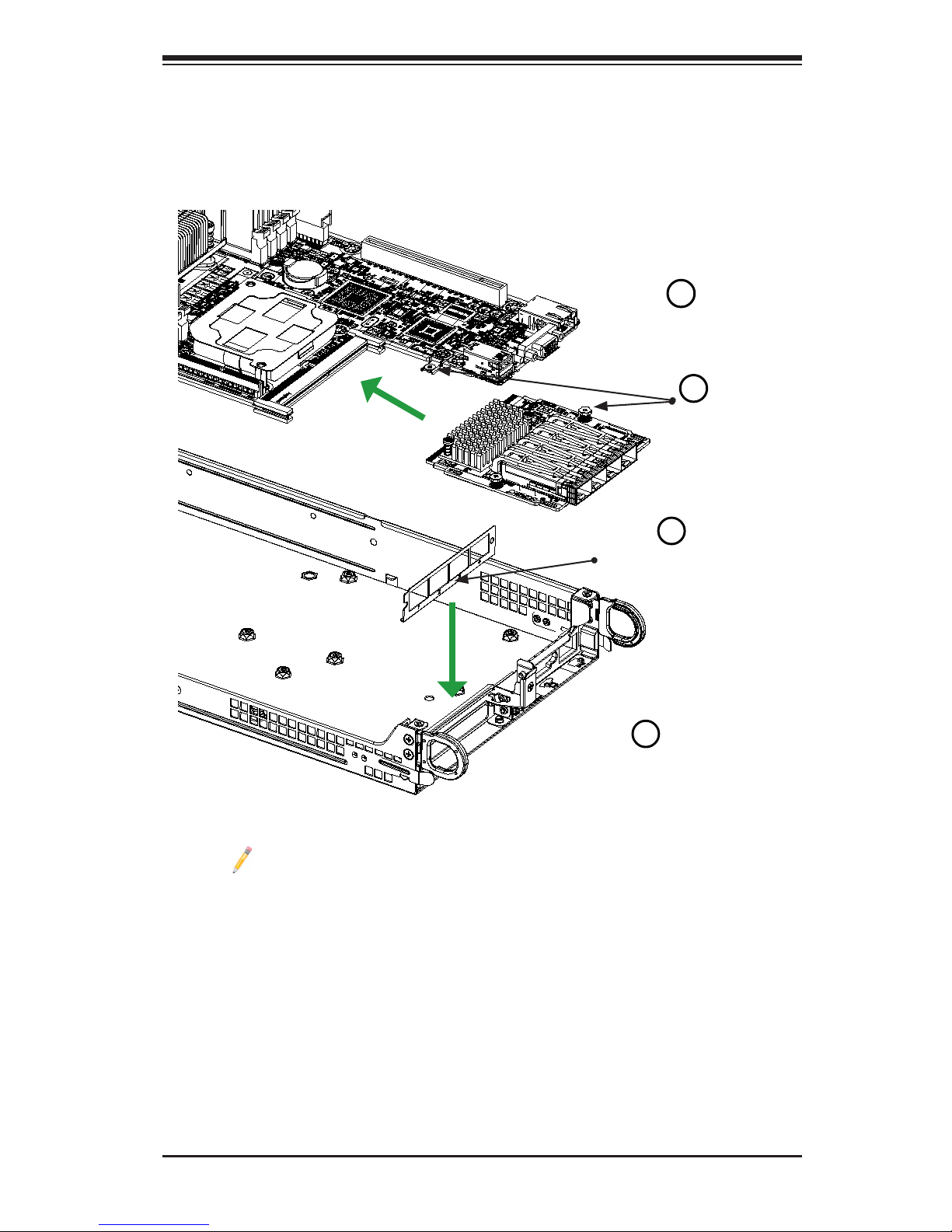

3-3 Installing the Add-on Card ..............................................................................3-2

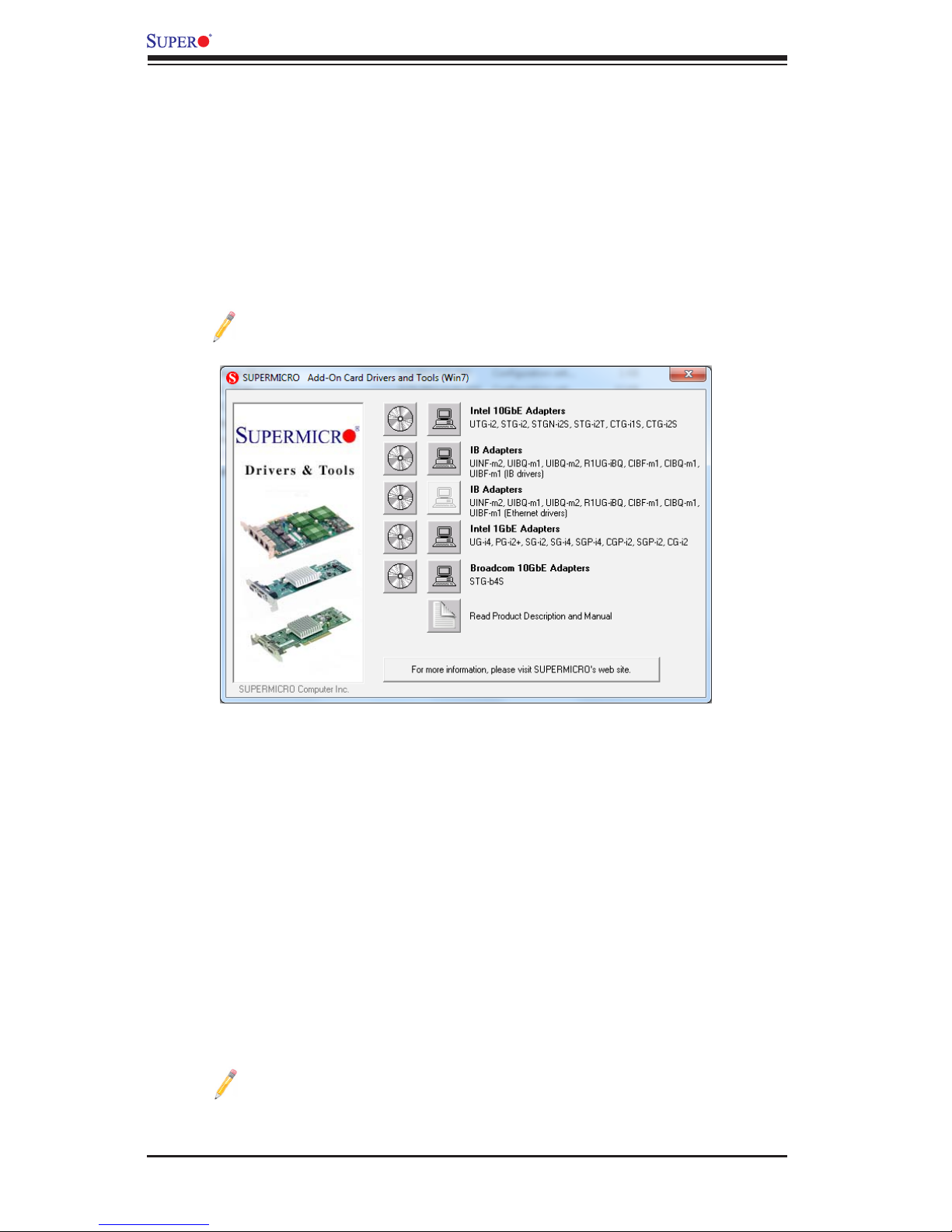

3-4 Installing Drivers on Windows ......................................................................... 3-4
3-5 Installing Drivers on Linux ............................................................................... 3-4
Build a Binary RPM Package.......................................................................... 3-4
3-6 Installing Drivers on FreeBSD ........................................................................ 3-6
AOC-MTGN-i2S Add-on Card User's Guide
vi
Page 7
Chapter 1: Overview
1-1
Chapter 1
Overview
1-1 Overview
Congratulations on purchasing your add-on card from an acknowledged leader in
the industry. Supermicro products are designed with the utmost attention to detail
to provide you with the highest standards in quality and performance. For product
support and updates, please refer to our website at http://www.supermicro.com/
products/nfo/networking.cfm#adapter.
1-2 Key Features
• Dual SFP+ Connectors
• Super I/O Module (SIOM) Form Factor
• Intel® QuickData Technology
• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environ-
ments
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE) Support
• Support for most Network Operating Systems
• NC-SI for Remote Management
• RoHS compliant 6/6
• Supports both Direct Atttach Copper and Fiber Cables
Page 8
1-2
AOC-MTGN-i2S Add-on Card User's Guide
1-3 Specications
General
• Intel
®
82599ES 10GbE controller
• Super I/O Module (SIOM) Form Factor
• Dual SFP+ ports
• Load balancing on multiple CPUs
• iSCSI remote boot support
• Fibre Channel over Ethernet (FCoE) support
• Intel
®
PROSet Utility for Windows® Device Manager
• Time Sync IEEE 1588
I/O Features
• Direct Cache Access (DCA) to avoid cache misses
• MSI-X support to minimize the overhead of interrupts, allowing load-balancing
between multiple cores/CPUs
• Tx/Rx IP, SCTP, TCP and UDP checksum ofoading capabilities (IPv4, IPv6)
• Receive and Transmit Side Scaling for Windows environments and scalable I/O
for Linux environments
Virtualization Features
• VMDq, Next-Generation VMDq (64 queues per port)
• PC-SIG SR-IOV implementation (64 virtual functions per port)
• Advanced Packet Filtering
• VLAN support to allow creation of multiple VLAN segments
• VXLAN through Software
Page 9
Chapter 1: Overview
1-3
Management Features
• Preboot eXecution Environment (PXE) support
• Simple Network Management Protocol (SNMP) and Remote Network Monitoring
(RMON) statistics counters
• iSCSI remote boot
• NC-SI for remote management
• Asset Management support on Supermicro® platforms
• Controller asset tags such as part number, revision, serial number, and MAC
addresses
Advanced Software Features
• Teaming support
• IEEE 802.3ad (link aggregation control protocol)
• IEEE 802.1Q VLANs
• IEEE 802.3 2005 ow control support
OS Support
• Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
• Windows 8.1, 8, 7 (x64 Edition)
• RedHat Linux
• SUSE Linux
• FreeBSD
• UEFI
• VMware
Page 10
1-4
AOC-MTGN-i2S Add-on Card User's Guide
Cables Support
• SFP+ direct attach twinaxial copper cables up to 7m
• Fiber-optic cables (with required optional SFP+ transceivers)
Power Consumption
• Typical power consumption: 6.2W
• Maximum power consumption: 7.2W
Operating Conditions
• Operating temperature: 0°C to 55°C (32°F to 131°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions
• Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
Optional Accessories
• AOC-E10GSFPSR: SFP+ transceiver module for short range ber cables (up to
300m), 10G/1G, 850nm, MMF, LC
• AOC-E10GSFPLR: SFP+ transceiver module for long range ber cables (up to
10km), 10G/1G, 1310nm, MMF, LC
• AOC-TSR-FS: SFP+ transceiver module for short range ber cables (up to
300m), 10G/1G, 850nm, MMF, LC
• AOM-TSFP-709DMZ-AVG: SFP+ transceiver module for short range ber cables,
10G/1G, 850nm, MMF, LC
• CBL-0347L: 1m 10GbE SFP+ to SFP+ copper cable, Passive, 30AWG, Pull Type
• CBL-NTWK-0347: 1m 10GbE SFP+ to SFP+ copper cable, Passive, 30AWG,
Push Type
Page 11
Chapter 1: Overview
1-5
• CBL-NTWK-0456: 2m 10GbE SFP+ to SFP+ copper cable, Passive, 30AWG,
Push Type
• CBL-0348L: 3m 10GbE SFP+ to SFP+ copper cable, Passive, 24AWG, Pull
release
• CBL-0349L: 5m 10GbE SFP+ to SFP+ copper cable, Passive, 24AWG, Pull
release
• CBL-SFP+AOC-1M: 1m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
• CBL-SFP+AOC-3M: 3m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
• CBL-SFP+AOC-5M: 5m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
Compliance/Environmental
• RoHS Compliant 6/6, Pb Free
Supported Platforms
• Supermicro® motherboards with Super I/O Module slot
• Supermicro® server systems with Super I/O Module slot
Page 12
1-6
AOC-MTGN-i2S Add-on Card User's Guide
Notes
Page 13
Chapter 2: Hardware Components
2-1
Chapter 2
Hardware Components
2-1 Add-On Card Image and Layout
The AOC-MTGN-i2S Layout
The AOC-MTGN-i2S Image
JPL1
1
LED3
A
C
JP3
DESIGNED IN USA
AOC-MTGN-i2S
REV:1.00
LED1
LED2
LAN1
LAN2
Intel 82599ES
S1
1
6
127
Page 14
2-2
AOC-MTGN-i2S Add-on Card User's Guide
2-2 Major Components
The following major components are installed on the AOC-MTGN-i2S:
1. Intel 82599 10GbE Controller
2. LAN Port 1 and LED1 Indicator
3. LAN Port 2 and LED2 Indicator
4. LED3 - Thermal Alert LED
5. JP3 - Thermal Alert Connector
6. S1 - DIP Switch
7. JPL1 - LAN Port Enable/Disable
JPL1
1
LED3
A
C
JP3
DESIGNED IN USA
AOC-MTGN-i2S
REV:1.00
LED1
LED2
LAN1
LAN2
Intel 82599ES
S1
1
6
127
1
7
6
5
4
3
2
Page 15
Chapter 2: Hardware Components
2-3
2-3 Connectors and LEDs
LAN Ports
Two SFP+ LAN ports (LAN1 and LAN2) are located on the add-on card. These
LAN ports support connection speeds of 10Gbps. Use SFP+ direct attach twinaxial
copper cables for network connections.
LED Color Denition
LNK
Yellow 1Gb Link Speed
Green 10Gb Link Speed
ACT
Blinking Green Activity
LED1 and LED2
Each LAN port has a corresponding LED to indicate speed and data activity. LED1
is for LAN port 1 and LED2 is for LAN port 2. For the location of the LEDs, see the
card layout on the previous page. For LED color and denition, see the table below.
Thermal Alert LED
A thermal alert LED is located at LED3. The yellow LED indicates there is a thermal
alert. Refer to the table on the right for the LED status. Refer to page 2-2 for the
location of the LED.
Thermal Alert
LED Status
Color Status
Yellow Thermal Alert
Page 16
2-4
AOC-MTGN-i2S Add-on Card User's Guide
LAN Port Enable/Disable
Use jumper JPL1 to enable or disable LAN ports 1 and 2. See the table below for
jumper settings. The default setting is Enabled.
LAN Port Enable/Disable
Jumper Settings
Jumper setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
2-4 Jumpers
Explanation of Jumpers
To modify the operation of the add-on card, a jumper can be used to choose between
optional settings. A jumper creates shorts between two pins to change the function
of the connector. Pin 1 is identied with a square solder pad on the printed circuit
board. See the add-on card layout on page 2-2 for the jumper location.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open"
means the jumper is off the pins.
Thermal Alert
PinDenition
Pin Denition
1 GND
2 Thermal_Alert_N
3 GND
Thermal Alert Connector
Connect an external cable (not included) from the motherboard to the thermal alert
connector at JP3 to monitor the external temperature. Refer to the table on the right
for the pin denition. Refer to page 2-2 for the location of the jumper.
Page 17
Chapter 2: Hardware Components
2-5
S1 DIP Switch
This DIP Switch provides SMBUS address selection. You can congure the card
with static SMBUS address. Refer to the tables below for address selections.
Page 18
2-6
AOC-MTGN-i2S Add-on Card User's Guide
Notes
Page 19
3-1
Chapter 3: Installation
Chapter 3
Installation
3-1 Static-Sensitive Devices
Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam-
aging your add-on card, it is important to handle it very carefully. The following
measures are generally sufcient to protect your equipment from ESD.
Precautions
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the add-on card from the
antistatic bag.
• Handle the add-on card by its edges only; do not touch its components, or
peripheral chips.
• Put the add-on card back into the antistatic bags when not in use.
• For grounding purposes, make sure that your system chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and
the add-on card.
Unpacking
The add-on card is shipped in antistatic packaging to avoid static damage. When
unpacking your component or your system, make sure that you are static protected.
Note: To avoid damaging your components and to ensure proper installa-
tion, be sure to always connect the power cord last, and always remove it
before adding, removing or changing any hardware components.
Page 20
3-2
AOC-MTG-i2S Add-on Card User's Guide
3-2 Before Installation
To install the add-on card properly, be sure to follow the instructions below.
1. Power down the system.
2. Remove the power cord from the wall socket.
3. Use industry standard anti-static equipment such as gloves or wrist strap and
follow the precautions listed on page 3-1 to avoid damage caused by ESD.
4. Familiarize yourself with the server, motherboard, and/or chassis documenta-
tion.
5. Conrm that your operating system includes the latest updates and hotxes.
3-3 Installing the Add-on Card
Follow the steps below to install the add-on card into your system.
1. Remove the server cover and, if any, set aside any screws for later use.
2. Remove the add-on card slot cover. If the slot cover has a screw, place it
aside for later use.
3. Position the add-on card in front of the SIOM slot and gently push in both
sides of the card until it slides into the slot.
SIOM card with the bracket installed
Insert the SIOM card into this slot
Note: This add-on card does not support hot plug. Please turn off the AC
power and remove the power cord from the wall socket before you install
or remove the add-on card.
Page 21
3-3
Chapter 3: Installation
Follow this step to install the add-on card if your system does not support a swap-
pable bracket. Insert the SIOM card in the motherboard and then install the moth-
erboard in the chassis. An internal bracket comes with the SIOM card 1U chassis
SKU. It needs to be installed onto the chassis.
4. Secure the add-on card to the chassis. If required, use the screw that you
previously removed.
5. Attach any necessary external cables to the add-on card.
6. Replace the system cover.
7. Plug in the power cord and power up the system.
Insert the SIOM card into the motherboard
Install the bracket onto the chassis
Install the motherboard in the chassis
1
2
3
4
Tighten the screw
Note: It is recommended that the SIOM card installation above be com-
pleted by a system integrator or the manufacturer.
Page 22
3-4
AOC-MTG-i2S Add-on Card User's Guide
3. Click on INSTALL DRIVERS AND SOFTWARE.
4. Follow the prompts to complete the installation.
3-5 Installing Drivers on Linux
Follow the steps below to install the driver to a Linux system.
Build a Binary RPM Package
1. Run ‘rpmbuild -tb <lename.tar.gz>’
2. Replace <lename.tar.gz> with the specic lename of the driver.
Note: For the build to work properly, the current running kernel MUST
match the version and conguration of the installed kernel sources. If you
have just recompiled the kernel, reboot the system at this time.
3-4 Installing Drivers on Windows
Follow the steps below to install the drivers for Windows. Download the drivers from
the Supermicro FTP site at ftp://ftp.supermicro.com/Networking_Drivers/.
1. Run the CDR-NIC.
2. When the SUPERMICRO window appears, click on the computer icon next to
the product model.
Note: If the FOUND NEW HARDWARE WIZARD screen displays on your
system, click CANCEL.
Page 23
3-5
Chapter 3: Installation
Follow the instructions below to build the driver manually.
1. Move the base driver tar le to the directory of your choice. For example:
/home/username/ixgbe
or
/usr/local/src/ixgbe
2. Untar/unzip archive, where <x.x.x> is the version number for the driver tar le:
tar zxf ixgbe-x.x.x.tar.gz
3. Change to the driver src directory, where <x.x.x> is the version number for
the driver tar:
cd ixgbe-x.x.x/src/
4. Compile the driver module:
make install
The binary will be installed as:
/lib/modules/[KERNEL_VERSION]/kernel/drivers/net/ixgbe/ixgbe.[k]o
The install locations listed above are the default locations. They may not be
correct for certain Linux distributions. For more information, see the ldistrib.txt
le included in the driver tar.
Note: IXGBE_NO_LRO is a compile time ag. The user can enable it at
compile time to remove support for LRO from the driver. The ag is used
by adding CFLAGS_EXTRA=-”DIXGBE_NO_LRO” to the make le when
it’s being compiled.
make CFLAGS_EXTRA=”-DIXGBE_NO_LRO” install
5. Load the module:
For kernel 2.6.x, use the modprobe command:
modprobe ixgbe <parameter>=<value>
For 2.6 kernels, the insmod command can be used if the full path to the driver
module is specied. For example:
insmod /lib/modules/<KERNEL VERSION>/kernel/drivers/net/
ixgbe/ixgbe.ko
Page 24
3-6
AOC-MTG-i2S Add-on Card User's Guide
In addition, when using 2.6-based kernels, make sure that older ixgbe drivers
are removed from the kernel before loading the new module. To do this, use:
rmmod ixgbe; modprobe ixgbe
6. Assign an IP address to the interface by entering the following, where x is the
interface number:
ifcong ethx <IP_address> netmask <netmask>
7. Verify that the interface works. Enter the following, where <IP_address> is the
IP address for another machine on the same subnet as the interface that is
being tested:
ping <IP_address>
3-6 Installing Drivers on FreeBSD
Follow the instructions below to install the drivers in FreeBSD kernel 4.8 or later.
In the instructions below, x.x.x is the driver version as indicated in the name of the
drive tar le.
Note: You must have kernel sources installed in order to compile the
driver module.
1. Move the base driver tar le to the dirctory of your choice. For example, use
/home/username/ixgb or /usr/local/src/ixgb.
2. Untar/unzip the archive:
tar xfz ixgb-x.x.x directory
3. To install man page:
cd ixgb-x.x.x
gzip -c ixgb.4 > /usr/share/man/man4/ixgb.4.gz
4. To load the driver onto a running system, perform the following steps:
cd ixgb-x.x.x
make
or
cd ixgb-x.x.x/src
make load
5. To assign an IP address to the interface, enter the following:
Page 25
3-7
Chapter 3: Installation
ifcong ixgb<interface_num> <IP_address>
6. Verify that the interface works. Enter the following, where <IP_address> is the
IP address for another machine on the same subnet as the interface that is
being tested:
ping <IP_address>
7. If you want the driver to load automatically when the system is booted:
cd ixgb-x.x.x/src
make load
cp if_ixgb.ko /modules
Edit /boot/loader.conf, and add the following line:
if_ixgb_load="YES"
or
compile the driver into the kernel (see item 8). Edit /etc/rc.conf, and create the
appropriate ifcong_ixgb<interface_num> entry:
ifcong_ixgb<interface_num>="<ifcong_settings>"
Example usage:
ifcong_ixgb0="inet 192.168.10.1 netmask 255.255.255.0"
8. If you want to compile the driver into the kernel, enter:
cd ixgb-x.x.x/src
mkdir /usr/src/sys/dev/ixgb
cp if_ixgb* /usr/src/sys/dev/ixgb
cp ixgb* /usr/src/sys/dev/ixgb
cp Makele.kernel /usr/src/sys/modules/ixgb/Makele
Edit the /usr/src/sys/conf/les.i386 le, and add the following line:
dev/ixgb/ixgb_hw.c optional ixgb
dev/ixgb/ixgb_ee.c optional ixgb
dev/ixgb/if_ixgb.c optional ixgb
Remove the following lines from the /usr/src/sys/conf/les.i386 le, if they exist:
/dev/ixgb/if_ixgb_fx_hw.c optional ixgb
/dev/ixgb/if_ixgb_phy.c optional ixgb
Page 26
3-8
AOC-MTG-i2S Add-on Card User's Guide
Edit the kernel conguration le (i.e., GENERIC or MYKERNEL) in /usr/src/sys/
i386/conf, and ensure the following line is present:
device ixgb
Compile and install the kernel. Reboot the system for the kernel updates to
take affect.
Page 27
(Disclaimer Continued)
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com­munication devices or other critical systems whose failure to perform be reasonably expected to result
in signicant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims
any and all liability, and should buyer use or sell such products for use in such ultra-hazardous ap­plications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Loading...
