Supermicro 2027R-E1R24L User Manual

®

SUPER STORAGE SYSTEM

2027R-E1R24L

SUPER

USER’S MANUAL

1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at

www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and docu­mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.
Any use or reproduction of this product is not allowed, except as expressly permitted by the terms
of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environ­ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the manufacturer’s instruction manual, may cause harmful interference
with radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn­ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to the
State of California to cause birth defects and other repro­ductive harm.

Manual Revision 1.0
Release Date: October 25, 2012

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2012 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

iii

Preface

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the 2027R-E1R24L. Installation
and maintenance should be performed by experienced technicians only.

The 2027R-E1R24L is a high-end storage system based on the SC216E16­R920LPB 2U rackmountable chassis and the X9DRD-7LN4F-JBOD dual processor
serverboard.

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the
system and describes the main features of the X9DRD-7LN4F-JBOD serverboard
and the SC216E16-R920LPB chassis.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the 2027R-E1R24L into a rack
and check out the server confi guration prior to powering up the system. If your server
was ordered without processor and memory components, this chapter will refer you
to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.

Chapter 4: System Safety

You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
2027R-E1R24L.

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

iv

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the X9DRD-7LN4F-JBOD serverboard,
including the locations and functions of connections, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and when
reconfi guring the serverboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC216E16-R920LPB chassis.
You should follow the procedures given in this chapter when installing, removing
or reconfi guring SAS/SATA or peripheral drives and when replacing system power
supply units and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed informa­tion on running the CMOS Setup Utility.

Appendix A: BIOS Error Beep Codes

Appendix B: System Specifi cations

Notes

Preface

v

vi

Table of Contents

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Serverboard Features ..................................................................................... 1-2

Processors ...................................................................................................... 1-2

Memory ........................................................................................................... 1-2

SAS ................................................................................................................. 1-2

Serial ATA ........................................................................................................ 1-2

PCI Expansion Slots ....................................................................................... 1-2

1-3 Server Chassis Features ................................................................................ 1-3

System Power ................................................................................................. 1-3

Hard Drives ..................................................................................................... 1-3

Front Control Panel ......................................................................................... 1-3

Cooling System ............................................................................................... 1-3

1-4 Contacting Supermicro .................................................................................... 1-6

Chapter 2 Server Installation

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Preparing for Setup ......................................................................................... 2-1

Choosing a Setup Location ............................................................................. 2-1

Rack Precautions ............................................................................................ 2-2

Server Precautions .......................................................................................... 2-2

Rack Mounting Considerations ....................................................................... 2-3

Ambient Operating Temperature ................................................................ 2-3

Reduced Airfl ow ......................................................................................... 2-3

Mechanical Loading ................................................................................... 2-3

Circuit Overloading ..................................................................................... 2-3

Reliable Ground ......................................................................................... 2-3

2-4 Rack Mounting Instructions ............................................................................. 2-4

Identifying the Sections of the Rack Rails ...................................................... 2-4

Locking Tabs ................................................................................................... 2-5

Releasing the Inner Rail ................................................................................. 2-5

Installing The Inner Rails on the Chassis ....................................................... 2-6

Installing the Outer Rails on the Rack ............................................................ 2-7

Standard Chassis Installation ......................................................................... 2-8

Optional Quick Installation Method ................................................................. 2-9

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

vii

Chapter 3 System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons ..................................................................................... 3-1

Reset ............................................................................................................... 3-1

Power .............................................................................................................. 3-1

3-3 Control Panel LEDs ........................................................................................ 3-1

Power Fail ....................................................................................................... 3-2

Overheat/Fan Fail ........................................................................................... 3-2

NIC1 ................................................................................................................ 3-2

NIC2 ................................................................................................................ 3-2

HDD ................................................................................................................. 3-3

Power .............................................................................................................. 3-3

3-4 Drive Carrier LEDs .......................................................................................... 3-3

Chapter 4 Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements ....................................................... 4-1

Warning Defi nition ........................................................................................... 4-1

Installation Instructions .................................................................................... 4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning ........................................................................ 4-6

Equipment Installation ..................................................................................... 4-8

Restricted Area ................................................................................................ 4-9

Battery Handling ............................................................................................ 4-10

Redundant Power Supplies .......................................................................... 4-12

Backplane Voltage ........................................................................................ 4-13

Comply with Local and National Electrical Codes ........................................ 4-14

Product Disposal ........................................................................................... 4-15

Hot Swap Fan Warning ................................................................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Chapter 5 Advanced Serverboard Setup

5-1 Handling the Serverboard ............................................................................... 5-1

Precautions ..................................................................................................... 5-1

Unpacking ....................................................................................................... 5-2

5-2 Connecting Cables .......................................................................................... 5-2

Connecting Data Cables ................................................................................. 5-2

Connecting Power Cables .............................................................................. 5-2

Connecting the Control Panel ......................................................................... 5-2

5-3 Rear I/O Ports ................................................................................................. 5-3

5-4 Installing the Processor and Heatsink ............................................................ 5-4

Installing an LGA2011 Processor .................................................................... 5-4

Table of Contents

viii

Installing a Passive CPU Heatsink ................................................................. 5-7

Removing the Heatsink ................................................................................... 5-8

5-5 Installing Memory ............................................................................................ 5-9

Memory Support .............................................................................................. 5-9

DIMM Installation ............................................................................................ 5-9

5-6 Adding PCI Add-On Cards ............................................................................ 5-14

5-7 Serverboard Details ...................................................................................... 5-15

X9DRD-7LN4F-JBOD Quick Reference ....................................................... 5-16

5-8 Connector Defi nitions ................................................................................... 5-18

5-9 Jumper Settings ............................................................................................ 5-25

5-10 Onboard Indicators ........................................................................................ 5-27

5-11 SATA Ports .................................................................................................... 5-28

5-12 Installing Software ......................................................................................... 5-29

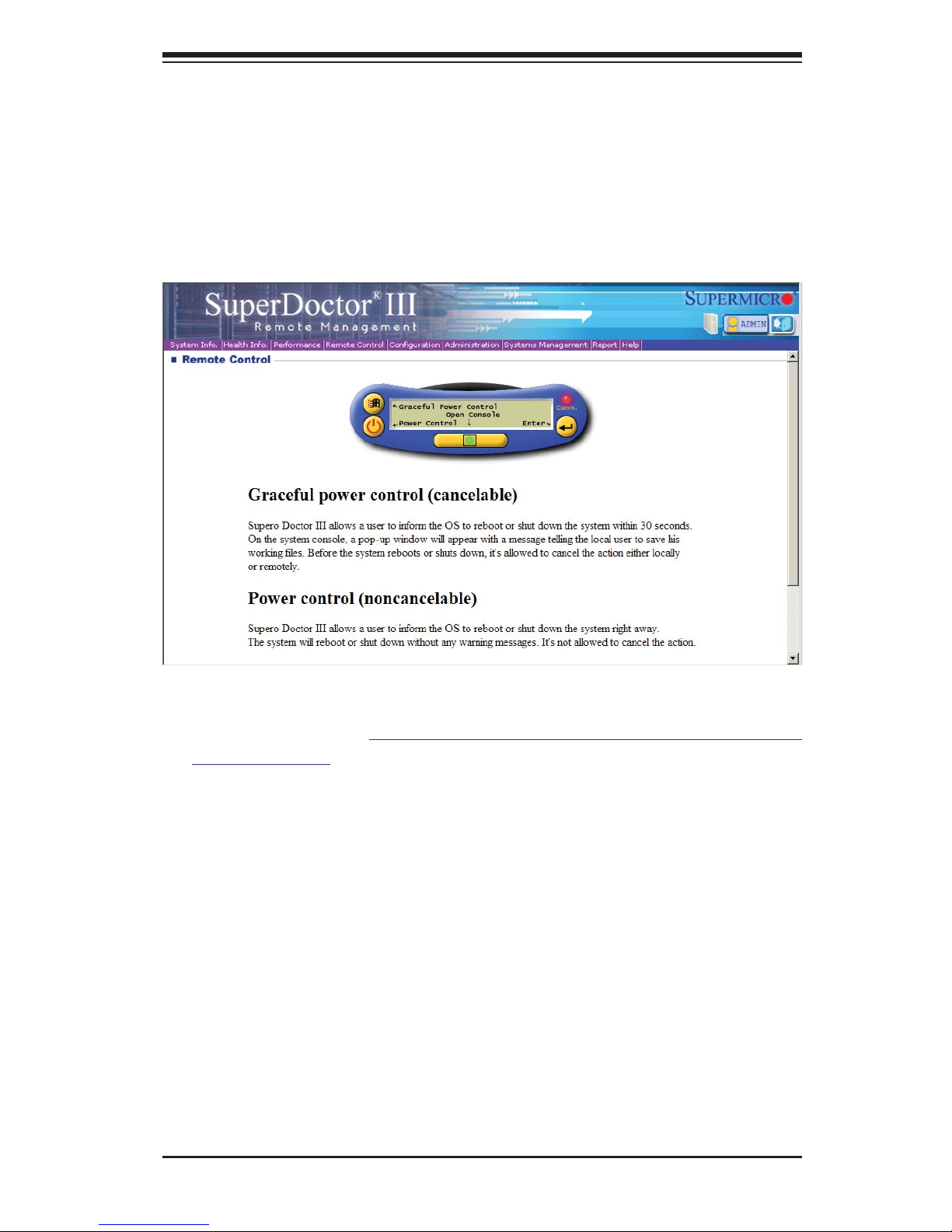

SuperDoctor III .............................................................................................. 5-30

5-13 Onboard Battery ............................................................................................ 5-32

Chapter 6 Advanced Chassis Setup

6-1 Static-Sensitive Devices .................................................................................. 6-1

Precautions ..................................................................................................... 6-1

Unpacking ....................................................................................................... 6-1

6-2 Control Panel .................................................................................................. 6-2

6-3 Removing the Chassis Cover ......................................................................... 6-3

5-9 System Fans ................................................................................................... 6-4

6-4 System Cooling ............................................................................................... 6-4

System Fans ................................................................................................... 6-4

System Fan Failure ......................................................................................... 6-4

Replacing System Fans .................................................................................. 6-4

Air Shrouds ..................................................................................................... 6-5

Installing the Air Shrouds in the Chassis ........................................................ 6-5

6-5 Drive Bay Installation/Removal ....................................................................... 6-7

Accessing the Drive Bays ............................................................................... 6-7

6-5 Power Supply ............................................................................................... 6-10

6-6 Attaching a JBOD Expansion Chassis .......................................................... 6-12

Chapter 7 BIOS

7-1 Introduction ...................................................................................................... 7-1

Starting BIOS Setup Utility .............................................................................. 7-1

How To Change the Confi guration Data ......................................................... 7-2

Starting the Setup Utility ................................................................................. 7-2

7-2 Main Setup ...................................................................................................... 7-2

7-3 Advanced Setup Confi gurations...................................................................... 7-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

7-4 Event Logs .................................................................................................... 7-25

7-5 IPMI ............................................................................................................... 7-27

7-6 Boot ............................................................................................................... 7-29

7-7 Security ......................................................................................................... 7-30

7-8 Save & Exit ................................................................................................... 7-31

Appendix A BIOS Error Beep Codes
Appendix B System Specifi cations

Table of Contents

ix

Chapter 1

Introduction

1-1 Overview

The 2027R-E1R24L is a high-end storage system comprised of two main subsys­tems: the SC216E16-R920LPB 2U/rack mount chassis and the X9DRD-7LN4F­JBOD dual processor serverboard. Please refer to our web site for information
on operating systems that have been certifi ed for use with the system (www.

supermicro.com).

In addition to the serverboard and chassis, various hardware components have
been included with the 2027R-E1R24L, as listed below:

• Two passive CPU heatsinks (SNK-P0048P)

• Three 8-cm system fans (FAN-0126L4)

• Two air shrouds (MCP-310-29011-1N, MCP-310-29012-1N)

• SATA Accessories

One SATA backplane (BPN-SAS2-216EL1)
Twenty-four drive carriers (MCP-220-00047-0B)

• Dual JBOD expansion ports (CBL-0168L-LP)

• One rackmount kit (MCP-290-00053-0N)

Note: a complete list of safety warnings is provided on the Supermicro web site at

http://www.supermicro.com/about/policies/safety_information.cfm.

Chapter 1: Introduction

1-1

1-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

1-2 Serverboard Features

The 2027R-E1R24L is built around the X9DRD-7LN4F-JBOD, a dual processor
serverboard based on the Intel C602J chipset. Below are the main features of the
X9DRD-7LN4F-JBOD. (See Figure 1-1 for a block diagram of the chipset).

Processors

The X9DRD-7LN4F-JBOD supports single or dual Intel® Xeon E5-2600 Series
processors. Please refer to the serverboard description pages on our web site for
a complete listing of supported processors (www.supermicro.com).

Memory

The X9DRD-7LN4F-JBOD has 16 DIMM slots that can support 512 GB of ECC
DDR3 Registered memory (RDIMM) or up to 128 GB of ECC/non-ECC DDR3
Unbuffered memory (UDIMM). See Chapter 5 for details.

SAS

A SAS 2.0 controller is integrated into the serverboard providing 8x lanes of 6Gb/s
SAS with basic HBA/ITMode controller functionality. The controller supports the
attachment of 122 SAS or SATA devices.

Serial ATA

A SATA controller is also integrated into the chipset to provide two SATA 3 (6/Gbps)
and four SATA 2 (3 Gbps) ports, which are RAID 0, 1, 5 and 10 supported. The
SATA drives are hot-swappable units.

PCI Expansion Slots

The X9DRD-7LN4F-JBOD has six PCI-E 3.0 x8 slots. The default confi guration
includes a port plate with dual JBOD expansion ports occupying slot #1 (PCI-E 3.0
x8). Note that expansion slots are controlled by the CPUs, so two CPUs need to
be installed to enable all PCI expansion slots. See Chapter 5 for details.

1-3

Chapter 1: Introduction

1-3 Server Chassis Features

The following is a general outline of the main features of the SC216E16-R920LPB
server chassis.

System Power

The SC216E16-R920LPB features a redundant (two separate power modules)
920W high-effi ciency power supply with I2C. This power redundancy feature allows
you to replace a failed power supply without shutting down the system.

Hard Drives

The SC216E16-R920LPB chassis was designed to support 24 dual-channel SATA
hard drives, which are hot-swappable units.

Note: The operating system you use must have RAID support to enable the hot­swap capability of the SATA drives.

Front Control Panel

The control panel on the SuperServer 2027R-E1R24L provides you with system
monitoring and control. LEDs indicate system power, HDD activity, network activ­ity, system overheat/fan fail and power supply failure. A main power button and a
system reset button are also included.

Cooling System

The SC216E16-R920LPB chassis includes three 8-cm hot-plug system fans located
in the middle section of the chassis. An air shroud channels the airfl ow from the
system fans to effi ciently cool the processors and memory. Two additional 8-cm
fans are located at the back of the chassis to expel hot air from the system. Each
power supply module also includes a cooling fan.

1-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Figure 1-1. Intel C602J Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

J23 SLOT#3

PCIE 3.0 x8

J24 SLOT#4

PCIE 3.0 x8

J25 SLOT#5

PCIE 3.0 x8

P0 P1

PE2
(AB)

PE2
(CD)

PE1
(AB)

DMI

DDR3 DIMM

CPU REAR

PROCESSOR

SANDYBRIDGE

PROCESSOR

SANDYBRIDGE

F

E

Socket 01

#2

#1

DDR3 DIMM

#2

#1

PE3

J22 SLOT#2
PCIE 3.0 x8

PCIE 3.0 x8

PCIE 3.0 x8
PCIE 3.0 x4

SAS

LSI

LAN1

LAN2

RJ45 RJ45
LAN3 LAN4

VGA CONN

IPMI LAN

PHY
RTL8201F

RJ45 RJ45

SAS2308

Powerville
I350-AM4
Quad GLAN

J26 SLOT#6

L-SAS0~3
L-SAS4~7

J21 SLOT#1
PCIE 3.0 x8

DDR3 DIMM

H

G

#2

#1

DDR3 DIMM

#2

#1

P1 P0

PE2
(AB)

PE2
(CD) (AB) (CD)

PE1
(AB)

PE3

DMI

PCH C602J

BIOS

SATA

SPI

SATA Gen3
6Gbps

SATA Gen3
6Gbps

SATA

SATA [0..1]

SCU0

USB

LPCPCI 32

SPI FLASH

DDR3 DIMM

CPU FRONT

D

C

Socket 00

#2

#1

#2

#1

PE3

DDR3 DIMM

B

A

#2

#1

DDR3 DIMM

QPI

QPI

#2

#1

I-SATA0

I-SATA1

S-SATA0

S-SATA1

S-SATA2

S-SATA3

REAR

HDR 2X5

0,1

TYPE-A

REAR

2,3

4,5 6 8,9

HDR 2X5

TPM HDR

Port 80

HERMON

WPCM450]

NCT7904D

HW Monitor

DDR3

DDR3 DIMM

1-5

Chapter 1: Introduction

Figure 1-2. X9DRD-7LN4F-JBOD Serverboard

Note: The SSG-2027R-E1R24L comes pre-installed with a JBOD expansion port

installed in PCI-E slot 1.

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2

P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel
PCH

JPS1

LAN
CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JBOD Expansion Ports

1-6

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

1-4 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacifi c

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd

New Taipei City 235

Taiwan
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [e-mail]
Tel: [phone]

Chapter 2: Server Installation

2-1

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your SuperServer 2027R­E1R24L up and running. Following these steps in the order given should enable
you to have the system operational within a minimum amount of time. This quick
setup assumes that your system has come to you with the processors and memory
preinstalled. If your system is not already fully integrated with a serverboard, pro­cessors, system memory etc., please turn to the chapter or section noted in each
step for details on installing specifi c components.

2-2 Unpacking the System

You should inspect the box the SuperServer 2027R-E1R24L was shipped in and
note if it was damaged in any way. If the server itself shows damage you should
fi le a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the SuperServer 2027R­E1R24L. It should be situated in a clean, dust-free area that is well ventilated. Avoid
areas where heat, electrical noise and electromagnetic fi elds are generated. You
will also need it placed near a grounded power outlet. Read the Rack and Server
Precautions in the next section.

2-3 Preparing for Setup

The box the SuperServer 2027R-E1R24L was shipped in should include two sets of
rail assemblies, two rail mounting brackets and the mounting screws you will need to
install the system into the rack. Follow the steps in the order given to complete the
installation process in a minimum amount of time. Please read this section in its en­tirety before you begin the installation procedure outlined in the sections that follow.

Choosing a Setup Location

• Leave enough clearance in front of the rack to enable you to open the front door

completely (~25 inches) and approximately 30 inches of clearance in the back
of the rack to allow for suffi cient airfl ow and ease in servicing.

• This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

2-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

• This product is not suitable for use with visual display work place devices

acccording to §2 of the the German Ordinance for Work with Visual Display Units.

Warnings and Precautions!

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to

the fl oor with the full weight of the rack resting on them.

• In single rack installation, stabilizers should be attached to the rack. In multiple

rack installations, the racks should be coupled together.

• Always make sure the rack is stable before extending a component from the

rack.

• You should extend only one component at a time - extending two or more si-

multaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Chapter 4.

• Determine the placement of each component in the rack before you install the

rails.

• Install the heaviest server components on the bottom of the rack fi rst, and then

work up.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a
power failure.

• Allow any hot plug drives and power supply modules to cool before touching

them.

• Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

Chapter 2: Server Installation

2-3

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera­ture of the rack environment may be greater than the ambient temperature of the
room. Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient tempera­ture (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required
for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connec­tions other than the direct connections to the branch circuit (i.e. the use of power
strips, etc.).

Warning! To prevent bodily injury when mounting or servicing this unit in a
rack, you must take special precautions to ensure that the system remains
stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially fi lled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

2-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

2-4 Rack Mounting Instructions

This section provides information on installing the chassis into a rack unit with the
rails provided. There are a variety of rack units on the market, which may mean
that the assembly procedure will differ slightly from the instructions provided. You
should also refer to the installation instructions that came with the rack unit you are
using. This rail will fi t a rack between 26.5" and 36.4" deep.

Note: fi gures are for illustrative purposes only. Servers should always be installed
in racks from the bottom up.

Identifying the Sections of the Rack Rails

The chassis package includes two rail assemblies in the rack mounting kit. Each
assembly consists of three sections: An inner chassis rail which secures directly to
the chassis, an outer rail that secures to the rack, and a middle rail which extends
from the outer rail. These assemblies are specifi cally designed for the left and right
side of the chassis.

Figure 2-1. Identifying the Outer Rail, Middle Rail and Inner Rails

(Left Rail Assembly Shown)

Inner Rail

Rail Assembly

(Shown with Rails

Retracted)

This Side Faces

Outward

Locking Tab

Middle Rail

Outer Rail

Chapter 2: Server Installation

2-5

Figure 2-2. Extending and Releasing the Inner Rail

1

2

1

1

1

3

1

4

Locking Tabs

Each inner rail has a locking tab. This tab locks the chassis into place when installed
and pushed fully into the rack. These tabs also lock the chassis in place when fully
extended from the rack. This prevents the server from coming completely out of
the rack when when the chassis is pulled out for servicing.

Releasing the Inner Rail

Releasing Inner Rail from the Outer Rails

1. Identify the left and right outer rail assemblies as described on page 6-4.

2. Pull the inner rail out of the outer rail until it is fully extended as illustrated
below.

3. Press the locking tab down to release the inner rail.

4. Repeat steps 1-3 for the second outer rail.

2-6

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Figure 2-4. Inner Rails Installed on the Chassis

(The chassis above are an example only. Actual chassis may differ slightly)

Figure 2-3. Installing the Inner Rails

Installing The Inner Rails on the Chassis

Installing the Inner Rails

1. Confi rm that the left and right inner rails have been correctly identifi ed.

2. Place the inner rail fi rmly against the side of the chassis, aligning the hooks
on the side of the chassis with the holes in the inner rail.

3. Slide the inner rail forward toward the front of the chassis until the rail clicks
into the locked position, which secures the inner rail to the chassis.

4. Secure the inner rail to the chassis with the screws provided.

5. Repeat steps 1 through 4 above for the other inner rail.

1

3

1

4

1

4

1

2

Inner Rails

Chapter 2: Server Installation

2-7

Installing the Outer Rails on the Rack

Installing the Outer Rails

1. Press upward on the locking tab at the rear end of the middle rail.

2. Push the middle rail back into the outer rail.

3. Hang the hooks of the front of the outer rail onto the slots on the front of
the rack. If necessary, use screws to secure the outer rails to the rack, as
illustrated above.

4. Pull out the rear of the outer rail, adjusting the length until it fi ts within the
posts of the rack.

5. Hang the hooks of the rear portion of the outer rail onto the slots on the rear
of the rack. If necessary, use screws to secure the rear of the outer rail to the
rear of the rack.

6. Repeat steps 1-5 for the remaining outer rail.

Figure 2-5. Extending and Releasing the Outer Rails

1

1

1

2

1

3

1

4

2-8

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Figure 2-6. Installing into a Rack

Standard Chassis Installation

Installing the Chassis into a Rack

1. Confi rm that the inner rails are properly installed on the chassis.

2. Confi rm that the outer rails are correctly installed on the rack.

3. Pull the middle rail out from the front of the outer rail and make sure that the
ball-bearing shuttle is at the front locking position of the middle rail.

4. Align the chassis inner rails with the front of the middle rails.

5. Slide the inner rails on the chassis into the middle rails, keeping the pressure
even on both sides, until the locking tab of the inner rail clicks into the front of
the middle rail, locking the chassis into the fully extended position.

6. Depress the locking tabs of both sides at the same time and push the chassis
all the way into the rear of the rack.

7. If necessary for security purposes, use screws to secure the chassis handles
to the front of the rack.

Ball-Bearing

Shuttle

Chapter 2: Server Installation

2-9

Optional Quick Installation Method

The following quick installation method may be used to install the chassis onto a
rack.

Installing the Chassis into a Rack

1. Install the whole rail assembly onto the rack as described on page 6-7.

2. Release the inner rail without retracting the middle rail.

3. Install the inner rails on the chassis as previously described on page 6-6.

4. Install the chassis onto the middle rail as described in the previous section.

Stability hazard. The rack stabilizing mechanism must be in place, or the
rack must be bolted to the fl oor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over.

2-10

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Notes

Chapter 3: System Interface

3-1

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the Hard drive
carriers to keep you constantly informed of the overall status of the system as well
as the activity and health of specifi c components. There are also two buttons on
the chassis control panel.

3-2 Control Panel Buttons

The two push-buttons located on the front of the chassis are (in order from left to
right) a reset button and a power on/off button.

Reset

Use the reset button to reboot the system.

Power

This is the main power button, which is used to apply or turn off the main system
power. Turning off system power with this button removes the main power but keeps
standby power supplied to the system. Therefore, the system power cord should
be unplugged before performing service.

3-3 Control Panel LEDs

The control panel located on the front of the chassis has several LEDs. These
LEDs provide you with critical information related to different parts of the system.
This section explains what each LED indicates when illuminated and any corrective
action you may need to take.

3-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Power Fail

Indicates a power supply module has failed. The second power supply module will
take the load and keep the system running but the failed module will need to be
replaced. Refer to Chapter 6 for details on replacing the power supply. This LED
should be off when the system is operating normally.

Overheat/Fan Fail

When this LED fl ashes, it indicates a fan failure. When on continuously it indicates
an overheat condition, which may be caused by cables obstructing the airfl ow in
the system or the ambient room temperature being too warm. Check the routing of
the cables and make sure all fans are present and operating normally. You should
also check to make sure that the chassis covers are installed. Finally, verify that
the heatsinks are installed properly (see Chapter 5). This LED will remain fl ashing
or on as long as the indicated condition exists.

NIC1

Indicates network activity on the LAN1 port when fl ashing.

NIC2

Indicates network activity on the LAN2 port when fl ashing.

1

2

Chapter 3: System Interface

3-3

HDD

Indicates IDE channel activity. On the SuperServer 2027R-E1R24L, this LED indi­cates hard and/or DVD-ROM drive activity when fl ashing.

Power

Indicates power is being supplied to the system's power supply units. This LED
should normally be illuminated when the system is operating.

3-4 Drive Carrier LEDs

Each drive carrier has two LEDs.

• Green: When illuminated, the green LED on the front of the drive carrier indi-

cates drive activity. A connection to the backplane enables this LED to blink on
and off when that particular drive is being accessed.

• Red: The red LED indicates a drive failure. If one of the drives fail, you should

be notifi ed by your system management software. Please refer to Chapter 6 for
instructions on replacing failed drives.

3-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Notes

4-1

Chapter 4: Warning Statements for AC Systems

Chapter 4

Standardized Warning Statements for AC Systems

4-1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user
of situations which have the potential for bodily injury. Should you have questions
or experience difficulty, Contact Supermicro's Technical Support department
for assistance. Only certifi ed technicians should attempt to install or confi gure
components.

Read this appendix in its entirety before installing or confi guring components in the
Supermicro chassis.

These warnings may also be found on our web site at http://www.supermicro.

com/about/policies/safety_information.cfm.

Warning!

This warning symbol means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the hazards involved with
electrical circuitry and be familiar with standard practices for preventing accidents.

Warning Defi nition

警告の定義

この警告サインは危険を意味します。

人身事故につながる可能性がありますので、いずれの機器でも動作させる前に、

電気回路に含まれる危険性に注意して、標準的な事故防止策に精通して下さい。

此警告符号代表危险。

您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分
意识到触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结
尾的声明号码找到此设备的安全性警告说明的翻译文本。

4-2

SUPERSERVER 2027R-E1R24L User's Manual

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu
Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den
Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung
vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen
Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes
de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y
familiarícese con los procedimientos estándar de prevención de accidentes. Al
fi nal de cada advertencia encontrará el número que le ayudará a encontrar el texto
traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant entraîner des blessures ou des dommages corporels. Avant
de travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées pour
éviter les accidents. Pour prendre connaissance des traductions des avertissements
fi gurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fi n de chaque avertissement.

CONSERVEZ CES INFORMATIONS.

ןונקת תורהצהאהרהז

ןה תואבה תורהצהא ינפמ שמתשמה תא ריהזהל תנמ לע ,היישעתה ינקת יפ לע תורהז הלבח

ה וא תולאש שיו הדימב .תירשפא תיזיפי ,יהשלכ היעבב תולקתרוציל שי הכימת תקלחמ םע רשק

רידגהל וא ןיקתהל םיאשר דבלב םיכמסומ םיאנכט .ורקימרפוס לש תינכט תאה .םיביכר

אורקל שי .ורקימרפוס יזראמב םיביכרה

תרדגה וא תנקתה ינפל ואולמב חפסנה תא

4-3

Warning Statements for AC Systems

안전을 위한 주의사항

경고!

이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수
있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와
관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준
작업절차를 준수해 주시기 바랍니다.

해당 번역문을 찾기 위해 각 경고의 마지막 부분에 제공된 경고문 번호를
참조하십시오

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken,
dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's
en dient u op de hoogte te zijn van de standaard procedures om ongelukken te
voorkomen. Gebruik de nummers aan het eind van elke waarschuwing om deze te
herleiden naar de desbetreffende locatie.

BEWAAR DEZE INSTRUCTIES

. ﻲﻓ ﻚﻧﺍ ﻥﺃ ﻦﻜﻤﻳ ﺔﻟﺎﺣ ﻲﻓ ﺐﺒﺴﺘﺗ ﺔﺑﺎﺻﺍ ﺔﻳﺪﺴﺟ ﺰﻣﺮﻟﺍ ﺍﺬﻫ ﻲﻨﻌﻳ ﺮﻄﺧ !ﺮﻳﺬﺤﺗ

ﻥﺃ ﻞﺒﻗ ﻱﺃ ﻰﻠﻋ ﻞﻤﻌﺗ ﺕﺍﺪﻌﻣ،ﻛﻢﻠﻋ ﻰﻠﻋ ﻦ ﻦﻋ ﺔﻤﺟﺎﻨﻟﺍ ﺮﻁﺎﺨﻤﻟﺎﺑ ﺮﺋﺍﻭﺪﻟﺍ

ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ

ﻛﻭﺔﻳﺍﺭﺩ ﻰﻠﻋ ﻦ ﺭﺎﻤﻤﻟﺎﺑﺕﺎﺳ ﺔﻴﺋﺎﻗﻮﻟﺍ ﻟ ﻊﻨﻤﻉﻮﻗﻭ ﻱﺃﺙﺩﺍﻮﺣ

ﻢﻗﺭ ﻡﺪﺨﺘﺳﺍ ﻥﺎﻴﺒﻟﺍ ﺹﻮﺼﻨﻤﻟﺍ ﺔﻳﺎﻬﻧ ﻲﻓ ﺮﻳﺬﺤﺗ ﻞﻛ ﺭﻮﺜﻌﻠﻟ ﺎﻬﺘﻤﺟﺮﺗ

4-4

SUPERSERVER 2027R-E1R24L User's Manual

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source.

Warnung

Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen
lesen.

¡Advertencia!

Lea las instrucciones de instalación antes de conectar el sistema a la red de
alimentación.

Attention

Avant de brancher le système sur la source d'alimentation, consulter les directives
d'installation.

設置手順書

システムを電源に接続する前に、設置手順書をお読み下さい。

ﻟﺍ ﺕﺍﺩﺎﺷﺭﺇ ﺮﻗﺍﺐﻴﻛﺮﺘ ﻞﻴﺻﻮﺗ ﻞﺒﻗ ﻰﻟﺇ ﻡﺎﻈﻨﻟﺍ ﺔﻗﺎﻄﻠﻟ ﺭﺪﺼﻣ

אורקל שי רוקמל תכרעמה רוביח ינפל הנקתה תוארוה תאחתמ.

시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오.

Waarschuwing

Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron
aansluit.

4-5

Chapter 4: Warning Statements for AC Systems

Circuit Breaker

Warning!

This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

この製 品 は、短絡（過電流）保護装置がある建物での設置を前提としています。

保護装置の定格が250V、20Aを超えないことを確認下さい。

Warnung

Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss­bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der
Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.

¡Advertencia!

Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes)
del edifi cio. Asegúrese de que el dispositivo de protección no sea superior a: 250
V, 20 A.

Attention

Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit
dépend de l'installation électrique du local. Vérifi ez que le courant nominal du
dispositif de protection n'est pas supérieur à :250 V, 20 A

לע ךמתסמ הז רצומנגהה תעינמל םינבמב תנקתומה יכ אדוול שי .ילמשח רצק

רצקה ינפמ ןגמה רישכמה ילמשחהמ רתוי אל אוה-250 V, 20 A

ﺞﺘﻨﻤﻟﺍ ﺍﺬﻫ ﻰﻠﻋ ﺪﻤﺘﻌﻳ ﺕﺍﺪﻌﻣ ﺔﻳﺎﻤﺤﻟﺍ ﺓﺮﻴﺼﻘﻟﺍﺮﺋﺍﻭﺪﻟﺍ ﻦﻣ ﺎﻬﺘﻴﺒﺜﺗ ﻢﺗ ﻲﺘﻟﺍ ﻲﻓ

ﻰﻨﺒﻤﻟﺍ

20A, 250V : ﻦﻣ ﺪﻛﺄﺗ ﻥﺃ ﻢﻴﻴﻘﺗ ﺯﺎﻬﺠﻟﺍ ﻟﺍﻲﺋﺎﻗﻮ ﺲﻴﻟ ﻦﻣ ﺮﺜﻛﺃ

4-6

SUPERSERVER 2027R-E1R24L User's Manual

Power Disconnection Warning

Warning!

The system must be disconnected from all sources of power and the power cord
removed from the power supply module(s) before accessing the chassis interior to
install or remove system components.

電源切断の警告

システムコンポーネントの取り付けまたは取り外しのために、シャーシー内部にアクセス
するには、

システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り
外す必要があります。

在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线.

Warnung

Das System muss von allen Quellen der Energie und vom Netzanschlusskabel
getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es
auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder
zu entfernen.

¡Advertencia!

El sistema debe ser disconnected de todas las fuentes de energía y del cable
eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso
el interior del chasis para instalar o para quitar componentes de sistema.

경고!

이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에
의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지

않도록 해야 합니다.

Waarschuwing

Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van
uw electrische installatie. Controleer of het beveiligde aparaat niet groter
gedimensioneerd is dan 220V,20A.

4-7

Chapter 4: Warning Statements for AC Systems

Le système doit être débranché de toutes les sources de puissance ainsi que de
son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour
installer ou enlever des composants de systéme.

ילמשח קותינ ינפמ הרהזא

!הרהזא

למשחה תורוקמ לכמ תכרעמה תא קתנל שי ריסהל שיו קפסהמ ילמשחה לבכ תא

נקתה ךרוצל זראמה לש ימינפה קלחל השיג ינפלת רסה ואת .םיביכר

ﻞﺼﻓ ﺐﺠﻳ ﻡﺎﻈﻨﻟﺍ ﻊﻴﻤﺟ ﻦﻣﺭﺩﺎﺼﻣ ﺔﻗﺎﻄﻟﺍ ﺔﻟﺍﺯﺇﻭ ءﺎﺑﺮﻬﻜﻟﺍ ﻚﻠﺳ ﻦﻣ ﺓﺪﺣﻭ ﺩﺍﺪﻣﺍ

ﺔﻗﺎﻄﻟﺍ ﻞﺒﻗ

ﻰﻟﺇ ﻝﻮﺻﻮﻟﺍ ﺔﻴﻠﺧﺍﺪﻟﺍ ﻖﻁﺎﻨﻤﻟﺍ ﻟﻞﻜﻴﻬﻠ ﺔﻟﺍﺯﺇ ﻭﺃ ﺖﻴﺒﺜﺘﻟ ﺕﺎﻧﻮﻜﻣ

ﺯﺎﻬﺠﻟﺍ

경고!

시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에
반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야
합니다.

Waarschuwing

Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren
of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle
stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen

4-8

SUPERSERVER 2027R-E1R24L User's Manual

Equipment Installation

Warning!

Only trained and qualifi ed personnel should be allowed to install, replace, or service
this equipment.

機器の設置

トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可

されています。

Warnung

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem,
qualifi ziertem Personal gestattet werden.

¡Advertencia!

Solamente el personal califi cado debe instalar, reemplazar o utilizar este equipo.

Attention

Il est vivement recommandé de confier l'installation, le remplacement et la
maintenance de ces équipements à des personnels qualifi és et expérimentés.

!הרהזא

שר דבלב ךמסומ תווצתא ףילחהל ,ןיקתהל יא .דויצה רובע תוריש תתל וא דויצה

ﻦﻴﺑﺭﺪﻤﻟﺍﻭ ﻭ ﺐﻴﻛﺮﺘﻟﻝﺍﺪﺒﺘﺳﺍ ﻭﺃ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ ﺢﻤﺴﻳ ﻥﺃ ﺐﺠﻳ ﻂﻘﻓ ﻦﻴﻠﻫﺆﻤﻟﺍ ﻦﻴﻔﻅﻮﻤﻠﻟ

경고!

훈련을 받고 공인된 기술자만이 이 장비의 설치, 교체 또는 서비스를 수행할 수
있습니다.

4-9

Chapter 4: Warning Statements for AC Systems

Warning!

This unit is intended for installation in restricted access areas. A restricted access
area can be accessed only through the use of a special tool, lock and key, or other
means of security. (This warning does not apply to workstations).

アクセス制限区域

このユ ニットは、アクセス制限区域に設置されることを想定しています。

アクセス制限区域は、特別なツール、鍵と錠 前、その他のセキュリティの手段を用いての

み出入りが可能です。

Restricted Area

Waarschuwing

Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door
geschoold en gekwalifi ceerd personeel.

Warnung

Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen.
Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und
Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.

¡Advertencia!

Esta unidad ha sido diseñada para instalación en áreas de acceso restringido.
Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una
herramienta especial, cerradura con llave u otro medio de seguridad.

Attention

Cet appareil doit être installée dans des zones d'accès réservés. L'accès à une
zone d'accès réservé n'est possible qu'en utilisant un outil spécial, un mécanisme
de verrouillage et une clé, ou tout autre moyen de sécurité.

4-10

SUPERSERVER 2027R-E1R24L User's Manual

Battery Handling

Warning!

There is the danger of explosion if the battery is replaced incorrectly. Replace the
battery only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions

תלבגומ השיג םע רוזא

!הרהזא

תרזעב תנתינ השיגה .השיג תלבגה םהב שיש םירוזאב הדיחיה תא ןיקתהל שי

.('דכו לוענמ ,חתפמ) דבלב החטבא ילכ

. ﺺﻴﺼﺨﺗ ﺓﺪﺣﻮﻟﺍ ﻩﺬﻫ ﻲﻓ ﺎﻬﺒﻴﻛﺮﺘﻟ ﻖﻁﺎﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻢﺗ

ﺻﻮﻟﺍ ﻦﻜﻤﻳﻰﻟﺇ ﻝﻮ ﺔﻘﻄﻨﻣ ﺓﺭﻮﻈﺤﻣ ﻂﻘﻓ ﻡﺍﺪﺨﺘﺳﺍ ﻝﻼﺧ ﻦﻣ ،ﺔﺻﺎﺧ ﺓﺍﺩﺃ

ﻭﺃ ﻱﺃ ﻼﻟ ﻯﺮﺧﺃ ﺔﻠﻴﺳﻭﻥﺎﻣﻷ ﺡﺎﺘﻔﻣﻭ ﻞﻔﻗ

경고!

이 장치는 접근이 제한된 구역에 설치하도록 되어있습니다. 특수도구, 잠금 장치 및
키, 또는 기타 보안 수단을 통해서만 접근 제한 구역에 들어갈 수 있습니다.

Waarschuwing

Dit apparaat is bedoeld voor installatie in gebieden met een beperkte toegang.
Toegang tot dergelijke gebieden kunnen alleen verkregen worden door gebruik te
maken van speciaal gereedschap, slot en sleutel of andere veiligheidsmaatregelen.

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメー
カーが推奨する型、または 同等のものを使 用下さい。使用済電池は製造元の指示に従
って処 分して 下さい 。

4-11

Chapter 4: Warning Statements for AC Systems

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die
Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.
Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer
que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
Reemplazar la batería exclusivamente con el mismo tipo o el equivalente
recomendado por el fabricante. Desechar las baterías gastadas según las
instrucciones del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל

ﺮﻄﺧ ﻙﺎﻨﻫ ﻦﻣ ﻝﺍﺪﺒﺘﺳﺍ ﺔﻟﺎﺣ ﻲﻓ ﺭﺎﺠﻔﻧﺍ ﺔﻳﺭﺎﻄﺒﻟﺍ ﺔﺤﻴﺤﺻ ﺮﻴﻏ ﺔﻘﻳﺮﻄﺑ ﻚﻴﻠﻌﻓ

ﺔﻳﺭﺎﻄﺒﻟﺍ ﻝﺍﺪﺒﺘﺳﺍ

ﻂﻘﻓ ﻉﻮﻨﻟﺍ ﺲﻔﻨﺑ ﺎﻬﻟﺩﺎﻌﻳ ﺎﻣ ﻭﺃ ﺎﻤﻛﺖﺻﻭﺃ ﺔﻌﻨﺼﻤﻟﺍ ﺔﻛﺮﺸﻟﺍ ﻪﺑ

ﺕﺎﻳﺭﺎﻄﺒﻟﺍ ﻦﻣ ﺺﻠﺨﺗ ﻟ ﺎﻘﻓﻭ ﺔﻠﻤﻌﺘﺴﻤﻟﺍﺔﻌﻧﺎﺼﻟﺍ ﺔﻛﺮﺸﻟﺍ ﺕﺎﻤﻴﻠﻌﺘ

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와
동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다.
제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontploffi ngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de
batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen
wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd
te worden.

4-12

SUPERSERVER 2027R-E1R24L User's Manual

Warnung

Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass
der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

¡Advertencia!

Puede que esta unidad tenga más de una conexión para fuentes de alimentación.
Para cortar por completo el suministro de energía, deben desconectarse todas las
conexiones.

Attention

Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute
tension et tout courant électrique de l'unité, toutes les connexions d'alimentation
doivent être débranchées.

Redundant Power Supplies

Warning!

This unit might have more than one power supply connection. All connections must
be removed to de-energize the unit.

冗長電源装置

このユニットは複数の電源装置が接続されている場合があります。

ユニットの電源を切るためには、すべての接続を取り外さなければなりません。

דחא קפסמ רתוי םייק םא

!הרהזא

.קפס לש דחא רוביחמ רתוי שי הדחיל תא ריסהל שיןקורל תנמ לע םירוביחה לכ

חיה תאי.הד

4-13

Chapter 4: Warning Statements for AC Systems

Backplane Voltage

Warning!

Hazardous voltage or energy is present on the backplane when the system is
operating. Use caution when servicing.

バックプレーンの電圧

システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。

修理する際には注意ください。

直流电源终端可能会产生危险的电压或能量.终端不使用时,请务必盖上机盖.机盖盖
上后,请确保导体未绝缘部分无法使用.

Warnung

Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche
Spannungen oder Energien auf. Vorsicht bei der Wartung.

¡Advertencia!

Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso.
Tenga cuidado cuando lo revise.

Attention

Lorsque le système est en fonctionnement, des tensions électriques circulent sur
le fond de panier. Prendre des précautions lors de la maintenance.

. ﺪﻗ ﺍﺬﻬﻟ ﻥﻮﻜﻳ ﻟﺍﺯﺎﻬﺠ ﺕﻻﺎﺼﺗﺍ ﺓﺪﻋ ﺕﺍﺪﺣﻮﺑ ﺔﻗﺎﻄﻟﺍ ﺩﺍﺪﻣﺍ

ﺔﻟﺍﺯﺇ ﺐﺠﻳ ﺕﻻﺎﺼﺗﻻﺍ ﺔﻓﺎﻛ ﻝﺰﻌﻟ ﻟﺍﺓﺪﺣﻮ ﻦﻋ ءﺎﺑﺮﻬﻜﻟﺍ

경고!

이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에
전원을 차단하기 위해서는 모든 연결 단자를 제거해야만 합니다.

Waarschuwing

Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle
aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken.

4-14

SUPERSERVER 2027R-E1R24L User's Manual

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

機器の取り付けはその地方および国の電気規格に準拠する必要があります。

Warnung

Die Installation der Geräte muss den Sicherheitsstandards entsprechen.

¡Advertencia!

La instalacion del equipo debe cumplir con las normas de electricidad locales y

nacionales.

ﻙﺎﻨﻫ ﺮﻄﺧ ﻦﻣ ﻲﺋﺎﺑﺮﻬﻜﻟﺍ ﺭﺎﻴﺘﻟﺍ ﻰﻠﻋ ﺓﺩﻮﺟﻮﻤﻟﺍ ﺔﻗﺎﻄﻟﺍﻭﺃ ﺔﺣﻮﻠﻟﺍ

ﻥﻮﻜﻳ ﺎﻣﺪﻨﻋﻡﺎﻈﻨﻟﺍ ﻞﻤﻌﻳ ﺪﻨﻋ ﺍﺭﺬﺣ ﻦﻛ ﺔﻣﺪﺧ ﺯﺎﻬﺠﻟﺍ ﺍﺬﻫ

경고!

시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생
합니다. 서비스 작업 시 주의하십시오.

Waarschuwing

Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het
systeem in gebruik is. Voorzichtigheid is geboden tijdens het onderhoud.

ירוחאה לנפב חתמ

זא!הרה

ךלהמב רהזיהל שי .תכרעמה לועפת ןמזב ירוחאה לנפב חתמ תנכס תמייק

.הדובעה

4-15

Chapter 4: Warning Statements for AC Systems

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws
and regulations.

יצראה למשחה יקוח םואית

!הרהזא

תנקתה םייצראהו םיימוקמה למשחה יקוחל תמאות תויהל תבייח דויצה.

ﺕﺍﺪﻌﻤﻟﺍ ﺐﻴﻛﺮﺗ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﻠﻟ ﻞﺜﺘﻤﻳ ﻥﺃ ﺐﺠﻳ ﻦﻴﻧﺍﻮﻘﺔﻴﻨﻁﻮﻟﺍﻭ ﺔﻴﻠﺤﻤﻟﺍ ﺔﻘﻠﻌﺘﻤﻟﺍ

ءﺎﺑﺮﻬﻜﻟﺎﺑ

Attention

L'équipement doit être installé conformément aux normes électriques nationales
et locales.

경고!

현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.

Waarschuwing

Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale
elektriciteitsvoorschriften.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が
あります。

4-16

SUPERSERVER 2027R-E1R24L User's Manual

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y

reglamentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

Warning!

The fans might still be turning when you remove the fan assembly from the chassis.

Keep fi ngers, screwdrivers, and other objects away from the openings in the fan

assembly's housing.

Hot Swap Fan Warning

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

ﻲﺋﺎﻬﻨﻟﺍ ﺺﻠﺨﺘﻟﺍ ﻦﻣ ﺞﺘﻨﻤﻟﺍ ﺍﺬﻫ ﻪﻌﻣ ﻞﻣﺎﻌﺘﻟﺍ ﻲﻐﺒﻨﻳ ﻟ ﺎﻘﻓﻭ ﻊﻴﻤﺠﺔﻴﻨﻁﻮﻟﺍ ﺢﺋﺍﻮﻠﻟﺍﻭ ﻦﻴﻧﺍﻮﻘﻟﺍ ﺪﻨﻋ

ファン・ホットスワップの警告

シャーシから冷却ファン装置を取り外した際、ファンがまだ回転している可能性がありま

す。ファンの開口部に、指、ドライバ ー、およびその他のものを近づけないで下さい。

4-17

Chapter 4: Warning Statements for AC Systems

Warnung

Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis
genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände
von den Öffnungen des Lüftergehäuses entfernt.

¡Advertencia!

Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador
del chasis. Mandtenga los dedos, los destornilladores y todos los objetos lejos de
las aberturas del ventilador

Attention

Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez
le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres
objets soient éloignés du logement du bloc ventilateur.

!הרהזא

יקלח תא םיריסמ רשאכ שי .םידבוע ןיידע םיררוואמהו ןכתי ,זראמהמ ררוואמה

קיחרהללררוואמה ךותב םיחתפהמ םינוש הדובע ילכו תועבצאה תא חוטב קחרמ

ﻦﻜﻤﻤﻟﺍ ﻦﻣ ﺡﻭﺍﺮﻤﻟﺍ ﻥﺃ ﻝﺍﺰﺗ ﻻ ﺔﻟﺍﺯﺇ ﺪﻨﻋﺭﻭﺪﺗ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ ﻞﻜﻴﻬﻟﺍ ﻦﻣ ﺐﺠﻳ ءﺎﻘﺑﺇ

ﻊﺑﺎﺻﻷﺍ ﻭﻲﻏﺍﺮﺒﻟﺍ ﺕﺎﻜﻔﻣ

. ءﺎﻴﺷﻷﺍ ﻦﻣ ﺎﻫﺮﻴﻏﻭ ﺍﺪﻴﻌﺑ ﻦﻋ ﺕﺎﺤﺘﻔﻟﺍ ﻲﻓ ﺔﻠﺘﻛ ﺔﺣﻭﺮﻤﻟﺍ

경고!

섀시로부터 팬 조립품을 제거할 때 팬은 여전히 회전하고 있을 수 있습니다. 팬
조림품 외관의 열려있는 부분들로부터 손가락 및 스크류드라이버, 다른 물체들이
가까이 하지 않도록 배치해 주십시오.

Waarschuwing

Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het
ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers
en eventuele andere voorwerpen uit de buurt van de openingen in de
ventilatorbehuizing.

4-18

SUPERSERVER 2027R-E1R24L User's Manual

Warning!

When installing the product, use the provided or designated connection cables,

power cables and AC adaptors. Using any other cables and adaptors could cause

a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the

use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any

other electrical devices than products designated by Supermicro only.

Power Cable and AC Adapter

Warnung

Bei der Installation des Produkts, die zur Verfügung gestellten oder benannt
Anschlusskabel, Stromkabel und Netzteile. Verwendung anderer Kabel und Adapter
kann zu einer Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und
Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifi zierte Kabel,
UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von
Supermicro nur bezeichnet gezeigt haben.

¡Advertencia!

Al instalar el producto, utilice los cables de conexión previstos o designados, los
cables y adaptadores de CA. La utilización de otros cables y adaptadores podría
ocasionar un mal funcionamiento o un incendio. Aparatos Eléctricos y la Ley de
Seguridad del Material prohíbe el uso de UL o CSA cables certifi cados que tienen
UL o CSA se muestra en el código de otros dispositivos eléctricos que los productos
designados por Supermicro solamente.

電源コードとACアダプター

製品を設置する場合、提供または指定された接続ケーブル、電源コードとACアダプター
を使用下さい。他のケーブルやアダプタを使用すると故障や火災の原因になることがあ

ります。電気用品安全法は、ULまたはCSA認定のケーブル(UL/CSEマークがコードに表

記)をSupermicroが指定する製品以外に使用することを禁止しています。

4-19

Chapter 4: Warning Statements for AC Systems

Attention

Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné.
L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement
ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit
l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code
pour tous les autres appareils électriques que les produits désignés par Supermicro
seulement.

אתמו םיילמשחמ י

AC

!הרהזא

םימאתמו םיקפס ,םילבכב שמתשהל שי ,רצומה תא םיניקתמ רשאכAC רשא

וא הלקתל םורגל לוכי רחא םאתמ וא לבכ לכב שומיש .ךכ םשל וקפוסו ודעונ

טב יקוחו למשח ירישכמב שומיש יקוח יפ לע .ילמשח רצק רוסיא םייק ,תוחי

ב םיכמסומה םילבכב שמתשהל-

UL ב וא- CSA לש דוק םהילע עיפומ ראשכ)

UL/CSA( רחא ילמשח רצומ לכ רובע.דבלב ורקימקרפוס ידי לע ןיוצ אלש

ﺐﻴﻛﺮﺗ ﺪﻨﻋ ﻡﺍﺪﺨﺘﺳﺍ ﺐﺠﻳ ﺯﺎﻬﺠﻟﺍ ﻭ،ﻞﻴﺻﻮﺘﻟﺍ ﺕﻼﺑﺎﻛ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺕﻼﺑﺎﻜﻟﺍ

ﺕﻻﻮﺤﻣﻭ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ

. ﻥﺃ ﻱﺃ ﻡﺍﺪﺨﺘﺳﺍ ﺕﻼﺑﺎﻛ ﺕﻻﻮﺤﻣﻭ ﻯﺮﺧﺃ ﺐﺒﺴﺘﻳ ﻲﻓ ﻞﻄﻋ ﺙﻭﺪﺣ ﻖﻳﺮﺣ ﻭﺃ . ﻲﺘﻟﺍ

ﻚﻟ ﺎﻫﺮﻴﻓﻮﺗ ﻢﺗ ﺞﺘﻨﻤﻟﺍ ﻊﻣ

UL ﻭﺃ CSA ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺓﺰﻬﺟﻷﺍ ﺩﺍﻮﻣﻭ ﻥﻮﻧﺎﻗ ﺔﻣﻼﺴﻟﺍ ﻡﺍﺪﺨﺘﺳﺍ ﺮﻈﺤﻳ ﺕﻼﺑﺎﻜﻟﺍ

ﻞﺒﻗ ﻦﻣ ﺓﺪﻤﺘﻌﻣ

Supermicro ﺓﺰﻬﺟﺃ ﻯﺮﺧﺃ ﺔﻴﺋﺎﺑﺮﻬﻛ ﺮﻴﻏ ﺕﺎﺠﺘﻨﻤﻟﺍ ﺔﻨﻴﻌﻤﻟﺍ ﻞﺒﻗ ﻦﻣ ﻱﻷ

(UL/CSA ﻞﻤﺤﺗ ﻲﺘﻟﺍﺔﻣﻼﻋ )

경고!

제품을 설치할 때에는 제공되거나 지정된 연결케이블과 전원케이블, AC어댑터를
사용해야 합니다. 그 밖의 다른 케이블들이나 어댑터들은 고장 또는 화재의 원인이
될 수 있습니다. 전기용품안전법 (Electrical Appliance and Material Safety
Law)은 슈퍼마이크로에서 지정한 제품들 외에는 그 밖의 다른 전기 장치들을
위한 UL또는 CSA에서 인증한 케이블(전선 위에 UL/CSA가 표시)들의 사용을
금지합니다.

Waarschuwing

Bij het installeren van het product, gebruik de meegeleverde of aangewezen kabels,
stroomkabels en adapters. Het gebruik van andere kabels en adapters kan leiden
tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet
verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op
de code voor andere elektrische apparaten dan de producten die door Supermicro
alleen.

4-20

SUPERSERVER 2027R-E1R24L User's Manual

Notes

Chapter 5: Advanced Serverboard Setup

5-1

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to connect the data and power cables and
install add-on cards. All serverboard jumpers and connections are also described.
A layout and quick reference chart are included in this chapter for your reference.
Remember to completely close the chassis when you have fi nished working with
the serverboard to better cool and protect the system.

5-1 Handling the Serverboard

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam­age to any printed circuit boards (PCBs), it is important to handle them very carefully
(see previous chapter). To prevent the serverboard from bending, keep one hand
under the center of the board to support it when handling. The following measures
are generally suffi cient to protect your equipment from electric static discharge.

Precautions

• Use a grounded wrist strap designed to prevent Electrostatic Discharge

(ESD).

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the serverboard.

5-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Unpacking

The serverboard is shipped in antistatic packaging to avoid electrical static dis-

charge. When unpacking the board, make sure the person handling it is static

protected.

5-2 Connecting Cables

Several cables need to be connected to the serverboard. These include the data

cables for the peripherals and control panel and the power cables.

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully

routed to prevent them from blocking the fl ow of cooling air that moves through

the system from front to back. If you need to disconnect any of these cables, you

should take care to keep them routed as they were originally after reconnecting

them (make sure the red wires connect to the pin 1 locations). The following data

cables (with their locations noted) should be connected. (See the layout on page

5-10 for connector locations.)

• Control Panel cable (JF1)

• USB cable for front side access (USB4/5)

Important! Make sure the the cables do not come into contact with the fans.

Connecting Power Cables

The X9DRD-7LN4F-JBOD has a 24-pin primary power supply connector (JPW1) for

connection to the ATX power supply. In addition, there are two 8-pin 12V processor

power connectors (JPW2 and JPW3) that must be connected to your power supply.

See Section 5-9 for power connector pin defi nitions.

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 5-1

for the pin locations of the various front control panel buttons and LED indicators.

All JF1 wires have been bundled into a single cable to simplify this connection. Make

sure the red wire plugs into pin 1 as marked on the board. The other end connects

to the Control Panel PCB board, located just behind the system status LEDs on

the chassis. See Chapter 5 for details and pin descriptions.

Chapter 5: Advanced Serverboard Setup

5-3

5-3 Rear I/O Ports

The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports.

Figure 5-1. Control Panel Header Pins

Figure 5-2. Rear I/O Ports

NMI

x (Key)

3.3V

ID/UID/SW/3.3V Stby

NIC1 Activity LED

NIC2 Activity LED

Red + (Blue Cathode

3.3V

Reset (Button)

Power (Button)

Ground

x (Key)

Power On LED

HDD LED

NIC1 Link LED

NIC2 Link LED

OH/Fan Fail LED

Power Fail LED

Ground

Ground

2 1

20 19

Rear I/O Ports

1 COM Port 1 7 LAN Port 1

2 USB Port 0 8 LAN Port 2

3 USB Port 1 9 LAN Port 3

4 Dedicated IPMI LAN 10 LAN Port 4

5 USB Port 2 11 VGA Port

6 USB Port 3 12 UID Switch

1

1

1

9

1

8

1

7

1

5

1

6

1

3

1

4

1

2

1

10

1

11

1

12

5-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

5-4 Installing the Processor and Heatsink

When handling the processor package, avoid placing direct pressure on the label

area of the fan.

Notes:

• Always connect the power cord last and always remove it before adding, re-

moving or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.

• If you buy a CPU separately, make sure that you use an Intel-certifi ed multi-

directional heatsink only.

• Make sure to install the serverboard into the chassis before you install the CPU

heatsinks.

• When receiving a serverboard without a processor pre-installed, make sure that

the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.

• Refer to the Supermicro web site for updates on CPU support.

1. There are two levers on the

LGA2011 socket. First press and
release the load lever labeled
'Open 1st'.

2. Press the second load lever

labeled 'Close 1st' to release the
load plate from its locked position.

Installing an LGA2011 Processor

OPEN 1st

WARNING!

OPEN 1st

WARNING!

Press down on

the lever labeled

'Close 1st'

Pull lever away
from the socket

Chapter 5: Advanced Serverboard Setup

5-5

Gently push
down to pop
the load plate
open.

3. With the lever labeled 'Close 1st'
fully retracted, gently push down
on the 'Open 1st' lever to open the
load plate. Lift the load plate to
open it completely.

4. Using your thumb and the index
fi nger, remove the 'WARNING'
plastic cap from the socket.

5. Use your thumb and index fi nger
to hold the CPU by its edges. Align
the CPU keys, which are semi­circle cutouts, against the socket
keys.

6. Once they are aligned, carefully
lower the CPU straight down into
the socket. (Do not drop the CPU
on the socket. Do not move the
CPU horizontally or vertically and
do not rub the CPU against any
pins of the socket, which may
damage the CPU or the socket.)

WARNING!

WARNING!

OPEN 1st

WARNING!

Socket Keys

CPU Keys

5-6

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Warning: You can only install the CPU to the socket in one direction. Make sure
that the CPU is properly inserted into the socket before closing the load plate. If it
doesn't close properly, do not force it as it may damage your CPU. Instead, open
the load plate again and double-check that the CPU is aligned properly.

7. With the CPU in the socket, in­spect the four corners of the CPU
to make sure that they are fl ush
with the socket.

8. Close the load plate. Lock the
lever labeled 'Close 1st', then lock
the lever labeled 'Open 1st'. Use
your thumb to gently push the
load levers down until the lever
locks.

OPEN 1st

OPEN

1

st

OPEN 1st

OP

E

N

1s

t

Lever Lock

Push down

and lock the

lever labeled

'Open 1st'.

Push down and lock the

level labeled 'Close 1st'.

Gently close

the load plate.

Chapter 5: Advanced Serverboard Setup

5-7

Installing a Passive CPU Heatsink

1. Do not apply any thermal grease to the heatsink or the CPU die -- the re­quired amount has already been applied.

2. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the Serverboard's and the Heatsink Bracket underneath.

3. Screw in two diagonal screws (i.e., the #1 and the #2 screws) until just snug
(-do not over-tighten the screws to avoid possible damage to the CPU.)

4. Finish the installation by fully tightening all four screws.

OPEN 1st

Motherboard

Screw#1

Screw#2

Mounting Holes

Screw#3

Screw#4

5-8

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Removing the Heatsink

Warning: We do not recommend that the CPU or the heatsink be removed. How-

ever, if you do need to uninstall the heatsink, please follow the instructions below
to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.

1. Unscrew the heatsink screws from the serverboard in the sequence as shown
in the illustration below.

2. Gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive
force when wriggling the heatsink!)

3. Once the heatsink is loosened, remove it from the CPU.

4. Remove the used thermal grease and clean the surface of the CPU and the
heatsink, Reapply the proper amount of thermal grease on the surface before
reinstalling the heatsink. (Do not reuse old thermal grease!)

Warning: Do not reuse old thermal grease!

OPEN 1st

Loosen screws
in sequence as
shown.

Screw#1

Screw#2

Motherboard

Screw#4

Screw#3

Chapter 5: Advanced Serverboard Setup

5-9

Memory Support

The X9DRD-7LN4F-JBOD has 16 DIMM slots that can support 512 GB of ECC
DDR3 Registered memory (RDIMM) or up to 128 GB of ECC/non-ECC DDR3 Unbuf­fered memory (UDIMM). For best performance, install pairs of memory modules of
the same type and speed. Please refer to our web site for any updates to supported
memory. All channels will run at the fastest common frequency.

DIMM Installation

Installing Memory Modules

1. Insert the desired number of DIMMs into the memory slots starting with P1­DIMMA1. See the Memory Installation Tables on the following pages.

2. Insert each DIMM module vertically into its slot. Pay attention to the notch
along the bottom of the module to avoid installing incorrectly (see Figure 5-3).

3. Use your thumbs to gently press down on both ends of the DIMM module
until it snaps into place in the slot. Repeat for all modules.

4. Press the release tabs to the locked positions to secure the DIMM module
into the slot.

CAUTION! Exercise extreme care when installing or removing DIMM modules to
prevent any possible damage.

5-5 Installing Memory

To In sta ll : Insert module

vertically and press
down until it snaps into
place. Pay attention to
the alignment notch at
the bottom.

To Remove:

Use your thumbs to
gently push the release
tabs near both ends of
the module. This should
release it from the slot.

Figure 5-3. DIMM Installation

Top View of DDR3 Slot

Release Tab

Release Tab

Notch should align with the
receptive key point on the
slot.

Notch

Notch

Front View

5-10

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

DIMM Module Population Tables

Processors and their Corresponding Memory Modules

CPU# Corresponding DIMM Modules

CPU 1 P1-

DIMMA1

P1­DIMMB1

P1­DIMMC1

P1­DIMMD1

P1­DIMMA2

P1­DIMMB2

P1­DIMMC2

P1­DIMMD2

CPU2 P2-

DIMME1

P2­DIMMF1

P2­DIMMG1

P2­DIMMH1

P2­DIMME2

P2­DIMM F2

P2­DIMMG2

P2­DIMMH2

Processor and Memory Module Population for Optimal Performance

Number of

CPUs+DIMMs

CPU and Memory Population Confi guration Table

(For memory to work properly, please follow the instructions below.)

1 CPU &
2 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1

1 CPU &
4 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1

1 CPU &

5~8 DIMMs

CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1­DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots

2 CPUs &

4 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1

2 CPUs &

6 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1

2 CPUs &

8 DIMMs

CPU1 + CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2­DIMMG1/P2-DIMMH1

2 CPUs &

10~16 DIMMs

CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2­DIMMG1/P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots

2 CPUs &

16 DIMMs

CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIM­MG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/
P2-DIMMF2/P2-DIMMG2/P2-DIMMH2

Intel E5-2600 Series Processor UDIMM Memory Support

Ranks Per

DIMM &

Data Width

Memory Capacity

Per DIMM

(See the Note below)

Speed (MT/s) and Voltage Validated by Slot per Channel

(SPC) and DIMM Per Channel (DPC)

1 Slot Per Channel 2 Slots Per Channel

1DPC 1DPC 2DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V

SRx8

Non-ECC

1GB 2GB 4GB NA 1066, 1333,

1600

NA 1066,

1333

NA 1066,

1333

DRx8

Non-ECC

2GB 4GB 8GB NA 1066, 1333,

1600

NA 1066,

1333

NA 1066,

1333

SRx16

Non-ECC

512MB 1GB 2GB NA 1066, 1333,

1600

NA 1066,

1333

NA 1066,

1333

SRx8 ECC 1GB 2GB 4GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066,

1333

1066 1066,

1333

DRx8 ECC 2GB 4GB 8GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066,

1333

1066 1066,

1333

Note: For detailed information on memory support and updates, please refer to the SMC Recommended
Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm.

Chapter 5: Advanced Serverboard Setup

5-11

Intel E5-2600 Series Processor RDIMM Memory Support

Ranks

Per

DIMM

& Data

Width

Memory Capacity

Per DIMM

(See the Note Below)

Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and

DIMM Per Channel (DPC)

1 Slot Per Channel 2 Slots Per Channel

1DPC 1DPC 2DPC

1.35V 1.5V 1.35V 1.5V 1.35V 1.5V

SRx8 1GB 2GB 4GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

DRx8 2GB 4GB 8GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

SRx4 2GB 4GB 8GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

DRx4 4GB 8GB 16GB 1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

1066,

1333

1066, 1333,

1600

QRx4 8GB 16GB 32GB 800 1066 800 1066 800 800

QRx8 4GB 8GB 16GB 800 1066 800 1066 800 800

Note: For detailed information on memory support and updates, please refer to the SMC Recommended

Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm.

Intel E5-2600 Series Processor LRDIMM Memory Support

Ranks Per

DIMM & Data

Width

(See the Note

Below)

Memory Capacity

Per DIMM

Speed (MT/s) and Voltage Validated

by Slot per Channel (SPC) and

DIMM Per Channel (DPC)

1 Slot Per

Channel

2 Slots Per

Channel

1DPC 1DPC and 2DPC

1.35V 1.5V 1.35V 1.5V

QRx4 (DDP) 16GB 32GB 1066,

1333

1066,

1333

1066 1066,

1333

QRx8 (P) 8GB 16GB 1066,

1333

1066,

1333

1066 1066,

1333

Note: For detailed information on memory support and updates, please refer to the
SMC Recommended Memory List posted on our website at http://www.supermicro.

com/support/resources/mem.cfm.

Note: For the memory modules to work properly, please install DIMM modules of the
same type, same speed and same operating frequency. Mixing RDIMMs, UDIMMs
or LRDIMMs is not allowed. Do not install both ECC and Non-ECC memory modules
on the same motherboard.

5-12

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

1 CPU, 2 DIMMs

1 CPU, 5-8 DIMMs

1 CPU, 4 DIMMs

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

Populate blue DIMM slots fi rst,
then the rest in any order

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

Chapter 5: Advanced Serverboard Setup

5-13

2 CPU, 6 DIMMs

2 CPU, 8 DIMMs 2 CPU, 10-16 DIMMs

For two CPUs and 16 DIMMs, populate all DIMM slots.

Populate blue DIMM slots fi rst, then any
memory pairs in the remaining slots.

2 CPU, 4 DIMMs

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JPME1

JI2C1

VGA1

I-SATA1

I-SATA0

I-SATA5

I-SATA4

I-SATA3

I-SATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T-SGPIO1

T-SGPIO2

JUSB6

JSD1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2
P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

USB4/5USB8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel

PCH

JPS1

LAN

CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

5-14

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

5-6 Adding PCI Add-On Cards

The 2027R-E1R24L can accommodate up to fi ve low-profi le PCI-E 3.0 x8 expan-
sion (add-on) cards.

Installing an Add-on Card

1. Begin by removing the shield for the PCI slot you wish to populate.

2. Fully seat the card into the slot, pushing down with your thumbs evenly on
both sides of the card.

3. Finish by using a screw to secure the top of the card shield to the chassis.
The PCI slot shields protect the serverboard and its components from EMI
and aid in proper ventilation, so make sure there is always a shield covering
each unused slot.

Chapter 5: Advanced Serverboard Setup

5-15

Figure 5-4. X9DRD-7LN4F-JBOD Layout

5-7 Serverboard Details

Notes

Jumpers not indicated are for test purposes only.

The SSG-2027R-E1R24L comes pre-installed with a JBOD expansion port installed
in PCI-E slot 1.

Please note that the PCI slots are enabled when their corresponding processors
are installed. "CPU2 Slot 4" indicates that the second CPU must be installed in the
CPU2 socket to enable this PCI slot.

JPME1

JI2C1

VGA1

I-SATA1

I

-

SATA0

I-SATA5

I-

S

ATA4

I-SATA3

I-

S

ATA2

JIPMB1

JPME2

JPL1

JBR1

JWD1

JPG1

JPB1

JVRM_I2C1

JVRM_I2C2

JVR1

FAN5

FAN6

FAN8

FAN7

FAN1

FAN2

FAN3

FAN4

JF2

T

-

SGPIO1

T-SGPIO2

JUSB6

JS

D1

JBT1

JBAT1

JTPM1

JF1

JPI2C1

JOH1

JI2C2

JL1

JSTBY1

JUIDB

J4

JD1

LED3

LEDM1

LED2

LAN2/4

LAN1/3

CPU1

CPU2

CPU2

CPU1

CPU2

CPU1

PWR I2C

UID

P2-DIMME1

P2-DIMMF2

P2-DIMMF1

P2-DIMMG2

P2-DIMMG1

P2-DIMMH2

P2-DIMMH1

P1-DIMMA2

P1-DIMMA1

P1-DIMMB2

P1-DIMMB1

P1-DIMMC1

P1-DIMMC2

P1-DIMMD1

P1-DIMMD2

US

B4

/5US

B

8/9

SLOT1 PCI-E 3.0 X8

SLOT2 PCI-E 3.0 X8

SLOT3 PCI-E 3.0 X8

SLOT4 PCI-E 3.0 X8

SLOT5 PCI-E 3.0 X8

USB6

TPM/PORT80

BUZZER

CMOS CLEAR

SLOT6 PCI-E 3.0 X8

COM2

USB2/3

COM1

USB0/1

SP1

CPU2

IPMI_LAN

CPU2

CPU2

Battery

BIOS

JPW1

JPW2

24-Pin Main PWR

8-Pin PWR

JPW4

P2-DIMME2

JPW3

8-Pin PWR

4-Pin PWR

L-SAS4~7

L-SAS0~3

LSI SAS CTRL

Intel
PCH

JPS1

LAN
CTRL

BMC

CPU1

X9DRD-7(J)LN4F

Rev. 1.01

JBOD Expansion Ports

5-16

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

X9DRD-7LN4F-JBOD Quick Reference

Jumper Description Default Setting

JBT1 Clear CMOS See Section 5-9

JI

2

C1/JI2C2 SMB to PCI-E Slots Pins 2-3 (Normal)

JPB1 BMC Enable/Disbable Pins 1-2 (Enabled)

JPG1 VGA Enable/Disable Pins 1-2 (Enabled)

JPL1 GLAN1/GLAN2 Enable/Disable Pins 1-2 (Enabled)

JPS1 SAS Enabled Pins 1-2 (Enabled)

JWD1 Watch Dog Pins 1-2 (Reset)

Connector Description

COM1/COM2 Backplane COM Port1/Front Accessible COM2 Header
FAN1~8 CPU/System Fan Headers
IPMI LAN Dedicated IPMI LAN port
I-SATA 1~6 Intel SATA Ports 0~5
JD1 Speaker/Power LED Indicator
JF1 Front Panel Control Header
JF2 LAN3 (NIC3) / LAN4 (NIC4) LED Headers
JIPMB1 4-pin External BMC I

2

C Header (for an IPMI Card)

JPI

2

C1 System Management SMBbus I2C Header
JL1 Chassis Intrusion
JOH1 Overheat/Fan Fail LED
JPW1 ATX 24-Pin Power Connector
JPW2/JPW3 12V 8-Pin Power Connectors
JPW4 12V 4-Pin Power Connector
JSD1 SATA DOM (Device On Module) Power Connector
JSTBY1 Standby Header
JTPM1 TPM (Trusted Platform Module)/Port 80
JUID UID (Unit Identifi cation) Switch
LAN1/3, LAN2/4 G-bit Ethernet Ports
SAS0~3, 4~7 SAS 2.0 Ports 0~3, 4~7 (LSI SAS 2308 controller)
(T-)SGPIO 1/2 SATA General Purpose I/O Headers
USB 0/1, 2/3 Back Panel USB 0/1, 2/3 Ports
USB 4/5, USB 8/9 Front Panel Accessible USB Ports (4/5, 8/9)
USB6 Type A USB Embedded Drive Connector

Chapter 5: Advanced Serverboard Setup

5-17

LED Description State

LED2 Standby PWR LED Solid Green (Standby Power On)

LED3 UID LED Blue: On (Unit Identifi ed)

LEDM1 BMC Heartbeat LED Blinking Green (BMC Normal)

5-18

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Reset Button

The Reset Button connection is
located on pins 3 and 4 of JF1 and
attaches to the reset switch on the
computer chassis. See the table on
the right for pin defi nitions.

Power Button

The Power On connection is on pins
1 and 2 of JF1. These should be
connected to the chassis power but­ton. See the table on the right for pin
defi nitions.

5-8 Connector Defi nitions

Required Connection

ATX Power 24-pin Connector

Pin Defi nitions

Pin# Defi nition Pin # Defi nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 Power Signal

2 Ground

Secondary Power Connector

JPW2 and JPW3 must also be con­nected to the power supply. See the
table on the right for pin defi nitions.

+12V 8-pin Power

Pin Defi nitions

Pins Defi nition

1 - 4 Ground

5 - 8 +12V

Warning: To provide adequate
power supply to the serverboard,
be sure to connect JPW1 and both
JPW2 and JPW3 to the power
supply. Failure to do so will void
the manufacturer warranty on your
power supply and serverboard.

Power Connectors

A 24-pin main power supply connec­tor (JPW1) and two 8-pin CPU power
connectors (JPW2/3) must be con­nected to the power supply. These
power connectors meet the SSI EPS
12V specifi cation. See the table on the
right for pin defi nitions.

Chapter 5: Advanced Serverboard Setup

5-19

Overheat/Fan Fail/PWR Fail LED

Connect an LED to the OH connection
on pins 7 and 8 of JF1 for the Over­heat/Fan Fail/Power Fail and UID
LED connections. The red LED on
pin 7 provides warning of overheat,
fan failure or power failure. The blue
LED on pin 8 works as the front panel
UID LED indicator. The red LED takes
precedence over the blue LED by
default. Refer to the table on the right
for pin defi nitions.

HDD LED

The HDD LED connection is located
on pins 13 and 14 of JF1. This LED
is used to display all IDE/SAS/SATA
activity. See the table on the right for
pin defi nitions.

OH/Fan Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

7 Vcc

8 Ground

NIC2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9 Vcc

10 Ground

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 Vcc

14 HD Active

NIC2 (JLAN2) LED

The LED connections for JLAN2 are
on pins 9 and 10 of JF1. Attach an
LED cable to display network activ­ity. See the table on the right for pin
defi nitions.

NIC1 LED

Pin Defi nitions (JF1)

Pin# Defi nition

11 Vcc

12 Ground

NIC1 (JLAN1) LED

The LED connections for JLAN1 are
on pins 11 and 12 of JF1. Attach an
LED cable to display network activ­ity. See the table on the right for pin
defi nitions.

OH/Fan Fail Indicator

Status

State Defi nition

Off Normal

On Overheat

Flash­ing

Fan Fail

Power Fail LED

The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re­fer to the table on the right for pin
defi nitions.

PWR Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 Vcc

6 Ground

5-20

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Fan Headers

There are eight fan headers on the
serverboard, all of which are 4-pin
fans. Pins 1-3 of the fan headers
are backward compatible with the
traditional 3-pin fans. (Fan speed
control is supported with 4-pin fans
only.) See the table on the right for pin
defi nitions. The onboard fan speeds
are controlled by IPMI.

ATX PS/2 Keyboard and PS/2
Mouse Ports

The ATX PS/2 keyboard and the PS/2
mouse are located beside the USB0/1
ports. The mouse port is above the
keyboard port. See the table on the
right for pin defi nitions.

NMI Button

The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin defi nitions.

NMI Button

Pin Defi nitions (JF1)

Pin# Defi nition

19 Control

20 Ground

Fan Header

Pin Defi nitions

(FAN1-8)

Pin# Defi nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWR Modulation

PS/2 Keyboard and

Mouse Port Pin

Defi nitions

Pin# Defi nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Power On LED

The Power On LED connector is lo­cated on pins 15 and 16 of JF1 (use
JLED for a 3-pin connector). This
connection is used to provide LED
indication of power being supplied to
the system. See the table on the right
for pin defi nitions.

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 5V Stby

16 Control

Chassis Intrusion

The Chassis Intrusion header is des­ignated JL1. Attach an appropriate
cable from the chassis to inform you
of a chassis intrusion when the chas­sis is opened

Chassis Intrusion

Pin Defi nitions

Pin# Defi nition

1 Intrusion Input

2 Ground

Chapter 5: Advanced Serverboard Setup

5-21

Ethernet Ports

Four Ethernet ports are located on the
I/O backplane. A dedicated IPMI LAN
port is also included to provide KVM
support for IPMI 2.0. These ports ac­cept RJ45 type cables. Please refer to
Section 5-11 for LAN LED information.

Power LED/Speaker

On the JD1 header, pins 1-3 are for
a power LED and pins 4-7 are for the
speaker. Close pins 4-7 with a jumper
to use an external speaker. If you wish
to use the onboard speaker, please
close pins 6-7. See the table on the
right for speaker pin defi nitions.

Speaker Connector

Pin Settings

Pin Setting Defi nition

Pins 4-7 External Speaker

Pins 6-7 Internal Speaker

Internal Speaker

The internal speaker, located at SP1,
can be used to provide audible indica­tions for various beep codes. See the
table on the right for pin defi nitions..

Internal Buzzer (SP1)

Pin Defi nition

Pin# Defi nitions

Pin 1 Pos. (+) Beep In

Pin 2 Neg. (-) Alarm

Speaker

PWR LED Connector

Pin Defi nitions

Pin Setting Defi nition

Pin 1 Anode (+)

Pin2 Cathode (-)

Pin3 NA

Overheat/Fan Fail LED

The JOH1 header is used to connect
an LED indicator to provide warnings
of chassis overheating and fan failure.
This LED will blink when a fan failure
occurs. Refer to the table on the right
for pin defi nitions.

OH/Fan Fail LED

Status

State Message

Solid Overheat

Blinking Fan Fail

Serial Ports

Two serial ports are included on the
serverboard. COM1 is a backpanel
port and COM2 is a header located
near the PCI-E slot 1. See the table
on the right for pin defi nitions.

Serial Port Pin Defi nitions

(COM1/COM2)

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 NC

5-22

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Universal Serial Bus (USB)

There are four Universal Serial Bus
ports (USB0/1/2/3) located on the
I/O panel. In addition, there is one
Type A port (USB6) and four head­ers (USB4/5/8/9) located on the
serverboard. The headers can be
used to provide front side USB access
(cables not included). See the table on
the right for pin defi nitions.

USB Header (USB4/5/8/9/6)

Pin Defi nitions

USB4/6

Pin # Defi nition

USB5/7

Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 N/A 5 Key

SGPIO Headers

The SGPIO (Serial General Purpose
Input/Output) headers are used to
communicate with the enclosure
management chip on the backplane.
See the table on the right for pin
defi nitions.

SGPIO Header

Pin Defi nitions

Pin# Defi nition Pin Defi nition

1NC 2 NC

3 Ground 4 DATA Out

5 Load 6 Ground

7 Clock 8 NC

NC = No Connection

Back Panel USB

(USB 0/1/2/3)

Pin# Defi nitions

1 +5V

2 PO-

3 PO+

4 Ground

5 N/A

Overheat LED/Fan Fail (JOH1)

The JOH1 header is used to connect
an LED to provide warning of chassis
overheating or fan failure. This LED
will blink to indicate a fan failure. Refer
to the tables on right for LED status
and pin defi nitions.

Overheat LED

Pin Defi nitions

Pin# Defi nition

1 5vDC

2 OH Active

OH/Fan Fail LED

States

State Message

Solid Overheat

Blinking Fan Fail

DOM Power Connector

A power connector for SATA DOM
(Disk On Module) devices is located at
JSD1. Connect an appropriate cable
here to provide power support for your
Serial Link DOM devices.

DOM PWR

Pin Defi nitions

Pin# Defi nition

1 +5V

2 Ground

3 Ground

Chapter 5: Advanced Serverboard Setup

5-23

IPMB

A System Management Bus header
for IPMI 2.0 is located at IPMB. Con­nect the appropriate cable here to
use the IPMB I

2

C connection on your

system.

IPMB Header

Pin Defi nitions

Pin# Defi nition

1 Data

2 Ground

3 Clock

4 No Connection

Power Supply SMBus I2C Header

The power System Management Bus
header at JPI2C1 is used to monitor
the status of the power supply, fan and
system temperature. See the table on
the right for pin defi nitions.

PWR SMBus Header

Pin Defi nitions

Pin# Defi nition

1 Clock

2 Data

3 PWR Fail

4 Ground

5 +3.3V

Standby Power Header

The +5V Standby Power header is
located at JSTBY1 on the mother­board. See the table on the right for
pin defi nitions. (You must also have a
card with a Standby Power connector
and a cable to use this feature.)

Standby PWR

Pin Defi nitions

Pin# Defi nition

1 +5V Standby

2 Ground

3 Wake-up

LAN3/LAN4 LED Indicators

The NIC (Network Interface Control­ler) LED connections for LAN Port 3
are located on pins 3 and 4 of JF2,
and the LED connections for LAN Port
4 is on Pins 1 and 2 of JF2. Attach NIC
LED cables here to display network
activities. Refer to the table on the
right for pin defi nitions.

LAN Ports 3/4 LED Indicators (JF2)

Pin Defi nitions

Pin# Defi nition Pin Defi nition

1 LAN4 Activity 2 LAN4 Link

3 LAN3 Activity 4 LAN3 Link

5-24

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

TPM Header/Port 80

A Trusted Platform Module/Port 80
header is located at JTPM1 to provide
TPM support and a Port 80 connec­tion. Use this header to enhance
system performance and data secu­rity. See the table on the right for pin
defi nitions.

TPM/Port 80 Header

Pin Defi nitions

Pin # Defi nition Pin # Defi nition

1 LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V (X)

7 LAD 3 8 LAD 2

9 +3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK4 14 SMB_DAT4

15 +3V_DUAL 16 SERIRQ

17 GND 18 CLKRUN# (X)

19 LPCPD# 20 LDRQ# (X)

Unit Identifi er Switch

The UID Switch is located next to the
LAN 2/4 ports on the backplane. The
Rear UID LED (LE2) is located next
to the UID switch. The control panel
UID LED connection is on pins 7/8 of
JF1. Connect a cable to pin 8 on JF1
for Front Panel UID LED indication.
When you press the UID switch, both
the rear UID LED and control panel
UID LED indicators will be turned on.
Press the UID switch again to turn off
both LED Indicators. These indicators
provide easy identifi cation of a system
unit that may be in need of service.

UID Switch

Pin# Defi nition

1 Ground

2 Ground

3 Button In

4 Ground

UID LED (LE2)

Status

Color/State OS Status

Blue: On Windows OS Unit Identifi ed

Blue:
Blinking

Linux OS Unit Identifi ed

Note: UID can also be triggered via IPMI. For more information on IPMI, please
refer to the IPMI User's Guide posted on our Website @http://www.supermicro.com.

Chapter 5: Advanced Serverboard Setup

5-25

5-9 Jumper Settings

Explanation of Jumpers

To modify the operation of the
serverboard, jumpers can be used
to choose between optional settings.
Jumpers create shorts between two
pins to change the function of the con­nector. Pin 1 is identifi ed with a square
solder pad on the printed circuit board.
See the serverboard layout pages for
jumper locations.

Note: On a two-pin jumper, "Closed"
means the jumper is on both pins and
"Open" means the jumper is either on
only one pin or completely removed.

Connector

Pins

Jumper

Setting

3 2 1

3 2 1

CMOS Clear

JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins,
this jumper consists of contact pads to prevent accidentally clearing the contents
of CMOS.

To clear CMOS,

1. First power down the system and unplug the power cord(s).

2. With the power disconnected, short the CMOS pads with a metal object such
as a small screwdriver.

3. Remove the screwdriver (or shorting device).

4. Reconnect the power cord(s) and power on the system.

Note: Do not use the PW_ON connector to clear CMOS.

BMC Enable

Jumper JPB1 allows you to enable the
embedded the Winbond WPCM450R
BMC (Baseboard Management) Con­troller to provide IPMI 2.0/KVM sup­port on the serverboard. See the table
on the right for jumper settings.

BMC Enable

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 BMC Enable

Pins 2-3 Normal (Default)

5-26

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

VGA Enable/Disable

JPG1 allows you to enable or disable
the VGA port. The default position is on
pins 1 and 2 to enable VGA. See the
table on the right for jumper settings.

VGA Enable/Disable

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

I2C to PCI-E Slots

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

I2C Bus to PCI-Exp. Slots

Jumpers JI2C1 and JI2C2 allow you
to connect the System Management
Bus (I2C) to the PCI-Express slots.
Both jumpers must be set to the same
setting. See the table on the right for
jumper settings.

GLAN Enable/Disable

JPL1 enables or disables the GLAN
ports on the serverboard. See the
table on the right for jumper settings.

GLAN Enable

Jumper Settings

Jumper Setting Defi nition

1-2 Enabled (default)

2-3 Disabled

Watch Dog Enable/Disable

Watch Dog is a system monitor that
can reboot the system when a software
application hangs. Jumping pins 1-2
will cause WD to reset the system if
an application hangs. Jumping pins 2-3
will generate a non-maskable interrupt
signal for the application that hangs.
See the table on the right for jumper
settings. Watch Dog must also be
enabled in BIOS.

Watch Dog

Jumper Settings

Jumper Setting Defi nition

Pins 1-2 Reset

Pins 2-3 NMI

Open Disabled

SAS Enable

Jumper JPS1 allows the user to enable
onboard LSI SAS support. The default
setting is on 1-2 to enable SAS con­nections 0~3, 4~7. See the table on the
right for jumper settings.

SAS Enable

Jumper Settings

Jumper Setting Defi nition

1-2 Enabled (Default)

2-3 Disabled

Chapter 5: Advanced Serverboard Setup

5-27

5-10 Onboard Indicators

LAN LEDs

The Ethernet ports (located beside the
VGA port) have two LEDs. On each
port, the yellow LED fl ashes to indi-
cate activity while the other LED may
be green, amber or off to indicate the
speed of the connection. See the table
on the right for the functions associ­ated with the connection speed LED.

JLAN1/2 LED

(Connection Speed Indicator)

LED Color Defi nition

Off NC or 10 Mbps

Green 100 Mbps

Amber 1 Gbps

Standby Power LED

An Standby Power LED is located at
LE1. This LED Indicator is lit when
the system is on. Be sure to unplug
the power cable before removing or
adding any components. See the table
on the right for more details.

IPMI Dedicated LAN LEDs

An additional IPMI Dedicated LAN is
also located on the I/O backplane.
The amber LED on the right indicates
activity, while the green LED on the
left indicates the speed of the connec­tion. See the table at right for more
information.

Link LED Activity LED

IPMI LAN

IPMI LAN Link LED &

Activity LED

LED Status Defi nition

Link (Left) Green: Solid 100 Mbps

Activity (Right) Amber: Blinking Active

BMC Heartbeat LED

A BMC Heartbeat LED is located at
LEDM1 on the serverboard. When
blinking, BMC is functioning normally.

BMC Heartbeat LED

LED Defi nition

D1 Blinking: BMC: Normal

Activity LED

Link LED

Activity LED

Link LED

Onboard PWR LED Indicator

LED States

LED Color Defi nition

Off System Off (PWR cable

not connected)

Green System On

Green:
Flashing
Quickly

ACPI S1 State

5-28

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

5-11 SATA Ports

SATA Port

Pin Defi nitions

Pin# Defi nition Pin Defi nition

1 Ground 2 TXP

3 TXN 4 Ground

5 RXN 6 RXP

7 Ground

SAS Port

Pin Defi nitions

Pin# Defi nition Pin Defi nition

1 Ground 2 TXP

3 TXN 4 Ground

5 RXN 6 RXP

7 Ground

Note: For more information on SATA HostRAID confi guration, please refer to the
Intel SATA HostRAID User's Guide posted on our website @ http://www.supermicro.

com..

Serial ATA Ports

There are six Serial ATA Ports (I­SATA0~I-SATA 5) located on the
serverboard, including four SATA2
ports and two SATA3 ports. These
ports provide serial-link signal con­nections, which are faster than Paral­lel ATA. See the table on the right for
pin defi nitions.

SAS2 Ports

Eight Serial Attached SCSI Ports
(SAS0~3, 4~7) located on the moth­erboard to provide serial link con­nections. These ports are supported
by the LSI SAS2 2308 Controller.
See the table on the right for pin
defi nitions.

Chapter 5: Advanced Serverboard Setup

5-29

5-12 Installing Software

After the hardware has been installed, you should fi rst install the operating system
and then the drivers. The necessary drivers are all included on the Supermicro CDs
that came packaged with your serverboard.

Driver/Tool Installation Display Screen

Note: Click the icons showing a hand writing on paper to view the readme fi les

for each item. Click the computer icons to the right of these items to install each
item (from top to the bottom) one at a time. After installing each item, you must
re-boot the system before moving on to the next item on the list. The bottom
icon with a CD on it allows you to view the entire contents of the CD.

5-30

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Supero Doctor III Interface Display Screen (Health Information)

SuperDoctor III

The SuperDoctor® III program is a Web base management tool that supports remote
management capability. It includes Remote and Local Management tools. The local
management is called SD III Client. The SuperDoctor III program included on the
CD-ROM that came with your serverboard allows you to monitor the environment
and operations of your system. SuperDoctor III displays crucial system information
such as CPU temperature, system voltages and fan status. See the Figure below
for a display of the SuperDoctor III interface.

Note: The default User Name and Password for SuperDoctor III is ADMIN / ADMIN.
Note: When SuperDoctor is fi rst installed, it adopts the temperature threshold set-

tings that have been set in BIOS. Any subsequent changes to these thresholds
must be made within SuperDoctor, as the SuperDoctor settings override the BIOS
settings. To set the BIOS temperature threshold settings again, you would fi rst need
to uninstall SuperDoctor.

Chapter 5: Advanced Serverboard Setup

5-31

Supero Doctor III Interface Display Screen (Remote Control)

Note: The SuperDoctor III program and User's Manual can be downloaded from the
Supermicro web site at http://www.supermicro.com/products/accessories/software/

SuperDoctorIII.cfm.

For Linux, we recommend using SuperDoctor II.

5-32

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

5-13 Onboard Battery

Care must be taken to assure that the chassis cover is in place when the 2027R­E1R24L is operating to assure proper cooling. Out of warranty damage to the system
can occur if this practice is not strictly followed.

Figure 5-5. Installing the Onboard Battery

LTUM ATTERY

ATTERY OLER

Please handle used batteries carefully. Do not damage the battery in any way; a
damaged battery may release hazardous materials into the environment. Do not
discard a used battery in the garbage or a public landfi ll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose
of your used battery properly.

Note: a complete list of safety warnings is provided on the Supermicro web site at

http://www.supermicro.com/about/policies/safety_information.cfm.

Chapter 6: Advanced Chassis Setup

6-1

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform mainte­nance on the SC216E16-R920LPB chassis. For component installation, follow the
steps in the order given to eliminate the most common problems encountered. If
some steps are unnecessary, skip ahead to the step that follows.

Tools Required: The only tool you will need to install components and perform
maintenance is a Philips screwdriver.

6-1 Static-Sensitive Devices

Electrostatic discharge (ESD) can damage electronic com ponents. To prevent
damage to any printed circuit boards (PCBs), it is important to handle them very
carefully. The following measures are generally suffi cient to protect your equipment
from ESD damage.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and
the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure the person handling it is static protected.

6-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Figure 6-1. Front and Rear Chassis Views

6-2 Control Panel

The control panel (located on the front of the chassis) must be connected to the
JF1 connector on the serverboard to provide you with system status indications. A
ribbon cable has bundled these wires together to simplify the connection. Connect
the cable from JF1 on the serverboard to the Control Panel PCB (printed circuit
board). Make sure the red wire plugs into pin 1 on both connectors. Pull all excess
cabling out of the airfl ow path. The LEDs inform you of system status. See Chap-
ter 3 for details on the LEDs and the control panel buttons. Details on JF1 can be
found in Chapter 5.

Hard Drives (24)Control Panel

I/O Ports (see Figure 5-2)

Power Supplies (2) 5 Low-profi le PCI Slots

JBOD Expansion Port Hardware RAID Controller

Chapter 6: Advanced Chassis Setup

6-3

6-3 Removing the Chassis Cover

Figure 6-2. Removing the Chassis Cover

Removing the Chassis Cover

You may need to gain access to the inside of the server to perform various main­tenance tasks.

1. Press the release tabs to remove the cover from the locked position. Press
both tabs at the same time.

2. Once the top cover is released from the locked position, slide the cover
toward the rear of the chassis.

3. Lift the cover off the chassis.

Warning: Except for short periods of time, do NOT operate the server without the
cover in place. The chassis cover must be in place to allow proper airfl ow and
prevent overheating.

Release Tab

Remove this screw

(if necessary)

1

1

1

1

1

2

1

3

6-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

6-4 System Cooling

System Fans

Three 8-cm hot-swap chassis fans provide the cooling for the SuperServer 2027R­E1R24L. It is very important that the chassis top cover is properly installed in order
for the cooling air to circulate properly through the chassis and cool the components.
See Figure 6-3.

System Fan Failure

Fan speed is controlled by system temperature via IPMI. If a fan fails, the remaining
fans will ramp up to full speed and the overheat/fan fail LED on the control panel will
turn on. Replace any failed fan at your earliest convenience with the same type and
model (the system can continue to run with a failed fan). Remove the top chassis
cover while the system is still running to determine which of the fans has failed.

Replacing System Fans

Replacing a System Fan

1. If necessary, open the chassis while the power is running to determine which
fan requires changing. (Never run the server for an extended period of time
with the chassis open.)

2. Press the fan release tab to lift the failed fan from the chassis and pull it
completely out of the chassis.

3. Place the new fan into the vacant space in the housing while making sure the
arrows on the top of the fan (indicating air direction) point in the same direc­tion as the arrows on the other fans.

4. The fan will automatically begin running at the correct speed.

Chapter 6: Advanced Chassis Setup

6-5

Air Shrouds

Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC216 chassis air
shrouds do not require screws for installation.

Installing the Air Shrouds in the Chassis

Installing the Main Air Shroud

1. Lay the chassis on a fl at, stable surface and remove the chassis cover.

2. Ensure that the motherboard, CPU, heatsink and memory are all properly
installed.

3. If necessary, move any cables that interfere with the air shroud placement.

4. Place the air shroud in the chassis. The air shroud fi ts just behind the three
fans in the fan rack. Slide the air shroud into the grooves just behind the fan
rack.
Note that some motherboards may require the air shroud to be modifi ed to
fi t over the motherboard. The SC216 chassis air shroud is designed with

Figure 6-3. Replacing System Cooling Fans

6-6

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

break-away pieces that may be removed to accomodate differing styles of
motherboards.

An additional air shroud is required for high-powered CPUs, to provide extra cooling.
Install the additional air shroud if necessary.

Installing the Additional Air Shroud

1. Remove the left side break-away piece of the main air shroud.

2. Slide the additional air shroud into the chassis before installing the main air
shroud.

3. Install the main air shroud as directed on the previous page.

Figure 6-4. Installing the Air Shroud

Chapter 6: Advanced Chassis Setup

6-7

6-5 Drive Bay Installation/Removal

Accessing the Drive Bays

SAS/SATA Drives: You do not need to access the inside of the chassis or remove
power to replace or swap SA/SATA drives. Proceed to the next step for instructions.

Note: You must use 2.5" drives in the SuperServer 2027R-E1R24L.

The chassis supports 24 hot-swappable hard drives. Only enterprise level SAS/
SATA HDDs are recommended for use in the SC216 chassis.

Removing Hard Drive Carriers from the Chassis

1. Press the release button on the drive tray. This extends the drive bay handle.

2. Use the handle to pull the tray out of the chassis.

6-8

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Warning! Enterprise level hard disk drives are recommended for use in Supermicro
chassis and servers. For information on recommended HDDs, visit the Supermicro
Web site at http://www.supermicro.com/products/nfo/files/storage/SAS-1-Com-

pList-110909.pdf

Important: Regardless of how many hard drives are installed, all drive carriers must
remain in the drive bays to maintain proper airfl ow.

Figure 6-5. Removing a Hard Drive Carrier

1

1

1

2

Use caution when working around the backplane. Do not touch the backplane with
any metal objects and make sure no ribbon cables touch the backplane or obstruct
the holes, which aid in proper airfl ow.

Chapter 6: Advanced Chassis Setup

6-9

Figure 6-6. Mounting a SATA Drive in a Carrier

Figure 6-7. Proper Installation of the Carrier into Hard Drive Bay

Installing a Hard Drive into a Drive Carrier

1. Insert a drive into the carrier with the PCB side facing down and the connec­tor end toward the rear of the carrier.

2. Align the drive in the carrier so that the mounting holes of both are aligned.
Note that the carrier has holes marked “SATA” to aid in correct installation.

3. Secure the drive to the carrier with four screws as illustrated above. Use the
four M3 fl at-head screws included in the HDD bag of the accessory box. Note
that the screws used to secure the dummy drive to the carrier cannot be used
to secure the hard drive.

4. Open the handle using the release button and insert the hard drive and drive
carrier into its bay vertically, keeping the carrier oriented so that the release
button is on the bottom.

5. Using the thumb, push against the upper part of the hard drive handle. Push
the hard drive into the hard drive bay as illustrated below, until the hard drive
reaches the end of the bay. Close the hard drive carrier handle to secure the
hard drive.

6-10

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

6-5 Power Supply

The 2027R-E1R24L chassis has two redundant 920 Watt power supplies. The
power modules are hot-swappable, enabling them to be changed without powering
down the system.

These power supplies are auto-switching capable, allowing them to automatically
sense and operate at a 100v to 240v input voltage. An amber light will be illuminated
on the power supply when the power is off. An illuminated green light indicates that
the power supply is operating normally.

Figure 6-8. Removing the Power Supply

Release Tab

Chapter 6: Advanced Chassis Setup

6-11

Changing the Power Supply

1. Determine which power supply needs to be replaced and unplug the power
cord to that module.

2. Push the release tab (on the back of the power supply) as illustrated, to
release the power module from the chassis.

3. While holding down the release tab, pull the power supply out using the
handle provided on the power module.

4. Replace the failed power module with the same model power supply.

5. Push the new power supply module into the power bay until the tab clicks into
the locked position.

6. Plug the AC power cord back into the module and the replacment power mod­ule will automatically power-up.

6-12

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

Figure 6-9. JBOD Expansion Port

JBOD OUT

(downstream port)

6-6 Attaching a JBOD Expansion Chassis

The 2027R-E1R24L features a single JBOD expansion port. The JBOD attachment
will vary depending on the specifi c JBOD chassis that is being connected. JBOD
image provided for reference purposes, port location and routing specifi cations are
subject to change. Please follow the instructions provided with the JBOD.

JBOD IN

(upstream port)

JBOD OUT

(downstream port)

Chapter 7: BIOS

7-1

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMI BIOS Setup utility for the X9DRD-7LN4F-JBOD It
also provides the instructions on how to navigate the AMI BIOS Setup utility screens.
The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated.

Starting BIOS Setup Utility

To enter the AMI BIOS Setup utility screens, press the <Del> key while the system
is booting up.

Note: In most cases, the <Del> key is used to invoke the AMI BIOS setup
screen. There are a few cases when other keys are used, such as <F3>,
<F4>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup
menu screen has two main frames. The left frame displays all the options that can
be confi gured. Grayed-out options cannot be confi gured. Options in blue can be
confi gured by the user. The right frame displays the key legend. Above the key
legend is an area reserved for informational text. When an option is selected in
the left frame, it is highlighted in white. Often informational text will accompany it.

Note: The AMI BIOS has default informational messages built in. The
manufacturer retains the option to include, omit, or change any of these
informational messages.

The AMI BIOS Setup utility uses a key-based navigation system called "hot keys."
Most of the AMI BIOS setup utility "hot keys" can be used at any time during setup
navigation. These keys include <F3>, <F4>, <Enter>, <ESC>, arrow keys, etc.

Note 1: Options printed in Bold are default settings.

Note 2: <F3> is used to load optimal default settings. <F4> is used to save

the settings and exit the setup utility.

7-2

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

How To Change the Confi guration Data

The confi guration data that determines the system parameters may be changed by
entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing
<Delete> at the appropriate time during system boot.

Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Re­covery User Guide posted @

http://www.supermicro.com/support/manuals/.

Starting the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
As the memory is being tested, press the <Delete> key to enter the main menu of
the AMI BIOS Setup utility. From the main menu, you can access the other setup
screens. An AMI BIOS identifi cation string is displayed at the left bottom corner of
the screen below the copyright message.

Warning! Do not upgrade the BIOS unless your system has a BIOS-related is­sue. Flashing the wrong BIOS can cause irreparable damage to the system. In
no event shall the manufacturer be liable for direct, indirect, special, incidental,
or consequential damage arising from a BIOS update. If you have to update the
BIOS, do not shut down or reset the system while the BIOS is being updated to
avoid possible boot failure.

7-2 Main Setup

When you fi rst enter the AMI BIOS Setup utility, you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the
top of the screen. The Main BIOS Setup screen is shown below.

Chapter 7: BIOS

7-3

The AMI BIOS Main menu displays the following information:

System Date/System Time

Use this option to change the system time and date. Highlight System Time or
System Date using the arrow keys. Enter new values through the keyboard and

press <Enter>. Press the <Tab> key to move between fi elds. The date must be
entered in Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note:
The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.).

Supermicro X9DRD-7LN4F-JBOD

Version

This item displays the SMC version of the BIOS ROM used in this system.

Build Date

This item displays the date that the BIOS Setup utility was built.

Memory Information

Total Memory

This displays the amount of memory that is available in the system.

7-4

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

7-3 Advanced Setup Confi gurations

Select the Advanced tab to access the following submenu items.

XBoot Feature

Quiet Boot

This feature allows the user to select bootup screen display between POST mes­sages and the OEM logo. Select Disabled to display the POST messages. Select
Enabled to display the OEM logo instead of the normal POST messages. The op­tions are Enabled and Disabled.

AddOn ROM Display Mode

Use this item to set the display mode for the Option ROM. Select Keep Current to
use the current AddOn ROM Display setting. Select Force BIOS to use the Option
ROM display mode set by the system BIOS. The options are Keep Current and

Force BIOS.

Bootup Num-Lock

Use this feature to set the Power-on state for the Numlock key. The options are
Off and On.

Wait For 'F1' If Error

Select Enabled to force the system to wait until the 'F1' key is pressed if an error
occurs. The options are Disabled and Enabled.

Interrupt 19 Capture

Interrupt 19 is the software interrupt that handles the boot disk function. When this
item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19

Chapter 7: BIOS

7-5

at bootup and allow the drives that are attached to these host adaptors to function
as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap­tors will not capture Interrupt 19, and the drives attached to these adaptors will not
function as bootable devices. The options are Enabled and Disabled.

Power Confi guration

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to automatically reboot when
a non-recoverable error occurs that lasts for more than fi ve minutes. The options
are Enabled and Disabled.

Power Button Function

If this feature is set to Instant Off, the system will power off immediately as soon
as the user presses the power button. If this feature is set to 4 Seconds Override,
the system will power off when the user presses the power button for 4 seconds or
longer. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay Off for the
system power to remain off after a power loss. Select Power On for the system
power to be turned on after a power loss. Select Last State to allow the system
to resume its last state before a power loss. The options are Stay Off, Power On,
and Last State.

XCPU Confi guration

This submenu displays the information of the CPU as detected by the BIOS. It also
allows the user to confi gure CPU settings.

XSocket 1 CPU Information/Socket 2 CPU Information

This submenu displays the following information regarding the CPUs installed
in Socket 1/ Socket 2.

• Type of CPU

• CPU Signature

• Microcode Patch

• CPU Stepping

• Maximum / Minimum CPU Speed

7-6

SUPERSTORAGESYSTEM 2027R-E1R24L User's Manual

• Processor Cores

• Intel HT (Hyper-Threading) Technology

• Intel VT-x Technology

• Intel SMX Technology

• L1 Data Cache / L1 Code Cache

• L2 Cache

• L3 Cache

CPU Speed
This item displays the speed of the CPU installed in Socket 1/Socket 2.

64-bit
This item indicates if the CPU installed in Socket 1 or Socket 2 supports 64-bit

technology.

Clock Spread Spectrum

Select Enable to enable Clock Spectrum support, which will allow the BIOS to moni­tor and attempt to reduce the level of Electromagnetic Interference caused by the
components whenever needed. The options are Disabled and Enabled.

RTID (Record Types IDs)

This feature displays the total number of Record Type IDs for local and remote
pools. The options are Optimal and Alternate.

Hyper-threading

Select Enabled to support Intel Hyper-threading Technology to enhance CPU per­formance. The options are Enabled and Disabled.

Active Processor Cores

Set to Enabled to use a processor's second core and above. (Please refer to Intel's
website for more information.) The options are All, 1, 2, 4, and 6.

Limit CPUID Maximum

This feature allows the user to set the maximum CPU ID value. Enable this function
to boot the legacy operating systems that cannot support processors with extended
CPUID functions. The options are Enabled and Disabled (for the Windows OS).

Chapter 7: BIOS

7-7

Execute-Disable Bit (Available if supported by the OS & the CPU)

Select Enabled to enable the Execute Disable Bit which will allow the processor
to designate areas in the system memory where an application code can execute
and where it cannot, thus preventing a worm or a virus from fl ooding illegal codes
to overwhelm the processor or damage the system during an attack. The default is

Enabled. (Refer to Intel and Microsoft Web sites for more information.)

Intel

®

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instruc­tions (NI) to ensure data security. The options are Enabled and Disabled.

MLC Streamer Prefetcher (Available when supported by the CPU)

If set to Enabled, the MLC (mid-level cache) streamer prefetcher will prefetch
streams of data and instructions from the main memory to the L2 cache to improve
CPU performance. The options are Disabled and Enabled.

MLC Spatial Prefetch (Available when supported by the CPU)

If this feature is set to Disabled, The CPU prefetches the cache line for 64 bytes.
If this feature is set to Enabled the CPU fetches both cache lines for 128 bytes as
comprised. The options are Disabled and Enabled.

DCU Streamer Prefetcher (Available when supported by the CPU)

Select Enabled to support Data Cache Unit (DCU) prefetch of L1 data to speed
up data accessing and processing in the DCU to enhance CPU performance. The
options are Disabled and Enabled.

DCU IP Prefetcher

Select Enabled for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch
IP addresses to improve network connectivity and system performance. The options
are Enabled and Disabled.

Intel® Virtualization Technology (Available when supported by the CPU)

Select Enabled to support Intel Virtualization Technology, which will allow one
platform to run multiple operating systems and applications in independent parti­tions, creating multiple "virtual" systems in one physical computer. The options
are Enabled and Disabled.

Note: If there is any change to this setting, you will need to power off and
restart the system for the change to take effect. Please refer to Intel’s
website for detailed information.)
