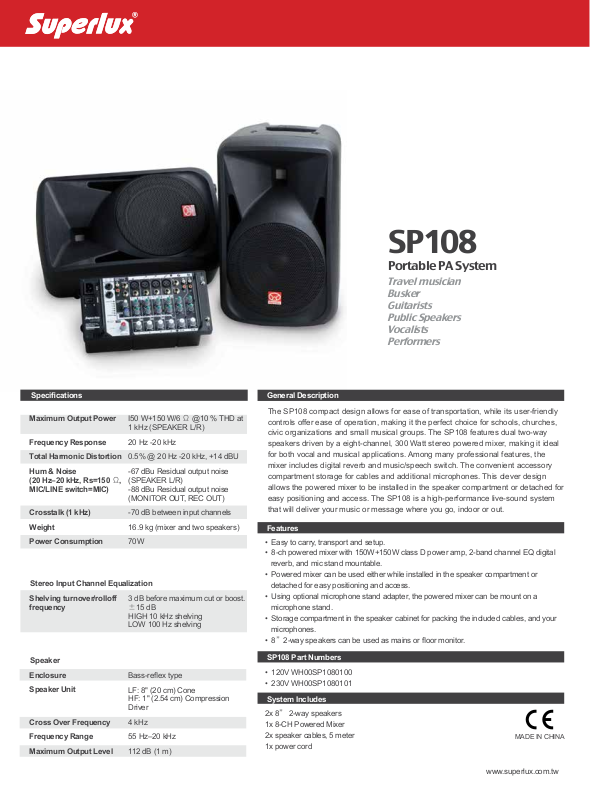

Superlux SP108 User Manual
SP108
Portable PA System
Travel musician
Busker
Guitarists
Public Speakers
Vocalists
Performers
Specifications
Maximum Output Power
Frequency Response
Total Harmonic Distortion
Hum & Noise
(20 Hz–20 kHz, Rs=150 Ω,
MIC/LINE switch=MIC)
Crosstalk (1 kHz)
Weight
Power Consumption
Stereo Input Channel Equalization
Shelving turnover/rolloff
frequency
Speaker
Enclosure
Speaker Unit
Cross Over Frequency
Frequency Range
Maximum Output Level
I50 W+150 W/6 Ω @10 % THD at
1 kHz (SPEAKER L/R)
20 Hz -20 kHz
0.5% @ 20 Hz -20 kHz, +14 dBU
-67 dBu Residual output noise
(SPEAKER L/R)
-88 dBu Residual output noise
(MONITOR OUT, REC OUT)
-70 dB between input channels
16.9 kg (mixer and two speakers)
70W
3 dB before maximum cut or boost.
±15 dB
HIGH 10 kHz shelving
LOW 100 Hz shelving
Bass-reflex type
LF: 8" (20 cm) Cone
HF: 1" (2.54 cm) Compression
Driver
4 kHz
55 Hz–20 kHz
112 dB (1 m)
General Description
The SP108 compact design allows for ease of transportation, while its user-friendly
controls offer ease of operation, making it the perfect choice for schools, churches,
civic organizations and small musical groups. The SP108 features dual two-way
speakers driven by a eight-channel, 300 Watt stereo powered mixer, making it ideal
for both vocal and musical applications. Among many professional features, the
mixer includes digital reverb and music/speech switch. The convenient accessory
compartment storage for cables and additional microphones. This clever design
allows the powered mixer to be installed in the speaker compartment or detached for
easy positioning and access. The SP108 is a high-performance live-sound system
that will deliver your music or message where you go, indoor or out.
Features
• Easy to carry, transport and setup.
• 8-ch powered mixer with 150W+150W class D power amp, 2-band channel EQ digital
reverb, and mic stand mountable.
• Powered mixer can be used either while installed in the speaker compartment or
detached for easy positioning and access.
• Using optional microphone stand adapter, the powered mixer can be mount on a
microphone stand.
• Storage compartment in the speaker cabinet for packing the included cables, and your
microphones.
• 8”2-way speakers can be used as mains or floor monitor.
SP108 Part Numbers
• 120V WH00SP1080100
• 230V WH00SP1080101
System Includes
2x 8” 2-way speakers
1x 8-CH Powered Mixer
2x speaker cables, 5 meter
1x power cord
MADE IN CHINA
www.superlux.com.tw
Mixer Panel
A
B C D E
F G
H
A. Speaker Out
Connect to the speakers by using the
included cables.
B. RCA Output Jacks
These jacks are for a recorder.
J
I
C. Monitor Out
This control will determine the level of 1/4”
line output jacks to be sent to powered
speakers for monitoring.
D. Mic/Line Inputs and Switches
These jacks accept your microphones
and instruments , and set the level switch
accordingly.
E. Stereo Line In Channels
The RCA jacks are for connecting to your
CD or MP3 player, while the 1/4” phone
jacks accept a stereo keyboard, synthesizer,
sampler, tone generator, external effect
processor or any other line level audio
equipment.
F. Level Meter
Five-stage level meter LEDs plus a
convenient Limiter LED to show when the
signal is triggering the Limiter circuit
Speech/ Music Switches
Set to Music when you are playing music
for getting enhanced bass or set to Speech
when making announcements.
Volume Master
This determine the output level of the entire
mix
G. Reverb Send, On/Off Switches
You may send the built-in reverb to channel
1 to 4 by the switches and the reverb
volume control.
H. Two-band EQ
This will give +/- 15dB boost or cut at high
and low band to compensate your input
signal.
I. Channel Volume
Independent level controls for every input
channel to set appropriate mixing level.
J. LOCK/OPEN
Originally, the mixer is installed in the
speaker compartment. But you can use a
screwdriver or coin to turn each screw on
the mixer from LOCK to OPEN until it clicks,
and securely hold the mixer's handles to
remove it from the speaker.
