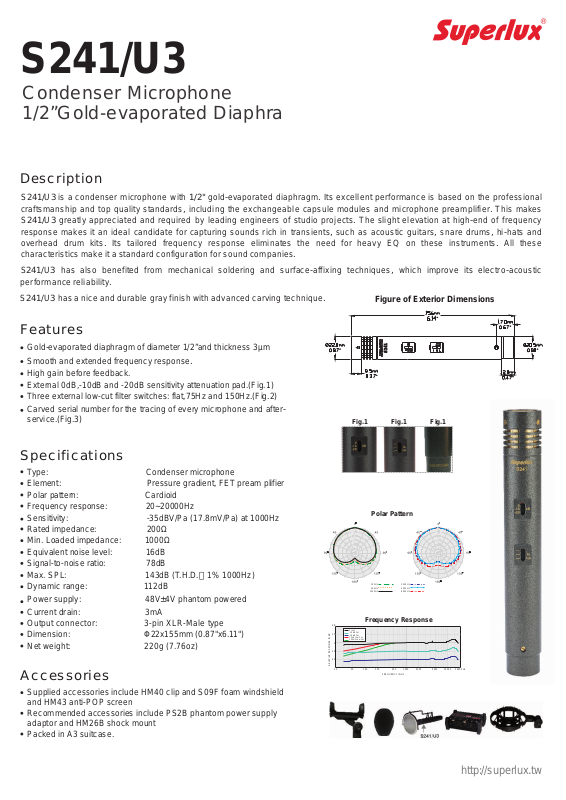

Superlux S241 User Manual

S241/U3

Condenser Microphone
1/2”Gold-evaporated Diaphra

Description

S241/U3 is a condenser microphone with 1/2" gold-evaporated diaphragm. Its excellent performance is based on the professional
craftsmanship and top quality standards, including the exchangeable capsule modules and microphone preamplifier. This makes
S241/U3 greatly appreciated and required by leading engineers of studio projects. The slight elevation at high-end of frequency
response makes it an ideal candidate for capturing sounds rich in transients, such as acoustic guitars, snare drums, hi-hats and
overhead drum kits. Its tailored frequency response eliminates the need for heavy EQ on these instruments. All these
characteristics make it a standard configuration for sound companies.

S241/U3 has also benefited from mechanical soldering and surface-affixing techniques, which improve its electro-acoustic
performance reliability.

S241/U3 has a nice and durable gray finish with advanced carving technique.

Features

Gold-evaporated diaphragm of diameter 1/2 and thickness 3

”

Smooth and extended frequency response.
High gain before feedback.
External 0dB,-10dB and sensitivity attenuation pad.(Fig.1)

-20dB

Three external low-cut filter switches: flat,75Hz and 150Hz.(Fig.2)
Carved serial number for the tracing of every microphone and after-

service.(Fig.3)

µm

Figure of Exterior Dimensions

7

2

S241

Fig.1

Fig.1

Fig.1

Specifications

Type: Condenser microphone
Element: Pressure gradient, FET pream plifier
Polar pattern: Cardioid
Frequency response: 20~20000Hz
Sensitivity: -35dBV/Pa (17.8mV/Pa) at 1000Hz
Rated impedance: 200Ω
Min. Loaded impedance: 1000Ω
Equivalent noise level: 16dB
Signal-to-noise ratio: 78dB
Max. SPL: 143dB (T.H.D.≦1% 1000Hz)
Dynamic range: 112dB

Power supply: 48V±4V phantom powered
Current drain: 3mA
Output connector: 3-pin XLR-Male type
Dimension: 22x155mm (0.87"x6.11")

Φ

Net weight: 220g (7.76oz)

Accessories

Supplied accessories include HM40 clip and S09F foam windshield
and HM43 anti-POP screen

Recommended accessories include PS2B phantom power supply
adaptor and HM26B shock mount

Packed in A3 suitcase.

Polar Pattern

250 Hz 2000 Hz
500 Hz

1000 Hz

dB

10

0

-10

-20

RELATIV E RESPON SE IN dB

20 50 100 200 500 1000 2000 5000 10000 20000 H z

Frequency Response

Front

-10dB Cu t

-20dB Cu t
75Hz Low C ut
150Hz Lo w Cut

FREQUE NCY IN Hz

4000 Hz
8000 Hz

S241/U3

http://superlux.tw
