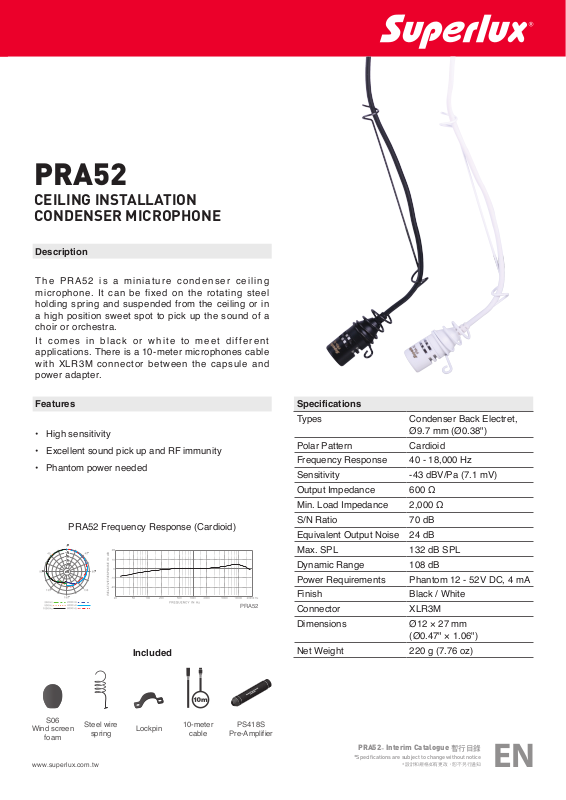

PRA52
CEILING INSTALLATION
CONDENSER MICROPHONE
Description
The PRA52 is a miniature condenser ceiling
microphone. It can be fixed on the rotating steel
holding spring and suspended from the ceiling or in
a high position sweet spot to pick up the sound of a
choir or orchestra.
It comes in black or white to meet different
applications. There is a 10-meter microphones cable
with XLR3M connector between the capsule and
power adapter.
Features
• High sensitivity
• Excellent sound pick up and RF immunity
• Phantom power needed
PRA52 Frequency Response (Cardioid)
Included
PRA52
Specifications
Types Condenser Back Electret,
Ø9.7 mm (Ø0.38")
Polar Pattern Cardioid
Frequency Response 40 - 18,000 Hz
Sensitivity -43 dBV/Pa (7.1 mV)
Output Impedance 600Ω
Min. Load Impedance 2,000Ω
S/N Ratio 70 dB
Equivalent Output Noise 24 dB
Max. SPL 132 dB SPL
Dynamic Range 108 dB
Power Requirements Phantom 12 - 52V DC, 4 mA
Finish Black / White
Connector XLR3M
Dimensions Ø12 × 27 mm
(Ø0.47" × 1.06")
Net Weight 220 g (7.76 oz)
S06
Wind screen
foam
www.superlux.com.tw
Steel wire
spring
Lockpin
10-meter
cable
PS418S
Pre-Amplifier
PRA52- Interim Catalogue
*Specications are subject to change
* 設計和規格如有更改，恕不另行通知
暫行目錄
without notice
